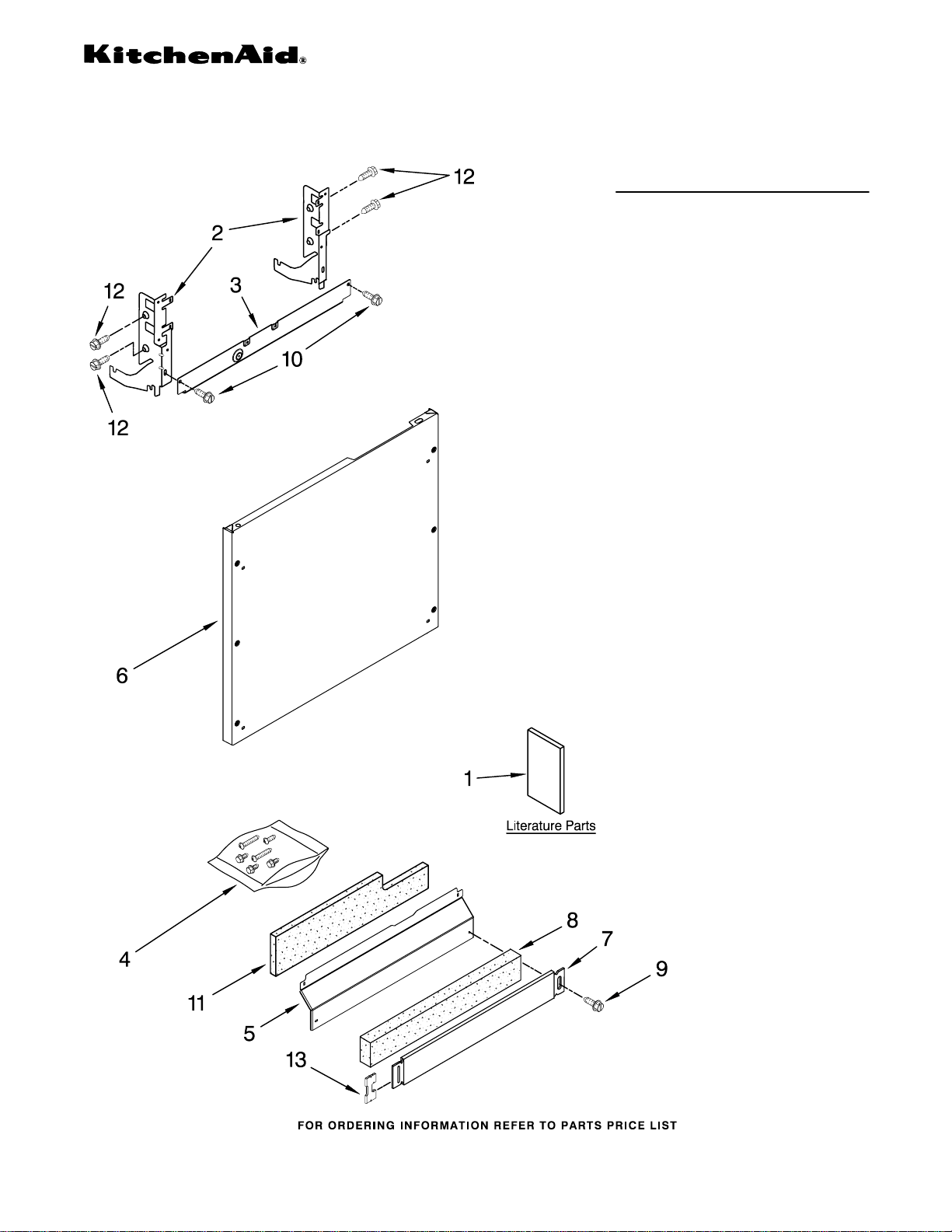

DOOR AND PANEL PARTS
1
For Model: KUDT03FTPA3
(Panel Ready)
04−08 Litho in U.S.A. (els) (eeb)
Part No. W10202037 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10078153
Instructions,
Installation
W10084560
Energy Guide
W10193741
D/W User
Instructions,
Spanish
W10193740
D/W User
Instructions,
English/French
W10130990
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8564886 Stiffener, Door
4 8531882 Screws, Bag
Door Assembly
5 8558260 Access Panel
(Includes Item 11)
6 8535133 Panel, Full Front
7 8558252 Toe Panel
(Includes
Items 8 & 13)
8 8268581 Insulation,
Toe Panel
9 302868 Screw
10 304392 Screw
11 8542578 Insulation,
Access Panel
12 3400071 Screw
13 8269016 Clip, Grounding
