LCD Monitor User Manual
C24V1H/C27V1Q/C32V1Q/CQ32V1
LED backlight
www.aoc.com
©2018 AOC. All Rights Reserved.
2
Safety ........................................................................................................................................................................ 3
National Conventions ......................................................................................................................................... 3
Power ................................................................................................................................................................ 4
Installation .......................................................................................................................................................... 5
Cleaning............................................................................................................................................................. 6
Other .................................................................................................................................................................. 7
Setup ........................................................................................................................................................................ 8
Contents in Box ................................................................................................................................................. 8
Setup Base ........................................................................................................................................................ 9
Adjusting Viewing Angle ................................................................................................................................... 10
Connecting the Monitor .................................................................................................................................... 11
Hotkeys ............................................................................................................................................................ 12
OSD Setting ..................................................................................................................................................... 14
Luminance ................................................................................................................................................ 15
Image Setup ............................................................................................................................................. 16
Color Setup ............................................................................................................................................... 17
Picture Boost ............................................................................................................................................ 18
OSD Setup ............................................................................................................................................... 19
Extra ......................................................................................................................................................... 20
Exit............................................................................................................................................................ 21
LED Indicator ................................................................................................................................................... 21
Troubleshoot ........................................................................................................................................................... 22
Specification ............................................................................................................................................................ 24
General Specification ....................................................................................................................................... 24
Preset Display Modes ...................................................................................................................................... 28
Pin Assignments .............................................................................................................................................. 29
Plug and Play ................................................................................................................................................... 31
3
Safety
National Conventions
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.
These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer system.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some
warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific
presentation of the warning is mandated by regulatory authority.
4
Power
The monitor should be operated only from the type of power source indicated on the label. If you are not sure
of the type of power supplied to your home, consult your dealer or local power company.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the
monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate
configured receptacles marked between 100 - 240V ~, Min. 1.5A
The wall socket shall be installed near the equipment and shall be easily accessible.
5
Installation
Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a
person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and
use mounting accessories recommended by the manufacturer. A product and cart combination should be moved
with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or
electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence
overheating may cause a fire or damage to the monitor.
See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or with
the stand:
6
Cleaning
Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of
strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough
as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.
7
Other
If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and
contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
For display with glossy bezel the user should consider the placement of the display as the bezel may cause
disturbing reflections from surrounding light and bright surfaces.
8
Setup
Contents in Box
Not all signal cables ( Analog, HDMI, DP cables),CD manual will be provided for all countries and regions.
Please check with the local dealer or AOC branch office for confirmation.
CD Manual Warranty card Base IO Cover
Power Cable Analog Cable HDMI Cable DP Cable
Monitor
9
Setup Base
Please setup or remove the base following the steps as below.
Please place the monitor on the curve-surface foamed cushion to prevent the scratch.
Setup:
Remove:
10
Adjusting Viewing Angle
For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust the monitor's angle to
your own preference.
Hold the stand so you will not topple the monitor when you change the monitor's angle.
NOTE:
Do not adjust the viewing angle over 23 degrees in order to avoid damage.
11
Connecting the Monitor
Cable Connections In Back of Monitor and Computer:
1 Power
2 DP
3 HDMI
4 Analog (D-Sub 15-Pin VGA cable)
5 Earphone out
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3 Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to the back of the
monitor and connect the other end to the computer’s HDMI port.
4 Optional – (Requires a video card with DP port) – Connect one end of the DP cable to the back of the monitor
and connect the other end to the computer’s DP port.
5 Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
12
Hotkeys
1
Source/Auto/Exit/Up
2
Eco/DCR/Down
3 Clear Vision/Left
4
Image Ratio/Volume/Right
5 Power/ Menu/Enter
Menu/Enter
Press to display the OSD or confirm the selection.
Power
Press the Power button to turn on/off the monitor.
Image Ratio/Volume/Right
When there is no OSD, Press Volume button to active volume adjustment bar, Press Left or Right to adjust volume.
When there is no OSD, press Right hotkey continuously to change 4:3 or wide image ratio. (If the product screen
size is 4:3 or input signal resolution is wide format, the hot key is disable to adjust).
Auto/Exit/Source hot key
When there is no OSD, Press Auto/Source button continuously about 2 second to do auto configure.
When the OSD is closed, press Source button will be Source hot key function. Press Source button continuously to
select the input source showed in the message bar, press Menu/Enter button to change to the source selected.
Eco /DCR/Down
When there is no OSD, Press this button to enter Eco/DCR adjustment. Then press Left or Right button to choose
different Eco/DCR.
13
Clear Vision
1. When there is no OSD, Press the “Left” button to activate Clear Vision.
2. Use the “Left” or “Right” buttons to select between weak, medium, strong, or off settings. Default setting is
always “off”.
3. Press and hold “Left” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision
Demo: on” will be display on the screen for a duration of 5 seconds. Press Menu or Exit button, the message
will disappear. Press and hold “Left” button for 5 seconds again, Clear Vision Demo will be off.
Clear Vision function provides the best image viewing experience by converting low resolution and blurry images
into clear and vivid images.
Clear Vision
Off
Adjust the Clear Vision
Weak
Medium
Strong
Clear Vision Demo on or off Disable or Enable Demo
14
OSD Setting
Basic and simple instruction on the control keys.
1. Press the MENU-button to activate the OSD window.
2. Press Left or Right to navigate through the functions. Once the desired function is highlighted,
press the MENU-button to activate it. If there is a sub-menu, press Left or Right to navigate through the
sub-menu functions.
3. Press Left or Right to change the settings of the selected function. Press AUTO to exit. If you want to adjust
any other function, repeat steps 2-3.
4. OSD Lock Function: To lock the OSD, press and hold the MENU-button while the monitor is off and then press
power button to turn the monitor on. To un-lock the OSD - press and hold the MENU-button while the monitor
is off and then press power button to turn the monitor on.
Notes:
1. If the product has only one signal input, the item of "Input Select" is disabled.
2. If the product screen size is 4:3 or input signal resolution is native resolution, the item of "Image Ratio" is
disabled.
3. One of Clear vision, DCR, Color Boost, and Picture Boost functions is activated; the other three functions are
turned off accordingly.
15

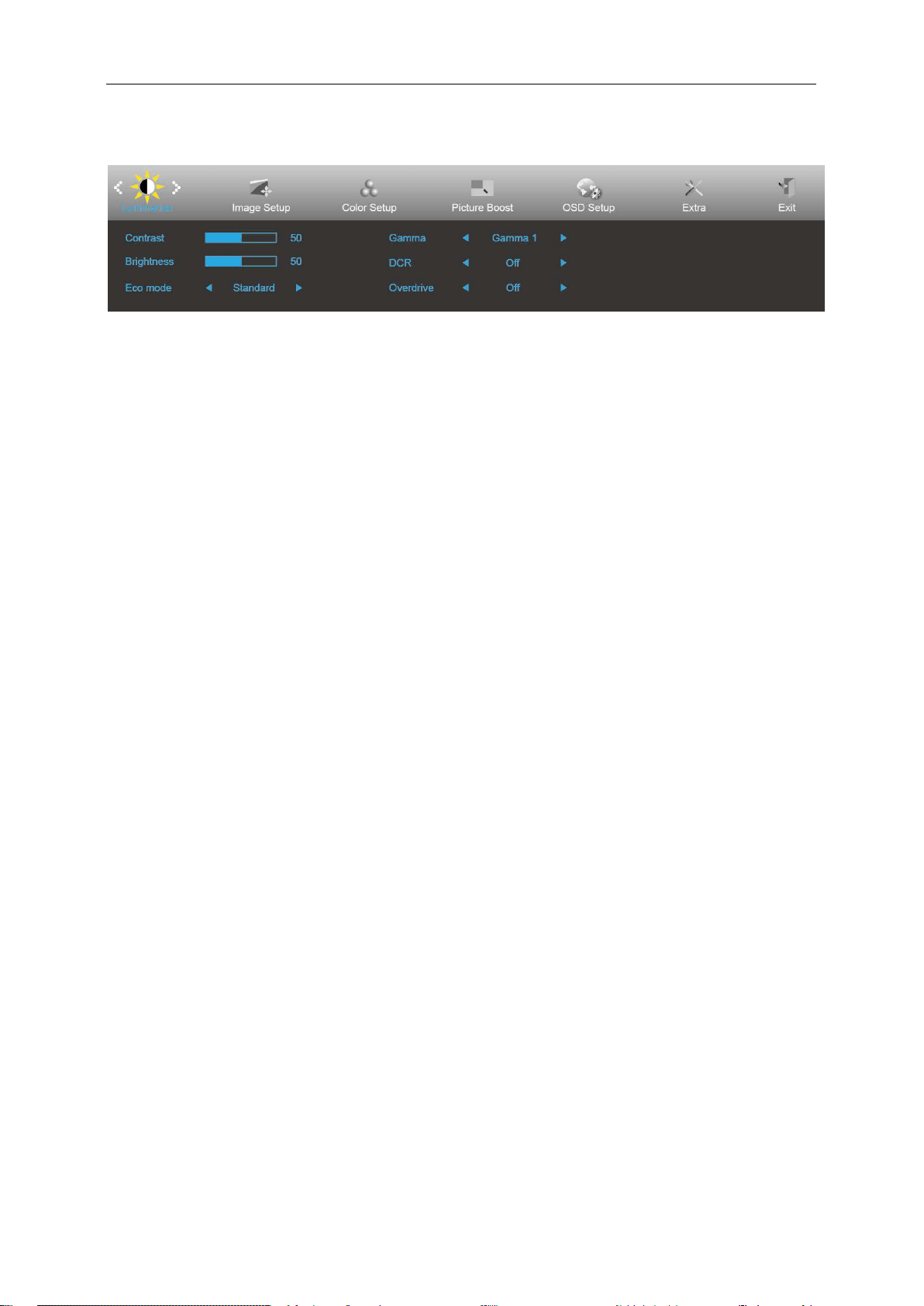

Luminance
1 Press MENU (Menu) to display menu.
2 Press Left or Right to select
(Luminance), and press MENU to enter.
3 Press Left or Right to select submenu.
4 Press Left or Right to adjust.
5 Press
AUTO to exit.
Contrast 0-100 Contrast from Digital-register.
Brightness 0-100 Backlight Adjustment
Eco mode
Standard
Standard Mode
Text
Text Mode
Internet
Internet Mode
Game
Game Mode
Movie
Movie Mode
Sports
Sports Mode
Gamma
Gamma1 Adjust to Gamma 1
Gamma2 Adjust to Gamma 2
Gamma3 Adjust to Gamma 3
DCR
Off Disable dynamic contrast ratio
On
Enable dynamic contrast ratio
Overdrive
Weak
Adjust the response time.
Medium
Strong
Off
16
Image Setup
1 Press MENU (Menu) to display menu.
2 Press Left or Right to select
(Image Setup), and press MENU to enter.
3 Press Left or Right to select submenu.
4 Press Left or Right to adjust.
5 Press
AUTO to exit.
Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise.
Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise.
Sharpness 0-100 Adjust picture sharpness.
H. Position 0-100 Adjust the horizontal position of the picture.
V. Position 0-100 Adjust the vertical position of the picture.
17
Color Setup
1 Press MENU (Menu) to display menu.
2 Press Left or Right to select (Color Setup), and press MENU to enter.
3 Press Left or Right to select submenu.
4 Press Left or Right to adjust.
5 Press
AUTO to exit.
Color Temp.
Warm Recall Warm Color Temperature from EEPROM.
Normal Recall Normal Color Temperature from EEPROM.
Cool Recall Cool Color Temperature from EEPROM.
sRGB Recall SRGB Color Temperature from EEPROM.
User Recall User Color Temperature from EEPROM
DCB Mode
Full
Enhance
ON/OFF Disable or Enable Full Enhance Mode.
Nature Skin ON/OFF Disable or Enable Nature Skin Mode.
Green Field ON/OFF Disable or Enable Green Field Mode.
Sky-blue ON/OFF Disable or Enable Sky-blue Mode.
AutoDetect ON/OFF Disable or Enable AutoDetect Mode.
DCB Demo ON/OFF Disable or Enable Demo.
Red 0-100 Red gain from Digital-register.
Green 0-100 Green gain from Digital-register.
Blue 0-100 Blue gain from Digital-register.
LowBlue Mode
Multimedia
Decrease blue light wave by controlling color
temperature
Internet
Office
Reading
Off
18
Picture Boost
1 Press MENU (Menu) to display menu.
2 Press Left or Right to select
(Picture Boost), and press MENU to enter.
3 Press Left or Right to select submenu.
4 Press Left or Right to adjust.
5 Press
AUTO to exit.
Bright Frame ON/OFF Enable/Disable Bright Frame
Frame Size 14-100 Adjust the Size of the Frame
Brightness 0-100 Brightness Adjustment for Enhance Area
Contrast 0-100 Contrast Adjustment for Enhance Area
H. position 0-100 Adjust the horizontal position of the Frame
V. position 0-100 Adjust the vertical position of the Frame
Note:
Adjust the brightness, contrast, and position of the Bright Frame for better viewing experience.
19
OSD Setup
1 Press MENU (Menu) to display menu.
2 Press Left or Right to select
(OSD Setup), and press MENU to enter.
3 Press Left or Right to select submenu.
4 Press Left or Right to adjust.
5 Press
AUTO to exit.
Language Select the OSD language.
Timeout 5-120 Adjust the OSD timeout.
V. Position 0-100 Adjust the vertical position of the OSD.
Transparence 0-100 Adjust the OSD.
H. Position 0-100 Adjust the horizontal position of the OSD.
Break Reminder on or off
Break reminder if the user continuously work
for more than 1hrs.
20
Extra
1 Press MENU (Menu) to display menu.
2 Press Left or Right to select
(Extra), and press MENU to enter.
3 Press Left or Right to select submenu.
4 Press Left or Right to adjust.
5 Press
AUTO to exit.
Input Select
C27V1Q/C32V1Q/CQ32V1:
Auto/D-SUB/HDMI/DP
C24V1H:
Auto/D-SUB/HDMI
Select signal source as input
Auto Config. Yes / No Auto adjust.the picture to default.
Off Timer 0-24 hrs Select DC off time.
Image Ratio wide or 4:3 Select wide or 4:3 format for display.
DDC/CI Yes / No Turn on or off DDC/CI Support.
Reset Yes / No Reset the menu to default.
21
Exit
1 Press
MENU (Menu) to display menu.
2 Press Left or Right to select
(Exit), and press MENU to enter.
3 Press
AUTO to exit.
Exit Exit the main OSD
LED Indicator
Status LED Color
Full Power Mode White
Power Saving Orange
22
Troubleshoot
Problem & Question
Possible Solutions
Power LED Is Not ON
Make sure the power button is ON and the Power Cord is properly connected
to a grounded power outlet and to the monitor.
No images on the screen
Is the power cord connected properly?
Check the power cord connection and power supply.
Is the cable connected correctly?
(Connected using the D-sub cable)
Check the DB-15 cable connection.
(Connected using the DVI cable)
Check the DVI cable connection.
* DVI input is not available on every model.
If the power is on, reboot the computer to see the initial screen (the login
screen), which can be seen.
If the initial screen (the login screen) appears, boot the computer in the
applicable mode (the safe mode for Windows 7/8/10) and then change
the frequency of the video card.
(Refer to the Setting the Optimal Resolution)
If the initial screen (the login screen) does not appear, contact the
Service Center or your dealer.
Can you see "Input Not Supported" on the screen?
You can see this message when the signal from the video card exceeds
the maximum resolution and frequency that the monitor can handle
properly.
Adjust the maximum resolution and frequency that the monitor can
handle properly.
Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & Has
Ghosting Shadowing Problem
Adjust the Contrast and Brightness Controls.
Press to auto adjust.
Make sure you are not using an extension cable or switch box. We
recommend plugging the monitor directly to the video card output connector
on the back.
Picture Bounces, Flickers Or
Wave Pattern Appears In The
Move electrical devices that may cause electrical interference as far away
from the monitor as possible.
Use the maximum refresh rate your monitor is capable of at the resolution
you are using.
23
Monitor Is Stuck In Active
Off-Mode"
The Computer Power Switch should be in the ON position.
The Computer Video Card should be snugly fitted in its slot.
Make sure the monitor's video cable is properly connected to the computer.
Inspect the monitor's video cable and make sure no pin is bent.
Make sure your computer is operational by hitting the CAPS LOCK key on
the keyboard while observing the CAPS LOCK LED. The LED should either
turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary
colors (RED, GREEN, or
BLUE)
Inspect the monitor's video cable and make sure that no pin is damaged.
Make sure the monitor's video cable is properly connected to the computer.
Screen image is not centered
or sized properly
Adjust H-Position and V-Position or press hot-key (AUTO).
Picture has color defects
(white does not look white)
Adjust RGB color or select desired color temperature.
Horizontal or vertical
disturbances on the screen
Use Windows 7/8/10 shut-down mode to adjust CLOCK and PHASE.
Press to auto-adjust.
24
Specification
General Specification
Panel
Model name C24V1H
Driving system TFT Color LCD
Viewable Image Size 23.6inch, 59.9cm diagonal
Pixel pitch 0.2715(H)mm x 0.2715(V)mm
Video R, G, B Analog Interface & HDMI Interface
Separate Sync. H/V TTL
Display Color 16.7M Colors
Others
Horizontal scan range 30~83kHz
Horizontal scan
Size(Maximum)
521.39mm
Vertical scan range 50Hz ~76Hz
Vertical scan Size(Maximum) 293.28mm
Optimal preset resolution 1920x1080@60Hz
Max resolution 1920x1080@75Hz
Plug & Play VESA DDC2B/CI
Input Connector D-Sub 15 pin/HDMI
Power Source 100-240V~, 50/60Hz, 1.5A
Power Consumption
Typical (Brightness = 90,Contrast = 50) 24W
Max.(Brightness = 100,Contrast = 100) ≤ 28W
Power saving ≤ 0.5W
Physical
Characteristics
Connector Type D-Sub/HDMI/Earphone out
Signal Cable Type Detachable
Environmental
Temperature:
Operating 0° to 40°C
Non-Operating -25° to 55°C
Humidity:
Operating 10% to 85% (non-condensing)
Non-Operating 5% to 93% (non-condensing)
Altitude:
Operating 0~ 5000m(0~ 16404 ft)
Non-Operating 0~ 12192m (0~ 40000 ft )
25
Panel
Model name C27V1Q
Driving system TFT Color LCD
Viewable Image Size 27inch, 68.6cm diagonal
Pixel pitch 0.3114(H)mm x 0.3114(V)mm
Video R, G, B Analog Interface & HDMI Interface & DP Interface
Separate Sync. H/V TTL
Display Color 16.7M Colors
Others
Horizontal scan range 30~83KHz
Horizontal scan
Size(Maximum)
597.888mm
Vertical scan range 50Hz ~76Hz
Vertical scan Size(Maximum) 336.312mm
Optimal preset resolution 1920x1080@60Hz
Max resolution 1920x1080@75Hz
Plug & Play VESA DDC2B/CI
Input Connector D-Sub 15 pin/HDMI/DP
Power Source 100-240V~, 50/60Hz, 1.5A
Power Consumption
Typical (Brightness = 90,Contrast = 50) 28W
Max.(Brightness = 100,Contrast = 100) ≤ 35W
Power saving ≤ 0.5W
Physical
Characteristics
Connector Type D-Sub/ HDMI/ DP/Earphone out
Signal Cable Type Detachable
Environmental
Temperature:
Operating 0° to 40°C
Non-Operating -25° to 55°C
Humidity:
Operating 10% to 85% (non-condensing)
Non-Operating 5% to 93% (non-condensing)
Altitude:
Operating 0~ 5000m(0~ 16404 ft)
Non-Operating 0~ 12192m (0~ 40000 ft )
26
Panel
Model name C32V1Q
Driving system TFT Color LCD
Viewable Image Size 31,5inch, 80.0cm diagonal
Pixel pitch 0.36375(H)mm x 0.36375(V)mm
Video R, G, B Analog Interface & HDMI Interface & DP Interface
Separate Sync. H/V TTL
Display Color 16.7M Colors
Others
Horizontal scan range 30~83KHz
Horizontal scan
Size(Maximum)
698.4mm
Vertical scan range 50Hz ~76Hz
Vertical scan Size(Maximum) 392.85mm
Optimal preset resolution 1920x1080@60Hz
Max resolution 1920x1080@75Hz
Plug & Play VESA DDC2B/CI
Input Connector D-Sub 15 pin/HDMI/DP
Power Source 100-240V~, 50/60Hz, 1.5A
Power Consumption
Typical (Brightness = 90,Contrast = 50) 28W
Max.(Brightness = 100,Contrast = 100) ≤ 42W
Power saving ≤ 0.5W
Physical
Characteristics
Connector Type D-Sub/ HDMI/ DP/Earphone out
Signal Cable Type Detachable
Environmental
Temperature:
Operating 0° to 40°C
Non-Operating -25° to 55°C
Humidity:
Operating 10% to 85% (non-condensing)
Non-Operating 5% to 93% (non-condensing)
Altitude:
Operating 0~ 5000m(0~ 16404 ft)
Non-Operating 0~ 12192m (0~ 40000 ft )
27
Panel
Model name CQ32V1
Driving system TFT Color LCD
Viewable Image Size 31,5inch, 80.0cm diagonal
Pixel pitch 0.2724(H)mm x 0.2724(V)mm
Video R, G, B Analog Interface & HDMI Interface & DP Interface
Separate Sync. H/V TTL
Display Color 16.7M Colors
Others
Horizontal scan range 30~99kHz
Horizontal scan
Size(Maximum)
697.344mm
Vertical scan range 50Hz ~76Hz
Vertical scan Size(Maximum) 392.256mm
Optimal preset resolution
1920x1080@60Hz (D-SUB)
2560x1440@60Hz(HDMI、DP)
Max resolution 2560x1440@75Hz(HDMI、DP)
Plug & Play VESA DDC2B/CI
Input Connector D-Sub 15 pin/HDMI/DP
Power Source 100-240V~, 50/60Hz, 1.5A
Power Consumption
Typical (Brightness = 90,Contrast = 50) 53W
Max.(Brightness = 100,Contrast = 100) ≤ 68W
Power saving ≤ 0.5W
Physical
Characteristics
Connector Type D-Sub/ HDMI/DP/Earphone out
Signal Cable Type Detachable
Environmental
Temperature:
Operating 0° to 40°C
Non-Operating -25° to 55°C
Humidity:
Operating 10% to 85% (non-condensing)
Non-Operating 5% to 93% (non-condensing)
Altitude:
Operating 0~ 5000m(0~ 16404 ft)
Non-Operating 0~ 12192m (0~ 40000 ft )
28
Preset Display Modes
Standard Resolution H. Frequency (kHz) V. Frequency (Hz)
VGA
640x480@60Hz 31.469 59.94
640x480@72Hz 37.861 72.809
640x480@75Hz 37.5 75
MAC MODES VGA 640x480@67Hz 35 66.667
IBM MODE 720x400@70Hz 31.469 70.087
SVGA
800x600@56Hz 35.156 56.25
800x600@60Hz 37.879 60.317
800x600@72Hz 48.077 72.188
800x600@75Hz 46.875 75
MAC MIDE SVGA 835x624@75Hz 49.725 74.5
XGA
1024x768@60Hz 48.363 60.004
1024x768@70Hz 56.476 70.069
1024x768@75Hz 60.023 75.029
SXGA
1280x1024@60Hz 63.981 60.02
1280x1024@75Hz 79.976 75.025
WSXG
1280x720@60HZ 45 60
1280x960@60HZ 60 60
WXGA+ 1440x900@60Hz 55.935 59.876
WSXGA+ 1680x1050@60Hz 65.29 59.954
FHD 1920x1080@60Hz 67.5 60
FHD(HDMI、DP)
C24V1H/C27V1Q/C32V1Q
1920x1080@75Hz 83.894 74.973
QHD(HDMI、DP) CQ32V1
2560x1440@60Hz 88.787 59.951
QHD(HDMI、DP) CQ32V1
2560x1440@75Hz 111.028 74.968
29
Pin Assignments
15-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1 Video-Red 9 +5V
2 Video-Green 10 Ground
3 Video-Blue 11 N.C.
4 N.C. 12 DDC-Serial data
5 Detect Cable 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC-Serial clock
8 GND-B
19-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1 TMDS Data 2+ 11 TMDS Clock Shield
2 TMDS Data 2 Shield 12 TMDS Clock
3
TMDS Data 2
13
CEC
4 TMDS Data 1+ 14 Reserved (N.C. on device
5 TMDS Data 1Shield 15 SCL
6 TMDS Data 1 16 SDA
7
TMDS Data 0+
17
DDC/CEC Ground
8 TMDS Data 0 Shield 18 +5V Power
9 TMDS Data 0 19 Hot Plug Detect
10 TMDS Clock +
30
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7
ML_Lane 1 (n)
17
AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR
31
Plug and Play
Plug & Play DDC2B Feature
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the
monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional
information about its display capabilities.
The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over
the DDC2B channel.
