HDR-CX400E/CX410VE/CX430V/CX430VE/CX510E/PJ420E/PJ420VE/
PJ430/PJ430E/PJ430V/PJ430VE/PJ510E
Digital HD Video
Camera Recorder
Operating Guide
4-452-896-11(1)
Table of contents
Getting started
Recording/Playback
Advanced operations
Editing
Saving movies and photos
with a computer
Saving images on an external
media device
Customizing your camcorder
Others/Index
Please also refer to :
http://www.sony.net/SonyInfo/Support/
2
GB
Read this first
Before operating the unit, please read this
manual thoroughly, and retain it for future
reference.
Owner’s Record
The model and serial numbers are located
on the bottom. Record the serial number
in the space provided below. Refer to these
numbers whenever you call upon your Sony
dealer regarding this product.
Model No. HDR-
Serial No.
Model No. AC-
Serial No.
WARNING
To reduce the risk of fire or electric
shock,
1) do not expose the unit to rain or
moisture.
2) do not place objects filled with
liquids, such as vases, on the
apparatus.
Do not expose the batteries to
excessive heat such as sunshine, fire or
the like.
This symbol is intended
to alert the user to the
presence of uninsulated
“dangerous voltage” within
the product’s enclosure
that may be of sufficient
magnitude to constitute
a risk of electric shock to
persons.
This symbol is intended
to alert the user to the
presence of important
operating and maintenance
(servicing) instructions in
the literature accompanying
the appliance.
3
GB
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS.
DANGER - TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE
INSTRUCTIONS.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper
configuration for the power outlet.
4
GB
Representative plug of power supply cord of countries/regions around the
world.
A Type
(American
Type)
B Type
(British Type)
BF Type
(British Type)
B3 Type
(British Type)
C Type
(CEE Type)
SE Type
(CEE Type)
O Type
(Ocean Type)
The representative supply voltage and plug type are described in this chart.
Depend on an area, Different type of plug and supply voltage are used.
Attention: Power cord meeting demands from each country shall be used.
F
or only the United States
U
se a supplied power cord.
Europe
Countries/regions Voltage Frequency (Hz) Plug type
Austria 230 50 C
Belgium 230 50 C
Czech 220 50 C
Denmark 230 50 C
Finland 230 50 C
France 230 50 C
Germany 230 50 C
Greece 220 50 C
Hungary 220 50 C
Iceland 230 50 C
Ireland 230 50 C/BF
Italy 220 50 C
Luxemburg 230 50 C
Netherlands 230 50 C
Norway 230 50 C
Poland 220 50 C
Portugal 230 50 C
Romania 220 50 C
Russia 220 50 C
Slovak 220 50 C
Spain 127/230 50 C
Sweden 230 50 C
Switzerland 230 50 C
UK 240 50 BF
Asia
Countries/regions Voltage Frequency (Hz) Plug type
China 220 50 A
Hong Kong 200/220 50 BF
India 230/240 50 C
Indonesia 127/230 50 C
Japan 100 50/60 A
Korea (rep) 220 60 C
Malaysia 240 50 BF
Philippines 220/230 60 A/C
Singapore 230 50 BF
Taiwan 110 60 A
Thailand 220 50 C/BF
5
GB
Countries/regions Voltage Frequency (Hz) Plug type
Vietnam 220 50 A/C
Oceania
Countries/regions Voltage Frequency (Hz) Plug type
Australia 240 50 O
New Zealand 230/240 50 O
North America
Countries/regions Voltage Frequency (Hz) Plug type
Canada 120 60 A
USA 120 60 A
Central America
Countries/regions Voltage Frequency (Hz) Plug type
Bahamas 120/240 60 A
Costa Rica 110 60 A
Cuba 110/220 60 A/C
Dominican (rep) 110 60 A
El Salvador 110 60 A
Guatemala 120 60 A
Honduras 110 60 A
Jamaica 110 50 A
Mexico 120/127 60 A
Nicaragua 120/240 60 A
Panama 110/220 60 A
South America
Countries/regions Voltage Frequency (Hz) Plug type
Argentina 220 50 C/BF/O
Brazil 127/220 60 A/C
Chile 220 50 C
Colombia 120 60 A
Peru 220 60 A/C
Venezuela 120 60 A
Middle East
Countries/regions Voltage Frequency (Hz) Plug type
Iran 220 50 C/BF
Iraq 220 50 C/BF
Israel 230 50 C
Saudi Arabia 127/220 50 A/C/BF
Turkey 220 50 C
UAE 240 50 C/BF
Africa
Countries/regions Voltage Frequency (Hz) Plug type
Algeria 127/220 50 C
Congo (dem) 220 50 C
Egypt 220 50 C
Ethiopia 220 50 C
Kenya 240 50 C/BF
Nigeria 230 50 C/BF
South Africa 220/230 50 C/BF
Tanzania 230 50 C/BF
Tunisia 220 50 C
6
GB
CAUTION
Battery pack
If the battery pack is mishandled, the
battery pack can burst, cause a fire or even
chemical burns. Observe the following
cautions.
Do not disassemble.
Do not crush and do not expose the battery
pack to any shock or force such as hammering,
dropping or stepping on it.
Do not short circuit and do not allow metal
objects to come into contact with the battery
terminals.
Do not expose to high temperature above 60°C
(140°F) such as in direct sunlight or in a car
parked in the sun.
Do not incinerate or dispose of in fire.
Do not handle damaged or leaking lithium ion
batteries.
Be sure to charge the battery pack using a
genuine Sony battery charger or a device that
can charge the battery pack.
Keep the battery pack out of the reach of small
children.
Keep the battery pack dry.
Replace only with the same or equivalent type
recommended by Sony.
Dispose of used battery packs promptly as
described in the instructions.
Replace the battery with the specified type
only. Otherwise, fire or injury may result.
AC Adaptor
Do not use the AC Adaptor placed in a
narrow space, such as between a wall and
furniture.
Use the nearby wall outlet (wall socket)
when using the AC Adaptor. Disconnect
the AC Adaptor from the wall outlet (wall
socket) immediately if any malfunction
occurs while using your camcorder.
Even if your camcorder is turned off, AC
power source (mains) is still supplied to
it while connected to the wall outlet (wall
socket) via the AC Adaptor.
Note on the power cord (mains lead)
The power cord (mains lead) is designed
specifically for use with this camcorder
only, and should not be used with other
electrical equipment.
Excessive sound pressure from earphones
and headphones can cause hearing loss.
For customers in the U.S.A. and CANADA
RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are
recyclable.
You can help preserve our
environment by returning
your used rechargeable
batteries to the collection and
recycling location nearest you.
For more information
regarding recycling of
rechargeable batteries, call
toll free
1-800-822- 8837, or visit
http://www.rbrc.org/
Caution: Do not handle damaged or
leaking Lithium-Ion batteries.
Battery pack
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
This Class B digital apparatus complies
with Canadian ICES-003.
7
GB
For Customers in the U.S.A.
UL is an internationally recognized safety
organization.
The UL Mark on the product means it has
been UL Listed.
If you have any questions about this
product, you may call:
Sony Customer Information Center
1-800-222-SONY (7669)
The number below is for the FCC related
matters only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: HDR-CX430V
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo, San Diego,
CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Declaration of Conformity
Trade Name: SONY
Model No.: HDR-PJ430V
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo, San Diego,
CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) this device must accept any
interference received, including
interference that may cause undesired
operation.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
Note
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and
can radiate radio frequency energy and,
if not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the following
measures:
8
GB
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/
TV technician for help.
The supplied interface cable must be used
with the equipment in order to comply with
the limits for a digital device pursuant to
Subpart B of Part 15 of FCC Rules.
FOR CUSTOMERS IN EUROPE
Hereby, Sony Corporation, declares that
this HDR-CX410VE/PJ420VE Digital HD
Video Camera Recorder is in compliance
with the essential requirements and other
relevant provisions of the Directive 1999/5/
EC. For details, please access the following
URL: http://www.compliance.sony.de/
Notice for the customers in the
countries applying EU Directives
This product has been manufactured by
or on behalf of Sony Corporation, 1-7-1
Konan Minato-ku Tokyo, 108-0075 Japan.
Inquiries related to product compliance
based on European Union legislation
shall be addressed to the authorized
representative, Sony Deutschland GmbH,
Hedelfinger Strasse 61, 70327 Stuttgart,
Germany. For any service or guarantee
matters, please refer to the addresses
provided in the separate service or
guarantee documents.
This product has been tested and found
compliant with the limits set out in the
EMC regulation for using connection cables
shorter than 3 meters (9.8 feet).
Attention
The electromagnetic fields at the specific
frequencies may influence the picture and
sound of this unit.
Notice
If static electricity or electromagnetism
causes data transfer to discontinue midway
(fail), restart the application or disconnect
and connect the communication cable
(USB, etc.) again.
Disposal of Old Electrical
& Electronic Equipment
(Applicable in the European
Union and other European
countries with separate
collection systems)
This symbol on the product or on its
packaging indicates that this product
shall not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the recycling
of electrical and electronic equipment.
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this product. The recycling of materials
will help to conserve natural resources. For
more detailed information about recycling
of this product, please contact your local
Civic Office, your household waste disposal
service or the shop where you purchased
the product.
9
GB
Disposal of waste batteries
(applicable in the European
Union and other European
countries with separate
collection systems)
This symbol on the battery or on the
packaging indicates that the battery
provided with this product shall not be
treated as household waste.
On certain batteries this symbol might
be used in combination with a chemical
symbol. The chemical symbols for mercury
(Hg) or lead (Pb) are added if the battery
contains more than 0.0005% mercury or
0.004% lead.
By ensuring these batteries are disposed of
correctly, you will help prevent potentially
negative consequences for the environment
and human health which could otherwise
be caused by inappropriate waste handling
of the battery. The recycling of the materials
will help to conserve natural resources.
In case of products that for safety,
performance or data integrity reasons
require a permanent connection with an
incorporated battery, this battery should be
replaced by qualified service staff only.
To ensure that the battery will be treated
properly, hand over the product at end-of-
life to the applicable collection point for
the recycling of electrical and electronic
equipment.
For all other batteries, please view the
section on how to remove the battery from
the product safely. Hand the battery over
to the applicable collection point for the
recycling of waste batteries.
For more detailed information about
recycling of this product or battery, please
contact your local Civic Office, your
household waste disposal service or the
shop where you purchased the product.
Notice for customers in the United
Kingdom
A moulded plug complying with BS 1363 is
fitted to this equipment for your safety and
convenience.
Should the fuse in the plug supplied need to
be replaced, a fuse of the same rating as the
supplied one and approved by ASTA or BSI
to BS 1362, (i.e., marked with an
or
mark) must be used.
If the plug supplied with this equipment has
a detachable fuse cover, be sure to attach
the fuse cover after you change the fuse.
Never use the plug without the fuse cover.
If you should lose the fuse cover, please
contact your nearest Sony service station.
10
GB
For information on your camcorder model,
see the following page:
Functions and equipment p.12
About language setting
Change the screen language before using the
camcorder if necessary (p. 23). The on-screen
displays in each local language are used for
illustrating the operating procedures.
On recording
Before starting to record, test the recording
function to make sure the image and sound are
recorded without any problems.
Compensation for the contents of recordings
cannot be provided, even if recording or
playback is not possible due to a malfunction of
the camcorder, recording media, etc.
TV color systems differ depending on the
country/region. To view your recordings on
a TV, you need a TV that supports the signal
format for your camcorder. For details on the
signal format, refer to “How to use this manual”
(p
.
12).
Television programs, films, video tapes,
and other materials may be copyrighted.
Unauthorized recording of such materials may
be violate to the copyright laws.
Notes on use
Do not do any of the following. If any of those
are done, the recording media may be damaged,
recorded images may be impossible to play back
or may be lost, or other malfunctions could
occur.
ejecting the memory card when the access
l
a
mp (p. 25) is lit or flashing
removing the battery pack or AC Adaptor
from the camcorder, or applying mechanical
shock or vibration to the camcorder when the
PO
WER/CH
G (charge) lamp (p. 20) is lit or
flashing green or the access lamp (p. 25) is lit
or flashing
When the camcorder is connected to other
devices through a USB connection and the
power of the camcorder is turned on, do not
close the LCD panel. The image data that has
been recorded may be lost.
Use the camcorder in accordance with local
regulations.
LCD Panel
The LCD screen is manufactured using
extremely high-precision technology, so over
99.99% of the pixels are operational for effective
use. However, there may be some tiny black
points and/or bright points (white, red, blue,
or green in color) that appear constantly on the
LCD screen. These points are normal results of
the manufacturing process and do not affect the
recording in any way.
About this manual, illustrations and
on-screen displays
The example images used in this manual for
illustration purposes are captured using a
digital still camera, and therefore may appear
different from images and screen indicators that
actually appear on your camcorder. And, the
illustrations of your camcorder and its screen
indication are exaggerated or simplified for
understandability.
Design and specifications of your camcorder
and accessories are subject to change without
notice.
Black points
White, red, blue or green points
11
GB
In this manual, the internal memory (models
with internal memory) of the camcorder and
the memory card are called “recording media.”
In this manual, the DVD disc recorded with
high definition image quality (HD) is called
AVCHD recording disc.
Learning more about the
camcorder (“Handycam” User
Guide)
“Handycam” User Guide is an on-line
manual. Refer to it for in-depth instructions
on the many functions of the camcorder.
1
Access the Sony support page.
http://www.sony.net/SonyInfo/
Support/
2
Select your country or region.
3
Search for the model name
of your camcorder within the
support page.
Check the model name on the bottom of
your camcorder.
12
GB
How to use this manual
In this manual, the differences in the specifications for each model are described together.
If you find the description “Models with ...” like below, confirm in this chapter whether the
description applies to your camcorder.
(M
odels with GPS)
(Models with the NTSC color system)
To confirm the model name of your camcorder
See the bottom of your camcorder.
Differences in functions
Model name
Recording media
Signal
format
USB
connection
GPS
Internal
memory +
Memory card
Memory card
HDR-CX400E
PAL Output only
HDR-CX410VE
PAL Output only
HDR-CX430VE/
PJ420VE/PJ430VE
PAL Output only
HDR-CX510E/
PJ420E/PJ430E/
PJ510E
PAL Output only
HDR-PJ430
NTSC Input/Output
HDR-CX430V/
PJ430V
NTSC Input/Output
Model name (HDR-xxx)
13
GB
Differences in equipment
Illustrations used in this manual are based on HDR-PJ420E.
Model name Projector
HDR-CX400E/CX410VE/CX430V/CX430VE/CX510E
HDR-PJ420E/PJ420VE/PJ430/PJ430E/PJ430V/PJ430VE/PJ510E
Notes
For the following items, the descriptions are explained with the model name.
Saf
ety Regulation (p. 2)
Pa
rts and controls (p. 16)
Men
u lists (p. 50)
Sp
ecifications (p. 63)
Recording time of movies/number of recordable photos (p. 56)
14
GB
Table of contents
Read this first . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Learning more about the camcorder (“Handycam” User Guide) . . . . . . . . . . . . . . 11
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Differences in functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Differences in equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

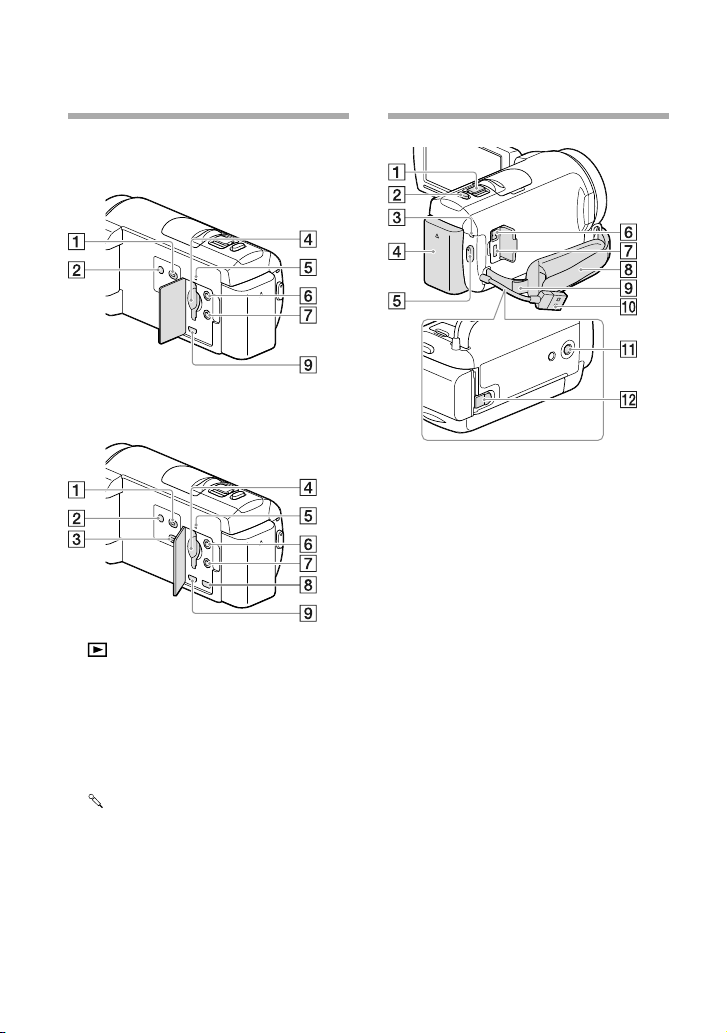

Parts and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Getting started
Supplied Items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

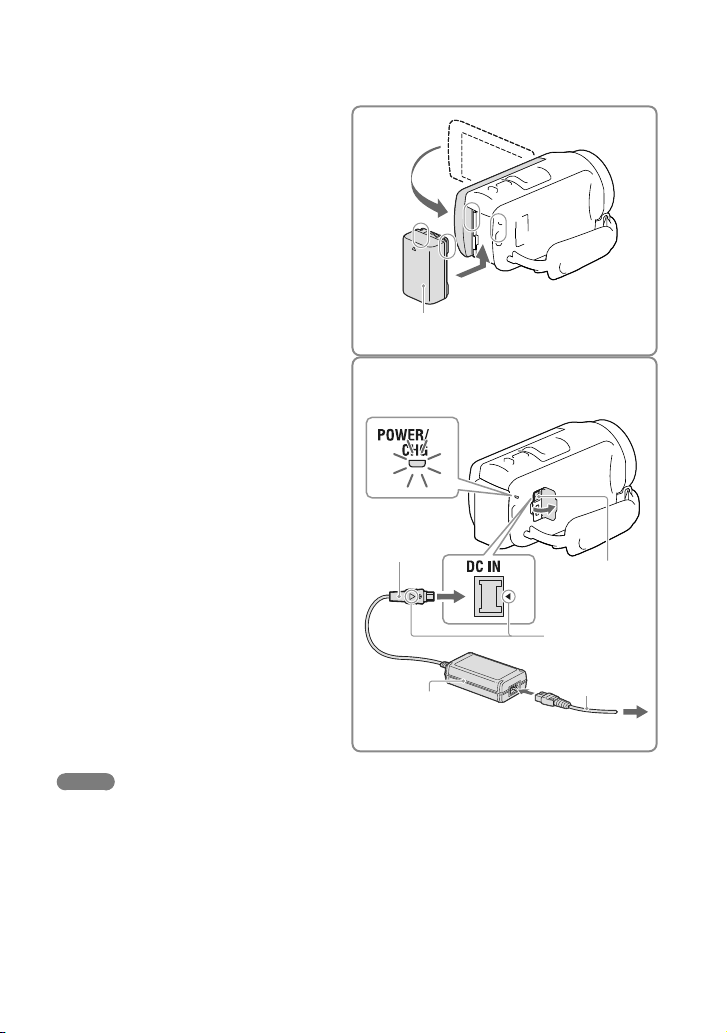

Charging the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Charging the battery using your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Charging the battery pack abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

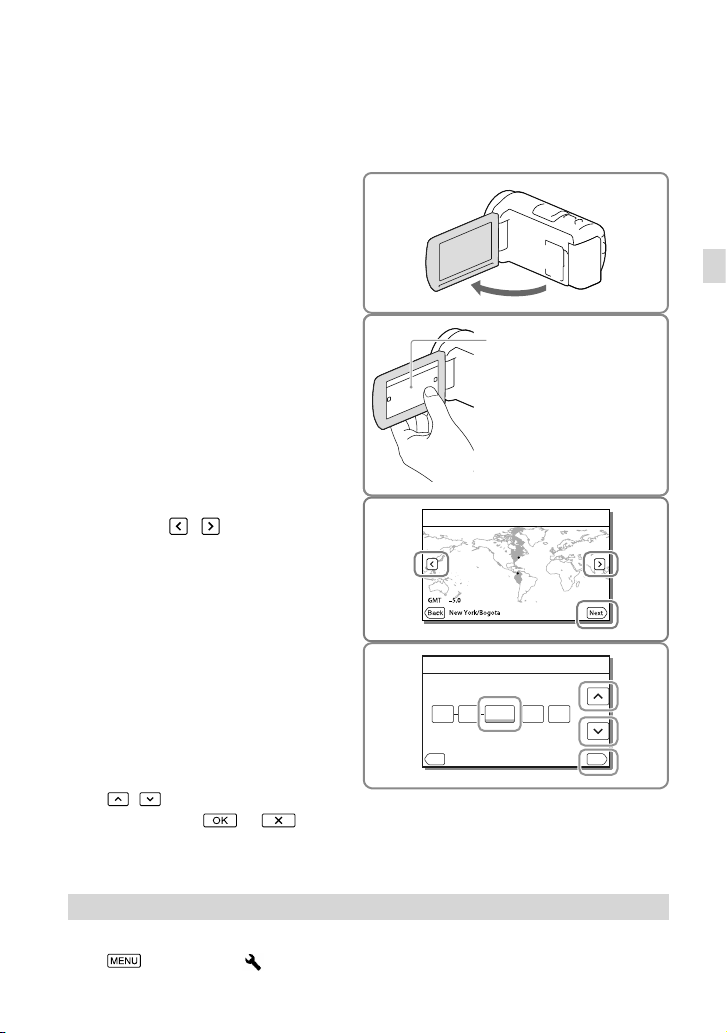

Turning the power on, and setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Changing the language setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Preparing the recording media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Selecting a recording medium (Models with internal memory) . . . . . . . . . . . . . . 25
Inserting a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Recording/Playback
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Recording movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

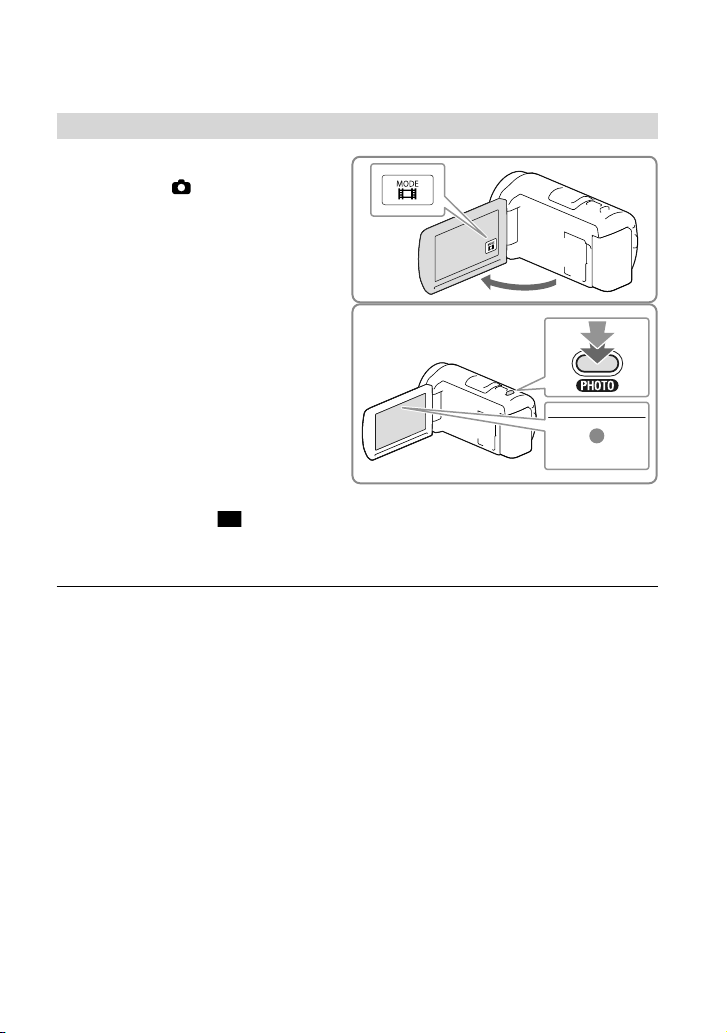

Shooting photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Zooming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

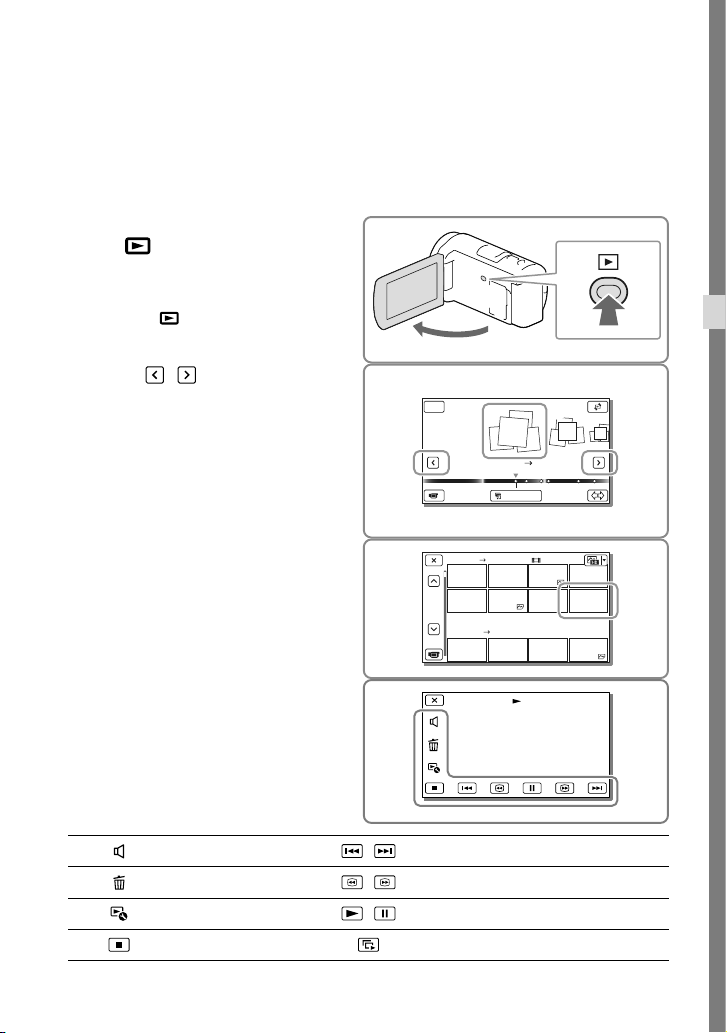

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Advanced operations
Recording images with various settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Selecting the image quality of movies (Recording mode) . . . . . . . . . . . . . . . . . . . . . 34

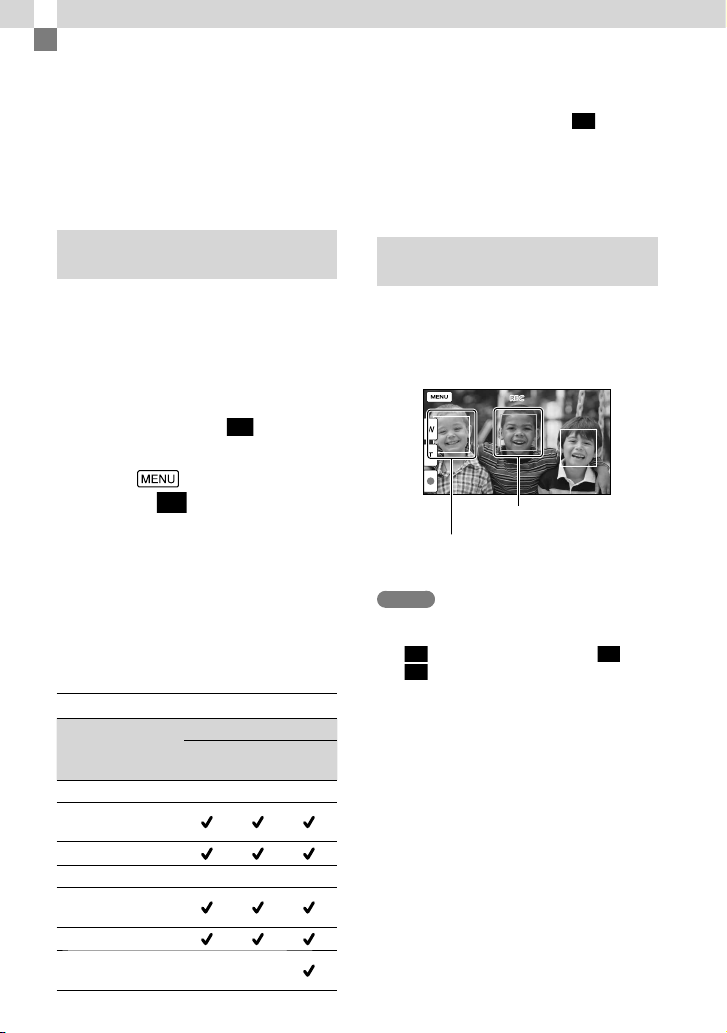

Capturing smiles automatically (Smile Shutter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

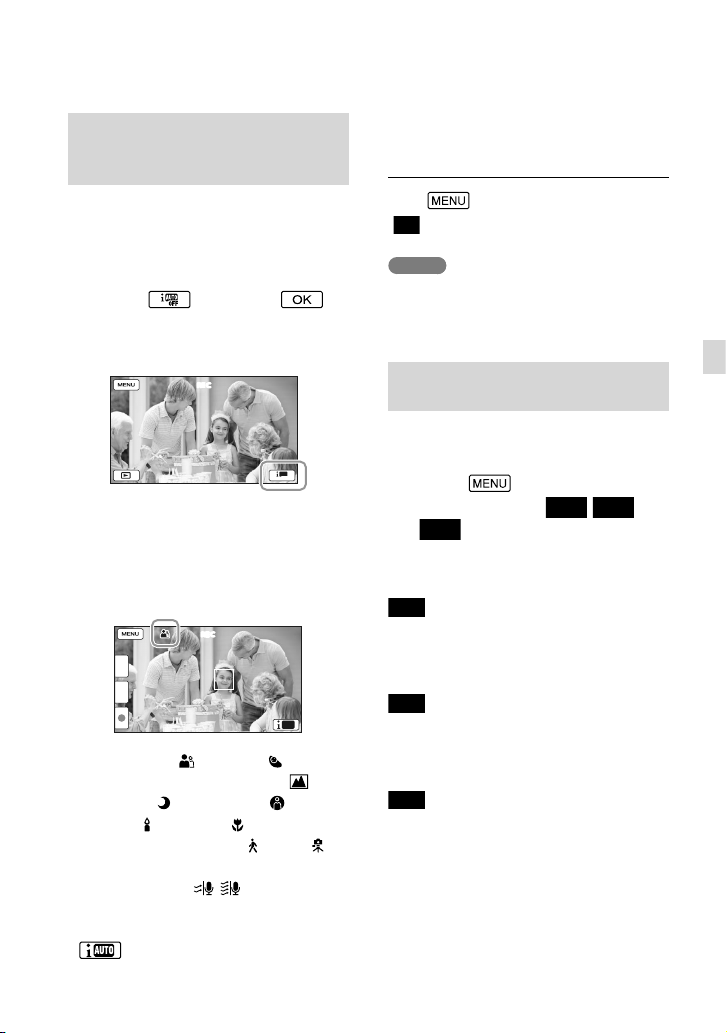

Selecting the suitable setting automatically for the recording situation
(Intelligent Auto) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Selecting the recording format of movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Recording information on your location (Models with GPS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Playing images on a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Enjoying 5.1ch surround sound. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Using the built-in projector (Models with a projector) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
15
Table of contents
GB
Editing
Editing on your camcorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Deleting movies and photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Dividing a movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Capturing a photo from a movie (Models with internal memory or
models with a USB input function) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Saving movies and photos with a computer
Playing images on a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
What you can do with “PlayMemories Home” software (Windows) . . . . . . . . . . 42
Software for Mac . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Preparing a computer (Windows) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Checking the computer system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Installing the “PlayMemories Home” software in your computer . . . . . . . . . . . . . 43
Starting the “PlayMemories Home” software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Saving images on an external media device
Creating a standard definition image quality (STD) disc with a recorder . . . . . . . . . . . . . 45
Saving images on an external media device with high definition (HD) image
quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Customizing your camcorder
Using menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Menu lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Others/Index
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Self-diagnosis display/Warning indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Recording time of movies/number of recordable photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Expected time of recording and playback with each battery pack . . . . . . . . . . . 56
Expected recording time of movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Expected number of recordable photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
About handling of your camcorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
END-USER LICENSE AGREEMENT FOR MAP DATA FOR VIDEO CAMERA RECORDER
PRODUCTS (Models with GPS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Screen indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
16
GB

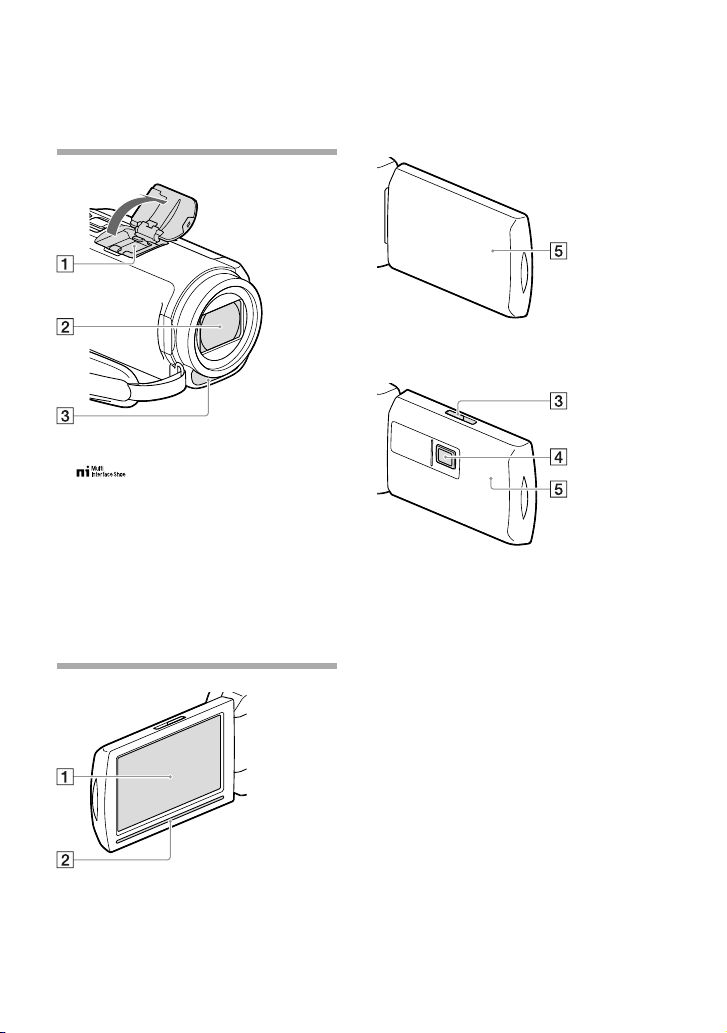

Parts and controls
Figures in ( ) are reference pages.
Multi interface shoe
For details on compatible accessories of the
Multi interface shoe, visit the Sony web site
in your area, or consult your Sony dealer or
localauthorized Sony service facility.
Operations with other manufacture’s
accessories are not guaranteed.
Lens (G lens)
Built-in microphone
HDR-CX400E/CX410VE/CX430V/
CX430VE/CX510E
HDR-PJ420E/PJ420VE/PJ430/PJ430E/
PJ430V/PJ430VE/PJ510E
LCD screen/Touch panel (23, 24)
If you rotate the LCD panel 180 degrees, you
can close the LCD panel with the LCD screen
facing out. This is convenient during playback
operations.
Speaker
PROJECTOR FOCUS lever (38)
Projector lens (38)
GPS antenna (HDR-CX410VE/CX430V/
CX430VE/PJ420VE/PJ430V/PJ430VE)
A GPS antenna is located in the LCD panel.
17
GB
HDR-CX400E/CX410VE/CX430V/
CX430VE/CX510E
HDR-PJ420E/PJ420VE/PJ430/PJ430E/
PJ430V/PJ430VE/PJ510E
(View Images) button
POWER button
PROJECTOR button (38)
Memory card slot (25)
Memory card access lamp (25)
While the lamp is lit or flashing, the
camcorder is reading or writing data.
(microphone) jack (PLUG IN POWER)
(headphones) jack
PROJECTOR IN jack (39)
HDMI OUT jack (36)
Power zoom lever (30)
PHOTO button (28)
POWER/CHG (charge) lamp (20)
Battery pack (20)
START/STOP button (27)
DC IN jack (20)
Multi/Micro USB Terminal (36)
Supports Micro USB compatible devices.
Grip belt
Loop for a shoulder belt
Built-in USB Cable (21)
Tripod receptacle
Attach a tripod (sold separately: the length of
the screw must be less than 5.5 mm (7/32 in.)).
Depending on the specifications of the tripod,
your camcorder may not attach in the proper
direction.
BATT (battery) release lever (22)
18
GB

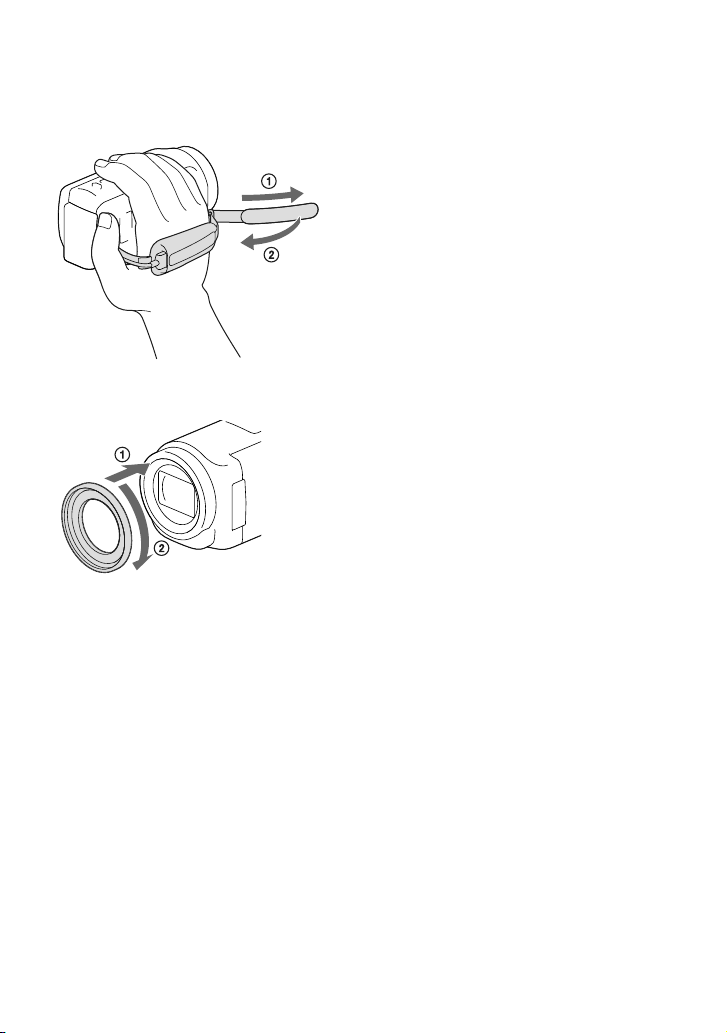

To fasten the grip belt
To attach the Step Down Ring
Align the Step Down Ring with the
camcorder properly (), then turn it in the
direction of the arrow until the Step Down
Ring is locked in place ().
You can change the filter diameter to 37mm
(1 1/2 in.) by attaching the Step Down Ring,
allowing you to use the recommended
conversion lens.
You cannot attach the wide end conversion
lens/wide conversion lens, if the Step Down
Ring is attached.
To remove Step Down Ring, turn it in the
opposite direction from that of the arrow.
19
GB
Getting started
Getting started

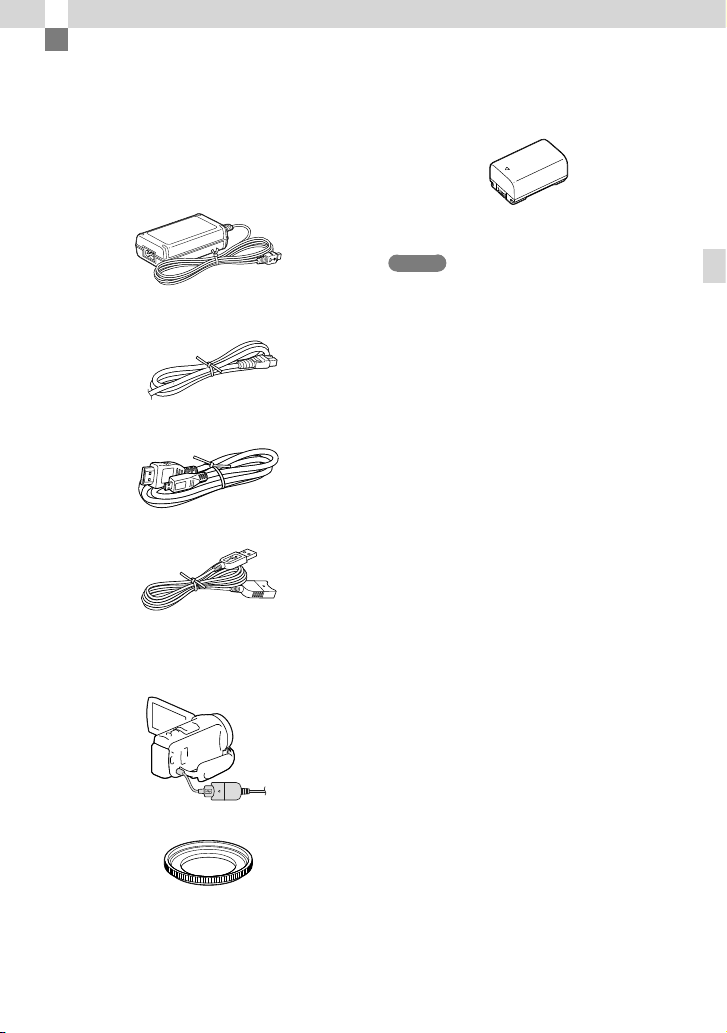

Supplied Items
The numbers in ( ) indicate the supplied
quantity.
Camcorder (1)
AC Adaptor (1)
Power cord (Mains lead) (1)
HDMI cable (1)
USB connection support cable (1)
The USB connection support cable is designed
for use with this camcorder only. Use this cable
when the Built-in USB Cable of the camcorder
(p. 21) is too short for connection.
Step Down Ring (1)
Rechargeable battery pack NP-FV50 (1)
“Operating Guide” (This manual) (1)
Notes
The “PlayMemories Home” software and
“PlayMemories Home Help Guide” can be
do
w
nloaded from the Sony website (p. 43).
20
GB
Charging the battery pack
1
Close the LCD screen and attach
the battery pack.
Align the indentation on the camcorder
and projection on the battery pack, then
slide the battery pack upwards.
2
Connect the AC Adaptor () and
the power cord (mains lead) ()
to your camcorder and the wall
outlet (wall socket).
The POWER/CHG (charge) lamp turns
orange.
The POWER/CHG (charge) lamp turns
off when the battery pack is fully charged.
Disconnect the AC Adaptor from the DC
IN jack of your camcorder.
Notes
You cannot attach any “InfoLITHIUM” battery pack other than the V series to your camcorder.
When attaching a video light (sold separately), it is recommended that you use an NP-FV70 or NP-FV100
battery pack.
You cannot use the NP-FV30 “InfoLITHIUM” battery pack with your camcorder.
In the default setting, the power turns off automatically if you leave your camcorder without any
operation for about 2 minutes, to save battery power ([Power Save], p. 52).
Battery pack
POWER/CHG (charge) lamp
DC plug
DC IN jack
Align the mark
on the DC plug
with that on the
DC IN jack
To the wall outlet (wall socket)
21
GB
Getting started
Charging the battery using your computer
Turn off your camcorder and connect
the camcorder to a running computer
using the Built-in USB Cable.
To charge the battery using an AC-UD10 USB charger/AC Adaptor (sold
separately)
You can charge the battery by connecting the Built-in USB Cable to a wall outlet (wall socket)
using an AC-UD10 USB charger/AC Adaptor (sold separately). You cannot use a Sony CP-
AH2R, CP-AL, or AC-UP100 portable power supply device (sold separately) to charge the
camcorder.
Charging time
Approximate time (min.) required to fully charge a fully discharged NP-FV50 battery pack
(supplied).
When using the AC Adaptor: 155 min.
When using your computer connected with the Built-in USB Cable
*: 280 min.
The charging times shown above are measured when charging the camcorder at a room temperature of
25 °C (77 °F). It is recommended that you charge the battery in a temperature range of 10 °C to 30 °C (50
°F to 86 °F).
* The charging times are measured without using the USB connection support cable.
Built-in USB Cable
To the wall outlet
(wall socket)
22
GB
To remove the battery pack
Close the LCD screen. Slide the BATT
(battery) release lever () and remove the
battery pack ().
To use your camcorder continuously for a long time
Connect the AC adaptor and the power cord (mains lead) to your camcorder and the wall outlet
(wall socket).
For details on how to connect the AC adaptor, refer to “Charging the battery pack”
(p. 20).
By using the AC adaptor, you can use your camcorder without worrying about the battery
running out of charge.
Notes on the AC Adaptor
Do not short-circuit the DC plug of the AC Adaptor or battery terminal with any metallic objects. This
may cause a malfunction.
Disconnect the AC Adaptor from the camcorder while holding both the camcorder and the DC plug.
Recording time, Playing time (p. 56)
Remaining battery indicator (p. 29)
Charging the battery pack abroad
You can charge the battery pack in any countries/regions using the AC Adaptor supplied with
your camcorder within the AC 100 V - 240 V, 50 Hz/60 Hz range. Do not use an electronic
voltage transformer.
23
GB
Getting started
Turning the power on, and setting the date
and time
For information on your camcorder model, see the following page:
Functions and equipment p.12
1
Open the LCD screen of your
camcorder and turn the power
on.
You can also turn on the camcorder by
pressing POWER (p. 17).
2
Select the desired language, then
select [Next].
3
Select the desired geographical
area with
/ , then select
[Next].
4
Set [Daylight Savings] or [Summer
Time], select the date format and
the date and time.
If you set [Daylight Savings] or [Summer
Time] to [On], the clock advances 1 hour.
When you select the date and time, select
one of the items and adjust the value with
/ .
When you select
, the date
and time setting operation is complete.
10 30: PM201311
Date & Time
Back Next
Changing the language setting
You can change the on-screen displays to show messages in a specified language.
Select [Setup] [ General Settings] [Language Setting] a desired language.
Touch the button on
the LCD screen.
24
GB
To turn off the power
Close the LCD screen or press the POWER button (p. 17).
To adjust the angle of the LCD panel
First open the LCD panel 90 degrees to the
camcorder (), and then adjust the angle
().
To turn off the beep sound
Select [Setup] [ General Settings] [Beep] [Off].
Notes
The recording date and time are recorded automatically on the recording media. They are not displayed
during recording. However, you can check them as [Data Code] during playback. To display them, select
[Setup] [ Playback Settings] [Data Code] [Date/Time].
Once the clock is set, the clock time is automatically adjusted with [Auto Clock ADJ ] and [Auto Area
ADJ] set to [On]. The clock may not automatically adjust to the correct time, depending on the country/
region selected for your camcorder. In this case, set [Auto Clock ADJ ] and [Auto Area ADJ] to [Off]
(models with GPS).
[Power On By LCD] (p. 52)
To set the date and time again: [Date & Time Setting] (p. 52)
To c
alibrate the touch panel: [Calibration] (p. 52)
90 degrees (max.)
180 degrees (max.) 90 degrees to the camcorder
25
GB
Getting started

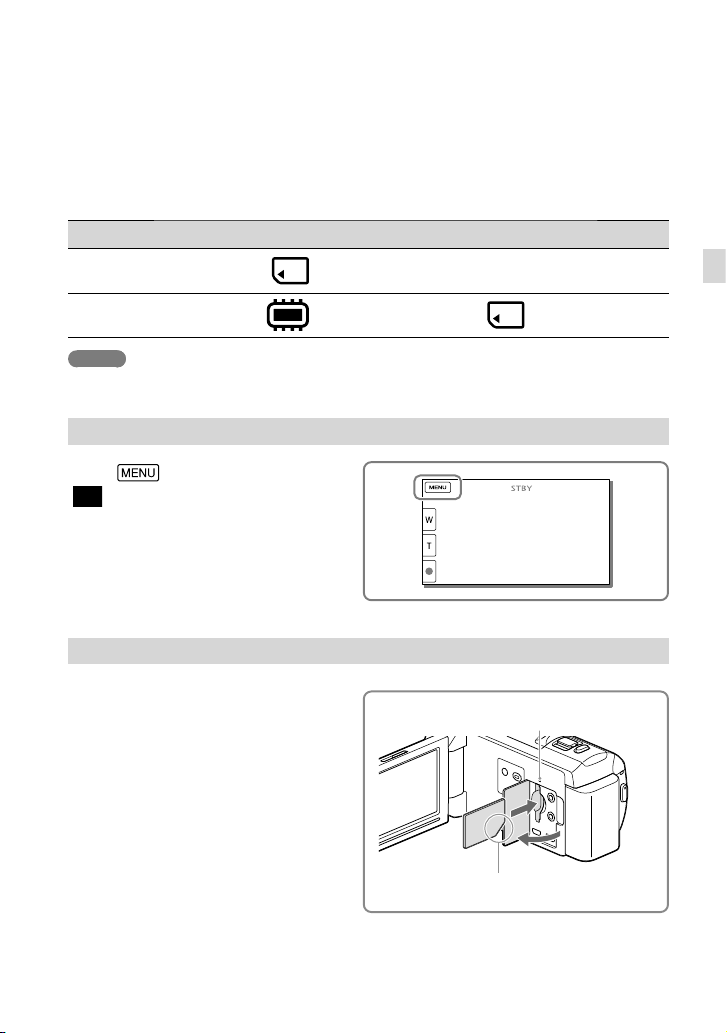

Preparing the recording media
For information on your camcorder model, see the following page:
Functions and equipment p.12
The recording media that can be used are displayed on the screen of your camcorder as
following icons.
Default recording medium Alternative recording medium
Models without internal
memory
Memory card
—
Models with internal
memory
Internal memory Memory card
Notes
You cannot select a different recording medium for movies and for photos.
Selecting a recording medium (Models with internal memory)
Select [Setup]
[
Media Settings] [Media
Select] the desired medium.
Inserting a memory card
Open the cover, and insert the
memory card until it clicks.
The [Preparing image database file. Please wait.]
screen appears if you insert a new memory card.
Wait until the screen disappears.
Access lamp
Insert the card with the notched corner
in the direction as illustrated.
26
GB
To eject the memory card
Open the cover and lightly push the memory card in once.
Notes
To ensure stable operation of the memory card, it is recommended to format the memory card with your
ca
mcorder before the first use (p. 51). Formatting the memory card will erase all the data stored on it and
the data will be irrecoverable. Save your important data on your PC, etc.
If [Failed to create a new Image Database File. It may be possible that there is not enough free space.] is
di
s
played, format the memory card (p. 51).
Confirm the direction of the memory card. If you forcibly insert the memory card in the wrong direction,
the memory card, memory card slot, or image data may be damaged.
When inserting or ejecting the memory card, be careful so that the memory card does not pop out and
drop.
Types of memory card you can use with your camcorder
SD Speed
Class
Capacity
(operation
verified)
Described in this
manual
“Memory Stick PRO Duo” media (Mark2)
—
Up to 32 GB
“Memory Stick PRO
Duo” media
“Memory Stick PRO-HG Duo” media
“Memory Stick XC-HG Duo” media Up to 64 GB
SD memory card
Class 4 or
faster
Up to 64 GB SD cardSDHC memory card
SDXC memory card
Operation with all memory cards is not assured.
Notes
A MultiMediaCard cannot be used with this camcorder.
Movies recorded on the “Memory Stick XC-HG Duo” media and SDXC memory cards cannot be
imported to or played back on computers or AV devices not supporting the exFAT
* file system by
connecting the camcorder to these devices with the USB cable. Confirm in advance that the connecting
equipment is supporting the exFAT system. If you connect an equipment not supporting the exFAT
system and the format screen appears, do not perform the format. All the data recorded will be lost.
* The exFAT is a file system that is used for the “Memory Stick XC-HG Duo” media and SDXC memory
cards.
Recording/playback/editing media: Screen indicators during recording (p. 70)
Recording time of movies/number of recordable photos (p. 56)
27
GB
Recording/Playback
Recording/Playback
Recording
For information on your camcorder model, see the following page:
Functions and equipment p.12
In the default setting, movies and photos are recorded on the following media. Movies are
recorded in high definition image quality (HD).
Models without internal memory: Memory card
Models with internal memory: Internal memory

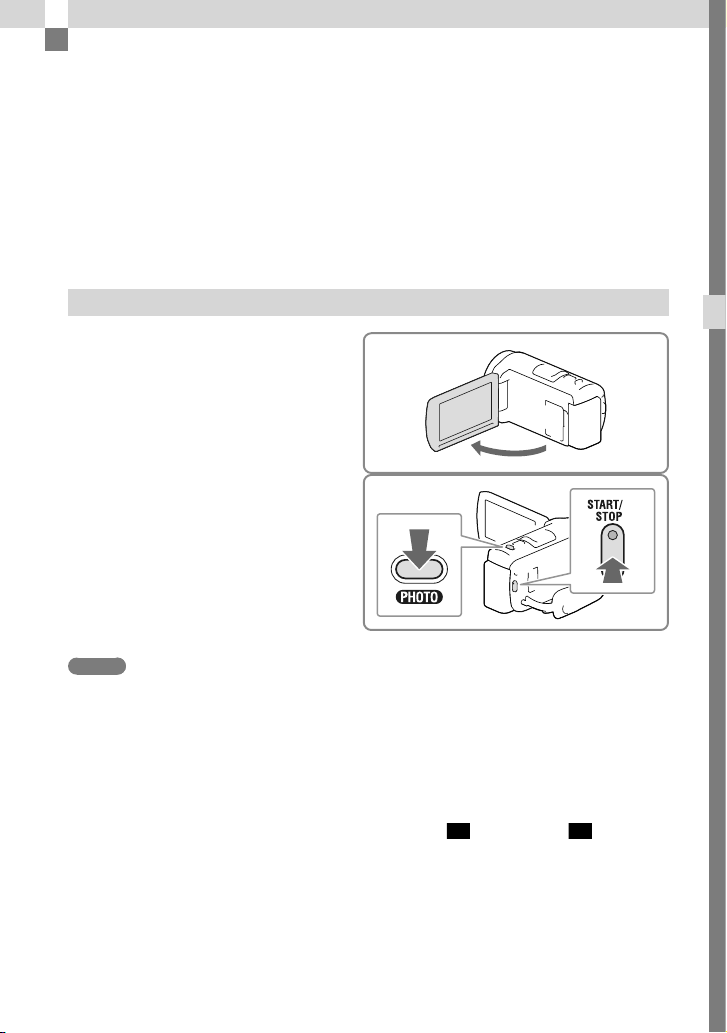

Recording movies
1
Open the LCD screen.
2
Press START/STOP to start
recording.
To stop recording, press START/STOP
again.
You can record photos during movie
recording by pressing PHOTO (Dual
Capture).
Notes
If you close the LCD screen while recording movies, the camcorder stops recording.
The maximum continuous recordable time of movies is about 13 hours.
When a movie file exceeds 2 GB, the next movie file is created automatically.
The following states will be indicated if data is still being written onto the recording media after recording
has finished. During this time, do not apply shock or vibration to the camcorder, or remove the battery or
AC Adaptor.
A
cces
s lamp (p. 25) is lit or flashing
The media icon in the upper right of the LCD screen is flashing
You may not be able to shoot photos depending on the setting in [
REC Mode] and [ Frame Rate].
The LCD screen of your camcorder can display recording images across the entire screen (full pixel
display). However, this may cause slight trimming of the top, bottom, right, and left edges of images when
played back on a TV which is not compatible with full pixel display. It is recommended you record images
w
i
th [Grid Line] set to [On] and using the outer frame of [Grid Line] (p. 51) as a guide.
Recording time, recordable number of photos (p. 56)
[Media Select] (Models with internal memory) (p. 25)
Re
cordable time, remaining capacity [Media Info] (p. 51)
28
GB
Shooting photos
1
Open the LCD screen and select
[MODE]
(Photo).
2
Press PHOTO lightly to adjust the
focus, then press it fully.
When the focus is adjusted properly,
AE/AF lock indicator appears on the LCD
screen.
To change the image size: [ Image Size] (p. 51)
To display items on the LCD screen
Items on the LCD screen disappear if you do not operate the camcorder for a few seconds
after you turn the camcorder on or switch between the movie recording and photo shooting
modes.
Touch anywhere except the buttons on the LCD screen to display information on icons with
functions convenient for recording.
To display items on the LCD screen all the time: [Display Setting] (p. 51)
29
GB
Recording/Playback
Screen indicators during recording
Described here are icons for both movie recording and photo recording modes. Refer to the
page in ( ) for details.
W
T
STBY
AUTO
60i
00:00:00
h14 m48
h2 m25
STBY
16
:
9
L
>9999
MODE
8.9M
5.1ch5.1ch
Q
QF
QAQSQDQGQJ QH
Zoom button (W: Wide/T: Telephoto), START/STOP button (in movie recording mode),
PHOTO button (in photo recording mode)
MENU button (49)
Status detected by Intelligent Auto (35)
Recording status ([STBY]/[REC])
AE/AF (automatic exposure/automatic focus) lock (28)
GPS triangulating status
* (36)
Tracking focus
Zoom, Remaining battery
Counter (hour: minute: second), Capturing a photo, Recording/playback/editing media
(70)
Estimated recording remaining time, Recording image quality, Frame rate, Recording
mode (HD/STD), Movie size (MP4) (34)
Approximate number of recordable photos, Aspect ratio (16:9 or 4:3), Photo size (L/M/S)
Tracking focus cancel button
[MODE] (Shooting Mode) button (28)
Intelligent Auto button (35)
Audio mode (51), Audio Level Display (51)
View Images button (31)
My Button (you can assign your favorite functions to icons displayed in this area) (51)
*
Models with GPS
30
GB
To record in mirror mode
Open the LCD panel 90 degrees to the
camcorder (), then rotate it 180 degrees to
the lens side ().
A mirror-image of the subject appears on the
LCD screen, but the image will be normal
when recorded.
Zooming
Move the power zoom lever to
magnify or reduce the size of the
image.
W (Wide angle): Wider range of view
T (Telephoto): Close view
You can magnify images up to 55 times
(Extended Zoom) the original size with the
power zoom lever.
Move the power zoom lever slightly for a slower
zoom. Move it further for a faster zoom.
Notes
Be sure to keep your finger on the power zoom lever. If you move your finger off the power zoom lever,
the operation sound of the power zoom lever may also be recorded.
You cannot change the zoom speed with the
/ button on the LCD screen.
The minimum possible distance between camcorder and subject while maintaining sharp focus is about
1
cm (about 13/32 in.) for wide angle and about 80 cm (about 31 1/2 in.) for telephoto.
You can magnify images up to 30 times using optical zooming in the following cases:
When [
SteadyShot] is set to other than [Active]
When the
(Photo) mode is selected
Further zooming: [Digital Zoom] (p. 50)
31
GB
Recording/Playback
Playback
For information on your camcorder model, see the following page:
Functions and equipment p.12
You can search for recorded images by date and time of recording (Event View) or location
of recording (Map View (models with GPS)).
1
Open the LCD screen and press
the
button on the camcorder
to enter the playback mode.
You can enter the playback mode by
selecting
on the LCD screen (p. 29).
2
Select / to move the desired
event to the center () and then
select it ().
The camcorder displays recorded images as
an event automatically, based on the date
and time.
MENU
2013
Hig hl igh t
1 1 2013 1-2
3
Select the image.
The camcorder plays from the selected
image to the last image in the event.
00:00:00
1 1 2013 1 2
1 18 2013 1 19
4
Select the appropriate buttons
on the LCD screen for various
playback operations.
Volume
/
Previous/Next
Delete
/
Fast-reverse/fast-forward
Context
/
Play/Pause
Stop Play/stop slide show
Some buttons described above may not appear, depending on the image being played back.
32
GB
As you repeat selecting / during playback, movies are played as fast as about 5 times about
10 times about 30 times about 60 times.
Select
/ during pause to play movies slowly.
To repeat Slideshow, select
[Slideshow Set].
Screen display on the Event View screen
MENU
Hi g h li g h t
2013
1 1 2013 1-2
00:00:00
1 1 2013 1 2
1 18 2013 1 19
Reduced-size images which enable you to view many images at the same time on an index screen are
called “thumbnails.”
Notes
To prevent your image data from being lost, save all your recorded images on external media periodically
(p
.
46).
In the default setting, a protected demonstration movie is pre-recorded (models with internal memory).
To go back to the Event
View screen
Next
Change to the movie/
photo recording mode
Switch Image Type button
Movie
Last played image
Event name
Recorded time/number of photos
Previous
To the MENU screen
Event name
To the previous event
Change to the movie/
photo recording mode
To the Map View screen
(models with GPS)
Events
To the next event
Time-line bar
Change Event Scale button
To play back short movies
Remaining battery
33
GB
Recording/Playback
To play movies and photos from the Map View (Models with GPS)
Switch to the Map View by touching
[Map View].
20132012
1 1 2013 1 2 2013
MENU
Hig hl igh t
When you use the map data for the first time:
A message appears asking you to confirm whether you agree with the terms of the license agreement of
the map data. You can use the map data by touching [Yes] on the screen after agreeing to the terms of the
licen
s
e agreement (p. 66).
You cannot use the map data if you touch [No]. However, when you try to use the map data for the
second time, the same message will appear on the screen, and you can use the map data by touching
[Yes].
To play back images with other devices
You may not be able to play back with other devices images that were recorded on your camcorder
normally. Also, you may not be able to play back images recorded on other devices with your camcorder.
Standard definition image quality (STD) movies recorded on SD memory cards cannot be played on AV
equipment of other manufacturers.
34
GB
Advanced operations
Recording images
with various settings
For information on your camcorder model,
see the following page:
Functions and equipment p.12
Selecting the image quality of
movies (Recording mode)
You can switch the recording mode to select
the movie quality when recording high
definition image quality (HD) movies. The
r
e
cording time (p. 57) or the type of media
device to which the images can be copied
may change, depending on the recording
mode selected. ([Standard
] is the
default setting.)
1
Select [Image Quality/
Size] [
REC Mode].
2
Select the desired recording
mode.
Recording mode and the media
devices to which the images can be
copied
Types of media
Recording mode
PS
*
FX
FH/
HQ/LP
On this camcorder
Internal
memory
**
Memory card
On external devices
External media
device
Blu-ray discs
AVCHD
recording discs
— —
* PS can be set only when the the [ Frame
Rate] is set to [60p] (models with the NTSC
color system) / [50p] (models with the PAL
color system).
** Models with internal memory
Capturing smiles automatically
(Smile Shutter)
A photo is recorded automatically when
the camcorder detects the smile of a person
during movie recording (p. 50). ([Dual
Capture] is the default setting.)
Notes
When set to the following, you cannot use the
Smile Shutter function.
[
REC Mode]: [Highest Quality ]
[
Frame Rate]: [60p] (models with the
NTSC color system) or [50p] (models with
the PAL color system)
Smiles may not be detected depending on
recording conditions, subject conditions, and
the setting of your camcorder.
[Smile Sensitivity] (p. 50)
The camcorder is
detecting a smile
(orange).
The camcorder is
detecting a face.
35
GB
Advanced operations
Selecting the suitable setting
automatically for the recording
situation (Intelligent Auto)
Your camcorder records movies after
selecting the most suitable setting for the
subjects or the situation automatically.
([On] is the default setting.)
1
Select [On] at
the right bottom of the recording
screen of movies or photos.
REC
AUTO
OFF
REC
2
Point the camcorder toward the
subject and start recording.
The icons that correspond to the
conditions detected are displayed.
REC
W
T
REC
AUTO
Face detection: (Portrait), (Baby)
Scene detection: (Backlight),
(Landscape), (Night Scene),
(Spotlight),
(Low light), (Macro)
Camera-shake detection:
(Walk),
(Tripod)
Sound detection:
, (Auto Wind
NR)
To cancel the Intelligent Auto function, select
[Off].
To record images brighter than those
recorded using the Intelligent Auto
function
Select [Camera/Mic]
[
Manual Settings] [Low Lux].
Notes
The camcorder may not detect the expected
scene or subject, depending on the recording
conditions.
Selecting the recording format
of movies
Your camcorder can record movies with
three different recording formats.
1
Select [Image
Quality/Size]
[ / /
Setting].
2
Select the desired image setting.
HD Quality:
This format is a high definition digital
video camera format. Enjoy beautiful
images on a big screen.
MP4:
This format is easy for playing back your
movies on a smartphone, for uploading to a
network or for uploading to the Web.
STD Quality:
This format is a standard definition digital
video camera format. This is useful for
saving your movies to a DVD.
36
GB
Recording
information on your
location
(Models with
GPS)
For information on your camcorder model,
see the following page:
Functions and equipment p.12
When you set [GPS Setting] to [On] (the
default setting), the
GPS triangulating
icon will appear on the screen and the
camcorder will start searching for
GPS
satellite signals. The icon displayed will
vary according to the intensity of the signal
received. The GPS function is available
when
, or are displayed.
The following features are available if you
use the
GPS (Global Positioning System)
function.
Recording location information on
m
ovies or photos ([On] is the default
setting.)
P
laying movies and photos by searching
f
or them from a map (Map View, p. 33)
Di
splaying a map of your current
lo
cation
If you do not want to record location
information
Select
[Setup]
[
General Settings] [GPS
Setting] [Off].
Notes
It may take a while before the camcorder starts
triangulating.
Use the GPS function outdoors and in open
areas, as the radio signals can best be received
in such areas.
The map always displays the north at the top.

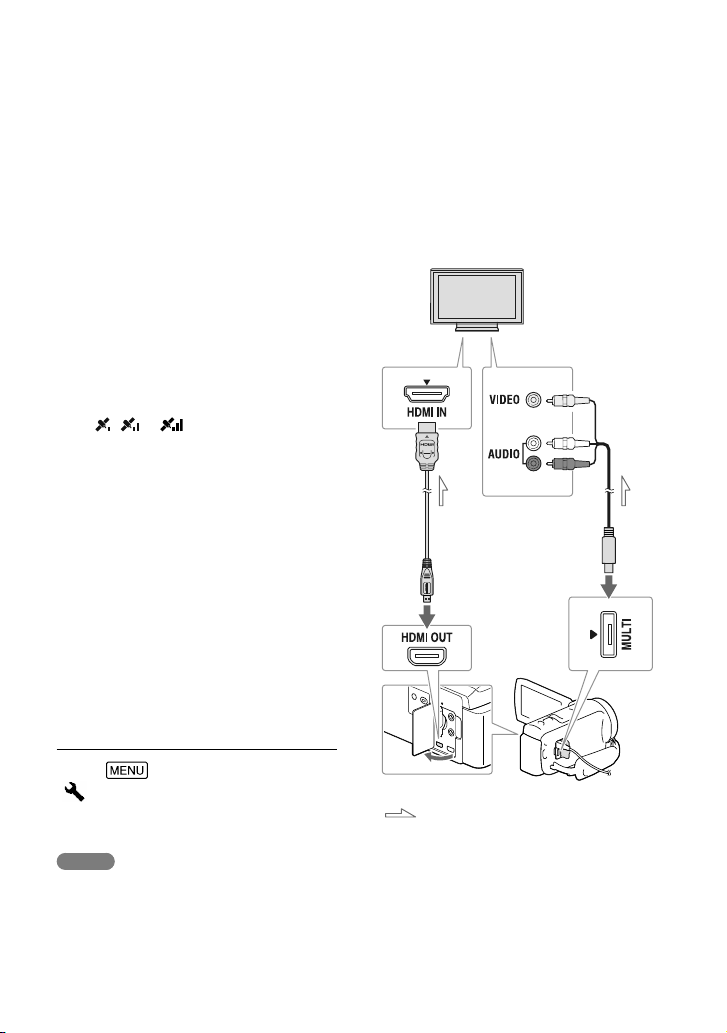

Playing images on a
TV
If you connect the camcorder to the HDMI
input jack of a TV, the image quality viewed
on the TV screen is high definition image
quality (HD). And if you can connect the
camcorder to the A/V input jack of a TV,
the image quality viewed on the TV is
standard definition image quality (STD).
1
Switch the input on the TV to the
connected jack.
2
Connect the camcorder to a TV.
3
Play a movie or a photo on the
camcorder (p. 31).
High
definition
Standard
definition
Yellow
White
Red
AV Cable (sold
separately)
HDMI Cable
(supplied)
Signal flow
37
GB
Advanced operations
When connecting to your TV via a
VCR
Connect your camcorder to the LINE IN
input on the VCR using an AV Cable (sold
separately). Set the input selector on the
VCR to LINE (VIDEO 1, VIDEO 2, etc.).
Setting the aspect ratio supported by the TV:
[TV Type] (p. 52)
On “Photo TV HD”
This camcorder is compatible with the
“Photo TV HD” standard. “Photo TV
HD” allows for highly-detailed, photo-like
depiction of subtle textures and colors.
By connecting Sony’s Photo TV HD-
compatible devices using an HDMI cable
*,
a whole new world of photos can be
enjoyed in breathtaking HD quality.
* The TV will automatically switch to the
appropriate mode when displaying photos.
Notes
Refer to the instruction manuals of the TV as
well.
Use the supplied AC Adaptor as the power
source (p. 20).
If the TV does not have the HDMI input
jack, use an AV Cable (sold separately) for
connection.
When movies are recorded with standard
definition image quality (STD), they are played
back in standard definition image quality (STD)
even on a high definition TV.
When you play back standard definition image
quality (STD) movies on a 4:3 TV that is not
compatible with the 16:9 signal, set [
Wide
Mode] to [4:3] to record movies with 4:3 aspect
ratio.
If you connect your camcorder to the TV using
more than one type of cable to output images,
HDMI output takes priority.
Enjoying 5.1ch surround sound
In the default setting, you can record Dolby
Digital 5.1ch surround sound with the
built-in microphone. Realistic sound can be
enjoyed when playing a movie on devices
that support 5.1ch surround sound input.
When your TV is monaural (When
your TV has only one audio input
jack)
Connect the yellow plug of an AV Cable
(sold separately) to the video input jack
and connect the white (left channel) or red
(right channel) plug to the audio input jack
of your TV or VCR.
38
GB

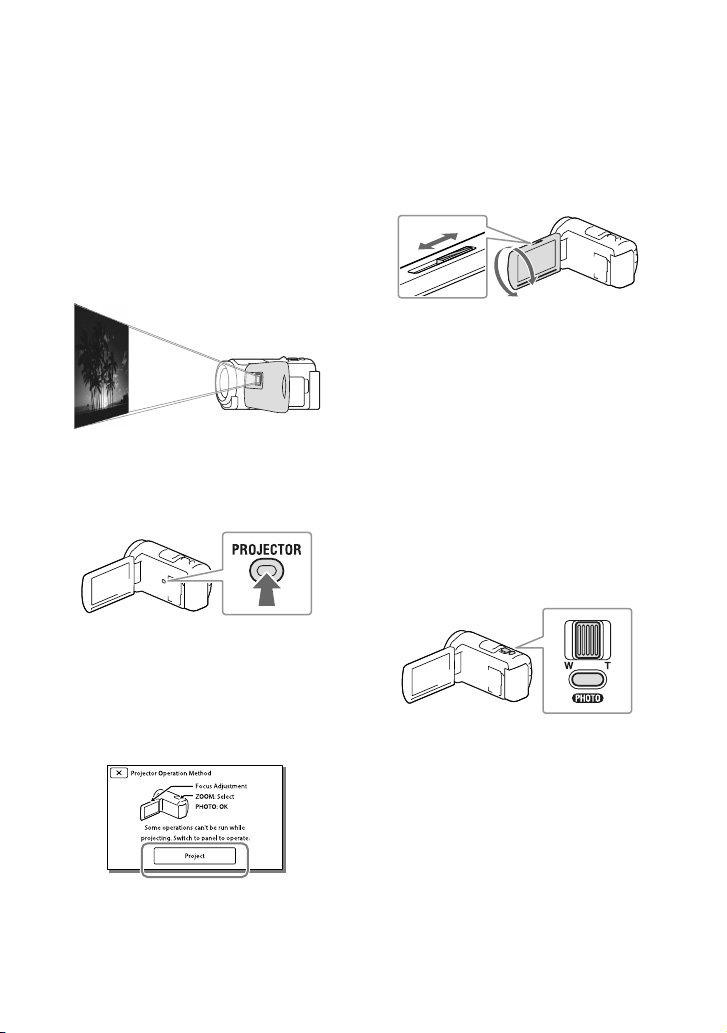

Using the built-in
projector
(Models with a
projector)
For information on your camcorder model,
see the following page:
Functions and equipment p.12
You can use a flat surface such as a wall as
a screen to view recorded images using the
built-in projector.
1
Face the projector lens towards a
surface, such as a wall, and then
press PROJECTOR.
2
Select [Image Shot on This
Device] on the LCD screen.
3
When the operating guide
screen appears, select [Project].
This screen appears the first time you use
the built-in projector after the camcorder
is turned on.
4
Adjust the focus of the projected
image using the PROJECTOR
FOCUS lever.
The projected image is larger when the
distance between your camcorder and the
reflecting surface increase.
It is recommended that you place the
camcorder about 0.5 m (1.6 feet) or further
away from the surface that the images are
to be projected onto.
5
When playing back images, use
the power zoom lever to move
the selection frame that appears
on the LCD screen, then press
PHOTO button.
For details on playback, see page 31.
To turn off the projector, press
PROJECTOR.
Power zoom lever
PHOTO button
PROJECTOR FOCUS lever
39
GB
Advanced operations
To use the projector for your
computer or smartphone
Connect the PROJECTOR IN jack of the
camcorder to an HDMI output jack of the other
device using the HDMI cable (supplied), then
select [Image from External Device] in step 2.
If the terminal of the device connected is not
compatible with the HDMI cable (supplied), use
an HDMI plug adaptor (sold separately).
You can only operate the PROJECTOR FOCUS
lever while projecting images.
Notes
The LCD screen turns off while an image is
being projected.
Be careful of the following operations or
situations while using the projector.
Make sure not to project images towards the
eyes.
Make sure not to touch the projector lens.
The LCD screen and the projector lens
become hot while in use.
Using the projector shortens battery
life (using the supplied AC Adaptor is
recommended).
The following operations are unavailable while
you are using the projector.
Map operation (models with GPS)
Output of Highlight Playback to a device such
as a TV
Operation of the camcorder with the LCD
screen closed
Several other functions
When the projected images contain a lot of
black, faint color unevenness may appear. This
is caused by light reflection in the projector lens
and is not a malfunction.
HDMI Cable
(supplied)
Signal flow
40
GB
Editing
Editing on your
camcorder
For information on your camcorder model,
see the following page:
Functions and equipment p.12
Notes
Some basic editing operations can be done on
the camcorder. If you want to perform advanced
editing operations, install the “PlayMemories
Home” software.
You cannot restore images once they are
deleted. Save important movies and photos in
advance.
Do not remove the battery pack or the AC
Adaptor from your camcorder while deleting
or dividing the images. It may damage the
recording media.
Do not eject the memory card while deleting or
dividing images from the memory card.
If you delete or divide movies/photos that are
included in saved scenarios, the scenarios will
also be deleted.
Deleting movies and photos
1
Select [Edit/Copy]
[Delete].
2
Select [Multiple Images], and
then select the type of image
you want to delete.
3
Add check marks to the movies
or photos to be deleted and
select
.
1 18 2013 1 19 2013
1 1 2013 1 2 2013
Delete
OK
To delete all movies/photos in the
selected date all together
1 In step 2, select [All In Event].
2 Select the date you want to delete using
/ , and then select .
OK
Delete
1 18 2013 1 19 2013
1 1 2013 1 2 2013
To delete a part of a movie
You can divide a movie and delete it.
Release protection: [Protect] (p. 51)
[Format] (p. 51)
Dividing a movie
1
Select [Divide] on the
movie playback screen.
41
GB
Editing
2
Select the point where you want
to divide the movie into scenes
using
/ , and then select
.
Notes
The point where you touch
and the actual
dividing point may differ as your camcorder
selects the dividing point in increments of about
half a second.
An MP4 movie cannot be divided.
Capturing a photo from a movie
(Models with internal memory
or models with a USB input
function)
You can capture images from movies
recorded with your camcorder.
1
Select [Photo Capture] that
appears on the playback screen
of a movie.
2
Select the point where you want
to capture a photo using
/ , and then select .
If the movie was recorded with one of
the following image quality levels, the
image size will be set as shown below.
High definition image quality (HD) or
MP4: 2.1 M (16:9)
Wide aspect ratio (16:9) with standard
definition image quality (STD): 0.2 M
(16:9)
4:3 aspect ratio with standard definition
image quality (STD): 0.3 M (4:3)
Notes
You cannot save captured images to the
memory card (models without a USB input
function).
On recording date and time of
captured photos
The recording date and time of captured photos
are the same as the recording date and time of
the movies.
If the movie you are capturing from has no data
code, the recording date and time of the photo
will be the date and time you captured from
the movie.
A B
A: Returns to the beginning of the selected
movie
B: Adjusts the capturing point with more
precision
A B
A: Returns to the beginning of the selected
movie
B: Adjusts the capturing point with more
precision
42
GB
Saving movies and photos with a computer
Playing images on a computer
The “PlayMemories Home” software allows you to import movies and still images to your
computer to use them in a variety of ways.
What you can do with “PlayMemories Home” software (Windows)
“PlayMemories Home” can be downloaded from the following URL.
www.sony.net/pm
Notes
An Internet connection is required to install “PlayMemories Home.”
An Internet connection is required to use “PlayMemories Online” and other online services. The services
may not be available in some countries/regions.
Software for Mac
The “PlayMemories Home” software is not supported with Mac computers. To import images
from the camcorder to your Mac and play them, use the appropriate software on your Mac.
For details, visit the following URL.
http://www.sony.co.jp/imsoft/Mac/
Import images from
the camcorder
View images in
a calendar
Upload images to online
services
Create a movie disc Share images in
“PlayMemories Online”
43
GB
Saving movies and photos with a computer
Preparing a computer
(Windows)
For information on your camcorder model,
see the following page:
Functions and equipment p.12
Checking the computer system
OS*
1
Microsoft Windows XP SP3*
2
/Windows Vista
SP2
*
3
/Windows 7 SP1/Windows 8
CPU
*
4
Intel Core Duo 1.66 GHz or faster, or Intel
Core 2 Duo 1.66 GHz or faster (Intel Core
2 Duo 2.26 GHz or faster is required when
processing FX or FH movies, and Intel Core
2 Duo 2.40 GHz or faster is required when
processing PS movies.)
Memory
Win
dows XP: 512 MB or more (1 GB or
more is recommended)
Windows Vista/ Windows 7/Windows 8:
1
GB or more
Hard disk
Disk volume required for installation:
Ap
proximately 500 MB
Display
Minimum 1,024 × 768 dots
*
1
Standard installation is required. Operation is
not assured if the OS has been upgraded or in a
multi-boot environment.
*
2
64-bit editions and Starter (Edition) are not
supported. Windows Image Mastering API
(IMAPI) Ver.2.0 or newer is required to use disc
creation function, etc.
*
3
Starter (Edition) is not supported.
*
4
Faster processor is recommended.
Notes
Operation with all computer environments is
not assured.
Installing the “PlayMemories
Home” software in your
computer
1
Access the following download
site using an Internet browser on
your computer, then click [Install]
[Run].
www.sony.net/pm
2
Install according to the on-screen
instructions.
When the on-screen instructions
prompting you to connect the camcorder
to a computer appear, connect the
camcorder to your computer with the
Built-in USB Cable.
When the installation completes,
“PlayMemories Home” starts up.
Notes on installation
If the “PlayMemories Home” software is
already installed on your computer, connect the
camcorder to your computer. Functions that
can be used with this camcorder will then be
available.
If the “PMB (Picture Motion Browser)”
software is installed on your computer, it will
be overwritten by the “PlayMemories Home”
software. In this case, you cannot use some
Built-in USB Cable
44
GB
functions that were available with “PMB” with
this “PlayMemories Home” software.
To disconnect your camcorder from
the computer
1 Click the icon at the bottom right of
the desktop of the computer [Safely
remove USB Mass Storage Device].
2 Select [Yes] on the camcorder
screen.
3 Disconnect the USB cable.
If you are using Windows 7 or Windows 8, click
, then click .
Notes
When you access the camcorder from the
computer, use the “PlayMemories Home”
software. Operation is not guaranteed if you
operate the data using software other than
the “PlayMemories Home” software or you
directly manipulate files and the folders from
a computer.
Images cannot be saved to some discs
depending on the configuration selected in
[
REC Mode]. Movies recorded in [60p
Quality
] (models with the NTSC color
system)/[50p Quality
] (models with the
PAL color system) or [Highest Quality
]
mode can only be saved to a Blu-ray disc.
You cannot create a disc with movies recorded
in [
MP4] mode.
The camcorder automatically divides an image
file that exceeds 2 GB and saves the parts as
separate files. All image files may be shown as
separate files on a computer, however, the files
will be handled properly by the import function
and the playback function of the camcorder or
the “PlayMemories Home” software.
Starting the
“PlayMemories
Home” software
1
Double-click the “PlayMemories
Home” icon on the computer
screen.
When using Windows 8, select the
“PlayMemories Home” icon from the start
screen.
2
Double-click the “PlayMemories
Home Help Guide” short-cut
icon on the computer screen to
see how to use “PlayMemories
Home.”
When using Windows 8, select
[PlayMemories Home Help Guide] from
the help menu of “PlayMemories Home.”
If the icon is not displayed on the
computer screen, click [Start] [All
Programs] [PlayMemories Home]
the desired item.
For details on “PlayMemories Home,”
select
(“PlayMemories Home Help
Guide”) on the software or visit the
PlayMemories Home support page (http://
www.sony.co.jp/pmh-se/).
45
GB
Saving images on an external media device
Saving images on an external media device
Creating a standard
definition image
quality (STD) disc with
a recorder
Connect your camcorder to a disc recorder
with an AV Cable (sold separately). You
can copy images played back on your
camcorder on a disc or video cassette.
Notes
Connect your camcorder to the wall outlet (wall
socket) using the supplied AC Adaptor for this
operation (p. 20).
Refer to the instruction manual supplied with
the device connected.
1
Insert the recording medium
in the recording device (a disc
recorder, etc.).
If your recording device has an input
selector, set it to the input mode.
2
Connect your camcorder to the
recording device with an AV
Cable (sold separately).
Connect your camcorder to the input jacks
of the recording device.
3
Start playback on your
camcorder, and record it on the
recording device.
4
When dubbing is finished, stop
the recording device, and then
your camcorder.
Notes
You cannot copy images to recorders connected
with an HDMI cable.
Since copying is performed via analog data
transfer, the image quality may deteriorate.
High definition image quality (HD) movies
will be copied with standard definition image
quality (STD).
When you connect a monaural device, connect
the yellow plug of an AV Cable (sold separately)
to the video input jack, and the white (left
channel) or the red (right channel) plug to the
audio input jack on the device.
Copying date and time information: [Data
Code] (p. 51)
Using 4:3 screen size display device: [TV Type]
(p. 52)
AV Cable
(sold separately)
Red White Yellow
Input
Signal flow
46
GB
Saving images on
an external media
device with high
definition (HD) image
quality
You can save movies and photos on an
external media device (USB storage
devices), such as an external hard disk
drive. The following functions will be
available after you have saved your images
on an external media device.
You can connect your camcorder and the
external media device, and then play back
images stored on the external media device
(p
.
47).
You can connect your computer and the
external media device and import images to
your computer using the “PlayMemories Home”
s
o
ftware (p. 44).
Notes
For this operation, you need the USB Adaptor
Cable VMC-UAM2 (sold separately).
Connect the AC Adaptor and the power
cord (mains lead) to the DC IN jack of your
camcorder and the wall outlet (wall socket).
Refer to the instruction manual supplied with
the external media device.
1
Connect your camcorder and
the external media device using
the USB Adaptor Cable (sold
separately).
Make sure not to disconnect the USB
cable while [Preparing image database
file. Please wait.] is displayed on the LCD
screen.
If [Repair Img. DB F.] is displayed on the
camcorder screen, select
.
2
Select [Copy.] on the camcorder
screen.
Movies and photos that are stored on the
recording media, and that have not yet
been saved on to external media device
can be saved on the connected media
device at this time.
This operation is available only when
there are newly recorded images in your
camcorder.
To disconnect the external media device,
select
while the camcorder is in the
playback standby mode (either Event View
or Event Index is displayed).
USB Adaptor Cable
VMC-UAM2
(sold separately)
47
GB
Saving images on an external media device
To play back images in the external
media device on the camcorder
Select [Play without copying.] in step 2 and
select the image you want to view.
You can also view images on a TV connected to
your camcorder (p. 36).
When an external media device is connected,
will appear on the Event View screen.
MENU
Hig hl igh t
2013
1 1 2013 1 2 2013
To delete images in the external
media device
1 Select [Play without copying.] in step 2.
2 Select
[Edit/Copy] [Delete],
and then follow the instructions that
appear on the LCD screen to delete
images.
To save the desired images in the
camcorder to the external media
device
1 Select [Play without copying.] in step 2.
2 Select
[Edit/Copy] [Copy],
and then follow the instructions that
appear on the LCD screen to save images.
If you want to copy images that have not yet
been copied, select
[Edit/Copy]
[Direct Copy] while your camcorder is
connected to the external media device.
To play back high definition image
quality (HD) movies on your
computer
On the “PlayMemories Home” software
(p. 44), select the drive that represents the
external media device connected, and then
play movies.
Notes
The following devices cannot be used as an
external media device:
media devices with a capacity exceeding 2 TB
ordinary disc drive such as CD or DVD drive
media devices connected via a USB hub
media devices with built-in USB hub
card reader
You may not be able to use external media
devices with a code function.
The FAT file system is available for your
camcorder. If the storage medium of the
external device was formatted for the NTFS
file system, etc., format the external media
device using the camcorder before use. The
format screen appears when an external
media device is connected to your camcorder.
Before formatting, make sure that you have no
important data saved on the external media
device as formatting will delete the data.
Operation is not guaranteed with all devices
satisfying the operating requirements.
For details on available external media devices,
go to the Sony support website in your
country/region.
The number of scenes you can save on the
external media device is as follows. However,
even if the external media device has free space,
you cannot save scenes exceeding the following
number.
High definition image quality (HD) movies:
Max. 3,999
Standard definition image quality (STD)
movies: Max. 9,999
MP4 movies and photos: Max. 40,000 (both
MP4 movies and photos)
48
GB
If your camcorder does not recognize the
external media device, try the following
operations.
Reconnect the USB Adaptor Cable to your
camcorder.
If the external media device has the AC power
cord (mains lead), connect it to the wall outlet
(wall socket).
The number of scenes may be smaller
depending on the type of images recorded.
You cannot copy images from an external
media device to the internal memory on the
camcorder.
49
GB
Customizing your camcorder
Customizing your camcorder
Using menus
The camcorder has various menu items
under each of 6 menu categories.
Shooting Mode
Camera/Mic
Image Quality/Size
Playback Function
Edit/Copy
Setup
1
Select .
2
Select a category.
MENU
Playback Function Edit/Copy Setup
Shooting Mode Camera/Mic Image Quality/Size
3
Select your desired menu item.
Edit/Copy
STBY
Protect
Delete
Copy
Direct Copy
Shooting Mode
Movie Photo
Smth Slw REC Golf Shot
Notes
Select
to finish setting the menu or to
return to the previous menu screen.
To find a menu item quickly
The [Camera/Mic] and [Setup] menus have
sub-categories. Select the sub-category icon
so that the LCD screen displays the list of
menus in the sub-category selected.
When you cannot select a menu item
Grayed out menu items or settings are not
available.
When you select the grayed out menu item,
your camcorder displays the reason why
you cannot select the menu item or the
instruction of under which condition you
can set the menu item.
Scrolls the
menu items
up or down
Sub-category icons
50
GB
Menu lists
Shooting Mode
Movie ..........................................Records movies.
Photo ...........................................Shoots photos.
Smth Slw REC ........................... Records smooth slow-motion movies.
Golf Shot .................................... Divides two seconds of fast movement into frames which are then
recorded as a movie and photos. Keep the subject in the white frame in the
center of the screen when recording.
Camera/Mic
Manual Settings
White Balance .................Adjusts the color balance to the recording environment.
Spot Meter/Fcs ............... Adjusts the brightness and focus for the selected subject simultaneously.
Spot Meter ....................... Adjusts the brightness of images to a subject you touch on the screen.
Spot Focus ....................... Adjusts the focus on a subject you touch on the screen.
Exposure ...........................Adjusts the brightness of movies and photos. If you select [Manual], adjust
the brightness (exposure) using
/ .
Focus..................................Adjusts the focus manually. If you select [Manual], select
to adjust
the focus for a nearby subject and
to adjust the focus for a distant
subject.
AE Shift.............................. Adjusts the exposure. Touch
if the subject is white or the backlight
is bright, or touch
if the subject is black or the light is dim.
White Balance Shift ......Adjusts the white balance.
Low Lux ............................. Records bright color images in the dim.
Camera Settings
Scene Selection .............Selects an appropriate recording setting according to the type of scene,
such as night view or beach.
Cinematone.............Adjusts the color of the movie to resemble the atmosphere of films when
recording.
Fader .......................... Fades scenes in or out.
Self-Timer ................. Sets the self-timer when your camcorder is in photo recording mode.
Tele Macro........................Focuses on the subject with its background blurred.
SteadyShot .............. Sets the SteadyShot function when recording movies.
SteadyShot .............. Sets the SteadyShot function when shooting photos.
Digital Zoom ...................Sets the maximum zoom level of the digital zoom.
Conversion Lens ............ Sets the type of an attached conversion lens (sold separately).
Auto Back Light .............. Adjusts the exposure for backlit subjects automatically.
Face
Face Detection ............... Automatically detects faces.
Smile Shutter .................. Automatically takes a shot whenever a smile is detected.
Smile Sensitivity ............Sets the smile detection sensitivity for the Smile Shutter function.
Microphone
Closer Voice ..................... Detects human faces and records the associated voice clearly.
Blt-in Zoom Mic .............Records movies with vivid sound appropriate to the zoom position.
Auto Wind NR ................. Recognizes the recording conditions and reduces the wind noise.
51
GB
Customizing your camcorder
Audio Mode ....................Sets the recording sound format (5.1ch surround/2ch stereo).
Audio Rec Level ............. Adjusts the audio recording level.
Shooting Assist
My Button ........................ Assigns functions to My Buttons.
Grid Line ........................... Displays grid lines as a guide to make sure the subject is horizontal or
vertical.
Display Setting ...............Sets the duration that icons or indicators are displayed on the LCD screen.
Audio Level Display ...... Displays the audio level meter on the LCD screen while recording.
Image Quality/Size
REC Mode ..........................Sets the mode to record movies.
Frame Rate ........................ Sets the frame rate to record movies.
/ / Setting ....Sets the image quality for recording movies.
Wide Mode ........................Sets the horizontal to vertical ratio when recording movies with standard
definition image quality (STD).
x.v.Color ..............................Records a wider range of colors. Set this item when you watch images with
a TV which is compliant with x.v.Color.
Image Size ......................... Sets the photo size.
Playback Function
Event View ................................. Starts playing images from the Event View display.
Map View*
1
................................ Starts playing the images from the Map View display.
Highlight Movie ...................... Starts playing Highlight Playback scenes or Highlight Scenarios saved with
standard definition image quality (STD).
Scenario ............................... Starts playing the scenarios that were saved by Highlight Playback.
Edit/Copy
Delete..........................................Deletes movies or photos.
Protect ........................................ Protects movies or photos to avoid deleting.
Copy*
2
......................................... Copies images.
Direct Copy ............................... Copies images stored in the camcorder to some type of external media
device.
Setup
Media Settings
Media Select*
2
................ Selects the type of recording media (p. 25).
Media Info ........................ Displays information on the recording media.
Format ...............................Deletes and formats all data on the recording media.
Repair Img. DB F. ............ R
ep
airs the image database file on the recording media (p. 55).
File Number ..................... Sets how to assign the file number to photos.
Playback Settings
Data Code ........................ Displays information that was recorded automatically at the time of
recording.
Volume ..............................A
d
justs the volume of playback sound (p. 31).
52
GB
Download Music*
3
........ Downloads your favorite music files from the computer to your camcorder
(while the camcorder is connected to the computer) that can be played
with the Highlight Playback scenes.
Empty Music*
3
................ Deletes all music files.
Connection
TV Type .............................Co
nverts the signal depending on the TV connected (p. 36).
HDMI Resolution ...........Selects the output image resolution when connecting your camcorder to a
TV with the HDMI cable.
CTRL FOR HDMI .............Sets whether or not the TV’s Remote Commander is to be used when
the camcorder is connected to a “BRAVIA” Sync compatible TV with the
HDMI cable.
USB Connect ................... Select this item when no instructions appear on the LCD screen when you
connect your camcorder to an external device via USB.
USB Connect Setting ...Sets the connection mode when the camcorder is connected to a computer
or a USB device.
USB LUN Setting ............ Sets the camcorder to improve the compatibility of a USB connection by
restricting some USB functions.
General Settings
Beep ................................... Sets whether the camcorder sounds operation beeps or not.
LCD Brightness .............. Adjusts the brightness of the LCD screen.
Your Location*
1
.............. Displays the current location on a map.
Airplane Mode*
1
............ Setting to be used when you are on board an airplane.
GPS Setting*
1
.................. Receives the GPS signal.
Power On By LCD ..........Sets the power so that it turns on automatically when you open the LCD
screen.
Language Setting .........S
ets the display language (p. 23).
Calibration ....................... Calibrates the touch panel.
Battery Info ...................... Displays the approximate remaining battery time.
Power Save ...................... Sets the LCD screen and the power so that they turn off automatically.
Initialize ............................ Initializes all the settings to the default settings.
Demo Mode .................... Sets playback of the demonstration movie about the functions of the
camcorder.
Clock Settings
Date & Time Setting .....Sets the date and time.
Area Setting ....................A
d
justs for a time difference without stopping the clock (p. 23).
Auto Clock ADJ *
1
..........Adjusts the clock automatically by acquiring the time from the GPS
system.
Auto Area ADJ*
1
............. Corrects time differences automatically by acquiring the current location
information from the GPS system.
*
1
HDR-CX410VE/CX430V/CX430VE/PJ420VE/PJ430V/PJ430VE
*
2
HDR-CX430V/CX430VE/CX510E/PJ420E/PJ420VE/PJ430/PJ430E/PJ430V/PJ430VE/PJ510E
*
3
HDR-CX430V/PJ430/PJ430V
53
GB
Others/Index
Others/Index
Troubleshooting
For information on your camcorder model,
see the following page:
Functions and equipment p.12
If you run into any problems using your
camcorder, follow the steps below.
Check the list (p. 53 to 55), and
inspect your camcorder.
Disconnect the power source, attach
the power source again after about
1
minute, and turn the camcorder
on.
Select [Setup]
[
General Settings] [Initialize].
If you select [Initialize], all settings,
including the clock setting, are reset.
Contact your Sony dealer or local
authorized Sony service facility.
You may need to initialize or change the
current internal memory (models with internal
memory) of your camcorder depending on the
problem. If you do so, the data stored on the
internal memory will be deleted. Be sure to
save the data on the internal memory on other
media (backup) before sending your camcorder
for repair. We will not compensate you for any
loss of internal memory data.
During repair, we may check a minimum
amount of data stored on the internal memory
in order to investigate the problem. However,
your Sony dealer will neither copy nor retain
your data.
S
e
e the “Handycam” User Guide (p. 11) for
details on the symptoms of your camcorder, and
“
P
layMemories Home Help Guide” (p. 44) on
connecting your camcorder to a computer.
The power does not turn on.
Attach a charged battery pack to the
camcorder (p. 20).
The plug of the AC Adaptor has been
disconnected from the wall outlet (wall
socket). Connect it to the wall outlet (wall
s
o
cket) (p. 20).
The camcorder does not operate even
when the power is set to on.
It takes a few seconds for your camcorder to
be ready to shoot after the power is turned on.
This is not a malfunction.
Disconnect the AC Adaptor from the wall
outlet (wall socket) or remove the battery
pack, then reconnect it after about 1 minute.
Your camcorder gets warm.
Your camcorder may become warm during
operation. This is not a malfunction.
The power abruptly turns off.
Use the AC Adaptor (p. 20).
In the default setting, the camcorder turns
itself off when no operations are performed for
a
b
out 2 minutes ([Power Save]) (p. 52), or turn
on the power again.
C
h
arge the battery pack (p. 20).
Pressing START/STOP or PHOTO does not
record images.
The playback screen is displayed. Stop
playback, and select
[Shooting
Mode]
[ Movie] or [ Photo].
Your camcorder is recording the image you
have just shot on the recording media. You
cannot make new recording during this
period.
The recording media is full. Delete
unn
e
cessary images (p. 40).
Total number of movie scenes or photos
exceeds the recordable capacity of your
c
amcorder (p. 57, 59). Delete unnecessary
ima
ges (p. 40).
54
GB
“PlayMemories Home” cannot be installed.
An Internet connection is required to install
“PlayMemories Home.”
Check the computer environment or
installation procedure required to install
“PlayMemories Home.”
“PlayMemories Home” does not work
correctly.
Quit “PlayMemories Home” and restart your
computer.
The camcorder is not recognized by the
computer.
Disconnect all USB devices from the USB jack
of your computer except the keyboard, mouse,
and your camcorder.
Disconnect the Built-in USB Cable from the
computer and restart the computer, then
connect the computer and your camcorder
again in the correct order.
When both the Built-in USB Cable and the
USB jack of the camcorder are connected
to the external devices at the same time,
disconnect the one that is not connected to a
computer.
Self-diagnosis
display/Warning
indicators
For information on your camcorder model,
see the following page:
Functions and equipment p.12
If indicators appear on the LCD screen,
check the following.
If the problem persists even after you
have tried to fix a couple of times, contact
your Sony dealer or local authorized Sony
service facility. In this case, when you
contact them, give them all the numbers of
the error code beginning with C or E.
You may hear a melody when some
warning indicators appear on the screen.
C:04:
The battery pack is not an “InfoLITHIUM”
battery pack (V series). Use an
“InfoLITHIUM” battery pack (V series)
(p
.
20).
Connect the DC plug of the AC Adaptor to the
D
C IN j
ack of your camcorder securely (p. 20).
C:06:
The battery pack temperature is high. Change
the battery pack or place it in a cool place.
C:13: / C:32:
Remove the power source. Reconnect it and
operate your camcorder again.
E::
Follow the steps from on page 53.
55
GB
Others/Index
The battery pack is nearly used up.
The battery pack temperature is high. Change
the battery pack or place it in a cool place.
No memory card is inserted (p. 25).
When the indicator flashes, there are not
enough free spaces for recording images.
D
e
lete unnecessary images (p. 40), or format
the memory card after storing the images on
o
t
her media (p. 51).
The image data base file may be damaged.
Check the data base file by selecting
[Setup] [
Media Settings] [Repair
Img. DB F.] the recording medium (models
with internal memory).
The memory card is damaged.
Format the memory card with your camcorder
(p.
51).
Incompatible memory card is inserted (p. 26).
The memory card is write-protected.
Access to the memory card was restricted on
another device.
The camcorder is unsteady, so camera-shake
easily occurs. Hold the camcorder steady with
both hands and record the image. However,
note that the camera-shake warning indicator
does not disappear.
The recording medium is full.
Photos cannot be recorded during processing.
Wait for a while, then record.
When set to the following, you cannot shoot
photos during movie recording.
[ REC Mode]: [Highest Quality ]
[
Frame Rate]: [60p] (models with the
NTSC color system) or [50p] (models with
the PAL color system)
56
GB
Recording time of
movies/number of
recordable photos
For information on your camcorder model,
see the following page:
Functions and equipment p.12
“HD” stands for high definition image
quality, and “STD” stands for standard
definition image quality.
Expected time of recording and
playback with each battery pack
Recording time
Approximate time available when you use a
fully charged battery pack.
HDR-CX400E/CX410VE/CX430V/CX430VE/
CX510E
Continuous recording
time
(unit: minute)
Battery pack
Image quality HD MP4 STD
NP-FV50
(supplied)
150 170 165
Typical recording time (unit: minute)
Battery pack
Image quality HD MP4 STD
NP-FV50
(supplied)
75 85 80
HDR-PJ420E/PJ420VE/PJ430/PJ430E/PJ430V/
PJ430VE/PJ510E
Continuous recording
time
(unit: minute)
Battery pack
Image quality HD MP4 STD
NP-FV50
(supplied)
140 155 150
Typical recording time (unit: minute)
Battery pack
Image quality HD MP4 STD
NP-FV50
(supplied)
70 75 75
Each recording time is measured when the
camcorder is recording high definition image
quality (HD) movies with [
REC Mode] set
to [Standard
].
Typical recording time shows the time when
you repeat recording start/stop, switching
[Shooting Mode], and zooming.
Times measured when using the camcorder at
25
C (77 °F). 10
C to 30
C (50 °F to 86 °F) is
recommended.
The recording and playback time will be
shorter, depending on the conditions under
which you use your camcorder, such as when
use your camcorder in low temperatures.
Playing time
Approximate time available when you use a
fully charged battery pack.
HDR-CX400E/CX410VE/CX430V/CX430VE/
CX510E
(unit: minute)
Battery pack
Image quality HD MP4 STD
NP-FV50
(supplied)
240 240 255
HDR-PJ420E/PJ420VE/PJ430/PJ430E/PJ430V/
PJ430VE/PJ510E
(unit: minute)
Battery pack
Image quality HD MP4 STD
NP-FV50
(supplied)
225 225 240
57
GB
Others/Index
Expected recording time of
movies
Internal memory (HDR-CX430V/
CX430VE/CX510E/PJ420E/PJ420VE/
PJ430/PJ430E/PJ430V/PJ430VE/
PJ510E)
HDR-PJ420E/PJ420VE
High definition image quality (HD) in h (hour) and min
(minute)
Recording mode
Recording time
HDR-PJ420E HDR-PJ420VE
[50p Quality
]/[60p
Quality
]
1 h 15 min
(1 h 15 min)
1 h
(1 h)
[Highest
Quality
]
1 h 30 min
(1 h 30 min)
1 h 10 min
(1 h 10 min)
[High
Quality
]
2 h
(2 h)
1 h 35 min
(1 h 35 min)
[Standard
]
3 h 35 min
(2 h 40 min)
2 h 50 min
(2 h 10 min)
[Long Time
]
6 h 10 min
(5 h 5 min)
5 h
(4 h 5 min)
MP4 in h (hour) and min (minute)
Recording time
HDR-PJ420E HDR-PJ420VE
5 h 25 min
(5 h 25 min)
4 h 20 min
(4 h 20 min)
Standard definition image quality (STD) in h (hour) and
min (minute)
Recording mode
Recording time
HDR-PJ420E HDR-PJ420VE
[Standard
]
3 h 45 min
(3 h 25 min)
3 h
(2 h 45 min)
HDR-CX430V/CX430VE/PJ430/PJ430E/PJ430V/
PJ430VE
High definition image quality (HD) in h (hour) and min
(minute)
Recording mode
Recording time
HDR-PJ430/PJ430E
HDR-CX430V/
CX430VE/PJ430V/
PJ430VE
[50p Quality
]/[60p
Quality
]
2 h 30 min
(2 h 30 min)
2 h 15 min
(2 h 15 min)
[Highest
Quality
]
3 h
(3 h)
2 h 40 min
(2 h 40 min)
[High
Quality
]
4 h 5 min
(4 h 5 min)
3 h 40 min
(3 h 40 min)
[Standard
]
7 h 15 min
(5 h 30 min)
6 h 30 min
(4 h 55 min)
[Long Time
]
12 h 30 min
(10 h 15 min)
11 h 15 min
(9 h 15 min)
MP4 in h (hour) and min (minute)
Recording time
HDR-PJ430/PJ430E
HDR-CX430V/CX430VE/
PJ430V/PJ430VE
10 h 55 min
(10 h 55 min)
9 h 55 min
(9 h 55 min)
Standard definition image quality (STD) in h (hour) and
min (minute)
Recording mode
Recording time
HDR-PJ430/PJ430E
HDR-CX430V/
CX430VE/PJ430V/
PJ430VE
[Standard
]
7 h 30 min
(6 h 55 min)
6 h 45 min
(6 h 15 min)
HDR-CX510E/PJ510E
High definition image quality (HD) in h (hour) and min
(minute)
Recording mode Recording time
[50p Quality
]/[60p
Quality
]
5 h 10 min
(5 h 10 min)
58
GB
Recording mode Recording time
[Highest
Quality
]
6 h 5 min
(6 h 5 min)
[High Quality
]
8 h 15 min
(8 h 15 min)
[Standard
]
14 h 30 min
(11 h)
[Long Time
]
25 h 5 min
(20 h 40 min)
MP4 in h (hour) and min (minute)
Recording time
22 h (22 h)
Standard definition image quality (STD) in h (hour) and
min (minute)
Recording mode Recording time
[Standard
]
15 h 5 min
(13 h 50 min)
If you want to record up to the maximum
recording time indicated in the table, you need
to delete the demonstration movie on your
camcorder. (models with internal memory)
Memory card
High definition image quality (HD)
(unit: minute)
Recording mode 16 GB 32 GB 64 GB
[50p Quality
]/[60p
Quality
]
75
(75)
150
(150)
305
(305)
[Highest
Quality
]
85
(85)
180
(180)
360
(360)
[High Quality
]
120
(120)
245
(245)
490
(490)
[Standard
]
210
(160)
430
(325)
865
(655)
[Long Time
]
370
(300)
740
(610)
1490
(1225)
MP4
(unit: minute)
16 GB 32 GB 64 GB
320
(320)
650
(650)
1305
(1305)
Standard definition image quality (STD)
(unit: minute)
Recording mode 16 GB 32 GB 64 GB
[Standard
]
220
(200)
445
(410)
895
(825)
When using a Sony memory card.
Notes
The recordable time may vary depending on
the recording and subject conditions and [REC
Mode] and [
Frame Rate] (p. 51).
The number in ( ) is the minimum recordable
time.
You can record movies of a maximum of 3,999
scenes with high definition image quality (HD)
and 9,999 scenes with standard definition image
quality (STD). And you can record a maximum
of 40,000 MP4 movies and photos collectively.
The maximum continuous recording time of
movies is approximately 13 hours.
Your camcorder uses the VBR (Variable Bit
Rate) format to automatically adjust image
quality to suit the recording scene. This
technology causes fluctuations in the recording
time of the media. Movies containing quickly
moving and complex images are recorded at
a higher bit-rate, and this reduces the overall
recording time.
59
GB
Others/Index
Expected number of recordable
photos
Internal memory (HDR-CX430V/
CX430VE/CX510E/PJ420E/PJ420VE/
PJ430/PJ430E/PJ430V/PJ430VE/
PJ510E)
You can record a maximum of 40,000 MP4
movies and photos collectively.
Memory card
8.9M
16 GB 3800
32 GB 7700
64 GB 15000
When using a Sony memory card.
The number of recordable photos of memory
card shown is for the maximum image size
of your camcorder. The actual number of
recordable photos is displayed on the LCD
s
cr
een during recording (p. 70).
The number of recordable photos of memory
card may vary depending on the recording
conditions.
Notes
The unique pixel array of Sony’s ClearVid and
the image processing system of Sony’s BIONZ
allows still image resolution equivalent to the
sizes described.
On bit-rate and recording pixels
The bit-rate, pixels and aspect ratio of each
recording mode for movies (movie + audio,
etc.)
Models with the NTSC color system:
High definition image quality (HD):
PS: Max. 28 Mbps 1,920 1,080 pixels/60p,
AVC HD 28 M (PS), 16:9
FX: Max. 24 Mbps 1,920 1,080 pixels/60i
or 1,920 1,080 pixels/24p, AVC HD 24 M
(FX), 16:9
FH: Approx. 17 Mbps (average) 1,920 1,080
pixels/60i or 1,920 1,080 pixels/24p, AVC
HD 17 M (FH), 16:9
HQ: Approx. 9 Mbps (average) 1,440 1,080
pixels/60i, AVC HD 9 M (HQ), 16:9
LP: Approx. 5 Mbps (average) 1,440 1,080
pixels/60i, AVC HD 5 M (LP), 16:9
MP4: Approx. 6 Mbps (average) 1,280 720
pixels/30p, 16:9
Standard definition image quality (STD):
HQ: Approx. 9 Mbps (average) 720 480
pixels/60i, STD 9 M (HQ), 16:9/4:3
Models with the PAL color system:
High definition image quality (HD):
PS: Max. 28 Mbps 1,920 1,080 pixels/50p,
AVC HD 28 M (PS), 16:9
FX: Max. 24 Mbps 1,920 1,080 pixels/50i
or 1,920 1,080 pixels/25p, AVC HD 24 M
(FX), 16:9
FH: Approx. 17 Mbps (average) 1,920 1,080
pixels/50i or 1,920 1,080 pixels/25p, AVC
HD 17 M (FH), 16:9
HQ: Approx. 9 Mbps (average) 1,440 1,080
pixels/50i, AVC HD 9 M (HQ), 16:9
LP: Approx. 5 Mbps (average) 1,440 1,080
pixels/50i, AVC HD 5 M (LP), 16:9
MP4: Approx. 6 Mbps (average) 1,280 720
pixels/25p, 16:9
Standard definition image quality (STD):
HQ: Approx. 9 Mbps (average) 720 576
pixels/50i, STD 9 M (HQ), 16:9/4:3
The photo recording pixels and the aspect ratio.
Photo recording mode, Dual capture:
3,984 2,240 dots/16:9
2,992 2,240 dots/4:3
2,816 1,584 dots/16:9
2,112 1,584 dots/4:3
1,920 1,080 dots/16:9
640 480 dots/4:3
Capturing a photo from a movie:
1,920 1,080 dots/16:9
640 360 dots/16:9
640 480 dots/4:3
60
GB
About handling of
your camcorder
For information on your camcorder model,
see the following page:
Functions and equipment p.12
On use and care
The camcorder is not dustproofed, dripproofed
or waterproofed.

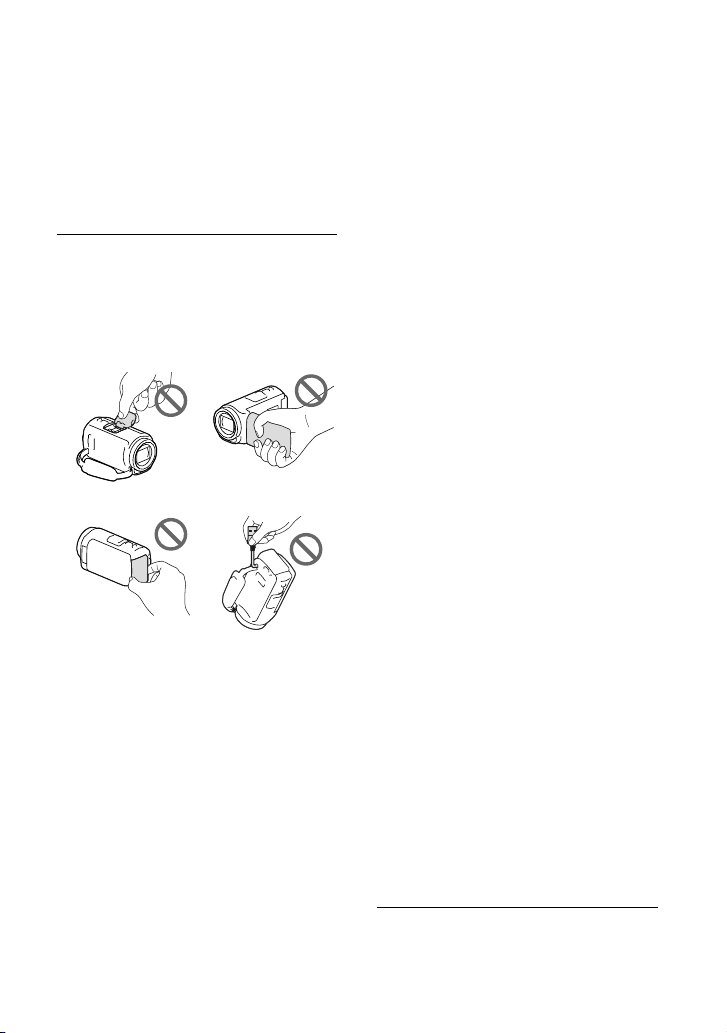

Do not hold the camcorder by the following
parts, and also do not hold the camcorder by
the jack covers.
Shoe cover LCD screen
Battery pack Built-in USB Cable
Do not aim the camcorder at the sun. Doing so
might cause your camcorder to malfunction.
Take images of the sun only in low light
conditions, such as at dusk.
Do not use or store the camcorder and
accessories in the following locations:
Anywhere extremely hot, cold or humid.
Never leave them exposed to temperatures
a
b
ove 60 C (140 °F), such as under direct
sunlight, near heaters or in a car parked in
the sun. They may malfunction or become
deformed.
Near strong magnetic fields or mechanical
vibration. The camcorder may malfunction.
Near strong radio waves or radiation. The
camcorder may not be able to record properly.
Near tuner devices such as TVs or radio.
Noise may occur.
On a sandy beach or anywhere dusty. If
sand or dust gets in your camcorder, it may
malfunction. Sometimes this malfunction
cannot be repaired.
Near windows or outdoors, where the LCD
screen or the lens may be exposed to direct
sunlight. This damages the LCD screen.
For DC or AC operation, use the accessories
recommended in these operating instructions.
Do not let your camcorder get wet, for example,
from rain or sea water. If your camcorder
gets wet, it may malfunction. Sometimes this
malfunction cannot be repaired.
If any solid object or liquid gets inside the
casing, unplug your camcorder and have it
checked by a Sony dealer before operating it
any further.
Avoid rough handling, disassembling,
modifying, physical shock, or impact such
as hammering, dropping or stepping on the
product. Be particularly careful with the lens.
Keep the LCD screen closed when you are not
using your camcorder.
Do not operate your camcorder with it wrapped
in an object such as a towel.
When disconnecting the power cord (mains
lead), pull it by the plug and not the cord.
Do not damage the power cord (mains lead)
such as by placing anything heavy on it.
Do not use a deformed or damaged battery
pack.
Keep metal contacts clean.
If the battery electrolytic liquid has leaked:
Consult your local authorized Sony service
facility.
Wash off any liquid that may have contacted
your skin.
If any liquid gets in your eyes, wash with
plenty of water and consult a doctor.
When not using your camcorder for a
long time
To keep your camcorder in optimum state for a
long time, turn it on and let it run by recording
and playing back images about once a month.
61
GB
Others/Index
Use up the battery pack completely before
storing it.
Note on the camcorder/battery pack
temperature
When the temperature of the camcorder
or battery pack becomes extremely high or
extremely low, you may not be able to record
or play back on the camcorder, due to the
protection features of the camcorder being
activated in such situations. In this case, an
indicator appears on the LCD screen.
Notes on charging through the USB
cable
Charging may not be possible with all
computers.
If you connect the camcorder to a laptop
computer that is not connected to a power
source, the battery of the laptop computer will
continue to use up its charge. Do not leave the
camcorder connected to a computer in this
manner.
Charging with a personally assembled
computer, with a converted computer, or
through a USB hub are not guaranteed.
The camcorder may not function correctly
depending on the USB device which is used
with the computer.
When the camcorder is connected to
a computer or accessories
Do not try to format the recording media of the
camcorder with a computer. If you do so, your
camcorder may not operate correctly.
When connecting the camcorder to another
device with communication cables, be sure to
insert the connector plug in the correct way.
Pushing the plug forcibly into the terminal
will damage the terminal and may result in a
malfunction of the camcorder.
When the camcorder is connected to other
devices through a USB connection and the
power of the camcorder is turned on, do not
close the LCD panel. The image data that has
been recorded may be lost.
Notes on optional accessories
We recommend using genuine Sony accessories.
Genuine Sony accessories may not be available
in some countries/regions.
Multi interface shoe
When using a dedicated microphone or
portable speaker, their power turns on or off
according to the power of your camcorder.
Refer to the operating instructions supplied
with the accessory used for details.
To attach an accessory, insert and fix the
accessory to the Multi interface shoe by pressing
down and sliding until it stops.
When you are recording movies with an
external flash (sold separately) connected to
the accessory shoe, turn off the power of the
external flash to prevent charging noise from
being recorded.
When an external microphone (sold separately)
is connected, it takes precedence over the built-
in microphone.
On handling the LCD screen
If you leave fingerprints, hand cream, etc. on
the LCD screen, the coating of the LCD screen
will come off easily. Wipe those off as soon as
possible.
If you wipe the LCD screen strongly with a
tissue, etc., the coating of the LCD screen may
be scratched.
If the LCD screen becomes dirty with
fingerprints or dust, it is recommended that you
gently remove those from the screen then clean
it with a soft cloth, etc.
62
GB
LCD screen
Do not apply excessive pressure on the LCD
screen, as it may cause uneven color and other
damage.
If your camcorder is used in a cold place, a
residual image may appear on the LCD screen.
This is not a malfunction.
While using your camcorder, the back of
the LCD screen may heat up. This is not a
malfunction.
To clean the casing and the projector
lens (Models with a projector)
Wipe the casing and the lens gently with a
soft cloth such as a cleaning cloth or eyeglass
cleaning cloth.
If the casing and the projector lens is very dirty,
clean the camcorder casing and the lens with
a soft cloth lightly moistened with water, and
then wipe the casing and the projector lens with
a dry soft cloth.
Avoid the following so as not to deform the
casing, damage the finish or scratch the lens:
Using chemicals such as thinner, benzine,
alcohol, chemical cloths, insect repellent,
insecticide and sunscreen
Handling the camcorder with the above
substances on your hands
Leaving the camcorder in contact with rubber
or vinyl objects for a long period of time
About care and storage of the lens
Wipe the surface of the lens clean with a soft
cloth in the following instances:
When there are fingerprints on the lens
surface
In hot or humid locations
When the lens is exposed to salty air such as
at the seaside
Store in a well-ventilated location subject to
little dirt or dust.
To prevent mold, periodically clean and store
the lens as described above.
On charging the pre-installed
rechargeable battery
Your camcorder has a pre-installed
rechargeable battery to retain the date,
time, and other settings even when the
LCD screen is closed. The pre-installed
rechargeable battery is always charged
while your camcorder is connected to the
wall outlet (wall socket) via the AC Adaptor
or while the battery pack is attached. The
rechargeable battery will be fully discharged
in about 3 months if you do not use your
camcorder at all. Charge the pre-installed
rechargeable battery before you start using
your camcorder.
However, even if the pre-installed
rechargeable battery is not charged, the
camcorder operation other than date
recording will not be affected.
How to charge the pre-installed
rechargeable battery
Connect your camcorder to a wall outlet
(wall socket) using the supplied AC
Adaptor, and leave it with the LCD screen
closed for more than 24 hours.
Note on disposal/transfer the
ownership of the camcorder (Models
with internal memory)
Even if you delete all movies and still
images, or perform [Format] (p. 51),
data on the internal memory may not be
completely erased. It is recommended that
you select
[Setup] [ Media
Settings] [Format] [Empty] to
prevent the recovery of your data.
63
GB
Others/Index
Specifications
System
Signal format:
NTSC color, EIA standards (HDR-CX430V/
PJ430/PJ430V)
PAL color, CCIR standards (HDR-CX400E/
CX410VE/CX430VE/CX510E/PJ420E/
PJ420VE/PJ430E/PJ430VE/PJ510E)
HD TV
Movie recording format:
AVCHD (AVCHD format Ver.2.0
compatible):
Video: MPEG-4 AVC/H.264
Audio: Dolby Digital 2ch/5.1ch Dolby Digital
5.1 Creator
*
1
MPEG-2 PS:
Video: MPEG-2 (Video)
Audio: Dolby Digital 2ch/5.1ch Dolby Digital
5.1 Creator
*
1
MP4:
Video: MPEG-4 AVC/H.264
Audio: MPEG-4 AAC-LC 2ch
*
1
Manufactured under license from Dolby
Laboratories.
Photo file format:
DCF Ver.2.0 Compatible
Exif Ver.2.3 Compatible
MPF Baseline Compatible
Recording media (Movie/Photo):
Internal memory
HDR-PJ420E/PJ420VE: 16 GB
HDR-CX430V/CX430VE/PJ430/PJ430E/
PJ430V/PJ430VE: 32 GB
HDR-CX510E/PJ510E: 64 GB
“Memory Stick PRO Duo” media
SD card (Class 4 or faster)
The capacity that a user can use (Approx.)
HD
R
-PJ420E: 15.5 GB
*
3
HDR-PJ420VE: 12.5 GB*
2
HDR-CX430V/CX430VE/PJ430V/PJ430VE:
28.1 GB
*
2
HDR-PJ430/PJ430E: 31.1 GB*
3
HDR-CX510E/PJ510E: 62.4 GB*
3
*
2
1 GB equals 1 billion bytes, 2.8 GB is
used for pre-installed map and another
portion is used for data management
functions. Only pre-installed
demonstration movie may be deleted.
*
3
1 GB equals 1 billion bytes, a portion of
which is used for system management
and/or application files. Only pre-
installed demonstration movie may be
deleted.
Image device:
4.6
mm (1/3.91 type) CMOS Sensor
Recording pixels (photo, 16:9):
Max. 8.9 m
ega (3 984 2
240) pixels*
4
Gross: Approx. 5 430 000 pixels
Effective (movie, 16:9)
*
5
:
Approx. 2 230 000 pixels
Effective (photo, 16:9):
Ap
prox. 2 230 000 pixels
Effective (photo, 4:3):
Ap
prox. 1 670 000 pixels
Lens:
G Lens
30× (Optical)
*
5
, 55× (Extended, while
recording movies)
*
6
, 350× (Digital)
Filter diameter: 46 mm (1 13/16 in.)
37
mm (1 1/2 in.) (When attaching the Step
Down Ring)
F1.8 ~ F4.0
Focal length:
f= 1.9
mm ~ 57.0 mm (3/32 in. ~ 2 1/4 in.)
When converted to a 35 mm still camera
For movies
*
5
: 26.8 mm ~ 804.0 mm
(1 1/16 in. ~ 31 3/4 in.) (16:9)
For photos: 26.8 mm ~ 804.0 mm (1 1/16 in.
~ 31 3/4 in.) (16:9)
Color temperature: [Auto], [One Push], [Indoor],
[Outdoor]
Minimum illumination:
6 lx (lux) (in default setting, shutter speed
1/30 second (HDR-CX430V/PJ430/PJ430V)
or 1/25 second (HDR-CX400E/CX410VE/
CX430VE/CX510E/PJ420E/PJ420VE/PJ430E/
PJ430VE/PJ510E))
3 lx (lux) ([Low Lux] is set to [On], shutter
speed 1/30 second (HDR-CX430V/PJ430/
PJ430V) or 1/25 second (HDR-CX400E/
CX410VE/CX430VE/CX510E/PJ420E/
PJ420VE/PJ430E/PJ430VE/PJ510E))
*
4
The unique pixel array of Sony’s ClearVid
and the image processing system
(BIONZ) allow still image resolution
equivalent to the sizes described.
*
5
[ SteadyShot] is set to [Standard] or
[Off].
*
6
[ SteadyShot] is set to [Active].
64
GB
Input/Output connectors
HDMI OUT jack: HDMI micro connector
PROJECTOR IN jack (HDR-PJ420E/PJ420VE/
PJ430/PJ430E/PJ430V/PJ430VE/PJ510E):
HDMI micro connector
MIC input jack: Stereo minijack ( 3.5
mm)
Headphone jack: Stereo minijack ( 3.5
mm)
USB jack: Type A (Built-in USB)
Multi/Micro USB Terminal
*
*
Supports Micro USB compatible devices.
USB connection is only for output (HDR-
CX400E/CX410VE/CX430VE/CX510E/PJ420E/
PJ420VE/PJ430E/PJ430VE/PJ510E).
LCD screen
Picture: 7.5 cm (3.0 type, aspect ratio 16:9)
Total number of pixels:
230
400 (960 240)
Projector (HDR-PJ420E/PJ420VE/PJ430/
PJ430E/PJ430V/PJ430VE/PJ510E)
Projection type: DLP
Light source: LED (R/G/B)
Focus: Manual
Thr
o
w Distance: 0.5 m (1.6 feet) or over
Contrast ratio: 1500:1
Resolution (output): nHD (640 360)
Continuous projection time (when using the
supplied battery pack):
Ap
prox. 1 h 40 min.
General
Power requirements: DC 6.8 V/7.2 V (battery
pack) DC 8.4 V (AC Adaptor)
USB Charging: DC 5 V 500 mA/1.5 A
Average power consumption:
During camera recording using LCD screen
at normal brightness:
HDR-CX400E/CX410VE/CX430V/
CX430VE/CX510E
HD: 2.5
W MP4: 2.2 W STD: 2.3 W
HDR-PJ420E/PJ420VE/PJ430/PJ430E/
PJ430V/PJ430VE/PJ510E
HD: 2.7
W MP4: 2.4 W STD: 2.5 W
Operating temperature: 0
C to 40
C (32 °F to
104 °F)
St
orage temperature: ‒20
C to +60
C (‒4 °F to
+140 °F)
Dimensions (approx.):
HDR-CX400E/CX410VE/CX430V/
CX430VE/CX510E:
58
mm 66
mm 121 mm (2 3/8 in.
2 5/8 in. 4
7/8 in.) (w/h/d) including the
projecting parts
58
mm 66
mm 127.5 mm (2 3/8 in.
2 5/8 in. 5
1/8 in.) (w/h/d) including the
projecting parts, the supplied rechargeable
battery pack attached
HDR-PJ420E/PJ420VE/PJ430/PJ430E/
PJ430V/PJ430VE/PJ510E:
61.5
mm 66
mm 121 mm (2 1/2 in.
2 5/8 in. 4
7/8 in.) (w/h/d) including the
projecting parts
61.5
mm 66
mm 127.5 mm (2 1/2 in.
2 5/8 in. 5
1/8 in.) (w/h/d) including the
projecting parts, the supplied rechargeable
battery pack attached
Mass (approx.)
HDR-CX400E/CX510E:
315
g (11.1 oz) main unit only
370 g (13.0 oz) including the supplied
rechargeable battery pack
HDR-CX410VE/CX430V/CX430VE:
320
g (11.3 oz) main unit only
375 g (13.2 oz) including the supplied
rechargeable battery pack
HDR-PJ420E/PJ430/PJ430E/PJ510E:
340
g (12.0 oz) main unit only
395 g (13.9 oz) including the supplied
rechargeable battery pack
HDR-PJ420VE/PJ430V/PJ430VE:
345
g (12.2 oz) main unit only
400 g (14.1 oz) including the supplied
rechargeable battery pack
AC Adaptor AC-L200C/AC-L200D
Power requirements: AC 100 V - 240 V,
50 Hz/60 Hz
Current consumption: 0.35 A - 0.18 A
Power consumption: 18 W
Output voltage: DC 8.4 V
*
Operating temperature: 0
C to 40
C (32 °F to
104 °F)
St
orage temperature: ‒20
C to +60
C (‒4 °F to
+140 °F)
Dimen
sions (approx.): 48 mm 29
mm
81 mm (1 15/16 in. 1
3/16 in. 3 1/4 in.)
(w/h/d) excluding the projecting parts
65
GB
Others/Index
Mass (approx.): 150 g (5.3 oz) excluding the
power cord (mains lead)
* See the label on the AC Adaptor for other
specifications.
Rechargeable battery pack NP-FV50
Maximum output voltage: DC 8.4 V
Output voltage: DC 6.8 V
Maximum charge voltage: DC 8.4 V
Maximum charge current: 2.1 A
Capacity
Typ
ical: 7.0 Wh (1 030 mAh)
Minimum: 6.6 Wh (980 mAh)
Type: Li-ion
Design and specifications of your camcorder and
accessories are subject to change without notice.
On trademarks
“Handycam” and are
registered trademarks of Sony Corporation.
“AVCHD,” “AVCHD Progressive,” “AVCHD”
logotype and “AVCHD Progressive” logotype
are trademarks of Panasonic Corporation and
Sony Corporation.
“Memory Stick,” “ ,” “Memory Stick Duo,”
“ ,” “Memory Stick PRO
Duo,” “
,” “Memory
Stick PRO-HG Duo,” “
,”
“Memory Stick XC-HG Duo,”
“ ,” “MagicGate,”
“
,” “MagicGate Memory
Stick” and “MagicGate Memory Stick Duo” are
trademarks or registered trademarks of Sony
Corporation.
“InfoLITHIUM” is a trademark of Sony
Corporation.
“x.v.Color” and “x.v.Colour” are trademarks of
Sony Corporation.
“BIONZ” is a trademark of Sony Corporation.
“BRAVIA” is a trademark of Sony Corporation.
Blu-ray Disc and Blu-ray are trademarks
of the Blu-ray Disc Association.
Dolby and the double-D symbol are trademarks
of Dolby Laboratories.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
Microsoft, Windows, Windows Vista, and
DirectX are either registered trademarks or
trademarks of Microsoft Corporation in the
United States and/or other countries.
Mac and Mac OS are registered trademarks of
Apple Inc. in the U.S. and other countries.
Intel, Intel Core, and Pentium are trademarks
or registered trademarks of Intel Corporation
or its subsidiaries in the United States and other
countries.
“
” and “PlayStation” are registered
trademarks of Sony Computer Entertainment
Inc.
NAVTEQ and the NAVTEQ Maps logo are
trademarks of NAVTEQ in the US and other
countries.
SDXC logo is a trademark of SD-3C, LLC.
MultiMediaCard is a trademark of
MultiMediaCard Association.
66
GB
Facebook and the “f” logo are trademarks or
registered trademarks of Facebook, Inc.
YouTube and the YouTube logo are trademarks
or registered trademarks of Google Inc.
All other product names mentioned herein may
be the trademarks or registered trademarks of
their respective companies. Furthermore, and
are not mentioned in each case in this manual.
Add further enjoyment with your PlayStation 3
by downloading the application for PlayStation 3
from PlayStation Store (where available.)
The application for PlayStation 3 requires
PlayStation Network account and application
download.
Accessible in areas where the PlayStation Store is
available.
END-USER LICENSE
AGREEMENT FOR
MAP DATA FOR
VIDEO CAMERA
RECORDER
PRODUCTS
(Models with
GPS)
YOU SHOULD CAREFULLY READ THE
FOLLOWING AGREEMENT BEFORE USING THIS
SOFTWARE.
IMPORTANT-READ CAREFULLY: This End-User
License Agreement (“LICENSE”) is a legal agreement
between you and Sony Corporation (“SONY”), the
licensor of the map data included in your video
camera recorder product (“PRODUCT”). Such
map data, including subsequent updates/upgrades,
is referred to herein as the SOFTWARE. This
LICENSE covers only the SOFTWARE. You may
use the SOFTWARE only in connection with your
use of the PRODUCT. By touching the “AGREE”
button appearing on the screen of the PRODUCT in
connection with this License, you agree to be bound
by the terms of this LICENSE. If you do not agree
to the terms of this LICENSE, SONY is unwilling to
license the SOFTWARE to you. In such event, the
SOFTWARE will not be available and you may not
use the SOFTWARE.
SOFTWARE LICENSE
The SOFTWARE is protected by copyright laws
and international copyright treaties, as well as
other intellectual property laws and treaties. The
SOFTWARE is licensed, not sold.
GRANT OF LICENSE
This LICENSE grants you the following rights on a
non-exclusive basis:
SOFTWARE. You may use the SOFTWARE on one
unit of the PRODUCT.
Use. You may use the SOFTWARE for its own use.
DESCRIPTION OF OTHER RIGHTS AND
LIMITATIONS
Restrictions. You may not transfer or distribute
any part of the SOFTWARE in any form for any
purpose except as expressly permitted in this
LICENSE. You may not use the SOFTWARE with
any products, systems or applications other than with
the PRODUCT. Except as otherwise provided in this
LICENSE, you may not use and may not permit any
third party to use the SOFTWARE separated from
the PRODUCT (in whole or in part, including, but
67
GB
Others/Index
not limited to, reproductions, outputs or extractions
or other works thereof in any form) for the purpose
of rental or lease whether with any license fee or not.
Some jurisdictions do not allow the restrictions of
such rights, in such case the above restrictions may
not apply to you.
Limitation on Reverse Engineering, Decompilation
and Disassembly. You may not (i) extract the
SOFTWARE from the PRODUCT, (ii) reproduce,
copy, modify, port, translate, or create derivative
works of the SOFTWARE in whole or in part, or
(iii) reverse engineer, decompile, disassemble the
SOFTWARE by any means whatsoever in whole or in
part for any purpose. Some jurisdictions do not allow
the limitation of such rights, in such case the above
limitation may not apply to you.
Trademarks and Notices: You may not remove, alter,
cover or deface any trademarks or copyright notices
on the SOFTWARE.
Data Files. The SOFTWARE may create data files
automatically for use with the SOFTWARE. Any
such data files will be deemed to be part of the
SOFTWARE.
SOFTWARE Transfer. You may permanently transfer
all of your rights under this LICENSE only as part
of a sale or transfer of the PRODUCT, provided you
retain no copies of the SOFTWARE, transfer all of the
SOFTWARE (including all copies (only if permitted
to copy under “Limitation on Reverse Engineering,
Decompilation and Disassembly” Paragraph above),
component parts, the media and printed materials,
all versions and any upgrades of the SOFTWARE and
this LICENSE), and the recipient agrees to the terms
and conditions of this LICENSE.
Termination. Without prejudice to any other rights,
SONY may terminate this LICENSE if you fail
to comply with the terms and conditions of this
LICENSE. In such event, you must stop using the
SOFTWARE and all of its component parts. The
provisions of this LICENSE “COPYRIGHT,” “HIGH
RISK ACTIVITIES,” “EXCLUSION OF WARRANTY
ON SOFTWARE,” “LIMITATION OF LIABILITY,”
“PROHIBITION ON EXPORT,” “SEVERABILITY,”
and “GOVERNING LAW AND JURISDICTION”
Sections, “Confidentiality” Paragraph of this Section
and this Paragraph shall survive any expiration or
termination of this LICENSE.
Confidentiality. You agree to keep information
contained in the SOFTWARE which is not publicly
known confidential to yourself, and not to disclose
such information to others without SONY’s prior
written approval.
COPYRIGHT
All title and copyright in and to the SOFTWARE
(including but not limited to any map data, images,
photographs, animation, video, audio, music, text and
“applets,” incorporated into the SOFTWARE), and
any copies of the SOFTWARE, are owned by SONY,
licensors and suppliers to SONY and their respective
affiliates (such licensors and suppliers to SONY,
together with their respective affiliates, are hereinafter
collectively referred to as “SONY’s Licensors”). All
rights not specifically granted under this LICENSE
are reserved by SONY or SONY’s Licensors.
HIGH RISK ACTIVITIES
The SOFTWARE is not fault-tolerant and is not
designed, manufactured or intended for use
in hazardous environments requiring fail-safe
performance, such as in the operation of nuclear
facilities, aircraft navigation or communication
systems, air traffic control, direct life support
machines, or weapons systems, in which the failure of
the SOFTWARE could lead to death, personal injury,
or severe physical or environmental damage (“High
Risk Activities”). SONY, its affiliates, their respective
suppliers and SONY’s Licensors specifically disclaim
any express or implied warranty of fitness for High
Risk Activities.
EXCLUSION OF WARRANTY ON SOFTWARE
You expressly acknowledge and agree that use of the
SOFTWARE is at your sole risk. The SOFTWARE
is provided “AS IS” and without warranty of any
kind and SONY, its affiliates, its and their respective
suppliers and SONY’s Licensors (in this section,
SONY, its affiliates, their respective suppliers and
SONY’s Licensors shall be collectively referred
to as “SONY”) EXPRESSLY DISCLAIMS ALL
WARRANTIES AND CONDITIONS, EXPRESS OR
IMPLIED, ARISING BY LAW OR OTHERWISE,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES AND CONDITIONS
OF QUALITY, NON-INFRINGEMENT,
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. SONY DOES NOT
WARRANT THAT THE FUNCTIONS CONTAINED
IN THE SOFTWARE WILL MEET YOUR
REQUIREMENTS, OR THAT THE OPERATION OF
THE SOFTWARE WILL BE UNINTERRUPTED OR
ERROR FREE. SONY DOES NOT WARRANT OR
MAKE ANY REPRESENTATIONS REGARDING
THE USE, INABILITY TO USE OR THE RESULTS
OF THE USE OF THE SOFTWARE IN TERMS OF
ITS CORRECTNESS, ACCURACY, RELIABILITY,
OR OTHERWISE. SOME JURISDICTIONS DO
NOT ALLOW THE EXCLUSION OF IMPLIED
WARRANTIES, IN SUCH CASE THE ABOVE
EXCLUSIONS MAY NOT APPLY TO YOU.
You expressly understand that the data in the
SOFTWARE may contain inaccurate or incomplete
information due to the passage of time, changing
circumstances, sources used and the nature of
collecting comprehensive geographic data, any of
which may lead to incorrect results.
68
GB
LIMITATION OF LIABILITY
IN THIS SECTION SONY, ITS AFFILIATES, ITS
AND THEIR RESPECTIVE SUPPLIERS AND
SONY’S LICENSORS SHALL BE COLLECTIVELY
REFERRED TO AS “SONY” TO THE MAXIMUM
EXTENT PERMITTED UNDER APPLICABLE
LAW. SONY SHALL NOT BE LIABLE FOR ANY
CLAIM, DEMAND OR ACTION, IRRESPECTIVE
OF THE NATURE OF THE CAUSE OF CLAIM,
DEMAND OR ACTION, ALLEGING ANY LOSS
OR DAMAGES, DIRECT OR INDIRECT, WHICH
MAY RESULT FROM THE USE OR POSSESSION
OF THE SOFTWARE; NOR FOR ANY LOSS
OF PROFIT, REVENUE, CONTRACTS OR
SAVINGS, NOR ANY OTHER DIRECT, INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF YOUR USE OF
OR INABILITY TO USE THE SOFTWARE,
ANY DEFECT IN THE SOFTWARE, OR THE
BREACH OF THE TERMS AND CONDITIONS,
WHETHER IN AN ACTION IN CONTRACT
OR TORT OR BASED ON A WARRANTY,
EVEN IF SONY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES EXCEPT IN
THE EVENT OF SONY’S GROSS NEGLIGENCE
OR WILLFUL MISCONDUCT, OF DEATH
OR PERSONAL INJURY, AND OF DAMAGES
DUE TO THE DEFECTIVE NATURE OF THE
PRODUCT. IN ANY CASE, SAVE FOR THE
FOREGOING EXCEPTIONS, SONY’S ENTIRE
LIABILITY UNDER ANY PROVISION OF THIS
LICENSE SHALL BE LIMITED TO THE AMOUNT
ACTUALLY PAID ALLOCATABLE TO THE
SOFTWARE. SOME JURISDICTIONS DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF
CONSEQUENTIAL OR INCIDENTAL DAMAGES,
SO THE ABOVE EXCLUSION OR LIMITATION
MAY NOT APPLY TO YOU.
PROHIBITION ON EXPORT
YOU ACKNOWLEDGE THAT THE USE OF THE
SOFTWARE IN SOME COUNTRIES, REGIONS,
AREAS OR FACILITIES, OR THE EXPORT OF
THE PRODUCTS FROM THE COUNTRY WHERE
SUCH PRODUCTS ARE DESIGNED TO BE SOLD,
MAY BE RESTRICTED OR PROHIBITED. YOU
AGREE TO USE THE SOFTWARE OR EXPORT
THE PRODUCTS IN ACCORDANCE WITH THE
APPLICABLE LAWS, ORDINANCES, RULES AND
REGULATIONS OF RELEVANT COUNTRIES,
REGIONS, AREAS AND FACILITIES.
SEVERABILITY
If any part of this LICENSE is held invalid or
unenforceable, the other parts will remain valid.
GOVERNING LAW AND JURISDICTION
This LICENSE shall be governed by the laws of
Japan without giving effect to its conflict of laws
provisions or the United Nations Convention for
Contracts for the International Sale of Goods, which
is expressly excluded. Any dispute arising out of this
LICENSE shall be subject to the exclusive venue of
the Tokyo District Court, and the parties hereby
consent to the venue and jurisdiction of such court.
THE PARTIES HEREBY WAIVE TRIAL BY JURY
WITH RESPECT TO ANY MATTERS ARISING
UNDER OR RELATING TO THIS LICENSE.
SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OF THE RIGHT OF TRIAL BY JURY,
IN SUCH CASE THE ABOVE EXCLUSION MAY
NOT APPLY TO YOU.
ENTIRE AGREEMENT
These terms and conditions constitute the entire
agreement between SONY and you pertaining to
the subject matter hereof, and supersedes in their
entirety any and all previously existing written or oral
agreements between us with respect to such subject
matter.
GOVERNMENT END USERS
If the SOFTWARE is being acquired by or on
behalf of the United States government or any other
entity seeking or applying rights similar to those
customarily claimed by the United States government,
such SOFTWARE is a “commercial item” as that
term is defined at 48 C.F.R. (“FAR”) 2.101, is
licensed in accordance with this LICENSE, and such
SOFTWARE delivered or otherwise furnished shall be
provided with the following “Notice of Use” and shall
be treated in accordance with such notice:
NOTICE OF USE
CONTRACTOR (MANUFACTURER/
SUPPLIER) NAME: SONY CORPORATION
CONTRACTOR (MANUFACTURER/
SUPPLIER) ADDRESS: 1-7-1 Konan, Minato-
ku, Tokyo, Japan
These SOFTWARE are commercial items
as defined in FAR 2.101 and are subject to
the END-USER LICENSE AGREEMENT
FOR MAP DATA FOR VIDEO CAMERA
RECORDER PRODUCTS under which this
SOFTWARE was provided.
If the Contracting Officer, federal government
agency, or any federal official refuses to use the legend
provided herein, the Contracting Officer, federal
government agency, or any federal official must notify
SONY prior to seeking additional or alternative rights
in the Software.
69
GB
Others/Index
Copyright and trademark information
1993-2011 NAVTEQ
2012 ZENRIN CO., LTD.
Australia
Hema Maps Pty. Ltd, 2010.
Copyright. Based on data provided under license
from PSMA Australia Limited (www.psma.com.au).
Product incorporates data which is 2010
Telstra Corporation Limited, GM Holden
Limited, Intelematics Australia Pty Ltd, NAVTEQ
International LLC, Sentinel Content Pty Limited and
Continental Pty Ltd.
Austria
Bundesamt für Eich- und Vermessungswesen
Canada
This data includes information taken with permission
from Canadian authorities, including Her Majesty
the Queen in Right of Canada, Queen’s Printer for
Ontario, Canada Post Corporation, GeoBase
,
The Department of Natural Resources Canada. All
rights reserved.
Croatia, Estonia, Latvia, Lithuania, Moldova,
Poland , Slovenia and Ukraine
EuroGeographic
France
source: IGN 2009 - BD TOPO
Germany
Die Grundlagendaten wurden mit Genehmigung der
zustaendigen Behoerden entnommen.
Great Britain
Contains Ordnance Survey data Crown copyright
and database right 2010
Contains Royal Mail data Royal Mail copyright
and database right 2010
Greece
Copyright Geomatics Ltd.
Hungary
Copyright 2003; Top-Map Ltd.
Italy
La Banca Dati Italiana è stata prodotta usando quale
riferimento anche cartografia numerica ed al tratto
prodotta e fornita dalla Regione Toscana.
Japan
Jordan
Royal Jordanian Geographic Centre
Mexico
Fuente: INEGI (Instituto Nacional de Estadística y
Geografía.)
Norway
Copyright 2000; Norwegian Mapping Authority
Portugal
Source: IgeoE – Portugal
Spain
Información geográfica propiedad del CNIG
Sweden
Based upon electronic data National Land Survey
Sweden.
Switzerland
Topografische Grundlage: Bundesamt für
Landestopographie.
United States
United States Postal Service
2010. Prices are not
established, controlled or approved by the United
States Postal Service
.
The following trademarks and registrations are owned
by the USPS: United States Postal Service, USPS,
and ZIP+4.
70
GB
Screen indicators
The following indicators appear when you
change the settings. See page 29 also for the
indicators that appear during recording or
playing.
Left
Indicator Meaning
MENU button (49)
Self-timer recording (50)
GPS triangulation status
(36)
[Airplane Mode] set to
[On] (52)
Wide Mode (51)
Fader (50)
[Face Detection] set to
[Off] (50)
[Smile Shutter] set to [Off]
(50)
Manual focus (50)
Scene Selection (50)
White Balance (50)
SteadyShot off (50)
White Balance Shift (50)
Tele Macro (50)
Conversion Lens (50)
Cinematone
Destination (52)
Intelligent Auto (face
detection/scene detection/
camera-shake detection/
sound detection) (35)
Center
Indicator Meaning
Slideshow Set (32)
Warning (54)
Playback mode (31)
Right
Indicator Meaning
60i
720
Recording image quality
(HD/MP4/STD), frame
rate (60p/50p/60i/50i/
24p/25p), recording mode
(PS/FX/FH/HQ/LP) and
movie size (34)
60min
Remaining battery
Recording/playback/
editing media (25)
0:00:00 Counter (hour:minute:
second)
00min Estimated remaining
recording time
9999
8.9M
Approximate number of
recordable photos and
photo size (51)
Playback folder
100/112 Current playing movie or
photo/Number of total
recorded movies or photos
Connection to the external
media device (47)
Bottom
Indicator Meaning
Audio Rec Level (51)
[Auto Wind NR] set to
[Off] (50)
[Closer Voice] set to [Off]
(50)
Blt-in Zoom Mic (50)
Audio Mode (51)
Low Lux (50)
Spot Meter/Fcs (50)/Spot
Meter (50)/ Exposure (50)
EV AE Shift (50)
Intelligent Auto (35)
101-0005
Data file name
Protect (51)
Left
Center
Right
Bottom
71
GB
Others/Index
Indicators and their positions are approximate
and may differ from what you actually see.
Some indicators may not appear, depending on
your camcorder model.
72
GB
Index
H
“Handycam” User Guide ...........11
HDMI Cable ................................36
How to use this manual .............12
HQ ................................................34
I
Initialize .......................................53
Initial setup ..................................23
Install ............................................43
Intelligent Auto ...........................35
L
Language ......................................10
LCD screen ..................................28
LP ..................................................34
M
Mac ...............................................42
Map View .....................................33
Media Select ................................25
Media Settings .............................25
Memory card ...............................25
“Memory Stick PRO-HG Duo”
media ............................................26
“Memory Stick PRO Duo” media
(Mark2) ........................................26
“Memory Stick XC-HG Duo”
media ............................................26
Menu lists ....................................50
Menus ...........................................49
Mirror mode ...............................30
Movies ..........................................27
Multi interface shoe..............16, 61
N
Notes on handling of your
camcorder ....................................60
Number of recordable photos ...59
P
Parts and controls .......................16
Photo Capture .............................41
Photos ..........................................28
Playback .......................................31
PlayMemories Home..... 19, 42, 43
PlayMemories Home Help
Guide ......................................19, 44
Power on ......................................23
Projector ......................................38
PS ..................................................34
R
REC Mode ...................................34
Recording ....................................27
Recording and playback time ...56
Recording media.........................25
Recording time of movies..........57
Repair ...........................................53
S
Saving images on an external
media device..........................45, 46
Screen indicators ..................29, 70
SD card .........................................26
Self-diagnosis display .................54
Setting the date and time ...........23
Smile Shutter ...............................34
Specifications ..............................63
Starting PlayMemories Home ...44
Step down ring ............................18
Summer Time .............................23
Supplied Items .............................19
T
Thumbnails .................................32
