ESF8725RKX
EN Dishwasher User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................5
3. PRODUCT DESCRIPTION................................................................................ 6
4. CONTROL PANEL............................................................................................. 7
5. PROGRAMMES................................................................................................. 7
6. SETTINGS..........................................................................................................9
7. OPTIONS..........................................................................................................11
8. BEFORE FIRST USE....................................................................................... 12
9. DAILY USE....................................................................................................... 13
10. HINTS AND TIPS........................................................................................... 14
11. CARE AND CLEANING..................................................................................16
12. TROUBLESHOOTING....................................................................................18
13. TECHNICAL INFORMATION......................................................................... 21
14. INSTALLATION.............................................................................................. 22
15. WARRANTY .................................................................................................. 24
IMPORTANT INFORMATION THAT MAY IMPACT
YOUR MANUFACTURER'S WARRANTY
Adherence to the directions for use in this manual is extremely important for
health and safety. Failure to strictly adhere to the requirements in this manual
may result in personal injury, property damage and affect your ability to make a
claim under the Electrolux manufacturer’s warranty provided with your product.
Products must be used, installed and operated in accordance with this manual.
You may not be able to claim on the Electrolux manufacturer’s warranty in the
event that your product fault is due to failure to adhere to this manual.
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time. Welcome to
Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
www.electrolux.com2
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
• Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
• Do not let children play with the appliance.
• Keep detergents away from children.
• Keep children and pets away from the appliance when
the door is open.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
• This appliance is intended to be used in household
and similar applications such as:
ENGLISH 3
– farm houses; staff kitchen areas in shops, offices
and other working environments;
– by clients in hotels, motels, bed & breakfast and
other residential type environments.
• Do not change the specification of this appliance.
• The operating water pressure (minimum and
maximum) must be between 0.5 (50) / 8 (800) bar
(kPa)
• Obey the maximum number of 15 place settings.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or a
similarly qualified persons in order to avoid a hazard.
• Put knives and cutlery with sharp points in the cutlery
basket with the points down or in a horizontal position.
• Do not leave the appliance with the door open, to
avoid a tripping hazard.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
• Do not use high pressure water sprays and/or steam
to clean the appliance.
• The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
• The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
• Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed. Avoid
contact with the skin and eyes and keep children away
from the dishwasher when the door is open.
• Check that the detergent receptacle is empty after
completion of the wash cycle.
www.electrolux.com4
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Dishwasher detergents are
dangerous. Follow the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may
remain on the dishes.
• Do not sit or stand on the open door
of the appliance.
• The appliance can release hot steam
if you open the door while a
programme operates.
ENGLISH 5
2.5 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION
5
4
9
8
6
10
11
2
3
1
7
1
Ceiling spray arm
2
Upper spray arm
3
Lower spray arm
4
Filters
5
Rating plate
6
Air vent
7
Rinse aid dispenser
8
Detergent dispenser
9
Lower basket
10
Upper basket
11
Cutlery drawer
3.1 Beam-on-Floor
The Beam-on-Floor is a light that is
displayed on the floor below the
appliance door.
• When the programme starts, a red
light comes on and stays on for the
duration of the programme.
• When the programme is completed, a
green light comes on.
• When the appliance has a
malfunction, the red light flashes.
The Beam-on-Floor is off
when the appliance is
deactivated.
www.electrolux.com6
When AirDry is activated
during the drying phase, the
projection on the floor may
not be completely visible. To
see if the cycle has ended,
check the control panel.
4. CONTROL PANEL
1
2
3
4
5
6
7
8
9
1
On/off button
2
Display
3
Program touchpad
4
Delay touchpad
5
MyFavourite touchpad
6
TimeManager touchpad
7
XtraDry touchpad
8
Hygiene touchpad
9
Indicators
4.1 Indicators
Indicator Description
Rinse aid indicator. It is on when the rinse aid dispenser needs refill‐
ing.
5. PROGRAMMES
The numbering of the programmes in the
table (P1, P2, etc.) reflects their
sequence on the control panel.
The order of the programmes in the table
may not reflect their sequence on the
control panel.
Programme Degree of soil
Type of load
Programme phases Options
P1
ECO
1)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
• Hygiene
• TimeManager
• XtraDry
P2
AutoFlex
2)
• All
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash from 45 °C to
70 °C
• Rinses
• Dry
• Hygiene
• XtraDry
ENGLISH 7
Programme Degree of soil
Type of load
Programme phases Options
P3
FlexiWash
3)
• Mixed soil
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 50 °C and 65
°C
• Rinses
• Dry
• TimeManager
• XtraDry
P4
Intensive
4)
• Heavy soil
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
• Hygiene
• TimeManager
• XtraDry
P5
Glass Care
5)
• Normal or light
soil
• Delicate crock‐
ery and glass‐
ware
• Wash 45 °C
• Rinses
• Dry
• XtraDry
P6
Quick Plus
6)
• Fresh soil
• Crockery and
cutlery
• Wash 60 °C
• Rinses
• Hygiene
• XtraDry
P7
Rinse &
Hold
7)
• All • Prewash
1)
This programme offers the most efficient use of water and energy consumption for crock‐
ery and cutlery with normal soil. This is the standard programme for test institutes.
2)
The appliance senses the degree of soil and the quantity of items in the baskets. It auto‐
matically adjusts the temperature and quantity of water as well as the wash duration.
3)
This programme is suitable for washing a load with mixed soil. Place items with heavy
soil in the lower basket and with normal soil in the upper basket. The pressure and tempera‐
ture of the water in the lower basket are higher than in the upper basket.
4)
This programme is designed to wash heavily soiled items with high water pressure and at
a high temperature.
5)
This programme controls the temperature of the water to provide special care for delicate
items, glassware in particular.
6)
This programme is suitable for washing a load or a half load with fresh or light soil in a
short time.
7)
With this programme, you can quickly rinse off food remains from the dishes and prevent
odours forming in the appliance. Do not use detergent with this programme.
5.1 Consumption values
Programme
1)
Water
(l)
Energy
(kWh)
Duration
(min)
P1
ECO
13.4 0.81 143
P2
AutoFlex
7.5 - 12.0 1.0 - 1.3 99 - 158
www.electrolux.com8
Programme
1)
Water
(l)
Energy
(kWh)
Duration
(min)
P3
FlexiWash
14 - 16 1.2 - 1.5 160 - 180
P4
Intensive
12.5 - 14.5 1.4 - 1.7 170 - 190
P5
Glass Care
12 - 14 0.7 - 0.9 82 - 92
P6
Quick Plus
10.5 0.9 30
P7
Rinse & Hold
4 0.01 14
1)
The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
5.2 Information for test
institutes
To receive the necessary information for
conducting performance tests (e.g.
according to EN60436), send an email
to:
In your request please include the
product number code (PNC) found on
the rating plate.
For any other questions regarding your
dishwasher please refer to the service
book provided with your appliance.
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode, it is possible to set a
programme and to enter user mode.
Settings available in user mode:
• Activation or deactivation of the rinse
aid empty notification.
• The level of rinse aid according to the
required dosage.
• Activation or deactivation of the
acoustic signal for the end of a
programme.
• Activation or deactivation of the
AirDry.
As the appliance stores the saved
settings, there is no need to configure
it before every cycle.
How to set the programme
selection mode
The appliance is in programme selection
mode when the display shows the
programme number P1.
After activation, the appliance is in
programme selection mode by default. If
not, set the programme selection mode
the following way:
Press and hold simultaneously and
until the appliance is in programme
selection mode.
How to enter user mode
Make sure the appliance is in
programme selection mode.
To enter user mode, press and hold
simultaneously and until the
ENGLISH 9
indicators , , and flash and
the display is blank.
6.2 The rinse aid empty
notification
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
When rinse aid chamber is empty, the
rinse aid indicator is turned on notifying
to refill rinse aid. If the drying results are
satisfactory while using multi-tablets only,
it is possible to deactivate the notification
for refilling rinse aid. However, for best
drying performance, always use rinse
aid.
If standard detergent or multi-tablets
without rinse aid are used, activate the
notification to keep the rinse aid refill
indicator active.
How to deactivate the rinse aid
empty notification
Make sure the appliance is in user mode.
1. Press .
• The indicators
, and are
off.
• The indicator still flashes.
• The display shows the current
setting.
–
= the rinse aid empty
notification is deactivated.
– = the rinse aid empty
notification is activated.
2. Press to change the setting.
3. Press the on/off button to confirm the
setting.
6.3 The rinse aid level
It is possible to set the released quantity
of rinse aid between level 1 (minimum
quantity) and level 6 (maximum quantity).
Level 0 deactivates the rinse aid
dispenser and no rinse aid is released.
Factory setting: level 4.
How to set the rinse aid level
Make sure the appliance is in user mode.
1. Press .
• The indicators , and are
off.
• The indicator
still flashes.
• The display shows the current
setting: e.g. = level 4.
– The levels of rinse aid are
from 0A to 6A
where level 0A means rinse
aid is not used.
2. Press repeatedly to change the
setting.
3. Press the on/off button to confirm the
setting.
6.4 Acoustic signals
Acoustic signals sound when a
malfunction of the appliance occurs. It is
not possible to deactivate these acoustic
signals.
There is also an acoustic signal that
sounds when the programme is
completed. By default this acoustic signal
is deactivated but it is possible to
activate it.
How to activate the acoustic
signal for the end of
programme
Make sure the appliance is in user mode.
1. Press .
• The indicators
, and are
off.
• The indicator
still flashes.
• The display shows the current
setting.
– = the acoustic signal is
deactivated.
– = the acoustic signal is
activated.
2. Press
to change the setting.
3. Press the on/off button to confirm the
setting.
www.electrolux.com10
6.5 AirDry
AirDry improves the drying results with
less energy consumption.
While the drying phase
operates, a device opens the
appliance door. The door is
then kept ajar.
CAUTION!
Do not try to close the
appliance door within 2
minutes after automatic
open. This can cause
damage to the appliance.
CAUTION!
In case of presence of
children, the AirDry system
can be deactivated if you
want to keep the door closed
in the end of the cycle.
AirDry is automatically activated with all
programmes excluding Rinse & Hold
To improve the drying performance refer
to the XtraDry option or activate AirDry.
How to deactivate AirDry
Make sure the appliance is in user mode.
1. Press .
• The indicators , and are
off.
• The indicator
still flashes.
• The display shows the current
setting.
– = AirDry is deactivated.
– = AirDry is activated.
2. Press to change the setting.
3. Press on/off to confirm the setting.
6.6 MyFavourite
This option allows to set and save the
most frequently used programme.
It is possible to save only 1 programme.
A new setting cancels the previous one.
How to save the MyFavourite
programme
1. Set the chosen programme.
It is also possible to set applicable
options together with the programme.
2. Press and hold
until the related
indicator is on.
How to set the MyFavourite
programme
Press .
• The MyFavourite indicator is on.
• The display shows the number
and the duration of the
programme.
• If options are saved together with
the programme, the indicators
related to the options are on.
7. OPTIONS
Desired options must be
activated every time before
you start a programme.
It is not possible to activate
or deactivate options while a
programme is running.
ENGLISH 11
Not all options are
compatible with each other.
If you select non compatible
options, the appliance
automatically deactivates
one or more of them. Only
the indicators of the still
active options are on.
If an option is not applicable
to a programme, the related
indicator is off or it flashes
quickly for a few seconds
and then goes out.
Activating options can affect
the water and energy
consumption as well as the
programme duration.
7.1 XtraDry
Activate this option to boost the drying
performance.
XtraDry is a permanent option for all
programmes other than ECO. It is
automatically activated in next cycles.
This configuration can be changed at any
time.
Every time ECO is activated,
XtraDry is off and needs to
be chosen manually.
Activating XtraDry deactivates
TimeManager and vice versa.
How to activate XtraDry
Press .
The related indicator is on.
The display shows the updated
programme duration.
7.2 TimeManager
The TimeManager allows to reduce the
duration of a selected programme by
approximately 50%.
The washing results are the same as
with the normal programme duration. The
drying results can decrease.
This option increases the pressure and
the temperature of the water. The
washing and the drying phases are
shorter.
By default, TimeManager is off, but it is
possible to activate it manually. This
option cannot be combined with XtraDry.
How to activate TimeManager
Press . The related indicator is on.
The display shows the updated
programme duration.
7.3 Hygiene
This option provides better hygiene
results by keeping the temperature at 70
°C for at least 10 minutes during the last
rinsing phase.
How to activate Hygiene
Press .
The related indicator is on.
The display shows the updated
programme duration.
8. BEFORE FIRST USE
1. Fill the rinse aid dispenser.
2. Open the water tap.
3. Start a program to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the
baskets.
www.electrolux.com12
8.1 How to fill the rinse aid
dispenser
A
B
C
CAUTION!
Only use rinse aid designed
specifically for dishwashers.
1. Open the lid (C).
2. Fill the dispenser (B) until the rinse
aid reaches the marking ''MAX''.
3. Remove the spilled rinse aid with an
absorbent cloth to prevent excessive
foam formation.
4. Close the lid. Make sure that the lid
locks into position.
Fill the rinse aid dispenser
when the indicator (A) is
clear.
9. DAILY USE
1. Open the water tap.
2. Press the on/off button to activate the
appliance.
Make sure that the appliance is in
programme selection mode.
• If the rinse aid indicator is on, fill
the rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Set and start a programme suitable
for the type of load and the degree of
soil.
9.1 Using the detergent
A
B
C
CAUTION!
Only use detergent
specifically designed for
dishwashers.
1. Press the release button (A) to open
the lid (C).
2. Put the detergent, in powder or
tablets, in the compartment (B).
3. If the programme has a prewash
phase, put a small quantity of
detergent on the inner part of the
appliance door.
4. Close the lid. Make sure that the lid
locks into position.
9.2 Setting and starting a
programme
Starting a programme
1. Keep the appliance door ajar.
2. Press the on/off button to activate the
appliance. Make sure that the
appliance is in programme selection
mode.
3. Press repeatedly until the display
shows the number of the programme
you want to start. The display will
show the programme number for
ENGLISH 13
approximately 3 seconds and then
show the programme duration.
• If you want to select the
MyFavourite programme, press
.
• The indicators of the options
related to the MyFavourite
programme come on.
4. Set the applicable options.
5. Close the appliance door to start the
programme.
Starting a programme with
delay start
1. Set a programme.
2. Press again and again until the
display shows the delay time you
want to set (from 1 to 24 hours).
The delay indicator comes on.
3. Close the appliance door to start the
countdown.
While a countdown is running it is
possible to increase the delay time but
not to change the selection of the
programme and options.
When the countdown is completed, the
programme starts.
Opening the door while the
appliance operates
Opening the door while a programme is
running stops the appliance. It may affect
the energy consumption and the
programme duration. After closing the
door, the appliance continues from the
point of interruption.
If the door is opened for
more than 30 seconds
during the drying phase, the
running programme ends. It
does not happen if the door
is opened by AirDry function.
Cancelling the delay start while
the countdown operates
When you cancel the delay start you
have to set the programme and options
again.
Press and hold simultaneously and
until the appliance is in programme
selection mode.
Cancelling the programme
Press and hold simultaneously and
until the appliance is in programme
selection mode.
Make sure that there is detergent in the
detergent dispenser before you start a
new programme.
End of programme
When the programme is completed and
you open the door, the appliance is
automatically deactivated.
Close the water tap.
The Auto Off function
This function decreases energy
consumption by deactivating
automatically the appliance when it is not
operating.
The function comes into operation:
• 5 minutes after the completion of the
programme.
• After 5 minutes if the programme has
not started.
10. HINTS AND TIPS
10.1 General
Follow the hints below to ensure optimal
cleaning and drying results in daily use
and to help you protect the environment.
• Remove larger residues of food from
the dishes into the waste bin.
• Do not pre-rinse dishes by hand.
When needed, select a programme
with a prewash phase.
www.electrolux.com14
• Always use the whole space of the
baskets.
• Make sure that items in the baskets
do not touch or cover each other.
Only then can the water completely
reach and wash the dishes.
• You can use dishwasher detergent
and rinse aid separately or you can
use the multi-tablets. Follow the
instructions on the packaging.
• Select a programme according to the
type of load and the degree of soil.
ECO offers the most efficient use of
water and energy consumption for
crockery and cutlery with normal soil.
10.2 Using rinse aid and
detergent
• Only use rinse aid and detergent for
dishwasher. Other products can
cause damage to the appliance.
• Detergent tablets do not fully dissolve
with short programs. To prevent
detergent residues on the tableware,
we recommend that you use the
tablets with long programs.
• Do not use more than the correct
quantity of detergent. Refer to the
instructions on the detergent
packaging.
10.3 Loading the baskets
• Only use the appliance to wash items
that are dishwasher-safe.
• Do not put in the appliance items
made of wood, horn, aluminium,
pewter and copper.
• Do not put in the appliance items that
can absorb water (sponges,
household cloths).
• Remove remaining food from the
items.
• Make soft the remaining burned food
on the items.
• Put hollow items (cups, glasses and
pans) with the opening down.
• Make sure that cutlery and dishes do
not bond together. Mix spoons with
other cutlery.
• Make sure that glasses do not touch
other glasses.
• Put small items in the cutlery basket.
• Put light items in the upper basket.
Make sure that the items do not
move.
• Make sure that the spray arm can
move freely before you start a
programme.
10.4 Before starting a
programme
Make sure that:
• The filters are clean and correctly
installed.
• The spray arms are not clogged.
• There is dishwasher rinse aid (unless
you use multi- tablets).
• The position of the items in the
baskets is correct.
• The programme is applicable to the
type of load and for the degree of soil.
• The correct quantity of detergent is
used.
10.5 Unloading the baskets
1. For improved drying results with the
most efficient use of energy select
the AirDry option, otherwise open the
door by approximately 10cm at the
end of the program.
2. Allow the tableware to cool for 30 -
40 minutes.
3. Hot items can be easily damaged,
allow them to cool down before
removing from appliance.
4. First remove items from the lower
basket then the upper basket.
At the end of the program
water can still remain on the
sides and on the door of the
appliance.
ENGLISH 15
11. CARE AND CLEANING
WARNING!
Before maintenance,
deactivate the appliance and
disconnect the mains plug
from the main socket.
Dirty filters and clogged
spray arms negatively affect
the washing results. Check
these elements regularly
and, if necessary, clean
them.

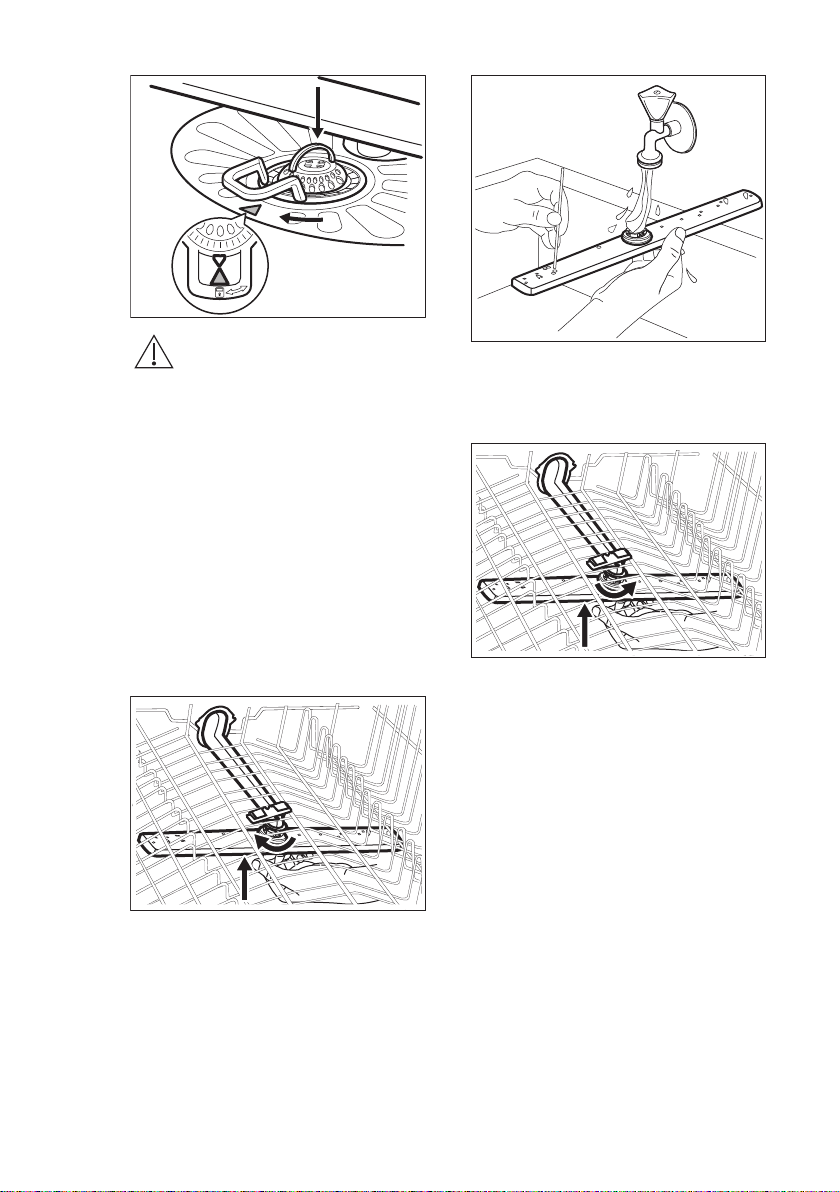

11.1 Cleaning the filters
The filter system is made of 3 parts.
C
B
A
1. Turn the filter (B) counterclockwise
and remove it.
2. Remove the filter (C) out of filter (B).
3. Remove the flat filter (A).
4. Wash the filters.
5. Make sure that there are no residues
of food or soil in or around the edge
of the sump.
6. Put back in place the flat filter (A).
Make sure that it is correctly
positioned under the 2 guides.
7. Reassemble the filters (B) and (C).
8. Put back the filter (B) in the flat filter
(A). Turn it clockwise until it locks.
www.electrolux.com16
CAUTION!
An incorrect position of the
filters can cause bad
washing results and damage
to the appliance.
11.2 Cleaning the upper spray
arm
We recommend to clean the upper spray
arm regularly to prevent soil from
clogging the holes.
Clogged holes can cause unsatisfactory
washing results.
1. Pull out the upper basket.
2. To detach the spray arm from the
basket, press the spray arm upwards
and simultaneously turn it clockwise.
3. Wash the spray arm under running
water. Use a thin pointed tool, e.g. a
toothpick, to remove particles of soil
from the holes.
4. To install the spray arm back, press
the spray arm upwards and
simultaneously turn it
counterclockwise until it locks into
place.
11.3 Internal cleaning
• Carefully clean the appliance,
including the rubber gasket of the
door, with a soft damp cloth.
• To maintain the performance of your
appliance, use a cleaning product
designed specifically for dishwashers
at least once a month. Carefully follow
the instructions on the packaging of
the product.
• Do not use abrasive products,
abrasive cleaning pads, sharp tools,
strong chemicals, scourer or solvents.
• Using short-duration programmes
regularly can cause grease and
limescale buildup inside the
appliance. Run long-duration
programmes at least twice a month to
prevent the buildup.
ENGLISH 17
11.4 External cleaning
• Clean the appliance with a moist soft
cloth.
• Only use neutral detergents.
• Do not use abrasive products,
abrasive cleaning pads or solvents.
12. TROUBLESHOOTING
If the appliance does not start or it stops
during operation. Before you contact an
Authorised Service Centre, check if you
can solve the problem by yourself with
the help of the information in the table.
WARNING!
Repairs not properly done
may result in serious risk to
the safety of the user. Any
repairs must be performed
by qualified personnel.
With some problems, the display
shows an alarm code.
The majority of problems that can
occur can be solved without the need
to contact an Authorised Service
Centre.
Problem and alarm code Possible solution
You cannot activate the
appliance.
• Make sure that the mains plug is connected to the
mains socket.
• Make sure that there is no damaged fuse in the fuse
box.
The programme does not
start.
• Make sure that the appliance door is closed.
• If the delay start is set, cancel the setting or wait for
the end of the countdown.
The appliance does not fill
with water.
The display shows or
.
• Make sure that the water tap is open.
• Make sure that the pressure of the water supply is
not too low. For this information, contact your local
water authority.
• Make sure that the water tap is not clogged.
• Make sure that the filter in the inlet hose is not clog‐
ged.
• Make sure that the inlet hose has no kinks or bends.
The appliance does not
drain the water.
The display shows .
• Make sure that the sink spigot is not clogged.
• Make sure that the drain hose has no kinks or bends.
The anti-flood device is on.
The display shows .
• Close the water tap and contact an Authorised Serv‐
ice Centre.
The appliance stops and
starts more times during
operation.
• It is normal. It provides optimal cleaning results and
energy savings.
The program lasts too
long.
• Select the TimeManager option to shorten the pro‐
gram time (if applicable).
• If the delayed start option is set, cancel the delay set‐
ting or wait for the end of the countdown.
www.electrolux.com18
Problem and alarm code Possible solution
The remaining time in the
display increases and
skips nearly to the end of
program time.
• This is not a defect. The appliance is working cor‐
rectly.
The options of the program
have to be set again every
time.
• To save your favourite configuration use option My‐
Favourite.
Small leak from the appli‐
ance door.

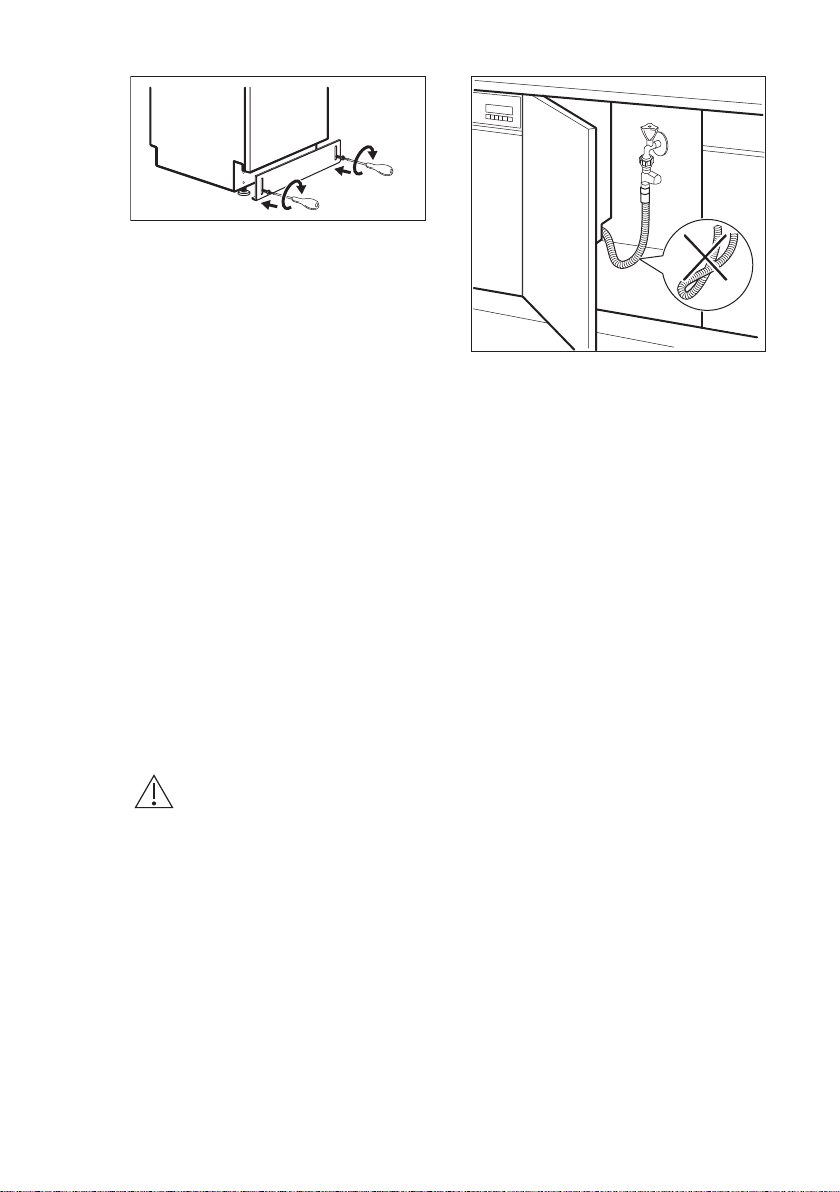

• The appliance is not levelled. Loosen or tighten the
adjustable feet (if applicable).
• The appliance door is not centred on the tub. Adjust
the rear foot (if applicable).
The appliance door is diffi‐
cult to close.
• The appliance is not levelled. Loosen or tighten the
adjustable feet (if applicable).
• Parts of the tableware are protruding from the bas‐
kets.
Rattling/knocking sounds
from inside the appliance.
• The tableware is not properly arranged in the bas‐
kets. Refer to basket loading leaflet.
• Make sure that the spray arms can rotate freely.
The appliance trips the cir‐
cuit-beaker.
• The amperage is insufficient to supply simultaneous‐
ly all the appliances in use. Check the socket amper‐
age and the capacity of the meter or turn off one of
the appliances in use.
• Internal electrical fault of the appliance. Contact an
Authorised Service Centre.
Refer to "Before first use",
"Daily use", or "Hints and
tips" for other possible
causes.
Once you have checked the appliance,
deactivate and activate the appliance. If
the problem occurs again, contact an
Authorised Service Centre.
For alarm codes not described in the
table, contact an Authorised Service
Centre.
12.1 The washing and drying results are not satisfactory
Problem Possible cause and solution
Poor washing results. • Refer to "Daily use", "Hints and tips" and basket
loading leaflet.
• Use more intensive washing programmes.
• Clean spray arm jets and filter. Refer to "Care and
Cleaning".
• Make sure the spray arms are in correct positions.
ENGLISH 19
Problem Possible cause and solution
Poor drying results. • Tableware has been left for too long inside a
closed appliance.
• There is no rinse aid or the dosage of rinse aid is
not enough. Set the rinse aid dispenser to a higher
level.
• Plastic items may need to be towel dried.
• For the best drying performance activate the option
XtraDry and set AirDry.
• We recommend to always use rinse aid, even in
combination with multi-tablets.
There are whitish streaks or
bluish layers on glasses and
dishes.
• The release quantity of rinse aid is too much. Ad‐
just the rinse aid level to a lower level.
• The quantity of detergent is too much.
There are stains and dry wa‐
ter drops on glasses and
dishes.
• The released quantity of rinse aid is not sufficient.
Adjust the rinse aid level to a higher level.
• The quality of the rinse aid can be the cause.
The dishes are wet. • For the best drying performance activate the option
XtraDry and set AirDry .
• The programme does not have a drying phase or
has a drying phase with low temperature.
• The rinse aid dispenser is empty.
• The quality of the rinse aid can be the cause.
• The quality of the multi-tablets can be the cause.
Try a different brand or activate the rinse aid dis‐
penser and use rinse aid and multi-tablets together.
The interior of the appliance
is wet.
• This is not a defect of the appliance. it is caused by
the humidity in the air that condenses on the walls.
Unusual foam during wash‐
ing.
• Use the detergent for dishwashers only.
• There is a leak in the rinse aid dispenser. Contact
an Authorised Service Centre.
Traces of rust on cutlery. • Silver and stainless steel cutlery were placed to‐
gether. Avoid to put silver and stainless steel items
close together.
There are residues of deter‐
gent in the dispenser at the
end of the programme.
• The detergent tablet got stuck in the dispenser and
therefore was not completely washed away by wa‐
ter.
• Water cannot wash away the detergent from the
dispenser. Make sure that the spray arm is not
blocked or clogged.
• Make sure that items in the baskets do not impede
the lid of the detergent dispenser from opening.
Odours inside the appliance. • Refer to "Internal cleaning".
www.electrolux.com20
Problem Possible cause and solution
Limescale deposits on the
tub and on the inside of the
door.
• Clean the appliance with appliance cleaners which
are particularly suitable for this purpose.
• Try different detergent.
• Contact the detergent manufacturer.
Dull, discoloured or chipped
tableware.
• Make sure that only dishwasher-safe items are
washed in the appliance.
• Load and unload the basket carefully. Refer to bas‐
ket loading leaflet.
• Place delicate items in the upper basket.
Refer to "Before first use",
"Daily use" or "Hints and
tips" for other possible
causes.
13. TECHNICAL INFORMATION
Dimensions Width / height / depth (mm) 596 / 818 - 878 / 570
Electrical connection
1)
Voltage (V) 200 - 240
Frequency (Hz) 50 - 60
Wattage (W) 1550-2200
Water supply pressure bar (minimum and maximum) 0.5 - 8
kPa (minimum and maximum) 50 - 800
Water supply
Cold water or hot water
2)
max 60 °C
Capacity Place settings 15
1)
Refer to the rating plate for other values.
2)
If the hot water comes from alternative source of energy (e.g. solar panels), use the hot
water supply to decrease energy consumption.
ENGLISH 21
14. INSTALLATION
If floor is not level, adjust
levelling legs to suit
The hose should not be
extended by more than
2 metres or water pump-
out
problems may occur
Removeentire plastic
membranefrom sink trap
spigot & fit drain hose to spigot
with clamp
Thereshould be a minimum
2mm gap between the top of
the dishwasher and
underside of bench top
Gap on both sides should be
equal, & no greater than
5 mm per side.
Secure dishwasher with
brackets or screws provided
Min. 400 mm straight
section
600mm max
300mm min
400mm
min
DISHWASHER
SINK
POWER OUTLET
Install the appliance under a kitchen
counter.
Put the appliance adjacent to a water tap
and a water drain.
For the venting of the appliance only
water hoses and mains cable openings
are necessary.
14.1 Adjusting the height of the
appliance
1. Remove the adjustable plinth.
2. To adjust the front height of the
appliance, turn the 2 front feet
counterclockwise.
3. To adjust the rear height of the
appliance, turn the middle screw
counterclockwise.
14.2 Adjusting the level of the
appliance
A correct adjustment of the level of the
appliance allows the door to close and
seal correctly.
If the door does not close correctly,
loosen or tighten the adjustable feet to
level the appliance.
After adjusting the level of the appliance,
assemble the adjustable plinth on the
appliance.
www.electrolux.com22
Once the installation is completed, make
sure that the bottom of the adjustable
plinth is aligned with the floor.
14.3 Water inlet hose
Connect the inlet hose to a water tap
with an external BSP thread spout of
3/4''.
For best washing performance it is
recommended to connect the appliance
to a cold water supply.
Energy savings can be made by
connecting the appliance to a Solar
water system and using economy
options, however the water temperature
must not exceed 60° C.
Inlet water supply
• Water pressure: 800 kPa max - 50
kPa min.
• Water flow rate 10 L / minute min.
• If water pressure is in excess of 800
kPa, a pressure reducing valve should
be used. Check for leaks.
• If water temperature is in excess of
60° C, a tempering valve should be
used. Check for leaks.
CAUTION!
Always use new hoses when
you connect the appliance to
the water mains. Old hoses
must not be used. The water
inlet hose must be examined
at an interval of twelve
months for deterioration and
replaced if necessary.
The water pressure must be in the limits
indicated in the chapter ''TECHNICAL
INFORMATION''. Make sure that the
local water authority gives you the
average mains pressure in your area.
In order to pass the safety valve through
the kitchen cabinets, an opening of at
least 45 mm x 90 mm is needed.
14.4 Water drain hose
The highest point of the drain hose must
be no more than 600 mm from the floor
and must have a continuous fall to the
plumbing connection.
The drain hose can be lengthened using
additional lengths and connectors. These
must be purchased from Electrolux
Spare Parts. The extension length must
not exceed 2 metres.
The drain hose must be free of
obstructions.
Remove the sink plug when the
appliance drains the water to prevent
that the water goes back into the
appliance.
The appliance has a security feature to
prevent dirty water going back into the
appliance. If the spigot of the sink has a
non-return valve, this valve can cause
the appliance to drain incorrectly. remove
the non-return valve.
If you connect the water drain hose to a
trap spigot under the sink, remove the
plastic membrane. If you do not remove
the membrane, remaining food can
cause a blockage in the drain hose
spigot.
ENGLISH 23
Remove
entire
internal
membrane
15. WARRANTY
FOR SALES IN AUSTRALIA AND NEW
ZEALAND
APPLIANCE: DISHWASHER
This document sets out the terms and
conditions of the product warranties
for Electrolux Appliances. It is an
important document. Please keep it
with your proof of purchase
documents in a safe place for future
reference should you require service
for your Appliance.
1. In this warranty:
a) ‘acceptable quality’ as referred to
in clause 10 of this warranty has
the same meaning referred to in
the ACL;
b) ‘ACL’ means Schedule 2 of the
Competition and Consumer Act
2010;
c) ‘Appliance’ means any Electrolux
product purchased by you and
accompanied by this document;
d) ‘ASC’ means Electrolux
authorised service centres;
e) ‘Electrolux’ means Electrolux
Home Products Pty Ltd of 163
O’Riordan Street, Mascot NSW
2020, ABN 51 004 762 341 in
respect of Appliances purchased
in Australia and Electrolux (NZ)
Limited (collectively ‘Electrolux’)
of 3-5 Niall Burgess Road, Mount
Wellington, in respect of
Appliances purchased in New
Zealand;
f) ‘major failure’ as referred to in
clause 10 of this warranty has
the same meaning referred to in
the ACL and includes a situation
when an Appliance cannot be
repaired or it is uneconomic for
Electrolux, at its discretion, to
repair an Appliance during the
Warranty Period;
g) ‘Warranty Period’ means the
Appliance is warranted against
manufacturing defects in
Australia for 24 months and in
New Zealand for 24 months,
following the date of original
purchase of the Appliance;
h) ‘you’ means the purchaser of the
Appliance not having purchased
the Appliance for re-sale, and
‘your’ has a corresponding
meaning.
2. This warranty only applies to
Appliances purchased and used in
Australia or New Zealand and used
in normal domestic applications and
is in addition to (and does not
exclude, restrict, or modify in any
way) any non-excludable statutory
warranties in Australia or New
Zealand.
3. During the Warranty Period
Electrolux or its ASC will, at no extra
charge if your Appliance is readily
accessible for service, without
special equipment and subject to
these terms and conditions, repair or
replace any parts which it considers
to be defective. Electrolux or its ASC
may use remanufactured parts to
repair your Appliance. You agree that
any replaced Appliances or parts
become the property of Electrolux.
This warranty does not apply to light
globes, batteries, filters or similar
perishable parts.
www.electrolux.com24
4. Parts and Appliances not supplied by
Electrolux are not covered by this
warranty.
5. To the extent permitted by law, you
will bear the cost of transportation,
travel and delivery of the Appliance
to and from Electrolux or its ASC. If
you reside outside of the service
area, you will bear the cost of:
a) travel of an authorised
representative;
b) transportation and delivery of the
Appliance to and from Electrolux
or its ASC.
In all instances, unless the Appliance
is transported by Electrolux or an
Electrolux authorised representative,
the Appliance is transported at the
owner’s cost and risk while in transit
to and from Electrolux or its ASC.
6. Proof of purchase is required before
you can make a claim under this
warranty.
7. You may not make a claim under this
warranty unless the defect claimed is
due to faulty or defective parts or
workmanship. Electrolux is not liable
in the following situations (which are
not exhaustive):
a) the Appliance is damaged by:
– accident
– misuse or abuse, including
failure to properly maintain or
service
– normal wear and tear
– power surges, electrical storm
damage or incorrect power
supply
– incomplete or improper
installation
– incorrect, improper or
inappropriate operation
– insect or vermin infestation
– failure to comply with any
additional instructions
supplied with the Appliance;
b) the Appliance is modified without
authority from Electrolux in
writing;
c) the Appliance’s serial number or
warranty seal has been removed
or defaced;
d) the Appliance was serviced or
repaired by anyone other than
Electrolux, an authorised repairer
or ASC.
8. This warranty, the contract to which it
relates and the relationship between
you and Electrolux are governed by
the law applicable where the
Appliance was purchased. Where the
Appliance was purchased in New
Zealand for commercial purposes the
Consumer Guarantee Act does not
apply.
9. To the extent permitted by law and
subject to your non-excludable
statutory rights and warranties,
Electrolux excludes all warranties
and liabilities (other than as
contained in this document) including
liability for any loss or damage
whether direct or indirect arising from
your purchase, use or non use of the
Appliance.
10. For Appliances and services
provided by Electrolux in Australia,
the Appliances come with a
guarantee by Electrolux that cannot
be excluded under the ACL. You are
entitled to a replacement or refund
for a major failure and for
compensation for any other
reasonably foreseeable loss or
damage. You are also entitled to
have the Appliance repaired or
replaced if the Appliance fails to be of
acceptable quality and the failure
does not amount to a major failure.
The benefits to you given by this
warranty are in addition to your other
rights and remedies under a law in
relation to the Appliances or services
to which the warranty relates.
11. At all times during the Warranty
Period, Electrolux shall, at its
discretion, determine whether repair,
replacement or refund will apply if an
Appliance has a valid warranty claim
applicable to it.
12. For Appliances and services
provided by Electrolux in New
Zealand, the Appliances come with a
guarantee by Electrolux pursuant to
the provisions of the Consumer
Guarantees Act, the Sale of Goods
Act and the Fair Trading Act.
13. To enquire about claiming under this
warranty, please follow these steps:
ENGLISH 25
a) carefully check the operating
instructions, user manual and the
terms of this warranty;
b) have the model and serial
number of the Appliance
available;
c) have the proof of purchase (e.g.
an invoice) available;
d) telephone the numbers shown
below.
14. You accept that if you make a
warranty claim, Electrolux and its
ASC may exchange information in
relation to you to enable Electrolux to
meet its obligations under this
warranty.
Important Notice
Before calling for service, please ensure that the steps listed in clause 13 above
have been followed.
FOR SERVICE
or to find the address of
your nearest state service
centre in Australia
Please call 13 13 4 9
For the cost of a local call (Australia
only)
SERVICE AUSTRALIA
ELECTROLUX HOME
PRODUCTS
www.electrolux.com.au
FOR SPARE PARTS
or to find the address of
your nearest state spare
parts centre in Australia
Please call 13 13 50
For the cost of a local call (Australia
only)
FOR SERVICE
or to find the address of
your nearest authorised
service centre in New Zea‐
land
Free call 0800 10 66 10
(New Zealand only)
SERVICE NEW ZEALAND
ELECTROLUX (NZ) Limi‐
ted
www.electrolux.co.nz
FOR SPARE PARTS
or to find the address of
your nearest state spare
parts centre in New Zea‐
land
Free call 0800 10 66 20
(New Zealand only)
16. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
*
www.electrolux.com26
www.shop.electrolux.com.au
117861190-A-112019
