Using this manual

Legends

Warning Important Hints and Tips Reference

Read Before the First Flight

Read the following documents before using the PHANTOM

1. In the Box

2. Phantom 4 User Manual

3. Phantom 4 Quick Start Guide

4. Phantom 4 Disclaimer and Safety Guidelines

5. Phantom 4 Intelligent Flight Battery Safety Guidelines

We recommend that you watch all tutorial videos on the ofcial DJI

website and read the Disclaimer

before you y. Prepare for your rst ight by reviewing the Phantom 4 Quick Start Guide and refer to the

User Manual for more details.

Video Tutorials

Please watch the tutorial videos at the link below, which demonstrates how to use Phantom 4 safely:

http://www.dji.com/product/phantom-4/info#video

Download the DJI GO App

Download and install the DJI GO app before using the aircraft. Scan the QR code to the right

to download the latest version.

The Android version of the DJI GO app is compatible with Android 4.1.2 or later.

The iOS version of the DJI GO app is compatible with iOS 8.0 or later.

Searching for Keywords

Search for keywords such as “battery” and “install” to nd a topic. If you are using Adobe Acrobat

Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search.

Navigating to a Topic

View a complete list of topics in the table of contents. Click on a topic to navigate to that section.

Printing this Document

This document supports high resolution printing.

Contents

Using this manual

Legends

Read Before the First Flight

Video Tutorials

Download the DJI GO App

Product Prole

Introduction

Features Highlights

Preparing the Aircraft

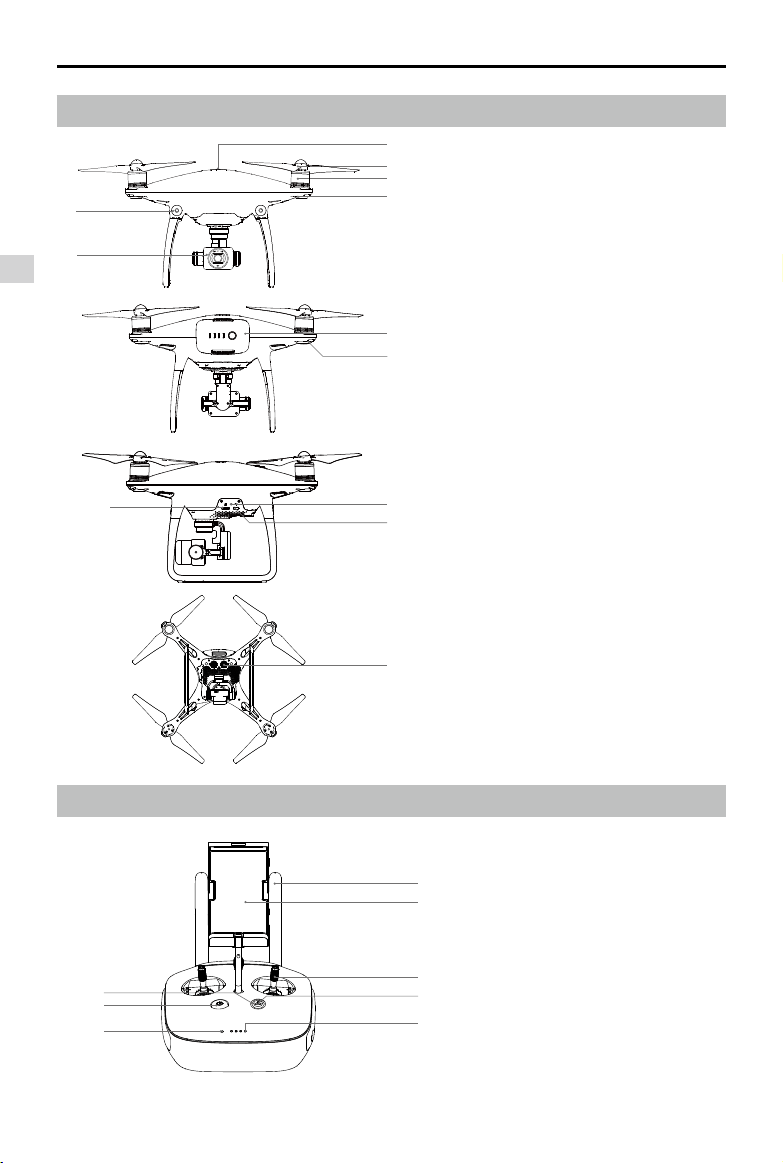

Aircraft Diagram

Remote Controller Diagram

Aircraft

Flight Controller

Flight Mode

Flight Status Indicator

Return-to-Home (RTH)

TapFly

ActiveTrack

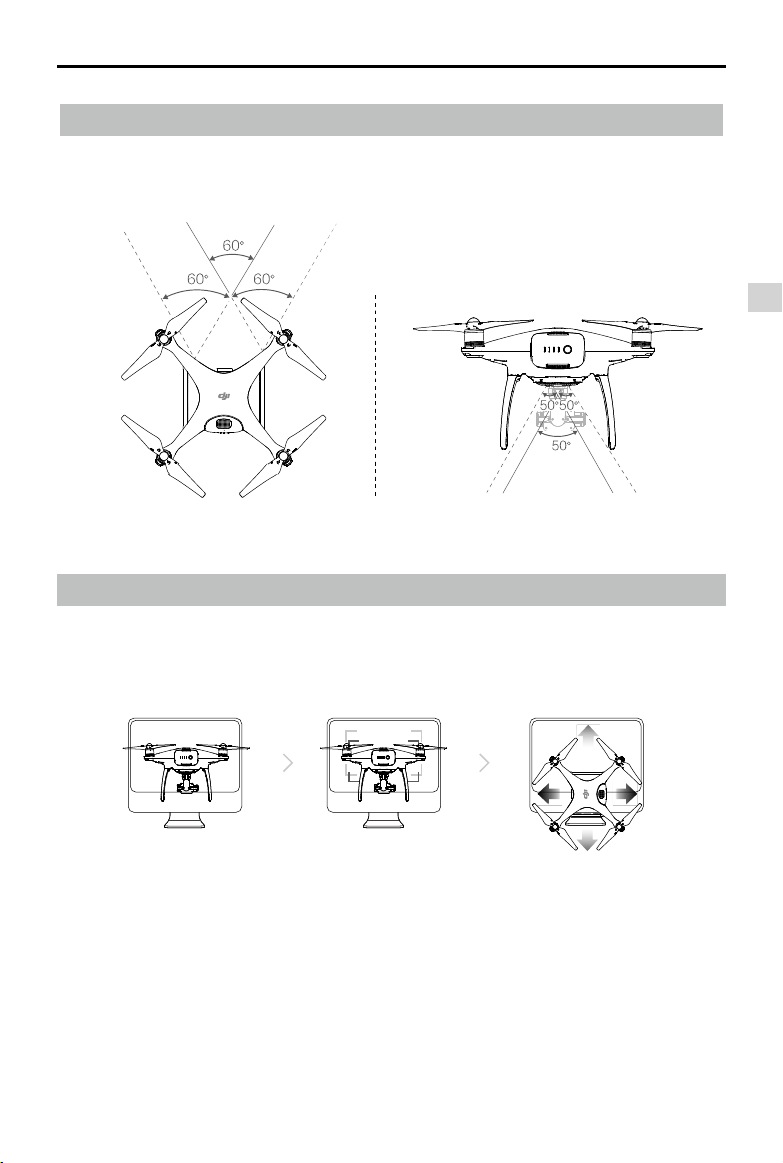

Obstacle and Vision Positioning System

Detection Range

Calibrating Front Sensors

Flight Recorder

Attaching and Detaching the Propellers

DJI Intelligent Flight Battery

Remote Controller

Remote Controller Prole

Using the Remote Controller

Remote Controller Status LED

Linking the Remote Controller

Camera and Gimbal

Camera Prole

Gimbal

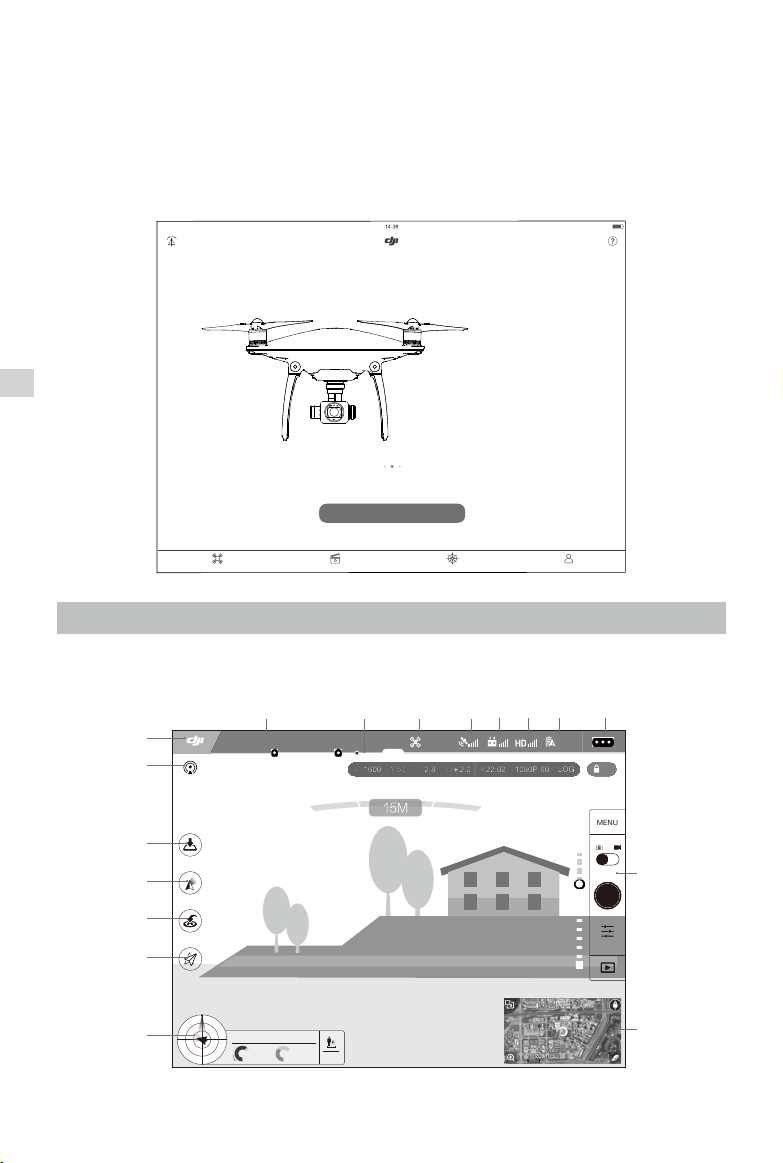

DJI GO App

Equipment

Editor

SkyPixel

Flight

Flight Environment Requirements

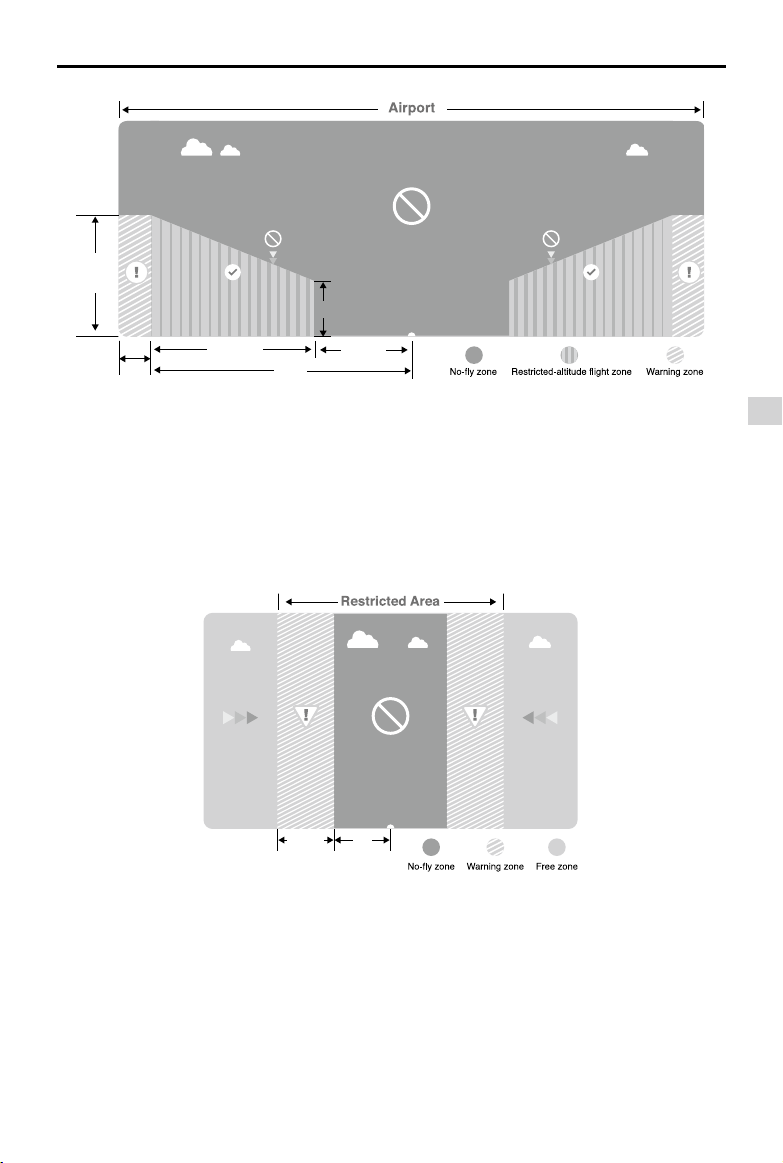

Flight Limits and No-Fly Zones

Preight Checklist

Calibrating the Compass

Auto Takeoff and Auto Landing

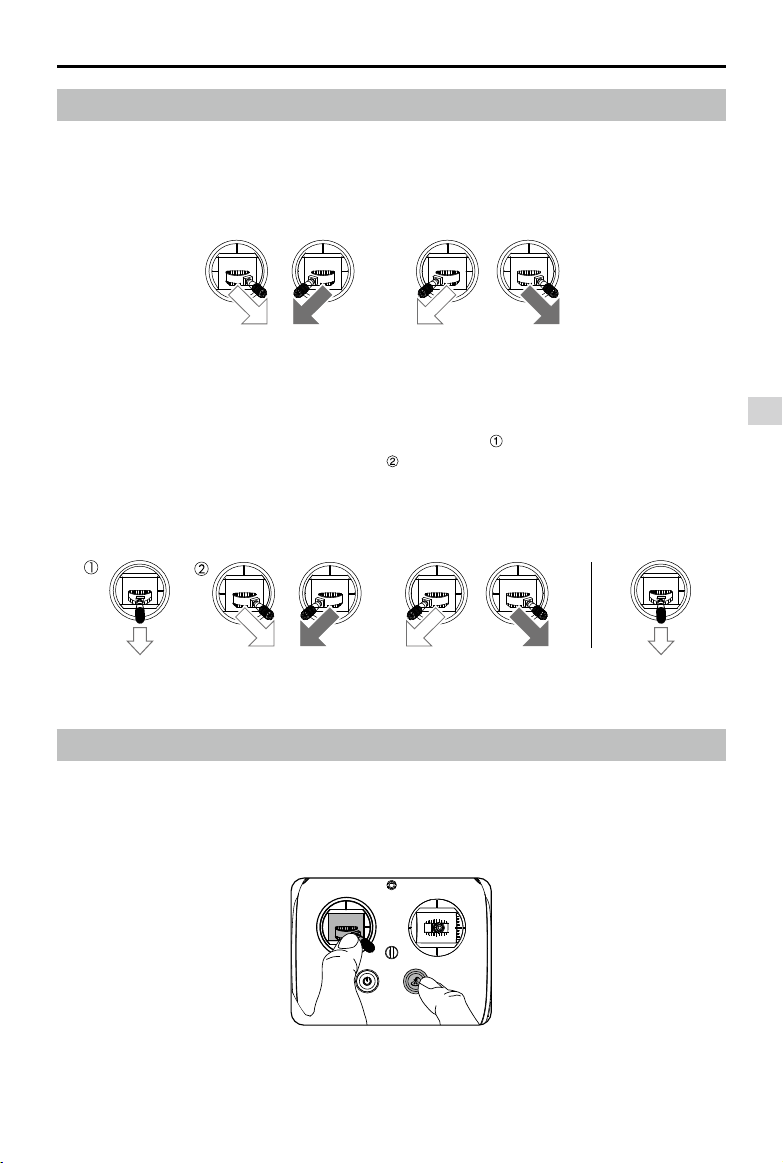

Starting/Stopping the Motors

Stop the motor mid-ight

Flight Test

FAQ

Appendix

Specications

Aircraft Status Indicator Description

Firmwares Update

Intelligent Flight Mode

After-Sales Information

FCC Compliance

Product Prole

This section introduces the Phantom 4

and lists the components of the aircraft

and remote controller.

Product Profile

Product Prole

Introduction

The DJI Phantom 4 is an extremely smart flying camera able to intelligently track objects without a

separate device, avoid obstacles and fly with a tap of your finger. All while shooting 4K video or 12

megapixel stills.

Features Highlights

Tapy and ActiveTrack are two brand new commands in the DJI GO app, unique to the Phantom 4. Now

with a simple tap you can y anywhere visible on your screen or track a moving subject smoothly and

easily.

Camera and Gimbal:

With the Phantom 4, you’re shooting 4K video at up to 30 frames per second and

capturing 12 megapixel photos that look crisper and cleaner than ever. An enhanced sensor gives you

greater clarity, lower noise, and better pictures than any previous ying camera.

HD Video Downlink:

The low-latency long range (up to 5 km) HD downlink is powered by an enhanced

version of DJI Lightbridge.

DJI Intelligent Flight Battery:

The new 5350 mAh DJI Intelligent Flight Battery features upgraded battery

cells and an advanced power management system to provide ight at up to around 28 minutes*.

Flight Controller:

The next-generation ight controller has been updated to provide a safer, more reliable

ight experience. A newly implemented ight recorder stores critical data from each ight and the Vision

Positioning System enhances hovering precision when ying indoors or in environments where GPS is

unavailable. A dual IMUs and compasses design provides redundancy to the aircraft.

Preparing the Aircraft

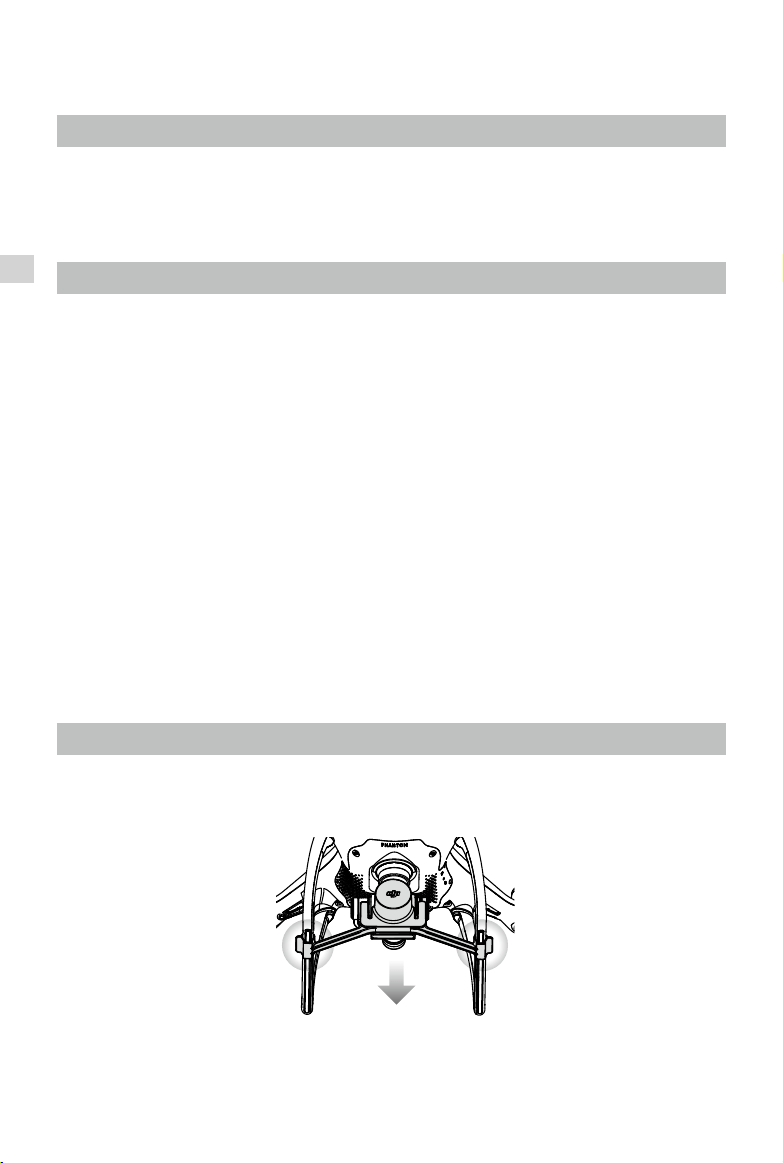

Removing Gimbal Clamp

Remove the gimbal clamp from the camera as shown below:

*At sea level in calm environments when ying in ATTI mode, The ight time will vary due to different ight

patterns, weather conditions and altitudes.

Product Profile

Phantom 4

User Manual

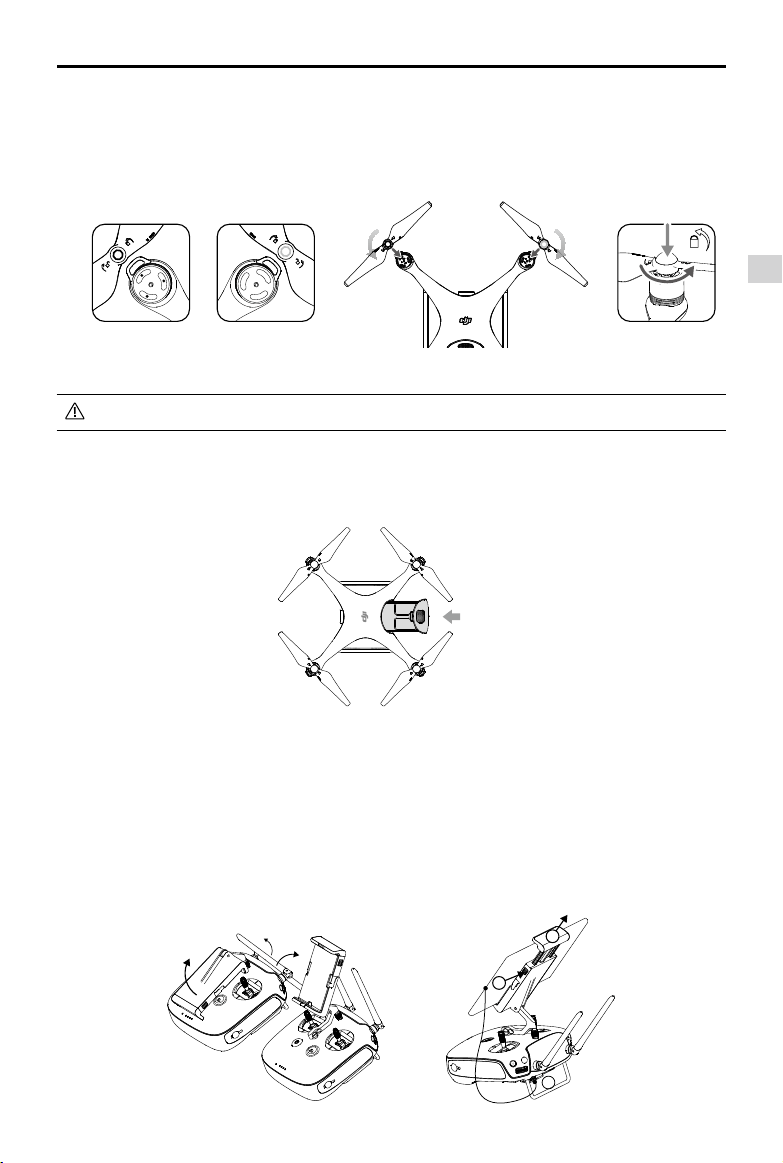

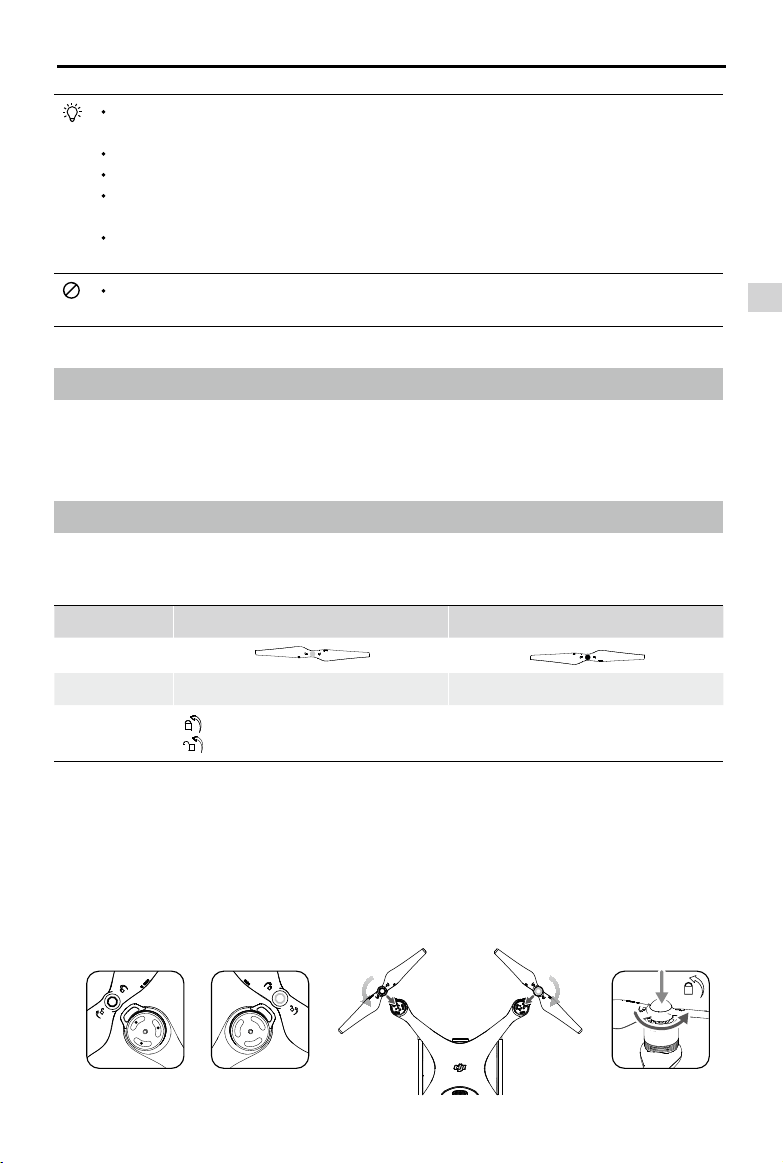

Attaching the Propellers:

Mount the propellers with black propeller rings to the motors with black dots. Mount the propellers with

sliver propeller rings to the motors without black dots. Press the propeller down onto the mounting plate

and rotate in the lock direction until it is secured in its position.

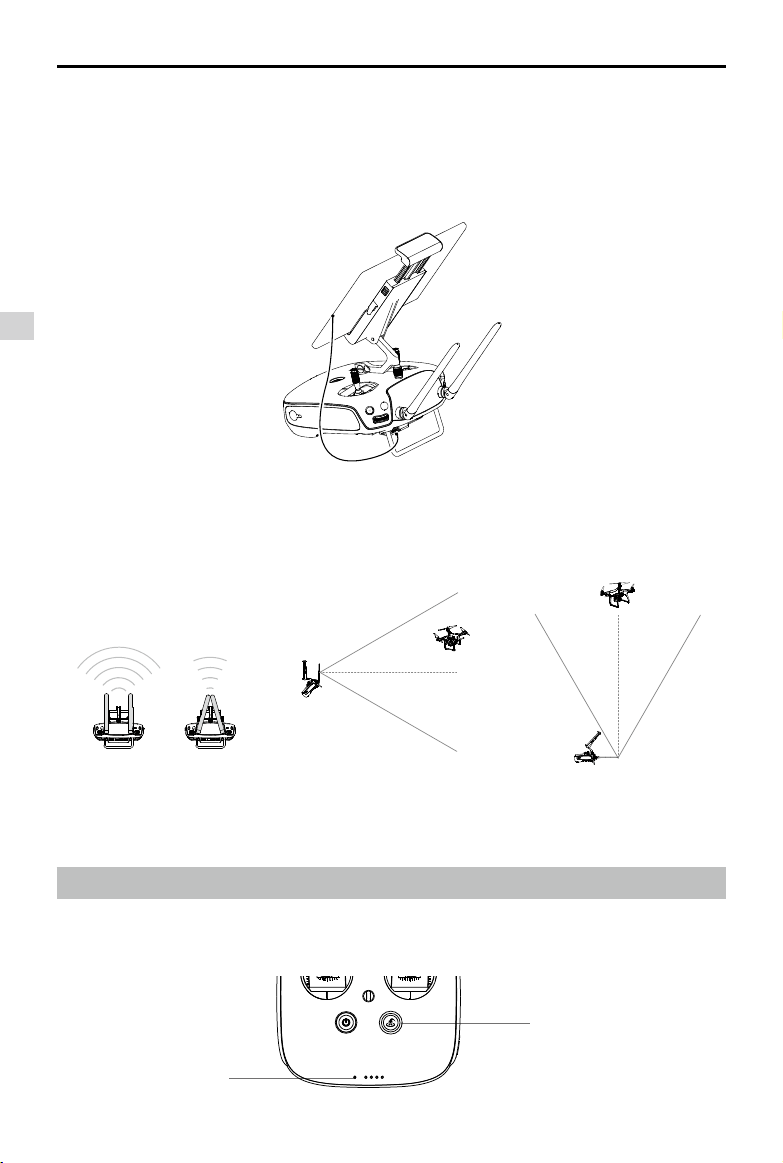

Preparing the Remote Controller:

The mobile device holder is designed for securing tablet or mobile device. Tilt the mobile device holder to

the desired position, then adjust the antennas so they are facing outward.

1. Press the button on the top right side of the mobile device holder to release the clamp, then adjust the

clamp to t the size of your mobile device.

2. Secure your mobile device in the clamp by pressing down, and connect your mobile device to the

remote controller using a USB cable.

3. Plug one end of the cable into the mobile device, and the other end into the USB port on the back of

the remote controller.

Check that all the propellers are secure before each ight.

Battery Installation

Slide battery into the battery compartment according to the arrow’s direction shown below. Make

sure that you hear a click sound indicates the battery is rmly installed. Failure to do so may affect

the ight safety of your aircraft.

Product Profile

Phantom 4

User Manual

Aircraft Diagram

Remote Controller Diagram

[1] Antennas

Relays aircraft control and video

signal.

[2] Mobile Device Holder

Securely mounts your mobile

device to the remote controller.

[3] Control Stick

Controls the orientation and

movement of the aircraft.

[4] Return Home (RTH) Button

Press and hold the button to initiate

Return to Home (RTH).

[1]

[2]

[4]

[5]

[6]

[7]

[8]

[3]

[1] GPS

[2] Propeller

[3] Motor

[4] Front LED Indicator

[5] Gimbal and Camera

[6] Obstacle Sensing System

[7] Intelligent Flight Battery

[8] Aircraft Status Indicator

[9] Camera / Linking Status Indicator

and Link Button

[10] Micro USB Port

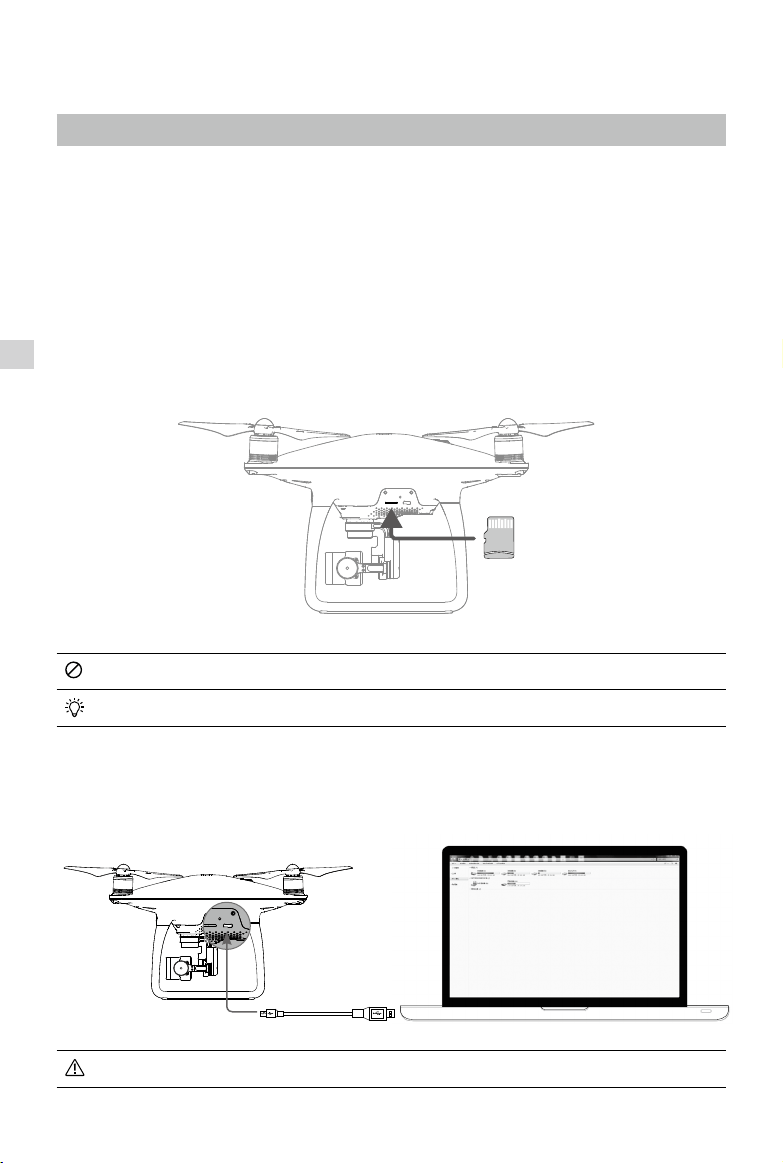

[11] Camera Micro SD Card Slot

[12] Vision Positioning Sensors

[1]

[2]

[3]

[4]

[7]

[8]

[9]

[12]

[10]

[11]

[5]

[6]

Product Profile

Phantom 4

User Manual

[5] Battery Level LEDs

Displays the battery level of the remote

controller.

[6] Status LED

Displays the remote controller's system status.

[7] Power Button

Used to turn the remote controller on and off.

[8] RTH LED

Circular LED around the RTH button displays

RTH status.

[17]

[19]

[18]

[9] Camera Settings Dial

Turn the dial to adjust camera settings.

(Only functions when the remote controller is

connected to a mobile device running the DJI

GO app. )

[10] Intelligent Flight Pause Button

Press once to allow the aircraft to exit from

TapFly, ActiveTrack and Advanced mode.

[11] Shutter Button

Press to take a photo. If burst mode is

selected, the set number of photos will be

taken with one press.

[12] Flight Mode Switch

Switch between P-mode, S-mode, and

A-mode.

[13] Video Recording Button

Press to start recording video. Press again to

stop recording.

[14] Gimbal Dial

Use this dial to control the tilt of the gimbal.

[15] Micro USB Port

Reserved port.

[16] USB Port

Connect to mobile device for running the DJI

GO app.

[17] C1 Button

Customizable through the DJI GO app.

[18] C2 Button

Customizable through the DJI GO app.

[19] Power Port

Connect to the Charger to charge the battery

of the remote controller.

[10]

[11]

[15] [16]

[9]

[12]

[13]

[14]

Aircraft

This section introduces the features of

the Flight Controller, Vision Positioning

System, and the Intelligent Flight Battery

Aircraft

Flight Controller

The Phantom 4’s ight controller features several important upgrades, including a new ight mode. Safety

modes include Failsafe and Return-to-Home. These features ensure the safe return of your aircraft if the

control signal is lost. The ight controller can also save critical ight data from each ight to the on-board

storage device. The new ight controller also provides increased stability and a new air braking feature.

Flight Mode

Three ight modes are available. The details of each ight mode are found below:

P-mode (Positioning)

：

P-mode works best when the GPS signal is strong. The aircraft utilizes the GPS

and Obstacle Sensing System to automatically stabilize itself, navigate between

obstacles or track a moving object. Advanced features such as TapFly and

ActiveTrack are enabled in this mode.

S-mode (Sport)

：

The handling gain values of the aircraft are adjusted in order to enhance

the maneuverability of the aircraft in S-mode. The maximum ight speed of

the aircraft is increased to 20 m /s in this mode. Note that Obstacle Sensing

system is disabled in this mode.

A-mode (Attitude)

：

When neither the GPS nor the Obstacle Sensing System is available, the aircraft

will only use its barometer for positioning to control the altitude.

The Obstacle Sensing System is disabled in S-mode (Sport), which means the aircraft will

not be able to automatically avoid obstacles in its ight path. Be vigilant and stay clear of

nearby obstacles.

The aircraft’s maximum speed and braking distance are significantly increased in S-mode

(Sport). A minimum braking distance of 164 feet (50 meters) is required in windless conditions.

The aircraft’s responsiveness is signicantly increased in S-mode (Sport), which means a small

stick movement on the remote controller will translate into a large travel distance of the aircraft.

Be vigilant and maintain adequate maneuvering space during ight.

The aircraft’s descent speed is signicantly increased in S-mode (Sport). A minimum braking

distance of 50 meters is required in windless conditions.

Use the Flight Controller mode switch to change the ight mode of the aircraft, refer to the “Flight

Mode Switch” on Page 33 for more information.

Aircraft

Phantom 4

User Manual

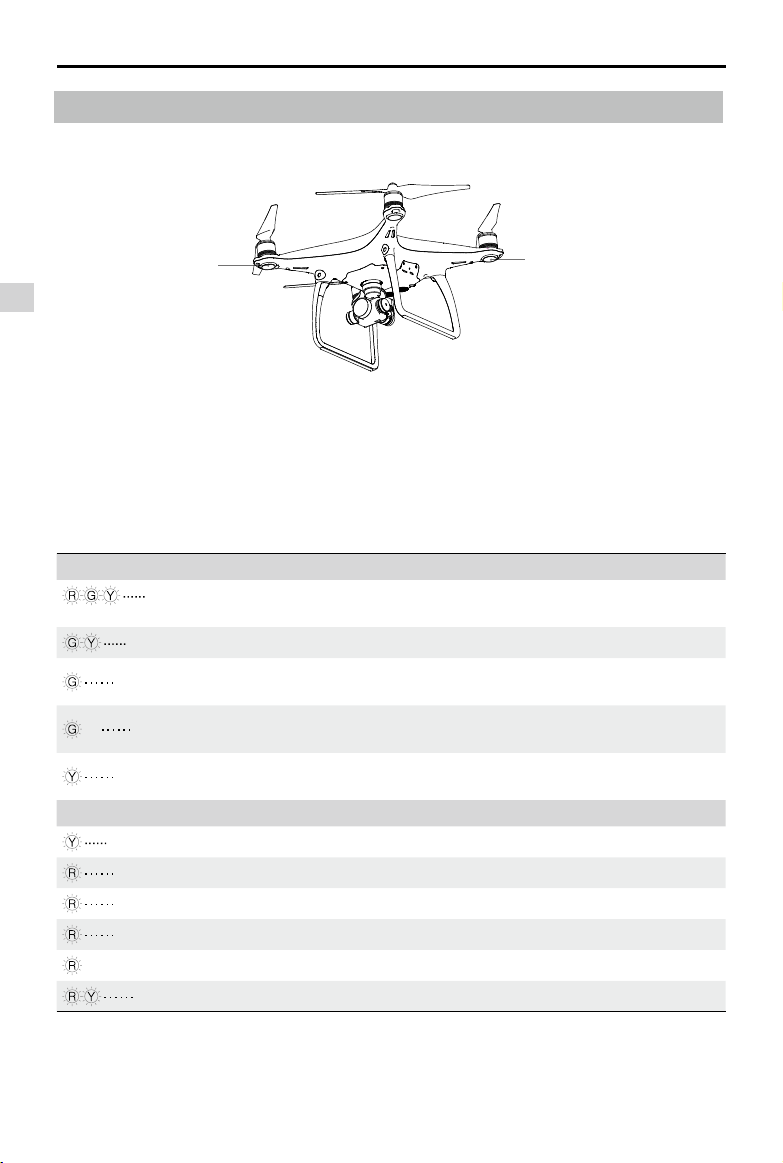

Flight Status Indicator

The Phantom 4 has Front LEDs and Aircraft Status Indicators. The positions of these LEDs are shown in

the gure below:

The Front LEDs show the orientation of the aircraft. The Front LEDs glow solid red when the aircraft is

turned on to indicate the front (or nose) of the aircraft. The Aircraft Status Indicators communicate the

system status of the ight controller. Refer to the table below for more information about the Aircraft Status

Indicators.

Front LED

Aircraft Status Indicator

Aircraft Status Indicator Description

Normal

Red, Green and Yellow Flash

Alternatively

Turning On and Self Diagnostic Testing

Green and Yellow Flash Alternatively Warming Up

Green Flashes Slowly

Safe to Fly (P-mode or S-mode with GPS , Vision

Positioning and Obstacle Sensing)

X2 Green Flashes Twice

Safe to Fly (P-mode or S-mode with GPS , Vision

Positioning and Obstacle Sensing)

Yellow Flashes Slowly

Safe to Fly (A-mode but No GPS and Vision

Positioning and Obstacle Sensing)

Warning

Fast Yellow Flashing Remote Controller's Signal Lost

Slow Red Flashing Low Battery Warning

Fast Red Flashing Critical Battery Warning

Red Flashing Alternatively IMU Error

—

Solid Red Critical Error

Red and Yellow Flash Alternatively Compass Calibration Required

Aircraft

Phantom 4

User Manual

Return-to-Home (RTH)

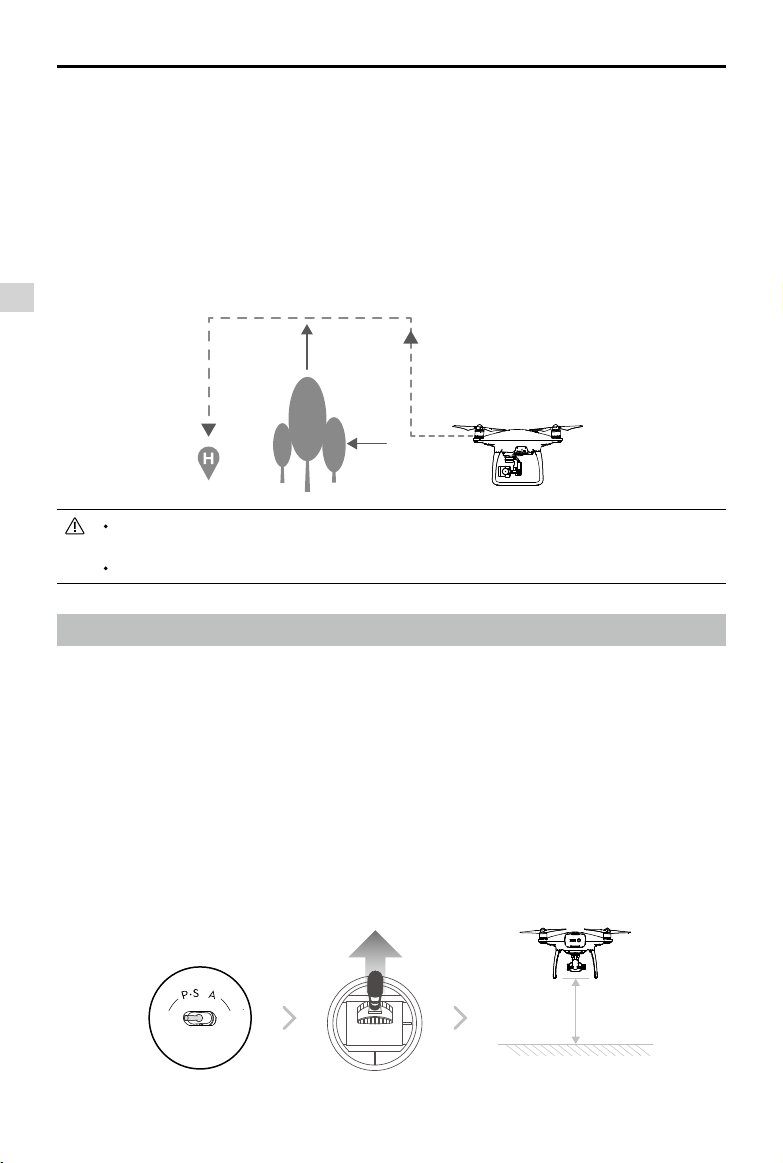

The Return-to-Home (RTH) function brings the aircraft back to the last recorded Home Point. There are

three types of RTH procedures: Smart RTH, Low Battery RTH, and Failsafe RTH. This section describes

these three scenarios in detail.

GPS

Description

Home Point

If a strong GPS signal was acquired before takeoff, the Home Point

is the location from which the aircraft was launched. The GPS signal

strength is indicated by the GPS icon ( ). The aircraft status

indicator will blink rapidly when the home point is recorded.

Failsafe RTH

If the Home Point was successfully recorded and the compass is functioning normally, Failsafe RTH will

be automatically activated if the remote controller signal is lost for more than three seconds. The Return-

to-Home process may be interrupted and the operator may regain control of the aircraft if the remote

controller signal connection is re-established.

Failsafe Illustration

Height over HP<=20m

RTH (adjustable altitude)

Fast Blinking Yellow

1 Record Home Point

Blinking Green

3 Remote Controller Signal Lost

Fast Blinking Yellow

2 Conrming Home Point

Blinking Green

6 Landing (after hovering for 5 secs)

Fast Blinking Yellow

Signal Lost Lasts (after 3 sec.)

Fast Blinking Yellow

Height over HP>20m

Elevate to 20m

20m

>3S

Aircraft cannot return to the Home Point when GPS signal is weak ( [ ] displays grey) or

unavailable.

Aircraft automatically descends and lands if RTH is triggered when the aircraft ies within a 20

meters (65 feet) radius of the Home Point. Aircraft will stop ascending and immediately return

to the Home Point if you move the left stick if the aircraft reaches 20 meters (65 feet) altitudes or

beyond during Failsafe.

The aircraft cannot avoid obstruction during the Failsafe RTH when Obstacle Sensing system is

disabled, therefore, it is important to set an suitable Failsafe altitude before each ight. Launch

the DJI GO app and enter “Camera” and select “MODE > Advanced Settings > Failsafe

mode” to set the Failsafe altitude.

User cannot control the aircraft while the aircraft is ascending to its failsafe altitude. However,

user can press RTH button once to exit ascending and regain control.

Aircraft can sense and avoid obstacles when Obstacle Sensing System is enabled and the

lighting conditions is sufcient. The aircraft will automatically climb up to avoid obstacle and y

to the Home Point at the new altitude.

Aircraft

Phantom 4

User Manual

Battery Level

Warning

Remark

Aircraft Status

Indicator

DJI GO App Flight Instructions

Low battery

level warning

The battery

power is low.

Please land the

aircraft.

Aircraft status

indicator blinks

RED slowly.

Tap “Go-home” to have the

aircraft return to the Home

point and land automatically,

or “Cancel” to resume normal

flight. If no action is taken,

the aircraft will automatically

go home and land after 10

seconds. Remote controller

will sound an alarm.

Fly the aircraft

back and land

it as soon as

possible, then

stop the motors

and replace the

battery.

Low Battery RTH

The low battery level failsafe is triggered when the DJI Intelligent Flight Battery is depleted to a point that

may affect the safe return of the aircraft. Users are advised to return home or land the aircraft immediately

when prompted. The DJI GO app will display a notice when a low battery warning is triggered. The

aircraft will automatically return to the Home Point if no action is taken after a ten-second countdown. The

user can cancel the RTH procedure by pressing the RTH button on the remote controller. The thresholds

for these warnings are automatically determined based on the aircraft’s current altitude and distance from

the Home Point.

The aircraft will land automatically if the current battery level can only support the aircraft long enough

to descend from its current altitude. The user can still use the remote controller to alter the aircraft’s

orientation during the landing process.

The Battery Level Indicator is displayed in the DJI GO app, and is described below:

Battery level Indicator

Critical Low battery level

warning(Red)

Low battery

level warning(Yellow)

Sufcient battery

level(Green)

Remaining ight time

Power requires

to return home

12:29

Smart RTH

Use the RTH button on the remote controller (refer to “RTH button” on page 33 for more information) or

tap the RTH button in the DJI GO app and follow the on-screen instructions when GPS is available to

initiate Smart RTH. The aircraft will then automatically return to the last recorded Home Point. You may use

the remote controller’s control sticks to control the aircraft’s position to avoid a collision during the Smart

RTH process. Press and hold the Smart RTH button once to start the process, and press the Smart RTH

button again to terminate the procedure and regain full control of the aircraft.

Aircraft

Phantom 4

User Manual

Critical Low

battery level

warning

The aircraft

must land

immediately.

Aircraft status

indicator blinks

RED quickly.

The DJI GO app display will

ash red and the aircraft will

start to descend. The remote

controller will sound an alarm.

Allow the aircraft to

descend and land

automatically.

Estimated

remaining

ight time

Estimated

remaining ight

based on current

battery level.

N/A N/A N/A

When Critical battery level warning is triggered and the aircraft begins to land automatically,

you may push the left stick upward to make the aircraft hover at its current altitude, giving you

an opportunity to navigate to a more appropriate landing location.

The colored zones and markers on the battery level indicator bar reflect the estimated

remaining ight time. They are automatically adjusted according to the aircraft’s current location

and status.

20米

The aircraft cannot avoid obstruction during the Failsafe RTH when the

Obstacle Sensing System is disabled. Therefore, it is important to set

an suitable Failsafe altitude before each ight. Launch the DJI GO app

and enter “Camera” and select “MODE > Advanced Settings > Failsafe

mode” to set the Failsafe altitude.

20 m

If the aircraft is ying under 20 meters (65 feet) and Failsafe (including

Smart RTH, Lower Battery RTH ) is triggered, the aircraft will first

automatically ascend to 20 meters (65 feet) from the current altitude.

You can only cancel the ascending by exiting the Failsafe. Refer to “RTH

Button” on page 33 for more information on how to exit the Failsafe and

regain the control of the remote controller.

20 m

Aircraft automatically descends and lands if RTH is triggered when the

aircraft ies within a 20 meters (65 feet) radius of the Home Point. Aircraft

will stop ascending and immediately return to the Home Point if you move

the left stick if the aircraft reaches 20 meters (65 feet) altitudes or beyond

during Failsafe.

20米

Aircraft cannot return to the Home Point when GPS signal is weak

( [ ] displays grey) or unavailable.

20米

if you move the left stick after the aircraft rises above 65 feet (20m)

but below the pre-set Failsafe RTH altitude, the aircraft will stop

ascending and immediately return to the Home Point.

Failsafe Safety Notices

Aircraft

Phantom 4

User Manual

15 meters

5 meters

Obstacle Avoidance During RTH

Aircraft can now sense and actively attempt to avoid obstacle during FailSafe RTH, provided that the

light condition is ideal for the Obstacle Sensing System. The details on how the aircraft will behave during

obstacle avoid is listed below:

1. Aircraft decelerates when an obstacle is sensed at 65 feet (20 meters) ahead.

2. Aircraft stops and hover then start ascending vertically to avoid the obstacle. Eventually, the aircraft will

stop climbing when it is at least 16 feet (5 meters) above the detected obstacle.

3. Failsafe RTH procedure resume, the aircraft will continue ying to the Home Point at the current

altitude.

TapFly

Introduction

With the TapFly feature, user now can tap on the mobile device screen to guide the aircraft to y toward the

designated direction without using the remote controller. Aircraft can automatically avoid obstacle or initiate

break and then hover automatically during the ight, provided that the lighting is not too dark ( < 300 lux) nor

too bright ( > 10,000 lux).

Using TapFly

Ensure the battery level is more than 50 % for the Intelligent Flight Battery. And the aircraft is in P-mode.

Then follow the steps below to use TapFly:

Take off and ensure the aircraft is ying at least 9 feet (3 meters) above the ground.

3 meters

ON OFF

Auto Hold

To ensure the aircraft is heading towards the static direction, you cannot rotate the aircraft

during FailSafe RTH while Obstacle Sensing System is enabled.

The aircraft cannot avoid the obstacle that is direct above the aircraft.

Aircraft

Phantom 4

User Manual

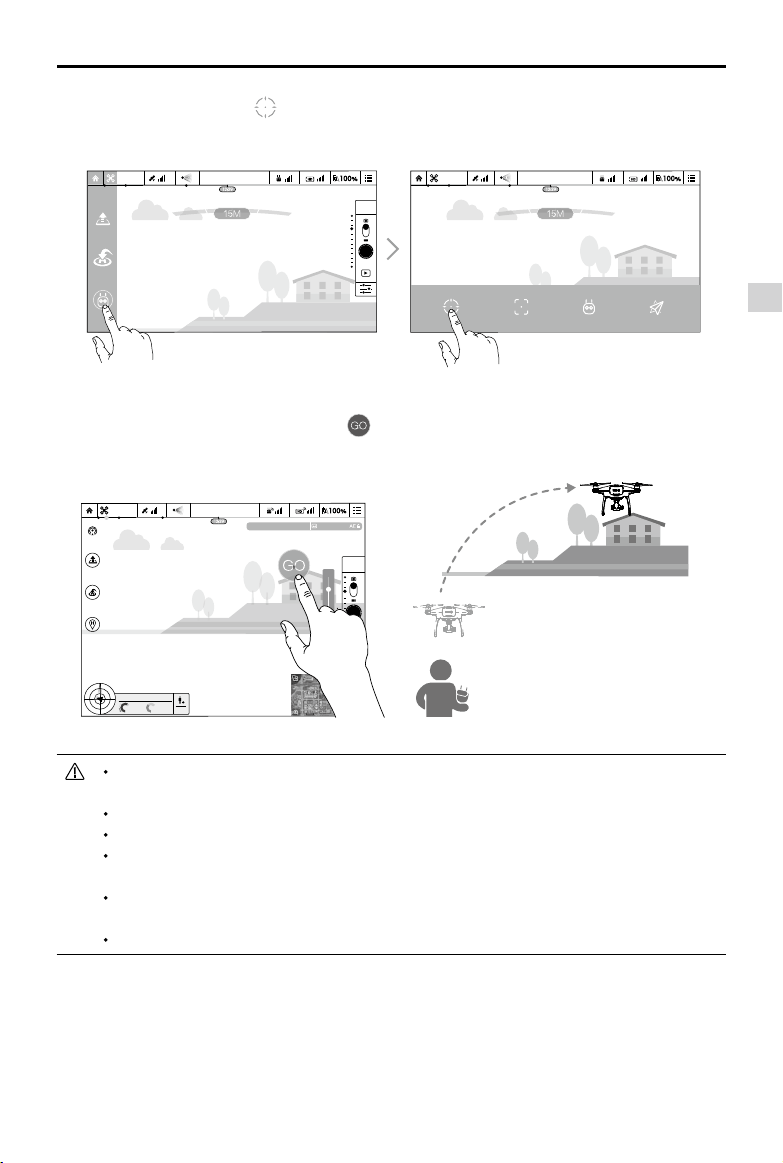

Launch DJI GO app and tap

at the bottom of the camera view, read and understand the prompt

statements.

Tap once on the target direction and wait for icon to appear. Tap again to conrm the selection and

the aircraft will automatically y towards the target direction.

DO NOT guide the aircraft to fly towards people, animals, small and fine objects (e.g. tree

branches and power lines) or transparent objects (e.g. glass or water surface).

Watch for the obstacles that is on the ight path and stay clear of them.

There may be deviations between the expected and the actual ight path of Tapy selection.

The selectable range for the target direction is limited. You cannot make TapFly selection that is

close to the upper or lower edge of the screen.

TapFly mode may not work properly when the aircraft is ying over water surface or snow covered

area.

Be extra cautions when ying in extremely dark (< 300 lux ) or bright (>10,000 lux) environments.

Safe to Fly (GPS)Safe to Fly (GPS)

TapFly SmartNormalActiveTrack

OPTI OPTI

1/320

4821

JPEG

ISO 100

EV 0

OPTI

V.S

M/S

H.S

4.22.3

39M 210M

232M

6.2m/s

可安全飞行 (GPS)

Safe to Fly (GPS)

Tap t

Aircraft

Phantom 4

User Manual

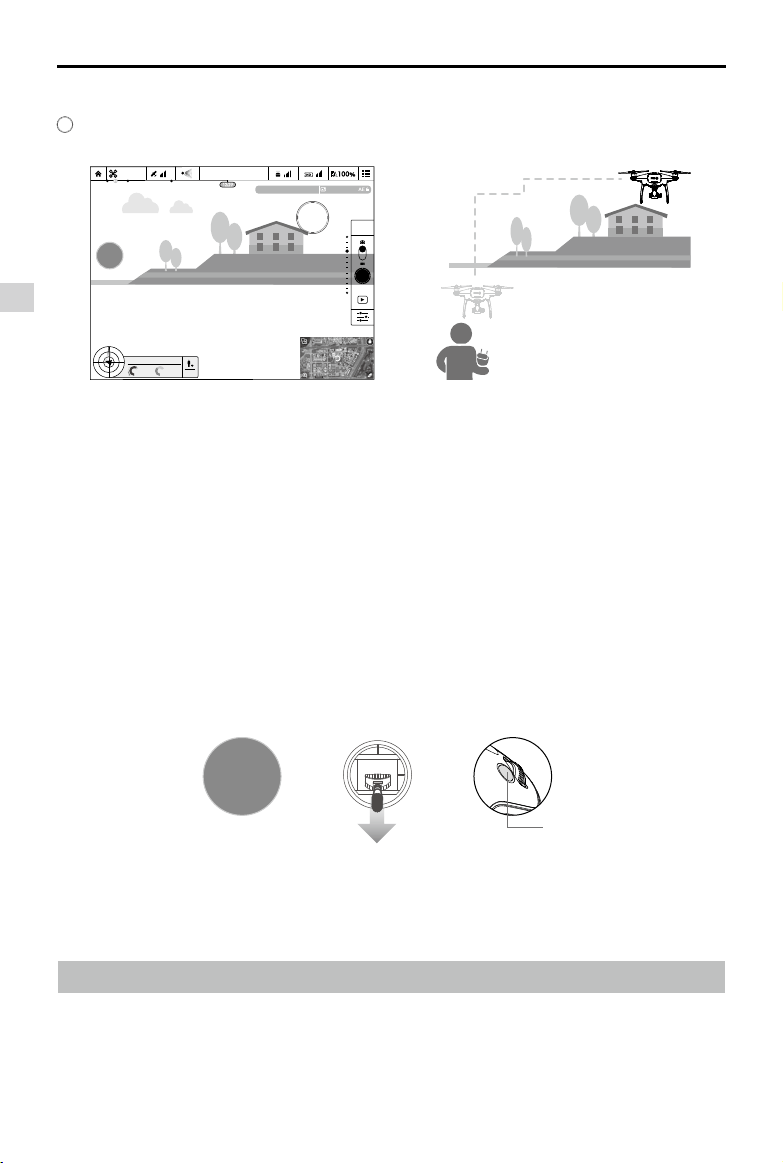

After conrmed with the TapFly selection, the aircraft will y automatically towards the area marked by

icon. Note that you can still use the control stick to control the movement of the aircraft during the ight.

可安全飞行 (GPS)

1/320

4821

JPEG

ISO 100

EV 0

OPTI

V.S

M/S

H.S

4.22.3

39M 210M

232M

STOP

Note that the aircraft will also automatically adjust its speed when it senses there is obstacle at the front

of the aircraft or it is ying too close to the ground. However, the user should not rely on this feature to

navigate the aircraft between the obstacles. Meanwhile the FailSafe procedure will override the TapFly

operation, given that if the GPS signal is weak; the aircraft will exit the autonomous ight from TapFly and

y back to the Home Point automatically.

Exit TapFly

Use the following methods to exit TapFly:

1. Press once on the Intelligent Flight Pause button on the remote controller or pull back the pitch stick on

the remote controller.

2. Tap “STOP” button on the screen.

STOP

Aircraft will stop and hover after exit from TapFly. You may either tap a new target direction to proceed to

the next ight or bring back the aircraft to the Home Point manually.

ActiveTrack

ActiveTrack allows you to mark and track a moving object on your mobile device screen. The aircraft will

automatically avoid obstacles in its ight path.

Safe to Fly (GPS)

OR OR

Intelligent Flight Pause button

Aircraft

Phantom 4

User Manual

Using ActiveTrack

Ensure the Intelligent Flight Battery has more than 50% power and the aircraft is in either P-mode. Then

follow the steps below to use ActiveTrack:

1. Take off and hover at least 9 feet (3 meters) above the ground.

3 meters

ON OFF

Auto Hold

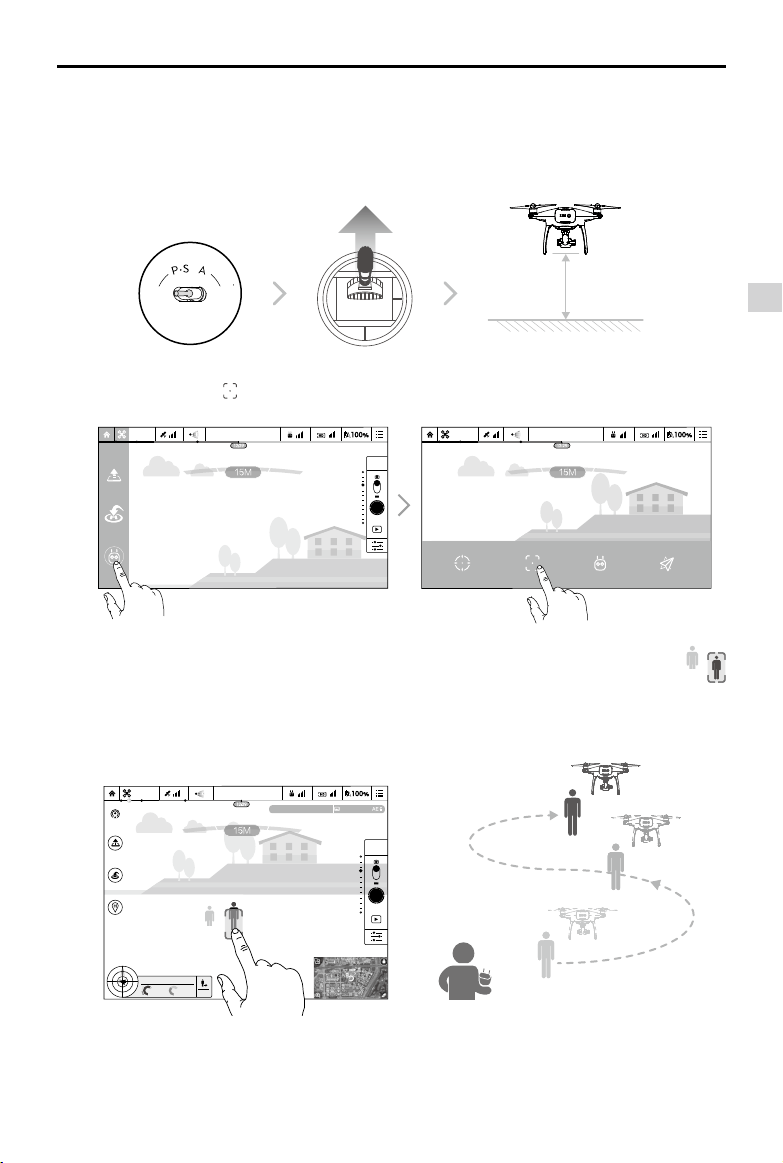

2. In the DJI GO app, tap to bring up the ight modes and then select.

3. Drag a box around the object you want to track and tap it to conrm the selection. The box

will turn green when tracking is in progress. If the box turns red, the object was not identied and you

should try again.

ACTMETRACK SMART

OPTI OPTI

Safe to Fly (GPS)Safe to Fly (GPS)

TapFly SmartActiveTrack Normal

1/320

4821

JPEG

ISO 100

EV 0

OPTI

V.S

M/S

H.S

4.22.3

39M 210M

232M

ActiveTrack

Safe to Fly (GPS)

Aircraft

Phantom 4

User Manual

DO NOT select an area containing people, animals, small, ne objects (e.g. tree branches

and power lines) or transparent objects (e.g. glass or water surface).

Stay clear of obstacles near the ight path, particularly when the aircraft is ying backward.

Be extra vigilant when using ActiveTrack in any of the following situations:

)

The tracked subject is not moving on a level plane.

)

The tracked subject changes shape drastically while moving.

)

The tracked subject could be blocked or out of sight for a long time.

)

The tracked subject is moving on a snowy surface.

)

The lighting is extremely low (< 300 lux) or high (> 10,000 lux).

)

The tracked subject has a similar color or pattern as its surrounding environment.

You must follow local privacy laws and regulations when using ActiveTrack.

The aircraft will sense and avoid obstacles on its ight path.

If the aircraft loses track of the subject, because it is moving too fast or obscured, re-select

the subject to resume tracking.

Exiting ActiveTrack

There are two ways to exit ActiveTrack:

1. Press the Intelligent Flight Pause button on the remote controller.

2. Pull the pitch stick backward.

After exiting ActiveTrack, the aircraft will stop and hover in place, at which point you may choose to start a

new mission or bring the aircraft back to the Home Point.

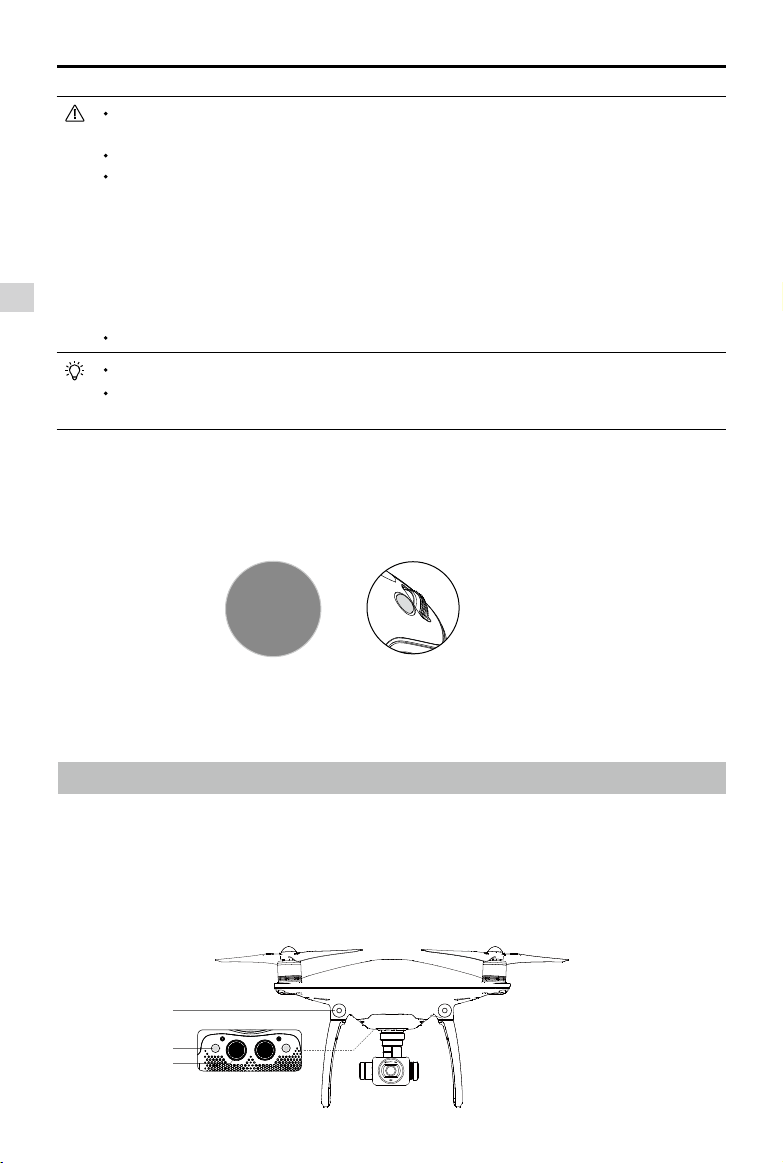

Obstacle and Vision Positioning System

The Phantom 4 is equipped with an Obstacle Sensing System that constantly scans for obstacles in front

of it, allowing it to avoid collisions by going around, over or hovering. The DJI Vision Positioning System

uses ultrasound and image data to help the aircraft maintain its current position. With the help of Vision

Positioning, your Phantom 4 can hover in place more precisely and ﬂy indoors or in other environments

where a GPS signal is not available. The main components of the Vision Positioning System are located on

the bottom of your Phantom 4; they include [3] two ultrasonic sensors and [1] [2] four monocular sensors.

STOP

[1]

[2]

[3]

Aircraft

Phantom 4

User Manual

Point the aircraft toward the screen

Align the boxes

Pan and tilt the aircraft

Calibrating Front Sensors

Obstacles Sensing cameras that installed on landing gear are calibrated on delivery. However these

camera are vulnerable to excessive impact, hence it will require calibration via DJI Assistant 2 from time

to time. Follow the steps below to calibrate the camera when the DJI GO app prompt you to do so.

Detection Range

The detection range of the Obstacle Sensing and Vision Positioning System is depicted as follow. Note

that the aircraft cannot sense and avoid the obstacles that are not within the detection range.

Using Vision Positioning

Vision Positioning is activated automatically when the aircraft is turned on. No further action is

required. Vision Positioning is typically used in indoor environments, where GPS is unavailable.

Using the sensors that are built into the Vision Positioning system, the aircraft can hover precisely

even without GPS.

Aircraft

Phantom 4

User Manual

Follow the steps below to use Vision Positioning:

1. Toggle the ight mode switch to P-mode.

2. Place the aircraft on a at surface. Note that the Vision Positioning system cannot work

properly on surfaces without clear pattern variations.

3. Turn on the aircraft. The aircraft status indicator will ash green two times, which indi-

cates the Vision Positioning system is ready. Gently push the left stick up to lift off and

the aircraft will hover in place.

The performance of your Vision Positioning System is affected by the surface over which it is

ying. The ultrasonic sensors may not be able to accurately measure distances when operating

above sound-absorbing materials. In addition, the camera may not function correctly in

suboptimal environments. The aircraft will switch from P-mode to A-mode automatically if neither

GPS nor Vision Positioning System are available. Operate the aircraft with great caution in the

following situations:

Flying over monochrome surfaces (e.g. pure black, pure white, pure red, pure green).

Flying over a highly reective surfaces.

Flying at high speeds(over 10 m/s at 2 meters or over 5 m/s at 1 meter).

Flying over water or transparent surfaces.

Flying over moving surfaces or objects.

Flying in an area where the lighting changes frequently or drastically.

Flying over extremely dark (lux < 10) or bright (lux > 100,000) surfaces.

Flying over surfaces that can absorb sound waves (e.g. thick carpet).

Flying over surfaces without clear patterns or texture.

Flying over surfaces with identical repeating patterns or textures (e.g. tiles with the same design).

Flying over inclined surfaces that will deect sound waves away from the aircraft.

Assisted Brakingfrom Obstacle Sensing System

obstacles are detected direct ahead of the aircraft. Note that Obstacle System works best when light

condition is ideal and the obstacle does not have feature-less pattern. In addition, the aircraft speed

cannot exceed over 10 meter/second so that the aircraft can break and stop at the safe distance.

ON OFF

Auto Hold

Aircraft

Phantom 4

User Manual

Flight Recorder

Flight data is automatically recorded to the internal storage of the aircraft. This includes flight

telemetry, aircraft status information, and other parameters. To access these data, connect the

aircraft to the PC through the Micro USB port and launch the DJI GO app.

Attaching and Detaching the Propellers

Use only DJI approved propellers with your Phantom 4. The grey and black ring on the propeller

indicate where they should be attached and in which direction whey should spin.

Propellers Silver Ring Black Ring

Figure

Attach On Motors without three dots Motors with three dots

Legends

Lock : Turn the propellers in the indicated direction to mount and tighten.

Unlock : Turn the propellers in the indicated direction to loosen and remove.

Keep the sensors clean at all times. Dirt or other debris may adversely affect the effectiveness

of the sensors.

Vision Positioning is only effective when the aircraft is at altitudes of 0.3 to 10 meters.

The Vision Positioning System may not function properly when the aircraft is ying over water.

The Vision Positioning System may not be able to recognize pattern on the ground in low light

conditions (less than 100 lux).

Do not use other ultrasonic devices with frequency of 40 KHz when Vision Positioning system is

in operation.

Keep the animals away from the aircraft when Vision Positioning system is activated. The sonar

sensor emits high frequency sounds that are only audible to some animals.

Attaching the Propellers

1. Be sure to remove the warning stickers from the motors before attaching the propellers.

2. Mount the propellers with black propeller rings to the motors with black dots. Mount the propellers with

sliver propeller rings to the motors without black dots. Press t he propeller down onto the mounting

plate and rotate in the lock direction until it is secured in its position.

Aircraft

Phantom 4

User Manual

DJI Intelligent Flight Battery Functions

1. Battery Level Display: The LED indicators display the current battery level.

2. Battery Life Display: The LEDs display the current battery power cycle.

3. Auto-Discharging Function: To prevent swelling, the battery automatically discharges to below 65% of

total power when it is idle for more than ten days. It takes around two days to discharge the battery to

65%. It is normal to feel moderate heat being emitted from the battery during the discharge process.

Discharge thresholds can be set in the DJI GO app.

4. Balanced Charging: Automatically balances the voltage of each battery cell when charging.

5. Overcharge Protection: Charging automatically stops when the battery is fully charged.

6. Temperature Detection: The battery will only charge when the temperature is between 5°C (41°F) and

40°C (104°F).

The Intelligent Flight Battery must be fully charged before using it for the first time. Refer to

“Charging the Intelligent Flight Battery” for more information.

Be aware that the output power of the supplied Phantom 4 charger is 100W.

DJI Intelligent Flight Battery

The DJI Intelligent Flight Battery has a capacity of 5350 mAh, a voltage of 15.2 V, and a smart charge/

discharge functionality. It should only be charged using an appropriate charger that has been approved

by DJI.

Intelligent Flight Battery Charger

Be aware of the sharp edges of the propellers. Handle with care.

Use only the DJI approved propellers. Do not intermix the propellers types.

Stand clear of the motors and DO NOT touch the propellers when they are spinning.

Detaching the Propellers

Press down the propellers onto the motor mount, rotate the propeller according to the marked direction to

unlock the propeller.

Check that the propellers and motors are installed correctly and rmly before every ight.

Ensure that all propellers are in good condition before each ight. DO NOT use aged, chipped,

or broken propellers.

To avoid injury, STAND CLEAR of and DO NOT touch propellers or motors when they are spinning.

ONLY use original DJI propellers for a better and safer ight experience.

Aircraft

Phantom 4

User Manual

Using the Battery

LED1

LED2

Battery Level Indicators

LED3

LED4

Power Button (Built-in LED)

Turning ON/OFF

Turning On:

Press the Power Button once, then press again and hold for 2 seconds to turn on. The

Power LED will turn red and the Battery Level Indicators will display the current battery level.

Turning

Off:

Press the Power Button once, then press again and hold for 2 seconds to turn off. The

battery power LED will ash when powering off the Phantom to allow automatically stopping

of a recording during the event recording wasn’t stopped.

The Battery Level Indicators will also show the current battery level during charging and

discharging. The indicators are dened below.

: LED is on. : LED is ashing.

: LED is off.

7. Over Current Protection: The battery stops charging when high amperage (more than 8 A) is detected.

8. Over Discharge Protection: To prevent over-discharge damage, discharging automatically stops when

the battery voltage reaches 12 V.

9. Short Circuit Protection: Automatically cuts the power supply when a short circuit is detected.

10. Battery Cell Damage Protection: The DJI GO app displays a warning message when a damaged

battery cell is detected.

11. Battery Error History: Browse the battery error history in the DJI GO app.

12. Sleep Mode: To save power, the battery enters sleep mode after 20 minutes of inactivity.

13. Communication: Information pertaining to the battery’s voltage, capacity, current, etc. is transmitted to

the aircraft’s main controller.

Refer to

Phantom 4 Intelligent Flight Battery Safety Guidelines

before use. Users take full

responsibility for all operations and usage.

Aircraft

Phantom 4

User Manual

Low Temperature Notice:

1. Battery capacity is signicantly reduced when ying in low temperature (< 0°C) environments.

2. It is not recommended that the battery be used in extremely low temperature (< -10°C) environments.

Battery voltage should reach the appropriate level when operating environment with temperatures

between -10°C and 5°C.

3. End the ight as soon as the DJI GO app displays the “Low Battery Level Warning” in low temperature

environments.

4. Keep the battery indoors to warm it before ying in low temperature environments.

5. To ensure optimal performance of the battery, keep the battery temperature above 20°C.

6. The charger will stop charging the battery if the battery cell’s temperature is not within the operating

range (0°C ~ 40°C ).

In cold environments, insert the battery into the battery compartment and allow the aircraft for

approximately 1-2 minutes to warm up before taking off.

Checking the Battery Level

The Battery Level Indicators display how much power remains. When the battery is turned off, press

the Power Button once. The Battery Level Indicators will light up to display the current battery level. See

below for details.

Battery Level

LED1 LED2 LED3 LED4 Battery Level

87.5%~100%

75%~87.5%

62.5%~75%

50%~62.5%

37.5%~50%

25%~37.5%

12.5%~25%

0%~12.5%

=0%

Battery life

Battery life refers to how many more times the battery can be discharged and recharged before it must

be replaced. When the battery is turned off, press and hold the Power Button for 5 seconds to check the

battery life. The Battery Level Indicators will light up and/or blink for two seconds, as shown below:

Aircraft

Phantom 4

User Manual

Charger

Intelligent Flight Battery

Power Outlet

Charging the Intelligent Flight Battery

1. Connect the Battery Charger to a power source (100-240 V 50/60 Hz).

2. Connect one end of the charger to the Intelligent Flight Battery to the Battery Charger. If the battery

level is above 95%, turn on the battery before charging.

3. The Battery Level Indicator will display the current battery level as it is charging.

4. The Intelligent Flight Battery is fully charged when the Battery Level Indicators are all off.

5. Air-cool the Intelligent Flight Battery after each ight. Allow its temperature to drop to room temperature

before storing it for an extended period.

Always turn off the battery before inserting it or removing it from the Phantom 4. Never insert or

remove a battery when it is turned on.

Battery Life

LED1 LED2 LED3 LED4 Battery Life

90%~100%

80%~90%

70%~80%

60%~70%

50%~60%

40%~50%

30%~40%

20%~30%

below 20%

When battery life reaches 0%, it can no longer be used.

For more information about the battery, launch the DJI GO app and check the information that is listed

under the battery tab.

Aircraft

Phantom 4

User Manual

Battery Level Indicators While Charging

LED1 LED2 LED3 LED4 Battery Level

0%~25%

25%~50%

50%~75%

75%~100%

Fully Charged

Battery Protection LED Display

The table below shows battery protection mechanisms and corresponding LED patterns.

Battery Level Indicators while Charging

LED1 LED2 LED3 LED4 Blinking Pattern Battery Protection Item

LED2 blinks twice per second Over current detected

LED2 blinks three times per second Short circuit detected

LED3 blinks twice per second Over charge detected

LED3 blinks three times per second Over-voltage charger detected

LED4 blinks twice per second Charging temperature is too low

LED4 blinks three times per second Charging temperature is too high

After these issues are resolved, press the Power Button to turn off the Battery Level Indicator. Unplug the

Intelligent Flight Battery from the charger and plug it back in to resume charging. Note that you do not

need to unplug and plug in the charger in the event of a room temperature error; the charger will resume

charging when the temperature is within the allowable range.

DJI does not take any responsibility for damage caused by third-party chargers.

How to discharge your Intelligent Flight Battery:

Slow :

Place the Intelligent Flight Battery into the Phantom 4’s Battery Compartment and turn

it on. Leave it on until there is less than 8% of power left, or until the battery can no longer be

turned on. Launch the DJI GO app to check battery levels.

Rapid :

Fly the Phantom 4 outdoors until there is less than 8% of power left, or until the battery

can no longer be turned on.

Remote Controller

This section describes the features

of the remote controller and includes

instructions for controlling the aircraft

and the camera.

Remote Controller

Remote Controller Prole

The Phantom 4 remote controller is a multi-function wireless communication device that integrates the

video downlink system and aircraft remote control system. The video downlink and aircraft remote control

system operate at 2.4 GHz. The remote controller features a number of camera control functions, such

as taking and previewing photos and videos, as well as controlling gimbal motion. The battery level is

displayed via LED indicators on the front panel of the remote controller.

Compliance Version:

The remote controller is compliant with local compliance and regulations.

Operating Mode:

Control can be set to Mode 1 or Mode 2, or to a custom mode.

Mode 1:

The right stick serves as the throttle.

Mode 2:

The left stick serves as the throttle.

To prevent transmission interference, do not operate more than three aircrafts in the same area.

Using the Remote Controller

Turning the Remote Controller On and Off

The Phantom 4 remote controller is powered by a 2S rechargeable battery that has a capacity of

6000 mAh. The battery level is indicated via the Battery Level LEDs on the front panel. Follow the

steps below to turn on your remote controller:

1. When the remote controller is turned off, press the Power Button once. The Battery Level LEDs will

display the current battery level.

2. Press and hold the Power Button to turn on the remote controller.

3. The remote controller will beep when it is turned on. The Status LED will rapidly blink green, indicating

that the remote controller is linking to the aircraft. The Status LEDs will glow solid green when linking is

complete.

4. Repeat Step 2 to turn off the remote controller.

Charging the Remote Controller

Charge the remote controller using the included charger. Refer to the gure on next page below for more

details.

Remote Controller

Phantom 4



User Manual



Charger

Power Outlet

Controlling the Camera

Shoot videos/pictures, view recorded images, and adjust camera settings via the Shutter Button, Camera

Settings Dial, Playback Button, and Video Recording Button on the remote controller.

[1] Camera Settings Dial

Turn the dial to adjust camera settings such as ISO, shutter speed, and aperture without letting go of

the remote controller. Press down on the dial to toggle between these settings.

[2] Shutter Button

Press to take a photo. If burst mode is activated, multiple photos will be taken with a single press.

[3] Video Recoding Button

Press once to start recording video, then press again to stop recording.

[4] Gimbal Dial

Use this dial to control the tilt of the gimbal.

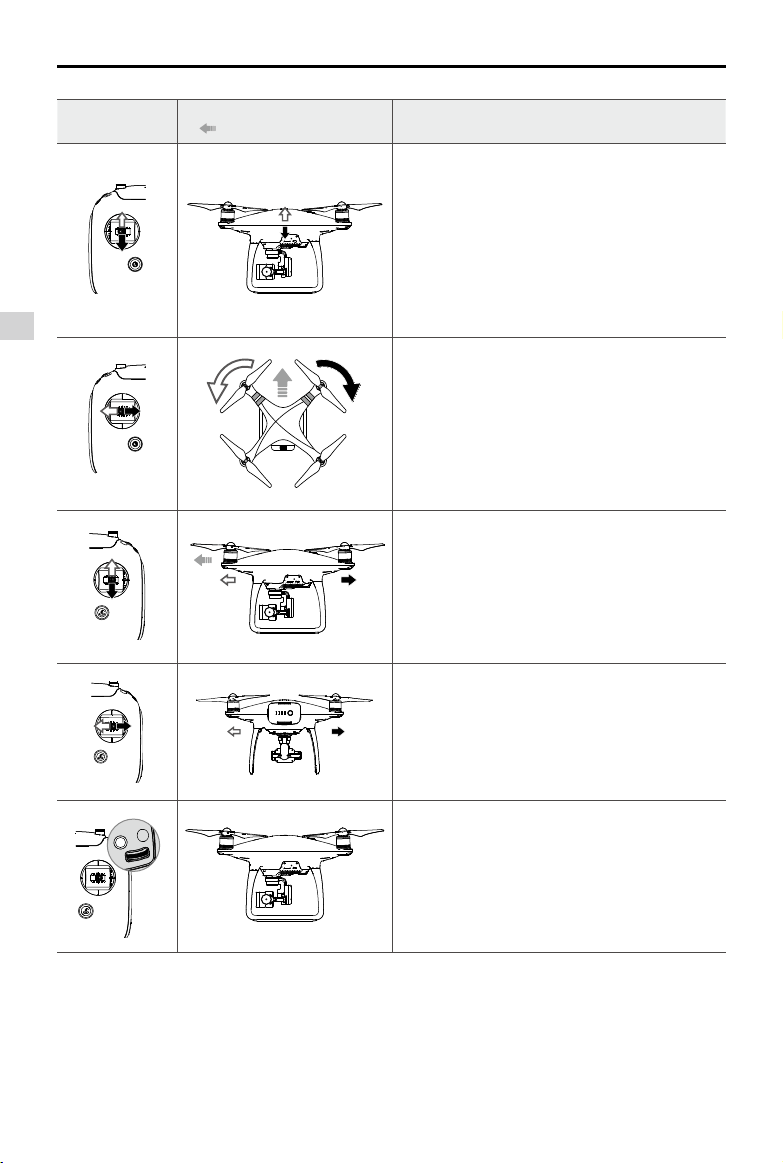

Controlling Aircraft

This section explains how to control the orientation of the aircraft through the remote controller. The

Remote Control is set to Mode 2 by default.

Stick Neutral/Mid-Point: Control sticks are in the center position.

Moving the Control Stick: The control stick is pushed away from the center position.

[1]

[2]

[3]

[4]

Remote Controller

Phantom 4

User Manual

Remote Controller

(Mode 2)

Aircraft

(

 

Indicates Nose Direction)

Remarks

Moving the left stick up and down changes the

aircraft’s elevation.

Push the stick up to ascend and down to descend.

When both sticks are centered, the Phantom 4 will

hover in place.

The more the stick is pushed away from the center

position, the faster the Phantom 4 will change

elevation. Always push the stick gently to prevent

sudden and unexpected elevation changes.

Moving the left stick to the left or right controls the

rudder and rotation of the aircraft.

Push the sick left to rotate the aircraft counter-

clockwise, push the stick right to rotate the aircraft

clockwise. If the stick is centered, the Phantom 4

will maintain its current orientation.

The more the stick is pushed away from the center

position, the faster the Phantom 4 will rotate.

Moving the right stick up and down changes the

aircraft’s forward and backward pitch.

Push the stick up to fly forward and down to fly

backward.

Phantom 4

will hover in place if the stick

is centered.

Push the stick further away from the center position for

a larger pitch angle (maximum 30˚) and faster ight.

Moving the right stick control left and right changes

the aircraft’s left and right pitch.

Push left to fly left and right to fly right. The

Phantom 4 will hover in place if the stick is

centered.

Press the Intellighent Flight Pause button once to

exit from the ActiveTrack, TapFly and Intelligent

Navigation ight mode. The aircraft will hover at

the current position.

Remote Controller

Phantom 4

User Manual

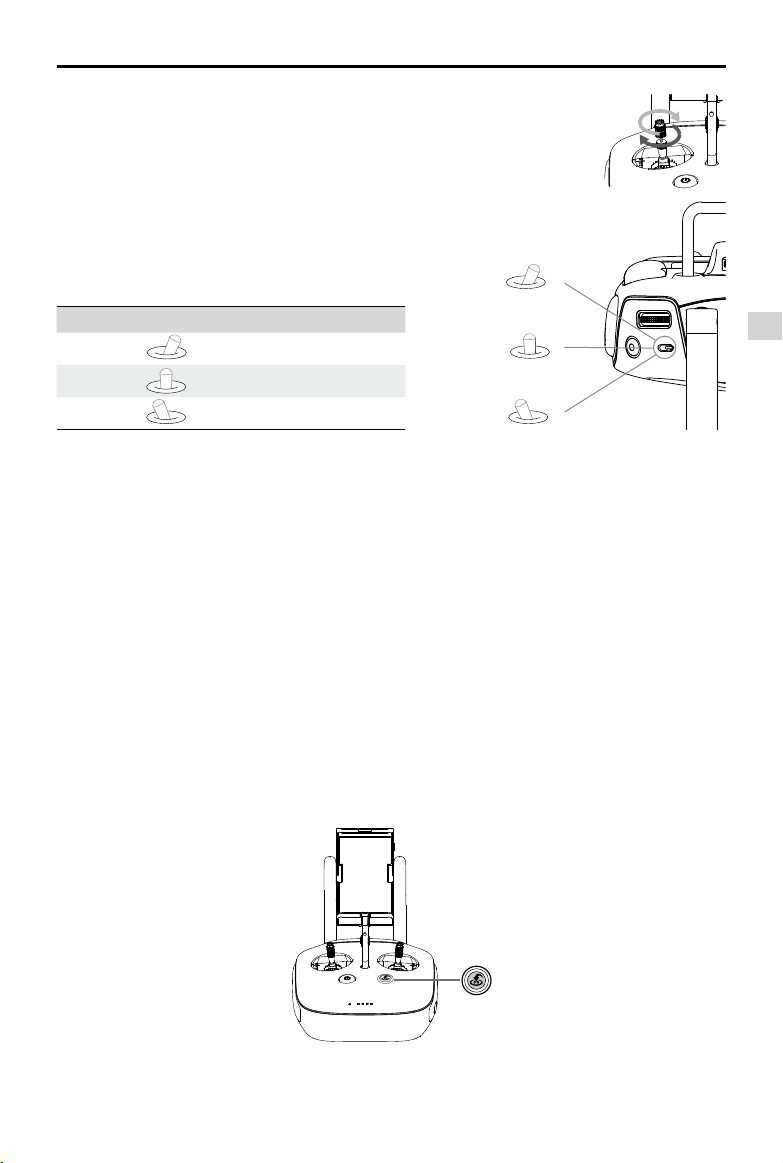

Position Figure Flight Mode

Position 1 P-mode

Position



2 S-mode

Position



3 A-mode

Flight Mode Switch

Toggle the switch to select the desired flight mode.

You may choose between; P-mode, S-mode and A-

mode.

Position



Position



Position



P-mode (Positioning)

：

P-mode works best when the GPS signal is strong. The aircraft utilizes the GPS

and Obstacle Sensing System to automatically stabilize itself, navigate between obstacles or track a

moving object. Advanced features such as TapFly and ActiveTrack are enabled in this mode.

S-mode (Sport)

：

The handling gain values of the aircraft are adjusted in order to enhance the

maneuverability of the aircraft in S-mode. The maximum ight speed of the aircraft is increased to

20 m /s in this mode. Note that Obstacle Sensing system is disabled in this mode.

A-mode (Attitude)

：

When neither the GPS nor the Obstacle Sensing System is available, the aircraft

will only use its barometer for positioning to control the altitude.

RTH Button

Press and hold the RTH button to start the Return-to-Home (RTH) procedure. The LED ring around the RTH

Button will blink white to indicate that the aircraft is entering RTH mode. The aircraft will then return to the

last recorded Home Point. Press this button again to cancel the RTH procedure and regain control of the

aircraft.

Adjusting Controller Sticks

Hold and twist the controller sticks clockwise or counter clockwise to adjust

the length of the controller sticks. A proper length of controller sticks can

improve the controlling accuracy.

Remote Controller

Phantom 4

User Manual

Connecting Your Mobile Device

Tilt the mobile device holder to the desired position. Press the button on the side of the mobile device holder

to release the clamp, and then place your mobile device into the cradle. Adjust the clamp down to secure the

mobile device. To connect your mobile device to the remote controller using a USB cable, plug one end of

the cable into your mobile device and the other end into the USB port on the back of the remote controller.

Optimal Transmission Range

The transmission signal between the aircraft and the remote controller is most reliable within the area that

is depicted in the image below:

Optimal Transmission Range

Ensure that the aircraft is ying within the optimal transmission zone. To achieve the best transmission

performance, maintain the appropriate relationship between the operator and the aircraft.

Remote Controller Status LED

The Status LED reects the strength of the connection between the remote controller and the aircraft. The

RTH LED indicates the Return-to-Home status of the aircraft. The table below contains more information

about these indicators.

RTH LED

Status LED

strong weak

Remote Controller

Phantom 4

User Manual

Status LED Alarm Remote Controller Status

—

Solid Red Chime The remote controller is disconnected from the aircraft.

—

Solid Green Chime The remote controller is connected to the aircraft.

Slow Blinking Red D-D-D

......

Remote controller error.

Red and Green/ Red and

Yellow Alternate Blinks

None HD downlink is disrupted.

RTH LED Sound Remote Controller Status

—

Solid White Chime Aircraft is returning home.

Blinking White D

. . .

Sending Return-to-Home command to the aircraft.

Blinking White DD

.. .. ..

Return-to-Home procedure in progress.

The Remote Status Indicator will blink red and sound an alert, when the battery level is critically low.

Linking the Remote Controller

The remote controller is linked to your aircraft before delivery. Linking is only required when using a new

remote controller for the rst time. Follow these steps to link a new remote controller:

1. Turn on the remote controller and connect to the mobile device. Launch the DJI GO app.

2. Turn on the Intelligent Flight Battery.

3. Enter “Camera” and tap on and then tap “Linking RC” button as shown below.

RC Control Setting

RC Calibration

Stick Mode

Button Customization

Not DefinedC1

C2 Not Defined

Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled.

Do not change unless familiar with your new mode.

You can customize the C1 and C2 buttons on the back of the RC.

Linking RC

Remote Controller

Phantom 4

User Manual

The remote controller will un-link itself from an aircraft if a new remote controller is linked to the

same aircraft.

Link Button

RC Calibration

Stick Mode

Button Customization

Not DefinedC1

C2 Not Defined

Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled.

Do not change unless familiar with your new mode.

You can customize the C1 and C2 buttons on the back of the RC.

RC Control Setting

Linking RC

Searching for aircraft frequency,

timeout in 54 seconds

Cancel

Press the linking button on the aircraft

to link this remote controller

5. Locate the linking button on the side of the aircraft, as shown in the gure below. Press the link button

to start linking. The Remote Controller Status Indicator LED will display a solid green once the remote

controller is successfully linked to the aircraft.

4. The remote controller is ready to link. The Remote Controller Status Indicator blinks blue and a beep is

emitted.

Camera and Gimbal

This section provides the technical

specications of the camera and

explains the gimbal’s operation modes.

Gimbal Camera

Camera and Gimbal

Camera Prole

The on-board camera uses the 1/2.3 inch CMOS sensor to capture video (up to 4096x2160p at 24fps or

4K at up to 30 fps with the Phantom 4 and 12 megapixel stills. You may choose to record the video in

either MOV or MP4 format. Available picture shooting modes include burst, continuous, and time-lapse

mode. A live preview of what the camera sees can be monitored on the connected mobile device via the

DJI GO app.

Camera Micro SD Card Slot

To store your photos and videos, insert the Micro SD card into the slot, as shown below, before

turning on the Phantom 4. The Phantom 4 comes with a 16 GB Micro SD card and supports Micro

SD cards up to 64 GB. A UHS-1 Micro SD card is recommended due to their fast read and write

speeds allowing you to save high-resolution video data.

Do not remove the Micro SD card from the Phantom 4 when it is turned on.

To ensure the stability of the camera system, single video recordings are capped at 30 minutes.

Camera Data Port

Turn on the Phantom 4 and connect a USB cable to the Camera Data Port to download photos and

videos to your computer.

The aircraft must be turned on before attempting to access the les on the Micro SD card.

Gimbal Camera

Phantom 4

User Manual

Camera Operation

Use the Shutter and Video Recording buttons on the remote controller to shoot the images or videos

through the DJI GO app. For more information about how to use these buttons, refer to “Controlling the

Camera Page 31”.

Camera LED Indicator

Camera LED Indicator lights up after the flight battery is powered on. It provides information on the

working status of the camera.

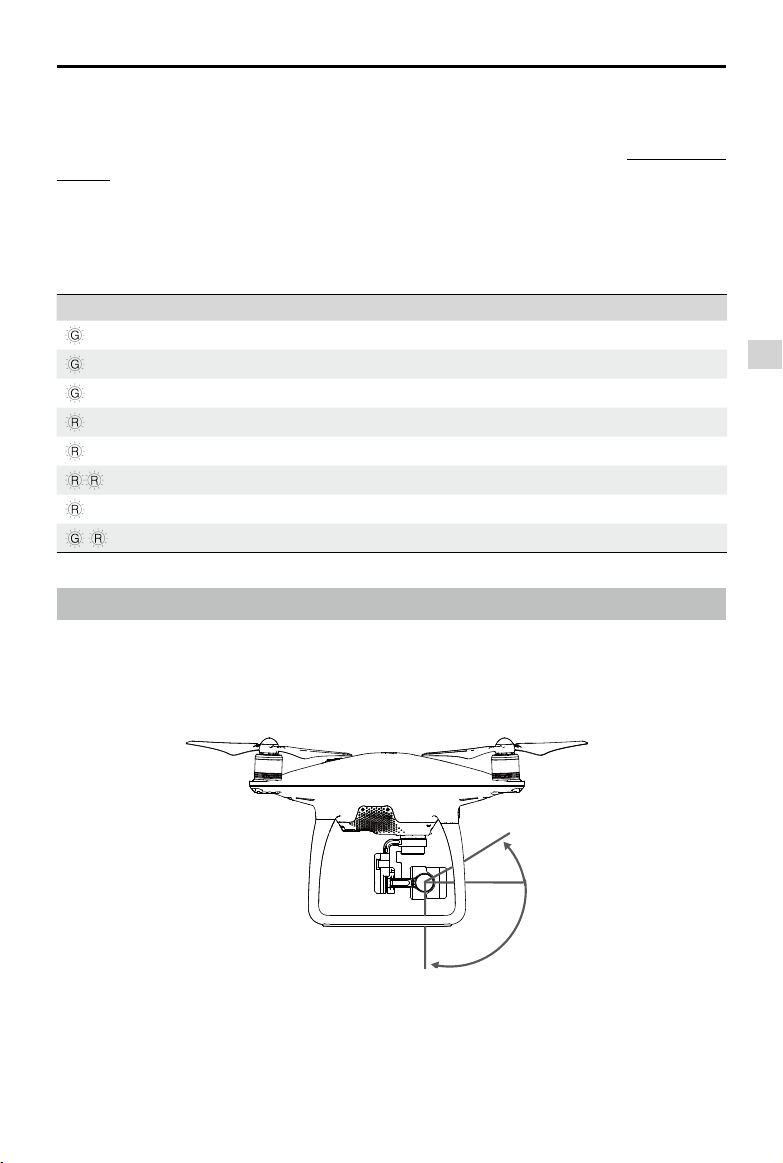

Camera LED Indicator Camera status

Green Fast Blink (0.2s off, 0.1s on ) System is warming up.

Green Blink Once (0.5s off, 0.4s on ) Taking a single picture.

Green Blink 3 Times (0.3s off, 0.1s on ) Taking 3 or 5 photos per shot.

Slow Red Blink (1.6s on, 0.8s off ) Recording.

Fast Red Blink (0.5s off, 0.2s on ) SD card error.

Double Red Blink (0.1s on, 0.1s off, 0.1s on, 0.1s off) Overheated Camera

Solid Red System error.

Green and Red Blink (0.8s green on, 0.8s red on) Firmware Upgrading

Gimbal

Gimbal Prole

The 3-axis gimbal provides a steady platform for the attached camera, allowing you to capture clear,

stable images and video. The gimbal can tilt the camera within a 120˚ range.

Use the gimbal dial on the remote controller to control the tilt movement of the camera.

-90°

0°

30°

Gimbal Camera

Phantom 4

User Manual

Gimbal Operation Modes

Two gimbal operation modes are available. Switch between the different operation modes on the

camera settings page of the DJI GO app. Note that your mobile device must be connected to the remote

controller for changes to take effect. Refer to the table below for details:

Follow Mode

The angle between gimbal’s orientation and aircraft’s nose remains

constant at all times.

FPV Mode

The gimbal will synchronize with the movement of the aircraft to provide a

rst-person perspective ying experience.

A gimbal motor error may occur in these situations:

(1) the aircraft is placed on uneven ground or the gimbal’s motion is obstructed

(2) the gimbal has been subjected to an excessive external force, such as a collision. Please

take off from at, open ground and protect the gimbal at all times.

Flying in heavy fog or clouds may make the gimbal wet, leading to temporary failure. The

gimbal will recover full functionality after it dries.

It is normal for the gimbal to produce short pulse of beeping tone upon initialization.

DJI GO app

This section introduces the four main

functions of the DJI GO app.

DJI GO App

22:02

LOG

1080P

ISO

1600

2.8

2.0

1/50

09:29

61%

P-GPS

M/S

H: D:

V.S

H.S

4.22.3

39M 210M

232M

SAFE TO FLY (GPS)

DJI GO App

The DJI GO app is a mobile application designed specically for DJI equipment. Use this app to control

the gimbal, camera, and other aircraft functions. The app features Equipment, Editor, Explorerand Me

sections, which are used for conguring your aircraft , editing and sharing your photos and videos with

others. It is recommended that you use a tablet for the best experience.

Connect your Aircraft, Take to the Skies

iPad

Learn More>

Use AEB shoot to get more dynanic image

Enter Camera View

80%

PHANTOM 4

Equipment Editor Explore Me

Equipment

On the Equipment page, you can enter Camera View, visit the Academy or view your ight records.

Camera View

[17]

[16]

[15]

[14]

[13]

[12]

[11]

[9]

[8][7][6][5]

[4][3][2][1]

[10]

DJI GO App

Phantom 4

User Manual

[1] System Status

: Indicates the current aircraft system status and GPS signal strength.

[2] Battery Level Indicator

: Describes the battery level of the aircraft according to its immediate status. The colored

zones represent the various stages of battery level. When the battery level drops to a certain stage,

the system will prompt the user to take the appropriate action.

[3] Flight Mode

: The text next to this icon indicates the current ight mode.

Tap this icon to congure the Main Controller Settings, to change the ight limits and set the gain

values.

[4] GPS Signal Strength

: Shows the current GPS signal strength. White bars indicate adequate GPS strength.

[5] Remote Controller Signal

: Shows the signal strength of the remote controller.

[6] HD Video Link Signal Strength

: Shows the signal strength of the HD video downlink between the aircraft and the remote

controller.

[7] Battery Level

61%

: Shows the current battery level.

Tap this icon to view the battery information menu where you can set the battery warning thresholds

and view the battery log.

[8] General Settings

: Tap this icon to view General Settings where you can set the ight parameters, and enable the

Flight Route display.

[9] Camera Operation Bar

The bar will be displayed when using the on-board camera.

Shutter and Recording Settings

: Tap this icon to enter various camera value settings including the Color Mode, Video Size, and

Image Size.

Shutter

: Tap this button to take a single photo. Press and hold this button to switch between Single Shot,

Triple Shot and Timed Shot modes.

Record

: Tap once to start recording video, then tap again to stop recording. You can also press the Video

Recording Button on the remote controller.

Playback

: Tap this icon to play back photos and videos after they are captured.

DJI GO App

Phantom 4

User Manual

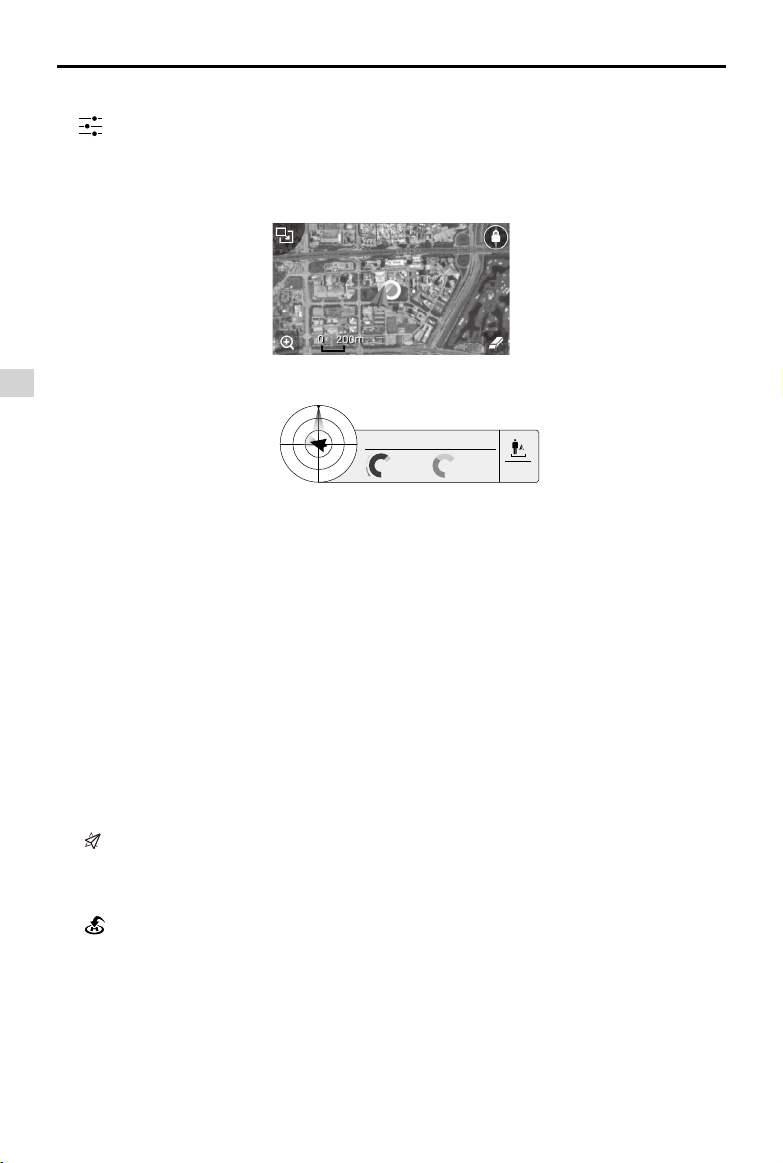

Camera Settings

: Tap this icon to set the ISO, Shutter Speed and Exposure Value of the camera.

[10] Mini Map

Displays the ight path of the current ight. Tap the Mini Map to switch between Camera View and

Map View.

[11] Flight Telemetry

H: D:

V.S

M/S

H.S

4.22.3

39M 210M

232M

Flight Attitude and Radar Function:

The aircraft’s ight attitude is indicated by the target-like icon.

(1) The red arrow shows which direction the aircraft is facing.

(2) The ratio of the grey area to the blue area indicates the aircraft’s pitch.

(3) The horizontal level of the grey area indicates the aircraft’s roll angle.

Flight Parameters:

Altitude: Vertical distance from the Home Point.

Distance: Horizontal distance from the Home Point.

Vertical Speed: Movement speed across a vertical distance.

Horizontal Speed: Movement speed across a horizontal distance.

Aircraft Distance:

The horizontal distance between the aircraft and the operator.

[12] Intelligent Flight Mode

: This icon displays the Intelligent Flight Mode settings when the aircraft has entered F-mode. Tap

to select one of the Intelligent Flight Modes. Refer to Intelligent Flight Modes (p. 62) for details.

[13] Return-to-Home (RTH)

: Initiate RTH home procedure. Tap to have the aircraft return to the latest Home Point.

[14] Gimbal Operation Mode

This icon will be displayed when using a DJI gimbal (or camera). Tap to select a mode or re-align

the gimbal.

DJI GO App

Phantom 4

User Manual

[15] Auto Takeoff/Landing

/ : Tap to initiate auto takeoff or landing.

[16] Livestream

: This icon indicates the current video feed is being broadcast live on YouTube. Ensure that

mobile data service is available on your mobile device.

[17] Back

: Tap this icon to return to the main menu.

Editor

An intelligent video editor is built into the DJI GO app. After recording several video clips and

downloading them to your mobile device, go to Editor on the home screen. You can then select a

template and a specied number of clips which are automatically combined to create a short lm that can

be shared immediately.

SkyPixel

Find out about our latest events, featured products and trending Skypixel uploads in the Explore page.

If you already have a DJI account, you will be able to participate in forum discussions, earn Credits in the

DJI Store, and share your artwork with the community.

Follow Mode

The gimbal’s orientation is aligned with the aircraft’s nose. One user

alone can control the pitch motion of the gimbal, but a second operator

is required to control the yaw motion using a second remote controller.

FPV Mode

The gimbal will lock to the movement of the aircraft to provide a First-

Person-View ying experience.

Flight

This section describes safe ight

practices and ight restrictions.

Flight

Once pre-ight preparation is complete, it is recommended that you use the ight simulator in the DJI GO

app to hone your ight skills and practice ying safely. Ensure that all ights are carried out in an open

area.

Flight Environment Requirements

1. Do not use the aircraft in severe weather conditions. These include wind speeds exceeding 10 m/s ,

snow, rain and fog.

2. Only y in open areas. Tall structures and large metal structures may affect the accuracy of the on-

board compass and GPS system.

3. Avoid obstacles, crowds, high voltage power lines, trees, and bodies of water.

4. Minimize interference by avoiding areas with high levels of electromagnetism, including base stations

and radio transmission towers.

5. Aircraft and battery performance is subject to environmental factors such as air density and temperature.

Be very careful when ying at altitudes greater than 19, 685 feet (6000 meters) above sea level, as the

performance of the battery and aircraft may be affected.

6. The Phantom 4 cannot operate within the polar areas.

Flight Limits and No-Fly Zones

All unmanned aerial vehicle (UAV) operators should abide by all regulations set forth by government and

regulatory agencies including the ICAO and the FAA. For safety reasons, ights are limited by default,

which helps users operate this product safely and legally. Flight limitations include height limits, distance

limits, and No-Fly Zones.

When operating in P-mode, height limits, distance limits, and No-Fly Zones function concurrently to

manage flight safety. In A-mode, only height limits are in effect, which by default prevent the aircraft

altitude from exceeding 1640 feet (500 m) .

Maximum ight altitude & Radius Limits

Maximum ight altitude and radius limits may be changed in the DJI GO app. Be aware that the maximum

ight altitude cannot exceed 1640 feet (500 meters). In accordance with these settings, your Phantom 4

will y in a restricted cylinder, as shown below:

Maximum Flight Altitude

Max Radius

Home Point

Height of aircraft

when turned on

Flight

Phantom 4

User Manual

GPS Signal Weak Blinking Yellow

Flight Limits DJI GO app Aircraft Status Indicator

Maximum

Flight

Altitude

Height is restricted to 26 feet (8

meters)when the GPS signal is

weak and Vision Positioning is

activated. Height is restricted to

164 feet (50 meters) when the

GPS signal is weak and Vision

Positioning is inactivated.

Warning: Height limit

reached.

None.

Max Radius No limits

If the aircraft ies out of the limit, you can still control the aircraft, but you cannot y it any

farther.

If the aircraft ies out of the max radius it will y back within range automatically when GPS

signal is strong.

No-Fly Zones

All No-Fly Zones are listed on the DJI official website at http://www.dji.com/flysafe/no-fly. No-Fly

Zones are divided into Airports and Restricted Areas. Airports include major airports and flying

elds where manned aircraft operate at low altitudes. Restricted Areas include border lines between

countries or sensitive institute. The details of the No-Fly Zones are explained as follow:

Airport

(1) Airport No-Fly Zone are comprised of Take-off Restricted zones and Restricted Altitude Zones. Each

zone features circles of various sizes.

(2) R1 miles (value of the R1 depends on the size and shape of the airport) around the airport is a Take-

off restricted zone, inside of which take off is prevented.

(3) From R1 mile to R1 + 1 mile around the airport the ight altitude is limited to a 15 degree inclination.

Starting at 65 feet (20 meters) from the edge of airport and radiating outward. The ight altitude is

limited to 1640 feet (500 meters) at R1+1 mile

(4) When the aircraft enters within 320 feet (100 meters) of No-Fly Zones, a warning message will appear

on the DJI GO app.

GPS Signal Strong Blinking Green

Flight Limits DJI GO app Aircraft Status Indicator

Maximum Flight

Altitude

Aircraft's altitude cannot

exceed the specied value.

Warning: Height

limit reached.

None.

Max Radius

Flight distance must be within

the max radius.

Warning: Distance

limit reached.

Rapid red ashing

when close to the

max radius limit.

Flight

Phantom 4

User Manual

Restricted Area

(1) Restricted Areas does not have ight altitude restrictions.

(2) R miles around the designated restriction area is a Take-off Restricted area. Aircraft cannot take off

within this zone. The value of R varies based on the denition of the restricted areas.

(3) A “warning zone” has been set around the Restricted Area. When the aircraft approaches within 0.062

miles (100 m) of this zone, a warning message will appear on the DJI GO app.

66 feet

1 mile

320 feet

1640

feet

100m R

66 feet

1 mile

320 feet

1640

feet

100 m

Flight

Phantom 4

User Manual

GPS Signal Strong Blinking Green

Zone Restriction DJI GO app Prompt

Aircraft

Status

Indicator

No-y Zone

Motors will not start.

Warning: You are in a No-fly

zone. Take off prohibited.

Red ashing

If the aircraft enters the

restricted area in A-mode, but is

switched to P-mode, the aircraft

will automatically descend, land,

and stop its motors.

Warning: You are in a no-y zone.

Automatic landing has begun.

Restricted-

altitude ight

zone

If the aircraft enters the restricted

area in A-mode, but is switched

to P-mode, it will descend to an

appropriate altitude and hover

15 feet below the altitude limit.

R1: Warning: You are in a

restricted zone. Descending to

safe altitude.

R2: Warning: You are in a

restricted zone. Maximum ight

altitude is restricted to between

20m and 500m. Fly cautiously.

Warning zone

No ight restriction applies, but

there will be a warning .

Warning: You are approaching a

restricted zone, Fly cautiously.

Free zone

No restrictions. None. None.

Preight Checklist

1. Remote controller, Intelligent Flight Battery, and mobile device are fully charged.

2. Propellers are mounted correctly and rmly.

3. Micro SD card has been inserted, if necessary.

4. Gimbal is functioning normally.

5. Motors can start and are functioning normally.

6. The DJI GO app is successfully connected to the aircraft.

7. Ensure that the sensors for the Obstacle Sensing System are clean.

Semi-automatic descent: All stick commands are available except the left stick command during

the descent and landing process. Motors will stop automatically after landing.

When ying in a safety zone, the aircraft's status indicator will blink red rapidly and continue for

3 seconds, then switch to indicate current ying status and continue for 5 seconds at which

point it will switch back to blinking red.

For safety reasons, please do not y close to airports, highways, railway stations, railway lines,

city centers, or other sensitive areas. Fly the aircraft only within your line of sight.

Flight

Phantom 4

User Manual

Calibrating the Compass

Only calibrate the compass when the DJI GO app or the status indicator prompt you to do so. Observe

the following rules when calibrating your compass:

DO NOT calibrate your compass where there is a chance of strong magnetic interference, such

as magnetite, parking structures, and steel reinforcements underground.

DO NOT carry ferromagnetic materials with you during calibration such as cellular phones.

The DJI GO app will prompt you to resolve the compass issue if the compass is affected by

strong interference after calibration is complete. Follow the prompted instructions to resolve the

compass issue.

Calibration Procedures

Choose an open area to carry out the following procedures.

1. Ensure that the compass is calibrated. If you did not calibrate the compass as part of your pre-ight

preparations, or if you have moved to a new location since the last calibration, tap the Aircraft Status

Bar in the app and select “Calibrate”, then follow the on-screen instructions.

2. Hold the aircraft horizontally and rotate 360 degrees. The Aircraft Status Indicators will display a solid

green light.

3. Hold the aircraft vertically, with nose pointing downward, and rotate it 360 degrees around the center

axis. Recalibrate the compass if the Aircraft Status Indicator glows solid red.

Flight

Phantom 4

User Manual

If the Aircraft Status Indicator blinks red and yellow after the calibration procedure, move your

aircraft to a different location and try again.

Calibrate the compass before each ight. Launch the DJI GO app and follow the on-screen

instructions to calibrate the compass. DO NOT calibrate the compass near metal objects such

as a metal bridge, cars, scaffolding.

If the aircraft status indicators is blinking red and yellow alternately after placing the aircraft on

the ground, the compass has detected magnetic interference. Change your location.

When to Recalibrate

1.When compass data is abnormal and the Aircraft Status Indicator is blinking green and yellow.

2.When ying in a new location or in a location that is different from the most recent ight.

3.When the mechanical or physical structure of the Phantom 4 has been changed.

4.When severe drifting occurs in ight, i.e. Phantom 4 does not y in straight line.

Auto Takeoff and Auto Landing

Auto Takeoff

Use auto takeoff only if the Aircraft Status Indicators are blinking green. Follow the steps below to use the

auto takeoff feature:

1. Launch the DJI GO app, and enter “Camera” page.

2. Ensure the aircraft is in P- mode.

3. Complete all steps on the pre-ight checklist.

4. Tap“ ”, and conrm that conditions are safe for ight. Slide the icon to conrm and takeoff.

5. Aircraft takes off and hovers at (1.2 meters) above ground.

Aircraft Status Indicator blinks rapidly when it is using the Vision Position System for stabilization.

The aircraft will automatically hover below 3 meters. It is recommended to wait until there is

sufcient GPS lock before using the Auto Take-off feature.

4. Re-calibrate the aircraft if the aircraft status indicators blink red.

Auto-Landing

Use auto-landing only if the Aircraft Status Indicators are blinking green. Follow the steps below to use

the auto-landing feature:

1. Ensure the aircraft is in P- mode.

2. Check the landing area condition before tapping “ ”, to begin landing. Then follow the on-screen

instructions.

Flight

Phantom 4

User Manual

Stopping the Motors

There are two methods to stop the motors.

Method 1: When Phantom 4 has landed, push the left stick down , then conduct the same CSC that

was used to start the motors, as described above . Motors will stop immediately. Release both sticks

once motors stop.

Method 2: When the aircraft has landed, push and hold the left stick down. The motors will stop after three

seconds.

Starting/Stopping the Motors

Starting the Motors

A Combination Stick Command (CSC) is used to start the motors. Push both sticks to the bottom

inner or outer corners to start the motors. Once the motors have started spinning, release both sticks

simultaneously.

Method 1 Method 2

Stop the motor mid-ight

Pull the left stick to the bottom inside corners and press the RTH button at the same time.

Only stop the

motors mid-ight in emergency situations when doing so can reduce the risk of damage or injury.

Refer to the user manual for details.

Flight

Phantom 4

User Manual

When the Aircraft Status Indicators blink yellow rapidly during ight, the aircraft has entered Failsafe

mode.

A low battery level warning is indicated by the Aircraft Status Indicators blinking red slowly or

rapidly during ight.

Watch our video tutorials for more ight information.

Video Suggestions and Tips

1. Go through the full pre-ight checklist before each ight.

2. Select the desired gimbal operation mode in the DJI GO app.

3. Only shoot video when ying in P-mode.

4. Always y in good weather and avoid ying in rain or heavy wind.

5. Choose the camera settings that suit your needs. Settings include photo format and exposure

compensation.

6. Perform ight tests to establish ight routes and preview scenes.

7. Push the control sticks gently to keep the aircraft’s movement smooth and stable.

Flight Test

Takeoff/Landing Procedures

1. Place the aircraft in an open, at area with the battery level indicators facing towards you.

2. Turn on the remote controller and your mobile device, then turn on the Intelligent Flight Battery.

3. Launch the DJI GO app and enter the Camera page.

4. Wait until the Aircraft Indicators blink green. This means the Home Point is recorded and it is now safe

to y. If they ash yellow, the Home Point has not been recorded.

5. Push the left stick up slowly to take off or use Auto Takeoff.

6. Shoot photos and videos using the DJI GO app.

7. To land, hover over a level surface and gently pull down on the left stick to descend.

8. After landing, execute the CSC command or hold the left stick at its lowest position until the motors

stop.

9. Turn off the Intelligent Flight Battery rst, then the Remote Controller.

FAQ

What is ActiveTrack?

ActiveTrack allows an aircraft to track a moving subject without a separate GPS tracker. Simply tap on the

mobile device screen inside the DJI GO app to select the subject to be tracked. The aircraft will lock on the

subject and start tracking it automatically from a safe distance.

What is TapFly?

TapFly means you can y in any direction with a tap of the nger, without a remote controller. With Obstacle

Avoidance turned on, the aircraft will automatically avoid obstacles, slow down or hover when required,

provided that the scene is bright enough ( < 300 lux) or too bright ( > 10,000 lux).

What is the Phantom 4 Obstacle Sensing System?

The Phantom 4 is equipped with an Obstacle Sensing System that constantly scans for obstacles in front of

it, allowing it to avoid collisions by going around, over or hovering.

Why does the Phantom 4 have a magnesium core?

The revolutionary magnesium core embedded into the aircraft greatly increases rigidity, minimizing

unwanted vibrations. This ensures the precision and performance of the inertial measurement unit (IMU).

The weight of the aircraft is also reduced through this magnesium core.

What changes were made to the Phantom 4 remote?

The Phantom 4 introduces a Sport mode, accessible through a new trio of modes, P, S and A.

P (Position) mode is the standard mode, giving access to normal ight as well as Intelligent Flight Modes,

ActiveTrack and TapFly.

S (Sport) Mode unlocks maximum ight speeds of up to 44mph (72kmh).

A (Attitude) Mode remains the same and removes satellite stabilization in ight. It allows the Phantom to

move more smoothly and naturally.

The ‘Playback’ button on the top right of the remote controller has been changed into a ‘Pause’ button that

lets you put the Phantom into hover during any Intelligent Flight Mode, ActiveTrack or TapFly with a tap.

What improvements have been made to the Phantom 4 Vision Positioning Unit?

The Vision Positioning System now uses four sensors to increase hovering accuracy and reliability, creating

a more controlled ying experience. Its sonar system has been improved and now functions from up to 10

meters off the ground. In ideal situations, these combine to give the Phantom 4 Vision Positioning System a

vertical hover accuracy of +/- 0.1 m and a horizontal hover accuracy of +/- 0.3 m.

What is the effective range of the Obstacle Sensing System on Phantom 4?

The effective range of the Obstacle Sensing System is 0.7 to 15 meters. Although the DJI GO app will indicate

when there are obstacles present, pilots should always be paying attention to the aircraft during ight.

FAQ

Phantom 4

User Manual

Does Obstacle Sensing System work in all modes?

The Obstacle Sensing System can be enabled in ActiveTrack, TapFly, Normal mode and all Intelligent

Navigation functions.

What are the major improvements in the Phantom 4 propulsion system?

The motor on the Phantom 4 is designed to work with the latest Push-and-Release Propellers. With this

locking mechanism, propellers can withstand drastic changes of motor speed, allowing the aircraft to be

more agile and more responsive to the pilot command.

How many minutes of ight time can Phantom 4 achieve with the new Intelligent Flight Battery?

At sea level in calm environments when ying in ATTI mode, the Phantom 4 can achieve 28 minute ight

times. This will vary due to different ight patterns, weather conditions and altitudes.

What are the major differences between the Phantom 4 propellers and the Phantom 3 ones?

The new Push-and-Release propellers are faster to install and more secure than the Self Tightening

propellers used previously. This security allows them to handle faster acceleration and harder braking.

What makes the Phantom 4 gimbal better?

The gimbal and camera system is integrated into the body, bringing it closer to the aircraft’s center of

gravity. It is also made of a rigid and strong composite material.

What makes the Phantom 4 camera better?

The Phantom 4 camera has been improved in terms of image quality. Chromatic aberration has been

reduced by 56% and lens distortion had been reduced by 36% compared to Phantom 3 Professional.

In addition to lens improvements, camera rmware has been tweaked to enable the camera to capture

120fps video in full 1080p FHD (the camera’s eld of view will be recongured to 47° when recording in

this mode) for smooth slow motion.

Why add a redundant IMU and compass to the Phantom 4?

A redundant IMU and compass enhances system reliability. The Phantom 4 can constantly compare data

received from both IMUs and then navigate itself using the most accurate data. The same is true of the

redundant compasses.

What are the highlights of the Phantom 4 remote control and live feed?

The Phantom 4’s remote control and live feed is based on DJI Lightbridge technology, providing effective

control range of up to 3.1mi (5km) in unobstructed areas that are free from interference. Its HD live feed

gives you an exact view of your ight, perfect for composing shots.

Does the Phantom 4 have Return-to-Home?

Yes. It also has Smart Return Home which engages the Obstacle Sensing System during return to home

ight. If the aircraft sees an obstacle on its way back, it will intelligently avoid it as it comes home.

FAQ

Phantom 4

User Manual

What’s the purpose of the Sport Mode?

Giving a top speed of 44.7mph (72Kph), Sport mode can be used for fun, letting you y faster than ever, or

to get to your shoot location while the light is perfect.

What’s the horizontal speed of Phantom 4 in ATTI Mode?

The horizontal speed of the Phantom 4 in ATTI mode is 35.8mph (57.6kph).

What is the difference between Sport Mode and ATTI Mode?

Though Phantom 4 can y up to 44.7mph in both Sport Mode and ATTI Mode, Phantom 4 will use GPS/

Glonass and its Vision Positioning System to achieve precision while hovering. In ATTI Mode, GPS and

Vision Positioning System will not function to aid the aircraft in terms of hovering or navigation.

In ActiveTrack, how do you untrack the subject? What happens to the aircraft after you stop

tracking?

Tap the Stop button on the left of the screen or pull the pitch stick backward for 3 seconds to exit

ActiveTrack. After exiting, the aircraft will hover in place. At this point you may choose to start a new

mission or bring the aircraft back to the Home Point.

How small an object can the Obstacle Sensing System see?

The minimum pixel size that the Obstacle Sensing system can see is 500 pixels.

What is ActiveTrack’s minimum altitude?

ActiveTrack will work down to 9ft (3m) above the ground.

Appendix

Specications

Aircraft

Weight (Battery & Propellers

Included)

1380 g

Max Ascent Speed 6 m/s ( Sport mode )

Max Descent Speed 4 m/s ( Sport mode )

Max Speed 20 m/s ( Sport mode )

Max Service Ceiling Above Sea Level

19685 feet ( 6000 m )

( Software altitude limit: 400 feet above takeoff point )

Max Flight Time Approx. 28 minutes

Operating Temperature Range 32° to 104° F ( 0° to 40° C )

Satellite Systems GPS/GLONASS

Gimbal

Controllable Range Pitch: - 90° to + 30°

Obstacle Sensing System

Obstacle Sensory Range 2 - 49 feet ( 0.7 - 15 m )

Operating Environment Surface with clear pattern and adequate lighting ( lux > 15 )

Vision Positioning System

Velocity Range ≤10 m/s ( 2 m above ground )

Altitude Range 0 - 33 feet ( 0 - 10 m )

Operating Range 0 - 33 feet ( 0 - 10 m )

Operating Environment Surfaces with a clear pattern and adequate lighting ( lux > 15 )

Camera

Sensor 1/2.3” Effective pixels:12 M

Lens

FOV ( Field Of View ) 94° 20 mm ( 35 mm format equivalent )

f/2.8 focus at ∞

ISO Range 100-3200(video) 100-1600(photo)

Electronic Shutter Speed 8 s to 1/8000 s

Max Image Size 4000 x 3000

Still Photography Modes

Single shot

Burst shooting: 3/5/7 frames

Auto Exposure Bracketing (AEB):

3/5 Bracketed frames at 0.7EV Bias

Time-lapse

HDR

Video Recording Modes

UHD: 4096×2160 (4K) 24 / 25p

3840×2160 (4K) 24 / 25 / 30p

2704×1520 (2.7K) 24 / 25 / 30p

FHD: 1920×1080 24 / 25 / 30 / 48 / 50 / 60 / 120p

HD: 1280×720 24 / 25 / 30 / 48 / 50 / 60p

Max. Bitrate Of Video Storage 60 Mbps

Appendix

Phantom 4

User Manual

Remote Controller

Operating Frequency 2.400 GHz to 2.483 GHz

Max Transmission Distance

FCC Compliant: 3.1 mi ( 5 km ); CE Compliant: 2.2 mi ( 3.5 km )

( Unobstructed, free of interference )

Operating Temperature 32° to 104° F ( 0° to 40° C )

Battery 6000 mAh LiPo 2S

Mobile Device Holder Tablets and smartphones

Transmitter Power ( EIRP ) FCC: 23 dBm; CE: 17 dBm

Operating Voltage 7.4V @ 1.2A

Charger

Voltage 17.4 V

Rated Power 100 W

Intelligent Flight Battery ( PH4 - 5350 mAh -15.2 V )

Capacity 5350 mAh

Voltage 15.2 V

Battery Type LiPo 4S

Energy 81.3 Wh

Net Weight 462 g

Operating Temperature 14° to 104° F ( -10° to 40° C )

Max. Charging Power 100 W

Aircraft Status Indicator Description

Normal

Red, Green and Yellow Flash

Alternatively

Turning on and Self-Diagnostics

Green and Yellow Flash Alternatively Aircraft Warming Up

Green Flashes Slowly Safe to Fly (P-mode with GPS and Vision Positioning)

X2 Green Flashes Twice Safe to Fly (P-mode with Vision Positioning but without GPS)

Yellow Flashes Slowly Safe to Fly (A-mode but No GPS and Vision Positioning)

Supported File Systems FAT32 ( ≤ 32 GB ); exFAT ( > 32 GB )

Photo JPEG, DNG ( RAW )

Video MP4 / MOV ( MPEG – 4 AVC / H.264 )

Supported SD Cards Micro SD, Max capacity: 64GB. Class 10 or UHS-1 rating required

Operating Temperature 32° to 104° F ( 0° to 40° C )

Appendix

Phantom 4

User Manual

Firmwares Update

Use DJI Assistant 2 or DJI GO app to update aircraft and remote controller. Follow the instructions

below to update the rmware through DJI Assistant 2:

1. Connect the aircraft to a computer with a USB cable.

2. Launch DJI Assistant 2 and login with your DJI account.

3. Select “Phantom 4” and click on the “Firmware Updates” on the left panel.

4. Select the rmware version that you wish to update.

5. Wait for the rmware to be downloaded and rmware update will start automatically.

6. Reboot the aircraft after the rmware update is complete.

The rmware update will take around 15 minutes. It is normal that the gimbal go limp, aircraft

status indicator blinks abnormally and the aircraft reboots. Please wait patiently until the update

is complete.

There will be no sound prompts during the update.

Ensure the computer has access to the Internet.

Ensure the battery level is adequate for the Intelligent Flight Battery.

Do not disconnect the aircraft from the computer during rmware update.

Intelligent Flight Mode

Intelligent Flight mode includes Course Lock, Home Lock, Point of Interest (POI), Follow Me and

Waypoints features to assist users to create professional shoots during the ight. Course Lock and Home

Point lock helps to lock the orientation of aircraft so that the user can focus more on other operations.

Point of Interest, Follow Me and Waypoints mode enable aircraft to y automatically according to the

pre-set ight maneuvers.

Course Lock

Lock the current nose direction as the aircraft’s forward direction. The aircraft will

move in the locked directions regardless of its orientation (yaw angle).

Home Lock Pull the pitch stick backward to move the aircraft toward its recorded Home Point.

Point of Interest

The aircraft will orbit around the subject automatically to allow the operator can be

more focus on framing their shoot on the subject in Point of Interest.

Follow Me

A virtual tether is created between the aircraft and the mobile device so that the

aircraft can track your movement as you move. Note that Follow Me performance is

subject to the GPS accuracy on the mobile device.

Warning

Fast Yellow Flashing Remote Controller Signal Lost

Slow Red Flashing Low Battery Warning

Fast Red Flashing Critical Battery Warning

Red Flashing Alternatively IMU Error

—

Solid Red Critical Error

Red and Yellow Flash Alternatively

Compass Calibration Required

Appendix

Phantom 4

User Manual

After-Sales Information

Visit the following pages to learn more about After-sales policy and warranty information:

1. After-sales Policy: http://www.dji.com/service

2. Refund Policy: http://www.dji.com/service/refund-return

3. Paid Repair Service: http://www.dji.com/service/repair-service

4. Warranty Service: http://www.dji.com/service/warranty-service

FCC Compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired

operation.

Changes or modications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

Compliance Information

FCC Warning Message

Any changes or modications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator&

your body. This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct

Waypoints

Record a ight path, then the aircraft will y along the same path repeatedly while

you control the camera and orientation. The ight path can be saved and re-apply

in the future.

Enable Multiple Flight Mode by launching the DJI GO app > Camera View > > Advanced Settings >

Multiple Flight Mode before using the Intelligent Flight Mode for the rst time.

Appendix

Phantom 4

User Manual

the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

IC RSS warning

This device complies with Industry Canada licence-exempt RSS standard (s). Operation is subject to the

following two conditions: (1) this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device.

Le présent areil est conforme aux CNR d'Industrie Canada licables aux areils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes:

(1) l'areil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'areil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d'en compromettre le fonctionnement.

IC Radiation Exposure Statement:

This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with minimum distance 20cm between the radiator&

your body.

Any Changes or modications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

KCC Warning Message

“해당무선설비는 운용 중 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다 .”

“해당 무선설비는 운용 중 전파혼신 가능성이 있음”

NCC Warning Message

低功率電波輻射性電機管理辦法

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加

大功率或變更原設計之特性及功能。

第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應改善至無

干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法

通信或工業、科學及醫療用電波輻射性電機設備之干擾。

This content is subject to change.

Download the latest version from

http://www.dji.com/product/phantom-4

If you have any questions about this document, please contact DJI by

sending a message to

[email protected]

DJI Support

http://www.dji.com/support

PHANTOM

is a trademark of DJI.

CP.PT.000314 Dji Mobile

Product's Documents

User Manual

Specifications

Dji CP.PT.000314 Questions and Answers

Related Products

CP.OS.00000022.01 Dji Mobile

Dji OSMO MOBILE SE

Dji OSMO MOBILE 6

Dji OSMO MOBILE Camera

Dji OSMO MOBILE 2 Camera
