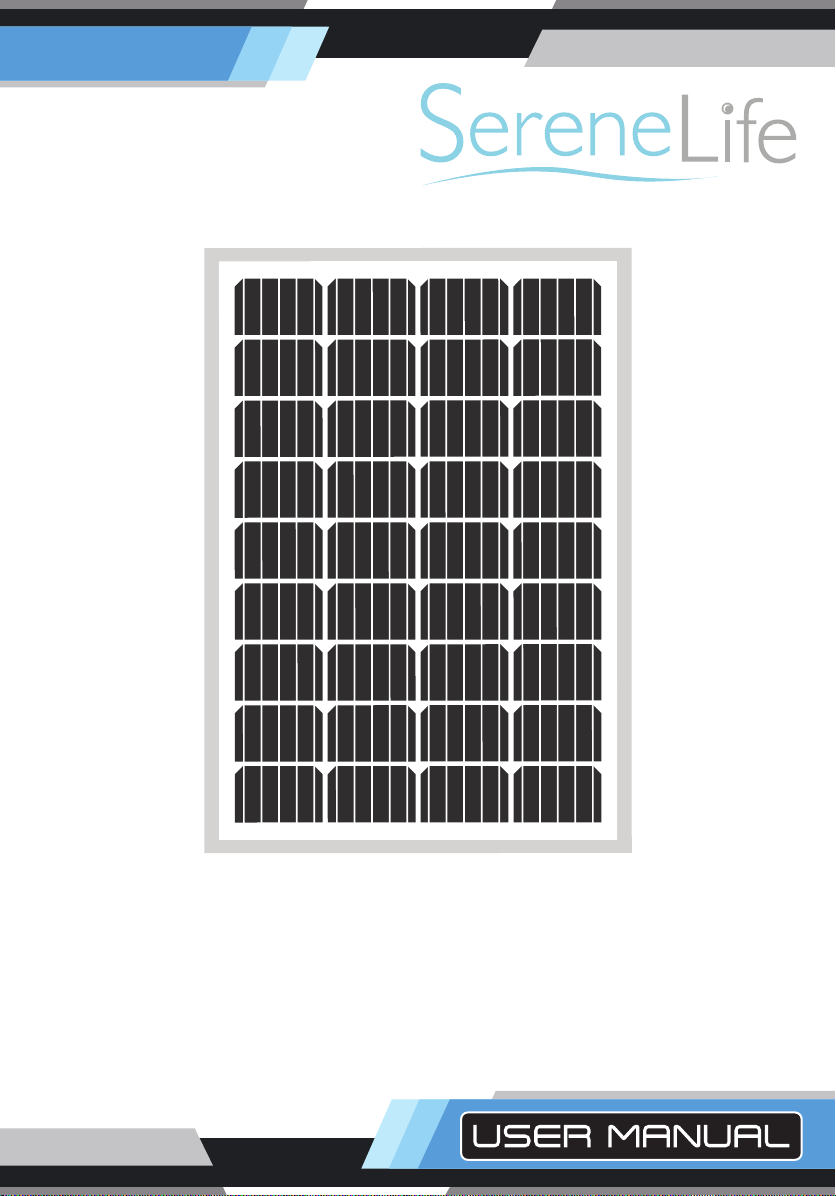

1 Pc. Portable Mono Solar Panel Starter Kit
SLSPNL10
100W with 3 ft. 11AWG Cable Set
www.SereneLifeHome.com
1
Please read the manual carefully before installing or operating the Portable
Mono Solar Panel Starter Kit to prevent personal injury or damage to the
components. Contact Technical support for any questions concerning the
installation.
SOLAR PANEL SPECIFICATION
Solar panels convert solar energy into electricity.
Parameter
FRONT SIDE BACK
Waterpr oof
Connector
1.4
35.4
26.4
20.3
1.4
4-0.35*0.55
24.6
35.4
35.4
35.4
26.4
Dimension
Inch
www.SereneLifeHome.com
2

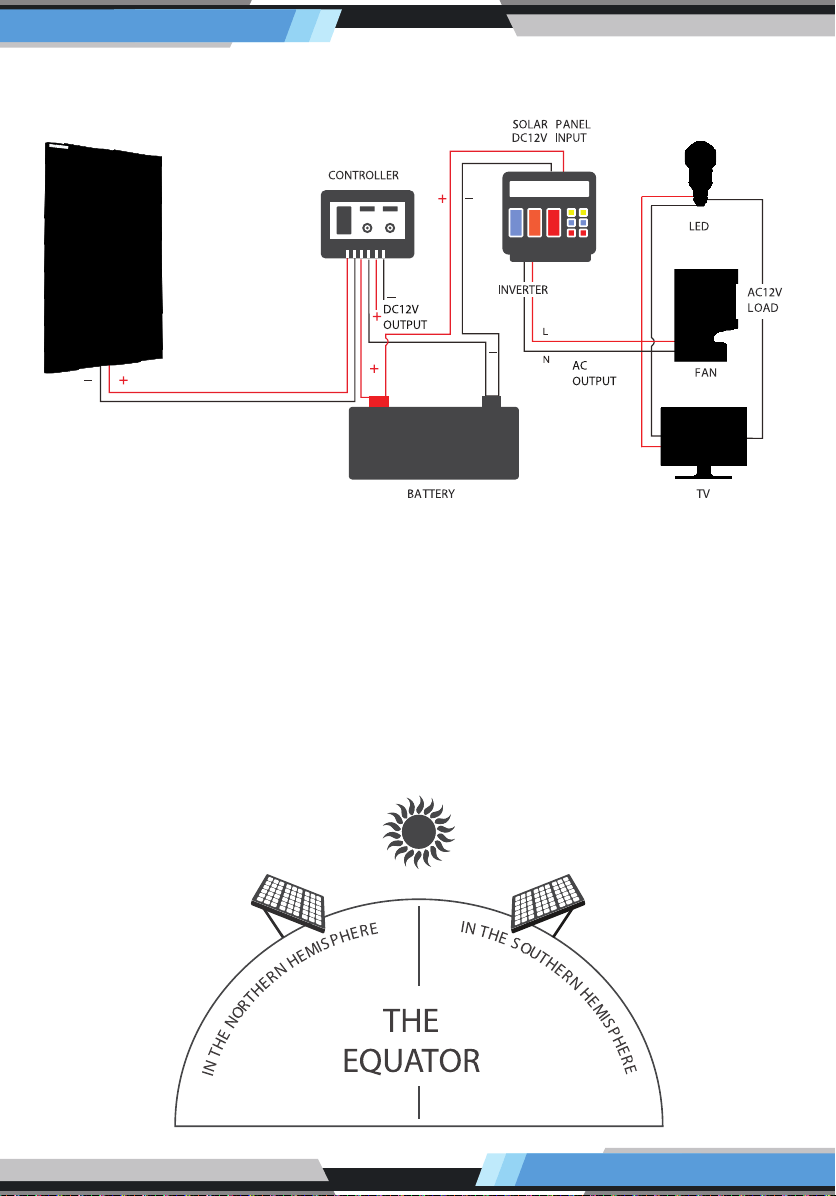

WIRING DIAGRAM
TIPS
• When you are using solar panels, please make sure the panels are facing the sun.
Solar panels shall be installed in a position where there is sucient sunlight.
Please ensure that there is no shielding around the installation site.
• If Solar panels are installed in areas such as snow, low temperature, strong wind,
water surface or near water area (which is vulnerable to salt-water corrosion),
islands, deserts, etc., appropriate steps should be taken to ensure reliability and
safety, and all electrical contact should be kept clean and dry.
www.SereneLifeHome.com
3
WARNING & SAFETY INFORMATION
•
The surfaces to be penetrated during installation shall be properly sealed to
prevent water leakage;
• When you are installing the solar system, it is necessary to avoid the solar panels
from anything sharp or heavy which could potentially break the tempered glass
of solar panels.
• Please do not punch holes on solar panel frame or change the original structure
of solar panels, otherwise it will aect the quality and lifespan of the solar panel,
and the solar panel after additional processing will not be covered by the
warranty.
• Solar panels are fragile, please handle with care, especially in the process of
unpacking.
• Store solar panels in a cool and dry place before unpacking.
• When moving a solar panel, grab the aluminium frame of the solar panel rather
than junction box or wires.
• Please protect the package of the solar panels. Please handle the solar panels
carefully when loading and unloading. Do not distort solar panel frame or drop
them to ground.
• Do not step on the solar panel, do not disassemble the solar panel or remove
other accessories from solar panel.
• Dust or dirt on the surface of the solar panel will directly lead to a decrease in the
output power of the solar panel.Apply soft cloth with moderate detergent to
clean the panel at least over a year.
• Please do not use corrosive deter gent for cleaning.
• Check solar panel appearance & performance regularly for signs of deterioration.
Inspect all wiring and connections regularly
• Check whether the xing screw and mounting bracket are rm regularly.
Adjust and reinforce them if necessary.
What's in the Box:
• (1) 100W Mono Solar Panel
• 3 ft. 11 AWG Cable Set
www.SereneLifeHome.com
4
Features:
• Portable and Easy Set-Up
• Sleek Design for Aesthetic Quality
• Grade A Mono Solar Cells
• Higher Module Conversion Eciency
• Optimally Generate about 33.4Ah in 12V Battery or 400WH per Day
• Anodized Aluminum Frame to Protect Solar Cells & Convenient for Installation
• Foam Box for Safe Transport and Easy Storage
• Dust Tight and Waterproof with IP67 Rating
• Set Up in Just 5 Minutes for Solar Starters
• Used for Marine, Dry Camp, RVs, and Other O-grid Applications
Technical Specs:
• Power Supply: 100W
• Fuse: 15A
• Battery Type: 12V Lead-acid and Lithium-ion Batteries
(Battery Not Included in the System)
• Cell Type: High-Eciency Monocrystalline
• Short-Circuit Current (Isc):5.85A
• Open-Circuit Voltage (Voc): 23.1V
• Maximum Power Current (Imp): 5.32A
• Standby Current: < 12mA
• Type of Connector: Aviation Connector
• Wire/Cable Length: 35.4 -inch
• Product Dimension: 35.4'' x 26.4'' x 1.4'' -inches
This product can expose you to a chemical or group of checmicals, which may include
“Lead” which is known in the state of California to cause cancer, birth defects, or other
reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
