NOTE: This User
Instruction
Manual
contains important
information, including
safety &
installation
points, which
will
enable you to get the most out of your appliance. Please keep
it
in a safe place so that it is easily
available
for future
reference; for
you or any person not familiar with the
operation
of the
appliance.
JW
01/08/13
2
Contents
Environmental
note 4
Important
safety information 5 – 8
Specifications 9 – 11
Product and aperture dimensions 9
Product specifications 9
Electrical
details 10
Ceramic hob surface layout 10
Control panel layout 11
Using the
ceramic
hob 11 - 22
Before first use 11
Touch controls 12
Switching
the hob on 12
Switching
on a zone and setting a power level 13
Power levels 14
Switching
off a zone 14
Switching
the hob off 15
Residual heat indicator 15
Pan sensor 15
Cookware
that is suitable for an induction hob 16
The boost function 16
The dual zone function 17
The keep warm function 18
The hob timer (minute minder) 19
The hob timer (linked to a cooking zone) 20-21
Cancelling
a timer function 21
Locking the hob top 22
Safety cut-off 22
High
temperature
protection 22
Detection
of
unknown
items 23
The
stop/start
function 23
Hob guidelines 23 - 24
Cleaning
and maintenance 25 - 26
Cleaning the ceramic hob top 25
After each use 25
Cleaning table 25
Using a ceramic hob scraper 26
Using a
specialist
ceramic hob cleaner 26
Installation 26 - 32
Positioning 27
Unpacking
the appliance 28
Installing
the appliance 28-29
Electrical
connection 29-30
Connecting
the mains supply cable 30
Replacing
the mains supply cable 31
My
appliance
isn’t
working
correctly 31-33
Error codes 32
Baumatic
consumables 34
Contact
details 35
3
Environmental
note
o The packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
o Please discard
environment.
all packaging material with due regard for the
4
Important
safety information
5
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before
attempting
to install or use the
appliance.
If you
are unsure of any of the information contained in this
booklet, please contact the
Baumatic
Advice Line.
General
Information
o This appliance is designed for domestic household use and for
the cooking and frying of
domestic
foodstuffs.
o IMPORTANT: The adjacent furniture and all materials used in
the installation must be able to withstand a minimum
temperature of 85°C above the
room it is located in, whilst in use.
ambient temperature of the
o Certain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures
below the
guidelines
given above.
o Any damage caused by the appliance being installed in
contravention
the owner.
of this temperature limit, will be the liability of
o Your new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of
affect your
statutory
rights.
Guarantee. The foregoing does not
o The use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will
invalidate
any
warranty
or liability claim.
o You should not use this appliance to store items on or as a work
surface.
o No
modifications
to the
appliance
are
permitted
by
Baumatic
Ltd.
o You should not store or place flammable or highly flammable
liquids/materials on top of or near the appliance. Items made
from aluminium, plastic or plastic film should also be
from the
appliance,
as they may fuse to the surface.
kept away
o Repairs may only be carried out by Baumatic service
engineers
or their
authorised
service agent.
6
Child Safety
o Baumatic strongly recommend that babies and young children are
prevented from being near to the appliance and not allowed to
touch the appliance at any time. During and after use, all
surfaces will be hot.
o If it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision at
all times.
o Older children should only be allowed to utilise the appliance
when supervised.
General
Safety
o The appliance should only be installed and connected by a
suitably qualified person.
o Care should be taken to ensure that the units and work surfaces
that you build the appliance into, meet with the relevant
standards.
o If you notice any scratches, splits or cracks in the ceramic glass,
you should immediately switch off the appliance and disconnect it
from your mains supply. Otherwise there is the risk of electric
shock occurring.
o This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
During use
o Any film or stickers that are present on the is
delivered
should be
removed
before use.
hob surface when it
o Care should be taken when utilising
there is a risk of burns being caused.
the appliance, otherwise
o You should not allow the electrical connection cables to come
into contact with the hob surface when it is hot or any hot
cookware.
o If fat and oil overheats, then it can ignite extremely quickly. For
this reason, when cooking with fat and oil the appliance should
not be left unattended.
o Make sure that all of the cooking zones are switched off after
use.
o IMPORTANT: This ceramic induction hob fully complies
with current legislation regarding electro-magnetic
interference and is designed not to interfere with other
electronic appliances providing these comply with the same
legislation.
o As the hob generates magnetic fields in its immediate
vicinity, pacemakers and active heart implants must be
designed to comply with relevant
regulations.
If in doubt,
you should consult the manufacturer of your device or
your doctor. In this respect, Baumatic can only guarantee
the
conformity
of our own product.
o If an object made of metal, (e.g. saucepan lid, knife, fork or
spoon) is placed on a cooking zone that is switched on, it
can get hot.
Cleaning
o
Cleaning
of the hob should be carried out on a regular basis.
o IMPORTANT: Before attempting to clean the appliance, it
should be
disconnected
from the mains and allowed to cool.
o Great care should be taken whilst using this appliance and when
following
the cleaning procedure.
o You should not use a steam jet or any other high pressure
cleaning
equipment
to clean the appliance.
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions. Please see
the specific section of this booklet that refers to
installation.
Baumatic Ltd. declines any
responsibility
for injury or damage,
to person or property, as a result of improper use or incorrect
installation
of this appliance.
7
Declaration
of conformity
This
appliance complies
with the
following European
Directives:
-2006/95/CE
General
regulations
/ Low tension
-1935/2004/CE 90/128/EEC This appliance is suitable to come in
contact with food
-2004/108/CE Electromagnetic
compatibility
o The manufacturer declares that the hob is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for
domestic purposes
only.
To avoid
damaging
your appliance
o The ceramic glass can be
damaged
by objects falling onto it.
o The ceramic glass edge can be damaged by knocks from
cookware.
o Cast iron and cast aluminium
cookware with damaged bases
may scratch the ceramic surface if
they are dragged across it.
o Pans should be lifted on and off the hob surface and not
dragged.
o Cooking zones should not be switched on without cookware
placed on it. Also the
cookware
should not be empty.
o Food or liquid that has high sugar content may damage the hob
top, if it comes into contact with the ceramic hob surface. Any
spillages should be wiped up
immediately,
however this may not
prevent the hob surface from
becoming
damaged.
8

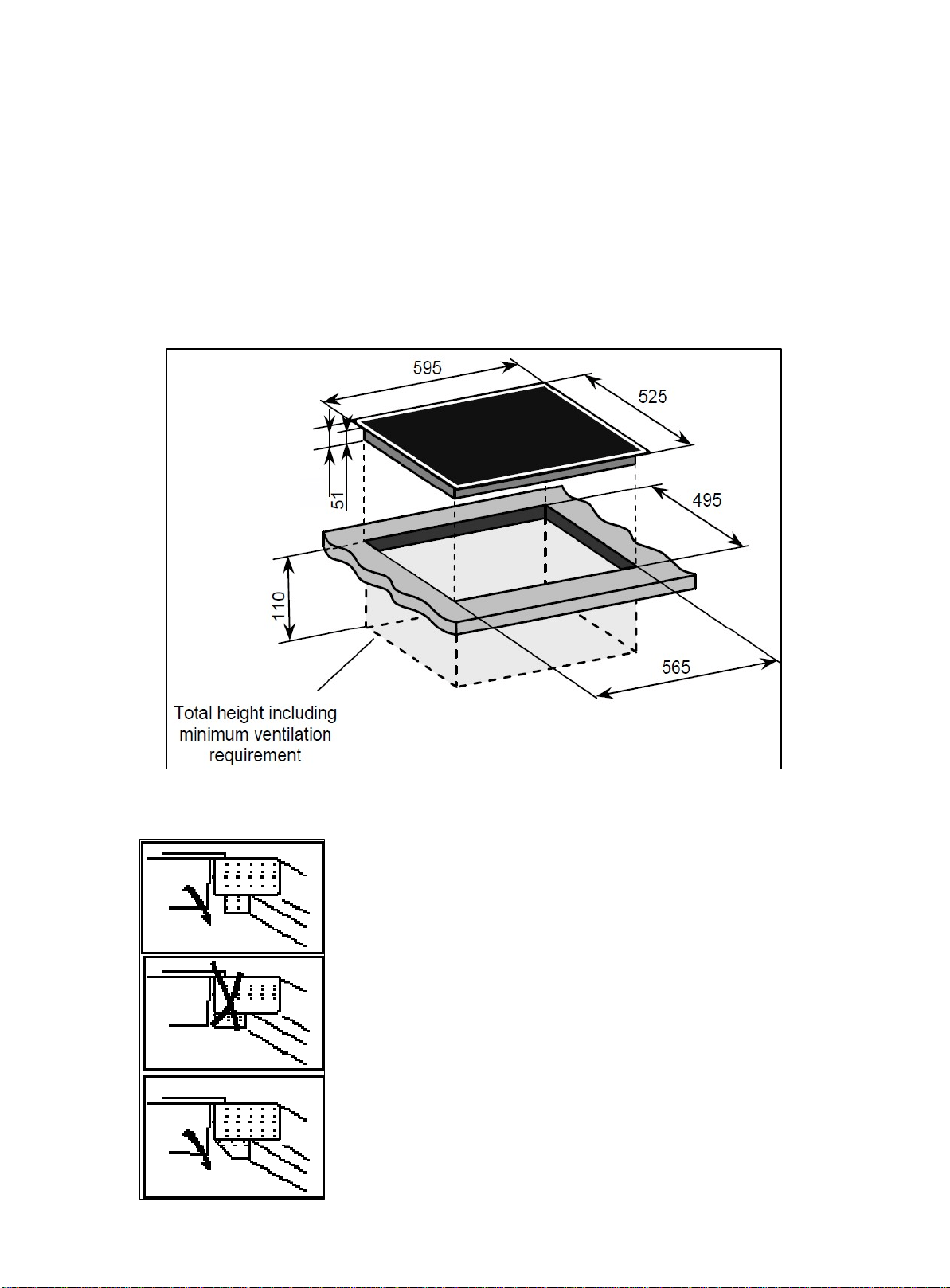

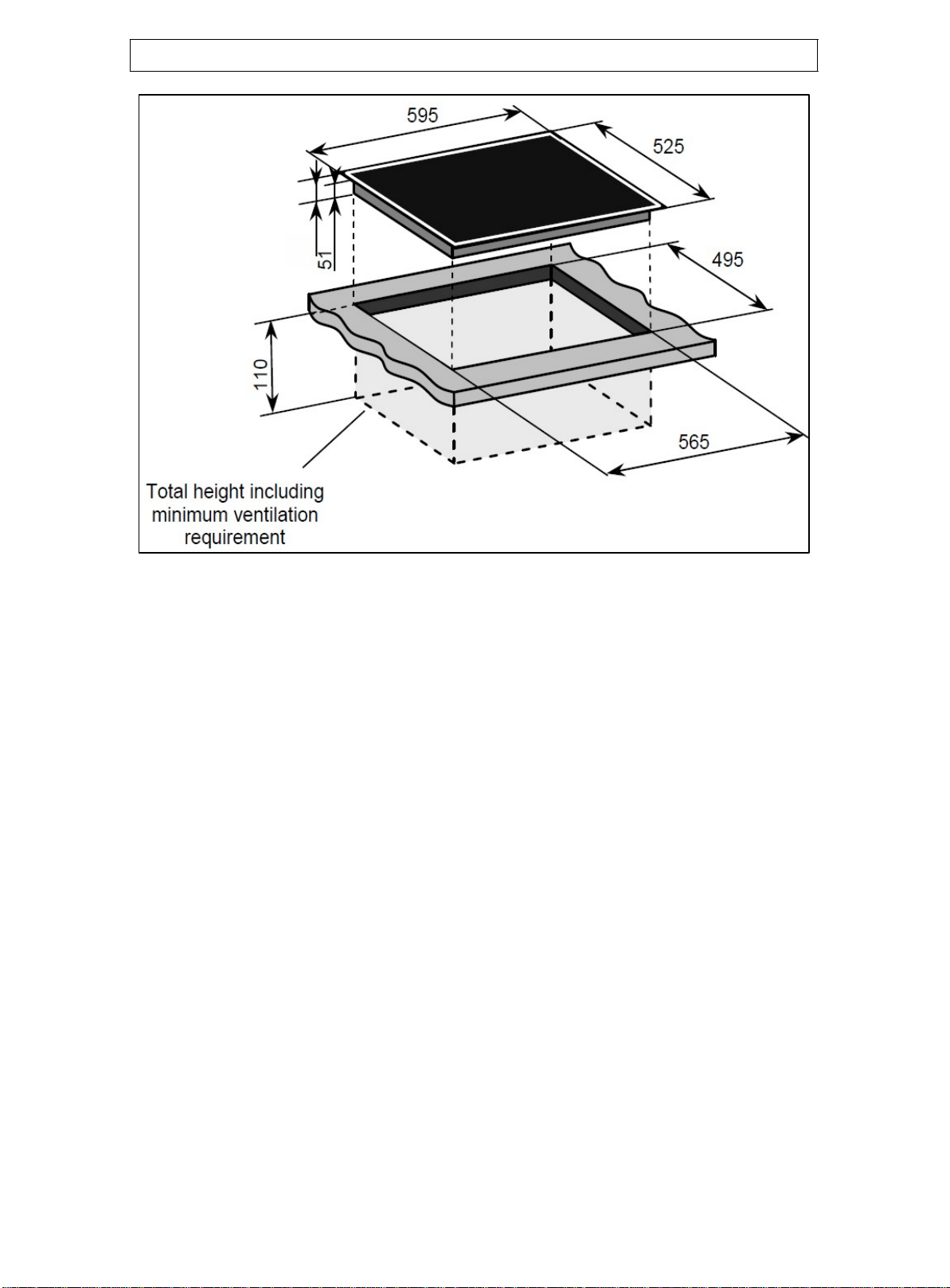

Specifications
55
Product
dimensions:
Aperture
dimensions:
Depth: 525 mm Depth: 495 mm
Width:
595 mm
Width: 565 mm
Height:
55 mm
Height: 110 mm (incl. ventilation)
Product
specifications:
o 4 x 1.80 kW
induction
zones with booster (3.0 kW) Ø 220 mm
2 x 3.0 kW dual zones with booster (4.0 kW) Ø 220 mm x 400 mm
o Front touch control operation
o 4
Individual
residual heat indicators
o 4
Independent induction
generators
o
Electronic
timer
o Pan
compatibility
detection
o Pause function
o Recall function
o
Safety lock
o Bevelled edges
Standard accessories
o Ceramic hob scraper
9
Electrical
details
Rated Voltage: 220 - 240 Vac 50 / 60 Hz
Supply Connection: 32A (double pole switched fused
outlet with 3mm contact gap)
Max Rated Inputs: 7.20 kW
Mains Supply Lead: 3 core x 6 mm² (not supplied)
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your hob is located on
the underneath of the appliance. Therefore it is a good idea to record
this
information
before you install your appliance.
Model Number ……………………………….
Serial Number
……………………………….
Date of
Purchase
……………………………….

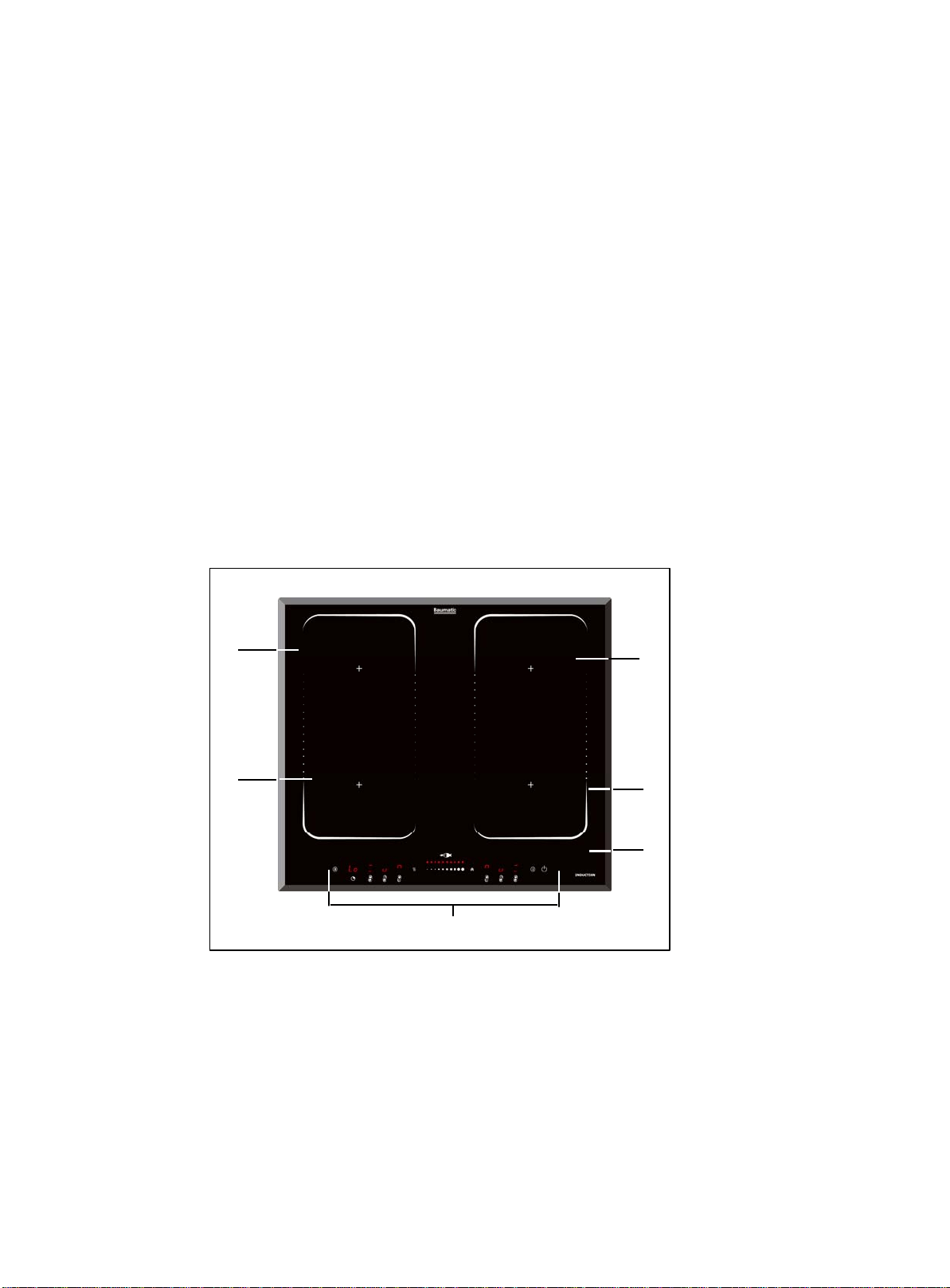

Ceramic
hob surface layout
2
3
1
4
6
5
1) 1 x 1.80 kW
induction
zones with booster (3.0 kW) Ø 200 mm
2) 1 x 1.80 kW
induction
zones with booster (3.0 kW) Ø 200 mm
1) +
2)
3.0 kW
induction
zones with booster (4.0 kW) Ø200X400 mm
3) 1 x 1.80 kW
induction
zones with booster (3.0 kW) Ø 200 mm
4)
1 x 1.80 kW
induction
zones with booster (3.0 kW) Ø 200 mm
3) +
4)
3.0 kW
induction
zones with booster (4.0 kW) Ø200X400 mm
5) Control panel
6) Hob surface
10

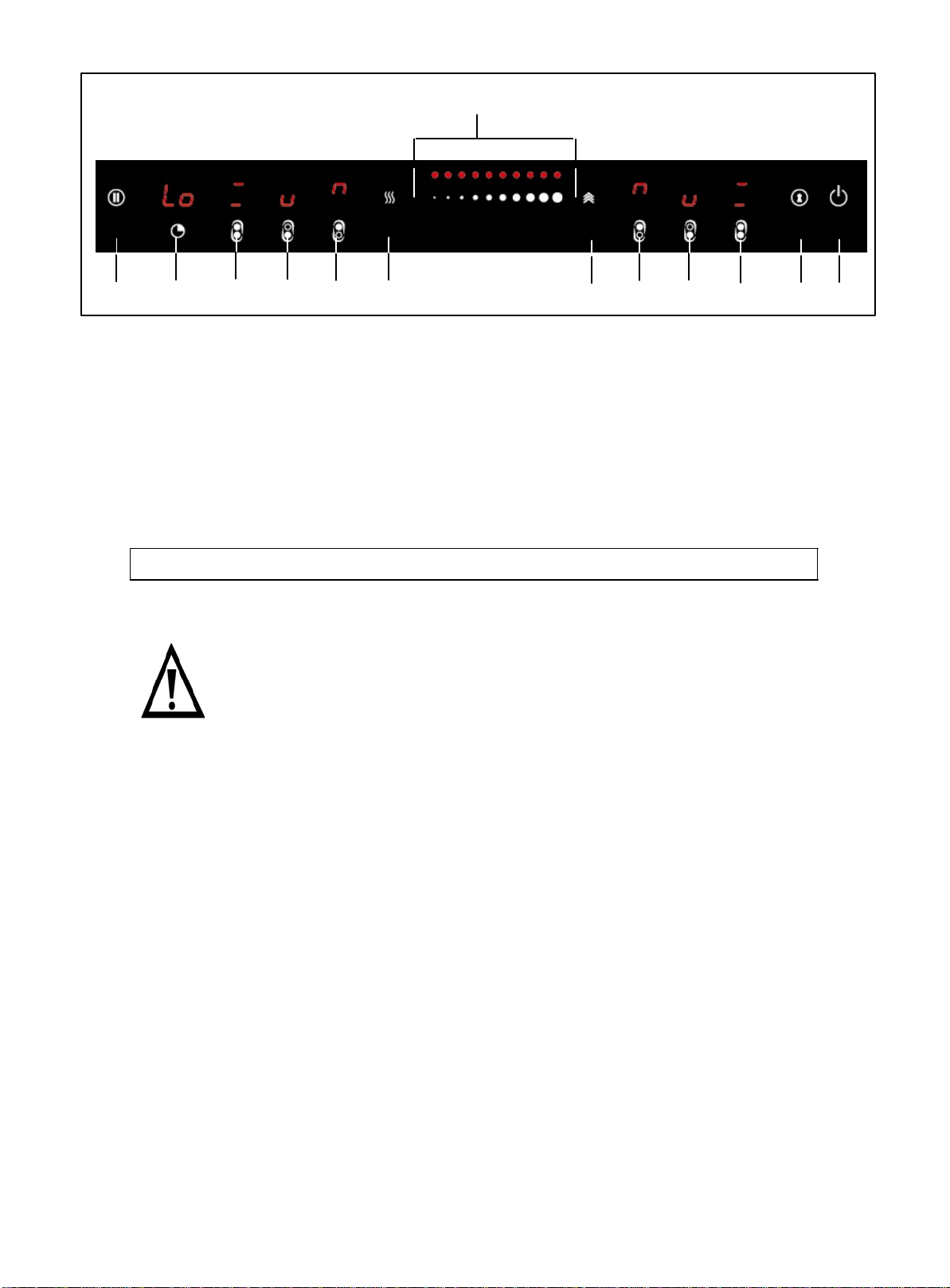

Control panel layout
1
3 2 2
2
2
6
7
2 2
2
4 5
1)
Power / Timer slider touch control
2)
Heating zone selection controls
3)
Pause control
4)
Key lock control
5)
ON/OFF control
6)
Keep warm control
7)
Boost control
Using the
ceramic
hob
Before first use
IMPORTANT:
You should clean the ceramic hob surface
(see
“Cleaning
and
maintenance”
section).
o You should switch on one cooking zone at a time for 5 minutes
at the maximum setting. This will help to eliminate any new
smell that exists and
evaporate
any humidity that has formed on
the heating
elements
during transit.
o Do not burn off more than one zone at once.
o You must place a saucepan filled half full with cold water on
each zone as you burn it off. Otherwise the induction zone will
not operate.
11
Touch controls
o All
operations
are
performed
by means of the touch controls that
can be found on the control panel.
o The controls respond to touch so you do not need to add any
pressure.

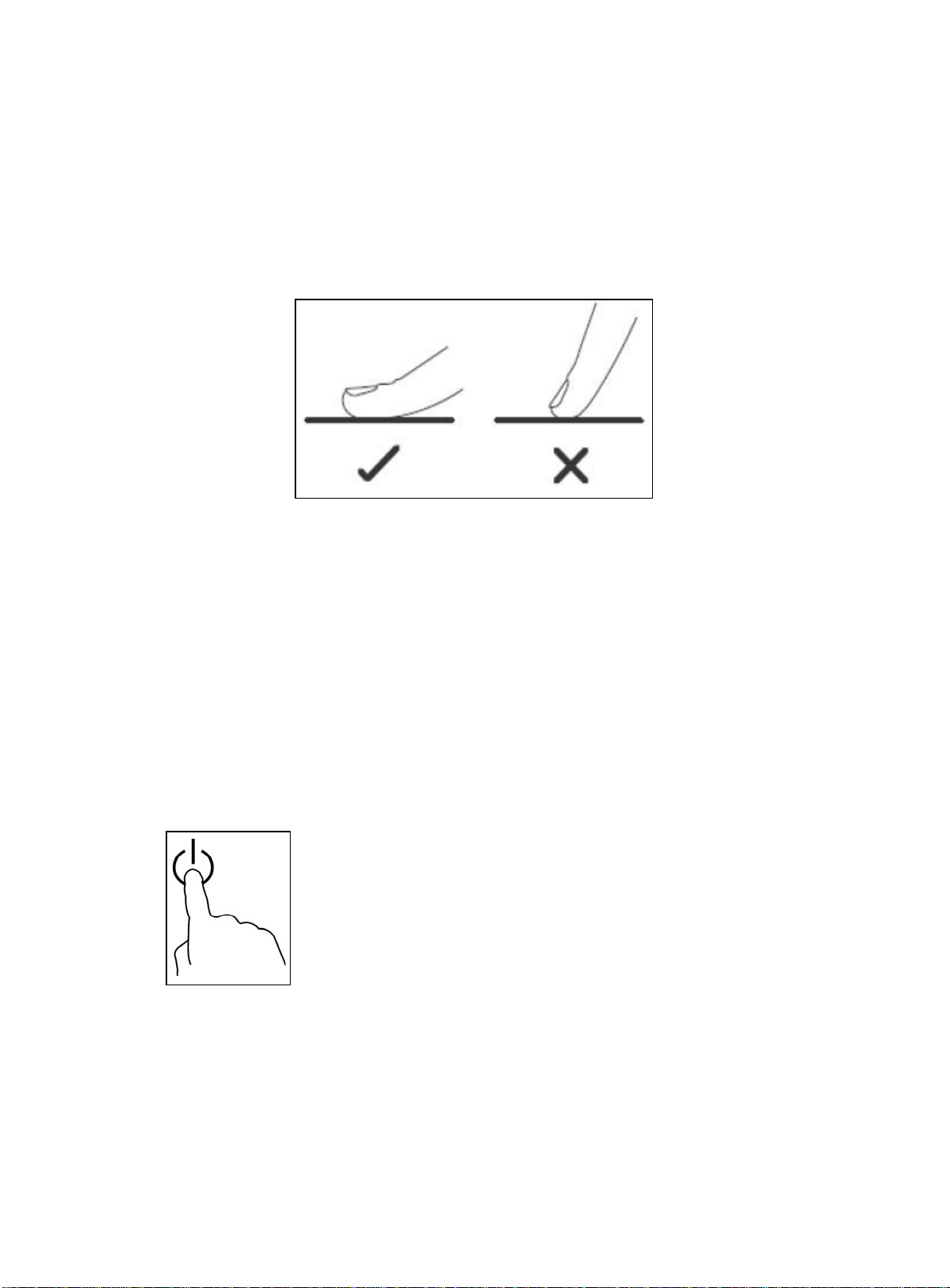

o You should use the ball of your finger not the tip when using the
controls.
o A beep will sound each time a touch is registered.
o You should ensure that the controls are kept clean, dry and that
no objects such as utensils or cloths cover them. Even a thin film
of water may make the controls difficult to operate.
Switching
the hob on
o When the hob is connected to a power supply, an audible signal
will sound. All of the cooking zone indicators will show “-”. The
hob has now entered
stand-by
mode.
o Press the ON/OFF button.
12
Switching
on a zone and setting a power level
IMPORTANT:
A zone must be selected within 1 minute of turning the
hob on.

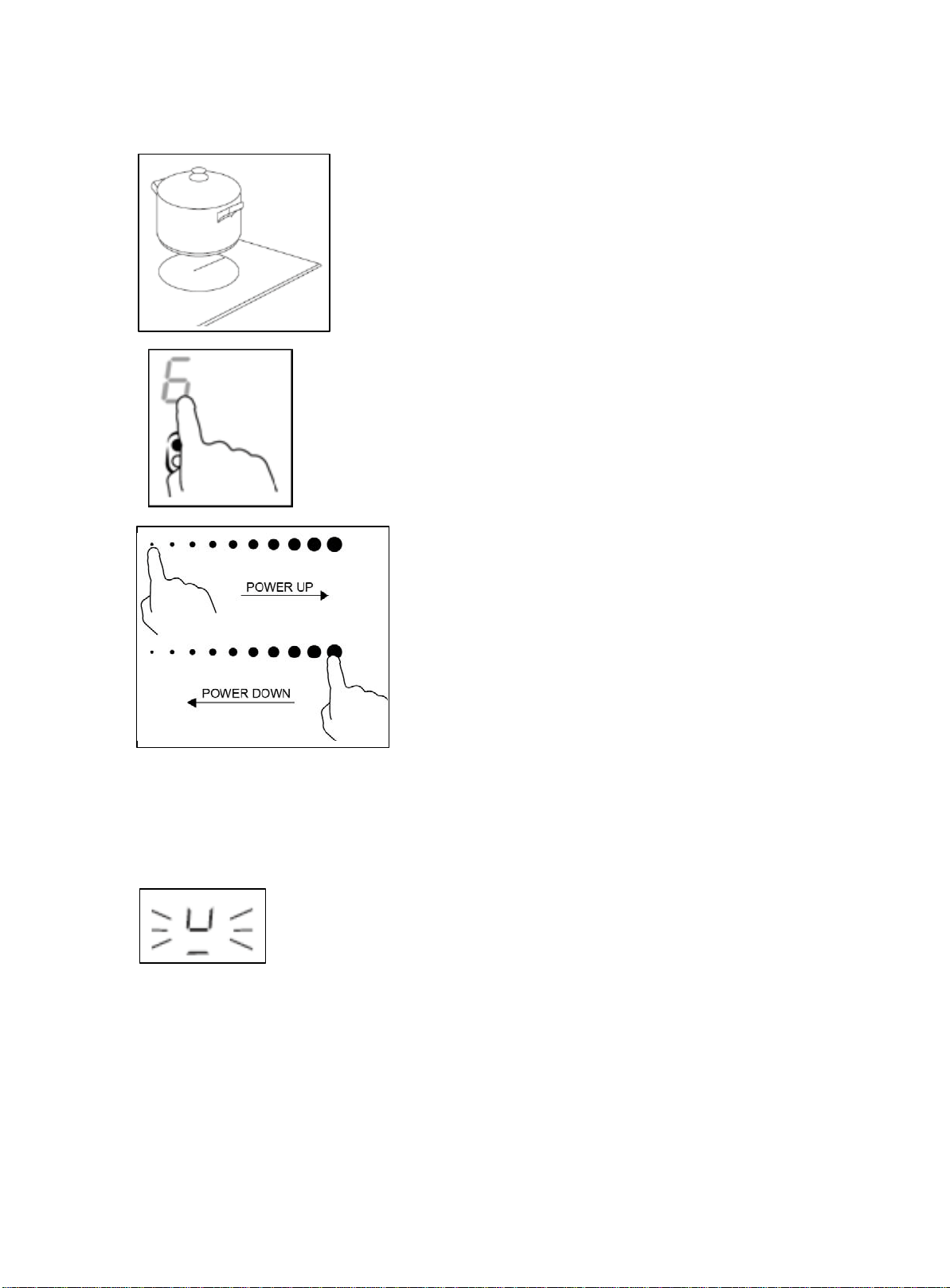

o Make sure that the bottom of the pan and
the surface of the hob are clean and dry
before placing a suitable pan on the
cooking zone that you wish to use.
o Press the cooking zone selection button of the
cooking zone that you want to use.
o Select the power level for the cooking
zone that you have selected using the
slider control. If you do not choose a
heat setting within 1 minute of turning
the hob on, the hob will switch off
automatically.
o Sliding the slider control to the right
will increase the power level while
sliding the slider control to the left will
decrease the power level. The power
level will show in the relevant display (0 – 9).
o You can alter the power level at any time during cooking using
the slider control.
If the display flashes with the symbol shown opposite,
alternatively
with the heat setting, this means that:
You have not placed a pan on the correct cooking zone or,
The pan you are using is not suitable for
induction
cooking or,
The pan is too small or not properly centred on the cooking
zone.
o No heating will take place unless there is a suitable pan on the
cooking zone. The display will automatically turn off after 1
minute if no suitable pan is placed on it.
13

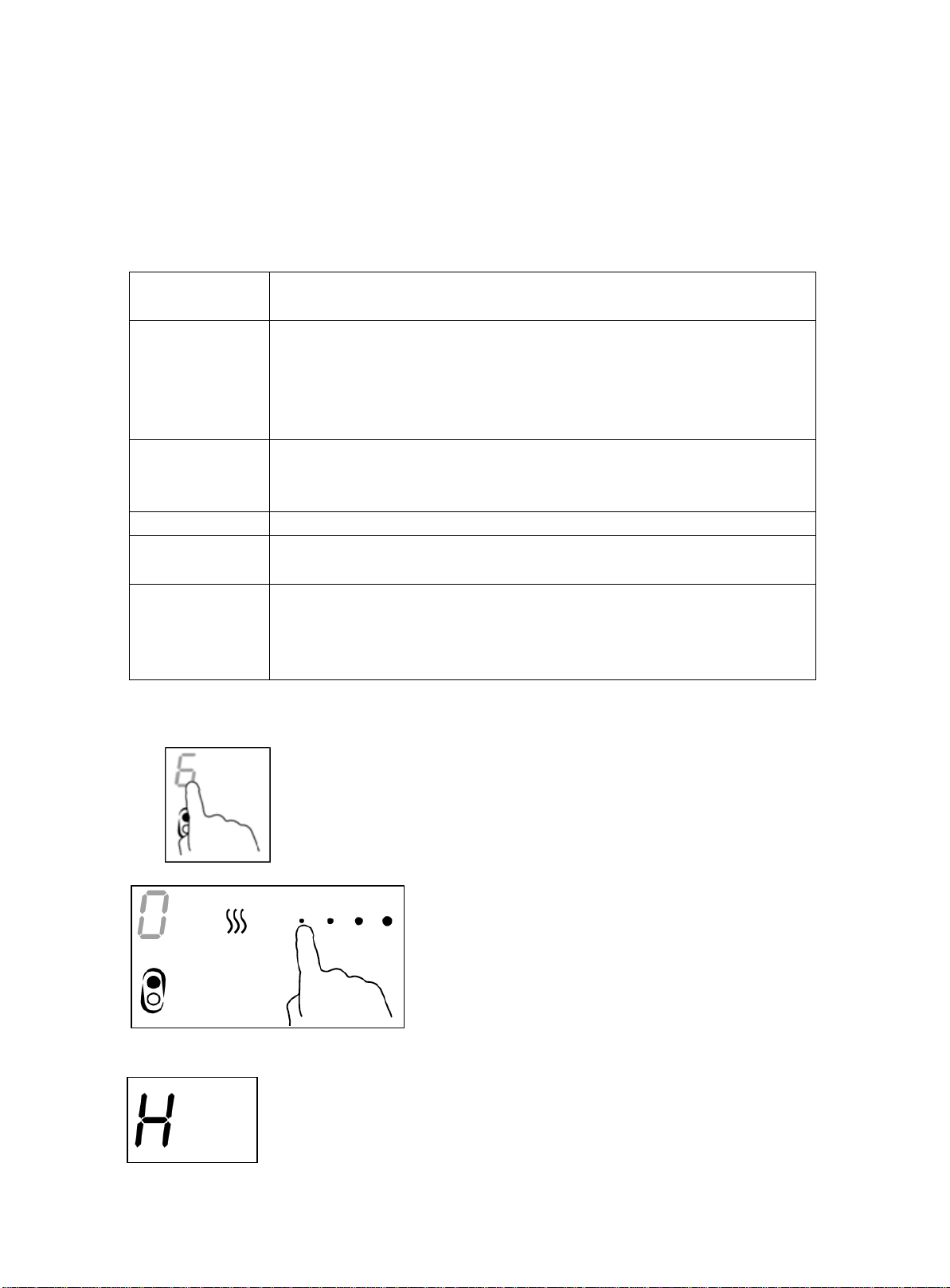

Power levels
o For a general guide to cooking various foods at the different
power levels please refer to the table below.
o Please note that this table should be viewed as a guide only and
that other factors such as cookware, weight and amount of food
and personal preference will all influence the power level
required.
Power
Level
Recommended
Use
1 -
2
o Delicate
warming
of small
amounts
of food.
o Melting chocolate, butter and foods that burn
quickly.
o Gentle simmering.
o Slow warming.
3 -
4
o Reheating.
o Rapid simmering.
o Cooking rice.
5 -
6
o Cooking pancakes.
7 -
8
o Sautéing.
o Cooking pasta.
9 - Boost
o Stir-frying.
o Searing.
o Bringing soup to the boil.
o Boiling water.
Switching
off a zone
o Press the cooking zone selection button of the
cooking zone that you want to switch off.
o Turn the cooking zone off by touching
smallest dot on
the power level
control. Ensure
display shows
power
level “0”.
o After a few seconds, the cooking zone
will
switch off.
o A “H” symbol will show in the cooking zone
indicator until the surface has cooled down to
a safe temperature (see the section on the
“residual heat indicator” for further
information).
14
Switching
the hob off
Once you have switched off all of the cooking zones, you should switch
the hob off.
o Press the ON/OFF button.
o It is possible to turn the hob off at any time by
pressing the ON/OFF button.

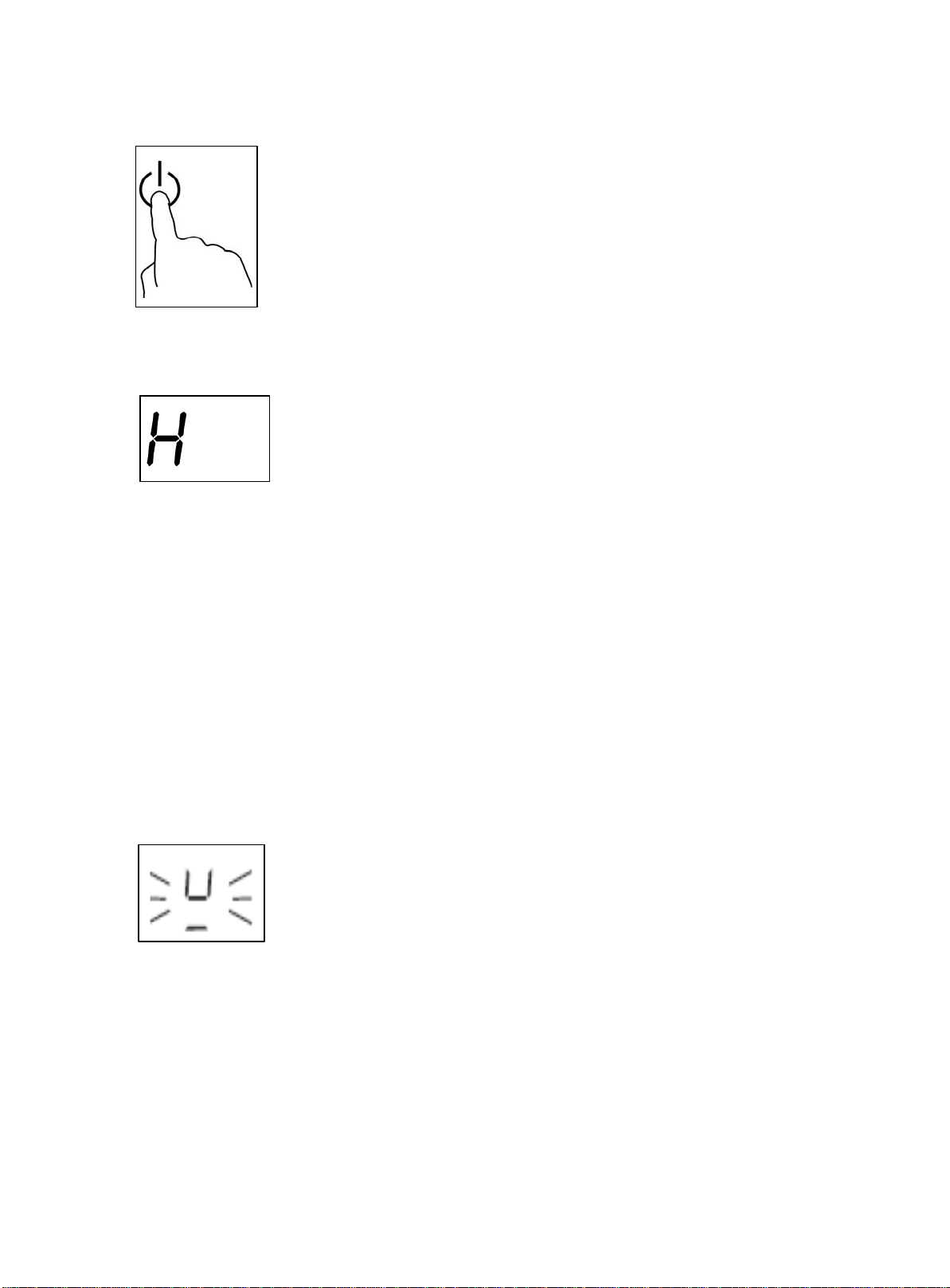

Residual
heat indicator
o After a zone is switched off, the
corresponding cooking zone indicator will
show a letter “H”. This means that the
temperature of the zone is over 60°C and is
therefore
still high enough to cause injury.
o IMPORTANT: The residual heat indicator will disappear if your
mains supply is cut. Care should be taken in case the surface
temperature
is still high.
Pan sensor
Each zone has a sensor on it, so it can detect the
presence
of a pan.
o The sensor is fine-tuned to detect a pan being placed on it. The
pan should be one size smaller than the nominal diameter of the
zone.
o If after placing a pan on a cooking zone and
selecting that cooking zone, a “U” shaped symbol
appears on the cooking zone indicator, this means
that the pan is either the incorrect size or shape.
Or it could be made from a material that is
inappropriate
for use on an
induction
zone hob.
o If a cooking zone is selected but no pan is detected, the pan
sensor system will check for the presence of a pan
approximately every few seconds. If no pan is detected after 1
minutes the hob will
automatically
switch off
o You should check that your pans are suitable for use on an
induction zone hob (see the pan manufacturer’s trademark or
instructions).
15
Cookware
that is
suitable
for an
induction
hob
The table below shows cookware that is normally suitable for use on
an
induction
zone hob:-
Cookware
Suitable
Steel,
enamelled
steel
Yes
Cast
iron
Yes
Stainless
steel Yes (if stated by the pan
manufacturer)
Aluminium,
copper, brass
No
Glass, ceramic, porcelain
No
o The bottom of the pans should be as flat and thick as possible.
o Certain types of cookware may result in a noise being made
when being used on an induction zone hob. This does not mean
that there is an
appliance
fault.
o
IMPORTANT:
You should make sure that all pans are placed in
the centre of the
induction
zone that you are using.

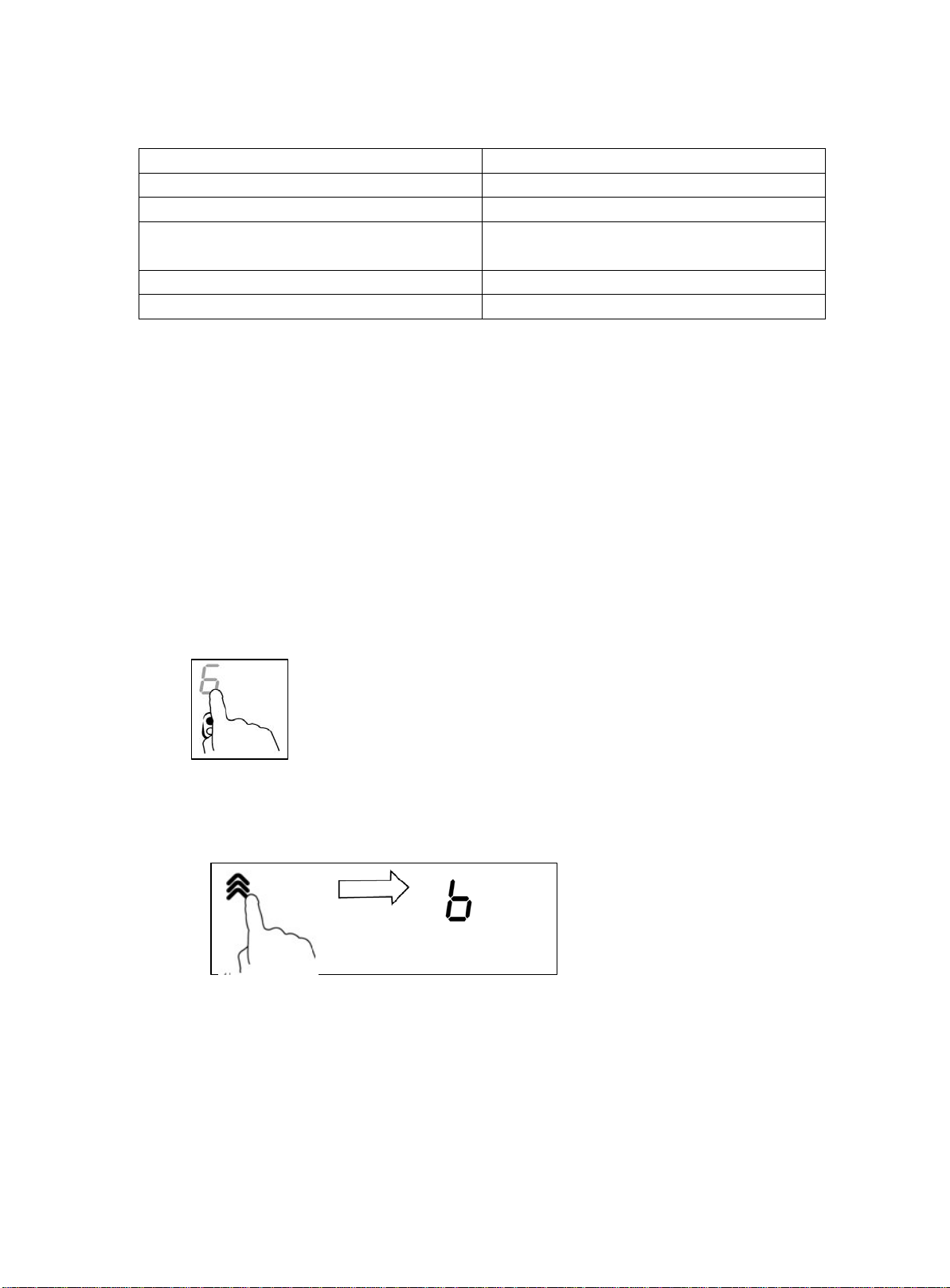

The boost function
To obtain a faster and more powerful heating speed, the booster
function can be used for any cooking zone.
o Press the cooking zone selection button of
the zone you wish to use.
o Then press the booster button. The relevant cooking zone
indicator will show “b” to indicate that the function has been
activated.
o The boost function will operate the chosen cooking zone at
maximum power for 10 minutes. After this time, the cooking zone
will return to its original power setting. The booster function can
be used on every cooking zone.
o The booster function can be de-activated by selecting the
relevant zone and then pressing either the booster button again,
by selecting a new
temperature
from 1 – 9 on the control panel,
or by
selecting
“0” on the control panel (lowest setting).
16

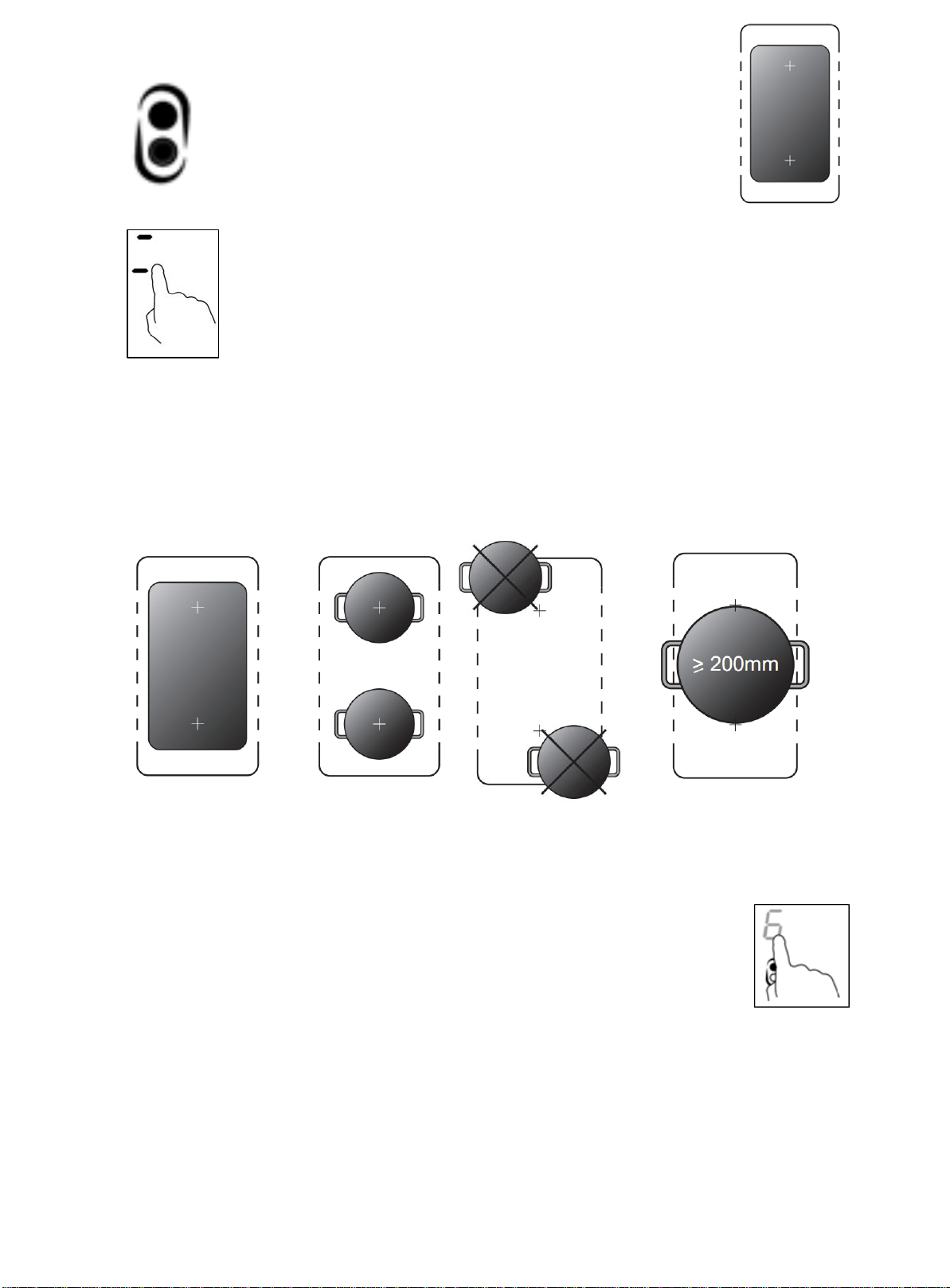

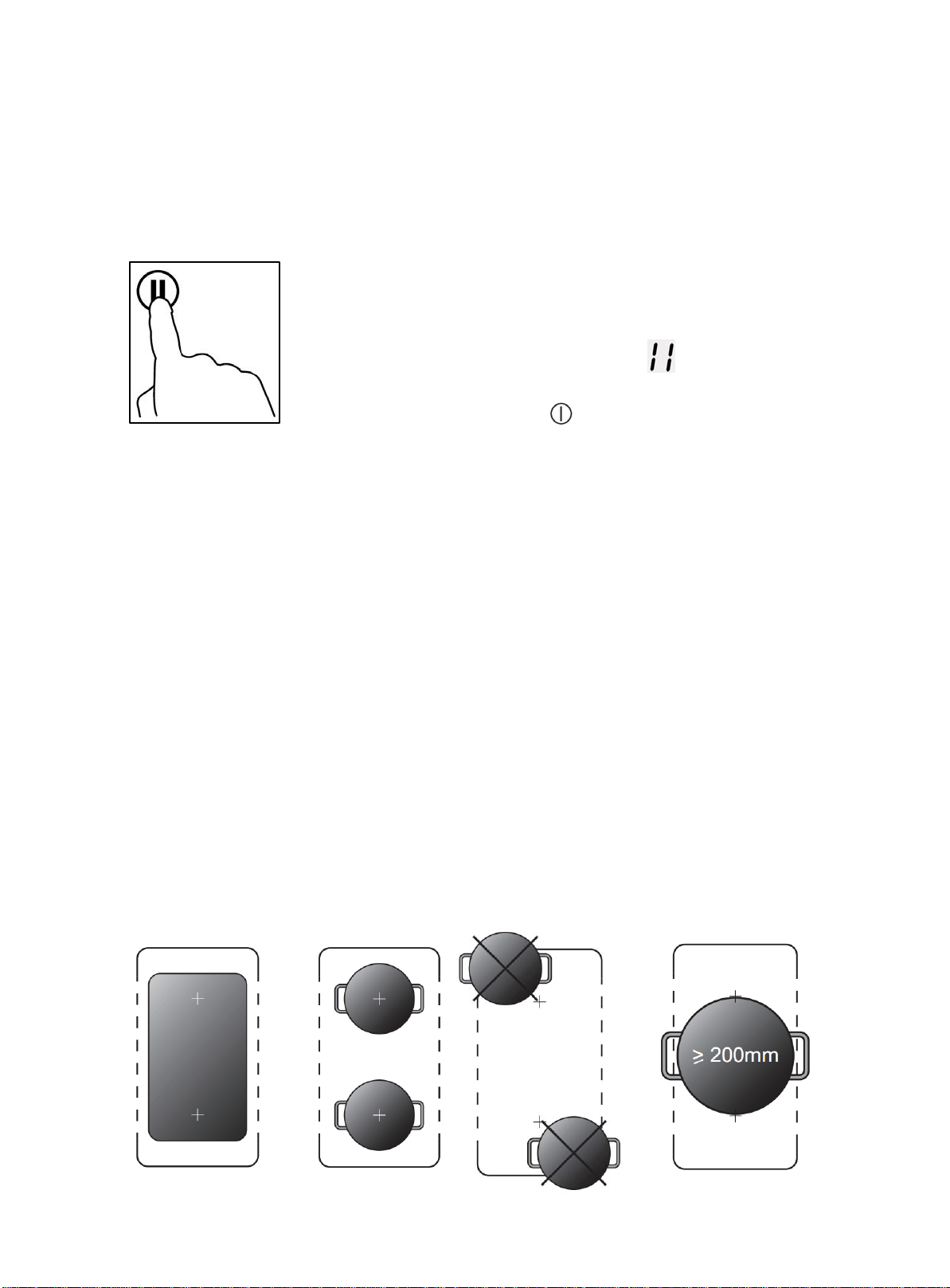

Switching on a dual circuit flexible cooking zone
The dual circuit cooking zones enable you to use two
vertical cooking zones simultaneously, creating one large
zone. This function is particularly useful when using
larger / oval / rectangular or elongated pots and pans,
but can also be used to cook with several smaller pots.
17
o Pre
ss the dual zone selection key
o Adjust the power in the usual way by using the power slider
control.
NOTE: If
for example your pan is moved from the front area of the dual zone to
the rear of the dual zone, the flexible area automatically detects the new position
of the pan and will adjust the heating accordingly whilst keeping the same power.
When using the dual zones cookware should be placed as central as
possible and should ideally cover both crosses.
Switching off a dual circuit flexible cooking zone
o You can turn off the dual zone by the normal way of selecting the (dual) zone
and reducing the power.
o You can you also separate the zones by selecting the individual
cooking zones using the dedicated selection buttons.

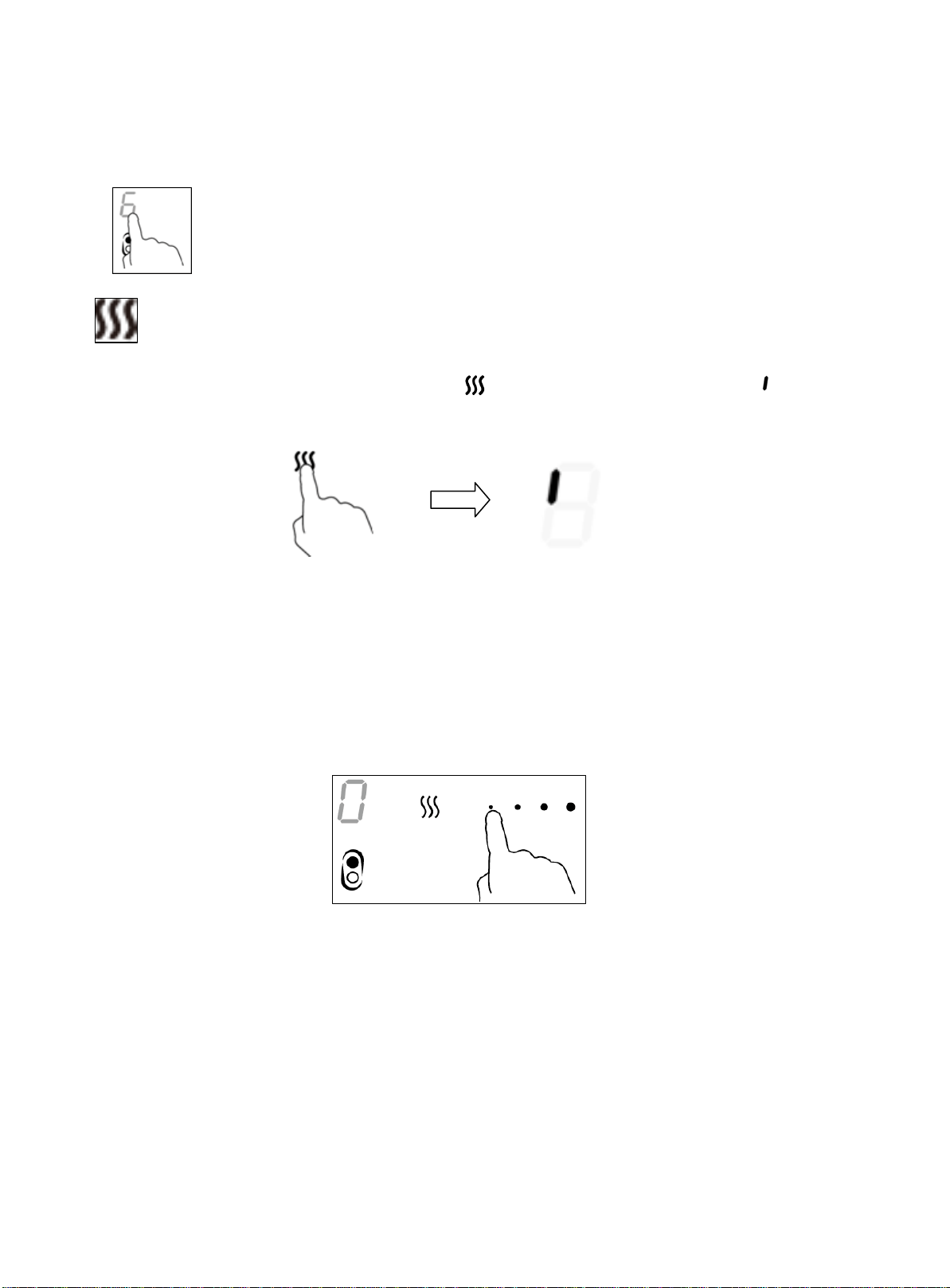

The warm function
This function is designed to automatically keep cooked food warm using variable
low power levels. For example, it will keep a pan of boiled water between 40°C ~
70°C.
o Pre
ss the cooking zone selection button for the zone you wish to
activate the warm function for.
o Pre
ss the warm function selection button.
After touching the keep warm button ,the zone indicator will show “ “
NOTE: The
keep warm function will last for 2 hours. After this time the hob will
turn off.
Turning off the warm function
o Adjust the
power of the zone in the usual way by using the power slider
control. You can select a new heat setting, or reduce the heat setting to “0”.
18

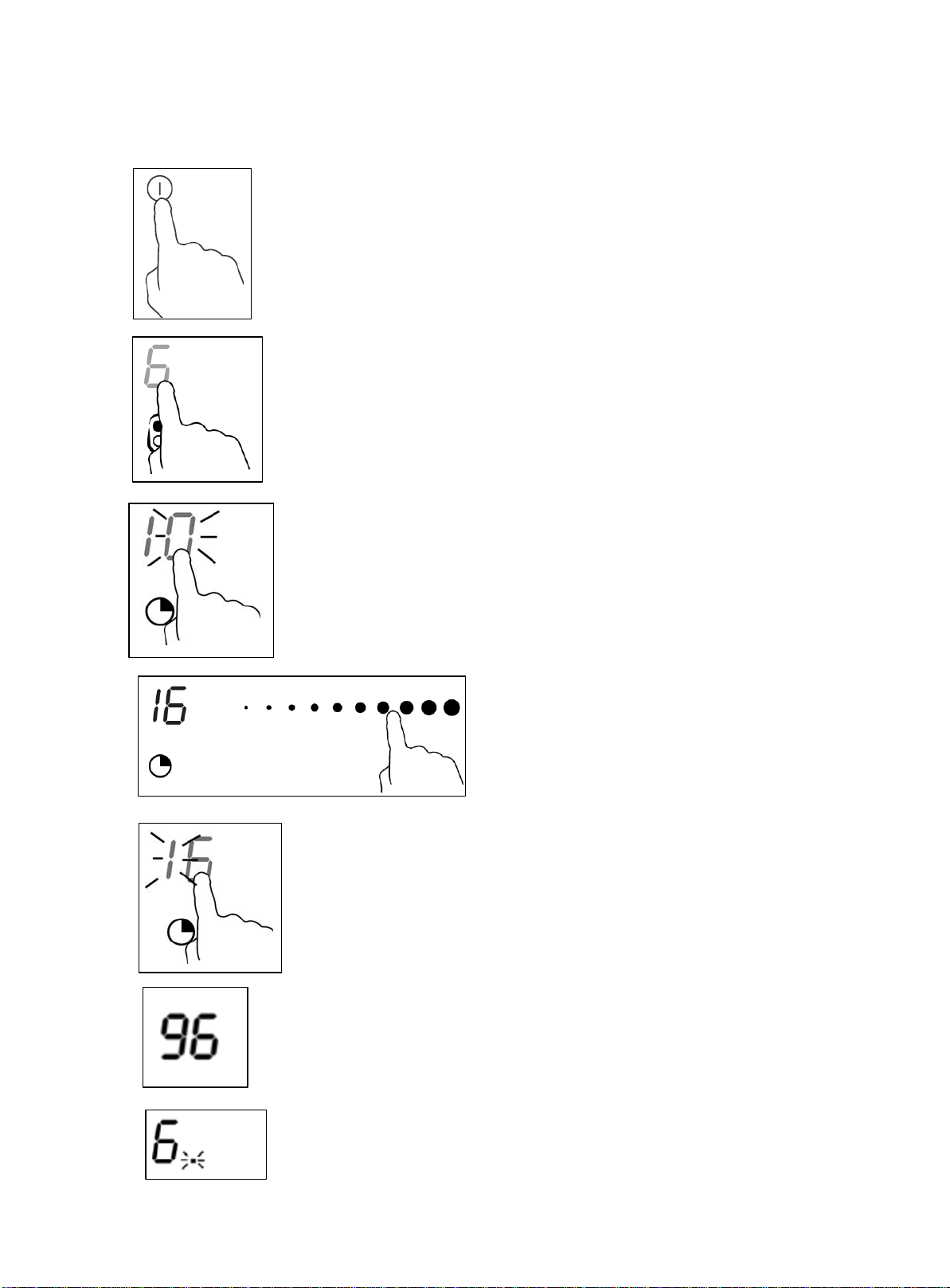

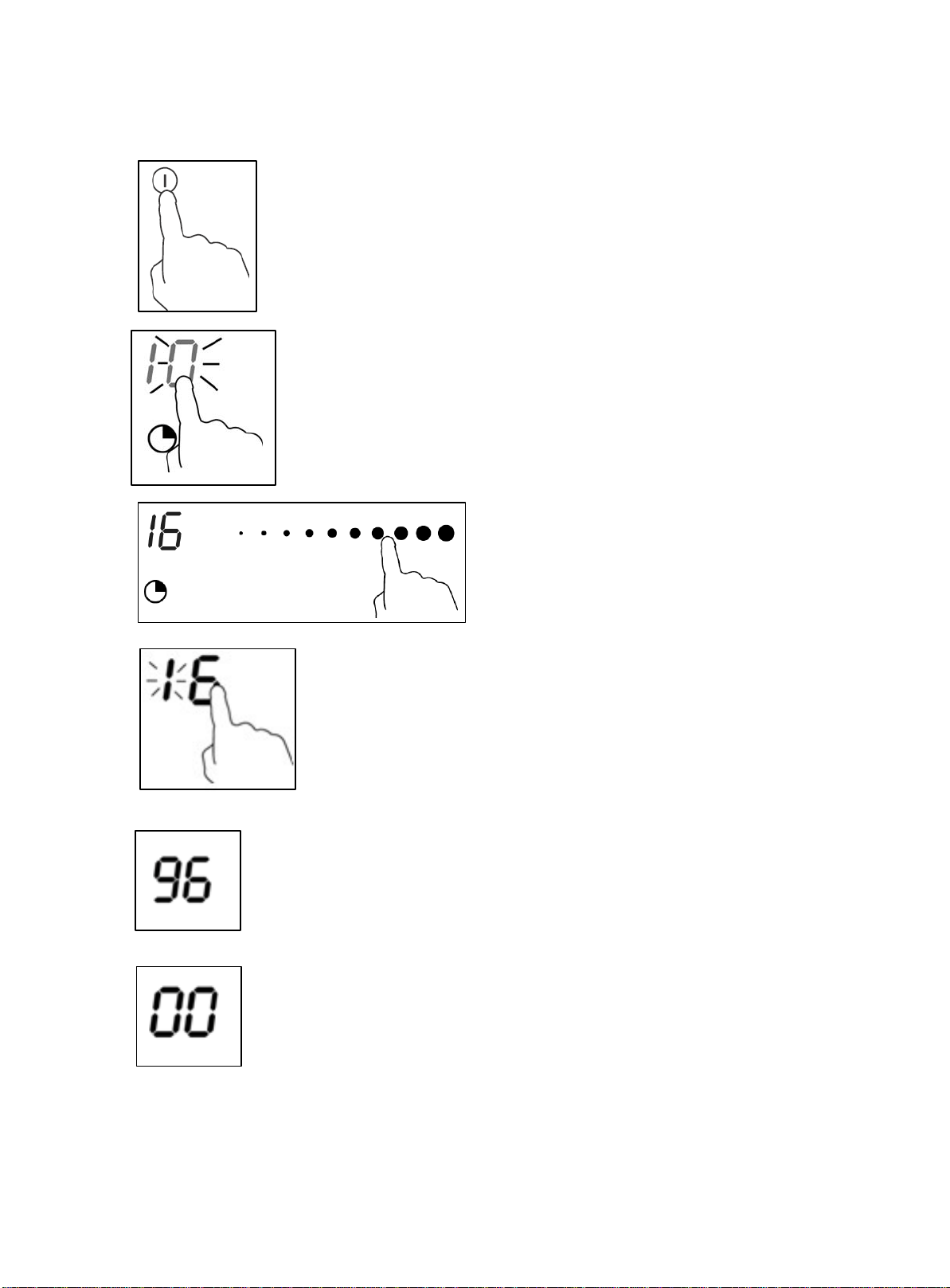

The hob timer
(minute
minder)
Your hob has a timer which will countdown a period of time between 1
and 99 minutes. At the end of the countdown period an audible signal
will sound.
o Press the ON/OFF button to turn the hob on. You
can use the minute minder even if you are not
using a cooking zone.
o
Touch timer control , the
“10”
will show in the
timer display where touched. and the
“0”
flashes.
o
Set the time by touching the slider
control. (e.g. 6)
19
o
Touch timer control again, the
“1”
will flash.
o
Set the time by touching the slider control (e.g.9),
now the timer you set is 96 minutes.
o When the set countdown time has elapsed an
alarm will sound for 30 seconds and the timer
indicator will show “00”.
WARNING: Any cooking zones are in use will continue heating.
You will need to switch them off manually when cooking is
complete. The hob timer (minute minder) is an audible alarm
only.
The hob timer (linked to a
cooking
zone)
You are able to link a countdown time to a cooking zone so that when
the countdown time has elapsed the cooking zone will switch off
automatically.
o Press the ON/OFF button to turn the hob on.
o Press the cooking zone selection button of
the zone you wish to use.
o
Touch timer control , the
“10”
will show in the
timer display where touched. and the
“0”
flashes.
o
Set the time by touching the slider
control. (e.g. 6)
o
Touch timer control again, the
“1”
will flash.
o
Set the time by touching the slider control (e.g.9),
now the timer you set is 96 minutes.
o NOTE: The red dot next to power level
indicator will illuminate indicating that the
zone is selected.
20
o
When cooking timer expires, the corresponding
cooking zone will
be switch off automatically.
IMPORTANT: All other cooking zones which are in use will
continue
to operate.

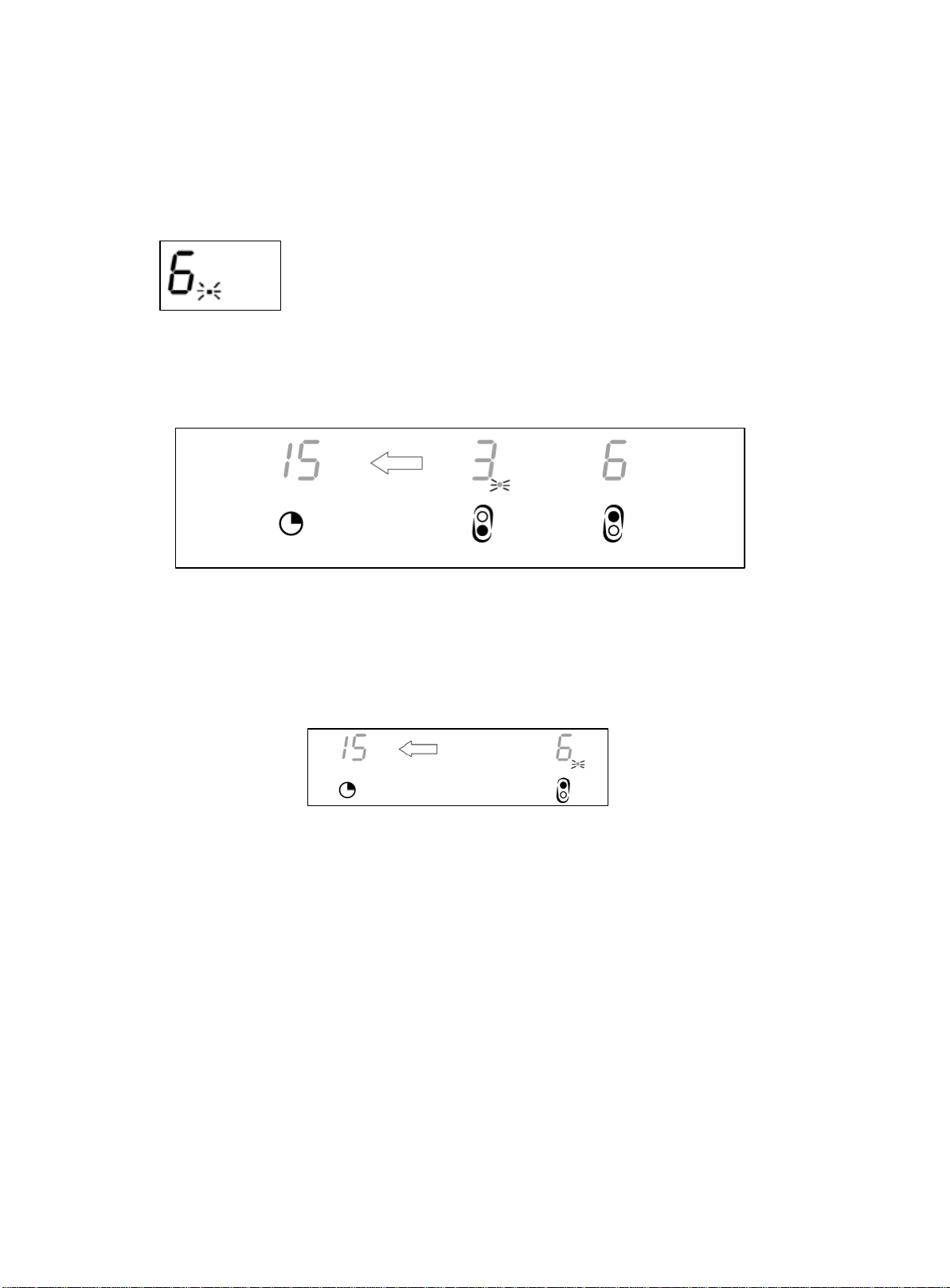

o A red dot will appear next to the power level
indicator of the relevant zone. When you set a
countdown time for several zones
simultaneously, a red dot will appear in all the
relevant zone indicators. The timer display will show the
minimum countdown time and the corresponding red dot will
flash.
(set to
15 minutes) (set to 45 minutes)
o When the set countdown time has elapsed, the relevant cooking
zone will switch off automatically. If countdown timers for other
cooking zones are set, the timer display will then show the next
minimum countdown time and the corresponding red dot will
flash.
WARNING: If any other cooking zones are in use, without a
countdown timer set, they will continue heating. You will need
to switch them off
manually
when
cooking
is complete.
Cancelling or modifying a hob timer
You can cancel a hob timer by following the guidelines above. First you
should select the zone with the active timer that you want to change or
turn off. Then press the timer button and select a new countdown time,
or reduce the time to “0” to turn off the timer.
21
Locking
the hob top
It is possible to lock the controls to prevent
unauthorised
usage of the
controls by other persons such as children.
o The whole hob top can be locked by pressing the safety
lock button whilst the
appliance
is
switched
on.
o The timer display will show “L0” to indicate that the safety lock
feature has been
switched
on.
o When the safety lock feature is activated, it will disable all
buttons on the control panel apart from the ON/OFF button.
o To disable the safety lock feature, you should press
and hold the safety lock button for a few seconds. The
“L0” symbol will disappear from the timer display and
you are then able to use the hob in normal operation.
o If the hob is switched off using the ON/OFF button while the
safety lock is activated, the safety lock will still be active when
the hob is turned back on.
Safety cut-off
o If one or more of the cooking zones are
accidentally
left on, a
safety cut off will activate after a certain period of time. The
length of time depends on the power level that a zone or zones
have been set on.
Power level Keep warm
1 2 3 4 5 6 7 8 9 Boost
Default working
time (hours)
2 8 8 8 4 4 4 2 2 2 10
Mins
o If more than one zone is operating when one of the zones
reaches its safety cut-off point, only the zone which has reached
its safety cut off point will switch off.
High
temperature
protection
o The hob is equipped with a temperature sensor which monitors
the
temperature
inside of the appliance.
o If an unusually high temperature is detected the induction hob
will stop
operating
automatically.
22
Detection
of
unknown
items
o When an
unsuitably
sized or
non-magnetic
pan (e.g. aluminium),
or some other small item (e.g. knife, fork, key) has been left on the
hob, the hob will
automatically
go on to standby mode after 1
minute. The fan will keep cooling the
induction
hob for a further 1
minute.
The
pause/resume
button
o This feature allows the user to “pause” all
cooking operations.
o Using this button will stop all zo
heating. All zones will display “
nes from
”.
o The control panel will
automatically
be locked and
only the power button and the pause/resume
button will operate.
23
o Press the pause/resume
button again to resume all
previously
in
o The zones will resume heating at the power level which
they
o The pause function will operate for 10
minutes and then the hob will
ob guidelines
o The first few times the hob top is used, it may give off an acrid,
Single zone cookware should be placed on the “+” and centred.
W
use zones.
were
originally
set at and will display the original power
settings. It will also resume any active timers.
turn off
H
burning smell. This smell will disappear completely with repeated
use.
o
hen using the dual zones cookware should be placed as central as
possible and should cover both crosses.
O The saucepans must be positioned exactly on these zones for
efficient heating to occur. Pans should have the same
diametre
as
the cooking zone that they are being used on.
o You should not use saucepans with rough bottoms, as this can
scratch the ceramic surface. Before use, make sure that the
bottoms of the
saucepans
are clean and dry.
o When cold, the bottom of the pans should be slightly concave, as
they expand when hot and lie flat on the surface of the hob. This
will allow the heat to transfer more easily.
o The best thickness for the bottom of the pans is 2 – 3 mm of
enamelled
steel and 4 – 6 mm for
stainless
steel with
sandwich
type
bottoms.
o If these rules are not followed, then there will be a great loss of
heat and energy. Heat not absorbed by the
saucepan,
will spread to
the hob, frame and
surrounding
cabinets.
o
Preferably
cover pans with a lid to permit cooking at a lower heat.
o Always cook vegetables and potatoes, etc. in as little water as
possible to reduce cooking times.
o Food or liquid that has high sugar content may damage the hob top
if it comes into contact with the ceramic hob surface. Any spillages
should be wiped up
immediately,
however this may not prevent the
hob surface from
becoming
damaged.
o IMPORTANT: The ceramic hob surface is tough; however it is not
unbreakable and can be damaged. Especially if pointed or hard
objects are allowed to fall on it with some force.
o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN
OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC
CUSTOMER
CARE
DEPARTMENT
IMMEDIATELY.
24
Cleaning
and maintenance
Cleaning operations must only be carried out
when the hob is cool.
The appliance should be disconnected from your
mains supply before commencing any cleaning
process.
Cleaning
the
ceramic
hob top
Any residues that are left on the hob top surface from cleaning
agents will damage it. You should remove any residues with
warm water and a little washing up liquid.
Abrasive cleaners or sharp objects will damage the hob surface;
you should clean it using warm water and a little washing up
liquid.
Although it is easier to clean some deposits whilst the hob
surface is still warm, you should take care not to burn yourself.
After each use
o Wipe the appliance over with a damp cloth and a little washing
up liquid.
o Dry the
appliance
by rubbing the surface with a clean cloth.
Cleaning
table
Type of deposit Remove
immediately?
Remove
when
the
appliance
has
cooled
down?
What should
I
use to
remove
the
deposit?
Sugar
or
food/liquid
containing sugar
Yes
No
Ceramic hob
scraper
Tin foil or plastic
Yes
No
Ceramic hob
scraper
Fat splashes
No
Yes
Ceramic hob
cleaner
Metallic
discolourations
No
Yes
Ceramic hob
cleaner
Water splashes or
water rings
No
Yes
Ceramic hob
cleaner
Any residues that are left on the hob top surface from cleaning
agents will damage it. You should remove any residues with
warm water mixed with a little washing up liquid
25
Using a
ceramic
hob scraper
A ceramic hob scraper will be provided with your appliance. The
following guidelines should be followed when using the ceramic hob
scraper:-

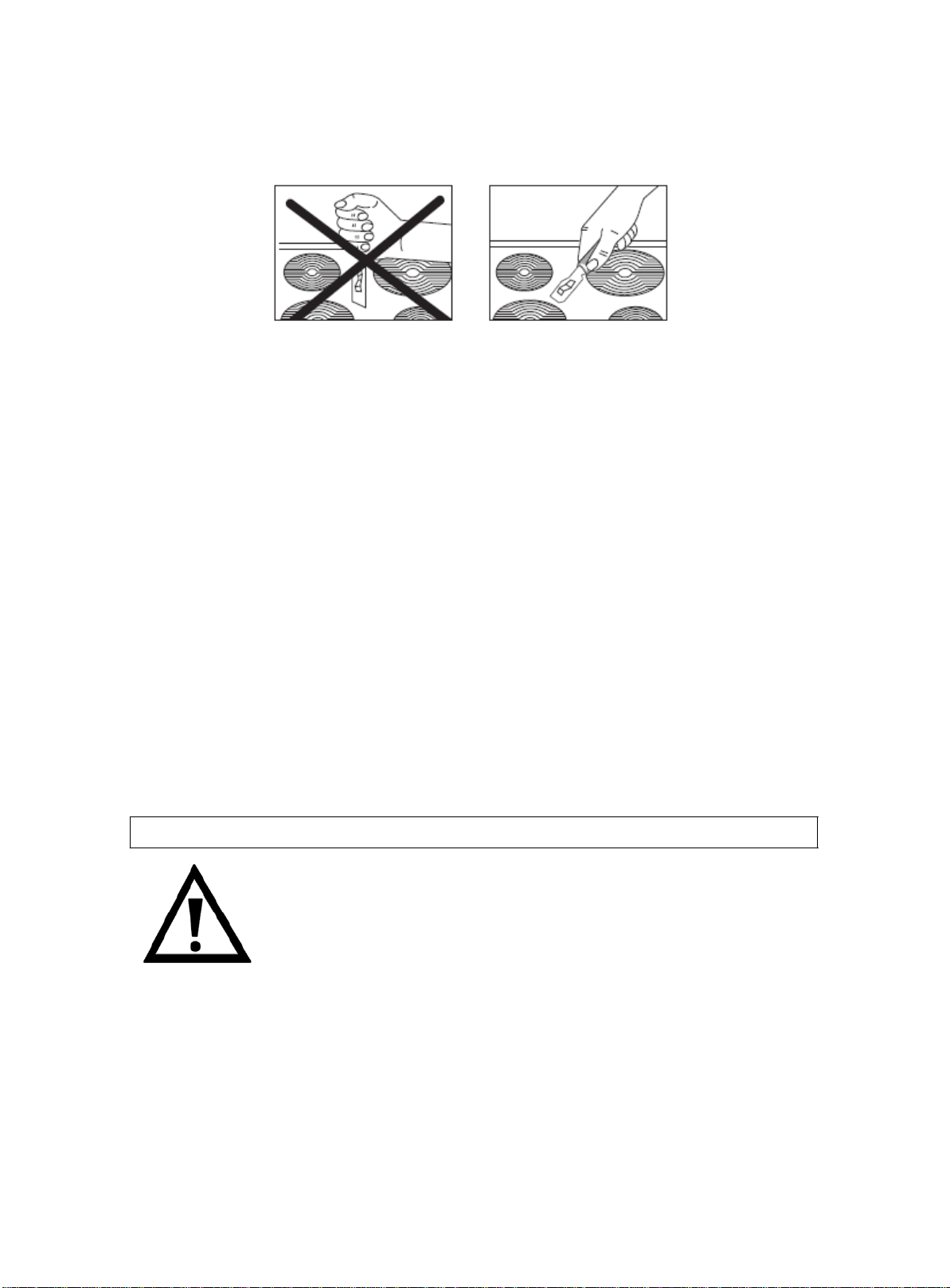

o The scraper should be placed on the ceramic surface at an angle.
o Residues should be removed by sliding the blade carefully over
the ceramic surface.
o The ceramic surface should be wiped with a damp cloth and a
small amount of washing up liquid.
o Dry the
appliance
by rubbing the surface with a clean cloth.
Using a
specialist ceramic
hob cleaner
It is possible to
purchase specialist
ceramic hob cleaner/conditioner.
You should follow the instructions given by the manufacturer of the
specialist ceramic hob cleaner. You should ensure that it is suitable for
use on your appliance.
Installation
The installation must be carried out by a suitably
qualified person, in accordance with the current
version of the following.
o UK Regulations and Safety Standards or their European
Norm Replacements.
o Building Regulations (issued by the Department of the
Environment).
o Building Standards (issued by the Scottish Development
Department).
o IEE Wiring Regulations.
o
Electricity
At Work Regulations.
26
Positioning
The adjacent furniture must be able to withstand a
minimum
temperature
rise of 85°C above the ambient
temperature of the room it is located in, during
periods
of use.
This appliance is classified as Class 3 and therefore is to be built into a
kitchen unit
(depending
on size) or 600 mm worktop that is at least 30
mm thick. The following minimum clearance distances must be
observed:-
o 700 mm between the hob surface and the underside of any
horizontal
surface above it.
o 50 mm clearance around the sides and front of the appliance,
measured
from the cut out.
o 55 mm clearance between the back of the hob surface and the
wall behind it,
measured
from the cut out.
o If the hob is positioned so that the right or left hand side of the
appliance will be near to the edge of a kitchen unit. There must
be a gap of at least 150 mm between the side of the hob and the
vertical surface of the kitchen unit.

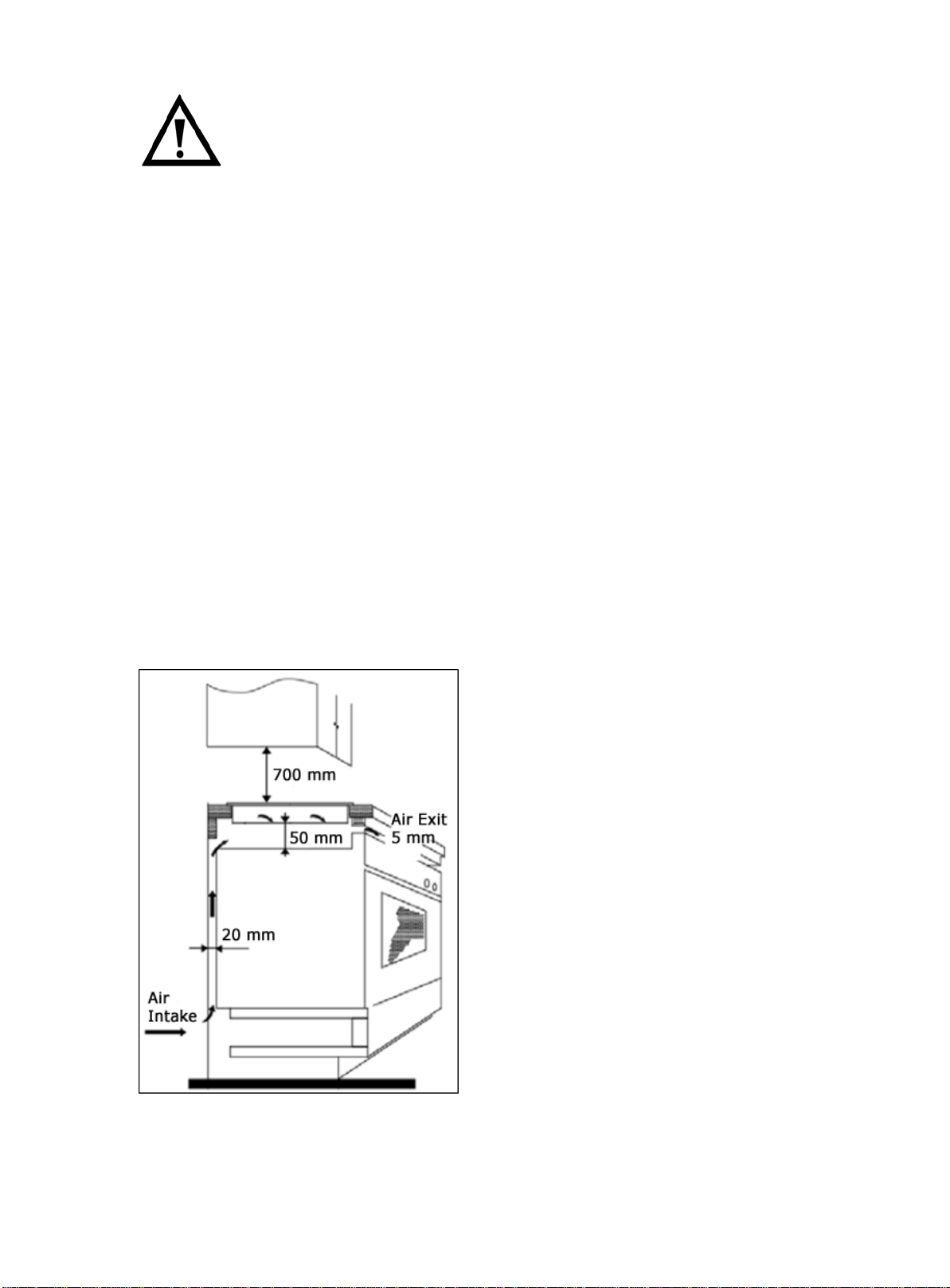

o IMPORTANT: Underneath
the appliance there must be
a partition made of insulating
material (e.g. wood). There
must be a gap of at least 50
mm between the underneath
of the appliance and this
partition.
o You must make sure that
there is a 5mm gap below
the underneath of the
worktop at the front edge of
the hob.
27
Unpacking
the appliance
When unpacking the appliance please check that the following items
are
contained
within the packaging:-
1
Baumatic
hob
1 Ceramic hob scraper
1
Installation
and
instruction
manual
1
Baumatic guarantee
card
Fixing brackets
Fixing screws
Installing
the appliance
55
o Cut a hole in
shown above.
the worktop that corresponds with the drawing
o IMPORTANT: There are ventilation
holes around the outside of the hob.
YOU MUST ensure that these holes are
not blocked by the work top, when you
put the hob
opposite).
into position (see drawing
28
o IMPORTANT: Do not use a silicon sealant to seal the appliance
against the aperture. This will make it difficult to remove the hob
from the aperture in future,
particularly
if it needs to be serviced.
o Carefully lower the hob into the aperture hole that you have cut
out.

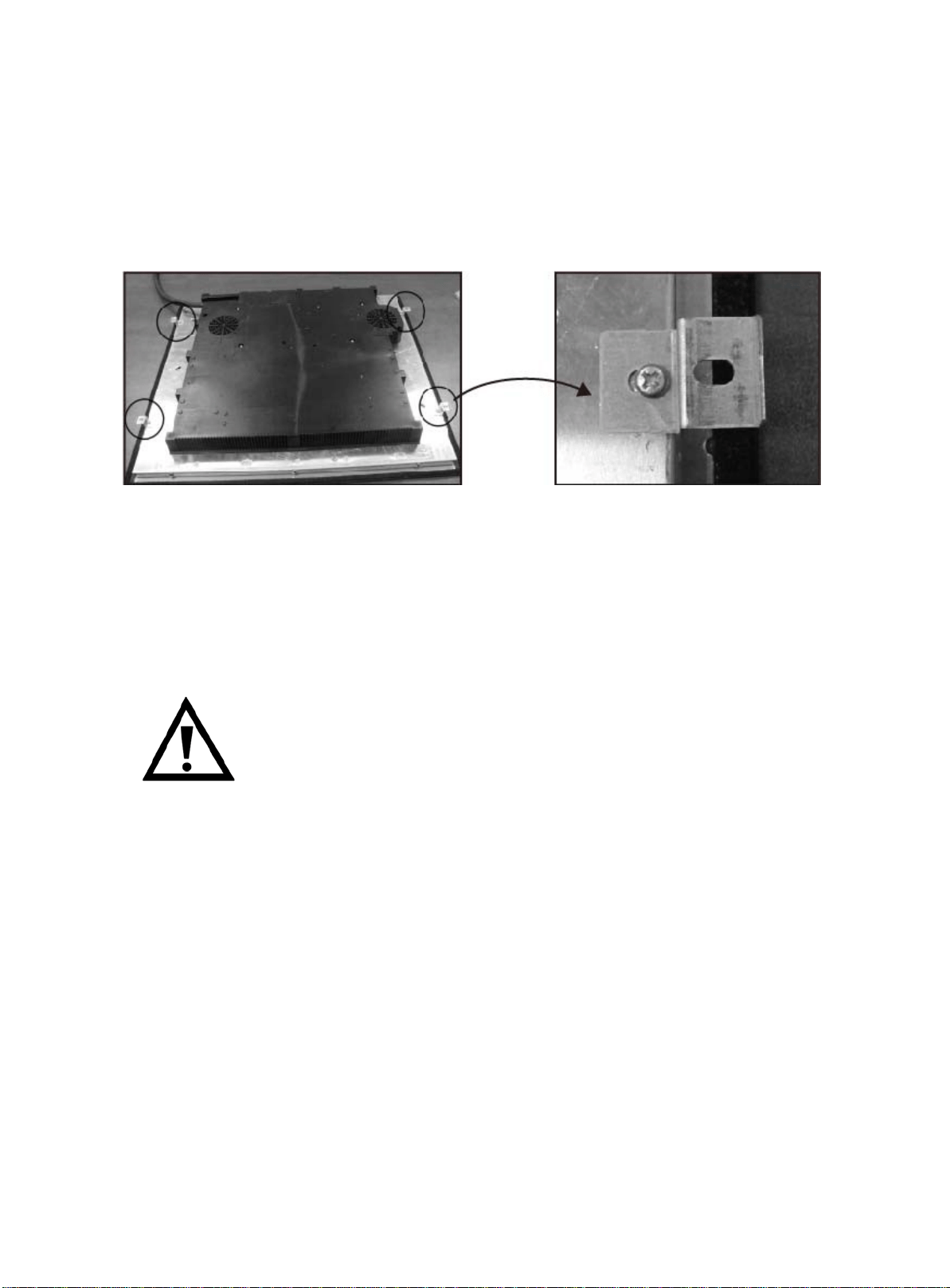

o There are holes on the base of the hob that you can fix the brackets
to.
You should place the bracket on the underneath of the hob, in a
position that is appropriate for the aperture that you have cut out.
Using the screws provided, fix the bracket to the hob. These screws
MUST be securely tightened.
Electrical connection
This appliance must be installed by a qualified
person in accordance with the latest edition of the
I.E.E.
Regulations
and in
compliance
with Baumatic’s
instructions.
Before connecting the appliance, make sure that the supply voltage
marked on the rating plate corresponds with your mains supply
voltage.
WARNING:
THIS
APPLIANCE
MUST BE EARTHED.
o This appliance must be wired into a 32A double pole switched
fused spur outlet, having 3 mm contact separation and placed in
an easily accessible position adjacent to the appliance. It should
not be located above the appliance and no more than 1.25m
away from it.
o The spur outlet must still be accessible even when your hob is
located in its
operating
position.
o Cable type: H05 RRF 3 core x 6 mm² (not supplied).
29
Connecting the mains supply cable
o The mains terminal block is located on the underside of the hob and the
terminals are accessible by removing the terminal block cover by
removing the cover screw.

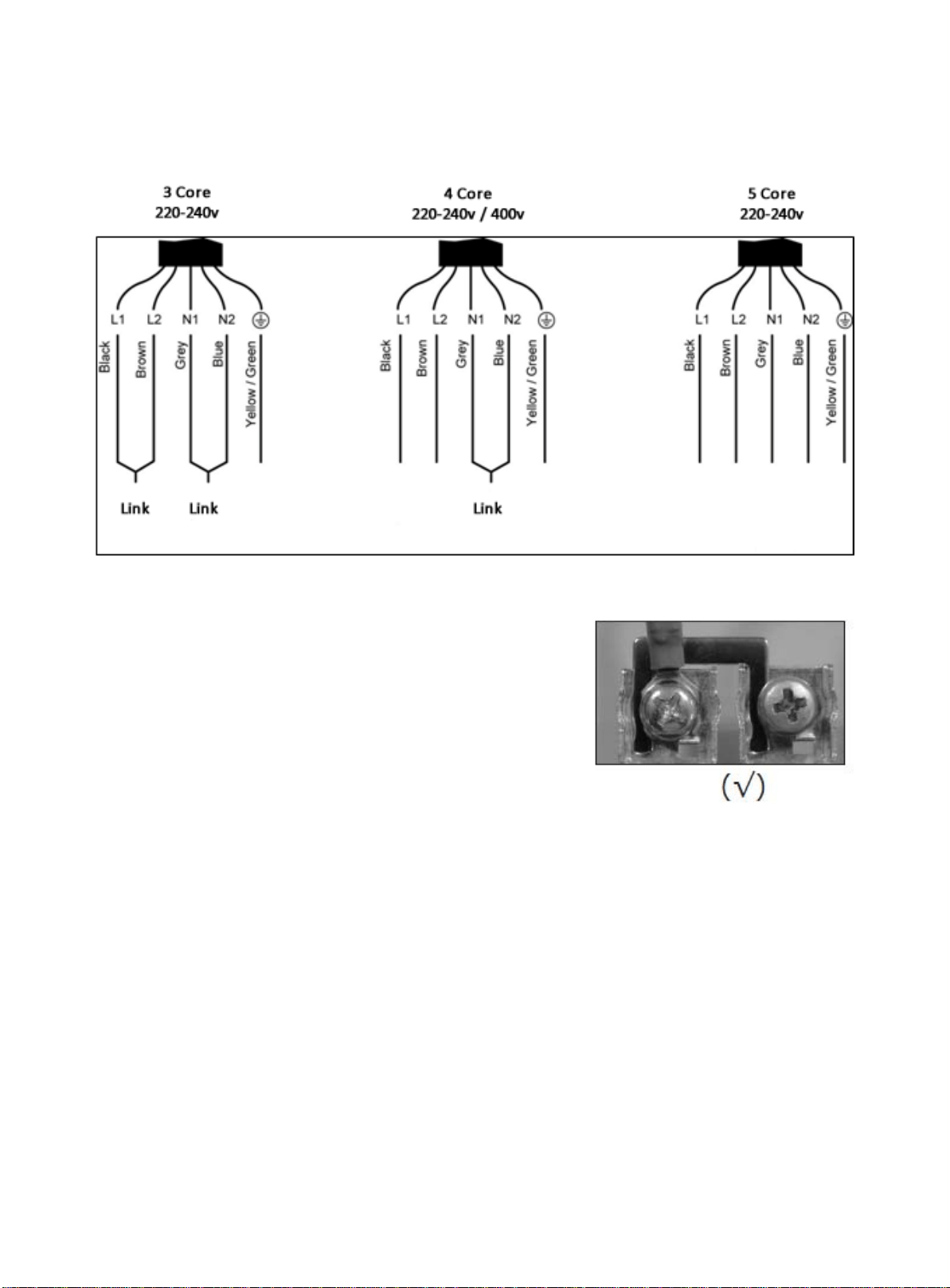

o The brass links
must be positioned as
indicated, based on voltage and electrical
connection, and once established ALL terminal
screws must be tightened down firmly.
o If when the hob is first switched o
n, only two of the zones work,
you should recheck that the terminal screws are all fully tightened
between the links. This should be done before contacting the
Customer Care Department.
o IMPORTANT: The appliance must NOT be connected to the mains supply
by means of a 13A plug and socket.
o The cable can be looped if necessary, but make sure that is not kinked or
trapped when the hob is in position. Care must be taken to avoid the
cable being in contact with hot parts of the appliance.
30
Replacing
the mains supply cable
If the mains supply cable is damaged, then it must be replaced by an
appropriate
replacement.
The mains supply cable should be replaced in accordance with the
instructions
below:
o Switch the
appliance
off at the socket.
o Open the terminal block on the
underside
of the hob.
o Unscrew the terminal screws fixing the cable.
o Replace the cable with one of the same length and in accordance
with the
specification
given on page 29.
o The
“green-yellow”
earth wire must be
connected
to the terminal
marked . It must be about 10 mm longer than the live and
neutral wires.
My
appliance
isn’t
working
correctly
o The
cooking
zones are not
functioning
or will not switch on.
* The safety lock has been switched on (see the “Locking the hob
top” section for
information
on how to turn off the safety lock).
* Several cooking zone selection buttons have been pressed at once.
You should only touch one cooking zone
selection
button at
once.
* The safety cut out has been triggered. Press a cooking zone
selection button to reset the hob.
* Check that the mains electrical supply to the appliance is correct
and
working.
Check the mains fuse.
* The pans that you are using are not suitable for use on an induction
hob.
31
o The residual heat indicator has not come on after I have
switched
a
cooking
zone off.
* The cooking zone has only been turned on for a short period of
time;
therefore
it did not go above 60°C.
* IMPORTANT: If the cooking zone does appear to be hotter than
60°C and the residual heat indicator has not come on, you should
call the
Baumatic Customer
Care
Department.
o A
humming
sound is heard when a
cooking
zone is selected.
* This is normal; the sound will
disappear
when the zone heats up.
o The
cooking
zones have
become
discoloured.
* This maybe caused by burnt on remnants of food. This will not
affect the working of the appliance. However you should make sure
that the cleaning
instructions
are being followed regularly.
o Only two of the zones on my hob are working
* You should recheck that the terminal screws are all fully tightened
between the links.
Error codes
The following error codes may appear in the timer display if there is a
problem with the
operation
of the hob.
Error
code
Likely cause
Possible
solution
F1-F6
Temperature
sensor failure Please contact
Customer
Care.
F9-FA
Temperature
sensor of the
IGBT
failure.
Please contact
Customer
Care.
FC
The
connection
between
the
display board and the
main
board has
failed
Please contact
Customer
Care.
E1/E2
Abnormal
supply voltage Check the power supply to
the
appliance
is
correct.
E3/E4
Temperature
sensor of the
ceramic glass plate Is high
Turn the power off. Restart
after
the hob cools
down.
E5
Temperature
sensor of the
IGBT
Is
high
Turn the power off. Restart
after
the hob cools
down.
IMPORTANT: If any other error codes appear on the cooking
zone display, you should turn the appliance off at the mains
and contact the Customer Care Helpline. DO NOT continue to
use the appliance.
IMPORTANT: If your appliance appears not to be
operating correctly, then you should disconnect it
from your mains supply and then contact
Baumatic Customer Care on telephone number
(0118) 933 6911.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE
YOURSELF.
Please note that if an engineer is asked to attend whilst the product is
under guarantee and finds that the problem is not the result of an
appliance fault, then you may be liable for the cost of the call out
charge.
The appliance must be accessible for the engineer to perform
any necessary repair. If your appliance is installed in such a
way that an engineer is concerned that damage will be caused
to the appliance or your kitchen, then they will not complete
a repair.
This includes situations where appliances have been tiled in,
sealed in with sealant, have wooden obstructions placed in
front of the appliance - like plinths, or any installation other
than the one
specified
by
Baumatic
Ltd. has been completed.
Please refer to the conditions of guarantee that appear on the
warranty card that you receive with the appliance.
IMPORTANT: Baumatic Ltd. operates a policy of continuous
improvement and reserves the right to adjust and modify its
products without
prior notification.
33
Baumatic
Consumables
o BC001
Degreaser
for
Dishwashers
(200 g)
o BC002 Descaler for Washing
Machines
and
Dishwashers
(200 g)
o BC003 Ceramic Hob Cleaner (250 ml)
o BC004 Oven Cleaner (250 ml)
o BC005
Stainless
Steel Cleaner and
Protector
(250 ml)
o BC007 E-Cloth – General Purpose Cloth
o BC008
Microwave
Cover
To order a
Baumatic consumable
product please call 0123 5437 244
and quote the product code. You can also order online from
eshop.baumatic.co.uk
34
35
United Kingdom
Baumatic
Ltd.,
Baumatic Buildings,
6 Bennet Road,
Reading,
Berkshire
RG2 0QX
United Kingdom
Sales Telephone
(0118) 933 6900
Sales Fax
(0118) 931 0035
Customer
Care Telephone
(0118) 933 6911
Customer
Care Fax
(0118) 986 9124
Spares Telephone
(01235) 437244
Advice Line Telephone
(0118) 933 6933
E-mail:
sales@baumatic.co.uk
customercare@baumatic.co.uk
spares@baumatic.co.uk
Website:
www.baumatic.co.uk
Facebook:
www.facebook.com/baumatic.uk
Republic
of Ireland
Service Telephone
1-890 812 724
Spares Telephone
091 756 771
Czech Republic/Slovakia
Baumatic s.r.o.
Lípová 665/1
460 01 Liberec 4
Czech Republic
Panenská 34
811 03 Bratislava - Staré Mesto
Slovakia
+420 483 577 200 (CZ)
+421 255 640 618 (SK)
www.baumatic.cz
www.baumatic.sk
Germany
Kundendienst & Ersatzteile
Deutschland 0049(0)180-5888975
Oesterreich +43 (0) 820 / 420423
www.baumatic.de
Italy
Baumatic
Italia S.R.L.
Via Galvani N.3
35011
Campodarsego
(PD)
+3904 9920 2297
www.baumatic.it
Holland
Baumatic Benelux B.V.
Dukdalfweg
15d
1332 BH ALMERE
Nederland
+31(0)36
549 1553
www.baumatic.nl
