User Manual

This is the main product document for model M2362D-PT.

The file format is pdf, 104 pages, you can download this manual here .

background
www.lg.com
OWNER’S MANUAL
MONITOR TV
MONITOR TV MODELS
Please read this manual carefully before operating
your set and retain it for future reference.
ENGLISH
M2362D
background
1
PREPARATION
FRONT PANEL CONTROLS
■
This is a simplified representation of the front panel. The image shown may be somewhat different from your set.
INPUT
Button
INPUT
MENU
PR
VOL
OK
MENU
Button
OK
Button
VOLUME
Buttons
PROGRAMME
Buttons
Power
Button
Headphone
Jack
IR receiver
(Remote controller
receiver)
LLiigghhtt SSeennssoorr
This is lens for light sensor
select outside luminance,
when setting AUTO
BRIGHT ON.
PPoowweerr IInnddiiccaattoorr
illuminates blue when the
set is switched on.
Note:You can adjust
Power indicator in the
OPTION menu.
background
22
PREPARATION
BACK PANEL INFORMATION
PPoowweerr CCoorrdd SSoocckkeett
This set operates on AC power. The voltage is indicated
on the Specifications page. Never attempt to operate
the set on DC power.
HHDDMMII IInnppuutt ((NNoott SSuuppppoorrtt PPCC))
Connect a HDMI signal to HDMI IN.
Or DVI (VIDEO) signal to HDMI IN with DVI to HDMI
cable.
RRGGBB//DDVVII AAuuddiioo IInnppuutt
Connect the audio from a PC.
OOppttiiccaall DDiiggiittaall AAuuddiioo OOuutt
Connect digital audio from various types of eguipment
RRGGBB IINNPPUUTT ((PPCC))
Connect the output from a PC.
UUSSBB IINN
DDVVII--DD IInnppuutt
Connect the output from a PC.
RRSS--223322CC IINN ((CCOONNTTRROOLL && SSEERRVVIICCEE)) PPOORRTT
Connect to the RS-232C port on a PC.
CCoommppoonneenntt IInnppuutt
Connect a component video/audio device to these
jacks.
AAuuddiioo//VViiddeeoo IInnppuutt
Connect audio/video output from an external device to
these jacks.
AAnntteennnnaa IInnppuutt
Connect over-the-air signals to this jack.
1
2
3
4
5
6
7
8
9
10
11
■
This is a simplified representation of the back panel. The image shown may be somewhat different from your set.
AC IN
AUDIO IN
(RGB/DVI)
OPTICAL
DIGITAL
AUDIO OUT
VIDEO
COMPONENT
IN
AV IN
VIDEO -AUDIO-
(MONO)
AUDIO
Y
P
B
P
R
L
R
RS-232C IN
(CONTROL & SERVICE)
USB IN
RGB IN (PC)
DVI-D IN (PC)
HDMI IN 1
AC IN
ANTENNA/
CABLE IN
L
R
2
8
9 10
1
2
76 11
53 4
background
33
PREPARATION
STAND INSTALLATION
■
The image shown may be somewhat different from your set.
1
2
3
Carefully place the product screen side down on a
cushioned surface that will protect product and
screen from damage.
Insert the
SSttaanndd BBaassee
into the product
Turn the
SSttaanndd BBaassee LLoocckk
through 90
° to fix the stand base to the stand body.
SSttaanndd BBaassee LLoocckk
<<LLoocckkeedd>>
4 5
O
P
E
N
O
P
E
N
O
P
E
N
O
P
E
N
SSttaanndd BBaassee
background
44
PREPARATION

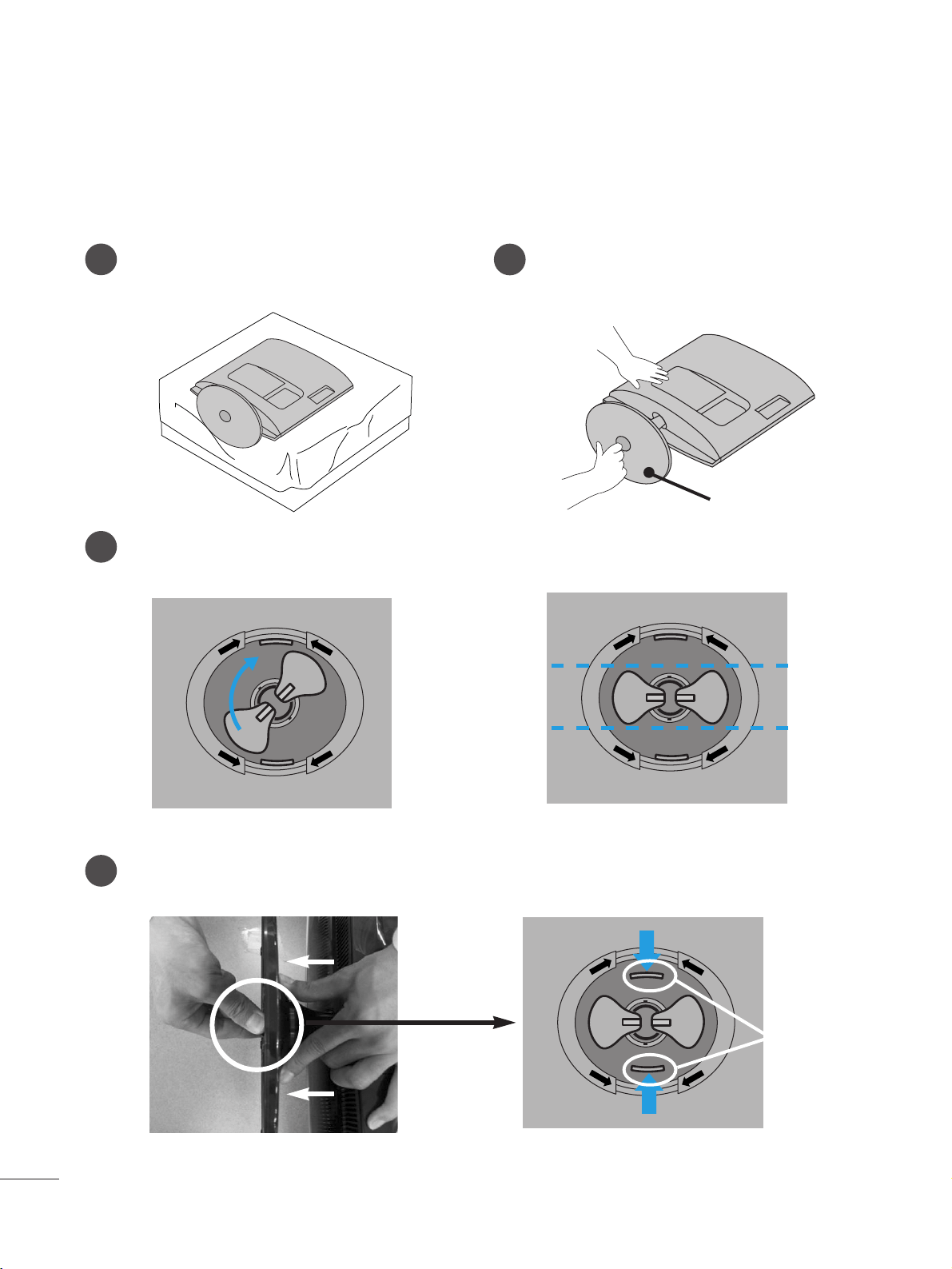

DETACHING STAND
■
The image shown may be somewhat different from your set.
1
2
3
4
Place the set screen side down on a cushion or
soft cloth.
Detach the monitor to the
SSttaanndd BBaassee
by
turning the screw to the left.
Turn the
SSttaanndd BBaassee LLoocckk
through 90
° to separate the Stand Base from the Stand Body.
Pushing
LLaattcchh
inside, Take the stand base from stand body.
O
P
E
N
O
P
E
N
LLaattcchh
SSttaanndd BBaassee
background
55
PREPARATION
DETACHING STAND BODY
1. Remove the screw 2 point.
2. Pull the stand body.
■
The image shown may be somewhat different from your set.
■
Remove the Stand Body in the same way as the following when using it as a Wall Hook.
background
66
PREPARATION
DESKTOP PEDESTAL INSTALLATION
For proper ventilation, allow a clearance of 10 cm on each side and from the wall.
10 c m
10 c m
10 c m
10 c m
WALL MOUNT: HORIZONTAL INSTALLATION
For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed installation
instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
10 c m
10 c m
10 cm 10 cm
10 c m
background
77
PREPARATION
POSITIONING YOUR DISPLAY
■
The image shown may be somewhat different from your set.
Adjust the position of the panel in various ways for maximum comfort.
•• TTiilltt rraannggee
LOCATION
Position your set so that no bright light or sunlight falls directly onto the screen. Care should be taken not to expose
the set to any unnecessary vibration, moisture, dust or heat. Also, ensure that the set is placed in a position to allow a
free flow of air. Do not cover the ventilation openings on the back cover.
If you intend to mount the set to a wall, attach Wall mounting interface (optional parts) to the back of the set.
When you install the set using the wall mounting interface (optional parts), attach it carefully so it will not drop.
- Be sure to use screws and a wall mount that meet VESA standards.
- Using screws longer than those recommended might damage the product.
- Using screws that do not meet VESA standards might either damage the product or result in it coming away from the
wall. We will not be held responsible for any damage resulting from failure to follow these instructions.
< Screw Mounting Interface Dimension >
100mm x 100mm hole spacing
-5
°
15
°
WWaarrnniinngg::
When adjusting the angle of the screen,do not put your
finger(s)in between the head of the monitor and the stand
body.You can hurt your finger(s).
background
88
PREPARATION
KENSINGTON SECURITY SYSTEM
- The product is equipped with a Kensington Security System connector on the back panel. Connect the
Kensington Security System cable as shown below.
- For detailed installation and use of the Kensington Security System, refer to the user’s guide provided with the
Kensington Security System.
For further information, contact
hhttttpp::////wwwwww..kkeennssiinnggttoonn..ccoomm
, the internet homepage of the Kensington
company. Kensington sells security systems for expensive electronic equipment such as notebook PCs and
LCD projectors.
NOTE
- The Kensington Security System is an optional accessory.
NOTES
a. If the product feels cold to the touch, there may be a small “flicker” when it is turned on.
This is normal, there is nothing wrong with product.
b. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However,
they have no adverse effect on the monitor's performance.
c. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.
Doing so may produce some temporary distortion effects on the screen.
background
99
AV 1 AV 2
ANTENNA/
CABLE IN
AV 1 AV 2
ANTENNA/
CABLE IN
EXTERNAL EQUIPMENT SETUP
■
For optimum picture quality, adjust antenna direction.
■
An antenna cable and converter are not supplied.
■
To prevent equipment damage, never plug in any power cords until you have finished connecting all equipment.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
(VHF, UHF)
Wall
Antenna
Socket
RF Coaxial Wire (75 ohm)
ANTENNA CONNECTION
Antenna
UHF
Signal
Amplifier
VHF
■
In poor signal areas, to get better picture quality, install a signal amplifier to the antenna as shown above.
■
If signal needs to be split for two TVs, use an antenna signal splitter for connection.
background
1100
EXTERNAL EQUIPMENT SETUP
Connect the SET-TOP outputs to the
CCOOMMPPOONNEENNTT IINN
VVIIDDEEOO
sockets (Y P
B PR) on the set.
Connect the audio cable from the SET-TOP to
CCOOMMPPOO--
NNEENNTT IINN AAUUDDIIOO
sockets of the set.
Press the
IINNPPUUTT
button to select
CCoommppoonneenntt..
2
3
1
HD RECEIVER SETUP
■
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■
The image shown may be somewhat different from your set.
When connecting with a component cable
Signal
480i/576i
480p/576p
720p/1080i
108 0 p
Component
Yes
Yes
Yes
Yes
HDMI
No
Yes
Yes
Yes
VIDEO
COMPONENT
IN
AUDIO
Y
P
B
P
R
L
R
1
2
background
1111
EXTERNAL EQUIPMENT SETUP
When connecting with a HDMI
Connect the HDMI output of the digital set-top box to the
HHDDMMII IINN
jack on the set.
1
Connect the digital set-top box to
HHDDMMII IINN
jack on
the set.
Connect the audio output of the digital set-top box to
the
AAUUDDIIOO IINN ((RRGGBB//DDVVII))
jack on the set.
Turn on the digital set-top box.
(
Refer to the owner’s
manual for the digital set-top box.
)
2
3
1
When connecting with a HDMI to DVI cable
NOTE
!
G
HDMI Input does not support PC mode. If it is connected PC, the screen may not be displayed properly.
or
HDMI IN
1
1
HDMI IN
2
HDMI IN
2
DVI OUTPUT
AUDIO
RL
AUDIO IN
(RGB/DVI)
HDMI IN
1
1
2
or
background
1122
EXTERNAL EQUIPMENT SETUP
DVD SETUP
When connecting with a component cable
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the set
YP
B
P
R
Video output ports
on DVD player
Y
Y
Y
Y
P
B
B-Y
Cb
Pb
P
R
R-Y
Cr
Pr
Connect the video output sockets (Y P
B PR) of the DVD to
the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
sockets (Y P
B PR) of the set.
Connect the audio cable from the DVD to
CCOOMMPPOONNEENNTT
IINN AAUUDDIIOO
sockets of the set.
Press the
IINNPPUUTT
button to select
CCoommppoonneenntt
.
Press the
PPLLAAYY
button on the DVD.
The DVD playback picture appears on the screen.
2
3
4
1
VIDEO
COMPONENT
IN
AUDIO
Y
P
B
P
R
L
R
1
2
background
1133
EXTERNAL EQUIPMENT SETUP
When connecting HDMI cable
Connect the HDMI output of the DVD to the
HHDDMMII IINN
jack on the set.
1
G Set can receive the video and audio signal simultaneously by using a HDMI cable.
G If the DVD player does not support Auto HDMI, you need to set the DVD output resolution appropriately.
NOTE
!
or
HDMI IN
1
1
HDMI IN
2
background
1144
EXTERNAL EQUIPMENT SETUP
VCR SETUP
■
To avoid picture noise (interference), leave an adequate distance between the VCR and set.
■
Typically a still picture is shown on the VCR. If a user uses 4:3 picture format for a long time, an afterimage
may remain on the sides of the screen.
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT
L
AV 1 AV 2
ANTENNA/
CABLE IN
Wall Jack
Antenna
1
2
When connecting with an antenna
Connect the RF out socket of the VCR to the aerial socket of the set.
Connect the aerial cable to the RF aerial in socket of the VCR.
Store the VCR channel on a desired programme number using the ‘Manual
programme tuning’ section.
Select the programme number where the VCR channel is stored.
Press the
PPLLAAYY
button on the VCR.
1
2
3
4
5
background
1155

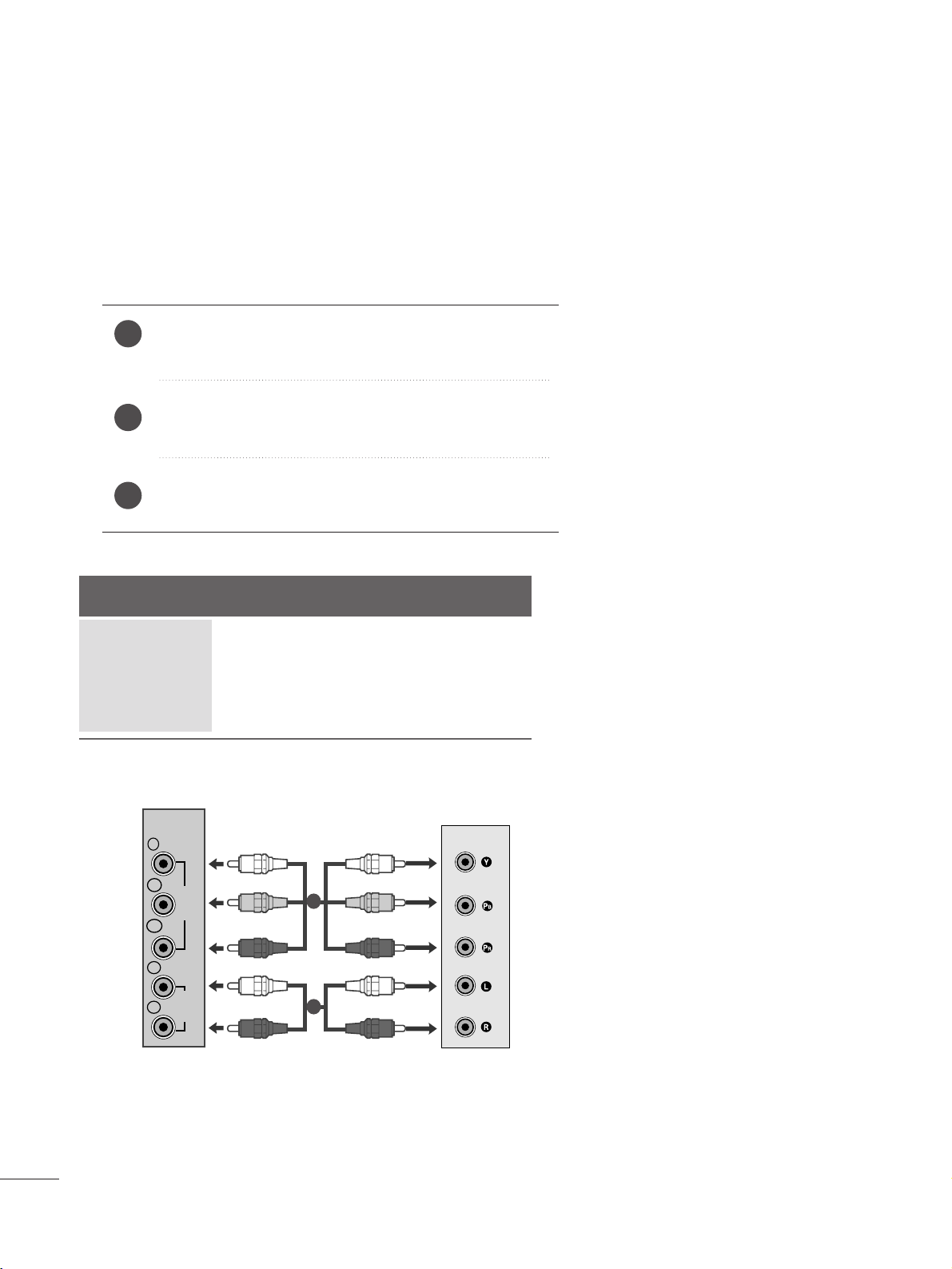

EXTERNAL EQUIPMENT SETUP
WWhheenn ccoonnnneeccttiinngg wwiitthh aa RRCCAA ccaabbllee
Connect the audio/video out sockets of the VCR to
AUDIO/VIDEO in sockets of the set.
Press the INPUT button to select AV.
Press the PLAY button on the VCR.
The VCR playback picture appears on the screen.
2
3
1
NOTE
!
G
If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the set.
VIDEO ANT IN
ANT OUT
S-VIDEO
L
R
AV 1 AV 2
VIDEO AUDIO
(MONO)
L
R
AV IN
1
Connect the USB device to the
UUSSBB IINN
jacks on the
side of set.
After connecting the
UUSSBB IINN
jacks, you use the
UUSSBB
function. (
G
pp..8800
)
2
1
USB SETUP
AV 1 AV 2
USB IN
Connect one end of an optical cable to the TV Digital
Audio
(
Optical
)
Output port.
Connect the other end of the optical cable to the digi-
tal audio
(
Optical
)
input on the audio equipment.
Set the
““TTVV SSppeeaakkeerr ooppttiioonn -- OOffff ””
in the AUDIO
menu.(
G
pp..6633
). Refer to the external audio equipment
instruction manual for operation.
Sending the TV’s audio signal to external audio equipment via the Digital Audio Output (Optical) port.
If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL AUDIO
OUT terminal on the back of TV to a DVD Home Theater (or amp).
2
1
DIGITAL AUDIO OUT SETUP
G
Do not look into the optical output port. Looking at the
laser beam may damage your vision.
CAUTION
background
1166
EXTERNAL EQUIPMENT SETUP
PC SETUP
This product provides Plug and Play capability, meaning that the PC adjusts automatically to the set's settings.

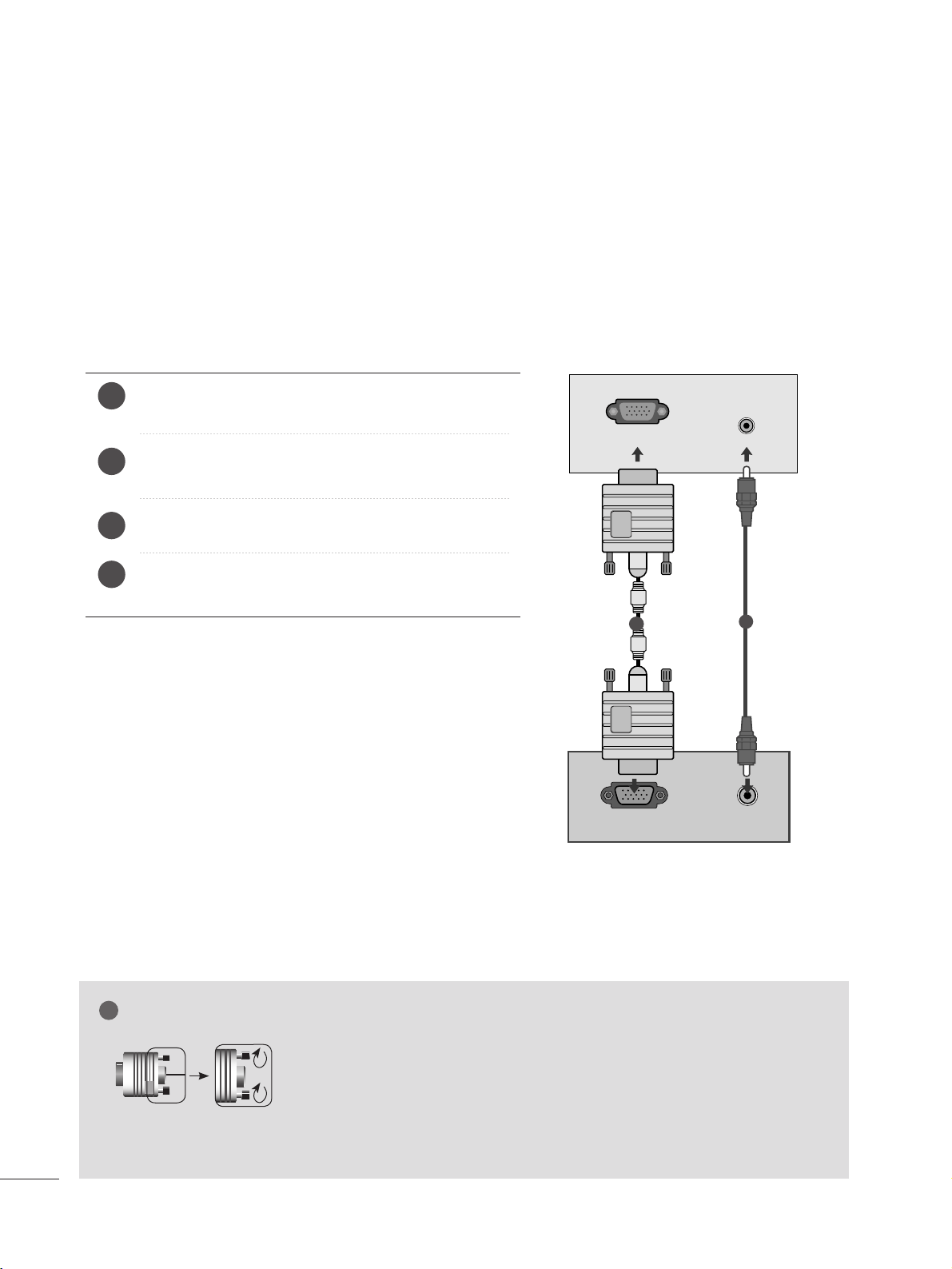

When connecting with a D-sub 15 pin cable
4
Connect the signal cable from the monitor output socket of
the PERSONAL COMPUTER to the PC input socket of the set.
Connect the audio cable from the PC to the
AAUUDDIIOO IINN
((RRGGBB//DDVVII))
sockets of the set.
Press the INPUT button to select
RRGGBB
.
Switch on the PC, and the PC screen appears on the set.
The set can be operated as a PC monitor.
2
3
1
RGB OUTPUT
AUDIO
AUDIO IN
(RGB/DVI)
RGB IN (PC)
1
2
NOTE
!
G
You must use shielded signal interface cables (D sub 15 pin cable, DVI cable) with ferrite cores to maintain
standard compliance for the product.
G
Connect the signal input cabel and tighten the screws by turning them clockwise.
background
1177
EXTERNAL EQUIPMENT SETUP
When connecting with a DVI cable
Connect the DVI output of the PC to the
DDVVII--DD IINN
jack on the set.
Connect the audio cable from the PC to the
AAUUDDIIOO
IINN ((RRGGBB//DDVVII))
sockets of the set.
2
1
NOTE
!
G
If the set is cold, there may be a small “flicker” when the
set is switched on. This is normal, there is nothing
wrong with the set.
G
If possible, use the 1920x1080 @ 60 Hz video mode
to obtain the best image quality for your LCD monitor.
If used with other resolutions, some scaled or
processed pictures may appear on the screen. The set
has been preadjusted to the mode 1920x1080 @ 60
Hz.
G
Some dot defects may appear on the screen, like Red,
Green or Blue spots. However, this will have no impact
or effect on the monitor performance.
G
Do not press the LCD screen with your finger for a long
time as this may produce some temporary distortion
effects on the screen.
G
Avoid keeping a fixed image on the set’s screen for pro-
longed periods of time. The fixed image may become
permanently imprinted on the screen; use a screen
saver when possible.
AUDIO
DVI OUTPUT
AUDIO IN
(RGB/DVI)
DVI-D IN (PC)
1
2
G
Connect the signal input cabel and tighten the screws by turning them
clockwise.
background
1188
EXTERNAL EQUIPMENT SETUP
Tie cables together with a cable tie as shown in the
illustration.
BACK COVER FOR WIRE ARRANGEMENT
Cable tie
R
R
background
1199
EXTERNAL EQUIPMENT SETUP
RGB/DVI[PC]
HDMI[DTV] (Not Support PC)
60
60
50
50
60
60
60
60
50
24
30
50
60
60
31 . 4 69
31 . 5
31 . 2 5
37.5
44.96
45
33.72
33.75
28.125
27
33.75
56.25
67.43
67.5
Resolution
720x480/60p
720x576/50p
1280x720/60p
1280x720/50p
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
1920x1080/60i
1920x1080/50i
1920x1080/24p
1920x1080/30p
1920x1080/50p
Resolution
640x480
800x600
720x400
1024x768
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
31 . 4 68 70
31 . 4 69 60
37.500 75
37.879 60
46.875 75
48.363 60
60.123 75
67.500 75
63.981 60
79.976 75
64.674 60
65.290 60
75.000 60
66.587 60
1280x1024
1152x864
1680x1050
1920x1080
1600x1200
1920x1080/60p
SUPPORTED DISPLAY RESOLUTION
background
2200
WATCHING TV /PROGRAMME CONTROL
REMOTE CONTROL KEY FUNCTIONS
When using the remote control, aim it at the remote control sensor on the set.
OK
MENU EXIT
GUIDE
123
456
789
0
Q.VIEW
LIST
TV/PC INPUT
POWER
VOL PR
I/II
MUTE
TEXT
RETURN
LIGHTING
FAV
INFO
i
TV/RADIO
Q.MENU
T.OPT MARK
SUBTITLE
POWER
TV/PC
INPUT
Switches the set on or off.
Selects TV or PC mode.
External input mode rotates in regular sequence.
TV/RADIO
I/II
MUTE
Selects Radio or TV channel.
Selects the sound output.(Refer to the p.64)
Switches the sound on or off.
0 to 9
number button
LIST
Q.VIEW
Selects a programme.
Selects numbered items in a menu.
Displays the programme table.(Refer to the p.35)
Returns to the previously viewed programme.
MENU
EXIT
INFO i
GUIDE
THUMBSTICK
(Up/Down/Left/Right)
OK
Selects a menu. (Refer to the p.25)
Clears all on-screen displays.
Shows the present screen information.
Shows programme schedule.(Refer to the p.36 to 38)
Allows you to navigate the on-screen menus and adjust
the system settings to your preference.
Accepts your selection or displays the current mode.
VOLUME UP
/DOWN
RETURN
LIGHTING
FAV
Programme
UP/DOWN
Adjusts the volume.
Allows the user to move back one step in an interactive applica-
tion, EPG or other user interaction function.
Press the Lighting button to turn the decoration lighting on/off.
Displays the selected favourite programme.(Refer to the p.35)
Selects a programme.
11
11
22
33
44
55
22
33
44
55
background
2211
WATCHING TV /PROGRAMME CONTROL
Installing Batteries
■
Open the battery compartment cover on the back and install the
batteries matching correct polarity
(
+ with +, - with -
)
.
■
Install two 1.5V AAA batteries. Don’t mix old or used batteries with
new ones.
■
Close cover.
USB Menu
control buttons
Controls USB menu (Photo List and Music
List)
(Refer to the p.80)
TELETEXT
BUTTONS
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
(Refer to the p.88 to 89)
11
22
33
Q.MENU
MARK
Select the desired quick menu source.
(Refer to the p.24)
Check and un-check programmes in the recorded set
menu.
OK
MENU EXIT
GUIDE
123
456
789
0
Q.VIEW
LIST
TV/PC INPUT
POWER
VOL PR
I/II
MUTE
TEXT
RETURN
LIGHTING
FAV
INFO
i
TV/RADIO
Q.MENU
T.OPT MARK
SUBTITLE
11
22
33
background
2222
WATCHING TV /PROGRAMME CONTROL
TURNING ON THE TV
- When your TV is turned on, you will be able to use its features.
Firstly,connect the power cord correctly and check the main power( r / I )on the TV.
SSeett IIDD :: OOffff
In standby mode to turn TV on, press the INPUT or PR
D
//
E
button on the TV or press the POWER button on the
remote control and the TV will switch on.
SSeett IIDD :: OOnn
In standby mode to turn TV on,pr ss the INPUT or PR
D
//
E
button on the TV or press the POWER, INPUT, PR
D
//
E
or NUMBER button on the remote control and the TV will switch on.
2
1
Initializing setup
Note:
a. If you close without completing the initial setting, the Initial Setting menu can be displayed again.
b. Press the RETURN button to change the current OSD to the previous OSD.
c. "
HHoommee UUssee
” mode is the optimal setting for home environments, and is the TV's default mode.
d. "
SSttoorree DDeemmoo
"mode is the optimal setting for store environments. If a user modifies image quality data,
“
SSttoorree DDeemmoo
” mode initializes the product to the image quality set by us after a certain period of time.
e. The mode (
HHoommee UUssee
,
SSttoorree DDeemmoo
) can be changed by executing
MMooddee SSeettttiinngg
in the
OOPPTTIIOONN
menu.
If the OSD (On Screen Display) is displayed on the screen after turning on the TV, you can adjust
the
MMooddee SSeettttiinngg
,
AAuuttoo ttuunniinngg
.
background
2233
WATCHING TV /PROGRAMME CONTROL
OK
MENU EXIT
GUIDE
123
456
789
0
Q.VIEW
LIST
TV/PC INPUT
POWER
VOL PR
I/II
MUTE
TEXT
RETURN
FAV
INFO
i
TV/RADIO
Q.MENU
T.OPT MARK
SUBTITLE
LIGHTING
PROGRAMME SELECTION
Press the
PPRR ++
or
--
or NUMBER buttons to select a pro-
gramme number.
1
VOLUME ADJUSTMENT
Press the VOL
++
or
--
button to adjust the volume.
If you want to switch the sound off, press the MUTE
button.
You can cancel this function by pressing the MUTE,
VOL
++
or
--
, or I/II button.
1
background
2244
WATCHING TV /PROGRAMME CONTROL
• Press the RETURN button to move to the previous menu screen.
•
AAssppeecctt RRaattiioo
: Selects your desired picture format.
For Zoom Setting, select 14:9, Zoom and Cinema
Zoom in Ratio Menu. After completing Zoom Setting,
the display goes back to Q.Menu.
•
PPiiccttuurree MMooddee
: Selects your desired Picture Mode.
•
SSoouunndd MMooddee
: It is a feature to automatically set the
sound combination which it deems the best for the
images being watched. Selects your desired Sound
Mode.
•
AAuuddiioo
: Selects the sound output.
•
SSlleeeepp TTiimmeerr
: Sets the sleep timer.
•
UUSSBB EEjjeecctt
: Selects “USB Eject” in order to eject USB
device.
QUICK MENU
Display each menu.
Select your desired Source.
Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
Q.Menu (Quick Menu) is a menu of features which users might use frequently.
1
Q. MENU
3
2
OK
OK
or
QQ..MMeennuu
CClloossee
1166::99
ZZoooomm SSeettttiinngg
SSttaannddaarrdd
SSttaannddaarrdd
LL ++RR
OOffff
EEjjeecctt
Aspect Ratio
Picture Mode
Sound Mode
Audio
Sleep Timer
USB Eject
background
2255
WATCHING TV /PROGRAMME CONTROL
ON SCREEN MENUS SELECTION AND ADJUSTMENT
Your set's OSD
(
On Screen Display
)
may differ slightly from what is shown in this manual.
SETUP
OPTION LOCK INPUT USB
AUDIO TIME
1
Display each menu.
2
Select a menu item.
3
Move to the pop up menu.
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Auto tuning
Manual tuning
Programme Edit

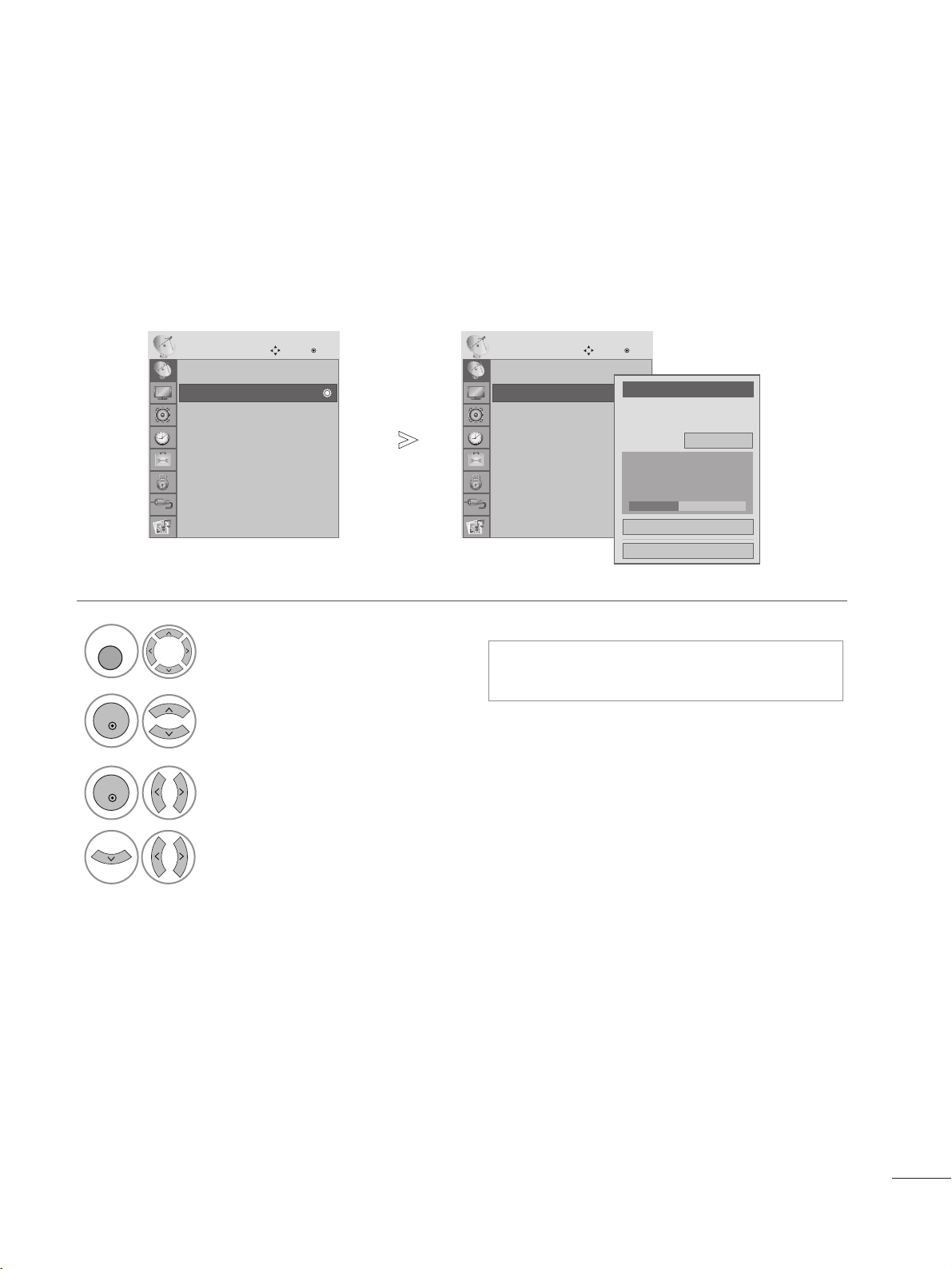

Software Update : On

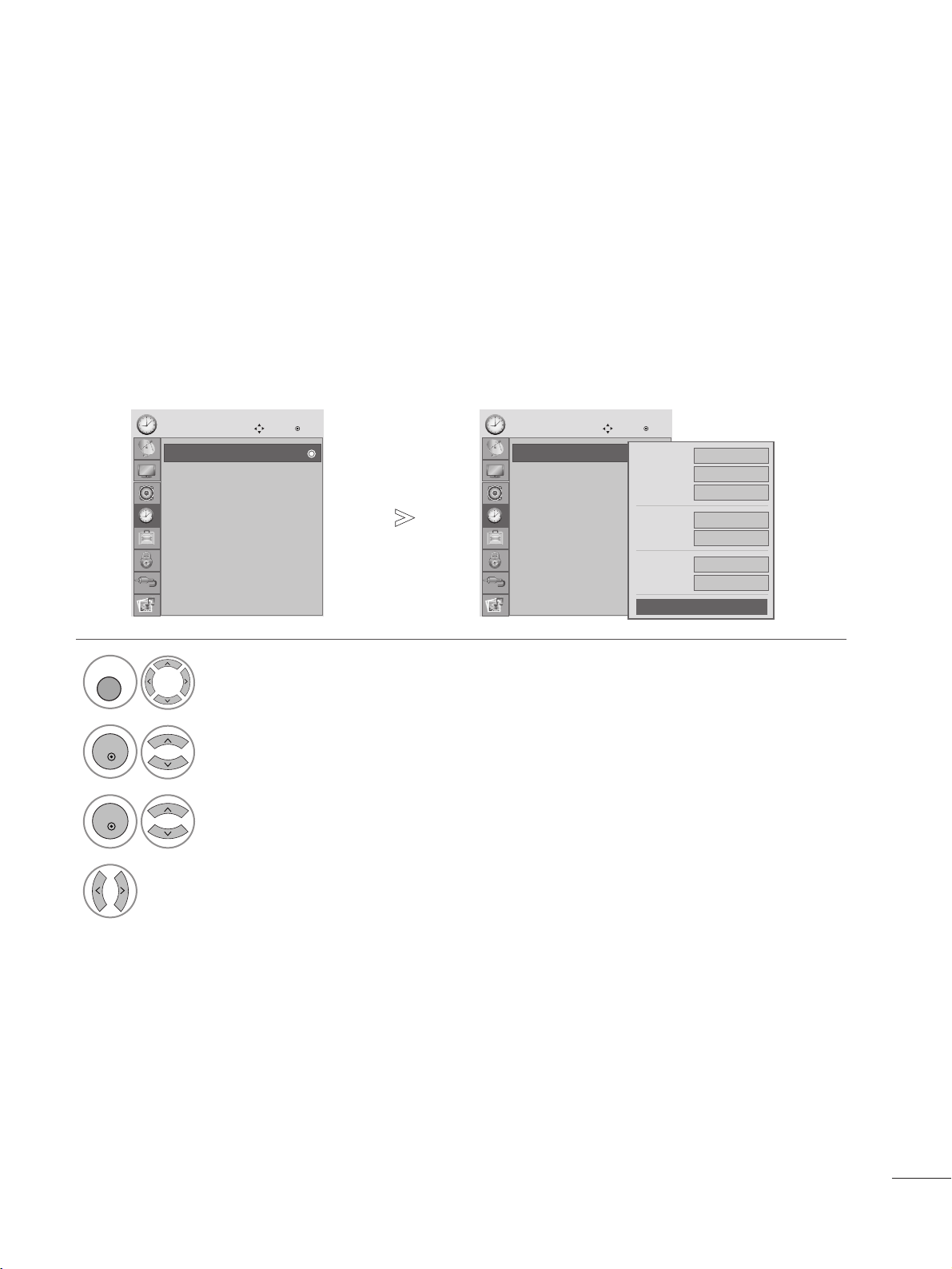

Diagnostics
SETUP
Move
OK
Clock
Off Time : Off
On Time : Off
Sleep Timer : Off
Auto Off : On
TIME
Move
OK
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
Lock System : Off
Set Password
Block Programme
Parental Guidance : Off
Input Block
LOCK
Move
OK
Antenna
AV
Component
RGB
HDMI 1
HDMI 2
DVI
INPUT
Move
OK
Photo List
Music List
USB
Move
OK
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
AUDIO
Move
OK
-+
LR
E
Aspect Ratio : 16:9
Auto Bright : Off
Picture Mode : Vivid
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
Move
OK
E
background
2266
WATCHING TV /PROGRAMME CONTROL
Use this to automatically find and store all available programmes.
When you start auto programming in digital mode, all previously stored service information will be deleted.

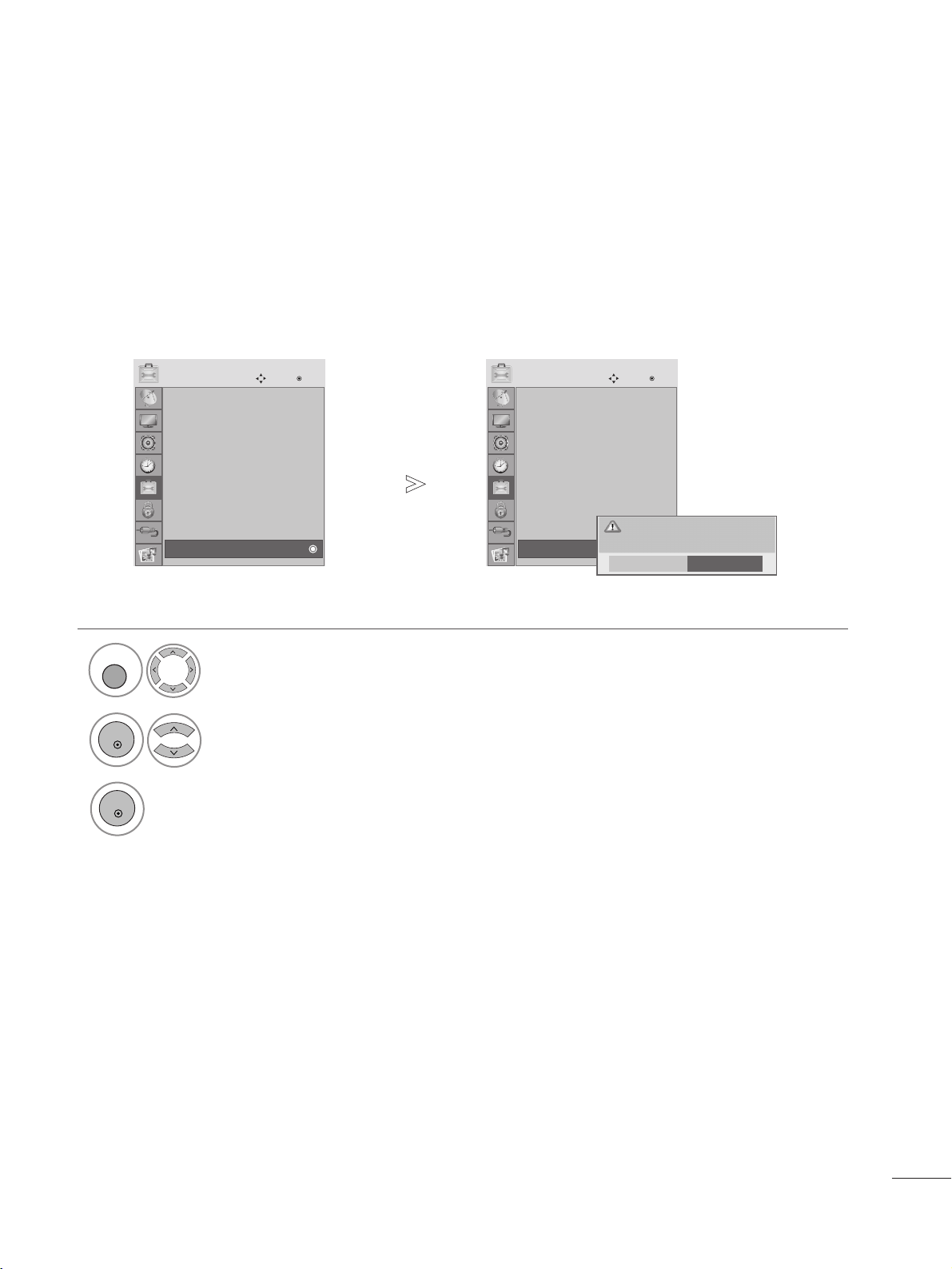

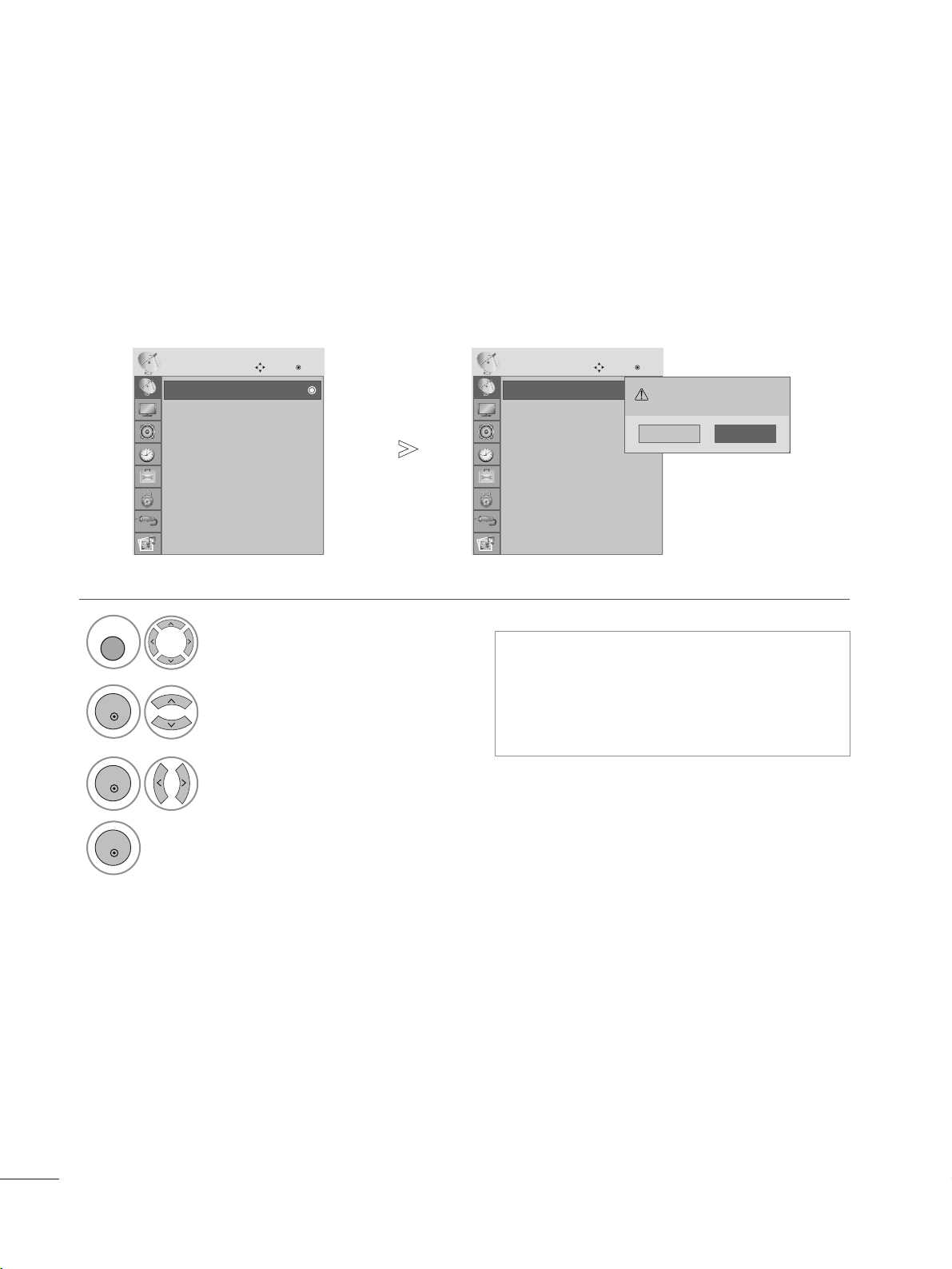

AUTO PROGRAMME TUNING
• Use NUMBER buttons to input a 4-digit
password in Lock System ‘On’.
• If you wish to keep on auto tuning, select
YES using the
F G
button. Then, press the
OK button. Otherwise, select NO.
Select
SSEETTUUPP
.
2
Select
AAuuttoo TTuunniinngg
.
3
Select
YYee ss
.
4
Run Auto tuning.
1
MENU
OK
OK
OK
•
Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Auto tuning
Manual tuning
Programme Edit
Software Update : On
Diagnostics
SETUP
Move
OK
AAuuttoo ttuunniinngg
Auto tuning
Manual tuning
Programme Edit
Software Update : On
Diagnostics
SETUP
Move
OK
AAuuttoo ttuunniinngg
All service-information will be updated.
Continue?
Yes No
background
2277
WATCHING TV /PROGRAMME CONTROL
Manual Tuning lets you manually add a programme to your programme list.
MANUAL PROGRAMME TUNING
(IN DIGITAL MODE)
•
Use NUMBER buttons to input a 4-digit
password in Lock System ‘On’.
Select
SSEETTUUPP
.
2
1
Select
MMaannuuaall TTuunniinngg
.
3
Select
DDTT VV
.
4
Select the desired channel number.
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Auto tuning
Manual tuning
Programme Edit
Software Update : On
Diagnostics
SETUP
Move
OK
MMaannuuaall ttuunniinngg
Auto tuning
Manual tuning
Programme Edit
Software Update : On
Diagnostics
SETUP
Move
OK
MMaannuuaall ttuunniinngg
Your receiver will add this
channel to your channel list.
UHF CH.
Bad Normal Good
F
DTV
G
30
Add
Close
background
2288
WATCHING TV /PROGRAMME CONTROL
Manual Tuning lets you manually tune and arrange the stations in whatever order you desire.

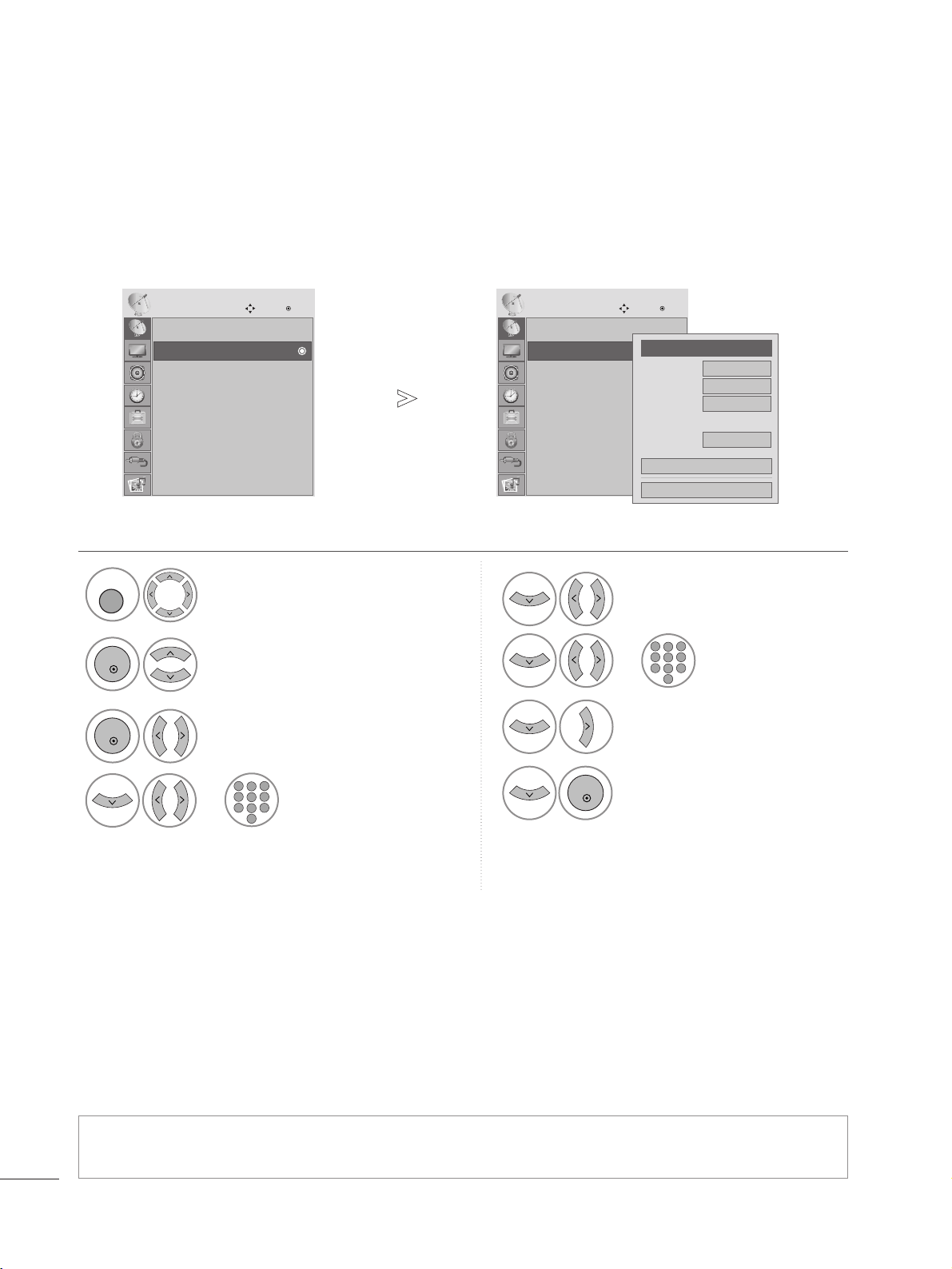

MANUAL PROGRAMME TUNING (IN ANALOGUE MODE)
• Use NUMBER buttons to input a 4-digit password in Lock System ‘On’.
• To store another channel, repeat steps 4 to 9.
Select
SSEETTUUPP
.
2
Select
MMaannuuaall TTuunniinngg
.
3
Select
TT VV
.
4
Select the desired pro-
gramme number on.
5
Select
VV//UUHHFF
or
CCaabbllee
.
7
Start searching.
8
Select
SSttoorree
.
or
6
Select the desired
channel number.
or
1
123
456
78
0
9
MENU
OK
OK
OK
123
456
78
0
9
•
Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Auto tuning
Manual tuning
Programme Edit
Software Update : On
Diagnostics
SETUP
Move
OK
MMaannuuaall ttuunniinngg
Auto tuning
Manual tuning
Programme Edit
Software Update : On
Diagnostics
SETUP
Move
OK
MMaannuuaall ttuunniinngg
Storage
F
TV
G
1
Band
V/UHF
Channel
F G
Search
1
Name
C 01
Store
Close
background
2299
WATCHING TV / PROGRAMME CONTROL
You can assign a station name with five characters to each programme number.
A Assigning a station name
Select SETUP.
2
Select Manual Tuning.
3
Select TV.
4
Select Name.
5
Select the position and make
your choice of the second
character, and so on.
You can use the alphabet
AA
to
ZZ
, the number
00
to
99
, +/ -, and
space.
6
Select Close.
7
Select Store.
1
MENU
OK
OK
OK
OK
OK
•
Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
background
3300
WATCHING TV /PROGRAMME CONTROL
When a programme number is skipped, it means that you will be unable to select it using PR + / - button during
TV viewing.
If you wish to select the skipped programme, directly enter the programme number with the NUMBER buttons or
select it in the Programme edit menu
This function enables you to skip the stored programmes.
PROGRAMME EDIT
• Use NUMBER buttons to input a 4-digit
password in Lock System ‘On’.
Select
SSEETTUUPP
.
2
Select
PPrrooggrraammmmee EEddiitt
.
3
Enter the Programme Edit.
4
Select a programme to be stored or skipped.
1
MENU
OK
OK
•
Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Auto tuning
Manual tuning
Programme Edit
Software Update : On
Diagnostics
SETUP
Move
OK
PPrrooggrraammmmee EEddiitt
ABC TV Sydney
1
Favourite List
Favourite Pr. Change
Page Change
D
F G
E
P
DTV RADIO TV
1 ABC TV Sydney 2 7 Digital
9 Nine Digital
10 ABC2
11 ABC TV 12 ABC HDTV
13 ABC TV 1 14 ABC TV 2
70 7 HD Digital 71 7 Digital 1
72 7 Digital 2 73 7 Digital 3
77 7 Guide 90 Nine Digital HD
99 Nine Guide 100 ABC TV 3
E
FAV
Navigation
Previous
RETURN
Skip
background
3311
WATCHING TV /PROGRAMME CONTROL
A Skipping a programme number
Select a programme number to be skipped.
2
BLUE
BLUE
Turn the skipped programme number to blue.
3
BLUE
BLUE
Release the skipped programme.
1
•
When a programme number is skipped, it means
that you will be unable to select it using the PR
+ / - button during normal TV viewing.
• If you wish to select a skipped programme, directly
enter the programme number with the NUMBER
buttons or select it in the programme edit or EPG.
A Selecting favourite programme
Select your favourite pro-
gramme number.
1
• It will automatically include the selected
programme into your favourite programme list.
FAV
IN DTV/RADIO MODE
background
3322
WATCHING TV /PROGRAMME CONTROL
This function enables you to delete or skip the stored programmes.
You can also move some channels to other programme numbers.
A Selecting a Favourite Programme
Select your favourite programme number.
•
The selected programme will be added to the
favourite programme list.
IN TV MODE
A Deleting a programme
Select a programme number to be deleted.
2
RED
RED
Turn the deleted programme number to red.
3
RED
RED
Release the deleted programme.
1
A Skipping a programme number
Select a programme number to be skipped.
2
BLUE
BLUE
Turn the skipped programme number to blue.
3
BLUE
BLUE
Release the skipped programme.
•
The selected programme is deleted, all the fol-
lowing programmes are shifted up one
A Moving a programme
Select a programme number to be moved.
Turn the moved programme number to YELLOW.
3
YELL
YELL
O
O
W
W
Release the moved programme.
• When a programme number is skipped it means
that you will be unable to select it using the
PR + / - button during normal TV viewing.
• If you wish to select a skipped programme, directly
enter the programme number with the NUMBER but-
tons or select it in the programme edit or EPG.
2
YELL
YELL
O
O
W
W
1
1
1
FAV
background
3333
WATCHING TV /PROGRAMME CONTROL
Software Update means software can be downloaded through the digital terrestrial broadcasting system.

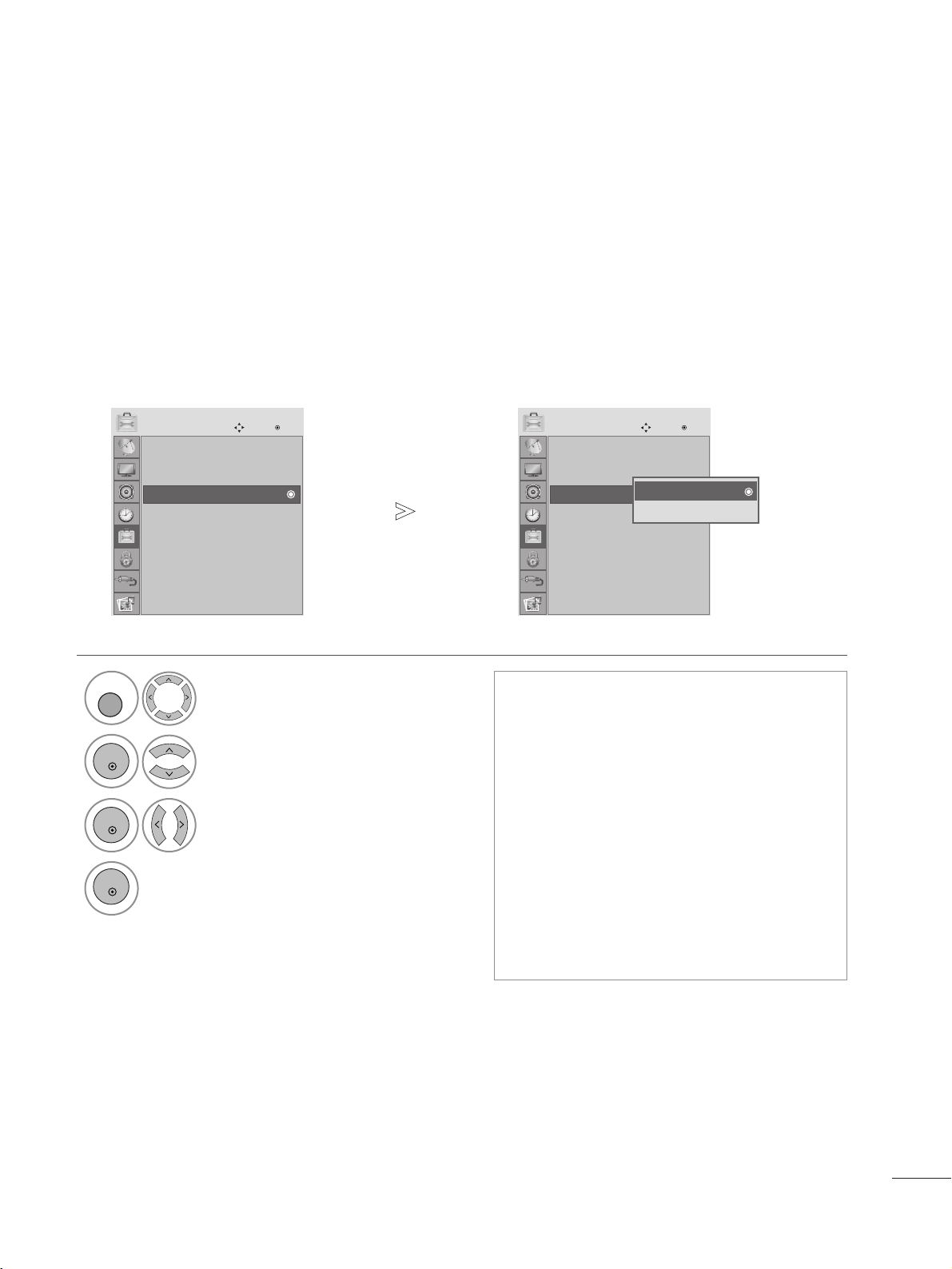

SOFTWARE UPDATE
Select
SSEETTUUPP
.
2
Select
SSooffttwwaarree UUppddaattee
.
3
After the Software Update is
complete, the System restart.
4
Save.
1
MENU
OK
OK
OK
Auto tuning
Manual tuning
Programme Edit
Software Update : On
Diagnostics
SETUP
Move
OK
SSooffttwwaarree UUppddaattee :: OOnn
Auto tuning
Manual tuning
Programme Edit
Software Update : On
Diagnostics
SETUP
Move
OK
SSooffttwwaarree UUppddaattee :: OOnn
Off
On
On
* When setting “Software Update”
- During Progress of a Software Update, please note the following:
• Power to the set must not be interrupted.
• The set must not be switched off.
• The antenna must not be disconnected.
• After Software Update, you can confirm the updated software version in Diagnostics menu.
• It may take an hour to download the software, so make sure that the power stays on during the download.
Occasionally, a transmission of
updated digital software infor-
mation will result in the following
menu on the TV screen.
When the Software Update
menu is "Off", the message to
change it to "On" appears.
Select the
YYEESS
using the
FG
button and you will see the follow-
ing picture.
After Software Update is com-
pleted, the System takes about
one minute to restart.
Software update is available.
Do you want to download?
(Ver. 02.54.00)
ii
?
Yes
No
Notice : Selection (YES) leads S/W
update when the TV off.
Turning on the TV will stop the
update. Do you want stop?
Yes
No
Updating software
(Ver. 02.33.00)
G
(Ver. 02.54.00)
7 %
ii
The update is completed.
TV will be rebooted.
Close
ii
When the power is turned off, downloading starts.
When the power is turned on while updating, the
progress status is displayed.
background
3344
WATCHING TV /PROGRAMME CONTROL
This function enables you to view information on the Manufacturer, Model/Type and Software Version.
This displays the information and signal strength of the tuned MUX.
This displays the signal information and service name of the selected MUX.
(*MUX:A higher directory of channels in digital broadcasting (a single MUX contains multiple channels.))
DIAGNOSTICS (IN DIGITAL MODE ONLY)
Select
SSEETTUUPP
.
2
Select
DDiiaaggnnoossttiiccss
.
4
Display the Channel information.
3
Display Manufacturer, Model/Type and Software Version.
1
Engineering Diagnostics
Manufacturer : LG Electronics Inc.
Model/Type : M2362D-PT
Software Version : V1.10.0
Popup
CH 34
CH 36
CH 38
CH 54
CH 60
Prev.
RETURN
Exit
MENU
CH 30
E
D
MENU
OK
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Auto tuning
Manual tuning
Programme Edit
Software Update : On
Diagnostics
SETUP
Move
OK
DDiiaaggnnoossttiiccss
background
3355
WATCHING TV /PROGRAMME CONTROL
You can check which programmes are stored in the
memory by displaying the programme table.
SELECTING THE PROGRAMME TABLE
Displayed in the
Locked Programme.
Display the PROGRAMME LIST.
1
Select a programme.
2
Switch to the chosen programme number.
1
A Displaying programme LIST
A Selecting a programme in the programme list
•
You may find some blue programmes. These
have been set up to be skipped by auto
programming or in the programme edit mode.
•
Some programmes with the channel number
shown in the programme LIST indicate there is
no station name assigned.
1
Turns the pages.
2
Returns to normal TV viewing.
A Paging through a programme list
1
Display the Favourite Programme table.
A
Displaying the favourite programme table
LIST
PR
FAV
OK
LIST
From the programme you are cur-
rently watching, the mode will
change from TV to DTV to Radio.
TV/RADIO
Programme List
1 ABC TV Sydney
9 Nine Digital
10 ABC 2
Exit
RETURN
background
3366
This system has an Electronic Programme Guide (EPG) to help navigate through all the possible viewing options.
The EPG supplies information such as programme listings, start and end times for all available services. In
addition, detailed information about the programme is often available in the EPG (the availability and amount of
these programme details will vary, depending on the particular broadcaster).
This function can be used only when the EPG information is broadcasted by broadcasting companies.
The EPG displays the programme description for the next seven days.
Switch on or off EPG.
1
Programme Guide
1 ABC TV Sydney 06 Mar. 2006 15:09
ALL
06 Mar.
14:00 15:00
1 ABC TV SY..
I Dream - Li...
7 7 Digital
No Information
9 NineDigital
No Information
Fra... ... ... ... Boohbah... ...Telet...
No Information
... ... ...
Out There
Bob the builder ...
10 ABC2
11 ABC TV
12 ABCHDTV
Radio Pr. Change
E
D
TV/RAD
Favourite
FAV
Mode Date Remind Programme Schedule List
Inforrmation
INFO
Switch on/off EPG
Select desired programme.
1
Display the selected programme.
2
Select a programme
The... Bobthebuilderspe...
...
GUIDE
or
PR
OK
EPG (ELECTRONIC PROGRAMME GUIDE)
(IN DIGITAL MODE)
background
3377

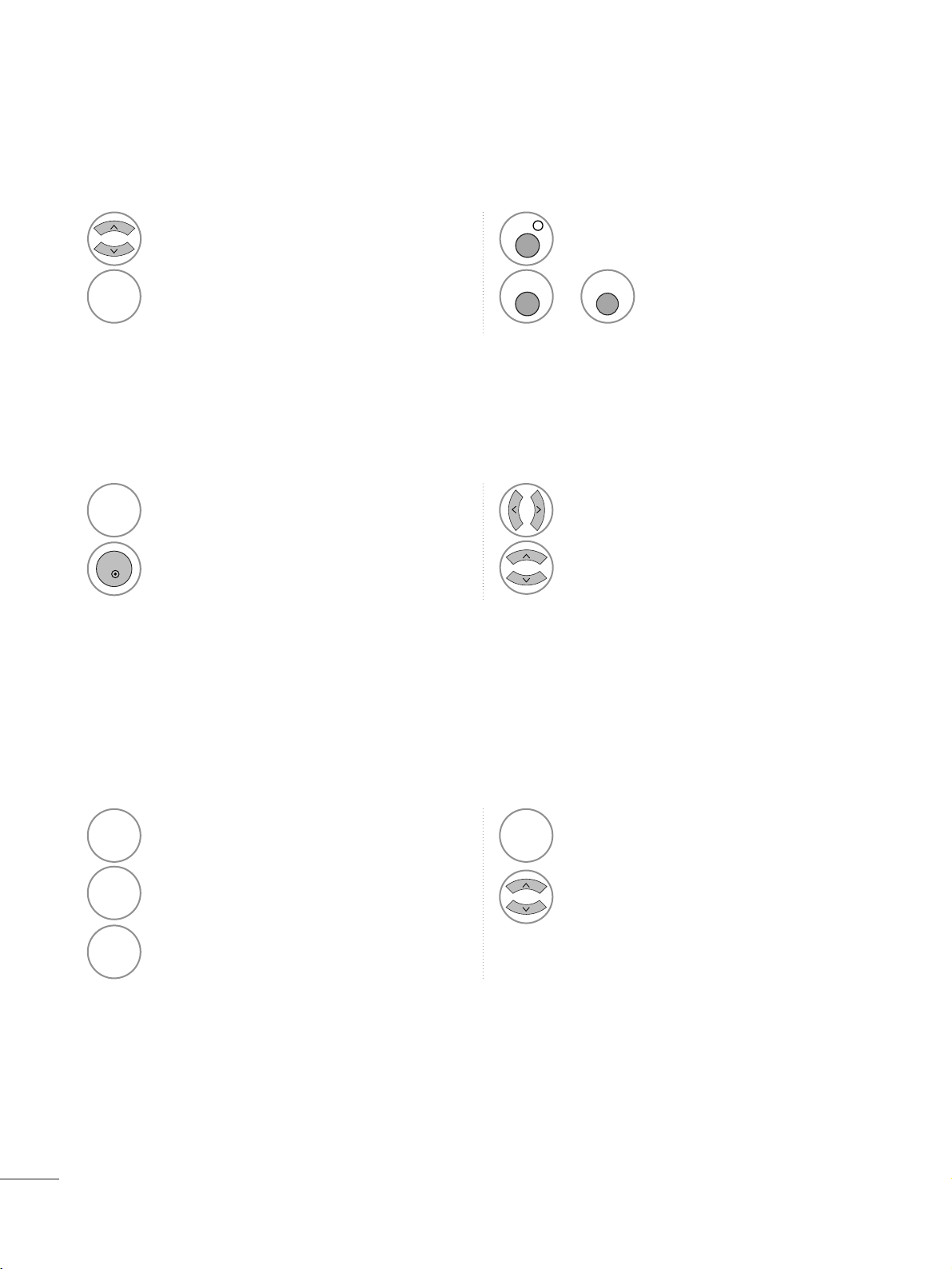

Button Function in 7 Day Guide Mode
Button Function in Date Change Mode
Change EPG mode.
RED
RED
Change to the selected programme.
Select NOW or NEXT Programme.
Enter Timer Record/Remind setting
mode.
YELL
YELL
O
O
W
W
Enter Timer Record/Remind list mode.
BLUE
BLUE
Button Function in NOW/NEXT Guide Mode
Change EPG mode.
RED
RED
Enter Timer Record/Remind list mode.
BLUE
BLUE
Enter Date setting mode.
GREEN
GREEN
Switch off Date setting mode.
GREEN
GREEN
Change to the selected programme.
Change to the selected date.
Select NOW or NEXT Programme.
Select a date.
Select the Broadcast Programme.
Switch off Date setting mode.
Enter Timer Record/Remind setting
mode.
YELL
YELL
O
O
W
W
OK
Select TV or RADIO Programme.
The detailed information on or off.
Page Up/Down.
Switch off EPG.
or
GUIDE
INFO
i
EXIT
Switch off EPG.
or
GUIDE
EXIT
TV/RADIO
PR
OK
OK
Select TV or RADIO Programme.
The detail information on or off.
Select the Broadcast Programme.
Page Up/Down.
Switch off EPG.
or
GUIDE
INFO
i
EXIT
TV/RADIO
PR
EPG (ELECTRONIC PROGRAMME GUIDE)
(IN DIGITAL MODE)
background
3388
Button Function in Extended Description Box
Button Function in Remind Setting Mode
Button Function in Schedule List Mode
Text Up/Down.
Function setting.
Select Schedule list.
Enter Timer Record/Remind setting
mode.
YELL
YELL
O
O
W
W
Change to Guide or Timer list mode.
YELL
YELL
O
O
W
W
Add new Manual Timer setting mode.
If you ’ve created a schedule list,a scheduled program is displayed at the scheduled time ven when you are
watching a different program at the time.
YELL
YELL
O
O
W
W
Save Timer Remind.
Select Service, Date or Start time.
Enter Schedule list editing mode.
GREEN
GREEN
Delete the selected item.
RED
RED
Change to Guide mode.
BLUE
BLUE
Switch off EPG.
or
GUIDE
EXIT
The detailed information on or off.
INFO
i
OK
EPG (ELECTRONIC PROGRAMME GUIDE)
(IN DIGITAL MODE)
background
3399
PICTURE CONTROL
You can watch the screen in various picture formats; 16:9, Just Scan, Original, 4:3, 14:9. Zoom and Cinema
Zoom.
If a fixed image is displayed on the screen for a long time, that fixed image may become imprinted on the screen
and remain visible.
You can adjust the enlarge proportion using
D E
button.
This function works in the following signal.

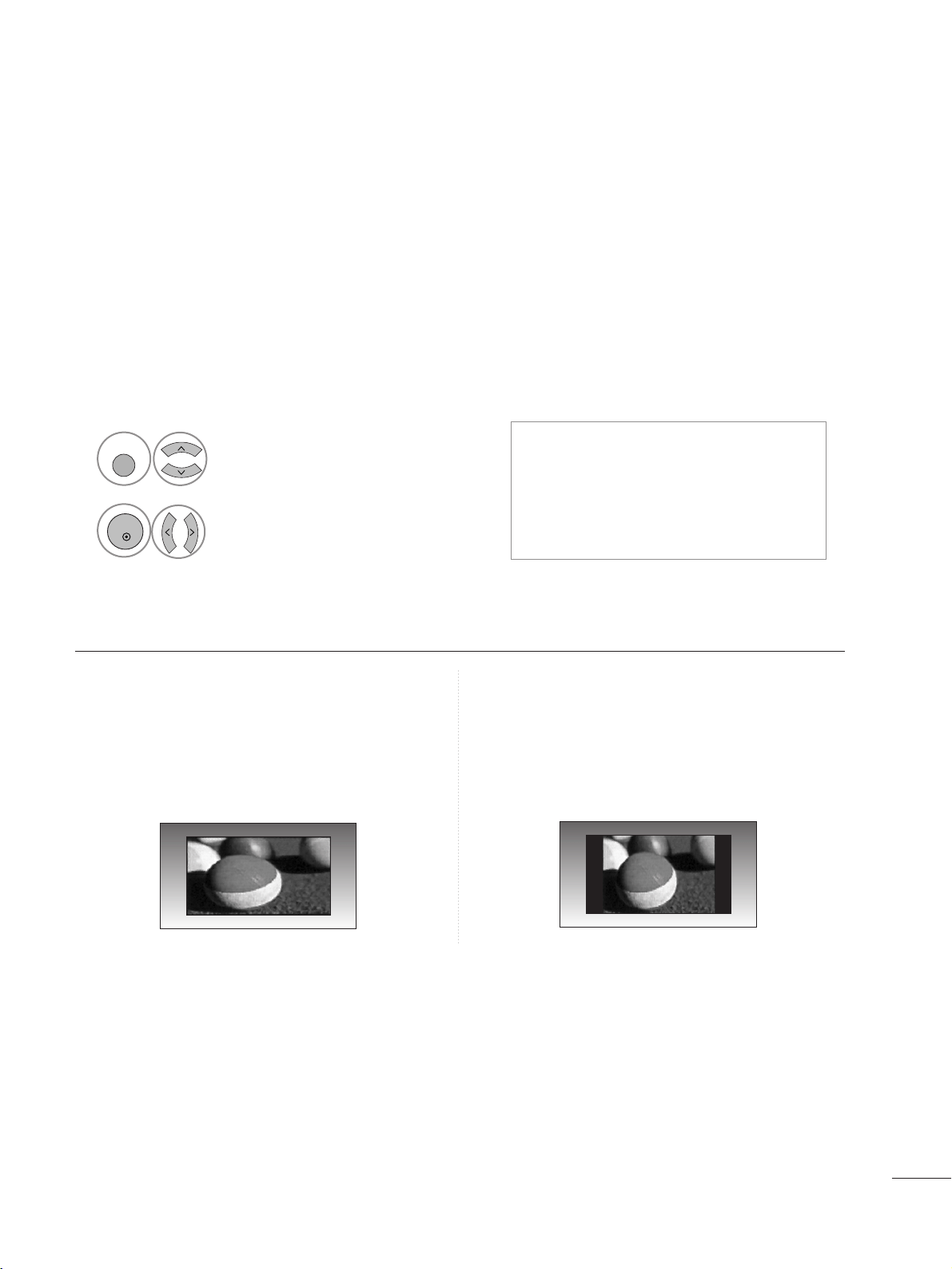

PICTURE SIZE (ASPECT RATIO) CONTROL
•
1166::99
The following selection will allow you to
adjust the picture horizontally, in linear
proportion, to fill the entire screen (useful for
viewing 4:3 formatted DVDs).
•
44::33
The following selection will allow you to view
a picture with an original 4:3 aspect ratio,
grey bars will appear on both the left and
right of the screen.
• You can also adjust
AAssppeecctt RRaattiioo
in the
PPIICCTTUURREE
menu.
• For Zoom Setting, select
1144::99
, Zoom and
Cinema Zoom in Ratio Menu. After com-
pleting Zoom Setting, the display goes
back to Q.Menu.
Select
AAssppeecctt RRaattiioo
.
Select the desired picture format.
1
Q. MENU
2
OK
background
4400
•

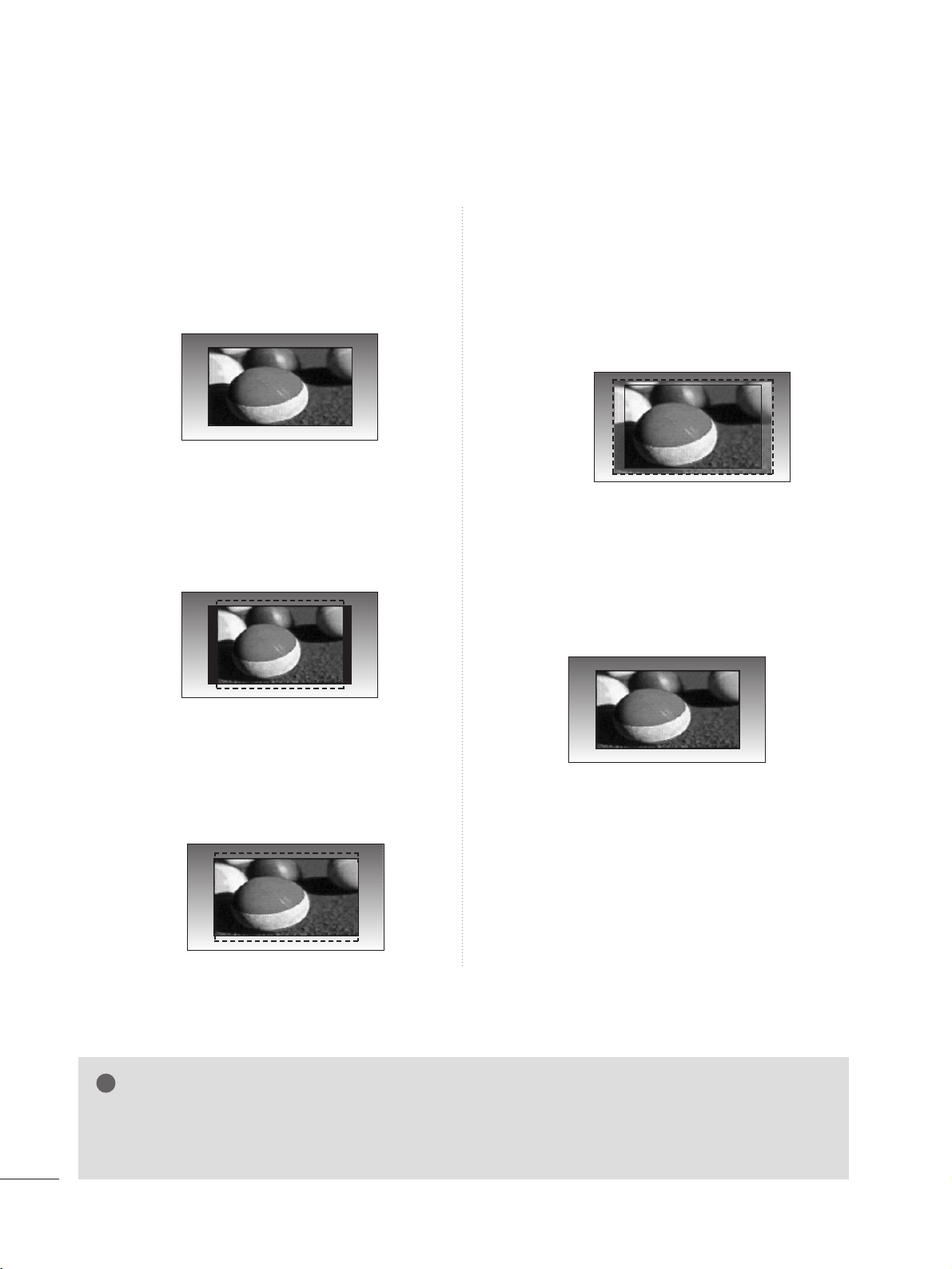

OOrriiggiinnaall
When your TV receives a wide screen signal, it
will automatically change to the picture
format broadcast.
•
1144::99
You can view a picture format of 14:9 or a
general TV programme in the 14:9 mode. The
14:9 screen is viewed in the same way as in
4:3, but is magnified to the left and right.
•
ZZoooomm
The following selection will allow you to view
the picture without any alteration, while filling
the entire screen. However, the top and
bottom of the picture will be cropped.
•
CCiinneemmaa ZZoooomm
Choose Cinema Zoom when you wish the pic-
ture to be altered, both horizontally extended
and vertically cropped. The picture adopting
a compromise between alteration and screen
coverage.
•
JJuusstt SSccaann
The following Selection allows you to view the
picture in the best quality without loss of
original picture in high resolution image.
Note: If there is interference in original pic-
ture, you can view interference at the edge.
NOTE
!
G
You can only select 16:9 (Wide), 4:3, 14:9, Zoom, Cinema Zoom in Component (under 720p) mode.
G
You can only select 4:3, 16:9 (Wide) in RGB/DVI mode only.
G
In HDMI/Component (over 720p) or DTV (over 576p) mode, Just Scan is available.
Original
Just Scan
PICTURE CONTROL
Original
background
4411
PICTURE CONTROL
Aspect Ratio : 16:9
Auto Bright : Off
Picture Mode : Vivid
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
Move
OK
E
Auto Bright : Off
Aspect Ratio : 16:9
Auto Bright : Off
Picture Mode : Vivid
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
Move
OK
E
Auto Bright : Off
Off
On
OO ffff
When ON is selected, this function adjusts the screen brightness automatically, depending on the surrounding
environment, to provide optimal viewing conditions.
When OFF is selected, this function is turned off.

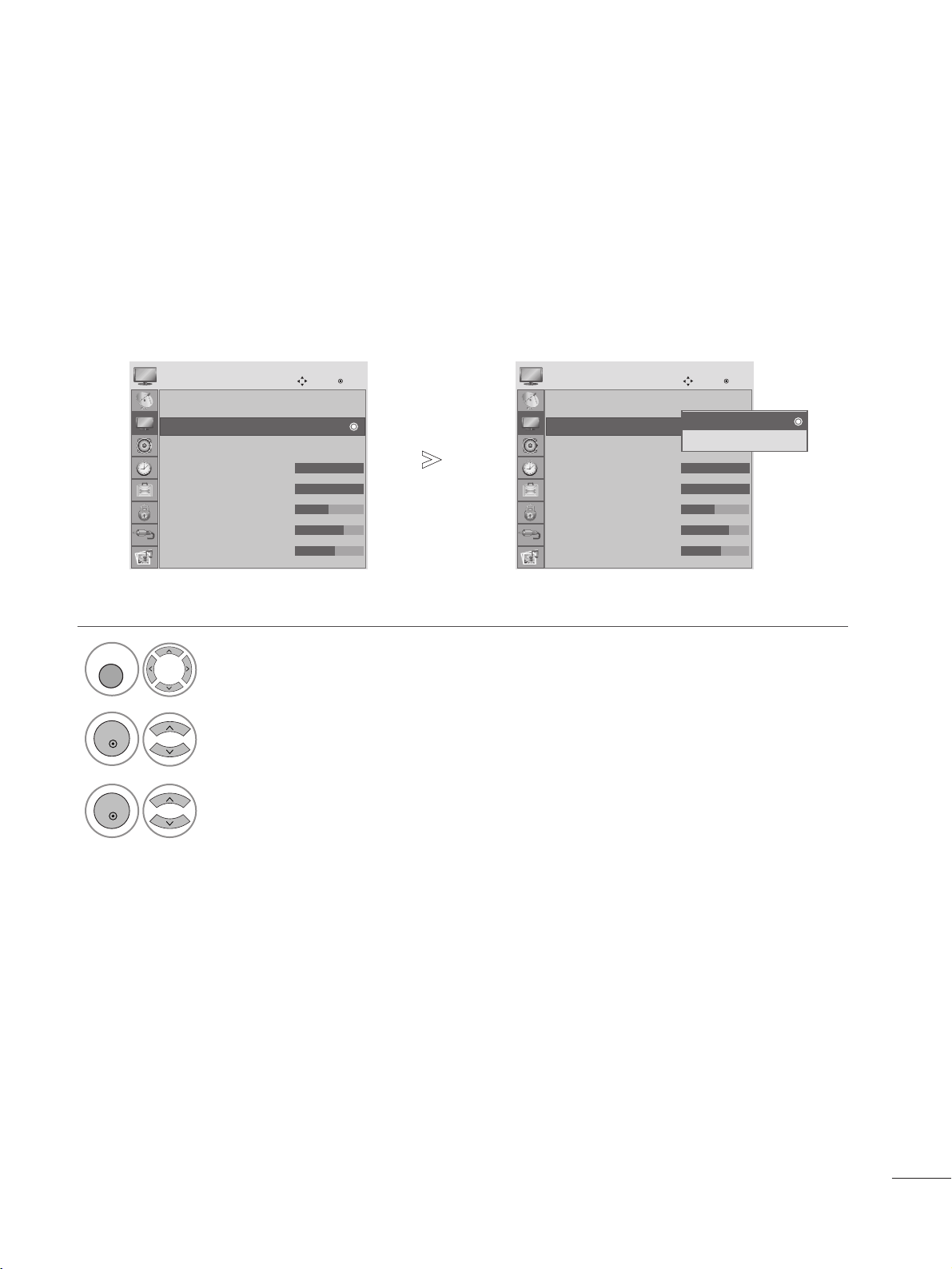

AUTO BRIGHT
Select
PPIICCTTUURREE
.
2
Select
AAuuttoo BBrriigghhtt..
3
Select
OO nn
or
OOffff
.
1
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
background
4422
PICTURE CONTROL

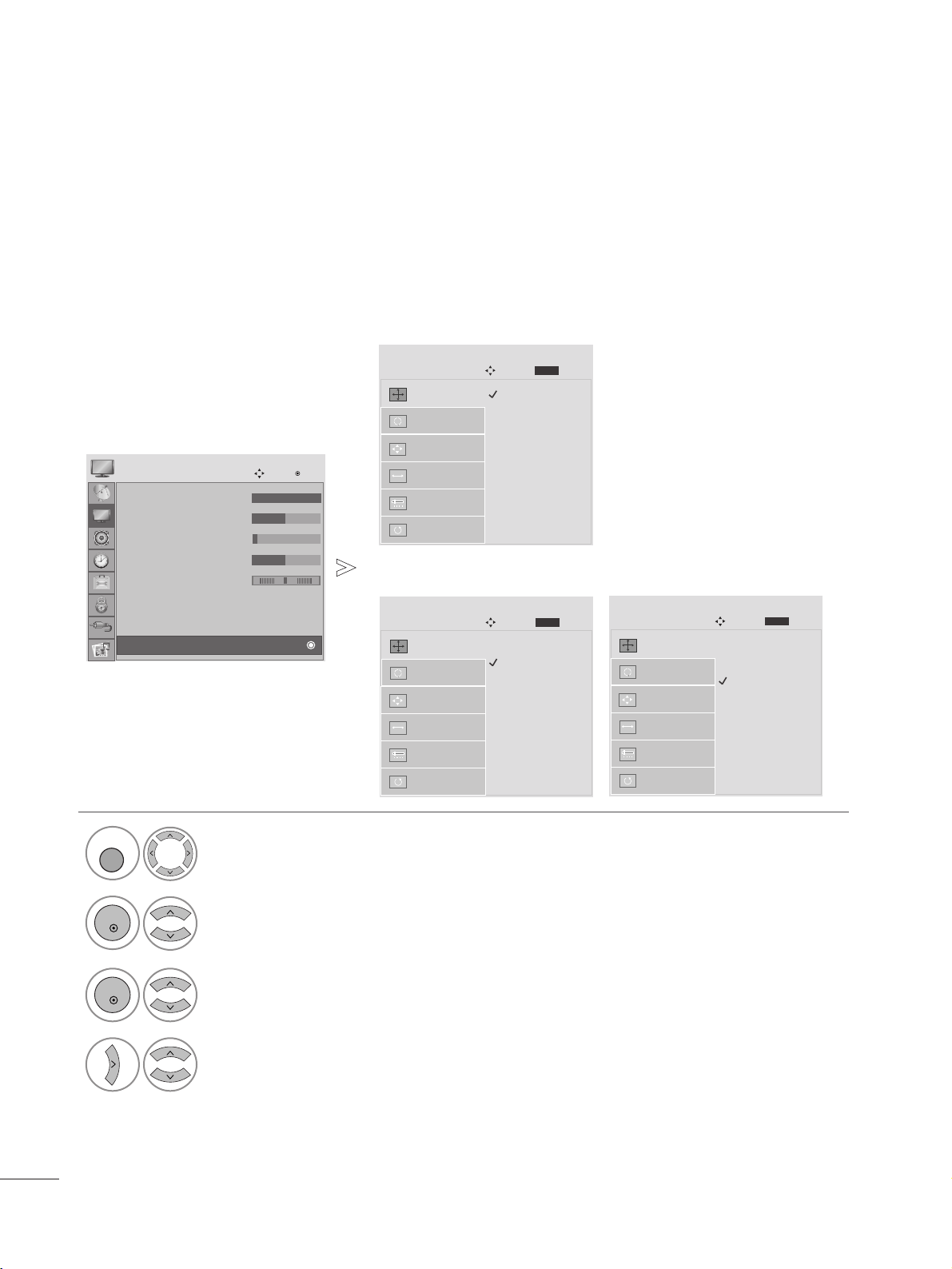

PRESET PICTURE SETTINGS
Picture Mode-Preset
Select
PPIICCTTUURREE
.
2
Select
PPiiccttuurree MMooddee
.
3
Select desired picture value.
1
• Picture Mode adjusts the set for the best pic-
ture appearance. Select the preset value in the
Picture Mode menu based on the programme
category.
<RGB,DVI Mode>
<Other mode>
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Aspect Ratio : 16:9
Auto Bright : Off
Picture Mode : Vivid
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
Move
OK
E
Picture Mode : Vivid
Aspect Ratio : 16:9
Auto Bright : Off
Picture Mode : Standard
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 8
• Colour 50
Move
OK
E
Picture Mode : Standard
Aspect Ratio : 16:9
Auto Bright : Off
Picture Mode : Vivid
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
Move
OK
E
Picture Mode : Vivid
Vivid
Standard
Cinema
Sport
Game
Expert 1
Expert 2
Vivid
Standard
sRGB
Cinema
Sport
Game
Expert 1
Expert 2
Standard
background
4433
PICTURE CONTROL
Choose one of three automatic colour adjustments. Set to warm to enhance warm colours such as red, or set to
cool to see less intense colours with more blue.

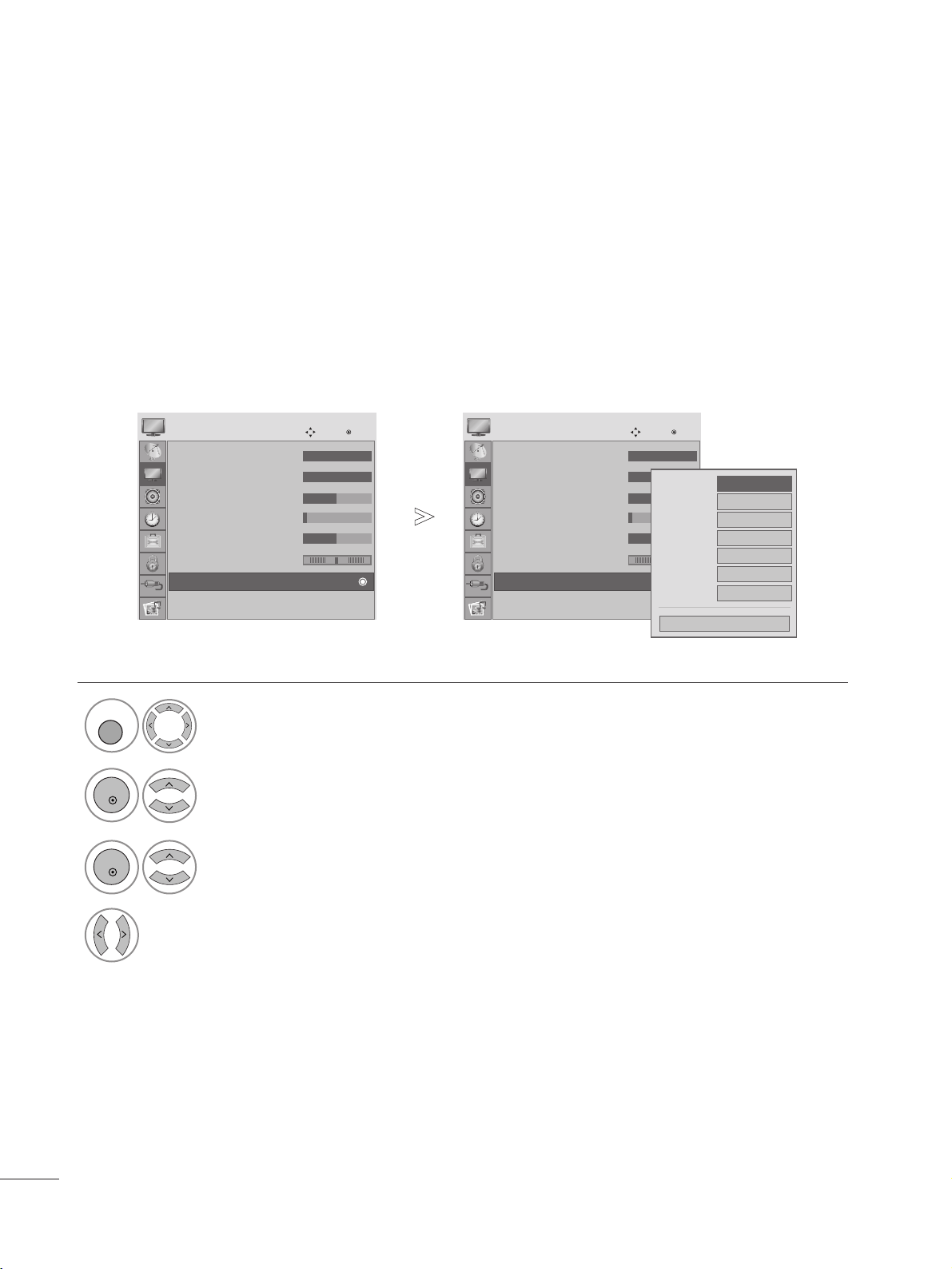

Auto Colour Tone Control (Warm/Medium/Cool)
Select
PPIICCTTUURREE
.
2
Select
AAddvvaanncceedd CCoonnttrrooll
.
3
Select
CCoolloouurr TTeemmppeerraattuurree
.
4
Select either
CCooooll
,
MMeeddiiuumm
or
WWaarrmm
.
1
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
• Tint 0
• Advanced Control
• Picture Reset
Move
OK
• Advanced Control
RG
D
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
• Tint 0
• Advanced Control
• Picture Reset
Move
OK
• Advanced Control
RG
D
Colour Temperature
F
Medium
G
Dynamic Contrast
High
Dynamic Colour
High
Noise Reduction
Medium
Gamma
Medium
Film Mode
Off
Black Level
Auto
Close
background
4444
PICTURE CONTROL
Choose one of two automatic colour adjustments.
Auto Colour Tone Control (6500K/9300K)
(RGB,DVI mode only)
Advanced control menu is inactivated when picture mode is sRGB.
Select
PPIICCTTUURREE
.
2
Select
AAddvvaanncceedd CCoonnttrroo
l.
3
Select
CCoolloouurr TTeemmppeerraattuurree
.
4
Select either
66550000KK
,
99330000KK
.
1
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
•
Press the RETURN button to move to the previous menu screen.
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 8
• Colour 50
• Tint 0
• Advanced Control
• Picture Reset
Move
OK
RG
D
• Advanced Control
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 8
• Colour 50
• Tint 0
• Advanced Control
• Picture Reset
Move
OK
RG
D
• Advanced Control
Colour Temperature
F
6500K
G
Dynamic Contrast
Off
Dynamic Colour
Off
Noise Reduction
Off
Gamma
Medium
Film Mode
Off
Black Level
Auto
Close
E E
background
4455
MANUAL PICTURE ADJUSTMENT
Picture Mode-User option
NOTE
!
G
You cannot adjust colour and tint in the RGB, DVI mode.
Select
PPIICCTTUURREE
.
2
Select
PPiiccttuurree MMooddee
.
4
Select
CCoonnttrraasstt
,
BBrriigghhttnneessss
,
SShhaarrppnneessss
,
CCoolloouurr
or
TTiinntt
.
5
Make appropriate adjustments.
1
3
Select desired picture value.
MENU
OK
OK
OK
OK
•
Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
PICTURE CONTROL
<RGB,DVI Mode>
<Other mode>
Aspect Ratio : 16:9
Auto Bright : Off
Picture Mode : Vivid
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
Move
OK
E
Picture Mode : Vivid (User)
Aspect Ratio : 16:9
Auto Bright : Off
Picture Mode : Standard
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 8
• Colour 50
Move
OK
E
Picture Mode : Standard (User)
Aspect Ratio : 16:9
Auto Bright : Off
Picture Mode : Vivid
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
Move
OK
E
Picture Mode : Vivid (User)
Vivid
Standard
Cinema
Sport
Game
Expert 1
Expert 2
Vivid (User)
Standard
sRGB
Cinema
Sport
Game
Expert 1
Expert 2
Standard (User)
background
4466
PICTURE CONTROL
DDyynnaammiicc CCoonnttrraasstt
Optimizes the contrast automatically according to the brightness of the reflection.
DDyynnaammiicc CCoolloouurr
Adjusts the colour of the reflection automatically to reproduce natural colurs as close as possible.
NNooiissee RReedduuccttiioonn
Removes interference up to the point where it does not damage the original picture.
GGaammmmaa
High gamma values display whitish images and low gamma values display high contrast images.
PICTURE IMPROVEMENT TECHNOLOGY
Select
PPIICCTTUURREE
.
2
Select
AAddvvaanncceedd CCoonnttrrooll
.
3
Select
DDyynnaammiicc CCoonnttrraasstt
,
DDyynnaammiicc CCoolloouurr
,
NNooiissee RReedduuccttiioonn
or
GGaammmmaa
.
4
Select your desired Source.
1
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
• Tint 0
• Advanced Control
• Picture Reset
Move
OK
RG
D
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
• Tint 0
• Advanced Control
• Picture Reset
Move
OK
RG
D
• Advanced Control • Advanced Control
Colour Temperature
Medium
Dynamic Contrast
F
High
G
Dynamic Colour
High
Noise Reduction
Medium
Gamma
Medium
Film Mode
Off
Black Level
Auto
Close
background
4477
ADVANCED - BLACK (DARKNESS) LEVEL
When you view a film, this function adjusts the set to the best picture quality.
This function works in the following mode: AV (NTSC-M), HDMI or Component.
Select
PPIICCTTUURREE
.
2
Select
AAddvvaanncceedd CCoonnttrrooll
.
3
Select
BBllaacckk LLeevveell
.
4
Select
LLooww
or
HHiigghh
.
1
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
•
LLooww::
The reflection of the screen gets darker.
•
HHiigghh::
The reflection of the screen gets brighter.
NOTE
!
G
If input is not AV(NTSC-M), HDMI or component, this function set to auto.
G
In case of auto, user can’t adjust it directly.
G
Auto: Realizing the black level of the screen and set it to High or Low automatically.
PICTURE CONTROL
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
• Tint 0
• Advanced Control
• Picture Reset
Move
OK
RG
D
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
• Tint 0
• Advanced Control
• Picture Reset
Move
OK
RG
D
• Advanced Control • Advanced Control
Colour Temperature
Medium
Dynamic Contrast
High
Dynamic Colour
High
Noise Reduction
Medium
Gamma
Medium
Film Mode
Off
Black Level
F
High
G
Close
background
4488
PICTURE CONTROL
Select
PPIICCTTUURREE
.
2
Select
AAddvvaanncceedd CCoonnttrrooll
.
3
Select
FFiillmm MMooddee
.
4
Select
OO nn
or
OOffff
.
1
ADVANCED - FILM MODE
To set the product up for the best picture quality for viewing films.
This feature operates only in TV, AV and Component 480i/576i/1080i mode.
MENU
OK
OK
•
Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
• Tint 0
• Advanced Control
• Picture Reset
Move
OK
RG
D
• Advanced Control
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
• Tint 0
• Advanced Control
• Picture Reset
Move
OK
RG
D
• Advanced Control
Colour Temperature
Medium
Dynamic Contrast
High
Dynamic Colour
High
Noise Reduction
Medium
Gamma
Medium
Film Mode
F
Off
G
Black Level
Auto
Close
background
4499
PICTURE CONTROL
Select your desired Source.
Select
PPIICCTTUURREE
.
Select
PPiiccttuurree MMooddee
.
Select
EExxppeerrtt CCoonnttrrooll
.
Make appropriate adjustments.
Select
EExxppeerrtt11
or
EExxppeerrtt22
.
By segmenting categories,
EExxppeerrtt11
and
EExxppeerrtt22
provide more categories which users can set as they see fit,
offering the optimal picture quality for users.
As the detail item for video quality experts to fine tune the video using specific videos, this may not be effec-
tive for general videos.
Expert Picture Control
2
3
4
1
MENU
OK
OK
OK
5
6
OK
•
Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Aspect Ratio : 16:9
Auto Bright : Off
Picture Mode : Expert 1
• Backlight 20
• Contrast 80
• Brightness 50
• H Sharpness50
• V Sharpness50
Move
OK
E
Picture Mode : Expert 1
• Contrast 80
• Brightness 50
• H Sharpness50
• V Sharpness50
• Colour 60
• Tint 0
• Expert Control
• Picture Reset
Move
OK
• Expert Control
Vivid
Standard
Cinema
Sport
Game
Expert 1
Expert 2
Expert 1
RG
D
Dynamic Contrast
F
Off
G
Noise Reduction
Off
Outer
Gamma
Medium
Black Level
Auto
Film Mode
Off
Colour Standard
SD
• Pattern
White Balance
Warm
Close
E
background
5500
PICTURE CONTROL
DDyynnaammiicc CCoonnttrraasstt
((OOffff//LLooww//HHiigghh))
■
Adjusts the contrast to keep it at the best level according to the brightness
of the screen. The resolution of gradation is improved by making bright
parts brighter and dark parts darker. This feature refers to dynamic contrast,
and enhances the feeling of presence that contrast controls are intended to
give by using dimming and other input signals.
NNooiissee RReedduuccttiioonn
((OOffff//LLooww//MMeeddiiuumm//HHiigghh))
■
Reduces screen noise without compromising video quality. This feature
is also used to reduce recursive noise and MPEG noise
(Mosquito/Block).
BBllaacckk LLeevveell
((LLooww//HHiigghh))
•
Low :
The reflection of the screen gets darker.
• High:
The reflection of the screen gets brighter.
• Auto : Realizing the black level of the screen and set it to High or Low
automatically.
■
Makes dark parts on the screen look darker.
Set black level of the screen to proper level.
This function works in the following mode: AV (NTSC-M), HDMI or
Component .
This function enables to select “Low” or “High” in the following
mode : AV(NTSC-M), HDMI or Component. Otherwise, “Black level”
is set to “Auto”.
FFiillmm MMooddee
((OOnn//OOffff))
■
Makes video clips recorded in film look more natural.
This feature operates only in TV, AV and Component
480i/576i/1080i mode.
CCoolloouurr SSttaannddaarrdd
((SSDD//HHDD))
WWhhiittee BBaallaannccee
((MMeeddiiuumm//WWaarrmm//CCooooll))
CCoolloouurr MMaannaaggeemmeenntt SSyysstteemm
GGaammmmaa
((LLooww//MMeeddiiuumm//HHiigghh))
■
You can adjust brightness of dark area and middle gray level area of the
picture.
•
Low : Make dark and middle gray level area of the picture brighten.
• Medium: Express original picture gradation.
• High: Make dark and middle gray level area of the picture darken.
■
Select the international standard for the colour gamut that will be
applied when the colour gamut is set to Standard.
•
SD: Increase colour accuracy by adjusting the output image to meet
the EBU (European Broadcasting Union) Colour Coordinate
Standard.
•
HD: Increase colour accuracy by adjusting the output image to meet
ITU.BT-709 (High Definition Signal International Colour Coordinate
Standard).
■
White Balance (Medium/Warm/Cool)
•
Adjust white balance.
■
Pattern (Inner/Outer)
•
Decide whether to use the Inner Pattern or External Pattern when
adjusting white balance.
■
Red Gain/Green Gain/Blue Gain
•
Adjust high-level white balance.
■
Red Offset/Green Offset/Blue Offset
•
Adjust low-level white balance.
■
Colour (Red/Green/Blue/Yellow/Cyan/Magenta)
•
Adjust colour saturation by area.
■
Tint (Red/Green/Blue/Yellow/Cyan/Magenta)
•
Adjust colour tint by area.
background
5511
PICTURE CONTROL
PICTURE RESET
Settings of the selected picture modes return to the default factory settings.
Select
PPIICCTTUURREE
.
2
Select
PPiiccttuurree RReesseett
.
3
Initialize the adjusted value.
1
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
• Tint 0
• Advanced Control
• Picture Reset
Move
OK
RG
D
• Picture Reset
• Backlight 100
• Contrast 100
• Brightness 50
• Sharpness 70
• Colour 60
• Tint 0
• Advanced Control
• Picture Reset
Move
OK
RG
D
• Picture Reset
Resetting video configuration...
ii
background
5522
PICTURE CONTROL
To view a normal picture, match the resolution of RGB mode and selection of PC mode.
This function works in the following mode: RGB[PC] mode.
<Vertical resolution : 768>
<Vertical resolution : 1050> <Vertical resolution : 900>
Selecting Resolution
1
Select
PPIICCTTUURREE
.
2
Select
SSCCRREEEENN
.
3
Select
RReessoolluuttiioonn
.
4
Select the desired resolution.
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
1024 x 768
1280 x 768
1360 x 768
1366 x 768
Auto Config.
SCREEN
Move
Resolution
G
Position
Size
Phase
Reset
Prev.
RETURN
1400 x 1050
1680 x 1050
Auto Config.
SCREEN
Move
Resolution
G
Position
Size
Phase
Reset
Prev.
RETURN
1280 x 960
1400 x 900
1600 x 900
Auto Config.
SCREEN
Move
Resolution
G
Position
Size
Phase
Reset
Prev.
RETURN
• Contrast 100
• Brightness 50
• Sharpness 8
• Colour 50
• Tint 0
• Advanced Control
• Picture Reset
Screen
Move
OK
Screen
RG
D
SCREEN SETUP FOR PC MODE
background
5533
• If you don’t want Auto Configure, do
not press OK
22.. UUssiinngg OOKK((RReemmooccoonn oorr ccoonnttrrooll kkeeyy))
1
Press OK.
OK
TThhiiss ffuunnccttiioonn iiss aavvaaiillaabbllee ffoorr RRGGBB ssiiggnnaallss oonnllyy..
AAuuttoo iinn pprrooggrreessss
<<11992200 xx 11008800 RReessoolluuttiioonn>>
<<OOtthheerrss RReessoolluuttiioonn>>
2
Press OK.
OK
Auto in progress
For optimal display
change resolution 1920 x 1080
Auto Config.
G
(OK)
PICTURE CONTROL
1
Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is still not
correct, your set is functioning properly but needs further adjustment.
AAuuttoo ccoonnffiigguurree
This function is for automatic adjustment of the screen position, clock, and phase The displayed image will be
unstable for a few seconds while the auto configuration is in progress.
Auto Configure (RGB [PC] mode only)
•
If the position of the image is still not correct,
try Auto adjustment again.
• If picture needs to be adjusted again after Auto
adjustment in RGB (PC), you can adjust the
PPoossiittiioonn
,
SSiizzee
or
PPhhaassee
.
Select
PPIICCTTUURREE
.
11.. UUssiinngg OOSSDD
2
Select
SSCCRREEEENN
.
3
Select
AAuuttoo CCoonnffiigg
.
To S e t
Auto Config.
G
SCREEN
Move
Resolution
Position
Size
Phase
Reset
MENU
OK
OK
Prev.
RETURN
5
Run Auto Config.
OK
4
Select
YYee ss
.
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Yes No
• Contrast 100
• Brightness 50
• Sharpness 8
• Colour 50
• Tint 0
• Advanced Control
• Picture Reset
Screen
Move
OK
Screen
RG
D
background
5544

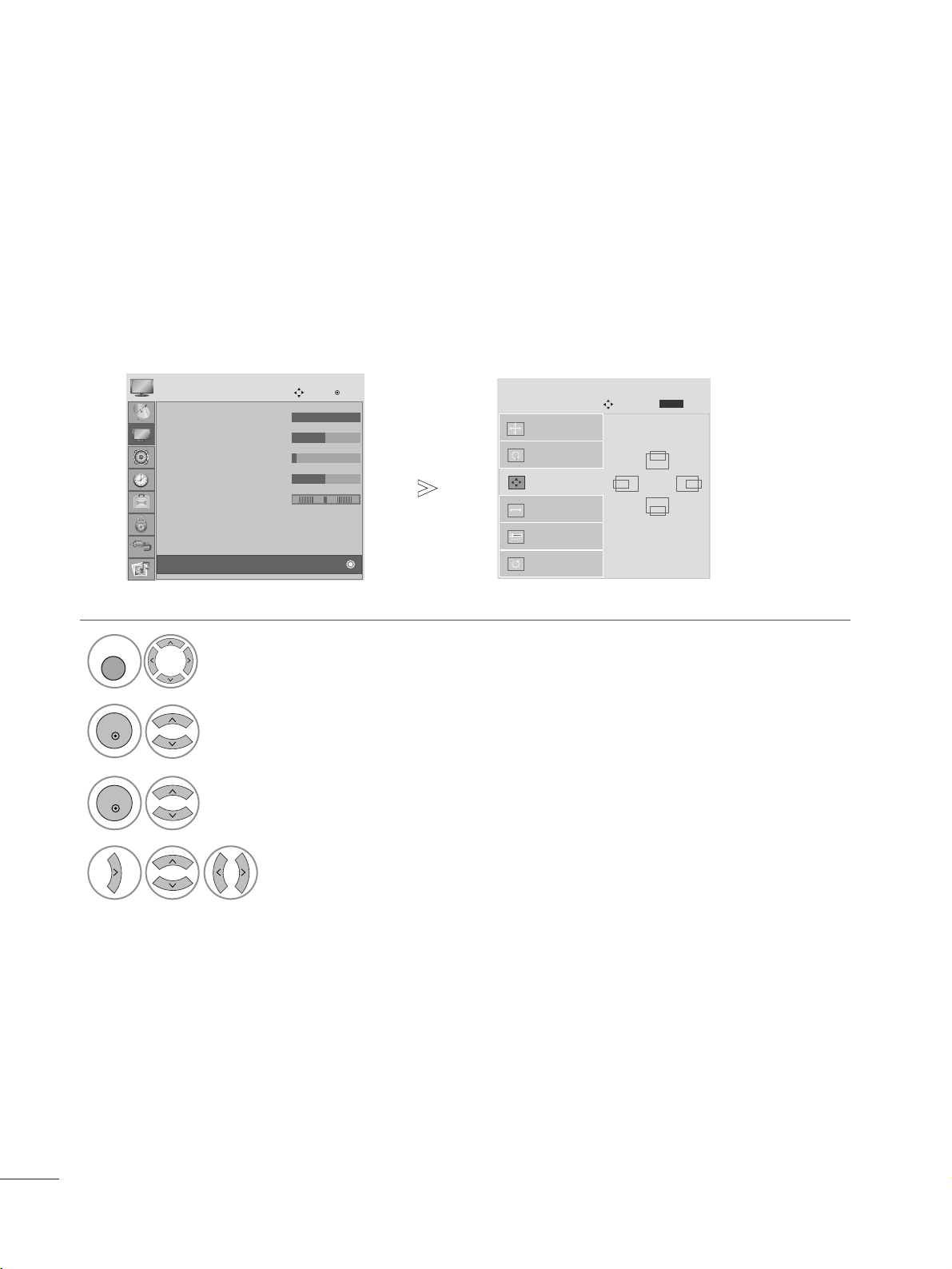

PICTURE CONTROL
If the picture is not clear after auto adjustment and especially if characters are still shaky, adjust the picture
phase manually.
This function works in the following mode: RGB[PC].
Adjustment for screen Position, Size, Phase
1
Select
PPIICCTTUURREE
.
2
Select
SSCCRREEEENN
.
3
Select
PPoossiittiioonn
,
SSiizzee
or
PPhhaassee
.
4
Make appropriate adjustments.
Auto Config.
SCREEN
Move
Resolution
Position
G
Size
Phase
Reset
GF
D
E
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Prev.
RETURN
• Contrast 100
• Brightness 50
• Sharpness 8
• Colour 50
• Tint 0
• Advanced Control
• Picture Reset
Screen
Move
OK
Screen
RG
D
background
5555
PICTURE CONTROL
Returns Position, Size and Phase to the default factory settings.
This function works in the following mode: RGB[PC].
Screen Reset
1
Select
PPIICCTTUURREE
.
2
Select
SSCCRREEEENN
.
3
Select
RReesseett
.
5
Run Reset.
To S e t
Auto Config.
SCREEN
Move
Prev.
RETURN
Resolution
Position
Size
Phase
Reset
G
MENU
OK
OK
OK
4
Select
YYeess..
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
• Contrast 100
• Brightness 50
• Sharpness 8
• Colour 50
• Tint 0
• Advanced Control
• Picture Reset
Screen
Move
OK
Screen
RG
D
background
5566
SOUND CONTROL
AVL automatically remains on the same volume level if you change programmes.
Because each broadcasting station has its own signal conditions,volume adjustment may be needed very time
the channel is changed.This feature allows users to enjoy stable volume levels by making automatic adjustments
for each programme.
AUTO VOLUME LEVELER
Select
AAUUDDIIOO
.
2
Select
AAuuttoo VVoolluummee
.
3
Select
OO nn
or
OOffff
.
1
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
AUDIO
Move
OK
-+
LR
E
Auto Volume : Off
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
AUDIO
Move
OK
-+
LR
E
Auto Volume : Off
Off
On
Off
background
5577

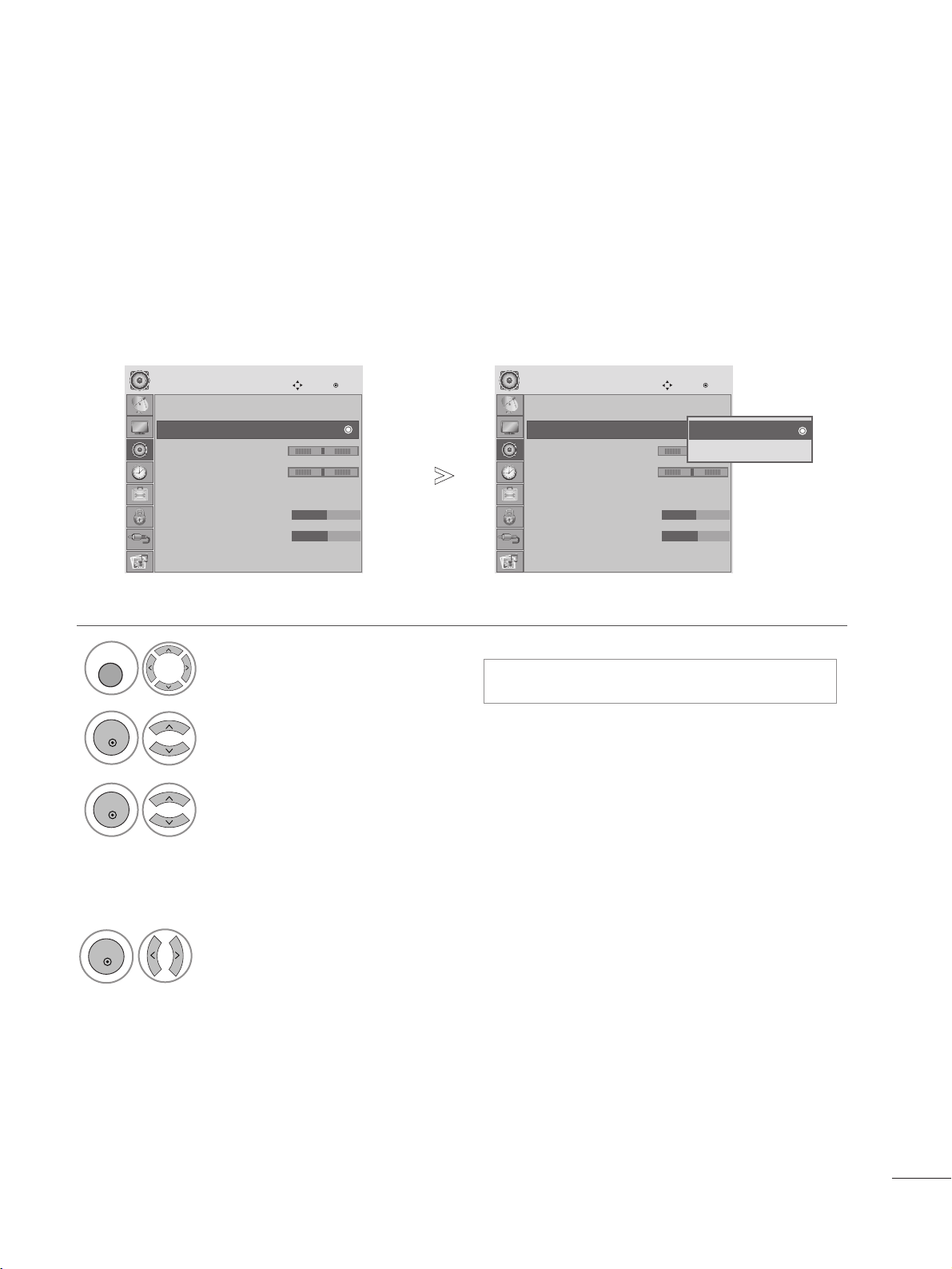

SOUND CONTROL
By differentiating the human sound range from others, it helps users listen to human voices better.
CLEAR VOICE II
Select
AAUUDDIIOO
.
2
Select
CClleeaarr VVooiiccee IIII
3
Select
OO nn
or
OOffff
.
1
MENU
OK
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
AUDIO
Move
OK
-+
LR
E
Clear Voice II : Off
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
AUDIO
Move
OK
-+
LR
E
Clear Voice II : Off
Off
On
Off
•
SSeelleecctt lleevveellss ffrroomm ‘‘--66’’ ttoo ’’++66’’..
Select the desired
LLeevveell
.
When the
CClleeaarr VVooiiccee IIII
is selected
OO nn
,
4
background
5588
SOUND CONTROL
You can adjust the sound balance of the speakers to preferred levels.
BALANCE
Select
AAUUDDIIOO
.
2
Select
BBaallaannccee
.
1
3
Make desired adjustment.
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
AUDIO
Move
OK
-+
LR
E
BBaallaannccee 00
LR
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
AUDIO
Move
OK
-+
LR
E
BBaallaannccee 00
LR
Close
•
Balance 0
LR
FG
background
5599
SOUND CONTROL
PRESET SOUND SETTINGS - SOUND MODE
You can select your preferred sound setting; Standard, Music, Cinema, Sport and Game and you can also adjust
Treble, Bass.
Sound Mode lets you enjoy the best sound without any Special adjustment as the set the appropriate sound
options based on the programme content.
Standard, Music, Cinema, Sport and Game are preset for optimum sound quality at the factory.
SSttaannddaarrdd
Offers standard-quality sound.
MMuussiicc
Optimizes sound for listening to music.
CCiinneemmaa
Optimizes sound for watching movies.
SSppoorrtt
Optimizes sound for watching sports vents.
GGaammee
Optimizes sound for playing games.
Select
AAUUDDIIOO
.
2
Select
SSoouunndd MMooddee
.
3
Select
SSttaannddaarrdd
,
MMuussiicc
,
CCiinneemmaa
,
SSppoorrtt
or
GGaammee
.
1
MENU
OK
OK
•
Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
AUDIO
Move
OK
-+
LR
E
SSoouunndd MMooddee :: SSttaannddaarrdd
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
AUDIO
Move
OK
-+
LR
E
SSoouunndd MMooddee :: SSttaannddaarrdd
Standard
Music
Cinema
Sport
Game
SSttaannddaarrdd
background
6600
SOUND CONTROL

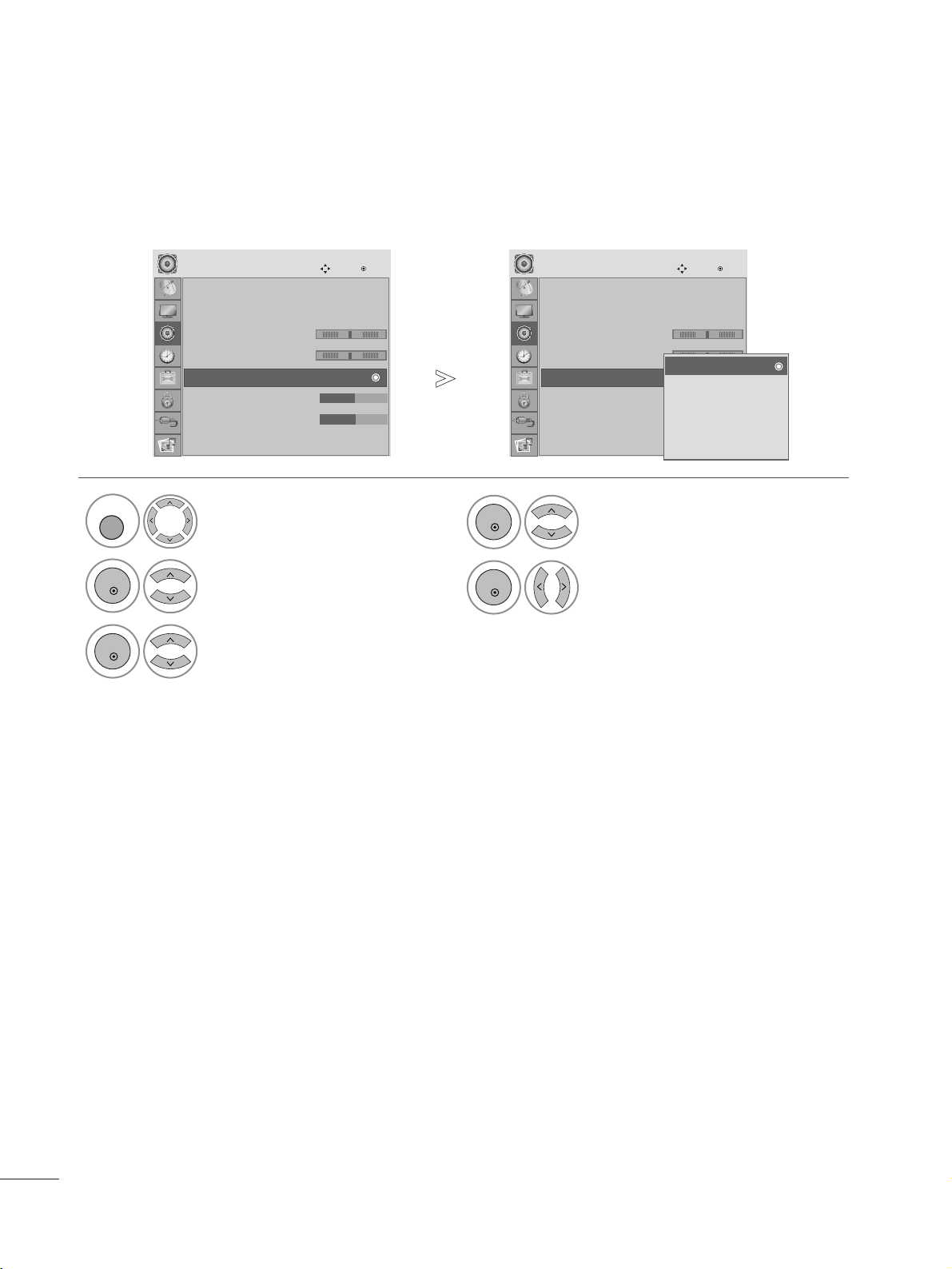

SOUND SETTING ADJUSTMENT - USER MODE
Adjusting the audio Treble and Bass.
Select
AAUUDDIIOO
.
2
Select
SSoouunndd MMooddee
.
3
Select
SSttaannddaarrdd
,
MMuussiicc
,
CCiinneemmaa
,
SSppoorrtt
or
GGaammee
.
Set the desired sound level.
1
4
Select a
TTrreebbllee
,
BBaassss
.
MENU
OK
OK
OK
5
OK
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
AUDIO
Move
OK
-+
LR
E
SSoouunndd MMooddee :: SSttaannddaarrdd((UUsseerr))
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
AUDIO
Move
OK
-+
LR
E
SSoouunndd MMooddee :: SSttaannddaarrdd((UUsseerr))
Standard(User)
Music
Cinema
Sport
Game
SSttaannddaarrdd((UUsseerr))
background
6611
SOUND CONTROL
AUDIO RESET
Settings of the selected Sound Mode return to the default factory settings.
Select
AAUUDDIIOO
.
2
Select
RReesseett
.
3
Initialize the adjusted value.
1
MENU
OK
OK
•
Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
• Reset
Digital Audio Out : PCM
TV Speaker : On
AUDIO
Move
OK
•• RReesseett
LR
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
• Reset
Digital Audio Out : PCM
TV Speaker : On
AUDIO
Move
OK
•• RReesseett
LR
Resetting sound mode configuration...
ii
D
D
background
6622
SOUND CONTROL
SELECTING DIGITAL AUDIO OUT
This function allows you to select your preferred Digital Audio Output.
Auto -allows original output DOLBY Digital if a channel is broadcast with Dolby Digital audio.
PCM -forces stereo PCM output.
When Dolby digital is available,selecting Auto in the Digital Audio Out menu will set SPDIF(Sony Philips Digital
InterFace)output to Dolby Digital.
If Auto is selected in the digital audio out menu when dolby digital is not available,SPDIF output will be
PCM(Pulse-code Modulation).
Even if both Auto and Audio language hav been set in a channel which broadcast Dolby Digital Audio,only Dolby
Digital will be played.
The product includes the capability to conv rt HE-AAC audio to Dolby Digital.This allows b st quality audio and
surround sound support for any high definition broadcast format.Select “Auto ”and mut TV speakers to enable
this at digital output.
Select
AAUUDDIIOO
.
Select
DDiiggiittaall AAuuddiioo OOuutt
.
3
Select
AAuuttoo
or
PP CCMM
.
1
2
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Manufactured under license from
Dolby Laboratories. “Dolby “and
the double-D symbol are trade-
marks of Dolby Laboratories.
• There is a possibility that when HDMI mode,
some DVD players do not make SPDIF sound.
At that time, set the output of the digital
audio of the DVD player to PCM.
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
• Reset
Digital Audio Out : PCM
TV Speaker : On
AUDIO
Move
OK
DDiiggiittaall AAuuddiioo OOuutt :: PPCCMM
LR
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
• Reset
Digital Audio Out : PCM
TV Speaker : On
AUDIO
Move
OK
DDiiggiittaall AAuuddiioo OOuutt :: PPCCMM
LR
Auto
PCM
PCM
D
D
background
6633
SOUND CONTROL
TV SPEAKERS ON/ OFF SETUP
You can adjust the internal speaker status.
In AV, COMPONENT, HDMI, RGB, DVI mode the TV speaker can be operational even though when there is no
video signal.
If you wish to use an external Hi-Fi system, turn off the TV internal speakers.
Select
AAUUDDIIOO
.
Select
TTVV SSppeeaakkeerr
.
3
Select
OO nn
or
OOffff
.
1
2
MENU
OK
OK
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
• Reset
Digital Audio Out : PCM
TV Speaker : On
AUDIO
Move
OK
TTVV SSppeeaakkeerr :: OOnn
LR
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
• Reset
Digital Audio Out : PCM
TV Speaker : On
AUDIO
Move
OK
TTVV SSppeeaakkeerr :: OOnn
LR
Off
On
On
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
D D
background
6644
Speaker Sound Output Selection
In AV, Component, RGB, HDMI and DVI mode, you can select output sound for the left and right loudspeakers.
Repeatedly press the
II//IIII
button to select the sound output.
LL++RR::
Audio signal from audio L input is sent to the left loud speaker and audio signal from audio R input is sent
to the right loud speaker.
LL++LL::
Audio signal from audio L input is sent to left and right loud speakers.
RR++RR::
Audio signal from audio R input is sent to left and right loud speakers.
SOUND CONTROL
I/II
A
MMoonnoo ssoouunndd sseelleeccttiioonn
If the stereo signal is weak in stereo reception, you can switch to mono. In mono reception, the clarity of sound
is improved.
BBrrooaaddccaasstt
Mono
Stereo
OOnn SSccrreeeenn DDiissppllaayy
MONO
MONO / STEREO
Stereo Reception (In Analogue Mode Only)
When a programme is selected, the sound information for the station appears after the programme number and
station name disappear.
Select the sound output.
I/II
background
6655
TIME SETTING
The clock is set automatically when receiving a digital signal. (You can set the clock manually only if the set has no
DTV signal.)
You must set the time correctly before using on/off timer function.
When you select a Time Zone city,the TV time is set by the time offset information based on Time Zone and GMT
(Greenwich Mean Time)which is received with the broadcast signal and the time is set automatically by a digital
signal.
Once Clock is set in DTV mode,you cannot change time.
CLOCK SETUP
Select
TTIIMMEE
.
2
Select
CClloocckk
.
1
3
Select either the year, month, date, time or Time Zone option.
4
Set the year,month,date,time and Time Zone options.
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
•
Press the RETURN button to move to the previous menu screen.
Clock
Off Time : Off
On Time : Off
Sleep Timer : Off
Auto Off : On
TIME
Move
OK
CClloo cckk
Clock
Off Time : Off
On Time : Off
Sleep Timer : Off
Auto Off : On
TIME
Move
OK
CClloo cckk
Date
01
Month
Jan.
Year
2008
Hour
00
Minute
00
Time Zone
NSW/ACT
GMT.10.0
Close
background
6666
The Off time function automatically switches the set to standby at a preset time.
Two hours after the set is switched on by the on time function it will automatically switch back to standby mode
unless a button has been pressed.
The Off time function overrides the On timer function if both are set to the same time.
The set must be in standby mode for the On timer to work.
AUTO ON/OFF TIMER SETTING
Select
TTIIMMEE
.
2
Select
OOffff ttiimmee
or
OOnn ttiimmee
.
1
3
Select
RReeppeeaatt
.
5
Set the
hhoouurr
.
6
Set the
mmiinnuutteess
.
4
Select
OOffff
,
OOnnccee
,
DDaaiillyy
,
MMoonn
to
FFrrii
,
MMoonn
to
SSaa tt
,
SSaatt
to
SSuunn
or
SSuunn
.
• To cancel On/Off Time function, select Off.
• For On Time function only
1
Select
MMooddee
.
2
Select
DDTTVV,, RRAADDIIOO,, TTVV,, AAVV,, CCoommppoonneenntt
,
RRGGBB
,
HHDDMMII
1 to 2 or
DD VVII
.
3
Set the programme.
4
Adjust volume level at
switch-on.
MENU
OK
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
TIME SETTING
Clock
Off Time : Off
On Time : Off
Sleep Timer : Off
Auto Off : On
TIME
Move
OK
OOnn TTiimmee :: OOffff
Clock
Off Time : Off
On Time : Off
Sleep Timer : Off
Auto Off : On
TIME
Move
OK
OOnn TTiimmee :: OOffff
Repeat
F
Off
G
Hour
00
Minute
00
Mode
DTV
Programme
800
Volume
30
Close
1/Jan. 2008 00:01
background
6677

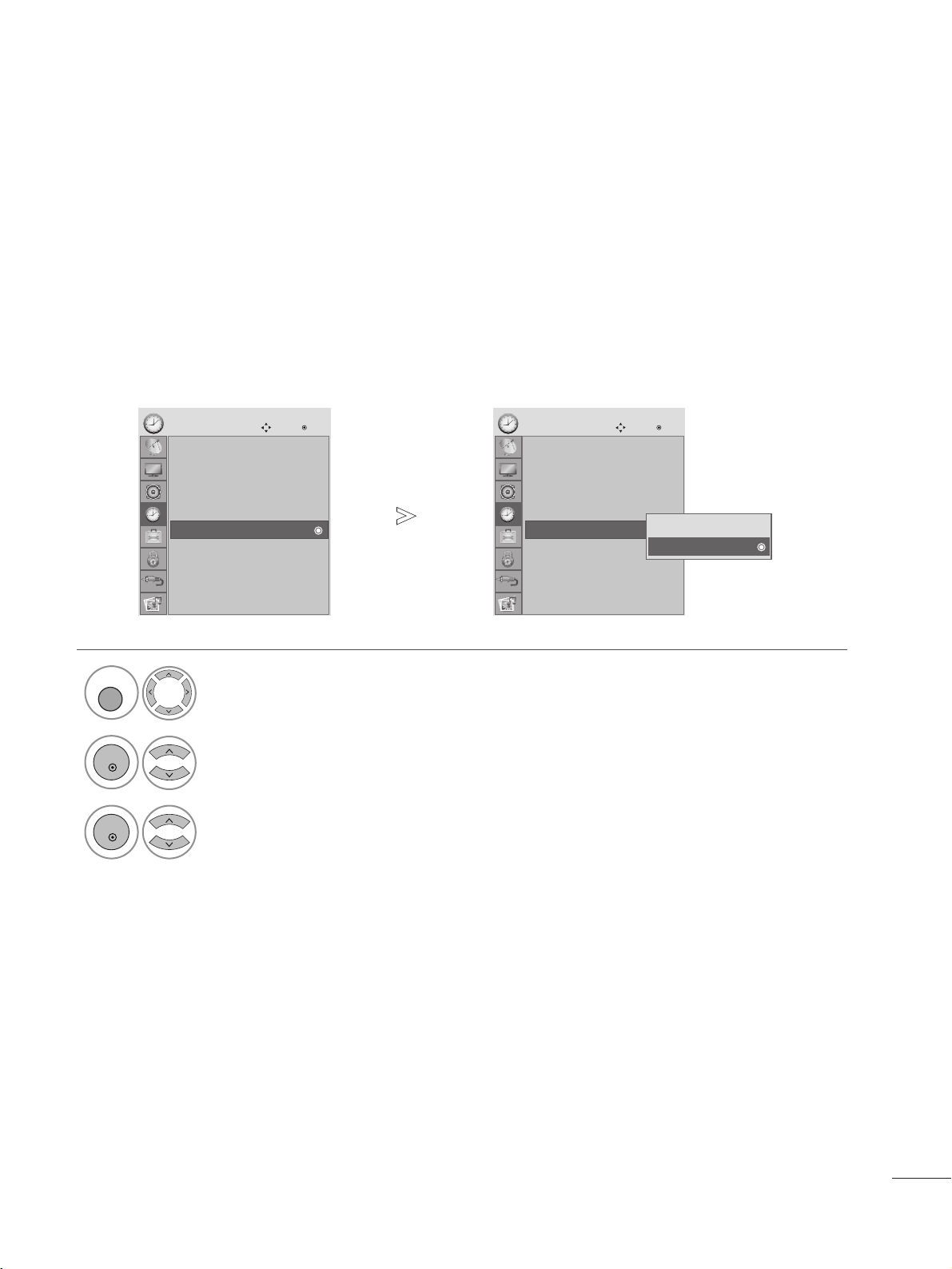

TIME SETTING
If the set is switched on and there is no input signal, it will switch off automatically after 10 minutes.
AUTO SHUT-OFF SETTING
Select
TTIIMMEE
.
2
Select
AAuuttoo OOffff
.
1
3
Select
OOffff
or
OO nn
.
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Clock
Off Time : Off
On Time : Off
Sleep Timer : Off
Auto Off : On
TIME
Move
OK
AAuuttoo OOffff :: OOnn
Clock
Off Time : Off
On Time : Off
Sleep Timer : Off
Auto Off : On
TIME
Move
OK
AAuuttoo OOffff :: OOnn
Off
On
On
background
6688
TIME SETTING
You do not have to remember to switch the set off before you go to sleep.
The sleep timer automatically switches the set off after the preset time has elapsed.
SLEEP TIMER SETTING
• When you switch the set off, the preset sleep time is cancelled.
• You can also adjust Sleep Timer in the Q.Menu.
• When entering DPM (Sleep mode), the value of sleep time setting will be canceled.
Select
TTIIMMEE
.
2
Select
SSlleeeepp TTiimmeerr
.
1
3
4
Confirm it.
MENU
OK
OK
OK
Select
OOffff
,
1100
,
2200
,
3300
,
6600
,
9900
,
1122 00
,
1188 00
or
224400 MMiinn..
background
6699

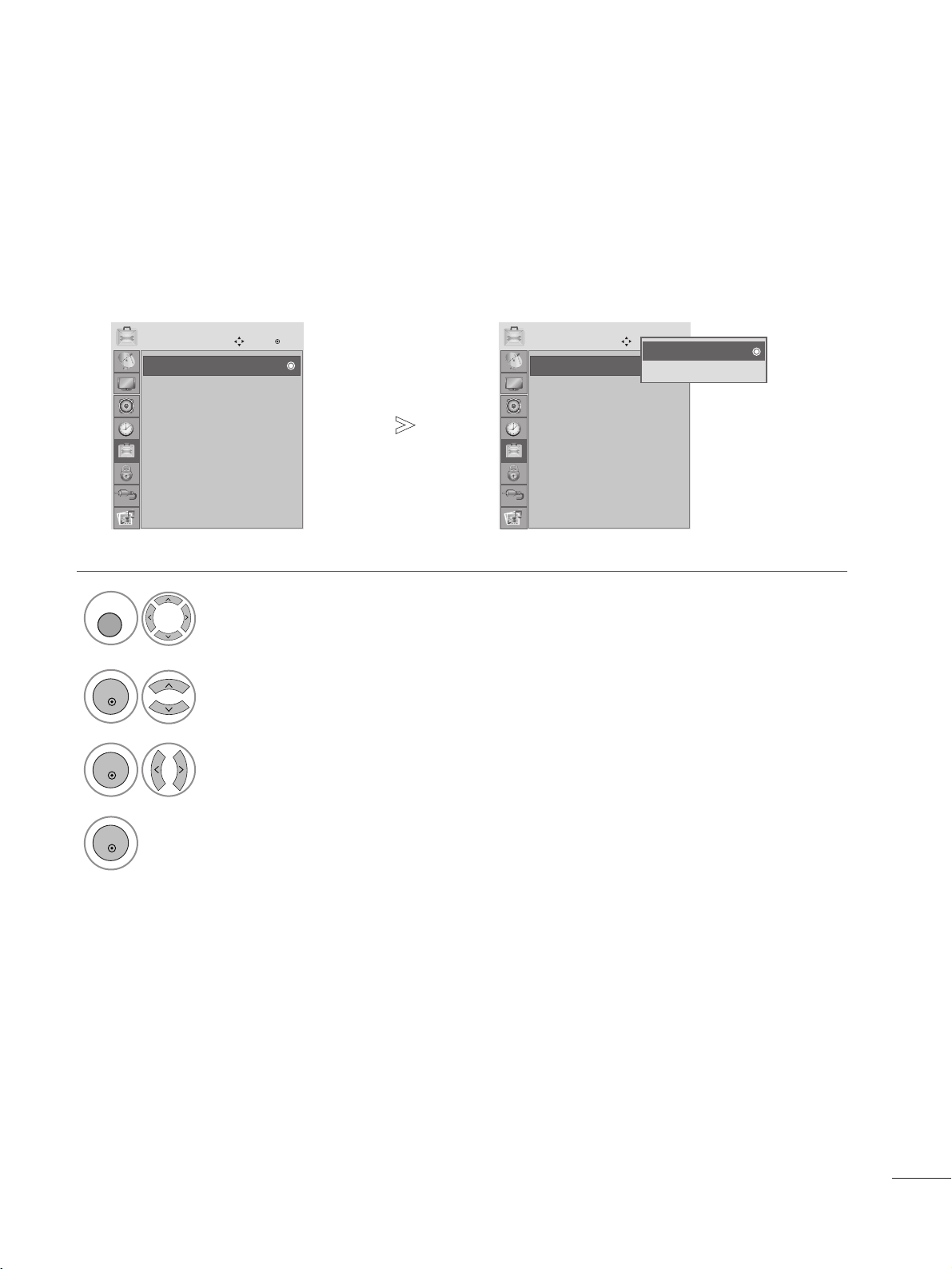

OPTION SETTING
(This menu is enabled only in DTV mode)
This function allow users to see subtitle at Digital TV mode.
Subtitle
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
Subtitle : Off
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
Subtitle : Off
Select
OOPPTTIIOONN
.
Select
SSuubbttiittllee
.
Select
OO nn
or
OOffff
.
Save.
2
3
4
1
MENU
OK
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Off
On
Off
background
7700
OPTION SETTING
Selects a label for each input source.
INPUT LABEL
Select
OOPPTTIIOONN
.
2
Select
IInnppuutt LLaabbeell
.
3
Select the source.
4
Select the label.
1
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
IInnppuutt LLaabbeell
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
IInnppuutt LLaabbeell
RGB
HDMI 1
HDMI 2
DVI
AV
Component
Close
background
7711
OPTION SETTING
The set can be configured so that the remote control is required to control it. This feature can be used to
prevent unauthorized viewing.
KEY LOCK
Select
OOPPTTIIOONN
.
2
Select
KKeeyy LLoocckk
.
3
Select
OO nn
or
OOffff
.
4
Save.
1
• Set ID : Off
In Key Lock ‘On’, if the set is turned off, press the
INPUT, PR
D E
button on the TV or POWER but-
tons on the remot control then the set will be
turned on.
• Set ID : On
In Key Lock ‘On’, if the set is turned off, press the
INPUT, PR
D E
button on the TV or POWER,
INPUT, PR
D E
or NUMBER buttons on the remot
control then the set will be turned on.
• With the
Key Lock ‘On’ the display Key Lock On
appears on the screen if any button on the front
panel is pr ssed while viewing the TV. (Except for
r / I button)
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
KKeeyy LLoocckk :: OO ffff
OK
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
KKeeyy LLoocckk :: OO ffff
Off
On
Off
background
7722

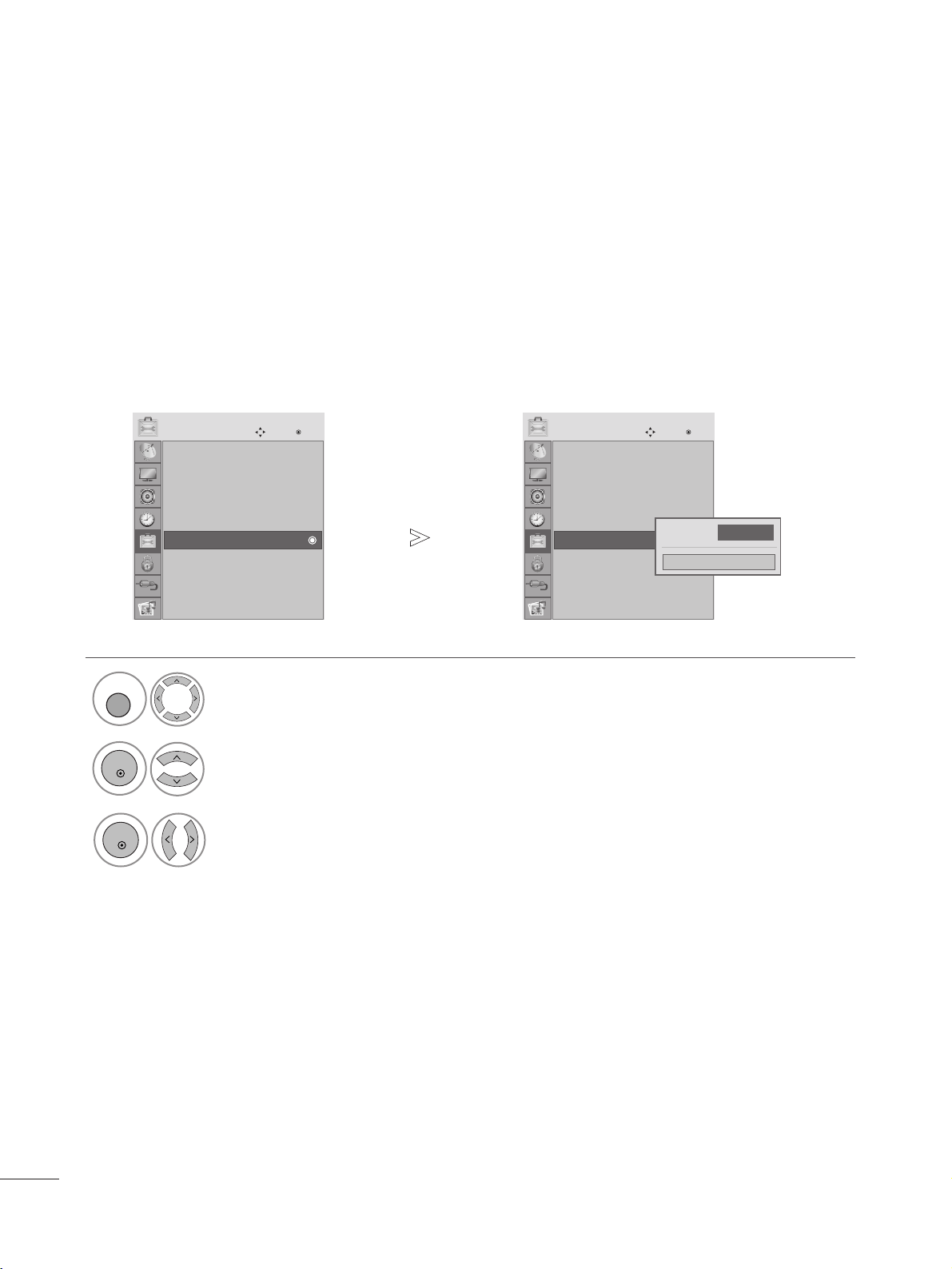

OPTION SETTING
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Select the power indicator on of off.
PPoowweerr iinnddiiccaattoorr OOnn
- Normal Mode : Blue LED On.
- Off Mode : LED Off
- DPM Mode : LED Amber blinking
PPoowweerr iinnddiiccaattoorr OOffff
- LED always Off.
POWER INDICATOR
1
Select
OOPPTTIIOONN
.
2
Select
PPoowweerr IInnddiiccaattoorr
.
MENU
OK
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
Power Indicator
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
Power Indicator
3
Select
OO nn
or
OOffff
.
OK
F
On
G
Close
Power Light
background
7733
OPTION SETTING
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
DDC/CI (Display Data Channel Command Interface) is a communication protocol for communications between
PC and set.
DDC/CI makes it possible to adjust and setup detailed functions on PC instead of the set OSD
Set can be adjusted with PC by connecting communication between PC and set when DDC/CI is ON, and set
cannot be adjusted with PC because communication between PC and set is disconnected when DDC/CI is OFF.
DDC CI(Only RGB, DVI mode)
1
Select
OOPPTTIIOONN
.
2
Select
DDDDCC CCII
.
MENU
OK
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
DDC CI : On
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
DDC CI : On
Off
On
On
3
Select
OO nn
or
OOffff
.
OK
background
7744
OPTION SETTING
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
We recommend setting the set to “Home Use” mode for the best picture in your home environment.
“Store Demo” mode is an optimal setting for displaying at stores.
1
Select
OOPPTTIIOONN
.
2
Select
MMooddee SSeettttiinngg
.
Select
SSttoorree DDeemmoo
or
HHoommee UUssee..
3
MENU
OK
OK
Selecting the environment.
Choose the setting mode you want.
Store Demo
Home Use
Select [Home Use] to use this TV at home. To use this TV at store,
select [Store Demo].
Mode Setting
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
Mode Setting : Home Use
MODE SETTING
background
7755
OPTION SETTING
This function operates in current mode.
To initialize the adjusted value.
When the Lock System menu is “On”, the message to enter the password appears.
Initializing
(Reset to original factory settings)
1
Select
OOPPTTIIOONN
.
2
Select
FFaaccttoorryy RReesseett
.
3
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
Factory Reset
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
Factory Reset
Yes
No
All user settings and channel set-
ting will be reset. Still Continue?
background
7766
PARENTAL CONTROL / RATINGS
SET PASSWORD & LOCK SYSTEM
Enter the password, press ‘0’, ‘0’, ‘0’, ‘0’ on the remote control handset.
Revitalize Block Programme, Parental Guidance and Input Block function.
Select
LLOOCCKK
.
2
Select
LLoocckk SSyysstteemm
.
3
Select
OO nn
.
4
Set the password.
5
Input a 4-digit password.
Be sure to remember this number!
Re-enter new password to confirm.
1
• If you forget your password, press ‘7’, ‘7’, ‘7’, ‘7’
on the remote control handset.
• If selecting On, Block Programme, Parental
Guidance and Input Block operates.
MENU
OK
OK
OK OK
123
456
78
0
9
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Lock System : Off
Set Password
Block Programme
Parental Guidance : Off
Input Block
LOCK
Move
OK
LLoocckk SSyysstteemm :: OOffff
Lock System : Off
Set Password
Block Programme
Parental Guidance : Off
Input Block
LOCK
Move
OK
LLoocckk SSyysstteemm :: OOffff
Off
On
Off
background
7777
PARENTAL CONTROL / RATINGS
BLOCK PROGRAMME
Blocks any programmes that you do not want to watch or that you do not want your children to watch.
This function is available in Lock System “On”.
Enter a password to watch a blocked programme.
Select
LLOOCCKK
.
2
Select
BBlloocckk PPrrooggrraammmmee
.
1
3
Enter the Block Programme.
4
Select a programme to be locked.
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
GREEN
GREEN
Lock System : Off
Set Password
Block Programme
Parental Guidance : Off
Input Block
LOCK
Move
OK
BBlloocckk PPrrooggrraammmmee
ABC TV Sydney
1
Pr. Change
Page Change
D
F G
E
P
DTV RADIO TV
1 ABC TV Sydney 2 7 Digital
9 Nine Digital
10 ABC2
11 ABC TV 12 ABC HDTV
13 ABC TV 1 14 ABC TV 2
70 7 HD Digital 71 7 Digital 1
72 7 Digital 2 73 7 Digital 3
77 7 Guide 90 Nine Digital HD
99 Nine Guide 100 ABC TV 3
E
Navigation
Previous
RETURN
Block/Unblock
background
7788

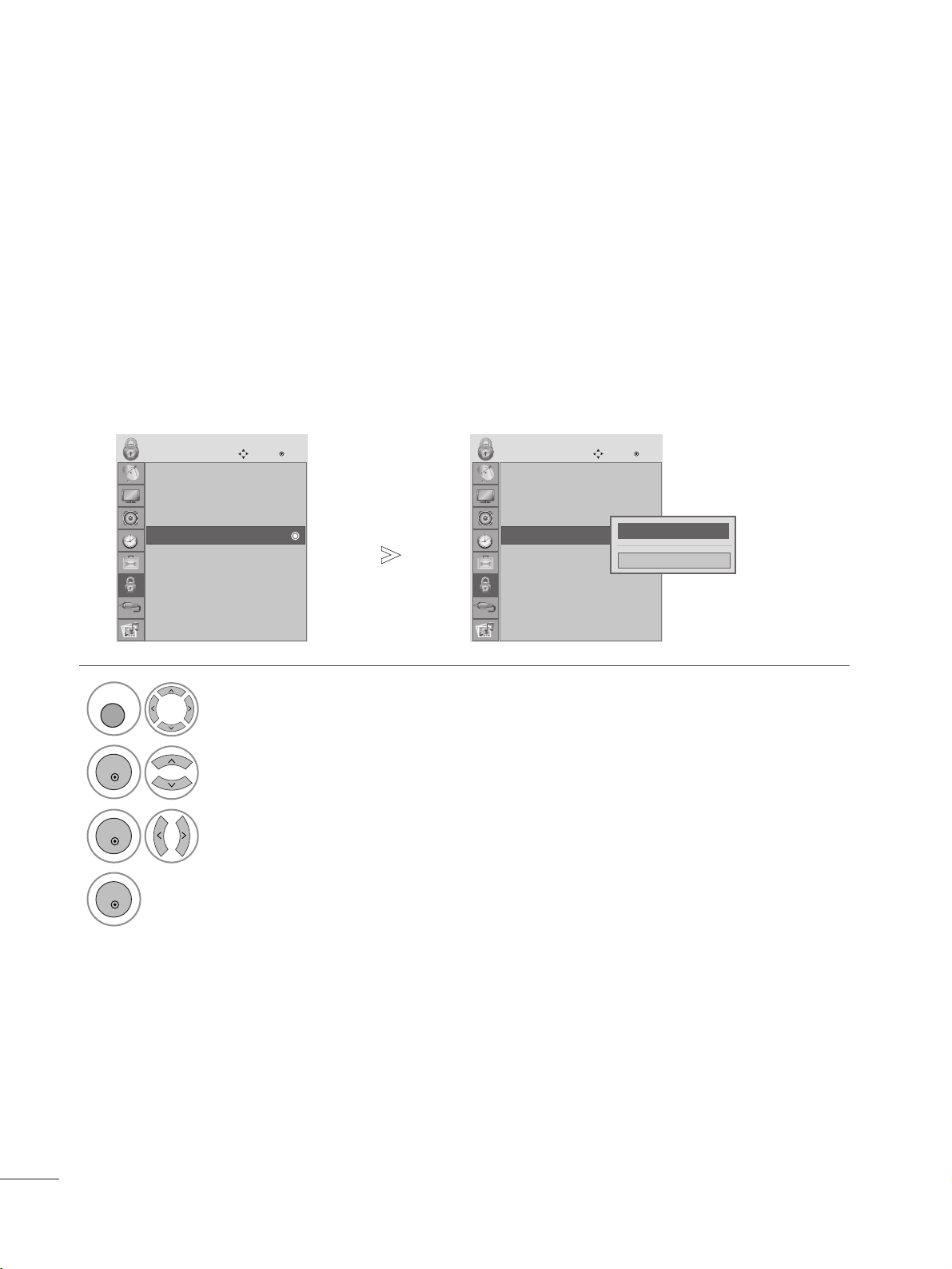

PARENTAL CONTROL / RATINGS
This function operates according to information from the broadcasting station. Therefore if the signal has
incorrect information, this function does not operate.
A password is required to gain access to this menu.
This set is programmed to remember which option it was last set to even if you switch the set off.
Prevents children from watching certain adult’s TV programmes, according to the ratings limit set.
Enter a password to watch a rated programme.
PARENTAL CONTROL (IN DIGITAL MODE ONLY)
Select
LLOOCCKK
.
2
Select
PPaarreennttaall GGuuiiddaannccee
.
3
Make appropriate adjustments.
4
Save.
1
MENU
OK
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Lock System : Off
Set Password
Block Programme
Parental Guidance : Off
Input Block
LOCK
Move
OK
PPaarreennttaall GGuuiiddaannccee :: OOffff
Lock System : Off
Set Password
Block Programme
Parental Guidance : Off
Input Block
LOCK
Move
OK
PPaarreennttaall GGuuiiddaannccee :: OOffff
F
Off
G
Close
background
7799
PARENTAL CONTROL / RATINGS
Enables you to block an input.
INPUT BLOCK
Select
LLOOCCKK
.
2
Select
IInnppuutt BBlloocckk
3
Select the source.
4
Select
OOffff
or
OO nn
.
1
MENU
OK
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Lock System : Off
Set Password
Block Programme
Parental Guidance : Off
Input Block
LOCK
Move
OK
IInnppuutt BBlloocckk
Lock System : Off
Set Password
Block Programme
Parental Guidance : Off
Input Block
LOCK
Move
OK
IInnppuutt BBlloocckk
AV
Component
RGB
HDMI1
HDMI2
DVI
F
Off
G
Off
Off
Off
Off
Close
Off
background
8800
TO USE A USB DEVICE
Precautions when using the USB device
G Only a USB storage device is recognizable.
G If the USB storage device is connected through a USB hub, the device is not recognizable.
Some USB device has an internal hub, they may not be recognized.
G A USB storage device using an automatic recognition programme may not be recognized.
G A USB storage device which uses its own driver may not be recognized.
G The recognition speed of a USB storage device may depend on each device.
G Please do not turn off the TV or unplug the USB device when the connected USB storage device is working. When such device is sud-
denly separated or unplugged, the stored files or the USB storage device may be damaged.
G Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may cause the product to mal-
function or fail to be played. Never forget to use only a USB storage device which has normal music files or image files.
G Please use only a USB storage device which was formatted as a FAT16, FAT32, NTFS file system provided with the Windows operating
system. In case of a storage device formatted as a different utility programme which is not supported by Windows, it may not be rec-
ognized.
Data in a USB storage device cannot be deleted in the NTFS file system.
G Please connect power to a USB storage device which requires an external power supply. If not, the device may not be recognized.
G Some storage device requires external power, please insert USB device to the monitor after connect external power. If not, it cause the
product to malfunction or fail to be played.
G Please connect a USB storage device with cable is offered by USB maker. If connected with cable is not offered by USB maker or an
excessively long cable, the device may not be recognized.
G Some USB storage devices may not be supported or operated smoothly.
G Maximum of 999 files and folders can be recognized.
G Data in a USB storage device cannot be aligned.
Up to 128 English characters can be recognized as a file name.
G Please back up the important file because a data of USB device may be damaged. Data management is consumer's responsibility and
in consequence the manufactures does not cover the product bearing data damage.
When connecting a USB device
When you connect a USB device, this pop up menu is displayed, automatically.
If the Pop Up menu does not appear, you can select Music List or Photo List in the USB menu.
“POP UP MENU” will not be displayed while the OSD including Menu, EPG or Schedule list is activated.
In USB device, you can not add a new folder or delete the existing folder.
When removing the USB device
Connect the USB device
to the
UUSSBB IINN
jack on
the rear of TV.
3
Select
PPHHOOTTOO LLIISSTT
or
MMUUSSIICC LLIISSTT..
1
AV 1 AV 2
USB IN
USB memory
stick
Select
EEjjeecctt
.
Select the USB Eject menu before removing the
USB device.
2
OK
1
Q. MENU
2
OK
• This TV Supports on JPEG and MP3.
PHOTO LIST MUSIC LIST
background
8811
TO USE A USB DEVICE
PHOTO LIST
Screen Components
The On Screen Display may be different from your TV. Images are an example to assist with the TV operation.
Moves to upper level folder
Current page/Total pages
Total number of marked photos
Usable USB memory
Corresponding buttons on the
remote control
** MMAARRKK aanndd FFAAVV hhaavvee ssaammee
ffuunnccttiioonn iinn UUSSBB mmooddee ((FFAAVV
kkeeyy ooppeerraattee lliikkee MMAARRKK kkeeyy))
1
3
4
5
2
PHOTO(
*
.JPEG) supporting file
Baseline: 15360
x
8640
Progressive format : 1024
x
768
• You can play JPEG files only.
• Only baseline scan is supported among JPEG (SOF0, SOF1 only).
• Non-supported files are displayed in the form of bitmap.
USB Device
Page 2/3
No Marked
Photo List
Up Folder
Free Space 150MB
Navigation Option Page Change Mark Exit
13 6 6
x
768, 125KB
KY101
KY102
JMJ001
JMJ002
JMJ003
JMJ004
KY103
KY104
KY105
JMJ005
JMJ006
JMJ007
JMJ008
Up Folder
2 3 4
5
1
Select
UUSSBB
.
Select
PPhhoottoo LLiisstt..
2
Drive1
1
MENU
OK
OK
MARK
RETURN
P
•
Press the RETURN button to close the menu window.
background
8822

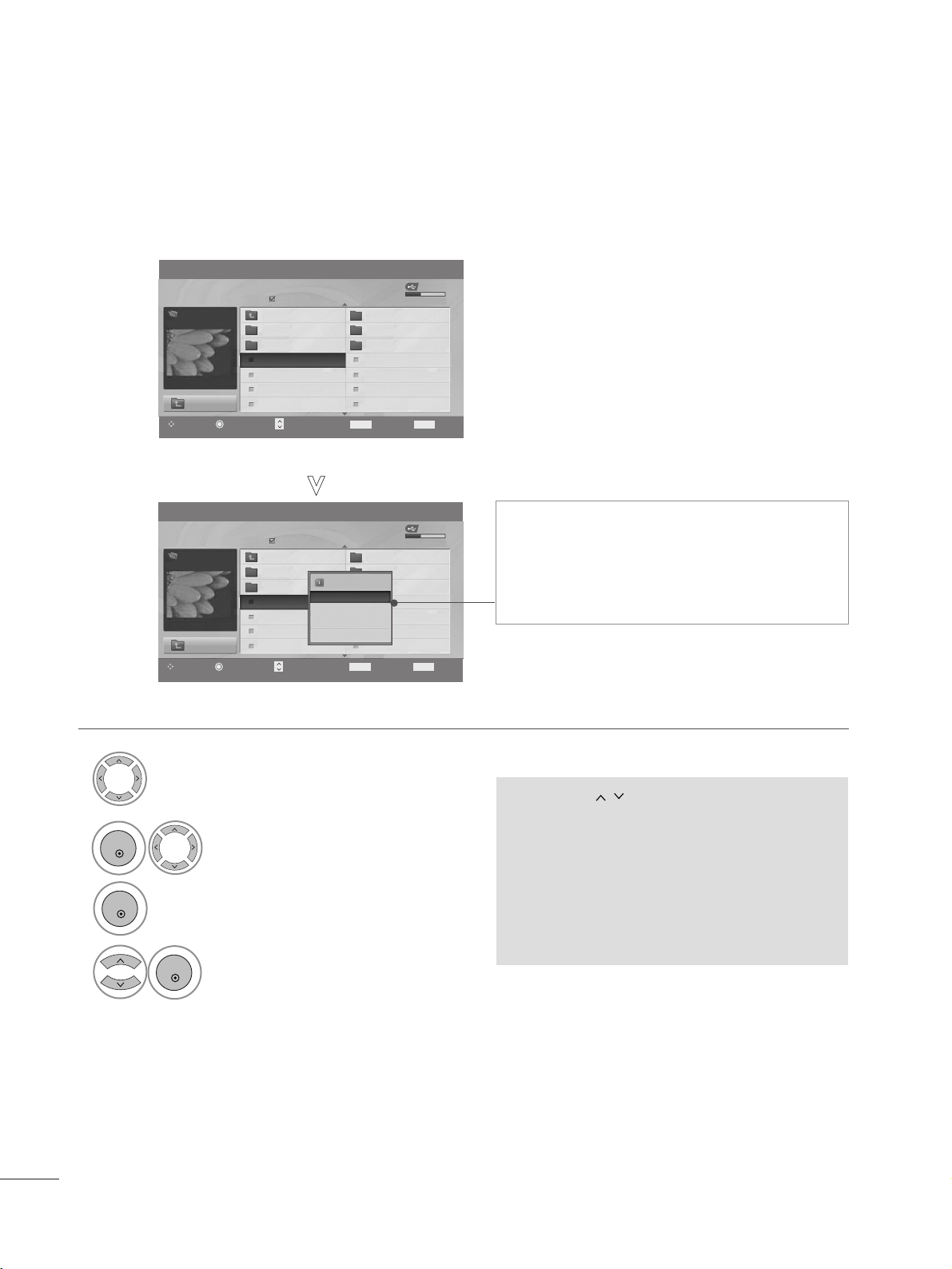

TO USE A USB DEVICE
Photo Selection and PopUp Menu
USB Device
Page 2/3
No Marked
Photo List
Up Folder
Free Space 150MB
Navigation Option Page Change Mark Exit
1366
x
768, 125KB
KR101
KR102
JMJ001
JMJ002
JMJ003
JMJ004
KR103
KR104
KR105
JMJ005
JMJ006
JMJ007
JMJ008
Up Folder
USB Device
Page 2/3
No Marked
Photo List
Up Folder
Free Space 150MB
1366
x
768, 125KB
KR101
KR102
JMJ001
JMJ002
JMJ003
JMJ004
KR103
KR104
KR105
JMJ005
JMJ006
JMJ007
JMJ008
Up Folder
1366x768, 125KB
View
Mark All
Delete
Close
G
VViieeww
: Display the selected item.
G
MMaarrkk AAllll
: Mark all photos on the screen.
G
UUnnmmaarrkk AAllll
: Deselect all marked photos.
G
DDeelleettee
: Delete the selected photo item.
G
CClloossee
: Close the pop-up menu.
Select the target folder or drive.
Select the desired photos.
2
Show the PopUp menu.
3
1
• Use the
PP
button to navigation in the
photo page.
• Use the
MMAARRKK
button to mark or unmark a
photo. When one or more photos are marked,
you can view individual photos or a slide show
of the marked photos. If no photos are marked,
you can view all photos individually or all pho-
tos in the folder in a slide show.
Drive1
Drive1
4
Select the desired PopUp menu.
OK
OK
OK
MARK RETURN
P
Navigation Option Page Change Mark Exit
MARK RETURN
P
•
Press the RETURN button to close the menu window.
background
8833

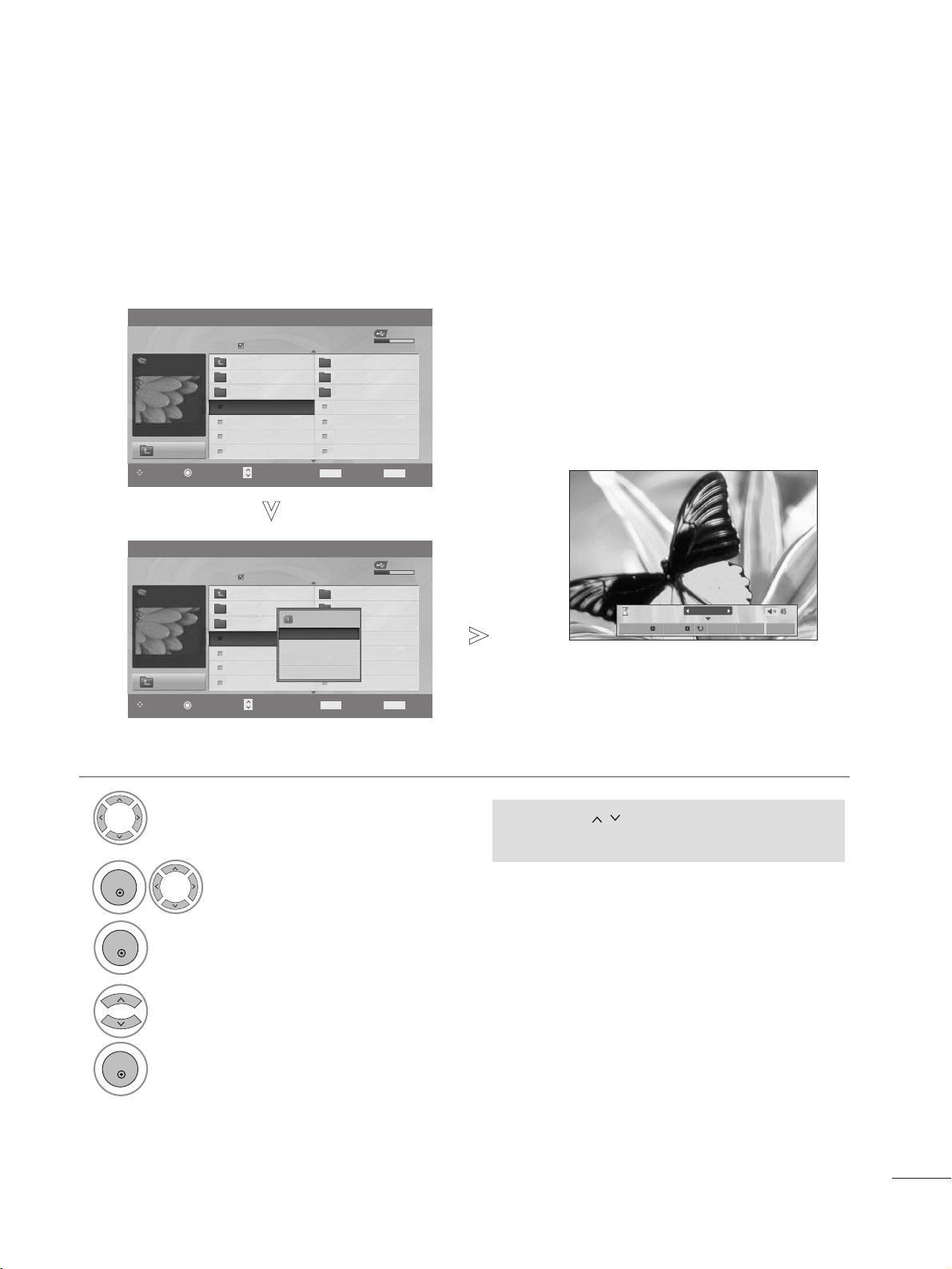

TO USE A USB DEVICE
Set up the menu in Full-Sized Screen
You can change the settings to display photos stored on a USB device, on a full-sized screen.
Detailed operations are available on full-sized photo view screen.
• Use the
PP
button to navigation in the
photo page.
USB Device
Page 2/3
No Marked
Photo List
Up Folder
Free Space 150MB
1366
x
768, 125KB
KR101
KR102
JMJ001
JMJ002
JMJ003
JMJ004
KR103
KR104
KR105
JMJ005
JMJ006
JMJ007
JMJ008
Up Folder
1366x768, 125KB
View
Mark All
Delete
Close
The aspect ratio of a photo may change the
size of the photo displayed on the screen in
full size.
Press the
RREETTUURRNN
button to move to the previ-
ous menu screen.
1/17
Slideshow BGM Delete Option Hide
USB Device
Page 2/3
No Marked
Photo List
Up Folder
Free Space 150MB
1366
x
768, 125KB
KR101
KR102
JMJ001
JMJ002
JMJ003
JMJ004
KR103
KR104
KR105
JMJ005
JMJ006
JMJ007
JMJ008
Up Folder
Drive1
Drive1
Select the target folder or drive.
Select the desired photos.
Show the PopUp menu.
5
Select
VViieeww
.
The selected photo is displayed in full size.
2
3
1
4
OK
OK
OK
Navigation Option Page Change Mark Exit
P
MARK RETURN
Navigation Option Page Change Mark Exit
P
MARK RETURN
•
Press the RETURN button to close the menu window.
background
8844
TO USE A USB DEVICE
1/17
Slideshow BGM Delete Option Hide
G
SSlliiddeesshhooww
: When no picture is selected, all photos in the current
folder are displayed during slide show. When selected, the selected
photos are displayed during slide show.
■
Set the time interval of the slide show in
OOppttiioonn
.
G
BBGGMM
: Listen to music while viewing photos in full size.
■
Set the BGM device and album in
OOppttiioonn
.
G
((RRoottaattee))
: Rotate photos.
■
Rotates the photo 90°, 18 0 °, 270°, 360°clockwise.
G
DDeelleettee
: Delete photos.
G
OOPPTTIIOONN
: Set values for
SSlliiddee SSppeeeedd
and
MMuussiicc FFoollddeerr
.
■
Use button and
OO KK
button to set values. Then go to
and press
OO KK
to save the settings.
■
You cannot change
MMuussiicc FFoollddeerr
while BGM is playing.
G
HHiiddee
: Hide the menu on the full-sized screen.
■
To see the menu again on the full-sized screen, press
OOKK
button
to display.
OK
Select the
SSlliiddeesshhooww
,
BBGGMM
,
((RRoottaattee))
,
DDeelleettee
,
OOppttiioonn
or
HHiiddee
.
Press F G to set the time interval between
slides.
Slide Speed
Fast
Cancel
Music
Music Folder
OK
• Use button to select the previous or
next photo.
•
Use button to select and control the
menu on the full-sized screen.
OK
6
•
Press the RETURN button to close the menu window.
background
8855
TO USE A USB DEVICE
MUSIC LIST
Purchased music files(*.MP3) may contain copyright restrictions. Playback of these files may not be supported by
this model.
Music file on your USB device can be played by this unit.
The On Screen Display may be different from your TV. Images are an example to assist with the TV operation.
Screen Components
MUSIC (*.MP3) supporting file
Bit rate 32 to 320kbps
• Sampling rate MPEG1 layer 3: 32 kHz, 44.1 kHz, 48 kHz.
USB Device
Page 2/3
No Marked
Music List
Up Folder
Free Space 150MB
Navigation Option Page Change Mark Exit
1:340, 120KB
Up Folder
2 3 4
5
1
Moves to upper level folder
Current page/Total pages
Total number of marked music
title
Usable USB memory
Corresponding buttons on
the remote control
** MMAARRKK aanndd FFAAVV hhaavvee
ssaammee ffuunnccttiioonn iinn UUSSBB
mmooddee ((FFAAVV kkeeyy ooppeerraattee
lliikkee MMAARRKK kkeeyy))
1
3
4
5
2
Select
UUSSBB
.
Select
MMuussiicc LLiisstt
.
1
2
Music
1
MENU
OK
OK
Title Duration
MARK
RETURN
P
•
Press the RETURN button to close the menu window.
background
8866
TO USE A USB DEVICE
Music Selection and PopUp Menu
USB Device
Page 2/3
No Marked
Music List
Up Folder
Free Space 150MB
1:340, 120KB
Up Folder
4395KB
1Kbps
Play
Play with Photo
Mark All
Delete
Close
G
PPllaayy
(During stop) : Play the selected music titles.
Once a music finishes playing, the next selected one
will be played. When there are no selected music
titles to play, the next one in the current folder will
be played. If you go to a different folder and press
the
OO KK
button, the current music in playback will
stop.
G
PPllaayy MMaarrkkeedd
: Play the selected music titles. Once
a music finishes playing, the next selected one will
be played automatically.
G
SSttoopp PPllaayy
(During playback) : Stop the playing
music titles.
G
PPllaayy wwiitthh PPhhoottoo
: Start playing the selected
music titles and then move to the Photo List.
G
MMaarrkk AAllll
: Mark all music titles in the folder.
G
UUnnmmaarrkk AAllll
: Deselect all marked music titles.
G
DDeelleettee
: Delete the selected music titles.
G
CClloossee
: Close the pop-up menu.
• Use the
PP
button to navigation in the
music page.
• Use
MMAARRKK
button to mark or unmark a music.
When one or more music files are marked, the
marked music title will be played in sequence.
For example, if you want to listen to only one
music repeatedly, just mark the music only and
play it. If no music is marked, all the music in
the folder will be played in sequence.
As shown , up to 6 music titles are listed per page.
USB Device
Page 2/3
No Marked
Music List
Up Folder
Free Space 150MB
1:340, 120KB
Up Folder
Music
Music
Select the target folder or drive.
Select the desired music title
Show the PopUp menu.
Select the desired PopUp menu.
2
3
1
4
OK
OK
OK
Title
Duration
Title
Duration
Navigation Option Page Change Mark Exit
P
MARK RETURN
Navigation Option Page Change Mark Exit
P
MARK RETURN
•
Press the RETURN button to close the menu window.
background
8877
TO USE A USB DEVICE
■
If you don't press any button for a while during the
playing, the play information box (as shown in the
below) will float as a screen saver.
■
The ‘Screen Saver’?
Screen saver is to prevent screen pixel damage due to
an fixed image remaining on the screen for a extended
period of time.
NOTE
!
G
When music is playing, is displayed in back of the music title.
G
A damaged or corrupted music does not play but displays 00:00 in playtime.
G
A music downloaded from a paid service with copyright protection does not start but displays inappropri-
ate information in playtime.
G
If you press
OO KK
,
A buttons, screen saver is stopped.
G
The
PPLLAAYY
((
G
))
,
PPaauussee
((
II II
))
,
A
,
GG
,
FF buttons on the remote control are also available in this mode.
G
You can use the GG button to select the next music and the FF button to select the previous music.
Using the remote control
When playing,
repeatedly, press the
RREEWW
((
FF
))
button to speed up
FF -> FFF -> FFFF ->
FFFFF ->FFFFFF .
repeatedly, press the
FF FF
((
GG
))
button to speed up
GG-> GGG -> GGGG -> GGGGG
-> GGGGGG.
■
Pressing these buttons repeatedly increases the fast forward/reverse speed.
During playback, press the
PPaauussee
((
II II
))
button.
■
Still screen is displayed.
■
When using the or button during playback a cursor indicating the position
can be viewed on the screen.
Press the
PPLLAAYY
((
G
))
button to return to normal playback.
FF / GG
PPLLAAYY
((
G
))
II II
background
8888
TELETEXT
TOP TEXT
The user guide displays four fields--red, green, yellow and blue at the bottom of the screen. The yellow field
denotes the next group and the blue field indicates the next block.
A
Block / group / page selection
With the blue button you can progress from block to block.
Use the yellow button to proceed to the next group with automatic overflow to the next block.
With the green button you can proceed to the next existing page with automatic overflow to the next group.
Alternatively, the PR + button can be used.
The red button permits you to return to previous selection. Alternatively, the PR - button can be used.
A
Direct page selection
Corresponding to the SIMPLE teletext mode, you can select a page by entering it as a three-digit number using
the NUMBER buttons in TOP mode.
44
1
2
3
TThhiiss ffeeaattuurree iiss nnoott aavvaaiillaabbllee iinn aallll ccoouunnttrriieess..
Press the
TTEEXXTT
button to switch to teletext. The initial page or last page appears on the screen.
Two page numbers, TV station name, date and time are displayed on the screen headline. The first page number
indicates your selection, while the second shows the current page displayed.
Press the
TTEEXXTT
or
EEXXIITT
button to switch off teletext. The previous mode reappears.
SWITCH ON/OFF
(IN DIGITAL MODE ONLY)
A
Page selection
Enter the desired page number as a three-digit number with the NUMBER buttons. If during selection you
press a wrong number, you must complete the three-digit number and then re-enter the correct page number.
The PR+ or - button can be used to select the previous or next page.
SIMPLE TEXT
1
2
Teletext is a free service broadcast by most TV stations which gives up-to-the-minute information on news,
weather, television programmes, share prices and many other topics.
The teletext decoder of this set can support the SIMPLE, TOP and FASTEXT systems. SIMPLE (standard teletext)
consists of a number of pages which are selected by directly entering the corresponding page number. TOP and
FASTEXT are more modern methods allowing quick and easy selection of teletext information.
background
8899
SPECIAL TELETEXT FUNCTIONS
FASTEXT
The teletext pages are colour coded along the bottom of the screen and are selected by pressing the correspond-
ing coloured button.
A Page selection
Press the
TT..OOPPTT
button and then use button to select menu. Display the index page.
You can select the pages which are colour coded along the bottom line with the same coloured buttons.
Corresponding to the SIMPLE teletext mode, you can select a page by entering its three digit page number
with the NUMBER buttons in FASTEXT mode.
The PR + or - button can be used to select the previous or next page.
i
44
1
2
3
TELETEXT
A
IInnddeexx
Select the each index page.
A
TTiimmee
When viewing a TV programme, select this menu to display the time at the top right
hand corner of the screen.
In the teletext mode, press this button to select a sub page number. The sub page
number is displayed at the bottom of the screen. To hold or change the sub page,
press the RED/GREEN, or NUMBER buttons.
A
HHoolldd
Stops the automatic page change which will occur if a teletext page consists of 2 or more sub pages. The num-
ber of sub pages and the sub page displayed is, usually, shown on the screen below the time. When this menu is
selected the stop symbol is displayed at the top left-hand corner of the screen and the automatic page change
is inactive.
A
RReevveeaall
Select this menu to display concealed information, such as solutions to riddles or puzzles.
A
UUppddaattee
Displays the TV picture on the screen while waiting for a new teletext page. The display will appear at the top
left hand corner of the screen. When the updated page is available then display will change to the page number.
Select this menu again to view the updated teletext page.
Text Option
Index
Time
Hold
Reveal
Update
Close
?
i
background
9900
No picture &No sound
No color, poor colour,
or poor picture
Poor reception on
some channels
Lines or streaks
in pictures
Horizontal/vertical bars
or picture shaking
Picture appears slowly
after switching on
A
Check whether the product is turned on.
A
Try another channel. The problem may be with the broadcast.
A
Is the power cord inserted into wall power outlet?
A
Check your antenna direction and/or location.
A
Test the wall power outlet, plug another product’s power cord into the outlet
where the product’s power cord was plugged in.
A
This is normal, the image is muted during the product startup process. Please
contact your service centre, if the picture has not appeared after five minutes.
A
Adjust Colour in menu option.
A
Keep a sufficient distance between the product and the VCR.
A
Try another channel. The problem may be with the broadcast.
A
Are the video cables installed properly?
A
Activate any function to restore the brightness of the picture.
A
Check for local interference such as an electrical appliance or power tool.
A
Station or cable product experiencing problems, tune to another station.
A
Station signal is weak, reorient antenna to receive weaker station.
A
Check for sources of possible interference.
A
Check antenna (Change the direction of the antenna).
TROUBLESHOOTING
TThhee ooppeerraattiioonn ddooeess nnoott wwoorrkk nnoorrmmaallllyy..
The remote control
doesn’t work
Power is suddenly
turned off
A
Check to see if there is any object between the product and the remote control causing
obstruction. Ensure you are pointing the remote control directly at the set.
A
Ensure that the batteries are installed with correct polarity (+ to +, - to -).
A
Install new batteries.
A
Is the sleep timer set?
A
Check the power control settings. Power interrupted.
A
No broadcast on station tuned with
AAuuttoo sslleeeepp
activated.
TThhee vviiddeeoo ffuunnccttiioonn ddooeess nnoott wwoorrkk..
APPENDIX
background
9911
APPENDIX
TThhee aauuddiioo ffuunnccttiioonn ddooeess nnoott wwoorrkk..
A
Press the VOL
++
or
--
button.
A
Sound muted? Press MUTE button.
A
Try another channel. The problem may be with the broadcast.
A
Are the audio cables installed properly?
A
Adjust
BBaallaannccee
in menu option.
A
A change in ambient humidity or temperature may result in an unusual noise
when the product is turned on or off and does not indicate a problem with
the product.
Picture OK & No sound
Unusual sound from
inside
the product
No output from one
of the speakers
NNoo iimmaaggee iiss ddiissppllaayyeedd..
A
Adjust brightness and contrast again.
A
If the product is in power saving mode, move the mouse or press any key.
A
The signal from the PC (Video card) is out of the vertical or horizontal
frequency range of the product.
Adjust the frequency range by referring to the Specifications in this user’s guide.
A
The signal cable between PC and product is not connected. Check the signal cable.
A
Press the ‘INPUT’ button in the remote control to check the input signal.
Power is on, power indic-
tor is blue but the screen
appears extremely dark.
Does the ‘Out of range’
message appear?
Does the power indica-
tor look blinking amber?
OOnnllyy RRGGBB//DDVVII mmooddee aapppplliieedd
Does the ‘Check signal
cable’ message appear?
background
9922
APPENDIX
‘‘UUnnkknnoowwnn PPrroodduucctt’’ mmeessssaaggee aappppeeaarrss wwhheenn tthhee pprroodduucctt iiss ccoonnnneecctteedd..
A
Install the product driver, which is provided with the product, or download it
from the web site.
(http://www.lg.com)
A
See if the plug_&_play function is supported by referring to the video card
user’s guide.
Did you install the driver?
TThhee ssccrreeeenn iimmaaggee llooookkss aabbnnoorrmmaall..
A
Adjust the Position menu in OSD.
A
See if the video card resolution and frequency are supported by the product.
If the frequency is out of range, set to the recommended resolution in the
Control Panel-Display-Setting menu.
A
Adjust the Clock menu in OSD.
A
Adjust the Phase menu in OSD.
Is the screen position
wrong?
Horizontal noise appears
or the characters look
blurred.
Do thin lines appear on
the background screen?
SSccrreeeenn ccoolloorr iiss aabbnnoorrmmaall..
A
Set screen color resolution to more than 24 bits (true color)
Select control Panel-Display-Settings-Color Table menu in Windows.
A
Check the connection status of the signal cable.
A
Several pixels (red, green, white or black color) may appear on the screen,
which can be attributable to the unique characteristics of the LCD panel.
It is not a malfunction of the LCD.
Screen has poor color res-
oluion (16_colors).
Do back spots appear on
the screen?
Screen color is unstable
or mono color.
AAfftteerr--iimmaaggee aappppeeaarrss oonn tthhee pprroodduucctt..
A
If you use a fixed image for a long time, the pixels may be damaged quickly.
Use the screen saver function.
After-image appears when
the product is turned off.
OOnnllyy RRGGBB mmooddee aapppplliieedd
background
9933
MAINTENANCE
Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy
your new set.
Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
To keep the dust off your screen for a while, wet a soft cloth in a mixture of lukewarm water and a little fab-
ric softener or dishwashing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.
Make sure the excess water is off the screen, and then let it air-dry before you turn on your set.
Cleaning the Cabinet
A
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
A
Please be sure not to use a wet cloth.
Extended Absence
G
If you expect to leave your set dormant for a long time (such as a vacation), it’s a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.
CAUTION
2
1
APPENDIX
background
9944
APPENDIX
PRODUCT SPECIFICATIONS
■
The specifications shown above may be changed without prior notice for quality improvement.
Power
AC 100-240V ~ 50/60 Hz 1.0A
On Mode : 55W (typ.)
Sleep Mode 1W
Off Mode 0.5W
LCD Panel
Screen Type
Pixel Pitch
584.2 mm Wide (23 inch) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size : 584.2 mm
0.265 mm (H) x 0.265 mm (V)
Max. Resolution
Recommended Resolution
Horizontal Frequency
Vertical Frequency
Synchronization Type
Video Signal
1920 X 1080 @60 Hz
1920 X 1080 @60 Hz
30 kHz to 83 kHz
56 Hz to 75 Hz
Separate Sync, Digital
Input Connector
TV, D-Sub Analog, PC Audio In, component, DVI-D, HDMI*2, CVBS
Rated Voltage
Power Consumption
Tilt
Tilt Range
-5° to 15 °
Dimensions
(Width x Height x Depth)
Weight
551.8 mm x 419.5 mm x 221.6 mm (21.72 inch x 16.52 inch x 8.72 inch)
5.2 kg (11.46 lb)
10 °C to 35 °C
20 % to 80 %
-10 °C to 60 °C
5 % to 90 %
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Environmental
conditions
background
9955
APPENDIX
IR CODES
A
Configuration of frame
1st frame
Repeat frame
A
Lead code
A
Repeat code
A
BBiitt ddeessccrriippttiioonn
A
FFrraammee iinntteerrvvaall:: TTff
The waveform is transmitted as long as a key is depressed.
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Lead code Low custom code High custom code Data code Data code
Repeat code
Tf
4.5 ms
9 ms
2.25 ms
9 ms
0.55 ms
0.56 ms
1.12 ms
0.56 ms
2.24 ms
Tf Tf
Tf=108ms @455KHz
Bit ”0” Bit ”1”
1. How to Connect
A
Connect your wired remote control to the Remote Control port on the set.
2. Remote Control IR Codes
A
Output waveform
Single pulse, modulated with 37.917 KHz signal at 455 KHz
T1
Tc
Carrier frequency
FCAR = 1/TC = fOSC/12
Duty ratio = T1/TC = 1/3
background
9966
APPENDIX
CCooddee ((HHeexxaa)) FFuunnccttiioonn NNoottee
00 PR
++
R/C BUTTON
01 PR
--
R/C BUTTON
02 VOL
++
R/C BUTTON
03 VOL
--
R/C BUTTON
40 Up (
D
) R/C BUTTON
41 D o wn (
E
) R/C BUTTON
06 Right (
G) R/C BUTTON
07 Left (
F) R/C BUTTON
08 POWER R/C BUTTON (POWER ON/OFF)
09 MUTE R/C BUTTON
0B INPUT R/C BUTTON
10 Number Key 0 R/C BUTTON
11 Number Key 1 R/C BUTTON
12 Number Key 2 R/C BUTTON
13 Number Key 3 R/C BUTTON
14 Number Key 4 R/C BUTTON
15 Number Key 5 R/C BUTTON
16 Number Key 6 R/C BUTTON
17 Number Key 7 R/C BUTTON
18 Number Key 8 R/C BUTTON
19 Number Key 9 R/C BUTTON
1A Q.VIEW R/C BUTTON
1E FAV R/C BUTTON
20 TEXT R/C BUTTON
21 T.OPT R/C BUTTON
28 RETURN R/C BUTTON
39 SUBTITLE R/C BUTTON
43 MENU R/C BUTTON
44 OK( ) R/C BUTTON
45 Q.MENU R/C BUTTON
50 TV/PC R/C BUTTON
F0 TV/RADIO R/C BUTTON
0A I/II R/C BUTTON
5B EXIT R/C BUTTON
1E MARK R/C BUTTON
53 LIST R/C BUTTON
61 BLUE Key R/C BUTTON
63 YELLOW Key R/C BUTTON
71 GREEN Key R/C BUTTON
72 RED Key R/C BUTTON
AA INFO i R/C BUTTON
AB GUIDE R/C BUTTON
background
9977
APPENDIX
EXTERNAL CONTROL DEVICE SETUP
RS-232C Setup
Connect the RS-232C (serial port) input jack to an
external control device (such as a computer or an A/V
control system) to control the product’s functions exter-
nally.
Connect the serial port of the control device to the RS-
232C jack on the product back panel.
Note: RS-232C connection cables are not supplied with
the product.
Type of Connector; D-Sub 9-Pin Male
No. Pin Name
1 No connection
2 RXD
(
Receive data
)
3 TXD
(
Transmit data
)
4DTR
(
DTE side ready
)
5 GND
6 DSR
(
DCE side ready
)
7RTS
(
Ready to send
)
8 CTS
(
Clear to send
)
9 No Connection
RS-232C IN
(CONTROL & SERVICE)
1 5
6 9
RS-232C Configurations
7-Wire Configurations
(
Standard RS-232C cable
)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
3-Wire Configurations
(
Not standard
)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
background

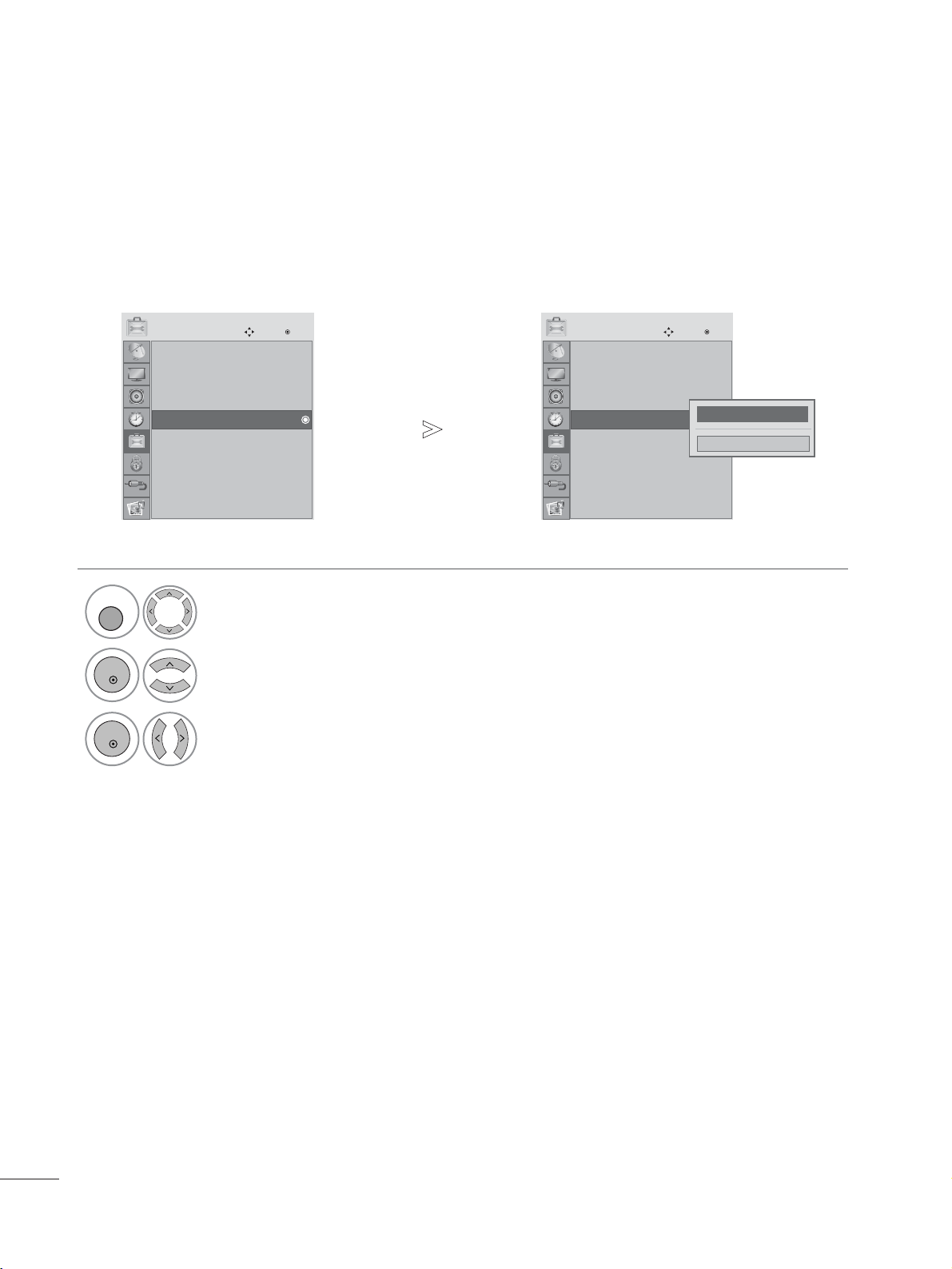

9988
APPENDIX
Use this function to specify a set ID number.
Refer to ‘Real Data Mapping’.
G
pp.. 110022
Set ID
Select
OOPPTTIIOONN
.
2
Select
SSeett IIDD
.
3
Adjust
SSeett IIDD
to choose the desired TV ID number.
The adjustment range of SET ID is 1 to 99.
1
MENU
OK
OK
• Press the MENU or EXIT button to close the menu window.
• Press the RETURN button to move to the previous menu screen.
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
Set ID : Off
Subtitle : Off
Input Label
Key Lock : Off
Set ID : Off
Power Indicator
DDC CI : On
Mode Setting : Home Use
Factory Reset
OPTION
Move
OK
Set ID : Off
F
Off
G
Close
background
9999
APPENDIX
01. Power k a 00 to 01
02. Aspect Ratio k c Refer to p. 100
03. Screen Mute k d 00 to 01
04. Volume Mute k e 00 to 01
05. Volume Control k f 00 to 64
06. Contrast k g 00 to 64
07. Brightness k h 00 to 64
08. Colour k i 00 to 64
09. Tint k j 00 to 64
10. Sharpness k k 00 to 64
11. OSD Select k l 00 to 01
12 .
Remote control lock mode
k m 00 to 01
13 .
Tr eble
k r 00 to 64
14 .
Bass
k s 00 to 64
15. Balance k t 00 to 64
16 .
Colour Temperature
k u 00 to 06
17. Auto Configure j u 01
18 .
Tune Command
maRefer to p. 102
19 .
Programme momory/Skip
mb00 to 01
20. Key m c Key Code
21. Control Backlight m g 00 to 64
22. Input select (Main) x b Refer to p. 102
Communication Parameters
A
Baud rate : 9600 bps
(
UART
)
A
Data length : 8 bits
A
Parity : None
A
Stop bit : 1 bit
A
Communication code : ASCII code
A
Use a crossed (reverse) cable.
Transmission
*
[Command 1] : First command to control the TV.
(j, k, m or x)
*
[Command 2] : Second command to control the TV.
*
[Set ID] : You can adjust the set ID to choose
desired monitor ID number in option
menu. Adjustment range is 1 to 99.
When selecting Set ID ‘0’, every
connected set is controlled.
Set ID is indicated as decimal (1 to
99) on menu and as Hexa decimal
(0x0 to 0x63) on transmission/
receiving protocol.
*
[DATA] : To transmit command data.
Transmit ‘FF’ data to read status of
command.
*
[Cr] : Carriage Return
ASCII code ‘0x0D’
*
[ ] : ASCII code ‘space (0x20)’
[Command1][Command2][ ][Set ID][ ][Data][Cr]
OK Acknowledgement
* The TV transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if
the data is in data read mode, it indicates present sta-
tus data. If the data is in data write mode, it returns the
data of the PC computer.
[Command2][ ][Set ID][ ][OK][Data][x]
Error Acknowledgement
* The TV transmits ACK (acknowledgement) based on
this format when receiving abnormal data from
nonviable functions or communication errors.
[Command2][ ][Set ID][ ][NG][Data][x]
Transmission / Receiving Protocol
Command Reference List
*
When setting 15 to 22, a menu does not appear on screen.
COMMAND
1
COMMAND
2
DATA
(Hexadecimal)
background
110000
APPENDIX
0088.. CCoolloouurr ((CCoommmmaanndd:: kk ii))
G To adjust the screen colour.
You can also adjust colour in the PICTURE menu.
Transmission
Data Min : 00 to Max : 64
*
Refer to ‘Real data mapping’. See page 102.
[k][i][ ][Set ID][ ][Data][Cr]
Ack
[i][ ][Set ID][ ][OK/NG][Data][x]
0044.. VVoolluummee MMuuttee ((CCoommmmaanndd:: kk ee))
G To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
[k][e][ ][Set ID][ ][Data][Cr]
Ack
[e][ ][Set ID][ ][OK/NG][Data][x]
0022.. AAssppeecctt RRaattiioo ((CCoommmmaanndd:: kk cc)) ((MMaaiinn PPiiccttuurree SSiizzee))
G To adjust the screen format. (Main picture format)
You can also adjust the screen format using the
AAssppeecctt RRaattiioo
in the PICTURE menu.
(1) ATV, AV Input mode
- 16:9 / Original / 4:3 / 14:9 / Cinema Zoom /
Zoom
(2) DTV
- 16:9 / Just Scan / Original / 4:3 / 14:9 / Cinema
Zoom / Zoom
(3) RGB, DVI, HDMI Input (HDMI-PC) mode
- 4:3 / 16:9
(4) Component, HDMI input (not HDMI-PC) mode
- 16:9 / 4:3 / 14:9 / Cinema Zoom / Zoom
(Just Scan : Only 720p over)
Transmission
Data 01 : Normal screen (4:3)
02 : Wide screen (16:9)
04 : Zoom
06 : Original
07 : 14:9
09 : Just Scan
10 to 1F : Cinema Zom 1 to 16
[k][c][ ][Set ID][ ][Data][Cr]
Ack
[c][ ][Set ID][ ][OK/NG][Data][x]
0055.. VVoolluummee CCoonnttrrooll ((CCoommmmaanndd:: kk ff))
G To adjust volume.
You can also adjust volume with the VOLUME buttons
on remote control.
Transmission
Data Min : 00 to Max : 64
*
Refer to ‘Real data mapping’. See page 102.
[k][f][ ][Set ID][ ][Data][Cr]
Ack
[f][ ][Set ID][ ][OK/NG][Data][x]
0066.. CCoonnttrraasstt ((CCoommmmaanndd:: kk gg))
G To adjust screen contrast.
You can also adjust contrast in the PICTURE menu.
Transmission
Data Min : 00 to Max : 64
*
Refer to ‘Real data mapping’. See page 102.
[k][g][ ][Set ID][ ][Data][Cr]
Ack
[g][ ][Set ID][ ][OK/NG][Data][x]
0077.. BBrriigghhttnneessss ((CCoommmmaanndd:: kk hh))
G To adjust screen brightness.
You can also adjust brightness in the PICTURE menu.
Transmission
Data Min : 00 to Max : 64
*
Refer to ‘Real data mapping’. See page 102.
[k][h][ ][Set ID][ ][Data][Cr]
Ack
[h][ ][Set ID][ ][OK/NG][Data][x]
0011.. PPoowweerr ((CCoommmmaanndd:: kk aa))
G To control Power On/Off of the TV.
Transmission
Data 00 : Power Off 01 : Power On
[k][a][ ][Set ID][ ][Data][Cr]
Ack
[a][ ][Set ID][ ][OK/NG][Data][x]
0033.. SSccrreeeenn MMuuttee ((CCoommmmaanndd:: kk dd))
G To select screen mute on/off.
Transmission
Data 00 : Screen mute off (Picture on)
01 : Screen mute on (Picture off)
[k][d][ ][Set ID][ ][Data][Cr]
Ack
[d][ ][Set ID][ ][OK/NG][Data][x]
background
110011
APPENDIX
1122.. RReemmoottee ccoonnttrrooll lloocckk mmooddee ((CCoommmmaanndd:: kk mm))
G To lock the front panel controls on the monitor and
remote control.
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Ack
Data 00 : Lock off 01 : Lock on
* If you are not using the remote control, use this mode.
When main power is on/off, external control lock is
released.
[m][ ][Set ID][ ][OK/NG][Data][x]
1111.. OOSSDD SSeelleecctt ((CCoommmmaanndd:: kk ll))
G To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Ack
Data 00 : OSD off 01 : OSD on
[l][ ][Set ID][ ][OK/NG][Data][x]
0099.. TTiinntt ((CCoommmmaanndd:: kk jj))
G To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission
Data Min : 00 to Max : 64
*
Refer to ‘Real data mapping’. See page 102.
[k][j][ ][Set ID][ ][Data][Cr]
Ack
[j][ ][Set ID][ ][OK/NG][Data][x]
G To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE menu.
Transmission
1100.. SShhaarrppnneessss ((CCoommmmaanndd:: kk kk))
Data Min : 00 to Max : 64
*
Refer to ‘Real data mapping’. See page 102.
[k][k][ ][Set ID][ ][Data][Cr]
Ack
[k][ ][Set ID][ ][OK/NG][Data][x]
1155.. BBaallaannccee ((CCoommmmaanndd:: kk tt))
G To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission
Data Min : 00 to Max : 64
*
Refer to ‘Real data mapping’. See page 102.
[k][t][ ][Set ID][ ][Data][Cr]
Ack
[t][ ][Set ID][ ][OK/NG][Data][x]
1133.. TTrreebbllee ((CCoommmmaanndd:: kk rr))
G
To adjust treble.
You can also adjust treble in the AUDIO menu.
No operation at USB input
Transmission
Data Min : 00 to Max : 64
*
Refer to ‘Real data mapping’. See page 102.
[k][r][ ][Set ID][ ][Data][Cr]
Ack
[r][ ][Set ID][ ][OK][Data][x]
1144.. BBaassss ((CCoommmmaanndd:: kk ss))
G To adjust Bass.
You can also adjust bass in the AUDIO menu.
No operation at USB input
Transmission
Data Min : 00 to Max : 64
*
Refer to ‘Real data mapping’. See page 102.
[k][s][ ][Set ID][ ][Data][Cr]
Ack
[s][ ][Set ID][ ][OK][Data][x]
1166.. CCoolloouurr TTeemmppeerraattuurree ((CCoommmmaanndd:: kk uu))
G To adjust colour temperature. You can also adjust
Colour Temperature in the PICTURE menu.
Transmission
Data 00: Medium 01: Cool 02: Warm(not RGB DVI mode)
05:9300K 06:6500K(Only RGB DVI mode)
[k][u][ ][Set ID][ ][Data][Cr]
Ack
[u][ ][Set ID][ ][OK/NG][Data][x]
background
110022
2200.. KKeeyy ((CCoommmmaanndd :: mm cc))
G To send IR remote key code.
Transmission
Data Key code - Refer to page 96.
[m][c][ ][Set ID][ ][Data][Cr]
Ack
[c][ ][Set ID][ ][OK/NG][Data][x]
2211.. CCoonnttrrooll BBaacckklliigghhtt ((CCoommmmaanndd:: mm gg))
G To Control the backlight.
((OOnnllyy AAuuttoo BBrriigghhtt OOffff))
Transmission
Data : Min: 00 to Max: 64 (*transmit by hexadecimal code)
[m][g][ ][Set ID][ ][Data][Cr]
Ack
[g][ ][Set ID][ ][OK/NG][Data][x]
APPENDIX
**
RReeaall ddaattaa mmaappppiinngg
00 : Step 0
A: Step 10 (Set ID 10)
F:Step 15 (Set ID 15)
10 : S t ep 16 (Set ID 16)
64 : Step 100
6E : Step 110
73 : Step 115
74 : S tep 116
C7: Step 199
FE : Step 254
FF : Step 255
1177.. AAuuttoo CCoonnffiigguurree ((CCoommmmaanndd:: jj uu))
G To adjust picture position and minimize image shaking
automatically. It works only in RGB (PC) mode.
Transmission
Data 01: To set
[j][u][ ][Set ID][ ][Data][Cr]
Ack
[u][ ][Set ID][ ][OK/NG][Data][x]
1188.. TTuunnee CCoommmmaanndd ((CCoommmmaanndd:: mm aa))
G Select channel to following physical number.
Transmission
Data 00 : High channel data
Data 01 : Low channel data
ex. No. 47 -> 00 2F (2FH)
No. 394 -> 01 88 (188H),
DTV No. 0 -> Don’t care
Data 02 : 0x00 : ATV, 0x10 : DTV, 0x20 : Radio
Channel data range
Analogue - Min: 00 to Max: 63 (0 to 99)
Digital - Min: 00 to Max: 3E7 (0 to 999)
[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][Cr]
Ack
[a][ ][Set ID][ ][OK/NG][Data][x]
Data Min: 00 to Max: 7DH
1199.. PPrrooggrraammmmee mmeemmoorryy//SSkkiipp ((CCoommmmaanndd:: mm bb))
G To set skip status for the current Programme.
Transmission
Data 00 : Skip
01 : Memory
[m][b][ ][Set ID][ ][Data][Cr]
Ack
[b][ ][Set ID][ ][OK/NG][Data][x]
2222.. IInnppuutt sseelleecctt ((CCoommmmaanndd:: xx bb))
((MMaaiinn PPiiccttuurree IInnppuutt))
G To select input source for main picture.
Transmission
Data Structure
MSB LSB
0
[x][b][ ][Set ID][ ][Data][Cr]
Ack
[b][ ][Set ID][ ][OK/NG][Data][x]
0 0 0 0 0 0 0
External Input Data
0 001 Analogue
0 000 DTV
0 010 AV
0 100 Component
0 110 RGB
1 000 DVI
1 001 HDMI
External Input Input Number
Input Number Data
0 000 Input1
0 010 Input3
0 001 Input2
background
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual(CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL

Specifications

Indexed Terms: Monitor, LCD Monitor

LG Electronics M2362D-PT Questions and Answers

Find answers or ask new question.
Questions and Answers

Related Products

Product LG Electronics W2242PM BF image
W2242PM-BF Lcd Monitors - Wide Screen Monitors - Lg Electronics Australia
2020-12-13 1 docs
Product LG Electronics L1742TE PF image
L1742TE-PF Lcd Monitors - Wide Screen Monitors - Lg Electronics Australia
2020-12-13 1 docs
Product LG Electronics L226WU PF image
L226WU-PF Lcd Monitors - Wide Screen Monitors - Lg Electronics Australia
2020-12-13 1 docs
Product LG Electronics W2284F PF image
W2284F-PF Lcd Monitors - Wide Screen Monitors - Lg Electronics Australia
2020-12-13 1 docs
Product LG Electronics W1952TE PF image
W1952TE-PF Lcd Monitors - Wide Screen Monitors - Lg Electronics Australia
2020-12-13 1 docs
Product LG Electronics E2711T BN image
E2711T-BN Lcd Monitors - Wide Screen Monitors - Lg Electronics Australia
2020-12-13 1 docs
