User Manual Volvo 2021 XC90 Hybrid Recharge Plug-in Hybrid Cars

• Owner's manual - (English)

User Manual Volvo XC90 Recharge

Table of Contents

• Owner information
• Owner's manual in centre display
• Navigate in the owner's manual in the centre display
• Owner's Manual in mobile devices
• Volvo Cars support site
• Reading the owner's manual
• The owner's manual and the envi-ronment
• Volvo ID
• Creating and registering a Volvo ID
• Drive-E - cleaner driving pleasure
• IntelliSafe – driver support and safety
• Sensus - online connectivity and entertainment
• Software updates
• Recording data
• Terms & Conditions for Services
• Customer Privacy Policy
• Important information on acces-sories and auxiliary equipment
• Installation of accessories
• Connection of equipment to the car's diagnostic socket
• Showing the car's identification number

SAFETY

Safety during pregnancy

• It is important that the seatbelt is used cor- rectly during pregnancy, and that pregnant drivers adjust their seating position.
• The diagonal section should wrap over the shoulder then be routed between the breasts and to the side of the abdomen.
• The lap section should lay flat over the thighs and as low as possible under the abdomen. – It must never be allowed to ride upward. Remove the slack from the seatbelt and ensure that it fits as close to the body as pos- sible. In addition, check that there are no twists in the seatbelt.

Starting and moving the car after

Starting the car after safety mode

1. Check the general damage situation of the car and whether any fuel has been leaking. There must be no smell of fuel either. If there is only minor damage and a check has revealed no fuel leaks, starting can be attempted.
2. Switch off the car.
3. Then try to start the car. > The car's electronics carry out a sys- tems check and then try to resume nor- mal status. The driver display shows the message Car start System check, wait during this time. This can take up to one minute.
4. Then try to start the car again when the message Car start System check, wait is no longer shown in the driver's display.

Moving the car after safety mode

1. If the driver display shows the message Normal mode The car is now in normal mode after a start attempt, the car can be carefully moved if standing in a dangerous position.
2. Do not move the car further than neces- sary.

WHIPS and child seats

• The protection provided by the car to children seated in a child seat or on a booster cushion is not diminished by WHIPS.

Seatbelts

• Heavy braking can have serious consequen- ces if the seatbelts are not used.
• It is important that the seatbelt lies against the body so it can provide good protection. Do not lean the backrest too far back. The seatbelt is designed to protect in a normal seating posi- tion.

Putting on and taking off seatbelts

Make sure that all passengers have fastened their seatbelts before starting to drive.

Putting on seatbelts

1. Pull out the seatbelt slowly and make sure it is not twisted or damaged.

• Make sure that the seatbelt is correctly fit- ted in the belt guide available for the sec- ond seat row's centre seat1

2. Lock the belt by inserting the locking tab in the intended buckle.

• > A loud "click" indicates that the belt has locked.

3. In the front seats and in the outer seats in the second seat row the seatbelt can be adjusted for height.

• Press together the seat mounting and move the seatbelt up or down.
• Position the belt as high as possible with- out it chafing against your throat.
• The seatbelt must pass over the shoulder (not down over the arm).

4. Tension the hip strap over the lap by pull- ing the diagonal shoulder belt up towards the shoulder.

• The hip strap must be positioned low down (not over the abdomen).

Taking off seatbelts

1. Press the red button on the seatbelt buckle and then let the belt retract.
2. If the seatbelt does not retract fully, feed it in by hand so that it does not hang loose. Make sure that the seatbelt is correctly fit- ted in the belt guide available for the sec- ond seat row's centre seat1

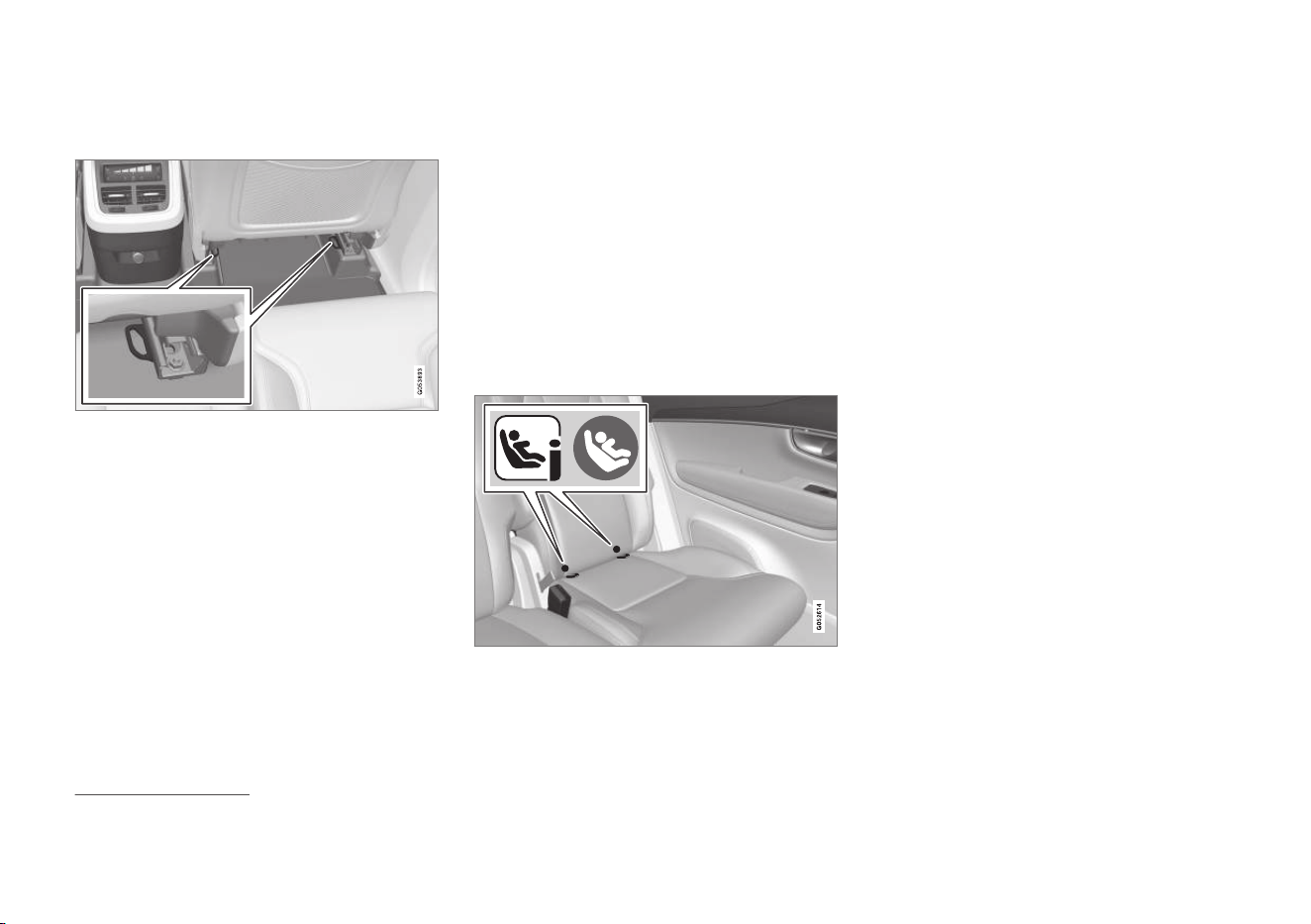

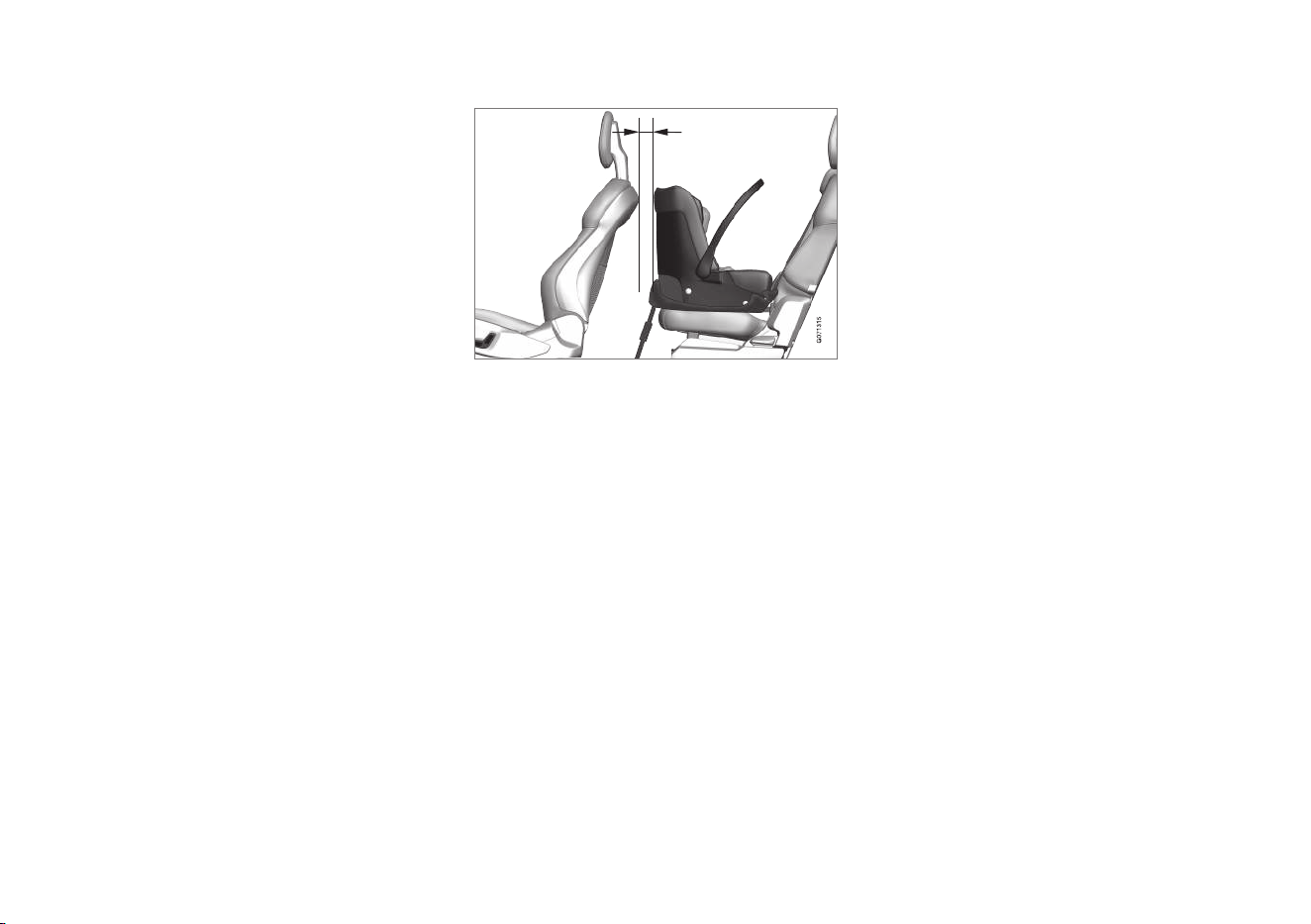

Child safety

• Children must always sit secure while travel- ling in the car.
• Volvo has child safety equipment (child seats and attachment devices) which is designed for fitting in this particular car. Using Volvo's child safety equipment, you obtain good conditions for a child to travel safely in the car. In addi- tion, the child safety equipment fits in well and is simple to use.
• The equipment that should be used is selected taking account of the weight and size of the child.
• Volvo recommends that children travel in a rear-facing child seat until as late an age as possible, at least until 4 years of age, and then in a front-facing child seat until the child is cm (4 feet 7 inches) tall.

Charging cable handle and charging input socket

Charging status is indicated in three ways:

• Indicators on the charging cable's control unit.
• Indicator lamp in the car's charging input socket.
• Illustration and text in the driver display.

MAINTENANCE AND SERVICE

Cleaning the interior

Use cleaning agents and car care products recommended by Volvo. Clean regularly, and deal with stains straight away. Vacuuming is important prior to using cleaning agents.

• Certain items of coloured clothing (e.g. dark jeans and suede garments) may stain the upholstery. If this occurs, it is important to clean and treat these parts of the upholstery as soon as pos- sible.
• Never use strong solvents such as washer fluid, pure petrol or white spirit or concentrated alcohol to clean the interior, since this may damage the upholstery as well as other interior materials.
• Never spray the cleaning agent directly onto components that have electrical buttons and controls. Wipe them instead using a moistened cloth con- taining the cleaning agent.
• Sharp objects and Velcro may damage the fabric upholstery.
• Only use cleaning agents on the type of material for which they were intended.

Cleaning the centre display

Dirt, stains and grease from fingers can affect the centre display's performance and reada- bility. Clean the screen frequently with a microfibre cloth.

1. Turn off the centre display with a long press on the home button.
2. Wipe the screen with the microfibre cloth supplied or use another microfibre cloth of equivalent quality. Wipe the screen with a clean and dry microfibre cloth using small circular movements. If necessary, lightly moisten the microfibre cloth with clean water.
3. Activate the display with a short press on the home button.

Cleaning fabric upholstery and headlining

It is recommended to use a fabric cleaning agent when cleaning textile fabric. Clean if necessary, and treat stains straight away.

Cleaning fabric upholstery

1. Start by vacuum cleaning the upholstery.
2. Follow the instructions for the fabric cleaning agent.
3. When cleaning fabric, a spray extraction cleaner is recommended for suction of the washing fluid and subsequent water rins- ing.

Cleaning the headlining

1. Brush the headlining carefully using a soft brush.
2. Follow the instructions for the fabric cleaning agent.
3. Then use a soft and lint-free cloth to wipe the headlining.

Cleaning the seatbelts

• Use cleaning agents and car care products recommended by Volvo. Clean regularly, and deal with stains straight away. Vacuuming is important prior to using cleaning agents.
• Use water and a synthetic detergent. A special textile cleaning agent is available from Volvo retailers. Ensure that the seatbelt is dry before allowing it to retract.

Cleaning textile floor and entrance mats

It is recommended to use a fabric cleaning agent when cleaning mats. Clean regularly, and deal with stains straight away. Vacuum- ing is important prior to using cleaning agents.

Remove inlaid carpets for separate cleaning of the floor carpet and the inlaid carpets. Each inlay mat is secured with pins.

1. Remove the inlay mat by taking hold of the inlay mat at each pin and lifting the mat straight up.
2. Use a vacuum cleaner to remove dust and dirt.
