LG Electronics RC275-M User Manual

RC275-M_NA1ULZS_ENG

Installation and Operating Guide | Warranty

Model Number | XBR716 | DVD Recorder/Video Cassette Recorder

Call us and we will

guide you through

your first recording,

for free.

1-800-243-0000

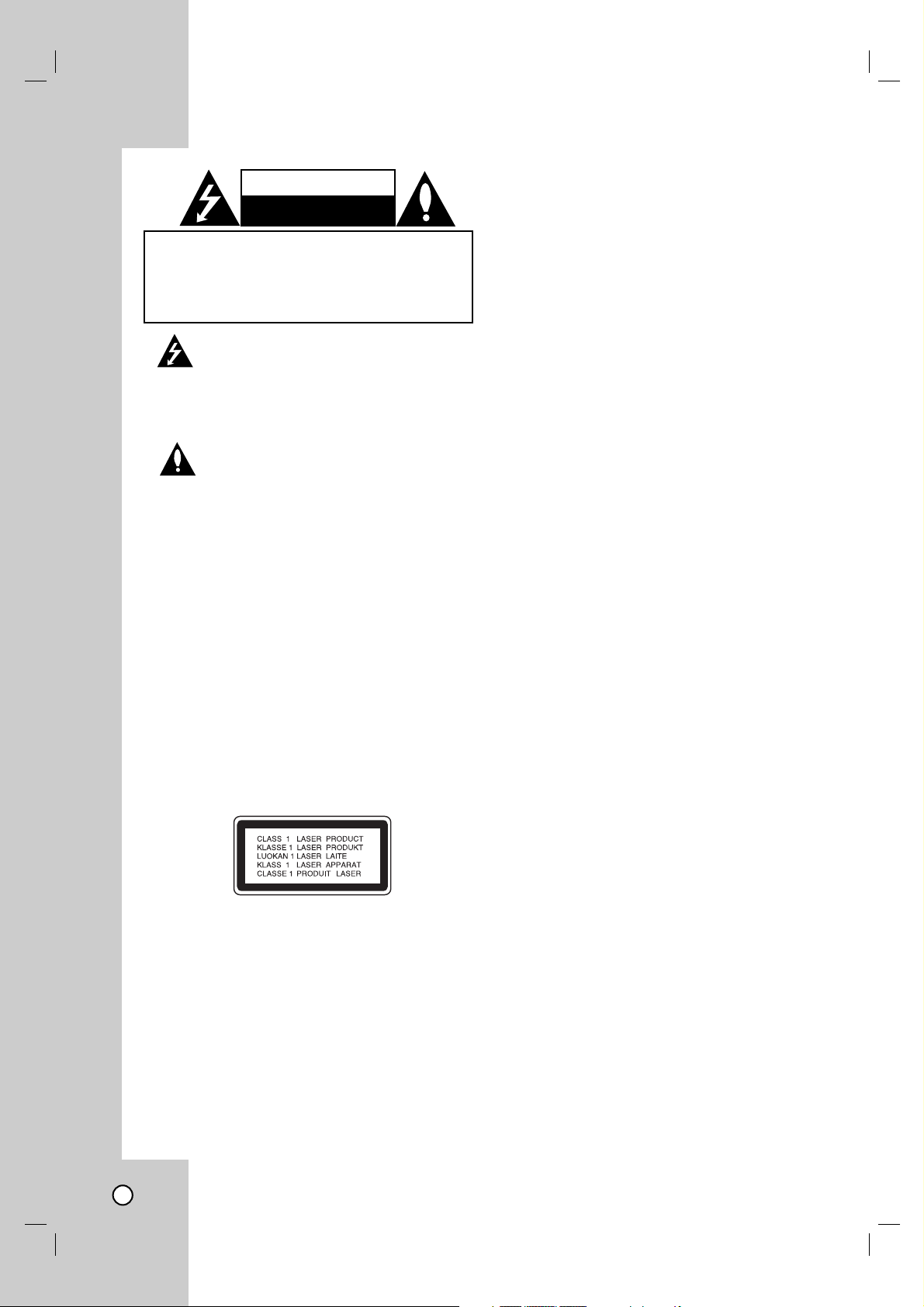

This lightning flash with arrowhead symbol within

an equilateral triangle is intended to alert the

user to the presence of uninsulated dangerous

voltage within the product’s enclosure that may

be of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral trian-

gle is intended to alert the user to the presence

of important operating and maintenance (servic-

ing) instructions in the literature accompanying

the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR

MOISTURE.

WARNING: Do not install this equipment in a confined

space such as a book case or similar unit.

CAUTION:

Do not block any ventilation openings. Install in accordance

with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventila-

tion and to ensure reliable operation of the product and to

protect it from over heating.

The openings should be never be blocked by placing the

product on a bed, sofa, rug or other similar surface.This

product should not be placed in a built-in installation such as

a bookcase or rack unless proper ventilation is provided or

the manufacturer's instruction have been adhered to.

CAUTION: CLASS 3B VISIBLE AND INVISIBLE LASER

RADIATION WHEN OPEN AND INTERLOCKS DEFEATED

AVOID EXPOSURE TO THE BEAM.

CAUTION:

This product employs a Laser System.

To ensure proper use of this product, please read this

owner’s manual carefully and retain it for future reference.

Should the unit require maintenance, contact an authorized

service center.

Performing controls, adjustments, or carrying out proce-

dures other than those specified herein may result in haz-

ardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open

the enclosure. Visible laser radiation when open. DO NOT

STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water

(dripping or splashing) and no objects filled with liquids,

such as vases, should be placed on the apparatus.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a

dedicated circuit;

That is, a single outlet circuit which powers only that appli-

ance and has no additional outlets or branch circuits. Check

the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose

or damaged wall outlets, extension cords, frayed power

cords, or damaged or cracked wire insulation are danger-

ous. Any of these conditions could result in electric shock or

fire. Periodically examine the cord of your appliance, and if

its appearance indicates damage or deterioration, unplug it,

discontinue use of the appliance, and have the cord

replaced with an exact replacement part by an authorized

servicer.

Protect the power cord from physical or mechanical abuse,

such as being twisted, kinked, pinched, closed in a door, or

walked upon. Pay particular attention to plugs, wall outlets,

and the point where the cord exits the appliance.

To disconnect power from the mains, pull out the mains cord

plug. When installing the product, ensure that the plug is

easily accessible.

FCC WARNING: This equipment may generate or use radio

frequency energy. Changes or modifications to this equipment

may cause harmful interference unless the modifications are

expressly approved in the instruction manual. The user could

lose the authority to operate this equipment if an unauthorized

change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules.

These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio com-

munications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

FCC COMPLIANCE: The responsible party for this prod-

uct’s compliance is:

LG Electronics U.S.A., Inc.,1000 Sylvan Avenue,

Englewood Cliffs, NJ.

Phone: 1-201-816-2000.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL

1. Read these instructions. - All these safety and

operating instructions should be read before the

product is operated.

2. Keep these instructions. - The safety, operating

and use instructions should be retained for future

reference.

3. Heed all warnings. - All warnings on the product

and in the operating instructions should be

adhered to.

4. Follow all instructions. - All operating and use

instructions should be followed.

5. Do not use this apparatus near water. – For

example: near a bath tub, wash bowl, kitchen sink,

laundry tub, in a wet basement; or near a swim-

ming pool; and other areas located near water.

6. Clean only with dry cloth. – Unplug this product

from the wall outlet before cleaning. Do not use

liquid cleaners.

Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided

for ventilation and to ensure reliable operation of

the product and to protect it from over-heating.

The openings should never be blocked by placing

the product on a bed, sofa, rug or other similar

surface. This product should not be placed in a

built-in installation such as a bookcase or rack

unless proper ventilation is provided or the manu-

facturer’s instructions have been adhered to.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other appa-

ratus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polar-

ized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A

grounding type plug has two blades and a third

grounding prong. The wide blade or the third

prong are provided for your safety. If the pro-

vided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete

outlet.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

11. Only use attachments/accessories specified

by the manufacturer.

12. Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or

sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods of

time.

14.

Refer all servicing to qualified service person-

nel. Servicing is required when the apparatus

has been damaged in any way, such as power-

supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or

has been dropped.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION:

PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S

MANUAL. AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE

REFERENCE.

This product has been designed and manufactured to assure personal safety. Improper use can result in elec-

tric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the follow-

ing procedures for installation, use, and servicing.

This product does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

INTRODUCTION

About the Symbol Display . . . . . . . . . . . . .5

Symbol Used in this Manual . . . . . . . . . . . . . .5

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . .5

Moisture Condensation . . . . . . . . . . . . . . . . . .5

Recordable and Playable Discs . . . . . . . . . . .6

Recommended recordable DVD discs . . . . . .6

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . .7

Regional Code . . . . . . . . . . . . . . . . . . . . . . . . .7

About the Remote Control . . . . . . . . . . . . . . .7

Restrictions on video recording . . . . . . . . . . .8

What is ‘CPRM’? . . . . . . . . . . . . . . . . . . . . . . .8

Notice for Progressive Scan Use . . . . . . . . . .8

Recording time and picture quality . . . . . . . .8

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Remote Control . . . . . . . . . . . . . . . . . . . . . . .10

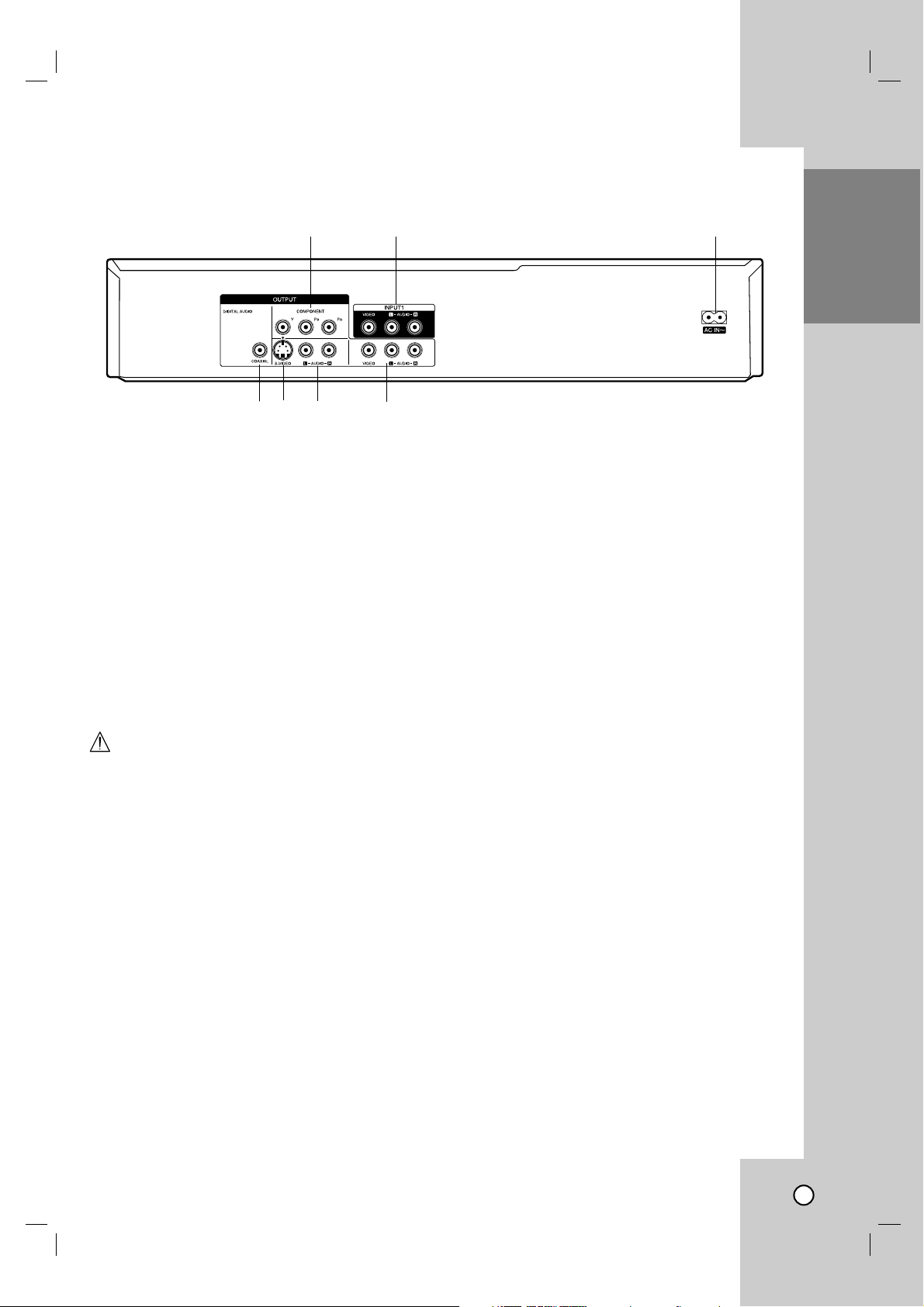

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .11

HOOKUP AND SETTINGS

Connections to your TV . . . . . . . . . . . . . . . .12

Connection to an Amplifier . . . . . . . . . . . . . .13

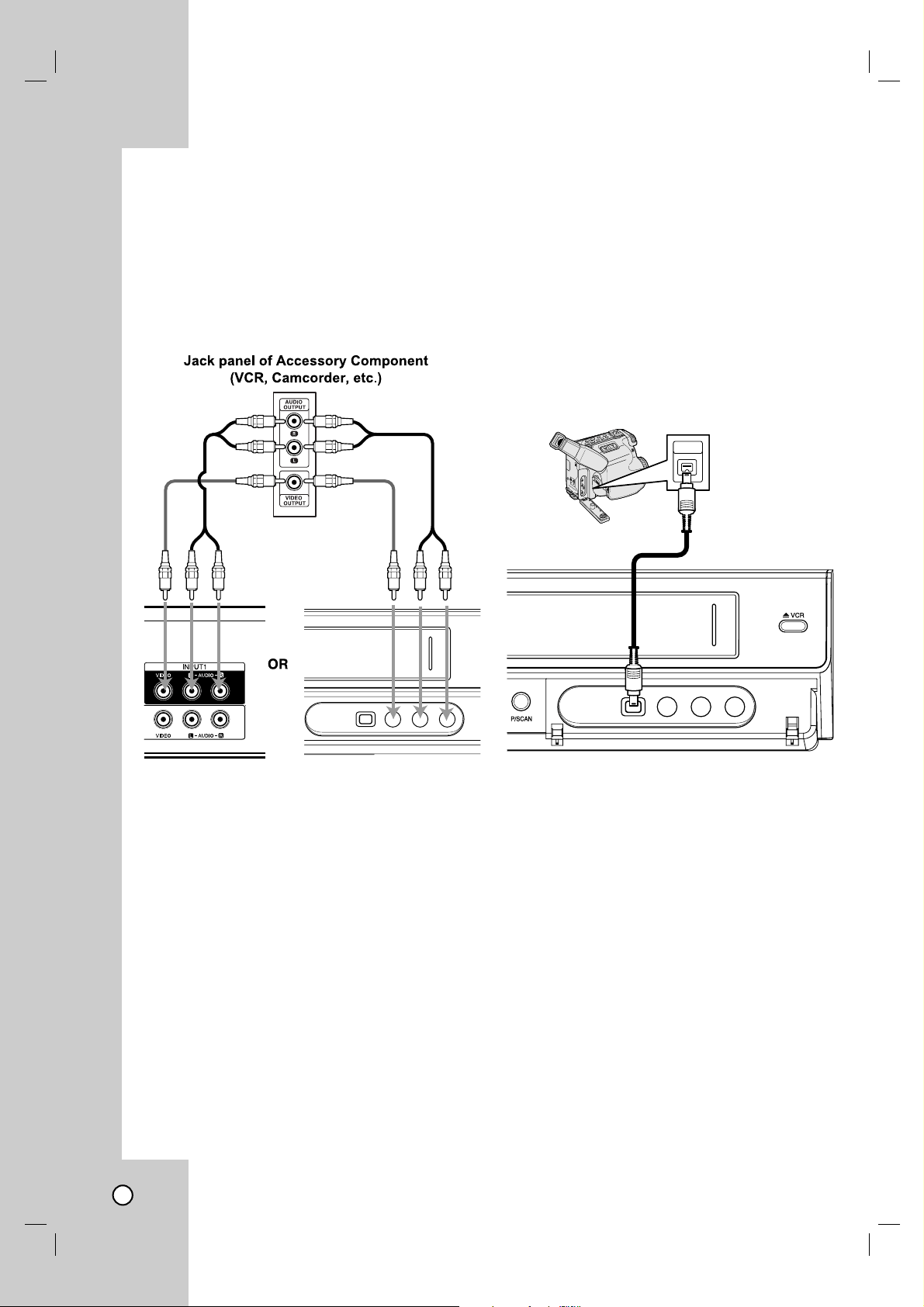

Accessory Audio/Video (A/V)

Connections to Recorder . . . . . . . . . . . . . . .14

Connecting a Digital Camcorder . . . . . . . . . .14

Initial Setup Wizard . . . . . . . . . . . . . . . . . . . .15

Using the Home Menu . . . . . . . . . . . . . . . . . .15

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . .16

General Settings . . . . . . . . . . . . . . . . . . . . . .16

Language Settings . . . . . . . . . . . . . . . . . . . .17

Audio Settings . . . . . . . . . . . . . . . . . . . . . . . .17

Lock (Parental Control) Settings . . . . . . . . .18

Recording Settings . . . . . . . . . . . . . . . . . . . .19

Disc Settings . . . . . . . . . . . . . . . . . . . . . .19-20

General Explanation of On-Screen Display .21

Displaying Information While Watching

AV input source . . . . . . . . . . . . . . . . . . . . . .21

Displaying Disc Information on-screen . . . . .21

PLAYBACK

Playing a Tape . . . . . . . . . . . . . . . . . . . . . . . .22

Playing a DVD . . . . . . . . . . . . . . . . . . . . . . . .22

VCR Playback Options . . . . . . . . . . . . . . . . .23

DVD Playback Features . . . . . . . . . . . . . .24-25

Special Playback Options . . . . . . . . . . . . . . .26

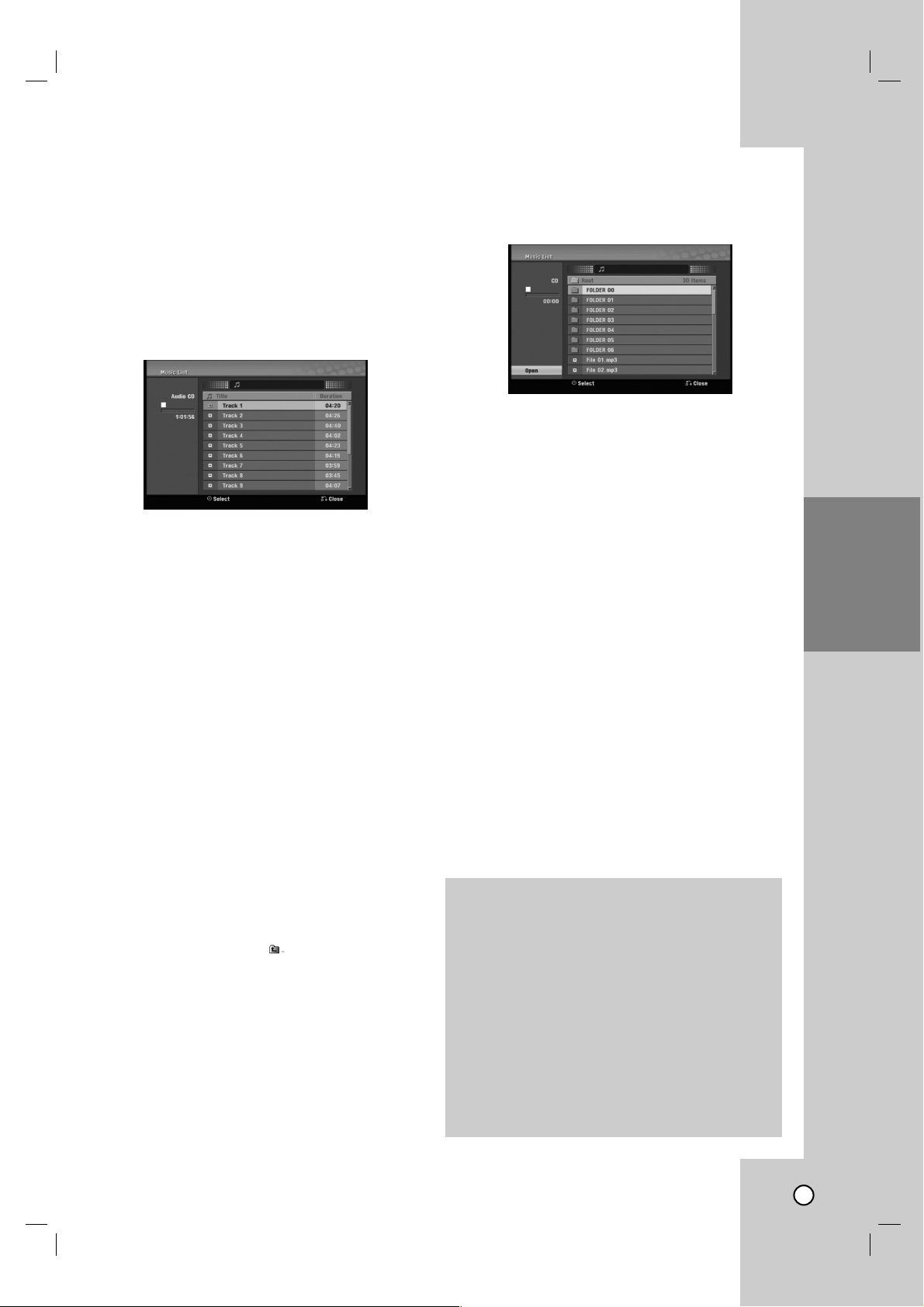

Playing an Audio CD or MP3/WMA files

. . . .27

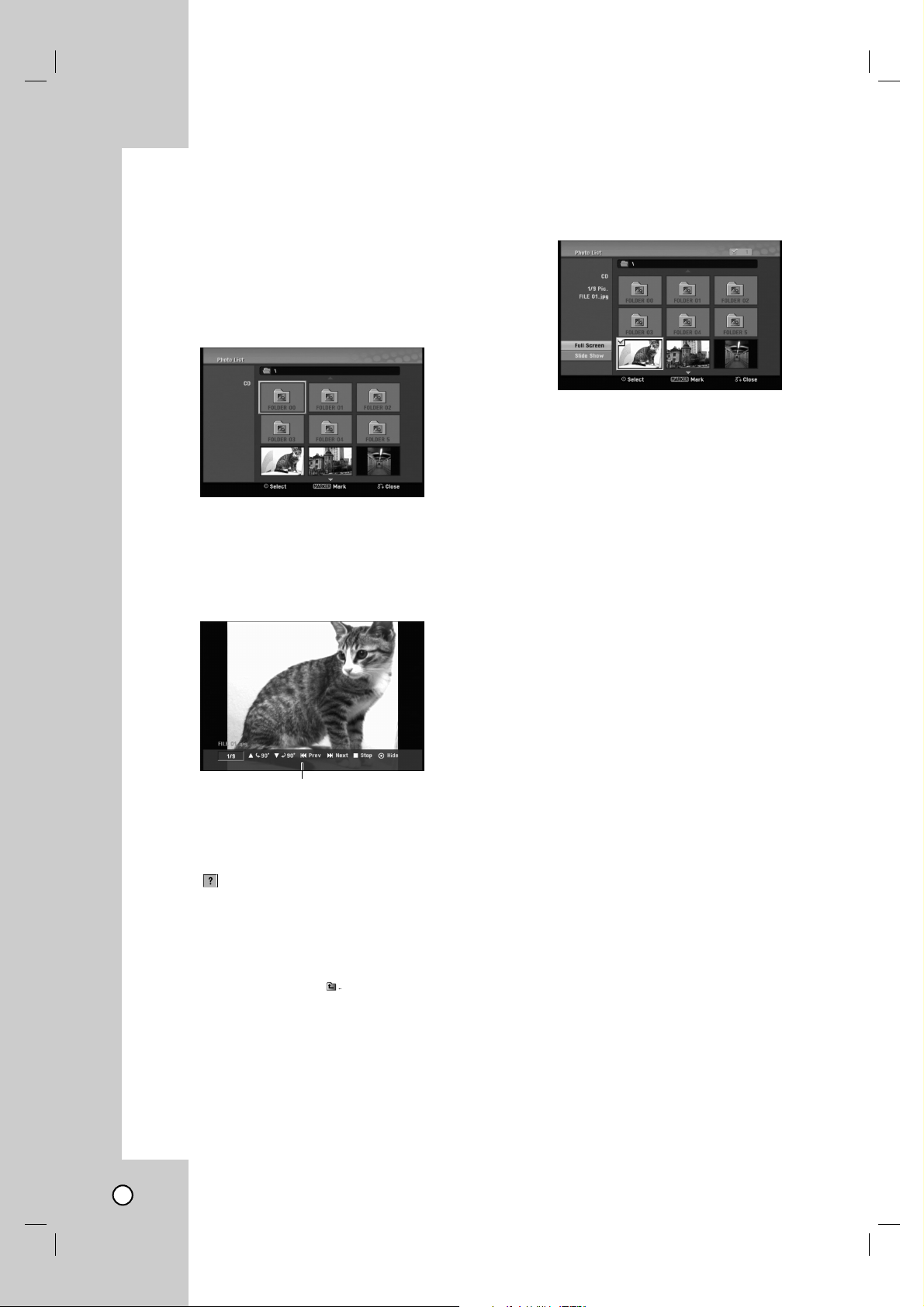

Viewing a JPEG files . . . . . . . . . . . . . . . .28-29

RECORDING

About DVD recording . . . . . . . . . . . . . . . . . .30

Notes for recording . . . . . . . . . . . . . . . . . . . .30

Recording from External Components . . . . .31

Instant Timer Recording . . . . . . . . . . . . . . . .31

Simultaneous Play and Record . . . . . . . . . . .31

Timer Recording . . . . . . . . . . . . . . . . . . . . . .32

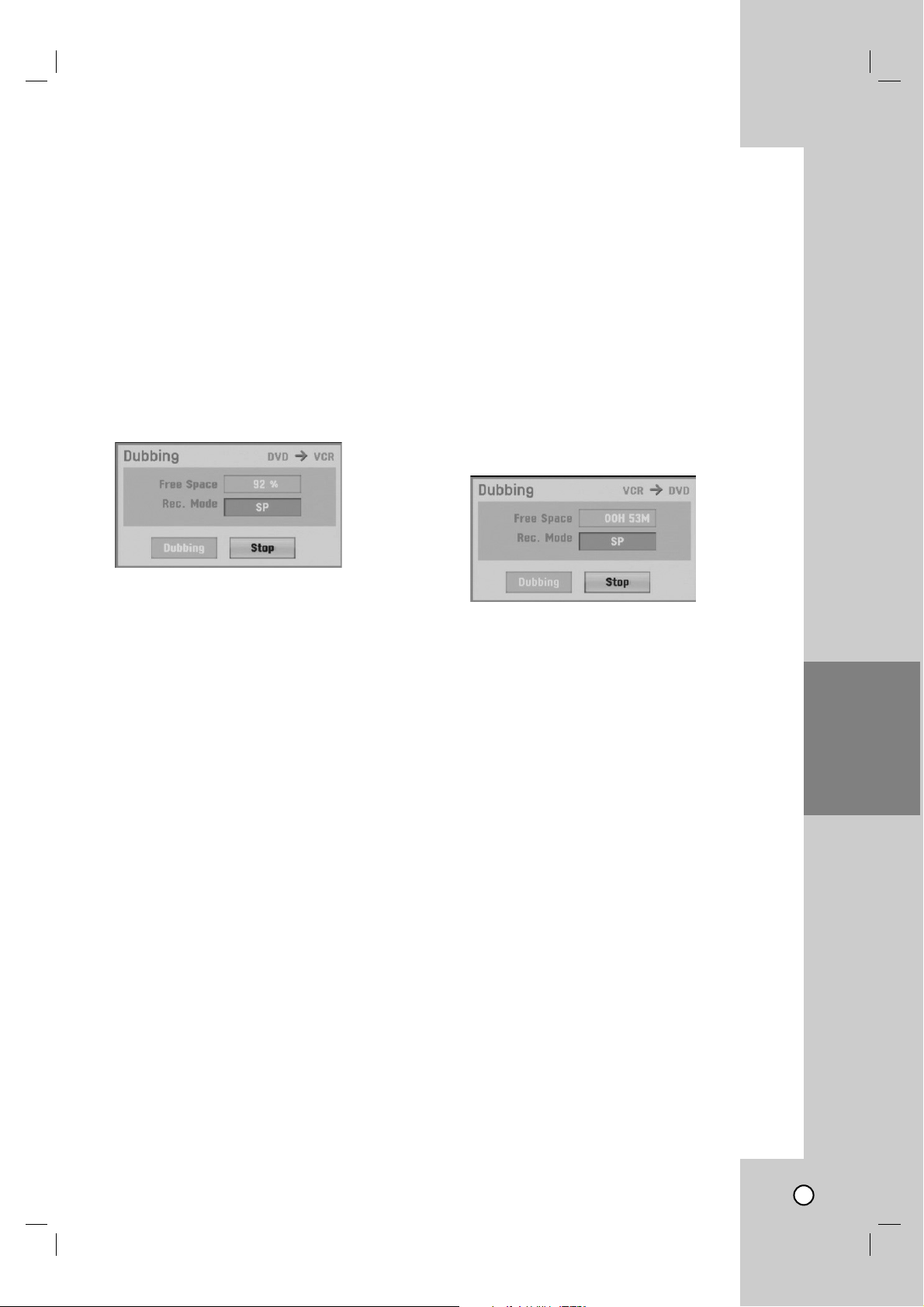

Dubbing from DVD to VCR . . . . . . . . . . . . . .33

Dubbing from VCR to DVD . . . . . . . . . . . . . .33

Recording from DV Input . . . . . . . . . . . . . . .34

EDITING

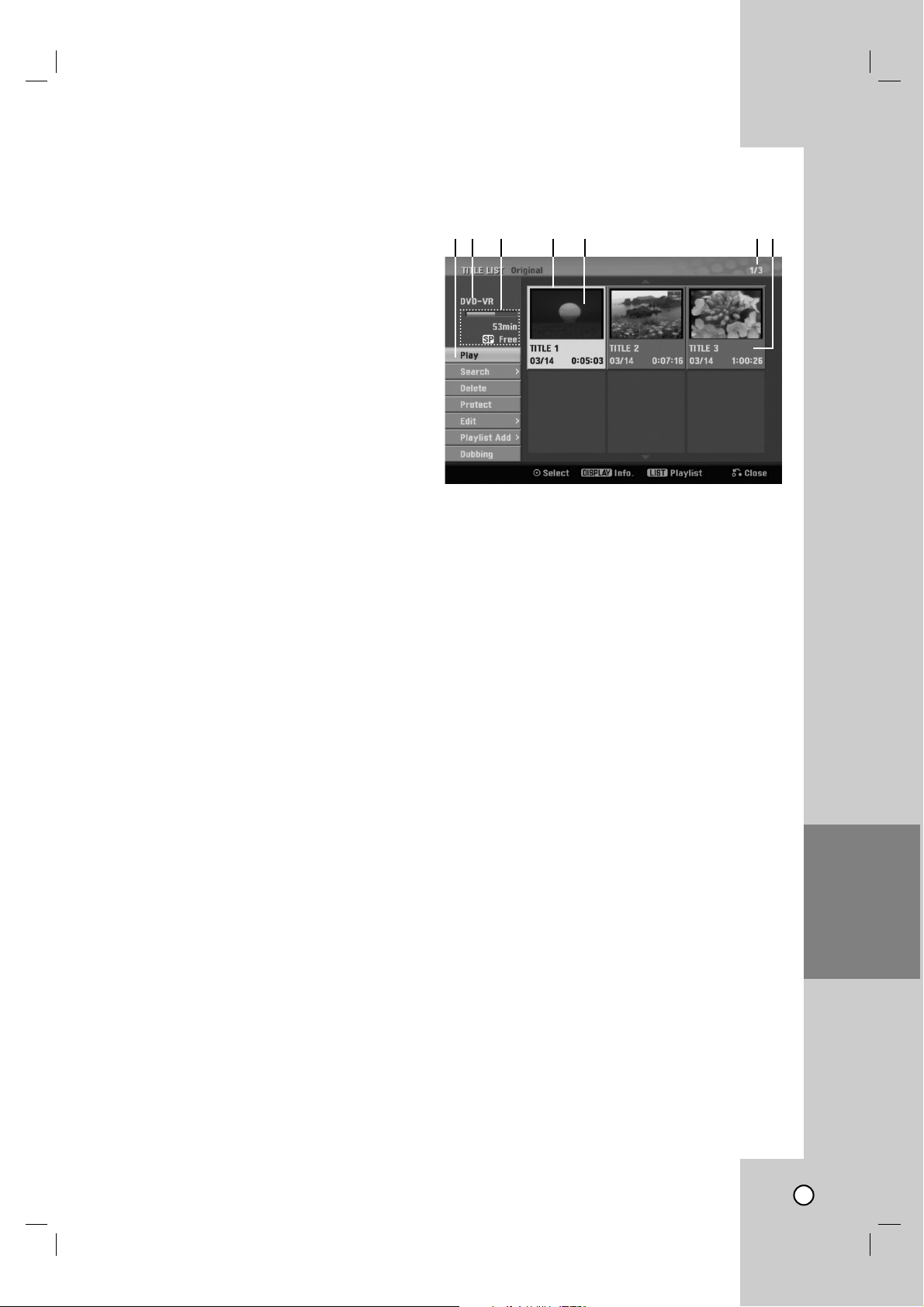

Title List and Chapter List Menu Overview .35

VR Mode: Original and Playlist Editing . . . .36

Adding Chapter Markers . . . . . . . . . . . . . . . .36

Changing Title Thumbnails . . . . . . . . . . . . . .36

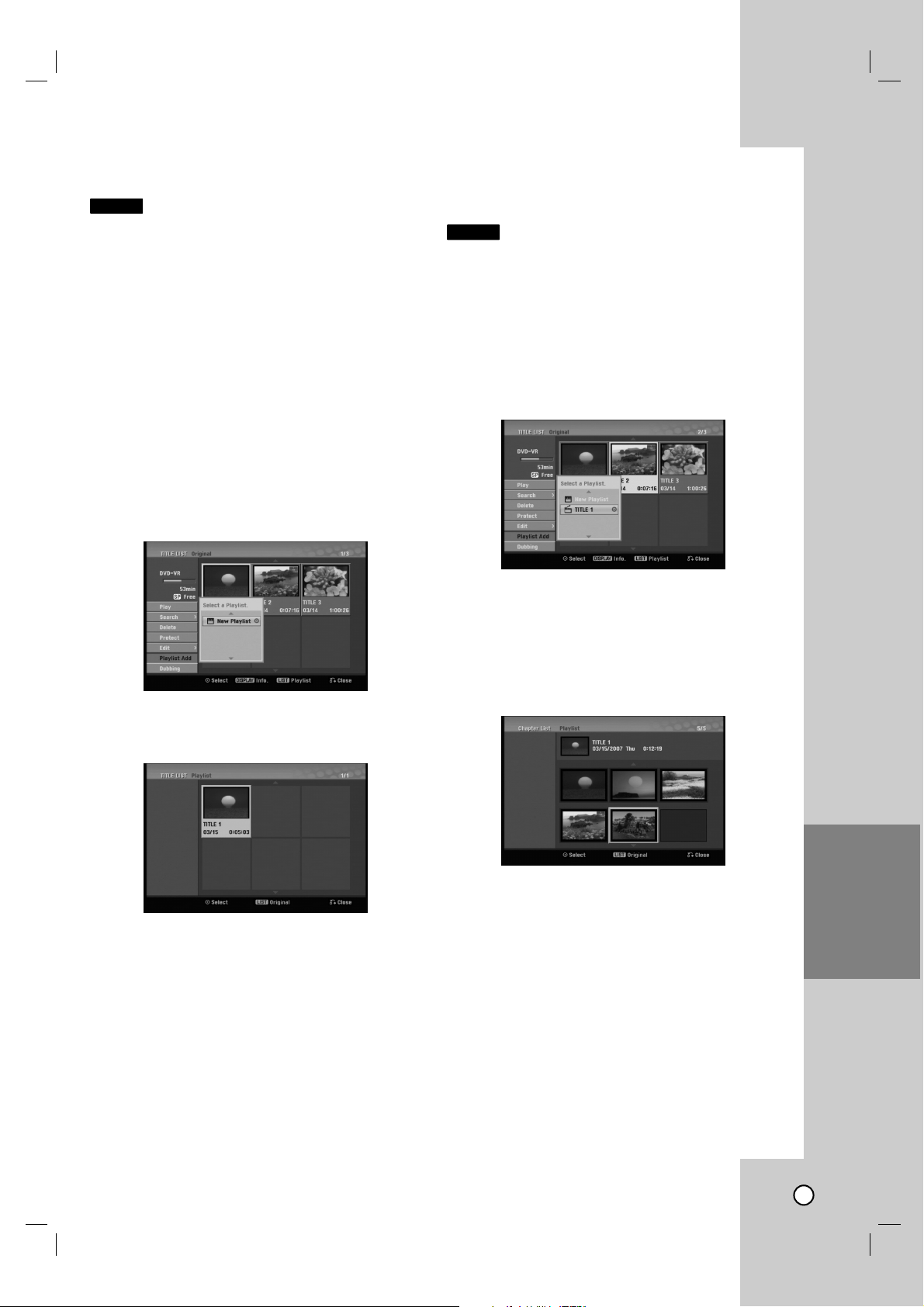

Making a New Playlist . . . . . . . . . . . . . . . . . .37

Adding Additional Title/Chapters to the

Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

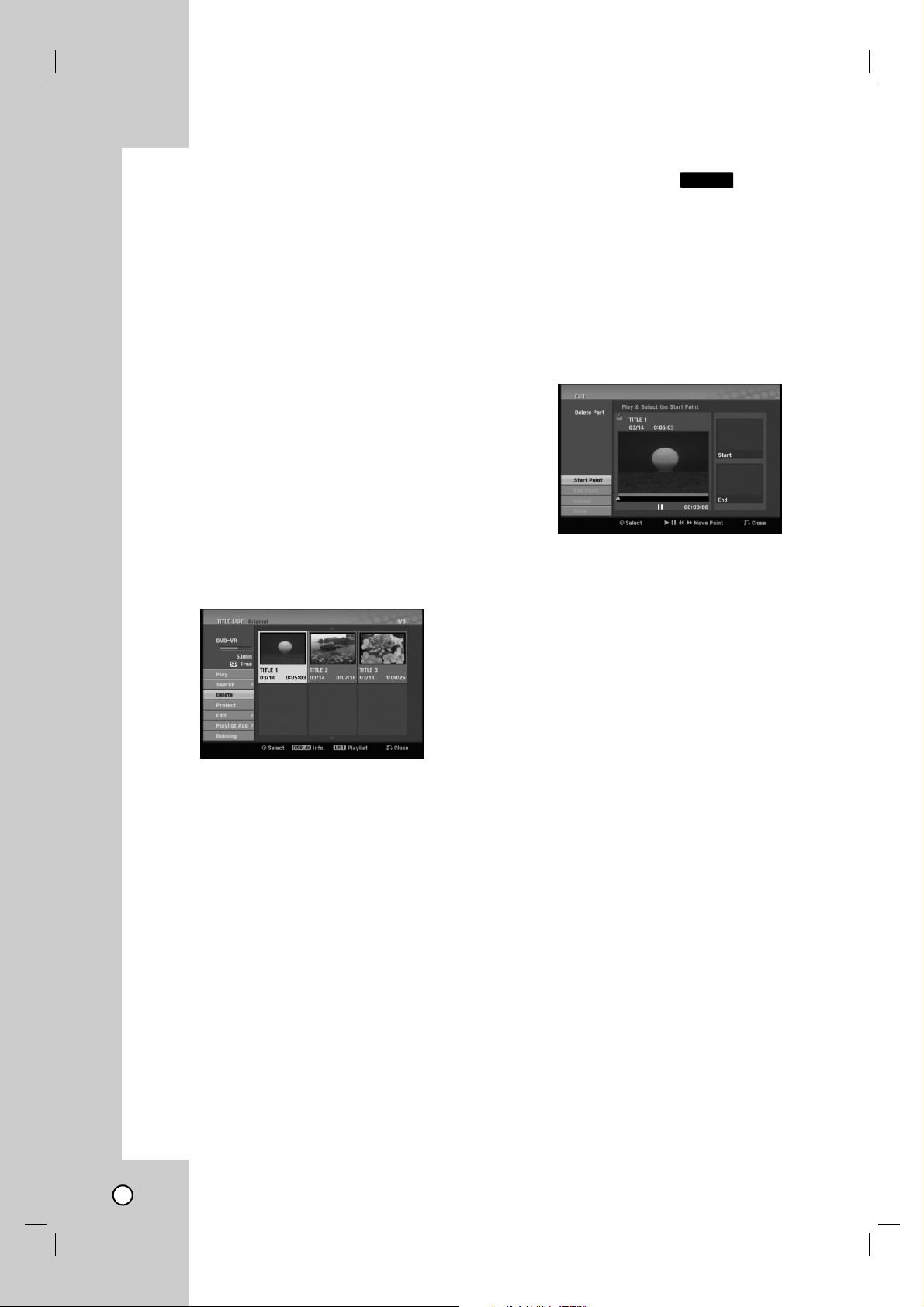

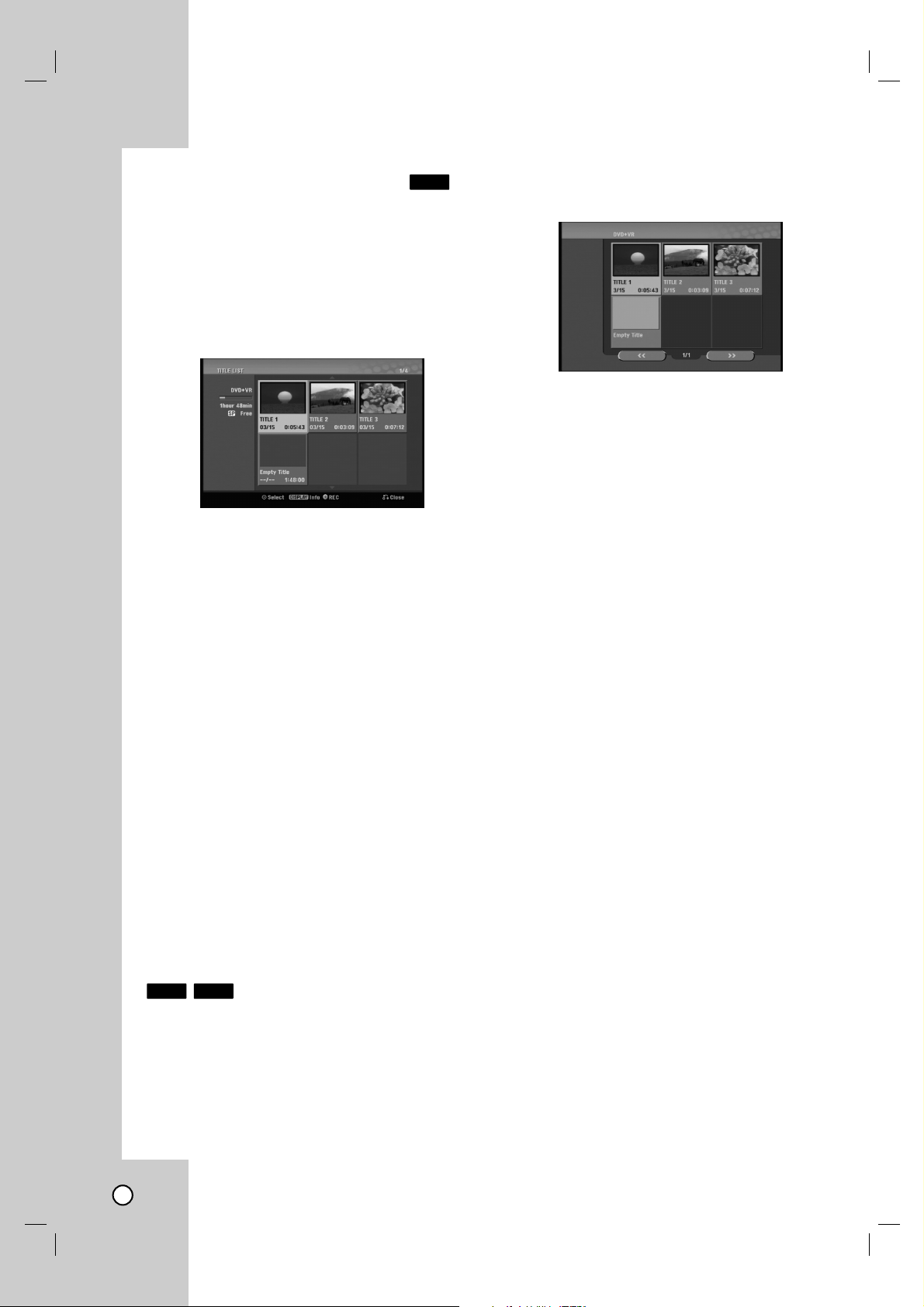

Deleting an Original or Playlist Title/

Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Deleting a Part . . . . . . . . . . . . . . . . . . . . . . . .38

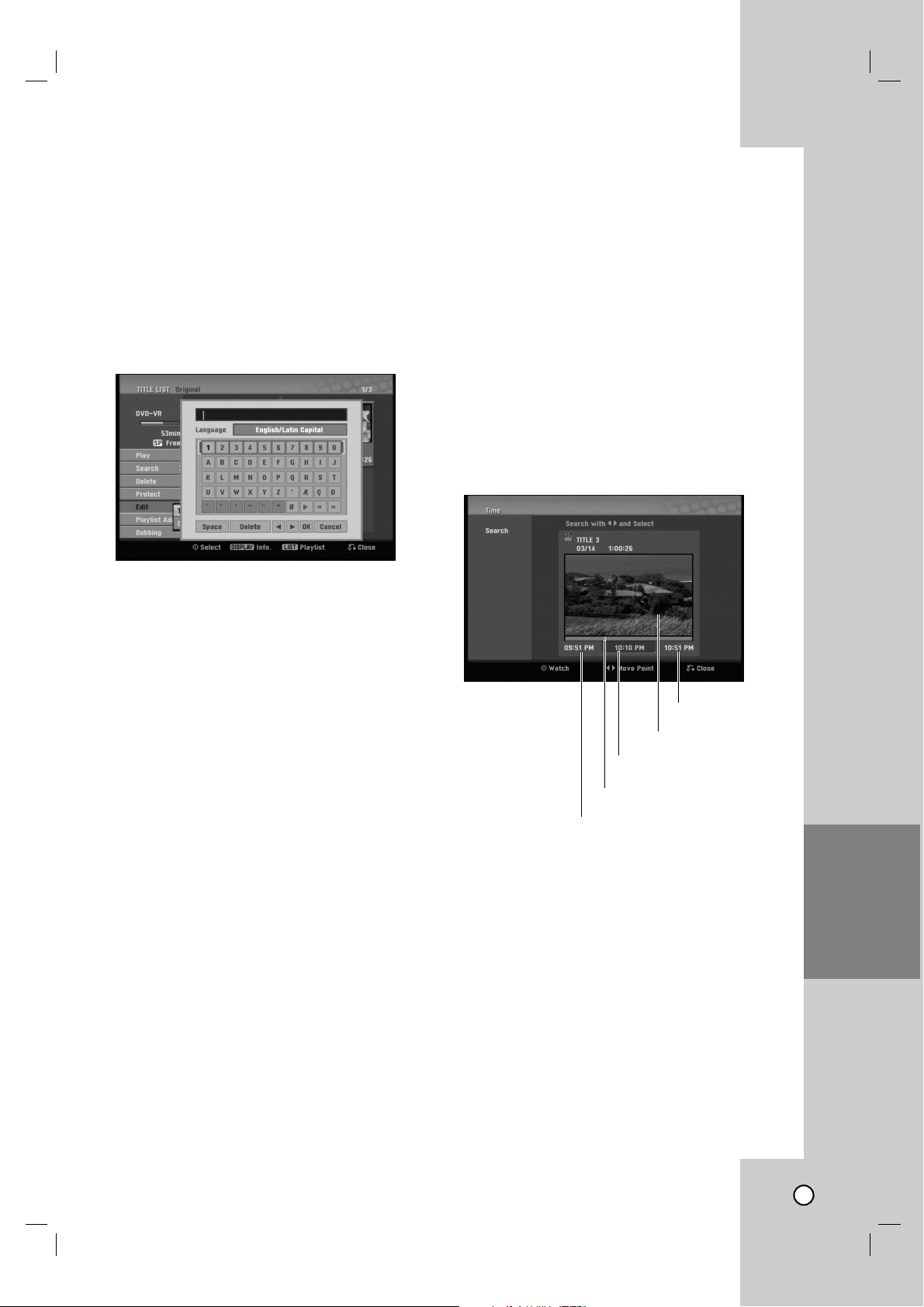

Naming a Title . . . . . . . . . . . . . . . . . . . . . . . .39

Time Search . . . . . . . . . . . . . . . . . . . . . . . . . .39

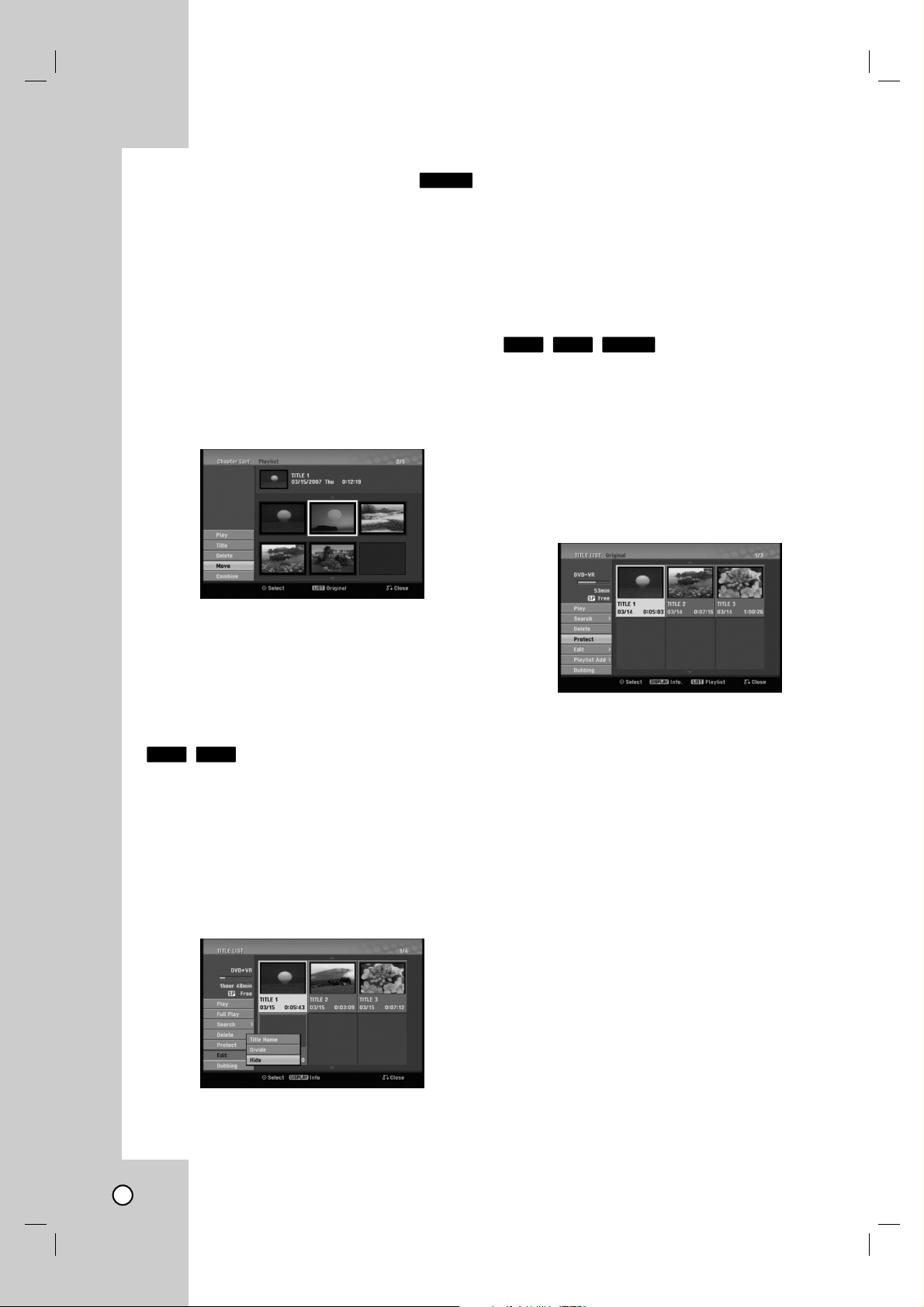

Moving a Playlist Chapter . . . . . . . . . . . . . . .40

Hide a Chapter/Title . . . . . . . . . . . . . . . . . . . .40

Protect a Title . . . . . . . . . . . . . . . . . . . . . . . .40

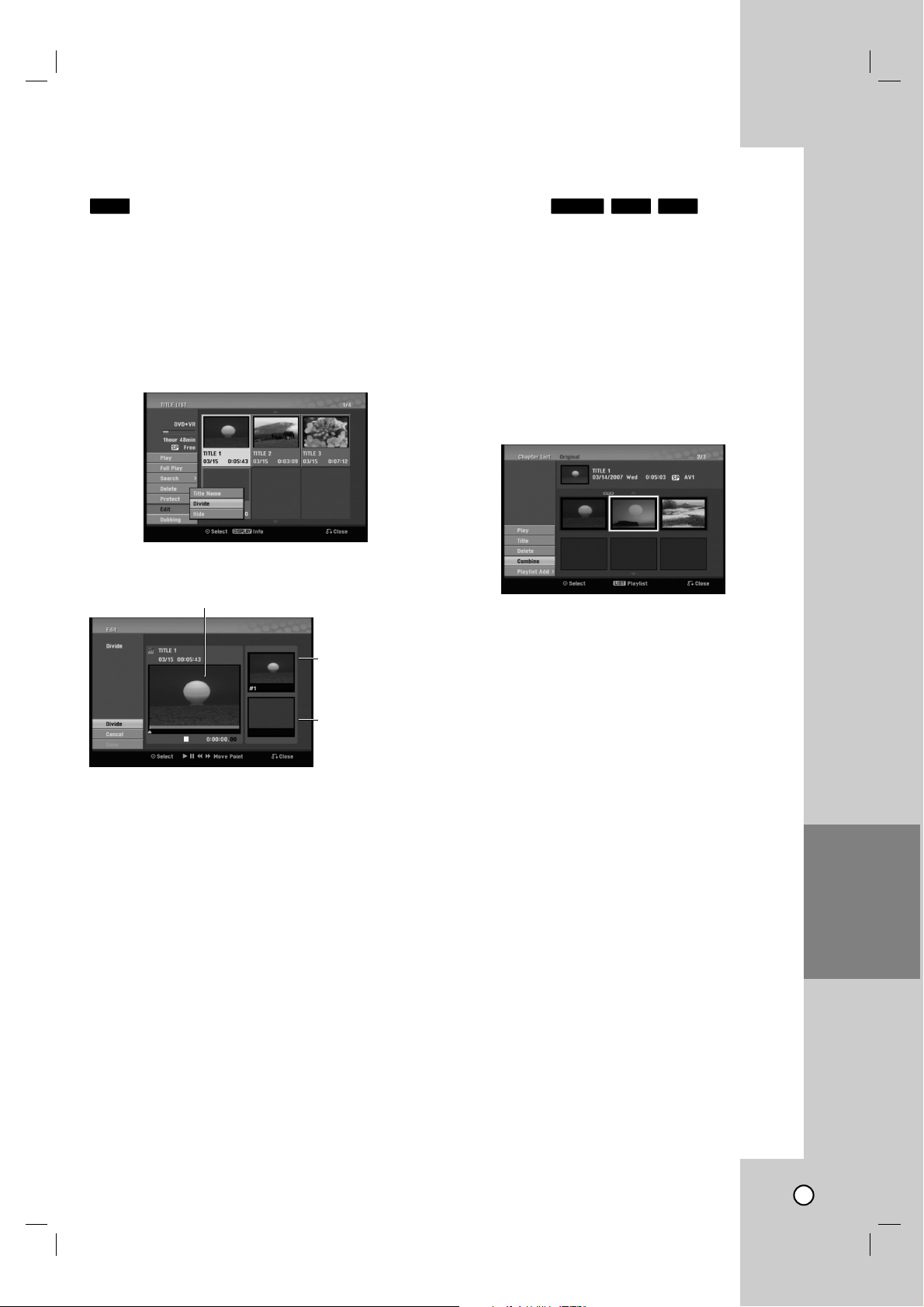

Divide One Titles Into Two . . . . . . . . . . . . . .41

Combining Two Chapters Into One . . . . . . . .41

Overwriting Recording . . . . . . . . . . . . . . . . .42

Viewing Title List menu displayed on other

DVD Recorders or Players . . . . . . . . . . . . . .42

Playing Your Recordings on Other DVD

Players (Finalizing a Disc) . . . . . . . . . . . . . . .42

REFERENCE

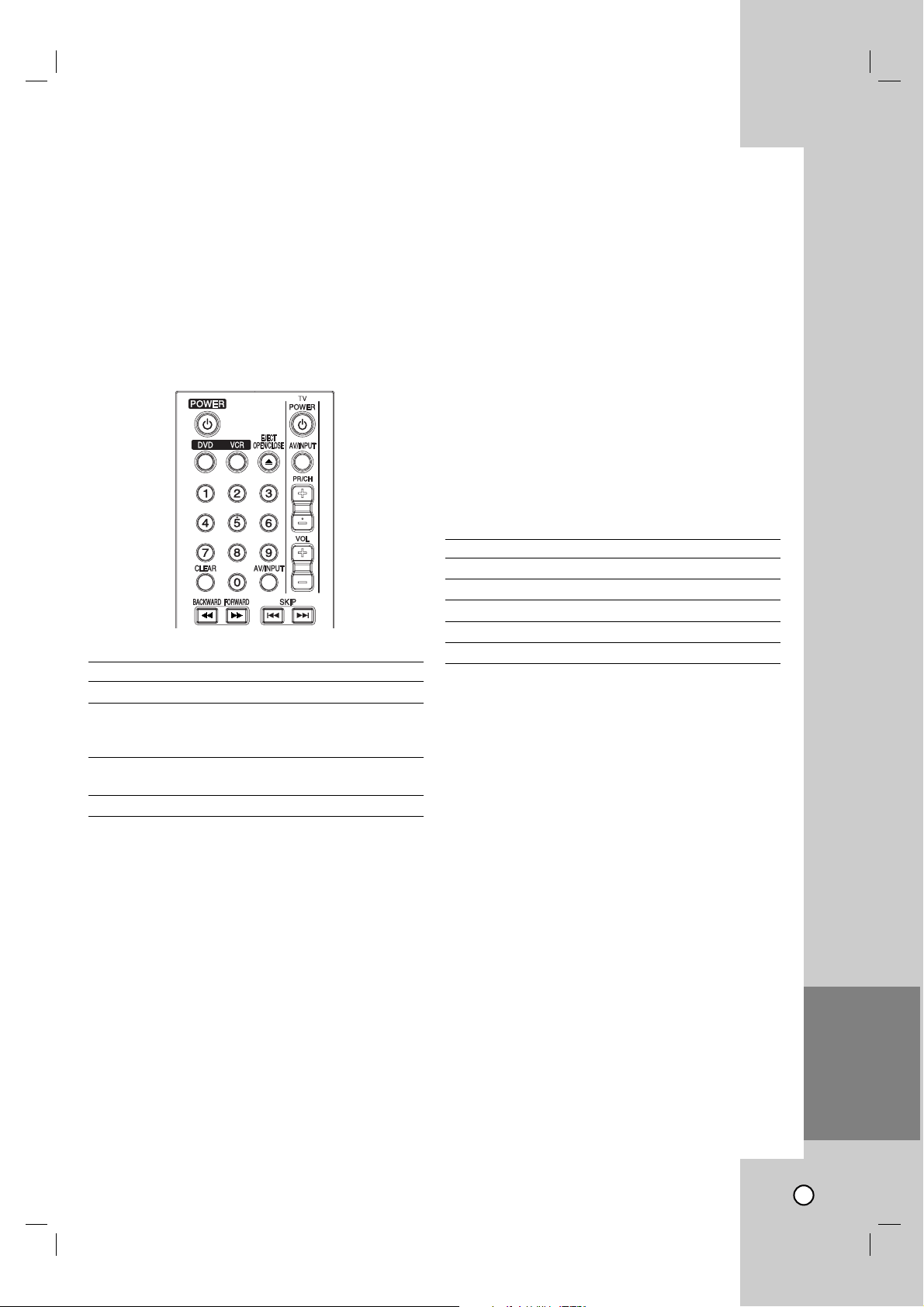

Controlling Your TV with the Supplied

Multi-brand Remote Control . . . . . . . . . . . . .43

Language Code List . . . . . . . . . . . . . . . . . . .44

Area Codes List . . . . . . . . . . . . . . . . . . . . . . .44

Troubleshooting . . . . . . . . . . . . . . . . . . . .45-46

Reset the Recorder . . . . . . . . . . . . . . . . . . .46

Specifications . . . . . . . . . . . . . . . . . . . . . . . .47

Warranty . . . . . . . . . . . . . . . . . . . . .Rear Cover

To ensure proper use of this product, please read

this owner’s manual carefully and retain for future

reference.

About the Symbol Display

“ ” may appear on your TV display during operation

and indicates that the function is not permitted by this

unit or specific media.

Symbol Used in this Manual

Note: Indicates special notes and operating fea-

tures.

Tip: Indicates tips and hints for making the task

easier.

A section whose title has one of the following sym-

bols are applicable only to those discs represented

by the symbol.

All DVD discs listed below.

DVD-RW with VR recording mode

DVD-RW with Video recording mode

DVD+RW disc

DVD-R disc

DVD+R disc

DVD-Video disc

Audio CDs

MP3 files

WMA files

JPEG files

Video Tape

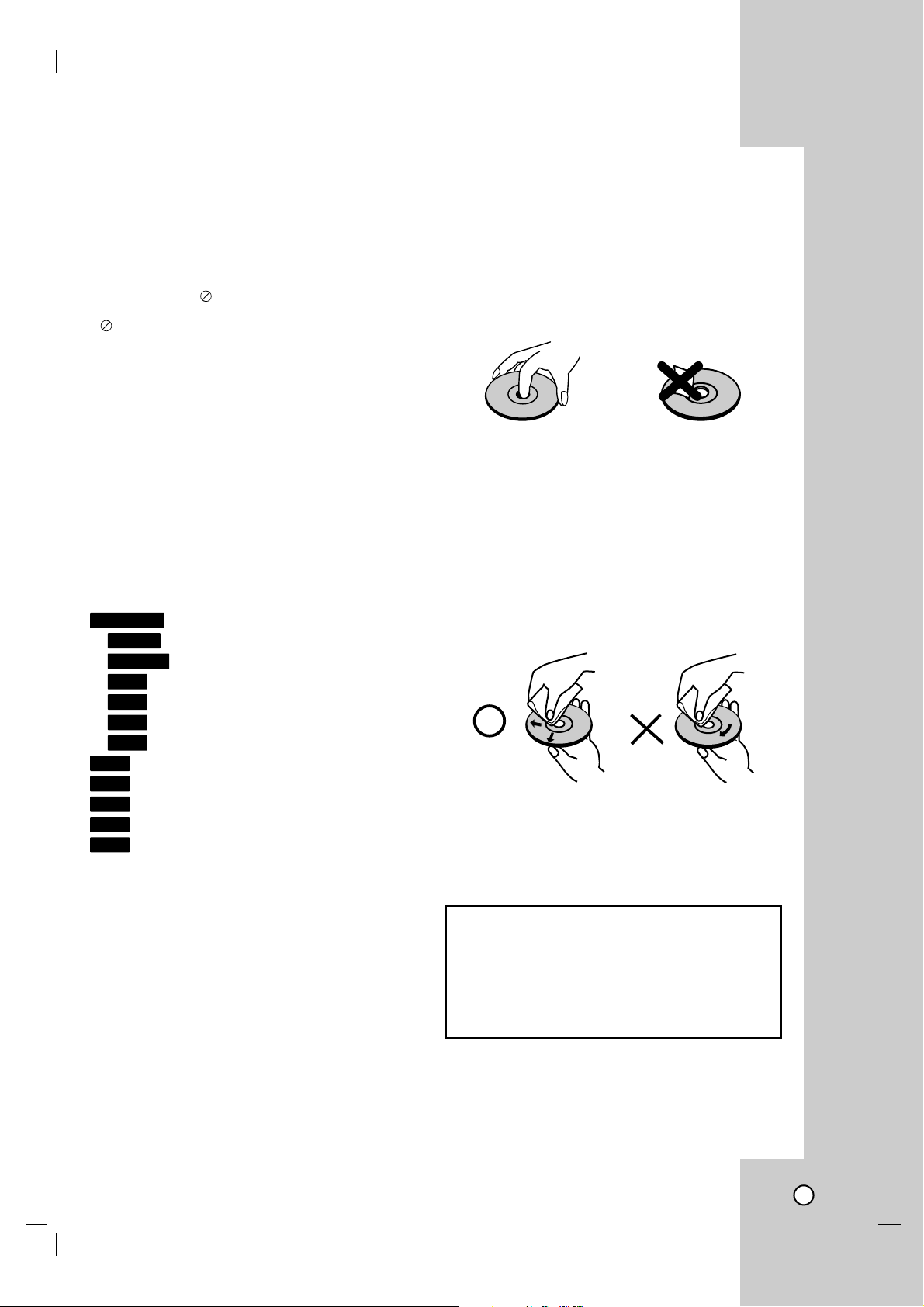

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the

disc by the edges so that fingerprints do not get on

the surface. Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not

expose the disc to direct sunlight or sources of heat

and never leave it in a parked car exposed to direct

sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor pic-

ture quality and sound distortion. Before playing,

clean the disc with a clean cloth. Wipe the disc from

the center out.

Do not use strong solvents such as alcohol, benzine,

thinner, commercially available cleaners, or anti-static

spray intended for older vinyl records.

VCR

JPEG

WMA

MP3

ACD

DVD

-R

+RW

-RW

Video

-RW

DVD ALL

Introduction

Moisture Condensation

Never operate this product immediately after mov-

ing it from a cold location to a warm location. Leave

it for two or three hours without operating it. If you

use this product in such a situation, it may damage

discs/tapes and internal parts.

Recordable and Playable Discs

DVD-RW (DVD - ReWritable)

 DVD-RW discs can be formatted for VR mode recording or Video mode recording.

 These Discs can be recorded on repeatedly. Recordings can be erased, then you can record again on the

same Disc.

[VR mode]

 Recordings can be extensively edited

 Playable only on VR mode compatible players (after finalization)

[Video mode]

 Playable on regular DVD players (after finalization)

 Limited editing features

DVD-R (DVD - Recordable)

 These Discs can be recorded only once. After you finalize a DVD-R, you cannot record on it or edit it.

 DVD-R discs can be only formatted to Video mode.

 Playable on regular DVD players (after finalization)

 Limited editing features

DVD+RW (DVD + ReWritable)

 These Discs can be recorded on repeatedly. Recordings can be erased, then you can record again on the

same Disc.

 Playable on DVD+RW compatible players (automatically finalization)

 The edited contents are playable on DVD+RW compatible players only after finalization.

 Recordings can be edited the title/chapter

DVD+R (DVD + Recordable)

 These Discs can be recorded only once. After you finalize a DVD+R, you cannot record on it or edit it any

more.

 Playable on DVD+R compatible players (after finalization)

 Any edited contents are not be compatible on DVD+R compatible players. (Hide, chapter combine, added

chapter mark, etc.)

 Limited title/chapter editing features.

Recommended recordable DVD discs

DVD-R

Mitsubishi (8x, 16x)

That’s (8x, 16x)

SONY (16x)

DVD+R

Mitsubishi (8x, 16x)

Ricoh (8x, 16x)

SONY (16x)

DVD-RW

Mitsubishi (4x)

Verbatim (4x)

JVC (4x)

Victor (4x)

Maxell (4x)

DVD+RW

Mitsubishi (4x)

SONY (2.4x)

Ricoh (2.4x, 4x)

Verbatim (2.4x)

INTRODUCTION

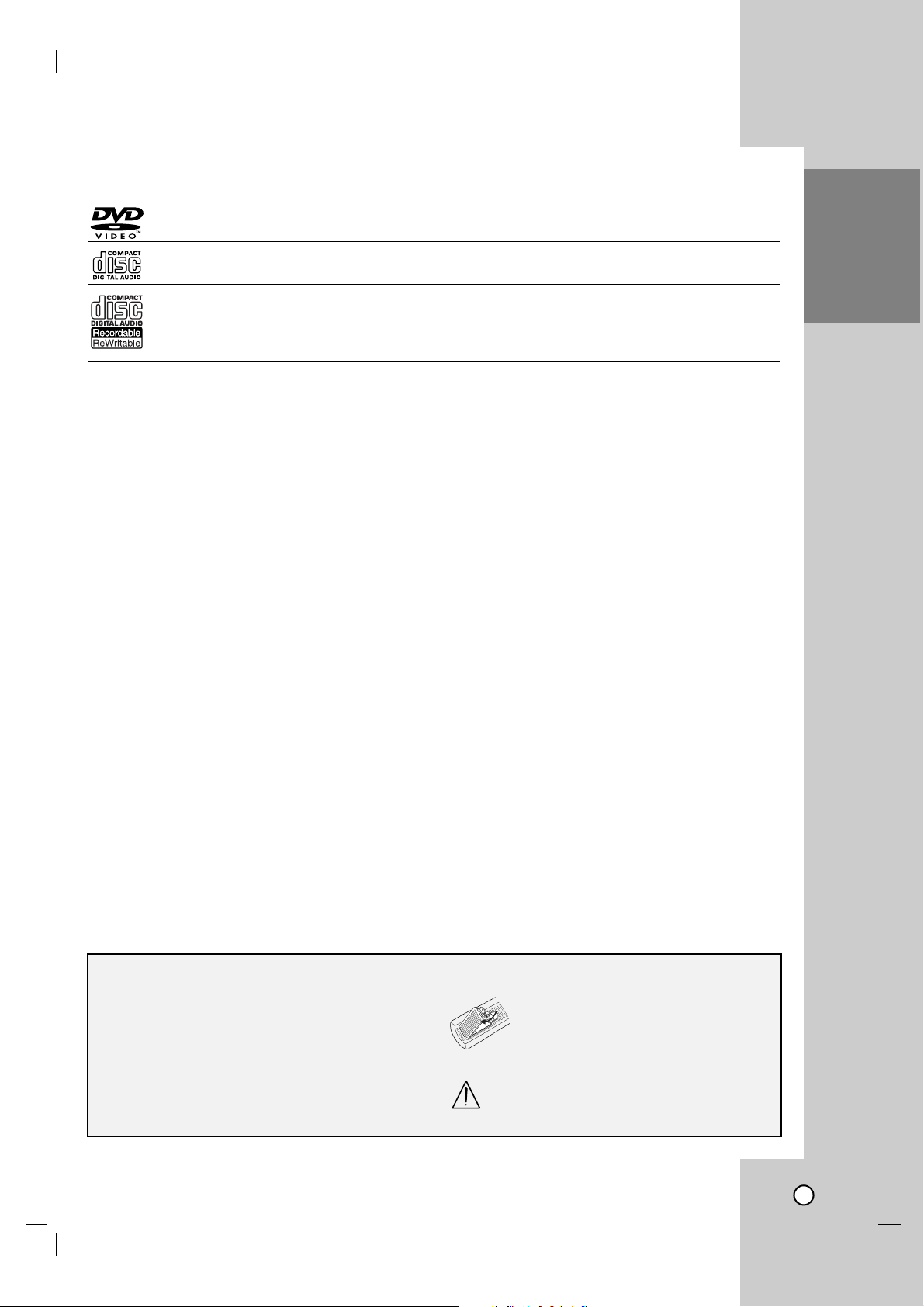

Playable Discs

DVD (8 cm / 12 cm disc)

Discs such as movies that can be purchased or rented

Audio CD (8 cm / 12 cm disc)

Music CDs or CD-Rs/CD-RWs in music CD format that can be purchased

CD-R/CD-RW (8 cm / 12 cm disc)

CD-R/CD-RW discs that contain audio titles, MP3, WMA or JPEG files.

Notes:

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some

CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.

• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.

• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). Doing so may result in malfunctions.

• Depending on the recording software & the finalization, some recorded discs (CD-R/RW or DVD±R/RW)

may not be playable.

• DVD-R/RW, DVD+R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD

Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the Recorder’s

lens.

• If you record a disc using a personal computer, even if it is recorded in a compatible format, there are

cases in which it may not play because of the settings of the application software used to create the disc.

(Check with the software publisher for more detailed information.)

• This recorder requires discs and recordings to meet certain technical standards in order to achieve optimal

playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different

types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain

pre-existing conditions (see above) to ensure compatible playback.

• Customers should note that permission is required in order to download MP3 / WMA files and music from

the Internet. Our company has no right to grant such permission. Permission should always be sought

from the copyright owner.

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labeled same as

the rear of the unit or “ALL”.

Notes on Regional Codes

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number

must match your unit’s regional code or the disc cannot play.

• If you try to play a DVD with a different regional code from the unit, the message “Incorrect region code.

Can’t play back” appears on the TV screen.

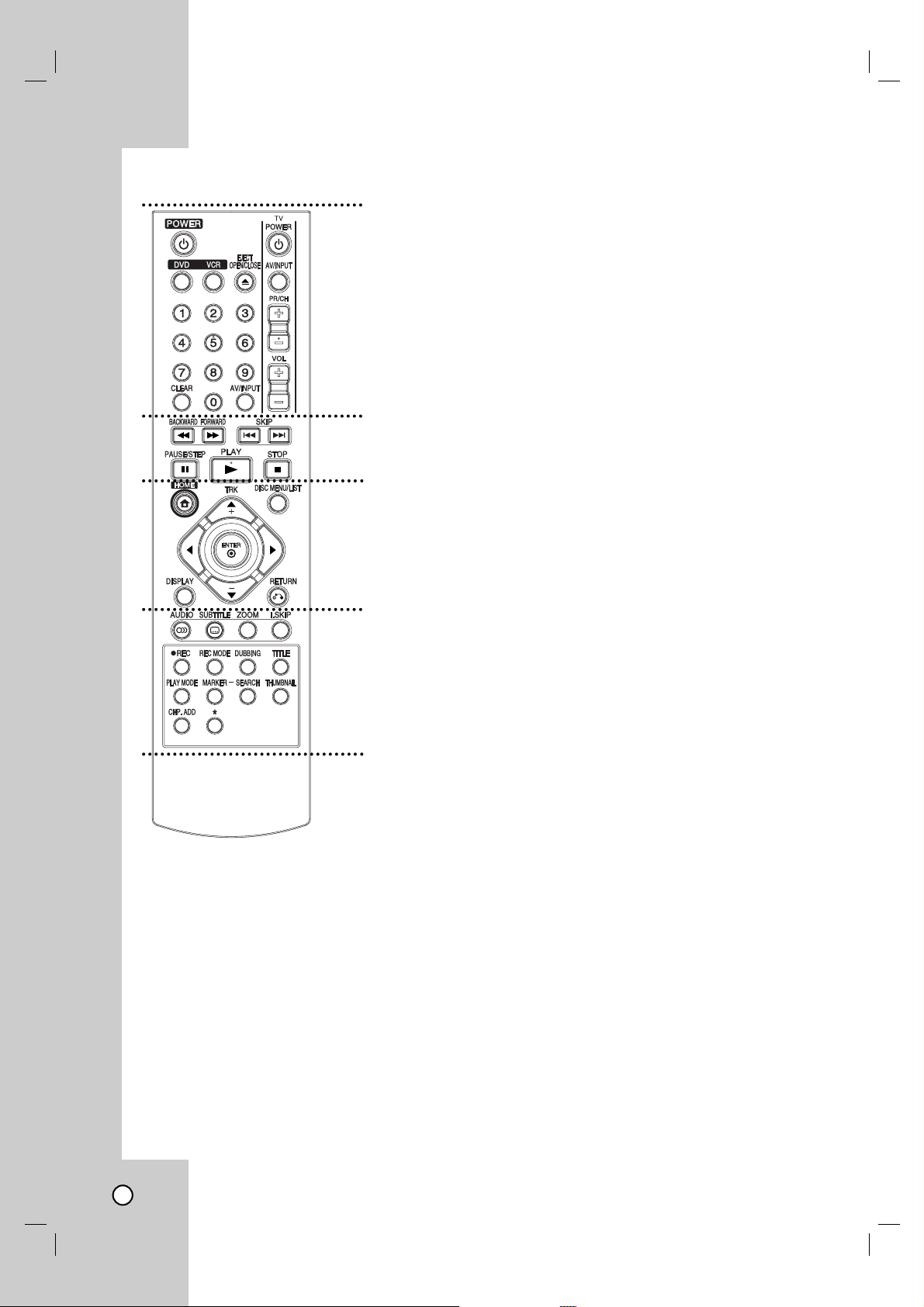

About the Remote Control

Operation Range

Point the Remote Control at the remote sensor and

press the buttons.

Distance: About 23 ft (7 m) from the front of the

remote sensor.

Angle: About 30° in each direction of the front of

the remote sensor.

Battery installation

Detach the battery cover on the rear

of the Remote Control, and insert two

(R03/AAA) size batteries with 3 and

# aligned correctly.

Do not mix old and new batteries and never

mix different types of batteries such as stan-

dard, alkaline, etc.

Restrictions on video recording

•You cannot record copy-protected video using this recorder. Copy-protected video includes DVD-Video

discs and some satellite broadcasts. If copy-protected material is encountered during a recording, recording

will pause or stop automatically and an error message will be displayed on-screen.

•Video that is ‘copy-once only’ can only be recorded using a DVD-RW disc in VR mode with CPRM (see

below).

What is ‘CPRM’?

CPRM is a copy protection system (with scramble system) only allowing the recording of ‘copy once’ broadcast

programs. CPRM stands for Content Protection for Recordable Media.

This Recorder is CPRM compatible, which means that you can record copy-once broadcast programs, but you

cannot then make a copy of those recordings. CPRM recordings can only be made on DVD-RW discs format-

ted in VR mode, and CPRM recordings can only be played on players that are specifically compatible with

CPRM.

• Recording equipment should be used only for lawful copying and you are advised to check carefully what is

lawful copying in the area in which you are making a copy. Copying of copyright material such as films or

music is unlawful unless permitted by a legal exception or consented to by the rights owner.

• This product incorporates copyright protection technology that is protected by method claims of certain U.S.

patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.

Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended

for home and other limited viewing uses only, unless otherwise authorized by Macrovision corporation.

Reverse engineering or disassembly is prohibited.

Notice for Progressive Scan Use

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPAT-

IBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE

OF 525 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH

THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING

YOUR TV SET COMPATIBILITY WITH THIS MODEL 525p DVD+VCR RECORDER, PLEASE CONTACT OUR

CUSTOMER SERVICE CENTER.

Recording time and picture quality

There are four preset recording quality modes:

 XP – Highest quality setting, gives about 1 hour of recording time on a DVD (4.7GB).

 SP – Default quality, sufficient for most applications, gives about 2 hours of recording time on a DVD

(4.7GB).

 LP – Slightly lower video quality, gives about 4 hour of recording time on a DVD (4.7GB).

 EP – Lowest video quality, gives about 6 hour of recording time on a DVD (4.7GB).

You may see a fragmented picture during playing back the contents recorded in EP mode .

Note:

You may see a fragmented picture during playing back the contents recorded in EP mode.

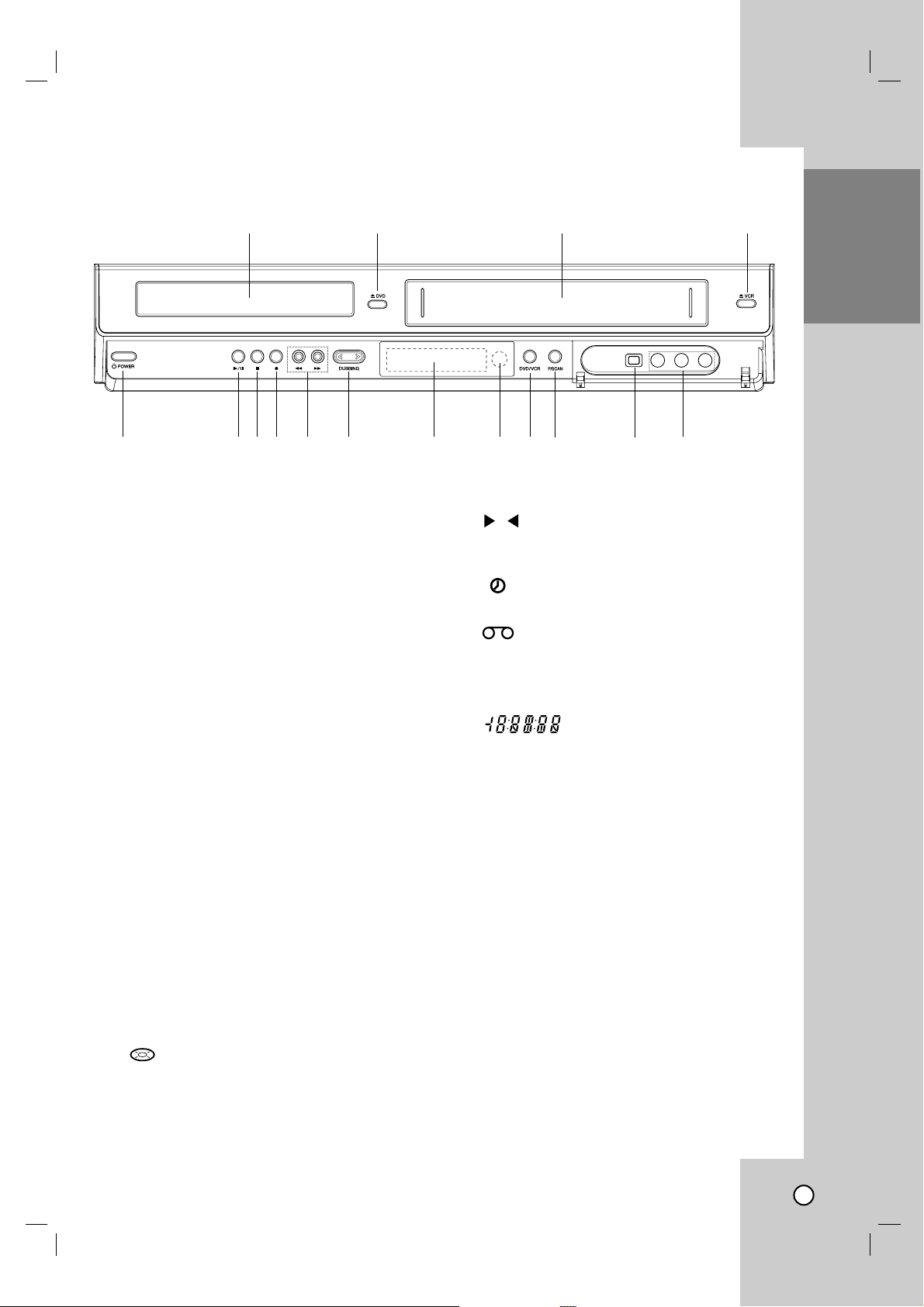

a Disc Tray (DVD deck)

Insert a disc here.

b Z DVD

Opens or closes the disc tray.

c Cassette Compartment (VCR deck)

Insert a video cassette here.

d Z VCR

Ejects the tape in the VCR deck.

POWER

Switches the Recorder ON and OFF.

f N / X (PLAY / PAUSE)

Starts playback.

Pause playback or recording temporarily,

press again to exit pause mode.

g x (STOP)

Stops playback

h z (REC)

Starts recording.

Press repeatedly to set the recording time.

i m/M (BACKWARD / FORWARD)

DVD: Search backward or forward.

- VCR: Rewinds/Advances the tape during the STOP

mode, for fast reverse/ forward picture search.

j DUBBING

Press to copy DVD to VCR (or VCR to DVD).

Lights when the Recorder is dubbing.

k Display window

Shows the current status of the Recorder.

Lights when a disc is in the DVD deck.

The DVD deck is selected.

Lights when the Recorder is in playing mode

or flashes when search mode.

The VCR deck is selected.

Indicates when the recorder is in timer

recording or a timer recording is

programmed.

A Video tape is inserted in the VCR deck.

The Recorder is recording.

Indicates PM time. (AM is not displayed.)

Indicates total playing time,

elapsed time, remaining time

or current deck status

(Playback, Pause, etc).

l Remote Sensor

Point the recorder Remote Control here.

m DVD/VCR

Toggles control between the DVD deck and the

VCR deck.

n P/SCAN

When you use the COMPONENT OUTPUT

jacks, you can change the resolution 576i to

576p for the Progressive Scan output.

o DV IN

Connect the DV output of a digital camcorder.

p AV IN 2 (VIDEO /AUDIO (Left/Right))

Connect the audio/video output of an external

source (Audio system, TV/ Monitor, VCR,

Camcorder, etc.).

REC

VCR

DVD

Front Panel

ab c d

e fgh i j k l m n o p

INTRODUCTION



POWER (1)

Turns Recorder ON and OFF.

DVD

Select the Recorder’s function mode to

DVD.

VCR

Select the Recorder’s function mode to

VCR.

EJECT, OPEN/CLOSE (Z)

- Opens and closes the disc tray.

- Ejects the tape in the VCR deck.

CLEAR

Removes a mark on the Marker

Search menu.

AV/INPUT

Changes the input to use for recording

(AV1, AV2, or DV IN).

0-9 numerical buttons

Selects numbered options in a menu.

TV Control Buttons

See page 43.



BACKWARD / FORWARD

(m/M)

DVD: Search backward or forward.

- VCR: Rewinds/Advances the tape

during the STOP mode, for fast

reverse/ forward picture search.

SKIP (. / >)

Go to next chapter or track. Returns to

beginning of current chapter or track or

go to previous chapter or track.

PAUSE/STEP (X)

Pause playback or recording

temporarily.

Press repeatedly for frame-by-frame

playback.

PLAY (N)

Starts playback.

STOP (x)

Stops playback or recording.



HOME

Accesses or removes the HOME

menu.

DISC MENU/LIST

Accesses menu on a DVD disc, Title

List or Playlist menu.

TRK (

)

Adjusts manually the tape’s picture

onscreen.

bBvV(left/right/up/down)

Selects menu options.

ENTER (



)

Confirms menu selections.

DISPLAY

Accesses On-Screen Display.

Displays information of current status.

RETURN (O)

Removes the menu.



AUDIO

Selects an audio language or an audio

channel.

SUBTITLE

Selects a subtitle language.

ZOOM

Enlarges DVD video image.

I.SKIP (INSTANT SKIP)

Skips 30 seconds forward during play-

back.

z REC

Starts recording. Press repeatedly to

set the recording time.

REC MODE

Selects the recording mode:

- DVD: SP, LP, EP or XP.

- VCR: SP or SLP.

DUBBING

Press to copy DVD to VCR (or VCR to

DVD).

TITLE

Displays the disc’s Title menu, if

available.

PLAY MODE

Selects play mode.

MARKER

Marks any point during playback.

Displays Marker Search menu.

THUMBNAIL

Selects a thumbnail picture for the

current title for use in the Title List

menu.

CHP. ADD

Inserts a chapter marker when playing/

recording.

This button is not available.

Remote Control

a COMPONENT OUTPUT (Y PB

)

Connect to a TV with Y P

B PR inputs.

b INPUT 1 (VIDEO/AUDIO (Left/Right))

Connect the audio/video output of an external

source (Audio system, TV/Monitor, VCR,

Camcorder).

c AC Power Cord

Plug into the power source.

d COAXIAL (DIGITAL AUDIO OUTPUT)

Connect to digital (coaxial) audio equipment.

e S-VIDEO OUTPUT

Connect to a S-Video Input on TV.

AUDIO OUTPUT (Left/Right)

Connect to a TV or other equipment with audio

inputs.

g VIDEO/AUDIO OUTPUT (Left/Right)

Connect to a TV with video and audio inputs.

ab c

de f g

Rear Panel

Caution

Do not touch the inner pins of the jacks on the rear panel.

Electrostatic discharge may cause permanent damage to the unit.

INTRODUCTION

Depending on your TV and other equipment

there are various ways you can connect the

recorder. Please refer to the manuals of your

TV, VCR, Stereo System or other devices as

necessary for additional connection informa-

tion.

Notes:

• Make sure the Recorder is connected directly to the TV

and tune the TV to the correct video input channel.

• Do not connect the Recorder’s AUDIO OUTPUT jack to

the phono in jack (record deck) of your audio system.

• Do not connect the Recorder via another VCR. The

DVD image could be distorted by the copy protection

system.

• The picture and sound of a nearby TV, VCR, or radio

may be distorted during playback. Position the units

away from each other or turn off the unit after removing

the disc.

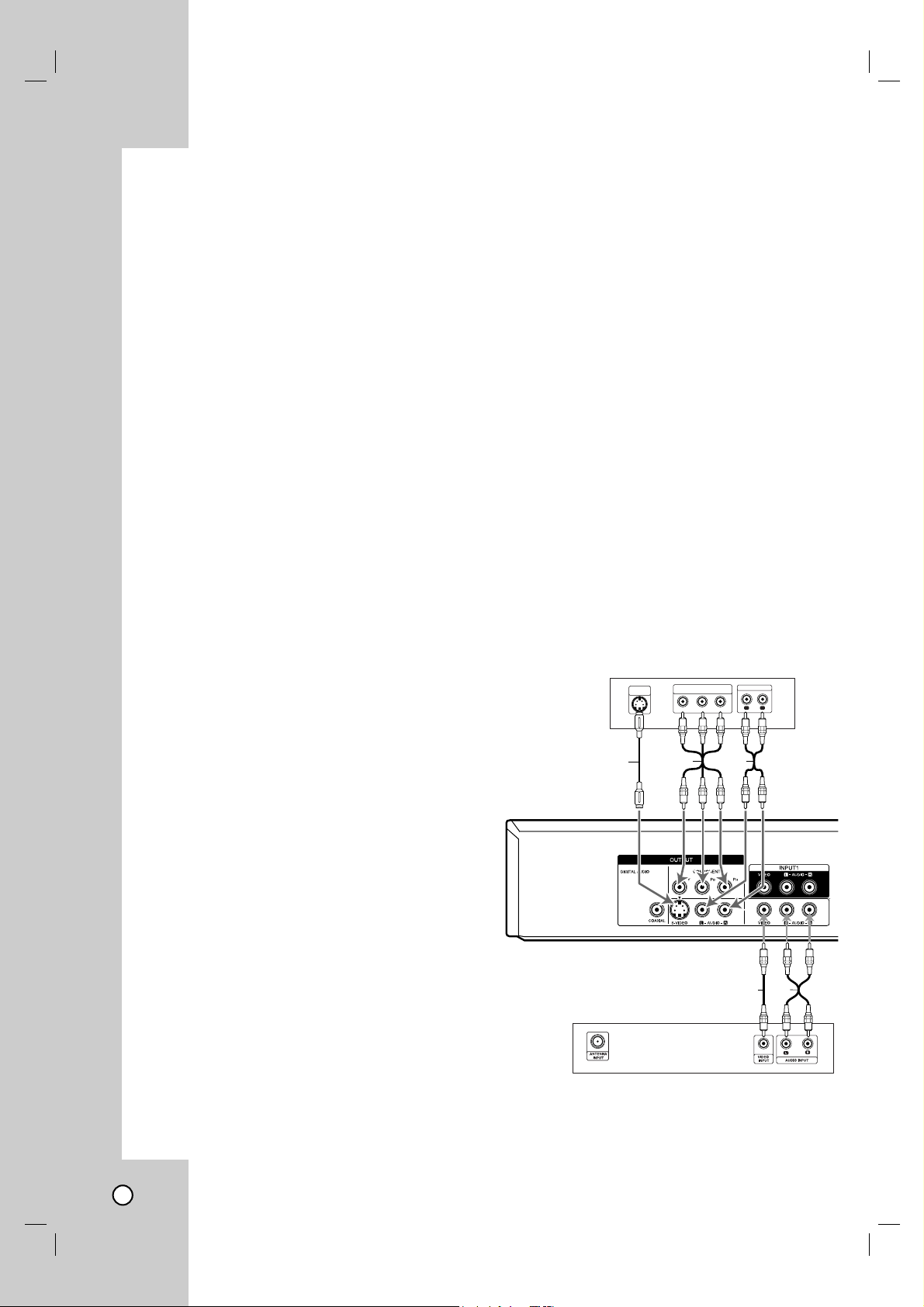

Connections to your TV

Make one of the following connections, depending on

the capabilities of your TV.

Video connection

Connect the VIDEO OUTPUT jack on the Recorder to

the video in jack on the TV using the video cable

supplied (V).

Note:

If you use this connection, set the TV’s source selector to

VIDEO.

S-Video connection

Connect the S-VIDEO OUTPUT jack on the Recorder

to the S-Video in jack on the TV using the optional S-

Video cable (S).

Component Video connection

If your television is a high-definition or “digital ready”

television, you may take advantage of the Recorder’s

progressive scan output for the highest video resolu-

tion possible.

Connect the COMPONENT OUTPUT jacks on the

Recorder to the corresponding in jacks on the TV

using an optional Y P

B P

R cable (C).

Notes:

• Set the resolution to 480p using P/SCAN button for pro-

gressive signal.

• Progressive Scan does not work with Video or

S-Video connections.

• If your TV does not accept the Progressive Scan format,

the picture will appear scrambled.

Audio connection

Connect the Left and Right AUDIO OUTPUT jacks on

the Recorder to the audio left/right in jacks on the TV

using the supplied audio cables (A1 or A2).

Rear of Recorder

A1V

Rear of TV

COMPONENT/PROGRESSIVE SCAN

VIDEO INPUT

AUDIO INPUT

S-VIDEO

INPUT

A2C

Hookup and Settings

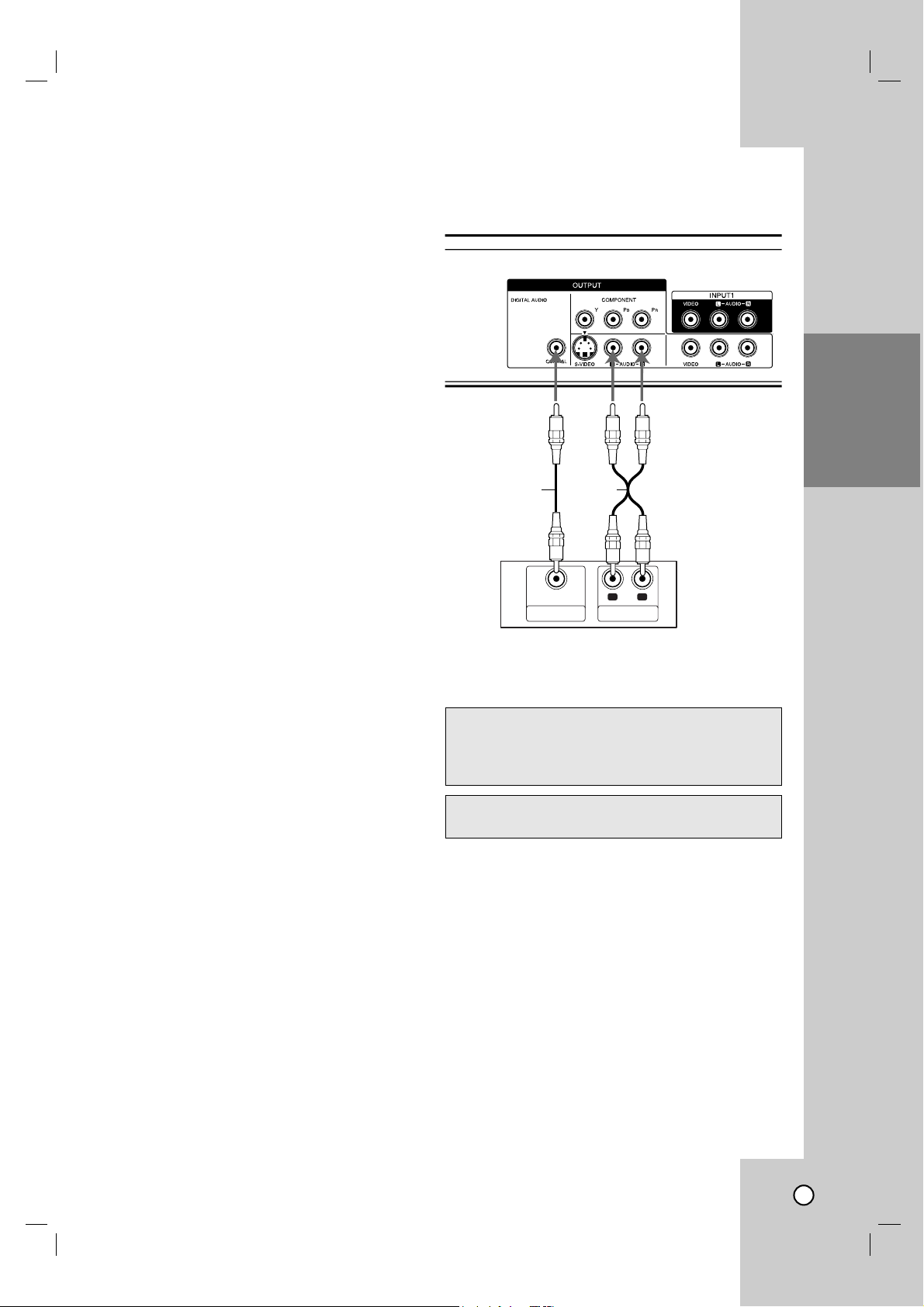

Connection to an

Amplifier

Connecting to an amplifier equipped with two

channel analog stereo or Dolby Pro Logic II/Pro

Logic

Connect the Left and Right AUDIO OUTPUT jacks on

the Recorder to the audio left and right in jacks on

your amplifier, receiver, or stereo system using the

audio cables (A) supplied.

Connecting to an amplifier equipped with two chan-

nel digital stereo (PCM) or to an Audio/Video receiv-

er equipped with a multi-channel decoder (Dolby

Digital™, MPEG 2, or DTS)

1. Connect one of the Recorder’s DIGITAL AUDIO

OUTPUT jacks (COAXIAL X) to the corresponding

in jack on your amplifier. Use an optional digital

(coaxial X) audio cable.

2. You will need to activate the Recorder ’s digital

output. (See [Audio Settings] on page 17).

Digital Multi-channel sound

A digital multi-channel connection provides the best

sound quality. For this you need a multi-channel

Audio/Video receiver that supports one or more of the

audio formats supported by your Recorder (MPEG 2,

Dolby Digital and DTS). Check the receiver manual

and the logos on the front of the receiver.

Caution:

Due to the DTS Licensing agreement, the digital

output will be in DTS digital out when DTS audio

stream is selected.

Notes:

•

If the audio format of the digital output does not match the

capabilities of your receiver, the receiver will produce a

strong, distorted sound or no sound at all.

• Six Channel Digital Surround Sound via digital connec-

tion can only be obtained if your receiver is equipped

with a Digital Multi-channel decoder.

•To see the audio format of the current DVD in the on-

screen display, press AUDIO.

• This Recorder does not perform internal (2 channel)

decoding of a DTS sound track. To enjoy DTS multi

channel surround, you must connect this Recorder to a

DTS compatible receiver via one of this Recorder’s digi-

tal audio outputs.

HOOKUP AND

SETTINGS

AUDIO INPUT

DIGITAL INPUT

COAXIAL

Amplifier (Receiver)

Rear of Recorder

Manufactured under license from Dolby

Laboratories. “Dolby”, “Pro Logic”, and the

double-D symbol are trademarks of Dolby

Laboratories.

DTS and DTS Digital Out are trademarks of

Digital Theater Systems, Inc.

Accessory

Audio/V

ideo (A/V)

Connections to

Recorder

Connect the INPUT 1 or AV IN 2 jacks on the

Recorder to the audio/video out jacks on your acces-

sory component, using the optional audio/video

cables. (Refer to page 31 for [Recording from

External Components].)

Connecting a Digital

Camcorder

Use a DV cable (not supplied) to connect the DV

in/out jack of your DV Digital Camcorder to the front

panel DV IN jack of this Recorder.

Note:

This jack is for connection to DV equipment only. It is

not compatible with digital satellite tuners or D-TAPE

video decks.

Rear of Recorder

Front of Recorder

DV Digital Camcorder

Front of Recorder

IN/OUT

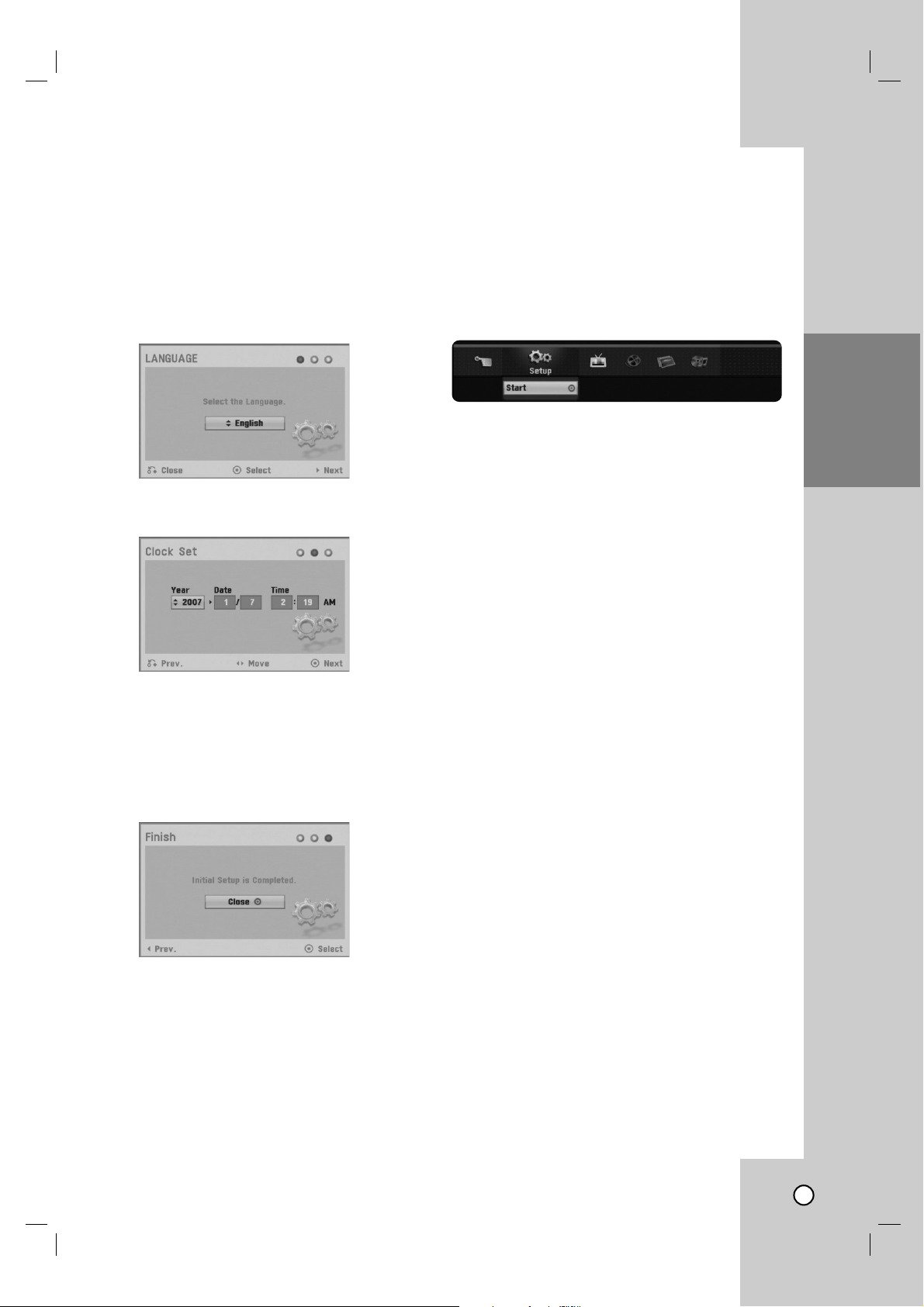

Initial Setup W

izard

After the POWER is pressed for the first time to turn

on the unit, the Initial Setup Wizard function sets the

Language and Clock step-by-step until the setup is

complete.

1. Use v / V to select a language for the Setup

menu and information display then press ENTER.

2. Enter the necessary information for year, date and

time.

b / B (left/right): Moves the cursor to the

previous or next column.

v / V (up/down): Changes the setting at the

current cursor position.

Press ENTER to confirm your setting.

3. Press ENTER to exit the menu.

Note:

You can reset the Initial Setup Wizard from the

[Factory Set] in the setup menu.(see page 16).

Using the Home Menu

From the Home Menu screen you can access all the

Media for playback and recording of the recorder.

1. Press HOME and the Home menu appears.

2. Use b / B to select the desired main option.

3. Use v / V to select the desired Sub option then

press ENTER to confirm your selection.

4. To exit the HOME menu, press HOME.

SETUP

• Start: Displays Setup menu.

• Timer Record: Displays [Timer Record List]

menu. (See page 32)

Movie

• VCR: Plays back Video tape.

• DISC:

- Displays TITLE LIST menu for recordable disc

(page 35)

- Plays back DVD-Video disc (pages 24-26).

Photo (See page 28)

• DISC: Displays [Photo List] menu for disc.

Music (See page 27)

• DISC: Displays [Music List] menu for disc.

Easy Menu

• Dubbing: Displays [Dubbing] menu.

• Disc Manager: Displays Disc Setup menu.

• Rec. Mode: Displays Record Mode setup menu.

• DV Input: Displays DV Input mode.

HOOKUP AND

SETTINGS

Initial Settings

In this menu system, there are several ways to cus-

tomize the settings provided. Most menus consist of

three levels to set up the options, but some require

greater depth for the variety of settings.

1. Press HOME and the Home menu appears.

2. Select [Setup] > [Start] and press ENTER.

3. Use v / V to select the desired option.

4. While the desired item is selected, press B to

move to the second level.

5. Use v / V to select the second desired option.

6. Press B to move to the third level.

7. Use v / V to select the desired setting then press

ENTER to confirm your selection.

Some items require additional steps.

8. Press RETURN (O) or HOME to exit the Setup

menu.

Note:

Press b to go back to the previous level.

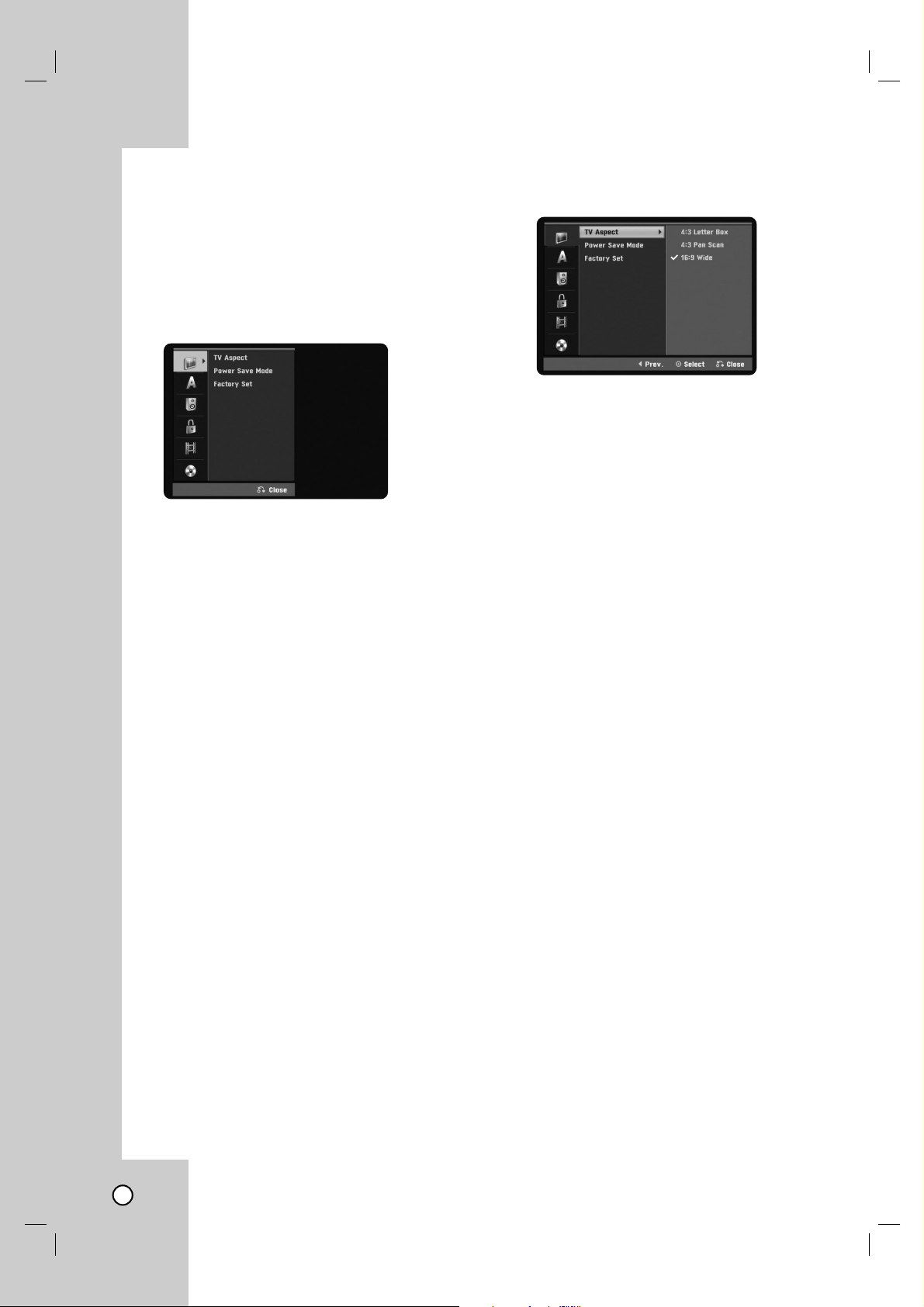

General Settings

TV Aspect

[4:3 Letter Box]: Select when a standard 4:3 TV

is connected. Displays theatrical images with

masking bars above and below the picture.

[4:3 Pan Scan]: Select when a standard 4:3 TV is

connected. Displays pictures cropped to fill your

TV screen. Both sides of the picture are cut off.

[16:9 Wide]: Select when a 16:9 wide TV is con-

nected.

Power Save Mode

Set Power Save Mode to [ON] to place your

Recorder into an economic power save mode.

Factory Set

You can reset the Recorder to its original factory

settings.

1. Select the [Factory Set] option.

2. Press B to select [SET] then press ENTER.

3. Select [OK] and press ENTER.

4. Follow the Initial Setup Wizard on page 15.

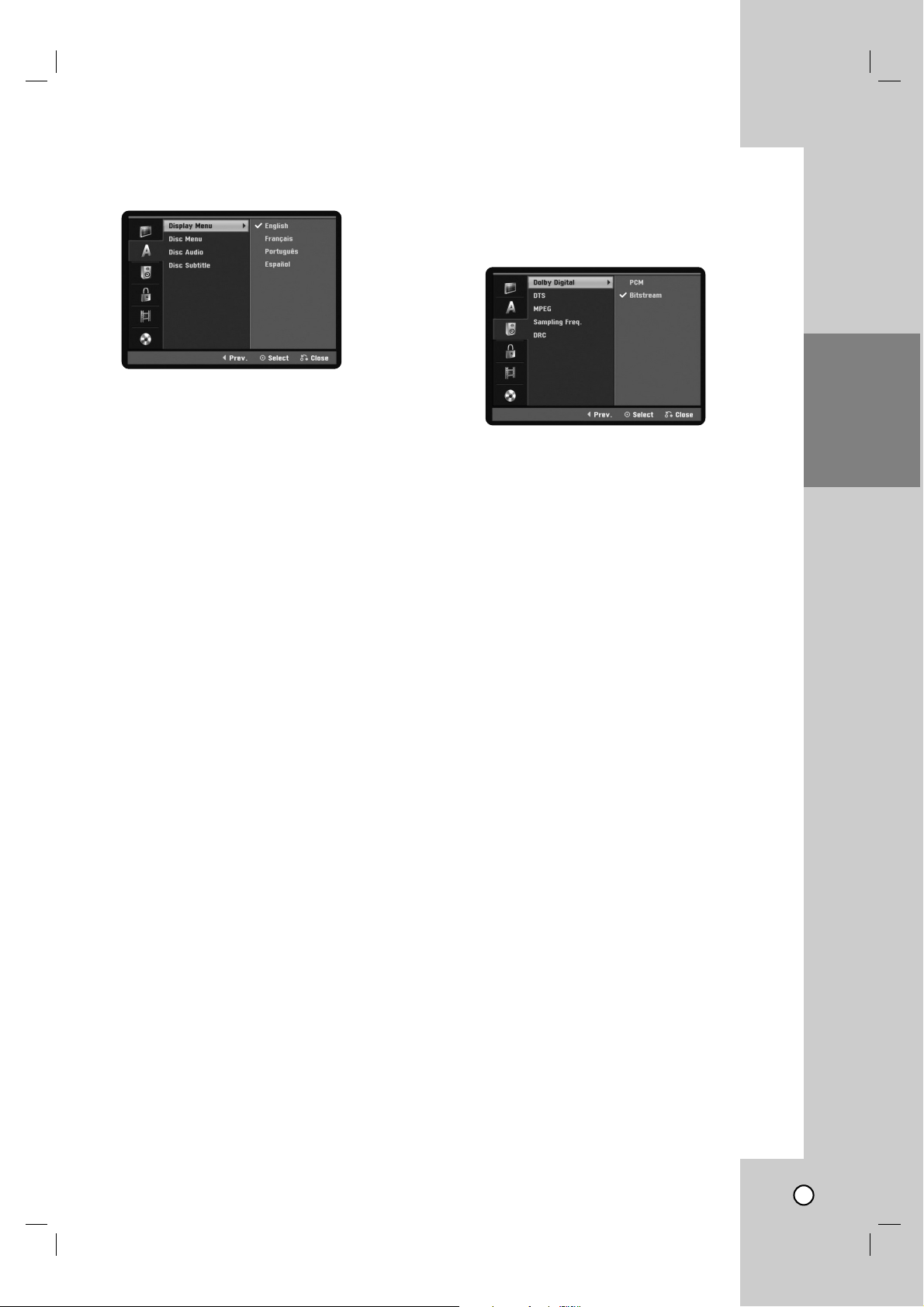

Language Settings

Display Menu

Select a language for the Setup menu and

information display.

Disc Menu / Audio / Subtitle

[Original]: Refers to the original language in

which the disc was recorded.

[Others]: To select another language, press num-

ber buttons then ENTER to enter the

corresponding 4-digit number according to the

language code list in the reference chapter (see

page 44). If you enter the wrong language code,

press CLEAR.

[OFF] (for Disc Subtitle): Turn off Subtitle.

Audio Settings

Each DVD disc has a variety of audio output options.

Set the Recorder’s Audio Output according to the

type of audio system you use.

Dolby Digital / DTS / MPEG

[Bitstream]: Select [Bitstream] if you connect the

DIGITAL AUDIO OUTPUT jack to an amplifier or

other equipment with a Dolby Digital, DTS or

MPEG decoder.

[PCM] (for Dolby Digital / MPEG): Select when

connected to a two-channel digital stereo amplifi-

er. DVDs encoded in Dolby Digital or MPEG will

be automatically downmixed to two-channel PCM

audio.

[OFF] (for DTS): If you select [OFF], the DTS

signal is not output through the DIGITAL AUDIO

OUTPUT jack.

Sampling Freq. (Frequency)

If your receiver or amplifier is NOT capable of han-

dling 96 kHz signals, select 48 kHz. When this choice

is made, this unit automatically converts any 96 kHz

signals to 48 kHz so your system can decode them.

If your receiver or amplifier is capable of handling 96

kHz signals, select 96 kHz. When this choice is

made, this unit passes each type of signal through

without any further processing.

Check the documentation for your amplifier to verify

its capabilities.

DRC (Dynamic Range Control)

With the DVD format, you can hear a program’s

soundtrack in the most accurate and realistic presen-

tation possible, thanks to digital audio technology.

However, you may wish to compress the dynamic

range of the audio output (the difference between the

loudest sounds and the quietest ones). This allows

you to listen to a movie at a lower volume without los-

ing clarity of sound. Set DRC to [ON] for this effect.

HOOKUP AND

SETTINGS

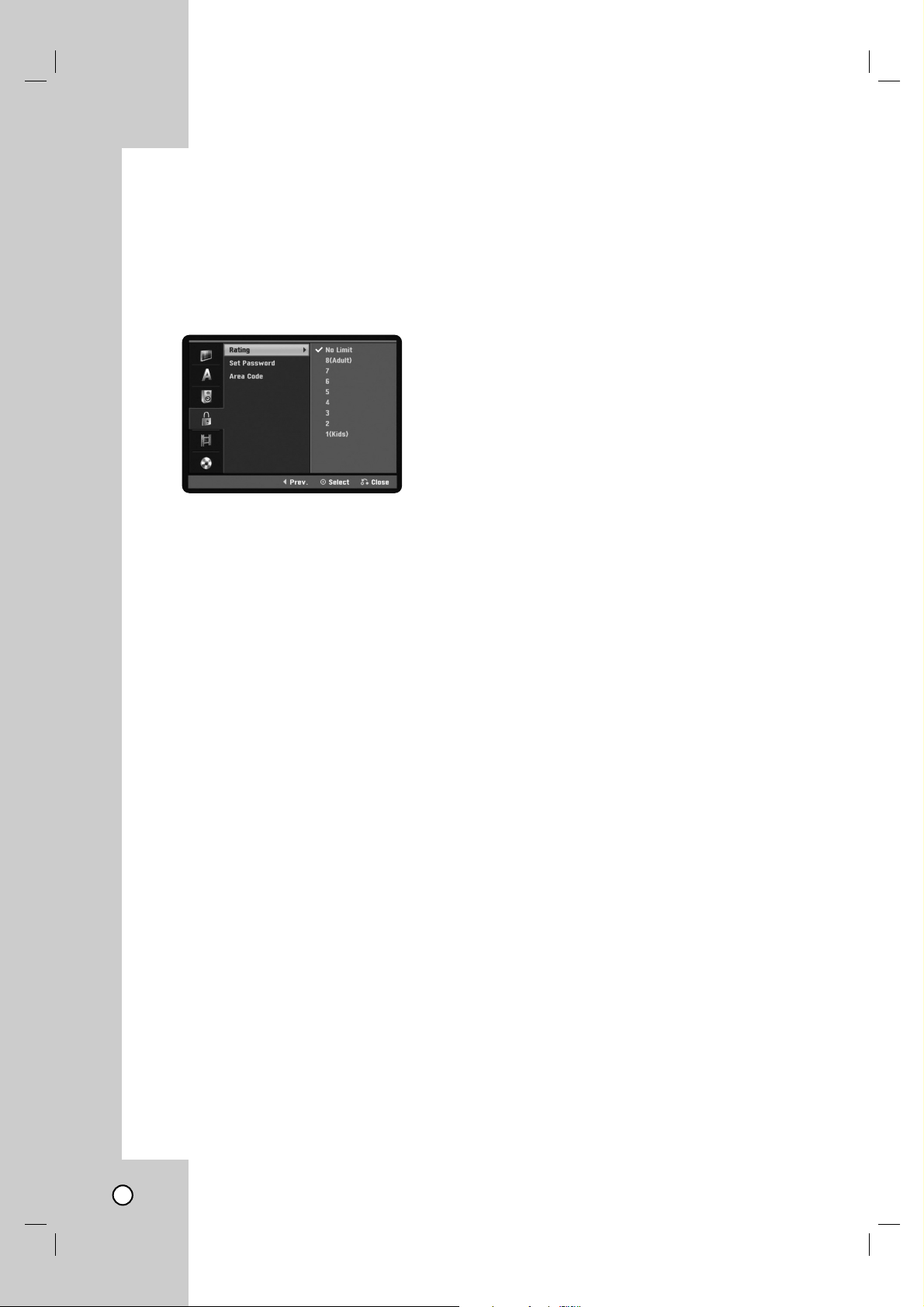

Lock (Parental Control)

Settings

Rating

Blocks playback of rated DVDs based on their

content. Not all discs are rated.

1. Select [Rating] option then press B.

2. To access the Rating, Password and Area Code

features, you must input the 4-digit security code

you created.

If you have not yet entered a security code you are

prompted to do so. Input a 4-digit code. Enter it

again to verify. If you make a mistake press

CLEAR.

3. Select a rating from 1 to 8 using the v / V buttons.

[1]-[8]: Rating one (1) has the most restrictions

and rating eight (8) is the least restrictive.

[No Limit]: If you select [No Limit], parental

control is not active and the disc plays in full.

4. Press ENTER to confirm your rating selection,

then press HOME to exit the menu.

5. Press OPEN/CLOSE (Z) to activate parental

control.

Note:

If you set a rating for the recorder, all disc scenes with the

same rating or lower are played. Higher rated scenes are

not played unless an alternate scene is available on the

disc. The alternative must have the same rating or a lower

one. If no suitable alternative is found, playback stops. You

must enter the 4-digit password or change the rating level in

order to play the disc.

Set Password

You can enter or change password.

1. Select [Set Password] option then press B.

2. Follow step 2 as shown [Rating].

To change the password, select the [Change],

press ENTER and input the new 4-digit code.

Input it again to verify.

3. Press HOME to exit the menu.

If you forget your password

If you forget your password you can clear it using the

following steps:

1. Press HOME and the Home menu appears.

2. Select [Setup] > [Start] and press ENTER.

3. Input the 6-digit number [210499]. The message

appears, select [OK] then press ENTER. The

security code is cleared.

4. Enter a new code as described above.

Area Code

Enter the Area Code whose standards were used to

rate the DVD video disc, based on the list in the

reference chapter (see page 44).

1. Select [Area Code] option then press B.

2. Follow step 2 as shown [Rating].

3. Select the first character using v / V buttons.

4. Shift the cursor using B buttons and select the

second character using v / V buttons.

5. Press ENTER to confirm your area code

selection, then press HOME to exit the menu.

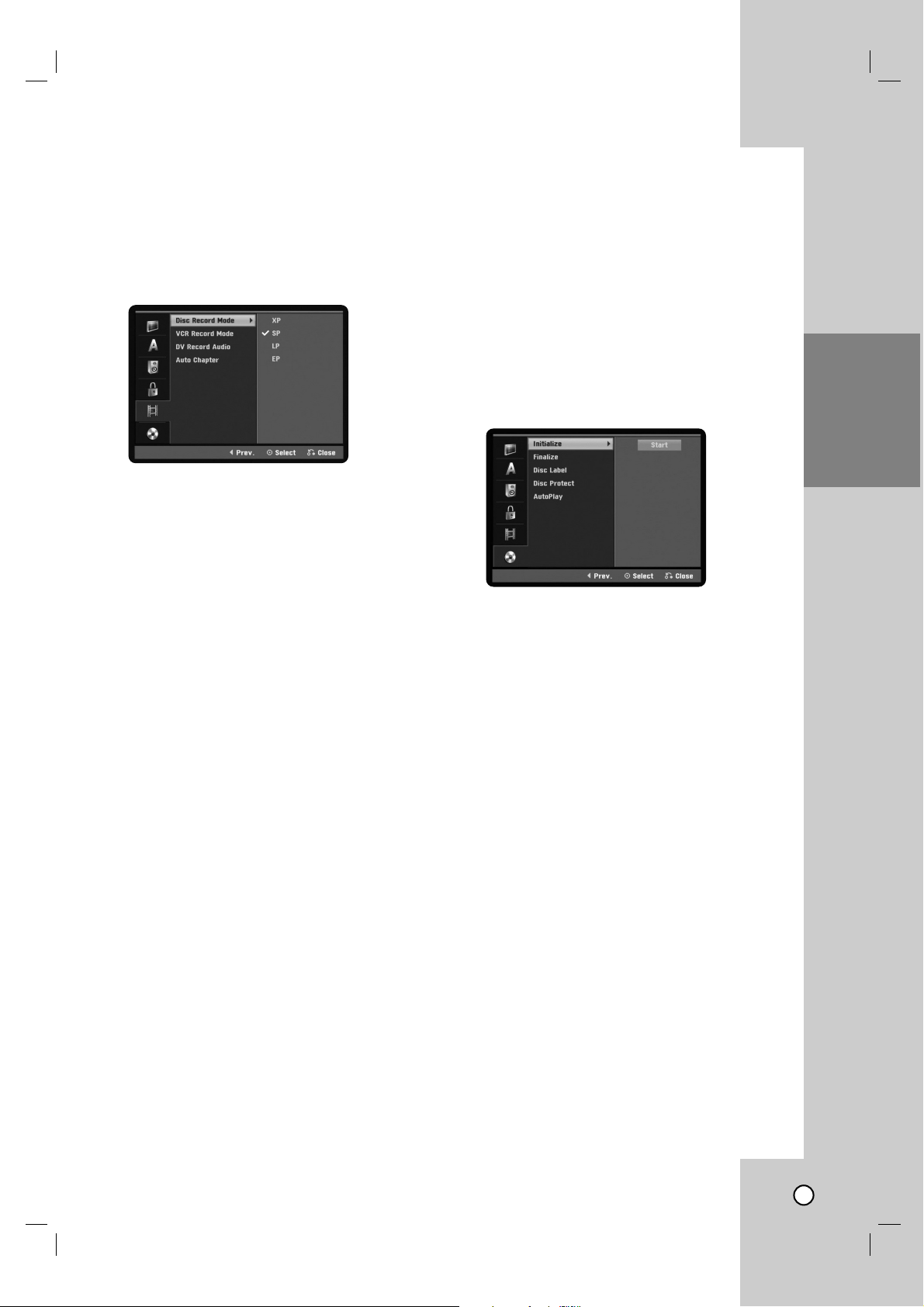

Recording Settings

Disc Record Mode

You can set the picture quality for recording;

XP (High Quality), SP (Standard Quality),

LP (Low Quality), EP (Extend Quality)

1. Select the [Disc Record Mode] option then press

2. Use v / V to select a desired Disc Record Mode

(XP, SP, LP or EP).

3. Press ENTER to confirm your selection, then

press HOME to exit the menu.

VCR Record Mode

You can set the picture quality for VCR recording;

SP (Standard Play), SLP (Super Long Play).

DV Record Audio

You need to set this if you have a camcorder using

32kHz/12-bit sound connected to the front panel DV

IN jack. Some digital camcorders have two stereo

tracks for audio. One is recorded at the time of shoot-

ing; the other is for overdubbing after shooting.

On the Audio 1 setting, the sound that was recorded

while shooting is used. On the Audio 2 setting, the

overdubbed sound is used.

Auto Chapter

During recording, chapter markers are added auto-

matically at fixed intervals. You can set this interval to

5 minutes or 10 minutes. To turn off automatic chap-

ter marking, select [None].

Disc Settings

Initialize

If you load a completely blank disc, the recorder will

initialize the disc.

• DVD-R: The recorder initialize the disc to Video mode.

The recording mode will always be Video mode.

• DVD-RW: The Initialize menu will appear.

Select [VR Mode] or [Video Mode] then press ENTER.

• DVD+RW/DVD+R: The Initialize menu will appears.

Select [OK] then press ENTER.

Also, you can reformat the DVD-RW/DVD+RW from

the Setup menu as below.

1. Select the [Initialize] option then press B.

[Start] icon is highlighted.

2. Press ENTER.

• In case of DVD-RW, use b / B to select a

desired Disc Initialize Mode (VR Mode or Video

Mode) then press ENTER.

• In case of DVD+RW, use b / B to select [OK],

and press ENTER.

It takes a few moments to format the disc.

Caution

If you want to change the disc format, everything

recorded on the disc will be erased.

HOOKUP AND

SETTINGS

Finalize

Finalizing ‘fixes’ the recordings in place so that the

disc can be played on a regular DVD player or com-

puter equipped with a suitable DVD-ROM drive.

Finalizing a Video mode disc creates a menu screen

for navigating the disc. This is accessed by pressing

DISC MENU/LIST or TITLE.

Caution

Once you have finalized a DVD-R and DVD+R disc,

you cannot edit or record anything else on that disc

except DVD+RW. However, you can record and edit

a DVD-RW disc by choosing [Unfinalize] option.

1. Select the [Finalize] option then press B.

2. Press ENTER while [Finalize] is selected.

Finalize menu appears.

3. Select [OK] then press ENTER.

The Recorder starts finalizing the disc.

Notes:

• Finalization can take up to 3-4 minutes or more depend-

ing on the type of disc, how much is recorded on the

disc, and the number of titles on the disc.

Tips:

• If you load a DVD-RW that has already been finalized,

you can ‘Unfinalize’ it by choosing [Unfinalize] from the

Finalize menu. After doing this, you can edit and re-

record onto the disc.

•You cannot unfinalize a DVD-R and DVD+R disc.

• If [Disc Protect] option is set to [ON], the finalize is not

available. To finalize, set [Disc Protect] option to [OFF].

Disc Label

Use the Disc Label feature to enter a name for the

disc. This name appears when you load the disc and

when you display disc information on-screen.

• The Disc label can be up to 32 characters long.

• For discs formatted on a different Recorder, you

will see only a limited character set.

1. Select the [Disc Label] option then press B.

[Edit] icon is highlighted.

2. Press ENTER.

Keyboard menu appears.

To enter characters, see page 39.

Disc Protect

Depending on the type of disc you are using, Disc

Protect allows you to preserve your recordings in a

variety of ways:

• DVD+RW: Prevents editing, erasing, or overwrit-

ing of existing recordings. Allows regular record-

ing.

• DVD+R: Prevents editing or erasing of existing

recordings. Allows regular recording.

• DVD-RW (VR mode): Prevents editing, erasing,

and regular recording.

Notes:

• Disc Protect is not compatible with DVD-RW discs in

Video mode or DVD-R discs.

• If you need to unlock a disc to make edits, select [OFF].

AutoPlay

When you load a DVD with AutoPlay turned on, the

Recorder will bypass the Disc menu and trailers and

start playing the movie automatically.

Set [AutoPlay] to [ON] or [OFF].

HOOKUP AND

SETTINGS

General Explanation of

On-Screen Display

Some DVDs require specific operation or allow only

limited operation during playback. When this occurs,

is displayed, action prohibited or not available.

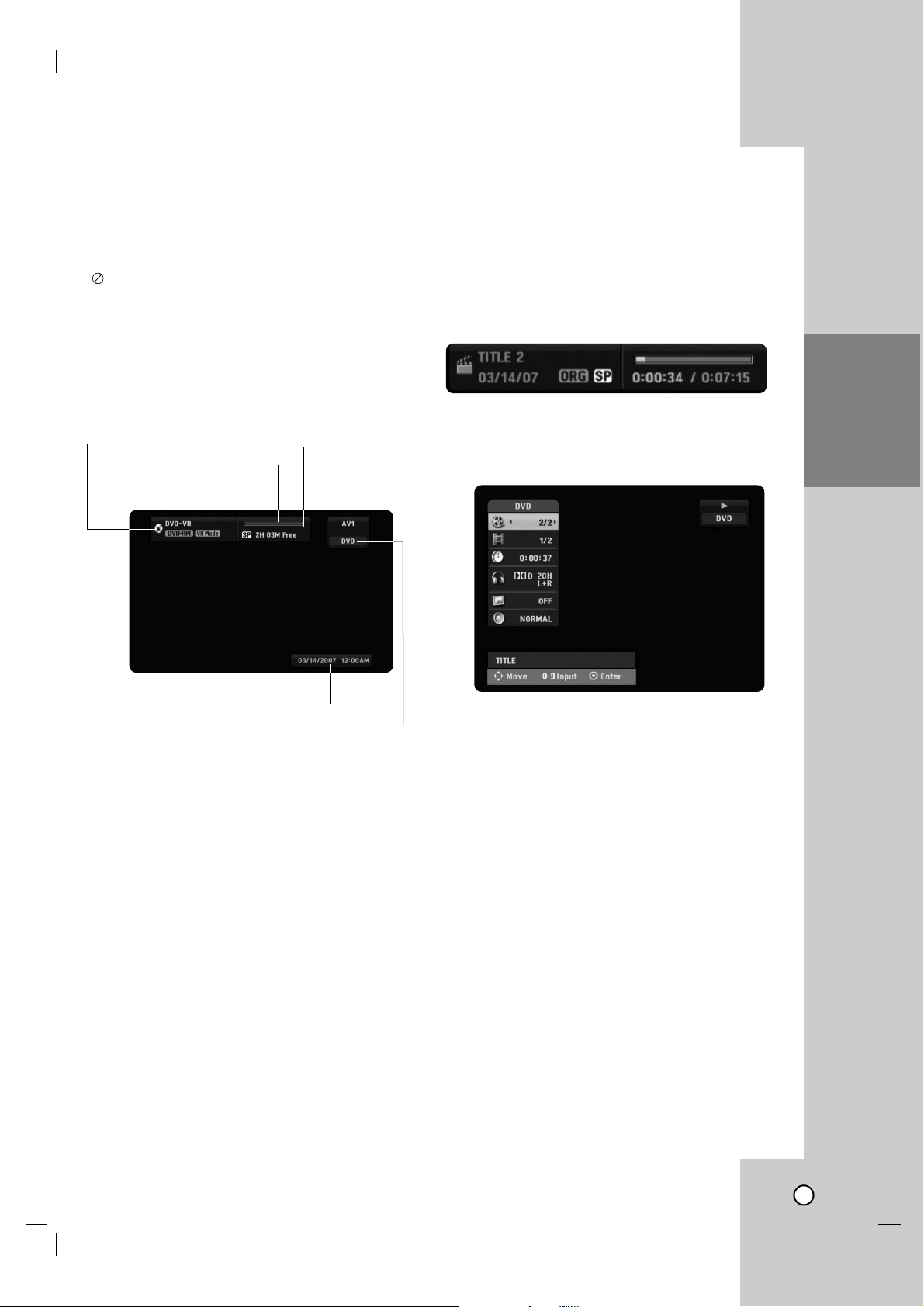

Displaying Information While

Watching AV input source

While watching TV, press DISPLAY to display/

remove the information displayed on-screen.

e.g., when DVD-RW in VR mode is inserted.

Displaying Disc Information

on-screen

You can display various information about the disc or

tape loaded on-screen. Some items can be changed

using the menu.

1. Press DISPLAY once to show current status.

Example: DVD-RW in VR mode

2. Press DISPLAY once again to show various

playback information.

The items displayed differ depending on the disc

type or playing status.

3. You can select an item by pressing v / V and

change or select the setting by pressing b / B.

For details about each item, see the pages in

parentheses.

• [Title]: Current title number/total number of

titles (page 26)

• [Chapter]: Current chapter number/total

number of chapters (page 24)

• [Time]: Elapsed playing time (page 26)

•

[Audio]: Selected audio language (DVD

VIDEO only) or audio channel (page 25)

• [Subtitle]: Selected subtitle (page 24)

• [Angle]: Selected angle/total number of angles

(page 26)

•

[Sound]: Selected sound mode (page 26)

Note:

If no button is pressed for 10 seconds, the on-screen dis-

play disappears.

Indicates disc name and format.

Indicates input

source.

Indicates the record mode,

free space, and elapsed time

progress bar.

Indicates current date and time.

Indicates operational mode of the recorder.

Playing a T

ape

1. Press VCR to control the VCR deck.

2. Insert a pre-recorded video cassette.

• If the unit is powered off, it will power on

automatically when the tape is loaded.

• If the Timer indicator lights on the front panel

display window, press POWER once.

3. Press PLAY (N) to start playback.

• If a tape without a safety tab is inserted the

unit starts playback automatically.

4. Press STOP (x) to stop playback.

• If the tape reaches the end before you press

STOP (x) the Recorder automatically stops,

rewinds and ejects the tape.

Note:

Super video tape Quasi Playback (SQPB)

• This Recorder can play back Super video tape

recorded, however, it cannot make recordings

using

using Super video tape format.

• SQPB is an abbreviation for Super video tape

Quasi Playback.

Playing a DVD

1. Press DVD to control the DVD deck.

1. Press OPEN/CLOSE (Z) to open the disc tray.

Load your chosen disc in the tray, with the

playback side down.

2. Press OPEN/CLOSE (Z) to close the tray.

Playback starts automatically. If playback does

not start, press PLAY (N)orStarts playback

using HOME menu.

3. To stop the playback, press STOP (x).

The unit records the stopped point, depending on

the disc. “

x” appears on the screen briefly.

Press PLAY (N) to resume playback (from the

scene point). If you press STOP (x) again or

unload the disc (“x” appears on the screen.), the

unit will clear the stopped point.

4. Press OPEN/CLOSE (Z) to remove the disc.

Press OPEN/CLOSE (Z) to close disc tray or

press POWER (1), the disc tray closes

automatically and unit turns off.

Note:

If parental control is set and the disc is not within the rating

settings you must input the password.

(See [Rating] on page 18).

Playback

PLAYBACK

VCR Playback Options

Buttons Operations

EJECT (Z) Ejects the tape in the VCR deck.

PAUSE (X) Pause playback.

Press repeatedly to step forward one frame at a time.

• After 5 minutes in STILL mode the Recorder stops to protect

the tape and video heads.

FORWARD (M) Scan forward. In Stop mode, fast forwards the tape.

In Pause mode, starts slow motion playback.

• After 3 minutes in SEARCH mode the Recorder returns to PLAY mode to protect the tape and

video heads

• After 3 minutes in SLOW MOTION mode the Recorder goes back to PLAY mode to protect the

tape and video heads.

BACKWARD (m) Scan backward. In Stop mode, rewinds the tape.

• After 3 minutes in SEARCH mode the Recorder returns to PLAY mode to protect the tape and

video heads.

CLEAR Resets the current tape counter position to 0:00:00. To automatically go to tape counter

position 0:00:00, press RETURN while the tape is in Stop mode.

TRACK (v / V) Manually reduces noise on the screen during tape playback. Tracking is set

automatically when a tape is inserted.

AUDIO Sets tape audio to HIFI, LEFT, RIGHT or NORMAL.

Use b/B buttons to select tape audio you want.

I.SKIP Press repeatedly during playback to skip forward

30 seconds (maximum 180 seconds).

DVD Playback Features

Buttons Operations

OPEN / CLOSE (Z) Opens or closes the disc tray.

PAUSE (X) Pause playback.

Press repeatedly to play Frame-by-Frame.

You can also use b / B to step backward and forward

while in Pause mode.

BACKWARD (m) / FORWARD (M)

During playback, press repeatedly to select the required

scan speed.

- DVD; 5 steps,

- Audio CD; 3 steps

In Pause mode, press BACKWARD (m) / FORWARD

(M) for slow motion playback (4 steps).

SKIP (. / >) During playback, press SKIP (> or . )to go to the

next chapter/track or to return to the beginning of the

current chapter/track.

Press SKIP . twice briefly to step back to the previous

chapter/track.

• To go directly to any chapter during DVD playback,

press DISPLAY twice and press v / V to select the

chapter icon. Then, input the chapter number or use

b / B.

• On an Audio CD, to go directly to any track, enter the

track number using the numbered buttons (0-9) during

playback.

ZOOM Enlarge the video image.

(x1 size → x2 size → x4 size → x1 size (normal size))

You can move through the zoomed picture using bBvV

buttons.

TITLE If the current DVD title has a menu, the title menu appears

on the screen. Otherwise, the disc menu may appears.

DISC MENU/LIST The disc menu appears on the screen.

SUBTITLE ( ) During playback, press SUBTITLE then press b / B

repeatedly to select a desired subtitle language.

I.SKIP Press repeatedly during playback to skip forward

30 seconds.

Discs

All Discs

DVD ALL

DVD

DVD ALL

WMA

MP3ACDDVD ALL

DVD ALL

ACDDVD ALL

DVD ALL

PLAYBACK

DVD Playback Features (Continued)

Buttons Operations

PLAY MODE Select a desired play mode while playback.

[A-]: Repeats a sequence between A (Start point) and B

(End point) during playback. Press ENTER at your

chosen end point then the repeat sequence begins.

[CHAPTER]: Repeats the current chapter.

[TITLE]: Repeats the current title.

[ALL]: Repeats the all titles/tracks.

[Track]: Repeats the current track.

[RANDOM]: Random playback

[Folder]: Repeats all the tracks on a folder of a disc.

[OFF]: Does not play repeatedly.

• If you press SKIP (>) once during Repeat Chapter

(Track) playback, the repeat playback cancels.

• By pressing SKIP (>) during Random playback, the

Recorder selects another title (track) and resumes

Random playback.

AUDIO ( ) Press AUDIO then press b / B repeatedly to hear a

different audio language or audio track.

Note:

Some discs feature both Dolby Digital and DTS sound-

tracks. There is no analog audio output when DTS is

selected. To listen to the DTS soundtrack, connect this

recorder to a DTS decoder via one of the digital outputs.

See page 13 for connection details.

Press AUDIO then press b / B repeatedly during playback

to hear a different audio channel.

With DVD-RW discs recorded in VR mode that have both

a main and a Bilingual audio channel, you can switch

between Main (L+L), Bilingual (R+R), or a mix of

both (L+R).

Discs

DVD ALL

DVD

DVD ALL

WMAMP3

Karaoke DVD

WMAMP3ACD

-RW

ACD

Karaoke DVDDVD ALL

DVD ALL

Karaoke DVD

ACDDVD ALL

Special Playback Options

If a menu screen is displayed

In some cases, the disc menu might appear instead.

Use the bB v Vbuttons to select the title/chapter

you want to view, then press ENTER to start. Press

TITLE or DISC MENU/LIST to return to the menu

screen.

Moving to another TITLE

When a disc has more than one title, you can move

to another title as follows:



Press DISPLAY twice during playback or in stop

mode then use

v / V to select the title icon. Then, press the

appropriate numbered button (0-9) or b / B to

select a title number.

Time Search

To start playing at any chosen time on the disc:

1. Press DISPLAY twice during playback. The time

search box shows the elapsed playing time.

2. Press v / V to select the time clock icon and

[-:--:--] appears.

3. Input the required start time in hours, minutes,

and seconds from left to right. If you enter the

wrong numbers, press b

B to move the under

bar (_) to the wrong number. Then enter the

correct numbers.

4. Press ENTER to confirm. Playback starts from the

selected time.

Marker Search

To enter a Marker

You can start playback from up to six memorized

points. To enter a marker, press MARKER at the

desired point on the disc. The Marker icon appears

on the TV screen briefly. Repeat to enter up to six

markers.

To Recall or Clear a Marked Scene

1. During disc playback, press SEARCH.

The marker search menu appears on the screen.

2. Use b/B/v/V to select a marker scene that you

want to recall or clear.

3. Press ENTER and playback starts from the

marked scene. Or, Press CLEAR and use b / B

to select [OK] then press ENTER to delete

marked scene from the list.

4. To remove the Marker Search menu,

press RETURN (O).

Camera Angle

If the disc contains scenes recorded at different

camera angles, you can change to a different camera

angle during playback. Press DISPLAY twice then

select the Angle icon during playback. Use b / B to

select a desired angle. Note that the number of the

current angle appears on the display.

Tip:

The Camera Angle icon is displayed on the TV screen when

alternate angles are available.

3D Surround

This unit can produce a 3D Surround effect, which

simulates multi-channel audio playback from two

conventional stereo speakers, instead of the five or

more speakers normally required to listen to multi-

channel audio from a home theater system.

1. Press DISPLAY twice then use v / V to select the

sound icon. Then, use b / B to select [3D SUR.].

2. To turn off the 3D Surround effect, select

[NORMAL].

Last Scene Memory

This Recorder memorizes last scene from the last

disc that is viewed. The last scene remains in memo-

ry even if you remove the disc from the Recorder or

switch off the Recorder. If you load a disc that has

the scene memorized, the scene is automatically

recalled.

Notes:

• Settings are stored in memory for use any time.

• This Recorder does not memorize settings of a disc if

you switch off the Recorder before commencing to play

it.

• Last Scene Memory function for a previous DVD title is

erased once a different DVD title is played.

DVD

DVD ALL

DVD

DVD ALL

DVD

Playing an

Audio CD or

MP3/WMA

files

The Recorder can play Audio CDs and MP3/WMA

files. Before playing MP3/WMA files, read [MP3/WMA

audio file requirement] on right.

1. Press HOME and the Home menu appears.

2. Select [Music] > [DISC] and press ENTER.

The [Music List] menu appears on the TV screen.

Example) Audio CD

3. Use v/V to select a track or file then press

PLAY (N). Playback starts.

You can use variable playback functions. Refer to

pages 24-26.

4. To stop playback at any time, press STOP (x).

Tips:

•You can view video input source by pressing

RETURN (O). If you want to return to the [Music List]

menu, press DISC MENU/LIST.

• Press DISPLAY to view ID3-Tag information for the MP3

file. If ID3-Tag information is not present, [ID3-tag: None]

will appear. If you select a folder, the number of subfold-

ers and number of MP3/WMA files in the folder are dis-

played. Press DISPLAY again to remove the information

screen.

• On the [Music List] menu, you can display the folders on

the disc. Use vVbBto select the “Folder” icon on the

[Music List] menu then press ENTER twice.

• On CDs or DVDs with mixed content (Audio tracks,

MP3/WMA files or JPEG files), you can select among

the [Music List] menu and [Photo List] menu by pressing

TITLE repeatedly.

• If you are in a file list and want to return to the Folder

list, use the v/V to highlight and press ENTER to

return to the previous menu screen.

Music List menu options

1. Press v / V to select a track/file or folder on the

[Music List] menu then press ENTER.

2. Use v / V to select an option, then press ENTER.

• [Play] Start playback the selected track or file.

• [Open] Opens the folder and a list of files in the

folder appears.

• [Random] Start or stop random playback.

Random

1. Press v / V to select a file then press ENTER.

The menu options appear.

2. Press v / V to select [Random] option then press

ENTER.

The unit automatically begins random playback

and “RANDOM” appears on the menu screen.

3. To return to normal playback, select [Random]

option again then press ENTER.

Tip:

By pressing SKIP ./> during Random play-

back, the unit selects another track and resumes

Random playback.

PLAYBACK

MP3/WMA audio file requirement

File extensions

“.mp3”, “.wma”.

Sampling frequency:

within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)

Bit rate: within:

8 - 320kbps (MP3), 32 - 192kbps (WMA)

CD-R Format:

ISO 9660 and JOLIET.

DVD±R/RW Format:

ISO 9660 (UDF Bridge format)

Maximum Files/Disc:

Less than 1999 (total number of files and folders)

iewing a JPEG files

This unit can play JPEG files. Before playing JPEG

recordings, read “About JPEG image files” on page

29.

1. Press HOME and the Home menu appears.

2. Select [Photo] > [DISC] and press ENTER.

3. Use v V b B to select a file or folder and press

ENTER.

2. Use v / V to select option and press ENTER.

Example: When you select a file.

3. Use v / V to select [Full Screen] then press

ENTER.

The selected image is displayed in full screen.

4. To stop viewing at any time, press STOP (x).

Notes:

• If the icon displays in the [Photo List] menu, it

means you cannot see those JPEG files.

•You can view video input source by pressing

RETURN (O). If you want to return to the [Photo List]

menu, press DISC MENU/LIST.

• If you are in a file list and want to return to the Folder

list, use the v/V to highlight and press ENTER to

return to the previous menu screen.

• On CDs or DVDs with mixed content (Audio tracks,

MP3/WMA files or JPEG files), you can select among

the [Music List] menu and [Photo List] menu by pressing

TITLE repeatedly.

Photo List menu options

1. Use v V b B to select a file then press ENTER.

The menu options appear.

2. Use v / V to select an option then press ENTER

to confirm your selection.

• [Open] Opens the folder and a list of files in the

folder appears.

• [Full Screen] Shows the selected file as full

screen.

• [Slide Show] Displays Slide Show menu.

Still picture

Use PAUSE/STEP (X) while showing a picture to

pause mode.

Skip Images

While viewing a picture, press SKIP (> or .)

once to advance to the next file or return to the

previous file.

Rotate Images

Use v / V while viewing a picture to flip the picture

clockwise or counterclockwise.

Press ENTER to appear or disappear this menu.

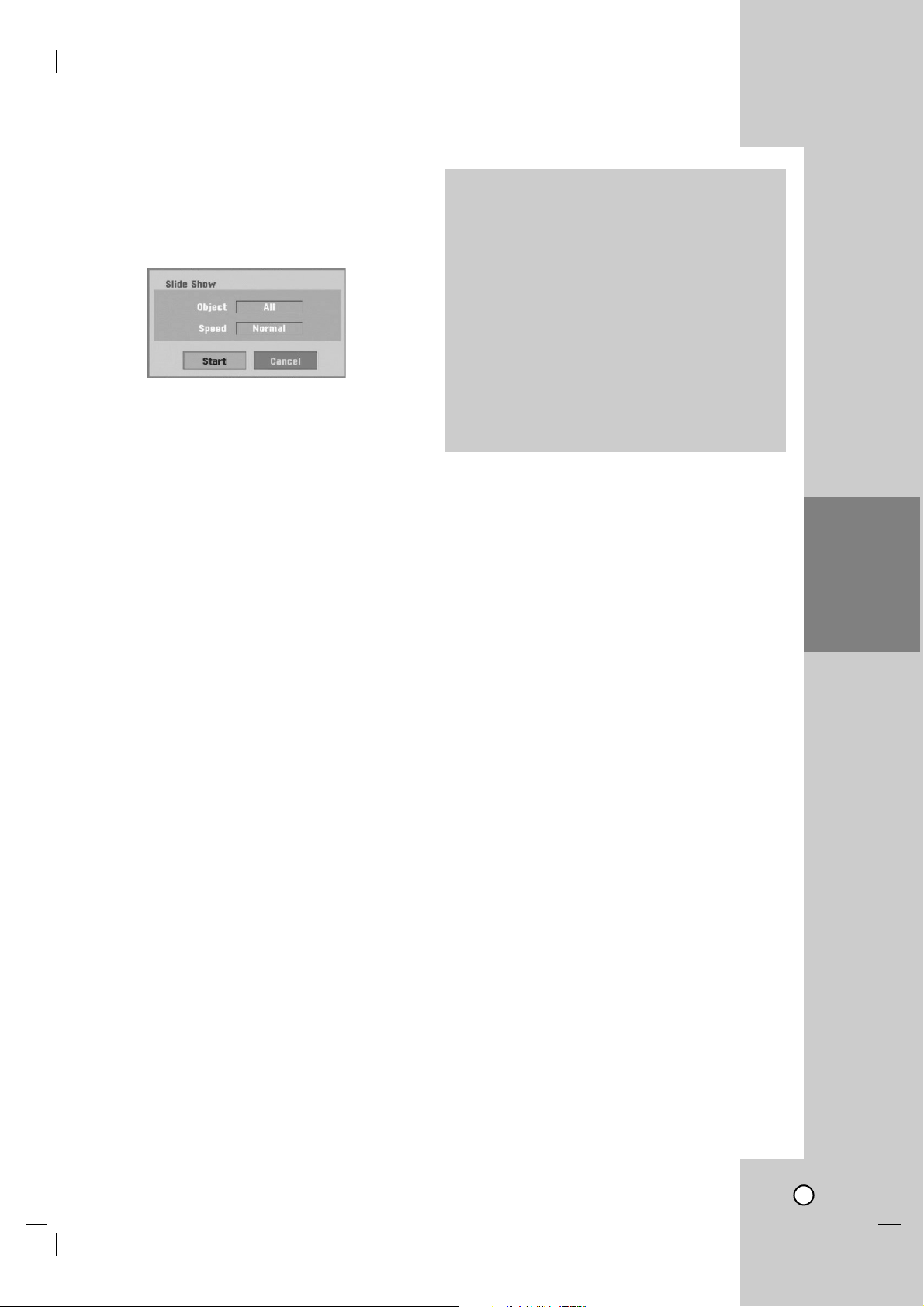

View Slide Shows

1. Select [Slide Show] option on the [Photo List]

menu.

2. Press ENTER.

3. Use b / B / v / V to set the options.

[Object] option:

• [Selected] Views slide show only selected

files.

• [All] Views slide show all files.

[Speed] option:

Sets the Slide Show speed to

[Normal], [Slow], or [Fast].

4. Select the [Start] option then press ENTER to

start the Slide Show.

5. Press STOP (x) to stop the Slide Show and

returns to the [Photo List] menu.

Tips:

• Use the CLEAR button to select all files, or cancel all

marked files.

• Selecting multiple files

1. Press MARKER.

A check mark appears on the file. Press MARKER

again to cancel the marked file.

2. Repeat step 1 to mark additional file.

PLAYBACK

Photo file requirement

File extensions

“.jpe”, “.jpeg”

Photo size:

Less than 4MB recommended

CD-R Format:

ISO 9660 and JOLIET.

DVD±R/RW Format:

ISO 9660 (UDF Bridge format)

Maximum Files/Disc:

Less than 1999 (total number of files and folders)

Notes on JPEG file

Progressive and lossless compression JPEG image

files are not supported.

About DVD recording

Notes:

• This Recorder cannot record CD-R or CD-RW

discs.

• Fingerprints and small scratches on a disc can

affect playback and/or recording performance.

Please take proper care of your discs.

• The company does not hold any responsibility to

compensate the contents which should have

been recorded, and any losses or damages (e.g.

losses of business profit, or business intermis-

sion) that may arise from malfunction of this

recorder (not recording/editing as intended).

Disc types and recording formats, modes,

and settings

This recorder can play many different kinds of DVD

discs: pre-recorded DVD-Video discs, DVD-RW,

DVD-R, DVD+RW and DVD+R discs. The disc format

for DVD-R, DVD+R, DVD+RW discs is always “Video

format”—the same as pre-recorded DVD-Video discs.

This means that once finalized, you can play a

DVD-R, DVD+R, or DVD+RW in a regular DVD play-

er.

The DVD-RW disc format is Video Recording (VR)

format or Video format. You can change Recording

format, if required. (Reinitializing the disc will erase

the contents of the disc.)

The recording mode is closely related to the disc for-

mat. If the disc format is Video Recording format,

then the recording mode is VR mode; if the disc for-

mat is Video format, then the recording mode is

Video mode (except for DVD-Video, which is not

recordable, and so does not have a recording mode).

These can be changed as required for each record-

ing and determine the picture quality and how much

space the recording will take up on the disc.

Notes for recording

• The recording times shown are not exact

because the recorder uses variable bit-rate video

compression. This means that the exact record-

ing time will depend on the material being record-

ed.

• If you record still pictures or audio only, the

recording time may be longer.

• The displayed times for recording and time

remaining may not always add up to exactly the

length of the disc.

• The recording time available may decrease if you

heavily edit a disc.

• If using a DVD-RW disc, make sure you change

the recording format (Video mode or VR mode)

before you record anything on the disc. See page

19 (Initialize) for how to do this.

• When using a DVD-R or DVD+R disc, you can

keep recording until the disc is full, or until you

finalize the disc. Before you start a recording

session, check the amount of recording time left

on the disc.

• When using a DVD-RW disc in Video mode,

recording time available will only increase if you

erase the last title recorded on the disc.

• The Delete Title option in the Title List (Original)

menu only hides the title, it does not actually

erase the title from the disc and increase the

recording time available (except for the last

recorded title on a DVD-RW disc in Video mode).

• Overwrite recording is available using DVD+RW

discs.

•

When using a DVD+R/RW, the recorder will exe-

cute the Menu-making operation to update the new

title and editing when removing the disc from the

recorder.

Recording

Recording from External

Components

You can record from an external component, such as

a camcorder or VCR, connected to any of the

Recorder’s external inputs.

1. Make sure that the component you want to record

from is connected properly to the Recorder. See

page 14.

2. Press AV/INPUT repeatedly to select the external

input to record from.

•AV1: Audio/Video Input mounted on back

panel.

•AV2: Audio/Video Input mounted on front

panel.

•DV: DV Input mounted on front panel.

3. Load a recordable disc or tape.

4. Set a recording mode as necessary by pressing

REC MODE repeatedly.

DVD: XP, SP, LP or EP.

VCR: SP or SLP

5. Press z REC once to start recording.

The REC indicator lights in the display window.

6. Press STOP (x) to stop recording.

Notes:

• Check that the Audio In settings DV Record Audio

are as you want them. See page 19.

• If your source is copy-protected using

CopyGuard, you will not be able to record it using

this recorder. See Copyright on page 8 for more

details.

• Recording continues until you press STOP (x) or

the disc is full.

• To record for a fixed length of time, see [Instant

Timer Recording] on this page.

Instant T

imer Recording

Instant Timer Recording allows you to make a

recording easily of a preset length without using the

program timer.

1. Follow steps 1-4 as shown left (Basic Recording

from a TV).

2. Press z REC repeatedly to select the recording

time length. Recording starts after the first press.

DVD: Each subsequent press increases the

recording time by 10 minutes.

VCR: Each subsequent press increases the

recording time by 30 minutes (maximum

540 minutes). Please confirm the Video tape

has enough remaining time to be recorded

before recording.

Checking the Recording Time

Press z REC or DISPLAY once to check the record-

ing time. The recalled setting will automatically return

to the TV screen for a moment.

Also, remaining time of recording is shown in the dis-

play window.

To Extend the Recording Time

The recording time can be extended anytime by

pressing z REC.

Each subsequent press increases the recording time

by 10 minutes (DVD) or 30 minutes (VCR).

To Pause the Recording

1. Press PAUSE/STEP (X) to pause the recording.

2. When you want to continue recording, press

PAUSE/STEP (X) or z REC.

Notes:

• If you press PAUSE/STEP (X) during the Instant Timer

Recording, it will be canceled.

• The Recorder will automatically power off when the

Instant Timer Recording ends.

• If the unit is DVD mode when the VCR Instant timer

recording ends, the unit will not automatically power off.

Simultaneous Play and

Record

You can play a DVD during the VCR recording, press

DVD to change DVD mode and perform the DVD

playback.

Notes:

• You cannot play or record both DVD and VCR at

the same time.

•

You cannot change VCR mode during the DVD

recording mode.

• If you wish VCR playback or record during the

DVD playback, press VCR to change VCR mode

and perform the VCR playback or recording.

RECORDING

imer Recording

The Timer Recording function allows you to record up

to 16 programs within a period of one month.

1. Press HOME and the Home menu appears.

2. Select [TV] > [Timer Record] and press ENTER.

3. Select [NEW] and press ENTER.

The [Timer Record] menu will appear.

• [Media] – Choose a media (DVD or VCR).

• [Input] – Choose one of the external inputs

from which to record (AV1 or AV2).

• [Date] – Choose a date up to 1 month in

advance, or select a daily or weekly program.

• [Start Time] – Set the recording start time.

• [End Time] – Set the recording end time.

• [Mode] – Choose a record mode.

DVD: EP, LP, SP, XP, or AT (Auto)

VCR: SP, SLP, or AT (Auto)

AT(Auto) mode determines how much time is avail-

able on the disc or tape and switches record mode,

if necessary, to complete recording the program.

2. Enter the necessary information for your timer

recording(s).

• b / B (left/right) – Move the cursor left/right

• v / V (up/down) – Change the setting at the

current cursor position

• Press RETURN (O) to exit the [Timer

Record] menu.

3. Press ENTER to save the program.

4. Press RETURN (O) to exit the Timer Record

List.

Notes:

•You must insert a recordable disc or tape.

• The Timer indicator lights on the front panel

display.

• The Recorder will automatically power off when

the Timer Recording ends.

• If the unit is DVD mode when the VCR timer

recording ends, the unit will not automatically

power off.

• There is a short delay when a timer recording fin-

ishes to confirm the recorded program. If two

timer recordings are set to record sequentially

(one right after the other), the very beginning of

the later program may not be recorded.

•You must press STOP (x) to stop the Timer

Recording.

Checking Timer Recording Details

Programming can be checked whenever the

Recorder is turned on.

1. Press HOME and the Home menu appears.

2. Select [TV] > [Timer Record] and press ENTER.

3. Use v / V to select a program.

4. Press ENTER to edit the selected program.

[Timer Record] menu appears.

Canceling a Timer Recording

You can clear a timer setting anytime before the

recording actually starts.

• Use v / V to select a program you want to erase

on the Timer Recorder List, then press CLEAR

and select [OK] than press ENTER.

Timer Recording Troubleshooting

Even though the timer is set, the recorder will not

record when:

• There is no disc (or tape) loaded.

•Anon-recordable disc (or tape) is loaded.

• Disc Protect is set to [ON] in the Disc menu (see

page 20).

• There are already 99 titles (DVD-RW, DVD-R), 49

titles (DVD+RW, DVD+R) recorded on the disc.

You cannot enter a timer program when:

•Arecording is already underway.

• The time you’re trying to set has already passed.

• There are already 16 timer programs set.

If two or more timer programs overlap:

• The earlier program takes priority.

• When the earlier program finishes, the later pro-

gram starts.

•

If two programs are set to start at exactly the same

time, the program entered first takes priority.

If the disc is damaged, the recording may not

complete successfully. In this case even though the

Check field shows [Rec. OK], it may not be

RECORDING

Dubbing from DVD to VCR

You can copy the contents of a DVD to a Video tape

using the DUBBING button.

1. Insert a blank video tape into the VCR deck.

2. Insert the disc you wish to copy in the DVD deck

and close the disc tray.

3. Find the place on the DVD (or Disc) from which

you want to start dubbing using the PLAY, FF,

REW and PAUSE functions.

For best results, pause playback at the point from

which you want to record.

4. Press the DUBBING button.

The Dubbing menu appears.

5. Use v / V / b / B to select the desired Record

Mode: SP or SLP (3 times SP).

6. Select [Dubbing] then press ENTER or DUBBING

to start copying.

7. To stop dubbing at any other time,

press STOP (x).

You must stop the dubbing process manually

when the DVD movie ends, or the unit may replay

and record over and over again.

Note:

If the DVD (or Discs) you are attempting to copy is

copy protected, you will not be able to copy the disc.

It is not permitted to copy Macrovision encoded

DVDs (or Discs). [Copy-protected. Cannot record.] is

displayed on the TV screen.

Tip:

If you press PAUSE during Dubbing mode, both the

DVD and VCR decks go into Pause mode and the

DUBBING button blinks on the front panel. While in

Pause mode, you can adjust the DVD playback posi-

tion using PLAY, REW, FF, PAUSE/STEP, etc. The

VCR deck will remain in Pause mode. To resume

Dubbing, press the DUBBING button twice.

Dubbing from VCR to DVD

You can copy the contents of a Video tape to a DVD

using the DUBBING button. This allows you to

archive your old Video tapes to DVD.

1. Insert a blank DVD disc in the DVD deck and

close the disc tray.

2. Insert the video tape you wish to copy into

the VCR deck.

3. Find the place on the Video tape from which you

want to start dubbing using the PLAY, FF, REW

and PAUSE functions. For best results, pause

playback at the point from which you want to

record.

4. Press the DUBBING button.

The Dubbing menu appears.

5. Use v / V / b / B to select the desired Record

Mode: EP, LP, SP or XP.

6. Select [Dubbing] then press ENTER or DUBBING

to start copying.

7. To stop dubbing at any other time,

press STOP (x).

Dubbing will stop automatically when the Video

tape ends.

Note:

If the video tape you are attempting to copy is

copy protected, you will not be able to copy the tape.

It is not permitted to copy Macrovision encoded

tapes.

Tip:

If you press PAUSE during Dubbing mode, both the

DVD and VCR decks go into Pause mode and the

DUBBING button blinks on the front panel. While in

Pause mode, you can adjust the VCR playback posi-

tion using PLAY, REW, FF, PAUSE/STEP, etc. The

DVD deck will remain in Pause mode. To resume

Dubbing, press the DUBBING button twice.

Recording from DV Input

Before DV dubbing

You can connect a DV-equipped camcorder to this

recorder using a single DV cable for input and output

of audio, video, data and control signals.

 This recorder is only compatible with DV-format

(DVC-SD, DV25) camcorders. Digital satellite

tuners and Digital video tape recorders are not

compatible.

 You cannot connect more than one DV camcorder

at a time to this recorder.

 You cannot control this recorder from external

equipment connected via the DV IN jack (including

two recorders).

 It may not always be possible to control the con-

nected camcorder via the DV IN jack.

 Digital camcorders can usually record audio as

stereo 16-bit/48kHz, or twin stereo tracks of 12-

bit/32kHz. This recorder can only record one stereo

audio track. Set [DV Record Audio] option to Audio

1 or Audio 2 as required (see page 19).

 Audio input to the DV IN jack should be 32 or

48kHz (not 44.1kHz).

 Picture disturbance on the recording may occur if

the source component pauses playback or plays an

unrecorded section of tape, or if the power fails in

the source component, or the DV cable becomes

disconnected.

Recording from a Digital Camcorder

You can record from a digital camcorder connected to

the DV IN jack on the front panel of this recorder.

Using the recorder’s remote, you can control both the

camcorder and this recorder.

Before recording, make sure that the audio input for

the DV IN jack is set up (see page 19).

Tips:

• The source signal must be DVC-SD format.

• Some camcorders cannot be controlled using this

recorder’s remote.

• If you connect a second recorder using a DV

cable, you cannot control the second DVD from

this one.

• You cannot control this unit remotely from a com-

ponent connected to the DV IN jack.

• You cannot record date and time information from

a DV cassette.

1. Make sure your digital camcorder is connected to

the front panel DV IN jack. See page 14.

2. Check that the DV audio input is as you require.

You can choose between Audio 1 (original audio)

and Audio 2 (overdubbed audio).

 DV Input is set from the DV Record Audio in

sub-menu of the Setup menu. See [DV Record

Audio] on page 19 for more information.

3. Press AV/INPUT repeatedly to select the DV

input.

4. Find the place on the camcorder tape that you

want to the recording to start from.

For best results, pause playback at the point from

which you want to record.

 Depending on your camcorder, you can use

this recorder’s remote to control the camcorder

using the STOP, PLAY, BACKWARD, FOR-

WARD and PAUSE functions.

5. Press z REC once to start recording.

 Recording is automatically stopped if the

recorder detects no signal.

 You can pause or stop the recording by press-

ing PAUSE/STEP (X) or STOP (x).

You cannot control the camcorder from this

Remote Control during recording.

 In Video mode, the final frame of the recording

may remain displayed on screen for a while

after recording stops.

Troubleshooting

If you cannot get a picture and/or audio through the

DV IN jack, check the bullet points:

 Make sure the DV cable is properly connected.

 Try switching off the connected equipment then

switch back on.

 Try switching the audio input.

Note:

Depending on the connected camcorder, you may not

be able to control it using the Remote Control supplied

with this recorder.

itle List and Chapter List

Menu Overview

Using the Title List menu you can edit video content.

The editing features available in the Title List menu

depend on whether you are editing video on DVD,

and whether you’re editing Original content, or a

Playlist.

There are two ways to edit VR mode DVD-RW discs.

You can directly edit the Original content of the disc,

or you can create and edit a Playlist. The Playlist

doesn’t actually change any of the content on the

disc, but just controls how the content is played back.

1. Press DISC MENU/LIST to display the TITLE

LIST menu.

Playback should be stopped when you do this.

 When selecting titles, use the v / V buttons to

display the previous/next page if there are more

than six titles.

 If you are editing a VR mode disc, press DISC

MENU/LIST to switch between Original and

Playlist menu.

 On the left side of the screen are the menu

options. The main part of the screen shows

thumbnails of the titles (or chapter) on the DVD.

You can change these thumbnails using the

THUMBNAIL button. (see [Changing Title

Thumbnails] on page 36.)

 Press DISPLAY to display the information of

selected title on the Title List menu.

 After selecting a title or chapter on the Title List

of Chapter List menu, then press ENTER. The

menu options on the left side of the menu. Use

v / V to select a option then press ENTER to

confirm your selection.

2. To exit the TITLE LIST menu, press

RETURN (O) repeatedly.

1. Menu options: To display menu option, select a

title or chapter then press ENTER. The options

displayed differ depending on the disc type.

• [Play] Start playback of the selected title or chapter.

The hidden titles and chapters on the DVD+R/RW

cannot be play back.

• [Search]

- [Chapter] ; Displays Chapter List of the Title.

- [Time] ; Search time for you want start point

of the title .

• [Delete] Deletes the title or chapter. (page 38)

• [Move] Moves chapter position on [Chapter List -

Playlist] menu (page 40).

• [Protect] Protects accidental recording, editing or

deleting of the title.(page 40)

• [Edit] Edits or Deletes a part of the title.

- [Title Name] Edits the title name. (page 39).

- [Delete Part] Deletes a part of the Title (page 38).

- [Divide] Divides a title into two (page 41).

- [Hide (Show)] Hides (or Shows) the selected title or

chapter. (page 40)

• [Playlist Add] Adds the title or chapter to the Playlist.

(page 37)

• [Dubbing] Dubs the title to VCR.

•[Title] Displays Title List of the chapter.

• [Combine] Combines two titles or chapters into one

(page 41).

• [Full Play] Starts playback of the selected title includ-

ing the hidden chapters.

2. Current media.

3. Indicates the record mode, free space, and

elapsed time progress bar.

4. Currently selected title.

5. Thumbnail.

6. Shows the selected title number and total number

of titles.

7. Shows the title name, recorded date, and record-

ing length.

Editing

12 3 4 5 67

EDITTING

VR Mode: Original and

Playlist Editing

Titles, Chapters and Parts

Titles in the disc’s original content contain one or

more chapters. When you insert a disc’s title into the

Playlist, all the chapters within that title also appear.

In other words, chapters in the Playlist behave exact-

ly as chapters on a DVD-Video disc do. Parts are

sections of Original or Playlist titles. From the Original

and Playlist menu you can add or delete parts.

Adding a chapter or title to the Playlist creates a new

title made up of a section (ie., chapter) of an Original

title. Deleting a part removes part of a title from the

Original or Playlist menu.

Caution

 When editing using the Delete, Add and Move func-

tions, the start and end frames may not be exactly

as set in the start and end point display.

 During Playlist playback, you may notice a momen-

tary pause between edits. This is not a malfunction.

Is editing a DVD like editing a video tape?

No. When you edit a video tape you need one video

deck to play the original tape and another to record

the edits. With DVD, you edit by making a ‘Playlist’ of

what to play and when to play it. On playback, the

Recorder plays the disc according to the Playlist.

About word ‘Original’ and ‘Playlist’

Throughout this manual, you will often see the words

Original and Playlist to refer to the actual content and

the edited version.

 Original: content refers to what’s actually recorded

on the disc.

 Playlist: content refers to the edited version of the

disc — how the Original content is to be played.

Adding Chapter Markers

You can create chapters within a title by inserting

chapter marks at the desired points.

Note:

Chapter markers are inserted at regular intervals

automatically. You can change this interval from the

Initial Setup menu (see [Auto Chapter] on page 19).

During recording or playing back, at the point you

want to start a new chapter, press CHP. ADD.

A chapter marker icon appears on the TV screen.

Changing T

itle Thumbnails

Each title displayed in the Title List menu is repre-

sented by a thumbnail picture taken from the start of

that title or chapter.

If you prefer, select a different still picture from within

a title.

Press THUMBNAIL to make the currently displayed

picture the one that appears in the Title List menu.

The still picture that you choose appears in both the

Original or Playlist menu.

Tip:

You can also change the thumbnail picture of the title

on the Chapter List menu. Select a chapter on the

Chapter List menu then press THUMBNAIL. The

thumbnail picture of the title that includes the chapter

is changed.

+R+RW-RW

-RW

Making a New Playlist

Use this function to add an Original title or chapter to

the Playlist. When you do this, the whole title is put

into the Playlist (you can delete bits you don’t need

later - see [Deleting an Original or Playlist title/chap-

ter] on page 38).

The title appears in the Playlist complete with the

chapter markers that appear in the Original. However,

if you add more chapter markers to the Original later,

these are not automatically copied over into the

Playlist title.

1. Choose a title or chapter on the [TITLE LIST-

Original] menu or [Chapter List-Original] menu to

put into the Playlist, then press ENTER.

The menu options appears on the left side of the

menu.

2. Use v / V to select [Playlist Add] option then

press B.

3. Select [New Playlist] then press ENTER.

The new title appears in the updated Playlist. All

chapters of the title are added to the Playlist.

Adding

Additional T

itle /

Chapters to the Playlist

You can add an Original title or chapter to add to a

Playlist title even if it is already registered.

1. Choose a title or chapter on the [TITLE LIST-

Original] menu or [Chapter List-Original] menu to

put into the Playlist, then press ENTER.

The menu options appears on the left side of the

screen.

2. Use v / V to select [Playlist Add] from menu

options then press B.

3. Choose a Title List-Playlist that is already regis-

tered to insert a title or chapter, then press

ENTER.

4. Repeat steps 1-3 to add additional title or chapter

on the Playlist.

You can view the added chapters on the [Chapter

List-Playlist] menu.

5. Press RETURN (O) to exit, or DISC MENU/LIST

to go back to the [Title List-Original] menu.

-RW

EDITTING

Deleting an Original or

Playlist T

itle/Chapter

When you erase a title or chapter from the Playlist

menu, you only remove it from the Playlist; the

title/chapter remains in the Original menu.

If you choose to delete a title or chapter from the

Original (title/chapter) menu, the title or chapter is

actually deleted from the disc and the remaining time

available for recording increases. Titles/chapters

deleted from the Original are also removed from the

Playlist.

Note:

It may not be possible to delete chapters that are less

than 5 seconds long.

1. Use b / B / v / V to choose a chapter or title you

want to delete on the [TITLE LIST] or [Chapter

List] menu then press ENTER.

The menu options appears on the left side of the

screen.

2. Select [Delete] option from the options on the

menu.

Example: Title List (DVD-VR)

3. Press ENTER to confirm.

The confirm message for deleting will appear.

4. Use b / B to select [OK] then press ENTER.

The selected chapter or title is deleted.

After pressing ENTER, the new, updated menu is

displayed.

5. Repeat steps 1 - 4 to continue to delete from the

menu.

6. Press RETURN (O) repeatedly to exit the menu.

Notes:

•

When DVD+RW recording, the deleted title’s

name is changed to [Deleted Title].

• If more than two titles are repeatedly deleted, the

titles are combined into one.

• When you are deleting a title or chapter, only the

last one on DVD+R/RW increases remaining

recording time.

Deleting a Part

You can delete a part which you do not want in the

title.

1. Use b / B / v / V to choose a title you want to

delete on the Title List menu then press ENTER.

The options appears on the left side of the menu.

2. Select [Edit] > [Delete Part] option then press

ENTER.

[Edit] menu appears on the TV screen.

Example: Edit (Delete Part) (DVD-VR)

3. Starts playback and use pause step, search and

slow-motion to find the starting point.

4. Press ENTER at the starting point of the section

you want to delete.

[End Point] icon is highlighted.

The part is indicated on the Progress Bar.

5. Use pause step, search and slow-motion to find

the ending point.

6. Press ENTER at the ending point of the section

you want to delete.

You can cancel the selected point, use v / V to

select [Cancel] icon then press ENTER.

7. If you finish to edit, select [Done] icon then press

ENTER.

The confirm message for deleting will appear.

Use b / B to select [OK] then press ENTER.

The selected part is deleted from the title and Title

List menu appears.

Notes:

• It may not be possible to delete parts that are less than

3 seconds long.

• If you select [Cancel] then press ENTER, the Recorder

will go to previous option and into Pause mode.

-RW

Naming a T

itle

You can name Original and Playlist titles independ-

ently.

1. Choose the title you want to name on the Title List

menu, then press ENTER.

The menu options appears on the left side of the

menu.

2. Use v/V to select [Edit] > [Title Name] option then

press ENTER.

Keyboard menu appears.

3. Enter a name for the title. Use b / B / v / V to

select a character then press ENTER to confirm

your selection.

• Language: Selects a keyboard type.

• Space: Inserts a space at the cursor position.

• Delete: Deletes the character to the left of the

cursor position.

• b / B: Moves the cursor left or right.

• OK: Confirms the name you have entered.

• Cancel: Deletes all characters and exits the

Keyboard menu.

Remote control buttons for entering a name

• PLAY (

): Inserts a space at the cursor posi-

tion.

• PAUSE/STEP (X): Deletes the character to

the right of the cursor position.

• SKIP (. / >): Moves the cursor left or

right.

• STOP (x), CLEAR: Deletes the character to

the left of the cursor position.

• 0-9: Enters the character corresponding to the

selected column.

• DISC MENU/LIST, DISPLAY: Switches the

keyboard type.

4. Choose [OK] then press ENTER to fix the name

and return to the previous menu screen.

5. Press RETURN (O) repeatedly to exit the menu.

Notes:

• Names can be up to 32 characters long.

• For discs formatted on a different recorder, you

will see only a limited character set.

• When recording on DVD-R, DVD+R or DVD+RW

discs, the entered name is displayed on the DVD

player only after finalization.

ime Search

You can select start point of the title.

1. Use b / B / v / V to choose a title on the TITLE

LIST menu then press ENTER.

The options appears on the left side of the menu.

2. Select [Search] > [Time] option then press

ENTER.

[Time] menu appears on the TV screen.

3. Use b / B to find the point you want to start.

The point increase 1 minute step.

If you press and hold b / B then the point

increase 5 minute step.

4. Press ENTER to start selected point.

Current picture

Selected time

Start time

Selected point

End time

EDITTING

Moving a Playlist Chapter

Use this function to re-arrange the playing order of

Playlist chapters on the Chapter List-Playlist menu.

Note:

This function is not available if there is only one

chapter.

1. Select a chapter on the Chapter List-Playlist

menu.

2. Press ENTER.

The menu options appears on the left side of the

menu.

3. Use v / V to select [Move] option from Playlist

options then press ENTER.

4. Use b / B / v / V to choose the place you want to

move the chapter then press ENTER.

After pressing ENTER, the updated menu is

displayed.

Hide a Chapter/T

itle

You can skip playing chapters or titles without delet-

ing from the disc.

1. Use vVbBto choose a chapter or title you

want to hide on the [TITLE LIST] or [Chapter List]

menu, then press ENTER.

Options appear on the left side of the screen.

2. Select [Edit] > [Hide] option.

Example: Title List (DVD+RW)

3. Press ENTER to confirm.

The chapter’s or title’s thumbnail will dim.

Tip:

If you select a hidden chapter or title on the TITLE

LIST or Chapter List menu, you can ‘show’ it by

choosing [Show] option on the menu. After doing that,

you are able to see the chapter or title.

Protect a T

itle

Use this function to protect against accidental record-

ing, editing or deleting of the title.

1. Press DISC MENU/LIST to display the [TITLE

LIST] menu.

2. Use vVbBto choose a title you want to protect

then press ENTER.

Options appear on the left side of the screen.

3. Select [Protect] from the options.

Example: Title List (DVD-VR)

4. Press ENTER to confirm.

The lock mark will appears on the title’s

thumbnail.

Tip:

If you select a title that has already been protected

on the Title List menu, you can ‘unprotect’ it by

choosing [Unprotect] option from the Title List menu

options. After doing that, you can edit and delete the

title.

-RW

+R+RW

-RW

Divide One T

itle Into T

Use this command to split a title up into two new

titles.

1. On the Title List menu, select a title you want to

divide then press ENTER.

The menu options appears on the left side of the

screen.

2. Select [Edit] > [Divide] option.

Example: Title List (DVD+RW)

3. Press ENTER.

[Edit (Divide)] menu appears.

4. Use play, pause step, search and slow-motion to

find the point you want to divide the title.

5. Select [Divide] option then press ENTER at the

point.

To reset the point, select [Cancel] option then

press ENTER. Repeat from step 3.

6. Choose [Done] option then press ENTER to fix

the dividing point.

The title is divided into two new titles. It take up to

4 minutes to divide.

Note:

You cannot select dividing point less than 3 seconds.

Combining T

wo Chapters

Into One

Use this function to combine two adjacent chapters

into one.

1. On the Chapter List menu, select the second

chapter of the two chapters you want to combine

then press ENTER

The menu options appears on the left side of the

screen.

2. Use v / V to select [Combine] option.

The combine indicator appears between the two

chapters you want to combine.

Example: Title List (DVD-VR)

3. Repeat steps 1 - 2 to continue to combine from

the menu.

4. Press RETURN (O) repeatedly to exit the menu.

Notes:

This function cannot operate listed as below;

• If there is only one chapter within the title.

• If you select first chapter.

• If two chapters created by erasing a part from an

original title.

• If two chapters created from different titles.

• If two chapters created by moving an order from an

original title.

+R+RW-RW

+RW

The first title’s

thumbnail

Current picture

The second

title’s thumbnail

EDITTING

Overwriting Recording

To overwrite a new video recording on a previously

recorded title, follow these steps. This feature is not

available for DVD+Rs, that always record at the end

of the Disc.

1. Select input source you want to record

(AV1-2, DV).

2. Press DISC MENU/LIST to display the TITLE

LIST menu.

3. Use vVbBto choose a title you want to

overwrite.

4. Press z REC to start overwrite recording.

Overwrite recording starts from the start point of

the title.

5. Press STOP (x) to stop the overwrite recording.

The new title is created and updated menu is dis-

played.

Notes:

• This function is not available for a protected title.

• If the overwrite is longer than the recording

length of the current title, the next title is over-

written. But if next title is protected, the over-

writing stops at the starting point of the title.

• If the selected title’s recording length is less than

10 seconds, the next title is overwritten. But if the

next title is protected, overwriting stops.

iewing T

itle List menu

displayed on other DVD

Recorders or Players

You can view the Title List menu displayed on the

other DVD player that is capable of playing DVD+RW

or DVD+R discs.

1. Insert DVD+R or DVD+RW disc recorded already.

2. On DVD mode, press TITLE in Play mode or Stop

mode.

Title List menu will appear as shown below.

3. To play back a title, select the title you want then

press ENTER or PLAY (N).

Tip:

You can remove the Title List menu by pressing

STOP (x).

Playing

our Recordings on

Other DVD Players

(Finalizing a Disc)

Most regular DVD players can play finalized discs

recorded in Video mode, finalized DVD+R or

DVD+RWs. A small number of players can also play

DVD-RW discs recorded in VR mode, finalized or not.

Check the manual that came with the other player to

check what formats of discs it will play.

Finalizing ‘fixes’ the recordings and editings in place

so that the disc can be played on a regular DVD play-

er or computer equipped with a suitable DVD-ROM

drive.

Finalizing a Video mode disc creates a menu screen

for navigating the disc. The menu can be accessed

by pressing DISC MENU/LIST or TITLE.

To finalize a disc, refer to [Finalize] on page 20.

Notes:

• Unfinalized DVD+RW is playable on regular DVD

players.

• The edited contents of a DVD+RW disc is com-

patible on regular DVD players only after finaliza-

tion.

• Any edited contents of the DVD+R disc are not

compatible on regular DVD players.

(Hide, chapter combine, added chapter mark, etc.)

• How long finalization takes depends on the type

of disc, how much is recorded on the disc, and

the number of titles on the disc.

+R+RW

+RW

Controlling

our TV with the

Supplied Multi-brand Remote

Control

You can control the sound level, input source, and

power switch of your LG TV with the supplied

Multi-brand Remote Control.

You can control your TV using the buttons below.

By pressing You can

POWER Turn the TV on or off.

AV/INPUT Switch the TV’s input source

between the TV and other input

sources.

PR/CH +/– Scans up or down through

memorized channels.

VOL +/– Adjust the volume of the TV.

Note:

Depending on the unit being connected, you may not be

able to control your TV using some of the buttons.

Controlling other TVs with the

Multi-brand Remote Control

You can control the sound level, input source, and

power switch of non-LG TVs as well. If your TV is list-

ed in the table below, set the appropriate manufactur-

er code.

1. While holding down TV POWER button, press the

number buttons to select the manufacturer code

for your TV (Refer to table on the right column).

2. Release TV POWER button.

Code numbers of controllable TVs

If more than one code number is listed, try entering

them one at a time until you find the one that works

with your TV.

Manufacturer Code Number

LG / GoldStar 1 (Default), 2

Zenith 1, 3, 4

Samsung 6, 7

Sony 8, 9

Hitachi 4

Notes:

• Depending on your TV, some or all buttons may not

function on the TV, even after entering the correct

manufacturer code.

• If you enter a new code number, the code number previ-

ously entered will be erased.

• When you replace the batteries of the remote, the code

number you have set may be reset to the default set-

ting. Set the appropriate code number again.

Reference

REFERENCE

Area Code

Afghanistan AF

Argentina AR

Australia AU

Austria AT

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

China CN

Colombia CO

Congo CG

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

El Salvador SV

Area Code

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Greenland GL

Heard and McDonald Islands

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya LY

Luxembourg LU

Area Code

Malaysia MY

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Netherlands Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama PA

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian Federation RU

Area Code

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan TW

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

Area Code List

Choose a area code from this list.

Language Code

Abkhazian 6566

Afar 6565

Afrikaans 6570

Albanian 8381

Ameharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Aymara 6588

Azerbaijani 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Cambodian 7577

Catalan 6765

Chinese 9072

Corsican 6779

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroese 7079

Language Code

Fiji 7074

Finnish 7073

French 7082

Frisian 7089

Galician 7176

Georgian 7565

German 6869

Greek 6976

Greenlandic 7576

Guarani 7178

Gujarati 7185

Hausa 7265

Hebrew 7387

Hindi 7273

Hungarian 7285

Icelandic 7383

Indonesian 7378

Interlingua 7365

Irish 7165

Italian 7384

Japanese 7465

Javanese 7487

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kirghiz 7589

Korean 7579

Kurdish 7585

Laothian 7679

Latin 7665

Latvian, Lettish 7686

Language Code

Lingala 7678

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay 7783

Malayalam 7776

Maltese 7784

Maori 7773

Marathi 7782

Moldavian 7779

Mongolian 7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya 7982

Panjabi 8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan 8377

Sanskrit 8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Sindhi 8368

Language Code

Singhalese 8373

Slovak 8375

Slovenian 8376

Somali 8379

Spanish 6983

Sudanese 8385

Swahili 8387

Swedish 8386

Tagalog 8476

Tajik 8471

Tamil 8465

Tatar 8484

Telugu 8469

Thai 8472

Tibetan 6679

Tigrinya 8473

Tonga 8479

Turkish 8482

Turkmen 8475

Twi 8487

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 7473

Yoruba 8979

Zulu 9085

Language Code List

Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.

roubleshooting

Symptom

No power.

Abnormal or no picture.

No sound.

The playback picture is

poor.

Picture from external

input is distorted.

The Recorder does not

start playback.

Video tape cannot be

inserted.

Cause

 The power cord is disconnected.

 The TV is not set to receive Recorder

signal output.

 The video cable is not connected

securely.

 Wrong connection.

 The equipment connected with the

audio cable is not set to receive

Recorder signal output.

 The audio cables are not connected

securely.

 The power of the equipment connected

with the audio cable is turned off.

 The AUDIO options are set to the wrong

position.

 The disc is dirty.

 Tape heads are dirty.

 Tape is a rental or was recorded on

another VCR.

 The video signal from the external

component is copy-protected.

 No disc is inserted.

 No tape is inserted.

 An unplayable disc is inserted.

 The disc is placed upside down.

 The disc is not placed within the guide.

 The disc is dirty.

 The Rating level is set.

 Is the cassette compartment empty?

Correction

 Plug the power cord into the wall out-

let securely.

 Select the appropriate video input

mode on the TV so the picture from

the Recorder appears on the TV

screen.

 Connect the video cable into the jacks

securely.

 Check the connection.

 Select the correct input mode of the

audio receiver so you can listen to the

sound from the Recorder.

 Connect the audio cable into the jacks

securely.

 Turn on the equipment connected with

the audio cable.

 Set the AUDIO options to the correct

position.

 Clean the disc.

 Clean video heads.

 Use TRK (v/V) for manual tracking

adjustment while tape is playing.

 You cannot connect via the Recorder.

Connect the component directly to

your TV.

 Insert a disc or tape. (Check that the

disc or tape indicator in the display

window is lit.)

 Insert a playable disc. (Check the disc

type and Regional code.)

 Place the disc with the playback side

down.

 Place the disc on the disc tray cor-

rectly inside the guide.

 Clean the disc.

 Cancel the Rating function or change

the rating level.

 Eject the tape in.

Check the following guide for the possible cause of a problem before contacting service.

REFERENCE

Symptom

The Remote Control

does not work properly.

Camcorder image is not

shown.

Camcorder image via

A/V input or DV IN to

Recorder is not shown

on TV screen.

Timer recording is not

possible.

Can’t play disc recorded

on this Recorder on

another DVD player.

Cannot record or did

not record successfully.

Stereo Audio Record

and/or Playback not

present.

Cause

 There is an obstacle in the path of the

Remote Control and this unit.

 The batteries in the Remote Control

are exhausted.

 The Remote Control is not pointed at

the remote sensor of the Recorder.

 The Remote Control is too far from

the Recorder.

 This Remote Control use the same

buttons for VCR and DVD functions

(ex.PLAY).

 Camcorder is off.

 The recorder’s source is incorrect.

 Clock in record is not set to

correct time.



Timer has been programmed incorrectly.

 (TIMER Record) indicator light does

not appear after programming timer.

 The disc was recorded in Video mode.

 Some players will not play even a

finalized disc recorded in Video mode.

 The disc was recorded in VR mode.

 Discs recorded with copy-once materi-

al cannot be played on other players.

 The remaining blank space on the

disc is insufficient.

 The source you are trying to record is

copy-protected.

 When recording to a Video mode disc,

programs that are copy-once protect-

ed cannot be recorded.

 Recorder A/V Out jacks are not

connected to TV A/V In jacks.

 Recorder Audio/Video Out is not

selected for viewing at the TV.

Correction

 Remove the obstacle.

 Replace the batteries with new ones.

 Point the Remote Control at the remote

sensor of the Recorder.

 Operate the Remote Control within

23ft (7m).

 When using a VCR, first press the VCR

button. When using a DVD, first press

the DVD button.

 Turn camcorder on and operate

properly.

 Use AV/INPUT to select input channel

(AV1, AV2 or DV IN).

 Set clock to correct time.

 Reprogram Timer.

 Reprogram Timer and turn the Record

off to enable timer.

 Finalize the disc; see page 20.

 No solution.

 The other player must be RW

compatible in order to play it.

 No solution.

 Use another disc.

 You cannot record the source.

 Use a VR mode formatted disc for

copy-once material.

 Make A/V connections. Stereo is avail-

able only via A/V output from Recorder.

 Select AUX or A/V source as TV input.

Reset the Recorder

If you observe any of the following symptoms...

• When the Recorder is plugged in, but the power

will not turn on or off.

• When the display window does not working.

• When the Recorder does not operate normally.

You can reset the Recorder as follows:

• Press and hold the POWER button for more than

five seconds. This will force the Recorder to power

off. Press the POWER button again to turn the

Recorder back on.

• Unplug the power cord and then plug the power

cord again after more than five seconds.

REFERENCE

General

Power requirements AC 120V, 60 Hz

Power consumption 24W

Dimensions (approx.) 430 X 78.5 X 260 mm (16.9 x 3.1 x 10.2 inches) (w x h x d)

Net Weight (approx.) 4.6 kg (10.14 lbs)

Operating temperature 5˚C to 35˚C (41˚F to 95˚F)

Operating humidity 5 % to 90 %

System

Signal system NTSC

Head system Four head helical scan azimuth system

Tape width 12.7 mm

Recording

Recording format DVD VideoRecording, DVD-VIDEO

Recordable discs DVD-ReWritable, DVD-Recordable, DVD+ReWritable, DVD+Recordable

Recordable time DVD ; Approx. 1 hour (XP mode), 2 hours (SP mode),

4 hours (LP mode), 6 hours (EP mode)

VCR ; SP: 2 HOURS (T-120), SLP: 6 HOURS (T-120)/8 HOURS (T-160)

Video recording format

Sampling frequency 27MHz

Compression format MPEG 2

Audio recording format

Sampling frequency 48kHz

Compression format Dolby Digital

Playback

Frequency response DVD (PCM 48 kHz): 8 Hz to 22 kHz, CD: 8 Hz to 20 kHz

Signal-to-noise ratio More than 95dB

Harmonic distortion Less than 0.008%

Dynamic range More than 90 dB

Inputs

VIDEO INPUT (AV 1, 2) 1.0 Vp-p 75 ohms, sync negative, RCA jack x 2

AUDIO INPUT (AV 1, 2) -6.0 dBm more than 47 kohms, RCA jack (L, R) x 2

DV IN 4 pin (IEEE 1394 standard)

Outputs

VIDEO OUTPUT 1 Vp-p 75 Ω, sync negative, RCA jack x 1

S-VIDEO OUTPUT (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1

COMPONENT OUTPUT (Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

Audio output (digital audio) 0.5 V (p-p), 75 Ω, RCA jack x 1

Audio output (analog audio) 1 kHz, -6 dB, 600 Ω, RCA jack (L, R) x 2

Accessory:

Video cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Audio cable (L, R) . . . . . . . . . . . . . . . .1

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . .1 Batteries . . . . . . . . . . . . . . . . . . . . . . .2

Design and specifications are subject to change without notice.

Specifications

This Zenith product, will be repaired or replaced, at Zenith’s option, if it proves to be defective in material or work-

manship, under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date

(“Date of Purchase”) of original consumer purchase of the product. This warranty is good only to the original pur-

chaser of the product and effective only when used in the United States, excluding U.S. Territories.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED

WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. ZENITH

WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES OF ANY

NATURE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REV-

ENUES OR PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED IN

CONTRACT, TORT OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or consequential damages

or limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives

you specific legal rights and you may also have other rights that may vary from state to state.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

• Damages or operating problems that result from shipping, installation, adjustment of user controls, calibration,

maintenance or failure to maintain, or separate system components; and

• Damages or operating problems that result from normal wear and tear, misuse, abuse, operation outside

environmental specifications or contrary to the requirements or precautions in the Operating Guide, accident,

lightning strikes or other natural causes, unauthorized modification or alteration, incorrect electrical current or

voltage, signal reception or input, software not licensed directly by LG, software errors that do not disable

functionality, operating and software protocols adopted after the date of manufacture or for outside the US,

institutional or commercial use, or other causes not arising out of defect in material or workmanship.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

WARRANTY PERIOD:

LABOR: 90 days from the Date of Purchase.

PARTS: One Year from the Date of Purchase.

* Parts replaced are warranted for the remaining portion

of the original warranty period.

HOW SER

VICE IS HANDLED:

Call 1-800-243-0000 for instructions on getting the

defective unit repaired or replaced.

Please retain dated sales receipt and your box to

return the unit to Zenith for repair or replacement.

Shipping both ways will be paid by Zenith during the first

90 days of the Warranty Period. During the remainder of

the Warranty Period (91-365 days), you pay inbound

shipping charges and Zenith pays return shipping

charges.

Visit our website at: http://www.zenithservice.com

For Warranty Service, Where to buy, Product

Assistance, or Customer Assistance

Call 1-800-243-0000(24 hours a day, 365days per year)

and select appropriate options from the menu.

Or visit our website at http:// www.zenithservice.com

To contact us by mail:

LG Customer Interactive Center

PO Box 240007

201 James Record Road

Huntsville, AL 35824

Attn CIC

Zenith

Limited Warranty - USA

Marketed and distributed by:

LG ELECTRONICS U.S.A., INC.

1000 SYLVAN AVENUE

ENGLEWOOD CLIFFS, NJ

P/N: MFL56842615

Issue O
