User Manual for Upright Vacuum

VACUUM ASSEMBLY

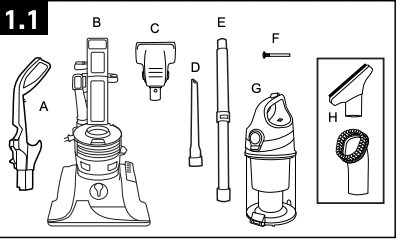

CARTON CONTENTS

A. Handle

B. Vacuum Base

C. Air-Powered Hand Tool*

D. Crevice Tool

E. Telescoping Wand

F. Screw (for assembly)

G. Dirt Cup

H Dusting/Upholstery Tool*

*Varies per model

Remove all parts from carton and identify each item shown.

Make sure all parts are located before disposing of packing materials.

Additional parts may be ordered at Hoover or call 1-800-944-9200

ATTACH HANDLE

Note: Remove the screw located in the vacuum base and set aside until instruction 1.3

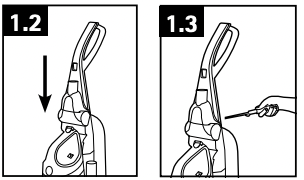

• 1.2 Insert handle section into vacuum base. Push down firmly.
• 1.3 Using a Phillips screwdriver, fasten (1) screw behind handle into vacuum base.

ATTACH DIRT CUP

• 1.4 Place bottom of dirt cup into vacuum body first. Pivot cup into vacuum. Dirt cup is secure when you hear a click.

POSITION TOOLS (varies per model)

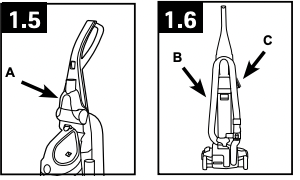

• 1.5 Attach bottom of Air-Powered Hand Tool (A) and pivot into handle until secure.
• 1.6 Place Crevice Tool into Wand and slide into tool storage area on left back side (B) of vacuum and place Upholstery Tool on right back side (C) of vacuum as shown.

HOW TO USE

ON-OFF SWITCH

• 2.2 Plug cord into electrical outlet.

To turn vacuum ON, push ON/OFF button (A) once.

To turn vacuum OFF, push switch again.

SUCTION ONLY MODE/ BRUSHROLL SHUT-OFF

for bare floors and very high pile carpet

• 2.3 For optimal cleaning performance on bare floors and carpet with pile deeper than 1”, brushroll should be turned off.

The vacuum is shipped with the brushroll in the ON position. To turn brushroll OFF for Suction Only Mode, step on pedal (B).

IMPORTANT

Pedal (B) is inactive when the cleaner is in the upright position.

CAUTION

Brushroll should be in off position for cleaning of high pile carpet deeper than 1”.

CAUTION

Not to be used for grooming a pet.

CORD RELEASE

• 2.4 Grasp the end of the plug and pull to release cord from cord reel.

IMPORTANT

When pulling on the cord, yellow tape will identify when the cord is almost fully extended. When red tape is visible on the cord, the cord has reached its full length. Do not pull the cord past the red tape.

TRANSPORTING CLEANER

• 2.5 To move your cleaner from room to room, put handle in upright position, tilt cleaner back on rear wheels and push forward.

HANDLE POSITIONS

2.6 The handle of your cleaner has two positions:

1) Upright for storage and when using cleaning tools.

2) Operating position for general operation on carpets and floors. Step on handle release pedal to lower handle.

CARPET HEIGHT ADJUSTMENT

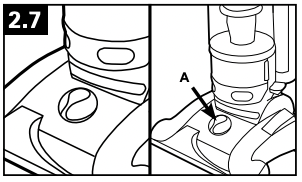

• 2.7 To adjust height setting, TURN knob (A) to desired height setting.

For maximum cleaning performance, the following carpet height settings are recommended:

• Lowest setting (1): for bare floors.

• Low setting (2): for all types of carpet.

• Higher settings: for very deep pile carpet, where easier pushing effort is desired, while maintaining good cleaning performance.

IMPORTANT If the vacuum is difficult to push, turn knob to the next higher setting.

TOOLS

Tools allow for cleaning surfaces above the floor and for reaching hard to clean areas. The vacuum is ready for tool use when handle is in upright position.

SELECT PROPER TOOL (Tools may vary per model)

A. Use Dusting/ Upholstery Tool to clean upholstered furniture, draperies, mattresses, clothing, and carpeted stairs. (Tool varies per model)

B. Air-Powered Hand Tool may be used for upholstered furniture, draperies, mattresses, clothing, and carpeted stairs. (Tool varies per model)

C. Telescoping Wand is used to give extra length to your hose. Use it with any of the above tools.

D. Crevice Tool may be used in tight spaces, corners and along edges in such places as dresser drawers, upholstered furniture, stairs and baseboards.

REMOVING HOSE

WARNING: To reduce the risk of personal injury - Unplug before cleaning or servicing.

3.2. When using cleaning tools, place cleaner handle in the upright position. The agitator brushroll will not rotate when the cleaner is in the upright position.

To remove hose for tool use, press the hose release button and pull hose end out.

To lock back into place, push hose into hose tube until you hear a click.

ATTACH WAND AND TOOLS (Tools may vary per model)

WARNING Unplug vacuum before connecting AirPowered Hand Tool.

3.3. Attach tool or wand to the hose (A).

Attach tool to wand (B) by pushing it firmly onto the wand.

Twist wand or tool slightly to tighten or loosen the connection.

To extend wand, twist counter-clockwise to the unlocked position, extend wand & twist clockwise until tight. Reverse to collapse.

CAUTION ! Not to be used for grooming a pet.

HOW TO CLEAN TOOLS

To clean Hose and Air-Powered Hand Tool, wipe with a damp cloth. DO NOT submerge in water.

Other cleaning tools may be washed in warm water with a mild detergent. Rinse and air dry 24 hours before using.

STAIR CLEANING

• 3.4 Lift vacuum by Stair Cleaning Handle and position on stairs. Clean forward to back. Never leave the vacuum standing on stairs when not cleaning.
• 3.5 Use the Hose and Air-Powered Hand Tool (Tool varies per model) for stair cleaning. When using tools, always ensure handle is in upright position.

CAUTION Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage. When using tools, always ensure handle is in upright position.

CORD REWIND AND STORAGE

• 3.6 To return cord for storage, unplug from wall. To return cord for storage, hold plug and press down Cord Release Pedal (A) on side of cord reel.

WARNING ! Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

MAINTENANCE

Familiarize yourself with these home maintenance tasks as proper use and care of your vacuum will ensure continued cleaning effectiveness.

If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

• 4.1 The System Check Indicator located at (A), alerts you to possible system performance issues.

Any other servicing should be done by an authorized service representative.

NOTICE

A Thermal Protector has been designed into your cleaner to protect it from overheating. When the thermal protector activates the cleaner will stop running. If this happens proceed as follows:

• 1. Turn cleaner OFF and unplug it from the electrical outlet.
• 2. Empty dirt cup.
• 3. Inspect the nozzle inlet, hose connector, hose, dirt cup inlet, cyclonic filter, rinsable filter, and HEPA filter for any obstructions. Clear obstructions if present.

When cleaner is unplugged and motor has cooled for 30 minutes, the thermal protector will deactivate and cleaning may continue. If the thermal protector continues to activate after following the above steps, your cleaner needs servicing.

DIRT CUP

When to Empty

• 4.2 To maintain optimal performance, empty the dirt cup before the dirt cup reaches the max line (A). Place the vacuum in the upright position before removing the dirt cup.

WARNING ! To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place.

Very fine materials, such as face powder or cornstarch, may seal the filter and cause a reduction in performance. When using the vacuum for this type of dust, empty the cup and clean the filters often.

How to Empty

• 4.3 Press dirt cup release button (A) and pivot cup out.
• 4.4 Hold dirt cup over trash receptacle, push dirt cup door release lever (B) to open dirt cup door (C). Close dirt cup door (C). Press firmly to secure lever.
• 4.5 Place bottom of dirt cup into vacuum body first. Pivot dirt cup into vacuum body and press firmly until it locks into place.

FILTERS: When to Clean

To maintain optimal performance, filters should be cleaned at least every two months under normal use.

Rinsable Filter: How to Clean

Remove dirt cup as described in Fig. 4.3.

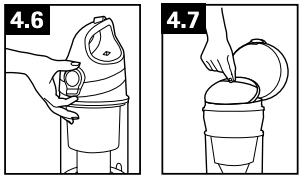

• 4.6 Pull up on dirt cup latch to open.
• 4.7 Pull on filter by the pocket to remove rinsable filter.

Hold filter under running water for at least two minutes to remove dirt and debris. Squeeze filter twice while underwater. Remove from water and squeeze a final time to remove excess water.

IMPORTANT Allow filter to dry completely before replacing. Dry filter on edge so air circulates on both sides of filter. This may take up to 48 hours.

Replace filter with pocket facing up.

Close lid securely by pushing until it clicks.

Replace dirt cup as described in Fig 4.5.

WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place.

What to Buy: Rinsable Filter

When used and maintained properly, your Rinsable Filter should not need replacement within the warranty period. If desired, additional filter is available at Hoover or call 1-800-944-9200. Ask for Hoover® Part No. 303903001.

Filter Made With HEPA Media: How to Clean

WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place.

• 4.8 With fingers in slots, pull filter frame (A) straight out. Hold filter over a trash receptacle and tap out dirt and debris. Slide back into position on vacuum and press firmly.

IMPORTANT DO NOT RINSE OR WASH THE FILTER MADE WITH HEPA MEDIA.

What to Buy: Filter Made With HEPA Media

When used and maintained properly, your Filter should not need replacement within the warranty period. If desired, additional filter is available at Hoover or call 1-800-944-9200. Ask for Hoover® Part No. 305687001.

Carbon Filter : How to Clean (Available on select models only).

Your Carbon Filter is located on the underside of the Filter made with HEPA media.

IMPORTANT DO NOT RINSE OR WASH the Carbon Filter.

What to Buy: Carbon Filter

Carbon Filter may need to be replaced more often to maintain optimal odor absorbing effectiveness. Additional filter is available at Hoover or call 1-800-944-9200. Ask for Hoover® Part 902404001.

Cyclonic Filter Assembly: How to Clean

WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place.

Remove dirt cup as described in Fig. 4.3.

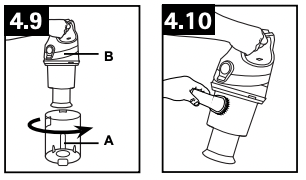

• 4.9 Twist filter assembly (B) counter-clockwise. Remove assembly from dirt cup (A).
• 4.10 Dirt and debris can be cleaned from the filter assembly with the Dusting/ Upholstery Tool.

Place the filter assembly (4.9, B) on the dirt cup, aligning (3) tabs on filter with (3) slots on dirt cup (A) and twist it clockwise to secure into position. Replace dirt cup as described in Fig. 4.5.

IMPORTANT Filter assembly must be properly aligned to dirt cup to function properly.

BRUSHROLL: How to Clean

CAUTION ! To reduce the risk of injury from moving parts - Unplug before servicing.

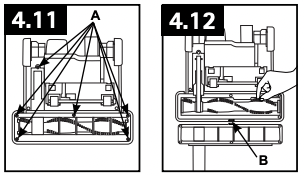

• 4.11 Turn vacuum over so bottom side is facing up and remove the (6) screws (A).
• 4.12 Pivot out bottom plate away from hidden latch (B) and remove any debris and/or hair from the brushroll.
• 4.13 Reposition bottom plate, aligning latch (B) and fastening all (6) screws (A). Press firmly at latch (B) area to ensure that it is properly latched.

HOSE: How to Clean

WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing

• 4.14 To remove hose for tool use, press the hose release button (A) and pull hose end out.

Clear away debris or obstructions from hose. Do not use sharp objects to clean out hose as they can cause damage. To lock back into place, push hose into hose tube until you hear a click.

AIR-POWERED HAND TOOL:

How to Clean (Tool varies per model)

CAUTION ! To reduce the risk of injury from moving parts - Unplug before servicing

• 4.15 Turn tool so bottom faces up. Rotate the latches (A) on either side of tool.
• 4.16 Remove bottom plate (B).
• 4.17 Remove any debris and/ or hair from brushroll. Replace bottom plate by aligning tabs along front edge of tool. Rotate latches back into locked position.

HEADLIGHT: How to Replace (available on select models only)

WARNING ! To reduce the risk of electric shock - Unplug before cleaning or servicing.

Removing Lens

Press Handle Release Pedal and place handle in low position.

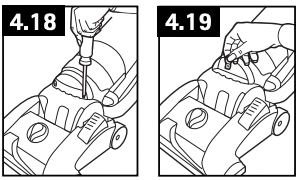

• 4.18 Using a Phillips screwdriver, remove (2) screws as shown and lift off lens.

Installing Bulb

• 4.19 Pull old bulb straight out of socket. Push new bulb straight into socket until locked in place. Do not use excessive force when installing bulb. Do not twist or turn bulb when installing bulb.

Replacing Lens

• 4.20 Reposition lens and secure with screws.

BELT

CAUTION ! To reduce the risk of injury from moving parts - Unplug before servicing.

The belt is located under the bottom plate of the vacuum and should be checked from time to time to be sure it is in good condition.

When To Replace

Replace belt if it is stretched, cut or broken. To check the belt, refer to Fig. 4.24 - 4.26.

How To Replace

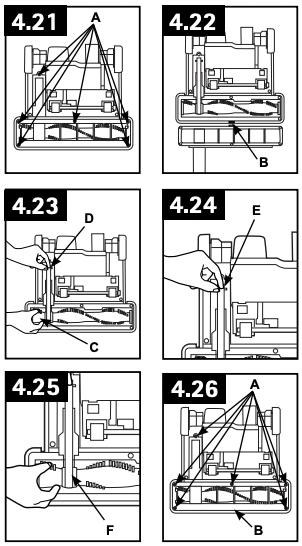

• 4.21 Turn vacuum over so bottom side is facing up and remove the (6) screws (A).
• 4.22 Pivot out bottom plate away from hidden latch (B).
• 4.23 Remove used belt from brushroll (C) then from motor shaft (metal rod) (D) and discard.

What to Buy: Belt Use only genuine HOOVER® belts with your vacuum. When purchasing a new belt for models with Brushroll On/Off (Suction Only Mode), ask for Flat Belt - HOOVER® part No. 562289001 or AH20065. If desired, additional belts can be purchased at Hoover or 1-800-944-9200

• 4.24 With lettering on outside of belt, slide new belt over motor shaft (metal rod) (E).
• 4.25 Then slip other end of belt around area of brushroll without bristles (F). With belt in place, pull and slide brushroll into nozzle making sure that the brushroll end caps are in the correct orientation.
• 4.26 Reposition bottom plate, aligning latch (B) and fastening all (6) screws (A). Press firmly at latch (B) area to ensure that it is properly latched.

IMPORTANT Rotate brushroll manually to make sure belt is not twisted.

LUBRICATION

The motor and brushroll are equipped with bearings which contain sufficient lubrication for their lifetime. The addition of lubricant could cause damage. Do not add lubricant to motor or brushroll.

TROUBLESHOOTING

If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the checklist below.

Any other servicing should be done by an authorized service representative.

If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use

WARNING ! To reduce the risk of personal injury - Unplug before cleaning or servicing.
