Operating Instructions
© 2001 Sony Corporation
4-081-143-11(1)
KP-43HT20
KP-53HS20
KP-53HS30
KP-61HS20
KP-61HS30
Projection TV
Operating Instructions
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
2
WARNING
To prevent fire or shock hazard, do not
expose the projection TV to rain or
moisture.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
To prevent electric shock, do not use this polarized AC
plug with an extension cord, receptacle or other outlet
unless the blades can be fully inserted to prevent blade
exposure.
CAUTION
When using TV games, computers, and similar products
with your projection TV, or viewing a TV station whose
logo always stays on the screen, keep the brightness and
contrast functions at low settings. If a fixed (non-moving)
pattern such as a station logo is left on the screen for long
periods of time, especially at a high brightness or contrast
setting, the image can be permanently imprinted onto the
screen. These types of imprints are not covered by your
warranty.
Note on Caption Vision
This television receiver provides display of television
closed captioning in accordance with §15.119 of the FCC
rules.
Note on convergence adjustment
Before you use your projection TV, make sure to adjust
convergence. For details, see “Adjusting the Convergence
Automatically – FLASH FOCUS™ –” on page 33.

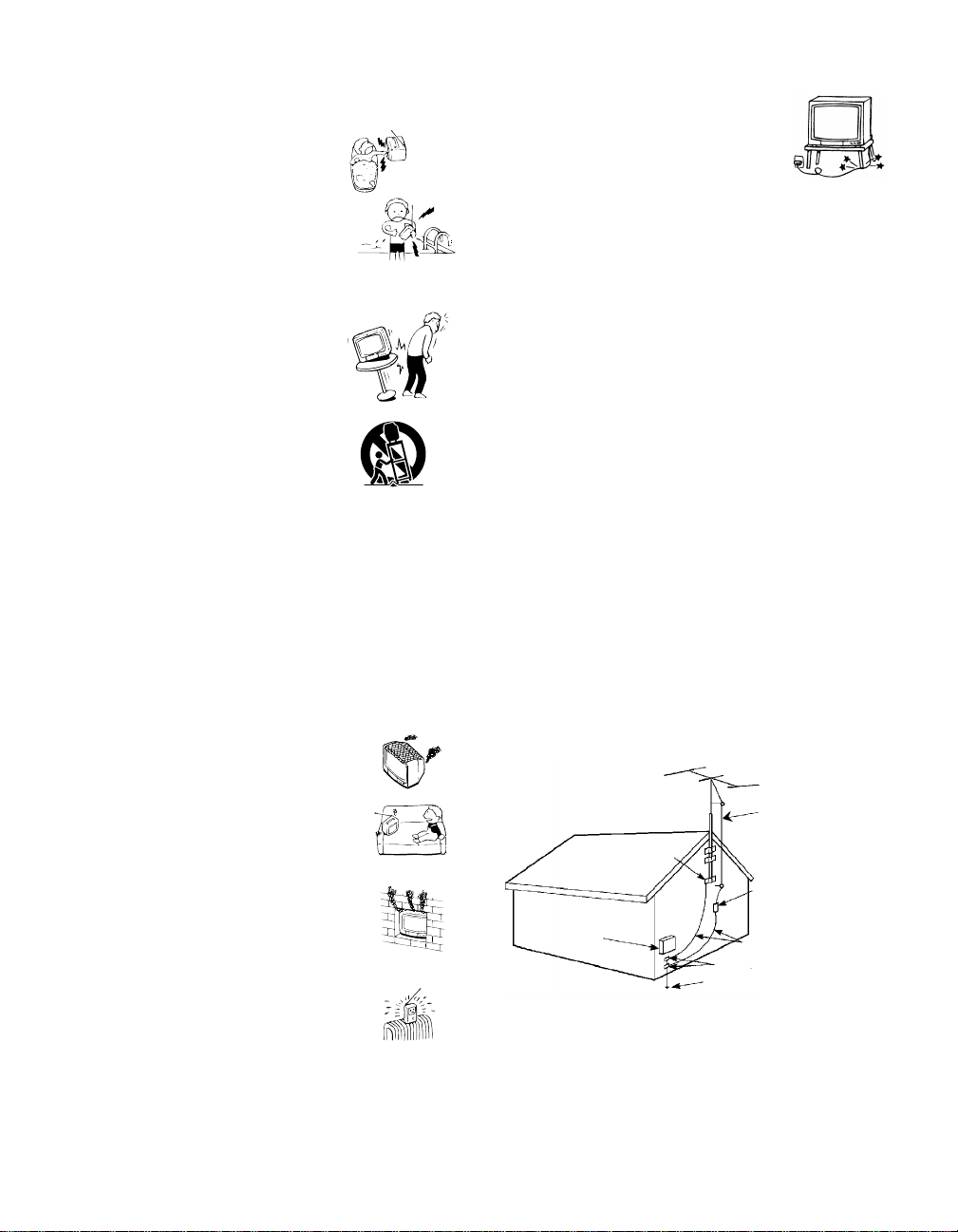

Note to CATV system installer
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.
Use of this television receiver for other than private
viewing of programs broadcast on UHF, VHF,
transmitted by cable companies or satellite for the use of
the general public may require authorization from the
broadcaster/cable company and/or program owner.
NOTIFICATION
This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference with radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
❑ Reorient or relocate the receiving antennas.
❑ Increase the separation between the equipment and
receiver.
❑ Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
❑ Consult the dealer or an experienced radio/TV
technician for help.

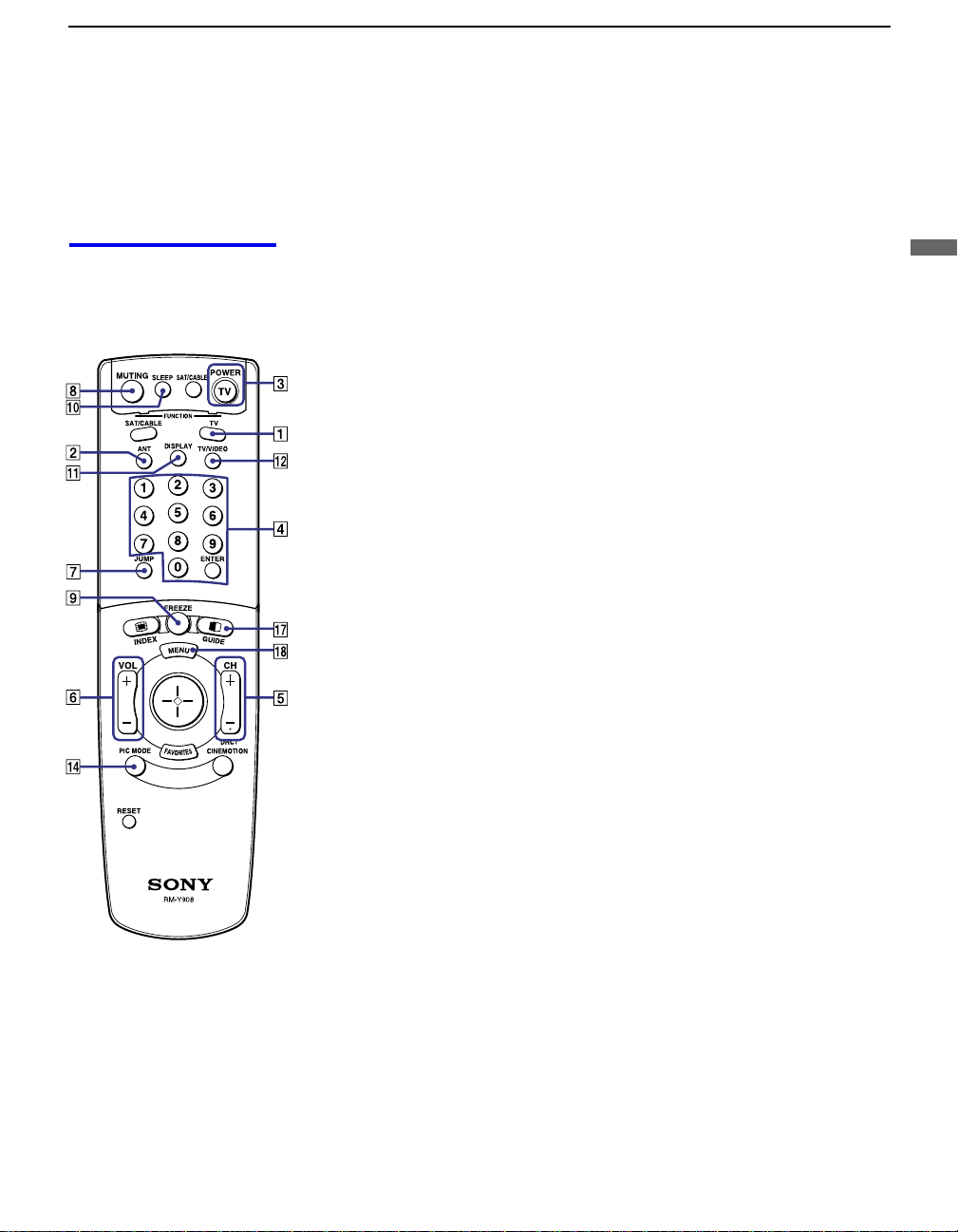

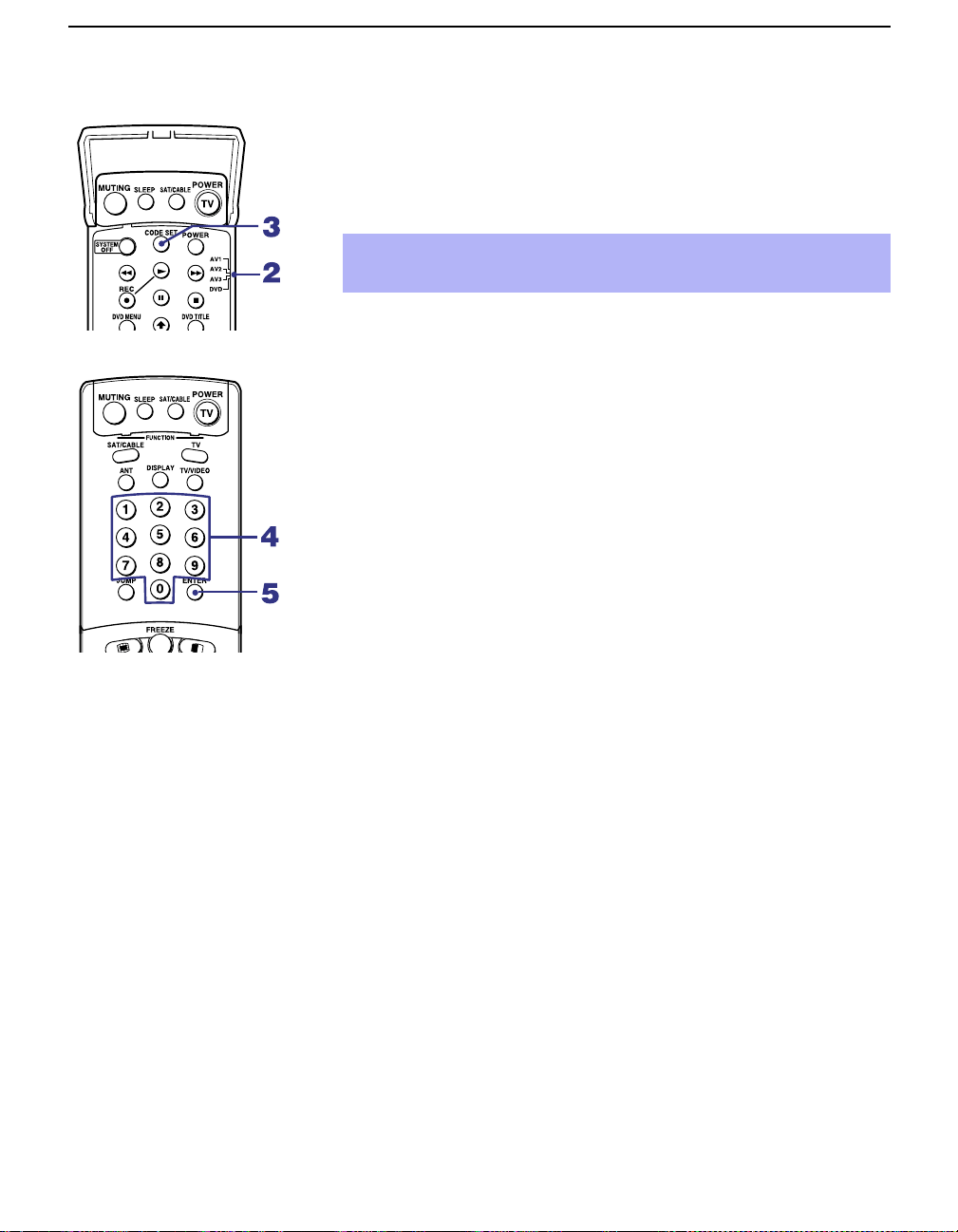

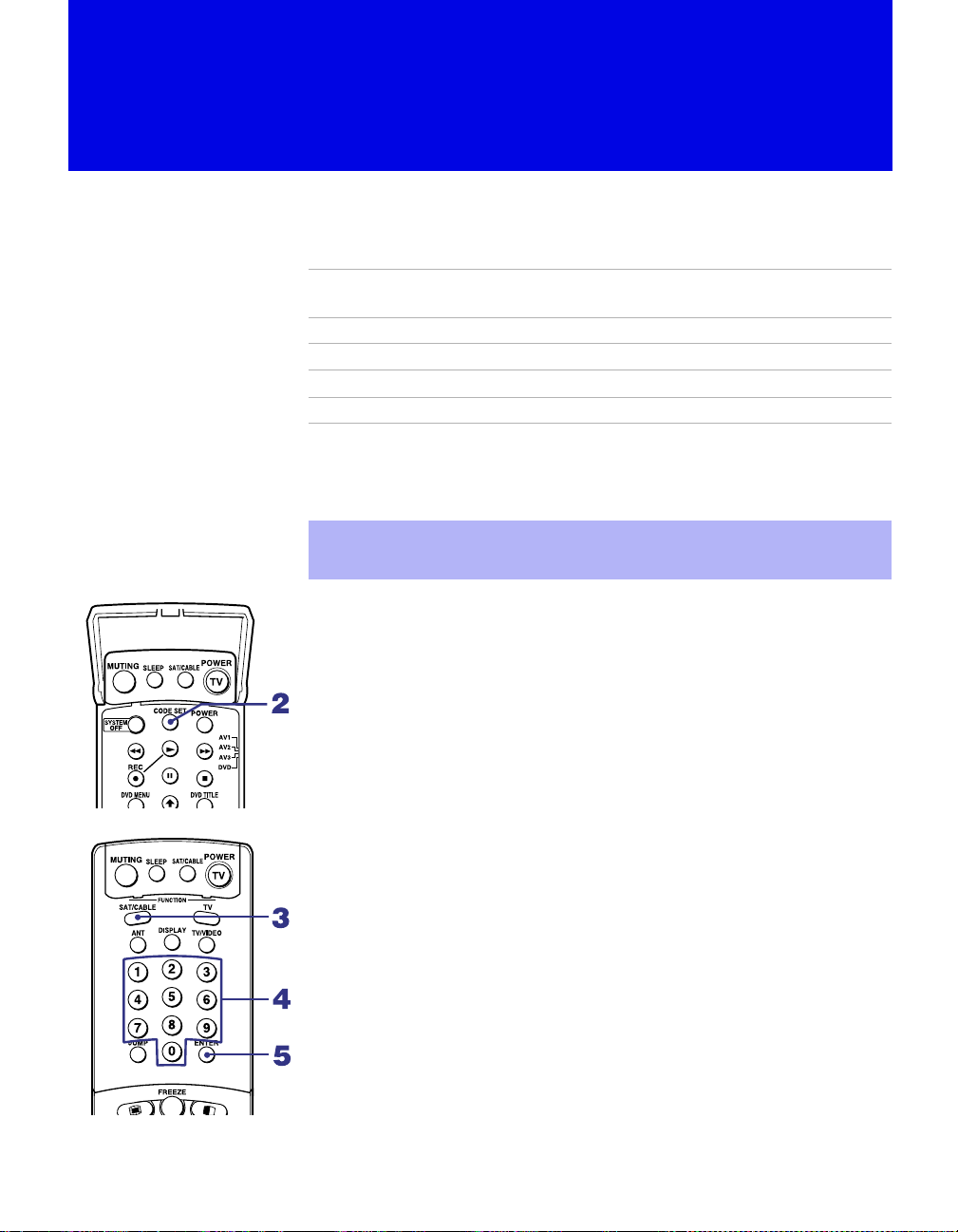

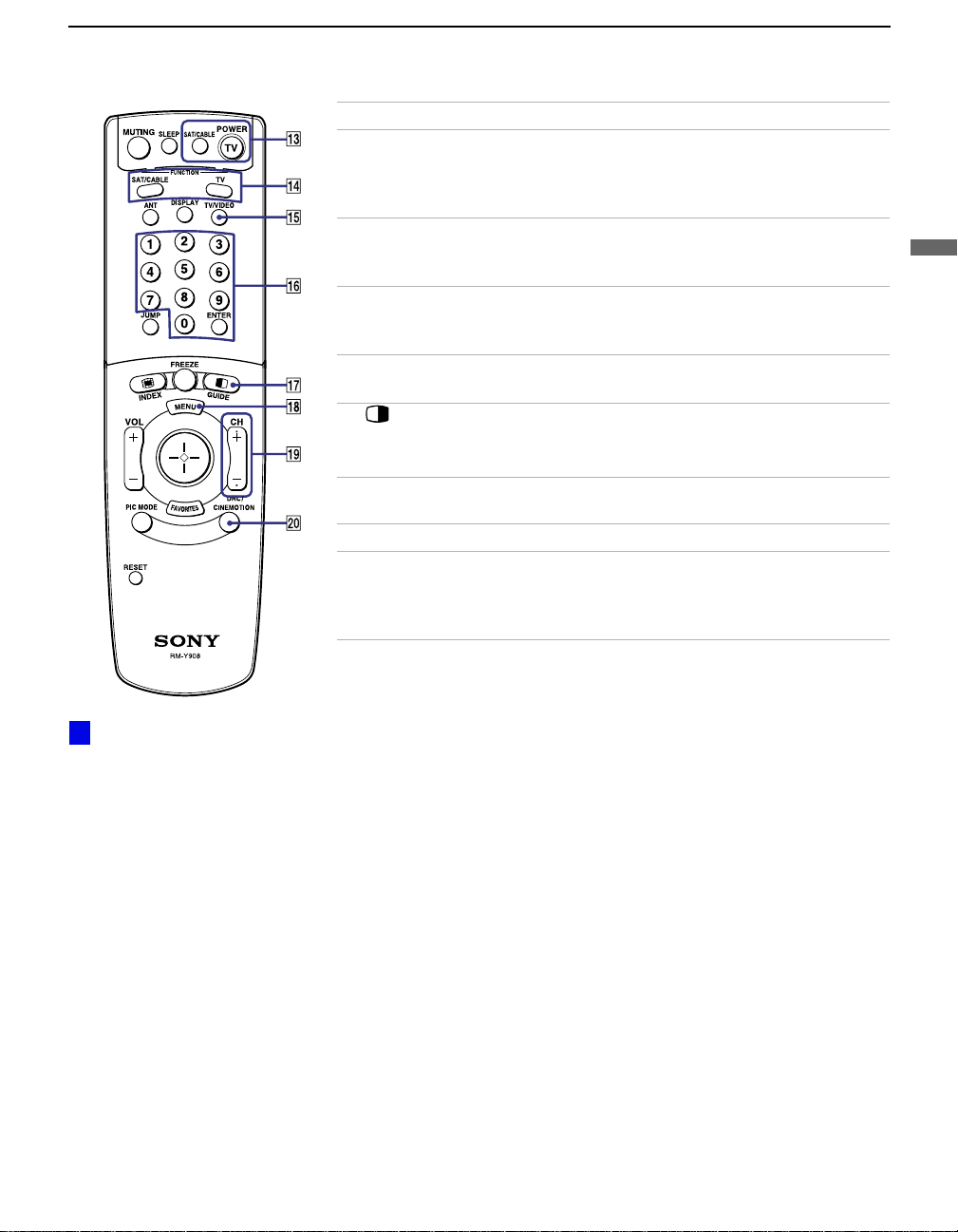

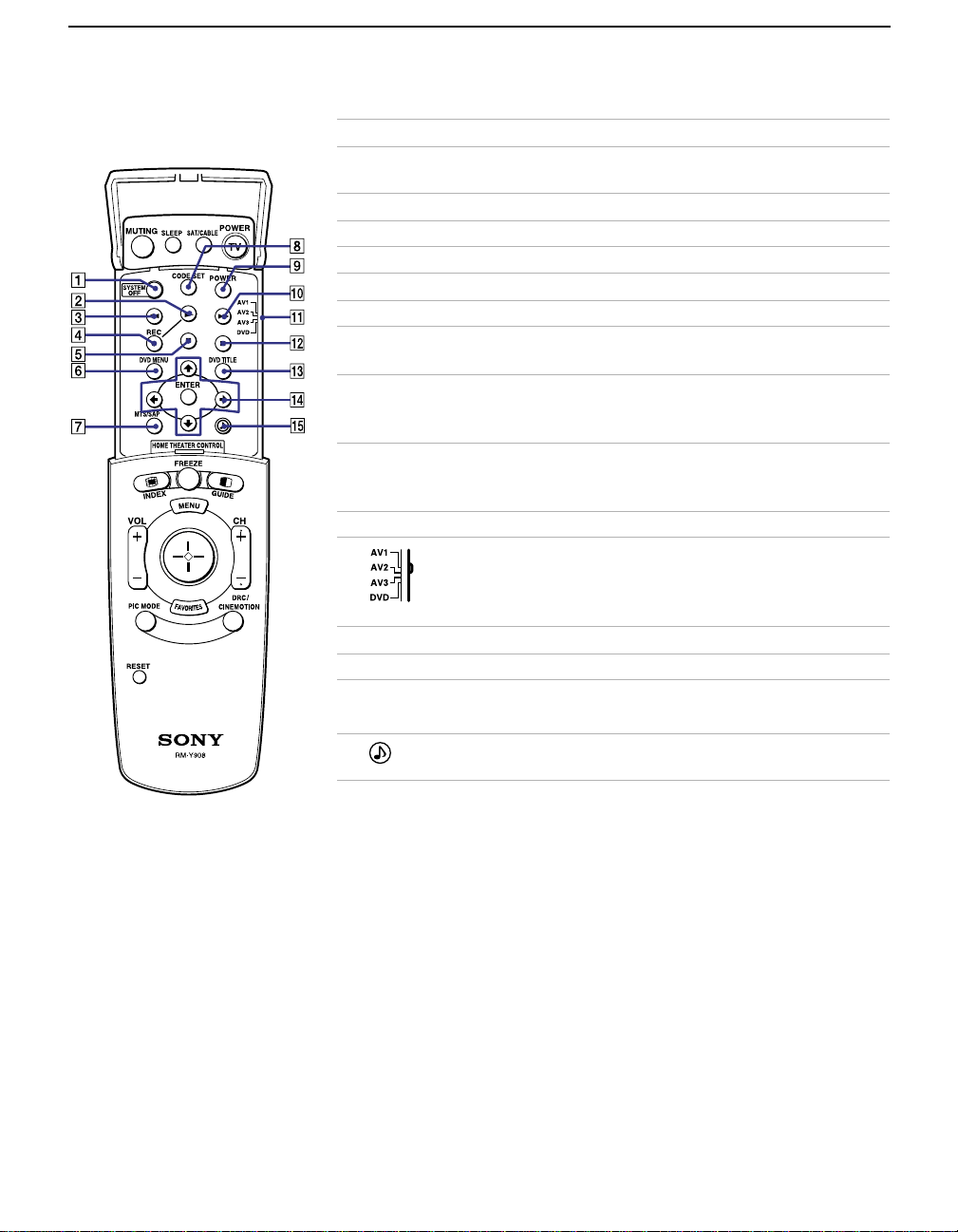

This document is for the remote control RM-Y908.
MODELS: KP-43HT20, KP-53HS20, KP-53HS30, KP-
61HS20, KP-61HS30
Please keep this notice with the instruction manual.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(
OR BACK
)
.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
NO ABRIR
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
3
Safety
❑ Operate the projection TV only on 120 V AC.
❑ The plug is designed, for safety purposes, to fit into
the wall outlet only one way. If you are unable to
insert the plug fully into the outlet, contact your
dealer.
❑ If any liquid or solid object should fall inside the
cabinet, unplug the projection TV immediately and
have it checked by qualified service personnel
before operating it further.
❑ If you will not be using the projection TV for several
days, disconnect the power by pulling the plug itself.
Never pull on the cord.
For details concerning safety precautions, see
“Important Safeguards” on page 4.
Installing
❑ To prevent internal heat buildup, do not block the
ventilation openings.
❑ Do not install the projection TV in a hot or humid
place, or in a place subject to excessive dust or
mechanical vibration.
❑ Avoid operating the projection TV at temperature
below 5°C (41°F).
❑ If the projection TV is transported directly from a
cold to a warm location, or if the room temperature
changes suddenly, the picture may be blurred or
show poor color. In this case, please wait a few hours
to let the moisture evaporate before turning on the
projection TV.
❑ To obtain the best picture, do not expose the screen
to direct illumination or direct sunlight. It is
recommended to use spot lighting directed down
from the ceiling or to cover the windows that face
the screen with opaque drapery. It is desirable to
install the projection TV in a room where the floor
and walls are not of a reflective material.
ENERGY STAR
®
is a U.S. registered mark.
TruSurround is a trademark of
SRS Labs, Inc. SRS and the SRS
symbol are registered trademarks
of SRS Labs, Inc. in the United States and selected
foreign countries. SRS and TruSurround are incorporated
under license from SRS Labs, Inc. and is protected under
United States Patent Nos. 4,748,669 and 4, 841, 572 with
numerous additional issued and pending foreign patents.
Purchase of this product does not convey the right to sell
recordings made with the TruSurround technology.
BBE and BBE Symbol are trademarks of BBE Sound,
Inc. and are licensed by BBE Sound, Inc. under U.S.
Patent No. 4,638,258 and 4,482,866.
ATTENTION
Pour prévenir les chocs électriques, ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
ou une autre sortie de courant, sauf si les lames peuvent
tre inserées à fond sans en laisser aucune partie à
decouvert.
Owner’s Record
The model and serial numbers are located at the rear of
the projection TV, below the Sony logo, on the sticker,
and also on the TV box (white label). Record these
numbers in the spaces provided below. Refer to them
whenever you call upon your Sony dealer regarding this
product.
Model No.
Serial No.
As an ENERGY STAR
®
Partner, Sony Corporation has
determined that this product
meets the ENERGY STAR
®
guidelines for energy efficiency.
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
4

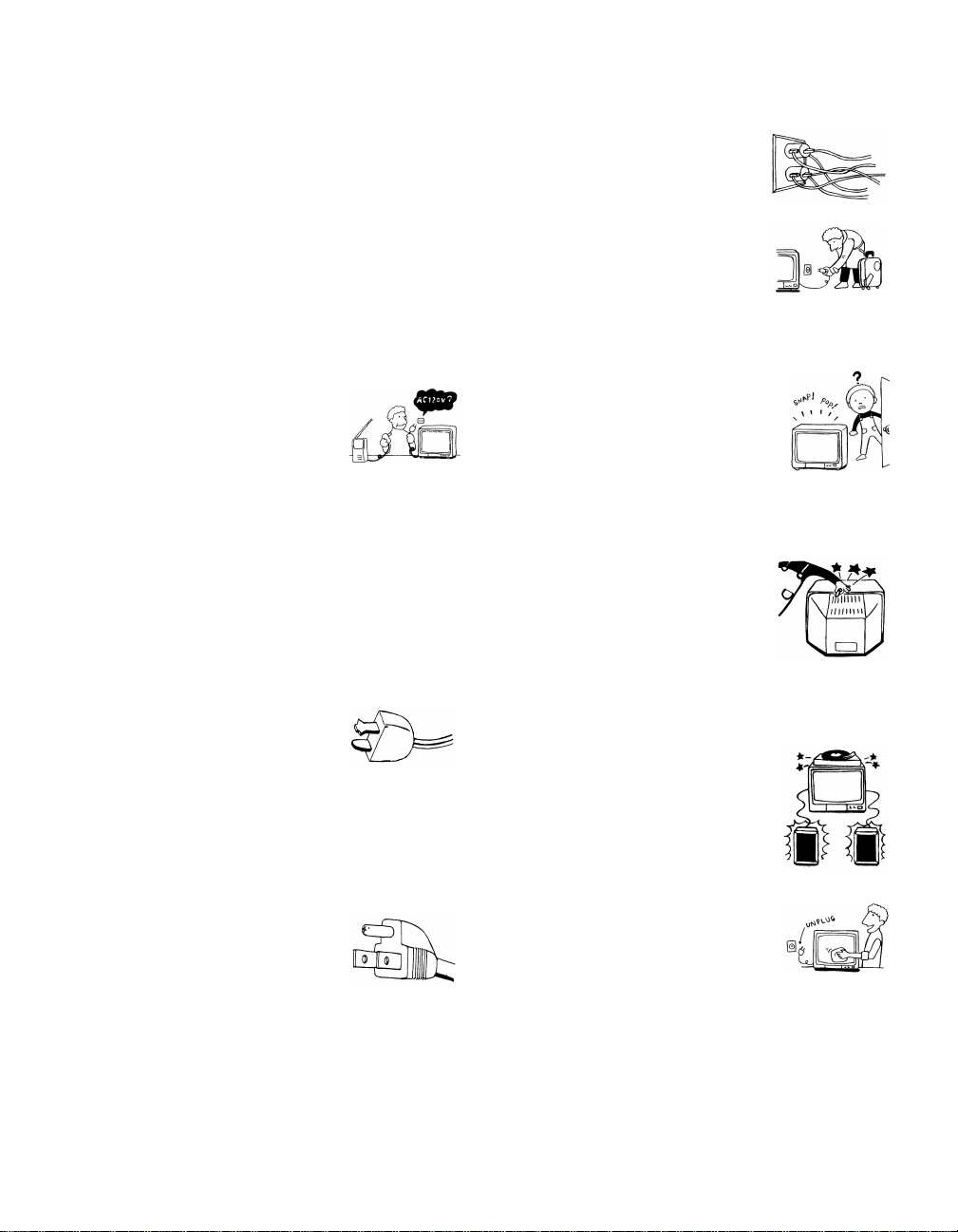

Important Safeguards
For your protection, please read these instructions
completely, and keep this manual for future reference.
Carefully observe and comply with all warnings, cautions
and instructions placed on the set or described in the
operating instructions or service manual.
WARNING
To guard against injury, the following basic safety
precautions should be observed in the installation, use
and servicing of the set.
Use
Power Sources
This set should be operated only from
the type of power source indicated on
the serial/model plate. If you are not sure
of the type of electrical power supplied
to your home, consult your dealer or
local power company. For those sets designed to operate
from battery power, refer to the operating instructions.
Grounding or Polarization
This set is equipped with a polarized AC power cord plug
(a plug having one blade wider than the other), or with a
three-wire grounding type plug (a plug having a third pin
for grounding). Follow the instructions below:
For the set with a polarized AC power cord
plug
This plug will fit into the power outlet
only one way. This is a safety feature. If
you are unable to insert the plug fully
into the outlet, try reversing the plug. If
the plug still fails to fit, contact your electrician to have a
suitable outlet installed. Do not defeat the safety purpose
of the polarized plug by forcing it in.
Alternate Warning for the set with a three-
wire grounding type AC plug
This plug will only fit into a grounding-
type power outlet. This is a safety
feature. If you are unable to insert the
plug into the outlet, contact your
electrician to have a suitable outlet
installed. Do not defeat the safety purpose of the
grounding plug.
Overloading
Do not overload wall outlets, extension
cords or convenience receptacles
beyond their capacity, since this can
result in fire or electric shock.
Always turn the set off when it is not
being used. When the set is left
unattended and unused for long
periods of time, unplug it from the
wall outlet as a precaution against the
possibility of an internal malfunction that could create a
fire hazard.
If a snapping or popping sound from a TV
set is continuous or frequent while the TV
is operating, unplug the TV and consult
your dealer or service technician. It is
normal for some TV sets to make
occasional snapping or popping sounds,
particularly when being turned on or off.
Object and Liquid Entry
Never push objects of any kind into the
set through the cabinet slots as they may
touch dangerous voltage points or short
out parts that could result in a fire or
electric shock. Never spill liquid of any
kind on the set.
Attachments
Do not use attachments not
recommended by the manufacturer, as
they may cause hazards.
Cleaning
Clean the cabinet of the projection TV
with a dry soft cloth. To remove dust
from the screen, wipe it gently with a soft
cloth. Stubborn stains may be removed
with a cloth slightly dampened with
solution of mild soap and warm water. Never use strong
solvents such as thinner or benzine for cleaning.
If the picture becomes dark after using the projection TV
for a long period of time, it may be necessary to clean the
inside of the projection TV. Consult qualified service
personnel.
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
5

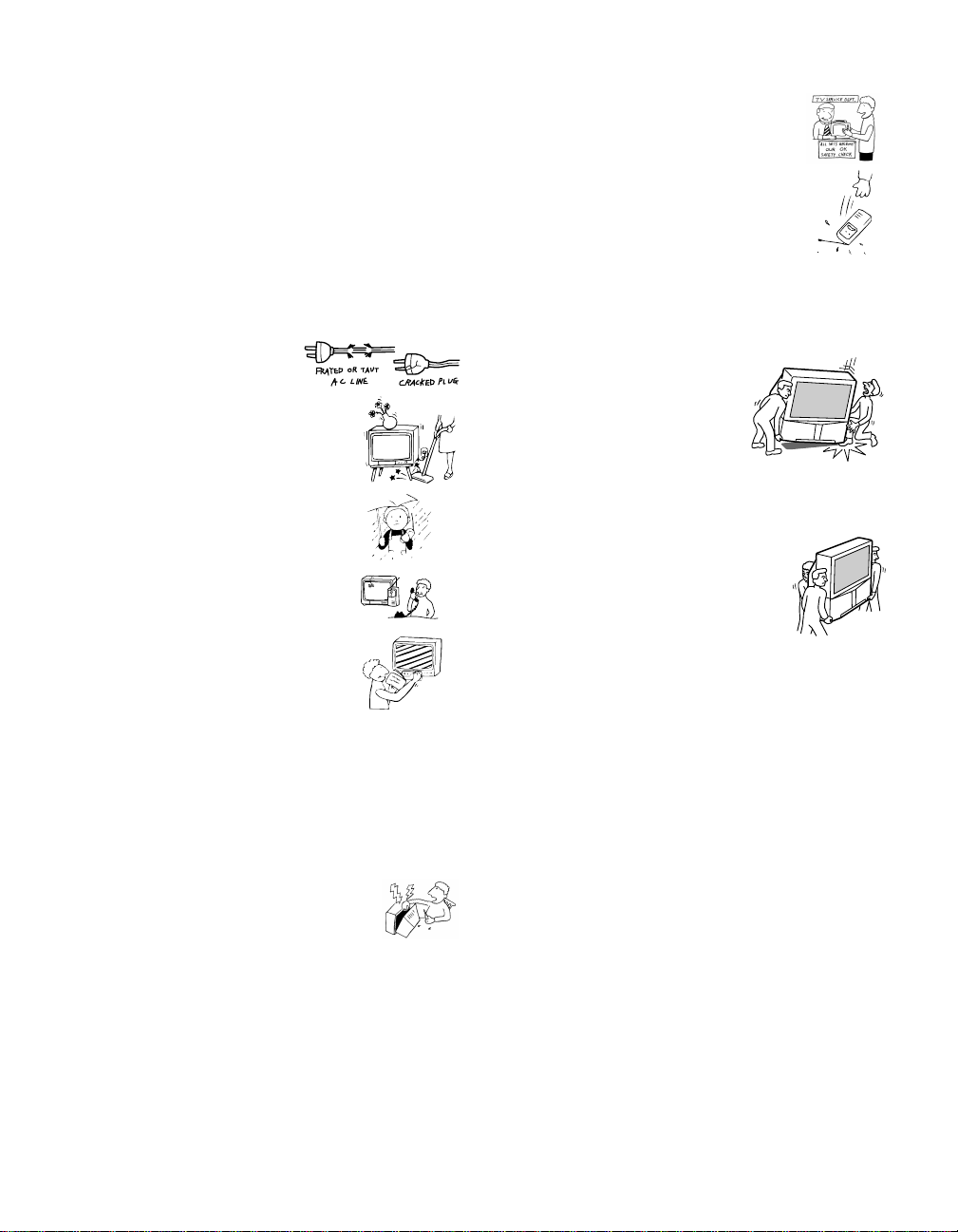

Installation
Water and Moisture
Do not use power-line operated sets
near water — for example, near a
bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or
near a swimming pool, etc.
Accessories
Do not place the set on an unstable
cart, stand, table or shelf. The set
may fall, causing serious injury to a
child or an adult and serious damage
to the set. Use only a cart or stand
recommended by the manufacturer
for the specific model of projection
TV. An appliance and cart
combination should be moved with
care. Quick stops, excessive force,
and uneven surfaces may cause the appliance and cart
combination to overturn.
Ventilation
The slots and openings in the cabinet and in the back or
bottom are provided for necessary ventilation. To ensure
reliable operation of the set, and to protect it from
overheating, these slots and openings must never be
blocked or covered.
❑ Never cover the slots and openings
with a cloth or other materials.
❑ Never block the slots and openings by
placing the set on a bed, sofa, rug or
other similar surface.
❑ Never place the set in a confined
space, such as a bookcase or built-in
cabinet, unless proper ventilation is
provided.
❑ Do not place the set near or over a
radiator or heat register, or where it is
exposed to direct sunlight.
Power-Cord Protection
Do not allow anything to rest on or roll
over the power cord, and do not place the
set where the power cord is subject to
wear or abuse.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions
below. An outdoor antenna system should not be located
in the vicinity of overhead power lines or other electric
light or power circuits, or where it can come in contact
with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA
SYSTEM, EXTREME CARE SHOULD BE TAKEN TO
KEEP FROM CONTACTING SUCH POWER LINES
OR CIRCUITS AS CONTACT WITH THEM IS
ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up static
charges.
Section 810 of the National Electrical Code (NEC) in
USA and Section 54 of the Canadian Electrical Code in
Canada provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Antenna Grounding According to the NEC
Refer to section 54-300 of Canadian Electrical Code for
Antenna Grounding.
Antenna lead-in wire
Ground clamps
Antenna lead-in wire
(NEC Section 810-20)
Grounding conductors
(NEC section 810-21)
Power service grounding
electrode system (NEC Art
250 Part H)
Ground clamp
Electrical
service
equipment
NEC: National
Electrical Code
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
6
Lightning
For added protection for this television receiver during a
lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet
and disconnect the antenna. This will prevent damage to
the receiver due to lightning and power-line surges.
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer servicing to
qualified service personnel under the following
conditions:
❑ When the power cord or
plug is damaged or frayed.
❑ If liquid has been spilled into
the set.
❑ If the set has been exposed
to rain or water.
❑ If the set has been subject to
excessive shock by being
dropped, or the cabinet has
been damaged.
❑ If the set does not operate
normally when following the
operating instructions.
Adjust only those controls
that are specified in the
operating instructions.
Improper adjustment of
other controls may result in
damage and will often
require extensive work by a
qualified technician to restore the set to normal
operation.
❑ When the set exhibits a distinct change in
performance, it indicates a need for service.
Servicing
Do not attempt to service the set yourself
since opening the cabinet may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
Replacement Parts
When replacement parts are required, be sure the service
technician certifies in writing that he has used
replacement parts specified by the manufacturer that have
the same characteristics as the original parts.
Unauthorized substitutions may result in fire, electric
shock or other hazards.
Safety Check
Upon completion of any service or repairs
to the set, ask the service technician to
perform routine safety checks (as specified
by the manufacturer) to determine that the
set is in safe operating condition, and to so
certify. When the set reaches the end of its
useful life, improper disposal could result
in a picture tube implosion. Ask a qualified
service technician to dispose of the set.
For Safety
Be careful when moving
the projection TV
When you place the projection TV
in position, be careful not to drop it
on your foot or fingers.
Watch your footing while installing the projection TV.
Carry the projection TV in the
specified manner
If you carry the projection TV in a manner
other than the specified manner and
without the specified number of persons, it
may drop and a serious injury may be
caused. Be sure to follow the instructions mentioned
below.
❑ Carry the projection TV with the specified number
of persons. (see page 10)
❑ Do not carry the projection TV holding the speaker
grill.
❑ Hold the projection TV tightly when carrying it.
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
7
Contents
Important Safeguards...............................................4
Introducing the Sony Projection TV
Presenting the Sony Projection TV..........................8
Using this manual ....................................................9
Installing and Connecting the
Projection TV
Contents .................................................................10
Inserting Batteries to the Remote Control .............10
Carrying Your Projection TV ................................10
Installing the Projection TV...................................11
Connector Types....................................................12

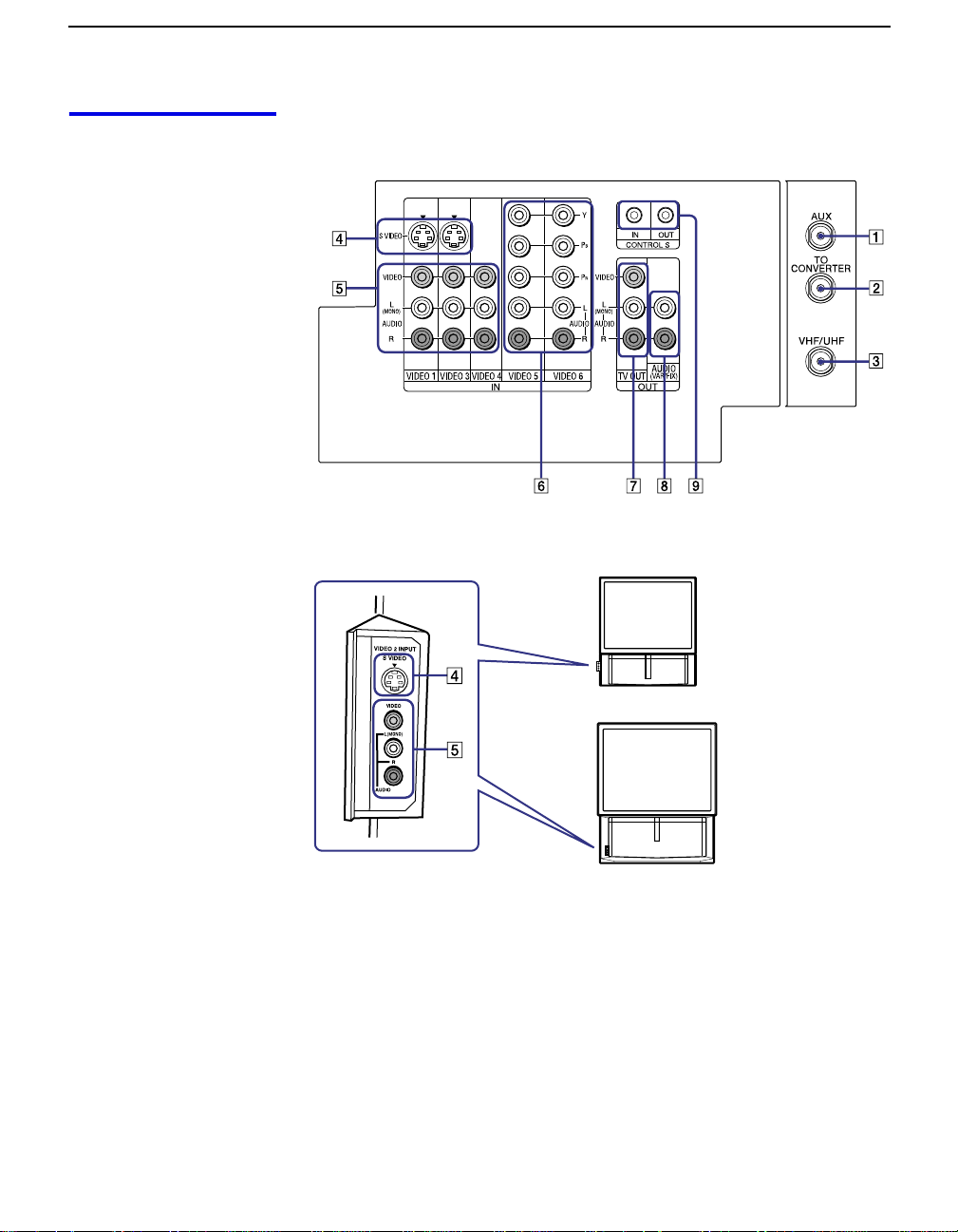

Projection TV Controls and Connectors................13
Basic Connections (Connecting Cable TV or
Antenna).........................................................16
Connecting a VCR and Cable................................19

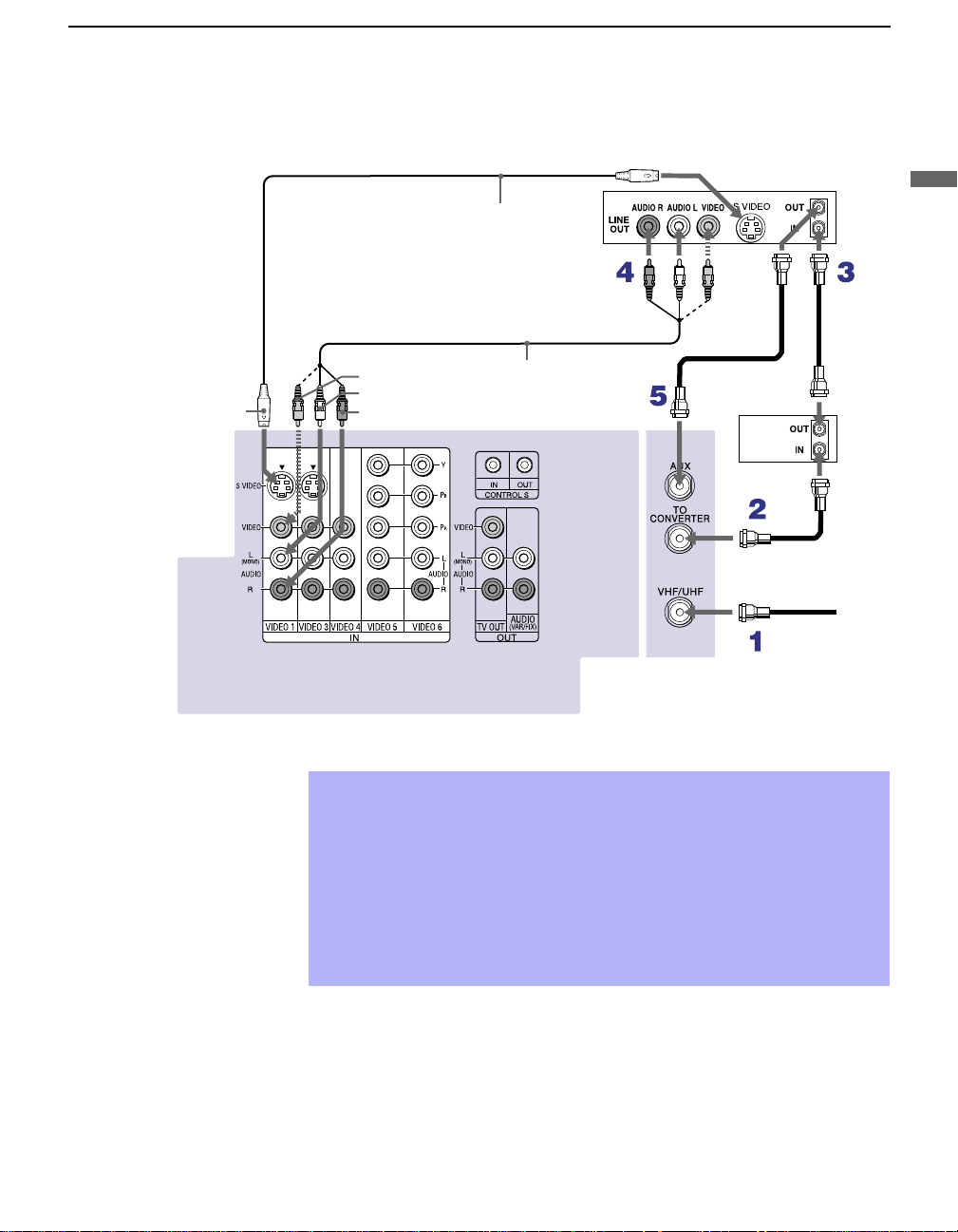

Connecting a VCR and Cable Box ........................20

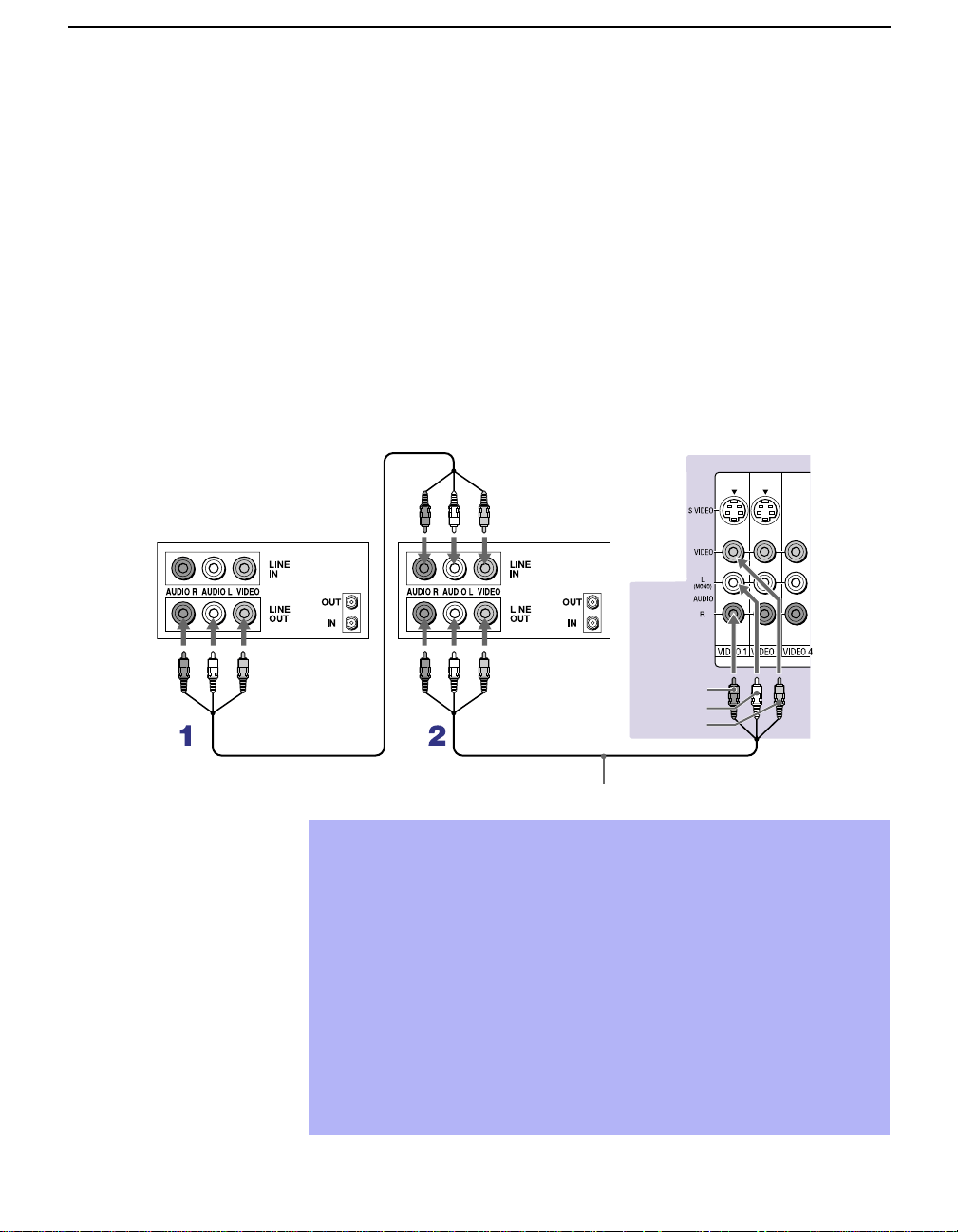

Connecting Two VCRs for Tape Editing ..............22

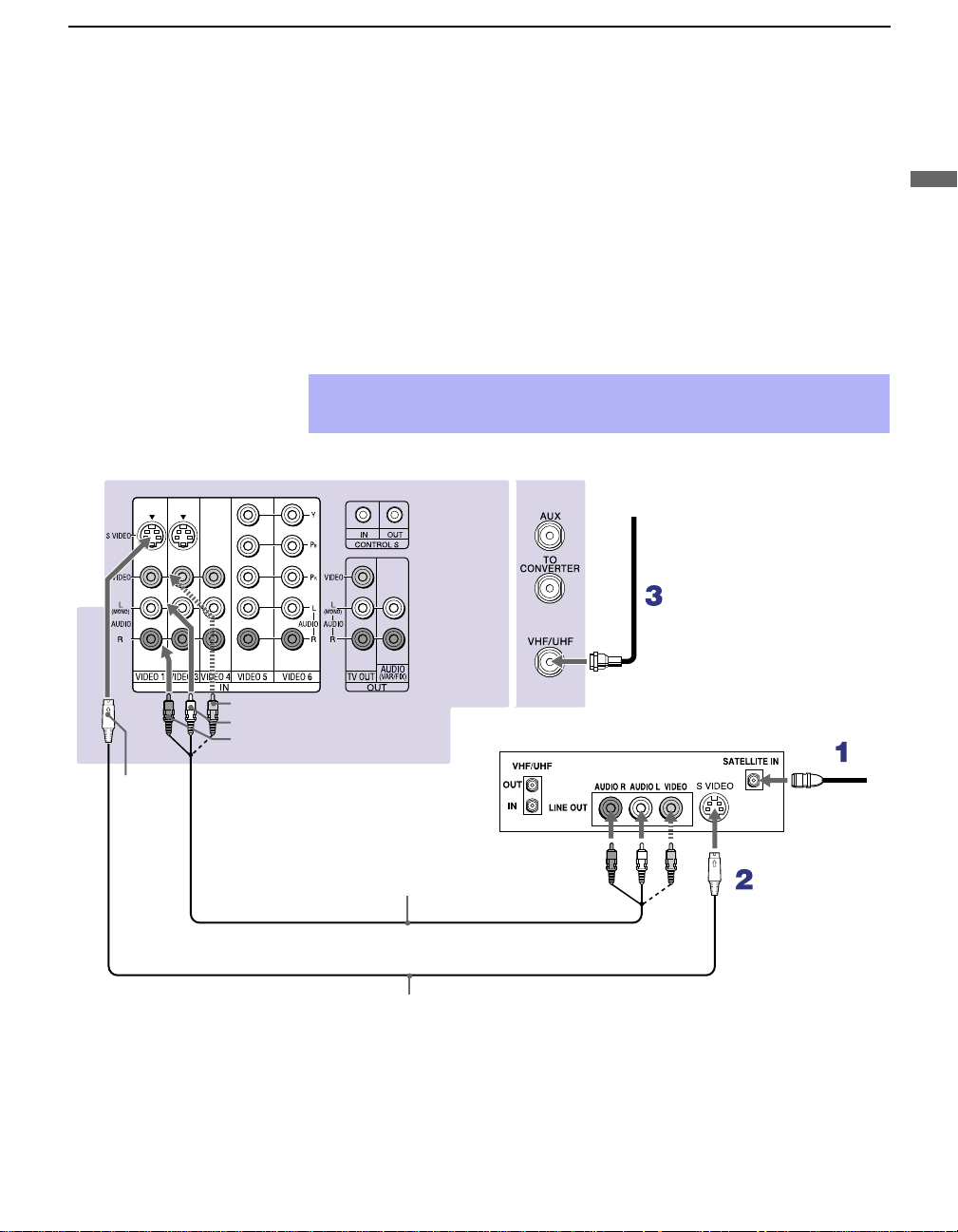

Connecting a Satellite Receiver.............................23

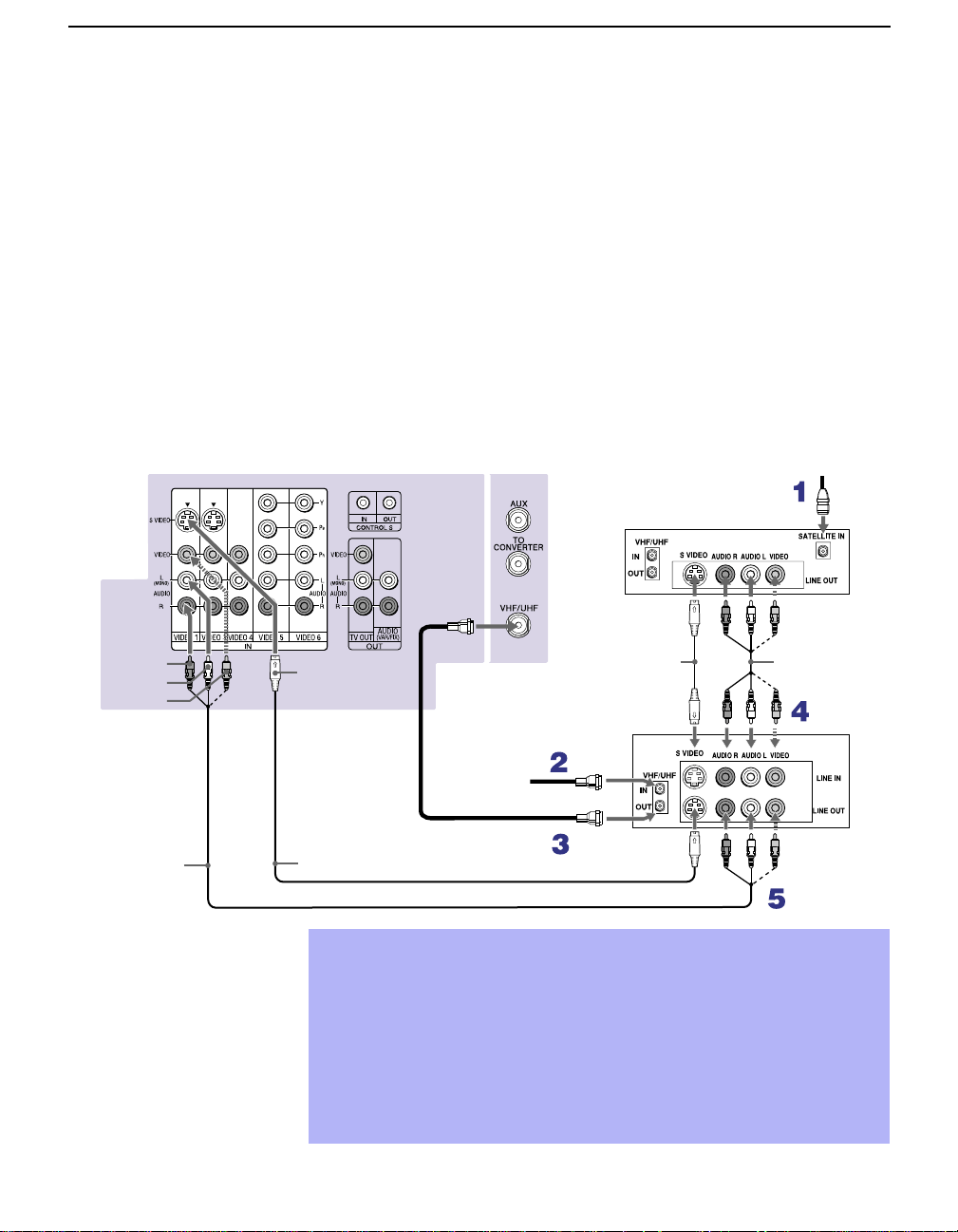

Connecting a Satellite Receiver with a VCR.........24

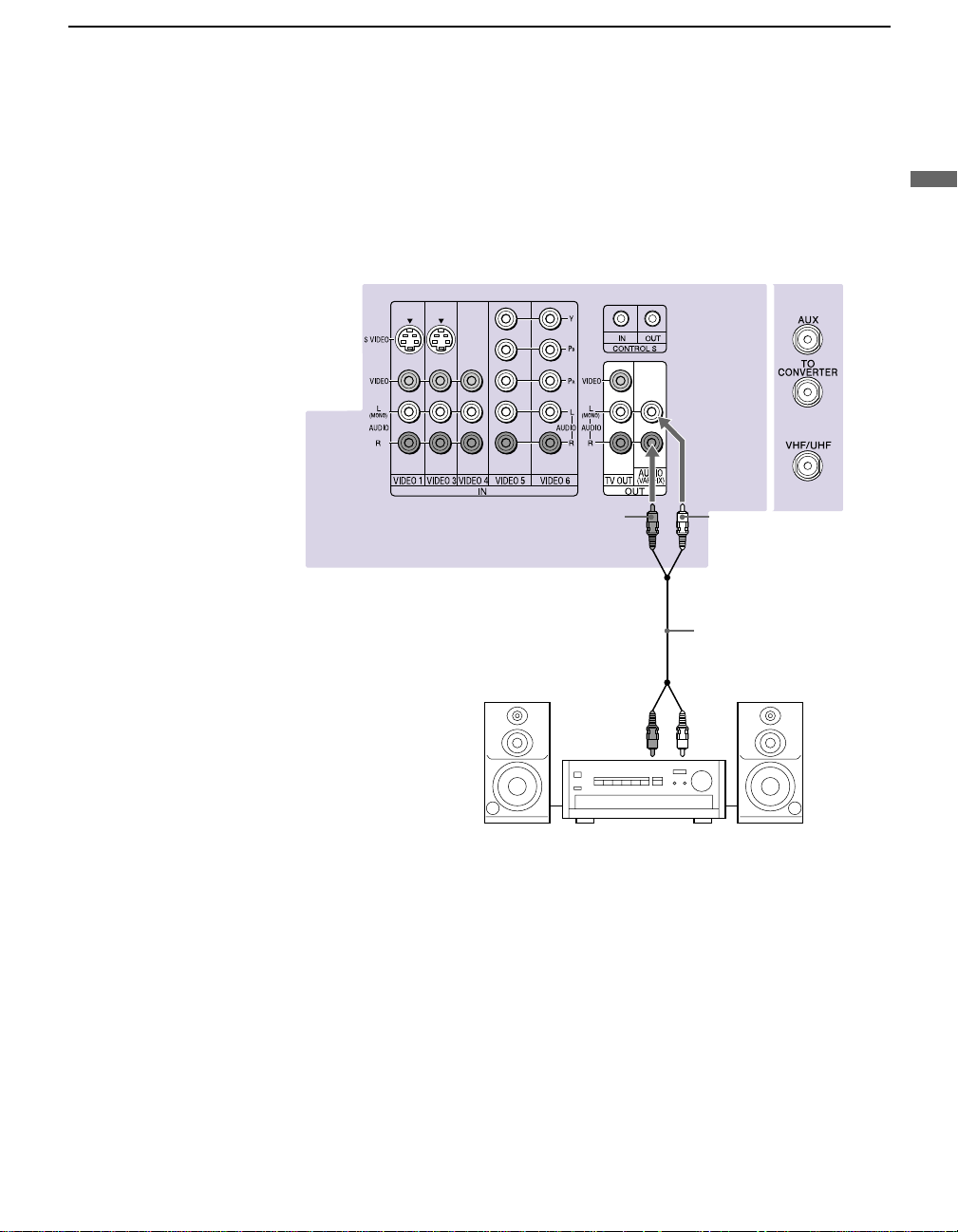

Connecting an Audio Receiver..............................25

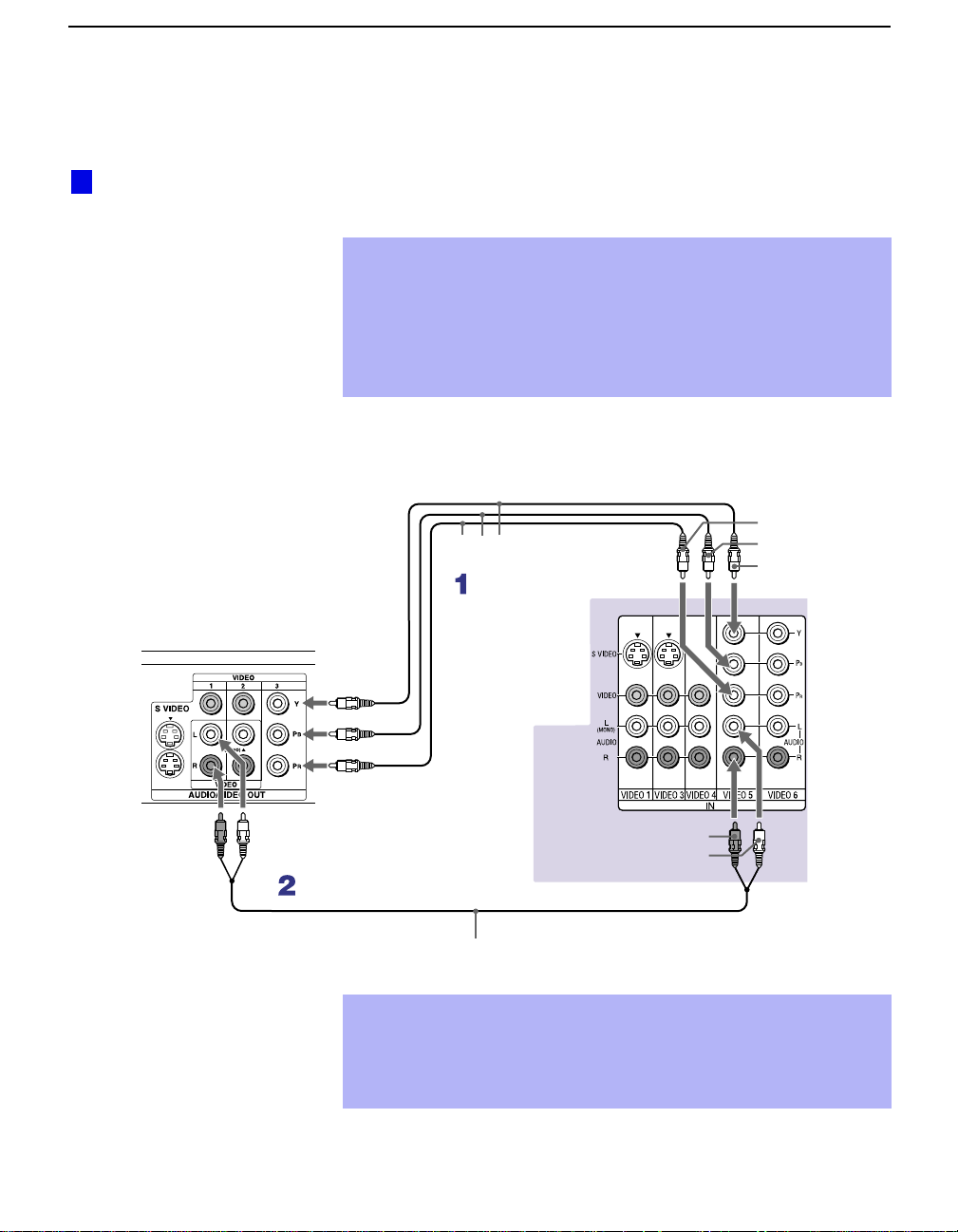

Connecting a DVD Player with Component
Video Connectors ..........................................26
Connecting a DVD Player with
A/V Connectors .............................................27
Connecting a Digital TV Receiver.........................28

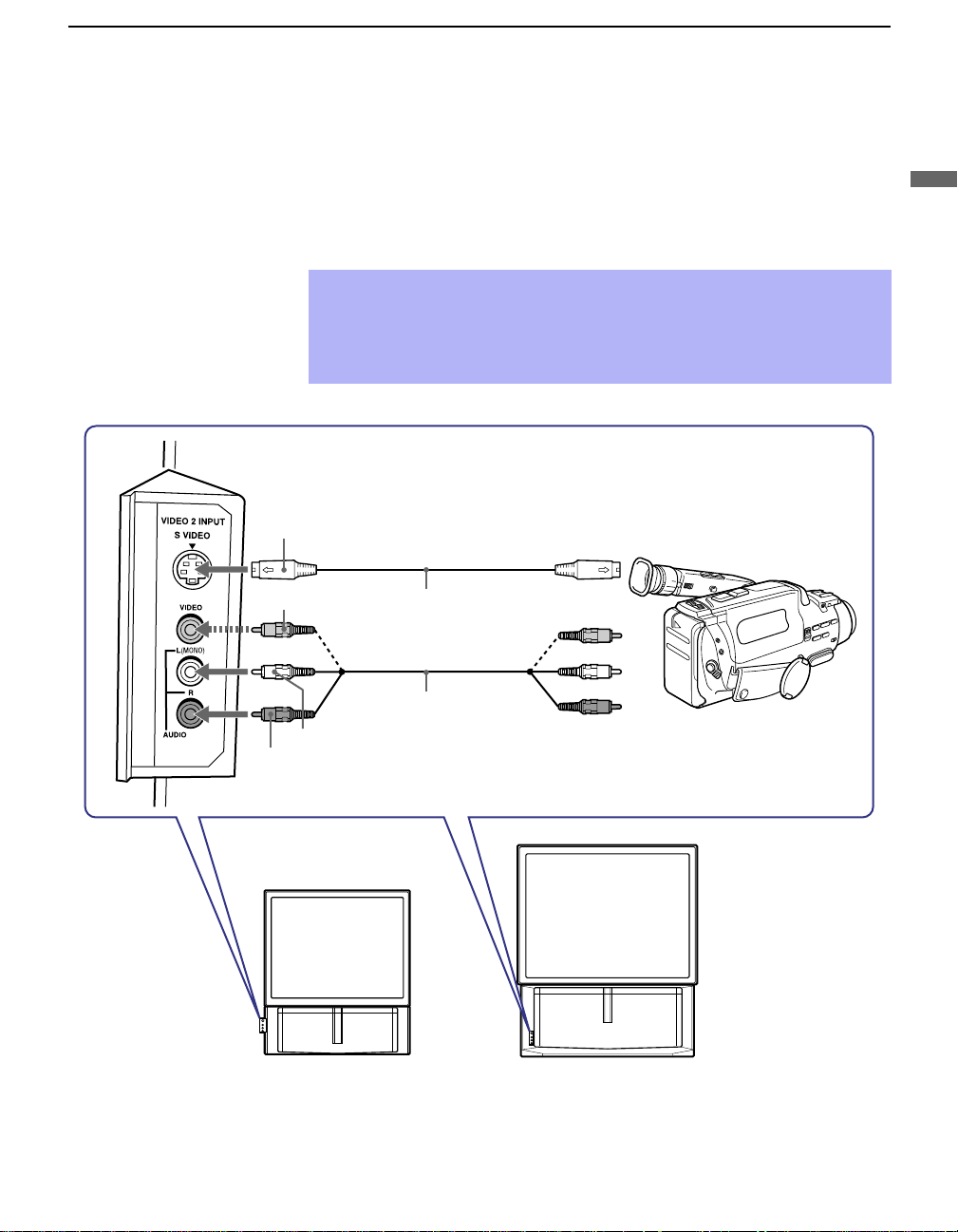

Connecting a Camcorder .......................................29
Connecting an AV Receiver..................................30

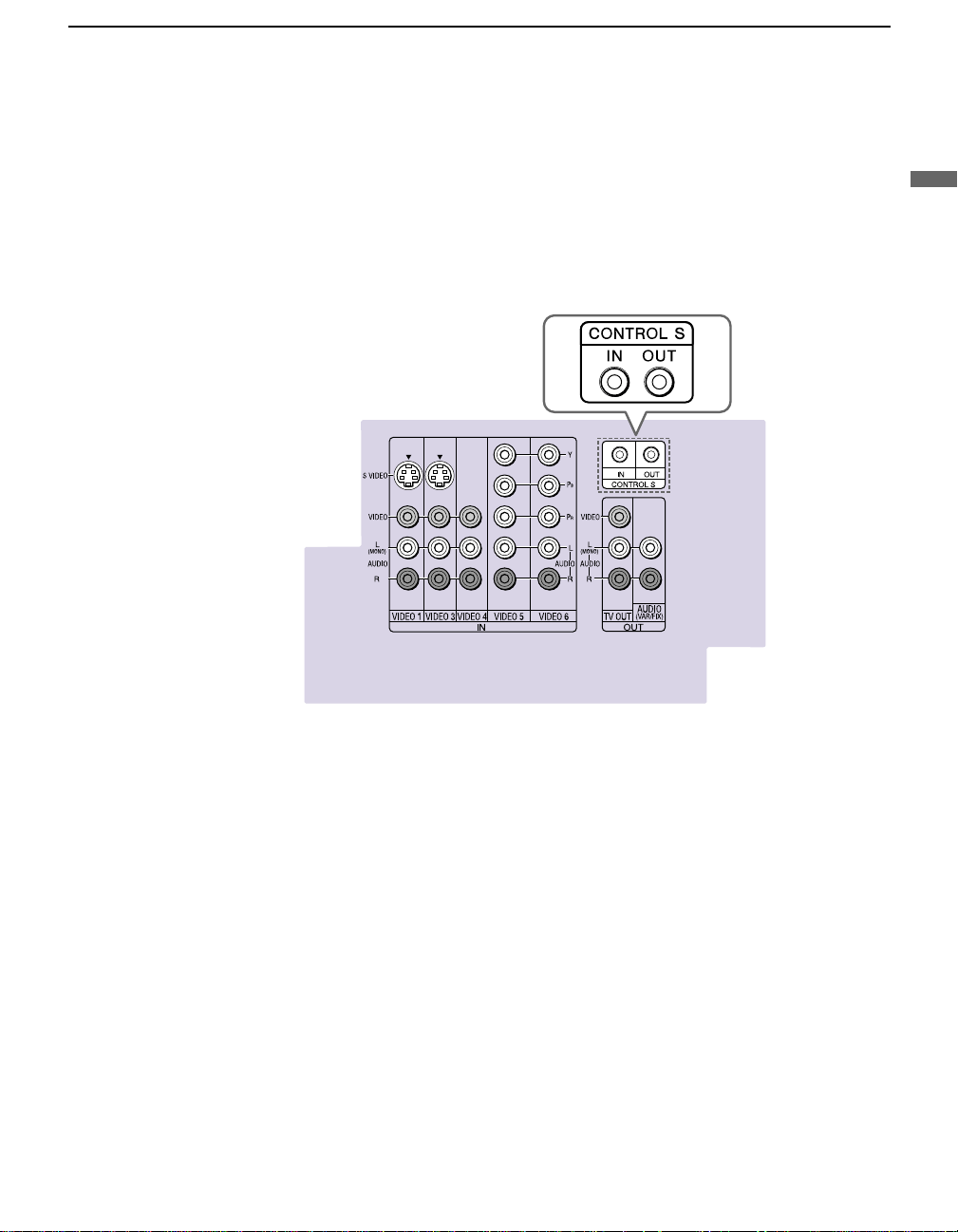

Using the CONTROL S Feature............................31
Setting Up the Projection TV Automatically.........32
Adjusting the Convergence Automatically
– FLASH FOCUS™ –...................................33
Using the Features
Using the Remote Control .....................................34
Watching the TV....................................................37
Watching the Digital TV .......................................39
Using Favorite Channels........................................40
Using Twin View™...............................................41
Using the Freeze Function.....................................44
Using Channel Index .............................................45

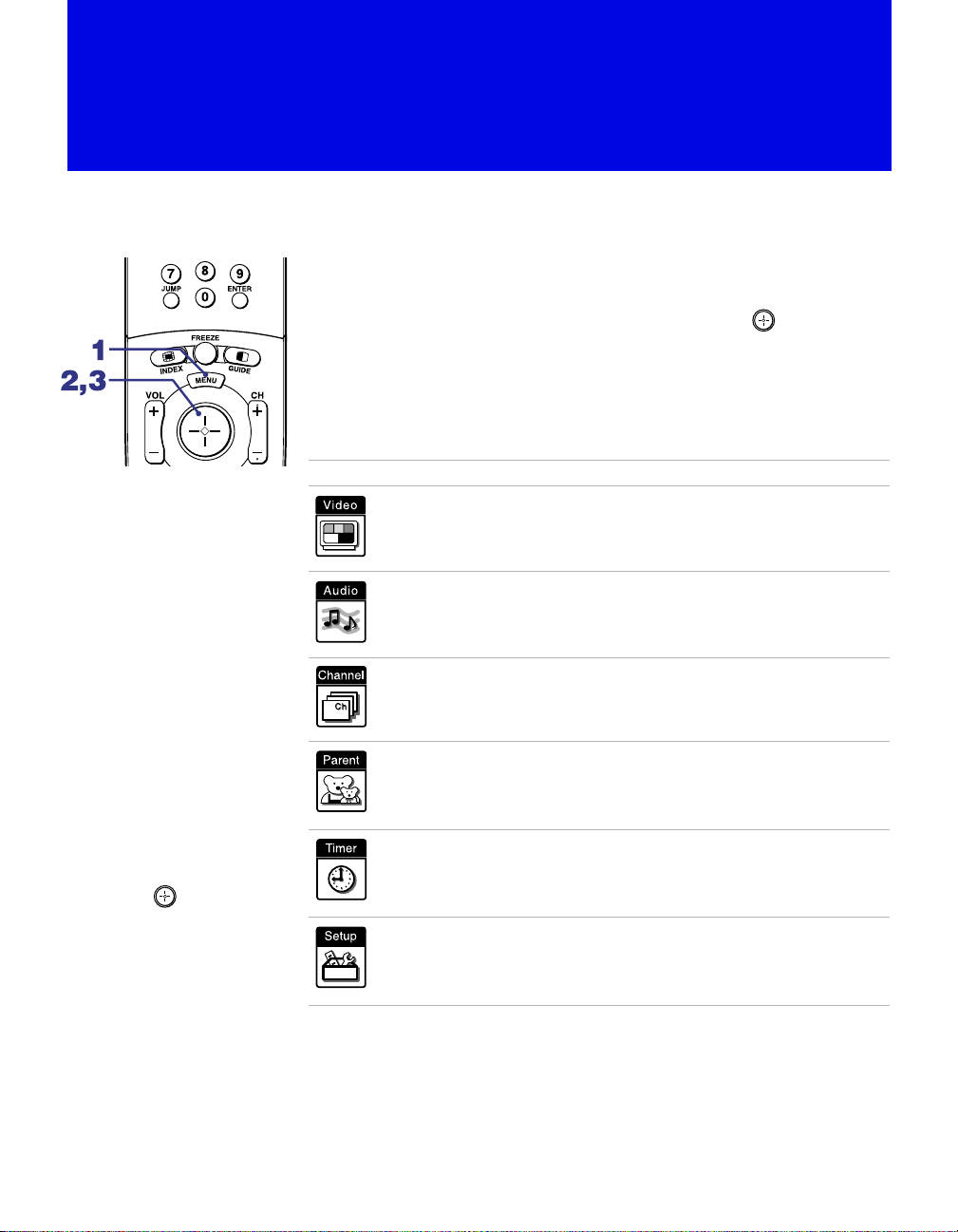

Using the Menus
Overview................................................................47
Using the Video Menu..........................................48
Using the Audio Menu..........................................50
Using the Channel Menu......................................52

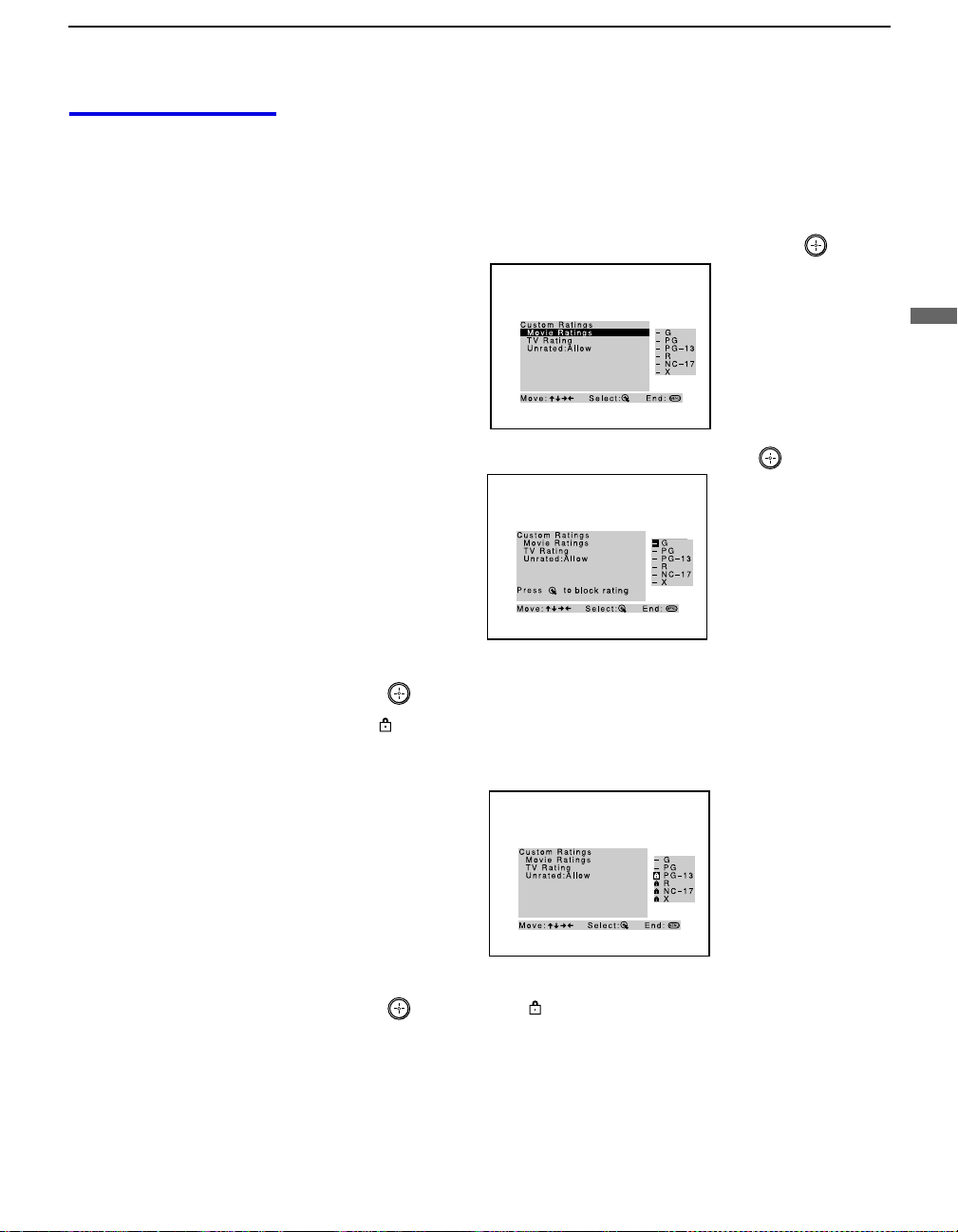

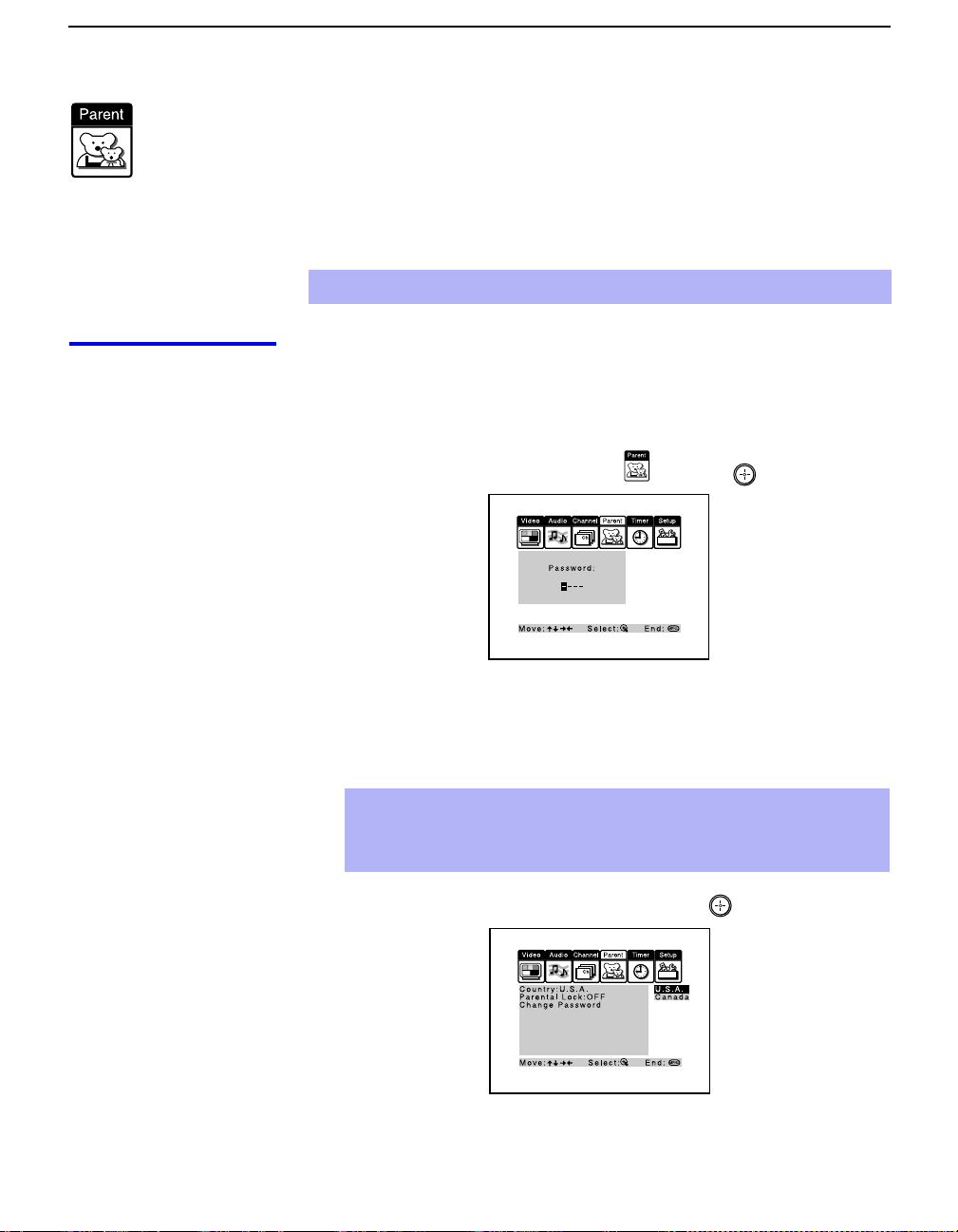

Using the Parent Menu .........................................54
Using the Timer Menu..........................................62
Using the Setup Menu ..........................................63
Other Information
Programming the Remote Control.........................65
Operating Other Components with Your
Projection TV Remote Control......................68
Troubleshooting.....................................................70
Specifications.........................................................73
8
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Introducing the Sony Projection TV
Presenting the Sony Projection TV
Thank you for purchasing the Sony Projection TV.
This manual is for models KP-43HT20, KP-53HS20, KP-53HS30, KP-
61HS20 and KP-61HS30.
Model KP-53HS30 is used for illustration purposes.
Features
Some of the features that you will enjoy with your new projection TV
include:
❑
Hi Scan 1080
™
: Enables you to receive the 1080i, 720p, 480p and 480i
digital TV formats. By using the VIDEO 5/6 IN jacks, you can connect
a DTV (digital television) receiver to view DTV programs.
❑
DRC
™
Multi-Function: Unlike conventional line doublers, the DRC
feature doubles vertical and horizontal lines, resulting in four times the
density for quality sources such as DVD, Satellite and Digital
camcorder.
❑
CineMotion
™
: Using the 2-3 Pull-Down technology, the CineMotion
feature allows you to obtain a smooth picture movement when playing
back movies or other video sources on film.
❑

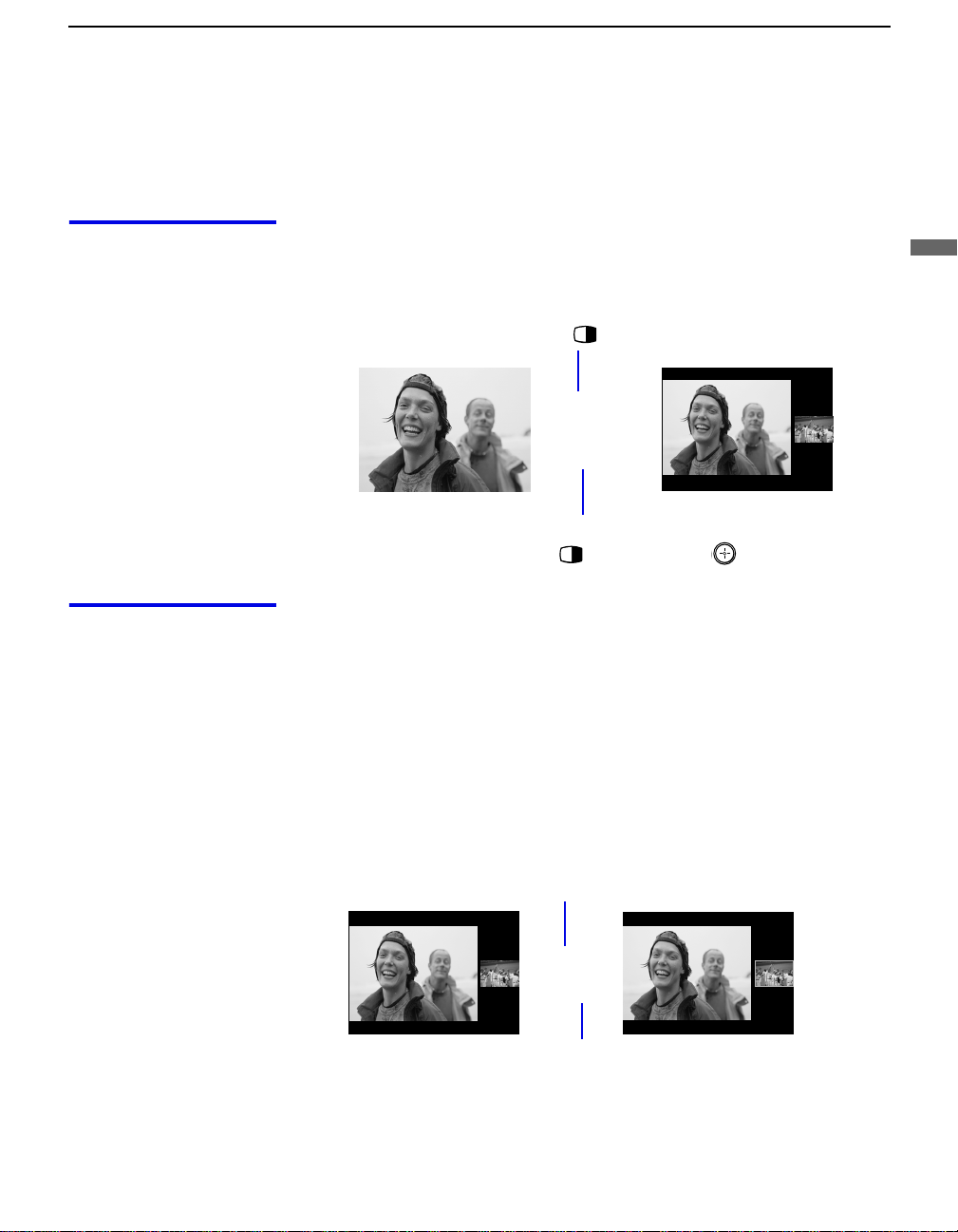

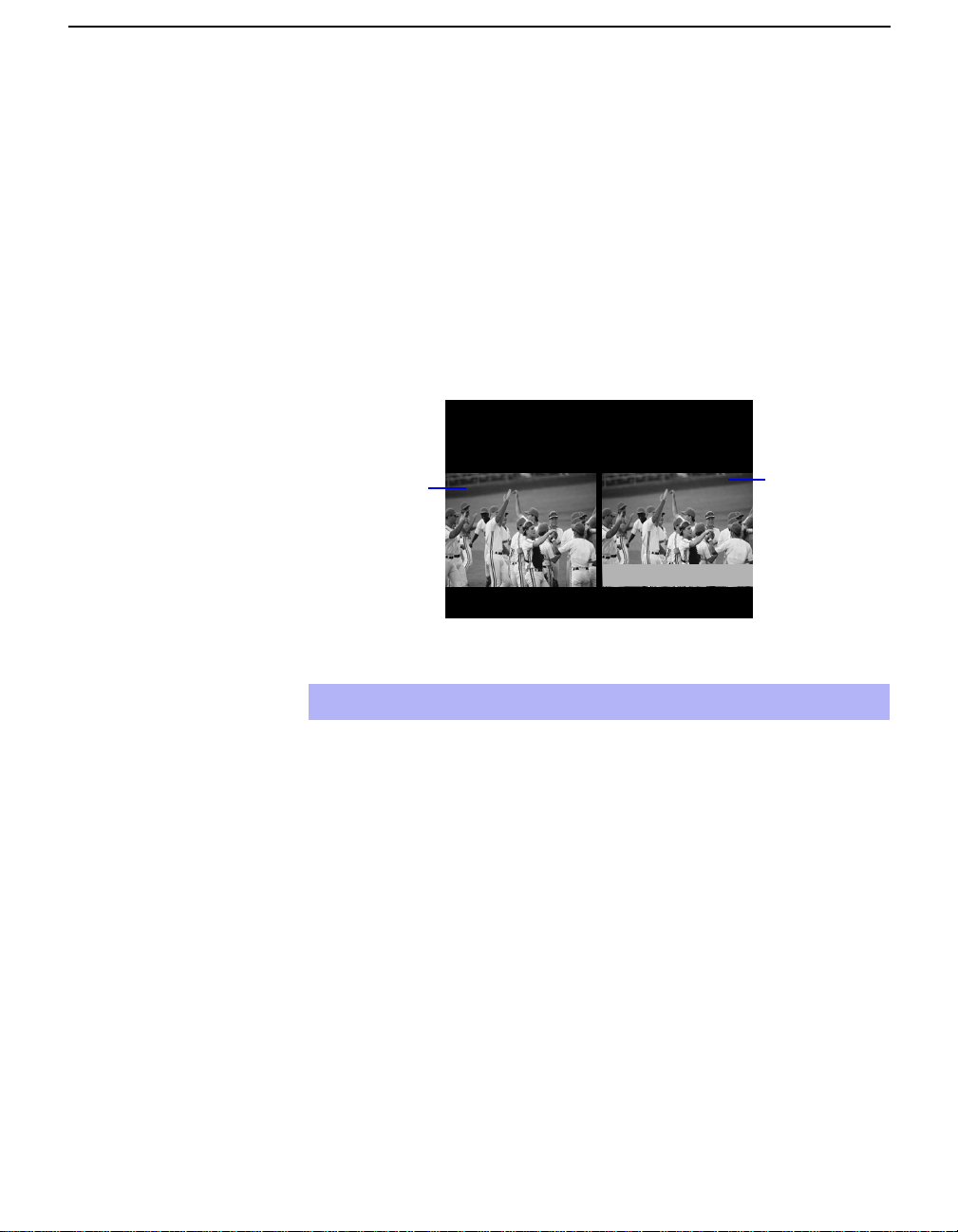

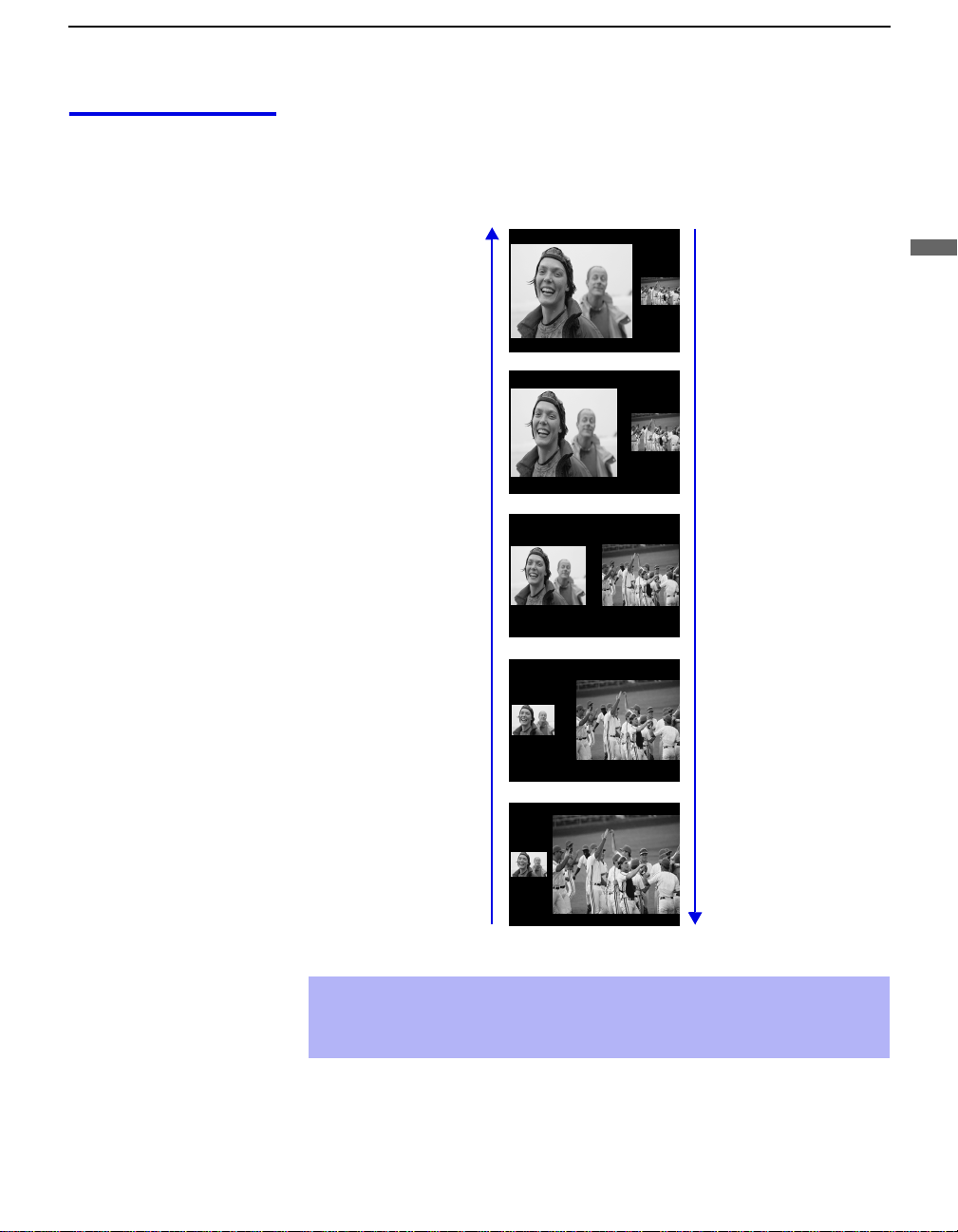

Twin View
™
: Using Multi-Image Driver (MID-X), Twin View allows
you to watch two programs side by side with the ability to zoom in one
picture and listen to selected window. You can watch pictures from two
different sources (1080i, 720p, 480p or 480i) simultaneously.
❑
16:9 Enhancement: Vertical Compression technology that maximizes
picture resolution on “anamorphic” or “enhanced for wide screen”
sources, including selected DVDs.
❑
Steady Sound
™
: Equalizes volume levels so there is consistent output
between programs and commercials.
❑
Parental Control: V-Chip technology allows parents to block
unsuitable programming for younger viewers.
❑
Component Video Inputs: Offers the best video quality for DVD
(480p, 480i) and Digital Set-top box (1080i, 720p, 480p, 480i)
connections.
❑
S-VIDEO Inputs: Provides a high-quality image for connected
equipment.
❑
Favorite Channel Preview: Preview up to eight favorite channels
without leaving the current channel.
Introducing the Sony Projection TV
9
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Introducing the Sony Projection TV
❑

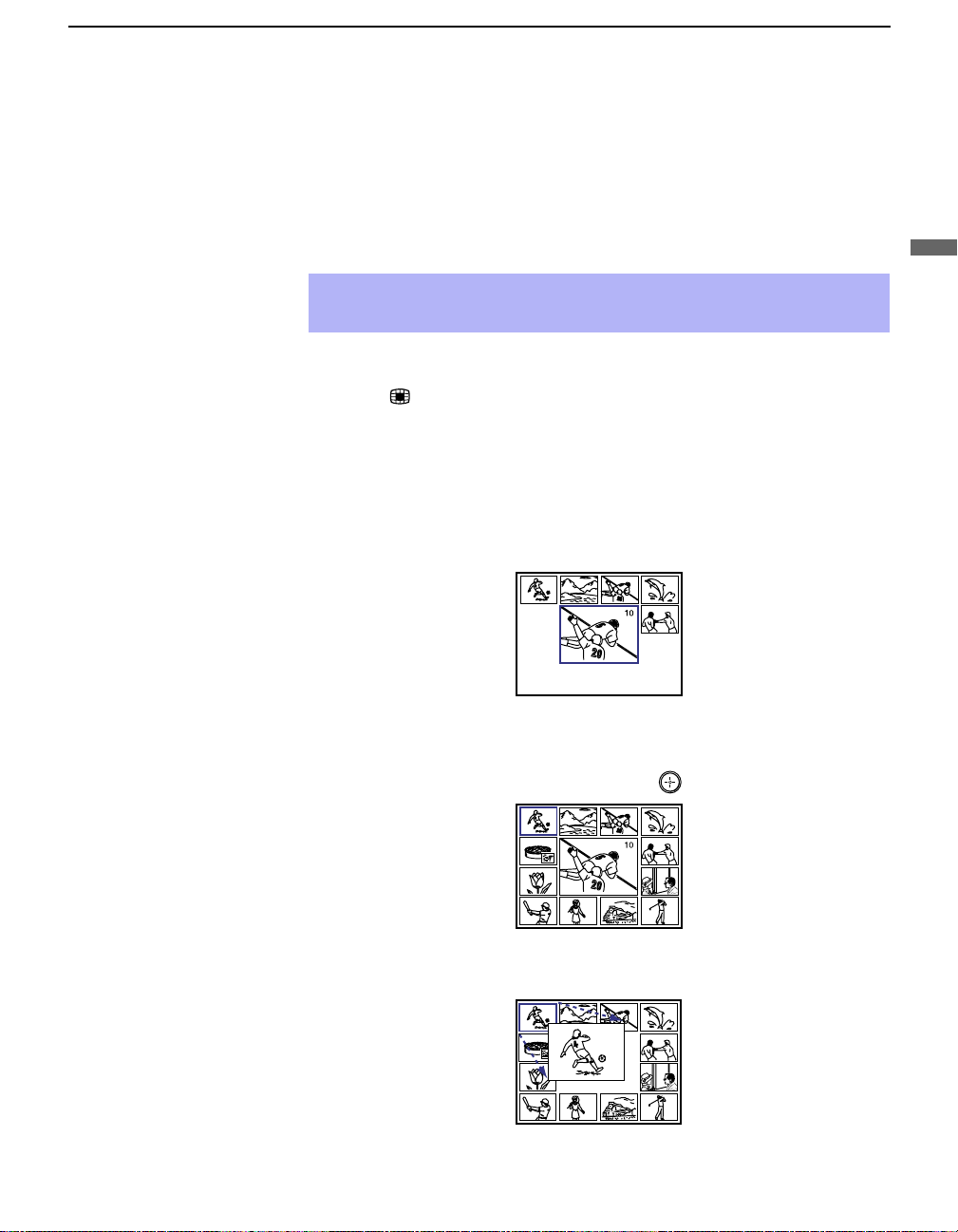

Channel Index: Allows you to view and choose from twelve programs.
❑
Flash Focus
™
: Allows you to adjust convergence automatically.
Using this manual
We recommend that you carefully review the contents of the following four
sections in the order provided to ensure that you fully understand the
operation of your new projection TV.
1
11
1
Installing and Connecting the Projection TV
This section guides you through your initial setup. It shows you how to
install your projection TV, to connect your new components and to connect
the antenna and cable.
2
22
2
Using the Features
This section shows you how to begin using your new projection TV. It
shows you how to use your remote control functions.
3
33
3

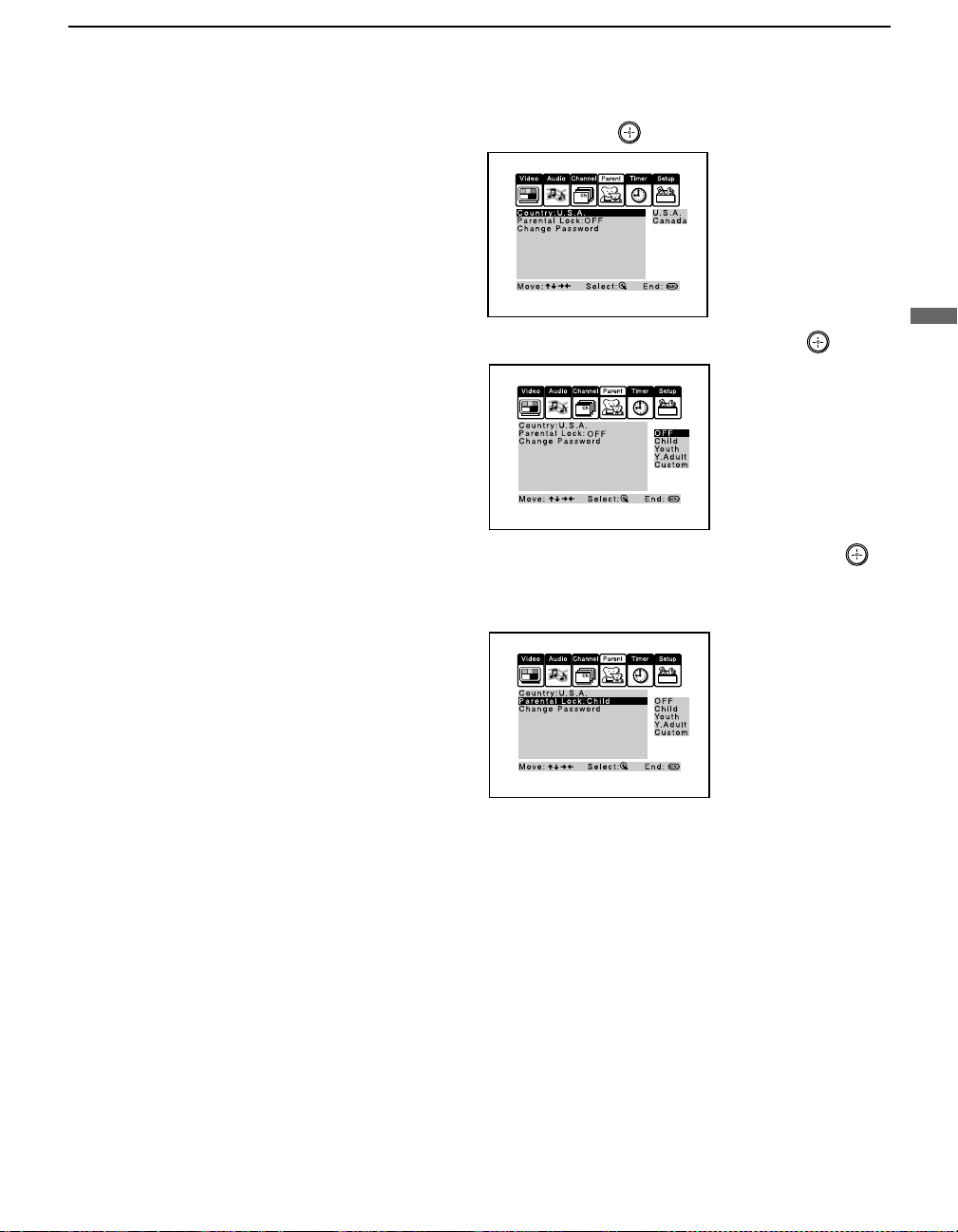

Using the menus
This section teaches you how to access on-screen menus and adjust your
projection TV settings.
Instructions in this manual are written for the remote control. Similar
controls may be found on the projection TV console.
10
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV
Contents
Your box contains your new projection TV, a remote control and two AA
batteries. No peripheral cables are included. If you intend to add additional
equipment to your projection TV, please check the hookup instructions for
your desired setup before you begin. You may need to purchase cables and/
or splitters to complete the hookup properly.
Inserting Batteries to the Remote Control
Insert two size AA (R6) batteries (supplied) by matching the + and – on the
batteries to the diagram inside the battery compartment.
Carrying Your Projection TV
Carrying the projection TV requires three or more people.
The projection TV has been equipped with casters for easy movement on a
hard surface. (for KP-53HS20, KP-53HS30, KP-61HS20 and KP-61HS30
only)
Please move your projection TV using the casters.
✍
Remove the batteries to avoid damage from possible battery leakage
whenever you anticipate that the remote control will not be used for an
extended period.
✍
Handle the remote control with care. Avoid dropping it, getting it wet, or
placing it in direct sunlight, near a heater, or where the humidity is high.
✍
Your remote control can be programmed to operate most video
equipment. (See “Programming the Remote Control” on page 65.)
e
e
E
E
Installing and Connecting the Projection TV
11
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV

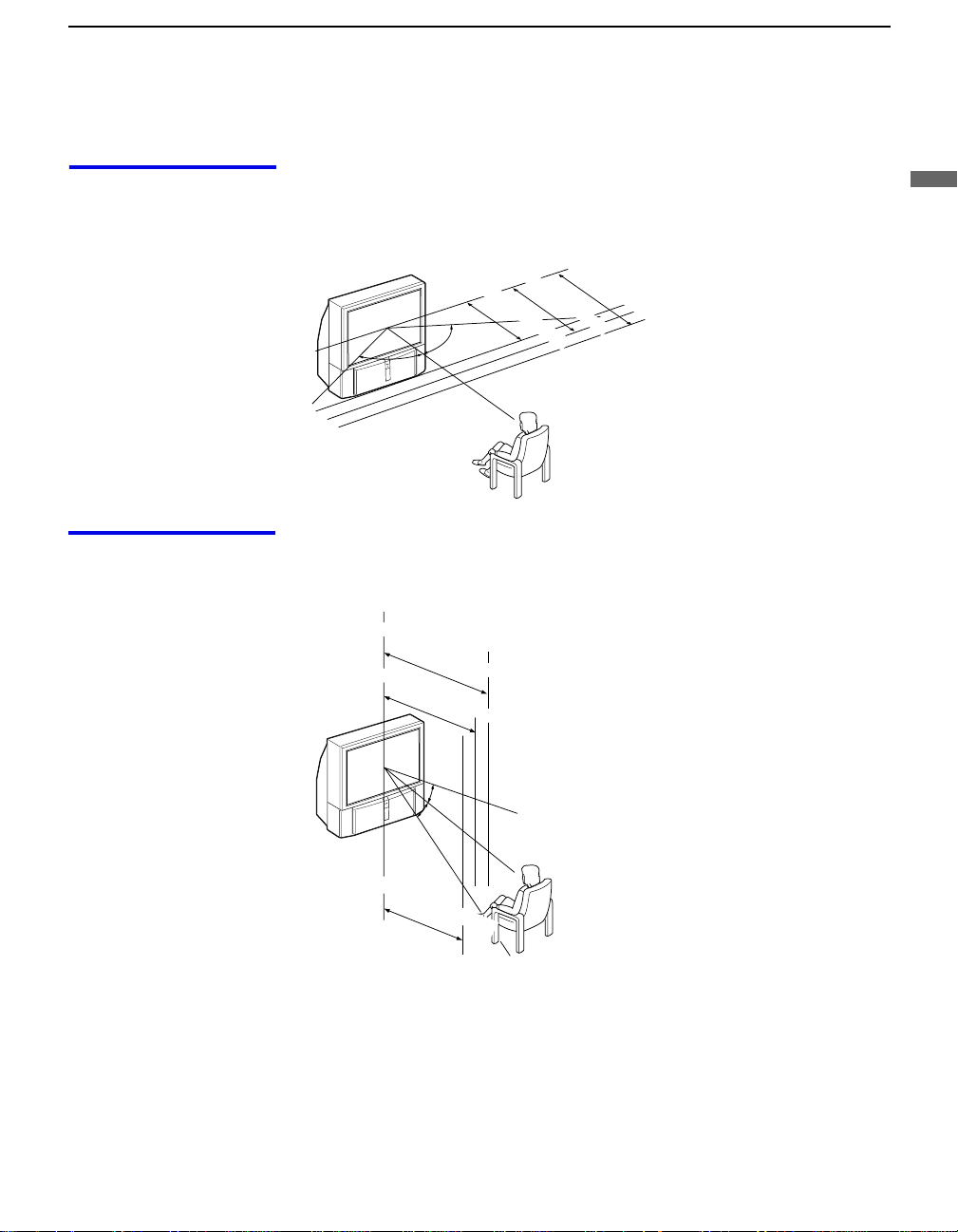

Installing the Projection TV
Recommended
viewing area
(Horizontal)
60˚
60
60˚
min. 1.8 m (approx. 6 ft.)
43"
min. 2.1 m (approx. 7 ft.)
53"
min. 2.4 m (approx. 8 ft.)
61"
20˚
20˚
min. 2.1 m (approx. 7 ft.)
53"
min. 2.4 m (approx. 8 ft.)
61"
min. 1.8 m (approx. 6ft.)
43"
Recommended
viewing area
(Vertical)
Installing and Connecting the Projection TV
12
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Connector Types
You may find it necessary to use some of the following connector types
during set up.
Coaxial cable
Standard TV cable and antenna cable
S Video cable
High quality video cable for enhanced picture quality
Audio/Video cable
Video - Yellow
Audio (Left) - White
Audio (Right) - Red

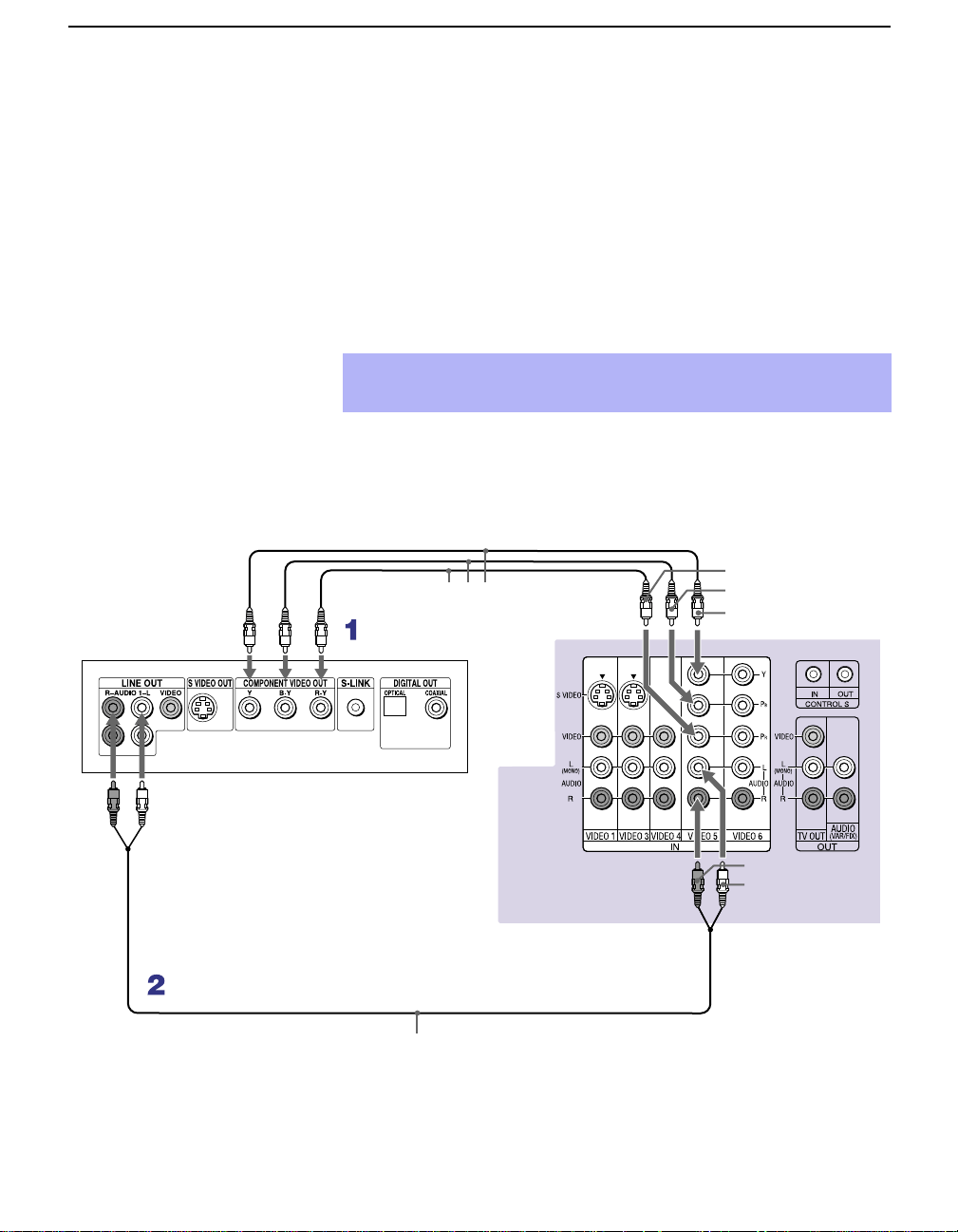

Some DVD Players are equipped with the following three video connectors.
Y - Green
P
B
(C
B
, C
b
or B–Y) - Blue
P
R
(C
R
, C
r
or R–Y) - Red
CONTROL S cable
CONTROL S connections are exclusive to Sony products and allow greater
control of all Sony equipment.
Plug Type
Screw-on Type
Push into connection.
Screw into connection.
Align guides and push
into connection.
Push into connection.
Push into connection.
Installing and Connecting the Projection TV
13
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV
Projection TV Controls and Connectors
Front Panel Menu
Controls
The front panel menu controls allow access to the on-screen menus without
the use of a remote control. Pressing
MENU
brings up the on-screen menus.
The arrow buttons move the on-screen cursor in the menus and the Select
button ( ) selects the menu item.
Installing and Connecting the Projection TV
14
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Projection TV Rear
and Front/Side
Panel Connectors
Rear of projection TV
Front or side of projection TV
KP-43HT20
KP-53HS20, KP-53HS30,
KP-61HS20 and KP-61HS30
Installing and Connecting the Projection TV
15
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV
Connection Description
1 AUX Allows you to view local and cable channels if your cable
provider does not feature local channels. You can switch
between local and cable channels easily by pressing ANT
on the remote control. Devices connected to the AUX
input cannot be viewed in Twin View.
2 TO CONVERTER This is a VHF/UHF OUT jack that lets you set up your
projection TV to switch between scrambled channels
(through a cable box) and normal cable channels (CATV).
Use this jack instead of a splitter to get better picture
quality when switching between scrambled and
unscrambled cable channels.
3 VHF/UHF Connects to your VHF/UHF antenna or cable.
4 S VIDEO
(Rear and front/
side)
Connects to the S VIDEO OUT jack of your VCR or other
S VIDEO-equipped video component. Provides better
picture quality than the VHF/UHF jacks or the Video IN
jack.
5 VIDEO
(L/R)/AUDIO
(Rear and front/
side)
Connects to the audio and video OUT jacks on your VCR
or other video component. A fourth video input (VIDEO
2) is located on the side panel (for KP-43HT20) or the
front panel (for KP-53HS20, KP-53HS30, KP-61HS20
and KP-61HS30) of the projection TV.
6 Y/P
B
/P
R
(L/R)/AUDIO
Connects to your DVD player’s or Digital Set-top box’s
component video (Y, P
B, PR) and audio (L/R) jacks.
7 TV OUT Connects to an AV receiver for greater control of all audio
and video equipment. (see page 30) For detailed
information about connection, refer to the operating
manual supplied with the AV receiver.
8 AUDIO OUT
(VAR/FIX)
L (MONO)/R
Connects to the left and right audio inputs of your audio or
video component.
9 CONTROL S
IN/OUT
To control other Sony equipment with the projection TV's
remote control, connect the CONTROL S IN jack of the
equipment to the CONTROL S OUT jack on the
projection TV with the CONTROL S cable.
To control the projection TV with a remote control for
another Sony product, connect the CONTROL S OUT
jack of the equipment to the CONTROL S IN jack on the
projection TV with the CONTROL S cable.
Installing and Connecting the Projection TV
16
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]

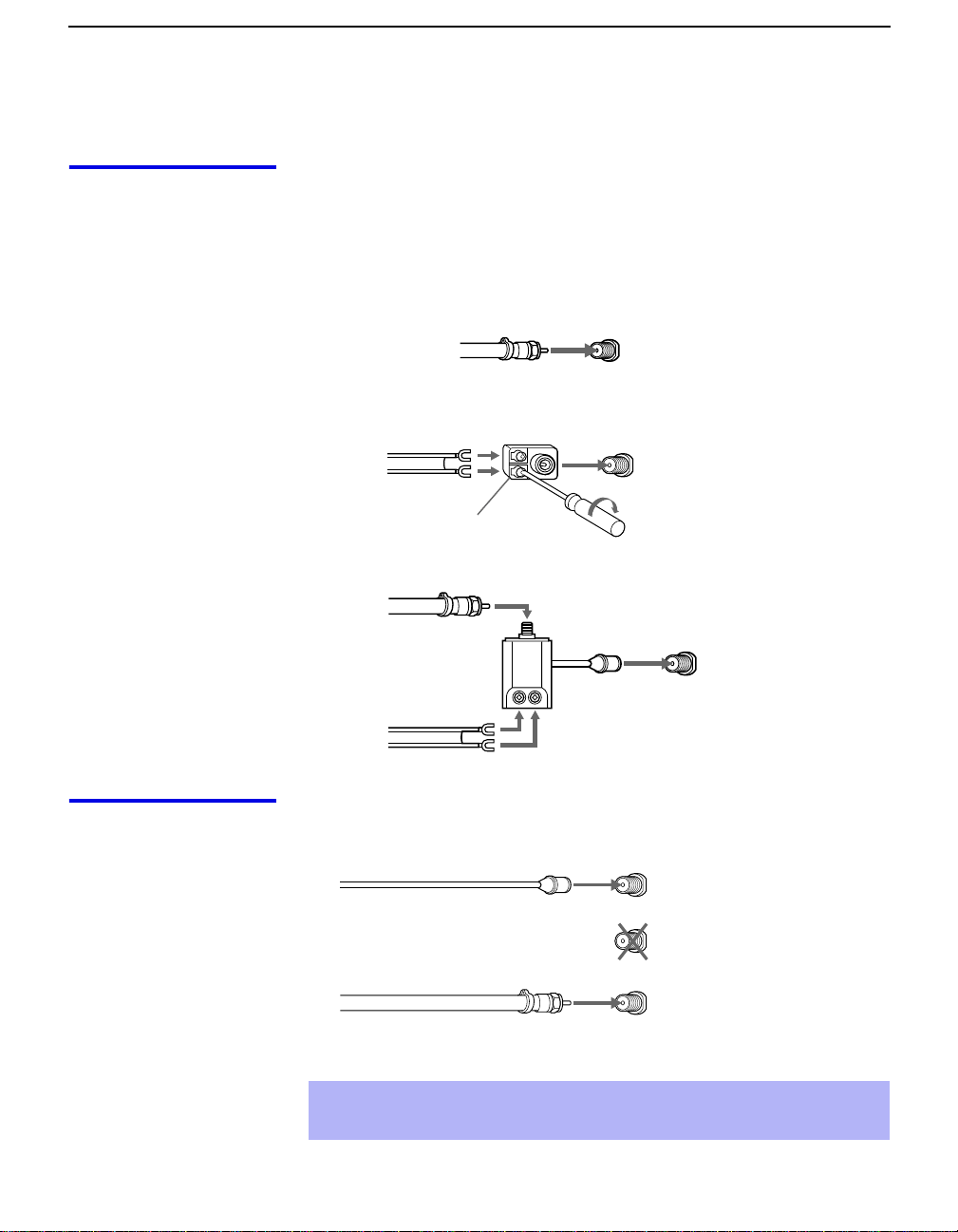

Basic Connections (Connecting Cable TV or Antenna)
Connecting Directly
to Cable or an
Antenna
The connection you choose depends on the cable found in your home. Newer
homes are equipped with standard coaxial cable (see A
AA
A); older homes
probably have 300-ohm twin lead cable (see B
BB
B); other homes may contain
both (see C
CC
C).
A VHF Only or VHF/UHF or Cable
B VHF Only or UHF Only or VHF/UHF
C VHF and UHF
Cable and Antenna
If your cable provider does not feature local channels, you may find this set
up convenient.
Select CABLE or antenna (ANT) mode by pressing
ANT
on the remote
control.
75-ohm coaxial
cable
Rear of projection TV
VHF/UHF
Rear of projection TV
Antenna connector
300-ohm twin lead cable
VHF/UHF
Rear of projection TV
75-ohm coaxial cable
VHF/UHF
U/V Splitter
(not supplied)
300-ohm twin lead cable
✍
To receive channels with an antenna, you need to turn your Cable to OFF
(see page 52) and perform the Auto Program function (see page 53).
CATV cable
Rear of projection TV
TO
CONVERTER
(No connection to
TO CONVERTER)
VHF/UHF
Antenna cable
AUX
Installing and Connecting the Projection TV
17
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV
Cable Box
Connections
Cable Box and Cable
This is the preferred basic cable TV hookup to use if:
❑
Your cable TV company scrambles some channels, but not all of them
(pay channels vs. regular cable channels) and you need to use a cable
box, and
❑
You want to enjoy the Twin View feature.
With this setup you can:
❑
Use the projection TV remote control to change channels using your
cable box when the signal is scrambled.
❑
Use the projection TV remote control to change channels using your
projection TV when the signal is not scrambled. (Your projection TV’s
tuner provides a better signal than the cable box.)
❑
Use the Twin View feature. (When all channels are routed through your
cable box, only one channel is sent to the projection TV, so you can not
use the Twin View or Channel Index features for your cable box.)
1
Connect the Cable TV cable to the projection TV’s VHF/UHF jack.
2
Using a coaxial cable, connect the projection TV’s TO CONVERTER
jack to the cable box’s IN jack. The projection TV’s internal converter
allows you to switch between unscrambled signals coming straight into
the projection TV and scrambled signals coming in through the cable
box, eliminating the need for an external splitter.
3
Using a coaxial cable, connect the cable box’s OUT jack to the
projection TV’s AUX jack.
✍
Pressing ANT on the remote control switches between the channels
coming in through the cable box (scrambled) and those coming directly
to the TV (unscrambled).
Rear of
projection TV
TO
CONVERTER
VHF/UHF
AUX
Cable box
OUT
IN
Signal
75-ohm coaxial cable (not supplied)
CATV cable (unscrambled channels)
(Continued)
Installing and Connecting the Projection TV
18
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Cable Box Only
Use this hookup if:
❑
You subscribe to a cable TV system that uses scrambled or encoded
signals requiring a cable box to view all channels, and
❑
You do not intend to hook up any other audio or video equipment to
your projection TV.
When all channels are routed through your cable box, only one unscrambled
channel is sent to the projection TV, so you cannot use the Twin View
feature. If some channels are scrambled, but others are not, consider using
the hookup on page 17 instead.
1
Connect the coaxial connector from your cable service to the cable
box’s IN jack.
2
Using a coaxial cable, connect the cable box’s OUT jack to the TV’s
VHF/UHF jack.
Also, set Cable to ON in the Channel menu. (see page 52)
✍
If you will be controlling all channel selection through your cable box,
consider using the Channel Fix feature to set your projection TV to
channel 3 or 4. (see page 53)
✍
Your Sony remote control can be programmed to operate your cable
box. (see “Programming the Remote Control” on page 65)
✍
To change channels using the cable box, set your projection TV to
channel 3 or 4 depending on the cable box channel output.
VHF/UHF
Rear of projection TV
Cable
IN
OUT
Cable box
Setting the Channel
Fix feature in the Channel
menu (see “Using the
Channel Menu” on page
52) ensures that you do
not accidentally switch
the channels using your
projection TV.
z
Installing and Connecting the Projection TV
19
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV
Connecting a VCR and Cable
Use this hookup if:
❑
You have cable TV that does not require a cable box.

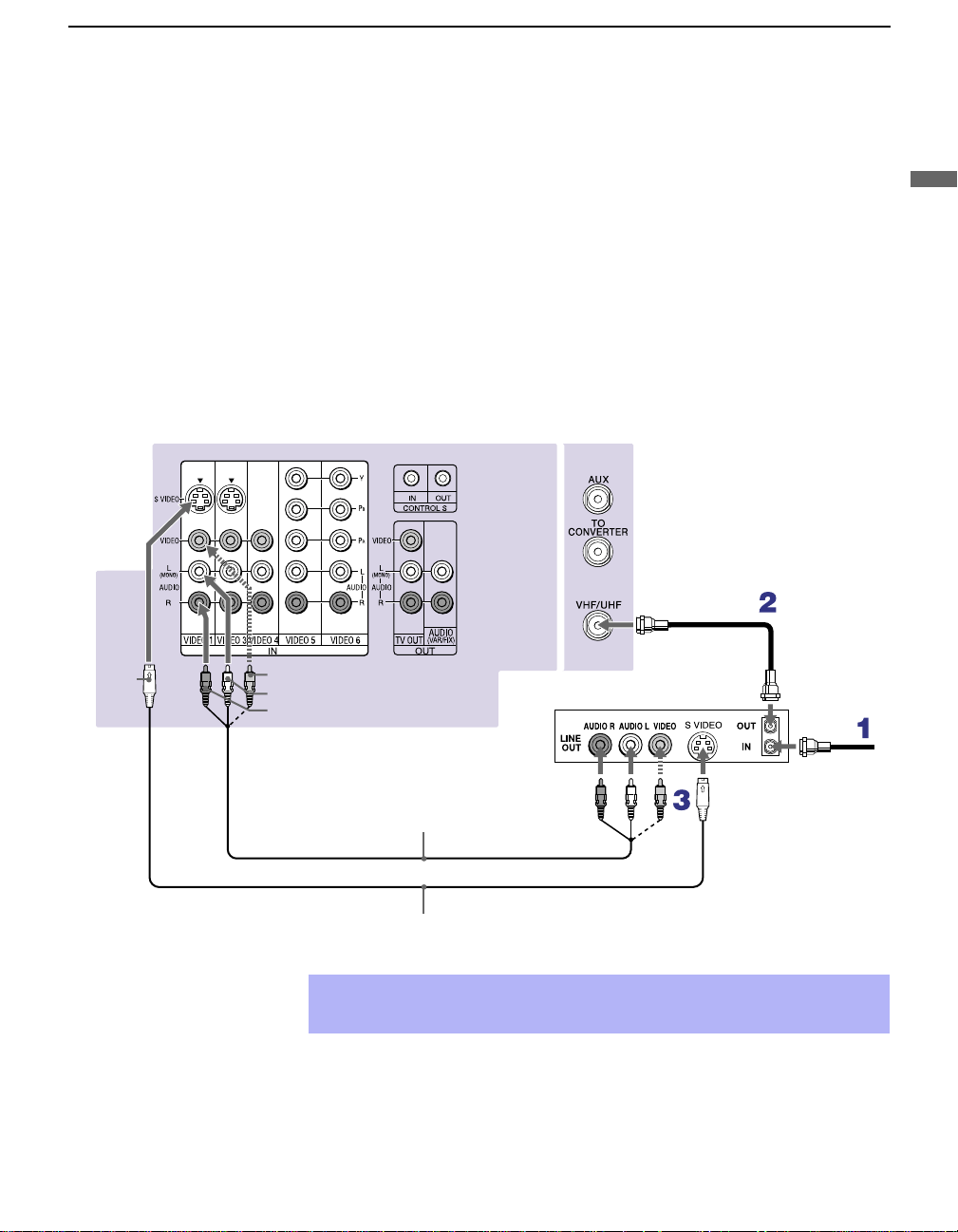

Disconnect all power sources before making any connections.
1
Connect the cable TV cable to the VCR’s IN jack.
2
Using a coaxial cable, connect the VCR’s OUT jack to the projection
TV’s VHF/UHF jack.
3
Using AUDIO and S VIDEO cables, connect the VCR’s Audio and
Video OUT jacks to the projection TV’s AUDIO and S VIDEO IN
jacks.
Coaxial cable
Rear of Projection TV
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
Cable
VCR
VMC-810S/820S
(not supplied)
S VIDEO
YC-15V/30V (not supplied)
✍
If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
Installing and Connecting the Projection TV
20
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Connecting a VCR and Cable Box
Use this hookup if:
❑
Your cable TV company scrambles some channels, but not all of them
(pay channels vs. regular cable channels) and you need to use a cable
box, and
❑
You want to enjoy the Twin View feature.
With this setup you can:
❑
Use the projection TV remote control to change channels using your
cable box when the signal is scrambled.
❑
Use the projection TV remote control to change channels using your
projection TV when the signal is not scrambled. Your projection TV’s
tuner provides a better signal than the cable box.
❑
Use the Twin View feature. (When all channels are routed through your
cable box, only one signal is sent to the projection TV, so you cannot
use the Twin View feature.)
Disconnect all power sources before making any connections.
1
Connect the Cable TV cable to the projection TV’s VHF/UHF jack.
2
Using a coaxial cable, connect the TV’s TO CONVERTER jack to the
cable box’s IN jack. The projection TV’s internal converter allows you
to switch between unscrambled signals coming straight into the
projection TV and scrambled signals coming in through the cable box,
eliminating the need for an external splitter.
3
Using a coaxial cable, connect the cable box’s OUT jack to the VCR’s
IN jack.
4
Using AUDIO and S VIDEO cables, connect the VCR’s AUDIO and S
VIDEO OUT jacks to the projection TV’s AUDIO and S VIDEO IN
jacks.
5
Using a coaxial cable, connect the VCR’s OUT jack to the projection
TV’s AUX jack.
✍
To view scrambled channels, set your projection TV to AUX 3 or 4
(depending on your cable box output). Change channels using your
cable box.
Installing and Connecting the Projection TV
21
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV
Coaxial
cable
Cable box
VCR
Rear of projection TV
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
VMC-810S/820S
(not supplied)
Coaxial cable
YC-15V/30V
(not supplied)
S VIDEO
✍
If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
✍
You will not be able to change channels on the VCR. Set your projection
TV and VCR to channel 3 or 4, depending on your cable box channel
output.
✍
Pressing ANT on the remote control switches between the channels
coming in through the cable box (scrambled) and those coming directly
to the projection TV (unscrambled).
Installing and Connecting the Projection TV
22
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Connecting Two VCRs for Tape Editing
Connecting two VCRs together, then into the projection TV, allows you to
switch between the two to be sure that what you are playing on one is
recording on the other.
Disconnect all power sources before making any connections.
1
Using AUDIO and VIDEO cables, connect the playback VCR’s Audio
and Video OUT jacks to the recording VCR’s Audio and Video IN
jacks.
2
Using AUDIO and VIDEO cables, connect the recording VCR’s
AUDIO and Video OUT jacks to the projection TV’s AUDIO and
VIDEO IN jacks.
Rear of projection TV
VCR (playback)
VCR (recording)
VMC-810S/820S (not supplied)
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
✍
To perform tape editing, set the projection TV to the video input intended
for playback by pressing TV/VIDEO on the remote control.
✍
You may need to change the video input on your VCR. Consult your
VCR’s operating manual for instructions.
✍
If your VCRs have an S VIDEO jack: For best picture quality, use an
S VIDEO connection instead of the yellow video cable on your combined
A/V cable.
Using an S VIDEO cable, connect the playback VCR’s S VIDEO OUT jack
to the recording VCR’s S VIDEO IN jack. S VIDEO does not provide audio,
so audio cables must still be connected to provide sound.
✍
You cannot record signals from equipment connected to the Y, P
B
, P
R
input.
Installing and Connecting the Projection TV
23
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV
Connecting a Satellite Receiver
Disconnect all power sources before making any connections.
1
Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2
Using AUDIO and S VIDEO cables, connect the satellite receiver’s
AUDIO and S VIDEO OUT jacks to the projection TV’s AUDIO and S
VIDEO IN jacks.
3
Connect a coaxial cable from your cable or antenna to the projection
TV’s VHF/UHF jack.
✍
If your satellite receiver is not equipped with S VIDEO, use a VIDEO cable
(yellow) instead of the S VIDEO cable.
Coaxial
cable
Satellite receiver
VMC-810S/820S (not supplied)
R
ear of projection TV
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
Satellite
antenna
cable
S
VIDEO
YC-15V/30V (not supplied)
Installing and Connecting the Projection TV
24
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]

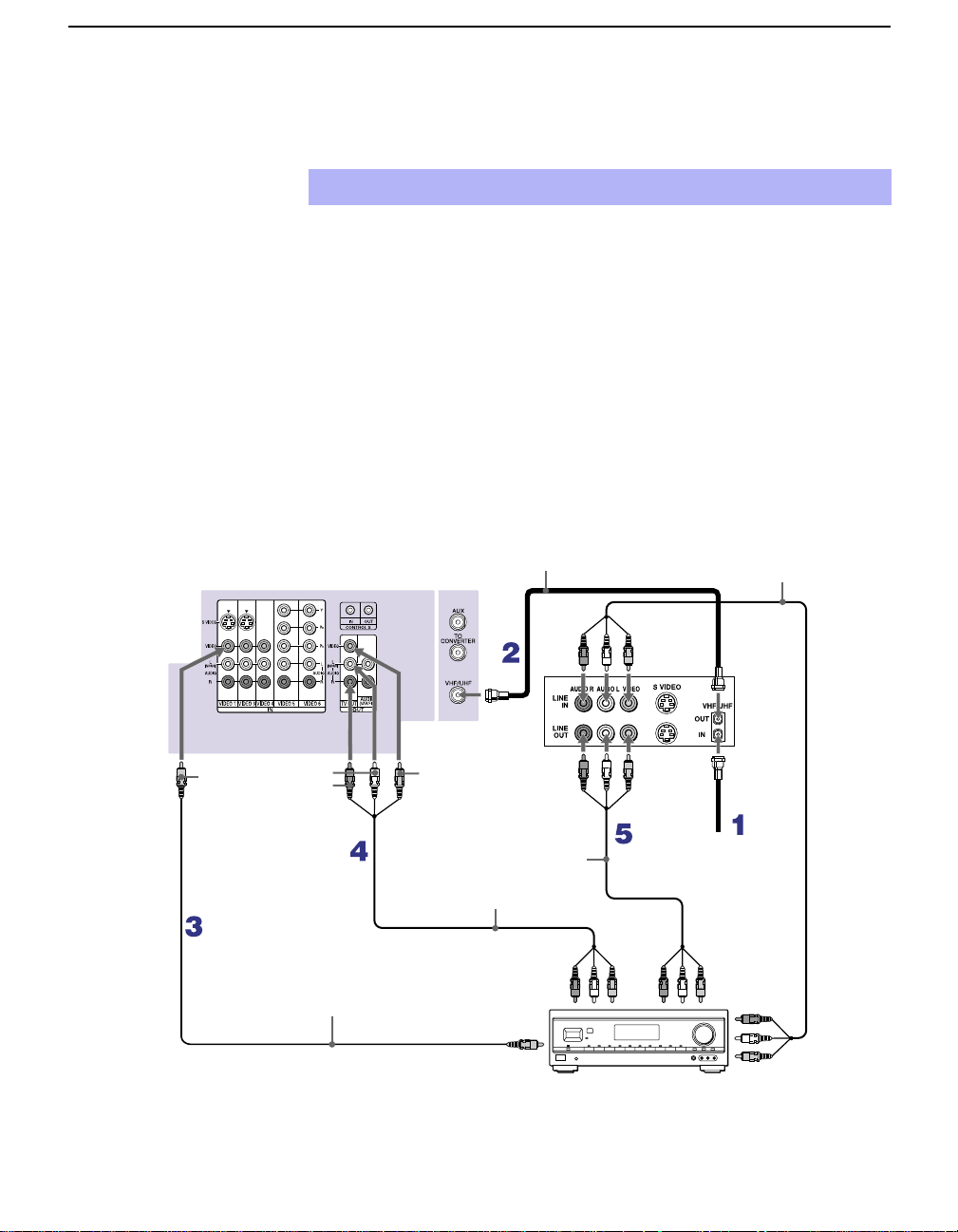

Connecting a Satellite Receiver with a VCR
Disconnect all power sources before making any connections.
1
Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2
Connect the CATV cable to the VCR’s VHF/UHF IN jack.
3
Using a coaxial cable, connect the VCR’s OUT jack to the projection
TV’s VHF/UHF jack.
4
Using AUDIO and S VIDEO cables, connect the satellite receiver’s
AUDIO and S VIDEO OUT jacks to the VCR’s AUDIO and S VIDEO
IN jacks.
5
Using AUDIO and S VIDEO cables, connect the VCR’s AUDIO and S
VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.
Coaxial
cable
Rear of projection TV
S VIDEO
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
Satellite receiver
VCR
YC-15V/30V
(not supplied)
VMC-810S/
820S (not
supplied)
YC-15V/30V (not supplied)
VMC-810S/820S
(not supplied)
Satellite
antenna
cable
Cable
✍
Be sure your VCR’s video input is set correctly. Consult your VCR’s
operating manual for instructions.
✍
Use TV/VIDEO to select
- VIDEO 1 to watch satellite TV or the VCR. (Your VCR must be turned
on)
- VHF/UHF to watch cable TV.
✍
If your VCR or satellite receiver is not equipped with S VIDEO, use a
VIDEO cable (yellow) instead of the S VIDEO cable.
Installing and Connecting the Projection TV
25
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV
Connecting an Audio Receiver
Disconnect all power sources before making any connections.
Using audio cables, connect the projection TV’s AUDIO OUT (VAR/FIX)
jacks to the audio receiver’s audio LINE IN jacks.
Rear of projection TV
AUDIO-R
(red)
AUDIO-L
(white)
Line
input
RK-74A
(not supplied)
Installing and Connecting the Projection TV
26
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Connecting a DVD Player with Component
Video Connectors
This is the preferred hookup to use if:
❑
Your DVD player has component (Y, PB, PR) jacks.
Disconnect all power sources before making any connections.
1
Using three separate component video cables, connect the DVD player’s
Y, P
B and PR jacks to the Y, PB and PR jacks on the projection TV. Use
the VIDEO IN 5 or 6 connections.
2
Using an audio cable, connect the DVD player’s Audio OUT jacks to
the projection TV’s AUDIO IN jacks. Be sure to use the same row of
inputs that you used for the video connection (VIDEO IN 5 or 6).
✍
The Y, P
B
and P
R
jacks on your DVD player are sometimes labeled Y,
C
B
and C
R
, or Y, B-Y and R-Y. If so, connect the cables to like colors.
VMC-10HG (not supplied)
Rear of projection TV
RK-74A (not supplied)
DVD player
AUDIO-R (red)
AUDIO-L (white)
P
R
P
B
Y
Installing and Connecting the Projection TV
27
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV

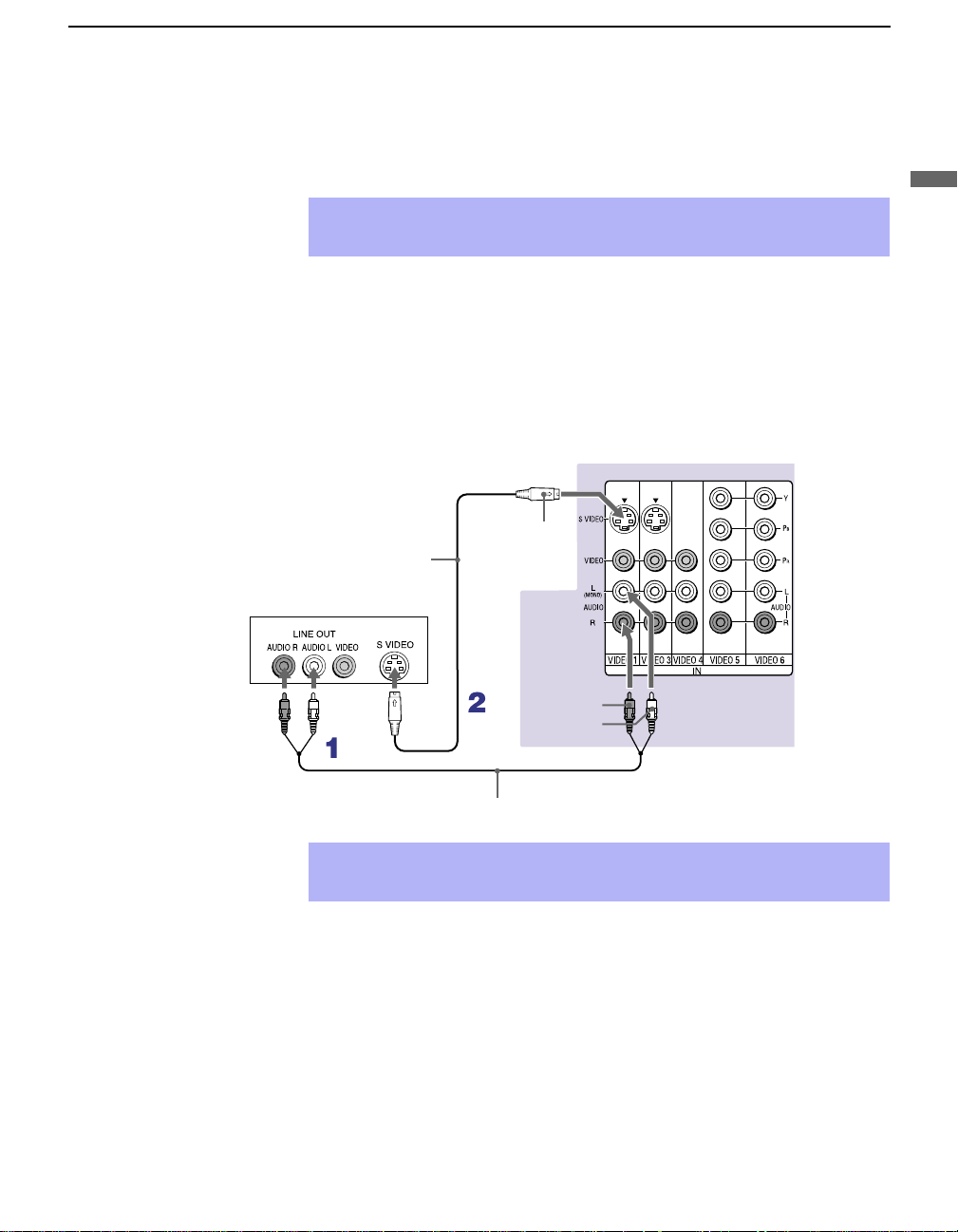

Connecting a DVD Player with A/V Connectors
Use this hookup if:
❑
Your DVD player does not have component (Y, PB, PR) jacks.
Disconnect all power sources before making any connections.
1
Using audio cables, connect the DVD player’s Audio OUT jacks to the
projection TV’s AUDIO IN jacks.
2
Using an S VIDEO cable, connect the DVD player’s S VIDEO jack to
the projection TV’s S VIDEO jack.
✍
If your DVD player has video component output connectors: for best
picture quality use the connection described on page 26.
Rear or projection TV
YC-15V/30V
(not supplied)
DVD player
RK-74A (not supplied)
AUDIO-R (red)
AUDIO-L (white)
S VIDEO
✍
Use TV/VIDEO on the remote control to switch between the VCR, DVD
player and cable TV inputs.
Installing and Connecting the Projection TV
28
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Connecting a Digital TV Receiver
Disconnect all power sources before making any connections.
1
Using three separate component video cables, connect the Digital TV
Set-top box’s Y, PB
and P
R
jacks to the projection TV.
2
Using an audio cable, connect the Digital TV Set-top box’s Audio OUT
jacks to the projection TV’s AUDIO IN jacks.
✍
The Y, P
B
and P
R
jacks do not provide audio, so audio cables must
be connected to provide sound.
Component input (Y, P
B
and P
R
) is recommended for optimum
picture quality. Component input is necessary to view 480p, 720p
and 1080i formats. You may also use component video or S VIDEO
connections.
Be sure to read the
Set-top box manual.
z
VMC-10HG (not supplied)
Digital TV Set-top box
RK-74A (not supplied)
AUDIO-R (red)
AUDIO-L (white)
Rear of
projection TV
P
R
P
B
Y
✍
You cannot record the signal from any equipment connected into the
Y, P
B
and P
R
connectors.
✍
This projection TV is not compatible with digital TV receivers
configured with RGB or VGA output connectors.
Installing and Connecting the Projection TV
29
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV
Connecting a Camcorder
For easy connection of the camcorder, the projection TV has front Audio and
Video inputs (shown below). However, if you prefer, you can also connect
the camcorder to the projection TV’s rear Audio and Video IN jacks.
Using AUDIO and S VIDEO cables, connect the camcorder’s Audio and S
VIDEO OUT jacks to the projection TV’s AUDIO and S VIDEO IN jacks.
✍
If you have a mono camcorder, connect its left audio output to the
projection TV’s AUDIO L jack.
✍
If your camcorder is not equipped with S VIDEO, use a VIDEO cable
(yellow) instead of the S VIDEO cable.
VIDEO (yellow)
A/V output
AUDIO-L (white)
AUDIO-R (red)
S VIDEO
YC-15V/30V (not supplied)
VMC-810S/820S
(not supplied)
KP-43HT20
KP-53HS20, KP-53HS30,
KP-61HS20, and KP-61HS30
Installing and Connecting the Projection TV
30
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Connecting an AV Receiver
For greater control of all audio and video equipment, connect an AV receiver.
Disconnect all power sources before making any connections.
1
Connect the coaxial cable from the incoming cable connection or
antenna to IN on the VCR.
2
Using a coaxial cable, connect OUT on the VCR to VHF/UHF on the
projection TV.
3
Using a VIDEO cable, connect VIDEO of VIDEO 1 IN on the
projection TV to MONITOR OUT on the AV receiver.
4
Using an AUDIO/VIDEO cable, connect TV OUT on the projection TV
to AUDIO/VIDEO 2 IN on the AV receiver.
5
Using an AUDIO/VIDEO cable, connect the video equipment to the AV
receiver.
6
Select the Setup menu and set “Video Label” to “Receiver” to fix your
TV’s input to AV receiver. (see “Video Label” on page 64)
✍
Change “Video Label” for the VIDEO 1 input to “Receiver.” (see page 64)
Rear of projection TV
AUDIO-L
AUDIO-R
VMC-10HG (not supplied)
Cable/
Antenna
Coaxial cable (not supplied)
VMC-810S/820S
(not supplied)
VMC-810S/820S
(not supplied)
AUDIO/
VIDEO 1 IN
AUDIO/VIDEO 1 OUT
AV receiver
VMC-810S/820S (not supplied)
MONITOR
OUT
VIDEO
VIDEO
VCR
AUDIO/
VIDEO 2 IN
Installing and Connecting the Projection TV
31
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV
Using the CONTROL S Feature
CONTROL S allows you to control your projection TV system and other
Sony equipment with one remote control. In addition to allowing you to
control multiple devices with one remote control, the CONTROL S feature
allows you to always point your remote control at your projection TV,
instead of having to point it at the other equipment, which might be hidden
or out of direct line of sight.
Rear of projection TV
Installing and Connecting the Projection TV
32
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Setting Up the Projection TV Automatically
After you finish connecting your projection TV, you can run Auto Setup to
set up your channels. The Auto Setup screen appears when you turn your
projection TV on for the first time after installing it. If you do not want to set
up the channels at this time, you can do it later by using the Auto Program
feature in the Channel menu. (see page 53)
Using Auto Setup
1
Press
POWER on the front panel of your projection TV or on the remote
control
to turn on the projection TV.
2
Press the
TV (FUNCTION)
button on your remote control. Red light will
briefly appear.
3
Press
CH+
on your projection TV to run Auto Setup, or press
CH–
to
exit. If you use the channel buttons on your remote control, be sure to
use the main set of buttons ( ).
✍
The Auto Setup feature does not apply for installations that use a cable
box for all channel selection.
✍
You can run Auto Program by selecting it in the Channel menu, as
described on page 53.
Projection TV front panel
Installing and Connecting the Projection TV
33
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Installing and Connecting the Projection TV
Adjusting the Convergence Automatically – FLASH FOCUS™ –
The projection tube image appears on the screen in three layers (red, green
and blue). If they do not converge, the color is poor and the picture blurs.
Before you use your projection TV, be sure to adjust the convergence.
The FLASH FOCUS feature allows you to adjust the convergence
automatically.
1
Receive a TV or cable TV program.
2
Press
FLASH FOCUS
.
The cross pattern appears and FLASH FOCUS begins to work. The
adjustment is completed when the cross pattern becomes white and will
come back to the program you are watching.
To obtain an
optimum
convergence for
Digital TV programs
The optimum convergence alignment varies with digital TV formats.
Whenever you find that the picture blurs, press FLASH FOCUS
.
✍
It is recommended to perform FLASH FOCUS about 30 minutes after the
projection TV is first turned on.
Projection TV
front panel
✍
You cannot perform any other functions until FLASH FOCUS has
completed its cycle.
✍
If you perform any other operation while FLASH FOCUS is in progress,
FLASH FOCUS operation is canceled.
✍
Unshielded speakers or other metallic objects can cause picture
distortion if placed close to the projection TV.
34
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Features
Using the Remote Control
The following table describes the buttons on the remote control that are for
more advanced functions.

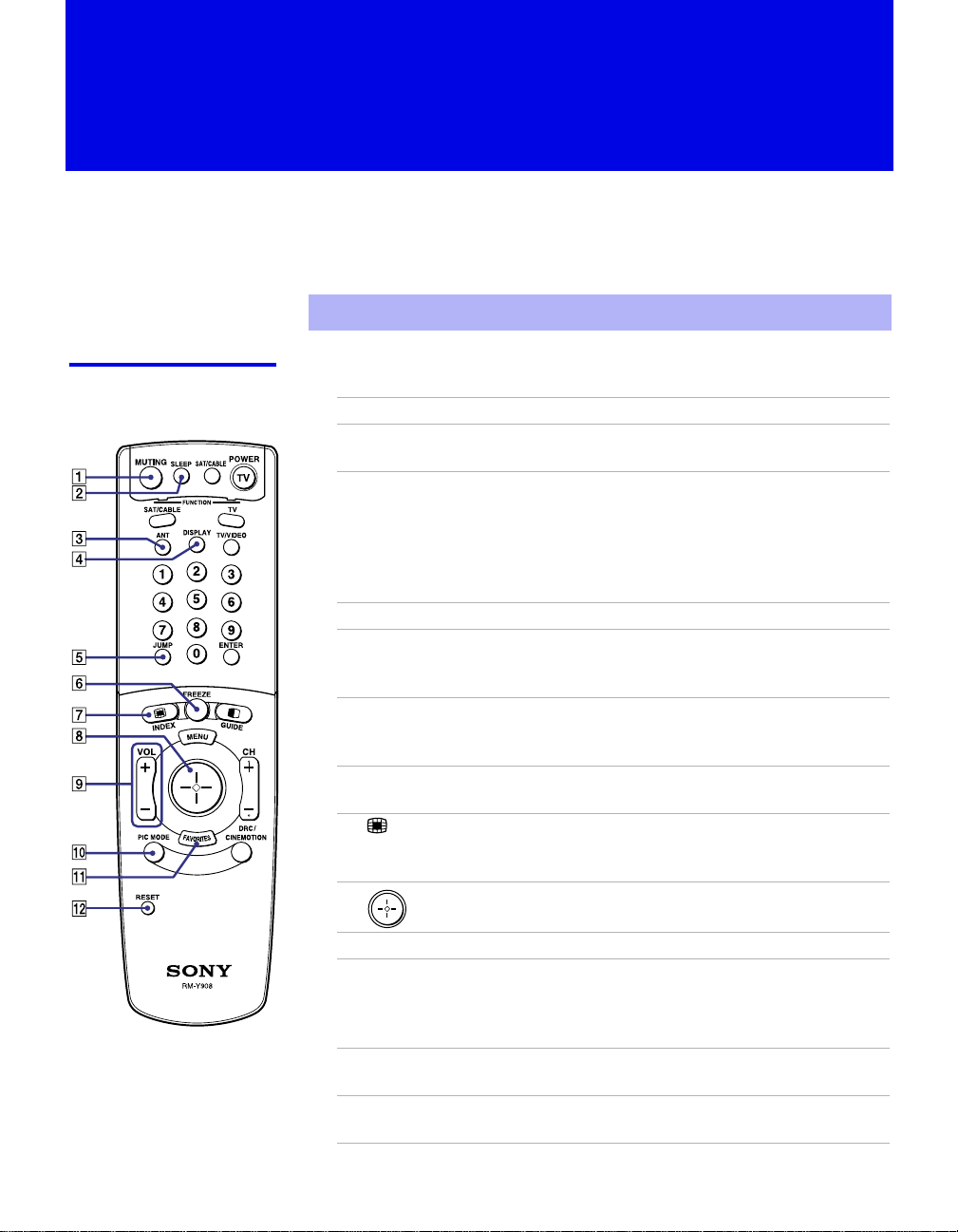

Button Descriptions
Outside Panel
✍
Main Power button must be turned ON to activate the remote control.
Button Description
1 MUTING Press to mute the sound. Press again or press VOL + to
restore the sound.
2 SLEEP Press repeatedly until the projection TV displays the time
in minutes (15, 30, 45, 60, or 90) that you want the
projection TV to remain on before shutting off
automatically. Cancel by pressing until SLEEP OFF
appears. While Sleep feature is set, press once to view
remaining time.
3 ANT Changes between the VHF/UHF input to the AUX input.
4 DISPLAY Press once to display the current time and channel label (if
set) and channel number. Press again to turn Display off.
See page 62 for details on setting the time.
5 JUMP Press to jump back and forth between two channels. The
projection TV alternates between the current channel and
the last channel that was selected.
6 FREEZE Freezes the window picture. Press again to restore the
picture.
7 INDEX Press to enter the Channel Index mode. You can view and
select from twelve channels without leaving the current
one.
8 Joystick allows for movement of the on-screen cursor.
Pressing down on the center of the joystick selects the item.
9 VOL +/– Adjusts the volume.
q; PIC MODE Press repeatedly to step through the available video picture
modes: Vivid, Standard, Movie and Pro. Also available in
the Video menu. For details, see “Selecting Video Options”
on page 48.
qa FAVORITES Displays the Favorite Channels list. For details, see “Using
Favorite Channels” on page 40.
qs RESET Press when in a menu to reset the settings to the factory
defaults.
Using the Features
35
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Features
qd POWER
buttons
(GREEN)
Turn on and off the projection TV and other audio/video
equipment you have programmed into the remote control.
For instructions, see “Programming the Remote Control”
on page 65.
qf FUNCTION
buttons
Select the equipment (TV, SAT/CABLE) that you want to
operate. The indicator lights up momentarily when pushed
to show which device the remote control is operating.
qg TV/VIDEO
Cycles through the video equipment connected to your
projection
TV’s video inputs:
TV
,
VIDEO 1
,
VIDEO 2
,
VIDEO 3
,
VIDEO 4
,
VIDEO 5
and
VIDEO 6
.
qh 0 – 9 and
ENTER
Press 0 - 9 to select a channel, the channel changes after 2
seconds. Press ENTER to select immediately.
qj
GUIDE
Turns on/off Twin View. For details, see “Using Twin
View™” on page 41.
Displays the program guide of your satellite.
qk MENU Press to display the projection TV on-screen menu. Press
again to exit from the menus.
ql CH +/– Scan through channels.
w; DRC/
CINEMOTION
Press repeatedly to step through the available high-
resolution picture modes: Interlaced, Progressive and
CineMotion. For details, see “Using the Video Menu” on
page 48.
Button Description
To scan rapidly through the
channels, press and hold down
CH+ or CH–.
z
Using the Features
36
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]

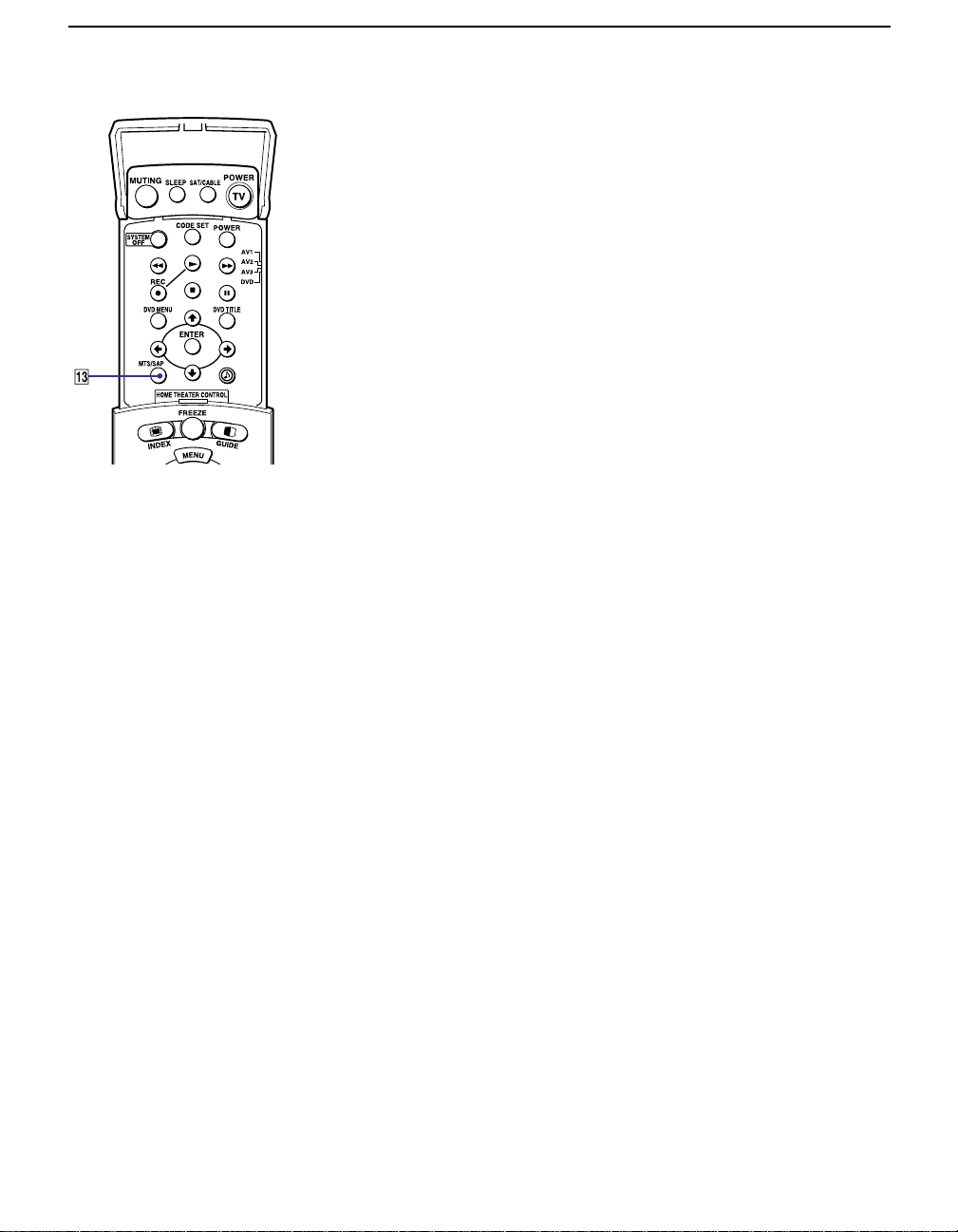

Inside Panel
Button Description
1 SYSTEM OFF Press to turn off the projection TV and all equipment
connected with S-Link.
2 N Play
3 m Rewind
4 REC Record
5 x Stop
6 DVD MENU Displays the DVD menu.
7 MTS/SAP Press to scroll through the Multi-channel TV Sound (MTS)
options: Stereo, Auto SAP, and Mono.
8 CODE SET Used for programming the remote control to operate non-
Sony video equipment. For details, see “Programming the
Remote Control” on page 65.
9 POWER Press to turn on the DVD/VCR player you have
programmed into the remote control. For instructions, see
“Programming the Remote Control” on page 65.
q; M Fast-forward
qa Use to switch control for connected video equipment. You
can program one video source for each switch position. For
details, see “Programming the Remote Control” on page
65.
qs X Pause (Press again to resume normal playback)
qd DVD TITLE Displays the DVD title.
qf M, m, <, ,,
and ENTER
Use to operate the DVD menu.
qg Press to select an audio option: Steady Sound ON or
OFF.
Using the Features
37
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Features
Watching the TV
Many TV features can be accessed directly through the remote control. The
following will explain the function of some buttons found on your remote
control.
Buttons for
Projection TV
Operations
1 TV (FUNCTION)
Activates the remote control for use with the projection TV.
2 ANT— (AUX input)
Press to change between the VHF/UHF input and the AUX input. (for
detailed connection information, see “Cable and Antenna” on page 16 or
“Cable Box Connections” on page 17)
3 TV (POWER)
Turns the projection TV on and off. If a video input indication (e.g., VIDEO
1, VIDEO 2) appears on the screen, press TV/VIDEO
or
CH +/ –
until a
channel number appears.
4 0-9 and ENTER
Use for direct channel selection. Press
0-9
to select a channel (for example,
to select channel 10, press 1
and
0
). The channel will change after 2 seconds,
or you can press ENTER
for immediate selection.
5 CH +/–
Press to scan through the channels (+ up or – down).
6 VOL +/–
Press to adjust the volume (+ up or – down).
7 JUMP
Press to alternate or jump back and forth between two channels. The
projection TV will jump between the current channel and the last channel
selected.
8 MUTING
Press to mute the sound. “MUTING” will appear on the screen and will dim
three seconds later. To restore sound, press again or press
VOL +
.
9 FREEZE — (yellow labeled button)
This is useful when you need to copy down information that appears on the
TV’s screen. (see “Using the Freeze Function” on page 44)
(Continued)
Using the Features
38
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
q; SLEEP
Press repeatedly until the projection TV displays the approximate time in
minutes (15, 30, 45, 60, or 90) that you want the projection TV to remain on
before shutting off automatically.
Cancel by pressing
SLEEP
until “SLEEP OFF” appears.
qa DISPLAY
Press to display the channel number, current time and channel label (if set).
To turn the display off, press
DISPLAY
again.
qs TV/VIDEO
Press repeatedly to scroll through available video inputs: TV, VIDEO 1,
VIDEO 2, VIDEO 3, VIDEO 4, VIDEO 5 and VIDEO 6.
If you select
Skip
as a
Video Label
in the Setup menu, your projection TV
will skip the video input you selected. (see “Video Label” on page 64)
qd MTS/SAP
Press to scroll through the Multi-channel TV Sound (MTS) options. (see
“MTS” on page 50)
qf PIC MODE
Press
PIC MODE
repeatedly to directly choose one of five different video
modes that best suits the program you are watching.
Vivid
: Select for enhanced picture contrast and sharpness.
Standard
: Select to display a standard picture for normal viewing
environments.
Movie
: Select to display a finely detailed picture for low light environments.
Pro (Professional)
: Select to display a picture with minimum enhancements.
When you select each mode, you can also adjust the picture quality (such as
Brightness, Color, etc.) to suit your taste. For details, see “Mode” on page
48.
Using the Features
39
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Features
Watching the Digital TV
When you have connected the DTV receiver, you can enjoy digital TV
programs. This projection TV is capable of receiving the 1080i, 720p, 480p
and 480i digital TV formats.
To view a digital TV program
1
11
1
Connect the DTV receiver to VIDEO 5 or 6 IN on the projection TV.
(for details, see page 28)
2
22
2
Press
TV/VIDEO
to select VIDEO 5 or 6.
3
33
3
Select a digital channel on the DTV receiver. For details, see the
Operating Manual of the DTV receiver.
4
44
4
Adjust the volume on this projection TV as necessary.
✍
This projection TV is not capable of displaying a native 720p format
signal. When the 720p format signal is received, it is converted into a
480p format signal.
✍
The optimum convergence alignment varies with digital TV formats.
Whenever you find that the picture blurs, press FLASH FOCUS. (for
details, see page 33)
Using the Features
40
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using Favorite Channels
The Favorite Channel feature lets you select programs from a list of favorite
channels that you preset.
To display a list of your favorite channels:
1
11
1
Press
FAVORITES
.
The Favorite Channel options appear.
2
22
2
Move the joystick up or down to highlight the channel you want to
watch. The program on that channel appears in the preview window.
Press to select.
✍
Your Favorite Channel options can be set automatically or manually. The
factory setting for Favorite Channel is Auto.
When Favorite Channel is set to Auto, the last eight channels selected
with 0-9 buttons will be set as Favorite Channel options. If you want to
input your own selections as Favorite Channel settings, see “Favorite
Channel” on page 52.
Preview window
Using the Features
41
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Features
Using Twin View™
Twin View enables you to watch two programs at the same time. You can
also change the size of both the left and right pictures.
Displaying Twin
Pictures
To display twin pictures
1
11
1
Make sure your projection TV is
tuned to a working channel.
2
22
2
Press .
To cancel twin pictures
❑
Press again (or press ).
Activating the
Although two pictures appear on the screen at the same time, only one
picture is active. Change the picture size by using the joystick. For an active
picture, you can:
❑
Change channels.
❑
Adjust the volume.
❑
Switch the input sources from VHF/UHF to cable by pressing
ANT
or
TV/VIDEO
to switch the video input.
❑
Change the picture size by pressing the joystick up or down.
To activate the right picture
❑
Move the joystick to the right.
To activate the left picture
❑
Move the joystick to the left.
,
,
,
,
(Continued)
Using the Features
42
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
✍
When you adjust the twin screen sizes, the projection TV memorizes
the change. The next time you use the Twin View feature with 480i
or 480p format input source, the memorized sizes appear.
✍
When viewing an enhanced 16:9 picture, the aspect ratio changes to
4:3 in Twin View. The picture will be reformatted to that aspect ratio.
✍
If viewing a 720p or 1080i format input source, the aspect ratio will
maintain the original 16:9 aspect ratio.
✍
Hookups that affect your ability to use Twin View:
- If you are viewing all channels through the cable box, the Twin
View feature will not work. The cable box only unscrambles one
signal at a time, so the right picture will be the same as the left
picture.
- You can watch a scrambled cable channel and another video
source. Be sure your DVD player, VCR or satellite receiver are
connected to one of the VIDEO IN 1-6 and AUX inputs on the rear
of the projection TV. Pictures from equipment connected to VIDEO
5, 6 and AUX will only appear in the left picture, not in the right.
✍
The active picture is highlighted in cyan.
Using the Features
43
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Features
Changing the
Picture Size
The zoom feature lets you change the size of the left and right pictures.
To enlarge the left
picture (reduce the
right)
1
11
1
Move the joystick
left to activate the
left picture (if not
already activated).
2
22
2
Move the joystick
up to enlarge the
picture and move
the joystick down
to reduce the
picture.
To enlarge the right
picture (reduce the
left)
1
11
1
Move the joystick
right to activate the
right picture (if not
already activated).
2
22
2
Move the joystick
up to enlarge the
picture and move
the joystick down to
reduce the picture.
✍
When you adjust the twin screen sizes, the projection TV memorizes the
change. The next time you use the Twin View function, the memorized
sizes appear.
Using the Features
44
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Freeze Function
The
FREEZE
button allows you to temporarily capture a program’s picture.
You can use this feature to write down information such as phone numbers,
recipes, etc.
To use the Freeze function
1
11
1
When the program information you want to capture is displayed, press
FREEZE
.
2
22
2
The projection TV switches to Twin View mode and displays the
“frozen” picture on the right, while the current program continues on the
left.
3
33
3
To cancel and return to normal viewing, press
FREEZE.
✍
Freeze feature is not available if you are already in Twin View™ mode.
Current program
in progress
Frozen picture
Call 555-1234
Using the Features
45
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Features
Using Channel Index
Channel Index allows you to display multiple channels and select one
directly.
The channels used for Channel Index will come directly from the projection
TV’s list of receivable channels (those set during “Auto Program” on page
53)
To use the Channel Index function
1
11
1
Press .
The current channel will be reduced in size and displayed in the center
of the screen in normal motion picture format. The first twelve
receivable channels will appear one after another, clockwise, around the
center picture. These small pictures are updated in intervals of one
second. The channel number and channel caption (if set) on the second
and later appearances will dim.
A cyan-colored frame will appear to indicate current channel selection.
2
22
2
Move the joystick in any direction to move the cyan frame to the
channel that you wish to view, and press .
The selected channel will zoom in and move to the center, and the sound
of that channel will be heard.
✍
Channel Index will not function when Parental Lock is activated. (See
“Using the Parent Menu” on page 54.)
(Continued)
Using the Features
46
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
For the center picture you can:
❑
Change the channel by pressing
0-9
and
ENTER
.
❑
Switch the input sources from VHF/UHF to cable by pressing
ANT
or to the video input by pressing
TV/VIDEO
, without changing the
surrounding channels.
3
33
3
If you wish to view another channel, repeat step 2.
To view another twelve channels, press
CH+
.
To view the previous twelve, press CH–
.
To view the normal picture of the selected channel, proceed to step 4.
4
44
4
Press .
The center picture will be enlarged for normal viewing.
To cancel Channel Index
❑
Press again to resume normal viewing.
✍
Sound will only be heard from the center picture.
✍
If one of the pictures received through Channel Index is snowy, the
entire screen may become unstable. In this case, erase the snowy
channel. (see “Channel Skip/Add” on page 53)
✍
If you leave the Channel Index screen displayed for an hour without
any additional operation, Channel Index is canceled and the normal
picture reappears.
47
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Menus
Overview
Opening and choosing a menu:
1
11
1
Press
MENU
to display the menu screen.
2
22
2
Move the joystick to the desired menu icon and press to select it.
3
33
3
Use the joystick to scroll through the features.
4
44
4
See the specific menu page for instructions on moving through the
menu.
The menu gives you access to the following features:
Menu Icon Description Page
Allows you to make adjustments to your picture settings.
It also allows you to customize the Picture Mode based on
the type of program you are viewing.
48
Offers enhanced audio options such as listening to second
audio programming (SAP), or customizing the Effect of
the sound on your projection TV.
50
Allows you to set up a Favorite Channel list, run the Auto
Program function, and more.
52
Lets you control the viewing of programs based on their
ratings.
54
Lets you set the clock on your projection TV and allows
you to program your projection TV for scheduled viewing
using the Timers.
62
Provides several options for setting up your channels,
labeling your Video inputs, and selecting the language of
the on-screen menus.
63
To end a menu session:
Press MENU again.
To end one menu
session and move to
another:
Press the joystick V to
return to the menu icons.
Move the joystick to
choose the next menu icon
and press to select it.
Using the Menus
48
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Video Menu
To select the Video Menu
1
11
1
Press
MENU
.
2
22
2
Move the joystick to the Video
icon and press .
3
33
3
Use the joystick to scroll
through the features.
4
44
4
Press to select a feature. That
feature’s adjustment appears.
5
55
5
Use the joystick to make the
desired adjustments.
6
66
6
Press to select/set.
7
77
7
Press
MENU
to exit the menu screen.
To restore the factory default settings for Picture, Brightness, Color,
Hue, Sharpness and Color Temp
❑
Press
RESET
on the remote control when in the Video menu.
Selecting Video
Options
The Video menu includes the following options.
To quickly and easily
change from one Video
Mode to another, use the
PIC MODE on the remote
control.
z
Option Description
Mode
Customized
viewing
Vivid Select for enhanced picture contrast and
sharpness.
Standard Recommended for Normal viewing conditions.
Movie Select for soft, film like, picture.
Pro Select for professional monitor like appearance.
✍
You can alter the Video menu settings (Picture, Brightness,
Color, etc.) for each Mode.
Picture Adjust to increase picture contrast and deepen the color or decrease
picture contrast and soften the color.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
Sharpness Adjust to sharpen or soften the picture.
Color Temp
White
intensity
adjustment
Choose from three color temperatures:
Cool Select to give the white colors a blue tint.
Neutral Select to give the white colors a neutral tint.
Warm Select to give the white colors a red tint (NTSC-
Standard).
Using the Menus
49
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Menus
DRC Mode
Digital
Reality
Creation
Creates a high-resolution picture with 4x density, for high quality
sources (i.e., DVD player, Satellite receiver).
Select from Interlaced, Progressive and CineMotion.
Interlaced Recommended for moving pictures.
Progressive Recommended for still images and text.
CineMotion Recommended for 24 frame-per-second films.
Option Description
Using the Menus
50
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]

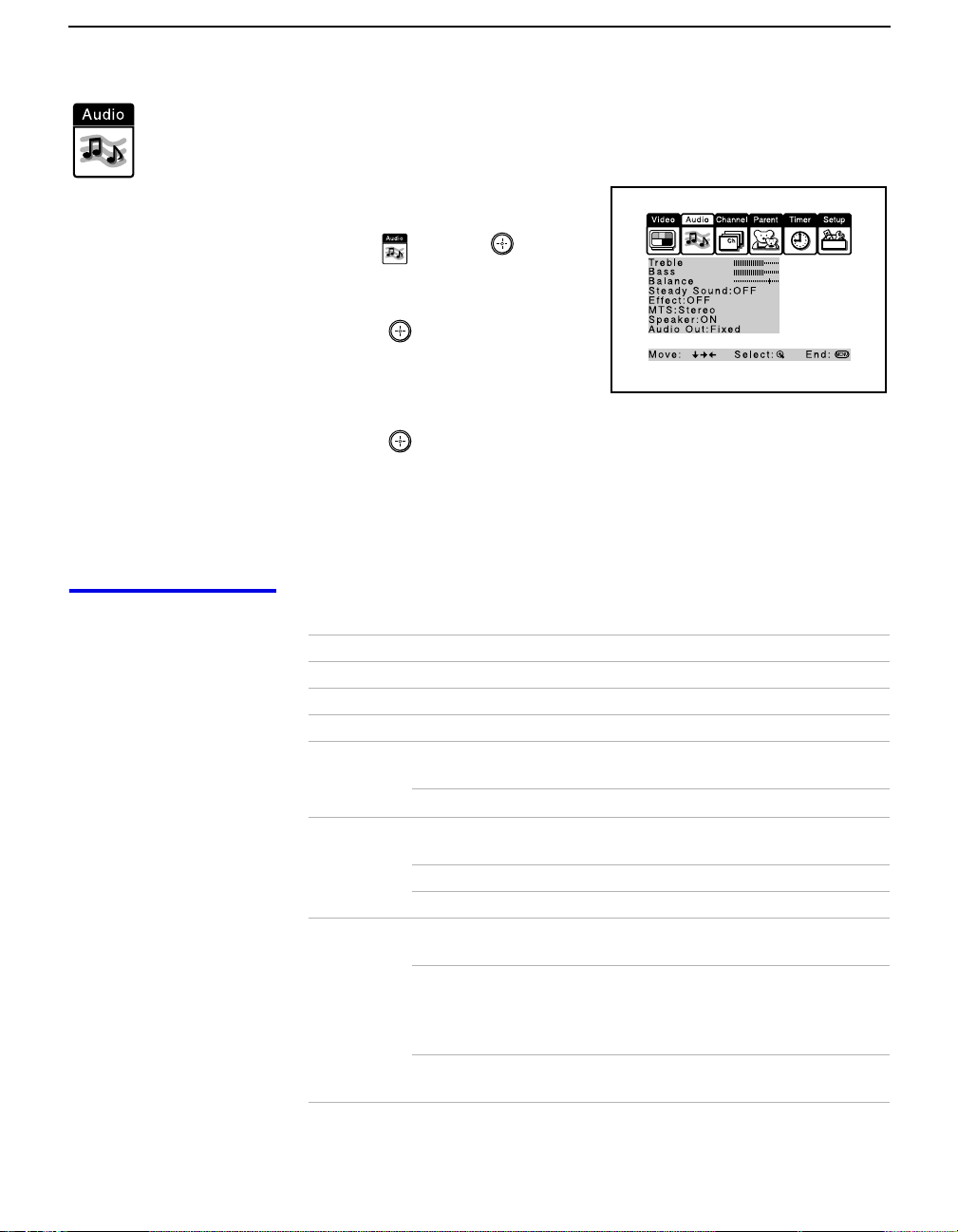

Using the Audio Menu
To select the Audio Menu
1
11
1
Press
MENU
.
2
22
2
Move the joystick to the Audio
icon and press .
3
33
3
Use the joystick to scroll through
the options.
4
44
4
Press to select an option.
That option’s settings appear.
5
55
5
Use the joystick to scroll through
the settings.
6
66
6
Press to select the desired setting.
7
77
7
Press
MENU
to exit the menu screen.
To restore the factory default settings for Treble, Bass and Balance
❑
Press
RESET
on the remote control when in the Audio menu.
Selecting Audio
Options
The Audio menu includes the following options:
Option Description
Treble Adjust to increase or decrease higher-pitched sounds.
Bass Adjust to increase or decrease lower-pitched sounds.
Balance Adjust to emphasize left or right speaker balance.
Steady
Sound
ON Select to stabilize the volume.
OFF Select to turn off Steady Sound.
Effect TruSurround Select for surround sound (for stereo programs
only).
Simulated Adds a surround-like effect to mono programs.
OFF Normal stereo or mono reception.
MTS
Enjoy stereo,
bilingual and
mono
programs
Stereo Select for stereo reception when viewing a program
broadcast in stereo.
Auto-SAP Select to automatically switch the projection TV to
second audio programs when a signal is received.
(If no SAP signal is present, the projection TV
remains in Stereo mode.)
Mono Select for mono reception. (Use to reduce noise
during weak stereo broadcasts.)
Using the Menus
51
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Menus
Speaker ON Select to turn on the projection TV speakers.
OFF Select to turn off the projection TV speakers and
listen to the projection TV's sound only through
your external audio system speakers.
Audio Out
Easy control
of volume
adjustments
Variable The projection TV’s speakers are turned off, but
the volume output from your audio system can still
be controlled by the projection TV’s remote
control.
Fixed The projection TV’s speakers are turned off and the
volume, bass and treble output of the projection TV
is fixed. Use your audio receiver’s volume control
to adjust the volume through your audio system.
Option Description
Using the Menus
52
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Channel Menu
To select the Channel Menu
1
11
1
Press
MENU
.
2
22
2
Move the joystick to the Channel
icon and press .
3
33
3
Use the joystick to scroll
through the features.
4
44
4
Press to select a feature. That
feature’s options appear.
5
55
5
Use the joystick to scroll
through the options.
6
66
6
Press to select the desired option.
7
77
7
Press
MENU
to exit the menu screen.
Selecting Channel
Options
The Channel menu includes the following options:
Video Audio
Channel Setup
Parent
Timer
Favorite Channel:Auto
Cable:ON
Channel fix:OFF
Auto Program
Channel Skip/Add
Channel Label
Move: Select: End:
MENU
Option Description
Favorite Channel Auto Select if you want Favorite Channel options to
be set automatically to the last eight channels
selected with the 0-9 buttons.
Manual Select if you want to input your own selections
as Favorite Channel options.
1
11
1
Press to select a favorite channel
number.
2
22
2
Use the joystick to scroll through the
channels until you find the channel you
want to add to your favorites.
3
33
3
Press to select it.
Cable ON Select if you are receiving cable channels with a
CATV cable.
OFF Select if you are using an antenna.
✍
You should run Auto Program after changing the Cable
setting.
Using the Menus
53
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Menus
Channel Fix
Useful when you
have a cable box
or satellite
receiver connected
2-6 “Fix” your projection TV’s channel setting to 3
or 4 and use the cable box, VCR or satellite
receiver to change channels. Select one of these
settings if you have connected the device to the
VHF/UHF jack.
AUX 2-6 Same as 2-6, except you select one of these
settings if you have connected the device to the
AUX jack. (see page 15)
VIDEO 1 Use when connecting an AV receiver to control
external video sources. TV output should be
connected through the AV receiver.
Auto Program Automatically programs the projection TV for all receivable
channels.
Channel
Skip/Add
Removes and adds viewable channels.
1
11
1
Use the joystick to scroll through the channels until you
find the channel you want to skip/add.
2
22
2
Press to select it.
3
33
3
Press the joystick up or down to toggle between “Add” and
“Skip.”
4
44
4
Press to select.
Channel Label Label up to 20 channels with their station call letters.
Option Description
Using the Menus
54
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Parent Menu
The Parent menu allows you to set up the TV to block programs according to
their content and rating levels.
These ratings are assigned by a federal rating board. Not all programs are
rated. Using the Parental Lock blocks programs with a specific rating, but it
does not block an entire channel.
Using the Parent
Menu
To select the rating
First, set a password, then select the country you reside in (U.S.A. or
Canada) and your desired rating.
1
11
1
Press
MENU
.
2
22
2
Move the joystick to the Parent icon and press .
3
33
3
Use the
0-9
buttons
on the remote control to enter your four-digit
password.
4
44
4
Confirm your password by entering it again. Your password is stored
and the Parent menu options appear.
5
55
5
Make sure that “Country” is selected, and press .
✍
Channel Index will not function when Parental Lock is activated.
✍
You need the password entered here for any future access into the Parent
menu. If you lose your password, see “Lost password” on page 71.
✍
If you want to change the password, see page 56.
Using the Menus
55
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Menus
6
66
6
Move the joystick up or down to select U.S.A. or Canada according to
the country you reside in, and press .
7
77
7
Move the joystick down to select “Parental Lock”, and press .
8
88
8
Move the joystick up or down to select a desired rating, and press .
If you select Child, Youth, Young Adult or Custom, the Parental Control
is activated automatically.
If you want to select the ratings from Custom, see “Using Custom
Rating Options” on page 57.
9
99
9
Press
MENU
to exit the menu screen.
(Continued)
Using the Menus
56
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
The Parent menu includes the following options.
To deactivate the Parental Control feature
❑
Set
Parental Lock
to
OFF
when in the Parent menu.
To change the password
1
11
1
Select
Change Password
option when in the Parent menu using the
joystick, and press .
2
22
2
Enter a new four-digit password using the
0-9
buttons.
3
33
3
Confirm the new password by entering it again.
4
44
4
Press
MENU
to exit the menu screen.
Viewing Blocked
Programs
You can view a blocked program by entering the password.
1
11
1
Press
ENTER
when tuned to a blocked program.
2
22
2
Enter your password using the
0-9
buttons.
Parental Control will be canceled temporarily until you turn your
projection TV off.
Option Description
Parental Lock
Turn ratings on/
off and select a
rating system
OFF Parental lock is off. No programs are blocked
from viewing.
Child Maximum ratings permitted are:
❏ US: TV-Y, TV-G, G
❏ Canada: TV-Y, C, G
Yo u th Maximum ratings permitted are:
❏ US: TV-PG, PG
❏ Canada: TV-PG, PG, 8 ans+
Young Adult Maximum ratings permitted are:
❏ US: TV-14, PG-13
❏ Canada: TV-14, 14+, 13 ans+
Custom Select to set ratings manually.
❏ US: See page 60 for details.
❏ Canada: See page 61 for details.
Change
Password
For changing your password. (see below)
For descriptions of
Child, Youth, and Young
Adult ratings, see
pages 60 and 61.
z
If you are not familiar
with the Parental
Guideline rating system,
you should select Child,
Youth, or Young Adult to
help simplify the rating
selection. To set more
restrictive ratings, select
Custom.
z
Using the Menus
57
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Menus
Using Custom
Rating Options
If you want to select the ratings to be blocked from Custom, follow the
procedure below.
1
11
1
Perform the steps 1 to 7 in “To select the rating” on page 54 to display
the Parental Lock options.
2
22
2
Move the joystick up or down to select “Custom,” and press .
3
33
3
Make sure that “Movie Ratings” is selected, and press .
4
44
4
Move the joystick up or down to select the rating to be blocked, and
press .
The indicator automatically appears beside the selected rating and all
“higher” ratings, indicating that the programs that match the ratings will
be blocked.
To unblock a rating, select it by moving the joystick up or down, then
press . The indicator changes into “-” and all “lower” ratings are
unblocked.
(Continued)
Using the Menus
58
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
5
55
5
Move the joystick left, then down, to select “TV Rating” or “Program,”
and press .
6
66
6
The “TV Rating” setting menu appears.
7
77
7
Move the joystick up or down to select the rating to be blocked, and
press .
The indicator automatically appears beside the selected rating and all
“higher” ratings, indicating that the programs that match the ratings will
be blocked.
To unblock a rating, select it by moving the joystick up or down, then
press . The indicator changes into “-” and all “lower” ratings are
unblocked.
Some TV ratings have additional content ratings called “extenders.” The
extenders are defined as follows: D (sexually suggestive Dialog), FV
(Fantasy Violence), L (coarse Language), S (Sexual situations) and V
(Violence). By setting the extenders, you can define additional viewing
limits. All of the extenders included in the selected ratings will be
blocked. If you wish to allow any of them to be viewed, go to step 8.
Using the Menus
59
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Menus
8
88
8
Move the joystick left or right to select the extender to be viewed, and
press .
“–” appears beside the selected extender, indicating that the programs
that match the extender can be viewed.
If you press again, is displayed to show that the programs that
match the extender will be blocked again.
9
99
9
Repeat step 8 for other extenders.
All programs that match the ratings you select and higher, except for the
extenders that were canceled, will be blocked.
10
1010
10
Press
MENU
to exit the menu screen.
Using the Menus
60
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
US custom rating options
If you selected U.S.A. as the country of residence on page 54, the Custom
Rating Menu includes the following options. (If you selected Canada, see
page 61.)
Option Description
Movie Rating G All children and General Audience.
PG Parental Guidance suggested.
PG-13 Parental Guidance for children under 13.
R Restricted viewing, parental guidance is suggested
for children under 17.
NC-17
and X
No one 17 and under allowed.
TV Rating
Block programs
by their rating,
content or both
Age-Based Options
TV-Y All children.
TV-Y7 Directed to older children.
TV-G General Audience.
TV-PG Parental Guidance suggested.
TV-14 Parents Strongly cautioned.
TV-MA Mature Audience only.
Content-Based Options
FV Fantasy Violence.
D Suggestive Dialogue.
L Strong Language.
S Sexual situations.
V Violence.
Unrated
Block programs
or movies that
are broadcast
without a rating
Block Blocks all programs and movies that are broadcast
without a rating.
Allow Allows programs and movies that are broadcast
without a rating.
✍
The content ratings will increase depending on the level of the age-based rating.
For example, a program with a TV-PG V (Violence) rating may contain moderate
violence, while a TV-14 V (Violence) rating may contain more intense violence.
To ensure maximum
blocking capability, the
age-based ratings should
be blocked.
If you choose to block
unrated TV programs,
please be aware that the
following programs may
be blocked: emergency
broadcasts, political
programs, sports, news,
public service
announcements, religious
programs and weather.
z
z
Using the Menus
61
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Menus
Canadian custom rating options
If you selected Canada as the country of residence on page 54, the Custom
Rating Menu includes the following options. (If you selected U.S.A., see
page 60.)
Option Description
English Rating C All children.
C8+ Children 8 years and older.
G General programming.
PG Parental Guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
USA Rating See “TV Rating” on page 60 for details.
Using the Menus
62
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Timer Menu
To select the Timer menu
1
11
1
Press
MENU
.
2
22
2
Move the joystick to the Timer
icon and press .
To set the Current Time
1
11
1
Use the joystick to select
“Current Time”, then press .
2
22
2
If it is currently Daylight Saving
Time, be sure to set the mode to
“ON” first.
3
33
3
Use the joystick to enter the correct time, then press .
4
44
4
Press
MENU
to exit the menu screen.
To set the Timer
Before setting the timer, be sure to set your projection TV’s clock to the
current time and Daylight Saving Mode.
1
11
1
Move the joystick to “Timer 1” or “Timer 2”, then press .
2
22
2
Use the joystick to enter your day, time and channel preferences, then
press to select each one.
3
33
3
Press
MENU
to exit the menu screen.
To reset the Clock or Timers
❑
Press
RESET
on the remote control after selecting that option in the
Timer menu.
Selecting Timer
Options
The Timer menu includes the following options:
Option Description
Timer 1
Timer 2
Program Select to set the Timer by day, time, duration,
and channel.
OFF Select to turn off the Timer. (Your previous
settings will be saved.)
Current Time Set the current time.
Daylight Saving ON Select in the spring to adjust the time during
Daylight Saving Time.
OFF Select in the fall to adjust the time at the end of
Daylight Saving Time.
Using the Menus
63
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Using the Menus
Using the Setup Menu
To select the Setup Menu
1
11
1
Press
MENU
.
2
22
2
Move the joystick to the Setup
icon and press .
3
33
3
Use the joystick to scroll through
the features.
4
44
4
Press to select a feature. That
feature’s options appear.
5
55
5
Use the joystick to scroll through
the options.
6
66
6
Press to select the desired option.
7
77
7
Press
MENU
to exit the menu screen.
Selecting
Setup Options
The Setup menu includes the following options:
Option Description
Caption Vision Allows you to select from three closed caption modes (for
programs that are broadcast with closed caption).
OFF Turns off Caption Vision.
CC1, CC2,
CC3, CC4
Displays a printed version of the
dialog or sound effects of a program.
(Should be set to CC1 for most
programs.)
TEXT1, TEXT2,
TEXT3, TEXT4
Displays network/station information
presented using either half or the
whole screen (if available). For closed
captioning, set to CC1.
XDS
(Extended Data
Service)
Displays a network name, program
name, program length, and time of the
show if the broadcaster offers this
service.
(Continued)
Using the Menus
64
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Video Label Allows you to label the audio/video components you connected
to the projection TV so you can identify them when using TV/
VIDEO. When in the Setup menu’s Video Label feature, use
the joystick to highlight an input to label, then press to
select it. Use the joystick to scroll through the labels. Press
to select the component you connected to each of the input
jacks on the back of your projection TV. Select “Skip” if you do
not have a component connected to a particular set of input
jacks.
VIDEO 1/2/3/4 VHS, 8mm, Beta, LD, Game, SAT,
DVD, Web, Receiver, DTV, Skip
VIDEO 5/6 DVD, DTV, HD, Skip
If you select “Skip”, your projection TV skips this connection
when you press TV/VIDEO.
✍
When you select “Receiver” on Video Label, your projection
TV’s input is fixed.
Language Select to display all on-screen menus in your language of
choice: English, Español, Français.
16:9 Enhanced Provides enhanced picture resolution for widescreen sources,
such as selected DVD titles (only available when the projection
TV is in VIDEO mode). Press TV/VIDEO and select from one
of the following options:
AUTO To activate automatically when a 16:9
signal is received.
ON To activate manually.
OFF To deactivate manually.
✍
AUTO/ON will appear when projection TV is in video mode 1-6.
ON/OFF will appear when projection TV is in VIDEO mode 5-6 and the 480p
signal occurs.
Option Description
To use this feature
with widescreen DVDs,
set your DVD player to
16:9 aspect ratio.
z
65
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Other Information
Programming the Remote Control
The remote control is preset to operate Sony brand video equipment.
If you have video equipment other than Sony brand that you want to control
with the projection TV’s remote control, use the following procedures to
program the remote control.
From the “Manufacturer’s Codes” listed on page 67, select the three-digit
code number for the manufacturer’s code for your component. If more than
one code number is listed, start with the number listed first. Use the code
number to complete the following procedure.
To program a cable box or a satellite receiver
1
11
1
Open the panel of the remote control.
2
22
2
Press
CODE SET
inside the panel.
3
33
3
Close the panel and press
SAT/CABLE (FUNCTON)
.
4
44
4
Enter the three-digit manufacturer’s code number using the
0-9
buttons.
5
55
5
Press
ENTER
.
6
66
6
To check if the code number works, aim the projection TV’s remote
control at the component and press the green POWER
button that
corresponds with that component. If it responds, the programming is
completed. If not, try using the other codes listed for that manufacturer.
Sony
Equipment
Switch Position
on Remote Control
Programmable
Code Number
Beta, ED Beta VCRs AV1 303
8 mm VCR AV2 302
VHS VCR AV3 301
DVD Player DVD 751
✍
The equipment must have infrared (IR) remote capability in order to be
used with the remote control.
(Continued)
Other Information
66
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
To program video equipment
1
11
1
Open the panel of the remote control.
2
22
2
Move the slide switch to the desired component type.
3
33
3
Press
CODE SET
inside the panel.
4
44
4
Close the panel and enter the three-digit manufacturer’s code number
using the 0-9
buttons.
5
55
5
Press
ENTER
.
6
66
6
To check if the code number works, aim the projection TV’s remote
control at the component, open the panel, and press the green POWER
button. If it responds, the programming is completed. If not, try using
the other codes listed for that manufacturer.
Tips
❑
If more than one code number is listed, try entering them one by one
until you come to the correct code for your component.
❑
If you enter a new code number, the code number you previously
entered at that setting is erased.
❑
In some rare cases, you may not be able to operate your component with
the Sony remote control. In this case, use the component’s own remote
control unit.
✍
You must perform step 4 within 10 seconds of step 3, or you must
start again from step 3.
Other Information
67
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Other Information
Manufacturer’s Codes
VCRs
DVD Players
Cable Boxes
Satellite Receivers
Manufacturer Code
Sony 301
Admiral
(M. Ward)
327
Aiwa 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Criterion 315
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316,
317, 318, 341
Fisher 330, 335
Funai 338
General Electric 329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304,
305,338
Instant Replay 309, 308
JC Penney 309, 305, 304,
330, 314, 336,
337
JVC 314, 336, 337,
345, 346, 347
Kenwood 314, 336, 332,
337
LXI (Sears) 332, 305, 330,
335, 338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/
MGA
323, 324, 325,
326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Panasonic 308, 309, 306,
307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/
PROSCAN
304, 305, 308,
309, 311, 312,
313, 310, 329
Realistic 309, 330, 328,
335, 324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321,
335, 323, 324,
325, 326
Sharp 327, 328
Shintom 315
Signature 2000
(M. Ward)
338, 327
SV2000 338
Sylvania 308, 309, 338,
310
Symphonic 338
Tashiro 332
Tatung 314, 336, 337
Teac 314. 336, 338,
337
Technics 309, 308
Toshiba 312, 311
Manufacturer Code
Wards 327, 328, 335,
331, 332
Yamaha 314, 330, 336,
337
Zenith 331
Manufacturer Code
Sony 751
Panasonic 753
Pioneer 752
RCA 755
Toshiba 754
Manufacturer Code
Hamlin/Regal 222, 223, 224,
225, 226
Jerrold/G. I. 201, 202, 203,
204, 205, 206,
207, 208, 218
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 214, 215
Scientific
Atlanta
209, 210, 211
Tocom 216, 217
Zenith 212, 213
Manufacturer Code
Sony 801
General
Electric
802
Hitachi 805
Hughes 804
Panasonic 803
RCA/
PROSCAN
802, 808
Toshiba 806, 807
Manufacturer Code
Other Information
68
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Operating Other Components with Your Projection TV Remote
Control
Operating a VCR
Open the panel and move the slide switch to the AV input you coded for this
device.
Operating a DVD
Player
Open the panel and move the slide switch to the DVD input you coded for
this device.
To Do This ... Press
Turn on/off green POWER button (inside the panel)
Change channels CH +/–
Record N and REC simultaneously
Play N
Stop x
Fast forward M
Rewind the tape m
Pause X (press again to resume normal playback)
Search the picture
forward or backward
M or m during playback
(release to resume normal playback)
Change input mode Slide switch
To Do This ... Press
Turn on/off green POWER button (inside the panel)
Play N
Stop x
Pause X (press again to resume normal playback)
Step through different tracks of
an audio disc
M to step forward or m to step backward
Step through different chapters
of a video disc
CH+ to step forward or CH– to step backward
Display the DVD menu DVD MENU
Select tracks directly 0-9 buttons
Display the menu (Setup) MENU
Display the DVD title DVD TITLE
Operate the DVD menu M, m, <, ,, ENTER
Other Information
69
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Other Information
Operating a Cable
Box
Operating a Satellite
Receiver
To Do This ... Press
Turn on/off SAT/CABLE (POWER)
Select Cable Box SAT/CABLE (FUNCTION)
Select a channel 0-9 buttons, ENTER
Change channels CH +/–
Back to previous channel JUMP
To Do This ... Press
Turn on/off SAT/CABLE (POWER)
Select Satellite Receiver SAT/CABLE (FUNCTION)
Select a channel 0-9 buttons, ENTER
Change channels CH +/–
Back to previous channel JUMP
Display channel number DISPLAY
Display DBS guide GUIDE
Display DBS menu MENU
Move highlight (cursor) Joystick or arrows
Select item
Other Information
70
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Troubleshooting
If, after reading these operating instructions, you have additional questions related to the use of your
Sony television, please call our Customer Information Services Center at 1-800-222-SONY (7669) (U.S.
residents only) or (416) 499-SONY (7669) (Canadian residents only).
Problem Possible Remedies
No picture
(screen not lit),
no sound
❏ Make sure the projection TV’s power cord is connected securely to the wall outlet.
❏ Push the power button on the front of the projection TV.
❏ Check to see if the TV/VIDEO setting is correct: when watching TV, set to TV,
and when watching connected equipment, set to VIDEO 1, 2, 3, 4, 5 or 6.
❏ Try another channel. It could be station trouble.
❏ The Parental Control feature is activated. (see “Using the Parent Menu” on page
54)
❏ If your projection TV does not turn on, and a red light keeps flashing, your
projection TV may need service. Call your local Sony Service Center.
Remote control
does not operate
❏ Batteries could be weak. Replace the batteries.
❏ Press TV (FUNCTION) when operating your projection TV.
❏ Make sure the projection TV’s power cord is connected securely to the wall outlet.
❏ Locate the projection TV at least 3-4 feet away from fluorescent lights.
❏ Check the orientation of the batteries.
Dark, poor or no
picture (screen lit),
good sound
❏ Adjust the Picture setting in the Video menu. (see page 48)
❏ Adjust the Brightness setting in the Video menu. (see page 48)
❏ Check antenna/cable connections.
❏ Adjust the convergence again using FLASH FOCUS. (see “Adjusting the
Convergence Automatically – FLASH FOCUS™ –” on page 33)
Good picture,
no sound
❏ Press MUTING so that “MUTING” disappears from the screen. (see page 34)
❏ Make sure Speaker is set to ON in the Audio menu. (see page 51)
❏ Check the MTS setting in the Audio menu. (see “MTS” on page 50)
Cannot receive digital channels
(when a DTV receiver is
connected)
❏ Check the connections between the DTV receiver and the projection TV. (see page
28)
❏ Check your local listings to find out if you can receive digital broadcasts in your
area.
Cannot receive upper channels
(UHF) when
using an antenna
❏ Change Cable to OFF. (see page 52)
❏ Use Auto Program in the Channel menu to add receivable channels that are not
presently in TV memory. (see page 53)
No color ❏ Adjust the Color settings in the Video menu. (see page 48)
Only snow and noise
appear on the screen
❏ Check the Cable setting in the Channel menu. (see “Cable” on page 52)
❏ Check the antenna/cable connections.
❏ Make sure the channel is broadcasting programs.
❏ Press ANT to change the input mode. (see page 37)
Dotted lines
or stripes
❏ Adjust the antenna.
❏ Move the projection TV away from noise sources such as cars, neon signs, or hair-
dryers.
Other Information
71
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Other Information
Projection TV is fixed to one
channel
❏ Use Auto Program in the Channel menu to add receivable channels that are not
presently in TV memory. (see page 53)
❏ Check your Channel Fix settings. (see page 53)
Double images or ghosts ❏ Use a highly directional outdoor antenna or a cable (when the problem is caused by
reflections from nearby mountains or tall buildings).
Cannot operate menu ❏ If the item you want to choose appears in gray, you cannot select it.
❏ Turn the projection TV’s power off and on again.
Cannot receive any channels
when using cable TV
❏ Use Auto Program in the Channel menu to add receivable channels that are not
presently in TV memory. (see page 53)
❏ Check your cable settings.
❏ Make sure Cable is set to ON in the Channel menu. (see page 52)
Cannot gain enough volume
when using a cable box
❏ Increase the volume of the cable box using the cable box’s remote control. Then
press TV (FUNCTION) and adjust the projection TV’s volume.
Channel Index does not display
all available channels
❏ Make sure Cable is set to ON in the Channel menu. (see “Cable” on page 52)
❏ Use Auto Program in the Channel menu to add receivable TV channels that are
not presently in TV memory. (see page 53)
Cannot receive channels
Unable to select a channel
❏ Use Auto Program in the Channel menu to add receivable TV channels that are
not presently in TV memory. (see page 53)
Lost password ❏ In the password screen (see page 54), enter the following master password: 4357.
The master password clears your previous password; it cannot be used to
temporarily unblock channels.
Cannot change channels with
the remote control
❏ Be sure you have not inadvertently switched your projection TV from channel 3 or
4 setting if you are using another device to change channels.
❏ If you are using another device to control channels, be sure the “function” button
for that device has been pressed, or the slide switch is set correctly. For example, if
you are using your cable to control channels, be sure to press SAT/CABLE.
Cannot cycle through the other
video equipment connected to
the projection TV
❏ Be sure the Video Label feature has not been set to Skip. (see page 64)
There is a black box on the
screen
❏ You have selected a text option in the Setup menu and no text is available. (see
page 63 to reset Setup selections) To turn this feature off, select OFF in the
Caption Vision option. If you were trying to get closed captioning, select CC1
instead of Text 1-4.
There is no twin picture or it is
just static
❏ Be sure your twin picture is set to a video source/channel that has a program airing.
❏ You may be tuned to a video input with nothing connected to it. Try cycling
through your video inputs using TV/VIDEO.
❏ Twin View is not set to receive a signal from the AUX input. If you have
connected a VCR, DVD player or satellite receiver to the AUX input on the
projection TV, it will not show in the second picture.
Problem Possible Remedies
(Continued)
Other Information
72
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
I get the same program in the
window picture as in the main
❏ Both may be set to the same channel. Try changing channels in either the main
picture or the window picture.
❏ You may be running all your channels through a cable box. The cable box will
only unscramble one signal at a time, so you cannot use the Twin View feature. If
possible, run a direct cable to your projection TV’s VHF/UHF input. (This will
only work if your cable system provides an unscrambled signal.)
I cannot get anything but TV
channels in my second picture
❏ Be sure the video label has not been set to skip your video inputs. See the Setup
menu on page 63.
Favorite Channel does not
display your choices
❏ Verify that Favorite Channel is set to Manual in the Channel menu. (see
“Favorite Channel” on page 52)
Some video sources do not
appear when you press TV/
VIDEO
❏ Ensure that Video Label is not set to SKIP. (see “Video Label” on page 64)
Problem Possible Remedies
Other Information
73
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Other Information
Specifications
Projection system 3 picture tubes, 3 lenses, horizontal in-line system
Picture Tube 7-inch high-brightness monochrome tubes (6.3 raster size), with optical
coupling and liquid cooling system
Projection lenses High performance, large
diameter hybrid lens F1.1
Antenna 75 ohm external terminal for VHF/UHF
Television System NTSC, American TV Standard
Screen size (measured diagonally) 43 inches (KP-43HT20)
53 inches (KP-53HS20, KP-53HS30)
61 inches (KP-61HS20, KP-61HS30)
Channel Coverage
VHF 2-13
UHF 14-69
CATV 1-125
Power Requirements 120V, 60 Hz
Number of Inputs/Outputs
Video (IN) 4 1 Vp-p, 75 ohms unbalanced, sync negative
S Video (IN) 3 Y: 1 Vp-p, 75 ohms unbalanced, sync
negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Audio (IN) 6 500 mVrms (100% modulation)
Impedance: 47 kiloohms
AUDIO (VAR/FIX) OUT 1 500 mVrms (100 % modulation), Impedance:
470 ohms
TV Out 1 1 Vp-p, 75 ohms unbalanced, sync negative
CONTROL S (IN/OUT) 1 minijacks
Component Video Input 2 (Y, P
B
, P
R
) Y: 1.0 Vp-p, 75 ohms unbalanced, sync
negative
P
B
: 0.7 Vp-p, 75 ohms
P
R
: 0.7 Vp-p, 75 ohms
RF Inputs 2
Converter 1
(Continued)
Other Information
74
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Design and specifications are subject to change without notice.
Supplied Accessories
Remote Control RM-Y908
AA (R6) Batteries 2 supplied for remote control
Optional Accessories
AV Cable VMC-810/820/830 HG
Audio Cable RKC-515HG
Control S Cable RK-G69HG
Component Video Cable VMC-10/30 HG
AV receiver STR-V555ES
TV Stand SU-43HT4/43HT5
Speaker Output 20 W × 2 (KP-43HT20, KP-53HS30, KP-61HS30)
18 W × 2 (KP-53HS20, KP-61HS20)
Dimensions (W × H × D) 38 × 42
1
/
8
× 22
4
/
3
inches (965 × 1,069 × 577 mm) (KP-43HT20)
46
1
/
2
× 55
7
/
8
× 25 inches (1,180 × 1,417 × 632 mm) (KP-53HS20, KP-
53HS30)
54 × 61
1
/
2
× 26
1
/
4
inches (1,370 × 1,560 × 666 mm) (KP-61HS20, KP-
61HS30)
Mass 119 lb 8 oz (54.2 kg) (KP-43HT20)
152 lb 9 oz (69.2 kg) (KP-53HS20)
157 lb (71.2 kg) (KP-53HS30)
203 lb 11 oz (92.4 kg) (KP-61HS20)
210 lb 5 oz (95.4 kg) (KP-61HS30)
Power Consumption
In Use 230 W
In Standby Under 1 W
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
75
Other Information
Index
16:9 (widescreen)
8, 64
A
Activating a Twin View screen
41
Adding channels to the channel list
53
Adjusting audio, Steady Sound
50
ANT button
34
Antenna, connecting
Aspect ratio, 16:9 in Twin View
42
Audio menu
47, 50
Audio receiver, connecting
25
Audio/Video cable
12
Auto Program (channel setup)
32, 53
Auto Setup
32, 53
AV receiver, connecting to TV OUT
15
B
Balance, adjusting
50
Bass, adjusting
50
Batteries, inserting in remote
10
Bilingual audio
50
Blocking programs. See Ratings.
Brightness, adjusting
48
C
Cable
setting ON/OFF
52
with VCR, connecting
19
Cable box
connecting with VCR
20
using with TV remote control
69
Camcorder, connecting
29
Caption Vision
63
CATV. See cable.
Channel Index
described
9
using
45
Channel list, adding channels
53
Channel menu
47, 52
Channel Skip/Add
53
Channels
Auto Program
53
creating labels
53
setting up
32
CineMotion, DRC
35, 49
Closed caption modes
63
CODE SET button
36
Color temperature, adjusting
48
Color, adjusting
48
Connecting
Audio receiver
25
AV receiver
30
Cable box
17, 18, 20
Cable or antenna
16
Camcorder
29
Digital TV Receiver
28
DVD player
26, 27
Satellite receiver
23, 24
VCR
20–22, 24
Connector Types
12
Contents of box
10
CONTROL S
31
Convergence, adjusting automatically
33
D
Daylight saving
62
Digital Reality Creation
49
Digital TV
connecting
28
watching
39
Digital TV program
39
Digital TV receiver, connecting
28
DISPLAY button
34
Display, turning off
34
DRC (Digital Reality Creation) Mode, described
8
DRC⁄CINEMOTION button
35
DVD MENU button
36
DVD player
using with TV remote control
68
with A/V connectors, connecting
27
with component video connectors, connecting
26
DVD TITLE button
36
E
Enhanced picture resolution, 16:9
64
Enlarging pictures, in Twin View
43
Extended Data Service
63
(Continued)
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
76
F
Favorite Channel
auto
52
described
8
manual
52
setting up
52
using
40
FAVORITES button
34
Features
8
Flash Focus
described
9
performing
33
FREEZE button
34
Freeze, using
37, 44
Front Panel Controls
13
FUNCTION buttons (WHITE)
35
H
Hookups
16
Hue, adjusting
48
I
Inputs, labeling
64
Installation of the projection TV
16–31
J
JUMP button
34
Jump, using
37
L
Label
channels
53
video inputs
64
Locking programs
54
M
MENU button
35
Menus
Audio
47, 50
Channel
47, 52
Parent
47
Setup
47, 63
Timer
47, 62
Video
47, 48
MODE
Movie
38
Pro
38
Standard
38
Vivid
38
MTS/SAP button
36
MTS/SAP, using
38
Muting, using
37
P
Parent menu
47, 54
Parental control, described
8
Password, changing
56
PIC MODE button
34
Picture contrast, adjusting
48
Picture size, adjusting in Twin View
43
POWER button
36
POWER buttons (GREEN)
35
Presetting channels
32
Problems, troubleshooting
70
R
Ratings
setting
54–56
viewing blocked programs
56
Rear panel controls and connections
14, 15
Remote control
buttons inside panel
36
Function of buttons
37
inserting batteries
10
programming
65–67
Remote control, operating other components with
Cable box
69
DVD player
68
Satellite receiver
69
VCR
68
Removing channels from the channel list
53
RESET button
34
Resetting
Audio options
50
Timer options
62
Video options
48
S
S Video cable
12
SAT/CABLE function button
35
SAT/CABLE power button
35
Satellite receiver
connecting
23
using with TV remote control
69
Setting up channels
32
Setup menu
47, 63
Sharpness, adjusting
48
SLEEP button
34
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
77
Other Information
Sleep, using
38
Specifications
73–74
Steady Sound
adjusting
50
described
8
Surround sound
50
SYSTEM OFF button
36
T
Tape-to-tape editing
22
Time
set current
62
set daylight saving
62
Timer menu
47, 62
Timer setting
62
Treble, adjusting
50
Troubleshooting
70
TV function button
35
TV power button
35
TV/VIDEO button
35
Twin View™
activating a picture
41
described
8
using
41
V
VCR
connecting two, for tape editing
22
using with TV remote control
68
with cable box, connecting
20
with cable, connecting
19
with satellite receiver, connecting
24
Video inputs, labeling
64
Video menu
47, 48
Video Modes, selecting
48
Viewing area, recommended
11
VOL +/– button
34
VOL +/– buttons
37
W
Widescreen
64
Widescreen, described
8
Z
Zoom feature, with Twin View
43
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Model name1[KP-43HT20] Model name2[KP-53HS20/30] Model name3[KP-61HS20/30]
[4-081-143-11 (1)]
Printed in U.S.A.
If, after reading this instruction manual, you
have additional questions related to the use of
your Sony projection TV, please call one of the
following numbers (English only).
Customers in the continental United
States contact the Direct Response
Center at:
1-800-222-SONY (7669)
Customers in Canada contact the
Customer Relations Center at:
(416) 499-SONY (7669)
