INSTALLATION GUIDE / USER GUIDE
NZ AU ROW
BOX WALL RANGEHOOD
HC60DCXB, HC90DCXB & HC120DCXB
models
1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com
Introduction 3
Safety and warnings 4
Installation instructions 7
Operating instructions 17
Cleaning and maintenance 18
Parts and accessories 20
Customer Care 21
3
INTRODUCTION
Thank you for purchasing a Fisher & Paykel product.
Thousands of hours go into the design, engineering, testing and perfecting of each
Fisher & Paykel appliance. The care and attention given to creating these beautiful
products doesn’t stop once it has found its home with you.
This use and care manual will answer most of your questions about the set-up, use and
on-going maintenance of your Fisher & Paykel product; however if you require further
information about your product and its use please consult our website for solutions
and further contact information to discuss with a service representative.
To ensure you receive all relevant product updates and the best service possible,
please register your Fisher & Paykel products through our website.
4
SAFETY AND WARNINGS
!
WARNING!
13.2 kg
(HC60)
17.6 kg
(HC90)
24 kg
(HC120)
Weight Hazard
The appliance is heavy. Please ensure adequate care is taken when
installing the appliance to prevent personal injury. The appliance must be
installed onto a solid wall, stud, beam or truss. Weight of the product is
13.2 kg (HC60)/ 17.6 kg (HC90)/ 24 kg (HC120).
!
WARNING!
Electric Shock Hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs. Alterations to the domestic wiring
system must only be made by a qualified electrician.
Failure to follow this advice may result in electrical shock or death.
5
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic safety precautions including
thefollowing:
Please read the entire set of instructions before installing or using this appliance.
Please make this information available to the person installing the appliance –
doing so could reduce your installation costs.
Always switch the power off prior to installation, servicing or cleaning of
theappliance.
This appliance must be installed and connected to the mains power supply only
by a suitably qualified person according to these installation instructions and in
compliance with any applicable local building and electricity regulations. Failure
toinstall the appliance correctly could invalidate any warranty or liability claims.
To comply with electrical safety regulations, the appliance must be plugged into
a socket near the appliance. The socket must be accessible, or have an accessible
isolating switch, to enable the end user to isolate the appliance from the power for
the purpose of internal cleaning or maintenance.
A power outlet should be within 750 mm of the motor assembly and can either be
onthe wall, behind the chimney or in the ceiling.
If the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a
hazard.
Ducting accessories are not supplied. All ducting must comply with local
requirements and building codes.
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
Before connecting any pipes, consult municipal ordinances to ensure that any
applicable regulations concerning the discharge of exhaust air are adhered to and
request permission from the person in charge of the building.
Exhaust air must not be discharged into an existing flue that is used for exhausting
fumes from appliances burning gas or other fuels.
There shall be adequate ventilation of the room when the rangehood is used at the
same time as appliances burning gas or other fuels.
The minimum distance between the supporting surface for cooking vessels on
the cooktop and the lowest part of the rangehood shall be 600 mm or 650 mm
ifinstalled over a gas cooktop.
Stainless steel is very easily damaged during installation if abraded or knocked by
tools. It is recommended to protect the top of the rangehood with cardboard or
polystyrene during the installation to minimise the risk of damage occurring.
To reduce the risk of damage occurring to the cooktop, it is recommended that
the surface of the cooktop is protected with cardboard or a similar object during
installation of the rangehood.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
6
You must read the details concerning the method and frequency of cleaning.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Never leave frying food unattended since grease can overheat and catch fire. The risk
of fire is even greater in the case of used oil.
Do not flambé under the rangehood.
Never use the rangehood without the filters in place.
During an electrostatic discharge (ESD) it is possible that the device will stop
working. By switching the device off and on the device will again work as intended.
CAUTION: accessible parts may become hot when used with cooking appliances.
Remove all packaging, including protective wrappings, before use.
SAFETY AND WARNINGS
7
INSTALLATION INSTRUCTIONS

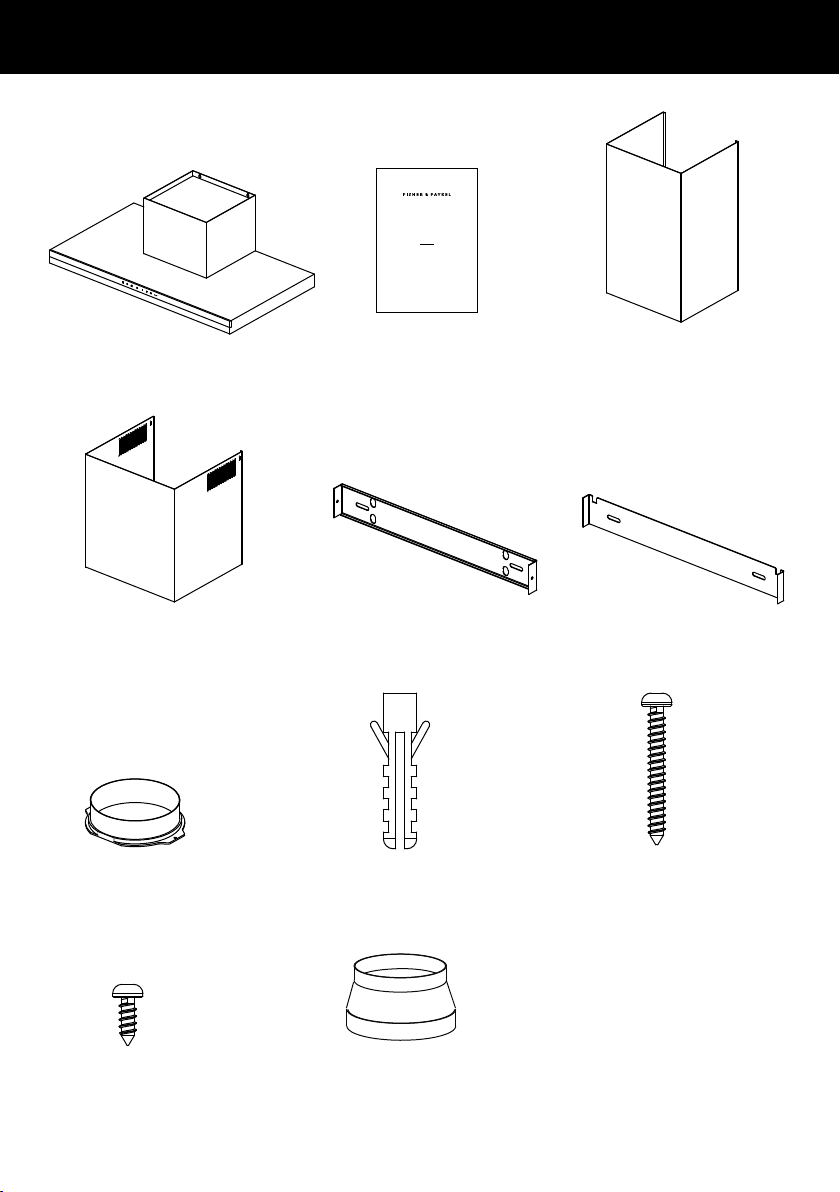

Contents of packaging
Upper chimney bracket
(1)
Installation instructions
User guide manual
(1)
Chimney
(1)
Expansion plug
(8)
30mm self
tapping screw
(8)
Upper chimney
(1)
Rangehood
(1)
Chimney bracket
(1)
INSTALLATION GUIDE / USER GUIDE
NZ AU ROW
BOX WALL RANGEHOOD
HC60DCXB3, HC90DCXB3 & HC120DCXB3 models
10mm self
tapping screw
(4)
150mm diameter
ducting adapter
(1)
125mm ducting adapter
(1)
8
INSTALLATION INSTRUCTIONS
Product dimensions
G
F
B
A
max
A
min
E D
K
L
C
I
H
Power cord location
Ø
J
9
INSTALLATION INSTRUCTIONS
HC60 HC90 HC120
PRODUCT DIMENSIONS mm
A
Overall height of product 595 – 1035 595 – 1035 595 – 1035
B
Overall width of product 598 898 1198
C
Overall depth of product 500 500 500
D
Height of hood 55 55 55
E
Height of stainless strip 27 27 27
F
Width of chimney 320 320 320
G
Depth of chimney 290 290 290
H
Distance from centre of ducting
outlet to back of product
82 82 82
I
Distance from centre of ducting
outlet to side of chimney
160 160 160
J
Diameter of ducting outlet 150 150 150
K
Distance between centre of lights 230 230 230
L
Distance from centre of lights to
back of product
45 45 45
Length of power cord 1200 1200 1200
IMPORTANT!
Actual product dimensions may vary by ± 2mm.
Please read the entire instructions before installing the rangehood.
10
INSTALLATION INSTRUCTIONS
Height of rangehood
INSTALLATION DIMENSIONS mm
M
Installation height
Ducted externally
Recirculation mode
min. 635 – max. 1035
min. 675 – max. 1035
N
Height top of cooktop to base of product
* Electric cooktop (for induction cooktop see note below)
Gas cooktop
min. 600 – max. 750
min. 650 – max. 750
Rangehood installation height above the cooktop
is the user’s preference. This rangehood must be
installed between the minimum and maximum height
limits indicated in the table above. Installation at
the lower height limit will improve the efficiency of
capturing cooking odours, grease and smoke.
* Induction cooking considerations
Induction cooktops use energy efficient technology
that only heats the contents of a cooking pot.
Unlike gas or traditional electric cooktops, the
surrounding air does not get heated when using
an induction cooktop. As a result, rangehood
filters, splashbacks and surrounding cabinetry do
not get warmed up, increasing the likelihood of
condensation on these cooler surfaces.
Other factors like ambient temperature, humidity,
natural ventilation of the room, size of the
cookware and how the induction cooktop is being
used also influence condensation. For example,
aggressive boiling on high cooktop heat settings
like PowerBoost increases the rate at which water is
evaporated, increasing the likelihood of condensation.
It is important to understand that neither the
rangehood nor the induction cooktop are faulty as a
result of this phenomenon.
Condensation can be minimised by:
Installing the rangehood at the maximum height
above the cooktop as specified in this user guide.
Using the rangehood on a lower speed setting
when boiling.
Using the induction cooktop on a lower heat
setting when boiling.
Switching the rangehood on 5minutes before
cooking and letting it run for at least 5minutes
after cooking. Refer to the ‘Operating instructions’
section on how to use the timer function.
N
M
11
INSTALLATION INSTRUCTIONS
Venting options
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
The rangehood can be installed to operate with the exhaust air ducted externally
from the kitchen, or installed to operate in recirculation mode with the exhaust air
recirculating within the kitchen.
Ducted externally
For an externally ducted installation it is recommended that 150mm diameter, rigid or
semi-rigid ducting is used. This will require a 160mm (min) round hole in the ceiling or
wall. Careshould be taken to position the hole correctly.
For optimal efficiency use the shortest and straightest duct route possible and use rigid
or semi-rigid ducting for reduced noise and increased airflow. Flexible metal ducting
should only be used as a last resort (ie in difficult installations) and if used ensure that it
is straight and smooth and extended as much as possible.
Recirculation mode
To enable the product to operate with the air recirculating within the kitchen, please
purchase a recirculation diverter and carbon filters (refer to the ‘Parts and accessories’
section). Therecirculation diverter is installed after a short length of ducting and is
required to channel the air out the side vents at the top ofthe chimney and the carbon
filters are required to remove odours.
Note: a ducting hole is not required in the wall or ceiling if the rangehood is
installed to operate in recirculation mode.
12
INSTALLATION INSTRUCTIONS
WARNING!
This appliance is heavy and requires two persons for unpacking and installation
Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards.
Failure to install the screws or fixing device in accordance with these instructions
mayresult in electrical hazards
IMPORTANT!
Wear gloves to protect against sharp edges.
The manufacturer is not liable for any damage caused by not following these instructions.
Installation
1
Preparing for installation:
Before installing your rangehood:
Please read the instructions carefully.
Unpack the rangehood and check that all functions are working.
Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate
match the voltage and frequency at the installation site.
Check that the area behind the installation surface to be drilled is clear of any
electrical cables or pipes, etc.
The stainless steel and glass surfaces of the rangehood are very easily damaged
during installation if grazed or knocked by tools. Please take care to protect the
surfaces during installation.
Protect the cooktop surface below with cardboard, or the like, to prevent damage
occurring whilst the rangehood is being installed above.
Temporarily mark the height of the bottom of the rangehood and the centre of the
cooktop on the wall according to the information given in the ‘Installation instructions
– Height of rangehood’ section.
The wall used for mounting the rangehood should have sufficient strength and a
flatsurface.
2
Attach chimney brackets and hood mounting screws
Attach the chimney bracket and upper
chimney bracket (if using the upper chimney)
in the locations shown in Fig.2 and 3. Use
the 30mm screws and expansion plugs if
attaching to masonry.
Attach the upper hood mounting
screws in the locations shown in
Fig.2 and 3. Use the 30mm screws
and expansion plugs if attaching to
masonry. Ensure that there is a 2mm
gap between the screw head and the
wall – see Fig.1.
2 mm
2 mm
Fig.1
13
INSTALLATION INSTRUCTIONS
Fig.2
250 mm
20 mm
A
B
250 mm
235 mm
C
D
Upper chimney extension
bracket attachment points
Chimney bracket
attachment points
Upper hood
attachment points
Lower hood
attachment points
HC60 HC90 HC120
PRODUCT DIMENSIONS mm
A
Lower rangehood attachment point width
420 580 900
B
Chimney bracket attachment point height
559 559 556
C
Upper rangehood attachment point height
286 286 288
D
Lower rangehood attachment point height
36 36 42.5
14
INSTALLATION INSTRUCTIONS
Fig.3
3
Attach ducting adapter
Place the ducting adapter
onto the hood and screw it in
place using the 10mm screws.
15
INSTALLATION INSTRUCTIONS
4
Attach hood to wall

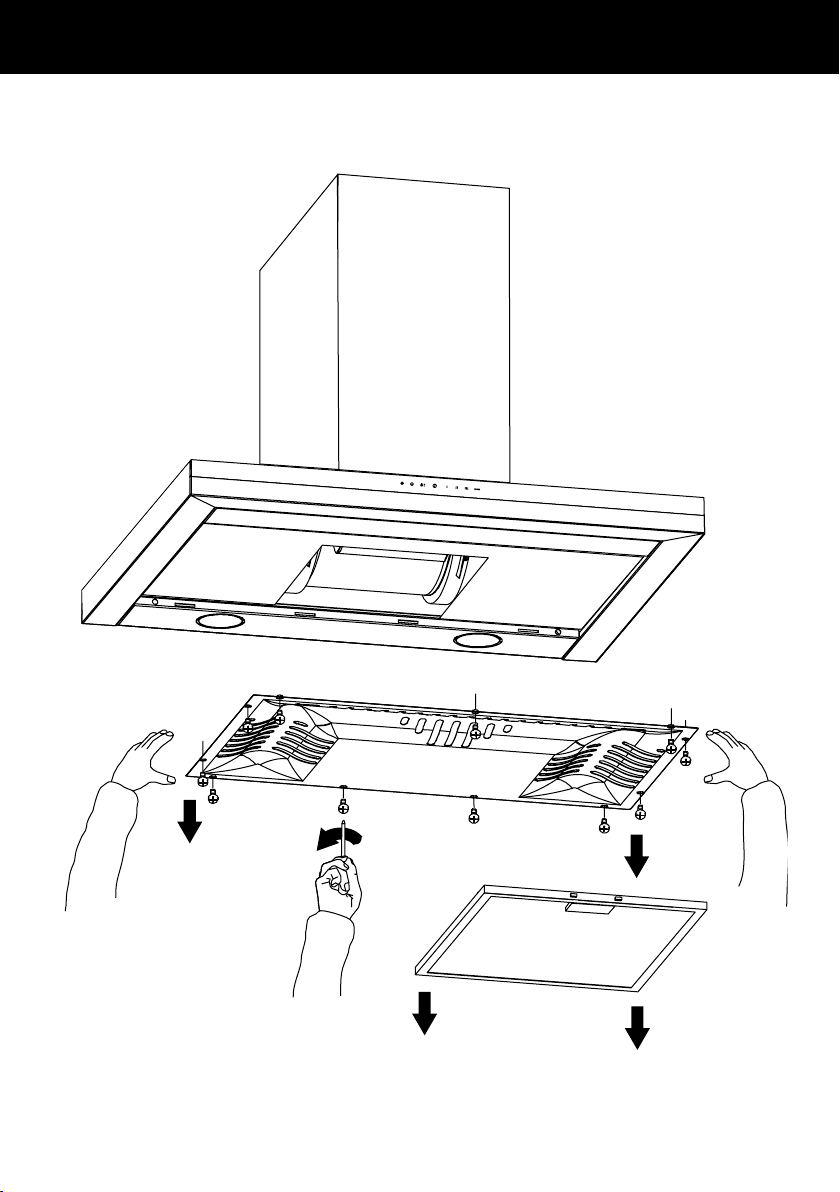

Remove filters and air flow balancing plate from hood as shown in Fig.4.
Fig.4
16
INSTALLATION INSTRUCTIONS
Fig.5
Hang hood off upper hood mounting screws with 2mm gap. Hang off the keyhole
attachment points on the back of the hood (see Fig.5). Tighten screws.
Attach lower hood mounting screws to fix hood to wall.
Reattach air flow balancing plate and filters.
5
Attach ducting
Attach ducting to ducting adapter using aluminium duct tape.
6
Attach chimney
Bend the tabs on the chimney (A).
Place chimney around the hood chassis and hang off the bracket (B).
Extend the upper chimney and attach to the chimney bracket with 10 mm screws (C).
A B C
16
17
OPERATING INSTRUCTIONS
Touch control panel
CONTROL PANEL FEATURES
Filter
cleaning alert
Activated regularly to alert of the need to
clean filters. It can be deactivated with a
singlepress.
Timer Turn the timer on. The fan operates for
5minutes at the current speed and each
descending speed before turning off.
Lights Turn the lights on or off. The lights are
dimmable.
Press and hold to progressively adjust the
brightness level.
Power on/off Turn the rangehood on or off. The fan
automatically turns on to operate at level 1.
Fan speed 1 – 3 Adjust the fan speed levels from 1 – 3 with 1
being the lowest level and 3 being the highest.
The fan speed level icon illuminates red
whenselected.
Boost Turn the fan onto boost speed. The icon
flashes red when it is on. The rangehood will
operate on boost speed for 5minutes and will
then revert to speed 3.
18
CLEANING AND MAINTENANCE
WARNING!
Unplug or disconnect the appliance from the power supply before servicing or cleaning.
IMPORTANT!
Never use abrasive or oil based cleaners
Wear gloves to protect against sharp edges
Maintenance
The rangehood should be cleaned regularly using a mild, liquid detergent and a clean
soft cloth to avoid a build-up of grease occurring. Avoid the use of corrosive chemicals,
abrasive cleaning products, hard brushes and steel wool pads. Grease deposits are
corrosive which can cause damage to your rangehood.
Note: in areas of high humidity or coastal environments, cleaning should be carried out
more frequently.
Aluminium filters
Depending on use, and at least once a month, the aluminium grease filters should be
removed and cleaned with hot soapy water or in a dishwasher.
If washed in a dishwasher, the filters should be placed in an upright position to prevent
food from falling on them.
After rinsing and drying, replace the filters.
Note: some discolouration of the frames may occur.
Removing the aluminium filters:
1
Pull the relative catch, tilting it downwards until it disengages from the supports.
2
Reverse these instructions when refitting the filters.
19
CLEANING AND MAINTENANCE
WARNING!
When replacing the bulb, let the bulb cool, and assure that power to the rangehood
has been turned off.
Use new bulbs according to that indicated on the rangehood nameplate.
Carbon filters – for use in recirculation mode
Active carbon filters are disposable items designed to remove grease and odours from
cooking vapours before the air is channelled back into the kitchen. The active carbon
filters must be replaced periodically to work properly, at least once every three months,
depending on the frequency with which the rangehood is used.
Note: fully saturated carbon filters can become a barrier to air movement therefore
limiting rangehood performance. In the event of fire, grease laden filters could be
flammable and therefore regular replacement is recommended.
Replacing the light bulb
ILCOS D code: DRR-3.5-220/240-GU10-50/50
1
Before changing the light bulb, ensure the rangehood is disconnected from the
powersupply.
2
Remove the aluminium grease filters.
3
Replace light bulbs.
4
Refit the aluminium filters.
Please note replacement bulbs are not covered by warranty.
20
PARTS AND ACCESSORIES
ITEM REFERENCE NUMBER
LED bulb 792603
Aluminium filter with stainless steel cover 792577
Recirculation carbon filter x2 792481
Recirculation diverter 792560
Ducting kit 150mm (eaves) PD-RHK150E
Ducting kit 150mm (wall) PD-RHK150W
21
CUSTOMER CARE
Before you call for service or assistance...
Check the things you can do yourself. Refer to your user guide and check that:
1
Your product is correctly installed.
2
You are familiar with its normal operation.
If after checking these points you still need assistance or parts, please refer to your
nearest Fisher & Paykel trained and supported service technician, Customer Care, or
contact us through our website www.fisherpaykel.com.
In New Zealand if you need assistance…*
Visit us online or call the Fisher & Paykel Customer Care Centre and talk to one of our
Customer Care Consultants.
Toll free: 0800 FP CARE or 0800 372 273
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, PO Box 58550, Botany, Auckland 2163
If you need service…*
Fisher & Paykel has a network of Fisher & Paykel trained and supported service technicians
that can carry out any service necessary on your appliance. Our Customer Care Centre
can recommend a Fisher & Paykel trained and supported service technician in your area.
In Australia if you need assistance…*
Visit us online or cll the Fisher & Paykel Customer Care Centre and talk to one of our
Customer Care Consultants.
Toll free: 1300 650 590
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Australia Pty Ltd, PO Box 798, Cleveland
QLD 4163
If you need service…*
Fisher & Paykel has a network of Fisher & Paykel trained and supported service technicians
that can carry out any service necessary on your appliance. Our Customer Care Centre
can recommend a Fisher & Paykel trained and supported service technician in your area.
For rest of the world…*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care
Consultants.
Phone: +64 9 273 0660
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, PO Box 58550, Botany, Auckland 2163,
New Zealand
22
CUSTOMER CARE
*If you call, write or contact us via our website please provide: your name and address,
model number, serial number, date of purchase and a complete description of the
problem. This information is needed in order to better respond to your request for
assistance.
Product details can be found on the air flow balancing plate underneath the filters.
Registration
Register your product with us so we can provide you with the best service possible.
To register your product visit our website: www.fisherpaykel.com
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
Town
Country
NZ AU ROW
104118C 06.19
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2019. All rights reserved.
The product specifications in this document apply to the specific
products and models described at the date of issue. Under our policy
of continuous product improvement, these specifications may change
at any time. You should therefore check with your Dealer to ensure this
document correctly describes the product currently available.
