M6-ETXv3 - Enclosed Speaker Systems
with Transflective™ RGB LED Lighting (optional)

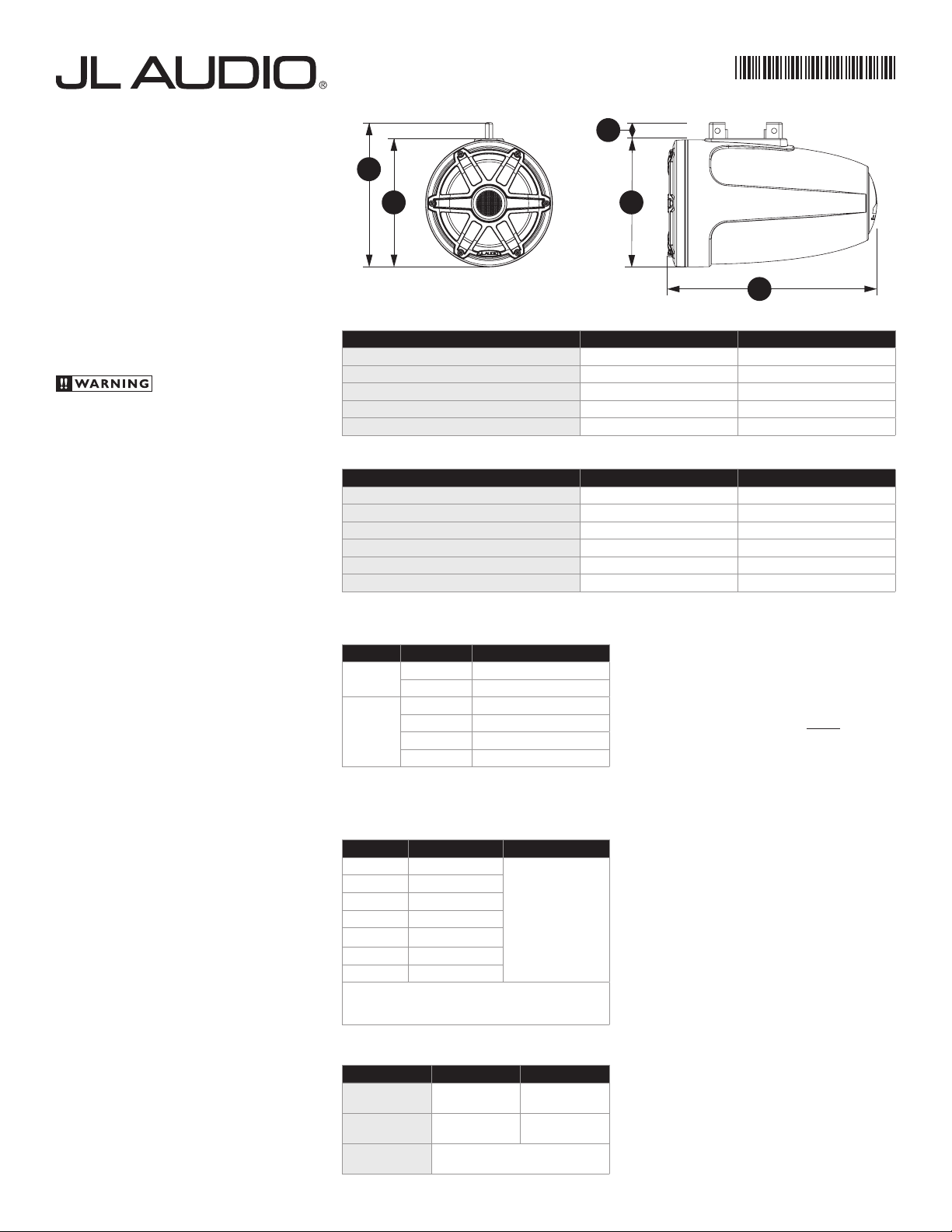

Physical Specifications M6-770ETXv3 M6-880ETXv3
Enclosure Diameter (A)
7.70 in / 196 mm 8.80 in / 224 mm
Enclosure Depth-Classic (B)
12.62 in / 321 mm 14.73 in / 374 mm
Enclosure Depth-Sport (B)
12.67 in / 322 mm 14.80 in / 376 mm
Height including Mounting Fixture Receiver* (C)
8.74 in / 222 mm 9.67 in / 246 mm
Mounting Fixture Receiver / Enclosure Offset (D)
1.04 in / 26 mm 0.87 in / 22 mm
*Mounting Fixtures Required (sold separately)
General Specifications M6-770ETXv3 M6-880ETXv3
System Nominal Impedance
4 Ω 4 Ω
System Frequency Response
45 Hz - 25 KHz ± 3 dB 38 Hz - 20 KHz ± 3 dB
System Efficiency
91.0 dB @ 1 W / 1 m 90.5 dB @ 1 W / 1 m
Continuous Power Handling (RMS)
100 W 125 W
Peak Music Power
200 W 250 W
Recommended RMS Amplifier Power (per Ch.)
40 - 200 W 50 - 250 W
Thank you for choosing JL Audio Marine
Enclosed Speaker Systems. With proper
installation, your new speakers will deliver years
of listening pleasure.
We strongly recommend that you have your
Enclosed Speaker Systems installed by your
authorized JL Audio dealer. The installation
professionals employed by your dealer have the
necessary tools and experience to properly install
this product. If you prefer to perform your own
installation, please read this and the instructions
included with your Mounting Fixtures (sold
separately) completely before beginning the process.
Installation of this product requires use of
JL Audio® Mounting Fixtures (sold separately).
No other method of installation should be
attempted. To avoid injury, installation
instructions included with the JL Audio®.
Mounting Fixtures MUST be followed precisely.
Do not attempt to remove the LEDs from from the
speakers. The LEDs are permanently fixed and
attempting to remove them will cause damage and
this damage will not be covered under warranty.
TRANSFLECTIVE™ RGB LED LIGHTING
Illuminated speaker models are equipped with
our innovative Transflective™ RGB LED lighting
system (patent pending). Fully integrated into the
speaker chassis, state-of-the-art LED rings are
positioned behind the woofer cones to produce
vibrant accent lighting that is remarkably smooth
and even, with no hot spots. A cable harness exiting
the enclosure includes wire leads for speaker and
LED connections. Refer to the Wiring Harness Info
table for individual RGB wire connection info.
Note: Wiring connections at each speaker location
are required for LED functionality.
Adjustable control of RGB lighting may be
achieved with the use of an RGB lighting controller
(sold separately). Note: When selecting an RGB
lighting controller, make sure that the total
amperage demands of all LED circuits does not
exceed the output capacity of the controller.
Refer to the RGB LED Specifications table for the
individual current draw amounts and sum (add)
the total. For optimal performance, we recommend
using the JL Audio marine lighting controller
(MLC-RW).
DIRECT LED WIRING
Alternatively, you may hard wire individual leads
or a combination of leads to achieve up to seven
different LED color assortments. Refer to the Direct
LED Wiring Info table for the wire colors used to
achieve specific LED colors.
Wiring Harness Info
Wire Size Wire Color Use
16 AWG
Red/Stripe Speaker Positive (+)
Black/Stripe
Speaker Negative (–)
20 AWG
Red Red RGB LED Negative (–)
Green Green RGB LED Negative (–)
Blue Blue RGB LED Negative (–)
Yellow Main RGB LED Positive (+12V)
Note: Not all wires may be used in normal applications. Refer to the
instructions of your RGB lighting controller for specific connection info.
Direct LED Wiring Info
LED Color Wire Color(s) Connection
Red Red
Combine selected
wires from all
speakers and connect
to negative ground
or to the negative (–)
battery post.
Green Green
Blue Blue
Yellow Red and Green
Pink Red and Blue
Aqua Green and Blue
White Red, Green and Blue
Combine all YELLOW (+12V) leads together (parallel)
and connect to a switched +12V supply. See below for
additional info.
RGB LED Specifications
Specification M6-770ETXv3 M6-880ETXv3
LED Current Draw
at 12V DC
324 mA 486 mA
Recommended
Fuse Value
500 mA 750 mA
LED Voltage
Range
10 - 14.4V DC
LED WIRING CONSIDERATIONS
• Do not connect to 24V electrical systems.
• Do not connect the speakers’ LED lights to the
vessel’s navigational lighting circuits.
• For short-circuit protection, we recommend
installing a fuse (not included) at EACH speaker’s
YELLOW (+12V) LED power connection lead.
Refer to the RGB LED Specifications table for
recommended fuse ratings.
• We recommend a minimum of 16AWG wire size
for each speaker’s LED connection circuits.
• In addition to the above, we recommend
activating the speakers’ LEDs thru a cabin/
interior lighting circuit that supplies +12V via an
existing switch. If an existing switched circuit
is not available, you may install a dedicated
toggle/rocker style switch that will supply
positive (+12V) power. Fuse this main +12V
connection according to the total amperage
demands of all LED circuits. Refer to the RGB
LED Specifications table for individual current
draw amounts and recommended fuse ratings.
INCLUDED PARTS
• Two Aluminum Logo Caps
• One Tube of Silicone Adhesive
• Eight Red Butt Splice Connectors (#22-18 AWG)
• Four Blue Butt Splice Connectors (#16-14 AWG)
M6-ETXv3_122018_SKU#011519
B
A
C
NOTE: Illustration may not be to scale.
A
D
Sport Grille Shown.
