W10740674A
Installation Instructions
for W10606694 L.P. (Propane and Butane)
Gas Conversion Kit
Parts included in Kit:
1 Instruction Sheet
1 Blocking Pin
1 Orice, Burner-Butane No. .049
1 Orice, Burner-Propane No. 55
1 Label, Rating Plate Conversion (English)
1 Label, Rating Plate Conversion (French)
1 Label, Conversion Record (English)
1 Label, Conversion Record (French)
1 Label, Burner Baseplate (English/French)
Converting 20,000 BTU/hr Gas Burners from Natural Gas
to Liqueed Petroleum (Bottled Gas)
NOTE: A qualied service technician is any person or
representative of a company who is experienced or trained
in servicing gas equipment and is familiar with necessary
precautions.
IMPORTANT: The LP Conversion Kit you received is an
approved kit for converting your gas dryer from natural to LP
propane or butane gas. The kit number shown on the Burner
Data Label located on the Burner Base may not match the kit
you receive due to kit consolidation.
NOTE: Read these instructions before proceeding.
Canada Only
THIS CONVERSION KIT SHALL BE CARRIED OUT IN
ACCORDANCE WITH THE REQUIREMENTS OF THE
PROVINCIAL AUTHORITIES HAVING JURISDICTION AND
IN ACCORDANCE WITH THE REQUIREMENTS OF THE
CAN-B49.1 AND CAN1-B149.2 INSTALLATION CODE.
Warning: This conversion kit shall be installed by a qualied
service agency in accordance with the manufacturer’s
instructions and all applicable codes and requirements of
the authority having jurisdiction. The information in these
instructions must be followed to minimize the risk of re or
explosion or to prevent property damage, personal injury,
or death. The qualied service agency is responsible for the
proper installation of this kit. The installation is not proper
and complete until the operation of the converted appliance
is checked as specied in the manufacturer’s instructions
supplied with this kit.
This dryer has been manufactured for use with Natural Gas.
Installation of this conversion kit converts the dryer for use
with L.P. gas with supply pressure between 8" (203 mm) and
13" (330 mm) water column. If this dryer is converted for use
with L.P. gas by means of this kit, the input rating will be 20,000
BTU’s per hour, for altitudes up to 10,000 feet (3,048 m). For
installations above 2,000 feet (610 m), contact a qualied
service agency for derating instructions.
Preparing for Kit Installation
READ THOROUGHLY AND FOLLOW STEPS
1. Unplug dryer or disconnect power.
2. Turn off gas supply using the shut-off valve that supplies
the dryer.
3. Fill out information on the appropriate Conversion Record
Label (English or French) and apply in a conspicuous
location adjacent to model and serial tag located in the
door well. Go to Section 1, 2, or 3, depending on model.
Tools and Accessories required:
1/4" Socket and Ratchet Wrench
1/4" Nut Driver
5/16" Nut Driver
Phillips-Head Screwdriver
T-20 Torx
®
-head Screwdriver
†
Pliers or Flat-Head Screwdriver
†® Torx and T-20 are registered trademarks of Acument Intellectual
Properties, LLC.

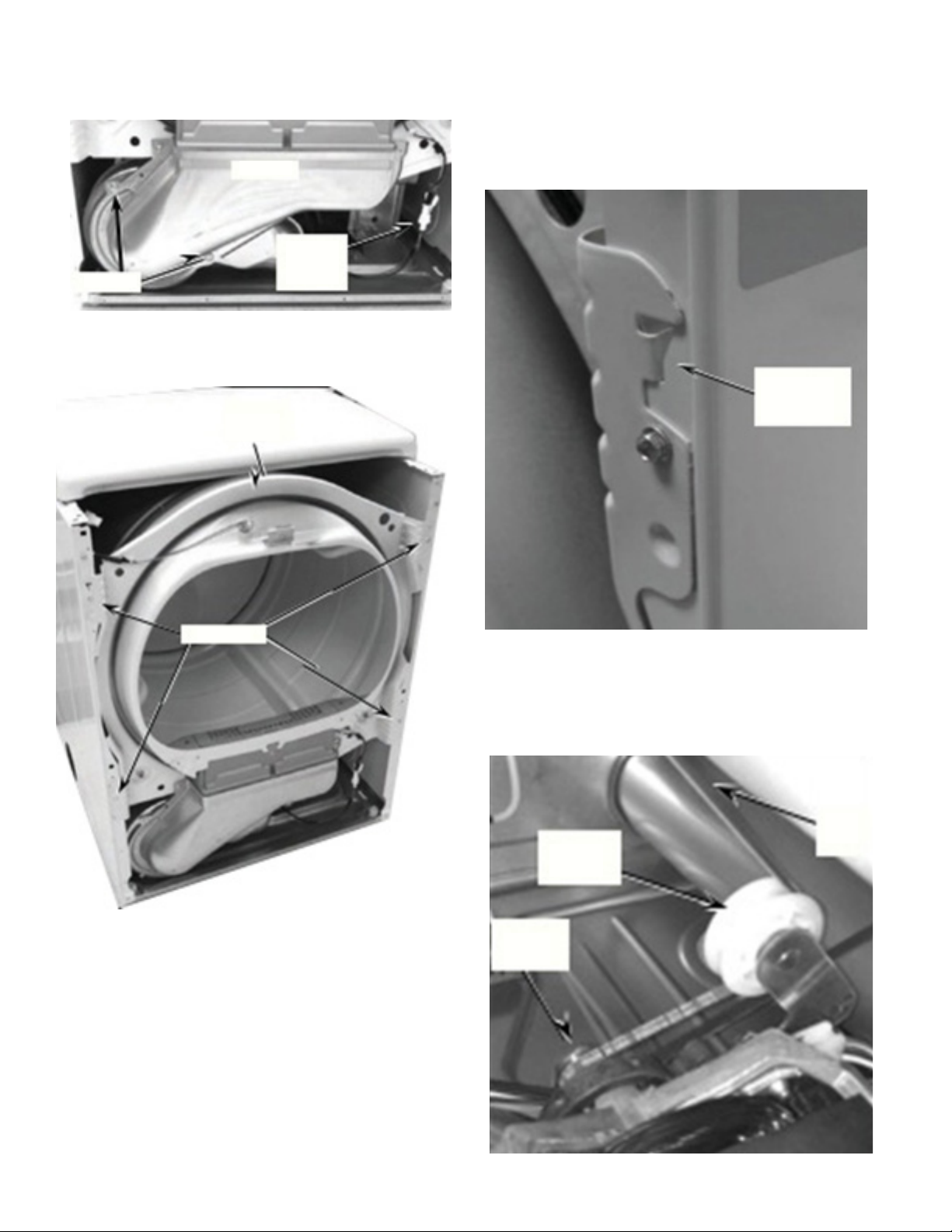

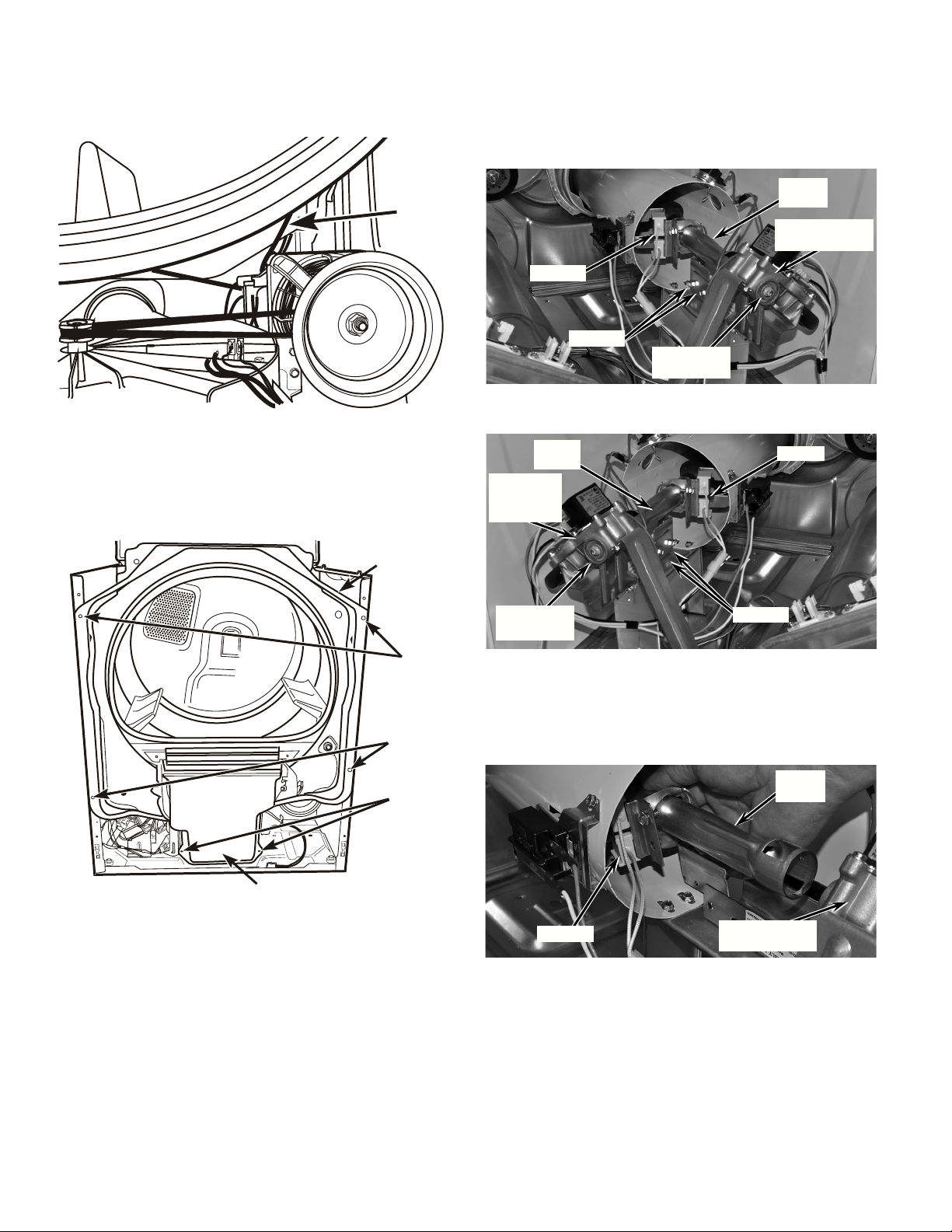

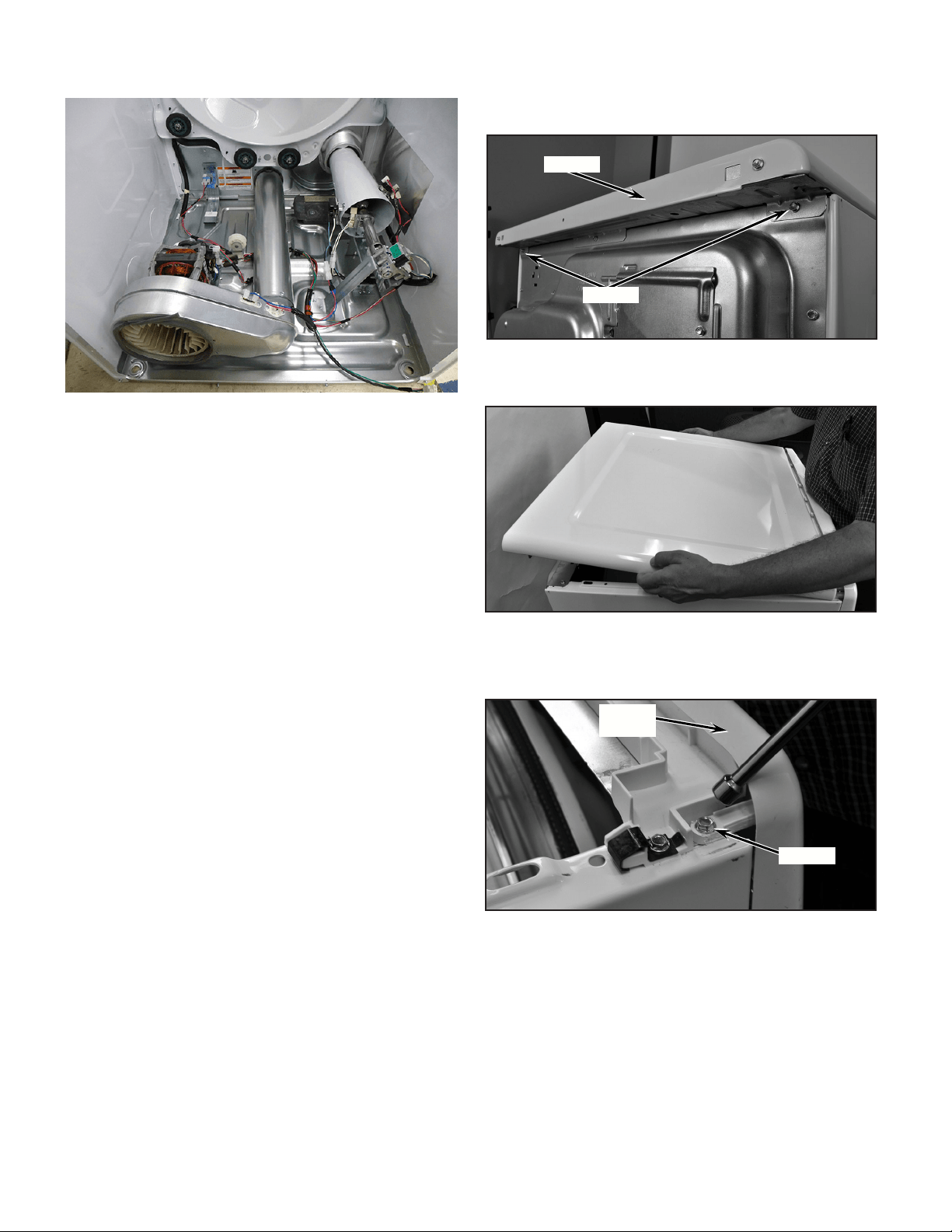

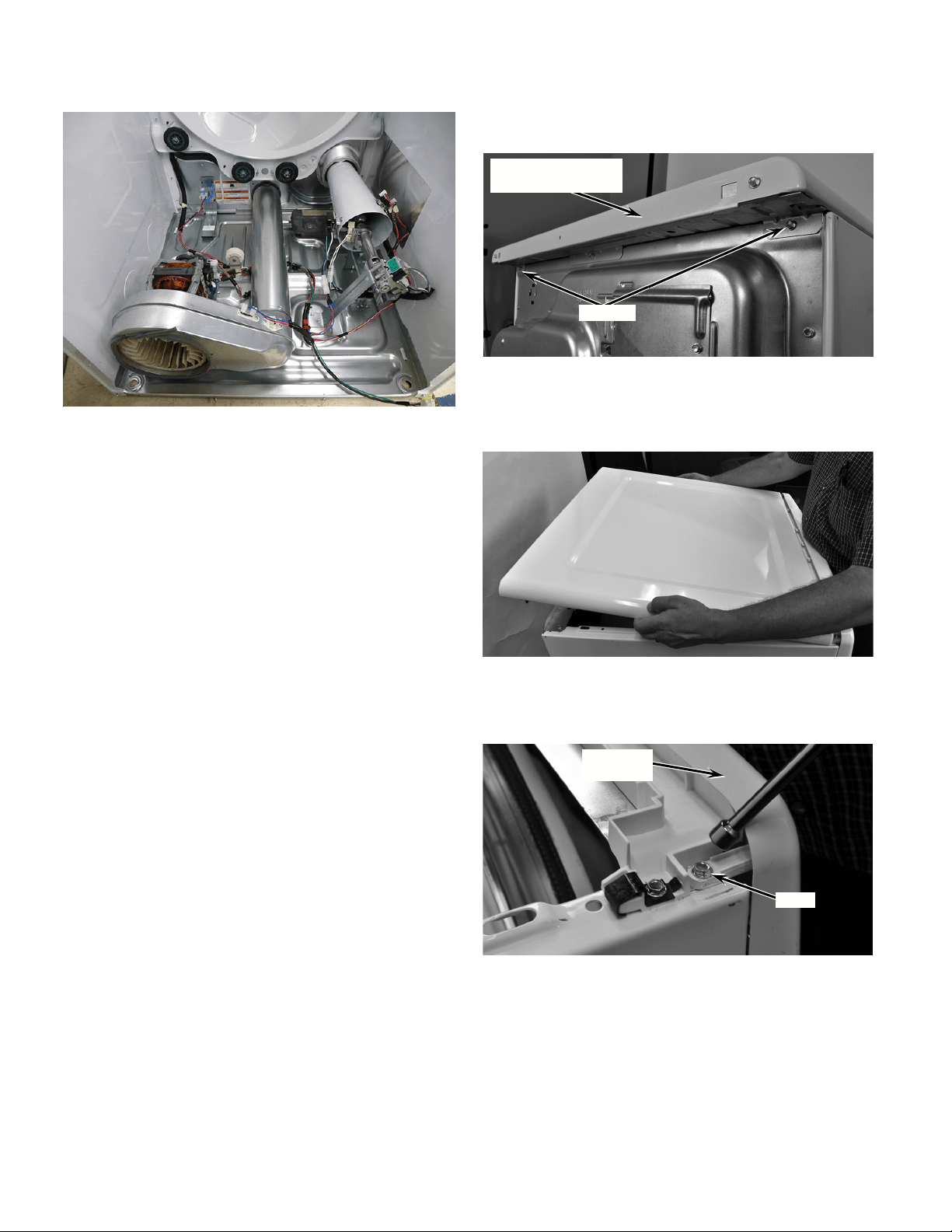

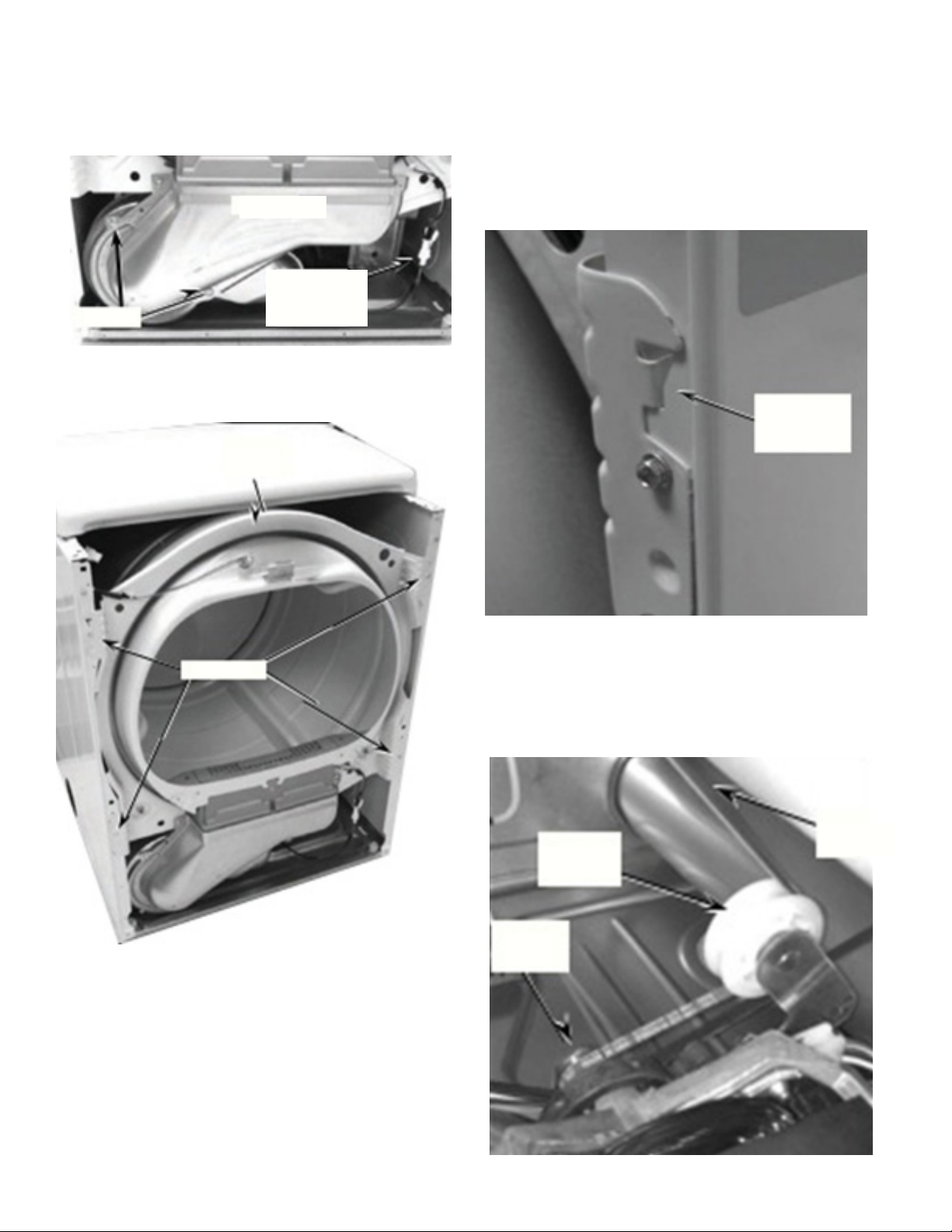

Disassembling the Dryer
Section
Cabinet
Width
Console
Location
Front Panel
Type
Rated
Capacity
(cubic feet)
Page
1 29" Rear Full 8.8+ 2
2 27" Front Full 7 to 7.5 4
3 29" Rear Full 7 to 7.6 8
4 27" Rear Toe Panel 7 to 7.5 9
