Owner's Manual

Operation Guide

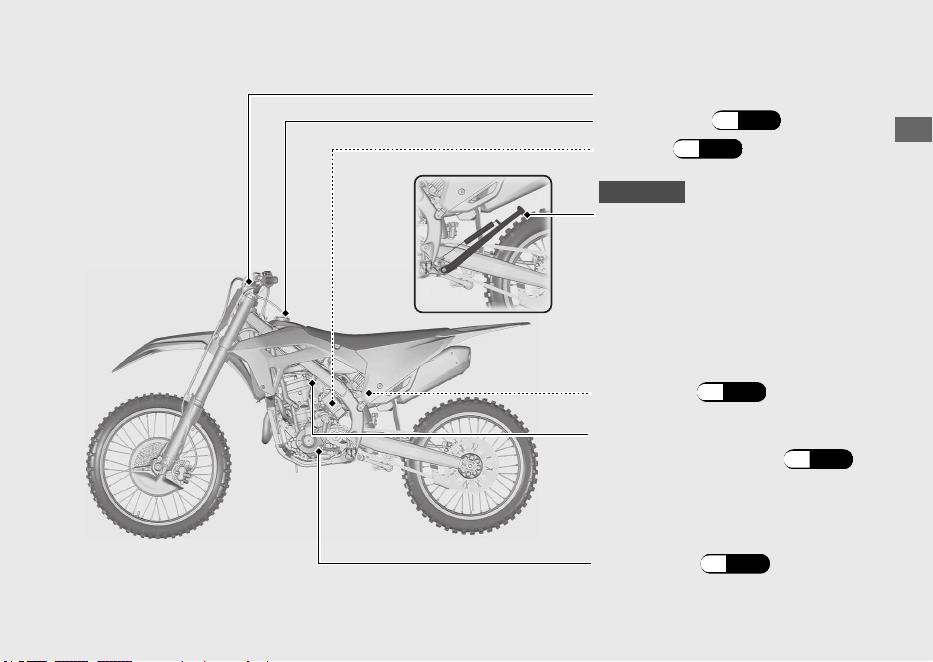

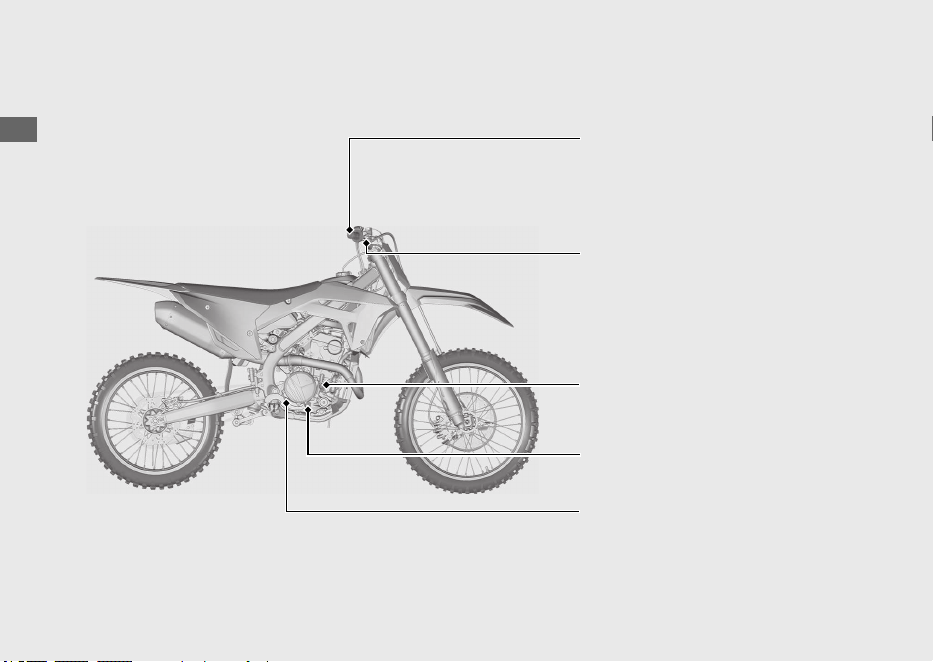

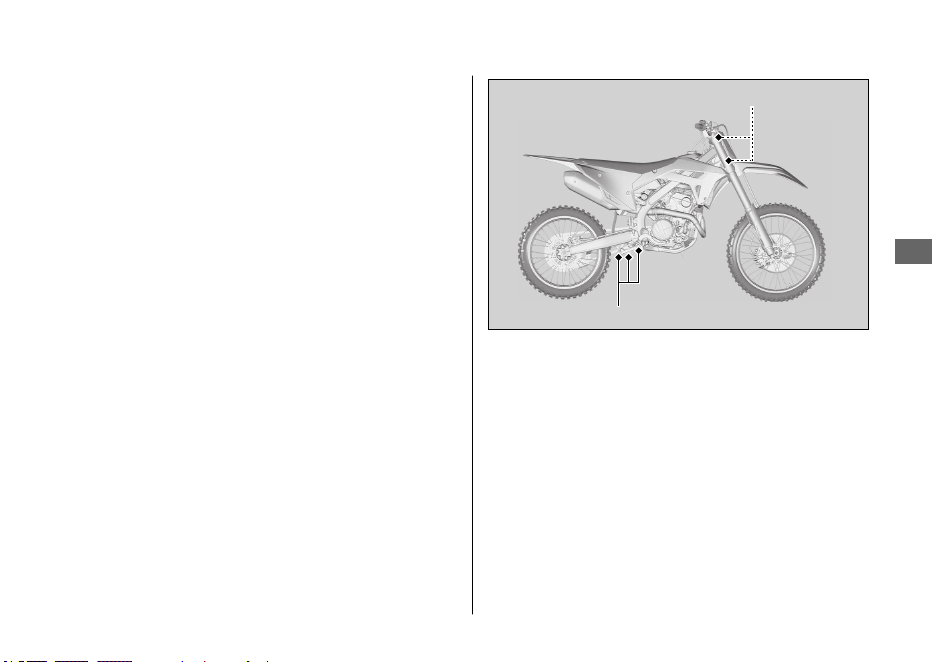

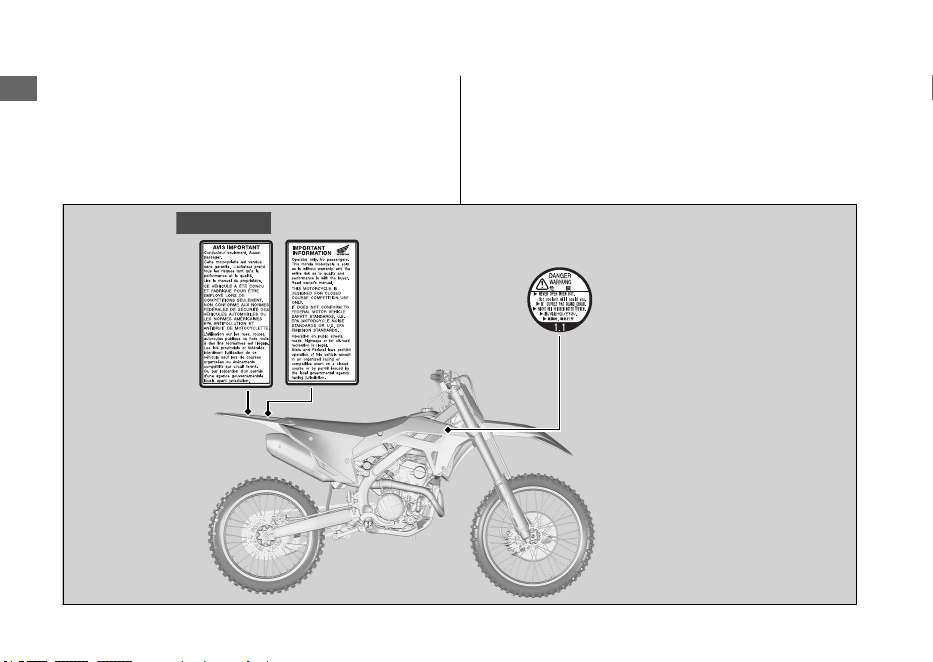

Parts Location

Indicators

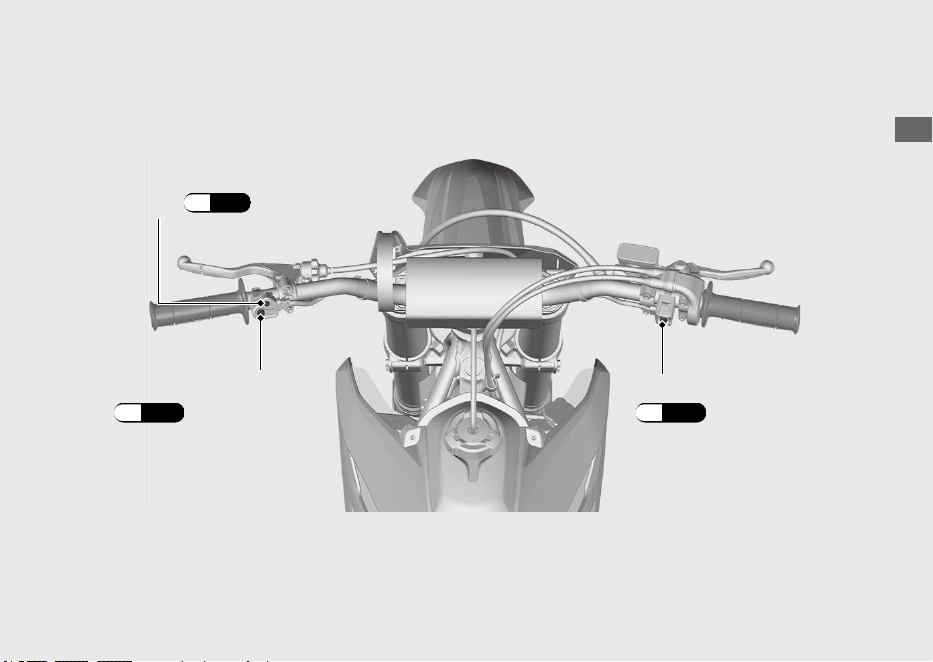

Switches

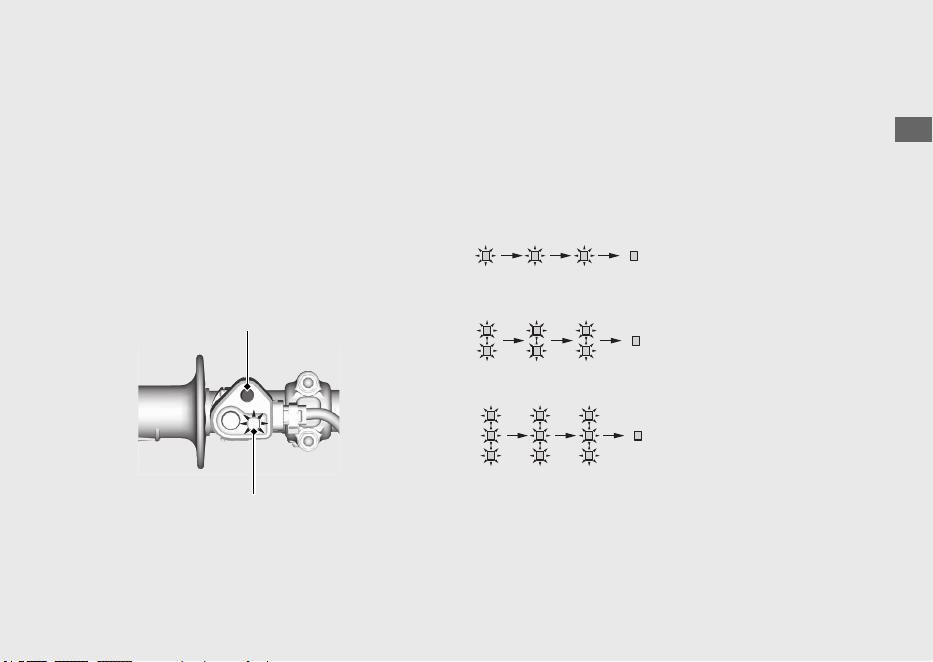

Engine Mode

You can change the engine output characteristic depending on track conditions by using the engine mode select button.

  • PGM-FI mode 1: standard setting
  • PGM-FI mode 2: smooth setting (reduce throttle response from the standard setting)
  • PGM-FI mode 3: aggressive setting (increase throttle response from the standard setting)

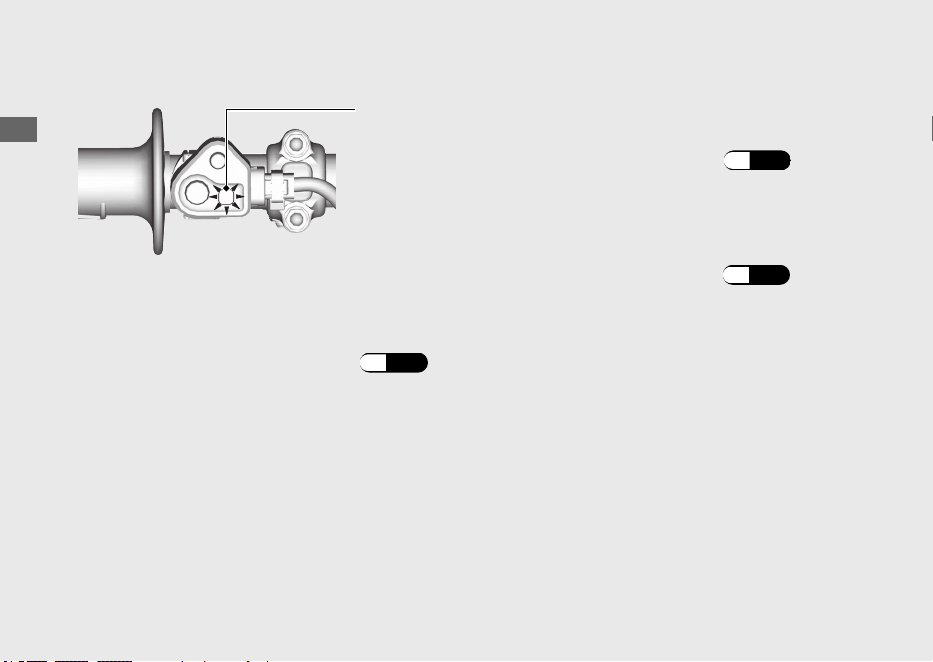

Current Mode

Start the engine and push the engine mode select button with your vehicle stopped. The engine mode indicator under the engine mode select button indicates the selected mode by blinking the mode number in blue 3 times.

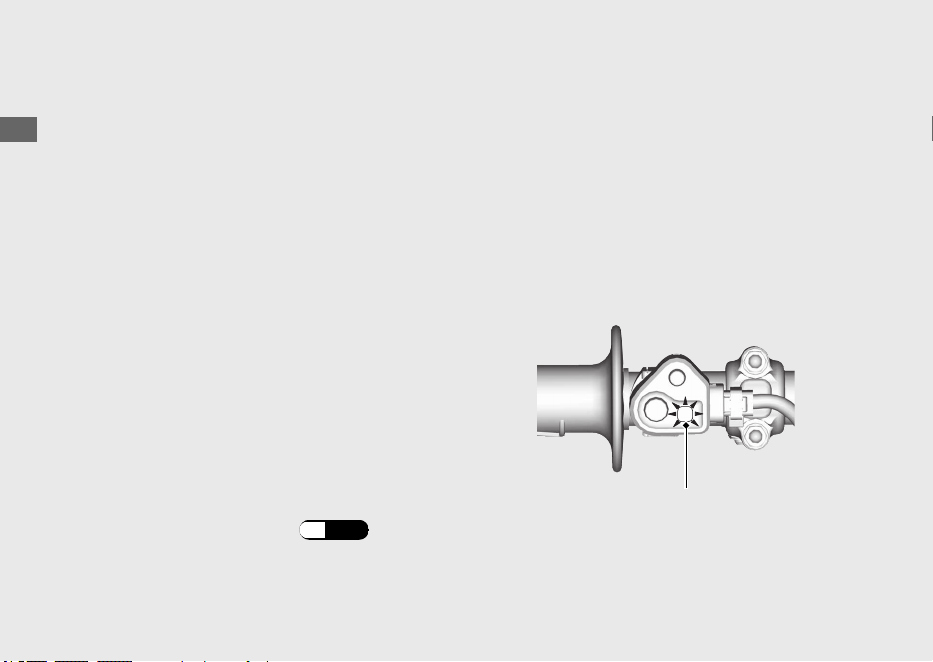

The engine mode indicator also indicates the currently selected mode by blinking the mode number once when the engine is started.

If the engine mode indicator stays on or does not come on when it should, have your dealer check it for problems.

Mode Selection

  1. Start the engine.
  2. With your vehicle stopped and the throttle closed, push and hold the engine mode select button for 1 or more seconds.
    Make sure that the fast idle knob is pushed in. If the fast idle knob is pulled out, the engine mode will not change.
  3. Release the engine mode select button. The engine mode indicator will indicate a selected mode by the number of times the indicator (blue) blinks.
  4. Repeat steps 2 – 3 until the desired mode is indicated.

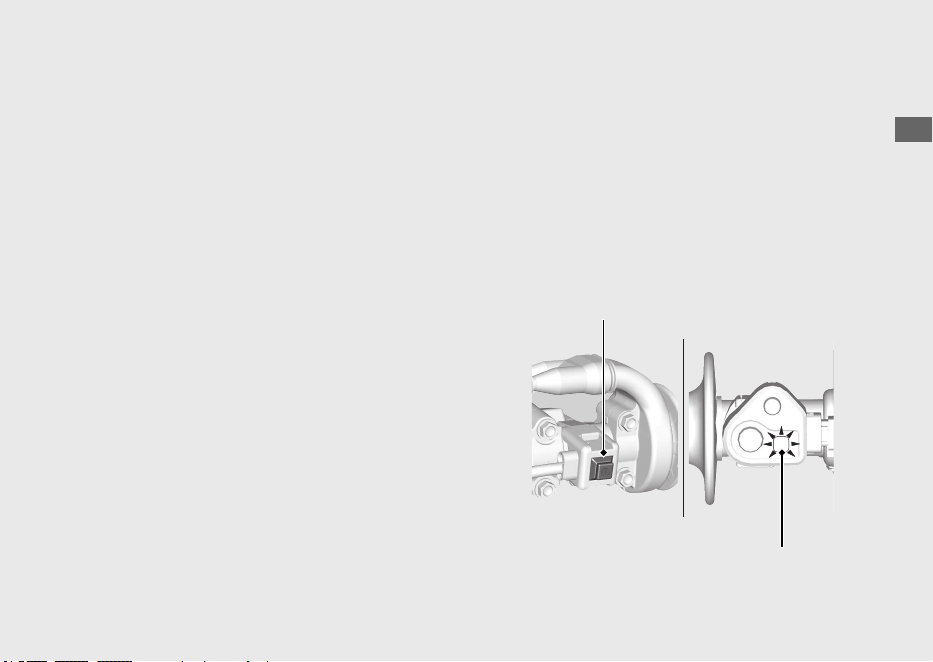

HRC-Launch Control System

The HRC-Launch Control System reduces slip and assists for an effective start by temporarily decreasing the rev limit when starting. You can select the rev limit level while the system is operating according to your skill and track conditions.

To change the level

  1. Start the engine and wait more than 2 seconds.
  2. Close the throttle completely, press and hold the start button while pulling the clutch lever in until the launch control system indicator blinks (purple).
    >> The system goes into standby, and the launch control system indicator indicates the selected level by blinking (purple).
    >> From standby, the control to decrease the rev limit starts.
    >> The system may become disabled if you snap the throttle excessively.
    >> If the idle speed is low, the system may not go into standby. Set the idle speed to standard rpm.

    See other models: 2022 CRF50F 2022 CRF110F 2022 CRF125F CRF125F 2022 CB300R
    >> To disable the system, quickly press the start button. The launch control system indicator stops blinking.
  3. Press and hold the start button. The level changes every time you press and hold.
    >> The level selected last is saved.
    >> The factory setting is level 2.
  4. To continue using the system, refer to step 2 in “To operate the system” (next page). To disable the system, quickly press the start button. The launch control system indicator stops blinking and the system is disabled.

=> Press and hold the start button while the launch control system is in standby

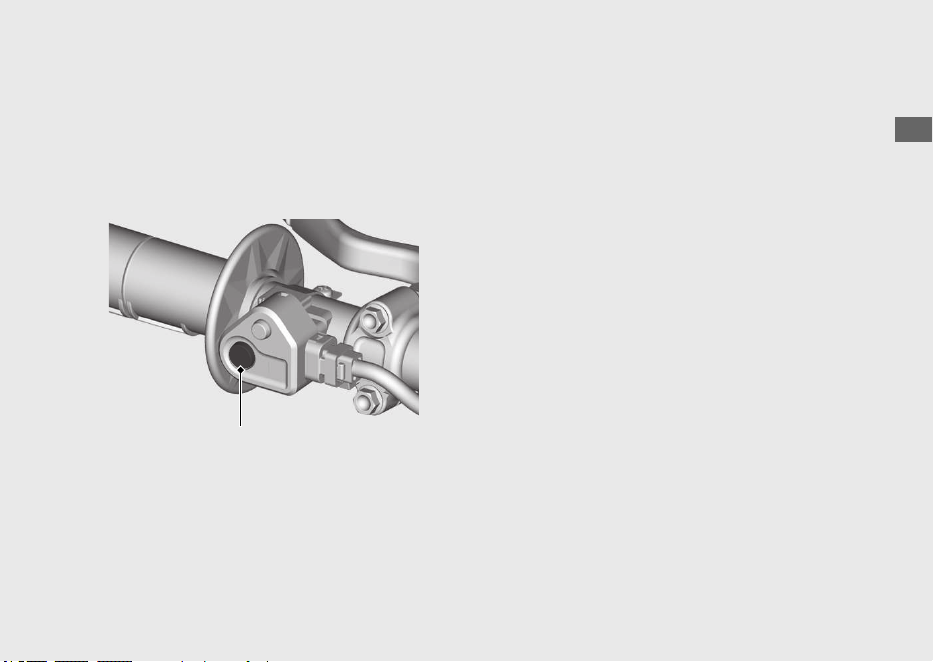

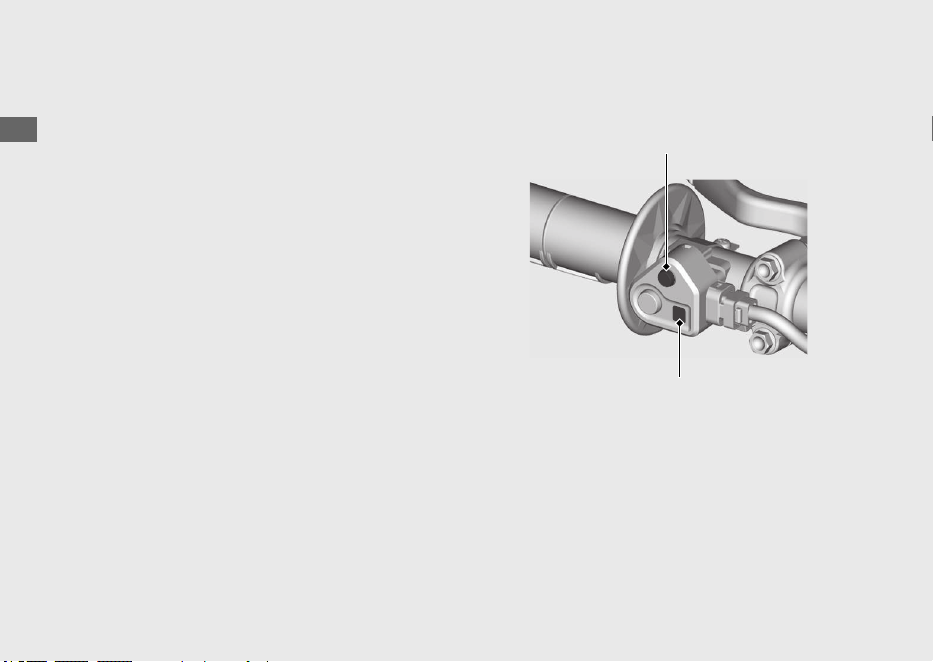

Start button

To operate the system

  1. Perform steps 1 and 2 in “To change the level”.
  2. Shift into 1st or 2nd gear.
  3. When launching, open the throttle halfway or more. The system operates.
    >> The reduced rev limit is controlled and will gradually return to normal in a few seconds. Once the rev limit returns to normal, the system is disabled.
    >> The launch control system indicator comes on (purple) while the system is operating.
    >> If you open the throttle halfway or more before starting, the control system stops before starting and there is no effect.
    >> If you close the throttle immediately, the system may not operate.
    >> When the launch control system operates, these following conditions will disable launch control: ● Vehicle is in 3rd gear ● The throttle is completely closed
  4. Make sure that the launch control system indicator is off. If it is not off, the system is not disabled. Quickly press the start button to disable the system.

Starting the Engine

Start your engine using the following procedure.

To restart a warm engine, follow the procedure for “Warm Engine Starting”.

NOTICE

  • If the engine does not start within 5 seconds, wait 10 seconds before trying to start the engine again to recover battery voltage.
  • Extended fast idling and revving the engine can damage the engine and the exhaust system. • Snapping the throttle or fast idling for more than about 5 minutes may cause exhaust pipe discoloration.

This vehicle does not have a start inhibitor. Pull the clutch lever all the way in when pressing the start button.
>> The vehicle can move when pressing the start button if the transmission is in gear and the clutch lever is not pulled.

Warning:

Pressing the start button when the transmission is in gear and the clutch lever is not pulled in can cause the vehicle to move suddenly, which can cause serious injury or death.
Always pull the clutch lever in when pressing the start button.

Cold Engine Starting

  1. Shift the transmission to neutral.

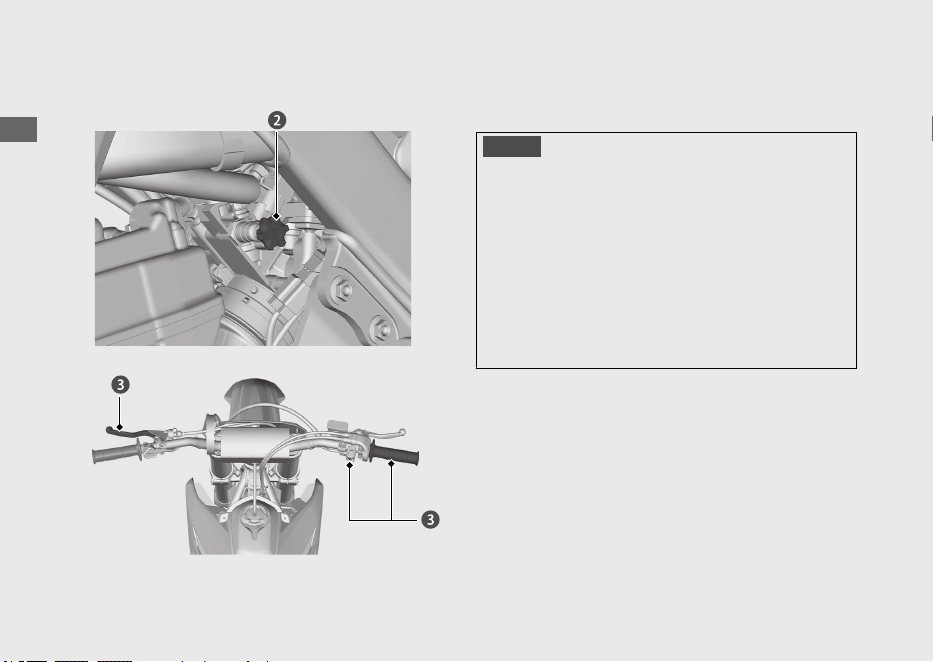

  2. If the temperature is 50 °F (10 °C) or below, pull the fast idle knob fully up.
  3. With the throttle completely closed, pull the clutch lever all the way in and press the start button.
  4. About a minute after the engine starts, push the fast idle knob back all the way to fully off. If idling is unstable, open the throttle slightly.

Warm Engine Starting

  1. Shift the transmission into neutral.
  2. With the throttle completely closed, pull the clutch lever all the way in and press the start button.

Starting the engine excessively charged with fuel by throttle blipping or other reasons

  1. Shift the transmission into neutral.
  2. With the throttle fully opened, pull the clutch lever and press the start button for 5 seconds to discharge excessive fuel from the engine.
  3. With the throttle completely closed, pull the clutch lever all the way in and press the start button.

If Engine Will Not Start

When starting the engine, the PGM-FI malfunction indicator lamp (MIL) (amber) will stay on for 2 seconds, then go off. Then, the engine mode indicator (blue) indicates the current engine mode for 0.8 seconds, then goes off. If the PGM-FI malfunction indicator lamp (MIL)/engine mode indicator does not come on or go off when it should, have your dealer check it for problems.

When you stop the engine

Normal Engine Stop

  1. Shift the transmission into neutral.
  2. Push and hold the engine stop button until the engine stops completely

Emergency Engine Stop

To stop the engine in an emergency, push and hold the engine stop button.

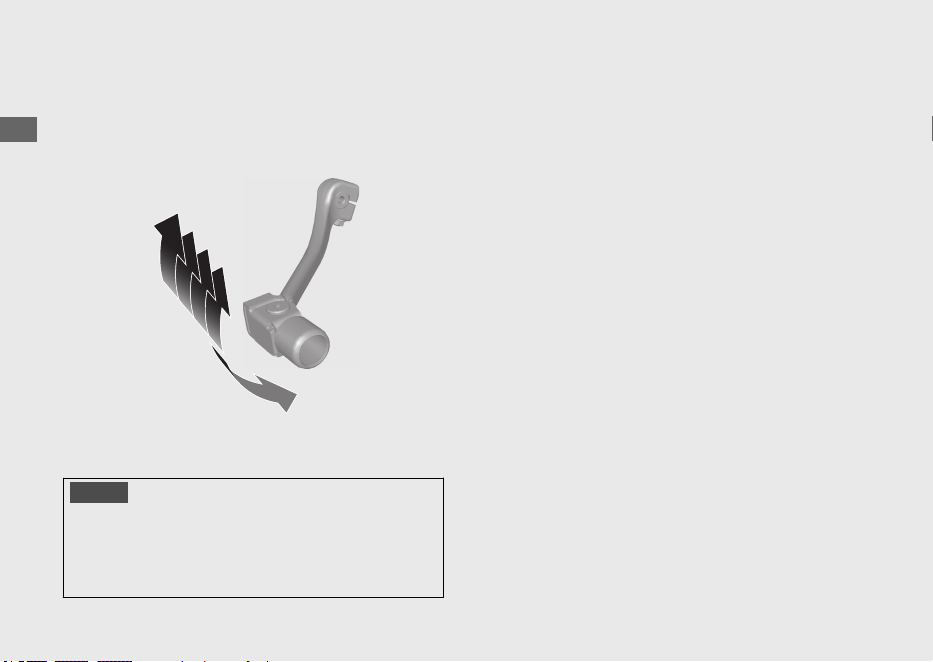

Shifting Gears

Your vehicle transmission has 5 forward gears in a one-down, four-up shift pattern.

NOTICE: Improper shifting can damage the engine, transmission, and drive train. Also, coasting or towing the vehicle for long distances with the engine off can damage the transmission.

Refueling

Be careful not to damage the fuel pump while filling the fuel tank.
Avoid overfilling the tank. There should be no fuel in the filler neck.

Fuel type: Unleaded gasoline only
Recommended fuel octane number: Pump Octane Number (PON) 91 or higher. CRF250RX Tank capacity: 2.11 US gal (8.0 L)
CRF250R Tank capacity: 1.66 US gal (6.3 L)

Refueling and Fuel Guidelines

Follow these guidelines to protect the engine and fuel system:

  • Use only unleaded gasoline.
  • Use the recommended octane number. Using lower octane gasoline will result in decreased engine performance.
  • Do not use fuels containing a high concentration of alcohol.
  • Do not use stale or contaminated gasoline or an oil/gasoline mixture.
  • Avoid getting dirt or water in the fuel tank.

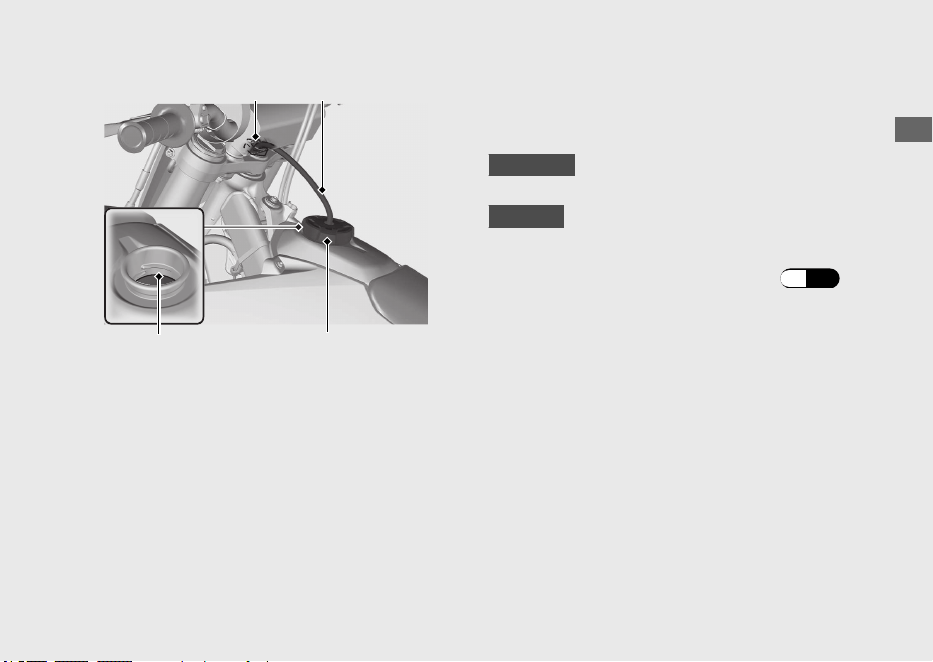

Opening the Fuel Fill Cap

  1. Pull the breather tube out of the steering stem nut.
  2. Turn the fuel fill cap counterclockwise and remove it.

Closing the Fuel Fill Cap

  1. After refueling, close the fuel fill cap securely.
  2. Insert the breather tube into the steering stem nut.

Warning! Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

  • Stop the engine, and keep heat, sparks, and flames away.
  • Only handle fuel outdoors.
  • Wipe up spills immediately.

Maintenance

Importance of Maintenance

Keeping your vehicle well-maintained is absolutely essential to your safety and to protect your investment, obtain maximum performance, avoid breakdowns, and reduce air pollution. Maintenance is the owner's responsibility. Be sure to inspect your vehicle before each ride and perform the periodic checks specified in the Maintenance Schedule.

WARNING!

Improperly maintaining your vehicle or failing to correct a problem before you ride can cause a crash in which you can be seriously hurt or killed. Always follow the inspection and maintenance recommendations and schedules in this owner's manual and competition handbook.

Maintenance Safety

Always read the maintenance instructions before you begin each task and make sure that you have the tools, parts, and skills required. We cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.

Follow these guidelines when performing maintenance.

  • Stop the engine.
  • CRF250RX
    Place your vehicle on a firm, level surface using the side stand, an optional workstand or a maintenance stand to provide support. CRF250R
    Place your vehicle on a firm, level surface using an optional workstand or a maintenance stand to provide support.
  • Allow the engine, muffler, brakes, and other high-temperature parts to cool before servicing as you can get burned.
  • Run the engine only when instructed, and do so in a well-ventilated area.

Maintenance Fundamentals

Pre-ride Inspection

To ensure safety, it is your responsibility to perform a pre-ride inspection and make sure that any problem you find is corrected. A preride inspection is a must, not only for safety, but because having a breakdown, or even a flat tire, can be a major inconvenience.

Refer to the Competition Handbook for procedures.

Competitive riding can be tough on a vehicle, so it’s important to inspect your vehicle and correct any problems you find before each ride.

Check the following before each ride:

  • Engine oil level
  • Fuel line for condition
  • Coolant for proper level
  • Cooling system and hoses for condition
  • Spark plug for proper heat range, carbon fouling and spark plug wire terminal for looseness
  • Air cleaner for condition and contamination
  • Clutch lever freeplay
  • Breather drain for cleaning
  • Steering head bearing and related parts for condition
  • Throttle operation
  • Tires for damage or improper inflation pressure
  • Spokes for looseness
  • Rim locks for looseness
  • Front and rear suspension for proper operation
  • Front and rear brakes, check operation
  • Drive chain for correct slack and adequate lubrication
  • Drive chain sliders and drive chain rollers for damage or wear
  • Exhaust pipe/Muffler for looseness
  • Every possible part for looseness (such as cylinder head bolts, engine mounting bolts/ nuts, axle nuts, handlebar holder bolts, fork bridge pinch bolts, drive chain adjuster, lock nuts, drive chain roller bolt/nut, wire harness connectors)
  • PGM-FI malfunction indicator lamp (MIL) operation

Between Races/Motos & Practice Maintenance

CRF250RX
After practice or between races you have a chance to make additional checks and adjustments.

CRF250R
After practice or between motos you have a chance to make additional checks and adjustments.

  • Clean accumulated dirt from under the fenders and off the wheels, suspension components, handgrips, controls, and footpegs. A stiff, nylon parts cleaning brush works well.
  • Check tire air pressure.
  • Check spoke tension, and make sure the rim locks are secure.

  • Check to make sure the sprocket bolts and nuts are secure.
  • Clean the sides of the drive chain with a stiff, nylon parts-cleaning brush. Lubricate and adjust the chain as necessary.

Do not perform maintenance while engine is running. Injury to your fingers or hands may result.

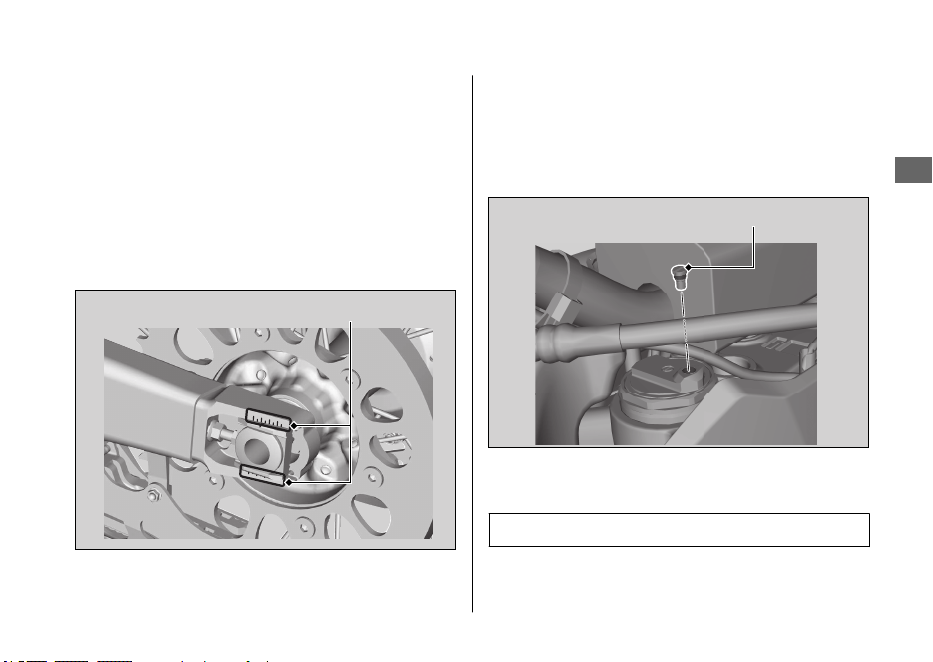

  • After adjustment, check that the chain adjuster index marks are in the same position on each side. This will ensure that the rear wheel is in proper alignment and allow maximum performance from the rear disc brake.

Maintaining proper wheel alignment will also extend brake pad lifespan.

  • Suspend the front wheel above the ground and use the pressure release screws to release the built-up pressure in the forks. This pressure is caused by normal fork action while riding.

Tighten the pressure release screws to the specified torque: 1.0 lbf·ft (1.3 N·m, 0.1 kgf·m)

After Competition Maintenance

It is important to the long term performance of your vehicle to practice a consistent maintenance program. Right after the event is a good time to begin your next maintenance cycle.

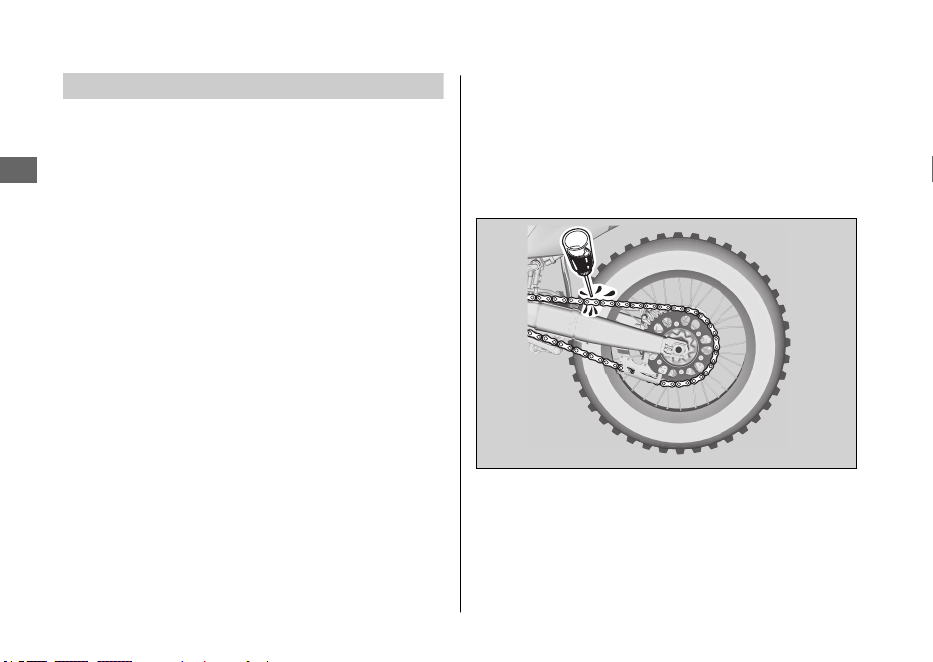

After Race (CRF250RX)/Moto (CRF250R) Lubrication

Apply a light coating of rust-inhibiting oil to the drive sprocket and any steel portions of the chassis or engine where the paint has worn away. This will prevent rusting of the exposed metal. Apply rust-inhibiting oil more heavily if the event was particularly wet or muddy. Take care to avoid spraying any oil near the brake pads or the brake discs.

Take care to prevent catching your fingers between the chain and sprocket. Remove the drive chain, clean and lubricate it. Be sure the chain is wiped clean and is dry before lubricating the chain.

Routine Cleaning

If your vehicle is only slightly dirty, it is best to clean it by hand with the aid of a stiff bristled nylon brush and some clean rags.

Take care to prevent catching your fingers between the chain and sprocket. A variety of reasonably priced cleaning brushes are available from variety, drug, food, and hardware stores. Some of these brushes are extremely useful in removing dirt from the many tight contours of the metal pieces of your vehicle. Avoid using stiff, abrasive brushes on the plastic or rubber parts. If your vehicle was exposed to sea air or salt water, rinse it as soon as possible after the event, dry it, and apply a spray lubricant to all metal parts. If you decide to wash your vehicle or use cleaners, refer to "Caring for Your Vehicle"

Replacing Parts

Always use Honda Genuine Parts or their equivalents to ensure reliability and safety.

WARNING!

Installing non-Honda parts may make your vehicle unsafe and cause a crash in which you can be seriously hurt or killed.
Always use Honda Genuine Parts or equivalents that have been designed and approved for your vehicle.

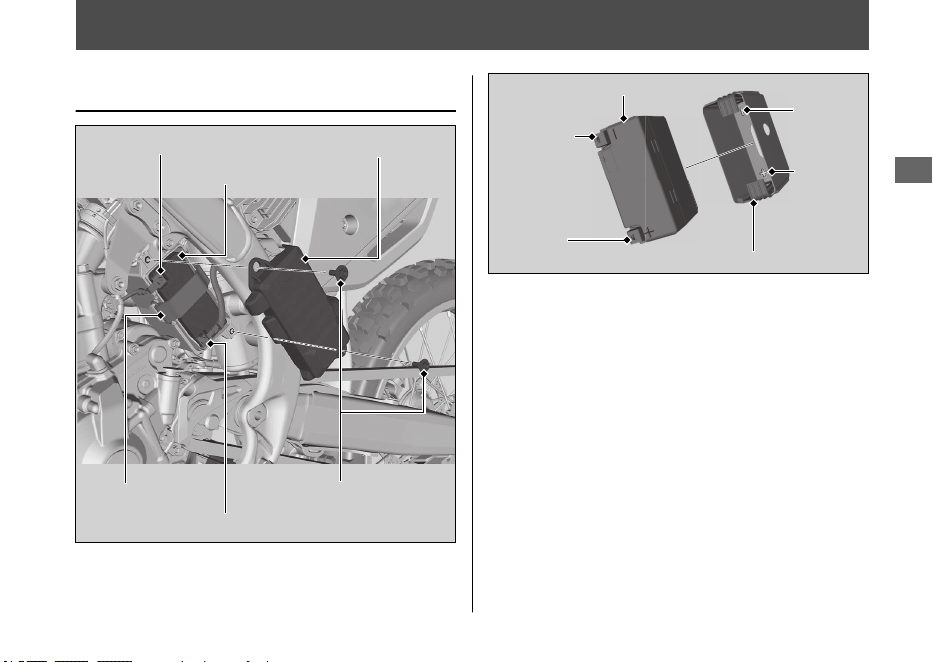

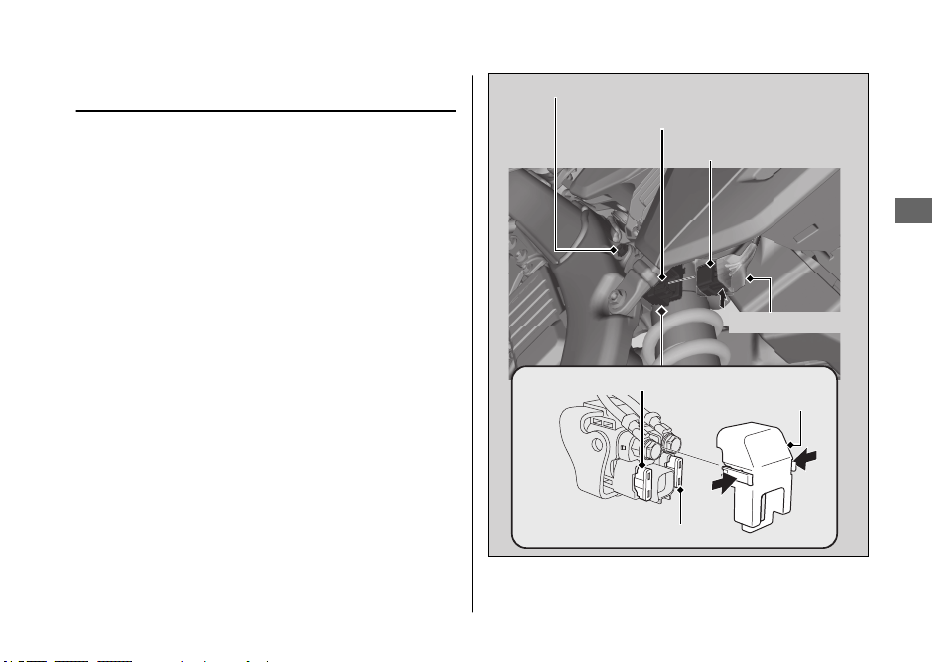

Lithium-Ion (Li-Ion) Battery

Your vehicle has a lithium-ion (li-ion) battery. Clean the battery terminals if they become dirty or corroded.

NOTICE
An improperly disposed of battery can be harmful to the environment and human health. Always confirm local regulations for proper battery disposal instruction.

What to do in an emergency

If any of the following occurs, immediately see your doctor.

  • Electrolyte splashes into your eyes:
    >> Wash your eyes repeatedly with cool water for at 15 minutes. Using water under pressure can damage your eyes.
  • Electrolyte splashes onto your skin:
    >> Remove affected clothing and wash your skin thoroughly using water.

Cleaning the Battery Terminals

  1. Remove the battery.
  2. If the terminals are starting to corrode and are coated with a white substance, wash with warm water and wipe clean.
  3. If the terminals are heavily corroded, clean and polish the terminals with a wire brush or sandpaper. Wear safety glasses.
  4. After cleaning, reinstall the battery. The battery has a limited life span. Consult your dealer about when you should replace the battery. Always replace the battery with another lithium-ion (li-ion) battery of the same type.

Charging

If you use electrical accessories that drain the battery or you do not ride frequently, we recommend that you charge the battery every 30 days using a charger recommended by your lithium-ion (li-ion) battery manufacturer.
Contact your dealer before charging the battery.
Make sure the battery terminals are disconnected before charging the battery.

NOTICE

  • Only use a charger recommended by your lithium-ion (li-ion) battery manufacturer. Using a battery charger that is not recommended can cause permanent damage to your battery.
  • Improper charging can damage the battery. If you can’t charge the battery or it appears unable to hold a charge, contact your dealer.
  • Do not jump-start, as this can damage your vehicle's electrical system and battery. Bump starting is not recommended.
  • Installing non-Honda electrical accessories can overload the electrical system, discharging the battery and possibly damaging the system.

Fuses

Fuses protect the electrical circuits on your vehicle. If something electrical on your vehicle stops working, check for and replace any blown fuses.

Inspecting and Replacing Fuses

Turn the engine off to remove and inspect the fuses. If a fuse is blown, replace with a fuse of the same rating. For fuse ratings, see “Specifications.”

NOTICE: Replacing a fuse with one that has a higher rating greatly increases the chance of damage to the electrical system.

If a fuse fails repeatedly, you likely have an electrical fault. Have your vehicle inspected by your dealer.

Tires (Inspecting/Replacing)

Checking the Air Pressure

Visually inspect your tires and use an air pressure gauge to measure the air pressure before each ride.
Always check air pressure when your tires are cold.
If you decide to adjust the tire pressure for a particular riding condition, make changes a little at a time.

Inspecting for Damage

Inspect the tires for cuts, slits, or cracks that expose fabric or cords, or nails or other foreign objects embedded in the side of the tire or the tread. Also inspect for any unusual bumps or bulges in the side walls of the tires.

Inspecting for Abnormal Wear

Inspect the tires for signs of abnormal wear on the contact surface.

Inspecting Rims and Valve Stems

Inspect the rims for damage and loose spokes. Also inspect the valve stems for their positions. A tilted valve stem indicates the tube is slipping inside the tire or the tire is slipping on the rim. See your dealer.

WARNING

Riding on tires that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.
Follow all instructions in this owner's manual regarding tire inflation and maintenance.

Have your tires replaced by your dealer. For recommended tires and air pressure, see “Specifications.”
Follow these guidelines whenever you replace tires.

  • Use the recommended tires or equivalents of the same size, construction, speed rating, and load range.
  • Remember to replace the inner tube whenever you replace a tire. The old tube will probably be stretched, and it could fail if installed in a new tire.
  • If a tube is punctured or damaged, you should replace it as soon as possible. A repaired tube may not have the same reliability as a new one, and it may fail while you are riding. Use a replacement tube equivalent to the original.

Removing & Installing Body Components

Battery

Removal

  1. Remove the battery lid by removing the bolts.
  2. Disconnect the negative - terminal from the battery.
  3. Disconnect the positive + terminal from the battery.
  4. Remove the battery band.
  5. Remove the battery assembly, taking care not to drop the terminal nuts.
  6. Separate the battery and battery rubber.

Installation

  1. Assemble the battery and battery rubber. u Make sure the + and - marks on the bottom of the battery rubber align with the positive + and negative - of the battery terminals.
  2. Install the battery assembly.
  3. Install and tighten the battery terminal bolts. Always connect the positive + terminal first. Make sure that bolts and nuts are tight.
  4. Tighten the positive + terminal bolt and negative - terminal bolt to the specified torque: 1.5 lbf·ft (2.0 N·m, 0.2 kgf·m)
  5. Install the battery band.
  6. Install the battery lid and tighten the bolts to the specified torque: 3.8 lbf·ft (5.2 N·m, 0.5 kgf·m)

Troubleshooting

Engine Will Not Start

Starter Motor Operates But Engine Does Not Start

Check the following items:

  • Check the correct engine starting sequence.
  • Check that there is gasoline in the fuel tank.
  • Check if the PGM-FI malfunction indicator lamp (MIL) is on.

Starter Motor Does Not Operate

Check the following items:

  • Check the correct engine starting sequence.
  • Check for a blown fuse.
  • Check for a loose battery connection or battery terminal corrosion,
  • Check the condition of the battery.

If the problem continues, have your vehicle inspected by your dealer as soon as possible or refer to an official Honda Service Manual available for purchase from your dealer.

Warning Indicators On or Flashing

PGM-FI (Programmed Fuel Injection) Malfunction Indicator Lamp (MIL)

If the indicator comes on while riding, you may have a serious problem with the PGM-FI system.

Reduce speed and have your vehicle inspected by your dealer as soon as possible or refer to an official Honda Service Manual available for purchase from your dealer.

Electrical Trouble

Battery Goes Dead

Battery charging is needed.
A battery charger recommended by your lithium-ion (li-ion) battery manufacturer is needed for battery charging.
Contact your dealer before charging the battery.
Remove the battery from the vehicle before charging.

NOTICE

Only use a charger recommended by your lithium-ion (li-ion) battery manufacturer. Using a battery charger that is not recommended can cause permanent damage to your battery.

If the battery does not recover after recharging, contact your dealer.

NOTICE

Do not jump-start, as this can damage your vehicle's electrical system and battery. Bump starting is not recommended.

Check the battery voltage using a digital multimeter with the cable connected. Below 1V: The battery has failed; replace the battery.

Between 1V and 8V: The battery may have failed; charge the battery and then recheck. If you can’t charge the battery or it appears unable to hold a charge, see your dealer.

Blown Fuse

Before handling fuses, see “Inspecting and Replacing Fuses"

Main fuse

  1. Disconnect the negative - terminal.
  2. Pull back the coupler cover.
  3. Disconnect the connector from the starter magnetic switch.
  4. Remove the starter magnetic switch stay bolt.
  5. Remove the starter magnetic switch cover.
  6. Pull the main fuse and check for a blown fuse. Always replace a blown fuse with a spare of the same rating.
  7. Install the starter magnetic switch cover.
  8. Install and tighten the starter magnetic switch stay bolt.
  9. Install the connector and coupler cover.
  10. Connect the negative - terminal.

NOTICE:

If a fuse fails repeatedly, you likely have an electrical problem. Have your vehicle inspected by your dealer.


Honda CRF250R | Series: Honda CRF | Pages: 80 | Created on: 2021-03-23 | File type: PDF | Filename: 47154289_2022-crf250r.pdf | Size: 3.14 MB | Language: English

Download User Manual

Product Infomation and Reviews - CRF250R photo

CRF250R Photo

T: @manualsFile

https://manualsFile.com
