Owner´s Manual and
Installation Instructions
Ranges
Electric Coil & Radiant
www.GEAppliances.ca
183D9541P007 Pub. No. 29-5619
Write the model and serial
numbers here:
Model #
__________________
Serial #
____________________
You can find them on a label,
behind the storage drawer on the
oven frame.
Coil Top and
Radiant Top Models
Standard
Clean Models
Self-Clean
Models
Safety Information
. . . . . . . . . . 2--6
Care and Cleaning . . . . . . . . 24--30
Installation Instructions
. . . . 31--35
Troubleshooting Tips
. . . . . . 36--40
Accessories
. . . . . . . . . . . . . . . . . . 41
Consumer Support
Product Registration. . . . . . . . . 42,43
Warranty . . . . . . . . . . . . . . . . . . . 44
Consumer Support. . . . . . . . . . . . 45
Operating Instructions
Surface Units . . . . . . . . . . . . . . . . 7, 8
Cookware . . . . . . . . . . . . . . . . . . . . 9
Controls . . . . . . . . . . . . . . . . . . . . 10
Oven . . . . . . . . . . . . . . . . . . . . . 11, 12
Clock, Timer and
Convenience Outlet . . . . . . . . .13, 14
Timed Baking and Roasting . . . . . 15
Special Features . . . . . . . . . . . 16 --18
Sabbath Features . . . . . . . . . . . 19, 20
Temperature Conversions . . . . . . 20
Thermostat . . . . . . . . . . . . . . . . . . .21
Self Clean . . . . . . . . . . . . . . . . . 22, 23
JCAS745
JCAP750
JCAP760
JCAP765
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
WARNING
All ranges can tip and injury could result.
To prevent accidental tipping of the range, attach
it to the wall by installing the Anti-Tip device
supplied.
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
Use this appliance only for its intended
purpose as described in this Owner's Manual.
Be sure your appliance is properly installed
and grounded by a qualified technician in
accordance with the provided installation
instructions.
Do not attempt to repair or rep1ace any
part of your range unless it is specifically
recommended in this manual. All other
servicing should be referred to a qualified
technician.
Do not leave children alone-children
should not be left alone or unattended in
an area where an appliance is in use. They
should never be allowed to sit or stand on
any part of the appliance.
Do not allow anyone to climb, stand
or hang on the door, storage drawer, or
cooktop. They could damage the range
and even tip it over, causing severe personal
injury.
Do not store flammable materials in an oven
or near the cooktop.
CAUTION: ITEMS OF INTEREST TO
CHILDREN SHOULD NOT BE STORED IN CABINETS
ABOVE A RANGE OR ON THE BACKSPLASH OF A
RANGE-CHILDREN CLIMBING ON THE RANGE TO
REACH ITEMS COULD BE SERIOUSLY INJURED.
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, personal injury, or loss of life.

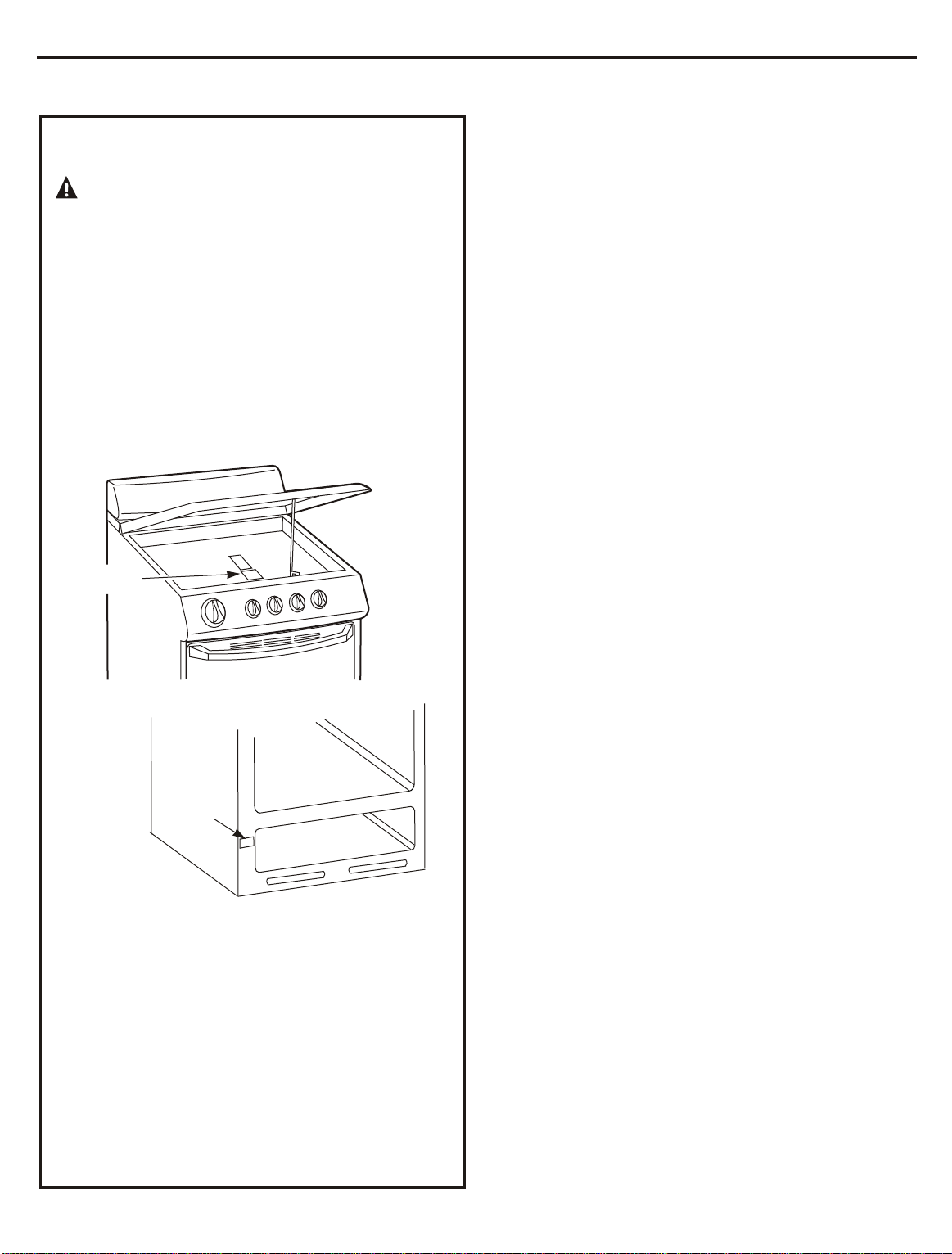

ANTI-TIP DEVICE
If the Anti-Tip device supplied with the range does
not fit this application, use the universal Anti-Tip
device WB2X7909
To check if the device is installed and engaged
properly, carefully tip the range forward. The
Anti-Tip device should engage and prevent
the range from tipping over.
Please refer to the Anti-Tip device information
in this manual. Failure to take this precaution
could result in tipping of the range and injury.
If you pull the range out from the wall for
any reason, make sure the device is properly
engaged when you push the range back against
the wall. If it is not, there is a possible risk of the
range tipping over and causing injury if you or
a child stand, sit or lean on an open door.
Safety Instructions
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
BEFORE PERFORMING ANY SERVICE, DISCONNECT
THE RANGE POWER SUPPLY AT THE HOUSEHOLD
DISTRIBUTION PANEL BY REMOVING THE FUSE OR
SWITCHING OFF THE CIRCUIT BREAKER.
2
Cook meat and poultry thoroughly-- meat to at Ieast an INTERNAL temperature of 160°F and poultry to at least an
INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.
COOK MEAT AND POULTRY THOROUGHLY. . .
SAFETY PRECAUTIONS
WARNING!
Never wear loose-fitting or hanging garments
while using the appliance. Be careful when
reaching for items stored over the range.
Flammable material could be ignited if
brought in contact with hot surface units
or heating elements and may cause severe
burns.
Use only dry pot holders-moist or damp pot
holders on hot surfaces may result in burns
from steam. Do not let pot holders touch hot
surface units or heating elements. Do not
use a towel or other bulky cloth.
For your safety never use your appliance
for warming or heating the room.
Do not let cooking grease or other flammable
materials accumulate in or near the range.
Do not use water on grease fires. Never pick
up a flaming pan. Turn the controls off.
Smother a flaming pan on a surface unit by
covering the pan completely with a well-
fitting lid, cookie sheet or flat tray. Use a
multi-purpose dry chemical or foam-type
fire extinguisher.
Flaming grease outside a pan can be put
out by covering it with baking soda or,
if available, by using a multi-purpose dry
chemical or foam-type fire extinguisher.
Flame in the oven can be smothered
completely by closing the door and turning
the oven off or by using a multi-purpose dry
chemical or foam-type fire extinguisher.
Do not touch the surface units, the heating
elements or the interior surface of the oven.
These surfaces may be hot enough to burn
even though they are dark in color. During
and after use, do not touch, or let clothing
or other flammable materials contact, the
surface units, areas nearby
the surface units
or any interior area of
the oven; allow
sufficient
time for cooling first.
Potentially hot surfaces include the cooktop,
areas facing the cooktop, oven vent
opening,
surfaces near the opening, crevices around
the oven door and metal trim parts above
the door.
REMEMBER: The inside surface of the oven
may be hot when
the door is opened.
Do not store or use combustible
materials,
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
Keep the hood and grease filters clean
to
maintain good venting and to avoid
grease fires.
Never block the vents (air openings) of the
range. They provide the air inlet and outlet
that are necessary for the range to operate
properly with correct combustion. Air
openings are located at the rear of the
cooktop, at the top and bottom of the oven
door, and at the
bottom of the range under
the storage drawer.
Safety Instructions
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
3
■ Do not clean the door gasket. The door
gasket is essential for a good seal. Care
should be taken not to rub, damage or
move the gasket.
■ Clean only parts listed in this Owner’s
Manual.
■ Do not use oven cleaners on self-clean
models. No commercial oven cleaner or
oven liner protective coating of any kind
should be used in or around any part of
the oven. Residue from oven cleaners will
damage the inside of the oven when the
self-clean cycle is used.
■ Before self-cleaning the oven, remove the
broiler pan, grid and other cookware.
■ Be sure to wipe up excess spillage before
starting the self-cleaning operation.
■ If the self-cleaning mode malfunctions,
turn the oven off and disconnect the power
supply. Have it serviced by a qualified
technician.
■ Take the shelves out of the oven before
you begin the self-clean cycle or they
may discolor.
SELF-CLEANING OVEN
(on some models)
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
4
■ Stand away from the range when opening
the oven door. Hot air or steam which
escapes can cause burns to hands, face
and/or eyes.
■ Do not heat unopened food containers.
Pressure could build up and the container
could burst, causing an injury.
■ Keep the oven vent unobstructed.
■ Keep the oven free from grease buildup.
■ Place the oven shelf in the desired position
while the oven is cool. If shelves must be
handled when hot, do not let pot holder
contact the heating elements.
■ Pulling out the shelf to the stop-lock is a
convenience in lifting heavy foods. It is also
a precaution against burns from touching
hot surfaces of the door or oven walls.
■ When using cooking or roasting bags in the
oven, follow the manufacturer’s directions.
■ Do not use the oven to dry newspapers.
If overheated, they can catch on fire.
■ Do not use the oven for a storage area.
Items stored in an oven can ignite.
■ Do not leave paper products, cooking
utensils or food in the oven when not in use.
OVEN
Operating
Instructions
Safety Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
5
Use proper pan size–select cookware having flat bottoms large enough to cover the surface unit
heating element. The use of undersized cookware will expose a portion of the surface unit to direct
contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will also
improve efficiency.
■ Never leave the surface units unattended at
high heat settings. Boilovers cause smoking
and greasy spillovers that may catch on fire.
■ Only certain types of glass, glass ⁄ceramic,
earthenware or other glazed containers are
suitable for cooktop service; others may
break because of the sudden change in
temperature.
■ To minimize the possibility of burns,
ignition of flammable materials and spillage,
the handle of a container should be turned
toward the center of the range without
extending over nearby surface units.
■ Always turn the surface units off before
removing cookware.
■ Do not flame foods on the cooktop. If you
do flame foods under the hood, turn the
fan on.
■ Keep an eye on foods being fried at high or
medium high heat settings.
■ Foods for frying should be as dry as possible.
Frost on frozen foods or moisture on fresh
foods can cause hot fat to bubble up and
over the sides of the pan.
■ Use little fat for effective shallow or deep fat
frying. Filling the pan too full of fat can
cause spillovers when food is added.
■ If a combination of oils or fats will be used in
frying, stir together before heating, or as fats
melt slowly.
■ Always heat fat slowly, and watch as it heats.
■ Use a deep fat thermometer whenever
possible to prevent overheating fat beyond
the smoking point.
SURFACE UNITS–ALL MODELS
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Safety Instructions
Consumer Support
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
6
■ Avoid scratching the glass cooktop. The
cooktop can be scratched with items such as
sharp instruments, rings or other jewelry and
rivets on clothing.
■ Large scratches or impacts to glass doors
or cooktops can lead to broken or shattered
glass.
■ Do not operate the radiant surface units if
the glass is broken. Spillovers or cleaning
solution may penetrate a broken cooktop
and create a risk of electrical shock. Contact
a qualified technician immediately should
your glass cooktop become broken.
■ Never use the glass cooktop surface as a
cutting board.
■ Do not place or store items that can melt or
catch fire on the glass cooktop, even when it
is not being used.
■ Be careful when placing spoons or other
stirring utensils on the glass cooktop surface
when it is in use. They may become hot and
could cause burns.
■ Clean the cooktop with caution. If a wet
sponge or cloth is used to wipe spills on a
hot surface unit, be careful to avoid steam
burns. Some cleaners can produce noxious
fumes if applied to a hot surface.
NOTE: We recommend that you avoid wiping
any surface unit areas until they have cooled
and the indicator light has gone off. Sugar
spills are the exception to this. Please see
Cleaning the glass cooktop section.
■ When the cooktop is cool, use only the
recommended cleaning cream to clean
the cooktop.
■ To avoid possible damage to the cooking
surface, do not apply cleaning cream to the
glass surface when it is hot.
■ After cleaning, use a dry cloth or paper towel
to remove all cleaning cream residue.
■ Read and follow all instructions and
warnings on the cleaning cream labels.
■ Do not lift the cooktop. Lifting the cooktop
can lead to damage and improper operation
of the range.
Use care when touching the cooktop. The glass surface of the cooktop will retain heat after the controls
have been turned off.
WARNING!
RADIANT SURFACE UNITS (on some models)
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Operating
Instructions
Safety Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
■ Clean the cooktop with caution. If a
wet sponge is used to wipe spills on a hot
cooktop, be careful to avoid steam burns.
■ To avoid the possibility of a burn or electric
shock, always be certain that the controls for
all surface units are at the OFF position and
all coils are cool before attempting to lift or
remove a unit.
■ Do not immerse or soak the removable
surface units. Do not put them in a
dishwasher.
■ Be sure the drip pans and the vent duct are
not covered and are in place. Their absence
during cooking could damage range parts
and wiring.
■ Do not use aluminum foil to line the drip
pans or anywhere in the oven except as
described in this manual. Misuse could
result in a shock, fire hazard or damage
to the range.
WARNING!
COIL SURFACE UNITS (on some models)
Safety Instructions
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
Throughout this manual, features and appearance may vary from your model.
Using the surface units.
In a quiet kitchen, you may hear
slight clicking sounds during cooking,
indicating heat settings selected are being
maintained.
Switching heats to higher settings always
shows a quicker change in temperature
than switching to lower settings.
Surface Cooking Controls
Your surface units and controls are designed
to give you a variety of heat settings for surface
unit cooking.
At both LO and Hl positions, there is
a slight niche so control clicks at those
positions; Hl marks the highest setting;
LO, the lowest setting.
How to Set the Controls
Push the control knob in.
Turn either clockwise or
counterclockwise to desired
heat setting.
Control must be pushed in to set only
from the 0FF position.
When control is in any position
other than OFF, you can turn it without
pushing in.
Be sure you turn control to OFF when
you finish cooking. An indicator light
will glow wen ANY surface unit is on.
A Burner On indicator light will glow
when any surface unit is on.
Heat Setting Guide
MAX —Quick start for cooking; bring water
to boil.
MEDIUM HIGH—Fast fry, pan broil;
maintain fast boil on large amount
of food.
MED — Saute and brown; maintain slow
boil on large amount of food.
MEDIUM LOW-Cereal; maintain serving
temperature of most foods.
NOTE:
MIN — Cook after starting at HI; cook
with little water in covered pan. Use to
steam rice.
At MAX or MEDIUM HIGH, never leave
food unattended. Boilovers cause
smoking; greasy spillovers may
catch fire.
At MIN, melt chocolate, butter on
small unit.
Cooking Tips
Use medium- or heavyweight
cookware. Aluminum cookware
conducts heat faster than other
metals. Cast-iron and coated cast-iron
cookware is slow to absorb heat,
but generally cooks evenly at low or
medium heat settings. Steel pans may
cook unevenly if not combined with
other metals.
Do not overfill cookware with fat
that may spill over when adding food.
Frosty foods bubble vigorously. Watch
foods frying at high temperatures.
Keep range and hood clean from
accumulated grease.
To conserve the most cooking energy,
pans should be flat on the bottom,
have straight sides and tight-fitting
lids. Match the size of the saucepan
to the size of the surface unit. A pan
that extends more than an inch
beyond the edge of the drip pan
traps heat, which causes “crazing”
(fine hairline cracks) on porcelain,
and discoloration ranging from blue
to dark gray on chrome drip pans.
1
2
1
2
5
7
MIN
MAX
MED
OFF
2
1
5
4
Medium
low
Medium
high
A Hot indicator light will glow when any radiant
element is turned on, and will remain on until
the surface is cool enough to touch.
A Burner On indicator light will glow when any
surface unit is on.
NOTE: The Hot indicator light may glow between the
surface control settings of Min and OFF, but there is no
power to the surface units.
Using the surface units.
Throughout this manual, features and appearance may vary from your model.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Safety Instructions
Consumer Support
Min
Max
Min
Max
Burner
On
Surface
de cuisson
Hot
Chaud
Indicator Lights (on radiant glass models only)
About the radiant surface units…
The radiant cooktop features heating units
beneath a smooth glass surface.
NOTE: A slight odor is normal when a new cooktop
is used for the first time. It is caused by the heating
of new parts and insulating materials and will
disappear in a short time.
The surface unit will cycle on and off to
maintain your selected control setting.
It is safe to place hot cookware from the
oven or surface on the glass surface when
the surface is cool.
Even after the surface units are turned off,
the glass cooktop retains enough heat to
continue cooking. To avoid over-cooking,
remove pans from the surface units when
the food is cooked. Avoid placing anything
on the surface unit until it has cooled
completely.
Do not slide cookware across the cooktop
because it can scratch the glass—the glass is
scratch resistant, not scratch proof.
■ Water stains (mineral deposits) are removable
using the cleaning cream or full-strength white
vinegar.
■ Use of window cleaner may leave an iridescent
film on the cooktop. The cleaning cream will
remove this discoloration.
■ Don’t store heavy items above the cooktop. If they
drop onto the cooktop, they can cause damage.
■ Do not use the surface as a cutting board.
Using the radiant surface units. (on some models)
8
;;
;;
;;;
;;;;;
;;;;;;;
;;;
;
;
;;;
;;;;;;
;;;;;;
;
;;;

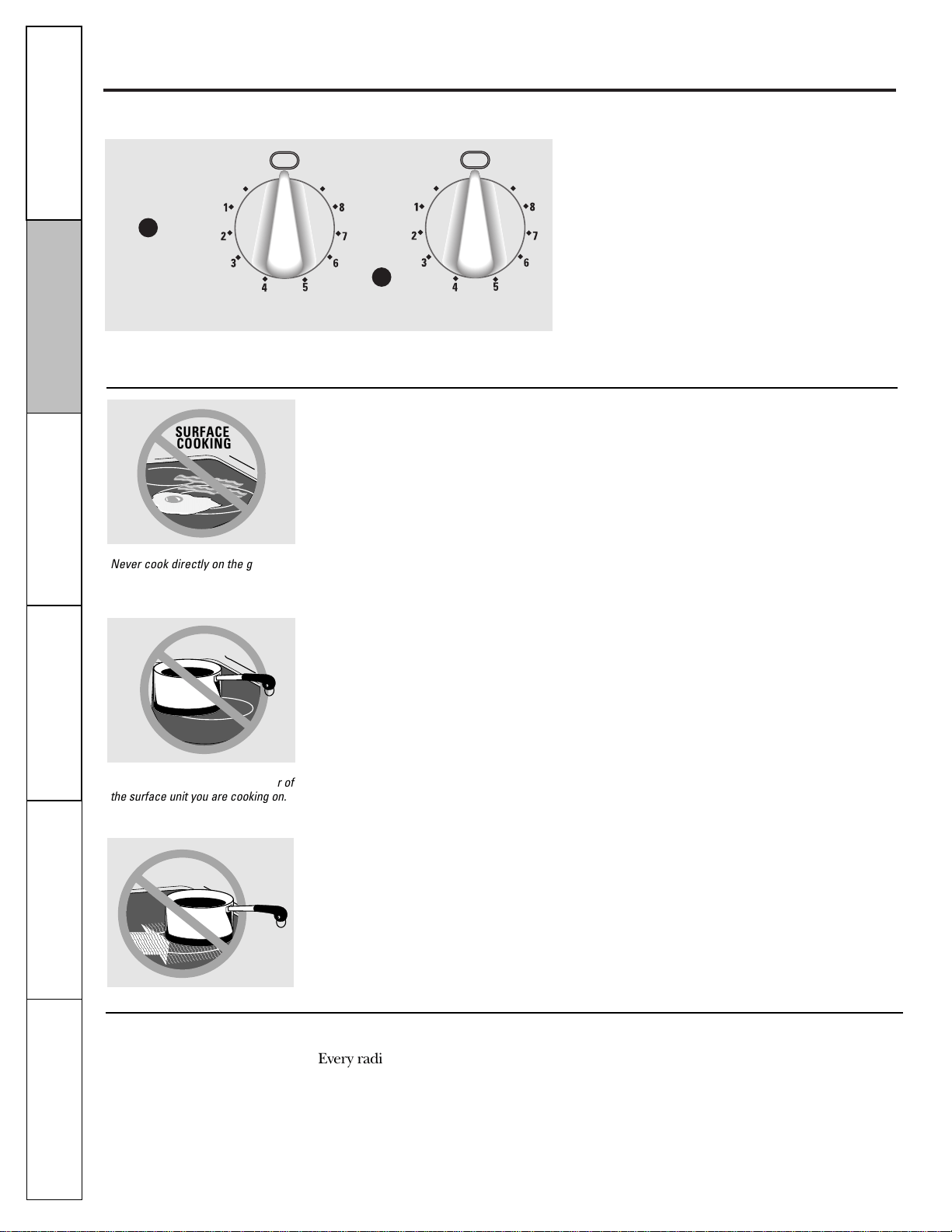

SURFACE
COOKING
Never cook directly on the glass.
Always use cookware.
;;;;
;;;;;;;;
;;;;;;;;;
;;;;
;;
;;;;
;;;;;
;;;;
;;;;
;;;
;;;
OFF CENTER
Always place the pan in the center of
the surface unit you are cooking on.
Every radiant surface unit has a
temperature limiter.
The temperature limiter protects the glass
cooktop from getting too hot.
The temperature limiter may cycle the
units off for a time if:
■ The pan boils dry.
■ The pan bottom is not flat.
■ The pan is off center.
■ There is no pan on the unit.
Temperature Limiter
;;
;;;;;
;;;;;;;;;
;;;
;;;
;
;;
;
;
;;;;;;;
;;;
;;;
;;;
;
;
;;
;
DRAGGING
8
9
Selecting types of cookware.
The following information will help you choose cookware which will give good performance on glass cooktops.
Stainless Steel:
recommended
Aluminum:
heavy weight recommended
Good conductivity. Aluminum residues
sometimes appear as scratches on the
cooktop, but can be removed if cleaned
immediately. Because of its low melting
point, thin-weight aluminum should not
be used.
Copper Bottom:
recommended
Copper may leave residues which can
appear as scratches. The residues can be
removed, as long as the cooktop is cleaned
immediately. However, do not let these pots
boil dry. Overheated metal can bond to
glass cooktops. An overheated copper
bottom pot will leave a residue that will
permanently stain the cooktop if not
removed immediately.
Porcelain Enamel Covered Cast Iron:
recommended
As long as the cookware is covered
completely with porcelain enamel, this
cookware is recommended. Caution is
recommended for cast-iron cookware
that is not completely covered with smooth
porcelain enamel, as it may scratch the
glass-ceramic cooktop.
Glass-ceramic:
usable, but not recommended
Poor performance. May scratch the surface.
Stoneware:
usable, but not recommended
Poor performance. May scratch the surface.
Home Canning Tips:
Be sure the canner is centered over the
surface unit.
Make sure the canner is flat on the bottom.
Use recipes and procedures from
reputable sources. These are available
from manufacturers such as Ball
®
and
Kerr
®
and the Department of Agriculture
Extension Service.
To prevent burns from steam or heat, use
caution when canning.
Check pans for flat bottoms by using
a straight edge.
Pans with rounded, curved, ridged
or warped bottoms are not
recommended.
Wok Cooking
We recommend that you use only a flat-bottomed
wok. They are available at your local retail store.
Do not use woks that have support rings.
Use of these types of woks, with or without
the ring in place, can be dangerous.
Placing the ring over the surface unit will
cause a buildup of heat that will damage
the porcelain cooktop. Do not try to use
such woks without the ring. You could be
seriously burned if the wok tips over.
Use only flat-bottomed woks.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Safety Instructions
Consumer Support
Use medium- or heavy-weight cookware.
Aluminum cookware conducts heat faster
than other metals. Cast-iron and coated
cast-iron cookware are slow to absorb heat,
but generally cook evenly at low to medium
heat settings. Steel pans may cook unevenly
if not combined with other metals.
For best cooking results, pans should be
flat on the bottom. Match the size of the
saucepan to the size of the surface unit.
The pan should not extend over the edge
of the surface unit more than 1 inch.
Not over 1 inch
1″
The following information will help you choose cookware which will give good performance on coil cooktops.
Surface Cookware Tips
10
Safety Instructions
Operating Instructions
Care and CleaningTroubleshooting TipsConsumer Support
Using the oven controls.
Throughout this manual, features and appearance may vary from your model.

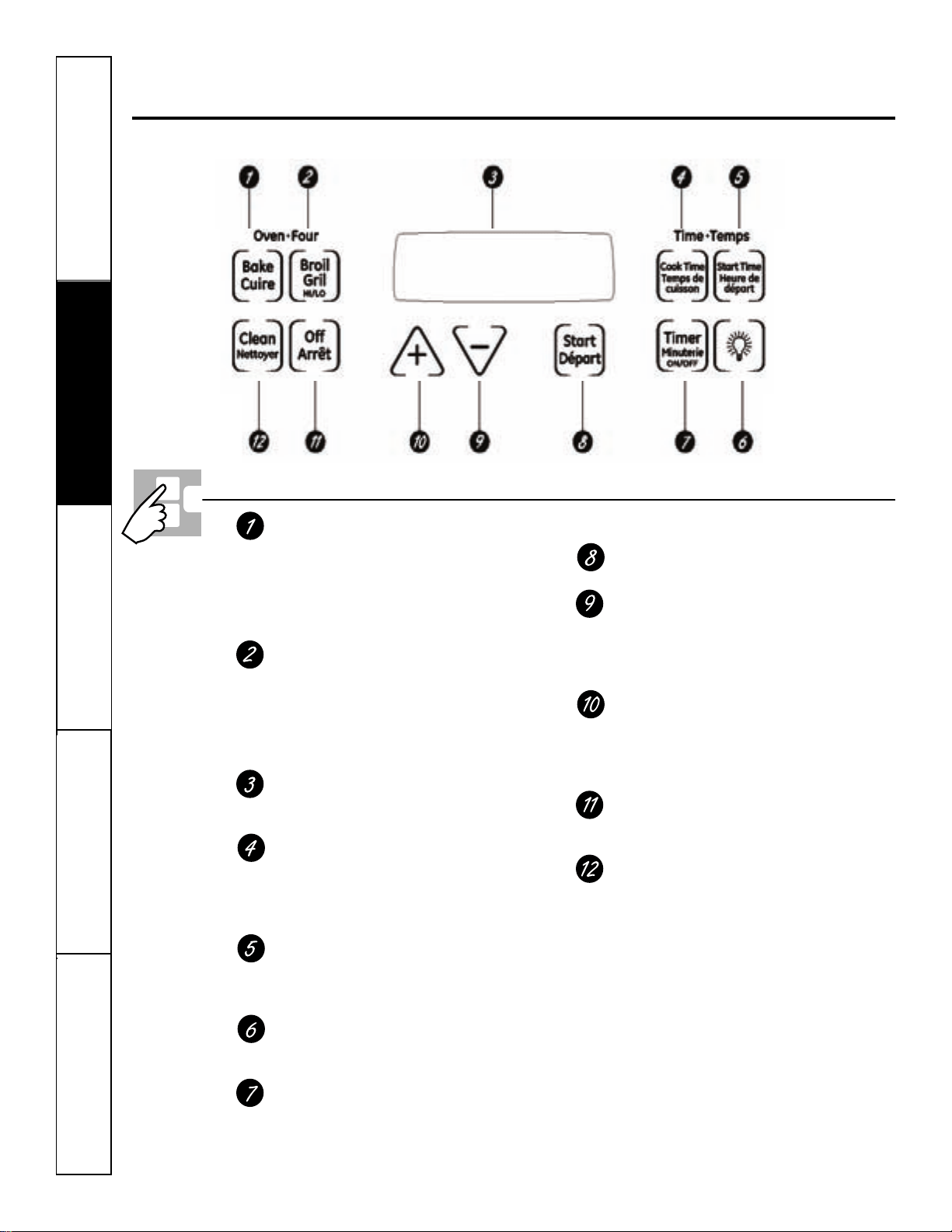

Oven Control, Clock and Timer Features and Settings
BAKE Pad
Touch this pad to select the bake function.
BAKE Light
Flashes while in edit mode—you can change the
oven temperature at this point.
BROIL HI/LO Pad
Touch this pad to select the broil function.
BROIL Light
Flashes while in edit mode—you can switch
from HI to LO BROIL at this point.
Display
Shows the operations you have selected,
the time of day and the cooking status.
COOK TIME Pad
Touch this pad and then touch the + or – pad
to set the amount of time you want your food to
cook. The oven will shut off when the cooking
time has run out.
START TIME Pad
Use along with the COOK TIME or
SELF CLEAN pad to set the oven to start and stop
automatically at a time you set.
OVEN LIGHT ON/OFF Pad
Touch this pad to turn the oven light on
or off.
TIMER/CLOCK Pad
Touch this pad to select the timer feature. Then
press + and – pads to adjust time.
To set the clock, touch this pad and hold 3
seconds and then touch the + and – pads. The
time of day will flash in the display when the
oven is first turned on.
START Pad
Must be touched to start any cooking function.
– Pad
Short taps to this pad will decrease the time
or temperature by small amounts. Touch
and hold the pad to decrease the time or
temperature by larger amounts.
+ Pad
Short taps to this pad will increase the time
or temperature by small amounts. Touch
and hold the pad to increase the time or
temperature by larger amounts.
CLEAR/OFF Pad
Touch this pad to cancel ALL oven operations
except the clock and timer.
SELF CLEAN Pad
Touch this pad to select the self-cleaning
function. See the Using the self-cleaning oven
section.
CLEAN Light
Flashes while in edit mode—you can change the
length of time for the self-clean cycle at this
point. Glows when the oven is in the self-clean
cycle. After the self-clean cycle, the light will turn
off. Unlatch the door.
If “F– and a number or letter” flash in the display and the oven
control signals, this indicates a function error code.
Touch the CLEAR/OFF pad. Allow the oven to cool for one hour.
Put the oven back into operation.
If function error code repeats, disconnect power to the oven and
call for service.
12
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
To avoid possible burns, place the shelves in the
desired position before you turn the oven on.
The shelves have stop-locks, so that when
placed correctly on the shelf supports (A
through E), they will stop before coming
completely out, and will not tilt.
When placing and removing cookware,
pull the shelf out to the bump on the
shelf support.
To remove a shelf, pull it toward you, tilt the
front end up and pull it out.
To replace, place the end of the shelf (stop-
locks) on the support, tilt up the front and
push the shelf in.
NOTE: The shelf is not designed to slide out
at the special low shelf (R) position.
Turn this knob to the setting you want.
■ The oven cycling light glows until the
oven reaches your selected temperature,
then goes off and on with the oven
element(s) during cooking.
Oven Temperature Knob (on some models)
Before you begin…
Using the oven.
TIMER Pad
Touch this pad to select the timer feature.
CLOCK Pad
Touch this pad before setting the clock.
Display
Shows the time of day and the time set for the timer, cook time or start time.
SET +/- Pads
These pads allow you to set the clock and timer.
Clock and Timer (on some models)
Appearance may vary.

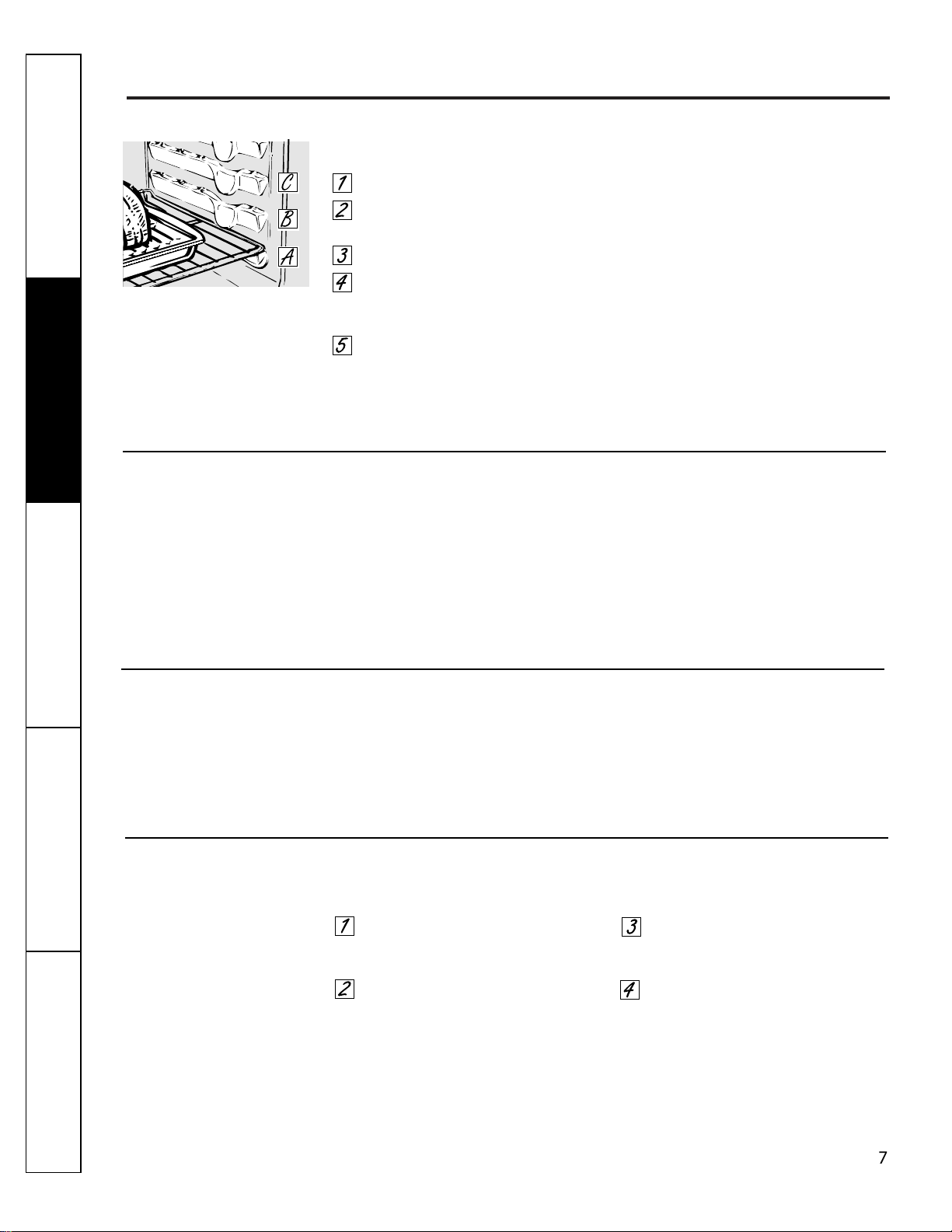

A
B
C
D
The oven has 4 shelf positions.
Oven shelf positions
The oven has four shelf supports---- A
(bottom), B, C and D (top).
11
Using the oven.
How to Set the Oven for Baking or Roasting

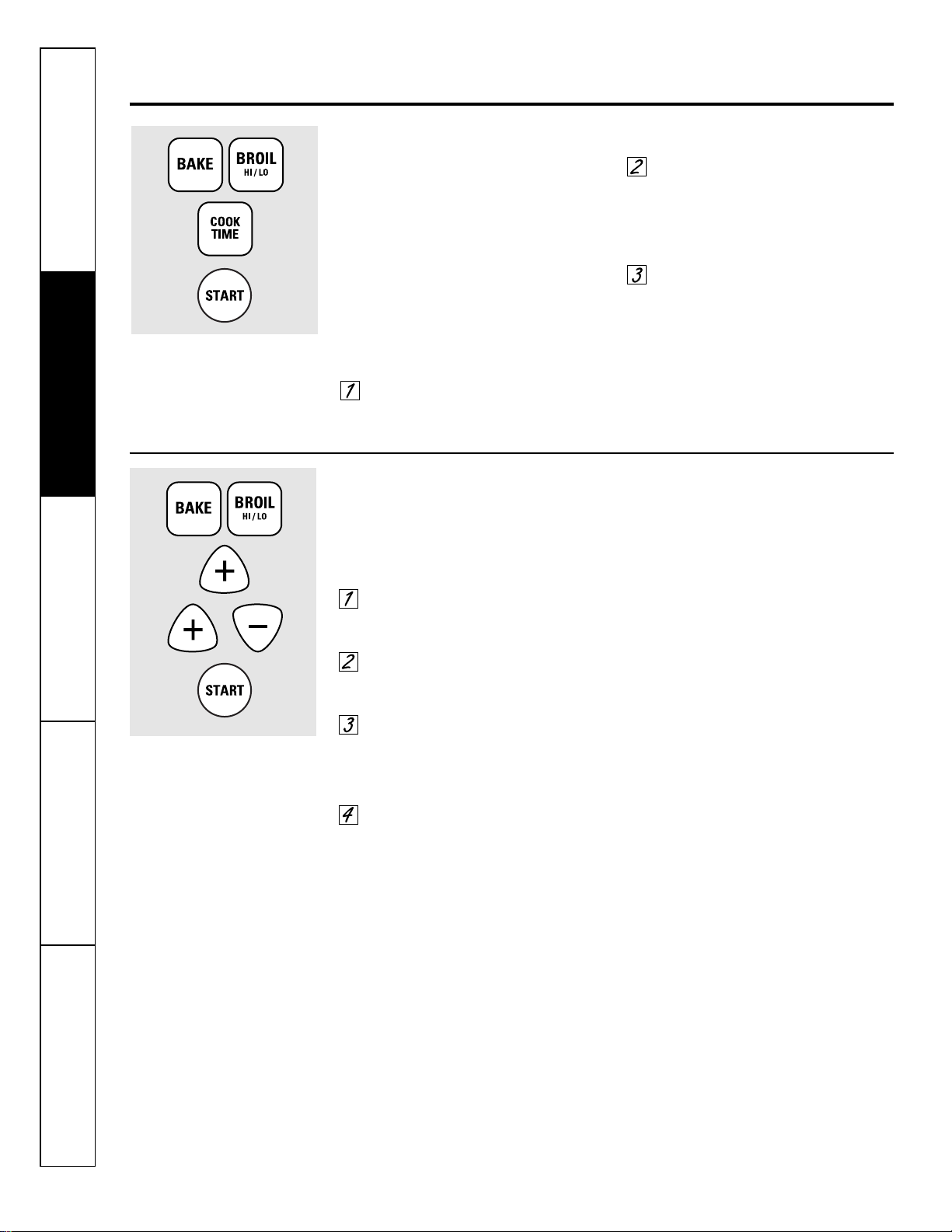

Touch the BAKE pad.
Touch the + or – pad to set the
desired temperature.
Touch the START pad.
Check food for doneness at
minimum time on recipe. Cook
longer if necessary.
Touch the CLEAR/OFF pad when
cooking is complete.
NOTE: A cooling fan may automatically turn on
and off to cool internal parts. This is normal, and
the fan may continue to run even after the oven is
turned off.
Preheating and Pan Placement
Preheat the oven if the recipe calls for it.
To preheat, set the oven at the correct
temperature. Preheating is necessary for
good results when baking cakes, cookies,
pastry and breads.
For ovens without a preheat indicator light or
tone, preheat 10 minutes.
Baking results will be better if baking
pans are centered in the oven as much
as possible. Pans should not touch each
other or the walls of the oven. If you
need to use two shelves, stagger the pans
so one is not directly above the other,
and leave approximately 1
1
⁄2″ between
pans, from the front, back and sides of
the wall.
Safety Instructions
Operating Instructions Care and Cleaning
Troubleshooting Tips Consumer Support
7
Aluminum Foil
Do not use aluminum foil on the bottom
of the oven.
Never entirely cover a shelf with
aluminum foil. This will disturb the heat
circulation and result in poor baking.
A smaller sheet of foil may be used to
catch a spillover by placing it on a lower
shelf several inches below the food.
12
How to Set the Oven for Broiling
Place the meat or fish on a broiler
grid in a broiler pan designed
for broiling.
If your oven is connected to 208 volts, rare steaks
may be broiled by preheating the broiler and
positioning the oven shelf one position higher.
Touch the BROILHI/LO pad once for
HI Broil.
To change to LO Broil, touch the
BROIL HI/LO pad again.
Touch the START pad.
When broiling is finished, touch the
CLEAR/OFF pad.
Not all features are on all models.
The timer is a minute timer only.
The OFF pad does not affect the
timer.
Make sure the clock is set to the
correct time of day.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Safety Instructions
Consumer Support
Touch TIMER pad and hold for

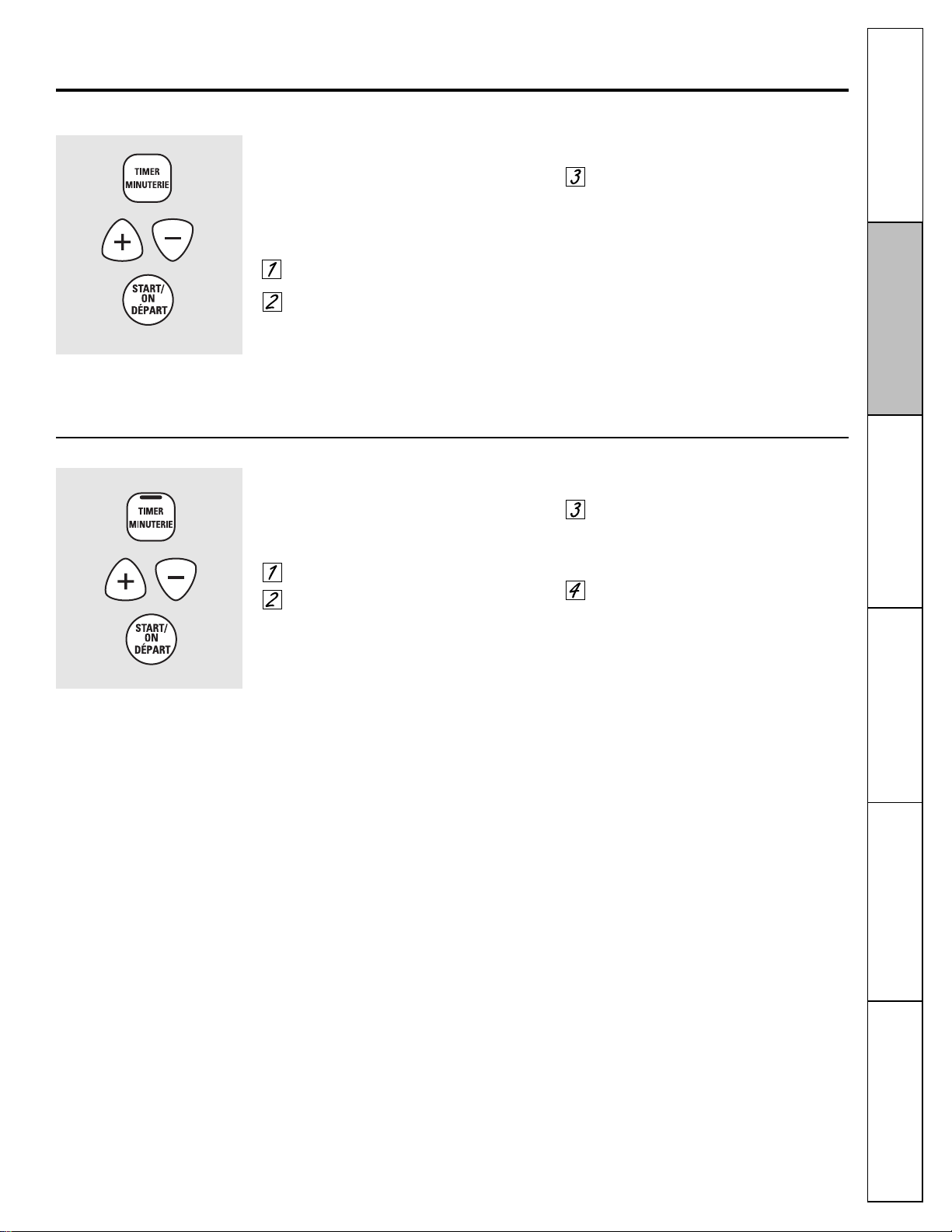

Using the clock, timer and convenience outlet. (on some models)
To Set the Clock
The clock must be set to the correct time
of day for the automatic oven timing
functions to work properly. The time of day
cannot be changed during a timed baking
or self-cleaning cycle.
If the + or – pads are not touched within
the display reverts to the original setting.
reenter the time of day.
Touch the START/ON pad until the
time of day shows in the display. This
enters the time and starts the clock.
To check the time of day when the display is
showing other information, simply touch the
TIMER pad. The time of day shows until
another pad is touched.
one minute after you touch the TIMER pad,
If this happens, touch the TIMER pad and
To Set the Timer
The timer does not control oven operations.
The maximum setting on the timer is 9 hours
and 59 minutes.
Touch the TIMER pad.
Touch the + or – pads until the
amount of time you want shows in
the display. The maximum time that
can be entered in minutes is 59.
Times more than 59 minutes should
be changed to hours and minutes.
If you make a mistake, touch the TIMER pad and
begin again.
Touch the START/ON pad. The time
will start counting down, although
the display does not change until one
minute has passed.
When the timer reaches :00, the
control will beep 3 times followed by
one beep every 6 seconds until the
TIMER pad is touched.
13
Touch the + or – pads.
3 seconds.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
14
Not all features are on all models.

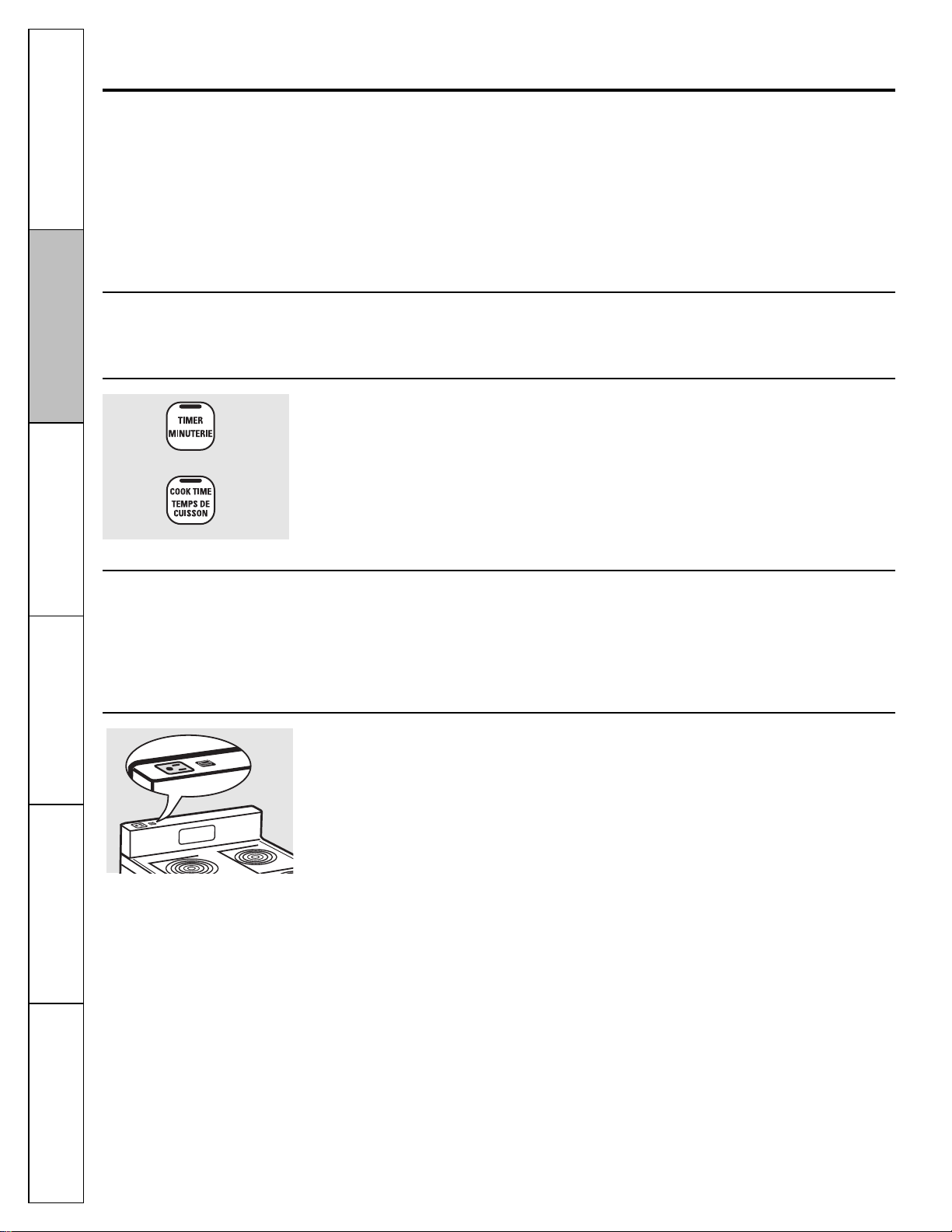

Using the clock, timer and convenience outlet. (on some models)
To Reset the Timer
If the display is still showing the time
remaining, you may change it by touching
the TIMER pad, then touch the + or – pads
until the time you want appears in the
display.
If the remaining time is not in the display
(clock, delay start or cooking time are in
the display), recall the remaining time by
touching the TIMER pad and then touching
the + or – pads to enter the new time you
want.
To Cancel the Timer
Touch the TIMER pad twice.
End of Cycle Tones (on some models)
Clear the tones by pressing the pad of the
function you are using.
Power Outage
If a flashing time is in the display, you have
experienced a power failure. Reset the clock.
To reset the clock, touch the TIMER pad
twice. Enter the correct time of day by
touching the + or – pads. Touch the
START/ON pad.
OR
Convenience Outlet (on some models)
The 120V convenience outlet located on
the top of the backguard may be used to
plug in small electrical appliances.
When using the outlet, be sure that the
electrical cord does not rest on or near a
surface unit. If the surface unit is turned
on, the cord will be damaged.
To reset the circuit breaker, press the
switch located near the outlet on top of
the backguard.
15

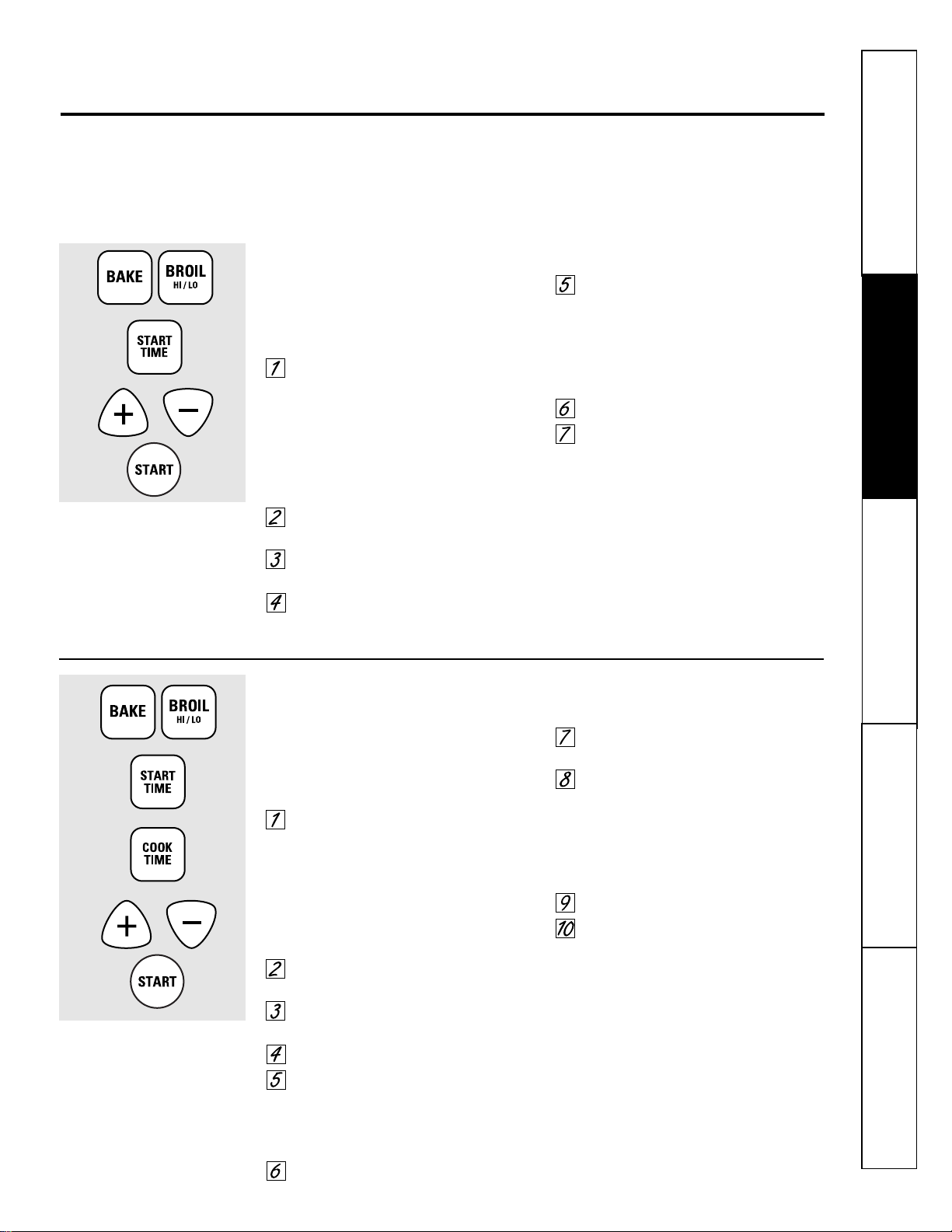

Using the timed baking and roasting features. (on some models)
NOTE: Foods that spoil easily–such as milk, eggs, fish, stuffings, poultry and pork–should not be allowed to sit for
more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that
the oven light is off because heat from the bulb will speed harmful bacteria growth.

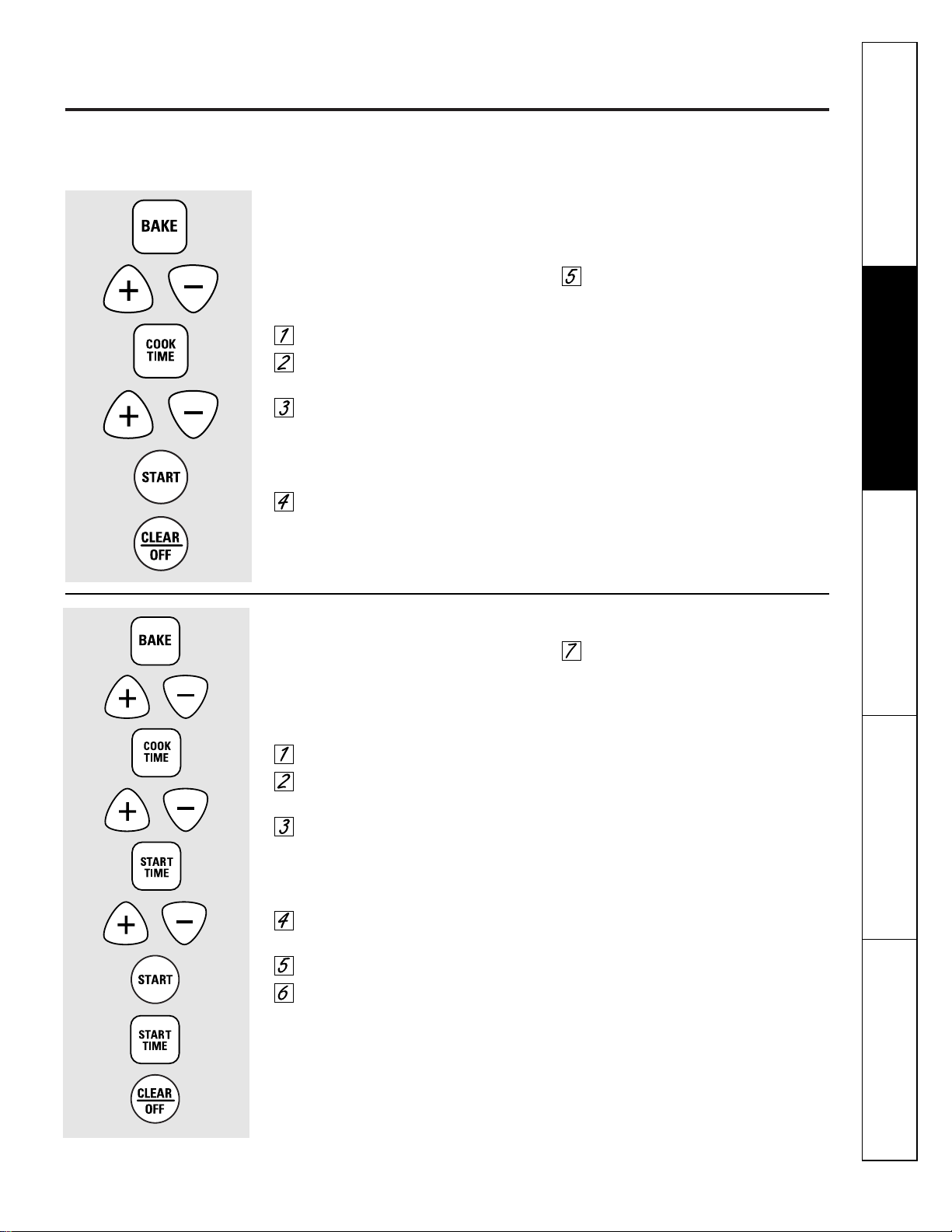

How to Set an Immediate Start and Automatic Stop
The oven will turn on immediately and cook for a
selected length of time. At the end of the cooking
time the oven will turn off automatically.
Make sure the clock shows the correct
time of day.
Touch the BAKE pad.
Using the + or – pad, enter the
desired temperature.
Touch the COOK TIME pad.
NOTE: If your recipe requires preheating, you
may need to add additional time to the length of
the cooking time.
Using the + or – pad, enter the
desired baking time.
The oven temperature and the cooking
time that you entered will be displayed.
Touch the START pad.
The display shows the oven temperature
that you set and the cooking time
countdown. The display starts changing
once the temperature reaches 100°F.
The oven will continue to cook for the
programmed amount of time, then shut
off automatically.
Touch the CLEAR/OFF pad to clear the
display.
How to Set a Delayed Start and Automatic Stop
You can set the oven control to delay-start the
oven, cook for a specific length of time and then
turn off automatically.
Make sure the clock shows the correct
time of day.
Touch the BAKE pad.
Using the + or – pad, enter the
desired temperature.
Touch the COOK TIME pad.
NOTE: If your recipe requires preheating, you
may need to add additional time to the length of
the cooking time.
Using the + or – pad, enter the
desired baking time.
Touch the START TIME pad.
Using the + or – pad, enter the time
of day you want the oven to turn on
and start cooking.
Touch the START pad.
NOTE: An attention tone will sound if you are
using timed baking and do not touch the START
pad after entering the baking temperature.
If you would like to check the times you
have set touch the START TIME pad to
check the start time you have set or touch
the COOK TIME pad to check the
length of cooking time you have set.
When the oven turns on at the time
of day you have set, the display will show
the changing temperature (starting at
100°F) and the cooking time countdown.
At the end of timed baking, the oven
will turn off. The end of cycle tone will
sound.
Touch the CLEAR/OFF pad to clear the
display.
Safety Instructions
Operating Instructions
Care and CleaningTroubleshooting TipsConsumer Support
Safety Instructions
Operating Instructions Care and Cleaning
Troubleshooting Tips Consumer Support

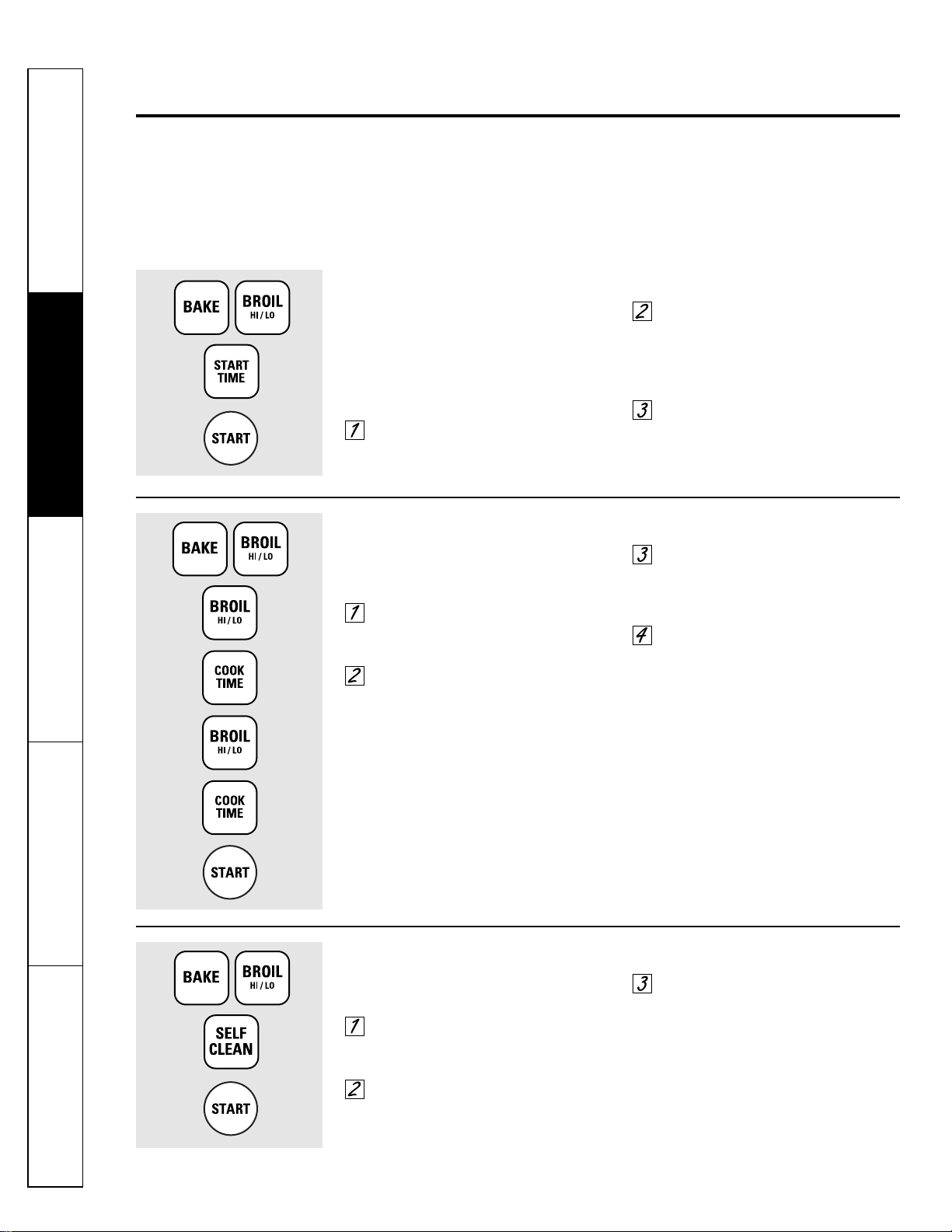

Special features of your oven control.
Your new touch pad control has additional features that you may choose to use. The following are the features
and how you may activate them.
The special feature modes can only be activated while the display is showing the time of day. They remain in
the control’s memory until the steps are repeated.
When the display shows your choice, touch the START pad. The special features will remain in memory after
a power failure, except for the Sabbath feature, which will have to be reset.
12 Hour Shut-Off
With this feature, should you forget and leave the
oven on, the control will automatically turn off the
oven after 12 hours during baking functions or
after 3 hours during a broil function.
If you wish to turn off this feature, follow
the steps below.
Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.
Touch the START TIME pad. The
display will show 12 shdn (12 hour
shut-off). Touch the START TIME
pad again and the display will show
no shdn (no shut-off).
Touch the START pad to activate the
no shut-off and leave the control
set in this special features mode.
Fahrenheit or Celsius Temperature Selection
Your oven control is set to use the Fahrenheit
temperature selections but you may change this
to use the Celsius selections.
Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.
Touch the BROIL HI/LO and
COOK TIME pads at the same time
for 2 seconds. The display will show
F (Fahrenheit).
Touch the BROIL HI/LO and
COOK TIME pads again at the
same time for 2 seconds. The display
will show C (Celsius).
Touch the START pad.
Control Lockout
Your control will allow you to lock down the touch
pads so they cannot be activated when touched.
Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.
Touch the SELF CLEAN pad. The
display will show LOC OFF.
Touch the SELF CLEAN pad again.
The display will show LOC ON.
Touch the START pad to activate
the control lockout feature and
leave the control set in this special
features mode.
When this feature is on and the touch
pads are touched the control will beep
and the display will show LOC.
NOTE: The control lockout mode will not affect
the TIMER/CLOCK and OVEN LIGHT ON/OFF
touch pads.
16
17
Safety Instructions
Operating Instructions
Care and CleaningTroubleshooting TipsConsumer Support

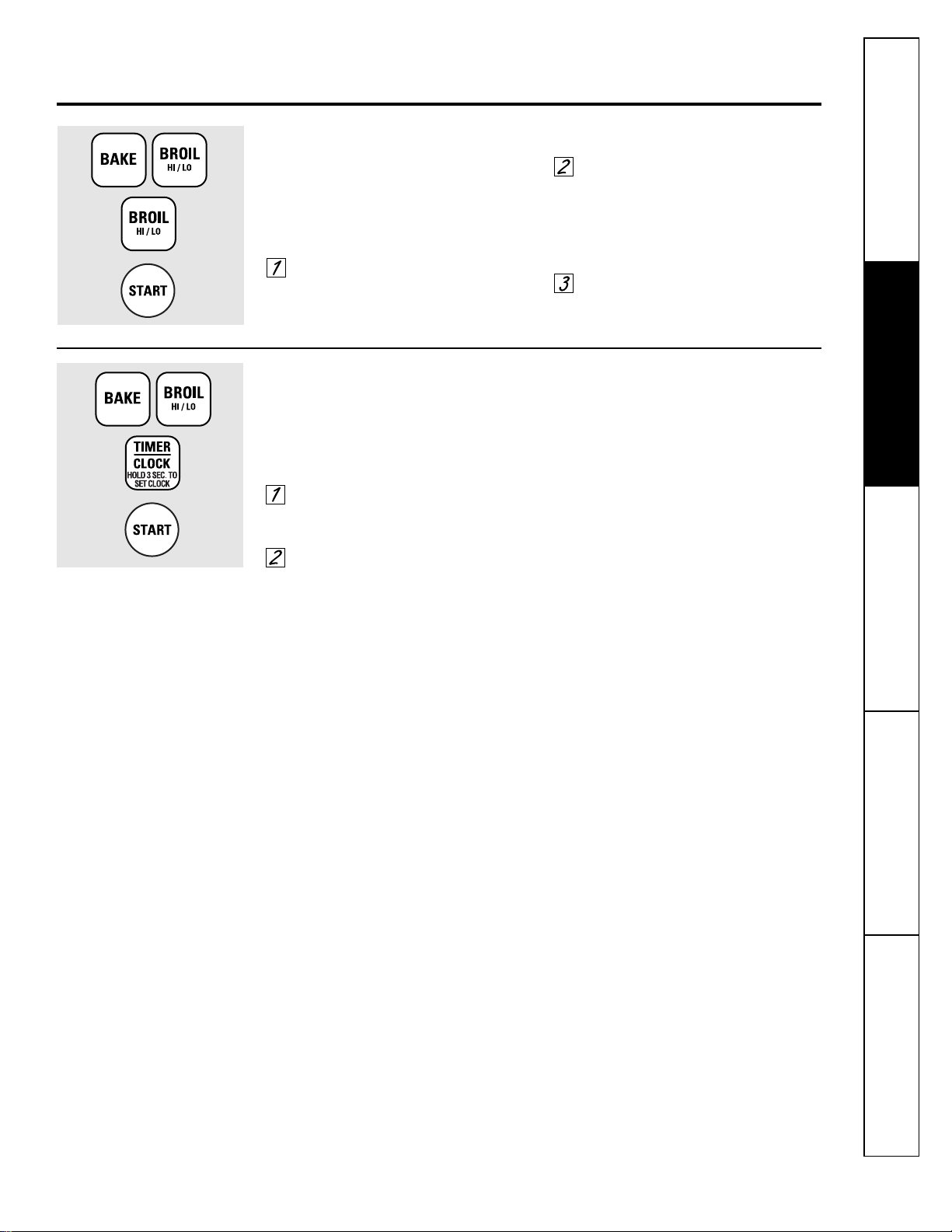

Special features of your oven control.
Tones at the End of a Timed Cycle
At the end of a timed cycle, 3 short beeps will
sound followed by one beep every 6 seconds until
the CLEAR/OFF pad is touched. This continuous 6
second beep may be canceled.
To cancel the 6 second beep:
Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.
Touch the BROIL HI/LO pad. The
display shows CON BEEP (continuous
beep). Touch the BROIL HI/LO pad
again. The display shows BEEP.
(This cancels the one beep
every 6 seconds.)
Touch the START pad.
12 Hour, 24 Hour or Clock Black-Out
Your control is set to use a 12 hour clock.
If you would prefer to have a 24 hour
military time clock or black-out the clock
display, follow the steps below.
Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.
Touch the TIMER/CLOCK pad once.
The display will show 12 hr. If this is
the choice you want touch the
START pad.
Touch the TIMER/CLOCK pad again
to change to the 24 hour military
time clock. The display will show 24
hr. If this is the choice you want
touch the START pad.
Touch the TIMER/CLOCK pad again
to black-out the clock display. The
display will show OFF. If this is the
choice you want touch the START
pad.
NOTE: If the clock is in the black-out mode you
will not be able to use the Delay Start function.
18
Safety Instructions
Operating Instructions Care and Cleaning
Troubleshooting Tips Consumer Support
Cook and Hold
Your new control has a cook and hold feature that
keeps cooked foods warm for up to 3 hours after
Timed Baking or Roasting is finished.
NOTE: This feature can only be programmed to
work with Timed Baking or Roasting. (See the
Using the timed baking and roasting features
section.) After Timed Baking or Roasting has
automatically stopped, the programmed Cook
and Hold will automatically start.
To activate this feature for use after
Timed Baking or Roasting, follow the
steps below.
Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.
Touch the COOK TIME pad.
The display will show Hld OFF.
Touch the COOK TIME pad again
to activate the feature. The display
will show Hld ON.
Touch the START pad to activate
the cook and hold feature and
leave the control set in this special
features mode.
Changing the Speed of the + or – Pads
As you use the + or – pads when setting a time
or temperature, you may notice the display
changes slowly. This special feature allows you to
change the speed. To set the speed you prefer,
follow the steps below.
Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.
Touch the + pad. The display will
show you a set speed between
1 and 5.
Touch the + pad to increase the
speed up to the number 5.
Touch the – pad to decrease the
speed down to the number 1.
Touch START to activate the setting
and leave the control set in this
special features mode.
Special features of your oven control.
19
Safety Instructions
Operating Instructions
Care and CleaningTroubleshooting Tips
Consumer Support
How to Set Sabbath Feature for Timed Baking/Roasting—
Immediate Start and Automatic Stop
NOTE: To understand how the oven control works,
practice using regular (non-Sabbath) Immediate Start
and Automatic Stop before entering the Sabbath mode.
Make sure the clock shows the correct time of day.
Touch and hold both the BAKE and
BROIL HI/LO pads, at the same time, until
the display shows SF.
NOTE: If bake or broil appears in the
display, the BAKE and BROIL HI/LO pads
were not touched at the same time.
Touch the CLEAR/OFF pad and begin
again.
Tap the START TIME pad until SAb bAtH
appears in the display.
Touch the START pad and ⊃ will appear
in the display.
Touch the COOK TIME pad.
Touch the + or – pad to set the desired
length of cooking time between 1
minute and 9 hours and 59 minutes.
The cooking time that you entered
will be displayed.
Touch the START pad.
Touch the BAKE pad. No signal will
be given.
The preset starting temperature will
automatically be set to 350°. Tap the
+ or – pad to increase or decrease the
temperature in 5° increments. The
temperature can be set between 170°
and 550°. No signal or temperature
will be given.
Touch the START pad.
After a random delay period of
approximately 30 seconds to 1 minute,
⊃ will appear in the display indicating
that the oven is baking/roasting.
If ⊃ does not appear in the
display, start again at step 7.
To adjust the oven temperature, touch the
BAKE pad and tap the + or – pad to increase or
decrease the temperature in 5° increments.
Touch the START pad.
When cooking is finished, the display will
change from ⊃ to ⊃ and 0:00 will appear,
indicating that the oven has turned OFF but is
still set in Sabbath. Remove the cooked food.
⊃
⊃
⊃
Using the Sabbath Feature.
(Designed for use on the Jewish Sabbath and Holidays.) (on some models)
The Sabbath feature can be used for baking/roasting only. It cannot be used for broiling, self-cleaning,
or Delay Start cooking.
NOTE: The oven light comes on automatically (on some models) when the door is opened and goes off when
the door is closed. The bulb may be removed. See the Oven Light Bulb section. On models with a light switch
on the control panel, the oven light may be turned on and left on.
How to Set Sabbath Feature for Regular Baking/Roasting
NOTE: To understand how the oven control works,
practice using regular baking (non-Sabbath) before
entering Sabbath mode.
Make sure the clock shows the correct time of day.
Touch and hold both the BAKE and
BROIL HI/LO pads, at the same time, until
the display shows SF.
NOTE: If bake or broil appears in the
display, the BAKE and BROIL HI/LO pads
were not touched at the same time.
Touch the CLEAR/OFF pad and begin
again.
Tap the START TIME pad until SAb bAtH
appears in the display.
Touch the START pad and ⊃ will appear
in the display.
Touch the BAKE pad. No signal will
be given.
The preset starting temperature will
automatically be set to 350°. Tap the
+ or – pad to increase or decrease the
temperature in 5° increments. The
temperature can be set between 170°
and 550°. No signal or temperature will
be given.
Touch the START pad.
After a random delay period of
approximately 30 seconds to 1 minute,
⊃ will appear in the display indicating
that the oven is baking/roasting.
If ⊃ does not appear in the display,
start again at step 4.
To adjust the oven temperature, touch
the BAKE pad and tap the + or – pad to
increase or decrease the temperature in 5°
increments. Touch the START pad.
NOTE: The CLEAR/OFF and COOK TIME pads
are active during the Sabbath feature.
⊃
⊃
When the display shows ⊃ the
oven is set in Sabbath. When the
display shows ⊃ the oven is
baking/roasting.
⊃
When the display shows ⊃ the
oven is set in Sabbath. When the
display shows ⊃ the oven is
baking/roasting.
⊃
20
Safety Instructions
Operating Instructions Care and Cleaning
Troubleshooting Tips Consumer Support
How to Exit the Sabbath Feature
Touch the CLEAR/OFF pad.
If the oven is cooking, wait for
a random delay period of
approximately 30 seconds to
display.
Touch and hold both the BAKE and
BROIL HI/LO pads, at the same time,
until the display shows SF.
Tap the START TIME pad until
12 shdn or no shdn appears in the
display. 12 shdn indicates that the
oven will automatically turn off after
12 hours. no shdn indicates that the
oven will not automatically turn off.
Touch the START pad.
NOTE: If a power outage occurred while
the oven was in Sabbath mode, the oven
will automatically turn off and the oven
control must be reset.
Fahrenheit° 140 150 170 200 250 275 300 325 350 375 400 425 450 475 500 525 550
Celsius° 60 65 75 95 120 135 150 160 175 190 205 220 230 245 260 275 290
Temperature Conversions
Power Outage
If a flashing time is in the display, you have experienced a
power failure. Reset the clock.
To reset the clock, touch the TIMER pad. Enter the
correct time of day by touching the + or – pads.
Touch the START/ON pad.
Using the Sabbath Feature.
(Designed for use on the Jewish Sabbath and Holidays.) (on some models)
1 minute, until only ⊃ is in the
You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to
become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself.
Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven. These
thermometers may vary 20–40°F.
NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures (on some models). The adjustment
will be retained in memory after a power failure.

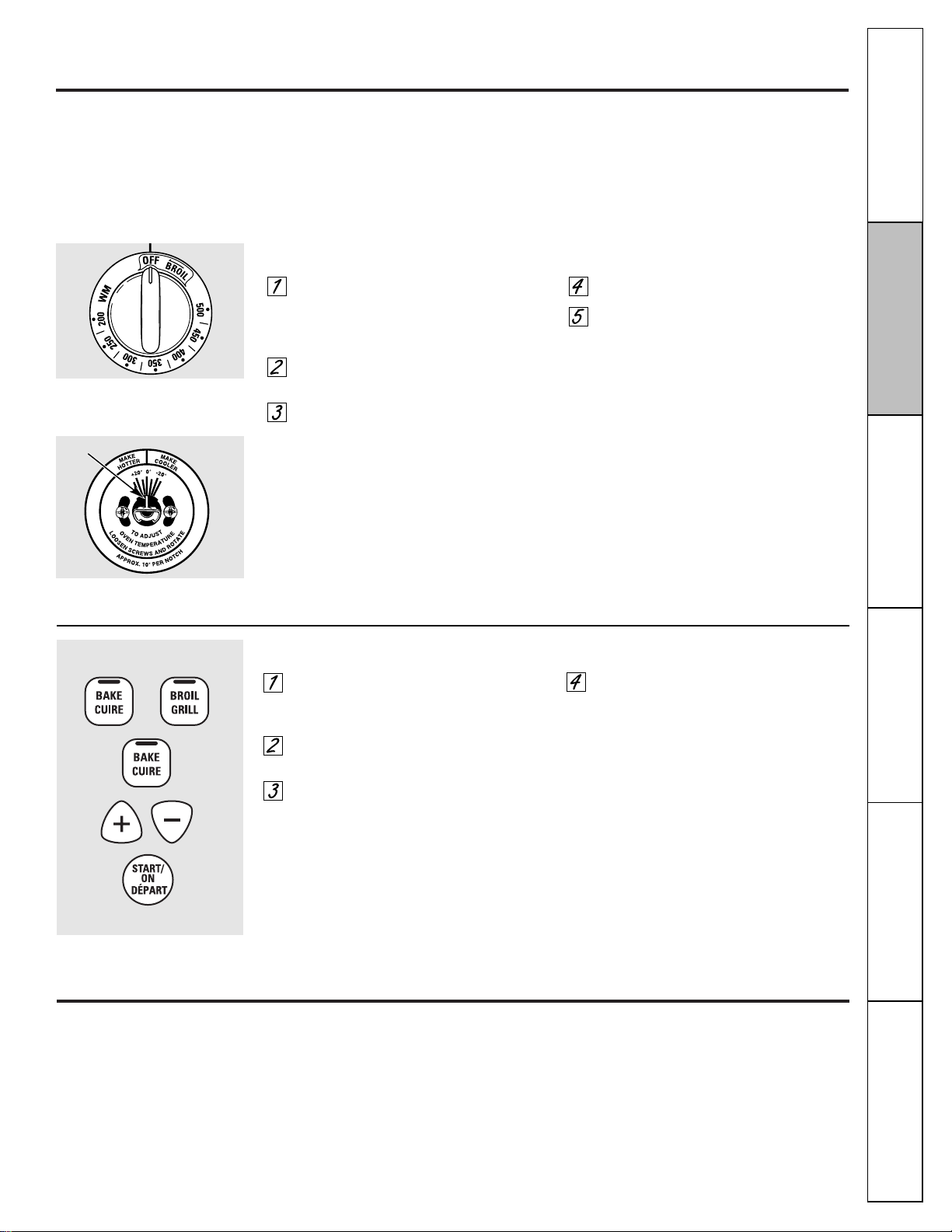

Adjust the oven thermostat—Easy to do yourself!
The type of margarine will affect baking performance!
Most recipes for baking have been developed
using high fat products such as butter or
margarine (80% fat). If you decrease the fat, the
recipe may not give the same results as with a
higher fat product.
Recipe failure can result if cakes, pies, pastries,
cookies or candies are made with low fat spreads.
The lower the fat content of a spread product, the
more noticeable these differences become.
Federal standards require products labeled
“margarine” to contain at least 80% fat by
weight. Low-fat spreads, on the other hand,
contain less fat and more water. The high
moisture content of these spreads affects
the texture and flavor of baked goods. For
best results with your old favorite recipes,
use margarine, butter or stick spreads
containing at least 70% vegetable oil.
Pull the Oven Temp knob off the
shaft, look at the back of the knob and
note the current setting before making
any adjustments.
Loosen both screws on the back of
the knob.
To increase the oven temperature,
move the pointer toward the words
“MAKE HOTTER.”
To decrease the oven temperature,
turn the pointer toward the words
“MAKE COOLER.”
Each notch changes the temperature
by 10°F.
Tighten the screws.
Replace the knob, matching the flat
area of the knob to the shaft.
To Adjust the Thermostat with this Type of Knob
Back of OVEN TEMP knob
Pointer
Front of OVEN TEMP knob
(knob appearance may vary)
To Adjust the Thermostat on Other Models
Touch the BAKE and BROIL pads at
the same time for 2 seconds until the
display shows SF.
Touch the BAKE pad. A two digit
number shows in the display.
The oven temperature can be adjusted
up to (+) 35°F hotter or (–) 35°F
cooler. Touch the + pad to increase the
temperature in 1 degree increments.
Touch the – pad to decrease the
temperature in 1 degree increments.
When you have made the adjustment,
touch the START/ON pad to go back to
the time of day display. Use your oven
as you would normally.
NOTE: This adjustment will not affect the broiling
or self-cleaning temperatures. It will be retained
in memory after a power failure.
+
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Safety Instructions
Consumer Support
21
22
Safety Instructions
Operating Instructions Care and Cleaning
Troubleshooting Tips Consumer Support

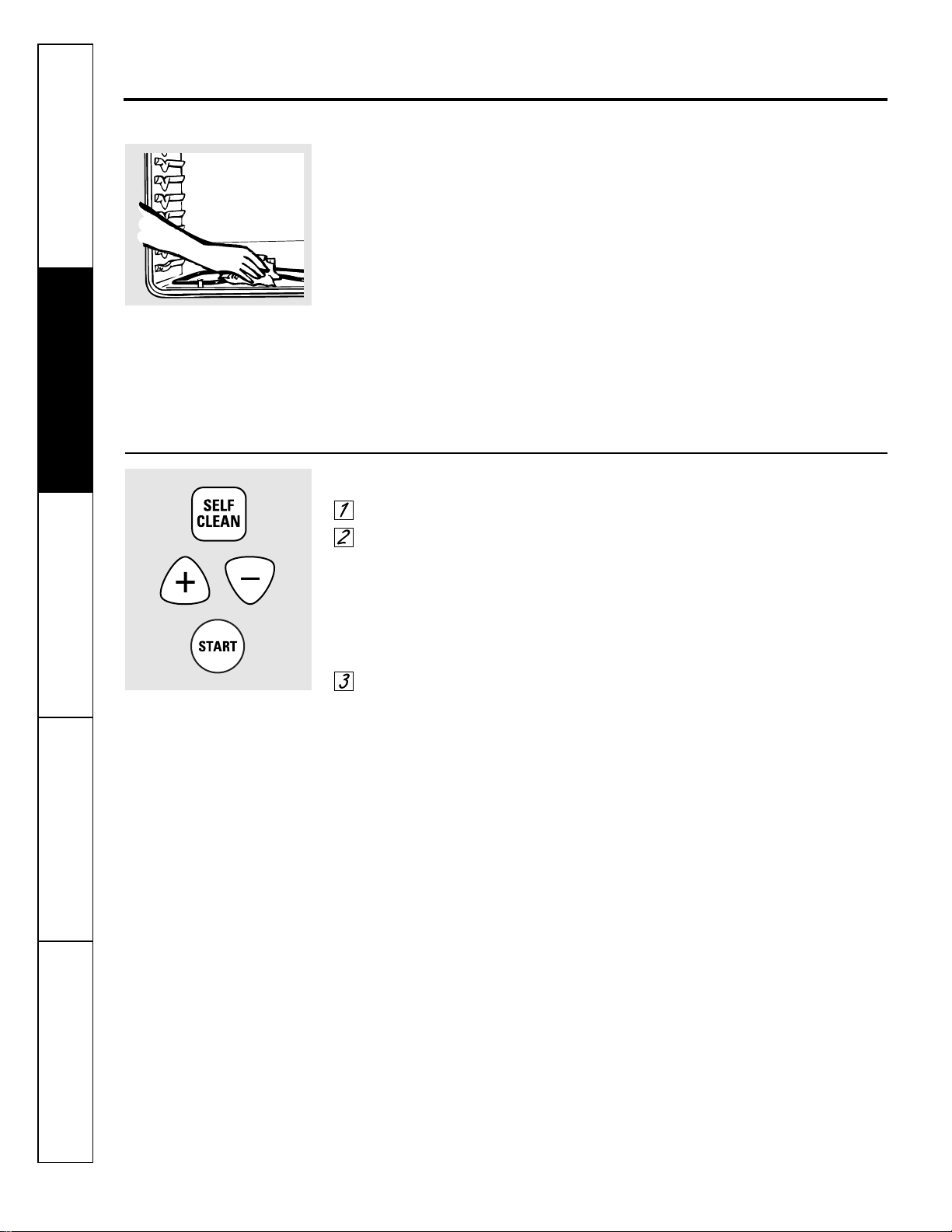

Using the self-cleaning oven.
The oven door must be closed and all controls must be set correctly for the cycle to work properly.
Before a Clean Cycle
The oven must be cool in order to set the
self-clean cycle.
We recommend venting your kitchen
with an open window or using a
ventilation fan or hood during the
first self-clean cycle.
Remove broiler pan, broiler grid,
all cookware and any aluminum foil
from the oven.
The shiny, silver-colored oven shelves
(on some models) can be self-cleaned,
but they will darken, lose their luster
and become hard to slide.
Do not use abrasives or oven cleaners.
Clean the top, sides and outside of the
oven door with soap and water.
Make sure the oven light bulb cover
(on some models) is in place and the
oven light is off.
IMPORTANT: The health of some birds
is extremely sensitive to the fumes given
off during the self-cleaning cycle of any
oven. Move birds to another well
ventilated room.
Wipe up heavy soil on the oven
bottom. (appearance may vary)
How to Set the Oven for Cleaning
Touch the SELF CLEAN pad.
Using the + or – pad, enter the
desired clean time, if a time other
than 4 hours is needed.
Clean cycle time is normally 4 hours.
You can change the clean time to any
time between 3 hours and 5 hours,
depending on how dirty your oven is.
Touch the START pad.
The door locks automatically. The display
will show the clean time remaining. It will
not be possible to open the oven door
until the temperature drops below the
lock temperature and the LOCKED DOOR
light goes off.
When the LOCKED DOOR light is off, open
the door.
■ The words LOCK DOOR will flash and
the oven control will signal if you set
the clean cycle and forget to close the
oven door.
■ To stop a clean cycle, touch the
CLEAR/OFF pad. When the LOCKED
DOOR light goes off indicating the
oven has cooled below the locking
temperature, open the door.
23
Safety Instructions
Operating Instructions
Care and CleaningTroubleshooting TipsConsumer Support

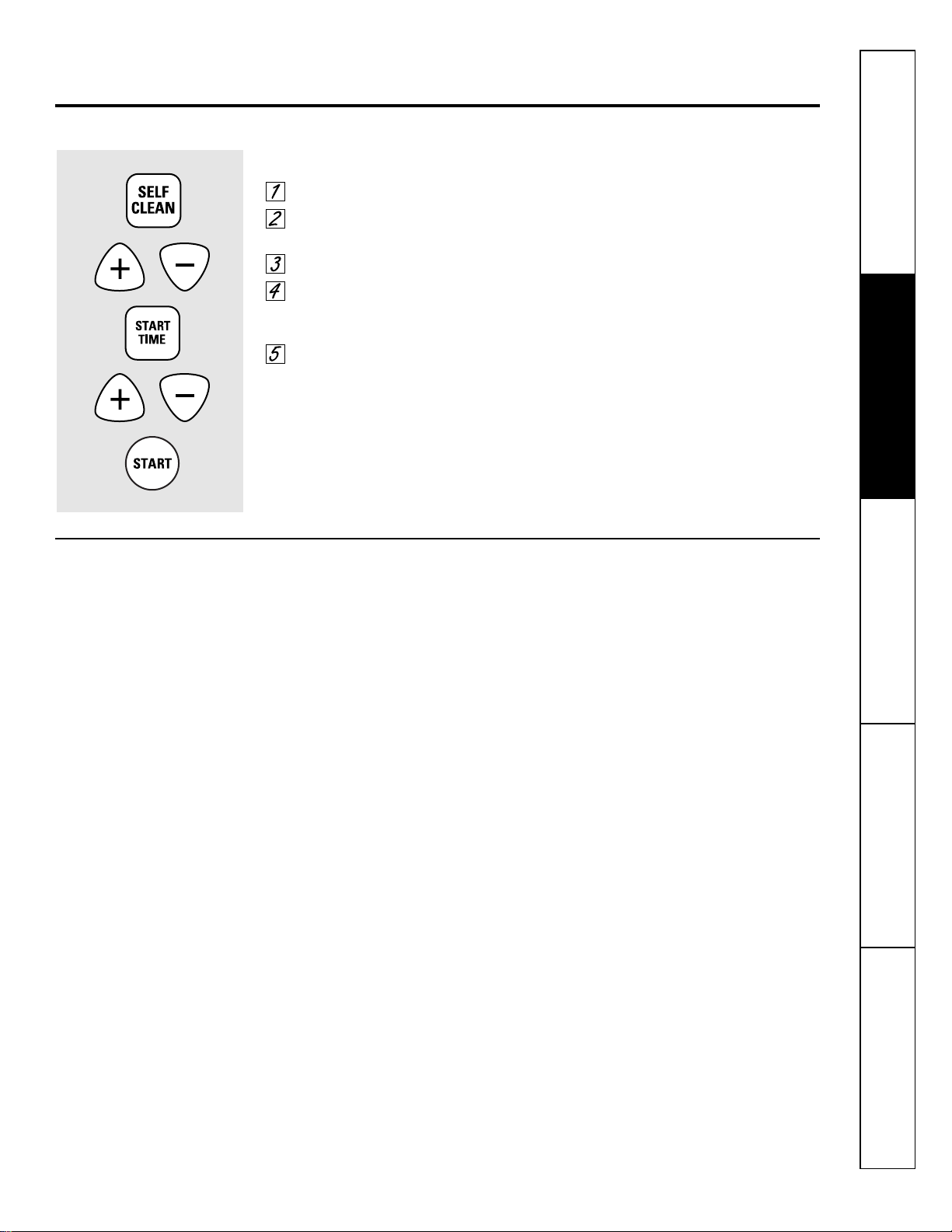

Using the self-cleaning oven.
The oven door must be closed and all controls must be set correctly for the cycle to work properly.
How to Delay the Start of Cleaning
Touch the SELF CLEAN pad.
Using the + or – pad, enter the
desired clean time.
Touch the START TIME pad.
Using the + or – pad, enter the time
of day you want the clean cycle to
start.
Touch the START pad.
The door locks automatically. The display
will show the start time. It will not be
possible to open the oven door until
the temperature drops below the lock
temperature and the LOCKED DOOR
light goes off.
When the LOCKED DOOR light is off, open
the door.
After a Clean Cycle
You may notice some white ash in the
oven. Wipe it up with a damp cloth after
the oven cools.
If white spots remain, remove them with a
soap-filled scrubbing pad and rinse thoroughly
with a vinegar and water mixture.
These deposits are usually a salt
residue that cannot be removed by
the clean cycle.
If the oven is not clean after one clean
cycle, repeat the cycle.
■ You cannot set the oven for cooking
until the oven is cool enough for the
door to unlock.
■ If the shelves become hard to
slide, wipe the shelf supports with
cooking oil.
24
Operating
Instructions
Safety Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
With proper care, the porcelain enamel
finish on the inside of the oven---top,
bottom, sides, back and inside of the door---
will stay new-looking for years.
Let the range cool before cleaning. We
recommend that you wear rubber gloves
when cleaning the range.
Soap and water will normally do the job.
Heavy spattering or spillovers may require
cleaning with a mild abrasive cleaner.
Soap-filled scouring pads may also be used.
Do not allow food spills with a high
sugar or acid content (such as milk,
tomatoes, sauerkraut, fruit juices or
pie filling) to remain on the surface. They may
cause a dull spot even after cleaning.
Household ammonia may make the
cleaning job easier. Place 1/2 cup in a
shallow glass or pottery container in a cold
oven overnight. The ammonia fumes will
help loosen the burned-on grease and food.
If necessary, you may use an oven cleaner.
Follow the package directions.
Do not spray oven cleaner on the electrical controls
and switches because it could cause a short circuit
and result in sparking or fire.
Do not allow a film from the cleaner to build up on
the temperature sensor–it could cause the oven to
heat improperly. (The sensor is located at the top of
the oven.) Carefully wipe the sensor clean after each
oven cleaning, being careful not to move the sensor
as a change in its position could affect how the
oven bakes.
Do not spray any oven cleaner on the oven door,
handles or any exterior surface of the oven, cabinets
or painted surfaces. The cleaner can damage these
surfaces.
Oven Interior (non-self clean models)
If your range is removed for cleaning,
servicing or any reason, be sure the
anti-tip device is re-engaged properly
when the range is replaced. Failure
to take this precaution could result in
tipping of the range and cause injury.
Be sure electrical power is off and all surfaces are cool before cleaning any part of the range.
Care and cleaning of the range.
The porcelain enamel finish is sturdy
but breakable if misused. This finish is
acid-resistant. However, any acidic foods
spilled (such as fruit juices, tomato or
vinegar) should not be permitted to remain
on the finish.
If acids spill on the cooktop while it is hot,
use a dry paper towel or cloth to wipe it up
right away. When the surface has cooled,
wash with soap and water. Rinse well.
For other spills such as fat spatterings, wash
with soap and water or cleansing powders
after the surface has cooled. Rinse well.
Polish with a dry cloth.
Porcelain Enamel Cooktop (on some models)
The gasket is designed with a gap
at the bottom to allow for proper
air circulation.
Because the area inside the gasket is
cleaned during the self-clean cycle,
you do not need to clean this by hand
on self-clean models.
The area outside the gasket and the
front frame can be cleaned with a
soap-filled steel-wool pad, hot water
and detergent. Rinse well with a
vinegar and water solution.
Do not rub or clean the door
gasket–it has an extremely low
resistance to abrasion.
If you notice the gasket becoming
worn, frayed or damaged in any way,
or if it has become displaced on the
door, you should have it replaced.
To clean the inside of the door:
Do not allow excess water to run into any
holes or slots in the door.
Soap and water will normally do the job.
Heavy spattering or spillovers may require
cleaning with a mild abrasive cleaner.
Soap-filled, steel-wool pads may also
be used.
Do not allow food spills with a high sugar or acid
content (such as milk, tomatoes, sauerkraut, fruit
juices or pie filling) to remain on the surface. They
may cause a dull spot even after cleaning.
To clean the outside of the door:
Use soap and water to thoroughly clean
the top, sides and front of the oven door.
Rinse well. You may also use a glass
cleaner to clean the glass on the outside
of the door. Do not let water drip into the
vent openings.
Spillage of marinades, fruit juices, tomato
sauces and basting materials containing
acids may cause discoloration and should
be wiped up immediately. When surface
is cool, clean and rinse.
Do not use oven cleaners, cleaning
powders or harsh abrasives on the
outside of the door.
To clean outside of the gasket:

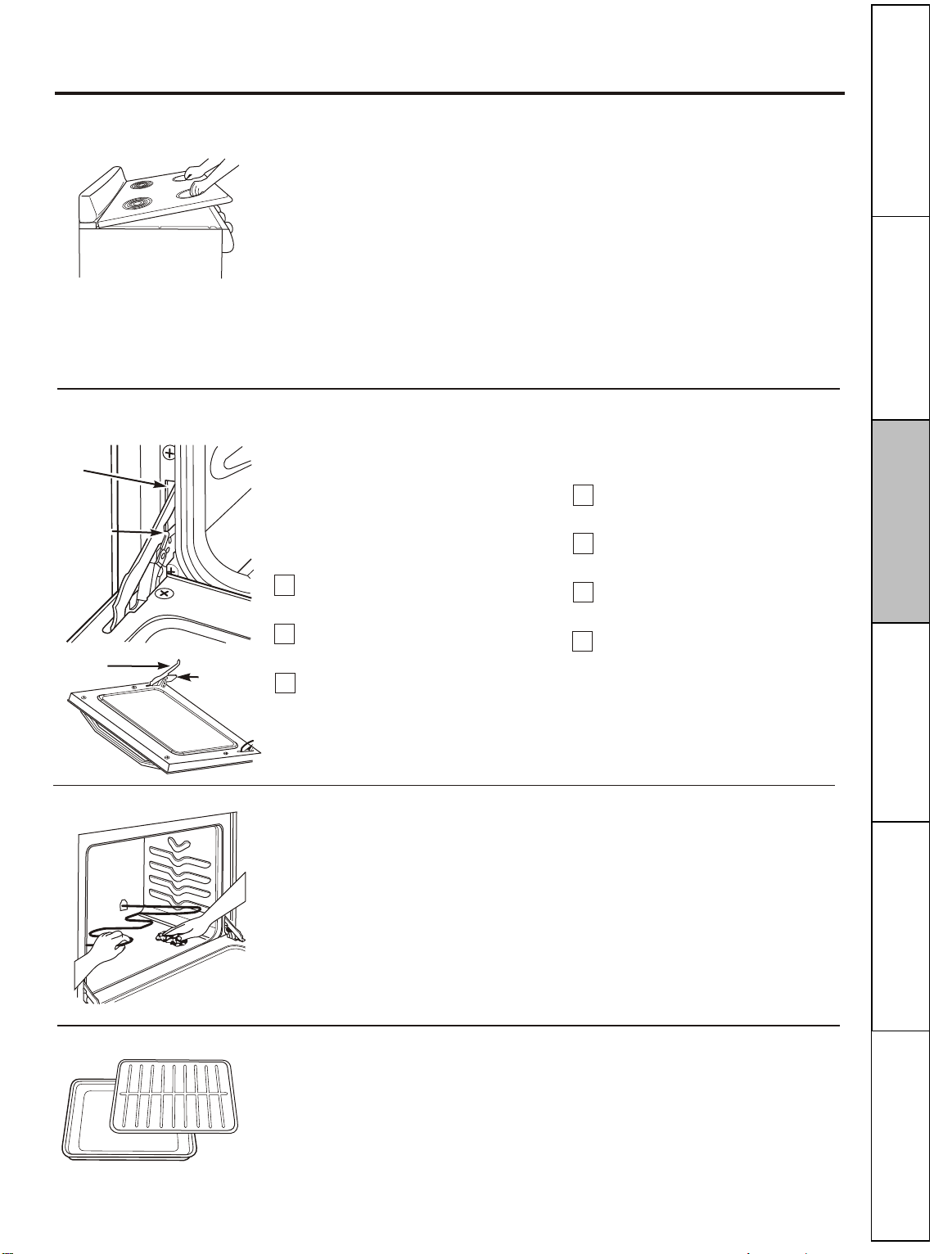

To make cleaning easier, the cooktop
may be lifted up and propped open.
Lift-Up Cooktop
Clean the area under the cooktop often. Built-up
soil, especially grease, may catch on fire.
Be sure all surface units are turned off
before raising the cooktop.
Remove the front surface and drip pans.
See the Surface Units and Drip Pans
section. Grasp the two front surface unit
wells and lift the cooktop up and prop it
open with the prop rod provided.
After cleaning underneath the cooktop
with hot, soapy water and a clean cloth,
hold the cooktop up, return the prop
rod to its storage position and lower the
cooktop until it snaps into position.
Be careful not to pinch your fingers.
Replace the two front drip pans and
surface units. See the Surface Units and
Drip Pans section.
Open the door to the full open
position.
Lift-Off Oven Door
The oven door is removable, but it is
heavy. You may need help removing and
replacing the door.
To remove the door:
Pull the hinge locks up over the
hinge hooks on both sides.
Grasp the door firmly on each side,
Iift slightly and pull it straight out
and away from the oven.
The bake element can be lifted gently to
clean the oven floor. Do not attempt to
clean any oven surface when any burner
element is on. Always wear protective
hand-wear when cleaning interior oven
surfaces or surfaces near heating
Oven Heating Elements
Do not clean the bake element or the
broil element. Any soil will burn off when
the elements are heated.
After broiling, remove the broiler pan
from the oven. Remove the grid from the
pan. Carefully pour out grease from the
pan into a proper container. Wash and
rinse the broiler pan and grid in hot
water with a soap-filled or plastic
scouring pad.
Broiler Pan and Grid
DO NOT ATTEMPT TO CLOSE THE DOOR
UNTIL THIS STEP IS COMPLETE. THE
HINGE OR DOOR COULD BE DAMAGED.
To replace the door:
Firmly grasp both sides of the door
at the top.
Insert and seat the upper and lower
hinge arms into the oven slots.
Push the hinge locks down from the
hinge hooks.
Close the oven door and make sure
it is working properly. If it is not
working properly, remove and
replace it following the above steps.
elements. lf spillovers, residue or ash
accumulate around the bake element,
gently wipe around the element with
warm water.
If food has burned on, sprinkle the grid
with detergent while hot and cover with
wet paper towels or a dishcloth. Soaking
the pan will remove burned on foods.
Do not store a soiled broiler pan and grid
anywhere in the range.
Both the broiler pan and grid can
also be cleaned in the dishwasher.
1
2
3
4
1
2
3
Upper
hinge arm
Lower
hinge arm
Hinge lock
Slot
Operating
Instructions
Safety Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
Care and cleaning of the range.
25
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Safety Instructions
Consumer Support
CAUTION: Before replacing your oven light
bulb, turn the oven light off and disconnect the
electrical power to the range at the main fuse
or circuit breaker panel.
Be sure to let the light cover and bulb cool
completely.
To remove the cover:
Hold a hand under the cover so it
doesnÕt fall when released. With fingers
of the same hand, firmly push back the
wire cover holder. Lift off the cover.
Do not remove any screws to remove the cover.
Replace bulb with a 40-watt household
appliance bulb.
To replace the cover:
Place it into groove of the light
receptacle. Pull wire forward to the
center of the cover until it snaps
into place.
Connect electrical power to the range.
Clean the oven shelves with an abrasive
cleanser or scouring pad. After cleaning,
rinse the shelves with clean water and dry
with a clean cloth.
NOTE: Take the shelves out of the oven
before you begin the self-clean cycle or
they may discolor.
To make the shelves slide more easily, apply
a small amount of vegetable oil or cooking
oil to a paper towel and wipe the edges of
the oven shelves with the paper towel.
Wire cover holder
Oven Shelves
Oven Light Replacement (on some models)
To remove the storage drawer:
Pull the drawer out all the way.
Tilt up the front and remove it.
To replace the storage drawer:
Insert glides at the back of the drawer
beyond the stop on range glides.
Lift the drawer if necessary to insert
easily.
Let the front of the drawer down, then
push in to close.
Clean under the range.
Storage Drawer Removal
(on some models)
Pull the knob straight off the stem.
Control Panel and Knobs
It’s a good idea to wipe the control panel
after each use of the oven. Use a damp
cloth to clean or rinse. For cleaning, use
mild soap and water or a 50/50 solution of
vinegar and water. For rinsing, use clean
water. Polish dry with a soft cloth.
Do not use abrasive cleansers, strong liquid
cleaners, plastic scouring pads or oven
cleaners on the control panel—they will
damage the finish.
The control knobs may be removed for
easier cleaning.
Make sure the knobs are in the OFF
positions and pull them straight off the
stems for cleaning.
The knobs can be cleaned in a dishwasher
or they may also be washed with soap and
water. Make sure the insides of the knobs
are dry before replacing.
Replace the knobs in the OFF position
to ensure proper placement.
Care and cleaning of the range.
26
27
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Safety Instructions
Consumer Support
Be sure all the controls are turned to OFF and the
surface units are cool before attempting to remove
them.
To clean the surface units, turn the control
to the highest setting for a minute. The coils
will burn off any soil.
To remove a surface unit:
To remove the drip pans for cleaning, the
surface units must be removed first.
Lift the surface unit about 1 inch above the
drip pan and pull it out.
Do not lift the surface unit more than 1″. If you do,
it may not lie flat on the drip pan when you plug it
back in.
Repeated lifting of the surface unit more than
1 inch above the drip pan can permanently
damage the receptacle.
To replace a surface unit:
Replace the drip pan into the recess in the
cooktop. Make sure the opening in the pan
lines up with the receptacle.
Insert the terminals of the surface unit
through the opening in the drip pan and
into the receptacle.
Guide the surface unit into place so it rests
evenly.
Do not immerse the surface units in
liquids of any kind.
Do not clean the surface units in a
dishwasher.
Do not bend the surface unit plug
terminals.
Do not attempt to clean, adjust or in any
way repair the plug-in receptacle.
Surface unit
Drip pan
Receptacle
Remove the surface units. Then lift out the
drip pans.
Place them in a covered container. Add
1/4 cup ammonia and let soak several
hours or overnight. Wash, rinse well
and dry.
The drip pans may also be cleaned in the
dishwasher.
Clean the area under the drip pans often.
Built-up soil, especially grease, may catch fire.
Do not cover the drip pans with foil. Using foil so
close to the receptacle could cause shock, fire or
damage to the range.
NOTE: Do not clean the drip pans in a
self-cleaning oven.
Drip Pans (if included)
Surface Units (on some models)
Care and cleaning of the range.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
28
Care and cleaning of the range.
Painted surfaces include the sides of the
range and the sides of the door trim.
To clean the painted surfaces, use a hot,
damp cloth with a mild detergent suitable
for these surfaces. Use a clean, hot, damp
cloth to remove soap. Dry with a dry, clean
cloth.
Do not use steel-wood pads, commercial
oven cleaners, cleaning powders or other
abrasive cleaners. They will damage the
surface.
Painted Surfaces (on some models)
On glass cooktop models, the oven is vented
through an opening at the rear of the
cooktop.
On coil cooktop models, the oven is vented
through an opening under the right rear
surface unit.
Never cover the opening with aluminum foil or
any other material.
Oven Vent
To clean the outside glass finish, use a glass
cleaner. Rinse and polish with a dry cloth.
Glass Window (on some models)
Do not use a steel wool pad; it will scratch
the surface.
To clean the stainless steel surface,
use warm sudsy water or a stainless steel
cleaner or polish. Always wipe the surface
in the direction of the grain. Follow the
cleaner instructions for cleaning the
stainless steel surface.
To inquire about purchasing stainless steel
appliance cleaner or polish, or to find the
location of a dealer or Camco Parts Store
nearest you, please call our toll-free
number:
National Parts Centre 1.800.661.1616
www.GEAppliances.ca
Stainless Steel Surfaces (on some models)
29
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Safety Instructions
Consumer Support

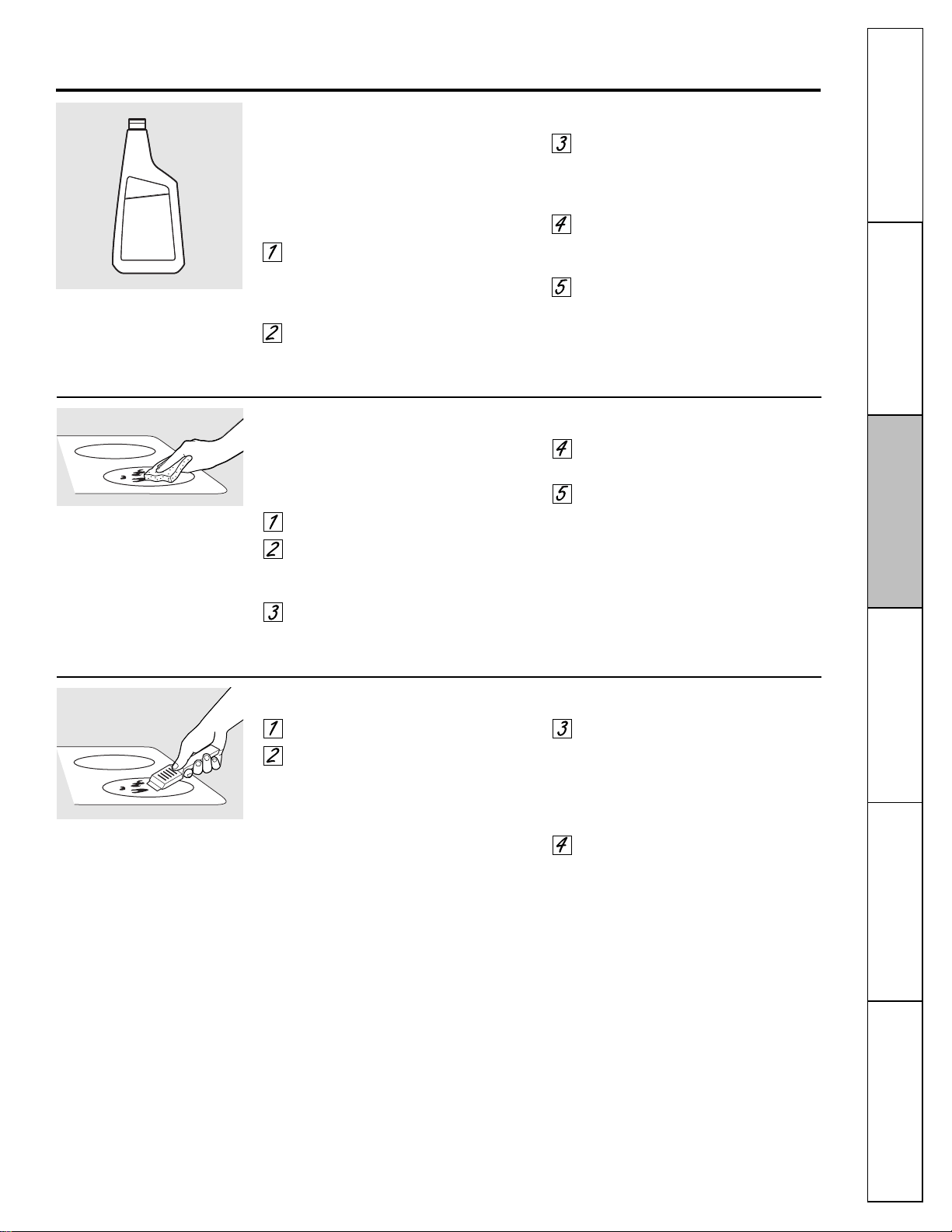

The Ceramic Cooktop Scraper and
all recommended supplies are
available through our dealers or
through a Camco Parts Store.
NOTE: Do not use a dull or nicked
blade.
Use a Cleaning Pad for Ceramic
Cooktops.
Clean your cooktop after
each spill. Use Ceramic
Cooktop Cleaner.
WARNING: DAMAGE to your glass
surface may occur if you use scrub pads other
than those recommended.
Allow the cooktop to cool.
Spread a few drops of Ceramic
Cooktop Cleaner on the entire
burned residue area.
Using the included Cleaning Pad for
Ceramic Cooktops, rub the residue
area, applying pressure as needed.
If any residue remains, repeat the
steps listed above as needed.
For additional protection, after all
residue has been removed, polish
the entire surface with Ceramic
Cooktop Cleaner and a paper towel.
Cleaning the glass cooktop. (on some models)
Normal Daily Use Cleaning
ONLY use Ceramic Cooktop Cleaner on
the glass cooktop. Other types of cleaners
may not be as effective.
To maintain and protect the surface of
your glass cooktop, follow these steps:
Before using the cooktop for the
first time, clean it with Ceramic
Cooktop Cleaner. This helps protect
the top and makes cleanup easier.
Daily use of Ceramic Cooktop
Cleaner will help keep the cooktop
looking new.
Shake the cleaning cream well.
Apply a few drops of Ceramic
Cooktop Cleaner directly to the
cooktop.
Use a paper towel for Ceramic
Cooktops to clean the entire
cooktop surface.
Use a dry cloth or paper towel
to remove all cleaning residue.
No need to rinse.
NOTE: It is very important that you DO NOT heat
the cooktop until it has been cleaned thoroughly.
Burned-On Residue
Allow the cooktop to cool.
Use a single-edge razor blade scraper
at approximately a 45° angle against
the glass surface and scrape the soil.
It will be necessary to apply pressure
to the razor scraper in order to
remove the residue.
After scraping with the razor scraper,
spread a few drops of Ceramic
Cooktop Cleaner on the entire
burned residue area. Use the
Cleaning Pad to remove any
remaining residue.
For additional protection, after all
residue has been removed, polish
the entire surface with Ceramic
Cooktop Cleaner and a paper towel.
Heavy, Burned-On Residue
Cleaning the glass cooktop. (on some models)
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
30
Sugary spillovers (such as
jellies, fudge, candy, syrups)
or melted plastics can cause
pitting of the surface of your
cooktop (not covered by the
warranty) unless the spill
is removed while still hot.
Special care should be
taken when removing hot
substances.
Be sure to use a new, sharp
razor scraper.
Do not use a dull or nicked
blade.
Be careful not to slide pots and pans
across your cooktop. It will leave metal
markings on the cooktop surface.
These marks are removable using
the Ceramic Cooktop Cleaner with the
Cleaning Pad for Ceramic Cooktops.
If pots with a thin overlay of aluminum
or copper are allowed to boil dry, the
overlay may leave black discoloration
on the cooktop.
This should be removed immediately
before heating again or the
discoloration may be permanent.
WARNING: Carefully check the
bottom of pans for roughness that would scratch
the cooktop.
Metal Marks and Scratches
To clean the cooktop seal around the
edges of the glass, lay a wet cloth on it
for a few minutes, then wipe clean
with nonabrasive cleaners.
Cooktop Seal
Glass surface—potential for permanent damage.
Damage from Sugary Spills and Melted Plastic
Turn off all surface units. Remove hot
pans.
Wearing an oven mitt:
a. Use a single-edge razor blade
scraper to move the spill to
a cool area on the cooktop.
b. Remove the spill with paper towels.
Any remaining spillover should be left
until the surface of the cooktop has
cooled.
Don’t use the surface units again until
all of the residue has been completely
removed.
NOTE: If pitting or indentation in the glass surface
has already occurred, the cooktop glass will have to
be replaced. In this case, service will be necessary.
To inquire about purchasing a part or
an accessory for your appliance, please call
our toll-free number:
National Parts Center 1-800-661-1616
www.GEAppliances.ca
Ceramic Cooktop Cleaner . . .# WX10X300
Ceramic Cooktop Scraper . . .# WX10X302
Kit . . . . . . . . . . . . . . . . . . . . . . . .# WB64X5027
(Kit includes cream and cooktop scraper)
Cleaning Pads for
Ceramic Cooktops . . . . . . . . .# WX10X350
To Order Parts
InstaIlation
Instructions
24” GE Electric Ranges
Questions? Call 1.800.561.3344 or consults our web page: www.geappliances.ca
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
IMPORTANT
IMPORTANT
— Save these
— Observe all
governing codes and ordinances.
instructions for local inspector’s use.
Note to Installer
Be sure to leave these
instructions with the Consumer.
instructions for future reference.
Keep these
Note to Consumer
Skill level
Installation of this appliance
requires basic mechanical skills.
Completion time
1 to 3 hours
Proper installation is the responsibility of
the installer.
Product failure due to improper installation
is not covered under the Warranty.
WARNING
— This appliance must
be properly grounded.
WARNING
FOR YOUR SAFETY:
— Before beginning the
installation, switch power off at service panel
and Iock the service disconnecting means to
prevent power from being switched on
accidentally. When the service disconnecting
means cannot be locked, securely fasten a
prominent warning device, such as a tag, to
the service panel.
FOR YOUR SAFETY:
All rough-in and spacing dimensions must be
met for safe use of your range. Electricity to
the range can be disconnected at the outlet
without moving the range if the outlet is in
the preferred location (remove lower drawer).
To reduce the risk of burns or fire when
reaching over hot surface elements, cabinet
storage space above the cooktop should be
avoided. lf cabinet storage space is to be
provided above the cooktop, the risk can
be reduced by installing a range hood that
sticks out at least 5” beyond the front of the
cabinets. Cabinets installed above a cooktop
must be no deeper than 13”.
Be sure your appliance is properly installed
and grounded by a qualified technician.
Make sure the cabinets and wall coverings
around the range can withstand the temperatures
(up to 200°F) generated by the range.
ANTI-TIP DEVICE
WARNING
— To reduce the risk
of tipping, the appliance must be secured by
properly installed Anti-Tip device packed with
this appliance.
lf the Anti-Tip device supplied with the range
does not fit this application, use the universal
Anti-Tip device WB2X7909.
WARNING
AlI ranges can tip
lnjury to persons could result
Install Anti-Tip device packed
with range
See Installation Instructions
lf you pull the range out and away from the
waIl for any reason, make sure the Anti-Tip
device is engaged when the range is pushed
back against the walI.
31
Installation Instructions

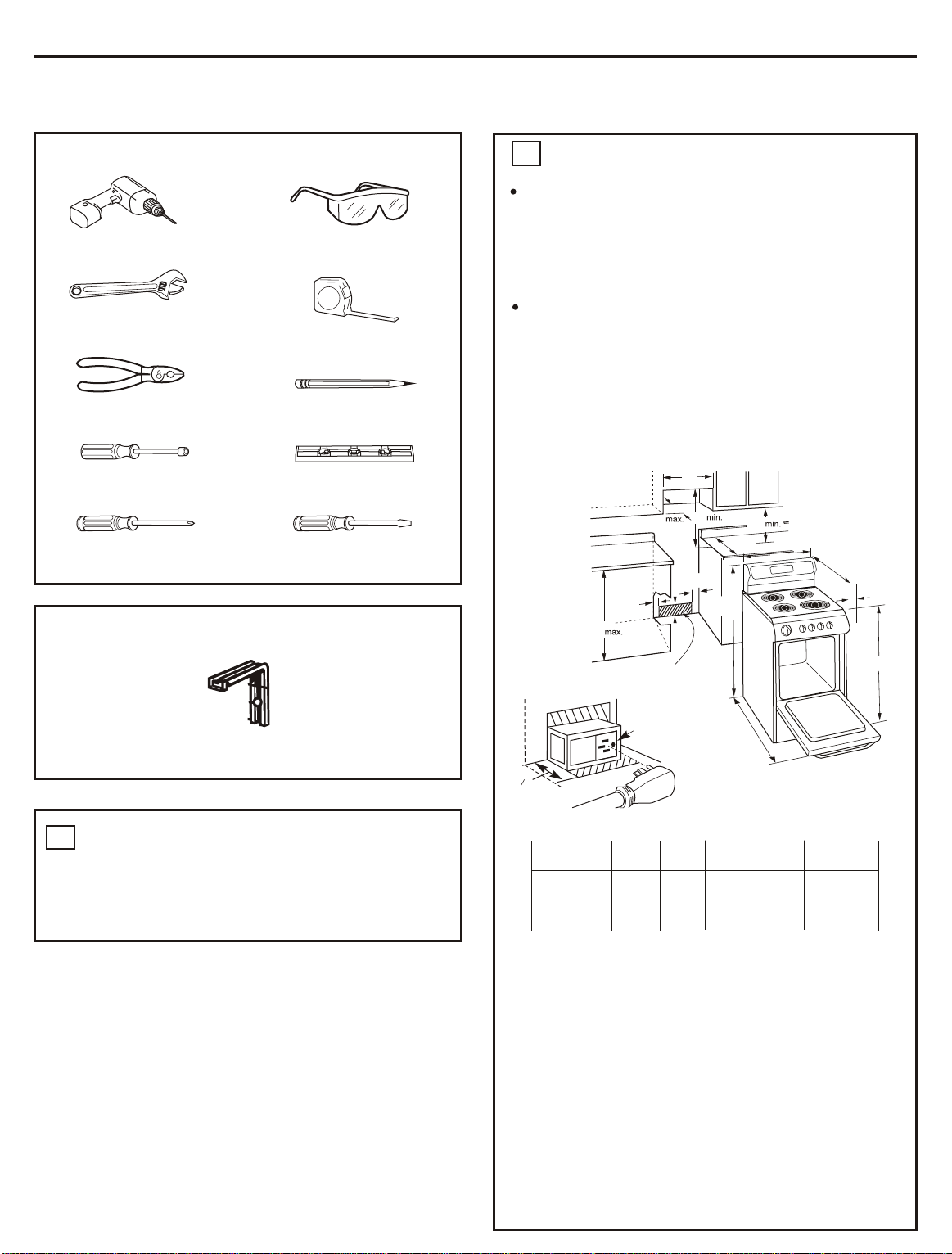

PREPARE TO INSTALL THE RANGE
Pencil
Level
PhiIIips Screwdriver
Screwdriver
TOOLS YOU WILL NEED
Drili with 1/8” Bit
Safety Glasses
Adjustable Wrench
Tape Measure
Pliers
1/4” Nut Driver
FIat-bIade
PARTS INCLUDED
Anti-Tip Bracket Kit
32
Allow 2” spacing from the range to adjacent
vertical walls above the cooktop surface. Allow
30” minimum clearance between the surface
units and the bottom of unprotected wood or
metal top cabinet, and 18” minimum between
the countertop and adjacent cabinet bottom.
PREPARE THE OPENING
To eliminate the risk of burns or fire when
reaching over hot surface elements, cabinet
storage space above the cooktop should be
avoided. lf cabinet storage space is to be
provided above the cooktop, the risk can be
reduced by ¡nstalling a range hood that
protrudes at least 5” beyond the front of the
cabinets. Cabinets installed above a cooktop
may be no deeper than 13”.
2
Recommended acceptable electrical outlet
area. Orient theelectrical receptacle so
the length is parallel to the floor
B
13”
30”
18”
24”
26” from wall
to front of
control panel
From
combustible
walls above
cooking
surface
2”
5”
2½”
36”
36”
C
Surface
mount
outlet
Outlet-box
Wall
D
(depth
with door
open)
Cord
Floor
2 ”
1
4
Wall Mounted
A
24”
A B
C
D
(recommended)
JCAS745
/
3
8
2” (5,08 cm)
41” (104,14cm)
JCAP760 47 ”
24 ”
JCAP750
JCAP765
Model
Flooring under the range
Your range, Iike many other household items,
is heavy and can settle into soft floor coverings
such as cushioned vinyl or carpeting.
When moving the range on this type of
flooring, it should be installed on a 1/4”
thick sheet of plywood (or similar material)
as foIlows:
When the floor covering ends at the front
of the range, the area that the range will
rest on should be built up with plywood
to the same level or higher than the floor
covering. This wiIl allow the range to be
moved for cleaning or servicing.
Remove packaging materials. Failure to
remove packaging materials could result
in damage to the appliance.
REMOVE SHIPPING MATERIALS
1
Installation Instructions
ELECTRICAL CONNECTIONS
ELECTRICAL REQUIREMENTS
plate. The rating plate is located under the
cooktop or in the front frame . (See below
pictures).
33
Rating Plate
Rating Plate
We recommend you have the electrical wiring
and hookup of your range connected by a
qualified electrician. After installation, have
the electrician show you where your main
range disconnect is located.
Check with your local utilities for electrical
codes which apply in your area. Failure to
wire your oven according to governing codes
could result in a hazardous condition. If there
are no local codes, your range must be wired
and fused to meet the requirements of the
Canadian Electrical Code, Part 1
Latest Edition.
CAUTION:
For personal safety,
do not use an extension cord with this
appliance. Remove house fuse or open circuit
breaker before beginning installation.
This appliance must be supplied with the
proper voltage and frequency, and connected
to an individual properly grounded branch
circuit, protected by a circuit breaker or fuse
having amperage as specified on the rating

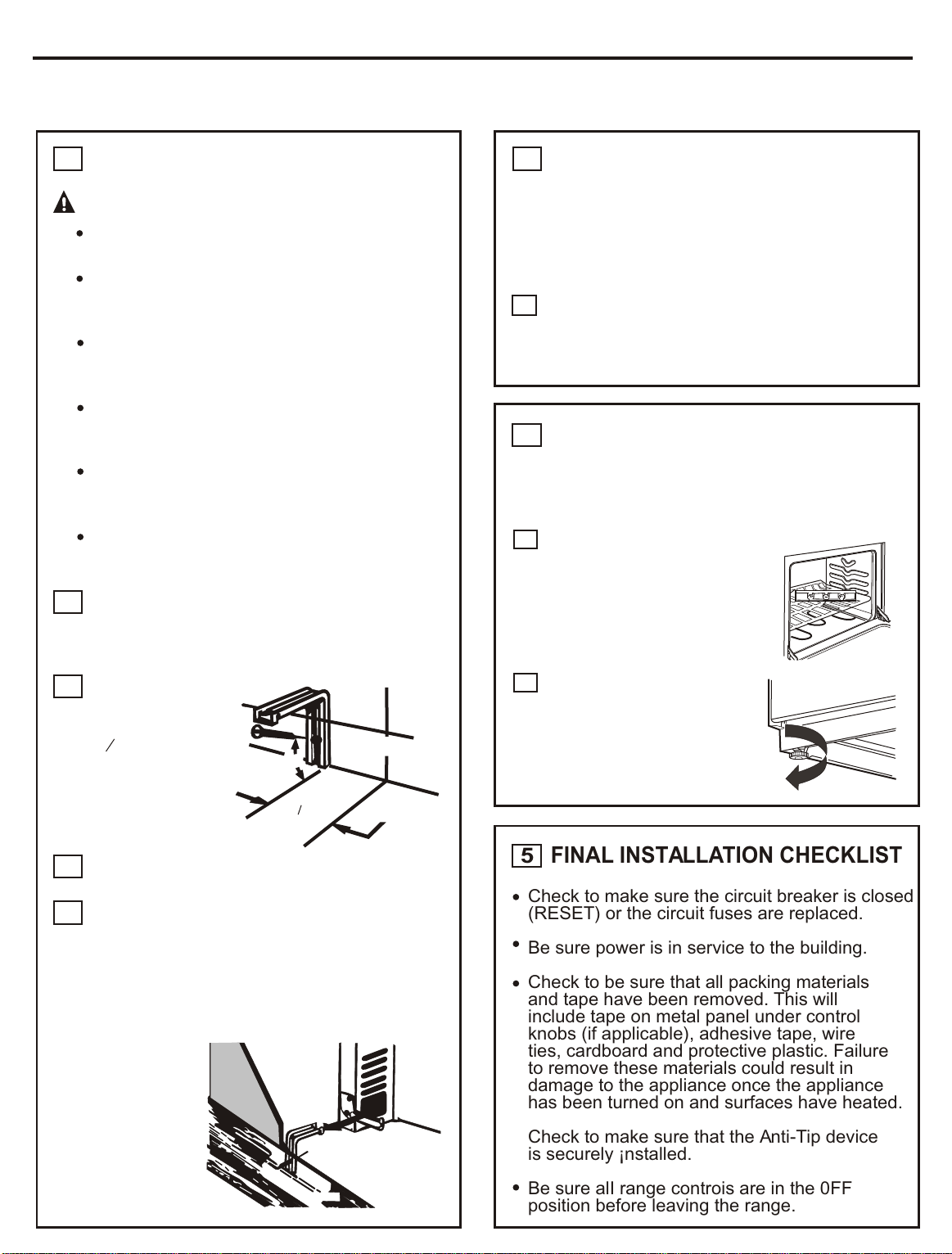

INSTALL THE RANGE
Installation Instructions
ANTI-TIP DEVICE INSTALLATION
WARNING:
Range must be secured with an
approved Anti-Tip device.
Mark the waIl where the RIGHT EDGE of
the range is to be located. Be sure to allow
for the countertop overhang if you intend
to install the range next to cabinets.
Unless properly installed, the range could
be tipped by you or a child standing, sitting
or Ieaning on an open door.
After installing the Anti-Tip device, verify
that it is in place by carefully attempting
to tilt the range forward.
This range has been designed to meet all
recognized ¡ndustry tip standards for alI
normal conditions.
After installing the Anti-Tip device, verify
that it is in place by carefully attempting
to tilt the range forward:
The use of this device does not preclude
tipping of the range when not properly
instaIIed.
Locate the
outside edge
of the device
2 ” toward
the center of
the range
from the
marked edge
of the range.
1
8
Using the device as a template, mark the
position of the hole for the screw.
For wood construction, drill a pilot hole at
an angle of 20 degrees frorn the horizontal.
A nail or awl may be used if a drill is not
available.
Mount the Anti-Tip device with the screw provided.
For cement or concrete construction, you will
need a 1/4” x 1½”
lag bolt and a
1/2” O.D. Sleeve
anchor, which
are not provided.
Drill the
recommended
size hole for the
hardware.
ANTI-TIP DEVICE INSTALLATION
Install the sleeve anchor into the drilled hole
and then install the lag bolt through the
device. The bolts must be properly tightened
as recommended for the hardware.
Slide the range against the wall, and check
for proper installation by grasping the front
edge of the cooktop and carefully
attempting to tilt the range forward.
LEVEL THE RANGE
For proper cooking and baking, the range
must be leveled. Leveling legs are located
on each corner at the base of the range.
Instail the oven shelves
(see Using the oven
section for instructions).
Put a spirit level or a glass
measuring cup partially
filled with water on one
of the oven shelves.
Turn the Iegs clockwise
to raise the range and
counterclockwise to
lower the range. Adjust
the leveling legs until
the range is level.
FINAL INSTALLATION CHECKLIST
Check to make sure the circuit breaker is closed
(RESET) or the circuit fuses are replaced.
Be sure power is in service to the building.
Check to be sure that all packing materials
and tape have been removed. This will
include tape on metal panel under control
knobs (if applicable), adhesive tape, wire
ties, cardboard and protective plastic. Failure
to remove these materials could result in
damage to the appliance once the appliance
has been turned on and surfaces have heated.
Check to make sure that the Anti-Tip device
is securely ¡nstalled.
Be sure alI range controis are in the 0FF
position before leaving the range.
(cont.)
Anti-Tip
device
Wallplate
Marked
edge
of range
Slotted
head
screw
Approx. 20°
2 ”
1
8
Wallboard
Anti-Tip
device
Wood screw
Back of
range
3
A
B
C
D
3
E
4
A
B
5
34
34
Installation Instructions
FINAL INSTALLATION
CHECKLIST
• Check to make sure the circuit breaker is
closed (RESET) or the circuit fuses are
replaced.
• Be sure power is in service to the building.
• Note (on some models): If the clock flashes
“bAd” and then “LinE” with a loud tone,
the neutral connection to the range is
miswired. Check the terminal block
connections and/or house wiring to correct.
• Check to be sure that all packing materials
and tape have been removed. This will
include tape on metal panel under control
knobs (if applicable), adhesive tape, wire
ties, cardboard and protective plastic.
Failure to remove these materials could
result in damage to the appliance once the
appliance has been turned on and surfaces
have heated.
• Check to make sure that the rear leveling
leg is fully inserted into the Anti-Tip bracket
and that the bracket is securely installed.
5
OPERATION CHECKLIST
• Turn on one of the surface units to observe
that the element glows within 60 seconds.
Turn the unit off when glow is detected. If
the glow is not detected within the time
limit, recheck the range wiring connections.
If change is required, retest again. If no
change is required, have building wiring
checked for proper connections and voltage.
• Check to make sure the Clock (on models
so equipped) display is energized. If a series
of horizontal red lines appear in the display,
disconnect power immediately. Recheck the
range wiring connections. If change is
made to connections, retest again. If no
change is required, have building wiring
checked for proper connections and
voltage. It is recommended that the clock
be changed if the red lines appear.
• Be sure all range controls are in the OFF
position before leaving the range.
6
35
Before you call for service…
Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Problem Possible Causes What To Do
Radiant Cooktops
Surface units will not Improper cookware •Use pans which are flat and match the diameter
maintain a rolling boil being used. of the surface unit selected.
or cooking is not
fast enough
Surface units do A fuse in your home may be • Replace the fuse or reset the circuit breaker.
not work properly blown or the circuit breaker
tripped.
Cooktop controls • Check to see the correct control is set for the surface
improperly set. unit you are using.
Scratches (may appear Incorrect cleaning • Scratches are not removable. Tiny scratches will become
as cracks) on cooktop methods being used. less visible in time as a result of cleaning.
glass surface
Cookware with rough bottoms • To avoid scratches, use the recommended cleaning
being used or coarse particles procedures. Make sure bottoms of cookware are clean
(salt or sand) were between before use, and use cookware with smooth bottoms.
the cookware and the surface
of the cooktop.
Cookware has been slid
across the cooktop surface.
Areas of discoloration Food spillovers not cleaned • See the Cleaning the glass cooktop section.
on the cooktop before next use.
Hot surface on a model • This is normal. The surface may appear discolored
with a light-colored glass when it is hot. This is temporary and will disappear
cooktop. as the glass cools.
Plastic melted to Hot cooktop came into • See the Glass surface—potential for permanent damage
the surface contact with plastic placed section in the Cleaning the glass cooktop section.
on the hot cooktop.
Pitting (or indentation) Hot sugar mixture spilled • Call a qualified technician for replacement.
of the cooktop on the cooktop.
Frequent cycling Improper cookware • Use only flat cookware to minimize cycling.
off and on of being used.
surface units
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Safety Instructions
Consumer Support
36
Before you call for service…
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
37
Troubleshooting Tips
Problem Possible Causes What To Do
Coil Cooktops
Surface units The surface units are not •With the controls off, check to make sure the surface
not functioning plugged in solidly. unit is plugged completely into the receptacle.
properly
The surface unit controls •Check to see the correct control is set for the surface
improperly set. unit you are using.
The drip pans are not set securely •With the controls off, check to make sure the drip pan is
in the cooktop. in the recess in the cooktop and that the opening in the
pan lines up with the receptacle.
Oven–All Models
Oven light does not work Light bulb is loose or defective. •Tighten or replace the bulb.
Switch operating light is broken. •Call for service.
Oven will not work Plug on range is not completely • Make sure electrical plug is plugged into a live, properly
inserted in the electrical outlet. grounded outlet.
A fuse in your home may • Replace fuse or reset circuit breaker.
be blown or the circuit
breaker tripped.
Oven controls improperly set. • See the Using the oven section.
On self-cleaning models, door • If necessary, allow the oven to cool then unlock the door.
left in the locked position.
Food does not bake Oven controls improperly set. •See the Using the oven section.
or roast properly
Shelf position is incorrect or the • See the Using the oven section.
shelf is not level.
Incorrect cookware or cookware • See the Using the oven section.
of improper size being used.
Oven thermostat needs •See the Adjust the oven thermostat–Easy to do yourself!
adjustment. section.
No power supply from Small appliance plug is not •Make sure the small appliance plug is properly
convenience outlet completely inserted in the inserted.
on top of backguard convenience outlet.
(on some models)
The backguard is too hot •Allow the range to cool, then reset the circuit
and the convenience outlet breaker by pressing the switch located near the
breaker has tripped. convenience outlet.
38
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Safety Instructions
Consumer Support
Problem Possible Causes What To Do
Food does not Oven is not set to BROIL. •On models with a temperature knob, make sure you turn
broil properly it all the way to the BROIL position. On models with a
BROIL pad, make sure it is turned on.
Door not open to the broil stop •See the Using the oven section.
position as recommended.
Improper shelf position • See the Broiling guide.
being used.
Food being cooked in a hot pan. • Use the broiling pan and grid that came with your
range. Make sure it is cool.
Cookware not suited for broiling. • Use the broiling pan and grid that came with your
range.
Aluminum foil used on the • See the Using the oven section.
broiling pan and grid has
not been fitted properly and
slit as recommended.
In some areas the power • Preheat the broil element for 10 minutes.
(voltage) may be low.
• Broil for the longest period of time recommended in
the Broiling guide.
Control signals after You forgot to enter a bake •Press the BAKE pad and desired temperature or the
entering cooking time temperature or cleaning time. CLEAN pad and desired clean time.
or delay start
Display flashes "bAd" The installed connection •Contact installer or electrician to correct miswire.
then "linE" with a from the house to the unit
loud tone is miswired.
Before you call for service…
Before you call for service…
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
39
Problem Possible Causes What To Do
Oven temperature too Oven thermostat •See the Adjust the oven thermostat–Easy to do
hot or too cold needs adjustment. yourself! section.
Clock and timer do Plug on range is not completely • Make sure electrical plug is plugged into a live, properly
not work inserted in the electrical outlet. grounded outlet.
A fuse in your home may be • Replace fuse or reset circuit breaker.
blown or the circuit breaker
tripped.
Oven controls improperly set. •See the Using the clock, timer and convenience outlet
section.
Display goes blank A fuse in your home may be •Replace the fuse or reset the circuit breaker.
blown or the circuit breaker
tripped.
The clock is turned off from • See the Using the clock, timer and convenience outlet
showing in the display. section.
Oven door is crooked The door is out of position. • Because the oven door is removable, it sometimes gets
out of position during installation. To straighten the
door, push down on the high corner.
Oven makes This is the sound of the •This is normal.
clicking noise heating element turning
off and on during
cooking functions.
“F—and a number You have a function error code. • Press the OFF pad. Put the oven back into
or letter” flash in operation.
the display
If the function code repeats: • Disconnect all power to the range for at least 30
seconds and then reconnect power. If the function
error code repeats, call for service.
• On self-cleaning models, if a function error code
appears during the self-cleaning cycle, check the oven
door latch. The latch may have been moved, if only
slightly, from the locked position. Make sure the latch
is moved to the right as far as it will go. Press the
OFF pad. Allow the oven to cool for one hour. Put the
oven back into operation.
Power outage Power outage or surge. •Some models will automatically resume their setting once
the power is restored. On models with a clock, you must
reset the clock. If the oven was in use, you must reset it by
pressing the OFF pad, setting the clock and resetting any
cooking function.
Display flashes Power failure. •Reset the clock.
Unable to get the display Oven control pads were not •The BAKE and BROIL pads must be pressed at the
to show “SF” pressed properly. same time and held for 3 seconds.
Troubleshooting Tips
40
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Safety Instructions
Consumer Support
Problem Possible Causes What To Do
“Burning” or “oily” This is normal in a new oven • To speed the process, set a self-clean cycle for a
odor emitting from the and will disappear in time. minimum of 3 hours. See the Using the self-cleaning
oven vent oven section.
Strong odor An odor from the insulation • This is temporary.
around the inside of the oven
is normal for the first few times
the oven is used.
Self-Cleaning Models
Oven will not self-clean The oven temperature is too • Allow the range to cool to room temperature and
high to set a self-clean operation. reset the controls.
Oven controls improperly set. • See the Using the self-cleaning oven section.
Oven door is not in the locked • Make sure you move the door latch handle all the way to
position. the right.
Oven starts a self-clean Oven door locked during • Turn the Oven Temperature knob to OFF. Allow the
cycle when you wanted cooking. oven to cool. Never force the door latch handle.
to bake, roast or broil
“Crackling” or This is the sound of the metal • This is normal.
“popping” sound heating and cooling during both
the cooking and cleaning
functions.
Excessive smoking Excessive soil. •Press the OFF pad. Open the windows to rid the room
during a clean cycle of smoke. Wait until the light on the CLEAN pad goes
off. Wipe up the excess soil and reset the clean cycle.
Oven door will Oven too hot. •Allow the oven to cool below locking temperature.
not unlock
Oven not clean after a Oven controls not properly set. •See Using the self-cleaning oven section.
clean cycle
Oven was heavily soiled. •Clean up heavy spillovers before starting the clean
cycle. Heavily soiled ovens may need to self-clean
again or for a longer period of time.
Before you call for service…
Fan Noise
Humming Noise on Self Clean
components under safety temperatures. Fan will turn
on/off automatically while the range is on Self-Clean cycle.
cycle.
Humming Noise on Bake/Broil •This is normal.
Cooling Fan will be turned-on automatically for Broil Lo/Hi
and for High Baking temperatures (around 475° F) in order
to maintain safety temperatures for all components.
Cooling Fan will turn-off when the oven temperature cools
down below 375° F
•This is normal
•Your range is equipped with a cooling fan to keep the
41
Surface Elements & Drip Pans
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support

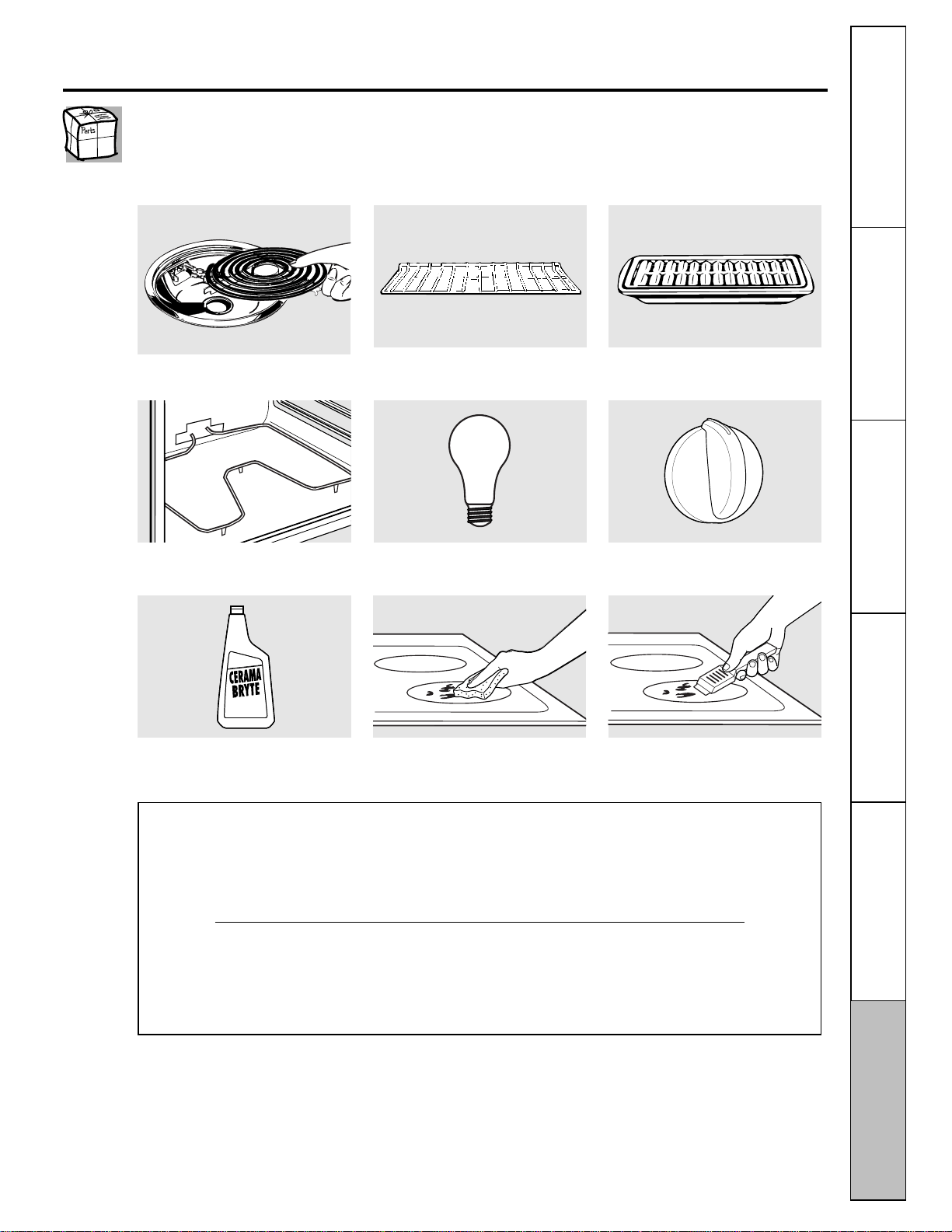

Looking For Something More?
To inquire about purchasing a part or an accessory for your appliance,
call our National Parts Center at 1.800.661.1616.
Tired of discolored racks? Wishing you had extra-heavy-duty oven racks?
NOW AVAILABLE for your range:
GE’
s innovative, self-cleanable porcelain-coated oven racks!
• Heavy Duty
• Durable
• Able to be cleaned in a self-cleaning oven
Oven Racks Broiler Pan
Oven Elements Light Bulbs Knobs
Cleaner Cleaning Pads Scraper
Accessories.
23
(FOR CANADIAN CONSUMERS ONLY -
POUR RÉSIDENTS CANADIENS SEULEMENT)
Please place in envelope and mail to:
Veuillez mettre dans une enveloppe et envoyez à:
OWNERSHIP REGISTRATION
P.O. BOX 1780
MISSISSAUGA, ONTARIO
L4Y 4G1
42
YES /OUI
NO / NON
NAME OF SELLING DEALER / NOM DU MARCHAND
MODEL/MODÉLE
INSTALLATION DATE/DATE D’INSTALLATION
SERIAL/SÉRIE
OWNERSHIP REGISTRATION CERTIFICATE - FICHE D’INSCRIPTION DU PROPRIÉTAIRE
Please register your product to enable us to contact you
in the remote event a safety notice is issued for this product
and to allow for efficient communication under the terms
of your warranty, should the need arise.
Veullez enregistrer votre produit afin de nous permettre de
communiquer avec vous si jamais un avis de sécurité concemant
ce produit était émis et de communiquer facilement avec vous en
vertu de votre garantie, si le besoin s’en faith sentir.
CUT ALONG THIS LINE AND RETURN CARD- -THANKS
REGISTER ON-LINE:
ENREGISTREMENT SUR INTERNET A:
www.geappliances.ca
www.electromenagersge.ca
MAIL TO:
POSTER Á:
APT. NO/APP./RR#
P.O. BOX 1780, MISSISSAUGA
ONTARIO, L4Y 4G1
LAST NAME/NOM
FIRST NAME/PRENOM
MRS./MME.
MS.
MR./M
MISS/MLLE.
STREET NO/N° RUE
STREET NAME/RUE
CITY/VILLE
PROVINCE
POSTAL CODE/POSTAL
AREA CODE/IND. RÉG.
TELEPHONE
E-MAIL
DID YOU PURCHASE A SERVICE CONTRACT FOR THIS APPLIANCE?
AVEZ-VOUZ ACHETÉ UN CONTRAT DE SERVICE POUR CET APPAREIL?
ENGLISH
FRANCAIS
I do not wish to receive any promotional offers regarding this product.
Je ne désire pas recevoir d’offers promotionnelles concemant ce produit.
CORRESPONDENCE
CORRESPONDANCE
IF YES/SI OUI:EXPIRATION
Y/A
M
D/J
Y/A
M
D/J
For Canadian
Customer
Pour les
Consommateurs
Canadiens
24
43
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Safety Instructions Consumer Support
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care technician. To schedule
service, 24 hours a day, call 1.800.
561.3344. Please have serial
number and model number available when calling for service.
¨
For The Period Of: Mabe Canada Will Provide:
One Year
Any part of the range which fails due to a defect in materials or workmanship. During this
limited one-year warranty, Mabe will also provide, free of charge, all labor and related
service to replace the defective part.
From the date of the
original purchase
Service trips to your home to teach you how to use
the product.
Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for
other than the intended purpose or used commercially.
Damage to the glass cooktop caused by use of cleaners
other than the recommended cleaning creams and pads.
Damage to the glass cooktop caused by hardened spills
of sugary materials or melted plastic that are not cleaned
according to the directions in the Owner´s Manual.
Replacement of house fuses or resetting of circuit
breakers.
Damage to the product caused by accident, fire, floods or
acts of God.
Incidental or consequential damage caused by possible
defects with this appliance.
Damage caused after delivery.
Product not accessible to provide required service.
What Mabe Canada Will Not Cover:
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
GE Electric Range Warranty.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use
within Canada. In-home warranty service will be provided in areas where it is available and deemed reasonable by
Mabe Canada to provide.
Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which
vary from province to province. To know what your legal rights are in your province, consult your local or provincial
consumer affairs office.
Warrantor: Mabe Canada Inc.,
Burlington, Ontario
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this
Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a
particular purpose, are limited to one year or the shortest period allowed by law
44
This book is printed on recycled paper.
Printed in Mexico
GE Appliances Website
www.GEAppliances.ca
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner´s Manuals
on-line. You can also "Ask Our Team of Experts
™
" your questions, and so much more...
Schedule Service
www.GEAppliances.ca
Expert GE repair service is only one step away from your door. Call 1-800-561-3344, 24 hours a day
7 days a week.
,
Parts and Accessories
www.GEAppliances.ca
To inquire about purchasing a part or an accessory for your appliance, call our National Parts Center
at 1-800-661-1616.
Contact Us
www.GEAppliances.ca
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: Mabe Canada, Inc.
1 Factory Lane
Moncton, New Brunswick
E1C 9M3
Register Your Appliance
www.GEAppliances.ca
Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the preprinted registration card included in the packing material.
Consumer Support.
45
