ABBQM
ABBQ1B
OPERATION MANUAL
APPLIANCES
FOR LIVING
Congratulations, you are now the proud owner of an ARTUSI cooking appliance. Thank you for purchasing ARTUSI
and welcome to the ARTUSI Family.
This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance
has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.
We present detailed information on each of the features your ARTUSI appliance consists of. Once you have read
this section you will be able to choose the most appropriate settings for your appliance when cooking different
types of food.
We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from
using your appliance. KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
TO REGISTER YOUR PRODUCT WITH ARTUSI, PLEASE FILL OUT THE WARRANTY CARD AT THE END OF
THIS BOOKLET AND POST IT TO: REPLY PAID 83617
LEICHHARDT NSW 2040
Dear Artusi Customer, please read this user manual carefully before using the product and, keep it permanently at
your disposal.
Note: This user manual is prepared for more than one model. Some of the features specified in this Manual may not
be available on your appliance.
All our appliances are only for domestic use, not for commercial use. Products marked with (*) are optional.
“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULA TIONS FORCE AND ONLY USED
IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE”
“Conforms with the WEEE Regulations.”
3
EN
Contents
Product description..........................................4
Components....................................................6
Important safety instructions........................... 8
Assembling the barbecue................................11
Gas cylinder safety information.......................20
Installation instructions....................................21
Application of the thin cover or cooking hood..31
Usage instructions...........................................33
Cleaning and care........................................... 37
Maintenance....................................................40
Troubleshooting...............................................41
Congratulations
Congratulations and thanks for choosing our
integrated barbecue. We are confident that it will
be a pleasure for you to use our new barbecue.
Before using the barbecue, we recommend
reading the entire user guide, which provides
a description of the barbecue and its functions.
To avoid those risks that are always present
when using a gas appliance, it is important to
install it correctly and carefully read the safety
instructions in order to avoid misuse and
hazards.
We recommend you keep this instruction
booklet for future reference and pass it to
any subsequent owners. After removing the
barbecue from its packaging, check to see that
it is not damaged. If in doubt, do not use the
appliance and contact your nearest customer
service centre.
GB
English
Suggestion for the
environment
Disposal information for users
• Most of the packaging material is recyclable.
These materials should be disposed of through
a local recycling centre or by putting them in
appropriate collection containers.
• If you want to discard the product, contact
your local authorities and ask about the correct
method of disposal.
• Remove all transit and packaging material
before use.
4
EN

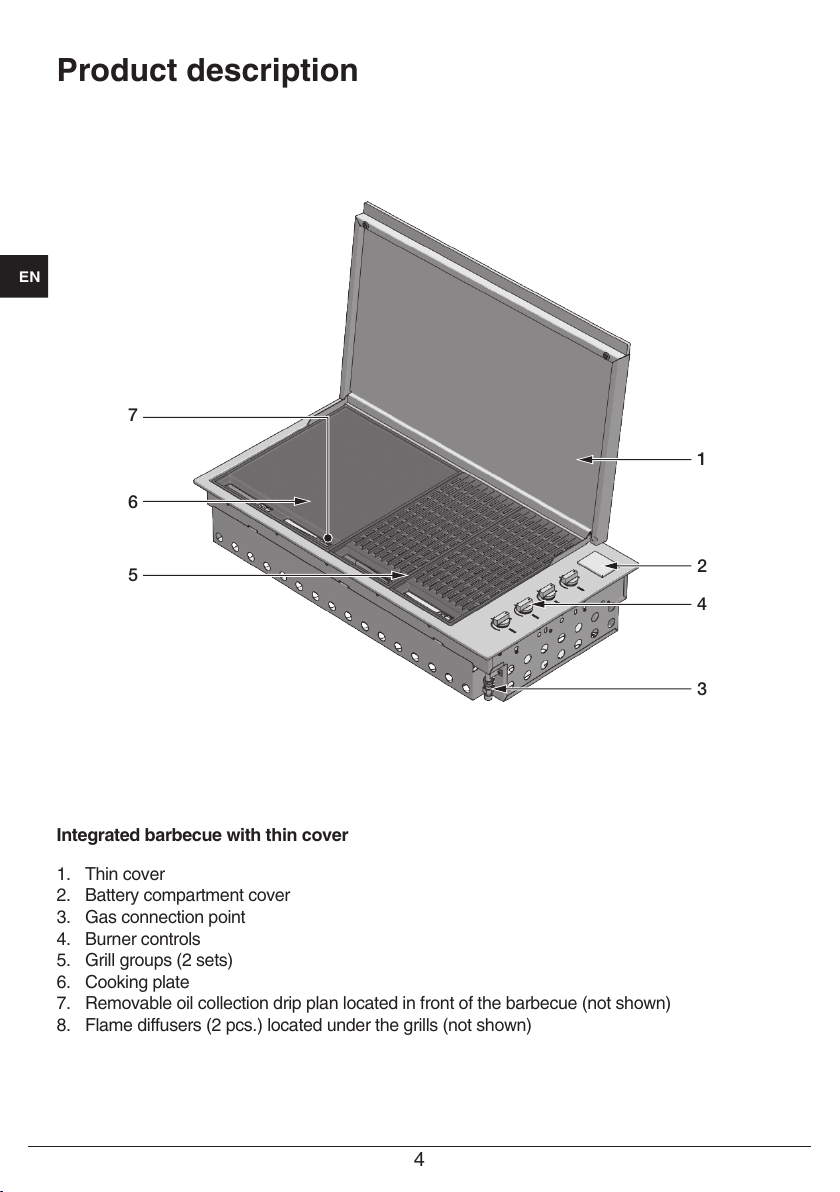

Product description
Integrated barbecue with thin cover
1. Thin cover
2. Battery compartment cover
3. Gas connection point
4. Burner controls
5. Grill groups (2 sets)
6. Cooking plate
7. Removable oil collection drip plan located in front of the barbecue (not shown)
8. Flame diffusers (2 pcs.) located under the grills (not shown)
7
1
2
3
4
5
6
5
EN
Integrated barbecue high cover
9. High cover
10. Heating racks
11. Battery compartment cover
12. Gas connection point
13. Burner controls
14. Grill group
15. Cooking plate
16. Removable oil collection drip plan located in front of the cooking surface (not shown)
17. Flame diffusers (2 pcs.) located under the grills (not shown)
16
9
11
12
13
14
15
10
6
EN

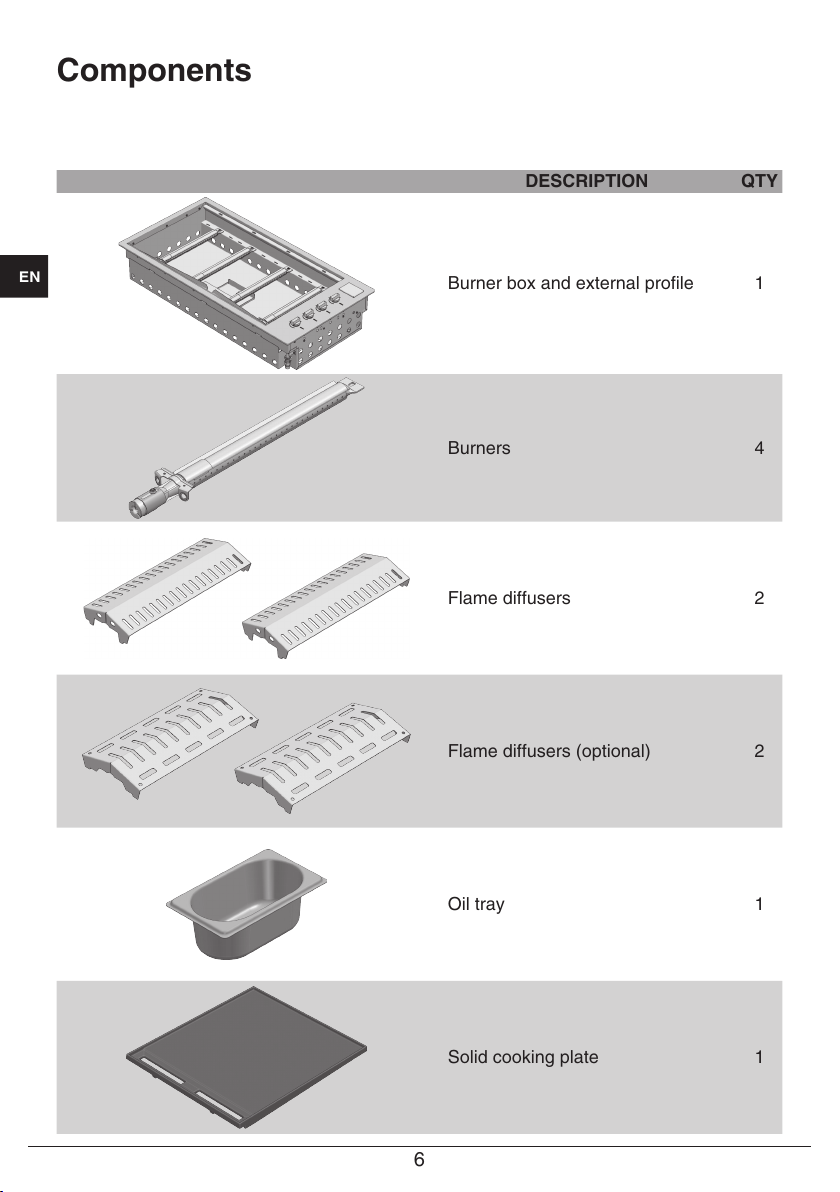

DESCRIPTION QTY
Burner box and external profile 1
Burners 4
Flame diffusers 2
Flame diffusers (optional) 2
Oil tray 1
Solid cooking plate 1
Components
7
EN
Grill groups 2
Universal LPG regulator and hose 1
Natural gas regulator 1
CONFIGURATION 1
High cover for cooking 1
CONFIGURATION 2
Low cover 1
8
EN
For your own safety, you should read this manual before operating the barbecue.
Use
Carefully read the user manual and keep it in a handy place for future reference.
Below, we explain the meaning of the symbols used in this manual:
ATTENTION
This symbol indicates information relating to the user’s personal safety
WARNING
This symbol indicates information on how to prevent damage to the appliance
TIPS AND INFORMATION
This symbol indicates tips and information about the use of the appliance
SUGGESTION FOR THE ENVIRONMENT
This symbol indicates information for the economical and ecological use of the appliance
This symbol indicates a prohibited action
ATTENTION
The appliance MUST only be installed and serviced by qualified and authorized
personnel.
Improper installation, modification, adjustment or maintenance can cause personal injury
or property damage.
Contact your nearest Service Centre for further information.
NOTE FOR THE INSTALLER:
THIS MANUAL MUST BE LEFT WITH THE OWNER FOR FUTURE REFERENCE
Only use a licensed gasfitter to install this barbecue and other trades as applicable;
electrician, carpenter, bricklayer.
Important safety instructions
9
EN
ATTENTION
IF YOU SMELL GAS, do not try to light the barbecue. Perform the leak test procedure
described in this manual. Locate the leak and tighten theleaking fitting; if it is the cylinder
fitting, also replace the gasket seal.
If the leak persists, turn off the gas supply and call for technical assistance.
Do not lean over barbecue while lighting.
Do not leave the barbecue unattended when it is on.
Do not delay ignition once the gas is opened.
Do not store or use aerosol sprays near the barbecue.
Do not store inflammable liquids near the barbecue.
Do not use abrasive or caustic detergents on the barbecue.
Do not operate the barbecue with the cover closed.
Do not attempt to disassemble or adjust the control valves.
Do not attempt to disassemble or adjust the cylinder regulator (not supplied) but, if
necessary, replace with a new one.
Do not use an open flame to check for leaks.
Do not modify the structure of the appliance and do not modify the dimensions of
the injector orifice.
Do not obstruct the ventilation openings of the barbecue.
Do not allow children to operate the barbecue or play near it.
Do not use the barbecue if inflammable materials are within a radius of about 60
cm from the top, bottom, rear or sides of the appliance.
Keep any electrical wires and fuel hoses away from hot surfaces.
Never store a spare gas cylinder near the barbecue.
Do not use or store flammable materials near this appliance.
Do not spray aerosols in the vicinity of this appliance while it is in operation.
Do not use this appliance as a space heater.
10
EN
Do not modify this appliance.
Do not place articles on or against this appliance.
This appliance reaches high temperatures. Be especially careful when children and
elderly persons are present
Do not move the barbecue when it is on.
Wear protective gloves when using the barbecue.
Keep children under the age of eight years away, if not constantly supervised.
Never attempt to extinguish a flame/fire with water: turn off the appliance and cover
the flame with a cover or a fire blanket.
Be careful when handling gas cylinders even if they appear empty, in compliance
with current safety rules.
Do not use dented or rusty gas cylinders
Do not disconnect the gas cylinder from the appliance when it is on. Perform any
service on the gas cylinder far away from the appliance.
Only turn the burners on with the cover lifted
If the knob becomes difficult to rotate, have the taps checked by an authorized
service centre.
Lower the cover, accompanying it with your hand and make sure that nothing is
obstructing its proper closure.
When cooking with the cover closed keep an eye on the thermometer: if the
temperature exceeds 350 °C, lift the cover to prevent dangerous overheating.
Do not leave objects on the cooking surfaces.
Never use the appliance to heat the area.
Always close the valve of the gas cylinder after use.
The manufacturer’s liability:
The manufacturer will not be liable for personal injury or property damage caused by:
• any use of the appliance other than anticipated;
• failure to follow the instructions of the user manual;
• tampering with any part of the appliance;
• use of other than original parts.
11
EN
Tools needed for assembly:
- Phillips screwdriver
1. Remove all components from the box.
2. Place the flame diffusers in the desired positions (under the points (A) in which the grill
sections will be placed) and attach the rear edge of the flame diffuser to the rear of the
body of the barbecue.
Assembling the barbecue
BACK
BACK
FRONT
FRONT
12
EN
3. Apply the oil drip pans to the front of the barbecue.
BACK
FRONT
FRONT
BACK
13
EN

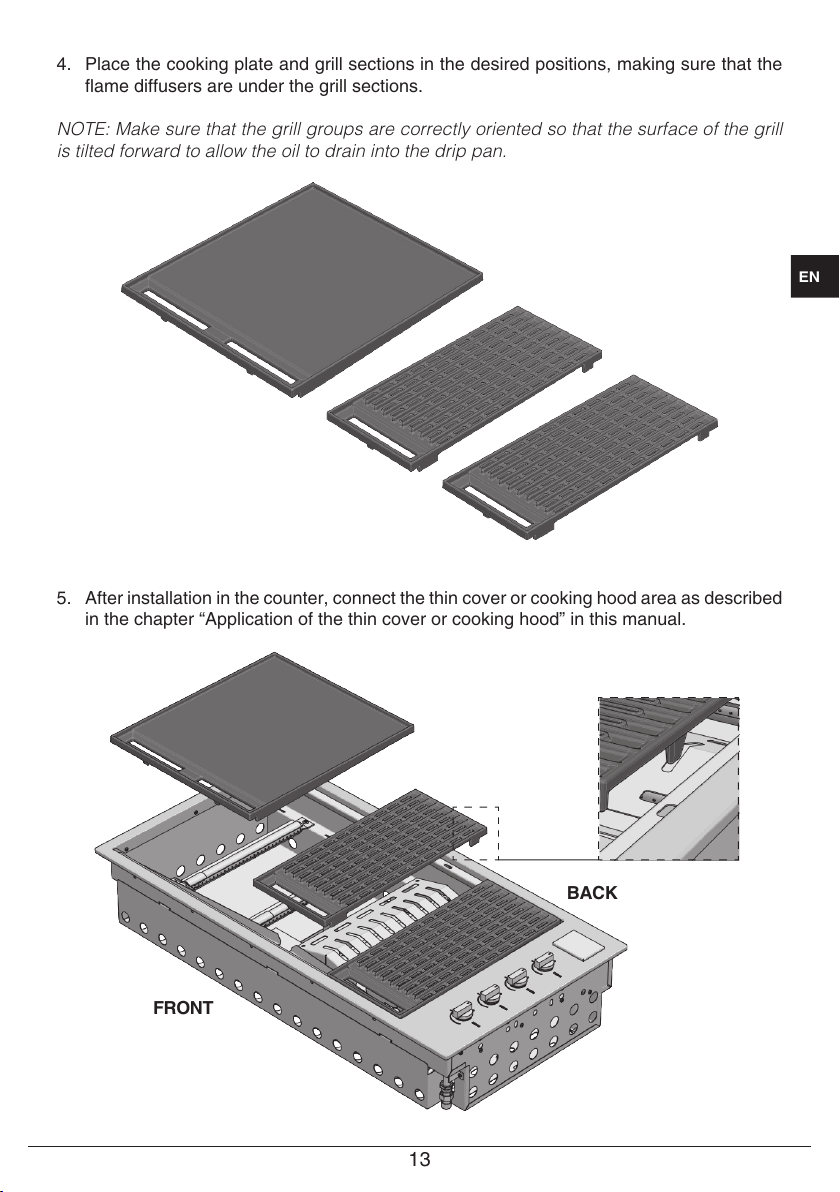

4. Place the cooking plate and grill sections in the desired positions, making sure that the
flame diffusers are under the grill sections.
NOTE: Make sure that the grill groups are correctly oriented so that the surface of the grill
is tilted forward to allow the oil to drain into the drip pan.
5. After installation in the counter, connect the thin cover or cooking hood area as described
in the chapter “Application of the thin cover or cooking hood” in this manual.
BACK
FRONT
14
EN
Gas Type
NATURAL
GAS
UNIVERSAL
LPG
Nominal heat input (MJ/h) 52 52
Injector diameter (1/100mm) 170 100
Number of injectors 4 4
Pressure (kPa) 1 2,75
Primary air regulation (mm)
X
2 All open
Adapting to different types of gas
If the appliance is configured for a different type of gas than that available, you have to replace
the injectors with ones corresponding to the type of gas to be used (see tables on the preceding
pages). The replacement will be made using an adequate 7 mm key after having lowered the
burners as in the following images. After replacing the injector, regulate the air to 1mm for natural
gas and to the maximum if LPG.
To adjust the minimum, after lighting the burner, remove the knob and the gasket below and
rotate the screw of the tap (B - see page 70), which should be totally closed for LPG and opened
about 3/4 turn for natural gas, keeping in mind that a flame lower than 3 mm may not even be
“perceived” by the thermocouple of the tap. After regulating the minimums, replace the gaskets
and knobs.
1 - Unscrew the fixing screws of the burner.
BACK
FRONT
15
EN

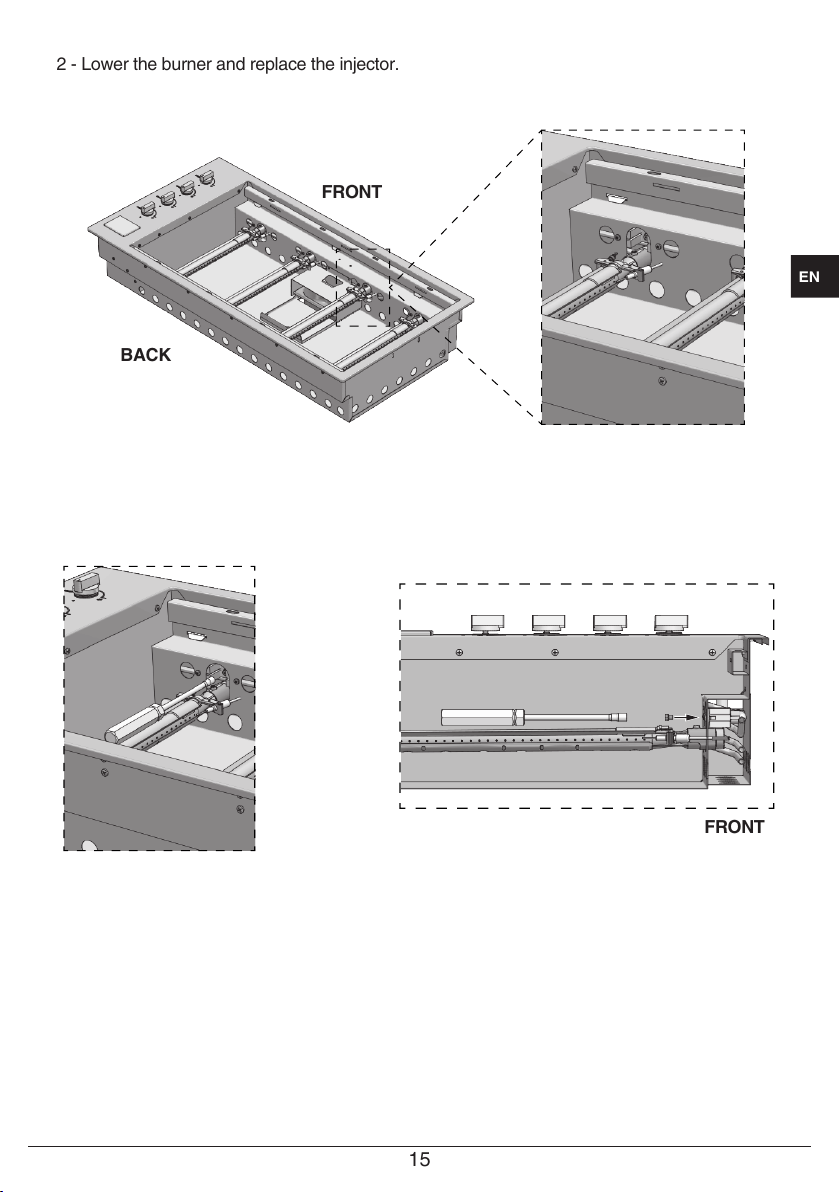

2 - Lower the burner and replace the injector.
BACK
FRONT
FRONT
16
EN
NOTES
• The appliance MUST only be installed and serviced by qualified and authorized personnel.
• The product is exclusively intended for outdoor use.
• The product must be installed according to the instructions, which require ventilation
openings to allow the grill to work properly. The lack of adequate ventilation to supply air to
the appliance can lead to poor operation of the burners or excessive heat build-up in the
installation compartment.
• The unit’s ventilation openings must not be covered during installation.
Gas connection
Connect the appliance to the cylinder or system according to the requirements of current law,
making sure that the appliance is configured for the type of gas available. If not, see: “Adapting
to different types of gas”. Also check that the feed pressure falls within the values shown in the
table: “Gas specifications”.

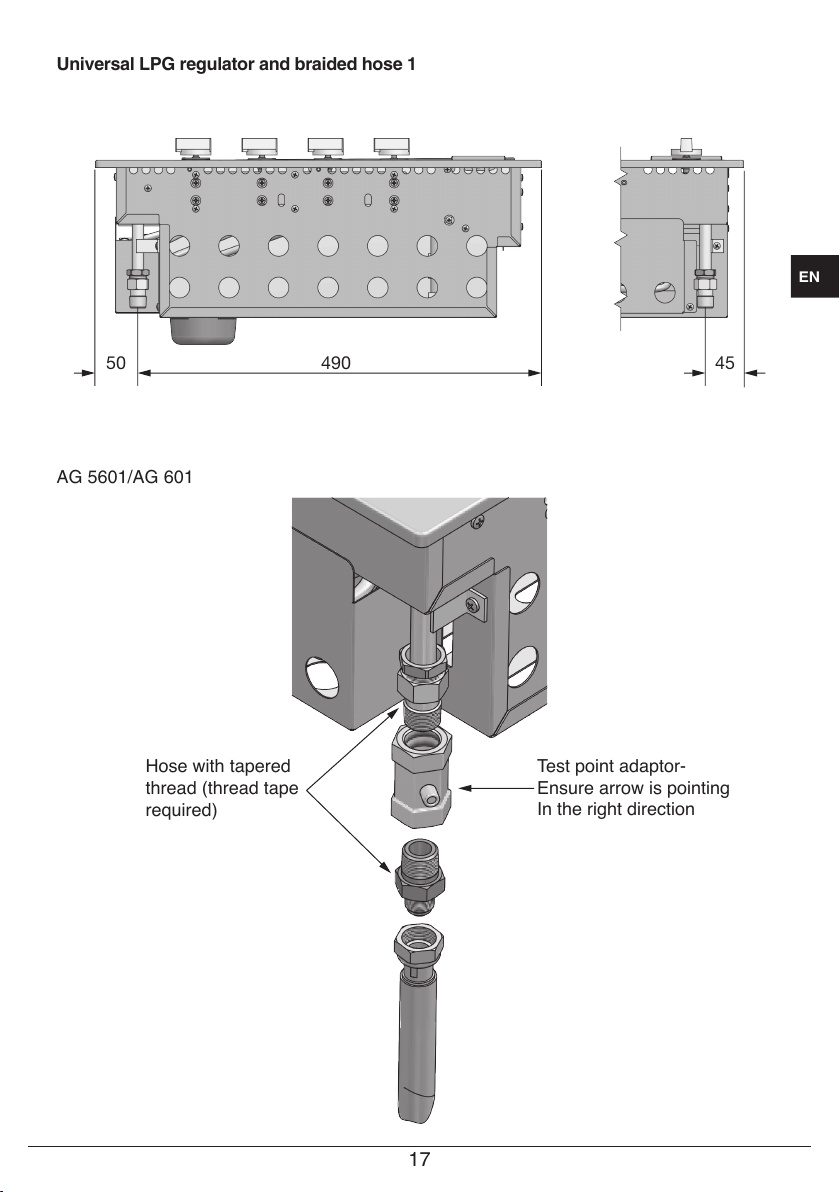

Rigid and semi-rigid metal and rubber hose connection
Make the hook-up with metal fittings and pipes (even flexible hoses) so as not to stress the
components inside the appliance.
A rubber hose connection complies with current law only if the hose can be inspected along its
entire length and easily replaced near the expiration indicated on the hose.
NOTE: - After installation, use soapy water to check the perfect seal of the entire connection
system. DO NOT USE AN OPEN FLAME TO CHECK THE GAS SEAL.
17
EN
Universal LPG regulator and braided hose 1
50 45490
AG 5601/AG 601
Test point adaptor-
Ensure arrow is pointing
In the right direction
Hose with tapered
thread (thread tape
required)
18
I
CONVERSION PROCEDURE
Normal LPG to NG
Regulator - ensure
arrow is pointing
the right direction
Hose with tapered
thread - thread tape
required
• Disconnect and disassembled/remove trivet, burners etc.
• Remove regulator. Ensure provision is left for measuring gas pressure e.g test point. A
separate fitting may have to fitted.
• Remove injectors and replace with correct sizes for each burner.
• Adjust aeration (X) per every burner
• Re-assemble burners.
• Turn gas on and test for leaks, repair if necessary.
• Light the burners and set the pression to 1,00kPa.
• Turn burner “Low” setting and adjust setting accordingly.
• Chek operation of ignition etc.
• Ensure data plate is changed with the new data plates supplied in the product.
For Natural Gas connection a bayonet connection point should be installed by a licensed
gas fitter prior to installing the barbecue unit.
19
EN
X
20
EN
• When converted for the use of universal LPG, the appliance is designed to use different
types of cylinders depending on the installation made. See the chapters on Installation
Preparation and Connection of the cylinder.
• The gas cylinder must be manufactured and marked in accordance with the specifications
for LPG cylinders.
• The shut-off valve must be closed when the appliance is not in use.
• The gas cylinders must be kept in an approved housing out of the reach of children.
• When you disconnect the gas cylinder, make sure all the control valves are in the “OFF” (O)
position.
• Before disconnecting, remove the cylinder from any housing in which it may be located.
• When you reconnect the hose to the cylinder, make sure all the connections are tight before
placing it back in its compartment.
• After each connection of a cylinder, perform a leak test as described below.
Leak testing procedure
• Make sure that all the gas taps are in the “OFF” (O) position.
• Mix a solution of water and detergent or soap in a small container.
• After connecting the hose, open the valve on the gas cylinder or gas system tap.
• Using a brush, paint the solution on the gas connection points and check for bubbles.
• Bubbles indicate a leak.
• Close the valve and tighten the fitting, possibly inserting a new gasket. Repeat the leak test.
• If the leak persists, turn off the gas and contact an authorized gas system maintenance
technician to repair the leak.
Gas cylinder safety information
21
EN
ATTENTION
• The appliance must only be used above ground level, in open air and natural ventilation
without stagnant areas where leaking gas and combustion products are rapidly dispersed by
the wind or natural convection. This barbecue is designed exclusively for outdoor use. Refer
to the drawings below.
• Never install the barbecue inside buildings, garages, sheds or covered walkways, or in a
boat, camper or caravan. This prevents the creation of fires or carbon monoxide with toxic
effects or asphyxiation.
• The compartment in which the appliance is installed must conform to one of the following
requirements:
• A compartment with walls on all sides, but with at least one permanent opening at
ground level and without upper cover.
• In a partial compartment that has a top cover and not more than two walls.
• In a partial compartment that has a top cover and not more than two walls; in this case,
the following principle applies:
• At least 25% of the total area of the walls is completely open and at least 30% of the
remaining area of the walls is open and free.
• In the case of balconies, at least 20% of the total area of the side, front and rear walls must
be and remain open and free.

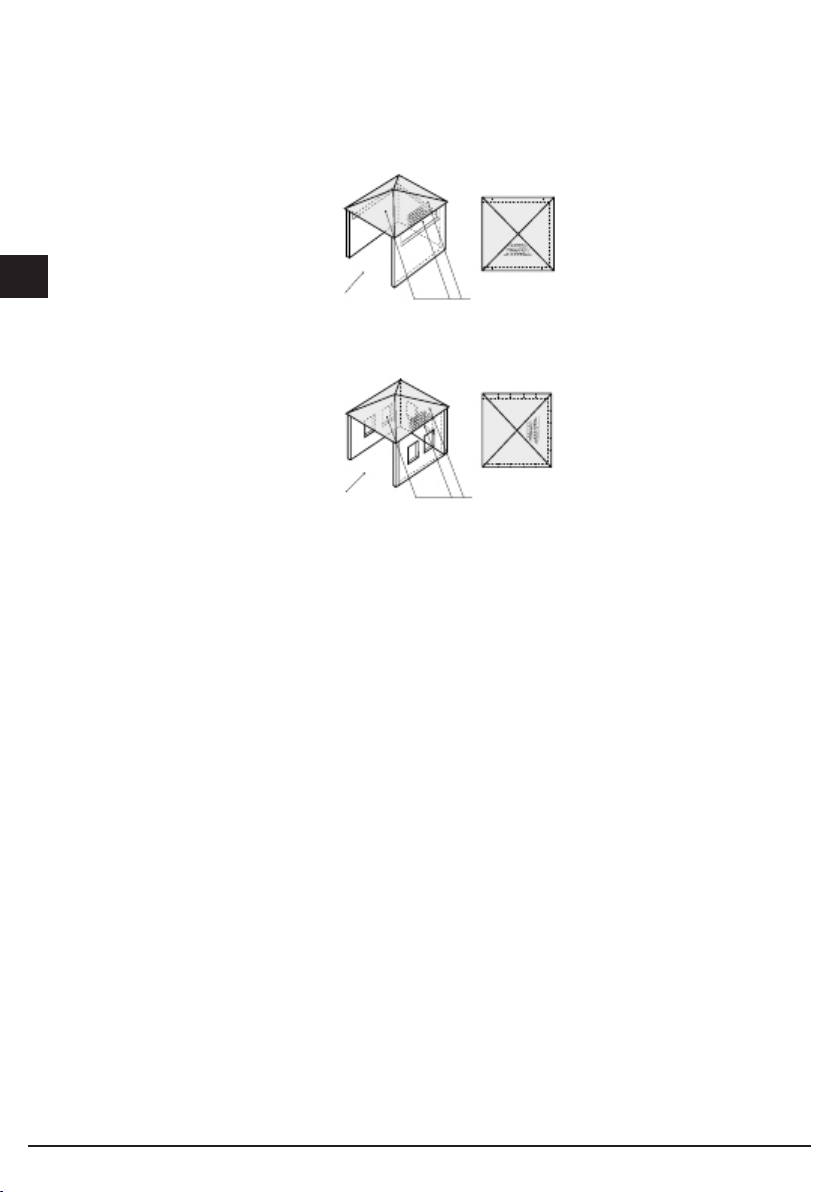

External surface area example 1
External surface area example 2
External surface area example 3
both ends open
Installation instructions and warnings
22
EN
External surface area example 4
open side for at least 25% of the
total area of the walls
in total 30% or more of the remai-
ning surface of the walls is open
and free
External surface area example 5
open side for at least 25% of the
total area of the walls
in total 30% or more of the remai-
ning surface of the walls is open
and free
Selection of the point of installation
• The appliance must not be installed on combustible materials. The minimum distance from
combustible materials is 200 mm (600mm overhead).
• The free space above the cooking surface with respect to combustible materials must be at
least 600 mm.
• The appliance must be installed in accordance with standards and local deviations.
• When using LPG, ventilation must be ensured in the compartment. The gas is highly
explosive and can cause serious personal injury and property damage if it is left to
accumulate and then ignited.
• Avoid locations exposed to the wind as this may affect cooking and the efficiency of the
burners. If you cannot avoid such a location, screens may be necessary.
Installation compartment
•The barbecue requires a non-combustible barrier beneath it to prevent reaching an
excessive temperature. The panel that acts as a barrier must be positioned 30/35 mm below
the base of the unit.
•The installation compartment must be made of non-combustible materials. Materials suitable
for its construction include brick, granite, marble, Hardiplank® and Villaboard® on a metal or
brick structure.
•The appliance requires ventilation openings in the front wall of the compartment. See the
drawing on page 27 for details.
•The appliance unit can be mounted in an island counter or a counter with splash guard.
Read the specific requirements for each type of mounting.
23
EN
Island-mounted
• If the appliance is installed in an island, it can be placed in the centre. Pay particular
attention to the overall dimensions of the top of the island, taking into account the open
cooking hood and its projection. See page 24.
• The required dimensions of the cut-out are 1025 mm x 502 mm (see drawing).
Installation in a counter in a special context
• The context must be made of non-combustible material.
• When mounting the appliance against a wall or a fence, it is essential to insulate combustible
materials. All combustible materials must be kept at least 600 mm away from the barbecue.
• The required dimensions of the cut-out are 1025 mm x 505 mm (see drawing).
• Models with high cooking cover require a specific free space on the back of the barbecue
between the splash guard and the cut-out of the counter of at least 70 mm. This, so that the
hood has the free space needed to open.
200
24
EN

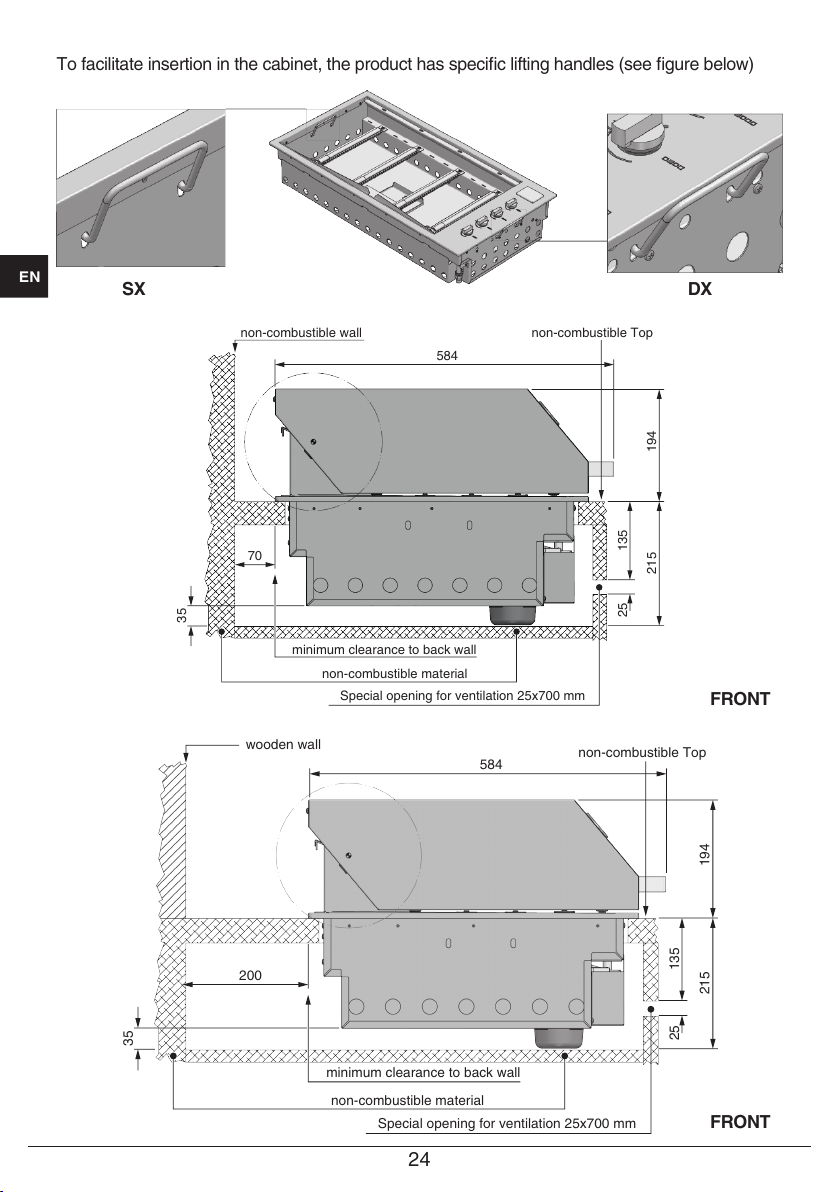

To facilitate insertion in the cabinet, the product has specific lifting handles (see figure below)
SX DX
non-combustible wall
non-combustible material
non-combustible Top
70
25 135
215
35
194
584
minimum clearance to back wall
Special opening for ventilation 25x700 mm
non-combustible material
wooden wall
non-combustible Top
200
25 135
215
35
minimum clearance to back wall
584
194
Special opening for ventilation 25x700 mm
FRONT
FRONT
25
EN

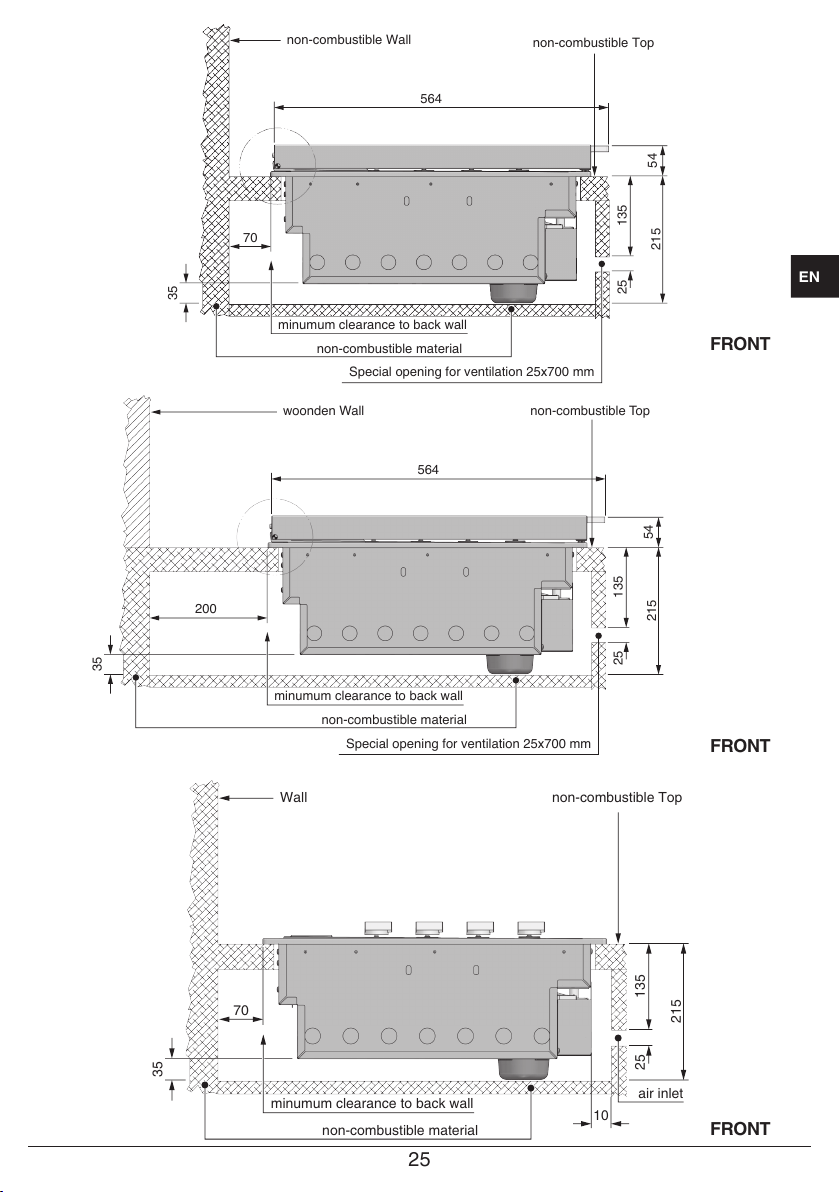

10
non-combustible material
Wall
70
35
25 135
215
non-combustible Top
air inlet
minumum clearance to back wall
non-combustible material
non-combustible Wall
70
564
35
25 135
215
54
non-combustible Top
Special opening for ventilation 25x700 mm
minumum clearance to back wall
woonden Wall
200
35
25 135
215
non-combustible Top
minumum clearance to back wall
non-combustible material
564
54
Special opening for ventilation 25x700 mm
FRONT
FRONT
FRONT
26
EN

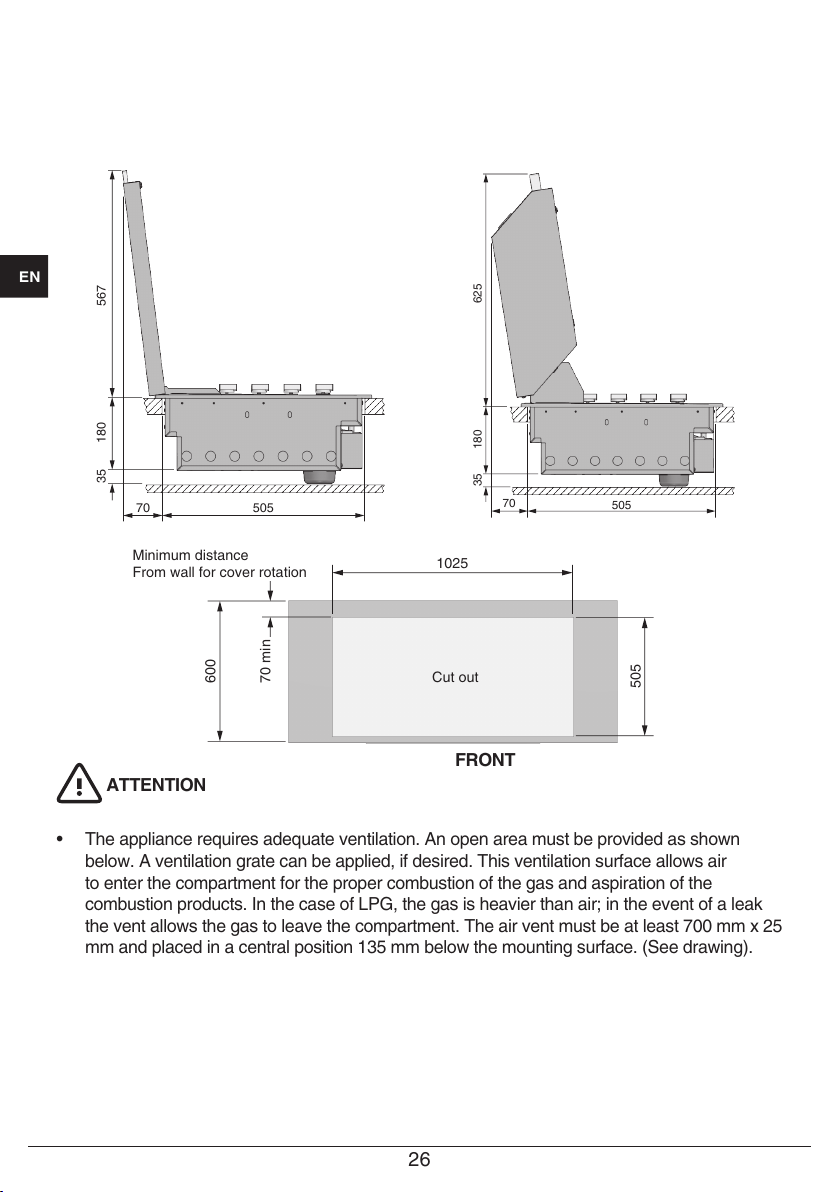

ATTENTION
• The appliance requires adequate ventilation. An open area must be provided as shown
below. A ventilation grate can be applied, if desired. This ventilation surface allows air
to enter the compartment for the proper combustion of the gas and aspiration of the
combustion products. In the case of LPG, the gas is heavier than air; in the event of a leak
the vent allows the gas to leave the compartment. The air vent must be at least 700 mm x 25
mm and placed in a central position 135 mm below the mounting surface. (See drawing).
50570
35 180 567
505
70
35 180 625
FRONT
Minimum distance
From wall for cover rotation
1025
600
70 min
505
Cut out
27
EN

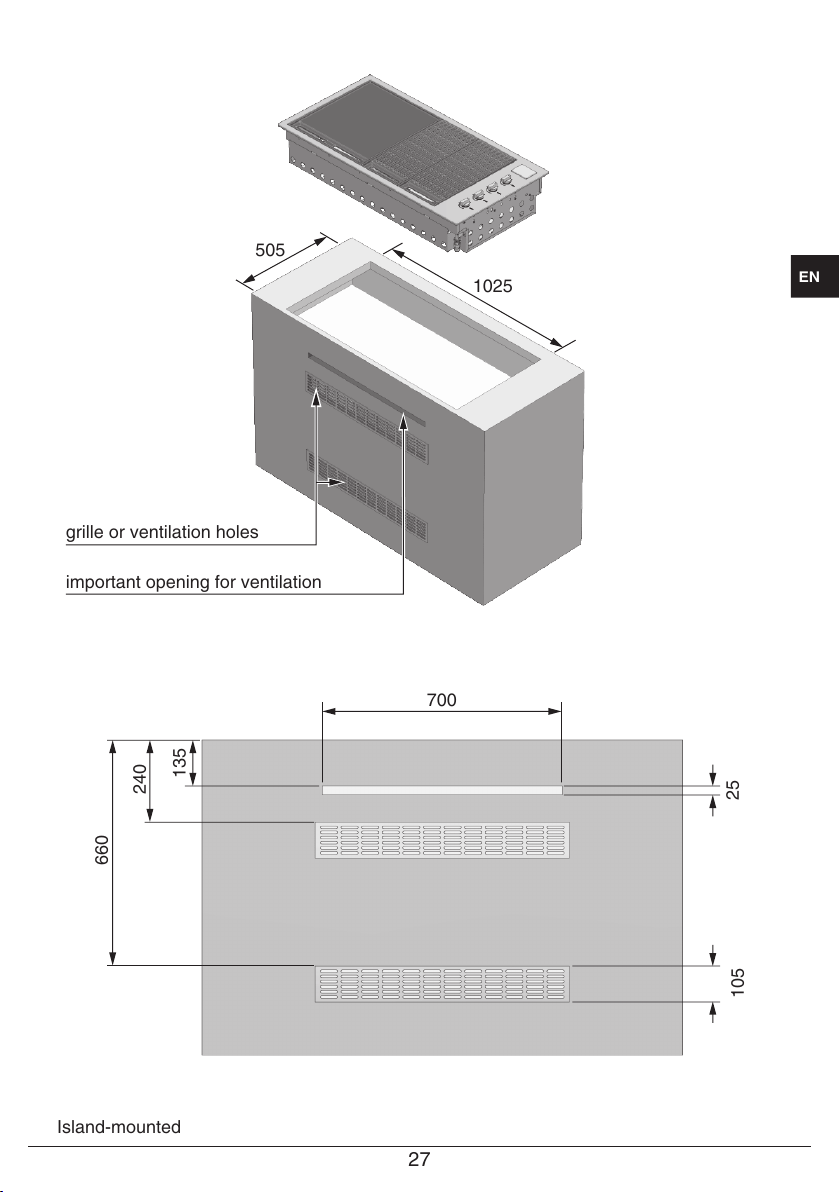

Island-mounted
700
135
240
660
25
105
505
1025
important opening for ventilation
grille or ventilation holes
28
EN

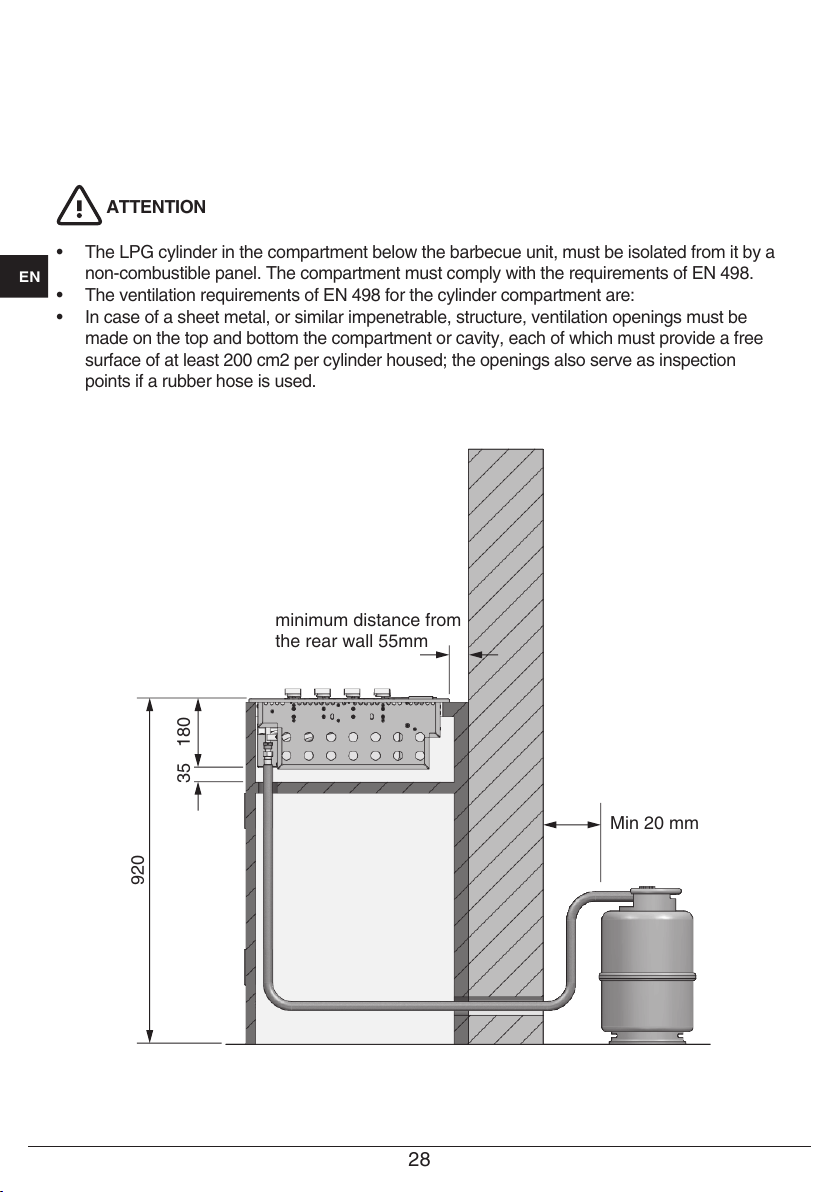

ATTENTION
• The LPG cylinder in the compartment below the barbecue unit, must be isolated from it by a
non-combustible panel. The compartment must comply with the requirements of EN 498.
• The ventilation requirements of EN 498 for the cylinder compartment are:
• In case of a sheet metal, or similar impenetrable, structure, ventilation openings must be
made on the top and bottom the compartment or cavity, each of which must provide a free
surface of at least 200 cm2 per cylinder housed; the openings also serve as inspection
points if a rubber hose is used.
minimum distance from
the rear wall 55mm
Min 20 mm
920
18035
29
EN

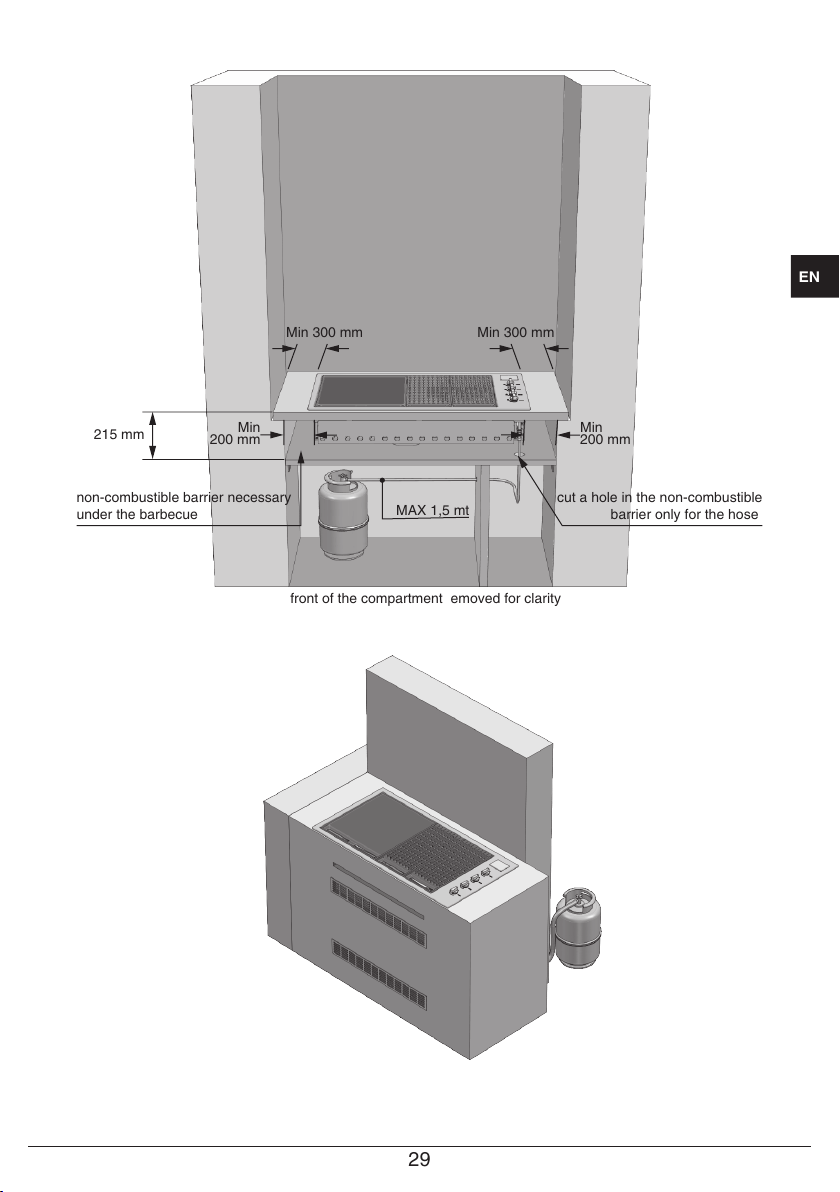

Min 300 mm
Min
200 mm
Min
200 mm
Min 300 mm
215 mm
MAX 1,5 mt
non-combustible barrier necessary
under the barbecue
cut a hole in the non-combustible
barrier only for the hose
front of the compartment emoved for clarity
30
EN
The LPG cylinder may be connected inside the object-holder compartment of barbecue
only if it has the dimensions shown in the guidelines. The safe use of a cylinder inside the
object-holder compartment of the barbecue depends on several factors:
A) The base of the cylinder must be properly inserted between the plates and be horizontal
on the base panel.
Dimensions of the cylinder
Max height 465 mm
Width 289 mm - (rectangular section) or 318 mm (circular section) maximum B) Capacity of
the cylinder max 6 kg
There are several models of cylinders with approved dimensions (2).
WARNING: if the LPG cylinder purchased does not have the required dimensions, do not
attempt to connect it inside the object-holder compartment. Fix the cylinder to the bracket
or rest it on the floor. Failure to follow these instructions could damage the hose and cause
fire or explosion, with serious injury or death and property damage.
31
EN
Application of the low cover
• Remove the thin cover from the packaging.
• Attach the hinges to the outer frame and secure it with the special screw provided.
Application of the thin cover
LEFT
RIGHT
32
EN
Application of the high cover
• Remove the High cover from the packaging.
• Remove the hinge from the cover and apply it to the outer frame. Fix it with the special
screws provided.
• Insert the cover into the seats of the hinge (see detail A page 89).
IMPORTANT
• Given the dimensions of the cooking hood, we recommend that two people position it.
• During positioning the high cover group, take special care to avoid scratching the external
profile.
33
EN

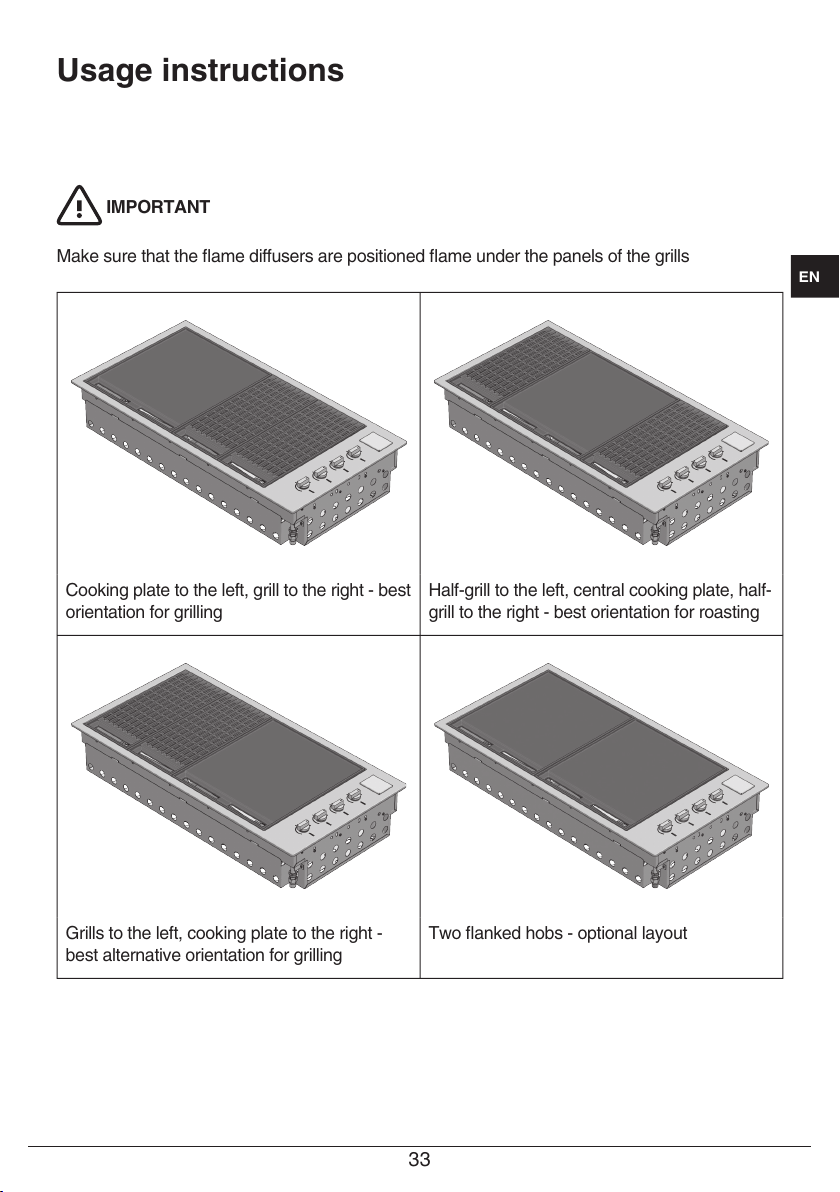

IMPORTANT
Make sure that the flame diffusers are positioned flame under the panels of the grills
Cooking plate to the left, grill to the right - best
orientation for grilling
Half-grill to the left, central cooking plate, half-
grill to the right - best orientation for roasting
Grills to the left, cooking plate to the right -
best alternative orientation for grilling
Two flanked hobs - optional layout
Usage instructions
34
EN
Control functions
Before lighting the barbecue:
• Check that all the gas hoses and fittings are tight.
• Open the thin or high cover.
Gas leakage detection test
Never use a match or flame, use soapy water solution and spray or brush the solution onto all
connections. Carefully check for bubbles which indicate a gas leak. If leaks are detected, turn
the gas off and retighten connection(s), then repeat test. The fittings must be thoroughly rinsed
with clean water after testing.
NOTE: The thin cover is intended to protect against the weather. The cover is not intended to
be used as a cooking hood.
• Make sure that all the control knobs are in the closed (O) position.
• Make sure that the cooking surfaces are clean.
• Open the main gas valve.
Ignition instructions
• Do not light the burners with the cooking surfaces covered.
• To light a burner, press the knob and turn it to the “MAX” (fast pre-heating) position.
• Hold it for 5 seconds (count to 10), release it and check the flame from the slots in the front.
• If the burner is not lit, turn the knob to the closed (O) position. Allow the gas to disperse, and
then repeat the ignition procedure.
OFF
MAX
MIN
35
EN
Manual lighting
• If the automatic ignition system is not working, the barbecue can be lit manually.
• To turn it on manually, use a long match (28cm). Pass the lit match between the inspection
slots under the front part of the hob, approaching it to the burner, then turn the knob and
hold it pressed on MAX (quick preheating) in order to perform the ignition. If it does not light,
close the control valve and wait a few minutes for the gas to disperse before trying to light
the barbecue again.
• Once one burner is lit, repeat the procedure for the others, if necessary.
• Incorrect lighting of the barbecue can result in serious injury, fire, explosion or death. If the
burner does not light, turn the gas off, wait 5 minutes to allow the gas to disperse before
attempting to light appliance again.
Inspection slits
Pre-heating cooking areas
• The barbecue is equipped with high-power burners. Under most conditions, it will only be
necessary to pre-heat the barbecue for just 5 minutes before starting to cook.
• As with most things, experience will teach the user the effectiveness and interval necessary
for reaching the best pre-heating time for obtaining the ideal cooking temperature. Don’t
forget that this also depends on the type of food, its thickness and how you want to cook it.
• Tests have shown that you can reduce the heat of the burners for satisfactory cooking.
• If the barbecue has a thin cover, you should remove it in the presence of wind.
• If the appliance is not working properly, refer to the chapter “Troubleshooting”.
• If you let the cooking areas overheat, there will be excessive smoke during cooking and the
food will burn.
• While cooking, avoid leaning over the open grill or placing the hands or fingers on the edge
of the oven.
36
EN
• In case of uncontrolled sudden flames, remove the food from the fire until the flame is
damped.
• To roast with the high cover closed, it is sufficient to adjust the 4 burners to the minimum
power (MIN) for satisfactory cooking
To turn off the burner
• When done cooking, turn the knob fully clockwise so that the mark on the knob is in the
closed (O) position.
Remember to always close the valve of the gas cylinder after use.
Remember to shut-off the gas before closing the cover.
ATTENTION
THE COVER MUST NOT BE CLOSED WHEN THE BURNERS ARE LIT.
If the cover is closed while the burners are lit, the cover and barbecue can be discoloured and
damaged.
37
EN
Care and cleaning of the appliance
To preserve its original appearance, we recommend cleaning the cooking surfaces after each
use.
ATTENTION
Make sure the barbecue is turned off and has cooled down before executing the instructions
shown below.
Cleaning of cooking parts
• Remove from the grill and from the cooking burners all the solid materials and the excess
grease using a scraper or a metal brush with brass bristles
• Use a clean, dry cloth to make sure all surfaces are dry.
Other stainless steel surfaces
WARNING
Do not use caustic or abrasive detergents, steel wool or metal scrapers on these stainless steel
surfaces because they can scratch and permanently damage the barbecue.
• Wash all stainless steel parts, including the thin cover, high cover and control knobs, with a
soft cloth and warm soapy water
• Clean the surfaces, making sure to rub/dry in the direction of the grain in order not to
damage the stainless steel.
• The inside of the barbecue can be cleaned with a soft cloth soaked in warm soapy water.
The front panel/tray placed inside can be removed for an easy cleaning.
• Use a clean, dry cloth to make sure all surfaces are dry.
Cleaning the cooking grills made of cast iron
• Clean with an adequate brass bristle brush. If necessary, remove from barbecue, wash with
warm soapy water, rinse with water and dry carefully.
Important: After cooking and cleaning, the cast-iron grids should be oiled. Apply a thin layer
of vegetable oil using a cloth or brush. Afterwards, use a cloth to rub the cookware as if you
want clean the oil you just placed on it.
WARNING
Pay particular attention (especially when cleaning the knobs and around the knobs) to avoid
water and soap residue from entering the control panel containing the valves or in the burners.
Also, be careful not to touch the ignition electrode and thermocouple. There must be 3 mm
of space between the electrode and the burners (see drawing on the next page). If the unit is
exposed to the elements we recommend you use the optional vinyl cover.
Cleaning and care
38
EN
3 mm
3 mm
Cleaning the grease drip pan
The integrated barbecue has a unique oil management system that uses overlapping channels
to convey all the oil towards the front to easily removable drip pans, which must be cleaned after
each use.
• To remove the drip pan, pull them upwards from the front of the barbecue; dispose of their
contents in a responsible way. Wash the collection pans in hot soapy water or, if you want,
you can put them in the dishwasher.
1 - To remove the drip pan
39
EN
2 - Move the drawer
3 - Raise up the pan up
Burners
The burners should be checked at least once a year and cleaned if necessary. Inspect the
burners to make sure that no residue deposits and that the gas connections are free.
SUGGESTIONS AND INFORMATION
Special note on “tea staining”
Sometimes stainless steel surfaces are affected by a colour change called “tea staining”.
This usually occurs in areas where high heat is used and can be removed using stainless
steel cleaning agents. For best results, we recommend that you regularly use stainless steel
cleaner on all stainless steel parts. These cleaners are available in all hardware stores and
supermarkets.
40
EN
Ignition system
To change the battery, remove the battery cover by lifting the battery holder flap on the left side
and pull out the battery. Replace it with a new D battery and replace the cover. Perform a test
by pressing the knob; you should hear a click.
Ventilation openings
The ventilation openings of the installation compartment must be inspected before each use of
the appliance to make sure that there are no obstructions that could impede the free flow of air.
Maintenance
41
EN
PROBLEM POSSIBLE CAUSE SOLUTION
The barbecue doesn’t light No gas Check that the shut-off valve is open (ON)
Gas cylinder empty - refill or change the
cylinder
The ignition system is not
working
Check the battery - you should hear a
clicking sound when you press the knob
Replace the battery
Light the barbecue manually
Gas tap regulated too high Clean and delicately dry the electrode
making sure that its position is correct
Excessive smoke from the
cooking surface
Gas valve set too high Lower the gas or turn off some of the
burners
Odour of gas
DON NOT TRY TO LIGHT THE
APPLIANCE
Gas leak Close the gas with the shut-off valves
Check for leaks, tighten the fittings
If the problem persists, call the Service
Centre
Troubleshooting
For service enquires please contact us at [email protected] or 1300 85 64 11
42
EN
MANUFACTURER’S DECLARATION
The manufacturer declares that, depending on their type, the products in this catalogue conform to the
fundamental requirements of European Directives and, for this reason, the product bears the CE mark, for
which this declaration of conformity was issued and made available to market supervisory bodies.
DISPOSAL OF USED APPLIANCES
At the end of their useful life, these appliances may not be disposed of with normal urban waste but must be
given to an electronic and electrical equipment collection and recycling point. This is indicated by the symbol
shown on the product, in the instruction manual or on the packing materials.
The materials used in this appliance can be reused in conformity with their intended use. Thanks to the
reuse, recycling or other forms of recovery of unusable appliances, you will make a contribution to protecting
our natural environment.
You can obtain information about the disposal points for unusable appliances from your local authorities.
The manufacturer will not be liable for inaccuracies in this manual due to typographic errors. We reserve
the right to make improvements or indispensable modifications to products without altering their essential
specifications. Products can be modified following requests for improvements and CE standards.
Warranty Card
Worldwide Appliances Pty Limited
A.B.N. 45868077422
Oce:
48-50 Moore Street, Leichhardt N.S.W 2040
Post:
Locked Bag 3000, Annandale, N.S.W 2038
P: 1300 694 583
WARRANTY REGISTRATION
Your ongoing satisfaction with your artusi
product is important to us. We ask that you
complete the enclosed Warranty Registration
Card and return it to us so that we have a record
of the artusi product purchased by you.
PRIVACY
Worldwide Appliances respects your
privacy and is committed to handling your
personal information in accordance with the
National Privacy Principles and the Privacy
Act 1988 (Cth). A copy of the Worldwide
Appliances Privacy Policy is available at
www.artusi.com.au. Worldwide Appliances will
not disclose any personal information set out
in the Warranty Registration Card (“Personal
Information”) without your consent unless
required by:
1. law;
2. any Worldwide Appliances related company;
3. any service provider which provide services
to artusi or assist artusi in providing services
(including repair and warranty services) to
customers. Our purpose in collecting the
Personal Information is
to keep a record of the artusi product purchased
by you, in order to provide a better warranty
service to you in the unlikely event that there is
a problem with your artusi product. Worldwide
Appliances may contact you at any one or more
of the address, email address or telephone
numbers set out in the Warranty Registration
Card. Please contact artusi on 1300 694
583 should you not wish to be contacted by
Worldwide Appliances.
WARRANTY
1. Warranty
Worldwide Appliances warrants that each artusi
product will remain, for a period of either 12
months or 24 months of warranty. All Warranties
are valid from the original date of purchase, And
warranty claims must be accompanied by the
proof of purchase.
24 months warranty products:
All Built-in Appliances – Limited to Ovens,
Gas, Induction and Electric Cooktops, and All
Rangehoods
Freestanding Cookers - Gas and Electric Models
(900mm Width)
artusi.com.au
Dishwashers - Freestanding, Fully Integrated,
Semi Integrated and built-in
12 months warranty products:
Freestanding Cookers - Gas and Electric Models
in 50cm, 54cm and 60cm Widths
Portable Appliances* – Benchtop Models and
Portable Gas Models
2. What is not Covered by the Warranty.
The Warranty does not apply if an artusi product
is defective by a factor other than a defect arising
in the manufacture of the artusi product, including
but not limited to:
(a) damage through misuse (including failure
to maintain, service or use with proper care),
neglect, accident or ordinary wear and tear
(including deterioration of parts and accessories
and glass breakage);
(b) use for purpose for which the artusi product
was not sold or designed;
(c) use or installation which is not in accordance
with any specied instructions for use or
installation;
(d) use or operation after a defect has occurred or
been discovered;
(e) damage through freight, transportation or
handling in transit (other than when Worldwide
Appliances is responsible);
(f) damage through exposure to chemicals, dusts,
residues, excessive voltage, heat, atmospheric
conditions or other forces or environmental
factors outside the control or Worldwide
Appliances;
(g) repair, modication or tampering by the
purchaser or any person other than Worldwide
Appliances, an employee of Worldwide
Appliances or an authorised artusi service
contractor*;
(h) use of parts, components or accessories
which have not been supplied or specically
approved by artusi.
(i) damage to surface coatings caused by cleaning
or maintenance using products not recommended
in the artusi product handbook provided to the
purchaser upon purchase of the artusi product;
(j) damage to the base of an electric oven due to
items having been placed on the base of the oven
cavity or covering the base, such as aluminium
foil (this impedes the transfer of heat from the
element to the oven cavity and can result in
irreparable damage); or
(k) damages, dents or other cosmetic
imperfections not aecting the performance of the
artusi in respect of an artusi product purchased
as a “factory second” or from display
The Warranty does not extend to light globes
used in artusi products.
3. Domestic Use
Each artusi product is made for domestic use.
This Warranty may not extend to artusi products
used for commercial purposes.
Continued over...
4
Please complete and send to ARTUSI at: REPLY PAID 83617
LEICHHARDT NSW 2040
Last Name: First Name:
Address:
State: Postcode: Email:
Home Phone: Mobile:
Purchase Date: / / (Please attach proof of purchase to validate warranty)
MODEL NUMBER
SERIAL NUMBER
(if you cannot locate the serial number please call ARTUSI on 1300 694 583)
1
2
3
4
WARRANTY REGISTRATION CARD
01052013
01032014
4. Time for Claim under the Warranty
You must make any claim under this Warranty
within twenty eight (28) days after the occurrence
of an event which gives rise to a claim pursuant
to the Warranty, by booking a service call on the
telephone number below.
5. Proof of Purchase
Customers must retain proof of purchase in order
to be eligible to make a warranty claim in respect
of an artusi product.
6. Claiming under the Warranty
Customers will bear the cost of claiming under
this Warranty unless Worldwide Appliances
determines the expenses are reasonable, in which
case the customer must claim those expenses
by providing written evidence of each expense
to Worldwide Appliances at the address on the
Warranty Registration Card.
7. Statutory Rights
(a) These terms and conditions do not aect your
statutory rights.
(b) The limitations on the Warranty set out in this
document do not exclude or limit the application
of the consumer guarantees set out in the Act or
any other equivalent or corresponding legislation
in the relevant jurisdiction where to do so would:
(i) contravene the law of the relevant jurisdiction;
or
(ii) cause any part of the Warranty to be void.
(c) Worldwide Appliances excludes indirect or
consequential loss of any kind (including, without
limitation, loss of use of the artusi product) and
(other than expressly provided for in these terms
and conditions) subject to all terms,
conditions and warranties implied by custom, the
general law, the Act or other statute.
(d) The liability of Worldwide Appliances to you
for a breach of any express or non-excludable
implied term, condition or warranty is limited at
the option of Worldwide Appliances to:
(i) replacing or repairing the defective part of the
artusi product;
(ii) paying the cost of replacing or repairing the
defective part of the artusi product;
(iii) replacing the artusi product; or
(iv) paying the cost of replacing the artusi
product.
(e) Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund
for a major failure and for compensation for any
other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
major failure.
8. Defects
Any part of an artusi product deemed to be
defective and replaced by Worldwide Appliances
is the property of Worldwide Appliances.
Worldwide Appliances reserves the right to
inspect and test artusi products in order to
determine the extent of any defect and the
validity of a claim under the Warranty.
*To locate your closest artusi authorised service
agent please contact us on 1300 652 100 or visit
www.artusi.com.au
ALL SERVICE CALLS MUST BE BOOKED
THROUGH AN AUTHORISED DEALER OR
WARRANTY DEPARTMENT ON 1300 652 100
OR stokesaps.com.au/artusi-service
01032014
Warranty Card continued
artusi.com.au
Warranty Card tear off
ARTUSI.COM.AU
P: 1300 649 583
NSW & ACT (HEAD OFFICE)
48-50 MOORE STREET
LEICHHARDT
F 02 8569 4699
QLD
1/42 CAVENDISH ROAD
COORPAROO
F 07 3397 0850
VIC, TAS & SA
1211 TOORAK ROAD
CAMBERWELL
F 03 9809 2155
WA & NT
UNIT 10/55 HOWE STREET
OSBORNE PARK
F 08 9201 9188
NZ
PO BOX 11.160
SOCKBURN CHRISTCHURCH
F 03 344 5906
ARTUSI OFFICES ARE OPEN DAILY FROM 9AM–5PM AND SATURDAYS 10AM–4PM
DISCLAIMER
Worldwide Appliances PTY LTD, trading as ARTUSI, is continually seeking ways to improve the design specifications, aesthetics and production
techniques of its products. As a result alterations to our products and designs take place continually. Whilst every effort is made to produce
information and literature that is up to date, this brochure should not be regarded as an infallible guide to the current specifications, nor does it
constitute an offer for the sale of any particular product. Product dimensions indicated in our literature is indicative only. Actual product only
should be used to define dimension cutouts. Distributors, and retailers are not agents of ARTUSI and are not authorised to bind ARTUSI by any
express or implied undertaking or representation.
