www.lg.com
OWNER’S MANUAL
Copyright © 2020 LG Electronics Inc. All Rights Reserved
MFL70445425
Rev.01_102920
OWNER’S MANUAL
AIR PURIFIER
Read this owner’s manual thoroughly before operating the appliance and keep it
handy for reference at all times.
AS330D Series
ENGLISH
TABLE OF CONTENTS
This manual may contain images or content
different from the model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS ..............................................................3
IMPORTANT SAFETY INSTRUCTIONS ..........................................................3
INSTALLATION .............................................................................10
Parts and Specifications..................................................................................10
Unpacking the Appliance.................................................................................13
Installation Location Requirements .................................................................14
Transportation Requirements ..........................................................................14
OPERATION .................................................................................15
Control Panel ..................................................................................................15

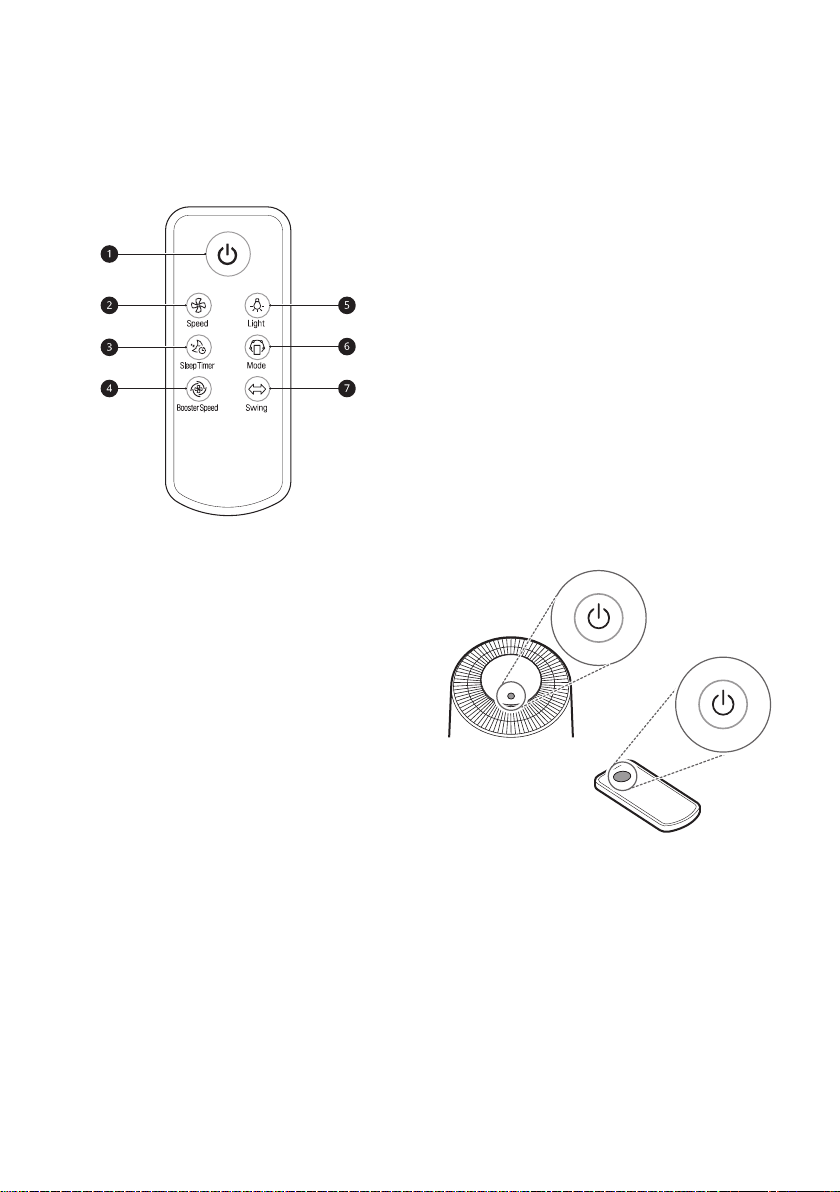

Remote Controller ...........................................................................................17
Getting Started ................................................................................................17
Using Operating Modes ..................................................................................18
Adjusting Fan Speeds .....................................................................................19
Using Extra Functions .....................................................................................20
Checking Air Quality ........................................................................................ 21
SMART FUNCTIONS ....................................................................24
LG ThinQ Application ......................................................................................24

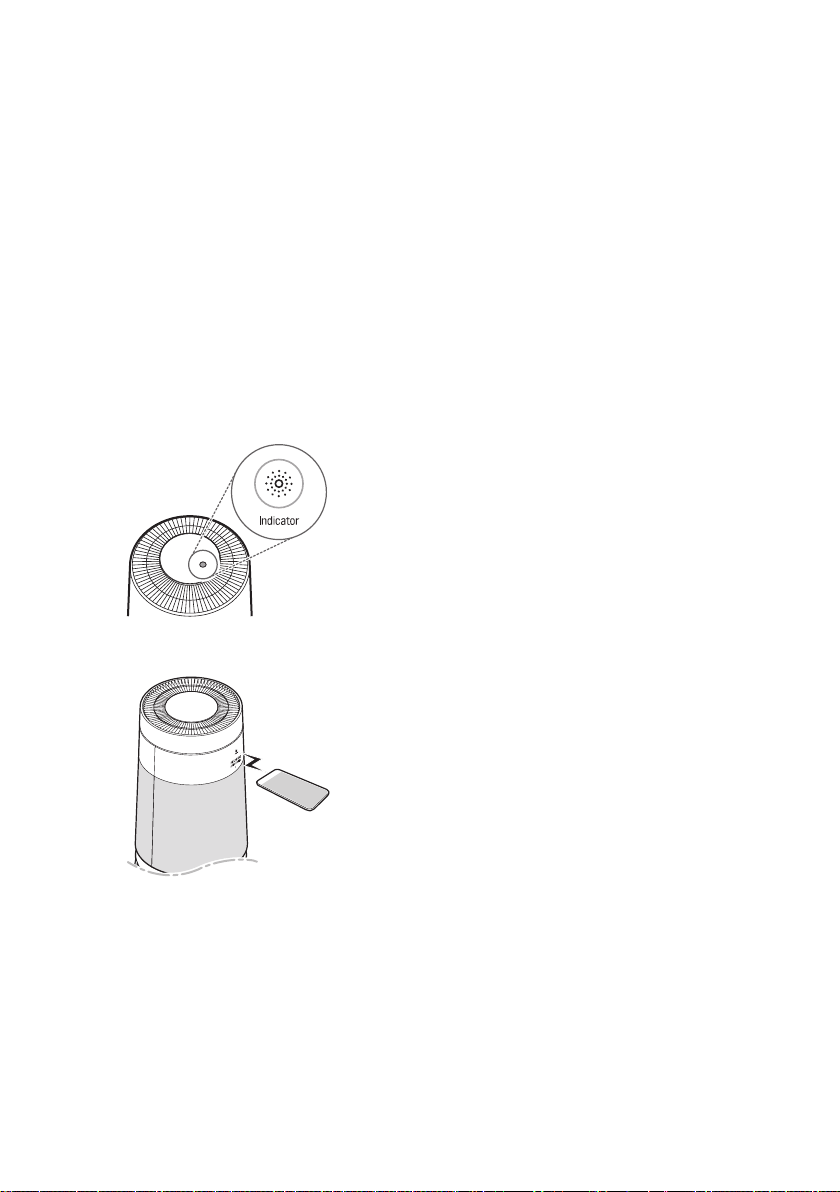

Smart Diagnosis .............................................................................................. 25
MAINTENANCE ............................................................................ 27
Maintaining the Appliance ...............................................................................27

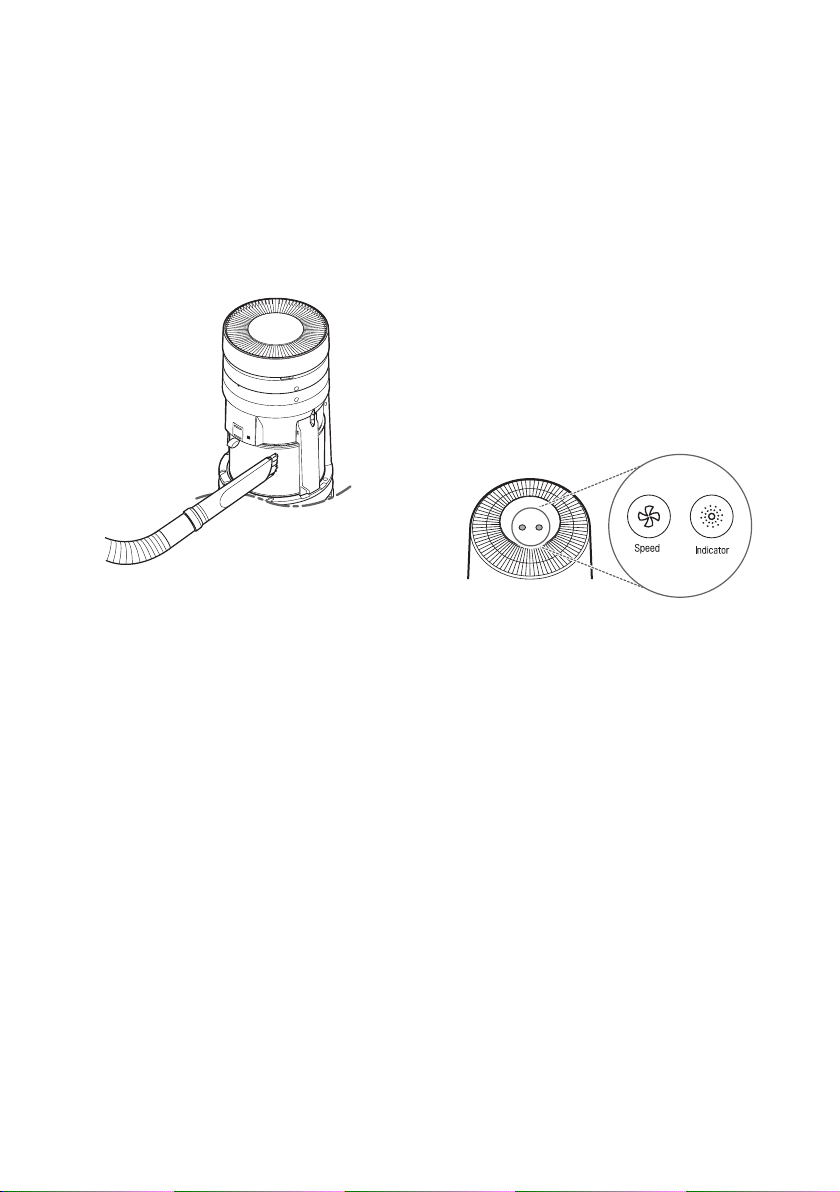

Cleaning the Appliance ...................................................................................28
Maintaining the Filter ....................................................................................... 29
TROUBLESHOOTING .................................................................. 30
Before Calling for Service ...............................................................................30
WARRANTY (USA) ....................................................................... 33
3
EN
SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
The following safety guidelines are intended to prevent unforeseen risks
or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as
described below.
This symbol is displayed to indicate matters and operations
that can cause risk. Read the text marked with this symbol
carefully and follow the instructions in order to avoid risk.
WARNING
This indicates that failure to follow the instructions can cause
serious injury or death.
CAUTION
This indicates that failure to follow the instructions can cause minor
injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product, follow
basic precautions, including the following:
Children in the Household
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
4
EN
Installation
• Do not install the appliance on an uneven or inclined surface.
• Do not install the appliance in an area exposed to direct sunlight or
near heat-generating equipment.
• Do not install the product in a place where combustible gas may leak
or industrial oil or metallic particulates are present.
• Do not allow the appliance to push against the power cord or plug.
• Do not touch the power plug with wet hands.
• When unplugging the power cord, always pull it by the plug.
• Unplug the appliance during thunder or lightning storms or when not
in use for a long time.
• Do not bend the power cable excessively or place a heavy object on
top of it.
• Do not extend the length of the power cable or alter it.
• Do not use several devices on a multi-socket extension outlet.
• Make the connection securely so that screw in terminals may not be
loosened when the cable is pulled.
• Make sure that the power cable cannot be be pulled out or damaged
during operation.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified person in order to
avoid a hazard.
• This appliance has a polarized plug (one blade is wider than the
other). To reduce the risk of electric shock, this plug is intended to
fit in a polarized outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. Do not attempt to defeat this safety feature.
5
EN
Operation
• If the appliance is immersed in water, stop using it and contact an LG
Electronics Customer Information Center.
• If there is a gas leakage (isobutane, propane, LNG, etc.), do not
touch the product or power plug and ventilate the area immediately.
• Do not clean the appliance with brushes, cloths or sponges which are
abrasive or made of metal.
• If you detect any abnormal noise, odor or smoke, unplug the product
immediately and contact an LG Electronics Customer Information
Center.
• Only an authorized repair person should disassemble, repair, or
modify the appliance.
• Do not use or store fire, combustibles (ether, benzene, alcohol,
drugs, propane, butane, combustible spray, insecticide, air freshener,
cosmetics, etc.) or flammable materials (candles, lamps, etc.) near
the product.
• Do not place the power cord under rugs, carpeting or mats.
• Do not allow animals or pets to chew on the power cord.
• Do not move the appliance when it is in operation.
• Do not hit the appliance.
• Do not insert hands or metal objects into the air inlet or outlet.
• Do not install and use broken parts.
• Do not put flammables into the appliance.
• Do not move or operate the appliance while its cover is open.
• Do not allow children to climb on or play with the appliance.
• Do not place anything on top of the appliance.
• The fan is not a toy. It should not be played with or placed where
young children can reach it.
6
EN
Maintenance
• Dispose of the packing materials (vinyl, styrofoam, etc.) to keep them
out of reach of children.
• Take care not to injure or pinch yourself when you detach and
reattach parts of the appliance.
• Turn off and unplug the appliance before cleaning it or replacing the
filter.
Battery
• A button/coin-shaped battery is used in the remote controller of the
appliance. If you accidentally swallow the battery, consult a doctor
immediately for emergency treatment. If you fail to receive first aid
within 2 hours after you swallow the battery, you may experience
damage to your internal organs or death in severe cases.
• Do not swallow the battery.
• If the battery tray is not secured firmly, stop using the remote
immediately and keep it away from children.
7
EN
CAUTION
To reduce the risk of minor injury to persons, malfunction, or
damage to the product or property when using this product,
follow basic precautions, including the following:
Installation
• Do not tilt the appliance to pull or push it when transporting.
• Do not install the appliance in a vehicle, RV, or marine vessel.
• Do not place the appliance near a TV or stereo equipment.
• Do not place the appliance under bright light.
• The appliance must be installed in accordance with national wiring
regulations.
• When moving or storing the appliance, wrap the power cord around
the base of the appliance to prevent personal injury, damage to the
cord or damage to floors.
• Do not place the appliance near curtains.
Operation
• Do not use the product for removal of toxic gas such as carbon
monoxide.
• Do not use the product for ventilation purposes.
• Do not use the appliance for a long time in a region with unstable
voltage.
• Do not place obstacles around the air inlet or outlet.
• For safe use of the appliance, children or others with reduced
mental capabilities need to be closely monitored by a person who is
responsible for their safety.
• Do not use the product for special purposes such as preserving
plants, precision instruments, artworks, etc.
• Do not operate the appliance with wet hands.
8
EN
• Do not let the moisture from a humidifier directly touch the appliance.
• Do not use the appliance while it is not in an upright position.
• Do not use the appliance near objects vulnerable to heat.
• Do not use detergents, cosmetics, chemicals, air fresheners, or
disinfectants in the appliance.
• Do not touch any internal parts while the unit is operating or
immediately after operation.
• Use the filter only for its intended purpose.
• The Deodorizing Care filter and True HEPA filter are assembled
together. Do not try to detach them from each other.
• Do not insert any objects into the clean booster.
• Do not operate the product while the clean booster cover and grille
are separated.
• Do not insert hands or metal objects into the moving parts of the
clean booster.
• Do not press multiple buttons at the same time on the remote
controller.
• Do not kick or step on the remote controller.
• Do not use the remote controller near water or in areas with high
humidity.
• Do not expose the remote controller to fire or high temperatures.
Maintenance
• Do not use strong detergents or solvents to clean the product. Use a
soft cloth to clean.
• Do not clean the appliance with an alkaline detergent.
• Do not wipe the appliance surface using sulfuric acid, hydrochloric
acid or organic solvents (thinner, kerosene etc.) or attach a sticker on
the appliance.
• Do not allow water inside the appliance.
• Do not wash the filter with water.
9
EN
• Be careful not to damage the ultra-fine filter when cleaning it with a
vacuum cleaner.
• Do not disassemble the clean booster.
Battery
• Do not modify the battery.
• An improperly installed battery may cause an explosion.
• Do not recharge or take apart the battery.
• Do not dispose of the battery by placing it in a fire, or expose it to
high temperatures.
• Remove and store the battery in a safe location if you don’t intend to
use the remote controller for a long time.
10
EN
INSTALLATION
• The appearance or components of the appliance may differ depending on the model.
Parts and Specifications
Front View
a
Air outlet/Clean booster
• Discharges purified air through the filter.
• Control the airflow so that it reaches every corner of the room.
b
Air quality light
• Uses colored light to indicate the overall air quality.
c
Air inlet
• The front and rear covers can be removed separately.
d
Status display panel
• Indicates appliance settings and air quality.
e
Control panel
• Set or adjust appliance functions.
f
Receiver for remote controller signal
11
EN
Rear View
a
Smart Diagnosis speaker
• In the event of a malfunction or failure, you can use the Smart Diagnosis option to help you
troubleshoot the appliance.
b
PM1.0 (particles with a diameter between 1.0 and 2.5 micrometers) sensor
• Detects the concentration of particulates in the air.
c
Odor (Gas) sensor
• Detects airborne odors.
d
Filter
• Minimizes allergens, fine particulates, possible sources of sick house syndrome, smog, and
other odors.
Specifications
• Appearance and specifications may vary without notice to improve the quality of the appliance.
Model AS330D Series
Power 115 V~, 60 Hz
Exterior dimensions
(
a
x
b
x
c
)
When the clean booster is not running:
13.5 x 23.1 x 13.5 inches
(343 x 587 x 343 mm)
When the clean booster is running:
13.5 x 32.4 x 13.5 inches
(343 x 824 x 343 mm)
12
EN
Filter System
a
Deodorizing Care filter
• Minimizes odors from the bathroom, cigarettes, food and other common sources.
b
True HEPA filter
• Minimizes PM1.0 and cigarette smoke from the air.
c
Ultra-fine filter
• Minimizes large particles floating in the air.
d
Filter handle
• Helps when removing the filter from the appliance.
Components
a
Remote controller / Battery (CR2025, 1 Unit)
b
Owner’s manual
• The remote controller may not be included depending on the model.
13
EN
Unpacking the Appliance
Unpack the appliance and remove any packing
tape or vinyl before using the appliance.
Removing the Filter Packaging
1
Remove the rear cover by gently pulling the
top of the cover at the sides until it separates
from the appliance. Lift the cover to remove it
from the base.
• The rear cover has “PM1.0 & GAS
SENSOR” printed on it.
2
Remove and dispose of the cardboard support
piece (a) located by the filter inlet.
3
Slide the filter out and remove it from its
packaging.
4
Install the filter in the appliance.
• Make sure that the handle Insert space
before parenthesis. (a) is at the top of the
filter.
5
Insert the tabs at the bottom of the cover into
the slots in the base of the appliance and
close the cover.
NOTE
• Remove the support and packaging prior to use
to prevent product malfunction.
• Install the filter with the handle at the top to
avoid product malfunction or failure.
14
EN
Installation Location
Requirements
Installation Location
Allow a 3 1/4 ft (1 m) clearance between the
appliance and surrounding surfaces or objects.
The air inlet needs space to function properly.
1 m
The performance of the appliance may differ
depending on surrounding conditions such as
temperature and humidity.
• 40–70 % humidity level is recommended for
optimal performance.
Transportation
Requirements
Transporting the Appliance
When moving or storing the appliance, wrap the
power cord around the base of the appliance to
prevent personal injury, damage to the cord or
damage to floors.
Do not hold the outer cover when you carry the
appliance. The cover may open accidentally,
causing the appliance to drop. Dropping the
appliance may cause personal injury or appliance
malfunction.
• Single
model:
Hold the bottom of the product with
both hands to move the product
safely.
15
EN
• The appearance or components of the appliance may differ depending on the model.
Control Panel
Control Panel Features
OPERATION
a
Power Button
b
Mode Button
Sets the operating mode.
• Press and hold the button for 3
seconds to turn on/off the air quality
light.
c
Speed Button
Adjusts the fan speed.
• Press and hold the button for 3
seconds to activate the Wi-Fi
connection mode.
• Wi-Fi function
− Before appliance connection: Press
and hold the button for 3 seconds to
activate the Wi-Fi connection mode.
(It will turn off automatically after 10
minutes.)
− After appliance connection: Press
and hold the button for 3 seconds
to control the appliance from the LG
ThinQ smartphone app.
− Wi-Fi function off: Press and hold the
Power button and the Speed button
at the same time for 3 seconds.
d
Booster Speed Button
Press to adjust the fan speed of the clean
booster.
e
Swing Button
Turns the clean booster left or right.
f
Indicator Button
Shows the concentration of particulate
matter by size of particulates.
g
Sleep Timer Button
Schedules an automatic turn off time for
the appliance.
• Press and hold for 3 seconds to lock or
unlock the control panel buttons.
16
EN
Status Display Panel
a
Display of air quality
A
Overall air quality (color)
B
Particulate matter (color)
C
Concentration of particles or sleep timer
time
D
Concentration of odour (color)
b
Displays operating mode
c
Displays speed and booster speed
G
Speed : Displays the air purifier’s fan
speed.
}
Booster speed : Displays the clean
booster’s fan speed.
d
Icons
Icon Description
Lights up when it is time to
replace the filter.
Lights up when the Wi-Fi
function is activated.
Lights up when the sleep timer
function is activated.
Lights up when a schedule for
turning on/off the appliance is
set in the LG ThinQ application.
Lights up when the control panel
is locked.
17
EN
Remote Controller
Remote Controller Features
a
Power Button
b
Speed Button
Adjusts the fan speed of the product.
c
Sleep Timer Button
Schedules an automatic turn off time for
the appliance.
d
Booster Speed Button
Adjusts the fan speed of the clean booster.
e
Light Button
Turns the air quality light on/off.
f
Mode Button
Sets the operating mode.
g
Swing Button
Turns the clean booster left or right.
NOTE
• If the battery runs out of charge, replace it with
a new one (CR2025).
• If the remote controller does not work as
expected, replace the battery or check the
polarity (+, -) of the battery. If the problem
continues, contact an LG Customer Information
Center.
• To use the remote controller, point the
transmitter on the remote controller at the
receiver on the front of the appliance and press
a button.
• The remote controller may not work if it is
farther than 22.75 ft (7 m) from the front of the
appliance.
Getting Started
Turning the Appliance On/Off
Press the Power button to turn the appliance on/
off.
NOTE
• The first time the appliance is turned on, it is
set to Booster mode.
• If you experience a power outage, when power
is restored the appliance starts in the last
operating mode set.
• After startup, the sensor ready display(
=
)
appears for 30 seconds.
18
EN
Using Operating Modes
Smart Mode
Select this mode to automatically adjust the
operating mode and fan speed based on the
overall air quality.
Press the Mode button to choose the Smart
mode.
• Press the button repeatedly to change the
operating mode in the following order:
Smart ~ Booster ~ Normal.
NOTE
• While in Smart mode, the Speed,
Booster Speed and Swing buttons do not
work.
Booster Mode
Select this mode to quickly clean the air and
circulate it as far as possible.
Press the Mode button to choose the Booster
mode.
NOTE
• If you happen to unplug the power cord from
the outlet before the clean booster closes
completely, plug in the cord again. The clean
booster will swing left and right and then close
completely.
Rotating the Clean Booster
While in Booster mode, press the Swing button.
Normal Mode
Select this mode for basic air purification and
control over the fan speed.
Press the Mode button to choose the Normal
mode.
19
EN
Adjusting Fan Speeds
Air Purifier Fan Speed
Press the Speed button during operation to adjust
the fan speed on the air purifier.
• Each time you press the button, the speed
changes in the following order:
Auto ~ Low ~ Medium ~ High ~ Turbo.
Fan Speed Display
The fan speed is displayed on the status display
panel. As you adjust the fan speed, the display
increases or decreases by 2 bars at a time.
[Fan speed set to Medium]
NOTE
• When the appliance is first turned on, the fan
speed is set to Auto. Auto mode adjusts the fan
speed automatically based on the indoor air
quality.
Clean Booster Fan Speed
To adjust the fan speed of the clean booster, press
the Booster Speed button while the appliance is
in Booster mode.
• Each time you press the button, the speed
changes in the following order:
Auto ~ Low ~ Medium ~ High ~ Turbo.
Booster Speed Display
The booster fan speed is displayed on the status
display panel. As you adjust the fan speed, the
display increases or decreases by 2 bars at a time.
[Booster fan speed set to Medium]
NOTE
• If set to Auto, the clean booster fan speed
adjusts based on the fan speed of the air
purifier.
20
EN
Using Extra Functions
Setting the Sleep Timer
Use this function to set an automatic stop time for
the appliance.
To use the function, press the Sleep Timer button
while the appliance is operating.
• Each time you press the button, the time until
the appliance automatically shuts off changes
in the following order:
After 2 hours ~ After 4 hours ~ After 8 hours
~ After 12 hours ~ Cancel.
• Once the sleep timer is set, the status display
panel displays only the sleep timer icon and a
few other icons.
NOTE
• The speed is set to Low by default for a certain
period of time. After the time passes, the speed
is controlled automatically depending on the air
quality.
• After the Sleep Timer is set, press the Speed
button to manually change the fan speed.
• To check the set time after setting the Sleep
Timer, press the Sleep Timer button.
• The sleep timer remains on even if the power
goes off or if there is a power outage.
Locking the Control Panel
Lock the control panel if you want to prevent
accidental operation or keep children from
changing the settings.
Press the Sleep Timer button for at least 3
seconds while the appliance is operating.
• k (Lock) is displayed on the status display
panel.
NOTE
• Turn the Lock function off in the same way you
turned it on.
• You can use the remote controller even when
the control panel is locked.
• The control panel can be locked even when the
appliance is not operating.
21
EN
Checking Air Quality
The overall air quality is indicated by the color of the air quality light and in the status display panel.
Overview of the Air Quality
The overall air quality is calculated based on the concentrations of odors and particulates in the air and is
categorized into 4 levels depending on these concentrations.
Colour
Overall Air
Quality
Concentration of PM (μg/m
3
)
Concentration of
Odour
State
PM10
(coarse
particles)
PM2.5
(fine particles)
PM1.0
(particles with
a diameter
between 1.0
and 2.5 μm)
State Level
Red Very Bad 255 or more 56 or more 56 or more Very strong 4
Orange Bad 155 ~ 254 36 ~ 55 36 ~ 55 Strong 3
Yellow Normal 55 ~ 154 13 ~ 35 13 ~ 35 Normal 2
Green Good 54 or less 12 or less 12 or less Weak 1
NOTE
• The color of the air quality light is based on the worst level detected, whether odors or particulates.
• PM (particulate matter) concentration is displayed in increments of 1 unit, from 8 to 999. PM
concentration values are based on the data sheet provided by the sensor manufacturer.
• The PM concentration measurement was tested using LG Electronics’ standard test materials.
• Differences in PM concentration values may be the result of different methods of measuring or
differences in the actual PM concentration levels.
− If the PM concentration is high, there may be a larger difference between the displayed concentration
and the actual concentration.
22
EN
Air Quality Details on the Status
Display Panel
a
Overall Air Quality
The overall air quality is indicated by the
color of the icon at the top of the status
display panel.
b
Odor Concentration
The odor concentration is indicated by the
color of the Odor icon on the status display
panel.
c
PM Concentration
The particulate matter (PM) concentration
is indicated in the PM concentration
display and by the color of the PM size
indicator. The number that appears in the
display is the worst level detected among
the PM10, PM2.5, and PM1.0 sensors.
d
PM Size
This display shows whichever PM size has
the highest concentration. The color of the
display indicates the PM concentration
level only.
Turning Air Quality Light On/Off
1
The overall indoor air quality is indicated by
the color of the air quality light.
a
Air quality light
2
Press and hold the Mode button for 3 seconds
to turn the air quality light on or off. On the
remote, press the Light button to turn the air
quality light on or off.
NOTE
• When the appliance is turned on, the air
quality light is white during the initial sensor
stabilization period (30 seconds). The odor
sensor takes 2 minutes to stabilize after the
appliance is turned on.
23
EN
Checking Particulate Levels
To check the particulate matter concentration by
particulate size, press the Indicator button while
the appliance is operating.
• Press the button repeatedly to see the PM
levels displayed in the following order:
PM10 ~ PM2.5 ~ PM1.0
• The concentration for the selected particulate
size is displayed for about 10 seconds.
NOTE
• The overall air quality level is a result of both
PM concentration and the odor level.
• Even two products placed in the same space
could measure the concentration of particulates
differently due to air circulation.
• Unlike the odor level, the PM concentration
may take time to measure accurately due to the
slow diffusion rate.
• Due to the flow around the particulate sensor,
the displayed PM concentration and actual
concentration may differ.
• The PM concentration measured may differ
from the actual PM concentration in the
following cases.
− The presence of sofas, beds, carpets,
vacuums, humidity, smoke, fragrances,
cosmetics, perfumes, insects, or pets
− If the appliance is located near a construction
site, road, factory, doorway, window, or vent
− If the appliance is located near cooking,
humidifiers, sprays or other products which
generate steam or fine particles.
24
EN
SMART FUNCTIONS
LG ThinQ Application
The LG ThinQ application allows you to
communicate with the appliance using a
smartphone.
LG ThinQ Application Features
Smart Diagnosis
If you experience a problem while using the
appliance, this smart diagnosis feature will help
you diagnose the problem.
Settings
Allows you to set various options on the appliance
and in the application.
NOTE
• If you change your wireless router, Internet
service provider, or password, delete the
connected appliance from the LG ThinQ
application and connect it again.
• The application is subject to change for
appliance improvement purposes without
notice to users.
• Functions may vary by model.
Before using LG ThinQ
Application
This feature is only available on models with Wi-Fi
function.
1
Check the distance between the appliance
and the wireless router (Wi-Fi network).
• If the distance between the appliance and
the wireless router is too far, the signal
strength becomes weak. It may take a long
time to connect or installation may fail.
2
Turn off the Mobile data or Cellular Data on
your smartphone.
3
Connect your smartphone to the wireless
router.
NOTE
• To verify the Wi-Fi connection, check that the
Wi-Fi f icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi
networks only. To check your network
frequency, contact your Internet service
provider or refer to your wireless router manual.
• LG ThinQ is not responsible for any
network connection problems or any faults,
malfunctions, or errors caused by network
connection.
• If the appliance is having trouble connecting
to the Wi-Fi network, it may be too far from
the router. Purchase a Wi-Fi repeater (range
extender) to improve the Wi-Fi signal strength.
• The Wi-Fi connection may not connect or may
be interrupted because of the home network
environment.
• The network connection may not work properly
depending on the Internet service provider.
• The surrounding wireless environment can
make the wireless network service run slowly.
• If the appliance cannot be connected due to
problems with the wireless signal transmission,
unplug the appliance and wait about a minute
before trying it again.
• If the firewall on your wireless router is enabled,
disable the firewall or add an exception to it.
• The wireless network name (SSID) should be
a combination of English letters and numbers.
(Do not use special characters.)
• Smartphone user interface (UI) may vary
depending on the mobile operating system
(OS) and the manufacturer.
• If the security protocol of the router is set to
WEP, the network setup may fail. Change the
security protocol (WPA2 is recommended) and
connect the product again.
25
EN
Installing the LG ThinQ
Application
Search for the LG ThinQ application from the
Google Play Store or Apple App Store on a
smartphone. Follow instructions to download and
install the application.
Wireless LAN Module Specifications
Frequency
Range
2412 MHz - 2462 MHz
Output Power
(Max)
< 30 dBm
FCC Notice
The following notice covers the transmitter
module contained in this product. This equipment
has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
− Reorient or relocate the receiving antenna.
− Increase the separation between the equipment
and the receiver.
− Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
− Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1)
This device may not cause harmful interference and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC RF Radiation Exposure
Statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-
located or operating in conjunction with any other
antenna or transmitter. This equipment should be
installed and operated with a minimum distance
of 20 cm (7.8 inches) between the antenna and
your body. Users must follow the specific operating
instructions for satisfying RF exposure compliance.
Open Source Software Notice
Information
To obtain the source code under GPL, LGPL, MPL,
and other open source licenses, that is contained
in this product, please visit http://opensource.lge.
com. In addition to the source code, all referred
license terms, warranty disclaimers and copyright
notices are available for download.
LG Electronics will also provide open source code
to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of
media, shipping, and handling) upon email request
to [email protected]. This offer is valid for a
period of three years after our last shipment of this
product. This offer is valid to anyone in receipt of
this information.
Smart Diagnosis
This feature is only available on models with the
c or d logo.
Use this feature to help you diagnose and solve
problems with your appliance.
NOTE
• For reasons not attributable to LGE’s
negligence, the service may not operate due to
external factors such as, but not limited to, Wi-
Fi unavailability, Wi-Fi disconnection, local app
store policy, or app unavailability.
• The feature may be subject to change without
prior notice and may have a different form
depending on where you are located.
Using LG ThinQ to Diagnose Issues
If you experience a problem with your Wi-Fi
equipped appliance, it can transmit troubleshooting
data to a smartphone using the LG ThinQ
application.
26
EN
• Launch the LG ThinQ application and select
the Smart Diagnosis feature in the menu.
Follow the instructions provided in the LG
ThinQ application.
Using Audible Diagnosis to
Diagnose Issues
Follow the instructions below to use the audible
diagnosis method.
• Launch the LG ThinQ application and select
the Smart Diagnosis feature in the menu.
Follow the instructions for audible diagnosis
provided in the LG ThinQ application.
1
Press and hold the Indicator button for 5
seconds to execute the Smart Diagnosis
function.
2
Hold the phone near the c or d logo on the
back of the appliance.
3
After the data transfer is complete, the
diagnosis will be displayed in the application.
NOTE
• For best results, do not move the phone while
the tones are being transmitted.
27
EN
Maintaining the Appliance
Scheduled Maintenance
Component
Cleaning
Frequency
Replacement
Frequency
Filter
Only ultra-
fine filter
Clean filter as
needed
The whole
filter
1 year
PM1.0 sensor
Every 2
months
-
NOTE
• The operating environment and operation
hours may affect the cleaning frequency. Clean
more often if operating in a dusty environment.
• Failure to clean the product following the
recommended schedule may result in it
smelling bad or not working properly.
• The filter must be replaced at the end of its
lifespan, and the cost of replacement filters is
not covered under the warranty. To purchase
new filters, contact an LG Electronics Customer
Information Center or visit the website at www.
lg.com
• If the PM concentration does not change on the
display for a long time, clean the PM1.0 sensor
even if it is not scheduled for a cleaning.
Alerts on the Status Display
Panel
When you see an alert message on the status
display panel, do the following:
Alert Measure
Replace the filter.
NOTE
• Filter replacement alerts appear based on
the maximum usage time, taking into account
the operating hours of the product. The
replacement frequency is determined by the
operating hours and environment.
MAINTENANCE
WARNING
• You must stop operating the appliance and unplug it before you clean and replace the filter.
• Do not spray water directly on the appliance.
28
EN
Storage
If the appliance is not used for a long period of
time, store it in a dry location out of direct sunlight.
1
Operate the product for one hour or more on
a fine day.
• This removes moisture and prevents mold
from building up inside the product.
2
Turn off the power and unplug it from the
electrical outlet.
• Wind the power cord around the bottom of
the appliance.
3
Cover the appliance to prevent dust or foreign
substances from entering the appliance. Store
the covered appliance out of direct sunlight.
CAUTION
• Do not store the appliance in a humid location
or where it is exposed to direct sunlight. Doing
so can lead to product deformation or odors.
Cleaning the Appliance
Cleaning the Exterior
1
Remove dust from the air inlet and outlet using
a vacuum cleaner.
2
Wipe the exterior with a soft cloth.
NOTE
• If you find it difficult to clean the front and rear
covers, disassemble them first and wash with
water. Then, dry them completely out of direct
sunlight.
Cleaning the Particulate Sensor
The PM1.0 sensor is used to detect fine as well
as coarse particulates. For best results, clean the
sensor lens frequently.
1
Remove the rear cover from the appliance.
2
Open the sensor cover.
3
Clean the lens with a cotton swab soaked with
water and dry it off with a dry cotton swab.
NOTE
• Use only water to clean the sensor. Using
other materials may cause the appliance to
malfunction.
29
EN
Maintaining the Filter
Cleaning the Filter
1
Separate the cover from the appliance.
2
Remove dust from the ultra-fine filter with a
vacuum cleaner or soft brush.
Replacing the Filter
1
Place a newspaper or cloth on the floor by
the appliance. Remove the cover from the
appliance and slide the old filter onto the
newspaper. Insert the new filter with the
handle at the top.
2
Once you have replaced the filter, disable the
filter replacement alert.
Disabling the Filter Replacement Alert
Press and hold the Speed and Indicator buttons
simultaneously for 3 seconds.
• The f(filter replacement alert) is disabled and
the replacement alarm is reset.
NOTE
• The filter replacement alert is disabled
automatically if 24 hours have passed since it
was displayed or if the product is disconnected
from the power source.
30
EN
TROUBLESHOOTING
Before Calling for Service
Please check the following before you contact the service center. If the problem persists, contact your local
service center.
Operation
Symptoms Possible Causes & Solution
The appliance does not
operate.
The power plug in unplugged from the outlet.
• Plug it into the outlet properly.
There is odor, but the
air quality light doesn’t
change
Is the air quality light red or orange?
• The color of the overall air quality light is determined by the worst level
sensed, whether that is a PM concentration or odor. The PM concentration
level may be worse than the odor level.
• The odor (gas) sensor is designed to detect harmful gases. Strong food
odors may not register as harmful, but the Deodorizing Care filter will
minimize them.
The air quality light
stays red.
Move the appliance to a different room and see if the color changes.
• If the odor level is beyond the capacity of the product to dispel, the light
may not change.
• Clean the sensor area.
• Remove the power plug from the outlet and reconnect it one minute later.
A substance was sprayed near the product.
• Do not use sprays near the product.
The buttons on the
control panel do not
work.
The k (Lock) is turned on on the status display panel.
• Press and hold the Sleep Timer button for 3 sec. To disable the lock
function.
The PM concentration
doesn’t change.
There is a foreign substance on the sensor.
• Clean the PM1.0 sensor.
The product is used in an enclosed space.
• In an enclosed space without frequent air exchange, the air quality may
stay the same.
The PM concentration
stays high.
The product is located in an area with frequent airflow from the outside.
• In an environment where outside air is supplied continuously, the PM
concentration may remain high.
The color of the overall
air quality light does
not match the PM
concentration value.
The overall air quality light may be reflecting the odor level.
• The overall air quality is based on both the PM concentration and the odor
level, and its color is determined by which is worse.
• If the PM concentration is low and the odor level is high, the overall air
quality light will reflect the odor level.
The clean booster is
not working.
The Booster mode is not selected.
• The booster fan speed and booster fan rotation functions work only in the
Booster mode.
31
EN
Symptoms Possible Causes & Solution
The PM concentration
levels are different
between the appliance
and the LG ThinQ app.
Make sure you are comparing the levels for the same size particulates.
• Make sure that the levels of the PM1.0/PM2.5/PM10 are displayed
consistently between the LG ThinQ app and your appliance.
• The LG ThinQ app may not update the sensor results as quickly as the
appliance display.
Performance
Symptoms Possible Causes & Solution
The indoor air is not
purified well enough.
The indoor air is very dirty.
• Ventilate the indoor air before you use the product.
The ultra-fine filter is clogged with dust.
• Clean the ultra-fine filter properly.
The True HEPA filter is clogged with dust.
• Replace the whole filter.
The location is too large for the capability of the air purifier.
• Use a product that fits the size of the room.
• Place the appliance away from windows, doors, and other areas with
frequent influx of outdoor air.
The air inlet or outlet is blocked.
• Remove the obstacle.
The appliance is located in a corner or an area where air circulation is
blocked.
• Move the appliance and install it again.
Noise
Symptoms Possible Causes & Solution
Fan is noisy even on
the lowest speed.
The ultra-fine filter is clogged with dust.
• Clean the ultra-fine filter properly.
The True HEPA filter is clogged with dust.
• Replace the whole filter.
The appliance makes
a sudden loud noise
while operating.
The operating mode is set to Smart mode or the fan speed is on Auto.
• It may make a sudden noise as it automatically adjusts the air flow
depending on indoor air quality.
A noise is generated
when I start or stop the
clean booster.
• The clean booster is looking for the correct location.
32
EN
Odor
Symptoms Possible Causes & Solution
A strange odor comes
out from the air outlet
as well as the filter.
Appliance is new.
• The odor of activated charcoal is not harmful. This is similar to the odor you
may experience in a brand new car. The odor should dissipate after 1-2
weeks of use.
The appliance is located in an area with a lot of smoke or odors.
• In areas with a lot of smoke or odors, the lifespan of the filters may be
greatly decreased. For best results, ventilate the room first, then use the
appliance.
The odor is coming from the filter.
• Replace the filter. The filter replacement frequency may differ depending
on the usage environment.
The appliance is located in an area with a lot of strong odors.
• If the appliance is used near where you cook or broil fish or meat, the
lifespan of the filters will be greatly decreased.
• For best results, ventilate the area first by opening a window or using a
vent hood. Use the appliance only to minimize odors left after ventilating
the area.
Wi-Fi
Symptoms Possible Causes & Solution
Your home appliance
and smartphone is not
connected to the Wi-Fi
network.
The password for the Wi-Fi that you are trying to connect to is incorrect.
• Find the Wi-Fi network connected to your smartphone and remove it, then
connect your appliance in LG ThinQ.
Mobile data for your smartphone is turned on.
• Turn off the Mobile data of your smartphone and connect the appliance
using the Wi-Fi network.
The wireless network name (SSID) is set incorrectly.
• The wireless network name (SSID) should be a combination of English
letters and numbers. (Do not use special characters.)
The router frequency is not 2.4 GHz.
• Only a 2.4 GHz router frequency is supported. Set the wireless router to
2.4 GHz and connect the appliance to the wireless router. To check the
router frequency, check with your Internet service provider or the router
manufacturer.
The appliance is too far from the router.
• If the appliance is too far from the router, the signal may be weak and the
connection may not be configured correctly. Move the router closer to the
appliance.
33
EN
Warranty (USA)
ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION
THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF
IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY
TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING
DISPUTES” BELOW.
Should the LG Air Purifier fail due to a defect in materials or workmanship under normal home use, during
the warranty period set forth below, LG will at its option repair or replace the product. This limited warranty
is valid only to the original retail purchaser of the product and applies only when purchased and used within
the United States, including U.S. Territories. Proof of original retail purchase is required to obtain warranty
service under this limited warranty.
Warranty Period Scope of Warranty Remark
One (1) year from date of original
retail purchase
Any internal / functional parts and
labor
LG will provide parts and labor to
repair or replace defective parts.
Ten (10) years from date of
original retail purchase
Smart Inverter Motor
Parts Only. Customer will be
responsible for any labor or in-
home service to replace defective
parts.
• Replacement products and parts are warranted for the remaining portion of the original warranty period
or ninety (90) days, whichever is greater.
• Replacement products and parts may be new or remanufactured.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW,
IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE
MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE,
INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE
WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on
how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty
gives you specific legal rights and you may also have other rights that vary from state to state.
THIS LIMITED WARRANTY DOES NOT COVER:
• Service trips to deliver, pick up, or install or repair the product; instruction to the customer on operation
of the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of
unauthorized repairs/installation.
• Failure of the product to perform during power failures and interrupted or inadequate electrical service.
• Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate
or interrupted water supply or inadequate supply of air.
• Damage resulting from operating the product in a corrosive atmosphere or contrary to the instructions
outlined in the product’s owner’s manual.
• Damage to the product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of
God.
• Damage or failure caused by unauthorized modification or alteration, or if it is used for other than the
intended purpose, or any water leakage where the unit was not properly installed.
34
EN
• Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial
or industrial use, or use of accessories, components, or consumable cleaning products that are not
approved by LG.
• Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage
to the finish of your product, unless such damage results from defects in materials or workmanship and
is reported within one (1) week of delivery.
• Damage or missing items to any display, open box, discounted, or refurbished product.
• Products with original serial numbers that have been removed, altered, or cannot be readily
determined. Model and serial numbers, along with original retail sales receipts, are required for
warranty validation.
• Increases in utility costs and additional utility expenses.
• Repairs when the product is used for other than normal and usual household use (e.g. commercial use,
in offices and recreational facilities) or contrary to the instructions outlined in the product’s owner’s
manual.
• Costs associated with removal of the product from your home for repairs.
• The removal and reinstallation of the product if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions, including LG’s owner’s and installation
manuals.
• Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair
includes use of parts not approved or specified by LG.
The cost of repair or replacement under these excluded circumstances shall be borne by the
consumer.
TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION
For additional product information, visit the LG website at http://www.lg.com
For assistance using this product or to schedule service, contact LG Electronics at 1-800-243-0000 (US).
For further assistance, write: LG Electronics, 201 James Record Road, Huntsville, Alabama 35813
PROCEDURE FOR RESOLVING DISPUTES:
ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS
LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING
ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION
MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR
PARTICIPATE IN A CLASS ACTION.
Definitions. For the purposes of this section, references to “LG” mean LG Electronics U.S.A., Inc., its
parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries,
predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall
include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute,
regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or
relating in any way to the sale, condition or performance of the product or this Limited Warranty.
Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG
in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics,
USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. You and LG
agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must
provide your name, address, and telephone number; identify the product that is the subject of the claim; and
describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute
within 30 days, either party may proceed to file a claim for arbitration.
Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during
the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between
us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute
35
EN
between you and LG shall not be combined or consolidated with a dispute involving any other person’s
or entity’s product or claim. More specifically, without limitation of the foregoing, any dispute between you
and LG shall not under any circumstances proceed as part of a class or representative action. Instead
of arbitration, either party may bring an individual action in small claims court, but that small claims court
action may not be brought on a class or representative basis.
Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written
demand for arbitration. The arbitration will be administered by the American Arbitration Association (“AAA”)
and will be conducted before a single arbitrator under the AAA’s Consumer Arbitration Rules that are in
effect at the time the arbitration is initiated (referred to as the “AAA Rules”) and under the procedures set
forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a copy of your
written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in
the AAA Rules. You must also send a copy of your written demand to LG at LG Electronics, USA, Inc. Attn:
Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. If there is a conflict between
the AAA Rules and the rules set forth in this section, the rules set forth in this section will govern. This
arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator’s
award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues
relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are
for the court to decide. The arbitrator is bound by the terms of this provision.
Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes
between us except to the extent that such law is preempted by or inconsistent with applicable federal law.
Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for
arbitration, LG will promptly pay all arbitration filing fees to the AAA unless you seek more than $25,000 in
damages, in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise
provided for herein, LG will pay all AAA filing, administration and arbitrator fees for any arbitration initiated
in accordance with the AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay
your attorneys’ fees and expenses as long as they are reasonable, by considering factors including, but not
limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows
for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent
that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand
is frivolous or brought for an improper purpose (as measured by the standards set forth in Federal Rule of
Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such
a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your
obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives any rights it may have
to seek attorneys’ fees and expenses from you if LG prevails in the arbitration.
Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration
conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing,
or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds $25,000, the right to
a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location
within the federal judicial district in which you reside unless we both agree to another location or we agree
to a telephonic arbitration.
Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require
the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30
calendar days from the date of the first consumer purchaser’s purchase of the product by either: (i) sending
an e-mail to [email protected], with the subject line: “Arbitration Opt Out” or (ii) calling 1-800-980-2973. You
must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on
which the product was purchased; (c) the product model name or model number; and (d) the serial number
(the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/us/support/
repair-service/schedule-repair-continued and clicking on “Find My Model & Serial Number”).
You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail
or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting
out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and
you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt
out, then you accept all terms and conditions of the arbitration provision described above.
Memo
model is measured based on a ratio between the
model’s CADR for Dust and the electrical energy it
consumes, or CADR/Watt.
