3-067-425-11 (1)
©2001 Sony Corporation
Operating Instructions
Before operating the unit, please read this manual thoroughly,
and retain it for future reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record the
serial number in the space provided below. Refer to these numbers
whenever you call upon your Sony dealer regarding this product.
DCR-TRV15/TRV17
Digital
Video Camera
Recorder
Model No. DCR-TRV Model No. AC-
Serial No. Serial No.
DCR-TRV17
2
Welcome!
Congratulations on your purchase of this Sony Digital Handycam camcorder. With your Digital
Handycam, you can capture life’s precious moments with superior picture and sound quality. Your Digital
Handycam is loaded with advanced features, but at the same time it is very easy to use. You will soon be
producing home video that you can enjoy for years to come.
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
Never expose the battery pack to temperatures
above 60°C (140°F) such as in a car parked in
the sun or under direct sunlight.
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous voltage”
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
For customers in the U.S.A. and
CANADA
DISPOSAL OF LITHIUM ION BATTERY.
LITHIUM ION BATTERY.
DISPOSE OF PROPERLY.
You can return your unwanted lithium ion batteries
to your nearest Sony Service Center or Factory
Service Center.
Note: In some areas the disposal of lithium ion
batteries in household or business trash may
be prohibited.
For the Sony Service Center nearest you call
1-800-222-SONY (United States only).
For the Sony Factory Service Center nearest you call
416-499-SONY (Canada only).
Caution: Do not handle damaged or leaking lithium
ion battery.
For the Customers in the U.S.A.
If you have any questions about this product, you
may call :
Sony Customer Information Center 1-800-222-SONY
(7669)
The number below is for the FCC related matters
only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: DCR-TRV15, DCR-TRV17
Responsible Party:Sony Electronics Inc.
Address: 680 Kinderkamack Road,
Oradell, NJ07649 U.S.A.
Telephone No.: 201-930-6972
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions.: (1) This device
may not cause harmful interference, and
(2)this device must accept any interference
received, including interference that may
cause undesired operation.
“Memory Stick”
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
3
Note:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/
TV technician for help.
For customers in CANADA
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
“Memory Stick”
This Class B digital apparatus complies with
Canadian ICES-003.
4
Main Features
Taking moving or still images, and playing them back
•Recording a picture (p. 21)
•Recording a still image on a tape (p. 38)
•Playing back a tape (p. 31)
•Recording still images on “Memory Stick”s (p. 112) (DCR-TRV17 only)
•Recording moving pictures on “Memory Stick”s (p. 120) (DCR-TRV17 only)
•Viewing a still image recorded on “Memory Stick” (p. 129) (DCR-TRV17 only)
•Viewing a moving picture recorded on “Memory Stick” (p. 132) (DCR-TRV17 only)
Capturing images on your computer

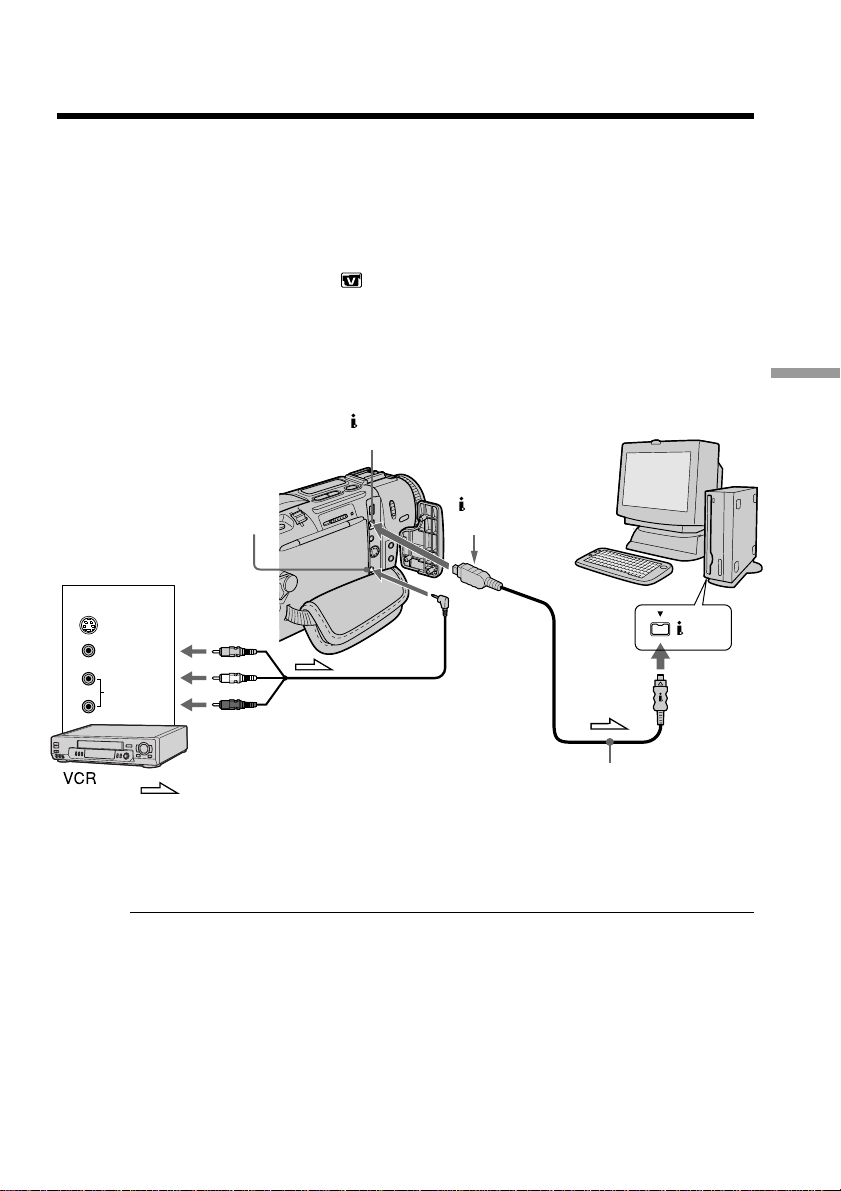

•Using with analog video unit and your computer (p. 79)

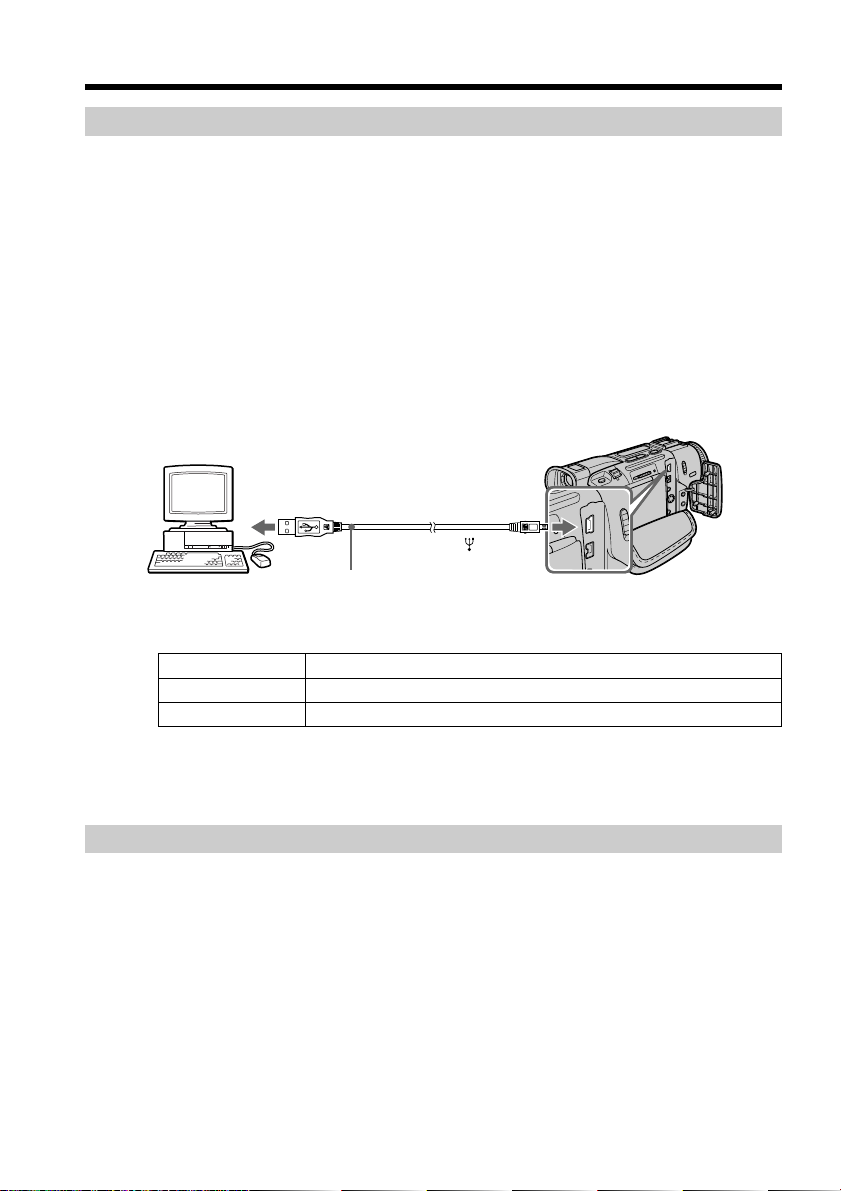

•Viewing images recorded on “Memory Stick” using USB cable (p. 134) (DCR-TRV17
only)
Other uses
Functions to adjust exposure in the recording mode
• Back light (p. 26)
• NightShot/Super NightShot (p. 27)
• PROGRAM AE (p. 49)
• Adjusting the exposure manually (p. 52)
Functions to give images more impact
• Digital zoom (p. 24) The default setting is set to OFF. (To zoom greater than 10×, select
the digital zoom power in D ZOOM in the menu settings.)
• Fader (p. 43)
• Picture effect (p. 45)
• Digital effect (p. 46)

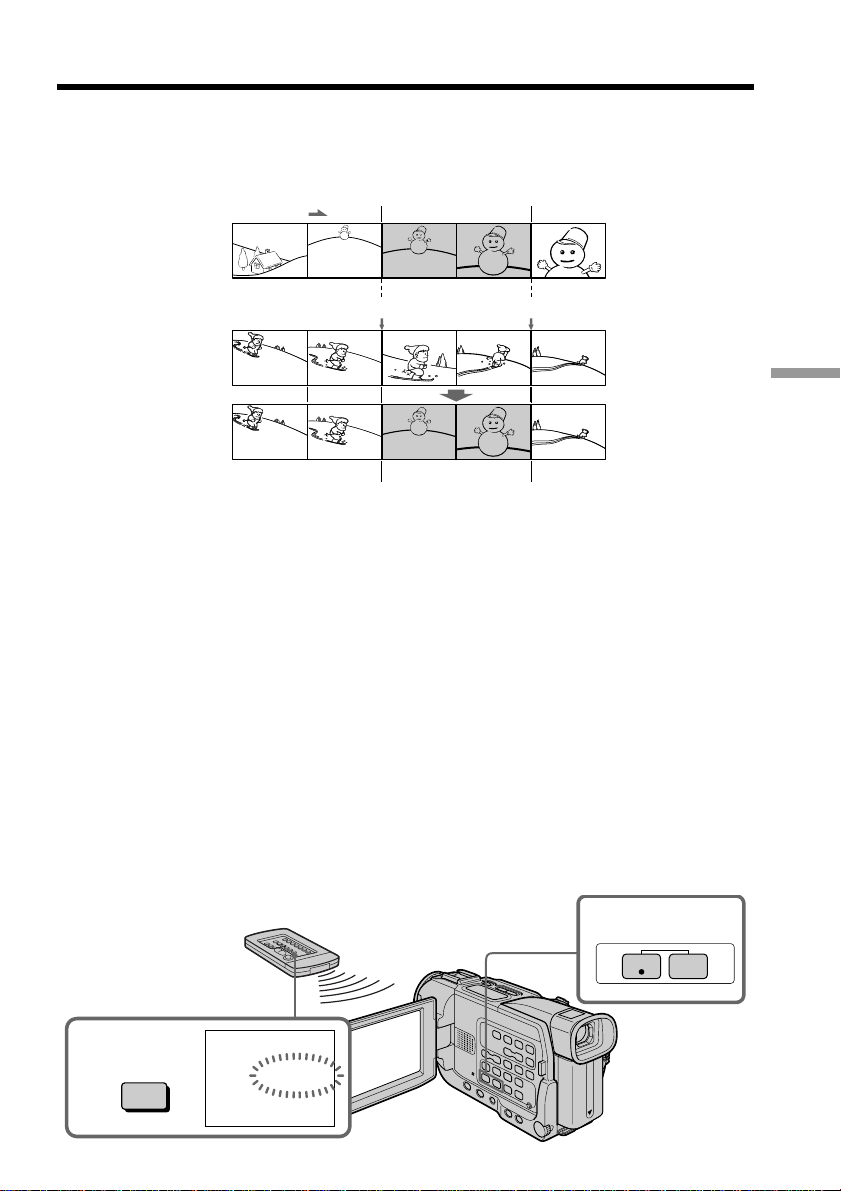

• Digital program editing (p. 68)
• Title (p. 89, 92)

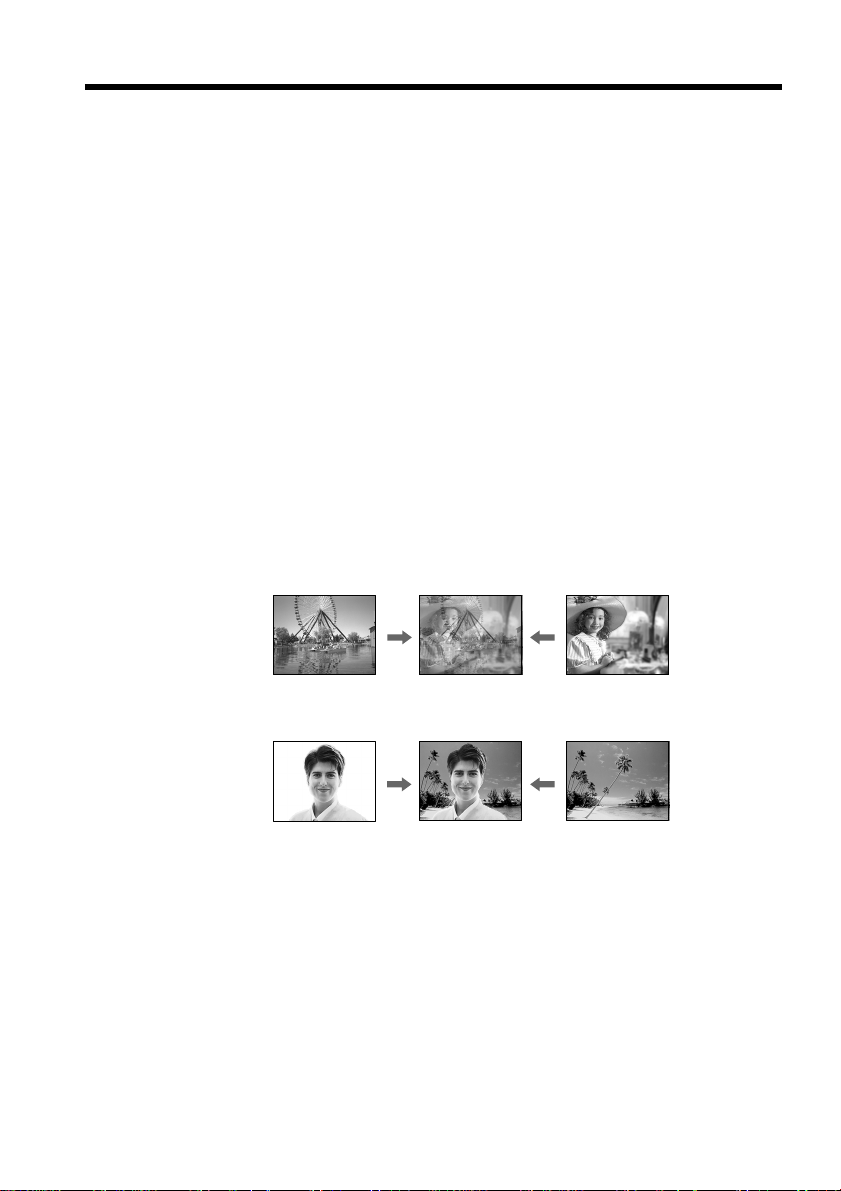

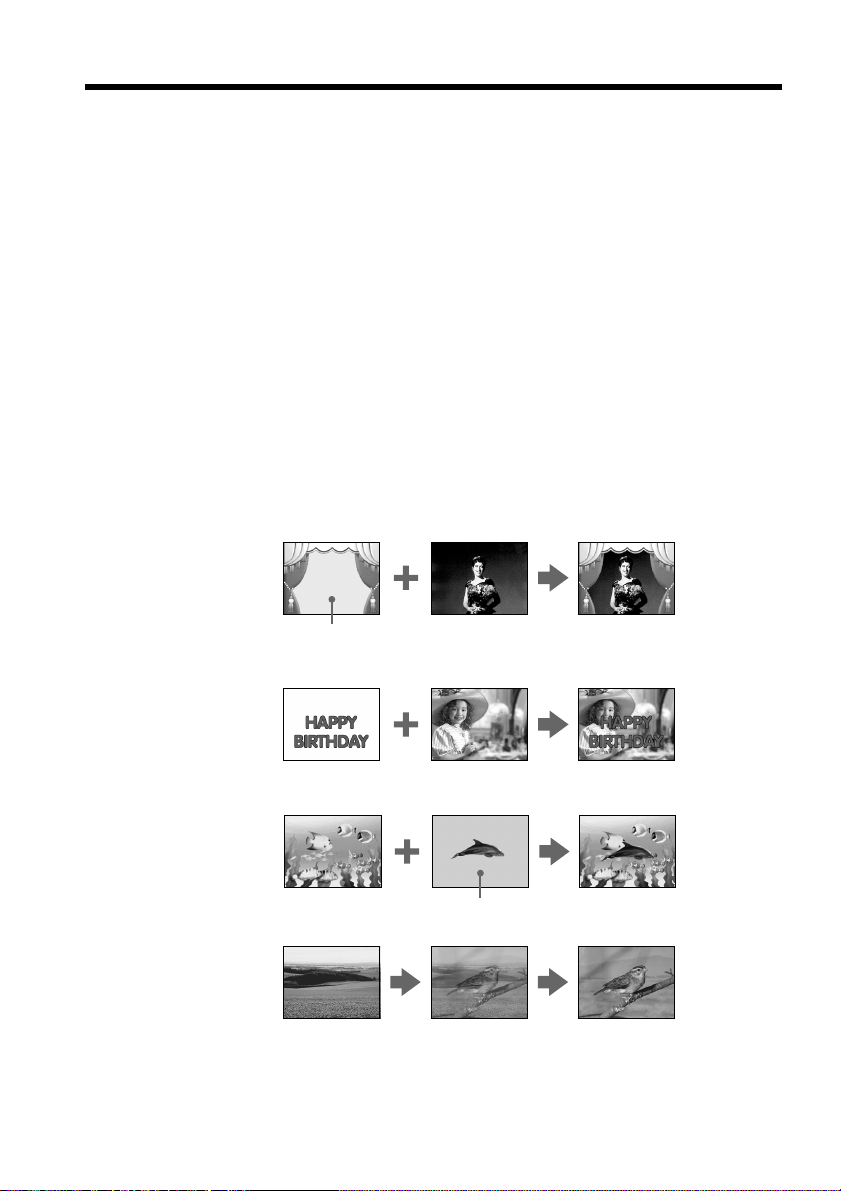

• MEMORY MIX (p. 124) (DCR-TRV17 only)
Functions to give a natural appearance to your recordings
• Landscape mode (p. 49)
• Sports lesson mode (p. 49)
• Manual focus (p. 53)
Functions to use after recording
• END SEARCH/EDITSEARCH/Rec review (p. 30)
• DATA CODE (p. 32)
• SUPER LASER LINK (p. 36)
• Tape PB ZOOM (p. 59)/Memory PB ZOOM (p. 140) (DCR-TRV17 only)
• Zero set memory (p. 60, 83)
• Title search (p. 61)
• HiFi SOUND (p. 98)
5
Getting started

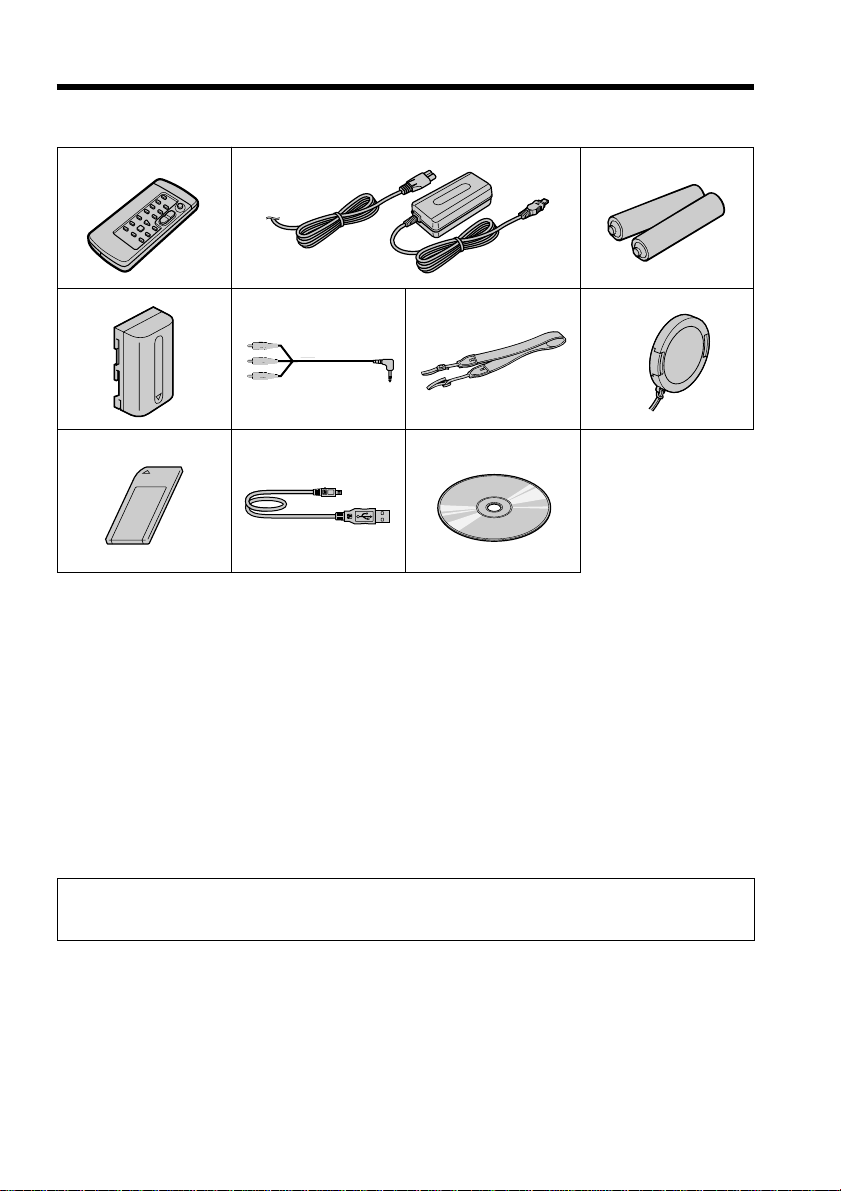

Checking supplied accessories
Make sure that the following accessories are supplied with your camcorder.

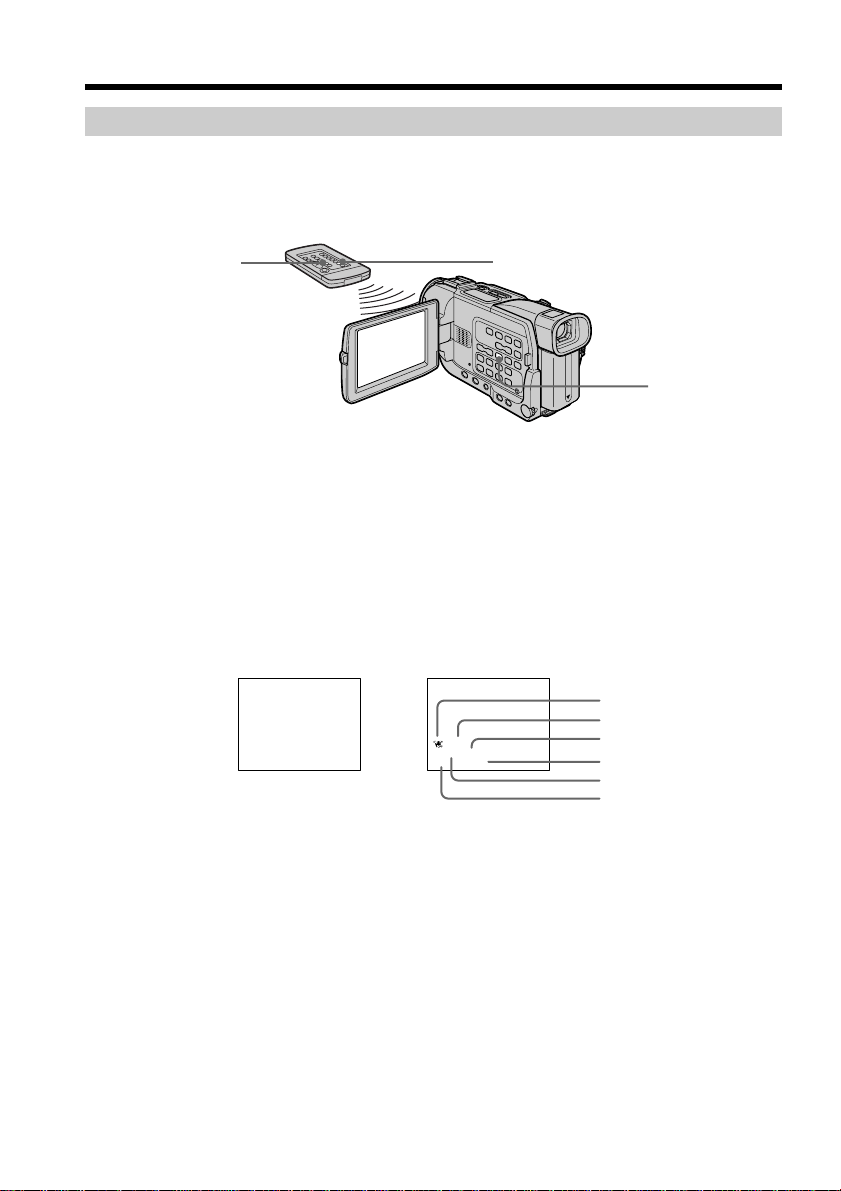

1 Wireless Remote Commander (1)
(p. 178)
2 AC-L10A/L10B/L10C AC power adaptor
(1), Power cord (1) (p. 13)
3 Size AA (R6) battery for Remote
Commander (2) (p. 178)
4 NP-FM30 battery pack (1) (p. 12, 13)
5 A/V connecting cable (1) (p. 35, 66)

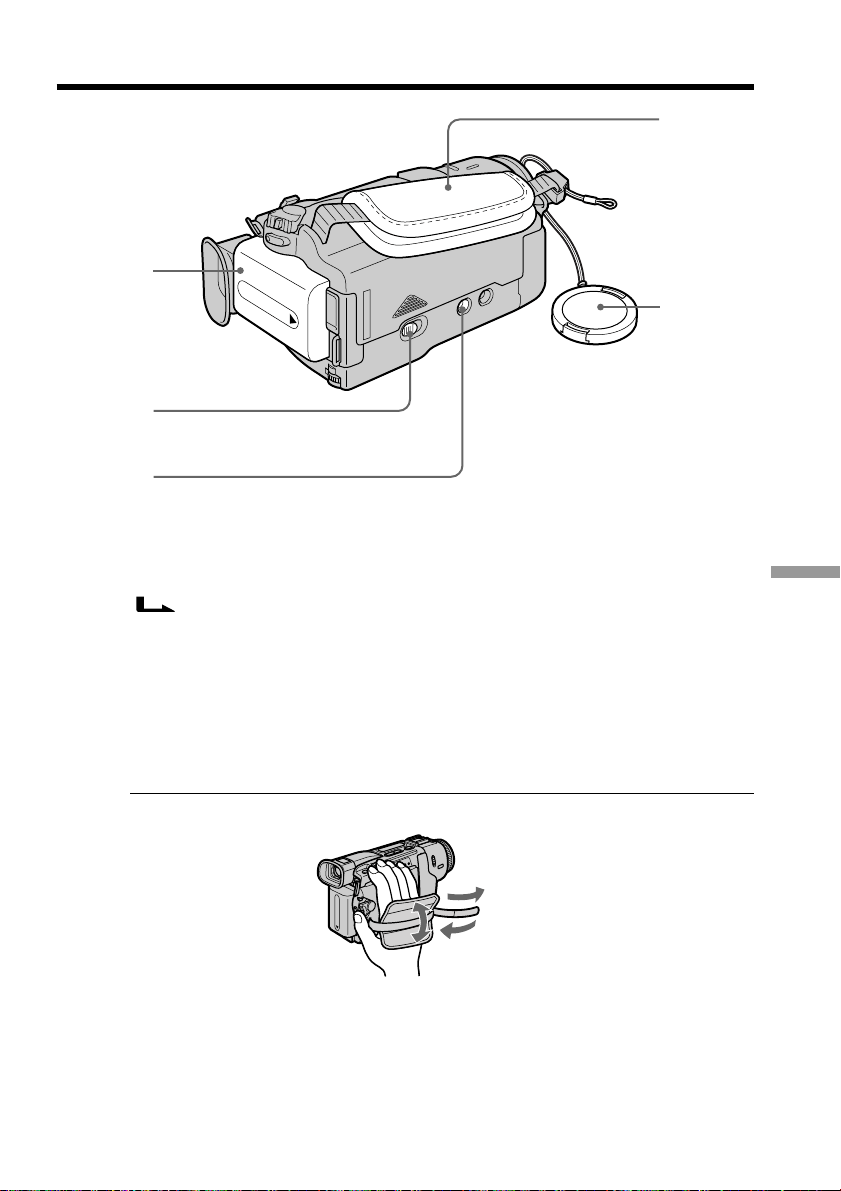

6 Shoulder strap (1) (p. 173)
7 Lens cap (1) (p. 21)
8 “Memory Stick” (1) (p. 103)
DCR-TRV17 only
9 USB cable (1) (p. 135)
DCR-TRV17 only
0 CD-ROM (SPVD-004, USB Driver) (1)
(p. 135) DCR-TRV17 only
8
12
4
7
5 6
Contents of the recording cannot be compensated if recording or playback is not made due to a
malfunction of the camcorder, storage media, etc.
3
9 0
6
Table of contents
Main Features .......................................... 4
Checking supplied accessories.............. 5

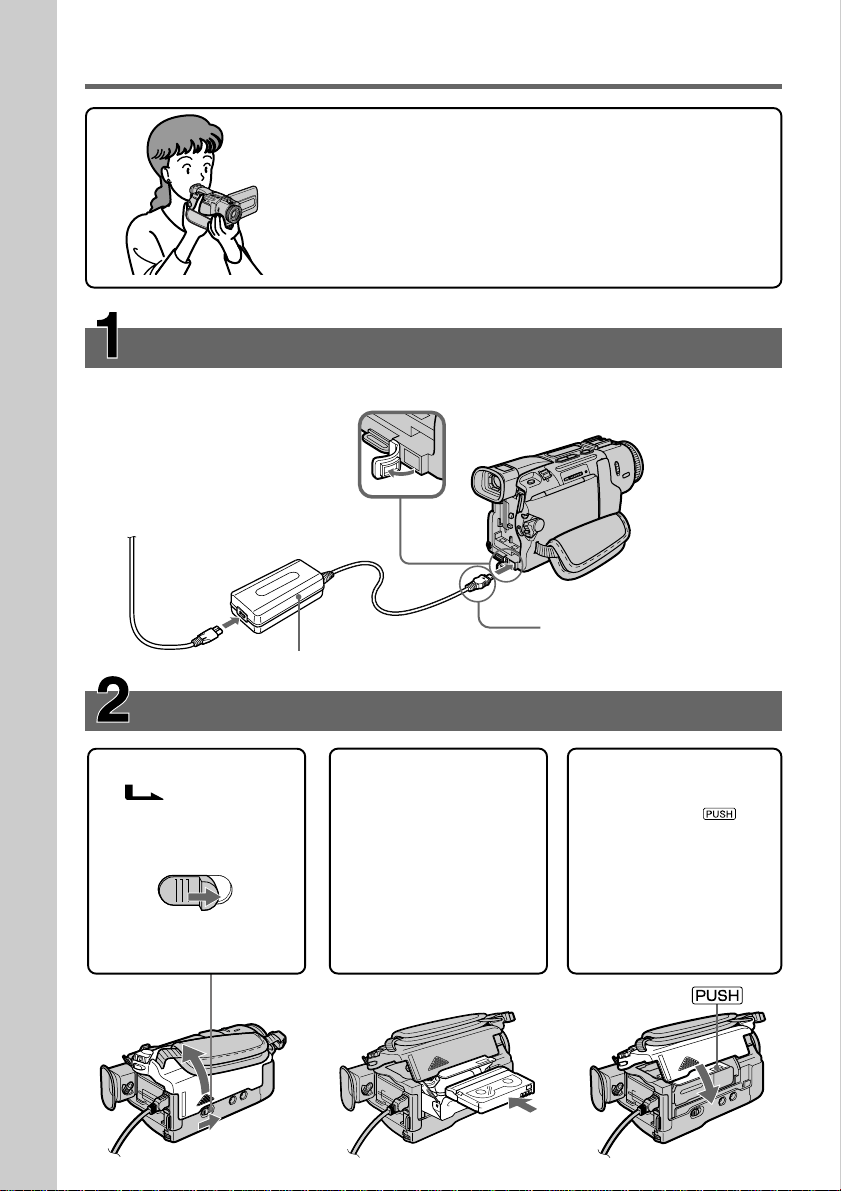

Quick Start Guide............................. 8
Getting started
Using this manual ................................. 10
Step 1 Preparing the power supply ... 12
Installing the battery pack............. 12

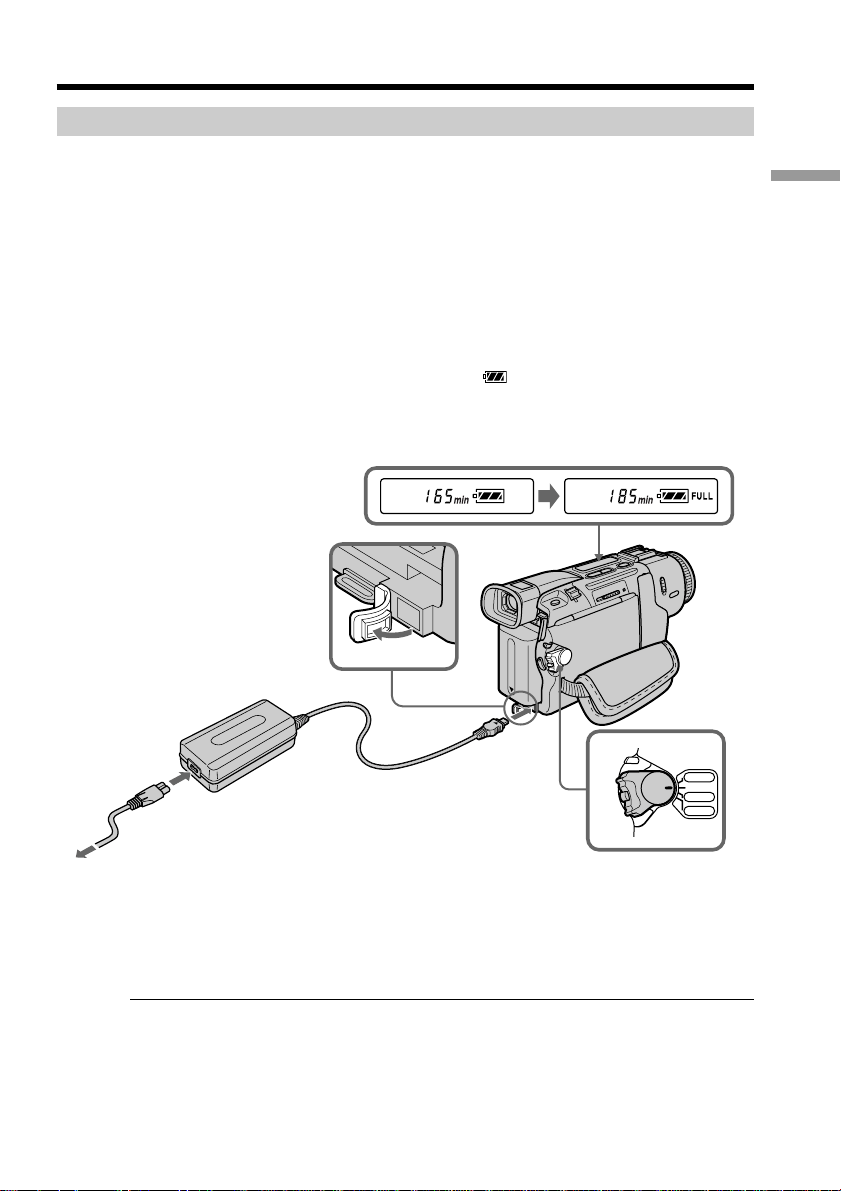

Charging the battery pack............. 13

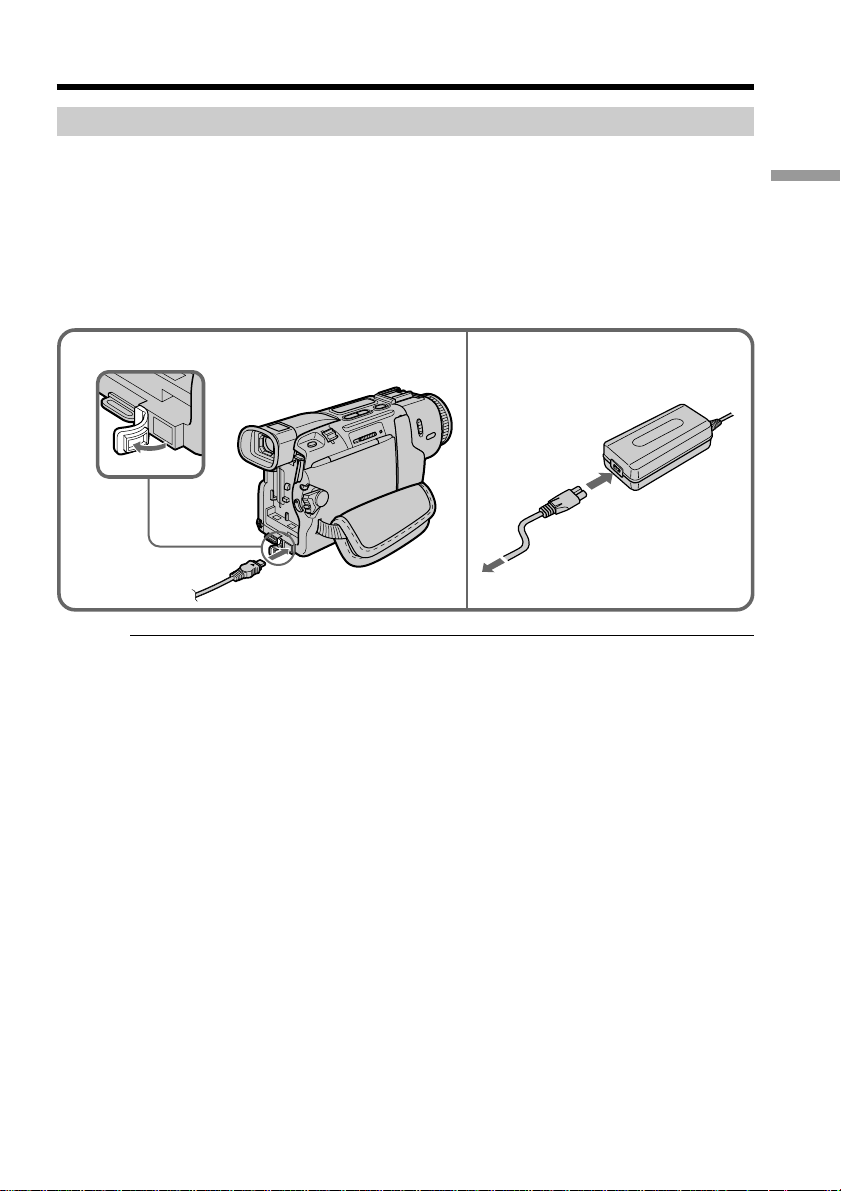

Connecting to the wall outlet ....... 17

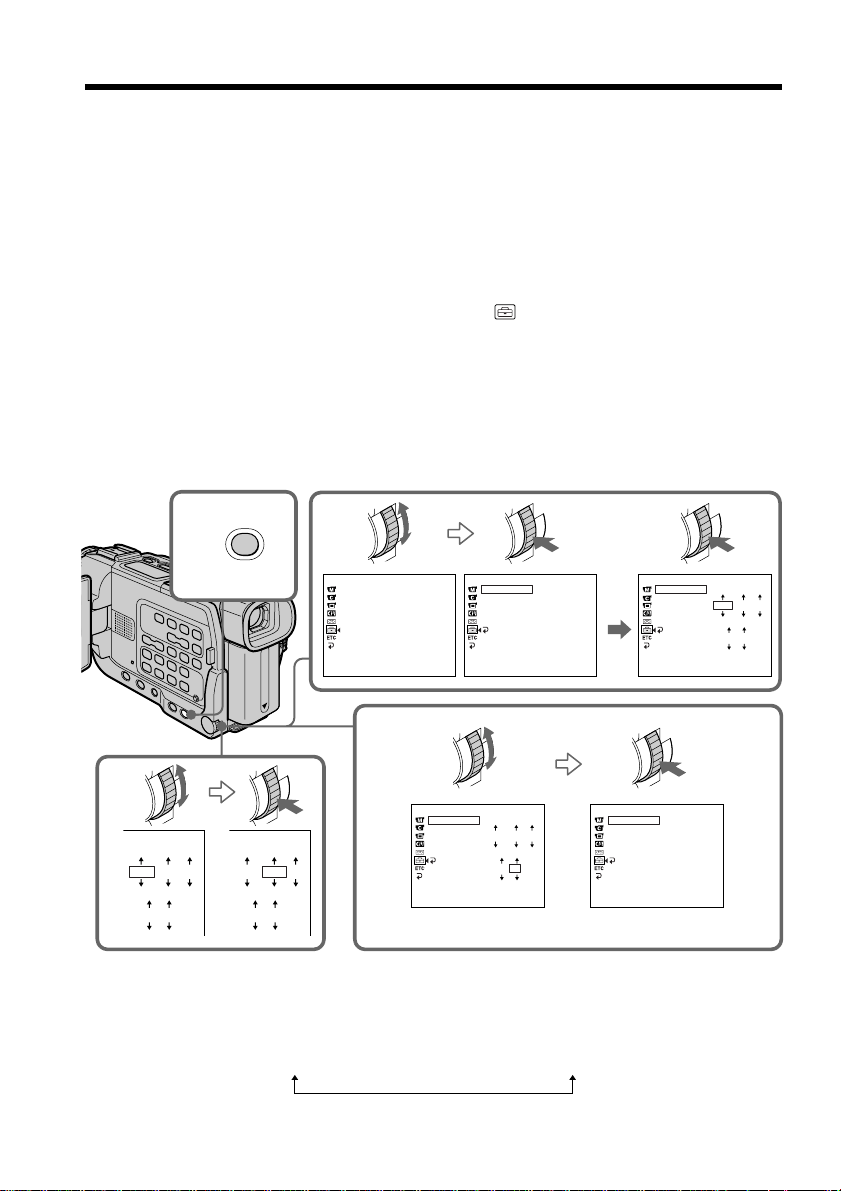

Step 2 Setting the date and time ......... 18

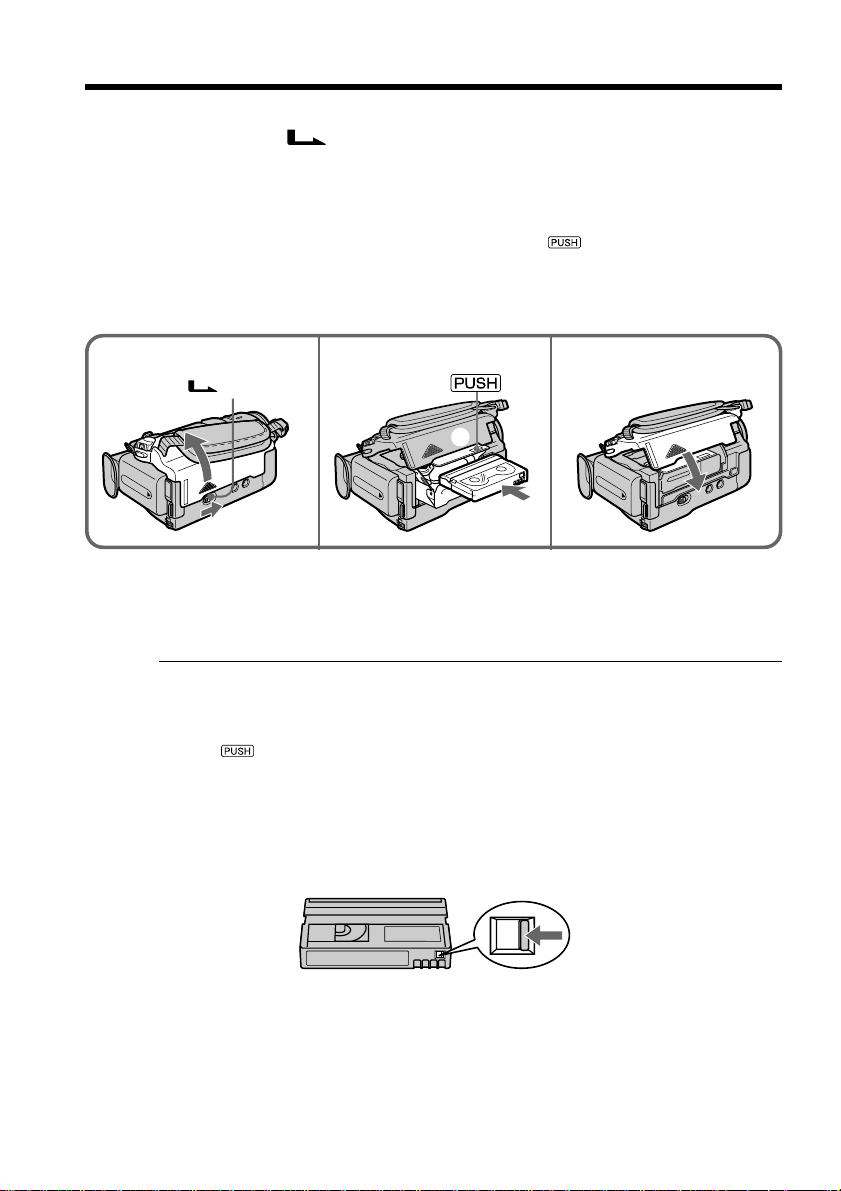

Step 3 Inserting a cassette ................... 20
Recording – Basics

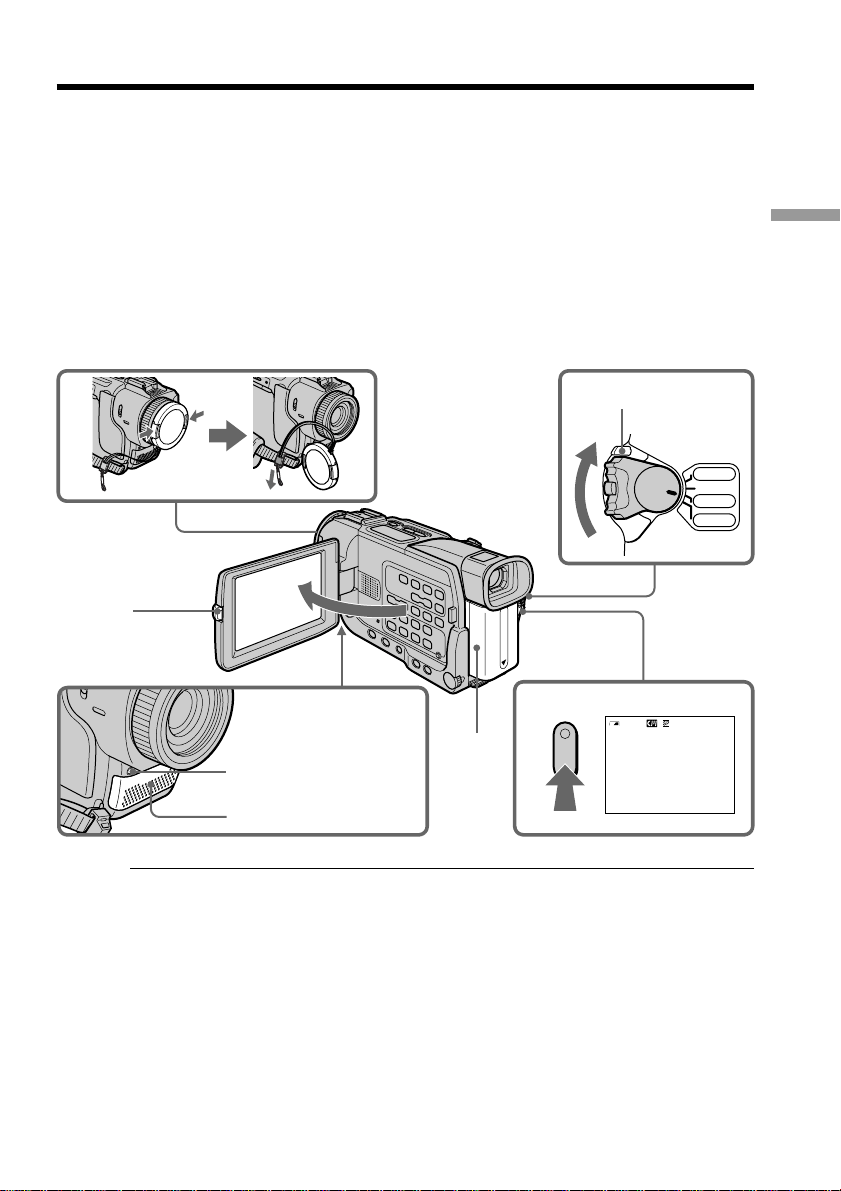

Recording a picture............................... 21
Shooting backlit subjects
– BACK LIGHT ........................ 26
Shooting in the dark
– Night Shot/Super NightShot
.................................................... 27
Self-timer recording ....................... 28
Checking the recording – END SEARCH
/ EDITSEARCH / Rec Review .... 30
Playback – Basics

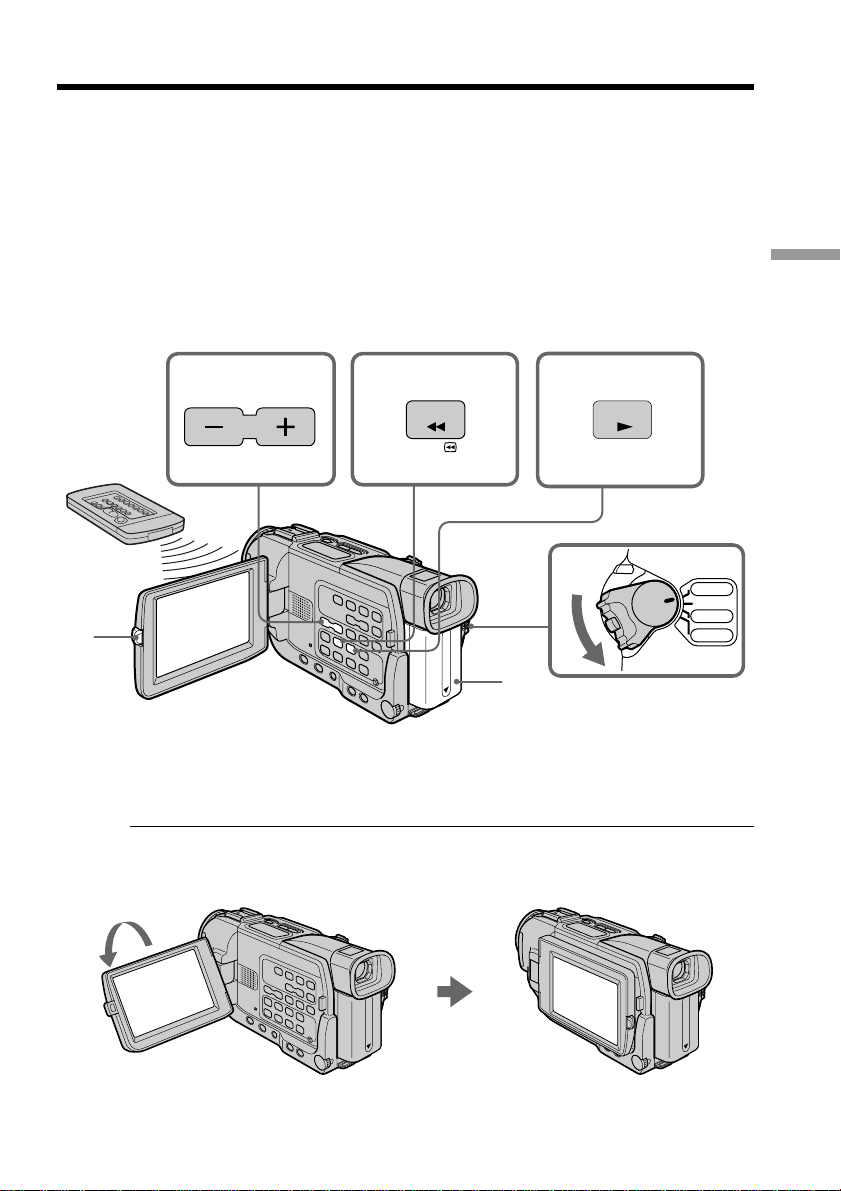

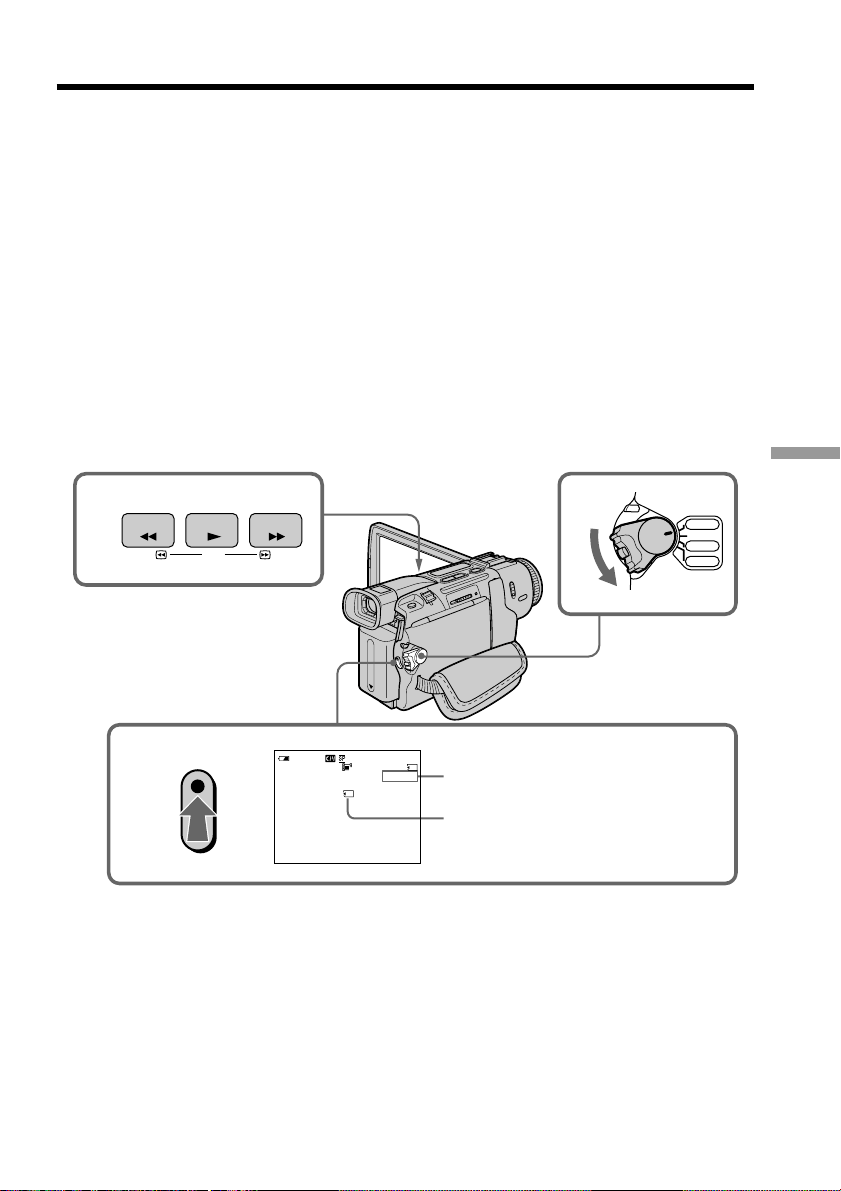

Playing back a tape ............................... 31

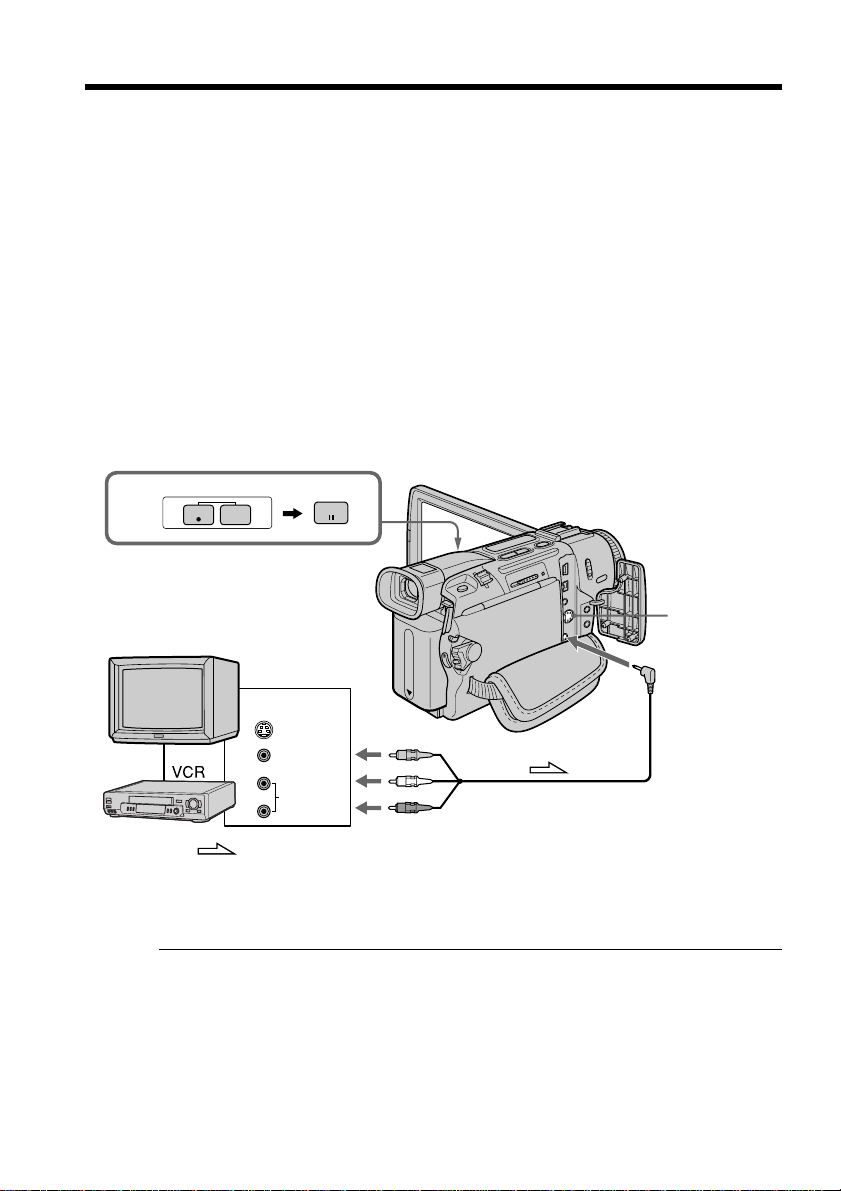

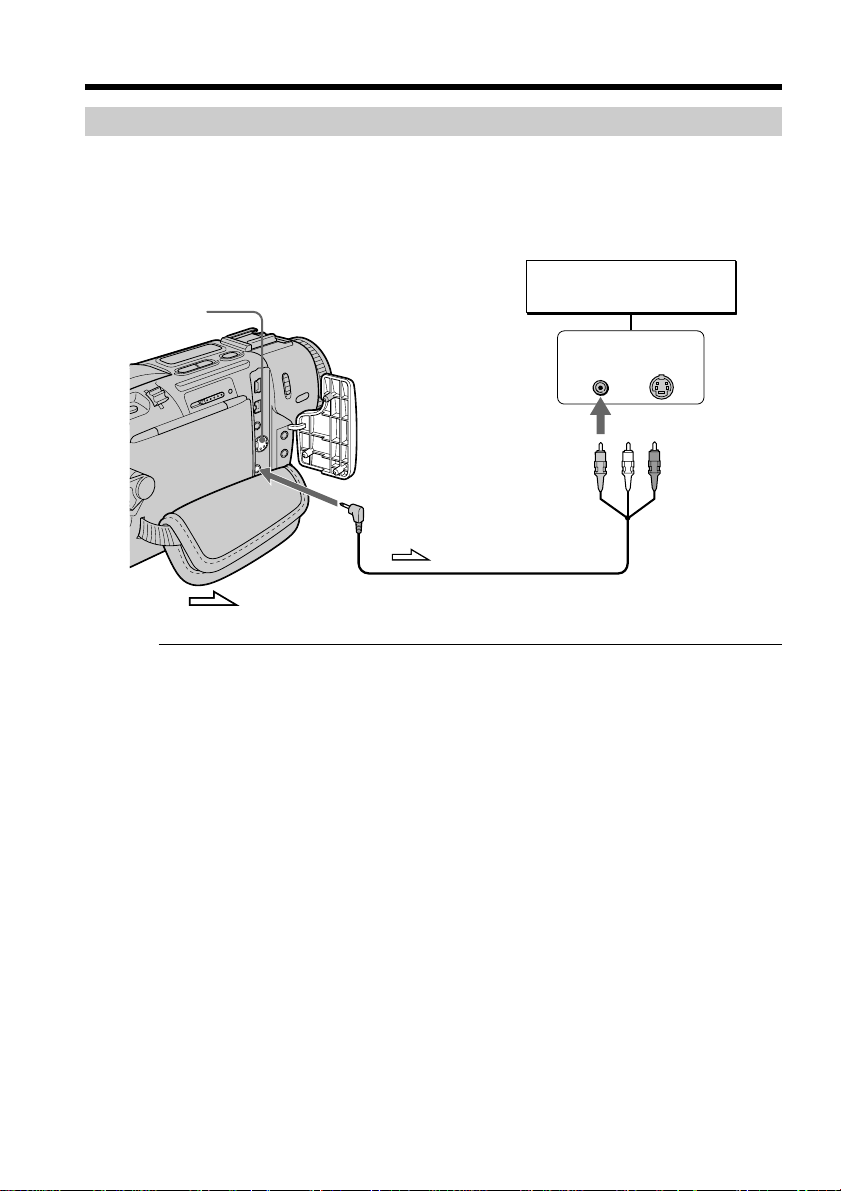

Viewing the recording on TV.............. 35
Advanced Recording
Operations
Recording a still image on a tape
– Tape Photo recording ................. 38
Adjusting the white balance manually
........................................................... 41
Using the wide mode ........................... 42

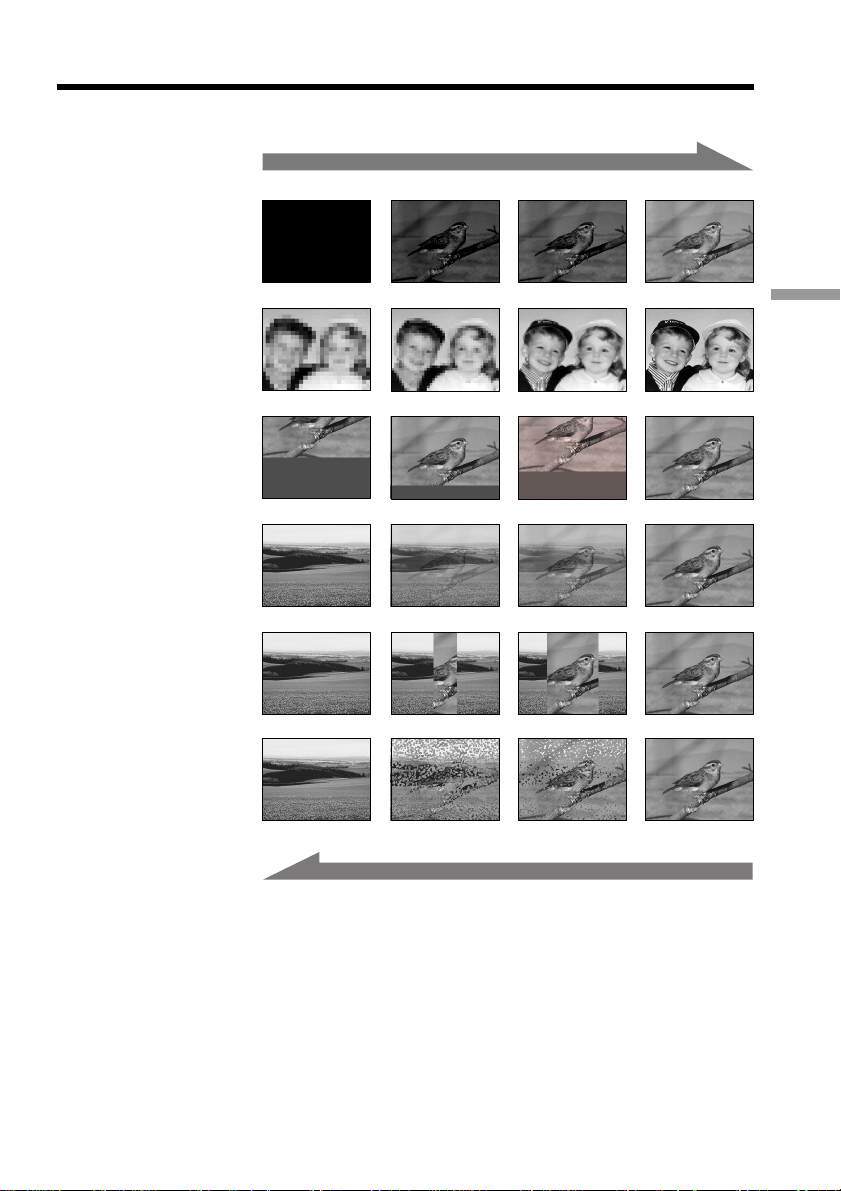

Using the fader function ...................... 43

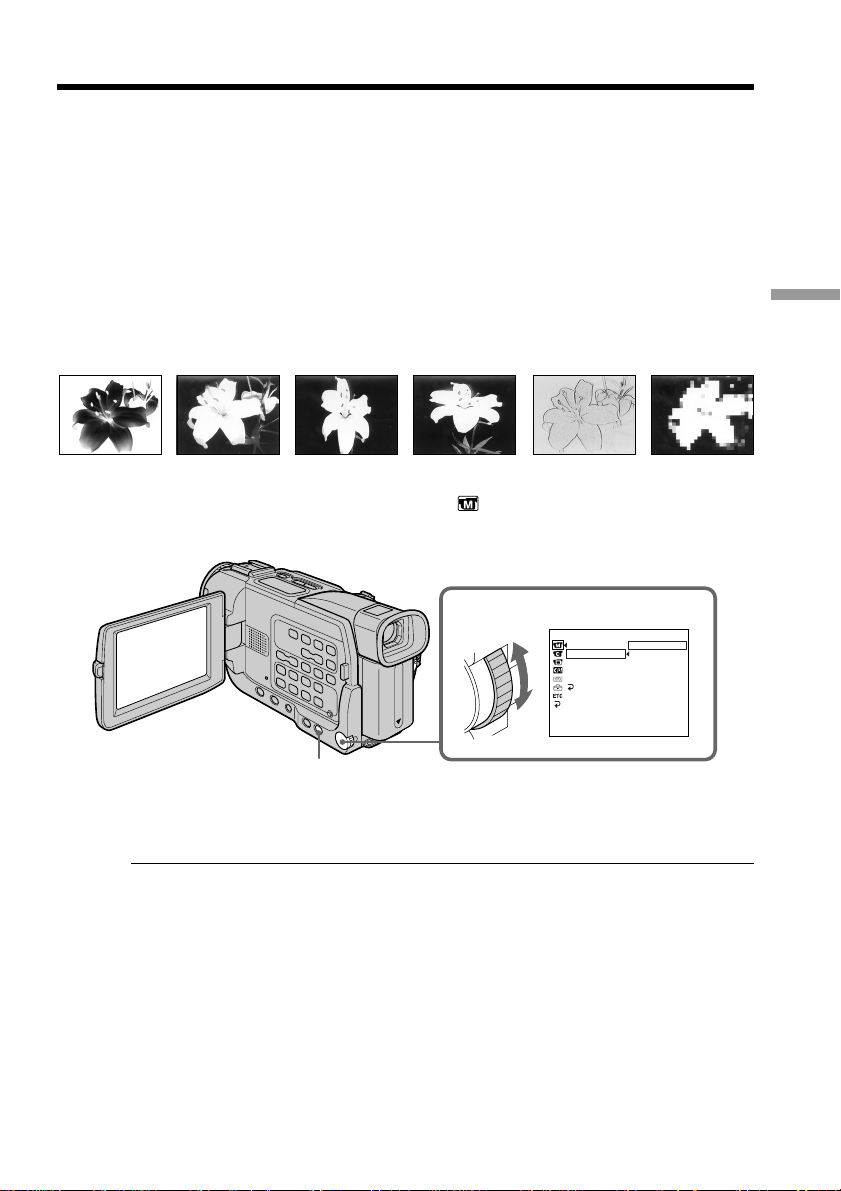

Using special effects – Picture effect .. 45
Using special effects – Digital effect ... 46
Using the PROGRAM AE function .... 49
Adjusting the exposure manually ...... 52
Focusing manually................................ 53
Interval recording ................................. 54
Frame by frame recording
– Cut recording ............................... 56
Advanced Playback
Operations
Playing back a tape with picture effects
........................................................... 57
Playing back a tape with digital effects
........................................................... 58
Enlarging images recorded on tapes
– Tape PB ZOOM ........................... 59
Quickly locating a scene using the zero
set memory function ...................... 60
Searching the boundaries of recorded
tape by title – Title search ............. 61
Searching a recording by date
– Date search ................................... 62
Searching for a photo
– Photo search/Photo scan ........... 64
Editing

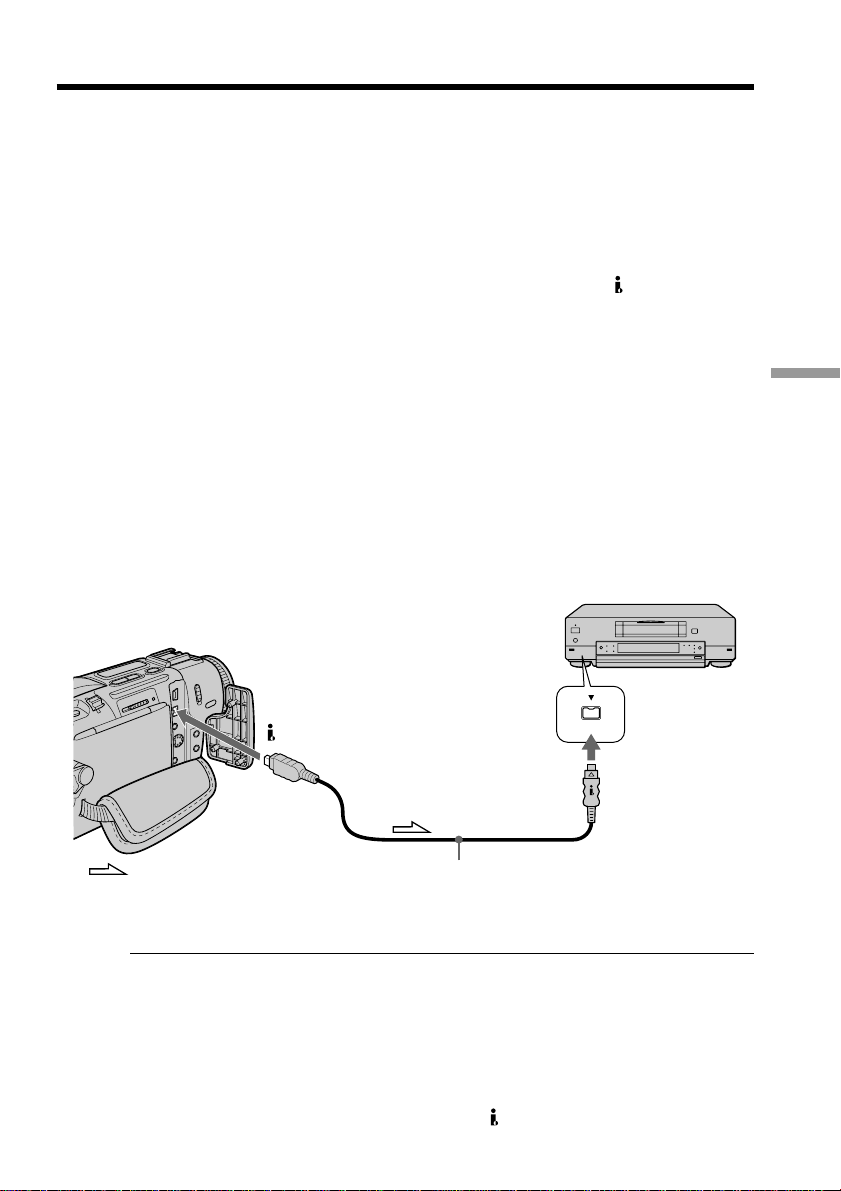

Dubbing a tape ...................................... 66
Dubbing only desired scenes
– Digital program editing.............. 68
Using with analog video unit and
personal computer
– Signal convert function ............... 79
Recording video or TV programs ....... 80
Inserting a scene from a VCR
– Insert editing ................................ 83
Audio dubbing ...................................... 85

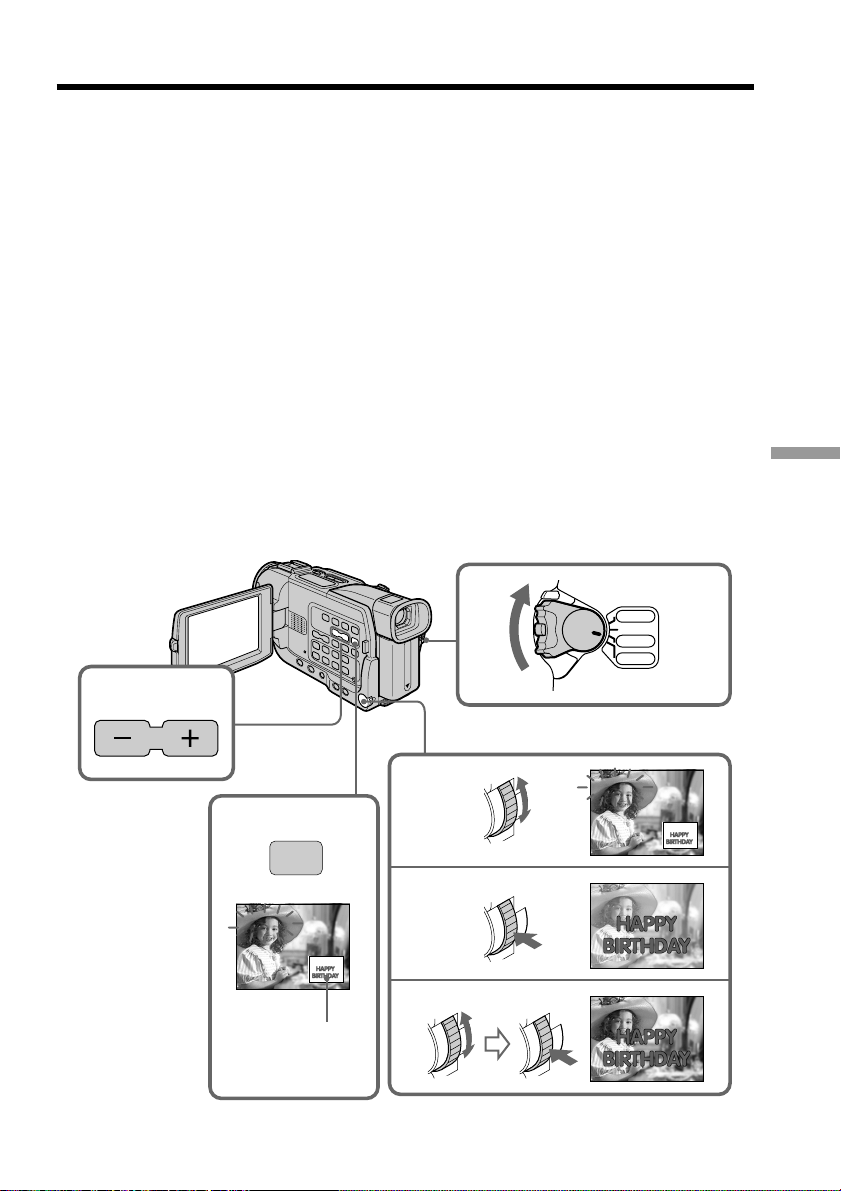

Superimposing a title ........................... 89

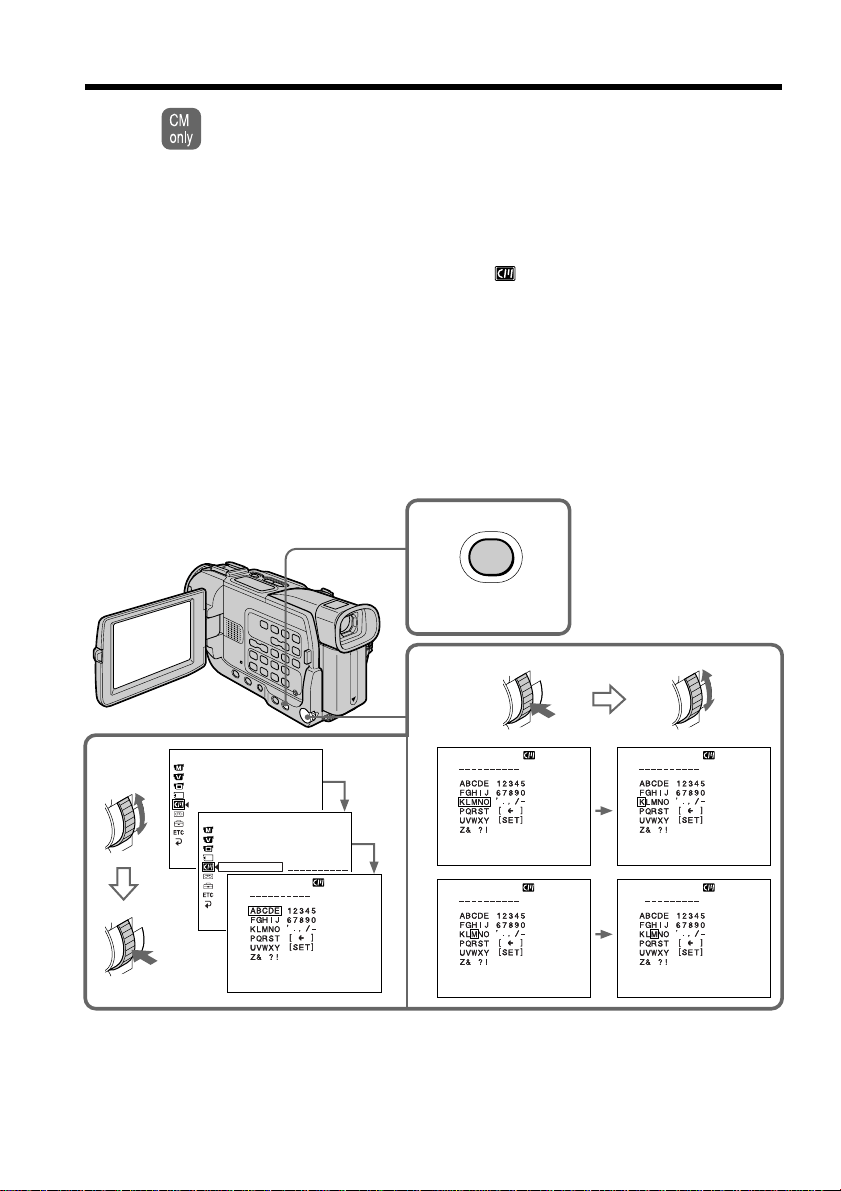

Making your own titles ........................ 92
Labeling a cassette ................................ 94
Customizing Your Camcorder

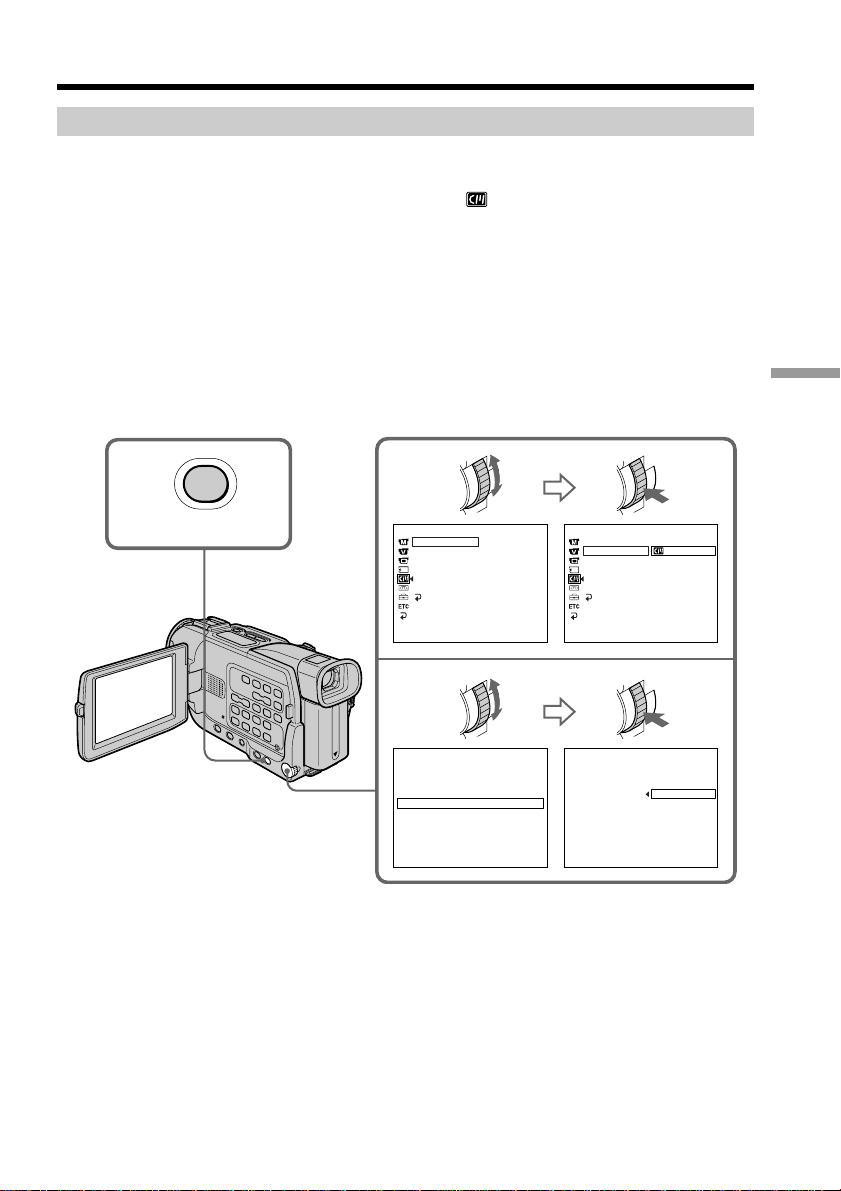

Changing the menu settings................ 96
“Memory Stick” Operations
(DCR-TRV17 only)
Using a “Memory Stick”
– introduction................................ 103
Recording still images on “Memory
Stick”s
– Memory photo recording ......... 112
Recording an image from a tape as a
still image ...................................... 117
Recording moving pictures on “Memory
Stick”s
– MPEG movie recording ............ 120
Recording a picture from a tape as a
moving picture ............................. 121
7
Getting started
Superimposing a still picture in a
“Memory Stick” on a moving
picture – MEMORY MIX ............. 124
Copying still images from a tape
– Photo save .................................. 127
Viewing a still picture
– Memory photo playback .......... 129
Viewing a moving picture
– MPEG movie playback ............. 132

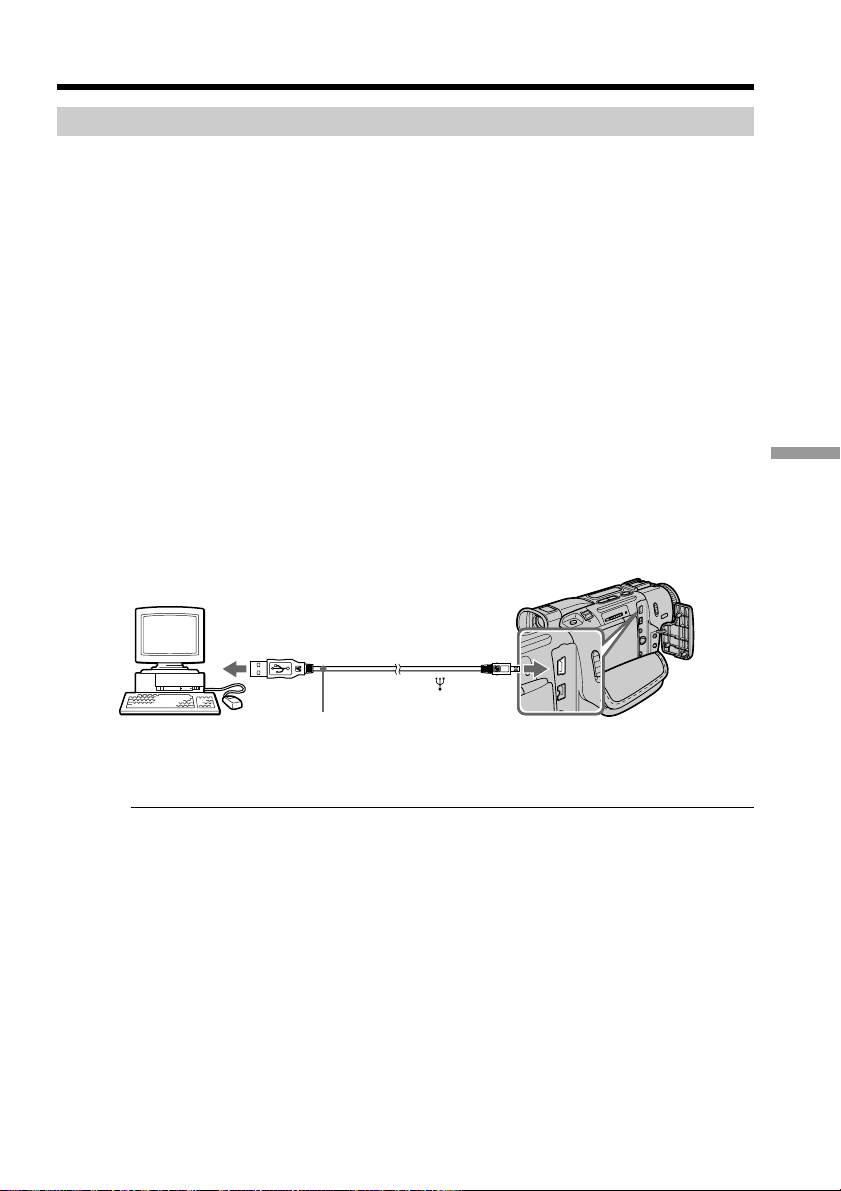

Viewing images using computer ...... 134
Copying the image recorded on
“Memory Stick”s to tapes ........... 138
Enlarging still images recorded on
“Memory Stick”s
– Memory PB ZOOM ................... 140
Playing back images in a continuous
loop
– SLIDE SHOW............................. 142
Preventing accidental erasure
– Image protection........................ 143
Deleting images................................... 144
Writing a print mark
– PRINT MARK ............................ 146
Using the printer (optional)............... 148
Troubleshooting
Types of trouble and their solutions
......................................................... 149
Self-diagnosis display......................... 155
Warning indicators and messages.... 156
Additional Information
Usable cassettes ................................... 158
About “InfoLITHIUM” battery pack
......................................................... 160
About i.LINK ....................................... 162
Using your camcorder abroad .......... 164
Maintenance information and
precautions .................................... 165
Specifications ....................................... 169
Quick Reference

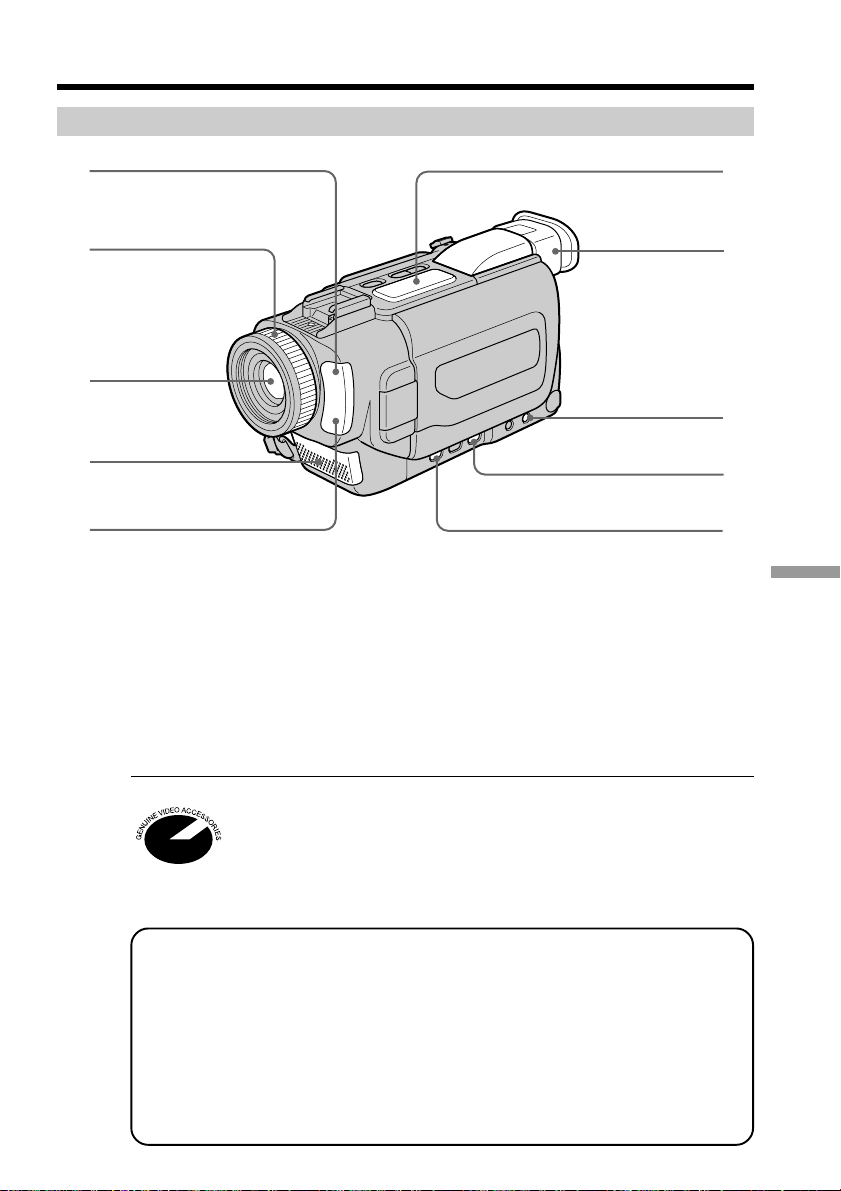

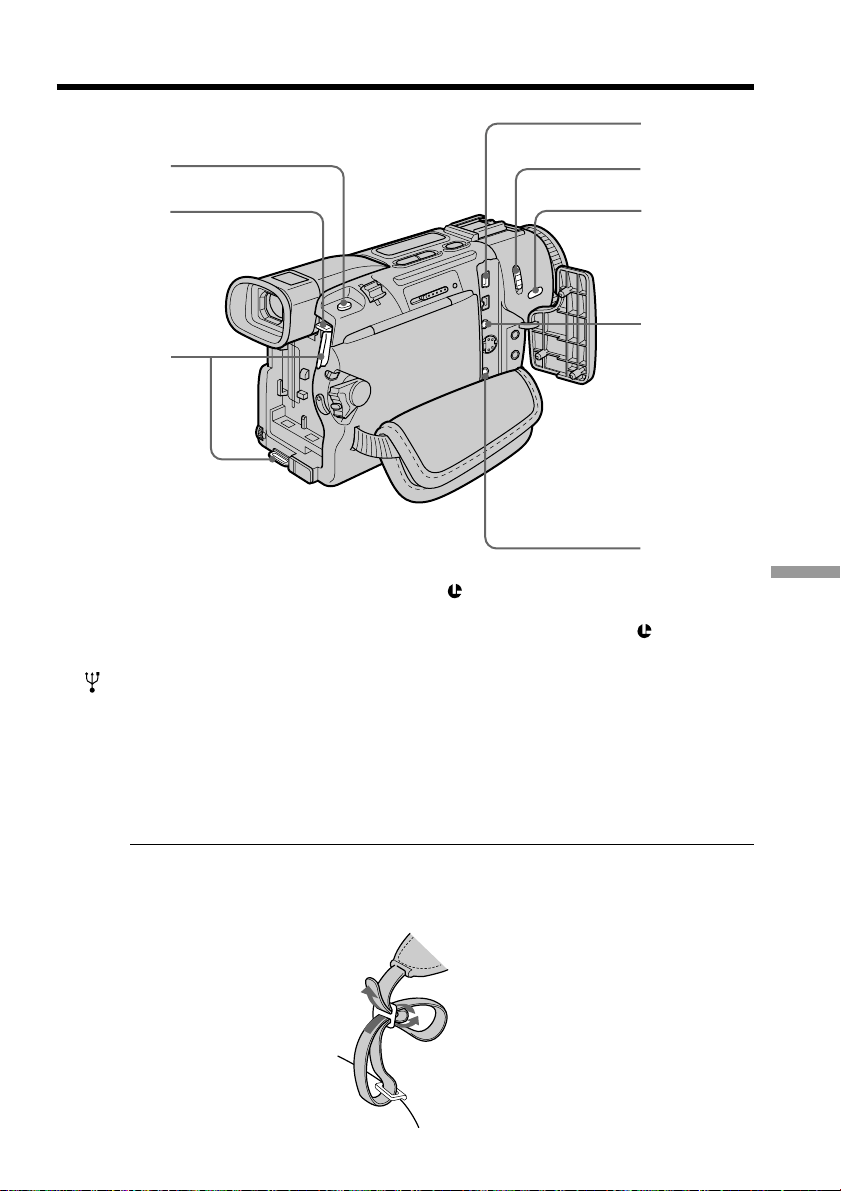

Identifying the parts and controls .... 171
Index ........................................ Back cover
Table of contents
Quick Start Guide
8
Quick Start Guide
This chapter introduces you to the basic features of your
camcorder. See the page in parentheses “( )” for more
information.
Inserting a cassette (p. 20)
Connecting the power cord (p. 17)
Use the battery pack when using your camcorder outdoors (p. 12).
Open the DC IN
jack cover.
Connect the plug with its v
mark facing up.
AC power adaptor (supplied)
1Slide OPEN/
EJECT in the
direction of the arrow
and open the lid.
2Push the middle
portion of the back of
the cassette to insert.
Insert the cassette in a
straight line deeply
into the cassette
compartment with the
window facing out.
3Close the cassette
compartment by
pressing the
mark on the cassette
compartment.
After the cassette
compartment going
down completely,
close the lid until it
clicks.
EJECT
Quick Start Guide
9
VCR
CAMERA
MEMORY
OFF(CHG)
REW
PLAY
POWER
VCR
CAMERA
MEMORY
OFF(CHG)
POW
ER

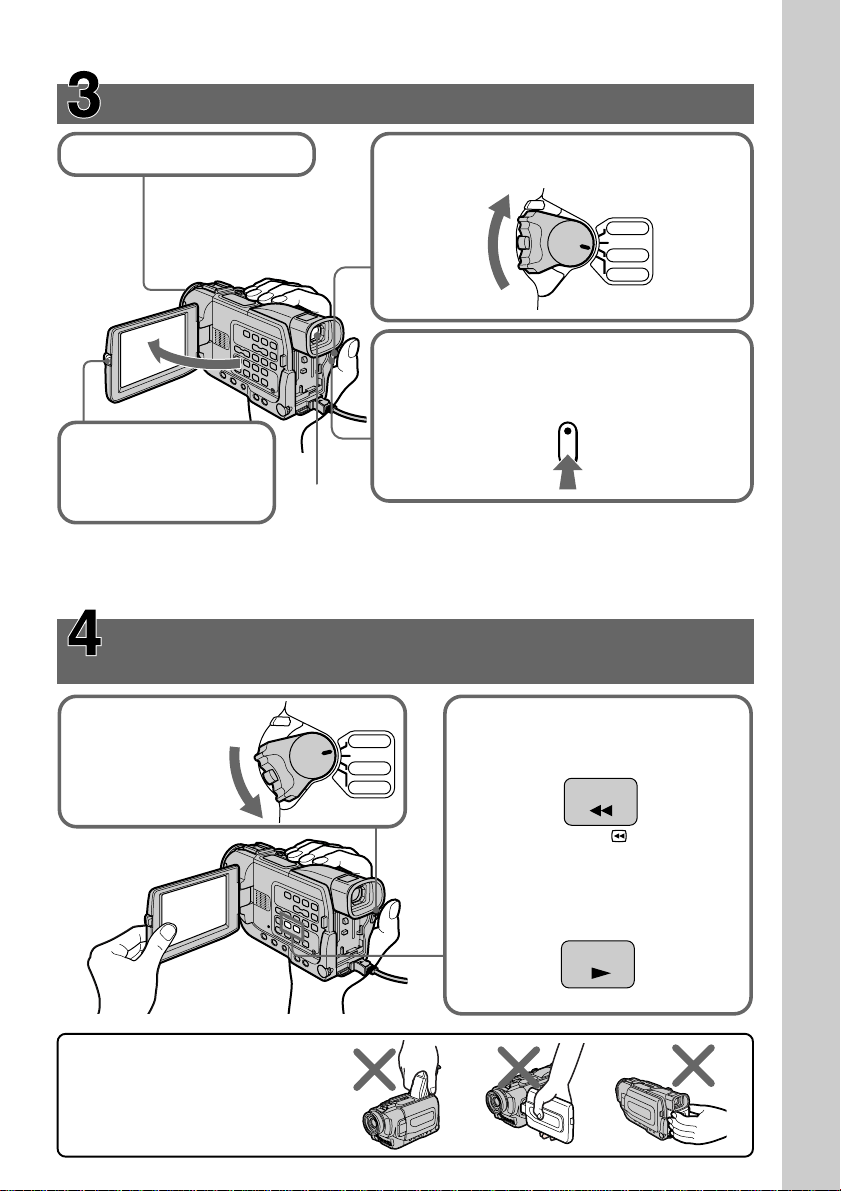

Recording a picture (p. 21)
Monitoring the playback picture on the LCD
screen (p. 31)
When you purchase your camcorder, the clock setting is set to off. If you want to record
the date and time for a picture, set the clock setting before recording (p. 18).
NOTE
Do not pick up your camcorder by
holding the viewfinder, the LCD
panel, or the battery pack.
1Set the POWER
switch to VCR
while pressing
the small green
button.
2Press m to rewind the tape.
3Press N to start playback.
1Remove the lens cap.
3To open the LCD
panel, press OPEN.
The picture appears on
the screen.
Viewfinder
When the LCD panel is closed, use the viewfinder
placing your eye against its eyecup.
2Set the POWER switch to CAMERA
while pressing the small green button.
4Press START/STOP. Your camcorder starts
recording. To stop recording, press START/
STOP again.
10
— Getting started —
Using this manual
The instructions in this manual are for the two models listed in the table below. Before
you start reading this manual and operating your camcorder, check the model number
by looking at the bottom of your camcorder. The DCR-TRV17 is the model used for
illustration purposes. Otherwise, the model name is indicated in the illustrations. Any
differences in operation are clearly indicated in the text, for example, “DCR-TRV17
only”.
As you read through this manual, buttons and settings on your camcorder are shown in
capital letters.
e.g. Set the POWER switch to CAMERA.
When you carry out an operation, you can hear a beep sound to indicate that the
operation is being carried out.
Types of differences
DCR-
MEMORY mark*
1)
(on the POWER
switch)
(USB) jack
Intelligent
accessory shoe
z Provided
— Not provided
*
1)
The model with MEMORY marked on the POWER switch is provided with memory functions.
See page 106 for details.
*
2)
This intelligent accessory shoe is designed to use a printer (optional) (p. 148).
Note on Cassette Memory
Your camcorder is based on the DV format. You can only use mini DV cassettes with
your camcorder. We recommend that you use a tape with cassette memory .
The functions which require different operations depending on whether the tape has
the cassette memory or not are:
•End search (p. 30)
•Date search (p. 62)
•Photo search (p. 64)
The functions you can operate only with the cassette memory are:
•Title search (p. 61)
•Superimposing a title (p. 89)
•Making your own titles (p. 92)
•Labeling a cassette (p. 94)
For details, see page 158.
You see this mark in the introduction of the features that are operated only with
cassette memory.
Tapes with cassette memory are marked by (Cassette Memory).
TRV15
—
—
8 pin
TRV17
z
z
15 pin*
2)
11
Getting started
Note on TV color systems
TV color systems differ from country to country. To view your recordings on a TV, you
need an NTSC system-based TV.
Copyright precautions
Television programs, films, video tapes, and other materials may be copyrighted.
Unauthorized recording of such materials may be contrary to the provision of the
copyright laws.

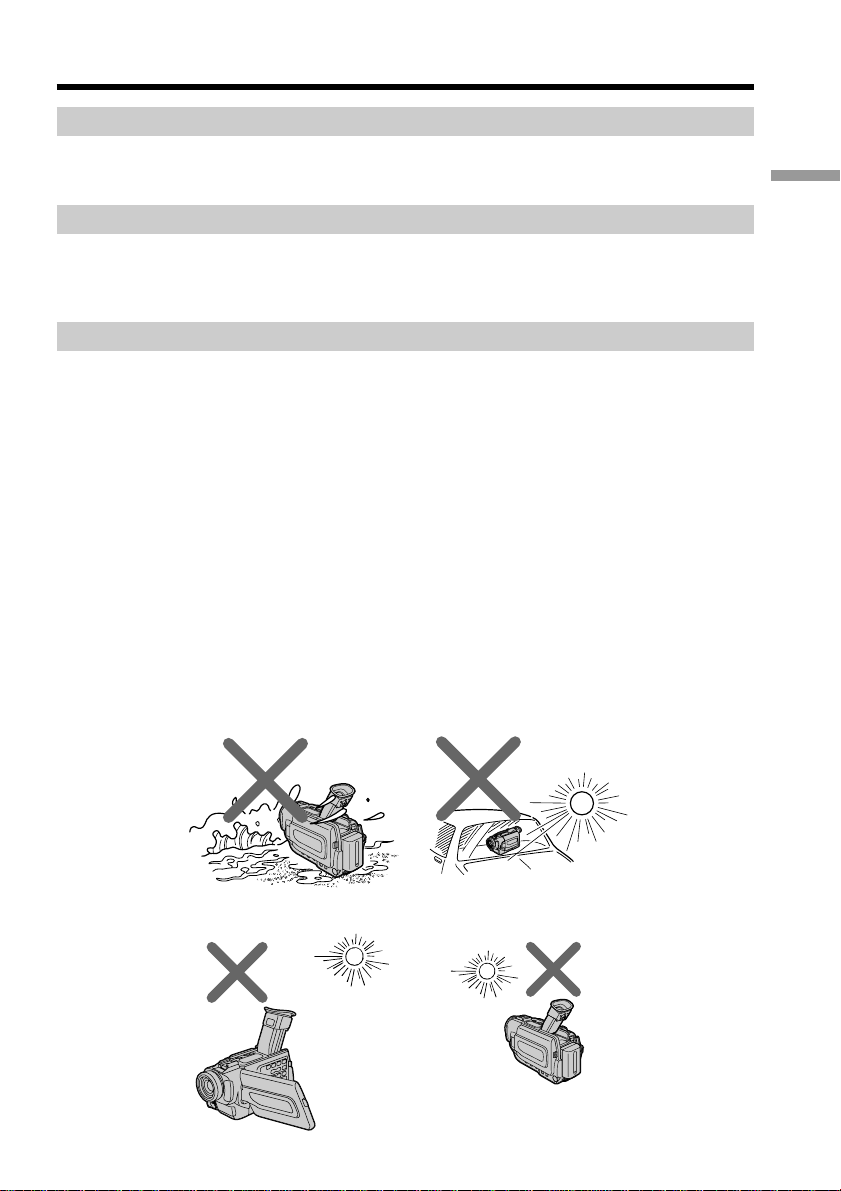

Precautions on camcorder care
Lens and LCD screen/finder (on mounted models only)
•The LCD screen and the finder are manufactured using extremely high-precision
technology so over 99.99 % of the pixels are operational for effective use.
However, there may be some tiny black points and/or bright points (white, red,
blue or green in color) that constantly appear on the LCD screen and the finder.
These points are normal in the manufacturing process and do not affect the
recording in any way.
•Do not let your camcorder get wet. Keep your camcorder away from rain and sea
water. Letting your camcorder get wet may cause your camcorder to malfunction.
Sometimes this malfunction cannot be repaired [a].
•Never leave your camcorder exposed to temperatures above 60 °C (140 °F), such as in
a car parked in the sun or under direct sunlight [b].
•Be careful when placing the camera near a window or outdoors. Exposing the LCD
screen, the finder or the lens to direct sunlight for long periods may cause
malfunctions [c].
•Do not directly shoot the sun. Doing so might cause your camcorder to malfunction.
Take pictures of the sun in low light conditions such as dusk [d].
Using this manual
[c][d]
[a][b]
12
Step 1 Preparing the power supply
Installing the battery pack
Install the battery pack to use your camcorder outdoors.
(1) Lift up the viewfinder.
(2) Slide the battery pack down until it clicks.
To remove the battery pack
(1) Lift up the viewfinder.
(2) Slide the battery pack out in the direction of the arrow while pressing BATT
down.
If you use the large capacity battery pack
If you install the NP-FM70/FM90/FM91 battery pack on your camcorder, extend its
viewfinder.
1
2
1
2
2
BATT release
button
13
Getting started
Charging the battery pack
Use the battery pack after charging it for your camcorder.
Your camcorder operates only with the “InfoLITHIUM” battery pack (M series).
See page 160 for details of “InfoLITHIUM” battery pack.
(1) Open the DC IN jack cover and connect the AC power adaptor supplied with
your camcorder to the DC IN jack on your camcorder with the plug’s v mark
facing up.
(2) Connect the power cord to the AC power adaptor.
(3) Connect the power cord to the wall outlet.
(4) Set the POWER switch to OFF (CHG). Charging begins. The remaining battery
time is indicated in minutes on the display window.
When the remaining battery indicator changes to , normal charge is completed. To
fully charge the battery (full charge), leave the battery pack attached for about one hour
after normal charge is completed until FULL appears in the display window. Fully
charging the battery allows you to use the battery longer than usual.
The number in the illustration of the display window may differ from that on your
camcorder.
After charging the battery pack
Disconnect the AC power adaptor from the DC IN jack on your camcorder.
Note
Prevent metallic objects from coming into contact with the metal parts of the DC plug of
the AC power adaptor. This may cause a short-circuit, damaging the AC power
adaptor.
Step 1 Preparing the power supply
1
2
4
VCR
CAMERA
MEMORY
OFF(CHG)
POWER
14
When the battery pack is charged fully
“FULL” appears in the display window.
Remaining battery time indicator
The remaining battery time you record with the viewfinder is displayed.
The remaining battery time indicator in the display window indicates the approximate
recording time with the viewfinder.
Until your camcorder calculates the actual remaining battery time
“– – – min” appears in the display window.
Charging time
Battery pack Full charge (Normal charge)
NP-FM30 (supplied) 145 (85)
NP-FM50 150 (90)
NP-FM70 240 (180)
NP-FM90 330 (270)
NP-FM91 360 (300)
Approximate minutes to charge an empty battery pack at 25 °C (77 °F).
Step 1 Preparing the power supply
15
Getting started
Recording time
DCR-TRV15
Recording with Recording with
Battery pack the viewfinder the LCD screen
Continuous* Typical** Continuous* Typical**
NP-FM30 (supplied) 125 65 90 45
NP-FM50 200 110 150 75
NP-FM70 415 225 310 165
NP-FM90 630 345 475 255
NP-FM91 725 395 550 290
DCR-TRV17
Recording with Recording with
Battery pack the viewfinder the LCD screen
Continuous* Typical** Continuous* Typical**
NP-FM30 (supplied) 120 60 80 40
NP-FM50 195 105 135 65
NP-FM70 400 220 275 145
NP-FM90 600 330 425 225
NP-FM91 695 380 490 255
Approximate minutes when you use a fully charged battery
* Approximate continuous recording time at 25 °C (77 °F). The battery life will be
shorter if you use your camcorder in a cold environment.
**Approximate number of minutes when recording while you repeat recording start/
stop, zooming and turning the power on/off. The actual battery life may be shorter.
Step 1 Preparing the power supply
16
Playing time
DCR-TRV15
Battery pack
Playing time Playing time
on LCD screen with LCD closed
NP-FM30 (supplied) 100 135
NP-FM50 160 220
NP-FM70 335 450
NP-FM90 505 685
NP-FM91 585 785
DCR-TRV17
Battery pack
Playing time Playing time
on LCD screen with LCD closed
NP-FM30 (supplied) 85 130
NP-FM50 140 210
NP-FM70 295 430
NP-FM90 450 655
NP-FM91 520 755
Approximate minutes when you use a fully charged battery
Approximate minutes when playing back at 25 °C (77 ºF). The battery life will be
shorter if you use your camcorder in a cold environment.
The recording and playing times of a normally charged battery are about 90% of those
of a fully charged battery.
If the power goes off although the battery remaining indicator indicates that the
battery pack has enough power to operate
Charge the battery pack fully again so that the indication on the battery remaining
indicator is correct.
What is ”InfoLITHIUM”?
The “InfoLITHIUM” is a lithium ion battery pack which can exchange data such as
battery consumption with compatible electronic equipment. This unit is compatible
with the “InfoLITHIUM” battery pack (M series). Your camcorder operates only with
the “InfoLITHIUM” battery. “InfoLITHIUM” M series battery packs have the
SERIES
TM
mark.
“InfoLITHIUM” is a trademark of Sony Corporation.
We recommend charging the battery pack in an ambient temperature of between 10 ˚C
to 30 ˚C (50 ˚F to 86 ˚F).
Step 1 Preparing the power supply
17
Getting started
Connecting to a wall outlet
When you use your camcorder for a long time, we recommend that you power it from a
wall outlet using the AC power adaptor.
(1) Open the DC IN jack cover, pulling the cover out a little and rotating it.
Connect the AC power adaptor supplied with your camcorder to the DC IN
jack on your camcorder with the plug’s v mark facing up.
(2) Connect the power cord to the AC power adaptor.
(3) Connect the power cord to a wall outlet.
PRECAUTION
The set is not disconnected from the AC power source (wall outlet) as long as it is
connected to the wall outlet, even if the set itself has been turned off.
Notes
•Place the AC power adaptor near a wall outlet.
While using the AC power adaptor, if any trouble occurs with this unit, disconnect the
plug from the wall outlet as soon as possible to cut off the power.
•The AC power adaptor can supply power even if the battery pack is attached to your
camcorder.
•The DC IN jack has “source priority.” This means that the battery pack cannot supply
any power if the power cord is connected to the DC IN jack, even when the power
cord is not plugged into a wall outlet.
Using a car battery
Use Sony DC Adaptor/Charger (optional). Refer to the operating instractions of the DC
Adaptor/Charger for further information.
Step 1 Preparing the power supply
2, 3
1
18
1995 T · · · · t 2001 T · · · · t 2079

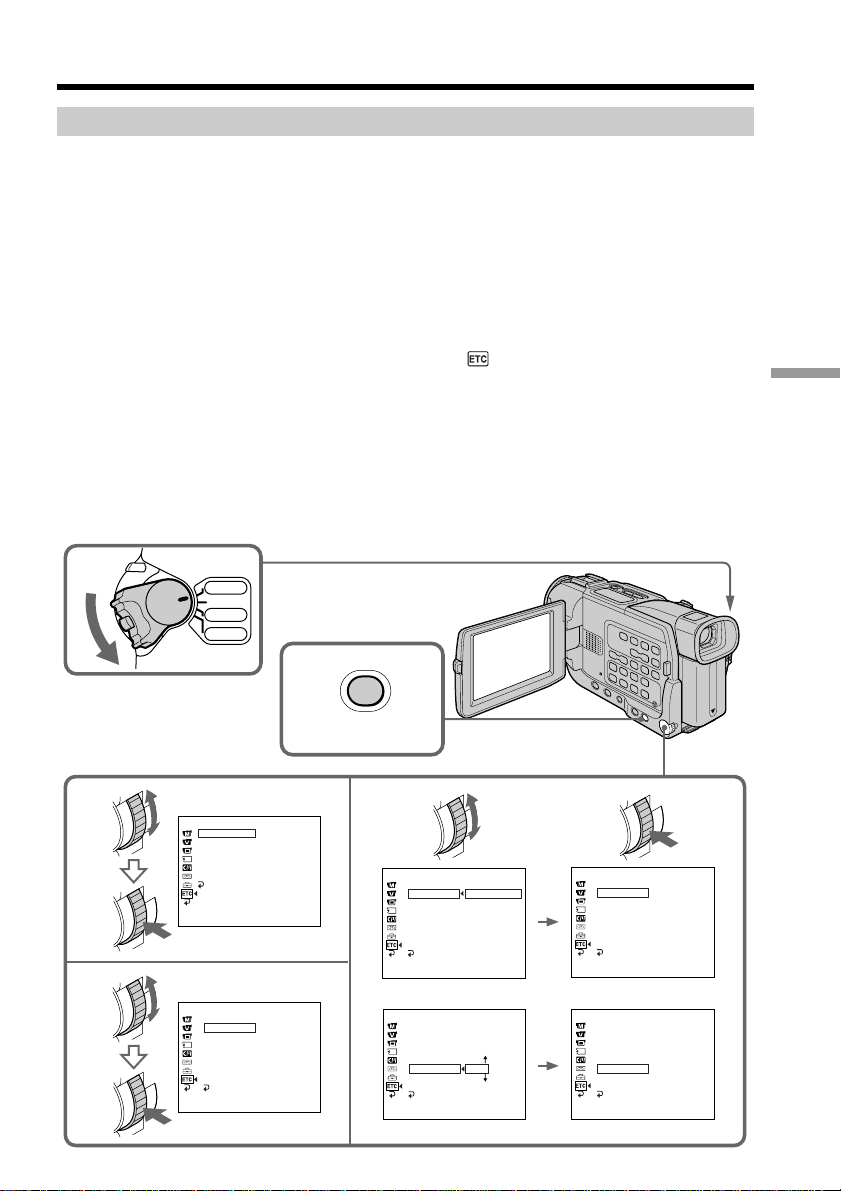

Set the date and time settings when you use your camcorder for the first time. “CLOCK
SET” will be displayed each time that you set the POWER switch to CAMERA/
MEMORY (DCR-TRV17 only) unless you set the date and time settings.
If you do not use your camcorder for about four months, the date and time settings may
be released (bars may appear) because the built-in rechargeable battery in your
camcorder will have been discharged (p. 166).
First, set the year, then the month, the day, the hour and then the minute.
(1) Set the POWER switch to CAMERA or MEMORY (DCR-TRV17 only), and then
press MENU to display the menu settings.
(2) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select CLOCK SET, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to adjust the desired year, then press the dial.
(5) Set the month, day and hour by turning the SEL/PUSH EXEC dial and
pressing the dial.
(6) Set the minute by turning the SEL/PUSH EXEC dial and pressing the dial by
the time signal. The clock starts to move.
(7) Press MENU to make the menu settings disappear.
The year changes as follows:
Step 2 Setting the date and time
SETUP MENU
CLOCK SET
AUTO TV ON
TV INPUT
LTR SIZE
DEMO MODE
[
MENU
]
:
END
SETUP MENU
CLOCK SET – – : – – : – –
AUTO TV ON
TV INPUT
LTR SIZE
DEMO MODE
RETURN
[
MENU
]
:
END
SETUP MENU
CLOCK SET
AUTO TV ON
TV INPUT 2001 JAN 1
LTR SIZE
DEMO MODE
RETURN
12 00 AM
[
MENU
]
:
END
SETUP MENU
CLOCK SET JUL 4 2001
AUTO TV ON 5:30:00 PM
TV INPUT
LTR SIZE
DEMO MODE
RETURN
[
MENU
]
:
END
SETUP MENU
CLOCK SET
AUTO TV ON
TV INPUT 2001 JUL 4
LTR SIZE
DEMO MODE
RETURN
5 30 PM
[
MENU
]
:
END
MENU
2001 JAN 1
12 00 AM
2001 JAN 1
12 00 AM
2
4
1,
7
3
6
19
Getting started
Step 2 Setting the date and time
If you do not set the date and time
“– –:– –:– –” is recorded on the data code of the tape and the “Memory Stick” (DCR-
TRV17 only).
Note on the time indicator
The internal clock of your camcorder operates on a 12-hour cycle.
•12:00 AM stands for midnight.
•12:00 PM stands for noon.
20
Step 3 Inserting a cassette
(1) Install the power source.
(2) Slide OPEN/
EJECT in the direction of the arrow and open the lid. The
cassette compartment automatically lifts up and opens.
(3) Push the middle portion of the back of the cassette to insert.
Insert the cassette in a straight line deeply into the cassette compartment with
the window facing out.
(4) Close the cassette compartment by pressing the
mark on the cassette
compartment. The cassette compartment automatically goes down.
(5) After the cassette compartment going down completely, close the lid until it
clicks.
To eject a cassette
Follow the procedure above, and take out the cassette in step 3.
Note
Do not press the cassette compartment down forcibly. Doing so may cause a
malfunction.
The cassette compartment may not be closed when you press any part of the lid other
than the mark.
When you use cassette with cassette memory
Read the instruction about cassette memory to use this function properly (p. 158).
To prevent accidental erasure
Slide the write-protect tab on the cassette to expose the red mark.
When ejecting a cassette
Do not press EDITSEARCH.
3, 4
5
2
OPEN/ EJECT
3
4
21
Recording – Basics
— Recording – Basics —
Recording a picture
Your camcorder automatically focuses for you.
(1) Remove the lens cap by pressing both knobs on its sides and attatch the lens
cap to the grip strap.
(2) Install the power source and insert a cassette. See “Step 1” to “Step 3” for more
information (p. 12 to p. 20).
(3) Set the POWER switch to CAMERA while pressing the small green button.
Your camcorder is set to the standby mode.
(4) To open the LCD panel, press OPEN. The viewfinder automatically turns off.
(5) Press START/STOP. Your camcorder starts recording. The REC indicator
appears. The camera recording lamp located on the front of your camcorder
lights up. To stop recording, press START/STOP again.
Notes
•Fasten the grip strap firmly.
•Do not touch the built-in microphone during recording.
Note on Recording mode
Your camcorder records and plays back in the SP (standard play) mode and in the LP
(long play) mode. Select SP or LP in the menu settings. In the LP mode, you can record
1.5 times as long as in the SP mode.
When you record a tape in the LP mode on your camcorder, we recommend playing the
tape on your camcorder.
0:00:01
40
min
REC
5
13
2
4
VCR
CAMERA
MEMORY
OFF(CHG)
POWER
Microphone
LOCK Switch
Camera recording
lamp
22
Note on the LOCK switch (DCR-TRV17 only)
When you slide the LOCK switch to the right, the POWER switch can no longer be set
to MEMORY accidentally. LOCK switch is set to the left before your camcorder leaves
the factory.
To enable smooth transition
Transition between the last scene you recorded and the next scene is smooth as long as
you do not eject the cassette even if you turn off your camcorder.
However, check the following:
•Do not mix recordings in the SP mode and ones in the LP mode on one tape.
•When you change the battery pack, set the POWER switch to OFF (CHG).
•When you use a tape with cassette memory, however, you can make the transition
smooth even after ejecting the cassette if you use the END SEARCH function (p. 30).
If you leave your camcorder in the standby mode for five minutes while the
cassette is inserted
Your camcorder automatically turns off. This is to save battery power and to prevent
battery and tape wear. To resume the standby mode, set the POWER switch to OFF
(CHG), and to CAMERA again.
When you record in the SP and LP modes on one tape or you record some scenes
in the LP mode
The playback picture may be distorted or the time code may not be written properly
between scenes.
Recording data
The recording date (date/time or various settings when recorded) are not displayed
while recording. However, they are recorded automatically onto tape. To display the
recording date and time, press DATA CODE on the Remote Commander during
playback.
Adjusting the LCD screen
The LCD panel moves about 90 degrees to the viewfinder side and about 180 degrees to
the lens side.
If you turn the LCD panel over so that it faces the other way, the indicator appears
on the LCD screen and in the viewfinder (Mirror mode).
When closing the LCD panel, set it vertically until it clicks, and swing it into the
camcorder body.
Note
When using the LCD screen except in the mirror mode, the viewfinder automatically
turns off.
Recording a picture
180°
90°
23
Recording – Basics
When you use the LCD screen outdoors in direct sunlight
The LCD screen may be difficult to see. If this happens, we recommend that you use the
viewfinder.
Picture in the mirror mode
The picture on the LCD screen is a mirror-image. However, the picture will be normal
when recorded.
During recording in the mirror mode
ZERO SET MEMORY on the Remote Commander does not work.
Indicators in the mirror mode
The STBY indicator appears as Xz and REC as z. Some of the other indicators appear
mirror-reversed and others are not displayed.
Adjusting the brightness of the LCD screen
Adjust the brightness of the LCD screen with LCD BRIGHT in in the menu settings
(p. 98).
LCD screen backlight
You can change the brightness of the backlight. Select LCD B.L. in the menu settings
(p. 98).
Even if you adjust the LCD screen backlight or brightness of the LCD screen
The recorded picture will not be affected.
After recording
(1) Set the POWER switch to OFF (CHG).
(2) Close the LCD panel.
(3) Eject the cassette.
Recording a picture
LCD /VF SET
LCD BRIGHT
[
MENU
]
:
END
MENU
24
Adjusting the viewfinder
If you record pictures with the LCD panel closed, check the picture with the viewfinder.
Adjust the viewfinder lens to your eyesight so that the indicators in the viewfinder
come into sharp focus.
Lift up the viewfinder and move the viewfinder lens adjustment lever.
Viewfinder backlight
You can change the brightness of the backlight. Select VF B.L. in the menu settings.
(p. 98)
Using the zoom feature
Move the power zoom lever a little for a slower zoom. Move it further for a faster zoom.
Using the zoom function sparingly results in better-looking recordings.
“T” side: for telephoto (subject appears closer)
“W” side: for wide-angle (subject appears farther away)
Recording a picture
T
W
T
W
W
T
25
Recording – Basics
To use zoom greater than 10×
Zoom greater than 10× is performed digitally. To activate digital zoom, select the digital
power in D ZOOM in the menu settings (p. 97). The digital zoom function is set to OFF
as a default settings. (p. 97)
When you shoot close to a subject
If you cannot get a sharp focus, move the power zoom lever to the “W” side until the
focus is sharp. You can shoot a subject that is at least about 80 cm (about 2 feet 5/8 inch)
away from the lens surface in the telephoto position, or about 1 cm (about 1/2 inch)
away in the wide-angle position.
Notes on digital zoom
•Digital zoom starts to function when zoom exceeds 10×.
•The picture quality deteriorates as you move the power zoom lever toward the “T”
side.
•You cannot use the digital zoom when the POWER switch is set to MEMORY (DCR-
TRV17 only).
Indicators displayed in the recording mode
The indicators are not recorded on tapes.
Recording a picture
T
W
The right side of the bar shows
the digital zooming zone.
The digital zooming zone appears
when you select the digital power
in the menu settings (p. 97).
Recording mode indicator
Cassette memory indicator
This appears when using a tape with cassette memory.
Time indicator
The time is displayed about 5 seconds after the
power is turned on.
Date indicator
The date is displayed about 5 seconds after the
power is turned on.
STBY/REC indicator
Remaining battery time indicator
Time code/Tape counter indicator
Remaining tape indicator (p. 101)
0:00:01
45min
40
min
REC
JUL 4 2001
12:05:56 AM
26
Remaining battery time indicator
The remaining battery time indicator roughly indicates the recording time. The
indicator may not be correct, depending on the conditions in which you are recording.
When you close the LCD panel and open it again, it takes about one minute for the
correct remaining battery time in minutes to be displayed.
Time code
The time code indicates the recording or playback time, “0:00:00” (hours : minutes :
seconds) in CAMERA mode and “0:00:00:00” (hours : minutes : seconds : frames) in
VCR mode. You cannot rewrite only the time code.
Remaining tape indicator
The indicator may not be displayed accurately depending on the tape.
Recording data
The recording data (date/time or various settings when recorded) are not displayed
while recording. However, they are recorded automatically onto tape. To display the
recording date and time, press DATA CODE on the Remote Commander during
playback.

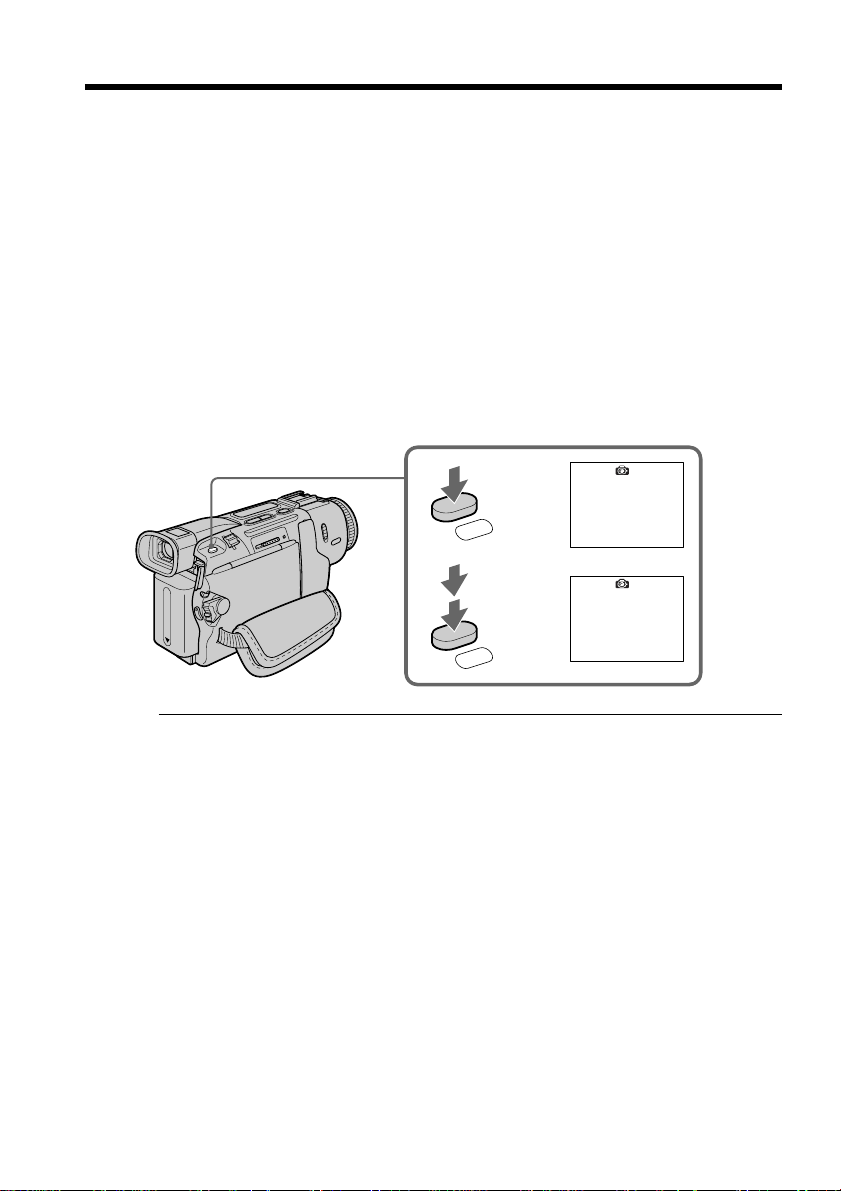

Shooting backlit subjects – BACK LIGHT
When you shoot a subject with the light source behind the subject or a subject with a
light background, use the backlight function.
In CAMERA or MEMORY (DCR-TRV17 only) mode, press BACK LIGHT.
The . indicator appears on the screen.
To cancel, press BACK LIGHT again.
If you press EXPOSURE when shooting backlit subjects
The backlight function will be canceled.
Recording a picture
BACK LIGHT
27
Recording – Basics

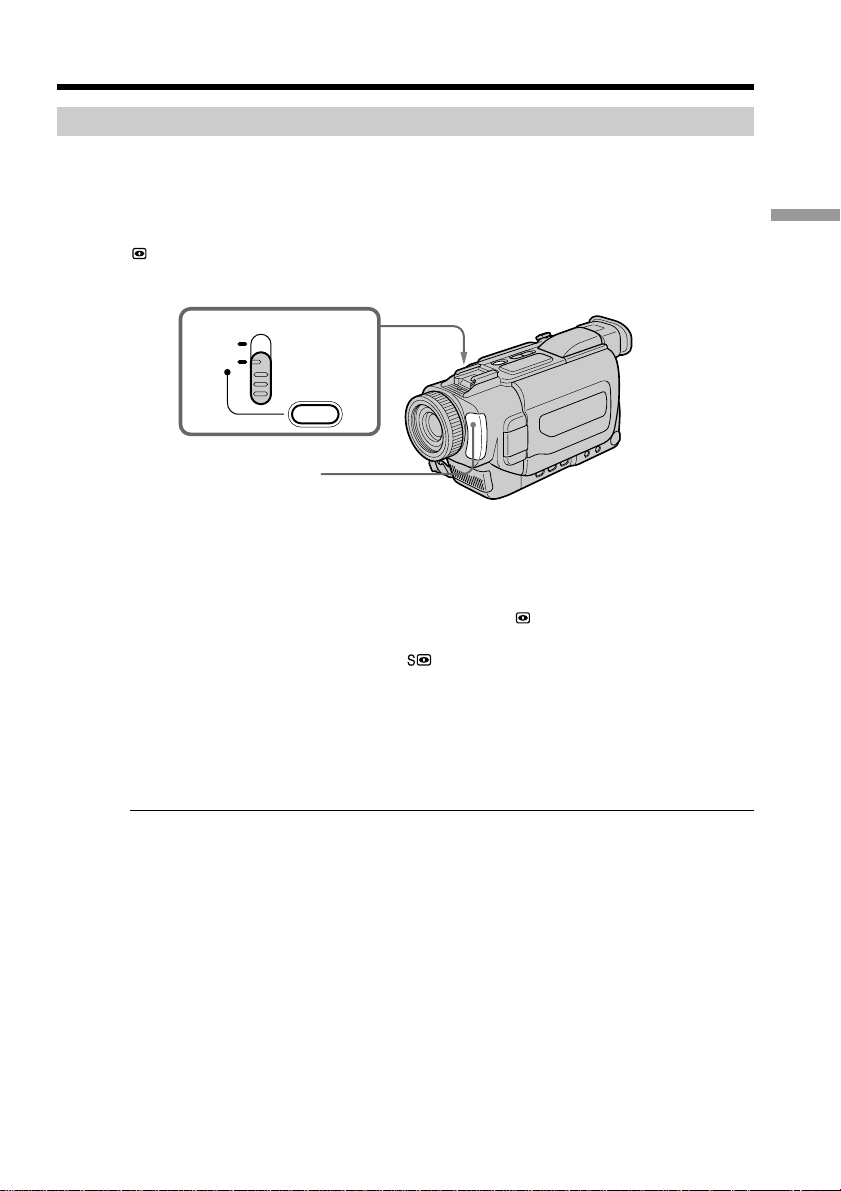

Shooting in the dark – NightShot/Super NightShot
The NightShot function enables you to shoot a subject in a dark place. For example, you
can satisfactorily record the environment of nocturnal animals for observation when
you use this function.
In CAMERA or MEMORY (DCR-TRV17 only) mode, slide NIGHTSHOT to ON.
and “NIGHTSHOT” indicators flash on the screen. To cancel the NightShot function,
slide NIGHTSHOT to OFF.
Using Super NightShot
The Super NightShot mode makes subjects more than 16 times brighter than those
recorded in the NightShot mode.
(1) In CAMERA mode, slide NIGHTSHOT to ON. indicator flashes on the
screen.
(2) Press SUPER NIGHTSHOT. The
indicator and “SUPER NIGHTSHOT“
flash on the screen.
To cancel the Super NightShot mode, press SUPER NIGHTSHOT.
Using the NightShot Light
The picture will be clearer with the NightShot Light on. To enable the NightShot Light,
set N.S. LIGHT to ON in the menu settings (p. 97).
Notes
•Do not use the NightShot function in bright places (ex. the outdoors in the daytime).
This may cause your camcorder to malfunction.
•When you keep NIGHTSHOT set to ON in normal recording, the picture may be
recorded in incorrect or unnatural colors.
•If focusing is difficult with the autofocus mode when using the NightShot function,
focus manually.
While using the NightShot function, you cannot use the following functions:
– Exposure
– PROGRAM AE
– White balance
Recording a picture
OFF
NIGHTSHOT
SUPER
NIGHTSHOT
ON
NightShot Light
emitter
28
While using the Super NightShot function
The shutter speed is automatically adjusted depending on the brightness. At that time,
the moving picture may be slow down.
While using the Super NightShot function, you cannot use the following
functions:
– Exposure
– PROGRAM AE
– Fader
– Digital effect
– White balance
While in MEMORY mode (DCR-TRV17 only)
You cannot use the Super NightShot function.

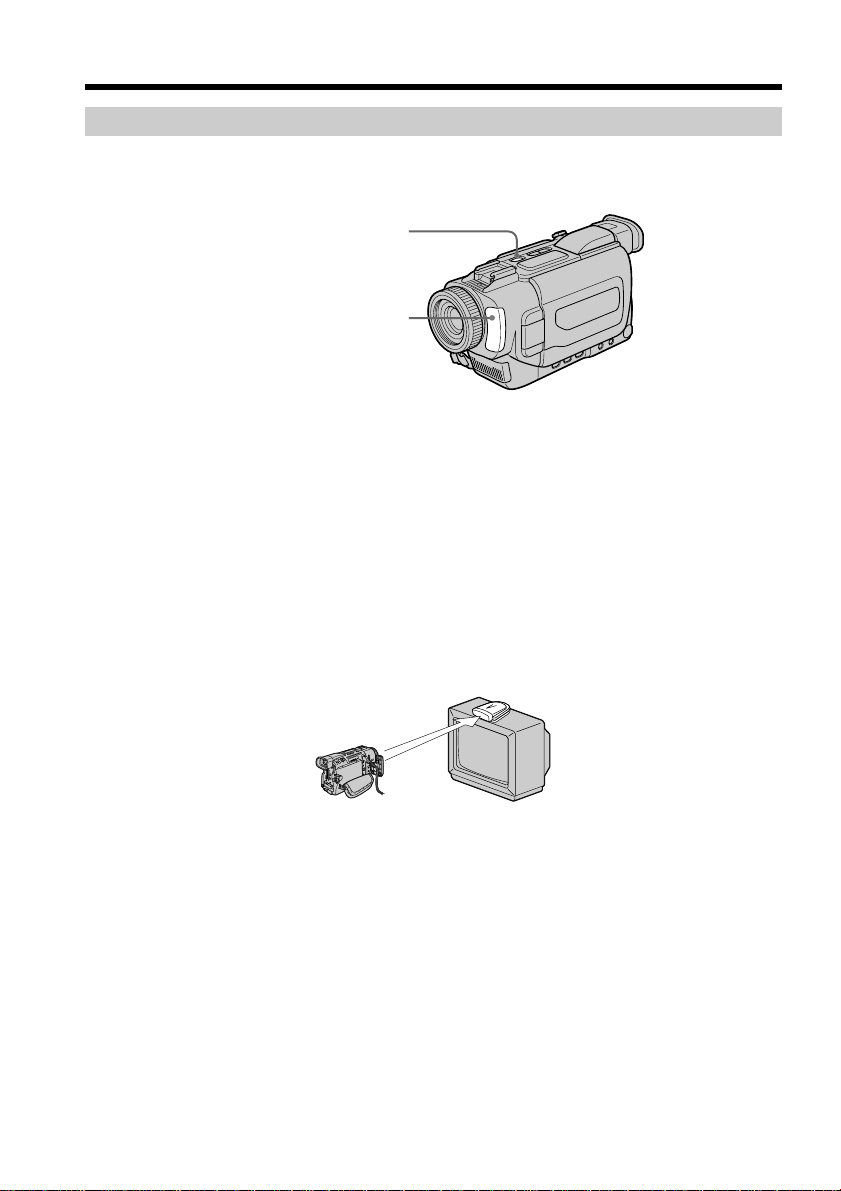

NightShot Light
NightShot Light rays are infrared and so are invisible. The maximum shooting distance
using the NightShot Light is about 3 m (10 feet).

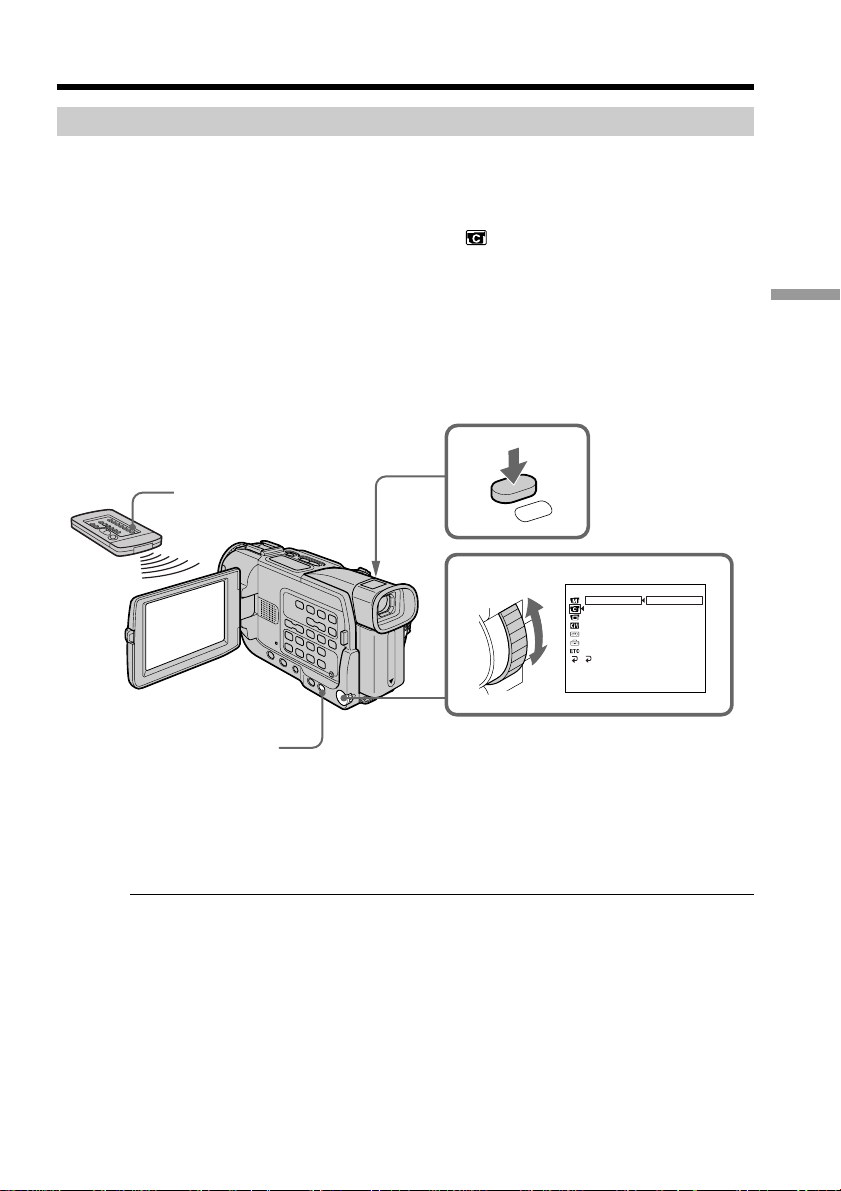

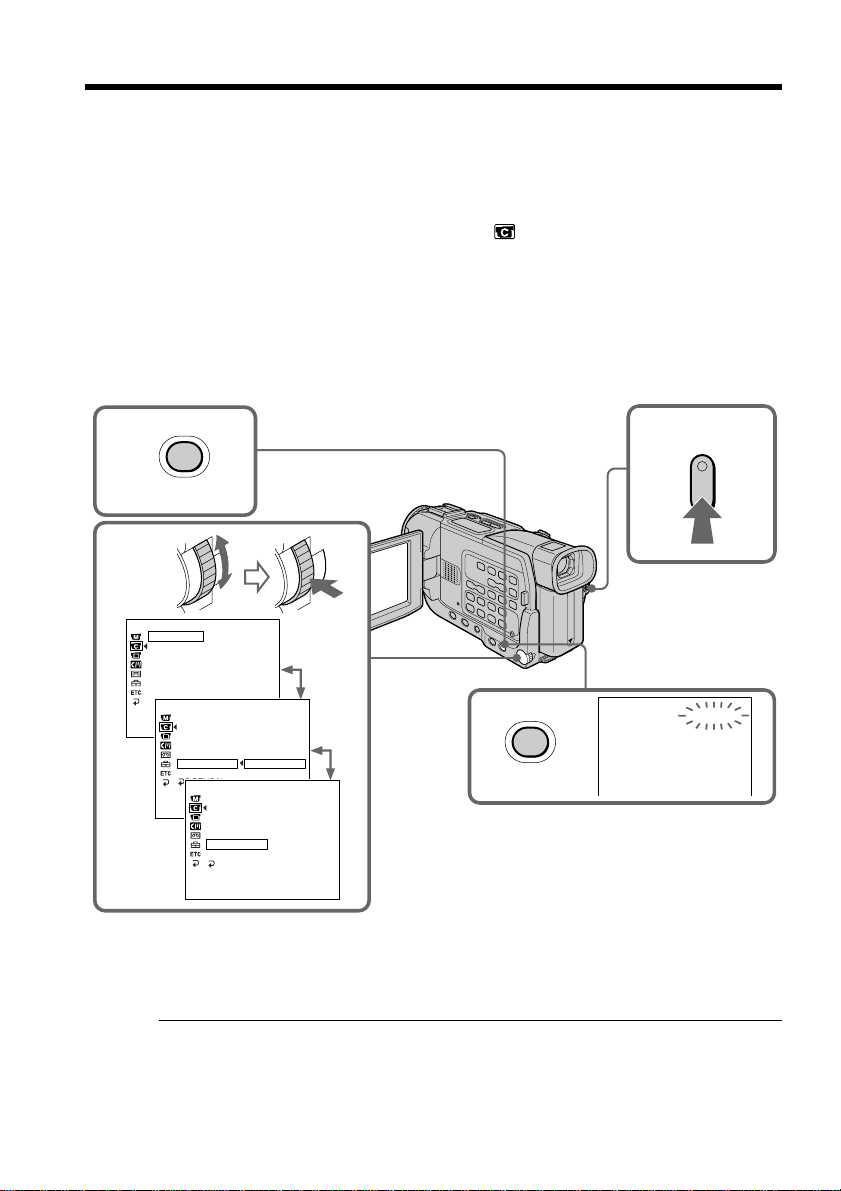

Self-timer recording
Recording with the self-timer starts in 10 seconds automatically. You can also use the
Remote Commander for this operation.
(1) Press MENU to display the menu settings in the standby mode.
(2) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select SELFTIMER, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(5) Press MENU to make the menu settings disappear.
(6) Press START/STOP.
Self-timer starts counting down from 10 with a beep sound. In the last two
seconds of the countdown, the beep sound gets faster, then recording starts
automatically. To stop recording, press START/STOP again.
Recording a picture
3
CAMERA SET
OFF
ON
SELFT IMER
DZOOM
16
:
9
W
IDE
STEADYSHOT
N
.
S
.
LIGHT
FRAME REC
RETURN
[
MENU
]
:
END
INT
.
REC
1,5 MENU
START/STOP
6 START/STOP
29
Recording – Basics
Recording a picture
To stop the countdown
Press START/STOP.
To restart the countdown, press START/STOP again.
To record still images using the self-timer
Press PHOTO in step 6. (p. 39)
To cancel self-timer recording
Set SELFTIMER to OFF in the menu settings in the standby mode.
Note
The self-timer recording mode is automatically cancelled when:
– Self-timer recording is finished.
– The POWER switch is set to OFF (CHG) or VCR.
Self-timer memory photo recording (DCR-TRV17 only)
You can also record still images on “Memory Stick”s with the self-timer (p. 116).
30

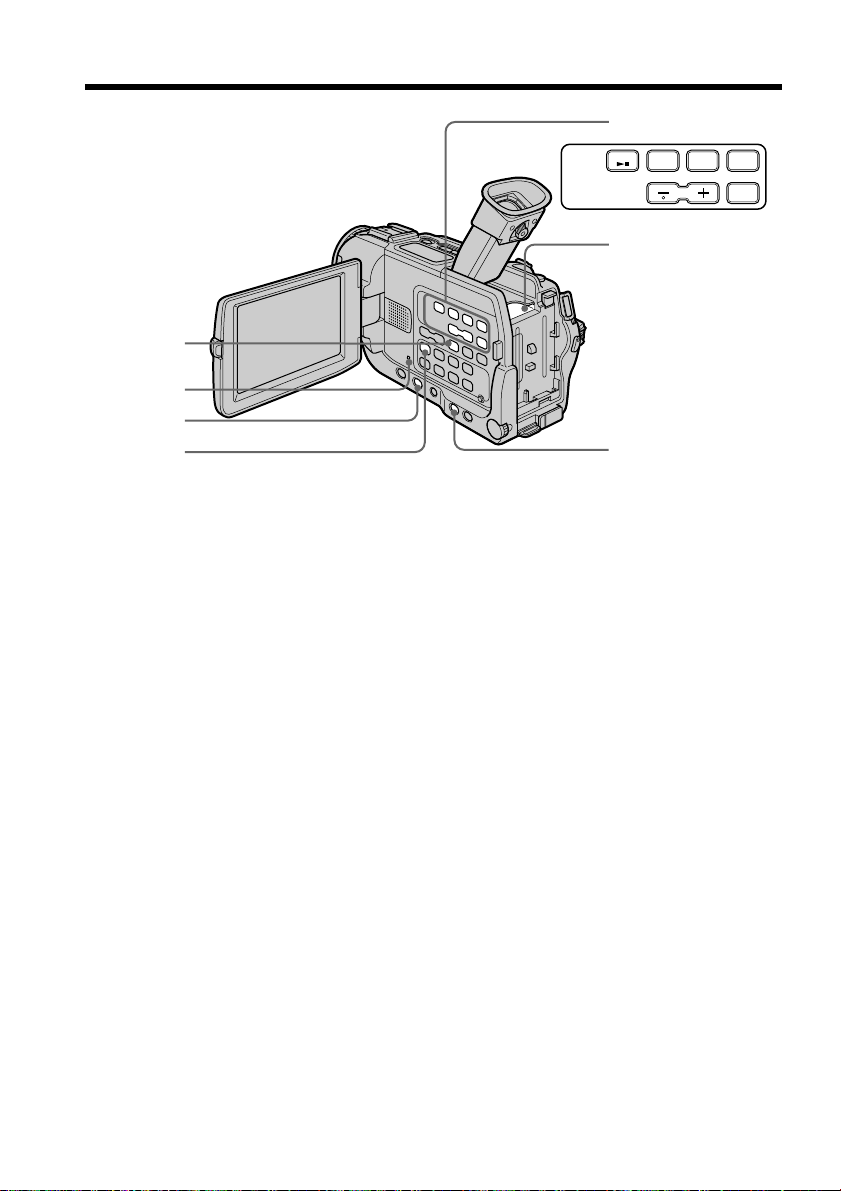

You can use these buttons to check the recorded picture or shoot so that the transition
between the last recorded scene and the next scene you record is smooth.
END SEARCH
You can go to the end of the recorded section after you record.
Press END SEARCH in the standby mode.
The last five seconds of the recorded section are played back and your camcorder
returns to the standby mode. You can monitor the sound from the speaker or
headphones.
EDITSEARCH
You can search for the next recording start point.
Hold down the +/– 7 side of EDITSEARCH in the standby mode. The recorded section
is played back.
+ : to go forward
– 7: to go backward
Release EDITSEARCH to stop playback. If you press START/STOP, re-recording begins
from the point you released EDITSEARCH. You cannot monitor the sound.
Rec Review
You can check the last recorded section.
Press the – 7 side of EDITSEARCH momentarily in the standby mode.
The section you have stopped most recently will be played back for a few seconds, and
then your camcorder will return to the standby mode. You can monitor the sound from
the speaker or headphones.
End search function
When you use a tape without cassette memory, the end search function does not work
once you eject the cassette after you have recorded on the tape. If you use a tape with
cassette memory, the end search function works even once you eject the cassette.
If a tape has a blank portion in the recorded portions
The end search function may not work correctly.
Checking the recording
– END SEARCH / EDITSEARCH / Rec Review
EDITSEARCH
END
SEARCH
31
Playback – Basics
— Playback – Basics —
Playing back a tape
You can monitor the playback picture on the screen. If you close the LCD panel, you can
monitor the playback picture in the viewfinder. You can control playback using the
Remote Commander supplied with your camcorder.
(1) Install the power source and insert the recorded tape.
(2) Set the POWER switch to VCR while pressing the small green button.
(3) To open the LCD panel, press OPEN.
(4) Press m to rewind the tape.
(5) Press N to start playback.
(6) To adjust the volume, press either of the two buttons on VOLUME. The
speaker on your camcorder is silent when the LCD panel is closed.
To stop playback
Press x.
When monitoring on the LCD screen
You can turn the LCD panel over and move it back to the camcorder body with the
LCD screen facing out.
When you open or close the LCD panel
Make sure that the LCD panel is set vertically.
5
PLAY
4
REW
POWER
VCR
CAMERA
MEMORY
OFF(CHG)
2
6
1
3
VOLUME
32
To display the screen indicators – Display function
Press DISPLAY on your camcorder or the Remote Commander supplied with your
camcorder.
The indicators appear on the LCD screen.
To make the indicators disappear, press DISPLAY again.
Using the data code function
Your camcorder automatically records not only images on the tape but also the
recording data (date/time or various settings when recorded) (Data code).
Use the Remote Commander for this operation.
Press DATA CODE on the Remote Commander in the playback mode.
The display changes as follows:
date/time t various settings (SteadyShot, white balance, gain, shutter speed, aperture
value, exposure mode) t no indicator
[a] SteadyShot off indicator
[b] Exposure mode indicator
[c] White balance indicator
[d] Gain indicator
[e] Shutter speed indicator
[f] Aperture value
Not to display various settings
Set DATA CODE to DATE in the menu settings (p. 102).
The display changes as follows:
date/time y no indicator
Playing back a tape
Date/time Various settings
[f]
[a]
[c]
[d]
[e]
[b]
60 AWB
F1.7 9dB
AUTO
JUL 4 2001
12:05:56 AM
DISPLAY
DATA CODE
DISPLAY
33
Playback – Basics
Playing back a tape
Recording data
Recording data is your camcorder’s information when you have recorded. In the
recording mode, the recording data will not be displayed.
When you use the data code function, bars (-- -- --) appear if:
•A blank portion of the tape is being played back.
•The tape is unreadable due to tape damage or noise.
•The tape was recorded by a camcorder without the date and time set.
Data code
The data code is displayed on the TV screen if you connect your camcorder to the TV.
Remaining battery time indicator during playback
The indicator indicates the approximate continuous playback time.
The indicator may not be correct, depending on the conditions in which you are playing
back. When you close the LCD panel and open it again, it takes about 1 minute for the
correct remaining battery time to be displayed.
Various playback modes
To operate video control buttons, set the POWER switch to VCR.
To view a still picture (playback pause)
Press X during playback. To resume normal playback, press N or X.
To advance the tape
Press M in the stop mode. To resume normal playback, press N.
To rewind the tape
Press m in the stop mode. To resume normal playback, press N.
To change the playback direction
Press on the Remote Commander during playback to reverse the playback direction.
To resume normal playback, press N.
To locate a scene monitoring the picture (picture search)
Keep pressing m or M during playback. To resume normal playback, release the button.
To monitor the high-speed picture while advancing or
rewinding the tape (skip scan)
Keep pressing m while rewinding or M while advancing the tape. To resume
rewinding or advancing, release the button.
To view the picture at slow speed (slow playback)
Press y on the Remote Commander during playback. For slow playback in the reverse
direction, press , then press y on the Remote Commander. To resume normal
playback, press N.
To view the picture at double speed
Press ×2 on the Remote Commander during playback. For double speed playback in the
reverse direction, press , then press ×2 on the Remote Commander. To resume
normal playback, press N.
34
Playing back a tape
To view the picture frame-by-frame
Press C on the Remote Commander in the playback pause mode. For frame-by-frame
playback in the reverse direction, press c. To resume normal playback, press N.
To search the last scene recorded (END SEARCH)
Press END SEARCH in the stop mode. The last five seconds of the recorded portion
plays back and stops.
In the various playback modes
•Sound is muted.
•The previous picture may remain as a mosaic image during playback.
When the playback pause mode lasts for five minutes
Your camcorder automatically enters the stop mode. To resume playback, press N.
Slow playback
The slow playback can be performed smoothly on your camcorder: however, this
function does not work for an output signal through the DV IN/OUT jack.
When you play back a tape in reverse
Horizontal noise may appear at the center, or the top and bottom of the screen. This is
not a malfunction.
35
Playback – Basics

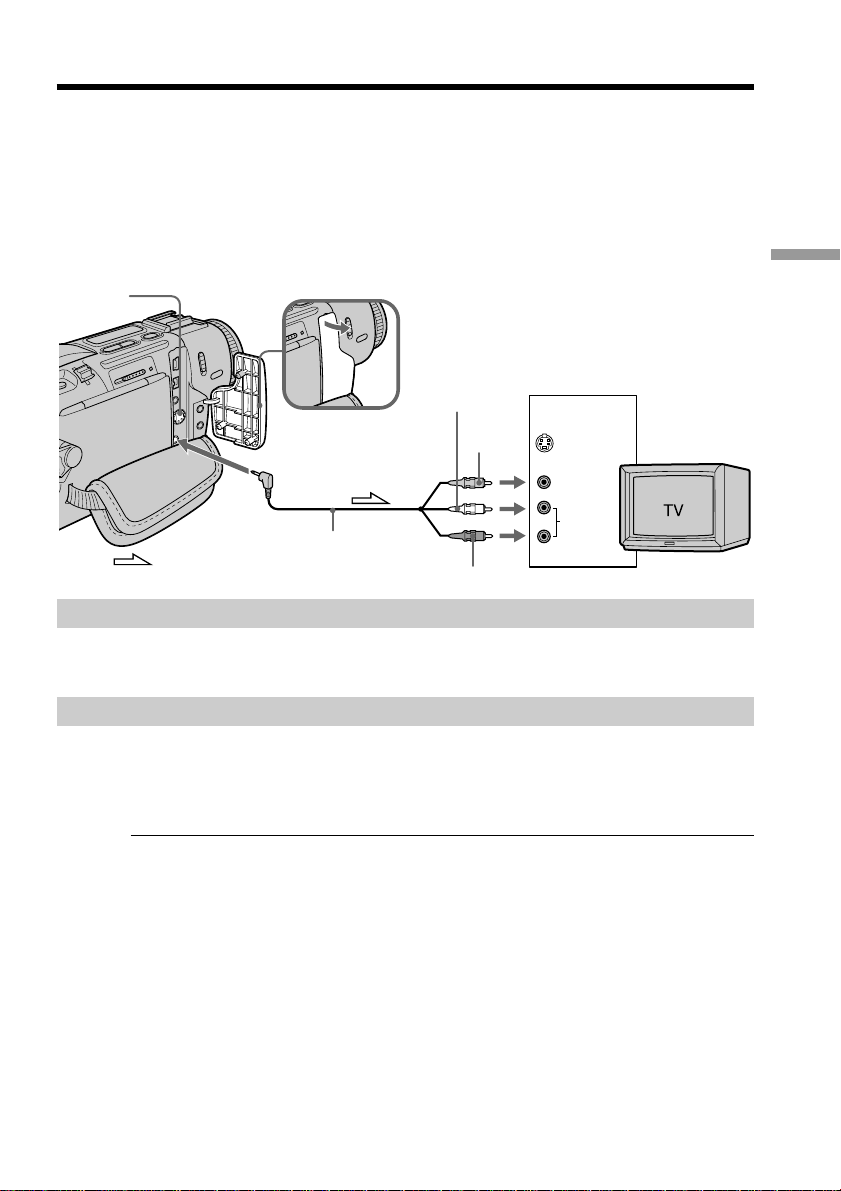

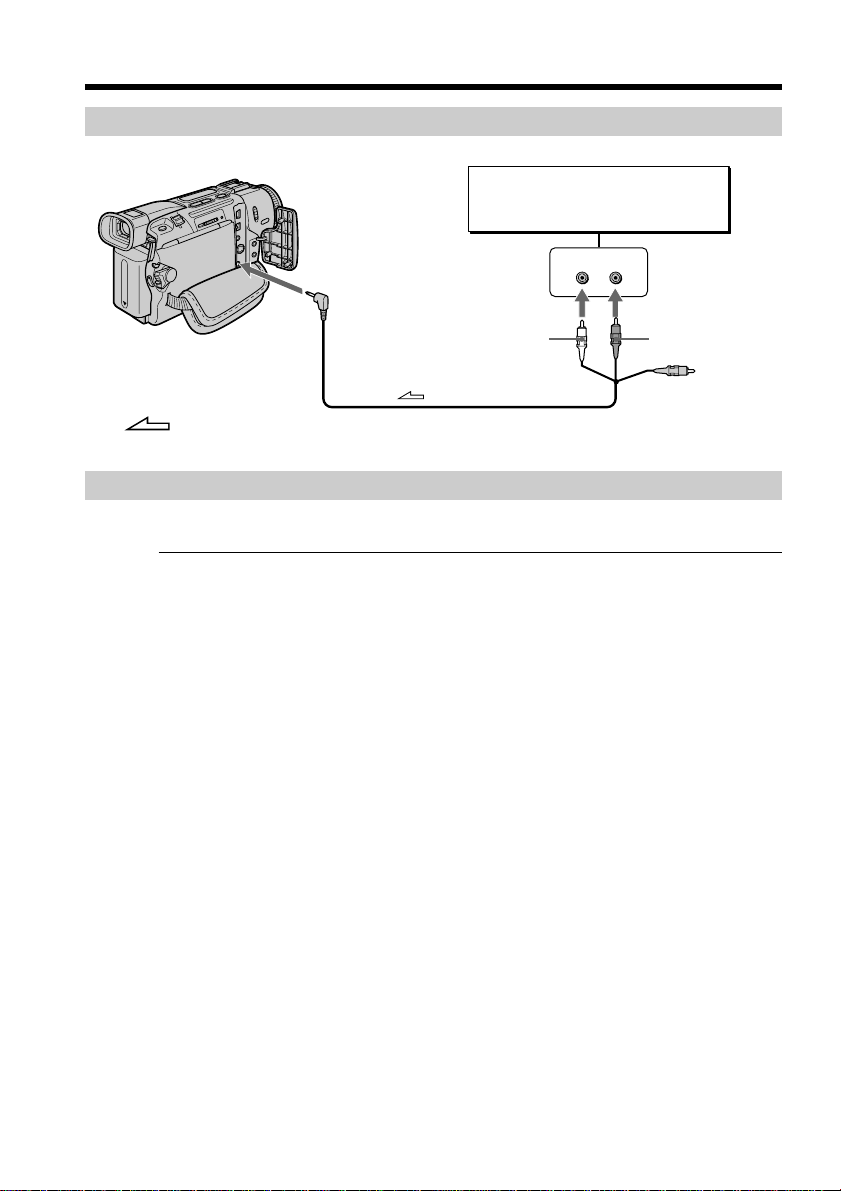

Connect your camcorder to your TV with the A/V connecting cable supplied with your
camcorder to watch the playback picture on the TV screen. You can operate the video
control buttons in the same way as when you monitor playback pictures on the screen.
When monitoring the playback picture on the TV screen, we recommend that you
power your camcorder from a wall outlet using the AC power adaptor (p. 17). Refer to
the operating instructions of your TV.
Open the jack cover. Connect your camcorder to the TV using the A/V connecting cable
supplied with your camcorder. Then, set the TV/VCR selector on the TV to VCR.

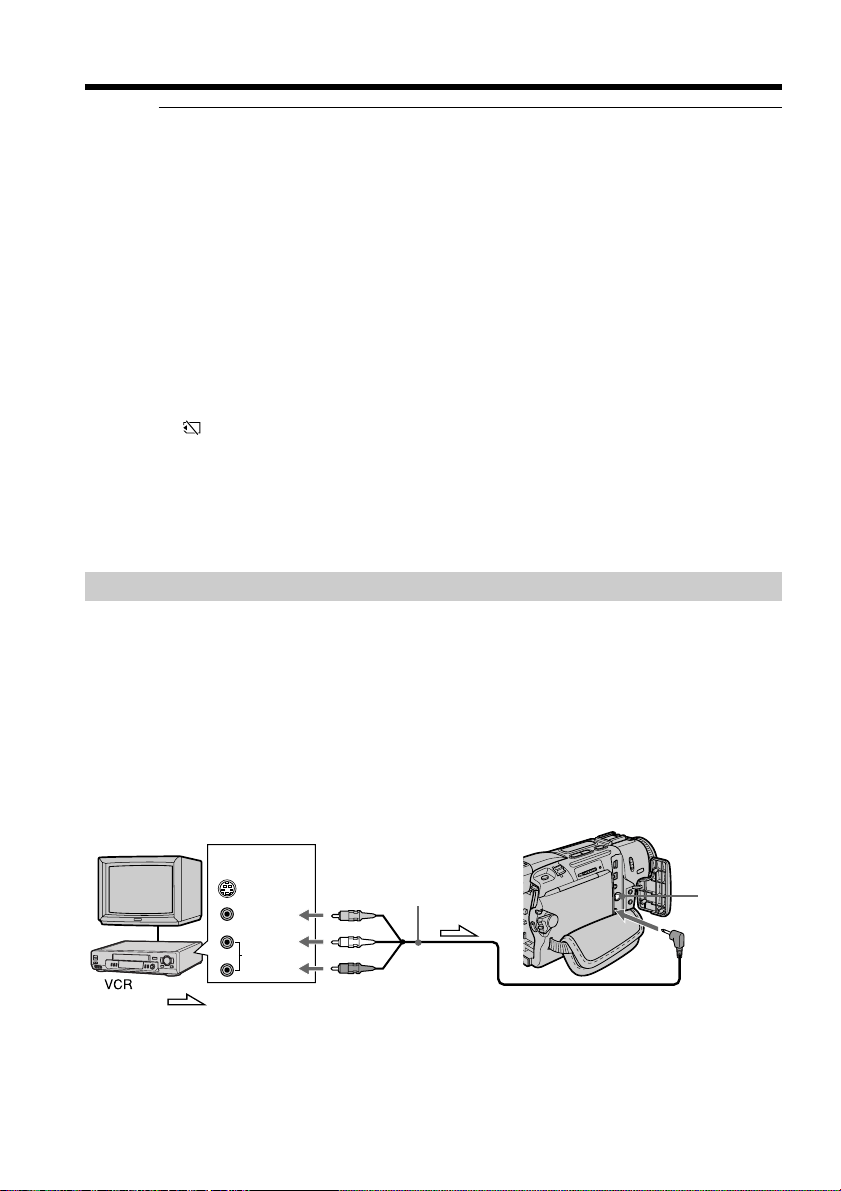

If your TV is already connected to a VCR
Connect your camcorder to the LINE IN input on the VCR by using the A/V connecting
cable supplied with your camcorder. Set the input selector on the VCR to LINE.
If your TV or VCR is a monaural type
Connect the yellow plug of the A/V connecting cable to the video input jack and the
white or the red plug to the audio input jack on the VCR or the TV. If you connect the
white plug, the sound is L (left) signal. If you connect the red plug, the sound is R
(right) signal.
If your TV or VCR has an S video jack
Connect using an S video cable (optional) to obtain high-quality pictures. With this
connection, you do not need to connect the yellow (video) plug of the A/V connecting
cable.
Connect the S video cable (optional) to the S video jacks on both your camcorder and
the TV or the VCR.
This connection produces higher quality DV format pictures.
S VIDEO
VIDEO
AUDIO
IN
AUDIO/VIDEO
S VIDEO
Viewing the recording on TV
: Signal flow
A/V connecting cable
(supplied)
White
Yellow
Red
36
Using the AV cordless IR receiver
Once you connect the AV cordless IR receiver (optional) to your TV or VCR, you can
easily view the picture on your TV. For details, refer to the operating instructions of the
AV cordless IR receiver.
Before operation
Attach the power supply such as the AC power adaptor to your camcorder, and insert
the recorded tape.
(1) After connecting your TV and AV cordless IR receiver, set the POWER switch
on the AV cordless IR receiver to ON.
(2) Set the POWER switch to VCR.
(3) Turn the TV on and set the TV/VCR selector on the TV to VCR.
(4) Press SUPER LASER LINK. The lamp of SUPER LASER LINK lights up.
(5) Press N on your camcorder to start playback.
(6) Point the super laser link emitter at the AV cordless IR receiver. Adjust the
position of your camcorder and the AV cordless IR receiver to obtain clear
playback pictures.
To cancel the super laser link function
Press SUPER LASER LINK again. The lamp on the SUPER LASER LINK button goes
out.
Viewing the recording on TV
SUPER LASER LINK
Super laser link emitter
37
Playback – Basics
Viewing the recording on TV
If you turn the power off
The super laser link function turns off automatically.
If you use a Sony TV
•You can turn on the TV automatically when you press SUPER LASER LINK. To do so,
make sure you:
– Turn the TV’s main switch on.
– Set AUTO TV ON to ON in the menu settings.
– Point the super laser link emitter at the TV’s remote sensor.
•You can switch the video input of the TV automatically to the one which the AV
cordless IR receiver is connected. To do so, set AUTO TV ON to ON and TV INPUT to
the same video input (1, 2, 3) in the menu settings. With some models, however, the
picture and sound may be disconnected momentarily when the video input is switched.
•The above feature may not work on some TV models.
When the super laser link function is activated (the SUPER LASER LINK button is lit)
Your camcorder consumes power. Press SUPER LASER LINK to turn off the laser link
function when it is not needed.
is a trademark of Sony Corporation.
38
— Advanced Recording Operations —
Recording a still image on a tape – Tape Photo recording
You can record a still picture like a photograph. This mode is useful when you want to
print a picture using a video printer (optional).
You can record about 510 pictures in the SP mode and about 765 pictures in the LP
mode on a 60-minute tape.
Besides the operation described here, your camcorder can record still pictures on
“Memory Stick”s (p. 112) (DCR-TRV17 only).

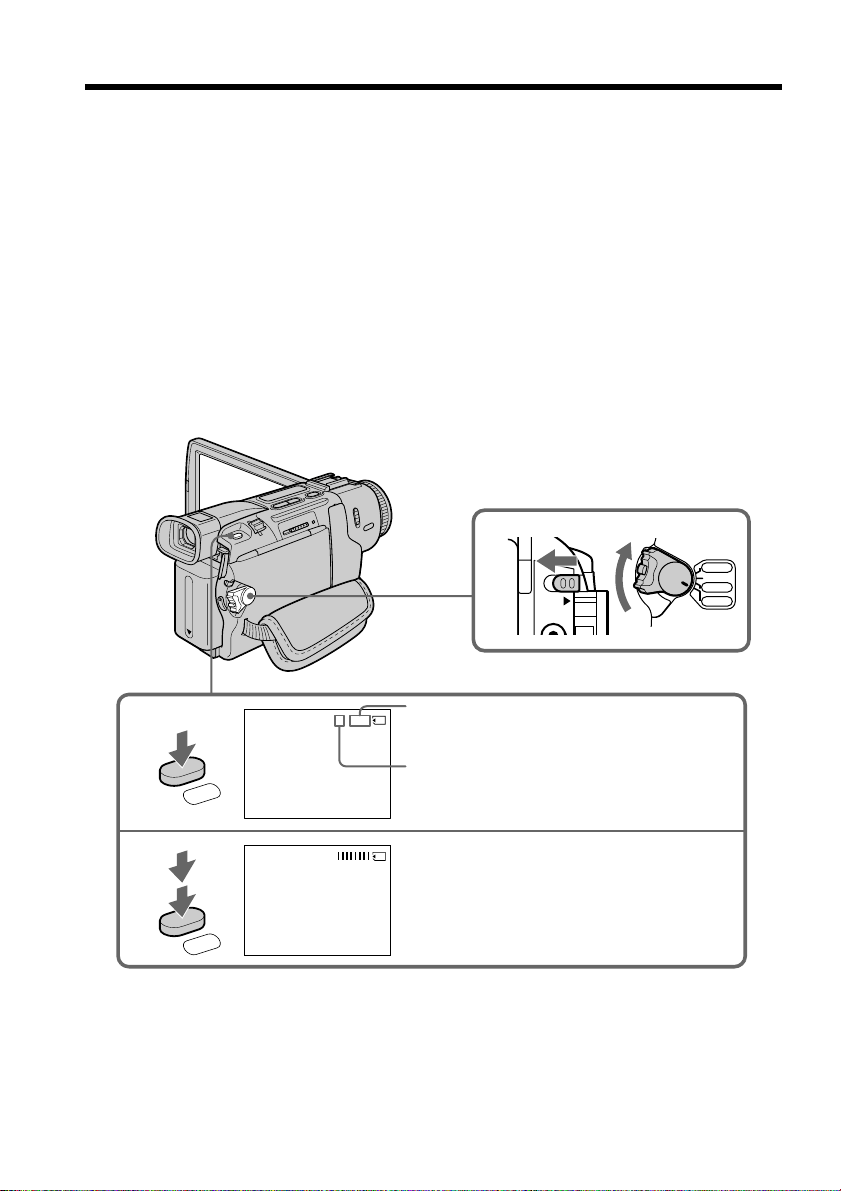

(1) In the standby mode, keep pressing PHOTO lightly until a still picture
appears.
The CAPTURE indicator appears. Recording does not start yet.
To change the still picture, release PHOTO, select a still picture again, and then
press and hold PHOTO lightly.
(2) Press PHOTO deeper.
The still picture on the screen is recorded for about seven seconds. The sound
during those seven seconds is also recorded.
The still image is displayed on the screen until recording is completed.
Notes
•During tape photo recording, you cannot change the mode or setting.
•When recording a still picture, do not shake your camcorder. The picture may
fluctuate.
•The PHOTO button does not work:
– while the fader function is set or in use
– while the digital effect function is set or in use
If you record a moving subject with the tape photo recording function
When you play back the still picture on other equipment, the picture may fluctuate.
To use the tape photo recording function using the Remote Commander
Press PHOTO on the Remote Commander. Your camcorder records a picture on the
screen immediately.
To use the tape photo recording function during normal CAMERA recording
Press PHOTO deeper. The still picture is then recorded for about seven seconds and
your camcorder returns to the standby mode. You cannot select another still picture.
To record clear and less fluctuated still pictures
We recommend that you record on “Memory Stick”s. (DCR-TRV17 only)
1
•••••••
2
CAPTURE
39
Advanced Recording Operations
Recording a still image on a tape – Tape Photo recording

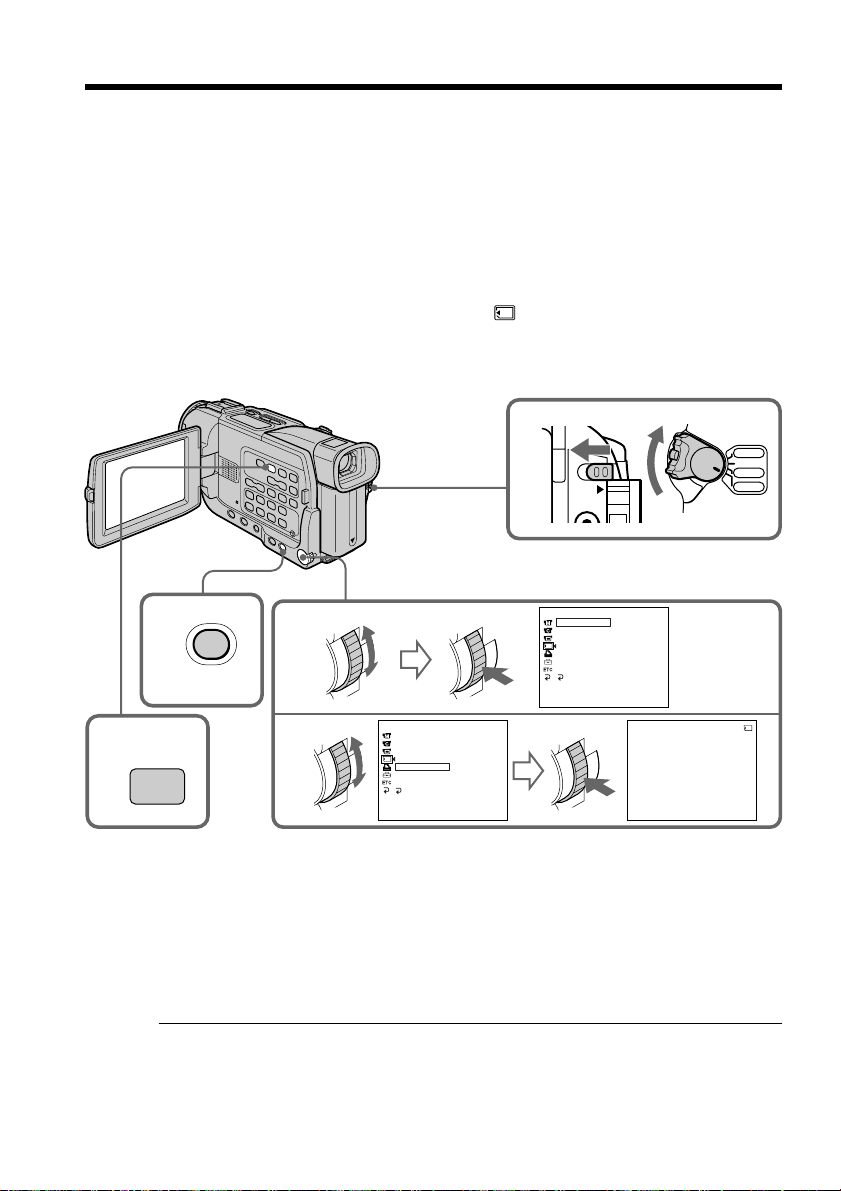

Self-timer recording
You can record still images on tapes with the self-timer. You can also use the Remote
Commander for this operation.
(1) In the standby mode, press MENU to display the menu settings.
(2) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select SELFTIMER, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(5) Press MENU to make the menu settings disappear.
(6) Press PHOTO deeper.
Self-timer starts counting down from 10 with a beep sound. In the last two
seconds of the countdown, the beep sound gets faster, then recording starts
automatically.
To cancel self-timer recording
Set SELFTIMER to OFF in the menu settings in the standby mode.
You cannot cancel the self-timer recording using the Remote Commander.
Note
The self-timer recording mode is automatically cancelled when:
– Self-timer recording is finished.
– The POWER switch is set to OFF (CHG) or VCR.
3
6
CAMERA SET
OFF
ON
SELFT IMER
DZOOM
16
:
9
W
IDE
STEADYSHOT
N
.
S
.
LIGHT
FRAME REC
INT
.
REC
RETURN
[
MENU
]
:
END
1,5 MENU
40
Printing the still picture

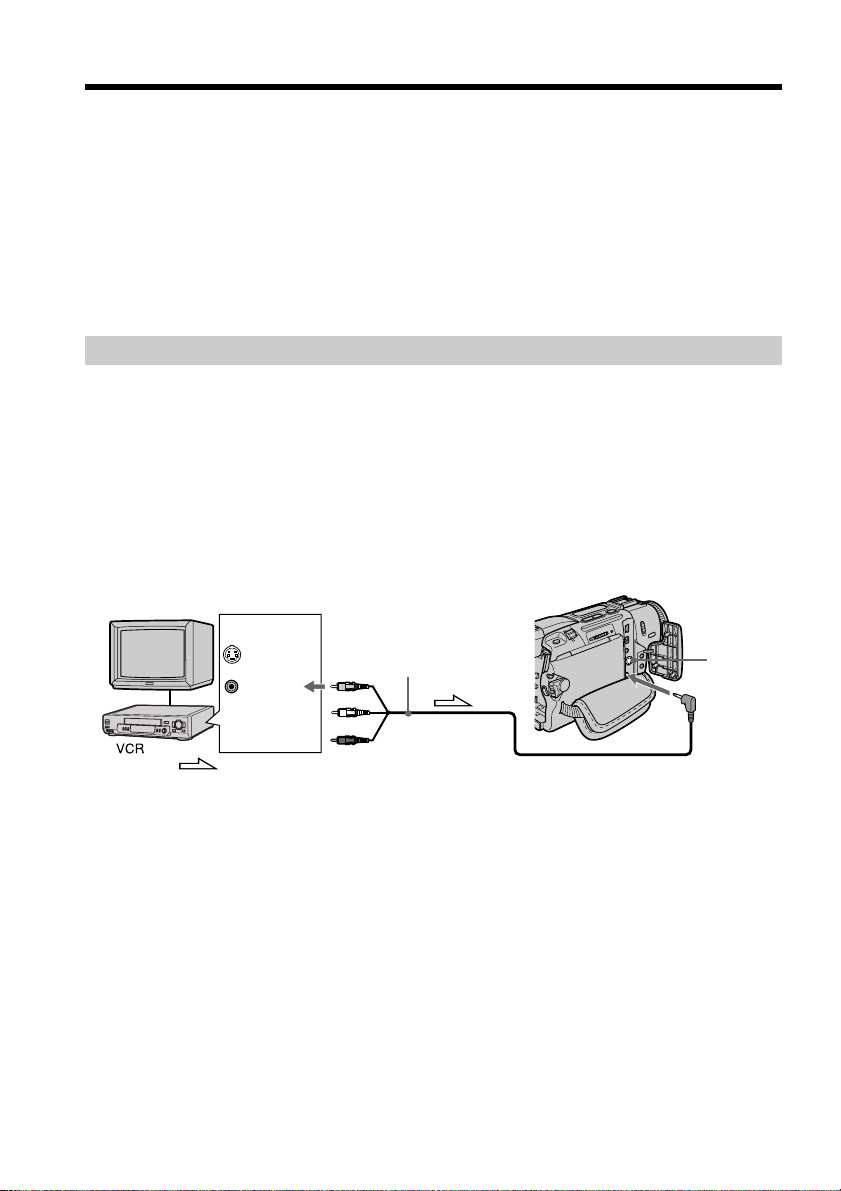

You can print a still picture by using the video printer (optional). Connect the video
printer using the A/V connecting cable supplied with your camcorder.
Connect it to the AUDIO/VIDEO jack and connect the yellow plug of the cable to the
video input of the video printer. Refer to the operating instructions of the video printer
as well.
If the video printer is equipped with S video input
Use the S video connecting cable (optional). Connect it to the S VIDEO jack and the S
video input of the video printer.
Recording a still image on a tape – Tape Photo recording
LINE IN
VIDEO S VIDEO
AUDIO/VIDEO
S VIDEO
: Signal flow
Video printer
41
Advanced Recording Operations

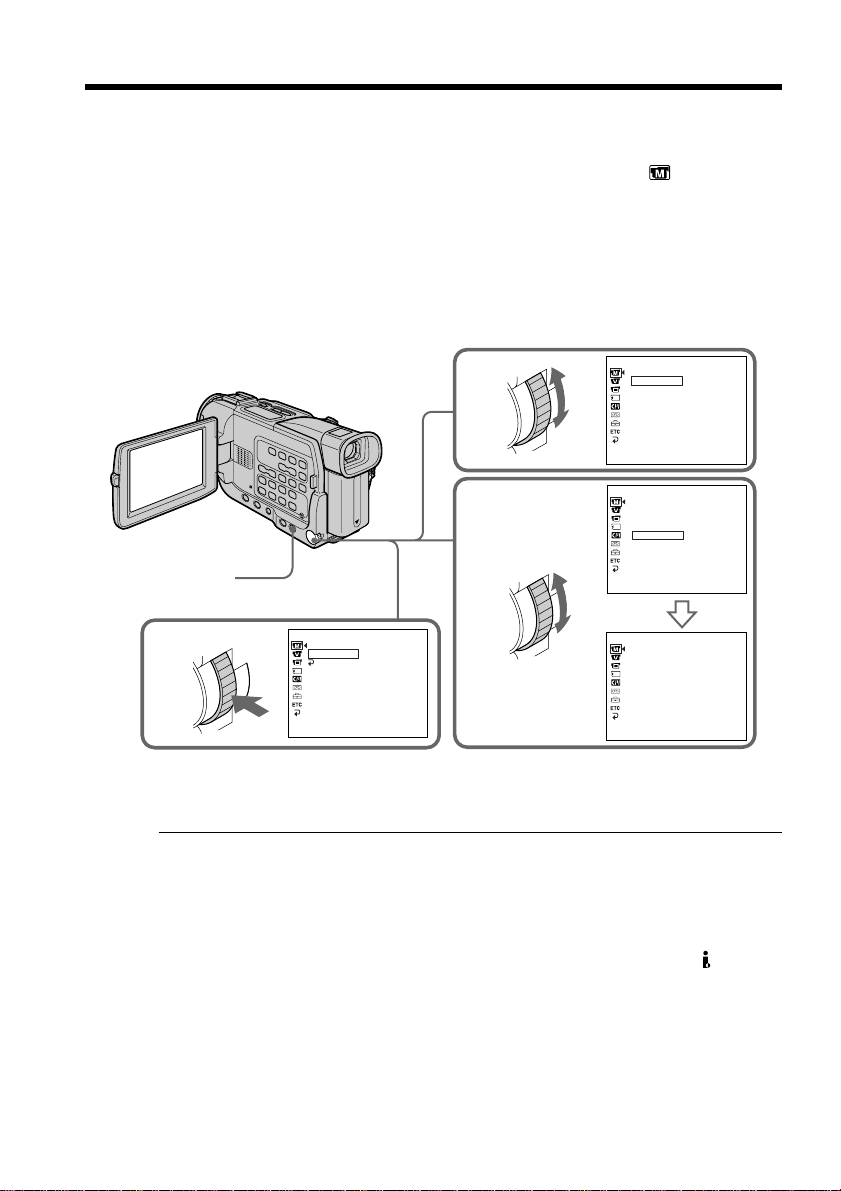

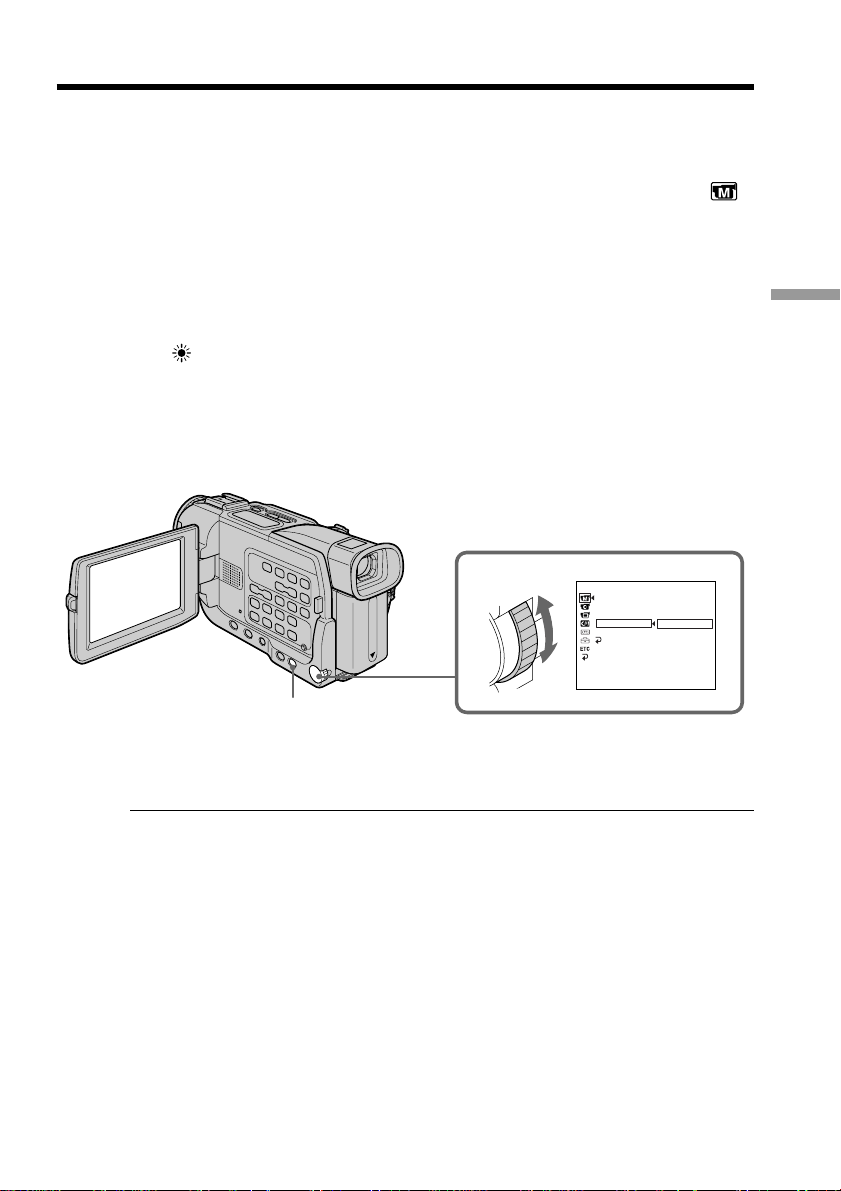

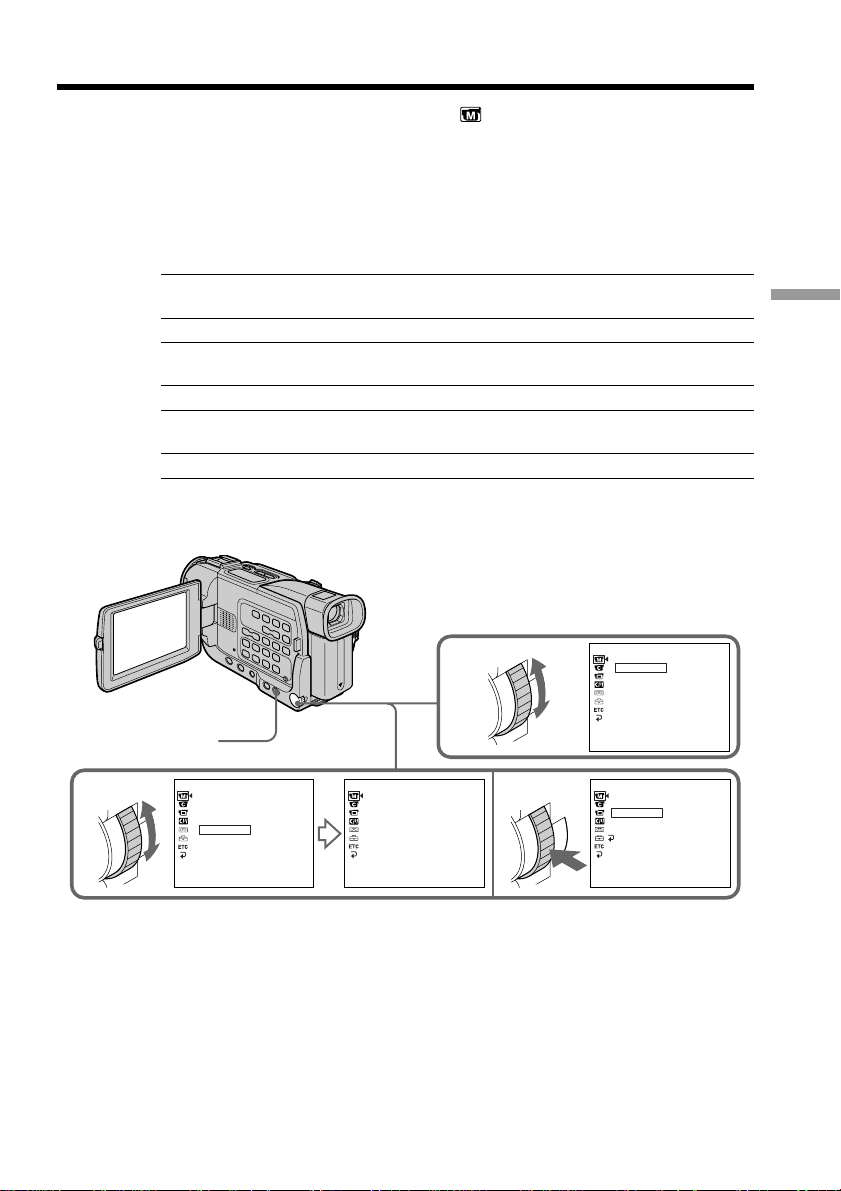

Adjusting the white balance manually
You can manually adjust and set the white balance. This adjustment makes white
subjects look white and allows more natural color balance. Normally white balance is
automatically adjusted.
(1) In CAMERA or MEMORY (DCR-TRV17 only) mode, select WHT BAL in
in the menu settings (p. 97).
(2) Select the desired white balance mode in the menu settings.
n (INDOOR) :
•Lighting condition changes quickly
•Too bright place such as photography studios
•Under sodium lamps or mercury lamps
(OUTDOOR) :
•Recording a sunset/sunrise, just after sunset, just before sunrise, neon signs, or
fireworks
•Under a color matching fluorescent lamp
HOLD :
Recording a single-colored subject or background
To return to the automatic white balance mode
Set WHT BAL to AUTO in the menu settings.
If the picture is being taken in a studio lit by TV lighting
We recommend that you record in the n indoor mode.
When you record under fluorescent lighting
Use the automatic white balance or hold mode.
Your camcorder may not adjust the white balance correctly in the n indoor mode.
In the automatic white balance mode
Point your camcorder at a white subject for about 10 seconds after setting the POWER
switch to CAMERA to get a better adjustment when:
•You detach the battery for replacement.
•You bring your camcorder to the outdoors from the interior of a house holding the
exposure, or vice versa.
In the hold white balance mode
Set the white balance to AUTO and reset to HOLD after a few seconds when:
•You change the PROGRAM AE mode.
•You bring your camcorder to the outdoors from the interior of a house, or vice versa.
MANUAL SET
AUTO
PROGRAM AE
PEFFECT
DEFFECT
W
HT BAL
OUTDOOR
HOLD
INDOOR
AUTO SHTR
RETURN
[
MENU
]
:
END
1
MENU
42

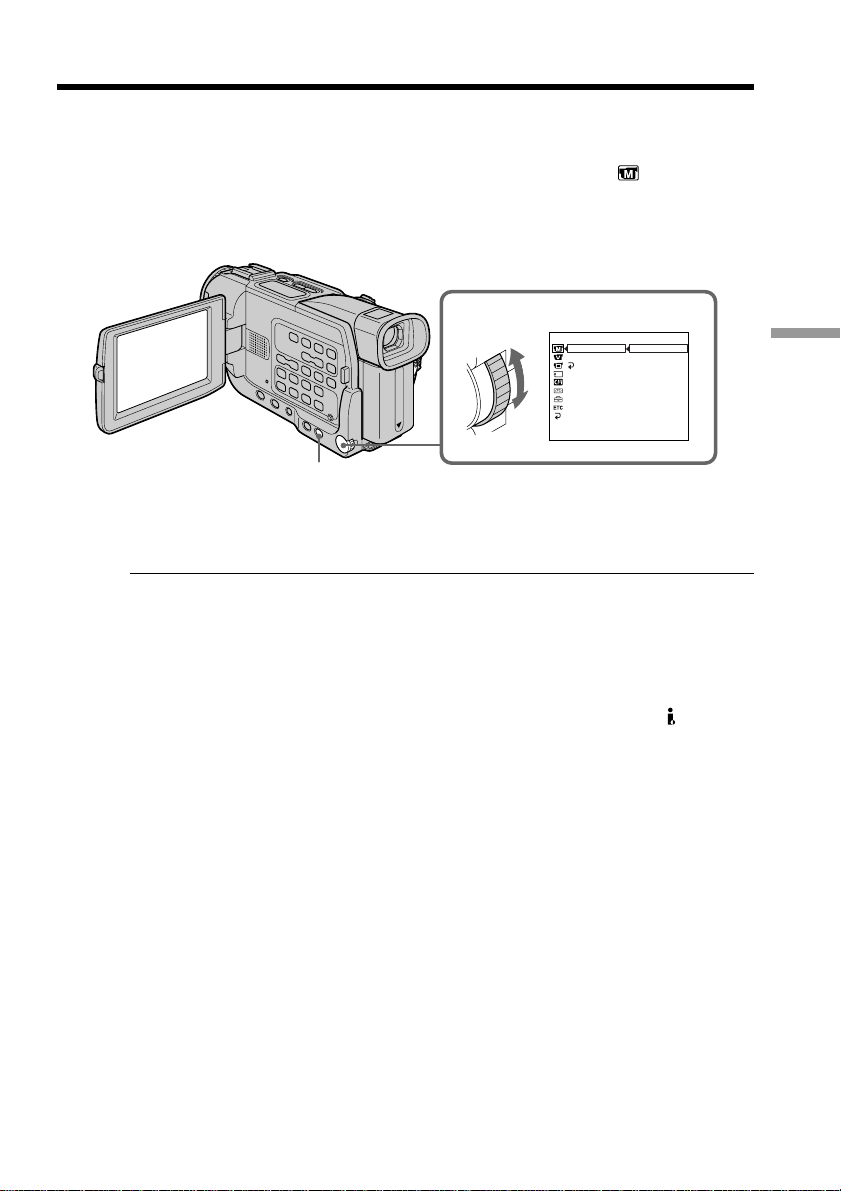

You can record a 16:9 wide picture to watch on the 16:9 wide-screen TV (16:9WIDE).
Black bands appear on the screen during recording in 16:9WIDE mode [a]. The picture
during a playback on a normal TV [b] or on a wide-screen TV [c] is compressed in the
widthwise direction. If you set the screen mode of the wide-screen TV to the full mode,
you can watch pictures of normal images [d].
In the standby mode, set 16:9WIDE to ON in in the menu settings (p. 97).
To cancel the wide mode
Set 16:9WIDE to OFF in the menu settings.
In the wide mode, you cannot select the following functions:
– OLD MOVIE
– BOUNCE
During recording
You cannot select or cancel the wide mode. When you cancel the wide mode, set your
camcorder to the standby mode and then set 16:9WIDE to OFF in the menu settings.
Connection for a TV
Pictures recorded in the 16:9WIDE mode automatically appear on the TV screen at full
size when:
– You connect your camcorder to a TV that is compatible with the video ID (ID-1/ID-2)
system.
– You connect your camcorder to the S video jack on the TV.
ID-1 system
The ID-1 system sends aspect ratio information (16:9, 4:3, or letter box) with video
signals. If you connect a TV compatible with the ID-1 system, the screen size is
automatically selected.
ID-2 system
The ID-2 system sends a copyright protection signal with ID-1 signals inserted between
video signals when you connect your camcorder to other equipment using the A/V
connecting cable.
Using the wide mode
[a]
[c]
[b]
[d]
16:9
WIDE
MENU
43
Advanced Recording Operations
You can fade in or out to give your recording a professional appearance.
MONOTONE
When fading in, the picture gradually changes from black-and-white to color.
When fading out, the picture gradually changes from color to black-and-white.
*Fade in only
Using the fader function
FADER
OVERLAP*
WIPE*
DOT*
[a]
RECSTBY
RECSTBY
[b]
M. FADER
(mosaic)
BOUNCE*
44

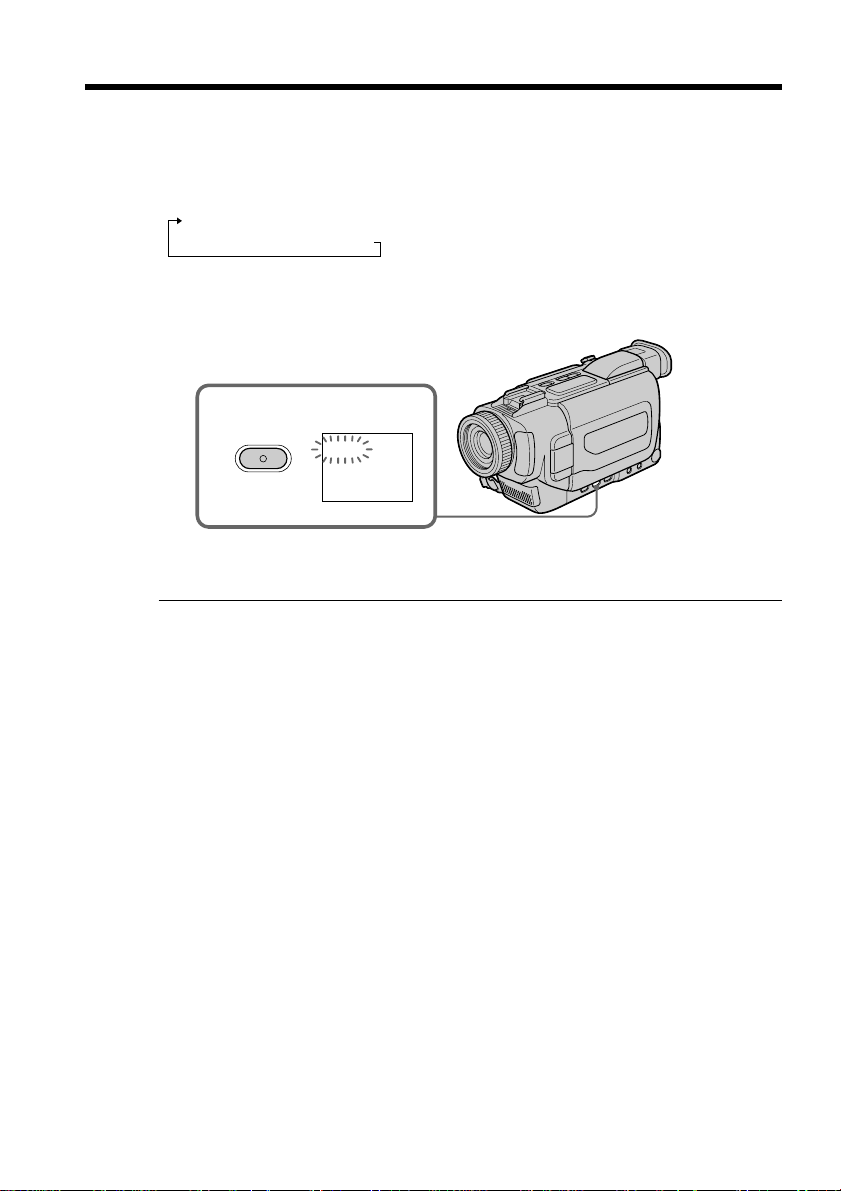

Using the fader function
(1) When fading in [a]
In the standby mode, press FADER until the desired fader indicator flashes.
When fading out [b]
In the recording mode, press FADER until the desired fader indicator flashes.
The indicator changes as follows:
FADER t M.FADER t BOUNCE t MONOTONE t OVERLAP t WIPE
t DOT t no indicator
The last selected fader mode is indicated first of all.
(2) Press START/STOP. The fader indicator stops flashing.
After the fader in/out is carried out, your camcorder automatically returns to
the normal mode.
To cancel the fader function
Before pressing START/STOP, press FADER until the indicator disappears.
Note
You cannot use the following functions while using the fader function. Also, you cannot
use the fader function while using the following functions:
– Digital effect
– Low lux mode of PROGRAM AE (Overlap, Wipe, or Dot function only)(The low lux
indicator flashes.)
– Super NightShot
– Tape Photo recording

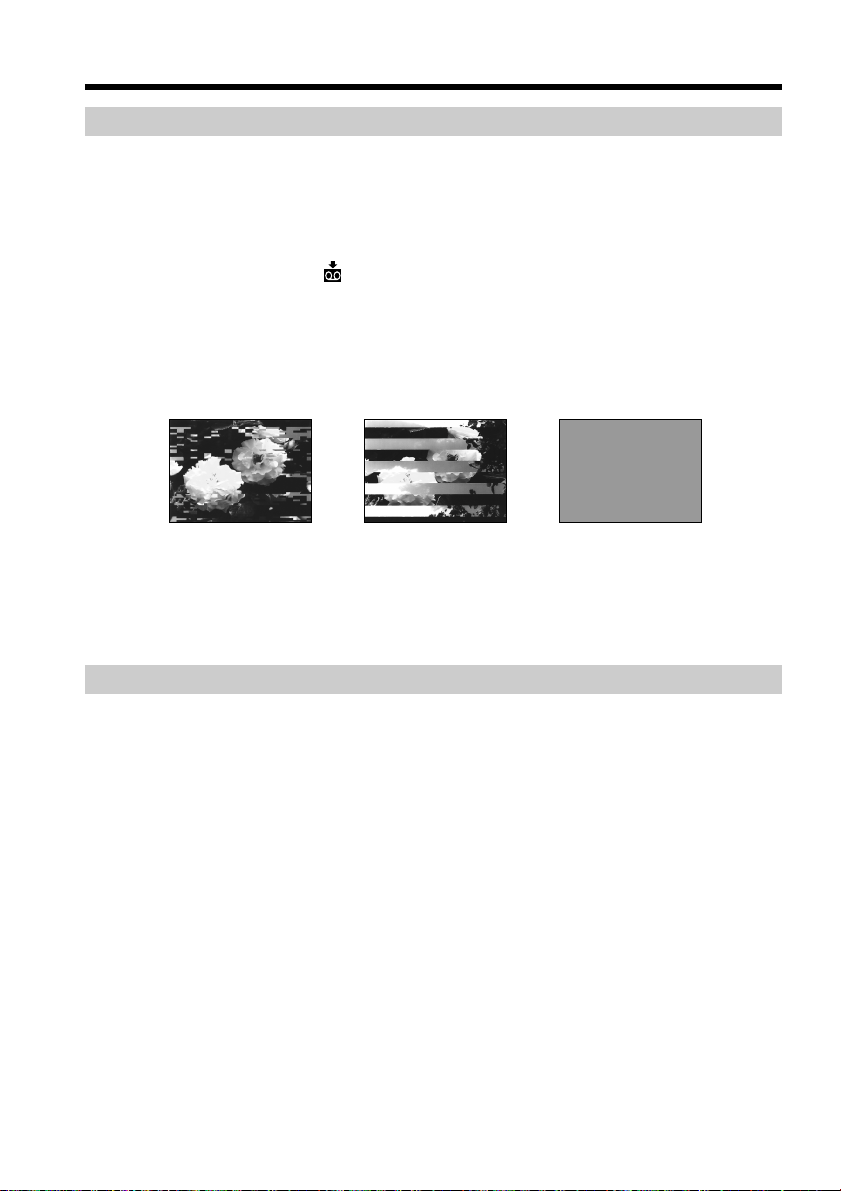

When the OVERLAP, WIPE, or DOT indicator appear in the standby mode
Your camcorder automatically stores the image recorded on a tape. As the image is
being stored, the indicators flash fast, and the playback picture disappears. At this
stage, the picture may not be recorded clearly, depending on the tape condition.
While using the bounce function, you cannot use the following functions:
– Exposure
– Focus
– Zoom
– Picture effect
Note on the bounce function
The BOUNCE indicator does not appear in the following mode or functions:
– D ZOOM is activated in the menu settings
– 16:9 wide
– Picture effect
– PROGRAM AE
While in MEMORY mode (DCR-TRV17 only)
You cannot use the fader function.
1
FADER
FADER
45
Advanced Recording Operations
You can digitally process images to obtain special effects like those in films or on TV.
NEG. ART [a] : The color and brightness of the picture are reversed.
SEPIA : The picture gets sepia.
B&W : The picture appears in monochrome (black-and-white).
SOLARIZE [b] : The light intensity is clearer, and the picture looks like an illustration.
SLIM [c] : The picture expands vertically.
STRETCH [d] : The picture expands horizontally.
PASTEL [e] : The contrast of the picture is emphasized, and the picture looks like an
animated cartoon.
MOSAIC [f] : The picture gets mosaic-patterned.
(1) In CAMERA mode, select P EFFECT in in the menu settings. (p. 97).
(2) Select the desired picture effect mode in the menu settings.
To cancel the picture effect function
Set P EFFECT to OFF in the menu settings.
While using the picture effect function, you cannot select the following functions:
– OLD MOVIE
– BOUNCE
When you turn the power off
Your camcorder automatically returns to the normal mode.
Using special effects – Picture effect
[a] [b] [c] [d] [e] [f]
MENU
MANUAL SET
PROGRAM AE
P EFFECT
D EFFECT
WHT BAL
AUTO SHTR
RETURN
[
MENU
]
:
END
OFF
NEG. ART
SEP
I
A
B&W
SOLAR
I
ZE
SL
I
M
STRETCH
PASTEL
MOSA
I
C
1
46
Using special effects – Digital effect
You can add special effects to recorded pictures using the various digital functions. The
sound is recorded normally.
STILL
You can record a still picture so that it is superimposed on a moving picture.
FLASH (FLASH MOTION)
You can record still pictures successively at constant intervals.
LUMI. (LUMINANCEKEY)
You can swap a brighter area in a still picture with a moving picture.
TRAIL
You can record the picture so that an incidental image like a trail is left.
SLOW SHTR (SLOW SHUTTER)
You can slow down the shutter speed. The slow shutter mode is good for recording
dark pictures more brightly.
OLD MOVIE
You can add an old movie type atmosphere to pictures. Your camcorder automatically
sets the wide mode to ON and picture effect to SEPIA, and the appropriate shutter
speed.
STILL
LUMI.
Still picture Moving picture
Still picture Moving picture
47
Advanced Recording Operations
Using special effects – Digital effect
(1) In CAMERA mode, select D EFFECT in in the menu settings (p. 97).
(2) Select the desired digital effect mode in the menu settings, then press the SEL/
PUSH EXEC dial.
The bars appear, in the STILL and LUMI. modes. The still image is stored in
memory.
(3) Turn the SEL/PUSH EXEC dial to adjust the effect, then press the dial.
Items to be adjusted
STILL The rate of the still picture you want to superimpose on the moving
FLASH The interval of flash motion
LUMI. The color scheme of the area in the still picture which is to be
swapped with a moving picture
TRAIL The time until the incidental image vanishes
SLOW SHTR Shutter speed. The larger the shutter speed number, the slower the
shutter speed.
OLD MOVIE No adjustment necessary
The more bars there are on the screen, the stronger the digital effect. The bars
appear in the following modes: STILL, FLASH, LUMI. and TRAIL.
To cancel the digital effect function
Set D EFFECT to OFF in the menu settings.
1
23
MANUAL SET
OFF
STI LL
FLASH
TRAI L
DEFFECT
[
MENU
]
:
END
LUMI
.
MANUAL SET
[
MENU
]
:
END
IIIIIIIIIIIIIIII
RETURN
MANUAL SET
OFF
STI LL
FLASH
TRAI L
DEFFECT
[
MENU
]
:
END
LUMI
.
MANUAL SET
DEFFECT
[
MENU
]
:
END
LUMI
.
PEFFECT
DEFFECT
SLO
W
SHTR
OLD MOVI E
PROGRAM AE
LUMI.
IIIIIIIIIIIIIIII
AUTO SHTR
RTHS
W
OLS
EIVOMDLO
W
HT BAL
MENU
48
Using special effects – Digital effect
Notes
•The following functions do not work during digital effect:
– Fader
– Low lux mode of PROGRAM AE (The low lux indicator flashes.)
– Tape photo recording
– Super NightShot
•The PROGRAM AE function does not work in the slow shutter mode.
•The following functions do not work in the old movie mode:
– Wide mode
– Picture effect
– PROGRAM AE
When you turn the power off
The digital effect will be automatically canceled.
When recording in the slow shutter mode
Auto focus may not be effective. Focus manually using a tripod.
Shutter speed
Shutter speed number Shutter speed
SLOW SHTR 1 1/30
SLOW SHTR 2 1/15
SLOW SHTR 3 1/8
SLOW SHTR 4 1/4
49
Advanced Recording Operations

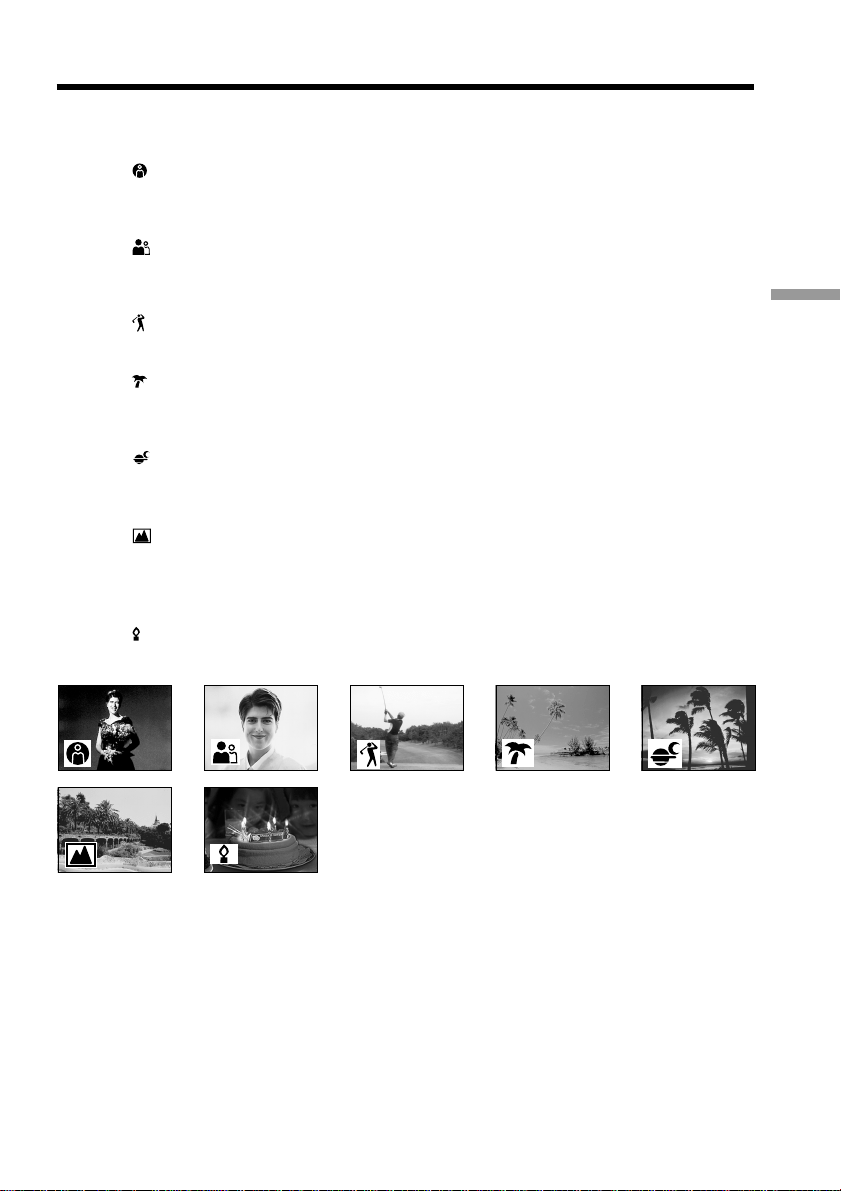

Using the PROGRAM AE function
You can select PROGRAM AE (Auto Exposure) mode to suit your specific shooting
requirements.
Spotlight
This mode prevents people’s faces, for example, from appearing excessively white
when shooting subjects lit by strong light in the theater.
Soft portrait
This mode brings out the subject while creating a soft background for subjects such as
people or flowers.
Sports lesson
This mode minimizes shake on fast-moving subjects such as in tennis or golf.
Beach & ski
This mode prevents people’s faces from appearing dark in strong light or reflected light,
such as at a beach in midsummer or on a ski slope.
Sunset & moon
This mode allows you to maintain atmosphere when you are recording sunsets, general
night views, fireworks displays and neon signs.
Landscape
This mode is for when you are recording distant subjects such as mountains and
prevents your camcorder from focusing on glass or metal mesh in windows when you
are recording a subject behind glass or a screen.
Low lux
This mode makes subjects brighter in insufficient light.
50
Using the PROGRAM AE function

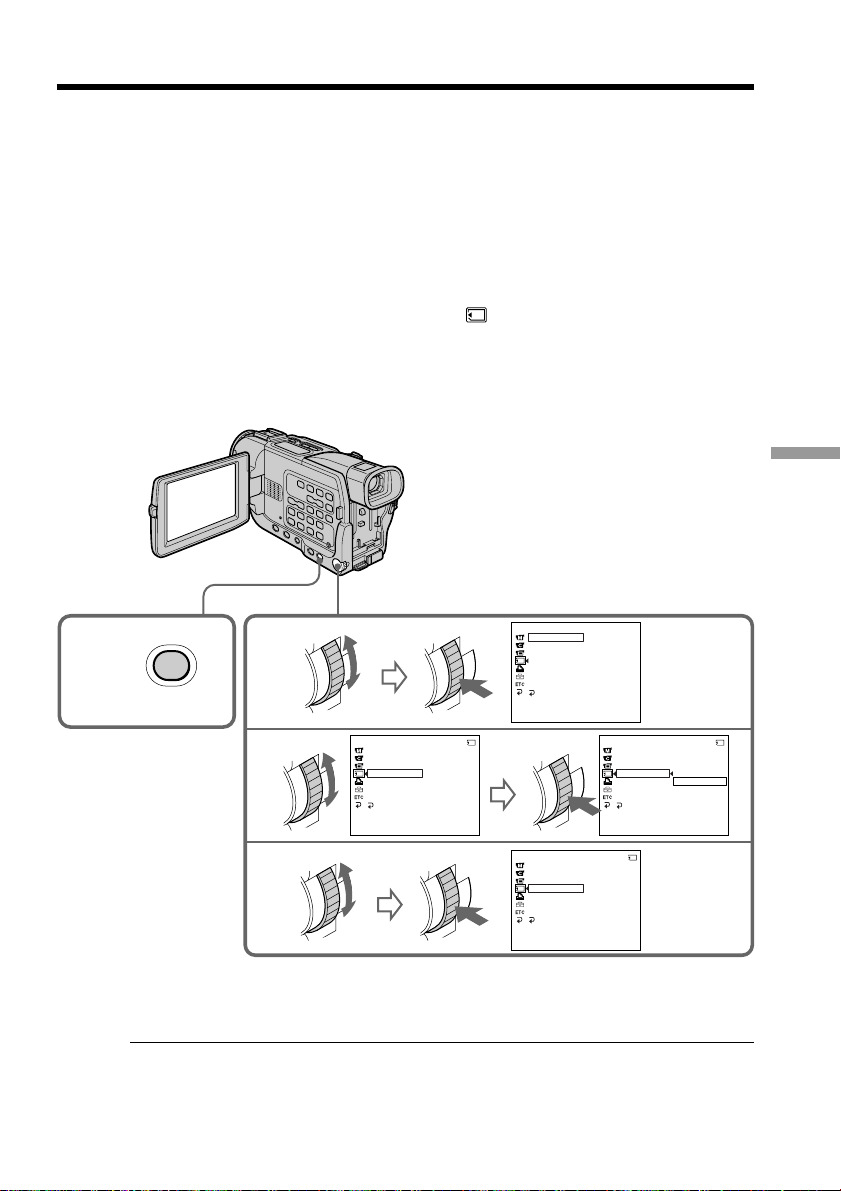

(1) Press MENU to display menu settings in CAMERA or MEMORY (DCR-TRV17
only) mode.
(2) Turn the SEL/PUSH EXEC dial to select
, then press the dial (p. 97).
(3) Turn the SEL/PUSH EXEC dial to select PROGRAM AE, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select the desired mode.
To turn the PROGRAM AE function off
Set PROGRAM AE to AUTO in the menu settings.
Notes
•Because your camcorder is set to focus only on subjects in the middle to far distance,
you cannot take close-ups in the following mode:
– Spotlight
– Sports lesson
– Beach & ski
•Your camcorder is set to focus only on distant subjects in the following modes:
– Sunset & moon
– Landscape
•The following functions do not work in the PROGRAM AE mode:
– Slow shutter
– OLD MOVIE
– BOUNCE
•The following functions do not work in the low lux mode:
– Digital effect
– Overlap
– Wipe
– Dot
•While setting the NIGHTSHOT to ON, the PROGRAM AE function does not work.
(The indicator flashes.)
•While shooting in MEMORY mode (DCR-TRV17 only), the following modes do not
work (The indicator flashes.) :
– Low lux
– Sports lesson
While WHT BAL is set to AUTO in the menu settings
The white balance is adjusted even if the PROGRAM AE function is selected.
Even if the PROGRAM AE function is selected
You can adjust the exposure.
2-4
MANUAL SET
AUTO
SPOTL IGHT
PORTRA I T
PROGRAM AE
PEFFECT
DEFFECT
WHT BA L
AUTO SHTR
RETURN
[
MENU
]
:
END
BEACH&SK I
SPORTS
SUNSETMOON
LANDSCAPE
LOW LUX
MENU
51
Advanced Recording Operations
If you are recording under a discharge tube such as a fluorescent lamp, sodium
lamp or mercury lamp
Flickering or changes in color may occur in the following modes. If this happens, turn
the PROGRAM AE function off.
– Soft portrait
– Sports lesson
Using the PROGRAM AE function
52

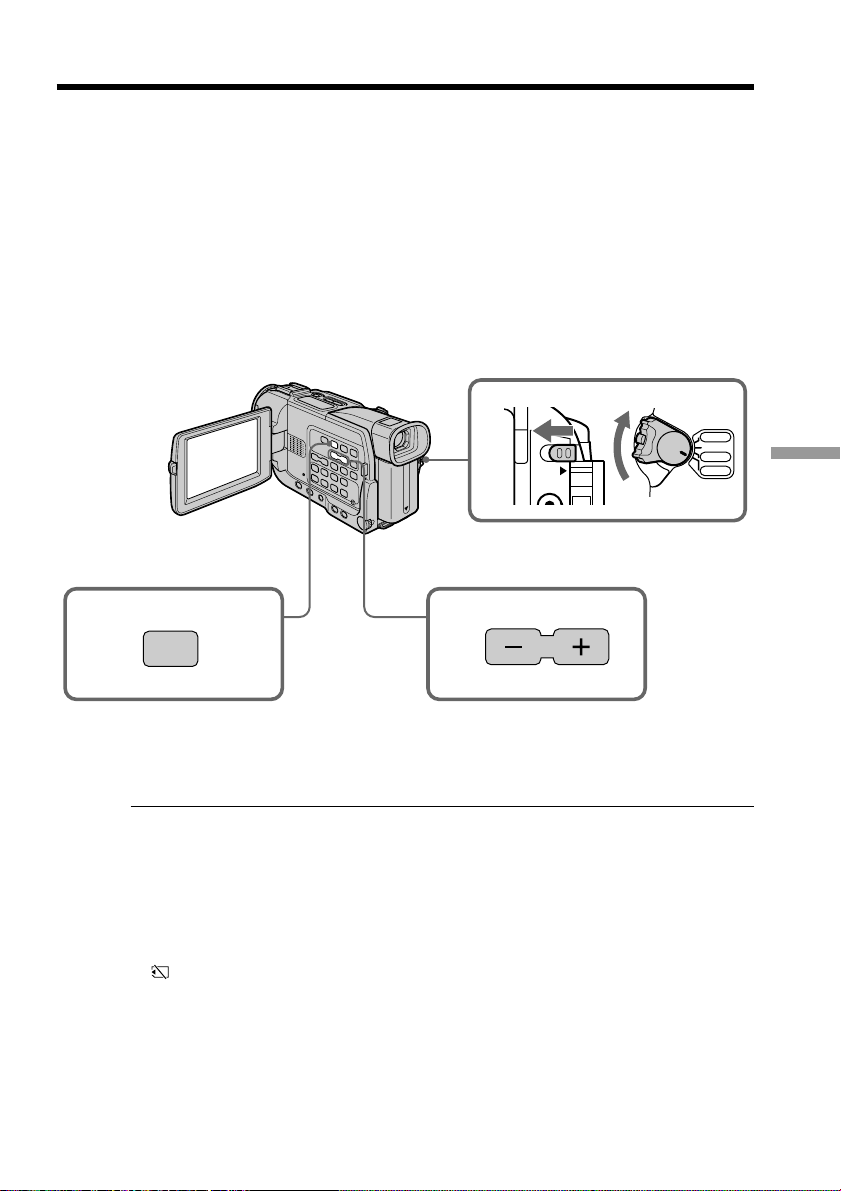

You can manually adjust and set the exposure. Adjust the exposure manually in the
following cases:
– The subject is backlit
– Bright subject and dark background
– To record dark pictures (e.g. night scenes) faithfully
(1) In CAMERA or MEMORY (DCR-TRV17 only) mode, press EXPOSURE. The
exposure indicator appears.
(2) Turn the SEL/PUSH EXEC dial to adjust the brightness.
To return to the automatic exposure mode
Press EXPOSURE again.
Note
When you adjust the exposure manually, the backlight function does not work.
Your camcorder automatically returns to the automatic exposure mode:
– If you change the PROGRAM AE mode.
– If you slide NIGHTSHOT to ON.
Adjusting the exposure manually
1
2
EXPOSURE
53
Advanced Recording Operations

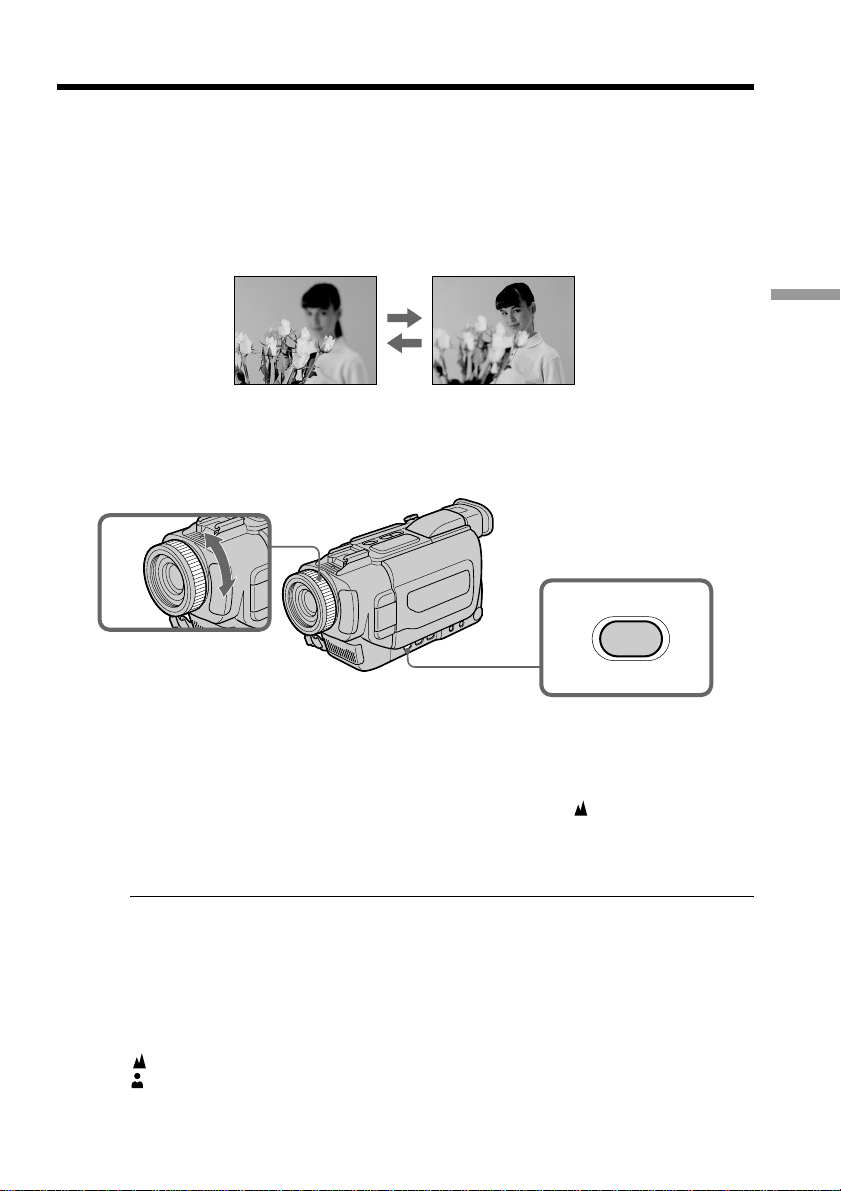

You can gain better results by manually adjusting the focus in the following cases:
•The autofocus mode is not effective when shooting
– subjects through glass coated with water droplets
– horizontal stripes
– subjects with little contrast with backgrounds such as walls and sky
•When you want to change the focus from a subject in the foreground to a subject in the
background
•Shooting a stationary subject when using a tripod
(1) In CAMERA or MEMORY (DCR-TRV17 only) mode, press FOCUS lightly. The
9 indicator appears.
(2) Turn the focus ring to sharpen focus.
To return to the autofocus mode
Press FOCUS lightly to turn off the indicator.
To record distant subjects
When you press FOCUS down firmly, the lens focuses on and indicator appears.
When you release FOCUS, your camcorder returns to the manual focus mode. Use this
mode when your camcorder focuses on near objects even though you are trying to
shoot a distant object.
To focus precisely
It is easier to focus on the subject if you adjust the zoom to shoot at the “W” (wide-
angle) after focusing at the “T” (telephoto) position.
When you shoot close to the subject
Focus at the end of the “W” (wide-angle) position.
9 changes as follows:
when recording a distant subject.
when the subject is too close to focus on.
Focusing manually
2
1
FOCUS
54

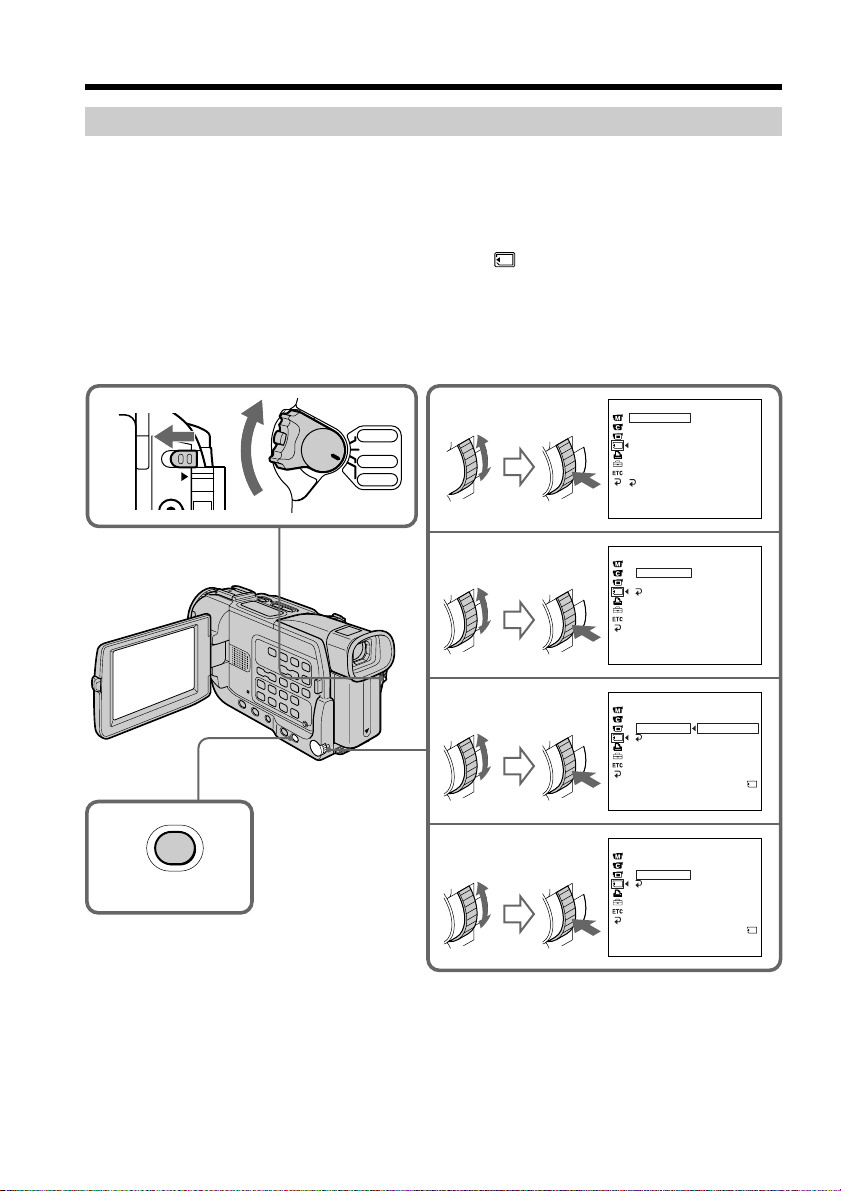

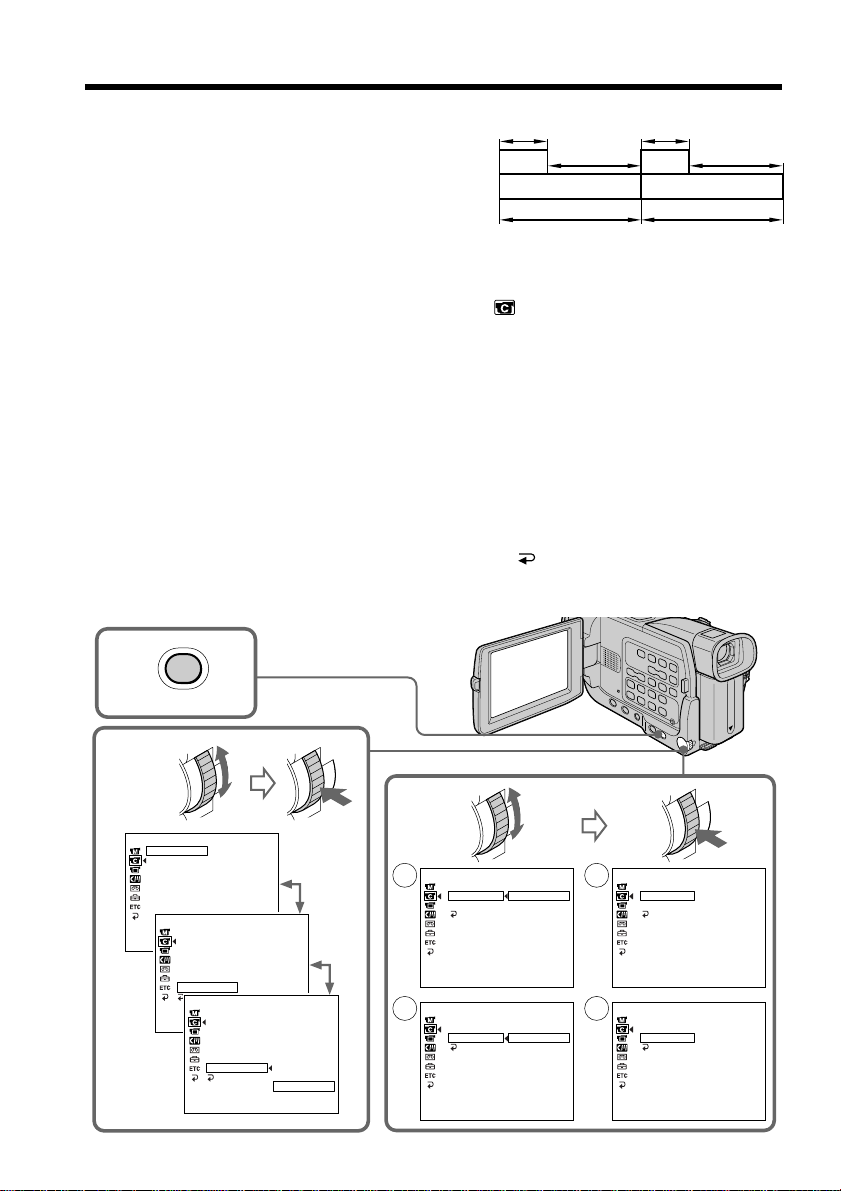

Interval recording
You can make a time-lapse recording by
setting the camcorder to automatically record
and standby sequentially. You can achieve an
excellent recording for flowering, emergence,
etc., with this function.
[a]Recording time
[b]Waiting time
(1) Press MENU to display the menu in standby mode.
(2) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select INT. REC, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select SET, then press the dial.
(5) Set INTERVAL and REC TIME.
1 Turn the SEL/PUSH EXEC dial to select INTERVAL, then press the dial.
2 Turn the SEL/PUSH EXEC dial to select the desired interval time, then
press the dial.
The time: 30SEC y 1MIN y 5MIN y 10MIN
3 Turn the SEL/PUSH EXEC dial to select REC TIME, then press the dial.
4 Turn the SEL/PUSH EXEC dial to select the desired recording time, then
press the dial.
The time: 0.5SEC y 1SEC y 1.5SEC y 2SEC
5 Turn the SEL/PUSH EXEC dial to select
RETURN, then press the dial
twice.
1
5
2-4
1 2
3 4
CAMERA SET
SELFTIMER
D ZOOM
16 : 9W
I
DE
STEADYSHOT
N.S. LIGHT
FRAME REC
I
NT. REC
[
MENU
]
:
END
CAMERA SET
SELFTIMER
D ZOOM
16 : 9W
I
DE
STEADYSHOT
N.S. LIGHT
FRAME REC
I
NT. REC
RETURN
OFF
[
MENU
]
:
END
OFF
CAMERA SET
I
NT. REC
I
NTERVAL
REC T
I
ME
RETURN
30SEC
[
MENU
]
:
END
CAMERA SET
I
NT. REC
I
NTERVAL
REC T
I
ME
RETURN
30SEC
1M
I
N
5M
I
N
10M
I
N
[
MENU
]
:
END
CAMERA SET
I
NT. REC
I
NTERVAL
REC T
I
ME
RETURN
[
MENU
]
:
END
CAMERA SET
I
NT. REC
I
NTERVAL
REC T
I
ME
RETURN
0.5SEC
[
MENU
]
:
END
0
.
5SEC
1SEC
1
.
5SEC
2SEC
CAMERA SET
SELFTIMER
D ZOOM
16 : 9W
I
DE
STEADYSHOT
N.S. LIGHT
FRAME REC
I
NT. REC
RETURN
ON
OFF
SET
[
MENU
]
:
END
MENU
10 min10 min
1 s 1 s
9 min 59 s 9 min 59 s
[a][a]
[b][b]
Example
55
Advanced Recording Operations
Interval recording
(6) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(7) Press MENU to erase the menu display. The interval recording indicator
flashes.
(8) Press START/STOP to start interval recording. The interval recording
indicator lights up.
To cancel the interval recording
•Set INT. REC to OFF in the menu settings.
•Set the POWER switch to OFF (CHG), VCR or MEMORY (DCR-TRV17 only).
To stop the interval recording momentarily and perform
normal recording
Press START/STOP. You can perform normal recording only once. To cancel the
normal recording, press START/STOP again.
Note on interval recording (DCR-TRV17 only)
You cannot do interval recording in memory mode.
On recording time
There may be a discrepancy in recording time of up to +/– 6 frames from the selected
time.
7
6
8
I
NTERVAL
CAMERA SET
SELFTIMER
D ZOOM
16 : 9W
I
DE
STEADYSHOT
N.S. LIGHT
FRAME REC
I
NT. REC
RETURN
ON
[
MENU
]
:
END
MENU
56
Frame by frame recording – Cut recording
You can make a recording with a stop-motion animated effect using cut recording. To
create this effect, alternately move the subject a little and make a cut recording. We
recommend that you use a tripod, and operate the camcorder using the Remote
Commander after step 6.
(1) Press MENU to display the menu in standby mode.
(2) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select FRAME REC, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(5) Press MENU to erase the menu display.
The FRAME REC indicator lights up.
(6) Press START/STOP to start cut recording. The camcorder makes a recording
for about six frames, and returns to recording standby.
(7) Move the subject, and repeat step 6.
To cancel the cut recording
•Set FRAME REC to OFF in the menu settings.
•Set the POWER switch to OFF (CHG), VCR, or MEMORY (DCR-TRV17 only).
Notes on cut recording
•The last recorded cut is longer than other cuts.
•The proper remaining tape time is not indicated if you use this function continuously.
1
6,7
5
FRAME REC
CAMERA SET
SELFTIMER
D ZOOM
16 : 9W
I
DE
STEADYSHOT
N.S. LIGHT
FRAME REC
I
NT. REC
[
MENU
]
:
END
CAMERA SET
SELFTIMER
D ZOOM
16 : 9W
I
DE
STEADYSHOT
N.S. LIGHT
FRAME REC
I
NT. REC
RETURN
OFF
ON
[
MENU
]
:
END
CAMERA SET
SELFTIMER
D ZOOM
16 : 9W
I
DE
STEADYSHOT
N.S. LIGHT
FRAME REC
I
NT. REC
RETURN
ON
[
MENU
]
:
END
OFF
2-4
MENU
MENU
57
Advanced Playback Operations
— Advanced Playback Operations —
Playing back a tape with picture effects
During playback, you can process a scene using the picture effect functions: NEG. ART,
SEPIA, B&W and SOLARIZE.
(1) In the playback or playback pause mode, select P EFFECT in in the menu
settings (p. 97).
(2) Select the desired mode by turning the SEL/PUSH EXEC dial.
For details of each picture effect function, see page 45.
To cancel the picture effect function
Set P EFFECT to OFF in the menu settings.
Notes
•You cannot process the picture that is input from other equipment using the picture
effect function.
•To record pictures that you have processed using the picture effect function, record
the pictures on the VCR, using your camcorder as a player.
Pictures processed by the picture effect function
Pictures processed by the picture effect function are not output through the DV IN/
OUT jack.
When you set the POWER switch to OFF (CHG) or stop playing back
The picture effect function is automatically canceled.
MENU
MANUAL SET
P EFFECT
D EFFECT
RETURN
[
MENU
]
:
END
OFF
NEG. ART
SEP
I
A
B&W
SOLAR
I
ZE
1
58
During playback, you can process a scene using the digital effect functions: STILL,
FLASH, LUMI. and TRAIL.
(1) In the playback or playback pause mode, select D EFFECT in in the menu
settings (p. 97).
(2) Select the desired digital effect mode in the menu settings, then press the SEL/
PUSH EXEC dial. The digital effect indicator lights up and the bars appear. In
the STILL or LUMI. mode, the image where you press the SEL/PUSH EXEC
dial is stored in memory as a still image.
(3) Turn the SEL/PUSH EXEC dial to adjust the effect, then press the dial.
For details of each digital effect function, see page 46.
To cancel the digital effect function
Set D EFFECT to OFF in the menu settings.
Notes
•You cannot process externally input scenes using the digital effect function.
•To record pictures that you have processed using the digital effect function, record the
pictures on the VCR, using your camcorder as a player.
Pictures processed by the digital effect function
•Pictures processed by the digital effect function are not output through the DV IN/
OUT jack.
•You cannot use the tape PB ZOOM function for pictures processed by digital effect
function.
When you set the POWER switch to OFF (CHG) or stop playing back
The digital effect function is automatically canceled.
Playing back a tape with digital effects
1
2
3
MANUAL SET
OFF
STI LL
FLASH
TRAI L
DEFFECT
[
MENU
]
:
END
LUMI
.
MANUAL
[
MENU
]
:
END
LUMI
.
IIIIIIII
••••••••
RETURN
MANUAL SET
OFF
STI LL
FLASH
TRAI L
DEFFECT
[
MENU
]
:
END
LUMI
.
MANUAL SET
DEFFECT
[
MENU
]
:
END
LUMI
.
IIIIIIII
••••••••
PEFFECT
DEFFECT
MENU
59
Advanced Playback Operations

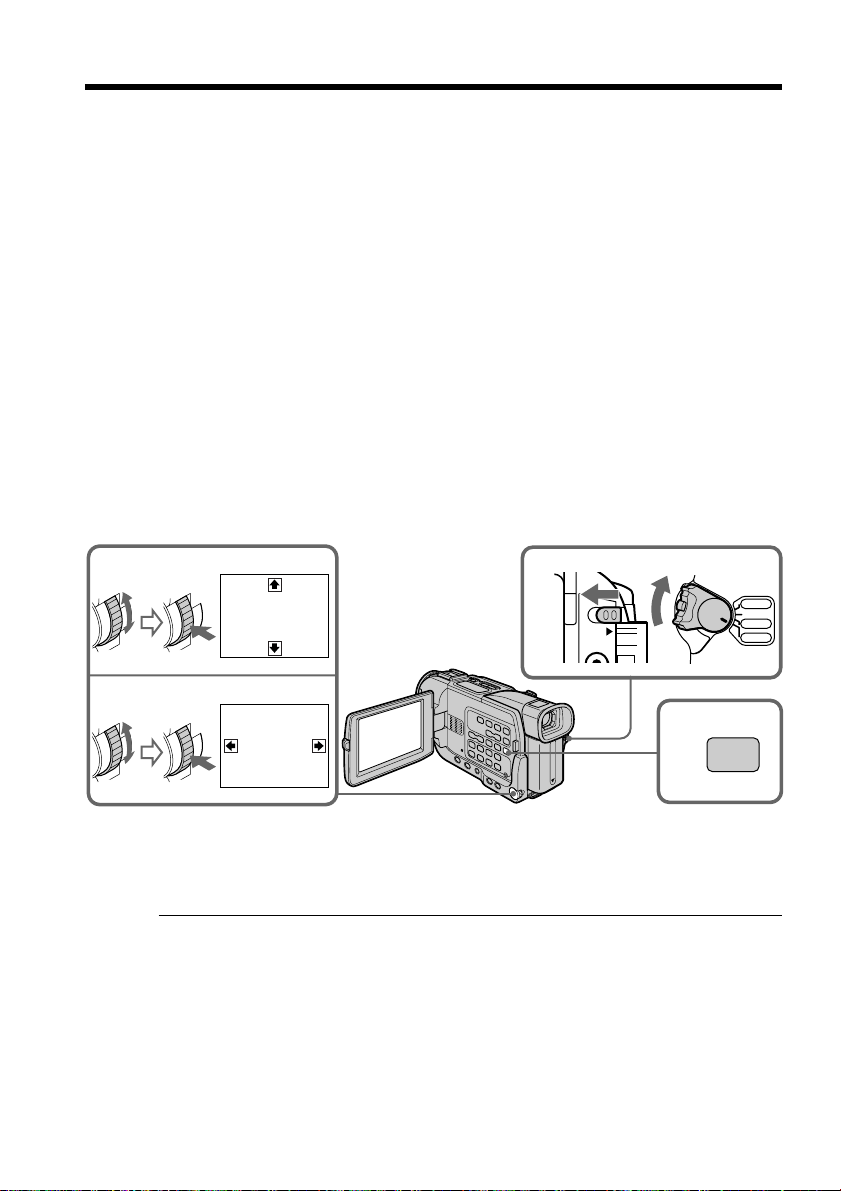

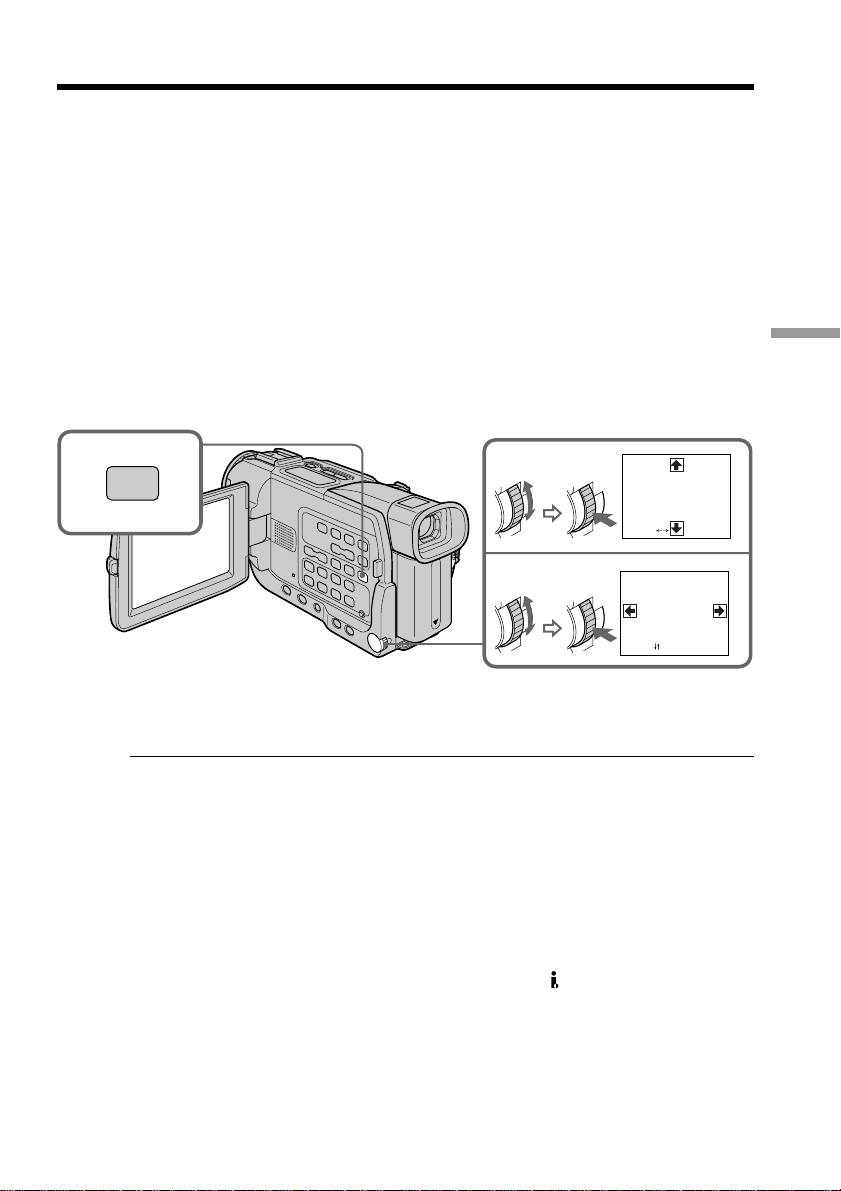

You can enlarge still and moving playback pictures. You can also dub the enlarged
pictures to tapes or copy to “Memory Stick”s (DCR-TRV17 only) (p. 121).
You can also enlarge still play back images recorded on “Memory Stick” (DCR-TRV17
only) (p. 140).
(1) In the playback or playback pause mode, press PB ZOOM on your camcorder.
The image is enlarged, and R r T t appears on the screen.
(2) Turn the SEL/PUSH EXEC dial to move the enlarged image, then press the
dial.
R : The image moves downwards.
r : The image moves upwards.
(3) Turn the SEL/PUSH EXEC dial to move the enlarged image, then press the
dial.
t : The image moves leftward (Turn the dial upwards.)
T : The image moves rightward (Turn the dial downwards.)
To cancel the PB ZOOM function
Press PB ZOOM.
Note
You cannot process externally input scenes using the PB ZOOM function with your
camcorder.
The PB ZOOM function is automatically canceled when you operate the following
functions:
– Set the POWER switch to OFF (CHG)
– Stop playback
– Display the menu settings
Pictures in the PB ZOOM
Pictures in the PB ZOOM mode are not output through the DV IN/OUT jack.
Enlarging images recorded on tapes
– Tape PB ZOOM
1
2
3
PB ZOOM
[
EXEC
]
:
PB ZOOM
[
EXEC
]
:
PB
ZOOM
60
Your camcorder goes forward or backward to automatically stop at a desired scene
having a tape counter value of “0:00:00”. You can do this with the Remote Commander.
(1) In the playback mode, press DISPLAY.
(2) Press ZERO SET MEMORY at the point you want to locate later. The tape
counter shows “0:00:00” and the ZERO SET MEMORY indicator flashes.
(3) Press x when you want to stop playback.
(4) Press m to rewind the tape to the tape counter’s zero point. The tape stops
automatically when the tape counter reaches approximately zero. The ZERO
SET MEMORY indicator disappears and the time code appears.
(5) Press N. Playback starts.
Notes
•When you press ZERO SET MEMORY before rewinding the tape, the zero set memory
function will be canceled.
•There may be a discrepancy of several seconds from the time code.
If a tape has a blank portion in the recorded portions
The zero set memory function may not work correctly.
Zero set memory functions also in the standby mode
When you insert a scene in the middle of a recorded tape, press ZERO SET MEMORY at
the point you want to end the insertion. Rewind the tape to the insert start point, and
start recording. Recording stops automatically at the tape counter zero point. Your
camcorder returns to the standby mode.
Quickly locating a scene using the zero
set memory function
DISPLAY ZERO SET
MEMORY
N
m
x
61
Advanced Playback Operations

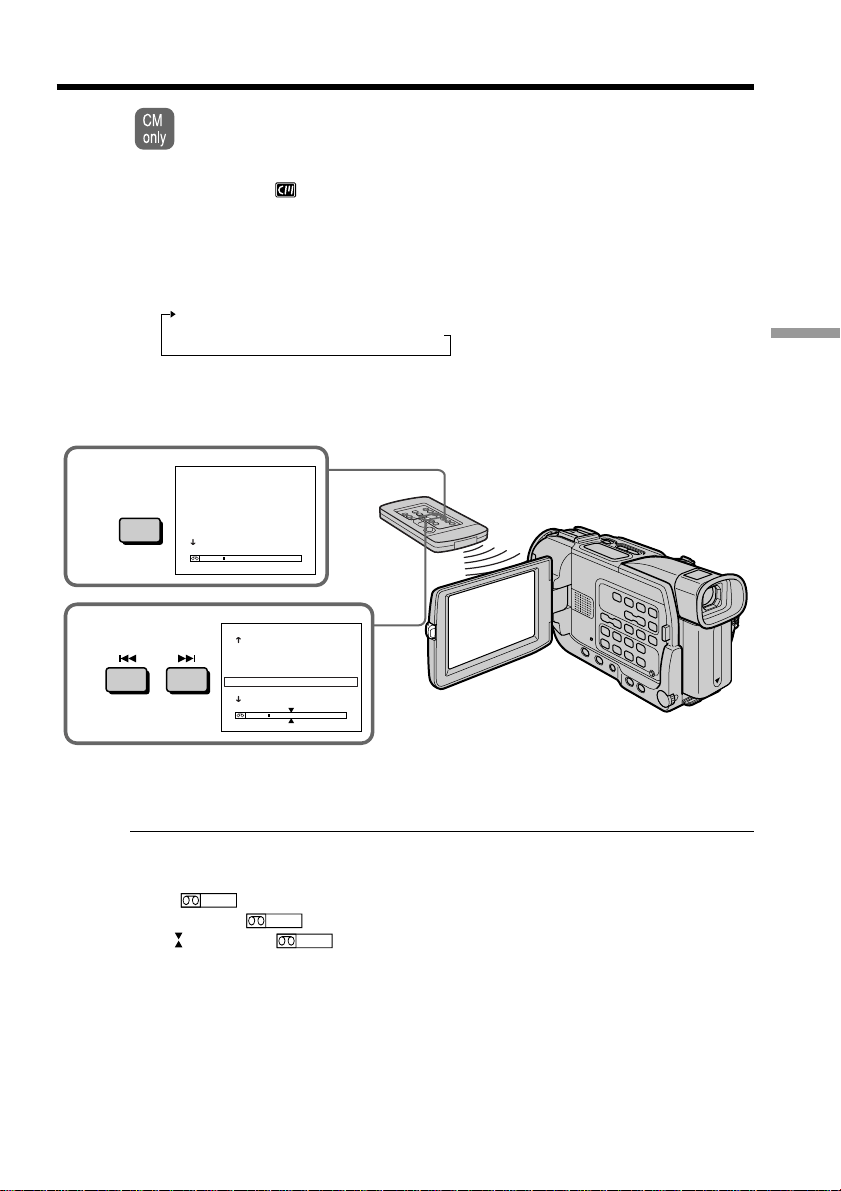

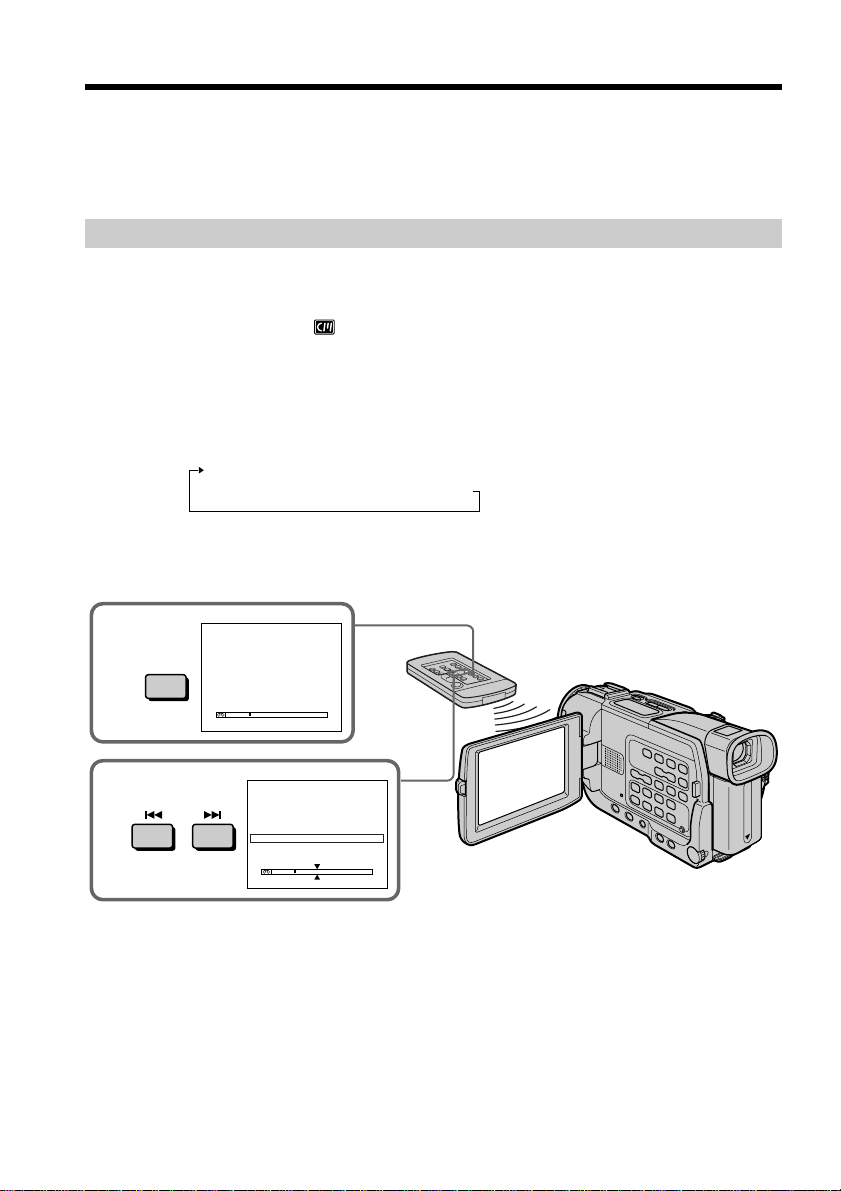

Searching the boundaries of recorded
tape by title – Title search
If you use a tape with cassette memory, you can search for the boundaries of
recorded tape by title. Use the Remote Commander for this operation.
Before operation
Set CM SEARCH in to ON in the menu settings (p. 100). (The default setting is ON.)
(1) Set the POWER switch to VCR.
(2) Press SEARCH MODE on the Remote Commander repeatedly, until the TITLE
SEARCH indicator appears.
The indicator changes as follows:
TITLE SEARCH t DATE SEARCH t PHOTO SEARCH
t PHOTO SCAN t no indicator
(3) Press . or > on the Remote Commander to select the title for playback.
Your camcorder automatically starts playback of the scene having the title that
you selected.
To stop searching
Press x.
If you use a tape without cassette memory
You cannot superimpose or search a title.
In the mark
•The bar in the mark indicates the present point on the tape.
•The mark in the indicates the actual point you are trying to search.
If a tape has a blank portion between recorded portions
The title search function may not work correctly.
To superimpose a title
See page 89.
3
2
SEARCH
MODE
TITLE SEARCH
1 HELLO!
2 CONGRATULATIONS!
3 HAPPY NEW YEAR!
4 PRESENT
5 GOOD MORNING
6 WEDDING
TITLE SEARCH
3 HAPPY NEW YEAR!
4 PRESENT
5 GOOD MORNING
6 WEDDING
7 NIGHT
8 BASEBALL
62

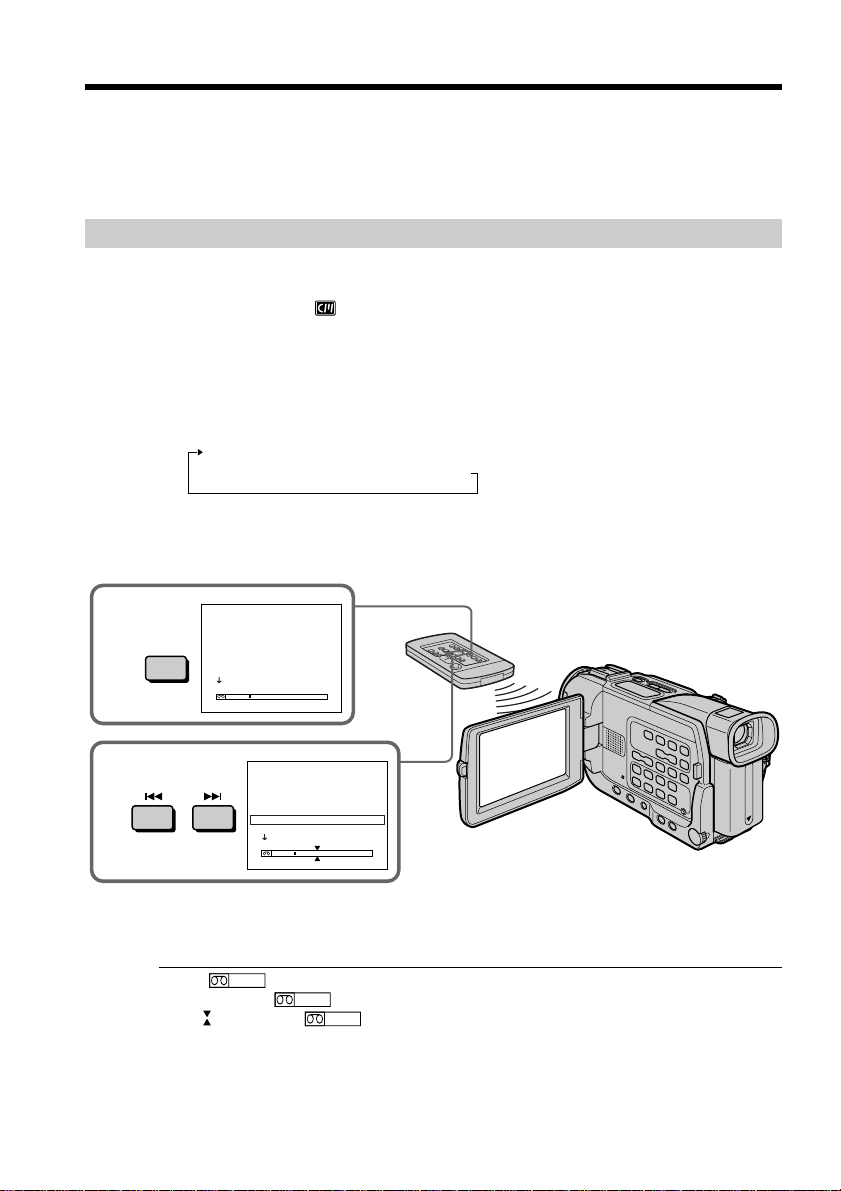

You can automatically search for the point where the recording date changes and start
playback from that point. Use a tape with cassette memory for convenience. Use the
Remote Commander for this operation.
Use this function to check where recording dates change or to edit the tape at each
recording date.
Searching for the date by using cassette memory
Before operation
•You can use this function only when playing back a tape with cassette memory
(p. 158).
•Set CM SEARCH in to ON in the menu settings (p. 100). (The default setting is
ON).
(1) Set the POWER switch to VCR.
(2) Press SEARCH MODE on the Remote Commander repeatedly, until the DATE
SEARCH indicator appears.
The indicator changes as follows:
TITLE SEARCH t DATE SEARCH t PHOTO SEARCH
t PHOTO SCAN t no indicator
(3) Press . or > on the Remote Commander to select the date for playback.
Your camcorder automatically starts playback at the beginning of the selected
date.
To stop searching
Press x.
Searching a recording by date
– Date search
3
2
SEARCH
MODE
DATE SEARCH
1 SEP / 5 / 01
2 SEP / 6 / 01
3 DEC / 24 / 01
4 JAN / 1 / 02
5 FEB / 11 / 02
6 APR / 29 / 02
DATE SEARCH
1 SEP / 5 / 01
2 SEP / 6 / 01
3 DEC / 24 / 01
4 JAN / 1 / 02
5 FEB / 11 / 02
6 APR / 29 / 02
63
Advanced Playback Operations
Note
If one day’s recording is less than two minutes, your camcorder may not accurately find
the point where the recording date changes.
In the mark
•The bar in the mark indicates the present point on the tape.
•The mark in the indicates the actual point you are trying to search.
If a tape has a blank portion between recorded portions
The date search function may not work correctly.
Cassette memory
The tape cassette memory can hold six recording date data. If you search the date
among seven or more data, see “Searching for the date without using cassette memory”
below.
Searching for the date without using cassette memory
(1) Set the POWER switch to VCR.
(2) Set CM SEARCH in
to OFF in the menu settings (p. 100).
(3) Press SEARCH MODE on the Remote Commander repeatedly, until the DATE
SEARCH indicator appears.
The indicator changes as follows:
DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t no indicator
(4) Press . on the Remote Commander to search for the previous date or press
> on the Remote Commander to search for the next date. Your camcorder
automatically starts playback at the point where the date changes. Each time
you press . or >, your camcorder searches for the previous or next date.
To stop searching
Press x.
Searching a recording by date – Date search
64

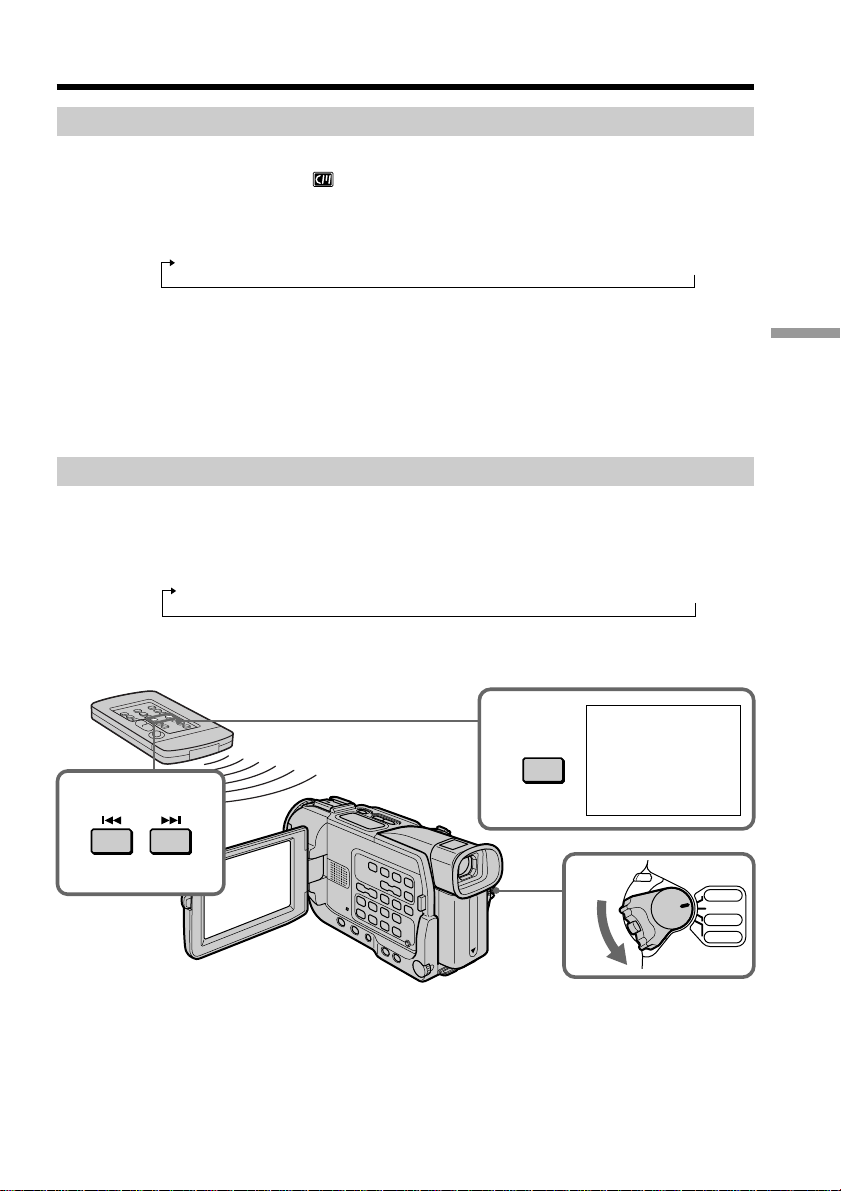

You can search for a still picture you have recorded on a tape (photo search).
You can also search for still pictures one after another and display each picture for five
seconds automatically regardless of cassette memory (photo scan). Use the Remote
Commander for these operations.
Use this function to check or edit still pictures.
Searching for a photo by using cassette memory
Before operation
•You can use this function only when playing back a tape with cassette memory.
•Set CM SEARCH in to ON in the menu settings (p. 100). (The default setting is
ON.)
(1) Set the POWER switch to VCR.
(2) Press SEARCH MODE on the Remote Commander repeatedly, until the
PHOTO SEARCH indicator appears.
The indicator changes as follows:
TITLE SEARCH t DATE SEARCH t PHOTO SEARCH
t PHOTO SCAN t no indicator
(3) Press . or > on the Remote Commander to select the date for playback.
Your camcorder automatically starts playback of the photo having the date
that you selected.
To stop searching
Press x.
In the mark
•The bar in the mark indicates the present point on the tape.
•The mark in the indicates the actual point you are trying to search.
If a tape has a blank portion between recorded portions
The photo search/photo scan function may not work correctly.
The available number of photos that can be searched using the cassette memory
The available number is up to 12 photos. However, you can search 13 photos or more
using the scanning photo function.
Searching for a photo
– Photo search/Photo scan
3
2
SEARCH
MODE
PHOTO SEARCH
1 SEP / 5 / 01
1
7
:
30
2 SEP / 6 / 01 8
:
50
3 DEC / 24 / 01
1
0
:
30
4 JAN / 1 / 02 23
:
25
5 FEB / 11 / 02
1
6
:
11
6 APR / 29 / 02
1
3
:
45
PHOTO SEARCH
1 SEP / 5 / 01
1
7
:
30
2 SEP / 6 / 01 8
:
50
3 DEC / 24 / 01
1
0
:
30
4 JAN / 1 / 02 23
:
25
5 FEB / 11 / 02
1
6
:
11
6 APR / 29 / 02
1
3
:
45
65
Advanced Playback Operations
Searching for a photo without using cassette memory
(1) Set the POWER switch to VCR.
(2) Set CM SEARCH in
to OFF in the menu settings (p. 100).
(3) Press SEARCH MODE on the Remote Commander repeatedly, until the
PHOTO SEARCH indicator appears.
The indicator changes as follows:
DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t no indicator
(4) Press . or > on the Remote Commander to select the photo for playback.
Each time you press . or >, your camcorder searches for the previous or
next photo.
Your camcorder automatically starts playback of the photo.
To stop searching
Press x.
Scanning photo
(1) Set the POWER switch to VCR.
(2) Press SEARCH MODE on the Remote Commander repeatedly, until the
PHOTO SCAN indicator appears.
The indicator changes as follows:
DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t no indicator
(3) Press . or > on the Remote Commander.
Each photo is played back for about five seconds automatically.
To stop scanning
Press x.
Searching for a photo – Photo search/Photo scan
1
2
SEARCH
MODE
PHOTO 00
SCAN
3
POWER
VCR
CAMERA
MEMORY
OFF(CHG)
66

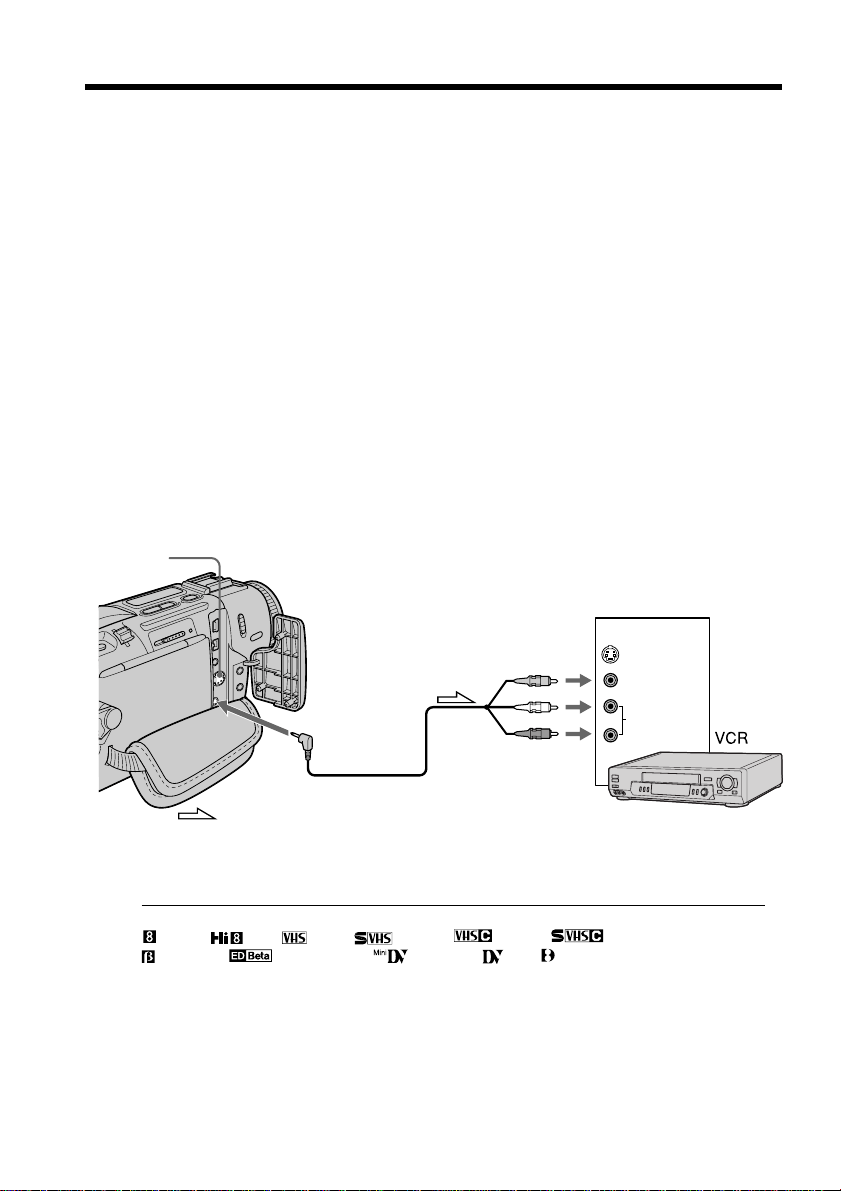

Using the A/V connecting cable
You can dub or edit on the VCR connected to your camcorder using your camcorder as
a player.
Connect your camcorder to the VCR using the A/V connecting cable supplied with
your camcorder.
Before operation
•Set DISPLAY to LCD in the menu settings. (The defalt setting is LCD.)
•Press the following buttons to make the indicator disappear so that they will not be
superimposed on the edited tape:
– DISPLAY
– DATA CODE on the Remote Commander
– SEARCH MODE on the Remote Commander
(1) Insert a blank tape (or a tape you want to record over) into the VCR, and insert
the recorded tape into your camcorder.
(2) Prepare the VCR for recording, then set the input selector to LINE.
Refer to the operating instructions of the VCR.
(3) Set the POWER switch to VCR.
(4) Play back the recorded tape on your camcorder.
(5) Start recording on the VCR. Refer to the operating instructions of your VCR.
When you have finished dubbing a tape
Press x on both your camcorder and the VCR.
You can edit on VCRs that support the following systems
8 mm, Hi8, VHS, S-VHS, VHSC, S-VHSC,
Betamax, ED Betamax, mini DV, DV, Digital8
If your VCR is a monaural type
Connect the yellow plug of the A/V connecting cable to the video input jack and the
white or the red plug to the audio input jack on the VCR or the TV. When the white
plug is connected, the left channel audio is output, and the red plug is connected, the
right channel audio is output.
— Editing —
Dubbing a tape
VIDEO
AUDIO
IN
AUDIO/VIDEO
S VIDEO
S VIDEO
: Signal flow
67
Editing
If your VCR has an S video jack
Connect using an S video cable (optional) to obtain high-quality pictures.
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (optional) to the S video jacks of both your camcorder and the
VCR.
This connection produces higher quality DV format pictures.

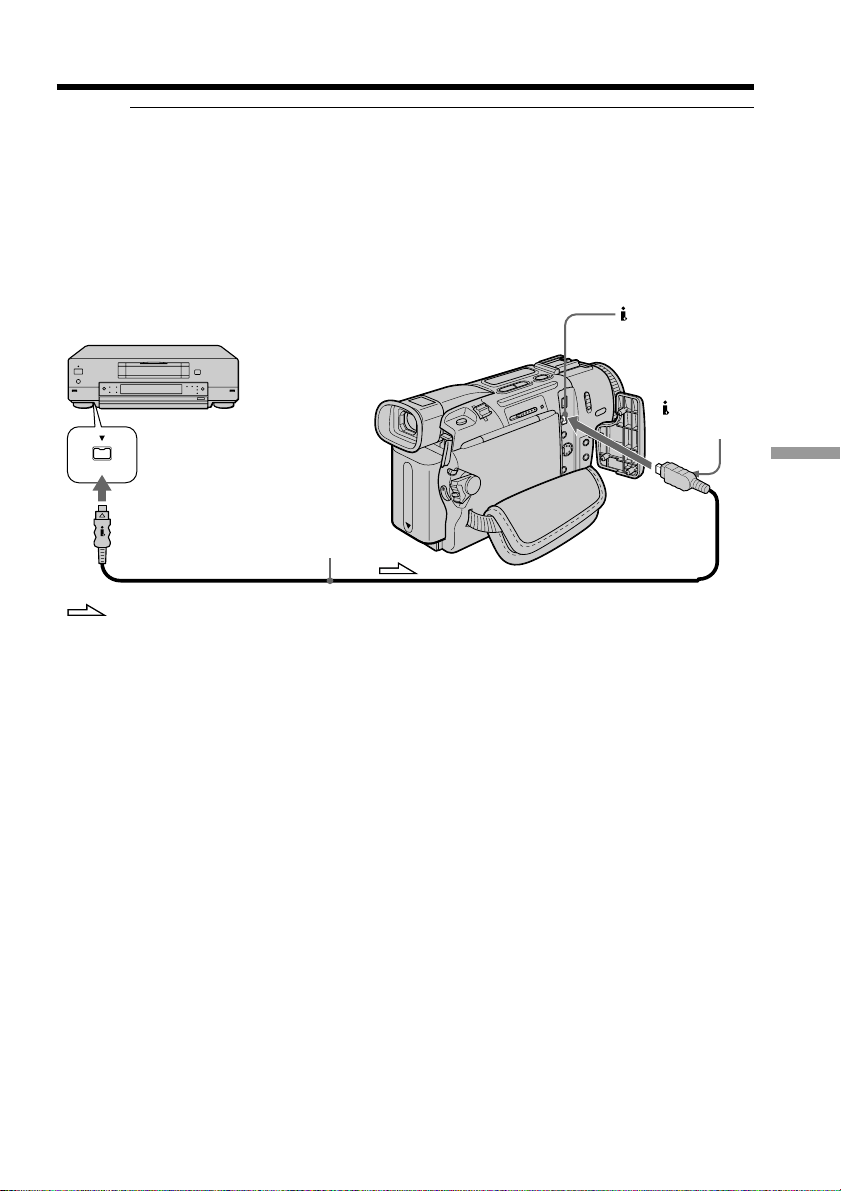

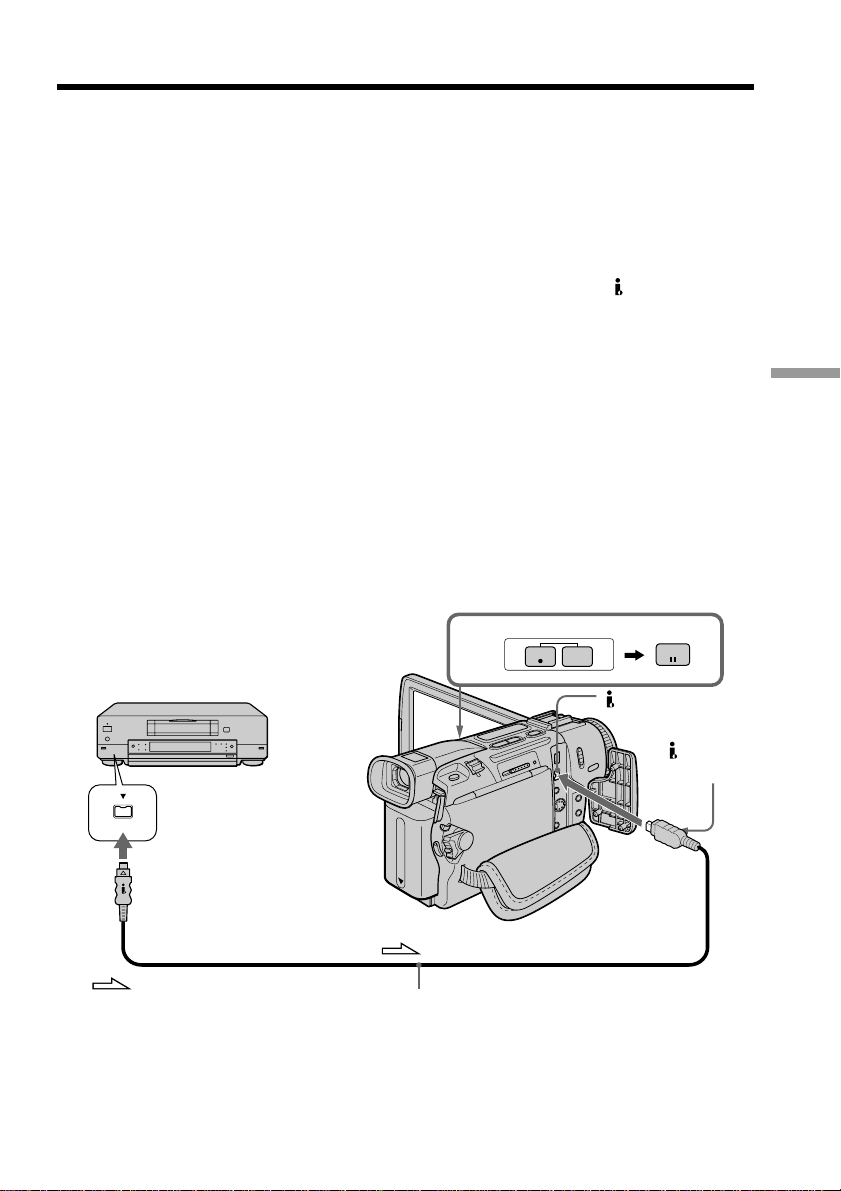

Using the i.LINK cable (DV connecting cable)
Simply connect the i.LINK cable (DV connecting cable) (optional) to DV IN/OUT and
to DV IN of the DV products. With digital-to-digital connection, video and audio
signals are transmitted in digital form for high-quality editing. You cannot dub the
titles, display indicators or the contents of cassette memory. You can dub the titles,
display indicators, the contents of cassette memory or letters on the “Memory Stick”
index screen (DCR-TRV17 only).
Set the input selector on the VCR to the DV input position if the VCR is equipped with
the input selector.
(1) Insert a blank tape (or a tape you want to record over) into the VCR, and insert
the recorded tape into your camcorder.
(2) Prepare the VCR for recording.
Set the input selector to LINE. Refer to the operating instructions of the VCR.
(3) Set the POWER switch to VCR.
(4) Play back the recorded tape on your camcorder.
(5) Start recording on the VCR. Refer to the operating instractions of your VCR.
When you have finished dubbing a tape
Press x on both your camcorder and the connected DV product.
You can connect one VCR only using the i.LINK cable (DV connecting cable)
See page 162 for more information about i.LINK.
The following functions do not work during digital editing:
– Digital effect
– PB ZOOM
– Picture effect
If you record a playback pause picture with the DV IN/OUT jack
The recorded picture becomes rough. And when you play back the picture using the
other video equipment, the picture may jitter.
Dubbing a tape
DV
i.LINK cable (DV connecting cable) (optional)
DV IN/OUT
: Signal flow
DV IN
68

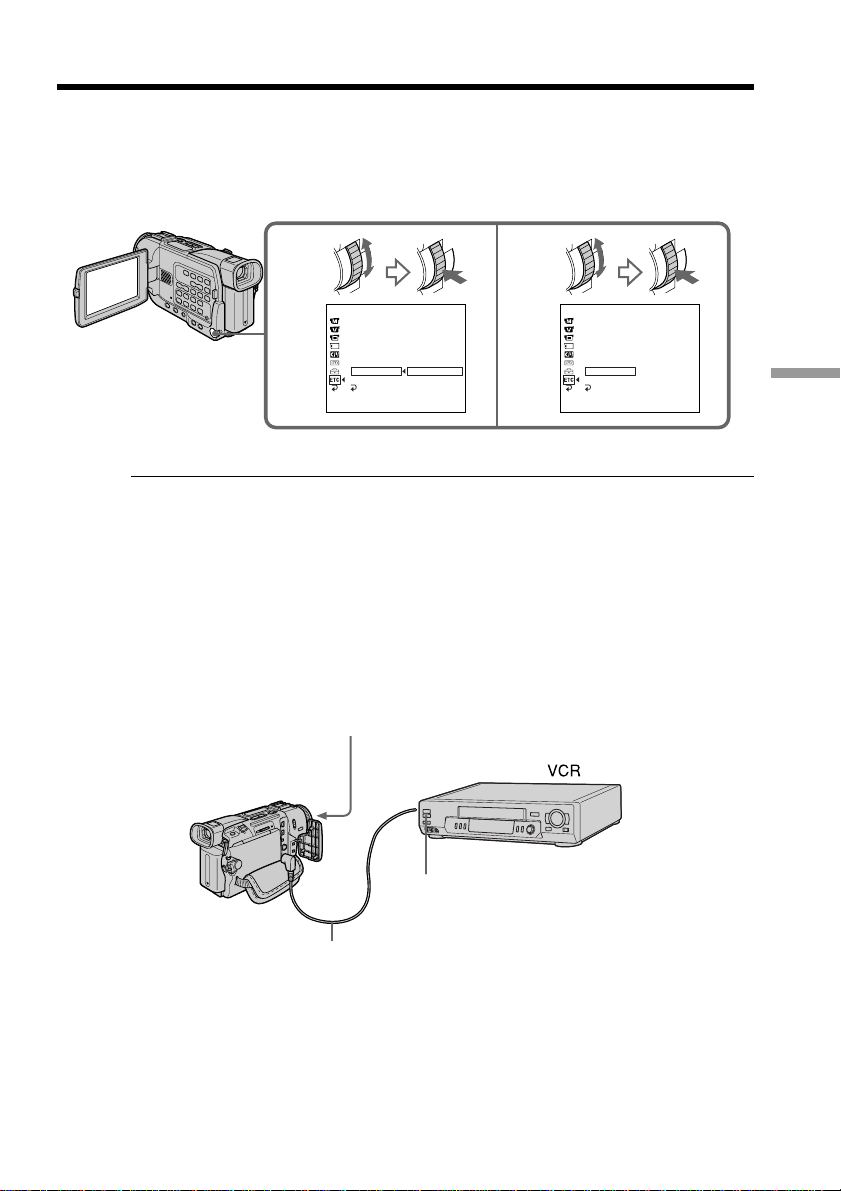

You can duplicate selected scenes (programs) for editing onto a tape without operating
the VCR.
Scenes can be selected by frame. You can set up to 20 programs.
Before operating the Digital program editing function
Step 1 Connecting the VCR (p. 68).
Step 2 Setting the VCR for operation (p. 69, 73).
Step 3 Adjusting the synchronicity of the VCR (p. 73).
When you dub using the same VCR again, you can skip steps 2 and 3.
Using the Digital program editing function
Operation 1 Making the program (p. 76).
Operation 2 Performing Digital program editing (dubbing a tape) (p. 78).
Step 1: Connecting the VCR
You can connect both an A/V connecting cable and an i.LINK cable (DV connecting
cable).
When you use the A/V connecting cable, connect the devices as illustrated in page 66.
When you use an i.LINK cable (DV connecting cable), connect the devices as illustrated
in page 67.
Notes
•You cannot dub titles, display indicators, or the contents of cassette memory.
•When you connect with an i.LINK cable (DV connecting cable), you may not be able to
operate the dubbing function correctly, depending on the VCR.
Set CONTROL to IR in the menu settings of your camcorder .
•When editing digital video, the operation signals cannot be sent with LANC .
If you connect using an i.LINK cable (DV connecting cable)
With digital-to-digital connection, video and audio signals are transmitted in digital
format for high-quality editing.
Dubbing only desired scenes
– Digital program editing
Switch the order
Unwanted scene Unwanted scene
69
Editing

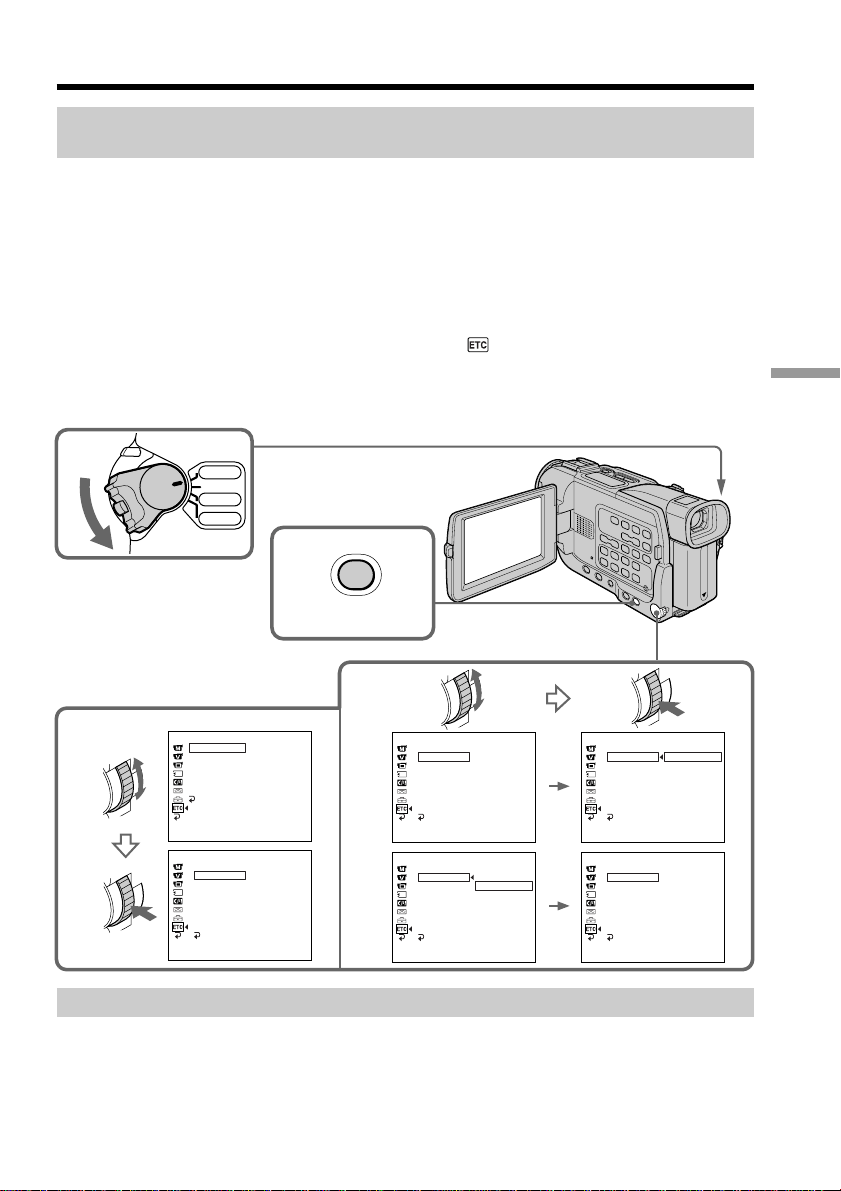

Step 2: Setting the VCR to operate with the A/V connecting cable
To edit using the VCR, send the control signal by infrared rays to the remote sensor on
the VCR.
When you connect using an A/V connecting cable, follow the procedure below, steps
(1) to (4), to send the control signal correctly.
(1) Set the IR SETUP code
1 Set the POWER switch to VCR on your camcorder.
2 Turn the power of the connected VCR on, then set the input selector to LINE.
When you connect a video camera recorder, set its power switch to VCR/VTR.
3 Press MENU to display the menu.
4 Turn the SEL/PUSH EXEC dial to select
, then press the dial.
5 Turn the SEL/PUSH EXEC dial to select EDIT SET, then press the dial.
6 Turn the SEL/PUSH EXEC dial to select CONTROL, then press the dial.
7 Turn the SEL/PUSH EXEC dial to select IR, then press the dial.
8 Turn the SEL/PUSH EXEC dial to select IR SETUP, then press the dial.
9 Turn the SEL/PUSH EXEC dial to select the IR SETUP code of your VCR, then
press the dial.
Check the code in “About the IR SETUP code.” (p. 70)
Dubbing only desired scenes – Digital program editing
4
6-9
5
1
3
POWER
VCR
CAMERA
MEMORY
OFF(CHG)
MENU
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
IR
i.LINK
RETURN
[
MENU
]
:
END
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
EDI TSET
[
MENU
]
:
END
DAT E / CAM
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
IR
RETURN
[
MENU
]
:
END
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
IR
RETURN
[
MENU
]
:
END
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
3
RETURN
[
MENU
]
:
END
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
4
RETURN
[
MENU
]
:
END
NRUTER
––:––:––
–– –––
–––– –– ––
––– –––
––– –––
70
Dubbing only desired scenes – Digital program editing
* TV/VCR component
Note on IR SETUP code
Digital program editing is not possible if the VCR does not support IR SETUP codes.
Brand IR SETUP code
Sony 1, 2, 3, 4, 5, 6
Admiral (M. Wards) 89
Aiwa 80
Audio Dynamic 21, 35
Bell&Howell (M. Wards)
36
Brocsonic 70, 82
Canon 77, 78, 97
Citizen 47
Craig 73, 47
Curtis Mathis 8, 80, 77
Daewoo 26, 40, 77
DBX 21, 33, 35
Dimensia 8
Emerson 26, 82, 59, 48, 70, 81
Fisher 36, 45, 37, 44
Funai 80
General Electric 87, 8, 77, 32*, 94*
Goldstar 47
Hitachi 78, 8, 42
Instant Replay 77, 78
JC Penny 77, 42, 8, 36, 21, 33, 35
JVC 21, 12, 13, 14, 33, 35
Kenwood 21, 33, 47, 35
LXI (Sears) 80, 47, 42, 44, 45, 36, 37
Magnavox 83, 78, 77
Marantz 21, 33, 35
Marta 47
Memorex 77, 37
Minolta 42, 8
Mitsubishi/MGA 28, 22, 23, 24
About the IR SETUP code
The IR SETUP code is stored in the memory of your camcorder. Be sure to set the
correct code depending on your VCR. The default setting is Code number 3.
Brand IR SETUP code
Multitech 23, 80, 32
NEC 21, 33, 35
Olympic 77, 78
Panasonic 16, 17, 78, 77, 96
Pentax 42,8
Philco 78, 77
Philips 83, 78, 77
Pioneer 78
Quasar 78, 77, 16, 17
RCA/PROSCAN 8, 42, 16, 77, 83, 7, 40, 41, 78*,
101
Realistic 77, 36
Sansui 21
Singer 73
Samsung 94, 41, 32, 32*, 94*, 24*
Sanyo 36, 37
Scott 40, 41, 32, 37, 28, 22, 23, 24
Sharp 89, 88
Shintom 73
Signature 2000 (M. Wards)
80, 89
Sylvania 83, 78, 77, 80
Symphonic 80
Tashiro 47
Tatung 21, 33, 35
Teac 21, 33, 80, 35
Technics 77, 78
Toshiba 40, 7
Wards 89, 88, 37, 95, 47
Yamaha 36, 21, 33, 35
Zenith 95
71
Editing
Dubbing only desired scenes – Digital program editing
(2)Setting the modes to cancel recording pause on the VCR
1 Turn the SEL/PUSH EXEC dial to select PAUSEMODE, then press the dial.
2 Turn the SEL/PUSH EXEC dial to select the mode to cancel recording pause
on the VCR, then press the dial.
Buttons for canceling recording pause on the VCR
The buttons vary depending on your VCR. To cancel recording pause:
– Select PAUSE if the button to cancel recording pause is X.
– Select REC if the button to cancel recording pause is z.
– Select PB if the button to cancel recording pause is N.
(3) Setting your camcorder and the VCR to face each other
Locate the infrared rays emitter of your camcorder and face it towards the remote
sensor of the VCR.
Set the devices about 30 cm (12 in.) apart, and remove any obstacles between the
devices.
12
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
PAUSE
REC
PB
RETURN
[
MENU
]
:
END
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
PAUSE
RETURN
[
MENU
]
:
END
Remote sensor
Infrared ray emitter
A/V connecting cable
72

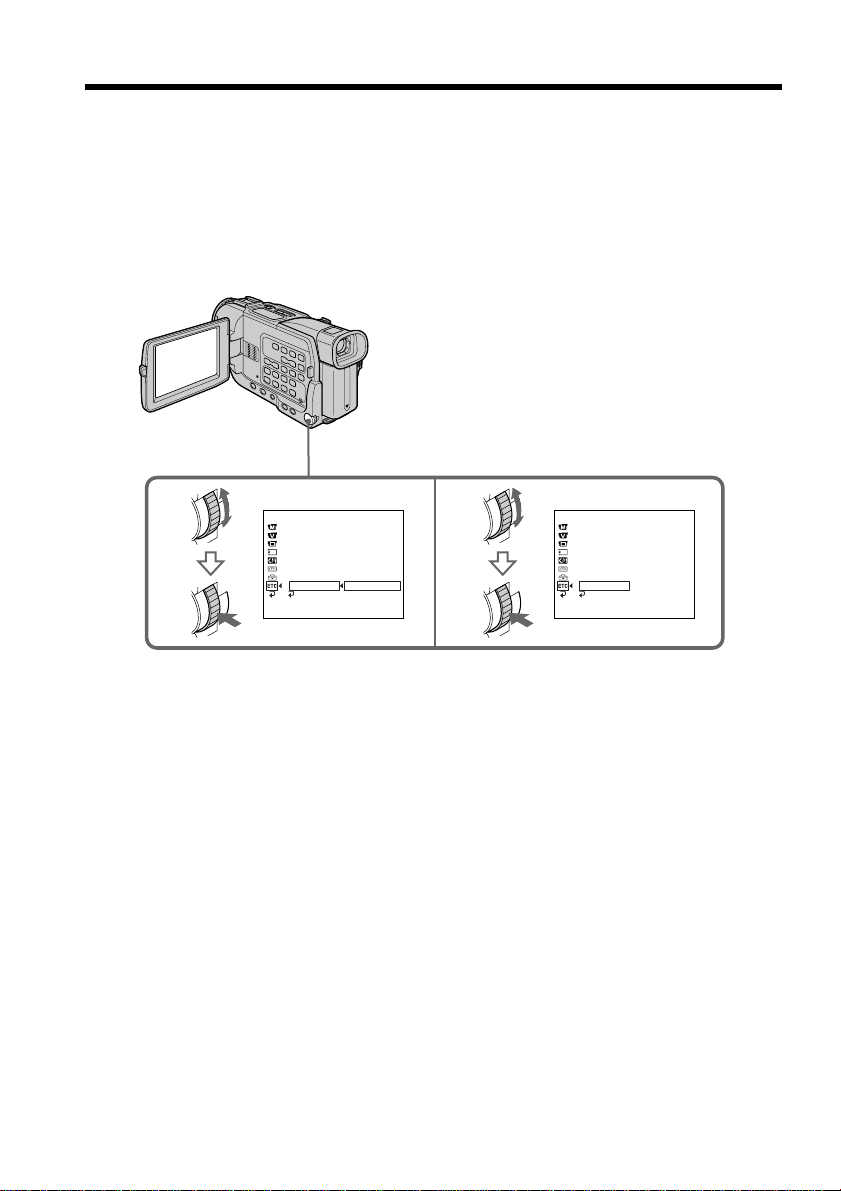

Dubbing only desired scenes – Digital program editing
(4)Confirming VCR operation
1 Insert a recordable tape into the VCR, then set to recording pause.
2 Turn the SEL/PUSH EXEC dial to select IR TEST, then press the dial.
3 Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
If the VCR starts recording, the setting is correct.
When finished, the indicator changes to COMPLETE.
When the VCR does not operate correctly
•After checking the code in “About the IR SETUP code,” set the IR SETUP or the
PAUSEMODE again.
•Place your camcorder at least 30 cm (12 in.) away from the VCR.
•Refer to the operating instructions of your VCR.
23
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
RETURN
REC PAUSE
ENGAGE
EXECUTE
RETURN
[
MENU
]
:
END
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
COMPLETE
RETURN
[
MENU
]
:
END
73
Editing
Step 2: Setting the VCR to operate with the i.LINK cable
(DV connecting cable)
When you connect using an i.LINK cable (DV connecting cable) (optional), follow the
procedure below.
(1) Set the POWER switch to VCR on your camcorder .
(2) Turn the power of the connected VCR on, then set the input selector to DV
input.
When you connect a digital video camera recorder, set its power switch to
VCR/VTR.
(3) Press MENU to display the menu.
(4) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select EDIT SET, then press the dial.
(6) Turn the SEL/PUSH EXEC dial to select CONTROL, then press the dial.
(7) Turn the SEL/PUSH EXEC dial to select i.LINK, then press the dial.
Step 3: Adjusting the synchronicity of the VCR
You can adjust the synchronicity of your camcorder and the VCR. Have a pen and
paper ready for notes. Before operation, eject the cassette from your camcorder.
(1) Set the POWER switch to VCR on your camcorder.
(2) Insert a blank tape (or a tape you want to record over) into the VCR, then set
to recording pause.
When you select i.LINK in CONTROL, you do not need to set to recording
pause.
5
6,7
1
POWER
VCR
CAMERA
MEMORY
OFF(CHG)
3
MENU
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
EDI TSET
[
MENU
]
:
END
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
IR
RETURN
[
MENU
]
:
END
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
IR
RETURN
[
MENU
]
:
END
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
IR
iLINK
RETURN
[
MENU
]
:
END
.
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
IR
iLINK
RETURN
[
MENU
]
:
END
.
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
iLINK
RETURN
[
MENU
]
:
END
.
NRUTER
MAC
/
ETAD
–––– –– ––
––: ––: ––
–– –––
–––
–––
–––
–––
Dubbing only desired scenes – Digital program editing
74
Dubbing only desired scenes – Digital program editing
(3) Turn the SEL/PUSH EXEC dial to select ADJ TEST, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
IN and OUT are recorded on an image for 5 times each to calculate the
numerical values for adjusting the synchronicity.
The EXECUTING indicator flashes on the screen.
When finished, the indicator changes to COMPLETE.
(5) Rewind the tape in the VCR, then start slow playback.
Take a note of the opening numerical value for each IN and the closing
numerical value for each OUT.
(6) Calculate the average of all the opening numerical values for each IN, and the
average of all the closing numerical values for each OUT.
(7) Turn the SEL/PUSH EXEC dial to select “CUT-IN”, then press the dial.
(8) Turn the SEL/PUSH EXEC dial to select the average numerical value of IN,
then press the dial.
The calculated start position for recording is set.
(9) Turn the SEL/PUSH EXEC dial to select “CUT-OUT”, then press the dial.
(10) Turn the SEL/PUSH EXEC dial to select the average numerical value of OUT,
then press the dial.
The calculated stop position for recording is set.
(11) Turn the SEL/PUSH EXEC dial to select
RETURN, then press the dial.
3,4
7
9
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
RETURN
EXECUTE
[
ME
EGAGNE
APSEU CER
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
EXECUT ING
No
2
IN
+
215
[
ME
.
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
COMPLETE
RETURN
[
MENU
]
:
END
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
0
RETURN
[
MENU
]
:
END
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
0
RETURN
[
MENU
]
:
END
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
0
RETURN
[
MENU
]
:
END
OTHERS
EDI TSET
CONTROL
ADJ TEST
”
CUT
-
IN
”
”
CUT
-
OUT
”
IR SETUP
PAUSEMODE
IR TEST
0
RETURN
[
MENU
]
:
END
75
Editing
Notes
•When you complete step 3, the image to adjust the syncronicity is recorded for about
50 seconds.
•If you start recording from the very beginning of the tape, the first few seconds of the
tape may not record properly. Be sure to allow about 10 seconds of lead before
starting the recording.
Dubbing only desired scenes – Digital program editing

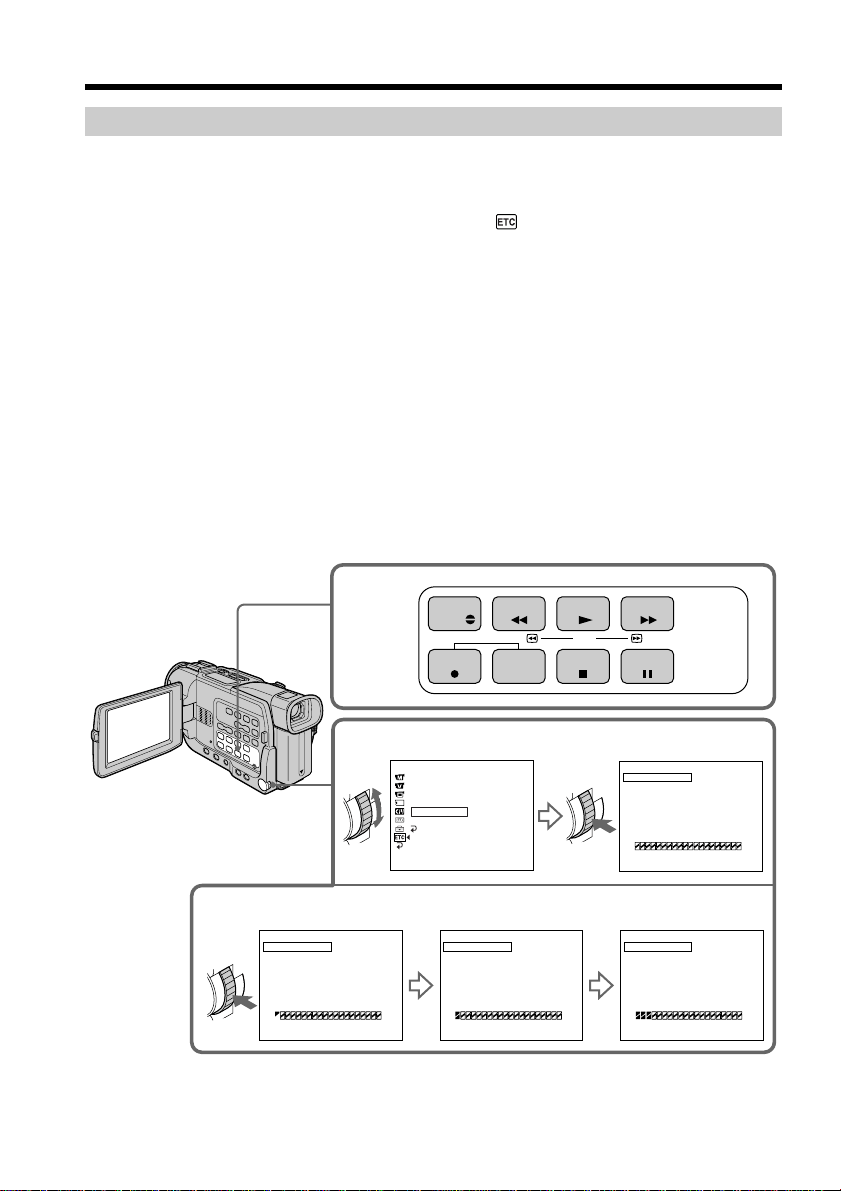

76
Dubbing only desired scenes – Digital program editing
Operation 1: Making the program
(1) Insert the tape for playback into your camcorder, and insert a tape for
recording into the VCR.
(2) Press MENU to display the menu.
(3) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select VIDEO EDIT, then press the dial.
(5) Search for the beginning of the first scene you want to insert using the video
operation buttons, then pause playback.
(6) Press the SEL/PUSH EXEC dial.
The IN point of the first program is set, and the top part of the program mark
changes to light blue.
(7) Search for the end of the first scene you want to insert using the video
operation buttons, then pause playback.
(8) Press the SEL/PUSH EXEC dial.
The OUT point of the first program is set, then the bottom part of the program
mark changes to light blue.
(9) Repeat steps 5 to 8, then set the program.
When the program is set, the program mark changes to light blue.
You can set a maximum of 20 programs.
6,8,9
5,7
4
REW
PLAY
AUDIO
DUB
FF
REC
STOP
PAUSE
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
[
MENU
]
:
END
MARK
UNDO
ERASE ALL
START
TOTAL
SCENE
1
IN
0
:
32
:
30
:
14
0
:
00
:
00
:
00
0
VIDEO EDIT
[
MENU
]
:
END
MARK
UNDO
ERASE ALL
START
TOTAL
SCENE
1
OUT
0
:
08
:
55
:
06
0
:
00
:
00
:
00
0
VIDEO EDIT
[
MENU
]
:
END
MARK
UNDO
ERASE ALL
START
TOTAL
SCENE
2
IN
0
:
09
:
07
:
06
0
:
00
:
12
:
13
1
VIDEO EDIT
[
MENU
]
:
END
MARK
UNDO
ERASE ALL
START
TOTAL
SCENE
4
IN
0
:
10
:
01
:
23
0
:
00
:
47
:
12
3
VIDEO EDIT
[
MENU
]
:
END
EDI TSET
RETURN
YDAER
77
Editing
Dubbing only desired scenes – Digital program editing
Erasing the program you have set
Erase OUT first and then IN from the last set program.
(1) Turn the SEL/PUSH EXEC dial to select UNDO, then press the dial.
(2) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
The last set program mark flashes, then the setting is canceled.
To cancel erasing
Select RETURN in step 2.
Erasing all programs
(1) Select VIDEO EDIT in the menu settings. Turn the SEL/PUSH EXEC dial to
select ERASE ALL, then press the dial.
(2) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
All the program marks flash, then the settings are cancelled.
To cancel erasing all programs
Select RETURN in step 2.
To cancel a program you have set
Press MENU.
The program is stored in memory until the tape is ejected.
Note
You cannot operate recording during Digital program editing.
On a blank portion of the tape
You cannot set IN or OUT on a blank portion of the tape.
If there is a blank portion between IN and OUT on the tape
The total time code may not be displayed correctly.
78
Operation 2: Performing Digital program editing
(Dubbing a tape)
Make sure that your camcorder and VCR are connected, and that the VCR is set to
recording pause. This procedure is not necessary when you use an i.LINK cable (DV
connecting cable).
When you use a digital video camera recorder, set its power switch to VCR/VTR.
(1) Select VIDEO EDIT. Turn the SEL/PUSH EXEC dial to select START, then
press the dial.
(2) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
Search for the beginning of the first program, then start dubbing.
The program mark flashes.
The SEARCH indicator appears during a search, and the EDIT indicator
appears during editing on the screen.
The program mark changes to light blue after dubbing is complete.
When dubbing ends, your camcorder and the VCR automatically stop.
To stop dubbing during editing
Press x on your camcorder.
To quit the Digital program editing function
Your camcorder stops when dubbing is complete. Then the display returns to VIDEO
EDIT in the menu settings.
Press MENU to quit the Digital program editing function.
You cannot record on the VCR when:
– The tape has run out.
– The write-protect tab on the cassette is set to lock.
– The IR SETUP code is not correct. (when IR is selected.)
– The button to cancel recording pause is not correct. (when IR is selected.)
NOT READY appears on the LCD screen when:
– The program to operate Digital program editing has not yet been made.
– i.LINK is selected but an i.LINK cable (DV connecting cable) is not connected.
– The power of the connected VCR is not turned on. (when you set i.LINK.)
Dubbing only desired scenes – Digital program editing
79
Editing
Using with analog video unit and
personal computer
– Signal convert function
You can capture images and sound from an analog video unit connected to your
computer which has the i.LINK (DV) jack to your camcorder.
Before operation
Set DISPLAY to LCD in the menu settings. (The default setting is LCD.)
(1) Set the POWER switch to VCR.
(2) Set A/V t DV OUT in
to ON in the menu settings (p. 98).
(3) Start playback on the analog video unit.
(4) Start capturing procedures on your computer. The operation procedures
depend on your computer and the software which you use.
For details on how to capture images, refer to the instruction manual of
computer and software.
After capturing images and sound
Stop capturing procedures on your computer , and stop the playback on the analog
video unit.
Notes
•You need to install software which can exchange video signals.
•Depending on the condition of the analog video signals, the computer may not be able
to output the images correctly when you convert analog video signals into digital
video signals via your camcorder. Depending on the analog video unit, the image may
contain noise or incorrect colors.
•You cannot record or capture the video output via your camcorder when the video
tapes include copyright protection signals such as ID-2 system.
i.LINK
AUDIO/VIDEO
DV
IN/OUT
is marked
on this side.
VIDEO
AUDIO
S VIDEO
OUT
(optional)
: Signal flow
80
Recording video or TV programs
Using the A/V connecting cable
You can record a tape from another VCR or a TV program from a TV that has video/
audio outputs. Use your camcorder as a recorder.
Before operation
Set DISPLAY to LCD in the menu settings. (The default setting is LCD.)
(1) Insert a blank tape (or a tape you want to record over) into your camcorder. If
you are recording a tape from the VCR, insert a recorded tape into the VCR.
(2) Set the POWER switch to VCR on your camcorder.
(3) Press z REC and the button on its right simultaneously on your camcorder,
then immediately press X on your camcorder.
(4) Press N on the VCR to start playback if you record a tape from a VCR. Select
a TV program if you record from a TV. The picture from a TV or VCR appears
on the screen.
(5) Press X on your camcorder at the scene where you want to start recording
from.
When you have finished dubbing a tape
Press x on both your camcorder and the VCR.
If your VCR is a monaural type
Connect the yellow plug of the A/V connecting cable to the video output jack and the
white or the red plug to the audio output jack on the VCR or the TV. When the white
plug is connected, the left channel audio is output, and the red plug is connected, the
right channel audio is output.
AUDIO/VIDEO
TV
REC
3
PAUSE
S VIDEO
VIDEO
AUDIO
S VIDEO
OUT
: Signal flow
81
Editing
If your TV or VCR has an S video jack
Connect using an S video cable (optional) to obtain high-quality pictures.
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (optional) to the S (S1) video jacks of both your camcorder and
the VCR.
This connection produces higher quality DV format pictures.
Using the i.LINK cable (DV connecting cable)
Simply connect the i.LINK cable (DV connecting cable) (optional) to DV IN/OUT and
to DV OUT of the DV products. With digital-to-digital connection, video and audio
signals are transmitted in digital form for high-quality editing.
Before operation
Set DISPLAY to LCD in the menu settings. (The default setting is LCD.)
(1) Insert a blank tape (or a tape you want to record over) into your camcorder,
and insert the recorded tape into the VCR.
(2) Set the POWER switch to VCR on your comcorder.
(3) Press z REC and the button on its right simultaneously on your camcorder,
then immediately press X on your camcorder.
(4) Press N on the VCR to start playback. The picture to be recorded appears on
the screen.
(5) Press X on your camcorder at the scene where you want to start recording
from.
When you have finished dubbing a tape
Press x on your camcorder, and then press the stop button on the VCR.
Recording video or TV programs
DV
REC
4
PAUSE
DV OUT
DV IN/OUT
: Signal flow
(optional)
is marked
on this side.
82
You can connect one VCR only using the i.LINK cable (DV connecting cable)
When you dub a picture in digital form
The color of the display may be uneven. However, this does not affect the dubbed
picture.
If you record playback pause picture with the DV IN/OUT jack
The recorded picture becomes rough. And when you play back the picture using your
camcorder, the picture may jitter.
Before recording
Make sure if the DV IN indicator appears on the screen. The DV IN indicator may
appear on both equipment.
Recording video or TV programs
83
Editing
Inserting a scene from a VCR – Insert editing
You can insert a new scene from a VCR onto your originally recorded tape by
specifying the insert start and end points. Use the Remote Commander for this
operation. Connections are the same as on page 80 or 81.
Insert a cassette containing the desired scene to insert into the VCR.
[A]: A tape that contains the scene to be superimposed
[B]: A tape before editing
[C]: A tape after editing
(1) Set the POWER switch to VCR on your camcorder.
(2) On the connected VCR, locate just before the insert start point [a], then press X
to set the VCR to the playback pause mode.
(3) On your camcorder, locate the insert end point [c] by pressing m or M.
Then press X to set it to the playback pause mode.
(4) Press ZERO SET MEMORY on the Remote Commander. The ZERO SET
MEMORY indicator flashes and the end point of the insert is stored in
memory. The tape counter shows “0:00:00.”
(5) On your camcorder, locate the insert start point [b] by pressing m, then press
z REC and the button on its right simultaneously.
(6) First press X on the VCR, and after a few seconds press X on your camcorder
to start inserting the new scene.
Inserting automatically stops near the zero point on the tape counter. Your
camcorder automatically returns to the recording pause mode.
4
0:00:00
ZERO SET
MEMORY
ZERO SET
MEMORY
5
REC
[a]
[b]
[c]
[A]
[B]
[C]
84
To change the insert end point
Press ZERO SET MEMORY again after step 5 to erase the ZERO SET MEMORY
indicator and begin from step 3.
Note
The picture and sound recorded on the portion between the insert start and end points
will be erased when you insert the new scene.
If you insert scenes on the tape recorded with other camcorder (including other
DCR-TRV15/TRV17)
The picture and sound may be distorted. We recommend that you insert scenes on a
tape recorded with your camcorder.
When the inserted picture is played back
The picture and sound may be distorted at the end of the inserted portion. This is not a
malfunction.
The picture and sound at the start point and the end point may be distorted in the LP
mode.
To insert a scene without setting the insert end point
Skip steps 3 and 4. Press x when you want to stop inserting.
Inserting a scene from a VCR – Insert editing
85
Editing

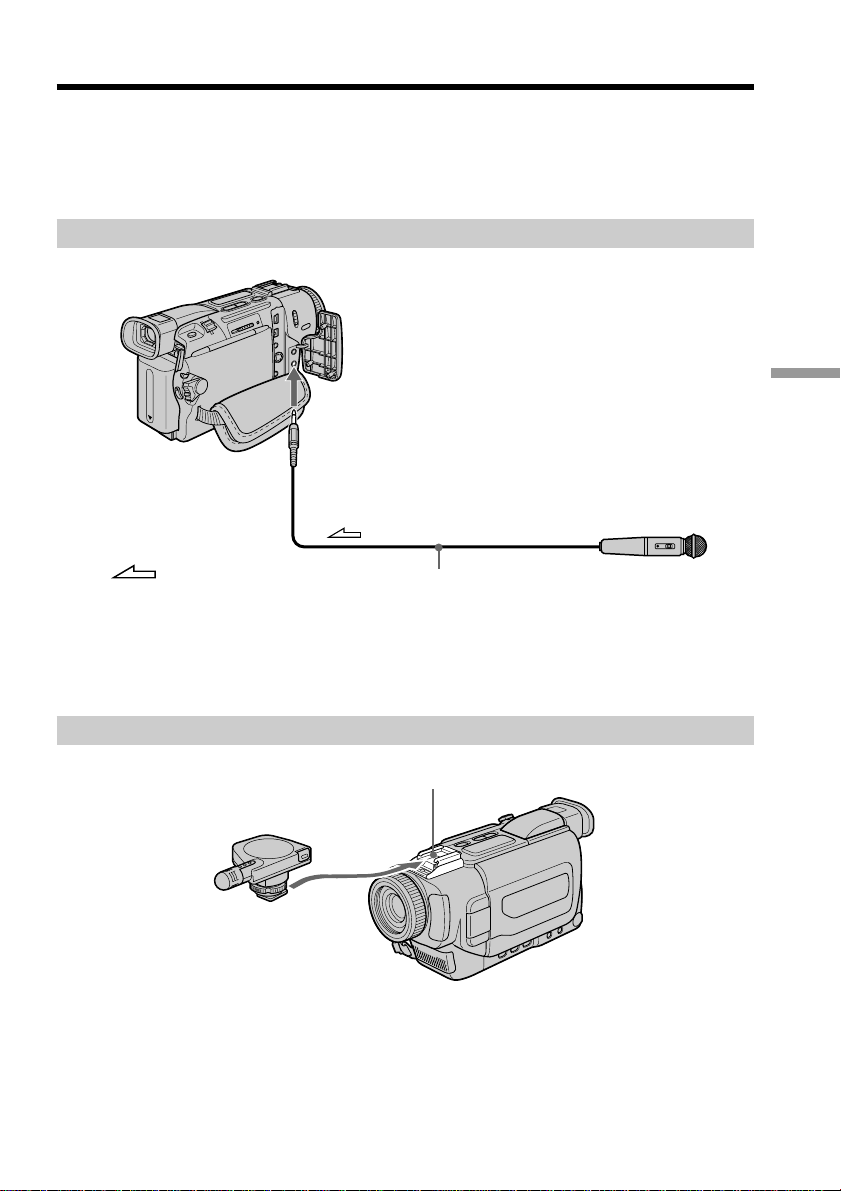

You can record an audio sound to add to the original sound on a tape by connecting
audio equipment or a microphone. If you connect the audio equipment, you can add
sound to your recorded tape by specifying starting and ending points. The original
sound will not be erased.
Select one of the following connections to add an audio sound.
Connecting the microphone with the MIC jack
You can check the recorded picture and sound by connecting your camcorder to a TV
with the A/V connecting cable.
The recorded sound is not output from a speaker. Check the sound by using the TV or
headphones.
Connecting the microphone with the intelligent accessory shoe
Audio dubbing
Intelligent Accessory Shoe
Microphone (optional)
: Signal flow
MIC
(PLUG IN
POWER)
Microphone (optional)
86
Audio dubbing
Dubbing with the AUDIO/VIDEO jack
Dubbing with the built-in microphone
No connection is necessary.
Note
When dubbing with the AUDIO/VIDEO jack or the built-in microphone, pictures are
not output through S VIDEO jack or the AUDIO/VIDEO jack. Check the recorded
picture on the screen. You can check the recorded sound by using headphones.
If you make all the connections
The audio input to be recorded will take precedence over others in the following order.
•MIC (PLUG IN POWER) jack
•Intelligent accessory shoe
•AUDIO/VIDEO jack
•Built-in microphone
LINE OUT
LR
AUDIO L AUDIO R
AUDIO/
VIDEO
Audio equipment
Do not connect the
video (yellow) plug.
: Signal flow
White Red
87
Editing

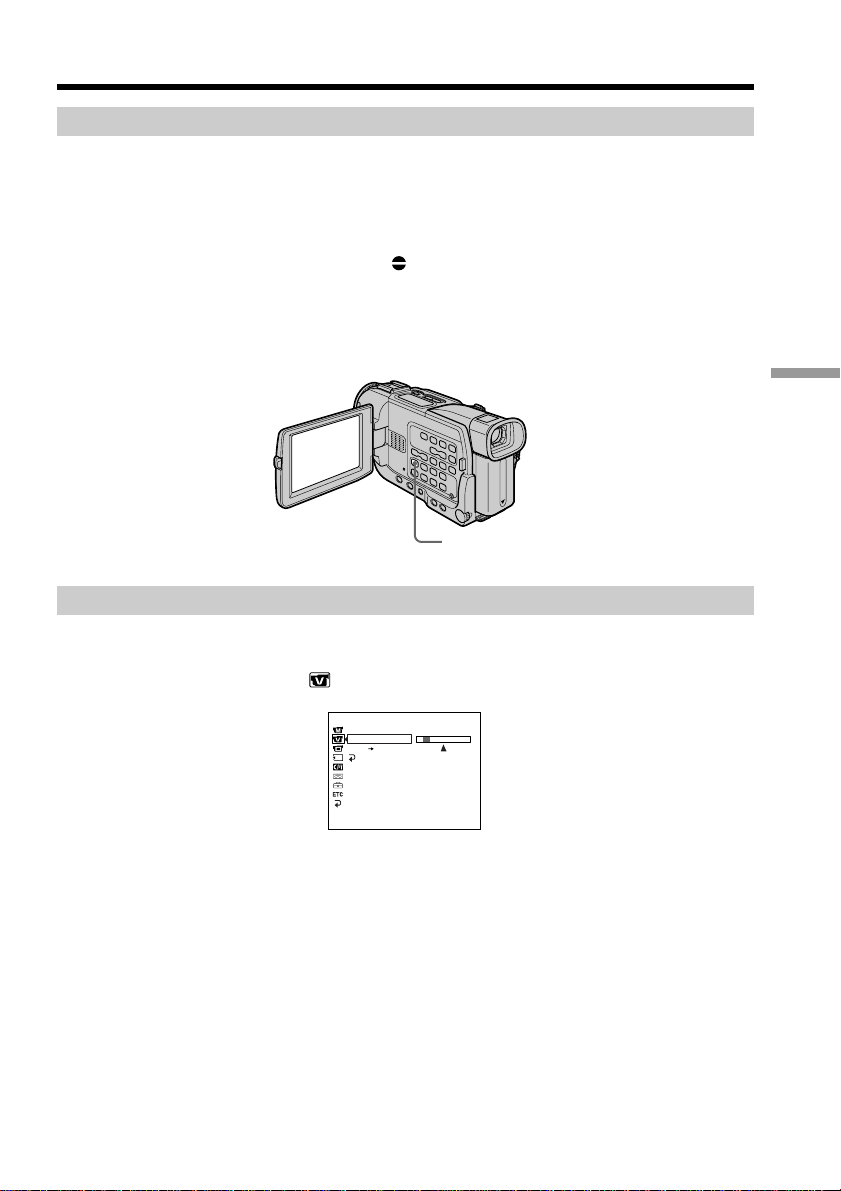

Adding an audio sound on a recorded tape
(1) Insert the recorded tape into your camcorder.
(2) Set the POWER switch to VCR on your camcorder.
(3) Locate the recording start point by pressing N on the Remote Commander.
Then press X at the point where you want to start recording to set your
camcorder to the playback pause mode.
(4) Press AUDIO DUB. The green
X indicator appears on the screen.
(5) Press X on your camcorder and start playing back the audio you want to
record at the same time.
The new sound is recorded in stereo 2 (ST2) during playback.
(6) Press x on your camcorder at the point where you want to stop recording.
Monitoring the new recorded sound
To play back the sound
Adjust the balance between the original sound (ST1) and the new sound (ST2) by
selecting AUDIO MIX in in the menu settings (p. 98).
Five minutes after when you disconnect the power source or remove the battery pack,
the setting of AUDIO MIX returns to the original sound (ST1) only. The default setting
is original sound only.
Audio dubbing
VCR SET
H i F i SOUND
AUDIO MIX
A / V DV OUT
RETURN
[
MENU
] :
END
ST1 ST2
AUDIO DUB
88
Audio dubbing
Notes
•New sound cannot be recorded on a tape already recorded in the 16-bit mode (32 kHz,
44.1 kHz or 48 kHz) (p. 101).
•New sound cannot be recorded on a tape already recorded in the LP mode (p. 101).
•You cannot add audio with the DV IN/OUT jack.
•You cannot add audio on the blank portion of the tape.
If an i.LINK cable (DV connecting cable) (optional) is connected to your camcorder
You cannot add a sound to a recorded tape.
To add new sound more precisely
Press ZERO SET MEMORY on the Remote Commander at the point where you want to
stop recording later in the playback mode.
Carry out steps 3 to 5. Recording automatically stops at the point where ZERO SET
MEMORY was pressed.
We recommend that you add new sound on a tape recorded with your camcorder
If you add new sound on a tape recorded with another camcorder (including other
DCR-TRV15/TRV17), the sound quality may become worse.
If you set the write-protect tab of the tape to lock
You cannot record on a tape. Slide the write-protect tab to release the write protection.
89
Editing

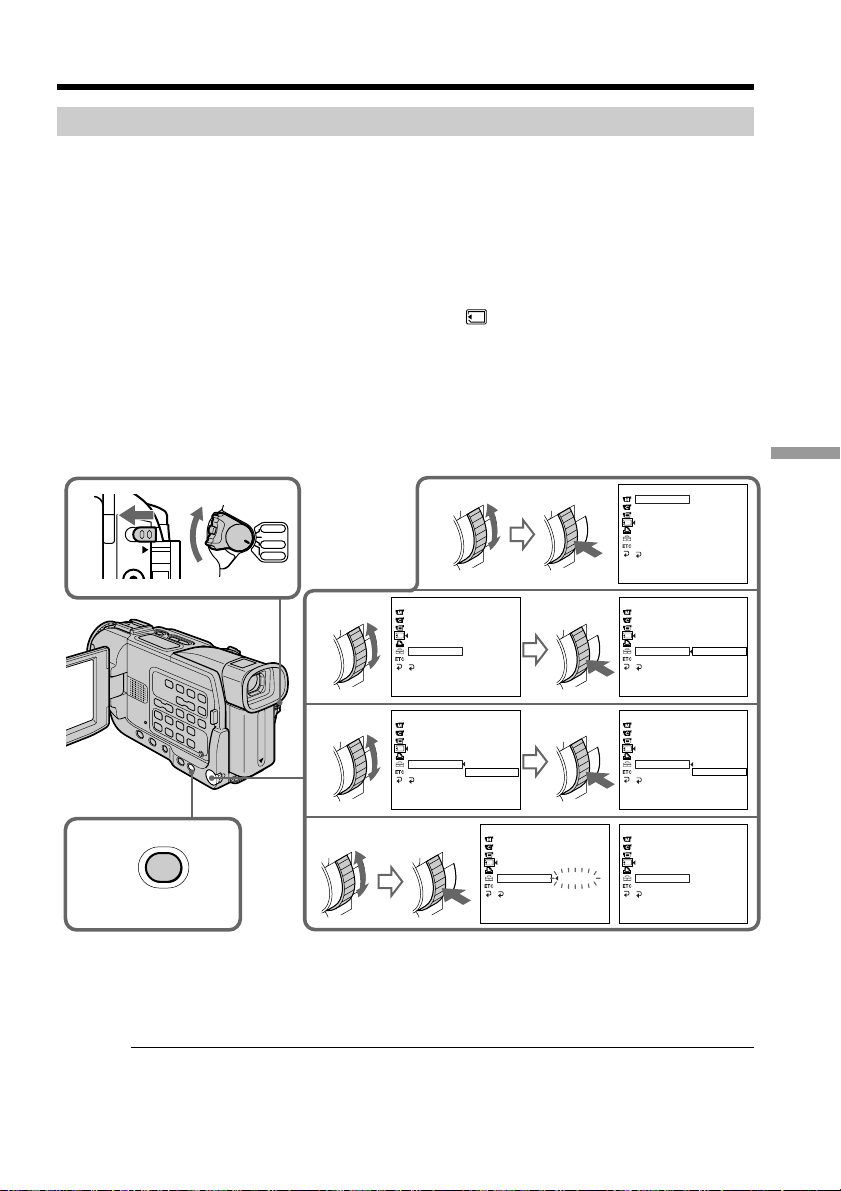

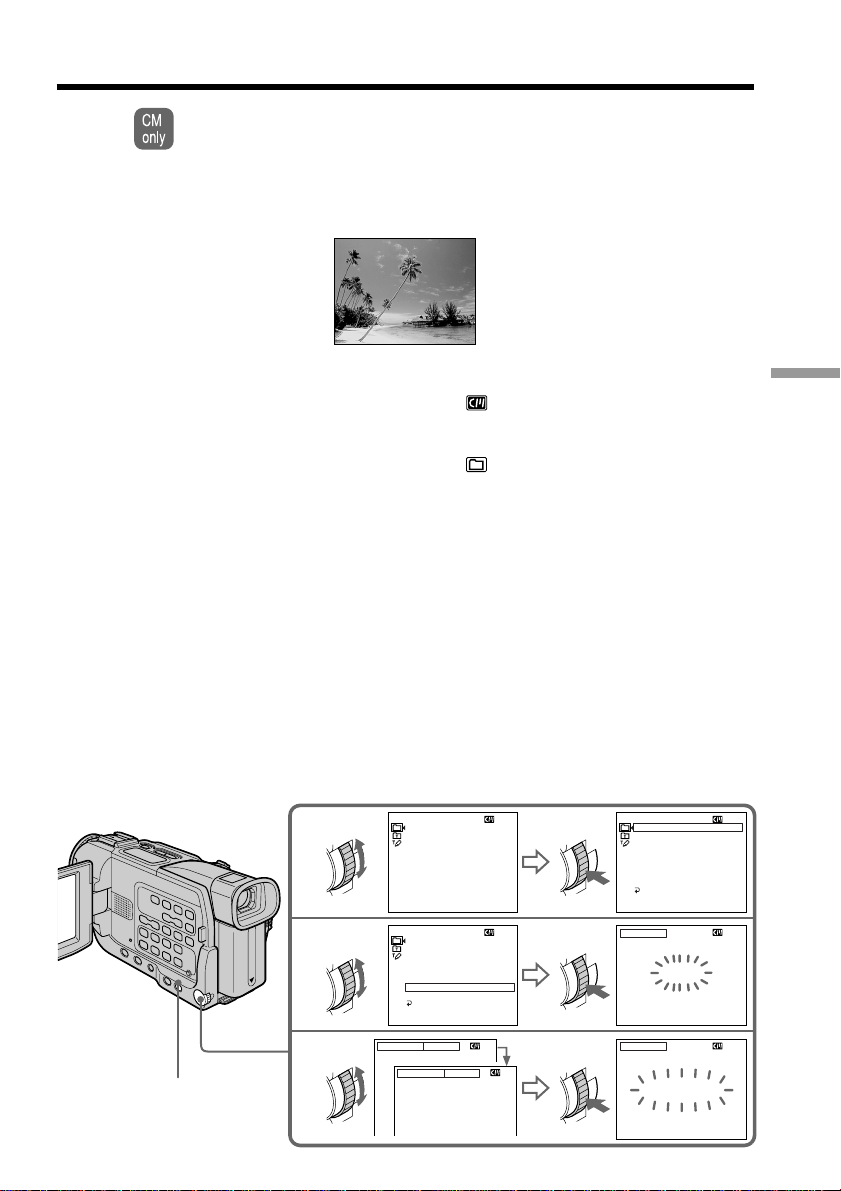

Superimposing a title
If you use a tape with cassette memory, you can superimpose the title. When
you play back the tape, the title is displayed for five seconds from the point
where you superimposed it.
You can select one of eight preset titles and two custom titles (p. 92). You can also select
the color, size and position of titles.
(1) In CAMERA or VCR mode, press MENU to display the menu.
(2) Turn the SEL/PUSH EXEC dial to select
in the menu settings, then press
the dial.
(3) Turn the SEL/PUSH EXEC dial to select TITLE then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select the desired title, then press the dial.
The title flashes.
(6) Change the color, size, or position, if necessary.
1 Turn the SEL/PUSH EXEC dial to select the COLOR, SIZE or POSITION,
then press the dial. The item appears.
2 Turn the SEL/PUSH EXEC dial to select the desired item, then press the
dial.
3 Repeat steps 1 and 2 until the title is laid out as desired.
(7) Press the SEL/PUSH EXEC dial again to complete the setting.
In the recording, playback or playback pause mode:
The “TITLE SAVE” indicator appears on the screen for five seconds and the
title is set.
In the standby mode:
The “TITLE” indicator appears. And when you press START/STOP to start
recording, “TITLE SAVE” appears on the screen for five seconds and the title
is set.
VACATION
4
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
[
MENU
] :
END
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
RETURN
[
MENU
] :
END
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
RETURN
[
MENU
] :
END
TITLE
VACATION
[
EXEC
] :
SAVE
[
MENU
] :
END
SIZE SMALL
[
EXEC
] :
SAVE
[
MENU
] :
END
TITLE
VACATION
SIZE LARGE
VACATION
5
6
MENU
90
Superimposing a title
If you set the write-protect tab to lock
You cannot superimpose or erase the title. Slide the write-protect tab to release the write
protection.
To use the custom title
If you want to use the custom title, select in step 4.
If the tape has a blank portion
You cannot superimpose a title on the portion.
If the tape has a blank portion in the middle of the recorded parts
The title may not be displayed correctly.
The titles superimposed with your camcorder
•They are displayed by only the DV format video equipment with index titler
function.
•The point you superimposed the title may be detected as an index signal when
searching a recording with other video equipment.
If the tape has too many index signals
You may not be able to superimpose a title because the memory is full. In this case,
delete data you do not need.
Not to display titles
Set TITLE DSPL to OFF in the menu settings (p. 100).
Title setting
•The title color changes as follows:
WHITE y YELLOW y VIOLET y RED y CYAN y GREEN y BLUE
•The title size changes as follows:
SMALL y LARGE
You cannot input 13 characters or more for a LARGE size.
•If you select the title size “SMALL,” you have 9 choices for the title position.
If you select the title size “LARGE,” you have 8 choices for the title position.
One cassette can have up to about 20 titles, if one title consists of five characters
However, if the cassette memory is full with date, photo and cassette label data, one
cassette can have only up to about 11 titles with five characters each.
Cassette memory capacity is as follows:
•6 date data (maximum)
•12 photo data (maximum)
•1 cassette label (maximum)
If the “ FULL” mark appears
The cassette memory is full. If you erase the title in the cassette, you can label it.
91
Editing
Erasing a title
(1) Set the POWER switch to CAMERA or VCR, and then press MENU to display
the menu.
(2) Turn the SEL/PUSH EXEC dial to select
in the menu setting, then press the
dial.
(3) Turn the SEL/PUSH EXEC dial to select TITLEERASE, then press the dial.
Title erase display appears.
(4) Turn the SEL/PUSH EXEC dial to select the title you want to erase, then press
the dial.
“ERASE OK ?” indicator appears.
(5) Make sure the title is the one you want to erase, and turn the SEL/PUSH EXEC
dial to select OK, then press the dial. OK changes to EXECUTE.
(6) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
ERASING indicator flashes, then COMPLETE indicator appears.
To cancel erasing a title
Select RETURN in step 6.
Superimposing a title
2,3
4,5
1
MENU
CM SET
T
I
TLE
T
I
TLEERASE
T
I
TLE DSPL
CM
SEARCH
TAPE T
I
TLE
ERASE ALL
RETURN
[
MENU
]
:
END
CM SET
T
I
TLE
T
I
TLEERASE
T
I
TLE DSPL
CM
SEARCH
TAPE T
I
TLE
ERASE ALL
RETURN
[
MENU
]
:
END
TITLE ERASE
1 HELLO
!
2 CONGRATULAT
I
ONS
!
3 HAPPY NEW YEAR
!
4 PRESENT
5 GOOD MORN
I
NG
6 WEDD
I
NG
[
MENU
]
:
END
T
I
TLE ERASE
4
PRESENT
ERASE OK ? RETURN
OK
[
MENU
]
:
END
READY
92

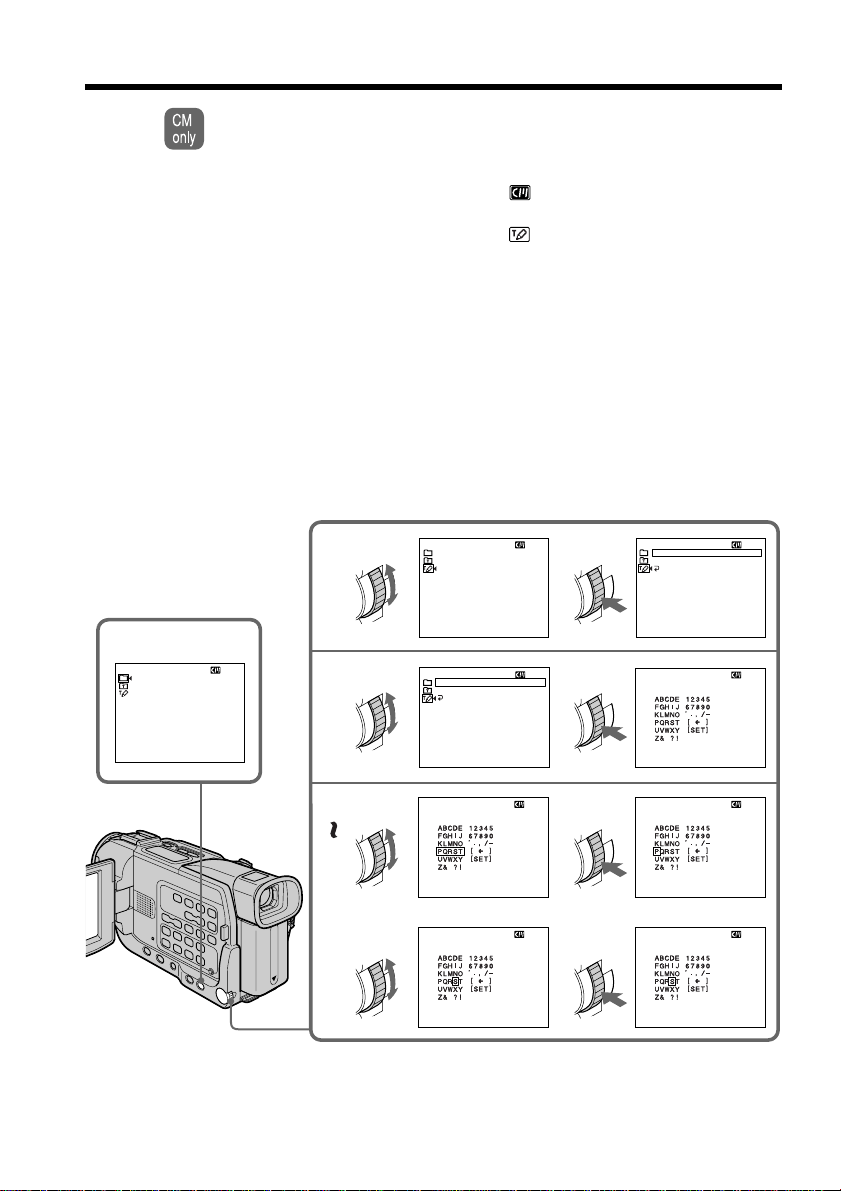

Making your own titles
You can make up to two titles and store them in cassette memory. Each title can
have up to 20 characters.
(1) Press MENU to display the menu in CAMERA or VCR mode.
(2) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select TITLE, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select the first line (CUSTOM1 SET) or
second line (CUSTOM2 SET), then press the dial.
(6) Turn the SEL/PUSH EXEC dial to select the column of the desired character,
then press the dial.
(7) Turn the SEL/PUSH EXEC dial to select the desired character, then press the
dial.
(8) Repeat steps 6 and 7 until you have selected all characters and completed the
title.
(9) To finish making your own titles, turn the SEL/PUSH EXEC dial to select
[SET], then press the dial.
(10) Press MENU to make the title menu disappear.
3
4
5
6
8
12
34
TITLE SET
CUSTOM1 SET
CUSTOM2 SET
[
MENU
] :
END
TITLE SET
CUSTOM1 SET
CUSTOM2 SET
RETURN
[
MENU
] :
END
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
[
MENU
] :
END
TITLE SET
––––––––––––––––––––
[
MENU
] :
END
TITLE SET
––––––––––––––––––––
[
MENU
] :
END
TITLE SET
––––––––––––––––––––
[
MENU
] :
END
TITLE SET
––––––––––––––––––––
[
MENU
] :
END
TITLE SET
S
–––––––––––––––––––
[
MENU
] :
END
TITLE SET
CUSTOM1 SET
CUSTOM2 SET
RETURN
[
MENU
] :
END
93
Editing
To change a title you have stored
In step 5, select CUSTOM1 SET or CUSTOM2 SET, depending on which title you want
to change, then press the SEL/PUSH EXEC dial. Turn the SEL/PUSH EXEC dial to
select [C], then press the dial to delete the title. The last character is erased. Enter the
new title as desired.
If you take five minutes or longer to enter characters in the standby mode while a
cassette is in your camcorder
The power automatically goes off. The characters you have entered remain stored in
memory. Set the POWER switch to OFF (CHG) once and then to CAMERA again, then
proceed from step 1.
We recommend setting the POWER switch to VCR or removing the cassette so that
your camcorder does not automatically turn off while you are entering title characters.
To delete the title
Select [C]. The last character is erased.
To enter a space
Select [Z& ?!], then select the blank part.
Making your own titles
94
Labeling a cassette
If you use a tape with cassette memory, you can label a cassette. The label can
consist of up to 10 characters and is stored in cassette memory. When you insert
the labelled cassette and turn the power on, the label is displayed for about five
seconds.
(1) Insert the cassette you want to label.
(2) Set the POWER switch to VCR.
(3) Press MENU to display the menu.
(4) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select TAPE TITLE, then press the dial. Tape
title display appears.
(6) Turn the SEL/PUSH EXEC dial to select the column of the desired character,
then press the dial.
(7) Turn the SEL/PUSH EXEC dial to select the desired character, then press the
dial.
(8) Repeat steps 6 and 7 until you finish the label.
(9) Turn the SEL/PUSH EXEC dial to select [SET], then press the dial.
The label is stored in memory.
4,5
CM SET
T
I
TLE
T
I
TLEERASE
T
I
TLE DSPL
CM
SEARCH
TAPE T
I
TLE
ERASE ALL
[
MENU
]
:
END
6-8
TAPE T
I
TLE
[
MENU
] :
END
TAPE T
I
TLE
[
MENU
] :
END
TAPE T
I
TLE
M
[
MENU
] :
END
TAPE T
I
TLE
[
MENU
] :
END
3
MENU
CM SET
T
I
TLE
T
I
TLEERASE
T
I
TLE DSPL
CM
SEARCH
TAPE T
I
TLE
ERASE ALL
[
MENU
]
:
END
TAPE T
I
TLE
[
MENU
] :
END
95
Editing
To erase a character
In step 6 turn the SEL/PUSH EXEC dial to select [C], then press the dial. The last
character is erased.
To change the label you have made
Insert the cassette to change the label, and operate in the same way to make a new label.
If you set the write-protect tab of the tape to lock
You cannot label the tape. Slide the write-protect tab to release the write protection.
If the mark appears in step 5
The cassette memory is full. If you erase the title in the cassette, you can label it.
If you have superimposed titles in the cassette
When the label is displayed, up to four titles also appear.
When the “-----” indicator has fewer than 10 spaces
The cassette memory is full.
The “-----” indicates the number of characters you can select for the label.
To enter a space
Select [Z& ?!], then select the blank part.
Labeling a cassette
96
— Customizing Your Camcorder —

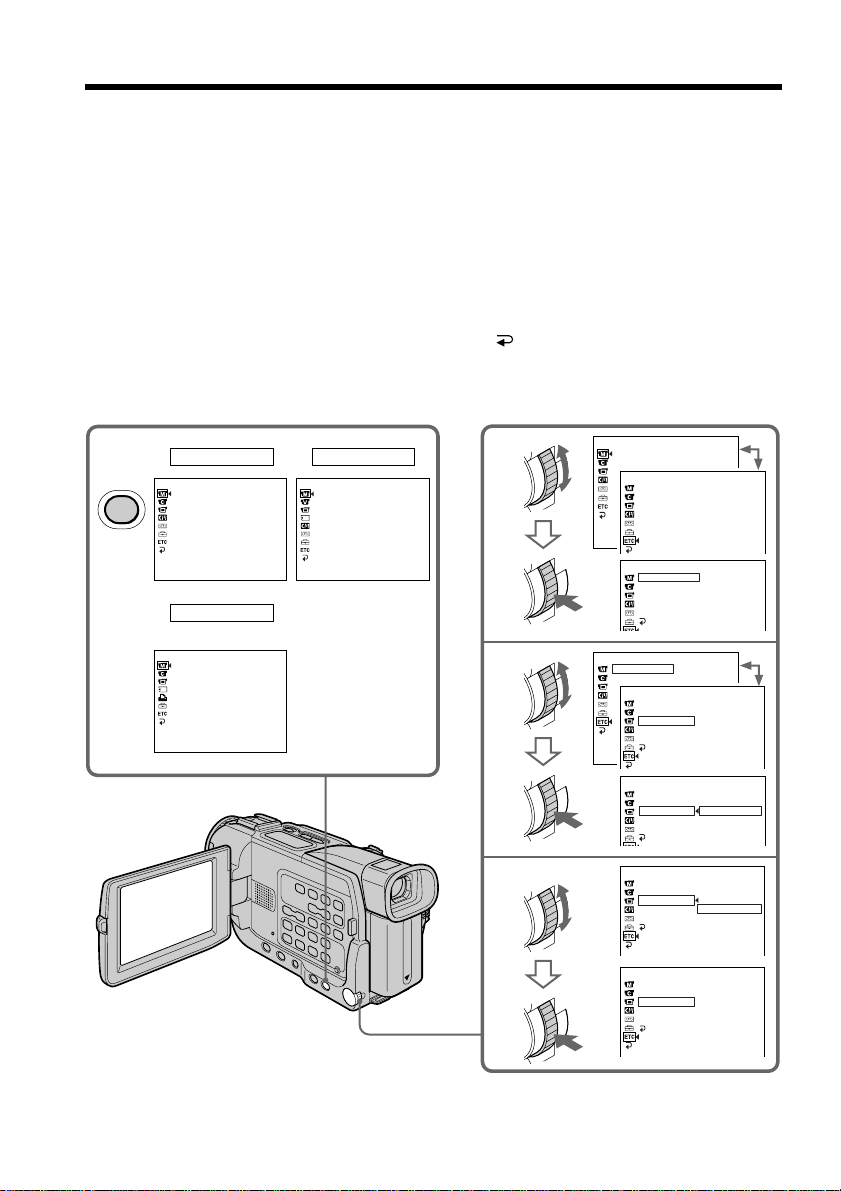

Changing the menu settings
To change the mode settings in the menu settings, select the menu items with the SEL/
PUSH EXEC dial. The factory settings can partially changed. First, select the icon, then
the menu item and then the mode.
(1) In CAMERA, MEMORY (DCR-TRV17 only) or VCR mode, press MENU.
(2) Turn the SEL/PUSH EXEC dial to select the desired icon, then press the dial to
set.
(3) Turn the SEL/PUSH EXEC dial to select the desired item, then press the dial to
set.
(4) Turn the SEL/PUSH EXEC dial to select the desired mode, then press the dial
to set.
(5) If you want to change other items, select
RETURN and press the dial, then
repeat steps 2 to 4.
For details, see “Selecting the mode setting of each item” (p. 97).
1
CAMERA
2
3
4
MANUAL SET
PROGRAM AE
P EFFECT
D EFFECT
WHT BAL
AUTO SHTR
[
MENU
]
:
END
VCR
MANUAL SET
P EFFECT
D EFFECT
[
MENU
]
:
END
MEMORY
MANUAL SET
PROGRAM AE
WHT BAL
[
MENU
]
:
END
MANUAL SET
PROGRAM AE
P EFFECT
OTHERS
WORLD TIME
BEEP
0 HR
OTHERS
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
RETURN
ON
OFF
MENU
OTHERS
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
OTHERS
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
RETURN
ON
OTHERS
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
RETURN
OFF
OTHERS
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
RETURN
0 HR
OTHERS
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
RETURN
ON
OFF
(DCR-TRV17 only)
97
Customizing Your Camcorder
Changing the menu settings
To make the menu display disappear
Press MENU.
Menu items are displayed as the following icons:
MANUAL SET
CAMERA SET
VCR SET
LCD/VF SET
MEMORY SET (DCR-TRV17 only)
PRINT SET (DCR-TRV17 only)
CM SET
TAPE SET
SETUP MENU
OTHERS
Selecting the mode setting of each item z is the default setting.
Menu items differ depending on the position of the POWER switch. The screen shows
only the items you can operate at the moment.
Icon/item
PROGRAM AE
P EFFECT
D EFFECT
WHT BAL
AUTO SHTR
SELFTIMER
D ZOOM
16:9WIDE
STEADYSHOT
N.S. LIGHT
Mode
—
—
—
—
z ON
OFF
z OFF
ON
z OFF
20×
120×
z OFF
ON
z ON
OFF
z ON
OFF
Meaning
To suit your specific shooting requirement
(p. 49)
To add special effects like those in films or on
the TV to images (p. 45, 57).
To add special effects using the various digital
functions (p. 46, 58)
To adjust the white balance (p. 41).
To automatically activate the electronic shutter
when shooting in bright conditions.
Not to automatically activate the electronic
shutter even when shooting in bright conditions.
Not to use the self-timer function
To use the self-timer function
To deactivate the digital zoom. Up to 10× zoom
is carried out.
To activate the digital zoom. More than 10× to
20× zoom is performed digitally (p. 24).
To activate the digital zoom. More than 10× to
120× zoom is performed digitally (p. 24).
—
To record a 16:9 wide picture (p. 42).
To compensate for camera-shake.
To cancel the SteadyShot function. Natural
pictures are produced when shooting a
stationary object with a tripod.
To use the NightShot Light function (p. 27).
To cancel the NightShot Light function.
POWER
switch
CAMERA
MEMORY
VCR
CAMERA
VCR
CAMERA
CAMERA
MEMORY
CAMERA
CAMERA
CAMERA
CAMERA
CAMERA
MEMORY
(continued on the following page)
CAMERA
MEMORY
98
Meaning
To deactivate Cut recording function.
To activate Cut recording function (p. 56).
To activate Interval recording function (p. 54).
To deactivate Interval recording function.
To set waiting time and recording time for
Interval recording function (p. 54).
To play back a stereo tape or dual sound track
tape with main and sub sound (p. 159).
To play back a stereo tape with the left sound or
a dual sound tape with main sound.
To play back a stereo tape with the right sound
or a dual sound track tape with sub sound.
To adjust the balance between the stereo 1 and
stereo 2 (p. 87).
To output digital images and sound in analog
format using your camcorder.
To output analog images and sound in digital
format using your camcorder (p. 79).
To adjust the brightness on the LCD screen with
the SEL/PUSH EXEC dial.
To set the brightness on the LCD screen normal.
To brighten the LCD screen.
To adjust the color on the LCD screen, turn and
press the SEL/PUSH EXEC dial.
To set the brightness on the viewfinder screen to
normal.
To brighten the viewfinder screen.
Icon/item
FRAME REC
INT. REC
HiFi SOUND
AUDIO MIX
A/VtDV OUT
LCD BRIGHT
LCD B. L.
LCD COLOR
VF B.L.
Mode
z OFF
ON
ON
z OFF
SET
z STEREO
1
2
—
z OFF
ON
—
z BRT NORMAL
BRIGHT
—
z BRT NORMAL
BRIGHT
Changing the menu settings
POWER
switch
CAMERA
CAMERA
VCR
VCR
VCR
VCR
CAMERA
MEMORY
ST1 ST2
VCR
CAMERA
MEMORY
VCR
CAMERA
MEMORY
To get low-
intensity
To get high-
intensity
To darken To lighten
Notes on the SteadyShot function
•The SteadyShot function will not correct excessive camera-shake.
•Attachment of a conversion lens (optional) may influence the SteadyShot function.
Notes on LCD B.L. and VF B.L.
•When you select “BRIGHT”, battery life is reduced by about 10 percent during
recording.
•When you use power sources other than the battery pack, “BRIGHT” is automatically
selected.
VCR
CAMERA
MEMORY
99
Customizing Your Camcorder
Changing the menu settings
Icon/item
* STILL SET
PIC MODE
QUALITY
MOVIE SET
IMAGE SIZE
REMAIN
PRINT MARK
PROTECT
SLIDE SHOW
DELETE ALL
* DCR-TRV17 only
Mode
z SINGLE
MULTI SCRN
z FINE
STANDARD
z 320 × 240
160 × 112
z AUTO
ON
ON
z OFF
ON
z OFF
—
—
Meaning
Not to record continuously.
To record nine still picutures continuously
(p. 114).
To record still pictures in the fine image quality
mode (p. 106).
To record still pictures in the standard image
quality mode (p. 106).
To record moving pictures in 320 × 240 size
(p. 108)
To record moving pictures in 160 × 112 size
(p. 108)
To display the remaining capacity of the
“Memory Stick” in the following cases:
•For 5 seconds after setting the POWER switch
to MEMORY
•For 5 seconds after inserting a “Memory Stick”
into your camcorder in MEMORY or VCR
mode
•When the capacity of the “Memory Stick” is
less than 1 minute in MEMORY mode
•For 5 seconds after completing a moving
picture recording
To always display the remaining capacity of the
“Memory Stick”
To write a print mark on the recorded still
images you want to print out later (p. 146).
To cancel print marks on still pictures.
To protect selected still pictures against
accidental erasure (p. 143).
Not to protect still pictures.
To play back images in a continuous loop (p. 142).
To delete all the unprotected images (p. 144).
POWER
switch
MEMORY
VCR
MEMORY
VCR
MEMORY
VCR
MEMORY
VCR
MEMORY
VCR
MEMORY
MEMORY
MEMORY
(continued on the following page)
100
Icon/item
* FORMAT
PHOTO SAVE
* 9PIC PRINT
DATE/TIME
TITLE
TITLEERASE
TITLE DSPL
CM SEARCH
TAPE TITLE
ERASE ALL
Mode
z RETURN
OK
—
z RETURN
SAME
MULTI
MARKED
z OFF
DATE
DAY&TIME
—
—
z ON
OFF
z ON
OFF
—
—
Meaning
To cancel formatting.
To format an inserted “Memory Stick.”
1. Select FORMAT with the SEL/PUSH EXEC
dial, then press the dial.
2. Turn the SEL/PUSH EXEC dial to select OK,
then press the dial.
3. After “EXECUTE” appears, press the SEL/
PUSH EXEC dial. “FORMATTING” flashes
during formatting. “COMPLETE” appears
when formatting is finished.
To duplicate mini DV still pictures on “Memory
Stick”(p. 127).
To cancel prints of split screen
To make prints of same split screen (p. 148)
To make prints of different split screen (p. 148)
To make prints of images with print marks in
recording order (p. 148)
To make prints without the recording date and
time
To make prints with the recording date (p. 148)
To make prints with the recording date and time
(p. 148)
To superimpose a title or make your own title.
(p. 89, 92)
To erase the title you have superimposed
(p. 91).
To display the title you have superimposed.
Not to display the title.
To search using cassette memory (p. 61).
To search without using cassette memory.
To label a cassette (p. 94).
To erase all the data in cassette memory.
POWER
switch
MEMORY
VCR
MEMORY
MEMORY
VCR
CAMERA
VCR
CAMERA
VCR
VCR
VCR
CAMERA
VCR
CAMERA
Changing the menu settings
* DCR-TRV17 only
Notes on formatting (DCR-TRV17 only)
•Supplied or optional “Memory Stick”s have been formatted at factory. Formatting
with this camcorder is not required.
•Do not turn the POWER switch or press any button while the display shows
“FORMATTING.”
•You cannot format the “Memory Stick” if the write-protect tab on the “Memory Stick”
is set to LOCK.
•Format again if the message “ ” appears.
Formatting erases all information on the “Memory Stick” (DCR-TRV17 only)
Check the contents of the “Memory Stick” before formatting.
• Formatting erases sample images on the “Memory Stick.”
• Formatting erases the protected image data on the “Memory Stick.”
Note on PRINT SET (DCR-TRV17 only)
9PIC PRINT and DATE/TIME are displayed only when an external printer (optional) is
connected to the intelligent accessory shoe.
101
Customizing Your Camcorder
Icon/item
REC MODE
AUDIO MODE
qREMAIN
CLOCK SET
AUTO TV ON
TV INPUT
LTR SIZE
DEMO MODE
Mode
z SP
LP
z 12BIT
16BIT
z AUTO
ON
—
z OFF
ON
z VIDEO1
VIDEO2
VIDEO3
OFF
z NORMAL
2×
z ON
OFF
Meaning
To record in the SP (Standard Play) mode.
To increase the recording time to 1.5 times the
SP mode.
To record in the 12-bit mode (two stereo
sounds).
To record in the 16-bit mode (the one stereo
sound with high quality).
To display the remaining tape bar:
•for about 8 seconds after your camcorder is
turned on and calculates the remaining
amount of tape.
•for about 8 seconds after a cassette is inserted
and your camcorder calculates the remaining
amount of tape.
•for about 8 seconds after N is pressed in
VCR mode.
•for about 8 seconds after DISPLAY is pressed
to display the screen indicators.
•for the period of tape rewinding, forwarding
or picture search in the VCR mode.
To always display the remaining tape indicator.
To set the date or time (p. 18).
—
To automatically turn on a Sony TV when using
the laser link function (P. 37).
To switch the video input on a Sony TV when
using the laser function (P. 37).
—
To display selected menu items in normal size.
To display selected menu items at twice the
normal size.
To make the demonstration appear.
To cancel the demonstration mode.
POWER
switch
VCR
CAMERA
VCR
CAMERA
VCR
CAMERA
CAMERA
MEMORY
VCR
CAMERA
MEMORY
Changing the menu settings
CAMERA
VCR
CAMERA
MEMORY
VCR
CAMERA
MEMORY
Notes on the LP mode
•When you record a tape in the LP mode on your camcorder, we recommend playing the tape
on your camcorder. When you play back the tape on other camcorders or VCRs, noise may
occur in pictures or sound.
•When you record in the LP mode, we recommend using a Sony Excellence/Master cassette
so that you can get the most out of your camcorder.
•You cannot make audio dubbing on a tape recorded in the LP mode. Use the SP mode for the
tape to be audio dubbed.
•When you record in the SP and LP modes on one tape or you record some scenes in the LP
mode, the playback picture may be distorted or the time code may not be written properly
between scenes.
Notes on AUDIO MODE
•You cannot dub audio sound on a tape recorded in the 16-bit mode.
•When playing back a tape recorded in the 16-bit mode, you cannot adjust the balance in
AUDIO MIX.
Notes on DEMO MODE
•You cannot select DEMO MODE when a cassette is inserted in your camcorder.
•DEMO MODE is set to STBY (Standby) at the factory and the demonstration starts about 10
minutes after you have set the POWER switch to CAMERA without a cassette inserted.
Note that you cannot select STBY of DEMO MODE in the menu settings.
•When NIGHTSHOT is set to ON, the “NIGHTSHOT” indicator appears on the LCD screen or
in the viewfinder and you cannot select DEMO MODE in the menu settings.
(continued on following page)
102
Icon/item
DATA CODE
WORLD TIME
BEEP
COMMANDER
DISPLAY
REC LAMP
VIDEO EDIT
EDIT SET
Note
If you press DISPLAY with DISPLAY set to V-OUT/LCD in the menu settings, the
picture from a TV or VCR will not appear on the LCD screen even when your
camcorder is connected to outputs on the TV or VCR.
When recording a close subject
When REC LAMP is set to ON, the red camera recording lamp on the front of the
camcorder may reflect on the subject if it is close. In this case, we recommend you set
REC LAMP to OFF.
In more than five minutes after removing the power source
The “AUDIO MIX”, “COMMANDER”, “HiFi SOUND”, and “WHT BAL” items are
returned to their factory settings.
The other menu items are held in memory even when the battery is removed.
Meaning
To display date, time and various settings
during playback (p. 32, 130).
To display date and time during playback
(p. 32, 130, 132).
To set the clock to the local time. Turn the SEL/
PUSH EXEC dial to set a time difference. The
clock changes by the time difference you set
here. If you set the time difference to 0, the clock
returns to the originally set time.
To output the melody when you start/stop
recording or when an unusual condition occurs
on your camcorder.
To output the beep instead of the melody.
To cancel the melody and beep sound.
To activate the Remote Commander supplied
with your camcorder.
To deactivate the Remote Commander to avoid
remote control misoperation caused by other
VCR’s remote control.
To show the display on the LCD screen and in
the viewfinder.
To show the display on the TV screen, LCD
screen and in the viewfinder.
To light up the camera recording lamp at the
front of your camcorder.
To turn the camera recording lamp off so that
the person is not aware of the recording.
To make program and perform video editing
(p. 76).
To adjust and set the synchronicity of your
camcorder and a VCR for dubbing in edit set
mode (p. 69).
Changing the menu settings
POWER
switch
VCR
MEMORY
CAMERA
MEMORY
VCR
CAMERA
MEMORY
VCR
CAMERA
MEMORY
VCR
CAMERA
MEMORY
CAMERA
MEMORY
VCR
VCR
Mode
z DATE/CAM
DATE
—
z MELODY
NORMAL
OFF
z ON
OFF
z LCD
V-OUT/LCD
z ON
OFF
—
—
103
“Memory Stick” Operations
– DCR-TRV17 only
You can record and play back images on a “Memory Stick” supplied with your
camcorder. You can easily play back, record or delete images. You can exchange image
data with other equipment such as your computer etc. using the USB cable for
“Memory Stick” supplied with your camcorder.
On file format
Still image (JPEG)
Your camcorder compresses image data in JPEG format (extension .jpg).
Moving picture (MPEG)
Your camcorder compresses picture data in MPEG format (extension .mpg).
Typical image data file name
Still image
100-0001: This file name appears on the screen of your camcorder.
Dsc00001.jpg: This file name appears on the display of your personal computer.
Moving picture
MOV00001:This file name appears on the screen of your camcorder.
Mov00001.mpg: This file name appears on the display of your personal computer.
Using a “Memory Stick”
•You cannot record or erase images when the write-protect tab on the “Memory Stick”
is set to LOCK.
The position and shape of the write-protect tab may be different depending on the
model.
•We recommend backing up important data.
•Image data may be damaged in the following cases:
– If you remove the “Memory Stick” or turn the power off while reading or writing.
– If you use “Memory Stick”s near static electricity or magnetic fields.
•Prevent metallic objects or your finger from coming into contact with the metal parts
of the connecting section.
•Stick its label on the labeling position.
•Do not bend, drop or apply strong shock to “Memory Stick”s.
•Do not disassemble or modify “Memory Stick”s.
•Do not let “Memory Stick”s get wet.
•Do not use or keep “Memory Stick”s in locations that are:
– Extremely hot such as in a car parked in the sun or under the scorching sun.
– Under direct sunlight.
– Very humid or subject to corrosive gases.
•When you carry or store a “Memory Stick,” put it in its case.
— “Memory Stick” Operations —
Using a “Memory Stick” – introduction
Write-protect tab
Labeling position
Terminal
104
“Memory Stick”s formatted by a computer
“Memory Stick”s formatted by Windows OS or Macintosh computers do not have a
guaranteed compatibility with this camcorder.
Notes on image data compatibility
•Image data files recorded on “Memory Stick”s by your camcorder conform with the
Design rule for Camera File system universal standard established by the JEITA
(Japan Electronics and Information Technology Industries Association). You cannot
play back on your camcorder still images recorded on other equipment (DCR-
TRV890E/TRV900/TRV900E or DSC-D700/D770) that does not conform with this
universal standard. (These models are not sold in some areas.)
•If you cannot use the “Memory Stick” that is used with other equipment, format it
with this camcorder (p. 100). However, formatting erases all information on the
“Memory Stick.”
•“Memory Stick” and are trademarks of Sony Corporation.
•Windows and ActiveMovie, DirectShow are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
•Macintosh and Mac OS, QuickTime are trademarks of Apple Computer, Inc.
•All other product names mentioned herein may be the trademarks or registered
trademarks of their respective companies.
•Furthermore, “™” and “®” are not mentioned in each case in this manual.
Using a “Memory Stick” – introduction
105
“Memory Stick” Operations

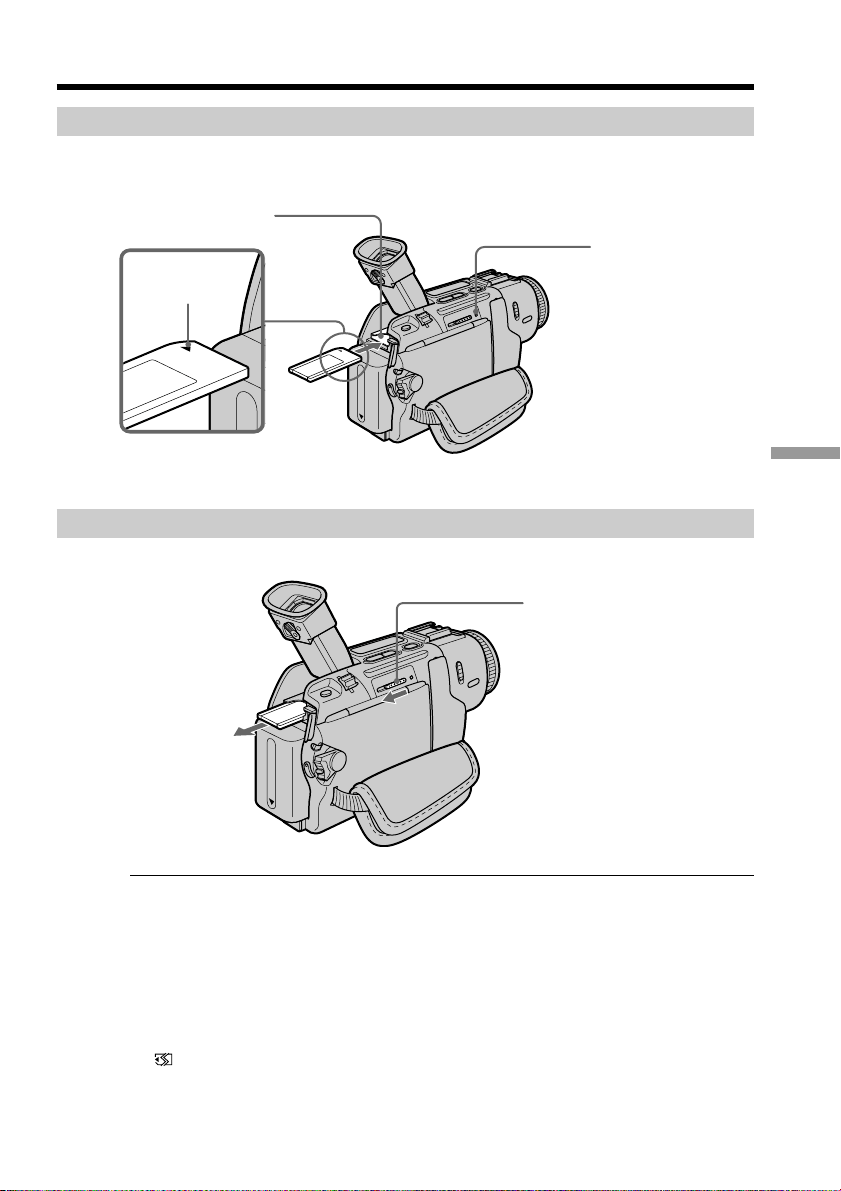

Inserting a “Memory Stick”
Lift up the viewfinder, and insert a “Memory Stick” in the “Memory Stick” slot as far as
it can go with the v mark facing up as illustrated.
Ejecting a “Memory Stick”
Slide > MEMORY EJECT in the direction of the arrow.
If you extend the viewfinder to the end
You cannot insert or eject a “Memory Stick.”
While the access lamp is lit or flashing
Do not shake or strike your camcorder because your camcorder is reading the data from
the “Memory Stick” or recording the data on the “Memory Stick.” Do not turn the
power off , eject a “Memory Stick” or remove the battery pack. Otherwise, the image
data breakdown may occur.
If “ MEMORYSTICK ERROR” is displayed
The “Memory Stick” may be corrupted. If this occurs, use another “Memory Stick.”
Using a “Memory Stick” – introduction
Access lamp
“Memory Stick” slot
v mark
> MEMORY EJECT
106
Using a “Memory Stick” – introduction
Selecting still image quality mode
You can select image quality mode in still image recording. The default setting is FINE.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Press MENU to display the menu.
(3) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select STILL SET, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select QUALITY, then press the dial.
(6) Turn the SEL/PUSH EXEC dial to select the desired image quality, then press
the dial.
1
2
3
5
6
4
MENU
LOCK
VCR
CAMERA
MEMORY
OFF(CHG)
P
O
W
E
R
MEMORY SET
STILL SET
MOV I E SET
PRINT MARK
PROTECT
SLIDE SHO
W
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
PIC MODE
MEMORY SET
STILL SET
RETURN
[
MENU
]
:
END
SINGLE
QUAL I TY
PIC MODE
MEMORY SET
12
STILL SET
[
MENU
]
:
END
QUAL I TY F I NE
REMA IN
RETURN
STANDARD
MEMORY SET
FINE
[
MENU
]
:
END
PIC MODE
12
STILL SET
QUAL I TY
REMA IN
RETURN
107
“Memory Stick” Operations
Image quality settings
Setting Meaning
FINE (FINE) Use this mode when you want to record high quality
images. The image is compressed to about 1/6.
STANDARD (STD) This is the standard image quality. The image is
compressed to about 1/10.
Note
In some cases, changing the image quality mode may not affect the image quality,
depending on the types of images you are shooting.
Differences in image quality mode
Recorded images are compressed in JPEG format before being stored in memory. The
memory capacity allotted to each image varies depending on the selected image quality
mode. Details are shown in the table below.
Image quality mode Memory capacity
FINE About 100 KB
STANDARD About 60 KB
Image quality mode indicator
The image quality mode indicator is not displayed during playback.
Using a “Memory Stick” – introduction
108
Selecting the image size
You can select 320 × 240 or 160 × 112 of the moving picture size.
The default setting is 320 × 240.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Press MENU to display the menu.
(3) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select MOVIE SET (moving picture), then
press the dial.
(5) Turn the SEL/PUSH EXEC dial to select IMAGESIZE, then press the dial.
(6) Turn the SEL/PUSH EXEC dial to select the desired image size, then press the
dial.
The indicator changes as follows:
320 160
Using a “Memory Stick” – introduction
109
“Memory Stick” Operations
Image size of still pictures
Image size is automatically set to 640 × 480.
Using a “Memory Stick” – introduction
4
3
5
6
1
2
MENU
LOCK
PLAYER
CAMERA
MEMORY
OFF(CHG)
P
O
W
E
R
MEMORY SET
MOV I E SET
PRINT MARK
PROTECT
SLIDE SHO
W
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
MEMORY SET
MOV I E SET
RETURN
REMA IN
[
MENU
]
:
END
IMAGESIZE
320 240
160 112
MEMORY SET
MOV I E SET
RETURN
REMA IN
[
MENU
]
:
END
IMAGESIZE
REMA IN
min
MEMORY SET
MOV I E SET
RETURN
REMA IN
[
MENU
]
:
END
IMAGESIZE
320 240
160 112
REMA IN
sec
320
NIAMER
sec
STILL SET
2
4
2
4
2
110
Using a “Memory Stick” – introduction
Moving picture size settings
Setting Meaning Indicator
Recording Playback
320 × 240 Records 320 × 240 moving pictures.
320
320
160 × 112 Records 160 × 112 moving pictures.
160
160
Maximum recording time of moving pictures
Image size Maximum recording time
320 × 240 15 seconds
160 × 112 60 seconds
Approximate number of still images you can record on a
“Memory Stick”
The number of images you can record varies depending on which image quality mode you
select and the complexity of the subject.
4MB type (supplied):
FINE (FINE) 40 images
STANDARD (STD) 60 images
8MB type (optional):
FINE (FINE) 81 images
STANDARD (STD) 122 images
16MB type (optional):
FINE (FINE) 164 images
STANDARD (STD) 246 images
32MB type (optional):
FINE (FINE) 329 images
STANDARD (STD) 494 images
64MB type (optional):
FINE (FINE) 659 images
STANDARD (STD) 988 images
128MB type (optional):
FINE (FINE) 1319 images
STANDARD (STD) 1978 images
111
“Memory Stick” Operations
Using a “Memory Stick” – introduction
Approximate time of moving pictures you can record on a
“Memory Stick”
The time of moving pictures you can record varies depending on which image size you
select and the complexity of the subject.
4MB type (supplied):
Picture size 160 × 112 320 × 240
Recording time 2 min. 40 sec. 40 sec.
8MB type (optional):
Picture size 160 × 112 320 × 240
Recording time 5 min. 20 sec. 1 min. 20 sec.
16MB type (optional):
Picture size 160 × 112 320 × 240
Recording time 10 min. 40 sec. 2 min. 40 sec.
32MB type (optional):
Picture size 160 × 112 320 × 240
Recording time 21 min. 20 sec. 5 min. 20 sec.
64MB type (optional):
Picture size 160 × 112 320 × 240
Recording time 42 min. 40 sec. 10 min. 40 sec.
128MB type (optional):
Picture size 160 × 112 320 × 240
Recording time 85 min. 20 sec. 21 min. 20 sec.
112
Recording still images on “Memory
Stick”s – Memory photo recording
– DCR-TRV17 only
You can record still pictures on “Memory Stick”s.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Keep pressing PHOTO lightly until the desired still picture appears. The green
z mark stops flashing, then lights up. The brightness of the picture and focus
are adjusted, being targeted for the middle of the picture and are fixed.
Recording does not start yet.
(3) Press PHOTO deeper. The image displayed on the screen will be recorded on a
“Memory Stick.” Recording is complete when the bar scroll indicator
disappears.
3
1 / 100
2
FINE
z
FINE
1
LOCK
VCR
CAMERA
MEMORY
OFF(CHG)
P
O
W
E
R
Number of images can be recorded
on the “Memory Stick”
Number of recorded images
113
“Memory Stick” Operations
Recording still images on “Memory Stick”s – Memory photo
recording
When the POWER switch is set to MEMORY
The following functions do not work:
– Wide TV mode
– Digital zoom
– SteadyShot function
– Super NightShot
– Fader
– Picture effect
– Digital effect
– Title
– Low lux mode (The indicator flashes.)
– Sports lesson mode (The indicator flashes.)
While you are recording a still image
You can neither turn off the power nor press PHOTO.
When you press PHOTO on the Remote Commander
Your camcorder immediately records the image that is on the screen when you press
the button.
Note
When recording still images at step 2 with the PHOTO button pressed lightly, the image
momentarily flickers. This is not a malfunction.
114
Recording images continuously
You can record still pictures continuously. Select one of the two modes described below
before recording.
Multi screen mode (Recording image size is 640 × 480)
You can record nine still pictures continuously on a single page.
While pressing down PHOTO, your camcorder continuously record maximum number
of still pictures.
When you stop pressing, the recording stops.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Press MENU to display the menu.
(3) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select STILL SET, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select PIC MODE, then press the dial.
(6) Turn the SEL/PUSH EXEC dial to select MULTI SCRN, then press the dial.
Recording still images on “Memory Stick”s
– Memory photo recording
115
“Memory Stick” Operations
Recording still images on “Memory Stick”s
– Memory photo recording
If the capacity of the “Memory Stick” becomes full
“ FULL” appears on the screen, and you cannot record still pictures on this “Memory
Stick.”
Continuous shooting settings
Setting Meaning (indicator on the screen)
SINGLE Your camcorder shoots one image at a time. (no indicator)
MULTI SCRN Your camcorder shoots nine still images at about 0.5 sec intervals and
displays the images on a single page divided into nine boxes. ( )
3
4
5
1
LOCK
2
MENU
PLAYER
CAMERA
MEMORY
OFF(CHG)
PO
W
E
R
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
MEMORY SET
STILL SET
PIC MODE
QUALITY
RETURN
SINGLE
[
MENU
]
:
END
MEMORY SET
STILL SET
PIC MODEL SINGLE
QUALITY
MULTI SCRN
RETURN
[
MENU
]
:
END
116
Recording still images on “Memory Stick”s
– Memory photo recording

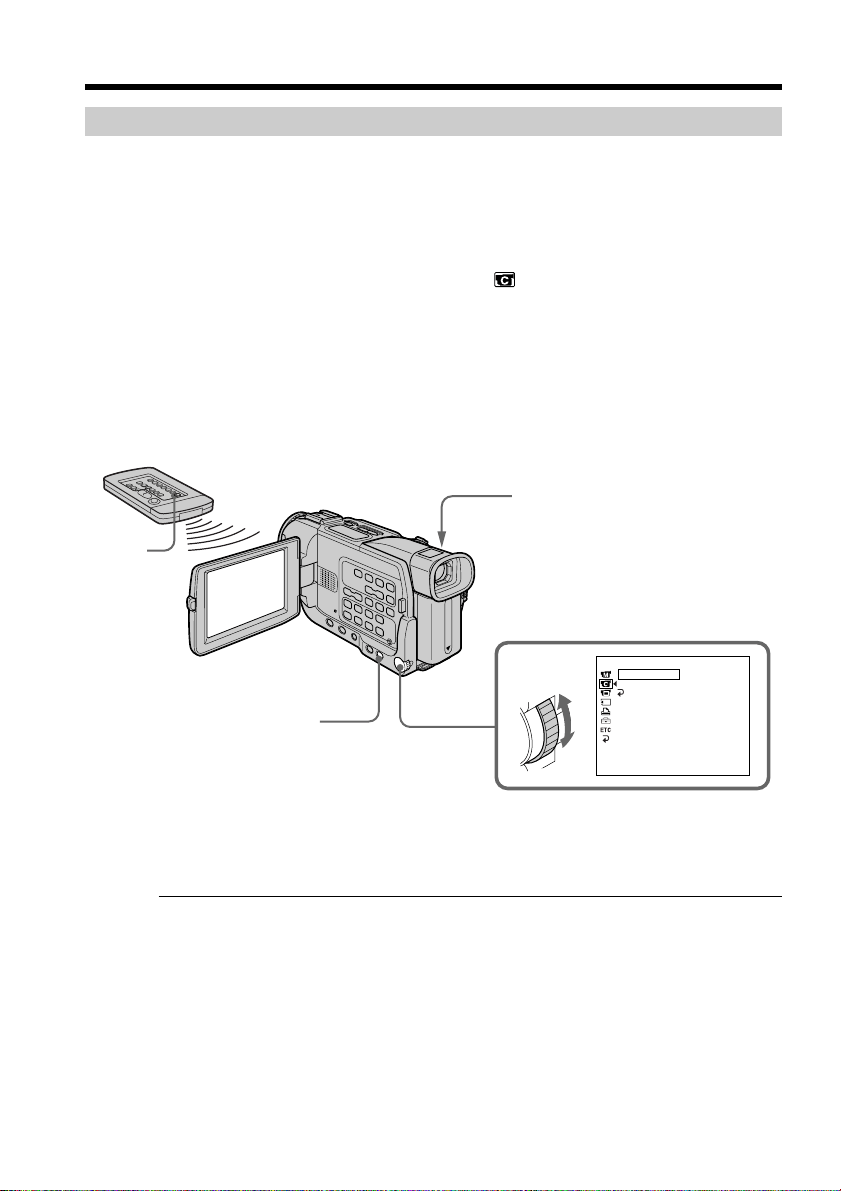

Self-timer memory photo recording
You can record still images on “Memory Stick”s with the self-timer. You can use the
Remote Commander for this operation.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK is set to the left
(unlock) position.
(2) Press MENU to display the menu settings in the standby mode.
(3) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select SELFTIMER, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(6) Press MENU to make the menu settings disappear.
(7) Press PHOTO deeper.
Self-timer starts counting down from 10 with a beep sound. In the last two
seconds of the countdown, the beep sound gets faster, then recording starts
automatically.
To cancel self-timer recording
Set SELFTIMER to OFF in the menu settings while your camcorder is in the standby
mode. You cannot cancel self-timer recording with Remote Commander.
Note
The self-timer recording mode is automatically cancelled when:
– Self-timer recording is finished.
– The POWER switch is set to OFF (CHG) or VCR.
To check the image to be recorded
You can check the image with pressing PHOTO lightly, then press it deeper to start the
self-timer recording.
MENU
3
CAMERA SET
SELFT IMER OFF
RETURN
[
MENU
]
:
END
NSLIGHT
..
117
“Memory Stick” Operations

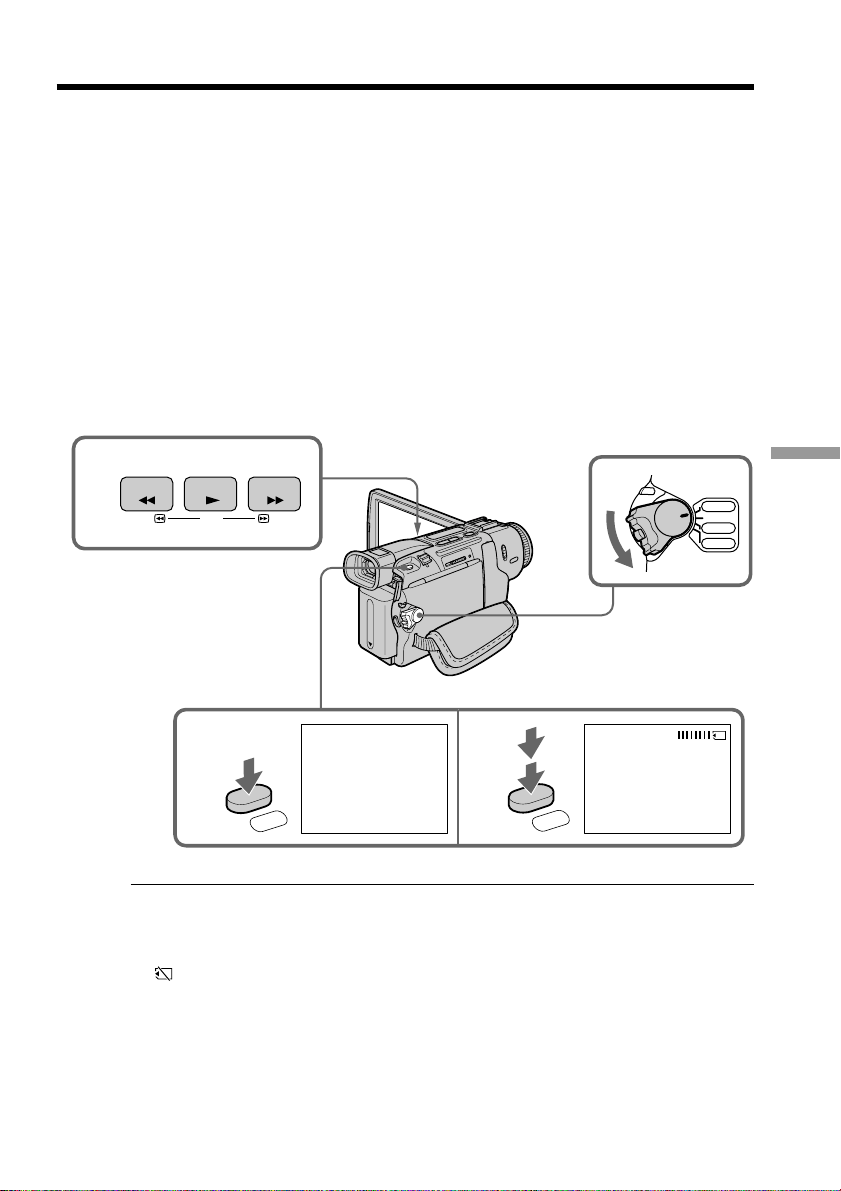

Recording an image from a tape as a still
– DCR-TRV17 only
Your camcorder can read moving picture data recorded on a tape and record it as a still
image on a “Memory Stick”.
Before operation
•Insert a recorded tape into your camcorder.
•Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to VCR.
(2) Press N. The picture recorded on the tape is played back.
(3) Keep pressing PHOTO lightly until the picture from the tape freezes.
“CAPTURE” appears on the screen. Recording does not start yet.
(4) Press PHOTO deeper. The image displayed on the screen will be recorded on a
“Memory Stick.” Recording is complete when the bar scroll indicator
disappears.
When the access lamp is lit or flashing
Never shake or strike the unit. As well do not turn the power off , eject a “Memory
Stick” or remove the battery pack. Otherwise, the image data breakdown may occur.
If “ ” appears on the screen
The inserted “Memory Stick” is incompatible with your camcorder because its format
does not conform with your camcorder. Check the format of the “Memory Stick.”
If you press PHOTO lightly in the playback mode
Your camcorder stops momentarily.
1
2
34
CAPTURE
REW
PLAY
FF
POWER
VCR
CAMERA
MEMORY
OFF(CHG)
118
Sound recorded on a tape
You cannot record the audio from a tape.
Titles have already recorded on tapes
You cannot record the titles on “Memory Stick”s. The title does not appear while you
are recording a still picture with PHOTO.
When you press PHOTO on the Remote Commander
Your camcorder immediately records the image that is on the screen when you press
the button.
Recording a still image from other equipment
Before operation
Set DISPLAY to LCD in the menu settings. (The default setting is LCD.)
(1) Set the POWER switch to VCR.
(2) Play back the recorded tape, or turn the TV on to see the desired program.
The image of the other equipment is displayed on the screen.
(3) Follow steps 3 and 4 on page 117.
Using the A/V connecting cable
Connect the yellow plug of the A/V connecting cable to the video jack on the VCR or
the TV.
Recording an image from a tape as a still image
OUT
TV
S VIDEO
VIDEO
: Signal flow
A/V connecting cable
S VIDEO
AUDIO/
VIDEO
119
“Memory Stick” Operations
If your TV or VCR has an S video jack
Connect using an S video cable (optional) to obtain high-quality pictures.
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (optional) to the S video jacks of both your camcorder and the
TV or VCR.
This connection produces higher quality DV format pictures.
Using the i.LINK cable (DV connecting cable)
Recording an image from a tape as a still image
DV
DV OUT
is marked
on this side.
DV
IN/OUT
: Signal flow
(optional)
120
– DCR-TRV17 only
You can record moving pictures with sound on “Memory Stick”s.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Press START/STOP. Your camcorder starts recording. The camera recording
lamp located on the front of your camcorder lights up. When IMAGESIZE in
the menu settings is set to 160 × 112, the maximum recording time is 60
seconds. However, when IMAGESIZE in the menu settings is set to 320 × 240,
the maximum recording time is 15 seconds.
To stop recording
Press START/STOP.
Note
Sound is recorded in monaural.
When the POWER switch is set to MEMORY
The following functions do not work:
– Wide TV
– Digital zoom
– SteadyShot function
– Super NightShot
– Fader
– Picture effect
– Digital effect
– Title
– Low lux mode (The indicator flashes.)
– Sports lesson mode (The indicator flashes.)
Recording moving pictures on “Memory
Stick”s – MPEG movie recording
2
320
40
REC
0
:
03
[
15
]
min
SEC
BBB
1
LOCK
VCR
CAMERA
MEMORY
OFF(CHG)
POWER
Recording time can be recorded on
the “Memory Stick”
This indicator is displayed for 5
seconds after pressing START/STOP.
This indicator is not recorded.
121
“Memory Stick” Operations
Recording a picture from a tape as a
moving picture
– DCR-TRV17 only
Your camcorder can read moving picture data recorded on a tape and record it as a
moving picture on a “Memory Stick.” Your camcorder can also take in moving picture
data through the input connector and record it as a moving picture on a “Memory
Stick.”
Before operation
•Insert a recorded tape into your camcorder.
•Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to VCR.
(2) Press N. The picture recorded on the tape is played back.
(3) Press START/STOP on your camcorder at the scene where you want to start
recording from. The camera recording lamp located on the front of your
camcorder lights up. When IMAGESIZE in the menu settings is set to 160 ×
112, the maximum recording time is 60 seconds. However, when IMAGESIZE
in the menu settings is set to 320 × 240, the maximum recording time is 15
seconds.
To stop recording
Press START/STOP.
3
1
POWER
VCR
CAMERA
MEMORY
OFF(CHG)
2
REW
PLAY
FF
320
40
REC
[
15
]
0
:
03
0
:
15
:
42
:
43
min
SEC
BBB
N
This indicator is displayed for
5 seconds after pressing START/STOP.
This indicator is not recorded.
Recording time can be recorded on the
“Memory Stick.”
122
Notes
•Sound recorded in 48 kHz is converted to one in 32 kHz when recording images from
a tape to “Memory Stick”s.
•Sound recorded in stereo is converted to monaural sound when recording from tapes.
When the access lamp is lit or flashing
Do not shake or strike the unit. As well do not turn the power off , eject a “Memory
Stick” or remove the battery pack. Otherwise, the image data breakdown may occur.
Titles have already recorded on tapes
You cannot record the titles on “Memory Stick”s. The title does not appear while you
are recording a moving image with START/STOP.
Various settings when recorded
You cannot record the various settings when recorded.
If “ AUDIO ERROR” is displayed
Sound that cannot be recorded by your camcorder has been recorded. Connect the A/V
connecting cable to input images from an external unit used to play back the image.
During recording on “Memory Stick”
•You cannot use the PB ZOOM function.
•You cannot record data codes from tape
Recording a moving picture from other equipment
Before operation
Set DISPLAY to LCD in the menu settings. (The default setting is LCD.)
(1) Set the POWER switch to VCR.
(2) Play back the recorded tape, or turn the TV on to see the desired program.
The image of the other equipment is displayed on the screen.
(3) Follow steps 3 on page 121.
Using the A/V connecting cable
Connect the yellow plug of the A/V connecting cable to the video jack on the VCR or
the TV.
Sound is recorded in monaural.
Recording a picture from a tape as a moving picture
OUT
TV
S VIDEO
AUDIO/VIDEO
VIDEO
AUDIO
S VIDEO
: Signal flow
AV connecting cable
123
“Memory Stick” Operations
If your TV or VCR has an S video jack
Connect using an S video cable (optional) to obtain high-quality pictures.
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (optional) to the S video jacks of both your camcorder and the
TV or VCR.
This connection produces higher quality DV format pictures.
Using the i.LINK cable (DV connecting cable)
Note
The “ ” flashes in the following instances. If this happens, eject and insert the
“Memory Stick“ again, and record distortion-free images.
– When recording on a tape in a poor recording state, for example, on a tape that has
been repeatedly used for dubbing
– When attempting to input images that are distorted due to poor radio wave reception
when a TV tuner unit is in use
Recording a picture from a tape as a moving picture
DV
DV OUT
is marked
on this side.
DV
IN/OUT
: Signal flow
(optional)
124
Superimposing a still picture in a “Memory
Stick” on a moving picture – MEMORY MIX
– DCR-TRV17 only
You can superimpose a still picture you have recorded on a “Memory Stick” on the top
of the moving picture you are recording.
M. CHROM (Memory chromakey)
You can swap a blue area of a still picture such as an illustration or a frame with a
moving picture.
M. LUMI (Memory luminancekey)
You can swap a brighter area of a still picture such as a handwritten illustration or title
with a moving picture. Record a title on a “Memory Stick” before a trip or event for
convenience.
C. CHROM (Camera chromakey)
You can superimpose a moving picture on the top of a still picture such as a picture can
be used as background. Shoot the subject against a blue background. The blue area of
the moving picture will be swapped with a still picture.
M. OVERLAP (Memory overlap)
You can make a moving image fade in on top of a still image.
M. CHROM
Still picture Moving picture
M. LUMI
C. CHROM
Blue
Still picture Moving picture
Still picture Moving picture
Blue
M. OVERLAP
Still picture Moving picture
125
“Memory Stick” Operations
Superimposing a still picture in a “Memory Stick” on a moving
picture – MEMORY MIX
Before operation
•Insert a tape for recording into your camcorder.
•Insert a recorded “Memory Stick” into your camcorder.
(1) Set the POWER switch to CAMERA or MEMORY.
Make sure that the LOCK switch is set to the left (unlock) position.
(2) Press MEMORY MIX in the standby mode.
The last recorded or last composed image appears on the lower part of the
screen as a thumbnail image.
(3) Press MEMORY+/– to select the still picture you want to superimpose.
To see the previous image, press MEMORY –. To see the next image, press
MEMORY+.
(4) Turn the SEL/PUSH EXEC dial to select the desired mode.
The mode changes as follows:
M. CHROM y M. LUMI y C. CHROM y M. OVERLAP
(5) Press the SEL/PUSH EXEC dial.
The still picture is superimposed on the moving picture. Your camcorder
automatically returns to the standby mode.
(6) Turn the SEL/PUSH EXEC dial to adjust the effect.
(7) Press START/STOP to start recording. Press PHOTO when you set the
POWER switch to MEMORY.
1
2
4
5
6
1
M. CHROM
M. LUMI
M. LUMI
M. LUMI
III------
100-0021
100-0021
III------
100-0021
3
MEMORY
MIX
VCR
CAMERA
MEMORY
OFF(CHG)
POWER
Still picture
126
Superimposing a still picture in a “Memory Stick” on a moving
picture – MEMORY MIX
Items to be adjusted
M. CHROM The color (blue) scheme of the area in the still picture which is to be
swapped with a moving picture
M. LUMI The color (bright) scheme of the area in the still picture which is to be
swapped with a moving picture
C. CHROM The color (blue) scheme of the area in the moving picture which is to be
swapped with a still picture
M. OVERLAP No adjustment necessary
The fewer bars there are on the screen, the stronger the effect.
To change the still picture to be superimposed
Do either of the following:
– Press MEMORY+/– before step 6.
– Press the SEL/PUSH EXEC dial before step 6, and repeat the procedure from step 4.
(Except for M.OVERLAP)
To change the mode setting
Press the SEL/PUSH EXEC dial before step 6, and repeat the procedure from step 4.
(Except for M.OVERLAP)
To cancel MEMORY MIX
Press MEMORY MIX.
Notes
•You can not use MEMORY MIX function for moving pictures recorded on “Memory
Stick”s.
•When the overlapping still image has a large amount of white, the thumbnail image of
the picture may not be clear.
Image data modified with computers or shot with other equipment
You may not be able to play them back with your camcorder.
When you set the POWER switch to MEMORY
You cannot select M.OVERLAP.
The “Memory Stick” supplied with your camcorder has stored 20 images
– For M.CHROM : 18 images (such as a frame) 100-0001 ~ 100-0018
– For C.CHROM : 2 images (such as a background) 100-0019 ~ 100-0020
Sample images
Sample images stored in the “Memory Stick” supplied with your camcorder are
protected (p. 143).
During recording
You cannot change the mode setting.
127
“Memory Stick” Operations

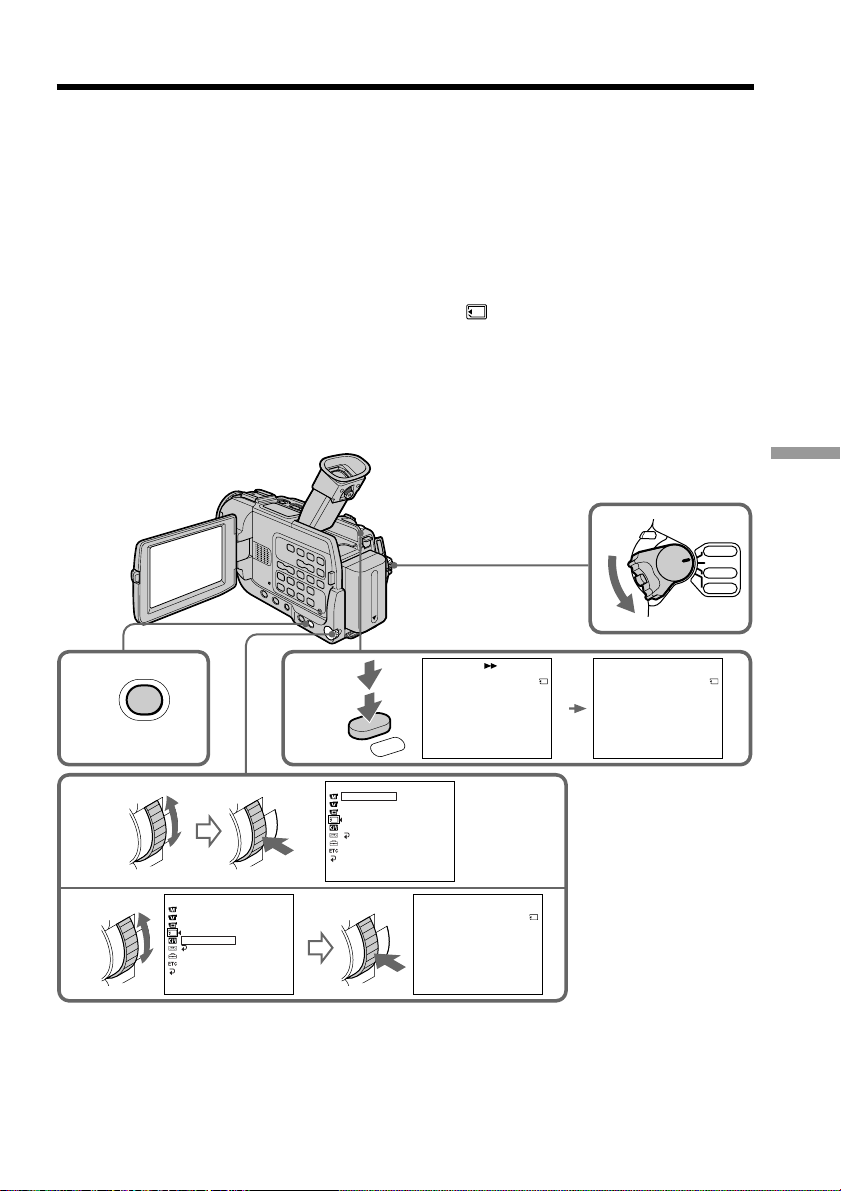

Copying still images from a tape
– Photo save
– DCR-TRV17 only
Using the search function, you can automatically take in only still images from tapes
and record them on a “Memory Stick” in sequence.
Before operation
•Insert a recorded tape into your camcorder and rewind the tape.
•Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to VCR.
(2) Press MENU to display the menu.
(3) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select PHOTO SAVE, then press the dial.
“PHOTO BUTTON” appears on the screen.
(5) Press PHOTO deeper. The still image from the tape is recorded on a “Memory
Stick.” The number of still images copied is displayed. END is displayed when
copying is completed.
2
3
5
4
1
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
PHOTO SAVE
RETURN
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
PHOTO SAVE
RETURN
[
MENU
]
:
END
READY
PHOTO SAVE 0 : 00 : 00 : 00
[
]
:
START
[
MENU
]
:
END
4 / 15
PHOTO BUTTON
PHOTO SAVE 0 : 00 : 00 : 00
[
MENU
]
:
END
4 / 15
SAV
I
NG
0
PHOTO SAVE 0 : 30 : 00 : 00
[
MENU
]
:
END
8 / 15
END
4
MENU
POWER
VCR
CAMERA
MEMORY
OFF(CHG)
128
To stop or end copying
Press MENU.
When the memory of the “Memory Stick” is full
“MEMORY FULL” appears on the screen, and the copying stops. Insert another
“Memory Stick” and repeat the procedure from step 2.
When the access lamp is lit or flashing
Do not shake or strike your camcorder. As well do not turn the power off, eject a
“Memory Stick” or remove the battery pack. Otherwise, the image data breakdown may
occur.
If the write-protect tab on the “Memory Stick” is set to LOCK
“NOT READY” appears when you select the item in the menu settings.
When you change “Memory Stick”s in the middle of copying
Your camcorder resumes copying from the last image recorded on the previous
“Memory Stick.”
Copying still images from a tape – Photo save
129
“Memory Stick” Operations
Viewing a still picture
– Memory photo playback
– DCR-TRV17 only
You can play back still images recorded on a “Memory Stick.” You can also play back
six images at a time by selecting the index screen.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY or VCR.
Make sure that the LOCK switch is set to the left (unlock) position.
(2) Press MEMORY PLAY. The last recorded image is displayed.
(3) Press MEMORY +/– to select the desired still image. To see the previous
image, press MEMORY –. To see the next image, press MEMORY +.
To stop memory photo playback
Press MEMORY PLAY again.
Note
You may not be able to play back images properly in the following cases:
– when playing back on your camcorder image data modified with computer.
– when playing back image data on other equipment including other DCR-TRV17.
Notes on the file name
•The directory is not displayed if the structure of the directory does not conform to the
DCF98 standard.
•“ - DIRECTORY ERROR” may appear on the screen if the structure of the
directory does not conform to the DCF98 standard. While this message appears, you
can play back images but cannot record them on the “Memory Stick”.
•The file name flashes on the screen if the file is corrupted or the file is unreadable.
2
1
LOCK
3
PLAY
VCR
CAMERA
MEMORY
OFF(CHG)
POWER
130
To play back recorded images on a TV screen
•Connect your camcorder to the TV with the A/V connecting cable supplied with your
camcorder before operation.
•When operating memory photo playback on a TV or on the LCD screen, the image
quality may appear to have deteriorated. This is not a malfunction. The image data is
as good as ever.
•Turn the audio volume of the TV down before operation, or noise (howling) may be
output from the TV speakers.
Recording data
When you press DATA CODE on the Remote Commander, you can see the recording
data (date/time or various settings when recorded). Recording data are also recorded
on “Memory Stick”.
When no image is recorded on the “Memory Stick”
The message “ NO FILE” appears.
Screen indicators during still image playback
Viewing a still picture – Memory photo playback
Image number/
Total number of recorded images
Data Directory Number, File Number
Protect indicator
Print mark
6 / 100
MEMORY PLAY
100-0006
131
“Memory Stick” Operations

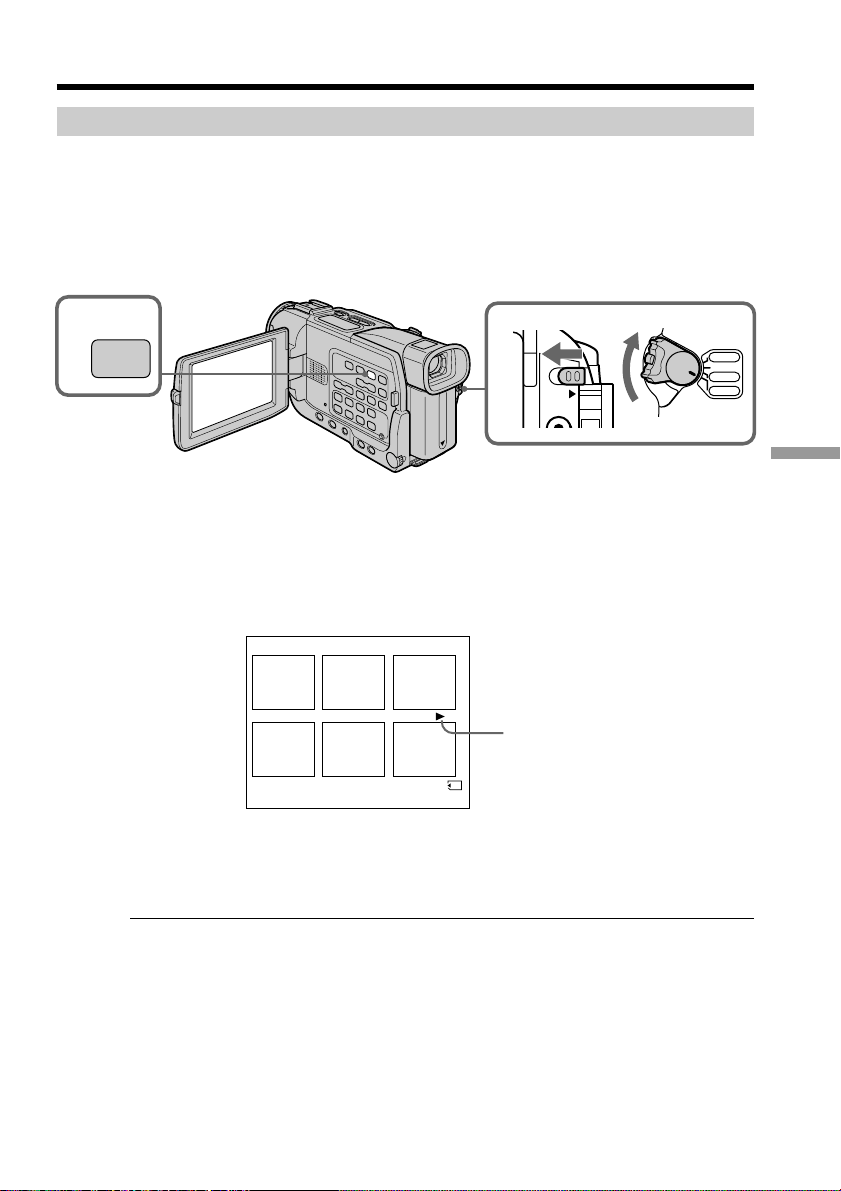

Playing back six recorded images at a time (index screen)
You can play back six recorded images at a time. This function is especially useful when
searching for a particular image.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Press MEMORY INDEX to display the index screen.
A red B mark appears above the image that is displayed before changing to the index
screen mode.
MEMORY – : to display the previous six images
MEMORY + : to display the following six images
To return to the normal playback screen (single screen)
Press MEMORY +/– to move the B mark to the image you want to display on full
screen, then press MEMORY PLAY.
Note
When displaying the index screen, the number appears above each image. This
indicates the order in which images are recorded on the “Memory Stick.” These
numbers are different from the data file names.
Image data modified with computers or shot with other equipment
These files may not be displayed on the index screen.
Viewing a still picture – Memory photo playback
1
LOCK
2
VCR
CAMERA
MEMORY
OFF(CHG)
POWER
INDEX
B mark
6 / 100
100-0006
1 2 3
4 5 6
132
Viewing a moving picture
– MPEG movie playback
– DCR-TRV17 only
You can play back moving pictures recorded on a “Memory Stick.” You can also play
back 6 images including still images in order at a time by selecting the index screen.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Press MEMORY PLAY. The last recorded image is displayed.
(3) Press MEMORY +/– to select the desired moving pictures. To see the previous
picture, press MEMORY –. To see the next picture, press MEMORY +.
(4) Press MPEG N X to start playback.
To stop MPEG movie playback
Press MPEG N X.
Note
You may not be able to play back images properly in the following cases:
– when playing back on your camcorder image data modified with computer
– when playing back image data on other equipment including other DCR-TRV17.
To play back recorded images on a TV screen
•Connect your camcorder to the TV with the A/V connecting cable supplied with your
camcorder before operation.
•Turn the audio volume of the TV down before operation, or noise (howling) may be
output from the TV speakers.
Recording data
When you press DATA CODE on the Remote Commander, you can see the recording
data (date/time or various setting when recorded).
When no image is recorded on the “Memory Stick”
The message “ NO FILE” appears.
1
LOCK
PLAY
3
2
4
MPEG
VCR
CAMERA
MEMORY
OFF(CHG)
PO
W
ER
133
“Memory Stick” Operations
Screen indicators during moving picture playback
Viewing a moving picture – MPEG movie playback
320
40
MOV
00001
MEMORY PLAY
2/20
0
:
12
min
Picture number/Total number of recorded
pictures
Image size
Data directory number/File number
Protect indicator
Remaining battery time indicator
Memory playback indicator
134
– DCR-TRV17 only
You can view data recorded on the “Memory Stick” using your computer.
On file format
Data recorded on the “Memory Stick” is stored in the following formats. Make sure that
applications that support these file formats are installed on your computer.
•Still images: JPEG format
•Moving images/audio: MPEG format
ActiveMovie Player (DirectShow) must be installed (to play back moving pictures).
QuickTime 3.2 or newer must be installed (to play back moving pictures).
Application software
For details on the application software, refer to the operating instructions supplied with
the CD-ROM.
Recommended USB connections environment
Recommended Windows environment
OS: Microsoft Windows 98, Windows 98SE, Windows Me or Windows 2000
Professional standard installation is required.
However, operation is not assured if the above environment is upgraded OS.
CPU:MMX Pentium 200 MHz or faster
The USB connector must be provided as standard.
Recommended Macintosh environment
Macintosh computer with the Mac OS 8.5.1/8.6/9.0 standard installation
However, note that the update to Mac OS 9.0 should be used for the following models.
• iMac with the Mac OS 8.6 standard installation and a slot loading type CD-ROM
drive
• iBook or G4 with the Mac OS 8.6 standard installation
The USB connector must be provided as standard.
Notes
•Operations are not guaranteed for either the Windows or Macintosh environment if
you connect 2 or more USB equipment to a single computer at the same time, or when
using a hub.
•Depending on the type of USB equipment that is used simultaneously, some
equipment may not operate.
•Operations are not guaranteed for all the recommended computer environments
mentioned above.
•All other product names mentioned herein may be the trademarks or registered
trademarks of their respective companies.
•Furthermore, “™” and “®” are not mentioned in each case in this manual.
Viewing images using computer
135
“Memory Stick” Operations
Installing the USB driver
Before connecting your camcorder to your computer, install the USB driver to the
computer. The USB driver is contained together with application software for viewing
images on a CD-ROM which is supplied with your camcorder.
For Windows 98/98SE, Windows 2000, Windows Me users
(1) Turn on your computer and allow Windows to load.
(2) Insert the supplied CD-ROM in the CD-ROM drive of your computer.
(3) Launch the application program on CD-ROM. After a moment, the dialog box
appears on your desktop. Set the cursor on “USB Driver Installation for
Windows 98/98SE/2000/Me” and click.
(4) The Setup program starts. Complete the installation on CD-ROM.
(5) Connect the USB jack on your camcorder with the USB connector on your
computer using the supplied USB cable.
(6) Insert a “Memory Stick” into your camcorder, connect the AC power adaptor
and set the POWER switch to MEMORY.
USB MODE appears on the LCD screen of your camcorder. Your computer
recognizes the camcorder, and the Windows Add Hardware Wizard starts.
(7) The Add Hardware Wizard starts twice because 2 different USB drivers are
installed. Be sure to allow the installation to complete without interrupting it.
Note
You cannot install the USB driver if a “Memory Stick” is not in your camcorder.
Be sure to insert a “Memory Stick” into your camcorder before installing the USB
driver.
For Macintosh users
(1) Turn on your computer and allow the Mac OS to load.
(2) Insert the supplied CD-ROM in the CD-ROM drive of your computer.
(3) Double-click the CD-ROM drive icon to open the window.
(4) Double-click the icon of the hard disk containing the OS to open the window.
(5) Move the following 2 files from the window opened in step 3 to the System
Folder icon in the window opened in step 4 (drag and drop).
• Sony Camcorder USB Driver
• Sony Camcorder USB Shim
(6) When “Put these items into the Extensions folder?” appears, click OK.
(7) Restart your computer.
Viewing images using computer
USB connector
USB jack
Computer
USB cable
Push into the end.
136
Viewing images
For Windows 98 users
(1) Turn on the power of your computer and allow Windows 98 to load.
(2) Connect one end of the USB cable to the USB jack on the camcorder and the
other end to the USB connector on your computer.
(3) Insert a “Memory Stick” into your camcorder, and connect the AC power
adaptor to your camcorder and then to a wall outlet.
(4) Set the POWER switch to MEMORY.
USB MODE appears on the screen of the camcorder.
(5) Open “My Computer” on Windows 98 and double click the newly recognized
drive. (Example: “Removable Disk (D:)”)
The folders inside the “Memory Stick” are displayed.
(6) Select and double-click the desired image file from the folder.
For the detailed folder and file name, see ”Image file storage destinations and
image files” (p. 137).
Desired file type Double-click in this order
Still image “Dcim” folder t “100msdcf” folder t Image file
Moving picture* “Mssony” folder t “Moml0001” folder t Image file*
* Copying a file to the hard disk of your computer before viewing it is recommended. If
you play back the file directly from the “Memory Stick”, the image and sound may
break off.
Unplug the USB cable/Eject the “Memory Stick”
To unplug the USB cable or eject the “Memory Stick”, follow the procedure below.
For Windows 2000/Windows Me users
(1) Move the cursor to the “Unplug or Eject Hardware” icon on the Task Tray and
click to cancel the applicable drive.
(2) A message to remove the device from the system appears, then unplug the
USB cable or eject the “Memory Stick.”
For Macintosh users
(1) Quit application programs opened.
Make sure that the access lamp of the hard disk is not lit.
(2) Drag and drop the “Memory Stick” icon to the Trash or select Eject under the
Special menu.
(3) Eject the “Memory Stick.”
Viewing images using computer
Push into the end.
USB connector
USB jack
Computer
USB cable
137
“Memory Stick” Operations
Notes on using your computer
“Memory Stick”
•“Memory Stick” operations on your camcorder cannot be assured if the “Memory
Stick” has been formatted on your computer.
•Do not optimize the “Memory Stick” on a Windows machine. This will shorten the
“Memory Stick” life.
•Do not compress the data on the “Memory Stick.” Compressed files cannot be played
back on your camcorder.
Software
•Depending on your application software, the file size may increase when you open a
still image file.
•When you load an image modified using a retouch software from your computer to
the camcorder or when you directly modify the image on the camcorder, the image
format will differ so a file error indicator may appear and you may be unable to open
the file.
Communications with your computer
Communications between your camcorder and your computer may not recover after
recovering from Suspend, Resume, or Sleep.
Image file storage destinations and image files
Image files recorded with your camcorder are grouped in folders by recording mode.
The meanings of the file names are as follows. ssss stands for any number within
the range from 0001 to 9999.
For Windows 98 users
(The drive recognizing the camcorder is [D:])
Folder File Meaning
100msdcf DSC0ssss.JPG Still image file
Moml0001 MOV0ssss.MPG Moving picture file
Viewing images using computer
Folder containing moving picture data
Folder containing still image data
138
Copying the image recorded on “Memory
Stick”s to tapes
– DCR-TRV17 only
You can copy still images or titles recorded on “Memory Stick” and record them to a
tape.
Before operation
•Insert a tape for recording into your camcorder.
•Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to VCR.
(2) Using the video control buttons, search a point where you want to record the
desired still image. Set the tape to playback pause.
(3) Press z REC and the button on its right simultaneously on your camcorder.
The tape is set to the recording pause mode.
(4) Press MEMORY PLAY and select the still image you want to copy by
MEMORY +/–.
(5) Press X to start recording and press X again to stop.
(6) If you have more to copy, repeat steps 4 and 5.
To stop copying in the middle
Press x.
During copying
You cannot operate the following buttons:
– MEMORY PLAY
– MEMORY INDEX
– MEMORY DELETE
– MEMORY +/–
– MEMORY MIX
REC
3
1
2
5
4
PLAY
z
zX
BX
POWER
VCR
CAMERA
MEMORY
OFF(CHG)
139
“Memory Stick” Operations
Copying the image recorded on “Memory Stick”s to tapes
Note on the index screen
You cannot record the index screen.
If you press EDITSEARCH during pause mode
Memory playback stops.
Image data modified with computers or shot with other equipment
You may not be able to copy them with your camcorder.
If you press DISPLAY during recording or in recording standby mode
You can see memory playback and the file name indicators in addition to the indicators
pertinent to tapes, such as the time code indicator.
140
Enlarging still images recorded on
“Memory Stick”s – Memory PB ZOOM
– DCR-TRV17 only
You can enlarge still images recorded on a “Memory Stick.” You can select and view the
desired part from the enlarged still image. Also, you can copy the desired part of the
enlarged still image to tapes or video tapes.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) In the memory playback mode, press PB ZOOM on your camcorder.
The still image is enlarged, and
R rT t
appear on the screen.
(3) Turn the SEL/PUSH EXEC dial to move the enlarged image, then press the
dial.
R
: The image moves downwards.
r
: The image moves upwards.
(4) Turn the SEL/PUSH EXEC dial to move the enlarged image, then press the
dial.
t
: The image moves leftward. (Turn the dial upwards.)
T
: The image moves rightward. (Turn the dial downwards.)
To cancel the Memory PB ZOOM function
Press PB ZOOM.
Note
You cannot copy the images enlarged by the PB ZOOM mode on “Memory Stick”s.
In the PB ZOOM mode
The digital effect function does not work.
2
3
4
1
LOCK
VCR
CAMERA
MEMORY
OFF(CHG)
POWER
PB
ZOOM
PB ZOOM
[
EXEC
]
: T t
PB ZOOM
[
EXEC
]
: r R
141
“Memory Stick” Operations
The PB ZOOM function is cancelled when the following buttons are pressed:
– MENU
– MEMORY PLAY
– MEMORY INDEX
– MEMORY +/–
Pictures in the PB ZOOM mode
Pictures in the PB ZOOM mode are not output through the DV IN/OUT jack when
the POWER switch is set to MEMORY.
Moving pictures recorded on “Memory Stick”s
The PB ZOOM function does not work on moving pictures recorded on “Memory
Stick”s.
Enlarging still images recorded on “Memory Stick”s
– Memory PB ZOOM
142
– DCR-TRV17 only
You can automatically play back images in sequence. This function is useful especially
when checking recorded images or during a presentation.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Press MENU to display the menu.
(3) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select SLIDE SHOW, then press the dial.
(5) Press MEMORY PLAY. Your camcorder plays back the images recorded on a
“Memory Stick” in sequence.
To stop the slide show
Press MENU.
To pause during a slide show
Press MEMORY PLAY.
To start the slide show from a particular image
Select the desired image using MEMORY +/– buttons before step 2.
To view the recorded images on TV
Connect your camcorder to a TV with the A/V connecting cable supplied with your
camcorder before operation.
If you change the “Memory Stick” during operation
The slide show does not operate. If you change the “Memory Stick,” be sure to follow
the steps again from the beginning.
Playing back images in a continuous loop
– SLIDE SHOW
2
5
3
4
1
1
LOCK
VCR
CAMERA
MEMORY
OFF(CHG)
P
O
W
E
R
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
READY
[
M PLAY
]
:
START
[
MENU
]
:
END
SL
I
DE SHOW
100-0001
1 / 100
PLAY
MENU
143
“Memory Stick” Operations
Preventing accidental erasure
– Image protection
– DCR-TRV17 only
To prevent accidental erasure of important images, you can protect selected images.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Play back the image you want to protect.
(3) Press MENU to display the menu.
(4) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select PROTECT, then press the dial.
(6) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(7) Press MENU to make the menu display disappear. The “-“ mark is
displayed beside the data file name of the protected image.
To cancel image protection
Select OFF in step 6, then press the SEL/PUSH EXEC dial.
Note
Formatting erases all information on the “Memory Stick,” including the protected
image data. Check the contents of the “Memory Stick” before formatting.
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot carry out image protection.
3,7
4
5
6
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
OFF
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
ON
OFF
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
ON
10 / 1210 / 12
10 / 12
MENU
144
– DCR-TRV17 only
You can delete images stored in a “Memory Stick.”
You can delete all images or selected images.

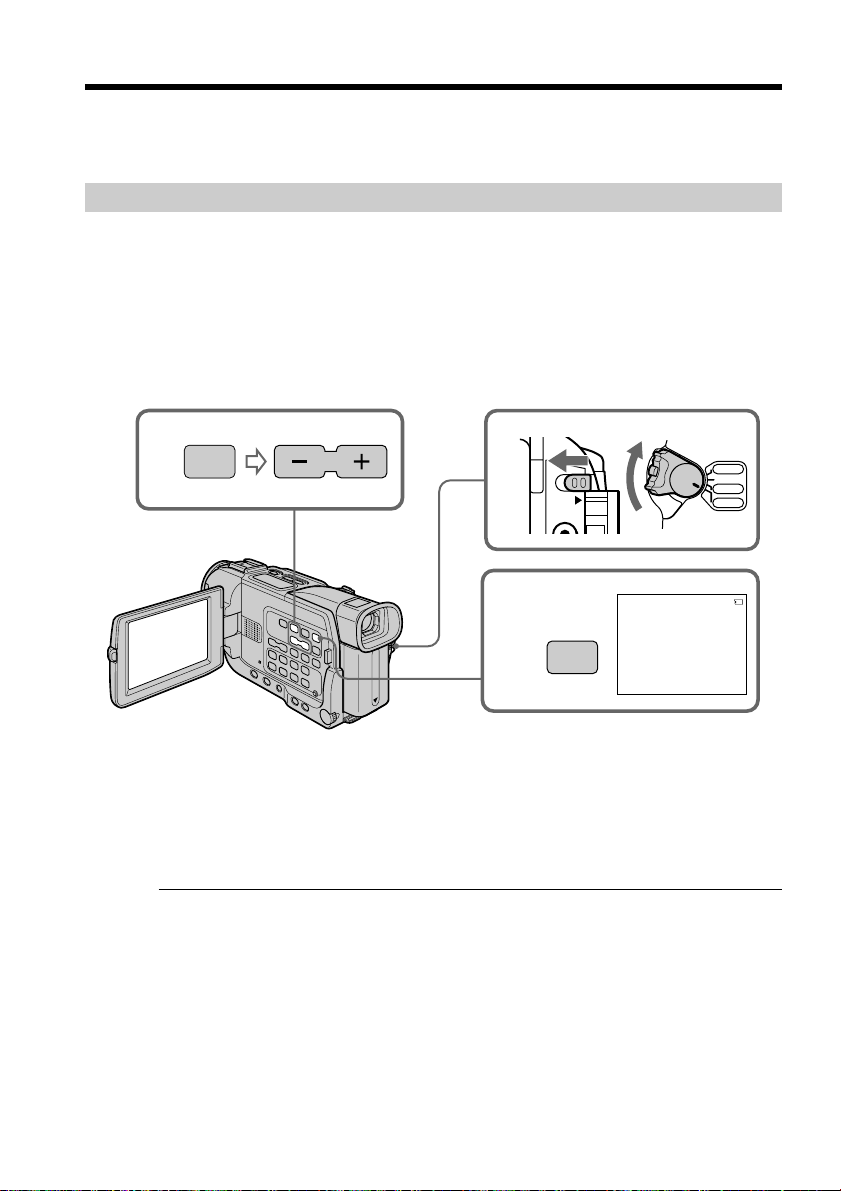

Deleting selected images
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Play back the image you want to delete.
(3) Press MEMORY DELETE. “DELETE?” appears on the screen.
(4) Press MEMORY DELETE again. The selected image is deleted.
To cancel deleting an image
Press MEMORY – in step 4.
To delete an image displayed on the index screen
Press MEMORY +/– to move the B indicator to the desired image and follow steps 3
and 4.
Notes
•To delete a protected image, first cancel image protection.
•Once you delete an image, you cannot restore it. Check the images to delete carefully
before deleting them.
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot delete images.
Deleting images
1
LOCK
3,4
2
VCR
CAMERA
MEMORY
OFF(CHG)
P
O
W
E
R
DELETE
100-0010
[
DELETE
]
:
DEL
[
–
]
:
CANCEL
89 / 100
DELETE?
DELETE
PLAY
145
“Memory Stick” Operations
Deleting all the images
You can delete all the unprotected images in a “Memory Stick.”
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to
the left (unlock) position.
(2) Press MENU to display the menu.
(3) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select DELETE ALL, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select OK, then press the dial. “OK” changes
to “EXECUTE.”
(6) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
“DELETING” appears on the screen. When all the unprotected images are
deleted, “COMPLETE” is displayed.
To cancel deleting all the images in the “Memory Stick”
Select RETURN in step 5, then press the SEL/PUSH EXEC dial.
While “DELETING” appears
Do not turn the POWER switch or press any buttons.
Deleting images
2
3
4
6
5
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
READY
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
RETURN
OK
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
RETURN
OK
RETURN
EXECUTE
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
DELET I NG
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
COMPLETE
MEMORY SET
MEMORY SET
MEMORY SET
MEMORY SET
1
MENU
LOCK
VCR
CAMERA
MEMORY
OFF(CHG)
POWER
146
Writing a print mark – PRINT MARK
– DCR-TRV17 only
You can specify the recorded still image to print out. This function is useful for printing
out still images later.
Your camcorder conforms with the DPOF (Digital Print Order Format) standard for
specifying the still images to print out.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch
is set to the left (unlock) position.
(2) Play back the image you want to write a print mark.
(3) Press MENU to display the menu.
(4) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select PRINT MARK, then press the dial.
(6) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(7) Press MENU to make the menu display disappear. The “
” mark is
displayed beside the data file name of the image with a print mark.
3,7
4
5
6
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
OFF
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
ON
OFF
MEMORY SET
STILL SET
MOVIE SET
PR
I
NT MARK
PROTECT
SL
I
DE SHOW
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
ON
10 / 1210 / 12
10 / 12
MENU
147
“Memory Stick” Operations
To cancel writing print marks
Select OFF in step 6, then press the SEL/PUSH EXEC dial.
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot write print marks on still images.
Moving pictures
You cannot write print marks on moving pictures.
While the file name is flashing
You cannot write print marks on images.
Writing a print mark – PRINT MARK
148

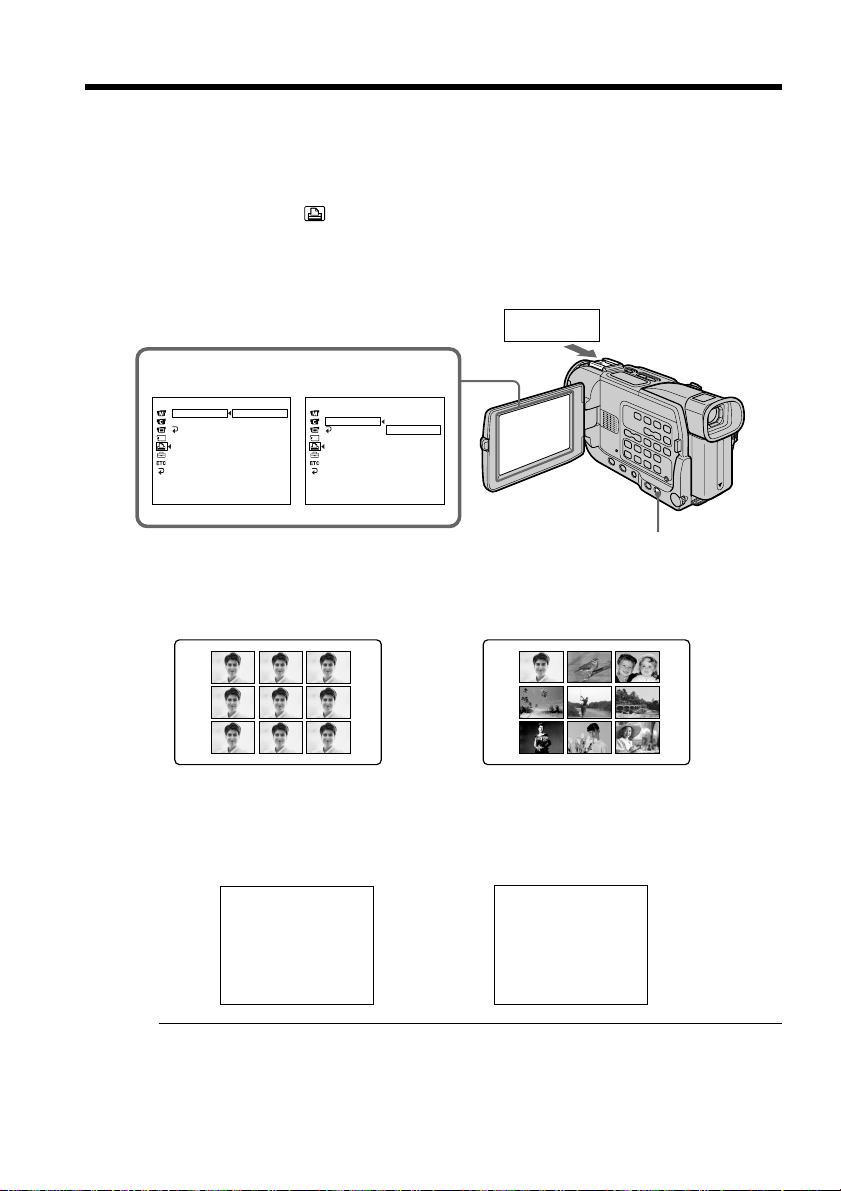

Using the printer (optional)
– DCR-TRV17 only
You can use the printer (optional) on your camcorder to print images on the print
paper.
For details, refer to the operating instructions of the printer.
There are various ways of printing still images. The following, however, describes how
to print by selecting in the menu on your camcorder.
Before operation
•Insert a recorded “Memory Stick” into your camcorder.
•Connect the printer to your camcorder as illustrated.
You can print 9 still images on the 9 split print paper. Select the desired mode in the
menu settings.
* 9 still images with print marks are printed together.
You can make prints with the recording date and/or recording time. Select the desired
mode in the menu settings.
Images recorded in multi screen mode
You cannot print images recorded in multi screen mode on sticker type print paper.
You cannot print following images:
– Moving pictures recorded on “Memory Stick”
– Images processed by the PB ZOOM function
Printer
PRI NT SET
[
MENU
]
:
END
RETURN
9PIC PRINT
DATE / TIME
RETURN
SAME
MUL T I
MARKED
PRI NT SET
[
MENU
]
:
END
RETURN
9PIC PRINT
DATE/TIME
OFF
DATE
DAY&T IME
MENU
9PIC PRINT DATE/TIME
SAME PICS MULTI PICS or MARKED PICS*
JUL 4 2001
DATE DAY & TIME
412
:
00
AM
149
Troubleshooting
— Troubleshooting —
Types of trouble and their solutions
If you run into any problem using your camcorder, use the following table to
troubleshoot the problem. If the problem persists, disconnect the power source and
contact your Sony dealer or local authorized Sony service facility. If “C:ss:ss”
appears on the screen or the self-diagnosis display function has worked. See page 155.
In the recording mode
Symptom Cause and/or Corrective Actions
• The POWER switch is not set to CAMERA.
c Set it to CAMERA. (p. 21)
• The tape has run out.
c Rewind the tape or insert a new one. (p. 20, 33)
• The write-protect tab is set to expose the red mark.
c Use a new tape or slide the tab. (p. 20)
• The tape is stuck to the drum (moisture condensation).
c Remove the cassette and leave your camcorder for at
least one hour to acclimatize. (p. 165)
• While being operated in CAMERA mode, your camcorder
has been in the standby mode for more than five minutes.
c Set the POWER switch to OFF (CHG) and then to
CAMERA. (p. 21)
• The battery pack is dead or nearly dead.
c Install a charged battery pack.
• The viewfinder lens is not adjusted.
c Adjust the viewfinder lens. (p. 24)
• STEADYSHOT is set to OFF in the menu settings.
c Set it to ON. (p. 97)
• The setting is the manual focus.
c Press FOCUS to set to the auto focus mode. (p. 53)
• Shooting conditions are not suitable for autofocus.
c Adjust to focus manually. (p. 53)
• The LCD panel is open.
c Close the LCD panel. (p. 22)
• The contrast between the subject and background is too
high. Your camcorder is not a malfunction.
• Your camcorder is not a malfunction.
• Slow shutter, low lux or Super NightShot mode is
activated. This is not a malfunction.
• If 10 minutes elapse after you set the POWER switch to
CAMERA or DEMO MODE is set to ON in the menu
settings without a cassette inserted, your camcorder
automatically starts the demonstration.
c Insert a cassette and the demonstration stops.
You can also cancel DEMO MODE. (p. 101)
(continued on the following page)
START/STOP does not operate.
The power goes off.
The image on the viewfinder is not
clear.
The SteadyShot function does not
work.
The autofocusing function does not
work.
The picture does not appear in the
viewfinder.
A vertical band appears when you
shoot a subject such as lights or a
candle flame against a dark
background.
A vertical band appears when you
shoot a very bright subject.
Some tiny white spots appear on the
screen.
An unknown picture is displayed on
the screen.
150
In the playback mode
Symptom Cause and/or Corrective Actions
• The POWER switch is not set to VCR.
c Set it to VCR. (p. 31)
• The tape has run out.
c Rewind the tape. (p. 33)
• The video head may be dirty.
c Clean the heads using the cleaning cassette (optional).
(p. 166)
• The volume is turned to minimum.
c Turn up the volume. (p. 31)
• AUDIO MIX is set to ST2 in the menu settings.
c Adjust AUDIO MIX. (p. 98)
• The tape has no cassette memory.
c Use a tape with cassette memory. (p. 62)
• CM SEARCH is set to OFF in the menu settings.
c Set it to ON. (p. 100)
• The tape has a blank portion in the recorded portion.
(p. 62)
• The tape has no cassette memory.
c Use a tape with cassette memory. (p. 62)
• CM SEARCH is set to OFF in the menu settings.
c Set it to ON. (p. 100)
• There is no title in the tape.
c Superimpose the titles. (p. 89)
• The tape has a blank portion in the recorded portion.
(p. 90)
• AUDIO MIX is set to ST1 side in the menu settings.
c Adjust AUDIO MIX. (p. 98)
• TITLE DSPL is set to OFF in the menu settings.
c Set it to ON. (p. 100)
Symptom Cause and/or Corrective Actions
• NIGHTSHOT is set to ON.
c Set it to OFF. (p. 27)
• NIGHTSHOT is set to ON in a bright place.
c Set it to OFF . (p. 27)
• BACK LIGHT is activated.
c Deactivate it.
• BEEP is set to OFF in the menu settings.
c Set it to MELODY or NORMAL. (p. 102)
c Set the STEADYSHOT in the menu settings to OFF.
(p. 97)
Types of trouble and their solutions
The picture is recorded in incorrect or
unnatural colors.
The picture appears too bright, and
the subject does not appear on the
screen.
The click of the shutter does not
sound.
Black bands appear when you
record TV or computer screen.
The tape does not move when a
video control button is pressed.
The playback button does not work.
There are horizontal lines on the
picture or the playback picture is not
clear or does not appear.
No sound or only a low sound is
heard when playing back a tape.
Displaying the recorded date, date
search function does not work.
The title search function does not
work.
The new sound added to the
recorded tape is not heard.
The title is not displayed.
151
Troubleshooting
Types of trouble and their solutions
In the recording and playback modes
Symptom Cause and/or Corrective Actions
• The battery pack is not installed, or is dead or nearly dead.
c Install a charged battery pack. (p. 12, 13)
• The AC power adaptor is not connected to a wall outlet.
c Connect the AC power adaptor to a wall outlet. (p. 17)
• The tape was ejected after recording when using a tape
without cassette memory. (p. 30)
• You have not recorded on the new cassette yet. (p. 30)
• The tape has a blank portion in the beginning or middle.
• The operating temperature is too low.
• The battery pack is not fully charged.
c Charge the battery pack again. (p. 13)
• The battery pack is completely dead, and cannot be
recharged.
c Replace with a new battery pack. (p. 12)
• You have used the battery pack in an extremely hot or
cold environment for a long time.
• The battery pack is completely dead, and cannot be
recharged.
c Replace with a new battery pack. (p. 12)
• The battery is not fully charged.
c Charge the battery pack fully again. (p. 13)
• A deviation has occured in the remaining battery time.
c Charge the battery fully. (p. 13)
• A deviation has occured in the remaining battery time.
c Charge the battery pack fully again so that the indication
on the battery remaining indicator is correct. (p. 13)
• The power source is disconnected.
c Connect it firmly. (p. 12, 17)
• The battery is dead.
c Use a charged battery pack. (p. 12, 13)
• Moisture condensation has occurred.
c Remove the cassette and leave your camcorder for at
least one hour to acclimatize. (p. 165)
• The gold-plated connector of the tape is dirty or dusty.
c Clean the gold-plated connector. (p. 158)
• The q REMAIN is set to AUTO in the menu settings.
c Set it to ON to always display the remaining tape
indicator. (p. 101)
The power does not turn on.
The end search function does not
work.
The end search function does not
work correctly.
The battery pack is quickly
discharged.
The battery remaining indicator does
not indicate the correct time.
The power goes off although the
battery remaining indicator indicates
that the battery pack has enough
power to operate.
The cassette cannot be removed from
the holder.
The % and Z indicators flash and no
functions except for cassette ejection
work.
indicator does not appear when
using a tape with cassette memory.
Remaining tape indicator is not
displayed.
(continued on the following page)
152
Types of trouble and their solutions
When operating using the “Memory Stick”
– DCR-TRV17 only
Symptom Cause and/or Corrective Actions
• The POWER switch is not set to MEMORY.
c Set it to MEMORY. (p. 112)
• The “Memory Stick” is not inserted.
c Insert a “Memory Stick”. (p. 105)
• The “Memory Stick” has already been recorded to its full
capacity.
c Delete unnecessary images and record again. (p. 144)
• The “Memory Stick” formatted incorrectly is inserted.
c Format the “Memory Stick” or use another “Memory
Stick. “ (p. 100)
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock. (p. 103)
• The image is protected.
c Cancel image protection. (p. 143)
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock. (p. 103)
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock. (p. 103)
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock. (p. 103)
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock. (p. 103)
• The image to protect is not be played back.
c Press MEMORY PLAY to play back the image. (p. 129)
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock. (p. 103)
• The image to write a print mark is not be played back.
c Press MEMORY PLAY to play back the image. (p. 129)
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock. (p. 103)
• The battery pack is dead.
c Install a charged battery pack or use the AC power
adaptor
• You may not be able to play back images in actual size
when you try to play back images recorded by other
equipment.
c This is not a malfunction.
The “Memory Stick” does not
function.
Recording does not function.
The image cannot be deleted.
You cannot format the “Memory
Stick”.
Deleting all the images cannot be
carried out.
You cannot protect the image.
You cannot write a print mark on
the still image.
The photo save function does not
work.
You cannot play back images in
actual size.
153
Troubleshooting
Types of trouble and their solutions
Others
Symptom Cause and/or Corrective Actions
• The tape has no cassette memory.
c Use a tape with cassette memory. (p. 89, 158)
• The cassette memory is full.
c Erase unnecessary title. (p. 91)
• The tape is set to prevent accidental erasure.
c Slide the write-protect tab so that red portion is not
visible. (p. 20)
• Nothing is recorded in that position on the tape.
c Superimpose the title to the recorded position. (p. 89)
• The tape has no cassette memory.
c Use a tape with cassette memory. (p. 94, 158)
• The cassette memory is full.
c Erase some titles. (p. 91)
• The tape is set to prevent accidental erasure.
c Slide the write-protect tab so that red portion is not
visible. (p. 20)
• The input selector on the VCR is not set correctly.
c Check the connection and set the input selector on the
VCR again. (p. 66, 67)
• The camcorder is connected to DV equipment of other
than Sony.
c Set it to IR. (p. 69)
• Setting program on a blank portion of the tape is
attempted.
c Set the program again on a recorded portion. (p. 76)
• The camcorder and the VCR are not synchronized.
c Adjust the synchronicity. (p. 73)
• COMMANDER is set to OFF in the menu settings.
c Set it to ON. (p. 102)
• Something is blocking the infrared rays.
c Remove the obstacle.
• The batteries are inserted in the battery holder with the + –
polarities incorrectly matching the + – marks.
c Insert the batteries with the correct polarity. (p. 178)
• The batteries are dead.
c Insert new ones. (p. 178)
• DISPLAY is set to V-OUT/LCD in the menu settings.
c Set it to LCD. (p. 102)
The title is not recorded.
The cassette label is not recorded.
Digital program editing does not
function.
The Remote Commander supplied
with your camcorder does not work.
The picture from a TV or VCR does
not appear even when your
camcorder is connected to output on
the TV or VCR.
(continued on the following page)
154
Symptom Cause and/or Corrective Actions
• Moisture condensation has occurred.
c Remove the cassette and leave your camcorder for at
least one hour to acclimatize. (p. 165)
• Some troubles have occurred in your camcorder.
c Remove the cassette and insert it again, then operate
your camcorder.
• Disconnect the power cord of the AC power adaptor or
remove the battery, then reconnect it in about one minute.
Turn the power on. If the functions still do not work, open
the LCD panel and press the RESET button beside the
z REC button using a sharp-pointed object. (If you press
the RESET button, all the settings including the date and
time return to the default.) (p. 176)
• The battery pack is not properly installed.
c Install it properly.
• Something is wrong with the battery pack.
c Contact your Sony dealer or local authorized Sony
service facility.
• The POWER switch is not set to OFF (CHG).
c Set it to OFF (CHG).
The melody or beep sounds for five
seconds.
No function works though the
power is on.
While charging the battery pack, no
indicator appears or the indicator
flashes in the display window.
You cannot charge the battery pack.
Types of trouble and their solutions
155
Troubleshooting
C:21:00
Self-diagnosis display
Five-digit display Cause and/or Corrective Actions
• You are using a battery pack that is not an
“InfoLITHIUM” battery pack.
c Use an “InfoLITHIUM” battery pack. (p. 160)
• Moisture condensation has occurred.
c Remove the cassette and leave your camcorder for at
least one hour to acclimatize. (p. 165)
• The video heads are dirty.
c Clean the heads using the cleaning cassette (optional).
(p. 166)
• A malfunction other than the above that you can service
has occurred.
c Remove the cassette and insert it again, then operate
your camcorder.
c Disconnect the power cord of the AC power adaptor or
remove the battery pack. After reconnecting the power
source, operate your camcorder.
• A malfunction that you cannot service has occurred.
c Contact your Sony dealer or local authorized Sony
service facility and inform them of the 5-digit code.
(example: E:61:10)
If you are unable to rectify the problem even if you try corrective actions a few times, contact your
Sony dealer or local authorized Sony service facility.
Your camcorder has a self-diagnosis display
function.
This function displays the current condition of
your camcorder as a 5-digit code (a combination of
a letter and figures) in the viewfinder, on the LCD
screen or in the display window. If a 5-digit code is
displayed, check the following code chart. The last
two digits (indicated by ss) will differ depending
on the state of your camcorder.
C:21:ss
LCD screen, Viewfinder or
Display window
Self-diagnosis display
•C:ss:ss
You can service your camcorder
yourself.
•E:ss:ss
Contact your Sony dealer or local
authorized Sony service facility.
E:61:ss
E:62:ss
C:31:ss
C:32:ss
C:04:ss
C:22:ss
156
Warning indicators and messages
100-0001 Warning indicator as to file
Slow flashing:
•The file is corrupted.
•The file is unreadable.
•You are trying to carry out MEMORY MIX
function on moving picture.
C:21:00 Self-diagnosis display (p. 155)
E The battery is dead or nearly dead
Slow flashing:
•The battery is nearly dead.
Depending on the operating conditions,
environment and battery condition, the E
indicator may flash, even if there are
approximately 5 to 10 minutes remaining.
Fast flashing:
•The battery is dead.
% Moisture condensation has occurred*
Fast flashing:
•Eject the cassette, turn off your camcorder,
and leave it for about 1 hour with the cassette
compartment open (p. 165).
Warning indicator as to cassette
memory*
Slow flashing:
•No tape with cassette memory is inserted
(p. 158).
Warning indicator as to “Memory
Stick”**
Slow flashing:
•No “Memory Stick” is inserted.
Fast flashing:
•The “Memory Stick” is not readable with
your camcorder (p. 103).
•The image cannot be recorded on “Memory
Stick” (p. 122).
If indicators and messages appear on the screen, check the following:
See the page in parentheses “( )” for more information.
Warning indicators
C:21:00100–0001
Warning indicator as to “Memory Stick”
formatting**
Fast flashing:
•“Memory Stick” is not formatted correctly
(p. 100).
•The “Memory Stick” data is corrupted.*
Q Warning indicator as to tape
Slow flashing:
•The tape is near the end.
•No tape is inserted.*
•The write-protect tab on the cassette is out
(red) (p. 20).*
Fast flashing:
•The tape has run out.*
Z You need to eject the cassette*
Slow flashing:
•The write-protect tab on the cassette is out
(red) (p. 20).
Fast flashing:
•Moisture condensation has occurred (p. 165).
•The tape has run out.
•The self-diagnosis display function is
activated (p. 155).
- The still image is protected*
Slow flashing:
•The still image is protected (p. 143).
Warning indicator as to the external flash
(optional)
Slow flashing:
•During charging.
Fast flashing:
•There is something wrong with the flash
(optional) while charging.
* You hear the melody or beep sound.
** DCR-TRV17 only
157
Troubleshooting
Warning indicators and messages
Warning messages
•CLOCK SET Set the date and time (p. 18).
•FOR “InfoLITHIUM” Use an “InfoLITHIUM” battery pack (p. 160).
BATTERY ONLY
• CLEANING CASSETTE*
3)
The video heads are dirty (p. 166).
• FULL The tape cassette memory is full.*
2)
• 16BIT AUDIO MODE is set to 16BIT (p. 101).*
2)
You cannot
dub new sound.
• REC MODE REC MODE is set to LP (p. 101).*
2)
You cannot dub
new sound.
• TAPE There is no recorded portion on the tape.*
2)
You
cannot dub new sound.
• “i.LINK” CABLE i.LINK cable is connected (p. 88).*
2)
You cannot dub
new sound.
• FULL*
1)
The “Memory Stick“ is full (p. 115).*
2)
• -*
1)
The write-protect tab on the “Memory Stick“ is set to
LOCK (p. 103).*
2)
• NO FILE*
1)
No still image is recorded on the “Memory Stick“
(p. 130).*
2)
• NO MEMORY STICK*
1)
No “Memory Stick“ is inserted.*
2)
• AUDIO ERROR*
1)
You are trying to record an image with sound that
cannot be recorded by your camcorder on the
“Memory Stick”.*
2)
• NO STILL IMAGE FILE No still image is recorded on the “Memory
Stick”though you are trying to print in the 9 PIC
PRINT mode.
• MEMORY STICK ERROR*
1)
The “Memory Stick“ data is corrupted (p. 105).*
2)
• FORMAT ERROR*
1)
The “Memory Stick” is not recognized. Check the
format (p. 100).*
2)
• - DIRECTORY ERROR*
1)
There are more than two same directories (p. 129).*
2)
•COPY INHIBIT The tape contains copyright control signals for
copyright protection of software (p. 158).*
2)
•Q Z TAPE END The tape has reached the end of the tape.*
2)
•Q NO TAPE Insert a cassette tape.*
2)
•DELETING You have pressed PHOTO during deleting all images
on “Memory Stick.”
•FORMATTING You have pressed PHOTO during formatting a
“Memory Stick.”
*
1)
DCR-TRV17 only
*
2)
You hear the melody or beep sound.
*
3)
The x indicator and “ CLEANING CASSETTE” message appear one after
another on the screen.
158
— Additional Information —
Usable cassettes
Selecting cassette types
You can use the mini DV cassette only*. You cannot use any other 8 mm,
Hi8, Digital8, VHS, VHSC, S-VHS, S-VHSC, Betamax,
ED Betamax or DV cassette.
* There are two types of mini DV cassettes: with cassette memory and without cassette
memory. Tapes with cassette memory have (Cassette Memory) mark.
We recommend you to use the tape with cassette memory.
The IC memory is mounted on this type of cassette. Your camcorder can read and
write data such as dates of recording or titles, etc. to this memory.
The functions using the cassette memory require successive signals recorded on the
tape. If the tape has a blank portion in the beginning or between the recorded
portions, a title may not be displayed properly or the search functions may not work
properly. Not to make any blank portion on the tape, operate the followings.
Press END SEARCH to go to the end of the recorded portion before you begin the
next recording if you operate the followings:
– you have ejected the cassette while recording.
– you have played back the tape in the VCR.
– you have used the edit search function.
If there is a blank portion or discontinuous signal on your tape, re-record from the
beginning to the end of the tape concerning above.
The same result may occur when you record using a digital video camera recorder
without a cassette memory function on a tape recorded by one with the cassette
memory function.
mark on the cassette
The memory capacity of tapes marked with is 4KB. Your camcorder can
accommodate tapes having a memory capacity of up to 16KB. 16KB tape is marked with
.
This is the Mini DV mark.
This is the Cassette Memory mark.
These are trademarks.
Copyright signal
When you play back
Using any other video camera recorder, you cannot record on tape that has recorded a
copyright control signals for copyright protection of software which is played back on
your camcorder.
When you record
You cannot record software on your camcorder that contains copyright control
signals for copyright protection of software.
“COPY INHIBIT” appears on the screen, in the viewfinder or on the TV screen if you
try to record such software.
Your camcorder does not record copyright control signals on the tape when it records.
159
Additional Information
Usable cassettes
Audio mode
12-bit mode: The original sound can be recorded in stereo 1, and the new sound in
stereo 2 in 32 kHz. The balance between stereo 1 and stereo 2 can be adjusted by
selecting AUDIO MIX in the menu settings during playback. Both sounds can be played
back.
16-bit mode: A new sound cannot be recorded but the original sound can be recorded in
high quality. Moreover, it can also play back sound recorded in 32 kHz, 44.1 kHz or
48 kHz. When playing back a tape recorded in the 16-bit mode, 16BIT indicator appears
on the LCD screen or in the viewfinder.
When you play back a dual sound track tape
When you play back a dual sound track tape recorded in a stereo system, set “HiFi
SOUND” to the desired mode in the menu settings (p. 98).
Sound from speaker
HiFi SOUND Playing back Playing back a dual
mode a stereo tape sound track tape
STEREO
Stereo Main sound and
sub sound
1 Left sound Main sound
2 Right sound Sub sound
You cannot record dual sound programs on your camcorder.
Notes on the cassette
When affixing a label on the cassette
Be sure to affix a label only on the locations as illustrated below [a] so as not to cause a
malfunction of your camcorder.
After using the cassette
Rewind the tape to the beginning, put the cassette in its case, and store it in an upright
position.
When the cassette memory function does not work
Reinsert a cassette. The gold-plated connector of cassettes may be dirty or dusty.
Cleaning the gold-plated connector
If the gold-plated connector of cassettes is dirty or dusty, you may not operate the
function using cassette memory. Clean up the gold-plated connector with cotton-wool
swab, about every 10 times ejection of a cassette. [b]
[a]
[b]
Do not affix a label
around this border.
160
About the “InfoLITHIUM” battery pack
What is the “InfoLITHIUM” battery pack?
The “InfoLITHIUM” battery pack is a lithium-ion battery pack that has functions for
communicating information related to operating conditions between the battery pack
and your camcorder or an AC power adaptor.
The “InfoLITHIUM” battery pack calculates the power consumption according to the
operating conditions of your camcorder, and displays the remaining battery time in
minutes.
Charging the battery pack
•Be sure to charge the battery pack before you start using your camcorder.
•We recommend charging the battery pack in an ambient temperature of between
10 °C to 30 °C (50 °F to 86 °F) until FULL appears in the display window, indicating
that the battery pack is fully charged. If you charge the battery pack outside of this
temperature range, you may not be able to efficiently charge the battery pack.
•After charging is completed, either disconnect the AC power adaptor from the DC IN
jack on your camcorder or remove the battery pack.
Effective use of the battery pack
• Battery performance decreases in low-temperature surroundings. So, the time that the
battery pack can be used becomes shorter. We recommend the following to use the
battery pack longer:
– Put the battery pack in a pocket close to your body to warm it up, and insert it in
your camcorder immediately before you start taking shots.
– Use the large capacity battery pack (NP-FM50/FM70/FM90/FM91, optional).
• Frequently using the LCD panel or frequently operating playback, fast forward or
rewind wears out the battery pack faster. We recommend using the large capacity
battery pack (NP-FM50/FM70/FM90/FM91, optional).
• Be certain to turn the POWER switch to OFF (CHG) when not taking shots or playing
back on your camcorder.
• Have spare battery packs handy for two or three times the expected recording time,
and make a trial recording before the actual recording.
•Do not expose the battery pack to water. The battery pack is not water-resistant.
Remaining battery time indicator
•If the power may go off although the remaining battery time indicator indicates that
the battery pack has enough power to operate, charge the battery pack fully again so
that the indication on the remaining battery time indicator is correct. Note, however,
that the correct battery indication sometimes will not be restored if it is used in high
temperatures for a long time or left in a fully charged state, or the battery pack is
frequently used. Regard the remaining battery time indication as the approximate
shooting time.
•The E mark indicating there is little remaining battery time sometimes flashes
depending on the operating conditions or ambient temperature and environment even
if the remaining battery time is about five to ten minutes.
How to store the battery pack
•Even if the battery pack is not used for a long time, store it in a dry, cool place after
fully charging it once per year and then using the battery pack up on your camcorder.
This is to maintain the battery pack's functions.
•To use the battery pack up on your camcorder, leave your camcorder in the shooting
mode until the power goes off without a cassette inserted.
161
Additional Information
Battery life
•The battery life is limited. Battery capacity drops little by little as you use it more and
more, and as time passes. When the available battery time is shortened considerably, a
probable cause is that the battery pack has reached the end of its life. Please buy a new
battery pack.
•The battery life varies according to how it is stored and operating conditions and
environment for each battery pack.
About the “InfoLITHIUM” battery pack
162
The DV jack on this unit is an i.LINK-compliant DV input/output jack. This section
describes the i.LINK standard and its features.
What is i.LINK?
i.LINK is a digital serial interface for handling digital video, digital audio and other
data in two directions between equipment having the i.LINK jack, and for controlling
other equipment.
i.LINK-compatible equipment can be connected by a single i.LINK cable. Possible
applications are operations and data transactions with various digital AV equipment.
When two or more i.LINK-compatible equipment are connected to this unit in a daisy
chain, operations and data transactions are possible with not only the equipment that
this unit is connected to but also with other devices via the directly connected
equipment.
Note, however, that the method of operation sometimes varies according to the
characteristics and specifications of the equipment to be connected, and that operations
and data transactions are sometimes not possible on some connected equipment.
Note
Normally, only one piece of equipment can be connected to this unit by the i.LINK
cable (DV connecting cable). When connecting this unit to i.LINK-compatible
equipment having two or more i.LINK jacks (DV jacks), refer to the instruction manual
of the equipment to be connected.
About the Name “i.LINK”
i.LINK is a more familiar term for IEEE 1394 data transport bus proposed by SONY,
and is a trademark approved by many corporations.
IEEE 1394 is an international standard standardized by the Institute of Electrical and
Electronic Engineers.
i.LINK Baud rate
i.LINK’s maximum baud rate varies according to the equipment. Three maximum
baud rates are defined:
S100 (approx. 100Mbps*)
S200 (approx. 200Mbps)
S400 (approx. 400Mbps)
The baud rate is listed under “Specifications” in the instruction manual of each
equipment. It is also indicated near the i.LINK jack on some equipment.
The maximum baud rate of equipment on which it is not indicated such as this unit is
“S100”.
When units are connected to equipment having a different maximum baud rate, the
baud rate sometimes differs from the indicated baud rate.
*What is Mbps?
Mbps stands for megabits per second, or the amount of data that can be sent or
received in one second. For example, a baud rate of 100Mbps means that 100 megabits
of data can be sent in one second.
About i.LINK
163
Additional Information
i.LINK functions on this unit
For details on how to dub when this unit is connected to other video equipment having
DV jacks, see page 67, 81.
This unit can also be connected to other i.LINK (DV) compatible equipment made by
SONY (e.g. VAIO series personal computer) other than video equipment.
Before connecting this unit to a personal computer, make sure that application software
supported by this unit is already installed on the personal computer.
For details on precautions when connecting this unit, also refer to the instruction
manuals for the equipment to be connected.
Required i.LINK Cable
Use the Sony i.LINK 4-pin-to-4-pin cable (during DV dubbing).
i.LINK and are trademarks.
About i.LINK
164
Using your camcorder abroad
You can use your camcorder in any country or area with the AC power adaptor
supplied with your camcorder within 100 V to 240 V AC, 50/60 Hz.
When charging the battery pack, use a commercially available AC plug adaptor [a], if
necessary, depending on the design of the wall outlet [b].
Your camcorder is an NTSC system based camcorder. If you want to view the playback
picture on a TV, it must be an NTSC system based TV with the AUDIO/VIDEO input
jack.
The following shows TV color systems used overseas.
NTSC system
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Jamaica,
Japan, Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the U.S.A., Venezuela,
etc.
PAL system
Australia, Austria, Belgium, China, Czech Republic, Denmark, Finland, Germany, Great
Britain, Holland, Hong Kong, Italy, Kuwait, Malaysia, New Zealand, Norway, Portugal,
Singapore, Slovak Republic, Spain, Sweden, Switzerland, Thailand, etc.
PAL-M system
Brazil
PAL-N system
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Guyana, Hungary, Iran, Iraq, Monaco, Poland, Russia, Ukraine, etc.
Simple setting of clock by time difference
You can easily set the clock to the local time by setting a time difference. Select WORLD
TIME in the menu settings. See page 102 for more information.
Using your camcorder abroad
AC-L10A/L10B/L10C
[b][a]
165
Additional Information
Maintenance information and
precautions
Moisture condensation
If your camcorder is brought directly from a cold place to a warm place, moisture may
condense inside your camcorder, on the surface of the tape, or on the lens. In this
condition, the tape may stick to the head drum and be damaged or your camcorder may
not operate correctly. If there is moisture inside your camcorder, the beep sounds and
the % indicator flashes. When the Z indicator flashes at the same time, the cassette is
inserted in your camcorder. If moisture condenses on the lens, the indicator will not
appear.
If moisture condensation occurred
None of the functions except cassette ejection will work. Eject the cassette, turn off your
camcorder, and leave it for about one hour with the cassette compartment open. Your
camcorder can be used again if the % indicator does not appear when the power is
turned on again.
Note on moisture condensation
Moisture may condense when you bring your camcorder from a cold place into a warm
place (or vice versa) or when you use your camcorder in a hot place as follows:
•You bring your camcorder from a ski slope into a place warmed up by a heating
device.
•You bring your camcorder from an air-conditioned car or room into a hot place
outside.
•You use your camcorder after a squall or a shower.
•You use your camcorder in a high temperature and humidity place.
How to prevent moisture condensation
When you bring your camcorder from a cold place into a warm place, put your
camcorder in a plastic bag and tightly seal it. Remove the bag when the air temperature
inside the plastic bag has reached the surrounding temperature (after about one hour).
166
Maintenance information
Cleaning the video head
To ensure normal recording and clear pictures, clean the video heads. The video head
may be dirty when:
•mosaic-pattern noise appears on the playback picture.
•playback pictures do not move.
•playback pictures do not appear.
•the x indicator and “ CLEANING CASSETTE” message appear one after another
or the x indicator flashes on the screen.
If the above problem, [a], [b] or [c] occurs, clean the video heads for 10 seconds with
the Sony DVM-12CLD cleaning cassette (optional). Check the picture and if the above
problem persists, repeat cleaning.
If the video heads gets dirtier, the entire screen becomes blue [c].
Cleaning the LCD screen
If fingerprints or dust make the LCD screen dirty, we recommend using a LCD
Cleaning Kit (optional) to clean the LCD screen.
Charging the built-in rechargeable battery in your camcorder
Your camcorder is supplied with a built-in rechargeable battry battery installed so as to
retain the date and time, etc., regardless of the setting of the POWER switch. The built-
in rechargeable battery is always charged as long as you are using your camcorder. The
battery, however, will get discharged gradually if you do not use your camcorder. It
will be completely discharged in about 4 months if you do not use your camcorder at
all. Even if the built-in rechargeable battery is not charged, it will not affect the
camcorder operation. To retain the date and time, etc., charge the battery if the battery
is discharged.
Charging the built-in rechargeable battery:
•Connect your camcorder to wall outlet using the AC power adaptor supplied with
your camcorder, and leave your camcorder with the POWER switch turned off for
more than 24 hours.
•Or install the fully charged battery pack in your camcorder, and leave your camcorder
with the POWER switch turned off for more than 24 hours.
Maintenance information and precautions
[a]
[b]
[c]
167
Additional Information
Maintenance information and precautions
Precautions
Camcorder operation
•Operate your camcorder on 7.2 V (battery pack) or 8.4 V (AC power adaptor).
•For DC or AC operation, use the accessories recommended in this operating
instructions.
•If any solid object or liquid get inside the casing, unplug your camcorder and have it
checked by a Sony dealer before operating it any further.
•Avoid rough handling or mechanical shock. Be particularly careful of the lens.
•Keep the POWER switch set to OFF (CHG) when you are not using your camcorder.
•Do not wrap your camcorder with a towel, for example, and operate it. Doing so
might cause heat to build up inside.
•Keep your camcorder away from strong magnetic fields or mechanical vibration.
•Do not touch the LCD screen with your fingers or a sharp-pointed object.
•If your camcorder is used in a cold place, a residual image may appear on the LCD
screen. This is not a malfunction.
•While using your camcorder, the back of the LCD screen may heat up. This is not a
malfunction.
On handling tapes
•Do not insert anything into the small holes on the rear of the cassette. These holes are
used to sense the type and thickness of the tape and if the recording tab is in or out.
•Do not open the tape protect cover or touch the tape.
•Avoid touching or damaging the terminals. To remove dust, clean the terminals with
a soft cloth.
Camcorder care
•Remove the tape, and periodically turn on the power, operate the CAMERA and VCR
sections and play back a tape for about three minutes when your camcorder is not to
be used for a long time.
•Clean the lens with a soft brush to remove dust. If there are fingerprints on the lens,
remove them with a soft cloth.
•Clean the camcorder body with a dry soft cloth, or a soft cloth lightly moistened with
a mild detergent solution. Do not use any type of solvent which may damage the
finish.
•Do not let sand get into your camcorder. When you use your camcorder on a sandy
beach or in a dusty place, protect it from the sand or dust. Sand or dust may cause
your camcorder to malfunction, and sometimes this malfunction cannot be repaired.
AC power adaptor
•Unplug the unit from the wall outlet when you are not using the unit for a long time.
To disconnect the power cord, pull it out by the plug. Never pull the power cord itself.
•Do not operate the unit with a damaged cord or if the unit has been dropped or
damaged.
•Do not bend the power cord forcibly, or place a heavy object on it. This will damage
the cord and may cause fire or electrical shock.
•Prevent metallic objects from coming into contact with the metal parts of the
connecting section. If this happens, a short may occur and the unit may be damaged.
•Always keep metal contacts clean.
•Do not disassemble the unit.
•Do not apply mechanical shock or drop the unit.
168
Maintenance information and precautions
•While the unit is in use, particularly during charging, keep it away from AM receivers
and video equipment. AM receivers and video equipment disturb AM reception and
video operation.
•The unit becomes warm during use. This is not a malfunction.
•Do not place the unit in locations that are:
– Extremely hot or cold
– Dusty or dirty
– Very humid
– Vibrating
About care and storage of the lens
•Wipe the surface of the lens clean with a soft cloth in the following instances:
– When there are fingerprints on the lens surface
– In hot or humid locations
– When the lens is used in environments susceptible to salt such as the seaside
•Store the lens in a well-ventilated location subject to little dirt or dust.
To prevent mold from occurring, periodically perform the above.
We recommend turning on and operating the video camera recorder about
once per month to keep the video camera recorder in an optimum state for
a long time.
Battery pack
•Use only the specified charger or video equipment with the charging function.
•To prevent accident from a short circuit, do not allow metal objects to come into
contact with the battery terminals.
•Keep the battery pack away from fire.
•Never expose the battery pack to temperatures above 60°C (140°F), such as in a car
parked in the sun or under direct sunlight.
•Keep the battery pack dry.
•Do not expose the battery pack to any mechanical shock.
•Do not disassemble nor modify the battery pack.
•Attach the battery pack to the video equipment securely.
Notes on dry batteries
To avoid possible damage from battery leakage or corrosion, observe the following:
•Be sure to insert the batteries with the + – polarities matched to the + – marks.
•Dry batteries are not rechargeable.
•Do not use a combination of new and old batteries.
•Do not use different types of batteries.
•Current flows from batteries when you are not using them for a long time.
•Do not use leaking batteries.
If batteries are leaking
•Wipe off the liquid in the battery compartment carefully before replacing the batteries.
•If you touch the liquid, wash it off with water.
•If the liquid get into your eyes, wash your eyes with a lot of water and then consult a
doctor.
If any problem occurs, unplug your camcorder and contact your nearest Sony dealer.
169
Additional Information
Specifications
Video camera
recorder
System
Video recording system
2 rotary heads
Helical scanning system
Audio recording system
Rotary heads, PCM system
Quantization: 12 bits (Fs 32
kHz, stereo 1, stereo 2), 16 bits
(Fs 48 kHz, stereo)
Video signal
NTSC color, EIA standards
Usable cassette
Mini DV cassette with the
mark printed
Tape speed
SP: Approx. 18.81 mm/s
LP: Approx. 12.56 mm/s
Recording/playback time
(using cassette DVM60)
SP: 1 hour
LP: 1.5 hours
Fastforward/rewind time
(using cassette DVM60)
Approx. 2 min. and 30 seconds
Viewfinder
Electric viewfinder (color)
Image device
4.5 mm (1/4 type) CCD
(Charge Coupled Device)
Approx. 680 000 pixels
(Effective: Approx. 340 000
pixels)
Lens
Carl Zeiss
Combined power zoom lens
Filter diameter
30 mm (1 3/16 in.)
10× (Optical), 120× (Digital)
Focal length
3.3 - 33 mm (5/32 - 1 5/16 in.)
When converted to a 35 mm
still camera
Camera/Memory (DCR-TRV17
only) mode:
42 - 420 mm (1 11/16 - 16 5/8
in.)
Color temperature
Auto, HOLD (Hold), nIndoor
(3 200 K), Outdoor (5 800 K)
Minimum illumination
5 lx (lux) (F 1.7)
0 lx (lux) (in the NightShot
mode)*
* Objects unable to be seen due
to the dark can be shot with
infrared lighting.
Input/Output connectors
S video input/output
4-pin mini DIN
Luminance signal: 1 Vp-p, 75 Ω
(ohms), unbalanced
Chrominance signal: 0.286 Vp-p,
75 Ω (ohms)
Audio/Video input/output
AV MINI JACK, 1 Vp-p, 75 Ω
(ohms), unbalanced, sync
negative
327 mV, (at output impedance
more than 47 kΩ (kilohms))
Output impedance with less
than 2.2 kΩ (kilohms)/Stereo
minijack (ø 3.5mm)
Input impedance more than
47 kΩ (kilohms)
DV input/output
4-pin connector
Headphone jack
Stereo minijack (ø 3.5 mm)
USB jack (DCR-TRV17 only)
mini-B
LANC jack
Stereo mini-minijack (ø 2.5 mm)
MIC jack
Stereo minijack (ø 3.5 mm)
LCD screen
DCR-TRV15:
6.2 cm (2.5 type)
50.3 × 37.4 mm (2 × 1 1/2 in.)
DCR-TRV17:
8.8 cm (3.5 type)
72.4 × 50.4 mm (2 7/8 × 2 in.)
Total dot number
123 200 (560 × 220)
General
Power requirements
7.2 V (battery pack)
8.4 V (AC power adaptor)
Average power consumption
(when using the battery pack)
During camera recording using
LCD
DCR-TRV15: 3.3 W
DCR-TRV17: 3.7 W
Viewfinder
DCR-TRV15: 2.5 W
DCR-TRV17: 2.6 W
Operating temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage temperature
–20 °C to +60 °C
(–4 °F to +140 °F)
Dimensions (Approx.)
74 × 95 × 175 mm
(2 7/8 × 3 3/4 × 6 1/2 in.)
(w/h/d)
Mass (approx.)
DCR-TRV15: 610 g (1 lb 5 oz)
DCR-TRV17: 650 g (1 lb 6 oz)
main unit only
DCR-TRV15: 700 g (1 lb 8 oz)
DCR-TRV17: 740 g (1 lb 10 oz)
including the battery pack
NP-FM30, cassette DVM60, lens
cap
Supplied accessories
See page 5.
170
Specifications
AC power adaptor
Power requirements
100 - 240 V AC, 50/60 Hz
Power consumption
23 W
Output voltage
DC OUT: 8.4 V, 1.5 A in the
operating mode
Operating temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage temperature
–20 °C to +60 °C (–4 °F to +140
°F)
Dimensions (approx.)
125 × 39 × 62 mm
(5 × 1 9/16 × 2 1/2 in.) (w/h/d)
excluding projecting parts
Mass (approx.)
280 g (9.8 oz)
excluding mains lead
Cord length (approx.)
Power cord: 2 m (6.6 feet)
Connecting cord: 1.6 m (5.2
feet)
Battery pack
Maximum output voltage
DC 8.4 V
Output voltage
DC 7.2 V
Capacity
5.0 Wh (700 mAh)
Dimensions (approx.)
38.2 × 20.5 × 55.6 mm
(1 9/16 × 13/16 × 2 1/4 in.)
(w/h/d)
Mass (approx.)
65 g (2.3 oz)
Type
Lithium ion
“Memory Stick”
(DCR-TRV17 only)
Memory
Flash memory
4MB: MSA-4A
Operating voltage
2.7-3.6V
Power consumption
Approx. 45mA in the operating
mode
Approx. 130µA in the standby
mode
Dimensions (approx.)
50 × 2.8 × 21.5 mm
(2 × 1/8 × 7/8 in.) (w/h/d)
Mass (approx.)
4 g (0.14 oz)
Design and specifications are
subject to change without
notice.
171
Quick Reference
— Quick Reference —
Identifying the parts and controls
1 Remote sensor
2 Focus ring (p. 53)
3 Lens
4 Microphone
5 Infrared rays emitter (p. 27, 36, 71)
This mark indicates that this product is a genuine accessory for Sony
video products.
When purchasing Sony video products, Sony recommends that you
purchase accessories with this “GENUINE VIDEO ACCESSORIES”
mark.
Camcorder
6 Display window (p. 13)
7 Viewfinder (p. 24)
8 MENU button (p. 96)
9 BACK LIGHT button (p. 26)
q; Focus button (p. 53)
1
6
7
8
9
q;
2
3
4
5
Note on the Carl Zeiss lens
Your camcorder is equipped with a Carl Zeiss lens which can reproduce a fine
image.
The lens for your camcorder was developed jointly by Carl Zeiss, in Germany, and
Sony Corporation. It adopts the MTF* measurement system for video camera and
offers a quality as the Carl Zeiss lens.
* MTF is an abbreviation of Modulation Transfer Function.
The value number indicates the amount of light of a subject penetrating into the
lens.
172
Identifying the parts and controls
qa > MEMORY EJECT Lever
(DCR-TRV17 only) (p. 105)
qs Power zoom lever (p. 24)
qd POWER switch (p. 13)
qf
qg
qh
qj
qs
qa
qd
Notes on the intelligent accessory shoe
•The intelligent accessory shoe supplies power to optional accessories such as a video
light, microphone or printer (DCR-TRV17 only) .
•The intelligent accessory shoe is linked to the POWER switch, allowing you to turn the
power supplied by the shoe on and off. Refer to the operating instructions of the
accessory for further information.
•The intelligent accessory shoe has a safety device for fixing the installed accessory
securely. To connect an accessory, press down and push it to the end, and then tighten
the screw.
•To remove an accessory, loosen the screw, and then press down and pull out the
accessory.
qf EDITSEARCH button (p. 30)
qg SUPER LASER LINK button (p. 36)
qh Intelligent accessory shoe (p. 85)
qj Camera recording lamp (p. 21)
173
Quick Reference
Identifying the parts and controls
qk
wa
ws
wd
wf
wg
ql
w;
qk PHOTO button (p. 38, 112)
ql BATT release button (p. 12)
w; Hooks for sholder strap
wa (USB) jack (DCR-TRV17 only)
(p. 135)
ws NIGHTSHOT switch (p. 27)
wd SUPER NIGHTSHOT button (p. 27)
Attaching the shoulder strap
Attach the shoulder strap supplied with your camcorder to the hooks for the shoulder
strap.
wf (LANC) control jack
LANC stands for Local Application
Control Bus System. The
control jack
is used for controlling the tape transport
of video equipment and other
peripherals connected to the video
equipment. This jack has the same
function as the jack indicated as
CONTROL L.
wg AUDIO/VIDEO ID-2 jack
(p. 35, 40, 66, 118, 122)
174
wh
wl
e;
ea
es
wj
wk
wh START/STOP button (p. 21)
wj SEL/PUSH EXEC dial (p. 96)
wk DC IN jack (p. 17)
wl DV IN/OUT jack (p. 67, 119, 123)
Identifying the parts and controls
e; i (headphones) jack
When you use headphones, the speaker
on your camcorder is silent.
ea MIC jack (PLUG IN POWER)
Connect an external microphone
(optional). This jack also accepts a
“plug-in-power” microphone.
es S VIDEO jack (p. 35, 40, 66, 118, 122)
175
Quick Reference
ej
ek
el
r;
ef
ed
eg
eh
PAUSEREC STOP
PLAY
REW FF
ed Speaker
ef VOLUME buttons (p. 31)
eg OPEN button (p. 21)
eh LCD screen (p. 22)
ej Viewfinder lens adjustment lever
(p. 24)
ek END SEARCH button (p. 30)
el PB ZOOM button (p. 59, 140)
r; Video control buttons (p. 33)
x STOP (stop)
m REW (rewind)
N PLAY (playback)
M FF (fastforward)
X PAUSE (pause)
z REC (record)
Identifying the parts and controls
176
Identifying the parts and controls
ra DISPLAY button (p. 32)
rs RESET button (p. 154)
rd FADER button (p. 44)
rf AUDIO DUB button (p. 87)
rg MEMORY operation buttons
(DCR-TRV17 only)
MPEG u button (p. 132)
MEMORY PLAY button (p. 129)
MEMORY INDEX button (p. 131)
MEMORY DELETE button (p. 144)
MEMORY +/– buttons (p. 129)
MEMORY MIX button (p. 125)
rh “Memory Stick” slot (DCR-TRV17
only)
rj EXPOSURE button (p. 52)
ra
rf
rs
rd
rg
rh
rj
MPEG
PLAY INDEX
DELETE
MEMORY
MIX
MEMORY
177
Quick Reference
Identifying the parts and controls
Fastening the grip strap
Fasten the grip strap firmly.
4
3
2
1
rk
rl
t;
ts
ta
rk Battery pack (p. 13)
rl OPEN/
EJECT lever (p. 20)
t; Tripod receptacle
Make sure that the length of the tripod
screw is less than 6.5 mm (9/32 inch).
Otherwise, you cannot attach the tripod
securely and the screw may damage
your camcorder.
ta Grip strap
ts Lens cap (p. 21)
178
Identifying the parts and controls
Remote Commander
The buttons that have the same name on the Remote Commander as on your camcorder
function identically to the buttons on your camcorder.
To prepare the Remote Commander
Insert 2 size AA (R6) batteries by matching the + and – polarities on the batteries to
the + – marks inside the battery compartment.
Notes on the Remote Commander
•Point the remote sensor away from strong light sources such as direct sunlight or
overhead lighting. Otherwise, the Remote Commander may not function properly.
•Your camcorder works in the Commander mode VTR 2. Commander modes
1, 2 and 3 are used to distinguish your camcorder from other Sony VCRs to avoid
remote control misoperation. If you use another Sony VCR in the Commander mode
VTR 2, we recommend changing the Commander mode or covering the sensor of the
VCR with black paper.
1 PHOTO button (p. 38, 112)
2 DISPLAY button (p. 32)
3 SEARCH MODE button (p. 61, 62, 64)
4 ./> buttons (p. 61, 62, 64)
5 Tape transport buttons (p. 33)
6 Transmitter
Point toward the remote sensor to
control the camcorder after turning on
the camcorder.
7 ZERO SET MEMORY button (p. 60, 83)
8 START/STOP button (p. 21)
9 DATA CODE button (p. 32)
0 Power zoom button (p. 24)
1
6
7
8
9
q;
2
3
4
5
179
Quick Reference
Identifying the parts and controls
Operation indicators
1 Cassette memory indicator (p. 25, 158)
2 Remaining battery time indicator
(p. 25)
3 Zoom indicator (p. 25)/Exposure
indicator (p. 52)/Data file name indicator
(DCR-TRV17 only) (p. 125)
4 Digital effect indicator (p. 47)/MEMORY
MIX indicator (DCR-TRV17 only) (p. 125)/
FADER indicator (p. 44)
5 16:9WIDE indicator (p. 42)
6 Picture effect indicator (p. 45)
7 Data code indicator (p. 32)
8 LCD bright indicator (p. 23)/Volume
indicator (p. 31)/Date indicator (p. 25)/
Time indicator (p. 25)
9 PROGRAM AE indicator (p. 49)
0 Backlight indicator (p. 26)
qa SteadyShot off indicator (p. 97)
qs Manual focus/Infinity indicator (p. 53)
qd Recording mode indicator (p. 25, 101)
qf STBY/REC indicator (p. 21)/Video control
mode indicator (p. 33)/Image size
indicator (DCR-TRV17 only)
(p. 108)/Image quality mode indicator
(DCR-TRV17 only) (p. 107)
qg NIGHTSHOT (p. 27)/SUPER NIGHTSHOT
indicator (p. 27)
qh Warning indicators (p. 156)
120min STBY. 0:12:34
nim21
+–
STILL
ZERO SET
MEMORY
END
SEARCH
16:9WIDE
NEG. ART
OTUA
BWA06
F1.7 16BIT
100-0001
A/V
t
DV
1
2
3
4
5
6
7
8
9
q;
qa
qs
qf
qd
qg
qh
qk
qj
ql
w;
wf
ws
wd
wg
wa
wj
wh
2
wk
qj Tape counter indicator (p. 25)/Time code
indicator (p. 25)/Self-diagnosis indicator
(p. 155)/Tape photo indicator (p. 38)/
Memory photo indicator
(DCR-TRV17 only) (p. 112)/Image
number indicator (DCR-TRV17 only)
(p. 130)
qk Remaining tape indicator (p. 25)/Memory
playback indicator (DCR-TRV17 only)
(p. 130)
ql ZERO SET MEMORY indicator (p. 60)
w; END SEARCH indicator (p. 30)
wa Self-timer indicator (p. 28)
ws A/V t DV indicator (p. 79)/DV IN
indicator (p. 82)
wd Audio mode indicator (p. 101)
wf Data file name indicator* (DCR-TRV17
only) (p. 125)/Time indicator (p. 25)
*This indicator appears when the
MEMORY MIX functions work.
wg Video flash ready indicator
This indicator appears when you use the
video flash light (optional).
wh Continuous mode indicator (DCR-TRV17
only) (p. 114)
wj Remaining battery time indicator
(p. 25)/Tape counter (p. 25)/Memory
counter (DCR-TRV17 only)/Time code
indicator (p. 25)/Self-diagnosis indicator
(p. 155)
wk FULL charge indicator (p. 13)
Index
A, B
AC power adaptor .................. 13
Adjusting viewfinder ............. 24
Audio dubbing........................ 85
AUDIO MIX ............................ 98
Audio mode........................... 101
AUTO SHUTTER.................... 97
A/V connecting cable
.................... 35, 40, 66, 118, 122
BACK LIGHT .......................... 26
Battery pack ............................. 12
Beep ........................................ 102
BOUNCE .................................. 43
C, D
Camera chromakey .............. 124
Cassette memory ............ 10, 158
Charging battery ..................... 13
Charging built-in
rechargeable battery .......... 166
Clock set ................................... 18
Continuous ............................ 114
Cut recording .......................... 56
Data code ................................. 32
Date search .............................. 62
DEMO .................................... 101
DIGITAL EFFECT ............ 46, 58
Digital program editing ......... 68
DISPLAY .................................. 32
DOT .......................................... 43
Dual sound track tape .......... 159
DV connecting cable
................................ 67, 119, 123
E
EDITSEARCH ......................... 30
END SEARCH................... 30, 34
Exposure .................................. 52
F, G, H
FADER ..................................... 43
Fade in/out.............................. 43
FLASH MOTION.................... 46
FOCUS...................................... 53
Format .................................... 100
Full charge ............................... 13
Grip strap ............................... 177
Headphone jack .................... 174
Heads...................................... 166
HiFi SOUND ........................... 98
I, J, K, L
i.LINK ..................................... 162
Image protection ................... 143
Image quality mode ............. 106
INDEX (Multiple) display ... 131
“InfoLITHIUM” battery ...... 160
Infrared rays emitter ... 27, 36, 71
Insert editing ........................... 83
Intelligent accessory shoe ...... 85
Interval recording ................... 54
JPEG........................................ 103
Labeling a cassette .................. 94
(LANC) .............................. 173
LUMINANCEKEY ................. 46
M, N
Main sound............................ 159
Manual focus ........................... 53
Memory chromakey ............. 124
Memory luminancekey ........ 124
MEMORY MIX...................... 124
Memory PB ZOOM .............. 140
Memory photo recording
.............................................. 112
“Memory Stick” .................... 103
Menu settings .......................... 96
Memory overlap ................... 124
M.FADER................................. 43
Mirror mode ............................ 22
Moisture condensation ........ 165
MONOTONE .......................... 43
MPEG ..................................... 103
MPEG movie recording ....... 120
NIGHTSHOT .......................... 27
Normal charge ........................ 13
NTSC system ......................... 164
O, P, Q
OLD MOVIE............................ 46
Operation indicators ............ 179
OVERLAP ................................ 43
Photo scan ................................ 65
Photo search ............................ 64
PICTURE EFFECT ............ 45, 57
Picture search .......................... 33
Playback pause........................ 33
Power zoom............................. 24
Print mark .............................. 146
PROGRAM AE....................... 49
R
Rec review ............................... 30
Recording time ........................ 15
Remaining battery time
indicator ................................ 25
Remaining tape indicator ...... 25
Remote commander ............. 178
Remote sensor ....................... 171
RESET ..................................... 154
S
Self-diagnosis display .......... 155
Self-timer recording ............... 28
Shoulder strap ....................... 173
Signal convert function .......... 79
Skip scan .................................. 33
Slide show.............................. 142
Slow playback ......................... 33
SLOW SHUTTER .................... 46
STEADYSHOT ........................ 97
Stereo tape ............................. 159
STILL ........................................ 46
Sub sound .............................. 159
SUPER LASER LINK ............. 36
SUPER NIGHTSHOT ............. 27
S VIDEO jack
.............. 35, 40, 66, 80, 118, 122
T, U, V
Tape counter...................... 25, 60
Tape PB ZOOM....................... 59
Tape photo recording............. 38
Telephoto ................................. 24
Time code................................. 25
Title ..................................... 89, 92
Title search ............................... 61
TRAIL ....................................... 46
Transition ................................. 22
TV color systems ................... 164
USB jack.............................. 135
W, X, Y, Z
Warning indicators ............... 156
White balance .......................... 41
Wide-angle .............................. 24
Wide mode .............................. 42
WIPE ......................................... 43
WORLD TIME....................... 164
Write-protect tab ................... 103
Zero set memory ............... 60, 83
Zoom ........................................ 24
