INSTALLATION GUIDE
for the
SB-F-FOC5DR/10TW3
SKU# 94560
2012 & Up Ford Focus 5 Door Hatchback
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized
JL Audio dealer. The installation professionals employed by your dealer have the necessary tools
and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your
own installation, please read this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
Continued on Next Page
SB-F-FOC5DR/10TW3 INSTR_SKU# 011352
INSTALLATION
DIFFICULTY:
2
5
OUT
OF
ESTIMATED TIME:
2 HOURS
SPECIFICATIONS
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)
INCLUDED HARDWARE
(1) 3/8 - 16 x 2-1/2” Hex Bolt
(1) 3/8” Flat Washer
(2) 3/8” Split Lock Washer
(4) 3/8” Fender Washer
(2) 3/8 - 16 Hex Nut
SB-F-FOC5DR/10TW3 INSTR_SKU# 011352
POWER RECOMMENDATION

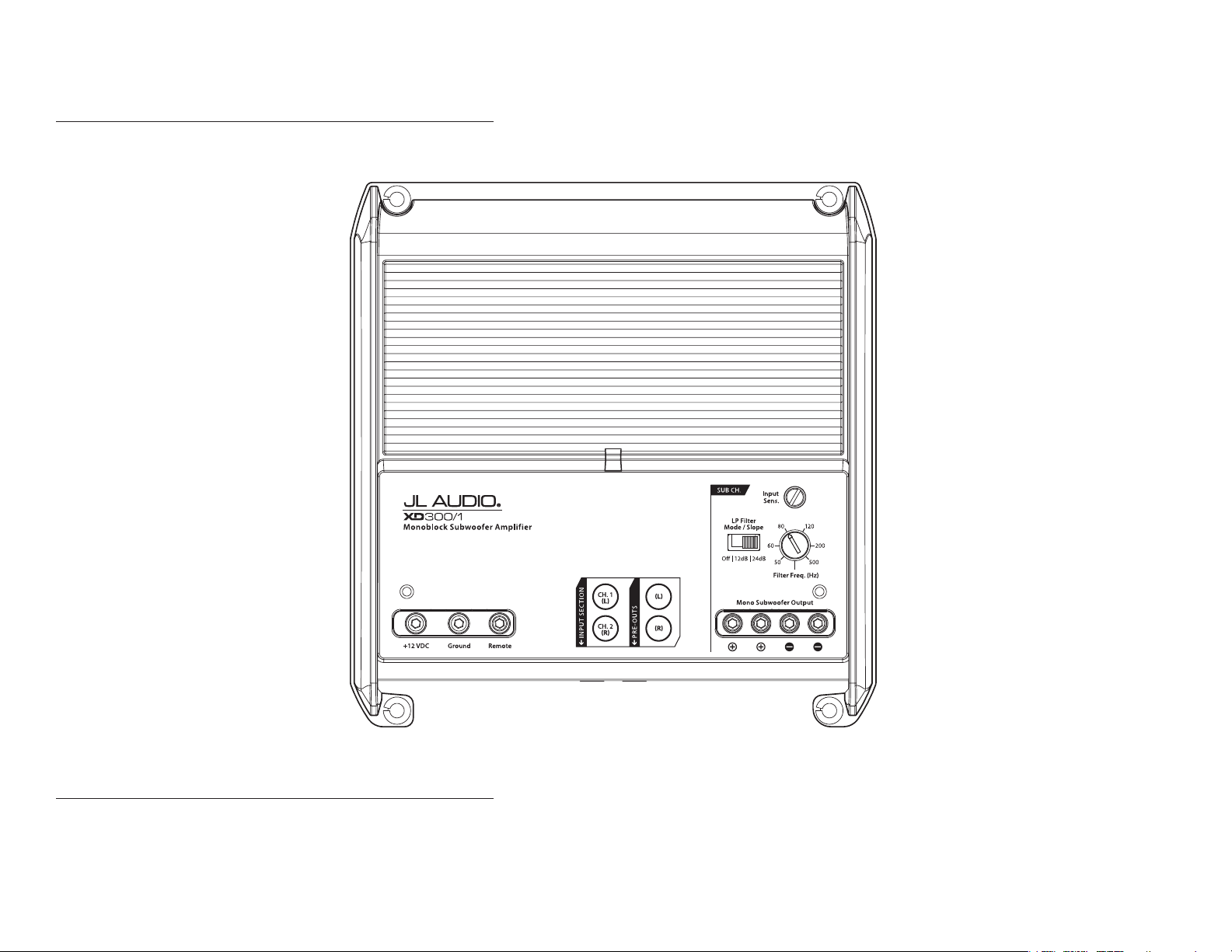

JL Audio recommends high quality ampliers such as the JL Audio XD300/1. The diagram below shows the recommended crossover settings for the XD300/1. For a detailed description of the amplier settings, consult the
owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplier. Other kits
are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for both channels of the amplier. JL Audio
reccomends using 12AWG speaker wire for subwoofers.
Continued on Next Page Page 2 • JL Audio, Inc., 2013
Continued on Next Page
SB-F-FOC5DR/10TW3 INSTR_SKU# 011352
Page 3 • JL Audio, Inc., 2013

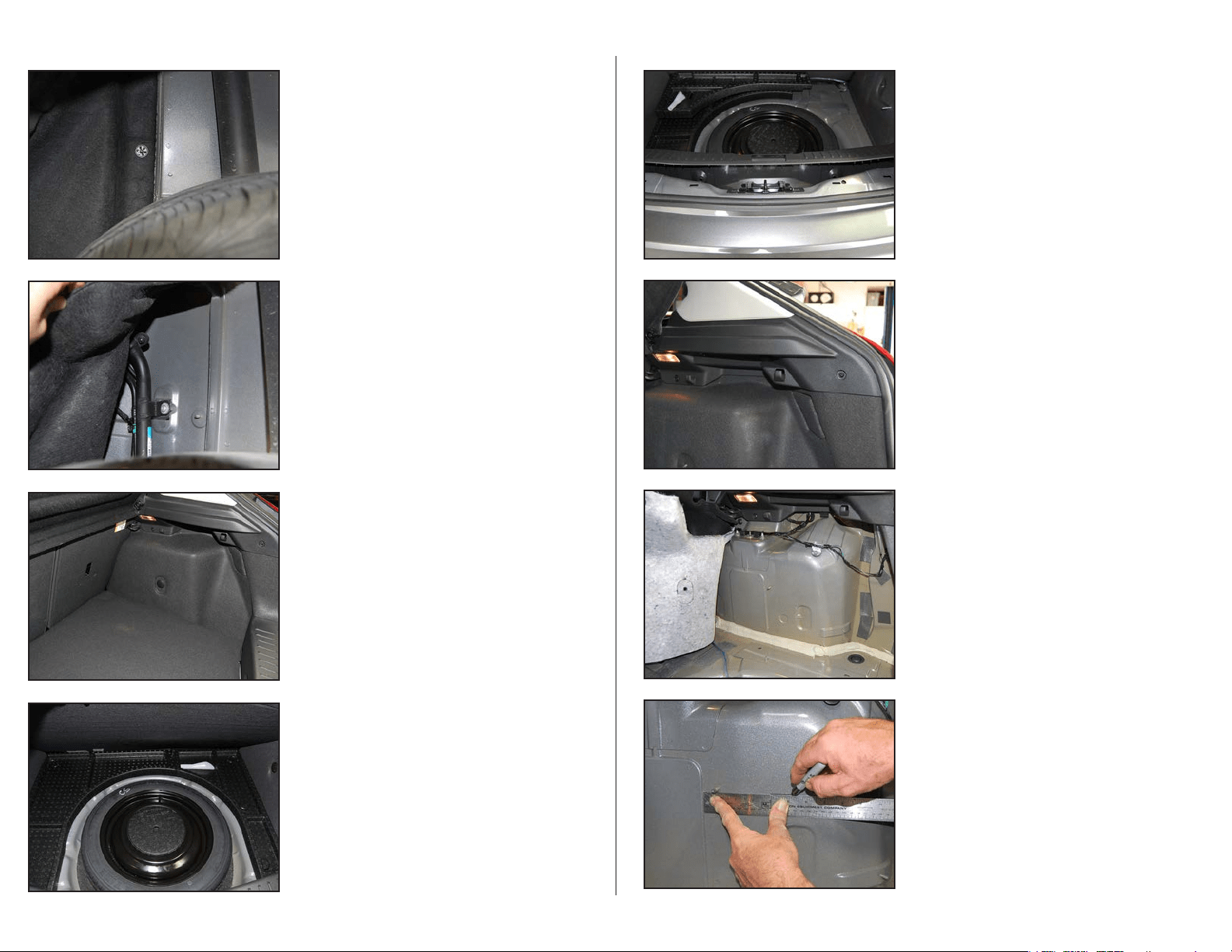

STEP 4
Remove the trunk floor panel.
STEP 8
Place a straight edge under the protruding stud, and
measure and mark 5-1/2” over from the vertical feature on
the fender well as shown.
STEP 3
Empty out the cargo area of the vehicle.
STEP 7
Pull the trunk liner and padding down and out from under
the plastic trim as shown.
STEP 2
Pull back the inner fender panel as shown.
STEP 6
Remove the two torx screws from the passenger’s side
plastic trim.
STEP 1
Using a panel tool, remove the two star nuts from the inner
fender panel of the passenger’s side rear tire well.
STEP 5
Carefully unclip the rear sill panel, and remove the panel.
Continued on Next Page
SB-F-FOC5DR/10TW3 INSTR_SKU# 011352

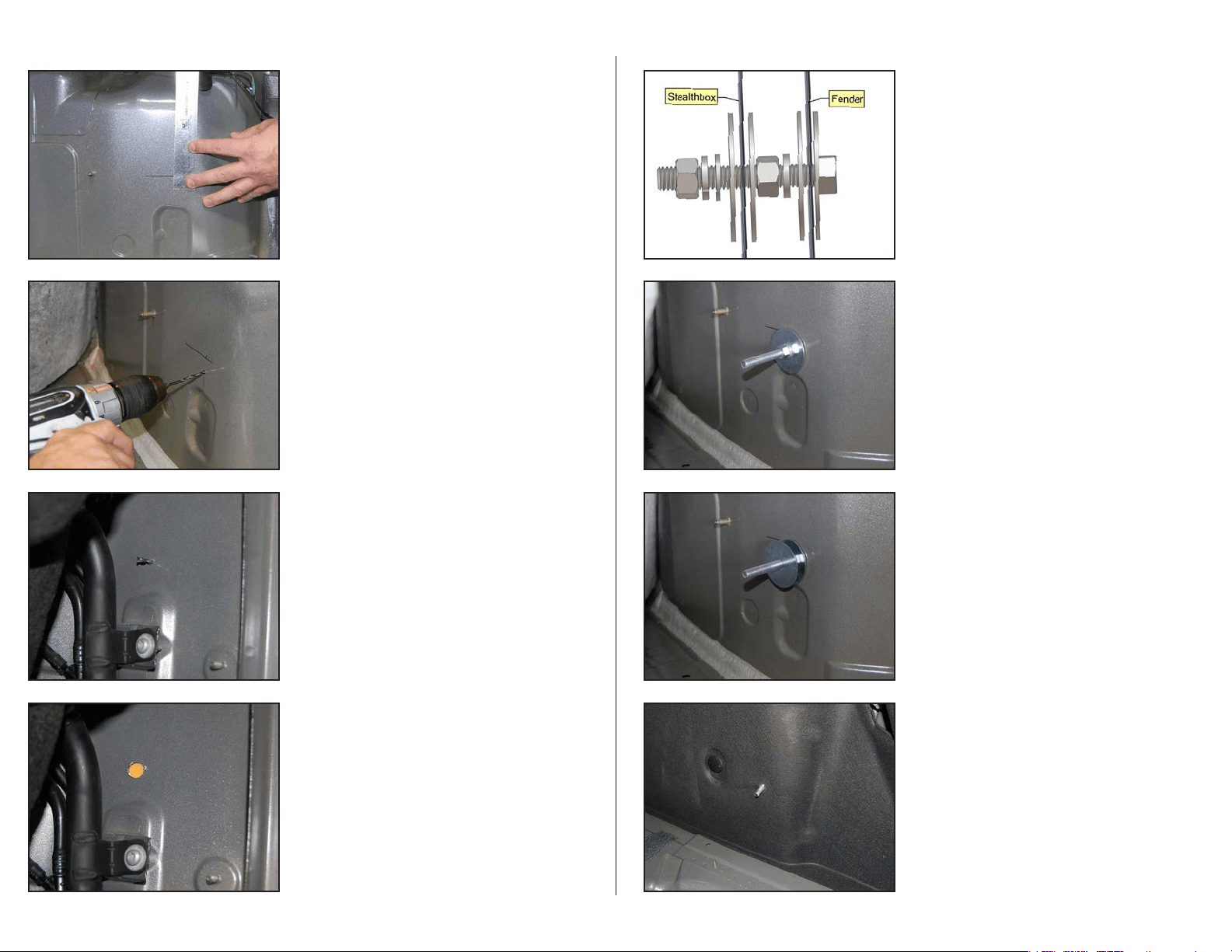

STEP 12
Using a unibit, enlarge the pilot hole to 1/2”.
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a reduction
in your weekly pay.
Always wear eye protection when drilling!
STEP 16
Position the padding and trunk liner back into place. Cut a
hole in the location of the 3/8 - 16 x 2-1/2” Hex Bolt . Reinstall
the padding and trunk liner allowing the 3/8 - 16 x 2-1/2” Hex
Bolt to pass through the hole.
Reinstall the two torx screws into the plastic trim. Reinstall
the inner fender panel and two star nuts from the outside.
STEP 11
Pictured is the 1/8” drill bit as seen from the outside to show
the hole location.
STEP 15
Place another 3/8” Fender Washer over the 3/8 - 16 x 2-1/2”
Hex Bolt as shown.
STEP 10
Using a 1/8” drill bit, drill a pilot hole on the mark made in the
previous step.
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a reduction
in your weekly pay.
Always wear eye protection when drilling!
STEP 14
Place a 3/8” Fender Washer over a 3/8 - 16 x 2-1/2” Hex Bolt,
and slide the assembly through the hole from the outside.
Inside, thread another 3/8” Fender Washer, a 3/8” Split Lock
Washer, and a 3/8 - 16 Hex Nut over the 3/8 - 16 x 2-1/2” Hex
Bolt, and firmly tighten.
STEP 9
Measure and mark down 3/4” from the mark made in the
previous step.
STEP 13
Refer to this illustration for clarity in Steps 14, 15, and 25.
Page 4 • JL Audio, Inc., 2013
Continued on Next Page
SB-F-FOC5DR/10TW3 INSTR_SKU# 011352
Page 5 • JL Audio, Inc., 2013

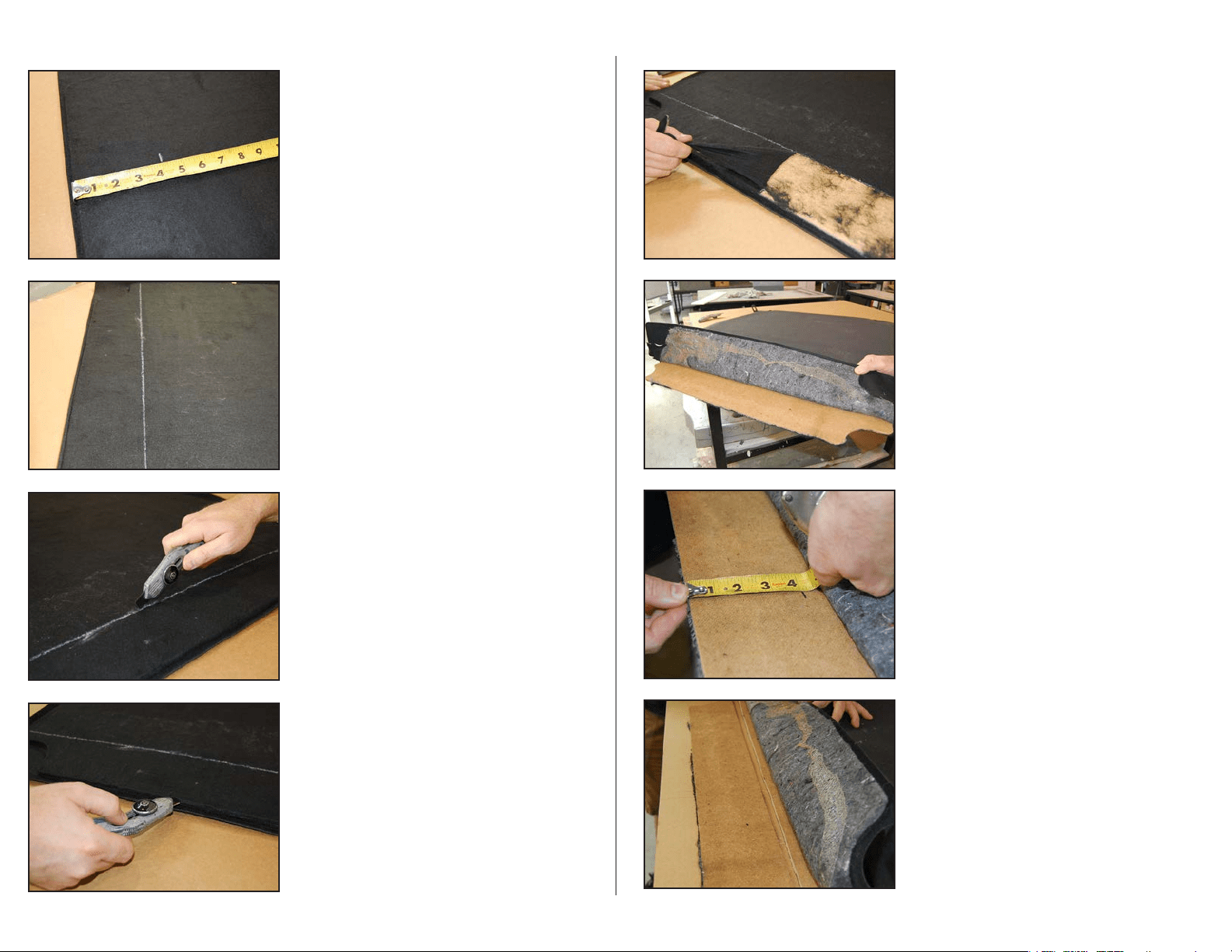

STEP 20
Cut the carpet around the edge of the trunk floor panel so
that this section of carpet can be separated from the trunk
floor panel.
STEP 24
Draw a line 4” from the edge, and cut off the section of
wood as shown. This will allow the trunk floor panel to be
removed and replaced without removing the Stealthbox®,
providing easy access to the spare tire.
Reinstall the trunk floor panel and trunk sill panel.
STEP 19
Cut the carpet on the line with a razor knife.
STEP 23
Measure and mark 4” from the passenger’s side edge of the
trunk floor panel.
STEP 18
Draw a line 4” from the edge, parallel to the edge.
STEP 22
Peel back a section of the carpet from the top of the trunk
floor panel as shown.
STE P 17
On the under side of the trunk floor panel, measure and
mark 4” from the passenger’s side edge.
STEP 21
Remove the carpet from the back of the trunk floor panel.
SB-F-FOC5DR/10TW3 INSTR_SKU# 011352

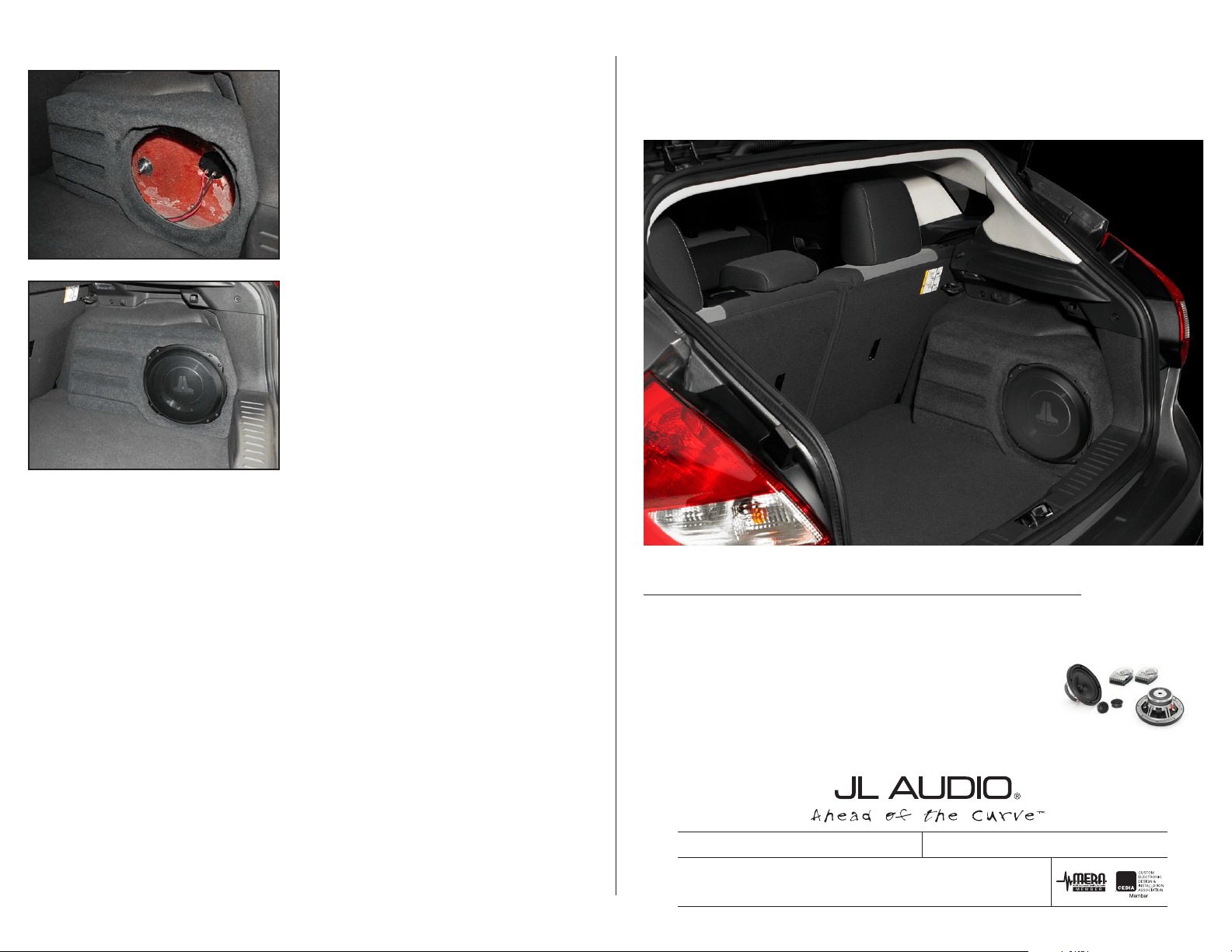

Page 6 • JL Audio, Inc., 2013
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6-1/2”- Front Doors
Fits JL Audio Models: TR650-CXi, TR650-CSi, C2-650x, C2-650,
C3-650, C5-650x, C5-650 & ZR650-CSi
Rear Speaker Size / Location: 6-1/2”- Rear Door
Fits JL Audio Models: TR650-CXi, TR650-CSi, C2-650x, C2-650,
C3-650, C5-650x, C5-650 & ZR650-CSi
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc.,. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.,.
JLA-SKU# 94560 03.15.2013 • Printed in USA • ©2011 JL Audio, Inc.,. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479
#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
STEP 26
Reinstall the subwoofer.
STEP 25
Using a Phillips head screwdriver, remove the subwoofer
from the Stealthbox®.
Connect speaker cable to the terminal cup and position the
Stealthbox® in the vehicle, allowing the 3/8 - 16 x 2-1/2” Hex
Bolt to pass through the hole in the back of the enclosure.
Thread a 3/8” Fender Washer, a 3/8” Flat Washer, a 3/8” Split
Lock Washer, and a 3/8 - 16 Hex Nut over the 3/8 - 16 x 2-1/2”
Hex Bolt, and firmly tighten. Route the cable as necessary.
CONGRATULATIONS!
You have completed the installation for this model. Enjoy your new Stealthbox®!
