LG 24BK400H-Bb LCD Monitor User Manual

www.lg.com

Please read this manual carefully before operating

your set and retain it for future reference.

OWNER'S MANUAL

LED LCD Monitor

(LED Monitor*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

LED LCD MONITOR MODEL

22MK4 series

24MK4 series

27MK4 series

22BK4 series

24BK4 series

27BK4 series

(22MK400H,22MK420H,22MK430H)

(24MK400H,24MK430H)

(27MK400H,27MK430H)

(22BK400H,22BK420H,22BK430H)

(24BK400H,24BK430H)

(27BK400H,27BK430H)

ENGLISH

CONTENTS

LICENSE ---------------------------- 3

ASSEMBLING AND PREPARING - 4

- Product Components -------------------------- 4

- Supported Drivers and Software -------------- 5

- Component and Button Description ---------- 6

How to Use the Joystick Button

Input Connector

- Moving and Lifting the Monitor --------------- 8

- Setting up the Monitor set ------------------- 9

Attaching the Stand Base

Mounting on a table

Mounting on a wall

USING THE MONITOR SET ------ 14

- Connecting to a PC --------------------------- 14

D-SUB connection

HDMI connection

- Connecting to AV Devices --------------------15

HDMI connection

- Connecting Peripherals ----------------------- 15

Connecting Headphones

CUSTOMIZING SETTINGS ------ 16

TROUBLESHOOTING ------------ 21

SPECIFICATIONS ---------------- 22

- Preset Modes (Resolution) ------------------- 28

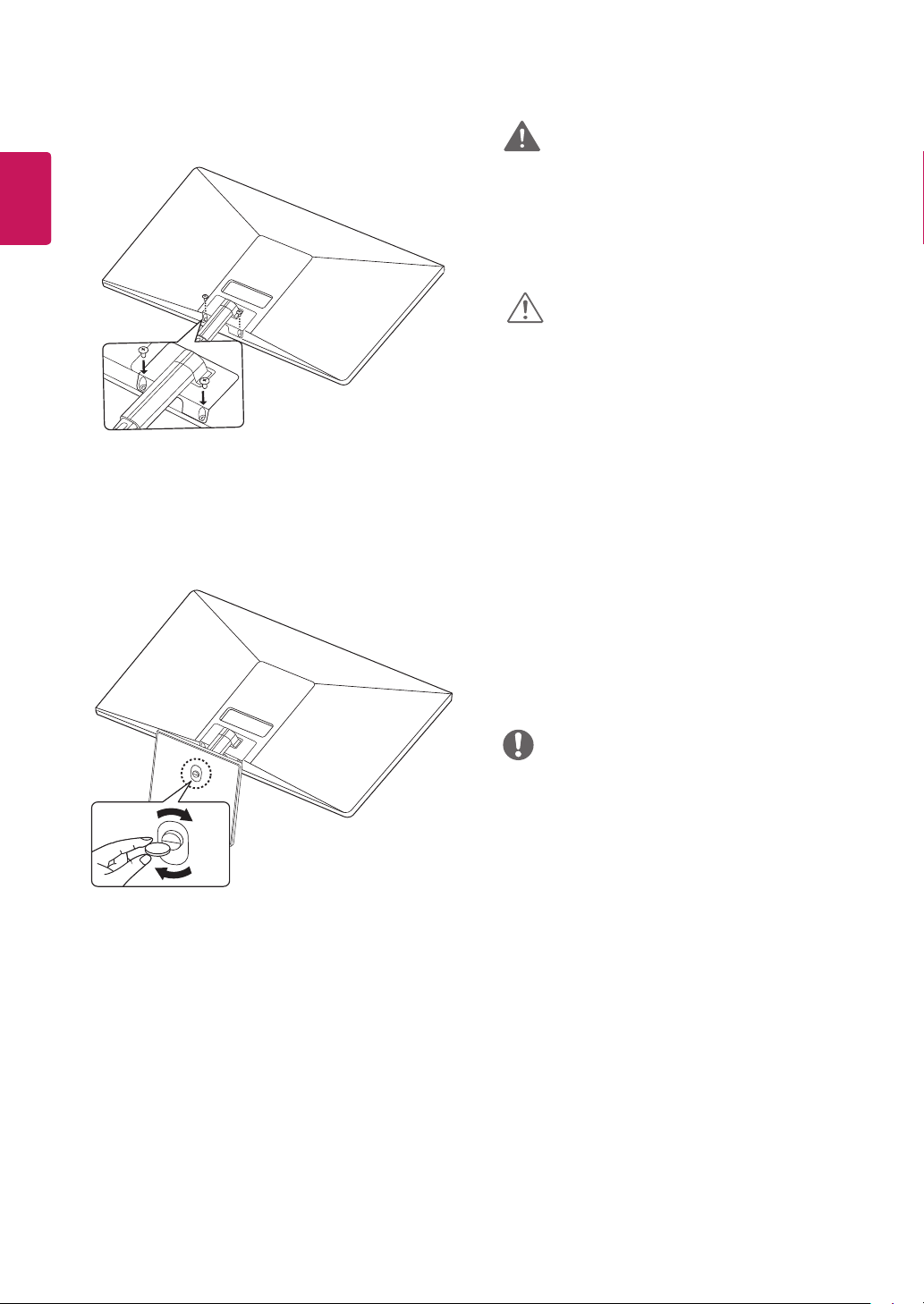

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the

United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

CD(Owner's Manual) /

Card

HDMI Cable

D-SUB Cable

( Depending on the country )

AC-DC AdapterPower Cord

AC-DC Adapter

Stand Body

Stand Base

2 Screws

22MK4 series 24MK4 series 22BK4 series 24BK4 series

27MK4 series 27BK4 series

ENG

ENGLISH

CAUTION

NOTE

Supported Drivers and Software

You can download and install the latest version from the LGE website (

www.lg.com

Drivers and Software Installation Priority 22MK4 series 22BK4 series

24MK4 series 24BK4 series

27MK4 series 27BK4 series

Monitor Driver Recommended O

OnScreen Control Recommended O

Always use genuine components to ensure safety and product performance.

The product warranty will not cover damage or injury caused by the use of counterfeit components.

It is recommend that use the supplied components.

If you use generic cables not certified by LG, the screen may not display or there may be image noises.

Note that the components may look different from those shown here.

Without prior notice, all information and specifications in this manual are subject to change to im-

prove the performance of the product.

To purchase optional accessories, visit an electronics store or online shopping site or contact the

retail store where you purchased the product.

ENG

ENGLISH

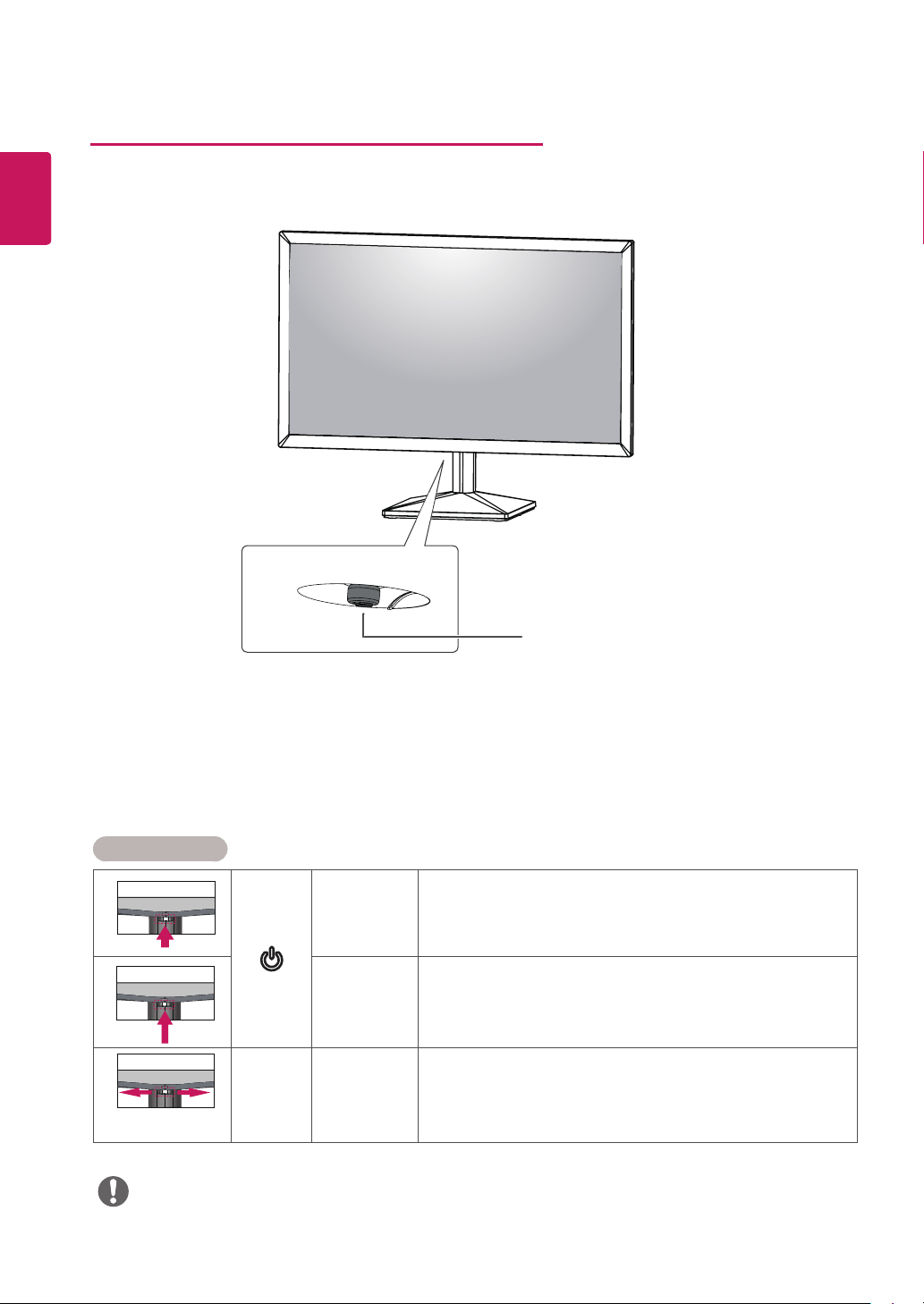

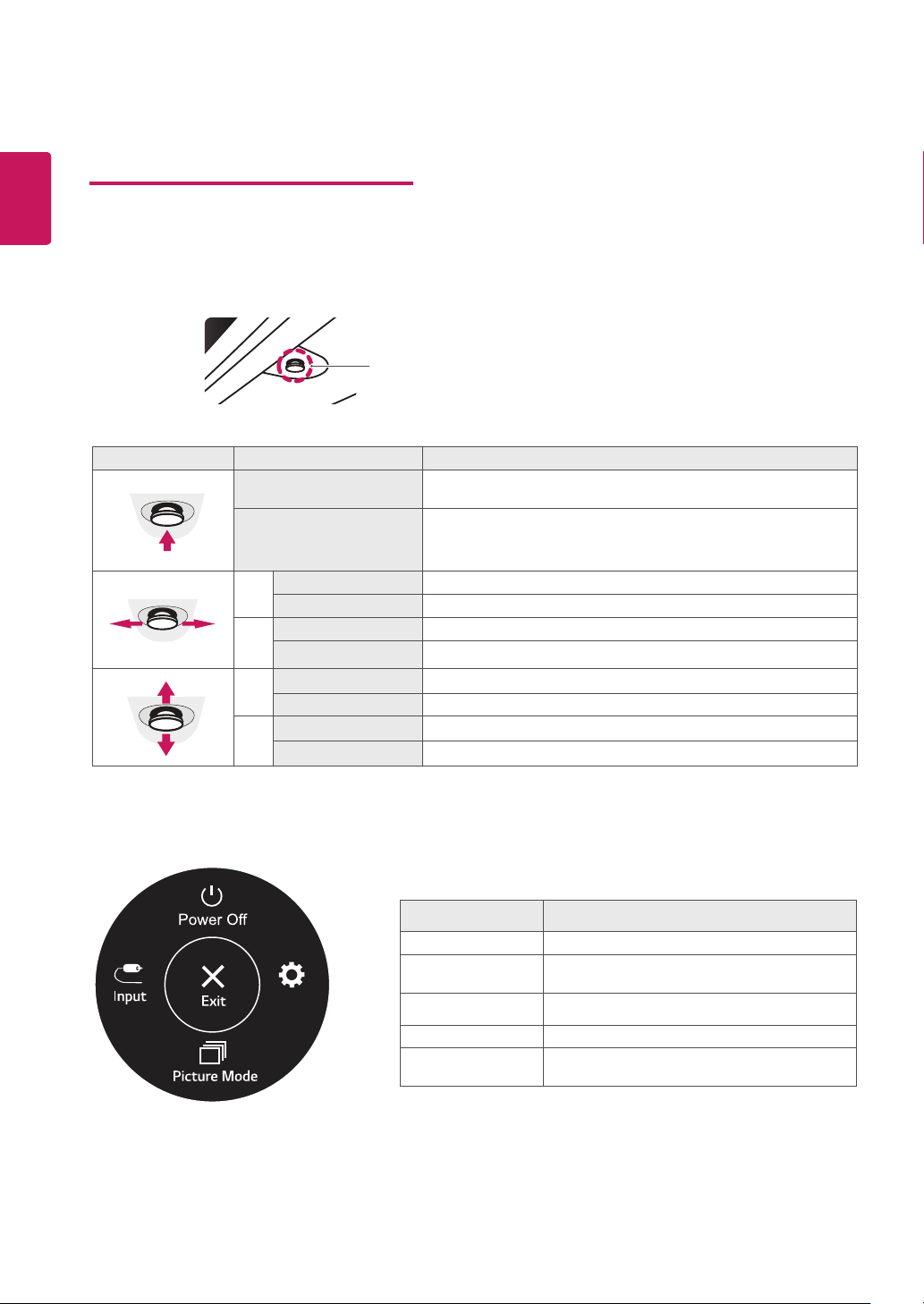

Component and Button Description

Joystick Button

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

Basic Functions

Power on

Press the joystick button once with your finger to turn on the

monitor.

Power off

Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►

Volume

Control

You can control the volume by moving the joystick button left/right.

(for HDMI only)

The joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

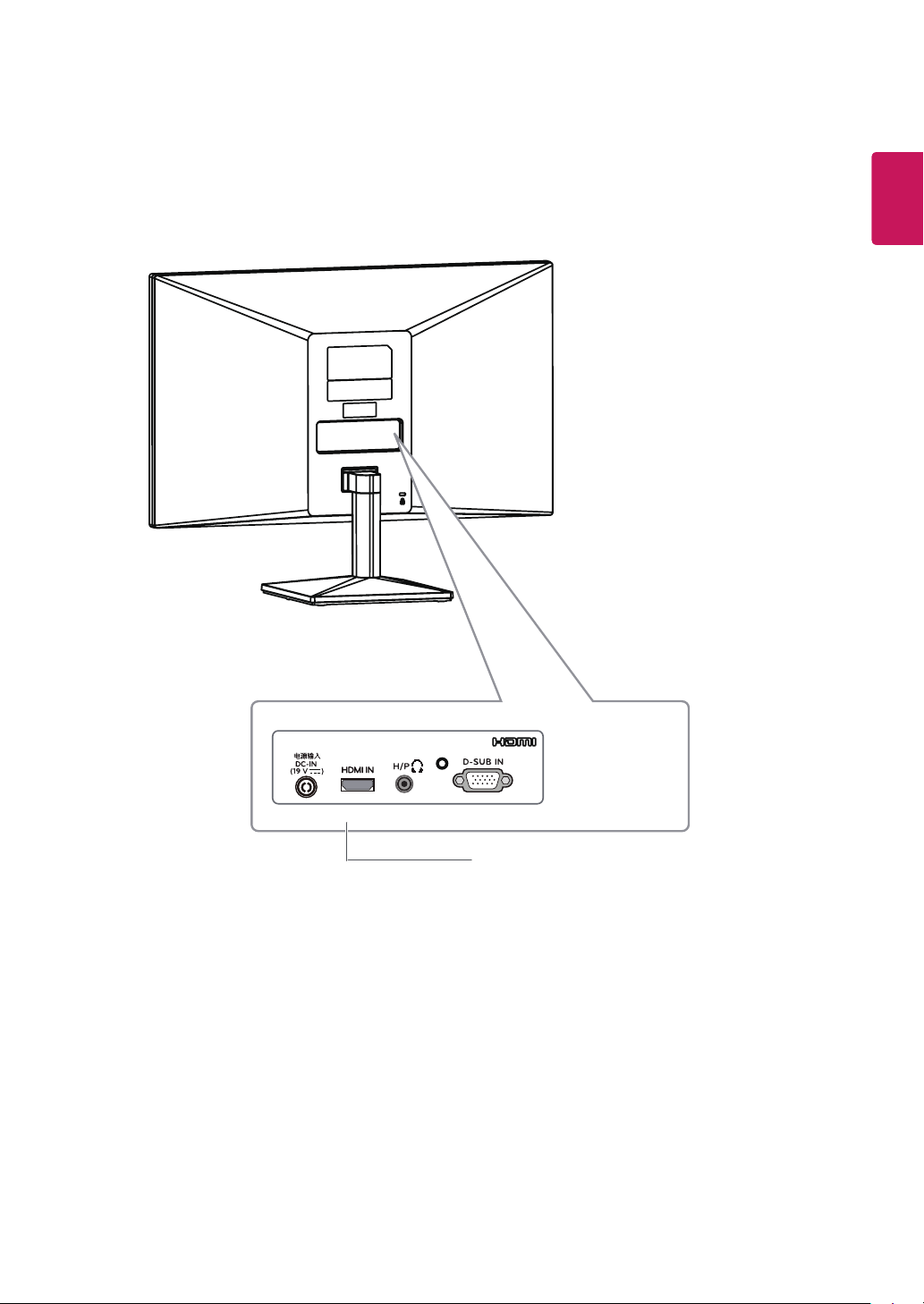

Connection panel (See p.14~15)

Input Connector

ENG

ENGLISH

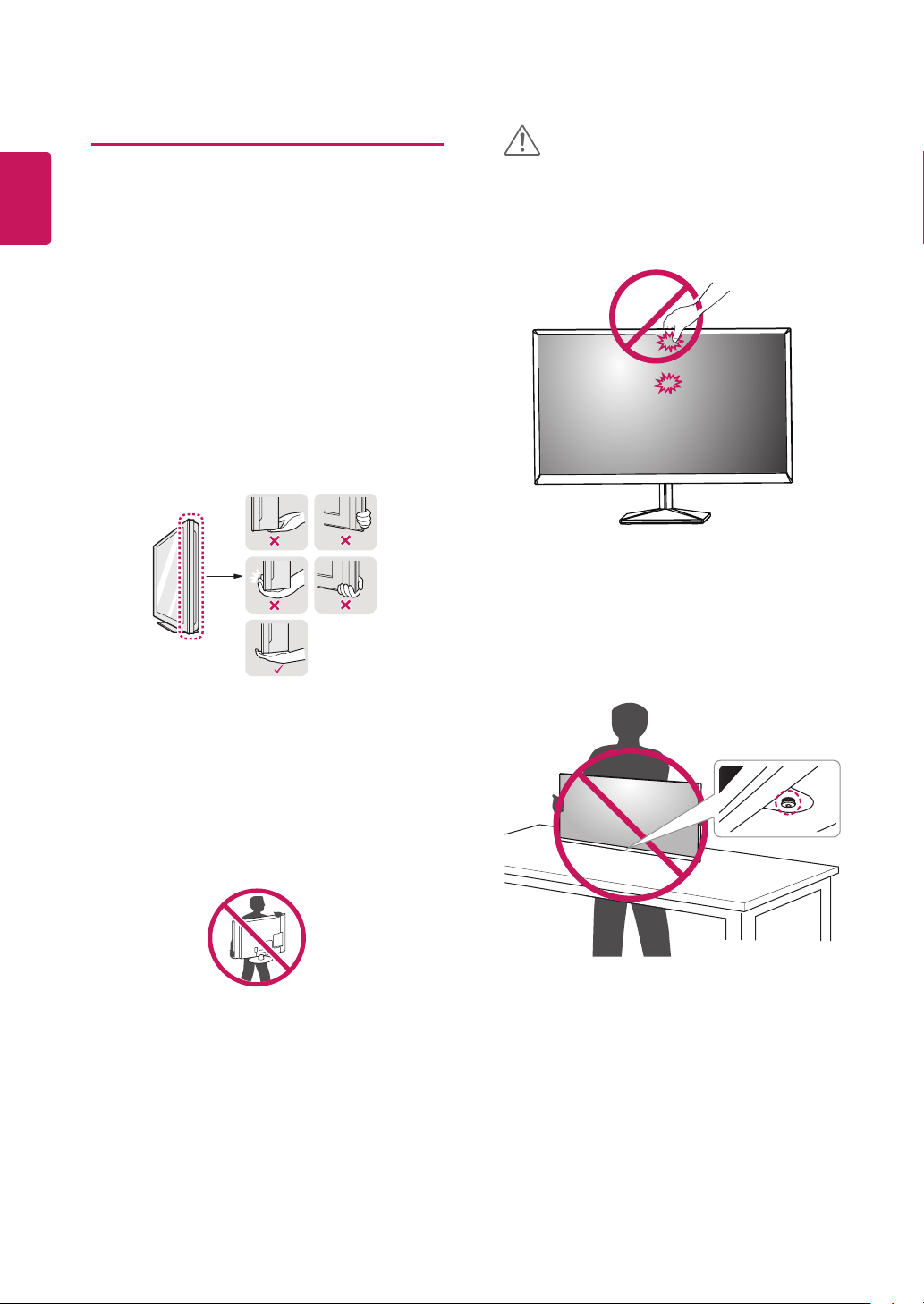

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

As far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

It is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

Before moving or lifting the monitor, discon-

nect the power cord and all cables.

Hold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

When holding the monitor, the screen should

face away from you to prevent it being

scratched.

When moving the monitor, avoid any strong

shock or vibrations to the product.

When moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

If you use the monitor panel without the

stand base, its joystick button may cause

the monitor to become unstable and fall,

resulting in damage to the monitor or human

injury. In addition, this may cause the joystick

button to malfunction.

ENG

ENGLISH

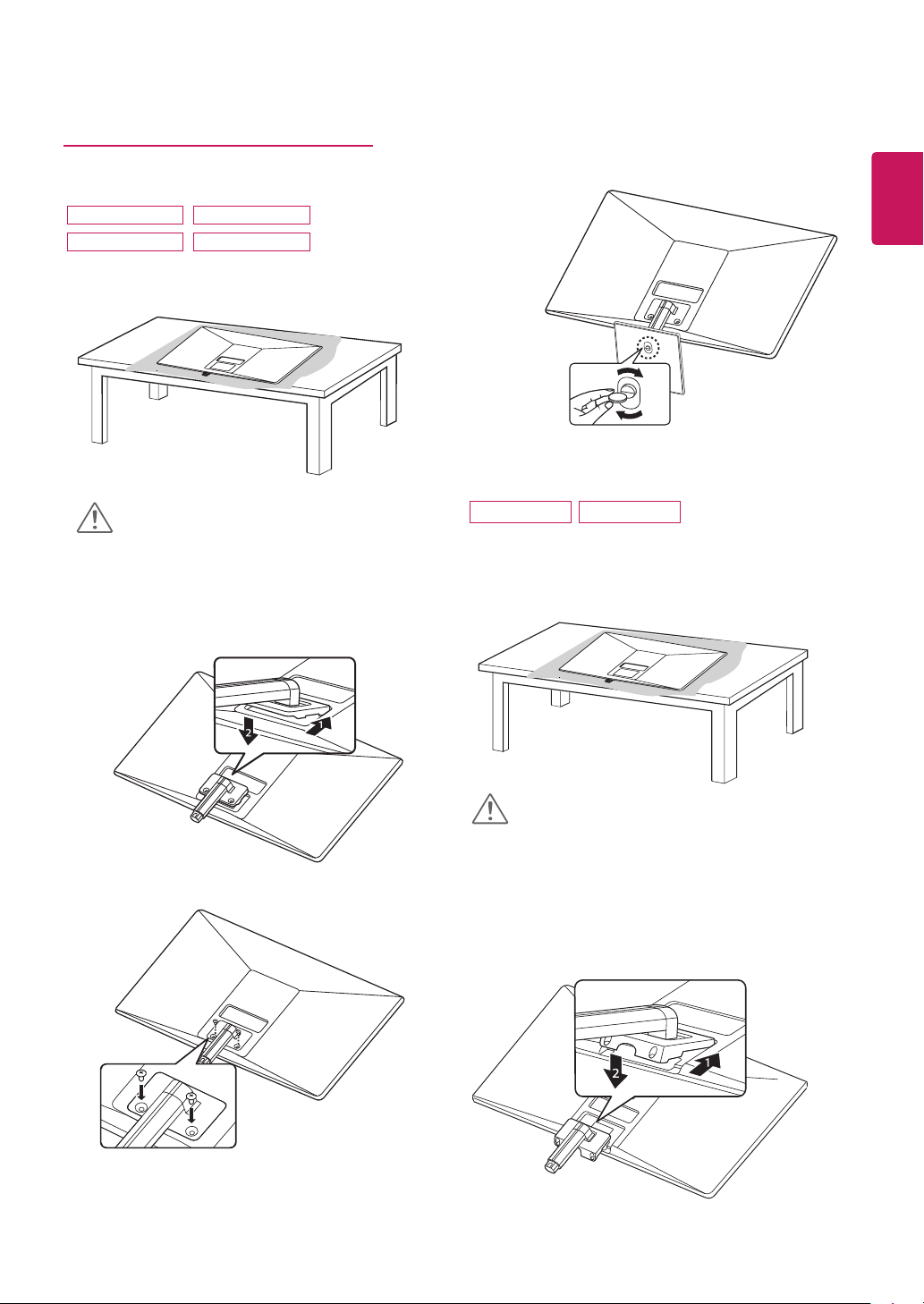

Setting up the Monitor set

Attaching the Stand Base

To protect the screen from scratches, cover the

surface with a soft cloth.

To protect the screen from scratches, cover the

surface with a soft cloth.

CAUTION

screw torque :10~12kgf

22MK4 series

24MK4 series

27MK4 series 27BK4 series

22BK4 series

24BK4 series

ENG

ENGLISH

To avoid injury to the fingers and foot when

Assembly Stand Body and Base, should hold Base

when assembly stand body and base.

Illustrations in this document represent typical

procedures, so they may look different from the

actual product.

Do not carry the monitor upside down by just

holding the stand base. This may cause the

monitor to fall off the stand and could result in

personal injury.

When lifting or moving the monitor, do not touch

the monitor screen. The force applied to the

monitor screen may cause damage to it.

Do not apply foreign substances (oils, lubricants,

etc.) to the screw parts when assembling the

product. (Doing so may damage the product.)

Applying excessive force when tightening screws

may cause damage to the monitor. Damage caused

in this way will not be covered by the product

warranty.

CAUTION

You can disassemble the stand in the reverse

order of the assembly.

NOTE

WARNING

screw torque :10~12kgf

ENG

ENGLISH

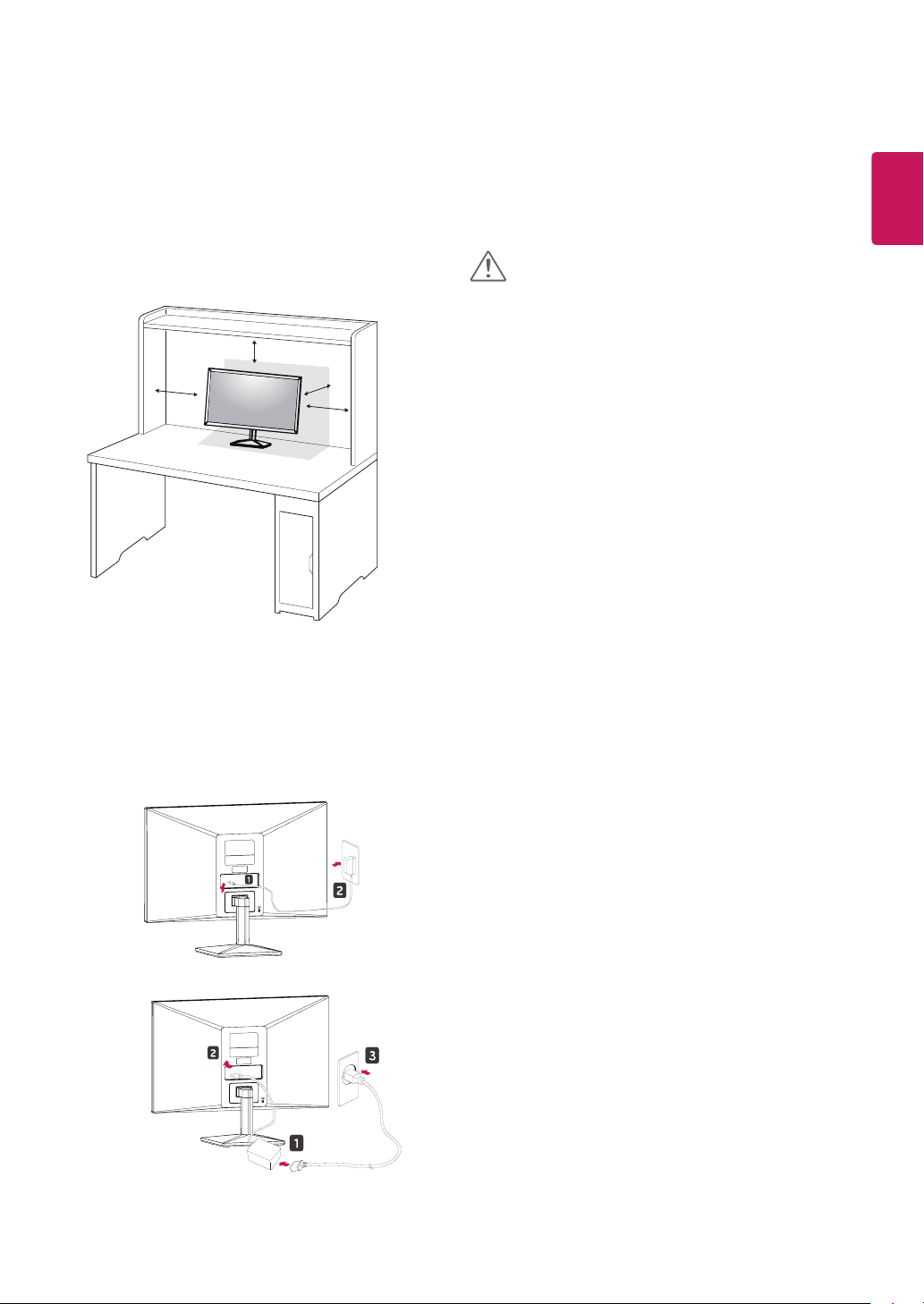

Mounting on a table

Lift and tilt the Monitor set into its upright

position on a table.

Leave a 100 mm(3.94 inches) (minimum) space

from the wall for proper ventilation.

Connect the AC-DC Adapter and Power Cord

to a wall outlet.

Press the joystick button on the bottom of the

monitor to turn on the monitor.

100 mm

(3.94 inches)

100 mm

(3.94 inches)

100 mm

(3.94 inches)

100 mm

(3.94 inches)

CAUTION

Unplug the power cord prior to moving or installing the

monitor. There is risk of electric shock.

ENG

ENGLISH

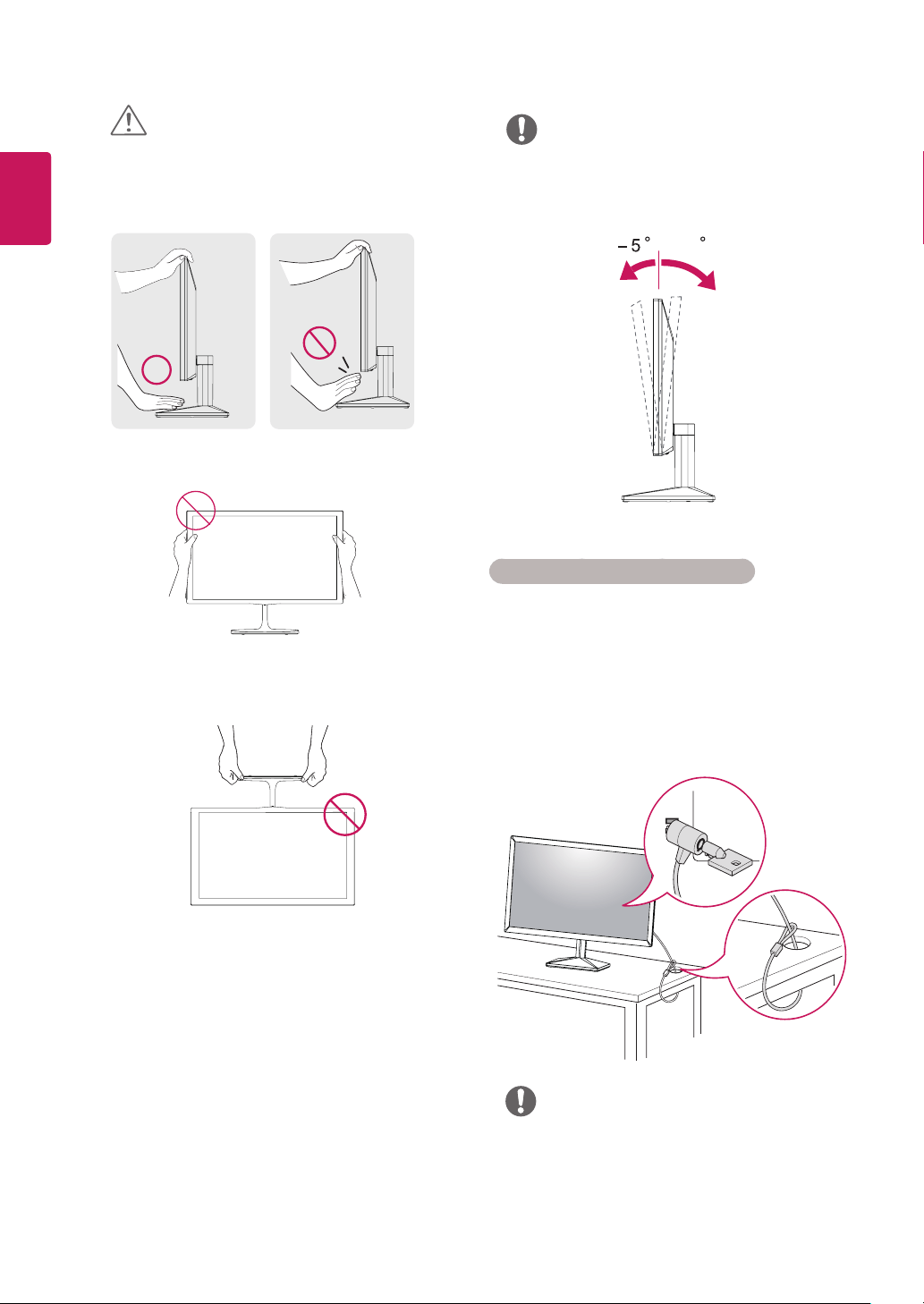

When you adjust the angle, do not hold the

bottom of the Monitor set frame as shown on

the following illustration, as may injure your

fingers.

Do not touch or press the screen when

adjusting the angle of the monitor.

Do not hold this set like below picture.Monitor

screen can detach from stand base and injure

your body.

WARNING

Using the Kensington security system

The Kensington security system connector is located at

the back of the Monitor set. For more information of

installation and using, refer to the manual supplied with

the Kensington security system or visit

http://www.

kensington.com

Connect the Kensington security system cable between

the Monitor set and a table.

The Kensington security system is optional. You can

obtain it from most electronics stores.

NOTE

The angle of the screen can be adjusted

forward or backward from -5° to 20° for a

comfortable viewing experience.

NOTE

Front Rear

ENG

ENGLISH

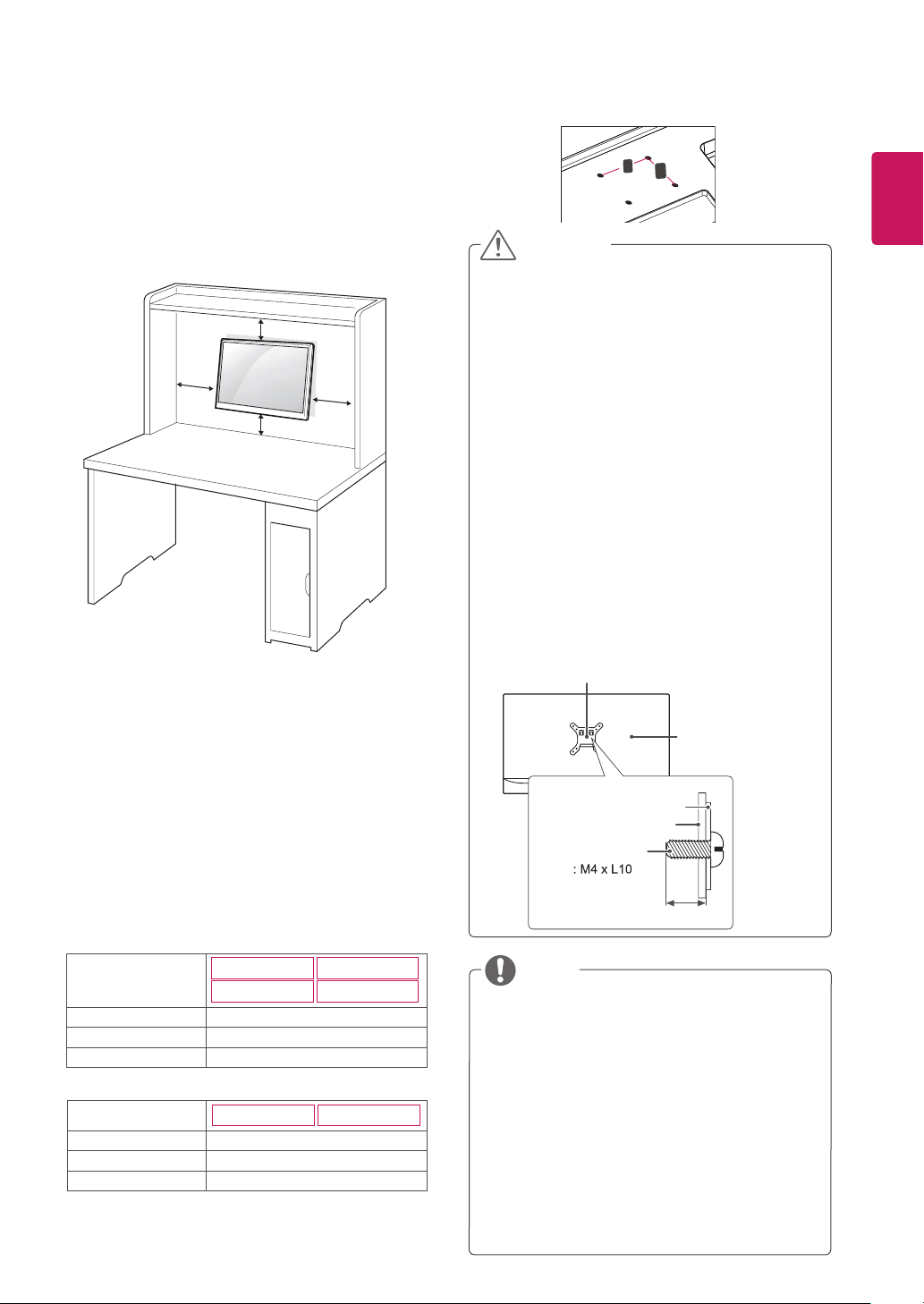

Mounting on a wall

For proper ventilation, allow a clearance of 100

mm(3.94 inches) on each side and from the wall.

Detailed instructions are available from your dealer, see

the optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

If you intend to mount the Monitor set to a wall, attach

Wall mounting interface (optional parts) to the back of

the set.

When you install the Monitor set using a wall mounting

interface (optional parts), attach it carefully so it will not

drop.

1 If you use screw longer than standard, the monitor

might be damaged internally.

2 If you use improper screw, the product might be dam-

aged and drop from mounted position.

In this case, LG Electronics is not responsible for it.

Disconnect the power cord first, and then

move or install the Monitor set. Otherwise

electric shock may occur.

If you install the Monitor set on a ceiling or

slanted wall, it may fall and result in severe

injury.

Use only an authorized LG wall mount

and contact the local dealer or qualified

personnel.

Do not over tighten the screws as this may

cause damage to the Monitor set and void

your warranty.

Use only screws and wall mounts that

meet the VESA standard. Any damages

or injuries by misuse or using an improper

accessory are not covered by the warranty.

Screw length from outer surface of back

cover should be under 8mm.

Use the screws that are listed on the VESA

standard screw specifications.

The wall mount kit will include an installation

manual and necessary parts.

The wall mount bracket is optional. You can

obtain additional accessories from your local

dealer.

The length of screws may differ depending

on the wall mount. Be sure to use the proper

length.

For more information, refer to the

instructions supplied with the wall mount.

CAUTION

NOTE

Back Cover

Wall mount Pad

Back Cover

Standard screw

Max.8mm

Wall Mount (A x B)

Model

22MK4 series

24MK4 series

22BK4 series

24BK4 series

Wall Mount (A x B)

75 x 75

Standard screw

Number of screws

Model

27MK4 series

27BK4 series

Wall Mount (A x B)

100 x 100

Standard screw

Number of screws

100 mm

(3.94 inches)

100 mm

(3.94 inches)

100 mm

(3.94 inches)

100 mm

(3.94 inches)

ENGLISH

USING THE MONITOR SET

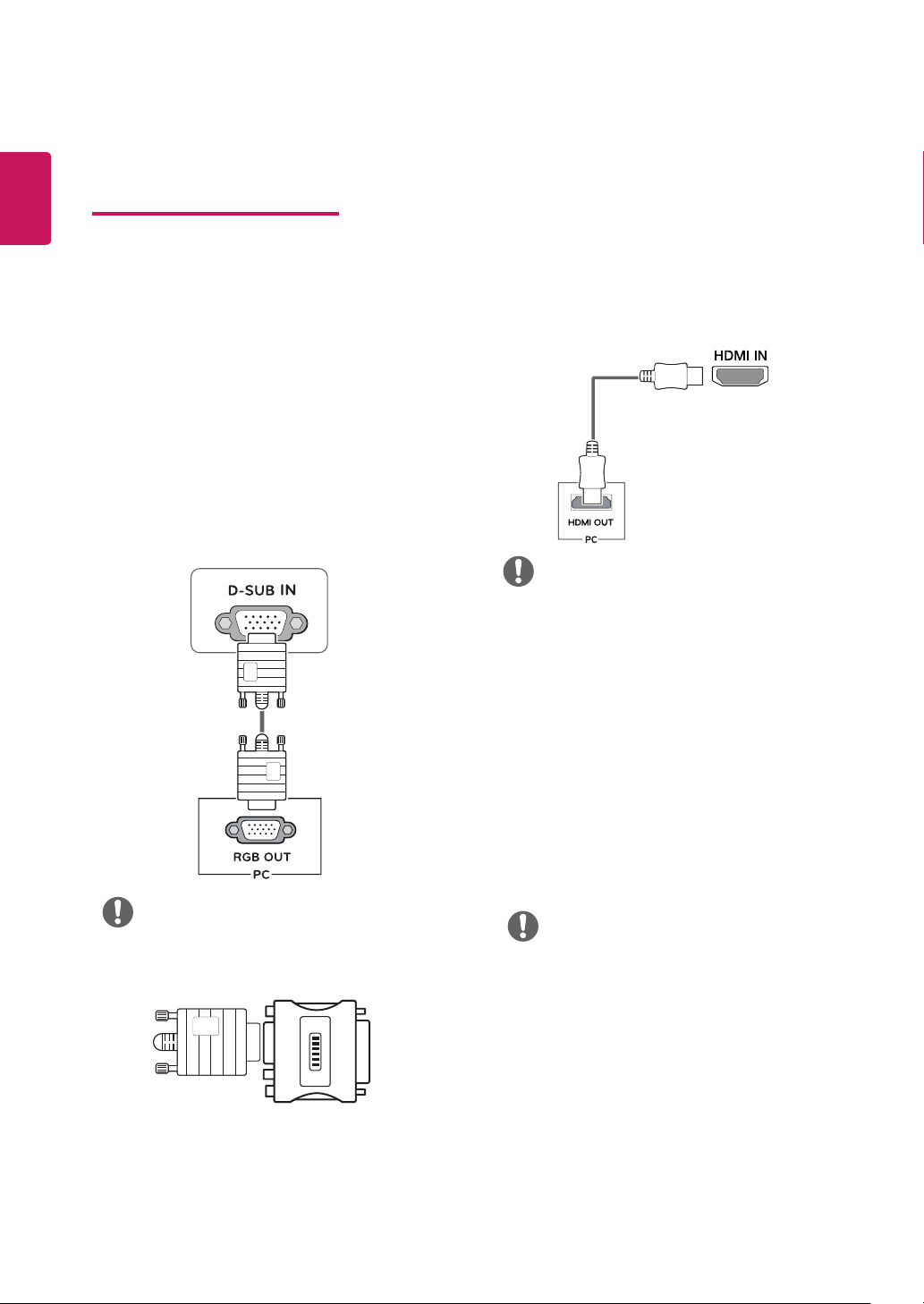

Connecting to a PC

Your Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected

device that users connect to a PC and turn

on, without device configuration or user

intervention.

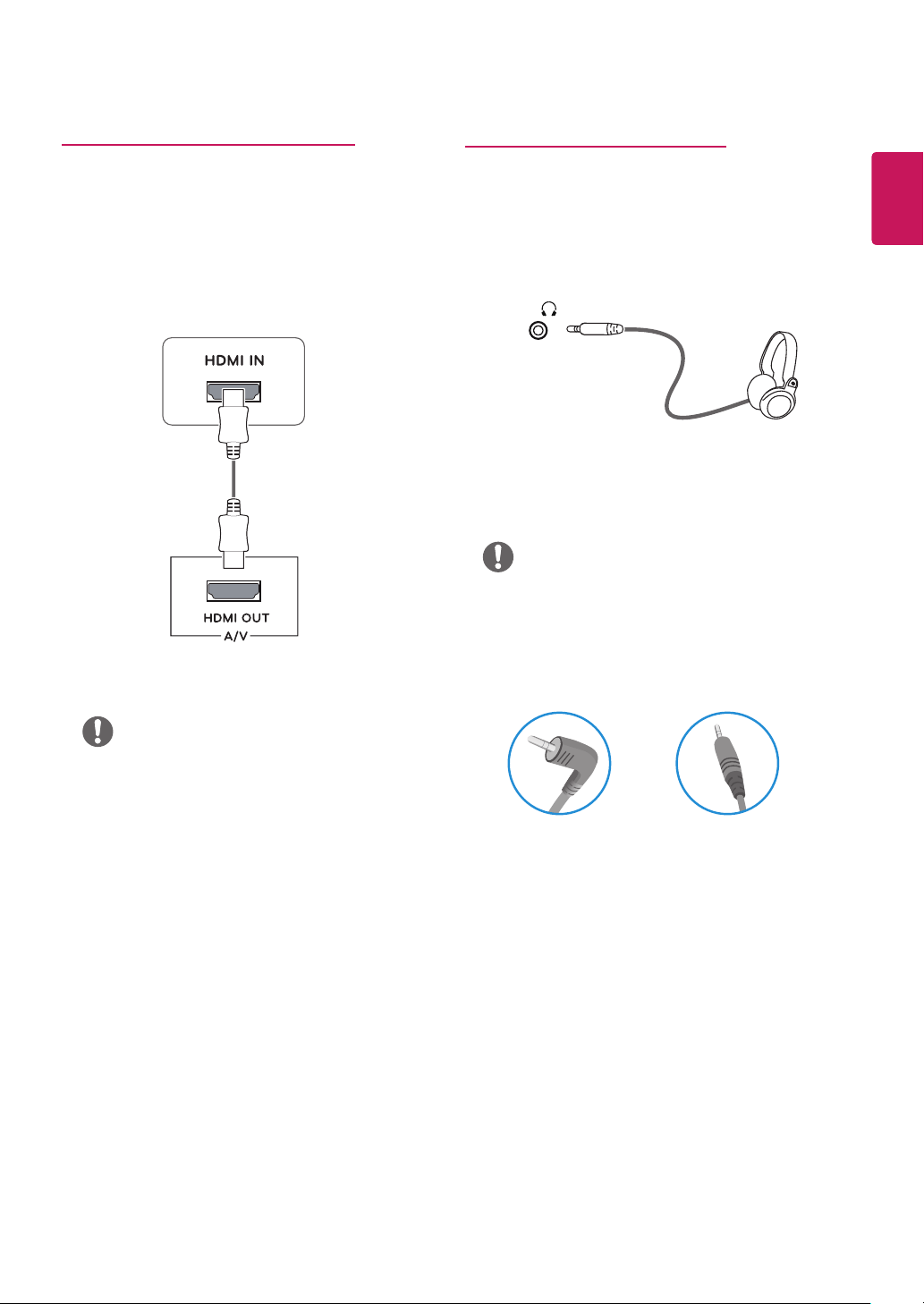

HDMI connection

Transmits the digital video and audio signals from

your PC to the Monitor set. Connect the PC and

the Monitor set with the HDMI cable as shown in

the following illustrations.

D-SUB connection

Transmits analog video from your PC to the

Monitor set. Connect the PC and the Monitor set

with the supplied D-sub 15 pin signal cable as

shown in the following illustrations.

If you use HDMI PC, it can cause compatibility

problem.

Use a certified cable with the HDMI logo

attached. If you do not use a certified HDMI

cable, the screen may not display or a

connection error may occur.

Recommended HDMI cable types

- High-Speed HDMI

Cable

- High-Speed HDMI

Cable with Ethernet

NOTE

When you want to use two PC in our Monitor,

please connect the signal cable(D-SUB/

DVI-D/HDMI) respectively in Monitor set.

If you turn the Monitor set on while it is cold,

the screen may flicker. This is normal.

Some red, green, or blue spots may appear

on the screen. This is normal.

Mac adapter

For Apple Macintosh use, a separate plug

adapter is needed to change the 15 pin

high density (3 row) D-SUB VGA connector

on the supplied cable to a 15 pin 2 row

connector.

When using a D-Sub signal input cable

connector for Macintosh

ENG

ENGLISH

Connecting to AV Devices

HDMI connection

Transmits the digital video and audio signals from your

AV devices to the monitor. Connect your AV device to

the monitor with the HDMI cable as illustrated below.

If you use HDMI PC, it can cause compatibility

problem.

Use a certified cable with the HDMI logo

attached. If you do not use a certified HDMI

cable, the screen may not display or a

connection error may occur.

Recommended HDMI cable types

- High-Speed HDMI

Cable

- High-Speed HDMI

Cable with Ethernet

NOTE

H/P

(sold separately)

Peripheral devices are sold separately.

If you use angled headphones, it may cause

a problem with connecting another external

device to the monitor. Therefore, it is recom-

mended to use straight headphones.

Angle Type Straight Type

NOTE

Depending on the audio settings of the

PC and external device, headphones and

speaker functions may be limited.

Connecting Peripherals

Connecting Headphones

Connect peripherals to the monitor via the headphones

port. Connect as illustrated.

ENG

ENGLISH

CUSTOMIZING SETTINGS

Activating the Main Menu

Press the joystick button on the bottom of the monitor.

Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.

Press the joystick button once more to close the main menu.

Joystick Button

Button Menu Status Description

Picture Mode

Main menu disabled

Enables the main menu.

Main menu enabled

Close the main menu.

(Long press the button to turn off the monitor)

Picture Mode

◄

Main menu disabled

Adjusts the monitor volume level. (for HDMI only)

Main menu enabled

Enters the input features.

►

Main menu disabled

Adjusts the monitor volume level. (for HDMI only)

Main menu enabled

Enters the Settings feature.

Picture Mode

▲

Main menu disabled

Displays the information on the current input.

Main menu enabled

Turns off the monitor.

▼

Main menu disabled

Displays the information on the current input.

Main menu enabled

Enters the picture mode feature. (for HDMI only)

Main Menu Features

Main Menu Description

Settings

Configures the screen settings.

Picture Mode

Select picture mode to achieve the best display

effect.

Input

Sets input mode.

Power Off

Turns off the monitor.

Exit

Exits the main menu.

Settings

Picture Mode

(for HDMI only)

ENG

ENGLISH

Customizing settings

Settings > Quick Set-

tings

Description

Brightness

Adjusts the contrast and brightness of the screen.

Contrast

Volume Adjusts the volume.(for HDMI only)

NOTE

You can adjust Mute/ Unmute by moving the joystick button to

▼

in the Volume menu.

Settings > Input Description

Input List Selects the input mode.

Aspect Ratio Adjusts the aspect ratio of the screen.

Full Wide Displays the video in wide-screen, regardless of the video signal input.

Original Displays video according to the aspect ratio of the video signal input.

NOTE

The options may disabled at the recommended resolution (1920 x 1080).

ENG

ENGLISH

Customizing settings

NOTE

This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen, please

turn off this function.

This function can’t distinguish some colors in some images.

Settings >


Description

Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be ad-

justed.

Reader Optimizes the screen for viewing documents. You can brighten the screen in the OSD

menu.

Photo Optimizes the screen to view photos.

Cinema Optimizes the screen to improve the visual effects of a video.

Color Weak-

ness

This mode is for users who cannot distinguish between red and green. It enables us-

ers with color weakness to easily distinguish between the two colors.

Game Optimizes the screen for gameplay.

Picture Adjust Brightness Adjusts the contrast and brightness of the screen.

Contrast

Sharpness Adjusts the sharpness of the screen.

SUPER

RESOLU-

TION+

High Optimized picture quality is displayed when a user wants crystal clear im-

ages. It is effective forhigh quality video or game.

Middle The optimized picture quality is displayed when a user wants images be-

tween low and high modes for comfortable viewing. It is effective for UCC or

SD video.

Low The optimized picture quality is displayed when a user wants smooth and

natural images. It is effective for slow -moving pictures or still images.

Off Select this option for everyday viewing. SUPER RESOLUTION+ is turned

off in this mode.

Black Level Sets the offset level (for HDMI only).

Offset: as a reference for a video signal, this is the darkest color the monitor can

display.

High Keeps the current contrast ratio of the screen.

Low Lowers the black levels and raises the white levels from the current contrast ratio of

the screen.

DFC On Adjusts the brightness automatically according to the screen.

Off Disables the DFC feature.

ENG

ENGLISH

Game Adjust

Response

Time

Sets a response time for displayed pictures based on the speed of the screen.

For a normal environment, it is recommended that you use

Fast

For a fast-moving picture, it is recommended that you use

Faster

Setting to

Faster

may cause image sticking.

Faster Sets the response time to faster.

Fast Sets the response time to fast.

Normal Sets the response time to normal.

Off Does not use the response time improvement feature.

FreeSync Provides seamless and natural images by synchronizing the vertical frequency of the

input signal with that of the output signal.

CAUTION

Supported Interface: HDMI.

Supported Graphic Card : A graphic card that supports AMD’s FreeSync is

necessary.

Supported Version : Make sure to update the graphic card to the latest driver.

For more information and requirement, refer to AMD website at http://www.amd.

com/FreeSync

On FreeSync

function on.

Off FreeSync

function off.

Black

Stabilizer

Black Stabilizer:

You can control the black contrast to have better visibility in dark scenes.

Increasing the Black Stabilizer value brightens the low gray level area on the screen.

(You can easily distinguish objects on dark game screens.)

Reducing the Black Stabilizer value darkens the low gray level area and increases the

dynamic contrast on the screen.

Cross Hair Cross Hair provides a mark on the center of the screen for First Person Shooter(FPS)

games. Users can select the cross hair that ts their gaming environment among four

different cross hairs.

When the monitor is off or enters energy saving mode, the Cross Hair feature is

automatically turned off.

Color Adjust Gamma Mode 1, Mode 2,

Mode 3

The higher the gamma value, the darker the image becomes. Like-

wise, the lower the gamma value, the lighter the image becomes.

Mode 4 If you do not need to adjust the gamma settings, select Mode 4.

Color Temp Selects the factory default picture color.

Warm: Sets the screen color to a reddish tone.

Medium: Sets the screen color between a red and blue tone.

Cool: Sets the screen color to a bluish tone.

Custom: The user can adjust it to red, green or blue by customization.

Red/Green/

Blue

You can customize the picture color using Red, Green, and Blue colors.

Configuration

Adjust

(D-SUB only)

Horizontal To move image left and right.

Vertical To move image up and down.

Clock To minimize any vertical bars or stripes visible on the screen background.The

horizontal screen size will also change.

Phase To adjust the focus of the display. This item allows you to remove any horizontal noise

and clear or sharpen the image of characters.

Resolution

(D-SUB only)

User can set the desired resolution.This option is enabled only when the screen resolution on your

computer is set to the following(D-SUB only).

NOTE

The function is enabled only when the screen resolution on your computer is set to the following,

except that the PC output wrong resolution.

1024x768, 1280x768, 1360x768, 1366x768,Off

1280x960, 1600x900,Off

1440x900, 1600x900,Off

Picture Reset

Do you want to reset your settings?

No Cancel the select.

Yes Returns to the default settings.

ENG

ENGLISH

Customizing settings

Settings > General Description

Language To choose the language in which the control names are displayed.

SMART ENERGY

SAVING

High Saves energy using the high-efficiency SMART ENERGY SAVING feature.

Low Saves energy using the low-efficiency SMART ENERGY SAVING feature.

Off Disables the SMART ENERGY SAVING feature.

Automatic Standby The monitor will automatically switch to standby mode after a certain period.

OSD Lock Prevents incorrect key input.

On Key input is disabled.

NOTE

All function except for the OSD Lock mode, brightness, Contrast, Input, Information

and Volume are disabled.

Off Key input is enabled.

Information The display information will be shown the Model, Serial Number, Total Power On Time, Reso-

lution.

Reset Do you want to reset your settings?

No Cancel the select.

Yes Returns to the default settings.

Saving Data depends on the Panel. So, those values should be different from each panel and panel vendor. If op-

tion of SMART ENERGY SAVING is High or Low, monitor luminance become higher or lower depend on source.

NOTE

ENG

ENGLISH

TROUBLESHOOTING

Check

Control Panel ► Display ► Settings

and see if the frequency or the resolution were

changed. If yes, readjust the video card to the recommend resolution.

If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the

screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.

The setting method can differ by computer and O/S (Operation System), and resolution mentioned

above may not be supported by the video card performance. In this case, please ask to the computer

or the video card manufacturer.

Keep proper posture when using the monitor, otherwise the screen may not be optimized.

CAUTION

The screen is flickering.

Did you select the recommended

resolution?

If the selected resolution is HDMI

1080i

60/50 Hz, the screen may be flickering.

Change the resolution to the recommended resolution

1080P

Display image is incorrect

The screen color is mono or

abnormal.

Check if the signal cable is properly connected and use a screwdriver to fasten

if necessary.

Make sure the video card is properly inserted in the slot.

Set the color setting higher than 24 bits (true color) at

Control Panel

►

Settings

The screen blinks.

Check if the screen is set to interlace mode and if yes, change it to the

recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?

Have you installed the display

driver?

Be sure to install the display driver from our web site:

http://www.lg.com

Make sure to check if the video card supports Plug&Play function.

Check the following before calling for service.

No image appears

Is the power cord of the display

connected?

Check and see if the power cord is connected properly to the power outlet.

Do you see an "Out of Range"

message on the screen?

This message appears when the signal from the PC (video card) is out of

horizontal or vertical frequency range of the display. See the 'Specifications'

section of this manual and configure your display again.

Do you see a "NO SIGNAL"

message on the screen or black

screen?

After the monitor is on "NO SIGNAL", the monitor goes to DPM mode.

This is displayed when the signal cable between the PC and the monitor is

missing or disconnected. Check the cable and reconnect it.

Check PC status.

Can 't you control some functions in OSD?

Can't you select some menu in

OSD?

You can unlock the OSD controls at any time by entering the OSD lock menu

and changing items to off.

ENG

ENGLISH

SPECIFICATIONS

LCD Screen Type TFT (Thin Film Transistor)

LCD(Liquid Crystal Display) Screen

Resolution Maximum Resolution 1920 x 1080 @ 75 Hz (HDMI)

1920 x 1080 @ 60 Hz (D-sub)

Recommended Resolution 1920 × 1080 @ 60 Hz

Video Signal Horizontal Frequency HDMI : 30 kHz to 85 kHz

D-SUB: 30 kHz to 83 kHz

Vertical Frequency HDMI

-PC: 56 Hz to 75 Hz

-AV: 50 Hz to 61 Hz

D-SUB: 56 Hz to 75 Hz

Synchronization Separate Sync, Digital.

Input Connector HDMI IN, D-SUB IN, H/P OUT

Power Input 22MK430H 22BK430H: 19 V 1.3 A or 19 V 0.8 A

22MK400H 22BK400H: 19 V 0.8 A

Power Consumption On Mode : 19.7 W Typ. ( Outgoing condition ) *

Sleep Mode ≤ 0.3 W

Off Mode ≤ 0.3 W

AC/DC adaptor Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-40FSG-19 19025GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-40FSG-19 19025GPB-2, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-25FSG-19 19025EPCU-1L, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-25SFA-19-3 19025E, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-25FSF-19 19025EPB-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP51, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type WA-24C19FS, manufactured by Asian Power Devices Inc.

or Type WA-24C19FU, manufactured by Asian Power Devices Inc.

or Type WA-24C19FK, manufactured by Asian Power Devices Inc.

or Type WA-24C19FB, manufactured by Asian Power Devices Inc.

or Type WA-24C19FN, manufactured by Asian Power Devices Inc.

or Type DA-24B19, manufactured by Asian Power Devices Inc.

OUTPUT: 19 V 1.3 A

22MK4 series 22BK4 series

ENG

ENGLISH

Type ADS-18SG-19-3 19016G, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-18FSG-19 19016GPG, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-18FSG-19 19016GPI, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-18FSG-19 19016GPCU, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-18FSG-19 19016GPB, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-25SFA-19-3 19016E, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-25FSF-19 19016EPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-25FSF-19 19016EPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-25FSF-19 19016EPI-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-25FSF-19 19016EPG-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-25FSF-19 19016EPB-1, manufactured by SHENZHEN HONOR ELECTRONIC

or Type ADS-25FSF-19 19016EPG, manufactured by SHENZHEN HONOR ELECTRONIC

or Type LCAP42, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP36-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP36-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP36-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type LCAP36-U, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or Type DA-16C19, manufactured by Asian Power Devices Inc.

or Type WA-16D19FG, manufactured by Asian Power Devices Inc.

or Type WA-16E19FA, manufactured by Asian Power Devices Inc.

OUTPUT: 19 V 0.84 A

Environmental

conditions

Operating Temperature

Operating Humidity

0 °C to 40 °C

Less than 80%

Storage Temperature

Storage Humidity

-20 °C to 60 °C

Less than 85 %

Dimension Monitor Size (Width x Height x Depth)

With Stand 509.6 mm x 395.8 mm x 181.9 mm

Without Stand 509.6 mm x 305.7 mm x 38.5 mm

Weight (Without

Packaging)

With Stand 22MK430H 22BK430H: 2.8 Kg

22MK400H 22BK400H: 2.4 Kg

Without Stand 22MK430H 22BK430H: 2.5 Kg

22MK400H 22BK400H: 2.1 Kg

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

* The power consumption level can be different by operating condition and monitor setting.

* The On mode power consumption is measured with LGE test standard(Full White pattern , Maximum resolution).

ENG

ENGLISH

SPECIFICATIONS

LCD Screen Type TFT (Thin Film Transistor)

LCD(Liquid Crystal Display) Screen

Resolution Maximum Resolution 1920 x 1080 @ 75 Hz (HDMI)

1920 x 1080 @ 60 Hz (D-sub)

Recommended Resolution 1920 × 1080 @ 60 Hz

Video Signal Horizontal Frequency HDMI : 30 kHz to 85 kHz

D-SUB: 30 kHz to 83 kHz

Vertical Frequency HDMI

-PC: 56 Hz to 75 Hz

-AV: 50 Hz to 61 Hz

D-SUB: 56 Hz to 75 Hz

Synchronization Separate Sync, Digital.

Input Connector HDMI IN, D-SUB IN, H/P OUT

Power Input 19 V 1.3 A

Power Consumption On Mode : 26 W Typ. ( Outgoing condition ) *
