AB BOARD
Assembly Manual
2 AB BOARD - Assembly Manual
M10x20mm Bolt
x8
7
M8x55mm Bolt
x2
8
Allen Wrench
x1
13
M10 Washer
x8
9
M8 Washer
x2
10
1

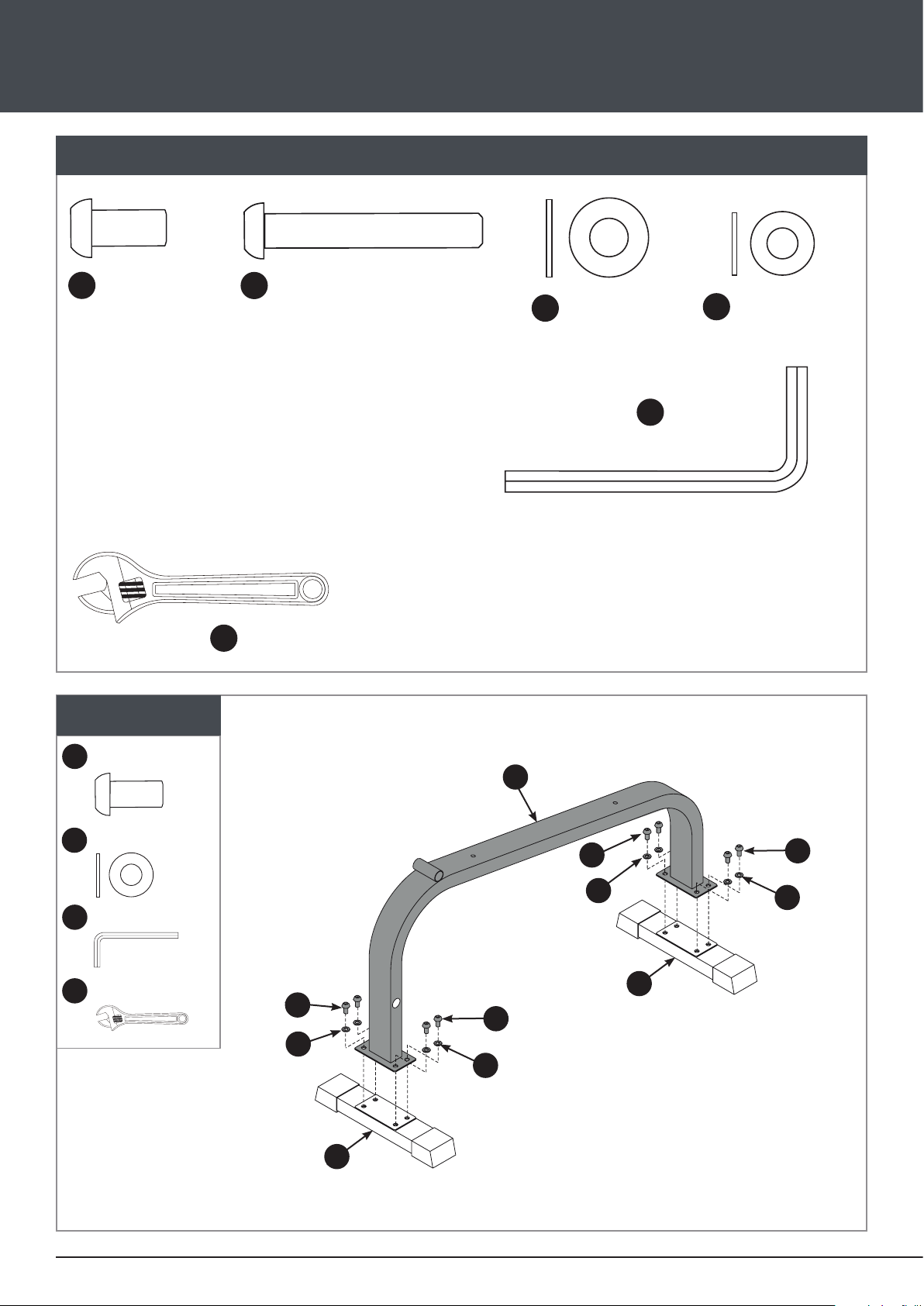

HARDWARE PACK
Spanner x1
NOT INCLUDED
Allen Wrench x1
13
M10x20mm Bolt x8
5
M10 Washer x8
9
Spanner x1
1
7
9
7
9
7
9
7
9

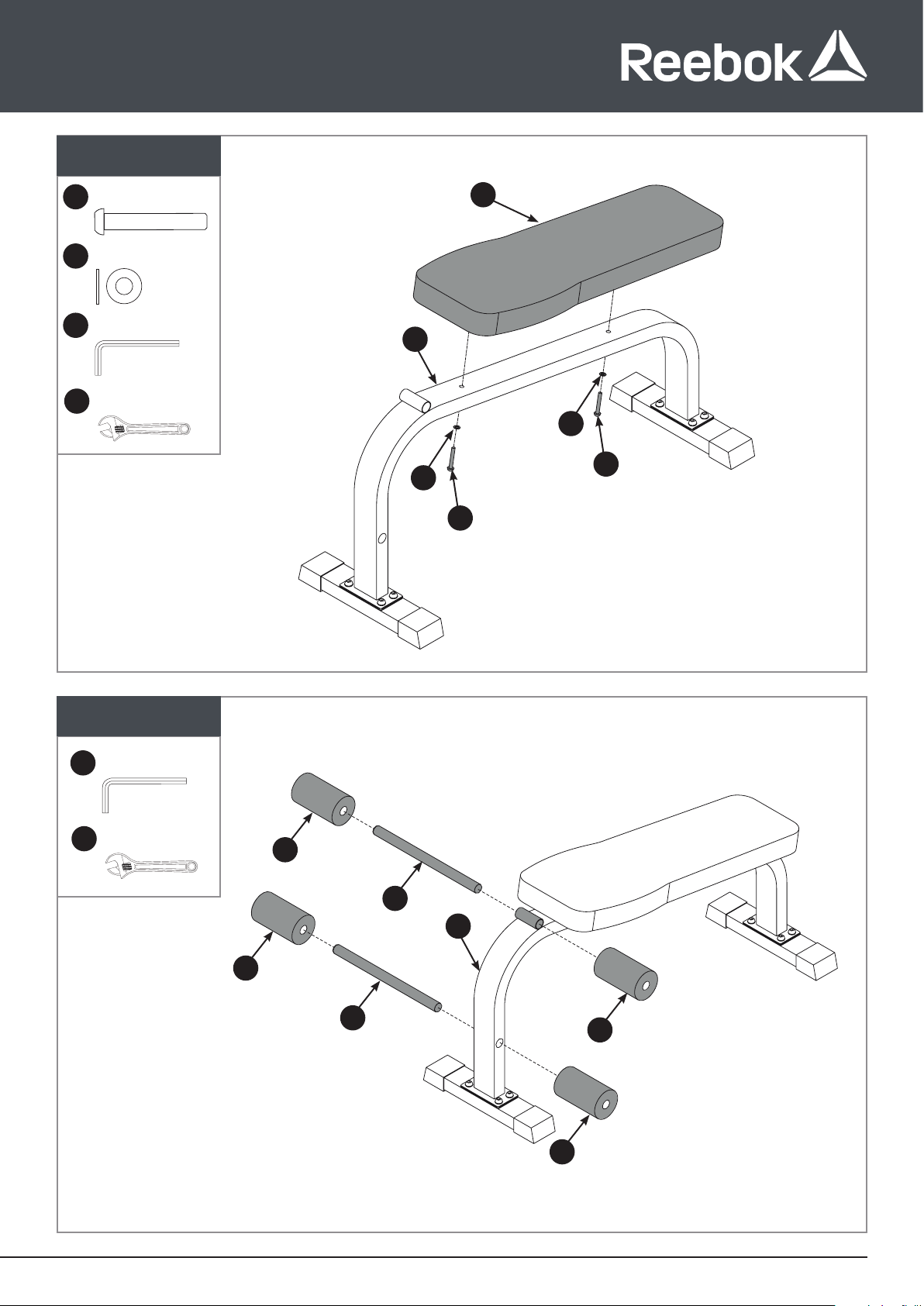

2
3
www.reebokfitness.com 3
2
3
Allen Wrench x1
13
Spanner x1
6
6
6
6
4
4
1
M8x55mm Bolt x2
6
M8 Washer x2
9
Allen Wrench x1
13
Spanner x1
1
5
10
8
10
8
4 AB BOARD - Assembly Manual

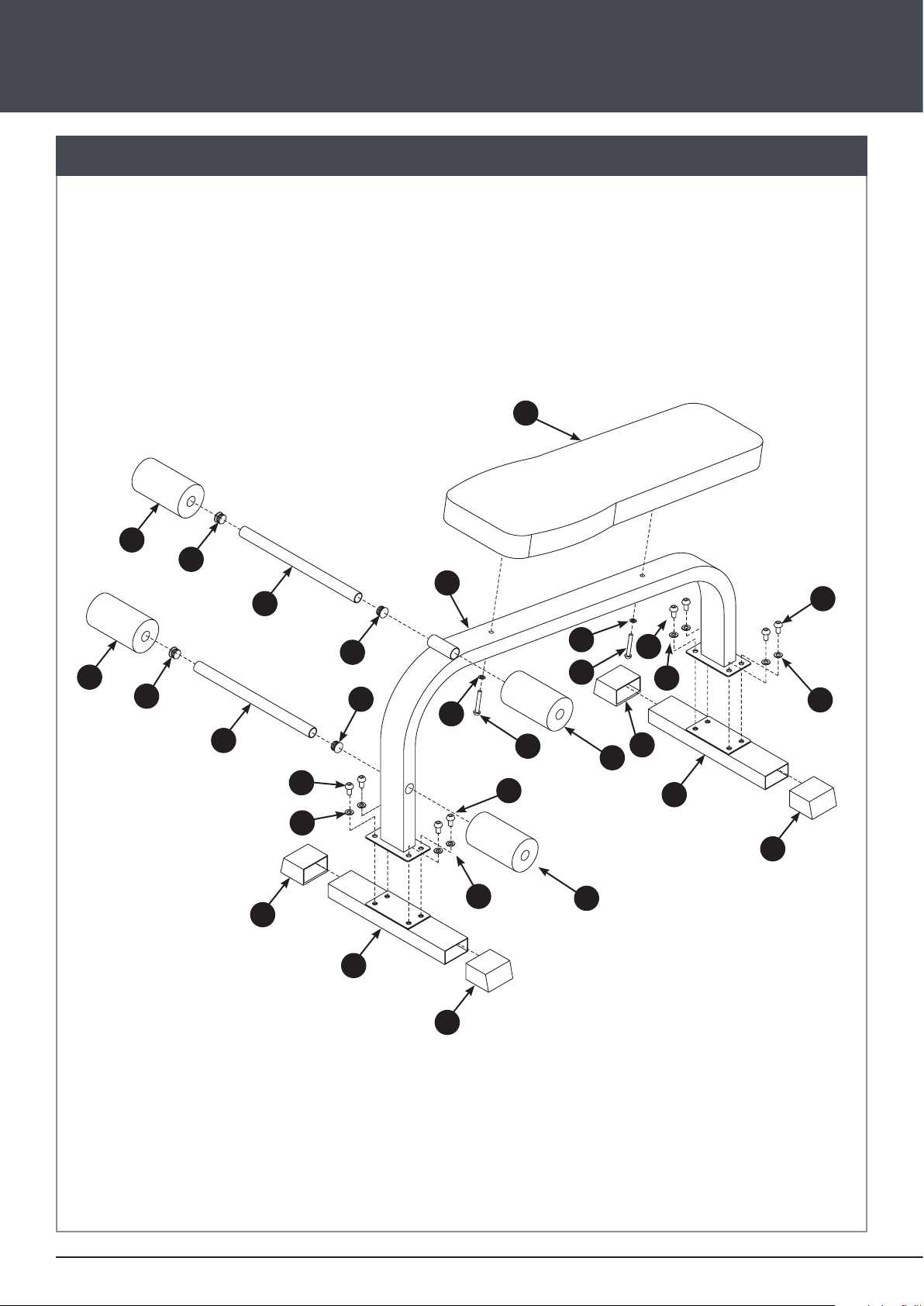

EXPLODED VIEW
5
6
12
4
12
6
12
4
12
7
9
11
2
11
4
9
6
6
10
8
11
11
3
1
10
8
7
9
7
9
www.reebokfitness.com 5
Part No. Code Description QTY
1 PFMRE602-01 Frame 1
2 PFMRE602-02 Front Horizontal Beam 1
3 PFMRE602-03 Rear Horizontal Beam 1
4 PFMRE602-04 Foam Roller Tube 2
5 PFMRE602-05 Backrest 1
6 PFMRE602-06 Foam Roll 4
7 PFM404-18 M10 x 20mm Bolt 8
8 PFMS80-17 M8 x 55mm Bolt 2
9 PRK1-06 M10 Washer 8
10 PFM2006-27 M8 Washer 2
11 PFMRE602-07 38 x 75 mm Oblique Rubber Cap 4
12 PRK1-03 25 mm Round Inner Cap 4
13 PFMALLEN10 Allen Wrench 1
PARTS LIST
www.reebokfitness.info/product-support
This product is suitable for user’s weight of
100kg.
100
kg
150
kg
This product is suitable for a max load of
150kg.
USER INFORMATION
AB BOARD
