Dji ZENMUSE X5R RAW Camera and 3-Axis Gimbal User Manual

User Manual

V1.2 2017.12

INSPIRE RAW

Searching for Keywords

Search for keywords such as “battery” and “install” to nd a topic. If you are using Adobe Acrobat

Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search.

Navigating to a Topic

View a complete list of topics in the table of contents. Click on a topic to navigate to that section.

Printing this Document

This document supports high resolution printing.

Using this manual

Legends

Warning Important Hints and Tips Reference

Before Flight

The following tutorials and manuals have been produced to ensure you to make full use of your Inspire 1

RAW.

1. In the Box

2. Safety Guidelines and Disclaimer

3. Quick Start Guide

4. Intelligent Flight Battery Safety Guidelines

5. User Manual

Watching all the tutorial videos and reading the Disclaimer before ight is recommended. Afterwards,

prepare for your rst ight by using the Quick Start Guide. Refer to this manual for more comprehensive

information.

Watch the Video Tutorials

Please watch the tutorial video below to learn how to use Inspire 1 RAW correctly and safely:

http://www.dji.com/product/inspire-1-pro-and-raw/video

Download the DJI GO app

Be sure to use the DJI GO app or other apps compatible with DJI aircraft during ight.

Scan the QR code or visit

“http://m.dji.net/djigo” to download the app.

For the best experience, use mobile device with Android V 4.1.2 or above. Requires iOS 8.0 or later.

For increased safety, the ight is restricted to a height of 30 m and distance of 50 m when not connected

or logged into the app during ight, including DJI GO and all apps compatible with DJI aircraft.

Contents

Using this manual

Legends 3

Before Flight 3

Watch the Video Tutorials 3

Download the DJI GO app 3

Product Prole

Introduction 7

Feature Highlights 7

Assemble the Aircraft 7

Installing the Gimbal and Camera 8

Aircraft Diagram 12

Remote Controller Diagram 12

Aircraft

Flight Controller 15

Flight Mode 15

Flight Status Indicator 15

Return to Home (RTH) 16

Dynamic Home Point 18

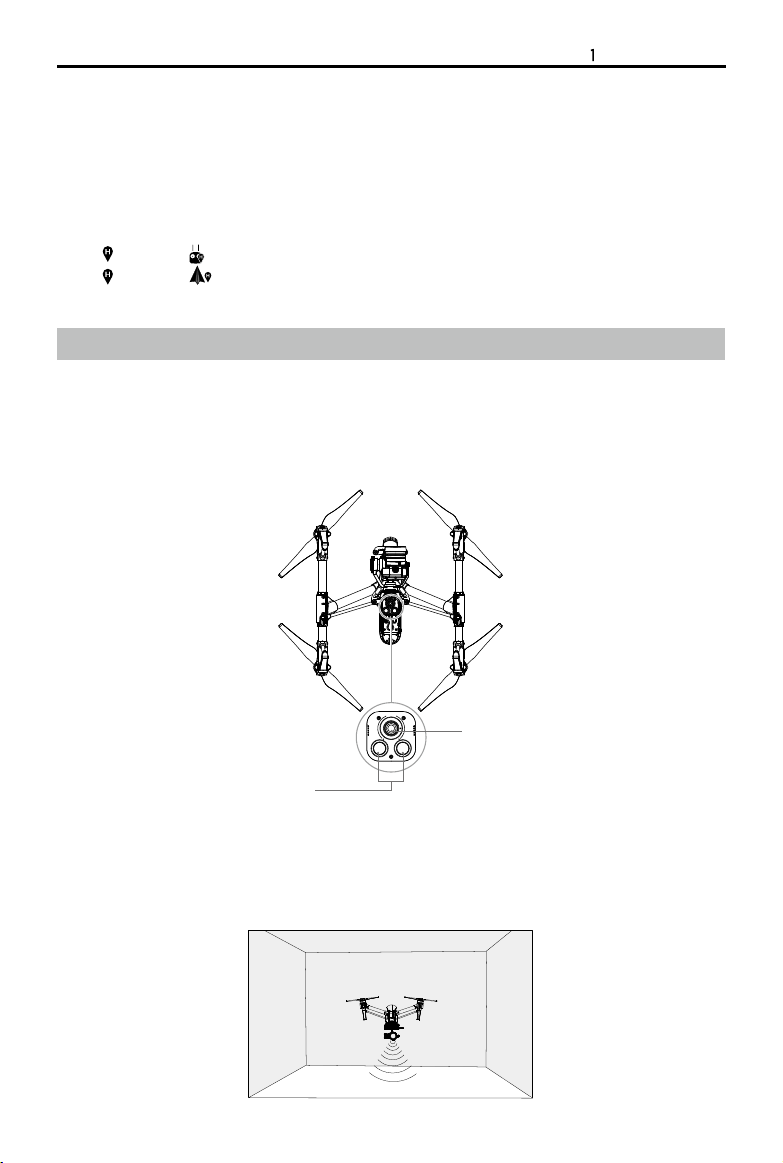

Vision Positioning System 19

Flight Recorder 21

Attaching and Detaching the Propellers 21

DJI Intelligent Flight Battery 21

Remote Controllers

 RemoteControllerProle 27

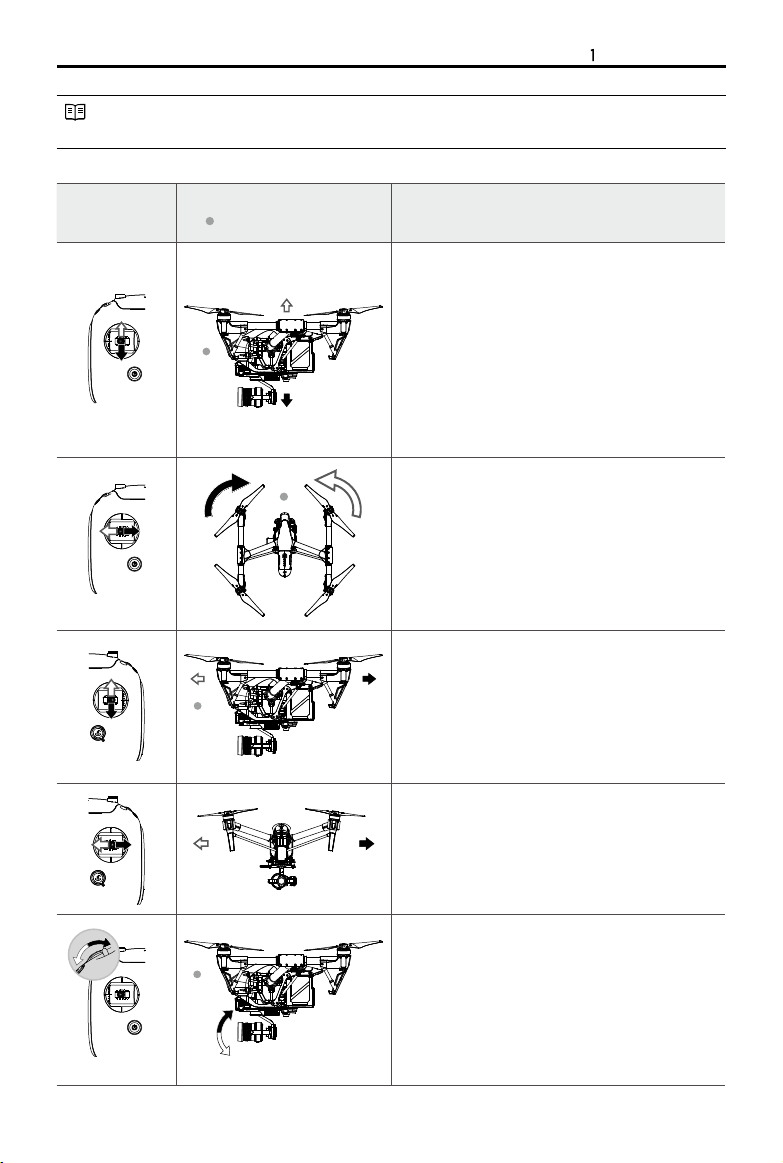

Remote Controller Operations 27

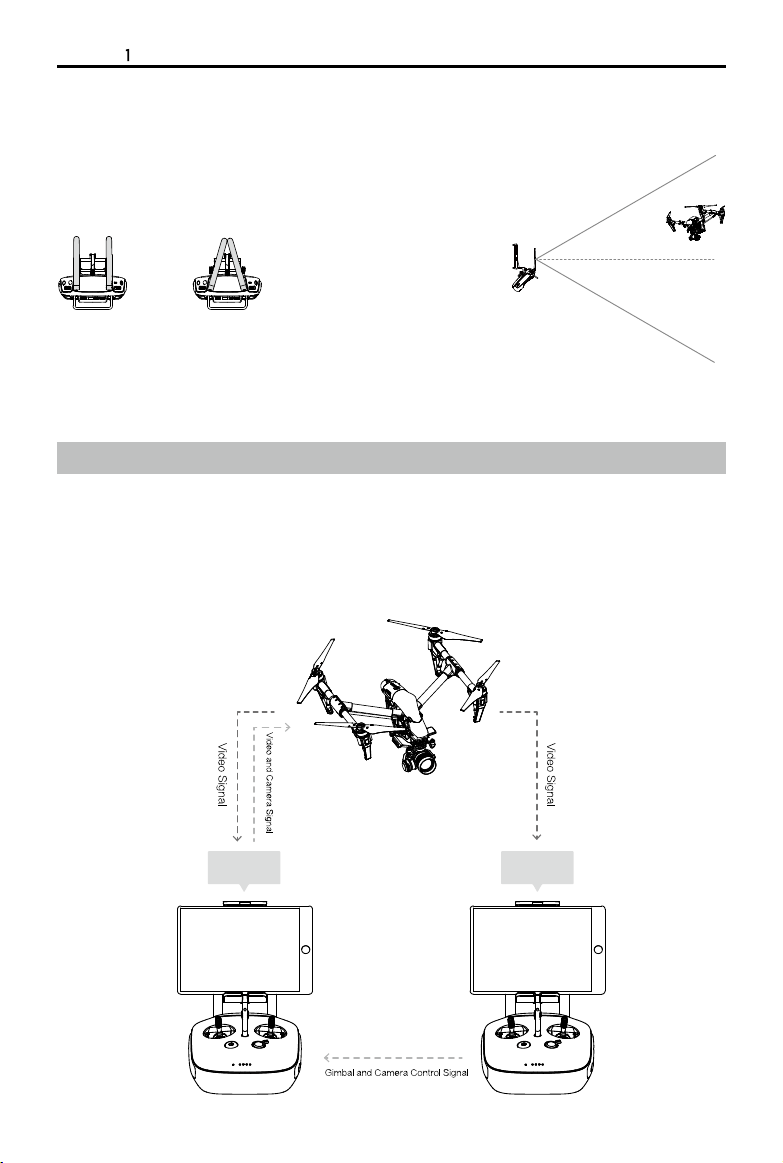

Dual Remote Controllers Mode 32

Remote Controller Status LED 34

Linking the Remote Controller 35

Used with the DJI Focus 37

Gimbal and Camera

Gimbal and Camera Overview 39

Components 39

User Manual

INSPIRE RAW

Using this manual

Legends 3

Before Flight 3

Watch the Video Tutorials 3

Download the DJI GO app 3

Product Prole

Introduction 7

Feature Highlights 7

Assemble the Aircraft 7

Installing the Gimbal and Camera 8

Aircraft Diagram 12

Remote Controller Diagram 12

Aircraft

Flight Controller 15

Flight Mode 15

Flight Status Indicator 15

Return to Home (RTH) 16

Dynamic Home Point 18

Vision Positioning System 19

Flight Recorder 21

Attaching and Detaching the Propellers 21

DJI Intelligent Flight Battery 21

Remote Controllers

 RemoteControllerProle 27

Remote Controller Operations 27

Dual Remote Controllers Mode 32

Remote Controller Status LED 34

Linking the Remote Controller 35

Used with the DJI Focus 37

Gimbal and Camera

Gimbal and Camera Overview 39

Components 39

Read the information below before setting up your Zenmuse X5R 40

Installing the Camera Lens 41

Camera Panel 47

Basic Shooting 47

Advanced Settings 48

Managing your Photos and Videos 50

DJI CineLight

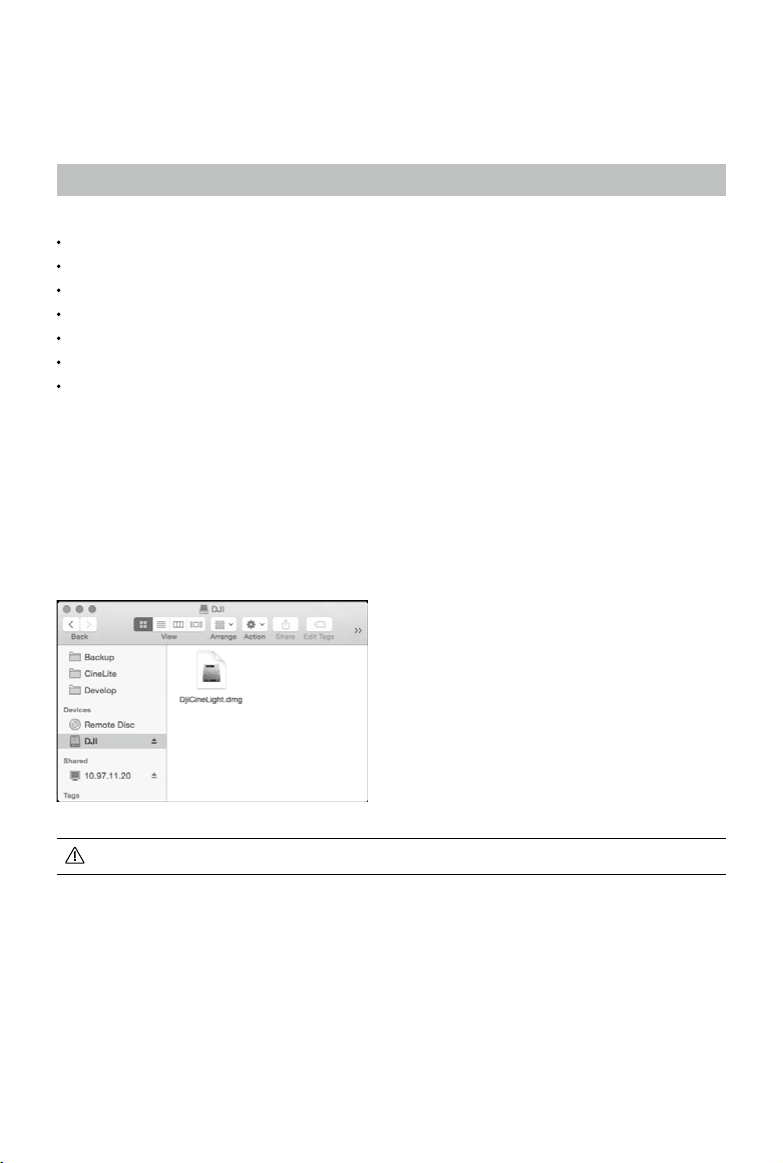

Installing DJI CineLight 52

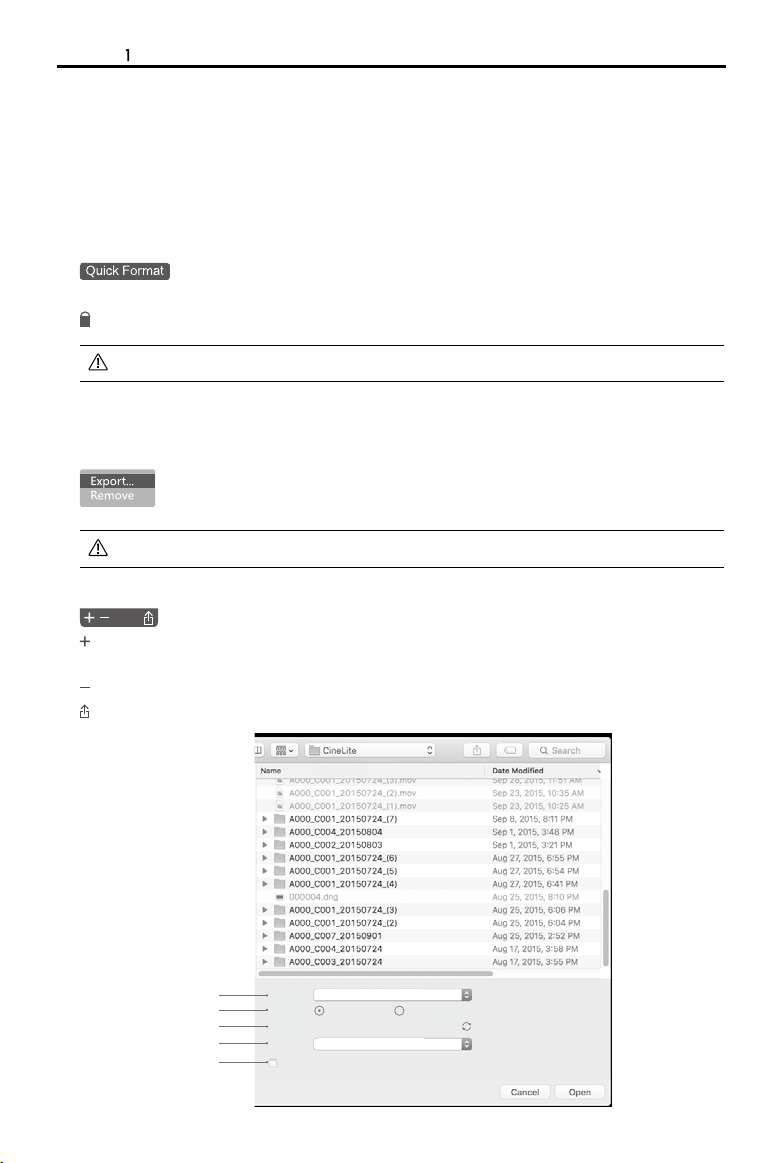

Accessing your Files 53

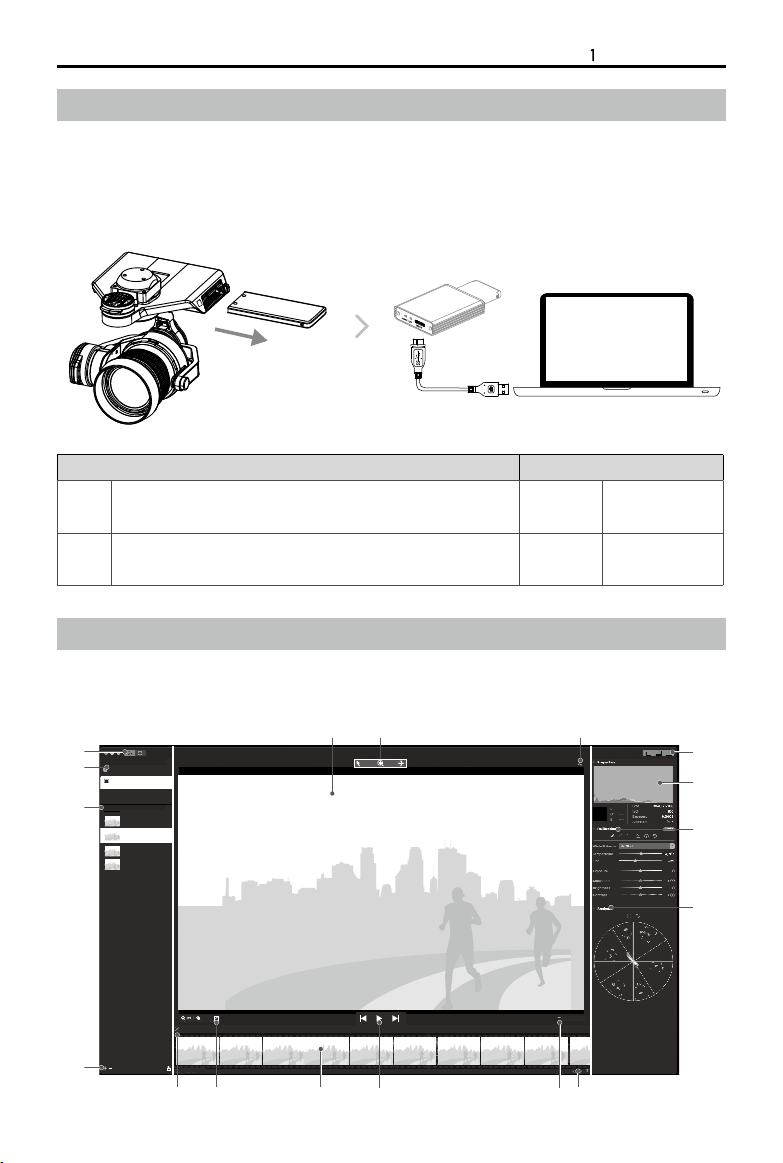

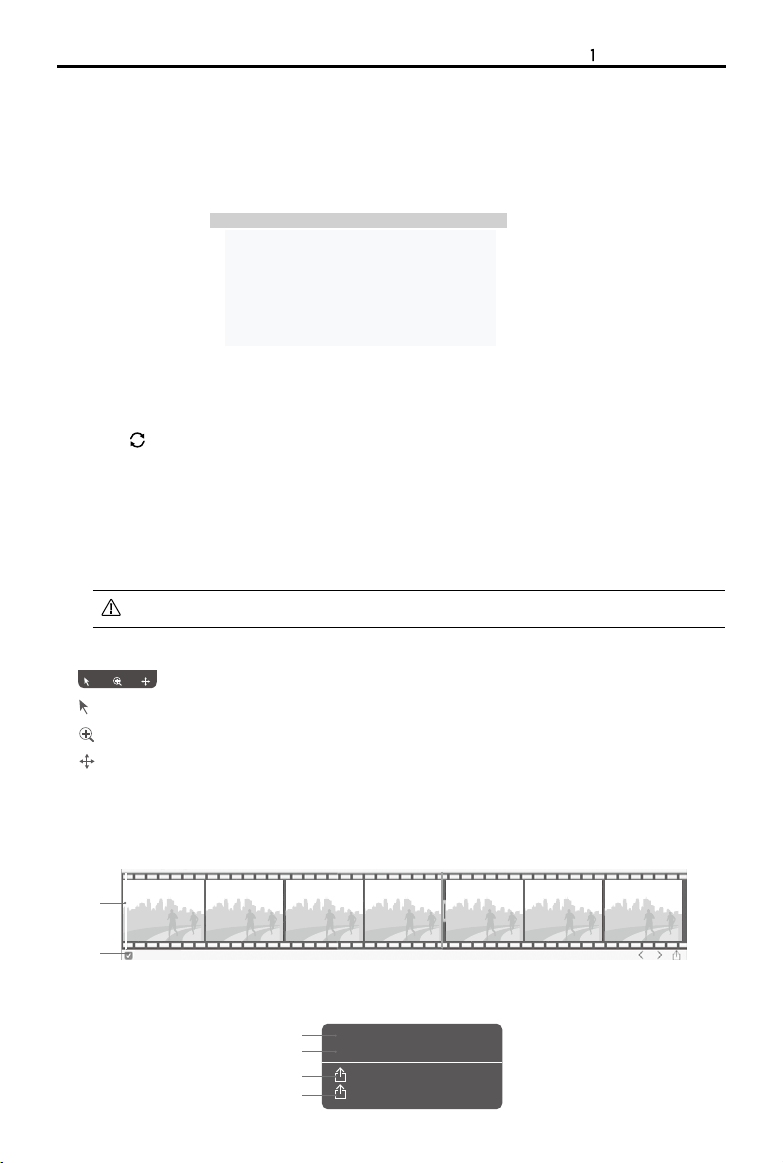

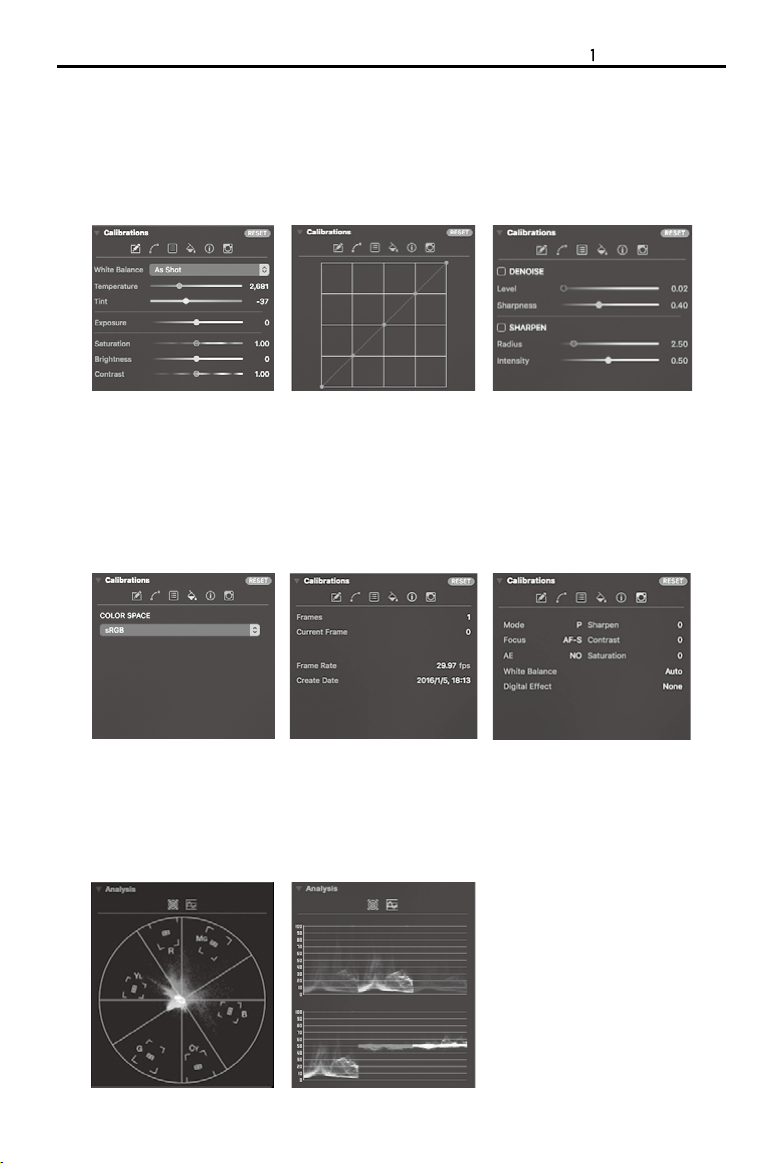

Post-Processing with DJI CineLight 53

DJI GO App

Equipment 59

Editor 63

Skypixel 63

Me 63

Flight

Flight Environment Requirements 65

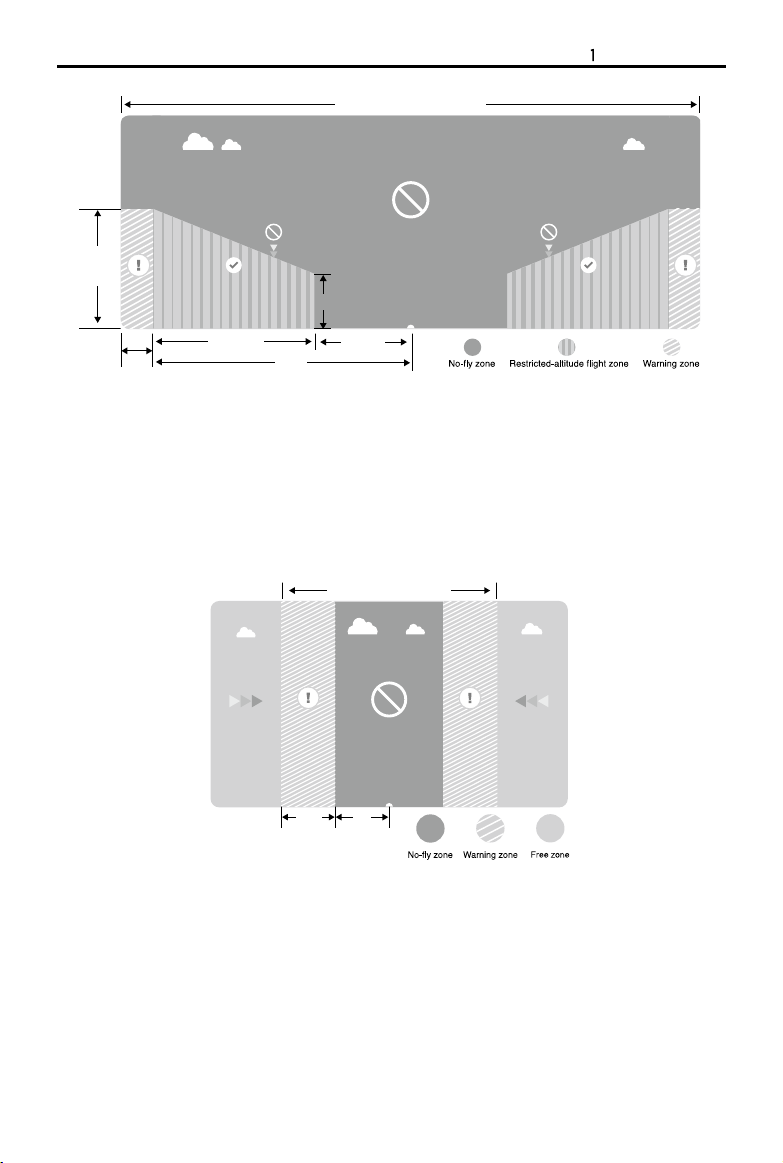

Flight Limits and Flight Restriction Area 65

 PreightChecklist 69

Calibrating the Compass 69

Auto Take-off and Auto Landing 70

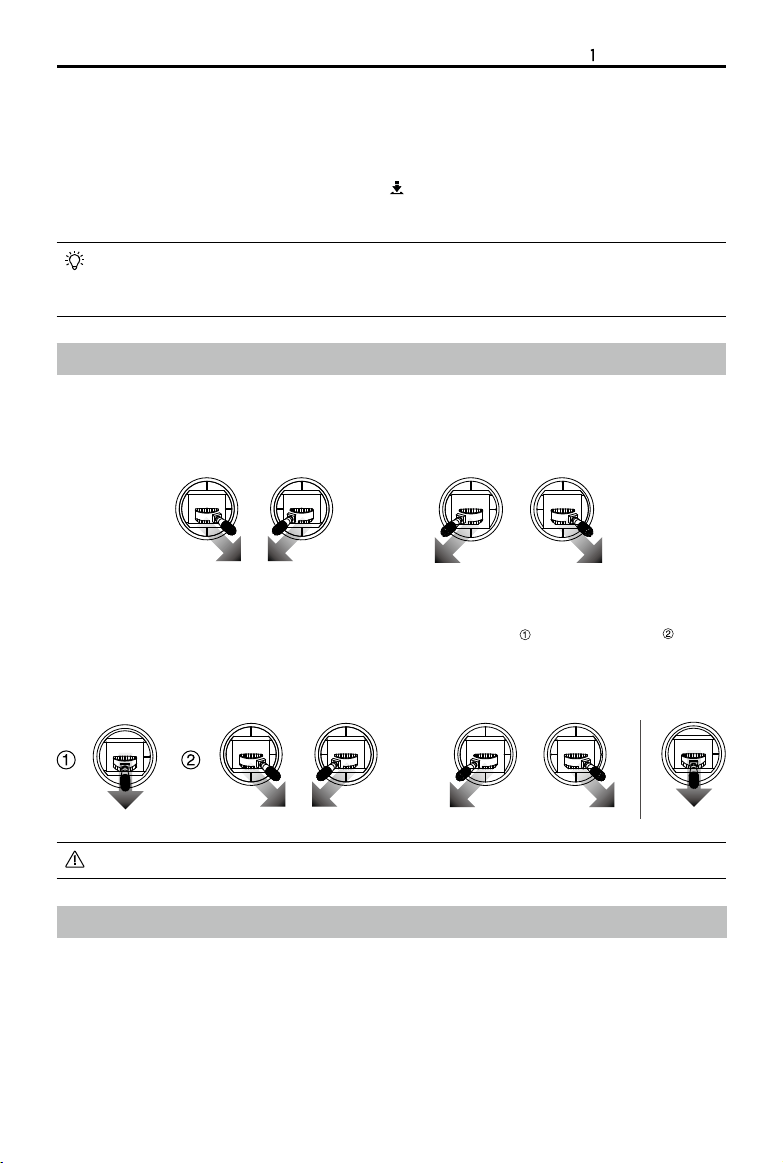

Starting/Stopping the Motors 71

Flight Test 71

FAQ

Appendix

 Specications 77

Intelligent Flight 81

How to Update Firmware 81

Product Prole

This chapter describes the features of

Inspire 1 RAW, instructs you to assemble

the aircraft and explains the components

on the aircraft and remote controllers.

Product Prole

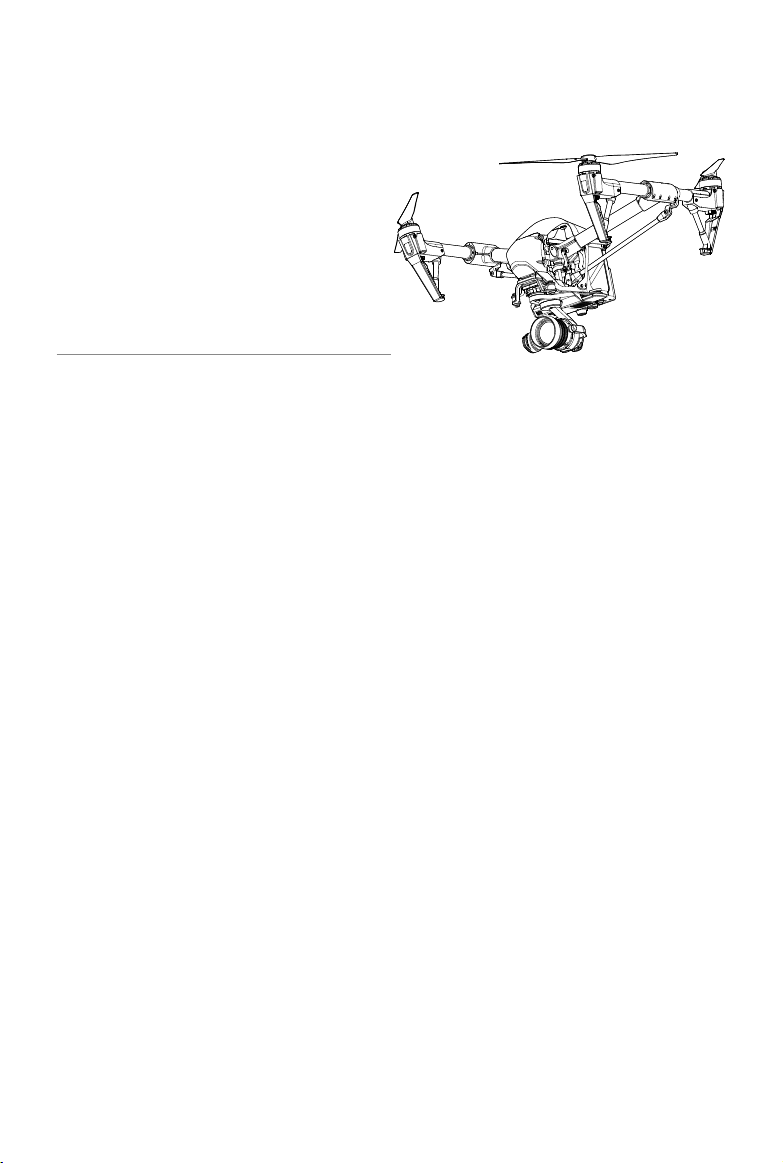

Introduction

The Inspire 1 RAW is brand new quadcopter capable of capturing 4K video and transmitting an HD video

signal (up to 5 km) to multiple devices straight out of the box. Equipped with retractable landing gear, it

can capture an unobstructed 360 degree view from its camera. The built-in camera has an integrated

gimbal to maximize stability and weight efficiency while minimizing space. When no GPS signal is

available, Vision Positioning technology provides hovering precision.

Feature Highlights

The Inspire 1 RAW is a professional aerial lmmaking and photography platform that is ready to y right

out of the box. Featuring an onboard camera equipped with a 15mm f/1.7 (35 mm format equivalent

30 mm) lens and 3-axis stabilized gimbal, it shoots sharp 16mp stills and stable video at up to 4K. Its

retractable landing gear pulls up out of view, giving the camera an unobstructed 360 degree view of

the world below. Through the DJI GO app, the camera focus, shutter speed, aperture and ISO can be

manually adjusted. The DJI Focus, a wireless follow focus system, can be linked to the remote controller

of the Inspire 1 RAW for seamless and tactile camera control across the entire ight range.

HD Video Downlink: Low latency, HD downlink powered by an enhanced version of the DJI Lightbridge

system. It also provides dual controllers mode.

Landing gear: Retractable landing gear that enables an unobstructed panoramic view from the camera.

DJI Intelligent Flight Battery: 4500 mAh DJI Intelligent Flight Battery employs new battery cells and a

battery management system.

Flight Controller: The next generation ight controller system provides a more reliable ight experience.

A new ight recorder stores the ight data from each ight, and Vision Positioning enhances hovering

precision when no GPS is available.

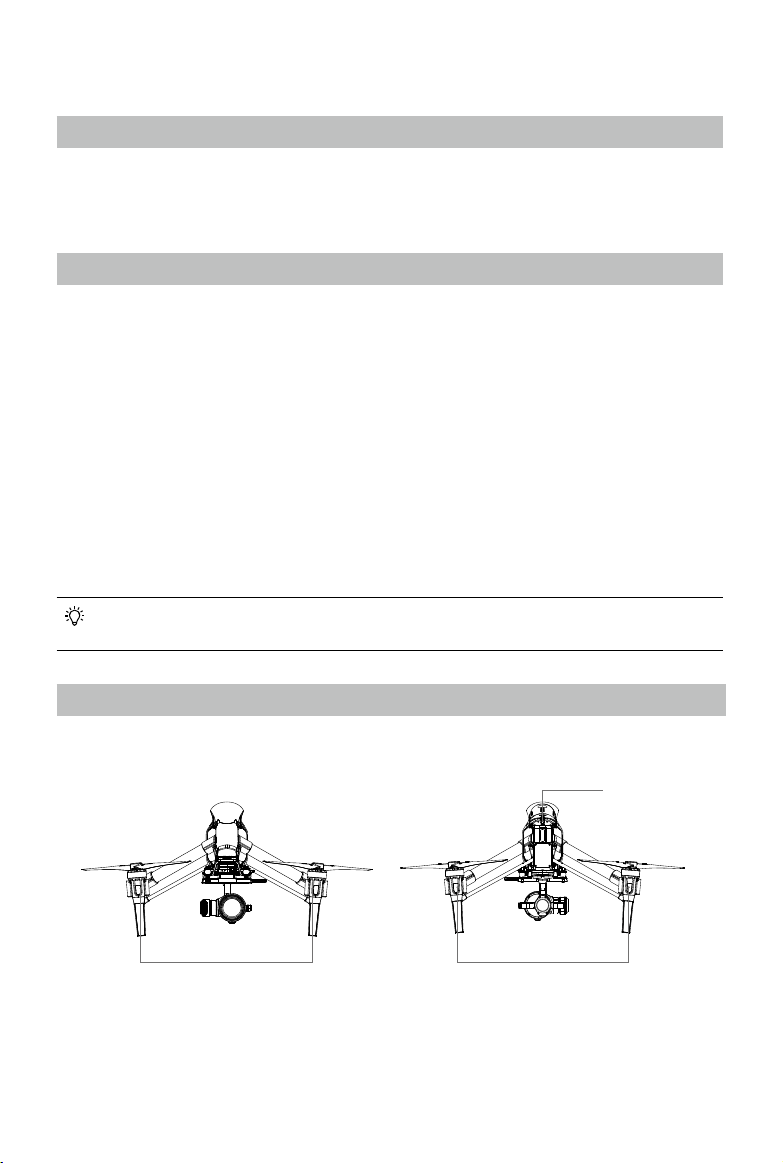

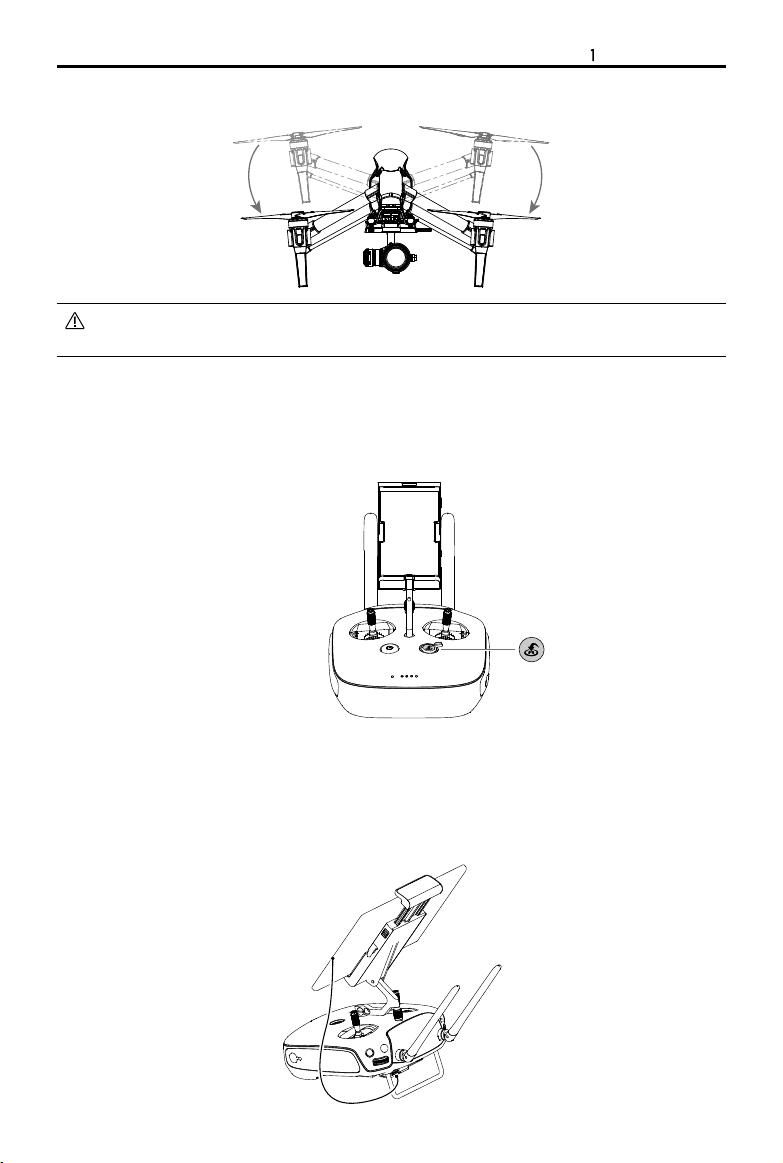

Assemble the Aircraft

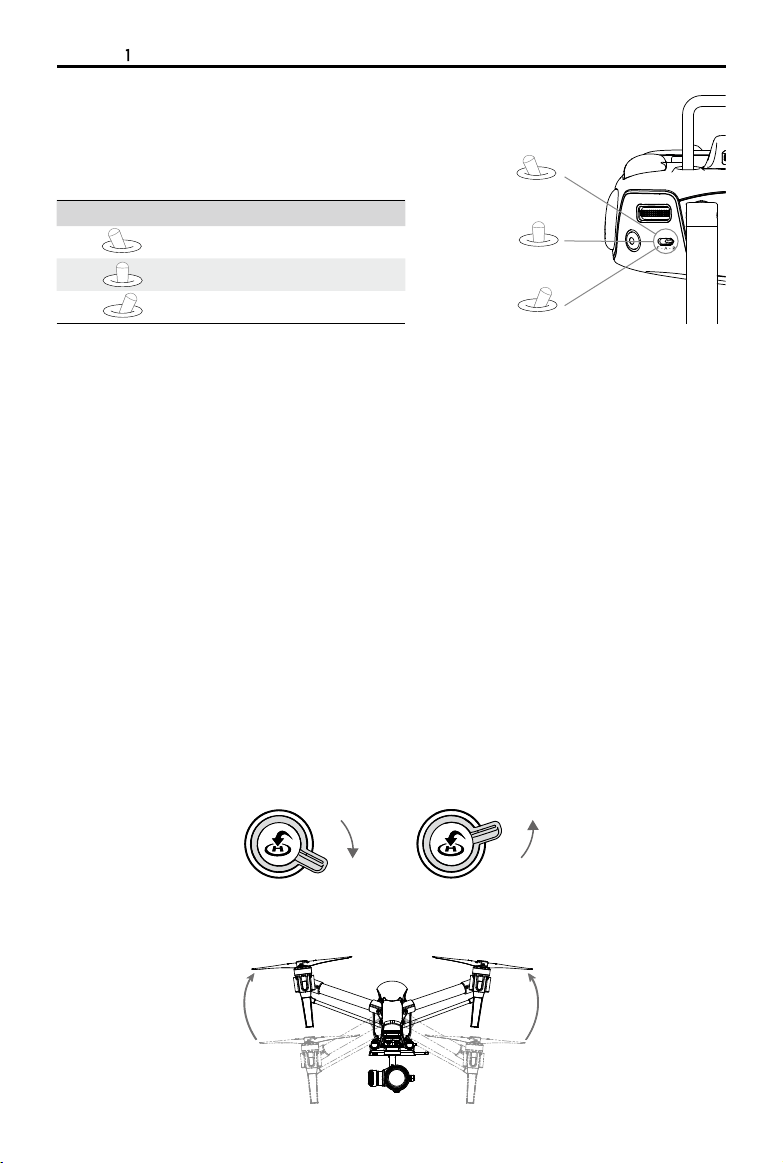

Unlocking Travel Mode

The aircraft is in Travel Mode during delivery. Follow these steps to change it to Landing Mode before

your rst ight:

1. Insert the Intelligent Flight Battery into the battery compartment.

2. Power on the Remote Controller and the Intelligent Flight Battery.

3. Toggle the Transformation Switch up and down at least four times.

4. Power off the aircraft.

Travel Mode Toggle×4 Landing Mode

User Manual

INSPIRE RAW

Battery must be fully charged before using it for the rst time. Refer to "Charging the Intelligent

Flight Battery" (P24) for more information .

If you have purchased the dual remote controller version, you must use the Master remote

controller to deactivate Travel Mode. Refer to "Setting Up Dual Remote Controllers Mode" (P32)

section for more information about Master remote controller.

Be sure to remove the gimbal from the aircraft before switch from Landing Mode to Travel Mode.

Place the aircraft on the smooth and reective surface (e.g. table or tile) before switching between

the travel modes to the landing mode. Do not place the aircraft on the rough and sound-absorbing

surface (e.g. carpet) before switching between the travel modes and landing mode.

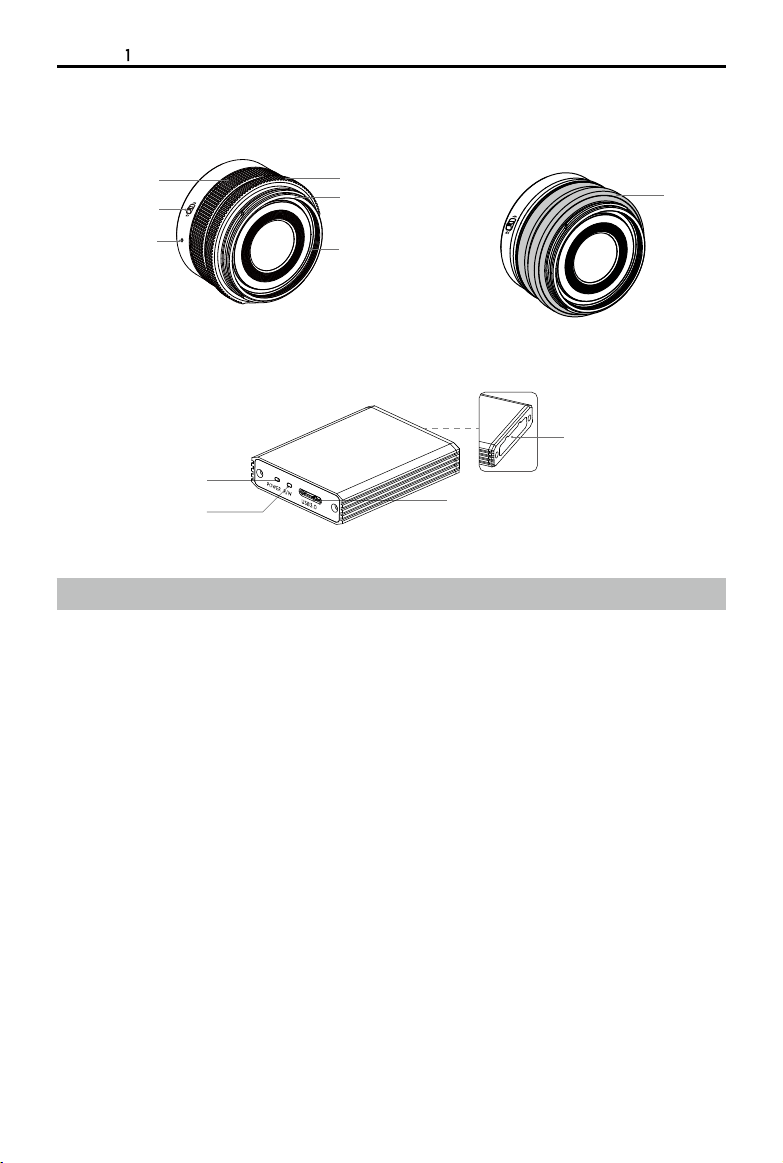

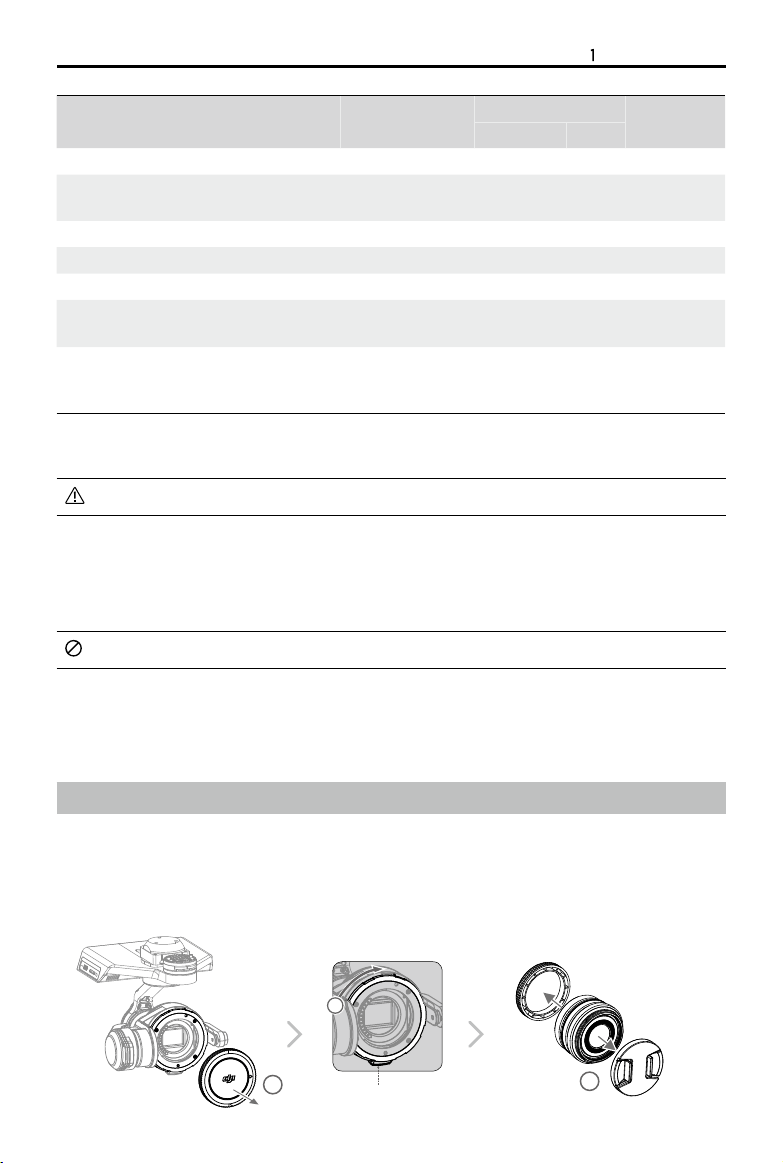

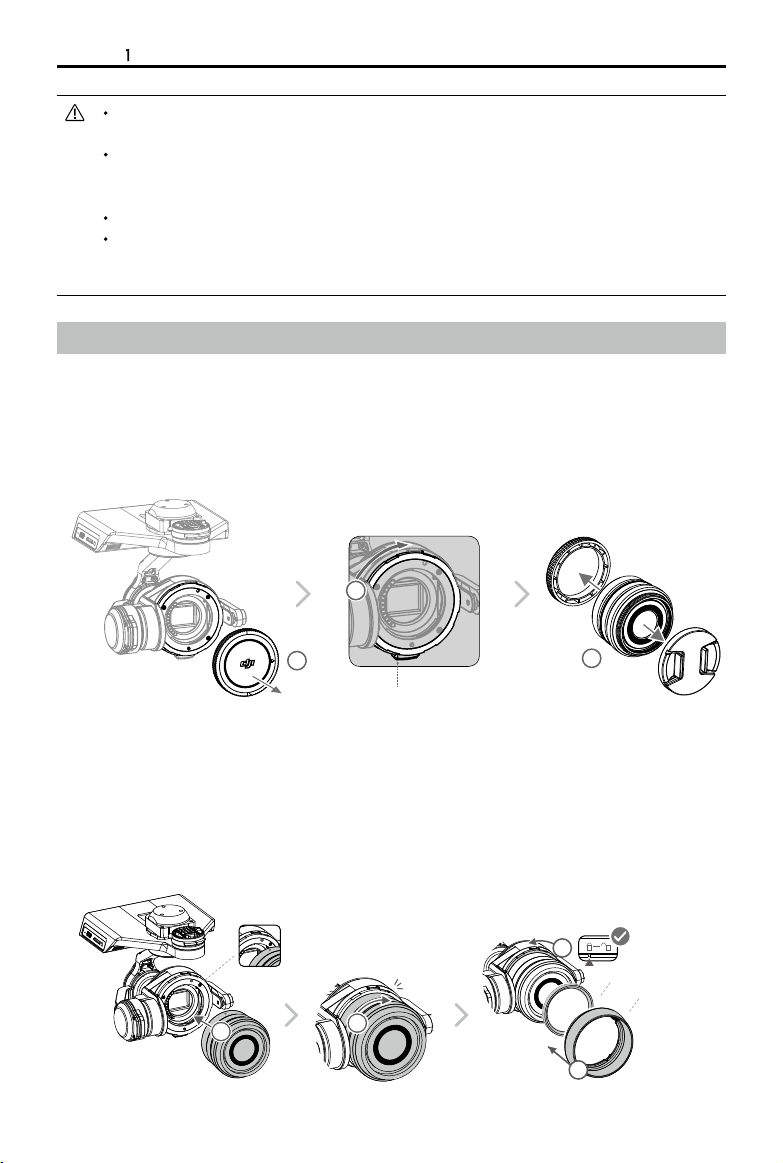

Installing the Gimbal and Camera

The following steps use the DJI MFT 15mm f/1.7 ASPH as illustration of how to mount the camera lens to

the camera body. Be sure to power off the battery before installation.

1. Remove the camera body cap.

2. While holding down the Lens Release Button, rotate the Lens Lock clockwise to unlock it.

3. Remove the lens cap and rear cap.

Lens Release Button

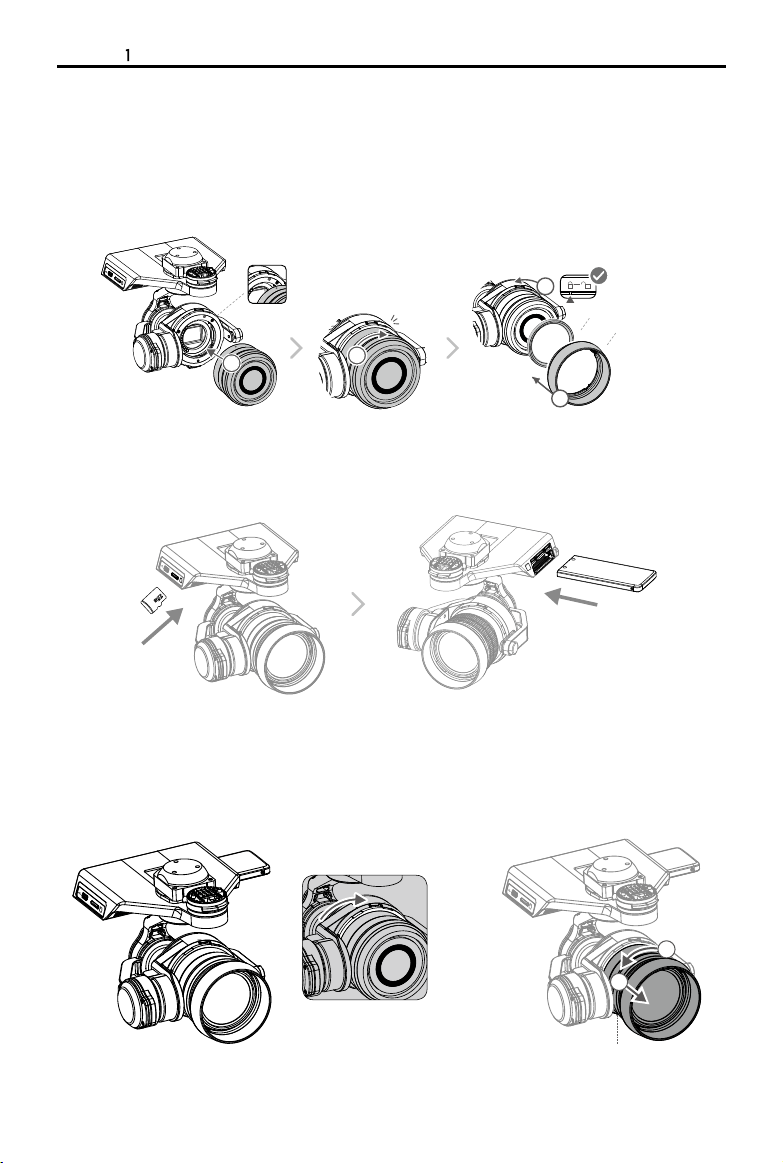

4. Align the two Lens Mount Indexes on the camera body and camera lens, and insert the camera lens

into the body of the camera.

5. Rotate the camera lens clockwise until you hear a click.

6. Rotate the Lens Lock counterclockwise to lock it.

7. Mount the Balancing Ring (or a lter) and the Lens Hood.

Click

Balancing Ring (or Filter)

Lens Hood

If you have purchased the dual remote controller version, you must use the primary remote

controller to deactivate Travel Mode. Refer to "Setting Up Dual Remote Controllers Mode" (P32)

section for more information about primary remote controller.

User Manual

INSPIRE RAW

Battery must be fully charged before using it for the rst time. Refer to "Charging the Intelligent

Flight Battery" (P24) for more information .

If you have purchased the dual remote controller version, you must use the Master remote

controller to deactivate Travel Mode. Refer to "Setting Up Dual Remote Controllers Mode" (P32)

section for more information about Master remote controller.

Be sure to remove the gimbal from the aircraft before switch from Landing Mode to Travel Mode.

Place the aircraft on the smooth and reective surface (e.g. table or tile) before switching between

the travel modes to the landing mode. Do not place the aircraft on the rough and sound-absorbing

surface (e.g. carpet) before switching between the travel modes and landing mode.

Installing the Gimbal and Camera

The following steps use the DJI MFT 15mm f/1.7 ASPH as illustration of how to mount the camera lens to

the camera body. Be sure to power off the battery before installation.

1. Remove the camera body cap.

2. While holding down the Lens Release Button, rotate the Lens Lock clockwise to unlock it.

3. Remove the lens cap and rear cap.

Lens Release Button

4. Align the two Lens Mount Indexes on the camera body and camera lens, and insert the camera lens

into the body of the camera.

5. Rotate the camera lens clockwise until you hear a click.

6. Rotate the Lens Lock counterclockwise to lock it.

7. Mount the Balancing Ring (or a lter) and the Lens Hood.

Click

Balancing Ring (or Filter)

Lens Hood

User Manual

INSPIRE RAW

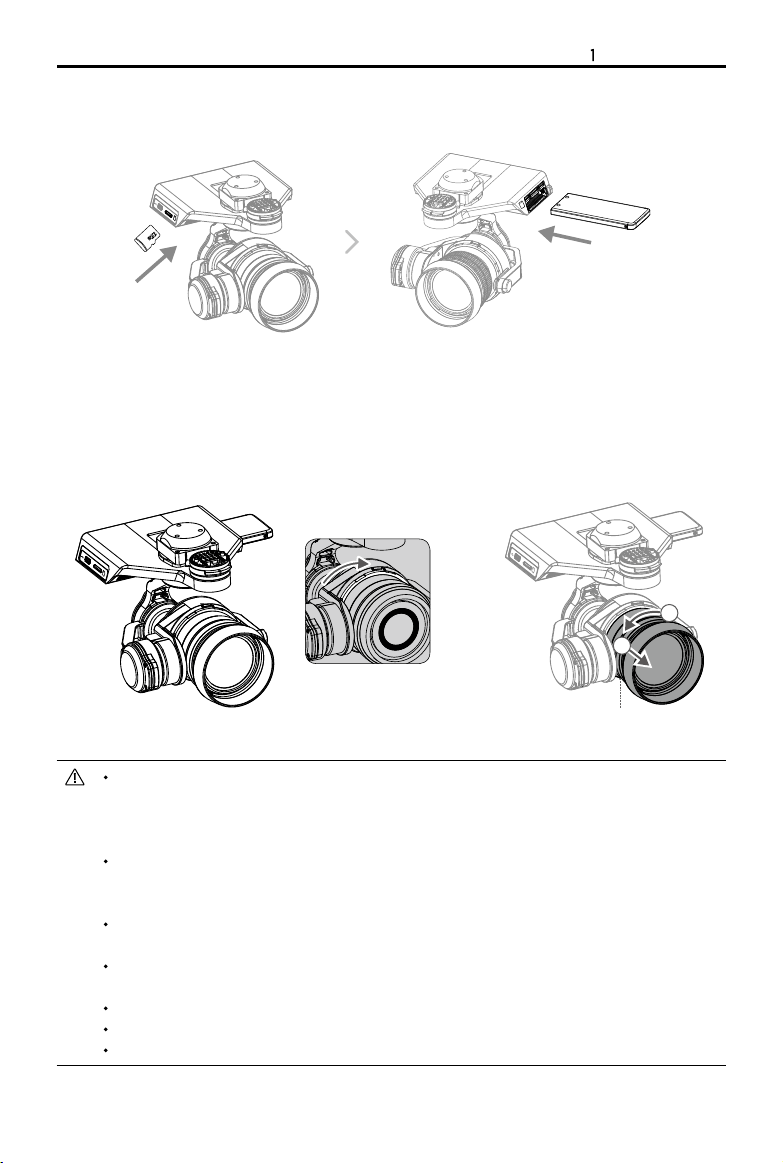

To remove the camera lens, power off the battery and then:

1. While holding down the Lens Release Button, rotate the Lens Lock clockwise to unlock it.

2. While holding down the Lens Release Button, rotate the camera lens counterclockwise to detach it.

It is recommended to wrap a dust cover around the lens to prevent contamination. DJI

produces dedicated dust covers for the DJI MFT 15mm f/1.7 ASPH and the Panasonic

Lumix G Leica DG Summilux 15mm f/1.7 ASPH. Other lenses may require you to purchase

a third-party dust cover.

It is important to tighten the Lens Lock after attaching the camera lens, as this can reduce the

vibrations of the lens when the aircraft is moving in ight. Always loosen the Lens Lock before

attaching and detaching the camera lens.

A lter can be installed in place of the Camera Balancing Ring. Remember to use a lter that

fullls the weight requirement.

Some lenses must not be used with a lens hood. Be sure to check the table above for the

accessory requirements for your lens.

Be sure to set the lens to AF mode.

Always hold down the Lens Release Button before rotating the Lens Lock to unlock it.

Always hold down the X5R SSD Release Button before removing the X5R SSD.

8. Insert the Micro SD card and the X5R SSD.

Lens Release Button

User Manual

INSPIRE RAW

Filters must have a weigh 7 - 11 g, with those weighing 10 - 11 g performing the best.

Outside this range, the lter will decrease gimbal performance. DJI MFT 15mm f/1.7 ASPH

supports lters have a size of 46mm. The Balancing Ring must be installed on the camera

lens when a lter is not used.

Be careful not to damage the Gimbal Connector and its metal contacts when attaching or storing

the Zenmuse X5R.

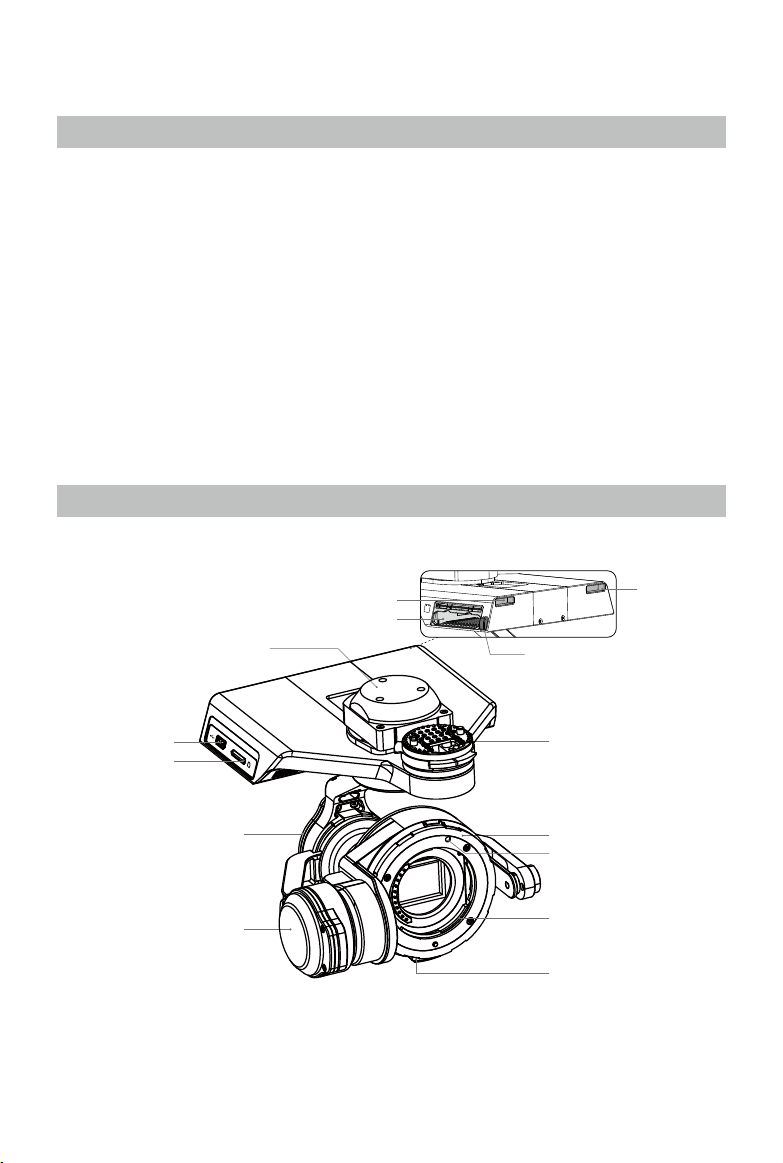

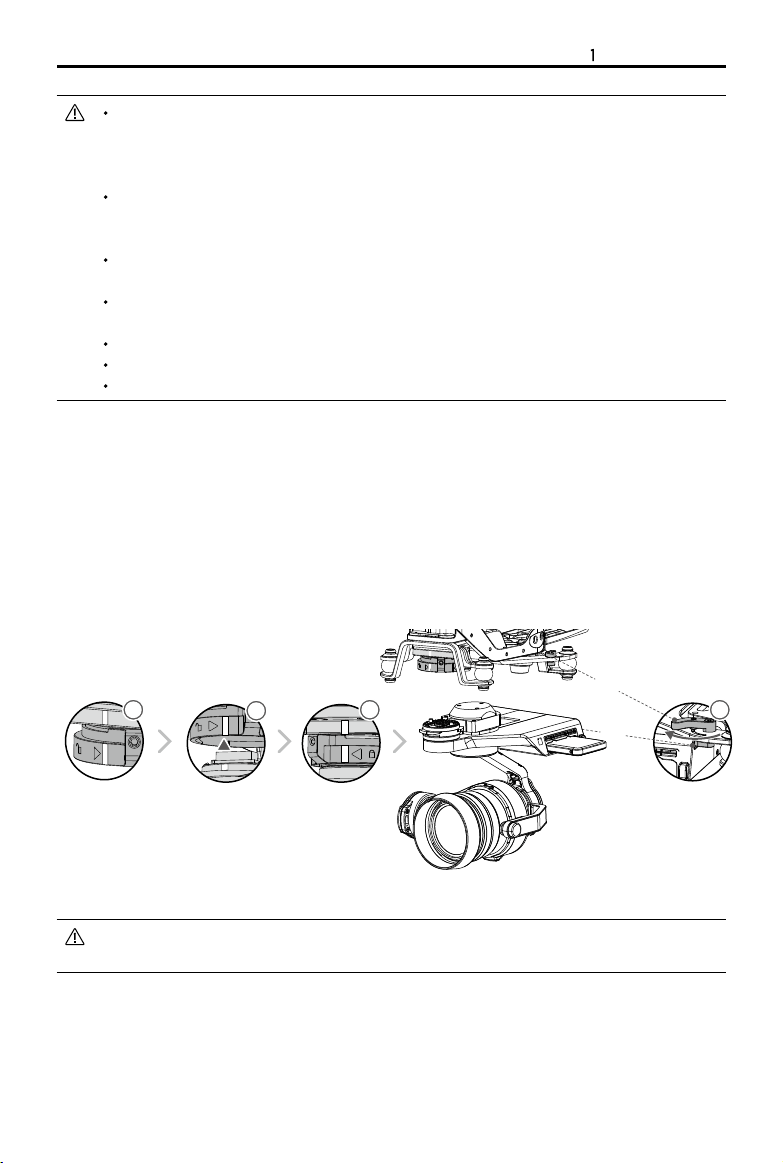

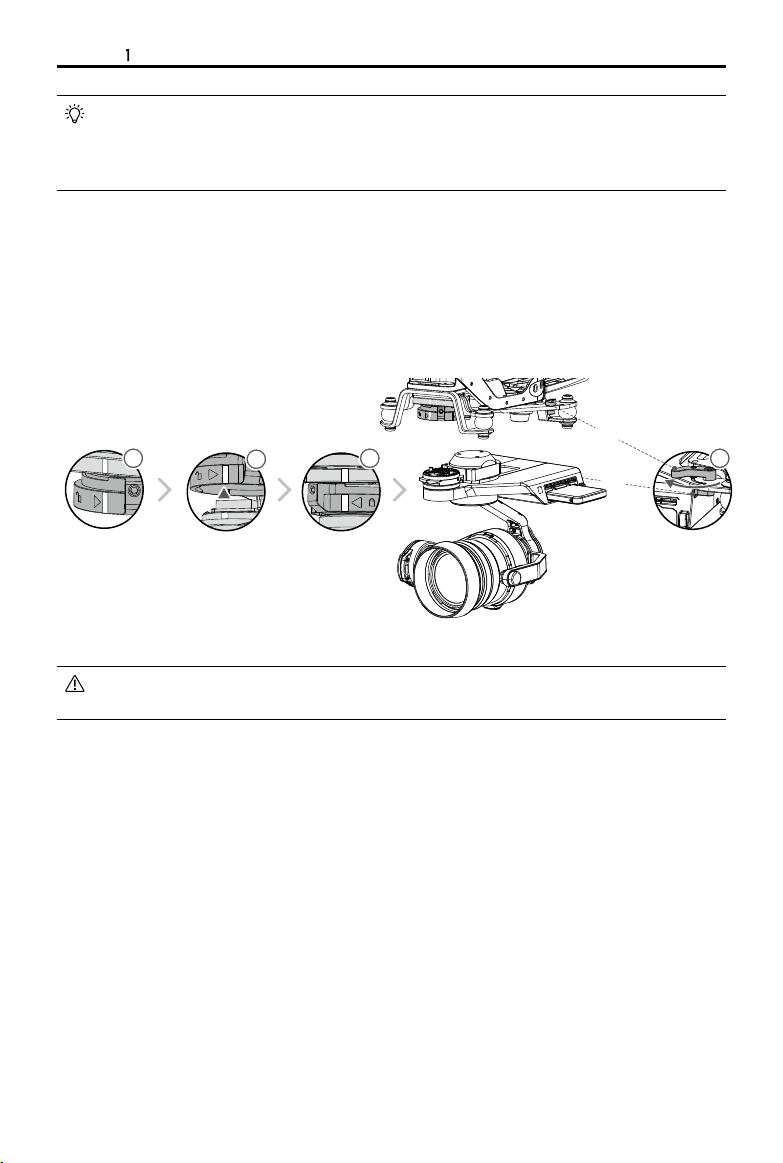

Attach the Zenmuse X5R

Power off the aircraft.

1. Rotate the Gimbal Lock to the unlocked position.

2. While aligning the white lines on the Gimbal Connector and Gimbal Lock, insert the Gimbal Connector.

3. Rotate the Gimbal Lock to the locked position.

4. Turn the two keys on the other end of the mounting plate 90 degrees into the slots.

Key

Slot

User Manual

INSPIRE RAW

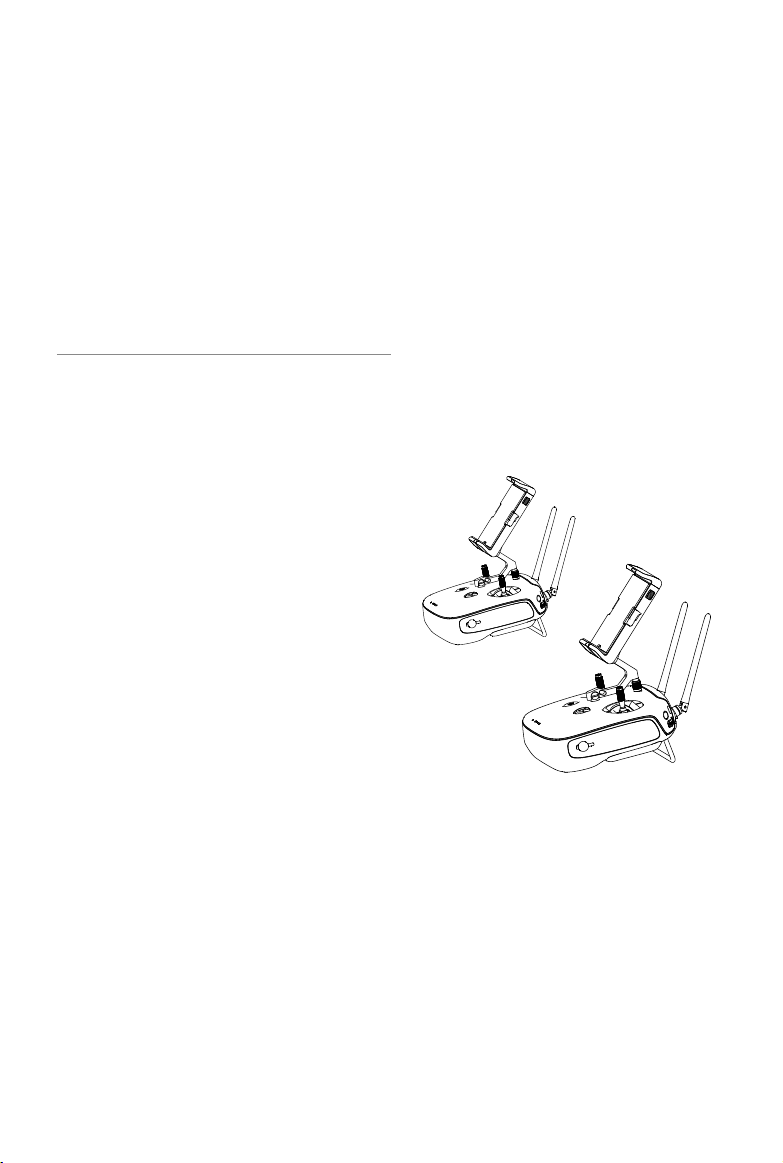

Preparing Remote Controller

Tilt the Mobile Device Holder to the desired position then adjust the antenna as shown.

1. Press the button on the side of the Mobile Device Holder to release the clamp, adjust it to t then attach

your mobile device.

2. Connect your mobile device to the remote controller with a USB cable.

3. Plug one end of the cable into your mobile device, and the other end into the USB port on the back of

the remote controller.

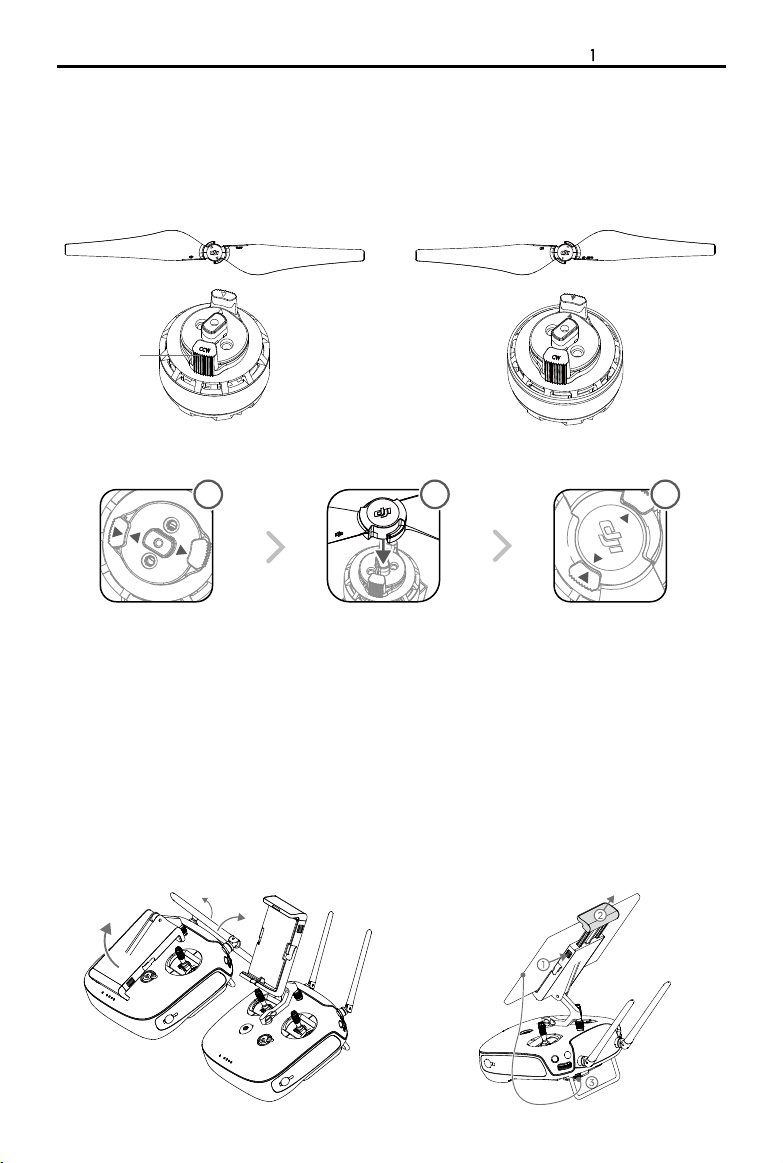

Attaching 1345T Quick-Release Propellers

Following the steps below to attach the 1345T Quick-Release propellers.

1. Pair the propellers and motors with arrows of the same color (red or white).

Propeller Lock

Rotate the propeller lock until

the arrows are aligned and you

hear a click.

Attach the propeller onto

the motor.

Once again, rotate the propeller

lock until you hear a click.

User Manual

INSPIRE RAW

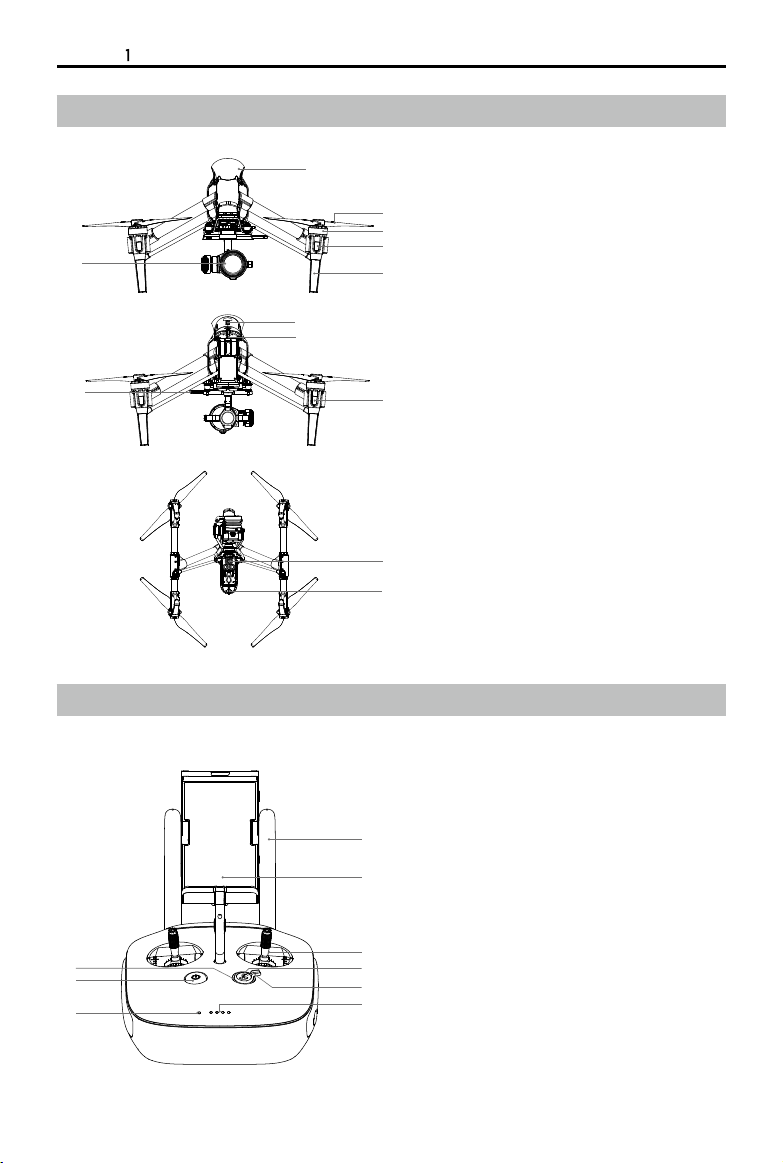

Aircraft Diagram

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

[9]

[10 ]

[11]

[12 ]

GPS

Propeller (P11)

Motor

Front LED (P15)

Landing gear

Gimbal and Camera (P39)

Intelligent Flight Battery (P21)

Aircraft Micro-USB Port

Rear LED (P15)

X5R SSD

Vision Positioning Sensors (P19)

Aircraft Status Indicator (P16)

Remote Controller Diagram

[1] Antennas (P32)

Relays aircraft control and video signal.

[2] Mobile Device Holder

Mounting place for your mobile device.

[3] Control Stick

Controls aircraft orientation.

[4] Return Home (RTH) Button (P31)

Press and hold the button to initiate Return to

Home (RTH).

[5] Transformation Switch (P30)

Toggle the switch up or down to raise or lower

the landing gear.

[1]

[2]

[4]

[5]

[6]

[7]

[8]

[9]

[3]

[11]

[12]

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

[10]

[9]

User Manual

INSPIRE RAW

[6] Battery Level LEDs

Displays the current battery level.

[7] Status LED

Displays the connection status.

[11]

[12]

[16] [17] [18] [19]

[10]

[13]

[14]

[15]

[8] Power Button

Used to power on or power off the remote controller.

[9] RTH LED

Circular LED around the RTH button displays RTH status.

[10] Camera Settings Dial

Turn the dial to adjust camera settings.

Only functions when the remote controller is

connected to a mobile device running the DJI

GO app.

[11] Playback Button

Playback the captured images or videos.

[12] Shutter Button

Press to take a photo. If in burst mode, the

set number of photos will be taken with one

press.

[13] Flight Mode Switch

Used to switch between P, A and F mode.

[14] Video Recording Button

Press to start recording video. Press again to

stop recording.

[15] Gimbal Dial

Use this dial to control the orientation of the

gimbal.

[16] Mini-HDMI Port

Connect an HD compatible monitor to this

port to get a live HD video preview of what the

camera sees.

[17] Micro USB Port

For connecting the remote controller to your

computer.

[18] CAN Bus Port

Reserved for future use.

[19] USB Port

Connect to mobile device to access all of the

DJI GO app controls and features.

[20]

[21]

[22]

[23]

[20] GPS Module

Used to pinpoint the location of the remote

controller.

[21] C1 Button

Customizable button in DJI GO app.

[22] Power Port

Connect to a power source to charge the

remote controller’s internal battery.

[23] C2 Button

Customizable button in DJI GO app.

Aircraft

This chapter describes the features of

the Flight Controller, Vision Positioning

System and the Intelligent Flight Battery.

Flight Status Indicator

The Inspire 1 RAW comes with the Front LED, Rear LED and Aircraft Status Indicator. The positions of

these LEDs are shown in the gure below:

The Front and Rear LED show the orientation of the aircraft. The Front LED displays solid red and the

Rear LED displays solid green.

Aircraft Status Indicator shows the system status of the ight controller. Refer to the table below for more

information about the Aircraft Status Indicator:

Aircraft

Flight Controller

The Inspire 1 RAW’s ight controller is based on DJI ight controller with several enhancements such

as new ight mode and new safe mode. Three safe modes are available: Failsafe, Return Home and

Dynamic Home Point. These features ensure the safe return of your aircraft if the control signal is lost. A

ight recorder stores crucial ight data for each ight.

Flight Mode

Three ight modes are available. The details of each ight mode are found in the section below:

P mode (Positioning) : P mode works best when GPS signal is strong. There are three different states of P

mode, which will be automatically selected by the Inspire 1 RAW depending on GPS signal strength and

Vision Positioning sensors:

P-GPS: GPS and Vision Positioning both are available, and the aircraft is using GPS for positioning.

P-OPTI: Vision Positioning is available but the GPS signal is not. Aircraft is using only Vision

Positioning for hovering

P-ATTI: Neither GPS or Vision Positioning available, aircraft is using only its barometer for positioning,

so only altitude is controlled.

A mode (Attitude): The GPS and Vision Positioning System is not used for holding position. The aircraft

only uses its barometer to maintain altitude. If it is still receiving a GPS signal, the aircraft can automatically

return home if the Remote Controller signal is lost and if the Home Point has been recorded successfully.

F mode (Function): Intelligent Orientation Control (IOC) is activated in this mode. For more information

about IOC, refer to the IOC in Appendix.

Use the Flight Controller mode switch to change the ight mode of the aircraft, refer to the “Flight

Mode Switch” on P30 for more information.

Front LED

Rear LED

Aircraft Status Indicator

User Manual

INSPIRE RAW

Aircraft Status Indicator Description

Normal

Red, Green and Yellow Flash

Alternatively

Power on and self-check

Green and Yellow Flash Alternatively Aircraft warming up

Green Flashes Slowly Safe to Fly (P mode with GPS and Vision Positioning)

X2 Green Flashes Twice Safe to Fly (P mode with Vision Positioning but without GPS)

Yellow Flashes Slowly Safe to Fly (A mode but No GPS and Vision Positioning)

Warning

Fast Yellow Flashing Remote Controller Signal Lost

Slow Red Flashing Low Battery Warning

Fast Red Flashing Critical Low Battery Warning

Red Flashing Alternatively IMU Error

—

Solid Red Critical Error

Red and Yellow Flash Alternatively Compass Calibration Required

Return to Home (RTH)

The Return to Home (RTH) brings the aircraft back to the last recorded Home Point. There are three cases

that will trigger RTH procedure; they are Smart RTH, Low Battery RTH and Failsafe RTH.

GPS

Description

Home Point

The Home Point is the location at which your aircraft takes off when the

GPS signal is strong. You can view the GPS signal strength through

the GPS icon ( ). If you are using the Dynamic Home Point

setting, the Home Point will be updated to your current position as you

move around and when the Aircraft Status Indicator blinks green.

Smart RTH

Using the RTH button on the remote controller (refer to “RTH button” on P31 for more information) or the

RTH button in the DJI GO app when GPS is available to enables smart RTH. The aircraft return to the

latest recorded Home Point, you may control the aircraft's orientation to avoid collision during the Smart

RTH. Press the Smart RTH button once to start the process, press the Smart RTH button again to exit

Smart RTH and regain the control.

User Manual

INSPIRE RAW

Battery Level

Warning

Remark

Aircraft Status

Indicator

DJI GO app Flight Instructions

Low battery

level warning

The battery

power is low.

Please land the

aircraft.

Aircraft status

indicator blinks

RED slowly.

Tap “Go-home” to have

the aircraft return to the

Home point and land

automatically, or “Cancel” to

resume normal ight. If no

action is taken, the aircraft

will automatically go home

and land after 10 seconds.

Remote controller will sound

an alarm.

Fly the aircraft

back and land

it as soon as

possible, then

stop the motors

and replace the

battery.

Critical Low

battery level

warning

The aircraft

must land

immediately.

Aircraft status

indicator blinks

RED quickly.

The DJI GO app screen will

ash red and aircraft starts to

descend. Remote controller

will sound an alarm.

The aircraft

will begin to

descend and land

automatically.

Estimated

remaining

ight time

Estimated

remaining ight

based on current

battery level.

N/A N/A N/A

Low Battery RTH

The low battery level failsafe is triggered when the DJI Intelligent Flight Battery is depleted to a point that

may affect the safe return of the aircraft. Users are advised to return home or land the aircraft immediately

when these warnings are shown. DJI GO app will advise user to return the aircraft to the Home Point

when low battery warning is triggered. Aircraft will automatically return to the Home Point if no action is

taken after 10 seconds countdown. User can cancel the RTH by pressing once on the RTH button. The

thresholds for these warnings are automatically determined based on the current aircraft altitude and its

distance from the Home Point.

Aircraft will land automatically if the current battery level can only support the aircraft to land to the ground

from the current altitude. User can use the remote controller to control the aircraft’s orientation during the

landing process.

The Battery Level Indicator is displayed in the DJI GO app, and is described below

Battery level indicator

Critical Low battery level

warning(Red)

Low battery

level warning

Sufcient battery

level(Green)

Remaining ight time

Power requires

to return home

User Manual

INSPIRE RAW

Aircraft automatically descends and lands if RTH is triggered when the aircraft ies within a 20

meter (65 feet) radius of the Home Point.

Aircraft cannot avoid obstruction during the Failsafe RTH, therefore it is important to set an

reasonable Failsafe altitude before each ight. Launch the DJI GO app and enter “Camera”

view and select “MODE” to set the Failsafe altitude.

Aircraft will stop ascending and immediately return to the Home Point if you move the throttle

stick if the aircraft reaches 20 m altitudes or beyond during Failsafe.

When the critical battery level warning activates and the aircraft is descending to land

automatically, you may push the throttle upward to hover the aircraft and navigate it to a more

appropriate location for landing.

Color zones and markers on the battery level indicator reect estimated remaining ight time

and are adjusted automatically, according to the aircraft’s current status.

Failsafe RTH

Failsafe RTH is activated automatically if remote controller signal (including video relay signal) is lost for

more than 3 seconds provided that Home Point has been successfully recorded and compass is working

normally. Return home process may be interrupted and the operator can regain control over the aircraft if

a remote controller signal is resumed.

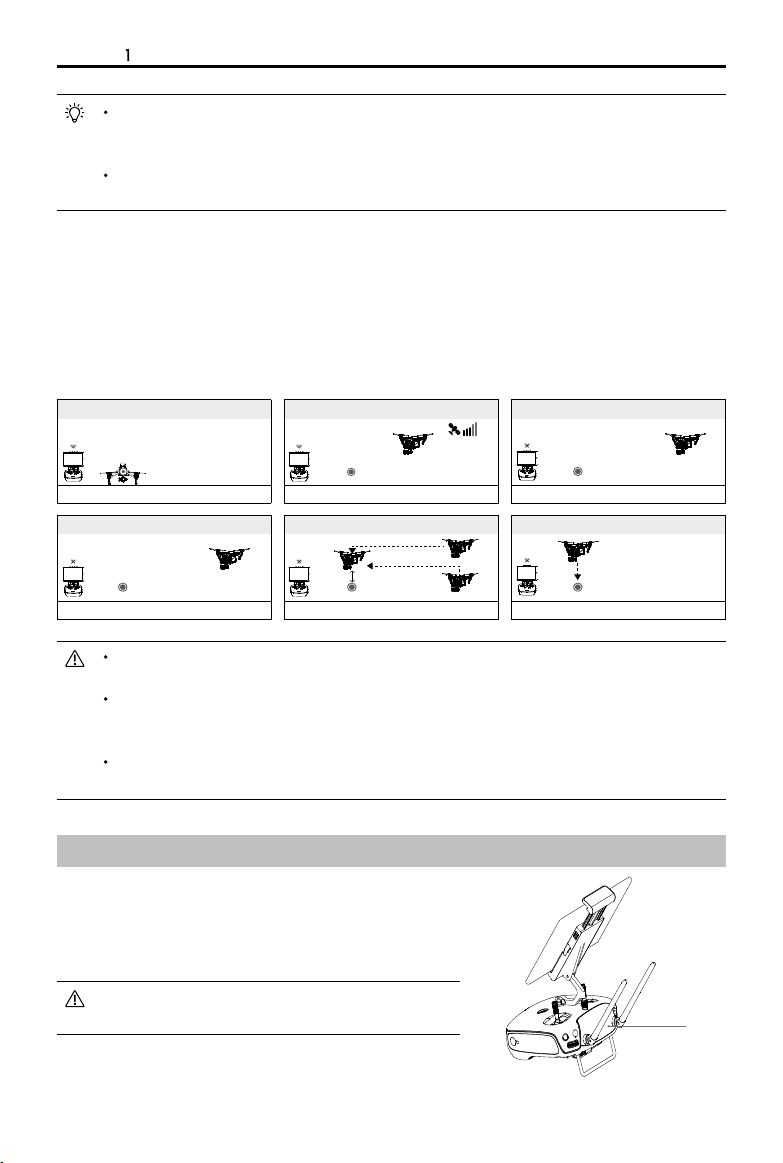

Failsafe Illustration

GPS

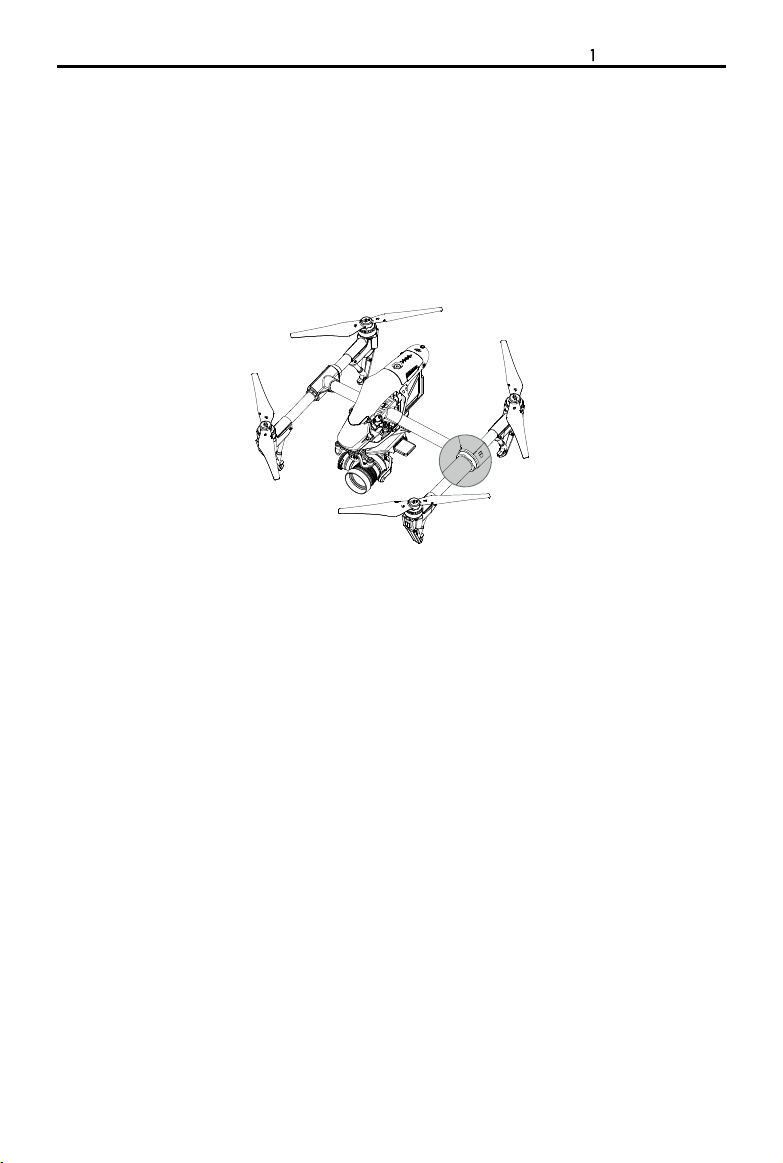

Dynamic Home Point

Dynamic home point is useful in situations when you are in

motion and require a Home Point that is different from the

takeoff point. GPS module is located at the position shown in

the gure below:

Ensure the space above the GPS module is not

obstructed when using Dynamic Home Point.

5 Go Home(20m can be set)

Fast Blinking Yellow

1 Record Home Point (HP)

Blinking Green

3 Remote Controller Signal Lost

Fast Blinking Yellow

2 Conrm Home Point

Blinking Green

6 Landing after Hovering 15secs

Fast Blinking Yellow

Signal Lost Lasts 3secs.

Fast Blinking Yellow

Height over HP>20m

Elevate to 20m

Height over HP<=20m

20m

User Manual

INSPIRE RAW

There are two options for Dynamic Home Point.

1. Set the aircraft current coordinate as the new Home Point.

2. Set the remote controller’s coordinate as the new Home Point.

Setting Up Dynamic Home Point

Follow the steps below to setup Dynamic Home Point:

1. Connect to the mobile device and launch the DJI GO app and go to the “Camera” page.

2. Tap“

”and select“ ”, to reset the remote controller’s coordinates as the new Home Point.

3. Tap“

”and select“ ”, to reset the aircraft’s coordinates as the new Home Point.

4. The aircraft status indicator blinks green to show Home Point is set successfully.

Vision Positioning System

DJI Vision Positioning is a positioning system that uses ultrasonic and image data to help the aircraft

identify its current position. With the help of Vision Positioning, your Inspire 1 RAW can hover in place

more precisely and y indoors or in other environments where there is no GPS signal available. The main

components of DJI Vision Positioning are located on the bottom of your Inspire 1 RAW, including [1] two

sonar sensors and [2] one monocular camera.

Using Vision Positioning

Vision Positioning is activated automatically when the Inspire 1 RAW is powered on. No manual action

is required. Vision Positioning is typically used in the indoor environment where no GPS is available. By

using the sensors on the Vision Positioning system, Inspire 1 RAW can perform precision hovering even

when no GPS is available.

[2]

[1]

User Manual

INSPIRE RAW

Follow the steps below to use Vision Positioning:

1. Toggle the switch to “P” as shown the gure to the right:

2. Place the Inspire 1 RAW on a flat surface. Notice that the Vision Positioning

system cannot work properly on surfaces without pattern variations.

3. Power on the Inspire 1 RAW. The aircraft status indicator will ash twice in green

light, which indicates the Vision Positioning system is ready. Gently push the

throttle up to lift off, and the Inspire 1 RAW will hover in place.

The performance of your Inspire 1 RAW’s Vision Positioning System is subject to the surface

you are ying over. The ultrasonic waves may not be able to accurately measure the distance

over sound absorbing materials, and the camera may not function correctly in suboptimal

environments. The aircraft will switch from “P” mode to “A” mode automatically if both GPS and

Vision Positioning System are not available. So operate the aircraft cautiously when in any of the

following situations:

Vision Positioning system may not be able to stabilize the aircraft when flying close to the

ground (below 0.5 meters) in fast speed.

Flying over monochrome surfaces (e.g. pure black, pure white, pure red, pure green).

Flying over a highly reective surfaces.

Flying at high speeds (over 8 m/s at 2 meters or over 4 m/s at 1 meter).

Flying over water or transparent surfaces.

Flying over moving surfaces or objects.

Flying in an area where the lighting changes frequently or drastically.

Flying over extremely dark (lux < 10) or bright (lux > 10,000) surfaces.

Flying over surfaces that can absorb sound waves (e.g. thick carpet).

Flying over surfaces without clear patterns or texture.

Flying over surfaces with identical repeating patterns or textures (e.g. tiles with same design).

Flying over inclined surfaces that will deect sound waves away from the aircraft.

In the event of loss of remote controller’s signal, the aircraft will hover for 8 seconds and then

auto-land if it is in “P” mode.

Keep the sensors clean at all times. Dirt or other debris may adversely affect the effectiveness

of the sensors.

The effective hovering altitudes of the aircraft is from 0 to 3 meters.

Vision Positioning system may not function properly when the aircraft is ying over water.

Vision Positioning system may not be able to recognize pattern on the ground in low light

conditions (less than 100lux).

Do not use other ultrasonic devices with frequency of 40 KHz when Vision Positioning system is

in operation.

User Manual

INSPIRE RAW

Intelligent Flight Battery

Charger

Battery must be fully charged before using it for the rst time. Refer to "Charging the Intelligent

Flight Battery" P24 for more information.

Keep the animals away from the aircraft when Vision Positioning system is activated. The sonar

sensor emits high frequency sound that is only audible to some animals.

Flight Recorder

Flight data is automatically stored in the internal storage device of the aircraft. User can gain access to

these data through the DJI GO app. This includes ight duration, orientation, distance, aircraft status

information, speed, and other parameters.

Attaching and Detaching the Propellers

Attaching the Propellers

Refer to "Attaching Propellers" on P11 for details.

Detaching the Propellers

Release the propeller lock and remover the propeller.

Check that the propellers and motors are installed correctly and rmly before every ight.

Ensure that all propellers are in good condition before each ight. DO NOT use old, chipped,

or broken propellers.

To avoid injury, STAND CLEAR of and DO NOT touch propellers or motors when they are spinning.

ONLY use original DJI propellers for a better and safer ight experience.

DJI Intelligent Flight Battery

The DJI Intelligent Flight Battery has a capacity of 4500mAh, voltage of 22.2V, and smart charge-

discharge functionality. It can only be charged with an appropriate DJI approved charger.

User Manual

INSPIRE RAW

DJI Intelligent Flight Battery Functions

1. Battery Level Display: LEDs display the current battery level.

2. Battery Life Display: LEDs display the current battery power cycle.

3. Auto-discharging Function: The battery automatically discharges to below 65% of total power when it

is idle (press the power button to check battery level will cause battery to exit idle state) for more than

10 days to prevent swelling. It takes around 2 days to discharge the battery to 65%.It is normal to feel

moderate heat emitting from the battery during the discharge process. Discharge thresholds can be

set in the DJI GO app.

4. Balanced Charging: Automatically balances the voltage of each battery cell when charging.

5. Over charge Protection: Charging automatically stops when the battery is fully charged.

6. Temperature Detection: The battery will only charge when the temperature is between 5 °C (41°F) and

40°C (104°F).

7. Over Current Protection: Battery stops charging when high amperage (more than 10A) is detected.

8. Over Discharge Protection: Discharging automatically stops when the battery voltage reaches 18V to

prevent over-discharge damage.

9. Short Circuit Protection: Automatically cuts the power supply when a short circuit is detected.

10. Battery Cell Damages Protection: DJI GO app shows warning message when damaged battery cell

is detected.

11. Battery Information History: Show the last 32 entries of battery information records that include warning

messages and so on.

12. Sleep Mode: Sleep mode is entered after 10 minutes of inactivity to save power.

13. Communication: Battery voltage, capacity, current, and other relevant information is provided to the

aircraft’s to the main controller.

Refer to

Disclaimer

and

Intelligent Flight Battery Safety Guidelines

before use. Users take full

responsibility for all operations and usage.

Using the Battery

Powering ON/OFF

Powering On: Press the Power Button once, then press again and hold for 2 seconds to power on. The

Power LED will turn red and the Battery Level Indicators will display the current battery level.

Powering Off: Press the Power Button once, then press again and hold for 2 seconds to power off.

Low Temperature Notice:

1. The performance of the intelligent Flight Battery is significantly reduced when flying in a low

temperature environments (those with air temperatures below 5℃). Ensure that the battery is fully

charged and the cell voltage is at 4.35 V before each ight.

LED1

LED2

LED3

LED4

Power Button

(Built-in LED)

User Manual

INSPIRE RAW

2. Using the Intelligent Flight Battery in extremely low temperature environments (those with air

temperatures below -10℃) is not recommended. When flying in environments with temperatures

between 5℃ and -10℃, the Intelligent Flight Battery should be able to achieve the appropriate voltage

levels (above 4.2 V), but it is recommended that you apply the included insulation sticker to the battery

in order to prevent a rapid drop in temperatures.

3. If the DJI GO app displays the “Critical Low Battery Level Warning” when ying in low temperature

environments, stop ying and land the aircraft immediately. You will still be able to control the aircraft’s

movement when this warning is triggered.

4. Store the Intelligent Flight Battery in a room temperature environment and ensure that its temperature

exceeds 5℃ before using it in the low temperature environment.

5. When using the Inspire 1 RAW in a low temperature environment, begin by allowing the aircraft to

hover at a low altitude, for approximately one minute, to heat the battery.

6. Battery capacity is significantly reduced in extreme low temperature environment (those with

temperature below -20℃ and battery body temperature at 5 ℃), even it has been pre-heated.

7. To ensure optimum performance, keep the Intelligent Flight Battery’s core temperature above 20℃

when in use.

In cold environments, insert the battery into the battery compartment and allow the aircraft to

warm up for approximately 1-2 minutes before taking off.

Checking the battery level

The Battery Level Indicators display how much remaining power the battery has. When the battery is

powered off, press the Power Button once. The Battery Level Indicators will light up to display the current

battery level. See below for details.

The Battery Level Indicators will also show the current battery level during charging and

discharging. The indicators are dened below.

: LED is on.

: LED is ashing.

: LED is off.

Battery Level

LED1 LED2 LED3 LED4 Battery Level

87.5%~100%

75%~87.5%

62.5%~75%

50%~62.5%

37.5%~50%

25%~37.5%

12.5%~25%

0%~12.5%

=0%

User Manual

INSPIRE RAW

Battery Life

LED1 LED2 LED3 LED4 Battery Life

90%~100%

80%~90%

70%~80%

60%~70%

50%~60%

40%~50%

30%~40%

20%~30%

below 20%

When battery life reaches 0%, it can no longer be used.

For more information about the battery, launch DJI GO app and check the information under the

battery tab.

Charging the Intelligent Flight Battery

1. Connect Battery Charger to a power source (100-240V 50/60Hz).

2. Open the Protection Cap and connect the Intelligent Flight Battery to the Battery Charger. If the battery

level is above 95%, turn on the battery before charging.

3. The Battery Level Indicator will display the current battery level during charging.

4. The Intelligent Flight Battery is fully charged when Battery Level Indicators are all off.

5. Air cool the Intelligent Flight Battery after each ight. Allow its temperature to drop to room temperature

before storing it for an extended period.

6. The battery will only charge when the temperature is between 5 °C (41°F) and 40°C (104°F).

Do not charge the Intelligent Flight Battery and remote controller with standard charger (model:

A14-100P1A) at the same time, otherwise the charger may overheat.

Always turn off the battery before inserting it or removing it from the Inspire 1 RAW. Never insert

or remove a battery when it is powered on.

Charger

Intelligent Flight Battery

Power Outlet

Battery life

The battery life indicates how many more times the battery can be discharged and recharged before

it must be replaced. When the battery is powered off, press and hold the Power Button for 5 seconds

to check the battery life. The Battery Level Indicators will light up and/or blink as described below for 2

seconds:

User Manual

INSPIRE RAW

Battery Level Indicators while Charging

LED1 LED2 LED3 LED4 Battery Level

0%~25%

25%~50%

50%~75%

75%~100%

Fully Charged

Charging Protection LED Display

The table below shows battery protection mechanisms and corresponding LED patterns.

Battery Level Indicators while Charging

LED1 LED2 LED3 LED4 Blinking Pattern Battery Protection Item

LED2 blinks twice per second Over current detected

LED2 blinks three times per second Short circuit detected

LED3 blinks twice per second Over charge detected

LED3 blinks three times per second Over-voltage charger detected

LED4 blinks twice per second

Charging temperature is too low

(<0°C)

LED4 blinks three times per second

Charging temperature is too high

(>40°C)

After any of the above mentioned protection issues are resolved, press the button to turn off the Battery

Level Indicator. Unplug the Intelligent Flight Battery from the charger and plug it back in to resume

charging. Note that you do not need to unplug and plug the charger in the event of a room temperature

error, the charger will resume charging when the temperature falls within the normal range.

DJI does not take any responsibility for damage caused by third-party chargers.

How to discharge your Intelligent Flight Battery:

To effectively calibrate the battery capacity, it is recommended to charge and discharge the

battery thoroughly for every 10 charge-and-discharge cycle. User should install the battery onto

the aircraft and then power on the aircraft to initiate the discharge process, discharge the battery

until the aircraft is powered off automatically. User should then fully charge the battery to ensure

the battery is working at its optimal.

Slow: Place the Intelligent Flight Battery into the Inspire 1 RAW’s Battery Compartment and

power it on. Leave it on until there is less than 5% of power left, or until the battery can no

longer be turned on. Launch the DJI GO app to check battery level.

Rapid: Fly the Inspire 1 RAW outdoors until there is less than 5% of power left, or until the battery

can no longer be turned on.

Remote Controllers

This chapter describes the features

of the remote controller that includes

aircraft and remote controller operations

and dual remote controller mode.

Remote Controller

RemoteControllerProle

The Inspire 1 RAW Remote Controller is a multi-function wireless communication device that integrates

the video downlink ground system and aircraft Remote Controller system. The video downlink and aircraft

Remote Controller system operate at 2.4 GHz with maximum transmission distance of 5 km. The remote

controller features a number of camera functions, such as taking and previewing photos and video, and

controlling gimbal motions. The remote controller is powered by a 2S rechargeable battery. The current

battery level is displayed by LEDs on the front panel of the remote control.

Compliance Version: The Remote Controller is compliant with local compliance and regulations.

Operating Mode: Control can be set to Mode 1, Mode 2.

Mode 1: The right stick serves as the throttle.

Mode 2: The left stick serves as the throttle.

Do not operate more than 3 aircrafts within in the same area (size equivalent to a soccer eld)

to prevent transmission interference.

To ensure the connection between the aircraft and remote controller, the Slave remote controller

is recommended to use in less interference environment.

Remote Controller Operations

Powering On And Off The Remote Controller

The Inspire 1 RAW remote controller is powered by a 2S rechargeable battery with a capacity of

6000mAh. The battery level is indicated by the Battery Level LEDs on the front panel. Follow the steps

below to power on your remote controller:

1. When powered off, press the Power Button once and the Battery Level LEDs will display the current

battery level.

2. Then, press and hold the Power Button to power on the remote controller.

3. The Remote Controller will beep when it powers on. The Status LED will blink green (secondary

remote controller blinks solid purple) rapidly, indicating that the remote controller is linking to the

aircraft. The Status LED will show a solid green light when linking is completed.

4. Repeat step 2 to power off the remote controller after finish using it.

Charging Remote Controller

Charge the remote controller via supplied charger.

To ensure the connection between the aircraft and remote controller, the secondary remote

controller is recommended to use in less interference environment.

Remote Controller

RemoteControllerProle

The Inspire 1 RAW Remote Controller is a multi-function wireless communication device that integrates

the video downlink ground system and aircraft Remote Controller system. The video downlink and aircraft

Remote Controller system operate at 2.4 GHz with maximum transmission distance of 5 km. The remote

controller features a number of camera functions, such as taking and previewing photos and video, and

controlling gimbal motions. The remote controller is powered by a 2S rechargeable battery. The current

battery level is displayed by LEDs on the front panel of the remote control.

Compliance Version: The Remote Controller is compliant with local compliance and regulations.

Operating Mode: Control can be set to Mode 1, Mode 2.

Mode 1: The right stick serves as the throttle.

Mode 2: The left stick serves as the throttle.

Do not operate more than 3 aircrafts within in the same area (size equivalent to a soccer eld)

to prevent transmission interference.

To ensure the connection between the aircraft and remote controller, the Slave remote controller

is recommended to use in less interference environment.

Remote Controller Operations

Powering On And Off The Remote Controller

The Inspire 1 RAW remote controller is powered by a 2S rechargeable battery with a capacity of

6000mAh. The battery level is indicated by the Battery Level LEDs on the front panel. Follow the steps

below to power on your remote controller:

1. When powered off, press the Power Button once and the Battery Level LEDs will display the current

battery level.

2. Then, press and hold the Power Button to power on the remote controller.

3. The Remote Controller will beep when it powers on. The Status LED will blink green (secondary

remote controller blinks solid purple) rapidly, indicating that the remote controller is linking to the

aircraft. The Status LED will show a solid green light when linking is completed.

4. Repeat step 2 to power off the remote controller after finish using it.

Charging Remote Controller

Charge the remote controller via supplied charger.

User Manual

INSPIRE RAW

Charger

Power Outlet

Power Button

Controlling Camera

Shoot videos or images and adjust camera settings via the Shutter Button, Camera Settings Dial, Playback

Button and Video Recording Button on the remote controller.

[1]

[2]

[3]

[4]

[1] Camera Settings Dial

Turn the dial to quickly adjust camera settings such as ISO and shutter speed without letting go of the

remote controller. Move the dial button to left or right to view the pictures or videos in playback mode.

[2] Playback Button

Press to view images or videos that have already been captured.

[3] Shutter Button

Press to take a photo. If burst mode is activated, multiple photos will be taken with a single press.

[4] Recoding Button

Press once to start recording video, then press again to stop recording.

Controlling Aircraft

This section explains how to use the various features of the remote controller. The Remote Controller is set

to Mode 2 by default.

User Manual

INSPIRE RAW

Remote

Controller

(Mode 2)

Aircraft

(

indicates nose direction)

Remarks

Moving the left stick up and down changes the

aircraft’s elevation.

Push the stick up to ascend and down to descend.

Push the throttle stick up to takeoff.

When both sticks are centered, the Inspire 1 RAW

will hover in place.

The more the stick is pushed away from the center

position, the faster the Inspire 1 RAW will change

elevation. Always push the stick gently to prevent

sudden and unexpected elevation changes.

Moving the left stick to the left or right controls the

rudder and rotation of the aircraft.

Push the sick left to rotate the aircraft counter

clock-wise, and push the stick right to rotate the

aircraft clockwise. If the stick is centered, the

Inspire 1 RAW will stay facing its current direction.

The more the stick is pushed away from the center

position, the faster the Inspire 1 RAW will rotate.

Moving the right stick up and down changes the

aircraft’s forward and backward pitch.

Push the stick up to y forward and down to y

backward. The Inspire 1 RAW will hover in place if

the stick is centered.

Push the stick further away from the center position for

a larger pitch angle and faster ight.

Moving the right stick control left and right changes

the aircraft’s left and right pitch.

Push left to y left and right to y right. The Inspire 1

RAW will hover in place if the stick is centered.

Push the stick further away from the center position for

a larger pitch angle and faster ight.

Gimbal Dial: Turn the dial to the right, and the

camera will shift to point upwards. Turn the

dial to the left, and the camera will shift to point

downwards. The camera will remain in its current

position when dial is static.

Stick Neutral/ mid point: Control sticks of the Remote Controller are placed at the central position.

Move the Stick: The control stick is pushed away from the central position.

User Manual

INSPIRE RAW

Figure Flight Mode

F mode

A mode

P mode

Flight Mode Switch

Toggle the switch to select the desired flight mode.

You may choose between; P mode, F mode and A

mode.

P mode (Positioning) : P mode works best when GPS signal is strong. There are three different states of P

mode, which will be automatically selected by the Inspire 1 RAW depending on GPS signal strength and

Vision Positioning sensors:

P-GPS: GPS and Vision Positioning both are available, and the aircraft is using GPS for positioning.

P-OPTI: Vision Positioning is available but the GPS signal is not. Aircraft is using only Vision

Positioning for hovering

P-ATTI: Neither GPS or Vision Positioning available, aircraft is using only its barometer for positioning,

so only altitude is controlled.

A mode (Attitude): The GPS and Vision Positioning System is not used for holding position. The aircraft

only uses its barometer to maintain altitude. If it is still receiving a GPS signal, the aircraft can automatically

return home if the Remote Controller signal is lost and if the Home Point has been recorded successfully.

F mode (Function): Intelligent Orientation Control (IOC) is activated in this mode. For more information

about IOC, refer to the IOC in Appendix.

The Flight Mode Switch is locked in P mode by default. To unlock the switch, launch the DJI GO app,

enter the "Camera" page, tap "MODE", and then activate "Multiple Flight Mode" .

Transformation Switch / RTH Button

The Transformation Switch / RTH Button combination serves two functions. Toggle the switch up or down

to raise or lower the landing gear. Or, press the button to activate the Return to Home (RTH) procedure.

Transformation Switch

This switch has two positions. The effect of toggling the switch to any of these positions is dened below:

1. Raise: Raise the landing gear to its upper most position.

Lower Raise

User Manual

INSPIRE RAW

2. Lower: The landing gear will lower to its lowest position for landing.

Connecting Mobile Device

Tilt the Mobile Device Holder to the desired position. Press the button on the side of the Mobile Device Holder

to release the clamp, and then place your mobile device into the clamp. Adjust the clamp to secure your

mobile device. Then connect your mobile device to the remote controller with a USB cable. Plug one end of

the cable into your mobile device, and the other end into the USB port on the back of the remote controller.

Do not raise the landing gear when the aircraft is on the ground. Ensure the landing gear is

lowered before landing.

RTH button

Press and hold this button to start the Return to Home (RTH) procedure. The LED around the RTH Button

will blink white to indicate the aircraft is entering RTH mode. The aircraft will then return to the last recorded

Home Point. Press this button again to cancel the RTH procedure and regain the control of the aircraft.

User Manual

INSPIRE RAW

Optimal Transmission Range

The signal transmission between aircraft and remote controller perform best within the range that

displayed in the picture shown below:

Ensure the aircraft is flying w

ithin the optimal transmission range. Adjust the distance and position

between the operator and the aircraft to achieve optimal transmission performance.

Dual Remote Controllers Mode

More than one remote controller can connect to the same aircraft in Dual Remote Controller mode. In Dual

Controllers mode, the “Primary” remote controller operator controls the orientation of the aircraft, while the

“Secondary” remote controller controls the movement of the gimbal and camera operation. When multiple

“secondary” remote controllers (max of 6) are connect to the aircraft, only the first connected “secondary”

remote controller is able to control the gimbal, the remaining “secondary” remote controller can view the live

feed video from the aircraft and set the camera parameters, but they cannot control the gimbal.

Optimal Transmission Range

Primary Remote

Controller

Secondary

Remote

Controller

Strong Weak

User Manual

INSPIRE RAW

Use the gimbal dial on the remote controller to control the pitch movement of the camera in the

single remote controller mode, however, you cannot control the pan movement of the camera.

Setting Up Dual Remote Controllers Mode

Dual

Remote Controllers mode is disabled by default. Users must enable this feature on the “Primary”

remote controller by through the DJI GO app. Follow the steps below for setup:

“Primary” Remote Controller:

1. Connect the remote controller to your mobile device and launch the DJI GO app.

2. Go to the Camera page, and tap

to enter the remote controller settings window.

3. Ta

p “Set RC Status” to enable Primary-and-Secondary mode.

4. Select “Primary” in the “Set RC Status” section to set the remote controller as “Primary” remote controller.

RC Control Settings

Set RC Status

Secondary RC List

Primary and Secondary

RC Settings

Primary

OFF

RC Name Connection Password

T12254 1234

Secondary

Primary

OFF

Secondary

RC Control Setting

Set RC Status

RC Name

Search for Primary Controller

Request Control

Primary RC List

Primary and Secondary

RC Settings

S88642

5. Enter the connection pas

sword for the “Secondary” remote controller.

“Secondary” Remote Controller:

1. Tap “Search for Primary Controller” to search the “Primary” remote controller.

User Manual

INSPIRE RAW

Remote controller cannot link to the aircraft if the remote controller is set as “Secondary”. Meanwhile,

the

“Secondary” remote controller cannot control the orientation of the aircraft. Reset the remote

controller to “Primary” in DJI GO app if you wish to link the remote controller to the aircraft.

2. Search the “Primary” remote c

ontroller in the surrounding area in the “Request Control” section.

lect the “Primary” Primary remote controller from the “Primary RC List” and input the connection

password to connect to the desired “Primary” remote controller.

RC Control Settings

Set RC Status

Slave RC List

Master and Slave

RC Settings

MasterOFF

RC Name Connection Password

T12254 1234

Slave

MasterOFF

Slave

RC Control Settings

Set RC Status

RC Name

Search for Master Controller

Request Control

Master RC List

Master and Slave

S88642

T12254

RC Settings

Primary

OFF

Secondary

RC Control Settings

Set RC Status

RC Name

Search for Primary Controller

Request Control

Primary RC List

Primary and Secondary

S88642

T12254

RC Settings

Primary

RC List

RTH LED

Status LED

Remote Controller Status LED

The Status LED reects connection status between Remote Controller and aircraft. The RTH LED shows

the Return to Home status of the aircraft. The table below contains details on these indicators.

User Manual

INSPIRE RAW

Status LED Alarm Remote Controller Status

—

Solid Red chime

The remote controller set as "Primary" but it is

not connected with the aircraft.

—

Solid Green chime

he remote controller set as "Primary" and it is

connected with the aircraft.

—

Solid Purple D-D-

he remote controller set as "Secondary" but it

is not connected with the aircraft.

—

Solid Blue D-D- chime

he remote controller set as "Secondary" and it is

connected with the aircraft.

Slow Blinking Red D-D-D

......

Remote controller error.

Red and Green/ Red and

Yellow Alternate Blinks

None HD Downlink is disrupted.

RTH LED Sound Remote Controller Status.

—

Solid White chime Initiate RTH procedure.

Blinking White D

. . .

Send RTH command to aircraft.

Blinking White DD

.. .. ..

Aircraft returning to Home Point.

The Remote Status Indicator will blink red, sound an alert, when the battery level is critically low.

Linking the Remote Controller

The remote controller is linked to your aircraft before delivery. Linking is only required when using a new

remote controller for the rst time. Follow these steps to link a new remote controller:

1. Power on the remote controller and connect to the mobile device. Launch DJI GO app.

2. Power on the Intelligent Flight Battery.

3. Enter “Camera” view and tap on and then tap “Linking Remote Controller” button as shown below.

RC Control Setting

Remote Control Calibration

Stick Mode

Gimbal Pitch/YawC1 C2 Reset gimbal yaw

Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled.

Do not change unless familiar with your new mode.

You can customize the C1 and C2 buttons on the back

of the remote controller.

Linking Remote Controller

User Manual

INSPIRE RAW

RC Control Setting

Remote Control Calibration

Stick Mode

Gimbal Pitch/YawC1 C2 Reset gimbal yaw

Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled.

Do not change unless familiar with your new mode.

You can customize the C1 and C2 buttons on the back

of the remote controller.

Linking Remote Controller

Searching for aircraft frequency,

timeout in 54 seconds

Cancel

Press the linking button on the aircraft

to link this remote controller

Remote controller cannot link to the aircraft if the remote controller is set as “Slave”. Meanwhile,

the “Slave” remote controller cannot control the orientation of the aircraft. Reset the remote

controller to “Master” in DJI GO app if you wish to link the remote controller to the aircraft.

Remote controller will disconnect from the linked aircraft if a new remote controller is linked to

the same aircraft.

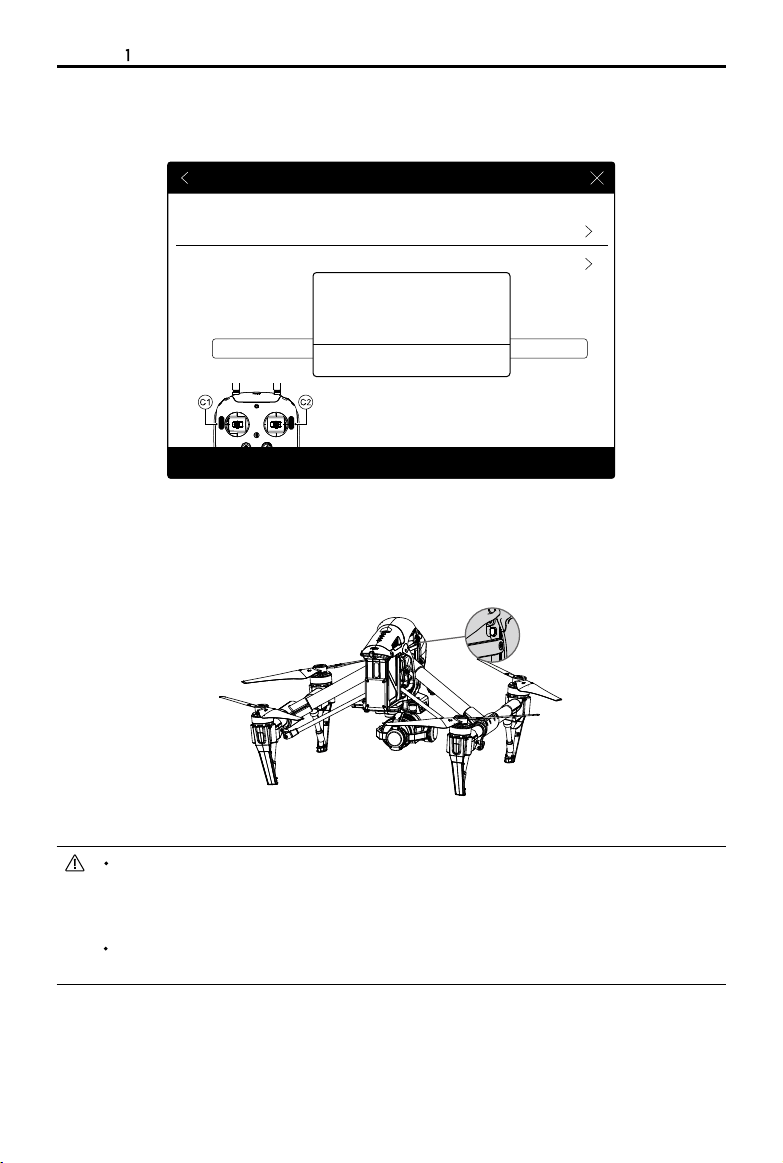

5. Locate the Linking button on the front of the aircraft, as shown in the gure shown below. Press the

Linking button to start linking. The Remote Controller Status Indicator will display solid green if Link is

succeed.

4. The remote controller is ready to link. The Remote Controller Status Indicator blinks blue and "beep"

sound is emitted.

Remote controller cannot link to the aircraft if the remote controller is set as “Secondary”.

Meanwhile, the “Secondary” remote controller cannot control the orientation of the aircraft.

Reset the remote controller to “Primary” in DJI GO app if you wish to link the remote

controller to the aircraft.

User Manual

INSPIRE RAW

RC Control Setting

Remote Control Calibration

Stick Mode

Gimbal Pitch/YawC1 C2 Reset gimbal yaw

Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled.

Do not change unless familiar with your new mode.

You can customize the C1 and C2 buttons on the back

of the remote controller.

Linking Remote Controller

Searching for aircraft frequency,

timeout in 54 seconds

Cancel

Press the linking button on the aircraft

to link this remote controller

Remote controller cannot link to the aircraft if the remote controller is set as “Slave”. Meanwhile,

the “Slave” remote controller cannot control the orientation of the aircraft. Reset the remote

controller to “Master” in DJI GO app if you wish to link the remote controller to the aircraft.

Remote controller will disconnect from the linked aircraft if a new remote controller is linked to

the same aircraft.

5. Locate the Linking button on the front of the aircraft, as shown in the gure shown below. Press the

Linking button to start linking. The Remote Controller Status Indicator will display solid green if Link is

succeed.

4. The remote controller is ready to link. The Remote Controller Status Indicator blinks blue and "beep"

sound is emitted.

User Manual

INSPIRE RAW

RC Control Setting

Remote Control Calibration

Stick Mode

Gimbal Pitch/YawC1 C2 Reset gimbal yaw

Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled.

Do not change unless familiar with your new mode.

You can customize the C1 and C2 buttons on the back

of the remote controller.

Linking Remote Controller

Searching for aircraft frequency,

timeout in 54 seconds

Cancel

Press the linking button on the aircraft

to link this remote controller

Remote controller cannot link to the aircraft if the remote controller is set as “Slave”. Meanwhile,

the “Slave” remote controller cannot control the orientation of the aircraft. Reset the remote

controller to “Master” in DJI GO app if you wish to link the remote controller to the aircraft.

Remote controller will disconnect from the linked aircraft if a new remote controller is linked to

the same aircraft.

5. Locate the Linking button on the front of the aircraft, as shown in the gure shown below. Press the

Linking button to start linking. The Remote Controller Status Indicator will display solid green if Link is

succeed.

4. The remote controller is ready to link. The Remote Controller Status Indicator blinks blue and "beep"

sound is emitted.

User Manual

INSPIRE RAW

RC Control Setting

Remote Control Calibration

Stick Mode

Gimbal Pitch/YawC1 C2 Reset gimbal yaw

Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled.

Do not change unless familiar with your new mode.

You can customize the C1 and C2 buttons on the back

of the remote controller.

Linking Remote Controller

Searching for aircraft frequency,

timeout in 54 seconds

Cancel

Press the linking button on the aircraft

to link this remote controller

Remote controller cannot link to the aircraft if the remote controller is set as “Slave”. Meanwhile,

the “Slave” remote controller cannot control the orientation of the aircraft. Reset the remote

controller to “Master” in DJI GO app if you wish to link the remote controller to the aircraft.

Remote controller will disconnect from the linked aircraft if a new remote controller is linked to

the same aircraft.

5. Locate the Linking button on the front of the aircraft, as shown in the gure shown below. Press the

Linking button to start linking. The Remote Controller Status Indicator will display solid green if Link is

succeed.

4. The remote controller is ready to link. The Remote Controller Status Indicator blinks blue and "beep"

sound is emitted.

User Manual

INSPIRE RAW

Used with the DJI Focus

DJI Focus is fully compatible with the Zenmuse X5R series gimbal and camera. No calibration is required

when using the Focus with the Zenmuse X5R camera.

Connection

To allow communication between the two devices, connect the communication port on the Focus remote

controller to the CAN Bus port on the Inspire 1 remote controller using the dedicated CAN Bus cable.

Ensure that the Zenmuse X5R camera is set in AF mode.

Refer to "DJI FOCUS User Manual" for more information.

Gimbal and Camera

This chapter provides the technical

specications of the camera and explains

the working mode of the gimbal.

Gimbal and Camera

Gimbal and Camera Overview

The Zenmuse X5R offers professional photographers a high-performance gimbal and camera system

with an M4/3 interchangeable lens. The Type 4/3 CMOS sensor supports lossless 4K RAW video and 16

MP still photos, with shooting modes including burst, AEB and timelapse.

Integrated into the system is a dedicated 512GB X5R SSD that stores lossless 4K RAW video at

up to 2.4Gbps and can be synced with DJI CineLight for post-processing RAW les. The optional

lens kit includes the DJI MFT 15mm f/1.7 ASPH (30mm in 35mm format) with a 72-degrees eld of

view.

When mounted on the Inspire 1 series, the 3-axis gimbal provides a stable platform for the camera to get

clear shots even during maneuvers. The gimbal tilts the camera across a -90° to +30° pitch angle and

pans ±320° in both directions. Live HD video from the camera is streamed to the DJI GO app.

Components

Zenmuse X5R Gimbal and Camera

Pan Motor

Tilt Motor

Gimbal Connector

Micro SD Card Slot

Lens Lock

Lens Mount Index

Lens Mount

Lens Release Button

Roll Motor

Micro USB Port

X5R SSD Release Button

X5R SSD Slot

Slot

User Manual

INSPIRE RAW

Dust Cover

46mm Lens Filter Thread

Lens Hood Thread

Aperture Ring

Focusing Ring

Lens Mount Index

AF/MF Switch

DJI MFT 15mm f/1.7 ASPH Lens

X5R Reader

Power LED

Working Status LED

USB Port

X5R SSD Slot

Read the information below before setting up your Zenmuse X5R

Supported Devices

The Zenmuse X5R can be attached to the following device:

DJI Inspire 1

Supported Lenses for the Inspire 1

The Zenmuse X5R currently supports the following lenses, and will continue to support more lenses in the

future.

DJI MFT 15mm f/1.7 ASPH

Panasonic Lumix G Leica DG Summilux 15mm f/1.7 ASPH

Olympus M.Zuiko Digital ED 12mm f/2.0

Olympus M.Zuiko Digital ED 17mm f/1.8

Olympus M.Zuiko Digital ED 25mm f/1.8

Olympus M.Zuiko Digital ED 45mm f/1.8 (For still photography)

Olympus M.Zuiko Digital ED 14-42mm f/3.5-5.6 EZ (For still photography)

Required Lens Accessories

The following table shows the recommended DJI Balancing Ring and lter and lens hood requirement for

each lens model.

Attach either a DJI Balancing Ring or lter only. Attach a lens hood only if required. The listed Balancing

Rings can be purchased on the DJI Store.

User Manual

INSPIRE RAW

Model DJI Balancing Ring

Filter

Lens Hood

Thread Size Weight

DJI MFT 15mm f/1.7 ASPH BR-Φ46-10 46 mm 10 g Required

Panasonic Lumix G Leica DG

Summilux 15mm f/1.7 ASPH

BR-Φ46-10 46 mm 10 g Required

Olympus M.Zuiko Digital ED 12mm f/2.0 BR-Φ46-10 46 mm 10 g Not required

Olympus M.Zuiko Digital ED 17mm f/1.8 BR-Φ46-33 46 mm 33 g Not required

Olympus M.Zuiko Digital ED 25mm f/1.8 Not required 46 mm 10 g Not required

Olympus M.Zuiko Digital ED 45mm f/1.8

(For still photography)

Not required 37 mm 14 g Not required

Olympus M.Zuiko Digital

ED 14-42mm f/3.5-5.6 EZ

(For still photography)

BR-Φ37-23 37 mm 23 g Not required

The thread size and weight of the Balancing Ring are included in the model number (i.e. BR-Φ46-10 has

a thread size of 46 mm and a weight of 10 g).

The Balancing Ring must be installed on the camera lens when a lter is not used.

Supported Micro SD Cards

The Zenmuse X5R comes with a 16GB Micro SD card, but also supports Micro SD cards with a capacity

of up to 64GB. We recommend using a UHS-1 Micro SD card to minimize the delay when reading and

writing high resolution video data.

DO NOT remove the Micro SD card from the Zenmuse X5R when it is powered on.

Supported X5R SSD

The Zenmuse X5R comes with an integrated 512GB X5R SSD for storing lossless and uncompressed

footage. Note that its operating temperature is 32° to 158° F (0° to 70° C).

Installing the Camera Lens

The following steps use the DJI MFT 15mm f/1.7 ASPH as illustration of how to mount the camera lens to

the camera body. Be sure to power off the battery before installation.

1. Remove the camera body cap.

2. While holding down the Lens Release Button, rotate the Lens Lock clockwise to unlock it.

3. Remove the lens cap and rear cap.

Lens Release Button

User Manual

INSPIRE RAW

4. Align the two Lens Mount Indexes on the camera body and camera lens, and insert the camera lens

into the body of the camera.

5. Rotate the camera lens clockwise until you hear a click.

6. Rotate the Lens Lock counterclockwise to lock it.

7. Mount the Balancing Ring (or a lter) and the Lens Hood.

Click

Balancing Ring (or Filter)

Lens Hood

To remove the camera lens, power off the battery and then:

1. While holding down the Lens Release Button, rotate the Lens Lock clockwise to unlock it.

2. While holding down the Lens Release Button, rotate the camera lens counterclockwise to detach it.

Lens Release Button

8. Insert the Micro SD card and the X5R SSD.

User Manual

INSPIRE RAW

It is recommended to wrap a dust cover around the lens to prevent contamination. DJI

produces dedicated dust covers for the DJI MFT 15mm f/1.7 ASPH and the Panasonic

Lumix G Leica DG Summilux 15mm f/1.7 ASPH. Other lenses may require you to purchase

a third-party dust cover.

It is important to tighten the Lens Lock after attaching the camera lens, as this can reduce the

vibrations of the lens when the aircraft is moving in ight. Always loosen the Lens Lock before

attaching and detaching the camera lens.

A lter can be installed in place of the Camera Balancing Ring. Remember to use a lter that

fullls the weight requirement.

Some lenses must not be used with a lens hood. Be sure to check the table above for the

accessory requirements for your lens.

Be sure to set the lens to AF mode.

Always hold down the Lens Release Button before rotating the Lens Lock to unlock it.

Always hold down the X5R SSD Release Button before removing the X5R SSD.

Be careful not to damage the Gimbal Connector and its metal contacts when attaching or storing

the Zenmuse X5R.

Attach the Zenmuse X5R

Power off the aircraft.

1. Rotate the Gimbal Lock to the unlocked position.

2. While aligning the white lines on the Gimbal Connector and Gimbal Lock, insert the Gimbal Connector.

3. Rotate the Gimbal Lock to the locked position.

4. Turn the two keys on the other end of the mounting plate 90 degrees into the slots.

Key

Slot

User Manual

INSPIRE RAW

DO NOT attach or detach the Zenmuse X5R when the aircraft is powered on.

Take off from a at, open area and protect the gimbal after powering up.

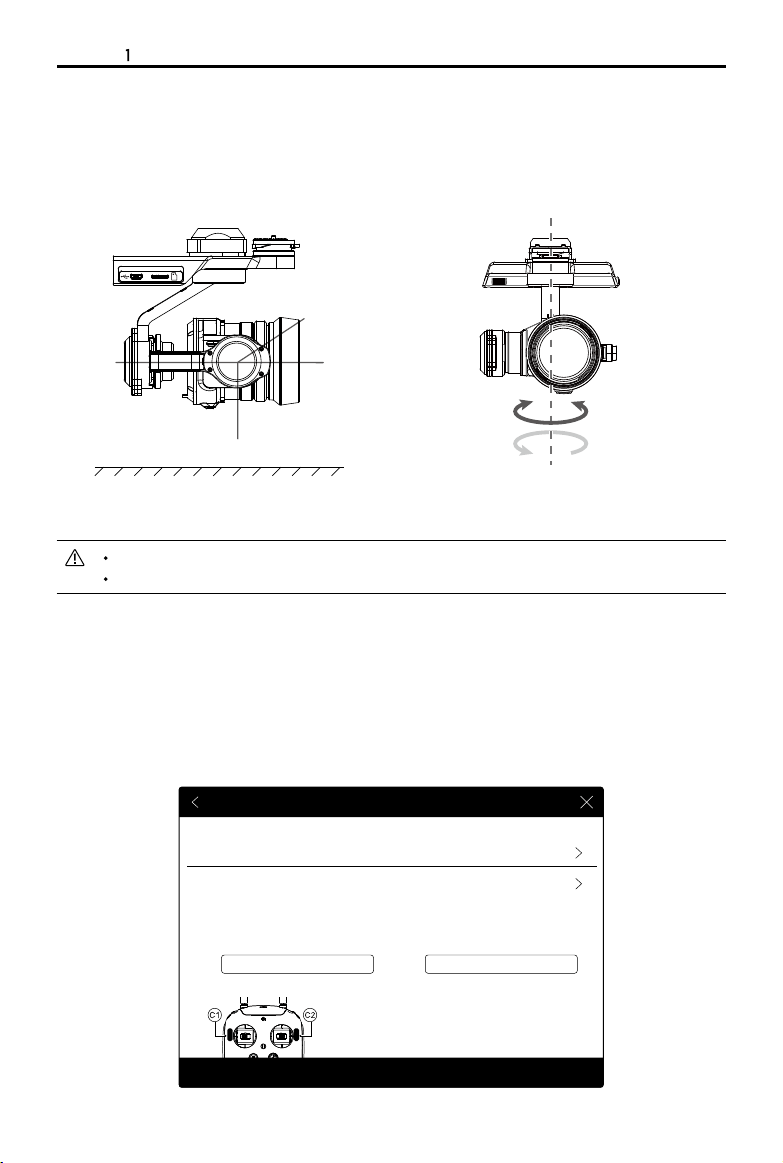

Ground Level

320°

-320°

Pan Control

Follow the instructions below to use the gimbal dial to control the pan movement of the gimbal:

1. Power on the aircraft and remote control, launch DJI GO app and enter “Camera” page.

2. Tap “RC Control Settings” icon and select either C1 or C2 customizable button as the gimbal pitch/

yaw switching button.

3. Select “Gimbal Pitch/Yaw” from the dropdown list.

RC Control Setting

Remote Control Calibration

Stick Mode

Gimbal Pitch/YawC1 C2 Reset gimbal yaw

Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled.

Do not change unless familiar with your new mode.

You can customize the C1 and C2 buttons on the back

of the remote controller.

Linking Remote Controller

Mechanical Range

The 3-axis gimbal provides a incredibly stable and mobile platform for the camera system to capture silky

smooth video. The gimbal can tilt the camera up to 120 degrees and pan 320 degrees in either direction,

providing 640 degrees of yaw rotation.

+30°

-90°

0°

User Manual

INSPIRE RAW

Press C1 or C2 button to switch from pitch mode to yaw mode. You may use the gimbal dial to pan the

gimbal under yaw mode. Press C1 or C2 again to exit yaw mode.

While pressing the C1 button, turn the gimbal dial to focus the X5 camera manually.

While pressing the C2 button, turn the camera settings dial to ne tune the roll axis of the gimbal.

Using DJI GO App to Control Gimbal

Follow the steps below to use DJI GO app to control the gimbal orientation:

1. Launch DJI GO app, enter “Camera” page.

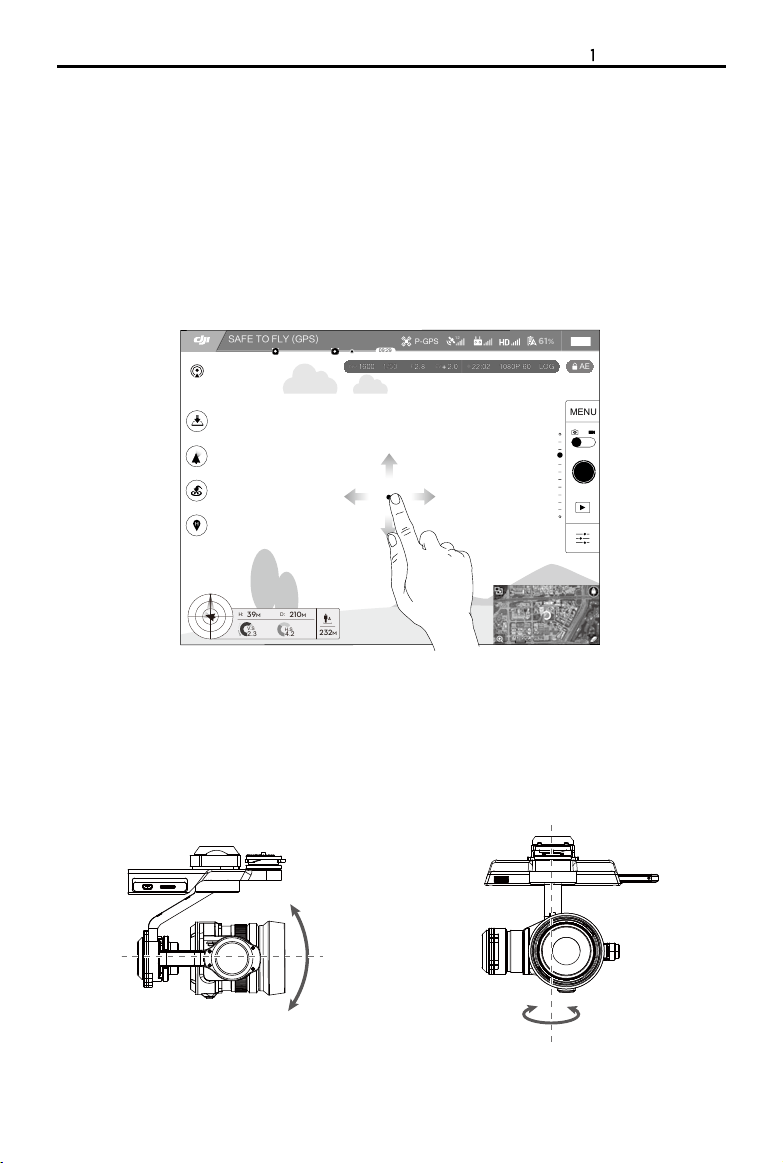

2. Tap and press on the screen until a blue circle is shown.

3. Slide to control the gimbal orientation within the “Camera” page as shown below.

22:02

LOG

1080P

ISO

1600

2.8

2.0

1/50

09:29

61%

P-GPS

SAFE TO FLY (GPS)

M/S

H: D:

V.S

H.S

4.22.3

39M 210M

232M

Gimbal Operation Modes

Three Gimbal operation modes are available. Switch between the different operation modes on the

Camera page of the DJI GO App. Note that your mobile device must be connected to the remote

controller for changes to take effect. Refer to the table below for details:

Pitch Pan

User Manual

INSPIRE RAW

Follow Mode

The angle between Gimbal’s orientation and aircraft’s nose remains

constant at all times. One user alone can control the pitch motion of the

Gimbal, but a second user is required to control the pan motion using a

second remote controller.

FPV Mode

The Gimbal will lock to the movements of the aircraft to provide a First-

Person-View ying experience.

Free Mode

The Gimbal’s motion is independent of the aircraft’s orientation. One user

alone can control the pitch motion of the Gimbal, but a second user is

required to control the pan motion using a second remote controller.

Re-alignment

Tap to force the Gimbal orientation to re-align with aircraft’s orientation

by panning from gimbal’s current orientation. Pitch angle will remain

unchanged during the re-alignment.

Gimbal motor error may occur in these situations: (1) Gimbal is placed on uneven ground.

(2) Gimbal has received an excessive external force, e.g. a collision. Please take off from at,

open ground and protect the gimbal after powering up.

Flying in heavy fog or cloud may make the gimbal wet, leading to a temporary failure. The

gimbal will recover when it dries out.

When the shutter speed is shorter than 1/125 seconds or the aircraft is flying quickly, the

aircraft’s vibration will increase and the gimbal will be affected by the greater wind, which may

cause the jello effect. It is recommended to use an ND Filter, reduce the aperture to increase

exposure time, or reduce ight speed to reduce the jello effect.

User Manual

INSPIRE RAW

Camera Panel

All camera operations are done on the Camera Panel in Camera View of the DJI GO app.

[1] Menu

[2] Photo/Video Switch

[3] Shutter/Record Button

[4] Playback

[5] Settings

[1]

[2]

[3]

[4]

[5]

Always set the camera lens to AF mode. The focus and aperture will be controlled by the DJI GO

app digitally.

Basic Shooting

Ensure the Micro SD card is inserted to enable camera operations. Photos are saved on the Micro SD

card, while videos are saved on both the Micro SD card and X5R SSD.

Taking Photos

Slide the Photo/Video Switch to the position. Tap the button or the shutter button on the remote

controller to take a single photo. Choose from one of the shooting modes by tapping “MENU” -> ->

Photo.

1. Burst Mode

Take 3, 5, or 7 shots in a row.

2. AEB (Auto Exposure Bracketing)

Take 3 or 5 bracketed frames with ±0.7EV steps for exposure compensation.

3. Time-lapse

Take photos in 5, 7, 10, 20 or 30 second intervals.

4. HDR

Adjust the dynamic range from this section.

Recording Videos

Slide the Photo/Recording Switch to the position. Tap the icon or the Record Button on the remote

controller to start or stop recording video.

User Manual

INSPIRE RAW

Advanced Settings

Exposure Modes

Tap to choose from the following exposure modes:

1. AUTO

The shutter speed and aperture are set automatically to obtain the correct exposure.

2. S (Shutter Priority)

Set your desired shutter speed, while the camera chooses the aperture automatically. This mode is

ideal for freezing action, creating motion blur or low-light shots.

3. A (Aperture Priority)

Set your desired aperture, while the camera chooses the shutter speed automatically. This mode

provides a wider depth of eld and can be used to blur out backgrounds.

4. M (Manual Exposure)

In general, increase the ISO for low light environments, and decrease the ISO if the surrounding is very

bright.

Photo Styles

Tap MENU -> -> Style to choose from the following styles:

1. Standard

A general-purpose style for most scenes.

2. Landscape

The camera will focus on as much of the scene as possible by using a large depth of eld.

3. Soft

Suitable for scenes with natural or soft colors.

4. Custom

Sharpness: -3 to +3

Contrast: -3 to +3

Saturation: -3 to +3

White Balance

Tap MENU -> ->White Balance to choose from the following modes:

1. Auto

The camera adjusts the white balance automatically.

2. Sunny / Cloudy / Incandescent / Neon

Choose one of these modes if natural-looking colors cannot be achieved through photo styles.

3. Custom (2000K~10000K)

Set a value between 2000K and 10000K to compensate for a specic light source.

User Manual

INSPIRE RAW

List of Settings


Shooting Modes

Single Shot, HDR Shot, Burst Mode (3/5/7),

AEB (3/5 bracketed frames), Timed-lapse(5s/7s/10s/20s/30s)

Image Size 4:3, 16:9

Image Format RAW, JPEG, JPEG+RAW

White Balance Auto, Sunny, Cloudy, Incandescent, Neon, Custom (2000K~10000K)

Style Standard, Landscape, Soft, Custom (Sharpness/Contrast/ Saturation)

Color D-Log, D-Cinelike, None, Art, B&W, Vivid, Beach, Dream, Classic, Nostalgia

Video

Video Size

4K (SSD RAW): 4096 × 2160 24p, (3840 × 2160) 24/30p

2.7K (SSD RAW): 2704 × 1520 24/30p

1080P (SSD RAW): 1920 × 1080 24/30/48/60p

Video Format

Micro SD: MP4/MOV (Codec: H.264)

X5R SSD: CinemaDNG (Codec: Lossless JPEG)

NTSC/ PAL PAL, NTSC

White Balance Auto, Sunny, Cloudy, Incandescent, Neon, Custom (2000K~10000K)

Style Standard, Landscape, Soft, Custom (Sharpness/Contrast/ Saturation)

Color D-Log, D-Cinelike, None, Art, B&W, Vivid, Beach, Dream, Classic, Nostalgia

General

Quick Preview Off, 1s, 2s, 3s, 4s, 5s

Anti-Flicker Auto, 50Hz and 60Hz

Show Grid Off, Grid Line, Grid + Diagonal, Center Point

File Index Mode Reset, Continuous

Others

Histograms, Video Captions, Over Exposure Warning, AF Assisted Focus, MF

Assisted Focus, Lens Prole, Calibration, Reset Settings, Format SD Card, Format

SSD

User Manual

INSPIRE RAW

Managing your Photos and Videos

Playback

Tap in the DJI GO app or press the Playback Button on the remote controller to review photos and

videos that you have captured. Press the same button again to return to capturing images.

The camera must be powered on to access the les.

You can view and delete les on the Micro SD card.

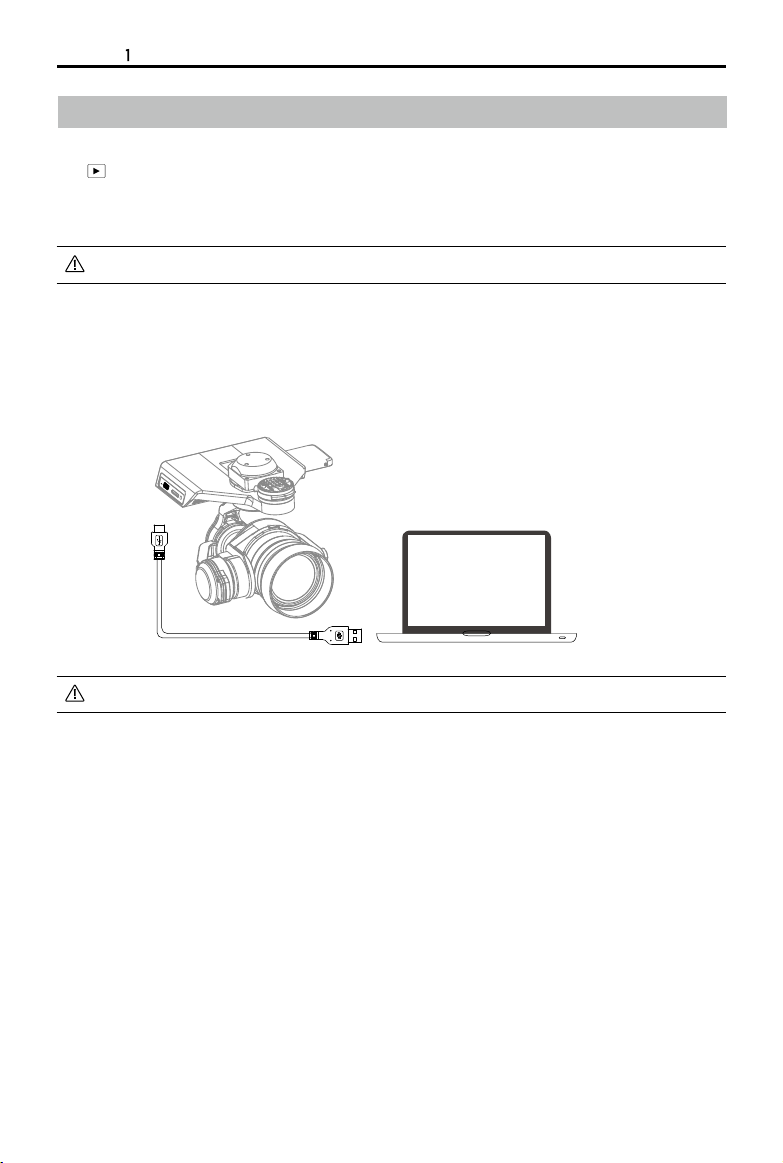

Downloading your Files from Micro SD Card

Download your photo and video les to your PC via the Micro USB Port or using a Micro SD card reader.

DJI CineLight

Use DJI CineLight to post-process X5R

SSD les

DJI CineLight

Files on the X5R SSD must be exported with DJI CineLight.

Installing DJI CineLight

System Requirements

Mac OS X 10.10 or later (versions 10.11 and 10.11.1 not fully supported)

6G of memory

Intel i5/i7 with 4+ cores

1440x900 resolution

Mac Pro, iMac and MacBook Pro recommended

Devices supporting USB3.0 recommended

Discrete graphics card recommended

Installation (Installer is included on the X5R SSD)

1. Plug the X5R SSD into the X5R Reader.

2. Connect the X5R Reader to your computer with a USB cable.

3. Select the “DJI” device.

4. Click to mount “DjiCineLight.dmg” in Finder.

5. Drag “CineLight.app” to /Applications/.

You will be prompted if an update is available when DJI CineLight launches.

User Manual

INSPIRE RAW

Accessing your Files

1. Power off the Zenmuse X5R. While holding down the X5R SSD Release Button, remove the X5R SSD.

2. Insert the X5R SSD into the X5R Reader.

3. Connect the X5 Reader to your computer with a USB cable.

4. Launch DJI CineLight.

Post-Processing with DJI CineLight

Using DJI CineLight, you can import Adobe DNG les on the X5R SSD or your computer, add effects and

enhancements, and then export them as a DNG sequence or high quality QuickTime video.

[1]

[2]

[3]

[4]

[5][6]

[7] [8] [9] [10] [11][12]

[13]

[14]

[15]

[16]

[17]

●

dng2号

00：01.53

Movie Clips

Libraries

●

DJI201023

Free:299.37 GB / Total:476.21GB

●

Local Library

Total:30 clips

●

TooFsat

00：02.53

●

TooFsat

00：02.53

●

A00_C01

00：00.03

SELECTION

DJI_A000121_23_20160301

FRAME SKIP

00:00.00 / 00:00.10

Power LED Working Status LED

Off

The X5R READER does not have power. / The X5R SSD is

not inserted.

Off Idle.

Solid

Blue

The X5R READER is powered on and the X5R SSD is

inserted correctly.

Blinking

Blue

Read and write

in progress.

User Manual

INSPIRE RAW

[1] Theme Switch

: Toggle

between the day and night themes.

[2] Libraries

Shows a list of connected devices (such as the X5R SSD) and your computer’s local library.

Connected Devices: Displays the device’s name, read-only mode, free disk space and total disk

space.

Computer: Displays saved DNG sequences.

: Right click the device name and choose “Quick Format” to reformat the

connected device.

Indicates that the connected device is read-only and cannot be reformatted.

Reformatting the device will cause all your les to be lost.

[3]

Movie Clips

Displays all the contents in the current library (includes the name, thumbnail, and total time).

Movie clips are saved as DNG sequences but DJI CineLight offers video playback.

: Right click to “Export” or “Remove” the movie clip.

A red mark will appear over the movie clip if its format is unknown.

[4] Movie Clip Tools

Import movie clips to the selected library. Only DNG sequences on your computer can be

imported.

Remove the selected movie clips.

Export the selected movie clips.

Format:

Resolution:

Range:

FrameRate:

Adobe DNG(Raw) sequence

29.97

Apply calibrations

Original Size Half Size Preview

0-9354

User Manual

INSPIRE RAW

√ Adobe DNG(raw) sequence

Adobe DNG (raw) sequence compatible with Premiere

TIFF sequence

Apple QuickTime video in ProRes 422 Proxy

Apple QuickTime video in ProRes 422 LT

Apple QuickTime video in ProRes 422

Apple QuickTime video in ProRes 422 HQ

Apple QuickTime video in ProRes 4444

Apple QuickTime video in ProRes 4444XQ

A: Export Format Options

DNG Sequence: Export the DNG sequence.

TIFF Sequence: Convert the DNG sequence to TIFF format and export.

ProRes: Export the DNG sequence as a movie clip encoded in ProRes.

B: Select “Original Size” to export the movie clip in its original resolution; select “Half Size

Preview” to export the movie in half of its original resolution.

C: Click

to synchronize the DNG sequence with the proxy les (on your Micro SD card with the

same le names) to eliminate any misaligned frames. The "Range" indicates the rst and last

frames.

D: Select a frame rate for the exported movie clip.

E: Check this box to apply your effects to the exported clip. Note that this option is disabled when

exporting in DNG sequence.

You can only import and delete les in your Local Library.

[5] Cursor Mode

Cursor.

: Zoom. Left click to zoom out; Alt + left click to zoom in.

: Drag.

[6] Selected Frame

Display the frame that is currently selected.

[7] Timeline View

A. Click to move the frame indicator.

B. The Selection Tool allows users to select and export a section of the movie clip.

SELECTION

Start Selection Here

End Selection Here

Export Shot...

Export Selected Range...

Set the starting point

Set the ending point

Export the entire move clip

Export a section of the movie clip

User Manual

INSPIRE RAW

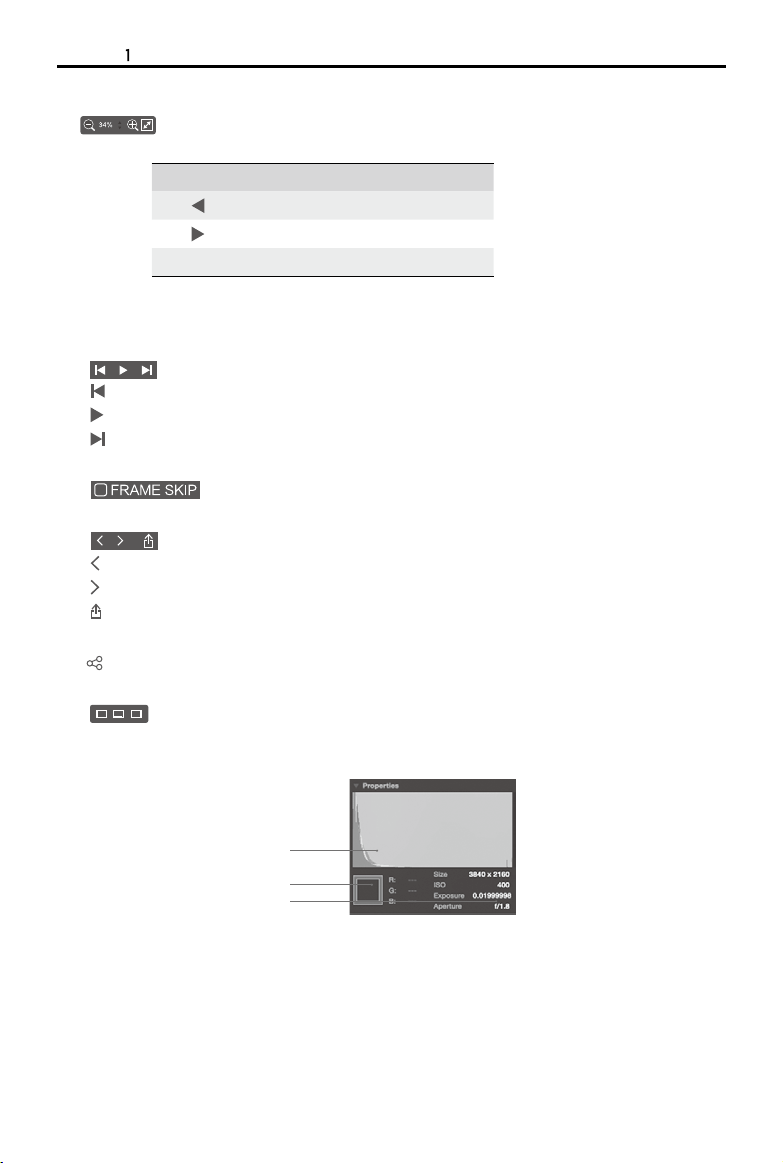

[8] Display Controls

: Zoom in or out, scale or auto t.

Space Bar Play/Pause

Play previous frame

Play next frame

Trackpad Drag les, zoom in or zoom out.

[9] Thumbnails

[10] Playback Controls

Play previous frame

Play/Stop

Play next frame

[11] Skip Frame Option

: Options to play the movie clip frame by frame or according to time.

[12] Timeline Actions

: Move to previous frame

: Move to next frame

: Export the selected frames

[13] Share

Share image with friends, move to folder or send by email.

[14] Layout

: Show/hide the left, right or timeline panes.

[15] Properties

A. RGB Histogram

B. Hover Pixel Color

C. Image Infomration

User Manual

INSPIRE RAW

[16] Color Calibrations

A. Basic: Adjust the white balance, exposure and saturation.

B. Tone Curve: Adjust up to 5 points on the tone curve.

C. Denoise and Sharpen

Adjust the denoise and sharpening values.

A B C

D. Color Management

Select the output color space.

E. Image Information

Detailed information of the movie clip.

F. Camera setting parameters when shooting.

D E F

[17] Analysis

A. Vector Scope

B. RGB and YCbCr Parades

A B

DJI GO App

This chapter describes the four main

GUI of the DJI GO app.

22:02

LOG

1080P

ISO

1600

2.8

2.0

1/50

09:29

61%

P-GPS

M/S

H: D:

V.S

H.S

4.22.3

39M 210M

232M

SAFE TO FLY (GPS)

DJI GO App

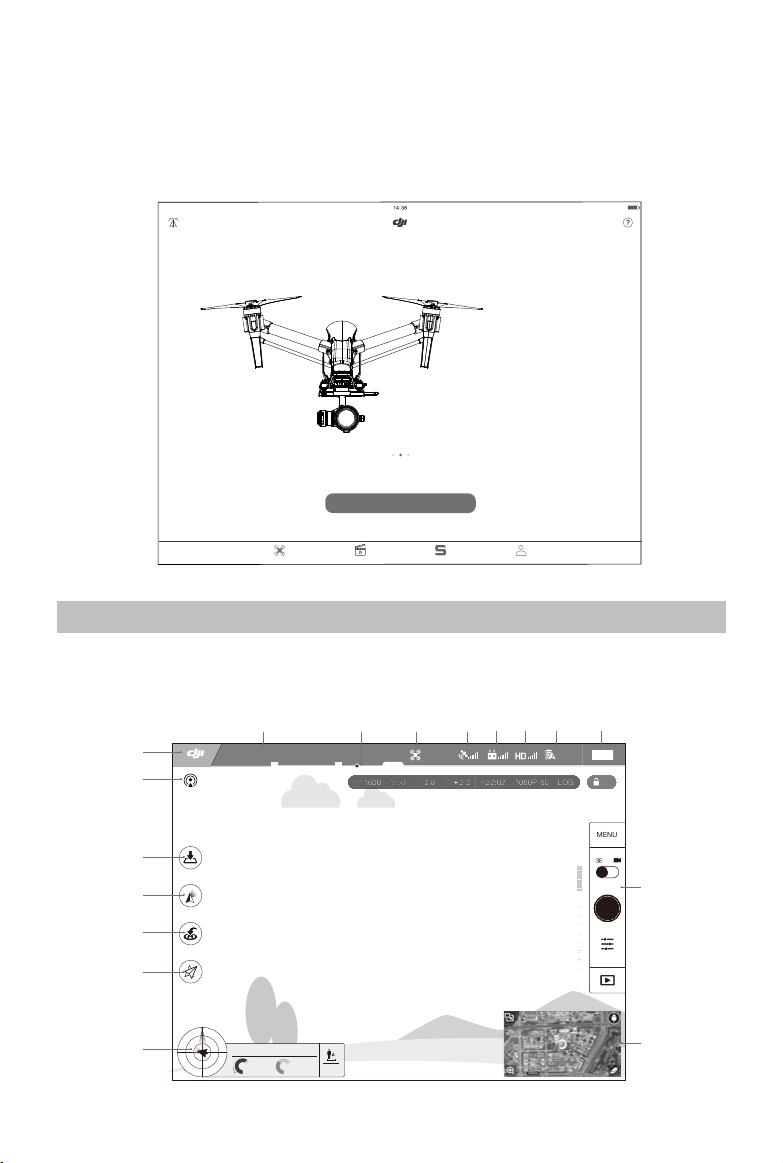

Use the DJI GO app to congure your aircraft. If using a gimbal or camera, you can also control the

gimbal or camera in the app. The Library, Explore, and Me sections in the app allow you to share your

content with friends.

Connect your Aircraft, Take to the Skies

iPad

Equipment Editor Skypixel Me

Learn More>

Use AEB shoot to get more dynanic image

Enter Camera View

80%

INSPIRE 1 RAW

Equipment

On the Equipment page, you can enter Camera View, visit the Academy or view your ight records.

Camera View.

[17]

[16]

[15]

[14]

[13]

[12]

[11]

[10]

[9]

[8][7][6][5]

[4][3][2][1]

User Manual

INSPIRE RAW

[1] System Status

: Indicates the current aircraft system status and GPS signal strength.

[2] Battery Level Indicator

: Describes the battery level of the aircraft according to its immediate status. The colored

zones represent the various stages of battery level. When the battery level drops to a certain stage,

the system will prompt the user to take the appropriate action.

[3] Flight Mode

: The text next to this icon indicates the current ight mode.

Tap this icon to congure the Main Controller Settings, to change the ight limits and set the gain

values.

[4] GPS Signal Strength

: Shows the current GPS signal strength. White bars indicate adequate GPS strength.

[5] Remote Controller Signal

: Shows the signal strength of the remote controller.

[6] HD Video Link Signal Strength

: Shows the signal strength of the HD video downlink between the aircraft and the remote

controller.

[7] Battery Level

61%

: Shows the current battery level.

Tap this icon to view the battery information menu where you can set the battery warning thresholds

and view the battery log.

[8] General Settings

: Tap this icon to view General Settings where you can set the ight parameters, and enable the

Flight Route display.

[9] Camera Operation Bar

This bar will be displayed when using a Zenmuse X3, X5 series or XT gimbal with camera.

Shutter and Recording Settings

: Tap this icon to enter various camera value settings including the Color Mode, Video Size, and

Image Size.

Shutter

: Tap this button to take a single photo. Press and hold this button to switch between Single Shot,

Triple Shot and Timed Shot modes.

Record

: Tap once to start recording video, then tap again to stop recording. You can also press the Video

Recording Button on the remote controller.

User Manual

INSPIRE RAW

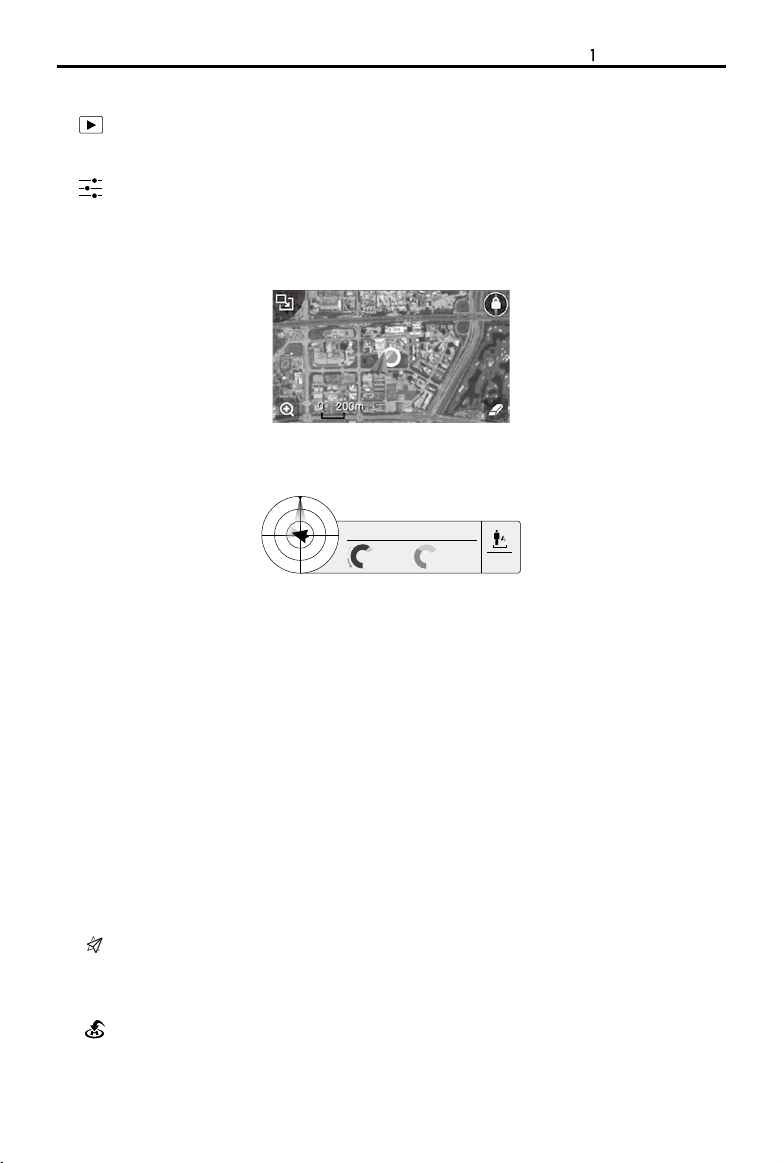

Playback

: Tap this icon to play back photos and videos after they are captured.

Camera Settings

: Tap this icon to set the ISO, Shutter Speed and Exposure Value of the camera.

[10] Mini Map

Displays the ight path of the current ight. Tap the Mini Map to switch between Camera View and

Map View.

[11] Flight Telemetry

H: D:

V.S

M/S

H.S

4.22.3

39M 210M

232M

Flight Attitude and Radar Function:

The aircraft’s ight attitude is indicated by the target-like icon.

(1) The red arrow shows which direction the aircraft is facing.

(2) The ratio of the grey area to the blue area indicates the aircraft’s pitch.

(3) The horizontal level of the grey area indicates the aircraft’s roll angle.

Flight Parameters:

Altitude: Vertical distance from the Home Point.

Distance: Horizontal distance from the Home Point.

Vertical Speed: Movement speed across a vertical distance.

Horizontal Speed: Movement speed across a horizontal distance.

Aircraft Distance:

The horizontal distance between the aircraft and the operator.

[12] Intelligent Flight Mode

: This icon displays the Intelligent Flight Mode settings when the aircraft has entered F-mode. Tap

to select one of the Intelligent Flight Modes.

[13] Return-to-Home (RTH)

: Initiate RTH home procedure. Tap to have the aircraft return to the latest Home Point.

User Manual

INSPIRE RAW

[14] Gimbal Operation Mode

This icon will be displayed when using a DJI gimbal (or camera). Tap to select a mode or re-align

the gimbal.

Follow Mode

The gimbal’s orientation is aligned with the aircraft’s nose. One user

alone can control the pitch motion of the gimbal, but a second operator is

required to control the yaw motion using a second remote controller.

FPV Mode

The gimbal will lock to the movement of the aircraft to provide a First-

Person-View ying experience.

Free Mode

The gimbal’s motion is independent of the aircraft’s orientation. One user

alone can control the pitch motion of the gimbal, but a second user is

required to control the yaw motion using a second remote controller.

Re-alignment

Re-align the yaw angle of the gimbal with that of the aircraft. The pitch

angle remains unchanged during the re-alignment.

[15] Auto Takeoff/Landing

/ : Tap to initiate auto takeoff or landing.

[16] Livestream

: This icon indicates the current video feed is being broadcast live on YouTube. Ensure that

mobile data service is available on your mobile device.

[17] Back

: Tap this icon to return to the main menu.

User Manual

INSPIRE RAW

Editor

An intelligent video editor is built into the DJI GO app. After recording several video clips and

downloading them to your mobile device, go to Editor on the home screen. You can then select a

template and a specied number of clips which are automatically combined to create a short lm that can

be shared immediately.

Skypixel

Find out about our latest events, featured products and trending Skypixel uploads in the Explore page.

If you already have a DJI account, you will be able to participate in forum discussions, earn Credits in the

DJI Store, and share your artwork with the community.

Flight

This chapter describes the flight safety

and ight restrictions.

Flight

Once pre-ight preparation is complete, it is recommended to use the ight simulator to learn how to y

safely. Ensure that all ights are carried out in a suitable location.

Flight Environment Requirements

1. Do not use the aircraft in severe weather conditions. These include wind speed exceeding 10m/s ,

snow, rain and smog.

2. Only y in open areas. Tall buildings and steel structures may affect the accuracy of the on-board

compass and GPS signal.

3. Avoid from obstacles, crowds, high voltage power lines, trees or bodies of water.

4. Minimize electromagnetic interference by not flying in area with high levels of electromagnetism,

including mobile phone base stations or radio transmission towers.

5. Aircraft and battery performance is subject to environment factor such as air density and temperature.

Be very careful when ying 14700 feet (4500 meters) or more above sea level as battery and aircraft

performance may be reduced.

6. The Inspire 1 RAW cannot operate within the polar areas in “P” mode.

Flight Limits and Flight Restriction Area

Flight limits on height and distance can be set. The details of these ight limits are described in the following

section.

All unmanned aerial vehicle (UAV) operators should abide by all regulations from such organizations as

the ICAO (International Civil Aviation Organization), FAA and their own national airspace regulations. For

safety reasons, the ight limits function is enabled by default to help users use this product safely and

legally. The ight limits function includes height limits, distance limits and No Fly Zones.

When operating in P Mode, height, distance limits and No Fly Zones work together to manage ight. In A

mode only height limits work and ights cannot go higher than 120 meters.

Max Height & Radius Limits

Max Height & Radius limit ying height and distance, and the user may change these settings in the DJI

GO App. Once complete, your Inspire 1 RAW will y in a restricted cylinder that is determined by these

settings. The tables below show the details of these limits.

Max Height

Max Radius

Home Point

Height of aircraft

when powered on

User Manual

INSPIRE RAW

GPS Signal Weak Blinking Yellow

Flight Limits DJI GO App

Aircraft Status

Indicator

Max Height

Height is restricted to 98 feet (30 meters)

when the GPS signal is weak and Vision

Positioning is inactivated.

Warning: Height limit

reached.

None.

Max Radius No limits

If you y out of the limit, you can still control the Inspire 1 RAW, but cannot y it further.

If the Inspire 1 RAW ies out of the max radius in Ready to Fly (non-GPS) mode, it will y back

within range automatically.

No-Fly Zones

All No-Fly Zones are listed on the DJI ofcial website at http://ysafe.dji.com/no-y. No-Fly Zones are

divided into Airports and Restricted Areas. Airports include major airports and ying elds where manned

aircraft operate at low altitudes. Restricted Areas include borders between countries or sensitive sites.

The details of the No-Fly Zones are explained below:

Airport:

(1) Airport No-Fly Zones are comprised of Takeoff Restricted Zones and Restricted-Altitude Zones. Each

zone features circles of various size.

(2) R1 depends on the size and shape of the airport, and is an area around the airport that is a Takeoff

Restricted Zone, inside of which take-off and ight is prevented.

(3) From R1 to R1+1 mile around the airport, the ight altitude is limited on a 15 degree incline, starting at

65 feet (20 meters) from the edge of airport and radiating outward. The ight altitude is limited to 1640

feet (500 meters) at R1+1 mile.

(4) When the aircraft is within 320 feet (100 meters) of the No-Fly Zones, a warning message will appear

in the DJI GO app.

GPS Signal Strong Blinking Green

Flight Limits DJI GO App Aircraft Status Indicator

Max Height

Flight altitude must be under

the set height.

Warning: Height

limit reached.

None.

Max Radius

Flight distance must be within

the max radius.

Warning: Distance

limit reached.

Rapid red ashing

when close to the

max radius limit.

User Manual

INSPIRE RAW

Restricted Areas:

(1) Restricted Areas do not have a ight altitude restriction.

(2) R around the designated Restricted Area is a Take-off Restricted area. Aircraft cannot takeoff within

this zone. The value of R varies depending on the denition of the Restricted Area.

(3) A “warning zone” has been set around each Restricted Area. When the aircraft is within 0.6 miles (1

km) of this zone, a warning message will appear in the DJI GO app.

Restricted Areas

66 feet

1 mile

320 feet

100m R

Airports

1640

feet

Restricted Areas

66 feet

1 mile

320 feet

100m R

Airports

1640

feet

User Manual

INSPIRE RAW

GPS Signal Strong Blinking Green

Zone Restriction DJI GO App Prompt

Aircraft

Status

Indicator

No-y Zone

Motors will not start.

Warning: You are in a No-y

zone. Take off prohibited.

Red ashing

If the aircraft enters the

restricted area in A mode but

P mode activates the aircraft

will automatically descend to

land then stop its motors after

landing.

Warning: You are in a No-y

zone, automatic landing has

begun. (If you are within 1.5 mile

radius)

Restricted-

altitude ight

zone

If the aircraft enters the

restricted area in A mode but P

mode activates, it will descend

to a safe altitude and hover 15

feet below the safe altitude.

Warning: You are in a restricted

zone. Descending to safe

altitude. (If you are between the

range of 1.5 mile and 5 mile

radius)

Warning: You are in a restricted

zone. Max ight height restricted

to between 10.5m and 120m. Fly

Cautiously.

Warning zone

No ight restriction applies, but

there will be warning message.

Warning: You are approaching a

restricted zone, Fly Cautiously.

Free zone

No restrictions. None. None.

Semi-automatic descent: All stick commands are available except the throttle stick command

during the descent and landing process. Motors will stop automatically after landing.

When ying in the safety zone, aircraft status indicator will blink red quickly and continue for 3

seconds, then switch to indicate current ying status and continue for 5 seconds at which point

it will switch back to red blinking.

For safety reasons, please do not y close to airports, highways, railway stations, railway lines,

city centers and other special areas. Try to ensure the aircraft is visible.

User Manual

INSPIRE RAW

PreightChecklist

1. Remote controller, aircraft battery, and mobile device are fully charged.

2. Propellers are mounted correctly and rmly.

3. Micro-SD card has been inserted if necessary.

4. Gimbal is functioning as normal.

5. Motors can start and are functioning as normal.

6. DJI GO app connected to the aircraft.

Calibrating the Compass

Only calibrate the compass when the DJI GO app or the status indicator prompt you to do so. Observe

the following rules when calibrating your compass:

DO NOT calibrate your compass where there is a chance of strong magnetic interference,

such as magnetite, parking structures, and steel reinforcements underground.

DO NOT carry ferromagnetic materials with you during calibration such as cellular phones.

The DJI GO app will prompt you to resolve the compass issue if the compass is affected by

strong interference after calibration is complete. Follow the prompted instructions to resolve the

compass issue.

Calibration Procedures

Choose an open space to carry out the following procedures.

1. Ensure that the compass is calibrated. If you did not calibrate the compass as part of your pre-ight

preparations, or if you have moved to a new location since the last calibration, tap Aircraft Status

Indicator bar in the app and select “Calibrate”, then follow the on-screen instructions.

2. Hold and rotate the aircraft horizontally 360 degrees, and the Aircraft Status Indicator will display a

solid green light.

User Manual

INSPIRE RAW

3. Hold the aircraft vertically with nose pointing downward, and rotate it 360 degrees around the center

axis. Recalibrate the compass if the Aircraft Status Indicator show solid red.

If the Aircraft Status Indicator blinks red and yellow after the calibration, move your aircraft to a

different location to carry out compass calibration.

Launch DJI GO App, follow the on-screen instruction to calibrate the compass.

When to Recalibrate

1. When compass data is abnormal, and the Aircraft Status Indicator is blinking red and yellow.

2. When the mechanical structure of the Inspire 1 RAW has changed, i.e. changed mounting position of

the compass.

3. When severe drifting occurs in ight, i.e. the Inspire 1 RAW does not y in straight lines.

Auto Take-off and Auto Landing

Auto Take-off

Use auto take-off to take off your aircraft automatically if the Aircraft Status Indicator displays blinking

green. Follow the steps below to use auto take-off:

1. Launch DJI GO app, enter camera page.

2. Ensure the aircraft is in “P” mode.

3. Go through the pre-ight checklist.

4. Tap“

”, and conrm ight condition. Slide to conrm and take-off.

5. Aircraft takes off and hovers at 1.5 meters above ground.

User Manual

INSPIRE RAW

Auto-Landing

Use auto-landing to land your aircraft automatically if the Aircraft Status Indicator displays blinking green.

Follow the steps below to use auto-landing:

1. Ensure the aircraft is in “P” mode.

2. Check the landing area condition before tapping “ ”, to perform landing.

3. Aircraft lowers the landing gear and proceed to land automatically.

Landing gear will automatically raise when the aircraft reaches an altitude of 1.5 m for the rst

time, and automatically lower every time it descends to 0.8 m. Users can turn this feature ON/

OFF in the DJI GO app.

Starting/Stopping the Motors

Starting Motors

The Combination Stick Command (CSC) listed below are used to start the motors instead of simply push-

ing the stick up. Ensure that you perform the CSC in one motion.

Flight Test

Take off/Landing Procedures

1. Place the aircraft on open, at ground with battery indicators facing towards you.

2. Power on the remote controller and your mobile device, then the Intelligent Flight Battery.

3. Launch the DJI GO App and enter the Camera page.

4. Wait until the Aircraft Indicator blinks green. This means the Home Point is recorded and it is safe to y

now. If it ashes yellow, it means Home Point is not recorded, and you should not take off.

5. Push the throttle up slowly to take off or using Auto Take-off to take off.

Stopping Motors

There are two methods to stop the motors.

Method 1: When the Inspire 1 RAW has landed, push the throttle down , then conduct CSC . Motors

will stop immediately. Release both sticks once motors stop.

Method 2: When the aircraft has landed, push the throttle down and hold. The motors will stop after 3

seconds.

Do not perform CSC when aircraft is in midair, otherwise the motors will be stopped.

User Manual

INSPIRE RAW

6. Shoot photos and videos using the DJI GO app.

7. To land, hover over a level surface and gently pull down on the throttle slowly to descend.

8. After landing, execute the CSC command or hold the throttle at its lowest position for 3 seconds or

more until the motors stop.

9. Turn off the Intelligent Flight Battery rst, followed by the Remote Controller.

When the Aircraft Status Indicator blinks yellow rapidly during ight, the aircraft has entered Failsafe

mode.

A low battery level warning is indicated by the Aircraft Status Indicator blinking red slowly or

rapidly during ight.

Watch video tutorials about ight for more ight information.

Video Suggestions and Tips

1. Work through the checklist before each ight.

2. Select desired gimbal working mode in the DJI GO app.

3. Aim to shoot when ying in P mode only.

4. Always y in good weather, such as sunny or windless days.

5. Change camera settings to suit you. These include photo format and exposure compensation.

6. Perform ight tests to establish ight routes and scenes.

7. Push the sticks gently to make aircraft movements stable and smooth.

FAQ

Troubleshooting (FAQ)

1. How can I put a GoPro camera on the Inspire 1 RAW?

he Inspire 1 RAW does not currently support GoPro attachments. The gimbal is designed to hold DJI

cameras only.

2. When will ground station functionality be available?

The Inspire 1 RAW does not currently support ground station. Ground station will be available with

future firmware updates.

3. Isthecamera’sexposureautomatic?

The exposure can be set to Auto, for automatic changes, or Manual, if you wish to use a specific setting.

4. Can I see the size of images through the app?

Yes, you can preview image or video sizes through the DJI GO app.

5. How much weight can the Inspire 1 RAW carry without its included camera?

We do not recommend flying with any payload other than the included DJI gimbal and camera.

6. Do you have an LCD monitor available for the Inspire 1 RAW?

No, DJI does not sell LCD or HD monitors for the Inspire 1 RAW. However, you can output the live

streaming video to a compatible monitor or mobile device of your own.

7. How long does it take to charge the battery? Does it comes with a charger?

Yes, all Inspire 1 RAW units come with standard TB47 charger.

With the standard TB47 100W charger, it takes 85min to fully charge a 4500mAh battery.

8. Are the two remote controllers the same? Should I setup the remote controllers in the app or

somewhere else to control the camera and aircraft separately?

The two remote controllers are physically identical. You can set the remote controllers to either "Primary"

or "Secondary" through the DJI GO app if you wish to use dual controller mode.

9. WherecanIfindinfoonthesimulationapplicationthatplugsintothetrainerport?Canyousuggesta

simulation program?

There is no trainer port on the remote controller for the Inspire 1 RAW.

10. Can the mobile device holder be used on the Phantom 2 series remote controller?

No, it cannot. The mobile device holder can only be used with the Inspire 1 RAW remote.

11. Does the Inspire 1 RAW have a SD card included?

The Inspire 1 RAW comes with a 16GB micro-SD card. It supports SD cards up to 64GB.

12. Can I upgrade and buy a second remote controller if I only buy a single remote controller now?

Yes.

13. How big is the Inspire 1 RAW?

Its length x height x width dimensions without the propellers attached are 44 x 30 x 45cm (17.3 x 11.8 x 17.7in).

User Manual

INSPIRE RAW

14.WhatightcontrollerdoestheInspire1RAWuse?

The Inspire 1 RAW uses its own new ight controller.

15. Which motors and propellers does the Inspire 1 RAW come with?

The Inspire 1 RAW uses 3510H motors and 1345T propellers.

16. Aircraft frame arm joints appear loosen, is that normal?

The space of the joins shown in the below gure is normal and it will not affect the performance of

aircraft, do not adjust the position of the screws on your own.

17. Failed to complete self-check?

Place the aircraft on the at surface before powering on. Do not move the aircraft during the self-

check.

Appendix

Specications

Aircraft

Model T600

Weight

2870 g (Battery and propellers included, Zenmuse X5R excluded)

3453 g (Battery, propellers and Zenmuse X5R included)

Max Takeoff Weight 3500 g

Hovering Accuracy (P Mode)

Vertical: 0.5 m

Horizontal: 2.5 m

Max Angular Velocity

Pitch: 300°/s

Yaw: 150°/s

Max Tilt Angle 35°

Max Ascent Speed 5 m/s

Max Descent Speed 4 m/s

Max Speed 18 m/s (ATTI mode, no wind)

Max Service Ceiling Above

Sea Level

4,500 m (Software altitude limit: 120 m above takeoff point)

Max Wind Speed Resistance 10 m/s

Max Flight Time Approx. 15 minutes

Motor Model DJI 3510H

Propeller Model DJI 1345T

Indoor Hovering Enabled by default

Operating Temperature 14° to 104° F (-10° to 40° C)

Diagonal Distance 559 mm

Gimbal and Camera

General

Name Zenmuse X5R

Operating Temperature 32° to 104° F (0° to 40° C)

Camera

Lens

Replaceable lens

M43 mount supporting auto-focus

Supported Lenses

DJI MFT 15mm f/1.7 ASPH

Panasonic Lumix G Leica DG Summilux 15mm f/1.7 ASPH

Olympus M.Zuiko Digital ED 12mm f/2.0

Olympus M.Zuiko 17mm f/1.8 (Balancing ring will be available on the

DJI Store soon)

Sensor Type 4/3 CMOS sensor

Effective Pixels 16 M

User Manual

INSPIRE RAW

ISO Range Photo: 100-25600; Video: 100-6400

Electronic Shutter Speed Photo: 8s-1/800s; Video: 1/25s-1/8000s

Field of View DJI MFT 15mm f/1.7 ASPH 72°

Still Photography Modes

Single shot

Burst shooting:3/5/7 frames

Auto Exposure Bracketing (AEB):3/5 bracketed frames at 0.7EV bias

Timelapse (3/5/7/10/20/30/60 sec); HDR

Video Resolution

UHD: 4K (4096×2160) 24/25p, 4K (3840×2160) 24/25/30p, 2.7K

(2704×1520) 24/25/30p

FHD: 1920×1080 24/25/30/48/50/60p

Max Video Bitrate Micro SD: 60 Mbps; X5R SSD: 2.4 Gbps (Avg: 1.7 Gbps)

Micro SD File Systems FAT32 (≤ 32 GB), exFAT (> 32 GB)

Photo Formats JPEG, DNG (RAW)

Video Formats

Micro SD: MP4/MOV (codec: H.264);

X5R SSD: CinemaDNG (codec: Lossless JPEG)

Supported Micro SD Devices Class 10 or UHS-1 or above Micro SD cards; Max capacity of 64GB

Supported Storage Devices

Class 10 or UHS-1 or above Micro SD cards

Max capacity of 64 GB

Default Lens

Name DJI MFT 15mm f/1.7 ASPH

Focal Length f=15 mm (35 mm format equivalent 30 mm)

Aperture Type 7 diaphragm blades/circular aperture diaphragm

Maximum Aperture F1.7

Minimum Aperture F16

Lens Construction 9 elements in 7 groups (3 aspherical lenses)

In Focus Distance 0.2 m to ∞ (from the focus distance reference line)

Mount Micro Four Thirds Mount

Angle of View 72°

Max Diameter Approx. 2.26 inches (57.5 mm)

Overall Length Approx. 1.42 inches (36 mm)

Weight Approx. 115 g

Gimbal

Angular Vibration Range ±0.02°

Mount Detachable

Controllable Range

Pitch:-90° to +30°

Pan:±320°

Max Controllable Speed

Pitch:120°/s

Pan:180°/s

User Manual

INSPIRE RAW

Remote Controller

Name C1

Operating Frequency

922.7MHz~927.7 MHz (Japan Only)

5.725~5.825 GHz;2.400~2.483 GHz

Max Transmitting Distance

FCC Compliant: 3.1 miles (5 km); CE Compliant: 2.1 miles (3.5 km)

(unobstructed, free of interference)

EIRP 10 dBm@900 MHz, 13 [email protected] GHz, 20 [email protected] GHz

Video Output Ports USB, Mini HDMI

Power Supply Built-in battery

Charging DJI charger

Dual User Capability

Primary-and-Secondary connection

Max Mobile Device Width 170 mm

Output Power 9 W

Operating Temperature 14° to 104° F (-10° to 40° C)

Storage Temperature

Less than 3 months: -4° to 113° F (-20° to 45° C)

More than 3 months: 72° to 82° F (22° to 28° C)

Charging Temperature 32° to 104° F (0° to 40° C)

Battery 6000 mAh 2S LiPo

Charger

Model A14-100P1A

Voltage 26.3 V

Rated Power 100 W

Battery (Standard)

Name Intelligent Flight Battery

Model TB47

Capacity 4500 mAh

Voltage 22.2 V

Battery Type 6S LiPo High voltage battery

Energy 99.9 Wh

Net Weight 570 g

Operating Temperature 14° to 104° F (-10° to 40° C)

Storage Temperature

Less than 3 months: -4° to 113° F (-20° to 45° C)

More than 3 months: 72° to 82° F (22° to 28° C)

Charging Temperature 32° to 104° F (0° to 40° C)

Max Charging Power 180 W

User Manual

INSPIRE RAW

Battery (Optional)

Name Intelligent Flight Battery

Model TB48

Capacity 5700 mAh

Voltage 22.8 V

Battery Type 6S LiPo High voltage battery

Energy 129.96 Wh

Net Weight 670 g

Operating Temperature 14° to 104° F (-10° to 40° C)

Storage Temperature

Less than 3 months: -4° to 113° F (-20° to 45° C)

More than 3 months: 72° to 82° F (22° to 28° C)

Charging Temperature 32° to 104° F (0° to 40° C)

Max Charging Power 180 W

Max Flight Time Approx. 18 minutes

Vision Positioning

Velocity Range < 8 m/s @altitude 6.56 feet (2 m)

Altitude Range 0.16 - 16.4 feet (5-500 cm)

Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

Operating Range < 9.84 feet (300 cm)

Aircraft Status Indicator Description

Normal

Red, Green and Yellow Flash

Alternatively

Power on and self-check

Green and Yellow Flash Alternatively Aircraft warming up

Green Flashes Slowly Safe to Fly (P mode with GPS and Vision Positioning)

X2 Green Flashes Twice Safe to Fly (P mode with Vision Positioning but without GPS)

Yellow Flashes Slowly Safe to Fly (A mode but No GPS and Vision Positioning)

Warning

Fast Yellow Flashing Remote Controller Signal Lost

Slow Red Flashing Low Battery Warning

Fast Red Flashing Critical Low Battery Warning

Red Flashing Alternatively IMU Error

—

Solid Red Critical Error

Red and Yellow Flash Alternatively Compass Calibration Required

User Manual

INSPIRE RAW

Intelligent Flight

Intelligent Flight mode includes Course Lock, Home Lock, Point of Interest (POI), Follow Me and

Waypoints features to assist users to create professional shoots during the ight. Course Lock and Home

Point lock helps to lock the orientation of aircraft so that the user can focus more on other operations.

Point of Interest, Follow Me and Waypoints mode enable aircraft to y automatically according to the pre-

set ight maneuvers.

Course Lock

Lock the current nose direction as the aircraft’s forward direction. The aircraft

will move in the locked directions regardless of its orientation (yaw angle).

Home Lock

Pull the pitch stick backward to move the aircraft toward its recorded Home

Point.

Point of Interest

The aircraft will orbit around the subject automatically to allow the operator

can be more focus on framing their shoot on the subject in Point of Interest.

Waypoints

Record a ight path, then the aircraft will y along the same path repeatedly

while you control the camera and orientation. The ight path can be saved

and re-apply in the future.

Enable Multiple Flight Mode by launching the DJI GO app > Camera View >

> Advanced Settings >

Multiple Flight Mode before using the Intelligent Flight Mode for the rst time.

How to Update Firmware

Follow the process described below to upgrade the aircraft, remote controller and battery.

Updating the Aircraft Firmware

Step 1- Check Battery and SD Card Capacity

Ensure the Intelligent Flight Battery has at least 50% power and there is at least 100 MB of free space on

the SD card.

Step 2- Prepare the Firmware Update Package

1. Download the firmware update package from the official DJI website (http://www.dji.com/product/

inspire-1-pro-and-raw).

2. Insert the SD card into your PC. Extract the all downloaded les into the root directory of the SD card.

Remove the SD card from your PC. Ensure the aircraft is powered off then insert the SD card into the

SD card slot on the camera.

Step 3- Update the Aircraft

1. Ensure the remote controller is powered off and then power on the aircraft. Upgrade will begin

automatically after aircraft is powered on.

2. It will take approximately 25 minutes to complete the rmware update. The camera status indicator

will blink green and red to indicate the upgrade is in progress and stop blinking when the update is

complete with success.

3. Check the upgrade status by opening the “.txt” le that is automatically generated after the update.

The update is successful if the text “result: successful” is in the document. Try upgrading the rmware

again if the text “result: failed” is found or the camera status indicator shows solid red.

User Manual

INSPIRE RAW

Please note that rmware update may reset various Main Controller Settings, such as the RTH

Altitude and Maximum Flight Distance, to factory defaults. Before the update, take note of your

preferred DJI GO 4 settings, and readjust them after the update to suit your preference.

Updating the Remote Controller Firmware

Ensure the DJI GO app has been updated to v1.2.0 before updating the remote controller. The

System Status bar in Camera View of the DJI GO App will ash several times if a rmware update is

available. Follow these steps to update the rmware via the DJI GO App.

Step 1- Check Battery and SD Card Capacity

1. The remote controller has at least 50% battery level.

2. Your mobile device is able to access the internet.

3. There is at least 30 MB of free space on your mobile device.

Step 2- Download and Update the Firmware

1. Go to the DJI GO App > Camera View > System Status bar > Overall Status. Tap Download the

firmware update package to download and update the firmware. Track the update progress from

progress bar in the DJI GO App. The status LED on the remote controller will blink blue during update

and blink green when update is complete with success.

Firmware update through the DJI GO app will not work with older versions of the remote controller

rmware. If the rmware update fails, follow the instructions below to update the rmware using the

traditional method:

a. Update the latest rmware package les from DJI ofcial web site.

b. Extract all downloaded les into the root directory of an SD card or USB ash drive.

c. Turn off the remote controller, Insert the SD card into a SD card reader or the USB disk onto the

remote controller USB port when remote controller is turned off.

d. Power on the remote controller and wait 60 seconds until the upgrade begins. Do not power off

the remote controller during the update.

e. It will take approximately 10 minutes to complete the rmware update. The camera will sound

a beeping sound and the Status LED on the remote controller shows solid blue to indicate the

update is in progress. The Status LED on remote controller shows solid green and beeping

sound will stop if the upgrade is completed with success.

f . If you do not have a SD card reader, you may insert the SD card into the gimbal and connect the

gimbal with remote controller to upgrade the remote controller.

You will only be able to update the remote controller rmware through the DJI GO app from

this point onwards.

Make sure to update your aircraft and gimbal before updating the Remote Controller.

Otherwise, the Remote Controller will be disconnected to the aircraft due to rmware version

not matched.

User Manual

INSPIRE RAW

Updating Intelligent Flight Battery Firmware

The Intelligent Flight Battery is upgraded during the aircraft rmware upgrade process. It is recommended

to keep the upgrade package files in your SD card. The upgrade will start automatically after power

cycling the aircraft.

Ensure there is only one rmware package le stored on your SD card.

Only storage devices that are formatted for FAT32 and exFAT le systems are supported for

aircraft and remote controller rmware updates.

Ensure the internet connection of your mobile device is stable when downloading the rmware

update package.

Turn on Airplane Mode on your mobile device before updating the rmware, as any incoming

calls may disrupt the update process.

Do not perform rmware update while the aircraft is still ying in the air. Only carry out rmware

update when the aircraft is landed.

Be sure to update the remote controller’s rmware to the latest version after you upgrade the

aircraft’s rmware.

The remote controller may become unlinked from the aircraft after updating. Re-link the remote

controller and aircraft.

Conrm the update results based on the blinking pattern of camera status indicator or gimbal

sound. It is normal for the aircraft to sound or the LED to blink during the update process.

DJI incorporates HDMI

technology.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI

Logo are trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

This content is subject to change.

Download the latest version from

www.dji.com/product/inspire-1-pro-and-raw

If you have any questions about this document, please contact DJI by

sending a message to

[email protected]

Dji ZENMUSE X5R RAW Camera and 3-Axis Gimbal

Product's Documents

User Manual

Specifications

Dji ZENMUSE X5R Questions and Answers

Related Products

Dji OSMO PRO AND RAW Camera

Dji OSMO PRO AND RAW Camera
