User manual Water Filter for AmazonBasics AMZN-HF-360A

Installation

  • Turn off water supply (A) and open nearest faucet to drain pipes before installation. Apply about 6 in (15 cm) of plumbers tape (B) in a clockwise direction to pipe threads of each adapter.
  • If using an optional UB-1 mounting bracket (sold separately), proceed and use the bracket as a template to mark screw locations. Then place the bracket over the cap and align with inlet and outlet ports. Otherwise skip to Step 3.
  • Assemble all fittings. Start screwing adapters into cap by hand. Use a wrench to tighten firmly. Do not over tighten. About one thread should remain visible.
  • Measure length (shown as X on diagram) across assembled fittings and subtract 1 in (25.4 mm) for 3/4-inch (19 mm) pipe or 1-1/2 in (38.1 mm) for 1/2 in (12.7 mm) pipe. Mark section of pipe to be removed.
  • Using a pipe cutter or hacksaw, cut and remove marked section of pipe. File or sand sharp edges on remaining pipe.
  • Slip brass compression nut and ferrule onto each end of 3/4 in(19 mm) pipe. If installing on 1/2 in( 12.7 mm) pipe, substitute rubber ferrule for brass ferrule.
  • Align filter assembly with ends of pipe, making certain the cap opening marked "IN" is facing your incoming water supply. It will be necessary to spread ends of pipe apart to install filter assembly. Using two adjustable Wrenches, hold incoming fitting securely with one wrench and tighten nut with second wrench. Repeat process for outgoing fitting.
  • Turn on main water supply. Slowly turn handle on housing 1/4 turn counterclockwise to allow system to fill with water. Press red pressure-relief button on top of filter to release trapped air. Check for leaks, then rotate handle fully to "ON" position. Open nearest faucet and flush filter cartridge for 5 minutes.

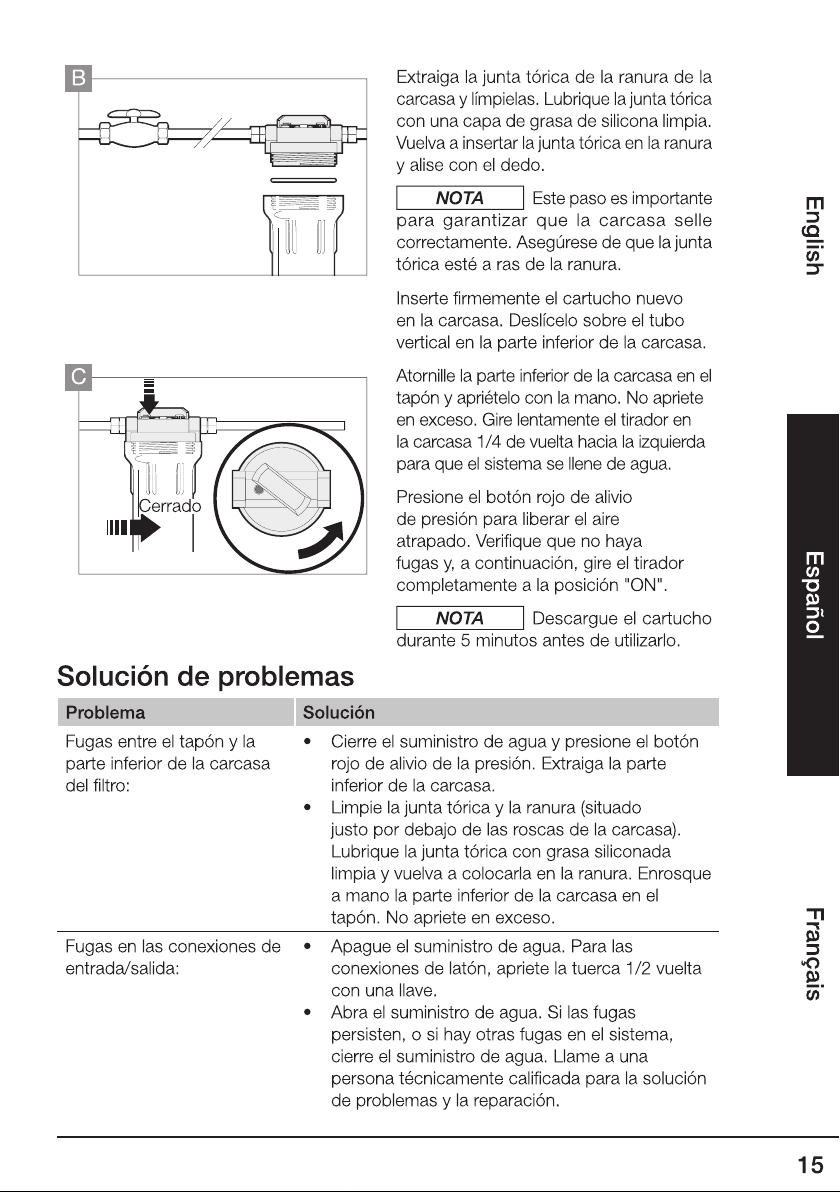

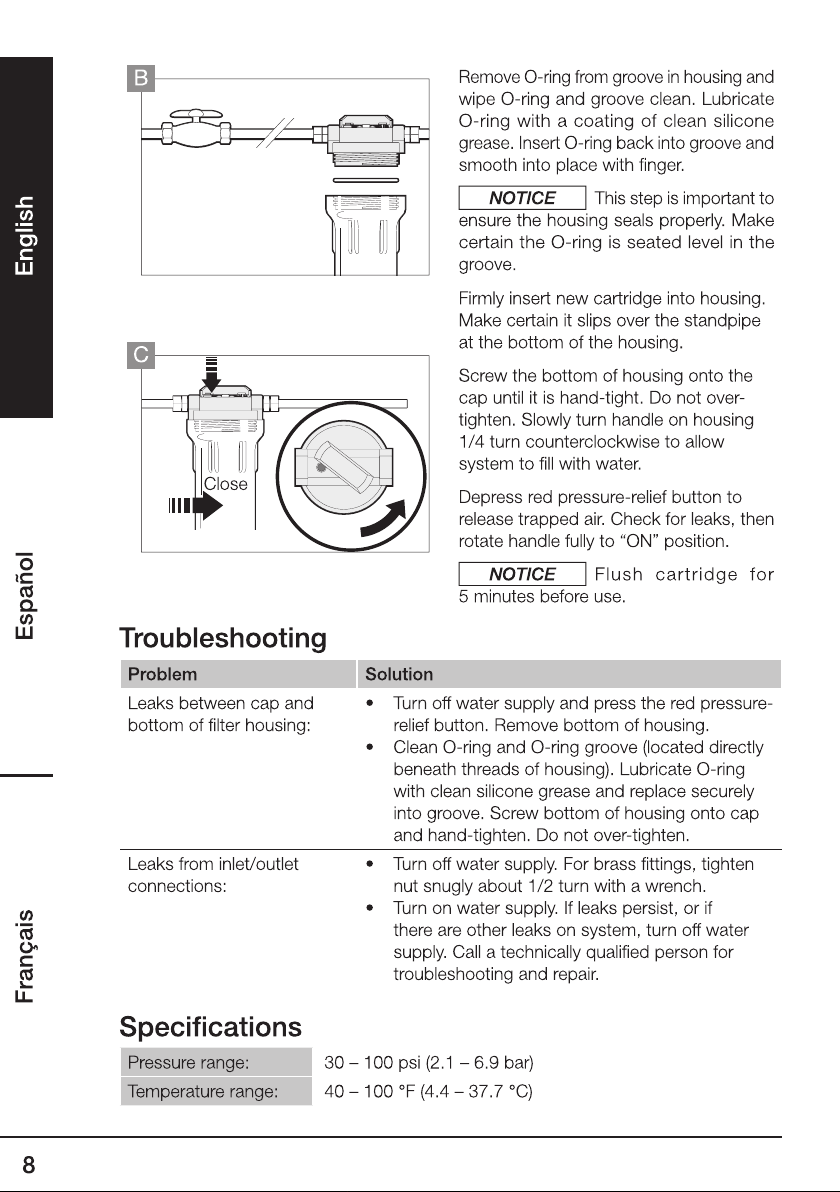

Filter Cartridge Replacement

  • Turn water off by rotating handle on top of housing in a clockwise direction. NOTICE This will shut off all water flow within the household. Depress red pressure-relief button to relieve pressure. Unscrew bottom of housing. Discard used cartridge.
  • Rinse out housing and fill 1/3 with water. Add 2 tablespoons of bleach and scrub with non-abrasive brush or sponge. Rinse thoroughly.
  • Remove O-ring from groove in housing and wipe O-ring and groove clean. Lubricate O-ring with a coating of clean silicone grease. Insert O-ring back into groove and smooth into place with finger.
  • Firmly insert new cartridge into housing. Make certain it slips over the standpipe at the bottom of the housing.
  • Screw the bottom of housing onto the cap until it is hand-tight. Do not over tighten. Slowly turn handle on housing 1/4 turn counterclockwise to allow system to fill with water.
  • Depress red pressure-relief button to release trapped air. Check for leaks, then rotate handle fully to "ON"position. NOTICE Flush cartridge for 5 minutes before use.

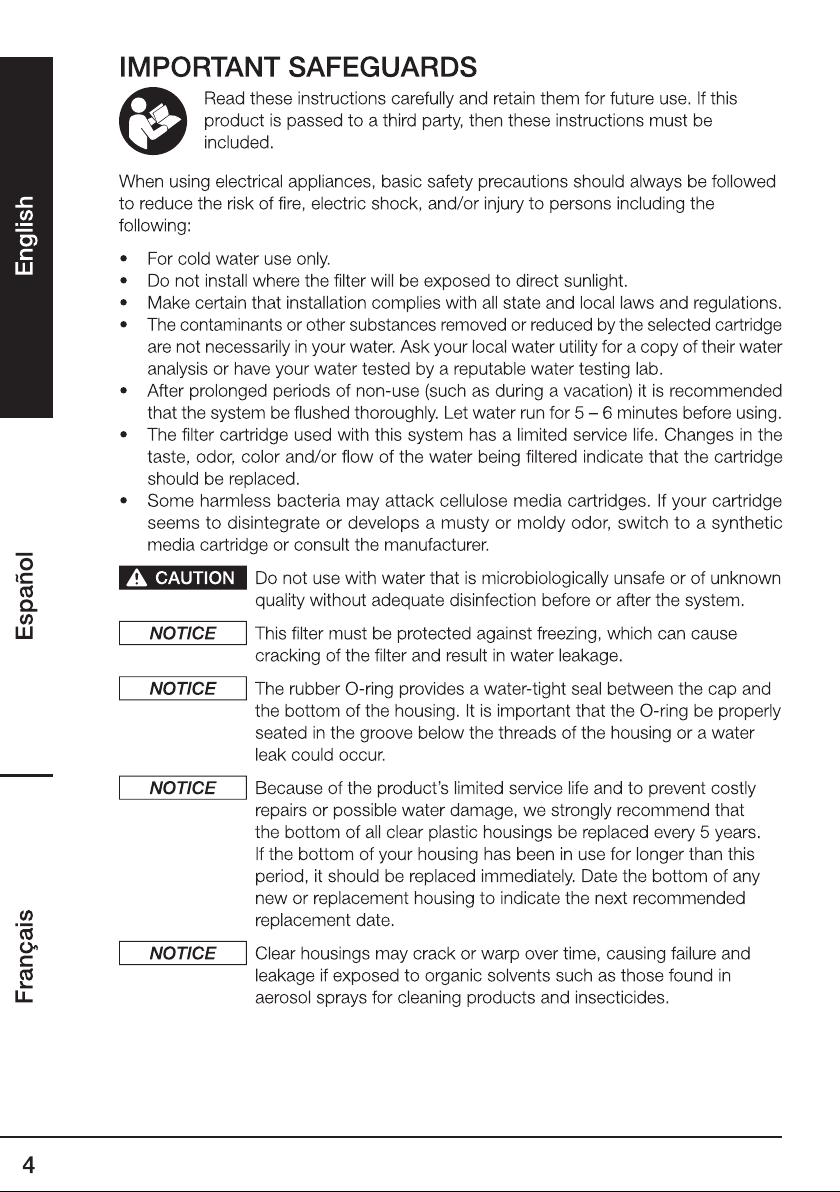

IMPORTANT SAFEGUARDS

  • NOTICE: This filter must be protected against freezing, which can cause cracking of the filter and result in water leakage.
  • NOTICE: The rubber O-ring provides a water-tight seal between the cap and the bottom of the housing. It is important that the O-ring be properly seated in the groove below the threads of the housing or a water leak could occur.
  • NOTICE: Because of the product's limited service life and to prevent costly repairs or possible water damage, we strongly recommend that the bottom of all clear plastic housings be replaced every 5 years. If the bottom of your housing has been in use for longer than this period, it should be replaced immediately. Date the bottom of any new or replacement housing to indicate the next recommended replacement date.
  • NOTICE: Clear housings may crack or warp over time, causing failure and leakage if exposed to organic solvents such as those found in aerosol sprays for cleaning products and insecticides.
