User Manual Fisher & Paykel RF610AZUB5 569L French Door Fridge

Documents for Fisher & Paykel RF610AZUB5

The following documents are available:
User Manual Specification Photos
RF610AZUB5 photo
INSTALLATION GUIDE/USER GUIDE
NZ AU GB IE EU AE HK SG
E72B, E402B, E442B, E522B, RF72B, RF402B, RF442B,
RF522B, RF522W, RF522A, RF610A & RF540A
ACTIVESMART™ REFRIGERATOR
CONTEMPORARY STYLE
ICE & WATER, AUTOMATIC ICE
NON-ICE & WATER
Loading ...
Loading ...
Loading ...

Specifications

Fisher & Paykel RF610AZUB5 Questions and Answers

Find answers or Ask a question.


  • Total questions: 1
  • Questions unAnswered : 1

#1 I have a F & P RF610ADUX1 fridge and the display is no longer working. As a result the water dispenser and ice maker has stopped working. I have turned it off for 20-30mins as well as tried the deactivate the Sabbath mode and nothing seems to work. Can you please assist?

F31 is No display signal received (shorted or broken wire) clock or data line. Can you fix it, probably - if you pull out the display module and check the wiring.

#2 is it frost free and does it use an inverter?

It is frost free, and most likely has an inverter ( a separate black box next to the compressor)

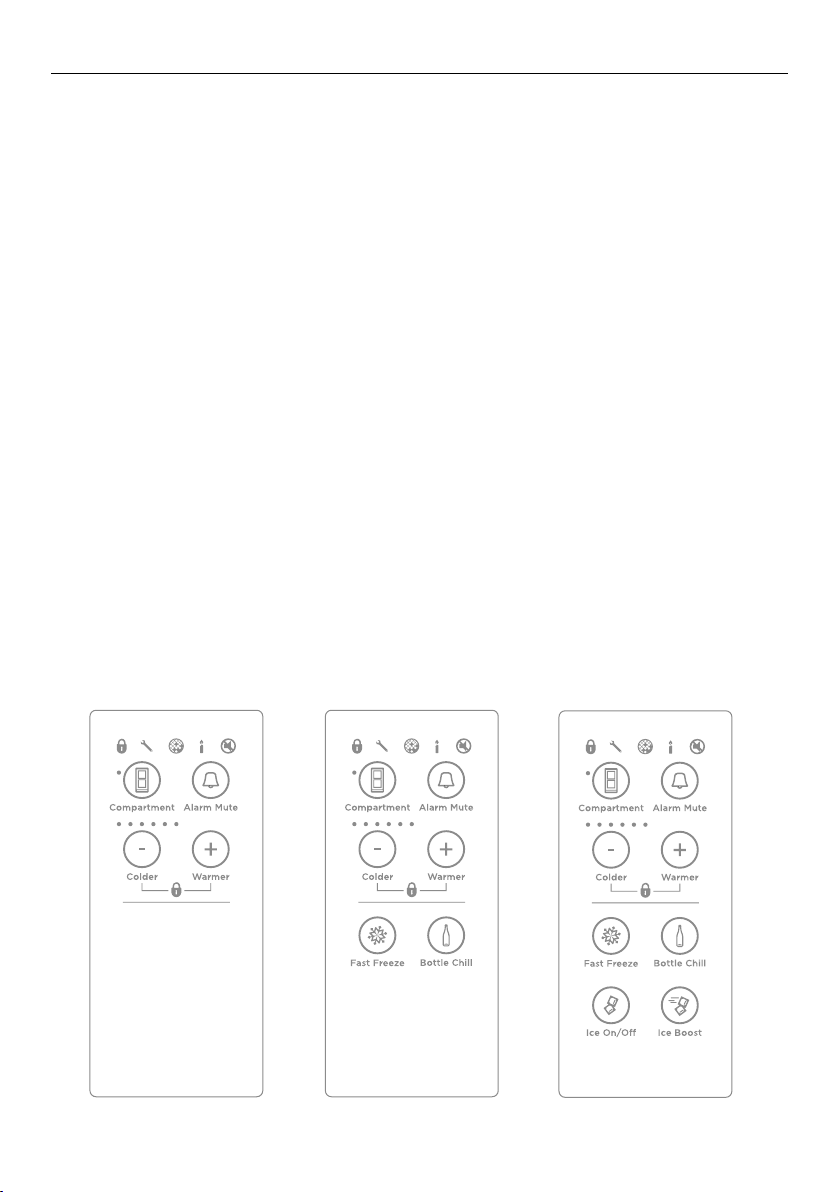

#3 Have a French Door model 610A and cannot locate, after about nine years, the control panel which should be on the RHS of the refrigerator section. Is it hidden in some way or am I totally on the wrong tram?

Yes. I think I had a magnetic calendar over it as we never connected the noisy icemaker

#4 How to cleaning Exterior doors?

- Clean the exterior door with liquid dishwashing detergent dissolved in warm water and a soft cloth.
- Dry the door with a lint-free cloth.
- Do not use any abrasive stainless steel cleaners, glass cleaners, solvents or scourer pads as these will damage the door surface.

#5 How to cleaning Cabinet surround?

- To maximise operating efficiency regularly vacuum the flooring around your appliance.
- Cleaning behind the appliance is required once or twice a year. More frequent cleaning may be necessary for dusty homes or those with pets shedding hair.
- To do this wind up the feet and carefully ease the refrigerator out of its position. Switch off and unplug.
- Vacuum the flooring behind your appliance and the rear compartment cover (where fitted) to remove dust accumulation. Use a dry lint-free cloth to clean the appliance walls and surrounding cabinetry.
- After cleaning, plug in and switch on. Push the appliance into position and wind feet down.
