Dimensions and Clearances
Dimensions and Clearances
Too small of a distance from adjacent items
may result in the degradation of freezing
capability and increased electricity costs. Allow
over 50 mm of clearance from each adjacent
wall when installing the appliance.
Ambient Temperature
•
•
The appliance is designed to operate within a
limited range of ambient temperatures,
depending on the climate zone. Do not use
the appliance at a temperature exceeding
the limit.
•
The internal temperature could be affected by
the location of the appliance, the ambient
temperature, the frequency of door opening
and so on.
•
The climate class can be found on the rating label.
Climate Class
Ambient Temperature
Range ºC
SN (Extended
Temperate)
+10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 - +38
T (Tropical) +16 - +43 / +10 - +43*
*Australia, India, Kenya
•
The appliances rated from SN to T are intended
to be used at an ambient temperature between
10 ºC and 43 ºC.

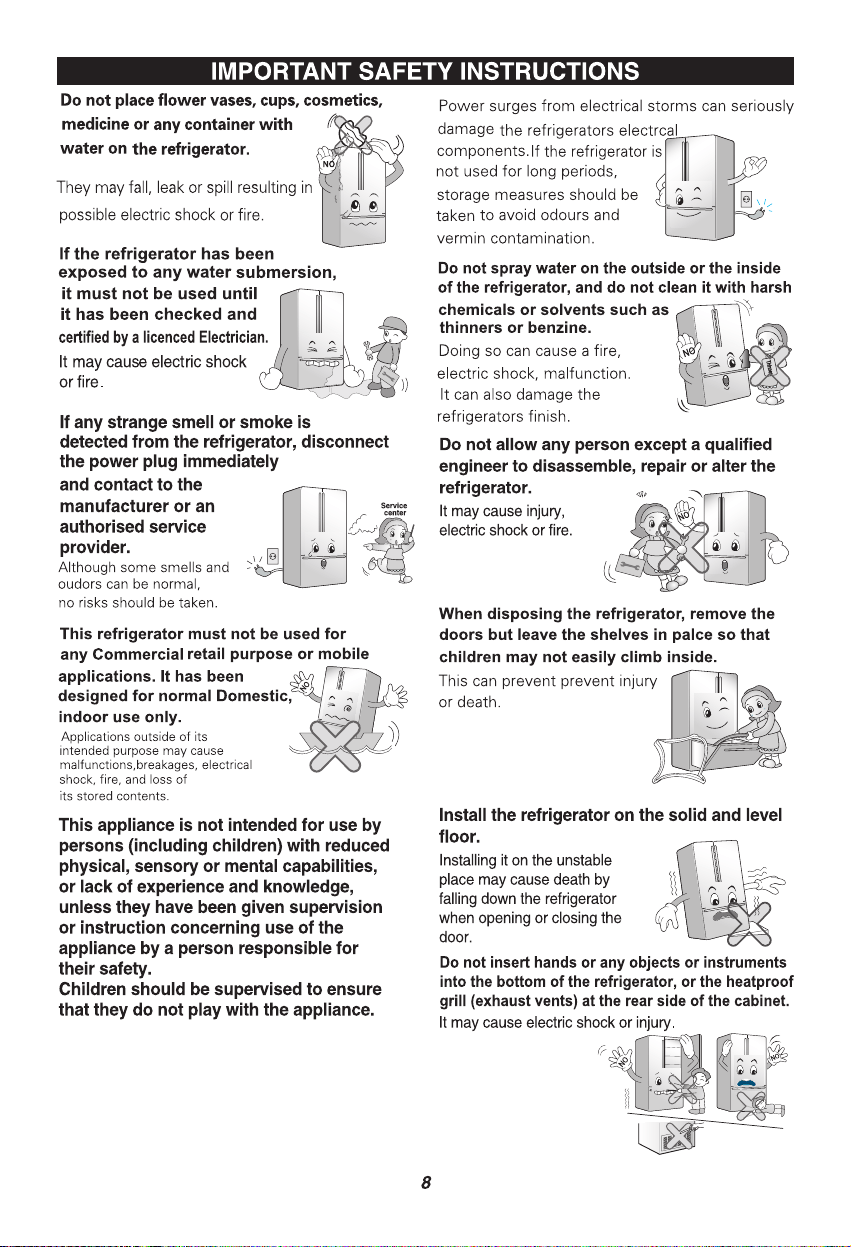

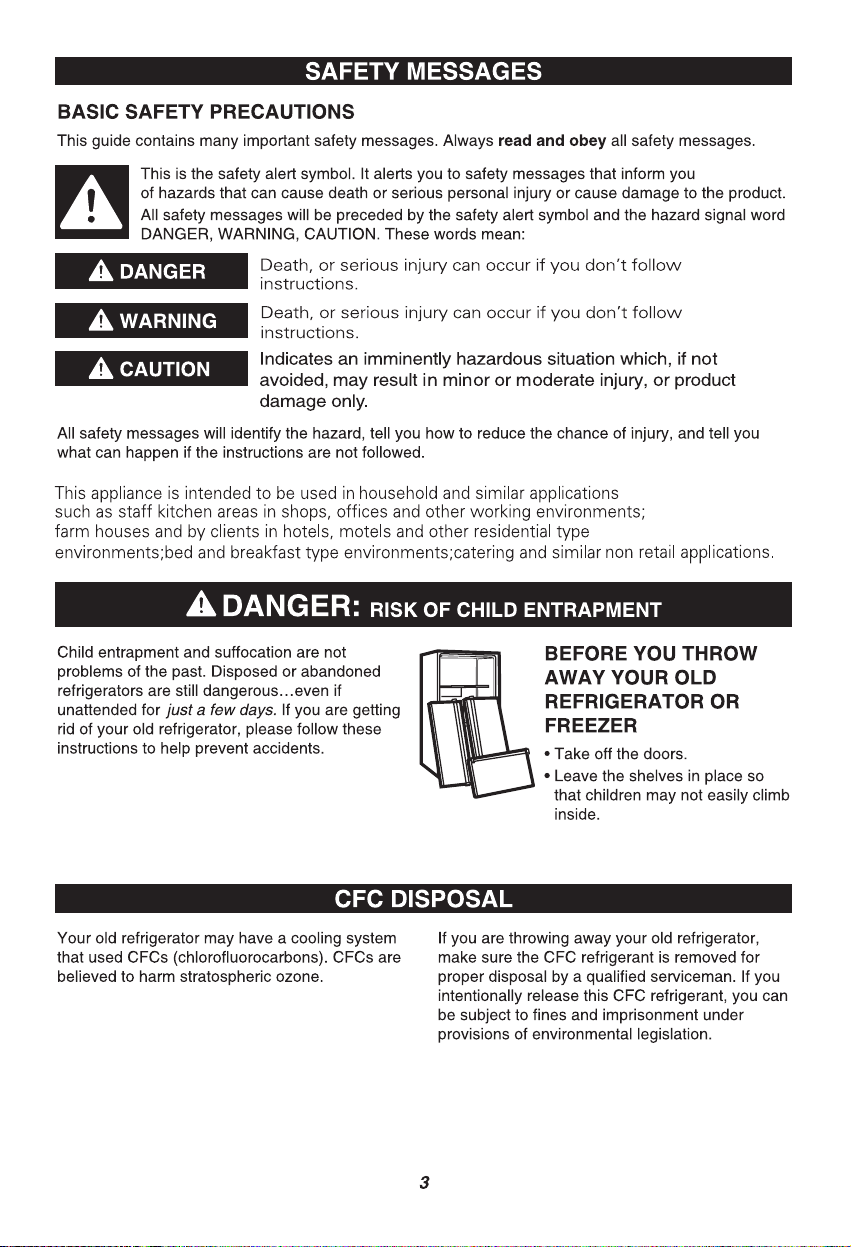

If the appliance is equipped with a lock (some
countries only), keep the key out of reach of children.
•
Do not place glass containers, bottles or cans
(especially those containing carbonated drinks) in the
freezer compartment, shelves or ice bin that will be
exposed to temperatures below freezing.
•

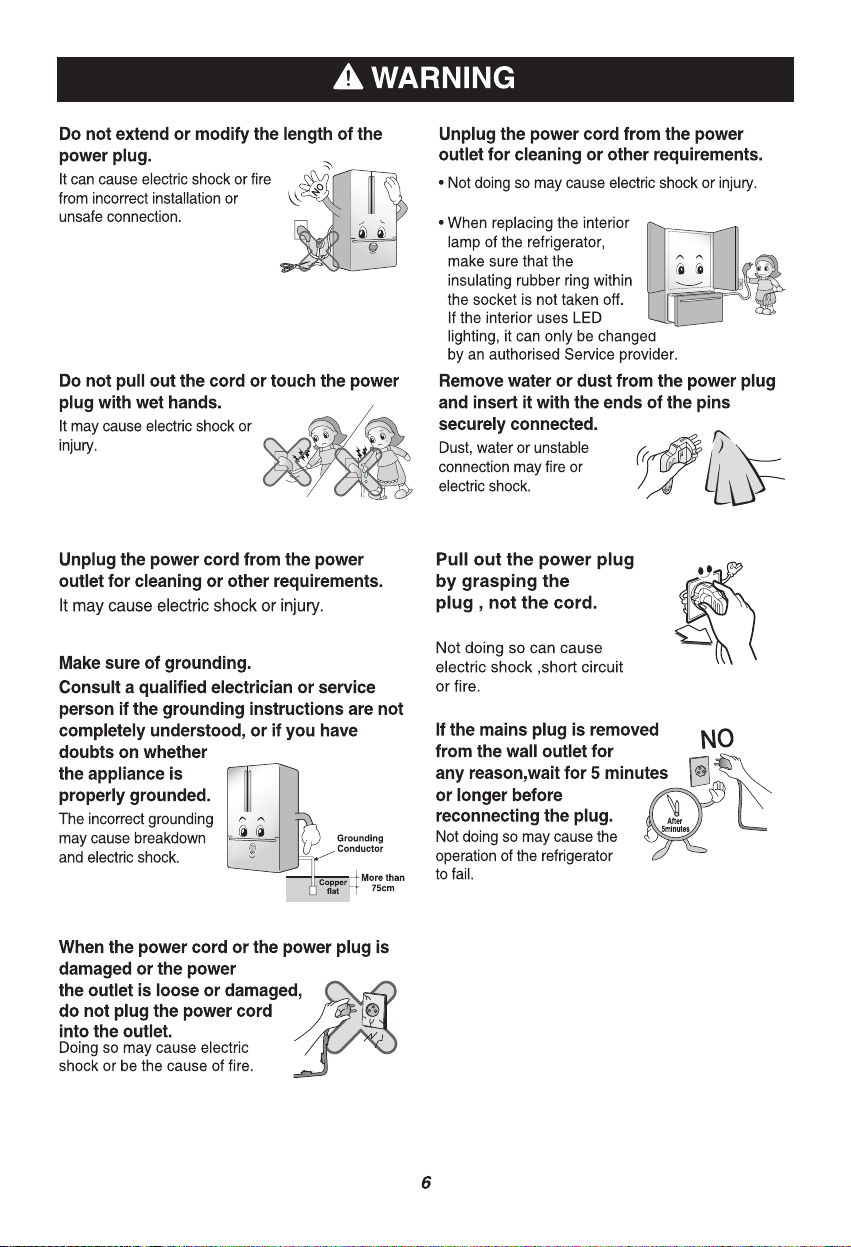

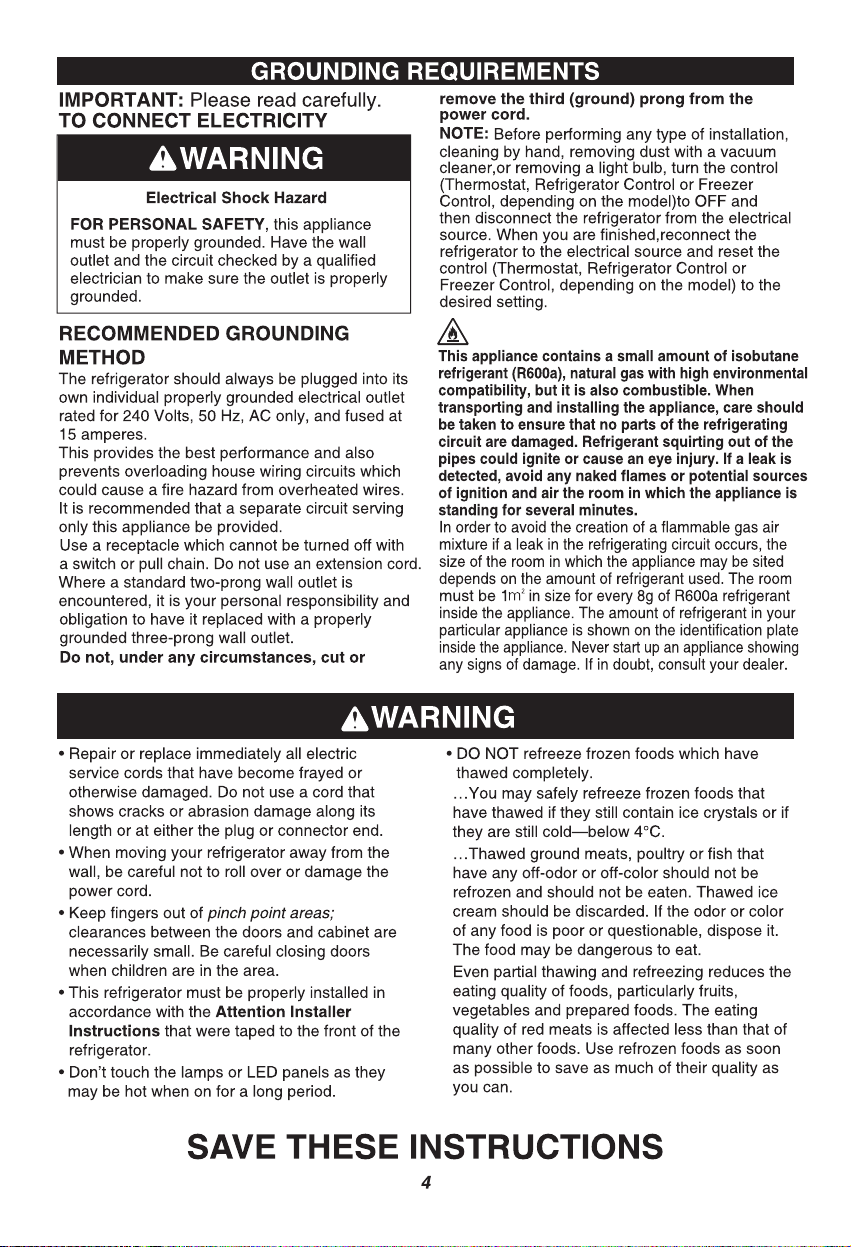

After installing the appliance, connect the power plug
into a socket outlet. Before moving and discarding the
appliance, disconnect the plug from the socket outlet.
•
If you are leaving the appliance turned off for an
extended period of time, remove all food and unplug
the power cord. Clean the interior, and leave the doors
slightly ajar to prevent mold from growing in the
appliance.
•
The automatic defrosting system in the appliance
ensures that the compartment remains free of ice
buildup under normal operating conditions.
•
If there are chill compartments in the appliance, do not
store vegetables and fruits with higher moisture content
in the chill compartments as they may freeze due to the
lower temperature.
•

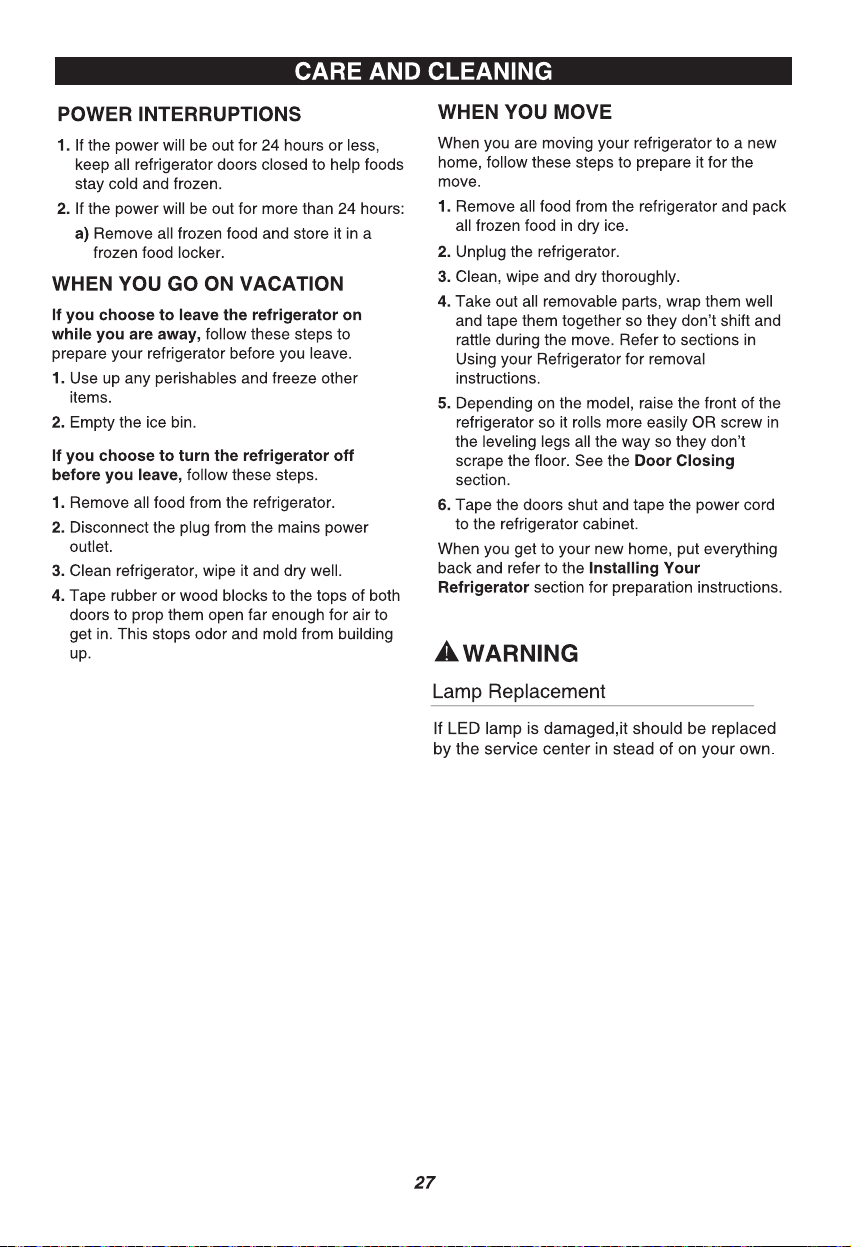

In the event of a blackout, call the electricity company
and ask how long it is going to last.
•
You should avoid door openings while the power is off.
•
When the power supply gets back to normal, check the
condition of the food.
A
H
E
K
FG
D
-
Size
A
908 mm
B
1771 mm
C
763 mm
D
21 mm
E
678 mm
F
742 mm
G
1304 mm
H
1737 mm
K
1692 mm
C
B
Vegetables
Vegetables
Fruit
Fruit
