QUICK REFERENCE GUIDE
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it
for future reference.
P/NO : MFL67415402 (1305-REV07)
22LT560C
26LT560C
32LT560C
37LT560C
42LT560C
32LT560E
37LT560E
42LT560E
47LT560E
55LS460E
2
ENG
ENGLISH

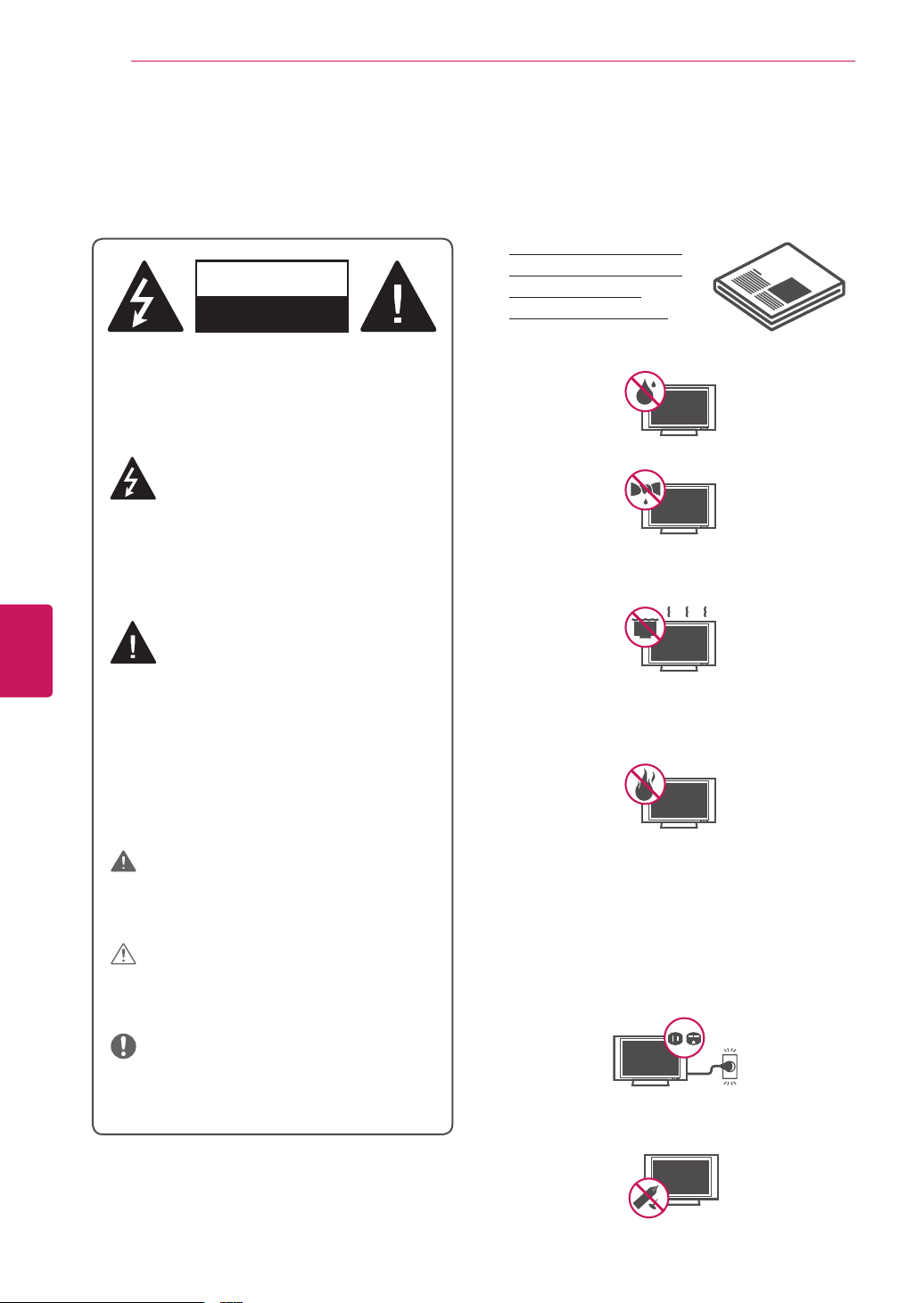

IMPORTANT SAFETY INSTRUCTIONS
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER
TO QUALIFIED SERVICE PERSONNEL.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
Do not use this apparatus near water.
Short-circuit
Breaker
Power Supply
Clean only with a dry cloth.
Short-circuit
Breaker
Power Supply
Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
Short-circuit
Breaker
Power Supply
Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
Short-circuit
Breaker
Power Supply
Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet (Can differ by country).
Short-circuit
Breaker
Power Supply
Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil or
pen, or make a scratch on it.
Short-circuit
Breaker
Power Supply
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance
of your product.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Short-circuit
Breaker
Power Supply
WARNING
: This product contains chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
Wash hands after handling.
WARNING
If you ignore the warning message, you may
be seriously injured or there is a possibility of
accident or death.
CAUTION
If you ignore the caution message, you may
be slightly injured or the product may be
damaged.
NOTE
The note helps you understand and use the
product safely. Please read the note carefully
before using the product.
3
ENG
ENGLISH

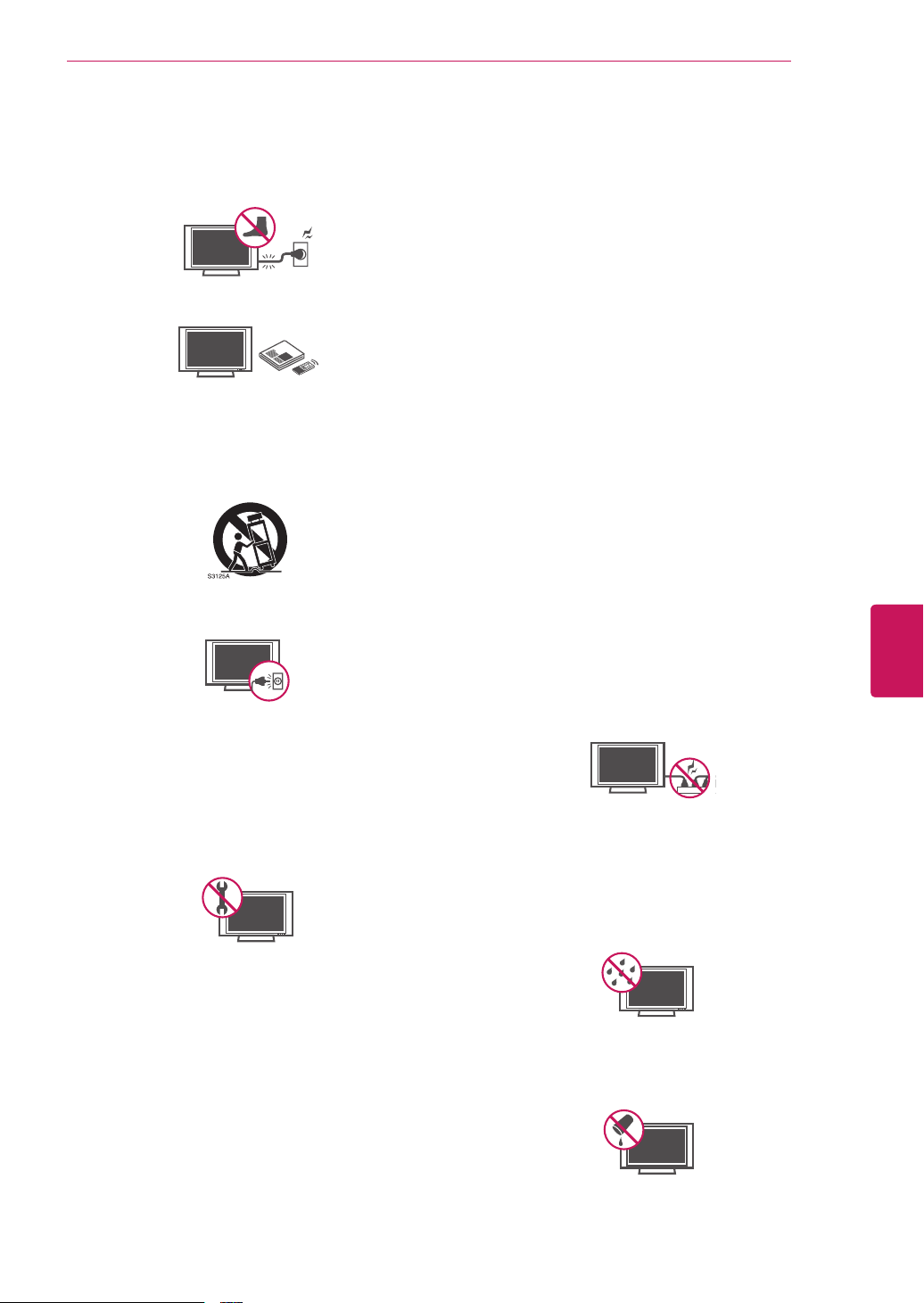

IMPORTANT SAFETY INSTRUCTIONS
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
Short-circuit
Breaker
Power Supply
Only use attachments/accessories specified
by the manufacturer.
Short-circuit
Breaker
Power Supply
Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Short-circuit
Breaker
Power Supply
Unplug this apparatus during lightning storms
or when unused for long periods of time.
Short-circuit
Breaker
Power Supply
Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
Short-circuit
Breaker
Power Supply
Do not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it is
plugged in.
Keep the packing anti-moisture material or
vinyl packing out of the reach of children. Anti-
moisture material is harmful if swallowed.
If swallowed by mistake, force the patient
to vomit and visit the nearest hospital.
Additionally, vinyl packing can cause
suffocation. Keep it out of the reach of
children.
CAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be
placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that
appliance and has no additional outlets or
branch circuits. Check the specification page
of this owner’s manual to be certain. Do not
connect too many appliances to the same
AC power outlet as this could result in fire or
electric shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire. Periodically
examine the cord of your appliance, and if its
appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance,
and have the cord replaced with an exact
replacement part by an authorized service.
Protect the power cord from physical or
mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits
the appliance. Do not move the TV with the
power cord plugged in. Do not use a damaged
or loose power cord. Be sure do grasp the
plug when unplugging the power cord. Do not
pull on the power cord to unplug the TV.
Short-circuit
Breaker
Power Supply
Warning
- To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such as
gasoline or candles, or expose the TV to direct
air conditioning.
Short-circuit
Breaker
Power Supply
Do not expose to dripping or splashing and do
not place objects filled with liquids, such as
vases, cups, etc. on or over the apparatus (e.g.
on shelves above the unit).
Short-circuit
Breaker
Power Supply
4
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground
wire to prevent possible electric shock (i.e. a
TV with a three-prong grounded AC plug must
be connected to a three-prong grounded AC
outlet). If grounding methods are not possible,
have a qualified electrician install a separate
circuit breaker. Do not try to ground the unit
by connecting it to telephone wires, lightening
rods, or gas pipes.
Short-circuit
Breaker
Power Supply
As long as this unit is connected to the AC
wall outlet, it is not disconnected from the AC
power source even if the unit is turned off.
Do not attempt to modify this product in
any way without written authorization from
LG Electronics. Unauthorized modification
could void the user’s authority to operate this
product.
Outdoor Antenna Grounding
(Can differ by
country):
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
the National Electrical Code (NEC) in the
U.S.A. provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Short-circuit
Breaker
Power Supply
Ground Clamp
Grounding Conductor
(NEC Section 810-21)
Antenna Lead in Wire
Electric Service
Equipment
Antenna Discharge Unit
(NEC Section 810-20)
Ground Clamp
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
NEC: National Electrical Code
Cleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other liquids
directly on the TV as electric shock may occur.
Do not clean with chemicals such as alcohol,
thinners or benzine.
Moving
Make sure the product is turned off,
unplugged and all cables have been removed.
It may take 2 or more people to carry larger
TVs. Do not press or put stress on the front
panel of the TV.
Ventilation
Install your TV where there is proper
ventilation. Do not install in a confined space
such as a bookcase. Do not cover the product
with cloth or other materials while plugged.
Do not install in excessively dusty places.
If you smell smoke or other odors coming
from the TV, unplug the power cord and
contact an authorized service center.
Keep the product away from direct sunlight.
Never touch this apparatus or antenna during
a thunder or lightning storm.
When mounting a TV on the wall, make sure
not to install the TV by hanging the power and
signal cables on the back of the TV.
Do not allow an impact shock or any objects to
fall into the product, and do not drop anything
onto the screen.
Disconnecting the Main Power
The power outlet used with this device must
remain easily accessible.
Store the accessories (battery, etc.) in a safe
location out of the reach of children.
This apparatus use batteries. In your
community there might be regulations that
require you to dispose of these batteries
properly due to environmental considerations.
Please contact your local authorities for
disposal or recycling information.
Do not dispose of batteries in a fire.
Do not short circuit, disassemble or allow the
batteries to overheat.
Dot Defect
The Plasma or LCD panel is a high technology
product with resolution of two million to six
million pixels. In a very few cases, you could
see fine dots on the screen while you’re
viewing the TV. Those dots are deactivated
pixels and do not affect the performance and
reliability of the TV.
5
ENG
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
Generated Sound
“Cracking” noise: A cracking noise that
occurs when watching or turning off the TV
is generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required.
Electrical circuit humming/panel buzzing: A
low level noise is generated from a high-
speed switching circuit, which supplies a large
amount of current to operate a product. It
varies depending on the product.
This generated sound does not affect the
performance and reliability of the product.
Take care not to touch the ventilation
openings. When watching the TV for a long
period, the ventilation openings may become
hot. This does not affect the performance of
the product or cause defects in the product.
If the TV feels cold to the touch, there may
be a small “flicker” when it is turned on. This
is normal, there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse
effect on the TV’s performance. Avoid
touching the LCD screen or holding your
finger(s) against it for long periods of time.
Doing so may produce some temporary
distortion effects on the screen.
DISPOSAL (Hg lamp only used in LCD TVs)
The fluorescent lamp used in this product contains
a small amount of mercury. Do not dispose of this
product with general household waste. Disposal of
this product must be carried out in accordance to
the regulations of your local authority.
Preventing “Image burn” or “Burn-in” on your TV
screen
If a fixed image displays on the TV screen for
a long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is “image burn” or “burn-in” and
not covered by the warranty.

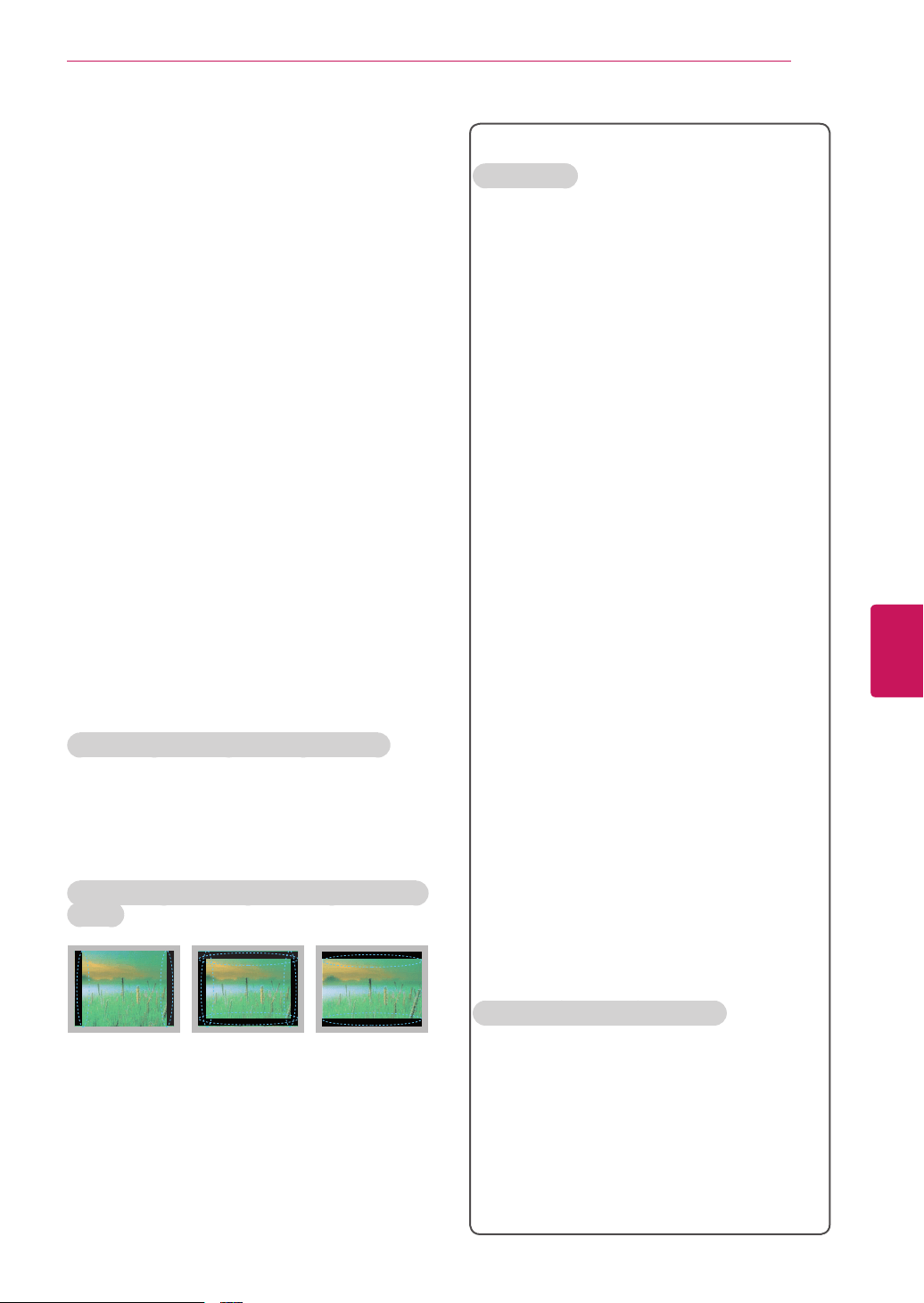

If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on
the letterboxed area of the screen.
Avoid displaying a fixed image on the TV
screen for a long period of time (2 or more
hours for LCD, 1 or more hours for the Plasma
TV) to prevent image burn.
For USA and Canada
FCC NOTICE
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and the receiver.
- Connect the equipment to an outlet on
a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/
TV technician for help.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) this device may not cause
harmful interference and (2) this device must
accept any interference received, including
interference that may cause undesired operation
of the device.
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV
system installer’s attention to Article 820-40 of
the National Electric Code (U.S.A.). The code
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall
be connected to the grounding system of the
building, as close to the point of the cable entry
as practical.
6
ENG
ENGLISH
LICENSES / OPEN SOURCE SOFTWARE NOTICE
LICENSES
Supported licenses may differ by model. For more information about licenses, 'visit www.lg.com'.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
ABOUT DIVX VIDEO: DivX
®
is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified
®
device that plays
DivX video. Visit divx.com for more information and software tools to convert your
files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified
®
device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup menu. Go to
vod.divx.com for more information on how to complete your registration.
“DivX Certified
®
to play DivX
®
video up to HD 1080p, including premium content.”
“DivX
®
, DivX Certified
®
and associated logos are trademarks of Rovi Corporation
or its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274”
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this
product, please visit 'http://opensource.lge.com'.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon email request to
[email protected]. This offer is valid for three (3) years from the date on which you purchased the
product.
7
ENG
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
2 IMPORTANT SAFETY INSTRUCTIONS
6 LICENSES
6 OPEN SOURCE SOFTWARE NOTICE
7 TABLE OF CONTENTS
8 INSTALLATION PROCEDURE
8 ASSEMBLING AND PREPARING
8 Unpacking
11 Optional Extras
12 Parts and buttons
14 Setting up the TV
14 - Attaching the stand
17 - Mounting on a table
18 - Mounting on a wall
20 - External speaker out

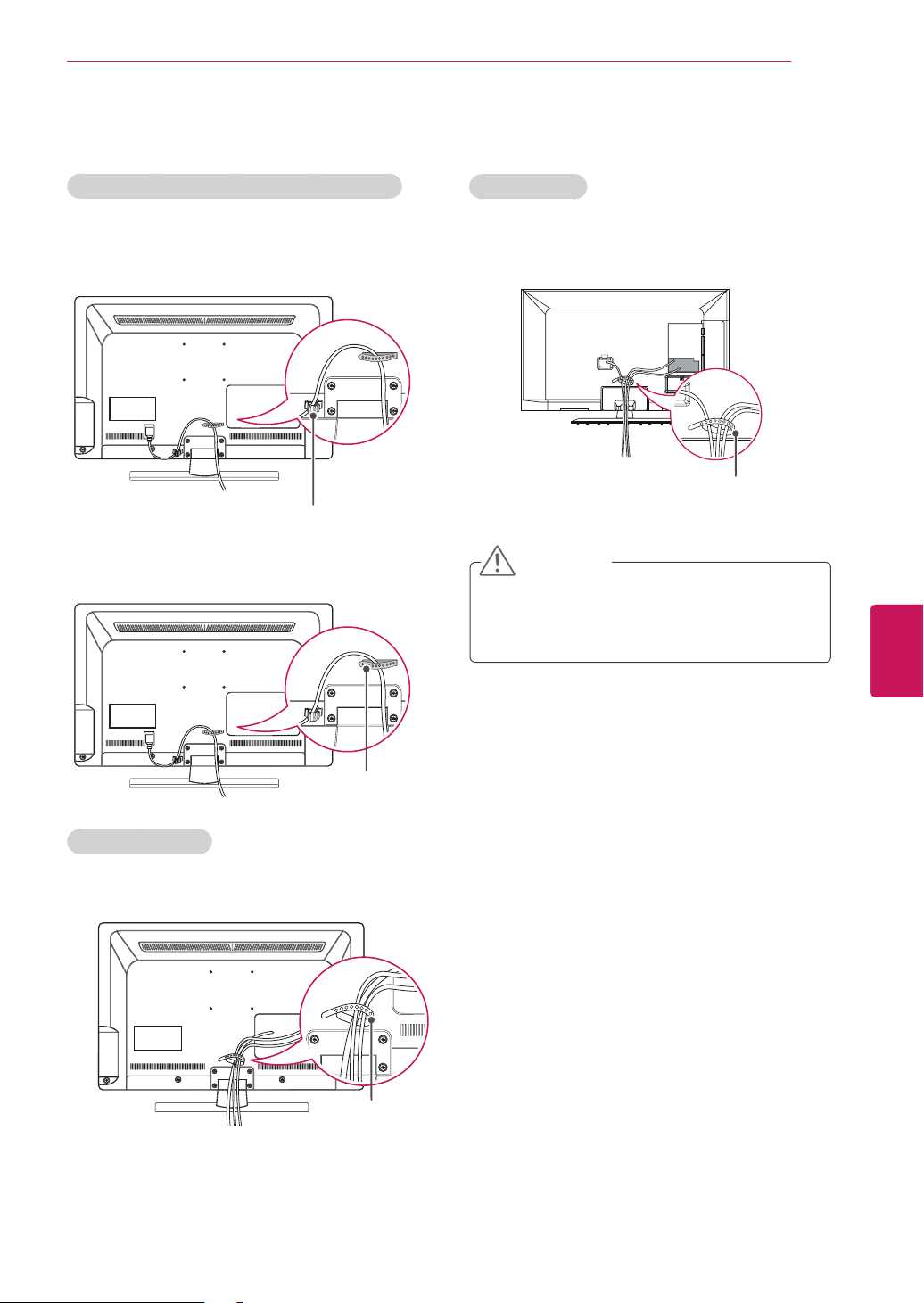

21 - Tidying cables
22 Making Connections
23 REMOTE CONTROL
25 GENERAL TROUBLESHOOTING
25 CAUTION FOR USING EzSign 2.0
26 SPECIFICATIONS
28 IR CODES
29 EXTERNAL CONTROL DEVICE SETUP
29 RS-232C Setup
29 Type of connector;
D-Sub 9-Pin Male
30 RS-232C configurations
31 Communication Parameters
31 Command reference list
32 Transmission / Receiving protocol
NOTE
Image shown may differ from your TV.
Your TV’s OSD (On Screen Display) may
differ slightly from that shown in this manual.
The available menus and options may differ
from the input source or product model that
you are using.
New features may be added to this TV in the
future.
8
ENG
ENGLISH
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
INSTALLATION PROCEDURE
1
Open the package and make sure all the accessories are included.
2
Attach the stand to the TV set.
3
Connect an external device to the TV set.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
CAUTION
Do not use any unapproved items to ensure the safety and product life span.
Any damages or injuries by using unapproved items are not covered by the warranty.
Some models appear to have a thin film on the screen. It is actually part of the screen,
do not remove it.
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39
inches) thick and 18 mm (0.7 inches) width.
Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit
into your TV's USB port.
B
A
A
B
*A 10 mm (0.39 inches)
*B
18 mm (0.7 inches)
NOTE
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
Remote Control,
Batteries (AAA)
(See p.23)
Quick Reference Guide Power Cord
(For 32/37/42LT560C) (For 22LT560C) (For 26LT560C)
Stand Body, Stand Base
(See p.14)
Stand Body, Stand Base
(See p.15)
Stand Body, Stand Base
(See p.15)
(For 32/37/42LT560C) (For 22LT560C) (For 26LT560C)
Stand Screws
8 EA, M4 x 14
(See p.14)
Stand Screws
4 EA, M4 x 12
2EA, M4 x 16
(See p.15)
Stand Screws
8 EA, M4 x 12
(See p.15)
(For 32/37/42LT560C) (For 32/37/42LT560C)
Desk-Mount Screw
(See p.17)
Cable Holder
(See p.21)
Power Cord Holder
(See p.21)
(For 22/26LT560C) (For 32/37/42LT560C)
AC/DC Adapter Protection Cover
FREEZE
RATIO
L/R SELECT
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
(For LT560C series)
CAUTION
Do not use any unapproved items to ensure the safety and product life span.
Any damages or injuries by using unapproved items are not covered by the warranty.
Some models appear to have a thin film on the screen. It is actually part of the screen,
do not remove it.
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
(For LT560E series)
Remote Control,
Batteries (AAA)
(See p.23)
Quick Reference Guide EzSign 2.0 Editor CD Power Cord
Stand Body, Stand Base
(See p.14)
Stand Screws
8 EA, M4 x 14
(See p.14)
Desk-Mount Screw
(See p.17)
Protection Cover
(For 47LT560E)
Power Cord Holder
(See p.21)
Cable Holder
(See p.21)
Wall Mount Screw
4EA, M6 x L51
FREEZE
RATIO
L/R SELECT
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
11
ENG
ENGLISH
ASSEMBLING AND PREPARING

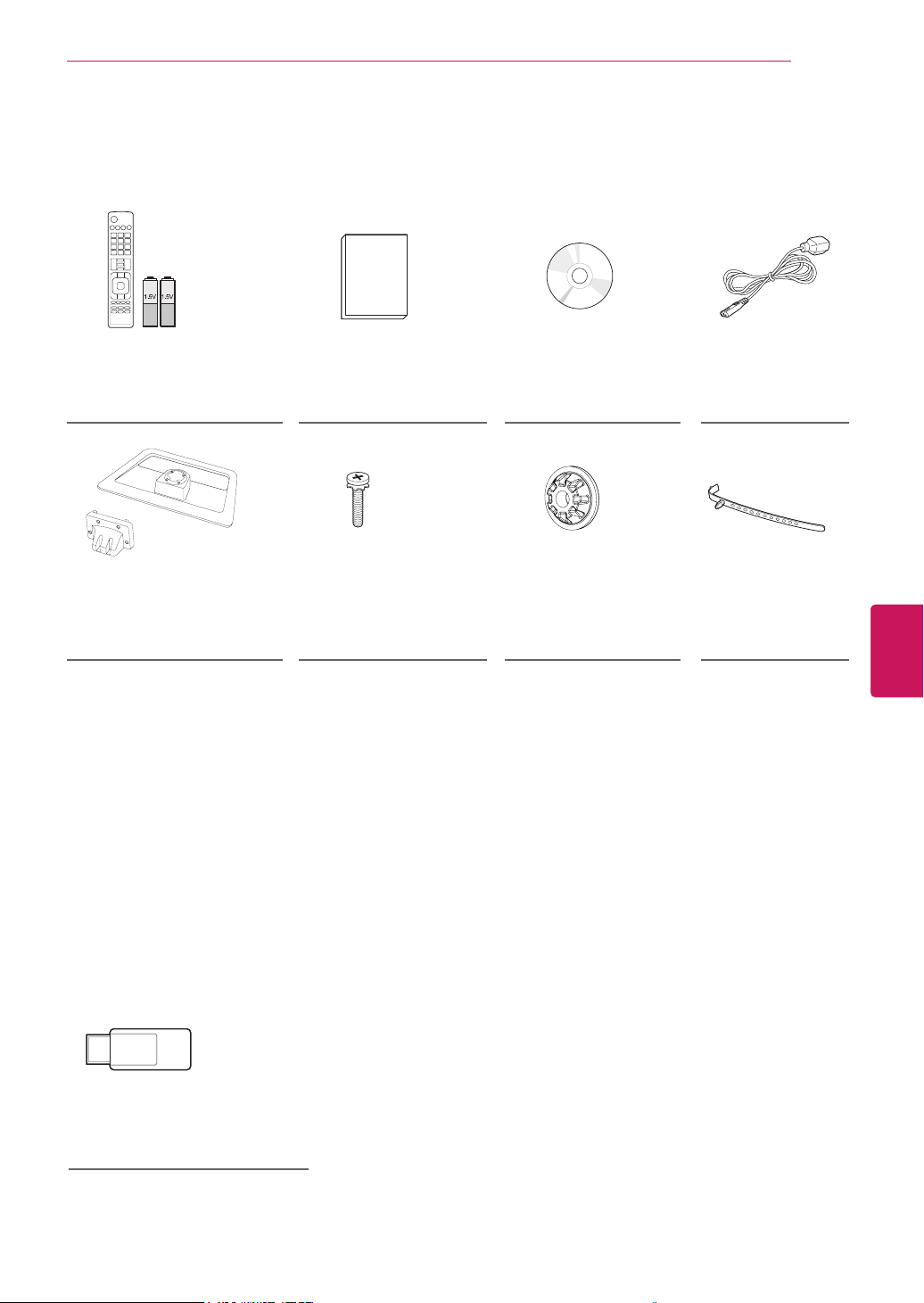

(For LS460E series)
Remote Control,
Batteries (AAA)
(See p.23)
Quick Reference Guide EzSign 2.0 Editor CD Power Cord
Stand Body, Stand Base
(See p.16)
Stand Screws
8 EA, M4 x 20
(See p.16)
Wall Mount Inner
Spacers
4 EA
(See p.19)
Cable Holder
(See p.21)
FREEZE
RATIO
L/R SELECT
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
Optional Extras
(For LT560E, LS460E series)
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
The model name or design may be changed manufacturer’s circumstances or policies.
AN-WF100
Wireless Dongle
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
USB IN
IN
3
ANTENNA/
CABLE IN
RJP
INTERFACE
AV IN
VIDEO
L/MONO
-AUDIO-
R
L R
AUDIO IN
(RGB/DVI)
1
2
/ DVI IN
EXTERNAL
SPEAKER OUT
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
DC IN
CAUTION
Do not insert LAN cable in the RJP INTERFACE.

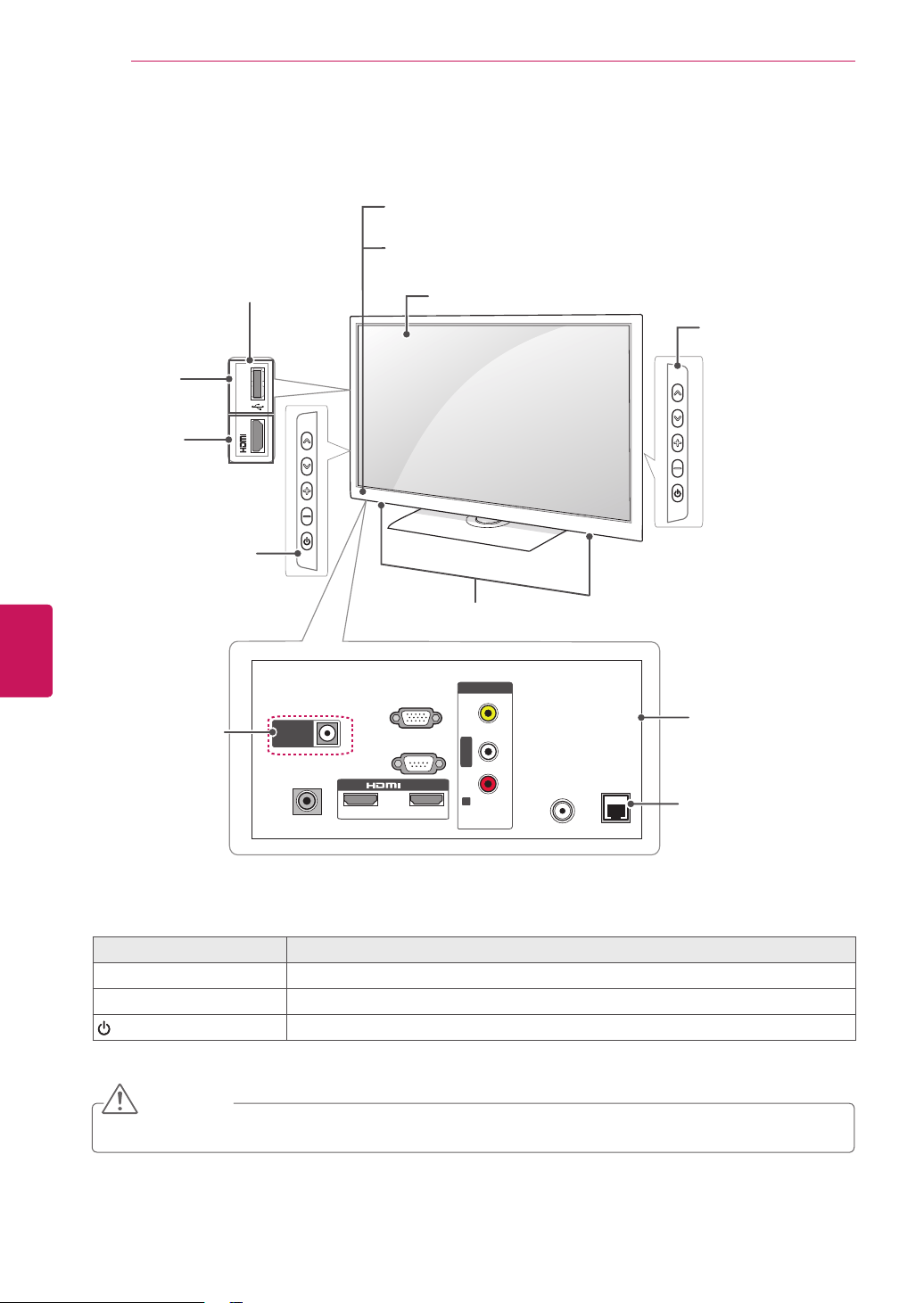

Parts and buttons
USB
Input
HDMI
Input
Screen
Rear Connection
Panel
Buttons
(For 32/37/42LT560C,
32/37/42/47LT560E)
Side Connection Panel
Remote Control
Power Indicator
(For 22/26LT560C)
Button Description
^
v
Scrolls through the saved channels.
+ - Adjusts the volume level.
Turns the power on or off.
Buttons
(For 22/26LT560C)
(For 32/37/42LT560C,
32/37/42/47LT560E)
(For LT560C, LT560E series)
Speakers
13
ENG
ENGLISH
ASSEMBLING AND PREPARING
Touch button Description
/
I
Turns the power on or off.
INPUT Changes the input source.
SETTINGS Accesses the Home menu, or saves your input and exits the menus.
OK
ꔉ
Selects the highlighted menu option or confirms an input
- + Adjusts the volume level.
v
^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
ANTENNA/
CABLE IN
RJP
INTERFACE
AV IN
VIDEO
L/MONO
-AUDIO-
R
L R
AUDIO IN (RGB DVI)
1 2
/ DVI IN
EXTERNAL
SPEAKER OUT
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
OK
SETTINGS
INPUT
USB IN
IN
3
Touch Buttons
2
Power Indicator
Remote Control and
Intelligent
1
Sensors
Screen
(For LS460E series)
Rear Connection
Panel
Side Connection Panel
USB
Input
HDMI
Input
Speakers
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
Setting up the TV
You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment center
or other furniture.
Attaching the stand
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
3
M4 x 14
4 EA
Front
1 2
Stand Body
Stand Base
M4 x 14
4 EA
CAUTION
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
(For 32/37/42LT560C, 32/37/42/47LT560E)
CAUTION
Make sure that the screws are fastened
completely. (If they are not fastened
securely enough, the TV may tilt forward
after being installed.)
Do not fasten the screws with too much
force; otherwise they may be worn out
and get loosened.
15
ENG
ENGLISH
ASSEMBLING AND PREPARING
(For 22/26LT560C)
Front
1
3
2
CAUTION
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
M4 x 16
2 EA
M4 x 12
4 EA
(For 22LT560C)
(For 26LT560C)
Stand Body
Stand Base
M4X20
Top View
CAUTION
Make sure that the screws are fastened
completely. (If they are not fastened
securely enough, the TV may tilt forward
after being installed.)
Do not fasten the screws with too much
force; otherwise they may be worn out
and get loosened.
M4 x 12
4 EA
16
ENG
ENGLISH
ASSEMBLING AND PREPARING
M4 x 20
4 EA
CAUTION
Make sure that the screws are fastened
completely. (If they are not fastened
securely enough, the TV may tilt forward
after being installed.)
Do not fasten the screws with too much
force; otherwise they may be worn out
and get loosened.
1
3
2
CAUTION
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
NOTE
Remove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
Front
Top View
Stand Body
Stand Base
M4 x 20
4 EA
(For 55LS460E)
17
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting on a table
1
Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (4 inches) (minimum) space
from the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
(4 inches)
2
Connect the power cord to a wall outlet.
CAUTION
Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
Securing the TV to a table
(For 32/37/42LT560C, 32/37/42/47LT560E)
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
To secure the TV to a table, insert and tighten the
supplied screw on the rear of the stand.
Adjusting the angle of the TV to suit view
(For 32/37/42LT560C, 32/37/42/47LT560E)
Swivel 90 degrees to the left or right and adjust
the angle of the TV to suit your view.
90˚90˚
(For 55LS460E)
Swivel 20 degrees to the left or right and adjust
the angle of the TV to suit your view.
20˚20˚
When adjusting the angle of the TV,
watch out for your fingers.
- Personal injury may occur if hands or
fingers are pinched. If the product is
tilted too much, it may fall, causing
damage or injury.
CAUTION
WARNING
To prevent TV from falling over, the TV should
be securely attached to the floor/wall per
installation instructions. Tipping, shaking, or
rocking the TV may cause injury.
18
ENG
ENGLISH
ASSEMBLING AND PREPARING
4-Screws
(Not provided as parts of the product)
Attaching the TV to a desk
The TV should be attached to a desk so it cannot
be pulled in a forward/backward direction,
potentially causing injury or damaging the product.
(For 32/37/42LT560C, 32/37/42/47LT560E,
55LS460E)
Mounting on a wall
An optional wall mount can be used with your LG
TV. Consult with your local dealer for a wall mount
that supports the VESA standard used by your TV
model (listed below).
LG recommends that wall mounting be performed
by a qualified professional installer.
10 cm
10 cm
10 cm
10 cm
Desk
Stand
(4 inches)
Using the Kensington security system (optional)
(Depending on model)
The Kensington security system connector is
located at the rear of the TV. For more information
of installation and using, refer to the manual
provided with the Kensington security system or
visit http://www.kensington.com.
Connect the Kensington security system cable
between the TV and a table.
The Kensington security system is optional.
You can obtain additional accessories from
your local dealer.
NOTE
19
ENG
ENGLISH
ASSEMBLING AND PREPARING
Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described
in the following table.
Model 22/26LT560C 32LT560C
32LT560E
VESA 100 x 100 200 x 100
Standard screw M4 M4
Number of screws 4 4
Wall mount bracket
(optional)
LSW100B(G)
LSW100B(G)
Model 37/42LT560C
37/42LT560E
47LT560E
VESA 200 x 200 400 x 400
Standard screw M6 M6
Number of screws 4 4
Wall mount bracket
(optional)
LSW200B(G)
LSW420BX
LSW220BX
NOTE
Use screws that are listed on the VESA
standard screw specifications.
The wall mount kit includes an installation
manual and necessary parts.
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
The length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
For more information, refer to the manual
supplied with the wall mount bracket.
When attaching a third-party wall mounting
bracket to the TV, insert the wall mount
inner spacers into the TV wall mount holes
to move your TV in vertical angle. Please
make sure not to use the spacers for LG wall
mounting bracket. (For 55LS460E)
Wall Mount Inner Spacer
Model 55LS460E
VESA 400 x 400
Standard screw M6
Number of screws 4
Wall mount bracket
(optional)
LSW400BX(G)
CAUTION
Disconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and contact
the local dealer or qualified personnel.
Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
Do not insert screws to four holes for
assembling the stand when installing the TV
to the wall.
On the 47LT560E models, use M6 x L51
screws.
20
ENG
ENGLISH
ASSEMBLING AND PREPARING
ANTENNA/
CABLE IN
RJP
INTERFACE
AV IN
VIDEO
L/MONO
-AUDIO-
R
L R
AUDIO IN
(RGB/DVI)
1
2
/ DVI IN
EXTERNAL
SPEAKER OUT
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
DC IN
R +
L -
L+
R -
External speaker out
Connect the external speaker.
(For 22/26/32/37/42LT560C, 32/37/42/47LT560E)
(For 55LS460E)
Make sure that the external speaker should
be connected with TV under power-off
state.
Use EXT speaker with BTL type (4p)
NOTE
ANTENNA/
CABLE IN
RJP
INTERFACE
AV IN
VIDEO
L/MONO
-AUDIO-
R
L R
AUDIO IN (RGB DVI)
1
2
/ DVI IN
EXTERNAL
SPEAKER OUT
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
R +
L -
L+
R -
Securing the TV to a wall (optional)
(Depending on model)
1
Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2
Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3
Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
Make sure that children do not climb on or
hang on the TV.
CAUTION
Use a platform or cabinet that is strong and
large enough to support the TV securely.
Brackets, bolts and ropes are optional. You
can obtain additional accessories from your
local dealer.
NOTE
21
ENG
ENGLISH
ASSEMBLING AND PREPARING
Tidying cables
For 32/37/42LT560C, 32/37/42/47LT560E
1
Install the power cord holder and power cord.
It will help prevent the power cable from being
removed by accident.
Power Cord Holder
2
Gather and bind the cables with the cable
holder.
Cable Holder
For 22/26LT560C
1
Gather and bind the cables with the cable
holder.
Cable Holder
For 55LS460E
1
Gather and bind the cables with the cable
holder.
Cable Holder
CAUTION
Do not move the TV by holding the cable
holder, as the cable holders may break, and
injuries and damage to the TV may occur.
22
ENG
ENGLISH
ASSEMBLING AND PREPARING
REMOTE CONTROL
Below is a description of the remote control. Your remote control may look slightly
different.
To install batteries, open the battery cover, insert batteries (1.5 V AAA) matching the
and ends to the label inside the compartment, and close the battery cover. To
remove the batteries, perform the installation actions in reverse.
CAUTION
Do not mix old and new batteries, as this may damage the remote control.
5*%2873&
$8',2287
RGB IN (PC)
VIDEO
MONO
( )
AUDIOL R
AV IN
VIDEO
AUDIO
R
L/MONO
AUDIO IN
(RGB/DVI)
L
R
AV IN
VIDEO
AUDIO
R
L/MONO
AUDIO IN
(RGB/DVI)
L
R
Making Connections
Image shown may differ from your TV.
Connect the external devices.
or
PC
DVD / Blu-Ray / HD Cable Box / VCR
(Not provided)
(Not provided)
(Not provided)
YELLOW
YELLOW
WHITE
WHITE
WHITE
RED RED
RED
23
ENG
ENGLISH
REMOTE CONTROL
REMOTE CONTROL
Below is a description of the remote control. Your remote control may look slightly
different.
To install batteries, open the battery cover, insert batteries (1.5 V AAA) matching the
and ends to the label inside the compartment, and close the battery cover. To
remove the batteries, perform the installation actions in reverse.
CAUTION
Do not mix old and new batteries, as this may damage the remote control.
This remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote sensor.
CH
1 2 3
4 5 6
7 8
0
9
P
A
G
E
Q.MENU
INPUT
CHAR/NUM
FLASHBK
EXIT
OK
GUIDE
PORTAL
TV
DVD
MARK
CC
TIMER
MUTE
INFO
PIP PIPCH+ PIPCH
-
SWAP
PIP
INPUT
SAP
MENU
SETTINGS
abc def
ghi jkl mno
pqrs tuv wxyz
.,;
@
DELETE
ENTER
VOL
(POWER
)
Turns the TV on or off.
Q. MENU
Accesses the quick menu.
TV
Selects the remote’s operating mode: TV.
DVD
Selects the remote’s operating mode: DVD.
INPUT
Rotates through inputs. Also switches the TV on from standby.
MARK
Not functional
Number button
Enters channel numbers or other numbers required.
Also supports characters.
— (DASH)
Selects a program number for multiple program channels
such as 2-1, 2-2, etc.
FLASHBK
Tunes to the last channel or input viewed.
VOL
Adjusts the volume level.
CHAR/NUM
Switches between Letter and Number input modes.
CC
Selects a closed caption.
TIMER
Turns the TV off in a set amount of time.
DELETE
Deletes letters and numbers.:
MUTE
Mutes all sounds.
^
CH
v
Scrolls through the saved channels.
PAGE
Moves to the previous or next screen.
24
ENG
ENGLISH
REMOTE CONTROL
CH
1 2 3
4 5 6
7 8
0
9
P
A
G
E
Q.MENU
INPUT
CHAR/NUM
FLASHBK
EXIT
OK
GUIDE
PORTAL
TV
DVD
MARK
CC
TIMER
MUTE
INFO
PIP PIPCH+ PIPCH
-
SWAP
PIP
INPUT
SAP
MENU
SETTINGS
abc def
ghi jkl mno
pqrs tuv wxyz
.,;
@
DELETE
ENTER
VOL
Color buttons ( : Red, : Green, : Yellow, : Blue )
These access special functions in some menus.
VCR/DVD/USB control buttons ( , , , , )
Controls video cassette recorders or DVD players or USB.
Not functional when EzSign contents is on.
Accesses the AV devices connected to the TV;
Opens the SIMPLINK menu.
PIP
Not functional
PIP CH +/-
Not functional
SWAP
Not functional
PIP INPUT
Not functional
SAP
Analog mode: Selects MTS sound (Mono, Stereo or SAP)
DTV mode: Changes the audio language.
PORTAL
Displays and removes the interactive menu. (For LT560C series)
Displays the EzSign content on a TV Screen.
(For LT560E, LS460E series
INFO
Views the information of the current program and screen.
(For LT560C series)
Shows or hides the information on TV remote control buttons in EzSign
mode. (For LT560E, LS460E series)
GUIDE
Displays and removes the electronic program guide.
(For LT560C series)
Shows Contents List in EzSign mode. (For LT560E, LS460E series)
Navigation buttons
(up/down/left/right)
Scrolls through menus or options.
OK/ENTER
ꔉ
Selects menus or options and confirms your input.
ꕣ (
BACK)
Returns to the previous level.
MENU/SETTINGS
Accesses the main menu.
EXIT
ꕯ
Clears all on-screen displays and returns to TV viewing.
25
ENG
ENGLISH
GENERAL TROUBLESHOOTING / CAUTION FOR USING EzSign 2.0
GENERAL TROUBLESHOOTING
Display Panel Picture
Symptom Possible Cause(s) Possible Solution(s)
No picture.
Display panel is turned off.
Turn TV ON.
Power failure?
Antenna/cable not connected.
Connect antenna/cable signal to TV.
Connections incorrect.
Check connections on TV.
MPI not connected
If applicable, connect MPI cable to MPI device.
Encrypted program.
Try another channel.
Wrong tuning band.
Adjust Installer Menu settings.
Picture Reception
Symptom Possible Cause(s) Possible Solution(s)
Normal picture,
poor or no sound.
Wrong Installer Menu settings.
Press MUTE or use Volume Up key to increase
sound level.
Broadcast problem.
Try a different channel.
CAUTION FOR USING EzSign 2.0
For LT560E, LS460E series
Do not remove a USB drive while data is being copied. It can corrupt the data and EzSign may not work
properly.
While loading a USB device or dongle, your TV may function slower than normal.
Some user-created subtitles may not work properly.
Some special characters are not supported in subtitles.
HTML tags are not supported in subtitles.
Subtitles in languages other than the supported languages are not available.
EzSign 2.0 TV function does not work before completing the initial setup Wizard. Make sure to complete
the initial setup Wizard by turning on the TV after installation.
If the time is set according to the TV signal, it may not appeared exactly for some region. In that case,
set the time manually.
It is recommended that you copy files to the TV memory before playing them, as playing directly from
the USB memory for an extended period of time may cause the device to overheat.
In EzSign 2.0 TV mode, some remote control keys may not work.
EzSign 2.0 TV dose not support the USB HUB. It is recommended that you connect a USB device directly
to the TV without using a USB extension cable as it may not work properly.
It is recommended that you use EzSign 2.0 TV within 8 hours per day as it is standard.
Refer to the EzSign 2.0 Editor user guide for details.
EzSign 2.0 TV does not support Store Demo.
Supported external subtitle format:*.smi/*.srt/*.sub(MicroDVD, Subviewer 1.0/2.0)/*.ass/*.ssa/*.
txt(TMPlayer)/*.psb(PowerDivX)
Do not update the EzSign content via wireless networking and a USB drive at the same time. And do not
play content from a USB drive while updating EzSign content via wireless networking.
26
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75
Ω
Environment
condition
Operating
Temperature
0 °C ~ 40 °C (32 °F ~ 104 °F)
Operating Humidity Less than 80%
Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F)
Storage Humidity Less than 85%
MODELS
22LT560C
(22LT560C-UA)
26LT560C
(26LT560C-UA)
Dimensions
(W x H x D)
With stand 516.6 x 385.7 x 192 (mm) 625.9 x 453.5 x 192 (mm)
20.3 x 15.1 x 7.5 (inch) 24.6 x 17.8 x 7.5 (inch)
Without stand 516.6 x 332.2 x 41.6 (mm) 625.9 x 393.2 x 46.6 (mm)
20.3 x 13.0 x 1.6 (inch) 24.6 x 15.4 x 1.8 (inch)
Weight With stand 3.7 kg (8.1 lbs) 4.7 kg (10.3 lbs)
Without stand 3.1 kg (6.8 lbs) 4.1 kg (9.0 lbs)
Current Value / Power Consumption 24 V
, 1.4 A 24 V , 1.8 A
Adapter (DC Power) In: AC 100 - 240 V ~ 50/60 Hz
Out: DC 24 V, 2.5 A
MODELS
32LT560C
(32LT560C-UA)
37LT560C
(37LT560C-UA)
32LT560E
(32LT560E-UA)
37LT560E
(37LT560E-UA)
Dimensions
(W x H x D)
With stand 765.6 x 535.6 x 231.9 (mm) 867.3 x 592.8 x 231.9 (mm)
30.1 x 21.0 x 9.1 (inch) 34.1 x 23.3 x 9.1 (inch)
Without stand 765.6 x 475.8 x 68.5 (mm) 867.3 x 532.8 x 68.6 (mm)
30.1 x 18.7 x 2.6 (inch) 34.1 x 20.9 x 2.7 (inch)
Weight With stand 9.2 kg (20.2 lbs) 11.2 kg (24.6 lbs)
Without stand 8.0 kg (17.6 lbs) 10.0 kg (22.0 lbs)
Current Value / Power Consumption 0.6 A / 60 W 0.9 A / 90 W
Power requirement AC100 - 240 V ~ 50/60 Hz
27
ENG
ENGLISH
SPECIFICATIONS
MODELS
42LT560C
(42LT560C-UA)
47LT560E
(47LT560E-UA)
42LT560E
(42LT560E-UA)
Dimensions
(W x H x D)
With stand 991.7 x 666.5 x 273.1 (mm) 1,101.0 x 728.5 x 273.1 (mm)
39.0 x 26.2 x 10.7 (inch)
43.3
x 28.6 x 10.7 (inch)
Without stand 991.7 x 604.0 x 55.0 (mm) 1,101.0 x 665.4 x 54.5 (mm)
39.0 x 23.7 x 2.1 (inch)
43.3
x 26.1 x 2.1 (inch)
Weight With stand 15.5 kg (34.1 lbs) 17.3 kg (38.1 lbs)
Without stand 13.5 kg (29.7 lbs) 15.3 kg (33.7 lbs)
Current Value / Power Consumption 1.0 A / 100 W 1.2 A / 120 W
Power requirement AC100 - 240 V ~ 50/60 Hz
MODELS
55LS460E
(55LS460E-UA)
Dimensions
(W x H x D)
With stand 1,263 x 822 x 315 (mm)
49.7
x 32.3 x 12.4 (inch)
Without stand 1,263 x 754 x 35.5 (mm)
49.7
x 29.6 x 1.3 (inch)
Weight With stand 25.5 kg (56.2 lbs)
Without stand 21.9 kg (48.2 lbs)
Current Value / Power Consumption 1.5 A / 150 W
Power requirement AC100 - 240 V ~ 50/60 Hz
RGB(PC), HDMI (PC) supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720 x 400 31.46 70.08
640 x 480 31.46 59.94
800 x 600 37.87 60.31
1024 x 768 48.36 60.00
1360 x 768 47.71 60.01
1280 x 1024 63.98 60.02
1920 x 1080 67.50 60.00
HDMI (DTV) supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720 x 480p
31.47
31.50
59.94
60.00
1280 x 720p
44.96
45.00
59.94
60.00
1920 x 1080i
33.72
33.75
59.94
60.00
1920 x 1080p
26.97
27.00
33.71
33.75
67.43
67.5
23.97
24.00
29.97
30.00
59.94
60.00
For 37/42LT560C, 37/42/47LT560E, 55LS460E
28
ENG
ENGLISH
IR CODES
IR CODES
(Depending on model)
Code
(Hexa)
Function Note
08
(POWER)
Remote control Button (Power On/Off)
0B INPUT Remote control Button
10-19 Number Key 0-9 Remote control Button
4C - (DASH) Remote control Button
1A FLASHBK Remote control Button
02 VOL + Remote control Button
03 VOL - Remote control Button
09 MUTE / DELETE Remote control Button
00 CH
^ /
PAGE
^
Remote control Button
01 CH
v /
PAGE
v
Remote control Button
43 SETTINGS / MENU Remote control Button
45 Q.MENU Remote control Button
28
ꕣ
(BACK) Remote control Button
AA INFO Remote control Button
5B EXIT Remote control Button
44 OK / ENTER Remote control Button
40
^
Remote control Button
41
v
Remote control Button
07
<
Remote control Button
06
>
Remote control Button
C1 RED 72 when used for RS232C [23. Key (Command: m c)] command
C0 GREEN 71 when used for RS232C [23. Key (Command: m c)] command
C2 YELLOW 63 when used for RS232C [23. Key (Command: m c)] command
C3 BLUE 61 when used for RS232C [23. Key (Command: m c)] command
B1
ꕗ
Remote control Button
B0
►
Remote control Button
BA
ꕘ
Remote control Button
8E
►►
Remote control Button
8F
◄◄
Remote control Button
7E SIMPLINK Remote control Button
60 PIP Remote control Button
71 PIP CH + Remote control Button
72 PIP CH - Remote control Button
63 SWAP Remote control Button
61 PIP INPUT Remote control Button
0A SAP Remote control Button
0E TIMER Remote control Button
39 CC / CHAR/NUM Remote control Button
1E
MARK Remote control Button
0C
PORTAL Remote control Button
AB
GUIDE Remote control Button
29
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
RS-232C Setup
Connect the RS-232C (serial port) input jack to
an external control device (such as a computer or
an A/V control system) to control the product’s
functions externally.
Connect the serial port of the control device to the
RS-232C jack on the product back panel.
RS-232C IN
(CONTROL & SERVICE)
NOTE
RS-232C on this unit is intended to be used
with third party RS-232C control hardware
and software. The instructions below
are provided to help with programming
software or to test functionality using telenet
software. RS-232C connection cables are not
supplied with the product.
Type of connector;
D-Sub 9-Pin Male
1 5
6 9
RS-232C IN
(CONTROL & SERVICE)
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
30
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
RS-232C configurations
7-Wire Configuration
(Serial female-female NULL modem cable)
PC TV
RXD
2 3
TXD
TXD
3 2
RXD
GND
5 5
GND
DTR
4 6
DSR
DSR
6 4
DTR
RTS
7 8
CTS
CTS
8 7
RTS
D-Sub 9 D-Sub 9
3-Wire Configurations(Not standard)
PC TV
RXD
2 3
TXD
TXD
3 2
RXD
GND
5 5
GND
DTR
4 6
DSR
DSR
6 4
DTR
RTS
7 8
CTS
CTS
8 7
RTS
D-Sub 9 D-Sub 9
Set ID
Set ID number.
OPTION
ꔂ Move ꔉ OK
ꔉ
• Language
• Caption : Off
• Standby Light : On
• My Media Setting
• Initial Setting
• Set ID : 1
• Mode Setting : Home Use
1
Press
Home
or
MENU
to access the main
menus.
2
Press the Navigation buttons to scroll to
OPTION
and press
OK/ENTER
.
3
Press the Navigation buttons to scroll to
Set ID
and press
OK/ENTER
.
4
Scroll left or right to select a set ID number and
select
CLOSE
. The adjustment range is 1-99.
5
When you are finished, press
EXIT
.
*Real data mapping
0 : Step 0
…
A : Step 10 (SET ID 10)
…
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
…
63 : Step 99 (SET ID 99)
64 : Step 100
31
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
Communication Parameters
Baud rate: 9600 bps (UART)
Data length: 8 bits
Parity : None
Stop bit: 1 bit
Communication code: ASCII code
Use a crossed (reverse) cable.
Command reference list
COMMAND1 COMMAND2
DATA
(Hexadecimal)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
01. Power k a 00 - 01 14. Treble k r 00 - 64
02. Input Select x b (See p.33) 15. Bass k s 00 - 64
03. Aspect
Ratio
k c (See p.33) 16. Balance k t 00 - 64
04. Screen
Mute
k d 00 - 01
17. 3D (For 3D
TV)
x t (See p.34)
05. Volume
Mute
k e 00 - 01
18. Color
Temperature
x u 00 - 64
06. Volume
Control
k f 00 - 64
19. Extended
3D (For 3D TV)
x v (See p.34)
07. Contrast k g 00 - 64
20. Energy
Saving
j q (See p.35)
08. Brightness k h 00 - 64
21. Auto
Configuration
j u (See p.35)
09. Color k i 00 - 64
23. Channel
Add/Del
m b 00 - 01
10. Tint k j 00 - 64 24. Key m c (See p.35)
11. Sharpness k k 00 - 64 25.. Backlight m g 00 - 64
12. OSD Select k l 00 - 01
13. Remote
Control
Lock Mode
k m 00 - 01
COMMAND1 COMMAND2
DATA00
(Hexadecimal)
DATA01
(Hexadecimal)
DATA02
(Hexadecimal)
DATA03
(Hexadecimal)
DATA04
(Hexadecimal)
DATA05
(Hexadecimal)
22. Channel
Tuning
m a
physical
program
high
major
program
low
major low minor high minor low attribute
32
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
Transmission / Receiving protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the set.(j, k, m or x)
[Command 2] : Second command to control the set.
[Set ID] : You can adjust the set ID to choose desired set ID number in Option menu. Adjustment range is
1~ 99. When selecting Set ID ‘0’, every connected the set is controlled. Set ID is indicated as decimal (1~
99) on menu and as Hexa decimal (0x0~ 0x63) on transmission /receiving protocol.
[DATA] : To transmit the command data.
Transmit the ‘FF’ data to read status of command.
[Cr] : Carriage Return
ASCII code ‘0x0D’
[ ] : ASCII code ‘space (0x20)’
* In this model, set will not send the status during the standby mode.
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.
* In this model, set will not send the status during the standby mode.
* Data Format
[Command 2] : Use as command.
[Set ID] : Use the small character, if set ID is 10, it will send the ‘0’, ‘a’.
[DATA] : Use the small character, if data is 0 x ab, it will send the ‘a’, ‘b’.
[OK] : Use the large character.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-
viable functions or communication errors.
Data01: Illegal Code
Data02: Not supported function
Data03: Wait more time
* In this model, set will not send the status during the standby mode.
* Data Format
[Command 2] : Use as command.
[Set ID] : Use the small character, if set ID is 10, it will send the ‘0’, ‘a’.
[DATA] : Use the small character, if data is 0 x ab, it will send the ‘a’, ‘b’.
[NG] : Use the large character
33
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
01. Power (Command: k a)
To control Power On/Off of the set.
Transmission [k][a][ ][Set ID][ ][Data][Cr]
Data 00: Power Off Data 01: Power On
Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]
* In a like manner, if other functions transmit ‘FF’
data based on this format, Acknowledgement data
feedback presents status about each function.
* Note: In this model, set will send the Acknowledge
after power on processing completion.
There might be a time delay between command and
acknowledge.
02. Input Select (Command: x b)
To select input source for set.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data 00: DTV (Antenna) Data 01: DTV (Cable)
Data 10: Analog (Antenna) Data 11: Analog (Cable)
Data 20: AV or AV1 Data 21: AV2
Data 40: Component or Component1
Data 41: Component2
Data 60: RGB-PC Data 90: HDMI1
Data 91: HDMI2 Data 92: HDMI3
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
* Use the feature depending on your model.
03. Aspect Ratio (Command: k c)
To adjust the screen format.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01: 4:3 Data: 09: Just scan
Data 02: 16:9 Data: 10: Cinema Zoom 1
Data 04: Zoom
…
Data 06: Set by program Data 1F: Cinema Zoom16
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
04. Screen Mute (Command: k d)
To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00:
Screen mute off (Picture on), Video-out Mute off
Data 01: Screen mute on (Picture off)
Data 10: Video-out Mute on
Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of Video-out Mute on only,
TV will display On
Screen Display (OSD). But, in case of screen mute on,
TV will not display On Screen Display (OSD).
05. Volume Mute (Command: k e)
To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00: Volume mute on (Volume off)
Data 01: Volume mute off (Volume on)
Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]
06. Volume Control (Command: k f)
To adjust volume.
You can also adjust volume with the volume buttons on
remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]
07. Contrast (Command: k g)
To adjust screen contrast.
You can also adjust contrast in the PICTURE menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]
08. Brightness (Command: k h)
To adjust screen brightness.
You can also adjust brightness in the PICTURE menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]
09. Color (Command: k i)
To adjust screen color.
You can also adjust color in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]
10. Tint (Command: k j)
To adjust screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red: 00 ~ Green: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [ j ][ ][Set ID][ ][OK/NG][Data][x]
11. Sharpness (Command: k k)
To adjust screen sharpness.
You can also adjust sharpness in the PICTURE menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]
34
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
12. OSD Select (Command: k l)
To select OSD (On Screen Display) on/off.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00: OSD off Data 01: OSD on
Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]
13. Remote Control Lock Mode (Command: k m)
To lock the remote control and the front panel controls
on the set.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00: Lock off Data 01: Lock on
Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]
If you’re not using the remote control and front panel
controls on the Monitor set, use this mode. When main
power is on/off, remote control lock is released.
If Key Lock is on in the standby mode, TV will not turn on
by POWER button of remote control and on the TV.
14. Treble (Command: k r)
To adjust treble.
You can also adjust treble in the AUDIO menu.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]
15. Bass (Command: k s)
To adjust bass.
You can also adjust bass in the AUDIO menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]
16. Balance (Command: k t)
To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]
17. 3D (Command: x t) (For 3D TV)
To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][Cr]
Data01
00: 3D On 01: 3D Off
02: 3D to 2D 03: 2D to 3D
Data02
00: Top and Bottom 01: Side by Side
02: Check Board 03: Frame Sequential
Data03
00: Right to Left
01: Left to Right
Data04
3D Depth: Min : 00 ~ Max : 14
(*transmit by Hexadecimal code)
*If data01 is 00(3D On), data04 has no meaning.
*If data01 is 01(3D Off) or 02(3D to 2D), data02, data03
and data04 have no meaning.
*If data1 is 03(2D to 3D), data2 has no meaning.
Data 01 Data 02 Data 03 Data 04
00 o o x
01 x x x
02 x x x
03 x o o
x : Don’t care
Acknowledgement [t][ ][OK][Data01][Data02]
[Data03][Data04][x][t][ ][NG][Data01][x]
18. Color Temperature (Command: x u)
To adjust color temperature.
You can also adjust color temperature in the
PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]
19. Extended 3D (Command: x v) (For 3D TV)
To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data01][ ][Data02][Cr]
Data01: 3D option
00: 3D Picture Correction
01: 3D Depth (2D to 3D Only)
02: 3D Viewpoint
03: 3D Picture Size
04: 3D Picture Balance
05: 3D Optimization
Data02: It has own range for each 3D option
determined by Data1.
1) When Data1 is 00
00: Right to Left 01: Left to Right
2) When Data1 is 01, 02
Data Min: 00 ~ Max: 14 (*transmit by Hexadecimal
code)
3) When Data1 is 03
00: Just Scan 01: 16:9
4) When Data1 is 04
00: Off 01: On
5) When Data1 is 05
Data Min: 00 ~ Max: 02 (*transmit by Hexadecimal
code)
Acknowledgement [v][ ][OK][Data01][Data02][x]
[v][ ][NG][Data01][x]
* Use the feature depending on your model.
35
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
20. Energy Saving (Command: j q)
To control the energy saving function.
Transmission [ j ][q][ ][Set ID][ ][Data][Cr]
Data 00: off
01: Minimum
02: Medium
03: Maximum
04: Auto/Intelligent sensor
(depending on model)
05: Screen off
Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]
21. Auto Configuration (Command: j u)
To adjust picture position and minimize image shaking
automatically. Auto configuration only works in RGB-PC
mode.
Transmission [ j ][u][ ][Set ID][ ][Data][Cr]
Data 01: To set
Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]
22. Channel Tuning (Command: m a)
To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][Set ID][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that the
channel should be mapped to, and the Minor is the sub-
channel. Since the ATSC tuner automatically maps the
channel to the Major number, the Physical number is not
required when sending a command.
Data 00: Physical Channel Number
NTSC air: 02~45, NTSC cable: 01, 0E~7D
ATSC air: 01~45, ATSC cable: 01~87
Data 01 & 02: Major Channel Number
Data 01: High byte Data 02: Low byte
Two bytes are available for the Major and Minor,
normally only the second byte is used.
Data 03 & 04: Minor Channel Number
Not needed for NTSC.
The table above lists the binary code which must be
converted to Hexadecimal before sending. For example:
The binary code to tune the sub source to an NTSC cable
channel is “1000 0001”, which translates to “81” in
Hex.
* 7th bit : For which source do you want to change
the channel.
* 6th bit: Use a two part or one part channel. Most
cases just use 0 since it’s ignored when using
NTSC.
* 5th bit: Use 0 with NTSC since it can only use
the physical channel number. Normally use 1 for
ATSC since most times it doesn’t matter what the
physical number is.
* 4th bit: Set to 0.
* 3-0 bits: Choose signal type.
* Tune Command Examples:
1. Tune to the analog (NTSC) cable channel 35.
Data 00 = Physical of 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = 0000 0001 in binary = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital (ATSC) local channel 30-3.
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = 0010 0010 in binary = 22
Total = ma 00 00 00 1E 00 03 22
* Use the feature depending on your model.
23. Channel Add/Del (Command: m b)
To add and delete the channels.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00: Channel Delete Data 01: Channel Add
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
24. Key (Command: m c)
To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key Code - See p.22
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
When TV is in the standby mode, TV will turn on by
POWER button of remote control only.
25. Backlight (Command: m g)
To adjust screen backlight.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min:00 ~ Max:64 (*transmit by Hexadecimal code)
*Refer to “Real data mapping”.
Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]
36
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
* Table List (Channel Tuning)
7
Main/Sub
6
Two/One
Part
Channel
5
Using
Physical
Channel
4
Reserved
3 2 1 0 Step
0 Main 0 Two 0 Use x 0 0 0 0 NTSC Air
1 Sub 1 One 1 No Use x 0 0 0 1 NTSC Cable
x 0 0 1 0 ATSC Air
x 0 0 1 1 ATSC Cable_std
x 0 1 0 0 ATSC Cable_hrc
x 0 1 0 1 ATSC Cable_irc
x 0 1 1 0 ATSC cable_auto
x 0 1 1 1 Reserved
x x x x x ...
x 1 1 1 1 Reserved

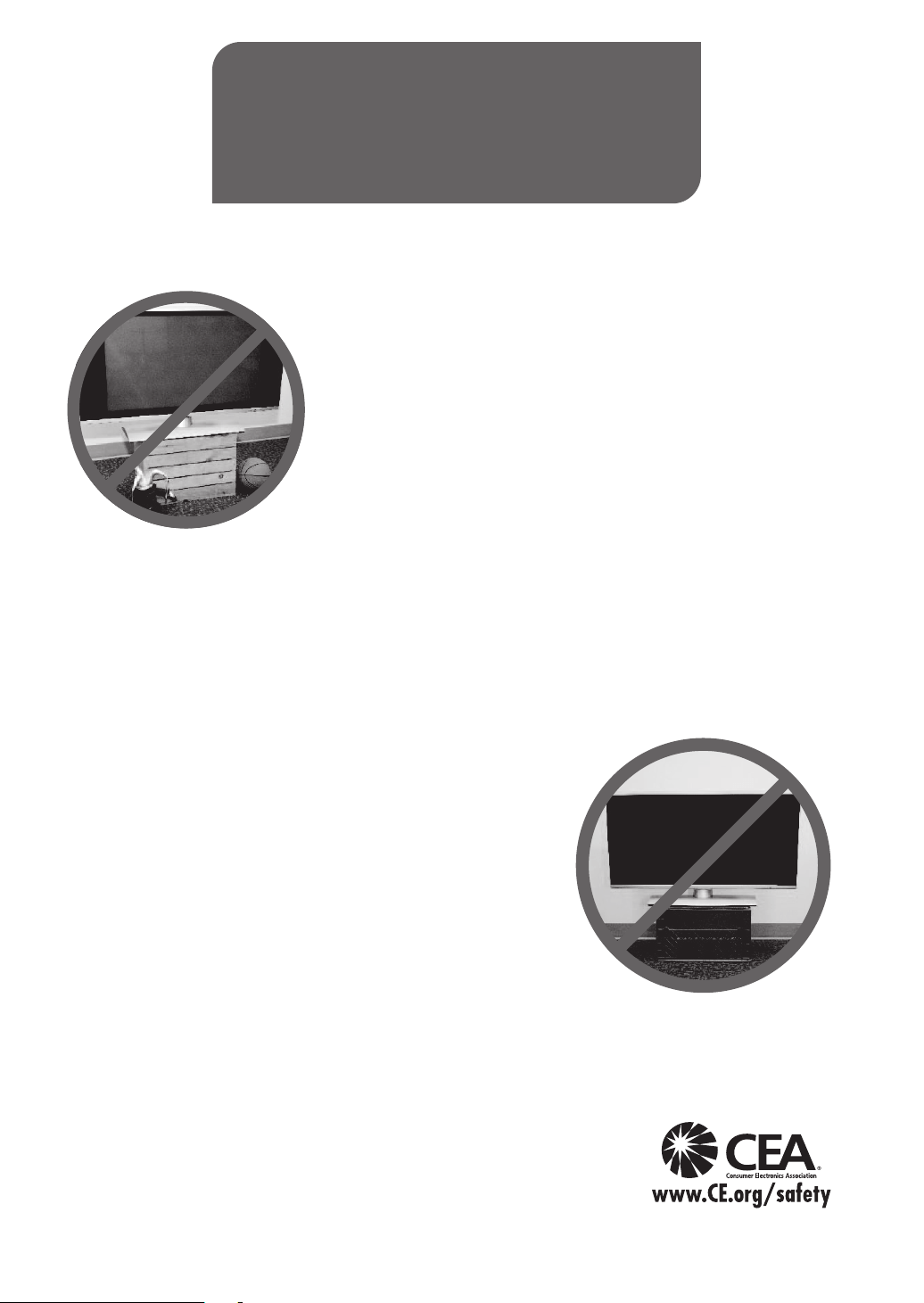

CHILD SAFETY:
It Makes A Difference How and Where
You Use Your Flat Panel Display
Congratulations on your purchase! As you enjoy your new product,
please keep these safety tips in mind:
THE ISSUE
The home theater entertainment experience is a growing trend and
larger flat panel displays are popular purchases. However, flat panel
displays are not always supported on the proper stands or installed
according to the manufacturer’s recommendations.
Flat panel displays that are inappropriately situated on dressers,
bookcases, shelves, desks, speakers, chests or carts may fall over and
cause injury.
THIS MANUFACURER CARES!
The consumer electronics industry is committed to making home
entertainment enjoyable and safe.
TUNE INTO SAFETY
O n e si z e do e s N O T fi t a l l . F o l l ow t h e ma n u f a c t u r e r ’ s
recommendations for the safe installation and use of your flat panel
display.
Carefully read and understand all enclosed instructions for proper use
of this product.
Don’t allow children to climb on or play with furniture and television
sets.
Don’t allow place flat panel displays on furniture that can easily be
used as steps, such as a chest of drawers.
Remember that children can become excited while watching
a program, especially on a “larger than life” flat panel display.
Care should be taken to place or install the display where it cannot be
pushed, pulled over, or knocked down.
Care should be taken to route all cords and cables connected to the
flat panel display so that they cannot be pulled or grabbed by curious
children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT
YOUR FLAT PANEL DISPLAY, ALWAYS:
Us e a mount that has been recomm ended by the display
man ufac turer an d/or lis ted by a n independen t labora tory
(such as UL, CSA, ETL).
Follow all instructions supplied by the display and wall mount
manufacturers.
If you have any doubts about your ability to safely install your flat
panel display, contact your retailer about professional installation.
Make sure that the wall where you are mounting the display is
appropriate. Some wall mounts are not designed to be mounted
to walls with steel studs or old cinder block construction.
If you are unsure, contact a professional installer.
A mini m u m o f t w o p e o ple are requ i r e d f o r i n s tallati o n .
Flat panel displays can be heavy
The model and serial numbers of the TV are
located on the back and/or one side of the TV.
Record them below should you ever need service.
MODEL
SERIAL
LG Customer Information Center
For inquires or comments, visit www.lg.com or call:
1-888-865-3026
1-888-542-2623
USA, Commercial User
CANADA
Pro:Centric is a trademark of LG Electronics U.S.A., Inc.
All other trademarks or registered trademarks are the property of
their respective owners.
This product qualifies for ENERGY STAR in the
“factory default (Home Use)” setting.
Changing the factory default settings or enabling other
features may increase power consumption that could
exceed the limits necessary to quality for ENERGY STAR.
(For 22/26LT560C)
(For LT560C series)
