Chef CHI643BA 60cm Induction Cooktop

User Manual

For CHI643BA. Additionally, the document applies to other Chef models: CHI743BA, SHI643BA

PDF File Manual, 9 pages, Read Online | Download pdf file

CHI643BA photo
background
INDUCTION COOKTOPS
User and Installation Manual
MODELS
CHI643BA, CHI743BA, SHI643BA
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...

Other documents for Chef CHI643BA

The following documents are available:
User Manual Specification
  • Bosch PIJ611BB1E Induction Cooktop Specifications Sheet - (English) Download
Photos

Specifications

Chef CHI643BA Questions and Answers


#1 What electric connection is required? Current cooktop has up to 28Amps. What is the required Amps for the Chef CHI643BA 60 Cm?

This cooktop requires around 29 Amps.

User Manual - Transcript

  • Page 1: INDUCTION COOKTOPS User and Installation Manual MODELS CHI643BA CHI743BA SHI643BA
  • Page 2 - English - : The symbols you will see in this booklet have these meanings WARNING warning Indicates information concerning your personal safety WARNING caution Indicates information on how to avoid damaging the appliance TIPS amp INFORMATION tips amp information Indicates tips and information about use of the appliance ENVIRONMENTAL TIPS environmental tips Indicates tips and information about economical and ecological use of the appliance TIPS amp INFORMATION tips amp information Important check for any damage or marks If you find the appliance is damaged or marked you must report it within 7 days if you wish to claim for damage marks under the manufacturers warranty This does not affect your statutory rights ENVIRONMENTAL TIPS environmental tips Information on disposal for users Most of the packing materials are recyclable Please dispose of those materials by contacting your local authorities and ask for the correct method of disposal CONGRATULATIONS Congratulations and thank you for choosing our Induction Cooktop We are sure you will find your new appliance a pleasure to use and a great asset to your cooking Before you use the appliance we recommend that you read through the whole user manual which provides a description of the product and its functions To avoid the risks that are always present when you use a cooking appliance it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards For future reference please store this booklet in a safe place Record model and serial number here Model Serial number general safety 2 CONTENTS Induction Cooktops Induction Cooktops GENERAL SAFETY 3 Safety information For your safety and correct operation of the appliance read this manual carefully before the installation and use Always keep these instructions with the appliance if you move or sell it The users must fully know the operation and safety functions of the appliance Children and vulnerable people safety WARNING warning Do not let persons children included with reduced physical sensory reduced mental functions or lack of experience and knowledge to use the appliance They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety Keep all packaging away from children There is the risk of suffocation or injury Keep the children away from the appliance during and after the operation until the appliance is cold Safety during operation Remove all packaging stickers and layers from the appliance before the first use Set the cooking zones to off after each use The risk of burns Do not put objects made of metal for example cutlery or saucepan lids on the surface that you cook They can become hot The users with an implanted pacemaker must keep their upper body minimum 30cm from induction cooking zones that are activated WARNING warning Fire risk Fats and oils can become hot very quickly with ignition Correct operation The appliance is only for domestic use Do not use the appliance as a work or a storage surface Do not put or keep flammable liquids and materials easy fusible objects made of plastic or aluminium on or near the appliance Be careful when you connect the appliance to the near sockets Other than the connection point in the terminal block do not let the electrical supply cord touch the appliance or hot cookware Ensure electrical supply cord is not tangled How to prevent damage to the appliance If objects or cookware fall on the glass the surface can be damaged Cookware made of cast iron cast aluminium or with damaged bottoms can scratch of the glass Do not move them on the surface Do not let cookware boil dry to prevent the damage to cookware and glass Do not use the cooking zones with empty cookware or without cookware Do not put aluminium foil on the appliance Make sure that the airflow space of 5mm between the worktop and front of the unit below it stays opened WARNING warning If there is a crack on the surface disconnect power supply to prevent the electrical shock CONDITIONS OF USE This appliance is intended to be used in household and similar applications such as Staff kitchen areas in shops offices and other working environments Farm houses By clients in hotels motels and other residential type environments Bed and breakfast type environments CONTENTS General safety 3 Installation instructions 4 Assembly 5 Product description 7 Operating instructions 8 Helpful hints and tips 9 Care and cleaning 10 Environment concerns 11 Warranty 12 Subject to change without notice

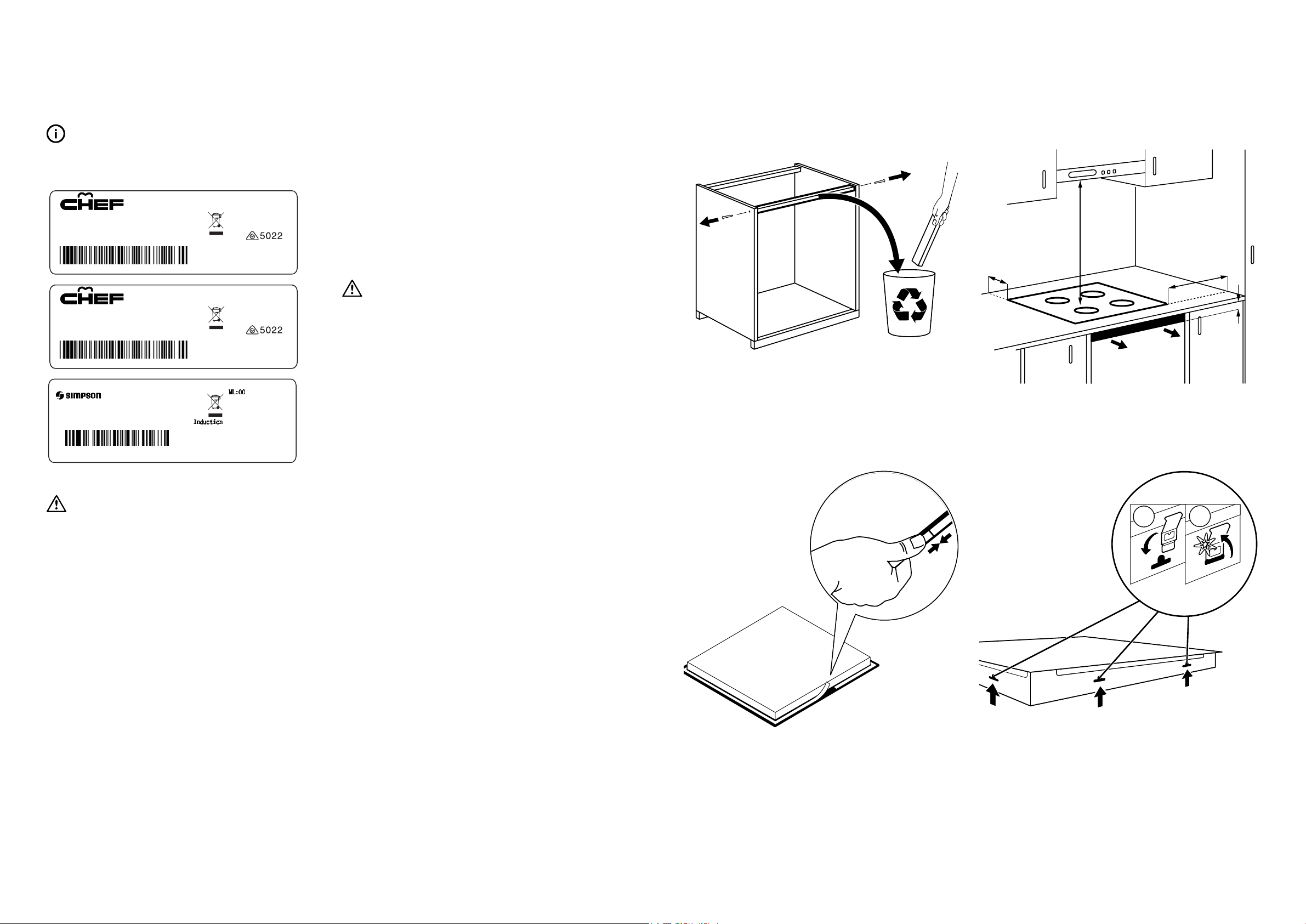

  • Page 3 - English - : installation instructions 4 INSTALLATION Induction Cooktops Induction Cooktops ASSEMBLY 5 assembly TIPS amp INFORMATION tips amp information Before the installation note down the serial number from the rating plate The rating plate of the appliance is on its lower casing PNC 949163299 Made in China By Electrolux Home Products Pty Ltd Model S NO 50Hz 74 KW 220 240 V AC CHI743BA 24094916329921xxxxxxxx2000 PNC 949163298 Made in China By Electrolux Home Products Pty Ltd Model S NO 50Hz 74 KW 220 240 V AC CHI643BA 240949163C29821xxxxxxxx2000 Made in China 50Hz SHI643BA 220 240V MODEL PNC949163315 74kW S NO 2409491633152155108547 The Safety Instructions WARNING warning You must read these Make sure that the appliance has not been damaged in transportation Do not connect a damaged appliance If it is necessary speak to the supplier Only an authorized servicing technician can install connect or repair this appliance Use only original spare parts Only use the builtin appliances after you assemble the appliance into correct builtin units and work surfaces that align to the standards Do not change the specification of this appliance Due to a risk of injury and damage Fully obey the laws ordinances directives and standards in the country where you use the appliance safety regulations recycling regulations electrical safety rules etc Keep the minimum distances to other appliances and units Make sure that the ventilation space of 5mm under the benchtop and directly in front of the appliance is free The warranty does not cover damages caused by lack of adequate ventilation Install shock protection for example install the drawers only with a protective floor directly below the appliance Do not use an external timer or a separate remote control system to operate the appliance Set the cooking zone to off after each use Do not rely on the pan detector Keep the cut surfaces of the worktop safe from moisture with a correct sealant Seal the appliance to the worktop with no space between with a correct sealant Keep the bottom of the appliance safe from steam and moisture eg from a dishwasher or oven Do not install the appliance adjacent to doors and below windows due to risk of cookware being pushed off hot appliance WARNING warning Risk of injury from electrical current Carefully obey the instructions for electrical connections Make electrical mains terminal free of voltage Install correctly to give shock protection Loose and incorrect plug and socket connections can make the terminal become too hot A qualified electrician must install the connections in the clamps correctly Use a strain relief clamp on cable Use the correct mains cable of type H05BBF Tmax 90C or higher for a single phase or two phase connection Replace the damaged mains cable with a special cable type H05BBF Tmax 90C or higher Speak to our Customer Care team The appliance must have the electrical installation which lets you disconnect the appliance from the mains at all poles with a contact opening width of minimum 3mm You must have correct devices to isolate line protecting cutouts fuses screw type fuses removed from the holder earth leakage trips and contactors min 50mm Make sure that a ventilation space of 5mm directly below the benchtop is included in the installation and kept free during use of the appliance The warranty does not cover functional failures caused by the lack of an adequate ventilation space min 50mm min 5mm min 500mm

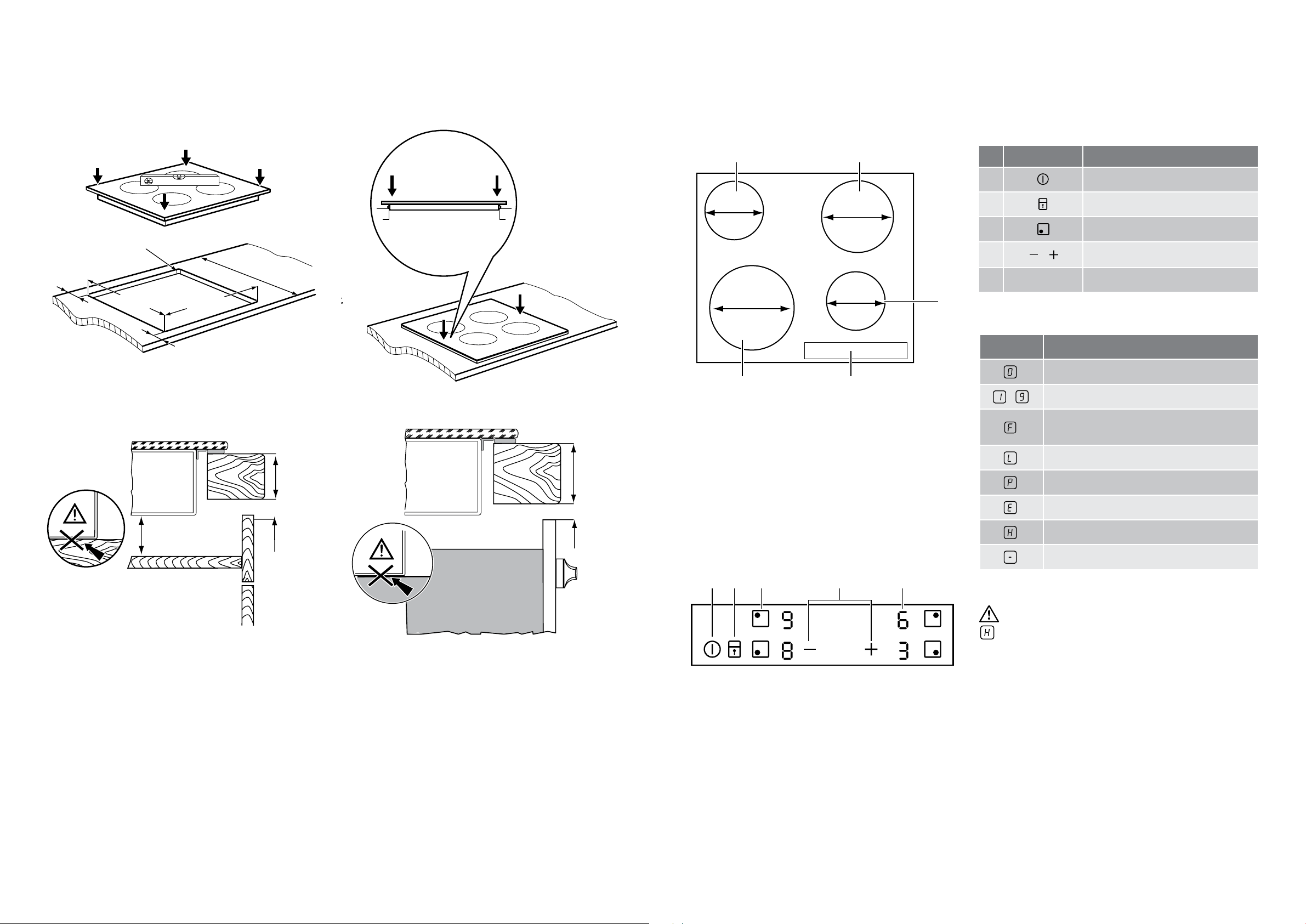

  • Page 4 - English - : assembly product description 6 ASSEMBLY Induction Cooktops Induction Cooktops PRODUCT DESCRIPTION 7 R 5mm 600mm min 25mm min 38mm min 20mm min 5mm min 5mm mm mm General overview 1 Inducton cooking zone 1400W with Power function 2500W minimum cookware diameter125mm 2 Inducton cooking zone 1800W with Power function 2800W minimum cookware diameter145mm 3 Inducton cooking zone 1400W with Power function 2500W minimum cookware diameter125mm 4 Inducton cooking zone 2300W with Power function 3200W minimum cookware diameter180mm Control panel layout 1 2 3 4 5 Operating the sensor field Sensor field Function Activates and deactivates the appliance Locksunlocks the control panel Activates the cooking zone Increases and decreases the heat settings 5 Heat setting display Shows the heat setting Heat setting displays Display Description The cooking zone is deactivated The cooking zone is in operation The cookware is incorrect or too small or there is no cookware on the cooking zone The lockthe child safety device is in operation The power function is in operation There is a malfunction A cooking zone is still hot residual heat The automatic switch off is in operation Residual heat indicator WARNING warning The risk of burns from residual heat The induction cooking zones make the heat necessary for cooking directly to the bottom of the cookware The ceramic glass conducts the heat into the cookware 1 2 45 140mm 140mm 210mm 180mm Make sure that a ventilation space of 5mm directly below the benchtop is included in the installation and kept free during use of the appliance The warranty does not cover functional failures caused by the lack of an adequate ventilation space

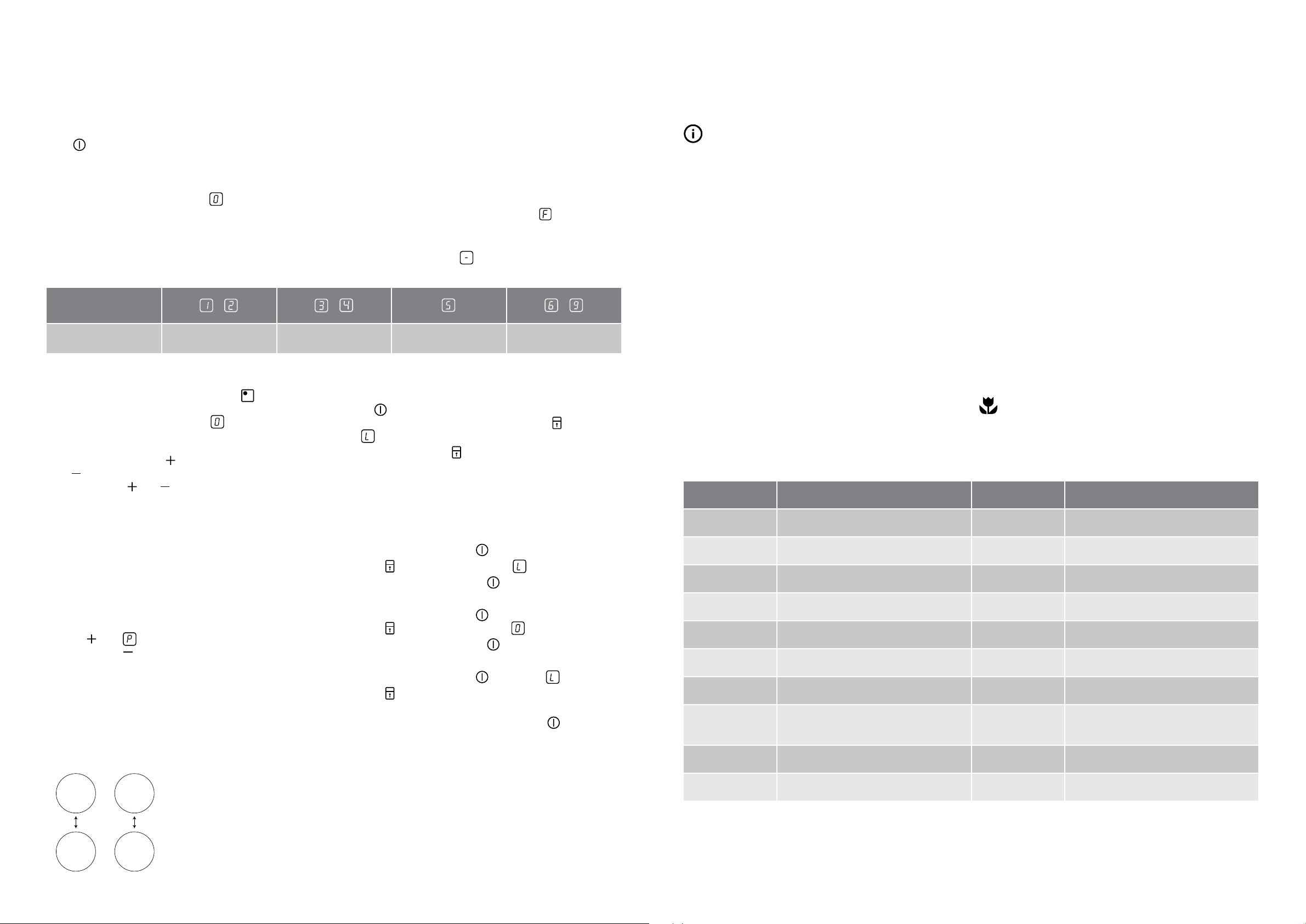

  • Page 5 - English - : 8 OPERATING INSTRUCTIONS Induction Cooktops operating instructions Activation and deactivation Touch for 1 second to activate or deactivate the appliance Automatic switch off The function deactivates the appliance automatically if All cooking zones are deactivated You do not set the heat setting after you activate the appliance The cooking zone selection To set the cooking zone touch the sensor field related with the cooking zone The display shows the selection by the dot adjacent to the heat setting indication The heat setting Set the cooking zone Press to increase the heat setting Press to decrease the heat setting The display shows the heat setting Touch and at the same time to deactivate the cooking zone Power function The power function increases power to the induction cooking zones You can activate the Power function for a maximum of 10 minutes After that the induction cooking zone automatically sets back to highest setting To activate the function 1 Set the cooking zone 2 Set the zone for the maximum heat setting 3 Press and comes on To deactivate the function press Power management The power management divides the power between two cooking zones in a pair Refer to the illustration The power function increases the power to the maximum level for one cooking zone in the pair Automatically decreases the power in the second cooking zone to a power level The display for the reduced zone change between two levels Lock When the cooking zones operate you can lock the control panel but not It prevents an accidental change of the heat setting First set the heat setting To start this function touch The symbol comes on for 4 seconds To stop this function touch The heat setting that you set before comes on When you switch off the cooktop you also stop this function The child safety device This function prevents an accidental operation of the appliance To activate the child safety device Activate the appliance with Do not set the heat settings Touch for 4 seconds The symbol comes on Deactivate the appliance with To deactivate the child safety device Activate the appliance with Do not set the heat settings Touch for 4 seconds The symbol comes on Deactivate the appliance with To override the child safety device for only one cooking time Activate the appliance with The symbol comes on Touch for 4 seconds Set the heat setting for 10 seconds You can operate the appliance When you deactivate the appliance with the child safety device operates again You spill something or put something on the control panel for more than 10 seconds a pan a cloth etc Remove the object or clean the control panel The appliance becomes too hot eg when a saucepan boils dry Before you use the appliance again the cooking zone must be cool If you use incorrect cookware The symbol comes on and the cooking zone deactivates automatically after 2 minutes If you do not deactivate a cooking zone or change a heat setting After some time comes on and the appliance deactivates Refer to table The times of Automatic Switch Off The heat setting The cooking zone deactivates after 6 hours 5 hours 4 hours 15 hours Induction Cooktops HINTS AND TIPS 9 helpful hints and tips TIPS amp INFORMATION tips amp information Use the correct cookware induction cooktop Cookware for induction cooking zones Important For induction cooking zones a strong electromagnetic field creates the heat in the cookware very quickly Cookware material Correct cast iron steel enamelled steel stainless steel the bottom made of multilayer with correct mark from a manufacturer Incorrect aluminium copper brass glass ceramic porcelain Cookware is correct for an induction hob if Water boils very quickly on a zone set to the highest heat setting A magnet pulls to the bottom of the cookware The bottom of the cookware must be as thick and flat as possible Cookware dimensions induction cooking zones adapt to the dimension of the bottom of the cookware automatically to some limit The noises during operation If you can hear A cracking noise cookware is made of different materials Whistle sound one or more cooking zones with high power levels and the cookware is made of different materials Humming high power levels in use Clicking electric switching occurs Hissing buzzing the fan is in operation The noises are normal and do not refer to appliance malfunction If unfamiliar with induction units please first compare the operating sounds of a demonstration model at your retailer before calling service If a service call is placed and the sounds are normal you will be charged for the visit ENVIRONMENTAL TIPS environmental tips Energy saving If it is possible always put the lids on the cookware Put cookware on a cooking zone before you start it The Examples of cooking applications The data in the table is for guidance only Heat setting Use Time Hint 1 Keep food warm As required Keep cookware covered 12 Hollandaise sauce melt butter chocolate and gelatine 525mins Stir from time to time 12 Solidify fluffy omelettes and baked eggs 1040mins Keep cookware covered 23 Simmer rice and milk based dishes and heating up readycooked meals 2550min Dont allow to dry out 34 Steam vegetables fish and meat 2045min Add a tablespoon of water 45 Steam potatoes 2060min Use no more than 14 cup of water and 750g of potatoes 45 Cook larger quantities of food stews and soups 60150mins Use up to 3 cups of water 67 Gentle fry escalope veal cordon bleu cutlets rissoles sausages liver roux eggs pancakes and donuts As required Turn half way through cook 78 Heavy fry hash browns loin steaks steaks 515mins Turn half way through cook Boil large quantities of water cook pasta sear meat goulash pot roast deepfry chips
  • Page 6 - English - : care and cleaning 10 CARE AND CLEANING Induction Cooktops Clean the appliance after each use Always use cookware with clean bottom WARNING warning Sharp objects and abrasive cleaning agents can cause damage to the appliance For your safety do not clean the appliance with steam cleaners or highpressure cleaners TIPS amp INFORMATION tips amp information Scratches or dark stains on the glass ceramic cause no effect on how the appliance operates If you tried the above solutions and cannot repair the problem speak to your dealer or our Customer Care team Give the data from the rating plate three digit letter code for the ceramic glass it is in the corner of the glass surface and an error message that comes on Make sure you operated the To remove the dirt 1 Remove immediately melted plastic plastic foil and food with sugar If not the dirt can cause damage to the appliance Use a special scraper for the glass Put the scraper on the glass surface at an acute angle and move the blade on the surface Remove after the appliance is sufficiently cool limescale rings water rings fat stains shiny metallic discolourations Use a special cleaning agent for glass ceramic or stainless steel 2 Clean the appliance with a moist cloth and some detergent 3 At the end rub the appliance dry with a clean cloth appliance correctly If not the servicing by a customer service technician or dealer will not be free of charge also during the warranty period The instructions about the customer service and conditions of guarantee are in the guarantee booklet How to resolve problems with your cooktop Problem Possible cause and remedy You cant activate the cooktop or operate it Activate the appliance again and set the heat setting in 10 seconds You touched 2 or more sensor fields at the same time Only touch one sensor field There is water or fat stains on the control panel Clean the control panel The cooktop deactivates An object has been placed on the button Remove the object from the sensor field The residual heat indicator does not come on The cooking zone is not hot because it operated only for a short time If the cooking zone is hot contact our Customer Care team The sensor fields become hot The cookware is too large or you put it too near to the controls Put large cookware on the rear cooking zones if it is necessary comes on The Automatic Switch Off is in operation Deactivate the appliance and activate it again comes on No cookware on the cooking zone Put cookware on the cooking zone Not correct cookware Use the correct cookware The diameter of the bottom of the cookware is too small for the cooking zone Move cookware to a smaller cooking zone and number comes on There is an error in the appliance Disconnect the appliance from the electrical supply for some time Disconnect the fuse from the electrical system of the house Connect again If comes on again contact our Customer Care team comes on The Automatic Switch Off operatres when the cookware on the appliance boils dry Deactivate the appliance Remove the hot cookware After approximately 30 seconds activate the cooking zone again will disappear from the display but the residual heat indicator will be shown until the cookware and appliance has sufficiently cooled down Refer to the Cookware section for correct cooking temperatures Red rings limescale or water rings shiny metallic or other discolouration scratches shadows bubbles or other miscellaneous marks or stains on ceramic glass cooktop surface Cooktop surface has not been cleaned correctly Cleaningmaintenance of the cooktop surface is not covered under warranty If a service call is placed to clean the cooktop you will be charged for the visit Use a ceramic glass cleaner such as Cerapol Pitting of ceramic glass surface Spills of liquid with high sugar content These types of spills must be removed immediately with a special scraper for the glass If not permanent damage to the cooktop glass can occur which is not covered under warranty The heat setting changes between two levels The power management is activated Refer to Power management comes on The Child Safety Lock device or the Lock function operates Refer to chapter Operating instructions environmental concerns Induction Cooktops ENVIRONMENTAL CONCERNS 11 The symbol PNC 949163299 Made in China By Electrolux Home Products Pty Ltd Model S NO 50Hz 74 KW 220 240 V AC CHI743BA 24094916329921xxxxxxxx2000 PNC 949163298 Made in China By Electrolux Home Products Pty Ltd Model S NO 50Hz 74 KW 220 240 V AC CHI643BA 240949163C29821xxxxxxxx2000 on the product or on its packaging indicates that this product may not be treated as household waste Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product For more detailed information about recycling of this product please contact your local council your household waste disposal service or the shop where you purchased the product ENVIRONMENTAL TIPS environmental tips Packaging material The packaging materials are friendly to the environment and can be recycled The plastic components are identified by marking gtPEltgtPSlt etc Discard the packaging materials as household waste at the waste disposal
  • Page 8 - English - : notes This document sets out the terms and conditions of the product warranties for Electrolux Appliances It is an important document Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance 1 In this warranty a acceptable quality as referred to in clause 10 of this warranty has the same meaning referred to in the ACL b ACL means Schedule 2 to the Competition and Consumer Act 2010 c Appliance means any Electrolux product purchased by you and accompanied by this document d ASC means Electrolux authorised service centres e Electrolux means Electrolux Home Products Pty Ltd of 163 ORiordan Street Mascot NSW 2020 ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux NZ Limited collectively Electrolux of 35 Niall Burgess Road Mount Wellington in respect of Appliances purchased in New Zealand f major failure as referred to in clause 10 of this warranty has the same meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Electrolux at its discretion to repair an Appliance during the Warranty Period g Warranty Period means the Appliance is warranted against manufacturing defects in Australia for 24 months and in New Zealand for 24 months following the date of original purchase of the Appliance h you means the purchaser of the Appliance not having purchased the Appliance for resale and your has a corresponding meaning 2 This warranty only applies to Appliances purchased and used in Australia or New Zealand and used in normal domestic applications and is in addition to and does not exclude restrict or modify in any way any nonexcludable statutory warranties in Australia or New Zealand 3 During the Warranty Period Electrolux or its ASC will at no extra charge if your Appliance is readily accessible for service without special equipment and subject to these terms and conditions repair or replace any parts which it considers to be defective Electrolux or its ASC may use remanufactured parts to repair your Appliance You agree that any replaced Appliances or parts become the property of Electrolux This warranty does not apply to light globes batteries lters or similar perishable parts 4 Parts and Appliances not supplied by Electrolux are not covered by this warranty 5 To the extent permitted by law you will bear the cost of transportation travel and delivery of the Appliance to and from Electrolux or its ASC If you reside outside of the service area you will bear the cost of a travel of an authorised representative b transportation and delivery of the Appliance to and from Electrolux or its ASC In all instances unless the Appliance is transported by Electrolux or an Electrolux authorised representative the Appliance is transported at the owners cost and risk while in transit to and from Electrolux or its ASC 6 Proof of purchase is required before you can make a claim under this warranty 7 You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship Electrolux is not liable in the following situations which are not exhaustive a the Appliance is damaged by i accident ii misuse or abuse including failure to properly maintain or service iii normal wear and tear iv power surges electrical storm damage or incorrect power supply v incomplete or improper installation vi incorrect improper or inappropriate operation vii insect or vermin infestation viii failure to comply with any additional instructions supplied with the Appliance b the Appliance is modied without authority from Electrolux in writing c the Appliances serial number or warranty seal has been removed or defaced d the Appliance was serviced or repaired by anyone other than Electrolux an authorised repairer or ASC 8 This warranty the contract to which it relates and the relationship between you and Electrolux are governed by the law applicable where the Appliance was purchased Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply 9 To the extent permitted by law and subject to your nonexcludable statutory rights and warranties Electrolux excludes all warranties and liabilities other than as contained in this document including liability for any loss or damage whether direct or indirect arising from your purchase use or non use of the Appliance 10 For Appliances and services provided by Electrolux in Australia the Appliances come with a guarantee by Electrolux that cannot be excluded under the ACL You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure The benets to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which the warranty relates 11 At all times during the Warranty Period Electrolux shall at its discretion determine whether repair replacement or refund will apply if an Appliance has a valid warranty claim applicable to it 12 For Appliances and services provided by Electrolux in New Zealand the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act the Sale of Goods Act and the Fair Trading Act 13 To enquire about claiming under this warranty please follow these steps a carefully check the operating instructions user manual and the terms of this warranty b have the model and serial number of the Appliance available c have the proof of purchase eg an invoice available d telephone the numbers shown below 14 You accept that if you make a warranty claim Electrolux and its ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE BUILTIN OVEN COOKTOP AND FREESTANDING COOKERS Important Notice Before calling for service please ensure that the steps listed in clause 13 above have been followed FOR SERVICE or to nd the address of your nearest state service centre in Australia PLEASE CALL 13 13 49 For the cost of a local call Australia only SERVICE AUSTRALIA ELECTROLUX HOME PRODUCTS electroluxcomau FOR SPARE PARTS or to nd the address of your nearest state spare parts centre in Australia PLEASE CALL 13 13 50 For the cost of a local call Australia only FOR SERVICE or to nd the address of your nearest authorised service centre in New Zealand FREE CALL 0800 10 66 10 New Zealand only SERVICE NEW ZEALAND ELECTROLUX NZ Limited electroluxconz FOR SPARE PARTS or to nd the address of your nearest state spare parts centre in New Zealand FREE CALL 0800 10 66 20 New Zealand only GOVWarrSep15
  • Page 9 - English - : Chef We are part of the Electrolux Family To add a touch of professional inspiration to your home visit electroluxcomau 2016 Electrolux Home Products Pty Ltd ABN 51 004 762 341 ANC A05333001 CMANInductionCooktopFeb16 For further information on all appliances or to obtain detailed dimension and installation information call into your Retailer phone or email our Customer Care team or visit our website Australia phone 1300 363 640 fax 1800 350 067 email customercareelectroluxcomau website chefcomau Chef models westinghousecomau Westinghouse models New Zealand phone 0800 234 234 fax0800 363 600 email customercareelectroluxconz website simpsonconz Simpson models westinghouseconz Westinghouse models Top service Top Service encompasses the after sales service provided by The Electrolux Group to consumers including delivery home service and spare parts like to know more
