Sony MHC-DP1000D Dvd Shelf System User Manual

Mini Hi-Fi

Component

System

Operating Instructions

4-236-762-12(1)

MHC-DP1000D

MHC-DP900D

Owner’s Record

The model and serial numbers are located on the rear panel. Record the serial number

in the space provided below. Refer to them whenever you call upon your Sony dealer

regarding this product.

Model No. Serial No.

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

This appliance is

classified as a CLASS 1

LASER product. The

CLASS 1 LASER

PRODUCT MARKING

is located on the rear

exterior.

CAUTION

The use of optical instruments with this product will

increase eye hazard.

As the laser beam used in this CD/DVD Player is

harmful to eyes, do not attempt to disassemble the

cabinet. Refer servicing to qualified personnel only.

U.S.A. model

This label is located on the rear exterior.

European model

The following caution label is located inside the

apparatus.

To prevent fire, do not Cover the ventilation of the

apparatus with news papers, table-cloths, curtains,

etc. And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Don’t throw a battery, dispose it as

the injurious wastes.

NOTICE FOR THE CUSTOMERS IN THE

U.S.A.

This symbol is intended to alert the user to

the presence of uninsulated “dangerous

voltage” within the product’s enclosure that

may be of sufficient magnitude to constitute

a risk of electric shock to persons.

This symbol is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following

measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

– Consult the dealer or an experienced radio/TV

technician for help.

CAUTION

You are cautioned that any changes or modifications

not expressly approved in this manual could void

your authority to operate this equipment.

NOTICE FOR THE CUSTOMERS IN

CANADA

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE

THIS POLARIZED AC PLUG WITH AN

EXTENSION CORD, RECEPTACLE OR OTHER

OUTLET UNLESS THE BLADES CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE.

Note to CATV system installer

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of cable entry as practical.

NOTICE FOR THE CUSTOMERS IN NORTH

AMERICA

ENERGY STAR

is a U.S.

registered mark.

As an ENERGY STAR

partner,

Sony Corporation has determined

that this product meets the ENERGY

STAR

guidelines for energy

efficiency.

This system incorporates Dolby* Digital, Pro Logic

Surround, DTS**, and the DTS Digital Surround

System.

* Manufactured under license from Dolby

Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are

trademarks of Dolby Laboratories.

**Manufactured under license from Digital Theater

Systems, Inc. US Pat. No. 5,451,942, 5,956,674,

5,974,380, 5,978,762 and other world-wide patents

issued and pending. “DTS” and “DTS Digital

Surround” are registered trademarks of Digital

IMPORTANT NOTICE

Caution: This system is capable of holding a

still video image or on-screen display image on

your television screen indefinitely. If you leave

the still video image or on-screen display

image displayed on your TV for an extended

period of time, you risk permanent damage to

your television screen. Projection televisions

are especially susceptible to this.

Table of Contents

This system can play the following discs .....

Parts Identification

Main unit ............................................... 7

Remote control ......................................8

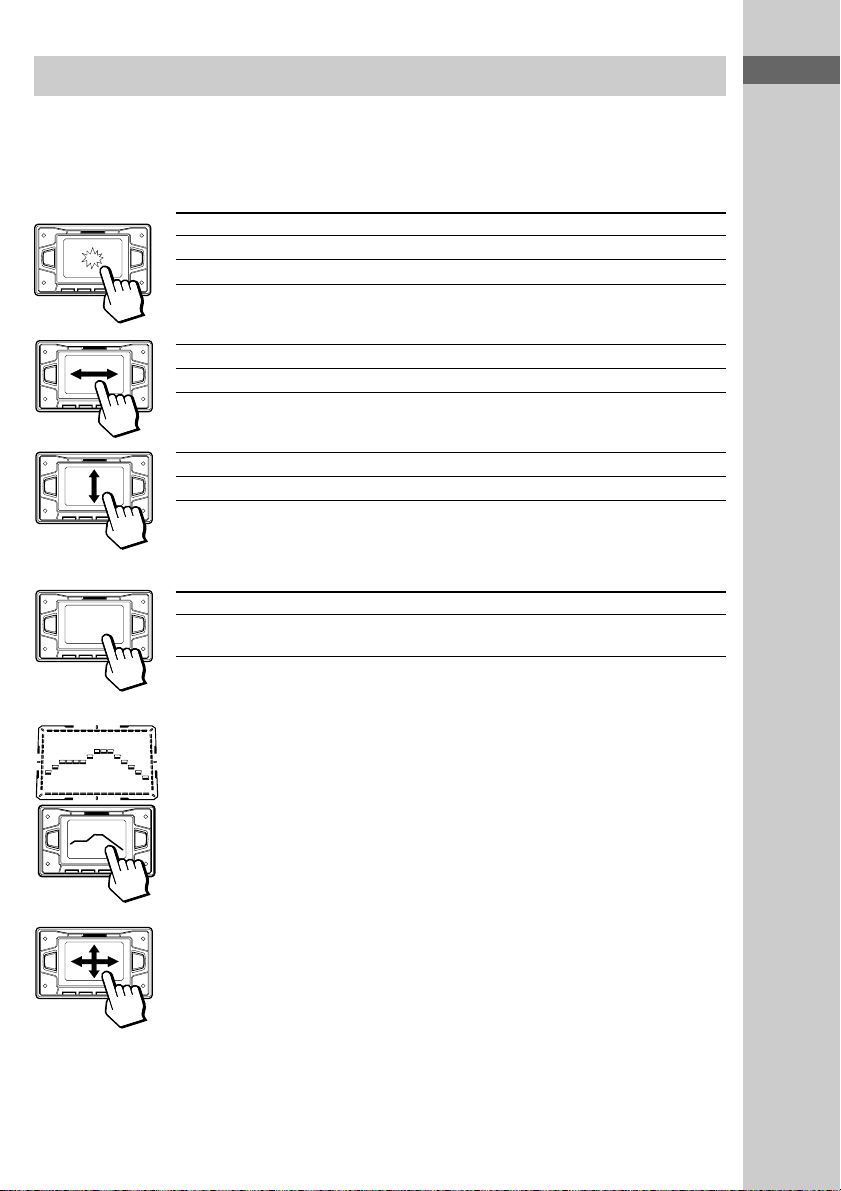

digipad operations ................................. 9

Getting Started

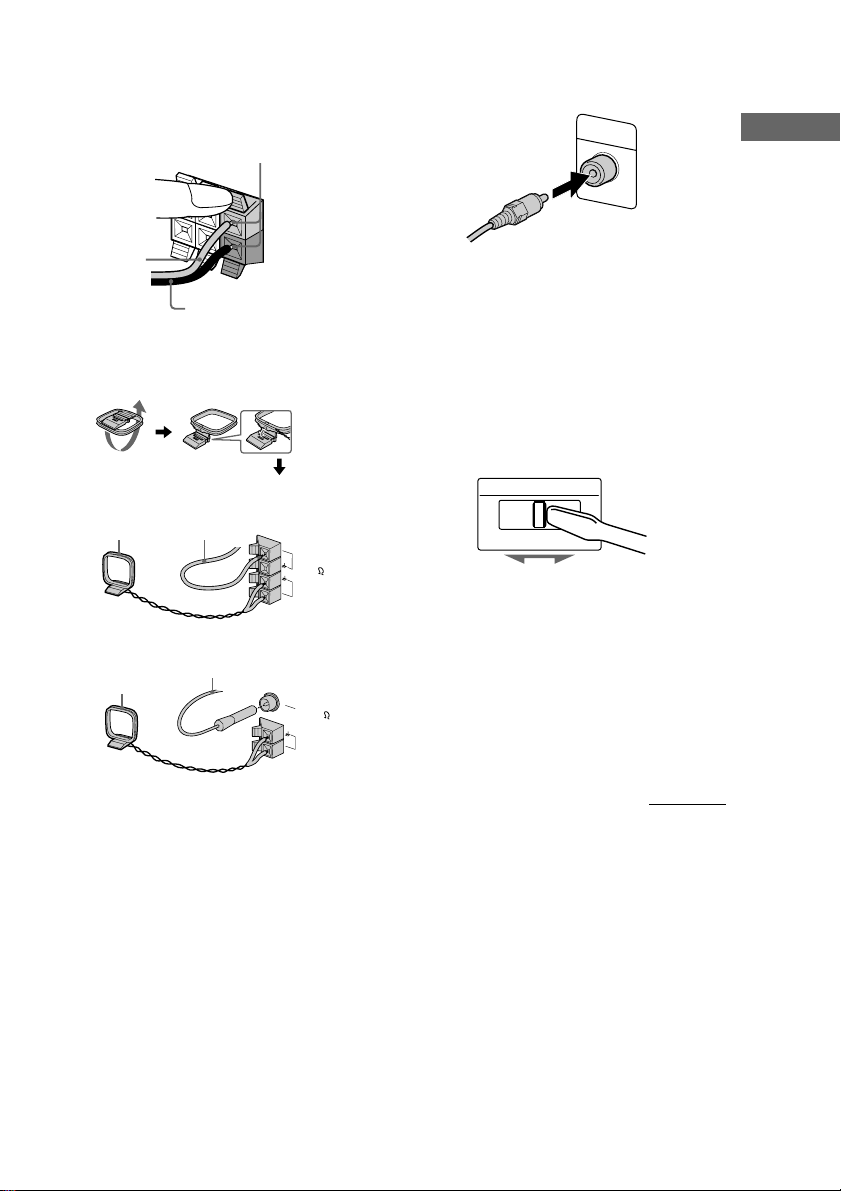

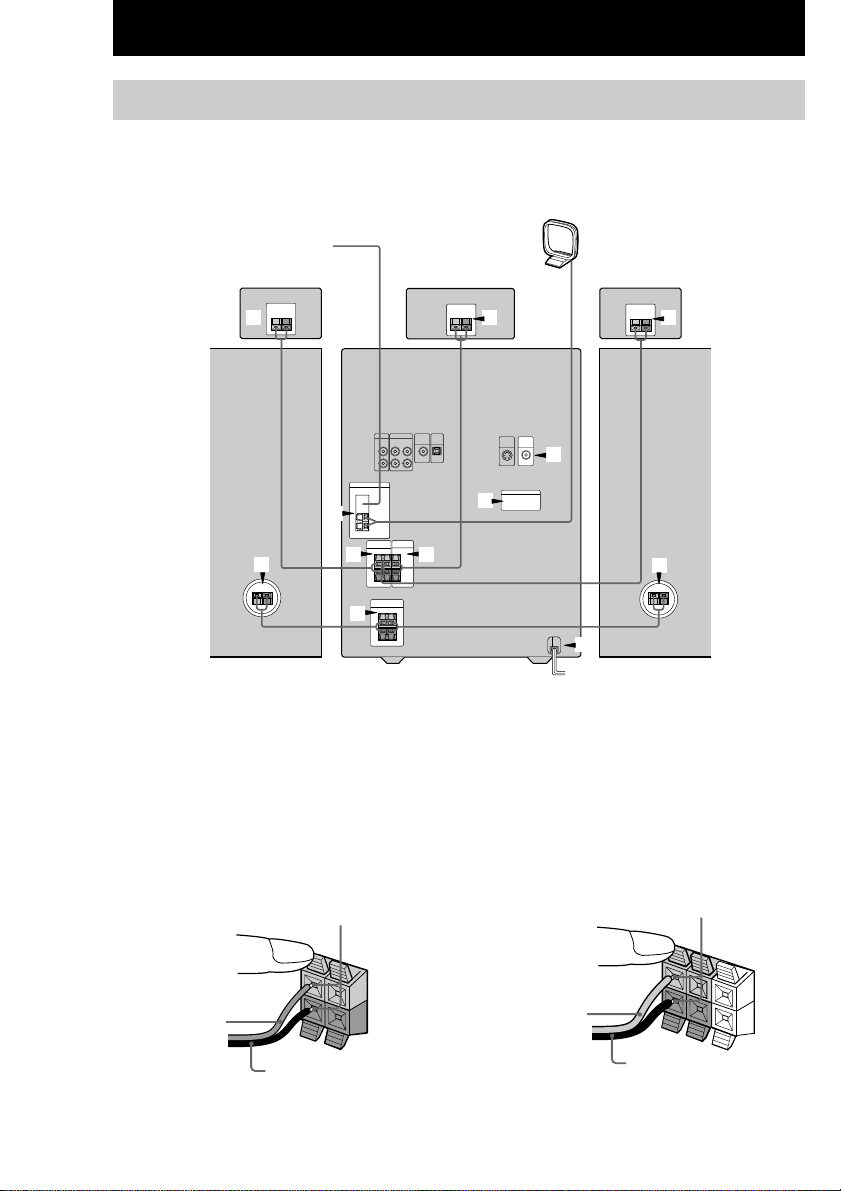

Hooking up the system ........................ 10

Inserting two size AA (R6) batteries

into the remote .............................. 12

Setting up your speakers for

Dolby Pro Logic* .......................... 13

Specifying the speaker parameters ...... 14

Setting the time.................................... 15

Saving the power in standby mode...... 16

Setting Up for DVD/VIDEO CD/

Using the Setup Display ...................... 17

Setting the display or sound track

language

— LANGUAGE SETUP .............. 18

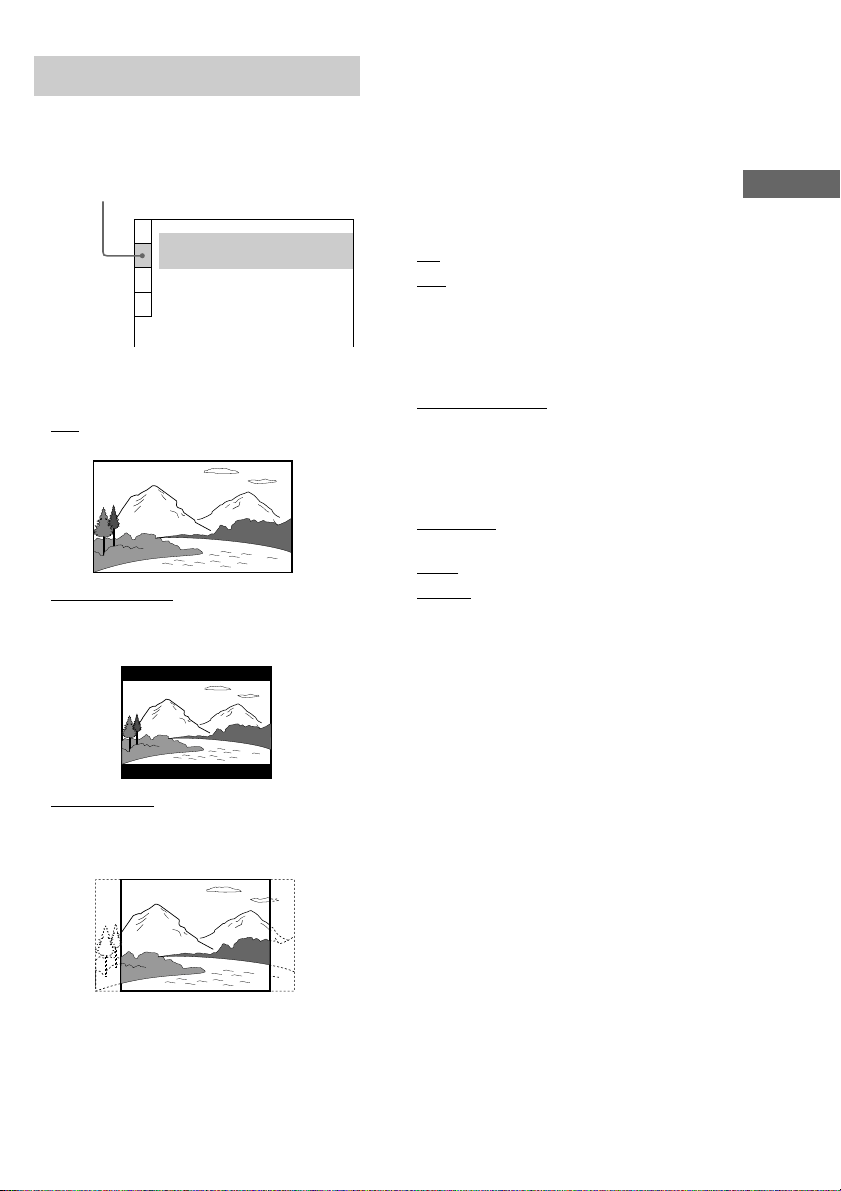

Settings for the display

— SCREEN SETUP ..................... 19

Custom settings

— CUSTOM SETUP .................... 20

Speaker settings

— SPEAKER SETUP................... 21

DVD/VIDEO CD/CD

Playing discs:

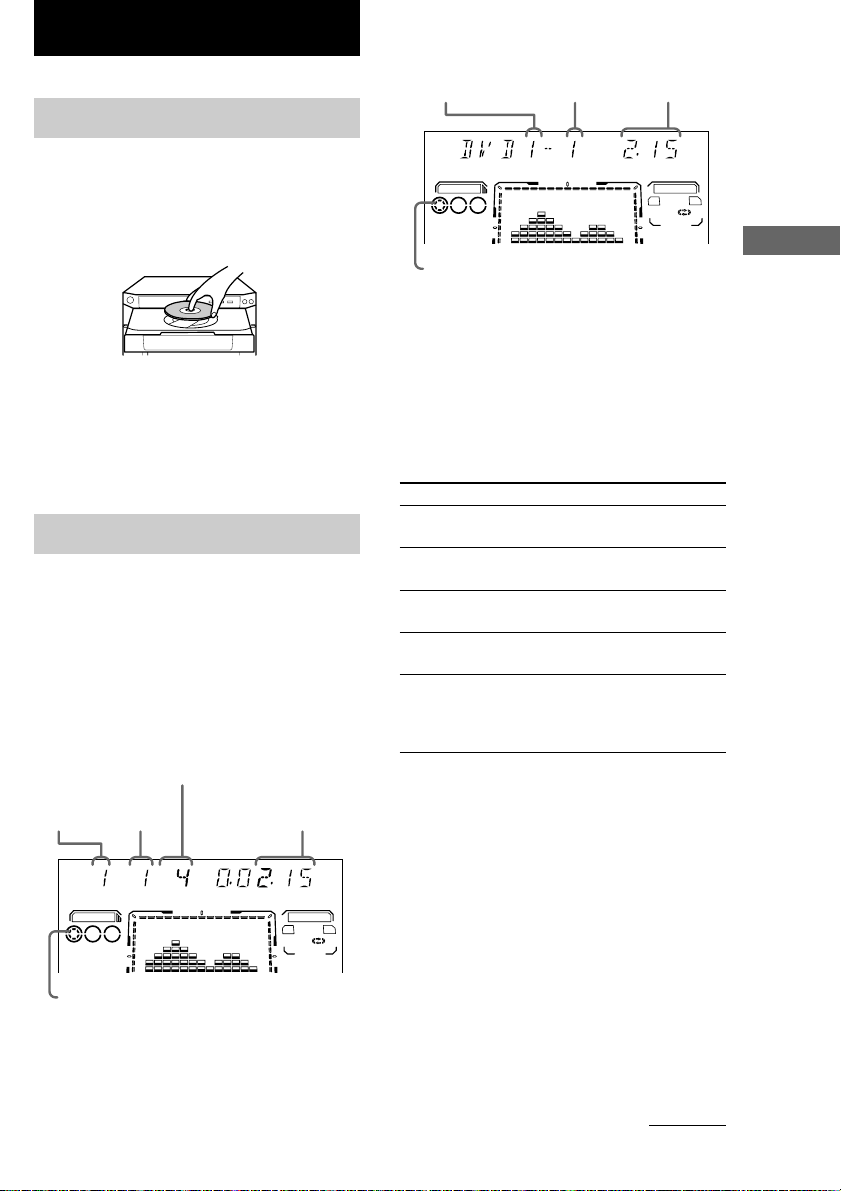

Loading a disc ..................................... 23

Playing a disc

— Normal Play/Shuffle Play/

Slow-motion Play/Freeze Frame... 23

Playing DVDs using the menu ............ 25

Playing VIDEO CDs with PBC functions

(Ver. 2.0)

— PBC Play .................................. 25

Creating your own program

— Program Play ............................ 26

Resuming playback from the point you

stopped the disc

— Resume Play.............................28

Playing repeatedly

— Repeat Play .............................. 28

Viewing information about the disc:

Checking the playing time and

remaining time .............................. 29

Checking the playback information

— ADVANCED ...........................31

Sound adjustments:

Changing the sound .............................32

Enjoying movies:

Searching for a title/chapter/track/

index/scene .................................... 34

Changing the angles ............................ 35

Displaying the subtitles ....................... 35

Using various additional functions:

Locking discs

— CUSTOM PARENTAL

CONTROL/PARENTAL

CONTROL .................................... 36

* MHC-DP1000D only.

** European model only.

***Except for North American and European models.

Tuner

Presetting radio stations....................... 40

Listening to the radio

— Preset Tuning ........................... 40

Using the Radio Data System

(RDS)** ........................................ 41

Tape

Loading a tape ..................................... 42

Playing a tape ...................................... 42

Recording to a tape

— CD Synchro Recording/

High-Speed Dubbing/Recording

Manually/Program Edit ................. 43

Timer-recording radio programs ......... 45

Sound Adjustment

To listen to multi channel sound ......... 46

About indicators .................................. 46

Adjusting the sound ............................. 46

Selecting the preset effect file ............. 47

Adjusting the sound effects ................. 47

Creating a personal audio effect file

— Personal file.............................. 48

Other Features

Changing the spectrum analyzer

display ........................................... 49

To adjust the brightness of the display...

Singing along: Karaoke*** ................. 49

Falling asleep to music

— Sleep Timer .............................. 50

Waking up to music

— Daily Timer .............................. 50

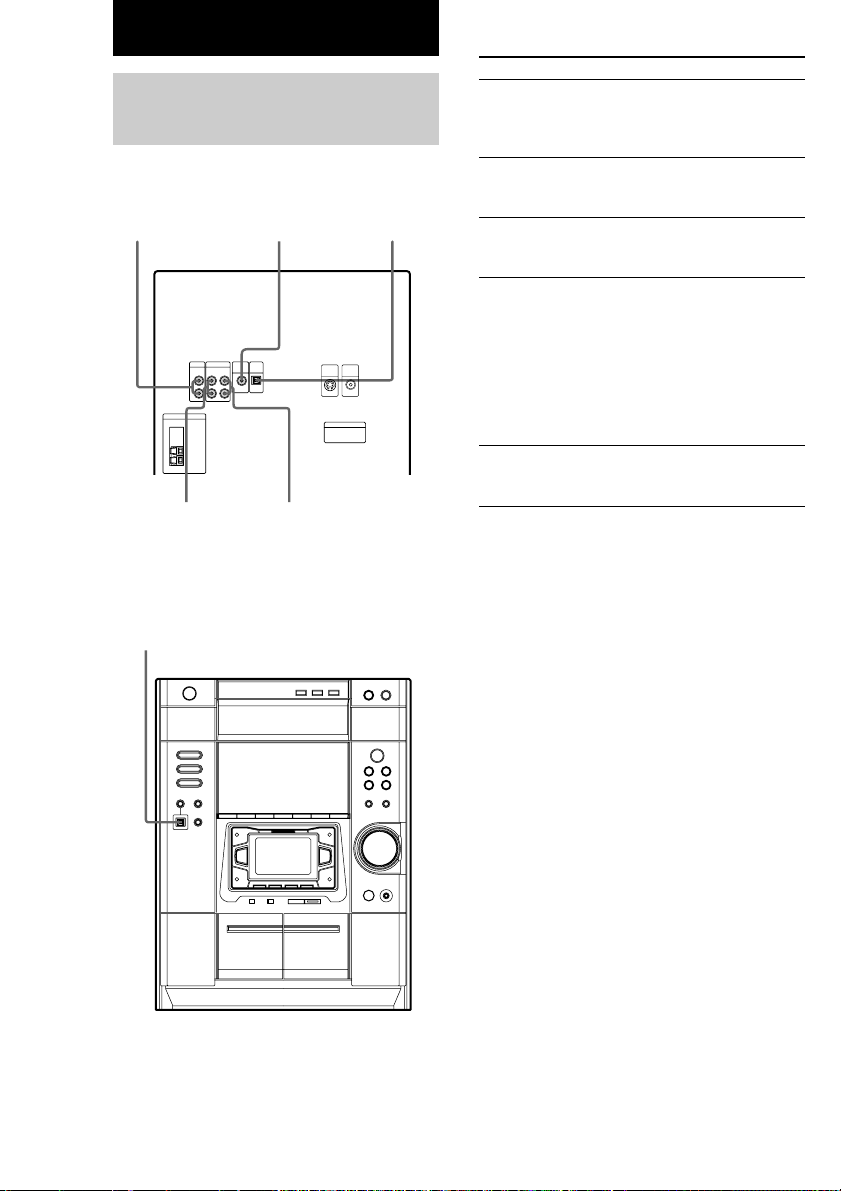

Hooking Up the Optional

Components

Connecting audio components ............ 52

Additional Information

Precautions .......................................... 53

Troubleshooting................................... 54

Specifications ...................................... 59

Glossary............................................... 62

Language code list ............................... 64

Control Menu Item List ....................... 65

Setup Display Item List ....................... 66

This system can play the

following discs

DVD VIDEOs Audio CDs VIDEO CDs

Disc

logo

Contents Audio + Audio Audio +

Video Video

The “DVD VIDEO” logo is a trademark.

Discs that this system

cannot play

• CD-ROMs (PHOTO CDs included)

• All CD-Rs other than music and VCD format

CD-Rs

• Data part of CD-Extras

• DVD-ROMs

• DVD Audio discs

• HD layer on SACDs

• 8 cm CDs

Note

Some CD-Rs/CD-RWs or DVD-Rs/DVD-RWs

cannot be played on this system depending upon the

format or the recording quality or physical condition

of the disc, or the characteristics of the recording

device.

Furthermore, the disc will not play if it has not been

correctly finalized. For more information, see the

operating instructions for the recording device.

Region code of DVDs you can

play on this system

Your system has a region code printed on the

back of the unit and will only play DVDs

labeled with identical region code.

DVDs labeled

ALL

will also be played on this

system.

If you try to play any other DVD, the message

“Playback prohibited by area limitations.” will

appear on the TV screen.

Depending on the DVD, no region code

indication may be labeled even though playing

the DVD is prohibited by area restrictions.

Note on playback operations of

DVDs and VIDEO CDs

Some playback operations of DVDs and

VIDEO CDs may be intentionally set by

software producers. Since this system plays

DVDs and VIDEO CDs according to the disc

contents the software producers designed, some

playback features may not be available. Also,

refer to the instructions supplied with the

DVDs or VIDEO CDs.

Note on PBC (Playback Control)

(VIDEO CDs)

This system conforms to Ver. 1.1 and Ver. 2.0

of VIDEO CD standards. You can enjoy two

kinds of playback depending on the disc type.

Disc type

VIDEO CDs

without PBC

functions

(Ver. 1.1 discs)

VIDEO CDs

with PBC

functions

(Ver. 2.0 discs)

Copyrights

This product incorporates copyright protection

technology that is protected by method claims

of certain U.S. patents, other intellectual

property rights owned by Macrovision

Corporation, and other rights owners. Use of

this copyright protection technology must be

authorized by Macrovision Corporation, and is

intended for home and other limited viewing

uses only unless otherwise authorized by

Macrovision Corporation. Reverse engineering

or disassembly is prohibited.

You can

Enjoy video playback (moving

pictures) as well as music.

Play interactive software

using menu screens displayed on

the TV screen (PBC Playback), in

addition to the video playback

functions of Ver. 1.1 discs.

Moreover, you can play high-

resolution still pictures, if they are

included on the disc.

Region code

MODEL NO. HCD-DPXXXX

DVD DECK RECEIVER

AC: 00V 00Hz 00W

SERIAL NO.

XXXXX

Parts Identification

12345

eaesedefegeh

rfrdrs

2CH/MULTI rs (24, 46)

CD SYNC HI-DUB qj (43, 44)

CLOCK/TIMER SET ed (15, 45,

51)

DECK A Z wa (42)

DECK B Z qk (42)

digipad el (9, 24, 40, 47)

DIGITAL wh (52)

DIGITAL IN (OPTICAL) jack

wf (52)

DIRECTION eg (42–44, 50)

DISC 1–3 2 (23, 24)

DISC SKIP EX-CHANGE 3

(23, 24)

Disc tray 5 (23)

DISPLAY ea (16, 29, 30)

DOLBY NR eh (42–44)

DSP EDIT rj (47)

DVD e; (12, 25, 26, 34, 43, 44)

DVD DISPLAY eg (17, 28, 30)

DVD MENU ql (25)

EFFECT rd (47)

ENTER r; (14, 15, 25–27, 31,

32, 34–41, 44, 45, 47, 51)

FM MODE eh (41)

GAME wg (52)

GAME MODE rh (47)

GROOVE rf (46)

IR receptor qf

KARAOKE PON (Except for

North American and European

models) es (49)

MD (VIDEO) wj (52)

MIC jack (Except for North

American and European

models) wd (49)

MIC LEVEL control (Except for

North American and European

models) ws (49)

MOVIE MODE ek (47)

MULTI CHANNEL DECODING

indicator rl (46)

MUSIC MODE rk (47)

P FILE rg (48)

PHONES jack qg

PLAY MODE ej (23, 26, 27, 44)

PTY (European model only) eg

(41)

REC PAUSE/START qh (43, 44,

50)

REPEAT eh (28, 29)

SPECTRUM (North American

and European models only) es

(49)

TAPE A/B wk (42, 43)

TIMER SELECT ef (45, 51)

TITLE w; (25)

TOOL MODE ra (47)

TUNER/BAND wl (40)

TUNER MEMORY ej (40)

VOLUME control qd

BUTTON DESCRIPTIONS

@/1 (power) 1

Z OPEN/CLOSE (disc tray) 4

nN (play) 6

X (pause) 7

x (stop) 8

. (go back) q;

> (go forward) 9

m/– (rewind) qs

M/+ (fast forward) qa

Parts Identification

Main unit

The items are arranged in alphabetical order.

Refer to the pages indicated in parentheses ( ) for details.

Mm>.

TtCc

1234 5

Remote control

2CH/MULTI qa (24, 46)

AMP MENU es (14, 49)

ANGLE eg (35)

AUDIO ws (32)

CLEAR rs (21, 27, 28, 34)

CLOCK/TIMER SELECT 2

(45, 51)

CLOCK/TIMER SET 3 (15, 45,

51)

D.SKIP qs (23, 24, 28)

DIGITAL rj (52)

DISPLAY rg (16, 29, 30)

DSP EDIT ef (47)

DVD rl (12, 16, 25, 26, 34, 43,

44)

DVD DISPLAY wd (17, 28, 30–

32, 34–36)

DVD MENU wa (25)

DVD SET UP ql (18, 22, 37)

EFFECT ON/OFF qd (47)

ENTER wk (14, 15, 17, 25–27,

31, 32, 34–41, 44, 45, 47, 49,

51)

GAME rh (52)

GAME MODE wl (47)

MD (VIDEO) rk (52)

MOVIE MODE wg (47)

MUSIC MODE ea (47)

NEXT el (24, 25)

Numeric buttons 8 (26)

P FILE ed (48)

PREV r; (24, 25)

REPEAT q; (28, 29)

RETURN O ra (25, 37, 38)

SLEEP 1 (50)

SLOW t/T qk (24)

SPEAKER LEVEL wf (14)

SPECTRUM rf (49)

STEP c/C ej (24)

SUB TITLE eh (35)

TAPE A/B ta (42, 43)

TITLE w; (25)

TOOL MODE wj (47)

TUNER/BAND t; (40, 41)

TV @/1 4 (12)

TV CH +/– 7 (12)

TV/VIDEO 9 (12)

TV VOL +/– 6 (12)

VOL +/– wh

BUTTON DESCRIPTIONS

@/1 (power) 5

nN (play), SELECT qf

X (pause) qg

x (stop) qj

m/M (rewind/fast forward),

TUNING –/+ qh

./> (go back/go forward),

PRESET –/+ ek

v/V/b/B e;

>10 rd

Parts Identification

digipad operations

This model is equipped with an unique digipad multi controlling device. You can control various

operations with this digipad.

DVD (When OSD does not appear in the screen), TUNER, TAPE

A/B functions

Basic operation DVD, TUNER, TAPE A/B

Tap once nN (Start playback)*

Tap twice x (Stop playback)

* When you tap the digipad while playing a DVD/VIDEO CD/CD, playback pauses. Tap

again to resume playback.

Slide from the left to the right > (AMS +, preset +)**

Slide from the right to the left . (AMS –, preset –)**

Slide from lower side to upper side M (Fast forward, tuning +)**

Slide from upper side to lower side m (Rewind, tuning –)**

**If you keep on moving, you can operate as pressing and holding these

buttons.

DVD function (When OSD appears in the screen)

Basic operation DVD

Slide to the top, buttom, left side, or v/V/b/B (same as the cursor buttons on the

right side of the digipad remote)

Adjusting the equalizer curve in EQ EDIT operations (page 47)

The curve made by sliding the finger is reflected in the display.

Selecting parameters in DSP EDIT and other adjustments

(page 47)

Slide in the direction until you reach the value you want (refer to each of the

operations).

Notes

• Do not use utensil whose end is sharpened.

• When this unit does not respond to the digipad operations, press the digipad a little harder.

–

2 2

1 1

Getting Started

Hooking up the system

Do the following procedure 1 to 8 to hook up your system using the supplied cords and

accessories.

AM loop antenna

Front speaker

(Left)

Front speaker

(Right)

FM antenna

Rear speaker*

(Right)

Rear speaker*

(Left)

Center speaker*

Insert only the stripped portion.

Black/Stripe (#)

Red/Solid (3)

–

1 Connect the front speakers.

Connect the speaker cords to the FRONT

SPEAKER jacks (MHC-DP1000D) or

SPEAKER jacks (MHC-DP900D).

2 Connect the rear speakers.

(MHC-DP1000D only)

Connect the speaker cords to the REAR

SPEAKER jacks.

Insert only the stripped portion.

Black/Stripe (#)

Gray/Solid (3)

* MHC-DP1000D only.

Getting Started

VIDEO

OUT

5 Connect the video input jack of your TV

to the VIDEO OUT jack with the video

cable.

When using a TV

Turn on the TV and select the video input so you can

view the pictures from this system.

Tip

For even higher quality video images, you can use an

optional S-video cable to connect the S VIDEO input

jack on your TV to the S VIDEO OUT jack.

6 For models with a voltage selector, set

VOLTAGE SELECTOR to the position of

your local power line voltage.

7 Connect the power cord to a wall outlet.

The demonstration appears in the display.

When you press ?/1, the system turns on

and the demonstration automatically ends.

If the supplied adaptor on the plug does not

fit your wall outlet, detach it from the plug

(only for models equipped with an adaptor).

3 Connect the center speaker.

(MHC-DP1000D only)

Connect the speaker cords to the CENTER

SPEAKER jacks.

4 Connect the FM/AM antennas.

Set up the AM loop antenna, then connect

it.

The plug of the FM antenna may vary according

to the model you purchased.

–

Insert only the stripped portion.

Black/Stripe (#)

Gray/Solid (3)

220V 230-240V120V

VOLTAGE SELECTOR

Extend the FM lead

antenna horizontally.

AM loop antenna

Extend the FM lead

antenna horizontally.

AM loop antenna

Jack type B

FM75

Jack type A

continued

8 (Except for Pan American and

European models)

Set the color system according to your

TV.

The color system is factory set to NTSC for

region code 3 models, and PAL for other

region code models. Each time you perform

the procedure below, the color system

changes as follows:

NTSC y PAL

Use the buttons on the unit.

1 Press ?/1 to turn on the system.

2 Press DVD.

3 Press x.

4 Press ?/1 while holding down X.

The system turns off.

5 Press ?/1 to turn on the system.

The system turns on and the color system is

changed.

To attach the speaker pads

Attach the supplied speaker pads to the bottom

of the speakers to stabilize the speakers and

prevent them from slipping.

Notes

• Keep the speaker cords away from the antennas to

prevent noise.

• The type of speakers supplied vary according to the

model you purchased (see “Specifications” on page

59).

• Do not place the rear speakers on top of a TV. This

may cause color distortion in the TV screen.

• For MHC-DP1000D, be sure to connect both left

and right rear speakers. Otherwise, the sound will

not be heard.

• When you play a VIDEO CD recorded in the

different color system from the one you set to the

system, the picture image may be distorted.

Inserting two size AA (R6)

batteries into the remote

Operating a Sony TV

You can use the following buttons on the

remote to operate a Sony TV.

To Press

Turn the TV on or off TV ?/1.

Switch the TV’s video input TV/VIDEO.

Change the TV channels TV CH +/–.

Adjusts the volume of the TV TV VOL +/–.

speaker(s)

Tip

When the remote no longer operates the system,

replace both batteries with new ones.

Note

If you do not use the remote for a long period of time,

remove the batteries to avoid possible damage from

battery leakage.

Notice for carrying this system

Do the following to protect the DVD

mechanism.

1 Turn on the system, then press DVD.

Make sure that all discs are removed

from the unit.

2 Hold down DVD, then press ?/1 until

“LOCK” appears.

3 Release ?/1 first, then release DVD.

4 Unplug the AC power cord.

}

]

Hooking up the system (continued)

Getting Started

Setting up your speakers

for Dolby Pro Logic

(MHC-DP1000D only)

Dolby Pro Logic Surround improves the sound

image by using four separate channels. These

channels manipulate the sound to be heard and

enhance the action on the screen.

Positioning the speakers

For the best possible surround sound, all

speakers should be the same distance from the

listening position (A). However, this unit lets

you to place the center speaker up to 1.5 meters

(5 feet) closer (B) and the rear speakers up to

4.5 meters (15 feet) closer (C) to the listening

position. The front speakers can be placed from

1.0 to 12.0 meters (3 to 40 feet) from the

listening position (A).

Note

Do not place the center speaker farther away from the

listening position than the front speakers.

Setting the center speaker

Place the center speaker at about the

same height as the front speakers. Align the

center speaker with the front speakers or place

it slightly behind the front speakers.

Setting the rear speakers

Place the rear speakers facing each other at

about 60 to 90 cm above your listening

position.

continued

45°

90°

A A

Rear speaker

60 to 90 cm

Specifying the distance of

the speakers

Use the remote for the operation.

1 Press AMP MENU.

2 From your listening position, press v

or V repeatedly to select the parameter.

Adjustable parameters are described below.

3 Press b or B repeatedly to select the

setting you want.

4 Repeat steps 2 to 3 to set other

parameters.

5 Press ENTER.

Tips

• You can use the digipad instead of the cursor

buttons (v/V/b/B).

• You can use “SPEAKER SETUP” in the Setup

Display to specify the distance of the speakers

(page 21).

Note

If each of the front or rear speakers is not placed at an

equal distance from your listening position, set the

distance of the closest speaker.

Adjustable parameters

The default settings are in the parentheses.

• FRONT: 1.0 meter to 12.0 meters (2.4 meters)

(3 feet to 40 feet (8 feet))*

Front speakers distance.

• CENTER: FRONT to 1.5 meters (2.4 meters)

(FRONT to 5 feet (8 feet))*

Center speaker distance.

• REAR: FRONT to 4.5 meters (1.5 meters)

(FRONT to 15 feet (5 feet))*

Rear speakers distance.

* North American model only.

Notes

• To enjoy Dolby Pro Logic surround with 2 channel

PCM or analog input sources, select “NORMAL

SURR” from the sound effect options (see page 47).

• If you press AMP MENU while adjusting

parameters using OSD, the OSD turns off.

Setting up your speakers for Dolby

Pro Logic (continued)

Specifying the speaker

parameters

Use the remote for the operation.

1 From your listening position, press

SPEAKER LEVEL.

Adjustable menus and parameters are

described below.

2 Press v or V repeatedly to select the

parameter.

3 Press b or B repeatedly to select the

setting you want.

4 Repeat steps 2 to 3 to set other

parameters.

5 Press ENTER.

Tips

• You can use the digipad instead of the cursor

buttons (v/V/b/B).

• You can use “SPEAKER SETUP” in the Setup

Display to specify the balance, level, and test tone

parameters (page 21).

Adjustable parameters

The default settings are in the parentheses.

x BALANCE

• FRNT L___R: (center)

Balance between the front left and right

speakers.

• (MHC-DP1000D only)

REAR L___R: (center)

Balance between the rear left and right

speakers.

Range: 6 dB (L) to 6 dB (R), 1 dB steps

x LEVEL (MHC-DP1000D only)

• REAR

dB: (0 dB)

Level of the rear speakers.

Range: –6 dB to 6 dB, 1 dB steps

• CTR

dB: (0 dB)

Level of the center speaker.

Range: –6 dB to 6 dB, 1 dB steps

• SW

dB: (10 dB)

Level of the sub woofer.

Range: –10 dB to 10 dB, 1 dB steps

Getting Started

x LFE

• LFE

*****

: (0 dB)

Level of the LFE (Low Frequency Effect)

channel output.

Range: OFF, –20 dB to 0 dB, 1 dB steps

“OFF” cuts the sound of the LFE channel.

However, the low frequency sound of the

speakers are output from the sub woofer.

“–20 dB” to “0 dB” settings allow you to

attenuate the LFE signal. “0 dB” outputs the

full LFE signal at the mix level determined by

the recording engineer.

x D.COMP.

• D.COMP.: (STD)

Dynamic range compression.

Range: OFF, 0.1 to 0.9, STD, MAX

“OFF” does not compress the dynamic range.

“0.1” to “0.9” settings allow you to compress

the dynamic range in small steps. “STD”

reproduces the sound track with the dynamic

range intended by the recording engineer.

“MAX” provides a great compression of the

dynamic range.

x T.TONE (MHC-DP1000D only)

• T.TONE: (OFF)

Test tone output.

Range: OFF, ON

“ON” outputs the test tone from each speaker in

sequence. Adjust the LEVEL and BALANCE

parameters so that the volume level of the test

tone from each speaker sounds the same using

the remote from your listening position. Select

“OFF” to turn off the test tone.

Notes

• When you adjust the level of the subwoofer, set

T.TONE to “OFF”.

• Dynamic range compression is possible with Dolby

Digital sources only.

• If you press SPEAKER LEVEL while adjusting

parameters using OSD, the OSD turns off.

Setting the time

1 Turn on the system.

2 Press CLOCK/TIMER SET.

When you set the time for the first time,

proceed to step 5.

3 Press . or > repeatedly to select

“CLOCK SET”.

4 Press ENTER.

5 Press . or > repeatedly to set the

hour.

6 Press ENTER.

7 Press . or > repeatedly to set the

minutes.

8 Press ENTER.

Tip

If you have made a mistake or want to change the

time, start over from step 2.

Note

The clock settings are canceled when you disconnect

the power cord or if a power failure occurs.

Saving the power in

standby mode

Press DISPLAY repeatedly when the

power is off.

Each time you press the button, the system

switches cyclically as follows:

Demonstration t Clock t Power Saving

Mode

To cancel the Power Saving mode

Press DISPLAY once to show the

demonstration, twice to show the clock display.

Tips

• ?/1 indicator lights up even in the Power Saving

Mode.

• The timer functions during the Power Saving Mode.

Note

During the Power Saving Mode, the following

functions do not work:

– Setting the time.

– Changing the AM tuning interval (except for

European and Middle Eastern models).

– Pressing a function button to turn the power on.

– Switching the function of MD (VIDEO).

– Switching the color system.

Setting Up for DVD/VIDEO CD/CD

5 Press v or V repeatedly to select the

setup item from the displayed list, then

press ENTER.

The selected setup item appears.

Example: “SCREEN SETUP”

6 Press v or V repeatedly to select an

item, then press ENTER.

The options for the selected item appear.

Example: “TV TYPE”

7 Press v or V repeatedly to select a

setting, then press ENTER.

The setting is selected and the setup is

completed.

Example: “4:3 PAN SCAN”

Setting Up for DVD/VIDEO CD/CD

Using the Setup Display

By using the Setup Display, you can make

various adjustments to items such as picture

and sound. You can also set a language for the

subtitles and the Setup Display, among other

things. For details on each Setup Display item,

see pages 18–22. For an overall list of Setup

Display items, see page 66.

The North American model is the model used

for OSD (on-screen display) illustration

purposes in this section.

Use the remote for the operation.

1 Press DVD.

2 When the playback is stopped, press

DVD DISPLAY.

The Control Menu appears.

If you press DVD SET UP, you can go to

step 4 directly.

3 Press v or V repeatedly to select

“SETUP”, then press ENTER.

The options for “SETUP” appear.

4 Press v or V repeatedly to select

“CUSTOM”, then press ENTER.

The Setup Display appears.

Selected item

Setup

items

Options

Selected setting

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

16:9

JACKET PICTURE

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

4:3 PAN SCAN

16:9

4:3 LETTER BOX

16:9

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

4:3 PAN SCAN

JACKET PICTURE

(

)

: :

RESET

DVD

CUSTOM

LANGUAGE SETUP

OSD:

DVD MENU:

AUDIO:

SUBTITLE:

ENGLISH

ORIGINAL

ENGLISH

Main

items

continued

To turn off the Setup Display

Press DVD SET UP or DVD DISPLAY

repeatedly until the Setup Display is turned off.

Tips

• If you select “RESET” in step 4, you can reset all of

the “SETUP” settings on pages 18–22 (except for

PARENTAL CONTROL) to the default settings.

After you select “RESET” and press ENTER, select

“YES” to reset the settings (it takes a few seconds

to complete), or select “NO” and press ENTER to

return to the Control Menu. Do not press ?/1 when

resetting the system.

• You can use the digipad instead of cursor buttons

(v/V/b/B) when DVD is selected as the current

function and OSD appears on the screen.

Setting the display or

sound track language

— LANGUAGE SETUP

“LANGUAGE SETUP” allows you to set

various languages for the on-screen display or

sound track.

x OSD (on-screen Display)

Switches the display language on the screen.

Select the language from the displayed list.

x DVD MENU (DVD only)

Select the language for the DVD menu.*

x AUDIO (DVD only)

Switches the language of the sound track.

Select the language from the displayed list.*

When you select “ORIGINAL”, the language

given priority in the disc is selected.

x SUBTITLE (DVD only)

Switches the language of the subtitle.

Select the language from the displayed list.*

When you select “AUDIO FOLLOW”, the

language for the subtitles changes according to

the language you selected for the sound track.

* If you select “OTHERS t” in “DVD MENU”,

“AUDIO”, or “SUBTITLE”, select and enter the

language code from the list using the numeric

buttons (page 64). After you selected, the language

code (4 digits) is displayed the next time you select

“OTHERS t”.

Note

When you select a language that is not recorded on

the DVD, one of the recorded languages will be

automatically selected (except for “OSD”).

Select “LANGUAGE SETUP” in the Setup Display.

LANGUAGE SETUP

OSD:

DVD MENU:

AUDIO:

SUBTITLE:

ENGLISH

ORIGINAL

ENGLISH

Using the Setup Display (continued)

Setting Up for DVD/VIDEO CD/CD

Settings for the display

— SCREEN SETUP

Select settings according to the connected TV.

x TV TYPE (DVD only)

Select the aspect ratio of the connected TV.

• 16:9: Select this when you connect a wide-

screen TV or a TV with a wide mode function.

• 4:3 LETTER BOX: Select this when you

connect a 4:3 screen TV. This setting displays a

wide picture with bands displayed on the upper

and lower portions of the screen.

• 4:3 PAN SCAN: Select this when you connect

a 4:3 screen TV. This setting displays the wide

picture on the entire screen and cuts off the

portions that do not fit.

Note

Depending on the DVD, “4:3 LETTER BOX” may be

selected automatically instead of “4:3 PAN SCAN”

or vice versa.

x SCREEN SAVER

Turn on and off the screen saver. If you turn on

the screen saver, the screen saver image

appears when you leave the player in pause or

stop mode for 15 minutes or when you play a

CD for more than 15 minutes. The screen saver

will help prevent your display device from

becoming damaged (ghosting). Press nN to

turn off the screen saver.

• ON: Turns on the screen saver.

• OFF: Turns off the screen saver.

x BACKGROUND

Select the background color or picture on the

TV screen when the playback is stopped or

while playing a CD.

• JACKET PICTURE: The jacket picture (still

picture) appears in the background, but only

when the jacket picture is already recorded on

the disc (CD-EXTRA, etc). If the disc does not

contain a jacket picture, the “GRAPHICS”

picture appears.

• GRAPHICS: The preset picture stored in the

system appears in the background.

• BLUE: The background color is blue.

• BLACK: The background color is black.

Select “SCREEN SETUP” in the Setup Display.

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

16:9

JACKET PICTURE

Custom settings

— CUSTOM SETUP

x COLOR SYSTEM (Except for Pan

American and European models)

Select the color system when you play a

VIDEO CD.

• AUTO: Outputs the video signal in the system

of the disc, either PAL or NTSC. If your TV

uses a DUAL system, select AUTO.

• PAL: Changes the video signal of an NTSC

disc and outputs it in the PAL system.

• NTSC: Changes the video signal of a PAL disc

and outputs it in the NTSC system.

Notes

• You cannot change the color system of the disc

itself.

• Except for Pan American and European models,

you can change the color system of this unit

according to the connected TV. See page 12.

x PAUSE MODE (DVD only)

Select the picture in pause mode.

• AUTO: A picture including subjects that move

dynamically is output with no jitter. Normally

select this position.

• FRAME: A picture including subjects that do

not move dynamically is output in high

resolution.

x PARENTAL CONTROL t (DVD only)

Set a password and playback limitation level

for DVDs with playback limitation for

children. For details, see “Limiting playback by

children (Parental Control)” on page 37.

x TRACK SELECTION (DVD only)

Gives the priority to the sound track which

contains the highest number of channels when

you play a DVD on which multiple audio

formats (PCM, DTS, MPEG audio, or Dolby

Digital format) are recorded.

• OFF: No priority given.

• AUTO: Priority given.

Notes

• When you set to “AUTO”, the language setting may

change. The “TRACK SELECTION” setting has

higher priority than the “AUDIO” setting in

“LANGUAGE SETUP” (page 18).

• If PCM, DTS, MPEG audio, and Dolby Digital

sound tracks have the same number of channels, the

system selects PCM, DTS, MPEG audio, and Dolby

Digital sound tracks in this order.

• Depending on the DVD, the audio channel with

priority may be predetermined. In this case, you

cannot give priority to the DTS, MPEG audio, or

Dolby Digital audio format by selecting “AUTO”.

Select “CUSTOM SETUP” in the Setup Display.

CUSTOM SETUP

PAUSE MODE:

PARENTAL CONTROL

TRACK SELECTION: OFF

AUTO

Setting Up for DVD/VIDEO CD/CD

• FRONT : Front speaker distance from the

listening position can be set in 0.1 meter

(1 foot) steps from 1.0 to 12.0 meters (3 to

40 feet).

• CENTER: Center speaker distance can be

moved up to 1.5 meters (5 feet) closer to the

listening position, from the front speakers in

0.1 meter (1 foot) steps.

• REAR: Rear speaker distance can be moved up

to 4.5 meters (15 feet) closer to the listening

position, from the front speakers in 0.1 meter

(1 foot) steps.

Notes

• When you select an item, the sound cuts off for a

moment.

• If each of the front or rear speakers is not placed at

an equal distance from your listening position, set

the distance of the closest speaker.

• Do not place the rear speakers farther away from

your listening position than the front speakers.

x BALANCE

You can vary the balance of the left and right

speakers as follows. Be sure to set “TEST

TONE” to “ON” for easy adjustment.

The default settings are in parentheses.

• FRONT (0 dB): Adjust the balance between

the front left and right speakers (6 dB (L) to

6 dB (R), 1 dB steps).

• (MHC-DP1000D only)

REAR (0 dB): Adjust the balance between the

rear left and right speakers (6 dB (L) to 6 dB

(R), 1 dB steps).

Speaker settings

— SPEAKER SETUP

Set up your speaker system for playback of

5.1CH DVDs.

To return to the default setting

Select the item, then press CLEAR.

x DISTANCE (MHC-DP1000D only)

The default distance settings for the speakers in

relation to the listening position is shown

below.

Be sure to change the value in the Setup

Display when you move the speakers.

Select “SPEAKER SETUP” in the Setup Display.

continued

SPEAKER SETUP

DISTANCE:

BALANCE:

LEVEL:

TEST TONE:

2.4m

(8ft)

2.4m

(8ft)

2.4m

(8ft)

1.5m

(5ft)

1.5m

(5ft)

Adjusting the speaker volume

and level

1 When the playback is stopped, press

DVD SET UP, then select “SPEAKER

SETUP”.

2 Select “TEST TONE” and set “TEST

TONE” to “ON”.

You will hear the test tone from each

speaker in sequence.

3 From your listening position, select

“BALANCE” or “LEVEL”, then press b

or B repeatedly to adjust the value of

“BALANCE”, or press v or V

repeatedly to adjust the value of

“LEVEL”.

The test tone is emitted from both left and

right speakers simultaneously.

4 Select “TEST TONE” and set “TEST

TONE” to “OFF” to turn off the test

tone.

Notes

• When you adjust the speaker settings, the sound

cuts off for a moment.

• If you adjust these parameters using OSD while

adjusting the speaker parameters using AMP

MENU or SPEAKER LEVEL (pages 14–15), the

display on the unit turns off.

x LEVEL (MHC-DP1000D only)

You can vary the level of each speakers as

follows. Be sure to set “TEST TONE” to “ON”

for easy adjustment.

The default settings are in parentheses.

• CENTER (0 dB): Adjust the level of the center

speaker (–6 dB to +6 dB, 1 dB steps).

• REAR (0 dB): Adjust the level of the rear

speakers (–6 dB to +6 dB, 1 dB steps).

• SUBWOOFER (10 dB): Adjust the level of the

subwoofer (–10 dB to +10 dB, 1 dB steps).

x TEST TONE (MHC-DP1000D only)

The speakers will emit a test tone to adjust

“BALANCE” and “LEVEL”.

• OFF: The test tone is not emitted from the

speakers.

• ON: The test tone is emitted from each speaker

in sequence while adjusting balance or level.

When you select one of the “SPEAKER

SETUP” items, the test tone is emitted from

both left and right speakers simultaneously.

Note

When you adjust the level of the subwoofer, set

T.TONE to “OFF”.

To adjust the volume of all the

speakers at once

Turn VOLUME (or press VOL +/– on the

remote).

Speaker settings (continued)

DVD/VIDEO CD/CD

MUSIC MOVIE

DVD TITLE CHAPTER HOUR MIN SEC

DVD

Playing discs

Loading a disc

1 Press Z OPEN/CLOSE.

The disc tray slides out.

2 Place a DVD/VIDEO CD/CD with the

label side up on the disc tray.

To insert additional discs, press DISC SKIP

EX-CHANGE (or D.SKIP on the remote) to

rotate the disc tray.

3 Press Z OPEN/CLOSE to close the disc

tray.

Playing a disc

— Normal Play/Shuffle Play/

Slow-motion Play/Freeze Frame

You can play up to three discs (DVD, VIDEO

CD, CD) in a row. Depending on the DVD or

VIDEO CD, some operations may be different

or restricted. Refer to the operating instructions

supplied with the disc.

When playing a DVD:

DVD/VIDEO CD/CD

Title

number

Playing time

Disc tray

number

When playing a VIDEO CD or CD:

1 Turn on your TV and select the video

input.

Refer to the operating instructions supplied

with your TV if you need help.

2 Press DVD.

3 When playback is stopped, press PLAY

MODE repeatedly until the mode you

want appears in the display.

Select

ALL DISCS

1 DISC

ALL DISCS

SHUFFLE

1 DISC

SHUFFLE

PROGRAM

4 Press one of the DISC 1–3 buttons.

If you press nN when DVD is selected

as the function (press DVD) and the disc

tray is closed, playback starts from the

selected disc.

Tips

• You cannot change the play mode during playback.

• You can change the play mode between 1 DISC and

ALL DISCS using the on-screen display as follows:

1 When playback is stopped, press DVD DISPLAY.

The Control Menu appears.

2 Press v or V to select “ONE/ALL DISCS”, then

press ENTER.

3 Press v or V to select either “ONE DISC” or

“ALL DISCS”, then press ENTER.

To play

All discs in the disc tray

continuously.

The disc you have selected in

the original order.

The tracks on all discs in

random order.

The tracks on the disc you have

selected in random order.

The tracks on all discs in the

order you want them to be

played (see “Creating your own

program” on page 26).

Disc presence indicator

continued

Track number Playing timeDisc tray number

Chapter number

MUSIC MOVIE

1 DISC

VCD

MIN SEC

DVD

Disc presence indicator

Other operations

Stop playback

Pause playback

Select a track or

chapter

Find a point in

a track title or

chapter

(Lock

Search function)

Change the

playback speed

(Slow-motion play)

Playing the disc

frame by frame

changing the

playback speed

(Freeze Frame)

Select a disc when

playback is stopped

Switch to DVD

function from

another source

Exchange other

discs during

playback

Remove the disc

There may be some disturbance in the video

image.

DVD and VIDEO CD only.

SLOW t and STEP c are not available during

playback of VIDEO CDs.

Tips

• You can use the digipad for DVD/VIDEO CD/CD

operations.

• You can use the digipad instead of cursor buttons

(v/V/b/B) when DVD is selected as the current

function and OSD appears on the screen.

Notes

• Depending on the DVD or VIDEO CD, some

operations may be prohibited.

• VIDEO CDs cannot be viewed slowly or frame by

frame in the reverse direction.

• Under the following circumstances, 2CH/MULTI is

automatically set to “2CH”.

– When recording.

– When TAPE B is in REC PAUSE mode.

– When recording using TAPE B.

• When using headphones, the sound from

headphones is 2 channel.

• Switch the channel mode to “2CH” by pressing

2CH/MULTI when making an analog recording

using a component connected to the MD OUT jacks

on this unit. There is no audio output from the MD

OUT jacks in the multi channel mode.

• Depending on the DVD, digital recording may not

be done. In this case, perform analog recording.

Press 2CH/MULTI to switch the channel mode to

“2CH” on this system when making an analog

recording.

• Set the sound to “STEREO” using the AUDIO

button when you play DTS sound tracks on a CD

(page 32).

Do this

Press x. The playback stops at

the point x is pressed (Resume

Play). Press x again to cancel

the Resume Play (see page 28).

Press X

Press again to resume playback.

During playback or pause, press

> (or NEXT on the remote)

(to go forward) or . (or

PREV on the remote) (to go

back).

Press M or m during

playback. Each time you press

the button, the speed changes as

follows:

1 (slow) y 2 (faster than 1)

Press nN to stop searching at

the desired point.

During playback, press SLOW

t or T

on the remote. Each

time you press the button, the

speed switches between two

slowed playback speeds. To

return to normal playback, press

nN.

During playback, press STEP

c or C

on the remote.

Each time you press the button,

playback is advanced a single

frame in the desired direction.

To return to normal playback,

press nN.

Press one of the DISC 1–3

buttons or DISC SKIP EX-

CHANGE (or D.SKIP on the

remote).

Press one of the DISC 1–3

buttons (Automatic Source

Selection).

Press DISC SKIP

EX-CHANGE.

Press Z OPEN/CLOSE.

Playing a disc (continued)

DVD/VIDEO CD/CD

Playing DVDs using the

Some discs have a “title menu” or a “DVD

menu”. On some DVDs, this may simply be

called a “menu” or “title”.

Using the title menu

A DVD is divided into long sections of a

picture or a music feature called “titles”. When

you play a DVD which contains several titles,

you can select the title you want using the title

menu.

1 Press DVD.

2 Press TITLE.

The title menu appears on the TV screen.

The contents of the menu vary from disc to

disc.

3 Press v/V/b/B or the numeric buttons

to select the title you want to play.

4 Press ENTER.

The playback starts from the selected title.

Using the DVD menu

Some DVDs allow you to select the disc

contents using a menu. When you play these

DVDs, you can select items such as the

language for the subtitles and the language for

the sound using the DVD menu.

1 Press DVD.

2 Press DVD MENU.

The DVD menu appears on the TV screen.

The contents of the menu vary from disc to

disc.

3 Press v/V/b/B or the numeric buttons

to select the item you want to change.

4 To change other items, repeat step 3.

5 Press ENTER.

Tip

You can use the digipad instead of cursor buttons

(v/V/b/B) when DVD is selected as the current

function and OSD appears on the screen.

Playing VIDEO CDs with

PBC functions (Ver. 2.0)

— PBC Play

You can use menus on your TV screen to enjoy

the disc’s interactive software. The menu

format and structure may differ depending on

each disc.

1 Press DVD.

2 Press nN to start playing a VIDEO

CD with PBC functions (Ver. 2.0).

The VIDEO CD and PBC indicators light

and a PBC menu appears on your TV.

The PBC indicator lights during PBC

playback of a PBC compatible VIDEO CD

(Ver. 2.0).

3 Press v or V repeatedly to select a

number from the menu, then press

ENTER.

4 Continue playback according to the

instructions on the menus to enjoy

interactive playback.

Stop playback

See the rest of the

Go back to the

top of the menu

Go back to the

previous menu

continued

Do this

Press x.

Press NEXT on the remote.

Press PREV on the remote.

Press RETURN O on the

remote.

Creating your own program

— Program Play

You can make a program of up to 25 steps from

all the discs in the order you want them to be

played.

1 Press DVD.

2 When the playback is stopped, press

PLAY MODE repeatedly until

“PROGRAM” appears in the front panel

display.

The Program Display appears on the screen.

3 Press ENTER, then press v or V

repeatedly to select the disc.

4 Press B.

The cursor moves to the title or track (in

this case, “01”).

* “?” appears when the system has not loaded the disc

information in the memory.

Cancel playback

with PBC functions

(Ver. 2.0)

Select a menu

number using the

remote

Note

Depending on the VIDEO CD, “Press ENTER” in

step 3 may appear as “Press SELECT” in the

operating instructions supplied with the disc.

Disc type*

Chapters recorded

on the disc

PROGRAM

– – – –

ALL CLEAR

– – – –

ALL

–

– – – –

ALL

PROGRAM

– – – –

ALL CLEAR

– – – –

PROGRAM

– – – –

ALL CLEAR

– – – –

ALL

DVD

Title Chapter

Do this

When the playback is

stopped, press . or >

repeatedly to select the track

you want, then press ENTER

(or press the numeric buttons

on the remote).

The PBC indicator turns off

and playback starts from the

selected track. Still images,

such as the menu screens, will

not be shown.

Press the numeric buttons,

then press ENTER.

To enter 0, press 10/0.

Playing VIDEO CDs with PBC

functions (Ver. 2.0) (continued)

DVD/VIDEO CD/CD

5 Select the title, chapter, or track you

want to program.

x When programming a DVD

For example, select chapter “03” of title

“02”.

Press v/V or the numeric buttons to select

“02” under “T”, then press ENTER.

Next, press v/V or the numeric buttons to

select “03” under “C”, then press ENTER.

x When programming a VIDEO CD or

For example, select track “02”.

Press v/V or the numeric buttons to select

“02” under “T”, then press ENTER.

6 To program other discs, titles,

chapters, or tracks, repeat steps 3 to 5.

7 Press nN to start Program Play.

Program Play starts.

Return to normal

playback

Turn off the Program

Display

Change the program

Cancel the

programmed order

Tip

The program you made remains in the system’s

memory even after it has been played back. Press

nN to play the same program again.

Notes

• The program is canceled when you change the

function to TUNER or turn the system off.

• You may not be able to do Program Play depending

on the DVD.

• You cannot make a program while playing a disc.

• When you switch the play mode to “PROGRAM”

while “REPEAT 1” is selected, “REPEAT 1” is

automatically canceled.

PROGRAM

– – – –

ALL CLEAR

– – – –

ALL

DVD

ALL

PROGRAM

1. DVD

–

0 2

–

0 3

ALL CLEAR

– – – –

–

– – – –

–

– – – –

PROGRAM

1. CD

–

ALL CLEAR

– – – –

ALL

Selected title and chapter

Selected track

Do this

Press CLEAR during playback.

Press PLAY MODE when the

playback is stopped.

To change the disc, select the

program number you want to

change using v/V after step 2

or 5, then press ENTER.

To change the title, chapter, or

track, select the one you want

in step 5.

To cancel all the titles,

chapters, or tracks in the

programed order, press v, and

select “ALL CLEAR” in step

3. To cancel the selected

program, select the program

using v/V in step 3, then press

CLEAR.

Resuming playback from

the point you stopped the

disc

— Resume Play

This system memorizes the point where you

stopped the disc so you can resume from that

point.

1 While playing a disc, press x to stop

playback.

“RESUME” appears in the display. If

“RESUME” does not appear, Resume Play

is not available.

2 Press nN.

The player starts playback from the point

you stopped the disc in step 1.

To view from the beginning of the

disc

When “RESUME” appears in the display, press

x, then press nN.

Notes

• Depending on where you stopped the disc, the

system may resume playback from a different point.

• Resume play is canceled when:

– you press numeric buttons, x, D.SKIP, or

./>.

– you remove the disc.

– you unplug the unit’s AC power cord.

– you change the settings of “DVD MENU”,

“AUDIO”, or “SUBTITLE” in “LANGUAGE

SETUP” in the setup display.

– you change the settings of “TV TYPE” in

”SCREEN SETUP” in the setup display.

– you change the settings of “PARENTAL

CONTROL” in ”CUSTOM SETUP” in the setup

display.

Playing repeatedly

— Repeat Play

You can play all the titles/tracks or a single

title/chapter/track on a disc.

In Shuffle or Program Play mode, the system

repeats the titles or tracks in the shuffled or

programmed order.

1 Press DVD DISPLAY.

The Control Menu appears.

2 Press v or V repeatedly to select

“REPEAT”, then press ENTER.

If you do not select “OFF,” the “REPEAT”

indicator lights in green.

3 Select the Repeat Play setting.

x When playing a DVD and when

Program Play is set to OFF

• OFF: does not play repeatedly.

• DISC: repeats all the titles.

• TITLE: repeats the current title on a disc.*

• CHAPTER: repeats the current chapter.

x When playing a VIDEO CD/CD and

when Program Play is set to OFF

• OFF: does not play repeatedly.

• DISC: repeats all the tracks on a disc.

• TRACK: repeats the current track.*

x When Program Play is set to ON

• OFF: does not play repeatedly.

• ON: repeats Program Play.

* When ALL DISCS SHUFFLE is selected, you can

select the Repeat Play of TITLE or TRACK only.

To cancel Repeat Play

Press CLEAR.

DVD/VIDEO CD/CD

Tips

• You can set Repeat Play when the playback is

stopped. After selecting the “REPEAT” item, press

nN. The Repeat Play starts.

• You can quickly display the “REPEAT” status.

Press REPEAT.

Notes

• You cannot perform Repeat Play during PBC

playback of VIDEO CDs (page 25).

• You may not be able to perform Repeat Play

depending on the DVD.

• If you select DISC repeat (with or without Program

Play), the program is repeated up to 5 times.

Viewing information about the disc

Checking the playing time

and remaining time

You can check the remaining time of the

current track or that of the disc.

When a DVD/CD TEXT disc is loaded, you

can check the information stored on the disc,

such as the titles.

When the system detects DVD/CD TEXT

discs, the “DVD TEXT” (or “CD TEXT”)

indication appears in the display.

Using the front panel display

Press DISPLAY.

Each time you press the button, the display

changes cyclically as follows:

During normal playback

When playing a DVD:

Playing time of the current title t Remaining

time of the current title t Playing time and the

current chapter t Remaining time of the

current chapter t Text*

t Clock display

(for 8 seconds) t Effect status

When playing a VIDEO CD (without PBC

functions) or CD:

Playing time and current track number t

Remaining time of the current track t Playing

time of the disc t Remaining time of the disc

t Text*

t Clock display (for 8 seconds) t

Effect status

VIDEO CDs with PBC functions (Ver. 2.0):

Playing time of the current scene*

t Text*

t Clock display (for 8 seconds) t Effect

status

continued

When the playback is stopped

DVDs:

Total number of titles*

t Title name of the

disc*

t Clock display (for 8 seconds) t

Effect status

VIDEO CDs or CDs:

Total number of tracks and the total playing

time*

t Title name of the disc*

t Clock

display (for 8 seconds) t Effect status

With DVD/CD TEXT discs only (certain characters

cannot be displayed). Depending on the disc, DVD/

CD text does not appear and “NO TEXT” appears.

May not appear with still images, etc.

When the playback is stopped and “RESUME”

appears on the front panel display, the point where

playback was stopped is displayed.

Using the on-screen display

1 Press DVD DISPLAY during playback.

The Control Menu appears.

2 Press DISPLAY repeatedly to change

the time information.

The display and the kinds of time that you

can change depend on the disc you are

playing.

x When playing a DVD

• T

Playing time of the current title

• T–

Remaining time of the current title

• C

Playing time of the current chapter

• C–

Remaining time of the current chapter

x When playing a VIDEO CD (with PBC

functions)

•

Playing time of the current scene

x When playing a VIDEO CD (without

PBC functions) or CD

• T

Playing time of the current track

• T–

Remaining time of the current track

• D

Playing time of the current disc

• D–

Remaining time of the current disc

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

Checking the text

information of the disc

Press DISPLAY repeatedly while playing a

DVD or a TEXT-CD.

The “TIME/TEXT” information is displayed at

the top of the screen. When the elapsed time of

the chapter, or track is displayed, text

information is displayed at the bottom of the

screen.

Notes

• Only DVD TEXT in English is displayed.

• When there is no text recorded on the disc, “NO

TEXT” is displayed.

• If DISPLAY is not pressed for 2 seconds, the

display disappears.

Checking the playing time and

remaining time (continued)

Time information

Disc type

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

0 1 : 3 2 : 5 5

BRAHMS SYMPHONY NO – 4

TIME/TEXT

DVD/VIDEO CD/CD

Checking the playback

information

— ADVANCED

(DVD only)

You can check information such as the bit rate

or the disc layer that is being played.

While playing a disc, an approximate bit rate of

the playback picture is always displayed as

Mbps (Mega bit per second) and the audio as

Kbps (Kilo bit per second).

1 Press DVD DISPLAY during playback.

The Control Menu appears.

2 Press v or V repeatedly to select

“ADVANCED”, then press ENTER.

The options for “ADVANCED” appear.

3 Press v or V repeatedly to select the

item.

For each item, see “Displays of each item”.

• BIT RATE: Displays the bit rate.

• LAYER: Displays the layer and the

pick-up point.

4 Press ENTER.

To close the “ADVANCED” display

Select “OFF” in step 3.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

Displays of each item

By pressing DVD DISPLAY repeatedly, you

can display either “BIT RATE” or “LAYER”,

whichever was selected in “ADVANCED”.

BIT RATE

When playing MPEG audio sound tracks:

Bit rate refers to the amount of video/audio

data per second in a disc. The higher the bit

rate, the larger the amount of data. When the

bit rate level is high, there is a large amount of

data. However, this does not always mean that

you can get higher quality pictures or sounds.

LAYER

This item indicates the approximate point

where the disc is playing. When the DVD has

dual layers, the system indicates which layer is

being read (“Layer 0” or “Layer 1”). For details

on the layers, see page 62 (DVD).

Audio

Video

Appears when the DVD

has dual layers

BIT RATE

kbps

Mbps

384

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

BIT RATE

kbps

Mbps

384

OFF

BIT RATE

LAYER

BIT RATE

kbps

Mbps

1000

Audio

Video

Changing the sound

If a DVD is recorded with multilingual tracks,

you can select the language you want while

playing the DVD. If the DVD is recorded in

multiple audio formats (PCM, Dolby Digital,

MPEG audio, or DTS), you can select the audio

format you want while playing the DVD.

With stereo CDs or VIDEO CDs, you can

select the sound from the right or left channel

and listen to the sound of the selected channel

through both the right and left speakers. (In this

case, the sound loses its stereo effect.) For

example, when playing a disc containing a song

with the vocals on the right channel and the

instruments on the left channel, you can select

the left channel and hear only the instruments

from both speakers.

1 Press DVD DISPLAY during playback.

The Control Menu appears.

2 Press v or V repeatedly to select

“AUDIO”, then press ENTER.

3 Press v or V repeatedly to select the

audio signal you want.

x When playing a DVD

Depending on the DVD, the choice of the

language varies. When 4 digits are

displayed, they represent the language code

(see the language code list on page 64).

When the same language is displayed two

or more, the DVD is recorded in multiple

audio formats.

x When playing a VIDEO CD or CD

• STEREO: The standard stereo sound.

• 1/L: The sound of the left channel

(monaural).

• 2/R: The sound of the right channel

(monaural).

4 Press ENTER.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

Tip

You can select “AUDIO” directly by pressing

AUDIO on the remote. Each time you press the

button, the item changes.

Notes

• For discs not in multiple audio format, you cannot

change the sound.

• During DVD playback, the sound may change

automatically.

Displaying the audio

information of the disc

(DVD only)

When you select “AUDIO”, the channels being

played are displayed on the screen.

For example, in Dolby Digital format, multiple

signals ranging from monaural to 5.1 channel

signals can be recorded on a DVD. Depending

on the DVD, the number of the recorded

channels may differ.

* “PCM”, “MPEG”, “DTS”, or “DOLBY DIGITAL”

is displayed.

For “DOLBY DIGITAL”, the channels in the

playing track are displayed numerically as follows:

For Dolby Digital 5.1 ch:

Current audio format*

Current playing program format**

Rear component 2

Front component 2 +

Center component 1

LFE (Low Frequency

Effect) component 1

Sound adjustment

DVD

1: ENGLISH

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

LRC

DOLBY DIGITAL 3/2.1

PROGRAM FORMAT

LFE

LS RS

DOLBY DIGITAL

3 / 2 . 1

DVD/VIDEO CD/CD

**The letters in the program format display mean the

following sound component:

L: Front (left)

R: Front (right)

C: Center

LS: Rear (left)

RS: Rear (right)

S: Rear (monaural): The rear component of the

Dolby Surround processed signal or the

Dolby Digital signal.

LFE: LFE (Low Frequency Effect)

The display examples are as follows:

• PCM (stereo)

• Dolby Surround

• Dolby Digital 5.1ch

When an LFE signal component is output,

“LFE” is enclosed in a solid line. When an LFE

signal component is not output, “LFE” is

enclosed in a broken line.

• DTS

“LFE” is always enclosed in a solid line

regardless of the LFE signal component being

output.

Note

When the signal contains rear signal components such

as LS, RS, or S, the DSP effect is enhanced (page 48).

PCM 48kHz 24bit

PROGRAM FORMAT

DOLBY SURROUND

DOLBY DIGITAL 2/0

L RC

PROGRAM FORMAT

LRC

DOLBY DIGITAL 3/2.1

PROGRAM FORMAT

LFE

LS RS

LRC

DTS 3/2.1

PROGRAM FORMAT

LFE

LS RS

Searching for a title/

chapter/track/index/scene

You can search a DVD disc by title or chapter,

and you can search a VIDEO CD or CD by

track, index, or scene. As titles and tracks are

assigned unique numbers on the disc, you can

select the desired one by entering its number.

Or, you can search for a scene using the time

code (TIME SEARCH).

1 Press DVD.

2 Press DVD DISPLAY.

The Control Menu appears.

3 Press v or V repeatedly to select the

search method.

x When playing a DVD

“TITLE”, “CHAPTER”, or “TIME/TEXT”

Select “TIME/TEXT” for TIME SEARCH.

x When playing a VIDEO CD

“TRACK” or “INDEX”

x When playing a VIDEO CD with PBC

functions

“SCENE”

x When playing a CD

“TRACK” or “INDEX”

4 Press ENTER.

“

(

)

” changes to “--

(

)

”.

The number in parentheses indicates the

total number of titles, chapters, tracks,

indexes, or scenes.

5 Press v or V repeatedly, or press the

numeric buttons to select the title,

chapter, track, index, or scene number

you want to search.

If you make a mistake

Press CLEAR to cancel the number, then

select another number.

6 Press ENTER.

The playback starts from the selected

number.

To search for a scene using

the time code (TIME SEARCH)

(DVD only)

1 In step 3, select “TIME/TEXT”.

“T

” (playing time of the current

title) is selected.

2 Press ENTER.

“T

” changes to “T --:--:--”.

3 Input the time code using the numeric

buttons, then press ENTER.

For example, to find the scene at 2 hours,

10 minutes, and 20 seconds after the

beginning, just enter “2:10:20”.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

Note

The displayed number of title, chapters, or tracks is

the same number of title, chapters, or tracks recorded

on the disc.

Enjoying movies

DVD/VIDEO CD/CD

Changing the angles

(DVD only)

When playing a DVD on which various angles

(multi-angles) for a scene are recorded, the

“ANGLE” indicator lights in green. This means

that you can change the viewing angle. For

example, while playing a scene of a train in

motion, you can display the view from either

the front of the train, the left window of the

train or from the right window without having

the train’s movement interrupted.

1 Press DVD DISPLAY during playback.

The Control Menu appears.

2 Press v or V repeatedly to select

“ANGLE”.

The angle number appears. The number in

parentheses indicates the total number of

angles.

3 Press ENTER.

The angle number changes to “–”.

4 Select the angle you want using the

numeric buttons or v/V, then press

ENTER.

The angle is changed to the selected angle.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

Tip

You can select the angle by pressing ANGLE on the

remote. Each time you press the button, the angle

changes.

Note

Depending on the DVD, you may not be able to

change the angles even if multi-angles are recorded

on the DVD.

Displaying the subtitles

(DVD only)

With DVDs on which multilingual subtitles are

recorded, you can change the subtitle language

while playing a DVD, or turn the subtitles on or

off whenever you want. For example, you can

select the language you want to master and turn

the subtitles on for better understanding.

1 Press DVD DISPLAY during playback.

The Control Menu appears.

2 Press v or V repeatedly to select

“SUBTITLE”, then press ENTER.

The options for “SUBTITLE” appear.

3 Press v or V repeatedly to select the

language you want, then press ENTER.

The subtitles are displayed in the selected

language.

To cancel the SUBTITLE setting

Select “OFF” in step 3.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

Tip

You can select the subtitle by pressing SUBTITLE on

the remote. Each time you press the button, the

language changes.

Notes

• When 4 digits are displayed in step 3, they indicate

the language code. Refer to the language code list

on page 64 to see the language the code represents.

• Depending on the DVD, you may not be able to

change the subtitles even if multilingual subtitles

are recorded on the DVD.

Locking discs

— CUSTOM PARENTAL CONTROL/

PARENTAL CONTROL

You can set two kinds of playback restrictions

for the disc.

• Custom Parental Control

You can set the playback restrictions so that

the system will not play inappropriate discs.

You can set the same Custom Parental

Control password for up to 50 discs. When

you set the fifty-first disc, the playback

restriction for the first disc is canceled.

• Parental Control

You can limit the playback of some DVDs

according to a predetermined level such as

the age of the users. The limited scene is not

played, or replaced by a different scene.

The same password is used for both Custom

Parental Control and Parental Control.

Custom Parental Control

1 Insert the disc you want to lock.

If the disc is playing, press x to stop

playback.

2 When the playback is stopped, press

DVD DISPLAY.

The Control Menu appears.

3 Press v or V repeatedly to select

“CUSTOM PARENTAL CONTROL”, then

press ENTER.

The “CUSTOM PARENTAL CONTROL”

display appears.

4 Press v or V repeatedly to select “ON

t”, then press ENTER.

x If you have not entered a password

The display for registering a new password

appears.

Enter a 4-digit password using the numeric

buttons, then press ENTER.

The display for confirming the password

appears.

x When you have already registered a

password

The display for entering the password

appears.

5 Enter or re-enter your 4-digit password

using the numeric buttons, then press

ENTER.

“Custom parental control is set.” appears

and the screen returns to the Control Menu

Display.

If you make a mistake entering your

password

Press b before you press ENTER and input

the correct number.

CUSTOM PARENTAL CONTROL

Enter a new 4-digit password, then

press

ENTER

CUSTOM PARENTAL CONTROL

Enter password, then press .

ENTER

Using various additional functions

DVD/VIDEO CD/CD

If you make a mistake

Press RETURN O, then start from step 3

again.

To turn off the Control Menu

Press RETURN O, then press DVD

DISPLAY repeatedly until the Control Menu is

turned off.

To turn off the Custom Parental

Control function

1 In step 4, select “OFF t”, then press

ENTER.

2 Enter your 4-digit password using the

numeric buttons, then press ENTER.

To change the password

1 In step 4, Press v or V repeatedly to select

“PASSWORD t”, then press ENTER.

The display for entering the password

appears.

2 Enter your 4-digit password using the

numeric buttons, then press ENTER.

3 Enter a new 4-digit password using the

numeric buttons, then press ENTER.

4 To confirm your password, re-enter it using

the numeric buttons, then press ENTER.

Playing the disc for which

Custom Parental Control is set

1 Insert the disc

for which Custom

Parental Control is set

The “CUSTOM PARENTAL CONTROL”

display appears.

2 Enter your 4-digit password using the

numeric buttons, then press ENTER.

The system is ready for playback.

Tip

If you forgot your password, enter the 6-digit number

“199703” using the numeric buttons when the

“CUSTOM PARENTAL CONTROL” display asks

you for your password, then press ENTER. The

display will ask you to enter a new 4-digit password.

Limiting playback by children

(Parental Control)

(DVD only)

1 When the playback is stopped, press

DVD SET UP.

The Control Menu appears.

2 Press v or V repeatedly to select

“CUSTOM SETUP”, then press ENTER.

The “CUSTOM SETUP” display appears.

3 Press v or V repeatedly to select

“PARENTAL CONTROL t”, then press

ENTER.

x If you have not entered a password

The display for registering a new password

appears.

Enter a 4-digit password using the numeric

buttons, then press ENTER.

The display for confirming the password

appears.

x When you have already registered a

password

The display for entering the password

appears.

CUSTOM SETUP

PAUSE MODE:

AUTO

TRACK SELECTION

OFF

PARENTAL CONTROL

CUSTOM SETUP

PARENTAL CONTROL

Enter a new 4-digit password, then

press

ENTER

continued

CUSTOM SETUP

PARENTAL CONTROL

Enter password, then press

ENTER

4 Enter or re-enter your 4-digit password

using the numeric buttons, then press

ENTER.

The display for setting the playback

limitation level and changing the password

appears.

5 Press v or V repeatedly to select

“STANDARD”, then press ENTER.

The options for “STANDARD” appears.

6 Press v or V repeatedly to select a

geographic area as the playback

limitation level, then press ENTER.

The area is selected.

When you select “OTHERS t”, select and

enter the standard code in the table on page

39 using the numeric buttons.

7 Press ENTER.

The options for “LEVEL” appears.

8 Press v or V repeatedly to select the

level you want, then press ENTER.

The Parental Control setting is completed.

The lower the value, the more strict the

limitation.

If you make a mistake

Press RETURN O to go back to the previous

screen.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

To turn off the Parental Control

function and play the DVD after

entering your password

Set “LEVEL” to “OFF” in step 8.

To change the password

1 In step 5, press V to select “CHANGE

PASSWORD t”, then press ENTER.

The display for entering the password

appears.

2 Follow step 3 to enter a new password.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL:

OFF

STANDARD:

CHANGE PASSWORD

USA

CUSTOM SETUP

PARENTAL CONTROL

LEVEL:

OFF

USA

STANDARD:

CHANGE PASSWORD

USA

OTHERS

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: OFF

OFF

STANDARD:

CHANGE PASSWORD

NC17

CUSTOM SETUP

PARENTAL CONTROL

LEVEL:

STANDARD:

CHANGE PASSWORD

USA

4: PG13

Locking discs (continued)

DVD/VIDEO CD/CD

Standard Code

number

Argentina 2044

Australia 2047

Austria 2046

Belgium 2057

Brazil 2070

Canada 2079

Chile 2090

China 2092

Denmark 2115

Finland 2165

France 2174

Germany 2109

Hong Kong 2219

India 2248

Indonesia 2238

Italy 2254

Japan 2276

Standard Code

number

Korea 2304

Malaysia 2363

Mexico 2362

Netherlands 2376

New Zealand 2390

Norway 2379

Pakistan 2427

Philippines 2424

Portugal 2436

Russia 2489

Singapore 2501

Spain 2149

Sweden 2499

Switzerland 2086

Taiwan 2543

Thailand 2528

United Kingdom

2184

Area code

Playing the disc for which

Parental Control is set

1 Insert the disc

and press nN

The “PARENTAL CONTROL” display

appears.

2 Enter your 4-digit password using the

numeric buttons, then press ENTER.

The playback starts.

Tip

If you forgot your password, remove the disc and

repeat steps 1 to 5 of “Limiting playback by

children”. When you are asked to enter your

password, enter “199703” using the numeric buttons,

then press ENTER. The display will ask you to enter

a new 4-digit password. After you enter a new 4-digit

password in step 3, replace the disc in the system and

press

. When the “PARENTAL CONTROL”

display appears, enter your new password.

Notes

• When you play DVDs which do not have the

Parental Control function, playback cannot be

limited on this system.

• Depending on the DVD, you may be asked to

change the parental control level while playing the

disc. In this case, enter your password, then change

the level. If the Resume Play mode is canceled, the

level returns to the original level.

To change the AM tuning interval

(Except for European and Middle

Eastern models)

The AM tuning interval is factory set to 9 kHz

(10 kHz in some areas). To change the AM

tuning interval, tune in any AM station first,

then turn off the power. While holding down

the ENTER button, turn the power back on.

When you change the interval, AM preset

stations will be erased. To reset the interval,

repeat the same procedure.

Listening to the radio

— Preset Tuning

Preset radio stations in the tuner’s memory first

(see “Presetting radio stations”).

1 Press TUNER/BAND repeatedly to

select FM or AM.

2 Press . or > repeatedly to tune in

the preset station you want.

To Do this

Turn off the radio Press ?/1.

To listen to non-preset radio stations

In step 2, press m or M repeatedly (Manual

Tuning) or press and hold m or M

(Automatic Tuning).

Notes

• When the TUNER function is selected, the OSD

does not appear on the screen.

• When DVD is selected as the current function and

TUNER/BAND is pressed to select the TUNER

function, some time may be necessary before the

function can be switched.

• When you change the function from DVD to

TUNER, “WAIT” may flash on the front panel

display. While this flashes, there is no audio output.

MHz

Presetting radio stations

You can preset 20 stations for FM and

10 stations for AM.

1 Press TUNER/BAND repeatedly to

select FM or AM.

2 Press and hold m or M until the

frequency indication starts to change,

then release.

Scanning stops when the system tunes in a

station. “TUNED” and “STEREO” (for a

stereo program) appear.

3 Press TUNER MEMORY.

A preset number appears in the display. The

stations are stored from preset number 1.

4 Press ENTER.

The station is stored.

5 Repeat steps 1 to 4 to store other

stations.

To tune in a station with a weak

signal

Press m or M repeatedly to tune in the

station manually.

To set another station to an existing

preset number

Start over from step 1. After step 3, press .

or > repeatedly to select the preset number

where you want to store a new station, then

proceed to step 4.

Tips

• Pressing TUNER/BAND while the power is off

automatically turns the power on.

• You can use the digipad instead of ./>.

• The preset stations are retained for half a day even

if you unplug the power cord or if a power failure

occurs.

TUNED

STEREO

MHz

Tuner

Preset number Frequency

Preset number

Tuner

Tips

• Pressing TUNER/BAND while the power is off

automatically turns the power on.

• You can use the digipad instead of ./>.

• When an FM program is noisy, press FM MODE so

that “MONO” appears in the display. There will be

no stereo effect, but the reception will improve.

• To improve broadcast reception, reorient the

antennas.

Using the Radio Data

System (RDS)

(European model only)

What is the Radio Data

System?

Radio Data System (RDS) is a broadcasting

service that allows radio stations to send

additional information along with the regular

program signal. This tuner offers convenient

RDS features like station name display and

location of stations by program type. RDS is

available only for FM stations.

Note

RDS may not work properly if the station you are

tuned to is not transmitting the RDS signal properly

or if the signal is weak.

Receiving RDS broadcasts

Simply select a station from the FM band.

When you tune in a station that provides RDS

services, the station name appears in the

display.

To check the RDS information

Press DISPLAY.

Each time you press the button, the display

changes cyclically as follows:

Station name* t Frequency t Program

type* t Clock display t Effect status

* If the RDS broadcast is not received, the station

name and program type may not appear in the

display.

Locating a station by

program type (PTY)

You can locate a station you want by selecting

a program type. The tuner tunes in the type of

programs currently being broadcast from the

RDS stations stored in the tuner’s preset

memory.

The types of programs include NEWS,

AFFAIRS (current news), INFO, SPORT,

EDUCATE (education programs), DRAMA,

CULTURE, SCIENCE, VARIED (interviews,

games and comedy), POP M, ROCK M, EASY

M, LIGHT M, CLASSICS, OTHER M,

WEATHER, FINANCE, CHILDREN,

SOCIAL, RELIGION, PHONE IN, TRAVEL,

LEISURE, JAZZ, COUNTRY (country music),

NATION M (nation’s popular music),

OLDIES, FOLK M, DOCUMENT

(investigative features), TEST (test signal for

emergency broadcast), ALARM (emergency

broadcast) and NONE (any programs not

defined above).

1 Press PTY while listening to the radio.

2 Press . or > repeatedly to select

the program type you want.

3 Press ENTER.

“PTY SEARCH” and the selected program

type appear alternately in the display.

When the tuner receives a program, the

preset station name flashes.

4 Press . or > repeatedly to

continue searching for the station

name you want.

5 Press ENTER while the preset station

name you want is flashing.

To cancel the PTY search

Press PTY again.

Tip

You can use the digipad instead of ./>.

Note

“NOT FOUND” appears when the program type you

selected is not currently being broadcast.

Stop playback

Pause playback

Fast-forward

Rewind

Tips

• You can use the digipad for tape operations.

• Pressing TAPE A/B while the power is off

automatically turns the power on.

• When you want to reduce the hiss noise in low-level

high-frequency signals, press DOLBY NR so that

“DOLBY NR” appears in the display.

• When a tape is inserted, corresponding presence

indicator lights up.

Searching for the beginning of a

track (AMS*)

During playback, press . or > repeatedly

for the number of songs you want to skip

forward (or backward).

The search direction, + (forward) or – (back),

and number of songs being skipped (1–9)

appear in the display.

* Automatic Music Sensor

Note

The AMS function may not operate correctly under

the following circumstances:

– When the unrecorded space between songs is less

than 4 seconds long.

– When the unit is placed near a television.

MUSIC

DSP EDIT

GAME

MOVIE

TOOL

Tape presence

indicator

Insert with the

side you want

to play/record

facing forward.

Example: searching forward 2 songs

Do this

Press x.

Press X.

Press again to resume playback.

Press M while playing the front

side or press m while playing the

reverse side.

Press m while playing the front

side or press M while playing the

reverse side.

Loading a tape

1 Press TAPE A/B repeatedly to select

deck A or B.

2 Press DECK A Z or DECK B Z.

3 Insert a tape in deck A or B.

Playing a tape

You can use TYPE I (normal) or TYPE II

(CrO2)

tapes. The deck automatically detects

the tape type.

1 Load a tape.

2 Press DIRECTION repeatedly to select

g to play one side, j to play both

sides, or RELAY* (Relay Play) to play

both decks in succession.

3 Press nN.

The tape starts playing.

Press nN again to play the reverse side.

When you select j or RELAY, the deck

stops automatically after repeating the

sequence 5 times.

* Relay Play always follow this cyclic sequence:

Deck A (front side) t Deck A (reverse side) t

Deck B (front side) t Deck B (reverse side)

Tape

Recording from a tape

(High-Speed Dubbing)

Recording from a VIDEO CD/CD

(CD Synchro Recording)

Recording Manually

Insert a recordable tape into deck B.

Press TAPE A/B repeatedly

to select TAPE A function.

Press DVD. Press a function button

for the recording

source.

Insert the tape you want to

record into deck A.

Insert the disc you want to

record.

Insert the disc, tape, or

tune in the station you

want to record.

Press CD SYNC HI-DUB.

Press REC PAUSE/

START.

Deck B stands by for recording.

The REC PAUSE/START button flashes.

To reduce the hiss noise in low-level high-frequency signals, press DOLBY NR so that “DOLBY

NR” appears in the display (except when recording from a tape).

Press DIRECTION repeatedly to select g to record on one side.

Select j (or RELAY) to record on both sides.

Press REC PAUSE/START.

Recording starts.

Steps

Recording to a tape

— CD Synchro Recording/High-Speed Dubbing/Recording Manually/Program

Edit

You can record from a DVD, VIDEO CD, CD, tape, radio or other connected component. You can

use TYPE I (normal) or TYPE II (CrO2) tapes. The recording level is adjusted automatically.

To Press

Stop recording x.

Pause recording* REC PAUSE/START.

* Only when recording manually.

Tips

• If you want to record from the reverse side, press

TAPE A/B to select deck B and press nN to

start playback of the reverse side after step 1. Press

x where you want to start recording.

• When you record on both sides, be sure to start

from the front side. If you start from the reverse

side, recording stops at the end of the reverse side.

• (High-Speed Dubbing only)

If you set direction to j when the tapes have

different lengths, the tapes in each deck reverses

independently. If you select RELAY, the tapes in

both decks reverse together.

Notes

• You cannot listen to other sources while recording.

• You cannot use the digipad during recording.

• If you change the setting of sound, such as changing

the preset effect file, while recording, the recording

sound is interrupted at the point.

• If you start recording with the 2CH/MULTI set to

“V.SEMI M.D.”, “MULTI”, or “V.M.DIMENS.”,

the setting automatically changes to “2CH”.

• CD synchro recording is not available with DVDs.

Start playing the

recording source.

continued

Recording to a tape (continued)

Recording a VIDEO CD/CD by

specifying the track order

— Program Edit

When programming, make sure the playing

times for each side do not exceed the length of

one side of the tape.

1 Insert a recordable tape into deck B,

then press DVD.

2 When the playback is stopped, press

PLAY MODE repeatedly until

“PROGRAM” appears in the front panel

display.

The Program Display appears on the screen.

3 Press ENTER, then press v or V

repeatedly to select the disc.

4 Press B.

The cursor moves to the track (in this case,

“01”).

* “?” appears when the system has not loaded the disc

information in the memory.

5 Select the track you want to program.

For example, select track “02”.

Press v/V or the numeric buttons to select

“02” under “T”, then press ENTER.

6 To program additional steps, repeat

steps 3 to 5.

7 Press CD SYNC HI-DUB.

Deck B stands by for recording. To reduce

the hiss noise in low-level high-frequency

signals, press DOLBY NR so that “DOLBY

NR” appears in the display. The REC

PAUSE/START button flashes.

8 Press DIRECTION repeatedly to select

g to record on one side.

Select j (or RELAY) to record on

both sides.

9 Press REC PAUSE/START.

Recording starts.

To cancel Program Edit

Press PLAY MODE repeatedly until “1 DISC”

or “ALL DISCS” appears in the display.

PROGRAM

– – – –

ALL CLEAR

– – – –

ALL

–

– – – –

ALL

PROGRAM

– – – –

ALL CLEAR

– – – –

PROGRAM

– – – –

ALL CLEAR

– – – –

ALL

–

– – – –

PROGRAM

1. CD

–

ALL CLEAR

– – – –

ALL

Disc type* Track

Selected track

Tape

Timer-recording radio

programs

To timer-record, you must set the clock (see

“Setting the time” on page 15) and preset the

radio stations (see “Presetting radio stations”

on page 40) beforehand.

1 Tune in the preset radio station (see

“Listening to the radio” on page 40).

2 Press CLOCK/TIMER SET.

“DAILY1 SET” appears.

3 Press . or > repeatedly to select

“REC SET”, then press ENTER.

“ON” appears and the hour indication

flashes.

4 Set the time to start recording.

Press . or > repeatedly to set the

hour, then press ENTER.

The minute indication flashes.

Press . or > repeatedly to set the

minutes, then press ENTER.

The hour indication flashes again.

5 Set the time to stop recording following

step 4.

The start time appears, followed by the stop

time, the preset radio station to be recorded

(e.g., “TUNER FM 5”), then the original

display appears.

6 Insert a recordable tape into deck B.

7 Turn off the power.

When the recording starts, the volume level

is set to the minimum.

Check the setting

Change the setting

Cancel the

Timer-recording

Notes

• If the power is on at the preset time, the Timer-

recording does not work.

• When you use the Sleep Timer, the Timer-recording

will not turn on the system until the Sleep Timer

turns it off.

• The power turns on 15 seconds before the preset

time.

Do this

Press TIMER SELECT (or

CLOCK/TIMER SELECT on

the remote) and press . or

> repeatedly to select

“REC SELECT”, then press

ENTER.

Start over from step 1.

Press TIMER SELECT (or

CLOCK/TIMER SELECT on

the remote) and press . or

> repeatedly to select

“TIMER OFF”, then press

ENTER.

Sound Adjustment

To listen to multi channel

sound

Press 2CH/MULTI.

Each time you press the button, the display

changes cyclically as follows:

2CH t V.SEMI M.D. t MULTI* t

V.M.DIMENS.*

2CH: The sound is output in 2-channel stereo.

V.SEMI M.D. (Virtual Semi Multi

Dimension): Uses 3D sound imaging to

create virtual rear speakers from the sound of

the front speakers without using actual rear

speakers. This mode creates 5 sets of virtual

speakers surrounding the listener at a 30° angle

of elevation.

MULTI*: The sound is output in multi channel.

V.M.DIMENS. (Virtual Multi Dimension)*:

Uses 3D sound imaging to create an array of

virtual rear speakers positioned higher than the

listener from a single pair of actual rear

speakers. This mode creates 5 sets of virtual

speakers surrounding the listener at

approximately a 30° angle of elevation.

* MHC-DP1000D only.

Notes

• When using headphones, this setting is fixed to

“2CH”. You cannot select other settings.

•

While decoding DTS signals, you cannot select the

sound effect option of MUSIC MODE together with

“V.SEMI M.D.” or “V.M.DIMENS.” simultaneously.

About indicators

MULTI CHANNEL DECODING indicator:

Lights up when the unit is decoding signals

recorded in a multi channel format.

PRO LOGIC indicator (in the display):

Lights up when the unit applies Dolby Pro

Logic processing to 2 channel signals in order

to output the center and rear channel signals.

; DIGITAL indicator (in the display):

Lights up when the unit is decoding signals

recorded in the Dolby Digital format.

dts indicator (in the display): Light up when

DTS signals are input.

Adjusting the sound

Press GROOVE.

Each time you press the button, the display

changes cyclically as follows:

GROOVE ON t V-GROOVE ON t

GROOVE OFF

GROOVE: The volume switches to power

mode and the equalizer curve changes.

V-GROOVE: The volume switches to power

mode, the lower bass frequencies of the sound

you are listening to is powerfully reinforced,

and the equalizer curve changes.

Sound Adjustment

Selecting the preset

effect file

Press one of the DSP buttons (MUSIC

MODE, MOVIE MODE, GAME MODE, or

TOOL MODE) repeatedly to select the

preset effect you want.

The preset effect name appears in the display.

See “Sound effect options” below.

To cancel

Press EFFECT (or EFFECT ON/OFF on the

remote) to select “EFFECT OFF”. All the

parameters become flat.

Sound effect options

You can enjoy surround sound simply by

selecting one of the preset effect according to

the program you want to listen to.

DSP Options

MODE

MUSIC LIVE HOUSE

MODE HALL

S.ENHANCE (SOUND ENHANCE)

RADIO SOUND

MOVIE C.STUDIO A (CINEMA STUDIO A)

MODE C.STUDIO B (CINEMA STUDIO B)

C.STUDIO C (CINEMA STUDIO C)

NORMAL SURR (NORMAL SURROUND)

GAME ARCADE

MODE RACING

ADVENTURE

BATTLE

TOOL PAN

MODE FLANGER

KEY CONTROL

EXCITER

COMPRESSOR

REVERB

EARLY RFLC. (EARLY REFLECTION)

CINEMA STUDIO A: Reproduces the sound

characteristics of Sony Pictures Entertainment’s

classic editing studio.

CINEMA STUDIO B: Reproduces the sound

characteristics of Sony Pictures Entertainment’s

mixing studio which is one of the most up-to-date

facilities in Hollywood.

CINEMA STUDIO C: Reproduces the sound

characteristics of Sony Pictures Entertainment’s

BGM recording studio.

Adjusting the sound

effects

Before operation, first select the audio effect

you want for your basic sound.

1 Press DSP EDIT.

Each time you press the button, the display

changes as follows:

DSP EDIT* (to adjust DSP) y EQ EDIT

(to adjust equalizer)

* This menu does not appear depending on the

audio effect.

2 Use the digipad to adjust the

parameters.

The parameter is adjusted according to the

curve your finger slides on the digipad.

Adjustable parameters are described on

page 48. After the curve your finger slides

is displayed for a while, then the curve

automatically adjusted by the unit is

displayed. For DSP EDIT, the adjustable

parameters vary depending on the preset

effect.

3 Press ENTER.

To cancel

Press EFFECT (or EFFECT ON/OFF on the

remote) to select “EFFECT OFF”. The

adjustment for the selected parameter is

canceled.

continued

Up/Down

(Y)

Right/Left

(X)

Adjustable parameters

Menu Right/Left Up/Down

(X) (Y)

DSP EDIT (See the chart below)

EQ EDIT Frequency Level

Adjustable DSP parameters

Sound effect Right/Left Up/Down

options (X) (Y)

LIVE HOUSE Time Wall type

HALL Time Wall type

S.ENHANCE Time Level

RADIO SOUND Time Level

C.STUDIO A Level —

C.STUDIO B Level —

C.STUDIO C Level —

NORMAL SURR ——

ARCADE Time Level

RACING Shape —

ADVENTURE Frequency Level

BATTLE Time Wall type

PAN Position Position

FLANGER Frequency Level

KEY CONTROL Key Time

EXCITER Frequency Level

COMPRESSOR Time Level

REVERB Time Wall type

EARLY RFLC. Shape —

Wall type: This parameter lets you control the level of

the high frequencies to alter the sonic character of

your listening environment by simulating a softer or

harder wall.

The adjustable DSP parameters are shown by

the indicator on the upper left corner in the

display. You can adjust in the direction the

cursor lights. Slide your finger on the digipad

to adjust the parameters.

Tips

• You can use the cursor buttons (v/V/b/B) on the

remote instead of the digipad. You can press

2 buttons simultaneously to move obliquely.

Example: Press v and B simultaneously to move

upper right direction.

• You can store the adjusted effect in a personal file

(see “Creating a personal audio effect file”).

Creating a personal audio

effect file

— Personal file

You can store the adjusted audio effects in the

system’s memory. You can create up to

5 audio effect files.

1 Obtain the sound effect you want to

store to P FILE.

2 Press and hold P FILE.

The personal file number appears in the

display.

3 Touch the digipad to select the file

number where you want to store the

effect.

4 Press ENTER.

To call up a personal file

Press P FILE repeatedly to select the file.

Note

When using personal files, the adjustable DSP EDIT

parameters depend on the original preset effect.

Adjusting the sound effects

(continued)

Other Features

Changing the spectrum

analyzer display

Press SPECTRUM on the remote.

Each time you press the button, the display

changes cyclically as follows:

PATTERN 1 t PATTERN 2 t

PATTERN 3 t PATTERN OFF

To adjust the brightness

of the display

Use the remote for the operation.

1 Press AMP MENU.

2 Press v or V repeatedly to select

“DIMMER”.

3 Press b or B repeatedly to select the

setting you want.

DIMMER 1 y DIMMER 2 y

DIMMER 3

4 Press ENTER.

Singing along: Karaoke

(Except for North American and

European models)

You can sing along with any disc or tape by

turning down the singer’s voice. You need to

connect an optional microphone.

1 Turn MIC LEVEL to MIN to turn down

the microphone volume.

2 Connect an optional microphone to MIC

jack.

3 Press KARAOKE PON.

Each time you press the button, the display

changes cyclically as follows:

KARAOKE PON t MPX R t

MPX L t Effect status*

* KARAOKE PON is cancelled.

To sing karaoke by decreasing the vocal

level of a disc or a tape, select “KARAOKE

PON”. To sing karaoke of multiplex CD,

select “MPX R” or “MPX L”.

4 Start playing the music and adjust the

volume.

5 Adjust the microphone volume by

turning MIC LEVEL.

When you use DVDs or VIDEO CDs

Turn on your TV and select the video input.

Refer to the operating instructions supplied

with your TV for details.

After you have finished

Turn MIC LEVEL to MIN and disconnect the

microphone from MIC jack, then press

KARAOKE PON repeatedly until “m”

disappears.

Notes

• With some songs, vocals may not be canceled when

you select “KARAOKE PON”.

• If you recall a sound effect, the karaoke mode is

canceled.

• During “KARAOKE PON”, “MPX R” or “MPX

L”, DSP effect switches to “KEY CONTROL”.

When the karaoke effect is canceled, the DSP effect

before entering the karaoke effect is applied again.

• The instrumental sound may be reduced as well as

the singer’s voice when the sound is recorded in

monaural.

• The singer’s voice may not be reduced when:

— only a few instruments are playing.

— a duet is being played.

— the source has strong echoes or chorus.

— the singer’s voice deviates from the center.

— the voice on the source is singing in high

soprano or tenor.

continued

Singing along: Karaoke (continued)

Press

SLEEP once.

SLEEP repeatedly to select

the time you want.

SLEEP repeatedly until

“SLEEP OFF” appears.

Mixing and recording sound

1 Do the procedure for “Singing along”

(steps 1 through 5). Then, load a

recordable tape in deck B.

2 Press the function button of the source

you want to record (e.g. DVD).

When you want to record from TAPE A,

press TAPE A/B repeatedly until TAPE A

is selected.

3 Press REC PAUSE/START.

Deck B stands by for recording.

4 Press DIRECTION repeatedly to select

g to record on one side. Select j

(or RELAY) to record on both sides.

5 Press REC PAUSE/START.

Recording starts.

6 Press nN to start playing the source

to be recorded.

Start singing along the music.

To stop recording

Press x.

Tips

• If acoustic feedback (howling) occurs, move the

microphone away from the speakers or change the

direction of the microphone.

• If you want to record your voice through the

microphone only, you can do so by selecting the

DVD function and not playing the disc.

• When high level sound signals are input, the unit

automatically adjusts the recording level to prevent

distortion of the recorded sound signal (Auto Level

Control Function).

Falling asleep to music

— Sleep Timer

You can set the system to turn off at a preset

time, so you can fall asleep to music.

Press SLEEP on the remote.

Each time you press the button, the minute

display (the turn-off time) changes as follows:

AUTO* t 90 t 80 t 70 t … t

10 t OFF

* The power turns off when the current disc or tape

finishes playback (for up to 100 minutes).

Check the remaining

time

(Except for AUTO)

Change the time to

turn off

Cancel the Sleep

Timer

Waking up to music

— Daily Timer

You can wake up to music at a preset time

every day. Make sure you have set the clock

(see “Setting the time” on page 15).

1 Prepare the music source you want to

play.

• DVD/VIDEO CD/CD: Load a disc.

• Tape: Load a tape with the side you

want to play facing forward.

• Radio: Tune in the preset station you

want (see “Listening to the radio” on

page 40).

Other Features

2 Adjust the volume.

3 Press CLOCK/TIMER SET.

“DAILY1 SET” appears.

4 Press . or > repeatedly to select

“DAILY1 SET (or DAILY2 SET)”, then

press ENTER.

“ON” appears and the hour indication

flashes.

5 Set the time to start playback.

Press . or > repeatedly to set the

hour, then press ENTER.

The minute indication flashes.

Press . or > repeatedly to set the

minutes, then press ENTER.

The hour indication flashes again.

6 Set the time to stop playback following

step 5.

7 Press . or > repeatedly until the

music source you want appears.

The indications change as follows:

t TUNER y DVD PLAY T

t TAPE PLAY T

8 Press ENTER.

The type of timer (“DAILY 1” or “DAILY

2”), followed by the start time, stop time

and the music source, appears, then the

original display appears.

9 Turn off the power.

Check the setting

Change the setting

Cancel the Daily

Timer

Notes

• If the power is on at the preset time, the Daily

Timer does not work.

• When you use the Sleep Timer, the Daily Timer

will not turn on the system until the Sleep Timer

turns it off.

• The power turns on 15 seconds before the preset

time.

• The program is canceled when you change the

function to TUNER or turn off the system.

Do this

Press TIMER SELECT (or

CLOCK/TIMER SELECT on

the remote) and press . or

> repeatedly to select the

respective mode (“DAILY 1”

or “DAILY 2”), then press

ENTER.

Start over from step 1.

Press TIMER SELECT (or

CLOCK/TIMER SELECT on

the remote) and press . or

> repeatedly to select

“TIMER OFF”, then press

ENTER.

Connecting audio

components

Hooking Up the Optional Components

Make a digital

recording from DVD/

VIDEO CD/CD to

Listen to the digital

sound of a

connected MD deck

Listen to the analog

sound of a

connected MD deck

Listen to the analog

sound of a connected

VCR

Listen to the analog

sound of a connected

video game

Tips

• Pressing DIGITAL, MD (VIDEO) or GAME while

the power is off automatically turns the power on.

• When you remove the optical cover, keep it for

future use.

Notes

• Make sure to match the color of the plugs and the

connectors.

• If the sound is distorted or too loud when VIDEO

function is selected, or you want to switch back to

MD function, repeat the operation described above

to switch to MD function.

• Digital signals are output from DIGITAL OUT jack

during DVD or DIGITAL function only. Besides,

the sound output from the DIGITAL OUT jack is

not affected by the sound adjustment.

• This unit is not compatible with 96 kHz sampling

frequencies and SACD format.

To the analog

output jacks of

a video game To subwoofer

To the digital

input jack of

an MD deck

To the analog

output jacks of

an MD deck/

VCR

To the analog

input jacks of

an MD deck/

VCR

To the digital

output jack of

an MD deck

Do This

Connect an optional optical

cable.

Press DIGITAL.

Press MD (VIDEO).

Hold down MD (VIDEO) and

press ?/1 while the power is

on. Release ?/1 first, then

release MD (VIDEO). This

switches the function from

MD to VIDEO. Once you

switched to the VIDEO

function, just press MD

(VIDEO).

Press GAME.

Additional Information

Precautions

On operating voltage

Before operating the unit, check that the operating

voltage of your unit is identical with the voltage of

your local power supply.

On safety

• The unit is not disconnected from the AC power

source (mains) as long as it is connected to the wall

outlet, even if the unit itself has been turned off.

• Unplug the unit from the wall outlet (mains) if it is

not to be used for an extended period of time. To

disconnect the cord (mains lead), pull it out by the

plug. Never pull the cord itself.

• Should any solid object or liquid fall into the

component, unplug the unit and have the

component checked by qualified personnel before

operating it any further.

• The AC power cord must be changed only at a

qualified service shop.

On placement

• Do not place the unit in an inclined position.

• Do not place the unit in locations where it is:

— extremely hot or cold.

— dusty or dirty.

— very humid.

— vibrating.

— subject to direct sunlight.

On heat buildup

• Although the unit heats up during operation, this is

not a malfunction.

• Place the unit in a location with adequate

ventilation to prevent heat build-up in the unit.

If you continuously use this unit at a large volume,

the cabinet temperature of the top, side and bottom

rises considerably. To avoid burning yourself, do not

touch the cabinet.

To prevent a malfunction, do not cover the ventilation

hole for the cooling fan.

On operation

• If the unit is brought directly from a cold to a warm

location, or is placed in a very damp room, moisture

may condense on the lens inside the DVD player.

Should this occur, the unit will not operate properly.

Remove the disc and leave the unit turned on for

about an hour until the moisture evaporates.

• When you move the unit, take out any discs.

If you have any questions or problems concerning the

unit, please consult your nearest Sony dealer.

Notes on discs

• Before playing, clean the disc with a cleaning cloth.

Wipe the disc from the center out.

• Do not use solvents such as benzene, thinner,

commercially available cleaners or anti-static spray

intended for vinyl LPs.

• Do not expose the disc to direct sunlight or heat

sources such as hot air ducts, nor leave it in a car

parked in direct sunlight.

• Do not use discs encircled with a protection ring.

This may cause a malfunction to the system.

• When using discs that have glue or similar tacky

substance on the label side of the disc or that used a

special ink when the label was printed, there is a

chance that the disc or label may become attached

to parts inside this unit. When this occurs, it may

not be possible to remove the disc, and may also

cause this unit to malfunction. Be sure to check that

the label side of the disc is not sticky before using.

The following types of disc should not be used:

— Rental or used discs with attached seals where

the glue extends beyond the seal. The perimeter

of the seal on the disc is tacky.

— Discs that have labels printed using a special ink

that feels tacky when touched.

• Discs with non-standard shapes (e.g., heart, square,

star) cannot be played on this unit. Attempting to do

so may damage the unit. Do not use such discs.

Note on CD-R/CD-RW playback

Discs recorded on CD-R/CD-RW drives may not be

played back because of scratches, dirt, recording

condition or the drive's characteristics. Besides, the

discs, which are not yet finalized at the end of

recording, cannot be played back.

Cleaning the cabinet

Use a soft cloth slightly moistened with mild

detergent solution.

continued

Hooking Up the Optional Components/Additional Information

Precautions (continued)

To save a tape permanently

To prevent a tape from being accidentally recorded

over, break off the cassette tab from side A or B as

illustrated.

If you later want to reuse the tape for recording, cover

the broken tab with adhesive tape. However, be

careful not to cover the detector slots which allow the

tape player to automatically detect the type of tape.

Before placing a cassette in the tape

deck

Take up any slack in the tape. Otherwise the tape may

get entangled in the parts of the tape deck and become

damaged.

When using a tape longer than

90 minutes

The tape is very elastic. Do not change the tape

operations such as play, stop, and fast-winding etc.

frequently. The tape may get entangled in the tape

deck.

Cleaning the tape heads

Clean the tape heads after every 10 hours of use.

Make sure to clean the tape heads before you start an

important recording or after playing an old tape. Use

a separately sold dry-type or wet-type cleaning

cassette. For details, refer to the instructions of the

cleaning cassette.

Demagnetizing the tape heads

Demagnetize the tape heads and the metal parts that

have contact with the tape every 20 to 30 hours of use

with a separately sold demagnetizing cassette. For

details, refer to the instructions of the demagnetizing

cassette.

In case color irregularity is observed

on nearby a TV screen

With the magnetically shielded type of speaker

system, the speakers can be installed near a TV set.

However, color irregularity may still be observed on

the TV screen depending on the type of your TV set.

If color irregularity is observed…

Turn off the TV set once, then turn it on after 15 to 30

minutes.

If color irregularity is observed

again…

Place the speakers farther away from the TV set.

Troubleshooting

If you run into any problem using this unit, use

the following check list.

First, check that the power cord is connected

firmly and the speakers are connected correctly

and firmly.

Should any problem persist, consult your

nearest Sony dealer.

General

The display starts flashing as soon as you plug

in the power cord even though you haven’t

turned on the power.

• The demonstration mode started. Press ?/1 (see

step 7 on page 11).

The clock setting/timer is canceled.

• The power cord is disconnected or a power

failure occurs. Redo “Setting the time” (page

15). If you have set the timer, redo “Waking up

to music” (page 50) and/or “Timer-recording

radio programs” (page 45).

Tab of side B Tab of side A

Detector slots

Tape type:

CrO

/METAL

Tape type:

Normal

Break off the

cassette tab of

side A

Additional Information

The radio presetting is canceled.

• The power cord is disconnected or a power

failure occurs for longer than half a day. Redo

“Presetting radio stations” (page 40).

There is no sound.

• Turn VOLUME clockwise.

• The headphones are connected.

• Insert only the stripped portion of the speaker

cord into the SPEAKER jack. Inserting the vinyl

portion of the speaker cord will obstruct the

speaker connections.

• The protective device on the amplifier has been

activated because of a short circuit.

(“PROTECT” and “PUSH POWER” flash

alternately.) Turn off the power, eliminate the

short-circuit problem and turn on the power

again.

• The system is in pause mode or in Slow-motion

Play mode. Press nN to return to normal play

mode.

• There is no audio output during Timer-recording.

The sound loses stereo effect when you play a

VIDEO CD, or a CD.

• Set “AUDIO” to “STEREO” in the Control

Menu (page 32).

• Make sure you connect the system

appropriately.

The surround effect is difficult to hear when you

are playing a Dolby Digital or MPEG audio sound

track.

• Make sure the DSP effect is on (page 47).

• Check the speaker connections and settings

(pages 14, 21).

• Depending on the DVD, the output signal may

not be the entire 5.1 channel but monaural or

stereo even if the sound track is recorded in

Dolby Digital or MPEG audio format.

There is severe hum or noise.

• A TV or VCR is placed too close to the unit.

Move the unit away from the TV or VCR.

The sound from the component connected to the

MD (VIDEO) jacks is distorted.

• If “VIDEO” appears in the display when you

press MD (VIDEO), switch to “MD” function

(see “Note: Connecting audio components” on

page 52).

“--.--” lights up in the display.

• A power interruption occurred. Set the clock and

timer settings again.

The timer does not function.

• Set the clock correctly.

• You cannot activate the Daily timer and the

Timer-recording simultaneously.

“DAILY 1”, “DAILY 2”, or “REC” does not appear

when you press TIMER SELECT (or CLOCK/

TIMER SELECT on the remote).

• Set the timer correctly.

• Set the clock.

The remote does not function.

• There is an obstacle between the remote and the

unit.

• The remote is not pointing in the direction of the

unit’s sensor.

• The batteries have run down. Replace the

batteries.

There is acoustic feedback.

• Decrease the volume level.

• Move the microphone away from the speakers or

change the direction of the microphone.

The color irregularity on a TV screen persists.

• Turn off the TV set once, then turn it on after

15 to 30 minutes. If the color irregularity still

persists, place the speakers farther away from the

TV set.

“PROTECT” and “PUSH POWER” appear

alternately.

• A strong signal is input. Turn off the power,

leave the system turned off for a while, then turn

on the power again. If “PROTECT” and “PUSH

POWER” still appear alternately, check the

speaker cords.

continued

Troubleshooting (continued)

Speakers

Sound comes from only one channel or

unbalanced left and right volume.

• Check the speaker connection and speaker

placement.

• The source being played back is monaural.

• Adjust the balance parameters (pages 14, 21).

The sound comes from the center speaker only.

(MHC-DP1000D only)

• Depending on the disc, the sound may come

from the center speaker only.

There is no sound from the center speaker.

(MHC-DP1000D only)

• Set the center speaker level to the appropriate

level.

• 2CH/MULTI is set to “2CH”.

• Make sure the DSP effect is on (page 47).

There is no sound from the rear speakers.

(MHC-DP1000D only)

• Set the rear speakers level to the appropriate

level.

• 2CH/MULTI is set to “2CH”.

• The software being played back has limited

sound effects. Check the volume with the test

tone.

No sound or only a very low-level sound is heard

from the rear speakers.

• Make sure the DSP effect is on (page 47).

Sound lacks bass.

• Check that the speaker’s + and – terminals are

connected correctly.

DVD/VIDEO CD/CD Player

The disc tray does not close.

• The disc is not placed properly.

The disc does not play.

• The disc is not lying flat in the disc tray.

• The disc is dirty (see page 53).

• The disc is inserted label side down.

• Moisture condensation has built up.

• The system cannot play CD-ROMs, etc. (page 6).

• The region code on the DVD does not match the

system.

The disc does not start playback from the

beginning.

• Program Play, Shuffle Play, or Repeat Play has

been selected (pages 23, 24, 26, 28). Press

CLEAR to cancel these functions before playing

a disc.

• Resume Play has been selected. When the

playback is stopped, press x, then start DVD

playback (page 28).

• The title, DVD or PBC menu automatically

appears on the screen.

Playback starts automatically.

• The DVD features an auto playback function.

Playback stops automatically.

• Some discs may contain an auto pause signal.

While playing such a disc, the playback stops at

the auto pause signal.

You cannot perform some functions such as

Stop, Search, Slow-motion Play, Repeat Play,

Shuffle Play, or Program Play.

• Depending on the disc, you may not be able to

do some of the operations above. Refer to the

operating instructions supplied with the disc.

Additional Information


There is no picture.

• Press DVD.

• Check that the system is connected securely.

• The video cable is damaged. Replace it with a

new one.

• Make sure you connect the system to the video

input jack of your TV (page 11).

• Make sure you turn on the TV.

• Make sure you select the video input on the TV

so that you can view the pictures from the

system.

The picture noise appears.

• Clean the disc.

• If video from your DVD player has to go through

your VCR to get to your TV, the copy-protection

applied to some DVD programs could affect

picture quality. If you still experience problems

after checking your connections, please try

connecting your DVD player directly to your

TV’s S video-input, if your TV is equipped with

this input (page 11).

• Except for Pan American and European models,

the color system is different. Set the color system

to match your TV (pages 12, 20).

The aspect ratio of the screen cannot be

changed even though you set “TV TYPE” in

“SCREEN SETUP” in the Setup Display when

you play a wide picture.

• The aspect ratio is fixed on your DVD.

• If you connect the system with the S-video cable,

connect directly to the TV. Otherwise, you may

not change the aspect ratio.

• Depending on the TV, you may not change the

aspect ratio.

Messages do not appear on the screen in the

language you want.

• Select the language you want for the on-screen

display in “OSD” under “LANGUAGE SETUP”

in the Setup Display (page 18).

The language for the sound track cannot be

changed.

• Multilingual tracks are not recorded on the DVD

being played.

• The DVD prohibits changing the language for

the sound track.

The subtitle language cannot be changed.

• Multilingual subtitles are not recorded on the

DVD being played.

• The DVD prohibits changing the subtitles.

The subtitle cannot be turned off.

• The DVD prohibits turning off subtitles.

The angles cannot be changed.

• Multi-angles are not recorded on the DVD being

played. The angle can be changed only when the

“ANGLE” indicator lights up on the front panel

display.

• The DVD prohibits changing the angles.

A 5-character service number is displayed on

the screen and on the front panel display.

• The self-diagnosis function is activated. (See the

table on page 58.)

The disc tray does not open and “LOCKED”

appears on the front panel display.

• Contact your Sony dealer or local authorized

Sony service facility.

continued

C:13:00

Tape Deck

The tape does not record.

• The tab has been removed from the cassette (see

“To save a tape permanently” on page 54).

• The tape has reeled to the end.

The tape does not record nor play, or there is a

decrease in sound level.

• The heads are dirty (see “Cleaning the tape

heads” on page 54).

• The record/playback heads are magnetized (see

“Demagnetizing the tape heads” on page 54).

The tape does not erase completely.

• The record/playback heads are magnetized (see

“Demagnetizing the tape heads” on page 54).

There is excessive wow or flutter, or the sound

drops out.

• The capstans or pinch rollers are dirty (see

“Cleaning the tape heads” on page 54).

Noise increases, or the high frequencies are

erased.

• The record/playback heads are magnetized (see

“Demagnetizing the tape heads” on page 54).

After pressing nN or Z, there is a mechanical

noise, “EJECT” appears in the display, and the

unit enters standby mode automatically.

• The cassette tape has not inserted correctly.

Tuner

There is severe hum or noise (“TUNED” or

“STEREO” flashes in the display).

• Adjust the antenna.

• The signal is too weak. Connect an external

antenna.

A stereo FM program cannot be received in

stereo.

• Press FM MODE so that “MONO” disappears.

If other troubles not described above

occur, reset the system as follows:

1 Press x, DISPLAY and DISC 1 at the

same time.

2 Unplug the power cord.

3 Plug the power cord back in.

4 Press ?/1 to turn on the power.

The system is reset to the factory settings

except for DVD settings. All the settings other

than DVD settings you made, such as the preset

stations, clock, and timer are cleared. You

should set them again.

Self-diagnosis function

(When letters/numbers appear in the

display)

When the self-diagnosis function is activated to

prevent the system from malfunctioning, a five-

character service number (e.g., C 13 00) with a

combination of a letter and digits appears on

the screen. In this case, check the following

table.

First three

characters of

the service

number

C 13

C 31

E XX

(XX is a number)

Cause and/or Corrective

Action

The disc is dirty

, Clean the disc with a soft

cloth (page 53).

The disc is not inserted correctly.

, Re-insert the disc correctly.

To prevent a malfunction, the

system has performed the self-

diagnosis function.

, Contact your nearest Sony

dealer or local authorized

Sony service facility and give

the 5-character service

number.

Example: E 61 10

Troubleshooting (continued)

Additional Information

Specifications

AUDIO POWER SPECIFICATIONS:

(MHC-DP1000D USA model only)

POWER OUTPUT AND TOTAL

HARMONIC DISTORTION

with 8 ohm loads both channels driven, from

120 Hz – 10 kHz; rates 100 watts per channel

minimum RMS power, with no more than 10%

total harmonic distortion from 250 milliwatts to

rated output.

Continuous RMS power output

Center speaker: 30 watts

Rear speakers: 30 + 30 watts

(8 ohms at 1 kHz, 10%

THD)

Amplifier section

Canadian model:

MHC-DP1000D

Continuous RMS power output (reference)

Front speaker: 100 + 100 watts

Center speaker: 30 watts

Rear speakers: 30 + 30 watts

(8 ohms at 1 kHz, 10%

THD)

Total harmonic distortion less than 0.07%

(8 ohms at 1 kHz, 70 W)

European model:

MHC-DP1000D

DIN power output (rated) 60 + 60 watts

(8 ohms at 1 kHz, DIN)

Continuous RMS power output (reference)

Front speaker: 80 + 80 watts

Center speaker: 30 watts

Rear speakers: 30 + 30 watts

(8 ohms at 1 kHz, 10%

THD)

Music power output (reference)

Front speaker: 150 + 150 watts

Center speaker: 60 watts

Rear speakers: 60 + 60 watts

(8 ohms at 1 kHz, 10%

THD)

Other models:

MHC-DP900D

The following measured at AC 120, 220, 240 V,

50/60 Hz

DIN power output (rated) 130 + 130 watts

(6 ohms at 1 kHz, DIN)

Continuous RMS power output (reference)

180 + 180 watts

(6 ohms at 1 kHz, 10%

THD)

MHC-DP1000D

The following measured at AC 120, 220, 240 V,

50/60 Hz

DIN power output (rated) 90 + 90 watts

(8 ohms at 1 kHz, DIN)

Continuous RMS power output (reference)

Front speaker: 120 + 120 watts

Center speaker: 40 watts

Rear speakers: 40 + 40 watts

(8 ohms at 1 kHz, 10%

THD)

Inputs

GAME IN: voltage 250 mV,

(phono jacks) impedance 47 kilohms

MD (VIDEO) IN: voltage 450 mV/250 mV,

(phono jacks) impedance 47 kilohms

OPTICAL IN:

(Square optical connector jacks, front panel)

wavelength ——

MIC: sensitivity 1 mV,

(Except for North impedance 10 kilohms

American and

European models)

(phone jack)

Outputs

MD (VIDEO) OUT: voltage 250 mV

(phono jacks) impedance 1 kilohms

VIDEO OUT: max. output level

(phono jack) 1 Vp-p, unbalanced,Sync

negative, load impedance

75 ohms

S-VIDEO OUT: Y: 1 Vp-p, unbalanced,

(4-pin/mini-DIN jack) Sync negative,

C: 0.286Vp-p,

load impedance 75 ohms

PHONES: accepts headphones of

(stereo mini jack) 8 ohms or more

SPEAKER: accepts impedance of 6 to

(MHC-DP900D only) 16 ohms

FRONT SPEAKER : accepts impedance of 8 to

(MHC-DP1000D only) 16 ohms

REAR SPEAKER: accepts impedance of 8 to

(MHC-DP1000D only) 16 ohms

CENTER SPEAKER: accepts impedance of 8 to

(MHC-DP1000D only) 16 ohms

SUB WOOFER: Voltage 1 V,

impedance 1 kilohms

continued

Specifications (continued)

DVD player section

Laser Semiconductor laser

(DVD: λ=650 nm,

CD: λ=780 nm)

Emission duration:

continuous

Frequency response DVD (PCM 48 kHz):

2 Hz – 22 kHz = (±1 dB)

CD: 2Hz – 20 kHz =

(±1 dB)

Signal-to-noise ratio More than 90 dB

Dynamic range More than 90 dB

Video color system format

NTSC, PAL

DIGITAL OUT OPTICAL

(Square optical connector jack, rear panel)

Wavelength 660 nm

Tape player section

Recording system 4-track 2-channel stereo

Frequency response 40 – 13,000 Hz (±3 dB),

(DOLBY NR OFF) using Sony TYPE I

cassette,

40 – 14,000 Hz (±3 dB),

using Sony TYPE II

cassette

Wow and flutter ±0.15% W.Peak (IEC)

0.1% W.RMS (NAB)

±0.2% W.Peak (DIN)

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range 87.5 – 108.0 MHz

Antenna FM lead antenna

Antenna terminals 75 ohm unbalanced

Intermediate frequency 10.7 MHz

AM tuner section

Tuning range

Pan American model: 530 – 1,710 kHz

(with the interval set at

10 kHz)

531 – 1,710 kHz

(with the interval set at

9 kHz)

European and Middle Eastern models:

531 – 1,602 kHz

(with the interval set at

9 kHz)

Other models: 531 – 1,602 kHz

(with the interval set at

9 kHz)

530 – 1,710 kHz

(with the interval set at

10 kHz)

Antenna AM loop antenna

Antenna terminals External antenna terminal

Intermediate frequency 450 kHz

Speaker

Front speaker

SS-DP1000DW for MHC-DP1000D (North

American and European models)

Speaker system 2-way, bass-reflex type,

magnetically shielded type

Speaker units

Woofer: 17 cm, cone type

Tweeter: 5 cm, cone type

Nominal impedance 8 ohms

Dimensions (w/h/d)

Approx. 230 x 360 x 260 mm

Mass Approx. 4.0 kg net per

speaker

SS-DP1000D/DP900D for MHC-DP1000D/

DP900D (Other models)

Speaker system 3-way, 3-unit,

bass-reflex type,

magnetically shielded type

Speaker units

Woofer: 15 cm, cone type

Subwoofer: 15 cm, cone type

Tweeter: 5 cm, cone type

Nominal impedance

SS-DP900D 6 ohms

SS-DP1000D 8 ohms

Dimensions (w/h/d)

Approx. 250 x 360 x 335 mm

Mass Approx. 6.5 kg net per

speaker

Rear speaker SS-RS270 for MHC-DP1000D

Speaker system 1-way, 1-unit,

bass-reflex type

Speaker units

Full-range: 8 cm, cone type

Nominal impedance 8 ohms

Dimensions (w/h/d)

Approx. 180 x 95 x 100 mm

Mass Approx. 0.65 kg net per

speaker

Center speaker SS-CT270 for MHC-DP1000D

Speaker system 1-way, 2-unit,

bass-reflex type,

magnetically shielded type

Speaker units

Full-range: 8 cm, cone type

Nominal impedance 8 ohms

Dimensions (w/h/d)

Approx. 225 x 95 x 100 mm

Mass Approx. 1.2 kg net

For the customers in Canada

(MHC-DP1000D only)

Use only the supplied SS-RS270 rear speakers for

connection to the REAR SPEAKER jacks, and only

the supplied SS-CT270 center speaker for connection

to the CENTER SPEAKER jacks on the

MHC-DP1000D.

Additional Information

General

Power requirements

North American model: 120 V AC, 60 Hz

European model: 230 V AC, 50/60 Hz

Australian model: 230 – 240 V AC,

50/60 Hz

Mexican model: 120 V AC, 60 Hz

Thailand model: 220 V AC, 50/60 Hz

Indian, Pakistani, Moroccan and Tunisian models:

220 V AC, 50/60 Hz

Other models: 120 V, 220 V or

230 – 240 V AC,

50/60 Hz

Adjustable with voltage

selector

Power consumption

U.S.A. model:

MHC-DP1000D 205 watts

Canadian model:

MHC-DP1000D 205 watts

European model:

MHC-DP1000D 190 watts

0.5 watts (at the Power

Saving Mode)

Other models:

MHC-DP900D 210 watts

MHC-DP1000D 225 watts

Dimensions (w/h/d)

Approx. 280 x 360 x 365 mm

Mass

North American and European models:

MHC-DP1000D Approx. 11.0 kg

Other models:

MHC-DP900D Approx. 12.5 kg

MHC-DP1000D Approx. 12.0 kg

Supplied accessories: AM loop antenna (1)

FM lead antenna (1)

Remote commander (1)

Batteries (2)

Video cable (1)

Front speaker pads (8)

Center and rear speaker

pads (MHC-DP1000D

only, 12)

Design and specifications are subject to change

without notice.

DTS

Digital audio compression technology that the

Digital Theater Systems, Inc. developed. This

technology conforms to 5.1-channel surround.

The rear channel is stereo and there is discrete

subwoofer channel in this format. DTS

provides the same 5.1 discrete channels of high

quality digital audio. The good channel

separation is realized because the all channel

data is recorded discrete and processed in

digital.

DVD

A disc that contains up to 8 hours of moving

pictures even though its diameter is the same as

a CD.

The data capacity of a single-layer and single-

sided DVD, at 4.7 GB (Giga Byte), is 7 times

that of a CD. Furthermore, the data capacity of

a dual-layer and single-sided DVD is 8.5 GB, a

single-layer and double-sided DVD 9.4 GB,

and a dual-layer and double-sided DVD 17 GB.

The picture data uses the MPEG 2 format, one

of the worldwide standards of digital

compression technology. The picture data is

compressed to about 1/40 of its original size.

The DVD also uses the variable rate coding

technology that changes the data to be allocated

according to the status of the picture.

The audio data is recorded in Dolby Digital as

well as in PCM, allowing you to enjoy more

real audio presence. Furthermore, various

advanced functions such as the multi-angle,

multilingual, and Parental Control functions are

provided with the DVD.

Index (CD) / Video Index (VIDEO CD)

A number that divides a track into sections to

easily locate the point you want on a VIDEO

CD or a CD. Depending on the disc, no indexes

may be recorded.

Glossary

Bit Rate

Value indicating the amount of video data

compressed in a DVD per second. The unit is

Mbps (Mega bit per second). 1 Mbps indicates

that the data per second is 1,000,000 bits. The

higher the bit rate is, the larger the amount of

data. However, this does not always mean that

you can get higher quality pictures.

Chapter

Sections of a picture or a music piece on a

DVD that are smaller than titles. A title is

composed of several chapters. Each chapter is

assigned a chapter number enabling you to

locate the chapter you want.

Dolby Digital

This sound format for movie theaters is more

advanced than Dolby Pro Logic Surround. In

this format, the rear speakers output stereo

sound with an expanded frequency range and a

subwoofer channel for deep bass is

independently provided. This format is also

called “5.1” because the subwoofer channel is

counted as 0.1 channel (since it functions only

when a deep bass effect is needed). All six

channels in this format are recorded separately

to realize superior channel separation.

Furthermore, since all the signals are processed

digitally, less signal degradation occurs.

Dolby Pro Logic Surround

As one method of decoding Dolby Surround,

Dolby Pro Logic Surround produces four

channels from two-channel sound. Compared

with the former Dolby Surround system, Dolby

Pro Logic Surround reproduces left-to-right

panning more naturally and localizes sounds

more precisely. To take full advantage of

Dolby Pro Logic Surround, you should have

one pair of rear speakers and a centre speaker.

The rear speakers output monaural sound.

Additional Information

Multi-angle function

Various angles, or viewpoints of the video

camera, for a scene are recorded on some

DVDs.

Multilingual function

Several languages for the sound or subtitles in a

picture are recorded on some DVDs.

Parental Control

A function of the DVD to limit playback of the

disc by the age of the users according to the

limitation level in each country. The limitation

varies from disc to disc; when it is activated,

playback is completely prohibited, violent

scenes are skipped or replaced with other

scenes and so on.

Playback Control (PBC)

Signals encoded on VIDEO CDs (Version 2.0)

to control playback. By using menu screens

recorded on VIDEO CDs with PBC functions,

you can enjoy playing simple interactive

programs, programs with search functions, and

so on.

Region Code

This system is used to protect copyrights. A

region number is allocated on each DVD

system or DVD disc according to the sales

region. Each region code is shown on the

system as well as on the disc packaging. The

system can play the discs that match its region

code. The system can also play discs with the

“

ALL

” mark. Even when the region code is not

shown on the DVD, the region limit may still

be activated.

Scene

On a VIDEO CD with PBC functions (page

25), the menu screens, moving pictures, and

still pictures are divided into sections called

“scenes”. Each scene is assigned a scene

number enabling you to locate the scene you

want.

Title

The longest sections of a picture or a music

piece on a DVD; a movie, etc., for a picture

piece on video software; or an album, etc., for a

music piece on an audio software. Each title is

assigned a title number enabling you to locate

the title you want.

Track

Sections of a picture or a music piece on a CD

or VIDEO CD. Each track is assigned a track

number enabling you to locate the track you

want.

VIDEO CD

A compact disc that contains moving pictures.

The picture data uses the MPEG 1 format, one

of the worldwide standards of digital

compression technology. The picture data is

compressed to about 1/140 of its original size.

Consequently, a 12 cm VIDEO CD can contain

up to 74 minutes of moving pictures.

VIDEO CDs also contain compact audio data.

Sounds outside the range of human hearing are

compressed while the sounds we can hear are

not compressed. VIDEO CDs can hold 6 times

the audio information of conventional audio

CDs.

There are 2 versions of VIDEO CDs.

• Version 1.1: You can play only moving pictures

and sounds.

• Version 2.0: You can play high-resolution still

pictures and enjoy PBC functions.

This system conforms to both versions.

DVD

structure

VIDEO CD

or CD

structure

Title

Disc

Index

Track

Chapter

Disc

Language code list

For details, see pages 18, 32 and 35.

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar 1186 Scots Gaelic 1350 Malayalam 1513 Siswati

1028 Abkhazian 1194 Galician 1352 Mongolian 1514 Sesotho

1032 Afrikaans 1196 Guarani 1353 Moldavian 1515 Sundanese

1039 Amharic 1203 Gujarati 1356 Marathi 1516 Swedish

1044 Arabic 1209 Hausa 1357 Malay 1517 Swahili

1045 Assamese 1217 Hindi 1358 Maltese 1521 Tamil

1051 Aymara 1226 Croatian 1363 Burmese 1525 Telugu

1052 Azerbaijani 1229 Hungarian 1365 Nauru 1527 Tajik

1053 Bashkir 1233 Armenian 1369 Nepali 1528 Thai

1057 Byelorussian 1235 Interlingua 1376 Dutch 1529 Tigrinya

1059 Bulgarian 1239 Interlingue 1379 Norwegian 1531 Turkmen

1060 Bihari 1245 Inupiak 1393 Occitan 1532 Tagalog

1061 Bislama 1248 Indonesian 1403 (Afan) Oromo 1534 Setswana

1066 Bengali; Bangla 1253 Icelandic 1408 Oriya 1535 Tonga

1067 Tibetan 1254 Italian 1417 Punjabi 1538 Turkish

1070 Breton 1257 Hebrew 1428 Polish 1539 Tsonga

1079 Catalan 1261 Japanese 1435 Pashto; Pushto 1540 Tatar

1093 Corsican 1269 Yiddish 1436 Portuguese 1543 Twi

1097 Czech 1283 Javanese 1463 Quechua 1557 Ukrainian

1103 Welsh 1287 Georgian 1481 Rhaeto-Romance 1564 Urdu

1105 Danish 1297 Kazakh 1482 Kirundi 1572 Uzbek

1109 German 1298 Greenlandic 1483 Romanian 1581 Vietnamese

1130 Bhutani 1299 Cambodian 1489 Russian 1587 Volapük

1142 Greek 1300 Kannada 1491 Kinyarwanda 1613 Wolof

1144 English 1301 Korean 1495 Sanskrit 1632 Xhosa

1145 Esperanto 1305 Kashmiri 1498 Sindhi 1665 Yoruba

1149 Spanish 1307 Kurdish 1501 Sangho 1684 Chinese

1150 Estonian 1311 Kirghiz 1502 Serbo-Croatian 1697 Zulu

1151 Basque 1313 Latin 1503 Singhalese 1703 Not specified

1157 Persian 1326 Lingala 1505 Slovak

1165 Finnish 1327 Laothian 1506 Slovenian

1166 Fiji 1332 Lithuanian 1507 Samoan

1171 Faroese 1334 Latvian; Lettish 1508 Shona

1174 French 1345 Malagasy 1509 Somali

1181 Frisian 1347 Maori 1511 Albanian

1183 Irish 1349 Macedonian 1512 Serbian

Additional Information

Control Menu Item List

Control Menu Items

TITLE (DVD only)

SCENE (VIDEO CD

in PBC Playback only)

TRACK (VIDEO CD only)

CHAPTER (DVD only)

INDEX (VIDEO CD only)

TRACK (CD only)

INDEX (CD only)

TIME/TEXT

AUDIO

SUBTITLE (DVD only)

ANGLE (DVD only)

ONE/ALL DISCS

REPEAT

ADVANCED (DVD only)

CUSTOM PARENTAL CONTROL

SETUP

Function

Selects the title (DVD), the scene (VIDEO CD in PBC Playback), or the

track (VIDEO CD) to be played.

Selects the chapter (DVD) or the index (VIDEO CD) to be played.

Selects the track to be played.

Selects the index to be played.

Checks the elapsed time and the remaining playback time.

Input the time code for picture and music searching.

Displays the DVD/CD text.

Changes the audio setting.

Displays the subtitles.

Changes the subtitle language.

Changes the angle.

Plays one disc or all discs in the disc tray.

Plays the entire disc (all titles/all tracks) repeatedly or one title/chapter/track

repeatedly.

Checks the information (bit rate or layer) on the disc while playing a DVD.

Sets the disc to prohibit playback.

CUSTOM Setup

Adjusts the image and sound quality, Parental Control, and other various

settings.

RESET

Returns the settings in “SETUP” to the default setting.

Tips

• Each time you press DVD DISPLAY, the Control Menu display changes cyclically as follows.

Control Menu display t “ADVANCED” display (Appears if you select any setting other than “OFF”. See page

31.) t Control Menu display off

The Control Menu items differ depending on the disc.

• The Control Menu icon indicator lights in green when you select any item except for “OFF” (“REPEAT” only).

The “ANGLE” indicator lights in green only when the angles can be changed.

Setup Display Item List

You can set the following items in the Setup Display.

The order of the displayed items may be different from the actual display.

CUSTOM

– COLOR AUTO

SYSTEM

– PAL

– NTSC

– PAUSE AUTO

MODE – FRAME

–

PARENTAL

LEVEL OFF

CONTROL

– 8.

– 7. NC17

– 6. R

– 5.

– 4. PG13

– 3. PG

– 2.

– 1. G

– STANDARD USA

– OTHERS

– CHANGE PASSWORD

–

TRACK

OFF

SELECTION – AUTO

LANGUAGE

– OSD (Select the language you

want to use from the

displayed language list.)

– DVD MENU (Select the language you

want to use from the

displayed language list.)

– AUDIO (Select the language you

want to use from the

displayed language list.

When you select

ORIGINAL, you can enjoy

the language given

priority on the disc.)

– SUBTITLE (Select the language you

want to use from the

displayed language list.

When you select AUDIO

FOLLOW, the setting is

automatically switched to

the language selected in

AUDIO.)

Except for Pan American and European models.

MHC-DP1000D only.

SCREEN

– TV TYPE 16:9

– 4:3 LETTER BOX

– 4:3 PAN SCAN

– SCREEN SAVER ON

– OFF

– BACKGROUND JACKET PICTURE

– GRAPHICS

– BLUE

– BLACK

SPEAKER

–

DISTANCE*

FRONT

1m – 12m/

3ft – 40ft

– CENTER

FRNT – 1.5m/

FRNT – 5ft

– REAR

FRNT – 4.5m/

FRNT – 15ft

– BALANCE FRONT 6 steps

left or right

– REAR

6 steps

left or right

– LEVEL

CENTER

–6 dB – +6 dB

– REAR

–6 dB – +6 dB

–

SUBWOOFER

–10 dB – +10 dB

– TEST OFF

TONE

– ON

Additional Information

Sony Corporation Printed in Malaysia
