This manual includes information needed when starting up and also
instructions for frequently used operations. The "Advanced Manual" is
available on the internet with details about the playback features/
listening modes/settings details, specifications, and troubleshooting.
The Advanced Manual is created in a format that makes it easy to read
on a PC or Smartphone.
http://www.onkyo.com/manual/txrz3100/adv/en.html
Advanced Manual found here
AV RECEIVER
TX-RZ3100
> Before start > Hookup > Setup > Playback > Part Names
SN29402420B_TX-RZ3100_BAS_En_171026.book 1 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
2
> Before start > Hookup > Setup > Playback > Part Names
What's in the box

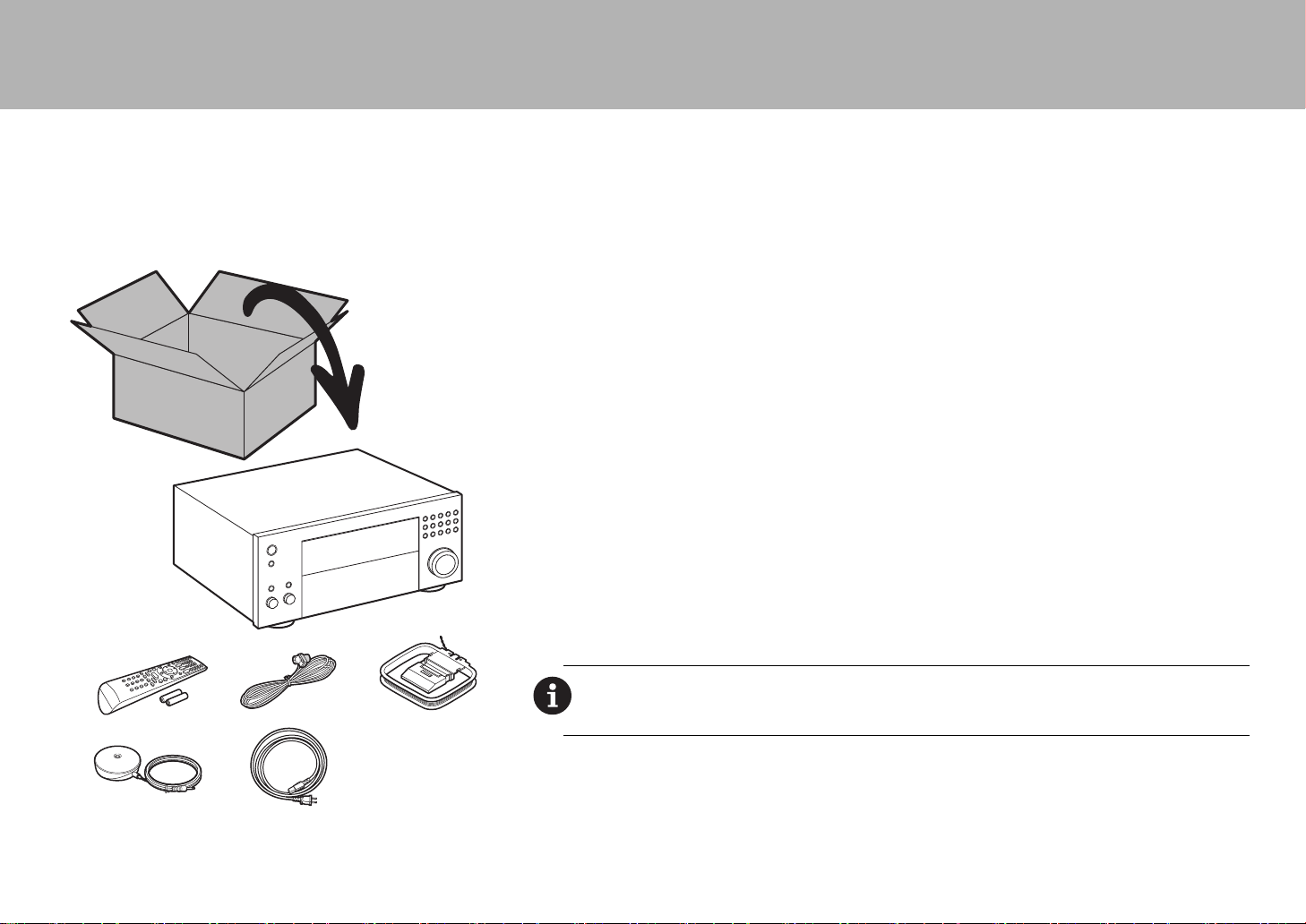

1. Main unit 2. Remote controller (RC-926R)
×1, Batteries (AA/R6) ×2
3. Indoor FM antenna ×1 4. AM loop antenna ×1 5. Speaker setup microphone ×1
6. Power cord ×1
Glossary
Dolby Atmos
This unit supports playback in the Dolby Atmos format which provides 360e sound placement. Unlike existing
surround systems, Dolby Atmos doesn't rely on channels, but rather enables the accurate placement of sound
objects that have independent motion in a three-dimensional space with even greater clarity. Dolby Atmos is an
optional audio format on Blu-ray Discs and achieves a three-dimensional sound field by introducing a sound field
above the listener.
ARC
The ARC (Audio Return Channel) feature transfers TV audio signals via HDMI cable so that you can play the
audio from the TV through this unit. Connection to an ARC compatible TV is complete with one HDMI cable. Refer
to the instruction manual for your TV to see if it supports ARC. (
Ä
P11)
HDMI CEC functionality
Control features such as linking input switching with the input selector and players conforming to the CEC
standard, switching audio output and volume using the remote controller of a CEC-compliant TV, and
automatically switching this unit to standby when the TV is turned off (
Ä
P13)
HDMI Standby Through
Video and audio signals from AV components can be transmitted to the TV even if this unit is in standby (
Ä
P13)
CAUTION: Connect speakers with 4 Ω to 16 Ω impedance. The power cord must be connected only after
all other cable connections are completed. We will not accept responsibility for damage arising from the
connection of equipment manufactured by other companies.
1
2
56
34
SN29402420B_TX-RZ3100_BAS_En_171026.book 2 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
3
> Before start > Hookup > Setup > Playback > Part Names

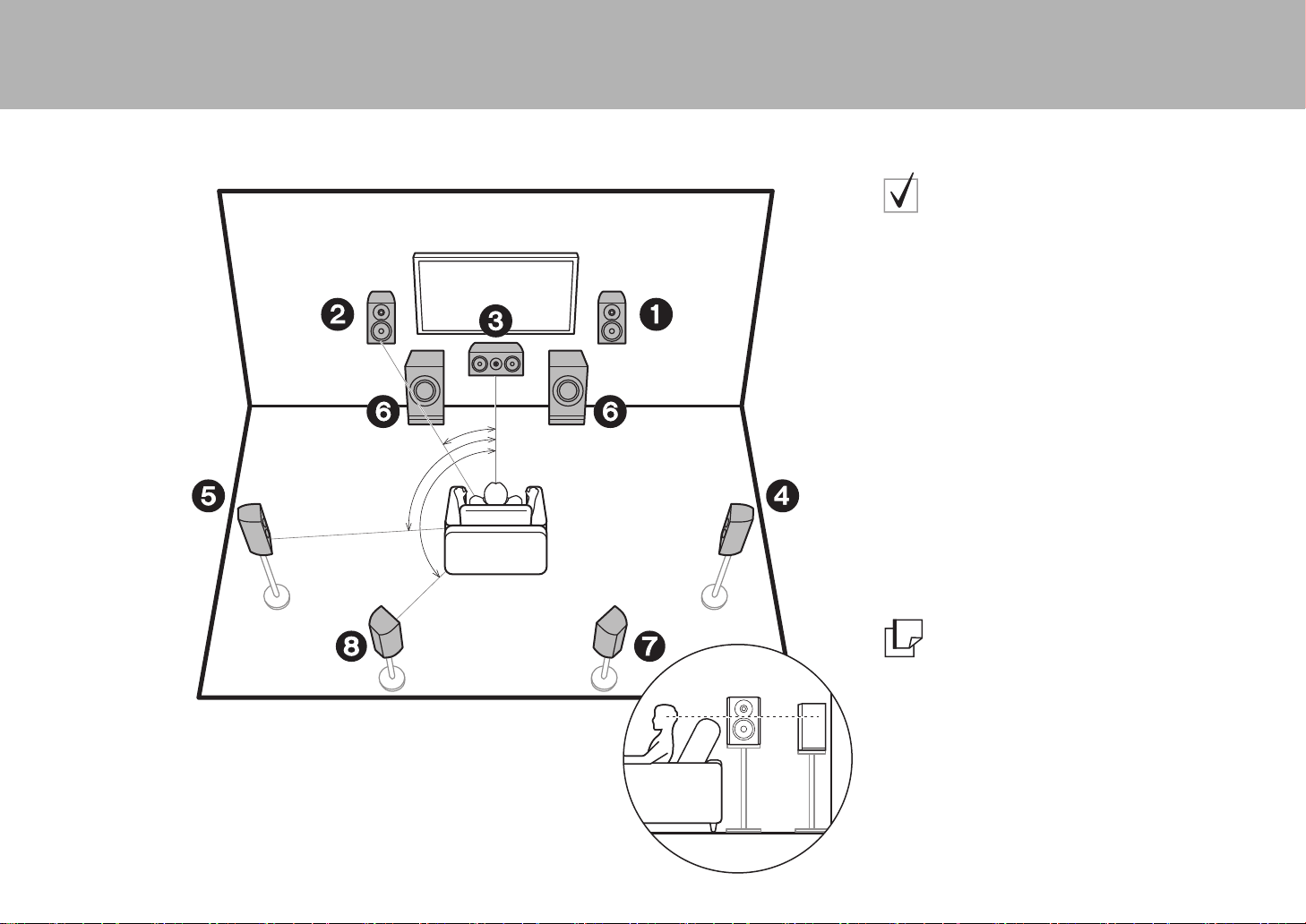

Step1: Speaker Layout
＊
1
＊
2
＊
3
＊ 1: 22e 〜 30e, ＊ 2: 90e 〜 120e, ＊ 3: 135e 〜 150e
12
Front Speakers
3
Center Speaker
45
Surround Speakers
6
Powered Subwoofer
78
Surround Back Speakers
7.1-Channel System
Front speakers output front stereo sound and a center
speaker outputs center sound such as dialogs and vocals.
Surround speakers create back sound field. Powered
subwoofer reproduces bass sounds and creates rich
sound field.
Surround back speakers improve the sense of
envelopment created by the back sound field and provide
a more realistic sound field. Furthermore, by installing
surround back speakers, you can select the Dolby Atmos
listening mode, which realizes the most up-to-date 3D
sound, when the input format is Dolby Atmos.
The front speakers should be positioned at ear height,
while the surround speakers should be positioned just
above ear height. Center speaker should be set up facing
the listening position.
Placing the powered subwoofer between the center
speaker and a front speaker gives you a natural sound
even when playing music.
The optimal positioning is for surround back speakers to
be at ear height.
0 If you are including surround back speakers in the
setup, surround speakers are required.
Go To "Hookup" (
Ä
P9)
SN29402420B_TX-RZ3100_BAS_En_171026.book 3 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
4
> Before start > Hookup > Setup > Playback > Part Names
＊
1
＊
2
＊
3
3´ (0.9 m)
or more
3´ (0.9 m)
or more
＊ 1: 22e 〜 30e, ＊ 2: 90e 〜 120e, ＊ 3: 135e 〜 150e

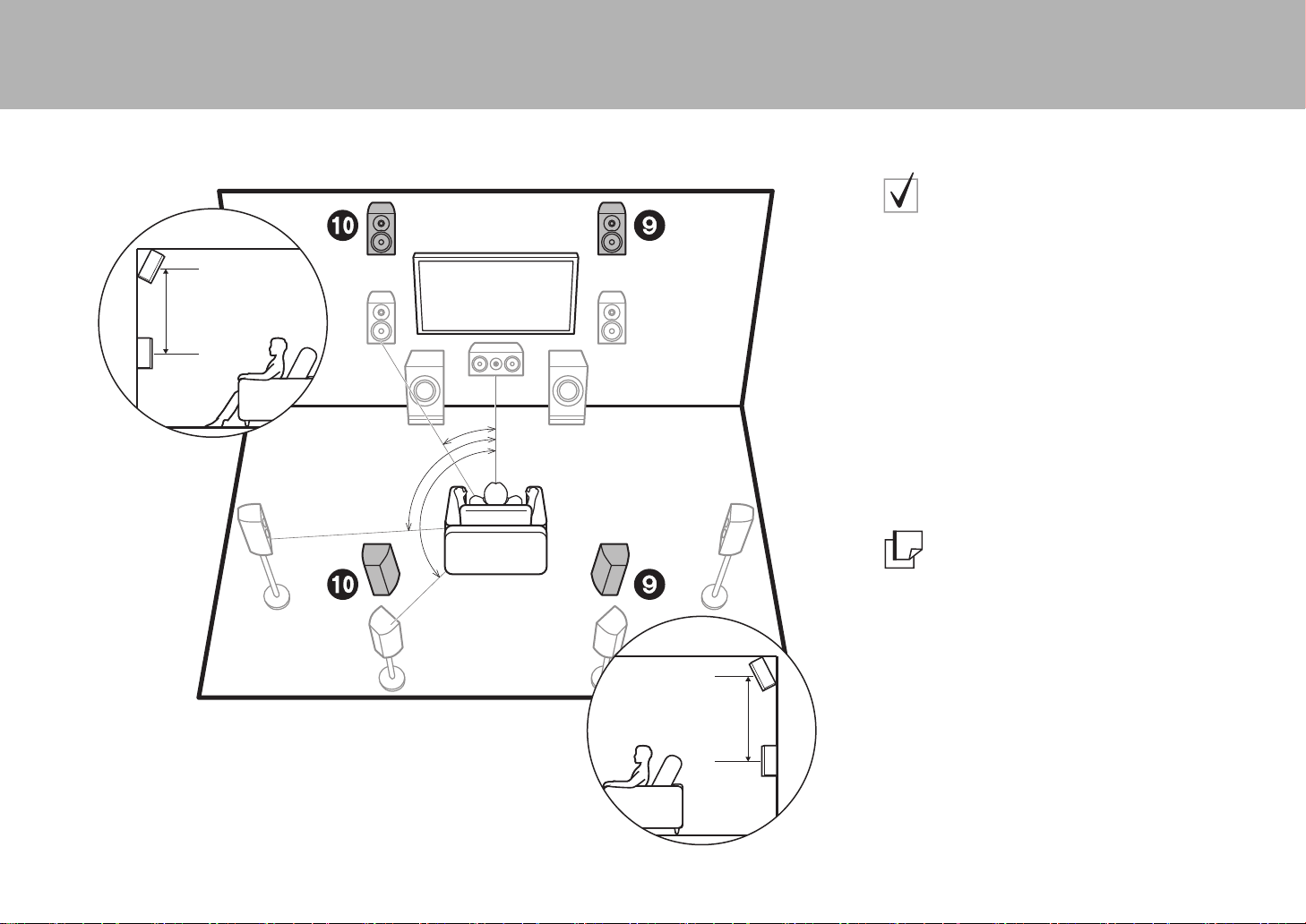

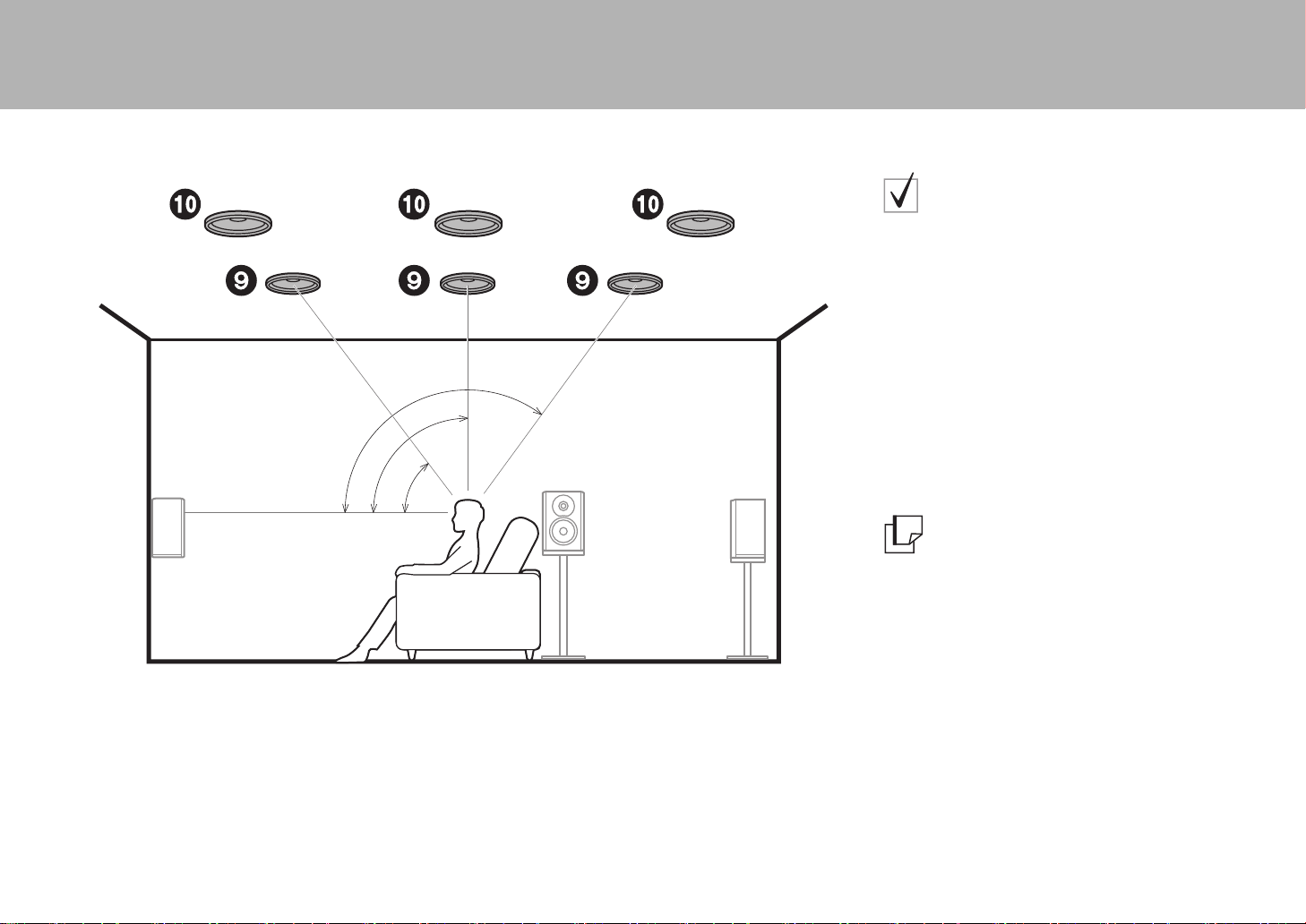

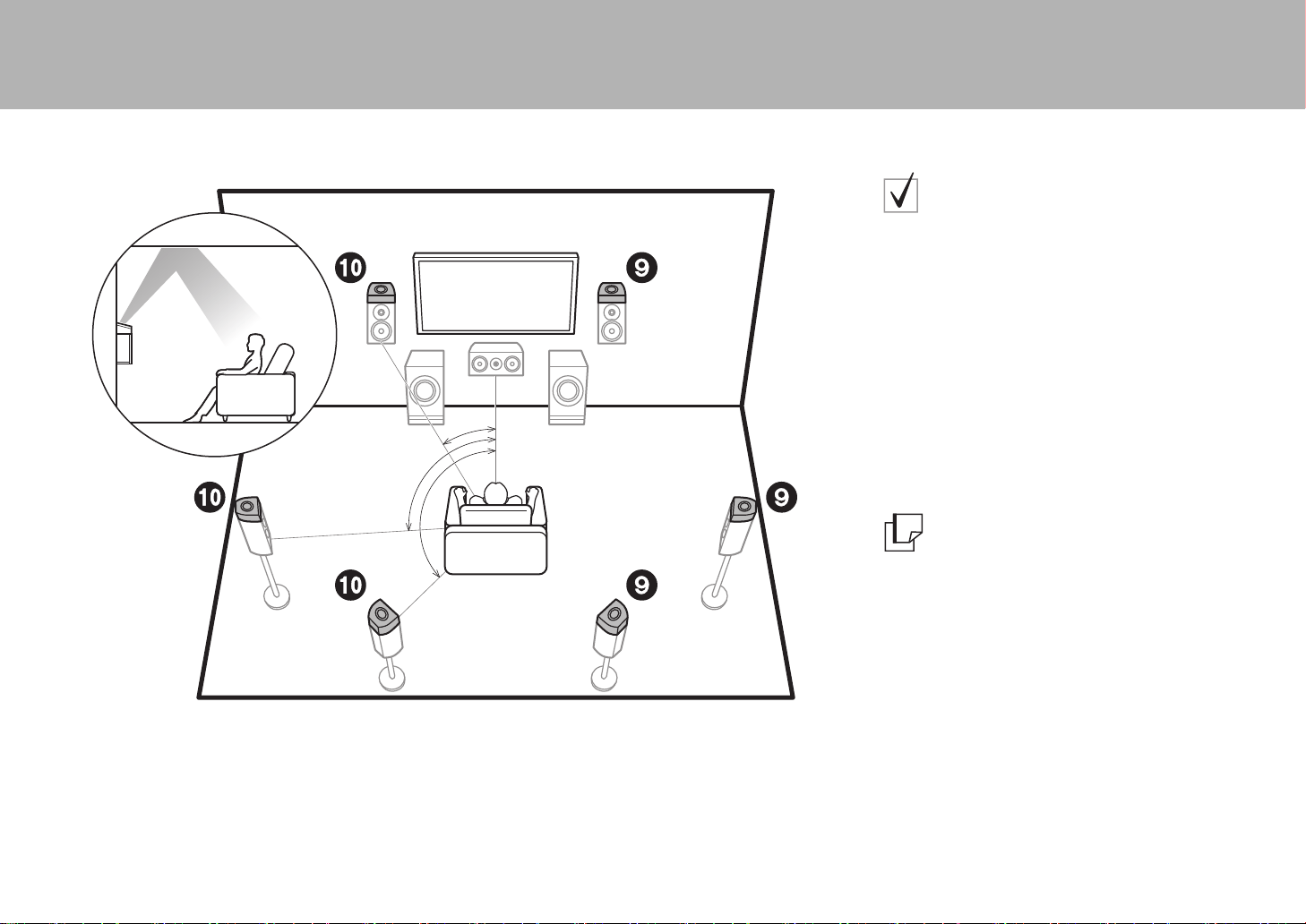

9:
Height Speakers
$
$
Front High Speakers
Rear High Speakers
Height Speakers;
Front High Speakers/
Rear High Speakers
These are types of height speakers. Furthermore, by
installing height speakers, you can select the Dolby
Atmos listening mode, which realizes the most up-to-date
3D sound including overhead sounds, when the input
format is Dolby Atmos.
Front high speakers or rear high speakers should be
situated at least 0.9 m higher than the front speakers.
Front high speakers should be situated directly above the
front speakers and the distance between the rear high
speakers should match the distance between the front
speakers. Both should be set up facing the listening
position. Note that with height speakers you can install up
to two sets; Height 1 Speaker and Height 2 Speaker.
Go To "Hookup" (
Ä
P9)
SN29402420B_TX-RZ3100_BAS_En_171026.book 4 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
5
> Before start > Hookup > Setup > Playback > Part Names
＊
1
＊
2
＊
3
＊ 1: 30e 〜 55e, ＊ 2: 65e 〜 100e, ＊ 3: 125e 〜 150e
9:
Height Speakers
$
$
$
Top Front Speakers
Top Middle Speakers
Top Rear Speakers
Height Speakers;
Ceiling Speakers
These are types of height speakers. Furthermore, by
installing height speakers, you can select the Dolby
Atmos listening mode, which realizes the most up-to-date
3D sound including overhead sounds, when the input
format is Dolby Atmos.
Fit top front speakers on the ceiling forward of the seating
position, top middle speakers on the ceiling directly above
the seating position, and top rear speakers on the ceiling
behind the seating position. The distance between each
pair should match the distance between the two front
speakers. Note that with height speakers you can install
up to two sets; Height 1 Speaker and Height 2 Speaker.
0 Dolby Laboratories recommends placing this type of
height speakers to obtain the best Dolby Atmos effect.
Go To "Hookup" (
Ä
P9)
SN29402420B_TX-RZ3100_BAS_En_171026.book 5 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
6
> Before start > Hookup > Setup > Playback > Part Names
＊
1
＊
2
＊
3
＊ 1: 22e 〜 30e, ＊ 2: 90e 〜 120e, ＊ 3: 135e 〜 150e
9:
Height Speakers
$
$
$
Dolby Enabled Speakers (Front)
Dolby Enabled Speakers (Surround)
Dolby Enabled Speakers (Surround Back)
Height Speakers;
Dolby Enabled Speakers
(Dolby Speakers)
These are types of height speakers. Dolby enabled
speakers are special speakers designed to face the
ceiling so that sound is heard after bouncing off the ceiling
so that sound appears to be coming from overhead.
Furthermore, by installing height speakers, you can select
the Dolby Atmos listening mode, which realizes the most
up-to-date 3D sound including overhead sounds, when
the input format is Dolby Atmos.
Place them either above the front speakers or above the
surround speakers or surround back speakers. Note that
with height speakers you can install up to two sets; Height
1 Speaker and Height 2 Speaker.
Go To "Hookup" (
Ä
P9)
SN29402420B_TX-RZ3100_BAS_En_171026.book 6 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
7
> Before start > Hookup > Setup > Playback > Part Names
＊
1
＊
2
＊
3
＊ 1: 22e 〜 30e, ＊ 2: 90e 〜 120e, ＊ 3: 135e 〜 150e
12
Front Speakers (Bi-Amping)
Bi-Amping the Speakers
It is possible to connect front speakers supporting Bi-
Amping to improve quality of the bass and treble. The
effects and placements for speakers are the same as for a
system that doesn't use Bi-Amping speakers.
Go To "Hookup" (
Ä
P10)
SN29402420B_TX-RZ3100_BAS_En_171026.book 7 ページ ２０１７年１０月２６日 木曜日 午後１時１０分

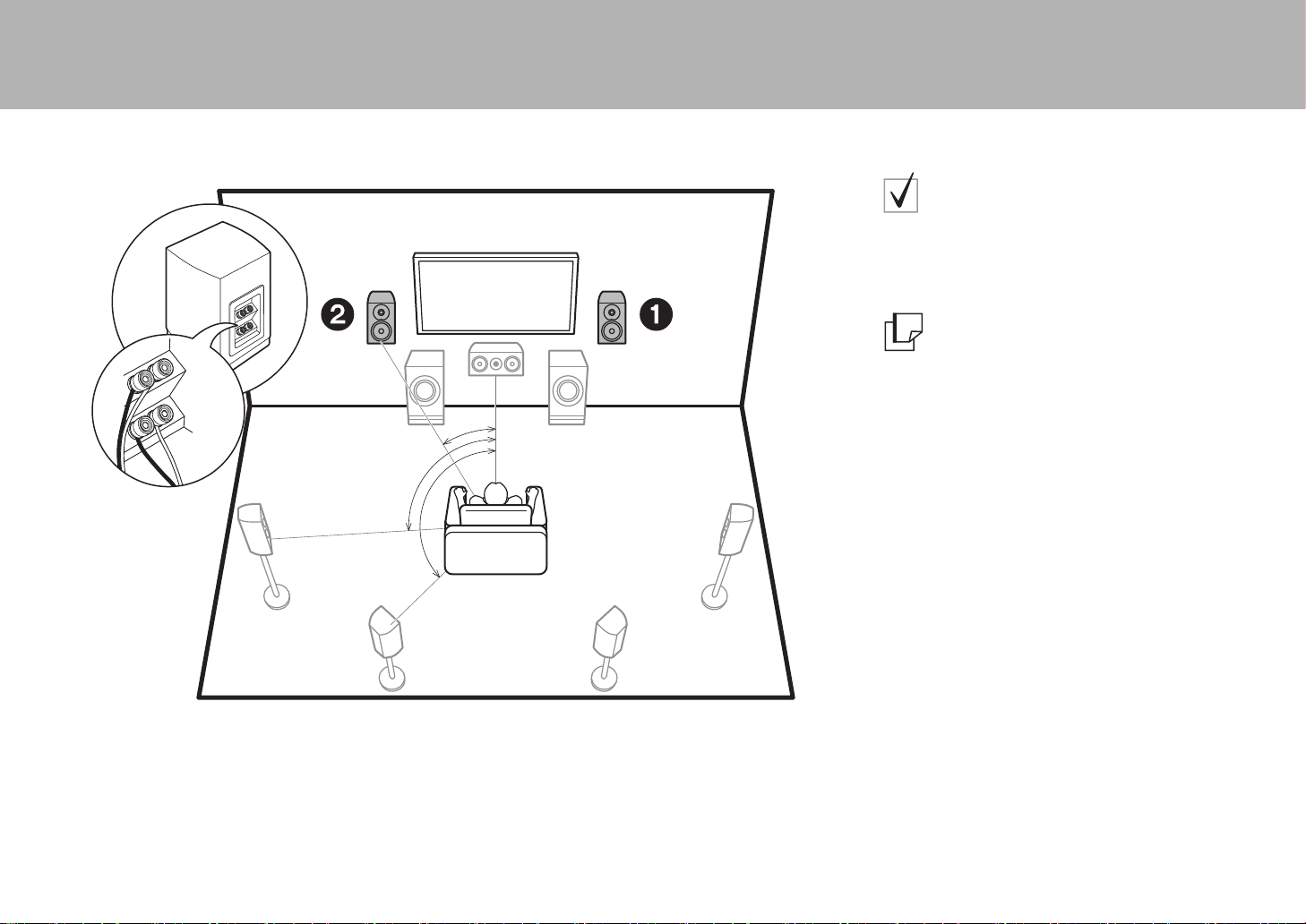

8
> Before start > Hookup > Setup > Playback > Part Names
Speaker combinations
In any of the combinations, up to two powered subwoofers can be connected.
Points to note with speaker combinations
＊ 1: It is not possible to use Bi-AMP and ZONE speakers at the same time. However, with 2.1 ch to 7.1 ch,
it is possible to use Bi-AMP and ZONE 2 speakers at the same time.
＊ 2: If front speakers are to be Bi-Amping connected, height speakers need to be connected to the
HEIGHT 2 jacks.
＊ 3: ZONE 2 speakers need to be connected to the HEIGHT 1 jack, ZONE 3 speakers need to be
connected to the SURROUND BACK jacks, and height speakers need to be connected to the
HEIGHT 2 jacks.
HEIGHT 1/HEIGHT 2
When connecting 2 sets of height speakers, the height speaker combinations you can choose are as follows.
– Height 1 Speaker: Top Middle, Height 2 Speaker: Rear High
– Height 1 Speaker: Front High, Height 2 Speaker: One of Rear High/Top Middle/Top Rear/Dolby Enabled
Speaker (Surround)/Dolby Enabled Speaker (Surround Back)
– Height 1 Speaker: Top Front or Dolby Enabled Speaker (Front), Height 2 Speaker: One of Rear High/Top
Rear/Dolby Enabled Speaker (Surround)/Dolby Enabled Speaker (Surround Back)
When connecting only one set of height speakers, select one type of height speakers from the types
available.

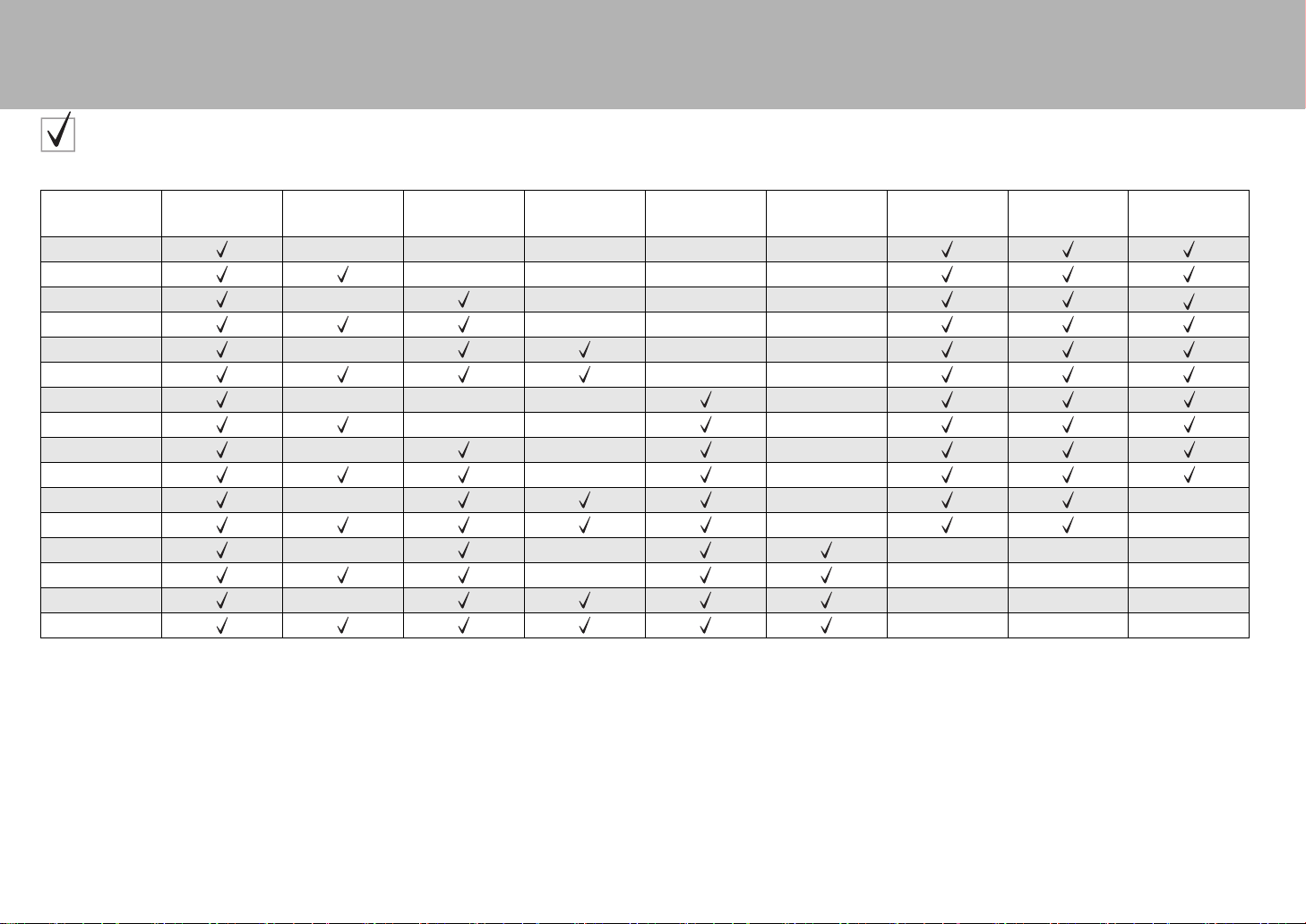

Speaker
Channels
FRONT CENTER SURROUND
SURROUND
BACK
HEIGHT 1 HEIGHT 2 Bi-AMP
＊ 1
ZONE 2
＊ 1
(
Ä
P18)
ZONE 3
＊ 1
(
Ä
P19)
2.1 ch
3.1 ch
4.1 ch
5.1 ch
6.1 ch
7.1 ch
2.1.2 ch
＊ 2
＊ 3
3.1.2 ch
＊ 2
＊ 3
4.1.2 ch
＊ 2
＊ 3
5.1.2 ch
＊ 2
＊ 3
6.1.2 ch
＊ 2
7.1.2 ch
＊ 2
4.1.4 ch
5.1.4 ch
6.1.4 ch
7.1.4 ch
SN29402420B_TX-RZ3100_BAS_En_171026.book 8 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
9
> Before start > Hookup > Setup > Playback > Part Names

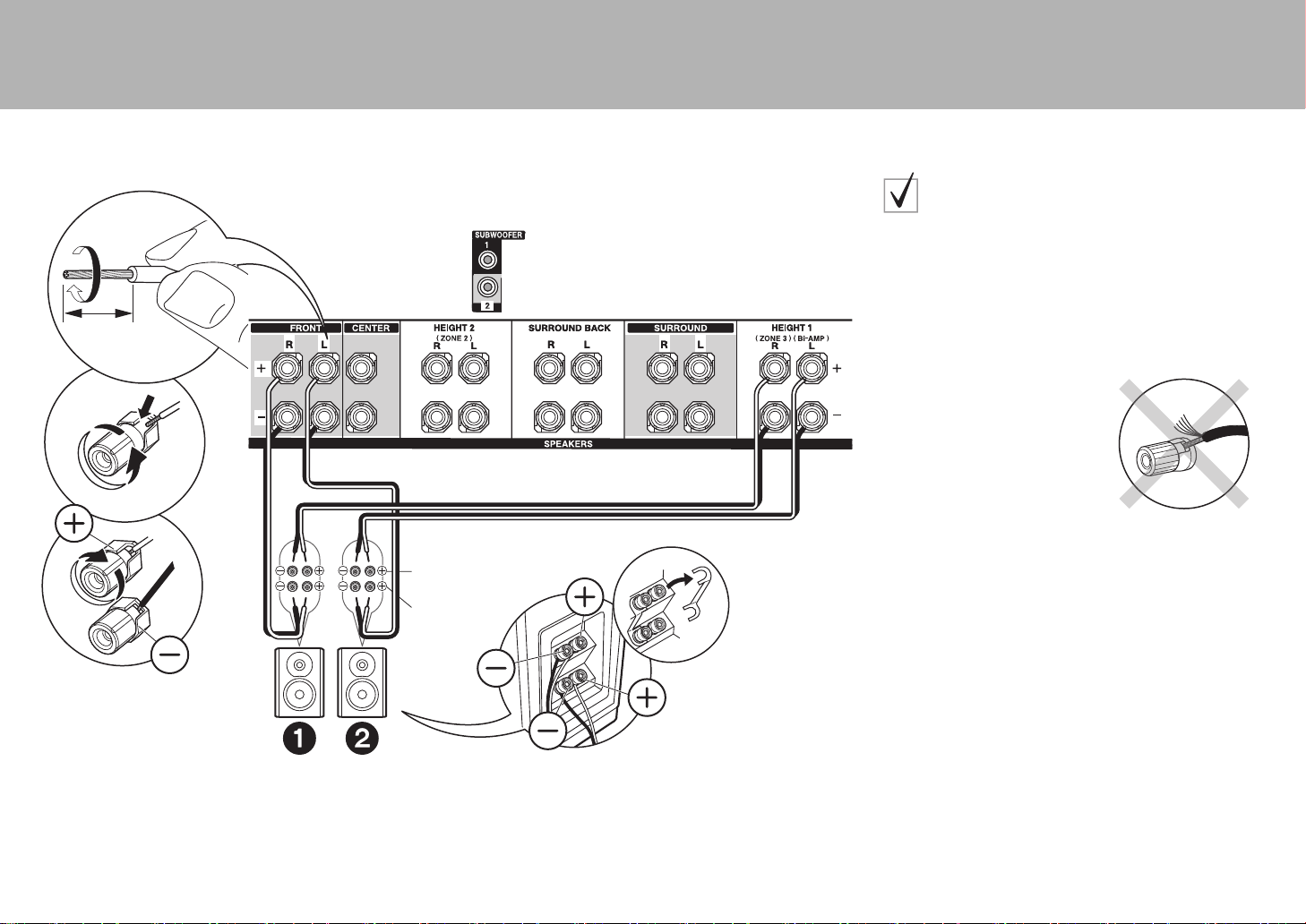

Step2: Connect the Speakers
2
1
3/8˝
(10 mm)
ᴧᴧ

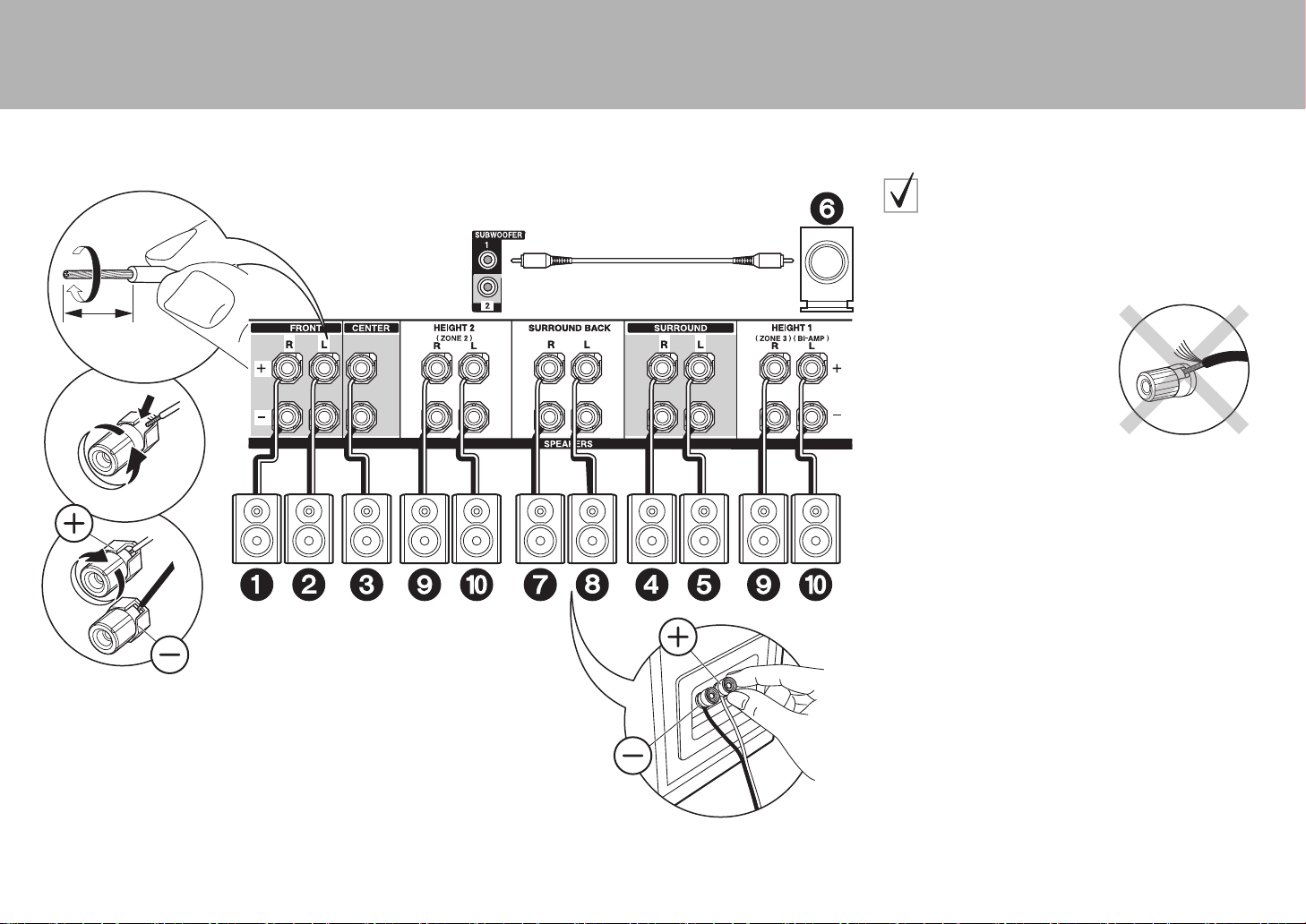

1 Speaker cable, 2 Subwoofer cable
Standard Connections
Refer to the illustration to connect the speaker system.
＊ Depending on the combination of speakers, you may need to
connect to other jacks. See "Points to note with speaker
combinations" (ÄP8) for details.
Make sure the exposed wires of the speakers do not stick out of
the speaker terminals when connecting. If the exposed wires of
the speakers touch the rear panel or the + and – wires touch each
other, the protection circuit will be activated.
SN29402420B_TX-RZ3100_BAS_En_171026.book 9 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
10
> Before start > Hookup > Setup > Playback > Part Names
1
3/8˝
(10 mm)
For high-
frequency
For low-
frequency
1 Speaker cable
Connections with Bi-
Amping speakers
Connect front speakers compatible with Bi-Amping
connection to the FRONT jacks and the HEIGHT 1 jacks.
Make sure you remove the jumper bar fitted between the
woofer jacks and tweeter jacks of the front speakers. In
case of Bi-Amping connection, refer to the instruction
manual of your speakers.
Make sure the exposed wires of the speakers do not stick out of
the speaker terminals when connecting. If the exposed wires of
the speakers touch the rear panel or the + and – wires touch each
other, the protection circuit will be activated.
SN29402420B_TX-RZ3100_BAS_En_171026.book 10 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
11
> Before start > Hookup > Setup > Playback > Part Names
Step3: Connect the TV
HDMI IN (ARC)
1
TV
1 HDMI cable

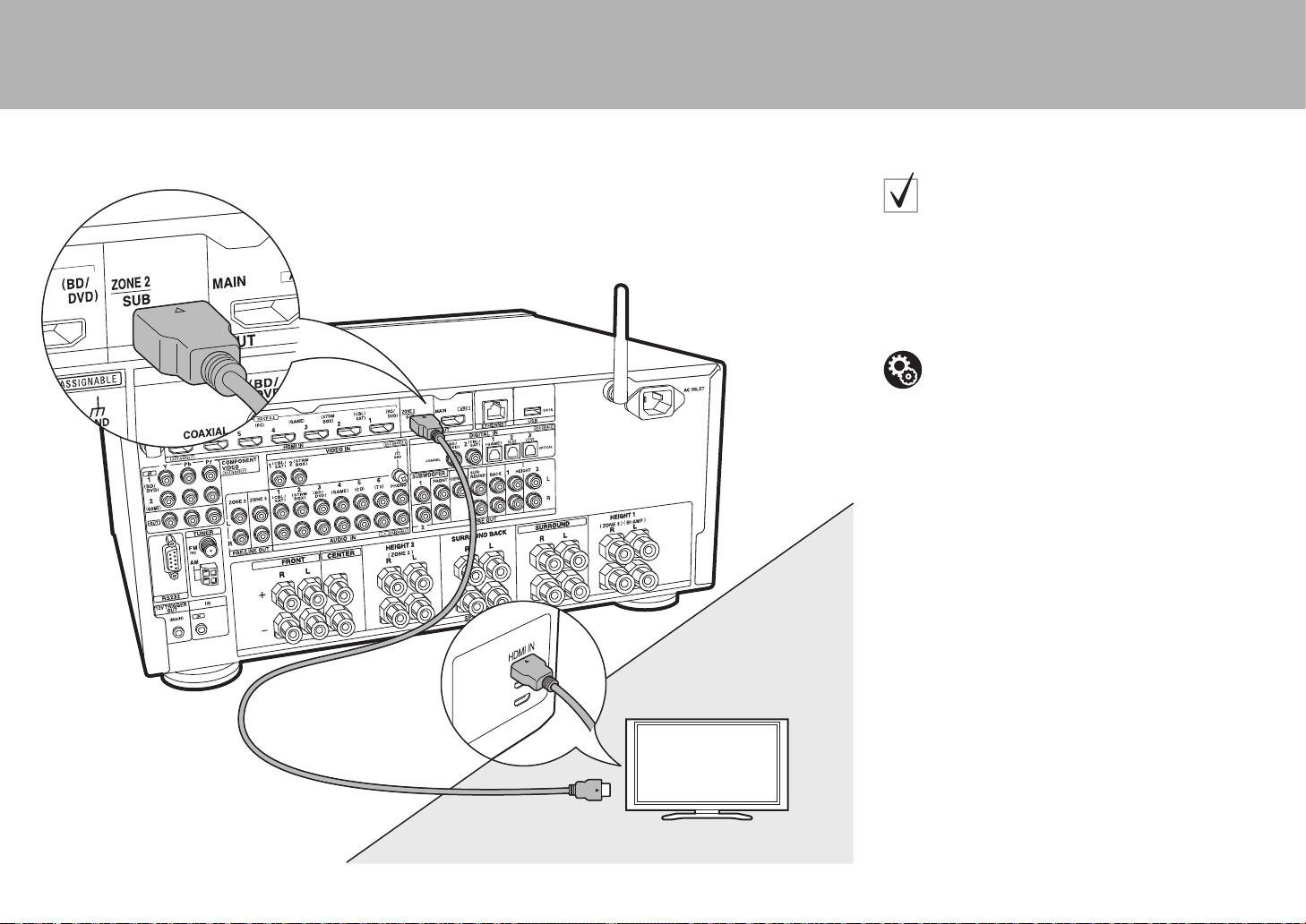

TV-1 (ARC TV)

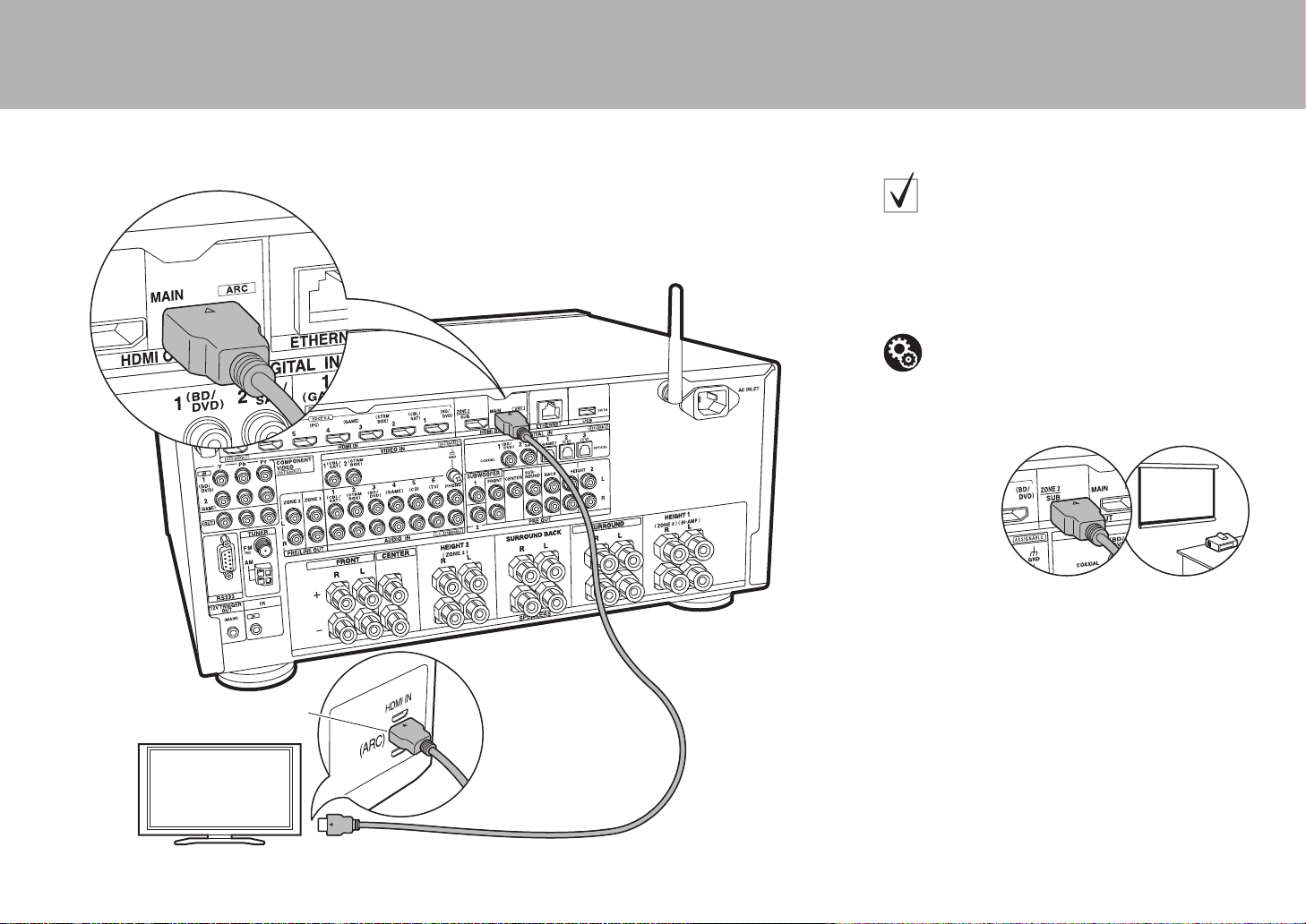

This describes the connections for a TV that supports the
ARC (Audio Return Channel) feature. By connecting with
a single HDMI cable, you can not only output the video
input to this unit to the TV, but you can also play the sound
from the TV through this unit. Choose an HDMI IN jack on
the TV that supports ARC when connecting.
Another TV or projector can be connected to the HDMI OUT SUB
jack. This jack does not support ARC. For details about how to
output video from the HDMI OUT SUB jack (ÄP23)
Setup
0 Settings are required to use the ARC function.
Select "Yes" in "5. Audio Return Channel" (
Ä
P22)
in the Initial Setup.
0 Please refer to the TV's operation manual for
directions on connections and setup for the TV.
SN29402420B_TX-RZ3100_BAS_En_171026.book 11 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
12
> Before start > Hookup > Setup > Playback > Part Names
12
TV
1 HDMI cable, 2 Digital optical cable
TV-2 (Non-ARC TV)

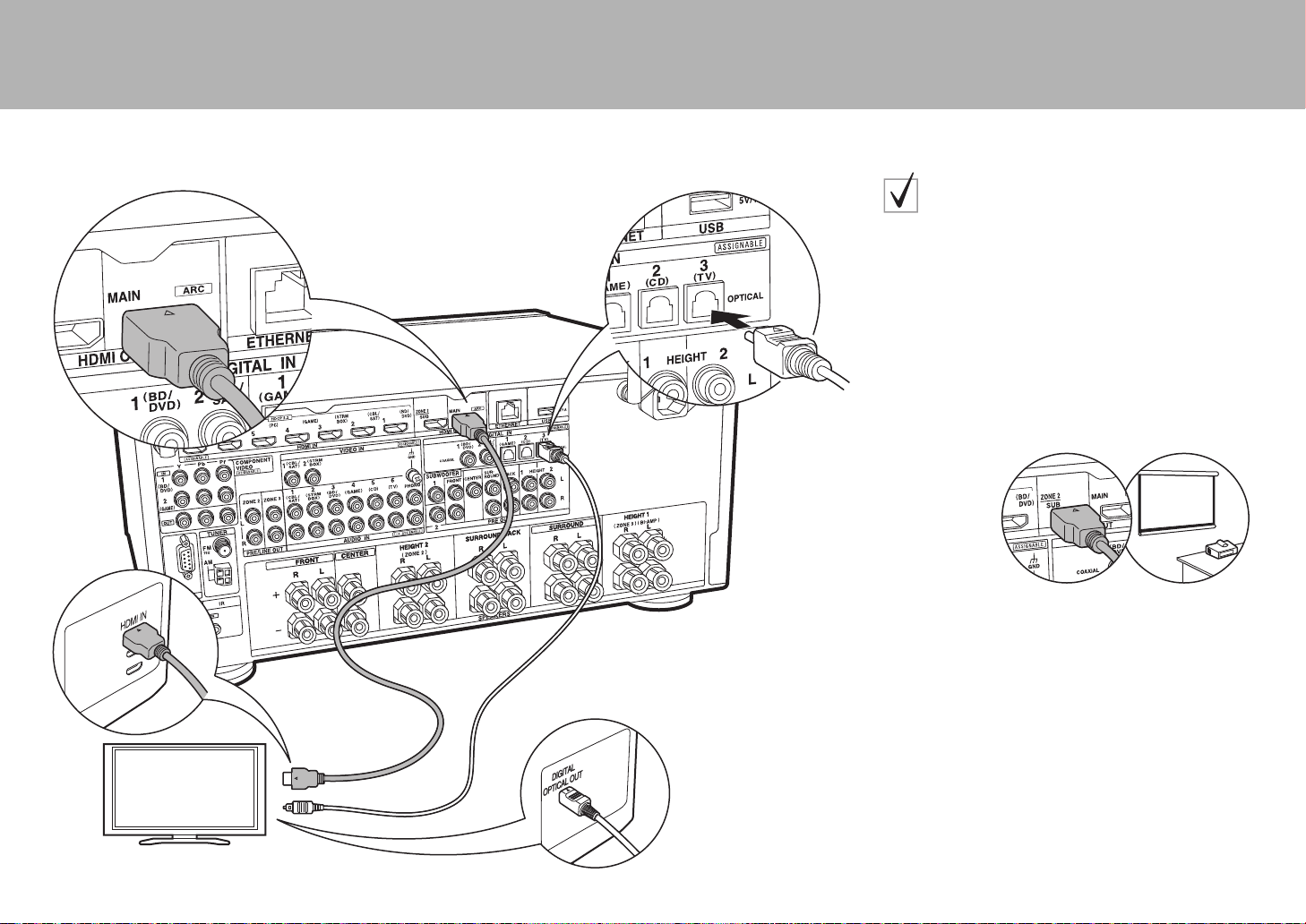

This describes the connections for a TV that does not
support the ARC (Audio Return Channel) feature. By
connecting with both an HDMI cable and a digital optical
cable, you can not only output the video input to this unit
to the TV, but you can also play the sound from the TV
through this unit.
If the TV doesn't have a DIGITAL OPTICAL OUT jack, use
an analog audio cable and connect the TV's ANALOG
AUDIO OUT jack to the AUDIO IN TV jack on this unit.
0 Connection with a digital optical cable is not necessary
if you will watch TV through a device such as a cable
set-top box (that is, not use a tuner built into the TV)
that you have connected to the INPUT jack on this unit.
Another TV or projector can be connected to the HDMI OUT SUB
jack. This jack does not support ARC. For details about how to
output video from the HDMI OUT SUB jack (ÄP23)
SN29402420B_TX-RZ3100_BAS_En_171026.book 12 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
13
> Before start > Hookup > Setup > Playback > Part Names
Step4: Connect the AV Components
BD/DVD
GAME
1
Cable/Satellite set-top
box
Streaming media
player
1 HDMI cable
HDMI AV Components

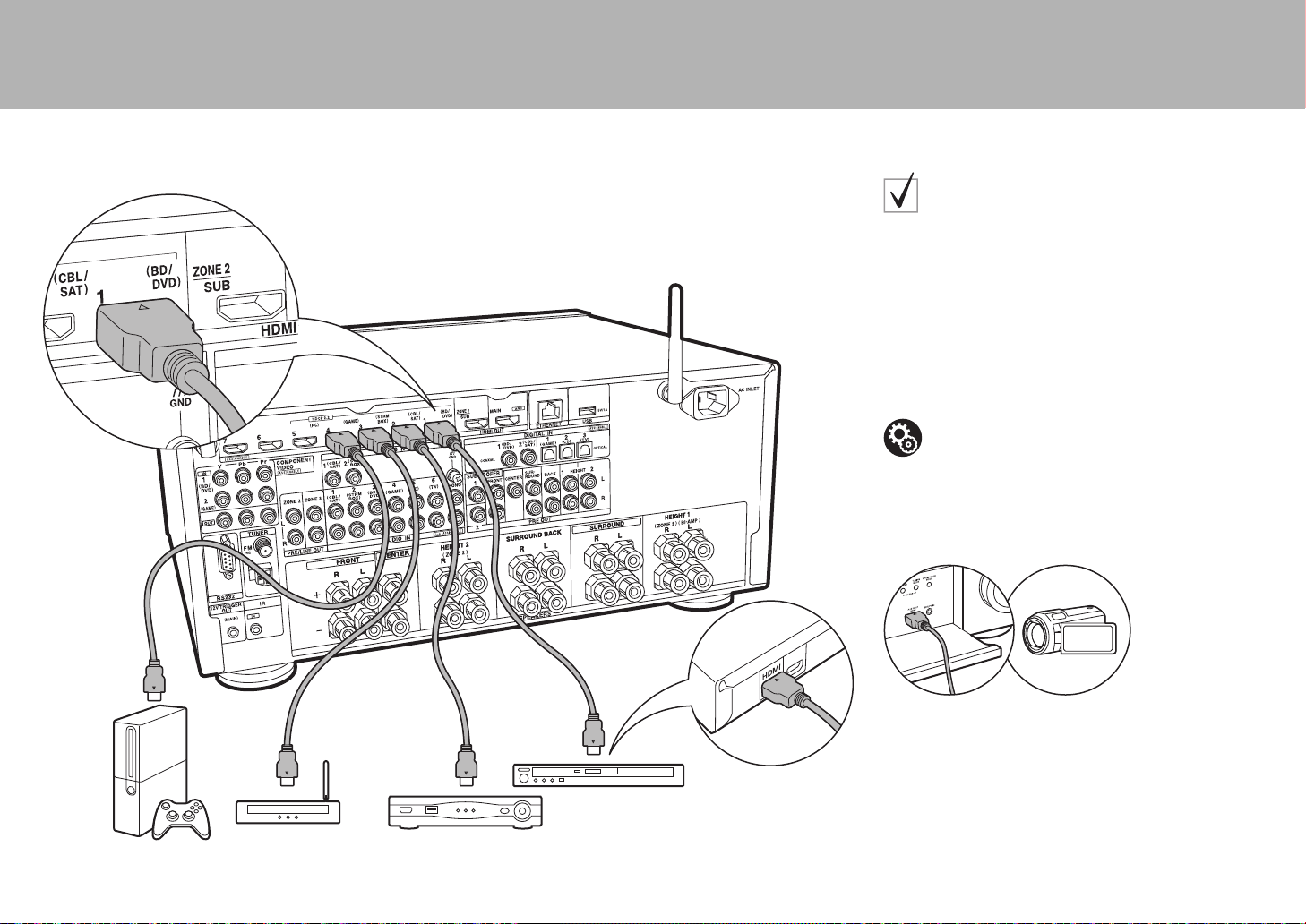

This is an example of connection with an AV component
that has an HDMI jack. With connection to an AV
component that conforms with the CEC (Consumer
Electronics Control) standard, you can use features such
as the HDMI CEC feature that links with the input selector,
and the HDMI Standby Through feature which allows you
to play video and audio from AV components on the TV
even when this unit is in standby mode.
0 To play 4K or 1080p video, use a high speed HDMI
cable. Further, to enjoy HDCP2.2 compatible video,
connect to the HDMI IN1 to IN5 jacks.
You can connect a device such as a video camera to the AUX
INPUT HDMI jack on the front panel.
Setup
0 HDMI setup (
Ä
P22) is required to use the HDMI
CEC and HDMI Standby Through features. Make
settings after all connections are complete.
0 To enjoy digital surround sound including Dolby
Digital, audio output should be set to "Bitstream
output" on the connected Blu-ray Disc player or
other device.
SN29402420B_TX-RZ3100_BAS_En_171026.book 13 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
14
> Before start > Hookup > Setup > Playback > Part Names
OR
1
23
BD/DVD
1 Component video cable, 2 Digital coaxial cable, 3 Analog audio cable

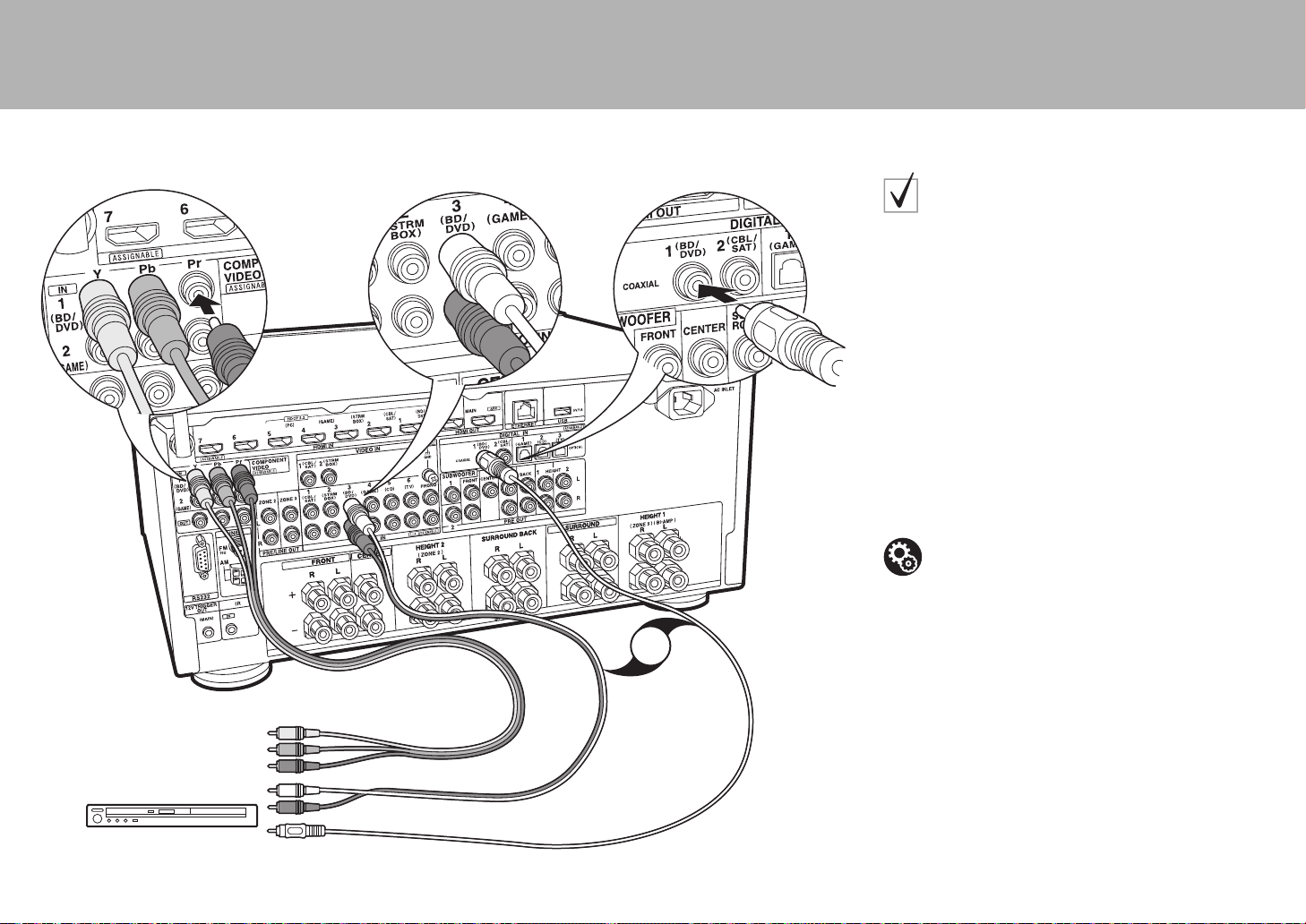

Non-HDMI AV Components
This is an example of connection with an AV component
that does not have an HDMI jack. Make the connections
to the AV component to match the jacks it has. When
video input connection is to the BD/DVD jack, the audio
input connection should also be to the BD/DVD jacks, and
so on, so that you connect the video input jacks to the
jacks with the same name as the audio input jacks. Note
that video signals input to the VIDEO IN jack or the
COMPONENT VIDEO IN jacks will be converted to HDMI
video signals and then output from the HDMI OUT jack.
0 To enjoy digital surround playback in formats such as
Dolby Digital, you need to make a connection for audio
signals with a digital coaxial cable or digital optical
cable.
0 It is possible to change assignment of the input jacks
you see in the illustration at left, so you can also
connect to any jack other than BD/DVD. For details,
see the Advanced Manual.
Setup
0 The COMPONENT VIDEO IN jacks are
compatible only with 480i or 576i resolution. When
you input video signals to the COMPONENT
VIDEO IN jacks, set the output resolution of the
player to 480i or 576i. Select interlace if there is no
option for 480i, etc. If your player does not support
480i or 576i output, use the VIDEO IN jack.
0 To enjoy digital surround sound including Dolby
Digital, audio output should be set to "Bitstream
output" on the connected Blu-ray Disc Player or
other device.
SN29402420B_TX-RZ3100_BAS_En_171026.book 14 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
15
> Before start > Hookup > Setup > Playback > Part Names
OR
CD
2
1
Turntable
1 Digital optical cable, 2 Analog audio cable
Audio Components

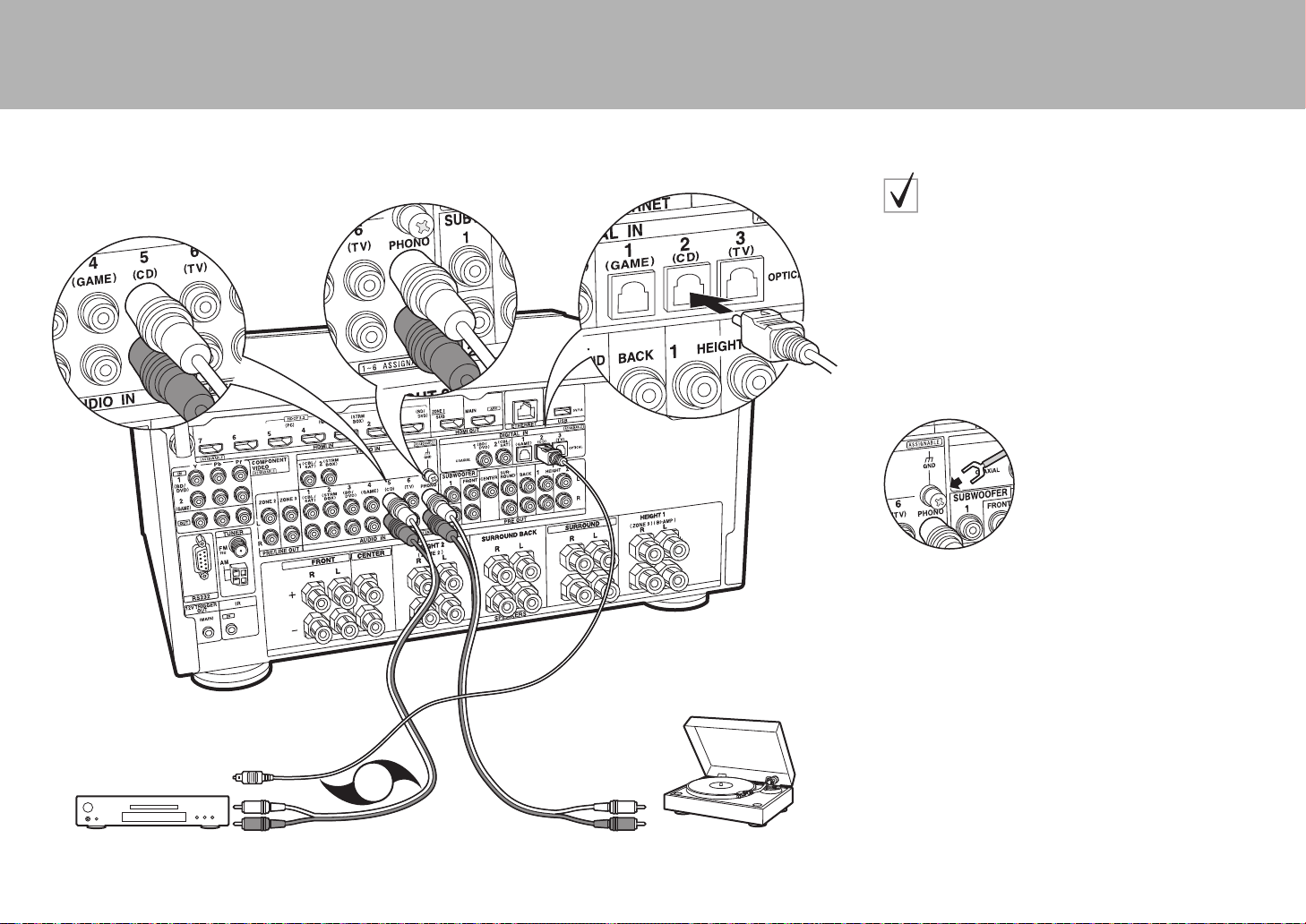

Example of a connection with an Audio Component.
Connect a CD player using a digital optical cable or
analog audio cable. You can also connect a turntable that
has an MM-type cartridge to the PHONO jack.
0 If the turntable has a built-in audio equalizer, connect it
to an AUDIO IN jack other than the PHONO jack.
Further, if the turntable uses an MC type cartridge,
install an audio equalizer compatible with the MC type
cartridge between the unit and the turntable, then
connect to any AUDIO IN jack other than the PHONO
jack.
If the turntable has a ground wire, connect it to the GND terminal
of this unit.
SN29402420B_TX-RZ3100_BAS_En_171026.book 15 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
16
> Before start > Hookup > Setup > Playback > Part Names
1
BD/DVD
Projector, etc.
1 Component video cable
Component Video Monitor

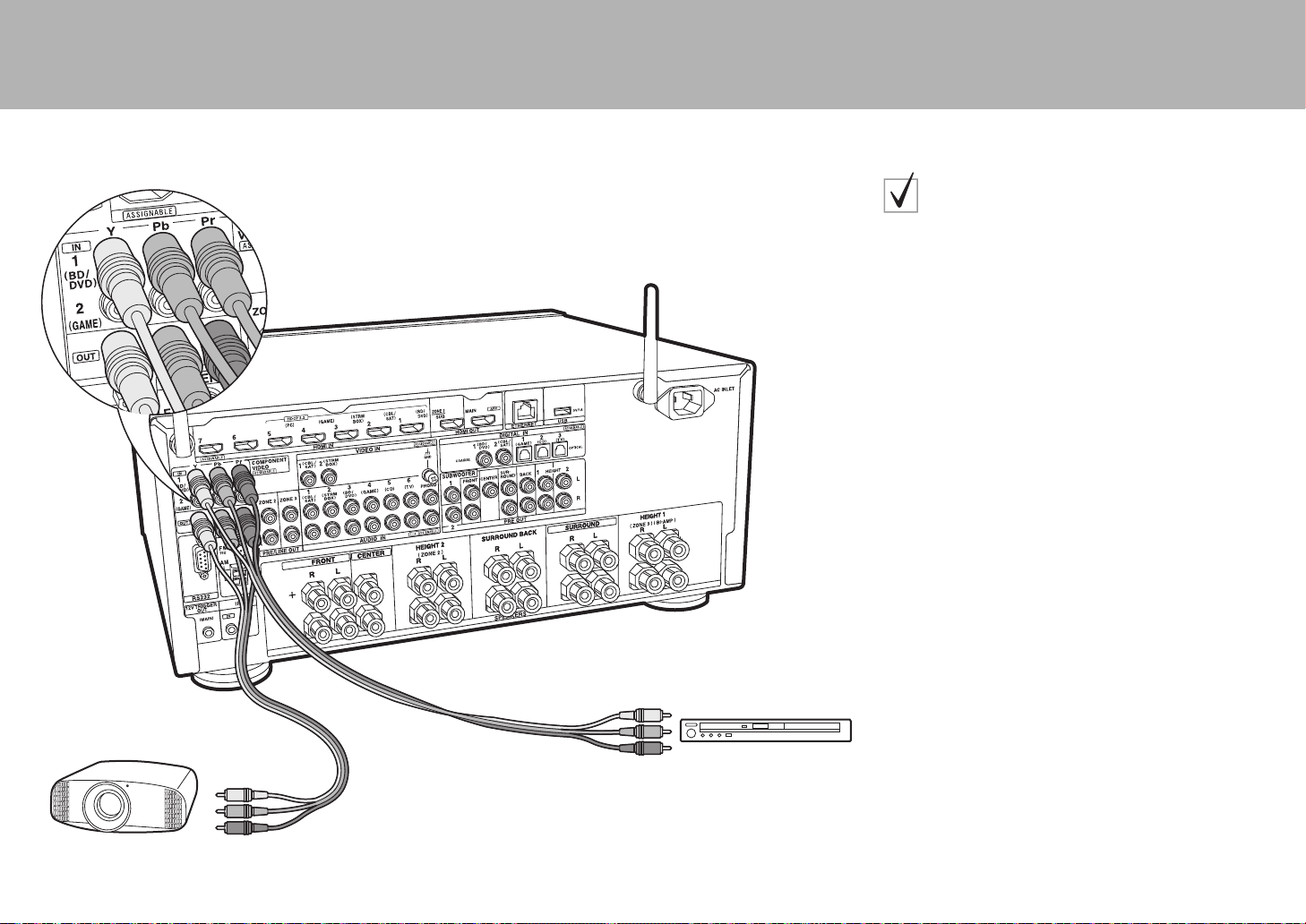

Use a component video cable to connect a TV or projector
that has component video input jacks rather than an
HDMI input jack. To output video from the COMPONENT
VIDEO OUT jacks, you must connect the external AV
components using a component video cable.
SN29402420B_TX-RZ3100_BAS_En_171026.book 16 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
17
> Before start > Hookup > Setup > Playback > Part Names
Step5: Multi-zone Connection
TV
ZONE2
MAIN ROOM
1
1 HDMI cable
ZONE 2 TV
You can enjoy content from a Blu-ray Disc player on a TV
equipped with an HDMI input jack in the separate room
(ZONE 2) by playing a Blu-ray Disc player in the main
room (where this unit is located), or play the content from
another AV component. Only the video from devices
connected to the HDMI IN1 to IN5 jacks can be played on
the TV in the separate room.
Setup
0 Settings are required in Initial Setup, "4. Multi
Zone Setup" (
Ä
P22) to enjoy this feature.
0
The audio from externally connected AV
components can only be played in ZONE 2 when the
audio is analog or 2ch PCM audio.
It may also be
necessary to convert the audio output of the AV
component to PCM output.
SN29402420B_TX-RZ3100_BAS_En_171026.book 17 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
18
> Before start > Hookup > Setup > Playback > Part Names
ZONE2
ZONE 2 SPEAKER
ZONE 2 PRE/LINE OUT
1
MAIN ROOM
LINE
IN
2
ᴧ
＊ Depending on the combination of speakers, you
may need to connect to other jacks. See "Points to
note with speaker combinations" (ÄP8) for details.
1 Analog audio cable, 2 Speaker cable
ZONE 2 PRE/LINE OUT /
ZONE 2 SPEAKER

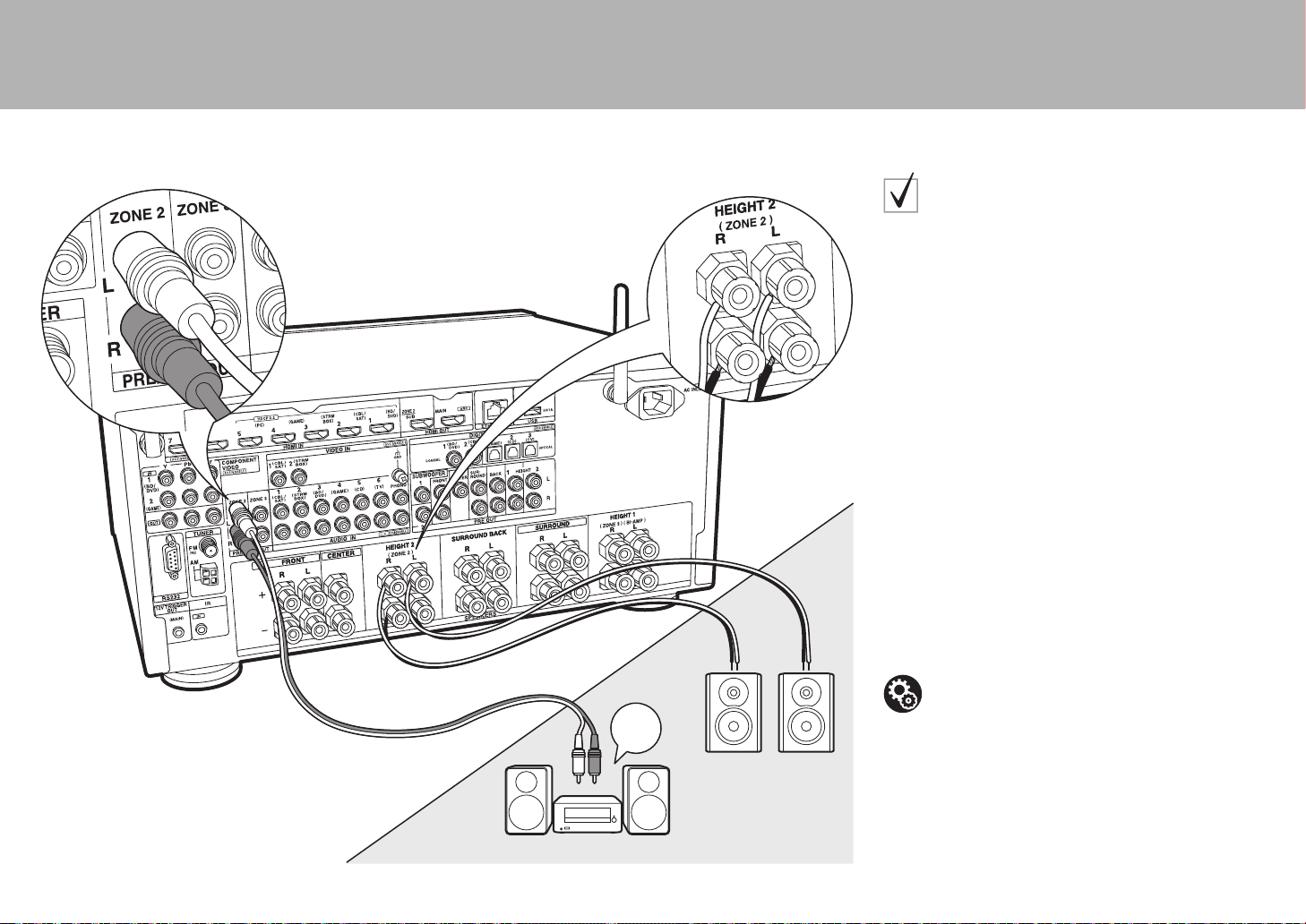

You can enjoy audio in the separate room by, for example,
playing a Blu-ray Disc player in the main room (where this
unit is located) and listening to internet radio in the
separate room (ZONE 2).
Connections with an AV component
Connect with HDMI IN 1 to 5 if you want to output an
external AV component to ZONE 2. If the AV component
doesn't have an HDMI jack, connect using a digital optical
cable, digital coaxial cable, or analog audio cable.
ZONE 2 PRE/LINE OUT
It is possible to play 2 ch sources in a separate room while
sources with a maximum of 11.1 ch are being played in
the main room. Connect the ZONE 2 PRE/LINE OUT
jacks of the unit and the LINE IN jacks of the pre-main
amplifier or the power amplifier in a separate room with an
analog audio cable.
ZONE 2 SPEAKER
It is possible to connect speakers in a separate room and
play 2 ch sources.
0 You can play through a maximum of 9.1 channels in the
main room during ZONE 2 playback.
Setup
0 Settings are required in Initial Setup, "4. Multi
Zone Setup" (
Ä
P22) to enjoy this feature.
0 The audio from externally connected AV
components can only be played in ZONE 2 when
the audio is analog or 2ch PCM audio. If you have
connected to this unit with an HDMI cable or digital
optical/coaxial cable, may be necessary to convert
the audio output of the AV component to PCM
output.
SN29402420B_TX-RZ3100_BAS_En_171026.book 18 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
19
> Before start > Hookup > Setup > Playback > Part Names
1
MAIN ROOM
LINE
IN
ZONE3
ZONE 3 SPEAKER
ZONE 3 PRE/LINE OUT
2
ᴧ
BD/DVD
＊ Depending on the combination of speakers, you
may need to connect to other jacks. See "Points to
note with speaker combinations" (ÄP8) for details.
1 Analog audio cable, 2 Speaker cable

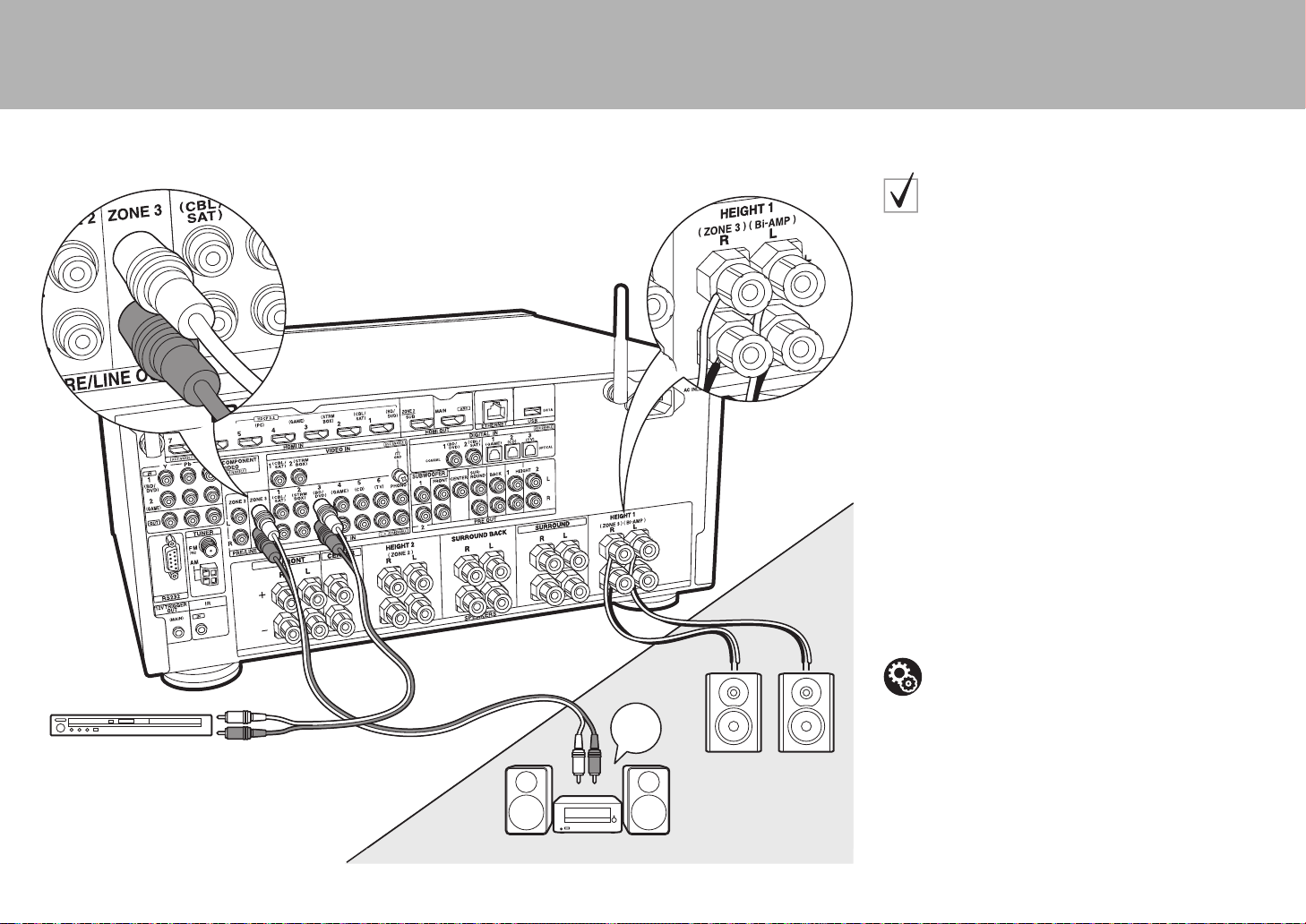

ZONE 3 PRE/LINE OUT /
ZONE 3 SPEAKER
Along with the main room and ZONE 2, you can also
enjoy audio in yet another room (ZONE 3).
Connections with an AV component
To output the audio of an external AV component to ZONE
3, connect using an analog audio cable. Output to ZONE
3 is not possible when you connect with an HDMI cable or
digital optical/coaxial cable.
ZONE 3 PRE/LINE OUT
It is possible to play 2 ch sources in a separate room while
sources with a maximum of 11.1 ch are being played in
the main room. Connect the ZONE 3 PRE/LINE OUT
jacks of the unit and the LINE IN jacks of the pre-main
amplifier or the power amplifier in a separate room with an
analog audio cable.
ZONE 3 SPEAKER
It is possible to connect speakers in a separate room and
play 2 ch sources.
0 You can play through a maximum of 7.1 channels in the
main room during ZONE 3 playback.
Setup
0 Settings are required in Initial Setup, "4. Multi
Zone Setup" (
Ä
P22) to enjoy this feature.
SN29402420B_TX-RZ3100_BAS_En_171026.book 19 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
20
> Before start > Hookup > Setup > Playback > Part Names

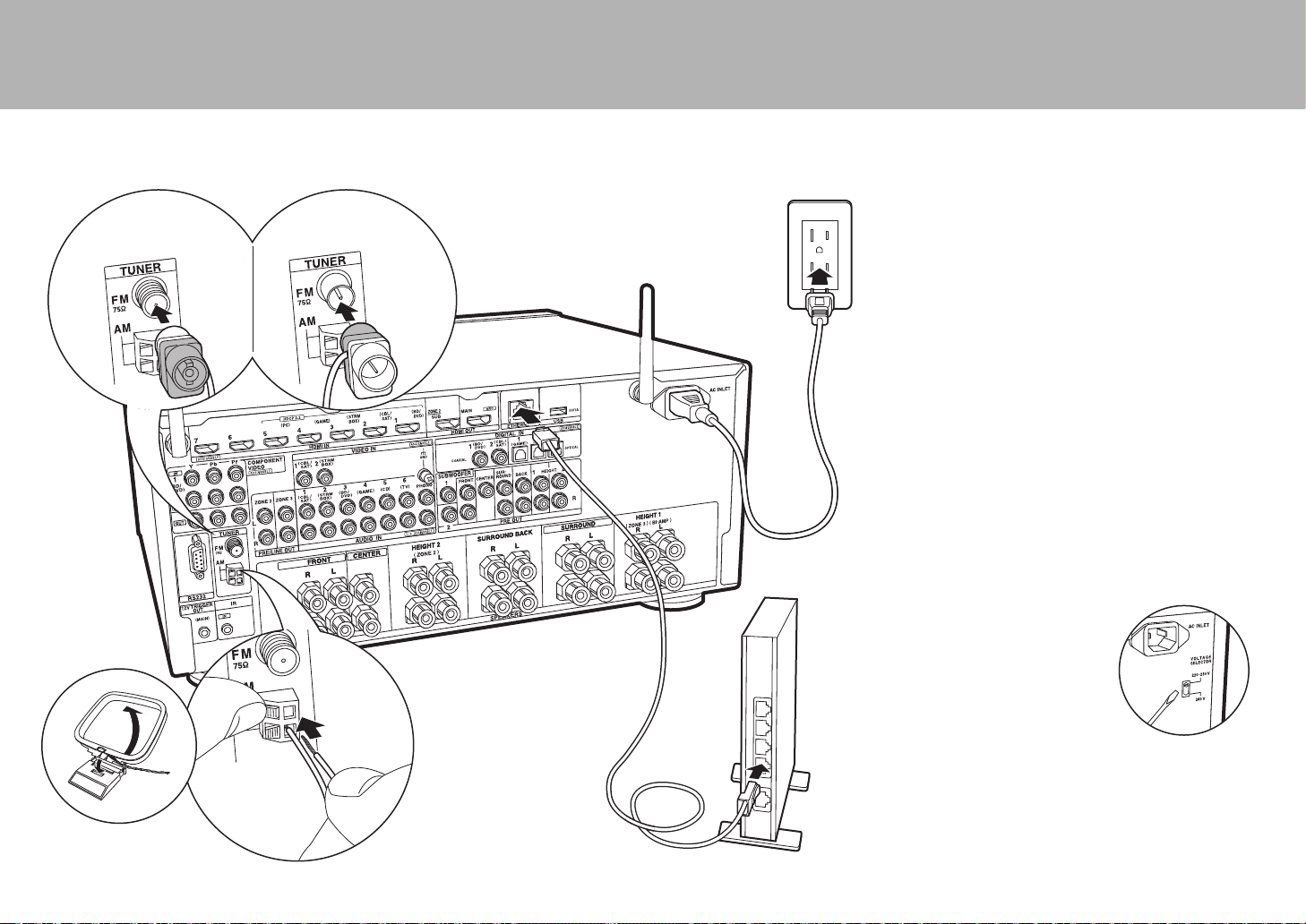

Step6: Connect Other Cables
1
3
4
2
1
2
(North American
models)
(European and
Asian models)
1 AM loop antenna, 2 Indoor FM antenna, 3 Ethernet cable, 4 Power cord
Antenna Hookup
Move the antenna around while playing the radio to find
the position with the best reception. Use a thumb tack or
similar to attach the indoor FM antenna to a wall.
Network Hookup
Connect this unit to the network using wired LAN or Wi-Fi
(wireless LAN). You can enjoy network features such as
internet radio, Music Server, and AirPlay by connecting
the unit to the network.
If you connect by wired LAN, connect with an Ethernet
cable to the ETHERNET port as shown in the illustration.
To connect by Wi-Fi, then after selecting "Wireless" in "3.
Network Connection" (
Ä
P22) in Initial Setup, select the
desired setting method and follow the onscreen
instructions to configure the connection.
Power Cord Hookup
This unit includes removable power cords. Connect the
power cord to the power outlet after completing all other
connections. Connect the power cord to AC INLET of the
unit and then connect to the outlet. Always disconnect the
outlet side first when disconnecting the power cord.
You can find the voltage selector switch
on the rear panel of multi-voltage
models. Please set it to the correct
voltage for your country or region.
Before changing the voltage, disconnect
the power cord. Use a medium size
screwdriver to change the voltage
switch.
SN29402420B_TX-RZ3100_BAS_En_171026.book 20 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
21
> Before start > Hookup >Setup > Playback > Part Names
Step7: Power On & Initial Setup
Initial Setup starts automatically

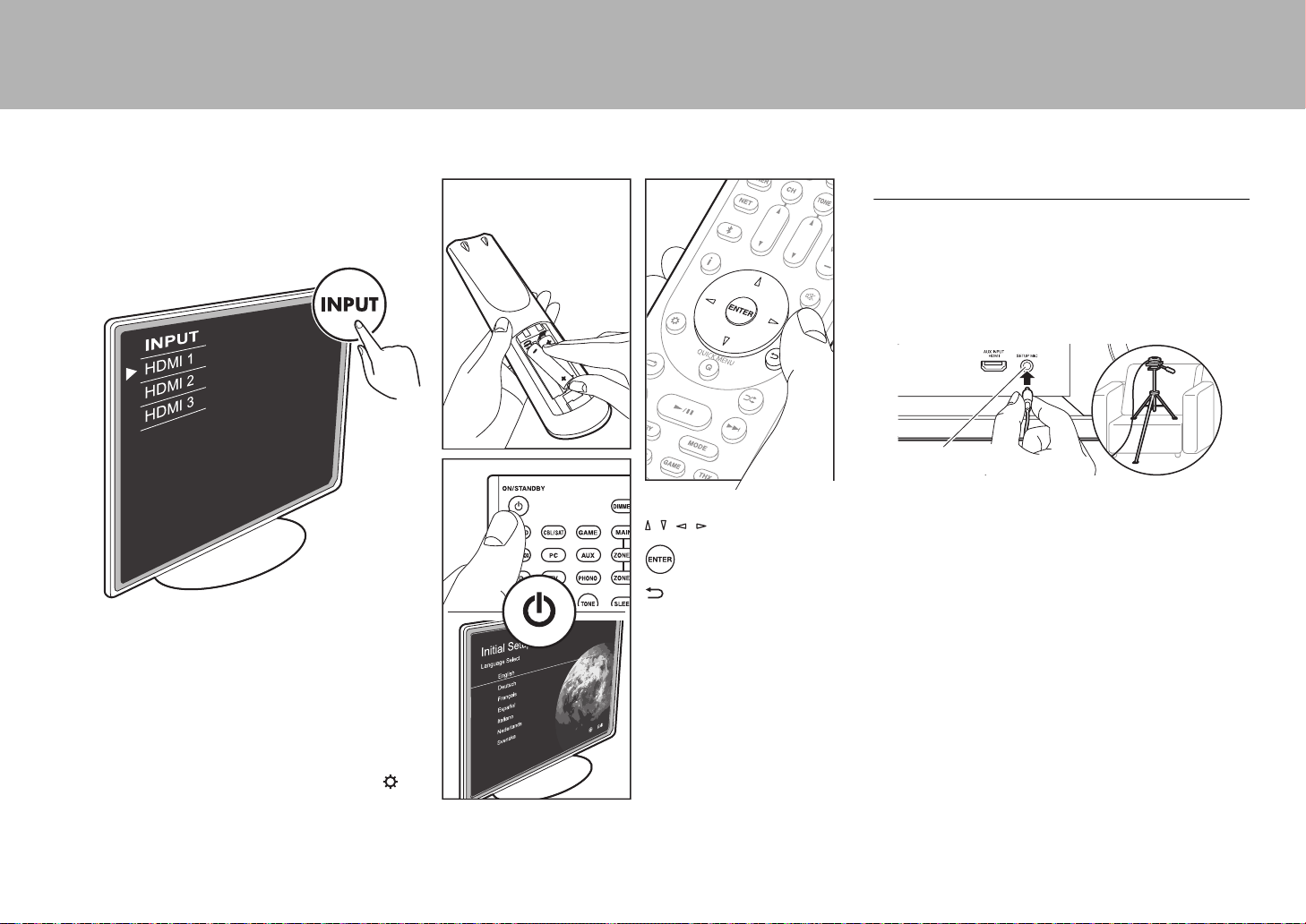

Switch the input on the TV to that assigned to the unit.
When you turn the unit on for the first time, Initial Setup is
automatically shown on the TV to enable you to make
settings required for startup using simple operations
following onscreen guidance.
0 If you terminate the procedure on the way or want to
change a setting made during Initial Setup, press on
the remote controller, select "7. Miscellaneous" – "Initial
Setup", and press ENTER.
: Selection
: OK
: Return
1. AccuEQ Room Calibration
Place the supplied speaker setup microphone in the
listening position, measure the test tones emitted by the
speakers, then the unit automatically sets the optimum
volume level for each speaker, the crossover frequencies,
and the distance from the listening position. This also
enables correction of distortion caused by the acoustic
environment of the room.
0 When putting the speaker setup microphone on a tripod,
refer to the illustration when putting it in place.
0 Set the subwoofer volume to more than halfway.
0 Calibration takes between 3 and 12 minutes to be
completed. The speakers emit the test tone at high
volume during measurement, so be careful of your
surroundings. Keep the room as quiet as possible during
measurement.
0 When using THX certified speakers, THX recommends
setting the crossover frequency to "80Hz(THX)". It is also
recommended to manually adjust the settings for each
speaker to suit the specific characteristics of each room.
0 If the power of this unit suddenly turns off, the wires in
the speaker cables may have touch the rear panel or
other wires and tripped the protection circuit. Twist the
wires again properly and make sure they do not stick out
of the speaker terminals when connecting.
SETUP MIC
SN29402420B_TX-RZ3100_BAS_En_171026.book 21 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
22
> Before start > Hookup >Setup > Playback > Part Names
2. Source Connection
Check that each input source is connected correctly. Follow
the guidance, select the input you want to confirm, start
play of the selected player, and confirm that the images
appear on the TV and that sound is played.
3. Network Connection
Set up Wi-Fi connection with an access point such as a
wireless LAN router. There are the following two methods of
connecting by Wi-Fi:
"Scan Networks": Search for an access point from this
unit. Find out the SSID of the access point beforehand.
"Use iOS Device (iOS7 or later)": Share the iOS device's
Wi-Fi settings with this unit.
If you select "Scan Networks", there are a further two
choices of connection method. Check the following.
0 "Enter Password": Enter the password (or key) of the
access point to connect.
0 "Push Button": If the access point has an automatic
connection button, you can connect without entering a
password.
0 If the SSID of the access point is not displayed, then in
the screen listing the SSIDs, select "Other..." with the !
cursor on the remote controller and press ENTER, then
follow the onscreen instructions.
Keyboard input
To switch between upper and lower case, select "A/a" on
the screen and press ENTER. To select whether to mask
the password with " ＊ " or display it in plain text, press
MEMORY on the remote controller. Press CLR to delete all
the input characters.
0 A confirmation screen asking you to agree to the privacy
policy is displayed during network setting. Select "Yes"
and press ENTER to indicate agreement.
4. Multi Zone Setup
Make these settings to enjoy video and audio in a room
other than the main room (ZONE 2/ZONE 3).
Select "Using AV Receiver" when connecting speakers in
the separate room. Select "with External Premain Amplifier"
when connecting a pre-main amplifier in the separate room.
Select "with External Power Amplifier" when connecting a
power amplifier.
If you are going to be connecting a TV in the separate room
(ZONE 2), then when "Would you be using TV in 2nd
room?" is displayed, select "Yes".
5. Audio Return Channel
If you have connected a TV that supports ARC, select
"Yes". This unit's ARC setting turns on and you can listen to
the TV's audio through this unit.
0 If you select "Yes", the HDMI CEC function is enabled
and power consumption increases during standby.
Wi-Fi Setup
Password
When finished, select the "OK" key.
Ɵơ
OKA/a
a b cdef gh i jklm
nopqr s t uvwxy z
1 2 3456789 0-^ \
,./;:@[]
A/aHide/ShowAll Erase
HDMI Setup
HDMI CEC
Make this setting to enable the control feature for devices
complying with the CEC standard. This is set to on
automatically if you have selected "Yes" in "5. Audio Return
Channel" in the Initial Setup.
Press the button on the remote controller to set "5.
Hardware" – "HDMI" – "HDMI CEC" to "On" on the TV
screen. Also enable the CEC control feature on the CEC
device you have connected.
HDMI Standby Through
Even if this unit is in standby, the input signals from AV
components are transmitted to the TV.
0 "Auto" / "Auto (Eco)": Select one of these settings
when connected AV components comply with the CEC
standard. Irrespective of the input selector selected
immediately before switching the unit to standby, you can
transmit the input signals from AV components to the TV.
Select "Auto (Eco)" if the TV is also CEC-compliant. You
can reduce power consumption in standby mode.
0 Input selector names for "BD/DVD", etc.: You can
transmit the input signals from the set input selector to
the TV. It can be selected when "HDMI CEC" is set to
"Off".
0 "Last": You can transfer the input signals of the input
selector selected immediately prior to the unit being
switched to standby. It can be selected when "HDMI
CEC" is set to "Off". With this setting, you can switch the
input selector even in the standby mode.
To exit the settings, press .
5-1 HDMI
HDMI CEC
HDMI Standby Through
Audio TV Out
Audio Return Channel
Auto Lip Sync
On
Auto(Eco)
Auto
Auto
On
SN29402420B_TX-RZ3100_BAS_En_171026.book 22 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
23
> Before start > Hookup > Setup > Playback >Part Names
Basic Playback
AV Component Playback
1. Switch the input on the TV to that assigned to
the unit.
2. Press the input selector (a) on the remote
controller with the same name as the jack to
which you connected the player to switch the
input.
For example, press BD/DVD to play the
player connected to the BD/DVD jack. Press
TV to listen the TV's sound.
0 When the CEC link function works, the
input switches automatically when you
have connected a CEC compliant TV and
player to this unit using HDMI connection.
3. Start play on the player.
4. Use VOL+/– (b) to adjust the volume.
When a TV is connected to the HDMI OUT
SUB jack
Press Q on the remote controller to display the
Quick Menu, and set "Other" – "HDMI Out" to
either "SUB" or "MAIN+SUB".
Listening Mode
This unit is equipped with a variety of listening
modes, and you can select the optimum
listening mode for movies, TV, music, and
games by repeatedly pressing the MOVIE/TV,
MUSIC, and GAME buttons (c). You can also
select THX-related listening modes by
repeatedly pressing THX (d). For details on the
listening modes, see the Advanced Manual.
This section introduces some of the popular
modes.
Dolby Digital/DTS modes
When the input signal is a digital surround
format such as Dolby Digital or DTS, you can
select the listening mode that suits the input
signal. Dolby Digital is displayed for Dolby
Digital and DTS-HD Master Audio is displayed
for DTS-HD Master Audio. The output is Stereo
for 2-channel input signals.
Direct
This listening mode can be selected for all input
signals. It shuts down processing that affects
sound quality to deliver a playback sound quality
closer to sources. Speakers play the sound field
according to the number of channels in the input
signal, so there would be output from only the
front speakers for a 2 ch signal, for example.
Dolby Surround/DTS Neural:X
These listening modes allow you to expand the
playback signal to a maximum of 11 channel to
suit the connected speaker configuration when
the input signal is 2 channels or 5.1 channels.
THX surround modes
Multiple surround speakers are installed in
movie theaters so that the moviegoer is
enveloped in a natural surround sound. Even
with just two surround speakers, the THX
Cinema mode achieves, with the high-quality
technology developed by THX, the same kind of
breadth of sound you would get in a movie
theater along with the natural flow of timbre with
the sound field towards the front. Also available
are modes such as THX Music and THX
Games.
Original surround modes
You can select listening modes such as the All
Ch Stereo mode where a stereo image is played
from both the front and the rear, and Orchestra
(only with the MUSIC button) which is best for
playback of classical and opera pieces.
Pure Audio
Listening mode that provides purer sound
quality by switching off the power of the display
and analog video circuits.
The listening mode last selected for the source
is remembered for each of the MOVIE/TV,
MUSIC, GAME and THX buttons. If content you
play is not supported by the listening mode you
selected last, the listening mode that is standard
for that content is selected automatically.

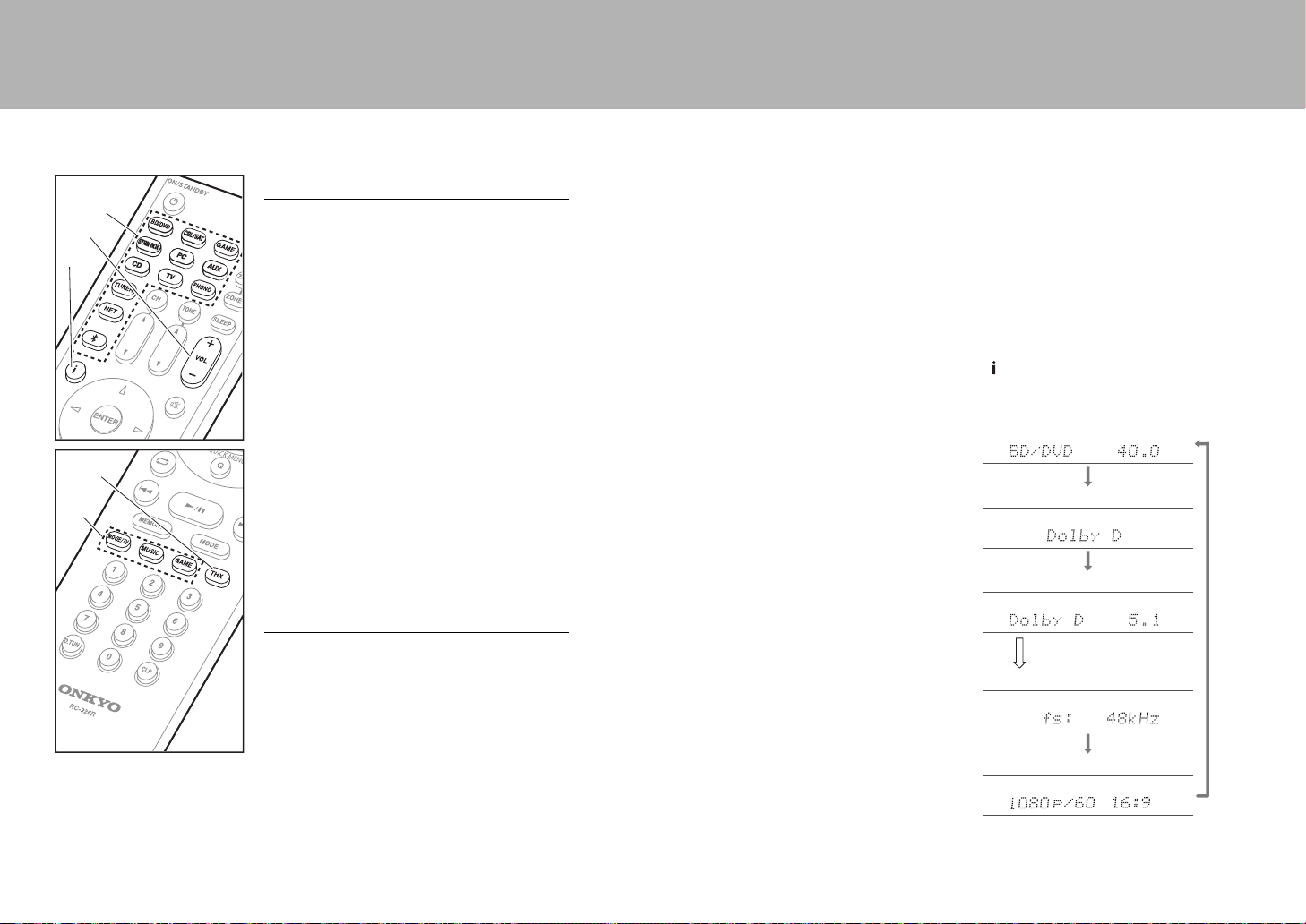

Press (e) repeatedly to switch the display of
the main unit in order of:
c
d
e
b
a
Input source & volume
Listening mode
Signal format
Sampling frequency
Input signal resolution
The display changes few
seconds later.
SN29402420B_TX-RZ3100_BAS_En_171026.book 23 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
24
> Before start > Hookup > Setup > Playback >Part Names
Network Functions
Network Services
1. Switch the input on the TV to that assigned to
the unit.

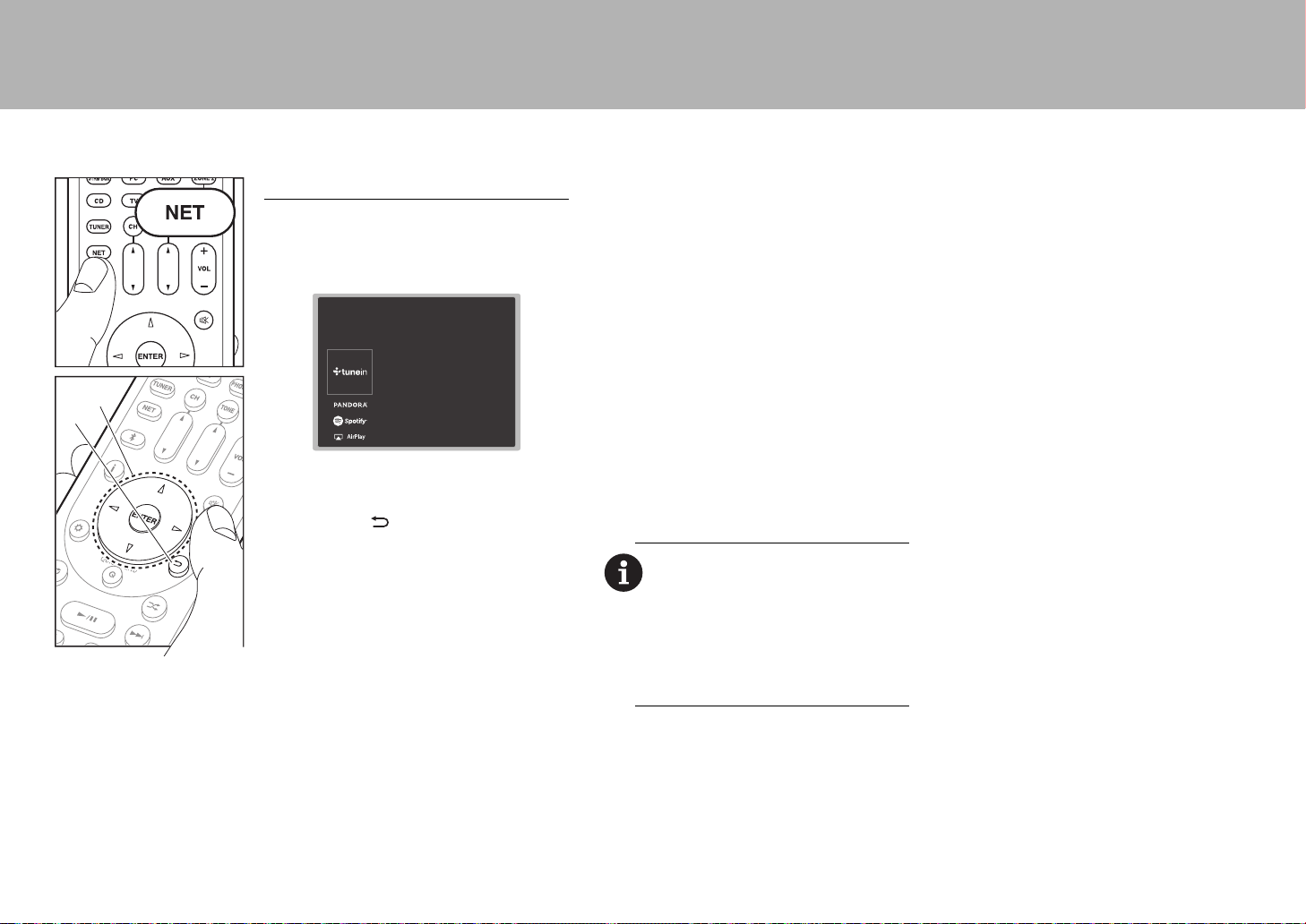

2. Press NET to display the network service list
screen.
3. Select the item with the cursors of the remote
controller and press ENTER to confirm your
selection (a). To return to the previous
screen, press (b).
Internet Radio
When this unit is connected to a network, you
can listen to TuneIn or other preregistered
Internet radio services. After selecting the
desired service, follow the on-screen
instructions, using the cursors to select radio
stations and programs, then press ENTER to
play. Play starts when 100% is displayed for
buffering.
Music Server
You can play music files stored on home-
network compliant PCs or NAS devices
connected to the same network as this unit.
Select the server with the cursors, select the
desired music file and press ENTER to start
playback. Play starts when 100% is displayed
for buffering.
0 This unit is compatible with Windows Media
®
Player 11 or 12 network servers or NAS that
are compatible with home network
functionality. You may need to make some
settings in advance to use Windows Media
®
Player 11 or 12. Enable media streaming for
this player in Windows Media
®
Player. For
details, see the Advanced Manual.
USB
Play music files on a USB storage device.
Connect the USB storage device to the USB
jack on the rear of the unit, select the desired
folder or music file with the cursors, and press
ENTER to confirm and start playback.
0 Operation cannot be guaranteed for all USB
storage devices.
0 This unit can use USB storage devices that
comply with the USB mass storage device
class standard. The unit is also compatible
with USB storage devices using the FAT16 or
FAT32 file system formats.
a
b
Notes:
0 Network services become selectable after the
network starts up even if they cannot be
selected first.
0 Functionality may be introduced by firmware
updates and service providers may cease
services, meaning that some network services
and content may become unavailable in the
future. Furthermore, available services may
vary depending on your area of residence.
SN29402420B_TX-RZ3100_BAS_En_171026.book 24 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
25
> Before start > Hookup > Setup > Playback >Part Names
AirPlay

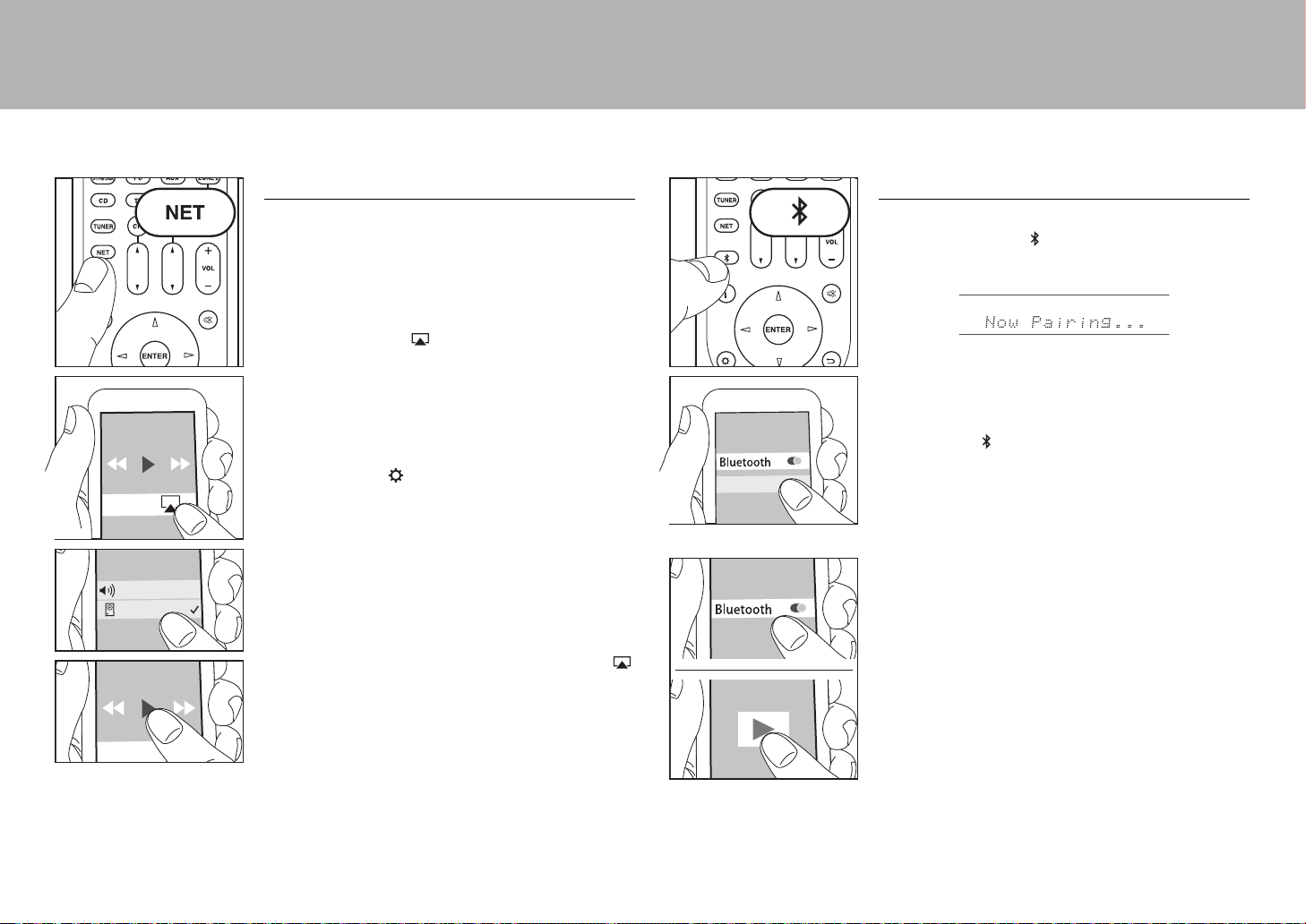

You can wirelessly enjoy the music files on an iPhone
®
,
iPod touch
®
, or iPad
®
connected to the same access point
as this unit.
0 Update the OS version on your iOS device to the latest
version.
1. Connect the iOS device to the access point.
2. Press NET.
3. Tap the AirPlay icon in the control center of the iOS
device and select this unit from the list of devices
displayed, and tap "Done".
4. Play the music files on the iOS device.
0 The default status is for the Network Standby feature to
be on, so when you do steps 3 and 4 above, this unit
automatically comes on and input switches to "NET". To
reduce the amount of power consumed in standby
mode, press the button on the remote controller,
then in the Setup menu displayed set "5. Hardware" –
"Power Management" – "Network Standby" to "Off".
0 Due to the characteristics of AirPlay wireless
technology, the sound produced on this unit may slightly
be behind the sound played on the AirPlay-enabled
device.
You can also play back music files on the computer with
iTunes (Ver. 10.2 or later). Before operation, make sure
this unit and the PC are connected to the same network,
then press NET on this unit. Next, click the AirPlay icon
in iTunes, select this unit from the list of devices displayed,
and start play of a music file.
OnkyoTX-XXXX
iPhone
BLUETOOTH
®
Playback
Pairing
1. When you press the button on the remote controller,
"Now Pairing..." is displayed on this unit's display, and
the pairing mode is enabled.
2. Enable (turn on) the BLUETOOTH function of the
BLUETOOTH enabled device, then select this unit from
amongst the devices displayed.
If a password is requested, enter "0000".
0 To connect another BLUETOOTH enabled device, press
and hold the button until "Now Pairing..." is
displayed, then perform step 2 above. This unit can
store the data of up to 8 paired devices.
0 The coverage area is 48 feet (15 meters). Note that
connection is not always guaranteed with all
BLUETOOTH enabled devices.
Playing Back
1. When the unit is on, connect the BLUETOOTH enabled
device.
2. The input selector of this unit will be automatically
switched to "BLUETOOTH".
3. Play music. Increase the volume of the BLUETOOTH
enabled device to an appropriate level.
0 Due to the characteristics of BLUETOOTH wireless
technology, the sound produced on this unit may slightly
be behind the sound played on the BLUETOOTH
enabled device.
OnkyoTX-XXXX
SN29402420B_TX-RZ3100_BAS_En_171026.book 25 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
26
> Before start > Hookup > Setup > Playback >Part Names
Others

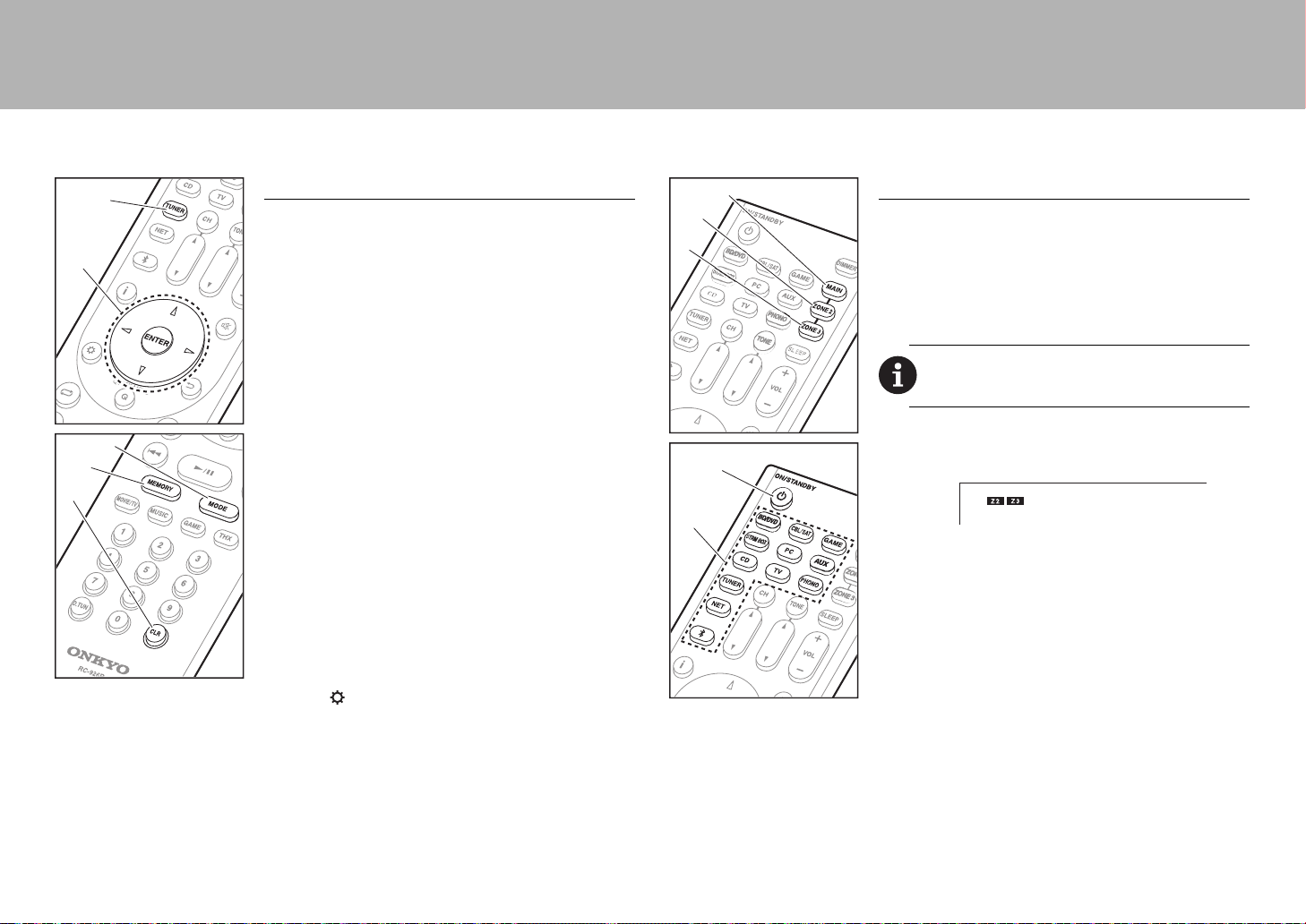

Listening To the Radio
1. Press TUNER (a) on the remote controller repeatedly to
select either "AM" or "FM" on the display.
2. Press MODE (c) on the remote controller, so that the
"TunMode: Auto" is displayed on the display.
3. When you press the # / $ cursor (b) buttons on the
remote controller, automatic tuning starts, and searching
stops when a station is found. When tuned into a radio
station, the "TUNED" indicator on the display lights.
You can preset up to 40 stations.
1. Tune into the AM/FM radio station you want to register.
2. Press MEMORY (d) on the remote controller so that the
preset number on the display flashes.
3. While the preset number is flashing (about 8 seconds),
repeatedly press the " / ! cursor (b) buttons on the
remote controller to select a number between 1 and 40.
4. Press MEMORY (d) again on the remote controller to
register the station. When registered, the preset number
stops flashing. To select a preset radio station, press the
" / ! cursor (b) buttons on the remote controller.
0 To delete a preset station, press the " / ! cursor (b)
buttons on the remote controller to select the preset
number you want to delete, press MEMORY (d) on the
remote controller and then press CLR (e) while the
preset number is flashing. When deleted, the number on
the display goes off.
Frequency step setting
Press the button on the remote controller to select "7.
Miscellaneous" – "Tuner" – "AM/FM Frequency Step" or
"AM Frequency Step" and select the frequency step for
your area. Note that when this setting is changed, all radio
presets are deleted.
c
d
e
a
b
Multi-zone
Play
1. Switch the remote controller to the mode for controlling
ZONE 2 or ZONE 3.
To switch to the mode for controlling ZONE 2, press
ZONE 2 (a) on the remote controller.
To switch to the mode for controlling ZONE 3, press
ZONE 3 (b) on the remote controller.
2. Point the remote controller at the main unit and press
Í ON/STANDBY (d).
"Z2" or "Z3" lights on the main unit display.
3. Press the input selector button (e) of the input to be
played in the separate room. On the main unit, after
pressing ZONE 2 or ZONE 3, within 8 seconds press
the input selector button to select the input to be played
in the separate room. To play the same source in the
main room and separate room, press ZONE 2 or ZONE
3 on the main unit twice.
0 You cannot select different inputs for the main room
and separate room with the "NET" or "BLUETOOTH"
input selector. You cannot select different stations for
the main room and separate room with the AM/FM
radio. When you select an input or station for the
separate room, the main room also switches.
0 DSD and Dolby TrueHD audio signals are not output
to ZONE 2/ZONE 3 when selected with the "NET"
input selector.
0 If ZONE 2 or ZONE 3 is turned on when the listening
mode of the main room is Pure Audio, it will
automatically switch to the Direct listening mode.
4. To adjust the volume on the power amplifier in the
To return the remote controller to main room control
mode: Press MAIN (c) on the remote controller.
a
b
c
d
e
SN29402420B_TX-RZ3100_BAS_En_171026.book 26 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
27
> Before start > Hookup > Setup > Playback >Part Names
separate room or the ZONE Speaker, adjust with VOL+/–
on the remote controller. To control on the main unit,
press ZONE 2 or ZONE 3 and adjust with the MASTER
VOLUME control within 8 seconds.
0 The information for a connected device can be displayed
on the TV screen in a separate room. Press the
button while the remote controller is in the mode for
controlling ZONE 2.
0 Power consumption in standby mode increases when the
multi-zone function is being used.
To turn off the function
Press Í ON/STANDBY while in the mode for controlling
ZONE 2 or ZONE 3 on the remote controller.
Playing in ZONE 2 or ZONE 3 only
If you turn the unit to standby during multi-zone playback,
the Z2 or Z3 indicator is dimmed and the playback mode is
switched to playback in a separate room only. Setting
ZONE 2/ZONE 3 to on while this unit is in standby will also
switch the playback mode to the same setting.
WHOLE HOUSE MODE
If you press WHOLE HOUSE MODE while playback is
being performed in the main room, the WHOLE HOUSE
MODE is turned on, "Z2" and "Z3" on the display light at the
same time and the playback sources of all the rooms are
switched to the same source at once.
0 The sources that can be played in ZONE 2 can be played
in all rooms.
0 This function cannot be used if headphones are
connected or audio is output from the speakers of the TV.
Settings
Settings are required in Initial Setup, "4. Multi Zone Setup"
(
Ä
P22) to use the multi-zone feature. When checking the
setting content, refer to the following, press on the
remote controller, and check in the Setup menu that is
displayed.
– When you have connected a TV in the separate room
with an HDMI cable, have you selected "Use" in "1. Input/
Output Assign" – "TV Out/OSD" – "Zone2 HDMI"?
– When you are playing the audio from an AV component
with an HDMI cable in the separate
room
, have you
selected "Use" in "1. Input/Output Assign" – "TV Out/
OSD" – "Zone2 HDMI"?
– When you have connected speakers in a separate room
with speaker cable, have you selected "Zone 2" or "Zone
2/Zone 3" in "2. Speaker" – "Configuration" – "Zone
Speaker"?
– When you have connected a power amplifier in a
separate room with an analog audio cable and you want
to control the volume with this unit, have you selected
"Variable" in "6. Multi Zone" – "Zone 2" or "Zone 3" –
"Output Level"?
Others
To adjust the sound quality
It is possible to enhance or moderate the bass and treble
range of all channels except the subwoofer channel. Press
TONE on the main unit several times to select the desired
setting from "Bass" and "Treble", and turn the TONE dial to
adjust.
0 This cannot be set if the listening mode is Pure Audio,
Direct or THX.
0 You can also adjust the sound quality of a power
amplifier connected in a separate room. After pressing
either ZONE 2 or ZONE 3 on the main unit, within
8 seconds press TONE and turn the TONE dial to adjust.
Quick Menu
By pressing Q on the remote controller during play, you can
adjust frequently used settings, such as the sound quality,
using on-screen menus. Select the item with the cursors of
the remote controller and press ENTER to confirm your
selection. To return to the previous screen, press .
0 You can adjust the sound quality with "Tone". "Other"
includes settings such as "A/V Sync" that allows you to
adjust the audio delay when the video is behind the
audio, "Music Optimizer" that provides better sound
quality for compressed audio, and "HDMI Out" which
allows you to select the HDMI OUT terminal to output
from "MAIN", "SUB", and "MAIN+SUB".
Quick Menu
Tone
Level
AccuEQ
Other
Bass
Treble
BD/DVD
SN29402420B_TX-RZ3100_BAS_En_171026.book 27 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
28
> Before start > Hookup > Setup > Playback >Part Names
When the unit is operating erratically
Try restarting the unit
Restarting the unit may help it operate more smoothly. To
restart the unit, turn it to standby, and then press Í ON/
STANDBY on the main unit for at least 5 seconds. (The
unit’s settings will be maintained.) If there is no
improvement even after the unit is restarted, try
disconnecting and reconnecting the power cords of the unit
and connected equipment.
Resetting the unit (this resets the unit settings to the
default)
If restarting the unit doesn't fix the problem, resetting the
unit to the status at the time of shipment may solve the
problem. If you reset the unit status, your preferences will
be reset to the defaults. Note them down before the
operation below.
1. While pressing the CBL input selector button on the main
unit, press Í ON/STANDBY.
2. "Clear" appears on the display and the unit returns to
standby. Do not unplug the power cord until "Clear"
disappears from the display.
To reset the remote controller, while holding down CLR,
press MODE until MAIN flash twice (about 3 seconds).
When the subwoofer produces no sound
If the setting of the front speakers is "Full Band" and during
2ch input such as from the TV or music, the low range
elements will be output from the front speakers rather than
from the subwoofer. If you would rather output from the
subwoofer, make one of the following settings.
1. Change the front speakers settings to a setting other
than "Full Band" for the crossover frequency value.
The range below the frequency you specify will be output
from the subwoofer rather than the front speakers. We
do not recommend changing this if your front speakers
have good low range reproduction capabilities.
2. Change "Double Bass" to "On".
The low range elements will be output from both the front
speakers and the subwoofer. This may mean that there
is too much bass. Do not change if this happens, or
choose option 1.
Refer to "Setup Menu" − "Crossover" in the Advanced
Manual for details.
SN29402420B_TX-RZ3100_BAS_En_171026.book 28 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
29
> Before start > Hookup > Setup > Playback >Part Names

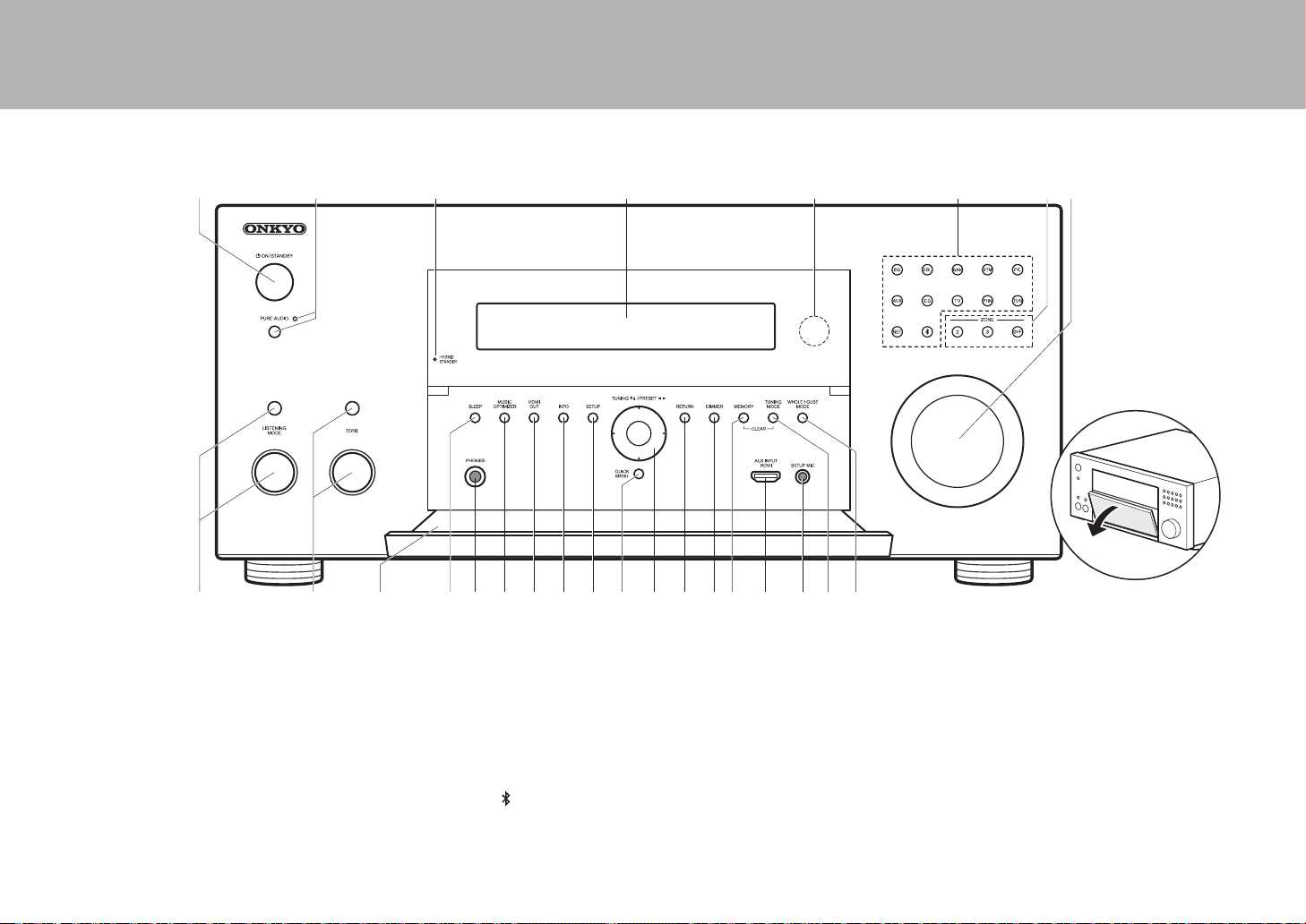

Front Panel
1. Í ON/STANDBY button: Turns the unit on or into
standby mode.
2. PURE AUDIO button/indicator: Switches the unit to Pure
Audio mode. (
Ä
P23)
3. HYBRID STANDBY indicator: Lights if the unit enters
standby mode when the features are enabled that
continue to work when this unit is in standby, such as
HDMI Standby Through and Network Standby.
4. Display (
Ä
P30)
5. Remote control sensor
6. Input selector buttons: Press the following buttons to
switch the input to be played. The jack allocated to the
buttons at the time of purchase are shown inside the
parentheses ( ).
BD (BD/DVD)
CBL (CBL/SAT)
GAM (GAME)
STM (STRM BOX)
PC (PC)
AUX (AUX INPUT HDMI)
CD (CD)
TV (TV)
PHN (PHONO)
TUN: AM/FM Radio
NET: Playing the Internet Radio, USB, etc.
: BLUETOOTH function
7. ZONE 2/ZONE 3 buttons: Controls the multi-zone
function. (
Ä
P26)
OFF button: Switches the multi-zone function off.
8. MASTER VOLUME: Allows you to adjust the volume.
9. (Up) LISTENING MODE button / (Down) LISTENING
MODE dial: Allows you to select the listening mode.
Press the button repeatedly to select a category from
"Movie/TV", "Music", "Game", then turn the dial to
change the mode. (
Ä
P23)
10.
(Up) TONE button / (Down) TONE dial: Adjusts the high
tone and low tone. Press the button repeatedly to select
the item to adjust from "Bass" and "Treble", and turn the
dial to adjust.
11.
Front flap
12.
SLEEP button: Set the sleep timer. Select from "30
minutes", "60 minutes", and "90 minutes".
13.
PHONES jack: Stereo headphones with a standard plug
(1/4 inch or ø6.3 mm) are connected.
14.
MUSIC OPTIMIZER button: Turns on/off the Music
12 74356
1716
21 2219 2018
9101112141513
23 24 25 26
8
11
SN29402420B_TX-RZ3100_BAS_En_171026.book 29 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
30
> Before start > Hookup > Setup > Playback >Part Names
Optimizer function that provides better sound quality for
compressed audio.
15.
HDMI OUT button: Allows you to select the HDMI OUT
jack to output video signals from "MAIN", "SUB", and
"MAIN+SUB".
16.
INFO button: Switches the information on the display.
17.
SETUP button: Displays the Setup menu.
18.
QUICK MENU button: You can perform common settings
on the TV screen. (
Ä
P27)
19.
Cursor buttons (TUNING43 / PRESET21 button)
and ENTER button: Select the item with the cursors and
press ENTER to confirm your selection. When using the
TUNER, select the frequency with TUNING43, or
select preset stations with PRESET21.
20.
RETURN button: Returns the display to the previous
state.
21.
DIMMER button: You can adjust the brightness of the
display in three steps. It cannot be turned off completely.
22.
MEMORY button: Used to register AM/FM radio stations.
23.
AUX INPUT HDMI jack: Connect to a video camera, etc.,
using a HDMI cable.
24.
SETUP MIC jack: The supplied speaker setup
microphone is connected.
25.
TUNING MODE button: Switches the tuning mode.
26.
WHOLE HOUSE MODE button: Enables the WHOLE
HOUSE MODE function to play the same source in all
the multi-zone connected rooms. (
Ä
P27)
Display
1. Speaker/Channel display: Displays the output channel that
corresponds to the selected listening mode.
2. Lights in the following conditions.
Ë: When headphones are connected.
Z2/Z3: When ZONE 2/ZONE 3 is on.
: When connected by BLUETOOTH.
: When connected by Wi-Fi.
NET: When "NET" is selected with the input selector and the unit is
connected to the network. It will flash if the connection to the network
is not correct.
USB: When "NET" is selected with the input selector and the unit is
connected by USB and the USB device is selected. Flashes if the
USB is not properly connected.
HDMI: When HDMI signals are input and the HDMI input is selected.
DIGITAL: When digital signals are input and the digital input is selected.
3. Lights according to the type of input digital audio signals and the
listening mode.
4. Lights in the following conditions.
RDS (European and Asian models): Receiving RDS broadcasting.
TUNED: Receiving AM/FM radio.
FM ST: Receiving FM stereo.
SLEEP: When the sleep timer is set.
AUTO STBY: When Auto Standby function is enabled.
5. Flashes when muting is on.
6. Displays various information of the input signals. Characters that
cannot be displayed on this unit are replaced with asterisks ( ＊ ).
0
When playing back software which has been encoded in Dolby Digital,
Dolby Digital Plus, Dolby TrueHD and Dolby Atmos, sometimes you
may see a brief message which will read "DialogNorm: X dB" (X being
a numeric value). For example, if you see the following message:
"DialogNorm:+4dB", to keep the overall output level at THX calibrated
loudness, just turn down the volume control by 4dB.
7. Lights when operating the "NET" input selector indicating remote controller
cursor operations are possible in screens showing list of tracks, for example.
14
6
2 35
77
SN29402420B_TX-RZ3100_BAS_En_171026.book 30 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
31
> Before start > Hookup > Setup > Playback >Part Names

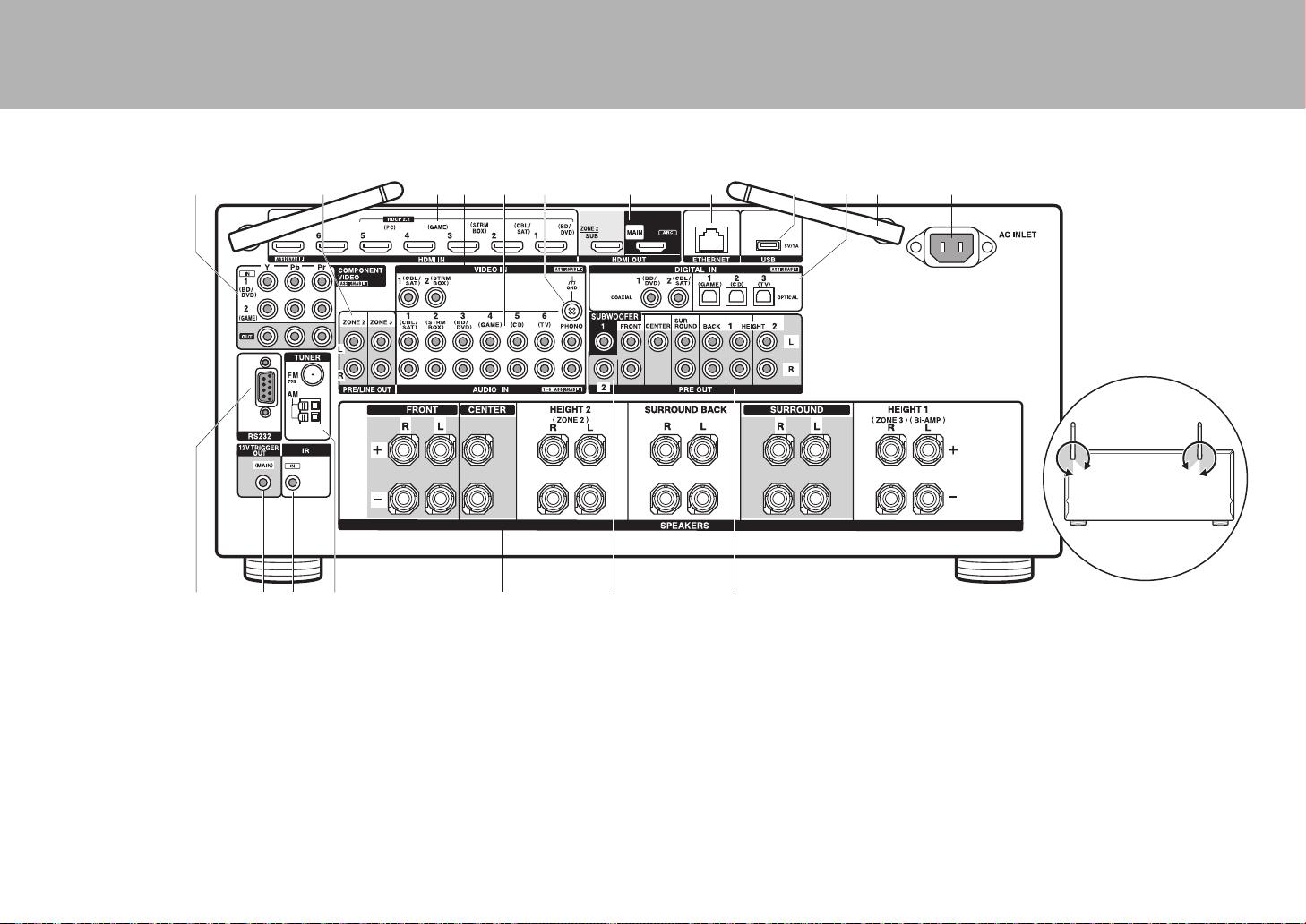

Rear Panel
1. COMPONENT VIDEO IN/OUT jacks: Transfer the video
signals of an AV component with a component video cable.
2. ZONE 2/ZONE 3 PRE/LINE OUT jacks: Output audio
signals with an analog audio cable to a pre-main
amplifier or a power amplifier in a separate room (ZONE
2/ZONE 3). (ÄP18, 19)
3. HDMI IN jacks: Transmit video signals and audio signals
with a HDMI cable connected to an AV component.
4. VIDEO IN jacks: Input the video signals from AV
components with an analog video cable.
5. AUDIO IN jacks: Input TV or AV component audio
signals with an analog audio cable.
6. GND terminal: The ground wire of the turntable is connected.
7. HDMI OUT jacks: Transmit video signals and audio
signals with a HDMI cable connected to a monitor such
as a TV or projector.
8. ETHERNET port: Connect to the network with an
Ethernet cable.
9. USB port: A USB storage device is connected so that music
files stored in it can be played. You can also supply power
(maximum 5V/1A) to USB devices with a USB cable.
10.
DIGITAL IN OPTICAL/COAXIAL jacks: Input the digital
audio signals from TV or AV components with a digital
optical cable or digital coaxial cable.
11.
Wireless antenna: Used upright for Wi-Fi connection or
when using a BLUETOOTH enabled device. The
diagram shows the movable range for the wireless
antenna. Do not try to force it beyond this range
otherwise you may break it.
12.
AC INLET: The supplied power cord is connected.
13.
RS232 port: For connection to the home control system.
14.
12V TRIGGER OUT jacks: Allows you to connect a
device with 12V trigger input jack to enable link operation
between the device and the unit.
15.
IR IN port: Allows you to connect a multiroom remote
control kit.
16.
TUNER AM/FM 75Ω terminal: The supplied antennas
are connected.
17.
SPEAKERS terminals: Connect speakers with speaker cables.
(North American models are compatible with banana plugs.)
18.
SUBWOOFER PRE OUT jacks: Connect a powered
subwoofer with a subwoofer cable. Up to two powered
subwoofers can be connected. You can set the volume
levels of the 2 powered subwoofers to different levels.
19.
PRE OUT jacks: Connect a power amplifier.
1 4 573268
19
910 1211
13
17
18
15
16
14
11
SN29402420B_TX-RZ3100_BAS_En_171026.book 31 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
32
> Before start > Hookup > Setup > Playback >Part Names

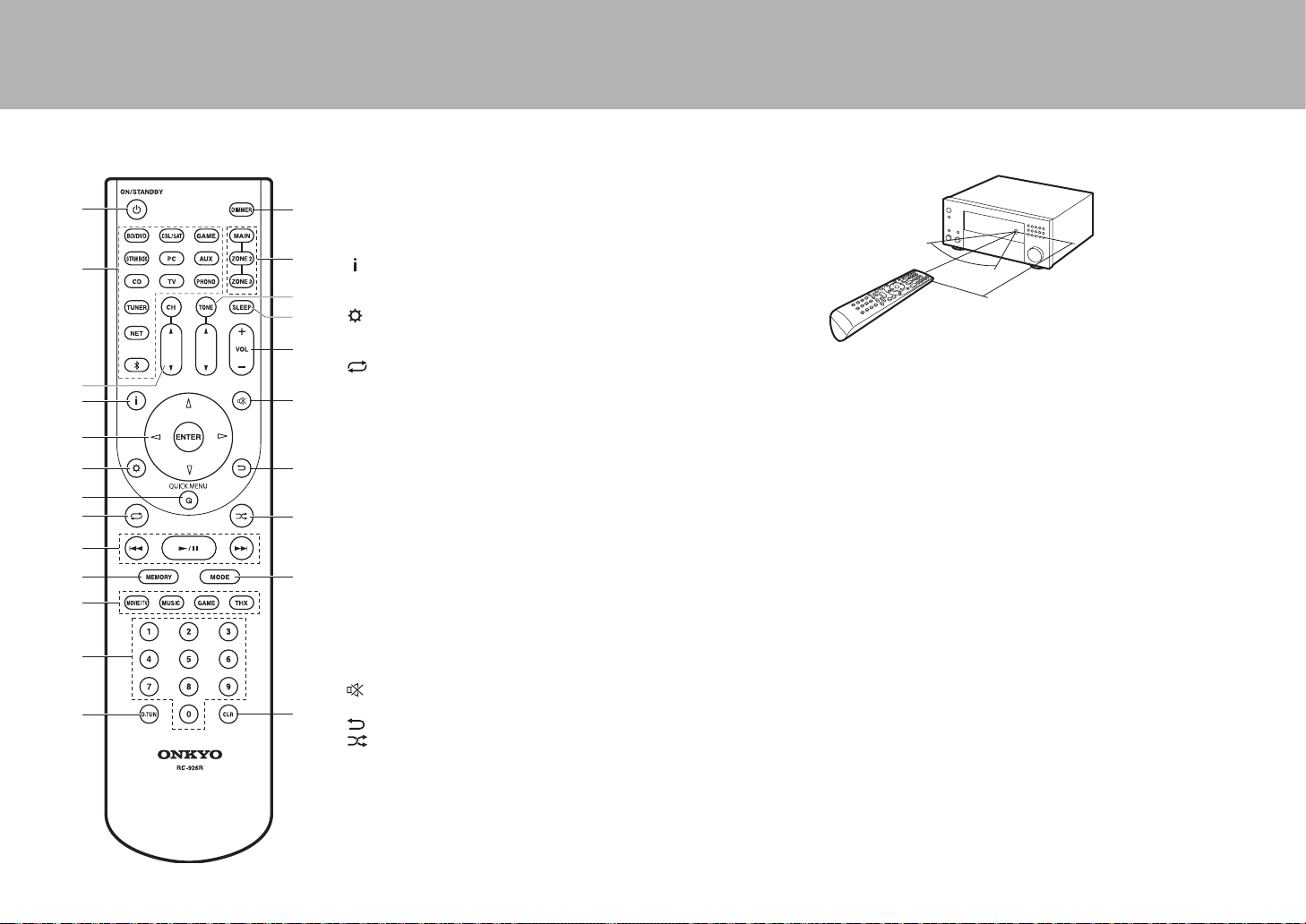

Remote Controller
1. Í ON/STANDBY button: Turns the unit on or into standby mode.
2. Input selector buttons: Switches the input to be played.
3. CH S / T buttons: Adjust the volume level of the speaker. Press
CH several times to select the speakers, then press S / T to
adjust the level.
4. button: Switches the information on the display.
5. Cursor buttons and ENTER button: Select the item with the
cursors and press ENTER to confirm your selection.
6. button: Displays the Setup menu.
7. Q (QUICK MENU) button: You can perform common settings on
the TV screen. (
Ä
P27)
8. button: You can start repeat play of the Music Server or USB.
9. Play buttons: You can start play of the Music Server or USB.
10.
MEMORY button: Used to register AM/FM radio stations.
11.
LISTENING MODE buttons: Allows you to select the listening
mode. (
Ä
P23)
12.
Numbered buttons
13.
D.TUN button: Use to directly input the frequency of AM/FM
stations when tuning.
14.
DIMMER button: You can adjust the brightness of the display in
three steps. It cannot be turned off completely.
15.
MAIN/ZONE 2/ZONE 3 buttons: Controls the multi-zone function.
(
Ä
P26)
16.
TONE S / T buttons: Adjusts the treble and bass. Press TONE
several times to select the item you want to adjust from "Bass"
and "Treble", then press S / T to adjust the level.
17.
SLEEP button: Set the sleep timer. Select from "30 minutes", "60
minutes", and "90 minutes".
18.
Volume buttons: Allows you to adjust the volume. This button
also cancels the muting.
19.
button: Temporarily mutes audio. Press again to cancel
muting.
20.
button: Returns the display to the previous state.
21.
button: You can start random play of the Music Server or
USB.
22.
MODE button: Switches tuning to an AM/FM station between
automatic tuning and manual tuning.
23.
CLR button: Deletes all characters you have entered when
entering text on the TV screen.
9
10
1
2
4
3
6
8
7
5
11
12
13
14
15
16
17
19
20
21
22
23
18
30°
30°
Approx.5 m (16 ft.)
SN29402420B_TX-RZ3100_BAS_En_171026.book 32 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
33
License and Trademark Information
Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos,
Dolby Surround, and the double-D symbol are trademarks of Dolby
Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from
DTS, Inc. DTS, the Symbol, DTS in combination with the Symbol, DTS:X, and
the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the
United States and/or other countries. © DTS, Inc. All Rights Reserved.
THX and the THX logo are trademarks of THX Ltd., registered in the U.S. and
other countries. U.S. Pat. nos. 7,254,239 & 7,593,533 & 7,974,425 & 8,452,028
& 8,509,457 Taiwan Pat. I238671 European Pat. 1,360,874
THX Select2 Plus
Before any home theater component can be THX Select2 Plus certified, it must
pass a rigorous series of quality and performance tests. Only then can a
product feature the THX Select2 Plus logo, which is your guarantee that the
Home Theater products you purchase will give you superb performance for
many years to come. THX Select2 Plus requirements define hundreds of
parameters, including power amplifier performance, and integrated amplifier
performance and operation for both digital and analog domains. THX Select2
Plus receivers also feature proprietary THX technologies (e.g., THX Mode)
which accurately translate movie soundtracks for home theater playback.
Re-Equalization and the “Re-EQ” logo are trademarks of THX Ltd.
“VLSC” and “VLSC (logo)” are trademarks of Onkyo Corporation.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance
®
.
AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered
in the U.S. and other countries.
iPad Air and iPad mini are trademarks of Apple Inc.
“Made for iPod”, “Made for iPhone” and “Made for iPad” mean that an electronic
accessory has been designed to connect specifically to iPod, iPhone, or iPad,
respectively, and has been certified by the developer to meet Apple
performance standards. Apple is not responsible for the operation of this device
or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, iPhone or iPad may affect
wireless performance.
AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac
with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.
Apple, Apple TV and Safari are trademarks of Apple Inc., registered in the U.S.
and other countries.
The BLUETOOTH
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Onkyo Corporation is under
license. Other trademarks and trade names are those of their respective
owners.
Onkyo Corporation does not guarantee BLUETOOTH compatibility between the
AV receiver and all BLUETOOTH enabled devices.
For compatibility between the AV receiver and another device with
BLUETOOTH technology, consult the device’s documentation and dealer. In
some countries, there may be restrictions on using BLUETOOTH devices.
Check with your local authorities.
Onkyo Corporation ne garantit pas la compatibilité BLUETOOTH entre l'ampli-
tuner AV et tous les appareils compatibles BLUETOOTH.
Pour assurer la compatibilité entre l'ampli-tuner AV et un autre périphérique à
technologie BLUETOOTH, consultez la documentation de l'appareil et le
vendeur. Dans certains pays, il peut exister des restrictions sur l'utilisation
d'appareils BLUETOOTH. Vérifiez auprès des autorités locales.
Onkyo Corporation no garantiza la compatibilidad BLUETOOTH entre el
receptor de AV y todos los dispositivos con tecnología BLUETOOTH.
Para obtener información sobre la compatibilidad entre el receptor de AV y otro
dispositivo con tecnología BLUETOOTH, consulte al distribuidor y la
documentación del dispositivo. En algunos países, es posible que el uso de
dispositivos BLUETOOTH esté restringido. Consulte con las autoridades
locales.
Onkyo Corporation non garantisce la compatibilità BLUETOOTH tra il ricevitore
AV e tutti i dispositivi abilitati al BLUETOOTH.
Per verificare la compatibilità tra il ricevitore AV e un altro dispositivo dotato di
tecnologia BLUETOOTH, consultare la documentazione del dispositivo in
questione o contattare il rivenditore. In alcuni Paesi potrebbero esistere delle
limitazioni per l'utilizzo di dispositivi BLUETOOTH. Verificare le condizioni con
le autorità locali.
Onkyo Corporation garantiert nicht die
BLUETOOTH
Kompatibilität zwischen
dem AV-Receiver und allen
BLUETOOTH
fähigen Geräten.
Zur Kompatibilität zwischen dem AV-Receiver und einem anderen Gerät mit
BLUETOOTH Technologie, schauen Sie in die Dokumentation des Geräts und
fragen Sie den Händler. Es kann sein, dass es in einigen Ländern
Beschränkungen zur Nutzung der BLUETOOTH Geräte gibt. Prüfen Sie das bei
Ihren lokalen Behörden.
Onkyo Corporation garandeert niet de
BLUETOOTH
compatibiliteit tussen de
AV-receiver en alle
BLUETOOTH
apparaten.
Raadpleeg voor compatibiliteit tussen de AV-receiver en een ander apparaat
met
BLUETOOTH
technologie de documentatie van het apparaat of de
verkoper. In sommige landen geldt mogelijk een beperking op het gebruik van
BLUETOOTH
apparatuur. Controleer de wetgeving in het land van gebruik.
Onkyo Corporation garanterar inte BLUETOOTH kompatibilitet mellan AV-
receiver och alla BLUETOOTH aktiverade enheter.
För kompatibilitet mellan AV-receiver och en annan enhet med BLUETOOTH
teknik, se enhetens dokumentation och återförsäljaren. I vissa länder kan det
finnas begränsningar för användandet av BLUETOOTH enheter. Kontrollera
hos de lokala myndigheterna.
PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks
or registered trademarks of Pandora Media, Inc. Used with permission.
The product with this logo is conformed to Hi-Res Audio standard defined by
Japan Audio Society. This logo is used under license from Japan Audio Society.
This product is protected by certain intellectual property rights of Microsoft. Use
or distribution of such technology outside of this product is prohibited without a
license from Microsoft.
Windows and the Windows logo are trademarks of the Microsoft group of
companies.
QR Code is a registered trademark of DENSO WAVE INCORPORATED.
“x.v.Color” and “x.v.Color” logo are trademarks of Sony Corporation.
DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and
Thomson.
AccuEQ, Music Optimizer, RIHD and WRAT are trademarks of Onkyo
Corporation.
“All other trademarks are the property of their respective owners.”
“Toutes les autres marques commerciales sont la propriété de leurs détenteurs
respectifs.”
“El resto de marcas comerciales son propiedad de sus respectivos propietarios”.
“Tutti gli altri marchi di fabbrica sono di proprietà dei rispettivi proprietari.”
“Alle anderen Warenzeichen sind das Eigentum ihrer jeweiligen Eigentümer.”
“Alle andere handelsmerken zijn eigendom van de desbetreffende
rechthebbenden.”
®
ΕϭλϟΕέΎη·ϝ
˶
ΑϘΗγ
˵
ϣϥϳΑ%/8(7227+ΙϭΗϭϠΑϟϲϓϖϓϭΗΩϭΟϭ2QN\RϥϣοΗϻ
%/8(7227+ΙϭΗϭϠΑϟΎΑΓΩϭίϣϟΓίϬΟϷϊϳϣΟϭΓέϭλϟϭ
ΙϭΗϭϠΑϟΎΑΩϭίϣέΧίΎϬΟϱϭΓέϭλϟϭΕϭλϟΕέΎη·ϝ
˶
ΑϘΗγ
˵
ϣϥϳΑϖϓϭΗϟϯΩϣϰϠϋϑέόΗϠϟ
ϥϭϛΗΩϗˬϝϭΩϟνόΑϲϓϝϳϛϭϟϝ΄γϭίΎϬΟϠϟΔϘϓέϣϟϖΎΛϭϟΔόΟέϣΑϡϗˬ%/8(7227+
ΔϳϠΣϣϟΕΎρϠγϟϊΟέ%/8(7227+ΙϭΗϭϠΑϟΎΑΓΩϭίϣϟΓίϬΟϷϡΩΧΗγϰϠϋΕΩϳϳϘΗϙΎϧϫ
SN29402420B_TX-RZ3100_BAS_En_171026.book 33 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
34
“Alla andra varumärken tillhör deras respektive ägare.”
DISCLAIMER
Through this device you are able to link to other services or websites which are
not under the control of any company which has designed, manufactured or
distributed/have distributed this device, and its affiliates (collectively,
“Company”). We have no control over the nature, content and availability of
those services. The inclusion of any links does not necessarily imply a
recommendation or endorse the views expressed within them.
All information, content and services available through this device belong to
third parties and are protected by copyright, patent, trademark and/or other
intellectual property laws of applicable countries.
The information, content and services provided through this device are for your
personal, noncommercial use only. Any information, content or services may
not be used in any manner other than previously approved by the appropriate
content owner or service provider.
You may not modify, copy, republish, translate, exploit, create derivative works,
upload, post, transmit, sell or distribute in any manner any information, content
or services available through this device, unless expressly permitted by the
appropriate copyright, patent, trademark and/or other intellectual property
owner, including, without limitation, content owner or service provider.
THE CONTENT AND SERVICES AVAILABLE THROUGH THIS DEVICE ARE
PROVIDED “AS IS”.
COMPANY DOES NOT WARRANT INFORMATION, CONTENT OR
SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY
PURPOSE.
COMPANY EXPRESSLY DISCLAIMS ANY WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF TITLE,
NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
Company makes no representation or warranty of any kind, express or implied,
about the completeness, accuracy, validity, legality, reliability, suitability or
availability with respect to the information, content or services available through
this device. Company shall not be liable, whether in contract or tort, including
negligence and strict liability, for any direct, indirect, special, incidental or
consequential damages or any other damages arising out of, or in connection
with, any information contained in, or as a result of the use of any content or
service by you or any third party, even if Company has been advised of the
possibility of such damages, nor shall Company be liable for any third party
claims against users of this device or any third party.
In no event shall Company be responsible nor liable for, without limiting the
generality of the foregoing, any interruption or suspension of any information,
content or service available through this device. Company is neither
responsible nor liable for customer service related to the information, content
and services available through this device. Any question or request for service
relating to the information, content or services should be made directly to the
appropriate content owners and services providers.
ϥϳϳϧόϣϟΎϬΑΎΣλϷΔϛϭϠϣϣϯέΧϷΔϳέΎΟΗϟΕΎϣϼόϟϊϳϣΟ
SN29402420B_TX-RZ3100_BAS_En_171026.book 34 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
35
SN29402420B_TX-RZ3100_BAS_En_171026.book 35 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
*29402420B*
F1710-2
SN 29402420B
(C) Copyright 2016 Onkyo & Pioneer Corporation Japan. All rights reserved.
Printed in Malaysia / Imprimé en Malaisie / Напечатано в Малайзии
http://www.onkyo.com/privacy/
<U.S.A.>
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
For Dealer, Service, Order and all other Business Inquiries:
Tel: 201-785-2600 Fax: 201-785-2650
http://www.us.onkyo.com/
<Germany>
Gutenbergstrasse 3, 82178 Puchheim, Germany
Tel: +49-8142-4401-0 Fax: +49-8142-4208-213
http://www.eu.onkyo.com/
<UK>
Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex,
HA4 6QQ United Kingdom
Tel: +44 (0)871-200-1996 Fax: +44 (0)871-200-1995
For Product Support only: +44 (0)208-836-3510
http://www.uk.onkyo.com/en/
<France>
6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE
For Product Support only: +33 969 368 138
http://www.fr.onkyo.com/fr/
For Product Support Team Only:
1-800-229-1687
http://www.us.onkyo.com/
1-10-5 Yokoami, Sumida-ku, Tokyo 130-0015 JAPAN
http://www.onkyo.com/
<Hong Kong>
Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.
Tel: +852-2429-3118 Fax: +852-2428-9039
http://www.hk.onkyo.com/
<PRC>
302, Building 1, 20 North Chaling Rd., Xuhui District, Shanghai, China 200032,
Tel: +86-21-52131366 Fax: +86-21-52130396
http://www.cn.onkyo.com/
<Asia, Oceania, Middle East, Africa>
Please contact an Onkyo distributor referring to Onkyo SUPPORT site.
http://www.intl.onkyo.com/support/
The above-mentioned information is subject to change without prior notice.
Visit the Onkyo web site for the latest update.
SN29402420B_TX-RZ3100_BAS_En_171026.book 36 ページ ２０１７年１０月２６日 木曜日 午後１時１０分
