BOK44WG OUTDOOR KITCHEN
450
from
200
from
wall
150
Wall

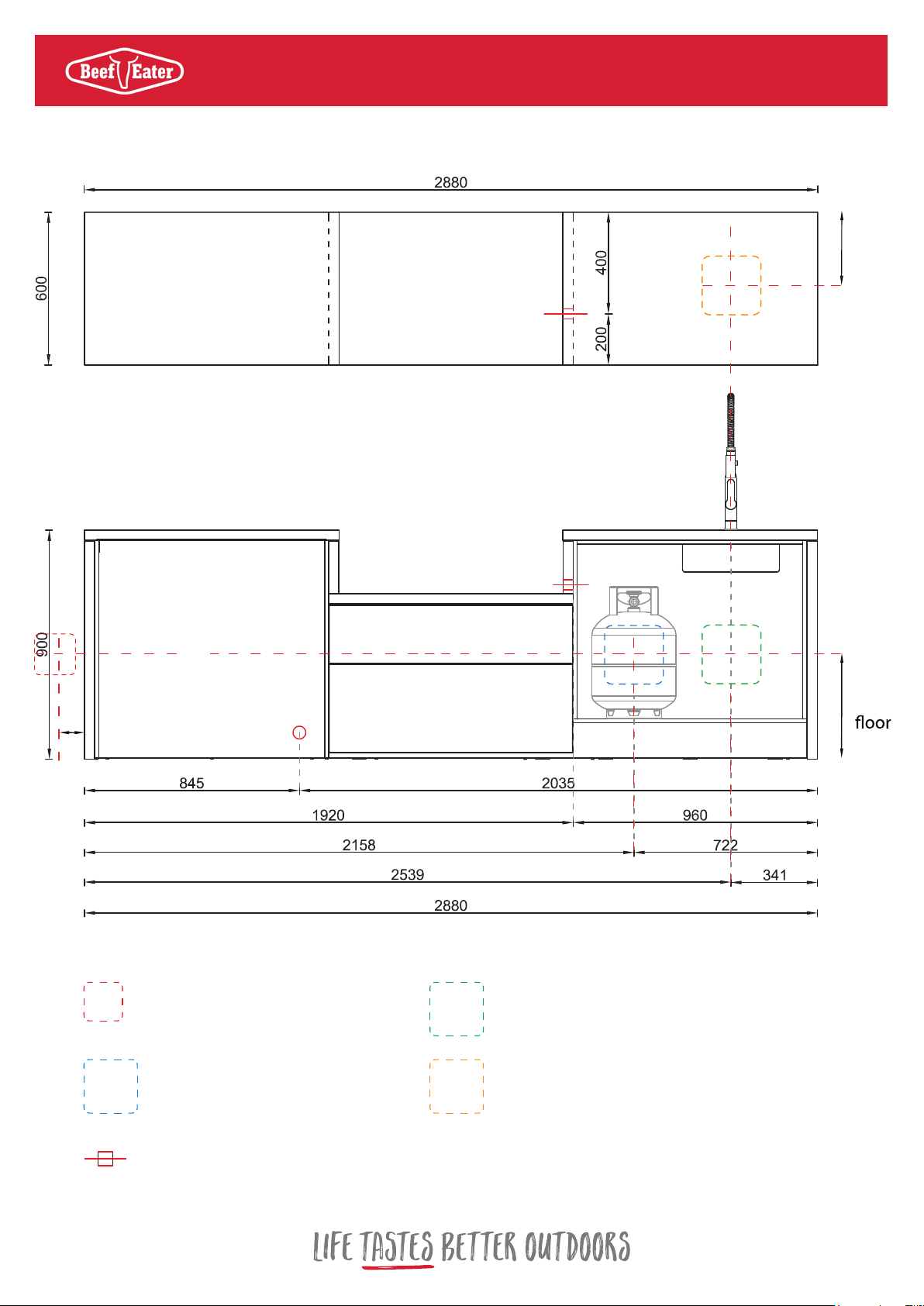

Front view
Top view
Suggested location of outdoor power
socket on the wall.
Suggested location of the NG with
bayonet fitting, extruding 100mm from
the back wall.
Suggested location of water inlets/outlet,
extruding 150mm from the back wall.
Optional location of water outlet
extruding 300mm from floor.
100
x 100
200
x 200
200
x 200
200
x 200
Hole for fridge
power cable to run
Hole for gas hose to run
*All measurement is in mm
SIGNATURE OUTDOOR KITCHEN
Natural ventilation required to comply as Outdoor Area in accordance with AS/NZS 5601.1:2013
The outdoor kitchen with BBQ shall only be used in an above ground, open air situation with natural
ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed
by wind and natural convection. Any enclosure in which the appliance is used shall comply with one of
the following;

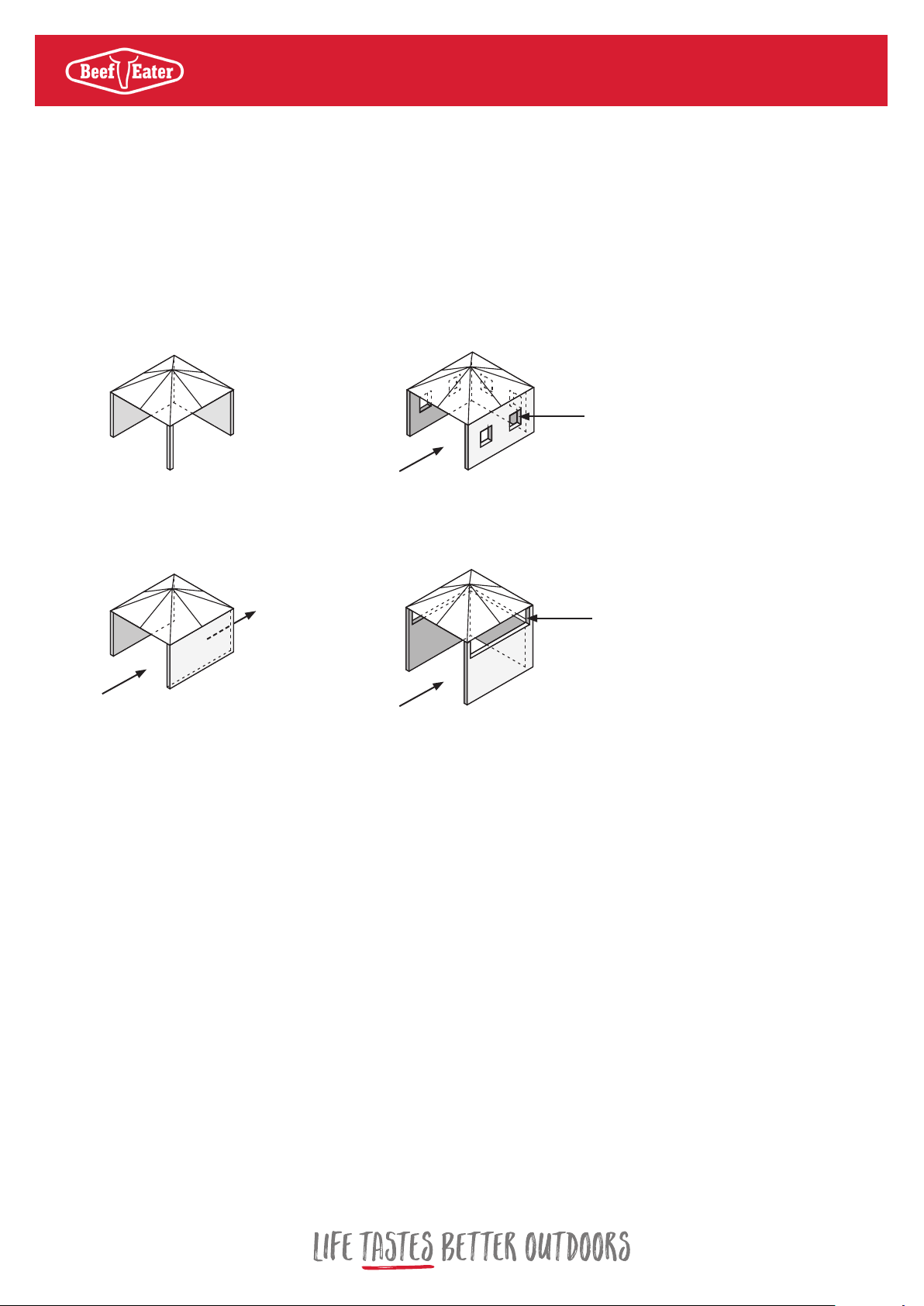

Within a partial enclosure that
includes an overhead cover and
no more than two walls.
Within a partial enclosure that includes an overhead cover
and more than two walls, the following shall apply:
A. At least 25% of the total wall area is completely open.
B. And, at least 30% of all remaining wall area is open
and unrestricted.
Refer to the Gas
Installation standard
AS/NZS 5601.1:2013
Appendix I, or your local gas
technical regulator, if further
clarification is needed.
B
A
A
B
Both ends
open
Both ends
open
