Operating instructions
Adora TS WP
Tumble dryer
2
© V-ZUG Ltd, CH-6302 Zug, 2018
3
Contents
1
Safety precautions 4
1.1
General safety precautions ............................... 4
1.2
Appliance-specific safety precautions ............ 4
1.3
Instructions for use ............................................. 6
1.4
Using for the first time........................................ 7
1.5
Note on the operating instructions .................. 8
2
Appliance description 9
2.1

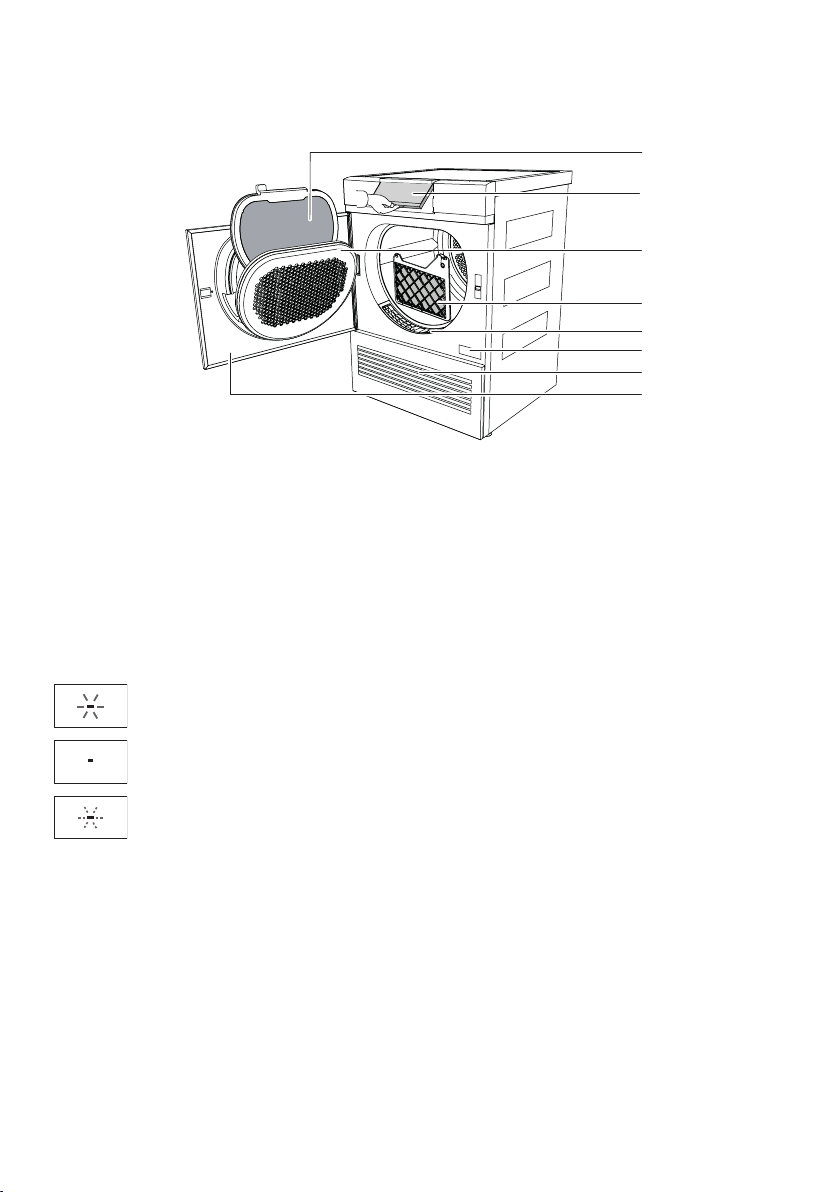

Appliance construction ...................................... 9
2.2
Indicator lights ..................................................... 9
2.3
Operating and display elements....................10
3
Programme overview 11
3.1
Automatic programmes ...................................11
3.2
Standard programme.......................................11
3.3
Additional programme .....................................11
3.4
Fabric types .......................................................12
3.5
Additional functions .......................................... 13
3.6
EcoManagement ............................................... 13
4
Operating the appliance 14
4.1

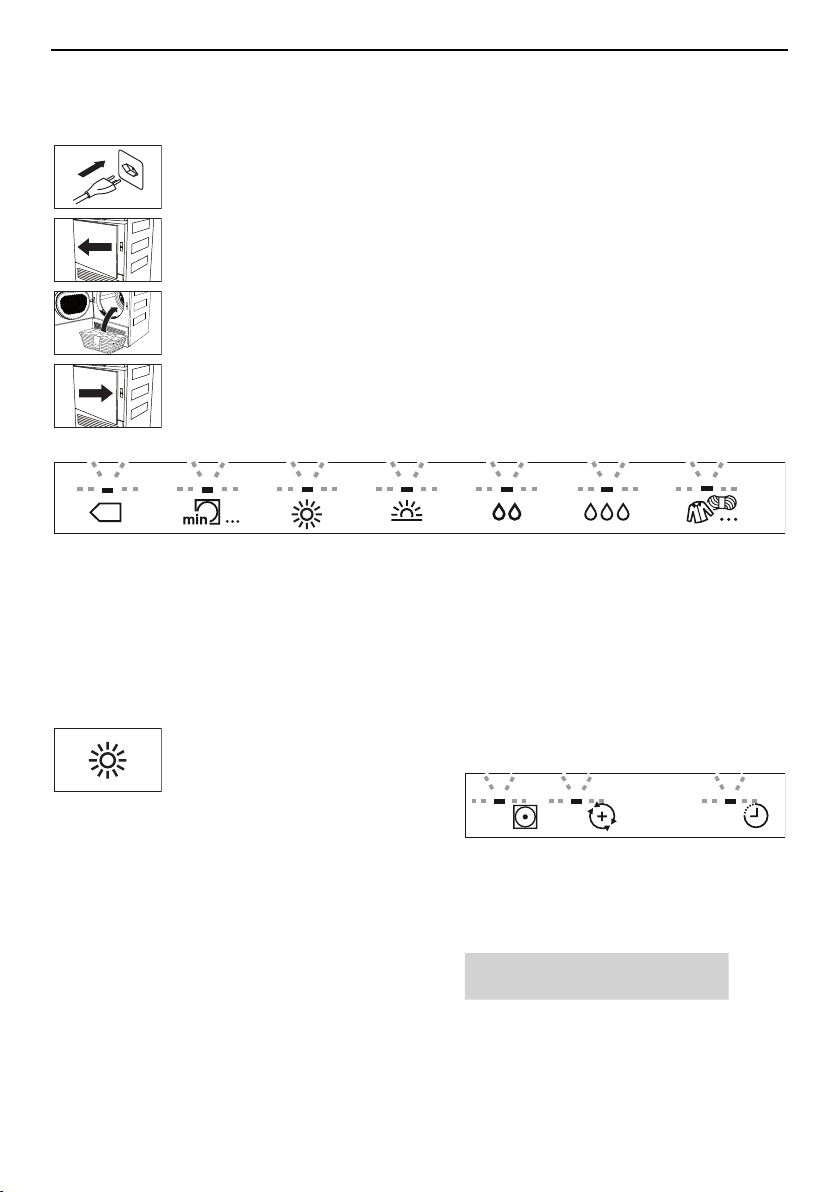

Preparations.......................................................14
4.2
Selecting programme....................................... 14
4.3
Selecting additional functions......................... 15
4.4
Delayed start......................................................15
4.5
Timed drying ...................................................... 15
4.6
Changing selection...........................................15
4.7
Aborting a programme ....................................16
4.8
Interrupting a programme ...............................16
4.9
With childproof lock activated ........................ 16
4.10
End of programme ........................................... 17
4.11
EcoManagement statistics .............................. 18
5
User settings 18
6
Care and maintenance 21
6.1

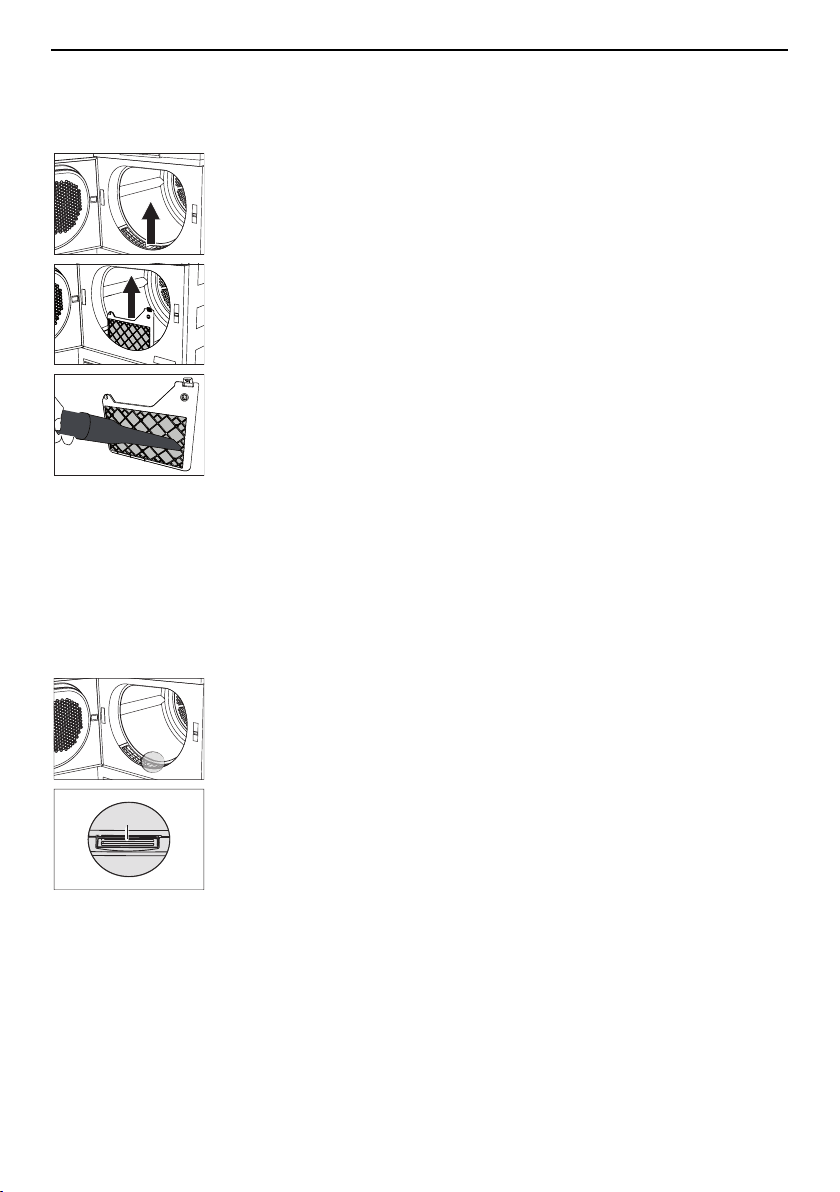

Cleaning the door filter and door filter mat ..21
6.2
Cleaning the front filter mat (annually) ..........22
6.3

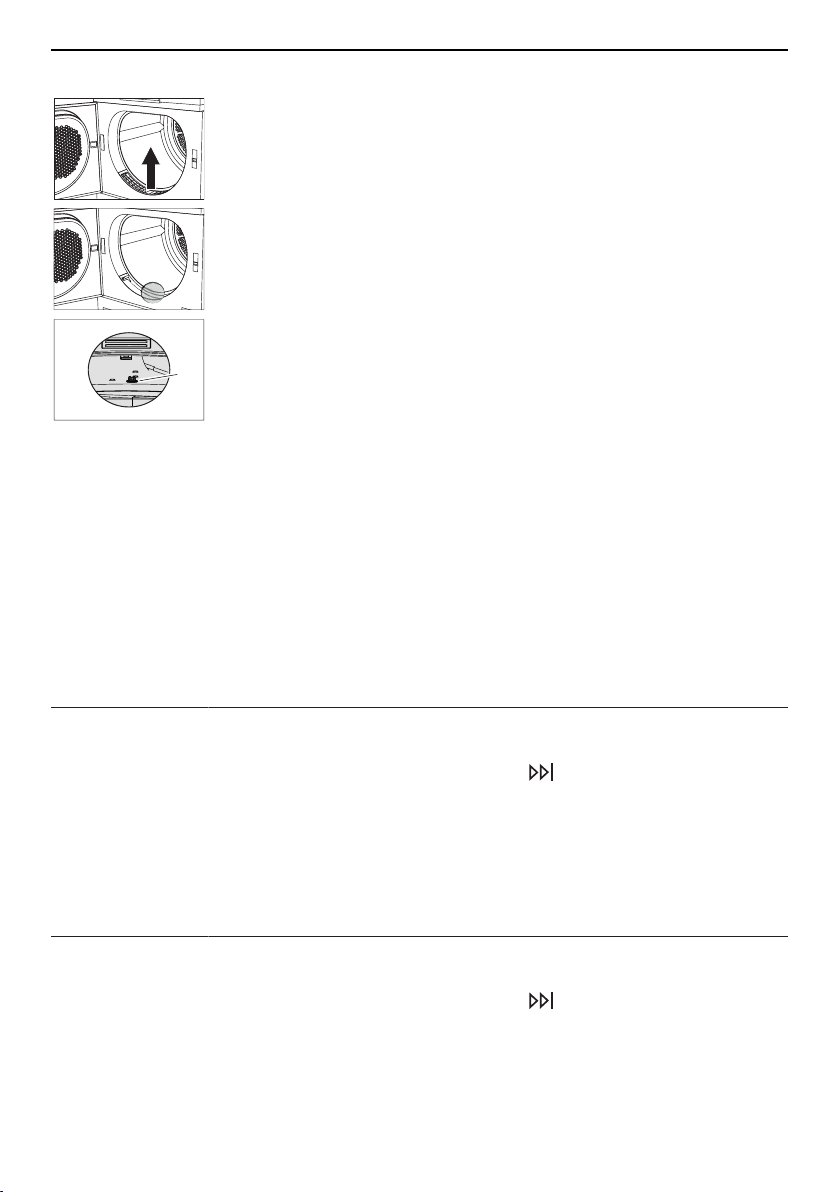

Cleaning the moisture sensor .........................22
6.4
Cleaning the temperature sensor...................23
6.5
Cleaning the appliance.....................................23
7
Trouble-shooting 23
7.1
Error messages..................................................23
7.2
Other possible problems .................................24
8
Spare parts 26
9
Technical data 26
10
Drying tips 28
10.1
Saving energy ....................................................28
10.2
Avoiding damage ..............................................28
11
Disposal 29
12
Notes 30
Quick instructions 32
4
1 Safety precautions
1.1 General safety precautions
▪ Read the operating instruc-
tions before using the appli-
ance for the first time!
▪ This appliance can be used
by children aged 8 and above
and by persons with reduced
physical, sensory or mental
capabilities, or lack of experi-
ence and/or knowledge,
provided they are supervised
or have been instructed on
the safe use of the appliance
and have understood the haz-
ards involved. Children shall
not play with the appliance.
Cleaning and user mainten-
ance shall not be undertaken
by children without supervi-
sion.
▪ If an appliance is not
equipped with a mains cable
and a plug or other means for
disconnecting from the mains
with a contact opening on
each pole complying with the
conditions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
ently installed electrical install-
ation in accordance with the
installation regulations.
▪ If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manufac-
turer or its Customer Services
or a similarly qualified person
in order to avoid hazard.
1.2 Appliance-specific safety
precautions
▪ Children under 3 years of age
must be kept away from the
appliance unless they are
constantly supervised.
▪ The appliance has a max-
imum dry load capacity of 7
kg.
▪ This appliance is only suitable
for drying textiles which have
been washed in water.
▪ The appliance is only to be
used with the recommended
1 Safety precautions
5
vaporizing medium. The use
of other substances may give
rise to a toxic or fire risk.
▪ The appliance has hot sur-
faces to evaporate active
components. These surfaces
should not be touched during
use.
▪ The tumble dryer may not be
used if industrial chemicals
were used for cleaning.
▪ Clean the fluff filters regularly.
▪ Do not allow fluff to build up
around the tumble dryer.
▪ Do not dry unwashed items in
the tumble dryer.
▪ Textiles that have been
cleaned, treated or soaked
with flammable chemicals,
detergents or solvents (such
as white spirit, alcohol, stain
remover, oil, turpentine, acet-
one, paint, wax, etc.) are a
fire and explosion hazard!
Wash materials containing
such substances first by hand
with water or allow the solvent
to evaporate completely.
▪ Items such as foam rubber
(latex foam), shower caps,
waterproof textiles, rubber
backed articles and clothes
or pillows fitted with foam rub-
ber pads should not be dried
in the tumble dryer.
▪ Fabric softeners, or similar
products, should be used as
specified by the fabric
softener instructions.
▪ Remove objects such as
lighters and matches and the
like.
▪ Never stop a tumble dryer be-
fore the end of the drying
cycle unless all items are
quickly removed and spread
out so that the heat is dissip-
ated.
▪ If the appliance is installed on
a carpeted floor ensure that
any ventilation openings on
the base of the appliance are
not obstructed.
▪ If the appliance is installed in
a housing, the ventilation
openings are to be kept free
of obstruction.
▪ Exhaust air must not be dis-
charged into a flue which is
used for exhausting fumes
1 Safety precautions
6
from appliances burning gas
or other fuels.
▪ Do not install the appliance
behind a door that locks, a
sliding door or a door with a
hinge that lies opposite the
hinge of the appliance.
To minimize the risk of fire in a tumble
dryer, the following should be observed:
▪ Oil-affected items can ignite
spontaneously, especially
when exposed to heat
sources such as in a tumble
dryer. The items become
warm, causing an oxidation
reaction in the oil. Oxidation
creates heat. If the heat can-
not escape, the items can be-
come hot enough to catch
fire. Piling, stacking or storing
oil-affected items can prevent
heat from escaping and so
create a fire hazard. If it is un-
avoidable that fabrics that
contain vegetable or cooking
oil or have been contamin-
ated by hair care products be
placed in a tumble dryer they
should first be washed in hot
water with extra detergent –
this will reduce, but not elim-
inate, the hazard.
1.3 Instructions for use
Before using for the first time
▪ The appliance must be installed and con-
nected to the electricity supply in accord-
ance with the separate installation instruc-
tions. Have a qualified fitter/electrician
carry out the necessary work.
▪ Ensure access to the place of disconnec-
tion (e.g. socket outlet, wall switch, fuse)
and the water tap.
Correct use
▪ The appliance is only suitable for drying
home textiles. It is designed for use in the
home and for the above-mentioned pur-
pose only. No liability is assumed for any
damage caused by improper or incorrect
use.
▪ Any repairs, modifications or manipula-
tions to the appliance, especially any elec-
trically live parts, may only be carried out
by the manufacturer, its Customer Ser-
vices or a similarly qualified person. Re-
pairs if carried out incorrectly could cause
serious injury or damage to the appliance
and fittings as well as affect the function-
ing of the appliance. If the appliance is
not working properly or in case of a repair
order, follow the instructions given in the
«Service & Support» section. If necessary,
please contact our Customer Services.
▪ Use original spare parts only.
▪ Before closing the appliance door and
starting a programme, ensure that there
are no foreign objects or pets in the drum.
1 Safety precautions
7
Note on use
▪ If the appliance is not operating properly,
disconnect it from the power supply im-
mediately.
▪ To protect your washing, follow the fabric
care symbols and the hints and advice in
the 'Drying tips' section.
▪ Do not operate the appliance without a
door filter or with a damaged door filter.
Fluff can destroy the appliance!
Caution: Burns hazard!
▪ Do not dry fabrics that contain traces of
hair spray, hair gel, nail varnish remover
or other similar substances. Danger of
gas build-up!
Caution: Risk to life!
▪ Packaging material, e.g. plastic film and
polystyrene, can be dangerous for chil-
dren. Danger of suffocation! Keep pack-
aging material away from children.
How to avoid damaging the appliance
▪ Transport the appliance in an upright posi-
tion only! Transporting it in any other posi-
tion will result in damage to the appliance!
When carried carefully without being
shaken, the appliance may be tilted a
maximum of 90° to the left (viewed from
the front).
Front
Front
▪ Close the appliance door carefully.
▪ When cleaning the appliance make sure
no water gets inside it. Use a moderately
damp cloth. Do not spray the outside or
the inside of the appliance with water. If
water gets inside the appliance, it will
cause damage.
1.4 Using for the first time
The appliance must be installed and
connected to the electricity supply
by a qualified fitter/electrician in ac-
cordance with the separate installa-
tion instructions.
Serial number
The serial number (FN) is located on the
identification plate:
▸ Note down the FN on the back page of
these operating instructions.
The FN can also be retrieved as follows:
▸ Hold the button depressed until the
following display appears:
User settings
FN XXXXX XXXXXX
1 Safety precautions
8
1.5 Note on the operating
instructions
For more information on your appliance and
for answers to frequently asked questions,
visit http://www.vzug.com.
Symbols used
Denotes important safety precau-
tions.
Caution, risk of fire!
Failure to observe said precautions can res-
ult in injury or in damage to the appliance or
fittings!
Validity
The product family (model number) corres-
ponds to the first alphanumerics on the iden-
tification plate. These operating instructions
apply to:
Appliance
designation
Adora TS WP
Type
WTATSWPZ
Product family
12005
Variations depending on the model are noted
in the text.
Modifications
Text, diagrams and data correspond to the
technical standard of the appliance at the
time these operating instructions went to
press. The right to make technical modifica-
tions for the purpose of the further develop-
ment of the appliances is reserved.
2 Appliance description
2.1 Appliance construction
1
2
3
4
6
7
8
5
1
Door filter with door filter mat
5
Front grille
2
Pivoting operating panel
6
Identification plate / serial number (FN)
3
Cover for door filter
7
Ventilation grille
4
Front filter mat
8
Appliance door
2.2 Indicator lights
Illuminated: relevant function active
Off: relevant function not selectable
Flashing: relevant function selectable
9
2 Appliance description
2.3 Operating and display elements
3
4
5
6
1 2
1
Pause
4
End of programme
2
Display
5
Automatic programmes
3
Additional functions
6
EcoManagement
Additional functions Automatic programmes Additional programme
Easy care Extra dry Timed drying
+
ReversePlus Normal dry
Delayed start Iron dry
Damp
Fabric types
Standard programme
10
3 Programme overview
3 Programme overview
To avoid damaging the laundry, follow the fabric care symbols on garment labels:
Tumble dry, medium heat Tumble dry, low heat Do not tumble dry
3.1 Automatic programmes
Automatic drying programmes have 3 phases:
Drying
The laundry is dried according to the settings.
Cooling down /
Final airing
The laundry is cooled down to a temperature at which creasing is min-
imized. The duration of this phase depends on the temperature of the
laundry. «Crease guard» starts if the appliance is not unloaded when
this phase ends.
Crease guard
The dried washing is moved at frequent intervals for up to 30 minutes
to prevent creasing. Open the appliance door to end before time.
Extra dry: For thick, multi-layered textiles and mixed loads. Less suit-
able for knitted or woven articles (e.g. t-shirts or underwear).
1–7 kg
Normal dry: For similar items of washing (e.g. t-shirts or underwear). 1–7 kg
Iron dry: For items that are to be ironed. 1–7 kg
Damp: For items that are to be pressed in a mangle (e.g. table linen). 1–7 kg
3.2 Standard programme
The most efficient programme for drying normal wet cotton laundry.
1–7kg
3.3 Additional programme
Timed drying: For final drying of textiles. For final drying of sleeping
bags and quilts, provided they have the relevant fabric care symbols.
Load for bulky textiles: 1 item
1–7 kg
11
3 Programme overview
3.4 Fabric types
▸ Press the button repeatedly to select the fabric type.
Airing: For refreshing or airing little-worn garments. 1–1.5 kg
Woollens: Gentle drying for woollen textiles labelled as washable. 1kg
Silks: For drying silk fabrics. Follow the fabric care symbols as silk
tends to crease easily.
1–1.5 kg
Crease guard: For reduced creasing (e.g. shirts and blouses). The
laundry is ready for ironing.
1kg
Shirts: Fabrics are gently dried to «cupboard dry». 1–7items
Outdoor garments: Leisure- and sportswear (Sympatex, Gore-tex, ...)
are dried gently.
1–3kg
Denim: Denim fabrics are dried to «cupboard dry». Follow the fabric
care symbols as denim material can shrink.
1–4kg
Baby garments: Baby garments are gently and hygienically dried to
«cupboard dry».
1–5kg
Thin down filling: For light-weight down textiles (e.g. thin duvets and
jackets). Optimum load: 1 item
1–2kg
Thick down filling: For bulky down textiles (e.g. pillows, jackets and
thick duvets). If recommended, tennis balls can be used for fluffing
up the down during drying. Optimum load: 1 item
1–2kg
Bedding: For similar items of washing. Fasten zips and buttons. 1–3kg
Towelling: For drying thick towels and terry towelling. 1–3kg
Basket programme: For drying clean canvas shoes/trainers and
small items such as gloves, hats and soft toys in the basket (can be
ordered as an accessory). Not suitable for leather or synthetic
leather.
12
3 Programme overview
3.5 Additional functions
Easy care: Gentle drying for mixed fabrics (e.g. shirts, pullovers and
T-shirts). The level of dryness is reduced. To prevent creasing, put
only a few items of laundry in the washing drum and unload them as
soon as the programme ends.
1–2.5kg
+
ReversePlus: The laundry is dried evenly and less likely to get
tangled. Particularly suitable for drying larger items, e.g. bedding.
Delayed start: For taking advantage of cheap-rate electricity (setting
range of up to 24hours). The programme starts automatically when
the delayed start set is reached.
3.6 EcoManagement
Only active if «EcoManagement» is turned on in the user settings.
EcoManagement provides information on the energy consumption of the appli-
ance. The following statistical data can only be retrieved when no programme
is running:
▪ Energy consumption of the last programme
▪ Total energy consumption
▪ Average energy consumption of the last 25 programmes
The energy consumption of a programme is displayed during programme se-
lection. At the end of a programme, the energy consumption of the last pro-
gramme run is displayed.
The values can vary according to programme, load, additional functions and user
settings.
13
4 Operating the appliance
4 Operating the appliance
4.1 Preparations
▸ Insert the mains plug into a suitable mains socket.
▸ Press the markings at the edge of the door (5 dots) and open the appliance
door.
▸ Loosely load wet laundry items one by one into the appliance.
▸ Close the appliance door. Ensure that no items of laundry are trapped in the
door.
The indicator lights for the programme buttons flash. They go out after 20seconds if no pro-
gramme selection is made. A programme can still be selected afterwards.
4.2 Selecting programme
«Press and go»
When a programme is selected, all the necessary settings for it are assigned automatically.
Additional functions can be selected or deselected by using further buttons in other views.
▸ Press the button for the desired
programme.
The indicator lights for select-
able additional functions flash.
If no button is pressed within the next 20seconds, the programme selected starts automatic-
ally.
Duration remaining indicator
When the programme starts, the programme
duration at maximum load is displayed. The let-
ter «h» flashes for about 1 minute. During this
time, the actual load is being determined and
the expected duration remaining is being calcu-
lated.
Determining load 1h35
14
4 Operating the appliance
The expected duration remaining is sub-
sequently displayed.
Drying 1h24
The programme may possibly take longer than
initially calculated. In this case, the duration re-
maining freezes while the programme runs. The
letter «h» flashes again.
Calculating time
remaining
0h15
4.3 Selecting additional functions
▸ Press the button for the desired programme.
▸ Press the button for the desired additional function.
If the programme needs to be changed, it is possible to select a new pro-
gramme within 20 seconds. Additional functions must also be reselected.
If no button is pressed within the next 20seconds, the programme selected starts automatic-
ally.
4.4 Delayed start
▸ Press the button for the desired programme.
▸ Press the button repeatedly until the time by which the start should be
delayed (max. 24hours) appears in the display.
The display goes dark. The programme starts when the set start time is
reached.
▸ To reduce the remaining time delay in hourly intervals, press the button re-
peatedly again.
Laundry can be added at any time.
4.5 Timed drying
▸ Press button.
The set duration appears in the display.
▸ Press the button repeatedly until the desired duration is displayed.
4.6 Changing selection
▸ Press another programme button during programme selection.
All selected settings are cleared. No changes can be made once a pro-
gramme has started. The programme must be aborted.
15
4 Operating the appliance
4.7 Aborting a programme
▸ Press button.
The programme is aborted. All settings are cleared.
4.8 Interrupting a programme
Through opening the appliance door
▸ Open the appliance door.
The indicator light for the programme selected illuminates. The programme
is interrupted. Laundry can be added.
▸ Close the appliance door.
The indicator light for the programme selected flashes.
▸ Press the flashing programme button.
The programme is resumed.
Through pressing the pause button
▸ Press button.
The programme is interrupted.
▸ Press the button again.
The programme is resumed.
Note: Each time a programme is interrupted, the programme sequence is delayed by
5minutes.
4.9 With childproof lock activated
How to turn the childproof lock on/off is described in «User settings».
Selecting programme
▸ Close the appliance door.
Childproof lock
The following display appears:
▸ Hold the desired, flashing pro-
gramme button depressed and
at the same time press the
«End of programme» button.
After being unlocked, the appliance can be operated normally. The childproof lock is automat-
ically activated as soon as the programme starts.
16
4 Operating the appliance
Interrupting a programme
▸ Open appliance door.
The programme is interrupted. Washing can be added.
▸ Close appliance door.
▸ Hold the flashing programme button depressed and at the same time press
the «End of programme» button.
The programme continues.
Aborting a programme
▸ With the appliance door open or closed, hold the illuminated programme
button depressed and at the same time press the «End of programme» but-
ton.
The programme is aborted.
4.10 End of programme
Display
Depending on whether «EcoManagement» has been activated, information on the energy con-
sumption is displayed when a programme ends.
With «EcoManagement»
The indicator light for the pro-
gramme that has finished illu-
minates. The adjacent mes-
sages alternate in the display:
End of programme
Clean door filter
1.1kWh
End of programme
Without «EcoManagement»
The indicator light for the pro-
gramme that has finished illu-
minates. The adjacent display
appears:
End of programme
Clean door filter
Note: Crease guard starts if the appliance is not unloaded straightaway. When it has finished,
all displays go out.
Unloading the washing
▸ Open the appliance door.
All displays go out.
17
5 User settings
▸ Unload the laundry.
Note: If the appliance door is opened during the «Final airing» phase, the programme is abor-
ted. All displays go out.
Each time after use
▸ Clean door filter (see page 21).
▸ Close appliance door.
4.11 EcoManagement statistics
Energy consumption can be displayed before a programme starts or after a programme ends.
Display total consumption
▸ Hold the button depressed for
3seconds.
Total consumption
123 kWh
The adjacent display appears.
Display average consumption
▸ Press the button again.
Average per cycle
0.6kWh
The adjacent display appears.
5 User settings
Providing no programme is running and no error message is displayed, the user settings
can be changed with the appliance door open or closed.
5.1 Preparations
The serial number has to be retrieved before the user settings can be changed.
User settings
FN XXXXX XXXXXX
▸ Hold the button depressed until the
adjacent display appears.
The user settings can be changed.
5.2 Language
1x
Language
D/F/I/R/E
English
The language is set during the initial set-
up of the appliance. It can be changed.
18
5 User settings
5.3 EcoManagement
Ein
2x
EcoManagement
OFF
EcoManagement
ON
Childproof lock
OFF
EcoManagement
Clear counter?
Clear total consumption?
YES: NO:
Clear average?
YES: NO:
Childproof lock
OFF
1
Clear average?
YES: NO:
When this function is activated, expected
consumption values appear at the start
of the programme and actual consump-
tion values appear at the end of the pro-
gramme. The stored consumption values
can be deleted as well.
5.4 Childproof lock
Ein
3x
Childproof lock
ON
Childproof lock
OFF
1
The childproof lock prevents a pro-
gramme from being started accidentally.
A programme can only be started by
pressing two buttons at the same time.
5.5 Level of dryness
4x
.....
.....
Level of dryness
1
Very low
final drying
Level of dryness
3
Normal
final drying
1
Level of dryness
5
Very strong
final drying
Change the level of dryness if the wash-
ing is not being dried sufficiently or is be-
ing overdried. The new level of dryness
applies to all programmes. Very low final
drying is recommended for very hard wa-
ter and very strong final drying for very
soft water. Caution! Overdrying can
weaken fabrics!
5.6 ReversePlus
Ein
5x
ReversePlus
ON
ReversePlus
OFF
1
When this function is activated, the wash-
ing dries evenly and is less likely to get
tangled.
1
Factory setting
19
5 User settings
5.7 Brightness
6x
Very dark
Medium
bright
Very bright
Brightness
1
Brightness
3
Brightness
5
1
...
...
The display can be adjusted to the pre-
vailing lighting conditions.
5.8 Button tone
7x
Button tone
OFF
Button tone
ON
1
The button tone can be turned on and
off. The button tone for the and
buttons cannot be turned off.
5.9 Factory settings
8x
Factory settings
YES: NO:
Factory settings
restore?
Factory settings
restored!
The factory settings can be restored. The
language if changed is not reset to the
factory setting.
9x
Display goes out.
Configuration saved
1
Factory setting
20
6 Care and maintenance
6 Care and maintenance
To minimize the risk of fire hazard regularly clean the filters!
A thick coating of fluff can trigger the «A9 Clean filter and mats» (see page 23) error mes-
sage.
6.1 Cleaning the door filter and door filter mat
Cleaning the door filter (each time after tumble drying)
1
▸ Open appliance door and then open cover for door filter.
▸ Take out the door filter 1 and remove the fluff.
▸ Put back the door filter 1.
▸ Close cover for door filter and close appliance door.
Cleaning the door filter and door filter mat (as required)
2
1
▸ Take out the door filter 1, as described in «Cleaning the door filter».
▸ Open the door filter 1 and take out the door filter mat 2.
1
▸ Hold the door filter 1 up to the light to detect deposits. Clean the door
filter 1 if necessary (with water, a sponge and abrasive liquid cleaning
agent or cleaning vinegar).
2
2
40
▸ Wash the door filter mat 2 under running water or in a washing ma-
chine at 40°C.
Caution! Never clean the door filter mat with a vacuum cleaner!
2
▸ Put the dry door filter mat 2 back into the door filter 1.
▸ Put back the door filter 1.
Note: Ensure the door filter 1 is positioned correctly.
21
6 Care and maintenance
6.2 Cleaning the front filter mat (annually)
If the «A9 Clean filter and mats» error message still appears after the door filter and the door
filter mat have been cleaned, the front filter mat must also be carefully cleaned.
1
▸ Open the appliance door and remove the front grille 1.
2
3
▸ Press the lug 2 down slightly to release and remove the front filter mat
3.
3
▸ Clean the front filter mat 3 carefully using a vacuum cleaner with the
crevice tool attachment.
▸ Clean the air duct in front of the front filter mat with a vacuum cleaner
or moist cloth if necessary.
▸ Put back the front filter mat 3 and engage. Ensure it is positioned cor-
rectly.
▸ Put back the front grille 1.
Note: The appliance will not start without the front filter mat being cor-
rectly in place.
6.3 Cleaning the moisture sensor
If the «A3» error message appears, the moisture sensor must be cleaned.
1
▸ Open appliance door.
1
▸ Remove any fluff or foreign objects on the moisture sensor 1.
▸ If necessary, clean moisture sensor 1 with a damp cloth and wipe dry.
22
7 Trouble-shooting
6.4 Cleaning the temperature sensor
1
▸ Open the appliance door and remove the front grille 1.
2
▸ Clean the temperature sensor 2 with a damp cloth.
▸ Put back the front grille 1.
2
6.5 Cleaning the appliance
▸ Wipe the outside of the appliance from time to time with a damp cloth and wipe dry.
7 Trouble-shooting
You may be able to trouble-shoot the following errors yourself. If not, note down the error mes-
sage in full (message, F and E numbers) and call Customer Services.
7.1 Error messages
Display Possible cause Solution
A0 Check outlet ▪ The drain hose is
blocked, kinked or de-
fective.
▪ The pumping height of
the drain hose is too
high (>1.2 m).
▪ The appliance is con-
nected to a concealed
double drain trap.
▸ Check part of drain hose that is not housed
in appliance.
▸ Press the button.
▸ Restart the programme.
A3 Clean mois-
ture sensor
▪ Moisture sensor is dirty
or wet.
▸ Clean moisture sensor and then wipe dry
(see page 22).
▸ Press the button.
▸ Restart the programme.
23
7 Trouble-shooting
Display Possible cause Solution
A9 Clean filter
and mats
▪ Door filter, door filter
mat or front filter mat
are blocked.
▸ Check and
clean (see page 21) parts.
▸ Press the button.
▸ Restart the programme.
Insert door filter /
close appliance
door
▪ The door filter is miss-
ing.
▪ The appliance door is
open.
▸ Insert door filter (ensure it is positioned cor-
rectly).
▸ Close the appliance door.
▸ Press the button.
▸ Restart the programme.
Insert front mat ▪ The front filter mat is
not inserted correctly.
▸ Insert front filter mat correctly.
▸ Press the button.
▸ Restart the programme.
FXX/EXX see in-
structions
FN XXXXX
XXXXXX
▪ Various situations can
lead to this error mes-
sage.
▸ Press the button.
▸ Switch off the power supply for about
1 minute.
▸ Switch the power supply back on again
and select a new programme.
▪ If the error appears
again:
▸ Note down error message in full and appli-
ance's FN.
▸ Switch off the power supply.
▸ Call Customer Services.
UXX/EXX see in-
structions
FN XXXXX
XXXXXX
▪ Overvoltage (U1)
▪ Undervoltage (U2)
▸ Press the button.
▸ Switch off the power supply for about
1 minute.
▸ Switch the power supply back on again
and select a new programme.
▪ If the error appears
again:
▸ Disconnect from the power supply.
▸ Have an electrician check the house install-
ation.
7.2 Other possible problems
Problem Possible cause Solution
The programme
takes signific-
antly longer than
indicated.
▪ Door filter and/or door
filter mat are blocked.
▸ Clean (see page 21) door filter and/or
door filter mat.
▪ Very wet washing.
▸ Spin washing at higher speed.
▪ The ambient temperat-
ure is too high or too
low.
▸ Improve circulation and ventilation of air in
room.
▸ Ensure that the temperature of the room is
between 5 and 35°C.
24
7 Trouble-shooting
Problem Possible cause Solution
No new pro-
gramme can be
selected.
▪ A programme was in-
terrupted.
▸ Press the button.
▸ Select a new programme.
The washing is
not dry enough.
▪ Mixed laundry load. ▸ Select a longer programme.
▸ Select the programme.
▸ Change (see page 19) the level of dryness.
▪ Interruption in power
supply.
▸ Check the mains plug, lead and fuses.
▪ The moisture sensor is
dirty.
▸ Clean (see page 22) the moisture sensor.
▪ The «demo mode» is
activated.
▸ Open appliance door.
▸ Hold the and buttons depressed
and at the same time press the but-
ton. «Demo mode on/off» appears in the
display and the button flashes.
▸ Press the button.
The duration re-
maining indicator
remains frozen
for a longer
period.
▪ Not yet reached level
of dryness required.
▸ No action is necessary. The indicator will
run automatically once the level of dryness
is reached.
▪ Wash load very mixed.
▸ No action is necessary. The indicator will
run automatically in a while.
▪ Build-up of fluff in door
filter.
▸ Clean (see page 21) the door filter.
The progress of
the programme
remains frozen at
«Final airing» for
a longer period.
▪ The laundry is being
cooled down.
▪ A high ambient tem-
perature extends the
cooling-down phase.
▸ No action is necessary. The laundry can be
unloaded at any time as long as it is then
spread out to cool down.
▪ The temperature
sensor is dirty.
▸ Clean (see page 23) the temperature
sensor.
The appliance
will not start.
▪ The appliance door is
open.
▸ Close the appliance door.
▪ Door filter or front filter
mat are missing.
▸ Insert door filter or front filter mat and en-
sure it is positioned correctly.
▪ Interruption in power
supply.
▸ Insert plug into mains socket.
▸ Turn wall switch on.
▸ Check fuse or circuit breaker.
25
8 Spare parts
8 Spare parts
Please give model number and exact designation when ordering parts.
Door filter Door filter mat Front grille Front filter mat
9 Technical data
Dimensions Ambient conditions
Height 85cm Permissible room temperature
when appliance is in operation:
5°C to 35°C
Width 59.5cm
Depth 61cm
Weight 65kg
Electrical connection
Pumping height of pump 1.2m See identification plate:
▸ Open the appliance door.
Dry load capacity 7kg
The identification plate is
located bottom right.
9.1 Note for testing institutes
▸ The appliance must be connected to the electricity supply for at least 5 minutes before tak-
ing measurements.
▸ The declaration data can be determined correctly only after a run-in phase of 5 complete
drying programmes with washing (automatic programme: normal dry ).
▸ Wash the door filter each time after completing a drying programme.
▸ Set to the standard programme according to AS/NZS 2442.2:2000:
Programme Load capacity
Standard programme 7kg
▸ Press the button.
26
9 Technical data
Data for the standard programme
Load capacity
kg
Programme
duration
hrs./mins.
Energy
star rating
Energy con-
sumption
kWh
7 2h42 9 1.66
9.2 Consumption values
The stated values for the programme duration and energy apply for the maximum stated ca-
pacity with a wash spun at around 1200 rpm (corresponds to a moisture level of around
60%). A higher spin speed or a smaller load reduce them by around 20–30%.
Automatic programmes
Programme Load
capacity
kg
Residual moisture
%
Programme
duration
hrs./mins.
Energy
kWh
Extra dry 1–7 -4 to -1 2h30 1.50
Normal dry 1–7 -1 to 2 2h03 1.23
Iron dry 1–7 8 to 16 1h40 0.98
Damp 1–7 20 to 30 1h20 0.74
Fabric types
Programme Load
capacity
kg
Residual moisture
%
Programme
duration
hrs./mins.
Energy
kWh
Airing 1–1.5 – 0h10 0.03
Silks 1–1.5 0 to 2 0h40 0.31
Crease guard 1 – 0h20 0.10
Shirts 1–7items 0 to 2 0h35 0.27
Outdoor garments 1–3 0 to 2 1h05 0.59
Denim 1–4 -1 to 2 1h45 1.03
Baby garments 1–5 -1 to 1 2h10 1.24
Thin down filling 1–2 -1 to 1 2h00 1.20
Thick down filling 1–2 -1 to 1 2h40 1.50
Towelling 1–3 -1 to 1 1h25 0.82
Bedding 1–3 -1 to 1 1h30 0.81
Woollens 1 0 to 5 1h10 0.56
27
10 Drying tips
10 Drying tips
10.1 Saving energy
▪ Spin the washing in the washing machine at a high spin speed before tumble drying. Mech-
anical draining in the washing machine is much more efficient than water evaporation in the
tumble dryer.
▪ Clean the door filter and the filter mats regularly. Dirty fluff filters block the air flow and re-
duce the appliance's efficiency.
▪ Where possible fill the drum to the maximum load capacity of the relevant programme.
▪ Select «EcoManagement» to find efficient programmes.
10.2 Avoiding damage
▪ Follow the fabric care symbols on garment labels.
▪ For drying, it is recommended that tumble dryer sheets or other fabric care solutions not be
used.
▪ Remove foreign objects and larger parts made of metal or hard plastic (e.g. buckles,
stones, detergent dosing aids) before tumble drying. These can dent the drum.
▪ Fasten hook and eye fasteners and zips. These can damage the laundry and the drum.
▪ Fasten cloth belts, apron ties and duvet and pillow cases to avoid them getting tangled up.
28
11 Disposal
11 Disposal
11.1 Packaging
Never allow children to play with packaging material due to the danger of injury or
suffocation. Store the packaging material in a safe location or dispose of it in an
environmentally-friendly way.
11.2 Safety
Render the appliance unusable to prevent accidents caused by improper use (e.g. through
children playing):
▸ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out
by a qualified electrician. Then cut the mains cable off flush with the appliance.
▸ Remove or disable the lock on the appliance door.
11.3 Disposal
▪ The «crossed‐out wheeled bin» symbol requires the separate collection of waste elec-
trical and electronic equipment (WEEE). Such equipment can contain hazardous, environ-
mentally harmful materials.
▪ These appliances are to be handed over to a designated collection point for the recycling
of electrical and electronic equipment and must not be disposed of with unsorted house-
hold waste. And in this way, you will be helping to protect resources and the environment.
▪ For more information, please contact the local authorities.
11.4 Note on heat pump
This appliance is CFC-free. It contains fluorinated greenhouse gas covered by the Kyoto Pro-
tocol.
Heat pump Hermetically closed
Greenhouse gas R134a
Load capacity [kg] 0.370
GWP [(kg CO
2
)/(kg greenhouse gas)] 1430
Total GWP [t CO
2
] 0.529
29
30
12 Notes
31
Quick instructions
Please first read the safety
precautions in the operating
instructions!
To start programme:
▸ Open appliance door.
▸ Check door filter.
▸ Load laundry.
▸ Close the appliance door.
▸ Select programme and any additional
functions (if required). Programme starts
automatically after 20seconds.
When programme has finished:
▸ When «Clean door filter» appears in the
display, unload the dry laundry.
▸ Clean door filter.
▸ Close appliance door.
Services & support
Register your appliance today online via
our website at www.vzug.com and benefit
from the best possible support in the event
of a malfunction – including during the
manufacturer's 2-year warranty period. You
will require the serial number (FN) and ap-
pliance designation to register your appli-
ance. You will find them on the identifica-
tion plate of your appliance.
You can make your own note of the FN and
appliance designation or note them on the
service sticker which comes with the appli-
ance:
FN: ______________________________
Appliance: ________________________
Your repair order
You can find the telephone number of the
nearest V-ZUG service centre to you under
www.vzug.com →Service →Service hotline.
General queries, accessories and service
agreement
V-ZUG will be happy to help you with any
general administrative or technical queries,
to accept your orders for accessories and
spare parts and to inform you about our
progressive service agreements.
V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug
[email protected], www.vzug.com
1013633-R04
