Cybex 17151 Jungle Gym

Jungle Gym Dip Chin Tower

Owner's Manual

Strength Systems

Part Number 17151-999-4 E

www.cybexintl.com

Table of Contents

Safety

Safety Guidelines and Practices.......................................................................3

Anchoring Equipment.......................................................................................3

Choosing and Preparing a Site.........................................................................7

Environment.....................................................................................................8

Tools Required..................................................................................................8

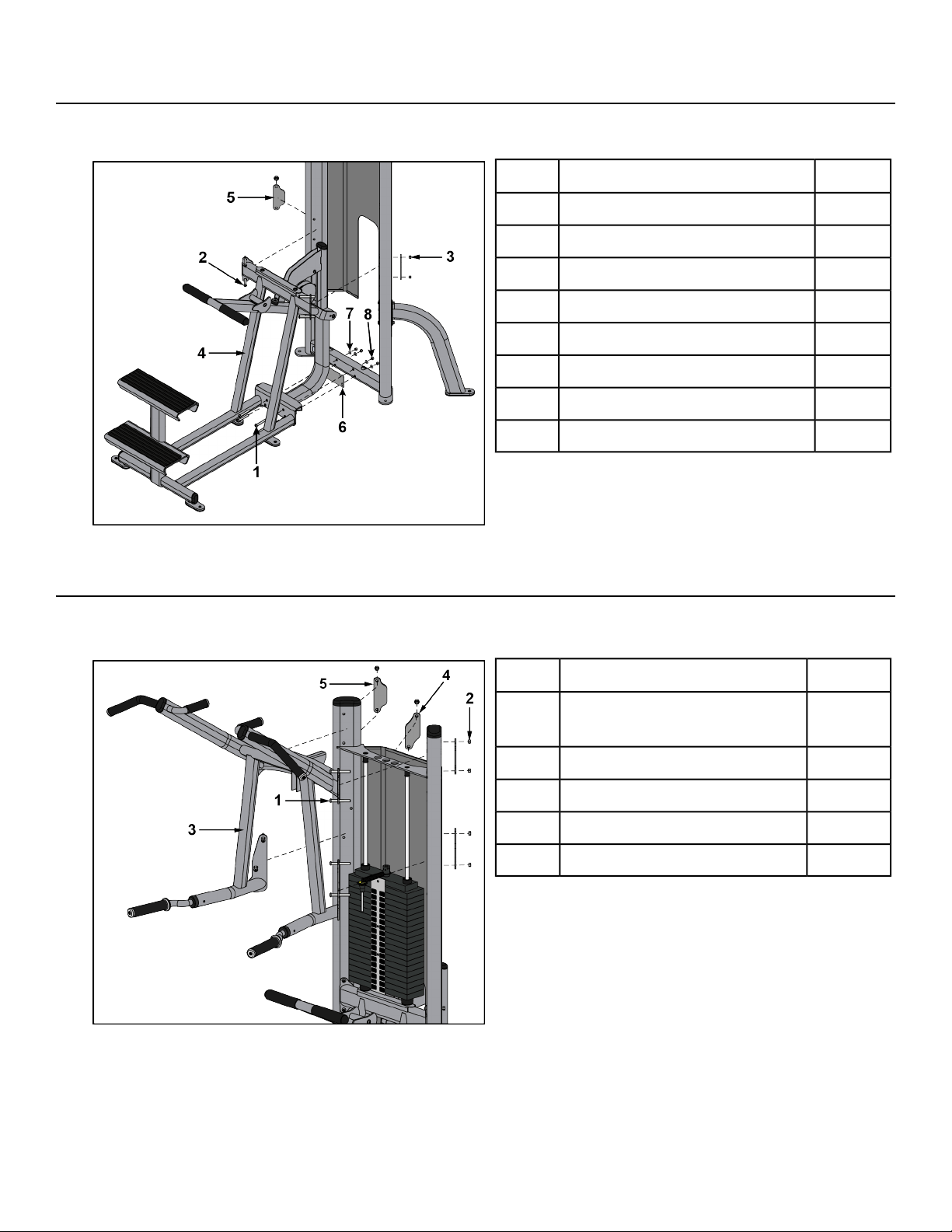

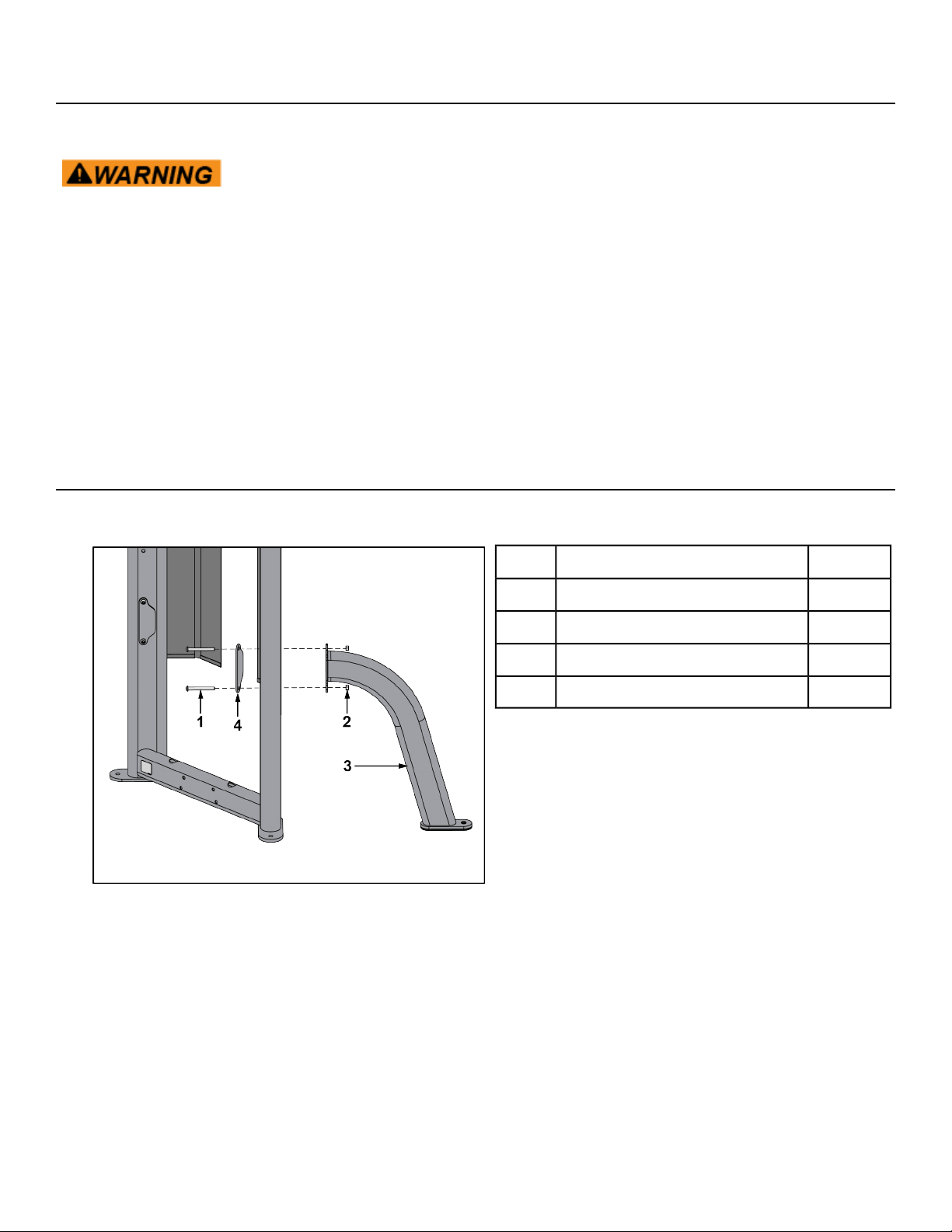

Assembly Procedure........................................................................................8

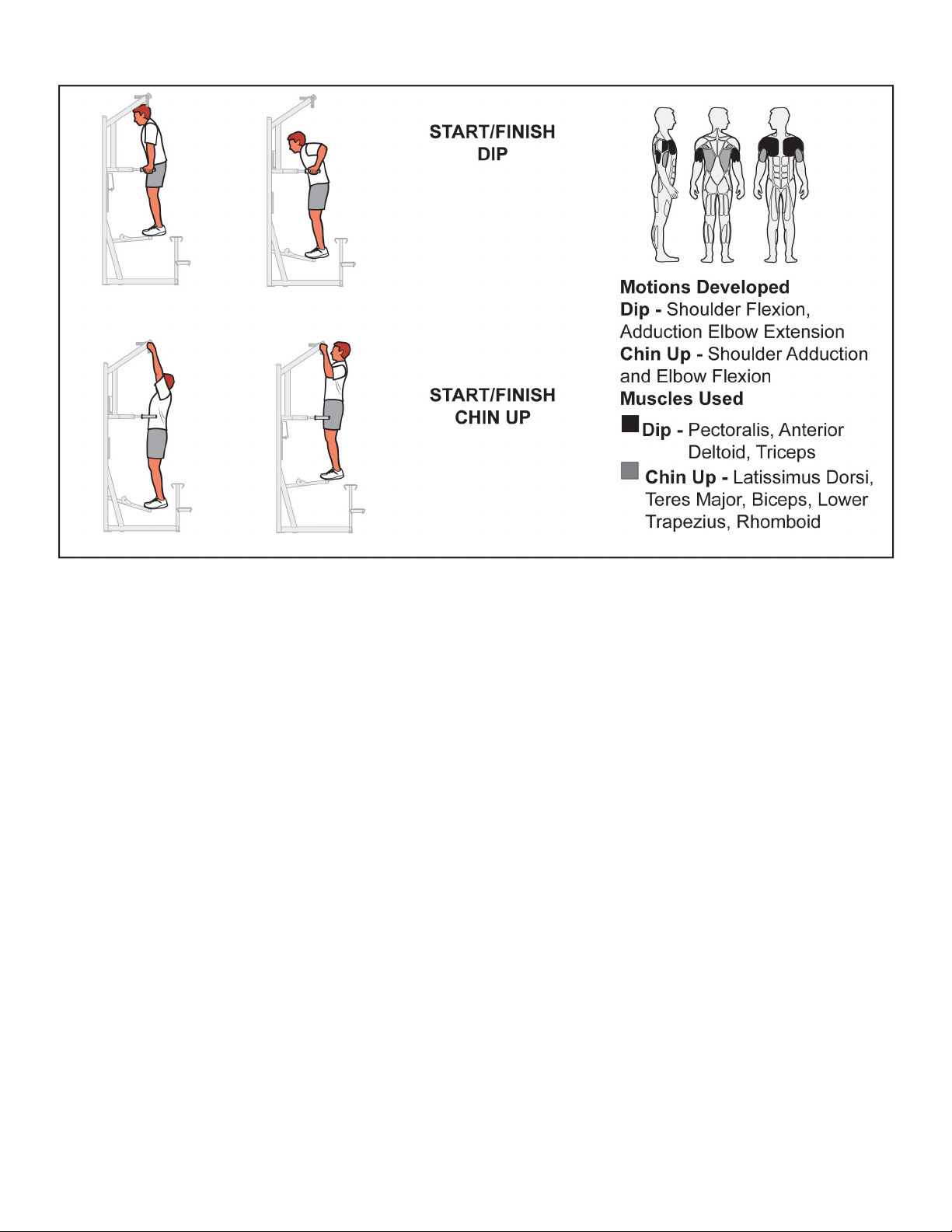

Exercise

Intended Use..................................................................................................14

Instructions.....................................................................................................14

Maintenance

Warnings.........................................................................................................16

Daily Procedures............................................................................................16

Ordering Parts................................................................................................22

Return Material Authorization (RMA)..............................................................23

Damaged Parts...............................................................................................23

Cybex

®

DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to

revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such

revisions or changes.

©

Serious injury or death could occur if the following safety precautions and

instructions are not followed.

Anchoring Equipment

Owner should not allow equipment to be used until it is properly anchored as described below.

Anchoring equipment:

• To maximize stability and eliminate rocking, tipping, or falling over,

any leg or frame not in contact with surface using flat washers.

• Due to the wide variation of flooring on which machines may be anchored

or installed, consult with a qualified and licensed contractor to ensure proper

anchoring and installation.

Facility Safety Precautions

Do not allow anyone, including trainers, to use equipment in a manner other than that shown on the

warning labels and instructional placards located on every machine.

Do not install equipment on an uneven surface. The solid, level surface should not deviate more than

1/8” over a 10’ distance or as defined and required by local building and architectural codes.

It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate

shown in the Owner’s Manual.

The dimensions stated in the assembly instructions of this manual include the maximum foot print (in

use) dimensions.

All equipment should be used in a supervised, access-controlled area.

Do not allow equipment to be used by children 12 and under. Supervise disabled and children 13 and

older.

The owner should ensure that regular inspection and maintenance checks as detailed in this manual

are performed. Keep a log of all maintenance and repair activities.

Each day before use, the owner should inspect the equipment. If there are any loose or worn components

such as belts, cables, grips, pulleys, or any missing, damaged labels, or placards, the owner should fix

• Insert weight pin completely before using selectorized equipment.

• Consult a physician prior to commencing an exercise program. If at any time during exercise you feel

faint, dizzy or experience pain, stop and consult your physician.

• Use a spotter for Free Weight equipment.

• DO NOT pin weights on selectorized equipment in an elevated position or use the machine if found

in this position

• DO NOT increase weight resistance on equipment by any means other than those provided by Cybex.

• DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving parts.

• DO NOT lean or pull on machine

• DO NOT remove any labeling from equipment.

Warnings and Cautions

Warning labels indicate a potentially hazardous situation that could result in serious injury or death if

the precautions are not observed.

Caution labels indicate a potentially hazardous situation that could result in serious injury or damage to

machine if the precautions are not observed.

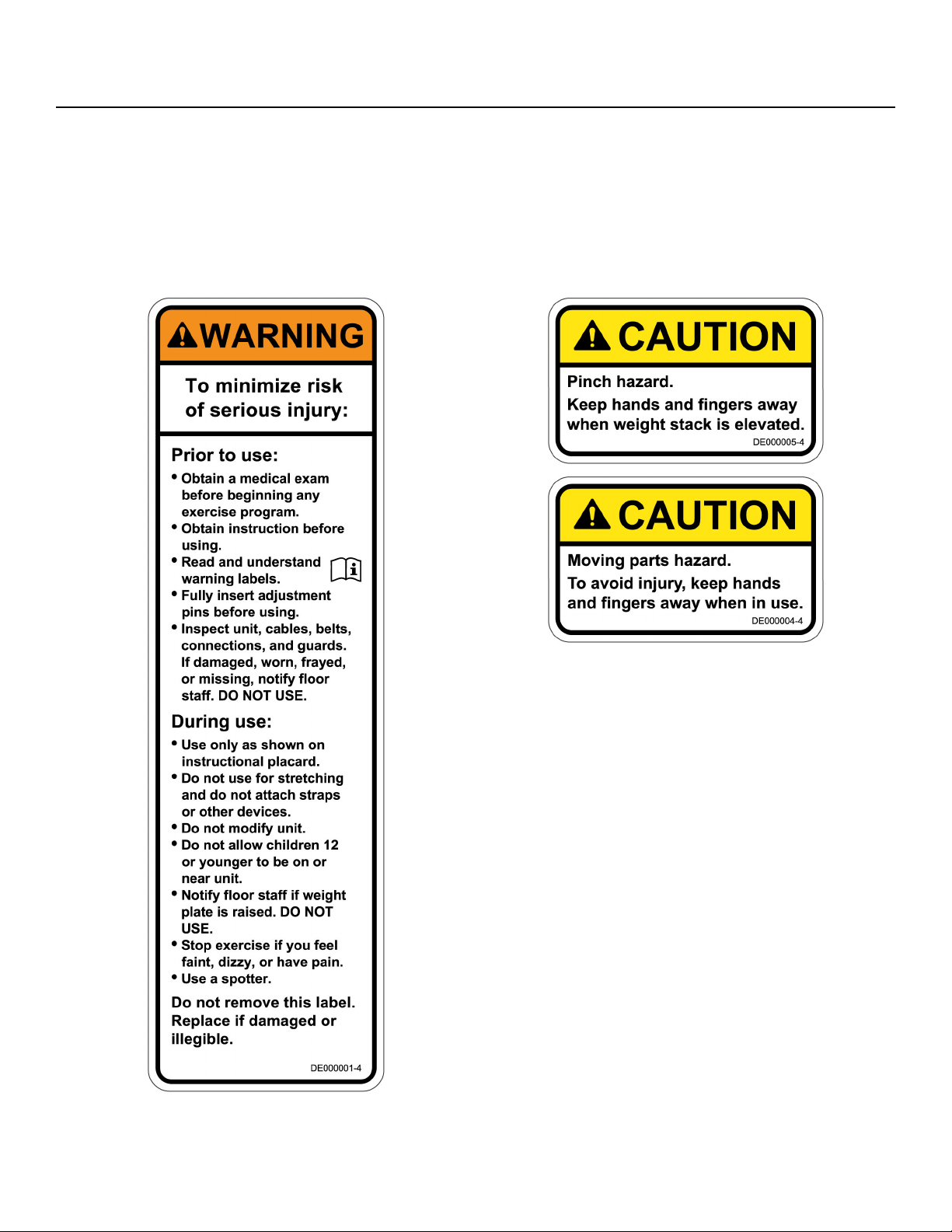

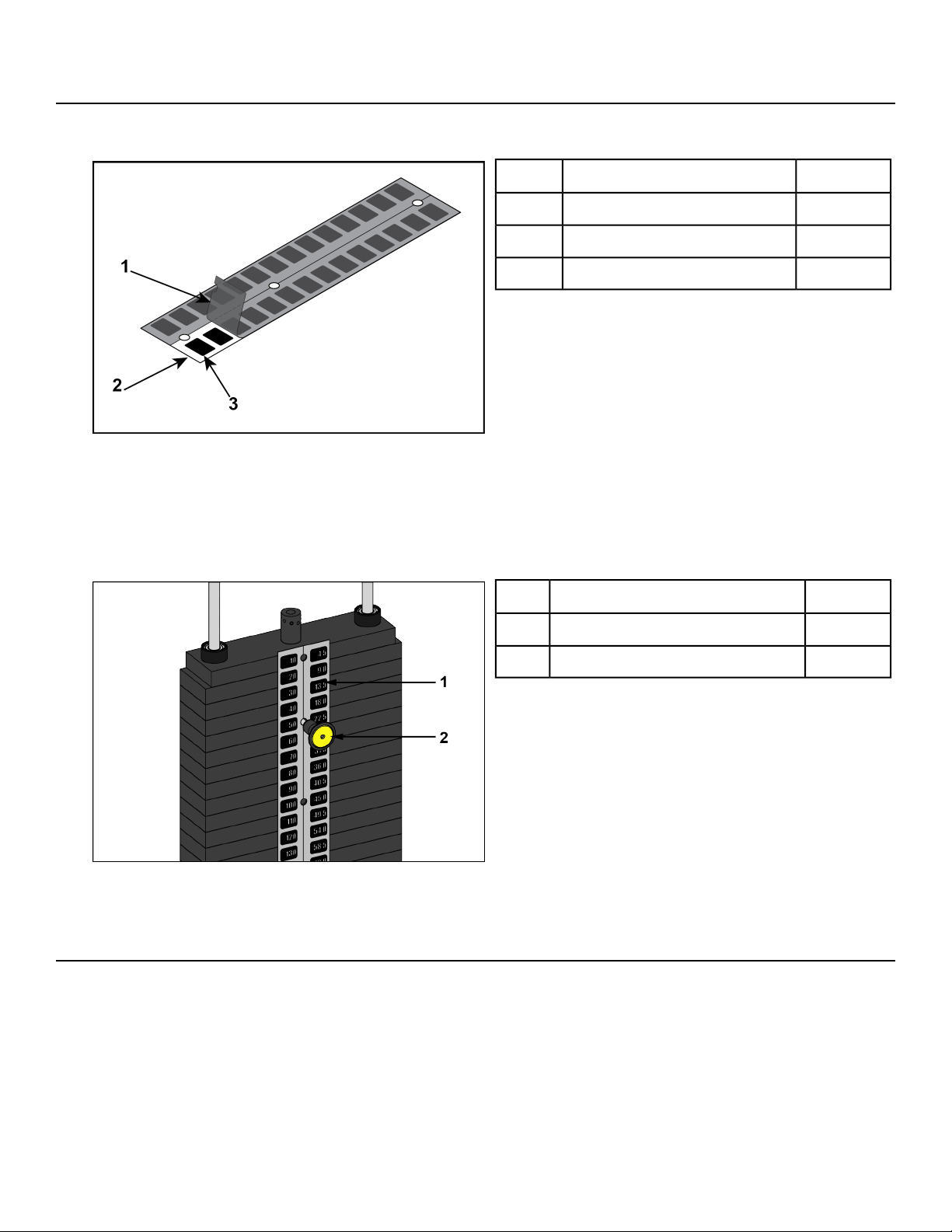

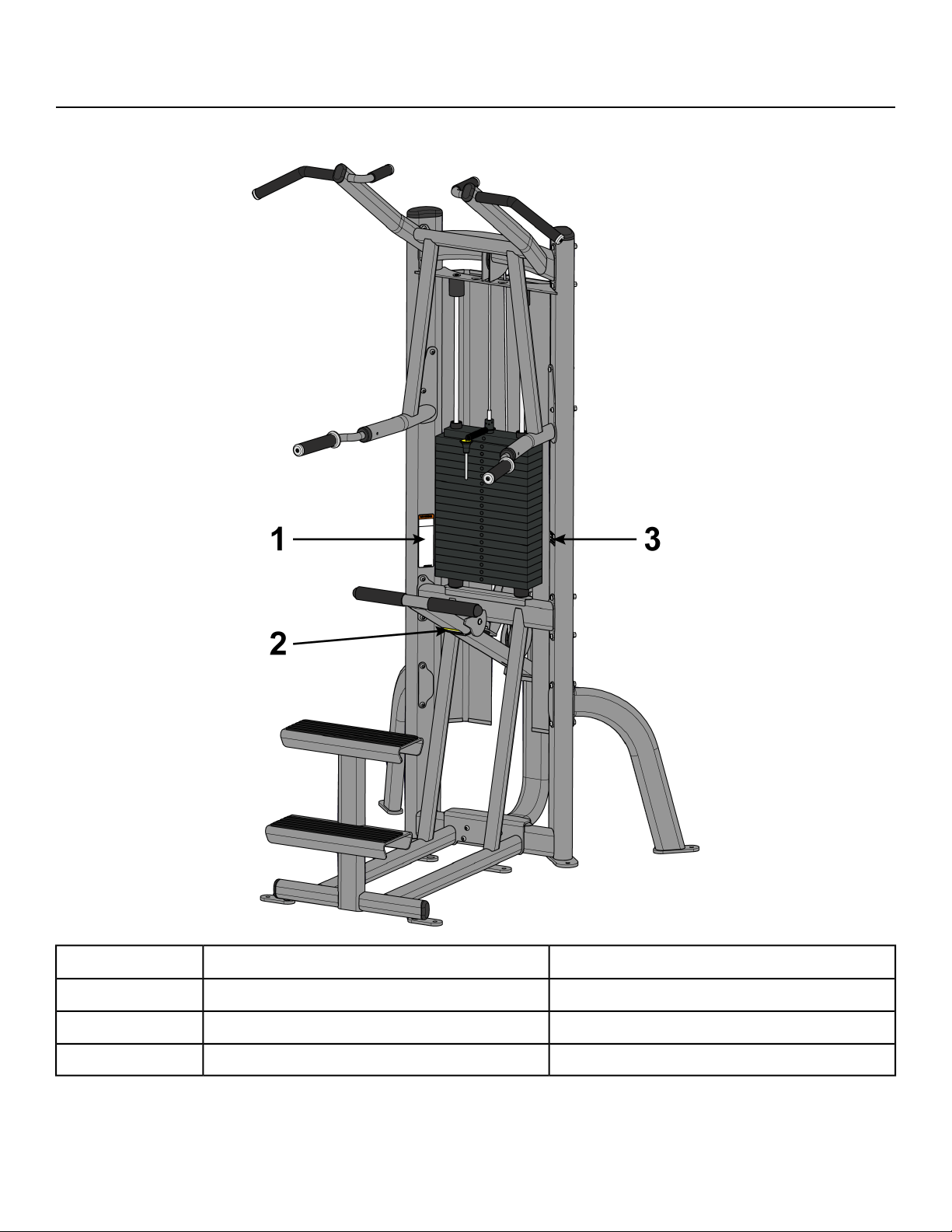

Label Placement

The following diagram shows where each label is located.

1DE000001-X1

1DE000004-X2

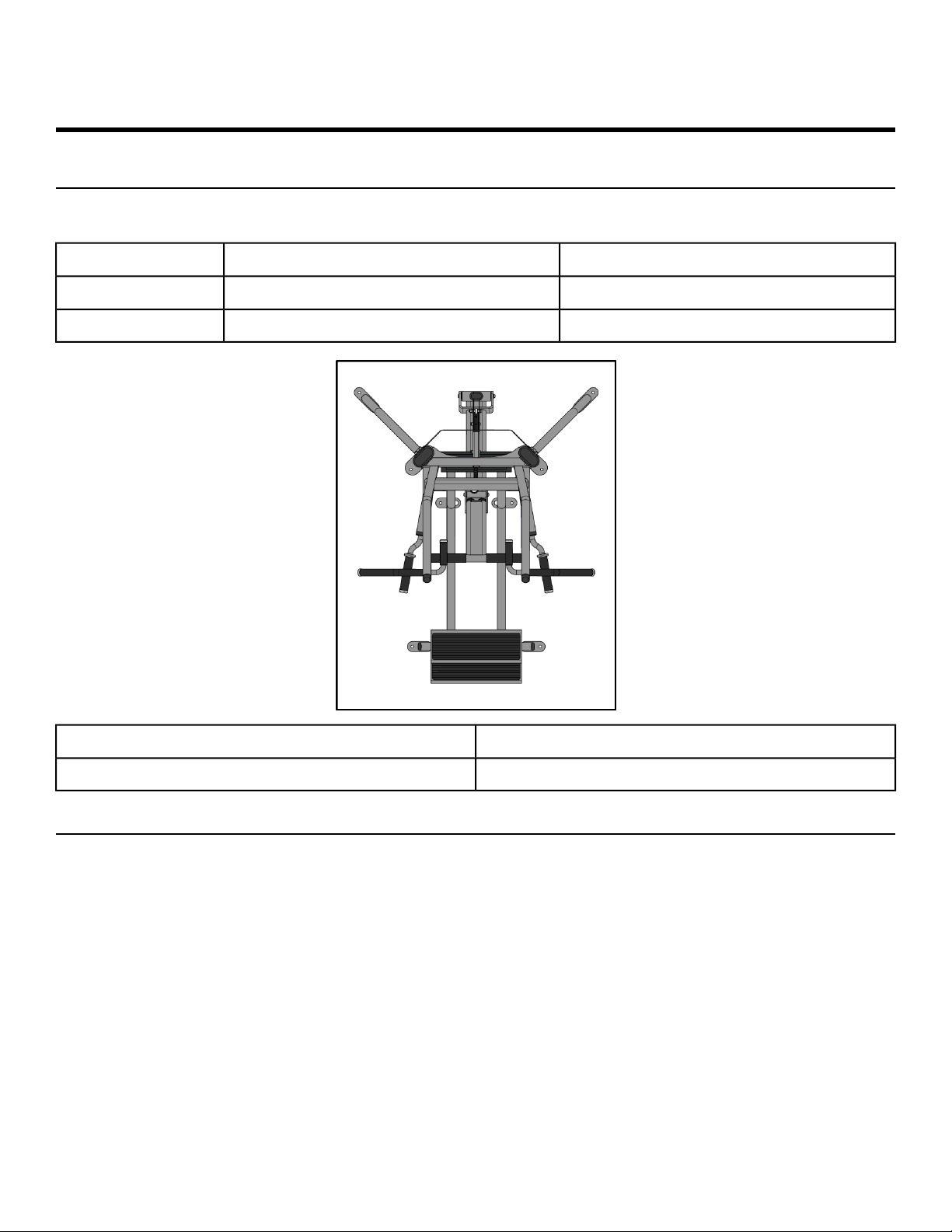

Assembly

300 lbs/135kg300 lbs/135kg

Choosing and Preparing a Site

• Area is well lit and well ventilated.

• Surface is structurally sound and properly leveled.

• Free area for access to unit and emergency dismount. Minimum clearance is 23.6 inches (0.6 meters).

• Adjacent units may share the free area.

It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate

clearance around each machine to allow for safe use and passage.

In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least 30 by

The unit is designed to function normally in an environment with a relative humidity range of 30% to

75%. The unit can be shipped and stored in a relative humidity range of 10% to 90%.

Climatic dry air may cause static electricity. During workout, user may experience a shock due to build

up of static electricity on the body and the discharge path of the unit. If static electricity is experienced,

increase humidity to a comfortable level through the use of a humidifier.

Do not install, use or store the unit in an area of high humidity, such as in the vicinity of a steam room,

sauna, indoor pool or outdoors. Exposure to extensive water vapor, chlorine and/or bromine could

adversely affect other parts of the unit.

Maintenance

maintenance actions can aid in providing safe, trouble-free operation of all Cybex equipment.

Cybex is not responsible for performing regular inspection and maintenance actions for your machines.

Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting

and recording. Cybex representatives are available to answer any questions that you may have.

Warnings

For maintenance, service and repair:

When using strong cleaning agents such as rubbing alcohol or bleach, it is advisable to test first in an

inconspicuous area. Other cleaning agents may contain harsh or unknown solvents and are subject to

formula changes by the product manufacturer without notice. Should you desire to use other cleaning

agents, carefully try them in an inconspicuous area to determine potential damage to the material. Never

use harsh solvents or cleaners which are intended for industrial applications. To clean stained or soiled

areas, a soft white cloth is recommended. Avoid use of paper towels.

Cleaning products may be harmful/irritating to your skin, eyes, etc. Use protective gloves and eye

protection. Do Not inhale or swallow any cleaning product. Protect surrounding area/clothing from

cannot be held responsible for damage or injuries resulting from the use or misuse of cleaning products.

(Alternative

Method)

Restoring

Luster

Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry thoroughly.

AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could scratch

or damage the equipment.

up each application with warm water rinse.

• DO NOT use abrasives or high alkaline cleaners.

• DO NOT leave cleaners on for long periods, wash immediately.

• DO NOT apply cleaners in direct sunlight or at elevated temperatures.

• DO NOT use scrapers, squeegees, or razors.

• DO NOT clean with gasoline.

• Formula 409

• Top Job

• Joy

Tighten all loose nuts and bolts as required.

Equipment hazard. To avoid serious injury or death replace worn or damaged

components immediately and keep the equipment out of use until repair is

completed.

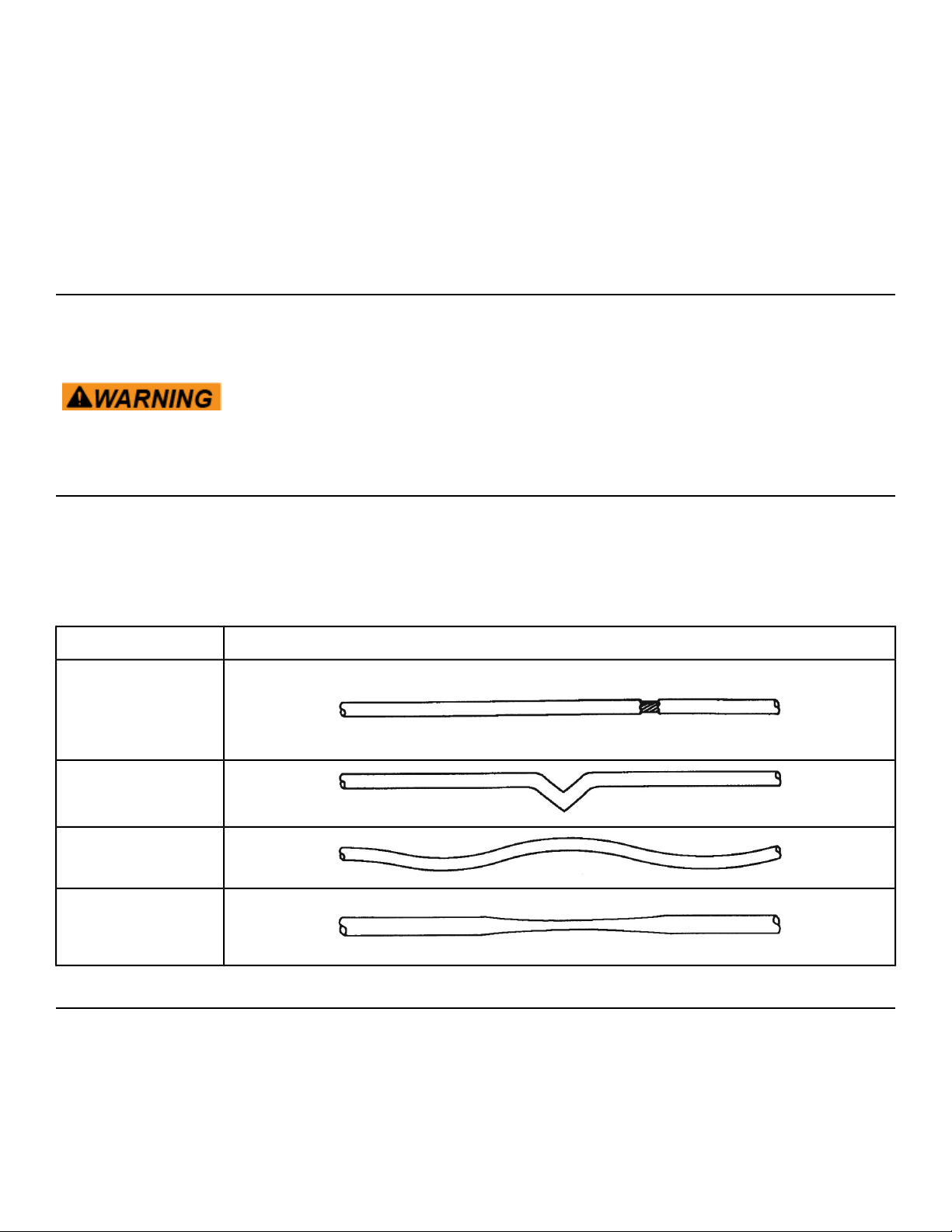

Inspect all cables for wear or damage and proper tension. When inspecting cables, run fingers on the

cable, paying particular attention to bends and attachment points.

Necking - A

stretched cable

sheath

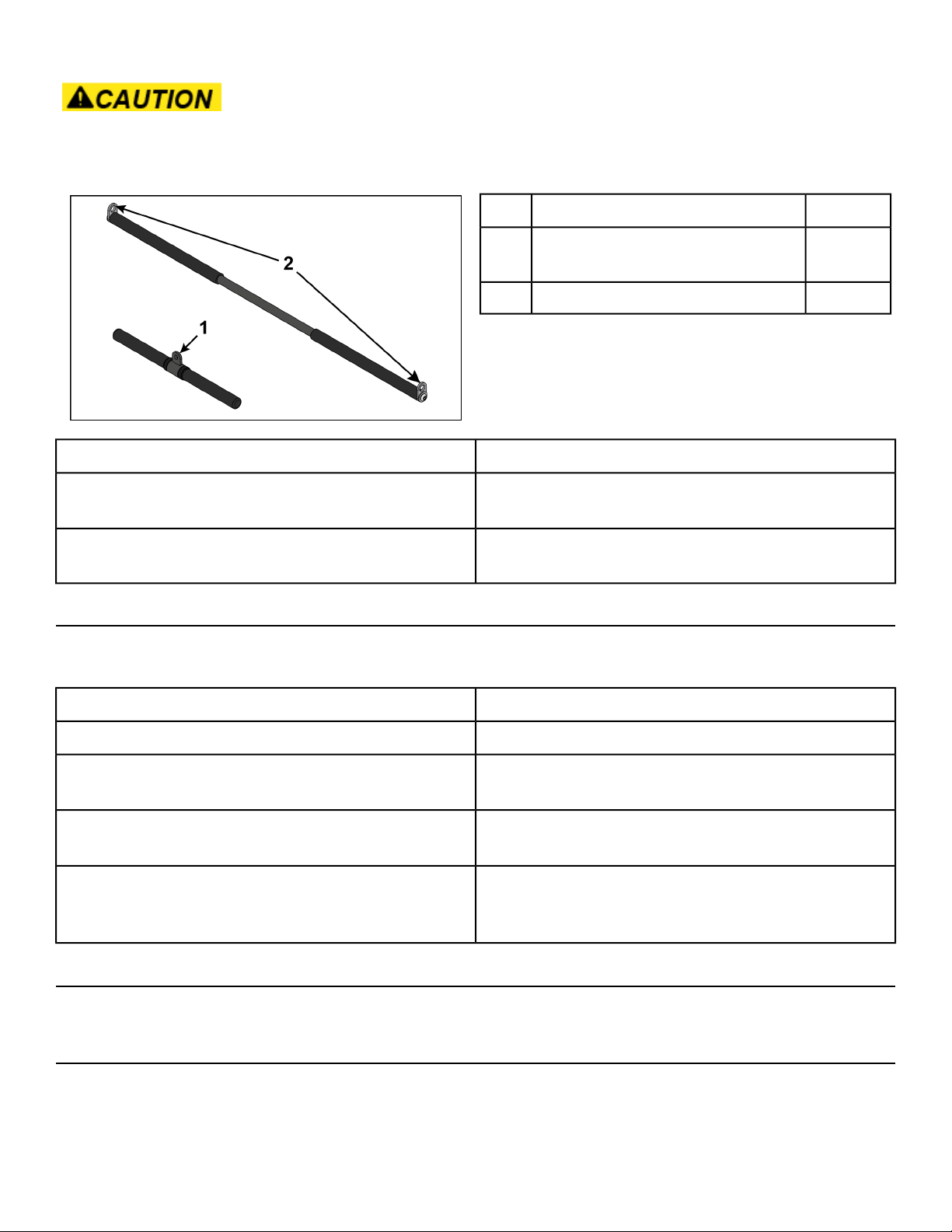

Inspect bars and handles for wear, paying particular attention to tab area connection points.

Worn handles

• Do not use handles if less then 1/8” of material remains on edge.

• Replace all worn handles immediately.

1

1

Inspect other items for proper operation, damage, or wear.

Yearly Procedures

Replace all cables and belts annually

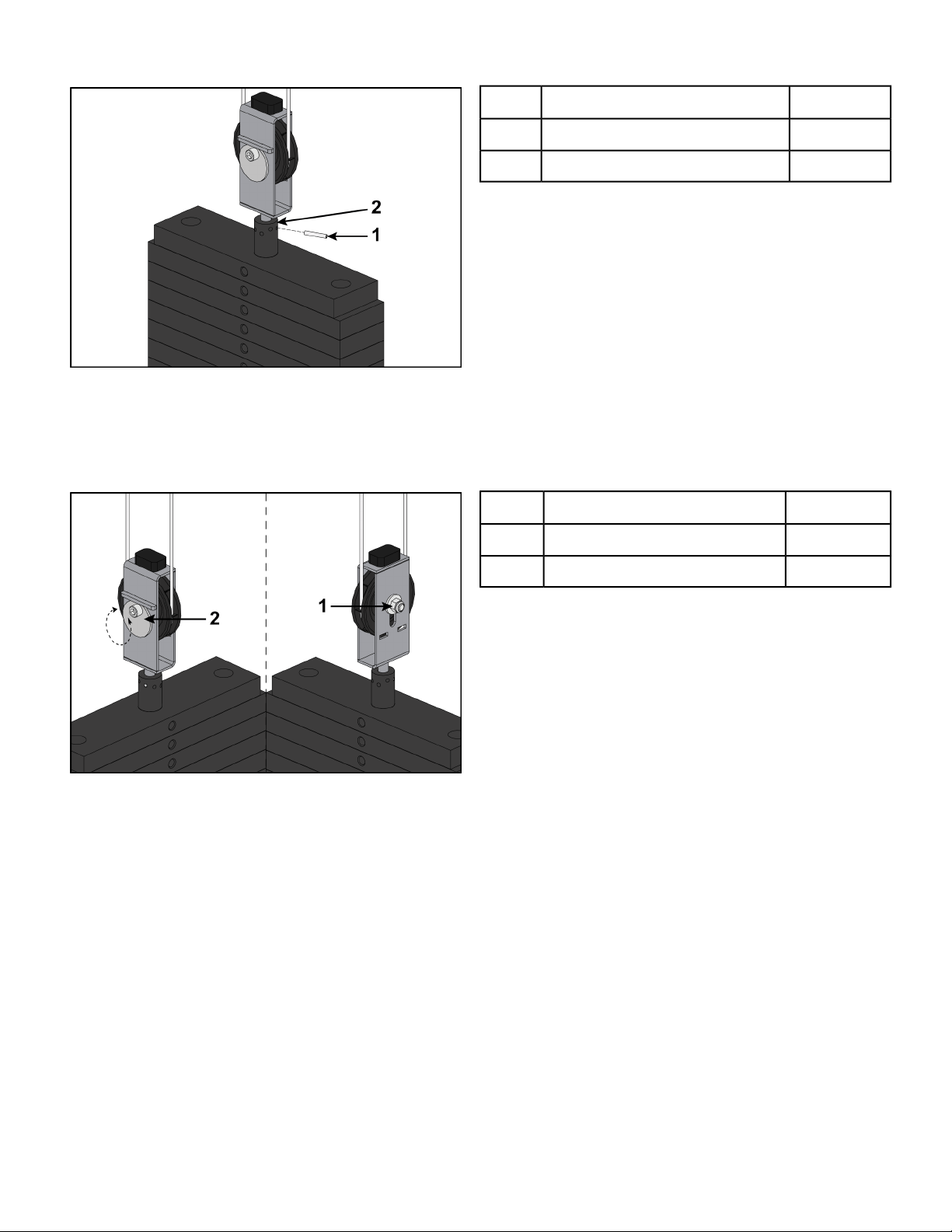

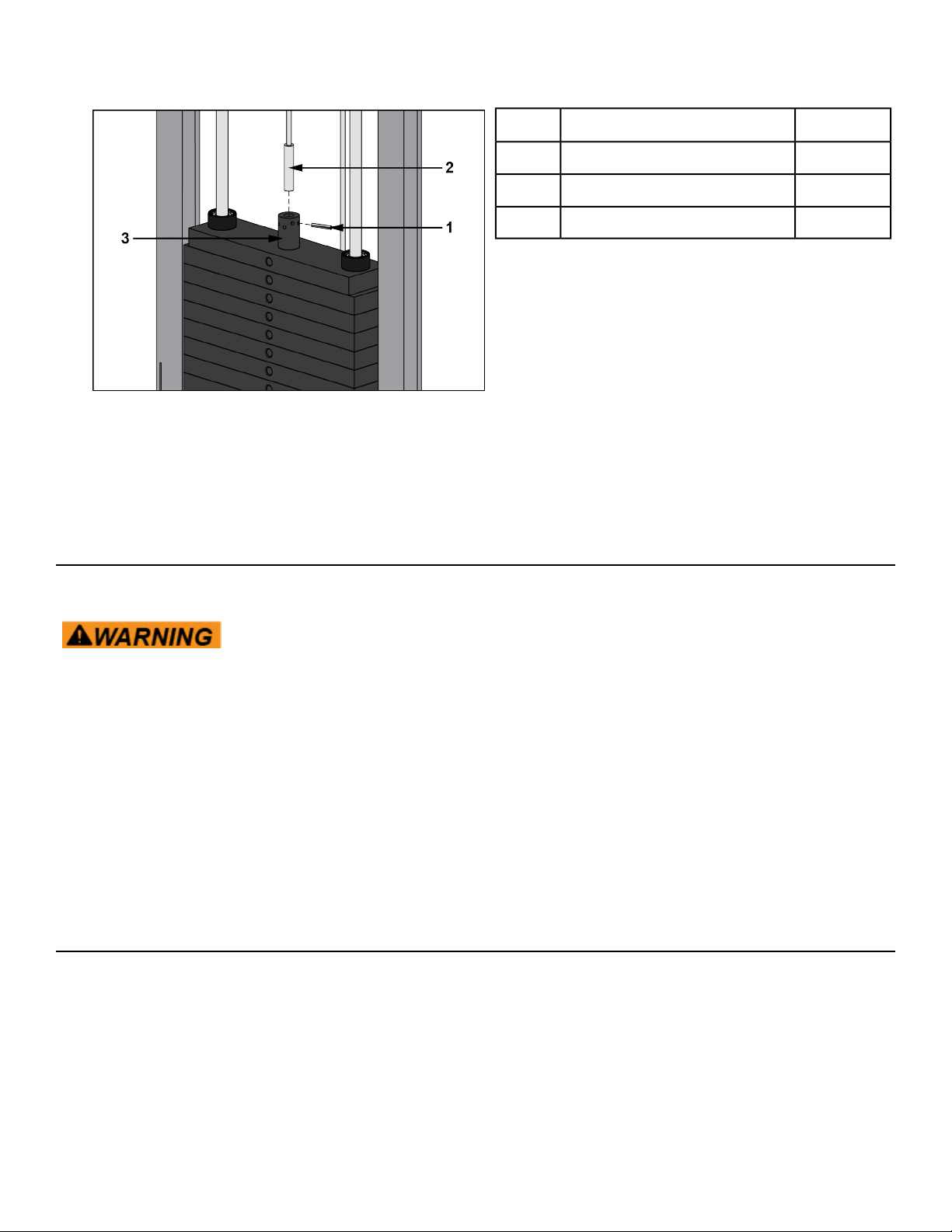

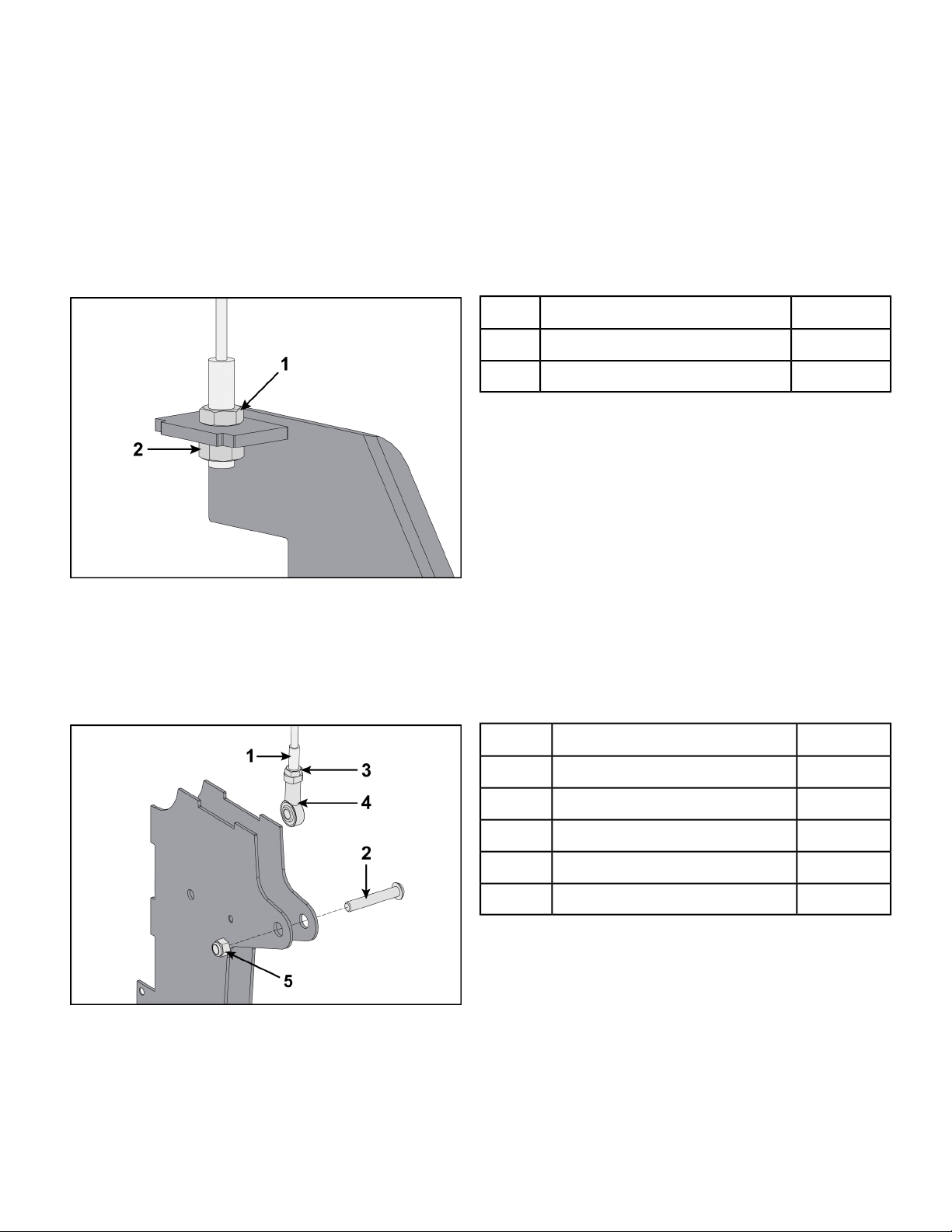

Cable Adjustment

• 9/16" Wrench (2)

• Hammer

This type of adjustment uses a jam nut and a tension adjustment nut at the cable cam end as the primary

adjustment. The other end of the cable usually contains a roll pin adjustment.

Customer Service

Return Material Authorization (RMA)
