Use and Care
Manual
Under-worktop refrigerator
UR 500
20191111 7086650 - 01
Contents
1 The appliance at a glance............................. 2
1.1 Additional benefits............................................ 2
1.2 Overview of the appliance and accessories..... 2
1.3 Range of appliance use.................................... 3
1.4 Conformity........................................................ 3
1.5 Product information.......................................... 3
1.6 Energy saving................................................... 3
2 General safety information........................... 3
3 Controls and displays................................... 5
3.1 Operating and control elements....................... 5
3.2 Temperature display......................................... 5
4 Start-up........................................................... 5
4.1 Switch on the device........................................ 5
5 Operation........................................................ 5
5.1 Temperature display unit.................................. 5
5.2 Child-proof lock................................................ 6
5.3 Door alarm....................................................... 6
5.4 Sabbath Mode.................................................. 6
5.5 Fridge compartment......................................... 7
6 Maintenance................................................... 9
6.1 Thawing........................................................... 9
6.2 Cleaning the appliance..................................... 9
6.3 Customer service............................................. 10
7 Troubleshooting............................................. 10
8 Putting appliance out of service.................. 12
8.1 Vacation Tips.................................................... 12
8.2 Switching the device off.................................... 12
8.3 Decommissioning ............................................ 12
9 Disposing of the appliance........................... 13
Congratulations on the purchase of your new appliance.
With this purchase, you have chosen all the advantages of
the latest refrigeration technology, guaranteeing you a
high-quality appliance with a long life span and high oper-
ating safety.
The equipment of your appliance gives you the highest
level of day-to-day ease of operation.
Together we are making an active contribution to the
conservation of our environment by purchasing this appli-
ance which is manufactured in an environmentally friendly
process with the use of recyclable materials.
We hope you enjoy your new appliance.
The manufacturer is constantly working to improve all
models. Therefore please understand that we reserve the
right to make design, equipment and technical modifica-
tions.
To get to know all the benefits of your new appliance,
please read the information contained in these instruc-
tions carefully.
The instructions apply to several models, so there may be
differences. Sections which only apply to certain appli-
ances are indicated with an asterisk (*).
Instructions for action are marked with a , the
results of action are marked with a .
1 The appliance at a glance
1.1 Additional benefits
-
CFC free
-
Energy-optimized refrigerant circuit
-
Energy-efficient insulation
-
Low energy consumption
-
User-friendly electronic controls
-
Active function indicators
-
Temperature can be controlled in the appliance inde-
pendent of ambient conditions according to its climate
rating - Temperature can be displayed as °C or °F
-
Large refrigeration capacity
-
Safety glass storage shelves
-
Adjustable door shelves for tall bottles
-
Shelves can be removed to make space for large items.
-
Bright LED interior light
-
Door ajar alarm
-
Transport handles on all large drawers
-
Integrated transport grips on appliance housing
-
Easy to clean
-
Door hinges can be reversed
-
Door-on-door system for easy kitchen cabinet installa-
tion
-
Soft stop mechanisms
-
This appliance has a Sabbath Mode function, which
makes it possible to use the appliance on religious holi-
days. Further information can be found on the Star-K
website www.star-k.org.
1.2 Overview of the appliance and
accessories
Note
u
Arrange food as shown in the picture. This arrangement
allows the appliance to work more efficiently, thus
saving energy.
u
Shelves, drawers, and baskets are arranged for optimal
energy efficiency in the factory configuration.
The appliance at a glance
2 * Depending on model and options

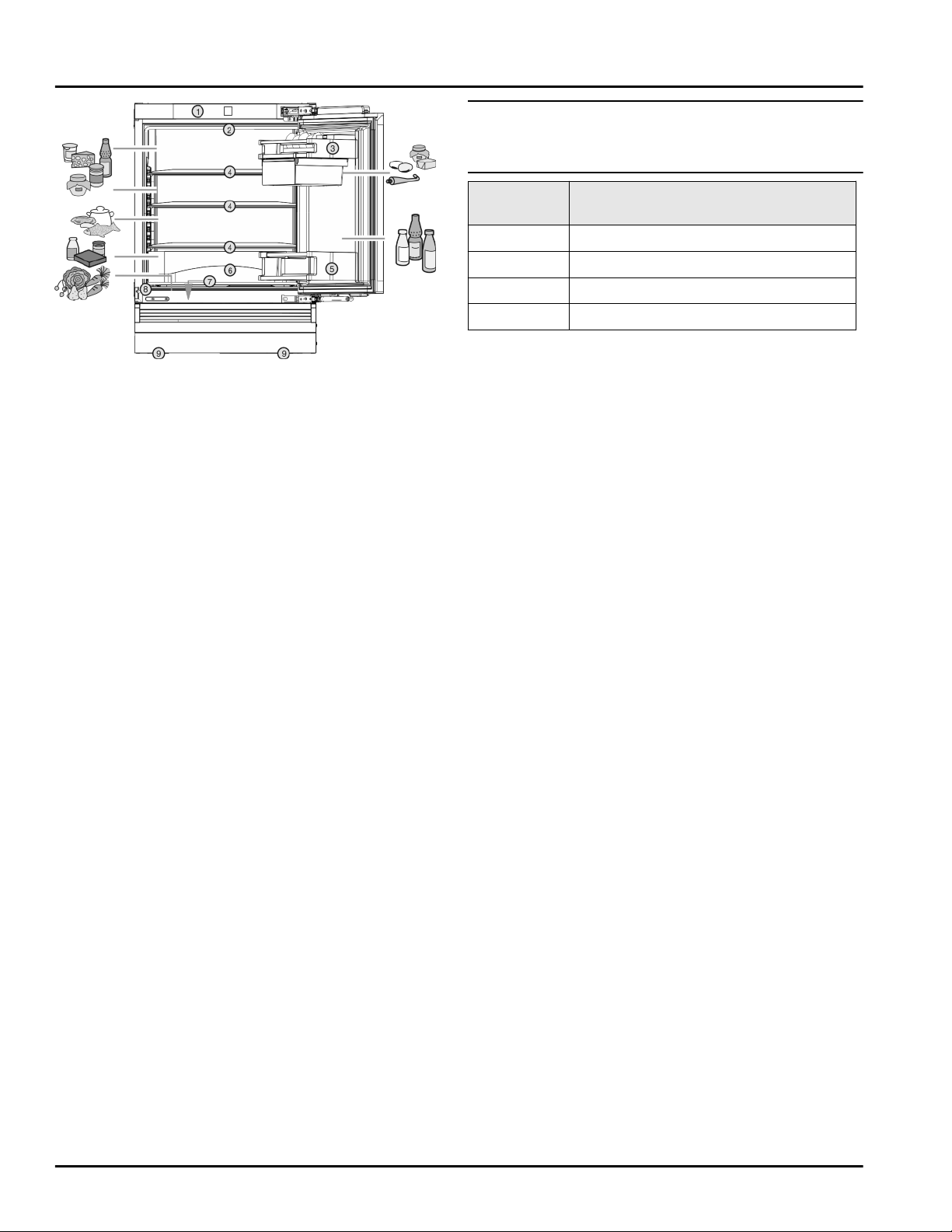

Fig. 1
(1) Control panel (6) Drawer
(2) Interior LED lighting (7) Vegetable drawer
(3) Butter and cheese
shelf
(8) Rating plate
(4) Shelf, moveable (9) Front and rear adjusting
feet
(5) Bottle shelf
1.3 Range of appliance use
Normal use
The appliance is only suitable for cooling food for
residential or other similar environments. This
includes the following types of uses
-
in staff kitchens, bed and breakfasts,
-
by guests in country homes, hotels, motels
and other types of accommodations,
-
for catering and similar wholesale services.
The appliance is suitable for integrated under
worktop use
All other types of uses are not permitted.
Foreseeable misuse
The following uses are specifically prohibited:
-
Storage and cooling of medication, blood
plasma, laboratory preparations or similar
substances and products in accordance with
the CMDCAS and FDA 510(k)
-
Use outdoors.
-
Use in moist areas exposed to the rain.
-
Use in areas at risk of explosion
Incorrect appliance use can cause damage to
the stored products or cause them to spoil.
Climate ratings
The appliance is set to operate within specific
ambient temperature limits according to its
climate rating The climate rating for your appli-
ance is printed on the rating plate
Note
u
To guarantee trouble-free operation, comply
with the indicated ambient temperatures.
Climate
rating
for ambient temperatures from
SN 50 °F (10 °C) to 90 °F (32 °C)
N 61 °F (16 °C) to 90 °F (32 °C)
ST 61 °F (16 °C) to 101 °F (38 °C)
T 61 °F (16 °C) to 110 °F (43 °C)
1.4 Conformity
The refrigerant circuit has been tested for leaks. When
installed, the appliance complies with the relevant safety
regulations and the safety standards CAN/CSA-C22.2 No.
60335-1-11, 60335-2-24-06 and UL 60335-1, UL
60335-2-24.
1.5 Product information
Product information is enclosed with the device in accord-
ance with (EU) Ordinance 2017/1369. The complete
product information sheet is available on the Liebherr
website in the download area.
1.6 Energy saving
-
Always ensure good ventilation. Do not obstruct ventila-
tion openings or grilles.
-
Never block air slits in the fan.
-
Do not install the appliance in direct sunlight or next to
an oven, heater, or similar heat source.
-
Energy consumption depends on installation conditions
such as the ambient temperature (see 1.3) . If the
ambient temperature differs from the standard tempera-
ture of 25 °C, energy consumption can change.
-
Avoid opening the appliance door for any longer then
necessary
-
The lower the temperature is set the higher the energy
consumption.
-
Store food logically (see 1) .
-
All food stored in the appliance should be well wrapped
and covered. This prevents frost buildup.
-
Only take food out for as long as necessary so that it
does not get too warm.
-
Insertion of warm foods: first let the food cool down to
room temperature.
2 General safety information
Read and follow these instructions. They contain
safety advice which is important for safe and
problem-free installation and operation. Always
read and follow the safety advice.
General safety information
* Depending on model and options 3
Dangers for the user:
-
This appliance can be operated by children as
well as by persons with reduced physical,
sensory or mental capabilities or lack of expe-
rience and knowledge if they are supervised or
have been instructed in the safe use of the
appliance and understand the associated
risks. Children must not play with the appli-
ance. Cleaning and user maintenance must
not be performed by children unless they are
supervised. Children between the ages of 3
and 8 may load and unload the appliance.
Children under the age of 3 must be kept away
from the appliance if they are not constantly
supervised.
-
When disconnecting the appliance from the
outlet, always take hold of the plug. Do not pull
on the cable.
-
Disconnect the power plug or switch off the
power if a fault occurs.
-
Do not damage the mains power line. Do not
operate the appliance from a defective mains
power line.
-
Repairs, work on the appliance and replace-
ment of the mains cable should only be carried
out by the customer service department or
other specifically trained specialist engineers.
-
Only install, connect and dispose of the appli-
ance in accordance with the instructions.
-
Only operate the appliance after it has been
installed.
-
Please keep the instructions and pass them on
to any future owner.
-
Special-purpose lamps inside the appliance
are intended to illuminate its interior compart-
ments and are unsuitable for room illumination.
Risk of fire:
-
The refrigerant contained within the appliance
(specifications on the rating plate) is environ-
mentally friendly, but flammable. Leaking
refrigerant can ignite.
•
Do not damage the pipes of the refrigerant
circuit.
•
Do not handle naked flames or ignition
sources inside the appliance.
•
Do not use electrical devices inside the
appliance (e.g. steam cleaners, heaters, ice
cream makers, etc.).
•
If refrigerant leaks: Remove naked flames or
ignition sources located near the area of the
leak. Air the room well. Contact the
customer service department.
-
Do not operate the appliance near explosive
gases.
-
Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
appliance.
-
Do not store explosive materials or spray cans
with flammable propellants, such as e.g.
butane, propane, pentane, etc. in the appli-
ance. You can recognize such spray cans by
the printed contents or a flame symbol. Any
leaking gasses can be ignited by electrical
components.
-
Alcoholic beverages or other containers
holding alcohol must always be tightly sealed
for storage purposes. Any leaking alcohol can
be ignited by electrical components
Tipover hazard:
-
Do not stand or climb on the base, drawers,
doors, etc. This applies in particular to chil-
dren.
Risk of food poisoning:
-
Do not consume food that has passed its best
before date.
Danger of frostbite, feelings of numbness
and pain:
-
Avoid continued skin contact with the cold
surfaces or chilled/frozen food or adopt protec-
tive measures, e. g. use gloves. Do not
consume ice cream (especially sherbets) and
ice cubes immediately when they are too cold.
Risk of injury and damage:
-
Hot steam may lead to injuries. Do not use any
electrical heating or steam cleaning equip-
ment, naked flames or defrosting sprays for
defrosting
-
Do not remove ice with sharp objects
Risk of crushing:
-
Do not hold onto the hinge when opening and
closing the door. Fingers may get caught.
California Proposition 65
-
This product contains chemicals known to the
state of California to cause cancer or repro-
ductive harm.
-
This product can expose you to chemicals
including Diisononyl Phthalate (DINP) which is
known to the State of California to cause
General safety information
4 * Depending on model and options
cancer. For more information go to
www.P65Warnings.ca.gov.
-
This product can expose you to chemicals
including Di-isodecyl Phthalate (DIDP) which
is known to the State of California to cause
birth defects or other reproductive harm. For
more information go to www.P65Warn-
ings.ca.gov.
Symbols on the device:
The symbol can be on the compressor. It
refers to the oil in the compressor and
refers to the following danger: Can be
lethal if swallowed or inhaled. This notice
only applies for recycling. There is no
danger during normal operation.
The symbol is located on the compressor
and indicates the danger of inflammable
materials.
This label or a similar one can be located
on the rear of the appliance. It refers to the
foamed-in panels in the door and/or the
housing. This notice only applies for recy-
cling. Do not remove the label.
Follow the specific instructions in the other
sections:
DANGER indicates a hazardous situation,
which if not avoided, will result in
death or serious injury.
WARNING indicates a hazardous situation,
which if not avoided, could result
in death or serious injury.
CAUTION indicates a hazardous situation,
which if not avoided, will result in
minor or moderate injury.
NOTICE indicates a hazardous situation,
which if not avoided, could result
in damage to property.
Note indicates useful advice and tips.
3 Controls and displays
3.1 Operating and control elements

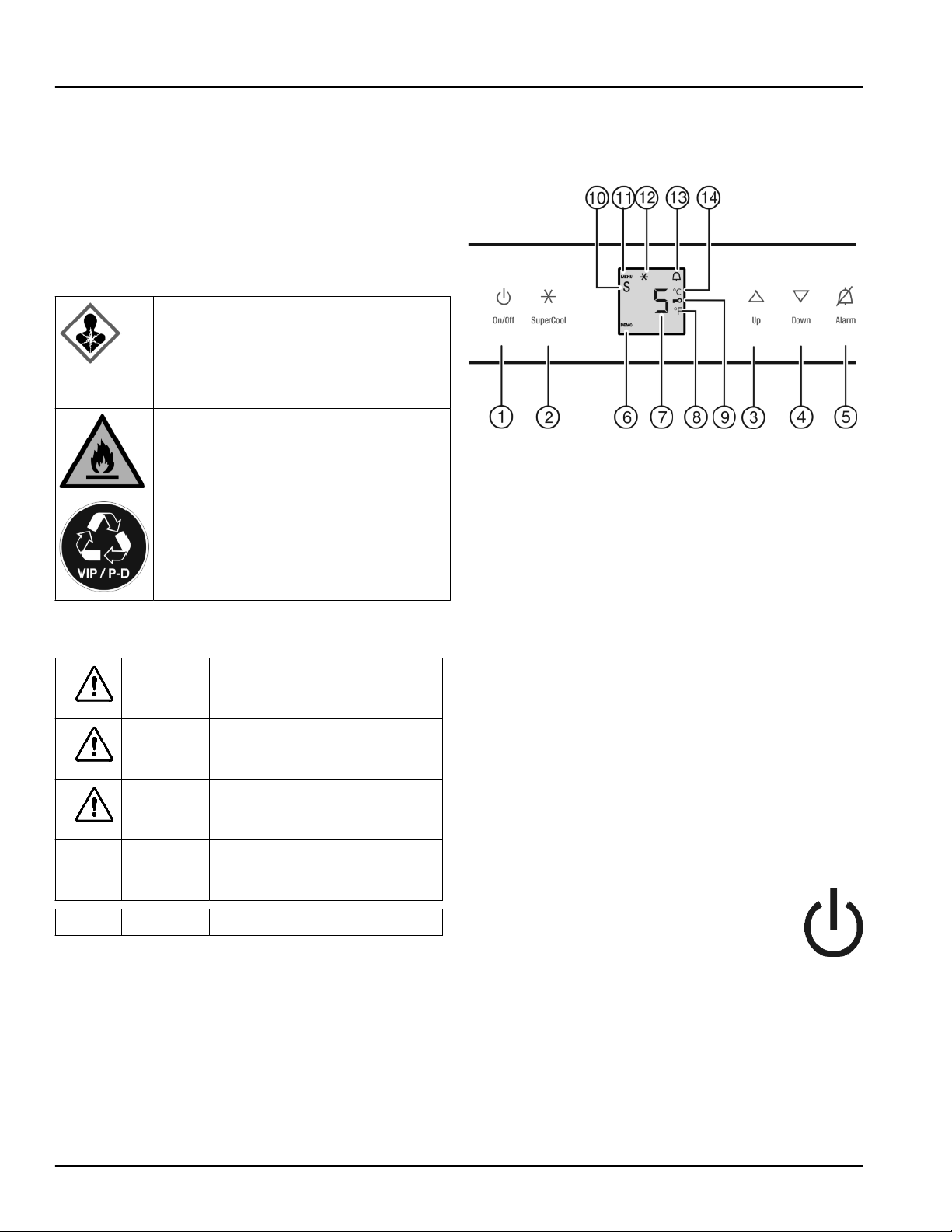

Fig. 2
(1) On/Off button (8) Fahrenheit symbol
(2) SuperCool button (9) Child safety symbol
(3) Up button (10)Sabbath mode symbol
(4) Down button (11)Menu symbol
(5) Alarm button (12)SuperCool symbol
(6) DEMO symbol (13)Alarm symbol
(7) Temperature display (14)Celsius symbol
3.2 Temperature display
The following is displayed in normal operation:
-
the average cooling temperature
The temperature display flashes:
-
the temperature setting has been changed
The following displays indicate malfunction. Possible
causes and corrective actions: (see 7) .
-
F0 to F9
4 Start-up
4.1 Switch on the device
u
Open the door.
u
Press the On/Off button
Fig. 2 (1)
.
w
The temperature display lights up. The appli-
ance is switched on.
w
If “DEMO” appears on the display, 'demons-
tration mode' is activated. Contact Customer
Service.
5 Operation
5.1 Temperature display unit
The temperature display can be changed from °F to °C.
Controls and displays
* Depending on model and options 5
5.1.1 To change the unit
u
To activate setting mode: Press and hold the Super-
Cool button
Fig. 2 (2)
for approx. 5 s.
w
The Menu symbol
Fig. 2 (11)
lights up.
w
S is displayed in the temperature display.
u
Using Up button
Fig. 2 (3)
/ Down button
Fig. 2 (4)
select °.
u
To confirm: Briefly press the SuperCool button
Fig. 2 (2)
.
w
The temperature unit is displayed.
u
To confirm: Briefly press the SuperCool button
Fig. 2 (2)
.
w
° flashes.
u
To exit setting mode: Press On/Off button
Fig. 2 (1)
.
-or-
u
Wait 5 minutes.
w
The temperature is again displayed in the temperature
display.
5.2 Child-proof lock
You can use the child-proof lock to lock the
buttons. This means that children cannot acci-
dentally switch off the appliance when playing.
5.2.1 Switching on the child proof lock
u
Select setting mode: Press and hold the SuperCool
button
Fig. 2 (2)
for approx. 5 seconds.
w
S will appear on the display.
w
The Menu symbol
Fig. 2 (11)
lights up.
u
Using the Up
Fig. 2 (3)
or Down button
Fig. 2 (4)
, select
c.
u
Press the SuperCool button
Fig. 2 (2)
briefly to confirm.
When c1 is shown on the display:
u
To switch on the child proof lock, press
the SuperCool button
Fig. 2 (2)
briefly.
w
The Child safety symbol
Fig. 2 (9)
lights up. c flashes on
the display.
When c0 is shown on the display:
u
To switch the child proof lock off, press the SuperCool
button
Fig. 2 (2)
briefly.
w
The Child safety symbol
Fig. 2 (9)
goes out. c flashes on
the display.
u
To deactivate setting mode: Press the On/Off button
Fig. 2 (1)
.
-or-
u
Wait 5 min.
w
The temperature is again displayed on the temperature
display.
5.3 Door alarm
For fridge compartment
If the door is open for longer than 180 seconds,
the acoustic warning sounds.
The acoustic warning stops automatically when
the door is closed
5.3.1 Switching off the door alarm
The acoustic warning can be switched off when the door
is open. The acoustic warning remains switched off as
long as the door is open. When the door is closed, the
alarm function is active again.
u
Press Alarm button
Fig. 2 (5)
.
w
The door alarm stops.
5.4 Sabbath Mode
This function meets the religious requirements on the
Sabbath and Jewish festivals. When the appliance is in
Sabbath mode some control electronic functions are
switched off. After setting Sabbath mode you no longer
need to worry about indicator lights, figures, symbols,
displays, alarm messages and fans. The thawing cycle
only operates at the specified time without taking refriger-
ator use into account. After a power cut the appliance
automatically switches on again in Sabbath mode.
You can find a list of Star-K-certified appliances at
www.star-k.org/appliances .
WARNING
Danger of food poisoning!
No record will be kept of a power failure during Sabbath
Mode. Thus, during Sabbath mode, if a power failure
occurs that you are not aware of, when the power comes
back on, the unit will continue to be in Sabbath Mode but
when Sabbath Mode is ended there will be no indication
that a power failure occurred.
If a power failure occurs during Sabbath mode:
u
Check the quality of the food. Do not consume spoiled
food!
-
All functions are blocked until Sabbath mode is
switched off.
-
If the unit is currently running in a mode such as
Superfrost, Supercool or the Ventilation is enabled
these functions will continue and finish their timed
cycles independent of now being in Sabbath mode.
-
No audible signals are emitted, and the temperature
display does not indicate any warnings or settings
(such as a temperature alarm or door alarm).
-
Light does not operate.
5.4.1 Setting Sabbath mode
u
To activate setting mode: Press and hold the Super-
Cool button
Fig. 2 (2)
for approx. 5 s.
w
S flashes on the display.
w
The Menu symbol
Fig. 2 (11)
lights up.
u
To access the Sabbath mode function: Briefly press the
SuperCool button
Fig. 2 (2)
.
Operation
6 * Depending on model and options
w
S flashes on the display.
When S1 is shown on the display:
u
To turn on Sabbath mode, briefly press the
SuperCool button
Fig. 2 (2)
.
When S0 is shown on the display:
u
To turn off Sabbath mode, briefly press the
SuperCool button
Fig. 2 (2)
.
u
To deactivate setting mode: Press the On/Off button
Fig. 2 (1)
.
-or-
u
Wait 5 min.
w
The Sabbath Mode symbol
Fig. 2 (10)
appears on the
temperature display as long as Sabbath Mode is active.
w
Sabbath mode switches off automatically after 120
hours if it is not manually switched off beforehand.
5.5 Fridge compartment
The natural circulation of air in the refrigerator compart-
ment results in zones with differing temperatures. It is
coldest directly above the vegetable drawers and at the
rear wall. It is warmest at the top front of the compartment
and in the door.
5.5.1 Refrigerating food
It is coldest directly above the vegetable drawers and at
the rear wall. The warmest areas are located in the top
front section and in the door.
WARNING
Danger of fire
u
Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
u
Use recyclable plastic, metal, aluminum and glass
containers and cling film to wrap foods.
u
Always store raw meat or fish in clean, closed
containers on the lowest shelf in the cooling area so
that other food cannot come into contact with it or drip
on it.
u
Always use closed containers for liquids and for food
that may give off or be tainted by odor or flavor transfer
or cover them.
u
Do not store food too close together to enable sufficient
air circulation.
5.5.2 Setting the temperature
The temperature depends on the following factors:
-
the number of times the door is opened
-
The duration the door is opened
-
the room temperature of the installation location
-
the type, temperature and amount of food.
The temperature is continuously adjustable across a
range of 36 °F (2 °C) to 49 °F (9 °C), and the advisable
range is 39 °F (4 °C).
u
To set a higher temperature: press the Up button
Fig. 2 (3)
.
u
To set a lower temperature: press the Down button
Fig. 2 (4)
.
w
When pressed once the previously set temperature
display value will flash.
u
To change the temperature in 1 °F (1 °C) increments:
briefly press the button.
u
To change the temperature continuously: hold the
button down.
w
The value is displayed flashing during the setting oper-
ation.
w
The actual temperature is displayed about 5 seconds
after the last press of a button. The temperature slowly
adjusts to the new value.
5.5.3 SuperCool
With SuperCool you switch to the highest cooling
performance to reach lower cooling tempera-
tures. Use SuperCool to rapidly cool large quan-
tities of food.
If SuperCool is on, the fan* may come on. The appliance
works at maximum refrigerating power. The sound of the
refrigeration unit may be temporarily louder as a result.
SuperCool will use more energy than normal operation.
Cooling with SuperCool
u
Briefly press the SuperCool button
Fig. 2 (2)
.
w
The SuperCool symbol
Fig. 2 (12)
lights up in the
display.
w
The cooling temperature drops to the coldest value.
SuperCool is switched on.
w
SuperCool switches itself off automatically after 12
hours. The appliance continues to work in normal
energy-saving mode.
To prematurely switch off SuperCool
u
Briefly press the SuperCool button
Fig. 2 (2)
.
w
The SuperCool symbol
Fig. 2 (12)
goes out in the
display.
w
SuperCool is switched off.
5.5.4 Shelves
Shifting or removing shelves
CAUTION
Danger of lacerations!
The storage shelf can shatter if dropped or mishandled.
You could cut yourself on the pieces of broken glass.
u
Only remove storage shelves when there is nothing on
them.
Extension stops secure the shelves against being acci-
dentally pulled out
Operation
* Depending on model and options 7

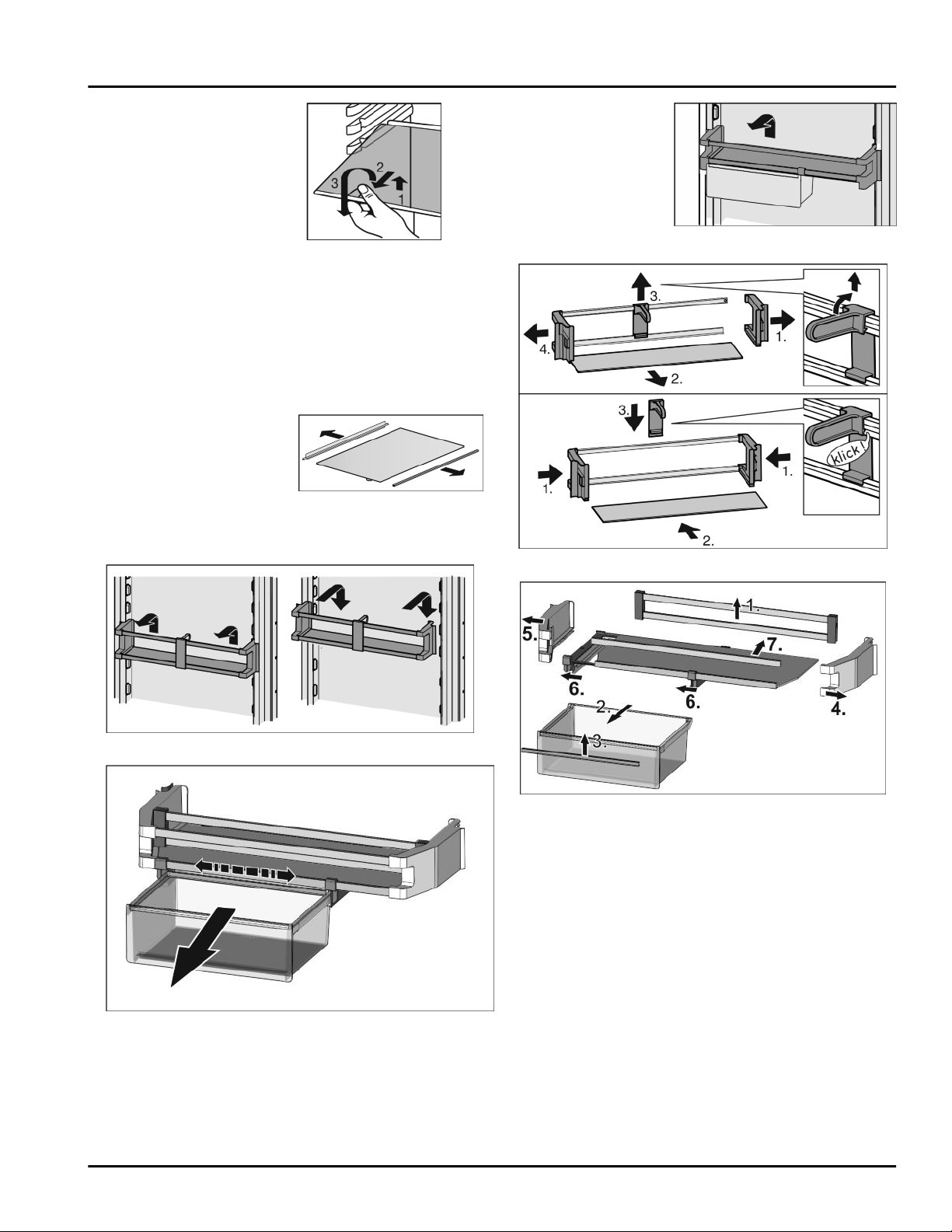

Fig. 3
u
Lift the shelf and pull it out towards you.
u
Insert the short shelf at the height of the gallon capacity
rack so that door closes properly. It is supported on
support bars.
u
Insert the shelf with the raised edge to the back
pointing upwards.
w
This prevents food from contacting and freezing to the
back wall.
To dismantle shelves
u
The shelves can be
dismantled for cleaning.
5.5.5 Door racks
Removing the door rack
Fig. 4
Fig. 5
u
To swap containers:
pull up to remove and
reinsert in the
desired position.
To dismantle door racks
Fig. 6
Fig. 7
u
The door racks can be dismantled for cleaning.
5.5.6 Egg tray
You can take out and rotate the egg tray. You can use the
two parts of the egg tray to mark different use-by dates, for
example.
Operation
8 * Depending on model and options
u
Use the top part to store e.g. chickens' eggs.
u
Use the bottom part to store quails' eggs.
5.5.7 Drawer
Fig. 8
6 Maintenance
6.1 Thawing
6.1.1 Defrosting the refrigerator
WARNING
Risk of injury and damage
u
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
u
Do not use any electrical heating or steam cleaning
equipment, naked flames or defrosting sprays for
defrosting.
u
Do not remove ice with sharp objects.
u
Do not damage the pipes of the refrigerant circuit.
The fridge compartment defrosts automatically. The
defrosted water will evaporate. Drops of water on the back
wall are a functional feature; this is completely normal.
u
Clean the drain opening regularly so that the condensa-
tion water can drain away. (see 6.2)
6.2 Cleaning the appliance
Clean the appliance regularly.
WARNING
Danger of electric shock.
u
Unplug refrigerator or disconnect power.
WARNING
Danger of fire
u
Do not damage the refrigerant circuit.
WARNING
Risk of injury or damage due to hot steam.
Hot steam can cause scalding/burns and damage to
surfaces.
u
Do not use steam cleaners.
NOTICE
Incorrect cleaning damages the appliance.
u
Do not use concentrated cleaning agents.
u
Do not use steel wool or sponges that scour or scratch.
u
Do not use caustic or abrasive cleaning materials or
those containing sand, chloride, or acids.
u
Do not use chemical solvents.
u
Do not damage or remove the rating plate on the inside
of the appliance. It is vital for the customer service
department.
u
Do not pull off, kink or damage any cables or other
components.
u
Do not let cleaning water get into the drain gutter, the
ventilation grille and electrical parts.
u
Use soft cleaning cloths and a multi-purpose cleaning
agent with a neutral pH value.
u
Only use food-compatible cleaning and care agents
inside the appliance.
u
Empty the appliance.
u
Disconnect the power plug.
u
Clean the ventilation grilles regularly.
w
Dust deposits increase energy consumption.
u
Clean the plastic surfaces, outside and inside, by
hand using lukewarm water and a little dish washing
liquid.
u
To clean the drain opening:
Remove deposits with a thin
instrument, e.g. a cotton bud.
u
Most of the equipment parts can be dismantled for
cleaning: see the respective chapter.
u
Clean the drawers by hand using lukewarm water and
a little dish washing liquid.
u
The remaining fittings are dishwasher suitable.
Maintenance
* Depending on model and options 9
After cleaning:
u
Wipe the appliance and accessories dry.
u
Connect the appliance and switch it on again.
When the temperature is sufficiently cold:
u
put the food back in the appliance.
6.3 Customer service
First check whether you can remedy the fault yourself
(see 7) . If this is not the case, please contact a qualified
service provider.
WARNING
Risk of injury from repairs by non-professionals.
u
Repairs and work on the appliance and the power
supply cable not described in the Manual (see 6)
should only be carried out by a qualified service
provider.
u

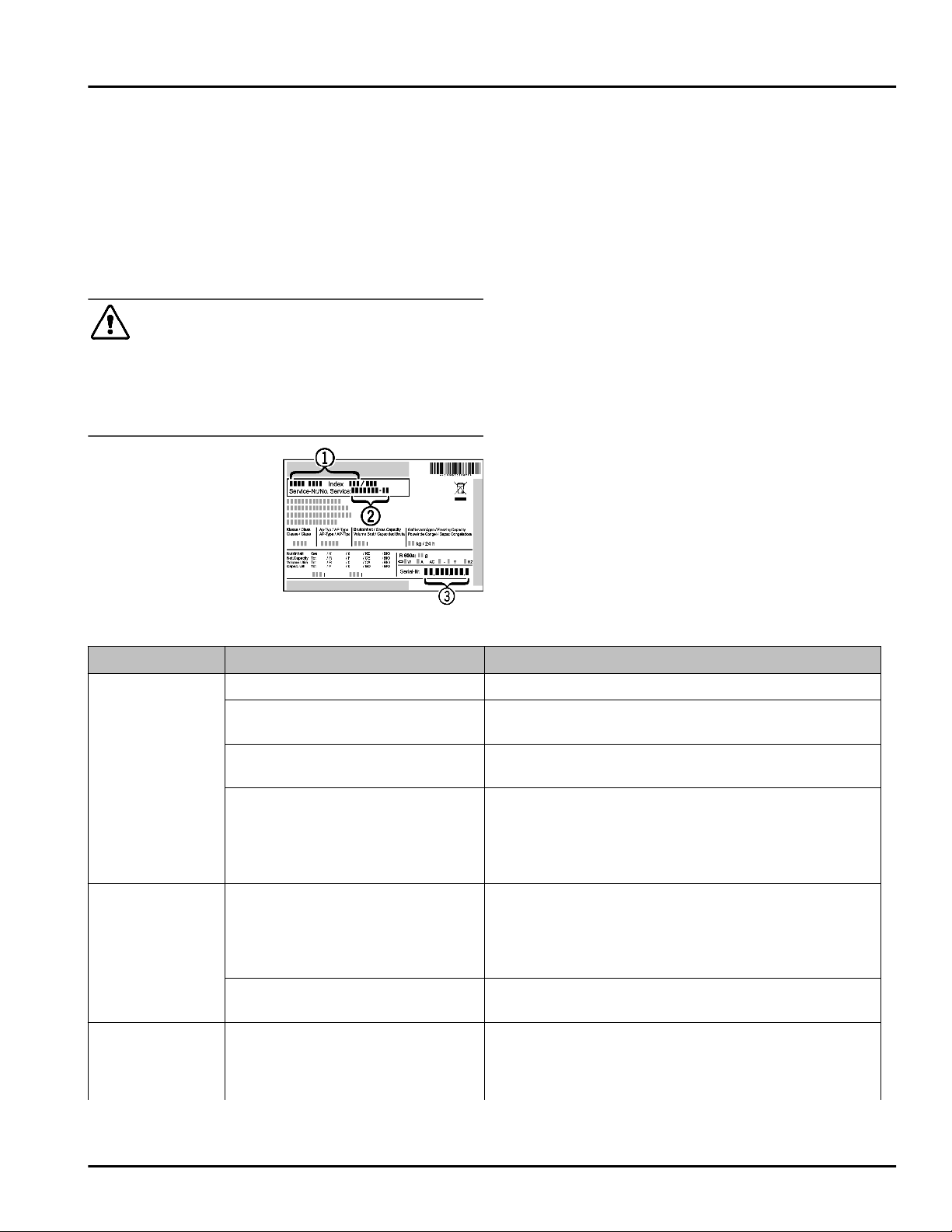

Read the appliance
designation
Fig. 9 (1)
,
service no.
Fig. 9 (2)
and serial no.
Fig. 9 (3)
from the
rating plate. The
rating plate is
located inside the
appliance on the left-
hand side.
Fig. 9
u
Notify a qualified service provider, specifying the fault,
appliance designation
Fig. 9 (1)
, service no.
Fig. 9 (2)
and serial
Fig. 9 (3)
no.
w
This will help us to provide you with a faster and more
accurate service.
u
Keep the appliance closed until the Customer Service
engineer arrives.
w
The food will stay cool longer.
u
Disconnect the power plug (do not pull on the power
cord to do this) or switch off the fuse.
7 Troubleshooting.
Your appliance is designed and manufactured for reliable
operation and a long lifespan. If a malfunction nonethe-
less occurs during operation, please determine if the
malfunction is due to an operating error. If a service call
determines operator error, you will be charged for the
costs incurred, even during the warranty period. You may
be able to rectify the following problems yourself:
Defect Cause Remedy
The appliance
does not work.
The appliance is not switched on.
u
Switch on the appliance.
The power plug is not properly
inserted in the wall socket.
u
Check the power plug.
The fuse in the wall socket is not
OK.
u
Check the fuse.
Power failure
u
Keep the appliance closed.
u
Protect the food: place dry ice on top of the food or
use an alternate freezer, if the power failure persists
for some time.
u
Do not re-freeze defrosted food.
The compressor
runs for a long
time.
When less refrigeration is required,
the speed-controlled compressor
switches to a low speed. Although
the running time is increased as a
result, energy is saved.
u
This is normal in energy-saving models.
SuperCool function is activated.
u
The compressor runs long to rapidly cool food. This is
normal.
An LED at the
lower rear of the
appliance (near
the compressor)
There is a fault.
u
Contact the customer service department (see 6) .
Troubleshooting.
10 * Depending on model and options
Defect Cause Remedy
flashes regularly
every 5
seconds*.
Noises are too
loud.
The different speed levels of speed-
controlled* compressors can cause
them to generate various noises
during operation.
u
These noises are normal.
A gurgling
sound
This sound comes from the refrig-
erant flowing in the refrigeration
circuit.
u
The sound is normal.
A faint clicking
sound
The sound always occurs when the
refrigeration unit (the motor) auto-
matically switches on or off.
u
The sound is normal.
A hum. It is
briefly a little
louder when the
refrigeration unit
(the motor)
switches on.
The refrigeration increases automat-
ically when the SuperCool function
is activated, fresh food has just been
placed in the appliance or the door
has been left open for a while.
u
The sound is normal.
The ambient temperature is too high.
u
Solution: (see 1.3)
A low hum
The sound occurs as a result of fan
air flow.
u
The sound is normal.
Vibration noise
The appliance is not standing firmly
on the floor. As a result, objects and
adjoining units are set into vibration
by the running refrigeration unit.
u
Check the installation and realign the appliance if
necessary.
u
Move bottles and containers apart.
Flow noise on
the soft stop
mechanism.
The sound is caused by the soft stop
mechanism.
u
The sound is normal.
The temperature
display indi-
cates: F0 to F9.
There is a fault.
u
Contact the customer service department (see 6) .
DEMO lights up
in the tempera-
ture display.
The demo mode is activated.
u
Contact the customer service department (see 6) .
The outside
surfaces of the
appliance are
hot*.
The heat of the refrigerant circuit is
used to prevent condensate from
forming.
u
This is normal.
The temperature
is not cold
enough.
The door of the appliance is not
closed properly.
u
Close the appliance door.
Insufficient ventilation.
u
Clear and clean the ventilation grille.
The ambient temperature is too high.
u
Solution: (see 1.3)
The appliance was opened too
frequently or for too long.
u
Wait to see whether the required temperature resets
itself by itself. If not, contact the customer service
department (see 6) .
Troubleshooting.
* Depending on model and options 11
Defect Cause Remedy
The temperature is incorrectly set.
u
Set to a colder temperature and check after 24 hours
The appliance is too near to a heat
source (stove, heater etc).
u
Change location of appliance or the heat source.
The appliance was not properly
installed in the recess.
u
Make sure the appliance was installed correctly and
the door closes properly.
The interior light
does not turn
on.
The appliance is not switched on.
u
Switch on the appliance.
The door was open for longer than
15 min.
u
The interior light automatically switches itself off if the
door remains open for approx. 15 min.
The LED interior light is faulty or the
cover is damaged:
WARNING
Risk of injury from electrical shock.
Live parts are under the cover.
u
The LED interior light should only be replaced or
repaired by the Customer Service department or by
engineers trained to do so.
WARNING
Risk of injury from LED lamp!
The light intensity of the LED lighting corresponds to risk
group RG 2.
If the cover is faulty:
u
Do not gaze directly at this lighting unit with optical
lenses while very close to the light source. This can
cause damage to your eyes.
The door seal is
defective or
should be
replaced for
other reasons.
The door seal is interchangeable.
You can replace it without the use of
any special tools.
u
Contact the customer service department (see 6) :
The appliance is
iced up or
condensation is
building.
The door seal may have slipped out
of its groove.
u
Check the door seal is well placed in the groove.
8 Putting appliance out of
service
8.1 Vacation Tips
Short vacations: If you will be away for less than four
weeks
u
Use all perishables.
Long vacations: If you will be away for a month or more
u
Remove all food from the appliance.
u
Turn OFF the appliance.
u
Clean the appliance (see 6.2) .
u
Leave the door open to prevent unpleasant odors.
w
This will also keep mold from building up.
8.2 Switching the device off
u
Press and hold the On/Off button
Fig. 2 (1)
until the
display becomes dark. Release the button.
w
If the appliance cannot be switched off, the Child Safety
function is still activated (see 5.2) .
8.3 Decommissioning
u
Empty the appliance.
u
Switch off the appliance (see 8) .
u
Pull out the power plug.
u
Clean the appliance (see 6.2) .
u
Leave the door open to prevent bad smells.
Putting appliance out of service
12 * Depending on model and options
9 Disposing of the appliance
Follow the local regulations for the disposal of appliances.
Old appliances can be dangerous. Contact the local
refuse collection department for additional information.
DANGER
There is a risk of suffocation.
Children playing can shut themselves in and suffocate.
u
Take the door(s) off.
u
Remove the drawers.
u
Leave the storage shelves in the appliance so that chil-
dren cannot easily climb into the appliance.
WARNING
Danger of electric shock.
u
Cut off the plug from the power cord and discard.
u
Cut off the power cord from the discarded appliance.
Dispose of separately from the appliance.
Ensure during and after disposal that the appliance isn't
stored in the vicinity of gasoline or other flammable vapors
and liquids.
When disposing of the appliance, ensure that the refriger-
ation circuit is not damaged to prevent uncontrolled
escape of the refrigerant it contains (data on type plate)
and oil.
Disposing of the appliance
* Depending on model and options 13
For Service in the U.S.:
Liebherr Service Center
Toll Free: 1-866-LIEBHER or 1-866-543-2437
Service-appliances.us@liebherr.com
PlusOne Solutions, Inc.
3501 Quadrangle Blvd, Suite 120
Orlando, FL 32817
For Service in Canada:
Liebherr Service Center
Toll Free: 1-888-LIEBHER or 1-888-543-2437
www.euro-parts.ca
EURO-PARTS CANADA
39822 Belgrave Road
Belgrave, Ontario, N0G 1E0
Phone: (519) 357-3320
Fax: (519) 357-1326
Part No. 7086650 - 01
www.liebherr-appliances.com
