2
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
4 ASSEMBLING AND PREPAR-
ING
4 Unpacking
5 Parts
6 To install in a Portrait Layout
6 Remove L-brackets before Installation
7 Moving Handles
7 - Moving the device in a vertical position
7 - Moving the device in a horizontal posi-
tion
8 STORAGE METHOD FOR PANEL PRO-
TECTION
8 - Correct Method
8 - Incorrect Method
9 Installing on a wall
10 EXTERNAL EQUIPMENT SETUP
10 - IR RECEIVER
11 Tiling Displays
11 - How to Join Sets - Installing Set 1
12 - How to Join Sets - Installing Set 2
13 - How to Join Sets - Installing Set 3
14 - How to Join Sets - Installing Set 4
15 Inserting the Cable Holder
16 REMOTE CONTROL
18 Displaying the device name connected to
an input port
19 Picture ID
20 USING THE MONITOR SET
20 Connecting to a PC
20 - RGB connection
21 - DVI to DVI connection
21 - HDMI connection
22 - Audio connection
22 - IR Receiver connection
23 Adjusting the screen
23 - Selecting an image mode
23 - Customizing image options
24 - Customizing PC display options
24 Adjusting the sound
24 - Selecting an sound mode
25 - Customizing sound options
25 Using additional options

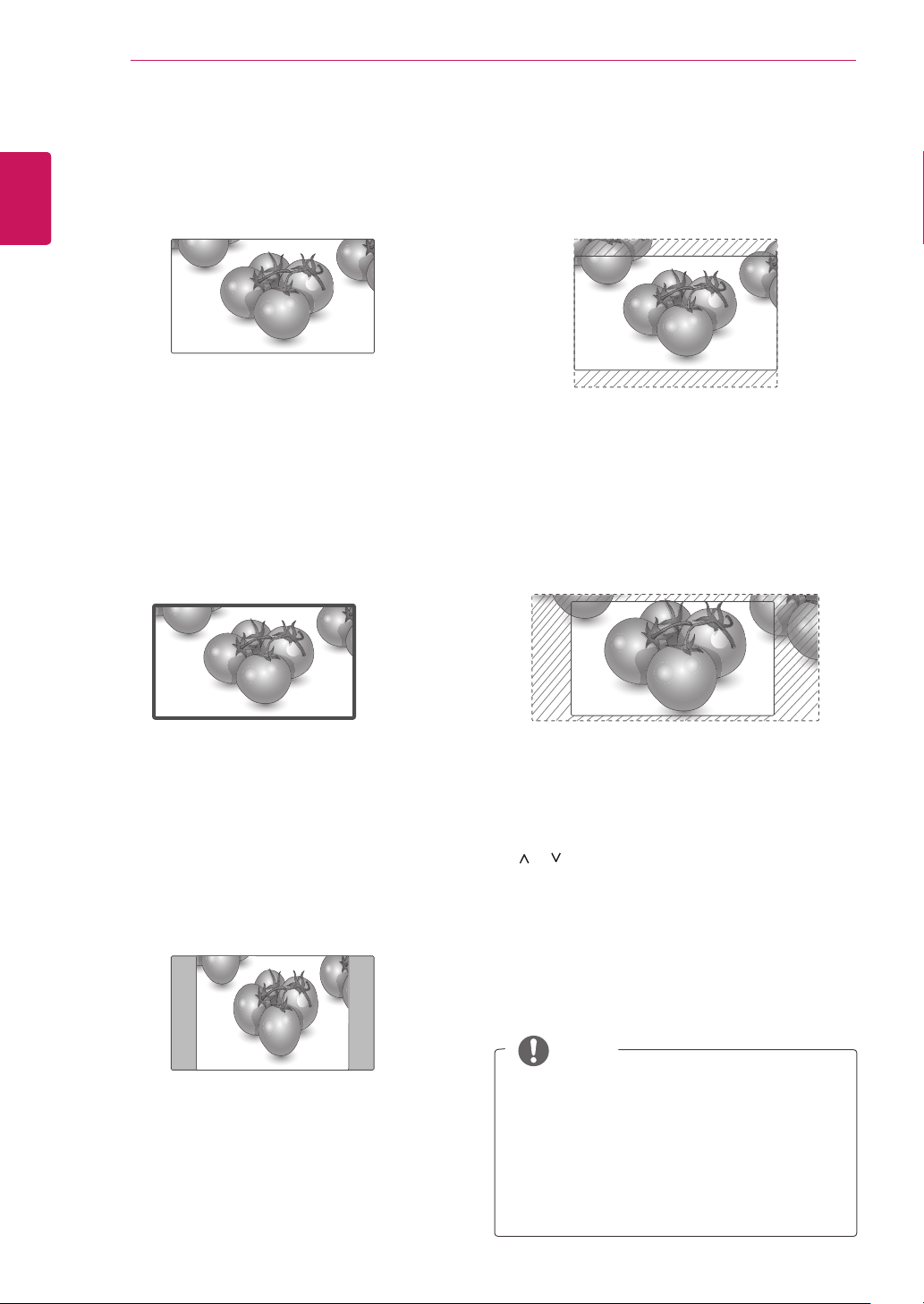

25 - Adjusting aspect ratio
27 ENTERTAINMENT
27 - Connecting to a wired network
28 - Network Status
29 - Connecting USB storage devices
30 - Browsing files

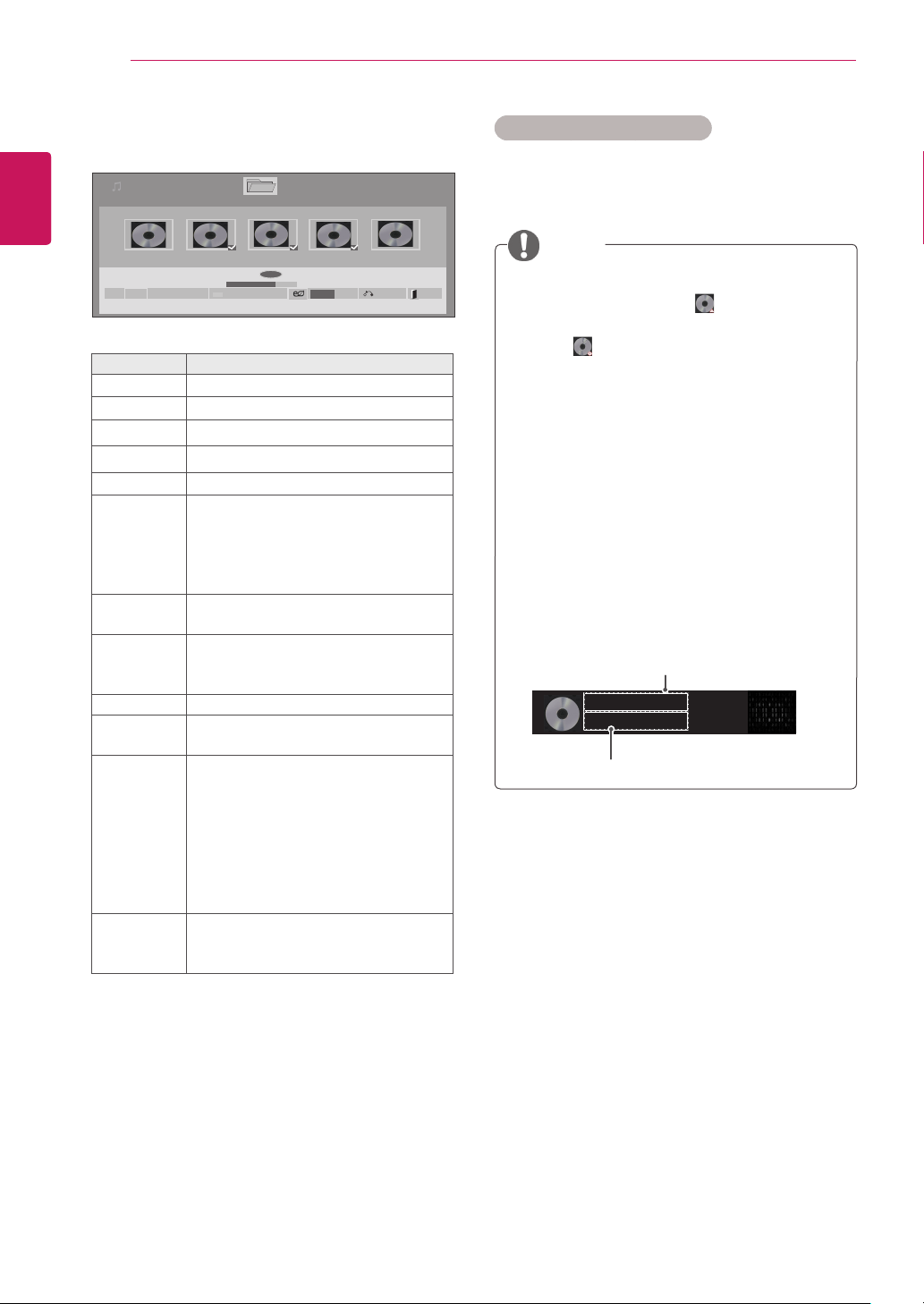

31 - Viewing movies
35 - Viewing photos
37 - Listening to music
39 - DivX® VOD Guide
41 CUSTOMIZING SETTINGS
41 Accessing main menus
42 - PICTURE settings
44 - AUDIO settings
45 - TIME settings
46 - OPTION settings
48 - NETWORK settings
49 MAKING CONNECTIONS
50 Connecting to a HD receiver, DVD or
VCR player

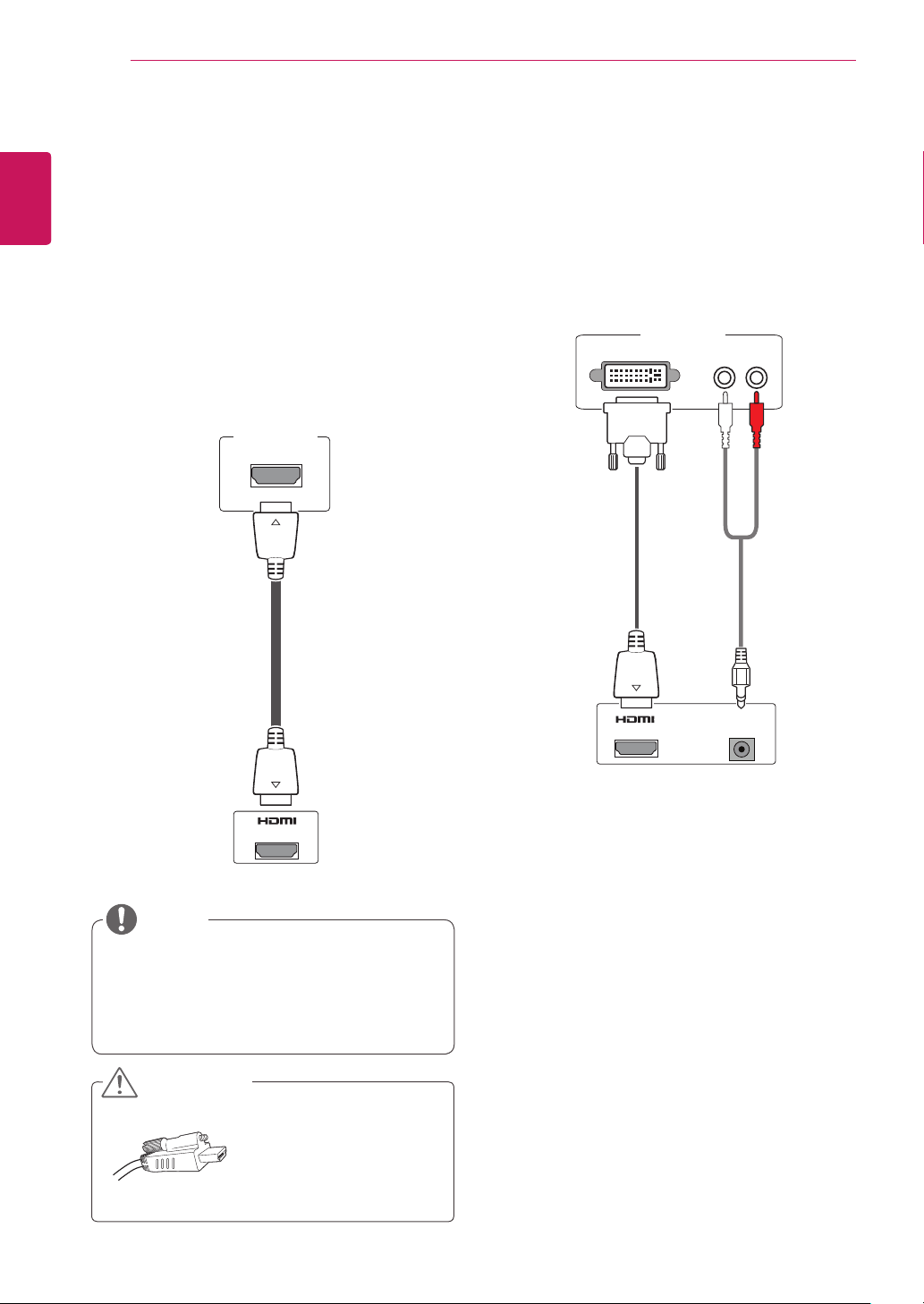

50 - HDMI connection
50 - DVI - HDMI connection
51 - AV connection
51 Connecting to a USB
3
ENG
ENGLISH
TABLE OF CONTENTS
51 Connecting to the LAN
51 - LAN connection

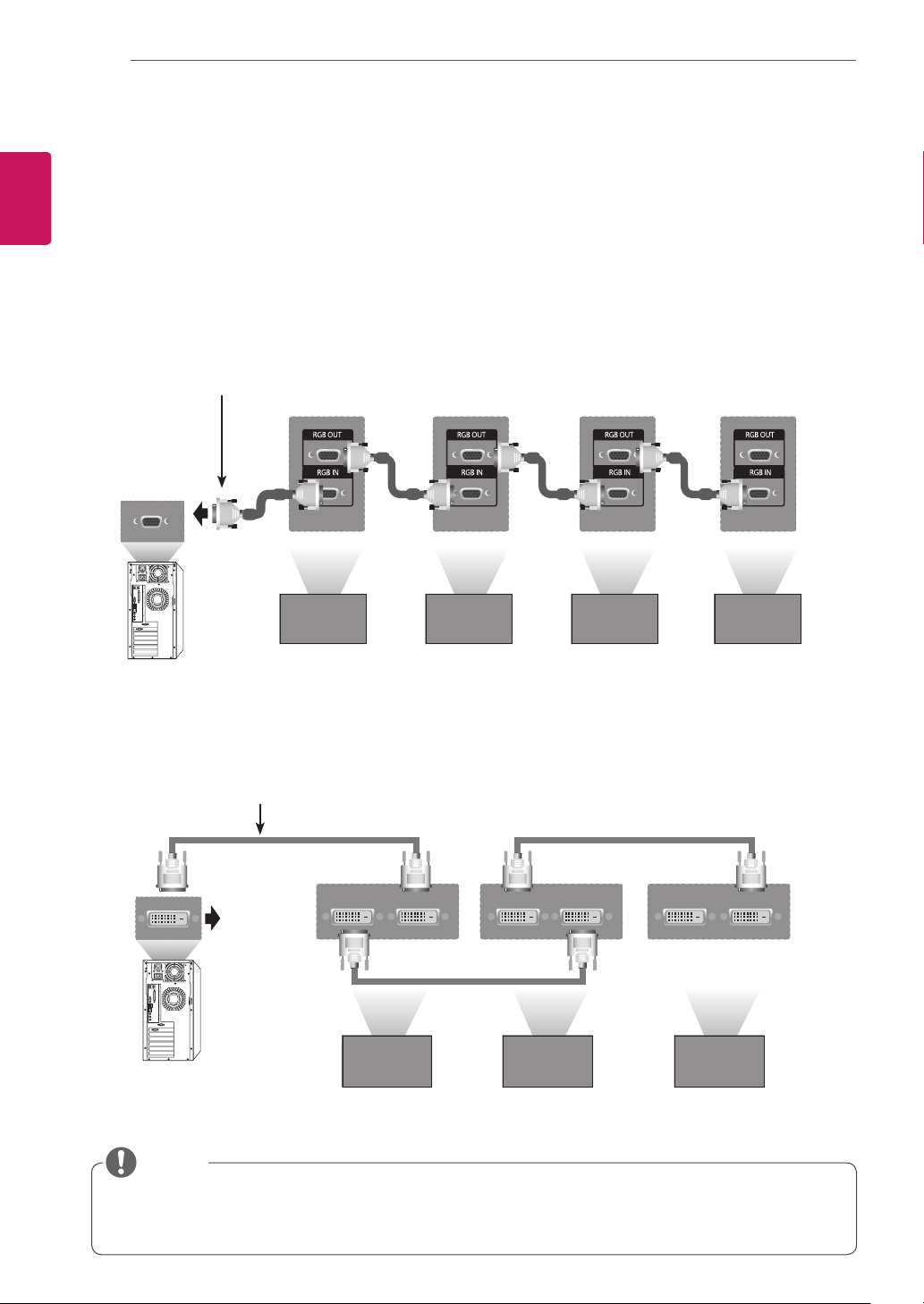

52 Daisy Chain Monitors
52 - RGB Cable
52 - DVI Cable
53 TROUBLESHOOTING
53 General
55 SPECIFICATIONS
57 RS-232 CONTROL
67 LICENSE
y
The following three phenomena may occur due to the characteristics of the Super Narrow Bezel
LCD. They are not related to the display's performance.
1. The edges of the screen may become darker or shadows may appear.
2. Light leakage may occur depending on the viewing angle.
3. Some components such as the guide boss or clip may be visible on the edges of the screen.
NOTE
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING

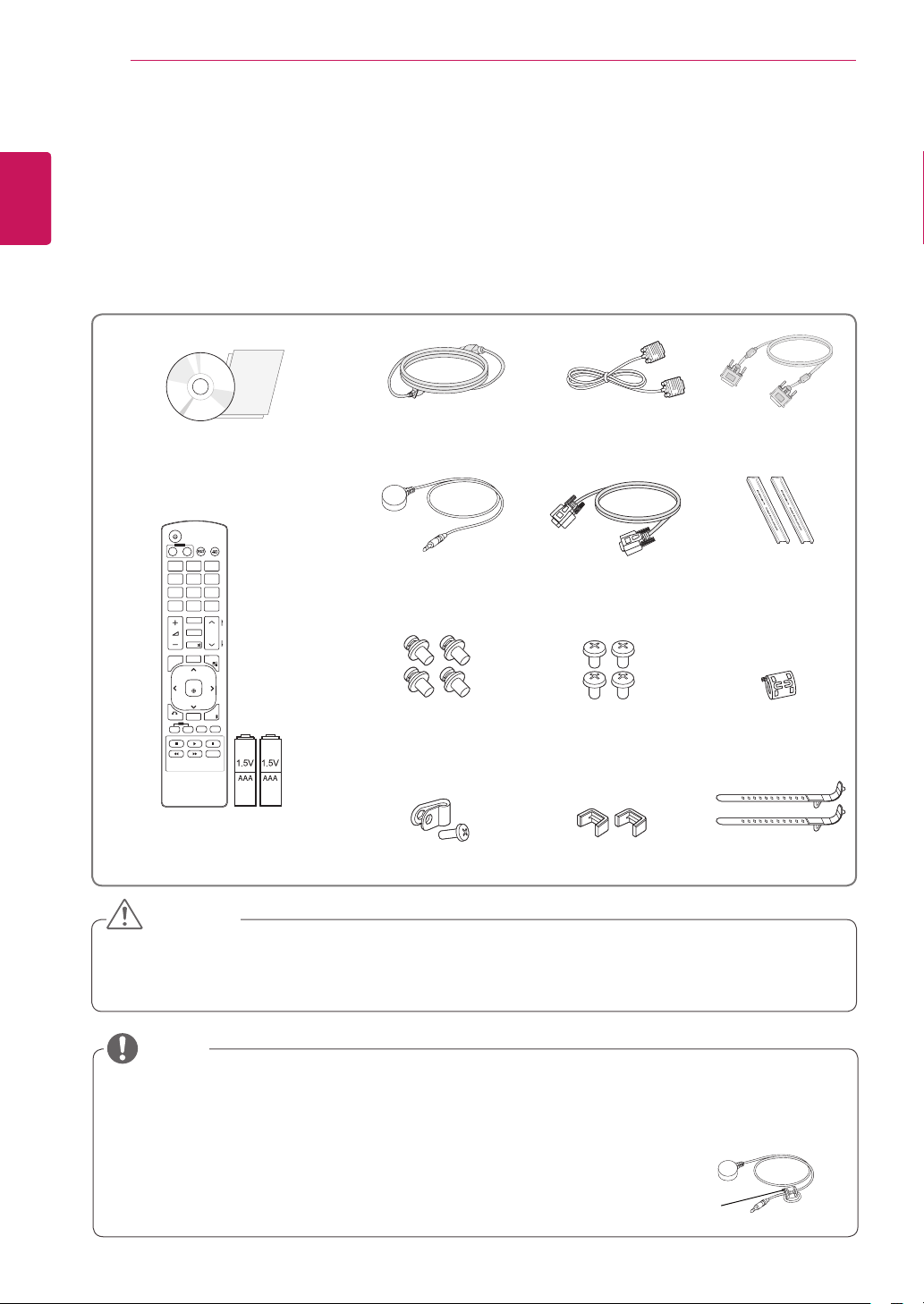

Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
y
Do not use any pirated items to ensure the safety and product life span.
y
Any damages or injuries by using pirated items are not covered by the warranty.
y
The accessories supplied with your product may vary depending on the model.
y
Product specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
y
How to Use a Ring Core
A ring core reduces electromagnetic waves emitted from the IR receiver.
Loop the cable through the core once, before using it as illustrated.
CAUTION
NOTE
Ring Core
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
POWER
OK
S.MENU
ID
BACK
TILE
ON
OFF
EXIT
Remote control and Batteries
Power Cord DVI Cable
IR Receiver Guide bracket
M4 x 10L
Screw (4ea)
Power cable holder U-shaped fixture
M6
Screw (4ea)
Ring Core
Cable holder
(2ea)
CD (Owner's Manual) /
Card
RGB Cable
RS-232C Cable
6
ENG
ENGLISH
ASSEMBLING AND PREPARING
To install in a Portrait Layout
When installing in a Portrait Layout, rotate the monitor clockwise 90 degrees (when facing the screen).
Remove L-brackets before Installation
Remove the L-brackets from each corner of the monitor before installing it.
Keep the removed L-brackets and use them when moving the monitor later.
NOTE
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Moving the device in a vertical
position

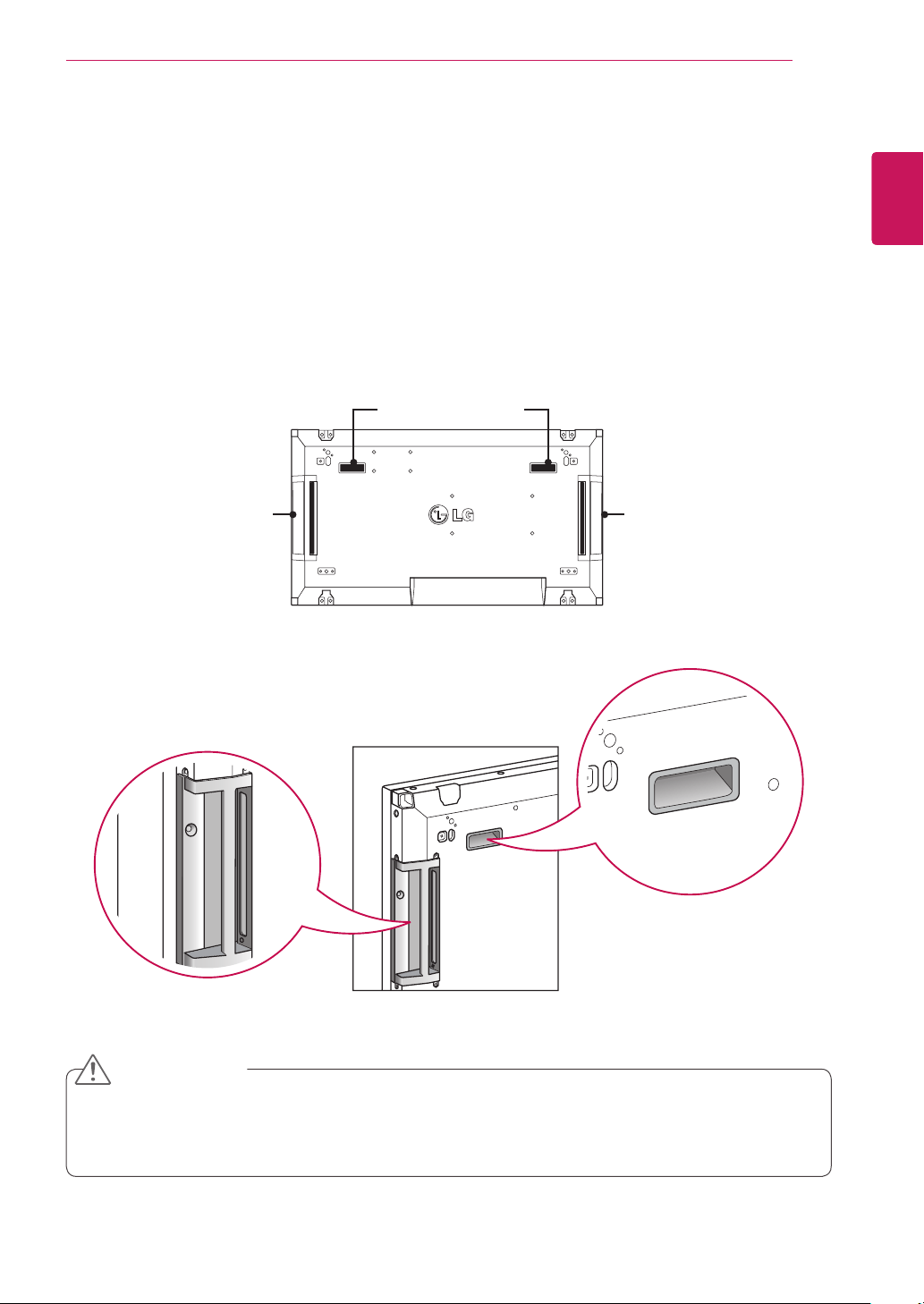

Moving Handles
Moving the device in a horizontal
position
Hold the vertical handles on the left and right
sides or the left and right handles on the back of
the display.
Have the screen facing down and hold the vertical
handles on the left and right sides.
DVI OUT DVI IN
COMPONENT IN
RGB OUT
RGB IN
SPEAKER
(8Ω)
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
USB LAN
AUDIO
RS-232C
(CONTROL)
/DVI
Left and right handles
at the back
Vertical handle
on the side
Vertical handle
on the side
y
Be careful not to directly touch the panel or expose it to shock when moving the monitor.
y
Hold the monitor with the handles as the corners of the front panel are sharp, which may cause an
injury.
CAUTION
8
ENG
ENGLISH
ASSEMBLING AND PREPARING

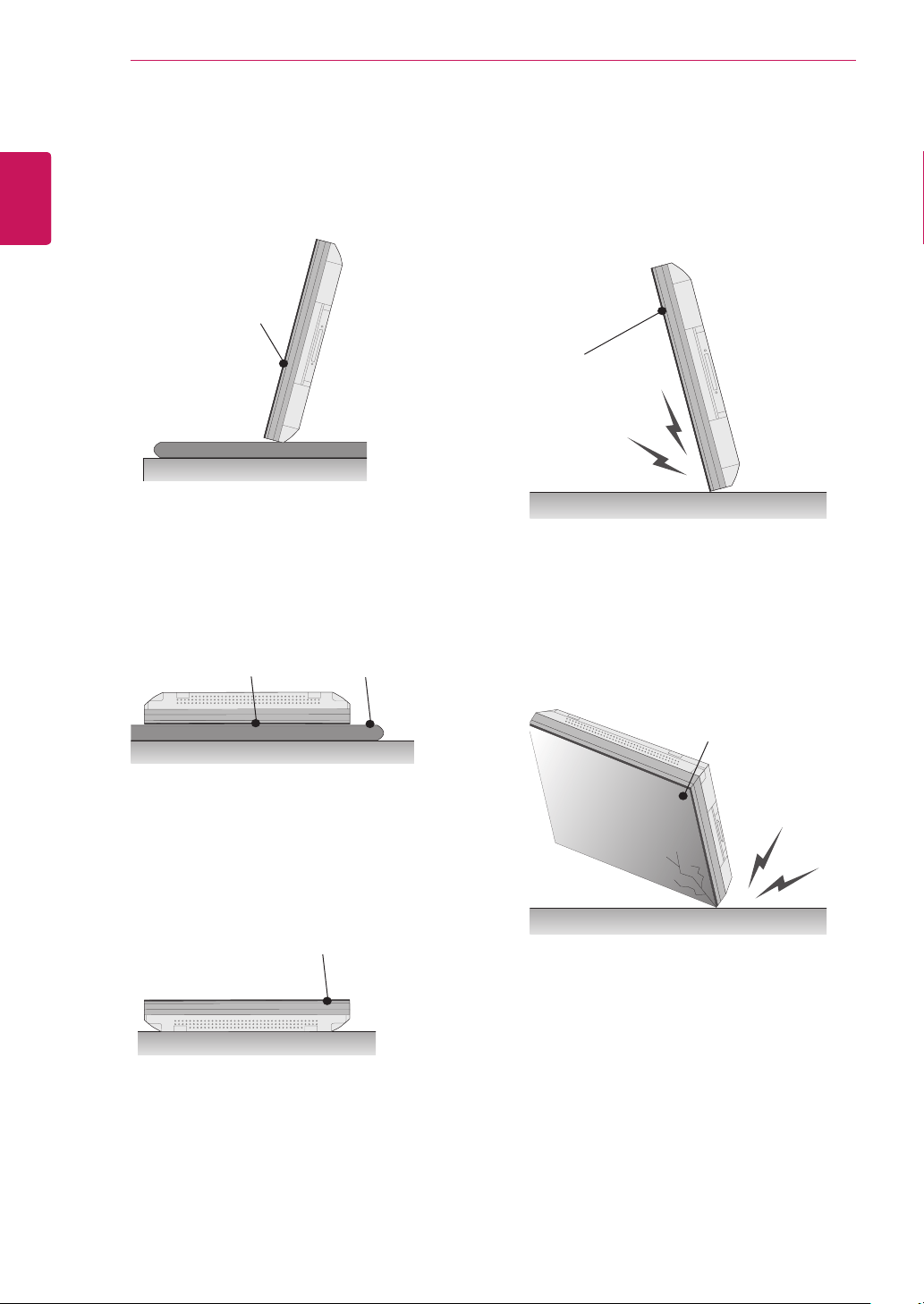

Correct Method Incorrect Method
STORAGE METHOD FOR PANEL PROTECTION
Panel
Panel
Cushion
If the product needs to be set upright, hold both
sides of the product, and tilt backward carefully
for. Do not let the panel not to touch the floor.
When laying down the product, lay a cushion on a
flat floor. Put the product on it with the panel of
the product facing down.
If there is not a cushion available, ensure the floor is
clean and then lay the product down carefully with the
panel facing either upward or downward.
At this time,
be careful for objects not to fall on the panel.
Panel
Panel
Panel
If the product is tilted onto the bezel, the bottom of
the panel may be damaged.
If the product is tilted onto the edge of the panel,
the panel may be damaged.
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
Disconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
y
If you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury. Use an authorized LG wall mount
and contact the local dealer or qualified
personnel.
y
Do not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
y
Use the screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
y
Use the screws that are listed on the VESA
standard screw specifications.
y
The wall mount kit includes an installation
manual and necessary parts.
y
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y
The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
y
For more information, refer to the
instructions supplied with the wall mount.
CAUTION
NOTE
NOTE
Do not install the product in a place with
no ventilation (e.g., on a bookshelf or in a
closet) or on a carpet or cushion. If there is
no other option but to mount the product on
the wall, make sure that sufcient ventilation
is provided before installation.
- Failure to do so may result in a re due to
the increase in the internal temperature.
If you want to mount the monitor on the wall (op-
tional), attach the wall mounting bracket to the rear
of the monitor.
Make sure that the wall mounting bracket is se-
curely fixed to the monitor and to the wall.
Use the wall mount plate and screws that comply
with the VESA standard.
Use the wall mount plate and screws conforming
to the VESA standard.

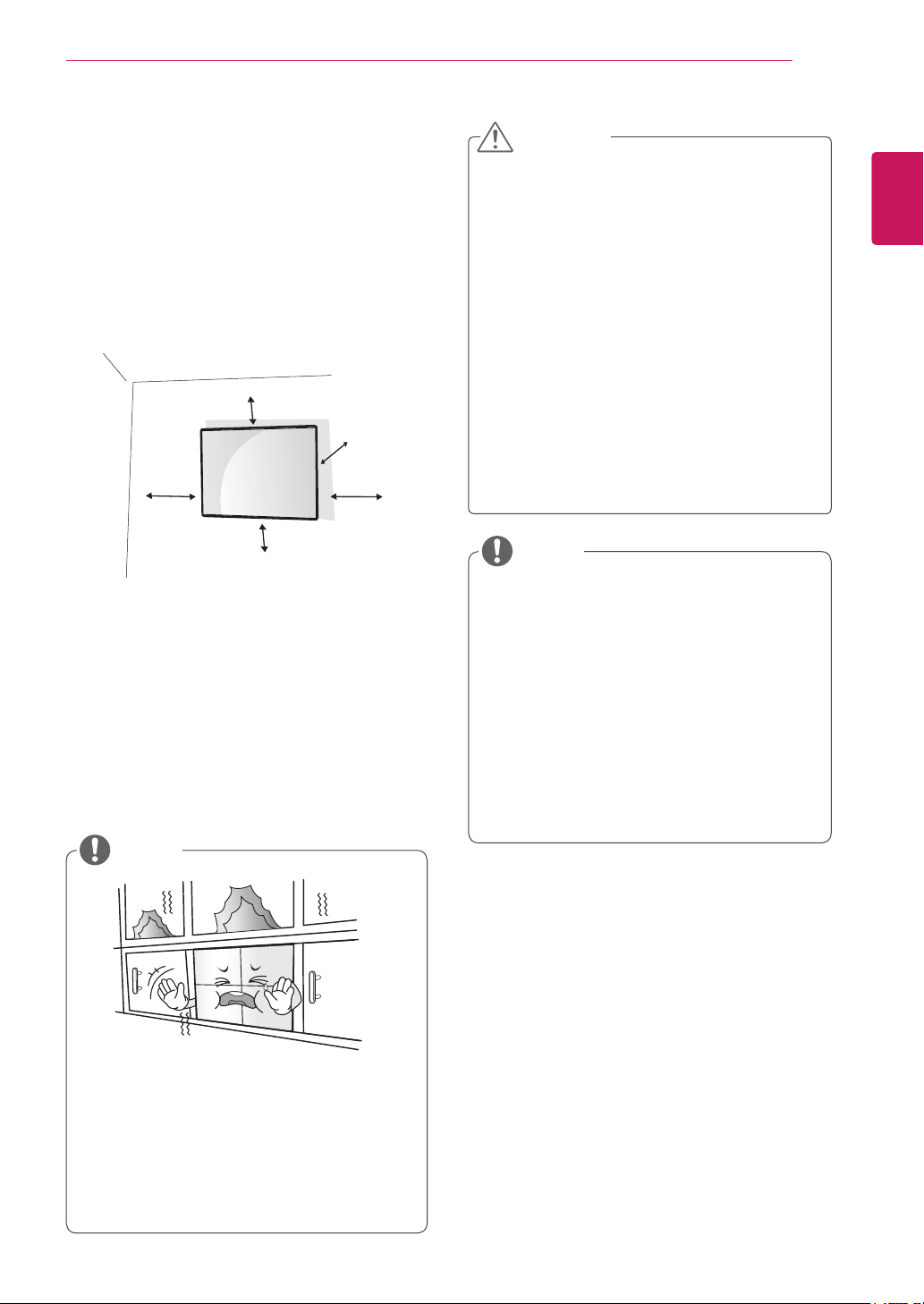

Installing on a wall
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation. De-
tailed installation instructions can be obtained from
your local retail store. Please refer to the manual
to install and set up a tilting wall mounting bracket.
10 cm
10 cm
10 cm
10 cm
20 cm
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
EXTERNAL EQUIPMENT SETUP
IR RECEIVER
This allows a remote control sensor to be placed
in a custom location. Then that display can control
other displays via an RS-232 cable. Refer to page
19 for more information.
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
11
ENG
ENGLISH
ASSEMBLING AND PREPARING

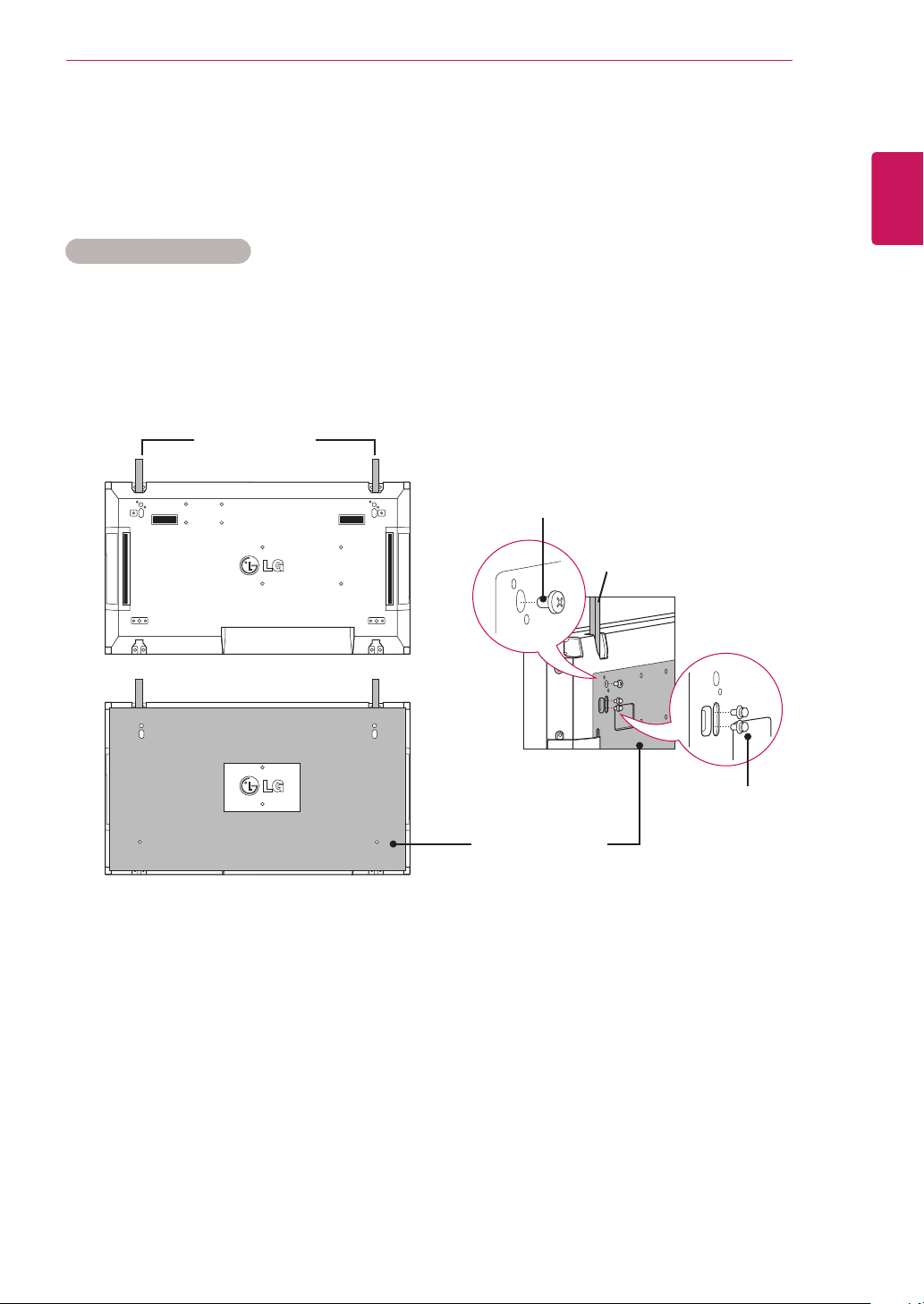

How to Join Sets - Installing Set 1
Tiling Displays
*Example of 2 x 2 tiling
* The numbers assigned in this example (#1, #2, #3, #4) are used to demonstrate the installation procedure
to ensure it is easy to follow. These numbers have nothing to do with the Set ID that is used to operate the
remote control.
Set the guide bracket into the bracket groove using screws and mount the set to the wall mount plate or
the wall.
* The wall mount plate is shaded in gray in the illustration to help you see it.
Guide bracket
Guide bracket
Screws for xing the
VESA wall mount
Wall mount plate
Screws for fixing
the guide bracket
<Rear view of the set with the wall mount plate>
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
<The sets joined with the guide brackets> <The sets after removing the guide brackets>
<Removing the guide bracket through
the side gap>

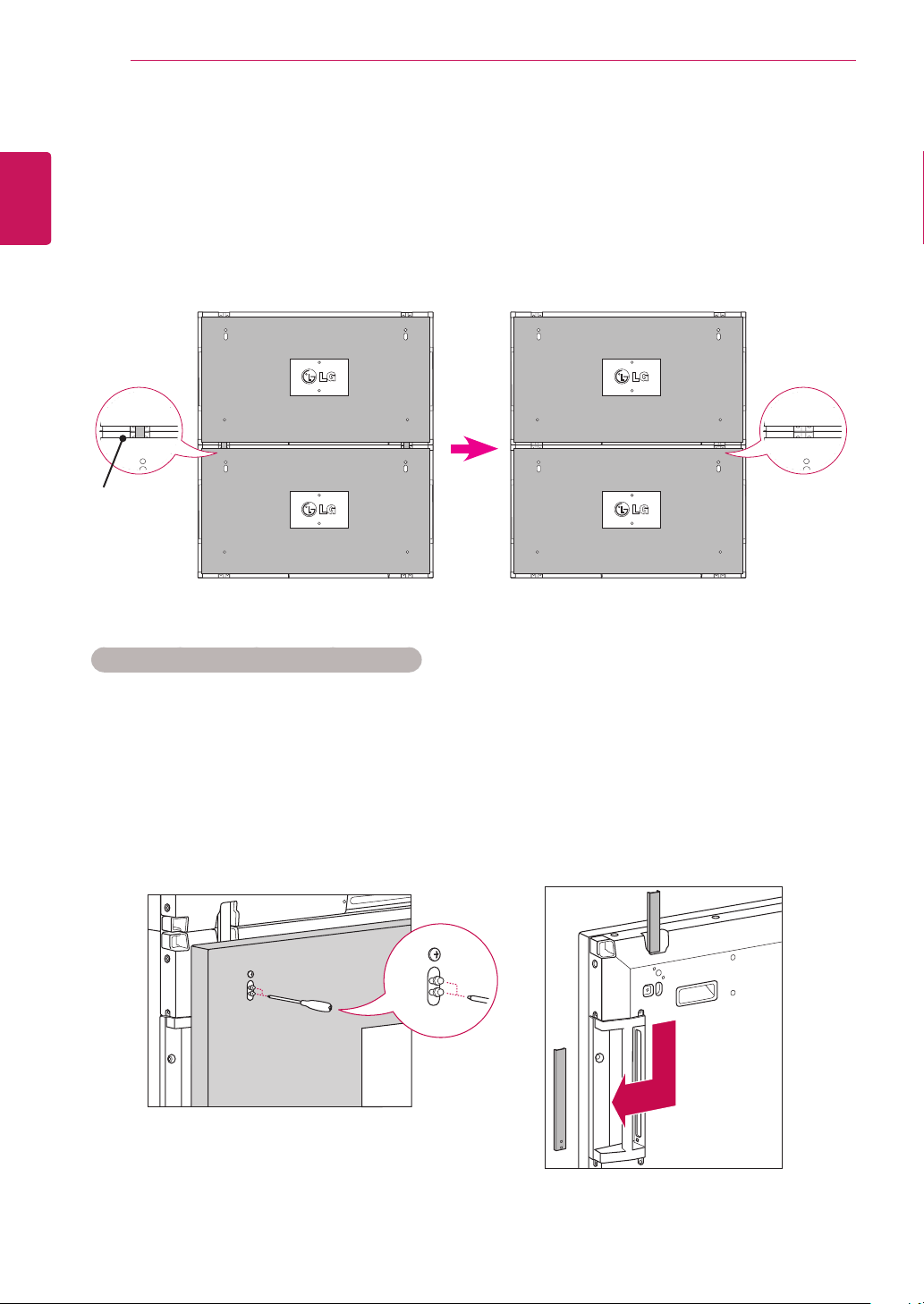

How to Join Sets - Installing Set 2
How to remove the guide brackets
* Unscrew the guide bracket screws from the rear of the set and remove the guide brackets.
* Once the screws are removed, the guide brackets will drop. You need to remove them through the gap
on the sides of the set.
* This can be done only when there is enough space between the set and the wall mount plate or the wall
to unscrew the screws. (Please check whether there is enough space to remove the screws before fixing
the guide brackets.)
Join Set 2 to Set 1 using the guide brackets on the top side of Set 1 and mount the two sets to the wall
mount plate or the wall.
Remove the guide brackets after mounting the sets.
Guide bracket
<Rear view of the set with the wall mount plate>
Remove the
guide brackets
13
ENG
ENGLISH
ASSEMBLING AND PREPARING
U-shaped xture
U-shaped xture
<Joined Sets 1 and 2> <Set 3 to be joined>
Fix the guide brackets to Set 3 following the steps above, and loosely mount the set to the wall mount
plate or the wall.
Minimize the space between the sides of the sets using the U-shaped fixture.
When the sets are joined with the minimum amount of space between them, rmly mount them to the wall
mount plate or the wall.
When the sets are firmly mounted to the wall, remove the U-shaped fixtures.
How to Join Sets - Installing Set 3
#2
#1 #3
14
ENG
ENGLISH
ASSEMBLING AND PREPARING

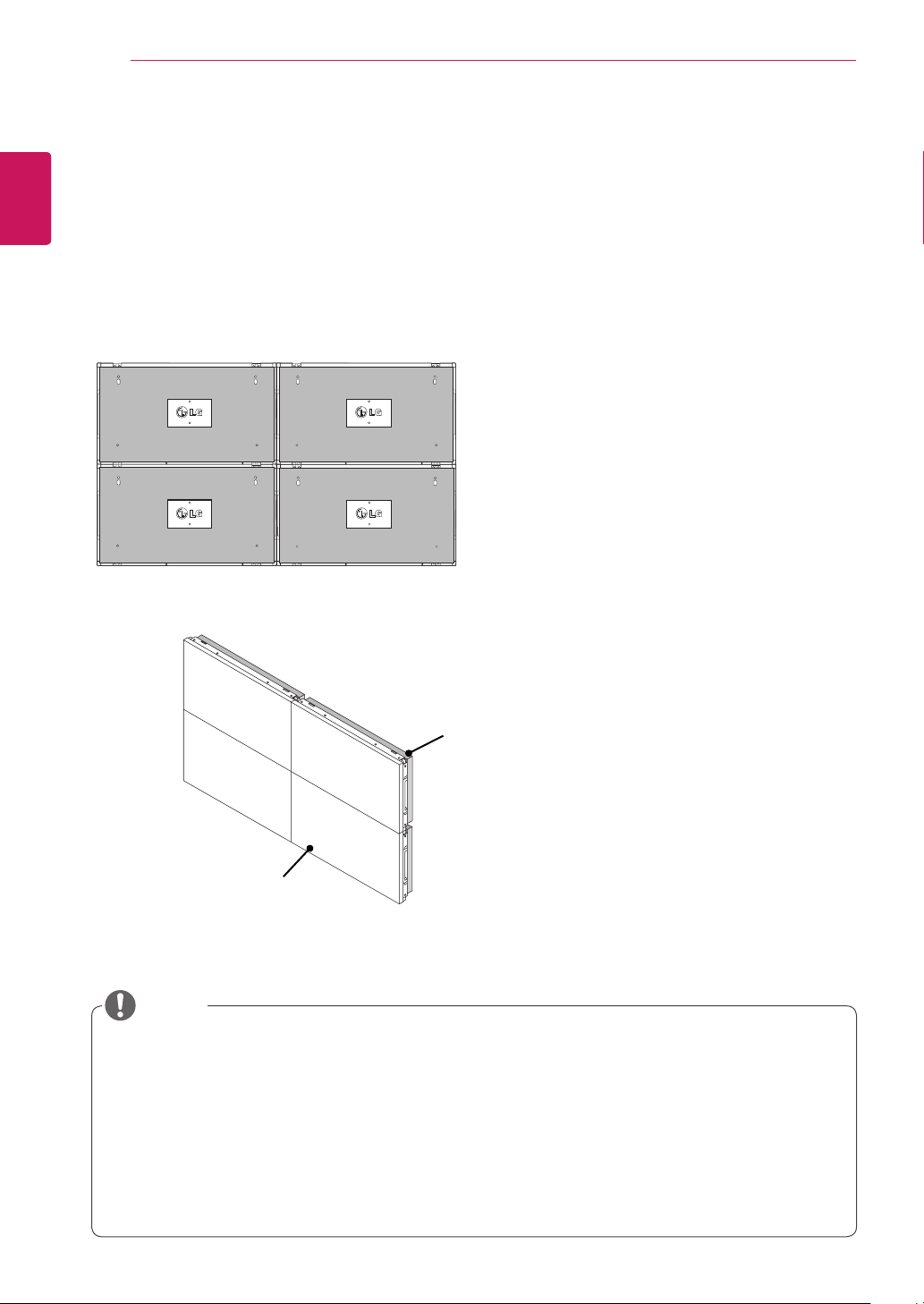

Set 4 joined to the rest of the sets
(2 x 2 tiling)
Wall mount plate or wall
Display set
Loosely mount Set 4 to the wall mount plate or the wall and minimize the space between the sets using
the U-shaped fixtures.
When Set 4 is firmly mounted to the wall, remove the U-shaped fixtures.
Remove the guide brackets. See <How to Join Sets - Installing Set2,3>.
Now the 2 x 2 tiling is complete.
You can tile in various combinations, such as 3 x 3.
How to Join Sets - Installing Set 4
y
The guide brackets for tiling should only be used to join sets and should be removed once they are joined.
y
The guide brackets should only be used as the assisting tool when tiling sets. The load applied to each set
should be supported by the wall mount plate or the wall using a VESA wall mount (800 x 400).
y
(Each set must be firmly mounted to the wall mount plate or the wall.)
y
The guide brackets must be removed once the sets are joined. When joining the sets without removing the
guide brackets, extra caution is required to prevent damage due to the set weight.
y
The U-shaped fixtures must also be removed after mounting the set to the wall mount plate or the wall.
y
You may mount the set without using the guide brackets or the U-shaped xtures; this does not affect the
performance of the device.
NOTE
15
ENG
ENGLISH
ASSEMBLING AND PREPARING

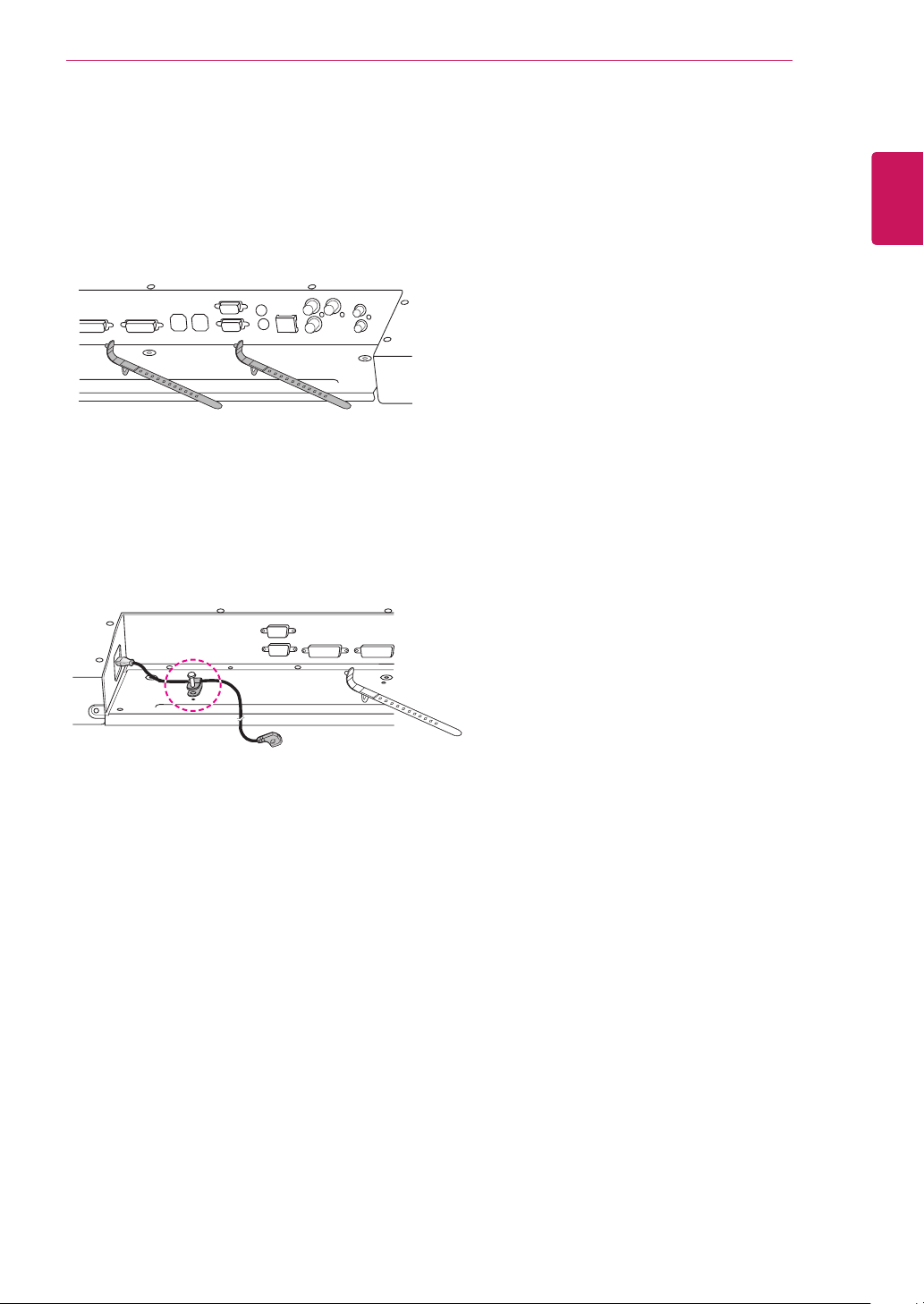

As illustrated, insert two cable holders into the
holes at the bottom rear of the set to organize the
cable bundles.
As illustrated, screw the power cable holder into
the hole on the bottom rear of the set to hold the
power cables together. (This is to put the power
cables inside the holder.)
Inserting the Cable Holder
16
ENG
ENGLISH
REMOTE CONTROL
REMOTE CONTROL

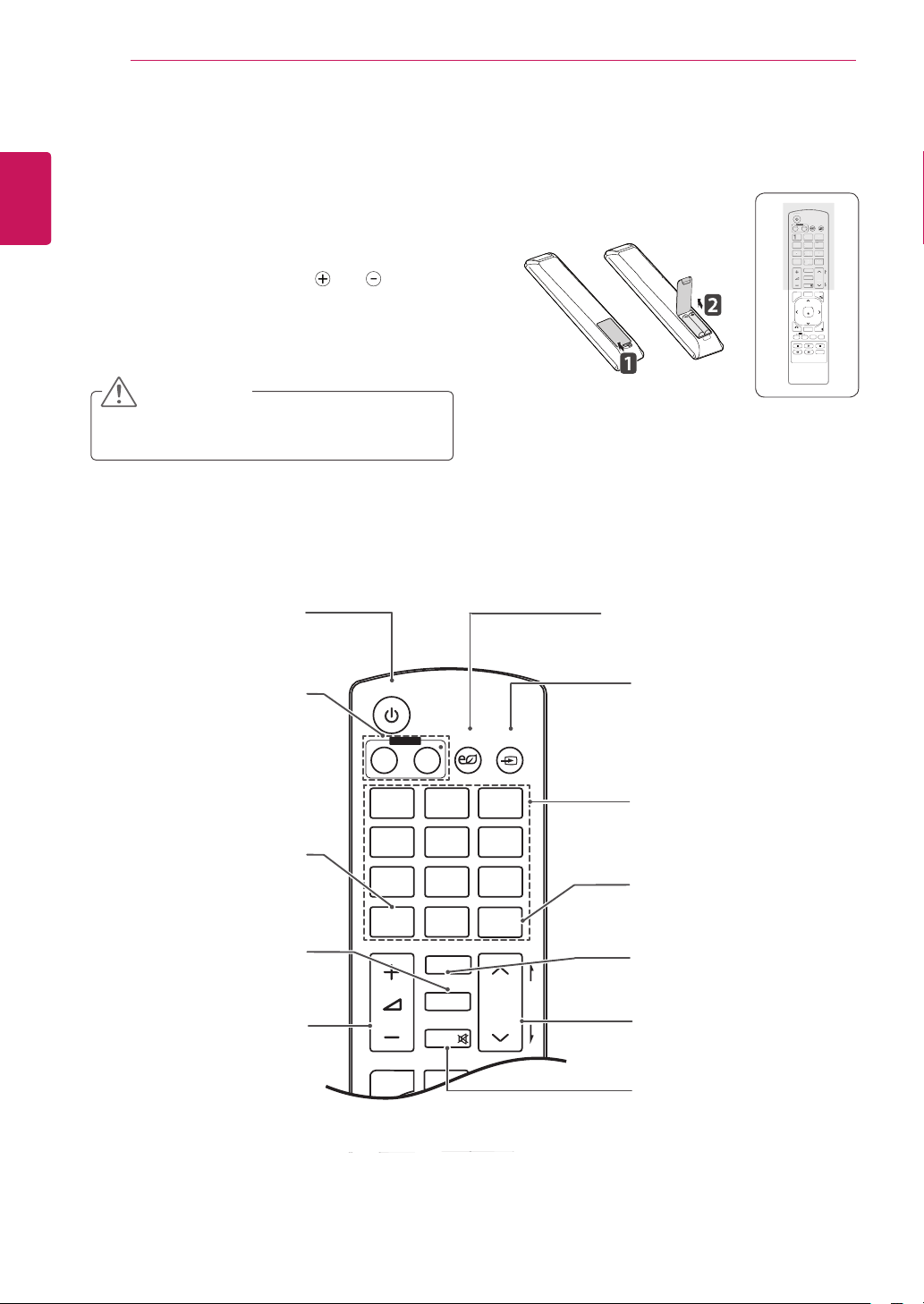

The descriptions in this manual are based on the buttons of the remote control. Please
read this manual carefully and use the Monitor set correctly.
To replace batteries, open the battery cover, replace
batteries (1.5 V AAA) matching and ends to the
label inside the compartment, and close the battery
cover. To remove the batteries, perform the installation
actions in reverse.
Make sure to point the remote control to the remote control sensor on the Monitor set.
CAUTION
y
Do not mix old and new batteries, as this
may damage the remote control.
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
1
. , !
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
1/a/A
0
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
P
A
G
E
INPUT
ENERGY
S
AVIN
G
MARK
AR
C
1
. , !
2
ABC
3
DEF
4
G
HI
5
J
K
L
6
M
N
O
7
PQRS
7
7
8
TUV
9
1/a/A
0
-
*
#
WXYZ
C
LEA
R
ON
OF
F
MONITOR
MONITOR
PSM
MU
T
E
BRI
G
H
T
N
ESS
PO
WE
R
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
Power On / Off
Switches the set on from
standby or off to standby.
Monitor On / Off
Turn off the monitor and then
turn it back on.
1/a/A
This button selection is not
applicable.
Energy Saving
Adjust the Energy Saving
mode of the SET.
INPUT
If you press the button once, the
following Input Signal Window
will appear. Select the signal
type you want using the button.
Number and Alphabet
Type numbers.
The alphabet selection is not
applicable.
Clear
This button selection is not
applicable.
PSM
Selects the Picture Status
Mode.
Volume Up/Down
Adjusts the volume.
ARC
Selects the Aspect Ratio Mode.
BRIGHTNESS
Moves to the previous or next
screen.
MUTE
Switches the sound on or off.
17
ENG
ENGLISH
REMOTE CONTROL
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
1
. , !
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
1/a/A
0
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
OK
S
.MEN
U
AUTO
MEN
U
ID
BA
C
K
T
IL
E
ON
OFF
E
XIT
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER

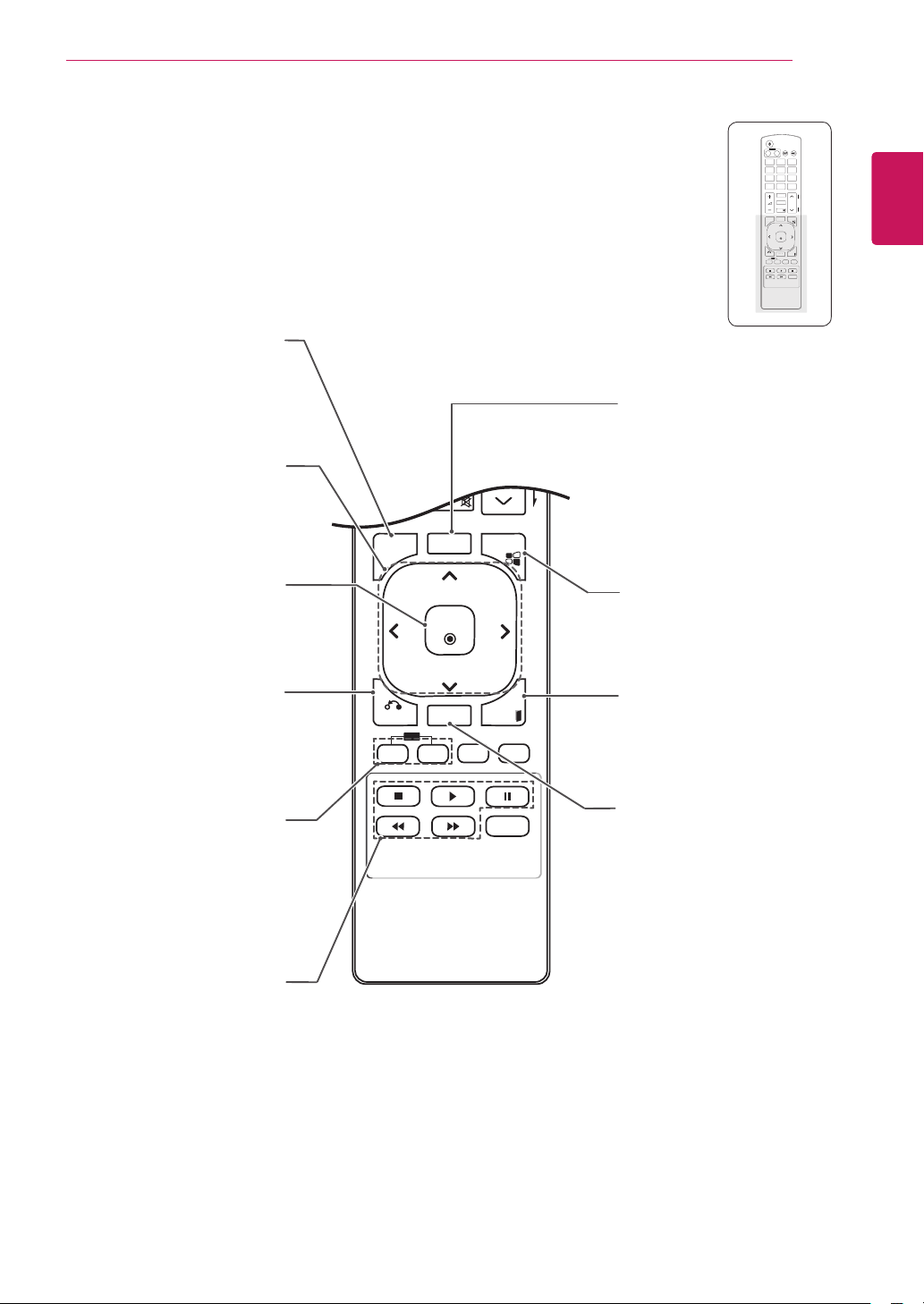

S.MENU
(SuperSign Menu Key)
This button selection is not
applicable.
EXIT
Clears all on-screen displays
and returns to Monitor set
viewing.
TILE
Selects the TILE Mode.
MENU(See p.41)
Selects a menu.
Clears all on-screen displays
and returns to Set viewing
from any menu.
Up/Down/Left/Right
Allows you to navigate the
on-screen menus and adjust
the system settings to your
preference.
OK
Accepts your selection or
displays the current mode.
BACK
Allows the user to move
back one step in an interactive
application.
USB Menu control
Controls media playback.
ID ON/OFF
Allows you to set the Picture
ID or turn it off. Use this
button to control the individual
monitors connected in RS-
232C mode. (It works properly
only when Set IDs are
assigned.)
AUTO
Automatically adjusts picture
position and minimizes image
instability.(RGB input only)
18
ENG
ENGLISH
REMOTE CONTROL
Displaying the device name connected to an input port
Display which devices are connected to which
external input ports.
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
1 Access the Input list screen and press the blue
(input label) button on the remote control.
2 You can assign an input label for every input
except USB.
Input Label
Close
Component
RGB
HDMI
DVI-D
y
External inputs supported: Component,
RGB, HDMI, DVI-D
y
Labels available : VCR, DVD, Set top box,
Satellite, Game, PC, Blue-ray, HD-DVD
y
The input labels are displayed on the Input
Label screen or at the top left of the screen
when you change the external input
setting.
y
For DTV/PC-compatible signals, such as
1080p 60 Hz, the screen settings may
change according to the input label. The
Just Scan option is available if a PC is
connected as an external device.
NOTE
19
ENG
ENGLISH
REMOTE CONTROL

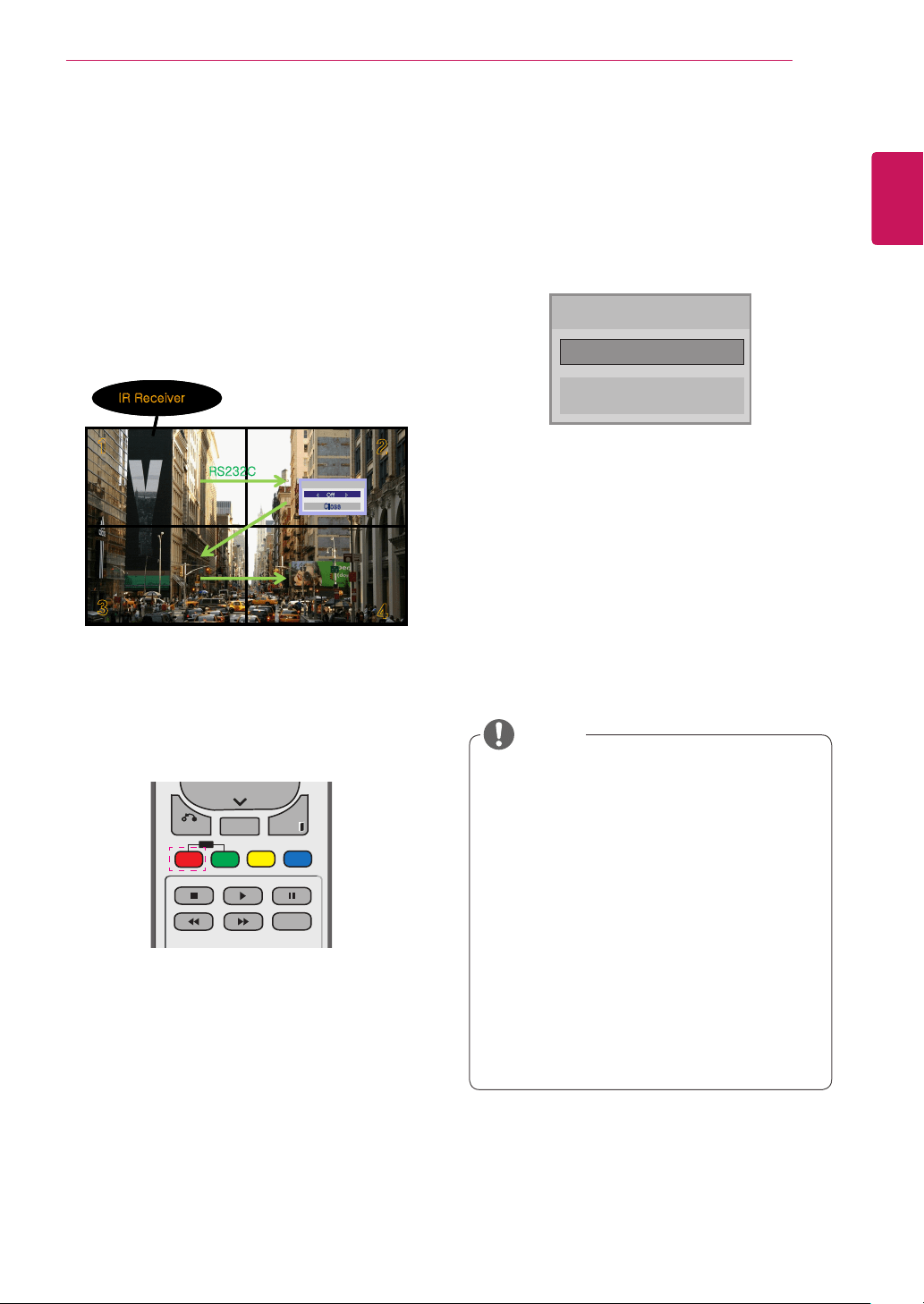

Picture ID
Picture ID is used to change the settings of a
specic display using a single IR receiver for
multi-vision. The set receiving the IR signal
communicates with another set via an RS232
connection. Each set is identied by a Set ID. If
you assign the Picture ID using the remote control,
only displays with the same Picture ID and Set ID
can be controlled remotely.
1 Press the red ON button on the remote control
to assign the Picture ID.
2 If you press the left/right buttons or press the
ON button repeatedly, the Picture ID cycles
through OFF and 0 to 4. Assign the ID you
want.
y
If you assign the Set ID to each set with
multi-vision, and then assign the Picture ID
using the red button on the remote control,
the key command is displayed for the set
with the same Set ID and Picture ID. A set
with different Set IDs and Picture IDs cannot
be controlled by IR signals.
y
For more information on how to assign the
Set ID, see "Set ID" on page See p.46.
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
y
For example, if the Picture ID is assigned
to 2, the upper right display (Set ID: 2) can
be controlled by IR signals.
y
For each set, you can change the
settings for the PICTURE, AUDIO, TIME,
NETWORK and MY MEDIA menus or the
hot keys on the remote control.
y
If you press the green OFF button for
Picture IDs, the Picture IDs for all sets are
turned off. If you then press any button
on the remote control, all sets will start
working again.
y
Picture ID will be disabled while using the
MY MEDIA menu.
NOTE
Picture ID
Close
◀
Off
▶
1
2
3
4
Picture ID
Off
Close
IR Receiver
RS232C
1
2
3
4
1
2
3
4
Picture ID
Off
Close
Picture ID
Off
Close
IR Receiver
RS232C
2X2 Multi-Vision (Total Set ID: 4)
Set IDs are assigned as shown in the picture.
20
ENG
ENGLISH
USING THE MONITOR SET
USING THE MONITOR SET
Connecting to a PC
y
It is recommended to you use an HDMI
connection for the best image quality.
NOTE
RGB connection
Transmits an analog video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with the D-sub 15 pin cable as shown the
following illustrations.
RGB IN
AUDIO
(RGB/DVI)
RGB IN
DVI IN
REMOTE
CONTROL IN
/DVI
PC
y
Do not press the screen with your finger for
this damage the screen.
y
Avoid displaying a fixed image on the
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
CAUTION
y
Apple computers may
require an adapter
to connect to this
monitor. Call or visit
their web site for more
information.
NOTE
y
Connect the signal
input cable and tighten
it by turning the screws
clockwise.
CAUTION
21
ENG
ENGLISH
USING THE MONITOR SET
RGB IN
AUDIO
(RGB/DVI)
RGB IN
DVI IN
REMOTE
CONTROL IN
/DVI
y
If you do not use an optional external
speaker, connect the PC to the Monitor set
with audio cable.
y
Use a shielded signal interface cable, such
as D-sub 15 pin signal cable and DVI to
HDMI cable, with a ferrite core to maintain
standard compliance for the product.
y
If you want to use HDMI-PC mode, you must
set the input label to PC mode.
NOTE
HDMI connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the HDMI cable as shown in
the following illustrations. When using computer
input with HDMI, you must set the label of that
HDMI input to PC.

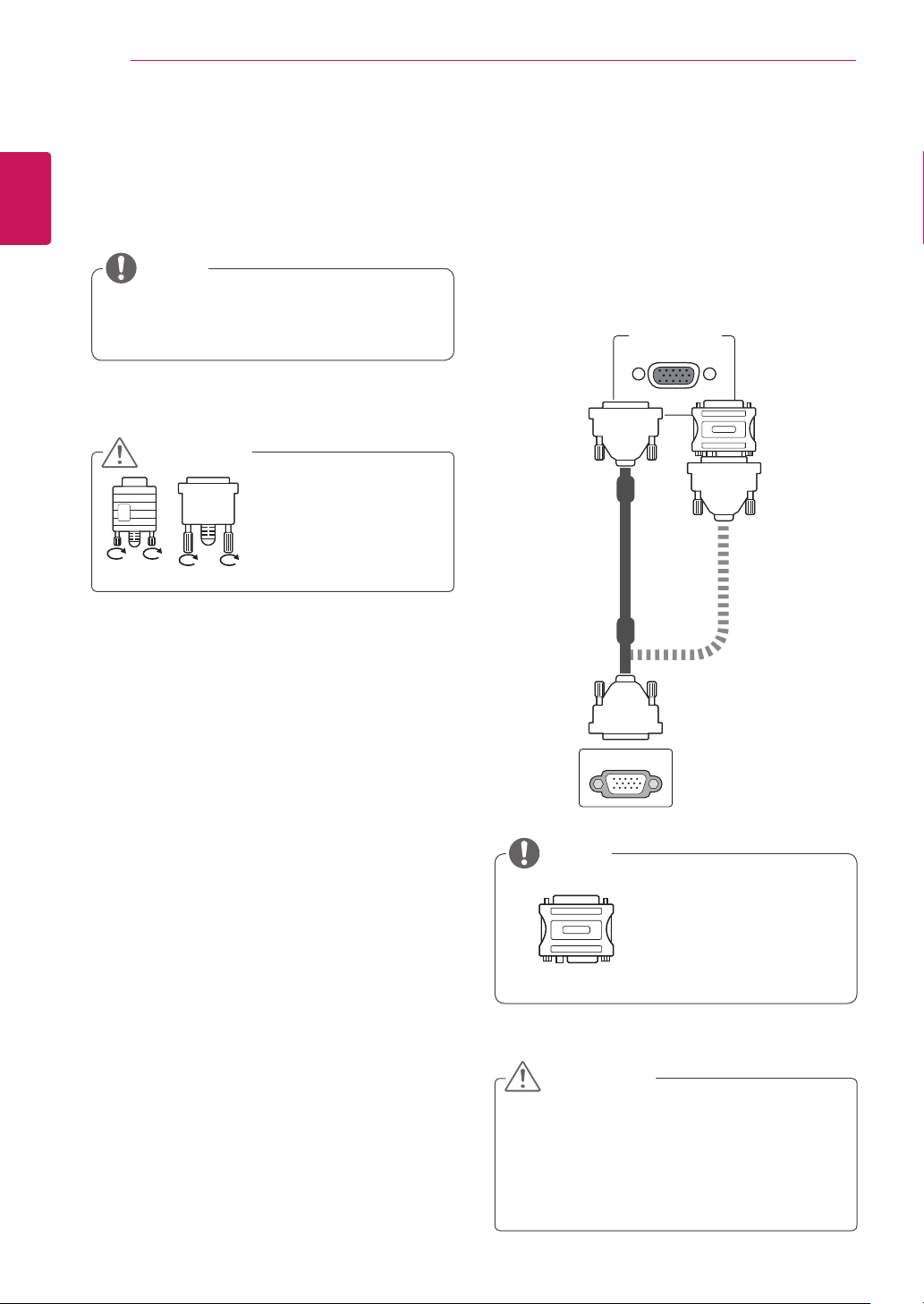

DVI to DVI connection
Transmits the digital video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with the DVI to DVI cable as shown the
following illustrations.
y
Use a High Speed HDMI™ Cable.
y
Please check the PC environment if you
cannot hear the sound in HDMI mode.
y
If you want to use HDMI-PC mode, you must
set the input label to PC mode.
NOTE
RGB IN
AUDIO
(RGB/DVI)
RGB IN
DVI IN
REMOTE
CONTROL IN
/DVI
PC
PC
(not included)
22
ENG
ENGLISH
USING THE MONITOR SET
RGB IN
AUDIO
(RGB/DVI)
RGB IN
DVI IN
REMOTE
CONTROL IN
/DVI
Audio connection
Transmits the audio signals from your PC to the
Monitor set. Connect the PC and the Monitor set
with the Audio cable as shown in the following
illustrations. You should set PC as an input label
to connect the PC to the Monitor set with an Audio
connection.
IR Receiver connection
Allows the use of a wired remote or IR receiver
extension.
PC
RGB IN
AUDIO
(RGB/DVI)
RGB IN
DVI IN
REMOTE
CONTROL IN
/DVI
(not included)
23
ENG
ENGLISH
USING THE MONITOR SET
Adjusting the screen
Selecting an image mode
Display images using optimized settings by
selecting one of the preset image modes.
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to
PICTURE and press OK.
3
Press the Navigation buttons to scroll to
Picture Mode and press OK.
4
Press the Navigation buttons to scroll to an
image mode you want and press OK.
Customizing image options
Customize basic and advanced options of each
image mode for the best screen performance.
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to
PICTURE and press OK.
3
Press the Navigation buttons to scroll to
Picture Mode and press OK.
4
Press the Navigation buttons to scroll to an
image mode you want and press OK.
5
Select and adjust following options, and then
press OK.
Mode Description
Vivid Adjusts the video image for the retail
environment by enhancing the Contrast,
Brightness, Color, and Sharpness.
Standard Adjusts the image for the normal
environment.
Cinema Optimizes the video image for the
cinematic look and enjoy movies as if you
are in a movie theater.
Sports Optimizes the video image for high and
dynamic actions by emphasizing primary
Colors such as white, grass, or sky blue.
Game Optimizes the video image for a fast
gaming screen such as PCs or games.
5
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Option Description
Backlight Adjusts the brightness of the screen
by controlling the LCD backlight. If
you decrease the brightness level,
the screen becomes darker and the
power consumption will be reduced
without any video signal loss.
Contrast Increases or decreases the gradient
of the video signal. You may use
Contrast when the bright part of the
image is saturated.
Brightness Adjusts the base level of the signal in
the image. You may use Brightness
when the dark part of the image is
saturated.
Sharpness Adjusts the level of crispness in the
edges between the light and dark
areas of the picture. The lower the
level, the softer the image.
Color Adjusts intensity of all Colors.
Tint Adjusts the balance between Red
and Green levels.
Color
Temperature
Set to warm to enhance hotter Colors
such as red, or set to cool to make
picture bluish.
24
ENG
ENGLISH
USING THE MONITOR SET
6
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Advanced
Control
Customizes the advanced options.
See more information about advanced
options See p.43.
Reset
Restores the options to the default
setting.
Customizing PC display options
Customize options of each image mode for the
best image quality.
y
This function works in the following mode:
RGB[PC] mode.
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to
PICTURE and press OK.
3
Press the Navigation buttons to scroll to
Screen and press OK.
4
Select and adjust following options, and then
press OK.
Option Description
Resolution Selects a proper Resolution.
Auto
Configure
Sets to adjust the screen Position, Size
and Phase automatically. The displayed
image may be unstable for a few seconds
while the configuration is in progress.
Position/
Size/Phase
Adjusts the options when the image is
not clear, especially when characters are
shaky, after the auto configuration.
Reset Restores the options to the default
setting.
5
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Adjusting the sound
Selecting an sound mode
Play the sound in its optimized settings by
selecting one of the preset sound modes.
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to
AUDIO and press OK.
3
Press the Navigation buttons to scroll to Sound
Mode and press OK.
4
Press the Navigation buttons to scroll to a
sound mode you want and press OK.
Mode Description
Standard Selects when you want standard-quality
sound.
Music Selects when you listen to music.
Cinema Selects when you watch movies.
Sports Selects when you watch sports events.
Game Selects when you play games.
5
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
25
ENG
ENGLISH
USING THE MONITOR SET
Customizing sound options
Customize options of each sound mode for the
best sound quality.
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to
AUDIO and press OK.
3
Press the Navigation buttons to scroll to Sound
Mode and press OK.
4
Press the Navigation buttons to scroll to a
sound mode you want and press OK.
5
Select and adjust following options, and then
press OK.
Option Description
Infinite
Sound
LG's Infinity Sound option provides
5.1 channel stereo sound from two
speakers.
Treble Controls the dominant sounds in the
output. When you turn up the treble, it
will increase the output to the higher
frequency range.
Bass Controls the softer sounds in the
output. When you turn up the bass, it
will increase the output to the lower
frequency range.
Reset Resets the sound mode to the default
setting.
6
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Using additional options
Adjusting aspect ratio
Resize the image to view the image at its optimal
size by pressing ARC while you are watching
Monitor set.
y
If a fixed image displays on the screen for a
long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is “image burn” or “burn-in” and
not covered by the warranty.
y
If the aspect ratio is set to 4:3 for a long
period of time, image burn may occur on
the letterboxed area of the screen.
CAUTION
You can also change the image size by
accessing the main menus.
NOTE
26
ENG
ENGLISH
USING THE MONITOR SET
- Just Scan: Following Selection will lead to you
view the picture of best quality without loss of
original picture in high resolution image.
Note: If there is noise in original Picture, You
can see the noise at the edge.
- Cinema Zoom1: Choose Cinema Zoom when
you want to enlarge the picture in correct
proportion.
Note: When enlarging or reducing the picture,
the image may become distorted.
y
< or >
button: Adjust enlarge proportion of
Cinema Zoom. The adjustment range is 1 to
16.
y
or
button: Move the screen.
y
You can only select 16:9, Just Scan, 4:3,
Zoom, Cinema Zoom1 in Component and
HDMI mode.
y
You can only select 4:3, 16:9 in RGB-PC,
HDMI-PC mode only.
y
In HDMI/DVI-DTV, Component (over 720p)
mode, Just Scan is available.
NOTE
Just Scan
- 4:3: The following selection will allow you to view
a picture with an original 4:3 aspect ratio, gray
bars will appear on both the left and right of the
screen.
- Zoom: The following selection will allow you to
view the picture without any alteration, while
filling the entire screen. However, the top and
bottom of the picture will be cropped.
- 16:9: The following selection will allow you
to adjust the picture horizontally, in linear
proportion, to fill the entire screen(useful for
viewing 4:3 formatted DVDs).
27
ENG
ENGLISH
ENTERTAINMENT
ENTERTAINMENT
Connecting to a wired network
(Depending on model)
Connect the display to a local area network (LAN)
via the LAN port as shown on the following illustra-
tion and set up the network settings.
47WV30BS only supports wired network connec-
tion.
After making a physical connection, a small
number of networks may require the display net-
work settings to be adjusted. For most networks,
the display will connect to automatically without
any adjustments.
For detailed information, contact your internet
provider or router manual.
y Do not connect a modular phone cable to
the LAN port.
y Since there are various connection meth-
ods, please follow the specifications of
your telecommunication carrier or internet
service provider.
y Network setting menu will not be availa-
ble until the display connected to physical
network.
y Since there are various connection meth-
ods, please follow the specifications of
your telecommunication carrier or internet
service provider.
CAUTION CAUTION
To set up the network seetings: (Even if your dis-
play has already connected automatically, running
setup again will not harm anything),
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to NET-
WORK and press OK.
3 Press the Navigation buttons to select Net-
work Setting and press OK.
4 If you already set Network Setting, select
Resetting. The new connection settings resets
the current network settings.
5 Select IP Auto Setting or IP Manual Setting.
- If selecting IP Manual Setting, press the
Navigation and Number buttons. IP address-
es will need to be input manually.
- IP Auto Setting: Select this if there is a
DHCP server (Router) on the local area net-
work (LAN) via wired connection, the display
will automatically be allocated an IP address.
If you’re using a broadband router or broad-
band modem that has a DHCP (Dynamic
Host Configuration Protocol) server function.
The IP address will automatically be deter-
mined.
6 When you are finished, press EXIT.
LAN
Router
LAN WAN
Cable modem
ETHERNET
@
Internet
Internet
28
ENG
ENGLISH
ENTERTAINMENT
y If you want to access the Internet directly
on your display, the internet connection
should always be on.
y If you cannot access the Internet, check
the network conditions from a PC on your
network.
y When you use Network Setting, check
the LAN cable or check if DHCP in the
router is turned on.
y If you do not complete the network set-
tings, the network may not work properly.
NOTE
Tips for Network setting
y Use a standard LAN cable with this display. Cat5
or better with a RJ45 connector.
y Many network connection problems during set
up can often be fixed by re-setting the router
or modem. After connecting the display to the
network, quickly power off and/or disconnect the
power cable of the network router or cable mo-
dem. Then power on and/or connect the power
cable again.
y Depending on the internet service provider
(ISP), the number of devices that can receive
internet service may be limited by the applicable
terms of service. For details, contact your ISP.
y LG is not responsible for any malfunction of the
display and/or the internet connection feature
due to communication errors/malfunctions as-
sociated with your internet connection, or other
connected equipment.
y LG is not responsible for problems within your
internet connection.
y You may experience undesired results if the
network connection speed does not meet the
requirements of the content being accessed.
y Some internet connection operations may not
be possible due to certain restrictions set by the
Internet service provider (ISP) supplying your
Internet connection.
y Any fees charged by an ISP including, without
limitation, connection charges are your respon-
sibility.
y A 10 Base-T or 100 Base-TX LAN port is
required when using a wired connection to this
display. If your internet service does not allow for
such a connection, you will not be able to con-
nect the display.
y A DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with your
ISP, you may not be able to use the internet
connection feature contained in this display or
you may be limited to the number of devices you
can connect at the same time. (If your ISP limits
sub-scription to one device, this display may
not be allowed to connect when a PC is already
connected.)
y The use of a “Router” may not be allowed or its
usage may be limited depending on the policies
and restrictions of your ISP. For details, contact
your ISP directly.
Network Status
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to NET-
WORK and press OK.
3 Press the Navigation buttons to select Net-
work Status.
4 Press OK to check the network status.
5 When you are finished, press EXIT.
Option Description
Setting Return to the network setting menu.
Test
Test the current network status after set-
ting the network.
Close Return to the previous menu.
29
ENG
ENGLISH
ENTERTAINMENT
Tips for using USB storage devices
y Only a USB storage device is recognizable.
y If the USB storage device is connected
through a USB hub, the device is not recog-
nizable.
y A USB storage device using an automatic
recognition program may not be recognized.
y A USB storage device which uses its own
driver may not be recognized.
y The recognition speed of a USB storage
device may depend on each device.
y Please do not turn off the display or unplug
the USB device when the connected USB
storage device is working. When such device
is suddenly separated or unplugged, the
stored files or the USB storage device may
be damaged.
y Please use only a USB storage device which
was formatted as a FAT32 file system or
NTFS file system provided with the Win-
dows operating system. In case of a storage
device formatted as a different utility program
which is not supported by Windows, it may
not be recognized.
y Please connect power to a USB storage
device(over 0.5 A) which requires an external
power supply. If not, the device may not be
recognized.
y Please connect a USB storage device with
the cable provided by the device maker.
y Some USB storage devices may not be sup-
ported or operated smoothly.
y File alignment method of USB storage
device is similar to Window XP and filename
support of up to 100 English characters.
y Be sure to back up important files since data
stored in a USB memory device may be
damaged. We will not be responsible for any
data loss.
Connecting USB storage de-
vices
Connect USB storage devices such as a USB
flash memory, external hard drive to the display
and use multimedia features (See "Browsing files"
on page 30).
Connect a USB flash memory or USB memory
card reader to the Display as shown on the follow-
ing illustration. The My media screen appears.
y Do not turn the display off or remove
a USB storage device while EMF(my
media) Menu is activated, as this could
result in loss of files or damage to the
USB storage device.
y Back up your files saved on a USB stor-
age device frequently, as you may lose
or damage the files and this may be not
covered by the warranty.
CAUTION
or
30
ENG
ENGLISH
ENTERTAINMENT
y If the USB HDD does not have an external
power source, the USB device may not be
detected. So be sure to connect the external
power source.
- Please use a power adaptor for an external
power source. We do not guarantee an USB
cable for an external power source.
y If your USB memory device has multiple
partitions, or if you use a USB multi-card
reader, you can use up to 4 partitions or USB
memory devices.
y If a USB memory device is connected to a
USB multi-card reader, its volume data may
not be detected.
y If the USB memory device does not work
properly, disconnect and reconnect it.
y How fast a USB memory device is detected
differs from device to device.
y If the USB is connected in Standby Mode,
specific hard disk will automatically be
loaded when the display is turned on.
y The recommended capacity is 1 TB or less
for a USB external hard disk and 32 GB or
less for USB memory.
y Any device with more than the recommended
capacity may not work properly.
y If a USB external hard disk with a “Energy
Saving” function does not work, turn the
hard disk off and on again to make it work
properly.
y USB storage devices below USB 2.0 are
supported as well. But they may not work
properly in the movie list.
y Maximum of 999 folders or files can be rec-
ognized under one folder.
Browsing files
Access the photo, music, or movie lists and browse
files.
1
Connect a USB storage device.
2
Press MENU to access the main menus.
3
Press the Navigation buttons to scroll to My
Media and press OK.
4
Press Navigation buttons to scroll to PHOTO
LIST, MUSIC LIST, or MOVIE LIST and press
OK.
No. Description
1
Moves to upper level folder
2
Current page/Total pages
3
Corresponding buttons on the
remote control
4
Current page/ total pages of
contents under the folder
focused on
1
5
Contents under the folder
focused on
1
Buttom Description
Green
button
Repeatedly, press the GREEN button to
converted to Photo List->Music List,
Music List->Movie List or Movie List-
>Photo List.
Yellow
button
A method to view in 5 large thumbnail
or simple list.
Blue
button
Convert to Mark Mode.
Page 1/1
Photo List
Drive1
Page 1/1
USB External
001
010 011 012 013 014 015
002 003 004 005 006 007
008
009
To Music List
Change Numbers
Mark Mode
Exit
View
Move
11
2
3
4
5
PAGE Page Change
Movie List Music ListPhoto List
31
ENG
ENGLISH
ENTERTAINMENT
Supported file format
Type Supported file format
Movie DAT,MPG,MPEG,VOB,AVI,DIVX,MP4,MKV,
TS,TRP,TP,ASF,WMV,FLV)
Movie(*.mpg/*.mpeg/*dat/*.ts/*.trp/*.tp/*.
vob/*.mp4/*.mov/*.mkv/*.divx/*.avi/*.asf/*.
wmv/*.flv/*.avi(motion-jpeg)/*.
mp4(motion-jpeg)/*.mkv(motion-jpeg))sup-
porting file
Video format : DivX3.11, DivX4.12,
DivX5.x, DivX6, Xvid1.00, Xvid1.01,
Xvid1.02, Xvid1.03, Xvid1.10 beta-1/beta-2,
Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC, VC1,
JPEG, Sorenson H.263
Audio format : Dolby Digital, AAC, Mpeg,
MP3, LPCM, HE-AAC, ADPCM, WMA
Bit rate : within 32 kbps to 320 kbps(MP3)
External Subtitle format : *.smi/*.srt/*.sub
(MicroDVD,Subviewer1.0/2.0)/*.ass/*.ssa/*.
txt(TMPlayer)/*.psb(PowerDivX)
Internal Subtitle format : only, XSUB (It is
the subtitle format used in DivX6 files)
Photo JPEG
Baseline : 64 x 64 to 15360 x 8640
Progressive : 64 x 64 to 1920 x 1440
y You can play JPEG files only.
y Non-supported files are displayed in the
form of predefined icon.
Only 3D Models
File
Extensions
Item Profile
2D jpeg
jpg
jpe
supported
file format
y
SOF0:
baseline
y
SOF1:
Extend
Sequential
y
SOF2:
Progressive
photo size
y
Min:
64 X 64
y
Max-Normal
Type:
15360
(W) X 8640 (H)
y
Progressive
Type:
1920
(W) X 1440 (H)
3D mpo supported
file format
mpo
photo size
y
4:3 size:
3,648 x 2,736
2,592 x 1,944
2,048 x 1,536
y
3:2 size:
3,648 x 2,432
Viewing movies
This display will play media files from a USB drive
or a DLNA server on your network.
1 Press the Navigation buttons to scroll to My
Media and press OK.
2 Press the Navigation buttons to scroll to Movie
List and press OK.
3 Press the Navigation buttons to scroll to a
folder you want and press OK.
4 Press the Navigation buttons to scroll to a file
you want and press OK.
Music
MP3
Bit rate 32 to 320
y Sampling rate MPEG1 Layer3 : 32 kHz,
44.1 kHz, 48 kHz
y Sampling rate MPEG2 Layer3 : 16 kHz,
22.05 kHz, 24 kHz
y Sampling rate MPEG2.5 Layer3 : 8 kHz,
11.025 kHz, 12 kHz
32
ENG
ENGLISH
ENTERTAINMENT

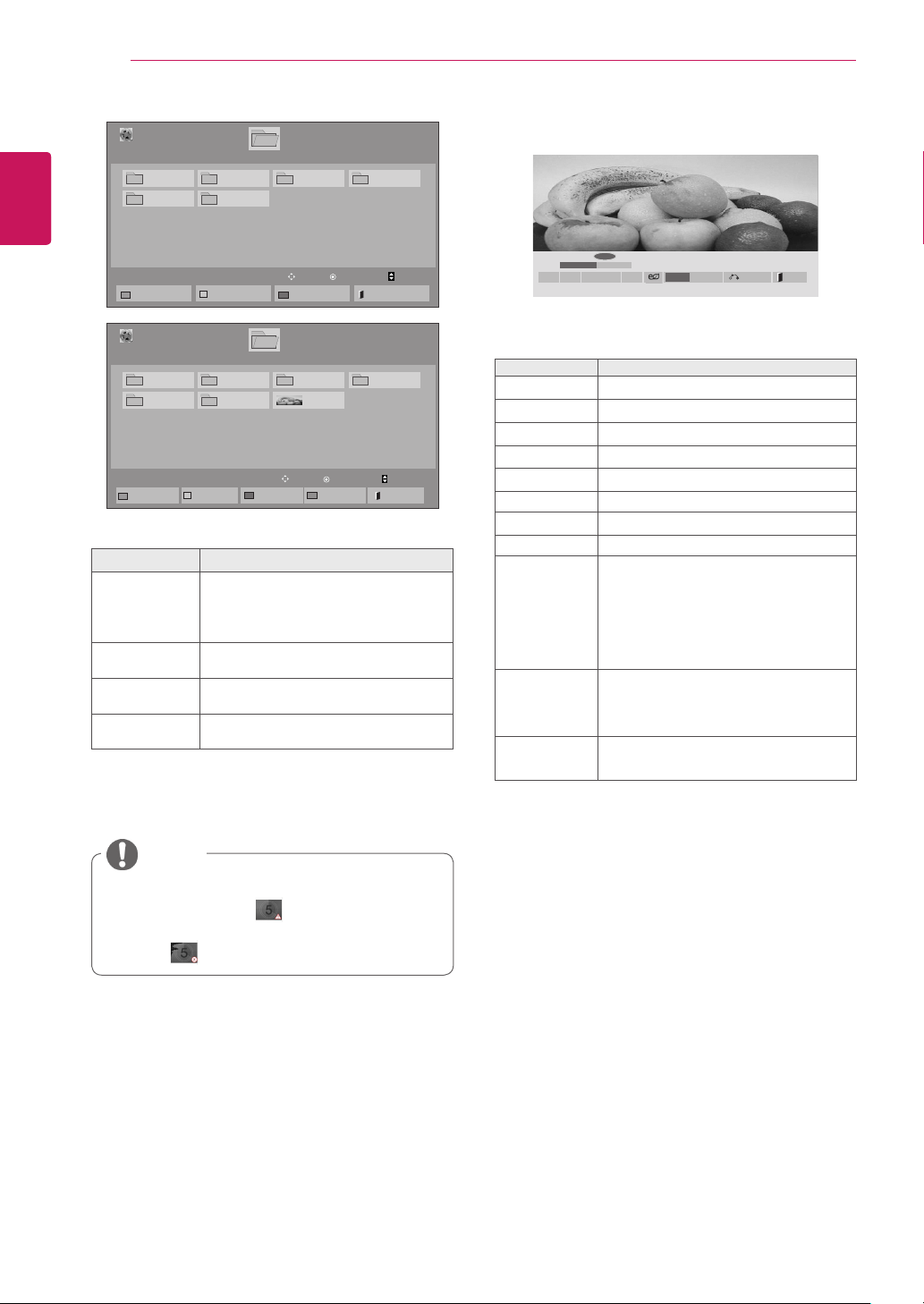

Menu Description
Play Marked Play the selected movie file.
Once a movie file finishes playing,
the next selected one will be played
automatically.
Mark All Mark all movie files on the screen.
Unmark All Deselect all marked movie files.
Exit Mark Mode Exit the Mark Mode.
Page 1/1
Movie List
USB External
Drive1
Page 1/1
To Photo list
Change Numbers
Mark Mode
Exit
003
001 002
004
005 006
View
Move
PAGE Page Change
Page 1/1
Movie List
USB External
Drive1
Page 1/1
Play Marked
Mark All
Unmark All
Exit
003
001 002
004
005 006
Mark Mode
Exit Mark Mode
051. Apple_ ......
02:30:25
View
Move
PAGE Page Change
5 Play a movie.
NOTE
y Non-supported files are displayed the preview
image by icon only .
y Abnormal files are displayed in the form of
bitmap .
6 Control playback by using the following buttons.
►
01:02:30 / 02:30:25
Option
Q.MENU
◄►
■
►
II
◄◄
►►
Hide Exit
Button Description
r
Stops the playback
s
Plays a video
t
Pauses or resumes the playback
v
Scans backward in a file
w
Scans forward in a file
MENU Show the Option menu.
BACK Hide the menu on the full-sized screen.
EXIT Return to Movie List.
< or >
Skips to specific points in a file dur-
ing playback. The time of a specific
point will appear on the status bar. In
some files, this function may not work
properly.
ENERGY
SAVING
Press the ENERGY SAVING button
repeatedly to increase the brightness
of your screen.
AV MODE
Press the AV MODE button repeatedly
to select the desired source.
33
ENG
ENGLISH
ENTERTAINMENT
Video options
1 Press MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set
Video Play., Set Video. or Set Audio. and
press OK.
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
y When replaying the video file after stopping,
you can play from where it stopped previ-
ously.
NOTE
Tips for using playing video files
y Some user-created subtitles may not work
properly.
y Some special characters are not supported
in subtitles.
y HTML tags are not supported in subtitles.
y Subtitles in languages other than the sup-
ported languages are not available.
y The screen may suffer temporary interrup-
tions (image stoppage, faster playback, etc.)
when the audio language is changed.
y A damaged movie file may not be played
correctly, or some player functions may not
be usable.
y Movie files produced with some encoders
may not be played correctly.
y If the video and audio structure of recorded
file is not interleaved, either video or audio is
outputted.
y HD videos with a maximum of
1920x1080@25/30P or 1280x720@50/60P
are supported, depending on the frame.
y Videos with resolutions higher than
1920X1080@25/30P or 1280x720@50/60P
may not work properly depending on the
frame.
y Movie files other than the specified types and
formats may not work properly.
y Max bitrate of playable movie file is 20 Mbps.
(only, Motion JPEG : 10 Mbps)
y We do not guarantee smooth playback of
profiles encoded level 4.1 or higher in H.264/
AVC.
y DTS Audio codec is not supported.
y A movie file more than 30 GB in file size is
not supported for playback.
y A DivX movie file and its subtitle file must be
located in the same folder.
y A video file name and its subtitle file name
must be identical for it to be displayed.
y Playing a video via a USB connection that
doesn’t support high speed may not work
properly.
y Files encoded with GMC(Global Motion
Compensation) may not be played.
y
When you are watching the movie by Movie
List function, you can adjust an image by
Energy Saving key on the remote control.
User setup for each image mode does not
operate.
34
ENG
ENGLISH
MAINTENANCE
Repeat Turn on/off repeat function of
movie playback. When turned on, the
file within the folder will be played
back repeatedly. Even when the
repeated playback
is turned off, it can run the playback if
the file name is similar to the previous
file.
Code Page Support Language
Latin1 English, Spanish, French,
German, Italian, Swedish, Finnish,
Dutch, Portuguese, Danish, Roma-
nian, Norwegian, Albanian, Gaelic,
Welsh, Irish, Catalan,Valencian
Latin2 Bosnian, Polish, Croatian, Czech,
Slovak, Slovenian, Serbian,
Hungarian
Latin4 Estonian, Latvian, Lithuanian
Cyrillic Bulgarian, Macedonian, Russian,
Ukrainian, Kazakh
Greek Greek
Turkish Turkish
y Only 10,000 of sync blocks can be supported
within the subtitle file.
y When playing a video, you can adjust the
Picture Size by pressing the RATIO button.
y Subtitles in your language are only sup-
ported when the OSD menu is also in this
language.
y The code page options may be disabled de-
pending on the language of the subtitle files.
y Select the appropriate code page for the
subtitle files.
NOTE
When you select the Set Video Play,,
1 Press the Navigation buttons to scroll to show
the Picture Size, Audio Language, Subtitle
Language or Repeat.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
Menu Description
Picture Size Selects your desired picture
format during movie play.
Audio
Language
Changes the Language Group of the
audio during movie play. Files
with a single audio track cannot be
selected.
Subtitle Lan-
guage
Turn on/off the subtitle.
Language Activated for SMI subtitle and
can select the language within the
subtitle.
Code Page Can select the font for subtitle.
When set to default, same font as
general menu will be used.
Sync Adjusts the time synchronisation of
the subtitle from -10 secs to +10 secs
by steps of 0.5 secs during movie
play.
Position Changes the position of the
subtitle either up or down during
movie play.
Size Selects your desired Subtitle size
during movie play.
35
ENG
ENGLISH
MAINTENANCE
When you select the Set Video,,
1 Press the Navigation buttons to scroll to make
appropriate adjustments.
When you select the Set Audio,,
1 Press the Navigation buttons to scroll to show
the Sound Mode, Clear Voice II or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
Viewing photos
View image files saved in a USB storage device.
The displays on the screen may differ from the
model.
1 Press the Navigation buttons to scroll to My
Media and press OK.
2 Press the Navigation buttons to scroll to Photo
List and press OK.
3 Press the Navigation buttons to scroll to a
folder you want and press OK.
4 Press the Navigation buttons to scroll to a file
you want and press OK.
5 View photos.
NOTE
y Non-supported files are displayed the pre-
view image by icon only .
y Abnormal files are displayed in the form of
bitmap .
Menu Description
View Marked Display the selected photo file.
Mark All Mark all photo files on the screen.
Unmark All Deselect all marked photo files.
Exit Mark Mode Exit the Mark Mode.
Page 1/1
Photo List
Drive1
Page 1/1
USB External
001
010 011 012 013 014 015
002 003 004 005 006 007
008
009
To Music List
Change Numbers
Mark Mode
Exit
Page 1/1
Photo List
Drive1
Page 1/1
USB External
001
010 011 012 013 014 015
002 003 004 005 006 007
008
009
Mark Mode
View Marked
Mark All
Unmark All
Exit
Exit Mark Mode
View
Move
PAGE Page Change
View
Move
PAGE Page Change
36
ENG
ENGLISH
MAINTENANCE

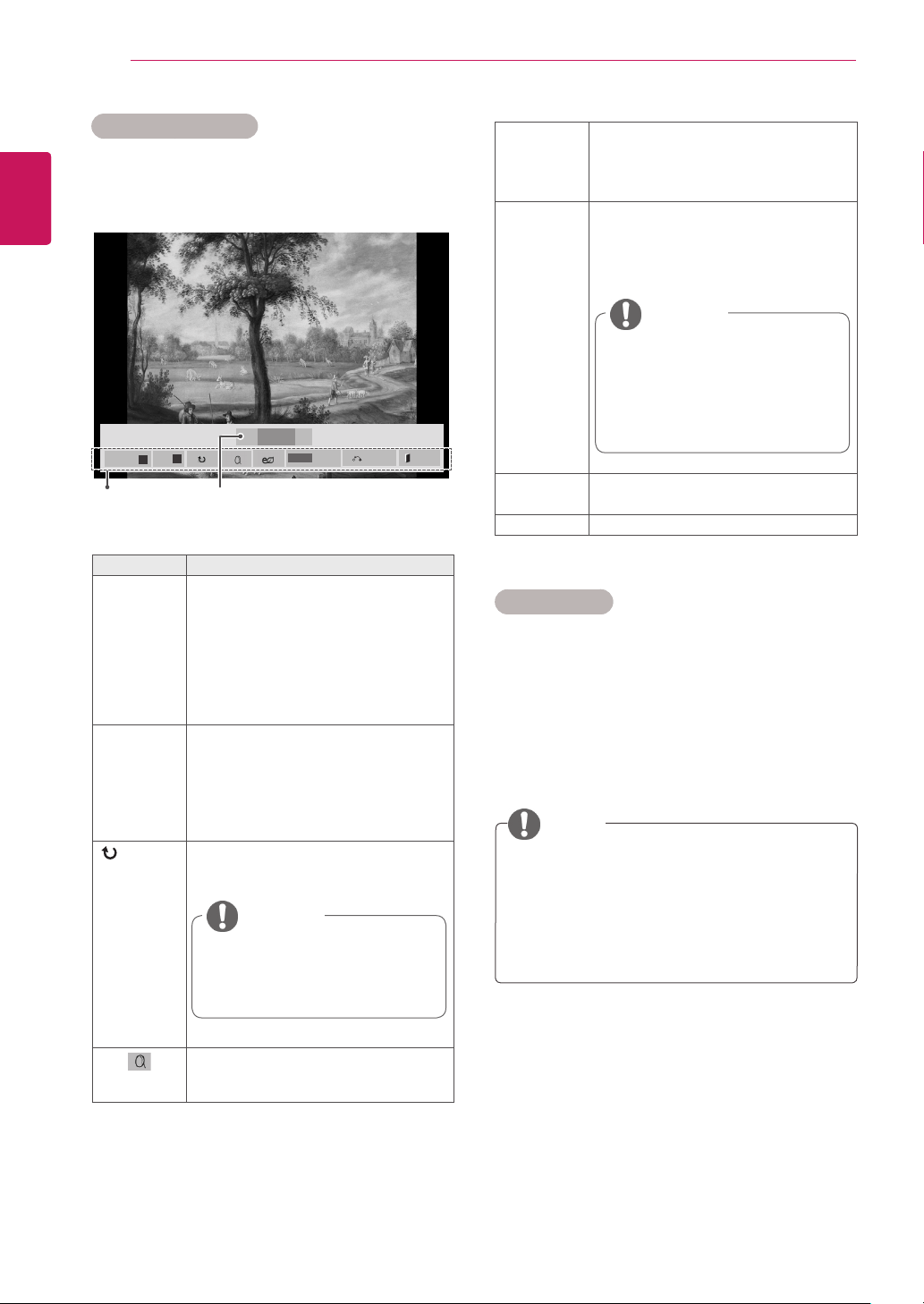

Photo options
1 Press MENU to show the Option menus.
2 Press the Navigation buttons to scroll to Set
Photo View., Set Video. or Set Audio. and
press OK.
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
NOTE
Option Description
Slideshow Starts or stops a slideshow with selected
photos.
If there are no selected photos, all pho-
tos saved in the current folder display
during a slideshow.
To set a slideshow speed, select Op-
tion.
BGM Turns the background music on or off.
To set the background music folder,
select Option.
You can adjust Option by MENU button
on the remote control.
(Rotate)
Rotates photos clockwise (90°, 180°,
270°, 360°).
y The supported photo size is
limited. You cannot rotate a
photo if the resolution of the
rotated width is larger than the
supported resolution size.
NOTE
View the photo by zoom in 2, 4 times.
Number of selected photosOptions
ENERGY
SAVING
Press the ENERGY SAVING button
repeatedly to change the brightness of
your screen.
Option y Slide Speed: Selects a slideshow
speed (Fast, Medium, Slow).
y BGM: Selects a music folder for the
background music.
Hide Hides the option window.
To display the options, press OK.
EXIT Return to Photo List.
Using photo options
Use the following options while viewing photos.
2008/12/10
1920 x 1080
479 KB
2/13
◄ ►
Slideshow
►
BGM
■
◄
Hide
Option
Q.MENU
Exit
◄
y You cannot change the music
folder while the background
music is playing.
y You can only select the MP3
folder saved on the device that
currently displays the photo.
NOTE
37
ENG
ENGLISH
MAINTENANCE
When you select the Set Video,
1 Press the Navigation buttons to scroll to make
appropriate adjustments.
When you select the Set Audio,
1 Press the Navigation buttons to scroll to show
the Sound Mode, Clear Voice II or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
5 Play music.
Listening to music
1 Press the Navigation buttons to scroll to My Me-
dia and press OK.
2 Press the Navigation buttons to scroll to Music
List and press OK.
3 Press the Navigation buttons to scroll to a folder
you want and press OK.
4 Press the Navigation buttons to scroll to a file
you want and press OK.
Menu Description
Play Marked Display the selected music file.
Mark All Mark all music files on the screen.
Unmark All Deselect all marked music files.
Exit Mark Mode Exit the Mark Mode.
Page 1/1
Music List
Drive1
Page 1/1
001. - B01.mp3
00:00
002. -B02.mp3
00:00
003. B03.mp3
00:00
004. - B04.mp3
00:00
005. - B05.mp3
00:00
USB External
To Movie List
Change Numbers
Mark Mode
Exit
View
Move
PAGE Page Change
Page 1/1
Music List
Drive1
Page 1/1
001. - B01.mp3
00:00
002. -B02.mp3
00:00
003. B03.mp3
00:00
004. - B04.mp3
00:00
005. - B05.mp3
00:00
USB External
Play Marked
Mark All
Unmark All
Exit
Mark Mode
Exit Mark Mode
View
Move
PAGE Page Change
When you select the Set Photo View,
1 Press the Navigation buttons to scroll to select
Slide Speed or BGM..
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
38
ENG
ENGLISH
MAINTENANCE
002. B02.mp3
► 00:31 / 04:04
Time elapsed /Duration
file name
y Non-supported files are displayed the pre-
view image by icon only .
y Abnormal files are displayed in the form of
bitmap .
y A damaged or corrupted music does not play
but displays 00:00 in playtime.
y A music downloaded from a paid service with
copyright protection does not start but dis-
plays inappropriate information in playtime.
y If you press OK, r buttons, screen saver
is stopped.
y The PLAY(s), Pause(t), r , w, v
buttons on the remote control are also avail-
able in this mode.
y You can use the w button to select the next
music and the v button to select the previ-
ous music.
NOTE
6 Control playback by using the following buttons.
Page 1/1
Music List
Drive1 Page 1/1
3 le(s) Marked
004. - B04.mp3
00:00
005. - B05.mp3
00:00
006. - B06.mp3
00:00
007. - B07.mp3
00:00
008. - B08.mp3
00:00
005. - B05.mp3
►
02:30 / 03:25
Hide Exit
Option
Q.MENU
Play with Photo
►
◄►
■
►
II
◄◄
►►
Button Description
r
Stops playback
s
Plays a music file
t
Pauses or resumes playback
w
Skips to the next file
v
Skips to the previous file
v or w
When playing,
When you press the v button, the previ-
ous music file will be played.
When you press the w button, the next
music file will be played.
Green
button
Start playing the selected music files and
then move to the Photo List.
ENERGY
SAVING
Press the ENERGY SAVING button re-
peatedly to change the brightness of
your screen.
MENU Show the Option menu.
Hide
Hides the option window.
To display the options, press OK.
EXIT
When you press the EXIT button while
the Music player is displayed, only the
music will be stopped and the player will
not return to normal viewing.
When you press the EXIT button while
the music is stopped or while the music
player is hidden, the player will return to
normal viewing.
< or >
When using the < or > button during
playback a cursor indicating the position
can be played.
Tips for playing music files
y
This unit can not supp ort the I D3 Tag
embedded MP3 files.
39
ENG
ENGLISH
MAINTENANCE
DivX® VOD Guide
DivX® VOD Registration
In order to play purchased or rented DivX® VOD
contents, you should register your device with 10
digit DivX registration code from your device at
www.divx.com/vod.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press OK.
3 Press the Blue button.
4 Press the Navigation buttons to scroll to DivX
Reg. Code and press OK.
5 View the registration code of your display.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
y Movie files are supported as follows
Resolution : under 1920x1080 WxH pixels
Frame rate : under 30 frames/
sec(1920x1080), under 60 frames/
sec(under 1280x720)
y Video Codec : MPEG 1, MPEG 2, MPEG
4, H.264/AVC, DivX 3.11, DivX 4.12,
DivX 5.x, DivX 6, Xvid 1.00, Xvid 1.01,
Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1,
Xvid 1.10-beta2, JPEG, VC1, Sorenson
H.263/H.264.
NOTE
1 Press MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set Au-
dio Play. or Set Audio. and press OK.
Music options
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
NOTE
When you select the Set Audio Play.,
1 Press the Navigation buttons to scroll to select
the Repeat or Random.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
When you select the Set Audio,,
1 Press the Navigation buttons to scroll to select
the Sound Mode, Clear Voice II or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
You must register your device to
play DivX protected videos.
Registration code : **********
Register at http://vod.divx.com
Close
40
ENG
ENGLISH
MAINTENANCE
y
Once the deregistration is executed, you
must register your device again to see
DivX® VOD contents.
NOTE
DivX® VOD Deregistration
You should deregister your device with 8 digit DivX
deregistration code from your device at www.divx.
com/vod.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press OK.
3 Press the Blue button.
4 Press the Navigation buttons to scroll to Deacti-
vation and press OK.
5 Press the Navigation buttons to select Yes to
confirm.
Deregistration code :
********
Deregister at http://vod.divx.com
Continue with registration?
Yes No
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
41
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Accessing main menus
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to one of the following menus and press OK.
3
Press the Navigation buttons to scroll to the setting or option you want and press OK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
OPTION
AUDIO
NETWORK
TIME
MY MEDIA
OPTION (See p.46)
Customizes the general settings
AUDIO (See p.44)
Adjusts the sound quality,
effect, or volume level
PICTURE (See p.42)
Adjusts the image size,
quality, or effect
TIME (See p.45)
Sets the time, date or
Timer feature
MY MEDIA
(See p.29)
Display and play
movie, photo and
music content
stored on your USB
NETWORK (See p.48)
Se ts up t he n e two rk
setting.
42
ENG
ENGLISH
CUSTOMIZING SETTINGS
PICTURE settings
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to PICTURE and
press OK.
3
Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available picture settings are described in the following:
Move
OK
ꔋ
• Aspect Ratio : 16:9
•
Energy Saving : Off
• Picture Mode : Standard
• Backlight 50
• Contrast 50
• Brightness 50
• Sharpness 50
• Color 50
• Tint 0
• Color Temp. 0
• Advanced Control
• Picture Reset
• Screen
R G
W C
Setting Description
Aspect Ratio Changes the image size to view images at its optimal size (See p.25).
Energy Saving Sets to automatically adjust the screen brightness corresponding to the surroundings.
Option
Off The backlight is off.
Minimum/
Medium/
Maximum
Selects the brightness level of the backlight.
Screen off The screen turns off in 3 seconds.
Picture Mode Selects one of the preset image or customizes options in each mode for the best Monitor set screen
performance. You are also able to customize advanced options of each mode.
The available preset picture modes vary depending on the Monitor set .
Mode
Vivid Adjusts the video image for the retail environment by enhancing the contrast,
brightness, Color, and sharpness.
Standard Adjusts the image for the normal environment.
Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in a
movie theater.
Sport Optimizes the video image for high and dynamic actions by emphasizing primary
Colors such as white, grass, or sky blue.
Game Optimizes the video image for a fast gaming screen such as PCs or games.
SCREEN
(In RGB-PC
Mode Only)
This option is enabled only when Input Select is set to Analog (RGB-PC) and the resolution is set to
1024x768, 1280x768, 1360x768 or 1366x768 on your PC.
Option
Resolution Selects a proper resolution. See "Specification" See p.55 for the recommended
resolution for each model.
Auto Configure Sets to adjust the screen position, clock, and phase automatically.
The displayed image may be unstable for a few seconds while the configuration is
in progress.
Position/Size/
Phase
Adjusts the options when the picture is not clear, especially when characters are
shaky, after the auto configuration.
Reset Restores the options to the default setting.
43
ENG
ENGLISH
CUSTOMIZING SETTINGS
Basic image options
Setting Description
Backlight Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the
brightness level, the screen becomes darker and the power consumption will be reduced
without any video signal loss.
Contrast Increases or decreases the gradient of the video signal. You may use Contrast when the
bright part of the picture is saturated.
Brightness Adjusts the base level of the signal in the picture. You may use Brightness when the dark
part of the picture is saturated.
Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture.
The lower the level, the softer the image.
Color Adjusts intensity of all Colors.
Tint Adjusts the balance between red and green levels.
Color Temperature Set to warm to enhance hotter Colors such as red, or set to cool to make picture bluish.
Advanced Control Customizes the advanced options.
Picture Reset Restores the options to the default setting.
Advanced image options
Setting Description
Dynamic Contrast
(Off/Low/Medium/
High)
Optimizes the contrast automatically according to the brightness of the reflection.
(This function can be used only under Component.)
Dynamic Color
(Off/Low/High)
Adjusts the Color of the reflection automatically to reproduce natural colurs as close as
possible.(This function can be used only under Component.)
Clear White
(Off/Low/High)
Make the white area of screen brighter and more white.
Skin Color It detects the skin area of video and adjusts it to express a natural skin color.
Noise Reduction
(Off/Low/Medium/High)
Removing the noise up to the point where it does not damage the original picture. (This
function can be used only under Component.)
Digital Noise
Reduction
(Off/Low/Medium/High)
This option reduces the noise produced while creating digital video signals.
Gamma
(Low/Medium/High)
Set your own gamma value.
On the monitor, high gamma values display whitish images and low gamma values display
high contrast images.
Black Level
Low/High
y
Low: The reflection of the screen gets darker.
y
High: The reflection of the screen gets brighter.
Function works in the following mode - Component, HDMI, DVI-D adjusts the contrast and the
brightness of the screen using the black level of the screen.
44
ENG
ENGLISH
CUSTOMIZING SETTINGS
AUDIO settings
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to AUDIO and press
OK.
3
Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available audio options are described in the following:
Move
OK
AUDIO
ꔋ
• Clear Voice II : Off
• Balance 0
• Sound Mode : Standard
• Infinite Sound: Off
• Treble 50
• Bass 50
• Reset
• Speaker : On
L R
Setting Description
Clear Voice ll By differentiating the human sound range from others, it helps users listen to human voices better.
Balance Use this function to balance sound from the left and right speakers.
Sound Mode The best sound tone quality will be selected automatically depending on the video type that you're
currently watching.
Mode
Standard The most commanding and natural audio.
Music Select this option to enjoy the original sound when listening to
the music.
Cinema Select this option to enjoy sublime sound.
Sports Select this option to watch sports broadcasting.
Game To enjoy dynamic sound when playing a game.
Option
Infinite Sound LG's Infinity Sound option provides 5.1 channel stereo sound
from two speakers.
Treble Controls the dominant sounds in the output. When you turn up
the treble, it will increase the output to the higher frequency
range.
Bass Controls the softer sounds in the output. When you turn up the
bass, it will increase the output to the lower frequency range.
Reset Resets the sound mode to the default setting.
Speaker Turns on the internal speaker of the set when using an external Hi-Fi system. You can use the
speaker as an audio output device even if there is no video input.
NOTE
If sound quality or volume is not at the level you want, it is recommended to use a separate
home theater system or amplier to cope with different user environments.
45
ENG
ENGLISH
CUSTOMIZING SETTINGS
TIME settings
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to TIME and press OK.
3
Press the Navigation buttons to scroll to the setting or option
you want and press OK.
- To return to the previous level, press BACK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available time settings are described in the following:
Move OK
TIME
ꔋ
• Clock
• Off Time : Off
• On Time : Off
• Sleep Timer : Off
• Power On Delay : Off
Setting Description
Clock If the current time is incorrect, reset the clock manually.
1) Press the MENU button and then use button to select the TIME menu,input OK button
to enter.
2) Press the button and then use button to select Clock menu.
3) Press the button and then use button to select date
4) Press the button and then use button to set the hour(00h to 23h).
5) Press the button and then use button to set the minutes(00 min to 59 min).
On/Off Time The off time automatically switches the set to standby at the pre-set time.
1) Press the MENU button and then use button to select the TIME menu,input OK button
to enter.
2) Press the button and then use button to select On/Off Timer.
3) Press the button and then use button to select date
4) Press the button and then use button to set the hour(00h to 23h).
5) Press the button and then use button to set the minutes(00 min to 59 min).
6) Press the button ,According to the personal needs, choose to add button.
Sleep Timer The power is automatically turned off when the time set by a user is passed.
1) Press the MENU button and then use button to select the TIME menu,input OK button
to enter
2) Press the button and then use button to select Sleep Timer menu.
3) Press the button and then use button to select the minutes(Off to 240 min).
Power on delay When connecting multiple monitors and turning the power on, the monitors are turned on
individually to prevent overload.
46
ENG
ENGLISH
CUSTOMIZING SETTINGS
OPTION settings
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to OPTION and press
OK.
3
Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
The available option settings are described in the following:
Move OK
OPTION
ꔋ
• Menu Language
• ISM Method : Normal
• Factory Reset
• Set ID
• Tile Mode
• FAN
• Product/Service Info.
Setting Description
Menu Language To choose the language in which the control names are displayed.
ISM Method Leaving a fixed image on the screen for a long time may cause damage to the screen and cause
image burn-in. To use the product for a long period of time, use a screen saver on the PC or utilize
the residual image prevention function on the product, and when the product is not used, turn off
the power. Burn-in and related problems are not covered by the warranty on this product.
Setting
Normal Sets it if image sticking is never a problem
White wash Removes a ghost image on the screen.
Use sparingly. Watch the sets normally for a while before using this feature to
see if the ghost image disappears on its own.
Color wash Removes a ghost image on the screen.
The color block with the screen moved a little and the white pattern are
alternately displayed. It is difficult to see the after image on all colors.
Once it has been corrected it will not be visible in any color.
Factory Reset Select this option to return to the default factory settings.
Set ID You can assign a unique Set ID NO (name assignment) to each product when several products
are connected for display. Specify the number (1 to Total Set ID) using the button and exit. Use
the assigned Set ID to individually control each product using the Product Control Program.
NOTE
If you change SET ID No, the value of ‘Power On Delay’ will be set to (SET ID No)/3(sec)
to prevent power consumption overload.
ex) SET ID No = 31
→
Power On Delay = 10(=31/3)
47
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Tile Mode Setting
Tile Mode You can display the image on multiple sets and view it in a larger size. To use
the Tile Mode on multiple sets with same signal.
Auto Config. This option optimizes the screen when you connect the set to a new computer
or change to a different mode. If you are not satisfied with the adjustment, you
can manually change the "Position" or "Size".
Position You can set the position.
Size You can set the size.
Natural The image is omitted by the distance between the screens to be naturally
shown.
Reset Function to initialize and release Tile.
All Tile setting are released when selecting Tile recall and the screen returns to
Full screen.
FAN Setting
Mode This option indicates the monitor's internal temperature and controls the fan.
• Auto: Switches the fan on and off according to the set temperature.
• On: The fan is always switched on.
• Manual: Switches the fan on and off according to user settings.
Hysterisis The difference in temperature between when the fan is switched on and when
it is off.
Set Temperature Set the temperature at which the fan is switched on.
Current
Temperature
Current temperature inside the set.
Product/Service
Info.
This option shows information about the set.
NOTE
We recommend that you use the Auto mode to prevent any malfunctions resulting from
incorrect fan settings.
48
ENG
ENGLISH
CUSTOMIZING SETTINGS
NETWORK settings
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to NETWORK and
press OK.
3
Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available option settings are described in the following:
Move OK
NETWORK
ꔋ
• Network Setting : Wired
• Network Status : Not connected
Setting Description
Network Setting Configure the network settings.(See p.27)
Network Status Display the network status.(See p.28)
NOTE
y Network setting menu will not be available until the display connected to physical network.
49
ENG
ENGLISH
MAKING CONNECTIONS
HD Receiver
Speaker
PC
Gaming device
USB
Camcorder/Camera
DVD
HDMI - (See p.50)
Component - (See p.51)
HDMI - (See p.21)
DVI - (See p.21)
RGB - (See p.20)
HDMI - (See p.50)
Component - (See p.51)
HDMI - (See p.50)
Component - (See p.51)
Memory storage
- (See p.51)
Memory card reader
- (See p.51)
HDMI - (See p.50)
Component - (See p.51)
MAKING CONNECTIONS
Connect various external devices to the ports on the Monitor set’s back panel.
1
Find an external device you want to connect to your Monitor set shown in the following illustration.
2
Check the connection type of the external device.
3
Go to the appropriate illustration and check the connection details.
NOTE
If you connect a gaming device to the Monitor set, use the cable supplied with the gaming device.
50
ENG
ENGLISH
MAKING CONNECTIONS
AUDIO
(RGB/DVI)
/DVI
/DVI
AUDIO
(RGB/DVI)
/DVI
/DVI
Connecting to a HD receiver,
DVD or VCR player
Connect a HD receiver, DVD, or VCR player to the
Monitor set and select an appropriate input mode.
HDMI connection
Transmits the digital video and audio signals from
an external device to the Monitor set. Connect the
external device and the Monitor set with the HDMI
cable as shown on the following illustration.
DVI - HDMI connection
Transmits the digital video signal from an external
device to the Monitor set. Connect the external
device and the Monitor set with the DVI-HDMI
cable as shown in the following illustration. To
transmit an audio signal, connect an optional audio
cable.
y
Use a High Speed HDMI™ Cable.
y
High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
y
Dolby Digital is not supported.
NOTE
PC
PC
y
When connecting
an HDMI cable as
illustrated, remove
the screw on the
HDMI connector first.
CAUTION
(not included)
(not included)
(not included)
51
ENG
ENGLISH
MAKING CONNECTIONS
AV connection
Transmits the analog video and audio signals from
an external device to the Monitor set. Connect
the external device and the Monitor set with a
component video cable and composite audio cable
as shown on the following illustration.
Connecting to the LAN
LAN connection
Connect the LAN cable.
A
Using a router(Switching Hub)
Network
PC
Product
LAN
Switching Hub
B
Using the Internet.
Connecting to a USB
Connect a USB storage device such as s USB
flash memory, external hard drive, MP3 player or
a USB memory card reader to the Monitor set and
access the USB menu to use various multimedia
files. "Connecting USB storage devices" on See
p.29 and “Browsing files” on See p.30
or
AUDIO
(RGB/DVI)
/DVI
/DVI
PC
(not included) (not included)
52
ENG
ENGLISH
MAKING CONNECTIONS
DVI-INDVI-OUT DVI-INDVI-OUTDVI-INDVI-OUT
DVI-INDVI-OUT DVI-INDVI-OUTDVI-INDVI-OUT
Daisy Chain Monitors
Use this function to share the RGB video signal with other monitors without having to use a separate signal
splitter box.
• To use different products connected to each other Connect one end of the signal input cable (15-pin
D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN
connector of other products
DVI Cable
RGB Cable
15-pin D-Sub Signal Cable
(Max 3m)
DVI Cable
(Max 3m)
y
When multi-connecting in/out cascade format, no loss cables are recommended.
y
Since the image quality may decrease when multiple monitors are connected, an amplifier may be
required in certain instances.
NOTE
53
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
General
No image is displayed
Problem Resolution
Is the product power cord
connected?
y
See if the power cord is properly connected to the outlet.
Does the 'Invalid Format' message
appear?
y
The signal from the PC (video card) is out of the vertical or horizontal
frequency range of the product. Adjust the frequency range by
referring to the Specifications in this manual.
* Maximum resolution
RGB : 1366 x 768 @ 60 Hz
HDMI/DVI : 1366 x 768 @ 60 Hz
Does the 'No Signal' message
appear?
y
The signal cable between PC and product is not connected. Check
the signal cable.
y
Press the 'INPUT' menu in the remote Control to check the input
signal.
y
Vertical frequency: To enable the user to watch the product display, screen image should be changed
tens of times every second like a fluorescent lamp. The vertical frequency or refresh rate is the times
of image display per second. The unit is Hz.
y
Horizontal frequency: The horizontal interval is the time to display one vertical line. When 1 is divided
by the horizontal interval, the number of horizontal lines displayed every second can be tabulated as
the horizontal frequency. The unit is kHz.
NOTE
54
ENG
ENGLISH
TROUBLESHOOTING
The screen image looks abnormal.
Problem Resolution
Is the screen position wrong?
y
D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select the optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Position OSD
menu.
y
See if the video card resolution and frequency are supported by the
product. If the frequency is out of range, set to the recommended
resolution in the Control Panel "Display" Setting menu.
Do thin lines appear on the
background screen?
y
D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the size OSD
menu.
Horizontal noise appears or the
characters look blurred.
y
D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Phase OSD
menu.
The screen is displayed abnormally.
y
The proper input signal is not connected to the signal port. Connect
the signal cable that matches with the source input signal.
After-image appears on the product.
Problem Resolution
After-image appears when the
product is turned off.
y
If you use a fixed image for a long time, the pixels may be damaged
quickly. Use the screen-saver function.
The audio function does not work.
Problem Resolution
No sound?
y
See if the audio cable is connected properly.
y
Adjust the volume.
y
See if the sound is set properly.
Sound is too dull.
y
Select the appropriate equalize sound.
Sound is too low.
y
Adjust the volume.
Screen color is abnormal.
Problem Resolution
Screen has poor color resolution
(16 colors).
y
Set the number of colors to more than 24 bits (true color) Select
Control Panel - Display - Settings - Color Table menu in Windows.
Screen color is unstable or mono-
colored.
y
Check the connection status of the signal cable. Or, re-insert the PC
video card.
Do black spots appear on the
screen?
y
Several pixels (red, green, white or black color) may appear on the
screen, which can be attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
55
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Panel
Screen Type 1192.8 mm Wide (46.96 inch) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size : 1192.8 mm
Pixel Pitch 0.5415 mm (H) x 0.5415 mm (V)
Video Signal
Max. Resolution RGB : 1366 x 768 @ 60 Hz
HDMI/DVI : 1366 x 768 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution RGB : 1366 x 768 @ 60 Hz
HDMI/DVI : 1366 x 768 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 kHz to 68 kHz
HDMI/DVI : 30kHz to 68 kHz
Vertical Frequency RGB : 56 Hz to 75 Hz
HDMI/DVI : 56 Hz to 63 Hz
Synchronization Type Separate Sync, Composite Sync, Digital, SOG
Input Connector
15-pin D-Sub type, HDMI/DVI(digital), COMPONENT, RS-232C,
LAN, USB
Power
Rated Voltage AC 100-240 V~ 50 / 60 Hz 2.2 A
Power Consumption On Mode : 220 W Max.
Off Mode : ≤ 0.5 W
Dimensions
(Width x Height x
Depth) / Weight
* Wall Bracket available VESA
800 x 400
1047 mm x 592 mm x 91.1 mm / 29 kg
Environmental
conditions
Operating Temperature
Operating Humidity
5 °C to 40 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 95 %
* Applicable only for models that support the speakers
Audio
RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance 8 Ω
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
H
W
D
SPECIFICATIONS
56
ENG
ENGLISH
PC supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
1 720 x 400 31.468 70.8
*2 640 x 480
31.469 59.94
*3 800 x 600
37.879 60.317
4 832 x 624
49.725 74.55
*5 1024 x 768
48.363 60
*6 1280 x 720
44.772 59.855
*7 1360 x 768
47.72 59.799
*8 1366 x 768
47.71 59.79
*9 1280 x 1024
63.981 60.02
DTV Mode
Resolution Component HDMI/DTV
480i o x
576i o x
480p o o
576p o o
720p o o
1080i o o
1 to 9: RGB Mode
* : HDMI/DVI mode
57
ENG
ENGLISH

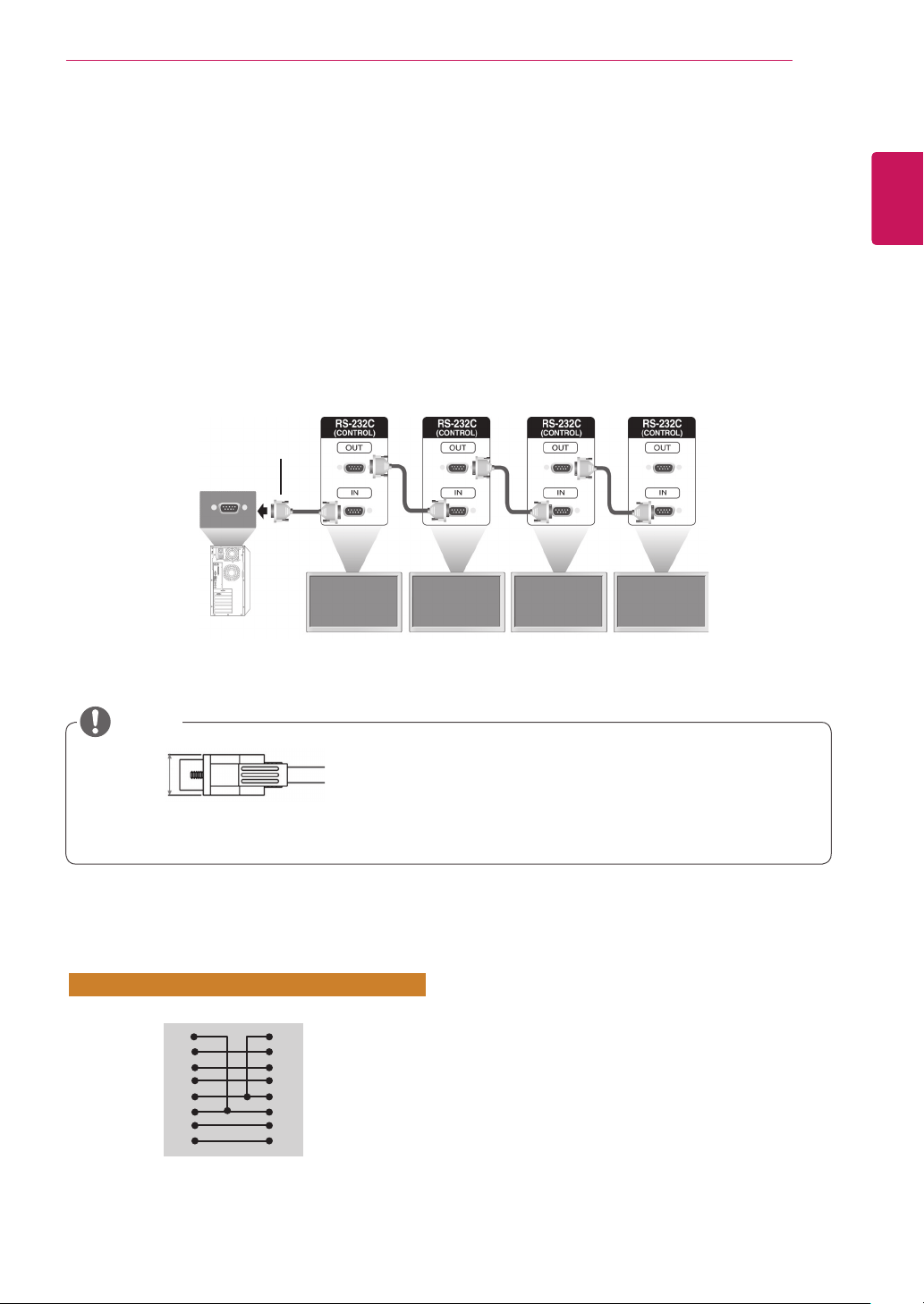

RS-232 CONTROL
RS-232 CONTROL
y
You can control several products at a time by connecting them to a single PC.
y
In the Option menu, Set ID must be between 1 and 225 without being duplicated.
Connecting the cable
Connect the RS-232C cable as shown in the picture.
y
The RS-232C protocol is used for communication between the PC and product. You can turn the
product on/off, select an input source or adjust the OSD menu from your PC. This monitor features
two RS-232 ports. One input and one output. This allows you to daisy-chain monitors without having
to use a splitter box.
Set 1 Set 2 Set 3 Set 4
PC
RS-232C Cable
y
Use RS-232C cables as shown in the picture.
y
If a cable bigger than the ones shown in the picture is used
in the connector, the connection may not be flawless due to
interference between the cables.
y
Pin 1 of RS-232C Out should be connected with Pin 4 of RS-
232C In.
NOTE
15 mm or
less
Communication Parameter
y
Baud Rate : 9600 buad Rate (UART)
y
Data Length : 8 bit
y
Parity Bit : None
y
Stop Bit : 1bit
y
Flow Control : None
y
Communication Code : ASCII code
y
Use a crossed (reverse) cable
RS-232C Configurations
8-Wire Configurations (Cross-over RS-232C cable)
PC Set
D-Sub 9 D-Sub 9
(Female) (Female)
DCD
RXD
TXD
GND
DTR
DSR
RTS
CTS
DCD
TXD
RXD
GND
DSR
DTR
CTS
RTS
1
2
3
5
4
6
7
8
1
3
2
5
6
4
8
7
58
ENG
ENGLISH
RS-232 CONTROL
Command Reference List
COMMAND
DATA
1 2
01. Power k a 00 to 01
02. Input Select x b refer to 02. Input Select
03. Aspect Ratio k c refer to 03. Aspect Ratio
04. Volume Mute k e 00 to 01
05. Volume Control k f 00 to 64
06. Contrast k g 00 to 64
07. Brightness k h 00 to 64
08. Color k i 00 to 64
09. Tint k j 00 to 64
10. Sharpness k k 00 to 64
11. OSD Select k l 00 to 01
12. Treble k r 00 to 64
13. Bass k s 00 to 64
14. Balance k t 00 to 64
15. Color Temperature x u 00 to 64
16. ISM mode j p refer to 16. ISM Method
17. Energy Saving j q refer to 17. Energy Saving
18. Auto Configuration j u 01
19. Key m c refer to 19. Key
20. Tile Mode d d 00 to 01
21. Tile H Position d e 00 to 64
22. Tile V Position d f 00 to 64
23. Tile H Size d g 00 to 64
24. Natural Mode
(in Tile Mode)
d j 00 to 01
25. Picture mode d x 00 to 04
26. Sound mode d y 01 to 05
27. Elapsed Time Return d l FF
28. Speaker d v 00 to 01
29. Sleep Time f f 00 to 08
30. Power On Delay f h 00 to 64
31. Language f i 00 to 08
32. Reset f k 00 to 02
33. H Position f q 00 to 64
34. V Position f r 23 to 41
35. H Size f s 00 to 64
36. FAN Control d o 00 to 01
37. FAN Fault check d w FF
38. Temperature Value d n FF
59
ENG
ENGLISH
RS-232 CONTROL
Transmission / Receiving Protocol
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
y
In a like manner, if other functions transmit ‘FF’ data based on this format, Acknowledgement data
feedback presents status about each function.
y
Note: In this mode, display will send the acknowledgement after power on processing completion.
There might be a time delay between command and acknowledgement.
y
Refer to ‘Real data mapping’ for hexadecimal data to decimal data.
y
No acknowledgement signal will be sent from display, if Set ID in transmission signal is set to
‘00’(=0x00).
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
y
[Command 1]: First command to control the set.
y
[Command 2]: Second Command to control the set.
y
[Set ID]: Set ID wants to communicate with the set. Command for test is 00.
y
[DATA]: Information passed to the set.
y
[Cr]: Carriage Return. ASCII code ‘0x0D’.
y
[ ]: ASCII code space ‘0 x 20’.
COMMAND
DATA
1 2
39. Serial No. Check f y FF
40. S/W Version f z FF
41. Tile Matrix d k 11 to FF
42. Tile ID d i Refer to 42. Tile ID
60
ENG
ENGLISH
RS-232 CONTROL
01. Power (Command : k a)
To control Power On / Off of the display.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off
01 : Power On
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
* In a like manner, if other functions transmit ‘FF’
data based on this format, Acknowledgement data
feedback presents status about each function.
* Note: In this modes, display will send the
acknowledgement after power on processing
completion. There might be a time delay between
command and acknowledgement.
* Refer to ‘Real data mapping’ for hexadecimal data
to decimal data.
04. Volume Mute (Command : k e)
To select screen mute on/off.
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data 0 : Volume Mute On (Volume Off)
1 : Volume Mute Off (Volume On)
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control(Command : k f)
To adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Volume 0 to 100
* Refer to ‘Real data mapping’ for hex decimal value.
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
To adjust screen contrast.
You can also adjust contrast in the PICTURE menu.
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Contrast 0 to 100
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
02. Input Select (Command : x b)
To select input source for display.
Transmission
[x][b][ ][Set ID][ ][Data][Cr]
Data 40: Component
60: RGB PC
90: HDMI
91: DVI
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
* Use this feature depending on your model
03. Aspect Ratio (Command : k c)
To adjust the screen format.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Data 01: 4:3
02: 16:9
04: Zoom
09: Just scan(720p or more)
10 to 1F: Cinema Zoom 1 to 16
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
Transmission / Receiving Protocol
61
ENG
ENGLISH
RS-232 CONTROL
07. Brightness (Command: k h)
To adjust screen brightness.
You can also adjust contrast in the PICTURE menu.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Brightness 0 to 100
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
08. Color (Command: k i)
To adjust screen color.
You can also adjust contrast in the PICTURE menu.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Color 0 to 100
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
09. Tint (Command: k j)
To adjust screen tint.
You can also adjust contrast in the PICTURE menu.
You can also adjust tint on AV and Component input
source.
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Tint 0 to 100 (R50 to G50)
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
10. Sharpness (Command: k k)
To adjust screen sharpness.
You can also adjust contrast in the PICTURE menu.
You can also adjust tint on AV and Component input
source.
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Sharpness 0 to 100
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
To select OSD(On Screen Display) on/off.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Data 00: OSD off
01: OSD on
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
12. Treble (Command: k r)
To adjust treble.
You can also adjust treble in the Audio menu.
Transmission
[k][r][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Treble 0 to 100
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
13. Bass (Command: k s)
To adjust bass.
You can also adjust treble in the Audio menu.
Transmission
[k][s][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Bass 0 to 100
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
14. Balance (Command: k t)
To adjust balance.
You can also adjust treble in the Audio menu.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Left 50 to Right 50
Acknowledgement
[t][ ][Set ID][ ][OK/NG][Data][x]
62
ENG
ENGLISH
RS-232 CONTROL
16. ISM Method (Command: j p)
To select ISM method for avoiding having a fixed
image remain on screen.
Transmission
[j][p][ ][Set ID][ ][Data][Cr]
Data 04: White Wash
08. Normal
20: Color Wash
Acknowledgement
[p][ ][Set ID][ ][OK/NG][Data][x]
20. Tile mode (Command: d d)
To select a tile mode.
Transmission
[d][d][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
21. Tile H Position (Command: d e)
To set the Horizontal position.
Transmission
[d][e][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Left Max to Right Max
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
22. Tile V Position (Command: d f)
To set the Vertical Position.
Transmission
[d][f][ ][Set ID][ ][Data][Cr]
Data 23 to 41: Bottom Max to Top Max
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
17. Energy Saving (Command: j q)
To control the energy saving function.
Transmission
[j][q][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: Minimum
02: Medium
03. Maximum
05. Screen Off
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
18. Auto Configuration (Command: j u)
To adjust picture position and minimize image
shaking automatically.
Auto configuration only works in RGB-PC mode.
Transmission
[j][u][ ][Set ID][ ][Data][Cr]
Data 01: Set
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
19. Key (Command: m c)
To send IR remote control code.
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
Data IR_KEY_CODE
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
When display is in the standby mode, display will
turn on by Power button of remote control only.
15. Color Temperature (Command: x u)
To adjust color temperature.
You can also adjust color temperature in the Picture
menu.
Transmission
[x][u][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Warm 50 to Cool 50
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
63
ENG
ENGLISH
RS-232 CONTROL
23. Tile H Size (Command: d g)
To set the Horizontal size.
Transmission
[d][g][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Min to Max
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
24. Natural Mode (in Tile Mode) (Comman : d j)
To assign the Tile Natural mode for Tiling function.
Transmission
[d][j][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
25. Picture Mode (Comman : d x)
To select the picture mode.
Transmission
[d][x][ ][Set ID][ ][Data][Cr]
Data 00: Vivid
01: Standard(User)
02. Cinema
03. Sport
04: Game
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
26. Sound Mode (Comman : d y)
To select the sound mode.
Transmission
[d][y][ ][Set ID][ ][Data][Cr]
Data 01: Standard
02: Music
03: Cinema
04: Sport
05. Game
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
28. Speaker (Command: d v)
To select speaker on/off.
Transmission
[d][v][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[v][ ][Set ID][ ][OK/NG][Data][x]
29. Sleep Time (Command: f f)
To set sleep time.
Transmission
[f][f][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: 10 min.
02: 20 min.
03: 30 min.
04: 60 min.
05: 90 min.
06: 120 min.
07: 180 min.
08: 240 min.
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
27. Elapsed Time Return (Command: d l)
To read the panel used time.
Transmission
[d][l][ ][Set ID][ ][Data][Cr]
Data FF: Data should be always ff in hexadecimal.
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
* Returned data means used hours in hexadecimal.
30. Power On Delay (Command: f h)
To set the schedule delay when the power is turned
on(unit: second).
Transmission
[f][h][ ][Set ID][ ][Data][Cr]
Data 00 to 64: 0 to 100sec.
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
64
ENG
ENGLISH
RS-232 CONTROL
31. Language (Command: f i)
To set language for OSD.
Transmission
[f][i][ ][Set ID][ ][Data][Cr]
Data 00: Korean
01: Chinese
02: Japanese
03: English
04: French
05: German
06: Italian
07: Portuguese
08: Spanish(EU)
09: Russian
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
32. Reset (Command: f k)
To execute the Picture, Screen and Factory reset
function.
Transmission
[f][k][ ][Set ID][ ][Data][Cr]
Data 00: Picture Reset
01: Screen Reset
02: Factory Reset
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
33. H Position (Command: f q)
To set the Horizontal position.
* This function only works in Tile Off mode.
Transmission
[f][q][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Left 50 to Right 50
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
34. V Position (Command: f r)
To set the Vertical position.
* This function only works in Tile Off mode.
Transmission
[f][r][ ][Set ID][ ][Data][Cr]
Data 23 to 41: Bottom 15 to Top 15
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
35. H Size (Command: f s)
To set the Horizontal size.
* This function only works in Tile Off mode.
Transmission
[f][s][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Size -50 to +50
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
36. FAN Control (Command: d o)
To set Fan control on/off.
* This function only works in Tile Off mode.
Transmission
[d][o][ ][Set ID][ ][Data][Cr]
Data 00: Auto
01: On
02: Manual
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
65
ENG
ENGLISH
RS-232 CONTROL
37. FAN Fault Check (Command: d w)
To set Fan control on/off.
* This function only works in Tile Off mode.
Transmission
[d][w][ ][Set ID][ ][Data][Cr]
Data FF: Data should be always ff in hexadecimal.
Acknowledgement
[w][ ][Set ID][ ][OK/NG][Data][x]
Data 00: Abnormal State
01: Normal State
38. Temperature Value (Command: d n)
To read the inside temperature of the display.
Transmission
[d][n][ ][Set ID][ ][Data][Cr]
Data FF: Data should be always ff in hexadecimal.
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
39. Serial No. Check (Command: f y)
To read the serial numbers.
Transmission
[f][y][ ][Set ID][ ][Data][Cr]
Data FF: Data should be always ff in hexadecimal.
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
40. S/W Version (Command: f z)
To read the software version.
Transmission
[f][z][ ][Set ID][ ][Data][Cr]
Data FF: Data should be always ff in hexadecimal.
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
41. Tile Matrix (Command: d k)
To set tile row and colume
Transmission
[d][k][ ][Set ID][ ][Data][Cr]
Data 11 to FF: 1st byte - Tile Row value
2nd byte - Tile Column value
* If Data is 00, 01 or 10, those commands won’t work
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
42. Tile ID (Command: d i)
To set Tile ID.
Transmission
[d][i][ ][Set ID][ ][Data][Cr]
Data 01 to E1: Tile ID 01 to 225**
FF: Read Tile ID
* Data should not be larger than (Tile Row) x (Tile
Column)
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
* NG will be returned if Data is larger than (Tile Row)
x (Tile Column), except 0xFF.
66
ENG
ENGLISH
RS-232 CONTROL
IR CODE (Hex) Function Remark
08 POWER Remocon Botton
C4 MONITOR ON Remocon Botton
C5 MONITOR OFF Remocon Botton
95 Evergy Saving Remocon Botton
0B INPUT Remocon Botton
10 Number 0 Remocon Botton
11 Number 1 Remocon Botton
12 Number 2 Remocon Botton
13 Number 3 Remocon Botton
14 Number 4 Remocon Botton
15 Number 5 Remocon Botton
16 Number 6 Remocon Botton
17 Number 7 Remocon Botton
18 Number 8 Remocon Botton
19 Number 9 Remocon Botton
02 VOL+ Remocon Botton
03 VOL- Remocon Botton
E0 BRIGHTNESS ∧ (Page Up) Remocon Botton
E1 BRIGHTNESS ∨ (Page Down) Remocon Botton
79 ARC (MARK) Remocon Botton
4D PSM Remocon Botton
09 MUTE Remocon Botton
43 MENU Remocon Botton
99 AUTO Remocon Botton
40
∧
Remocon Botton
41
∨
Remocon Botton
06 > Remocon Botton
07 < Remocon Botton
44 OK Remocon Botton
28 BACK Remocon Botton
7B TILE Remocon Botton
5B EXIT Remocon Botton
72 ID ON(Red) Remocon Botton
71 ID OFF(Green) Remocon Botton
63 Yellow Remocon Botton
61 Blue Remocon Botton
B1 ■ Remocon Botton
B0 ► Remocon Botton
BA ll Remocon Botton
8F ◄◄ Remocon Botton
8E ►► Remocon Botton
67
ENG
ENGLISH
LICENSE
LICENSE
A different license is supported depending on the model. Visit www.lg.com for more information on the
license.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete your
registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation
or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual(CD) in an
accessible place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
Temporary noise is normal when powering ON or
OFF this device.
As an ENERGY STAR Partner LGE U. S. A.,Inc. has
determined that this product meets the ENERGY
STAR guidelines for energy efficiency.
ENERGY S TAR is a s e t of pow e r-
saving guidelines issued by the U.S.
Environmental Protection Agency(EPA).
