INSTALLATION INSTRUCTION
Model: VT-8057
UP/DOWN SOFT LIGHT-OUTDOOR
WEEE Number: 80133970
INTRODUCTION
Thank you for selecng and buying V-TAC LED Up/down so light-outdoor. V-TAC
will serve you the best. Please read these instrucons carefully before starng
the installaon and keep this manual handy for future reference. If you have any
other query, please contact our dealer or local vendor from whom you have
purchased the product. They are trained and ready to serve you at the best.
TECHNICAL PARAMETERS
LED
parameter
Performace
parameter
Lamp
warm white
580 lm
3000K 4000K
≥80
≥30000Hrs
500Vac/1min
100LM/W
96PCS
12C8B
36 - 39V
240mA
0.9
240mA, 30-80V
PC
calss I
IP65
230 x 100 x 90mm
-30°C ~ 85°C, 0% - 95% R.H.
-25°C ~ 50°C, 10% - 90% R.H.
/
100~240Vac, 50/60Hz
less than 3% within 1000 working hours
COB LED
9W
92°
580 lm
600 lm
cool white
natural white
Lumens (lm)
color temperature (K)
CRI
Type of LED
Decay rate (%)
Total power (W)
Lifespan (Hrs)
High voltage testing
Lighting efficiency
Series-parallel way
Voltage
Current
Input parameter
Power factor
Output paremeter
Material
Dimension
Cut - out
Protection class
IP
Application
hotel, home-lighting, recreation place, supermarket
office building
Operating temperature
Storage temperature
Qty / Ctn
N.Wcarton size
Chip quantity
Beam angle
Packing
specification
Environment
parameter
Structure
parameter
Driver
specification
6400K

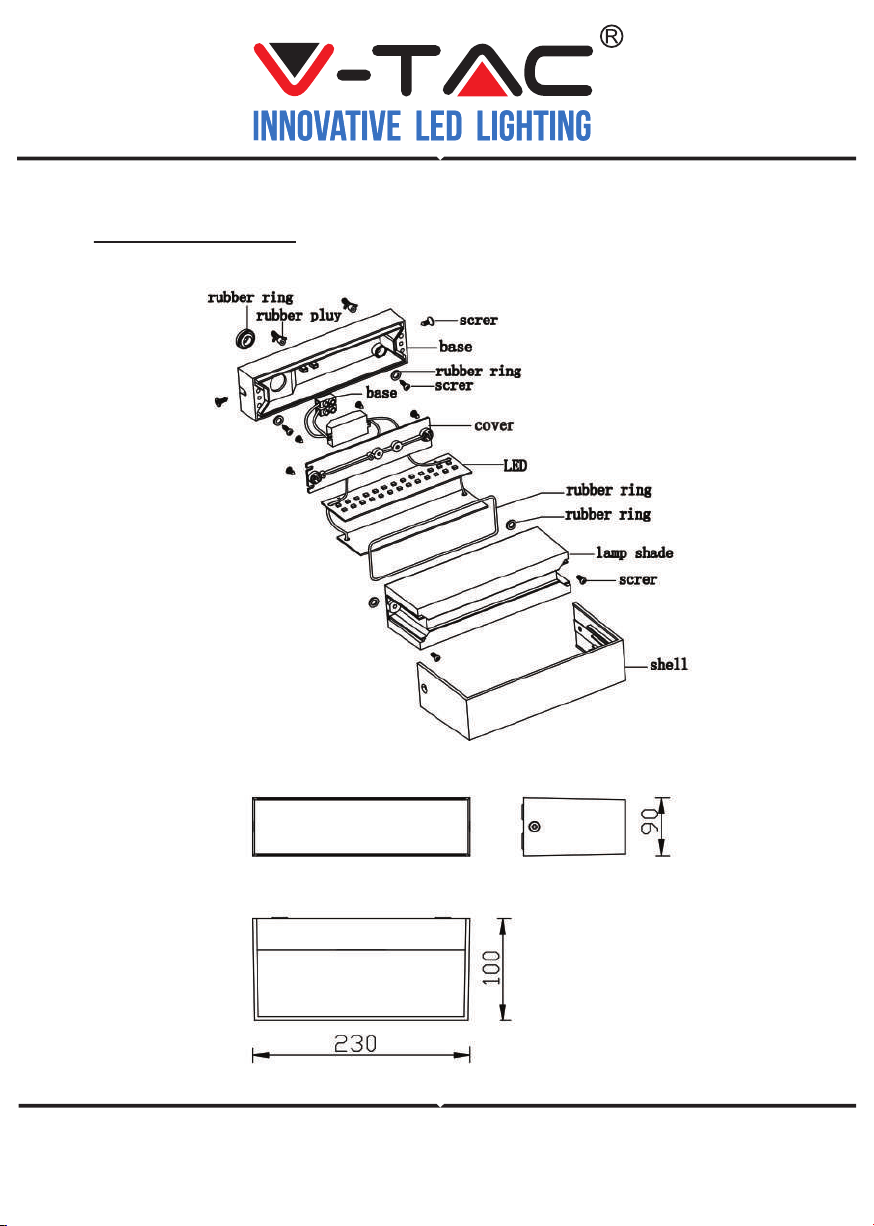

STRUCTURE & SIZE
INSTALLATION INSTRUCTION
In case of any query /issue with the product please reach out to us at [email protected]om
1. Switch off the power.
2. To drill the appropriate holes on the wall. (picture 1)
3. Enter the parcles and install the lamp base on the wall. (picture 2)
4. Connect the light into the mains (100-240V), install the lampshade
and cover the shell. (picture 3)
5. Switch on the power if above steps are done properly without any mistakes.
