Operating and installation instructions
Rangehood
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 10 572 810
Contents
2
Warning and Safety instructions.......................................................................... 3
Caring for the environment ................................................................................ 12
Description of the functions............................................................................... 13
Guide to the appliance........................................................................................ 14
Operation.............................................................................................................. 16
Switching the fan on.............................................................................................. 16
Switching the fan off ............................................................................................. 16
Switching the cooktop lighting on/off ................................................................... 16
Energy saving tips ............................................................................................... 17
Cleaning and care ............................................................................................... 18
Housing ................................................................................................................. 18
Grease filter ........................................................................................................... 18
NoSmell active charcoal filters .............................................................................. 20
Disposing of the charcoal filters .......................................................................20
Changing a lamp ................................................................................................... 21
After sales service and warranty ....................................................................... 22
Position of the data plate ...................................................................................... 22
Warranty: Other countries ..................................................................................... 22
Installation............................................................................................................ 23
Before installation.................................................................................................. 23
Installation instructions.......................................................................................... 23
Assembly parts...................................................................................................... 24
Appliance dimensions ........................................................................................... 26
Safety distance (S) ................................................................................................ 27
Installation recommendations ............................................................................... 28
Connection for air extraction ............................................................................. 29
Condensate trap.................................................................................................... 30
Silencer.................................................................................................................. 30
Electrical connection .......................................................................................... 32
Technical data...................................................................................................... 33
Warning and Safety instructions
3
This appliance complies with all relevant local and national safety
requirements. Inappropriate use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and damage to the appliance, please
read these instructions carefully before using it for the first time.
They contain important notes on the safety, installation, use and
maintenance of the appliance. Miele cannot be held liable for non-
compliance with these instructions.
Keep these instructions in a safe place and ensure that all users
are familiar with the contents. Pass them on to any future owner of
the appliance.
Correct application
This rangehood is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
The appliance is not suitable for outdoor use.
It must only be used to extract vapours and remove odours from
cooking.
Any other usage is at the owner's risk. Miele cannot be held liable for
damage resulting from incorrect or improper use or operation.
Where a recirculation rangehood is fitted above a gas cooktop,
please ensure that there is an adequate supply of fresh air into the
room in which it is installed. Please seek the advice of a qualified gas
fitter if necessary.
Warning and Safety instructions
4
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person responsible
for their safety, and are able to recognise the dangers of misuse.
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
Cleaning work may only be carried out by older children under the
supervision of an adult.
Children should be supervised near the appliance. Ensure that
they do not play with the appliance.
The cooktop lighting is very intense.
Ensure, in particular, that babies/small children do not look directly
at the light.
Danger of suffocation! Children may be able to wrap themselves in
packing material or pull it over their head with the risk of suffocation.
Keep children away from any packing material.
Warning and Safety instructions
5
Technical safety
Repairs and other work by unqualified persons could be
dangerous. Installation, maintenance work and repairs to electrical
appliances must only be carried out by a Miele approved service
technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system. It is most important that this basic safety requirement is
present and tested regularly and, where there is any doubt, the
household wiring system should be inspected by a qualified
electrician.
Reliable and safe operation of this rangehood can only be assured
if it has been connected to the mains electricity supply.
Before connecting the appliance to the mains supply, ensure that
the connection data on the data plate (voltage and frequency)
matches the mains electricity supply. This data must correspond in
order to avoid the risk of damage to the appliance. Consult a
qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. Extension leads are a fire
hazard and do not guarantee the required safety of the appliance.
Warning and Safety instructions
6
For safety reasons, this appliance may only be used after it has
been built in.
This rangehood must not be installed and operated in mobile
installations (e.g. on a ship).
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the "Cleaning and care" section of this
booklet. Under no circumstances should any other parts of the
housing be opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
If the mains connection cable is damaged, it must only be
replaced by a Miele authorised service technician or suitably
qualified electrician in order to avoid a hazard.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
– the mains circuit breaker is switched off, or
– it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
Warning and Safety instructions
7

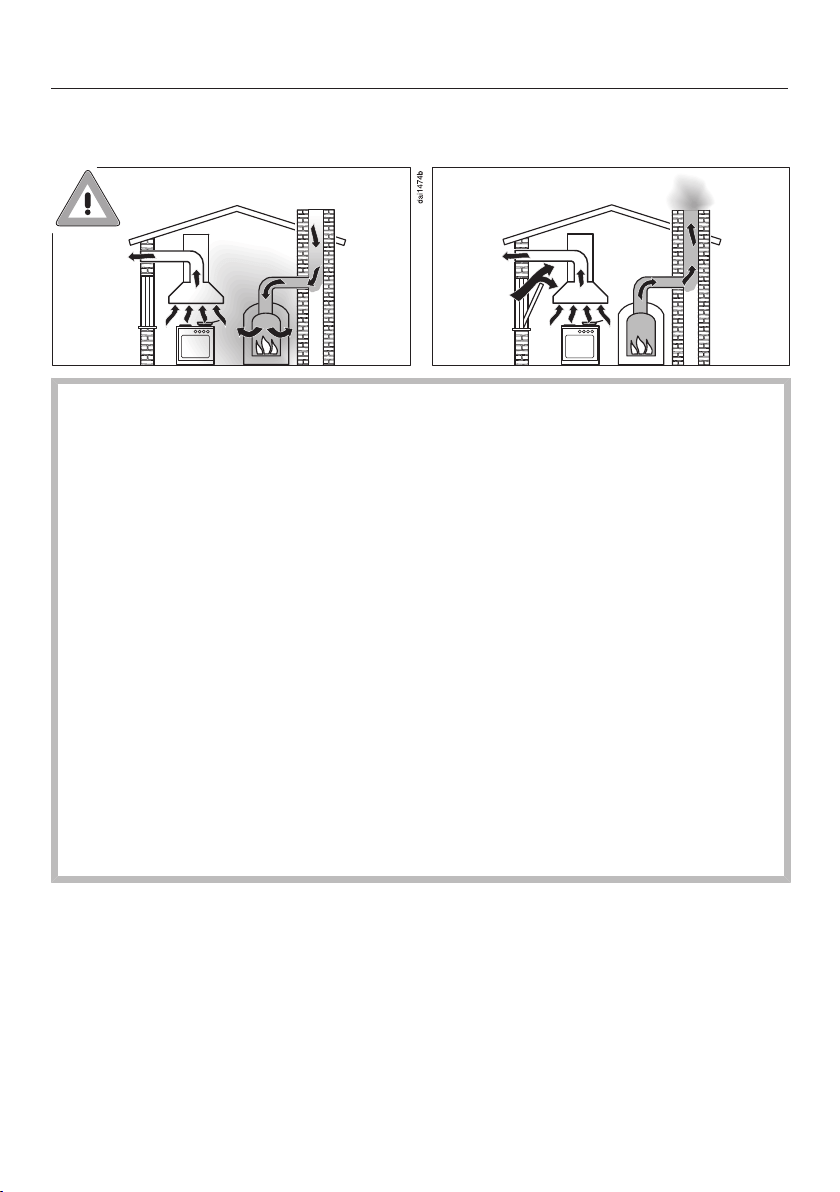

Using at the same time as other heating appliances that depend on the air
from the room
Warning - danger of toxic fumes!
Great care should be taken when using the rangehood at the same
time and in the same room or area of the house as another heating
appliance which depends on the air in the room.
Such appliances include gas, oil, wood or coal-fired boilers and
heaters, continuous flow or other water heaters, gas cooktops, or
ovens which draw air in from the room and duct exhaust gases out
through a chimney or extraction ducting.
When used in extraction mode, with or without an external motor
fitted, or in recirculation mode with a recirculation box installed
outside the room, the appliance draws air in from the room in
which it is installed and from neighbouring rooms.
If there is insufficient air, an underpressure will occur. The heating
appliance will be starved of oxygen, impairing combustion.
Harmful gases could be drawn out of the chimney or extraction
ducting back into the room, with potentially fatal consequences.
Warning and Safety instructions
8
In order to ensure safe operation, and to prevent gases given off
by the heating appliances from being drawn back into the room
when the rangehood and the heater are in operation
simultaneously, an underpressure in the room of 0.04mbar (4pa)
is the maximum permissible.
Ventilation can be maintained by air inlets which cannot be
blocked, in windows, doors or outside wall vents, or by other
technical measures, such as ensuring that the rangehood can only
be switched on when the heating appliance is switched off or vice
versa. A ventilation brick alone is not generally sufficient to ensure
safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, the advice of a competent builder, or for
gas a qualified gas fitter (registered with an official gas safety body
in accordance with national safety regulations), must be sought.
If the rangehood is used in recirculation mode, where the air is
directed back into the room in which it is located, operating a
heating appliance which depends on the room air at the same time
is not hazardous.
Warning and Safety instructions
9
Correct use
Never use an open flame beneath the rangehood. To avoid the
danger of fire, do not flambé or grill over an open flame.
When switched on, the rangehood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
The rangehood can become damaged when exposed to excessive
heat.
– When using the rangehood over a gas cooktop, ensure that any
burners in use are always covered by a pan. Switch the cooking
zone off when a pan is removed, even for a short time.
– Select a pan which is suitable for the size of the burner.
– Regulate the flame so that it does not burn up the sides of the
pan.
– Avoid overheating the pan (e.g. when cooking with a wok).
Always switch the rangehood on when a cooking zone is in use,
otherwise condensation may collect in the rangehood, which could
cause corrosion.
When cooking with oil or fat, chip pans and deep fat fryers etc.,
do not leave the pans unattended. Never leave an open grill
unattended when grilling. Overheated oil and fat can ignite and could
set the rangehood on fire.
Warning and Safety instructions
10
Do not use the rangehood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
The rangehood can get very hot during cooking due to heat rising
from the cooktop.
Do not touch the housing or the grease filters until the rangehood
has cooled down.
This rangehood is not suitable for placing objects on.
Correct installation
Refer to the cooktop manufacturer's instructions as to whether a
rangehood may be operated above the cooktop.
Safety regulations prohibit the fitting of a rangehood over solid
fuel stoves.
Insufficient distance between the cooktop and the rangehood can
result in damage to the rangehood.
The minimum safety distances between the top of the cooktop and
the bottom of the rangehood given in the "Installation" section must
be maintained, unless the cooktop manufacturer states that a greater
distance is required.
If more than one cooking appliance is fitted beneath the rangehood,
and they have different minimum safety distances to the rangehood,
select the greater distance.
The distances given in "Installation" must be observed when
fitting the rangehood.
Warning and Safety instructions
11
All ducting, pipework and fittings must be of non-flammable
material. These can be obtained from builders' merchants.
The appliance must not be connected to a chimney or vent flue
which is in current use for exhausting fumes from appliances burning
gas or other fuels. Neither should it be connected to ducting which
ventilates rooms with fireplaces.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
There is a risk of fire if cleaning is not carried out as described in
these operating instructions.
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the machine and its
surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the machine warranty.
Accessories
Use only genuine original Miele spare parts. If spare parts or
accessories from other manufacturers are used, the warranty will be
invalidated, and Miele cannot accept liability.
Caring for the environment
12
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.
Description of the functions
13
Depending on the model of the
rangehood, the following options are
available:
Air extraction mode
The air is drawn in and cleaned by the
grease filter and directed outside.
Non-return flap
The non-return flap is designed to
prevent the exchange of room and
outside air taking place.
The flap is closed when the rangehood
is switched off.
When the rangehood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
If the on-site ventilation system does
not have a non-return flap, the non-
return flap supplied must be fitted.
Recirculation mode
(available as an optional extra with a
conversion kit and charcoal filter: see
"Technical Data")
The air is drawn in and cleaned first by
the grease filter and then by a charcoal
filter. The cleaned air is then
recirculated back into the kitchen.
Guide to the appliance
14
Guide to the appliance
15

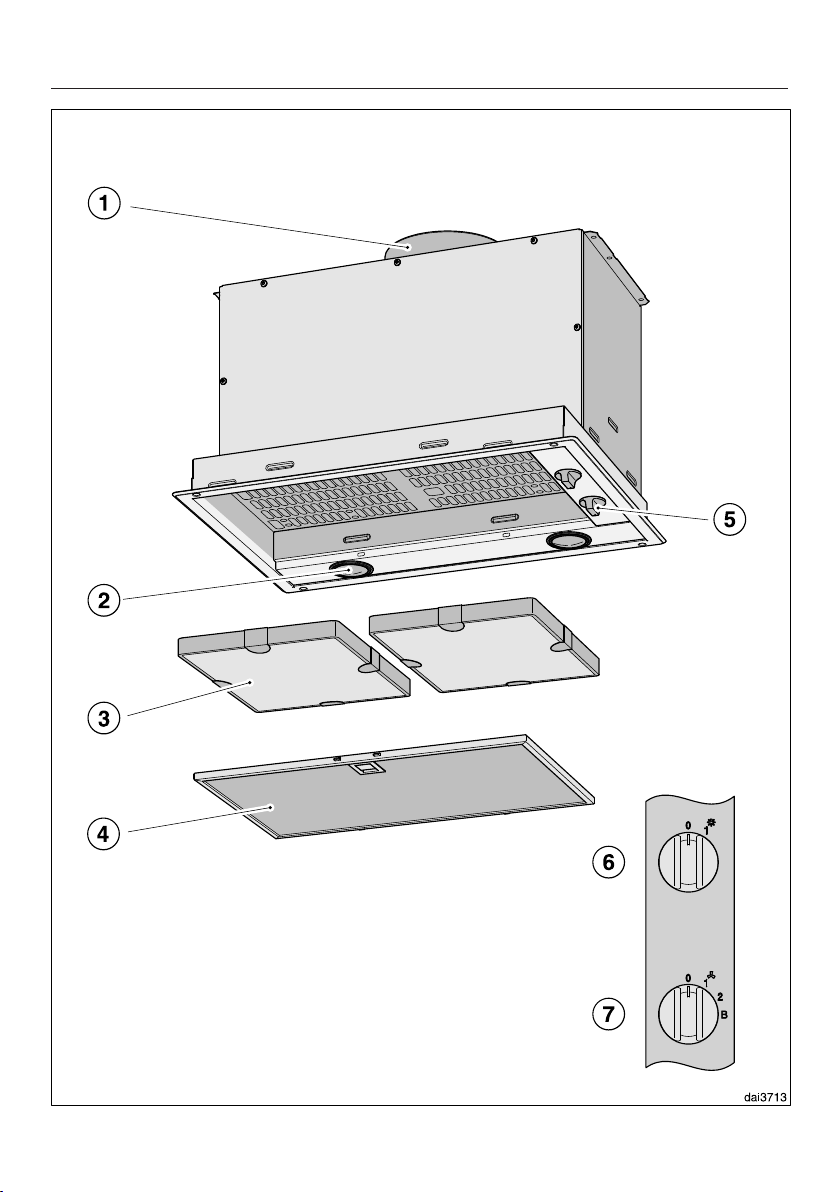

a
Exhaust connection
Extraction ducting can be directed through the back of the rangehood, upwards
to the ceiling, or to the side (...EXT models only).
b
Cooktop lighting
c
NoSmell active charcoal filter
(special accessory for recirculation mode)
d
Grease filter
e
Controls
f
Rotary control for cooktop illumination
g
Rotary control for the fan
Operation
16
Switching the fan on
For light to heavy cooking vapours and
odours, select power settings 1 and 2.
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, select Booster
settingB.
Switch the fan on with the fan
switch and select the power level
you want.
Switching the fan off
It is advisable to run the fan for a few
minutes after cooking has finished to
neutralise any lingering vapours and
odours in the air.
To switch off, move the fan switch to
0.
Switching the cooktop lighting
on/off
The cooktop lighting can be switched
on and off independently of the fan.
Use the lighting switch to switch
the cooktop lighting on (1) or off (0).
Energy saving tips
17
This rangehood operates very efficiently
and economically. The following will
help you to save even more energy
when using it:
– Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there
is insufficient air flow the rangehood
cannot operate efficiently and this
causes increased operating noise
levels.
– Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
rangehood power level and therefore
benefit from reduced energy
consumption.
– Check the power level selected on
the rangehood. A lower power level is
generally sufficient for the majority of
cooking. Only use the Booster setting
when necessary.
– When a large volume of cooking
vapours are being produced, switch
to a high power level in good time.
This is more efficient than operating
the rangehood for longer to try to
capture cooking vapours which have
already been distributed throughout
the kitchen.
– Make sure that you switch the
rangehood off after use.
– Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
Cleaning and care
18
Before proceeding with any
maintenance or cleaning task, the
rangehood must be disconnected
from the power supply (see "Warning
and Safety instructions").
Housing
General
The surfaces and controls are
susceptible to scratches and
abrasion.
Please observe the following
cleaning instructions.
All external surfaces and controls can
be cleaned using warm water with a
small amount of washing-up liquid
applied with a well wrung-out soft
sponge or cloth.
Do not use too much water when
cleaning the controls.
Water could penetrate into the
electronics and cause damage.
After cleaning, wipe the surfaces dry
using a soft cloth.
Do not use:
– cleaning agents containing soda,
acids, chlorides or solvents,
– abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents. These will damage
the surface material.
Grease filter
The re-usable metal grease filter in the
appliance removes solid particles from
the kitchen vapours (grease, dust, etc.)
preventing soiling of the rangehood.
An oversaturated filter is a fire
hazard.
Grease filter cleaning intervals
The grease filter should be cleaned
regularly (at least every 3-4 weeks) to
avoid a build-up of grease.
Removing a grease filter
When handling a grease filter, be
careful not to drop it.
This can result in damage to the filter
and the cooktop below.
Make sure you hold the filter securely
at all times when handling it.
To take out a grease filter, release the
locking clip on the filter, lower the
filter approx. 45°, unhook it at the
back and remove it.
Cleaning and care
19
Cleaning the grease filter by hand
Clean the grease filter with a soft
nylon brush in a mild solution of hot
water and a small amount of
washing-up liquid. Do not use
undiluted washing-up liquid.
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
– cleaning agents containing descaling
agents,
– powder cleaners or cream cleaners,
– aggressive all-purpose cleaning
agents or spray cleaners for grease,
– oven sprays.
Cleaning the grease filter in a
dishwasher
Place the filter as upright as possible
in the lower basket, with the short
side upright, ensuring the spray arm
is not obstructed.
Use a proprietary household
dishwasher detergent.
Select a dishwasher programme with
a wash temperature between 50°C
and 65°C.
Depending on the cleaning agent
used, cleaning the grease filter in a
dishwasher can cause permanent
discolouration to the internal surfaces
of the filter. However, this will not
affect the functioning of the filter in
any way.
After cleaning
After cleaning, leave the grease filter
to dry on an absorbent surface before
refitting it.
When removing the filter for cleaning,
also clean off any residues of oil or fat
from the now accessible casing to
prevent the risk of these catching fire.

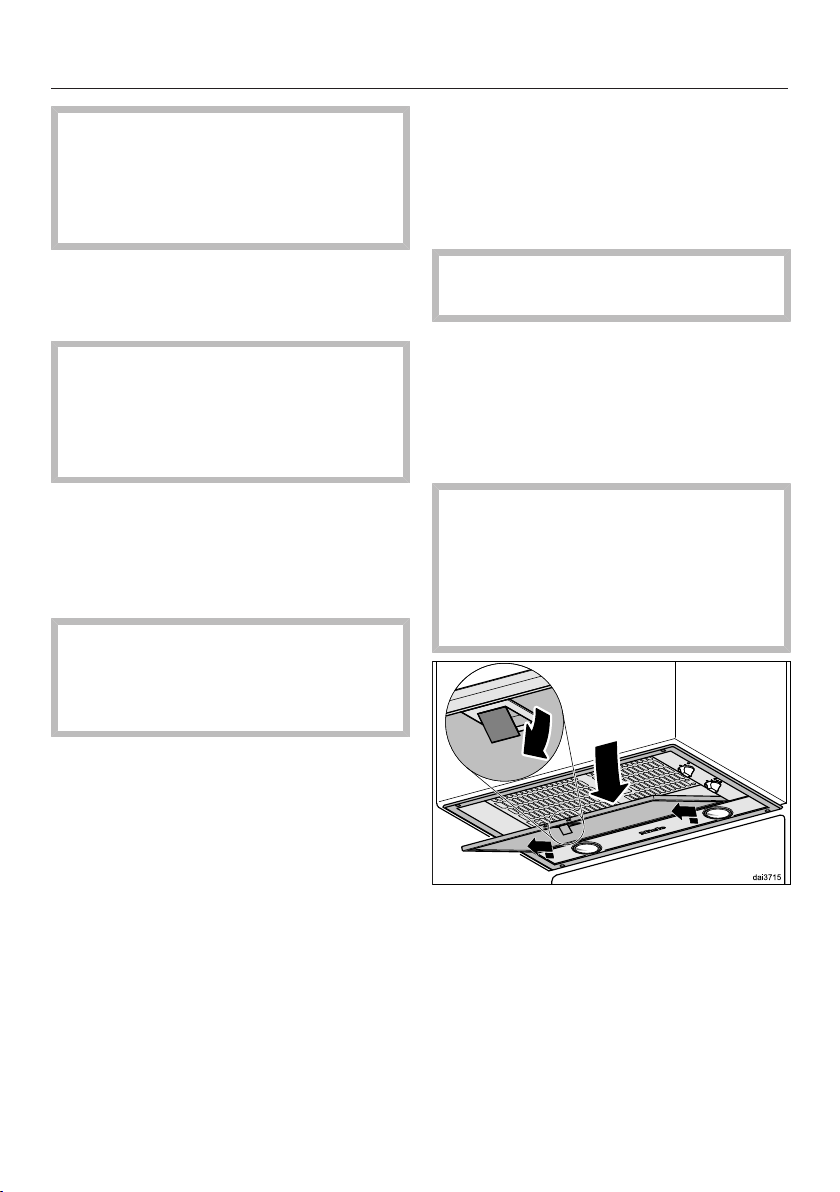

Refit the grease filter, making sure
that the locking clip is facing down
towards the cooktop.

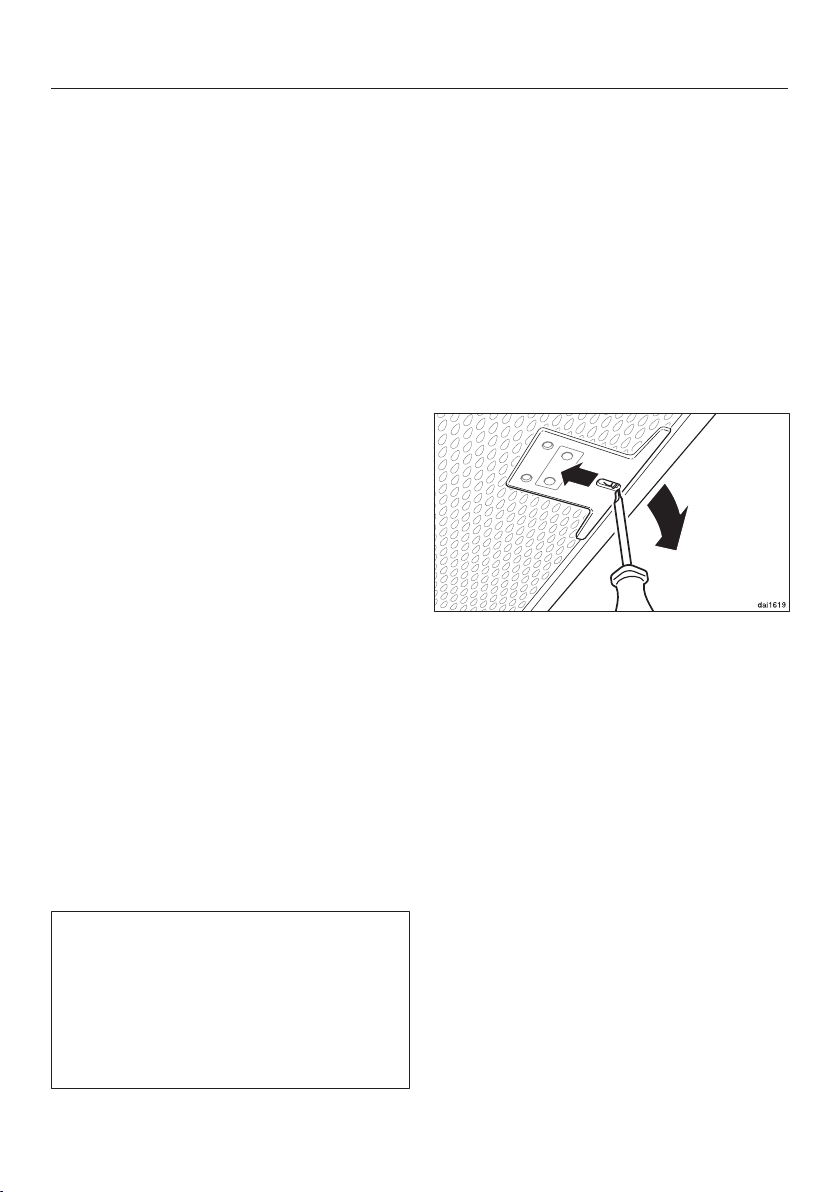

If a grease filter is inadvertently
refitted upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
Cleaning and care
20
NoSmell active charcoal filters
With recirculation mode, two charcoal
filters must be fitted in addition to the
grease filter. These are designed to
absorb cooking odours.
They are fitted into the canopy above
the grease filter.
Charcoal filters are available to order via
the Miele Webshop or directly from
Miele (see end of this booklet for
contact details). See "Technical data"
for the model number of the charcoal
filter.
Fitting and replacing the charcoal
filters
Before fitting or replacing a charcoal
filter, the grease filter must first be
taken out (see previous section for
instructions on how to do this).

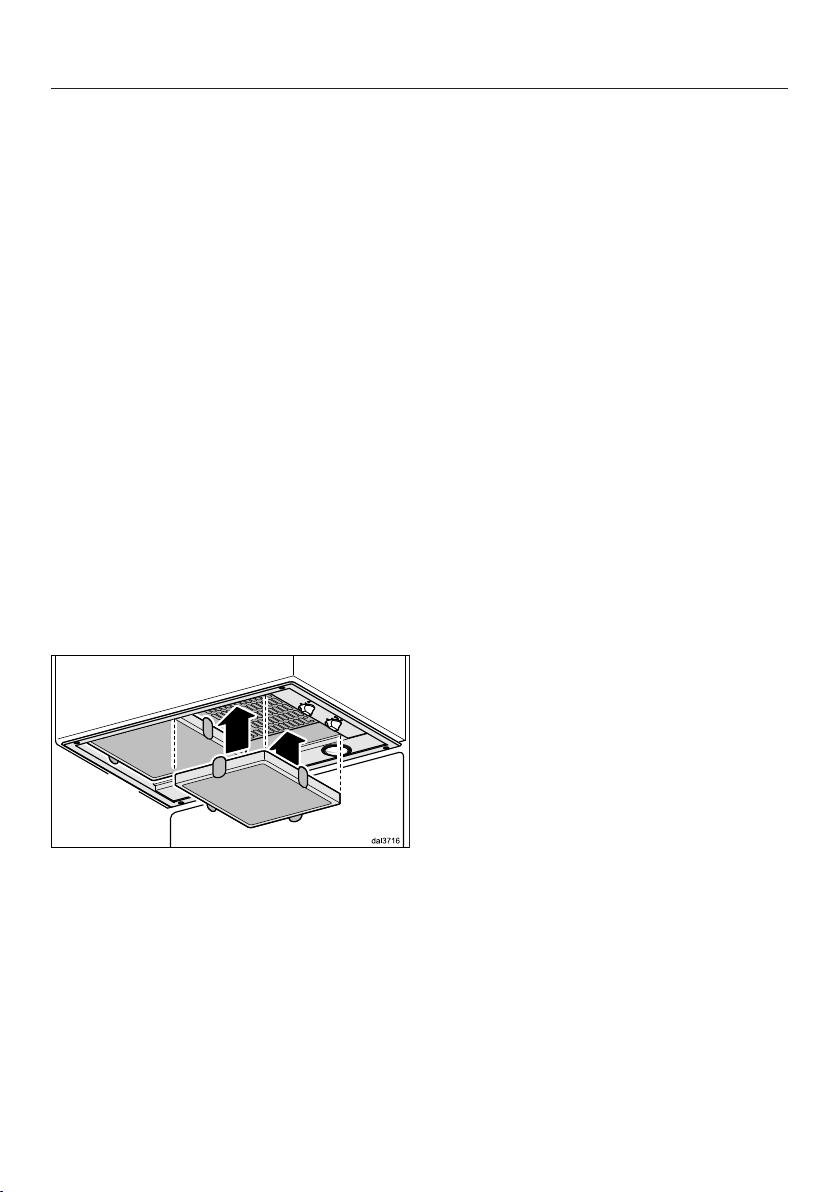

Unwrap the charcoal filters.
Fit the charcoal filters into the frame.
Refit the grease filter.
When to change the NoSmell active
charcoal filters
Always replace the charcoal filters
when they no longer absorb kitchen
odours effectively.
They should, however, be replaced at
least every 6 months.
Disposing of the charcoal filters
The used charcoal filters can be
disposed of with the normal
household waste.
Cleaning and care
21
Changing a lamp
Use only the lamps specified for use
with this appliance.
Other lamps, e.g. halogen lamps,
may cause damage due to the high
generation of heat.
The lamps should be replaced with the
following:
Manufacturer ............................... EGLO
Lamp type .................................... GU10
Specification................................ 11427
Wattage ........................................... 3 W
ILCOS D Code...... DR-3-H-GU10-50/56
Alternatively, the following lamps can
be used:
Manufacturer ............................... EGLO
Lamp type .................................... GU10
Specification................................ 11511
Wattage ........................................... 5 W
ILCOS D Code...... DR-5-H-GU10-50/54
These lamps have a different luminosity.
Only use lamps of the same type in the
rangehood.
These lamps are available from Miele or
from specialist retailers.
Switch off the fan and the lighting.
The lamps can get hot during use.
Allow the lamps to cool down for a
few minutes before changing them.
Disconnect the rangehood from the
mains electrical supply before
replacing the lamps (see "Warning
and Safety instructions").

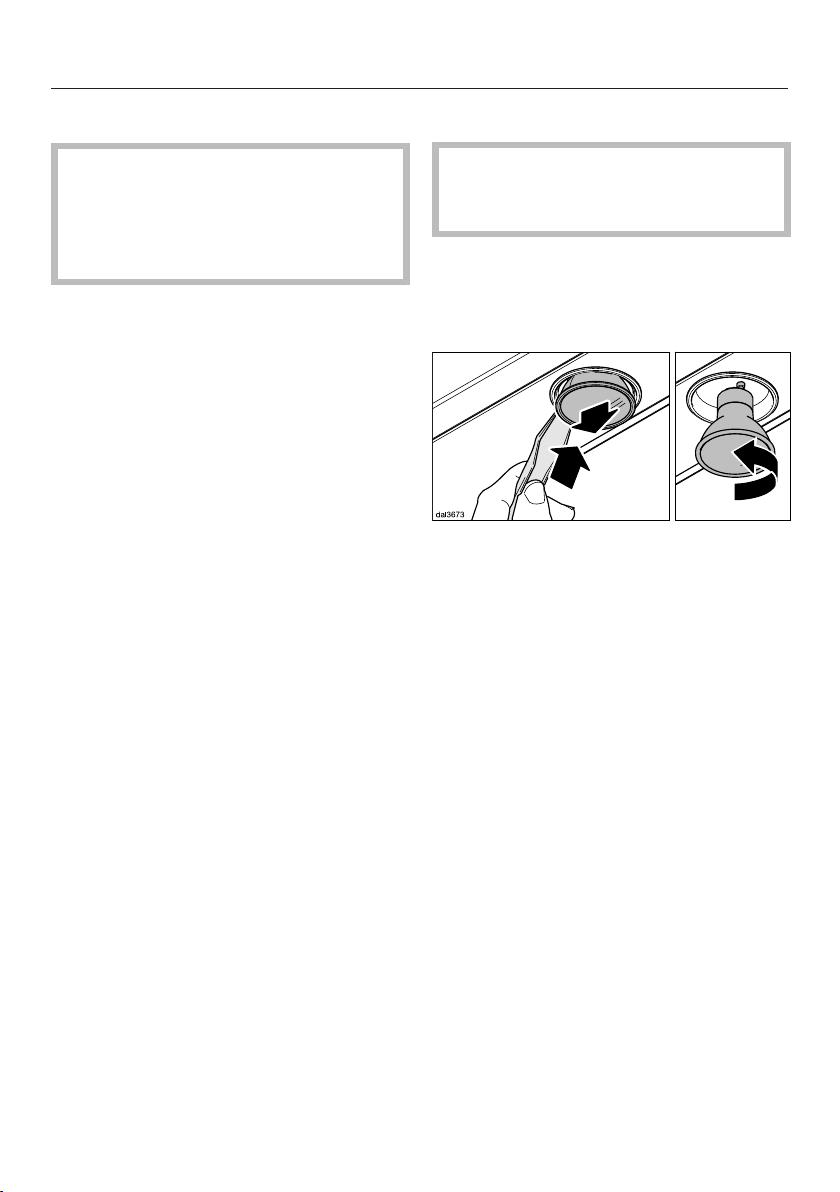

Insert the lever supplied into the gap
between the lamp and the lamp
holder.
The lamp will then drop downwards.
Grip the lamp, turn it anti-clockwise
and take it out.
Screw the new lamp into the socket
and push it upwards. Please follow
the manufacturer's safety
instructions.
After sales service and warranty
22
In the event of a fault which you cannot
remedy yourself, please contact Miele.
The contact details for Miele are given
at the back of these instructions.
When contacting Miele, please quote
the model and serial number of your
appliance.
These can be found on the data plate.
Position of the data plate
The data plate is visible after removing
the grease filter.
Warranty: AU, NZ
The manufacturer's warranty for this
appliance is 2 years.
For further information, please refer to
your warranty booklet.
Warranty: Other countries
For information on the appliance
warranty specific to your country please
contact Miele. See end of this booklet
for contact details.
Installation
23
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
"Warning and Safety instructions" at
the beginning of this booklet.
Installation instructions
See enclosed installation sheet for
instructions on how to install this
appliance.
The rangehood is intended to be built
into wall units, rangehood housing
units, and above breakfast bars or
island areas.
Check prior to installation that the top
of the appliance will be accessible
after installation.
If this is not the case, install the exhaust
ducting and prepare the mains
connection before installation.
Installation
24

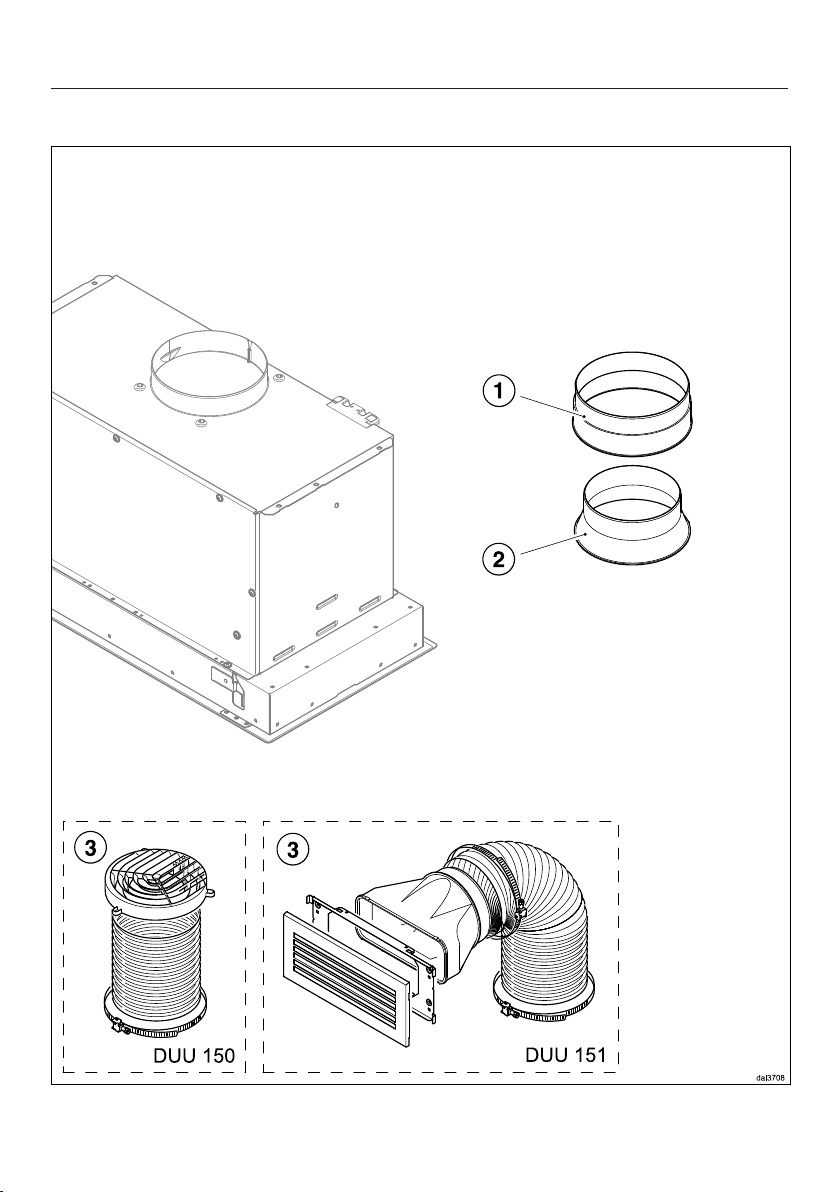

Assembly parts
Installation
25
a
1 exhaust socket for exhaust
ducting 150 mm.
b
1 reducing collar for exhaust
ducting 125mm (recommended
for connection to existing 125mm
ducting only).
c
Conversion kit for recirculation
mode (the conversion kit is not
supplied, but is available as an
optional accessory - see "Technical
data"). The kit contains an exhaust
grille and flexible aluminium hose
with hose clips.
3.5x16mm screws for securing the
rangehood.
DA 2450, 2550: 4 screws
DA 2570, 2580: 6 screws
DA 2510: 8 screws
The screws supplied are intended for
securing the rangehood to a solid
wooden cabinet floor with a
minimum thickness of 16mm.
Ensure the floor can permanently
support the weight of the appliance.
Keep the following in a safe place:
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
Installation instructions
1 lever
for replacing lamps.
Installation
26

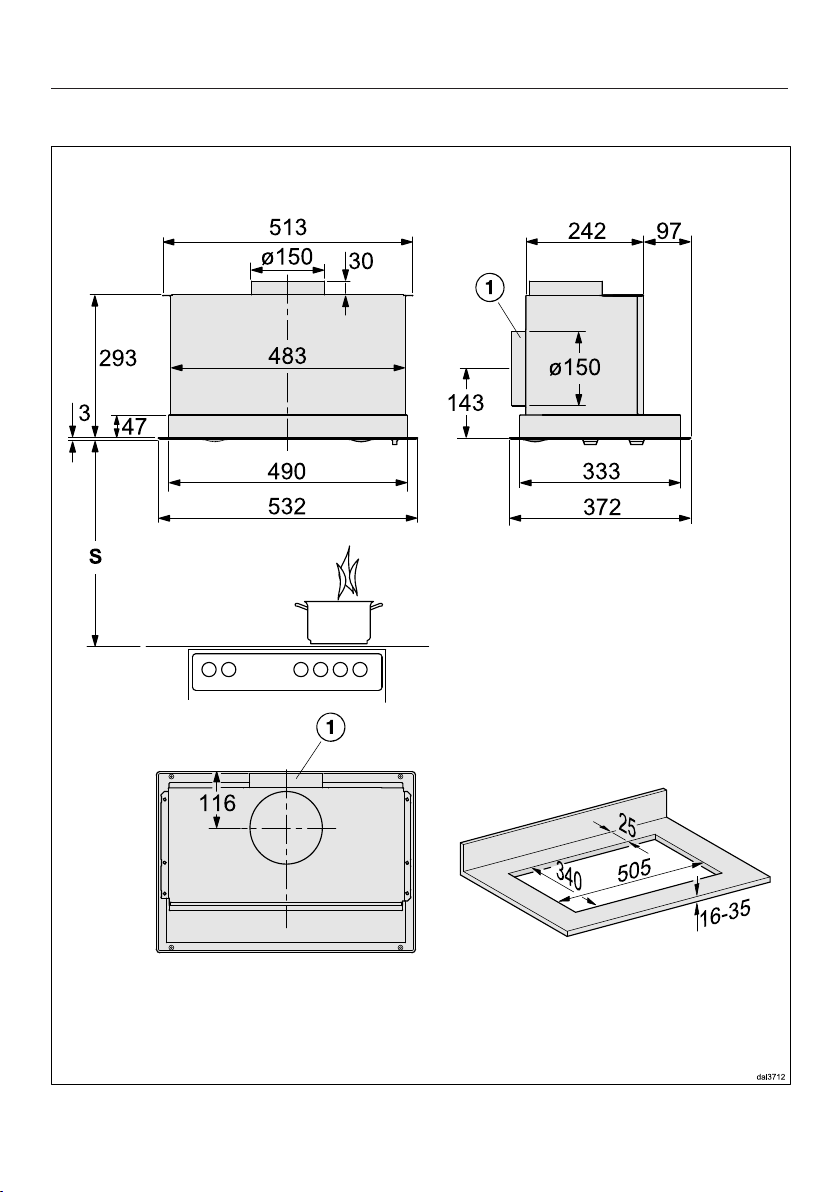

Appliance dimensions
The drawing is not to scale.
Installation
27
Safety distance (S)
The minimum distances between the highest part of a cooktop (including
trivets, dials - depending on model) and the bottom of the rangehood are as
follows, unless a greater distance is specified by the manufacturer of your
cooking appliance. See also "Warning and Safety instructions".
Cooking appliance Minimum distance S
Electric cooktop 600 mm (AU, NZ)
450 mm (HK, MY, SG)
Electric grill, deep fat fryer (electric) 650 mm
Multi-burner gas cooktop with maximum 45.4MJ/h total
output, with no burner having a greater output than
16.2MJ/h.
650 mm
Multi-burner gas cooktop with total output greater than
45.4MJ/h, but with a maximum of 77.8MJ/h, with no
burner having a greater output than 17.3MJ/h.
760 mm
Multi-burner gas cooktop with total output greater than
77.8MJ/h, with a single burner having a greater output
than 17.3MJ/h.
Not possible
Single burner gas cooktop with a maximum output of
21.6MJ/h.
650 mm
Single burner gas cooktop with an output greater than
21.6MJ/h, but with a maximum of 29.2MJ/h.
760 mm
Single burner gas cooktop with an output greater than
29.2MJ/h.
Not possible
Installation
28
Installation recommendations
– To achieve optimum vapour
extraction, the rangehood must be
positioned centrally over the cooktop,
not to the side.
– The installation area must be easily
accessible. The rangehood should be
easily accessible and easy to
dismantle in the event that service is
required. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or features in the vicinity of
the rangehood.
Connection for air extraction
29
Before installation, it is important
to read the information given on the
following pages as well as the
"Appliance dimensions" and the
"Warning and Safety instructions" at
the beginning of this booklet. This is
particularly crucial when using the
rangehood at the same time as a
heating appliance that relies on
oxygen from the same room, which
could result in the build-up of toxic
fumes.
The rangehood should be installed
according to local and national
building regulations. Seek approval
from the building inspector where
necessary.
Only use smooth pipes or flexible
hoses made from non-flammable
materials for the extraction ducting.
To achieve the greatest possible air
extraction with the lowest noise level,
please note the following:
– The diameter of the exhaust ducting
should not be less than 150mm.
– If flat ducting is being used, the
cross-sectional area must not be
smaller than the cross-sectional area
of the exhaust connection.
– The exhaust ducting should be as
short and straight as possible.
– Only use wide radius bends.
– The exhaust ducting must not be
kinked or compressed.
– Ensure that all connections are
strong and airtight.
Remember that any constriction of
the airflow will reduce extraction
performance and increase operating
noise.
If the exhaust is ducted through an
outside wall, a telescopic wall vent or
a roof vent (available as an optional
accessory) is recommended.

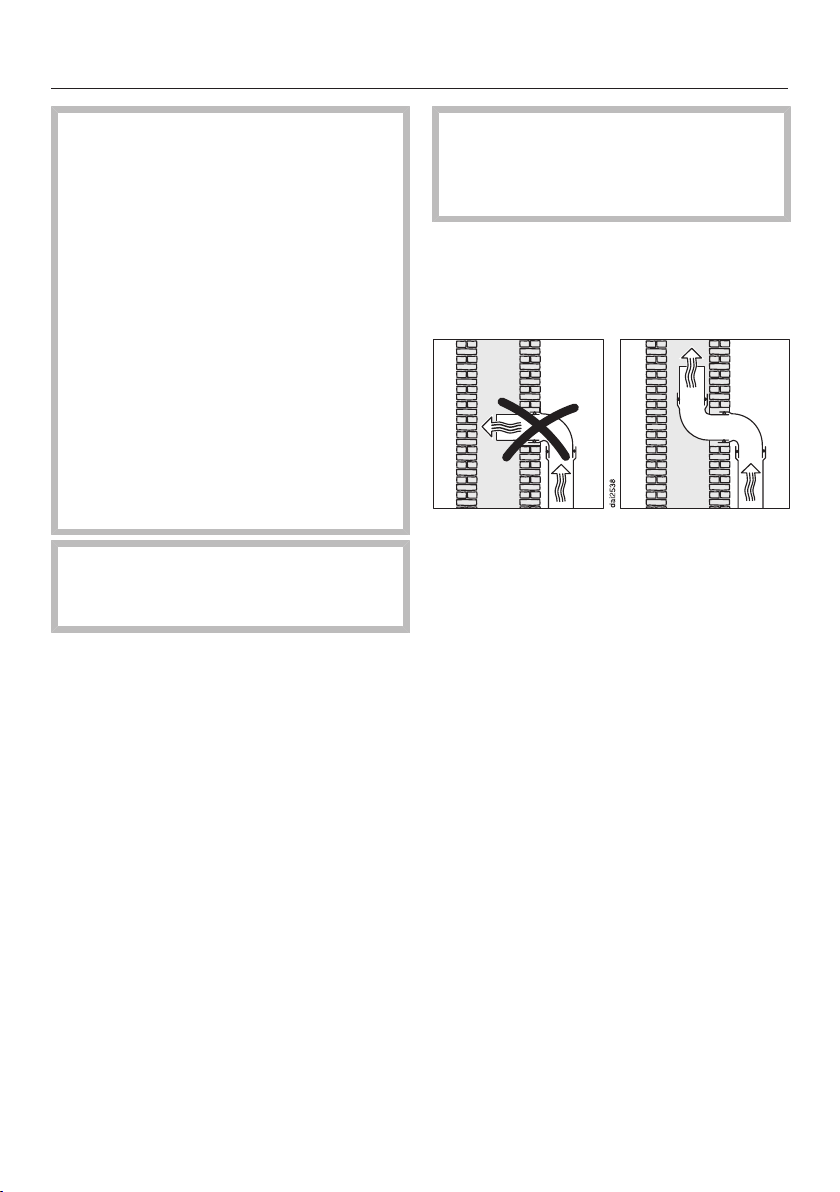

If the exhaust air is to be ducted into
a vent flue, the ducting must be
directed in the flow direction of the
flue.
When ducting is horizontal, it must be
laid to slope away at at least 1cm per
metre. This is to ensure that
condensate cannot drain back into
the rangehood.
If the exhaust ducting is to run
through rooms, ceiling space etc.
where there may be great variations
in temperature between the different
areas, the problem of condensation
will need to be addressed. The
exhaust ducting will need to be
suitably insulated.
Connection for air extraction
30

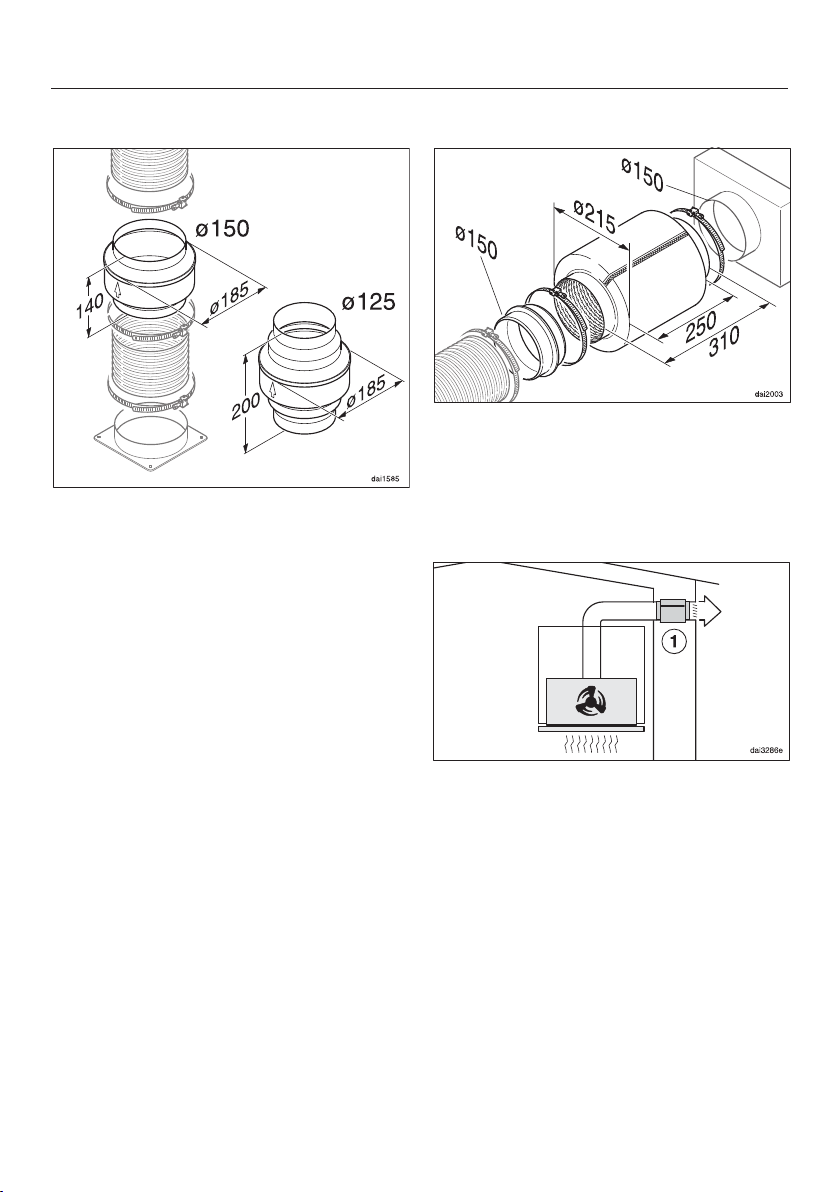

Condensate trap
In addition to insulating the exhaust
ducting, we recommend that a suitable
condensate trap is also installed to
collect and evaporate any condensate
which may occur.
Condensate traps are available for
125mm or 150mm ducting.
When installing a condensate trap,
ensure that it is positioned vertically
and, if possible, directly above the
exhaust socket.
The arrow on the housing indicates
the direction of airflow.
Silencer
To achieve even further reductions in
noise levels, a special silencer (optional
accessory) can be fitted in the ducting
system.
Air extraction mode
The silencer not only reduces noise
from the motor outside the house, but
also sounds from outside (e.g. traffic
noise). For this reason, the silencer
must be positioned as close as possible
to the ducting exit .
Connection for air extraction
31
Recirculation mode
The silencer needs to be positioned
between the exhaust connection and
the exhaust grille . Ensure there is
adequate space for fitting it.
Electrical connection
32
All electrical work must be
undertaken by a suitably qualified
and competent person in strict
accordance with current national and
local safety and building code
regulations. Installation, repairs and
other work by unqualified persons
could be dangerous, for which the
manufacturer cannot be held liable.
Ensure power is not supplied to the
appliance until after installation or
repair work has been carried out.
The rangehood must be connected to a
suitably earthed socket (AC 230 V,
50Hz).
For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA.
Connection of this appliance must be
made via a suitable isolator switch
which provides disconnection on all
poles and which complies with national
and local safety regulations. The
isolator switch should be easily
accessible after the appliance has been
built in.
If the mains socket is not accessible
after installation, an additional means of
disconnection must be provided for all
poles. There must be an all-pole
contact gap of 3 mm in the switch
(including switch, fuses and relays).
The connection data is given on the
data plate (See "After sales service").
Ensure that this data matches the
household mains supply.
Technical data
33
Fan motor 220 W
Cooktop lighting 2 x 3 W
Total rated load 226 W
Voltage, frequency AC 230 V, 50 Hz
Fuse rating 10 A
Mains connection cable length 1.5 m
Weight 8 kg
Special accessory for recirculation mode
DUU150 or DUU151 conversion kit and charcoal filter set DKF15-1. The set
contains 2 charcoal filters.
Miele (Hong Kong) Limited
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay
Hong Kong
Tel.: (852) 2610 1025
Fax: (852) 3579 1404
E-mail: [email protected]
Website: www.miele.hk
Singapore
Miele Pte. Ltd.
163 Penang Road
# 04 - 03 Winsland House II
Singapore 238463
Tel.: +65-67351191
Fax: +65-67351161
E-mail: [email protected]
Internet: www.miele.sg
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana Petroleum
Solaris Dutamas No. 1, Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Miele Experience Centre and
Head Office Melbourne:
1 Gilbert Park Drive
Knoxfield, VIC 3180
www.miele.com.au
Miele New Zealand Limited
IRD 98 463 631
Head Office:
Level 2, 10 College Hill
Freemans Bay, Auckland 1011
Telephone:
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
Miele Global Headquarters
Germany
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany
M.-Nr. 10 572 810 / 01en-AU, NZ
DA 2450
