POWER CONNECTION CHART
GE 230/208 Volt Wall Plug Heater Wattage
Power Supply Kit Configuration Circuit Protective Device @ 230/208 Volts
RAK3153A Tandem 15-Amp Time-Delay Fuse or Breaker 2.55/2.09 KW
RAK3203A Perpendicular 20-Amp Time-Delay Fuse or Breaker 3.45/2.82 KW
RAK3303A Large Tandem 30-Amp Time-Delay Fuse or Breaker 5.00/4.09 KW
230/208 VOLT ELECTRICAL SUPPLY
A power supply kit must be used to supply power to the
Zoneline unit. The appropriate kit is determined by the
voltage, the means of electrical connection, and the
amperage of the branch circuit. See the POWER
CONNECTION CHART to confirm the appropriate kit.
All wiring, including installation of the receptacle,
must be in accordance with the NEC and local codes,
ordinances, and regulations.

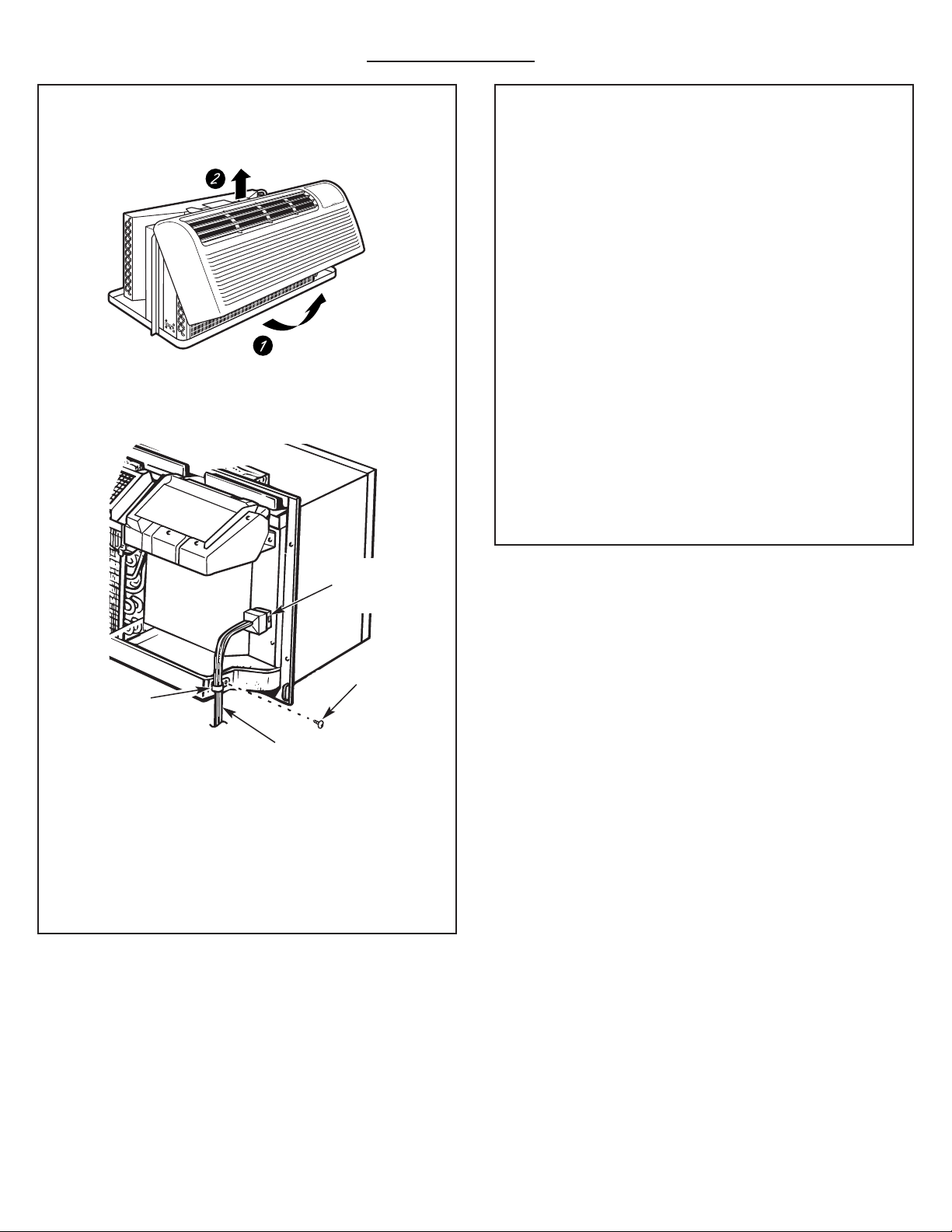

Installation instructions
RAK3153A, RAK3203A,
for your new
RAK3303A
Power Supply Kit for Cord
Connection with Current
Interruption Device
Before you begin – Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
TOOLS NEEDED
• 1/4″ Nut driver • Phillips screwdriver
• This kit is for use with 230/208 volt 2800, 2900,
3800, 3900, 4100, 5200, 5500, 5800 and 6100
Series GE Zoneline units only.
IMPORTANT NOTES
• This unit must be properly grounded.
• The electrical rating marked on the previously installed
Zoneline and power supply kit must be the same as
the supply branch circuit.
• Aluminum building wiring may present special
problems—consult a qualified electrician.
• All wiring, including installation of the receptacle,
must be in accordance with the NEC and local codes,
ordinances, and regulations.
• Use ONLY the wiring size recommended for single
outlet branch circuit.
• Proper current protection is the responsibility of
the owner.
Tandem
15 Amp
230/208 volt receptacle configuration
Perpendicular
20 Amp
Large Tandem
30 Amp
Power supply kit
Recommended branch circuit wire sizes*
Nameplate
maximum circuit AWG wire
breaker size size**
15A 14
20A 12
30A 10
AWG – American Wire Gauge
* Single circuit breaker from main box
** Based on copper wire, single-insulated conductor at 60°C
NOTE: Use copper conductors only.
WARNING:
Disconnect the electrical power
supply before wiring connections.
Pub No. 31-61544 08-09 JRPrinted in the United States
Appearance may vary.
