18-15/16"
23-5/8"
3/4" Thick Panel
Appearance Side
1-9/16"
3/4"
1/2"
A*
23-5/8"
3/4" Thick Access Panel
Installation
Instructions
3/4" Custom Dishwasher
Door and Access Panel Kit
GPF375 Kit
Note: The custom wood
access panel should
evenly match the bottom
of adjacent cabinets.
Adjustments made to the
leveling legs to obtain
correct height can affect
the vertical dimension
(height) of the access
panel.

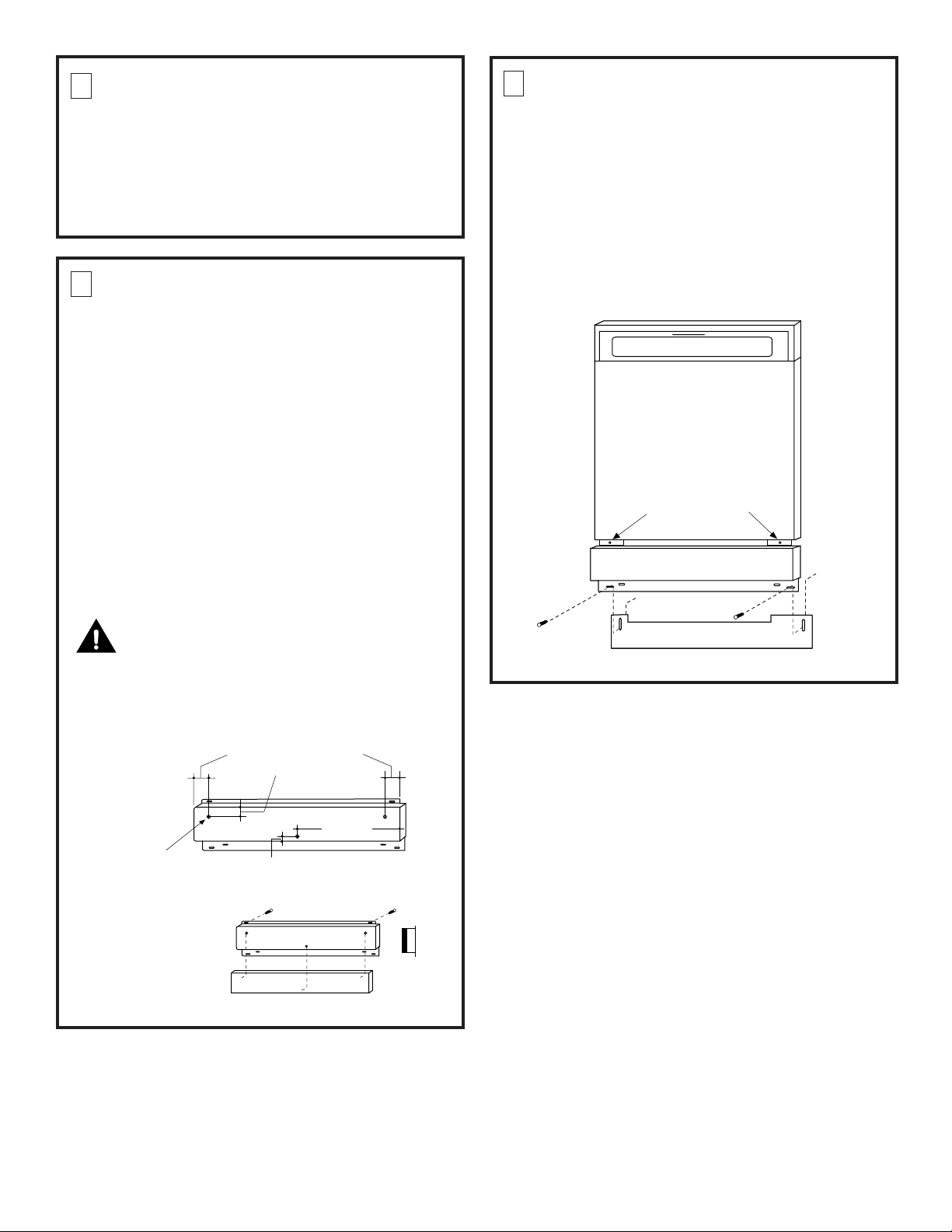

1 CUT 3/4" THICK CUSTOM
PANELS TO SIZE
• Cut the 3/4" thick door panel to the dimen-
sions shown.
• Rout the bottom edge of the door panel on
the appearance side, 1/2" deep and 1-9/16"
high resulting in 1/4" thickness. See
illustration.
• The access panel height may be 3-3/4" to
4-1/4" max. The access panel height can vary
depending upon toekick height and adjust-
ments made to the leveling legs.
*3-3/4" min., 4-1/4" max. for typical 4" toekicks.
Adjustments may be required to match adjacent cabinet
fronts.
WARNING:
To prevent electric shock, disconnect electrical
power supply to dishwasher before changing
panels. Do not operate dishwasher while
changing panels or when lower access panel
assembly is removed.
Before you begin
Read these instructions completely
and carefully.
IMPORTANT – Save these instructions
for local inspector’s use.
IMPORTANT – Observe all governing
codes and ordinances.
Note to Installer – Be sure to leave these
instructions with the Consumer.
Note to Consumer – Keep these instructions
with your Owner’s Manual for future
reference.
STOP

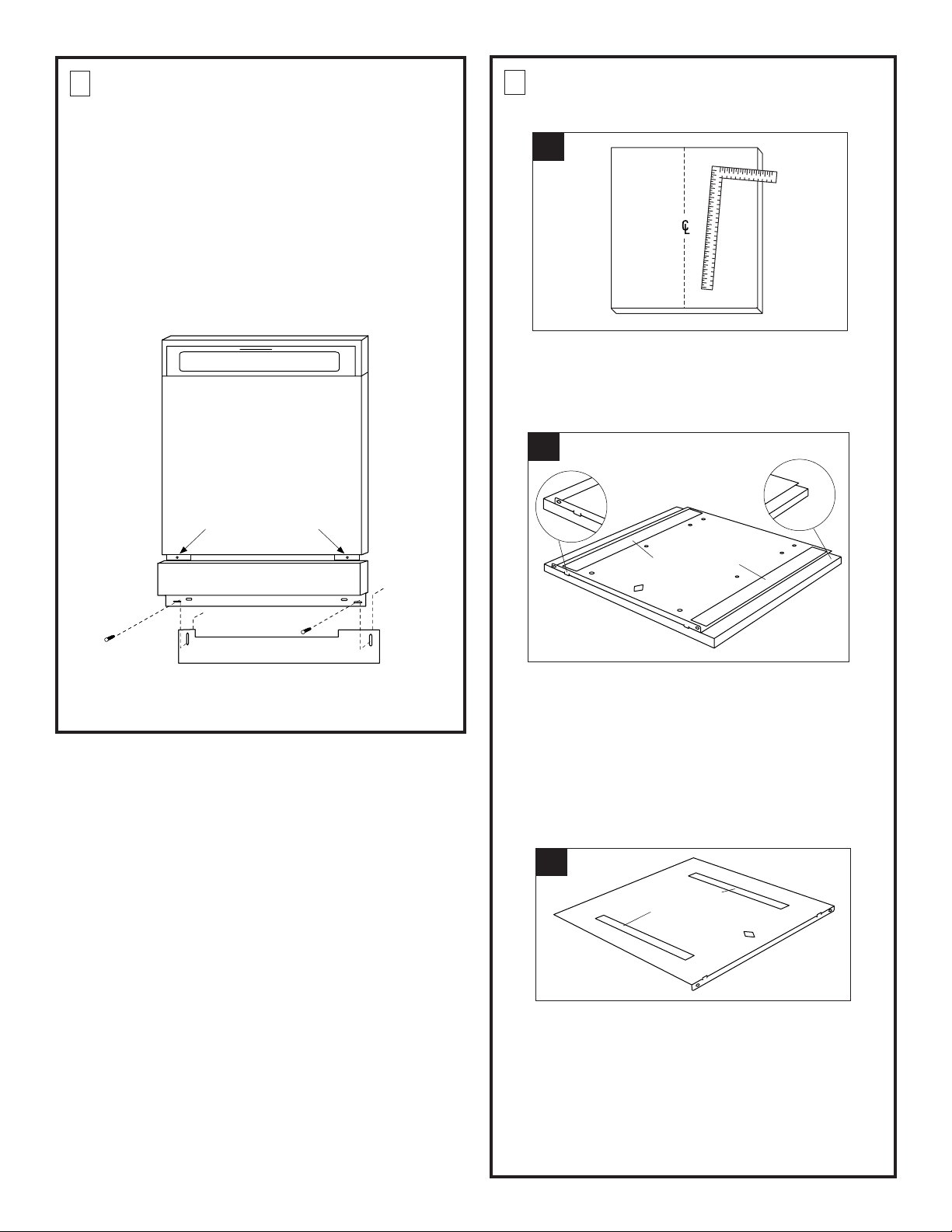

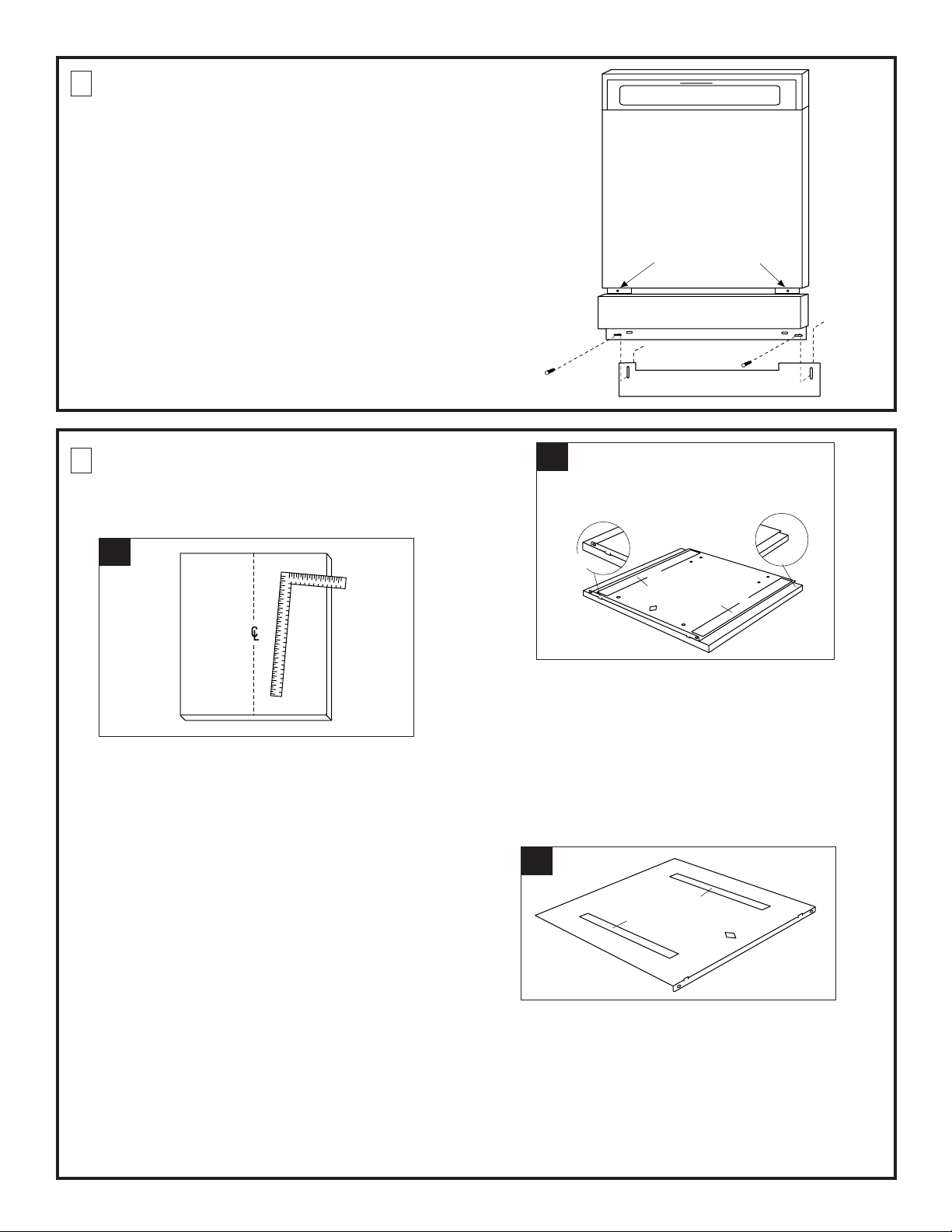

TOOLS AND MATERIALS REQUIRED:
• 1/4" socket driver
• Phillips screwdriver
• Electric drill
• 1/8" and 3/16" drill bits
• Carpenters square
• Safety Glasses
The custom panels should be constructed in
the same manner as cabinet doors. Cut edges
can be seen and must be finished for the best
appearance.
The GPF475 Trim Kit provides for the installa-
tion of 3/4" thick custom door and access
panels with a typical 4" high toekick.

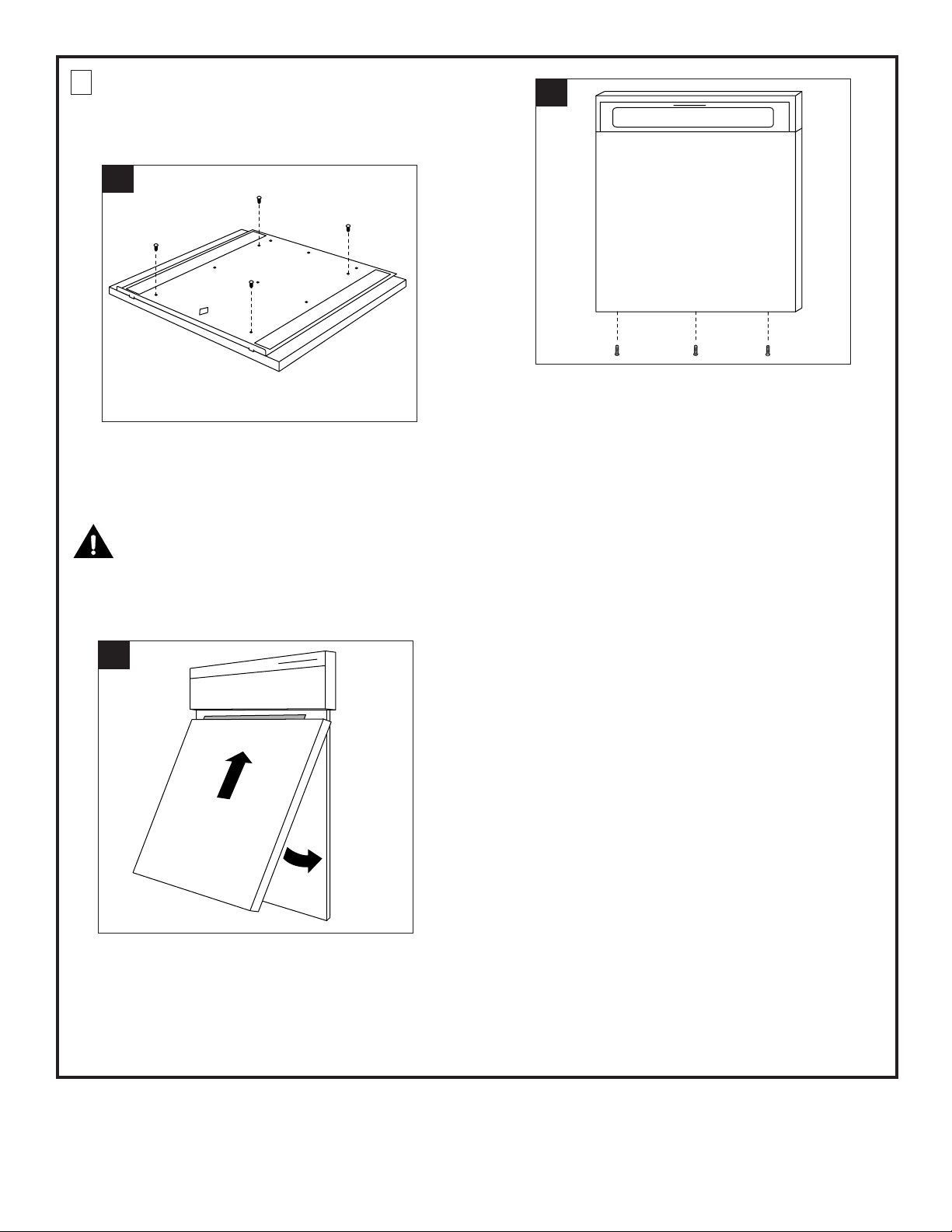

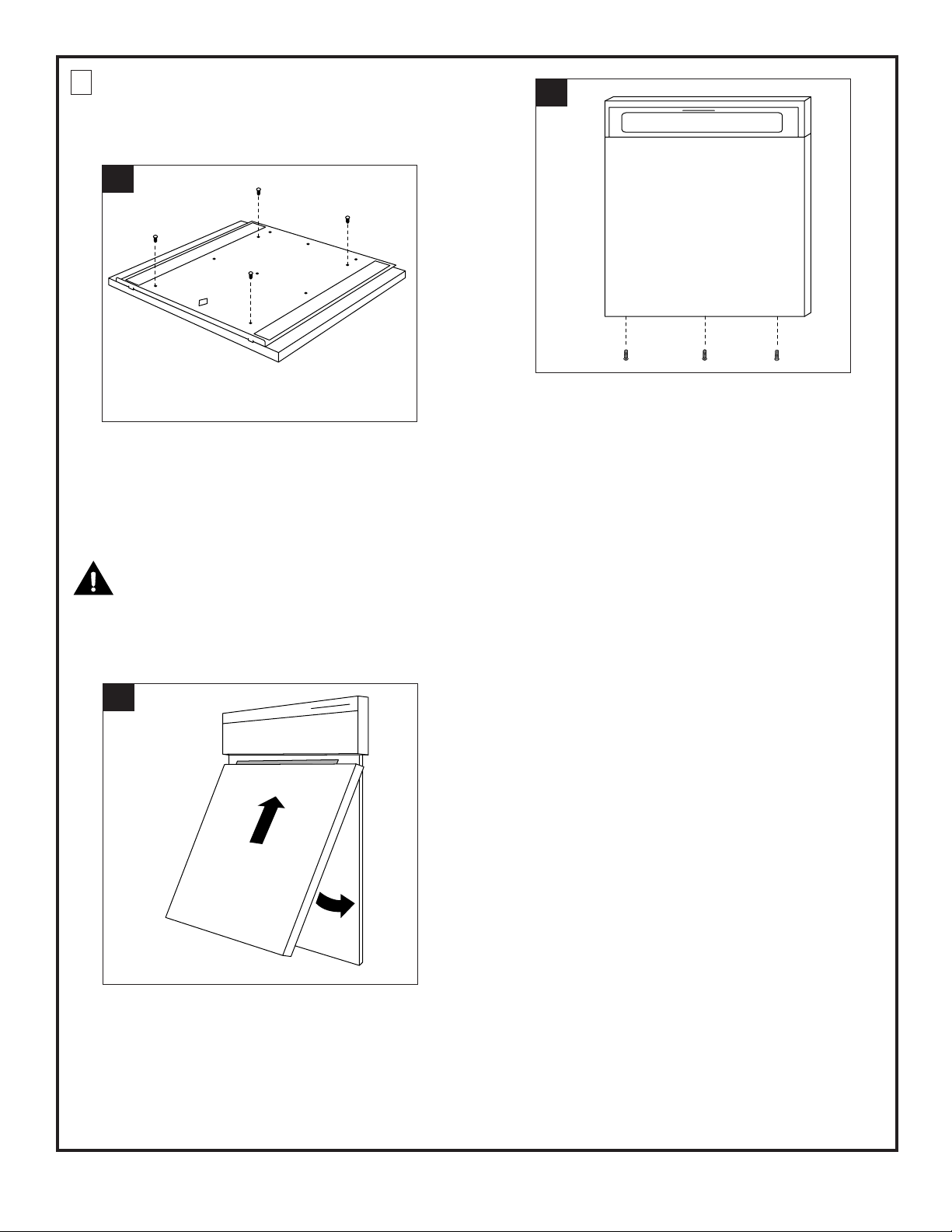

KIT INCLUDES:
• Door panel support
• 7, 5/8" phillips flat head screws
• 3 round head screws
• GPF100 spring kit
