Instructions for installation
and use
Extractor hood
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch DWB098J50B:
[en] Instructions for installation and use
1
Extractor hood
1
Table of contents
2
[en] Instructions for installation and use
2
Instruction manual
2
8 Intended use
2
Intended use
2
( Important safety information
2
Important safety information
2
: Warning
2
Danger of suffocation!
2
: Warning
2
Danger of death!
2
: Warning
3
Risk of fire!
3
: Warning
3
Risk of burns!
3
: Warning
3
Risk of injury!
3
: Warning
4
Risk of electric shock!
4
Causes of damage
4
Caution!
4
7 Environmental protection
4
Environmental protection
4
Environmentally-friendly disposal
4
Ç Operating modes
4
Operating modes
4
Exhaust air mode
4
Note:
4
Circulating-air mode
4
Notes
4
1 Operating the appliance
5
Operating the appliance
5
Note:
5
Control panel model 1
5
Explanation
5
Setting the fan
5
Intensive setting
5
Fan run-on time
5
Lighting
5
Saturation display
5
Audible signal
5
Control panel model 2
6
Explanation
6
Setting the fan
6
Intensive setting
6
Automatic mode
6
Sensor control
6
1. Press and hold the > symbol for four seconds when the fan is switched off. The setting is displayed.
6
2. The sensor control setting can be changed by touching symbol 1, 2, 3, or the C or D symbol.
6
3. To confirm the entries, press and hold the > symbol for four seconds.
6
Fan run-on time
6
Lighting
6
Saturation display
7
Audible signal
7
2 Cleaning and maintenance
7
Cleaning and maintenance
7
: Warning
7
Risk of burns!
7
: Warning
7
Risk of electric shock!
7
: Warning
7
Risk of electric shock!
7
: Warning
7
Risk of injury!
7
Cleaning agents
7
Area
7
Cleaning agents
7
Cleaning the metal mesh grease filters
8
: Warning
8
Risk of fire!
8
Notes
8
In the dishwasher:
8
Note:
8
By hand:
8
Note:
8
Removing metal grease filter
8
1. Open the lock and fold down the metal grease filter. While doing this, place the other hand under the metal grease filter.
8
2. Take the metal grease filter out of the holder.
8
Notes
8
3. Clean the metal grease filter.
8
Installing the metal mesh grease filter
8
1. Insert the metal mesh grease filter.
8
2. Fold the metal mesh grease filter upwards, locking it in place.
8
3 Trouble shooting
9
Trouble shooting
9
: Warning
9
Risk of electric shock!
9
Malfunction table
9
Problem
9
Possible cause
9
Solution
9
Replacing bulbs
9
: Warning
9
Risk of electric shock!
9
Replacing halogen bulbs
9
Note:
9
1. Carefully remove the bulb ring using a suitable tool.
9
2. Pull out the bulb and replace it with a bulb of the same type.
9
3. Insert the bulb cover.
9
4. Insert the mains plug or switch on the fuse again.
9
LED lights
9
: Warning
9
Risk of injury!
9
4 Customer service
10
Customer service
10
To book an engineer visit and product advice
10
Accessories for circulating-air mode
10
Notes
10
Installation instructions
11
( Important safety information
11
Important safety information
11
: Warning
11
Risk of death!
11
: Warning
11
Danger of death!
11
: Warning
12
Danger of death!
12
: Warning
12
Risk of fire!
12
: Warning
12
Risk of injury!
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Danger of suffocation!
12
K General information
13
General information
13
Exhaust air mode
13
: Warning
13
Risk of death!
13
Exhaust duct
13
Note:
13
Checking the wall
13
Electrical connection
13
: Warning
13
Risk of electric shock!
13
: Warning
13
Risk of electric shock!
13
5 Installation
14
Installation
14
Preparing the installation
14
Caution!
14

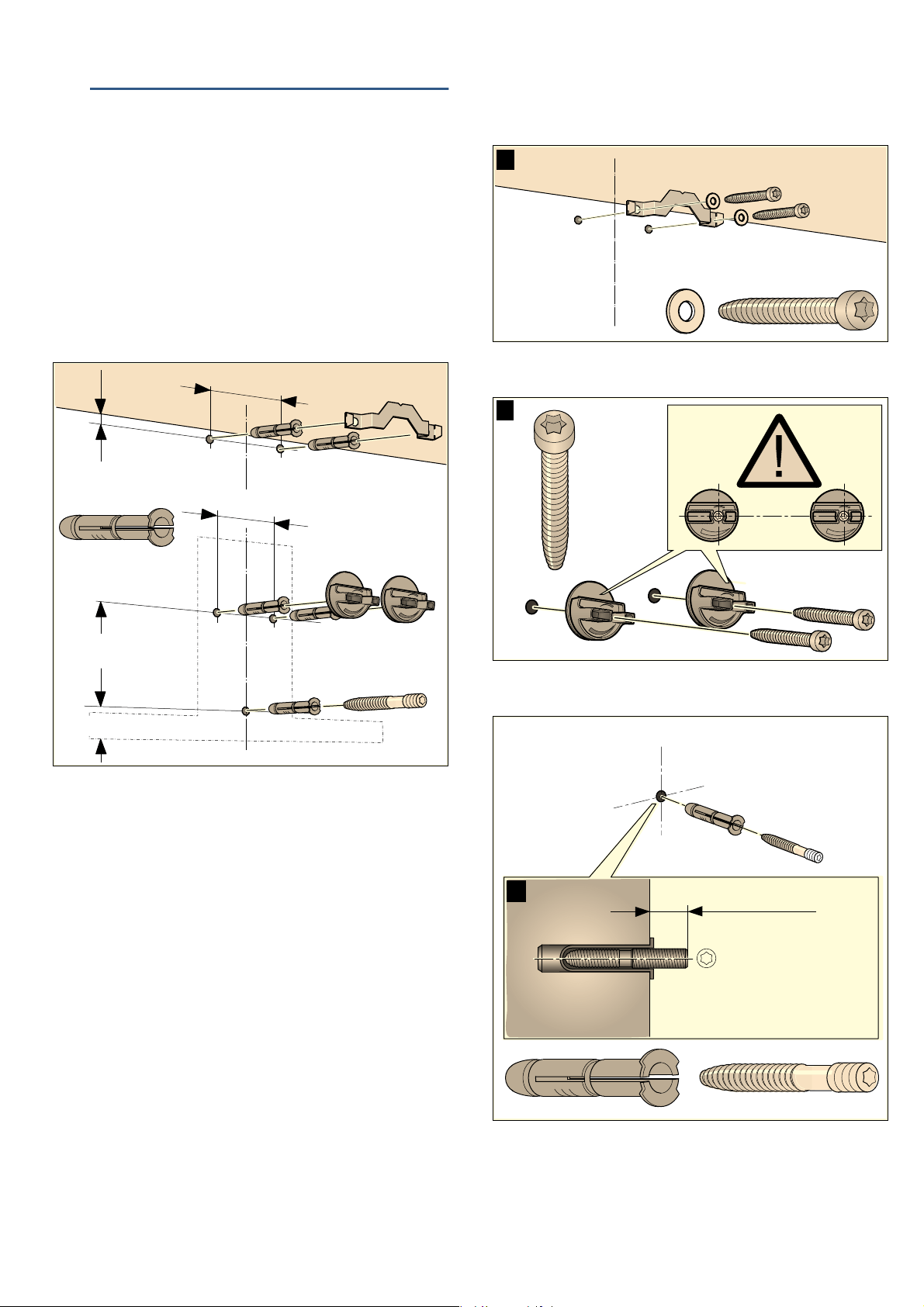

1. Mark a vertical centre line on the wall from the ceiling to the lower edge of the extractor hood.
14
2. Mark positions for the screws and the contour of the attachment area.
14
3. Drill five 8 mm diameter holes to a depth of 80 mm for the attachments and press in the wall plugs flush with the wall.
14
Installation
14
1. Screw on the fixing bracket for the flue duct. ¨
14
2. Screw on brackets for the extractor hood hand-tight. Do not firmly tighten the screws. ©
14
3. Screw in the threaded bolt, leaving it protruding out of the wall by 5–9 mm. ª
14
Attaching and aligning the appliance
15

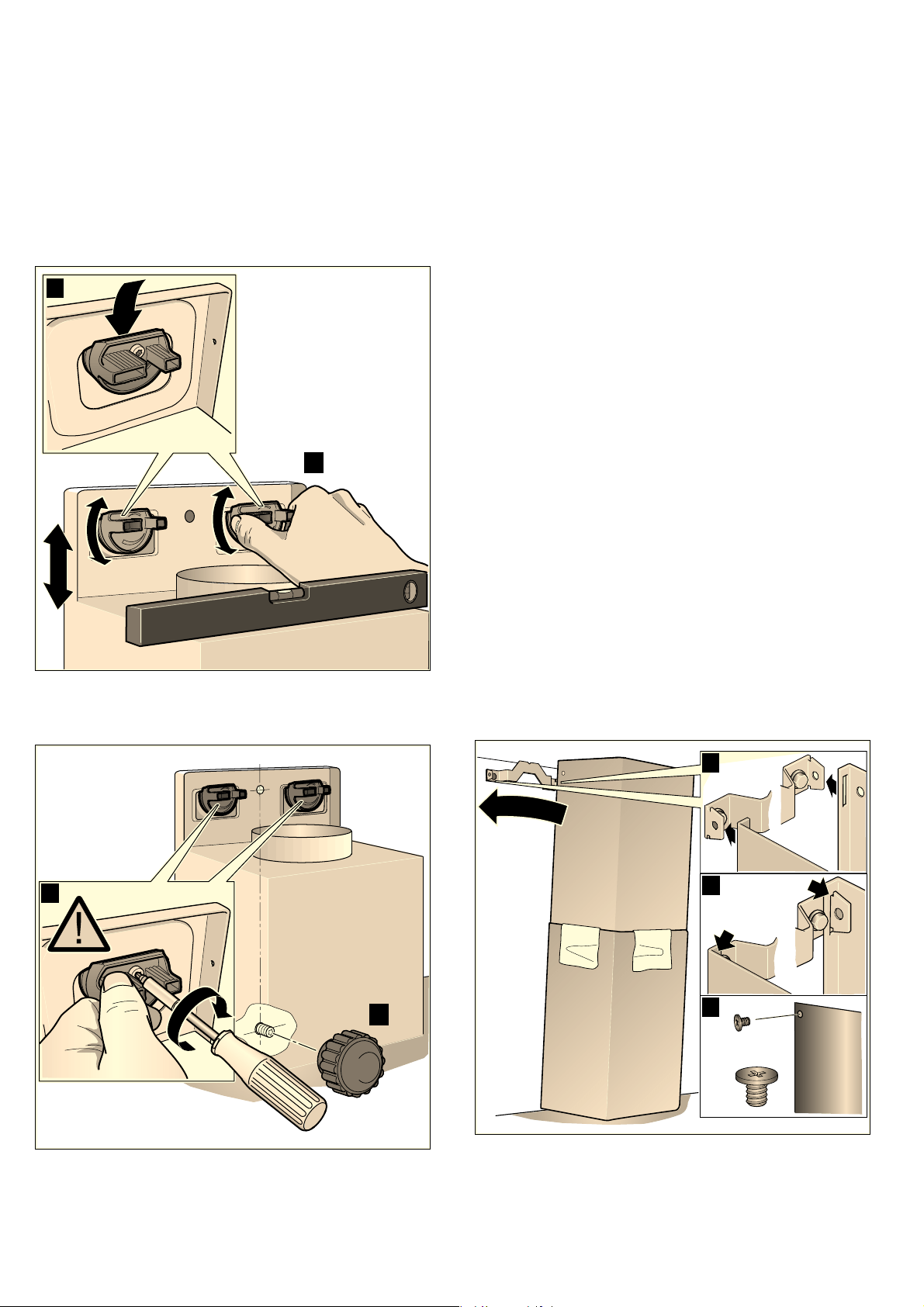

1. First, remove the protective foil from the back of the appliance and, following installation, remove the foil completely.
15
2. When attaching the appliance, ensure that it engages firmly with the brackets. «
15
3. Align the appliance horizontally by turning the brackets. If required, the appliance can be moved to the right or left. ¬
15
4. Firmly tighten the screws for the brackets. When doing so, hold the brackets securely in place. ®
15
5. Firmly tighten the knurled nuts. ¯
15
Connecting the pipes
15
Note:
15
Exhaust-air pipe Ø 120 mm
15
1. Attach the reducing connector directly to the air-pipe connector.
15
2. Attach the exhaust air pipe to the reducing connector.
15
3. Seal both joints appropriately.
15
Attaching the flue duct
15
: Warning
15
Risk of injury!
15
1. Separate the flue ducts.
15
2. Remove the protective foil from both flue ducts.
15
3. Push one flue duct into the other.
15
Notes
15
4. Place flue ducts on the appliance.
15
5. Push the inner flue duct upwards and attach it to the fixing brackets on the left and right. ¨
15
6. Press the flue duct downwards until it engages. ©
15
7. Screw the flue duct to the sides of the fixing bracket using two screws. ª
