Start Here
10 Raise the control panel, then press the power button to
turn on the product.
Note: If an error message appears, turn off the product and
check that no protective material has been left inside the
product.
11 ET-3760: Press or to select your language on the
LCD screen, then press the OK button.
ET-4760: Select your language, country, and time.
Note: You can change these settings later using the product’s
control panel. For more information, see the online User’s Guide.
Follow steps 12 and 13 to continue ink charging.
12 When the message to see the Start Here sheet appears
on the LCD screen:
ET-3760: Press the OK button, then press and hold the
help button for 3 seconds.
ET-4760: Press and hold the
help button for 3 seconds.
13 When the ink confirmation message appears on the LCD
screen, select Done to start charging the ink. Ink charging
takes approximately 10 minutes. A message appears
when ink charging is complete. Press the OK button to
continue.
Caution: Do not turn off the product, raise the scanner unit, or
load paper while the product is charging or you’ll waste ink.
Note: The included ink bottles are designed for reliable printer
setup and cannot be resold. After setup, the remaining ink is
available for printing.
14 To complete filling the ink tanks, repeat steps 1 through 7
using the remaining ink in the bottles.
Note: Replace the bottle cap before disposing of the bottles.
15 Close the ink tank cover and scanner unit.
16 Select Next and follow the on-screen instructions to reset
the ink levels.
17 Follow the on-screen instructions to adjust the print
quality. Press the OK button to continue.
Note:

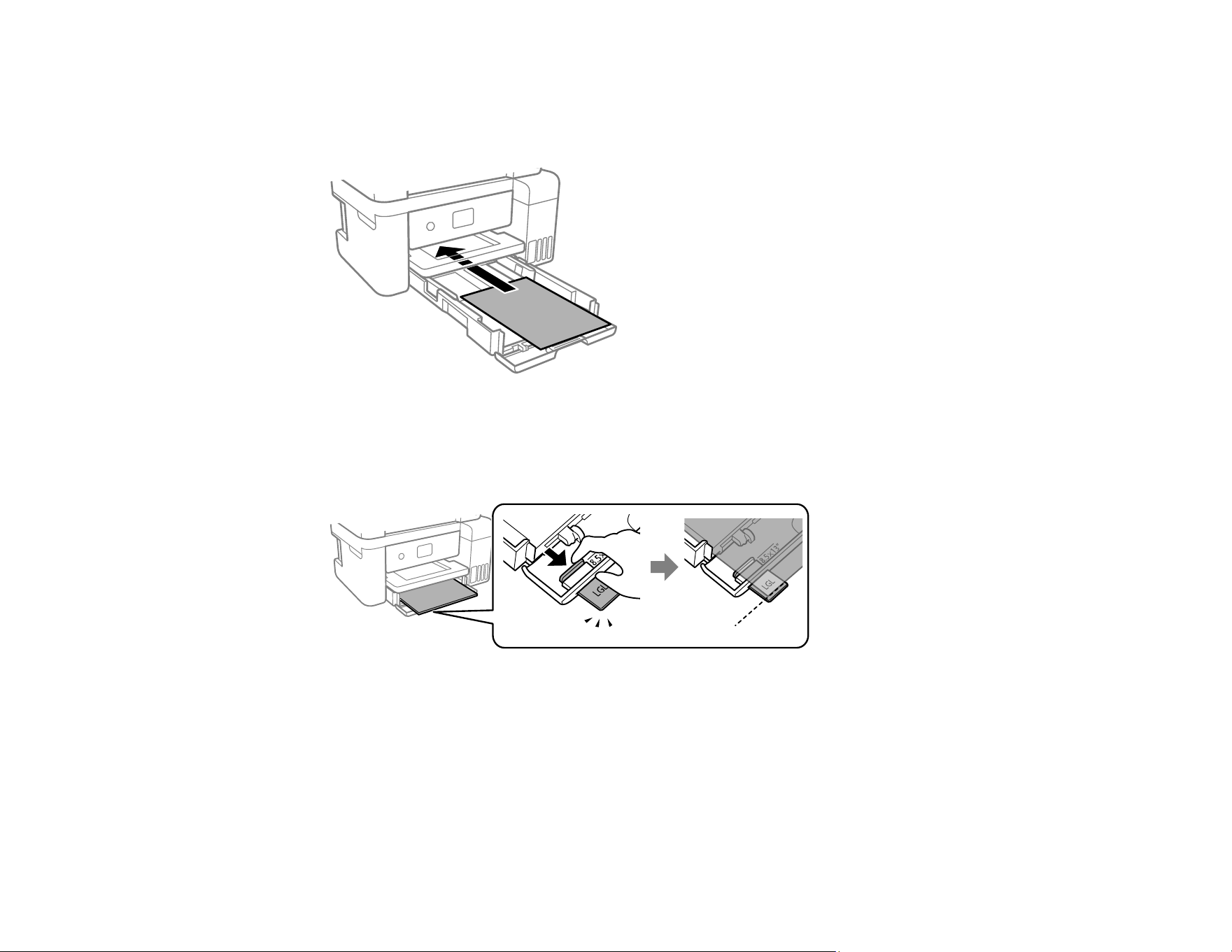

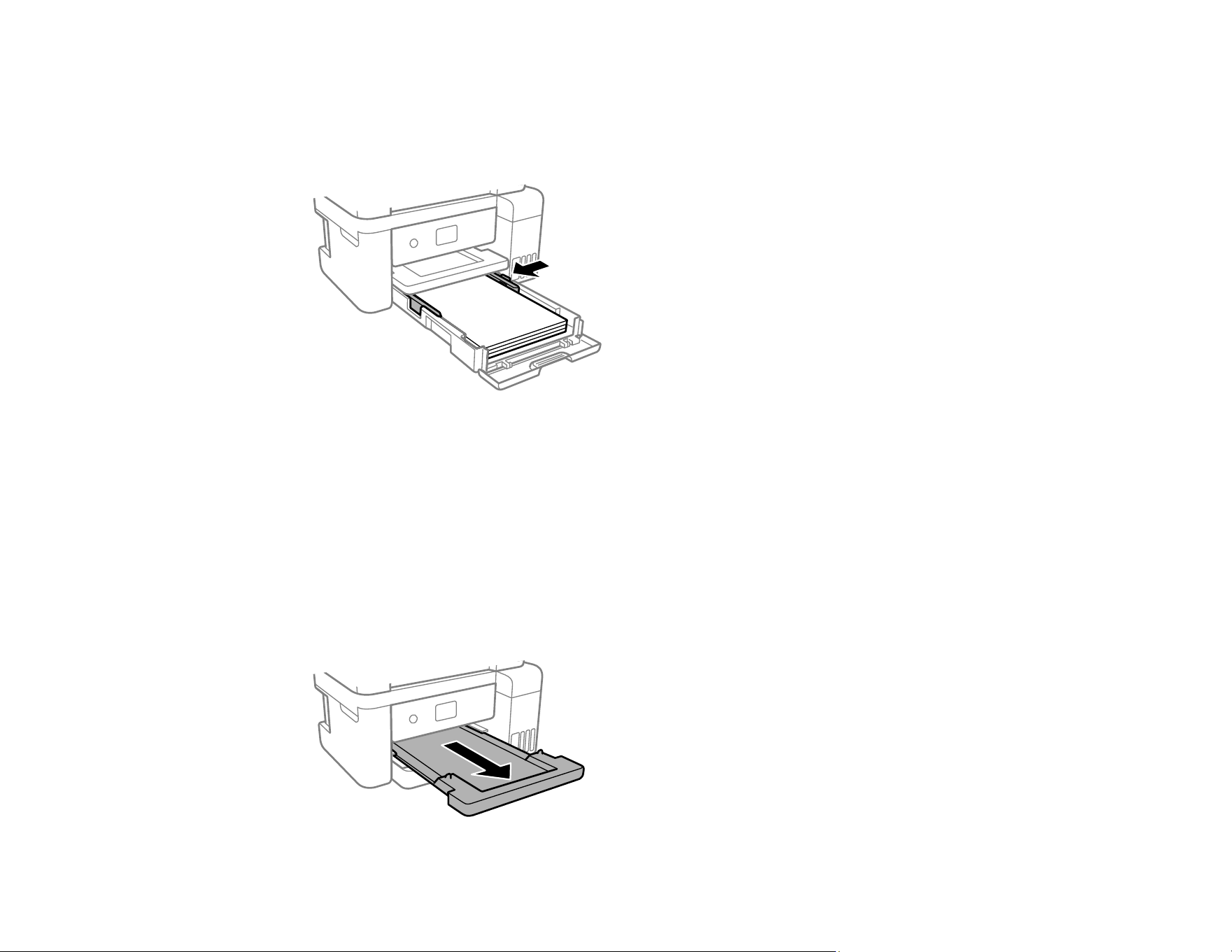

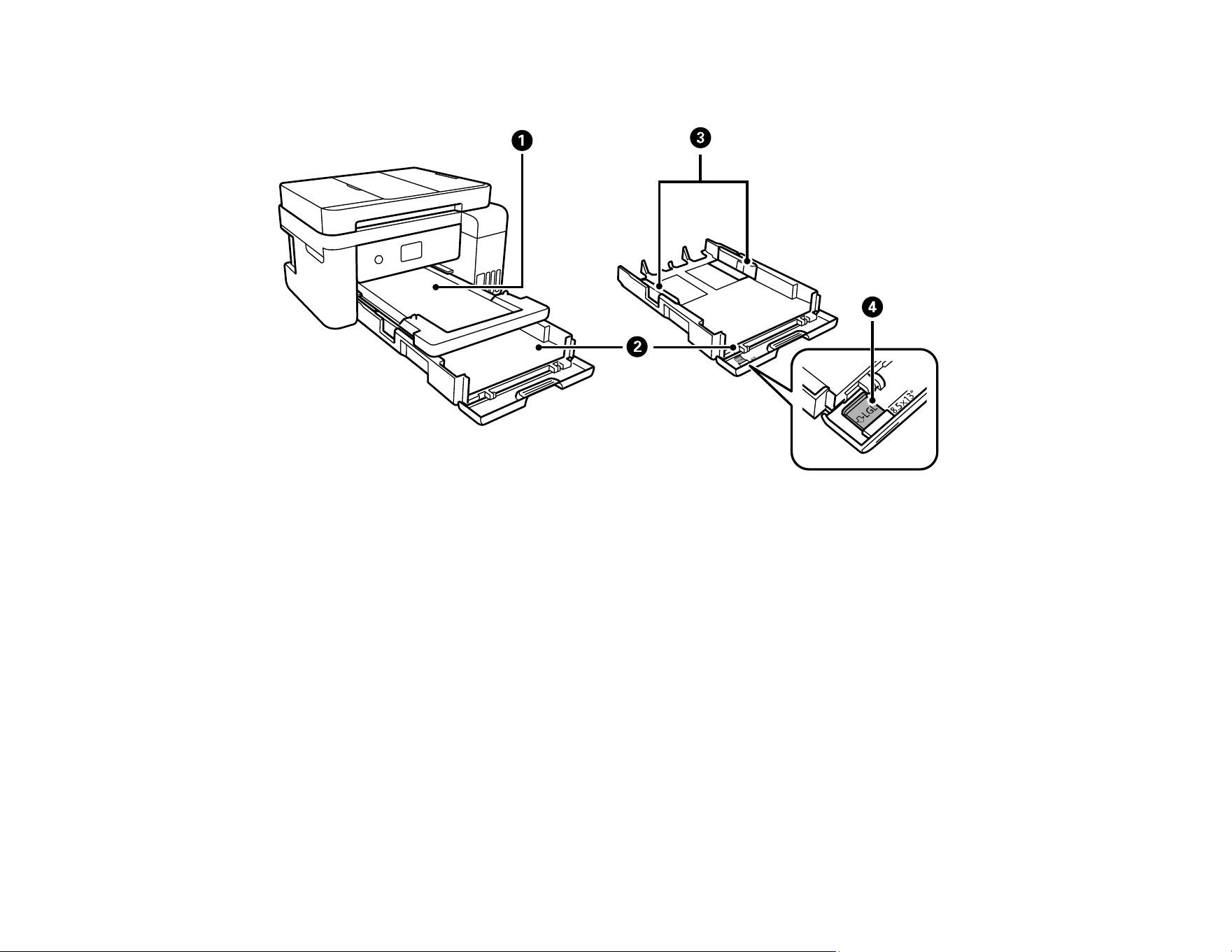

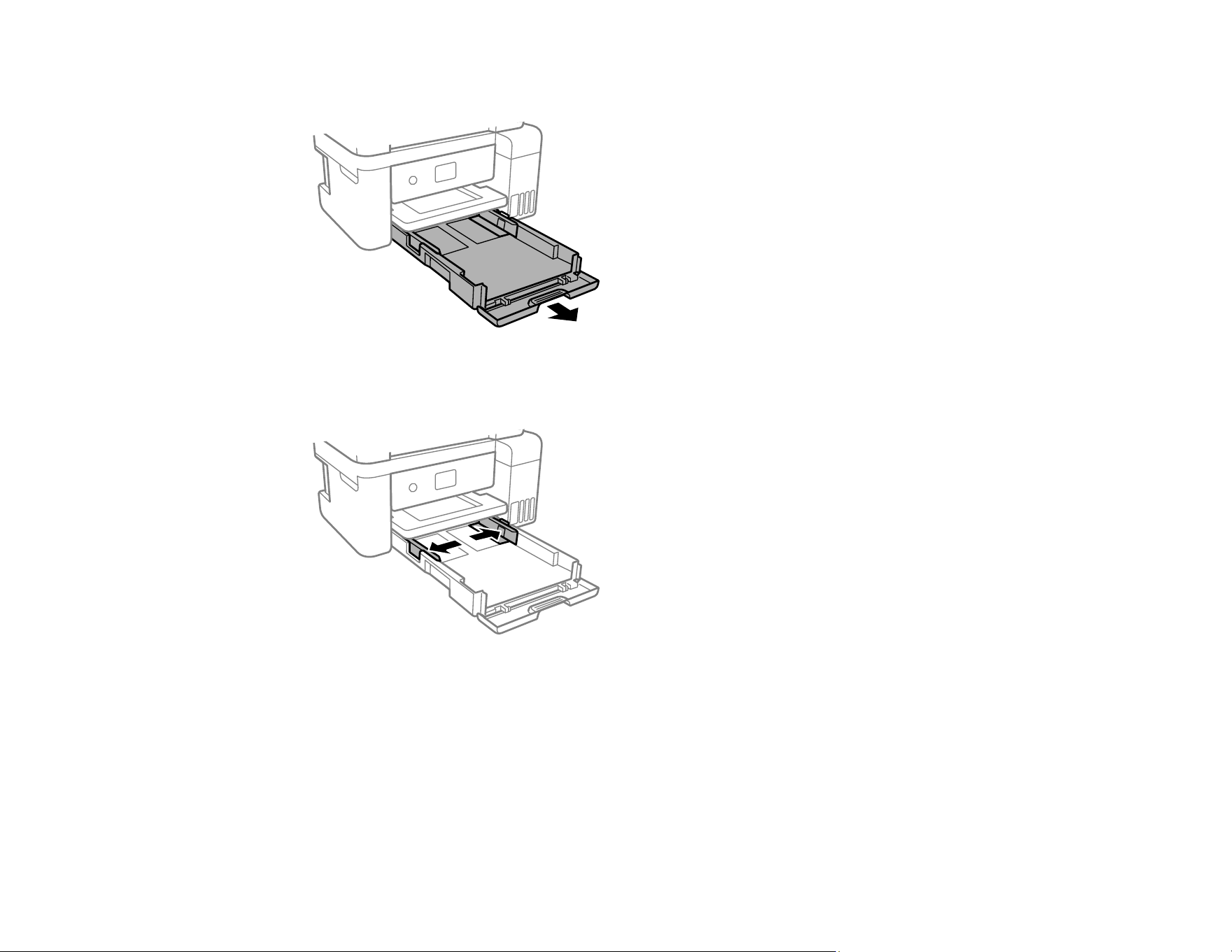

• You need to load paper before you can adjust the print quality. See
“Load paper” on the back of this sheet for details.
• You can change these settings later using the product’s control
panel. For more information, see the online User’s Guide.
IMPORTANT: Before using this product, make sure you read
these instructions and the safety instructions in the online User’s
Guide.
Important Safety Instructions: When using telephone equipment, you
should always follow basic safety precautions to reduce the risk of fire,
electric shock, and personal injury, including the following:
• Do not use the Epson
®
product near water.
• Always keep this guide handy.
• Avoid using a telephone during an electrical storm. There may be a
remote risk of electric shock from lightning.
•
Do not use a telephone to report a gas leak in the vicinity of the leak.
Caution: To reduce the risk of fire, use only a No. 26 AWG or larger
telecommunication line cord.
The illustrations show the ET-4760, but the steps are the same
for all models, unless otherwise specified.
1
Unpack
Note: Do not open the ink bottles until you are ready to fill the ink
tanks. The ink bottles are vacuum packed to maintain reliability.

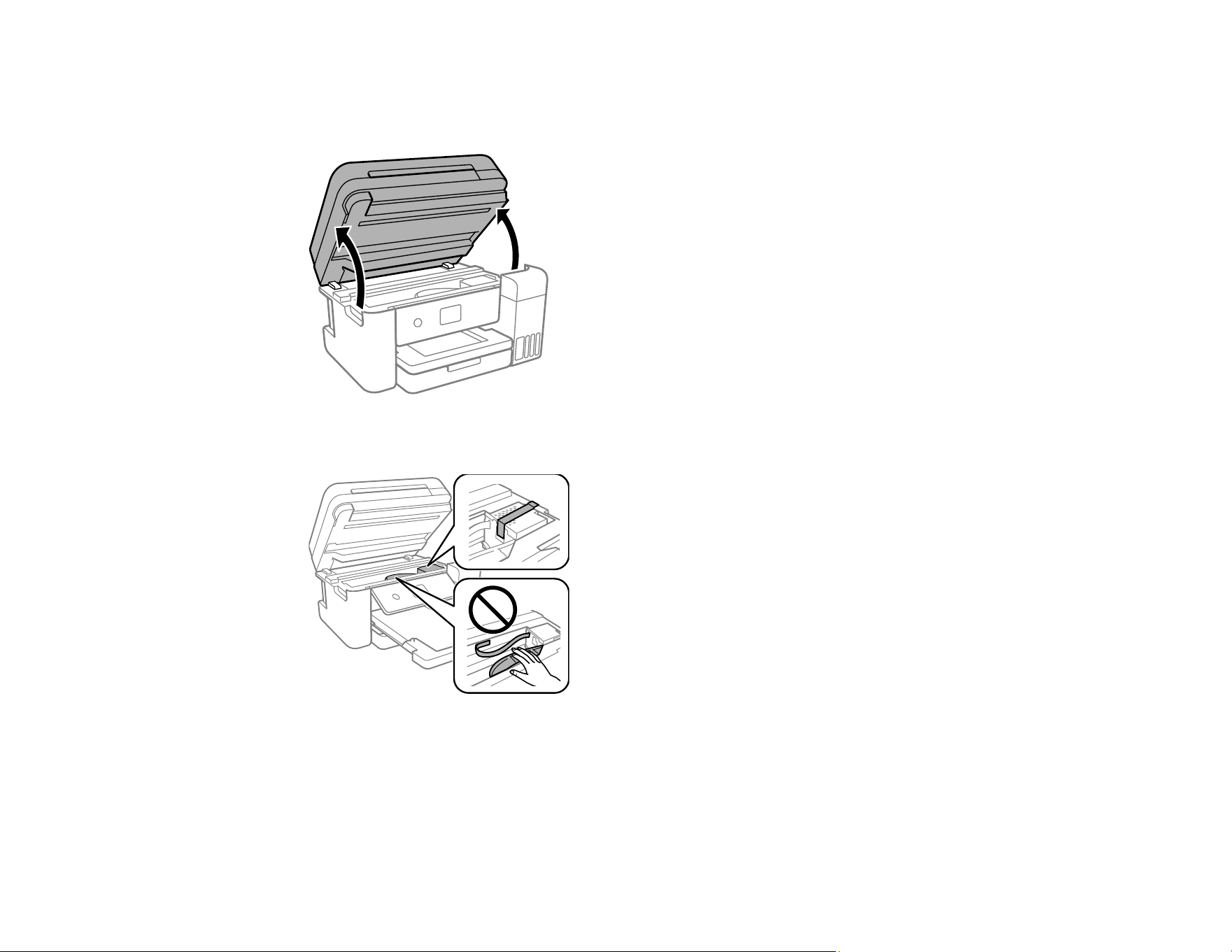

1 Remove all protective materials from the product.

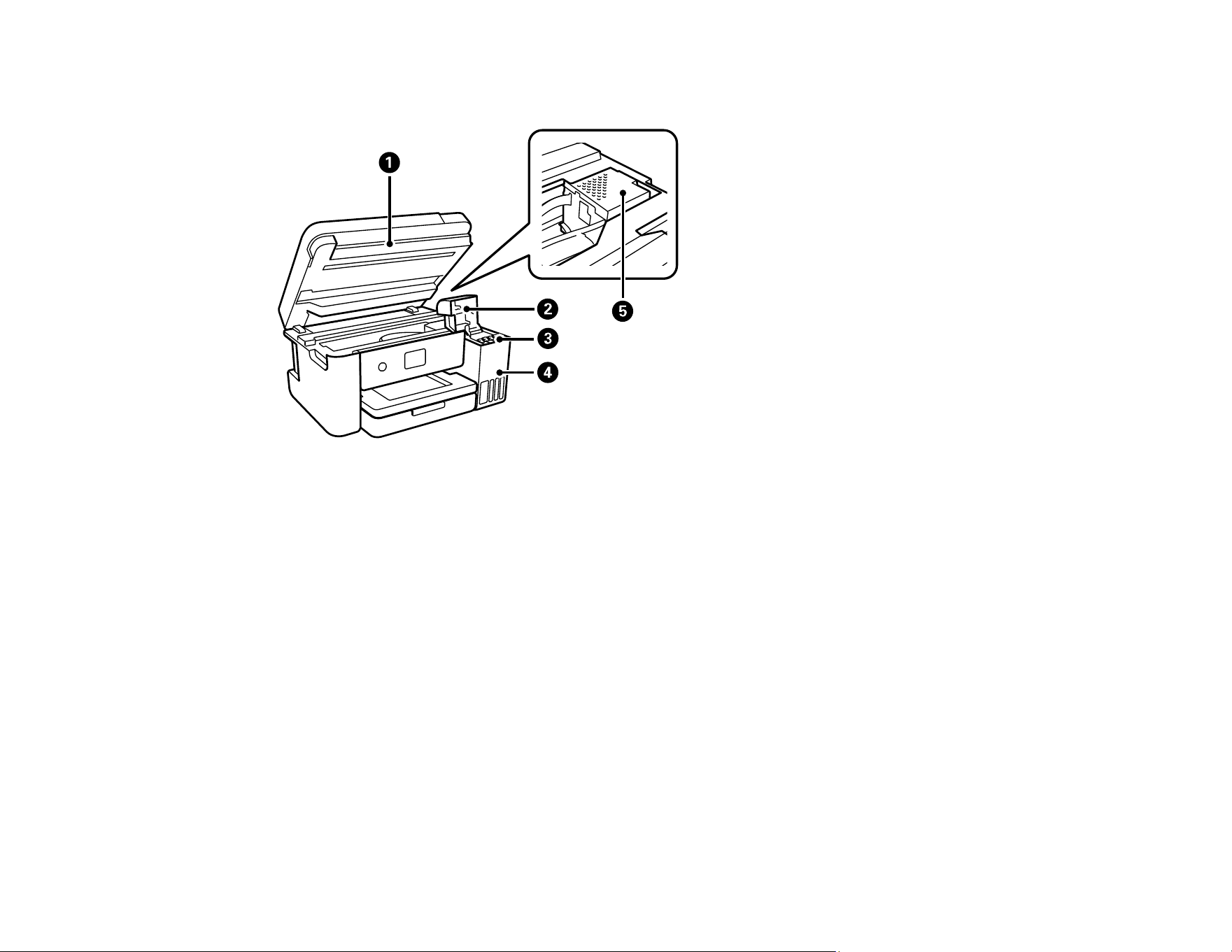

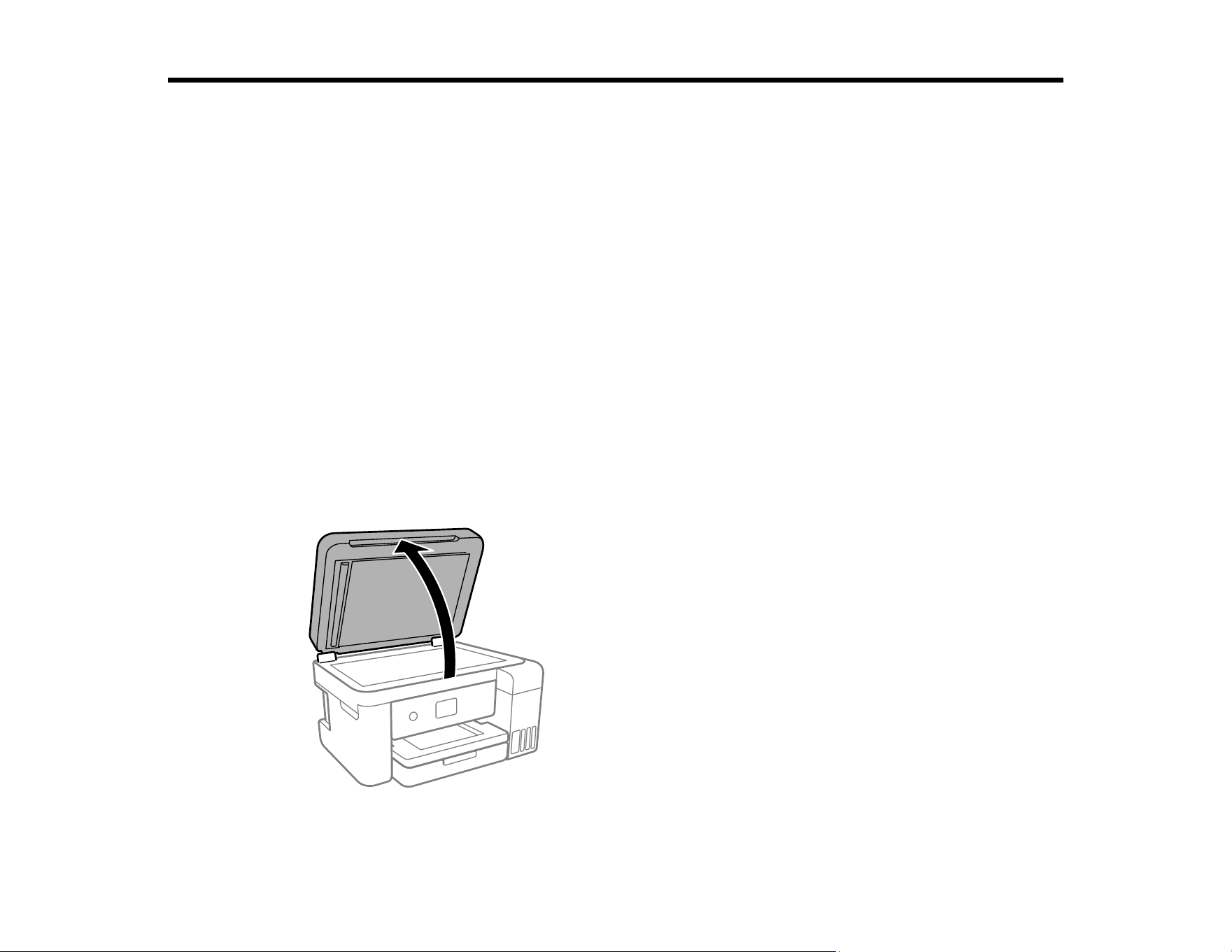

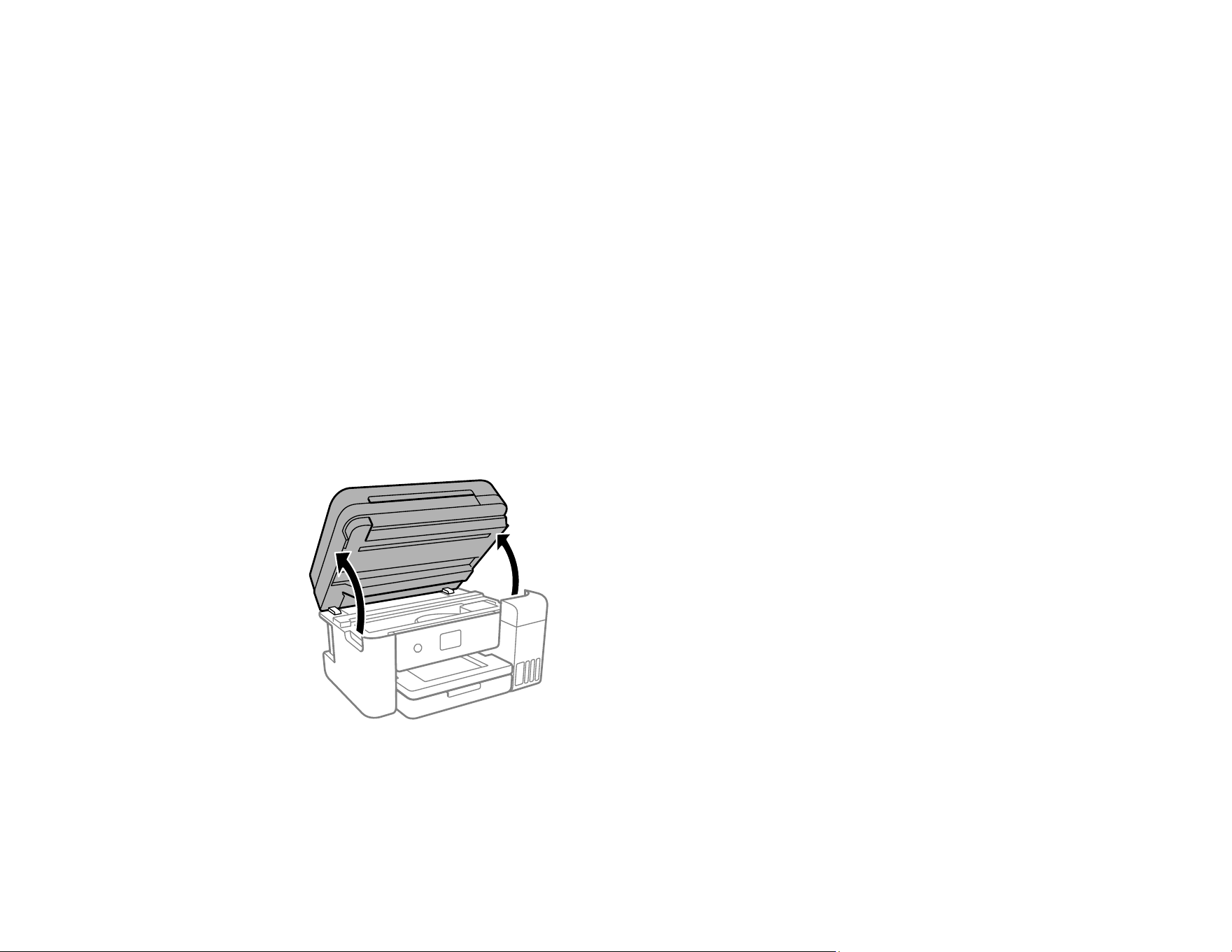

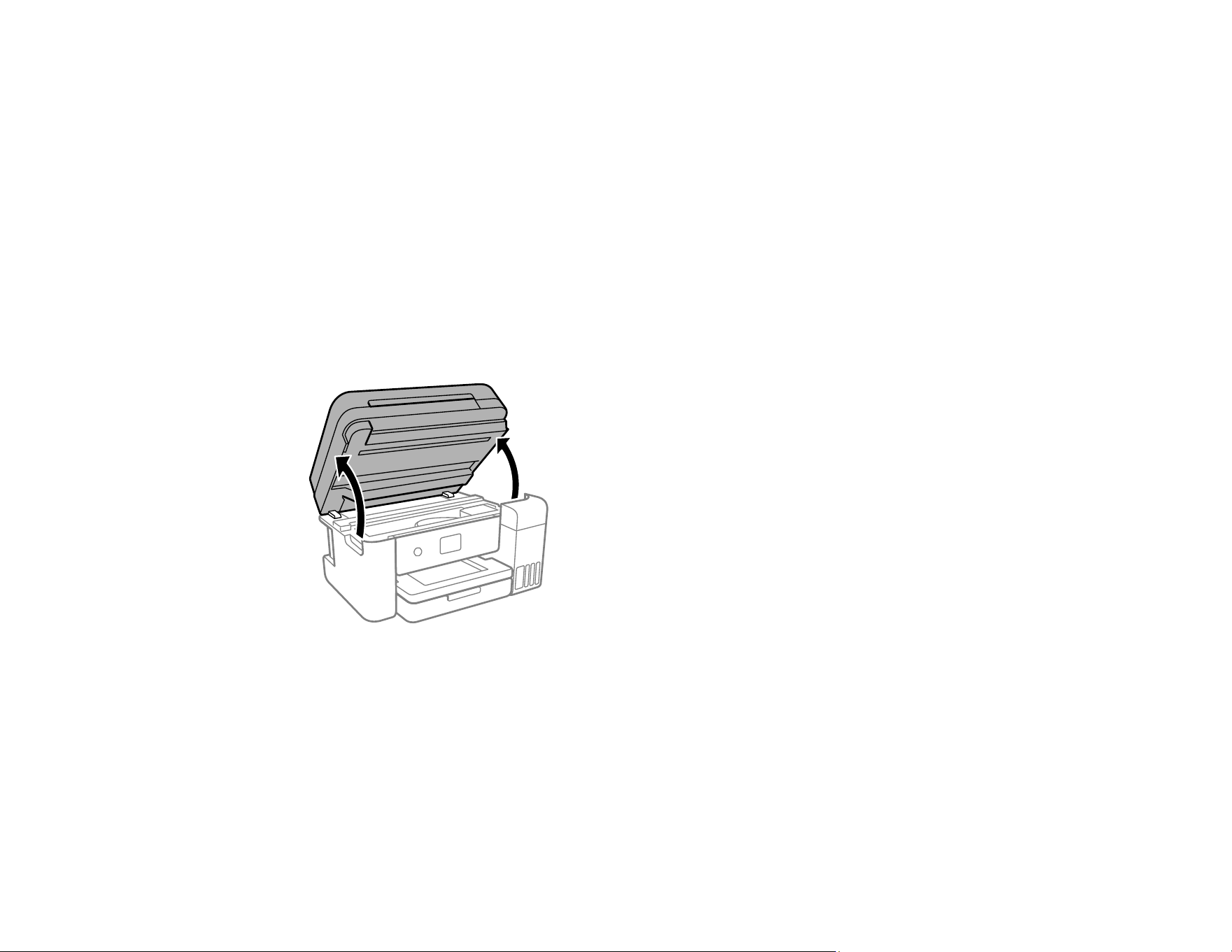

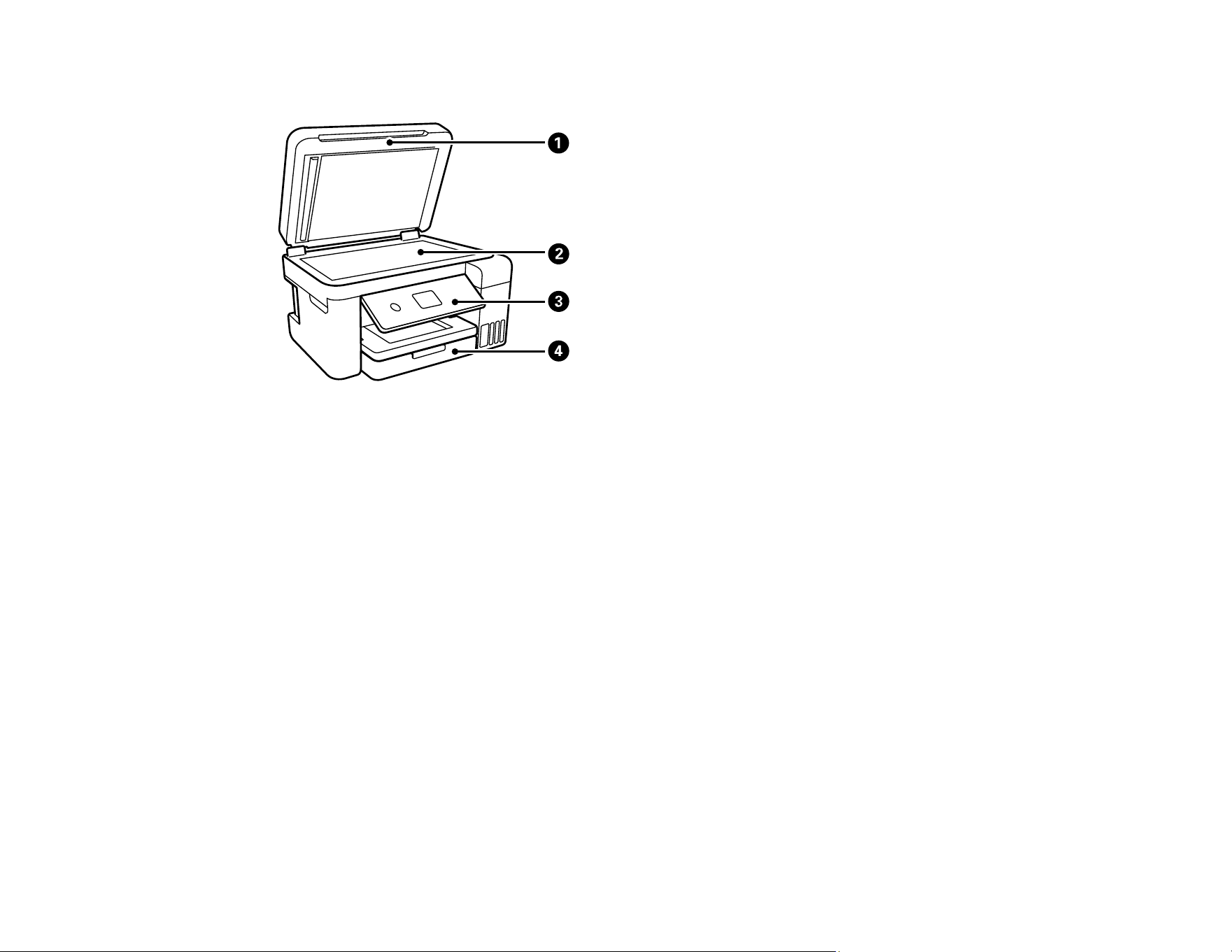

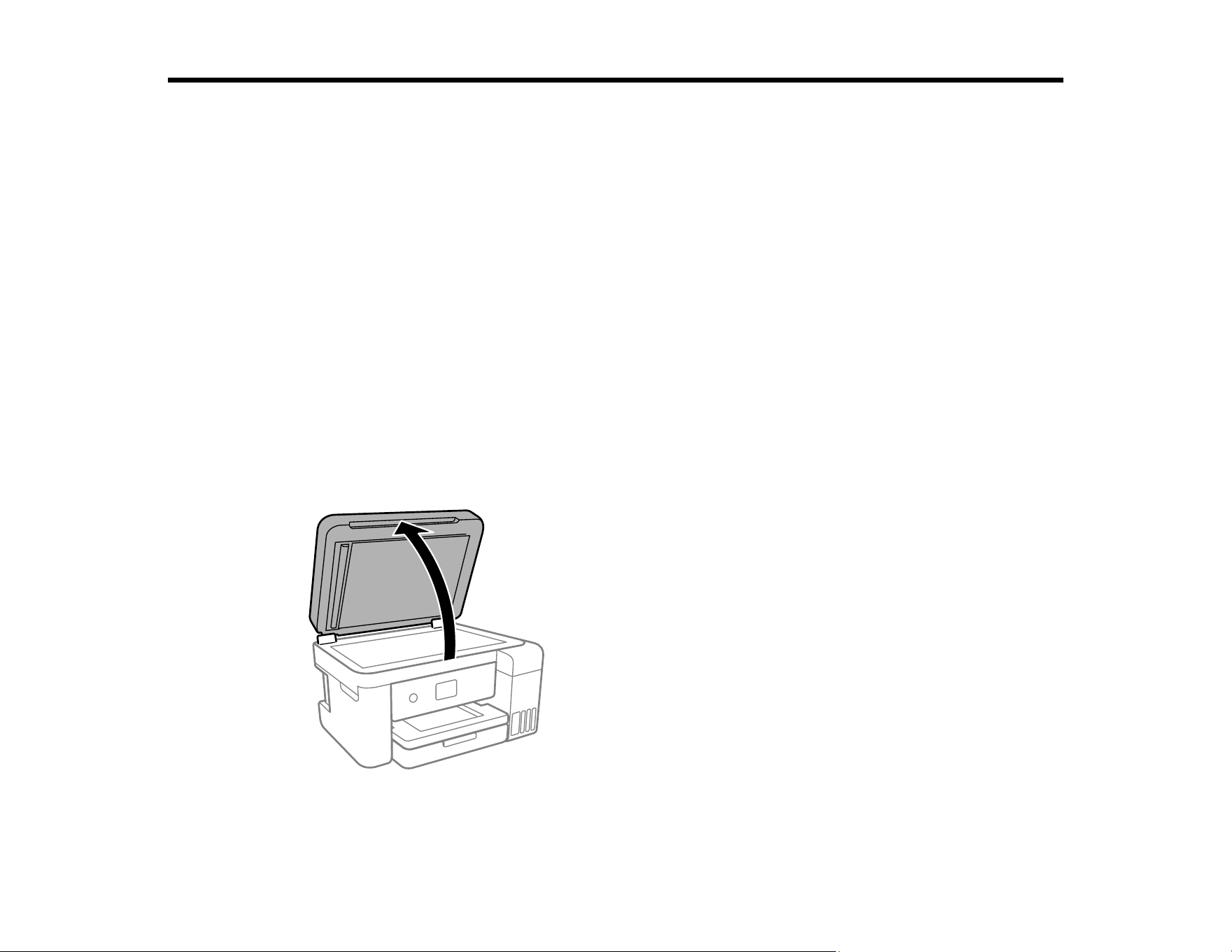

2 Lift up the scanner unit. Remove all protective materials
from inside the product.

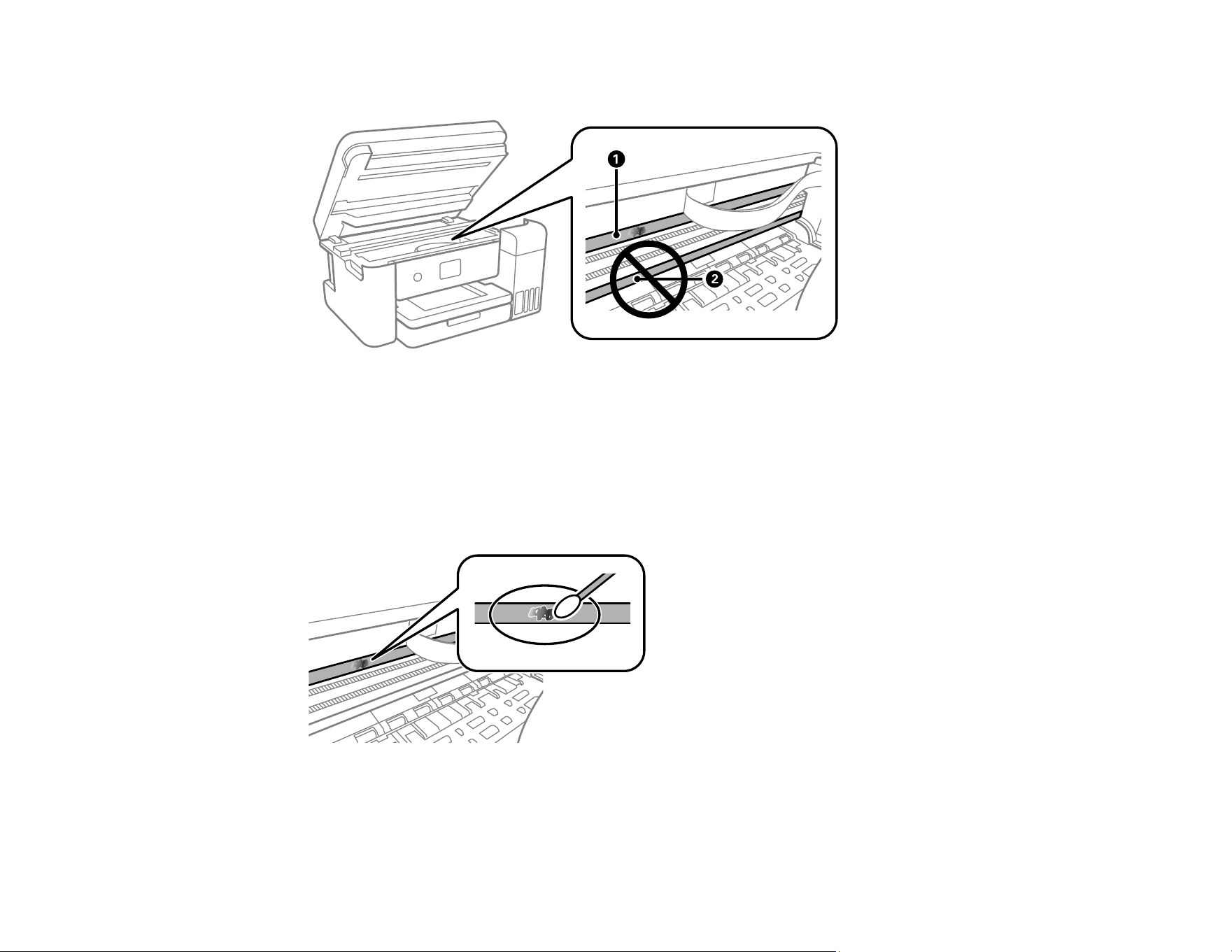

Caution: Do not touch the flat white cable or the ink tubes and
their translucent cover.
2
Fill ink tanks
Warning: Keep the ink bottles out of the reach of children and do not
drink the ink.
Caution: This product requires careful handling of ink. If ink spills,
wipe it off immediately with a damp towel to avoid permanent stains.
If ink gets on your clothes or belongings, it may not come off.
Note:
• Epson cannot guarantee the quality or reliability of third-party ink.
• Use the ink bottles included with the printer to set up the product.
Part of the ink will be used to charge the print head. These bottles
may print fewer pages compared with replacement ink bottles.

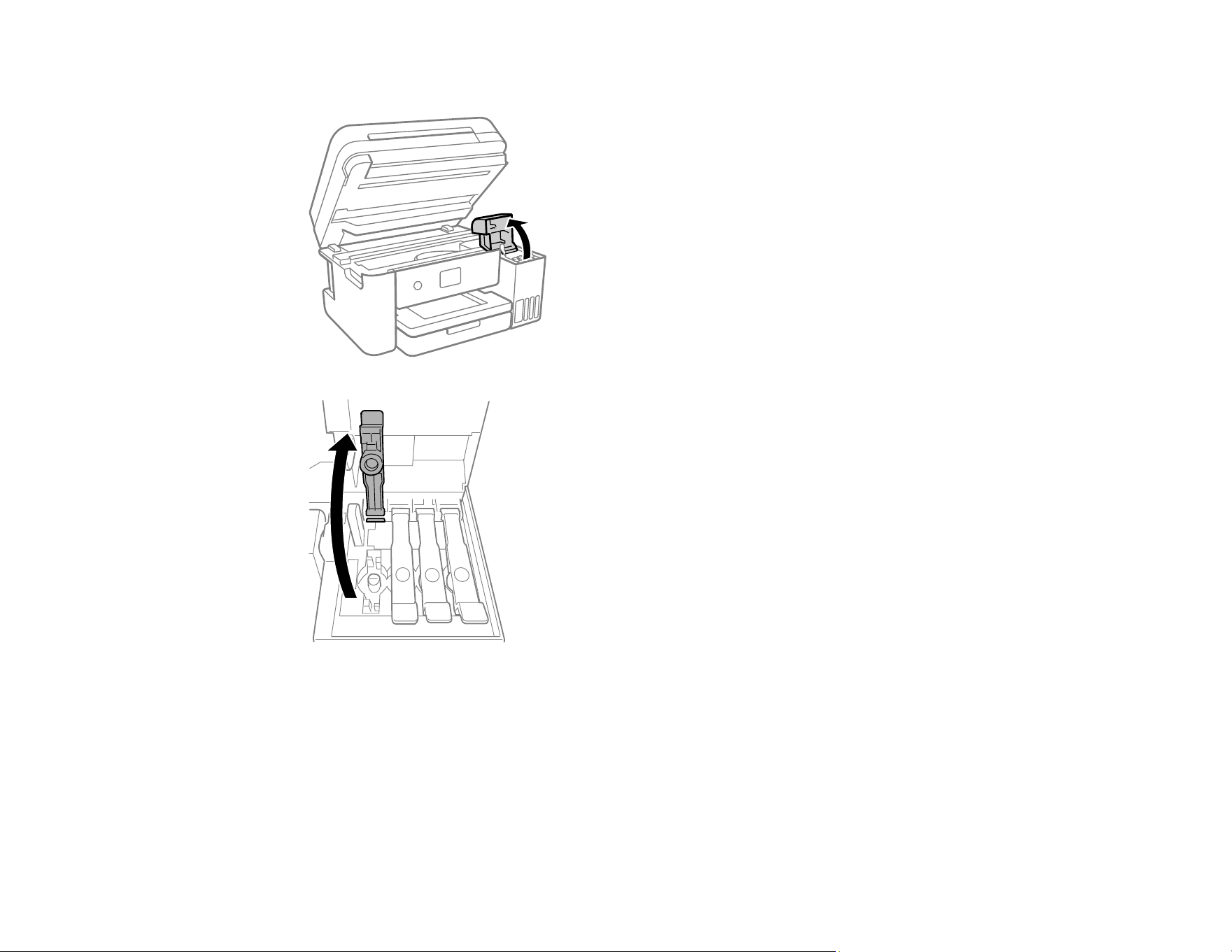

1 Open the ink tank cover, then open the cap for the
black ink.

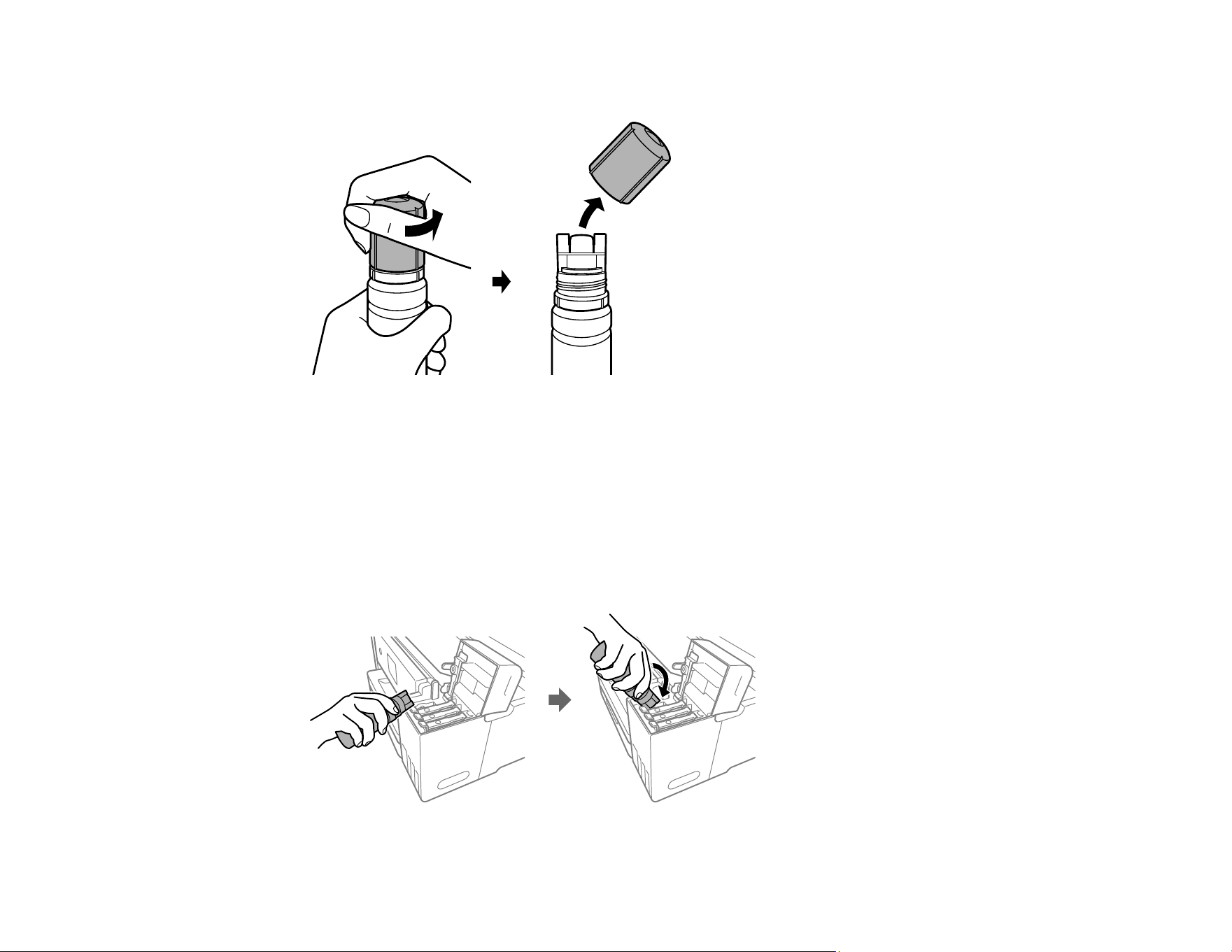

2 Unpack the black (BK) ink bottle. Hold the ink bottle
upright and slowly turn the bottle cap to remove it.
Caution: Do not shake or squeeze the ink bottles. Do not touch
the top of the ink bottle after its cap is removed.

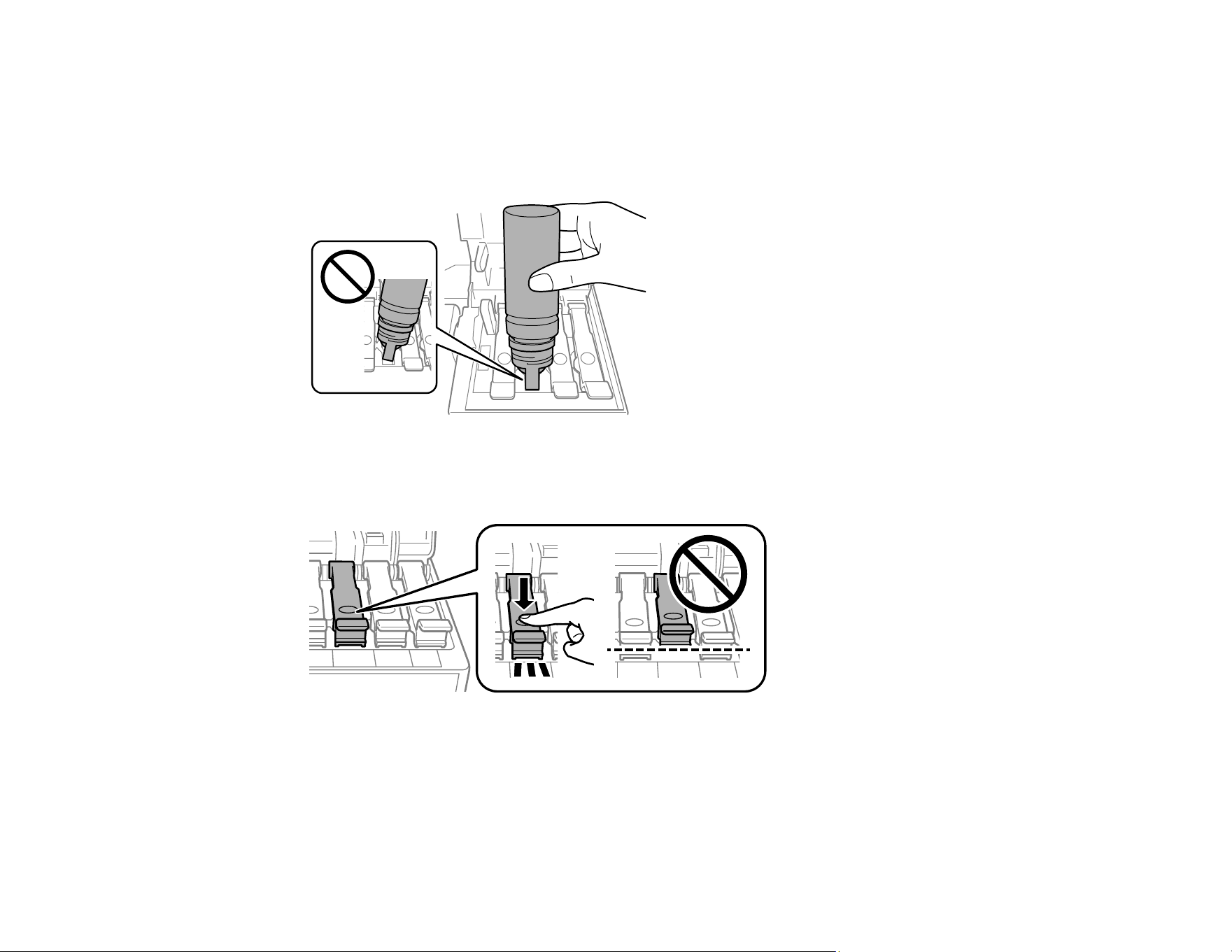

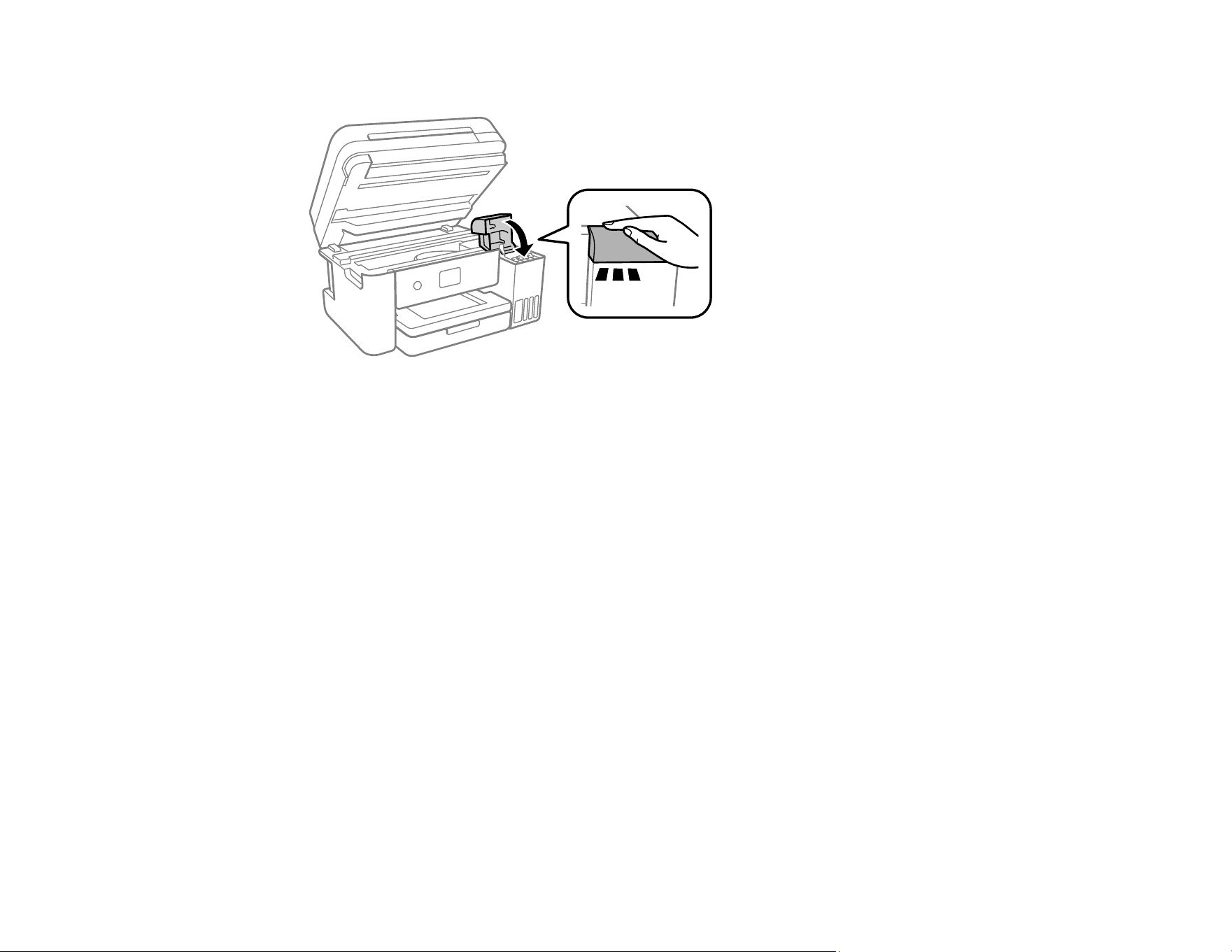

3 Insert the ink bottle into the filling port, as shown below.
Note: Refer to the color-coded sticker to identify the color of
each tank. Do not force the bottles into position; they are keyed
for each color.

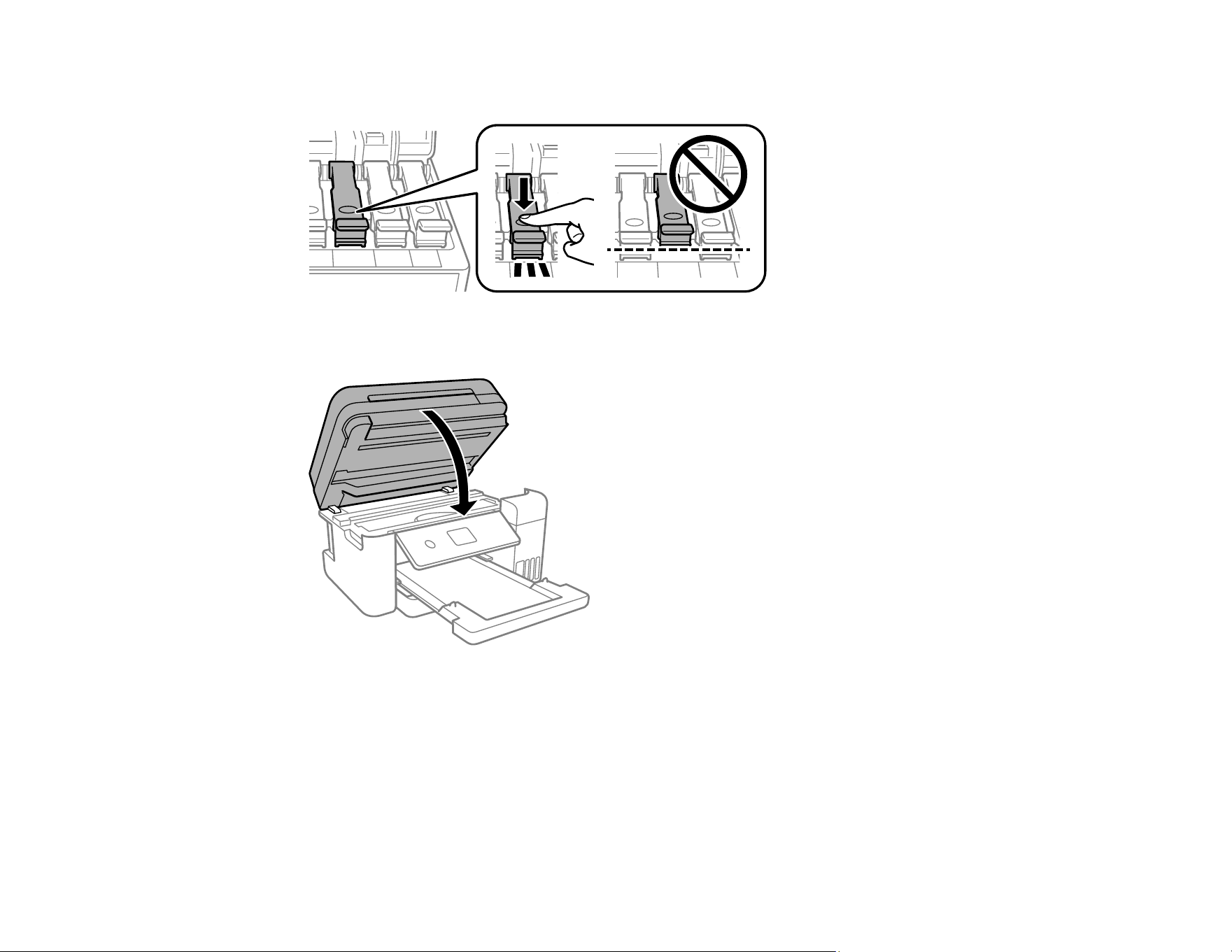

4 Wait for the ink to fill the tank.
Do not squeeze the bottle. Ink
flows into the tank and stops
automatically when the ink is
filled to the upper line.
Note: If ink does not flow from
the bottle, lift and reinsert the
bottle.
Caution: After setup, periodically
inspect the ink level to ensure it
is not below the lowest line on
the tank. Prolonged use when
ink is below the lowest line could
damage the product. See the
online User’s Guide for refilling
instructions.
5 When the ink tank is full, remove the ink
bottle and replace the bottle cap. Place the
remaining ink aside; you will need it later.
Note: Do not leave the ink bottle inserted;
otherwise the bottle may be damaged or ink
may leak.
6 Close the ink tank cap.
7 Repeat the previous steps for the other colors.
8 Close the ink tank cover and then the scanner unit.

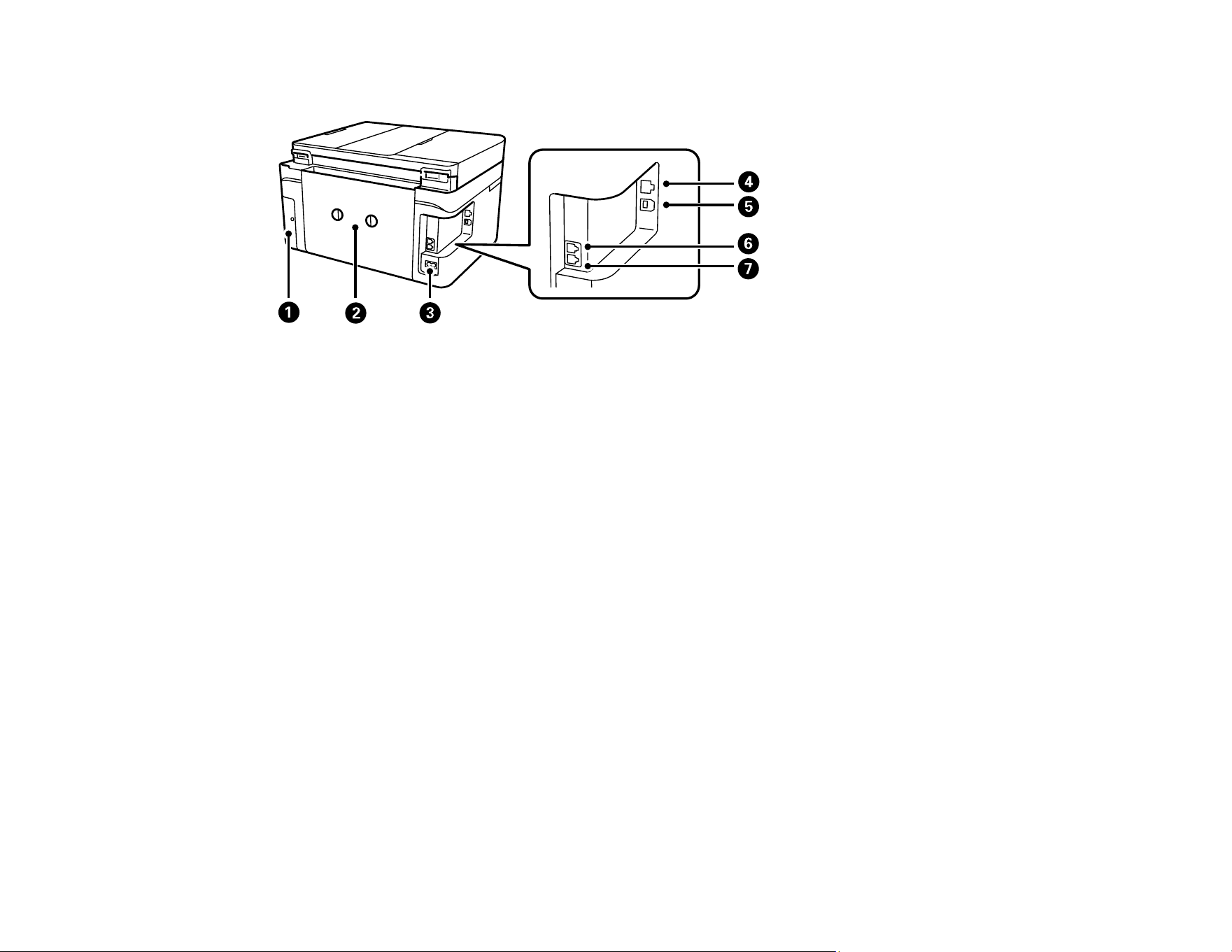

9 Connect the power cord to the back of the product and to
an electrical outlet.
Caution: Do not connect to your computer yet.
ET-3760/ET-4760
4137714 Rev.0
1-F C
4137714 Rev.0
1-F M
4137714 Rev.0
1-F Y
4137714 Rev.0
1-F K
