V-Tac VT-6552-3 65W LED Ceiling Fan RF Control 3 Brown User Manual

SAFETY INSTRUCTIONS

• Make sure that the mains voltage matches the voltage stated on the rating label of the

appliance.

• Check the power cord regularly for visible damage. If the cord is damaged, it must be

replaced by the official Technical Support Service, in order to avoid any type of danger.

WARNING: Do not use the appliance if its cord, plug, or housing is damaged, nor after it

malfunctions or has been dropped or damaged in any way.

• The appliance is not intended to be used by children under the age of 8. It can be used by

children over the age of 8, as long as they are given continuous supervision.

• This appliance is not intended to be used by persons with reduced physical, sensory, or

mental capabilities, or lack of experience or knowledge, unless they have been given supervi-

sion or instruction concerning the use of the appliance in a safe way by a person responsible

for their safety, and understand the hazards involved.

• Supervise young children to make sure that they do not play with the appliance. Close

supervision is necessary when the appliance is being used by or near children.

• Keep the appliance and its cord out of reach of children under the age of 8.

• Do not try to repair the appliance by yourself. Contact the official Technical Support Service

for advice.

• Cleaning and maintenance must be carried out according to this instruction manual to make

sure the appliance functions properly. Turn off and unplug the appliance before cleaning it.

• Make sure the fan is not placed near drapes, curtains, or any objects that may be drawn into

the fan.

• The minimum distance between the fan blades and the floor must be 2.3 m. The minimum

carrying capacity of the outlet box from which the fan is hung must be 45 kg.

• Do not use the appliance in confined spaces with explosive or toxic vapours.

• This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

• Make sure you install all-poles disconnection switch with a minimum distance of 3 mm

between poles in the supply wiring to the ceiling fan.

• Make sure the installation site will not allow the rotating fan blades to come into contact with

any object and that there is a minimum distance of 150mm (6”) from the blade tip to the wall

or ceiling. Please note that the bigger this distance is, the more airflow the fan will produce.

• Switch off the power before connecting or repairing the fan.

• The electrical wiring must be in accordance with the local regulations.

• The fan must be properly grounded to avoid the risk of electric shocks. Never mount the fan

in a moist or wet room. Be careful when working near the rotating blades.

• This appliance must be installed in accordance with the national electrical installation regula-

tions.

• Ensure that the fan is switched off from the supply mains before removing the guard.

• If unusual oscillating movement is observed, immediately stop using the ceiling fan and con-

tact the manufacturer, its service agent or suitably qualified persons.

• The replacement of parts of the safety suspension system device shall be performed by the

manufacturer, its service agent or suitably qualified persons.

• The mounting of the suspension system shall be performed by the manufacturer, its service

agent or suitably qualified person.

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes,

polystyrene, etc.) away from their reach.

IMPORTANT: Shut off the main electric switch during installation or maintenance. It is recom-

mended to switch off the plug of the automatic switch before the fan (Both mains and fan

switch should be not powered).

• Do not use outdoors. The product must be installed in a dry place, where it is not exposed to

water or moisture.

• Do not connect the fan motor to a dimmer switch. This could result in malfunction or motor

damage.

• It is not recommended that ceiling fans and gas appliances operate in the same room at the

same time.

• The fan must be completely turned off and stopped before reversing the fan direction. This

will prevent the fan motor and controller from getting damaged.

• Do not insert any object into the fan blades during operation. This will damage the blades

and upset the balance of the fan causing the unit to wobble.

• After the fan is completely installed make sure all base and fan blade fixings are secured and

tightened to prevent any problems.

• Some of the connections may loosen due to the fan’s natural movement. Check the support

connections brackets and blade attachments twice a year to make sure they remain secured. If

any are loose, tighten.

• The use of electrical appliances requires notion of somebasic rules, such as:

• Do not touch the appliance with wet hands or feet

• Never expose the appliance to atmospheric conditions (rain, sun, etc.).

• Do not use the device next to potentially explosive or inflammable liquids or gases.

• This product is intended for household use ONLY & not for commercial or outdoor use.

• Keep batteries out of the reach of children and animals, they could cause damage if swal-

lowed. If they were swallowed, contact your doctor immediately.

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read

these instructions carefully before starting the installation and keep this manual handy for

future reference. If you have any another query, please contact our dealer or local vendor from

whom you have purchased the product. They are trained and ready to serve you at the best.

The warranty is valid for 2 years from the date of purchase. The warranty does not apply to

damage caused by incorrect installation or abnormal wear and tear. The company gives no

warranty against damage to any surface due to incorrect removal and installation of the prod-

uct. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours

a day would void the warranty. This product is warranted for manufacturing defects only.

This marking indicates that this

product should not be disposed

of with other household wastes.

Caution, risk of electric shock.

• If any visible signs of damage, holes or deterioration are observed, avoid direct contact

between batteries and skin, eyes or mucous membranes. If batteries leak and get into contact

with eyes, immediately wash them with abundant water. Contact your doctor immediately.

• Please make sure to turn off the power before starting the installation.

• Installation should only be done by a certified electrician.

INSTRUCTION MANUAL

DECORATIVE CEILING FANS (VT-6552-3)

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code

to access the manual in

multiple languages.

TECHNICAL DATA

1) 52" (132CM ) Decorative ceiling fan

2) With forward and reverse function

3) 3 ABS plastic blades

4) AC powerful motor:172*20mm, 3.85kg

5) Revolutions per minute:180±10 RPM

6) Blade angle 13°

7) 3 speeds and light remote control

8) Motor Power:AC 220V~240V,50HZ, 65W

9) G.W.:7.9KG / N.W.:7.1KG

ENGLISH

Tools and material required (not included)

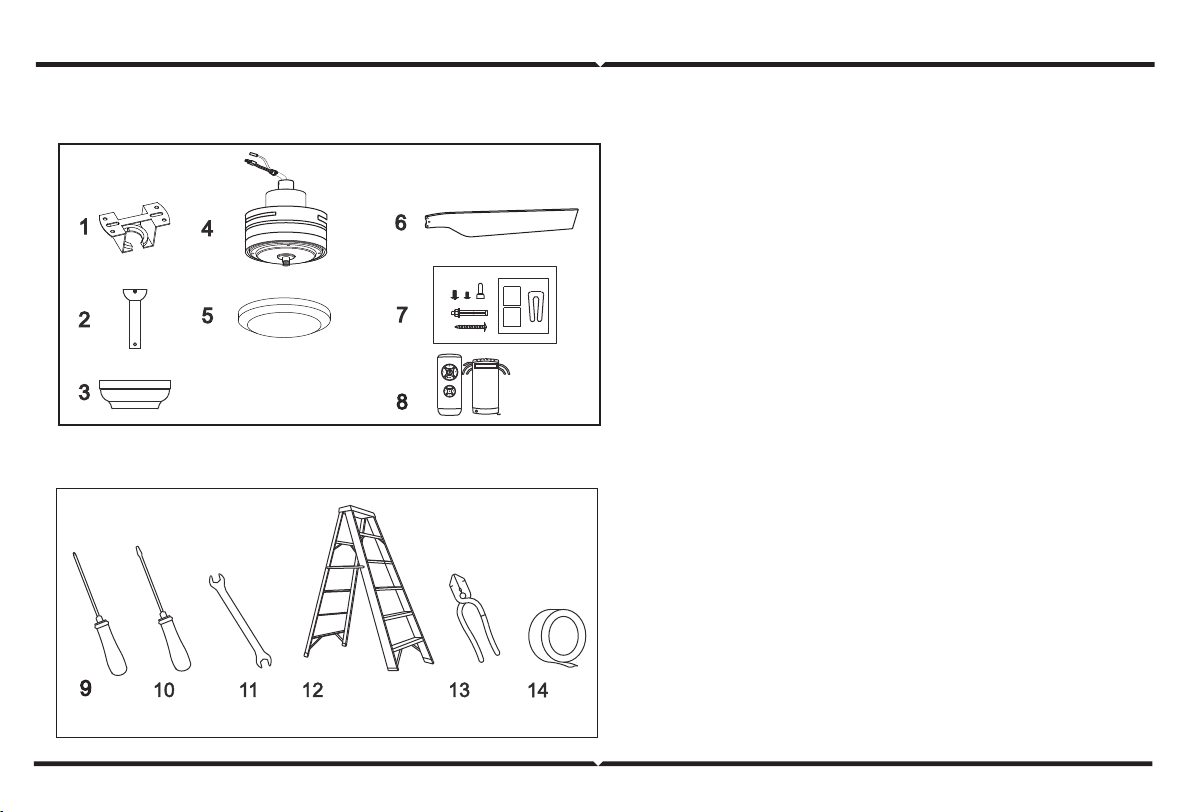

PARTS AND COMPONENTS

1. Hanger bracket

2. Downrod Assembly

3. Canopy

4. Fan Motor Assembly

5. Facing Cover

6. Blade

7. Screw kit, mounting bracket hardware

(wire, nuts, rubber washers) and

attachment hardware

8. Remote control

9. Screwdriver

10. Flat-blade screwdriver

11. Adjustable pliers or wrench

12. Step ladder

13. Wire cutter

14. Electrical tape

FIG 1

FIG 2

ENGLISH

1. BEFORE USE

Unpack your ceiling fan carefully then remove all parts and components and lay on a cloth or soft

surface to avoid damage. Do not lay the motor housing on its side, the housing may get damaged.

Before commencing installation, check that all parts are included.

2. PRODUCT ASSEMBLY

WARNING: All electrical tasks should only be undertaken after disconnection of electricity by

removing fuses or turning off the circuit breaker to avoid risk of electric shocks.

ASSEMBLY STEPS:

2.1. INSTALLATION OF THE MOUNTING BRACKET

The hanger bracket must be screwed on to a firm flat surface. The structure to which it is installed

must be able to withstand ten times the static weight of the fan. In case of installing the ceiling fan

to a wooden joist, 2 self-tapping screws provided should be enough to support the ceiling fan. The

washers provided must be placed in the following Order:

screw head > round washer > spring washer > mounting bracket

> ceiling.

1. Concrete ceiling: Drill two holes with an appropriate depth by a drilling

bit with diameter 8mm, and insert 1 piece of expansion screw to each

hole, then fix the mounting bracket into the expansion screws, and tight-

en it with the nuts of expansion screws. (Fig 2)

2. Wooden ceiling: Fix the mounting bracket to the wooden ceiling by 4

pieces wooden screws. The thickness of wooden ceiling must be at least

7cm. (Fig 3)

NOTE: Do not install mounting bracket on the roof leaking and damp.

The ceiling must be able to with stand the weight of 40kgs or more.

ENGLISH

• Unscrew the screw on the down rod’s hanger ball, then

loosen the hanger ball. Remove the stop pin from inside the

down rod and remove the hanger ball from the rod.

• Remove the clevis pin and hairpin clip from the down rod. If

you prefer using the longer down rod, install the hanger ball on

it and make sure to move the earth wire from one to the other.

Pass the electrical supply leads from the top of the motor all

the way through the down rod until they come out the other

end.

• Insert the down rod into the motor housing’s hole and turn it

in order to align the holes on both sides with the holes on the

down rod.

• Pass the clevis pin through the holes so that it passes

through the down rod too, be careful not to damage any of the

wires. Pass the hairpin clip through the clevis pin so that it is

securely fixed.

• Tighten all the screws set up to the moment. This will ensure

minimum rod and fan tumbling.

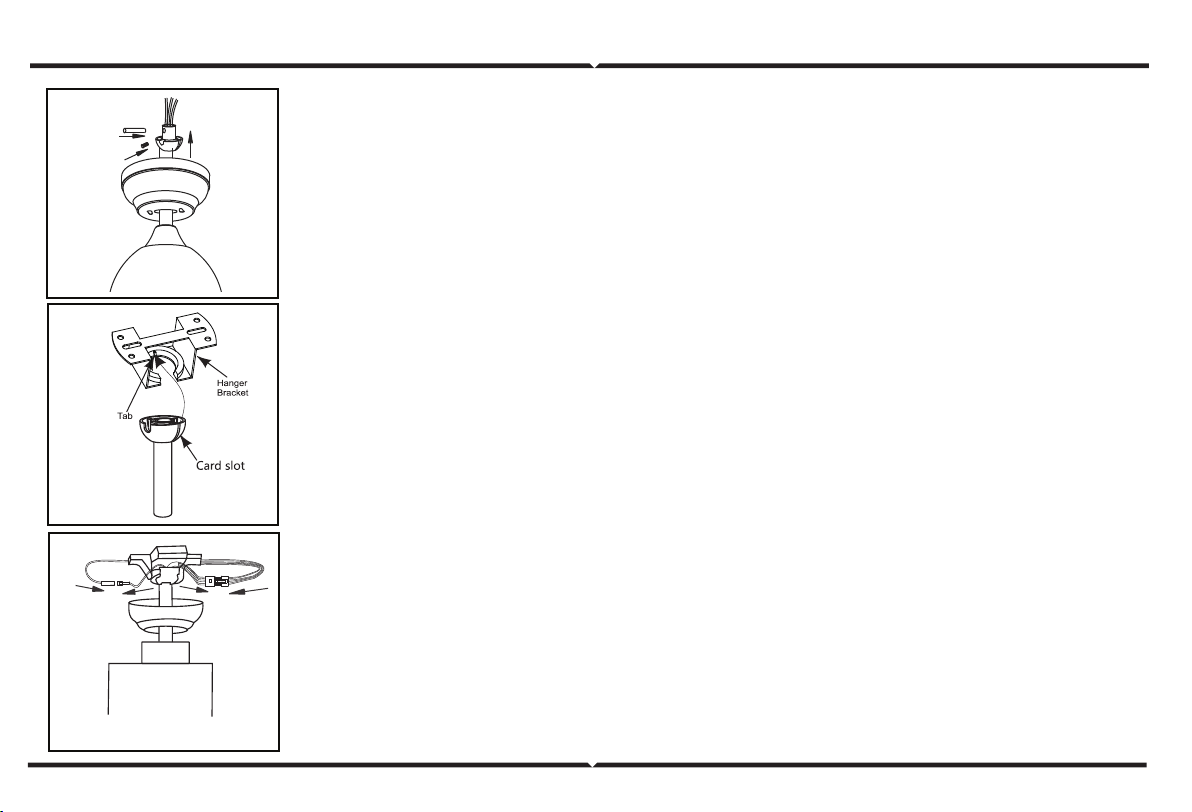

2.2. INSTALLATION OF THE DOWN ROD AND HANGER BALL

FIG 4

FIG 5

• If screws are not properly tightened, the motor might oscillate. This

could be dangerous.

• Once the above steps are all finished, install the hanger ball onto the

down rod, insert the stop pin in the down rod and lift up the hanger ball.

Then, tighten all the screws firmly so that all the elements are completely

and securely fixed.

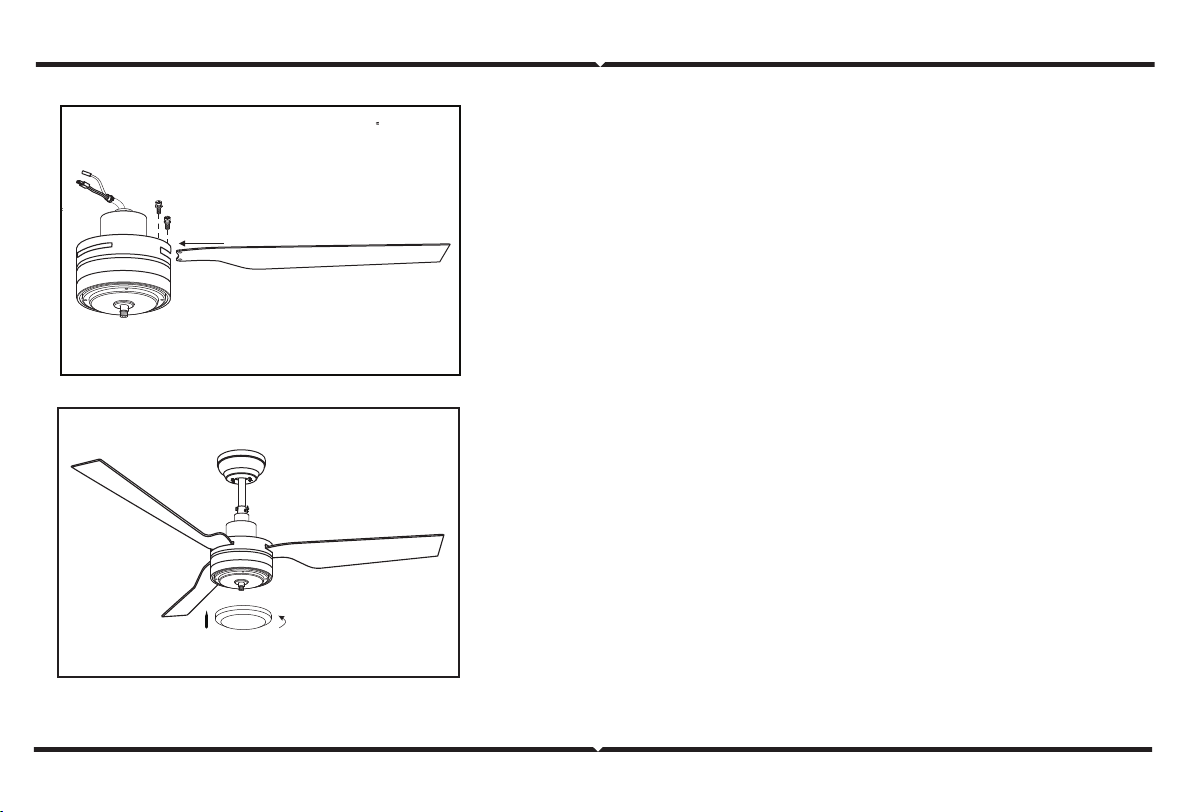

2.3. HANGING THE FAN TO THE MOUNTING BRACKET AND

ATTACHING THE BLADES

• Lift the fan up to the mounting bracket, insert the hanger ball in the

mounting bracket through the opening and carefully let it rest.

• Rotate the ball and make sure that the tab located in the mounting

bracket is aligned with the hanging ball’s slot.

• When aligned, the fan will automatically sit on its correct position. This

will prevent rotation of the rod and fan when the unit is operating.

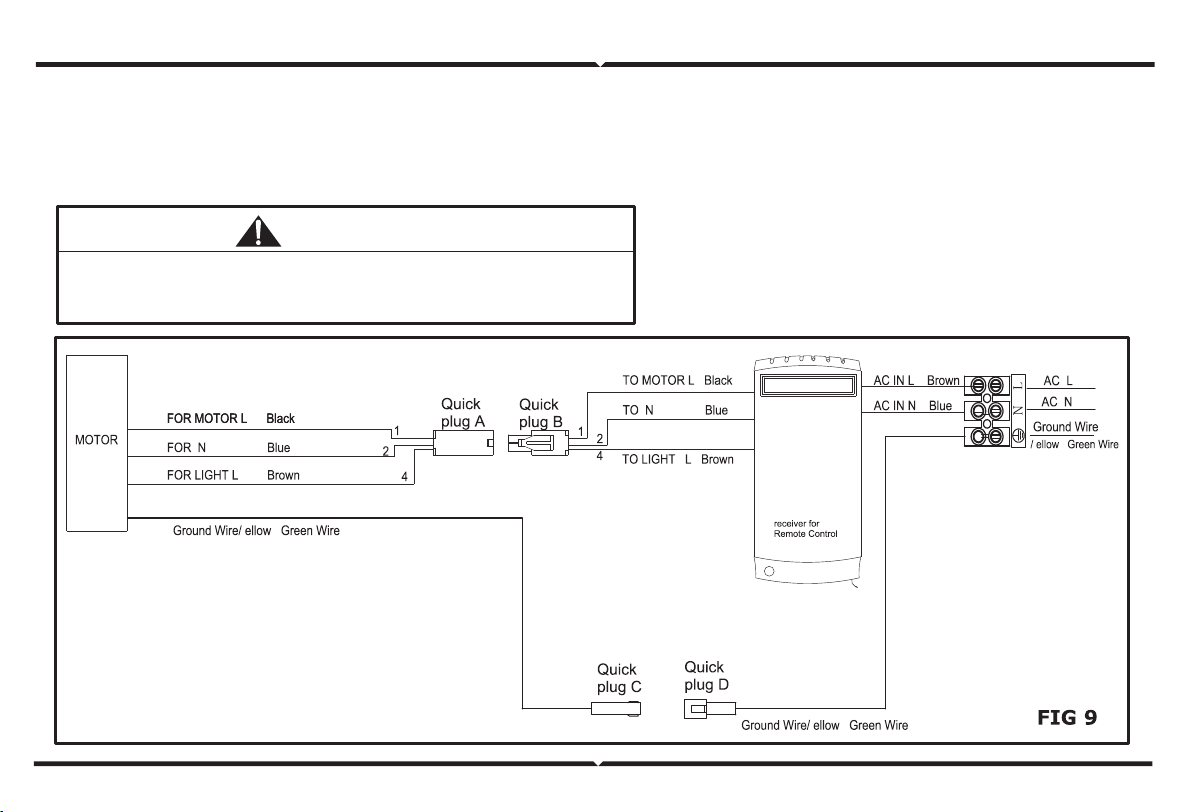

2.4. REMOTE CONTROL AND WIRING INSTRUCTION

• Place the receiver through the hanging bracket and connect the wires

following the colour codes.

• Connect the push connectors from the fan to the remote control as

stated below:

FIG 6

FIG 7

FIG 8

ENGLISH
