Multi-Functional Cleaning
English 02
IPX5
2 86343680 AP 100-50 M
Machine Data Label
OVERVIEW
This machine is a multi-functional cleaning machine intended for commercial use. The appliance applies chemical
at low pressure and uses high pressure to clean with. Then the soiled water is vacuumed back into the recovery
tank.
MODELS: AP 100/50 M 1.007-080.0
Warranty Registration
Thank you for choosing our product. Warranty registration is quick and easy.
Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to:
http://warranty.karcherna.com/warrantyregistration.aspx
3
Table of Contents
Machine Data Label . . . . . . . . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3
How To Use This Manual . . . . . . . . . . . . . . . . . . . . . 4
Safety
GROUNDING INSTRUCTIONS . . . . . . . . . . . . . . . .5
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .6
HAZARD INTENSITY LEVEL . . . . . . . . . . . . . . . . . .7
SAFETY LABEL LOCATION . . . . . . . . . . . . . . . . . . 8
Operations
Technical Specifications . . . . . . . . . . . . . . . . . . . . . .9
How the Machine Works . . . . . . . . . . . . . . . . . . . . . 10
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Filling The Machine. . . . . . . . . . . . . . . . . . . . . . . . . 14
Machine Operation . . . . . . . . . . . . . . . . . . . . . . . . .17
Chemicals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Maintenance
Float Shut-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Strainer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Vacuum Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Vacuum Motor Replacement . . . . . . . . . . . . . . . . . 20

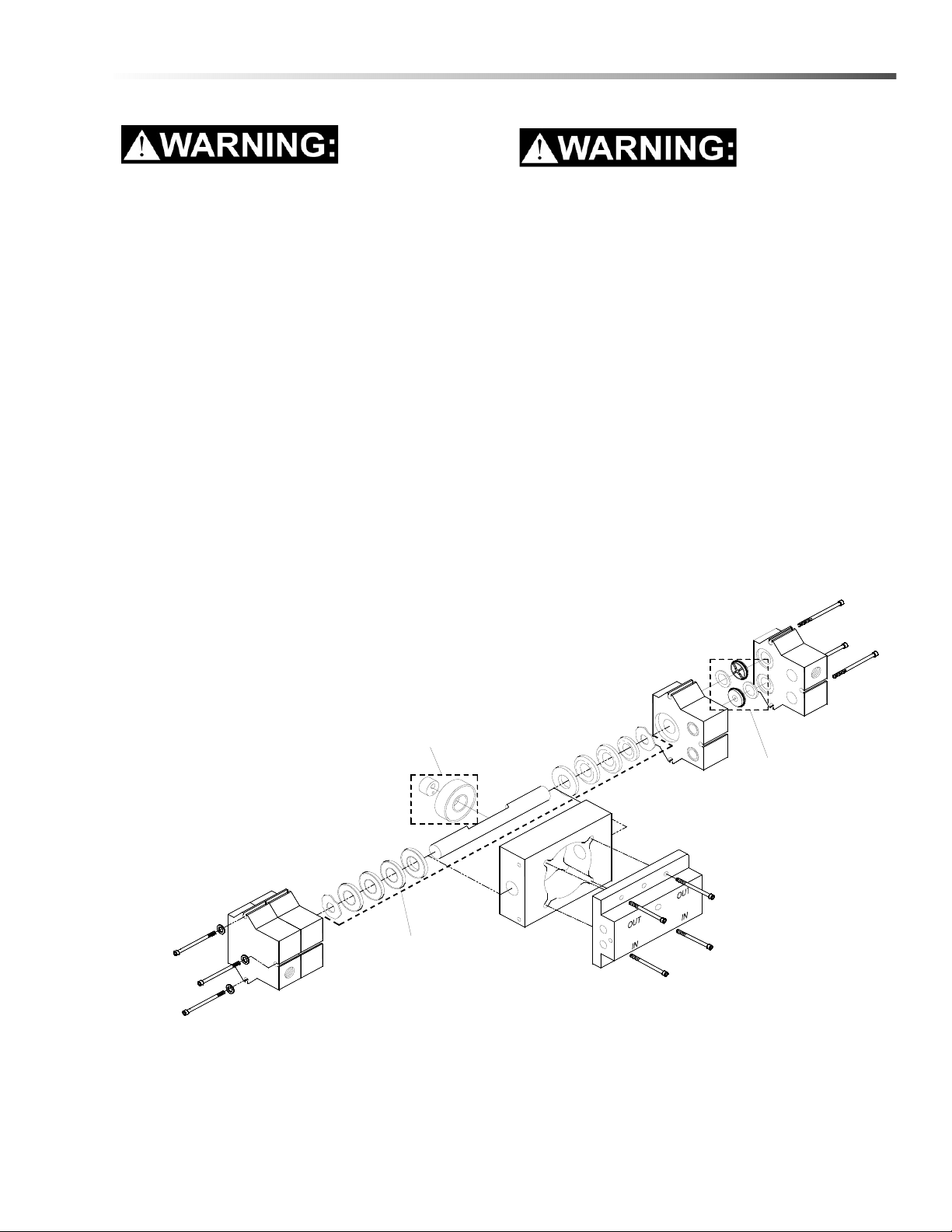

Solution Pump Replacement . . . . . . . . . . . . . . . . .21
Unloader Replacement . . . . . . . . . . . . . . . . . . . . . .21
Periodic Maintenance . . . . . . . . . . . . . . . . . . . . . . .22
Daily/regular Maintenance . . . . . . . . . . . . . . . . . . .22
Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Trouble Shooting. . . . . . . . . . . . . . . . . . . . . . . . . . .23
Parts
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

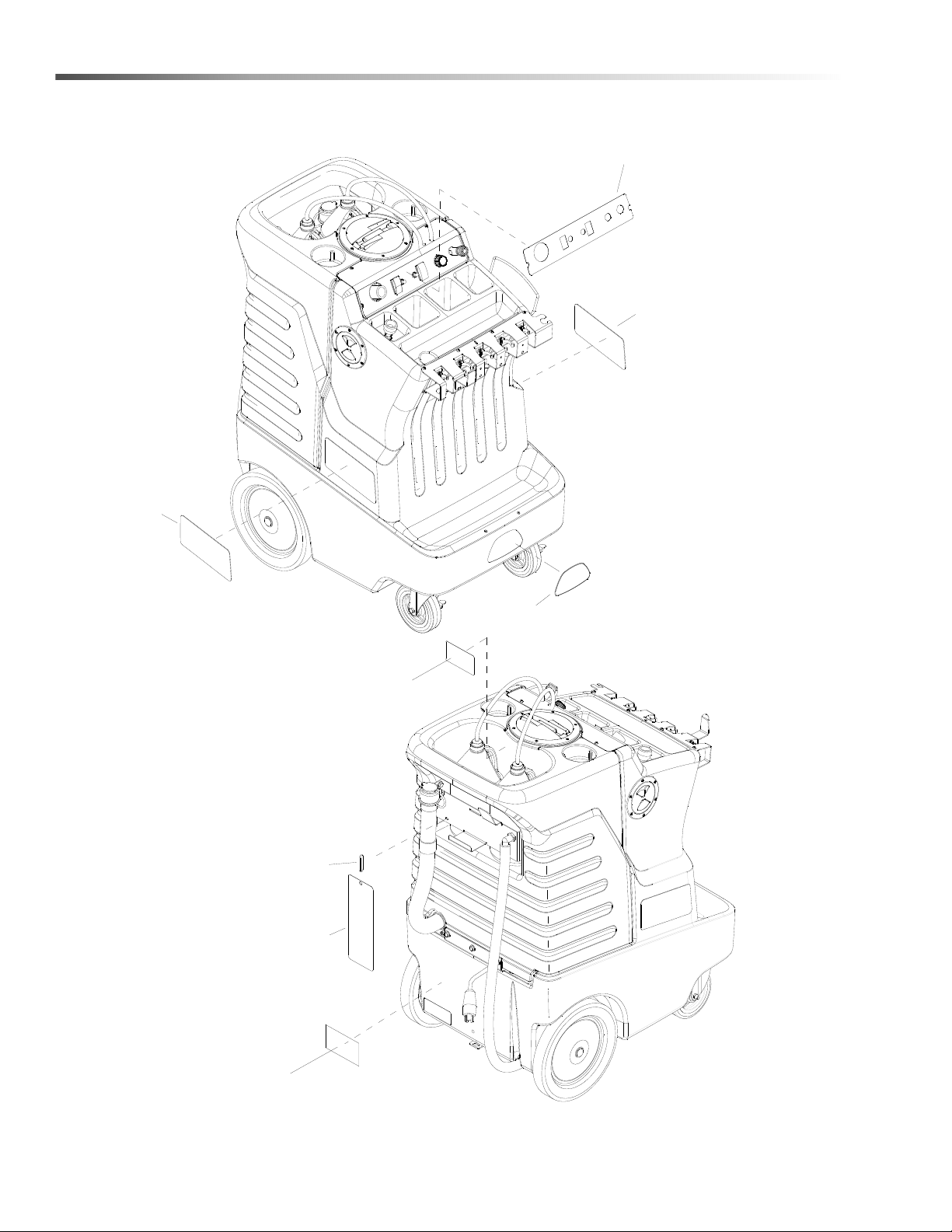

Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

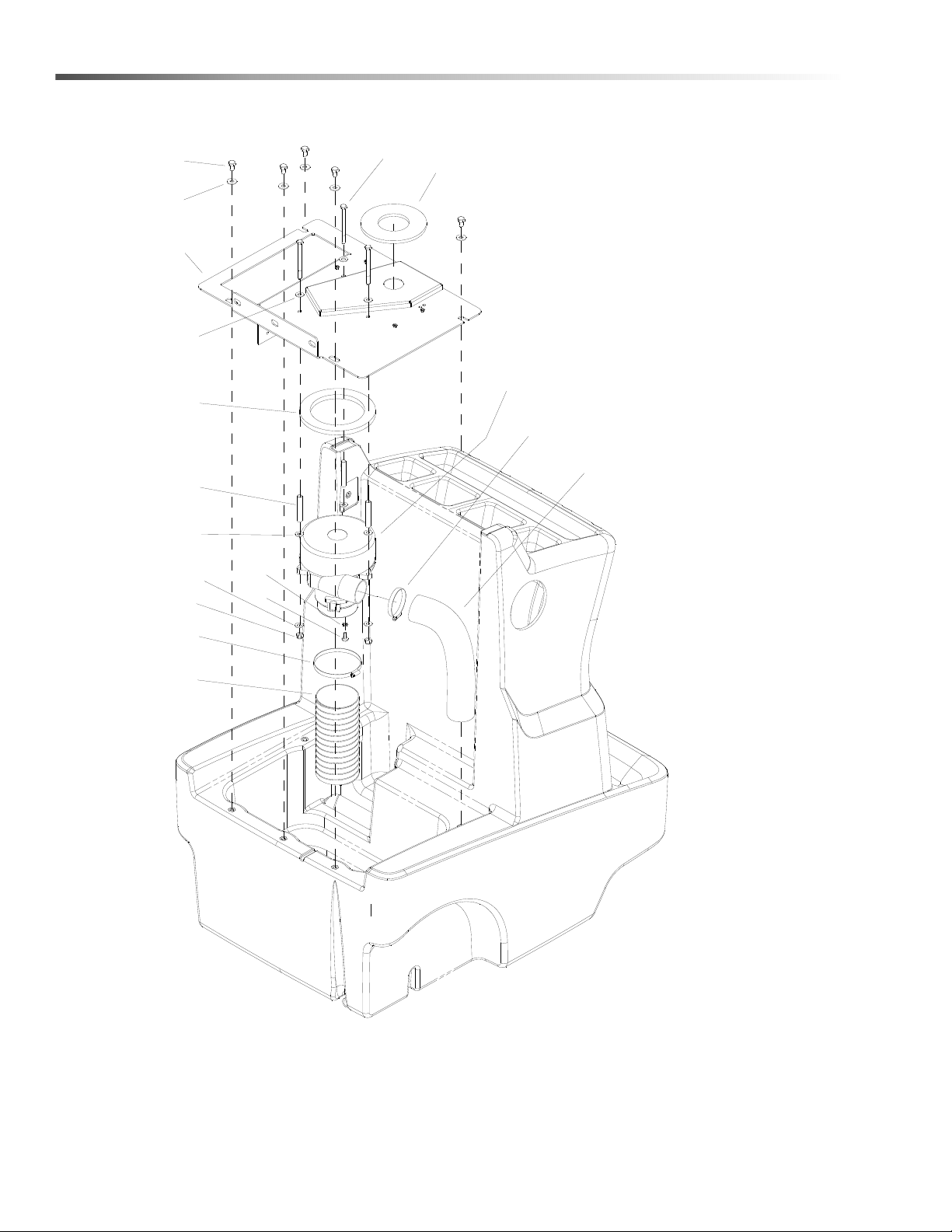

Solution Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Solution Injector Assembly . . . . . . . . . . . . . . . . . . 32
Solution Pump Assembly . . . . . . . . . . . . . . . . . . . 34
Solution Pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Recovery Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Vacuum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

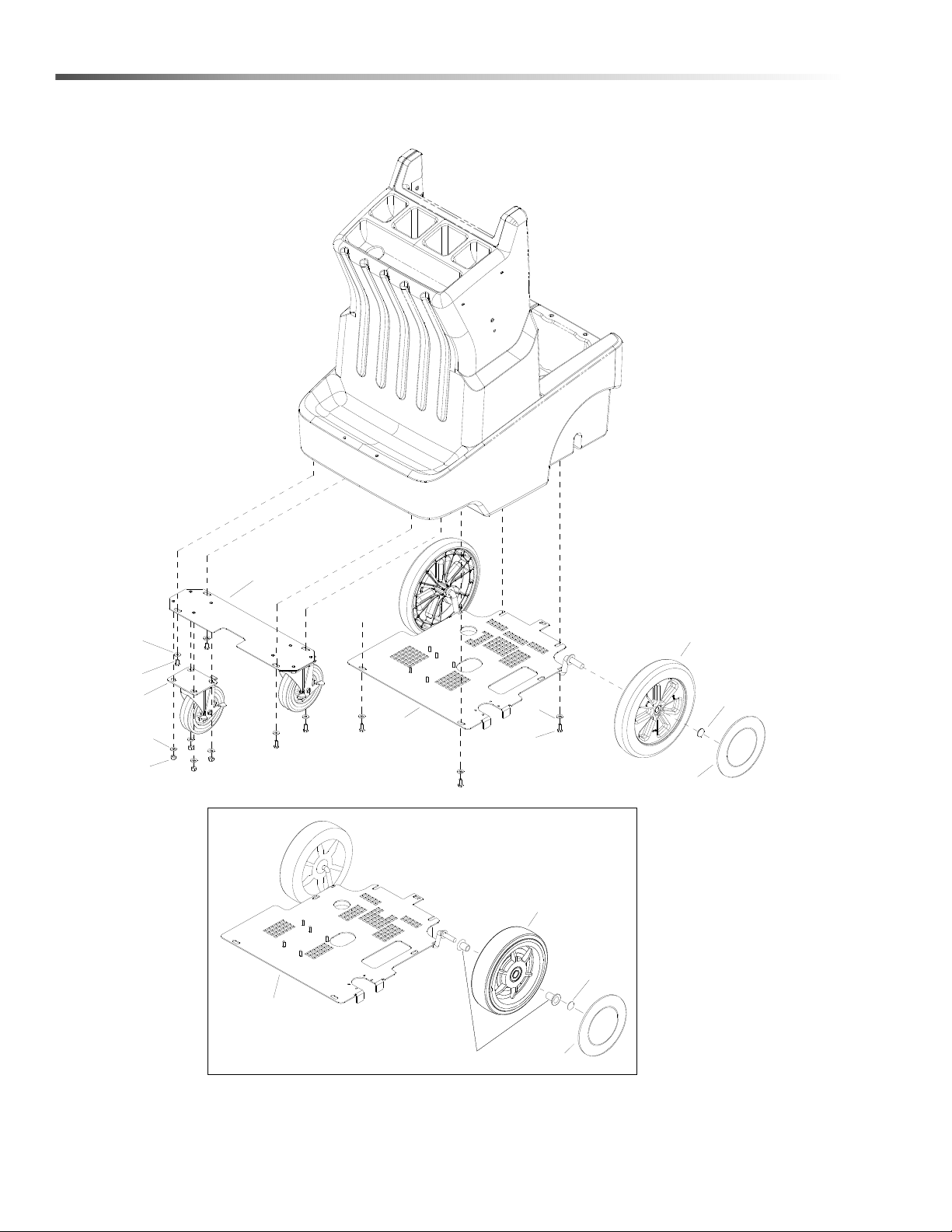

Wheels & Frame . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Tools - Standard . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Vacuum Hose Rack - Option . . . . . . . . . . . . . . . . 48
Tools - Grout Cleaner - Option . . . . . . . . . . . . . . . 50

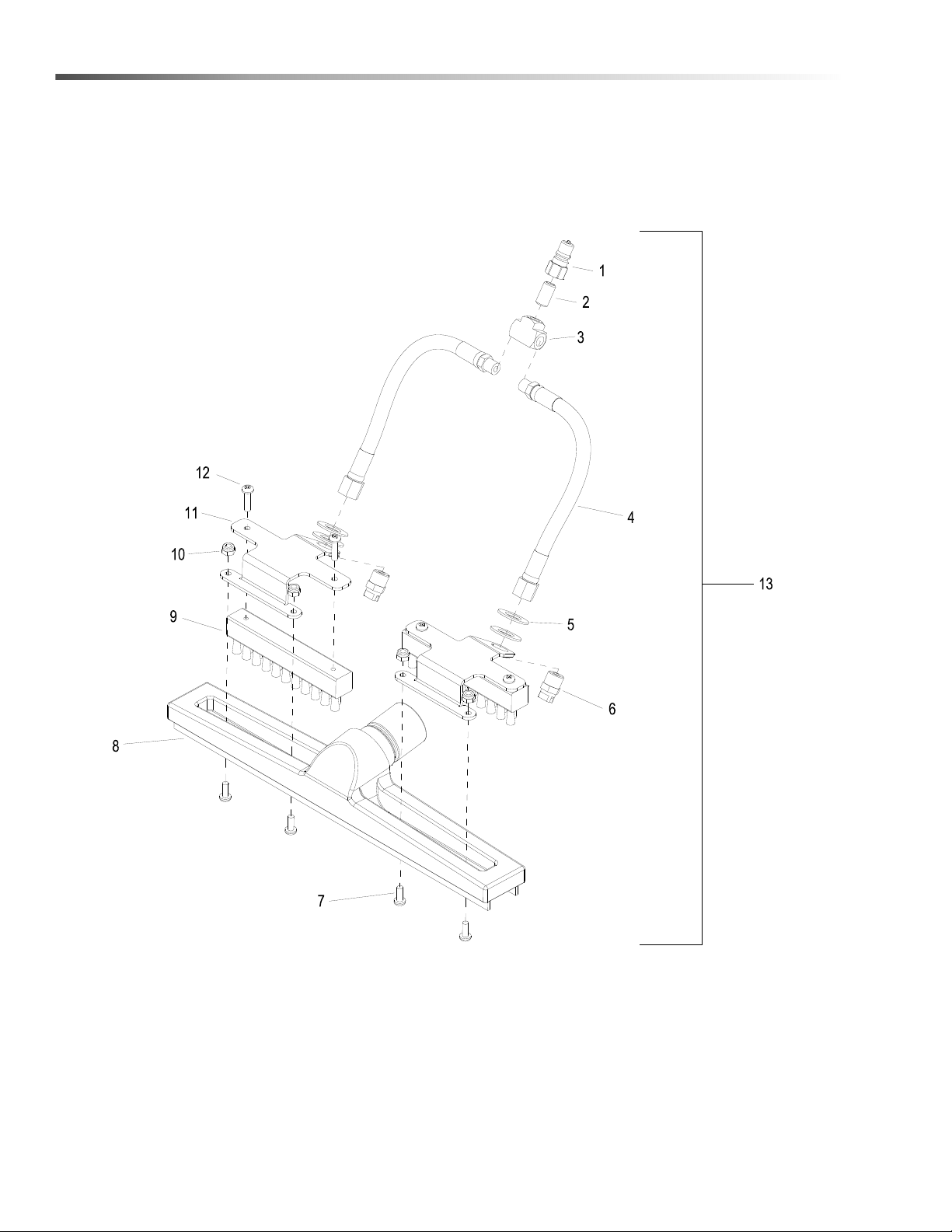

Tools - High Pressure Wand - Option . . . . . . . . . . 52
Tools - Carpet Tool - Option . . . . . . . . . . . . . . . . . 54
Chemical Lock - Option. . . . . . . . . . . . . . . . . . . . . 56
Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . . 58
Serial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
86343680 AP 100-50 M
4
How To Use This Manual
This manual contains the following sections:
• How to Use This Manual
•Safety
• Operations
• Maintenance
• Parts List
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.

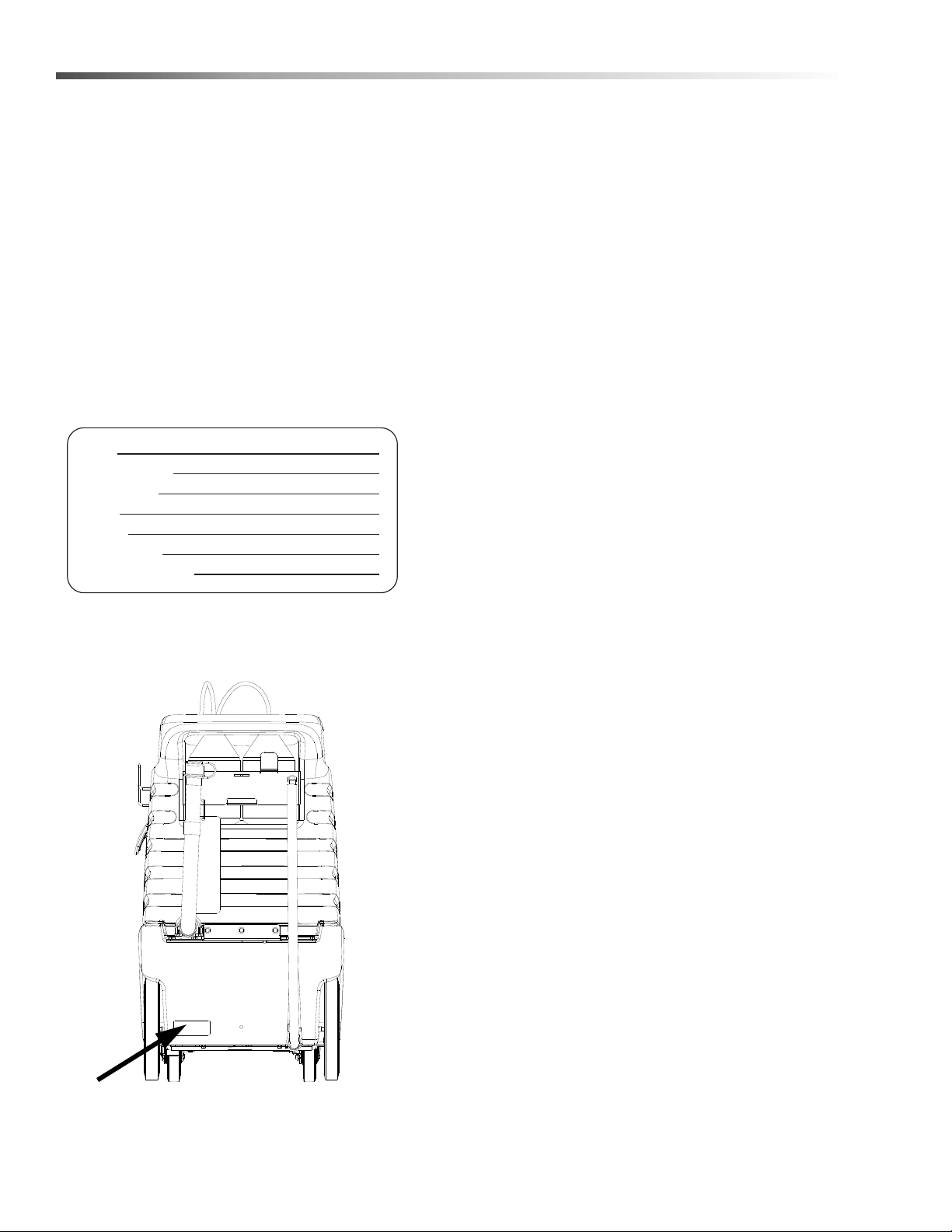

The model and serial number of your machine is
located on the back of the machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive main-
tenance to keep the machine and its components in
good working condition. They are listed in this general
order:
• Vacuum Motor
• Solution Pump
• Daily Maintenance
• Periodic Maintenance
• Service Schedule
• Machine Troubleshooting
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts lists
include a number of columns of information:
• REF – column refers to the reference number
on the parts illustration.
• PART NO. – column lists the part number for
the part.
• PRV NO. – reference number.
• QTY – column lists the quantity of the part used
in that area of the machine.
• DESCRIPTION – column is a brief description
of the part.
• SERIAL NO. FROM – If this column has an (*)
and a Reference number, see the SERIAL
NUMBERS page in the back of your manual. If
column has two asterisk (**), call manufacturer
for serial number. The serial number indicates
the first machine the part number is applicable
to. The main illustration shows the most current
design of the machine. When a boxed illustra-
tion is shown, it displays the older design.
• NOTES – column for information not noted by
the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.
NOTE: The manual part number is located on the
lower left corner of the front cover.
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
86343680 AP 100-50 M
5
Safety
THIS PRODUCT IS FOR COMMERCIAL
USE ONLY.
ELECTRICAL
The amp, hertz, and voltage are listed on the data label
found on each machine. Using voltages above or below
those indicated on the data label will cause serious
damage to the motors.
EXTENSION CORDS
If an extension cord is used, the wire size must be at
least one size larger than the power cord on the
machine, and must be limited to 50 feet (15.5m) in
length.
GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of
electric shock. This appliance is equipped with a cord
having an equipment-grounding conductor and
grounding plug. The plug must be inserted into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordi-
nances.
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service person
if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug
provided with the appliance - if it will not fit the
outlet, have a proper outlet installed by a qualified
electrician.

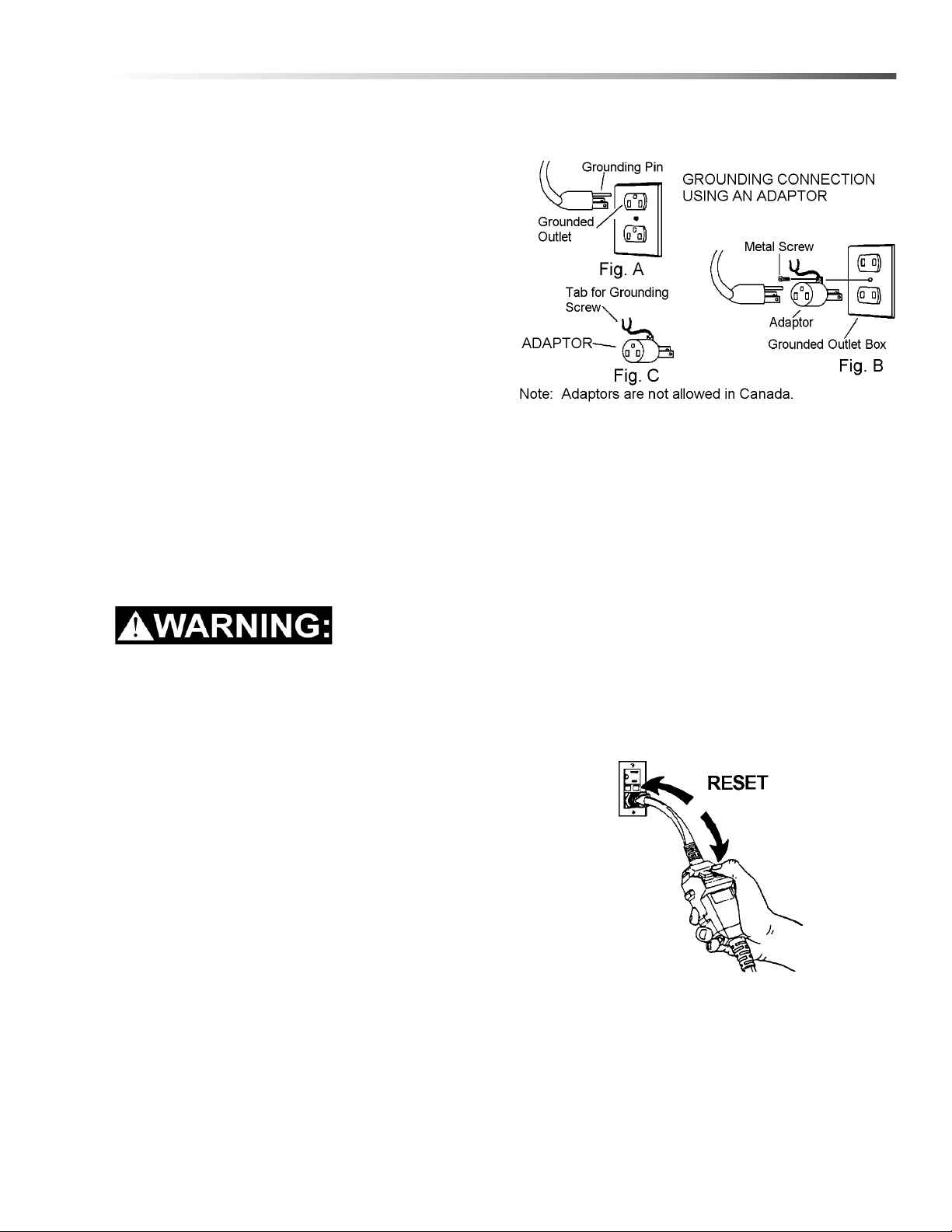

GROUNDING INSTRUCTIONS
GROUND-FAULT CIRCUIT-INTERRUPTER-
PROTECTION
This pressure washer is provided with a (GFCI) built
into the plug of the power supply cord. This device
provides additional protection from the risk of electric
shock. Should replacement of the plug or cord become
necessary, use only identical replacement parts that
include GFCI protection. If the GFCI is not the
AUTOMATIC RESET TYPE, it must be manually
TESTED and RESET each time the cleaning system is
plugged in. Press firmly to assure internal spring
activates switch. Push "test" then push "reset". Motor
will not start if GFCl does not reset. Check circuit
breakers or outlet. If circuit breaker is not tripped and
unit will not reset, contact local service center.
86343680 AP 100-50 M
6
Safety
IMPORTANT SAFETY INSTRUCTIONS
When using this machine, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Connect to a properly grounded outlet. See Grounding Instructions.
Do not leave the machine unattended. Unplug machine from outlet when not in use and before maintenance or
service.
WARNING: Do not use the appliance within range of persons unless they wear protective clothing.
WARNING: High pressure jets can be dangerous it subject to misuse. The jets must not be directed at persons, live
electrical equipment or the appliance itself.
Do not direct the jets against yourself or others in order to clean clothes or foot-wear.
Disconnect from electrical power supply before carrying out user maintenance.
High pressure cleaners shall not be used by children or untrained personnel.
To ensure appliance safety, use only original spare parts from manufacturer or approved by the manufacturer.
WARNING: High pressure hoses, fittings and couplings are important for the safety of the appliance. Use only
hoses, fittings and couplings recommended by the manufacturer.
Do not use the appliance if the supply cord or important parts of the appliance are damaged, e.g. safety devices,
high pressure hoses, trigger gun.
Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord around sharp
edges or corners.
Do not run machine over cord. Keep cord away from heated surfaces.
Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.
Do not handle the electrical plug or machine with wet hands.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow. Do
not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
Turn off all controls before unplugging.
Do not operate this machine near flammable fluids, dust or vapors. This machine is not suitable for picking up
health endangering dust.
If foam or liquid comes out of machine, switch off immediately.
READ AND SAVE THESE INSTRUCTIONS
86343680 AP 100-50 M
7
Safety
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY.
The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the equip-
ment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the
machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine.
Use approved replacement parts.
86343680 AP 100-50 M
8
Safety

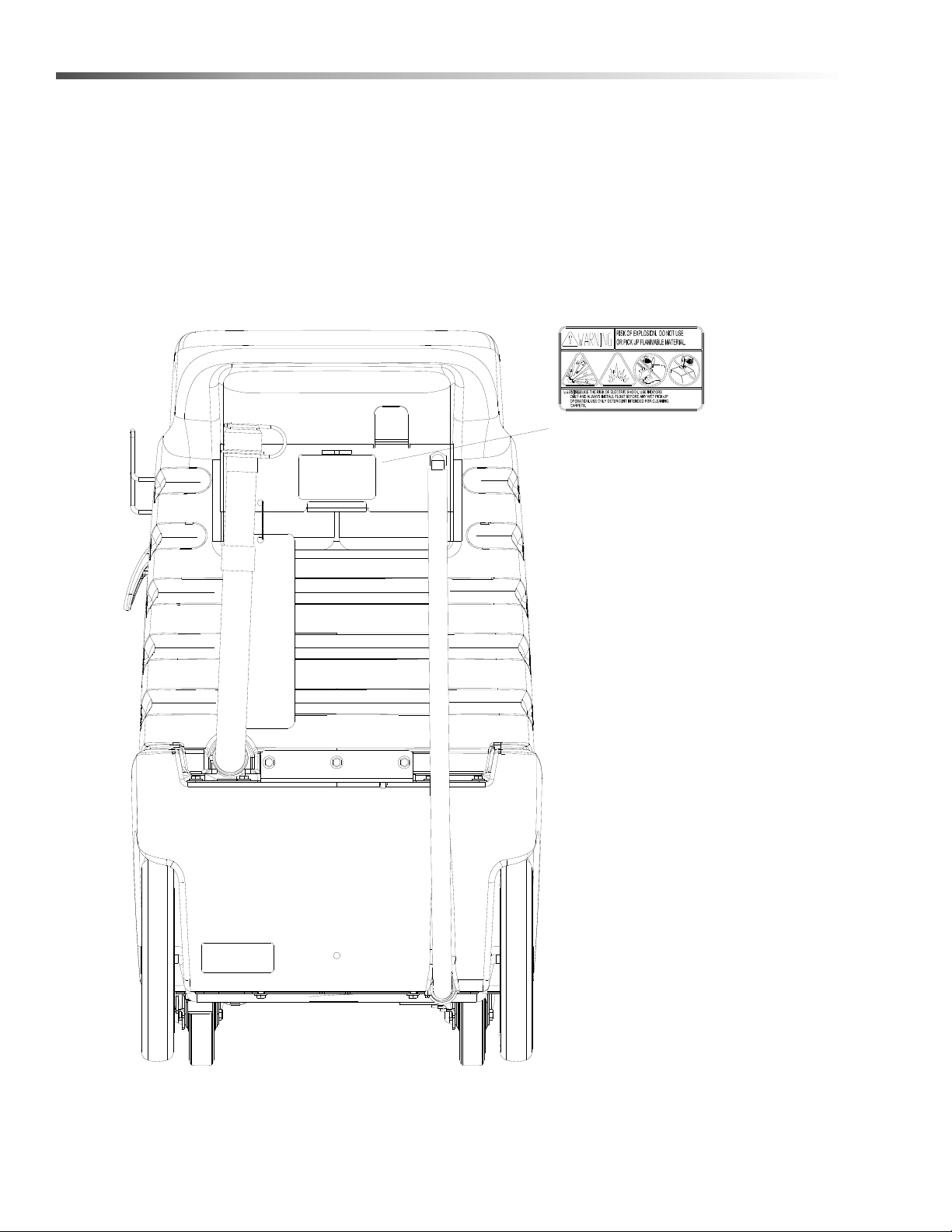

SAFETY LABEL LOCATION
The following WARNING LABEL(S) are found on your cleaning unit. These labels point out important Warnings and
Cautions which should be followed at all times. Failure to follow warnings and cautions could result in fatality,
personal injury to yourself and/or others, or property damage. Follow these instructions carefully! DO NOT remove
these labels.
NOTE: If at any time the labels become illegible, promptly replace them.
86343680 AP 100-50 M
WARNING LABEL 86242230
9
Operations
Technical Specifications
SPECIAL NOTES:
The sound pressure level at 1m from the machine was measured to be 79 dBA. This was a nearfield, broadband
measurement taken in a typical industrial environment on a tile floor. This appliance contains no possible source of
impact noise. The instantaneous sound pressure is below 63 Pa.
The weighted root mean square acceleration at the operator's arms was measured to be below 2.5m/s2. The
measurement and related calculations were made in accordance with ISO 5349-1.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
ITEM DIMENSION/CAPACITY
Electrical 120V, 14A, 60HZ
Electric Pump Motor 1/2hp, 1750rpm
Solution Pump 700psi (48 bars), Axial plunger
Electric Vacuum Motor 2stage, 1.25hp (2.80m3/min.)
Waterlift 82 in. (208 cm)
Solution Capacity 29 gallons (111L)
Recovery Capacity 19 gallons (70L)
Wheels
-Front (2)
-Rear (2)
6 in. dia. (15.24cm) X 1.5
12 in. dia. ( 30.48cm)X 1.75
Dimensions - Weight 205 lb. (93kg)
Dimensions - Length 36 in. (91.4cm)
Dimensions - Height 43 in. (109.2cm)
Dimensions - Width 24.75 in. (62.87cm)
Power Cable 50 ft. (15.2m) 14 gauge
86343680 AP 100-50 M
10
Operations
How the Machine Works
This machine is a multi-functional cleaning machine
intended for commercial use. The appliance applies
chemical at low pressure and uses high pressure to
clean with. Then the soiled water is vacuumed back
into the recovery tank.
The machine's primary systems are the clean water
system, recovery system, chemical system and
pressure washer system.
The function of the clean water system is to store clean
water and deliver it to the available tools. The clean
water system consists of the clean water tank and
strainer. The clean water tank stores water until it is
delivered to the tools. The strainer protects the pump
from debris.
The function of the recovery system is to vacuum the
soiled water back into the recovery tank. The recovery
system consists of the wand and wheeled squeegee,
vacuum motor, float shut-off and recovery tank. The
wand and wheeled squeegee wipes the dirty solution
off the floor. The vacuum motor provides suction to
draw the dirty solution off the floor and into the recovery
tank. The float shut-off protects the vacuum fan from
over filling. The recovery tank stores the dirty solution.
The function of the chemical system is to dispense
chemical into the clean water system. The chemical
system consists of the chemical reservoir, chemical cap
and a chemical-metering selector. The chemical
reservoir stores and dispenses chemical into the clean
water system. The chemical-metering selector meters
the amount of chemical and selects between chemical
A or B and turn chemical off.
The function of pressure washer system is to clean
fixtures and other surfaces. The pressure washer
system consists of a pump, high-pressure hose and
spray gun. The pump delivers cleaning solution to the
tools. The high-pressure hose connects the pump to
the spray gun.
86343680 AP 100-50 M
11
Operations

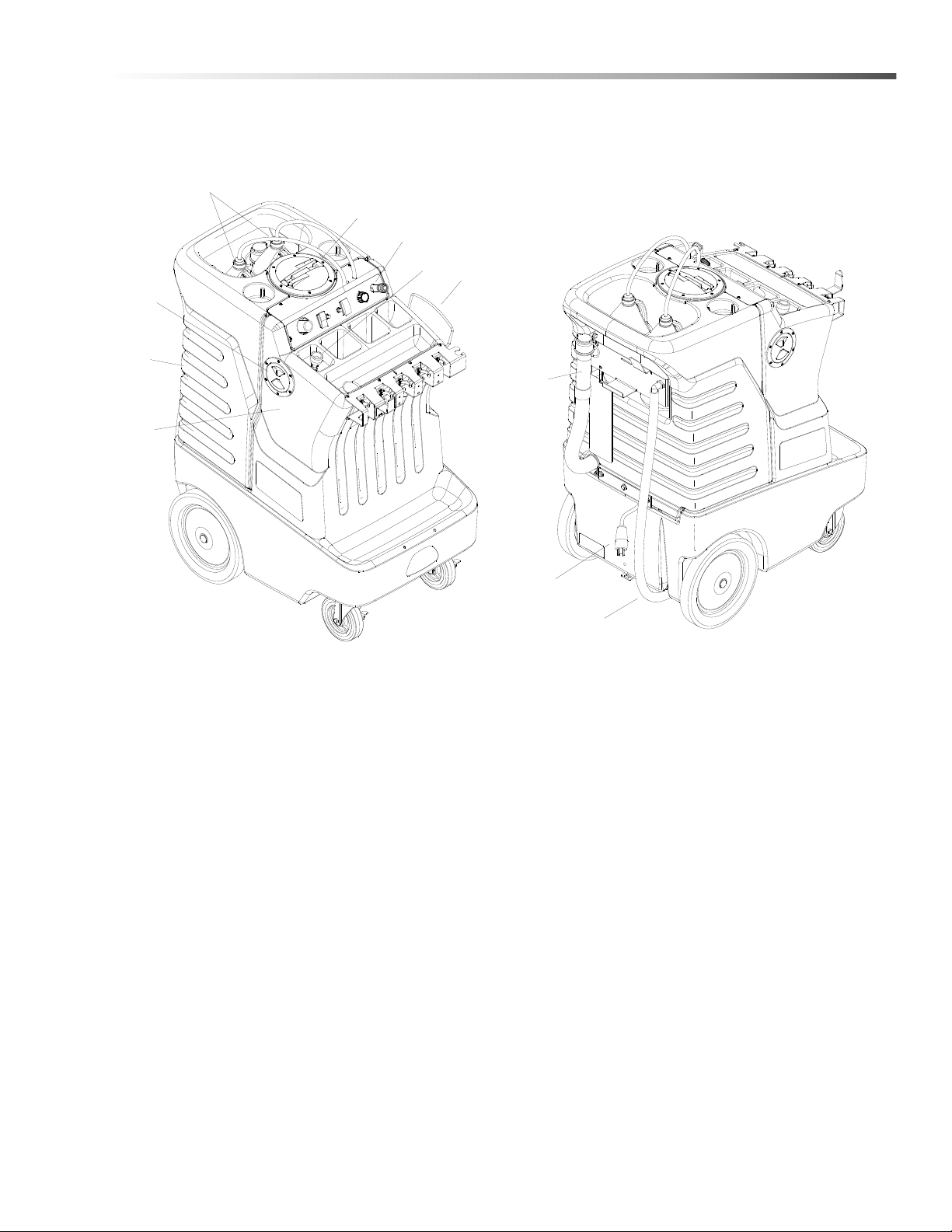

Components

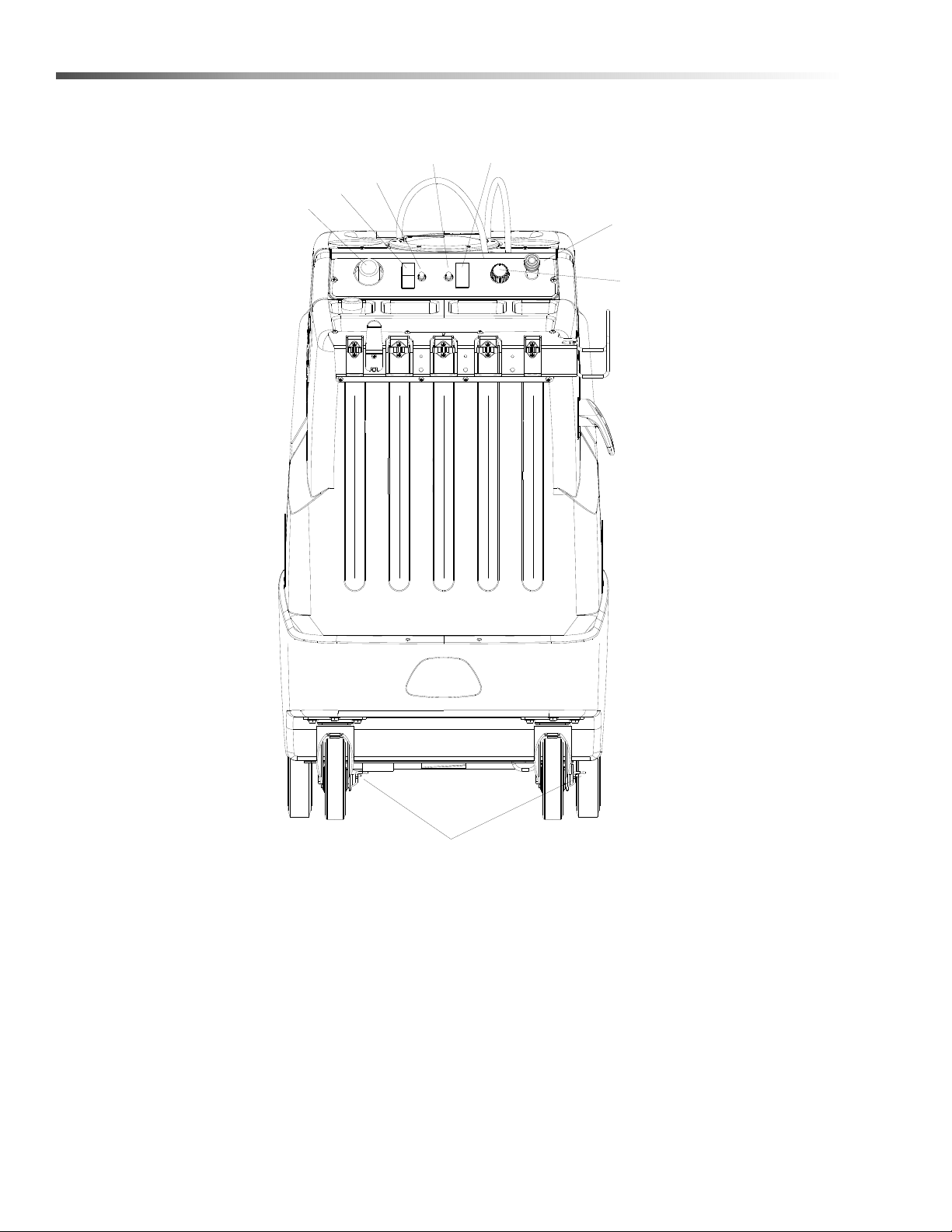

1. Control Panel
2. Solution Tank
3. Solution Tank Lid
4. Solution Tank Drain Hose
5. Solution Tank Fill Hose
6. Recovery Tank
7. Recovery Tank Lid
8. Recovery Tank Drain Hose
9. Chemical Siphon Caps
10. Electrical Cord
11. High Pressure Hose Storage
86343680 AP 100-50 M
11
10
9
8
7
6
5
4
3

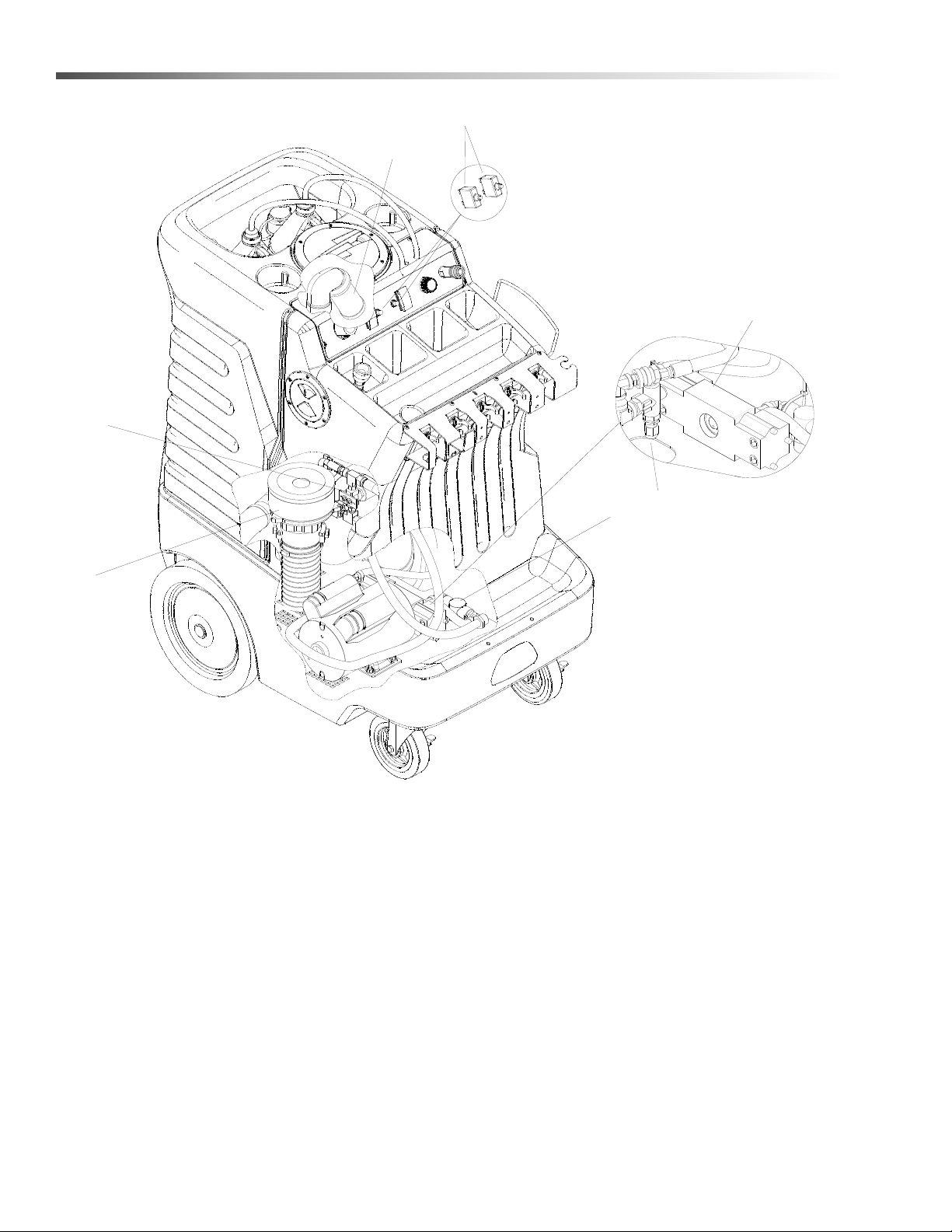

2
1
12
Operations
Controls
1. Caster Lock
2. Chemical Selector and Metering Valve
3. Pump Circuit Breaker
4. Pump Switch/Pump Chemical Switch
5. Solution Accessory Tool Hook-Up
6. Vacuum Accessory Tool Hook-Up
7. Vacuum Circuit Breaker
8. Vacuum Switch
86343680 AP 100-50 M
2
3
4
5
6
7
8
1
13
Operations
1. CASTER LOCK
Locks the wheels in place to keep the machine from moving.
2. CHEMICAL SELECTOR AND METERING VALVE
Meters the amount of chemical being dispensed and selects
between chemical A or B and turns chemical off.
3. PUMP CIRCUIT BREAKER
8 Amp. Protects the pump motor.
4. PUMP SWITCH
High pressure no chemical, low pressure with chemical.
5. SOLUTION ACCESSORY TOOL HOOK-UP
Used for various auxiliary-cleaning tools.
6. VACUUM ACCESSORY TOOL HOOK-UP
To use accessory tool, remove hose from vac shoe
and attach to accessory tool adaptor.
7. VACUUM CIRCUIT BREAKER
10 Amp. Protects the vacuum motor.
8. VACUUM SWITCH
Turns the vacuum motor On and Off.
86343680 AP 100-50 M
14
Operations

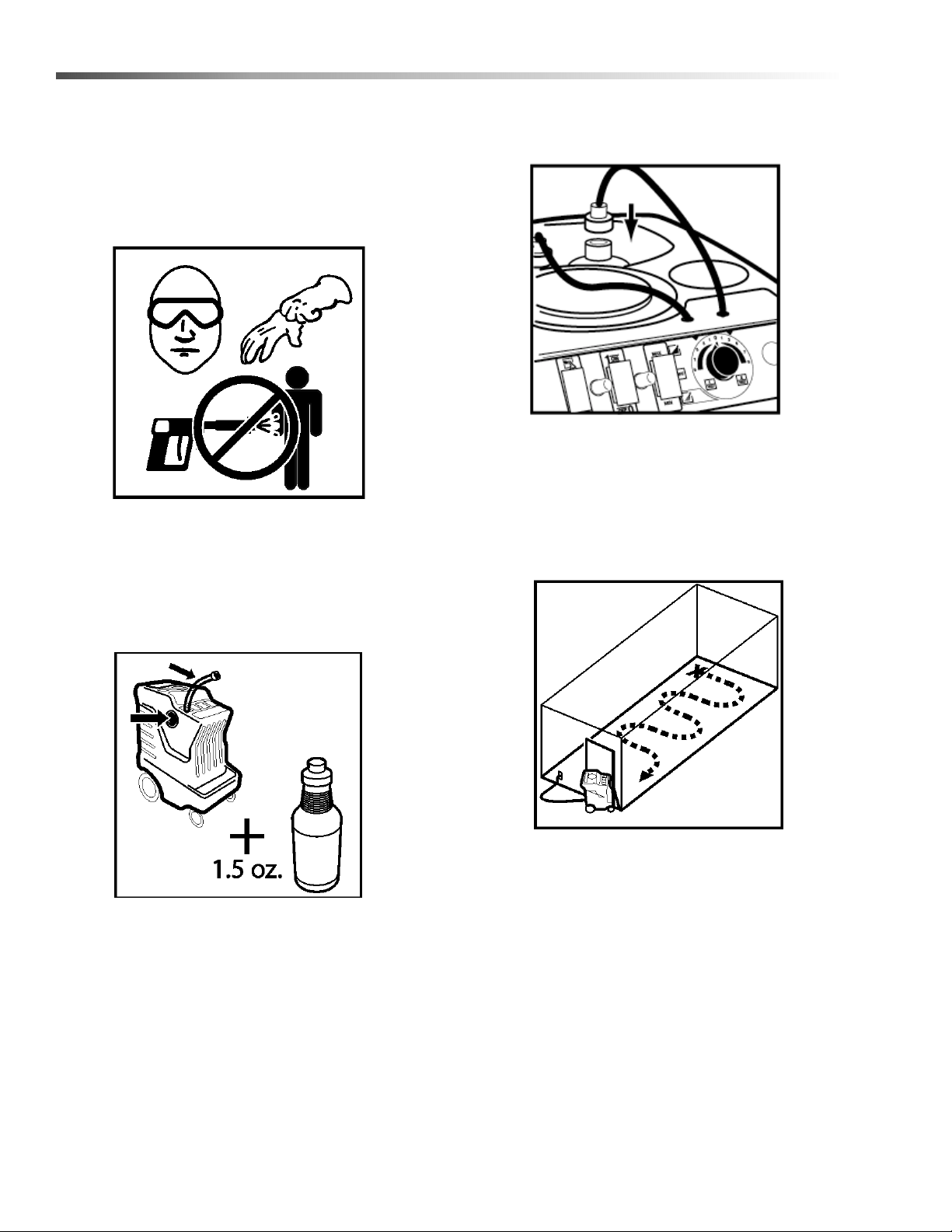

Filling The Machine
Do not put defoamer, solvents spotter or prespray
chemicals in the solution tank.
1. Always use gloves and eye protection. Never spray
solution towards people.
2. To fill Use fill hose or pour directly into solution
tank. Use COLD WATER. Add 1 ½ oz of Compass-
Rinse TM to each full solution tank.
3. Attach the adapter cap and intake hose to the
Chemical bottle. Refer to the Chemical Label for
the desired dilution.
4. Position the machine in the door way, lock front
casters. Start at furthest point in the room and work
towards the door.
86343680 AP 100-50 M
15
Operations

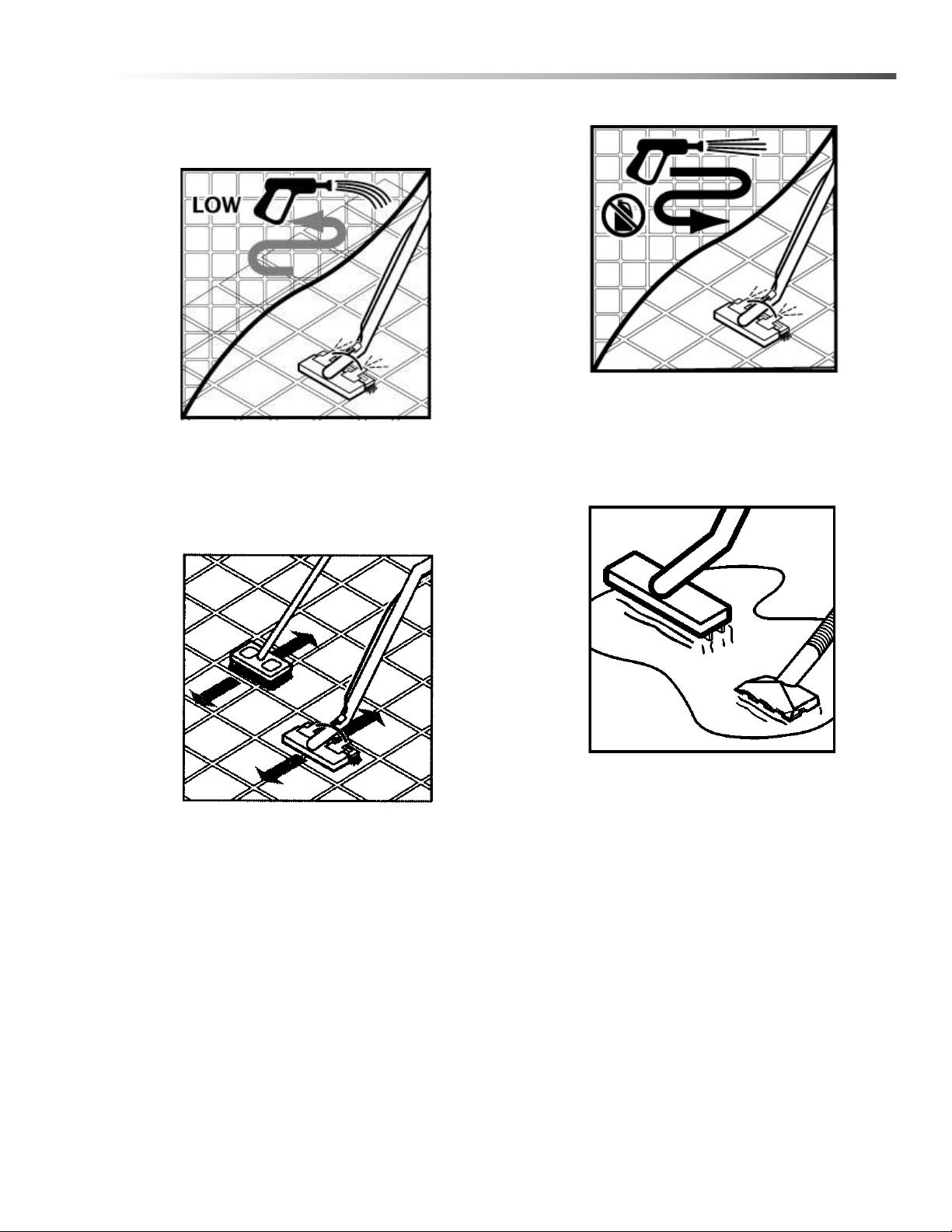

5. Always Spray chemical using low pressure
6. Use brush or grout tool for heavy soiled areas.
7. Turn Chemical off. Pressure clean by rinsing
surfaces at high pressure.
8. Use Squeegee to remove standing water.
86343680 AP 100-50 M
16
Operations
9. Store and secure hoses and tools neatly.
10. Drain machine at proper disposal areas. Use
pressure gun to rinse and clean recovery tank.

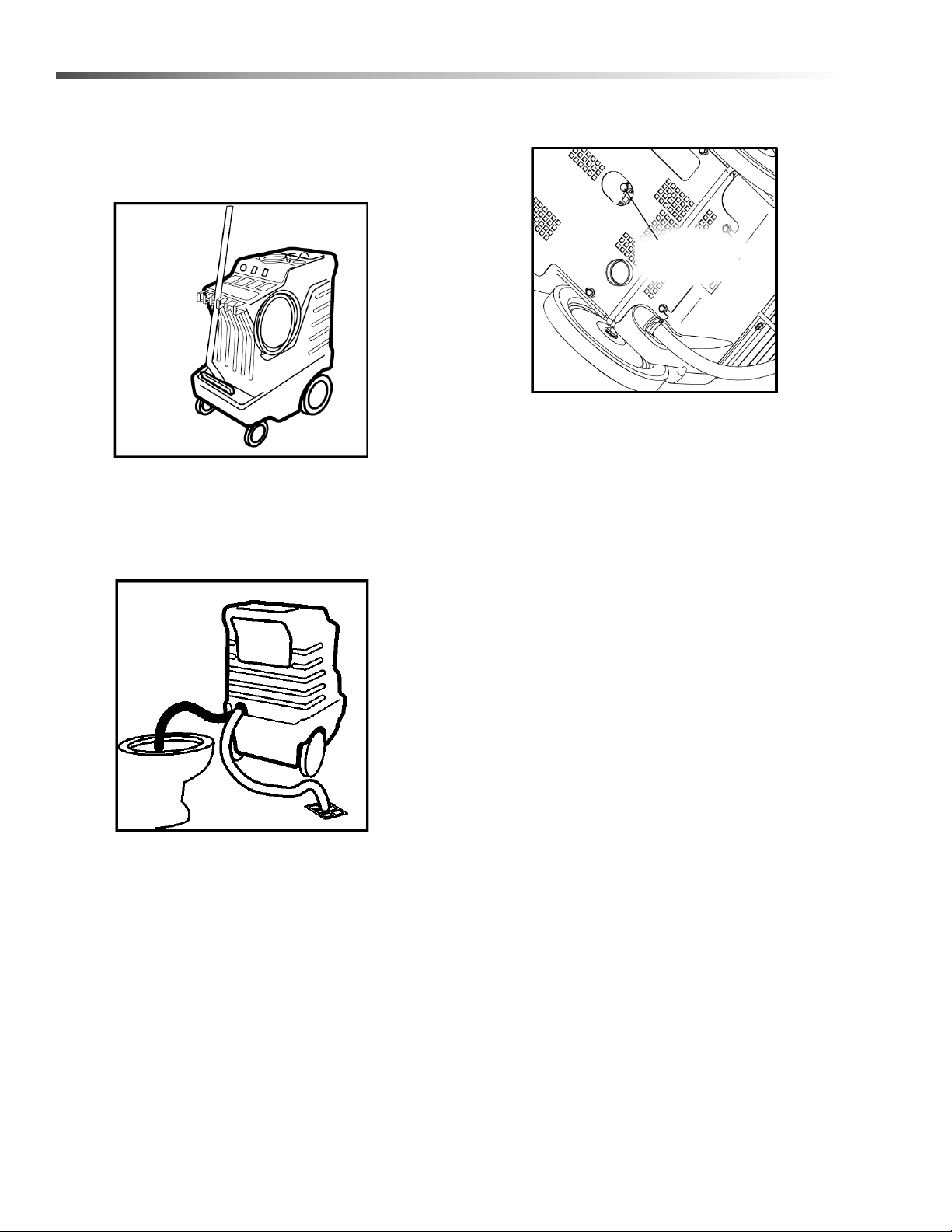

11. From the factory your machine is set to spray at
600 psi (high pressure) and 200 psi (low pressure
w/chemical injection). To lower pressure turn the
unloader valve knob counter clockwise. The valve
is accessed from below the machine through a
hole in the bottom frame. Only turn the valve a
maximum of three revolutions.
Note: Lowering the pressure in this way will reduce
both of the high pressure and low pressure setting
simultaneously.
86343680 AP 100-50 M
UNLOADE
R
VALVE
17
Operations
Machine Operation
Care must be exercised in the use of all chemicals.
Chemicals are poisonous and can pose a health risk.
Read and follow manufacturers instructions regarding
dangers and correct usages.
The internal parts of the pump used in the machine are
suitable for use with most carpet cleaning chemicals.
But they are susceptible to chemical attack from some
cleaning substances, such as hydrocarbon solvents
and chlorinated bleaches. These non-compatible
materials are not of the type used for carpet cleaning.
Chemicals
Suitable Chemicals
• Alkalis
• Detergents
• Hydroxides
• Soaps
• Vinegar
Non-Compatible
• Aldehydes
• Aromatics Hydrocarbons
•SP Butyls
• Carbon Tetrachloride
• Clorox*
• Chlorinated Bleaches
• Chlorinated Hydrocarbons
•Lysol*
• Methyl Ethel Ketone (MEK)
• Perchorethylene (perc)
• Phenolics
• Trichlorethylene
• D-Limonene
*Product Trademark Names
Only use chemicals approved for use with this
machine. Use of non-compatible chemicals may cause
machine damage and will not be covered under the
warranty. Carefully read ingredients on manufacturer's
label before using any product in this machine.
Do not let pump run dry.
Do not let pump run unattended.
86343680 AP 100-50 M
18
Maintenance
1. Float Shut-Off
2. Strainer
3. Circuit Breakers
4. Vacuum Motor
5. Pump
6. Adjustable Unloader Valve
7. Injector Assembly & Coil
86343680 AP 100-50 M
6
5
7
4
3
2
1
19
Maintenance
Float Shut-off
The float shut-off is located inside the recovery tank.
The purpose of the float shut-off is to notify the user
that the recovery tank is full. Remove daily and clean
any debris for maximum airflow.
Strainer
The strainer is located on the left side between the front
and rear wheels. The strainer protects the pump from
debris. If there is little or no solution flow to the ground,
check the stainer for debris. Drain the solution tank and
clean the solution strainer. To remove the strainer, turn
the bottom part of the strainer counterclockwise until
the bottom is separated. Clean out the debris from the
wire mesh and reassemble. Make sure the o-ring
gasket is in place when reassembled.
Circuit Breakers
Circuit breakers interrupt the flow of power in the event
of an electrical overload. When a circuit breaker is
tripped, reset it by pressing the exposed button. If a
circuit breaker continues to trip, the cause of the elec-
trical overload should be found and corrected.
86343680 AP 100-50 M
6 AMP
PUMP MOTOR
10 AMP
VACUUM MOTOR
120V
20
Maintenance
Vacuum Motor

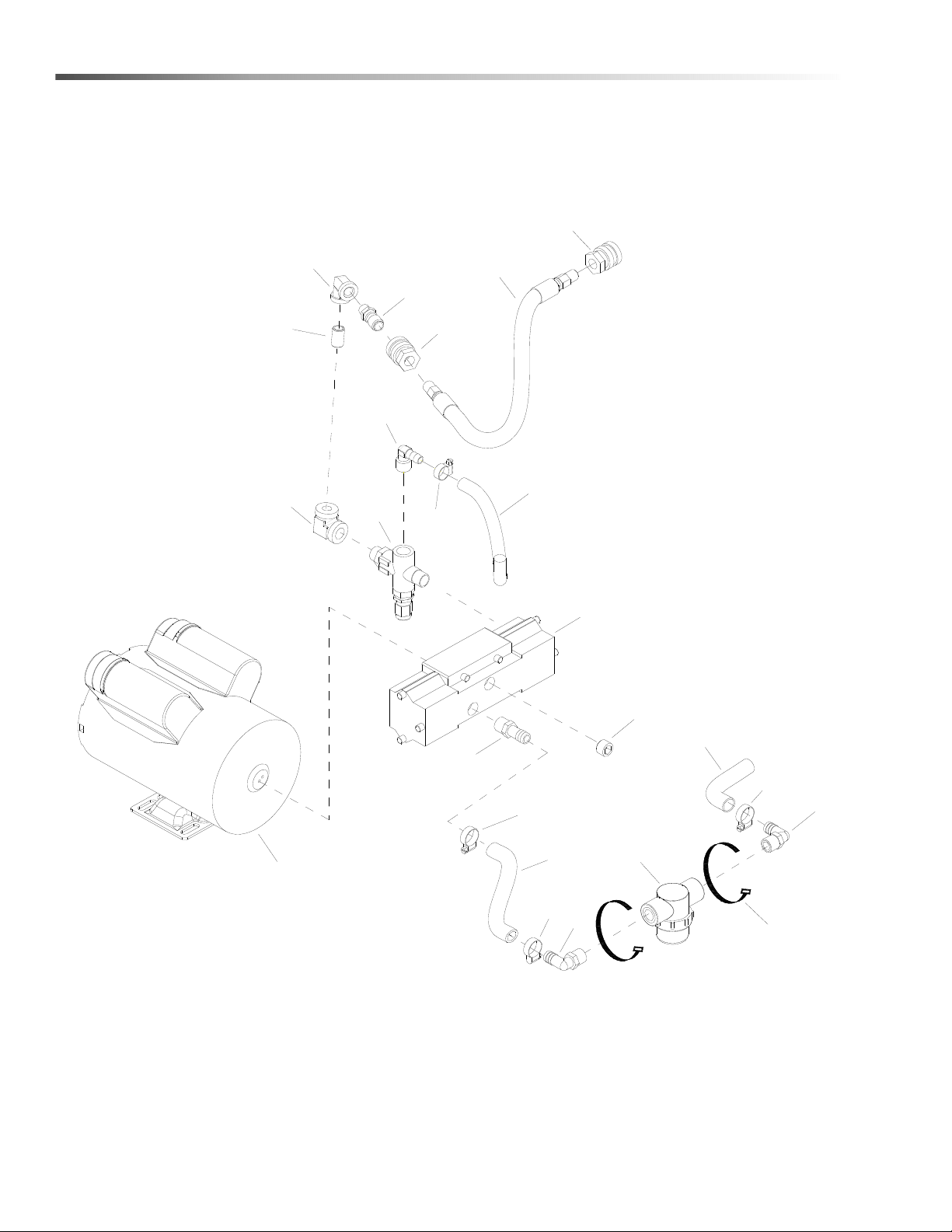

(Refer to vacuum group in the parts section of manual).
ONLY QUALIFIED MAINTENANCE PERSONNEL
ARE TO PERFORM THE FOLLOWING REPAIRS.
Vacuum Motor Replacement
1. Turn off all switches and unplug machine.
2. Remove recovery tank.
3. Remove the 5 screws holding the vacuum motor
cover to the solution tank.
4. Locate the vacuum motor wires and disconnect at
the connector.
5. Remove the vacuum motor.
6. Reverse process to install.
86343680 AP 100-50 M
3
8
[9.5 mm]
Vacuum Motor Carbon Brushes
Carbon
Brushes
End Cap
If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.
Important:
These brushes wear quicker as the length shortens due to
increased heat. Spring inside brush housing will damage
motor if brushes are allowed to wear away completely.
Periodically check the length of the carbon brushes. Replace
both carbon brushes when either is less than 3/8" (9.5mm)
long.
AVERTISSEMENT: Le fil à
la terre vert doit être attaché
pour un fonctionnement en
toute sécurité. voir le
schéma de câblage.
WARNING: The green
ground wire must be
attached for safe operation.

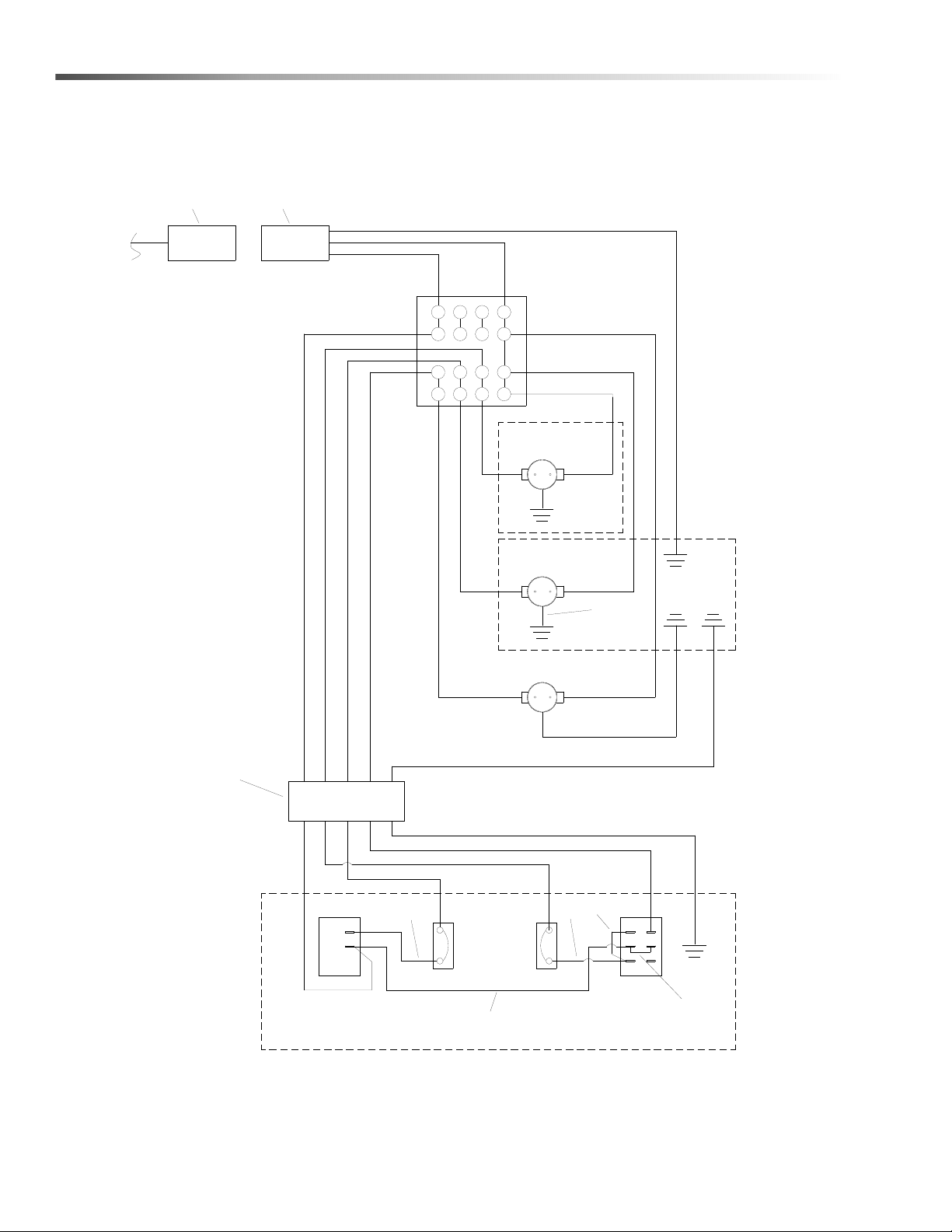

See wiring diagram.
21
Maintenance
Pump
ONLY QUALIFIED MAINTENANCE PERSONNEL
ARE TO PERFORM THE FOLLOWING REPAIRS.
Solution Pump Replacement
1. Turn off all switches and unplug machine.
2. Tilt machine back so bottom is exposed.
3. Remove the 6 screws that fasten the frame to the
solution tank.
4. Remove the solution hoses from the fittings on the
pump.
5. Reverse process to install.
Regulating Unloader
ONLY QUALIFIED MAINTENANCE PERSONNEL
ARE TO PERFORM THE FOLLOWING REPAIRS.
Unloader Replacement
1. Turn off all switches and unplug machine.
2. Tilt machine back so bottom is exposed.
3. Remove the 6 screws that fasten the frame to the
solution tank.
4. Remove the solution hoses from the fittings on the
pump.
5. Remove the unloader.
6. Reverse process to install.
86343680 AP 100-50 M
CAM & BEARING
PLUNGER & SEALS KIT
86201080
VALVE & O-RING KIT
(BOTH SIDES)
86201030
PUMP REPLACEMENT KITS
86311080
PRV NO. 250-25A
PRV NO. 250-73B
22
Maintenance
Periodic Maintenance
Twice a month, flush a white vinegar solution (one quart
vinegar to two gallons of water) or anti-browning
solution (mixed as directed) through the machine. This
will prevent build-up of alkaline residue in the system.
If spray jets become clogged, remove the spray tips,
wash them thoroughly, and blow dry.
NOTE: Do not use pins, wires, etc. to clean nozzles
as this could destroy the spray pattern.
Periodically inspect all hoses, electrical cables and
connections on your machine. Frayed or cracked
hoses should be repaired or replaced to eliminate
vacuum or solution pressure loss. The electrical cable
must be well insulated and cable connector screw kept
tight. If the cable insulation is broken or frayed, repair
or replace immediately. Don't take chances with elec-
trical fire or shock.
Daily/regular Maintenance
Before making any adjustments to the machine,
disconnect the power cord from the electrical source.
1. Empty unused cleaning solution from the solution
tank.
2. Inspect and clean filter screen in solution tank.
3. Flush pumping system with 4 to 7 liters of clean
water.
4. After each use, rinse tank with fresh water. Period-
ically inspect the recovery tank and decontaminate
if necessary, using a Hospital Grade Virucide or a
10-1 bleach to water solution. Waste water should
be disposed of properly.
5. Remove filter to clean. Filters used for wet pick-up
including striper must be thoroughly cleaned before
being allowed to dry.
6. Check spray jets for full spray pattern.
Service Schedule
DAILY WEEKLY QUARTERLY
Check machine for cord damage *
Check recovery dome and gasket for damage and cleanliness *
Check hoses for wear, blockages, or damage *
Check handles, switches, and knobs for damage *
Check vac motor intake filter and clean *
Run one gallon of water through system *
Clean out recovery tank and check float valve to make sure it moves
freely
*
Clean out solution tank and remove and clean vacuum intake screen *
Clean outside of all tanks and check for damage *
Run vac motor for at least one minute to allow motor to dry *
Store with dome off tank to allow the tank to dry *
Check all bearings for noise *
Check all gaskets for wear and leakage *
Check vacuum intake screen for damage; replace if necessary *
Check pump pressure; observe spray pattern and check with gauge if
necessary
*
Check and clean solution screen *
Check cables for fraying *
Check overall performance of machine *
Check vac motor carbon brushes *
86343680 AP 100-50 M
23
Maintenance
Trouble Shooting
PROBLEM CAUSE SOLUTION
Loss of Power
Dead electrical circuit Check building circuit breaker or fuse box
Faulty power cord Replace
GFI breaker is tripped Reset breaker on power cord
Electrical shock
Equipment not grounding Follow grounding instructions exactly
Receptacle not grounded Contact an electrician to check building’s wiring
Internal wiring problem
Have a trained service technician check machine’s
wiring
Vac motor speed varies or
doesn’t run
Worn motor brushes Replace
Motor worn out Replace
Faulty switch Replace
Loss of Vacuum
Loose vacuum dome Center and seal dome over tank
Vacuum circuit breaker tripped Reset breaker
Crack in dome of poor joint Replace or repair using acrylic plastic cement only
Lint or dirt clogging vacuum
screen
With power off, clean screen
Loose cuffs on vacuum hose Tighten cuffs turning counterclockwise
Vac motor seals leaking Replace
Floor tool vac chamber clogged Wash out with hose, Pick lint out with a wire
Vac motor, hose, or dome
gasket
Replace
Pump runs no solution
Pump inlet screen plugged Clean inlet screen
Pump circuit breaker tripped Reset breaker
Faulty pump switch Call for service
Faulty pump motor Call for service
Pump air locked
Press trigger to open valve on cleaning wand to
relieve air
Internal or external solution line
damaged and leaking
Replace
Pump runs, loss of pressure
Jet orifice on cleaning wand is
too large
Total jet opening for 100 psi should be .06 to .08
Internal pump components
wearing out
Replace, see pump kit components (pg 20)
Note: Operation of pump using a wand or hand tool with an orifice of less than .06
will cause pump to cavitate or pulsate and could result in premature wear of pump
components.
Check valves in pump head for
particles or cuts in seals
Take piston from BPR and lubricate with Super-
lube. If problem still exists change BPR kit
Pump will not run
Unit not plugged in Connect unit to 3 prong grounded outlet
Loose wiring See dealer
Solution hose fitting hard to
connect
Corrosion on fittings
Clean with steel wool. Soak in acetic acid (white
vinegar). Lubricate lightly with silicone base lubri-
cant.
86343680 AP 100-50 M
24 86343680 AP 100-50 M
Notes:
25
PARTS
86343680 AP 100-50 M
Parts
26

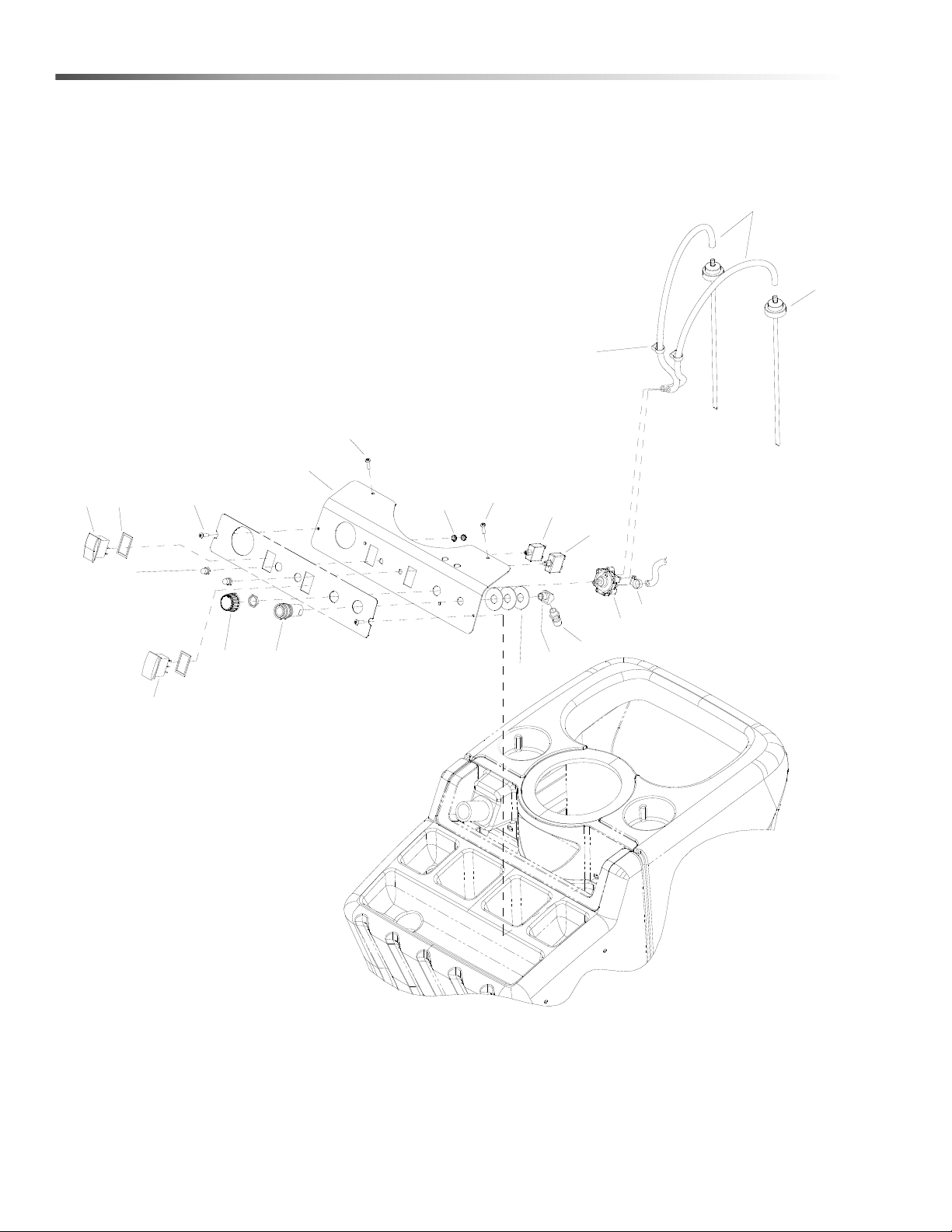

Control Panel
86343680 AP 100-50 M
1
2
5
7
8
9
10
11
11
13
3
4
14
15
1617
4
1
11
12
6
2786343680 AP 100-50 M
Control Panel
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86233090 20016 3 CLAMP, 1/4 ID HOSE
2 86282280 39634 2 HOSE, 1/4 ID NYLOCBRAID X 23"
3 86402500 270699 2 CAP CHEM FEED W/DIP TUBE, YLW
4 86258930 84187 1 VALVE, CHEMICAL METERING
5 86005700 57104 2 NUT, 10-32 W/STAR WASHER PLTD
6 86001940 14635 1 BREAKER, 10A CIRUIT
7 86215670 140839 1 BREAKER, 8A VDE CIRCUIT
8 86302400 - 1 QD, NIPPLE, FOSTER 25 MPB
9 86197390 31021 1 ELBOW, 1/4 NPT 45D STREET
10 86279560 87178 3 WASHER, 5/8 ID X 1.70 D 0.05T
11 86276290 70626 4 SCR, #10 X 3/4 PPHST HI-LO BLK
12 86297370 - 1 PANEL, SWITCH CONTROL
13 86002450 22015 1 COUPLER, 1/4 QD
14 86002010 14942 2 BOOT, 3/8 CIRCUIT BREAKER
15 86007200 72162 1 SWITCH, DPDT3-POSITION ROCKER
16 86238030 36235 2 GASKET, SWITCH CARLING
17 86007140 72130 1 SWITCH, SPST 2-POSITION ROCKER
28

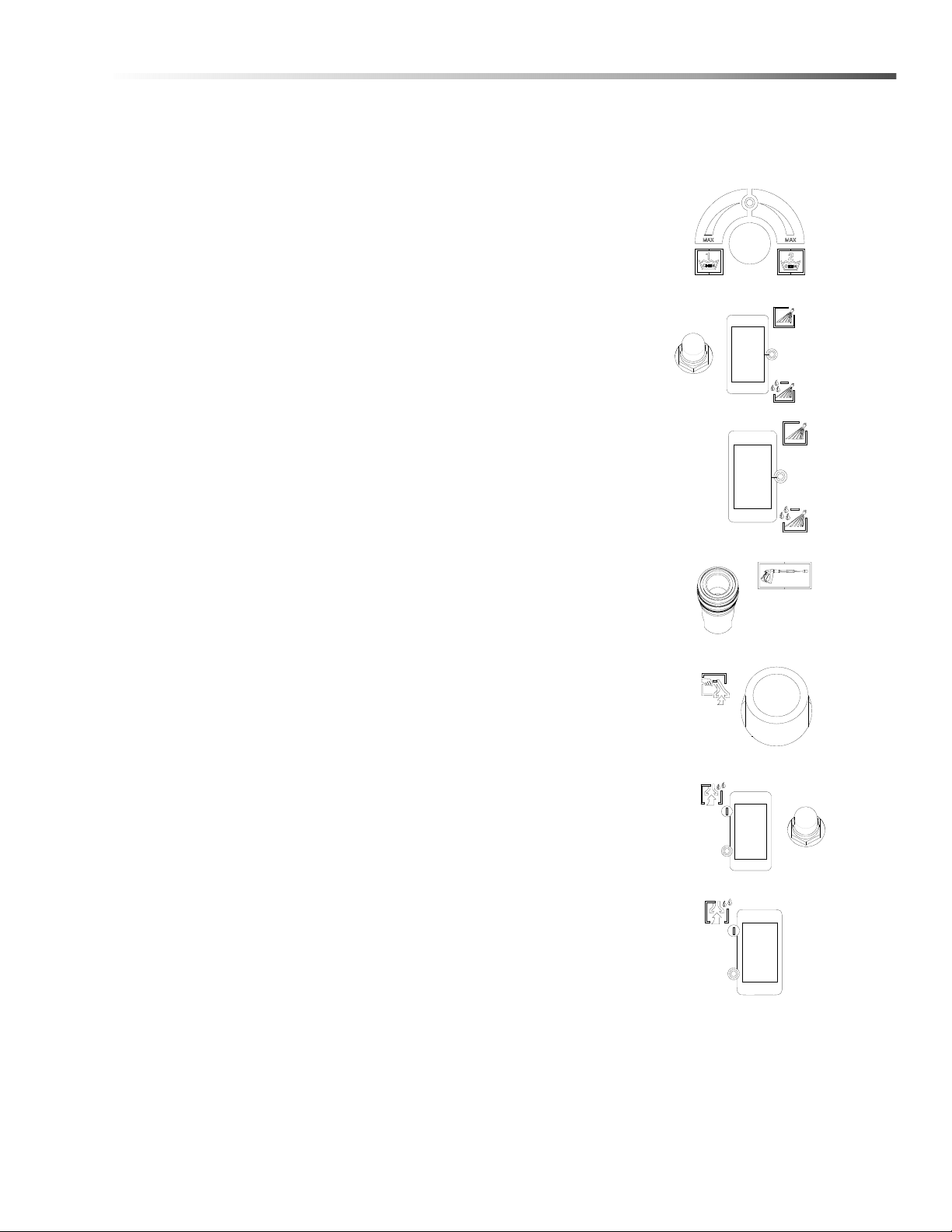

Decals
86343680 AP 100-50 M
1
3
3
4
5
2
6
7
2986343680 AP 100-50 M
Decals
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86396600 - 1 LABEL, COMPASS, CONTROL
2 86242230 500009 1 LABEL, WARNING EXPLOSION HAZ'D
3 86332740 - 2 LABEL, KARCHER PROFESSIONAL
4 86335160 - 1 LABEL, KARCHER FRONT
5 86305190 - 1 INSTRUCTION CARD
6 86002870 27417 1 CORD, 1/8" X 12"
7 87581700 - 1
LABEL QR CODE COMPASS AP
100/50 M-CA
30

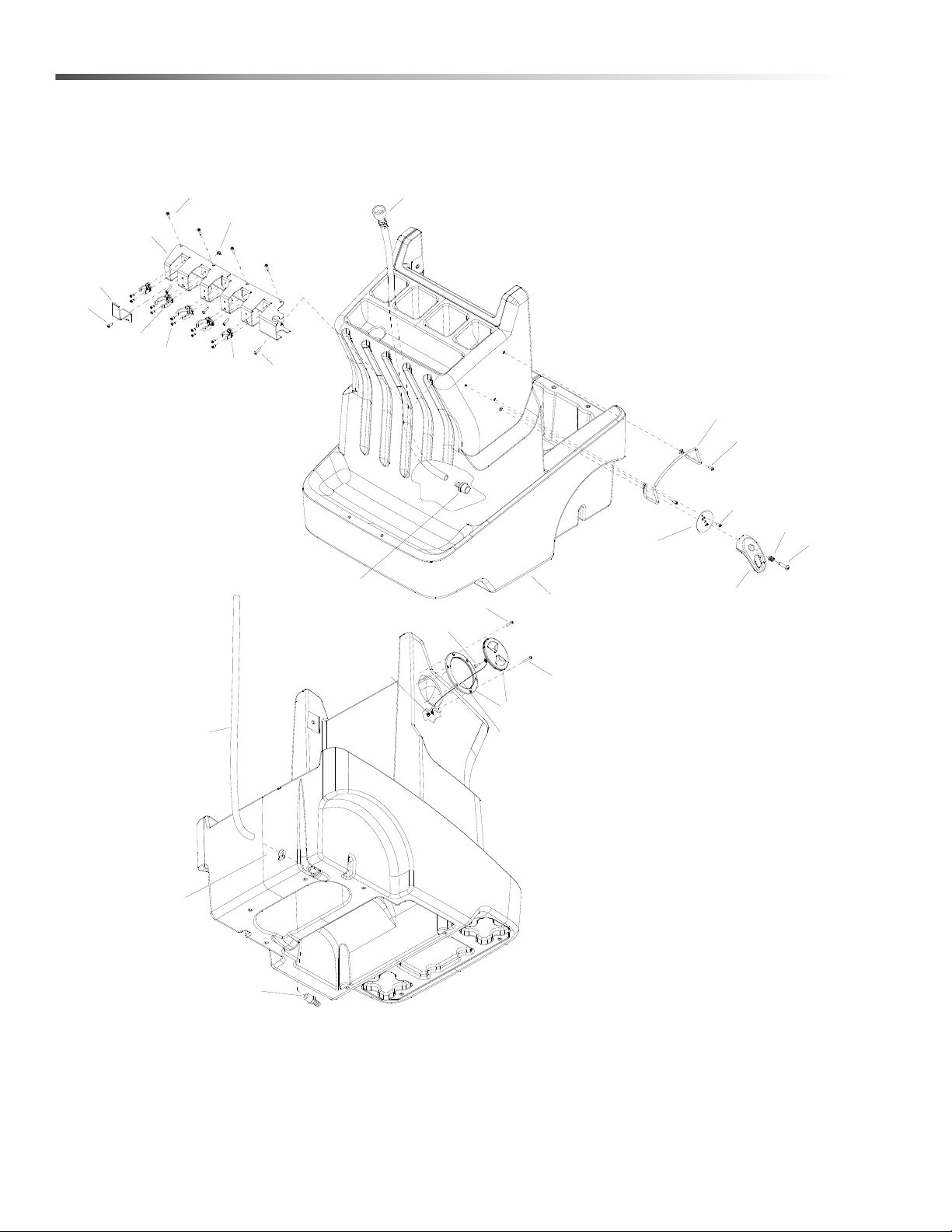

Solution Tank
86343680 AP 100-50 M
18
19
16
15
14
13
11
10
5
4
3
12
5
20
21
15
17
9
8
7
6
5
2
1
22
23
25
24
3186343680 AP 100-50 M
Solution Tank
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86275800 70546 5 SCR, 8 X 3/4 PFHT/S BLK ZINC
2 86334470 - 1 DECK, PLATE ASM, 4", YLW
3 86333450 - 1 TANK, SOL CMPS2K
4 86239680 41476 1 HOOK, HOSE STORAGE
5 86006950 70532 4 SCR, 10-32 X 1/2 PPHMS BLK NP
6 86224730 73939 1 SPRING, COMP, 12MM OD X 12.7MM
7 86276650 70707 1 SCR, 5/16-18 X 1.5 BSHCS SS
8 86335610 - 1 HOOK, UPPER, CORD YLW
9 86301030 - 1 PLATE, DETENT, CORD HOOK
10 86302130 - 2 CLIP, C 5/8, PLASTIC
11 86302090 - 10 SCR, 8-32 X 7/16 PFHTC "F" BLK
12 86002990 27744 3 CLIP, 1 1/2" PLASTIC
13 86301990 - 1 HOSE HOOK, HLDER, TOOL
14 86301980 - 1 HOLDER, TOOL
15 86276290 70626 8 SCR, #10 X 3/4 PPHST HI-LO BLK
16 86271680 57236 1 NUT, 10-32 HEX NYLOCK BLK
17 86197920 40023 1 HOSEBARB, 1/2MPT X 3/8 NYL DL
18 86260690 02130 1 HOSE ASM, FCT ADPTR X 60" NBRD
19 86302590 - 1 HOSE, CLEAR, 3/4 ID X 30"
20 86233300 20101 1 CLAMP, 1.25" WORM GEAR SS
21 86197910 40022 1 HOSEBARB, 1/2MPT X 1/2 POLY DL
22 86339990 - 1 SCR, 8-32 X 1.0, FHMS, PHLPS, SS, BLK
23 86277560 70866 1 SCR,#6X1/2 SHT MTL SS
24 86232790 27912 1 CHAIN, ASM, #10SS BD X 8"
25 86272020 57313 1 NUT, 8-32 HEX THIN NYLOCK SS
32

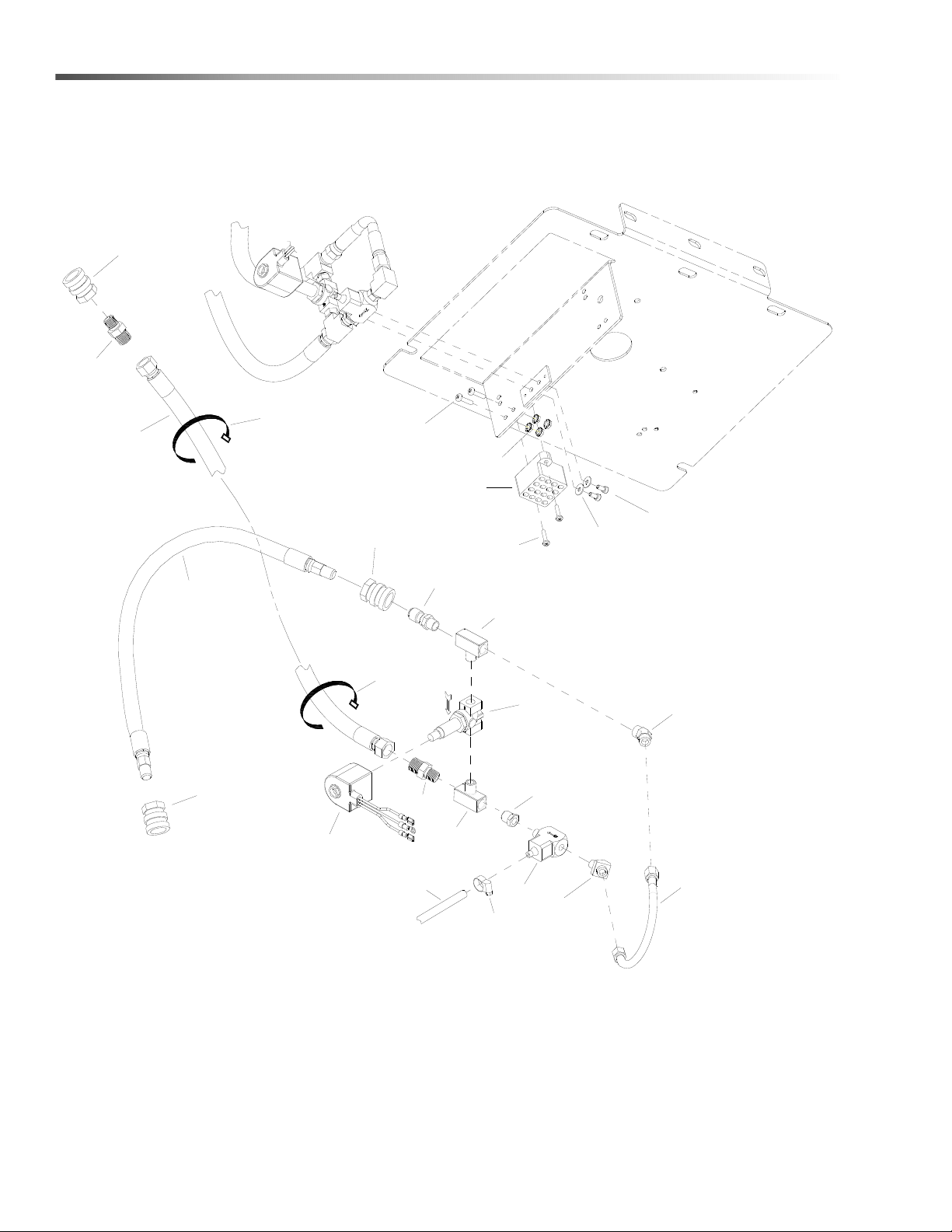

Solution Injector Assembly
86343680 AP 100-50 M
17
1
22
1
11
11
21
21
12
13
14
15
16
18
19
20
1
2
3
5
3
7
8
9
10
6
4
3386343680 AP 100-50 M
Solution Injector Assembly
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86302410 - 3 QD, COUPLER, FOSTER 25FS
2 86302570 - 1 HOSE, PULSE, 3/8F X 3/8F X 45"
3 86197730 78024 2 TEE, 1/4 BRANCH
4 86180460 12-800356 1 ELL,1/4PX1/4T 45DEG BR
5 86303760 - 1 VALVE, SOLENOID, 1/4F 700PSI
6 86303850 - 1 COIL, 115V, SOLENOID
7 86197300 14079 1 BUSHING, 1/8 FPT X 1/4 MPT HEX
8 86303770 - 1 INJECTOR KIT, DEMA, 200-3C
9 86180420 12-800261 1 ELL, 1/8P X 1/4T 45 DEG.
10 86327120 - 1 HOSE, 3/16 X 8 (1/4FT BS) MET
11 86188130 11-800151 2 NIPPLE, 3/8M X 1/4M
12 86006630 70171 2 SCR, 10-24 X 1/2 HHMS SS
13 86010650 87018 2 WASHER, #10 X 9/16 OD
14 86006490 70013 2 SCR, 8-32 X 3/4 PPHMS
15 86305200 - 1 TERMINAL BLOCK, 115/230V
16 86273980 70066 2 SCR, 10-32 X 3/4 PPHMS
17 86302400 - 1 QD, NIPPLE, FOSTER 25MPB
18 86005700 57104 4 NUT, 10-32 W/STAR WASHER PLTD
19 86233090 20016 1 CLAMP, 1/4 ID HOSE
20 86295830 - 1 HOSE, 1/4ID NYLOBRAID X 41"
21 86264940 27051 6 CABLE TIE, 11.38" UL/CSA
22 86302790 - 1
HOSE, PULSE, 1/4 MPLT X 1/4 MPLT
X 30"
34
Solution Pump Assembly
86343680 AP 100-50 M
2
16
18
17
19
20
3
4
20
1
5
6
7
8
9
10
11
12
13
14
9
12
12
15
3586343680 AP 100-50 M
Solution Pump Assembly
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL
NO. FROM
NOTES:
1 86302790 - 1 HOSE, PULSE, 1/4MSWL X 3/8NPT X 30"
2 86197610 40034 1 HOSEBARB, 3/8MPTX3/8 90D DL
3 86233090 20016 1 CLAMP, 1/4 ID HOSE
4 86302780 - 1 HOSE, BRAIDED, 3/8ID X 16" L
5 86302820 - 1 PUMP, PUMPTEC, 700PSI
6 86197540 40013 1 HOSEBARB, 3/8MPT X 1/2 DL
7 86190520 11-800224 4 PLUG, 3/8 SOCHD BR
8 86302770 - 1 HOSE, BRAIDED, 1/2 ID X 14" L
9 86197940 40027 2 HOSEBARB, 3/8MPTX1/2 90D DL
10 86305460 - 1 STRAINER, 3/8 FPT 80 MESH
11 86302760 - 1 HOSE, BRAIDED, 1/2 ID X 4-3/4" L
12 86233150 20042 3 CLAMP, 3/8 HOSE (D-SLOT)
13 86302720 - 1 MOTOR, 700PSI, 115/230 VOLT
14 86302730 - 1 UNLOADER, 800PSI, PUMPTEC
15 86264940 27051 5 CABLE TIE, 11.38" UL/CSA
16 86197380 31018 1 ELBOW, 3/8FPT X 1/4FPT
17 86005590 56014 1 NIPPLE, 1/4 CLOSE
18 86197370 31017 1 ELBOW, 1/4FPT X 1/4FPT
19 86302400 - 1 QD, NIPPLE, FOSTER 25MPB
20 86302410 - 2 QD, COUPLER, FOSTER 25FS
36

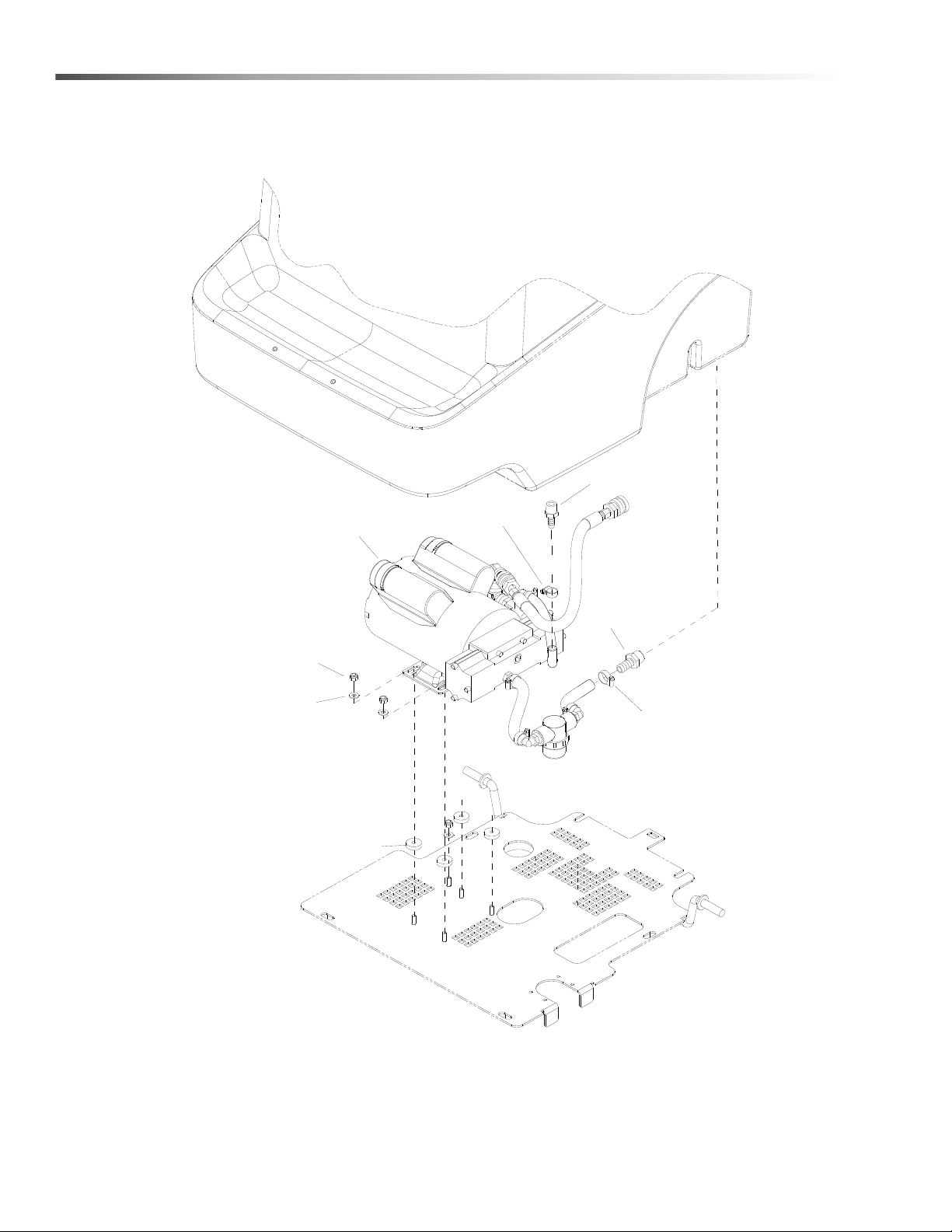

Solution Pump
86343680 AP 100-50 M
1
2
3
4
5
6
7
8
3786343680 AP 100-50 M
Solution Pump
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86240430 40083 1 HOSEBARB, 3/8 MPT X 3/8 NYLON
2 86233090 20016 1 CLAMP, 1/4 ID HOSE
3 86197910 40022 1 HOSEBARB, 1/2MPT X 1/2 POLY DL
4 86233150 20042 1 CLAMP, 3/8 HOSE (D-SLOT)
5 86010630 87013 5 WASHER, 1/4 ID X 5/8 OD SS
6 86005810 57245 5 NUT, 1/4-20 HEX NYLOCK SS
7 86302430 - 1 PUMP ASM, 700 PSI 115V COMPLETE
8 86423350 - 4
WASHER, 1/4" X 1" X 1/4",
FLT NPRN BLK
38
Recovery Tank
86343680 AP 100-50 M
2
1
1
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
17
18
19
20

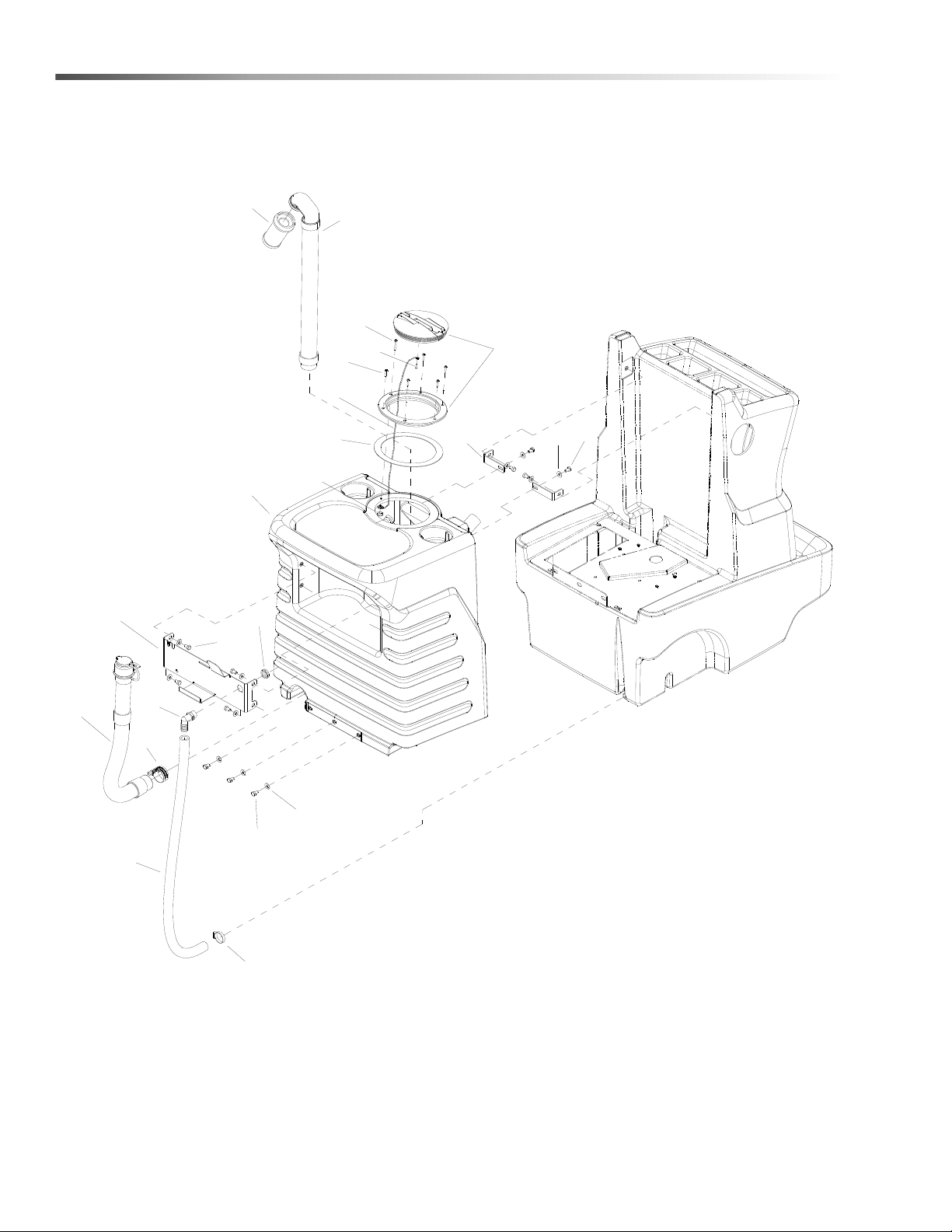

3986343680 AP 100-50 M
Recovery Tank
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86277040 70781 11 SCR, 5/16-18 X 1/2 HHCS SS NP
2 86010670 87029 11 WASHER, 5/16 FLAT SS
3 86070510 140659 1 BRKT, TANK MOUNT
4 86334490 - 1 DECK PLATE ASM, 6", YLW
5 86275800 70546 5 SCR, 8 X 3/4 PFHT/S BLK ZINC
6 86004000 35255 1 GASKET, TANK LID
7 86033250 66402 1 PIPE ASM, VACUUM STACK
8 86199840 090-12A 1 FLOAT SCREEN CAGE ASSY (SLIP)
9 86233110 20018 1 CLAMP, 1.0" WORM GEAR
10 86300350 - 1 TANK, REC BLK
11 86271850 57287 1 NUT, 1/2 NPT PLASTIC
12 86296560 - 1 BRACKET, UTILITY MOUNT, 2.0
13 86240790 82358 1 HOSEBARB, 1/2 MPT X 3/4 90D
14 86334700 - 1 DRAIN HOSE, CMPS, YLW
15 86177050 03-000176 1 CLAMP, HOSE #20
16 86302590 - 1 HOSE, CLEAR, 3/4ID X 34"
17 86277560 70866 1 SCR, #6 X 1/2 SHT MTL SS
18 86339990 - 1 SCR, 8-32 X 1.0, FHMS, PHLPS, SS, BLK
19 86232790 27912 1 CHAIN, ASM, #10SS BD X 8"
20 86272020 57313 1 NUT, 8-32 HEX THIN NYLOCK SS
40
Vacuum
86343680 AP 100-50 M
16
12
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
12
4186343680 AP 100-50 M
Vacuum
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86237870 35270 1 GASKET, 5.0 OD X 2.38 ID X .25T
2 86002380 20046 1 CLAMP, 2.25" WORM GEAR
3 86281180 39298 1 HOSE, 2.0 VAC EXHAUST X 17"
4 86240240 39697 1 HOSE, 3.15 ID X 7.0L VENT
5 86233260 20092 1 CLAMP, 3.5" WORM GEAR
6 86274980 70335 1 SCR, 10-32 X 1/2 PHTR GRN/GRND
7 86005810 57245 3 NUT, 1/4-20 HEX NYLOCK SS
8 86010640 87016 1 WASHER, #10 LOCK EXT STAR SS
9 86201970 065-92 3 VAC SPACER 2 1/4 (2 STAGE)
10 86003760 35166 1 GASKET, VAC MTR
11 86296140 - 1 COVER, VAC MOTOR
12 86010630 87013 9 WASHER, 1/4 ID X 5/8 OD SS
13 86007010 70663 3 SCR, 1/4-20 X 3 1/4 HHCS PLT
14 86010670 87029 5 WASHER, 5/16 FLAT SS
15 86277040 70781 5 SCR, 5/16-18 X 1/2 HHCS SS NP
16 86303840 - 1 VAC MTR, 120V 5.7 2 ST TD
- 86135320 140687 - BRUSH SET, 120V VAC
42
Wheels & Frame
4
5
6
7
5
12
13
9
3
8
5
10
11
1
2
14
11
86343680 AP 100-50 M
4386343680 AP 100-50 M
Wheels & Frame
* SEE SERIAL NUMBER PAGE
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86309790 - 2 WHEEL, 12" X 2.25" (1*)
2 86001660 - 2 HUBCAP, 5/8" SHAFT (1*)
3 86270830 57023 8 NUT, 5/16-18 HEX NYLOCK SS
4 86078800 620001 1 PLATE MOUNT CASTER
5 86010670 87029 16 WASHER, 5/16 FLAT SS
6 86276780 70728 4 SCR, 5/16-18 X 3/4 HHCS SS
7 86334680 - 2 CASTER, 6" DIA. 4.5 SWVL, YLW
8 86277040 70781 4 SCR, 5/16-18X1/2 HHCS SS NP
9 86413130 - 1 FRAME, PUMP/WHEEL MNT, CMPS2 (1*)
10 86323860 - 4 BUSHING FLANGED .501D X .630D
11 86300070 - 2 HUBCAP 9.75" WHEEL, BLACK
12 86323840 - 2 WHEEL, 12"
13 86271380 57196 2 NUT, 1/2 PUSH-IN DOME CAP
14 86296130 - 1 FRAME, PUMP/WHEEL MNT
44

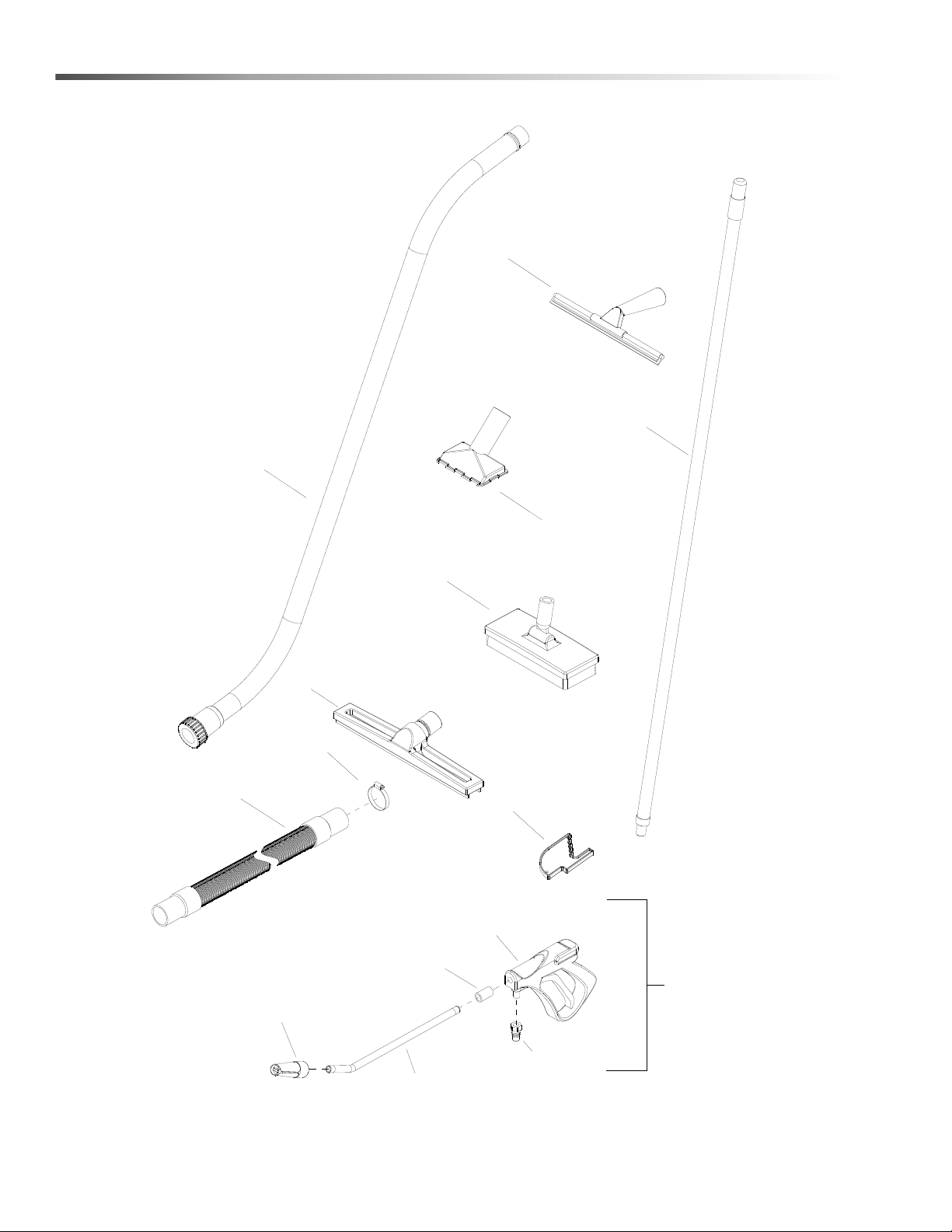

Tools - Standard
86343680 AP 100-50 M
5
6
4
3
1
2
19
16
17
13A
13B
8
9
10
7
11
4586343680 AP 100-50 M
Tools - Standard
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86257660 02478 1 TOOL, HAND SQUEEGEE
2 86257650 02477 1 TOOL, SCRUB BRUSH HANDLE
3 86257640 02475 1 TOOL, GULPER
4 86257670 02479 1 TOOL, TILE BRUSH
5 86257680 02480 1 TOOL, ALUMINUM WAND
6 86257620 02473 1 TOOL, WHEELED SQUEEGEE
7 86301890 - 1 LANCE, TUBE, 1/4", 14" LONG
8 86290390 - 1 GUN, PRESSURE WASH PMPTC
9 86301910 - 1 BUSHING, SPRAY GUN
10 86301920 - 1 NOZZLE, ADJUSTABLE, 027 JET
11 86005580 56012 1 NIPPLE, 1/4 FPT QD
12 86200350 39578 1 HOSE ASM, 1/4HP SLTN 25 FT NOT SHOWN
13A 86240180 39637 1 HOSE ASM, 1.5 X 30 FT, STRETCH STANDARD
13B 86240250 39703 1 HOSE ASM, 1.5 BLK VAC X 30' OPTIONAL
14 86202160 320-05 1 STRAP, VELCRO NOT SHOWN
15 86234200 23215 1 CORD SET, 14/3 X 50 FT GFCI YLW NOT SHOWN
16 86301880 - 1 SPRAY GUN COMPLETE
17 86002400 20064 1 CLAMP, 2.9" WORM GEAR X .312W
18 86241930 47419 - KIT, SQUEEGEE TOOL BLADES
19 86257690 02481 1 TOOL, DOOR WEDGE
46
Wiring Diagram
86343680 AP 100-50 M
BLK
WHT
GRN/YEL
POWER
CORD
CONNECTION
SOLENOID
VACUUM
MOTOR
PUMP
MOTOR
5 WIRE HARNESS
1 234
678
1211109
13 14 15 16
5
BLK
BLU
RED
ORG
WHT
WHT
WHT
GRN/YEL
GRN/YEL
BLK
WHT
BLK
GRN/YEL
ORG
BLU
RED
BLK
BLK
BLK
1
2
3
4
5
6
4
5
POWER
CORD
7
PUMP
SWITCH
PUMP
CIRCUIT
BREAKER
VACUUM
SWITCH
VACUUM
CIRCUIT
BREAKER
POWER
4786343680 AP 100-50 M
Wiring Diagram
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86305020 - 1 HARNESS, MAIN
2 86305060 - 1 CORD SET, 14/3 X 31
3 86308000 - 1 WIRE, 6" BLK/14 76050 X 76029
4 88305070 - 2 WIRE, 2", BLK/14 76050 X 76029
5 86268570 88401 2 WIRE, 3", BLK/14 76029X 76029
6 86268180 88184 1 WIRE, 8", GRN/18 76008 X 76008
7 86234200 23215 1 CORD SET, 14/3X50' GFCI YLW
48

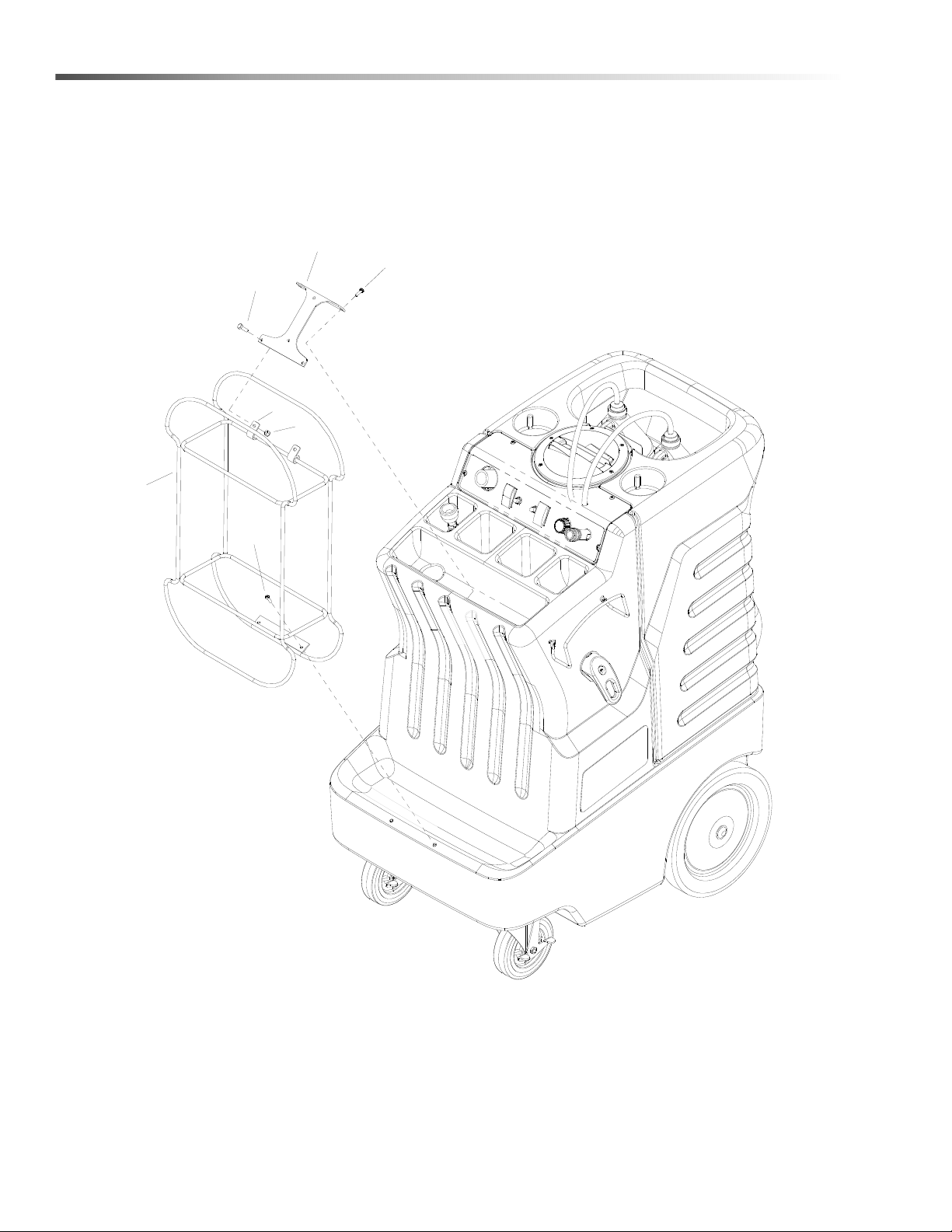

Vacuum Hose Rack - Option
86343680 AP 100-50 M
4
5
6
7
3
2
1
4986343680 AP 100-50 M
Vacuum Hose Rack - Option
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86240630 49499 1 HOSE RACK
2 86276600 70696 3 SCR, #10 X 3/4 PTHSMS SS
3 86006590 70088 2 SCR, 10-32 X 1/2 PPHMS SS NP
4 86275210 70384 2 SCR, 1/4-20 X ½ PHTR BLK DL
5 86270250 03-000133 2 CLAMP, 1/4X1/4 BLT VIN DP
6 86005680 57047 2 NUT, ¼-20 HEX NYLOCK
7 86068180 140710 1 BRACKET, TOP HOSE RACK
50

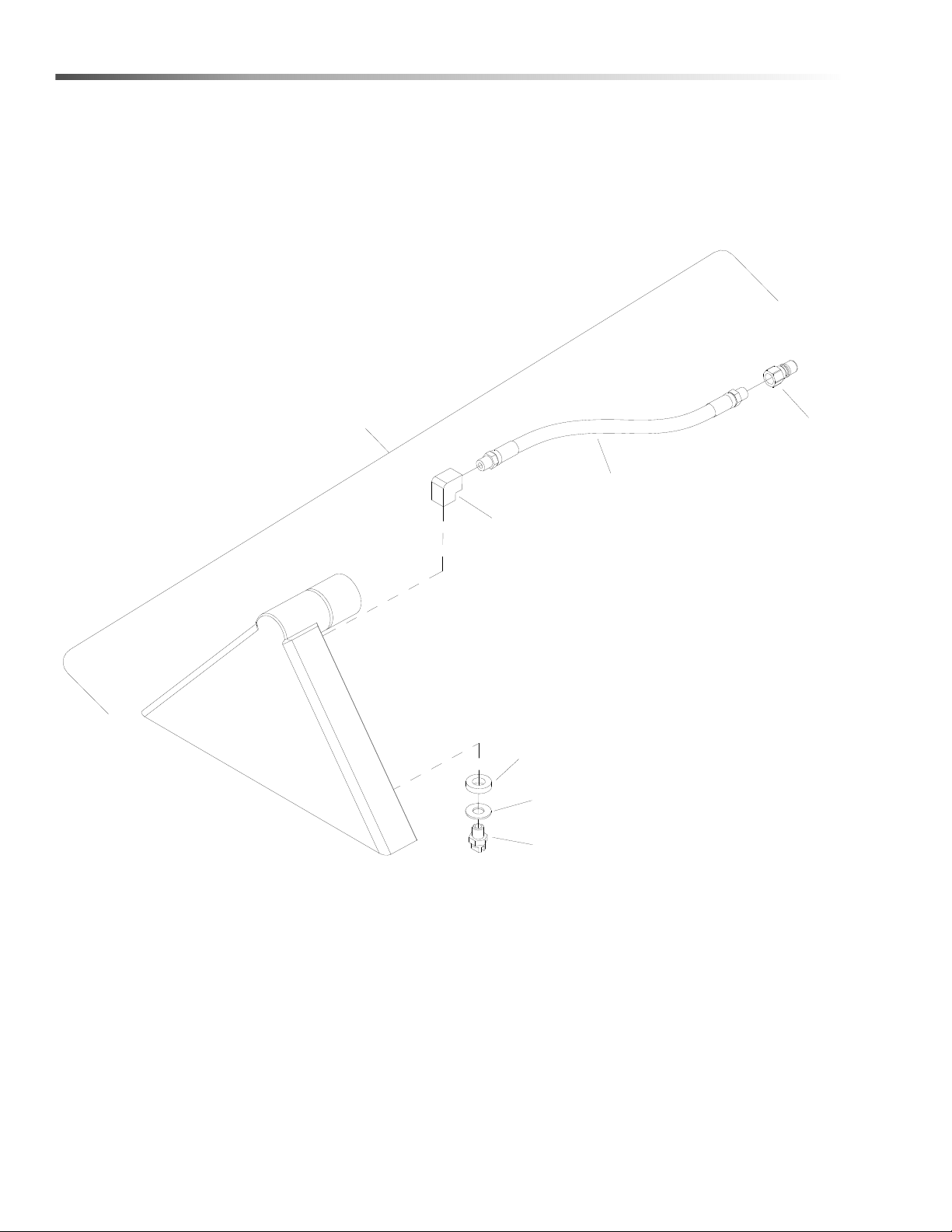

Tools - Grout Cleaner - Option
86343680 AP 100-50 M
5186343680 AP 100-50 M
Tools - Grout Cleaner - Option
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86200820 270-11A 1 NIPPLE, 1/8 FPT QD MALE BRASS
2 86247720 56032 1 NIPPLE, 1/8 CLOSE
3 86194160 11-800133 1 TEE, 1/8 BR
4 86240190 39639 2 HOSE, 1/8 MPT X 1/4 FPT X 12L
5 86090230 87015 4 WASHER, 9/16 ID X 1.06 OD SS
6 86241700 44079 2 JET, 1/4 MEG 15015
7 86006590 70088 4 SCR, 10-32 X 1/2 PPHMS SS NP
8 86088740 02476 1 TOOL, GROUT CLEANER
9 86308040 - 2 BRUSH, FLOOR TOOL
10 86270990 57090 4 NUT, 10-32 HEX NYLOCK SS
11 86308780 - 2 BRKT, BRUSH MOUNT
12 86006870 70406 4 SCREW #10B X 1/2 PHSM BLK
13 86000480 47431 REF KIT, GROUT CLEANER
52

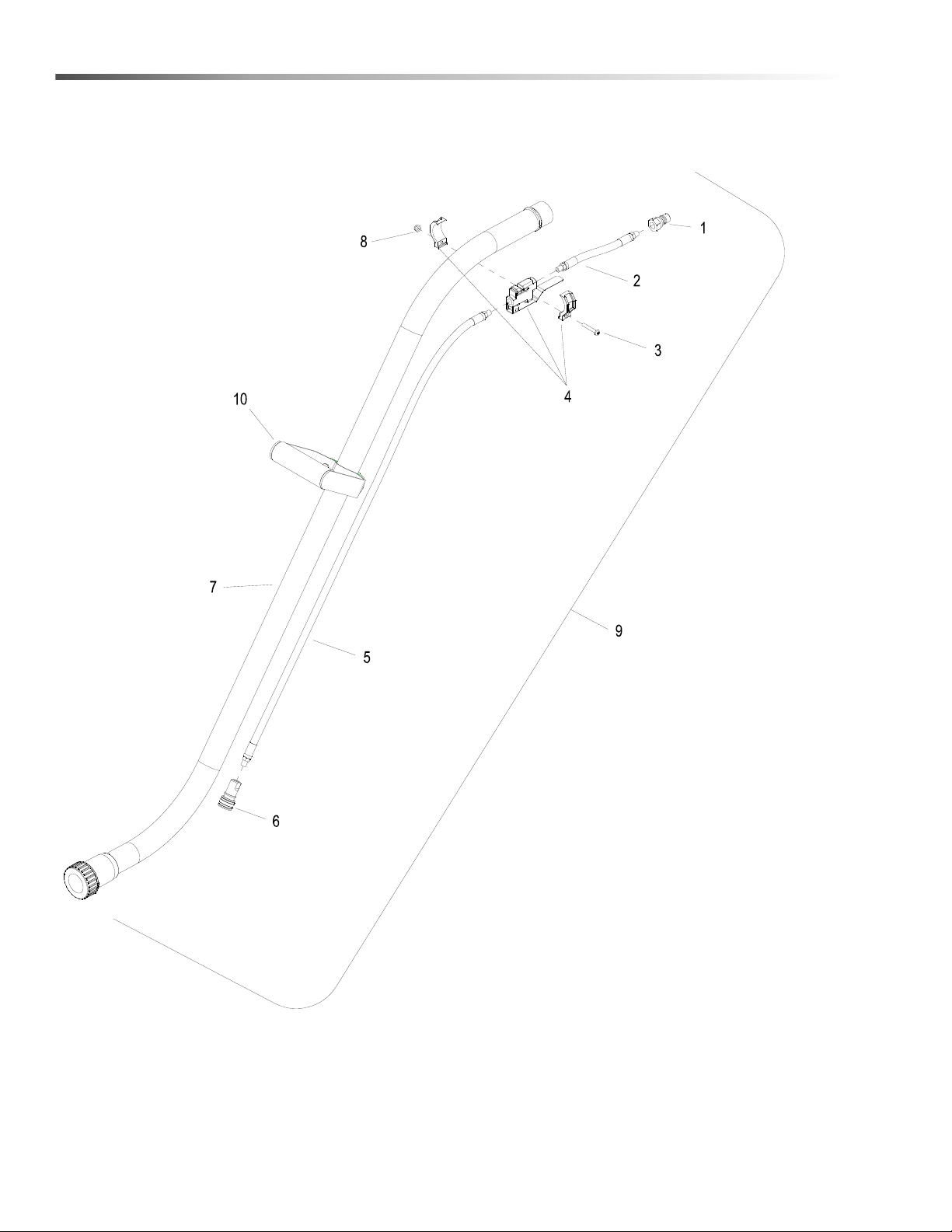

Tools - High Pressure Wand - Option
86343680 AP 100-50 M
5386343680 AP 100-50 M
Tools - High Pressure Wand - Option
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86005580 56012 1 NIPPLE, 1/4 FPT QD
2 86240210 39641 1 HOSE, 1/8 MPT X 1/4 MPT X 7 L
3 86274410 70195 1 SCR, 10-32 X 1.25 PPHMS SS
4 86258950 84189 1 VALVE, 500 PSI W/ CLAMP
5 86240200 39640 1 HOSE, 1/8 MPT X 1/8 MPT X 38L
6 86200810 270-11 1 NIPPLE, 1/8 FPT QD FEM BRASS
7 86257680 02480 1 TOOL, ALUMINUM WAND
8 86270990 57090 1 NUT, 10-32 HEX NYLOCK SS
9 86041300 47432 REF KIT, HIGH PRESSURE WAND COMPLETE
10 86135760 38109 1 HANDLE GRIP ASSEMBLY 1.5"T
54
Tools - Carpet Tool - Option
86343680 AP 100-50 M
7
6
5
4
3
2
1
5586343680 AP 100-50 M
Tools - Carpet Tool - Option
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86200820 270-11A 1 NIPPLE, 1/8 FPT QD MALE BRASS
2 86240220 39642 1 HOSE, 1/8 MPT X 1/8 MPT
3 86296220 - 1 ELBOW, 1/8 FPT
4 86305440 - 1 WASHER, .45ID X .87X .20THK NYL
5 86305450 - 1 WASHER, .40ID X .87OD X .060THK SST
6 86241710 44080 1 JET, 1/4 H-VV 11003
7 86284550 02484 - TOOL, CARPET CLEANER COMPLETE
56

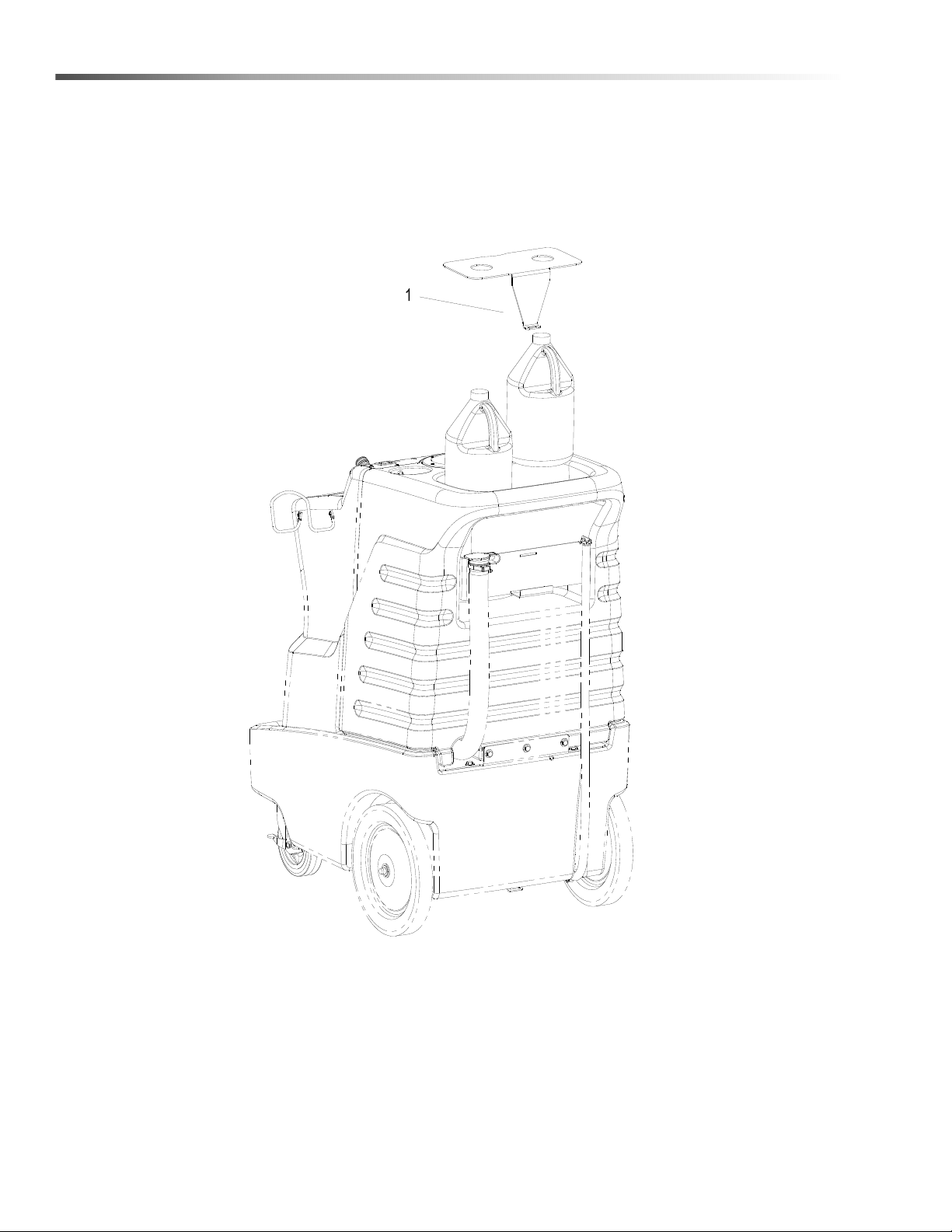

Chemical Lock - Option
86343680 AP 100-50 M
5786343680 AP 100-50 M
Chemical Lock - Option
REF PART NO. PRV NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES:
1 86070520 140660 1 BRKT, CHEMICAL LOCK
58
Suggested Spare Parts
PART NO. PRV NO. DESCRIPTION
SERIAL NO.
FROM
NOTES:
86241930 47419 KIT, SQUEEGEE TOOL BLADES
86305460 - STRAINER, 3/8FPT 80 MESH
86135320 140687 BRUSH SET, 120V VAC
86028720 53266 VAC MOTOR ASM, 115V W/ TERM
86002010 14942 BOOT, 3/8 CIRCUIT BREAKER
86215670 140839 BREAKER, 8A VDE CIRCUIT
86001940 14635 BREAKER, 10A CIRCUIT
86241930 47419 KIT, SQUEEGEE TOOL BLADES
86302720 - MOTOR, 700PSI, PUMPTEC
86302820 - PUMP, PUMPTEC, 115/230 VOLT
86301880 - SPRAY GUN
86301920 - NOZZLE, ADJUSTABLE, 027 JET
86343680 AP 100-50 M
59
Serial Numbers
REF.
NO.
MODEL: SERIAL #
1 10070800000036
86343680 AP 100-50 M
Rate your product and tell us your opinion.
Évaluer votre produit et dites-nous votre opinion.
www.kaercher.com/welcome
www.kaercher.com/dealersearch
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28-40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
DANKE!
THANK YOU!
MERCI!
GRACIAS!
!
Registrieren Sie Ihr Produkt und protieren Sie von vielen Vorteilen.
Register your product and benet from many advantages.
Enregistrez votre produit et bénécier de nombreux avantages.
Registre su producto y aproveche de muchas ventajas.
Bewerten Sie Ihr Produkt und sagen Sie uns ihre Meinung.
Reseñe su producto y díganos su opini
ó
n
