User Manual Amazon Basics GP8-BK Full-Size Ergonomic Wireless PC Mouse

Amazon Basics GP8-BK Full-Size Ergonomic Wireless PC Mouse - Use Manual - Use Guide PDF.
Documents: Go to download!

• Owner's manual - (English, French, Spanish, Chinese, Japanese)

Table of contents

• Parts List
• Set up
• Operation
• Federal Communication Commission Interference Statement
• IC Caution
• Intended Use
• Safety and Compliance
• Cleaning and Maintenance
• Specifications
• Disposal

Quick Start Guide for Mouse

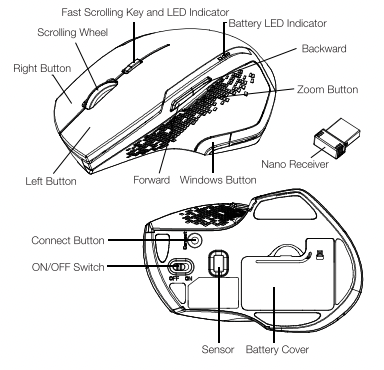

Parts List

Set up

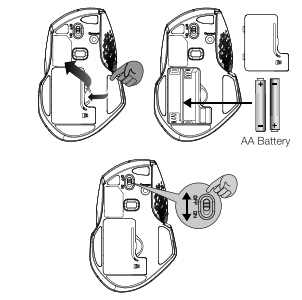

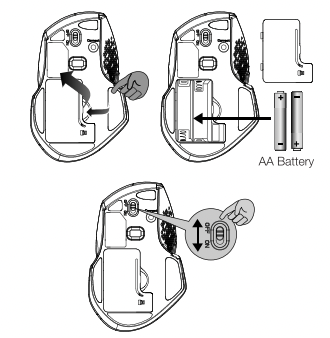

Installing the Batteries

• Remove the battery cover.

• Insert two AA batteries correctly with regard to polarity (+ and -) marked on the battery and the product.

• Place the cover back over the battery compartment.

• Slide the ON/OFF switch to ON to turn on the mouse.

Pairing

• Remove the battery cover, and take the nano receiver out.

• Plug the nano receiver into a USB port of your computer.

Note: If the mouse is not connected, proceed as follows:

1. Remove the nano receiver from the USB port and plug it back in.

2. Press the Connect button of the mouse.

Note: The LED indicator on the mouse flashes steadily when it is in pairing mode and stops blinking when it is successfully paired with the receiver.

Fast Scrolling Key and LED Indicator

LED is on for 3 sec.

Power ON

LED blinks for 10 sec.

During pairing (the LED goes off when pairing is successful or if no connection was established after 10 seconds.)

LED blinks for 10 sec.

Low battery warning

LED is on for 10 sec.

Fast scrolling activated

Battery LED indicator

When you switch on the mouse, all 3 LEDs will light up for 1 second. Right after that, the battery level will be displayed for approx. 4 seconds.

Operation

Controls

Forward

• Press this button to view the next page in your Internet browser.

Backward

• Press this button to view the previous page in your Internet browser.

Zoom

• Press this button and scroll the wheel to zoom in/out.

Windows

• Press this button to bring up the Windows Start Screen.

Scrolling Speed

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a ^ Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Radiation Exposure Statement:

The product complies with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

IC Caution

This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Intended Use

This product is a wireless computer peripheral intended for interacting with your computer.

Safety and Compliance

Read this instruction manual carefully before using the product. It contains important information for your safety as well as operating and maintenance advice. Observe all safety instructions to avoid damage through improper use! Follow all warnings on the product. Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included.

• Never use this product if damaged.

• Do not insert any foreign objects into the inside of the casing.

• Protect the product from extreme temperatures, hot surfaces, open flames, direct sunlight, water, high humidity, moisture, strong jolts, flammable gases, vapours and solvents.

• Keep this product and its packaging out of the reach of children and pets.

• Warning! Do not look directly at the LED light.

Battery Warnings

• Keep batteries out of the reach of children.

• Do not mix old and new batteries or batteries of different types or brands.

• Do not dispose of batteries in fire.

• Store unused batteries in their original packaging away from metal objects. If already unpacked, do not mix or jumble batteries.

• Remove batteries the from product if it is not to be used for an extended period of time unless it is for emergency purposes. Depleted batteries should be immediately removed from product and properly disposed.

• If the battery leaks, avoid contact with skin and eyes. Rinse affected areas immediately with plenty of clean water, then consult a doctor.

Cleaning and Maintenance

• Clean the product with a dry lint-free cloth. Do not allow any water or other liquids enter the product’s interior.

• Do not use abrasives, harsh cleaning solutions or hard brushes for cleaning.

• Clean the battery contacts and also those of the product prior to battery installation.

Specifications

Power Supply: 3 V (2 x 1.5 V AA battery)

Current consumption: 7 mA

Weight: 92.7 g (0.20 lbs)

Dimensions: 12.6 x 8.2 x 4.5 cm (5 x 3.2 x 1.7 in)

Encryption: AES128

OS compatibility: Windows 10/8/7

Transmission power: 1 mW

Frequency band: 2.4 GHz (2.402 GHz - 2.480 GHz)

Disposal

Each country should have its collection centers for electrical and electronic equipment recycling. For information about your recycling drop-off site, please contact your related electrical and electronic equipment waste management authority, your local city office, or your house hold waste disposal service.

Used batteries must not be disposed of with household waste since they may contain toxic elements and heavy metals that can be harmful to the environment and human health.
Consumers are therefore obligated to return batteries to retail or local collection facilities free of charge. Used batteries will be recycled.

They contain important raw materials such as iron, zinc, manganese or nickel.

See other models: AMZ-LFBCL-B CA023GMFTP005 K690 CH01-0201-150-2P-A11 KBLGOD-US
The crossed-out wheelie bin symbol indicates: Batteries and rechargeable batteries must not be disposed of with household waste.
