1
SPECTRUM
68 cm Decorative
Chimney Hood
User Manual for your Baumatic
SPECTRUM
68 cm Decorative Chimney Hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 13/05/13
2
3
Contents Page
Environmental note 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8
Product dimensions 8
Specifications 8
Optional extras 8
Using your Baumatic cooker hood 9 - 10
Before first use 9
To use your cooker hood 9
Setting the motor speed 10
The cooker hood lights 10
Cleaning your Baumatic cooker hood 11
Cleaning 11
The grease filter 11
Maintenance 12 - 15
Removing and cleaning the grease filter 12
Changing a light bulb 13
Fitting the carbon filters 14
Installation 15 - 23
Electrical connection 15 - 16
Before beginning installation 16
Fitting the glass 17

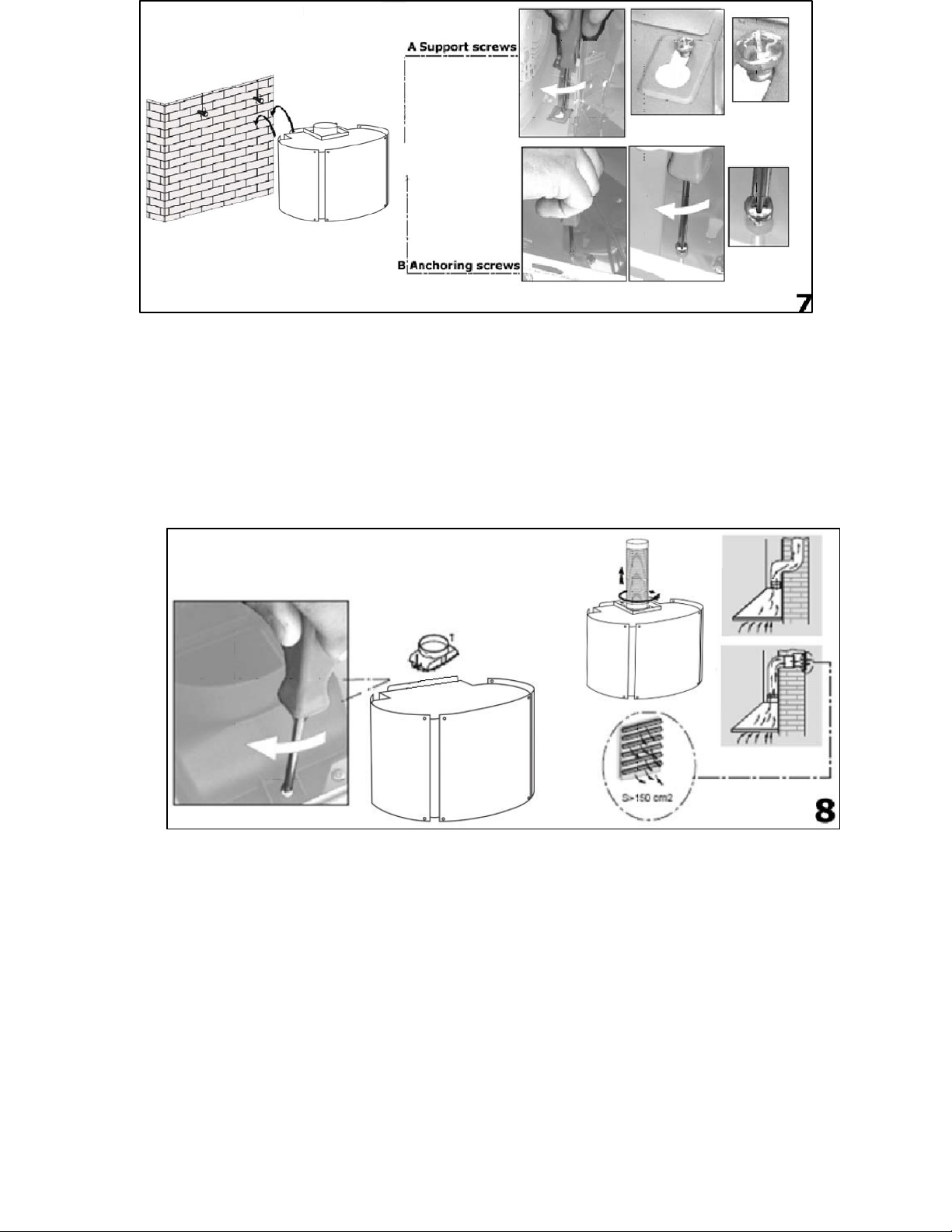

Installing your cooker hood 17 - 20
Connecting to external ducting 20

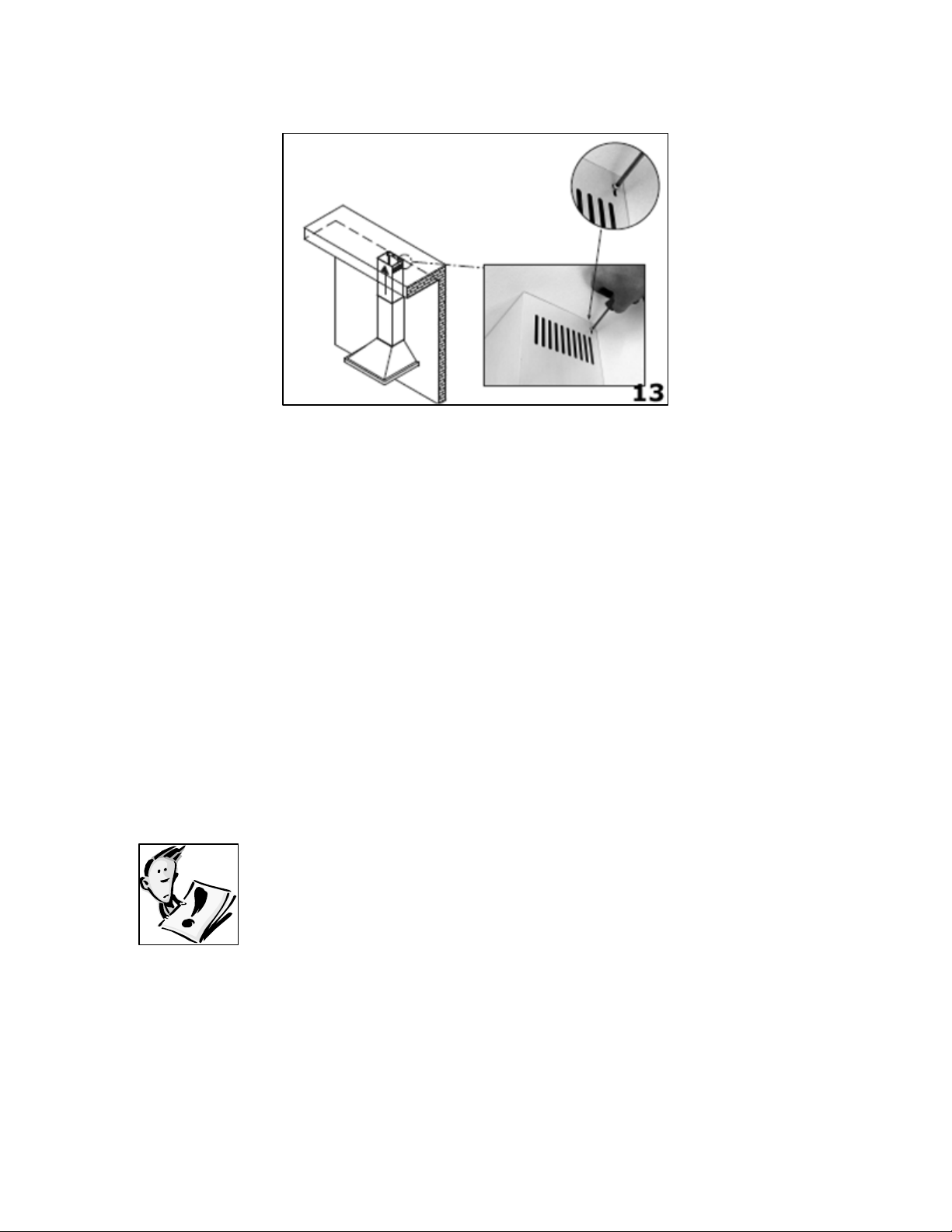

Fitting the optional chimney sections (CQ5SS) 21 - 23
Completing the installation 23
Extraction mode or recirculation mode? 24
Troubleshooting 24 – 25
Baumatic consumables 26
Contact details 27
ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
CONFORMITY TO W.E.E.E. DIRECTIVE
4
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Customer
Care Department.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
o The hood must be installed in accordance with the installation
instructions and all measurements followed.
o If the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
o It is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
o When installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
Electric cookers: 700 mm
Gas cookers: 700 mm
Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT
SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
5
o When installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
o The edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
o If the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
o If other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
o When the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
o Ensure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
o Keep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
o Your cooker hood is for domestic use only.
o Please dispose of the packing material carefully – children are
especially vulnerable to it.
o Dirty oil is an even greater fire risk.
o Always put lids on pots and pans when cooking
on a gas cooker.
6
o The manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.
o Remember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
o Note: Your cooker hood is designed to remove cooking
odours from the room and not steam.
o Warning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
o Do not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
o Do not install above a cooker with a high level grill.
o Never leave frying pans unattended during use
as overheated fats and oils might catch fire.
o The lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
o The cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. a naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
o Do not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
o Never flambé cook under this cooker hood.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
7
Specifications of your cooker hood
PRODUCT DIMENSIONS:
Height: 375 mm
Width: 680 mm
Depth: 470 mm
Your cooker hood is fitted with:
o Electronic pushbutton control operation
o 3 Speeds
o 1 Washable aluminium grease filter
o 2 LED lights
o Perimeter extraction
o Ambient lighting
o Extraction or recirculation
o Non return air flow flap
Extraction capacity: 750 m³/hr
Noise level:
49 / 55 / 60 dB
Optional extras:
o Carbon filter for recirculation (1 x pair S1)
o CQ5SS Decorative chimney section
8
Using your Baumatic cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE COOKER HOOD IS USED FOR THE FIRST
TIME.
o You should use a good quality stainless steel cleaner and polish
on ALL of the stainless steel areas of your cooker hood, before it
is used for the first time.
o This will help to leave a silicone water-resistant film to protect
the stainless steel surfaces.
To use your cooker hood
Before operating the hood, make sure that it has been installed by a
suitably qualified person, as per the information contained in
Baumatic’s installation instructions.

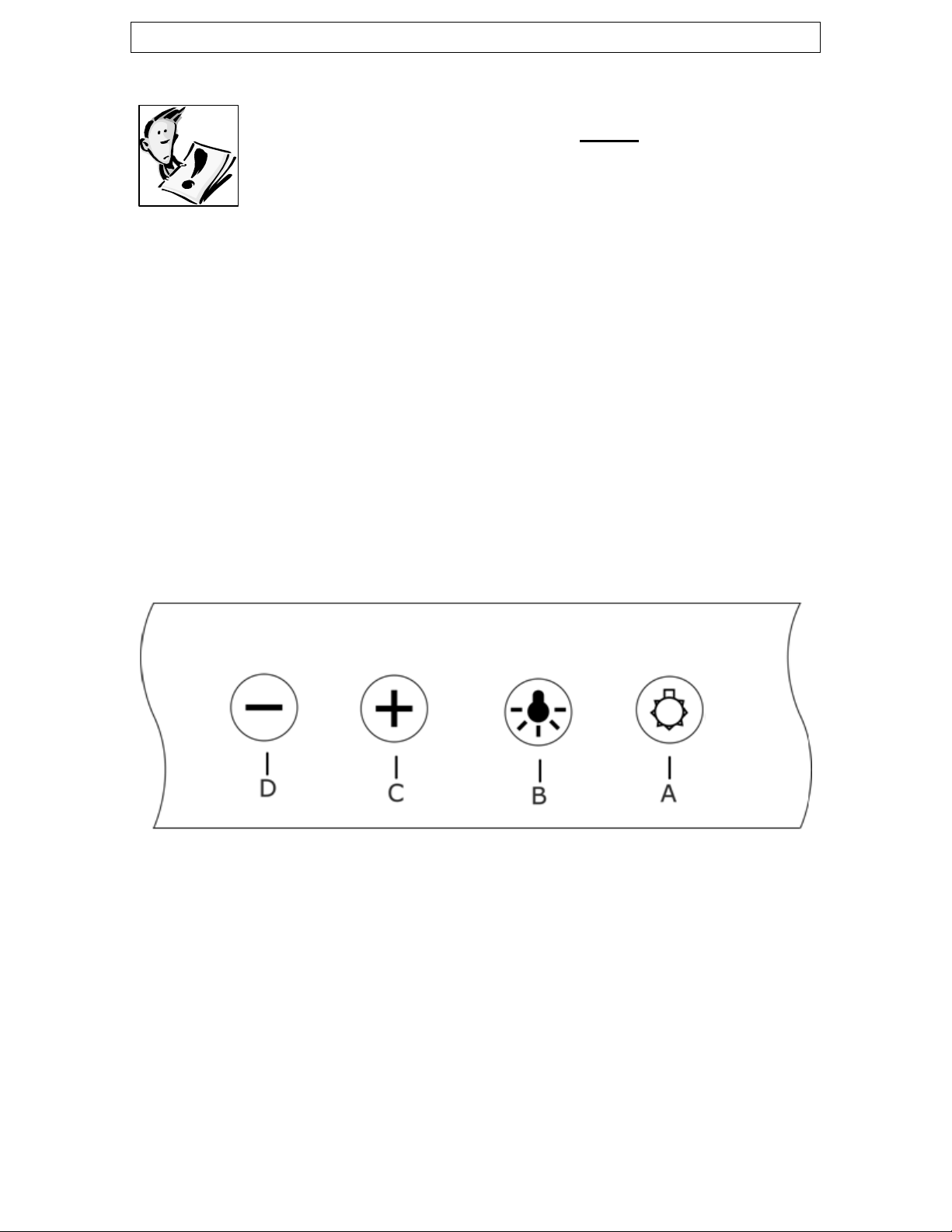

o Find the control panel, which is located under the front of the
canopy.
o There are several buttons on the control panel, which perform
separate functions.
) Light control button
) Ambient light button
) Speed increase button
) Speed decrease button
A
B
C
D
9
10
etting the motor speed
Press the speed increase button to switch the hood on.
o The motor has three speeds, low, medium and high.
e and decrease buttons to choose
an appropriate motor speed.
minus button once when
the motor is set at the lowest speed.
TEN MINUTES AFTER YOU HAVE FINISHED COOKING.
he cooker hood lights
an be switched on and off by pressing the
light control button.
ach press of this button will change the colour of
ambient light.
light will cycle through the various colours
automatically.
light button once to set the current colour
manually again.
should not be used as a
eparate light source for the room.
S
o
o You can use the speed increas
o To turn the cooker hood off press the
IMPORTANT: IDEALLY YOU SHOULD SWITCH ON
YOUR HOOD TEN MINUTES BEFORE YOU START TO
COOK, OR AT THE VERY LEAST WHEN YOU BEGIN
COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR
T
o The two LED lights c
o Press the ambient light button to switch on the coloured LED
ambient light. E
o If you press and hold the ambient light button for about 3
seconds, the
o When the ambient light is showing the desired colour, you can
press the ambient
IMPORTANT: The lights should only be turned on when the
cooker hood is in use. The lights
s
11
leaning your Baumatic cooker hood C
IMPORTANT: BEFORE CLEANING, ALWAYS
ENSURE THAT YOU HAVE SWITCHED YOUR
COOKER HOOD OFF
AT THE OMNI-POLAR
WITCH, SET AT THE WALL FROM THE CABLE.
cooker hood with mild liquid
ease filter grill with mild liquid
nd polish
e carbon filter”). A build up of grease
he grease filter
S
Cleaning
Clean the external parts of youro
detergent and a new damp cloth.
o Never use abrasive powder, corrosive solvents or brushes.
o Never insert pointed objects into the motor’s protective grid.
o Only clean the control panel and gr
detergents and a new damp cloth.
o You should use a good quality stainless steel cleaner a
on ALL of the stainless steel areas of your cooker hood
o If you are using the appliance in recirculation mode, then be
sure to replace the carbon filters at the recommended intervals
(see section on “Fitting th
could cause a fire hazard.
o Never attempt to clean the area above the grease filter.
T
o Your cooker hood is fitted with a grease filter, which helps to
absorb grease particles and protect your kitchen and furniture
mable if you allow it to
a month, using hot water and normal washing-up
o DO NOT WASH THE GREASE FILTER IN A DISHWASHER.
from greasy residues.
o The aluminium filter may become inflam
get saturated with this greasy residue.
o To prevent this fire hazard, the filter should be cleaned regularly.
Depending on use, this should be done every 10-15 days or at
least once
detergent.
12
aintenance M

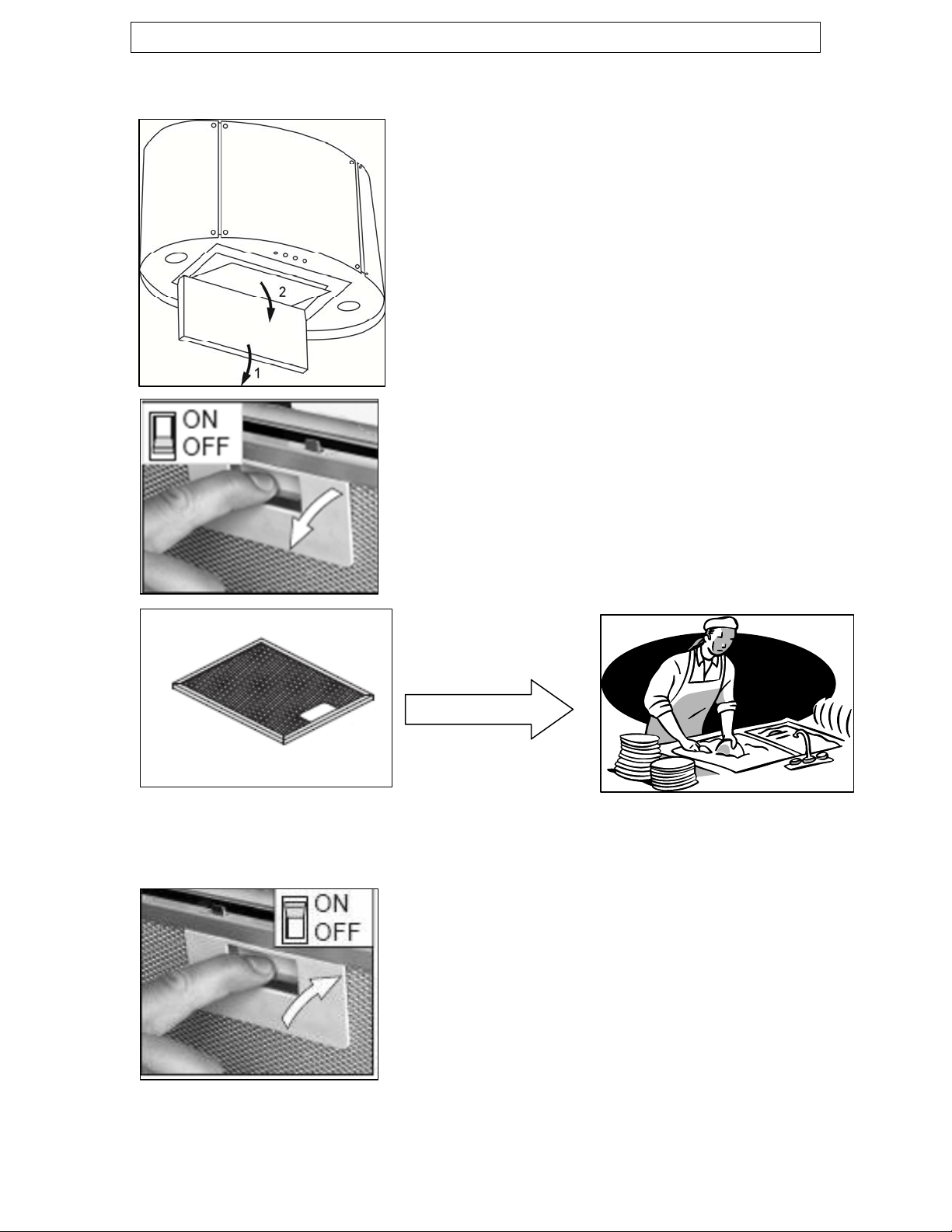

Removing and cleaning the grease filter
o Open the cover (1) that sits over t
grease filter (as sho
he
wn in the line
drawing opposite).
pulling it away from the cooker hood.
at
build up is severe).
he grease filter once it has
r that sits over the
lter dry thoroughly before
cooker hood.
o Remove the grease filter (2) by
pulling down on the handle and
o Soak the grease filter in hot water and washing up liquid for
least 5 minutes (or longer if the grease
o Rinse it off thoroughly with hot water.
o Repeat the process if required.
o Refit t
dried.
o Close the cove
grease filter.
IMPORTANT: Let the grease fio
refitting it in the
13

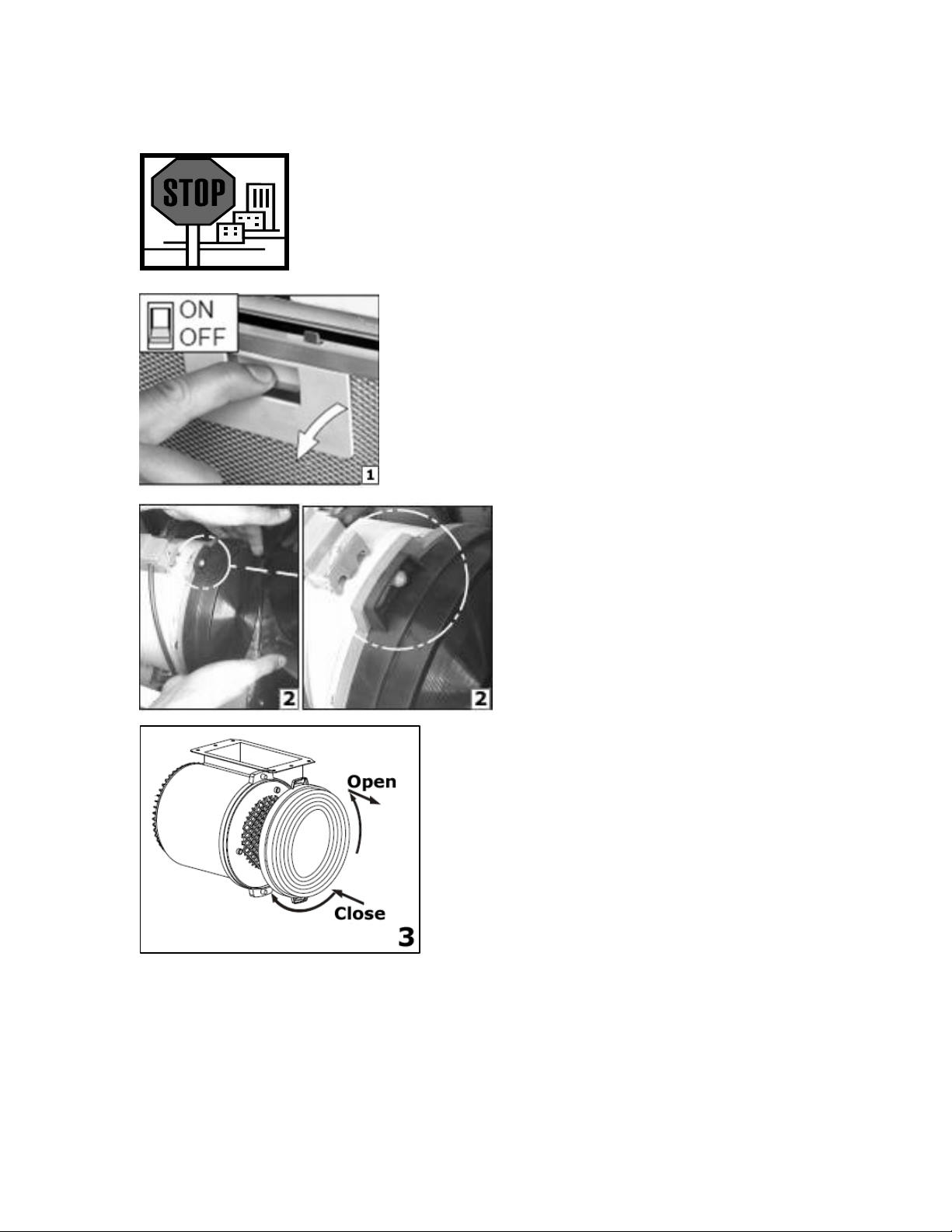

G TO CHANGE A
U MUST ENSURE THAT YOU HAVE
DISCONNECTED THE COOKER HOOD FROM YOUR
led down.
re changing the bulb.
It is not possible to replace the bulbs individually,
it will be necessary to obtain the bulbs, bulb holders and wiring
wiring in the same
manner as the originals.
o Reconnect the light wiring connection point.
o If the light or lights still do not work, make sure that the lamps
housings before you call for
technical assistance.
o Refit the glass to the appliance.
Changing a light bulb
IMPORTANT: BEFORE ATTEMPTIN
LIGHT BULB, YO
MAINS SUPPLY.
o Prior to touching the light bulbs ensure they are coo
o First unscrew the 4 screws securing the glass panel on the side
of the appliance where you a
o Disconnect the light wiring connection point and push/pull the
light out of the light fitting.
o IMPORTANT:
as a complete part. This is available from our Spares
Department.
o Fit the replacement bulbs, bulb holders and
o IMPORTANT: Defective bulbs should be replaced immediately.
are fitted properly into their
14
ce is to be used in recirculation mode then it is necessary
to fit carbon filters. This will help to absorb unpleasant odours caused
UST
COOKER HOOD FROM YOUR MAINS SUPPLY.
) Open the cover and remove the grease
ilter as previously described.
on filter over
he pins that are located at the
nd of the motor.
) Turn the carbon filter anticlockwise,
filter. You need to
place a carbon filter at either end
of the motor.
The carbon filters should be replaced every 3 - 6 months or if
they show signs of damage.
Fitting the carbon filters
If the applian
by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU M
ENSURE THAT YOU HAVE DISCONNECTED THE
1
f
2) Hook the carb
t
e
3
until you feel it click into place.
o Repeat this process for the
second carbon
o Refit the grease filters.
o
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and freq me. The rating
e all the accident prevention regulations in force,
r normal use and the regular operation of the
l connection, using an omni-polar switch with a contact
RTHED. It should only
uency in your ho
plate can be found behind the grease filter.
15
The manufacturer declines all responsibility in the event of the installer
failing to observ
which are necessary fo
electric system.
Electrical connection
YOUR COOKER HOOD IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
o The cooker hood’s power cable must be fitted upstream from the
electrica
distance of at least 3 mm. THE FUSE MUST BE RATED AT 3
AMPS.
WARNING: THIS APPLIANCE MUST BE EA
be connected by a competent person, using fixed wiring via a double
pole switched fused spur outlet. (UK ONLY).
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
ith
colou
as follows:
w the I.E.E. and local regulations. The wires in the mains lead are
red in accordance with the following UK code:
Blue = Neutral, Brown = Live, Green/Yellow = Ground
If you only find two wires in the main’s lead (blue and brown),
then neither must be connected to the earth terminal.
As the colours of the wires in the appliano ce’s mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed
16
The blue wire must be connected to the terminal marked “N”
The brown wire must be connected to the terminal marked “L”
If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
Carry out all necessary masonry work prior to the fitting of the
Ensure that all electrical connections are carried out by a suitably
Before commencing installation of the cooker hood the grease filter
packaging or any other materials, such as packets of screws,
tective covering
should be placed over the worktop, hob top or cooker. This will help
for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood parts
erials, in accordance with the type of wall and
ceiling. The wall and ceiling must be strong enough to take the
Do not tile, grout or silicone this appliance to the wall. This
appliance is designed to be surface mounted only.
o
(neutral), or coloured black.
o
(live), or coloured red.
Before beginning installation
o Check that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted.
outside.
o
cooker hood.
o
qualified person.
o
should be removed.
o Check inside the product and ensure that there is no transit
guarantees etc. These should be removed and kept for future use.
o If possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
ceiling. If this is not possible, then a thick, pro
to protect these surfaces from damage and debris.
o Select a flat surface
and fittings on to it.
o Rawl plugs are provided to secure the hood to most types of walls
and ceilings. However a qualified technician must verify the
suitability of the mat
weight of the hood.
o
17
itting the glass
o The glass can be attached to the cooker hood using the four
in the picture above.
Installing y
RE
R TO USE
TURN TO PAGE 24 NOW TO
UNDERSTAND THE DIFFERENCES BETWEEN THESE
.
e
o the shape of the SPECTRUM. However the
installation method shown is correct and MUST be
followed.
SHOULD BE CONNECTED TO
F
provided screws as shown
our cooker hood
IMPORTANT: YOU WILL HAVE TO DECIDE BEFO
INSTALLING YOUR COOKER HOOD WHETHE
IT IN EXTRACTION MODE OR RECIRCULATION
MODE. PLEASE
TWO MODES.
o We recommend that at least two people install this hood
o Please note that the styles of cooker hood shown in th
line drawings in the following pages are sometimes
different t
IMPORTANT: YOUR COOKER HOOD
YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION
PROCESS HAS BEEN COMPLETED.
18
tall
illed (as
hown in the figure
pposite).
2a) The support screw holes are indicated by figure A in this drawing
and the anchoring screw hole B.
1) Remove the metal grease filter.
2) Position the
hood against the
wall that you are
intending to ins
it on and mark the
position of the
support holes that
are to be dr
s
o
s are indicated by figure
19
3) Using a drill bit with an 8 mm
diameter, make holes in the wall on the
positions that you have marked in step
2.
4) Insert rawl plugs into all of the holes that you have drilled.
5) Fasten the support screws halfway in, le
the wall.
aving them 10 mm out of
6) Hang the hood onto the
upport screws.
s
7) Fully tighten the support screws (A) and then screw the anchoring
screws (B) through the relevant holes in the cooker hood. Fully
tighten the anchoring screws into the wall.
Connecting to external ducting
8) Connect the coupling to the top of the cooker hood, and then
connect a 125 mm ducting hose to the coupling (please note that the
ducting hose is not supplied with the appliance).
o The other end of the ducting hose should be connected to a
discharge outlet that is suitable for cooking vapours. It should
have a cross section of at least 150 cm².
o The maximum distance between the coupling and your discharge
outlet should be 3 metres, with one 90 degree bend. For each
additional 90 degree bend, the maximum distance is reduced by
a further metre.
20
Fitting the optional chimney sections (CQ5SS)
9) Take the two chimney sections
(C) and (D).
o Rest the bottom of chimney
section (C) on the top of the
hood. You should take care to
position the tabs on the
chimney section into the rear
of the hood.
o Mark the side measurement of
both sides of chimney section
(C) on the wall with a pencil.
10) Lift chimney section (D) upwards until it reaches the ceiling. You
must ensure that it is perpendicular to the hood.
o Mark the side measurements of both sides of chimney section (D)
on the wall with a pencil and then remove chimney section (D).
21
11) Take the flat bracket (E) and place it between the two pencil
marks that you made in step 9
o Keeping the bracket in contact with the wall, use a pencil to mark
on the wall the anchoring holes that are cut out of the bracket.
12) Using an 8 mm drill bit, drill out two holes on the pencil markings
that you made in step 11. Insert rawl plugs into the holes and then
use a screwdriver to secure the fixing bracket to the wall.
o Refit chimney section (C) to the hood and fix it onto the hood using
the two screws that are supplied.
o Secure the top of chimney section (C) to the flat bracket, using the
screws provided.
22
o Slide chimney section (D) inside of chimney section (C). Then
secure the L shaped bracket to the wall, using the same method
as you have just used to secure the lower bracket.
13) Lift chimney section (D) up to the ceiling and secure it to the L
shaped bracket using the screws provided.
Completing the installation
If you are setting the appliance to recirculation mode, then you should
now fit the two carbon filters. See the “Fitting the carbon filters”
section on page 14 - 15.
The electrical connection must correspond to the electrical requirement
noted on the rating plate, which is placed inside the cooker hood. The
appliance should now be connected to the electrical supply. See page
15 - 16 for detailed information on the electrical connection.
Use a stainless steel cleaner on the stainless steel sections of the
appliance.
Refit the grease filter and then switch on the mains supply
to the appliance. Check that the appliance is operating
correctly by selecting each speed and switching the light
bulbs on and off.
23
Extraction mode or recirculation mode?
What is the difference between extraction and recirculation
modes?
o To get optimum performance from your cooker, the air will be
taken out of the room via external ducting.
o Unfortunately if you live in a flat or the hood is too far from an
outside wall, this may not be possible. The only alternative is to
recirculate the air.
o In recirculation mode stale air is taken via the grease filter, and
passed through a charcoal filter for purification. The air then re-
enters the kitchen via an opening in the hood.
What is a charcoal filter and do I need one?
o All cooker hoods have grease filters but if you are using your
cooker hood in recirculation mode, then charcoal filters must be
fitted in addition to the grease filters.
Troubleshooting
IMPORTANT: If your cooker hood appears not to be operating
properly, before contacting the Baumatic Customer Care
Department, please refer to the checklist below.
My cooker hood will not start.
o Check that the hood is connected to the electricity supply
o Check that the fan speed control is set correctly.
My cooker hood is not working effectively.
o The fan speed is not set high enough
o The grease filter is dirty and requires cleaning.
o The kitchen is not well ventilated enough.
o If the hood is set up for recirculation mode, check that the
carbon filters do not need replacing.
o If the hood is set up for extraction mode, check that the ducting
hose and discharge outlet are not blocked.
24
My cooker hood has switched off during operation.
o The safety cut-out device has been tripped.
o Turn off the hob and then wait for the safety cut-out device to
reset.
o IMPORTANT: If you have installed your cooker hood too low,
the safety cut-out device will frequently trip. Your cooker hood
may become damaged if the safety cut-out device is tripped
frequently.
IMPORTANT: If your appliance appears not to be
operating correctly, then you should disconnect it
from your mains supply and then contact Baumatic
Customer Care on telephone number (0118) 933
6911.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
Please note that if an engineer is asked to attend whilst the product is
under guarantee and finds that the problem is not the result of an
appliance fault, then you may be liable for the cost of the call out
charge.
The appliance must be accessible for the engineer to perform
any necessary repair. If your appliance is installed in such a
way that an engineer is concerned that damage will be caused
to the appliance or your kitchen, then they will not complete a
repair.
This includes situations where appliances have been tiled in,
sealed in with sealant, have wooden obstructions placed in
front of the appliance, like plinths. Or any installation other
than the one specified by Baumatic Ltd. has been completed.
Please refer to the conditions of guarantee that appear on the
warranty card that you receive with the appliance.
IMPORTANT: Baumatic Ltd. operates a policy of continuous
improvement and reserves the right to adjust and modify its
products without prior notification.
25
26
Baumatic Consumables
o BC001 Degreaser for Dishwashers (200 g)
o BC002 Descaler for Washing Machines and Dishwashers (200 g)
o BC003 Ceramic Hob Cleaner (250 ml)
o BC004 Oven Cleaner (250 ml)
o BC005 Stainless Steel Cleaner and Protector (250 ml)
o BC007 E-Cloth – General Purpose Cloth
o BC008 Microwave Cover
To order a Baumatic consumable product please call 0123 5437 244
and quote the product code. You can also order online from
eshop.baumatic.co.uk
27
United Kingdom
Baumatic Ltd.,
Baumatic Buildings,
6 Bennet Road,
Reading, Berkshire
RG2 0QX
United Kingdom
Sales Telephone
(0118) 933 6900
Sales Fax
(0118) 931 0035
Customer Care Telephone
(0118) 933 6911
Customer Care Fax
(0118) 986 9124
Spares Telephone
(01235) 437244
Advice Line Telephone
(0118) 933 6933
E-mail:
customercare@baumatic.co.uk
spares@baumatic.co.uk
Website:
www.baumatic.co.uk
Facebook:
www.facebook.com/baumatic.uk
Republic of Ireland
Service Telephone
1-890 812 724
Spares Telephone
091 756 771
Czech Re
public
Baumatic CR spol s.r.o.
Lìpovà 665
460 01 Liberec 4
Czech Republic
+420 483 577 200
www.baumatic.cz
Slovakia
Baumatic Slovakia, s.r.o.
Panenská 34
811 03 Bratislava - Staré Mesto
Slovakia
+421 255 640 618
www.baumatic.sk
Germany
Baumatic Gmbh
Bachstr.10-12
320 52 Herford
Deutschland
+49 (0) 5223 99408 0
www.baumatic.de
Italy
Baumatic Italia S.R.L.
Via Galvani N.3
35011 Campodarsego (PD)
+3904 9920 2297
www.baumatic.it
Holland
Baumatic Benelux B.V.
Dukdalfweg 15d
1332 BH ALMERE
Nederland
+31(0)36 549 1553
www.baumatic.nl
28
