FOR YOUR SAFETY!
— Do not store or use gasoline or other flammable
vapors or liquids or other combustible materials
in the vicinity of this or any other appliance. To
do so may result in an explosion or fire.
— WHAT TO DO IF YOU SMELL GAS
● Do not try to light any appliance.
● Do not touch any electrical switch; do not
use any phone in your building.
● Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
● If you cannot reach your gas supplier, call
the fire department.
● Do not return to your home until authorized
by the gas supplier or fire department.
— Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, personal injury, or death . Refer to this
manual. Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
!
WARNING: If the information in these instructions is not followed exactly,
a fire or explosion may result causing property damage, personal injury or death.
!
The purpose of this manual is twofold: one, to provide the installer with the basic directions
and recommendations for the proper installation and adjustment of the water heater; and
two, for the owner–operator, to explain the features, operation, safety precautions,
maintenance and troubleshooting of the water heater. This manual also includes a parts
list.
It is very important that all persons who are expected to install, operate or adjust this
water heater read the instructions carefully so they may understand how to perform these
operations. If you do not understand these instructions or any terms within it, seek
professional advice.
Any questions regarding the operation, maintenance, service or warranty of this water
heater should be directed to the seller from whom it was purchased. If additional
information is required, refer to the section on “If you need service.”
Do not destroy this manual. Please read carefully and keep in a safe place for future
reference.
Recognize this symbol as an indication of Important Safety Information!
California Proposition 65 Warning: This product contains chemicals known to
the State of California to cause cancer, birth defects or other reproductive harm.
!
!
Residential 40 and 50 Gallon
Use & Care Manual
With Installation Instructions for the Installer
Printed in USA
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
®
WARNING: This water heater is not
suitable for use in manufactured (mobile) homes!
!
®
Water Heaters
Gas Residential
Manufactured under trademark license by:
Rheem Manufacturing Company
2600 Gunter Park Drive East, Montgomery, AL 36109-1413
Inside you will find many helpful hints on how to use and maintain
your water heater properly. Just a little preventive care on your part
can save you time and money over the life of your water heater.
You’ll find many answers to common problems in the Before You Call
For Service section. If you review our chart of Troubleshooting Tips
first, you may not need to call for service at all.
READ THIS MANUAL
FOR YOUR RECORDS
Write the model and serial numbers here:
#
#
You can find them on a label on the appliance.
Staple sales slip or cancelled check here.
Proof of the original purchase date is needed to obtain service under
the warranty.
IMPORTANT!
Fill out and return the Consumer Product Registration Card that is
in the back of this manual.
If you do need service, you can relax knowing help is only a phone call
away. For service call 800-431-1549.
IF YOU NEED SERVICE
Your safety and the safety of others are very important. There are
many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol. Recognize this symbol
as an indication of Important Safety Information! This
symbol alerts you to potential hazards that can kill or
hurt you and others.
All safety messages will follow the safety alert symbol and either the
word “DANGER”, “WARNING”, “CAUTION” or “NOTICE”.
These words mean:
DANGER An imminently hazardous situation that will
result in death or serious injury.
WARNING A potentially hazardous situation that could
result in death or serious injury and/or damage
to property.
CAUTION A potentially hazardous situation that may
result in minor or moderate injury.
Notice: Attention is called to observe a specified
procedure or maintain a specific condition.
!
!
!
READ THE SAFETY INFORMATION
!
Customer Service Troubleshooting Tips Care and Cleaning Operating Instructions Installation Instructions Safety Instructions
Safety Information
Safety Precautions. . . . . . . 3–6
LP Gas Models . . . . . . . . . . . . . 5
Installation Instructions
Location . . . . . . . . . . . . . . . . . . . . 7

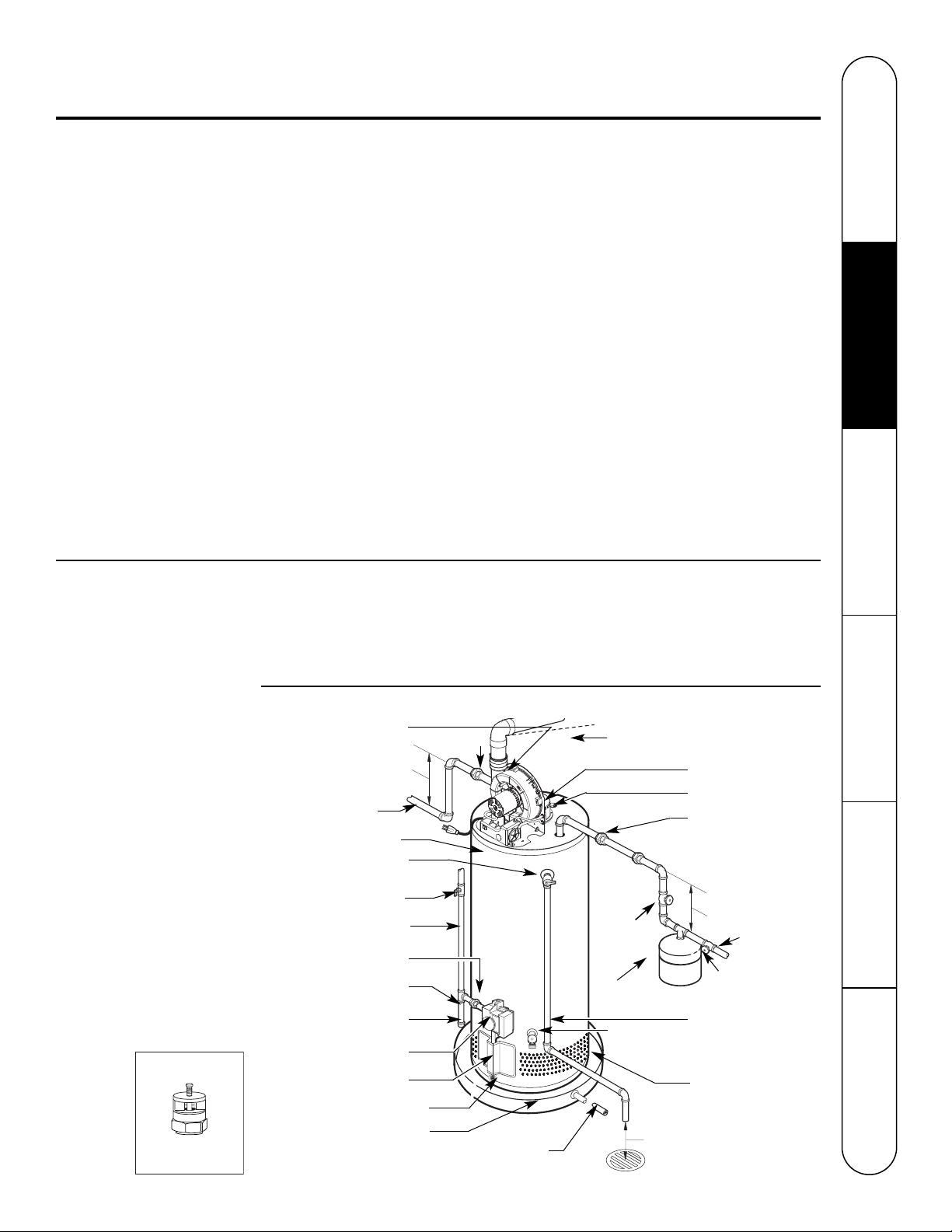

Water Supply Connections. . . 9
Gas Supply. . . . . . . . . . . . . . . . . 11

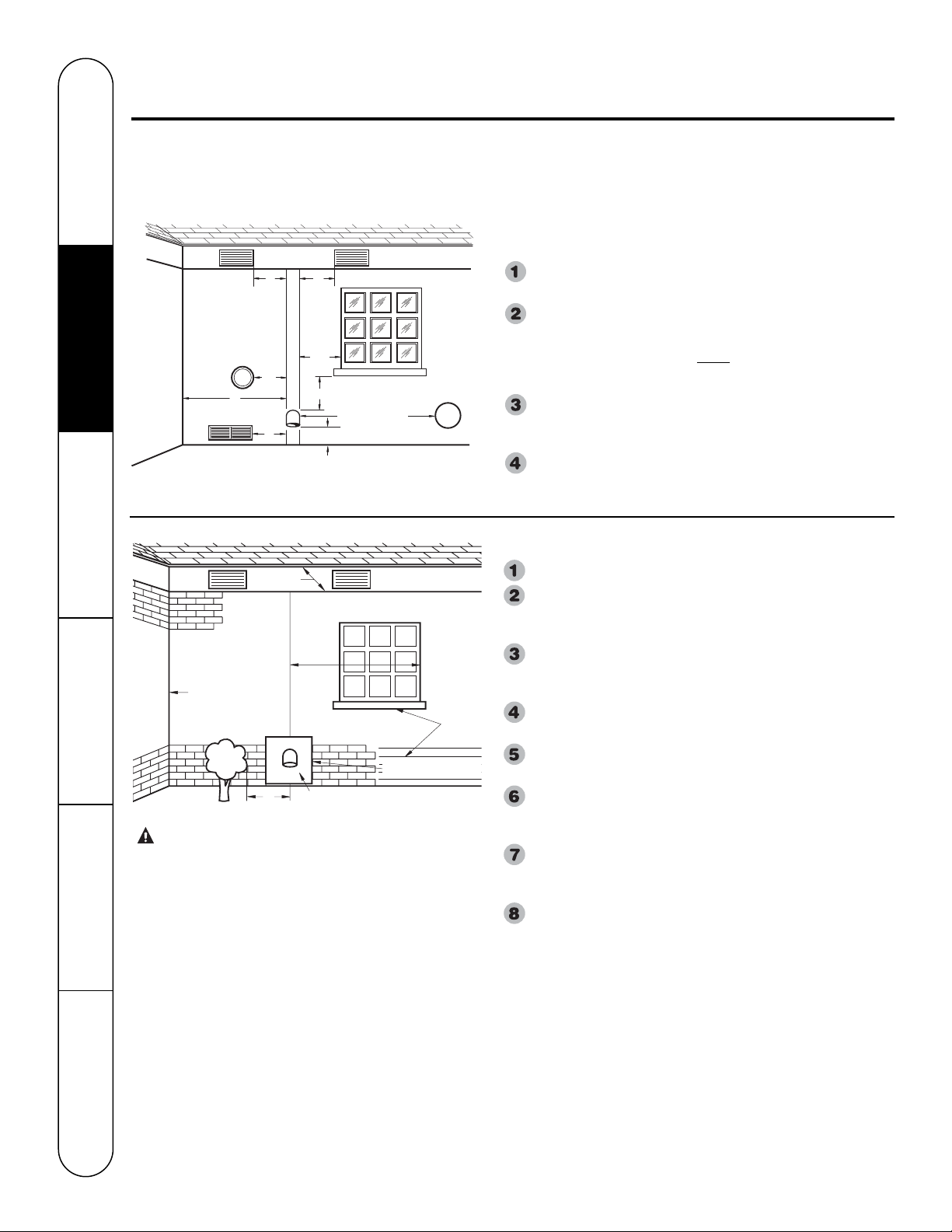

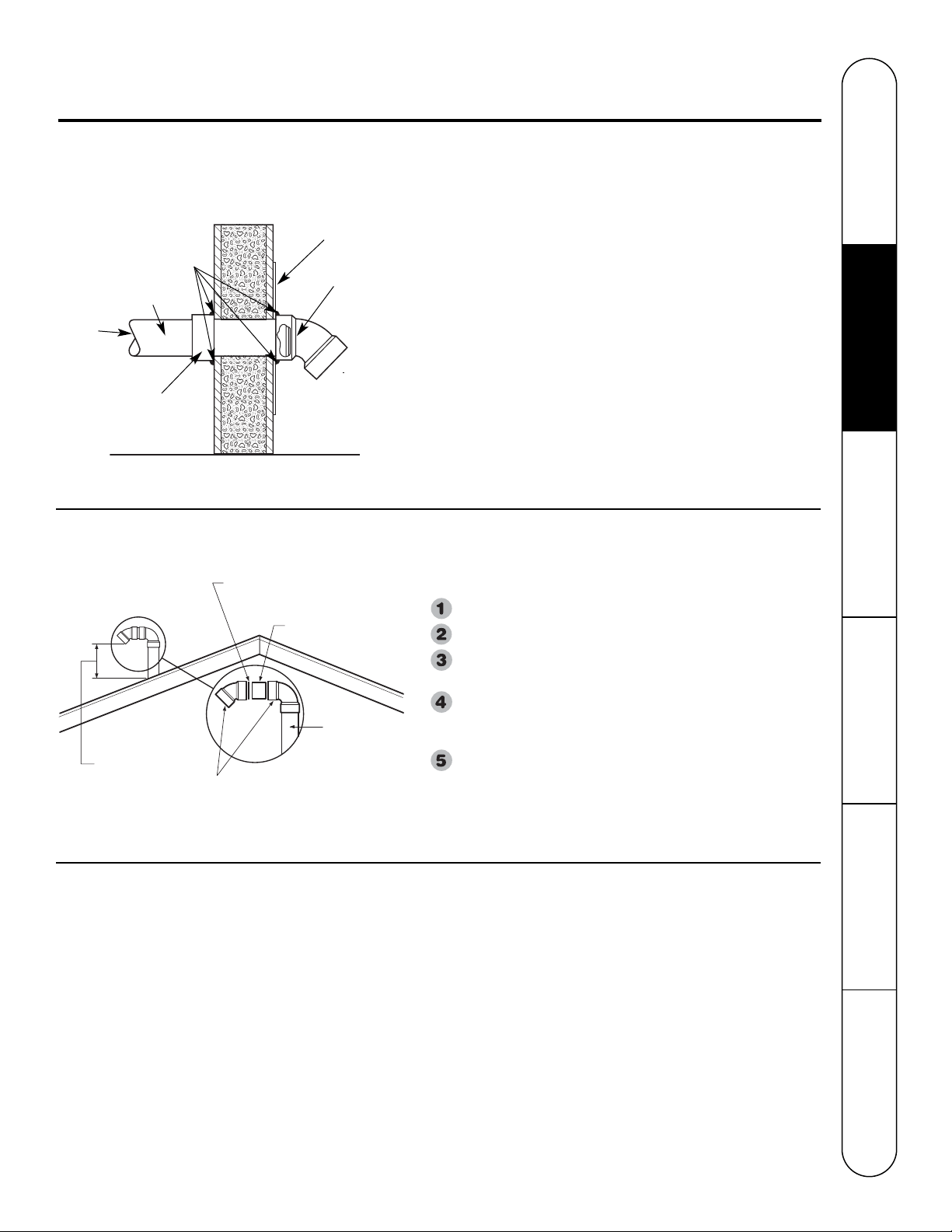

Venting . . . . . . . . . . . . . . . . . . 12-16
Wiring Diagram. . . . . . . . . . . . . . 17
Pipe Insulation. . . . . . . . . . . . . . 18
Heat Traps . . . . . . . . . . . . . . . . . 19
Installation Checklist . . . . . . . 20
Potable/Space Heating . . . . . 21
Operating Instructions
Lighting Instructions. . . . . . . 22

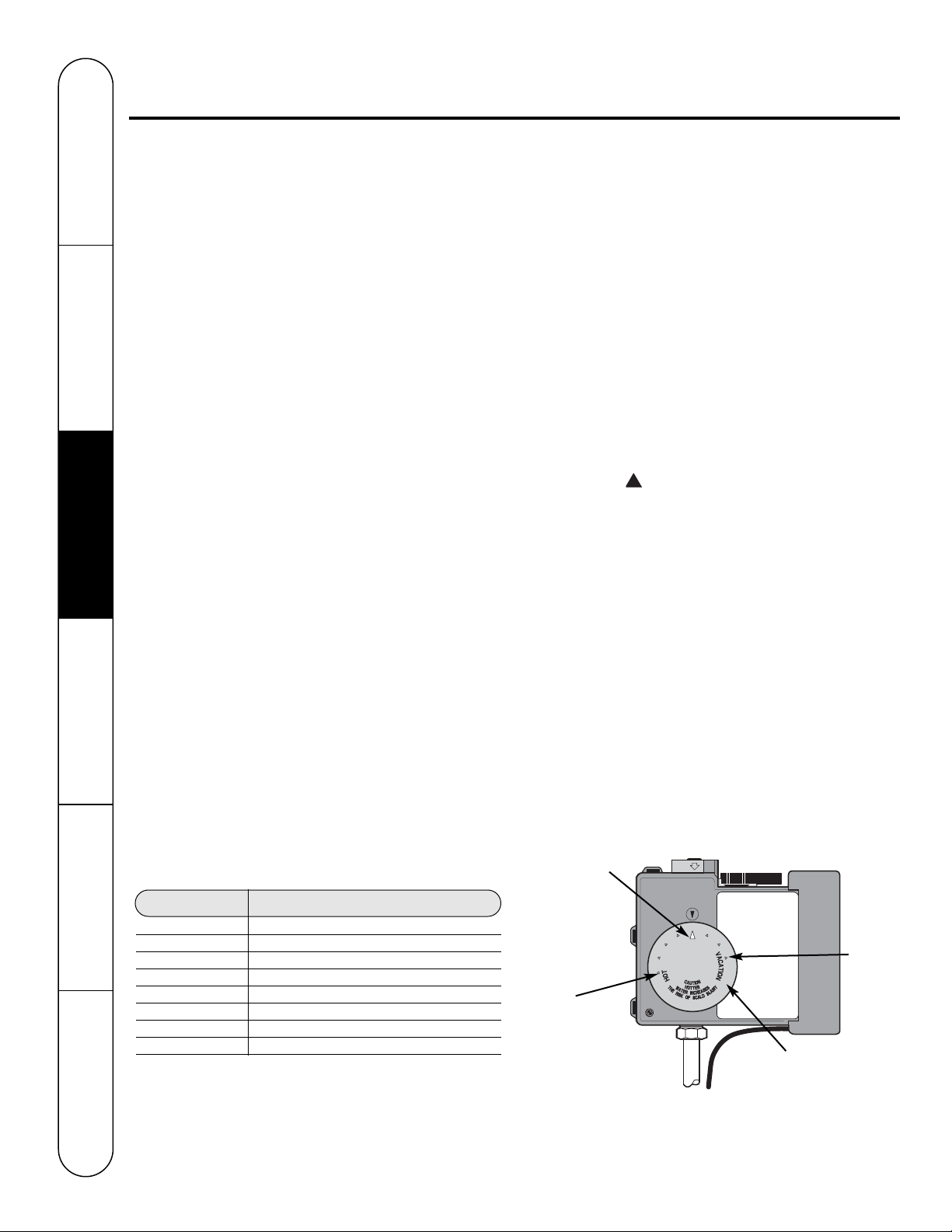

Water Temperature . . . . . 23, 24
Care and Cleaning
Draining. . . . . . . . . . . . . . . . . . . 26
Maintenance . . . . . . . . . . . . . . 26
Vent System Inspection . . . . 27
Burner Inspection . . . . . . . . . . 27
Extended Shut-Down. . . . . . . 28
Troubleshooting Tips
Before You Call
For Service . . . . . . . . . . . . . 29-31
Customer Service

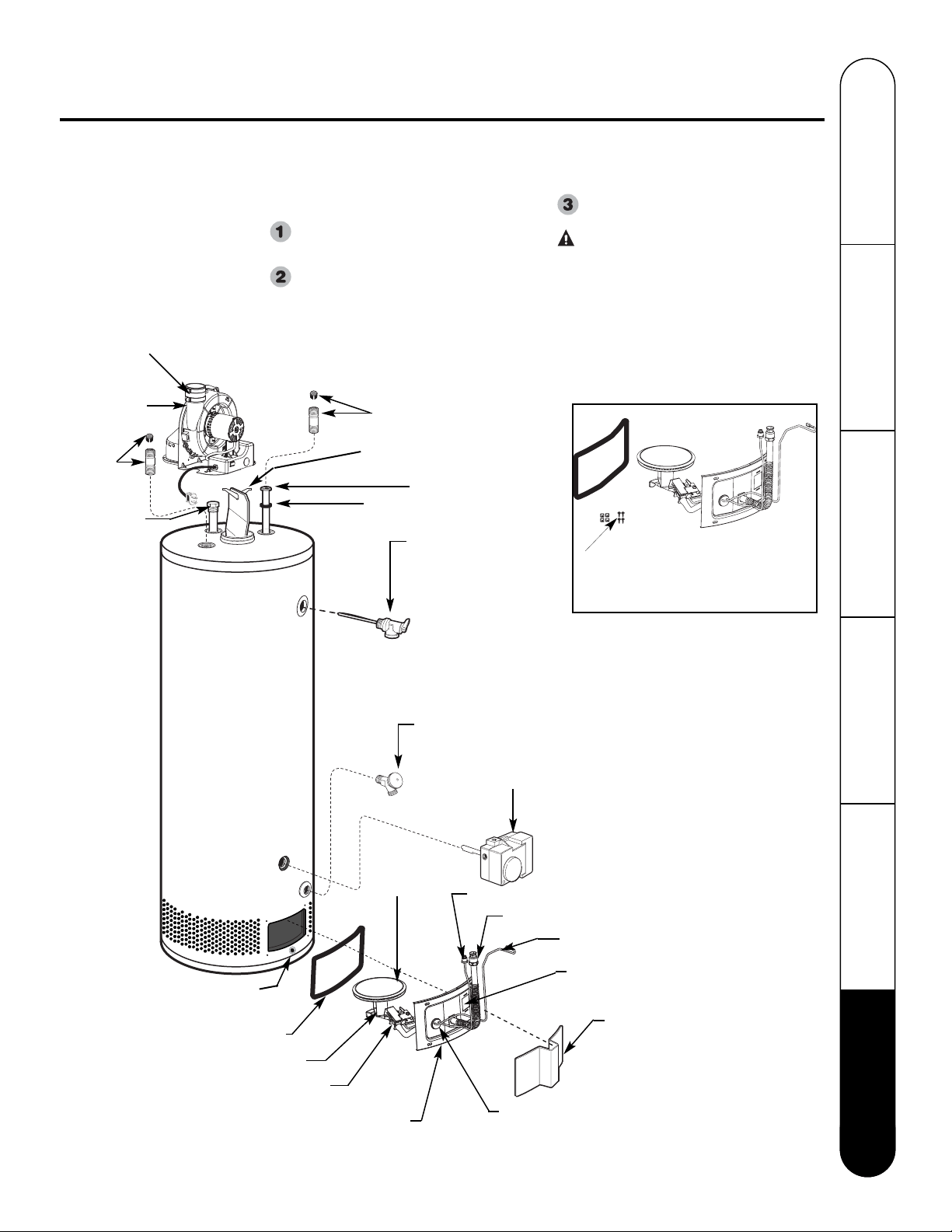

Parts List . . . . . . . . . . . . . . . . . 32
If You Need Service . . . . . . . . . 36
2
3
!
!

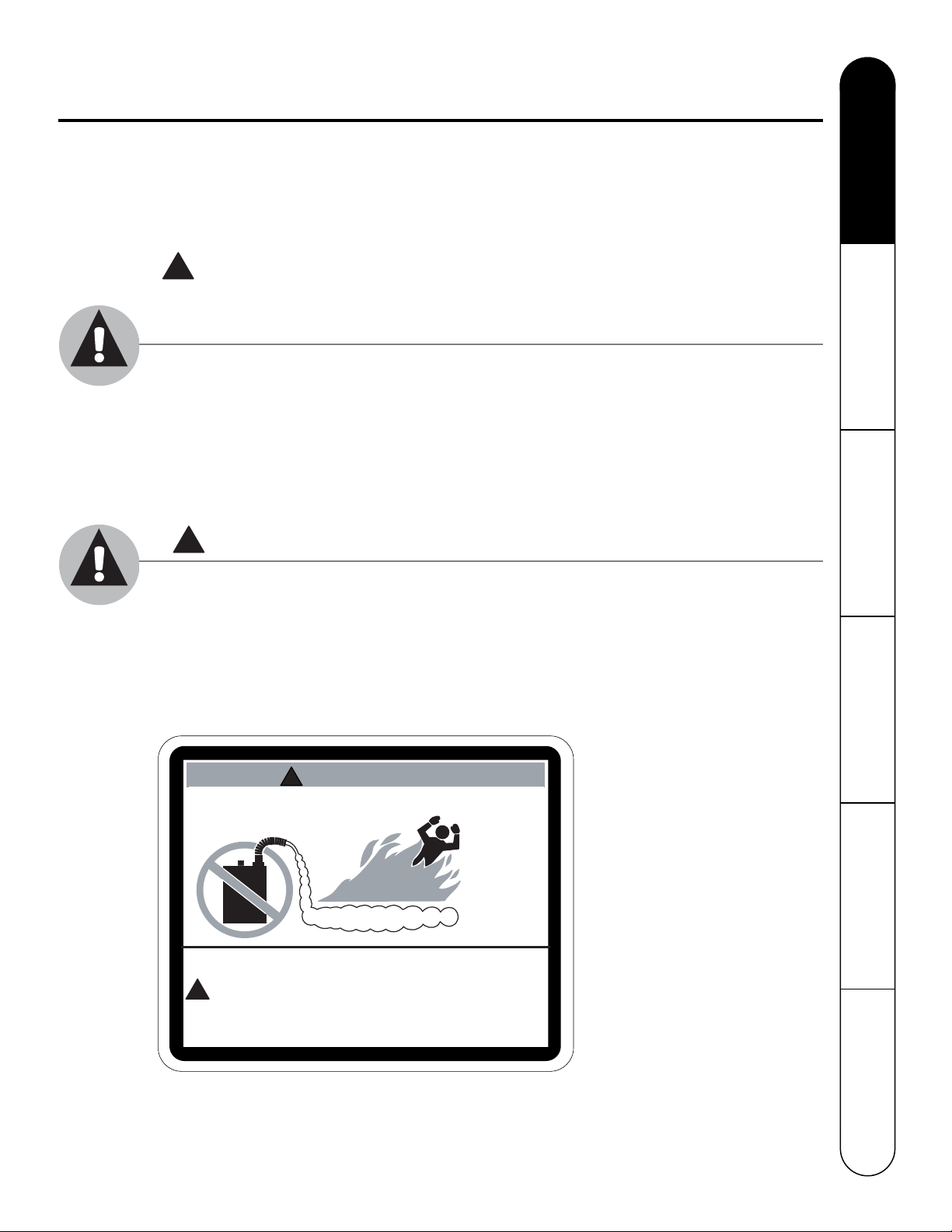

FLAMMABLES
Flammable Vapors
FIRE AND EXPLOSION HAZARD
Can result in serious injury or death.
Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance. Storage of or use of gasoline
or other flammable vapors or liquids in the vicinity of this or any other
appliance can result in serious injury or death.
WARNING
Be sure to read and understand the entire Use and Care Manual before attempting to install or operate this
water heater. It may save you time and money. Pay particular attention to the Safety Instructions. Failure to
follow these warnings could result in serious bodily injury or death. Should you have problems understanding
the instructions in this manual, or have any questions, STOP, and get help from a qualified service technician,
or the local gas utility.
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
Failure to install the blower assembly and properly vent the water heater to the outdoors as
outlined in the Venting Section of the Installation Instructions in this manual can result in
unsafe operation of the water heater. To avoid the risk of fire, explosion, or asphyxiation from
carbon monoxide, never operate this water heater unless it is properly vented and has an
adequate air supply for proper operation. Be sure to inspect the vent system for proper
installation at initial start-up; and at least annually thereafter. Refer to the Care and Cleaning
section of this manual for more information regarding vent system inspection.
DANGER!
INSTALL THE BLOWER ASSEMBLY AND PROPERLY VENT
THE WATER HEATER…
!
Gasoline, as well as other flammable materials and liquids (adhesives, solvents, paint thinners,
etc.), and the vapors they produce are extremely dangerous. DO NOT handle, use or store
gasoline or other flammable or combustible materials anywhere near or in the vicinity of a
water heater or any other appliance. Be sure to read and follow the warning label pictured
below and other labels on the water heater, as well as the warnings printed in this manual.
Failure to do so can result in property damage, bodily injury or death.
WARNING!
!
Safety Instructions Installation Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service
