English
AVH-W4500NEX
DVD RDS AV RECEIVER
Important (Serial number)
The serial number is located on the bottom of this unit. For your own security and convenience, be
sure to record this number on the enclosed warranty card.
Operation Manual
English
- 2 -
Important
■Precaution ......................... 5
Information to user...................................................... 5
Important safety information .................................. 7
To ensure safe driving................................................. 8
When using a display connected to V OUT ........ 9
To avoid battery exhaustion..................................... 9
Rear view camera ......................................................... 9
Handling the SD card slot ....................................... 10
Handling the USB connector ................................. 10
Failure to operate ....................................................... 10
Visit our website ......................................................... 10
Protecting the LCD panel and screen ................. 11
Notes on internal memory...................................... 11
About this manual ..................................................... 11
■Parts and controls........... 12
Main unit ....................................................................... 12
Remote Control........................................................... 13
Protecting your product against theft................ 14
■Basic operation ............... 17
Notes on using the LCD panel............................... 17
Adjusting the LCD panel angle ............................. 17
Resetting the microprocessor ............................... 17
Preparing the remote control ................................ 18
Starting up the unit................................................... 19
Using the touch panel.............................................. 20
Top menu screen ....................................................... 23
■Bluetooth ......................... 25
Bluetooth connection .............................................. 25
Bluetooth settings..................................................... 25
Hands-free phoning.................................................. 26
Bluetooth audio ......................................................... 31
■Wi-Fi.................................. 33
Wi-Fi connection ........................................................ 33
Wi-Fi settings ............................................................... 33
Wi-Fi audio ................................................................... 34
■AV source ......................... 35
Supported AV source................................................ 35
Displaying the AV operation screen.................... 35
Selecting a source ..................................................... 36
Changing the display order of source................ 36
Adjusting the range of favorite source icons
area .......................................................................... 37
■Setup for iPod®/iPhone® or
smartphone ..................... 38
iPod/iPhone ................................................................. 38
Smartphone (Android™ device) ........................... 39

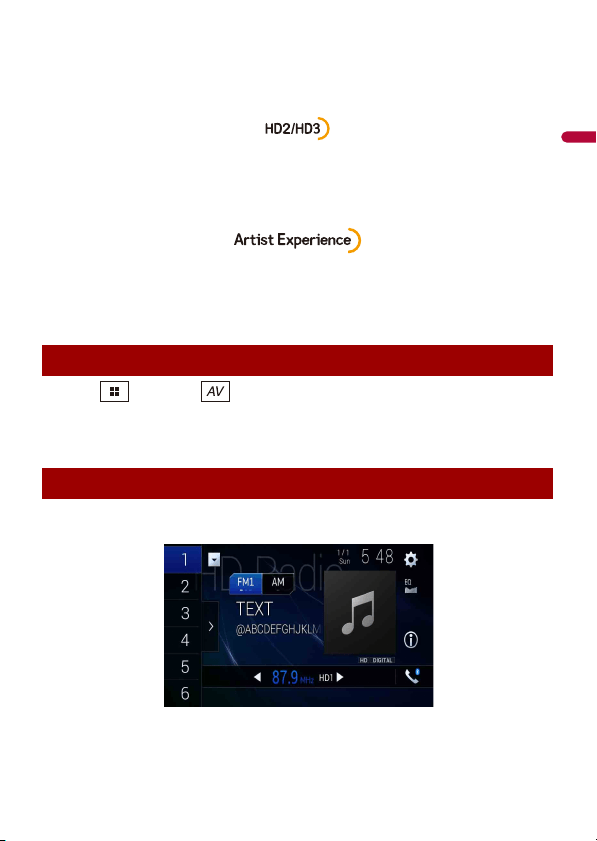

■HD Radio™ Technology ... 40
About HD Radio stations......................................... 40
Starting procedure.................................................... 41
Basic operation ........................................................... 41
Storing the strongest broadcast frequencies
(BSM) ....................................................................... 42
Radio settings ............................................................. 43
■Disc ................................... 44
Inserting and ejecting a disc ................................. 44
Basic operation ........................................................... 44

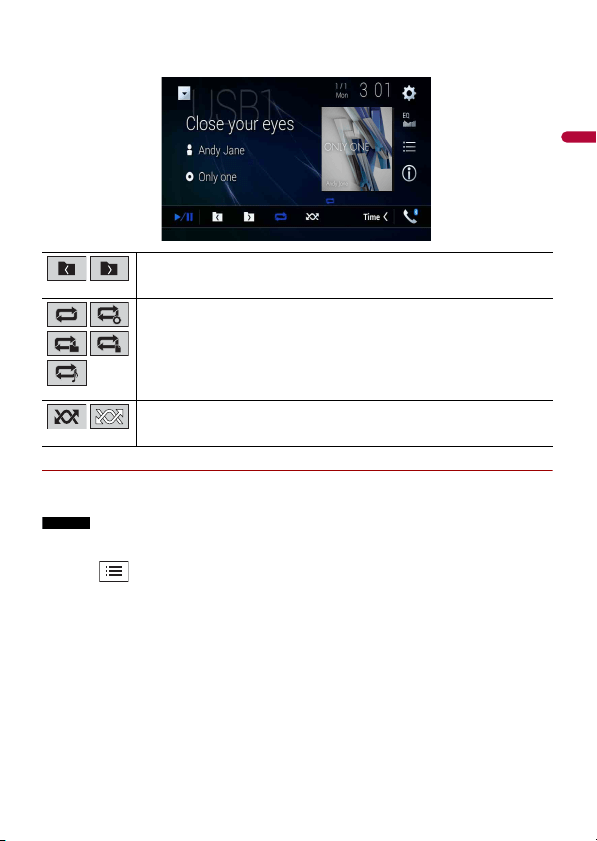

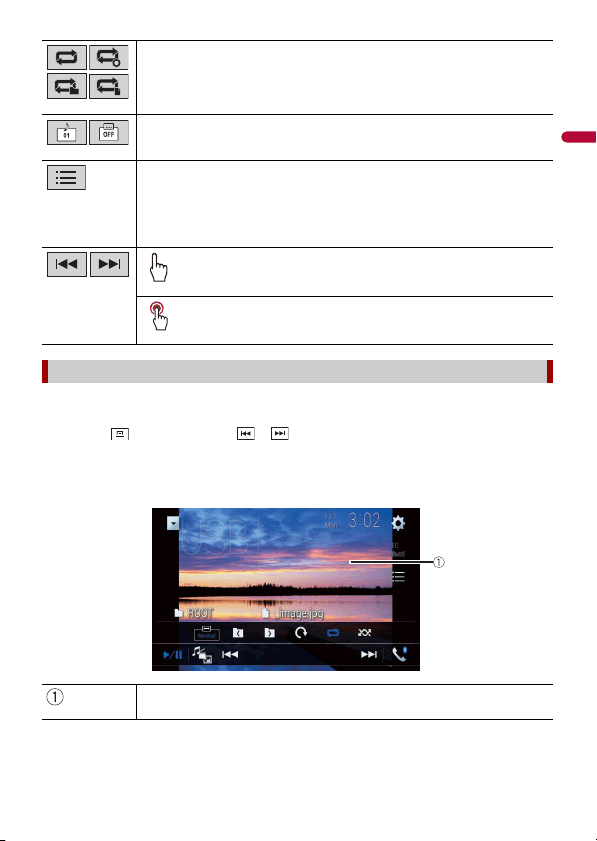

■Compressed files ............. 49
Inserting and ejecting media ................................ 49
Starting procedure.................................................... 51
Contents
Thank you for buying this Pioneer
product.
Please read through these instructions
so you will know how to operate your
model properly. After you have finished
reading the instructions, keep this
document in a safe place for future
reference.
The screen shown in the examples may
differ from actual screens, which may be
changed without notice for
performance and function
improvements.
English
- 3 -
Basic operation ........................................................... 51
■iPod .................................. 57
Connecting your iPod............................................... 57
Basic operation ........................................................... 57
■WebLink™ ........................ 61
Using WebLink ............................................................ 61
Starting procedure .................................................... 61
Using the audio mix function ................................ 63

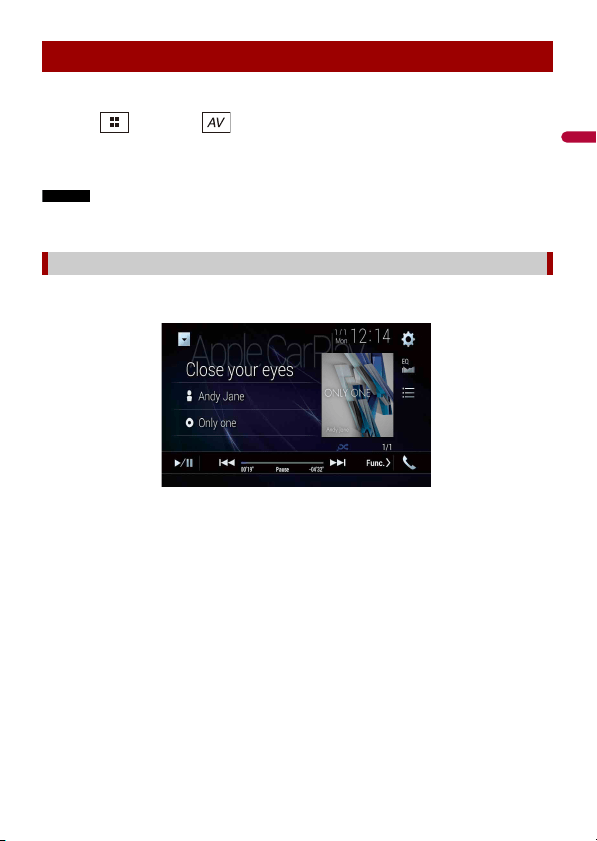

■Apple CarPlay™ ............... 64
Using Apple CarPlay.................................................. 64
Setting the driving position ................................... 64
Starting procedure .................................................... 65
Adjusting the volume ............................................... 66
■Android Auto™ ................ 67
Using Android Auto................................................... 67
Setting the driving position ................................... 67
Starting procedure .................................................... 68
Adjusting the volume ............................................... 69
Setting the auto-launch function......................... 69
■Pandora®.......................... 71
Listening to Pandora................................................. 71
Basic operation ........................................................... 72

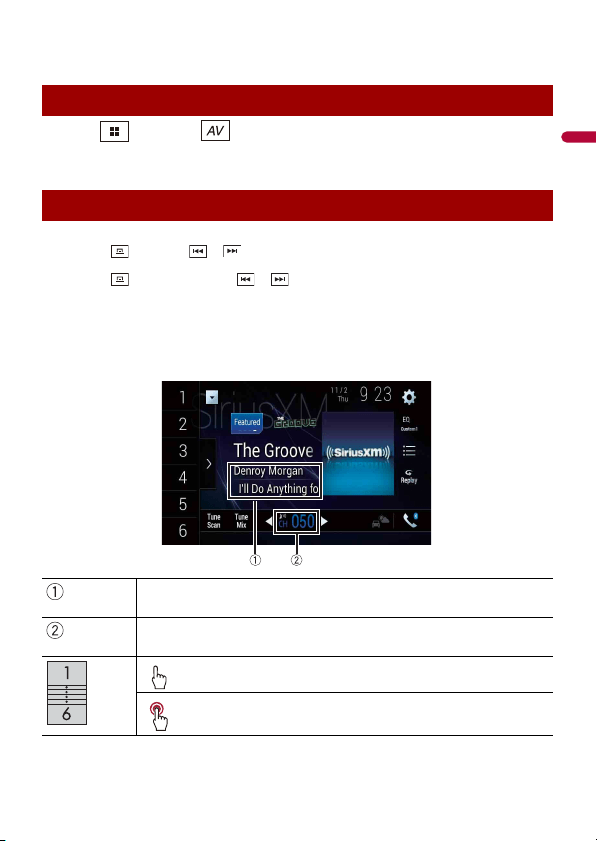

■SiriusXM® Satellite
Radio................................ 74
Subscribing to the SiriusXM Satellite Radio
service ..................................................................... 74
Listening to SiriusXM ................................................ 75
Basic operation ........................................................... 75
TuneScan™.................................................................... 77
SportsFlash™ ................................................................ 78
SmartFavorites ............................................................ 78
Using Featured Favorites Band.............................. 79
Parental lock................................................................. 79
Using the content alerts function ........................ 79
SiriusXM settings ........................................................ 80

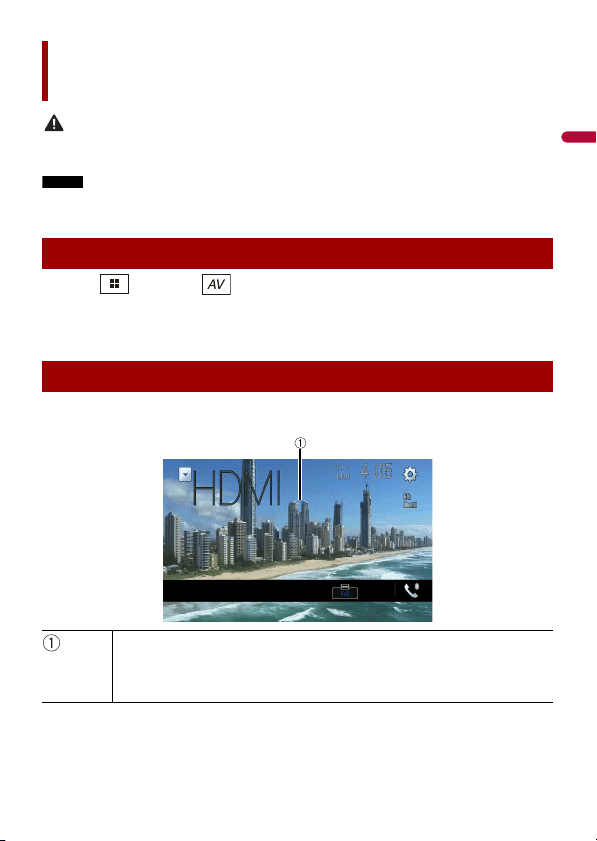

■HDMI ................................ 82
Starting procedure .................................................... 82
Basic operation ........................................................... 82
■AUX .................................. 83
Starting procedure.................................................... 83
Basic operation ........................................................... 84
■AV input ........................... 85
Starting procedure.................................................... 85
Basic operation ........................................................... 86

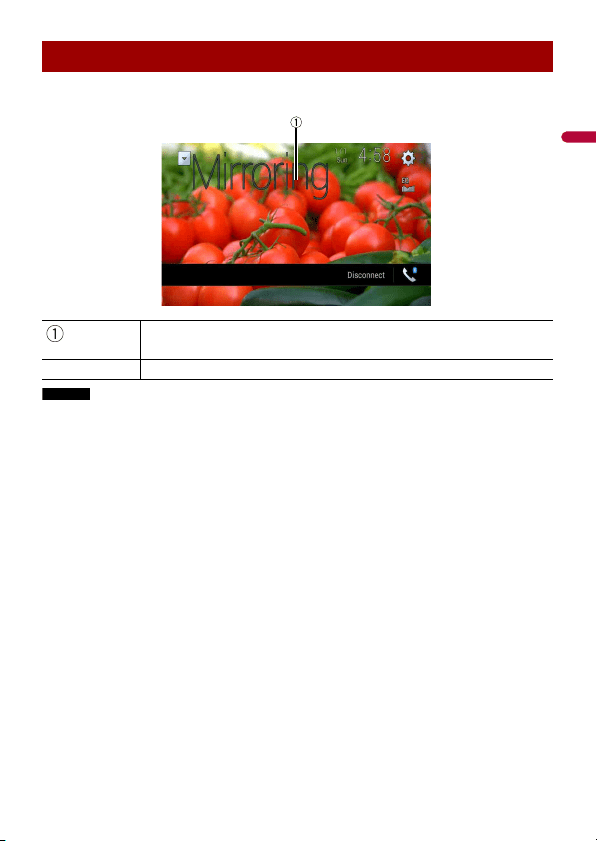

■Wireless Mirroring........... 87
Starting procedure.................................................... 87
Basic operation ........................................................... 88
■iDatalink........................... 89
Using iDatalink............................................................ 89
Activating iDatalink Maestro ................................. 89
Starting procedure.................................................... 90
Displaying obstacle detection information ..... 92
iDatalink settings ....................................................... 92
■Settings ............................ 94
Displaying the setting screen................................ 94
System settings .......................................................... 94
Theme settings ......................................................... 104
Audio settings........................................................... 106
Video settings ........................................................... 112
■Favorite menu................ 116
Creating a shortcut ................................................. 116
Selecting a shortcut................................................ 116
Removing a shortcut .............................................. 116
■Other functions ............. 117
Setting the time and date..................................... 117
Changing the wide screen mode....................... 117
Selecting the video for the rear display........... 118
Setting the anti-theft function............................ 119
Restoring this product to the default
settings ................................................................. 120
■Appendix ....................... 121
Troubleshooting....................................................... 121
Error messages.......................................................... 124
Handling and care of discs ................................... 129
Playable discs ............................................................ 130
Detailed information for playable media........ 130
Bluetooth.................................................................... 135
SiriusXM® Satellite Radio....................................... 135
Wi-Fi.............................................................................. 136
English
- 4 -
HD Radio™ Technology......................................... 136
SDXC ............................................................................ 136
WMA/WMV ................................................................ 136
FLAC ............................................................................. 136
DivX.............................................................................. 137
AAC............................................................................... 137
WebLink...................................................................... 137
Waze............................................................................. 137
Google™, Google Play, Android ......................... 137
Android Auto ............................................................ 137
Detailed information regarding connected iPod
devices ................................................................. 137
Using app-based connected content .............. 138
Pandora®..................................................................... 139
HDMI ............................................................................ 139
Notice regarding video viewing ........................ 139
Notice regarding DVD-Video viewing ............. 139
Notice regarding MP3 file usage ....................... 140
Notice regarding open source licenses........... 140
Using the LCD screen correctly .......................... 140
Specifications............................................................ 141
English
- 5 -
Precaution
Information to user
–MODEL NO.: AVH-W4500NEX
FCC ID: AJDK103
IC: 775E-K103
–This device complies with Part 15 of FCC Rules and Innovation, Science, and Economic
Development Canada licence-exempt RSSs. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of this device.
–The Bluetooth antenna cannot be removed (or replaced) by user.
–This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the ISED
radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed
to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should
be installed and operated keeping the radiator at least 20 cm or more away from person’s body
(excluding extremities: hands, wrists, feet and ankles).
–This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
–Alteration or modifications carried out without appropriate authorization may invalidate the user’s
right to operate the equipment.
–NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION:
THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.
- 6 -
English
CAN ICES-3 B/NMB-3 B
WARNING
• This product contains chemicals known to the State of California and other governmental entities to
cause cancer and birth defects or other reproductive harm. Wash hands after handling.
• Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the
product, and to protect it from overheating. To prevent fire hazard, the openings should never be
blocked or covered with items (such as papers, floor mat, cloths).
CAUTION
This product is evaluated in moderate and tropical climate condition under the Audio, video and
similar electronic apparatus - Safety requirements, IEC 60065.
Get the most out of your equipment by playing it at a safe level—a level that lets the sound come
through clearly without annoying blaring or distortion and, most importantly, without affecting your
sensitive hearing. Sound can be deceiving.
Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal”
can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a
safe level BEFORE your hearing adapts.
▶ESTABLISH A SAFE LEVEL:
– Set your volume control at a low setting.
– Slowly increase the sound until you can hear it comfortably and clearly, without
distortion.
CAUTION
This product is a Class 1 laser product classified under the safety standard, IEC 60825-1:2014, and
contains a class 1M laser module. To ensure continued safety, do not remove any covers or attempt
to gain access to the inside of the product. Refer all servicing to qualified personnel.
FEDERAL COMMUNICATIONS COMMISSION SUPPLIER'S DECLARATION OF CONFORMITY
Product Name: DVD RDS AV RECEIVER
Model Number: AVH-W4500NEX
Responsible Party Name: PIONEER ELECTRONICS (USA), INC. SERVICE SUPPORT DIVISION
Address: 2050 W. 190TH STREET, SUITE 100 TORRANCE, CA 90504, U.S.A.
Phone: 1-310-952-2915
URL: http://www.pioneerelectronics.com
The Safety of Your Ears is in Your Hands
CLASS 1 LASER PRODUCT
CAUTION—CLASS 1M VISIBLE AND INVISIBLE
LASER RADIATION WHEN OPEN, DO NOT VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS.
English
- 7 -
– Once you have established a comfortable sound level, set the dial and leave it
there.
▶BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
– Do not turn up the volume so high that you can’t hear what’s around you.
– Use caution or temporarily discontinue use in potentially hazardous situations.
– Do not use headphones while operating a motorized vehicle; the use of
headphones may create a traffic hazard and is illegal in many areas.
WARNING
• Do not attempt to install or service this product by yourself. Installation or servicing of this product by
persons without training and experience in electronic equipment and automotive accessories may
be dangerous and could expose you to the risk of electric shock, injury or other hazards.
• Do not allow this product to come into contact with liquids. Electrical shock could result. Also,
damage to the product, smoke, and overheating could result from contact with liquids.
• If liquid or foreign matter should get inside this product, park your vehicle in a safe place, turn the
ignition switch off (ACC OFF) immediately and consult your dealer or the nearest authorized Pioneer
Service Station. Do not use this product in this condition because doing so may result in a fire, electric
shock, or other failure.
• If you notice smoke, a strange noise or odor from this product, or any other abnormal signs on the
LCD screen, turn off the power immediately and consult your dealer or the nearest authorized
Pioneer Service Station. Using this product in this condition may result in permanent damage to the
system.
• Do not disassemble or modify this product, as there are high-voltage components inside which may
cause an electric shock. Be sure to consult your dealer or the nearest authorized Pioneer Service
Station for internal inspection, adjustments or repairs.
Before using this product, be sure to read and fully understand the following safety
information:
• Do not operate this product, any applications, or the rear view camera option (if
purchased) if doing so will divert your attention in any way from the safe operation of
your vehicle. Always observe safe driving rules and follow all existing traffic
regulations. If you experience difficulty in operating this product, pull over, park your
vehicle in a safe location and apply the parking brake before making the necessary
adjustments.
• Never set the volume of this product so high that you cannot hear outside traffic and
emergency vehicles.
• To promote safety, certain functions are disabled unless the vehicle is stopped and the
parking brake is applied.
• Keep this manual handy as a reference for operating procedures and safety
information.
• Do not install this product where it may (i) obstruct the driver’s vision, (ii) impair the
performance of any of the vehicle’s operating systems or safety features, including air
Important safety information
- 8 -
English
bags or hazard lamp buttons or (iii) impair the driver’s ability to safely operate the
vehicle.
• Please remember to fasten your seat belt at all times while operating your vehicle. If
you are ever in an accident, your injuries can be considerably more severe if your seat
belt is not properly buckled.
• Never use headphones while driving.
• Rear visibility systems (backup cameras) are required in certain new vehicles sold in
the U.S. and Canada. U.S. regulations began according to a two year phase-in on May
1, 2016, and both the U.S. and Canada require that all such vehicles manufactured on
or after May 1, 2018 have rear visibility systems. Owners of vehicles equipped with
compliant rear visibility systems should not install or use this product in a way
that alters or disables that system's compliance with applicable regulations. If
you are unsure whether your vehicle has a rear visibility system subject to the U.S. or
Canadian regulations, please contact the vehicle manufacturer or dealer.
If your vehicle has a compliant backup camera that displays the backup view through
the factory receiver, do not use the Pioneer receiver unless it is connected to and
displays the same view as the factory backup camera. Connection to the factory
backup camera will require an adaptor, sold separately. Not all vehicles may be able to
connect. Please check with a qualified professional installer for installation options
specific to your vehicle.
Parking brake interlock
Certain functions (such as viewing of video image and certain touch panel key
operations) offered by this product could be dangerous (possibly resulting in serious
injury or death) and/or unlawful if used while driving. To prevent such functions from
being used while the vehicle is in motion, there is an interlock system that senses when
the parking brake is set and when the vehicle is moving. If you attempt to use the
functions described above while driving, they will become disabled until you stop the
vehicle in a safe place.
WARNING
• LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND
MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH.
IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY
RESULT IN SERIOUS INJURY OR DAMAGE.
• Do not take any steps to tamper with or disable the parking brake interlock system which is in
place for your protection. Tampering with or disabling the parking brake interlock system
could result in serious injury or death.
• To avoid the risk of damage and injury and the potential violation of applicable laws, this
product is not for use with a video image that is visible to the driver.
• In some countries the viewing of video image on a display inside a vehicle even by persons other
than the driver may be illegal. Where such regulations apply, they must be obeyed.
To ensure safe driving
English
- 9 -
If you attempt to watch video image while driving, the warning “Viewing of front seat
video source while driving is strictly prohibited.” will appear on the screen. To watch
video image on this display, stop the vehicle in a safe place and apply the parking brake.
Please keep the brake pedal pushed down before releasing the parking brake.
The video output terminal (V OUT) is for connection of a display to enable passengers in
the rear seats to watch video images.
WARNING
NEVER install the rear display in a location that enables the driver to watch video images while driving.
Be sure to run the vehicle engine while using this product. Using this product without
running the engine can drain the battery.
WARNING
Do not install this product in a vehicle that does not have an ACC wire or circuitry available.
With an optional rear view camera, you are able to use this product as an aid to keep an
eye on trailers, or backing into a tight parking spot.
WARNING
• SCREEN IMAGE MAY APPEAR REVERSED.
• USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN
INJURY OR DAMAGE.
• If this product displays the vehicle's backup camera image, close the LCD panel before putting the
vehicle in reverse.
CAUTION
• For safety reasons, the rear view camera function is not available until this product boots up
completely.
• The rear view mode is to use this product as an aid to keep an eye on the trailers, or while backing up.
Do not use this function for entertainment purposes.
When using a display connected to V OUT
To avoid battery exhaustion
Rear view camera
- 10 -
English
CAUTION
• Keep the SD memory card out of the reach of small children to prevent them from accidentally
swallowing it.
• To prevent data loss and damage to the storage device, never remove it from this product while data
is being transferred.
• If data loss or corruption occurs on the storage device for any reason, it is usually not possible to
recover the data. Pioneer accepts no liability for damages, costs or expenses arising from data loss or
corruption.
• Never insert or eject an SD memory card while driving.
CAUTION
• To prevent data loss and damage to the storage device, never remove it from this product while data
is being transferred.
• Pioneer cannot guarantee compatibility with all USB mass storage devices and assumes no
responsibility for any loss of data on media players, iPhone, smartphone, or other devices while using
this product.
After-sales service for Pioneer products
Visit us at the following site:
http://www.pioneerelectronics.com
http://www.pioneerelectronics.ca
• We offer the latest information about PIONEER CORPORATION on our website.
• Pioneer regularly provides software updates to further improve it’s products. Please
check the support section of the Pioneer website for all available software updates.
Handling the SD card slot
Handling the USB connector
Failure to operate
Please contact the dealer or distributor from which you purchased the product for after-sales service
(including warranty conditions) or any other information. In case the necessary information is not
available, please contact the companies listed below.
Please do not ship your product to the companies at the addresses listed below for repair without
making advance contact.
–USA&CANADA
Pioneer Electronics (USA) Inc.
CUSTOMER SUPPORT DIVISION
P.O. Box 1760 Long Beach, CA 90801-1760
800-421-1404
For warranty information, please see the Limited Warranty sheet included with your product.
Visit our website
English
- 11 -
1 Register your product.
2 Receive updates on the latest products and technologies.
3 Download owner’s manuals, order product catalogs, research new products, and
much more.
4 Receive notices of software upgrades and software updates.
• Do not expose the LCD screen to direct sunlight when this product is not used. This
may result in LCD screen malfunction due to the resulting high temperatures.
• When using a cellular phone, keep the antenna of the cellular phone away from the
LCD screen to prevent disruption of the video in the form of spots, colored stripes, etc.
• To protect the LCD screen from damage, be sure to touch the touch panel keys only
with your finger and do so gently.
• If the battery is disconnected or discharged, the memory will be erased and must be
reprogrammed.
• The information will be erased by disconnecting the yellow lead from the battery (or
removing the battery itself ).
• Some of the settings and recorded contents will not be reset.
This manual uses diagrams of actual screens to describe operations. However, the
screens on some units may not match those shown in this manual depending on the
model used.
Protecting the LCD panel and screen
Notes on internal memory
About this manual
Meanings of symbols used in this manual
This indicates to touch the appropriate soft key on the touch screen.
This indicates to touch and hold the appropriate soft key on the touch screen.
- 12 -
English
Parts and controls
Main unit
LCD screen
VOL (+/-)
Press to switch between the Application screen and the AV operation screen.
Press and hold to switch to the camera view mode.
NOTE
To activate the camera view mode with this button, set [Back Camera Input] to
[On] or [AV Input] to [Camera] (page 95).
Press to display the top menu screen.
Press and hold to power off. To power back on, press any button.
Press to display the menu bar (page 21).
Press and hold to mute or unmute.
Press to display the top menu screen or back to previous screen.
Press and hold to turn off the display.
English
- 13 -
Press to activate the voice recognition mode with a connected iPhone or
smartphone.
Press and hold to display the connectable device list screen or device search
screen.
RESET Press to reset the microprocessor (page 17).
SD card slot Refer to Inserting and ejecting an SD memory card (page 49).
Auto EQ
microphone
input jack
Use to connect a microphone for acoustical measurement (sold separately).
Disc-loading
slot
Refer to Inserting and ejecting a disc (page 44).
Remote Control
VOLUME (+/-)
REAR SRC Press to cycle through all the available rear sources.
Press and hold to turn the rear source off.
SRC Press to cycle through all the available sources.
Press and hold to turn the source off.
TOP MENU Press to return to the top menu during DVD playback.
Source mode
select switch
Use to switch the source mode between the front source and the rear source.
Thumb pad Use to select a menu on the DVD menu.
MUTE
MENU Displays the DVD menu during DVD playback.
AUDIO
SUBTITLE
ANGLE
Press to change the audio language, subtitle language or viewing angle
during DVD playback.
BAND/ESC Press to select the tuner band when tuner is selected as a source.
Press to switch between media file types when playing the following types of
data:
• Disc
• External storage device (USB, SD)
- 14 -
English
CAUTION
• Do not attempt to detach the front panel while DISC/SD is in the eject position.
• Do not attempt to detach the front panel while data is being written to USB/SD. Doing so may cause
the data to become corrupted.
• After the front panel has been detached, the attaching plate will move back to its original position
automatically. Be careful not to let hands or other objects get caught behind the monitor as it is
moving back.
• Please make sure that the front panel is in its original position while the vehicle is in motion. It is
dangerous to drive with the front panel sticking out.
• Do not place beverages or other objects on top of the front panel while it is fully open.
Important
• Handle the front panel with care when removing or attaching it.
• Avoid subjecting the front panel to excessive shock.
• Keep the front panel out of direct sunlight and high temperatures.
• If removed, replace the front panel on the product before starting up your vehicle.
1 Press .
2 Touch .
3 Slide the dial at the bottom of the front panel to the right, and lift up the front
panel while pushing down on the dial.
RETURN Press to return to the specified point and start playback from there.
Press to pause or resume playback.
or For audio: Press and hold to perform fast reverse or fast forward.
For video: Press to perform fast reverse or fast forward.
or Press to return to the previous track (chapter) or go to the next track (chapter).
Press to answer or end a call.
Press to stop playback.
If you resume playback, playback will start from the point where you stopped.
Press the button again to stop playback completely.
FOLDER/P.CH Press to select the next or previous title or folder.
Press to recall radio station frequencies assigned to preset channel keys.
Press to answer or end a call.
Protecting your product against theft
Removing the front panel
English
- 15 -
4
Put the front panel into the provided protective case for safe keeping.
1 Slide the front panel into the top of the product and push it into place.
Slide the inserter on the front panel into the insertion slot on top of the unit and push
it into place.
2 Push on the bottom of the front panel until it clicks into place.
Attaching the front panel
- 16 -
English
English
- 17 -
WARNING
• Keep hands and fingers clear of this product when opening, closing, or adjusting the LCD panel. Be
especially cautious of children’s hands and fingers.
• Do not use with the LCD panel left open. It may result in injury in the event of an accident.
• Close the LCD panel before putting the vehicle in motion. Driving with the LCD panel open may
damage the unit, and any backup camera image shown through the LCD panel will not be visible.
CAUTION
• Do not open or close the LCD panel forcefully. It may cause a malfunction.
• Do not operate this product until the LCD panel has completely opened or closed. If this product is
operated while the LCD panel is opening or closing, the LCD panel may stop at that angle for safety.
• Do not place glass or can on the open LCD panel.
1 Press .
2 Touch or to adjust the angle of the LCD panel.
3 Touch .
Returns to the previous screen.
CAUTION
• Pressing the RESET button resets settings and recorded contents to the factory settings.
– Do not perform this operation when a device is connected to this product.
– Some of the settings and recorded contents will not be reset.
• The microprocessor must be reset under the following conditions:
– Prior to using this product for the first time after installation.
– If this product fails to operate properly.
– If there appears to be problems with the operation of the system.
1 Turn the ignition switch OFF.
2 Press RESET with a pen tip or other pointed tools.
Settings and recorded contents are reset to the factory settings.
Basic operation
Notes on using the LCD panel
Adjusting the LCD panel angle
Resetting the microprocessor
- 18 -
English
Remove the insulation sheet before use.
WARNING
• Do not ingest the battery, Chemical Burn Hazard.
(The remote control supplied with) This product contains a coin/button cell battery. If the coin/
button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to
death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from
children.
If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
• Batteries (battery pack or batteries installed) must not be exposed to excessive heat such as sunshine,
fire or the like.
CAUTION
• Remove the battery if the remote control is not used for a month or longer.
• There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or
equivalent type.
• Do not handle the battery with metallic tools.
• Do not store the battery with metallic objects.
• If the battery leaks, wipe the remote control completely clean and install a new battery.
• When disposing of used batteries, please comply with governmental regulations or environmental
public institution’s rules that apply in your country/area.
• “Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate. (Applicable to California, U.S.A.)”
Point the remote control in the direction of the front panel to operate.
Preparing the remote control
Using the remote control
How to replace the battery
Insert the CR2025 (3 V) battery with the plus (+) and
minus (-) poles orientated properly.
English
- 19 -
NOTE
The remote control may not function properly in direct sunlight.
Important
• Do not store the remote control in high temperatures or direct sunlight.
• Do not let the remote control fall onto the floor, where it may become jammed under the brake or gas
pedal.
1 Start the engine to boot up the system.
The [Select Program Language] screen appears.
NOTES
• From the second time on, the screen shown will differ depending on the previous conditions.
• From the second time on, enter the password for the anti-theft function if the password entry
screen appears.
2 Touch the language.
3 Touch .
The [Speaker Mode Settings] screen appears.
4 Touch the speaker modes.
[Standard Mode]
4-speaker system with front and rear speakers, or a 6-speaker system with front and
rear speakers and subwoofers.
[Network Mode]
3-way system with a high range speaker, middle range speaker and subwoofer (low
range speaker) for reproduction of high, middle and low frequencies (bands).
WARNING
Do not use the unit in Standard Mode when a speaker system for 3-way Network Mode is
connected to the unit. This may cause damage to the speakers.
5 Touch .
Initial Legal Disclaimer screen appears.
6 Touch [OK].
The top menu screen appears.
NOTE
Once the speaker mode is set, the setting cannot be changed unless this product is restored to the
default settings. Restore the default settings to change the speaker mode setting (page 120).
Starting up the unit
- 20 -
English
To change the speaker mode, you need to restore this product to the default settings.
1 Restore the default setting (page 120).
You can operate this product by touching the keys on the screen directly with your
fingers.
NOTE
To protect the LCD screen from damage, be sure to touch the screen only with your finger gently.
: Returns to the previous screen.
: Close the screen.
Switching the speaker mode
Using the touch panel
Common touch panel keys
Operating list screens
Touching an item on the list allows you to narrow down the options and
proceed to the next operation.
Appears when all characters are not displayed on the display area.
If you touch the key, the rests are scrolled for display.
NOTE
This function is available only when you stop your vehicle in a safe place and apply
the parking brake.
Appears when items cannot be displayed on a single page.
Drag the side bar, the initial search bar or the list to view any hidden items.
English
- 21 -
1
Press .
The menu bar pops up on the screen.
NOTE
The menu bar availability may vary depending on the activating source.
1 Touch or .
Operating the time bar
You can change the playback point by dragging the key.
The playback time corresponding to the position of the key is displayed while
dragging the key.
Operating the menu bar
Switches the dimmer duration by day or night.
Switches between playback and pause.
Skips files forward or backward.
Performs fast reverse or fast forward.
Displays setting menu screen (page 94).
Closes the menu bar.
Switching the operation panel
- 22 -
English
The hidden function keys appear.
NOTE
This key does not appear for some AV sources.
Operating the on-screen keyboard
Displays the characters that are entered.
Moves the cursor to the right or left for a number of characters equivalent to the
number of touches.
Enters the characters in the text box.
Deletes the input text to the left of the cursor one letter at a time.
Touching and holding the key deletes the letters to the left of the cursor in rapid
succession.
Confirms the entry and proceeds to the next step.
Enters a space.
Switches between alphabet and numbers/symbols.
Switches between capital and lower case letters.
English
- 23 -
Top menu screen
Favorite source icons
TIPS
• When you connect the external navigation system to this unit, the navigation
mode key is displayed at the middle of the right side of the display.
• If you select [Power OFF], you can turn off almost all functions. The [Power OFF]
mode is released in the following cases.
– An incoming call is received (only for hands-free phoning via Bluetooth).
– A rear view camera image is input when the vehicle is in reverse.
– A button on this unit is pressed.
– The ignition switch is turned off (ACC OFF), then turned on (ACC ON).
AV/Device source operation key.
Displays the current source.
TIP
When the last source is displayed behind the key, you can switch the source by
touching the key.
Setting the time and date (page 117)
Settings (page 94) and Favorite menu (page 116)
- 24 -
English
Connected device key
Displays connected device.
Switches the source or application with connected devices such as WebLink,
external navigation system, Apple CarPlay, Android Auto.
TIPS
• When a device with a compatible application is connected, the favorite
application key appears. Once the key appears, you can adjust the range of the
favorite application key area with the following steps.
1 Touch and hold .
appears at the top right of the favorite application key.
2 Drag to the desired position.
To finish the adjusting, touch any place of the display except for the
favorite application key.
• You can also switch the mobile device to be connected with the following steps.
1 Touch .
2 Touch .
3 Select desired device then follow the instruction.
Touch for the first wireless connection with the device.
NOTE
This function is available only when you stop your vehicle in a safe place and apply
the parking brake or the vehicle is completely stopped.
AV source (page 35)
Hands-free phoning (page 26)
English
- 25 -
1 Turn on the Bluetooth function on the device.
2 Press .
3 Touch then .
The Bluetooth screen appears.
4 Touch [Connection].
5 Touch .
The unit starts to search for available devices, then displays them in the device list.
6 Touch the Bluetooth device name.
After the device is successfully registered, a Bluetooth connection is established by
the system. Once the connection is established, the device name is displayed on the
list.
NOTES
• If twenty devices are already paired, [Memory Full] is displayed. Delete a paired device first (page 26).
• If your device supports SSP (Secure Simple Pairing), a six-digit number appears on the display of this
product. Touch [Yes] to pair the device.
• If a PIN code input is required, enter a PIN code. (The default PIN code is "0000".)
TIP
The Bluetooth connection can also be made by detecting this product from the Bluetooth device.
Before registration, make sure that [Visibility] in the [Bluetooth] menu is set to [On] (page 26). For
details on Bluetooth device operations, refer to the operating instructions supplied with the Bluetooth
device.
1 Press .
2 Touch then .
CAUTION
Never turn this product off and disconnect the device while the Bluetooth setting operation is being
processed.
Bluetooth
Bluetooth connection
Bluetooth settings
- 26 -
English
To use this function you need to connect your cellular phone to this product via
Bluetooth in advance (page 25).
CAUTION
For your safety, avoid talking on the phone as much as possible while driving.
1 Press .
2 Touch .
The phone menu screen appears.
3 Touch one of the call icons on the phone menu screen.
Menu Item Description
[Connection] Connect, disconnect, or delete registered Bluetooth device
manually.
Touch to delete registered device.
To connect a registered Bluetooth device manually, touch
the name of the device.
To disconnect the device, touch the name of the connected
device in the list.
NOTE
Connect the Bluetooth device manually in the following cases:
• Two or more Bluetooth devices are registered, and you want to
manually select the device to be used.
• You want to reconnect a disconnected Bluetooth device.
• Connection cannot be established automatically for some
reason.
[Auto Connect]
[On] [Off]
Select [On] to connect the last connected Bluetooth device
automatically.
[Visibility]
[On] [Off]
Select [On] to make this product visible to the other device.
[PIN Code Input] Change the PIN code for Bluetooth connection.
The default PIN code is “0000”.
1 Touch [0] to [9] to input the pin code (up to 8 digits).
2 Touch .
[Device Information] Displaying the device name and address of this product.
[Bluetooth Memory Clear] Touch [Clear] then [OK] to clear the Bluetooth memory.
Hands-free phoning
Making a phone call
English
- 27 -
▶To end the call
1 Touch .
The following items are displayed.
• Name of the current cellular phone
• List number of the current cellular phone
• Reception status of the current cellular phone
• Battery status of the current cellular phone
Using preset dial list (page 28)
Using phone book
Select a contact from the phone book. Touch the desired name on the list then
select the phone number.
TIPS
• The contacts on your phone will be automatically transferred to this product.
• Update the phone book manually.
NOTE
[Visibility] of the [Bluetooth] screen should be on (page 26).
Using call history
Make a phone call from the received call , dialed call , or missed call .
Direct phone number input
Enter the number keys to enter the phone number then touch to make a call.
Switches to the voice recognition function (page 28).
- 28 -
English
▶Registering a phone number
You can easily store up to six phone numbers per device as presets.
1 Press .
2 Touch .
3 Touch or .
On the [Phone Book] screen, touch the desired name to display the contact’s phone
number.
4 Touch .
▶Dialing from the preset dial list
1 Touch .
2 Touch the desired entry on the list to make a call.
The dial screen appears and dialing starts.
▶Deleting a phone number
1 Press .
2 Touch .
3 Touch .
4 Touch .
5 Touch [Yes].
1 Touch to answer the call.
Touch to end the call.
TIPS
• Touch while getting a call waiting, switch to the talking person.
• Touch while getting a call waiting to reject the call.
You can use the voice recognition function of iPhone or smartphone.
NOTES
• When an iPhone running iOS 6.1 or higher is used, Siri® Eyes Free Mode is available with this product.
Using the preset dial lists
Receiving a phone call
Voice recognition function
English
- 29 -
• For using this function with a smartphone, the device must be compatible with Android Auto. For
using the voice recognition function with a smartphone, launch Android Auto beforehand.
1 Press .
2 Touch .
3 Touch .
The voice recognition function launches and the voice control screen appears.
TIP
You can also launch the voice recognition function by pressing .
1 Touch .
TIP
To display the dial confirmation screen, touch again.
NOTES
• The dial confirmation screen cannot be minimized on the AV operation screen.
• AV sources cannot be selected even if the dial confirmation screen is minimized while talking on the
phone or receiving an incoming call.
1 Press .
2 Touch then .
During a conversation, you can switch to private mode (talk directly on your cellular
phone).
1 Touch or to turn private mode on or off.
Minimizing the dial confirmation screen
Phone settings
Menu Item Description
[Auto Answer]
[On] [Off]
Select [On] to answer an incoming call automatically.
[Ring Tone]
[On] [Off]
Select [On] if the ring tone does not come out from the car
speakers.
[Invert Name] Select [Yes] to change the order of the first and last names
in the phone book.
Setting the private mode
- 30 -
English
This product can be adjusted to the other party’s listening volume.
1 Touch to switch between the three volume levels.
▶General notes
• Connection to all cellular phones featuring Bluetooth wireless technology is not
guaranteed.
• The line-of-sight distance between this product and your cellular phone must be 10
meters or less when sending and receiving voice and data via Bluetooth technology.
• With some cellular phones, the ring sound may not be output from the speakers.
• If private mode is selected on the cellular phone, hands-free phoning may be disabled.
▶Registration and connection
• Cellular phone operations vary depending on the type of cellular phone. Refer to the
instruction manual that came with your cellular phone for detailed instructions.
• When phone book transfer does not work, disconnect your phone and then perform
pairing again from your phone to this product.
▶Making and receiving calls
• You may hear a noise in the following situations:
– When you answer the phone using the button on the phone.
– When the person on the other end of the line hangs up the phone.
• If the person on the other end of the line cannot hear the conversation due to an echo,
decrease the volume level for hands-free phoning.
• With some cellular phones, even after you press the accept button on the cellular
phone when a call comes in, hands-free phoning may not be performed.
• The registered name will appear if the phone number is already registered in the
phone book. When the same phone number is registered under different names, only
the phone number will be displayed.
▶The received call and dialed number histories
• You cannot make a call to the entry of an unknown user (no phone number) in the
received call history.
• If calls are made by operating your cellular phone, no history data will be recorded in
this product.
▶Phone book transfers
• If there are more than 1 000 phone book entries on your cellular phone, not all entries
may download completely.
• Depending on the phone, this product may not display the phone book correctly.
Adjusting the other party’s listening volume
Notes for hands-free phoning
English
- 31 -
• If the phone book in the phone contains image data, the phone book may not be
transferred correctly.
• Depending on the cellular phone, phone book transfer may not be available.
Before using the Bluetooth audio player, register and connect the device to this product
(page 25).
NOTES
• Depending on the Bluetooth audio player connected to this product, the available operations with
this product may be limited to the following two levels:
– A2DP (Advanced Audio Distribution Profile): Only playing back songs on your audio player is
possible.
– A2DP and AVRCP (Audio/Video Remote Control Profile): Playing back, pausing, selecting songs, etc.,
are possible.
• Depending on the Bluetooth device connected to this product, the available operations with this
product may be limited or differ from the descriptions in this manual.
• While you are listening to songs on your Bluetooth device, refrain from operating the phone function
as much as possible. If you try operating, the signal may cause noise for song playback.
• When you are talking on the Bluetooth device connected to this product via Bluetooth, it may pause
playback.
1 Press .
2 Touch then .
The system setting screen appears.
3 Touch [AV Source Settings].
4 Confirm that [Bluetooth Audio] is turned on.
5 Press .
6 Touch .
The AV source screen appears.
7 Touch [Bluetooth Audio].
The Bluetooth audio playback screen appears.
Bluetooth audio playback screen 1
Bluetooth audio
Basic operation
- 32 -
English
Bluetooth audio playback screen 2
Switches between playback and pause.
Skips files forward or backward.
• By pressing then touch or , you can also skip files forward or
backward.
• By pressing then touch and hold or , you can also perform fast
reverse or fast forward.
Selects a file or folder from the list to playback.
NOTE
This function is available only when the AVRCP version of the Bluetooth device is
1.4 or higher.
Switches among the Bluetooth devices when the devices are connected to
this product via Bluetooth.
Sets a repeat play range.
Plays files in random order.
English
- 33 -
You can connect your Wi-Fi certfied mobile device to this product via Wi-Fi connection.
1 Turn on the Wi-Fi function on the device.
2 Press .
3 Touch then .
4 Touch [Wi-Fi Settings].
5 Set [Wi-Fi] to [ON].
6 Touch [Device Information].
7 Connect this product with the dislayed network name in [Device Information]
from the mobile device.
1 Press .
2 Touch then .
3 Touch [Wi-Fi Settings].
NOTE
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
The menu items vary according to the source.
Wi-Fi
Wi-Fi connection
Wi-Fi settings
Menu Item Description
[Wi-Fi]
[ON] [OFF]
Switches Wi-Fi connection on or off.
[Device Information] Displays the network name and MAC address of this
product.
- 34 -
English
Before using the Wi-Fi audio player, connect the device to this product via Apple
CarPlay™ (page 64) or Android Auto wirelessly (page 68).
1 Press then touch .
2 Touch [Wi-Fi Audio].
The Wi-Fi audio playback screen appears.
NOTES
• [Wi-Fi Audio] is displayed as [Android Auto] when the Android Auto is in use.
• [Wi-Fi Audio] is displayed as [Apple CarPlay] when the Apple CarPlay is in use.
Wi-Fi audio screen (Example: Apple CarPlay)
Wi-Fi audio with Apple CarPlay operation is same as the iPod source function. For details
of the operation, refer to the iPod operation (page 57).
Wi-Fi audio
Basic operation
English
- 35 -
You can play or use the following sources with this product.
• HD Radio Broadcasts (HD Radio™ tuner)
• CD
• ROM (compressed audio or video files on discs)
• DVD-Video
• Video-CD
The following sources can be played back or used by connecting an auxiliary device.
• USB
• SD
• iPod
• Pandora®
• Bluetooth® audio
• Wi-Fi audio (Apple CarPlay, Android Auto)
• SiriusXM® Satellite Radio
• AV input (AV)
• AUX
• HDMI
• Wireless Mirroring
• Car Sources (iDatalink)
1 Press then touch the AV operation key.
The AV operation screen appears.
AV source
Supported AV source
Displaying the AV operation screen
- 36 -
English
1 Press then touch .
2 Touch the source icon.
When you select [Source OFF], the AV source is turned off.
1 Press then touch the AV operation key.
2 Touch .
3 Touch the s ource key.
When you select [Source OFF], the AV source is turned off.
NOTE
This function is available only when you stop your vehicle in a safe place and apply the parking brake.
1 Press then touch .
2 Touch and hold the source icon and drag the icon to the desired position.
1 Press then touch the AV operation key.
2 Touch .
3 Touch .
Displays the source list.
Recalls equalizer curves (page 106).
Selecting a source
Source on the AV source selection screen
Source on the source list
Changing the display order of source
Changing the display order of source icons
Changing the display order of source keys
English
- 37 -
4
Drag the source key to the desired position.
NOTE
This function is available only when you stop your vehicle in a safe place and apply the parking brake.
1 Press .
2 Touch and hold .
appears at the top left of the favorite source icons.
3 Drag to the desired position.
To finish the adjusting, touch any place of the display except for the favorite source
icons area.
Adjusting the range of favorite source icons area
- 38 -
English
When using an iPod/iPhone or a smartphone with this product, configure settings of this
product according to the device to be connected. This section describes the settings
required for each device.
NOTES
• Operation methods may vary depending on the iPod/iPhone model or smartphone and its software
version.
• Depending on the software version of iPod/iPhone or the version of smartphone OS, it may not be
compatible with this unit.
• The setting may not be operable right after it is changed.
• This setting is available only when a hands-free telephone is not used.
• The setting will change after the following processes are automatically executed.
– The source is turned off.
– WebLink, Apple CarPlay or Android Auto is exited.
– The smartphone connection (USB and Bluetooth) is disconnected.
Compatible iPod/iPhone models
• iPhone 7
• iPhone 7 Plus
• iPhone SE
• iPhone 6s
• iPhone 6s Plus
• iPhone 6
• iPhone 6 Plus
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPod touch® (6th generation)
• iPod touch (5th generation)
• iPod nano® (7th generation)
Depending on the iPod models, it may not be compatible with some AV sources. For
details about iPod/iPhone compatibility with this product, refer to the information on
our website.
1 Press .
2 Touch then .
Setup for iPod®/iPhone®
or smartphone
iPod/iPhone
English
- 39 -
3 Touch [Smartphone-related Settings].
4 Touch [Smartphone Setup].
5 Touch [iPhone/iPod].
The available function icons are displayed.
6 Touch [OK].
Compatible smartphones
Compatibility with all smartphones is not guaranteed. For details about smartphone
compatibility with this product, refer to the information on our website.
1 Press .
2 Touch then .
3 Touch [Smartphone-related Settings].
4 Touch [Smartphone Setup].
5 Touch [Others].
6 Touch [Android Auto] to use Android Auto.
Touch [WebLink] to use WebLink.
The available function icons are displayed.
7 Touch [OK].
Smartphone (Android™ device)
- 40 -
English
HD Radio stations offer high quality audio and data services. HD Radio stations are
brought to you by your local FM or AM stations.
HD Radio stations feature the following:
• High quality audio
• FM multicasting
• Data service
Digital, CD-quality sound. HD Radio Technology enables local radio stations to broadcast
a clean digital signal. AM sounds like today’s FM and FM sounds like a CD.
HD Radio™ Technology
About HD Radio stations
: Sub channel
AM band
Analog AM
Analog AM Digital AM
FM band
Analog FM
Analog FM Digital FM
Analog FM Digital FM-1ch
Digital FM-2ch
Digital FM-3ch
: Main channel
English
- 41 -
Program Service Data: Contributes to the superior user experience of HD Radio
Technology. Presents song name, artist, station IDs, HD2/HD3 Channel Guide, and other
relevant data streams.
Adjacent to traditional main stations are extra local FM channels. These HD2/HD3
Channels provide new, original music as well as deep cuts into traditional genre.
Visual information related to content being played on your HD Radio receiver, such as
Album Art, historical photographs, still art from live broadcasts, among other related
content.
1 Press then touch .
2 Touch [HD Radio].
The HD Radio screen appears.
HD Radio screen
Starting procedure
Basic operation
- 42 -
English
TIPS
• By pressing then touch or , you can also switch the preset channels.
• By pressing then touch and hold or and releasing it, you can also perform seek tuning.
The BSM (best stations memory) function automatically stores the six strongest
broadcast frequencies under the preset channel keys [1] to [6].
NOTES
• Storing broadcast frequencies with BSM may replace those you have already saved.
• Previously stored broadcast frequencies may remain stored if the number of frequencies stored has
not reached the limit.
1 Touch the preset channel list display key.
2 Touch to begin search.
While the message is displayed, the six strongest broadcast frequencies will be
stored under the preset channel keys in the order of their signal strength.
1 Touch [Cancel].
Recalls the preset channel stored to a key from memory.
Stores the current broadcast frequency to a key.
Displays the preset channel list.
Select an item on the list ([1] to [6]) to switch to the preset channel.
Selects the FM1, FM2, FM3 or AM band.
Performs manual tuning.
Performs seek tuning or non stop seek tuning.
Releasing the key in a few seconds skips to the nearest station from the
current frequency. Keep holding the key for long seconds to perform,
performs non stop seek tuning.
Switches the text display between the main channel and sub channels.
Storing the strongest broadcast frequencies (BSM)
To cancel the storage process
English
- 43 -
1 Press .
2 Touch then .
The system setting screen appears.
3 Touch [AV Source Settings].
4 Touch [Radio Settings].
The menu items vary according to the source.
Radio settings
Menu Item Description
[Blending]
[On] [Off]
Switches to the analog broadcast of the same
frequency level automatically when reception
of a digital broadcast becomes weak. Select
[Off] to receive only a digital signal.
[Seek] Select the method of seek tuning.
[Seek All] Seeks stations from both analog and digital
broadcasting.
[Seek HD] Only seeks stations from digital broadcasting.
[Local]
[Off]
FM: [Level1] [Level2] [Level3] [Level4]
AM: [Level1] [Level2]
Local seek tuning allows you to only tune into
radio stations with sufficiently strong signals.
NOTE
[Level4] for FM and [Level2] for AM are available only
with the stations with the strongest signals.
- 44 -
English
You can play a normal music CD, Video-CD, or DVD-Video using the built-in drive of this
product.
WARNING
Keep hands and fingers clear of this product when opening, closing, or adjusting the LCD panel. Be
especially cautious of children’s hands and fingers.
CAUTION
Do not insert anything other than a disc into the disc-loading slot.
1 Press .
2 Touch to open the LCD panel.
3 Insert a disc into the disc-loading slot.
The source changes and then playback will start.
NOTE
If the disc is already set, select [Disc] as the playing source.
1 Press .
2 Touch to open the LCD panel.
3 Remove the disc and press .
TIPS
• By pressing then touch or , you can also skip files/chapters forward or backward.
• By pressing then touch and hold or , you can also perform fast reverse or fast forward.
• If a Video-CD with PBC (playback control) On is being played, appears.
• You can set the screen size for the video image (page 117).
Disc
Inserting and ejecting a disc
Inserting a disc
Ejecting a disc
Basic operation
English
- 45 -
Audio source screen 1
Audio source screen 2
Audio source
Switches between playback and pause.
Skips files forward or backward.
Selects a track from the list.
Touch a track on the list to play back.
Sets a repeat play for the current disc/the current track.
Plays or does not play tracks in random order.
- 46 -
English
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video
images, stop in a safe place and apply the parking brake.
Video source screen 1
Video source
Hides the touch panel keys.
To display the keys again, touch anywhere on the screen.
Performs fast reverse or fast forward.
Touch again to change the playback speed.
Stops playback.
Performs frame-by-frame playback.
Performs slow-motion playback.
Each time you touch , it changes the speed in four steps in the
following order: 1/16 -> 1/8 -> 1/4 -> 1/2
Displays the DVD menu.
NOTE
This function may not work properly with some DVD disc content. In that case, use
touch panel keys to operate the DVD menu.
Switches the audio/subtitle language.
English
- 47 -
* PBC (playback control) only
Video source screen 2
Searches for the part you want to play.
Touch [Title], [Chapter], [10key], or [Track] then input the desired number from [0]
to [9].
To start playback from the number you registered, touch .
TIPS
• To cancel an input number, touch [C].
• For DVD-Videos, you can select [Title], [Chapter] or [10Key].
• For Video-CDs, you can select [Track] or [10key].*
Skips files/chapters forward or backward.
Performs fast reverse or fast forward.
Selects the audio output from [L+R], [Left], [Right], [Mix].
This function is available for Video-CDs and DVDs recorded with LPCM audio.
Changes the viewing angle (Multi-angle).
This function is available for DVDs featuring multi-angle recordings.
Sets a repeat play for all files/the current chapter/the current title.
- 48 -
English
Displays the DVD menu keypad.
If items on the DVD menu appear, the touch panel keys may overlay them. If so,
select an item using these touch panel keys.
Touch , , , or to select the menu item then touch .
NOTE
The way to display the menu differs depending on the disc.
TIP
If you touch , you can operate the DVD menu directly.
Resumes playback (Bookmark).
This function is available for DVD-Video. You can memorize one point as a
Bookmark for a disc (up to five discs). To clear the bookmark on the disc, touch and
hold this key.
Returns and begins playback from the specified point.
This function is available for DVD-Video and Video-CDs featuring PBC (playback
control).
English
- 49 -
You can play compressed audio, compressed video, or still image files stored in a disc or
an external storage device.
WARNING
Keep hands and fingers clear of this product when opening, closing, or adjusting the LCD panel. Be
especially cautious of children’s hands and fingers.
CAUTION
• Do not insert anything other than a disc into the disc-loading slot.
• Do not insert anything other than SD memory cards into the SD card slot.
• Ejecting an SD memory card during data transfer can damage the SD memory card. Be sure to eject
the SD memory card by the procedure described in this manual.
• Do not press when an SD memory card is not fully inserted. Doing so may damage the card.
• Do not press before an SD memory card has been completely removed. Doing so may damage
the card.
1 Press .
2 Touch to open the LCD panel.
3 Insert a disc into the disc-loading slot.
The source changes and then playback will start.
NOTE
If the disc is already set, select [Disc] as the playing source.
1 Press .
2 Touch to open the LCD panel.
3 Remove the disc and press .
1 Press .
Compressed files
Inserting and ejecting media
Inserting a disc
Ejecting a disc
Inserting an SD memory card
- 50 -
English
2 Touch to open the LCD panel.
3 Insert an SD memory card into the SD card slot.
4 Press .
NOTES
• This system is not compatible with the Multi Media Card (MMC).
• Compatibility with all SD memory cards is not guaranteed.
• This product may not achieve optimum performance with some SD memory cards.
1 Press .
2 Touch to open the LCD panel.
3 Press the middle of the SD memory card gently until it clicks.
4 Pull the SD memory card out straight.
5 Press .
1 Pull out the plug from the USB port of the USB cable.
2 Plug a USB storage device into the USB cable.
NOTES
• This product may not achieve optimum performance with some USB storage devices.
• Connection via a USB hub is not possible.
• A USB cable is required for connection.
Ejecting an SD memory card
Plugging a USB storage device
USB cable
USB storage device
English
- 51 -
1 Pull out the USB storage device from the USB cable.
NOTES
• Check that no data is being accessed before pulling out the USB storage device.
• Turn off (ACC OFF) the ignition switch before unplugging the USB storage device.
1 Insert the disc (page 49).
TIP
If the disc is already set, select [Disc] as the playing source.
1 Insert the SD memory card into the SD card slot or plug the USB storage device
into the USB connector.
2 Press then touch .
3 Touch [USB] or [SD].
Playback is performed in order of folder numbers. Folders are skipped if they contain
no playable files.
NOTES
• For details on inserting SD card see on Inserting an SD memory card (page 49).
• For details on plugging USB storage device, see on Plugging a USB storage device (page 50).
TIPS
• By pressing then touch or , you can also skip files/chapters forward or backward.
• By pressing then touch and hold or on the audio or video file, you can also perform fast
reverse or fast forward.
• You can set the screen size for the video and image files (page 117).
Unplugging a USB storage device
Starting procedure
For Disc
For USB/SD
Basic operation
- 52 -
English
Audio source screen 1 (Example: USB)
Audio source
Displays the link search screen.
Touch the song to play back followed by touching the song information, after
switching to Music Browse mode (page 53).
TIP
If you touch the artwork, the list of songs in the album is displayed.
NOTE
This function is available for the external storage device (USB, SD) only.
Switches between playback and pause.
Switches the following media file types.
[Music]: Compressed audio files
[Video]: Compressed video files
[Photo]: Image files
Skips files forward or backward.
Switches the current music information display.
Selects a file from the list.
Touch a file on the list to playback.
TIP
Touching a folder on the list shows its contents. You can play a file on the list by
touching it.
NOTE
When you play compressed audio files stored in an external storage device (USB,
SD), you can search for a file using Music Browse (page 53).
English
- 53 -
Audio source screen 2 (Example: USB)
▶Selecting a file using Music Browse mode
You can select files to play back using the category list if the files contain tag
information.
NOTES
• This function is available for the external storage device (USB, SD) only.
• Music Browse mode cannot be held once the power is turned off.
1 Touch .
2 Touch the [Tag] tab.
3 Touch the desired category to display the file list.
4 Touch the item.
Refine the item until the desired song title or file name is displayed on the list.
5 Touch the desired song title or file name to play back.
If the selection made with Music Browse has been canceled, you can switch to Music
Browse mode again by touching the [Tag] tab on the file/folder list screen and
touching the desired track.
Selects the previous folder or the next folder.
Sets a repeat play range for all files/the current folder/the current file.
Plays files or does not play in random order.
- 54 -
English
TIP
Once the database is created in the USB storage, there is no need to create the database again as long
as the same contents are saved. To enter the Music Browse mode directly, touch and then touch
[Tag] before selecting the song.
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video
images, stop in a safe place and apply the parking brake.
Video source screen (Example: USB)
Video source
Hides the touch panel keys.
To display the keys again, touch anywhere on the screen.
Switches between playback and pause.
Switches the following media file types.
[Music]: Compressed audio files
[Video]: Compressed video files
[Photo]: Image files
Performs fast reverse or fast forward.
Touch again to change the playback speed.
Stops playback.
Performs frame-by-frame playback.
Performs slow-motion playback.
English
- 55 -
TIPS
• Image files are not displayed in the rear display.
• By pressing then touch and hold or on the still image file, you can search through 10
image files at a time. If the file currently being played is the first or last file in the folder, the search is
not performed.
Still image screen
Sets a repeat play range for all files/the current folder/the current file.
Switches the audio/subtitle language.
Selects a file from the list.
Touch a file on the list to playback.
TIP
Touching a folder on the list shows its contents. You can play a file on the list by
touching it.
Skips files forward or backward.
Performs fast reverse or fast forward.
Still image source
Hides the touch panel keys.
To display the keys again, touch anywhere on the screen.
- 56 -
English
Switches between playback and pause.
Switches the following media file types.
[Music]: Compressed audio files
[Video]: Compressed video files
[Photo]: Image files
Skips files forward or backward.
Selects the previous folder or the next folder.
Rotates the displayed picture 90° clockwise.
Sets a repeat play range for all files/the current folder.
Plays all files in the current repeat play range or does not play them in
random order.
Selects a file from the list.
Touch a file on the list to playback.
TIP
Touching a folder on the list shows its contents. You can play a file on the list by
touching it.
English
- 57 -
When connecting an iPod to this product, the settings are automatically configured
according to the device to be connected.
NOTES
• Depending on the generation or version of the iPod, some functions may not be available.
• Do not delete the Apple Music® app from your iPod since some functions may not be available.
• When connecting an iPhone or iPod touch, quit all applications before connecting the device.
1 Connect your iPod via USB.
2 Press then touch .
3 Touch [iPod].
NOTE
For details on USB connection, refer to the Installation Manual.
TIPS
• By pressing then touch or , you can also skip files forward or backward.
• By pressing then touch and hold or , you can also perform fast reverse or fast forward.
NOTE
Skipping backward, fast reverse and fast forward are not available while playing Apple Music Radio.
iPod
Connecting your iPod
Basic operation
- 58 -
English
Audio source screen 1
Audio source
Displays the link search screen.
Select a song from the list related to the song currently playing.
TIP
If you touch the artwork, the list of songs in the album is displayed.
NOTE
This function is not available while playing Apple Music Radio.
Switches between playback and pause.
Skips files forward or backward.
Selects a song from the list.
Touch the category then the title of the list to playback of the selected list.
TIPS
• If you use English as the system language, the alphabet search function is
available. Touch the initial search bar to use this function.
• When you touch Apple Music Radio station in the list screen, Apple Music Radio
screen appears (page 59).
NOTES
• Depending on the generation or version of the iPod, some functions may not be
available.
• Only 16 000 songs in the iPod are available in the list if the iPod has more than 16
000 songs. Available songs depend on the iPod.
English
- 59 -
Audio source screen 2
Important
Apple Music Radio may not be available in your country or region. For details about Apple Music Radio,
visit the following site: http://www.apple.com/music/
NOTE
This function is only available when using the iPod function with an iPhone 7, iPhone 7 Plus, iPhone SE,
iPhone 6s, iPhone 6s Plus, iPhone 6, iPhone 6 Plus, iPhone 5s, iPhone 5c, iPhone 5 or iPod touch (5th
and 6th generation).
1 Touch .
2 Touch [Radio].
Changes the audiobook speed.
Normal—Fast—Slow
NOTE
The audiobook speed icon may not change depending on the connected iPod/
iPhone.
Sets a repeat play range for all in the selected list/the current song.
Plays songs within the selected list/album randomly.
Apple Music® Radio source
- 60 -
English
Apple Music Radio screen
Switches between playback and pause.
Displays the pop-up menu for Apple Music Radio.
• Touch [Play More Like This] to play back songs similar to the current song.
• Touch [Play Less Like This] to set it not to play back the current song again.
• Touch [Add to iTunes Wish List] to add the current song to the iTunes® wish list.
NOTE
This function may not be used depending on your Apple Music account status.
Skips tracks forward.
English
- 61 -
WebLink lets you enjoy compatible smartphones apps in the car. You can operate
WebLink compatible applications with finger gestures such as tapping, dragging,
scrolling, or flicking on the screen of this product.
NOTES
• The supported finger gestures may vary depending on the WebLink compatible application.
• To use WebLink, you must first install the WebLink Host app on the iPhone or smartphone. For details
about the WebLink Host app, visit the following site: https://www.abaltatech.com/weblink/
• Be sure to read Using app-based connected content (page 138) before you perform this operation.
• Copyright protected files such as DRM cannot be played.
WARNING
Certain uses of the iPhone or smartphone may not be legal while driving in your jurisdiction, so you
must be aware of and obey any such restrictions. If in doubt as to a particular function, only perform it
while the car is parked. No feature should be used unless it is safe to do so under the driving conditions
you are experiencing.
Important
• Pioneer is not liable for any issues that may arise from incorrect or flawed app-based content.
• The content and functionality of the supported applications are the responsibility of the App
providers.
• In WebLink, functionality through the product is limited while driving, with available functions
determined by the App providers.
• Availability of WebLink functionality is determined by the App provider, and not determined by
Pioneer.
• WebLink allows access to applications other than those listed that are subject to limitations while
driving.
When connecting an iPhone or a smartphone to this product, settings are required
according to the connected device. For details, refer to Setup for iPod®/iPhone® or
smartphone (page 38).
TIPS
• Touch the desired application icon after the WebLink Host app is launched.
• The desired application is launched, and the application operation screen appears.
• Press to go back to the top menu screen.
WebLink™
Using WebLink
Starting procedure
- 62 -
English
WebLink
1 Connect your iPhone to this product via USB.
Refer to the Installation Manual.
2 Press .
3 Touch .
4 Touch [WebLink].
5 Touch desired icon in the tab.
The WebLink app is launched.
NOTE
The video playback capability depends on the connected Android device.
1 Unlock your smartphone and connect it to this product via USB.
Refer to the Installation Manual.
2 Press .
3 Touch .
4 Touch [WebLink].
5 Touch desired icon in the tab.
The WebLink app is launched.
Displays the main menu of the WebLink source screen.
For iPhone users
For smartphone (Android) users
English
- 63 -
You can output the audio mixing AV source and an application for iPhone or
smartphone when WebLink is used.
NOTE
Depending on the application or AV source, this function may not be available.
1 Start up the WebLink.
2 Press VOL (+/-).
The audio mix menu will be displayed on the screen.
Android
iOS
Using the audio mix function
Touch to mute. Touch again to cancel mute.
Sets whether to switch the sound mix function on or off.
• Left tab:
The audio mix function is enabled (mix on) and the App volume is displayed.
• Right tab:
The audio mix function is disabled (mix off). This is not displayed on the AV
operation screen.
Adjusts the application audio volume.
- 64 -
English
You can operate iPhone applications with finger gestures such as tapping, dragging,
scrolling, or flicking on the screen of this product.
Compatible iPhone models
For details about compatibility of iPhone models, refer to the following website.
http://www.apple.com/ios/carplay
NOTE
The compatible finger gestures vary depending on the application for the iPhone.
WARNING
Certain uses of the iPhone may not be legal while driving in your jurisdiction, so you must be aware of
and obey any such restrictions. If in doubt as to a particular function, only perform it while the car is
parked. No feature should be used unless it is safe to do so under the driving conditions you are
experiencing.
Important
Apple CarPlay may not be available in your country or region.
For details about Apple CarPlay, visit the following site:
http://www.apple.com/ios/carplay
• The content and functionality of the supported applications are the responsibility of the App
providers.
• In Apple CarPlay, usage is limited while driving, with availability of functions and content determined
by the App providers.
• Apple CarPlay allows access to applications other than those listed that are subject to limitations
while driving.
• PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-PIONEER) APPS
AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE
INFORMATION.
To achieve optimum usability of Apple CarPlay, set the driving position setting correctly
according to the vehicle. The setting will be applied the next time an Apple CarPlay
compatible device is connected to this product.
1 Press .
2 Touch then .
The system setting screen appears.
Apple CarPlay™
Using Apple CarPlay
Setting the driving position
English
- 65 -
3 Touch [Smartphone-related Settings].
4 Touch [Driving Position].
[Left]
Select for a left-hand drive vehicle.
[Right]
Select for a right-hand drive vehicle.
When connecting an iPhone to this product, settings are required according to the
connected device. For details, refer to Setup for iPod®/iPhone® or smartphone (page 38).
1 Connect an Apple CarPlay compatible device to this product via USB.
2 Press .
3 Touch .
4 Touch [Apple CarPlay].
5 Touch the Apple CarPlay icon in the tab.
The application screen appears.
Before using Apple CarPlay wirelessly, connect the device to this product via Bluetooth
and turn on Apple CarPlay in the Bluetooth setting menu of the device (page 25).
1 Turn on the Wi-Fi function on the device.
2 Press .
3 Touch .
The device search screen appears.
Touch then skip to step 4 since the device list screen appears if Apple CarPlay had
previously been used wirelessly with the device.
NOTE
The unit cannot detect the device unless the Bluetooth or Apple CarPlay setting menu is displayed
on the iPhone screen.
4 Touch .
5 Touch a desired device on the screen.
Starting procedure
Wired connection
Wireless connection
- 66 -
English
The unit configures the connection then start the application.
TIP
You can also start Apple CarPlay with a desired device by opening the Bluetooth or Apple CarPlay
setting menu while displaying the device search or device list screen.
TIP
You can use Siri function by pressing once Apple CarPlay is activated.
NOTES
• For details on USB connection, refer to the Installation Manual.
• If an Apple CarPlay compatible device has been connected and another screen is displayed, touch
[Apple CarPlay] on the top menu screen to display the Application menu screen.
• The Bluetooth connection with the Apple CarPlay compatible device will be terminated automatically
if Apple CarPlay is turned on. While Apple CarPlay is turned on, only a Bluetooth audio connection will
be possible for devices other than the device connected via Apple CarPlay.
• Hands-free phoning via Bluetooth wireless technology is not available while Apple CarPlay is on. If
Apple CarPlay is turned on during a call on a cellular phone other than an Apple CarPlay compatible
device, the Bluetooth connection will be terminated after the call ends.
You can adjust the guidance volume separately from the main sound volume when
Apple CarPlay is used.
1 While Apple CarPlay is activated, press VOL (+/-).
The volume menu will be displayed on the screen.
NOTE
The volume menu is displayed for four seconds. If the menu disappears, press VOL (+/-) again. The
menu reappears.
Adjusting the volume
Touch to mute. Touch again to cancel mute.
Touch [+]/[-] to adjust the guidance volume.
Displays the main sound volume. To adjust the main sound volume, press
VOL (+/-) on the unit.
English
- 67 -
You can operate Android applications with finger gestures such as tapping, dragging,
scrolling, or flicking on the screen of this product.
Compatible Android devices
For details about compatibility of Android models, refer to the following website.
https://support.google.com/androidauto
NOTE
The compatible finger gestures vary depending on the application for the smartphone.
WARNING
Certain uses of the smartphone may not be legal while driving in your jurisdiction, so you must be
aware of and obey any such restrictions. If in doubt as to a particular function, only perform it while the
car is parked. No feature should be used unless it is safe to do so under the driving conditions you are
experiencing.
Important
Android Auto may not be available in your country or region.
For details about Android Auto, please refer to the Google support site:
http://support.google.com/androidauto
• The content and functionality of the supported applications are the responsibility of the App
providers.
• In Android Auto, usage is limited while driving, with availability of functions and content determined
by the App providers.
• Android Auto allows access to applications other than those listed that are subject to limitations
while driving.
• PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-PIONEER) APPS
AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE
INFORMATION.
To achieve optimum usability of Android Auto, set the driving position setting correctly
according to the vehicle. The setting will be applied the next time an Android Auto
compatible device is connected to this product.
1 Press .
2 Touch then .
The system setting screen appears.
Android Auto™
Using Android Auto
Setting the driving position
- 68 -
English
3 Touch [Smartphone-related Settings].
4 Touch [Driving Position].
[Left]
Select for a left-hand drive vehicle.
[Right]
Select for a right-hand drive vehicle.
When connecting a smartphone to this product, settings are required according to the
connected device. For details, refer to Setup for iPod®/iPhone® or smartphone (page 38).
1 Connect an Android Auto™ compatible device to this product via USB.
2 Press .
3 Touch .
4 Touch [Android Auto].
5 Touch the Android Auto icon in the tab.
A Bluetooth connection with the Android Auto compatible device is automatically
established and a Bluetooth connection with any other devices are terminated.
Before using Android Auto wirelessly, connect the device to this product via Bluetooth
(page 25).
1 Turn on the Wi-Fi function on the device.
2 Press .
3 Touch .
The device search screen appears.
Touch then skip to step 4 since the device list screen appears if Android Auto had
previously been used wirelessly with the device.
NOTE
The unit cannot detect the device unless the Bluetooth setting menu is displayed on the
smartphone screen.
4 Touch .
Starting procedure
Wired connection
Wireless connection
English
- 69 -
5
Touch a desired device on the screen.
The unit configures the connection then start the application.
TIP
You can use voice recognition function by pressing once Android Auto is activated.
NOTES
• For details on USB connection, refer to the Installation Manual.
• If twenty devices are already paired, the message confirming whether to delete the registered device
is displayed. If you want to delete the device, touch [Agree]. If you want to delete other device, touch
[BT Settings] and delete the devices manually (page 26).
• If Android Auto is turned on during a call on a cellular phone other than the Android Auto compatible
device, the Bluetooth connection will switch to the Android Auto compatible device after the call.
You can adjust the guidance volume separately from the main sound volume when
Android Auto is used.
1 While Android Auto is activated, press VOL (+/-).
The volume menu will be displayed on the screen.
NOTE
The volume menu is displayed for four seconds. If the menu disappears, press VOL (+/-) again. The
menu reappears.
If this function is set to on, Android Auto will launch automatically when an Android
Auto compatible device is connected to this product.
Adjusting the volume
Touch to mute. Touch again to cancel mute.
Touch [+]/[-] to adjust the guidance volume.
Displays the main sound volume. To adjust the main sound volume, press
VOL (+/-) on the unit.
Setting the auto-launch function
- 70 -
English
NOTE
Android Auto will launch automatically only when an Android Auto compatible device is correctly
connected to this product.
1 Press .
2 Touch then .
3 Touch [Smartphone-related Settings].
4 Touch [Android Auto Auto-launch] to switch [On] or [Off].
English
- 71 -
Pandora Music is a music service not affiliated with Pioneer. More information is
available at http://www.pandora.com.
The Pandora mobile application is available for iPhone and smartphones. Please visit
www.pandora.com/everywhere/mobile for the latest compatibility information.
WARNING
Certain uses of the iPhone or smartphone may not be legal while driving in your jurisdiction, so you
must be aware of and obey any such restrictions.
If in doubt as to a particular function, only perform it while the car is parked.
No feature should be used unless it is safe to do so under the driving conditions you are experiencing.
Important
Create a free or a paid account online. You can create the account in the Pandora application from your
iPhone or smartphone, or from the website (http://www.pandora.com/account/register).
Limitations:
• The Pandora service is subject to change without notice. The service could be affected
by any of the following: firmware version of the iPhone or smartphone, firmware
version of the Pandora application, changes to the Pandora music service.
• Certain functions of the Pandora service are not available when accessing the service
through Pioneer car audio/video products. They include, but are not limited to the
following: sending information about current stations, buying tracks from iTunes App
Store® or Google Play, viewing additional text information, logging in to Pandora,
adjusting Cell Network Audio Quality.
NOTE
In this chapter, iPhone and iPod touch will be referred to as "iPhone".
Update the firmware of the Pandora application to the latest version before use.
1 Unlock the mobile device and connect it to this product.
• iPhone via USB or Bluetooth
• Smartphone via Bluetooth
2 Press then touch .
3 Touch [Pandora].
4 Launch the Pandora application on the mobile device and start playback.
NOTES
• For details on Bluetooth connection, see page 25.
Pandora®
Listening to Pandora
- 72 -
English
• For details on USB connection, refer to the Installation Manual.
Playback screen 1
Basic operation
Recalls the preset station stored to a key from the memory.
Stores the current station to a key.
Displays the preset station list.
Select an item on the list ([1] to [6]) to switch to the preset station.
Switches between playback and pause.
Skips tracks forward.
TIP
By pressing then touch , you can skip songs forward.
*
Gives a Thumbs Up to the playing track.
*
Gives a Thumbs Down to the playing track and skips to the next track.
Switches among connected devices.
English
- 73 -
* and are not available when using a shared station.
Playback screen 2
Selects a Pandora station from the list.
• : Switches to the station list.
• : Switches to the genre list.
• : Plays only one track based on particular musical characteristics from several
shuffled stations.
• : Deletes the station.
•A-Z: Sorts the items in the list alphabetically.
•Date: Sorts the items in the list in the order of the dates.
TIP
Shared stations are indicated by .
Creates a new station.
Touch [Track] or [Artist] to create a new station.
Adds information for the track currently playing to bookmarks.
- 74 -
English
Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over
140 channels, including commercial-free music plus the best sports, news, talk, comedy,
and entertainment. Welcome to the world of satellite radio. A SiriusXM Connect Vehicle
Tuner and Subscription are required. For more information, visit the website
(www.siriusxm.com).
To take full advantage of all the SiriusXM capabilities, such as TuneMix™, SportsFlash™
and Traffic & Weather Now™, please use the SXV300 tuner or later version (sold
separately). Other tuners are compatible but may limit the features.
1 Press then touch .
2 Touch [SiriusXM].
You should be able to tune in to Channel 1. If you cannot get Channel 1, ensure that
your SiriusXM Connect Vehicle Tuner is installed correctly.
3 Switch to Channel 0 and check the Radio ID.
The SiriusXM Radio ID can be found by tuning in to Channel 0.
In addition, the Radio ID is located on the bottom of the SiriusXM Connect Vehicle
Tuner and its packaging.
You will need this number to activate your subscription.
NOTE
The SiriusXM Radio ID does not include the letters I, O, S, or F.
4 Activate the service either online or by phone.
TIP
In the USA, you can activate online or by calling SiriusXM Listener Care:
• Visit the website
www.siriusxm.com/activatenow
• Call SiriusXM Listener Care at
1-866-635-2349
For Canadian subscriptions, please contact:
• Visit the website
www.siriusxm.ca/activatexm
and click on "ACTIVATE RADIO" at the top right corner of the page, or call (1-877-438-9677).
NOTES
• The SiriusXM satellites will send an activation message to your tuner. When the tuner has received the
message, [Subscription Updated] is displayed.
SiriusXM® Satellite Radio
Subscribing to the SiriusXM Satellite Radio service
English
- 75 -
• The activation process usually takes 10 to 15 minutes, but it may take up to an hour. Your radio will
need to be powered on and receiving the SiriusXM signal to receive the activation message.
1 Press then touch .
2 Touch [SiriusXM].
TIPS
• By pressing then touch or , you can move the preset channels up or down on the current
channel screen, and skip files forward or backward on the play time indicator screen.
• By pressing then touch and hold or , you can move channels up or down on the current
channel screen, and perform fast reverse or fast forward on the play time indicator screen.
• On the Featured Favorites Band, the current broadcast frequency cannot be stored to a key (page 79).
• If fewer than two music channels are stored as presets, you cannot use the TuneMix function.
• [RADIO ID] is displayed when Channel 0 is selected.
Current channel display (Live broadcast mode)
Listening to SiriusXM
Basic operation
Memorizes the current channel content information for the alert function
(page 79).
Selects a channel directly.
Recalls the preset channel stored to a key from the memory.
Stores the current channel to a key.
- 76 -
English
Displays the preset channels.
Select an item on the list ([1] to [6]) to switch to the preset channel.
Selects a band.
There are 4 bands. You can store 6 channels per band for a total of 24 presets.
Performs TuneScan™ (page 77).
Switches TuneMix™ to on or off.
You can use TuneMix™ to play a unique blend of songs from each of the music
channels stored as presets on the current band.
NOTES
• When fewer than two music channels are stored as presets, you cannot use
TuneMix™.
• Locked channels will not be used by TuneMix™ until the channels are unlocked
by entering the parental control passcode.
• TuneMix™ is only compatible with SXV300 or later tuner models (sold
separately).
Performs channel number down/up.
Performs fast channel number down/up.
Switches to the channel broadcasting the traffic and weather information for
the selected city (Traffic & Weather Now™).
Touch the Traffic & Weather Now™ button and you will be able to hear the latest
report for the selected city from the beginning.
To cancel Traffic & Weather Now™, touch .
TIPS
• Grayed out: Traffic and weather broadcast for your market is not yet available.
• With green dot: Latest report available, but not listened to yet.
• White: Latest report available to hear again.
• To listen to the information again, touch on the current channel display.
• If you have not selected the city, touch to select the city. You can also select
the city in advance (page 81).
• If you have already selected the city, you can listen to the information only by
touching .
NOTES
• The selected city can be changed in the Sirius XM settings (page 81).
• Traffic & Weather Now™ is only compatible with SXV300 or later tuner models
(sold separately).
Switches between live broadcast mode and Replay Mode.
English
- 77 -
Replay Mode (Time bar display)
When you activate the TuneScan™ feature, you will hear a few seconds of the songs
which have not been listened to from each of the music channels stored as presets on
the current band.
NOTES
• When fewer than two music channels are stored as presets, you cannot use TuneScan™.
Selects a channel from the list.
Select the category name or the list of all channels then touch the desired channel.
To switch the display list, touch .
TIPS
• The displayed list switches in the following order.
Channel Name—Artist Name—Song Title—Content Info
• If you touch , you can scan each channel in the selected category.
NOTES
• The types of categories available depend on the types of channels available.
• It may take time to display the channel list depending on the SiriusXM reception
condition.
Switches between playback and pause.
Performs content forward or backward.
Performs fast forward or rewind.
Switches between live broadcast mode and Replay Mode.
TuneScan™
- 78 -
English
• TuneScan™ may take a few minutes to become available after the product is turned on or the preset
band is changed.
• Tune Scan™ is compatible with SXV200 or later tuner models (sold separately).
1 Touch to display the following display.
SportsFlash™ will notify you when a big play happens during a game with one of your
favorite sports teams.
Choose to tune in and hear the play unfold like it was live. Continue listening to the
game, or you can return to your previous channel.
For details, see [SportsFlash] (page 81) and [SportsFlash List] (page 81) in SiriusXM
settings.
NOTE
SportsFlash™ is only compatible with SXV300 or later tuner models (sold separately).
All preset channels will buffer the content to be used for Replay, TuneStart, TuneScan
and TuneMix features.
NOTE
SmartFavorite is compatible with SXV200 or later tuner models (sold separately).
Continues playing the current scanning song or channel.
Skips to the previous/next song during TuneScan™ or to the previous/next
channel during category scan.
Cancels scan play and returns to the previous channel.
SportsFlash™
SmartFavorites
English
- 79 -
Featured Favorites are groups of channels that are created by the SiriusXM Programming
department allowing you to discover new channels. Featured Favorite channels are
dynamic and can change often, allowing you to discover new channels.
For details, see [Featured Favorites] and [Featured Band Update Messages] in SiriusXM
settings (page 80).
When there is a Featured Favorite, access it with the band key.
1 Touch the band key.
SXM1—SXM2—SXM3—FF
When there are multiple Featured Favorites, access them from the category list.
It is displayed at the bottom of the category list (page 77).
The Parental Control feature allows you to limit access to any SiriusXM channels,
including those with mature content. When enabled, the Parental Control feature
requires you to enter a passcode to tune to the locked channels.
For details, see [Parental Control] in SiriusXM settings (page 80).
The song titles, artist names, and your favorite sport teams that you are listening to can
be memorized on an alert list.
When a program that matches a keyword memorized to the alert list is broadcast, a beep
sounds and a message is displayed.
For Details, see [Alert List](page 80) in SiriusXM settings .
NOTES
• You can register up to 50 keywords in the alert list.
• You can enable or disable alerts by setting the alert function.
• The radio will display an alert message when a matching artist, song, or team is found on another
channel. Touch [Jump] to switch to the channel. If you touch [Stay], the channel will not switch.
1 On the current channel content information area, touch the item for which you
want an alert.
2 Touch [OK] for the artist or song, or touch [Team1] or [Team2] for the game.
Using Featured Favorites Band
How to access
Parental lock
Using the content alerts function
Memorizing the current contents
- 80 -
English
TIP
To set the alert function, you can set up at [Alert List] (page 80) in the [SiriusXM Settings].
1 Press .
2 Touch then .
The system setting screen appears.
3 Touch [AV Source Settings].
4 Touch [SiriusXM Settings].
The menu items vary according to the source.
SiriusXM settings
Menu Item Description
[Tune Start]
[On] [Off]
Start songs automatically from the beginning when you tune to
one of your preset channels in the current preset band when
TuneStart™ is turned on.
[Parental Control] Enter the current passcode then touch to set this function
(the default passcode is 0000).
• To edit the passcode, touch [Edit Code] then touch
followed by entering the new passcode.
• To lock the channel, touch the appropriate channel.
appears and the channel is locked.
TIPS
• When you touch the locked channel, the channel is unlocked.
• When you touch [Clear All], all locked channels are unlocked.
[Alert List] Select to activate the alert function of each memorized alert list
by touching by [Alert On] or [Alert Off].
TIPS
• Touch [Delete All] to delete all items memorized to the alert list.
• If you touch and hold the list item, you can delete the item from the
list.
[Team Settings] Set to notify you when games involving your favorite sports
teams are about to start.
1 Select your favorite league in the list screen.
2 Touch your favorite team in your selected league to switch
the alert on or off.
English
- 81 -
[Featured Favorites]
[On] [Off]
Set to [On] to allow you to discover new channels created by
the SiriusXM Programming department.
NOTE
If the Featured Favorite Band needs to update, the Featured Band
Update message will appear.
[Featured Band
Update Messages]
[On] [Off]
Set to [On] to be notified when the featured seasonal theme is
updated.
TIP
To display [Featured Band Update Messages] at all times, [Featured
Favorites] needs to be set to [On].
[SportsFlash]
[On] [Off]
Activates the SportsFlash™ function.
• Touch [Play] to listen to the notified channel.
• Touch [Ignore] to stay tuned to the current channel.
• Touch [Cancel] to cancel notifications regarding the game.
[SportsFlash List] Select favorite teams for SportsFlash™.
• Touch [Edit List] then select a league and team to set the
favorite.
TIPS
• You can touch an item again to deselect it.
• If you want to remove all the teams you have set, touch [Clear All].
Setting of priorities
If you set many Favorite Teams, SportsFlash™ notifications can
be received for up to 5 Favorite Teams at once. Set the priorities
if more than six teams are set as Favorite Teams.
1 Touch [Prioritize] on the team selection screen.
2 Select the five high priority teams from the selected
favorite teams.
[City Setting] Select the city for the latest traffic and weather report in Traffic
& Weather Now™.
[SiriusXM Reset] Set to restore to the default SiriusXM settings by touching
[Restore].
CAUTION
Do not turn off the engine while restoring the settings.
NOTES
• This setting is available only when you stop your vehicle in a safe place
and apply the parking brake.
• The source is turned off before the process starts.
Menu Item Description
- 82 -
English
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video
images, stop in a safe place and apply the parking brake.
NOTE
A High Speed HDMI® Cable (sold separately) is required for connection. For details, refer to the
Installation Manual.
1 Press then touch .
2 Touch [HDMI].
The HDMI source screen appears.
HDMI source screen
HDMI
Starting procedure
Basic operation
Hides the touch panel keys.
To display the keys again, touch anywhere on the screen.
TIP
You can set the screen size for the video image (page 117).
English
- 83 -
You can display the video image output by the device connected to video input.
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video
images, stop in a safe place and apply the parking brake.
NOTES
• A Mini-jack AV cable (sold separately) is required for connection. For details, refer to the Installation
Manual.
• You can set the screen size for the video image (page 117).
1 Press .
2 Touch then .
3 Touch [Input/Output Settings].
4 Confirm that [AUX Input] is turned on.
5 Press then touch .
6 Touch [AUX].
The AUX screen appears.
AUX
Starting procedure
English
- 85 -
You can display the video image output by the device connected or the camera to video
input. For details, refer to the Installation Manual.
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video
images, stop in a safe place and apply the parking brake.
1 Press .
2 Touch then .
3 Touch [Input/Output Settings].
4 Touch [AV Input].
5 Touch [Source] for AV source or [Camera] for camera.
6 Press then touch .
7 Touch [AV] for AV source or [Camera View] for camera.
The image is displayed on the screen.
NOTE
If [Source] is selected, [2nd Camera Input] is automatically set to [Off] (page 96).
AV input
Starting procedure
- 86 -
English
AV source screen
Basic operation
Hides the touch panel keys.
To display the keys again, touch anywhere on the screen.
English
- 87 -
(This function is available only for Android device.)
Wireless Mirroring is a wireless display designed to mirror your mobile device on this
product screen via Wi-Fi connection.
Wireless Mirroring operations and procedures vary depending on the connected mobile
device. Refer to the instruction manual that came with your mobile device.
CAUTION
For safety reasons, this function is available only when you stop your vehicle in a safe place and apply
the parking brake.
1 Press .
2 Touch then .
3 Touch [Wi-Fi Settings].
4 Confirm that [Wi-Fi] is turned on.
5 Press then touch .
6 Touch [Mirroring].
A connection is configured then the instruction message appears on the display.
NOTES
• When Apple CarPlay or Android Auto with wireless connection is activated, the connection
swtiching confirmation screen appears. Touch [OK] to proceed to Wireless Mirroring.
• When the Wi-Fi connection is set to [OFF], the connection confirmation screen appears. Touch
[Start] to make the connection.
7 Make a Wireless Mirroring connection on the mobile device.
8 Touch [Yes].
The Wireless Mirroring screen appears.
Wireless Mirroring
Starting procedure
- 88 -
English
Wireless Mirroring screen (Example)
NOTES
• The screen shown in the example may differ from the connected mobile device.
• If the Android device is not ready for Miracast UIBC, you cannot perform touch operation.
Basic operation
Displays Full screen.
[Disconnect]
Disconnects Wireless Mirroring.
English
- 89 -
You can access the satellite radio source provided for the vehicle. The vehicle
information and many OEM systems such as steering wheel controls, warning chimes,
driver safety systems, and etc. can be displayed on this product by connecting the
optional iDatalink adapter. It is also possible to add visual screens such as gauges,
vehicle information, climate control, and parking assist. However, an extra interface
module is required to access these features.
NOTE
Since the type of module varies depending on the vehicle model, search for your vehicle at the
following URL to determine what features are available for each module. Remember to select the
correct radio model for accurate results.
http://maestro.idatalink.com/
Important
• For details about vehicle models that are compatible with the iDatalink adapter, refer to the
information on our website.
• For information on installing the iDatalink adapter, refer to the install guide of the iDatalink adapter.
• After installing the iDatalink adapter, be sure to check the operations.
• Functions and displays vary depending on the vehicle model. For details of the functions available for
each model, refer to the information on our website.
• Please note that the device number of this product and a computer with internet access are required
to program your Maestro RR module. For troubleshooting information about iDatalink functions, visit
the following website.
http://maestro.idatalink.com/support
Limitations
• The data is transmitted to this product from your vehicle system via the connected
iDatalink adapter. Therefore, the actual data contents displayed on your product may
be different from the contents on the screen described in this manual.
• When information on your vehicle or on the devices of your vehicle is sent from the
iDatalink Maestro module, a screen notifying you of such information may pop up.
Before using and/or connecting the iDatalink Maestro adapter, you will need to first flash
the Maestro RR module with the appropriate vehicle and head unit firmware.
1 Find the device number (12 alphanumeric characters) on the label on the
packaging of this product or on the product itself.
iDatalink
Using iDatalink
Activating iDatalink Maestro
- 90 -
English
2 Access the following website and follow the on-screen instructions to configure
the desired firmware.
http://maestro.idatalink.com/
NOTE
When the serial number input is required, input the device number of this product.
3 Install the vehicle/head unit specific firmware on your iDatalink Maestro module.
4 Connect this product to iDatalink Maestro, and then install this product to the
vehicle.
The iDatalink function will be active.
NOTES
• Device number input is required for updating the iDatalink Maestro module. Take a note of the device
number as necessary.
• For details on installing the firmware, refer to iDatalink Maestro website.
• For details on connecting this product to iDatalink Maestro, refer to the Installation Manual.
• You can also check the device number on the [Firmware Information] screen of this product
(page 101).
1 Connect the iDatalink Maestro adapter to this product.
For details, refer to the Installation manual.
2 Press then touch .
3 Touch [Car Sources] or [Car Features].
The touched menu screen appears.
These operations are almost similar to the built in AV sources of this product. For details
of the operations, refer to the related pages.
• USB/iPod operations (page 49) (page 57)
• SiriusXM tuner operations (page 74)
• Bluetooth audio operations (page 31)
• Hands-free phone operations (page 26)
You can check and operate the following screens after selecting [Car Features] in the
starting procedure. Touch one of the icons on the left side of the screen to change the
feature.
Starting procedure
Using functions in Car Sources
Using functions in Car Features
English
- 91 -
Gauges screen
Vehicle Information screen
Displays the Gauge screen.
Displays the Vehicle Information screen.
Displays the Climate screen.
Displays the Parking Assist screen.
- 92 -
English
Climate screen
Parking Assist screen
CAUTION
This function is intended solely to assist the driver’s vision. It does not detect all dangers and obstacles
and is not a substitute for your attentiveness, judgment, and care while parking your vehicle.
NOTE
This function is only available for vehicles equipped with a parking sensor system.
1 Press .
2 Touch then .
3 Touch [OEM Settings] or [OEM Volume Settings].
The setting screen for iDatalink appears.
Displaying obstacle detection information
iDatalink settings
English
- 93 -
Menu Item Description
[OEM Settings] Setting for iDatalink function when the iDatalink adapter is
connected to the unit.
[OEM Volume Settings] Setting for iDatalink function volume when the iDatalink
adapter is connected to the unit.
- 94 -
English
You can adjust various settings in the main menu.
1 Press .
2 Touch .
3 Touch one of the following categories, then select the options.
System settings (page 94)
Theme settings (page 104)
Audio settings (page 106)
Video settings (page 112)
Bluetooth settings (page 25)
The menu items vary according to the source.
Settings
Displaying the setting screen
System settings
[AV Source Settings]
Menu Item Description
[Radio Settings] (page 43)
[SiriusXM Settings] (page 80)
[Bluetooth Audio]
[On] [Off]
Setting Bluetooth audio source activation.
[Smartphone-related Settings]
Menu Item Description
[Smartphone Setup] Setting the connected mobile device (page 38).
[Driving Position]
[Right] [Left]
Setting the driving position.
• Apple CarPlay™ (page 64)
• Android Auto™ (page 67)
English
- 95 -
A separately sold rear view camera (e.g. ND-BC8) is required for utilizing the rear view
camera function. (For details, consult your dealer.)
▶Rear view camera
This product features a function that automatically switches to the full-screen image of
the rear view camera installed on your vehicle when the shift lever is in the REVERSE (R)
position.
Camera View mode also allows you to check what is behind you while driving.
TIP
The parking assist guidelines can be displayed temporarily on the rear view camera screen by touching
the icon at the top left of the screen. The guidelines can be adjusted. For details on how to adjust the
guidelines, see [Parking Assist Guide Adjust] (page 97).
▶Camera for Camera View mode
Camera View can be displayed at all times. Note that with this setting, the camera image
is not resized to fit, and that a portion of what is seen by the camera is not viewable.
To display the camera image, touch [Camera View] on the AV source selection screen
(page 36).
[Android Auto Auto-
launch]
[On] [Off]
Select [On] to automatically launch Android Auto when an
Android device is connected to the unit.
[Auto Mix (iPhone/iPod)]
Menu Item Description
[Auto Mix (iPhone/iPod)]
[On] [Off]
Select whether to perform mixing the sound output from
WebLink and AV source sound automatically.
[Input/Output Settings]
Menu Item Description
[AV Input]
[Source] [Camera] [Off]
Select AV input source (page 85).
[AUX Input]
[On] [Off]
Set to [On] for AUX source (page 83).
[Camera settings]
Menu Item Description
- 96 -
English
NOTES
• To set the rear view camera as the camera for Camera View mode, set [Back Camera Input] to [On]
(page 96).
• When using the 2nd camera, set [AV Input] to [Camera] (page 85).
• When the camera view of both the rear view camera and 2nd camera are available, the key to switch
the display appears. Touch this key to switch the display between the rear view image and 2nd
camera image.
CAUTION
Pioneer recommends the use of a camera which outputs mirror reversed images, otherwise the screen
image may appear reversed.
• Immediately verify whether the display changes to the rear view camera image when the shift lever is
moved to REVERSE (R) from another position.
• When the screen changes to full-screen rear view camera image during normal driving, switch to the
opposite setting in [Reverse Gear Setting].
• If you touch while the camera image is displayed, the displayed image turns off temporarily.
• When the camera view of both the rear view camera and 2nd camera are available, the key to switch
the display appears. Touch this key to switch the display between the rear view image and 2nd
camera image.
Menu Item Description
[Camera View]
[On] [Off]
Set to [On] to display camera view at all times. (The same
mode is turned on when is touched on the camera
view screen. The setting value is synchronized.)
NOTES
• To set the rear view camera as the camera for Camera View
mode, set [Back Camera Input] to [On] (page 96).
• When using the second camera, set [AV Input] to [Camera] or
[2nd Camera Input] to [On] (both settings are synchronized)
(page 96).
TIP
You can also turn this function on by touching [Camera View] on
the AV source selection screen or in the source list.
[Back Camera Input]
[Off] [On]
Setting the second camera activation (front camera, etc.).
Setting rear view camera activation.
[2nd Camera Input]
[Off] [On]
Setting the second camera activation (front camera, etc.).
This function is synchronized with [AV Input] setting.
[Reverse Gear Setting] Setting the polarity of the rear view camera.
[Battery] The polarity of the connected lead is positive.
[Ground] The polarity of the connected lead is negative.
NOTE
If the camera polarity setting is wrong, or wrong camera setting is
made, press RESET button to release the rear view camera screen
and then change the camera polarity setting to [Battery].
English
- 97 -
[Parking Assist Guide
Adjust]
Adjusting the guidelines by dragging or touching / /
// / on the screen.
Touch [Default] to reset the settings.
CAUTION
• When adjusting the guidelines, park the vehicle in a safe place
and apply the parking brake; this setting is available only when
the vehicle is parked with the parking brake applied.
• Turn the vehicle off before getting out to place the markings.
• The range projected by the rear view camera is limited. Also, the
vehicle width and distance guidelines displayed on the rear view
camera image may differ from the actual vehicle width and
distance. (The guidelines are straight lines.)
• The image quality may deteriorate depending on the usage
environment, such as at night or in dark surroundings.
NOTES
• Use painter's tape or similar tape to place markings as shown
below before setting up the guidelines.
• Adjust the guidelines so that they overlay the tape markings as
closely as possible.
[Wi-Fi Settings]
Menu Item Description
[Wi-Fi Settings] (page 33)
Menu Item Description
30 cm (1 ft)
Markings
Markings
Rear bumper
Vehicle Longitudinal
Centerline
3.05 m
(10 ft)
6.1 m
(20 ft)
1.52 m (5 ft)
25 cm (9-7/8 in.)
25 cm (9-7/8 in.)
- 98 -
English
Touch [Restore] to restore the settings to the default settings.
CAUTION
Do not turn off the engine while restoring the settings.
NOTE
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
[Demo Mode]
Menu Item Description
[Demo Mode]
[On] [Off]
Setting the demo mode.
[System Language]
Menu Item Description
[System Language] Select the system language.
NOTES
• If the embedded language and the selected language setting are
not the same, the text information may not display properly.
• Some characters may not be displayed properly.
[Restore Settings]
Menu Item Description
[All Settings] Almost all settings or recorded content returns to the
default.
[Audio Settings] Restore to default Audio settings.
NOTE
This setting is available when the source is turned off.
[Theme Settings] Restore to default Theme settings.
[Bluetooth Settings] Restore to default Bluetooth settings.
[Beep Tone]
Menu Item Description
[Beep Tone]
[On] [Off]
Select [Off] to disable the beep sound when the button is
pressed or the screen is touched.
English
- 99 -
If you feel that the touch panel keys on the screen deviate from the actual positions that
respond to your touch, adjust the response positions of the touch panel screen.
NOTES
• Do not use sharp pointed tools such as ballpoint or mechanical pens. They may damage the screen.
• Do not turn off the engine while saving the adjusted position data.
• This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
NOTE
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
[Touch Panel Calibration]
Menu Item Description
[Touch Panel Calibration] 1 Touch two corners of the screen along the arrows then
touch the centers of the two [+] marks at the same
time twice.
2 Press .
The adjustment results are saved.
3 Press once again.
Proceed to 16-point adjustment.
4 Gently touch the center of the [+] mark displayed on
the screen.
The target indicates the order.
• When you press , the previous adjustment
position returns.
• When you press and hold , the adjustment is
canceled.
5 Press and hold .
The adjustment results are saved.
[Dimmer Settings]
Menu Item Description
[Dimmer Trigger] Setting the dimmer brightness.
[Auto] Switches the dimmer to on or off automatically according
to your vehicle’s headlight turning on or off.
[Manual] Switches the dimmer to on or off manually.
[Time] Switches the dimmer to on or off at the time you adjusted.
[Day/Night] Setting the dimmer duration by day or night.
You can use this function when [Dimmer Trigger] is set to
[Manual].
[Day] Turns the dimmer function to off.
- 100 -
English
You can adjust the picture for each source and rear view camera.
CAUTION
For safety reasons, you cannot use some of these functions while your vehicle is in motion. To enable
these functions, you must stop in a safe place and apply the parking brake.
To adjust following menu, touch , , , to adjust.
[Night] Turns the dimmer function to on.
[Dimmer Duration] Adjust the time that the dimmer is turned on or off by
dragging the cursors or touching or .
You can use this function when [Dimmer Trigger] is set to
[Time].
TIPS
• Each touch of or moves the cursor backward or forward
in the 15 minute width.
• When the cursors are placed on the same point, the dimmer
available time is 0 hours.
• When the cursor for off time setting is placed on the left end and
the cursor for on time setting is placed on the right end, the
dimmer available time is 0 hours.
• When the cursor for on time setting is placed on the left end and
the cursor for off time setting is placed on the right end, the
dimmer available time is 24 hours.
NOTE
The time display of the dimmer duration adjusting bar depends on
the clock display setting (page 117).
[Picture Adjustment]
Menu Item Description
[Brightness]
[-24] to [+24]
Adjust the black intensity.
[Contrast]
[-24] to [+24]
Adjust the contrast.
[Color]*
[-24] to [+24]
Adjust the color saturation.
[Hue]*
[-24] to [+24]
Adjust the tone of color (which color is emphasized, red, or
green).
[Dimmer Level]
[+1] to [+48]
Adjust the brightness of the display.
Menu Item Description
English
- 101 -
* With some pictures, you cannot adjust [Hue] and [Color].
NOTES
• The adjustments of [Brightness], [Contrast], and [Dimmer Level] are stored separately when your
vehicle's headlights are off (daytime) and on (nighttime).
• [Brightness] and [Contrast] are switched automatically depending on the setting of [Dimmer
Settings].
• [Dimmer Level] can be changed the setting or the time to switch it to on or off (page 99).
• The picture adjustment may not be available with some rear view cameras.
• The setting contents can be memorized separately.
[Temperature]
[-3] to [+3]
Adjust the color temperature, resulting in a better white
balance.
[System Information]
Menu Item Description
[Firmware Information] Displays the firmware version.
TIP
You can also check the open source license of the functions that
this product is equipped with by touching [License] in this menu.
Menu Item Description
- 102 -
English
[Firmware Update]
CAUTION
• The external storage device for updating must contain only the
correct update file.
• Never turn this product off, eject the SD memory card or
disconnect the USB storage device while the firmware is being
updated.
• You can only update the firmware when the vehicle is stopped
and the parking brake is engaged.
• You cannot update the old firmware version once the latest
firmware is updated.
1 Download the firmware update files into your
computer.
2 Connect a blank (formatted) storage device to your
computer then locate the correct update file and copy
it onto the USB storage device.
3 Set the external storage device to this product
(page 50).
4 Turn the source off (page 36).
5 Display the [System] setting screen (page 94).
6 Touch [System Information].
7 Touch [Firmware Update].
8 Touch [Continue].
Follow the on-screen instructions to finish updating the
firmware.
NOTE
If an error message appears on the screen, touch the display and
perform the above steps again.
[3D Calibration Status] Check the sensor learning status, such as the degree of
learning. You can also check the current sensor values and
the total number of speed pulses.
To delete the learned results stored in the sensor, follow
the below instructions.
1 Touch [Distance] or [Speed Pulse], and then touch
[Yes].
2 Touch [Learning] and then touch [Reset All].
TIP
Touch [Reset All] to reset the sensor after changing the
installation position or angle.
NOTE
If you touch [Reset Distance], all learned results stored in
[Distance] are cleared.
Menu Item Description
English
- 103 -
[Connection Status] Check that the leads are properly connected between this
product and vehicle.
[GPS Antenna] Displays the connection status of the GPS antenna ([OK] or
[NOK]) and the reception sensitivity.
NOTE
If reception is poor, change the installation position of the GPS
antenna.
[Positioning Status] Displays the positioning status (3D positioning, 2D
positioning, or no positioning), the number of satellites
used for positioning (orange), and the number of satellites
that have received signals (yellow). If signals from more
than three satellites are received, the current location can
be measured.
[Installation] Indicates whether the installation position of this product
is correct or not. If installed correctly, [OK] appears. When
this product is installed at an extreme angle exceeding the
limitation of the installing angle, [NOK(Inst. Angle)] is
displayed. If the installation of this product is continually
changed and it is not firmly fixed into place,
[NOK(Vibration)] is displayed.
[Speed Pulse] The speed pulse value detected by this product is shown.
[Illumination] Displays the status of headlights or small lamps of the
vehicle.
[Back Signal] When the shift lever is shifted to “R” (reverse position), the
signal switches to [High] or [Low]. The signal displayed
varies depending on the vehicle.
[iDataLink] Displays the status of the optional iDatalink adapter.
[OEM Settings]
Menu Item Description
[OEM Settings] (page 93).
[OEM Volume Settings]
Menu Item Description
[OEM Volume Settings] (page 93).
Menu Item Description
- 104 -
English
CAUTION
Do not turn off the engine while importing an image from the external storage device.
The menu items vary according to the source.
Theme settings
Menu Item Description
[Background]
[Home] [AV]
Select the wall paper from the preset items in this product
or original pictures via the external device such as USB
storage device and SD memory card.
TIP
The wall paper can be set from selections for the top menu screen
and AV operation screen.
Preset Display Selects the desired preset background display.
(custom)* Displays the background display image imported from the
external storage device.
To set the image from an external device, touch then
select the desired image by touching the desired external
storage device after connecting the device.
NOTE
Background display image must be used within the following
formats.
• JPEG image files (.jpg or .jpeg)
• Allowable data size is 10 MB or smaller
• Allowable image size is 4 000 pixels × 4 000 pixels or smaller
(off) Hides the background display.
[Illumination] Select an illumination color from the color list or create a
defined color.
Colored Keys Select the desired preset color.
(custom) Displays the screen to customize the illumination color.
To customize the defined color, touch then touch
or to adjust the brightness and the level of red, green
and blue to create favorite color.
To store the customized color in the memory, touch and
hold [Memo], and the customized color will be available at
the next illumination setting by touching .
TIP
You can also adjust the color tone by dragging the color bar.
(rainbow) Shifts gradually between the preset colors in sequence.
English
- 105 -
* The external storage device is inserted or plugged in in advance to customize the image (page 49).
You can export settings you have made on the [Theme] screen to an external storage
device. Also, you can import them from an external storage device.
CAUTION
Do not turn off the engine while exporting or importing the settings.
NOTES
• If multiple external storage devices that include available data are connected to this product, the
order of priority for the targets that the Theme settings are exported to or imported from is as follows:
SD memory card
USB storage device (USB port 1)
USB storage device (USB port 2)
• This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
▶Exporting Theme settings
1 Set the external storage device (page 49).
2 Press .
3 Touch then .
4 Touch [Export].
[Theme] Select the theme color.
TIP
You can preview the top menu screen or the AV operation screen
by touching [Home] or [AV] respectively.
[Clock] Select the style of the clock from the preset image.
Preset Images Select the desired preset style for the clock.
(off) Hides the clock display.
[Splash Screen] Select the splash screen from the preinstalled image in this
product or external devices such as USB storage devices
and SD memory cards.
Preset Images Selects the desired preset splash screen image.
(custom)* Displays the splash screen image imported from the
external storage device.
To set the image from an external device, touch then
select the desired image by touching the desired external
storage device after connecting the device.
Replicating the settings
Menu Item Description
- 106 -
English
5 Touch the item you want export.
[Illumination]
[Theme]
[Splash Screen]
[Select All]
6 Touch [Export].
▶Importing Theme settings
1 Set the external storage device (page 49).
A message confirming whether to import the stored setting data appears.
2 Touch [Import].
The menu items vary according to the source. Some of the menu items become
unavailable when the volume is set to mute or the source is off.
Audio settings
Menu Item Description
[Graphic EQ]
[Super Bass] [Powerful]
[Natural] [Vocal] [Flat]
[Custom1] [Custom2]
Select or customize the equalizer curve.
Select a curve that you want to use as the basis of
customizing then touch the frequency that you want to
adjust.
TIPS
• If you touch [Custom1] or [Custom2], the equalizer curve
currently stored in [Custom1] or [Custom2] is recalled.
• If the equalizer curve stored in [Custom1] or [Custom2] is
modified, each stored curve will be overwritten.
• If you trail your finger across the bars of multiple equalizer
bands, the equalizer curve settings will be set to the value of the
touched point on each bar.
• If the preset equalizer curve other than [Custom1] or [Custom2]
is modified, the curve setting will be overwritten in [Custom1].
[Fader/Balance] Touch or to adjust the front/rear speaker balance.
Set [Front] and [Rear] to [0] when using a dual speaker
system.
Touch or to adjust the left/right speaker balance.
TIP
You can also set the value by dragging the point on the displayed
table.
NOTE
Only the balance can be adjusted when [Network Mode] is
selected as the speaker mode.
English
- 107 -
[Mute Level] Select mute or attenuate the AV source volume and iPhone
or smartphone application volume when the navigation
outputs the guidance voice.
[ATT] The volume becomes 20 dB lower than the current volume.
[Mute] The volume becomes 0.
[Off] The volume does not change.
[Source Level Adjuster]
[-4] to [+4]
Adjust the volume level of each source to prevent radical
changes in volume when switching between sources other
than FM.
Touch or to adjust the source volume after
comparing the FM tuner volume level with the level of the
source.
TIP
If you directly touch the area where the cursor can be moved, the
SLA (source level adjustment) setting will be changed to the value
of the touched point.
NOTES
• Settings are based on the FM tuner volume level, which remains
unchanged.
• This function is not available when the FM tuner is selected as
the AV source.
[Subwoofer]
[On] [Off]
Select enable or disable rear subwoofer output from this
product.
NOTE
If [Off] is selected, the subwoofer adjustment is not available in
[Speaker Level], [Time Alignment] and [Crossover].
[Speaker Level]
Listening position*1*2
[Off] [Front Left] [Front
Right] [Front] [All]
Standard Mode*3
[Front Left] [Front Right]
[Rear Left] [Rear Right]
[Subwoofer]
Network Mode*3
[High Left] [High Right]
[Mid Left] [Mid Right]
[Subwoofer]
Speaker output level
[-24] to [10]
Adjust the speaker output level of the listening position.
1 Touch or to select the listening position then
select the output speaker.
2 Touch or to adjust the selected speaker output
level.
Menu Item Description
- 108 -
English
[Crossover] Select a speaker unit (filter) to adjust the HPF or LPF cutoff
frequency and the slope for each speaker unit (page 112).
[Subwoofer Settings] Select the subwoofer phase (page 112).
[Listening Position]*1
[Off] [Front Left] [Front
Right] [Front] [All]
Select a listening position that you want to make as the
center of sound effects.
[Time Alignment]
[On] [Off]
Listening position*1*2
[Off] [Front Left] [Front
Right] [Front] [All]
Standard Mode*3*4
[Front Left] [Front Right]
[Rear Left] [Rear Right]
[Subwoofer]
Network Mode*3*4
[High Left] [High Right]
[Mid Left] [Mid Right]
[Subwoofer]
Distance
[0] to [140]
Select or customize the time alignment settings to reflect
the distance between the listener’s position and each
speaker. You need to measure the distance between the
head of the listener and each speaker unit.
1 Touch or to select the listening position then
select the alignment speaker.
2 Touch or to input the distance between the
selected speaker and listening position.
TIP
If you touch [TA On], the time alignment is turned off mandatorily.
NOTE
This function is available only when the listening position setting
is set to [Front Left] or [Front Right].
[Auto EQ]
[On] [Off]
Set the auto-adjusted equalizer to suit the vehicle’s
acoustics. To use this function, the Auto EQ measurement
must be done in advance (page 110).
[A-EQ&TA Measurement] Measures and adjusts the vehicles acoustics, equalizer, and
time alignment automatically to suit the vehicle interior
(page 110).
[Save Settings] Save to recall the following current sound settings by
touching [OK]: slope, subwoofer phase, speaker level,
Graphic EQ, HPF/LPF, listening position, crossover, time
alignment.
TIP
When you touch [Cancel], return to the [Audio] setting screen.
[Load Settings] Load the sound settings.
NOTES
• [Sound Setting] is available only when you have already saved
the sound settings (page 108).
• [Auto EQ&TA Setting] is available only when you have already
performed Auto EQ measurement (page 109).
Menu Item Description
English
- 109 -
*1 [All] is not available when [Network Mode] is selected as the speaker mode.
*2 If you change the listening position setting, the output levels of all the speakers will change in
conjunction with the setting.
*3 To use this function, the vehicle’s acoustics must be measured in advance.
*4 This function is available only when the [Listening Position] setting is set to [Front Left] or [Front
Right].
By measuring the vehicle’s acoustics, the equalizer curve can be adjusted automatically
to suit the vehicle interior.
[ASL] Set to one of five levels to increase the volume level of the
audio depending on the driving speed and road
conditions.
[BASS Boost]
[0] to [6]
Adjust the bass boost level.
[Rear Speaker Output]
[Rear] [Subwoofer]
Select the rear speaker output.
NOTES
• This function is available when [Standard Mode] is selected as
the speaker mode.
• If [Subwoofer] is selected, the rear speaker adjustment is not
available in [Speaker Level], [Time Alignment] and [Crossover].
[Loudness]
[Off] [Low] [Mid] [High]
Compensates for deficiencies in the low-frequency and
high-frequency ranges at low volume.
[Automatic Level Control] Corrects automatically the audio level difference between
the music files or the sources.
[Off] Turns the auto level control setting off.
[Mode1] Corrects a little the audio level difference between the
music files or the sources (for the narrow dynamic range
audio signal).
[Mode2] Corrects widely the audio level difference between the
music files or the sources (for the wide dynamic range
audio signal).
[Sound Retriever]
[Off] [Mode1] [Mode2]
Enhances compressed audio and restores rich sound
automatically.
TIP
[Mode2] has a stronger effect than [Mode1].
Adjusting the equalizer curve automatically (Auto EQ)
Menu Item Description
- 110 -
English
WARNING
A loud tone (noise) may be emitted from the speakers when measuring the vehicle’s acoustics. Never
perform Auto EQ measurement while driving.
CAUTION
• Thoroughly check the conditions before performing Auto EQ as the speakers may be damaged if this
is performed under the following conditions:
– When the speakers are incorrectly connected. (For example, when a rear speaker is connected as a
subwoofer output.)
– When a speaker is connected to a power amp delivering output higher than the speaker’s
maximum input power capability.
• If a microphone for acoustical measurement (sold separately) is not placed in the appropriate
location, the measurement tone may become loud and measurement may take a long time, resulting
in battery drainage. Be sure to place the microphone in the specified location.
▶Before operating the Auto EQ function
• Perform Auto EQ in a quiet place with the vehicle engine and air conditioning
switched off. Also, cut the power of car phones or cellular phones in the vehicle, or
remove them in advance. Surrounding sounds may prevent correct measurement of
the vehicle’s acoustics.
• Be sure to use the microphone for acoustical measurement (sold separately). Using
other microphones may prevent measurement, or result in incorrect measurement of
the vehicle’s acoustics.
• To perform Auto EQ, the front speakers must be connected.
• When this product is connected to a power amp with input level control, Auto EQ may
be impossible if the power amp’s input level is set below the standard level.
• When this product is connected to a power amp with an LPF (low pass filter), turn the
LPF off before performing Auto EQ. Also, set the cutoff frequency for the built-in LPF of
an active subwoofer to the highest frequency.
• The distance has been calculated by a computer to provide optimum delay to ensure
accurate results. Do not change this value.
– The reflected sound within the vehicle is strong and delay occurs.
– The LPF on active subwoofers or external amps delay the lower sounds.
• If an error occurs during measurement, check the following before measuring the
vehicle’s acoustics.
– Front speakers (left/right)
– Rear speakers (left/right)
–Noise
– Microphone for acoustical measurement (sold separately)
–Low battery
▶Performing Auto EQ
CAUTION
Do not turn off the engine while the measurement is in progress.
English
- 111 -
NOTES
• Auto EQ changes the audio settings as follows:
– The fader/balance settings return to the center position (page 106).
• Previous settings for Auto EQ will be overwritten.
1
Stop the vehicle in a quiet place, close all doors, windows, and sun roof, and then
turn the engine off.
If the engine is left running, engine noise may prevent correct Auto EQ.
NOTE
If driving restrictions are detected during measurement, the measurement is canceled.
2
Fix the microphone for acoustical measurement (sold separately) in the center of
the headrest of the driver’s seat, facing forward.
The Auto EQ may differ depending on where you place the microphone. If desired,
place the microphone on the front passenger seat and perform Auto EQ.
3
Disconnect the iPhone or smartphone device.
4
Turn on the ignition switch (ACC ON).
If the vehicle’s air conditioner or heater is turned on, turn it off.
5
Switch the AV source to [Source OFF] (page 36).
6
Press .
7
Touch then .
8
Touch [A-EQ&TA Measurement].
9
Connect the microphone for acoustical measurement (sold separately) with this
product.
Plug the microphone into the Auto EQ microphone input jack on this product
(page 12).
NOTE
Use an extension cable (sold separately) if the cord of the microphone (sold separately) is not long
enough.
10
Touch [Front Left] or [Front Right] to select the current listening position.
11
Touch [Start].
A 10-second countdown starts.
NOTE
The Bluetooth connection is disconnected before the process starts.
12
Exit the vehicle and keep the doors closed until the countdown finishes.
When the countdown finishes, a measurement tone (noise) is emitted from the
speakers and Auto EQ measurement begins.
13
Wait until the measurement is completed.
When Auto EQ is completed, a message is displayed.
- 112 -
English
NOTE
The measurement time varies depending on the type of vehicle.
TIP
To stop the measurement, touch [Stop].
14
Store the microphone carefully in the glove compartment or another safe place.
If the microphone is subjected to direct sunlight for an extended period, high
temperatures may cause distortion, color change, or malfunction.
You can adjust the cutoff frequency value of each speaker.
The following speakers can be adjusted:
[Standard Mode]: Front, Rear, Subwoofer.
[Network Mode]: High, Mid, Subwoofer.
NOTES
• Subwoofer settings are available only when [Subwoofer] is [On].
• Rear speaker settings are available only when [Rear Speaker Output] is [Rear].
1 Press .
2 Touch then .
3 Touch [Crossover] or [Subwoofer Settings].
4 Touch or to switch the speaker.
5 Drag the graph line to set the cutoff position.
6 Drag the lowest point of the graph to set the cutoff slope.
The following items can also be set.
The menu items vary according to the source.
This setting is available only when [Disc] is selected as the source.
Adjusting the cutoff frequency value
Switches the subwoofer phase between normal and reverse position.
LPF/HPF
Switches the LPF/HPF setting to [On] or [Off]. When it is turned off, the high-pass
filter or low-pass filter of each speaker can also be turned on by touching the
graph lines.
Video settings
[DVD/DivX Setup]
English
- 113 -
Menu Item Description
[Subtitle Language]*1*2 Set a subtitle language preference. When you select
[Others], a language code input screen is shown. Input the
four-digit code of the desired language then touch .
[Audio Language]*1*2 Set an audio language preference. When you select
[Others], a language code input screen is shown. Input the
four-digit code of the desired language then touch .
[Menu Language]*1*2 Set a menu language preference. When you select [Others],
a language code input screen is shown. Input the four-digit
code of the desired language then touch .
[Multi Angle]
[On] [Off]
Set to display the angle icon on the screen.
[TV Aspect] Set the aspect ratio suitable for your rear display 16:9 (wide
screen display) or 4:3 (regular display). (We recommend
use of this function only when you want to fit the aspect
ratio to the rear display.)
NOTES
• When playing discs that do not have a panscan system, the disc
is played back with [Letter Box] even if you select the [Pan Scan]
setting. Confirm whether the disc package bears the
mark.
• The TV aspect ratio cannot be changed for some discs. For
details, refer to the disc's instructions.
[16:9] Displays the wide screen image (16:9) as it is (initial
setting).
[Letter Box] Makes the image in the shape of a letterbox with black
bands on the top and bottom of the screen.
[Pan Scan] Cuts the image short on the right and left sides of the
screen.
- 114 -
English
[Parental] Set restrictions so that children cannot watch violent or
adult-oriented scenes. You can set the parental lock level in
steps as desired.
1 Touch [0] to [9] to input a four-digit code number.
2 Touch .
Registers the code number, and you can now set the
level.
3 Touch any number between [1] to [8] to select the
desired level.
The lower the level is set, the tighter the restriction is
applied.
4 Touch .
Sets the parental lock level.
NOTES
• We recommend keeping a record of your code number in case
you forget it.
• The parental lock level is recorded on the disc. You can confirm it
by looking at the disc package, the included booklet, or the disc
itself. You cannot use parental lock with discs that do not feature
a recorded parental lock level.
• With some discs, parental lock operates to skip certain scenes
only, after which normal playback resumes. For details, refer to
the disc's instructions.
• When you set a parental lock level and then play a disc featuring
parental lock, code number input indications may be displayed.
In this case, playback will begin when the correct code number is
input.
[DivX® VOD] Displays this product's registration and deregistration code
to register this product with your DivX VOD content
provider to play DivX® VOD (video on demand) content on
this product.
TIP
You can do this by generating a DivX VOD registration code, which
you submit to your provider.
[Registration Code] is 10-digit.
[Deregistration Code] is 8-digit.
NOTE
Make a note of the code as you will need it when you register or
deregister from a DivX VOD provider.
Menu Item Description
English
- 115 -
*1 You can switch the language by touching the switch languages key during playback.
*2 The setting made here will not be affected even if the language is switched during playback using
the appropriate key.
[DVD Auto Play]
[On] [Off]
Set to display the DVD menu automatically and start
playback from the first chapter of the first title when a DVD
disc with a DVD menu is inserted.
NOTE
Some DVDs may not operate properly. If this function is not fully
operable, turn this function off and start playback.
[Time Per Photo Slide]
Menu Item Description
[Time Per Photo Slide]
[5sec] [10sec] [15sec]
[Manual]
Select the interval of image file slideshows on this product.
[Video Signal Setting]
Menu Item Description
[AV]
[Auto] [PAL] [NTSC] [PAL-
M] [PAL-N] [SECAM]
Select the suitable video signal setting when you connect
this product to an AV equipment.
[AUX]
[Auto] [PAL] [NTSC] [PAL-
M] [PAL-N] [SECAM]
Select the suitable video signal setting when you connect
this product to an AUX equipment.
[Camera]
[Auto] [PAL] [NTSC] [PAL-
M] [PAL-N] [SECAM]
Select the suitable video signal setting when you connect
this product to a rear view camera.
Menu Item Description
- 116 -
English
Registering your favorite menu items in shortcuts allows you to quickly jump to the
registered menu screen by a simple touch on the [Favorites] screen.
NOTE
Up to 12 menu items can be registered in the favorite menu.
1 Press then touch .
2 Touch the star icon of the menu item.
The star icon for the selected menu is filled in.
TIP
To cancel the registration, touch the star icon in the menu column again.
1 Press then touch .
2 Touch .
3 Touch the menu item.
1 Press then touch .
2 Touch .
3 Touch and hold the favorite menu column.
The selected menu item is removed from the [Favorites] screen.
TIP
You can also remove a shortcut by touching and holding the registered menu column.
Favorite menu
Creating a shortcut
Selecting a shortcut
Removing a shortcut
English
- 117 -
1 Touch the current time on the screen.
2 Touch or to set the correct time and date.
You can operate the following items: Year, month, date, hour, minute.
TIPS
• You can change the time display format to [12hour] or [24hour].
• You can change the order of date display format: Day-month, Month-day.
You can set the screen mode for AV screen and image files.
1 Touch the screen display mode key.
2 Touch the desired mode.
Other functions
Setting the time and date
Changing the wide screen mode
Screen display mode key
[Full] A 4:3 picture is enlarged in the horizontal direction only, enabling you to enjoy an
image without any omissions.
[Zoom] A 4:3 picture is enlarged in the same proportion both vertically and horizontally.
[Normal] A 4:3 picture is displayed normally, without changing its proportion.
- 118 -
English
TIPS
• Different settings can be stored for each video source.
• When a video is viewed in wide screen mode that does not match its original aspect ratio, it may
appear different.
• The video image will appear coarser when viewed in [Zoom] mode.
NOTES
• Image files can be set to either [Normal] or [Trimming] in wide screen mode.
• This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
You can choose either to show the same image as the front screen or to show the
selected source on the rear display.
NOTES
• Video files on the external storage device are not available as a source for the rear display when
[Apple CarPlay] is activated.
• Video files on the external storage device are not available as a source for the rear display when
[Android Auto] is activated in [Smartphone Setup].
1 Press then touch .
2 Touch [Rear].
3 Touch the source you want to show on the rear display.
[Trimming] An image is displayed across the entire screen with the horizontal-to-vertical ratio
left as is. If the screen ratio differs from the image, the image may be displayed
partly cut off either at the top/bottom or sides.
NOTE
[Trimming] is for image files only.
Selecting the video for the rear display
[Mirror] The video on the front screen of this product is output to the rear display.
NOTE
Not all videos or sounds can be output to the rear display.
[DVD/CD] The video and sound of a disc are output to the rear display.
NOTE
Compatible video types are DVD-V, Video-CD, DivX, MPEG-1, MPEG-2, and MPEG-
4 only.
[USB1] The video and sound of the USB storage device is output to the rear display.
NOTES
• The port that supports the rear display will only be USB port 1.
• Compatible file types are MPEG-4, H.264, WMV, MKV, and FLV only.
English
- 119 -
You can set a password for this product. If the back-up lead is cut after the password is
set, this product prompts for the password at the time of next boot up.
Important
If you forgot your password, contact the nearest authorized Pioneer Service Station.
1 Press .
2 Touch then .
3 Touch 1, followed by 2, and then touch 3.
4 Touch [Set Password].
5 Enter the password.
5 to 16 characters can be entered for a password.
6 Touch [Go].
7 Enter a password hint.
[SD] The video and sound of the SD memory cards are output to the rear display.
NOTE
Compatible file types are MPEG-4, H.264, WMV, MKV, and FLV only.
[AV] The video and/or sound of the AV input source are output to the rear display.
NOTE
The video image and sound are output only when [AV Input] is set to [Source]
(page 85).
[Source OFF] Nothing is output to the rear display.
Setting the anti-theft function
Setting the password
- 120 -
English
Up to 40 characters can be entered for a hint.
8 Touch [Go].
If you want to change the password currently set, enter the current password and
then enter the new one.
9 Check the password, and then touch [OK].
The current password and password hint can be deleted.
1 Press .
2 Touch then .
3 Touch 1, followed by 2, and then touch 3 (page 119).
4 Touch [Clear Password].
5 Touch [Yes].
6 Touch [OK].
7 Enter the current password.
8 Touch [Go].
A message indicating that the security setting is canceled appears.
You can restore settings or recorded content to the default settings from [Restore
Settings] in the [System] menu (page 98).
Deleting the password
Restoring this product to the default settings
English
- 121 -
If you have problems operating this
product, refer to this section. The most
common problems are listed below, along
with likely causes and solutions. If a
solution to your problem cannot be found
here, contact your dealer or the nearest
authorized Pioneer service facility.
A black screen is displayed, and
operation is not possible using the touch
panel keys.
→ [Power OFF] mode is on.
– Press any button on this product to
release the mode.
– Press and hold the RESET button to
release the rear view camera screen
and then change the camera polarity
setting to [Battery].
CD or DVD playback is not possible.
→ The disc is inserted upside down.
– Insert the disc with the label upward.
→ The disc is dirty.
–Clean the disc.
→ The disc is cracked or otherwise
damaged.
– Insert a normal, round disc.
→ The files on the disc are in an irregular
file format.
– Check the file format.
→ The disc format cannot be played back.
– Replace the disc.
→ The loaded disc is a type this product
cannot play.
– Check what type of disc it is.
The screen is covered by a caution
message and the video cannot be shown.
→ The parking brake lead is not connected
or the parking brake is not applied.
– Connect the parking brake lead
correctly, and apply the parking brake.
→ The parking brake interlock is activated.
– Park your vehicle in a safe place and
apply the parking brake.
No video output from the connected
equipment.
→ The [AV Input] or [AUX Input] setting is
incorrect.
–Correct the settings.
The audio or video skips.
→ This product is not firmly secured.
–Secure this product firmly.
No sounds are produced. The volume
level will not rise.
→ Cables are not connected correctly.
– Connect the cables correctly.
→ The system is performing still, slow
motion, or frame-by-frame playback
with DVD-Video.
– There is no sound during still, slow
motion, or frame-by-frame playback
with DVD-Video.
→ The system is paused or performing fast
reverse or forward during the disc
playback.
– For the media other than music CD
(CD-DA), there is no sound on fast
reverse or forward.
Appendix
Troubleshooting
Common problems
Problems with the AV screen
English
- 122 -
The icon is displayed, and operation is
impossible.
→ The operation is not compatible with
the video configuration.
– The operation is not possible. (For
example, the DVD playing does not
feature that angle, audio system,
subtitle language, etc.)
The picture stops (pauses) and this
product cannot be operated.
→ The reading of data is impossible during
disc playback.
– Stop playback once, then restart.
The picture is stretched, with an incorrect
aspect ratio.
→ The aspect setting is incorrect for the
display.
– Select the appropriate setting for that
image.
A parental lock message is displayed and
DVD playback is not possible.
→ The parental lock is on.
– Turn the parental lock off or change
the level.
The parental lock for DVD playback
cannot be canceled.
→ The code number is incorrect.
– Input the correct code number.
The DVD video is not played back with
the audio/subtitle language specified in
[DVD/DivX Setup].
→ The DVD does not support the
language selected in [DVD/DivX Setup].
– Playback in the selected language is
not possible if the language selected
in [DVD/DivX Setup] is not recorded
on the disc.
The picture is extremely unclear/
distorted and dark during playback.
→ The disc features a signal to prohibit
copying. (Some discs may have this.)
– Since this product is compatible with
the copy guard analog copy protect
system, the picture may suffer from
horizontal stripes or other
imperfections when a disc with that
kind of protection signal is viewed on
some displays. This is not a
malfunction.
iPod cannot be operated.
→ The iPod is frozen.
– Reconnect the iPod with the USB
interface cable for iPod/iPhone.
–Update the iPod software version.
→ An error has occurred.
– Reconnect the iPod with the USB
interface cable for iPod/iPhone.
– Park your vehicle in a safe place, and
then turn off the ignition switch (ACC
OFF). Subsequently, turn the ignition
switch to on (ACC ON) again.
–Update the iPod software version.
→ Cables are not connected correctly.
– Connect the cables correctly.
Sound from the iPod cannot be heard.
→ The audio output direction may switch
automatically when the Bluetooth and
USB connections are used at the same
time.
– Use the iPod to change the audio
output direction.
No back camera image when the vehicle
is in reverse.
→ The back camera input setting on the
receiver is set to Off.
– Change the back camera setting to On
in the settings menu. (Refer to the
System Settings section of this manual
to adjust.)
→ The camera input may be loose or not
connected.
– Check the connection and make sure
the male end of the camera is
connected to the brown input on the
English
- 123 -
back of the receiver. (Refer to the
installation manual.)
→ The reverse lead on the receiver may
not be connected to the proper wire at
the reverse lamp.
– Check the connection and make sure
that the violet/white lead of the
receiver is connected to the lead
whose voltage changes when the shift
lever is put in reverse. (Refer to the
installation manual.)
Black screen displayed when the vehicle
is in reverse, with no camera installed.
→ Back camera input is set to On.
–Turn the setting to Off in the settings
menu. (Refer to the System Settings
section of this manual to adjust.)
Back image displayed when vehicle is not
in reverse.
→ The camera polarity is not set properly
in the Camera settings menu.
– Review System Settings section of this
manual for steps to switch the camera
polarity. Park in a safe place, then
while keeping your foot firmly on the
brake, put the vehicle in reverse,
access the System Settings menu, and
change the camera polarity setting.
Put vehicle back in park. (Refer to the
System Settings section of this manual
to adjust.)
Dialing is impossible because the touch
panel keys for dialing are inactive.
→ Your phone is out of range for service.
– Retry after re-entering the range for
service.
→ The connection between the cellular
phone and this product cannot be
established.
– Perform the connection process.
A black screen is displayed.
→ While operating an application, the
application was ended on the
smartphone side.
–Press to display the top menu
screen.
→ The smartphone OS may be awaiting
screen operation.
– Stop the vehicle in a safe place and
check the screen on the smartphone.
The screen is displayed, but operation
does not work at all.
→ An error has occurred.
– Park your vehicle in a safe place, and
then turn off the ignition switch (ACC
OFF). Subsequently, turn the ignition
switch to on (ACC ON) again.
– When an Android device is connected,
disconnect the Bluetooth connection
from this product and then reconnect
it.
The smartphone was not charged.
→ Charging stopped because the
temperature of the smartphone rose
due to prolonged use of the
smartphone during charging.
– Disconnect the smartphone from the
cable, and wait until the smartphone
cools down.
→ More battery power was consumed
than was gained from charging.
– This problem may be resolved by
stopping any unnecessary services on
the smartphone.
The status of the vehicle for the forward
and backward directions are reversed.
→ Since part of the vehicle status is sent to
the connected device when you use the
Android Auto function, this problem
Problems with the phone screen
Problems with Application
screen
English
- 124 -
occurs when the reverse gear polarity
setting of this product is incorrect.
– Check the polarity and re-select the
correct setting.
When problems occur with this product, an
error message appears on the display.
Refer to the table below to identify the
problem, then take the suggested
corrective action. If the error persists,
record the error message and contact your
dealer or your nearest Pioneer service
center.
AMP Error
→ This product fails to operate or the
speaker connection is incorrect; the
protective circuit is activated.
– Check the speaker connection. If the
message fails to disappear even after
the engine is switched off/on, contact
your dealer or an authorized Pioneer
Service Station for assistance.
TEMP
→ The temperature of this product is
outside the normal operating range.
–Wait until this product returns to a
temperature within the normal
operating limits.
Product overheat. System will be shut
down automatically in 1 minute. Restart
the product by ACC-Off/On may fix this
problem. If this message keeps showing
up, it is possible that some problem
occured in the product.
→ The temperature is too high for this
product to operate.
– Follow the instructions displayed on
the screen. If this does not solve the
problem, contact your dealer or an
authorized Pioneer Station for
assistance.
Error-19
(Communication error occurred.)
→ Communication failed.
– Disconnect the cable from the iPod.
Once the iPod’s main menu is
displayed, reconnect the iPod and
reset it.
Our content licenses limit the number of
tracks you may skip.
→ Skip limit reached.
– Do not exceed the skip limit.
– Pandora limits the total number of
skips per hour.
Please sign in to your Pandora account
→ You are not logged in to the Pandora
application.
– Please log in to the Pandora
application.
Check USB
→ The USB connector or USB cable has
short-circuited.
– Check that the USB connector or USB
cable is not caught in something or
damaged.
→ The connected USB storage device
consumes more than maximum
allowable current.
– Disconnect the USB storage device
and do not use it. Turn the ignition
switch to OFF, then to ACC or ON and
then connect a compliant USB storage
device.
Poor network connection. Listening will
resume when it’s restored.
→ The Pandora application is accessed/
relocated from outside the licensing
region.
Error messages
Common
Pandora
English
- 125 -
– Access Pandora from within the
licensing region.
Incompatible USB
→ The connected USB storage device is
not supported by this product.
– Disconnect your device and replace it
with a compatible USB storage device.
Check Antenna
→ The antenna connection is incorrect.
– Check the antenna connection. If the
message fails to disappear even after
the engine is switched off/on, contact
your dealer or the nearest authorized
Pioneer service center for assistance.
Check Tuner
→ The SiriusXM Connect Vehicle Tuner
connection is incorrect.
– Check the tuner connection and
battery voltage. If the message fails to
disappear even after the engine is
switched off/on, contact your dealer
or the nearest authorized Pioneer
service center for assistance.
No Signal
→ The SiriusXM Connect Vehicle Tuner is
having difficulty receiving the SiriusXM
satellite signal.
– Verify that your vehicle is outdoors
with a clear view of the southern sky.
– Verify that the SiriusXM magnetic
mount antenna is mounted on a metal
surface on the outside of the vehicle.
– Move the SiriusXM antenna away from
any obstructions.
No Content
→ TuneScan™ is not available.
– Perform the operation with another
preset channel.
Channel Not Available
→ The channel that you have requested is
not a valid SiriusXM channel.
– Visit www.siriusxm.com for more
information about the SiriusXM
channel lineup.
Subscription Updated Press Enter to
Continue
→ This product has detected a change in
your SiriusXM subscription status.
– Touch [Enter] to clear the message.
In the U.S.A., visit www.siriusxm.com
or call 1-866-635-2349 if you have
questions about your subscription. In
Canada, visit www.siriusxm.ca or call
1-877-438-9677 if you have questions
about your subscription.
Channel Not Subscribed. Call SiriusXM to
Subscribe.
→ The channel that you have requested is
not included in your SiriusXM
subscription package.
– Check the content of your SiriusXM
subscription package.
In the U.S.A., visit www.siriusxm.com
or call 1-866-635-2349 if you have
questions about your subscription
package or would like to subscribe to
this channel. In Canada, visit
www.siriusxm.ca or call 1-877-438-
9677.
Channel Locked Please Enter the Lock
Code
→ Locked by the radio Parental Control
feature.
– Release the channel lock.
Artist Unavailable
→ The alert memo function is not
available.
– Perform the operation with another
channel.
SiriusXM® Satellite Radio
English
- 126 -
Song Unavailable
→ The alert memo function is not
available.
– Perform the operation with another
channel.
Team Unavailable
→ The alert memo function is not
available.
– Perform the operation with another
channel.
Alert Memory Full You can manage alert
memory in the alert list
→ The memory is full.
– Clear the alert list.
Memory Full
→ The memory has become full while
playback was paused.
– Resume playback.
Memory Nearly Full
→ The memory has become nearly full
while playback was paused.
– Resume playback.
No qualified TuneMix music channels in
this band.
→ There are no qualified TuneMix
channels in this band.
– Requires two or more qualified music
channels to be stored as presets in the
current band.
Error-02-XX/FF-FF
→ The disc is dirty.
–Clean the disc.
→ The disc is scratched.
– Replace the disc.
→ The disc is loaded upside down.
– Check that the disc is loaded correctly.
→ There is an electrical or mechanical
error.
– Press the RESET button.
Different Region Disc
→ The disc does not have the same region
number as this product.
– Replace the DVD with one bearing the
correct region number.
Unplayable Disc
→ This type of disc cannot be played on
this product.
– Replace the disc with one that can be
played on this product.
Unplayable File
→ This type of file cannot be played on this
product.
– Select a file that can be played.
Skipped
→ The inserted disc contains DRM
protected files.
– The protected files are skipped.
Protect
→ All the files on the inserted disc are
embedded with DRM.
– Replace the disc.
This DivX rental has expired.
→ The inserted disc contains expired DivX
VOD content.
– Select a file that can be played.
Video resolution not supported
→ Files that cannot be played on this
product are included in the file.
– Select a file that can be played.
Unable to write to flash memory.
→ The playback history for VOD contents
cannot be saved for some reason.
–Retry.
– If the message appears frequently,
consult your dealer.
Disc
English
- 127 -
Your device is not authorized to play this
DivX protected video.
→ This product’s DivX registration code
has not been authorized by the DivX
VOD contents provider.
–Register this product to the DivX VOD
contents provider.
Video frame rate not supported
→ DivX file’s frame rate is more than 30 fps.
– Select a file that can be played.
Audio Format not supported
→ This type of file is not supported on this
product.
– Select a file that can be played.
Error-02-9X/-DX
→ Communication failed.
– Turn the ignition switch OFF and back
ON.
– Disconnect the USB storage device.
– Change to a different source. Then,
return to the USB storage device.
Unplayable File
→ There is no playable file in the external
storage device (USB, SD).
– Check that the files in the external
storage device (USB, SD) are
compatible with this product.
→ Security for the connected external
storage device (USB, SD) is enabled.
– Follow the external storage device
(USB, SD) instructions to disable
security.
Skipped
→ The connected external storage device
(USB, SD) contains DRM protected files.
– The protected files are skipped.
Protect
→ All the files on the connected external
storage device (USB, SD) are embedded
with DRM.
– Replace the external storage device
(USB, SD).
Incompatible USB
→ The connected USB storage device is
not supported by this product.
– Disconnect your device and replace it
with a compatible USB storage device.
Incompatible SD
→ The SD memory card is not supported
by this product.
– Remove your device and replace it
with a compatible SD memory card.
– Format the SD memory card. It is
recommended that you use SD
Formatter for formatting SD memory
cards.
Check USB
→ The USB connector or USB cable has
short-circuited.
– Check that the USB connector or USB
cable is not caught in something or
damaged.
→ The connected USB storage device
consumes more than maximum
allowable current.
– Disconnect the USB storage device
and do not use it. Turn the ignition
switch to OFF, then to ACC or ON and
then connect a compliant USB storage
device.
HUB Error
→ The connected USB hub is not
supported by this product.
– Directly connect the USB storage
device to this product.
No Response
→ This product cannot recognize the
connected USB storage device.
External storage device (USB,
SD)
English
- 128 -
– Disconnect the device and replace it
with another USB storage device.
Video resolution not supported
→ Files that cannot be played on this
product are included in the file.
– Select a file that can be played.
USB1 was disconnected for device
protection. Do not re-insert this USB
memory into the unit. Press reset to
restart USB memory. (USB2 was
disconnected for device protection. Do
not re-insert this USB memory into the
unit. Press reset to restart USB memory.)
→ The USB connector or USB cable is
short-circuited.
– Check that the USB connector or USB
cable is not caught in something or
damaged.
→ The connected USB storage device
consumes more than maximum
allowable current.
– Disconnect the USB storage device
and do not use it. Turn the ignition
switch to OFF, then to ACC or ON and
then connect a compliant USB storage
device.
→ The USB interface cable for iPod/iPhone
is short-circuited.
– Confirm that the USB interface cable
for iPod/iPhone or USB cable is not
caught in something or damaged.
Audio Format not supported
→ This type of file is not supported on this
product.
– Select a file that can be played.
Error-02-6X/-9X/-DX
→ iPod failure.
– Disconnect the cable from the iPod.
Once the iPod’s main menu is
displayed, reconnect the iPod and
reset it.
Error-02-67
→ The iPod firmware version is old.
–Update the iPod version.
Error-10
→ The power failed for the Bluetooth
module of this product.
– Turn the ignition switch to OFF and
then to ON.
If the error message is still displayed after
performing the above action, please
contact your dealer or an authorized
Pioneer Service Station.
Attempting to connect to Apple CarPlay.
→ Communication failed and the system is
trying to connect.
→ Wait for a while. Then, perform the
actions below if the error message is still
displayed.
–Restart the iPhone.
– Disconnect the cable from the iPhone,
and then connect the iPhone again
after a few seconds.
– Turn the ignition switch to OFF and
then to ON.
If the error message is still displayed after
performing the above action, please
contact your dealer or an authorized
Pioneer Service Station.
Android Auto has stopped.
→ The connected device is not compatible
with Android Auto.
– Check if the device is compatible with
Android Auto.
iPod
Bluetooth
Apple CarPlay
Android Auto
English
- 129 -
→ The startup of Android Auto failed for
some reasons.
– Disconnect the cable from the
smartphone, and then connect the
smartphone again after a few seconds.
–Restart the smartphone.
– Turn the ignition switch to OFF and
then to ON.
If the error message is still displayed after
performing the above action, please
contact your dealer or an authorized
Pioneer Service Station.
→ The time set in this product is not
correct.
– Check if the time is correctly set.
Bluetooth pairing failed. Please pair your
Android phone manually.
→ The Bluetooth pairing failed for some
reasons.
– Pair this product with the device
manually.
To use Android Auto, please stop your car
and check your Android phone.
→ The default settings are displayed on
the screen of the Android Auto
compatible device or images are not
output from the Android Auto
compatible device.
– Park your vehicle in a safe place, and
follow the instructions displayed on
the screen. If the error message is still
displayed after performing on-screen
instructions, please reconnect the
device.
Some basic precautions are necessary
when handling your discs.
• Use only conventional, fully circular discs.
Do not use shaped discs.
• Do not use cracked, chipped, warped, or
otherwise damaged discs as they may
damage the built-in drive.
• Use 12-cm discs. Do not use 8-cm discs or
an adapter for 8-cm discs.
• When using discs that can be printed on
label surfaces, check the instructions and
the warnings of the discs. Depending on
the discs, inserting and ejecting may not
be possible. Using such discs may result
in damage to this equipment.
• Do not attach labels, write on or apply
chemicals to the surface of the discs.
• Do not attach commercially available
labels or other materials to the discs.
• To clean a disc, wipe it with a soft cloth,
moving outward from the center.
• Condensation may temporarily impair
the built-in drive’s performance.
• Playback of discs may not be possible
because of disc characteristics, disc
format, recorded application, playback
environment, storage conditions and so
on.
• Road shocks may interrupt disc playback.
• Read the precautions for discs before
using them.
• At extremely high temperatures, a
temperature cutout protects this product
by switching it off automatically.
• Despite our careful design of the product,
small scratches that do not affect actual
operation may appear on the disc surface
as a result of mechanical wear, ambient
conditions for use or handling of the disc.
This is not a sign of the malfunction of
Handling and care of
discs
Built-in drive and care
Ambient conditions for playing a
disc
English
- 130 -
this product. Consider it to be normal
wear and tear.
• is a trademark of DVD Format/Logo
Licensing Corporation.
• It is not possible to play DVD Audio discs.
This DVD drive may not be able to play all
discs bearing the marks shown above.
This unit is not compatible with discs
recorded in AVCHD (Advanced Video
Codec High Definition) format. Do not
insert in AVCHD discs. If inserted, the disc
may not be ejected.
• DualDiscs are two-sided discs that have a
recordable CD for audio on one side and
a recordable DVD for video on the other.
• Playback of the DVD side is possible with
this product. However, since the CD side
of DualDiscs is not physically compatible
with the general CD standard, it may not
be possible to play the CD side with this
product.
• Frequent loading and ejecting of a
DualDisc may result in scratches to the
disc.
• Serious scratches can lead to playback
problems on this product. In some cases,
a DualDisc may become stuck in the disc-
loading slot and will not eject. To prevent
this, we recommend you refrain from
using DualDisc with this product.
• Please refer to the manufacturer for more
detailed information about DualDiscs.
This product will down-mix Dolby Digital signals
internally and the sound will be output in stereo.
• Manufactured under license from Dolby
Laboratories. Dolby, Dolby Audio and the
double-D symbol are trademarks of
Dolby Laboratories.
Common notes about disc
compatibility
• Certain functions of this product may not
be available for some discs.
• Compatibility with all discs is not
guaranteed.
• It is not possible to play DVD-RAM discs.
• Playback of discs may become impossible
with direct exposure to sunlight, high
temperatures, or depending on the
storage conditions in the vehicle.
Playable discs
DVD-Video
CD
AVCHD recorded discs
Playing DualDisc
Dolby Digital
Detailed information
for playable media
Compatibility
English
- 131 -
DVD-Video discs
• DVD-Video discs that have incompatible
region numbers cannot be played on this
DVD drive. The region number of the
player can be found on this product’s
chassis.
DVD-R/DVD-RW/DVD-R SL (Single
Layer)/DVD-R DL (Dual Layer) discs
• Unfinalized discs which have been
recorded with the Video format (video
mode) cannot be played back.
• Discs which have been recorded with the
Video Recording format (VR mode)
cannot be played back.
• DVD-R DL (Dual Layer) discs which have
been recorded with Layer Jump
recording cannot be played back.
• For detailed information about recording
mode, please contact the manufacturer
of media, recorders, or writing software.
CD-R/CD-RW discs
• Unfinalized discs cannot be played back.
• It may not be possible to playback CD-R/
CD-RW discs recorded on a music CD
recorder or a computer because of disc
characteristics, scratches or dirt on the
disc, or dirt, scratches or condensation on
the lens of the built-in drive.
• Playback of discs recorded on a computer
may not be possible, depending on the
recording device, writing software, their
settings, and other environmental
factors.
• Please record with the correct format.
(For details, please contact manufacturer
of media, recorders, or writing software.)
• Titles and other text information
recorded on a CD-R/CD-RW disc may not
be displayed by this product (in the case
of audio data (CD-DA)).
• Read the precautions with CD-R/CD-RW
discs before using them.
Common notes about the external
storage device (USB, SD)
• Do not leave the external storage device
(USB, SD) storage device in any location
with high temperatures.
• Depending on the kind of the external
storage device (USB, SD) storage device
you use, this product may not recognize
the storage device or files may not be
played back properly.
• The text information of some audio and
video files may not be correctly
displayed.
• File extensions must be used properly.
• There may be a slight delay when starting
playback of files on an external storage
device (USB, SD) storage device with
complex folder hierarchies.
• Operations may vary depending on the
kind of an external storage device (USB,
SD) storage device.
• It may not be possible to play some music
files from SD or USB because of file
characteristics, file format, recorded
application, playback environment,
storage conditions, and so on.
• Copyright protected files cannot be
played back.
SD memory cards
• For details about SD memory card
compatibility with this product, refer to
Specifications (page 141).
• Some SD memory cards may not be
recognized by this unit even if the SD
memory cards can be recognized by a
computer. Formatting the SD memory
cards using a dedicated formatter may
resolve the problem. SD memory cards
formatted using the standard formatting
function on a computer do not comply
with the SD standard. Problems such as
that those cards cannot be read or
written could occur. It is recommended
that you use a dedicated formatter to
avoid such problems. All of the data
English
- 132 -
stored on an SD memory card will be
deleted when the card is formatted. Back
up any needed data beforehand as
necessary. A dedicated formatter for SD
memory cards can be obtained from the
following site.
https://www.sdcard.org/
• This product is not compatible with the
Multi Media Card (MMC).
USB storage device
• For details about USB storage device
compatibility with this product, refer to
Specifications (page 141).
• Protocol: bulk
• You cannot connect a USB storage device
to this product via a USB hub.
• Partitioned USB storage device is not
compatible with this product.
• Firmly secure the USB storage device
when driving. Do not let the USB storage
device fall onto the floor, where it may
become jammed under the brake or gas
pedal.
• There may be a slight delay when starting
playback of audio files encoded with
image data.
• Some USB storage devices connected to
this product may generate noise on the
radio.
• Do not connect anything other than the
USB storage device.
Common notes about DivX files
• Only DivX files downloaded from DivX
partner sites are guaranteed for proper
operation. Unauthorized DivX files may
not operate properly.
• DRM rental files cannot be operated until
playing back is started.
• This product corresponds to a DivX file
display of up to 1 590 minutes 43
seconds. Search operations beyond this
time limit are prohibited.
• DivX VOD file playback requires
supplying the ID code of this product to
the DivX VOD provider. Regarding the ID
code, refer to Displaying your DivX VOD
registration code on page 114.
• For details on the DivX video versions
that can be played on this product, refer
to Specifications (page 141).
• For more details about DivX, visit the
following site: http://www.divx.com/
DivX subtitle files
• Srt format subtitle files with the
extension “.srt” can be used.
• Only one subtitle file can be used for each
DivX file. Multiple subtitle files cannot be
associated.
• Subtitle files that are named with the
same character string as the DivX file
before the extension are associated with
the DivX file. The character strings before
the extension must be exactly the same.
However, if there is only one DivX file and
one subtitle file in a single folder, the files
are associated even if the file names are
not the same.
• The subtitle file must be stored in the
same folder as the DivX file.
• Up to 255 subtitle files may be used. Any
more subtitle files will not be recognized.
• Up to 64 characters can be used for the
name of the subtitle file, including the
extension. If more than 64 characters are
used for the file name, the subtitle file
may not be recognized.
• The character code for the subtitle file
should comply with ISO-8859-1. Using
characters other than ISO-8859-1 may
cause the characters to be displayed
incorrectly.
• The subtitles may not be displayed
correctly if the displayed characters in the
subtitle file include control code.
• For materials that use a high transfer rate,
the subtitles and video may not be
completely synchronized.
• If multiple subtitles are programmed to
display within a very short time frame,
English
- 133 -
such as 0.1 seconds, the subtitles may not
be displayed at the correct time.
General
• Files may not be played back properly
depending on the environment in which
the file was created or on the contents of
the file.
• This product may not play back files,
depending on the application used to
encode the files.
• This product may not operate correctly,
depending on the application used to
encode WMA files.
• Depending on the version of Windows
Media™ Player used to encode WMA files,
album names and other text information
may not be correctly displayed.
• There may be a slight delay when starting
playback of audio files encoded with
image data.
• This product is not compatible with
packet write data transfer.
• This product can recognize up to 32
characters, beginning with the first
character, including extension for the file
and folder name. Depending on the
display area, this product may try to
display them with a reduced font size.
However, the maximum number of the
characters that you can display varies
according to the width of each character,
and of the display area.
• Folder selection sequence or other
operations may be altered, depending on
the encoding or writing software.
• Regardless of the length of blank section
between the songs of original recording,
compressed audio discs play with a short
pause between songs.
• Maximum playback time of audio file
stored in the disc: 60 h
• Maximum playback time of audio file
stored on an external storage device
(USB, SD): 7.5 h (450 minutes)
• This product assigns folder numbers. The
user cannot assign folder numbers.
CD-R/-RW
DVD-R/-R SL/-R DL/DVD-RW
USB storage device/SD memory card
Media compatibility chart
CODEC FORMAT MP3, WMA,
AAC, DivX,
MPEG1, MPEG2,
MPEG4
FILE SYSTEM ISO 9660 level
1, level 2,
Romeo Joliet
MAX. DIRECTORY No limit
MAX. FOLDER No. 700
MAX. FILE No. 999
CODEC FORMAT MP3, WMA,
AAC, MPEG2,
MPEG4
FILE SYSTEM ISO 9660 level
1, level 2,
Romeo Joliet
MAX. FOLDER No. 700
MAX. FILE No. 3 500
CODEC FORMAT MP3, WMA,
AAC, WAV,
FLAC, H.264,
MPEG2, MPEG4,
WMV, FLV, MKV,
JPEG
FILE SYSTEM FAT16/32/NTFS
MAX. DIRECTORY 8
MAX. FOLDER No. FAT16, FAT32:
65 536
NTFS:
No limit
MAX. FILE No. FAT16, FAT32:
65 536
NTFS:
No limit
English
- 134 -
MP3 compatibility
• Ver. 2.x of ID3 tag is prioritized when both
Ver. 1.x and Ver. 2.x exist.
• This product is not compatible with the
following: MP3i (MP3 interactive), mp3
PRO, m3u playlist
WMA compatibility
• This product is not compatible with the
following: Windows Media™ Audio 9
Professional, Lossless, Voice
WAV compatibility
• The sampling frequency shown in the
display may be rounded.
• WAV files on the CD-R/-RW, DVD-R/-RW/-
R SL/-R DL cannot be played.
AAC compatibility
• This product plays back AAC files
encoded by iTunes.
FLAC compatibility
• FLAC files on the CD-R/-RW, DVD-R/-RW/-
R SL/-R DL cannot be played.
DivX compatibility
• This product is not compatible with the
following: DivX Ultra format, DivX files
without video data, DivX files encoded
with LPCM (Linear PCM) audio codec
• Depending on the file information
composition, such as the number of
audio streams, there may be a slight
delay in the start of playback on discs.
• If a file contains more than 4 GB, playback
stops before the end.
• Some special operations may be
prohibited because of the composition of
DivX files.
• Files with high transfer rates may not be
played back correctly. The standard
transfer rate is 4 Mbps for CDs and 10.08
Mbps for DVDs.
• DivX files on the external storage device
(USB, SD) cannot be played.
CD-R/-RW, DVD-R/-R SL/-R DL/DVD-RW
Audio and video files compatibility
(USB, SD)
• Files may not be able to be played back
depending on the bit rate.
SAMPLING FREQUENCY 16 kHz to 48
kHz
TRANSMISSION RATE 8 kbps to 320
kbps, VBR
ID3 TAG USB:
v1,v1.1,v2.2,v2.
3,v2.4
Disc:
v1,v1.1,v2.2,v2.
3
SAMPLING FREQUENCY USB: 32 kHz to
48 kHz
Disc: 8 kHz to
48 kHz
TRANSMISSION RATE USB: 48 kbps to
320 kbps (CBR),
VBR
Disc: 5 kbps to
320 kbps (CBR),
VBR
DECODING FORMAT LPCM
SAMPLING FREQUENCY 16 kHz to 48
kHz
TRANSMISSION RATE Approx. 1.5
Mbps
SAMPLING FREQUENCY 11.025 kHz to
48 kHz
TRANSMISSION RATE USB: 16 kbps to
320 kbps (CBR)
Disc: 8 kbps to
320 kbps (CBR)
SAMPLING FREQUENCY 8 kHz to 192
kHz
EXTENSION .avi/.divx
PROFILE Home Theater
Profile
MAX RESOLUTION 720 x 576
English
- 135 -
• Only USB storage devices can play back
VOB files.
.avi
.mp4
.3gp
.mkv
.mov
.flv
.f4v
.asf
.wmv
.vob
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by PIONEER
CORPORATION is under license. Other
trademarks and trade names are those of their
respective owners.
Sirius, XM and all related marks and logos are
trademarks of Sirius XM Radio Inc. All rights
reserved.
Compatible video codec MPEG4, H.264,
H.263, Xvid
Maximum resolution 1 920 x 1 080
Maximum frame rate 30 fps
Compatible video codec MPEG4, H.264,
H.263
Maximum resolution 1 920 x 1 080
Maximum frame rate 30 fps
Compatible video codec MPEG4, H.264,
H.263
Maximum resolution 1 920 x 1 080
Maximum frame rate 30 fps
Compatible video codec MPEG4, H.264,
Xvid
Maximum resolution 1 920 x 1 080
Maximum frame rate 30 fps
Compatible video codec MPEG4, H.264,
H.263
Maximum resolution 1 920 x 1 080
Maximum frame rate 30 fps
Compatible video codec H.264
Maximum resolution 1 920 x 1 080
Maximum frame rate 30 fps
Compatible video codec H.264
Maximum resolution 1 920 x 1 080
Maximum frame rate 30 fps
Compatible video codec WMV/VC-1
Maximum resolution 1 920 x 1 080
Maximum frame rate 30 fps
Compatible video codec WMV/VC-1
Maximum resolution 1 920 x 1 080
Maximum frame rate 30 fps
Compatible video codec MPEG2, H.264
Maximum resolution 1 920 x 1 080
Maximum frame rate 30 fps
Bluetooth
SiriusXM® Satellite
Radio
English
- 136 -
The Wi-Fi CERTIFIED™ Logo is a certification
mark of Wi-Fi Alliance®.
HD Radio Technology manufactured under
license from iBiquity Digital Corporation.
U.S. and Foreign Patents. For patents see
http://dts.com/patents. HD Radio and the
HD, HD Radio, and "ARC" logos are
registered trademarks or trademarks of
iBiquity Digital Corporation in the United
States and/or other countries.
SDXC Logo is a trademark of SD-3C LLC.
Windows Media is either a registered trademark
or trademark of Microsoft Corporation in the
United States and/or other countries.
• This product includes technology owned
by Microsoft Corporation and cannot be
used or distributed without a license
from Microsoft Licensing, Inc.
Copyright © 2000-2009 Josh Coalson
Copyright © 2011-2013 Xiph.Org
Foundation
Redistribution and use in source and
binary forms, with or without modification,
are permitted provided that the following
conditions are met:
– Redistributions of source code must
retain the above copyright notice, this list
of conditions and the following
disclaimer.
– Redistributions in binary form must
reproduce the above copyright notice,
this list of conditions and the following
disclaimer in the documentation and/or
other materials provided with the
distribution.
– Neither the name of the Xiph.org
Foundation nor the names of its
contributors may be used to endorse or
promote products derived from this
software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
Wi-Fi
HD Radio™ Technology
SDXC
WMA/WMV
FLAC
English
- 137 -
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
DivX® Home Theater Certified devices have been
tested for high-quality DivX Home Theater video
playback (including .avi, .divx). When you see
the DivX logo, you know you have the freedom
to play your favorite videos.
DivX®, DivX Certified® and associated logos are
trademarks of DivX, LLC and are used under
license.
This DivX Certified® device can play DivX® Home
Theater video files up to 576p (including .avi,
.divx).
Download free software at www.divx.com to
create, play and cast digital videos.
AAC is short for Advanced Audio Coding
and refers to an audio compression
technology standard used with MPEG-2
and MPEG-4. Several applications can be
used to encode AAC files, but file formats
and extensions differ depending on the
application which is used to encode. This
unit plays back AAC files encoded by
iTunes.
WebLink is a trademark of Abalta
Technologies, Inc.
Waze and Waze logo are registered
trademarks of Google LLC.
Google, Google Play and Android are
trademarks of Google LLC.
Android Auto is a trademark of Google LLC.
• Pioneer accepts no responsibility for data
lost from an iPod, even if that data is lost
while using this product. Please back up
your iPod data regularly.
• Do not leave the iPod in direct sunlight
for extended amounts of time. Extended
exposure to direct sunlight can result in
iPod malfunction due to the resulting
high temperature.
• Do not leave the iPod in any location with
high temperatures.
• Firmly secure the iPod when driving. Do
not let the iPod fall onto the floor, where
it may become jammed under the brake
or gas pedal.
• For details, refer to the iPod manuals.
DivX
AAC
WebLink
Waze
Google™, Google Play,
Android
Android Auto
Detailed information
regarding connected iPod
devices
English
- 138 -
Use of the Made for Apple badge means that
an accessory has been designed to connect
specifically to the Apple product(s) identified
in the badge, and has been certified by the
developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards.
Please note that the use of this accessory
with an Apple product may affect wireless
performance.
iPhone, iPod, iPod nano, iPod touch, and
Lightning are trademarks of Apple Inc.,
registered in the U.S. and other countries.
App Store is a service mark of Apple Inc.
iOS is a trademark on which Cisco holds
the trademark right in the US and certain
other countries.
iTunes is a trademark of Apple Inc.,
registered in the U.S. and other
countries.
Apple Music is a trademark of Apple
Inc., registered in the U.S. and other
countries.
Apple CarPlay is a trademark of Apple Inc.
Use of the Works with Apple badge means
that an accessory has been designed to work
specifically with the technology identified in
the badge and has been certified by the
developer to meet Apple performance
standards.
Works with Siri through the microphone.
Important
Requirements to access app-based
connected content services using this
product:
• Latest version of the Pioneer compatible
connected content application(s) for the
smartphone, available from the service
provider, downloaded to your
smartphone.
• A current account with the content
service provider.
• Smartphone Data Plan.
Note: if the Data Plan for your
smartphone does not provide for
unlimited data usage, additional charges
from your carrier may apply for accessing
app-based connected content via 3G,
EDGE and/or LTE (4G) networks.
• Connection to the Internet via 3G, EDGE,
LTE (4G ) or Wi-Fi netwo rk.
iPhone, iPod and Lightning®
App Store
iOS
iTunes
Apple Music
Apple CarPlay
Siri
Using app-based
connected content
English
- 139 -
• Optional Pioneer adapter cable
connecting your iPhone to this product.
Limitations:
• Access to app-based connected content
will depend on the availability of cellular
and/or Wi-Fi network coverage for the
purpose of allowing your smartphone to
connect to the Internet.
• Service availability may be
geographically limited to the region.
Consult the connected content service
provider for additional information.
• Ability of this product to access
connected content is subject to change
without notice and could be affected by
any of the following: compatibility issues
with future firmware versions of
smartphone; compatibility issues with
future versions of the connected content
application(s) for the smartphone;
changes to or discontinuation of the
connected Content application(s) or
service by its provider.
• Pioneer is not liable for any issues that
may arise from incorrect or flawed app-
based content.
• The content and functionality of the
supported applications are the
responsibility of the App providers.
• In WebLink, Apple CarPlay and Android
Auto, functionality through the product
is limited while driving, with available
functions determined by the App
providers.
• Availability of WebLink, Apple CarPlay
and Android Auto functionalities is
determined by the App provider, and not
determined by Pioneer.
• WebLink, Apple CarPlay and Android
Auto allow access to applications other
than those listed (subject to limitations
while driving), but the extent to which
content can be used is determined by the
App providers.
Pandora, the Pandora logo, and the Pandora
trade dress are trademarks or registered
trademarks of Pandora Media, Inc. Used with
permission.
Pandora is only available in certain countries.
Please visit
http://www.pandora.com/legal
for more information.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc.
Remember that use of this system for
commercial or public viewing purposes
may constitute an infringement on the
author’s rights as protected by the
Copyright Law.
This item incorporates copy protection
technology that is protected by U.S.
patents and other intellectual property
rights of Rovi Corporation. Reverse
engineering and disassembly are
prohibited.
Pandora®
HDMI
Notice regarding video
viewing
Notice regarding DVD-
Video viewing
English
- 140 -
Supply of this product only conveys a
license for private, non-commercial use
and does not convey a license nor imply
any right to use this product in any
commercial (i.e. revenue-generating) real
time broadcasting (terrestrial, satellite,
cable and/or any other media),
broadcasting/streaming via internet,
intranets and/or other networks or in other
electronic content distribution systems,
such as pay-audio or audio-on-demand
applications. An independent license for
such use is required. For details, please visit
http://www.mp3licensing.com.
For details about the open source licenses
for the functions that this product is
equipped with, please visit
http://www.oss-pioneer.com/car/
multimedia/
• When the LCD screen is subjected to
direct sunlight for a long period of time, it
will become very hot, resulting in
possible damage to the LCD screen.
When not using this product, avoid
exposing it to direct sunlight as much as
possible.
• The LCD screen should be used within
the temperature ranges shown in
Specifications (page 141).
• Do not use the LCD screen at
temperatures higher or lower than the
operating temperature range, because
the LCD screen may not operate normally
and could be damaged.
• The LCD screen is exposed in order to
increase its visibility within the vehicle.
Please do not press strongly on it as this
may damage it.
• Do not push the LCD screen with
excessive force as this may scratch it.
• Never touch the LCD screen with
anything besides your finger when
operating the touch panel functions. The
LCD screen can scratch easily.
• If the LCD screen is near the vent of an air
conditioner, make sure that air from the
air conditioner is not blowing on it. Heat
from the heater may break the LCD
screen, and cool air from the cooler may
cause moisture to form inside this
product, resulting in possible damage.
• Small black dots or white dots (bright
dots) may appear on the LCD screen.
These are due to the characteristics of the
LCD screen and do not indicate a
malfunction.
• The LCD screen will be difficult to see if it
is exposed to direct sunlight.
• When using a cellular phone, keep the
antenna of the cellular phone away from
the LCD screen to prevent disruption of
the video in the form of disturbances
such as spots or colored stripes.
• When removing dust from or cleaning
the LCD screen, first turn this product off
Notice regarding MP3
file usage
Notice regarding open
source licenses
Using the LCD screen
correctly
Handling the LCD screen
Liquid crystal display (LCD)
screen
Maintaining the LCD screen
English
- 141 -
and then wipe the screen with a soft dry
cloth.
• When wiping the LCD screen, take care
not to scratch the surface. Do not use
harsh or abrasive chemical cleaners.
A light emitting diode is used inside the
display to illuminate the LCD screen.
• At low temperatures, using the LED
backlight may increase image lag and
degrade the image quality because of the
characteristics of the LCD screen. Image
quality will improve with an increase in
temperature.
• The product lifetime of the LED backlight
is more than 10 000 hours. However, it
may decrease if used in high
temperatures.
• If the LED backlight reaches the end of its
product lifetime, the screen will become
dimmer and the image will no longer be
visible. In that case, please consult your
dealer or the nearest authorized Pioneer
Service Station.
General
Rated power source:
14.4 V DC (10.8 V to 15.1 V allowable)
Grounding system:
Negative type
Maximum current consumption:
10.0 A
Dimensions (W × H × D):
Chassis D:
178 mm × 100 mm × 165 mm (7 in. × 3-
7/8 in. × 6-1/2 in.)
Nose:
171 mm × 97 mm × 18 mm (6-3/4 in. ×
3-7/8 in. × 3/4 in.)
Weight:
2.1 kg (4.6 lbs)
Display
Screen size/aspect ratio:
6.94 inch wide/16:9 (effective display
area: 156.24 mm × 81.6 mm) (6-1/8 in. ×
3-1/4 in.)
Pixels:
1 209 600 (2 520 × 480)
Display method:
TFT Active matrix driving
Color system:
PAL/NTSC/PAL-M/PAL-N/SECAM
compatible
Temperature range:
-10 ˚C to +60 ˚C (+14 ˚F to +140 ˚F)
Audio
Maximum power output:
• 50 W × 4 ch/4 Ω
• 50 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for
subwoofer)
Continuous power output:
22 W × 4 (50 Hz to 15 kHz, 5 %THD, 4 Ω
LOAD, Both Channels Driven)
Load impedance:
4 Ω (4 Ω to 8 Ω allowable)
Preout output level (max): 4.0 V
Equalizer (13-Band Graphic Equalizer):
Frequency:
50 Hz/80 Hz/125 Hz/200 Hz/315 Hz/
500 Hz/800 Hz/1.25 kHz/2 kHz/3.15
kHz/5 kHz/8 kHz/12.5 kHz
Gain: ±12 dB (2 dB/step)
<Standard Mode>
HPF:
Frequency:
25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80
Hz/100 Hz/125 Hz/160 Hz/200 Hz/250
Hz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24
dB/oct, OFF
Subwoofer/LPF:
Frequency:
25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80
LED (light-emitting diode)
backlight
Specifications
English
- 142 -
Hz/100 Hz/125 Hz/160 Hz/200 Hz/250
Hz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24
dB/oct, -30 dB/oct, -36 dB/oct, OFF
Gain:
+10 dB to -24 dB (1 dB/step)
Phase: Normal/Reverse
Time alignment:
0 to 140 step (1 inch/step)
Bass boost:
Gain: +12 dB to 0 dB (2 dB/step)
Speaker level:
+10 dB to -24 dB (1 dB/step)
<Network Mode>
HPF (High):
Frequency:
1.25 kHz/1.6 kHz/2 kHz/2.5 kHz/3.15
kHz/4 kHz/5 kHz/6.3 kHz/8 kHz/10 kHz/
12.5 kHz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24
dB/oct
HPF (Mid):
Frequency:
25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80
Hz/100 Hz/125 Hz/160 Hz/200 Hz/250
Hz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24
dB/oct, OFF
LPF (Mid):
Frequency:
1.25 kHz/1.6 kHz/2 kHz/2.5 kHz/3.15
kHz/4 kHz/5 kHz/6.3 kHz/8 kHz/10 kHz/
12.5 kHz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24
dB/oct, OFF
Subwoofer:
Frequency:
25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80
Hz/100 Hz/125 Hz/160 Hz/200 Hz/250
Hz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24
dB/oct, -30 dB/oct, -36 dB/oct, OFF
Gain:
+10 dB to -24 dB (1 dB/step)
Phase: Normal/Reverse
Time alignment:
0 to 140 step (1 inch/step)
Bass boost:
Gain: +12 dB to 0 dB (2 dB/step)
Speaker level:
+10 dB to -24 dB (1 dB/step)
DVD drive
System:
DVD-V, VCD, CD, MP3, WMA, AAC, DivX,
MPEG player
Usable discs:
DVD-VIDEO, VIDEO-CD, CD, CD-R, CD-
RW, DVD-R, DVD-RW, DVD-R DL
Region number: 1
Frequency response:
5 Hz to 44 000 Hz (with DVD, at sampling
frequency 96 kHz)
Signal-to-noise ratio:
96 dB (1 kHz) (IHF-A network) (RCA level)
Video output level:
Video:
1.0 V p-p/75 Ω (±0.2 V)
Number of channels: 2 (stereo)
MP3 decoding format:
MPEG-1 & 2 & 2.5 Audio Layer 3
WMA decoding format:
Ver. 7, 8, 9 (2 ch audio) (Windows
Media Player)
AAC decoding format:
MPEG-4 AAC (iTunes encoded only):
.m4a (Ver. 11 and earlier)
DivX decoding format:
Home Theater Ver. 3.11, 4.x, 5.x, 6.x:
.avi, .divx
MPEG video decoding format:
MPEG1:
.mpg, .mpeg, .dat
MPEG-2 PS:
.mpg, .mpeg
English
- 143 -
MPEG4 part 2 (visual), MS-MPEG4 Ver.
3:
.avi
USB
USB standard spec:
USB 1.1, USB 2.0 high speed
Max current supply: 1.6 A
USB Class:
MSC (Mass Storage Class), iPod (Audio
Class, HID Class)
File system: FAT16, FAT32, NTFS
<USB audio>
MP3 decoding format:
MPEG-1/Layer-1, MPEG-1/Layer-2, MPEG-
1/Layer-3
MPEG-2/Layer-1, MPEG-2/Layer-2, MPEG-
2/Layer-3
MPEG-2.5/Layer-3
WMA decoding format:
WMA 10 Std, WMA 10 Pro, WMA 9
Lossless
AAC decoding format:
MPEG-2 AAC-LC, MPEG-4 AAC-LC
FLAC signal format:
Ver. 1.3.0
WAV signal format:
Linear PCM
<USB image>
JPEG decoding format:
JPEG
<USB video>
H.264 video decoding format:
Base Line Profile, Main Profile, High
Profile
WMV video decoding format:
VC-1 SP/MP/AP, WMV 7/8
MPEG4 video decoding format:
Simple Profile, Advanced Simple Profile
(except GMC)
SD
Compatible physical format:
Version 2.0
File system: FAT16, FAT32, NTFS
<SD audio>
MP3 decoding format:
MPEG-1/Layer 1, MPEG-1/Layer 2, MPEG-
1/Layer 3,
MPEG-2/Layer 1, MPEG-2/Layer 2, MPEG-
2/Layer 3,
MPEG-2.5/Layer 3
WMA decoding format:
WMA 10 Std, WMA 10 Pro, WMA 9
Lossless
AAC decoding format:
MPEG-2 AAC-LC, MPEG-4 AAC-LC
WAV signal format:
Linear PCM
FLAC signal format:
Ver. 1.3.0
<SD image>
JPEG decoding format:
JPEG
<SD video>
H.264 video decoding format:
Base Line Profile, Main Profile, High
Profile
WMV video decoding format:
VC-1 SP/MP/AP, WMV 7/8
MPEG4 video decoding format:
Simple Profile, Advanced Simple Profile
(except GMC)
Bluetooth
Version:
Bluetooth 4.1
Output power:
+4 dBm Max. (Power class 2)
Frequency band:
2 400 MHz to 2 483.5 MHz
FM tuner
Frequency range:
87.9 MHz to 107.9 MHz
Usable sensitivity:
11 dBf (1.0 μV/75 Ω, mono, S/N: 30 dB)
Signal-to-noise ratio:
English
- 144 -
80 dB (digital broadcasting) (IHF-A
network)
72 dB (analog broadcasting) (IHF-A
network)
AM tuner
Frequency range:
530 kHz to 1 710 kHz
Usable sensitivity:
28 μV (S/N: 20 dB)
Signal-to-noise ratio:
80 dB (digital broadcasting) (IHF-A
network)
62 dB (analog broadcasting) (IHF-A
network)
Wi-Fi
Frequency channel:
1, 6, 11 ch (2.4 GHz)
149, 151, 155 ch (5 GHz)
Security:
WPA 2 (personal)
Output power:
+16 dBm Max (2.4 GHz)
+13 dBm Max (5 GHz)
GPS
GNSS receiver
System:
GPS L1C/Ac, SBAS L1C/A, GLONASS
L1OF SPS (Standard Positioning
Service)
Reception system:
72 channel Multi-channel reception
system
Reception frequency:
1 575.42 MHz/1 602 MHz
Sensitivity:
-140 dBm (typ)
Frequency:
Approx. once per second
GPS antenna
Antenna:
Micro strip flat antenna/right-handed
helical polarization
Antenna cable:
3.55 m (11ft. 7in.)
Dimensions (W × H × D):
33 mm × 14.7 mm × 36 mm (1-1/4 in. ×
1/2 in. × 1-3/8 in.)
Weight:
73.7 g (0.2 lbs)
CEA2006 Specifications
Power output:
14 W RMS × 4 Channels (4 Ω and 1 %
THD+N)
S/N ratio:
91 dBA (reference: 1 W into 4 Ω)
NOTE
Specifications and design are subject to possible
modifications without notice due to
improvements.
<
=
© 2019 PIONEER CORPORATION. All rights reserved.
