CONTENTS
2 Panel, drawer
2 Trim, cabinet side
1 Assembly, lock
1 Shim, plastic 3/32"
1 Shim, plastic 1/4"
1 Bracket, center
1 Pocket, lock
2 Washer
2 Nut
16 Screw, #8 x 32 x ½"

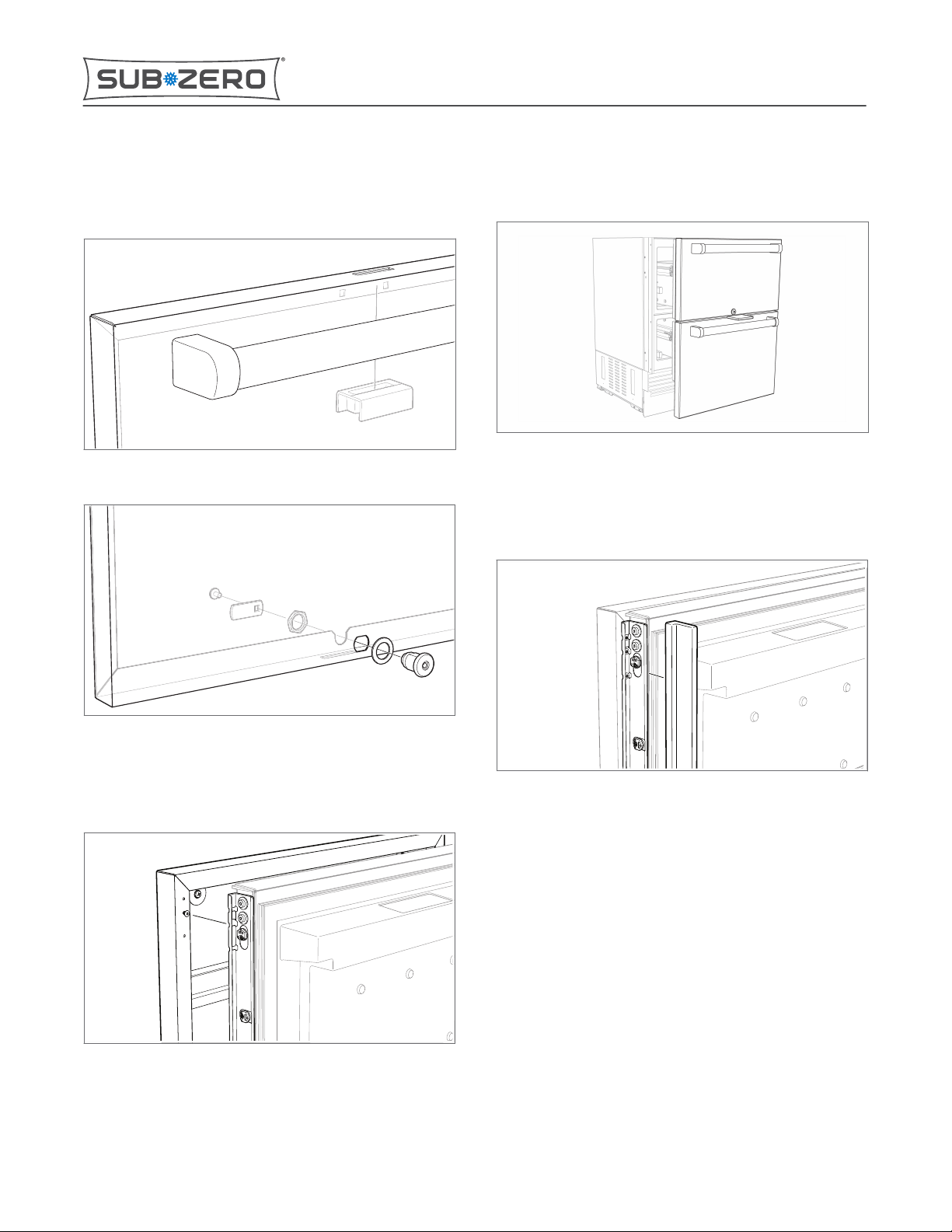

ID-24RO STAINLESS STEEL PANEL INSTALLATION
1
For panels without a lock, proceed to step 14.
2
Remove both drawers.
3
Remove the existing side mounting brackets.
4
Install one of the new cabinet side trims using the
existing screws. The mounting stud on the side trim
should align with the bottom of the center mullion.
5
Place the center bracket onto the mounting stud, then
loosely secure with a washer and a nut.
6
Install the remaining cabinet side trim using the existing
screws, then loosely secure to the center bracket stud
with a washer and a nut.
7
Install the upper drawer.
8
Place the 3/32 plastic shim above the center bracket
and below the upper drawer.
9
Move the center bracket up or down to achieve proper
spacing, then tighten both nuts to secure each side of
the bracket.
10
Discard the shim.
11
Install the bottom drawer.
ID-24RO Stainless Steel Panel Installation
subzero.com 800.222.7820
9012313 REV-A 12/2016
Page 1 of 2
*9012313$REVA*
12
Remove the paper backing from the lock pocket, align
it with the square holes and the slot in the lower panel,
then press to secure.
13
Install the lock assembly on the upper panel, then use
the key to verify the cam rotates downward.
14
Partially insert a screw in the center hole on each side
of the top set of holes for each panel.
15
Open the drawers and use the positioning screws to
support and align the panels with the mounting
brackets on each side of the drawer.
16
Install and secure the remaining screws through the
brackets and into the panels.
17
Pull both drawers out slightly, then place the 1/4" shim
between the upper and lower drawer panels.
18
To make panels adjustments, refer to the Integrated
Refrigeration Installation Instructions.
19
Verify the operation of the lock, then discard the shim.
20
Align the trim with the bracket on the side of the drawer
and snap into position.
