User Manual
ZWD76SB4PW
EN User Manual
Washer Dryer
VISIT OUR WEBSITE TO:
Get usage advice, brochures, trouble shooter, service and repair information:
www.zanussi.com/support
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damage that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible
location for future reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very
extensive and complex disabilities shall be kept away from the
appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from
the appliance unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door
is open.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
GENERAL SAFETY
• Do not change the specification of this appliance.
2
• This appliance is intended to be used in household and similar
applications such as:
– staff kitchen areas in shops, offices and other working
environments;
– by clients in hotels, motels, bed & breakfast and other
residential type environments;
– areas for communal use in blocks of flats or in launderettes.
• The appliance shall be installed as a freestanding product or
below the kitchen worktop if space margins permit.
• Do not install the appliance behind a lockable door, a sliding
door or a door with a hinge on the opposite side, that would
prevent the appliance door from being fully open.
• Connect the mains plug to the mains socket only at the end of
the installation process. Make sure that the mains plug is
accessible after installation.
• The ventilation opening in the base must not be covered by a
carpet, mat, or any floor covering.
• CAUTION: The appliance must not be supplied through an
external switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by a utility.
• Ensure good air ventilation in the room where the appliance is
installed to avoid the backflow of unwanted gases into the room
from appliances burning gas or other fuels, including open fires.
• Exhaust air must not be discharged into a flue which is used for
exhausting fumes from any appliances burning gas or other
fuels.
• The operating water pressure at the water entry point from the
outlet connection must be between 0.5 bar (0.05 MPa) and 8
bar (0.8 MPa).
• Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
• The appliance must be connected to the water mains using the
new supplied hose sets, or other new hose sets supplied by
the Authorised Service Centre.
• Old hose sets must not be reused.
3
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre or
similarly qualified persons to avoid an electrical hazard.
• Wipe away lint or packaging debris that has accumulated
around the appliance.
• Items that have been soiled with substances such as vegetable
or mineral oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, waxes and wax removers should be washed
separately with an extra amount of detergent before being dried
in the washer dryer.
• Do not use the appliance if items have been soiled with
industrial chemicals.
• Do not dry unwashed items in the wash dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, and rubber backed articles and clothes, or
pillows fitted with foam rubber pads should not be dried in the
washer dryer.
• Fabric softeners, or similar products, should only be used as
specified by the product manufacturer’s instructions.
• Remove all objects from items that could be a source of fire
ignition such as lighters or matches.
• Never stop the washer dryer before the end of the drying cycle
unless all items are quickly removed and separated so that
residual heat can dissipate.
• The final part of the washer dryer cycle takes place without heat
(cool down cycle) to ensure that items reach a temperature that
will not cause damage to them.
• Do not use high pressure water sprays and/or steam to clean
the appliance.
• Clean the appliance with a moist cloth. Use only neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
4
SAFETY INSTRUCTIONS
INSTALLATION
The installation must comply with
relevant national regulations.
• Follow the installation instructions supplied with
the appliance.
• Do not install or use the appliance where the
temperature can be less than 0°C or where it is
exposed to the weather.
• Always keep the appliance vertical when it is
being moved.
• Make sure that there is air circulation between
the appliance and the floor.

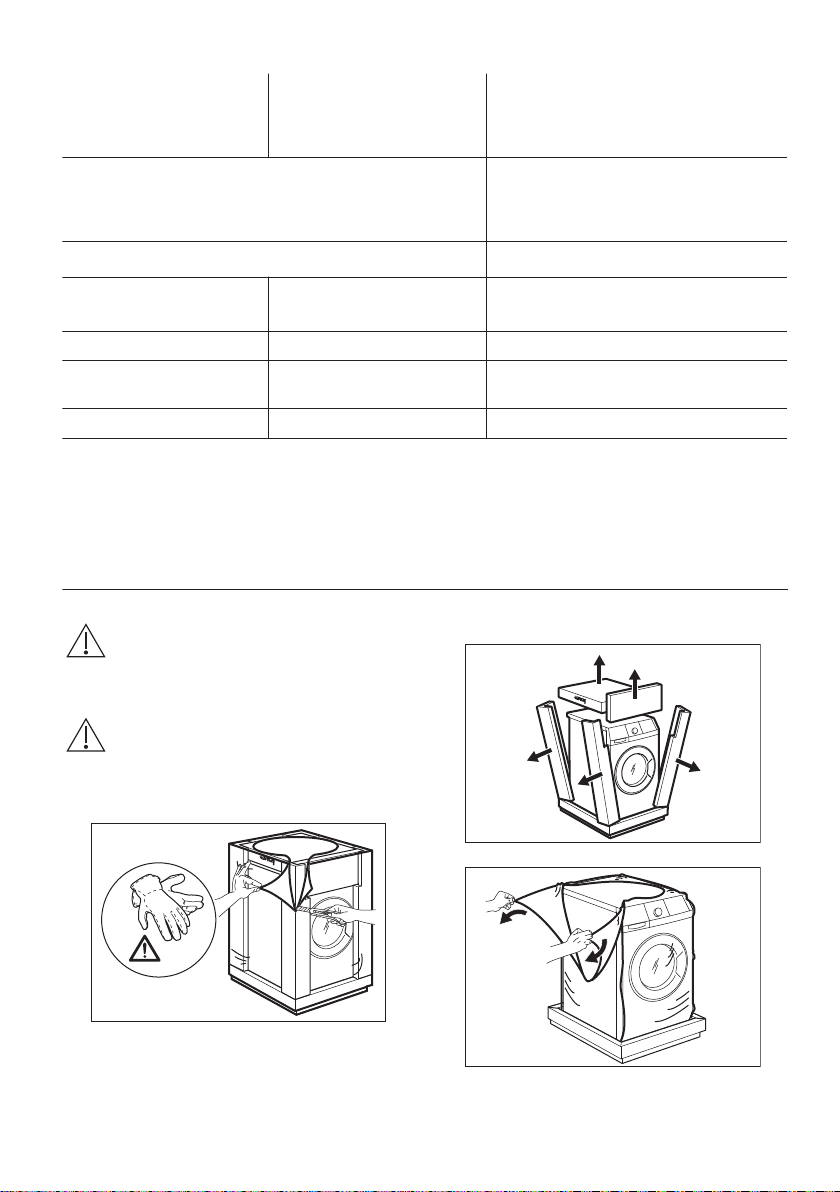

• Remove all the packaging and the transit bolts.
• The floor area on which the appliance is to be
installed must be flat, stable, heat resistant and
clean.
• Keep the transit bolts in a safe place. If the
appliance is to be moved in the future they must
be reattached to lock the drum to prevent an
internal damage.
• Always take care when moving the appliance as
it is heavy. Always use safety gloves and
enclosed footwear.
• Do not install or use a damaged appliance.
• Do not install the appliance where the appliance
door cannot be fully opened.
• Adjust the feet to have the necessary space
between the appliance and the flooring.
• When the appliance is in its permanent position,
check if it is levelled correctly with the aid of a
spirit level. If it is not, adjust the feet accordingly.
ELECTRICAL CONNECTION
WARNING! Risk of fire and electric
shock.
• The appliance must be earthed.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and extension
cables.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains plug
with wet hands.
• This appliance is fitted with a 13 A mains plug. If
it is necessary to change the mains plug fuse,
use only a 13 A ASTA (BS 1362) fuse (UK and
Ireland only).
WATER CONNECTION
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used
for a long time, where repair work has been
carried out or new devices fitted (water meters,
etc.), let the water flow until it is clean and clear.
• Ensure that there are no visible water leaks
during and after the first use of the appliance.
USE
WARNING! Risk of injury, electric
shock, fire, burns or damage to the
appliance.
• Do not put flammable products or items that are
wet with flammable products in, near or on the
appliance.
• Do not touch the glass door while a programme
operates. The glass can get hot.
• Do not dry damaged (torn, frayed) items that
contain padding or fillings.
• If laundry has been washed with a stain remover,
carry out an additional rinse cycle before
starting a drying cycle.
• Make sure that all metal objects are removed
from the laundry.
• Dry only fabrics that are suitable to dry in the
appliance. Follow the cleaning instruction on the
item label.
• Do not sit or stand on the open door of the
appliance.
• Do not dry dripping wet clothes in the
appliance.
• Do not let hot items to touch the plastic parts of
the appliance.
• Remove a detergent ball (if used) before
starting a drying programme.
• Do not use a detergent ball if setting a non-stop
programme.
INTERNAL LIGHTING
WARNING! Risk of injury.
• Concerning the lamp(s) inside this product and
spare part lamps sold separately: These lamps
are intended to withstand extreme physical
conditions in household appliances, such as
temperature, vibration, humidity, or are intended
to signal information about the operational
status of the appliance. They are not intended to
be used in other applications and are not
suitable for household room illumination.
• To replace the internal lighting, contact the
Authorised Service Centre.
5
SERVICE
• To repair the appliance contact the Authorised
Service Centre. Use original spare parts only.
• Please note that self-repair or non-professional
repair can have safety consequences and might
void the guarantee.
• The following spare parts will be available for 10
years after the model has been discontinued:
motor and motor brushes, transmission between
motor and drum, pumps, shock absorbers and
springs, washing drum, drum spider and related
ball bearings, heaters and heating elements,
including heat pumps, piping and related
equipment including hoses, valves, filters and
aquastops, printed circuit boards, electronic
displays, pressure switches, thermostats and
sensors, software and firmware including reset
software, door, door hinge and seals, other
seals, door locking assembly, plastic peripherals
such as detergent dispensers. Please note that
some of these spare parts are only available to
professional repairers, and that not all spare
parts are relevant for all models.
DISPOSAL
• Disconnect the appliance from the mains
electrical and water supplies.
• Cut off the mains electrical cable close to the
appliance and dispose of it.
• Remove the door catch to prevent children or
pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with
local requirements for the disposal of Waste
Electrical and Electronic Equipment (WEEE).
PRODUCT DESCRIPTION
APPLIANCE OVERVIEW
1 2 3
5
6
7
4
1
Worktop
2
Detergent dispenser
3
Control panel
4
Door handle
5
Rating plate
6
Quick Reminder sticker
7
Drain pump filter
8
Feet for levelling the appliance
00000000
00A
Mod.
xxxxxxxxx
000V ~ 00Hz 0000 W
910000000
00
A
B
C
Prod.No.
D
The rating plate reports the model name (A),
product number (B), electrical ratings (C) and
serial number (D).
TECHNICAL DATA
Dimension Width/ Height/ Total depth 59.7 cm /84.7 cm /55.7 cm
6
Electrical connection Voltage
Overall power
Fuse
Frequency
230-240 V
2200 W
13 A
50 Hz
Level of protection against ingress of solid particles and
moisture ensured by the protective cover, except where
the low voltage equipment has no protection against
moisture
IPX4
Water supply
1) Cold water
Water supply pressure
2)
Minimum
Maximum
0.5 bar (0.05 MPa)
8 bar (0.8 MPa)
Maximum wash load Cotton 7 kg
Maximum dry load Cotton
Synthetics
4 kg
3 kg
Spin Speed Maximum spin speed 1551 rpm
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
2) The appliance works correctly if the water pressure is not lower than 0.05 MPa (0.5 bar). If you cannot
connect the water inlet hose to the cold water tap of the primary hydraulic system, connect it to your do-
mestic cold water storage system. Make sure not to exceed a distance of 5.02 m (16.5 ft) between the
appliance inlet hose and the bottom of the water storage tank.
INSTALLATION
WARNING! Refer to Safety chapters.
UNPACKING
WARNING! Remove all the packaging
and the transit bolts before installing
the appliance.

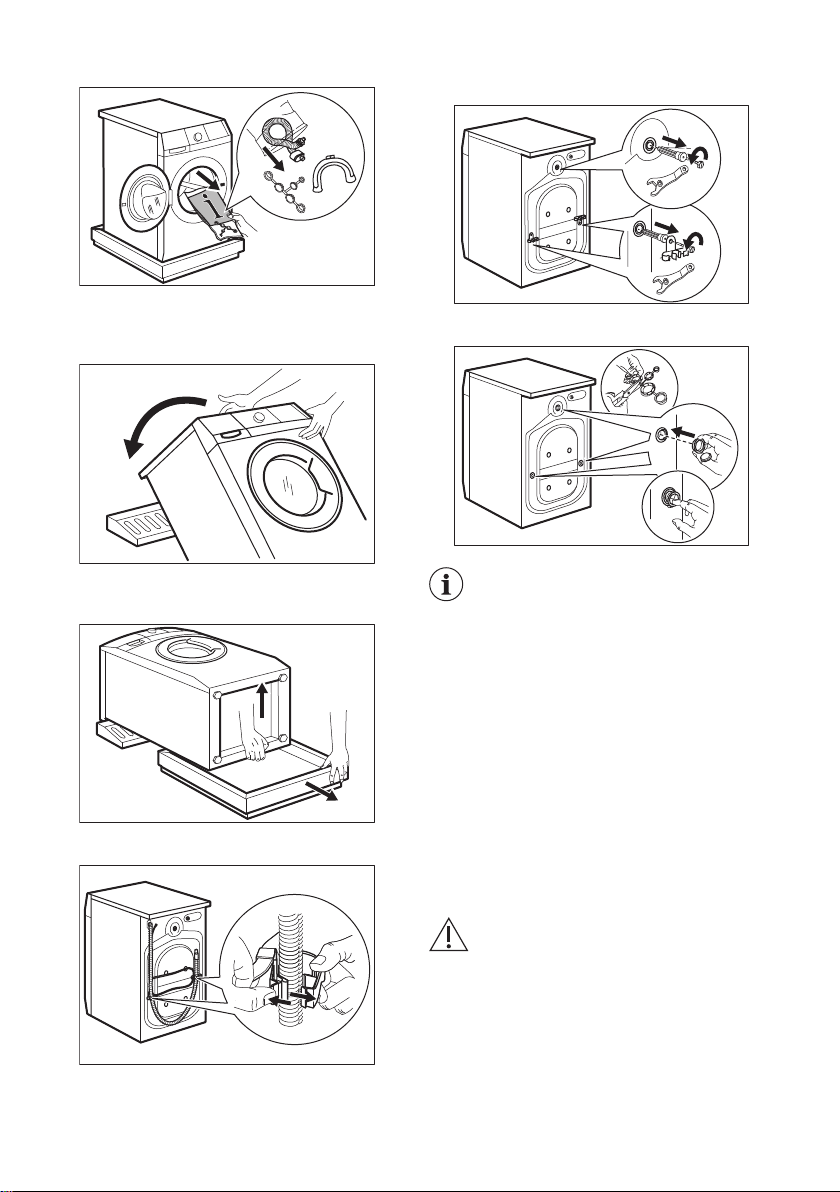

1. Use the gloves. Remove the external film. If
necessary, use a cutter.
2. Remove the cardboard top. Remove the
polystyrene packaging materials.
3. Remove the internal film.
4. Open the door. Remove the polystyrene piece
from the door seal and all the items from the
7
drum.
5. Put one of the polystyrene packaging elements
on the floor behind the appliance. Carefully put
down the appliance with the rear side on it.
Make sure not to damage the hoses.
6. Remove the polystyrene protection from the
bottom. Pull up the appliance in vertical
position.
1
2
7. Remove the power supply cable and the drain
hose from the hose holders.
8. Remove the three bolts. Use the key supplied
with the appliance. Pull out the plastic spacers.
9. Put the plastic caps in the holes. You can find
these caps in the user manual bag.
We recommend that you keep the
packaging and the transit bolts for any
movements of the appliance.
.
INFORMATION FOR INSTALLATION
Positioning and levelling
Adjust the appliance correctly to prevent vibration,
noise and movement of the appliance when it
operates.
1. Install the appliance on a flat hard floor. The
appliance must be levelled and stable. Make sure
that the appliance does not touch the wall or other
units and there is air circulation below the
appliance.
2. Loosen or tighten the feet to adjust the level. All
feet must rest firmly on the floor.
WARNING! Do not put cardboard,
wood or equivalent materials below
the appliance feet to adjust the level.
The inlet hose
8
CAUTION! Make sure there is no
damage to hoses and there are no
leaks from the couplings. Do not use
an extension hose if the inlet hose is
too short. Contact the service centre
for a replacement inlet hose.

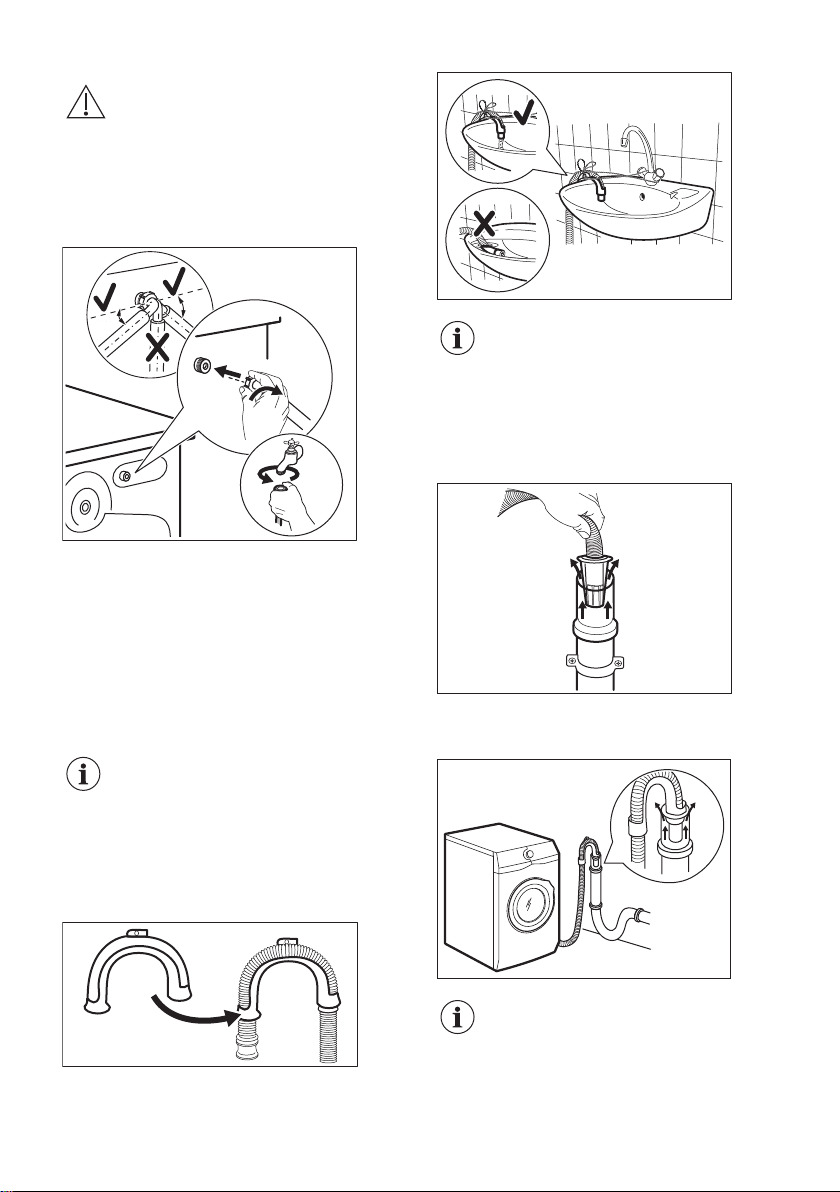

1. Connect the water inlet hose to the back of the
appliance.
20º20º
45º45º
2. Position it toward left or right depending on the
positon of the water tap. Make sure that the inlet
hose is not in vertical position.
3. If necessary, loosen the ring nut to set it in the
correct position.
4. Connect the water inlet hose to the cold water
tap with 3/4'' thread.
Water drainage
The drain hose should stay at a height of no less
than 60 cm and not more than 100 cm.
You can extend the drain hose to
maximum 400 cm. Contact the
authorised service centre for the other
drain hose and the extension.
It is possible to connect the drain hose in different
ways:
1. Make a U shape with the drain hose and put it
around the plastic hose guide.
2. On the edge of a sink - Fasten the guide to the
water tap or to the wall.
Make sure that the plastic guide
cannot move when the appliance
drains and the drain hose end is not
immersed in the water. There may be a
return of dirty water into the appliance.
3. If the end of the drain hose looks like this (see
the picture), you can push it directly into the stand
pipe.
4. To a stand pipe with vent hole - Insert the drain
hose directly into a drain pipe. Refer to the
illustration.
The end of the drain hose must always
be ventilated , i.e. the inner diameter of
the drain pipe (min. 38 mm - min. 1.5")
must be larger than the external
diameter of the drain hose.
9

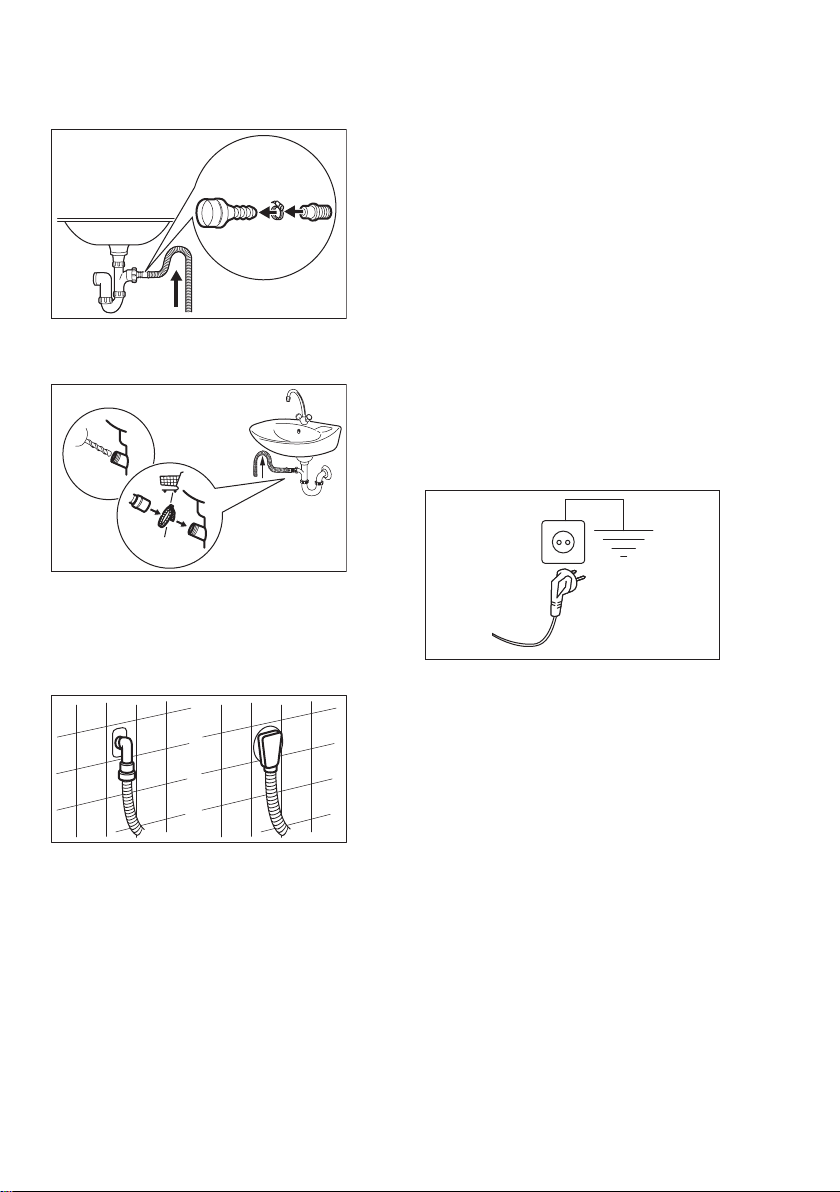

5. Without the plastic hose guide, to a sink spigot-
Put the drain hose in the spigot and tighten it with a
clamp. Refer to the illustration.
Make sure that the drain hose makes a loop to
prevent particles going into the appliance from the
sink.
ø16
1
W011
2
Connect the drain hose to the spigot and tighten it
with a clamp. Make sure that the drain hose makes
a loop to prevent particles going into the appliance
from the sink.
6. Position the hose directly to a built-in drain pipe
in the room wall and tighten it with a clamp.
INSTALLATION ON SUSPENDED FLOORING
Suspended wooden floors are particularly
susceptible to vibration.
To limit vibration we recommend placing a
waterproof wooden panel, at least 15 mm thick,
under the appliance. It should be screwed to at
least 2 floor beams and should extend beyond the
front feet.
If possible, install the appliance where the floor is
more stable.
ELECTRICAL CONNECTION
At the end of installation you can connect the mains
plug to the mains socket.
The rating plate and the 'Technical Data' chapter
indicate the necessary electrical ratings. Make sure
that they are compatible with the mains power
supply.
Check that your domestic electrical installation can
take the maximum load required, also taking into
account any other appliances in use.
Connect the appliance to an earthed socket.
The power supply cable must be easily accessible
after installing the appliance.
For any electrical work required to install this
appliance, contact our Authorised Service Centre.
The manufacturer does not accept any
responsibility for damage or injury through failure to
comply with the above safety precaution.
10
CONTROL PANEL
CONTROL PANEL DESCRIPTION
Temp
Spin
Flexi
Time
Delay
Start
Time
Dry
Auto
Dry
Extra
Rinse
Prewash
20°
90°
40°
30°
1000
60°
1200
1600
800
20min Wash
Delicates
Cottons
Eco 40-60
Synthetics
Drain
Spin
Rinse
Wool
Steam
Synthetics
Wool
60min
Wash&Dry
Cottons
1 2 3 4
91011
7
6
8
5
1
Programme knob
2
Spin speed reduction (Spin)
3
Temperature selection (Temp.)
4
Display
5
Drying time selection (Time Dry)
6
Prewash phase (Prewash)
7
Additional rinse (Extra Rinse)
8
Automatic drying level (Auto Dry)
9
Start/Pause
10
Delay start setting (Delay Start)
11
Time saving (Flex Time)
DISPLAY
A B
E DFGH
C
11
A
Time area
: Programme duration
: Selected drying time
: Delay start
: Alarm codes
: Message of error
: The programme is completed.
Time programme indicators
: Normal duration indicator
: Quick indicator
: Super quick indicator
B Delay start indicator
C
Child safety lock indicator
D
Door locked indicator
E
, ,
Indicators of dryness level
F
Steam indicator
G
Drying phase indicator
H
Washing phase indicator
PROGRAMMES
PROGRAMME CHART
Programme
Default temperature
Temperature range
Maximum load
Reference spin
speed
Programme description
(Type of load and level of soiling)
Eco 40-60 (Wash only
mode)
40 °C
1)
60 °C
2)
- 30 °C
7 kg
1600 rpm
White cotton and fast-coloured cotton.
Normally soiled items.
Eco 40-60 + Cupboard
dry level (Wash & Dry
mode)
40 °C
3)
60 °C - 30 °C
4 kg
1600 rpm
12
Programme
Default temperature
Temperature range
Maximum load
Reference spin
speed
Programme description
(Type of load and level of soiling)
Eco 40-60 + Cupboard
dry level (Dry only mode)
4)
4 kg
White cotton and fast-coloured cotton.
Cottons
40 °C
90°C - (Cold)
7 kg
1600 rpm
White cotton and coloured cotton.
Normally, heavily and lightly soiled items.
Synthetics
40 °C
60°C - (Cold)
3 kg
1200 rpm
Synthetic items or mixed fabric items.
Normally soiled items.
Wool
40 °C
40°C - (Cold)
1.5 kg
1200 rpm
Machine washable wool, hand washable
wool and other fabrics with «hand washing»
care symbol
5)
.
Delicates
30 °C
40°C - (Cold)
2 kg
1200 rpm
Delicate fabrics such as acrylics, viscose
and mixed fabrics requiring gentler wash-
ing. Normally and lightly soiled items.
20min Wash
30 °C
40 °C - 30 °C
3 kg
1200 rpm
A very short cycle for lightly soiled cotton
and synthetic items or worn only once.
Rinse
7 kg
6)
1600 rpm
7)
To rinse and spin the laundry. All fabrics, ex-
cept woollens and very delicate fabrics. Reduce
the spin speed accordingly to the type of laun-
dry.
Drain 7 kg To drain the water in the drum. All fabrics.
Spin
7 kg
6)
1600 rpm
7)
All fabrics, except woollens and delicate
fabrics. To spin the laundry and to drain the
water in the drum.
Wool
1 kg
Drying programme for woollens.
Synthetics
3 kg
Drying programme for synthetic items.
Cottons
4 kg
Drying programme for cotton items.
60min Wash&Dry
30 °C
40 °C - 30 °C
1 kg
1200 rpm
Complete programme composed of a washing
phase and of a drying phase for a small load of
mixed fabrics (cotton and synthetic items).
13
Programme
Default temperature
Temperature range
Maximum load
Reference spin
speed
Programme description
(Type of load and level of soiling)
Steam
1.5 kg
Steam programme can be used for reducing
wrinkles and odours
8)
of garments that just
need to be refreshed, avoiding washing. The
fabric fibres are relaxed and afterwards ironing
becomes effortless. When the programme is
completed, quickly remove the laundry from the
drum
9)
. Steam programmes do not perform any
hygienic cycle. Do not set this programme with
the following type of items:
• Items that are not suitable for tumble drying.
• Items with label "Dry clean only".
Off position
1) According to Commission Regulation EU 2019/2023. This programme at default temperature and
spin speed, in washing only mode, with rated capacity 7 kg is able to clean normally soiled cotton laundry
declared to be washable at 40 °C or 60 °C, together in the same cycle.
For the reached temperature in the laundry, the programme duration and other data, please
refer to 'Consumption Values' chapter.
The most efficient programmes in terms of energy consumption are generally those that per-
form at lower temperatures and longer duration.
2) Cottons energy saving programme. This programme at 60ºC with a load of 7 kg is the reference
programme for data entered in the energy label, in compliance with 96/60/EC Directive. Set this pro-
gramme to have a good washing results and decrease the energy consumption. The time of the washing
programme is extended.
3) According to Commission Regulation EU 2019/2023. This programme at default temperature and
spin speed, in washing and drying mode, with rated capacity 4 kg and with Cupboard dry level performs
the wash and dry cycle able to clean normally soiled cotton laundry declared to be washable at 40 °C or
60 °C, together in the same cycle and, after drying phase, the laundry can be immediately stored in a cup-
board.
4) This programme is the drying reference programme for data entered in the energy label on compliance
with 96/60/EC Directive. The test performance, in accordance with EN 50229, must be carried out with a
FIRST drying load of the maximum declared drying capacity (load composition according to EN61121) by
setting the AUTOMATIC CUPBOARD DRY for Eco 40-60 programme. The SECOND drying load with
the residual load must be tested by setting the AUTOMATIC CUPBOARD DRY for Eco 40-60 pro-
gramme.
5) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't
rotate or doesn't rotate properly, but this is normal for this programme.
6) The maximum load refers to cottons items. Reduce the load accordingly in case of other type of laundry.
7) The maximum spin speed is related to cotton items. Set the spin speed. Make sure that it agrees with
the laundry.
8) Steam programme doesn't remove particularly intense odour.
9) After the steam treatment the laundry can be humid. Hang items out for a few minutes.
14
Programme options compatibility
Programme
Spin
Flex Time
Delay Start
Eco 40-60
■ ■ ■ ■ ■
■
1)
■
Cottons ■ ■ ■ ■ ■ ■ ■
Synthetics ■ ■ ■ ■ ■ ■ ■
Wool
■ ■ ■ ■
Delicates ■ ■ ■ ■ ■ ■
20min Wash ■ ■ ■
Rinse ■ ■ ■ ■ ■
Drain ■
Spin ■ ■ ■
Wool
■
Synthetics
■
Cottons
■
60min Wash&Dry ■
Steam
■ ■
1) Only the QUICK option is available.
Suitable detergents for each programme
Programme
Universal
powder
1)
Liquid
Universal
Liquid for
coloureds
Delicates
woollens
Special
Eco 40-60 ▲ ▲ ▲ -- --
Cottons ▲ ▲ ▲ -- --
Synthetics ▲ ▲ ▲ -- --
Delicates -- -- -- ▲ ▲
15
Programme
Universal
powder
1)
Liquid
Universal
Liquid for
coloureds
Delicates
woollens
Special
Wool -- -- -- ▲ ▲
20min Wash -- ▲ ▲ -- --
60min
Wash&Dry
-- ▲ ▲ -- --
1) At temperature higher than 60 °C the use of powder detergent is recommended.
▲ = Recommended -- = Not recommended
AUTOMATIC DRYING
Dryness Level Type of fabric Load
Extra Dry
For towelling materials
Cottons and Linen
(bathrobes, bath towels, etc)
up to 4 kg
Cupboard Dry
For items to be stored
Cottons and Linen
(bathrobes, bath towels, etc)
up to 4 kg
Synthetics and mixed fab-
rics
(jumpers, blouses, underwear,
household and bed linen)
up to 3 kg
Wool items (woollen jumpers) up to 1 kg
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts, etc)
up to 4 kg
TIMED DRYING
Dryness Level Type of fabric Load (kg)
Spin
speed
(rpm)
Suggested
duration
(mins)
Extra Dry
For towelling materials
Cottons and Linen
(bathrobes, bath towels, etc)
4 1600 165 - 180
2 1600 90 - 100
1 1600 60 - 70
Cupboard Dry
For items to be stored
Cottons and Linen
(bathrobes, bath towels, etc)
4 1600 155 - 170
2 1600 80 - 90
1 1600 50 - 60
16
Dryness Level Type of fabric Load (kg)
Spin
speed
(rpm)
Suggested
duration
(mins)
Cupboard Dry
For items to be stored
Synthetics and mixed fab-
rics
(jumpers, blouses, underwear,
household and bed linen)
3 1200 90 - 105
1 1200 40 - 50
Wool
(woollen jumpers)
1 1200 80 - 100
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts, etc)
4 1600 110 - 125
2 1600 65 - 75
1 1600 40 - 50
OPTIONS
TEMP.
Set this option to change the default temperature.
Indicator = cold water.
The display shows the set temperature.
SPIN
With this option you can change the default spin
speed.
The indicator of the set speed comes on.
Additional spin options:
No Spin
• Set this option to deactivate all spin phases.
Only the drain phase is available.
• The related indicator comes on.
• Set this option for very delicate fabrics.
• The rinses phase uses more water for some
washing programmes.
Rinse Hold
• Set this option to prevent the laundry creases.
• The related indicator comes on.
• There is a water in the drum when the
programme is completed.
• The drum turns regularly to prevent the laundry
creases.
• The door stays locked. You must drain the water
to unlock the door.
To drain the water refer to ‘At the end
of the programme’.
TIME DRY
With this option you can set the time for the fabrics
you have to dry. The display shows the set value.
Each time you press this touchpad the time value
increases by 5 minutes.
You cannot set all time values for
different types of fabrics.
AUTO DRY
With this option you can set an automatic level of
dryness for the laundry. The display shows the
symbol of the set level.
•
Extra dry level for cotton items
• Cupboard dry level for cotton and synthetic
items
•
Iron dry level for cotton items
PREWASH
With this option you can add a prewash phase to a
washing programme.
Use this option for heavy soil.
When you set this option the programme duration
increases.
The related indicator comes on.
EXTRA RINSE
With this option you can add extra rinses to a
washing programme.
17
Use this option for persons allergic to detergents
and in areas where the water is soft.
The related indicator comes on.
DELAY START
With this option you can delay the start of a
programme from 30 minutes to 20 hours.
The display shows the related indicator.
FLEX TIME
Press Flex Time to decrease the programme time.
You can select:
• QUICK: to wash items with daily soil.
• SUPER QUICK: to wash quickly items with
almost no soil.
Some programmes accept only one of
these options.
SETTINGS
CHILD LOCK
With this option you can prevent that the children
play with the control panel.
• To activate/deactivate this option, press
and at the same time until the indicator
comes on/goes off.
You can activate this option:
• After you press
: the options and the
programme knob are locked.
• Before you press : the appliance cannot
start.
PERMANENT EXTRA RINSE
With this option you can permanently have an extra
rinse when you set a new programme.
• To activate/deactivate this option press
and at the same time until the indicator
comes on/goes off.
ACOUSTIC SIGNALS
The acoustic signals operate when:
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic signals,
press
and at the same time for 6 seconds.
If you deactivate the acoustic signals,
they continue operate when the
appliance has a malfunction.
BEFORE FIRST USE
During installation or before first use
you may observe some water in the
appliance. This is residual water left in
the appliance after a full functional test
in the factory to ensure the appliance
is delivered to customers in perfect
working order and is no cause for
concern.
1. Connect the mains plug to the mains socket.
2. Open the water tap.
3. Put 2 litre of water in the detergent
compartment for washing phase.
This activates the drain system.
4. Put a small quantity of detergent in the
compartment for washing phase.
5. Set and start a programme for cotton at the
highest temperature without laundry.
This removes all possible dirt from the drum and the
tub.
DAILY USE - WASHING ONLY
WARNING! Refer to Safety chapters.
LOADING THE LAUNDRY
1. Open the appliance door.
2. Empty the pockets and unfold the items before
you put them in the appliance.
18
3. Put the laundry in the drum, one item at a time.
Do not put too much laundry in the drum.
4. Close the door firmly.
CAUTION! Make sure that no laundry
gets caught between the seal and the
door to avoid risk of water leakage and
damage to the laundry.
Washing heavily oiled, greasy stains
could cause damage to rubber parts
of the washing machine.
USING DETERGENT AND ADDITIVES
1. Measure out the detergent and the fabric
conditioner.
2. Put the detergent and the fabric conditioner
into the compartments.
Always follow the instructions that
you find on the packaging of the
detergent products, but we
recommend that you do not
exceed the maximum indicated
level. This quantity will however
guarantee the best washing
results.
3. Carefully close the detergent drawer.

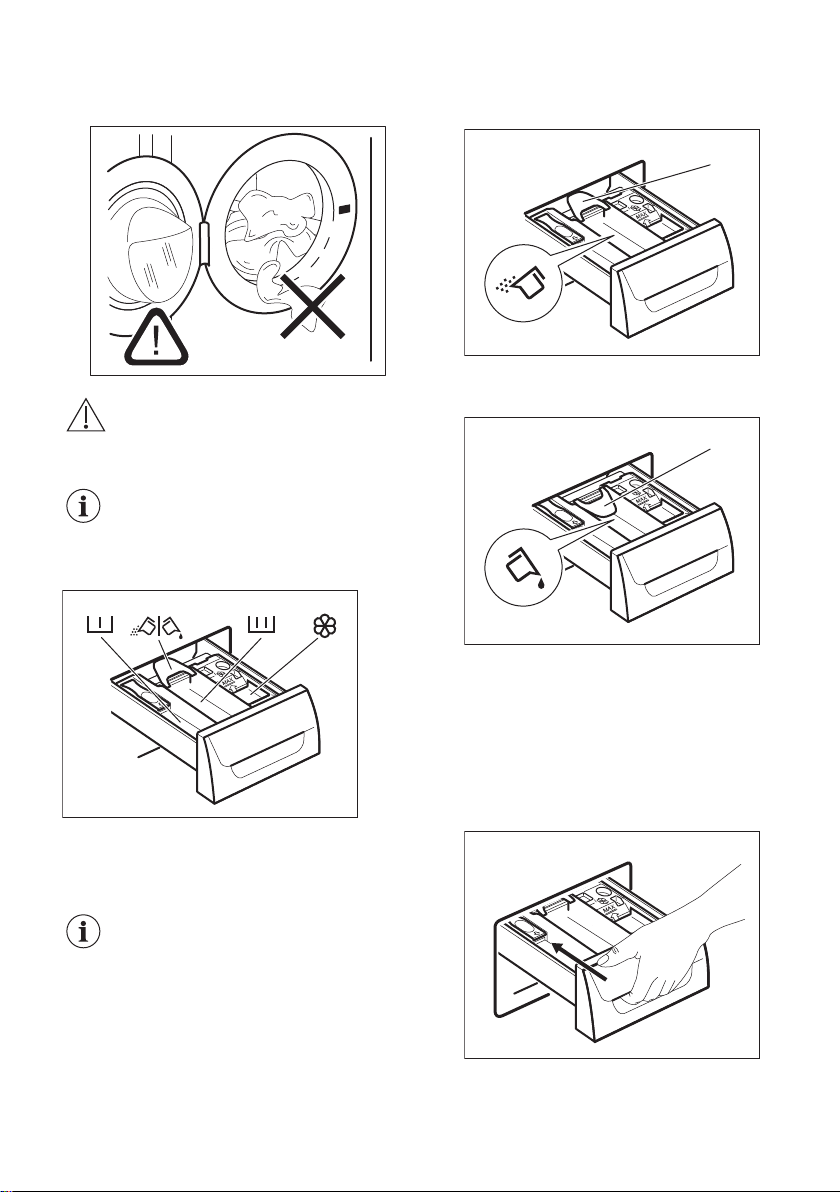

CHECK THE POSITION OF THE DETERGENT
FLAP
1. Pull out the detergent dispenser until it stops.
A
2. Press the lever down to remove the dispenser.
3. To use powder detergent, turn the flap up.
4. To use liquid detergent, turn the flap down.
B
With the flap in the position DOWN:
• Do not use gelatinous or thick liquid
detergents.
• Do not exceed to liquid detergent dose
indicated on the flap.
• Do not set the prewash phase.
• Do not set the delay start function.
5. Measure out the detergent and the fabric
conditioner.
6. Carefully close the detergent dispenser.
Make sure that the flap does not cause a blockage
when you close the drawer.
19
SETTING A PROGRAMME
1. Turn the programme knob to switch the
appliance on and set the required programme:
• The indicator flashes.
• The display shows the level of the Time
Manager, the programme duration and the
indicators of the phases of the programme.
2. If necessary, change the temperature and the
spin speed or add available options. When you
activate an option, the indicator of the set
option comes on.
If you set something incorrect, the
display shows the message .
STARTING A PROGRAMME WITHOUT THE
DELAY START
Press .
• The indicator of stops to flash and
stays on.
• The indicator starts to flash on the
display.
• The programme starts, the door locks, the
display shows the indicator .
• The drain pump can operate for a short time
when the appliance fills water.
After approximately 15 minutes from
the start of the programme:
• The appliance adjusts automatically
the programme duration agree with
the laundry load.
• The display shows the new value.
STARTING A PROGRAMME WITH THE
DELAY START
1. Press Delay Start again and again until the
display shows the delay you want to set.
The related indicator comes on the display.
2. Press :
• The appliance starts the countdown.
• The door locks, the display shows the
indicator
.
• When the countdown is completed, the
programme starts automatically.
You can cancel or change the set of
the delay start before you press the
. To cancel the delay start:
• Press to set the appliance
to pause.
• Press until the display
shows '.
• Press again to start the
programme immediately.
INTERRUPTING A PROGRAMME AND
CHANGING THE OPTIONS
You can change only some options before they
operate.
1. Press
.
The indicator flashes.
2. Change the options.
3. Press again.
The programme continues.
CANCELLING A RUNNING PROGRAMME
1. Turn the programme knob to position to
cancel the programme and to deactivate the
appliance.
2. Turn the programme knob again to activate the
appliance. Now, you can set a new washing
programme.
Before starting the new programme
the appliance could drain the water. In
this case, make sure that the detergent
is still in the detergent compartment, if
not fill the detergent again.
OPENING THE DOOR
CAUTION! If the temperature and
level of the water in the drum are too
high and the drum still rotates, you
cannot open the door.
While a programme or the delay start operates, the
appliance door is locked and the display shows the
indicator .
Open the appliance door when the
programme or the delay start operates:
1. Press
to pause the appliance.
2. Wait until the door lock indicator goes off.
3. Open the door.
4. Close the door and press again .
The programme or delay start continues to operate.
20
AT THE END OF THE PROGRAMME
• The appliance stops automatically.
• The acoustic signal operates (if it is activated).
• In the display comes on.
• The indicator of the goes off.
• The door lock indicator goes off.
• You can open the door.
• Remove the laundry from the appliance. Make
sure that the drum is empty.
• Close the water tap.
• Turn the programme knob to position to
deactivate the appliance.
• Keep the door ajar, to prevent the mildew and
odours.
The washing programme is completed, but
there is water in the drum:
• The drum turns regularly to prevent the creases
in the laundry.
• The door lock indicator
is on. The indicator
flashes. The door stays locked.
• You must drain the water to open the door.
To drain the water:
1. If necessary, decrease the spin speed. If you
set , the appliance only drains.
2. Press . The appliance drains the water and
spins.
3. When the programme is completed, and the
door lock indicator goes off, you can open
the door.
4. Turn the programme knob to position to
deactivate the appliance.
The appliance drains and spins
automatically after approximately 18
hours (except for Wool programme).
STAND-BY
Some minutes after the end of the washing
programme, if you do not deactivate the appliance,
the energy saving status activates.
The energy saving status decreases the energy
consumption when the appliance is on the stand
by.
• All indicators and the display go off.
• The indicator of the flashes slowly
• Press one of the options to deactivate the
energy saving status.
If you set a programme or an option
that ends with water in the drum, the
energy saving status function doesn't
activate to remind you to drain the
water.
DAILY USE - DRYING ONLY
WARNING! Refer to Safety chapters.
This appliance is an automatic washer
dryer.
DRYING SETTING
WARNING! Make sure that the
water tap is open.
1. Turn the programme knob to the desired
programme to activate the appliance.
2. Load the laundry one item at a time.
3. Turn the programme dial to the programme
applicable for the items to dry. The display
shows the drying indicator
.
To have a good drying performance do
not exceed the maximum drying loads
recommended in the user manual. Do
not set a spin speed lower than the
automatic speed of the set
programme.
DRYING AT AUTOMATIC LEVELS
The laundry can be dried at pre-defined levels of
dryness:
1. Press
again and again until the display
shows one of the dryness level indicator:
•
: IRON DRY level indicator for cotton
items
• : CUPBOARD DRY level indicator for
cotton and synthetic items
•
: EXTRA DRY level indicator for cotton
items
The display shows a time value, calculated on the
default load size. If the amount of your laundry is
21
more or less than the default size, the appliance
adjusts automatically the time value during the
cycle.
2. Press to start the programme.
The display shows the door locked indicator .
The drying indicator
starts to flash.
You cannot set all dryness levels for
any type of laundry.
TIMED DRYING
The laundry can also be dried with a manual timed
drying:
1. Press
again and again to set the time value
(see the «Programmes for timed drying» table).
• The display shows 10 minutes. Each time
you press this touchpad the time value
increases by 5 minutes.
• The display shows the set time value: for
example – .
• After some seconds the display shows a
new time value: . The appliance
calculates also the duration of the anti-
crease and the cooling phases.
2. Press to start the programme.
• The display shows regularly a new time
value.
• The drying indicator starts to flash.
• The display shows the door locked indicator
.
If you set only 10 minutes of drying,
the appliance performs only a cooling
phase.
If the laundry is not sufficient dry, set
again a short drying time.
END OF THE DRYING PROGRAMME
The appliance stops automatically.
• The acoustic signals operate (if they are active).
• In the display comes on.
• The indicator goes off.
• The last minutes of the drying cycle the
appliance performs a cooling and anti-crease
phase. The door is still locked.
When the door locked goes off in the display,
you can open the door.
1. Turn the programme knob to to deactivate
the appliance.
After some minutes from the end of the programme,
the energy saving function automatically
deactivates the appliance.
2. Remove the laundry from the appliance.
Make sure that the drum is empty.
3. Keep the door ajar, to prevent mildew and
odours.
4. Close the water tap.
DAILY USE - WASHING & DRYING
WARNING! Refer to Safety chapters.
This appliance is an automatic washer
dryer.
NON-STOP PROGRAMME
1. Turn the programme knob to the desired
programme to activate the appliance.
2. Load the laundry one item at a time.
To have a good drying performance do
not exceed the maximum drying loads
recommended in the user manual. Do
not set a spin speed lower than the
automatic speed of the set
programme.
3. Put the detergent and the additives in the
appropriate compartment.
4. Turn the programme dial to the washing
programme.
The display shows the indicators of the different
washing phases.
5. Set the available options.
WASHING & AUTOMATIC DRYING
1. Press again and again until the display
shows one of the dryness level indicator:
•
: IRON DRY level indicator for cotton
items
• : CUPBOARD DRY level indicator for
cotton and synthetic items
•
: EXTRA DRY level indicator for cotton
items
The display shows the indicator . The time value
on the display is the duration of the washing +
drying cycles, calculated on a default load size.
22
To have a good drying the appliance
does not let you set a too low spin
speed for the items to be washed and
dried.
2. Press to start the programme.
In the display the indicator of the set dryness level
stays on.
The door locked indicator
goes on.
The display shows regularly a new time value.
The last minutes of the drying cycle
the appliance performs the anti-crease
and the cooling phases.
WASHING & TIMED DRYING
To have a good drying the appliance does not let
you set a too low spin speed for the items to be
washed and dried.
1. Press
to set the drying time value. The
display shows 10 minutes.
The indicator comes on in the display. The
display shows the set drying value time. for
example: . After some seconds the display
shows the final time value , that is the total
duration of the washing and drying cycles (washing
+ drying + anti-crease + cooling phases).
If you set only 10 minutes of drying
after washing, the appliance calculates
also the duration of the anti-crease
and the cooling phases.
2. Press to start the programme.
In the display the indicator comes on. The door
is locked. The display shows regularly a new time
value.
END OF THE PROGRAMME
The appliance stops automatically. The acoustic
signals operate (if they are active).
For more information see "At the end of the drying
programme " of the previous chapter.
1. Remove the laundry from the appliance.
Make sure that the drum is empty.
2. Keep the door ajar to prevent mildew and
odours.
3. Close the water tap.
FLUFF IN THE FABRICS
During the washing and/or drying phase, some
types of fabric, (sponge, wool, sweatshirt) could
release fluff.
The released fluff could stick to the fabrics during
the next cycle.
To prevent the fluff in your laundry, we recommend
that you:
• Do not wash dark fabrics after you have washed
and dried light coloured fabrics (new sponge,
wool, sweatshirt ) and the contrary.
• Line dry this type of fabrics at open air when
they are washed the first time.

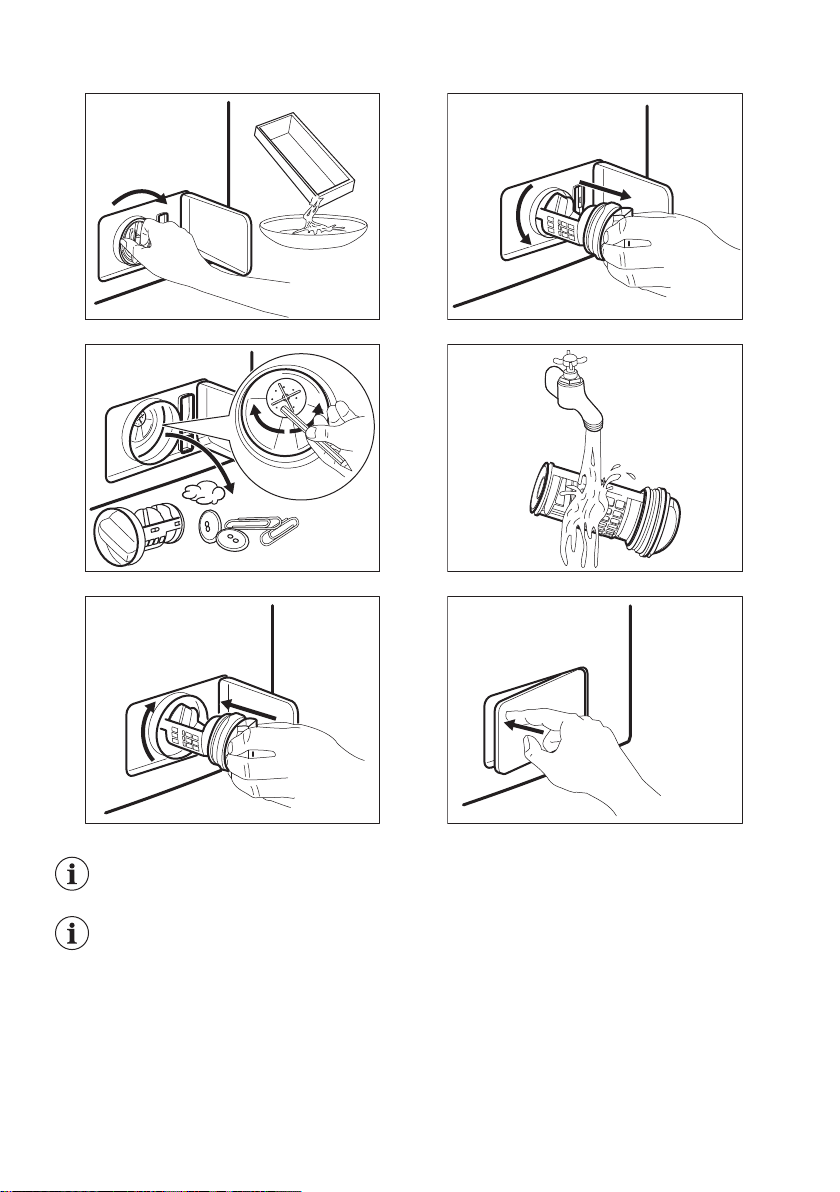

• Clean the drain filter.
• After the drying phase, clean the empty drum,
the gasket and the door with a wet cloth.
HOW TO REMOVE THE FLUFF IN THE
GARMENTS
To remove the fluff inside the drum, set a special
programme:
1. Empty the drum.
2. Clean the drum, the gasket and the door with a
wet cloth.
3. Set the rinse programme.
4. Press at the same time and to activate
the cleaning function until the display shows
CLE.
5. Press to start the programme.
HINTS AND TIPS
WARNING! Refer to Safety chapters.
THE LAUNDRY LOAD
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are on the
laundry care labels.
• Do not wash white and coloured items together.
• Some coloured items can discolour with the first
wash. We recommend that you wash them
separately for the first times.
• Turn multilayered fabrics, wool and items with
painted illustrations inside out.
23
• Wash and pre-treat heavy soil stains with a
suitable detergent before putting in drum.
• Be careful with the curtains. Remove the hooks
and put the curtains in a washing bag or
pillowcase.
• Do not wash laundry without hems or with cuts.

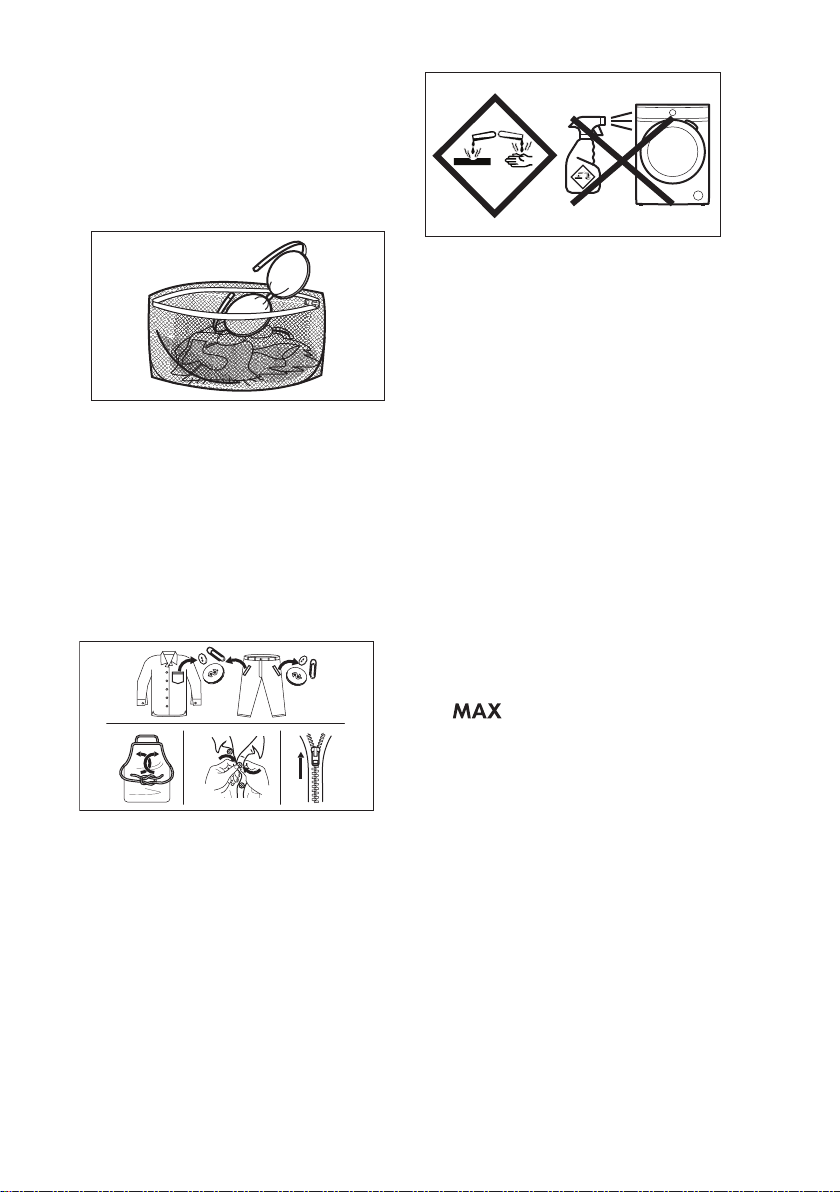

Use a washing bag to wash small and/or
delicate items (e.g. underwired bras, belts,
tights, shoelaces, ribbons, etc. ).
• A very small load can cause balance problems
with the spin phase leading to excessive
vibration. If this occurs:
- interrupt the programme and open the door
(refer to "Daily Use" chapter);
-manually redistribute the load so that the items
are spaced evenly around the tub;
-press the Start/Pause button. The spin phase
continues.
• Button up pillowcases, close zippers, hooks and
poppers. Tie up belts, cords, shoelaces, ribbons
and any other loose elements.
• Empty the pockets and unfold the items.
STUBBORN STAINS
For some stains, water and detergent is not
sufficient.
We recommend that you pre-treat these stains
before you put the items in the appliance.
Special stain removers are available. Use the
special stain remover that is applicable to the type
of stain and fabric.
Do not spray stain remover on garments near the
appliance as it is corrosive to the plastic parts.
DETERGENT TYPE AND QUANTITY.
The choice of detergent and use of correct
quantities not only affects your wash performance,
but also helps to avoid waste and protect the
environment:
• Use only detergents and other treatments
specially made for washing machines. First,
follow these generic rules:
– powder detergents for all types of fabric,
excluding delicate. Prefer powder
detergents containing bleach for whites and
laundry sanitization,
– liquid detergents, preferably for low
temperature wash programmes (60 °C max)
for all types of fabric, or special ones for
woollens only.
• The choice and quantity of detergent will
depend on: type of fabric (delicates, woollens,
cottons, etc), the colour of clothes, size of the
load, degree of soiling, wash temperature and
hardness of the water used.
• Follow the instructions that you find on
packaging of the detergents or other treatments
without exceeding the indicated maximum level
(
).
• Do not mix different types of detergents.
• Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– there is large amounts of foam during
washing.
• When using detergent tabs or pods, always put
them inside the drum, not in the detergent
dispenser.
Insufficient detergent may cause:
• unsatisfactory washing results,
• the wash load to turn grey,
• greasy clothes,
• mould in the appliance.
Excessive detergent may cause:
• sudsing,
• reduced washing effect,
• inadequate rinsing,
• a greater impact for the environment.
24
ECOLOGICAL HINTS
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed
without prewash in order to save detergent,
water and time (the environment is protected
too!).
• Loading the appliance to the maximum
capacity indicated for each programmes
helps to reduce energy and water
consumption.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.
• To use the correct quantity of detergent, refer to
the quantity suggested by the detergent
producer and check the water hardness of your
domestic system. Refer to "Water hardness".
WATER HARDNESS
If the water hardness in your area is high or
moderate, we recommend that you use a water
softener for washing machines. In areas where the
water hardness is soft it is not necessary to use a
water softener.
To know the water hardness in your area, contact
your local water authority.
Use the correct quantity of the water softener.
Obey the instructions that you find on the
packaging of the product.
PREPARE THE DRYING CYCLE
• Open the water tap.
• Check if the drain hose is connected properly.
Refer to installation chapter for more
information.
• For the maximum laundry load of the drying
programmes, refer to the drying programmes
table.
ITEMS NOT SUITABLE FOR DRYING
Do not set a drying programme for this
laundry:
• Synthetic curtains.
• Pieces of clothing with metal inserts.
• Nylon stockings.
• Quilts.
• Bed covers.
• Duvets.
• Anoraks.
• Sleeping bags.
• Fabrics with residue of hair sprays, nail solvents
or similar.
• Garments with foam-rubber or materials similar
to foam-rubber.
GARMENT LABELS
When you dry the laundry, obey the indications on
the labels of the manufacturers:
•
= The item can be tumble dried
• = The drying cycle is at high temperature
• = The drying cycle is at reduced
temperature
• = The item can not be tumble dried.
DRYING CYCLE DURATION
The drying time can change depending on:
• speed of the last spin
• dryness level
• type of laundry
• weight of the load
ADDITIONAL DRYING
If, at the end of the drying programme, the laundry
is still damp, set a short drying cycle again.
WARNING! To avoid creasing and
shrinkage do not overdry the
laundry.
GENERAL TIPS
Refer to the «Drying programmes» table to find the
average drying times.
Experience will help you to dry the laundry better.
Take note of the duration of the cycles done before.
To avoid the static charge at the end of the drying
cycle:
1. Use fabric conditioner in the washing cycle.
2. Use special fabric conditioner for tumble
dryers.
When the drying programme is completed remove
the laundry promptly.
CARE AND CLEANING
WARNING! Refer to Safety chapters.
PERIODIC CLEANING SCHEDULE
Periodic cleaning helps to extend the life of
your appliance.
25
After each cycle, keep the door and the detergent
dispenser slightly ajar to get air circulation and dry
the humidity inside the appliance: this will prevent
mildew and odours.
If the appliance is not used for a long time: close
the water tap and unplug the appliance.
Indicative periodic cleaning schedule:
Descaling Twice a year
Maintenance wash Once a month
Clean door seal Every two months
Clean drum Every two months
Remove fluff inside
the drum
Twice a month
1)
Clean detergent dis-
penser
Every two months
Clean drain pump fil-
ter
Twice a year
Clean the inlet hose
and the valve filter
Twice a year
1) Refer to ''Fluff in the fabrics'' chapter.
The following paragraphs explain how you should
clean each part.
REMOVING FOREIGN OBJECTS
Make sure that pockets are empty and
all loose elements are tied up before
running your cycle. Refer to 'The
laundry load' in 'Hints and tips'.
Remove any foreign objects (such as metal clip,
buttons, coins, etc) that you may find in the door
seal, the filters and the drum. Refer to 'Door seal
with double lip trap', 'Cleaning the drum', 'Cleaning
the drain pump' and 'Cleaning the inlet hose and
the valve filter' paragraphs. If necessary, please
contact the Authorised Service Centre.
EXTERNAL CLEANING
Clean the appliance with soap and warm water
only. Fully dry all the surfaces. Do not use a
scouring pads or any scratching material.
CAUTION! Do not use alcohol,
solvents or chemical products.
CAUTION! Do not use the metal
surfaces with chlorine-based
detergent.
DESCALING
If the water hardness in your area is high or
moderate, we recommend that you use a water
descaling product for washing machines.
Regularly examine the drum to prevent limescale
and rust particles.
To remove rust particles use only special products
for washing machines. Do this separately from the
laundry wash.
Always obey the instructions that you
find on the packaging of the product.
MAINTENANCE WASH
With the low temperature programmes it is possible
that some detergent stays in the drum. Perform a
maintenance wash regularly. To do this:
• Remove all laundry from the drum.
• Select the cotton programme with the highest
temperature with a small quantity of detergent.
DOOR SEAL WITH DOUBLE LIP TRAP
This appliance is designed with a self cleaning
draining system, allowing light fluff fibers that fall
off the clothes to be drained out with the water.
Regularly examine the seal. Coins, buttons, other
small items can be recovered at the end of the
cycle.
Clean it when needed, using ammonia cream
cleanser agent without scratching the seal surface.
Always obey the instructions that you
find on the packaging of the product.
26

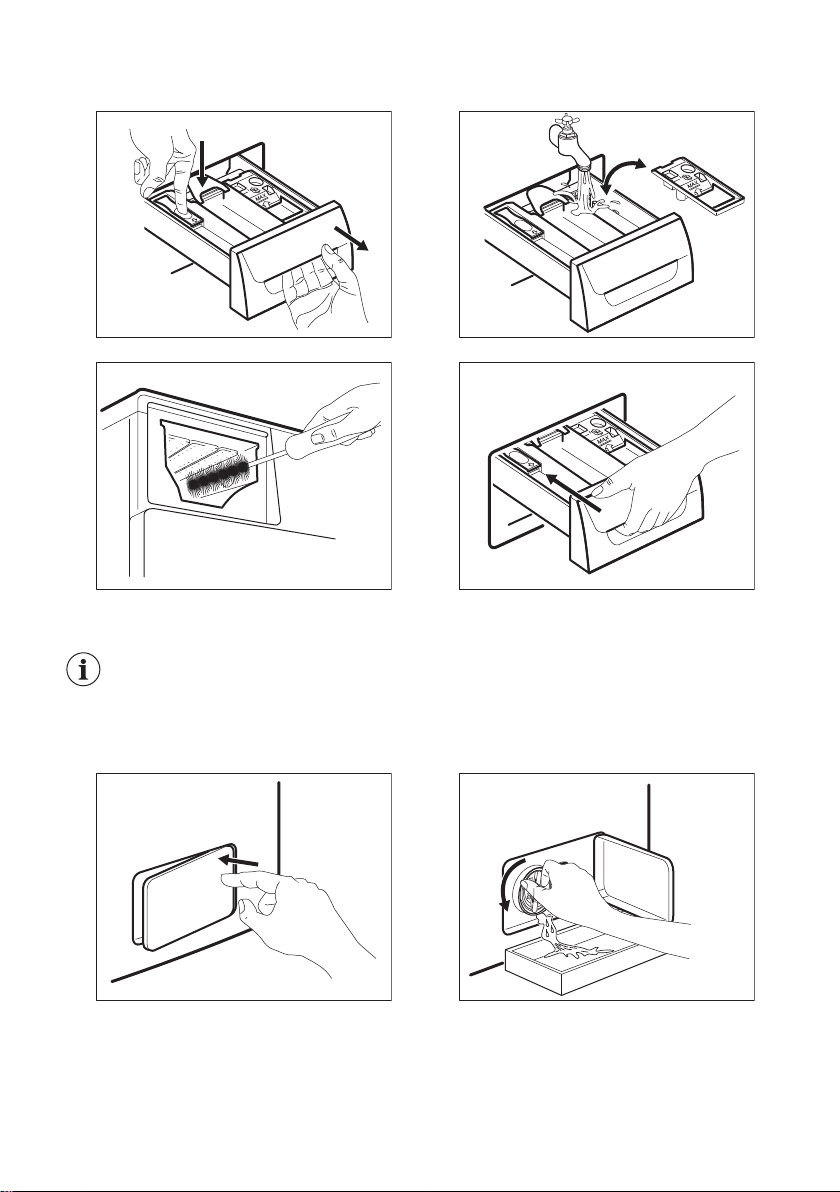

CLEANING THE DETERGENT DISPENSER
1.
1
2
2.
3. 4.
CLEANING THE DRAIN FILTER
Do not clean the drain filter if the water in the appliance is hot.
• Repeat the steps 2 and 3 until the water stops flowing out.
• Always keep a rag nearby to dry up any water spillage.
1. 2.
180°
27
3.
2
1
4.
1
2
5. 6.
7.
2
1
8.
Regularly check the drain pump filter and make sure that it is clean.
Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Author-
ised Service Centre. Make sure also that you tighten the filter correctly to prevent leakages.
28

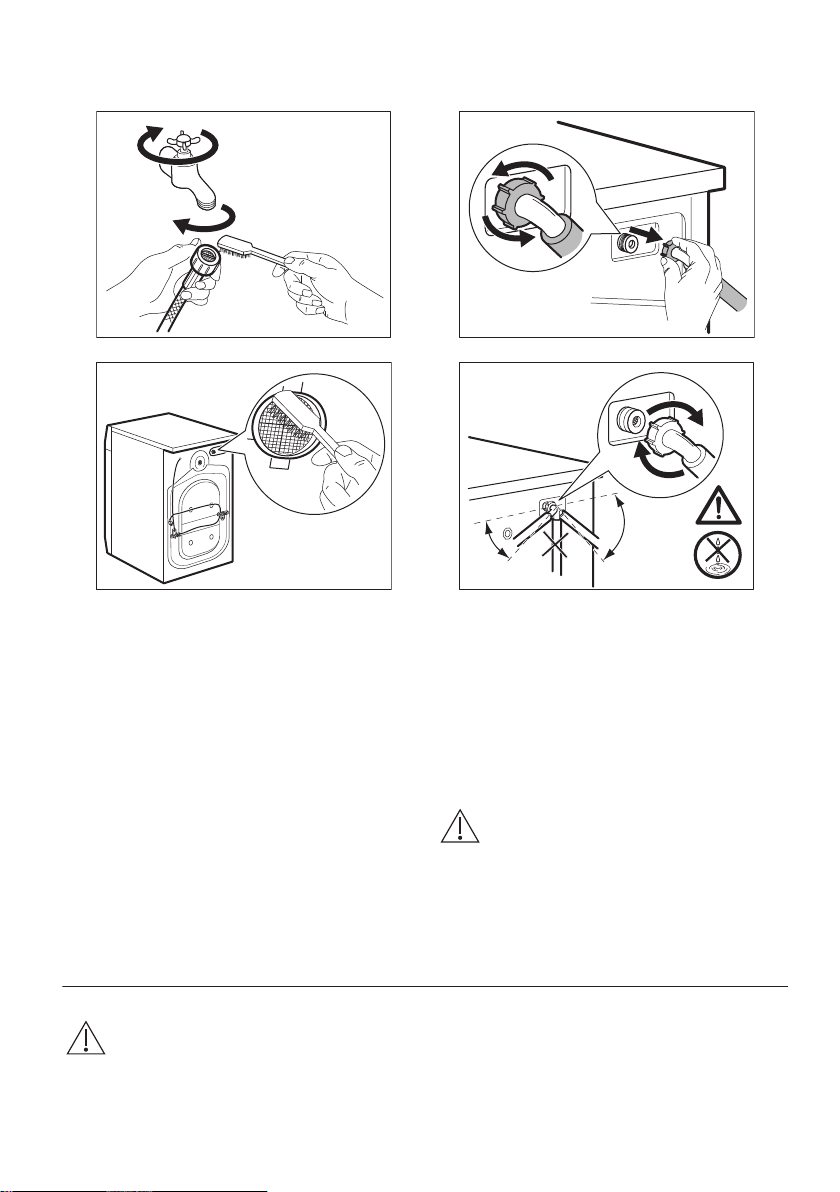

CLEANING THE INLET HOSE AND THE VALVE FILTER
1.
1
2
3
2.
3. 4.
45°
20°
EMERGENCY DRAIN
Because of a malfunction, the appliance cannot
drain the water.
If this occurs, do steps (1) through (8) of 'Cleaning
the drain filter'. If necessary, clean the pump.
When you drain the water with the emergency drain
procedure, you must activate the drain system
again:
1. Put 2 litres of water in the main wash
compartment of the detergent dispenser.
2. Start the programme to drain the water.
FROST PRECAUTIONS
If the appliance is installed in an area where the
temperature can be less than 0° C, remove the
remaining water from the inlet hose and the drain
pump.
1. Disconnect the mains plug from the mains
socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in a
container and let the water flow out of the
hose.
4. Empty the drain pump. Refer to the emergency
drain procedure.
5. When the drain pump is empty, install the inlet
hose again.
WARNING! Make sure that the
temperature is higher than 0 °C before
you use the appliance again.
The manufacturer is not responsible
for damages caused by low
temperatures.
TROUBLESHOOTING
WARNING! Refer to Safety chapters.
29
ALARM CODES AND POSSIBLE FAILURES
The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to
the tables).
WARNING! Deactivate the appliance before carrying out any check.
With some problems, the display shows an alarm code and the Start/
Pause button may flash continuously:
Problem Possible solution
The appliance does not
fill with water properly.
• Make sure that the water tap is open.
• Make sure that the pressure of the water supply is not too low. For this
information, contact your local water authority.
• Make sure that the water tap is not clogged.
• Make sure that the inlet hose has no kinks, damages or bends.
• Make sure that the connection of the water inlet hose is correct.
• Make sure that the filter of the inlet hose and the filter of the valve are
not clogged. Refer to 'Care and cleaning'.
The appliance does not
drain the water.
• Make sure that the sink spigot is not clogged.
• Make sure that the drain hose has no kinks or bends.
• Make sure that the drain filter is not clogged. Clean the filter, if neces-
sary. Refer to "Care and cleaning".
• Make sure that the connection of the drain hose is correct.
• Set the drain programme if you set an option which ends with water in
the tub.
The appliance door is
open or not closed cor-
rectly.
• Make sure that the door is properly closed.
Internal fail. No commu-
nication between elec-
tronic elements of the
appliance.
• The programme was not finished properly or the appliance stopped
too early. Switch the appliance off and on again.
• If the alarm code appears again, contact the Authorised Service Cen-
tre.
The mains supply is un-
stable.
• Wait until mains supply is stable.
If the display shows other alarm codes, deactivate and activate the appliance. If
the problem continues, contact the Authorised Service Centre.
In case of different problem with the washing machine check the table below for
possible solutions.
30
Problem Possible solution
The programme does
not start.
• Make sure that the mains plug is connected to the mains socket.
• Make sure that the appliance door is closed.
• Make sure that there is no damaged fuse in the fuse box.
• Make sure that the Start/Pause has been touched.
• If the delay start is set, cancel the setting or wait for the end of count-
down.
• Deactivate the Child Lock function if it is on.
• Check the position of the knob on the selected programme.
The appliance fills with
water and drains imme-
diately.
• Make sure that the drain hose is in the correct position. The hose may
be positioned too low. Refer to "Installation instruction".
The spin phase does
not operate or the
washing cycle lasts lon-
ger than usual.
• Make sure that the drain filter is not clogged. Clean the filter, if neces-
sary. Refer to "Care and cleaning".
• Adjust manually the items in the tub and start the spin phase again.
This problem may be caused by balance problems.
There is water on the
floor.
• Make sure that the couplings of the water hoses are tight and there is
not water leakages.
• Make sure that the water inlet hose and the drain hose have no dam-
ages.
• Make sure you use the correct detergent and the correct quantity of it.
You cannot open the
appliance door.
• Make sure that a washing programme that ends with water in tub, has
not been selected.
• Make sure that the washing programme is finished.
• Make sure that the appliance receives electrical power.
• This problem may be caused by a failure of the appliance. Contact the
Authorised Service Centre.
If you need to open the door, please read carefully "Emergency door
opening".
The appliance makes an
unusual noise and vi-
brates.
• Make sure the levelling of the appliance is correct. Refer to "Installa-
tion instruction".
• Make sure that the packaging and/or the transit bolts are removed.
Refer to "Installation instruction".
• Add more laundry in the drum. The load may be too small.
The programme dura-
tion increases or de-
creases during pro-
gramme execution.
• The TimeCare System is able to adjust the programme duration ac-
cording to the type and the laundry load size. Refer to "The TimeCare
System load detection" in "Daily Use" chapter.
The washing results are
not satisfactory.
• Increase the detergent quantity or use a different detergent.
• Use special products to remove the stubborn stains before you wash
the laundry.
• Make sure that you set the correct temperature.
• Decrease the laundry load.
Too much foam in the
drum during the wash-
ing cycle.
• Reduce the quantity of detergent.
31
Problem Possible solution
After the washing cycle,
there are some deter-
gent residues in the dis-
penser drawer.
• Make sure that the flap is in the correct position (UP for powder deter-
gent - DOWN for liquid detergent).
• Make sure you have used the detergent dispenser according the indi-
cations given in this user manual.
The appliance does not
dry or does not dry cor-
rectly.
• Turn the water tap on.
• Make sure the drain filter is not clogged.
• Reduce the laundry load.
• Make sure you have set the correct cycle. if necessary, set again a
short drying time.
The laundry is full of dif-
ferent colours fluff.
The fabrics washed in the previous cycle released fluff of a different col-
our:
• The drying phase helps to eliminate some fluff.
• Clean the clothes with a fluff remover.
In case of an excessive amount of fluff in the drum run the special pro-
gramme to clean it (refer to “Fluff in the fabrics" for more details).
After the check, activate the appliance. The programme continues from the point
of interruption.
If the problem occurs again, contact the Authorised Service Centre.
The necessary data for the service centre are on the rating plate.

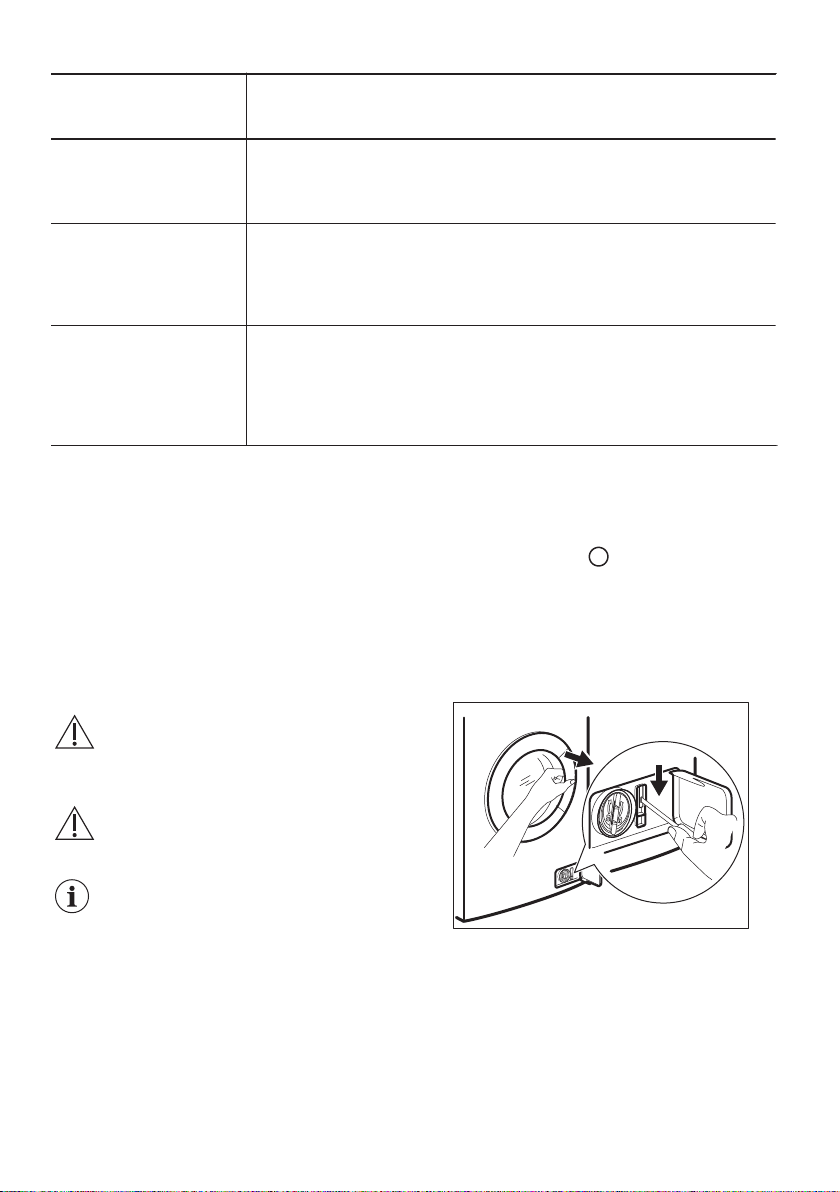

EMERGENCY DOOR OPENING
In case of power failure or appliance failure the
appliance door remains locked. The washing
programme continues, when the power is restored.
If the door remains locked in case of failure, it is
possible to open it using the emergency unlock
feature.
Before opening the door:
CAUTION! Make sure that the
water temperature and the
laundry are not hot. Wait till they
cool down, if necessary.
CAUTION! Make sure that the
drum is not rotating. Wait till the
drum stops rotating, if necessary.
Make sure that the water level
inside the drum is not too high.
Proceed with an emergency drain,
if necessary (refer to «Emergency
drain» in «Care and cleaning»
chapter).
To open the door, proceed as follows:
1. Turn the selector to position to switch the
appliance off.
2. Disconnect the mains plug from the mains
socket.
3. Open the filter flap.
4. Keep the emergency unlock trigger pulled
downward and, at the same time, open the
appliance door.
5. Take out the laundry and then close the
appliance door.
6. Close the filter flap.
32
CONSUMPTION VALUES
INTRODUCTION
This user manual reports two different tables in order to favour a
gradual passage from a regulation to the other:
• Directive 96/60/EC, valid up to 28th of February 2021, is rela-
ted to an energy label reporting the Energy Efficiency classes
from A to G for washing and drying cycles.
• Regulation EU 2019/2023, valid from 1st March 2021, is rela-
ted to an energy label reporting the Energy Efficiency classes ,
as double scale from A to G, for the wash and dry complete cy-
cle and for washing cycle only, as set by Regulation EU
2019/2014.
See the web link www.theenergylabel.eu for detailed informa-
tion about Energy Label.
The QR code on the energy label supplied with the appliance pro-
vides a web link to the information related to the performance of
the appliance in the EU EPREL database. Keep the energy label
for reference together with the user manual and all other docu-
ments provided with this appliance.
It is also possible to find the same information in EPREL using the
link https://eprel.ec.europa.eu and the model name and prod-
uct number that you find on the rating plate of the appliance. Refer
to 'Product description' chapter for the position of the rating plate.
LEGEND
kg Laundry load. h:mm Programme duration.
kWh Energy consumption. °C Temperature in the laundry.
Litres Water consumption. rpm Spin speed.
% Remaining moisture at the end of the cycle. The higher is the spin speed, the higher is the
noise and the lower is the remaining moisture at the end of washing cycle.
Values and programme duration may differ depending on different conditions (e.g. room tem-
perature, water temperature and pressure, load size and type of laundry, supply voltage) and
also if you change the default setting of a programme.
33
ACCORDING TO COMMISSION
REGULATION EU 2019/2023
Washing only
Eco 40-60 pro-
gramme
kg kWh Litres h:mm % °C
rpm
1)
Full load 7 1.060 54 3:20 50 44 1551
Half load 3.5 0.715 44 2:30 50 38 1551
Quarter load 2 0.460 35 2:30 54 34 1551
1) Maximum spin speed.
Wash and dry cycle
Eco 40-60 pro-
gramme and Cup-
board dry level
kg kWh Litres h:mm % °C
rpm
1)
Full load 4 3.215 68 6:15 0 41 1551
Half load 2 1.825 48 4:35 0 37 1551
1) Maximum spin speed.
ACCORDING TO 96/60/EC DIRECTIVE
Cottons energy saving programme Load (kg)
Energy con-
sumption
(kWh)
Water con-
sumption (li-
tres)
Approximate
programme
duration (mi-
nutes)
Eco 40-60 at 60 °C 7 0.86 53 263
COMMON PROGRAMMES - WASHING ONLY
These values are indicative only.
Programme kg kWh Litres h:mm % °C
rpm
1)
Cottons
2)
90°C
7 2.10 80 3:10 44 85 1600
34
Programme kg kWh Litres h:mm % °C
rpm
1)
Cottons
60°C
7 1.15 75 2:50 44 55 1600
Cottons
3)
20°C
7 0.35 75 2:45 44 20 1600
Synthetics
40°C
3 0.65 50 1:45 35 40 1200
Delicates
4)
30°C
2 0.30 40 1:25 35 30 1200
Wool
30°C
1.5 0.25 60 1:05 30 30 1200
1) Reference indicator of the spin speed.
2) Suitable for washing heavily soiled textiles.
3) Suitable for washing lightly soiled cottons.
4) It also performs as quick washing cycle for lightly soiled laundry.
COMMON PROGRAMMES - WASH AND DRY
These values are indicative only.
Programme kg kWh Litres h:mm % °C
rpm
1)
Synthetics
40°C
3 2.00 75 4:00 1 40 1200
1) Reference indicator of the spin speed.
ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the
packaging in relevant containers to recycle it. Help
protect the environment and human health by
recycling waste of electrical and electronic
appliances. Do not dispose of appliances marked
with the symbol with the household waste.
Return the product to your local recycling facility or
contact your municipal office.
35
*
WWW.ZANUSSI.COM/SHOP
157033700-A-402020
